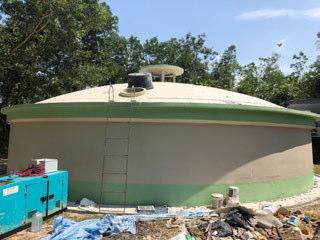

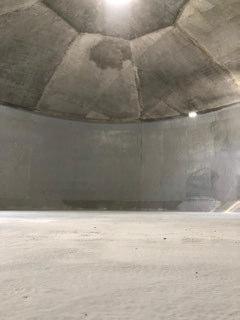

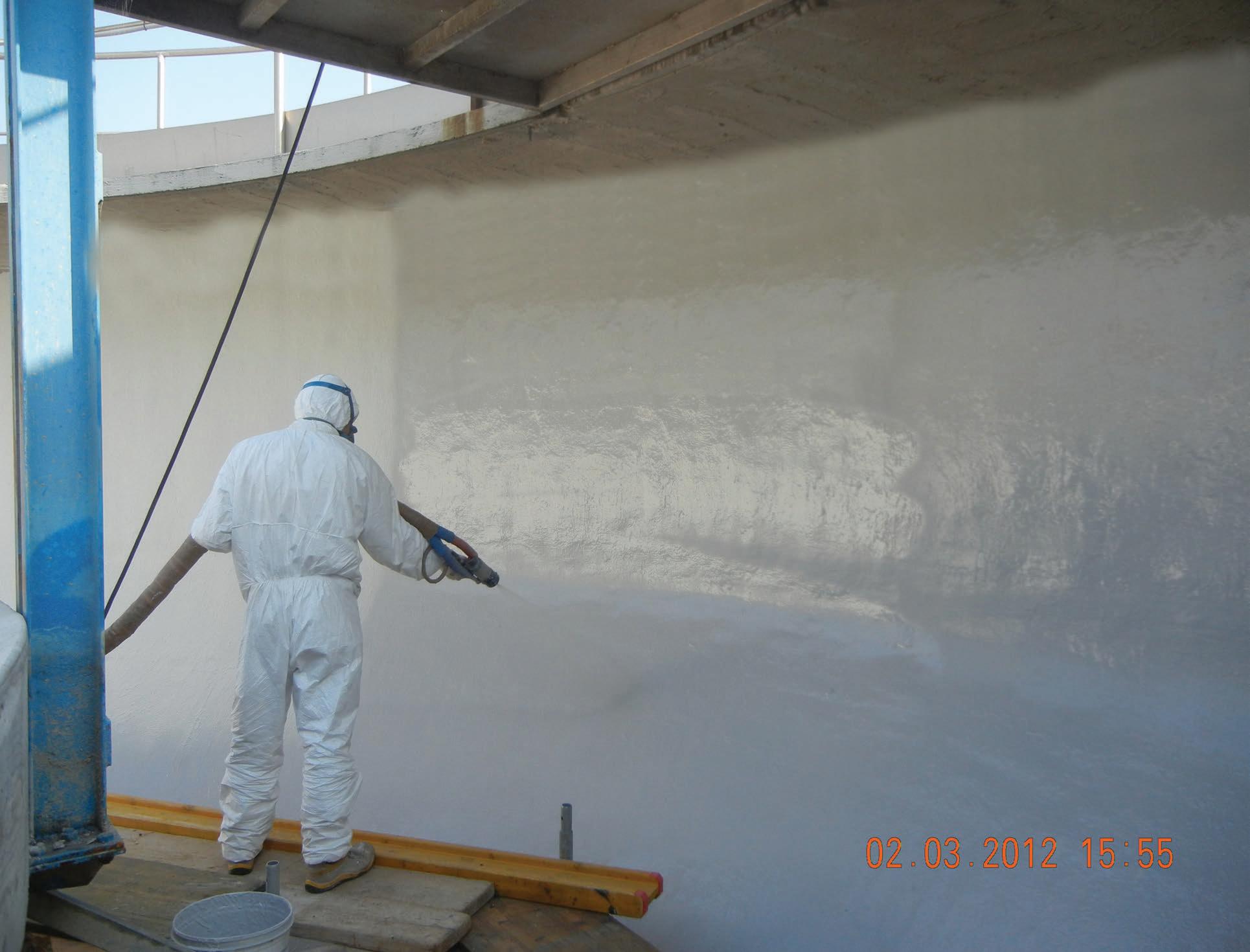

BPA-SilverSeal is auniquewaterreacting, impermeable,self-healing,light-weight,swelling,nonwovenwaterproofingmembrane. Itis usedespecially in thefield of structuralwaterproofing as well as tunnelsealing.BPA-SilverSealswelling non-woven is aneedle-punched PP-non-wovengeotextile impregnated by asuperabsorberandawateractivatedswellingpolymer(BPA-EasySeal)with an optional high-density PE-membrane(BPA-SilverSeal) The use of ourswellingnon-wovenmembranes eliminatestheneedforconventionalwaterproofing materialssuch as bituminousliners,coatingsand syntheticmembranes of allkinds.

Number 03, MARCH 2020

IEM Registered on 1 May 1959

MAJLIS BAGI SESI 2019/2020 (IEM COUNCIL SESSION 2019/2020)

YANG DIPERTUA / PRESIDENT

Ir. David Lai Kong Phooi

TIMBALAN YANG DIPERTUA / DEPUTY PRESIDENT

Ir. Ong Ching Loon

NAIB YANG DIPERTUA / VICE PRESIDENTS

Ir. Prof. Dr Norlida bt Buniyamin, Ir. Prof. Dr Jeffrey Chiang Choong Luin, Ir. Ellias bin Saidin, Y.Bhg. First Admiral Dato’ Ir. Ahmad Murad bin Omar, Ir. Dr Tan Chee Fai, Ir. Hj. Mohd

Aman bin Hj. Idris, Ir. Dr Wang Hong Kok

SETIAUSAHA KEHORMAT / HONORARY SECRETARY

Ir. Mohd Khir bin Muhammad

BENDAHARI KEHORMAT / HONORARY TREASURER

Ir. Chen Harn Shean

BEKAS YANG DIPERTUA TERAKHIR / IMMEDIATE PAST PRESIDENT

Ir. Dr Tan Yean Chin

BEKAS YANG DIPERTUA / PAST PRESIDENTS

Y.Bhg. Academician Tan Sri Datuk Ir. (Dr) Hj. Ahmad Zaidee bin Laidin, Y.Bhg. Dato’ Ir. Dr Gue See Sew, Y.Bhg. Datuk Paduka Ir. (Dr) Hj. Keizrul bin Abdullah, Y.Bhg. Academician Tan Sri Dato’ Ir. Emeritus Prof. Dr Chuah Hean Teik, Ir. Choo Kok Beng, Y.Bhg. Dato’ Ir. Lim Chow Hock

WAKIL AWAM / CIVIL REPRESENTATIVE

Ir. Dr Lee Yun Fook

WAKIL MEKANIKAL / MECHANICAL REPRESENTATIVE

Ir. Fam Yew Hin

WAKIL ELEKTRIK / ELECTRICAL REPRESENTATIVE

Ir. Lim Kim Ten

WAKIL STRUKTUR / STRUCTURAL REPRESENTATIVE

Ir. Dr Ng Soon Ching

WAKIL KIMIA / CHEMICAL REPRESENTATIVE

Ir. Prof. Dr Lee Tin Sin

WAKIL LAIN-LAIN DISPLIN / REPRESENTATIVE TO OTHER DISCIPLINES

Ir. Dr Bhuvendhraa Rudrusamy

WAKIL MULTIMEDIA DAN ICT / ICT AND MULTIMEDIA REPRESENTATIVE

Ir. Dr David Chuah Joon Huang

WAKIL JURUTERA WANITA / WOMAN ENGINEERS REPRESENTATIVE

Ir. Rusnida bt Talib

AHLI MAJLIS / COUNCIL MEMBERS

Ir. Dr Leong Wai Yie, Ir. Razmahwata Mohd Razalli, Ir. Abdul Razak Yakob, Ir. Yau Chau Fong, Y.Bhg. Dato’ Ir. Foong Choy Chye, Y.Bhg. Dato’ Ir. Kisai bin Rahmat, Y.Bhg. Dato’ Ir. Nor Hisham Mohd Ghazali, Ir. Toh Chin Kok, Ir. Dr Jeyanthi Ramasamy, Ir. Yim Hon Wa, Ir. Yam Teong Sian, Y.Bhg. Dato’ Ir. Fakharazi bin Wahijan, Ir. Yasotha Ramachandran Chetty, Ir. Mohmad Asari bin Daud, Ir. Ng Beng Hooi, Ir. Dr Lai Khin Wee, Ir. Prof. Dr Ruslan bin Hassan, Ir. Mah Siew Kien, Y.Bhg. Dato’ Ir. Mohd Azmi bin Ismail, Ir. Ng Yong Kong, Ir. Dr Mui Kai Yin, Y.Bhg. Dato’ Ir. Noor Azmi bin Jaafar, Ir. Ting Chek Choon, Ir. Sukhairul Nizam bin Abd Razak, Ir. Lai Sze Ching, Y.Bhg. Dato’ Ir. Dr Ahmad Anuar bin Othman, Y.Bhg. Dato’ Ir. (Dr) Andy Seo Kian Haw, Y.Bhg. Dato’ Seri Ir. Dr Zaini bin Ujang, Ir. Omar bin Mat Piah WAKIL BAHAGIAN JURUTERA SISWAZAH / YOUNG ENGINEERS SECTION

REPRESENTATIVES

Dr Yew Weng Kean, Mr. Kuugan Thangarajoo, Ms. Tiang Kor Lin, Mr. Tan Teck Ying, Mr. Lim Yiren

PENGERUSI CAWANGAN / BRANCH CHAIRMAN

1. Pulau Pinang: Ir. Yau Ann Nian

2. Selatan: Ir. Teo Ki Yuee

3. Perak: Ir. Simon Yeong Chin Chow

4. Kedah-Perlis: Ir. Haji Abdullah bin Othman

5. Negeri Sembilan: Ir. Dr Oh Seong Por

6. Kelantan: Ir. Abrizan bin Abdul Kadir

7. Terengganu: Ir. Abdullah Zawawi bin Haji Mohamad Noor

8. Melaka: Ir. Sreedaran a/l Raman

9. Sarawak: Ir. Haidel Heli

10. Sabah: Ir. Jeffrey Ng Vun Ping

11. Miri: Ir. Dr Lau Hieng Ho

12. Pahang: Ir. Ahmad Kamal Kunji

AHLI JAWATANKUASA INFORMASI DAN PENERBITAN/ STANDING COMMITTEE ON INFORMATION AND PUBLICATIONS 2019/2020

Pengerusi/Chairman: Ir. Dr Wang Hong Kok Naib Pengerusi/Vice Chairman: Ir. Dr David Chuah Joon Huang Setiausaha/Secretary: Ir. Lau Tai Onn Ketua Pengarang/Chief Editor: Ir. Dr Wang Hong Kok Pengarang Bulletin/Bulletin Editor: Ir. Dr Bhuvendhraa Rudrusamy Pengarang Prinsipal Jurnal/Principal Journal Editor: Ir. Dr David Chuah Joon Huang Pengerusi Perpustakaan/Library Chairman: Ir. C.M.M. Aboobucker

Ahli-Ahli/Committee Members: Ir. Ong Guan Hock, Ir. Abdul Razak Yakob, Ir. Yee Thien Seng, Ir. Chin Mee Poon, Ir. Dr Oh Seong Por, Ms. Michelle Lau Chui Chui, Ir. Prof. Dr Abdul Aziz bin Abdul Samad, Ir. Razmahwata bin Mohd Razalli, Y.Bhg. Dato’ Ir. Nor Hisham Mohd Ghazali, Ir. Yasotha Ramachandran Chetty, Dr Sudharshan N. Raman, Ir. Hasril bin Hasini

LEMBAGA PENGARANG/EDITORIAL BOARD 2019/2020 Ketua Pengarang/Chief Editor: Ir. Dr Wang Hong Kok Pengarang Bulletin/Bulletin Editor: Ir. Dr Bhuvendhraa Rudrusamy Pengarang Prinsipal Jurnal/Principal Journal Editor: Ir. Dr David Chuah Joon Huang Ahli-ahli/Committee Members: Ir. Lau Tai Onn, Ir. Ong Guan Hock, Ir. Abdul Razak Yakob, Ir. Yee Thien Seng, Ms. Michelle Lau Chui Chui, Ir. Dr Oh Seong Por, Ir. Yasotha Ramachandran Chetty, Dr Sudharshan N. Raman, Ir. Razmahwata bin Mohd Razalli, Ir. Hasril bin Hasini

Secretariat: Janet Lim, May Lee

THE INSTITUTION OF ENGINEERS, MALAYSIA Bangunan Ingenieur, Lots 60 & 62, Jalan 52/4, P.O. Box 223, (Jalan Sultan), 46720 Petaling Jaya, Selangor Darul Ehsan. Tel: 603-7968 4001/4002 Fax: 603-7957 7678 E-mail: sec@iem.org.my Homepage: http://www.myiem.org.my

5 COVER NOTE & EDITOR’S NOTE

16 - 23 FEATURE

6 - 12 COVER STORY

Water Resources: Demand, Climate & Sustainability

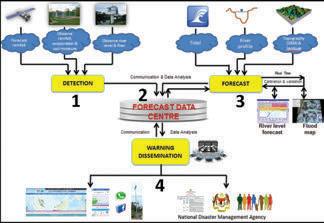

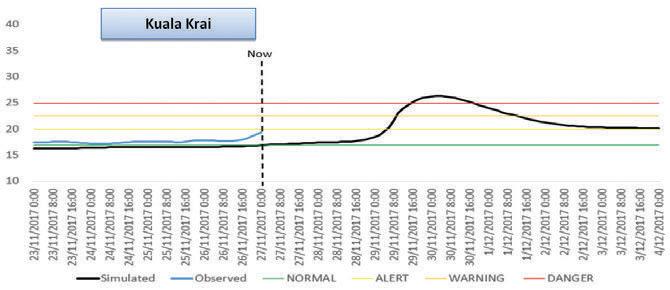

5 Years After Severe Flood in 2014: A Better Flood Forecasting System

26 - 33 FORUMS

Biomedical Engineering, a Career Path with a Bright Future

Underground Tunnelling in the Klang Valley and the Pursuit of an Autonomous Tunnel Boring Machine

Hat-Type Steel Sheet Pile Technology for Improvement of Construction Productivity

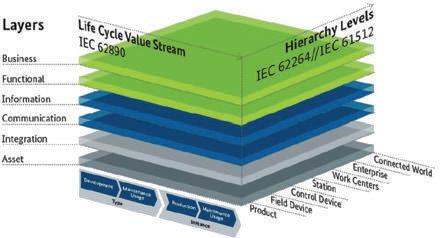

The Way Forward for SMI/SMES in Industry 4.0 Part 2: Current Challenges in Industry 4.0 Ecosystem

34 - 35

NEWS FROM BRANCH

IEM Melaka Technical Visit to Kota Kinabalu Technical Visit to Favelle Favco Cranes

Marred Beauty of Dal Lake, Kashmir 39 ENGINEER’S ADVENTURE Nanosatellite UiTMSAT-2 Mission Idea Symposium 36 CAMPUS NEWS

40 PINK PAGE 41 - 43 BLUE PAGE

DIMENSION PUBLISHING SDN. BHD. [ 199701034233 (449732-T) ]

Level 18-01-02, PJX-HM Shah Tower, No. 16A, Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia. Tel: +(603) 7493 1049 Fax: +(603) 7493 1047

E-mail: info@dimensionpublishing.com Website: www.dimensionpublishing.com

CHAIRMAN

ROBERT MEBRUER

CEO/PUBLISHER

PATRICK LEUNG

GENERAL MANAGER

SHIRLEY THAM ● shirley@dimensionpublishing.com

HEAD OF MARKETING & BUSINESS DEVELOPMENT

JOSEPH HOW ● joseph@dimensionpublishing.com

PRODUCTION EDITOR

TAN BEE HONG ● bee@dimensionpublishing.com

CONTRIBUTING WRITERS

PUTRI ZANINA ● putri@dimensionpublishing.com

LAURA LEE ● laura@dimensionpublishing.com

SENIOR GRAPHIC DESIGNER

SUMATHI MANOKARAN ● sumathi@dimensionpublishing.com

GRAPHIC DESIGNER

SOFIA ● sofia@dimensionpublishing.com

ADVERTISING CONSULTANTS

THAM CHOON KIT ● ckit@dimensionpublishing.com

ACCOUNTS CUM ADMIN EXECUTIVE

YEN YIN ● yenyin@dimensionpublishing.com

For advertisement placements and subscriptions, please contact: DIMENSION PUBLISHING SDN. BHD. [ 199701034233 (449732-T) ] Level 18-01-02, PJX-HM Shah Tower, No.16A, Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia. Tel: +(603) 7493 1049 Fax: +(603) 7493 1047

E-mail: info@dimensionpublishing.com

Subscription Department E-mail: info@dimensionpublishing.com

Printed by

PERCETAKAN SKYLINE SDN. BHD. (135134-V) No. 35 - 37, Jalan 12/32B, TSI Business Industrial Park, Off Jalan Kepong, 52100 Kuala Lumpur. Mailer

SM UNIQUE MAILING SERVICES SDN. BHD. (44277-W) 80, Jalan Nadchatiram Satu, Taman Taynton View, Cheras, 56000 Kuala Lumpur, Malaysia. Tel: +(603) 9132 9192

JURUTERA MONTHLY CIRCULATION: 22,500 COPIES

Submission or placement of articles in JURUTERA could be made to the:-

Chief Editor

THE INSTITUTION OF ENGINEERS, MALAYSIA (IEM) Bangunan Ingenieur, Lots 60 & 62, Jalan 52/4, P.O. Box 223 (Jalan Sultan), 46720 Petaling Jaya, Selangor. Tel: +(603) 7968 4001/4002 Fax: +(603) 7957 7678 E-mail: pub@iem.org.my or sec@iem.org.my IEM Website: http://www.myiem.org.my

PUBLICATION DISCLAIMER

The publication has been compiled by both IEM and Dimension with great care and they disclaim any duty to investigate any products, process, services, designs and the like which may be described in this publication. The appearance of any information in this publication does not necessarily constitute endorsement by IEM and Dimension. There is no guarantee that the information in this publication is free from errors. IEM and Dimension do not necessarily agree with the statement or the opinion expresssed in this publication.

JURUTERA Bulletin of IEM is the official magazine of The Institution of Engineers, Malaysia (IEM) and is published by Dimension Publishing Sdn. Bhd. The Institution and the Publisher retain the copyright over all materials published in the magazine. No part of this magazine may be reproduced and transmitted in any form or stored in any retrieval system of any nature without the prior written permission of IEM and the Publisher.

COVER NOTE

WATER RESOURCES: DEMAND, CLIMATE & SUSTAINABILITY

by Y.Bhg. Dato’ Ir. Hj. Mohd. Azmi bin Ismail Chairman, Water Resources Technical Division

In conjunction with World Water Day on 22 March, WRTD takes centrestage in this month’s JURUTERA.World Water Day highlights the importance of sustainable management of fresh water resources.

The intention is to inspire young talents and professionals to learn more about water-related issues and to take action that will make a difference.

In line with the theme for this issue of JURUTERA, Water Resources: Demand, Climate & Sustainability,we talked to the former Minister of Water, Land & Natural Resources,Y.B.Dato’Dr Xavier Jayakumar.In the Cover Story, he shares with us his views on the challenges that the water industry currently faces and provides insights into sustainable water resources management and development strategies that will help the country move forward.

It has always our commitment and initiative to create awareness of and to promote among engineering professionals, the continuous development in the planning,engineering and management of sustainable water resources.

This year, WRTD will be organising workshops in ASIA 2020, the Eighth International Conference & Exhibition on Water Resources and Renewable Energy Development in Asia.

The committee is also working on the Water Resources Symposium in conjunction with the IEM Convention 2020 in September. We would like to take this opportunity to encourage all IEM members to join us in making these events a success.

EDITOR’S NOTE

by Ir. Dr Bhuvendhraa Rudrusamy Bulletin Editor

WATER OF LIFE

This March, JURUTERA takes a look at Water Resource Management in Malaysia.We will check out the planning, development, distribution, management and maintenance of our water resources on which we are dependent for access to clean water for our daily needs.

Regardless of changes in the global climate, the constant demand for water in our daily activities cannot be compromised and together we must be conscious of our environment to ensure its sustainability.

The Editorial Board welcomes all our IEM branches to share your exciting activities with the rest of our fellow members through JURUTERA, and we looking forward eagerly for your submissions. On that note, we end with a short phrase that’s big in meaning!

“Sharing is Caring”

Water Resources: Demand, Climate & Sustainability

International World Water Day, an annual UN observance day, falls on 22 March every year. For 2020, the theme is Water & Climate Change.

On 22 March each year, the worldobservesInternational World Water Day, an event that highlights the importance of fresh water and advocates for sustainable management of freshwater resources.The theme for 2020isWater&ClimateChange,and how these two are fundamentally connected. According to worldwaterday.org, adapting to the water effects of climate change will protect health and save lives and using water more efﬁciently will reduce greenhouse gases.

With the growing awareness of the urgency of water conservation around the world, the various stakeholders in Malaysia are urgently workingtogethertoﬁxabrokenwater system.

Although we are blessed with abundant rainfall and plentiful sources of water, Malaysia’s water system is plagued with intermittent shutdowns, an ageing system that desperately needs to be updated, water companies which are solely proﬁt-oriented and a public that is seemingly unaware of the serious need for water conservation.

JURUTERA speaks to Y.B. Dato' Dr Xavier Jayakumar, the former Minister of Water, Land & Natural Resources (Kementerian Air,Tanah Dan Sumber

Asli or KATS), about the state of water resources in our country, the challenges in managing the system,changingthewayweview water and plans for the future.

SOURCE, CONSUMPTION & SUPPLY

Dato’ Dr Xavier says that in terms of water supply, Malaysia is considered a developed country as 90% of the population have access to clean drinking water. The remaining 10% live in extremely remote areas, so it is difﬁcult to ensure they get a proper supply of water.

“Malaysia gets an average rainfall of 2,940 milimetres per year (three times the global average) which contributes to an estimated 970 billion cubic metres of annual water resource.About 43% of that returns to the atmosphere through evaporation, 6% percolates into

the ground and the remaining 51% ﬂows away as surface runoff,”he says. “About 97% of our raw water supply come from rivers and lakes.

We have a dense network of rivers, with up to 2,986 river basins, including 189 major river basins.The agriculture industry is the largest user of water, requiring up to 68% of total water consumption for paddy irrigation, other crops, livestock and ﬁsheries. Domestic and industry users consume 33% which can be translated into an average of 201 mililitres per person per day for nondomestic users.”

ERRATIC RAINFALL, CLIMATE CHANGE & DEVELOPMENT

Rainfall is seasonal and rain does not fall evenly throughout the country, the result of typical rainfall characteristics as well as other climatic and physical factors which govern rainfall pattern.

Sarawak and Terengganu receive more than 3,300 millimetres of rain annually while Negeri Sembilan, MelakaandPerlisgetonlyabout1,800 millimetres. Kelantan, Terengganu, Pahang and Johor receive 55% of their rainfall during the northeast monsoon (November to March) and 41% during the southwest monsoon. The west coast states in the peninsula get about a third each during the two monsoon periods and during the inter-monsoon months.

High population density as well as extensive agricultural activities in several states have resulted in water demands exceeding the carrying capacity. Climate change is another big threat as dry areas

are becoming drier and the wet places are becoming wetter.

While there are many factors involved,the fact remains that,on the whole, Malaysia has a healthy water supply,with sufﬁcient volume of water resources for the foreseeable future.So it is quite clear then that water related problems are the result of poor water resources management and not any other reason.

“Because of the abundant rainfall, we have been able to effectively manage our water resources and to convert a large volume of that into drinking water,”says Dato’Dr Xavier.

“However, with climate change and seasonal droughts becoming longer and more severe, some states are suffering from a short supply of raw water. What we have now is a system that has neglected to ensure at least a 50-year supply of water. The planning has been haphazard and the response to water shortage ad hoc, like fire-fighting.Therefore, it is crucial that we pay attention to these issues and fix them as fast as possible.”

WATER MANAGEMENT & MISMANAGEMENT

Dato’ Dr Xavier is well aware of the challenges he faces when attempting to manage and update a very old system and to correct years of mismanagement.

“Pipes are very old and eroded. So when you turn on the tap in your home, the water will appear brown and look dirty.We have identiﬁed the problem and are in the process of gradually changing these pipes,” he says.“However,the most pressing issue

Y.B. Dato' Dr Xavier Jayakumar, the former Minister of Water, Land & Natural Resources (Kementerian Air, Tanah Dan Sumber Asli or KATS).

For

the system to be efﬁcient, each state needs to have a certain percentage of reserve margin which can be anywhere from 8% to 12%. Sadly, our reserve is currently less than 2%, which is critical because consequently there are shutdowns and thousands of households have to go without water.

“ “

in most states is the lack of reserve water. For the system to be efﬁcient, each state needs to have a certain percentage of reserve margin of between 8% and 12%.If a system has been planned and managed well, you can have even more than 15% of reserve water.

“Sadly, our reserve is currently less than 2%, which is critical because consequently, there are shutdowns and thousands of households have to go without water.But with a reserve of at least 13%, the majority of the households can have water supply for 48-72 hours in the event of a shutdown. So you can see how dire the situation is.We are trying to ﬁx this but it is a long process, one of which involves a 50-year plan.” A huge part of the erratic water supply is the poor management of the multiple water systems in the country.

“The Federal Government contributes billions of ringgit to upgrade water infrastructure all over the country. State Governments don’t spend that much money, as their funds come from tariff collections and is usually only enough to cover the management. Many states owe the Federal Government a great deal of money as all the funds they receive

are actually loans. Now we have to work to resolve that,” says Dato’ Dr Xavier.

“We don’t really have a water shortage problem. We have inherited a very good system from the British but,overtheyears,wehaveneglected to upgrade the system. Therefore we have put into place a ﬁve-year plan to upgrade the system. We are also looking at rainfall patterns and advising states on how they can run their water services more effectively. We are still giving them loans and paying for all expenses incurred during emergencies.”

Under the Federal Constitution, matterspertainingtowater,rivers,land andforestcomeunderthejurisdiction of the State Governments which are also responsible for management of water resources, including gazetting water catchment areas and controlling development in the states. The Federal Government is tasked with promoting uniformity in legislations, providing technical advice, setting up hydrological and other monitoring stations, collecting hydrological data as well as conducting surveys and relevant studies.

“The Federal Government and its agencies are in charge of planning and funding programmes to ensure water security in the states is ﬁrm. But every state manages its water differently and has a different water company.Tariffs also differ according to usage, population and demand. Therefore the amount of water that is used and the amount of water that has to be treated differs from state to state,”explains Dato’Dr Xavier.

“The lack of water reserves is due solely to the water management of individual states not having done enough to ensure a sufﬁcient supply. Management has been inward looking and focuses only on proﬁts from the water companies while neglecting everything else. Penang is the only state with a proper water management system. All the other states don’t have enough funding to manage water systems the way they should be managed and the way we expect them to.”

PROBLEM OF NON-REVENUE WATER

Non-revenue water (NRW) is one of the more persistent problems in local water systems. NRW is water that is pumped or produced but subsequently lost or otherwise unaccounted for in the system before it reaches the consumer.

Losses can be real or apparent. High levels of NRW are detrimental to the ﬁnancial viability of water utilities, as well to the water quality itself.Costs incurred as a result of faulty metering, evaporation, theft, poor data gathering and leakage are passed on to the consumer.

Dato’ Dr Xavier is very concerned about the high level of NRW. “Nonrevenue water levels are very high, with the national average at 35%. Kedah reports 48%, Pahang is 44%45%,Perlis is 67% and Selangor is 33%. NRWisahugeproblemforus;youcan even call it a disease. For example, Kedah’s daily output is 1,480 million litres per day but 48% of that is NRW which means that almost half of the water produced is being wasted. Not enough capital is being pumped into the system to ensure it runs smoothly. We have to change that,”he says. Malaysia has formulated Water Demand Management (WDM) to ensure that water is used more efﬁciently and sustainably. It has identiﬁed nine strategies and 23 action plans to be implemented.It focuses on reduction of NRW,application of water saving equipment, alternative water resources and water audit for big water consumers.Among the targets set are

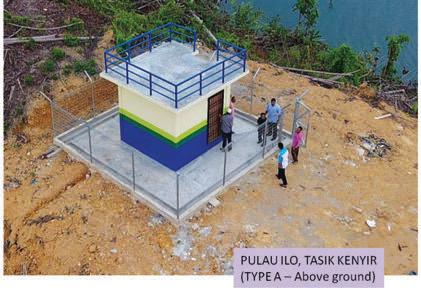

Stesen Hidrologi

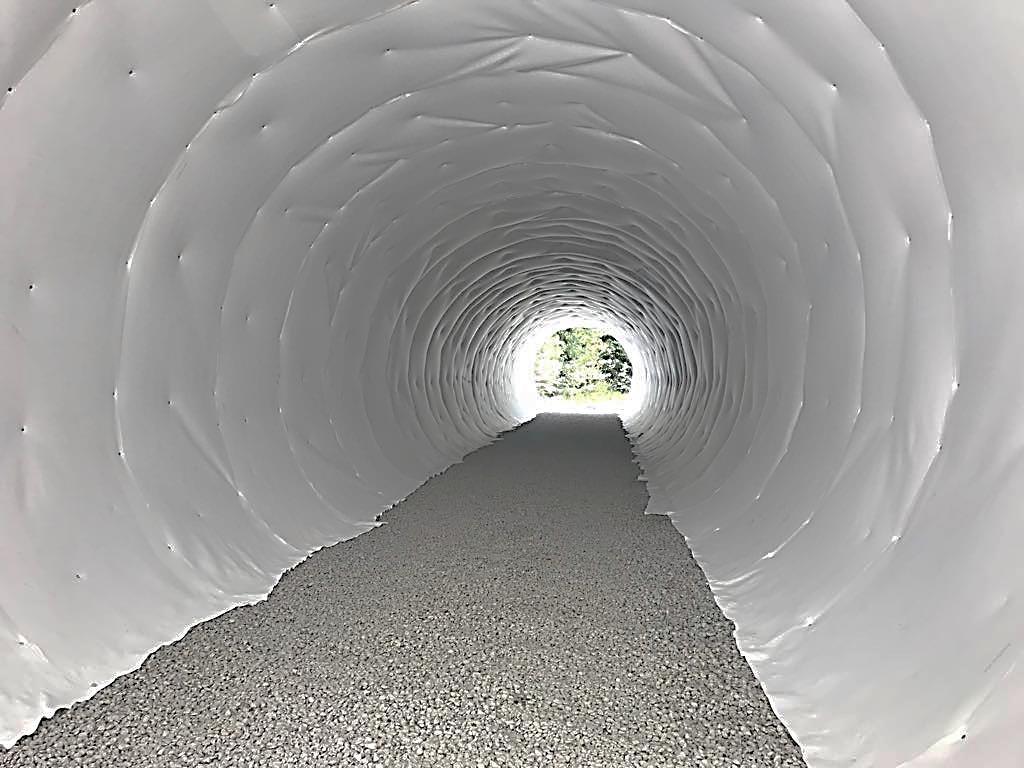

SIKA SOLUTIONS FOR TUNNEL STRUCTURES

́ Waterproofing solutions for mined and cut-and-cover tunnels

́ Leak sealing solutions with Sika injection systems

́ Ground consolidation, stabilization and water stopping

́ Refurbishment of existing linings

́ Admixtures for shotcrete and concrete

́ Anchoring systems

a per capita water consumption of 180 litres per day, NRW reduction to 31% and mandatory applications of water saving equipment.

Dato’ Dr Xavier says the Ministry aims to reduce NRW from the current 35.3% to 31% by the end of the 11th Malaysia Plan this year.

“Among the initiatives being implemented is the National NRW Reduction Programme 2018/2020 with an allocation of RM1.39 billion. One main plan is a massive pipe replacement programme involving all water operators in the country. It is imperative to rethink approaches to solutions, how to implement, maintain and continuously improve performance and efﬁciency. One way is through a collaborative effort in devising new training approaches that practitioners focus on realistic targets,”he says.

AILING RIVERS

Malaysia has 50 ailing rivers. Records from the Department of Environment showsthatmanyriversareinastateof deterioration.This is alarming.

“Rehabilitation and restoration of river conditions must begin with the setting of a water quality standard to be achieved in each river. By having such a target, we will be able to harmonise the needs of continuous physical development without jeopardising the health of the environment,”says Dato’Dr Xavier.

Intheinternationalarena,Malaysia has expressed its commitment to the ﬁeld of sustainable development at the United Nations Sustainable Development Summit in September 2015 which contains 17 goals. Sustainable Development Goal No. 6 is speciﬁcally related to water.

FIXING THE BROKEN SYSTEM

Dato’Dr Xavier says water companies need to recognise that they have a serious problem and that their systems are ineffective. “The ministry is drafting plans to make sure water companies realise they need to shift away from being just proﬁt-oriented. Industry players will have their proﬁts

capped and systems regulated.Water tariffs can then be maintained and, while they will still have a comfortable margin, the extras will be put back into the industry.When the industry is upgraded, the proﬁt margin will also increase over a period of 20-25 years,” he says.

“Water companies must cut the red tape and work with the Federal Government as we are willing to help them ﬁnancially. They need to ensure that revenue collected is adequate sustainment and that there is still extra to spend on upgrading the infrastructure to overcome the problems inherited from the previous administration.”

“ “

Malaysians need to and must save water.We all want our taps to run 24 hours a day, 365 days a year. In order for that to be possible, we must all understand the value of water as a utility.

WATER CONSERVATION

Dato’ Dr Xavier says that Malaysians, in particular the youth, waste an incredible amount of water. “We should be using 170-180 millilitres daily but each individual uses 220-230 millilitres. If every Malaysian reduces his/her water usage,we will be saving a great deal of water which can be channelled for other purposes,” he says.

Generally, the public is ignorant of the value of water as the cost of treatment and delivering potable water is largely subsidised by the Government. Consumer behaviour, perception and low awareness with regards to the value of water is reﬂected in the trend and pattern of usage.

“Malaysians need to and must save water. You can cope without electricity for a few days, but you cannot do without water supply for a few days. We all want water to be available 24 hours a day, 365 days a year. In order for that to be possible, we all need to understand the value of water as a utility,” says Dato’ Dr Xavier.

“The relatively low water tariffs also contribute to water wastage. In addition, the free water policy in some states has not helped reduce water consumption. The Ministry and SPAN (National Water Service Commission) plans to introduce a tariff setting mechanism which will take into account the basic water requirement for humans at the range of 20 metres cubed in line with basic human principles. To support the target to reduce water consumption to 180 litres per capita per day by 2020, penalties will be imposed on those who waste water.”

UNREVISED WATER TARIFFS

Dato’ Dr Xavier believes that the water industry must have an in-built self-governing mechanism and that it must have enough ﬁnances to upkeep and ensure that the system is always in good working order.

“All these, of course, require an injection of funds. So we looked at water tariffs which had not been assessed for more than 20 years. We have come up with a new tariff mechanism which does not involve the states increasing their debts but instead, involves the private sector. We are increasing water rates, but it will be less than 2% of the average household income.

“Water rates will have different bands: Bands 1, 2, 3, Industrial Use and Agricultural Use. Consumers will be charged according to usage. This will have a direct effect on how water companies are run.When water companies are healthy, NRW will be reduced and water supply will be smoother. But if money is not spent within the industry to make necessary improvements, then the same

problems – water shortage, water cuts,burstpipes–willrecur.Webelieve that this will be a holistic approach to dealing with the issue.”

EXPLORING ALTERNATE SOURCES OF WATER

Malaysia is also looking at alternate sourcesoffreshwatersupply.Asstated earlier, about 97% of our raw water supply comes from rivers and lakes. Storage infrastructure and withdrawal facilities are mostly located upstream and, mainly due the physical terrain and to avoid saltwater intrusion issues, it is estimated that up to 85% of the surface runoff travels to the sea. Malaysia has been concentrating on surface water all these years,but there is a huge supply of underground water that has not been tapped.

Dato’ Dr Xavier feels that a proper overhaul of the system and the creation of a larger volume of reserve water will involve looking at alternate sources of water supply.“We are looking at all possibilities, from rainwater harvesting and storm water storagetooff-riverstorageandcoastal reservoirs. All these can be planned but we must have the resources to do so and we must also have enough water to be run off into the rivers as storage before we can ﬁgure out how to convert it into drinking water, water for industrial use and water for agricultural use,”he says.

“Every state has its own water reserves, dams built to store water. But that water is hardly ever used as it is purely for emergencies. Dams are collection centres. Malaysia’s frequent and heavy rainfall runs off into rivers, which is the supply we predominantly use. When there is a drought and the water level in rivers decreases, we release water from the dams to ﬁll up the rivers. We also do cross boundary water transfer from Pahang to Selangor as Selangor does not have enough raw water.For Johor, we transport water from the north to the south.Penang too does not have enough water, so we take water from Perak.”

He sees subterranean water as

an untapped resource. “We plan to have a hybrid system for states such as Kedah and Johor which involves tapping into underground water to ensure supply meets the increasing demand. For these states, 20% of the water will be from underground and the rest will be surface water,” he says. For guidance, Malaysia is looking at countries already working with underground water. “We have the technology to ﬁnd underground water but technology is changing all the time though our engineers are always keeping up to date. We have 4D technologies from Japan to help with the mapping of subterranean rivers. In some cases, the rivers only releasethewaterwhentheyreachthe sea.We need to study this carefully,as there must be recharge equal to what we take out,to ensure there is always waterandthatthelanddoesnotsink,” he says.

“This is in the immediate future and agencies involved have been given the go-ahead to flesh this out to be included in the 12th Malaysia Plan.We’re looking at Japan,Denmark and Korea as examples of countries that are purely non-profit and are managing their water exceedingly efficiently.

“Almost 95% of water in Denmark comes from underground sources and the Yamamoto district of Japan hasbeenusingundergroundwaterfor a few centuries without encountering any sinking. We will look at these countries and then ﬁgure out what will work best for us.”

REALIGNING WATER RESOURCES MANAGEMENT

As we approach the end of the 11th Malaysia Plan, Dato’ Dr Xavier feels there is much that we have yet to achieve. “Our rivers, as the main source of raw water, are constantly at risk of being polluted, no thanks to the lack of public awareness, lack of enforcement to punish non-point source polluters and unconnected private wastewater plants,”he says.

“Learning from these experiences, I believe there is a need to transform

our water industry under the 12th Malaysia Plan, centred on the key principles of Shared Prosperity Vision by 2030. We are also working closely with the Ministry of Economic Affairs (MEA) to develop a new strategic direction for the water sector.”

The doctrine of a new strategy for water sector is based on the recognition of water as a wealth creation sector. The water sector must be managed to achieve an inclusive and sustainable provision of a safe and affordable water supply and sanitation systems. This move, it is hoped, will place Malaysia as a tropical Asian frontier in Integrated Water Resources Management (IWRM).

Integrated Water Resources Management and Integrated River Basin Management are the ways forward in managing water, in which many countries have shown great achievements in their management.

Water resources governance been managed by several agencies, often resulting in overlapping and overlooking functions with grey areas of responsibilities. IWRM, handled individually and disparately by 13 states and three FederalTerritories,has also created many issues.At the very least, there must be Federal support, capacity building and financing to ensure that the finite and limited water resources are managed for the benefit of the nation. States which have pioneered better governance of their water resources could have achieved better success if there was focus and sustained Federal support for their programmes.

Group photo session

PROTECTING WATER RESOURCES

To protect water resources, the introduction and application of Total Maximum Daily Load (TMDL) for each river basin is obligatory. TMDL is the calculation of the maximum amount of pollutants allowed to enter a water body so as to ensure it will meet and continue to meet water quality standards for that particular pollutant.TMDL determines a pollutant reduction target and allocates load reductions necessary to the source(s) of the pollutant.

“TMDL is new in Malaysia but it has been the practice in most developed countries such as the United States of America in the management of their water bodies,”says Dato’Dr Xavier.

“In the Malaysian context, the Federal Government can work closely with the state governments to develop TMDL and translate it into local plans by the State authorities. With the application of TMDL, coupled with holistic land use plans and efﬁcient enforcement, it is not impossible to restore our river conditions. TMDL is something that we are looking at in the 12th Malaysia Plan.

“Instillingasenseofriverownership among the public is the master key to sustain the policies, facilities and infrastructures provided by the Government. Through DID, KATS has embarked on many campaigns to promote the stewardship of rivers. This effort goes back to the early

“ “

years of Kempen Cintailah Sungai Kita (Love Our Rivers Campaign). I am happy to see that the sense of river ownership amongst the public is growing.I applaud the determination of non-governmental organisations, corporate companies and individuals such as Friends of Rivers, which are actively involved in community-based programmes to rehabilitate and preserve the river ecosystem."

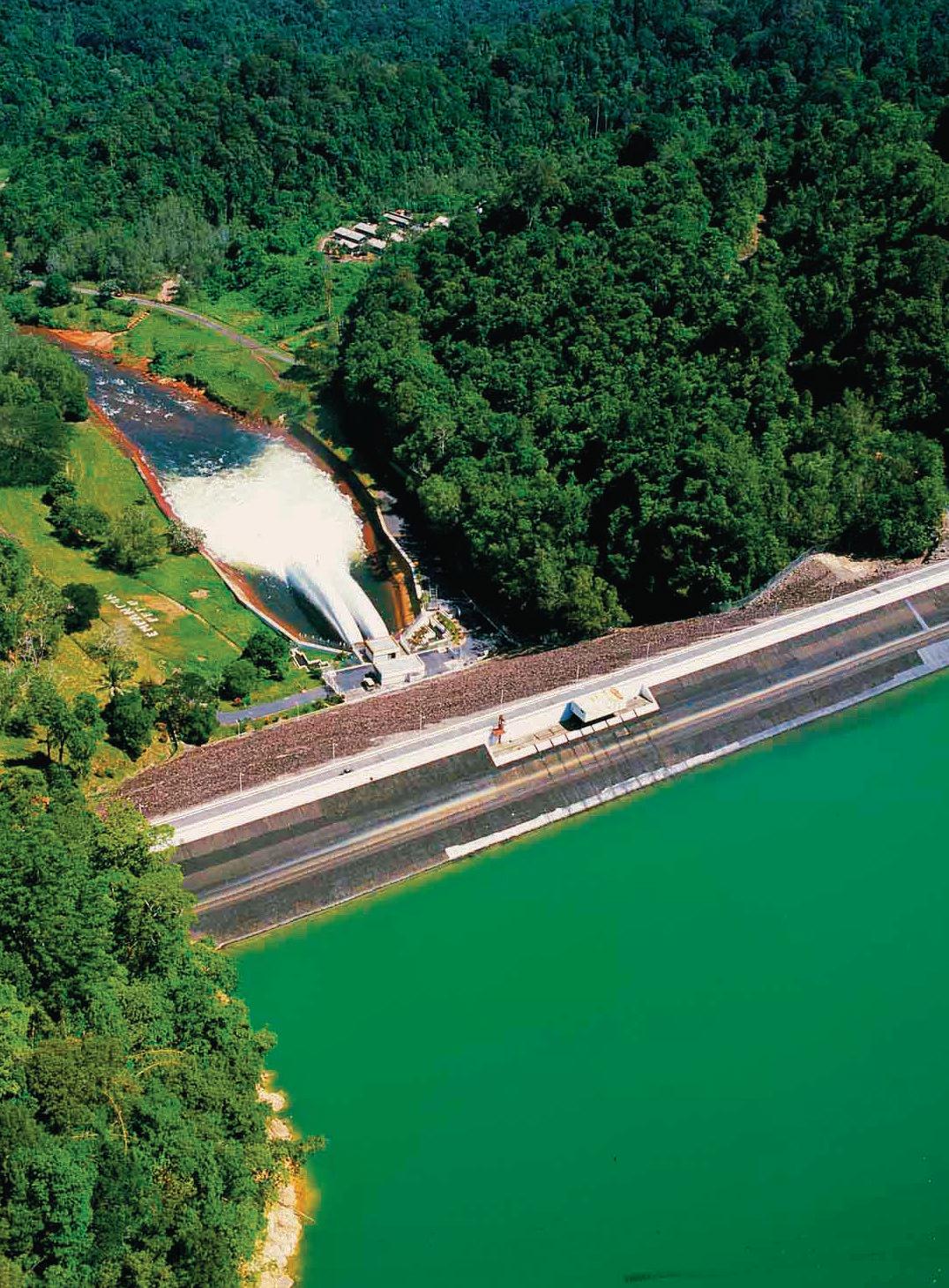

EYES ON DAMS

In 2018, there were two occasions of prolonged torrential rain in Laos and Myanmar which resulted in dam breaks,leading to catastrophic losses and destruction. This is a reminder for us here in Malaysia to make dam safety a top-most priority,says Dato’Dr Xavier.

At present, there are 104 dams in the country,consisting of 16 irrigation and drainage dams under the supervision of DID,7 agricultural dams, tworecreationaldams,16hydropower dams,61 water supply dams and one private dam.Over 60% of these dams are categorised as large dams,based on the International Commission on Large Dam classiﬁcation and most of these dams were constructed in the 1960s.

a series of consultation sessions with state Governments, including townhall sessions with the public, academicians, non-governmental organisations and opinion leaders. The enactment of the Dam Safety Act willenhancetheoperationoftheDam Safety Team, established under the Water Works Department,to carry out safety monitoring on and inspection of high risk dams,”says Dato’Dr Xavier.

In 2017, KATS (then NRE) established the Dam Safety Flying Squad to carry out dam safety auditing. The squad looks into measures taken by owners to ensure that the dams are safe, free from trespassers and free from pollution. The enactment of the Dam SafetyAct will further enhance the operation of the Dam Safety Flying Squad in carrying surveillance on dams.

MOVING FORWARD

All parties involved must understand that this is a nonproﬁt industry and that all costs must be kept at a minimum.The days of making excessive proﬁts out of water have ended.

Currently, there is no speciﬁc legislation that addresses dam issues in Malaysia. There are only administrative guidelines with regards to dams. So there is an urgent need to establish a law in relation to dam safety and security as a measure to manage the risk of dam failures.The 12th National Water Resources Council Meeting (MSAN) has approved the Malaysia Dams Safety Management Guidelines (MyDAMS) for use as a systematic guideline on dam safety management,in conjunction with the international dam safety guidelines.

“With MyDAMS as the base, KATS has initiated a new Dam Safety Act or Rang Undang-Undang Keselamatan Empangan (RUU KE) to govern the management of all dams for the protection of human life and the environment. This Dam Safety Act will be tabled soon, followed by

Dato’ Dr Xavier wants engineers and planners to keep up with the latest technologies.“Theyneedtoadvisethe Federal and state water departments on the right technologies to use and to ensure that measures are cost effective. The input of water engineers will be crucial to our development. They are integral to understanding water needs while balancing the needs of other sectors and to projecting future demands to enable sustainable development.City planners too must always prioritise water in any development,”he says.

Dato’ Dr Xavier is committed to changing the way the water industry is managed and operated.“All parties involved must understand that this is a non-proﬁt industry and that all costs must be kept at a minimum.The days of making excessive proﬁts out of water have ended,”he adds.

He wants Malaysians to know that he and his team are committed to ensuring the public gets what it needs – clean, potable water. “Let me assure you that water that leaves the treatment plants is of world class standard and can be drunk directly. Water is a human right and that is where we stand,”he stresses.

URUTERA

Circulation and Readership Profile

JURUTERA has an estimated readership of 200,000 professionals. Our esteemed readership consists of certified engineers, decision making corporate leaders, CEOs, government officials, project directors, entrepreneurs, project consultants, engineering consulting firms and companies involved with engineering products and services.

Advertising Benefits

Our business partners can be assured that their products and services will be given the circulation and exposure they deserve, thus maintaining a sustained advertising presence to our core readers of decision-making engineers and technical experts. Our website offers an even wider market reach, with added international presence, aided by our international affiliation with official engineering bodies all over the world. Our online and offline advertising features such as banner advertising, article sponsorship and direct e-mail announcements have proven to be successful marketing strategies that will set the businesses of our partners apart from their competition.

PRICES PER INSERTION IN RINGGIT MALAYSIA (RM)

5 YEARS AFTER SEVERE FLOOD IN 2014: A BETTER FLOOD FORECASTING SYSTEM

Flooding is a natural way to discharge occasional large rainfall in the river eco system. However, with rapid urbanisation,natural ﬂoodplains have been sacriﬁced for socio-economic activities;we now realise that we need protection against inundation.

In Malaysia,ﬂooding is the most severe natural disaster and it affects 18% of the country annually. There have been records of major ﬂoods: 1926 (whole country), 1963 (Sarawak), 1967 (Kelantan), 1970 (Kuala Lumpur), 1971 (whole country), 1976, 1996 (Sabah), 1998 (Penang), 2000 (Shah Alam), 2001 (Kuantan), 2003 (Kuala Lumpur/ Sarawak),2004 (Kelantan),2005 (Kedah/Perlis),2006/2007 (Johor/Melaka), 2007 (Kuala Lumpur), 2007/2008 (Pahang),2013 (Cameron Highlands,Kuantan,Kemaman) and 2014 (Kelantan,Terengganu,Pahang).

Meanwhile, with urbanisation and an increasing population, flash floods occur more frequently now, especially in city areas.For example,the population in the KlangValley (less than 500,000 in the 1970s) is more than 3 million today and,to accommodate the need for housing, public facilities, utilities, businesses, recreational parks and others,new land areas have been opened up.The change from natural land surface to hard surface reduces the ability of rainwater to infiltrate the soil.The rainwater turns to surface runoff in a shorter time and so, more areas will be flooded at the downstream lower ground level.

After the catastrophic flood of 1971,the government set up The Permanent Flood Control Commission to look into long-term solutions to mitigate flooding. The National Disaster Relief Committee was also tasked with reducing losses in the event of impending flooding. One of its roles was to establish rainfall and water level stations to measure and deliver the information as quickly as possible to obtain flood forecasts.The flood forecast model was introduced as a function to predict river water level at any particular location.The forecast lead time depended on the time lag of surface runoff

from upstream at higher levels flowing to inundation areas at lower level and finally to dissipate into the sea.

With the latest technologies in rainfall forecast and higher accuracies of surface topographic data, the flood forecasting model has made significant advances by using sophisticated and peopleoriented models to achieve better and more accurate flood forecasts.

After the severe flooding on the east coast of the peninsula in December 2014, the government realised there was a need for non-structural measures in flood mitigationprogrammes.ThefloodhitKelantan,Terengganu

by Y.Bhg. Dato’ Ir. Hj. Mohd. Azmi bin Ismail

Ir. Sazali Osman

Abdul Hafiz Mohamad

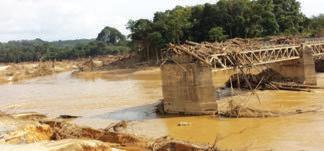

Floods in Kelantan in 2014

Kuala Krai

SK Manek Urai

and Pahang and over 500,000 people were evacuated with 25 casualties and RM2.85 billion in losses (not including intangible losses).Victims also voiced out their dissatisfaction over the following:

1. Delay in early ﬂood warning, especially for upstream areas such as Kuala Krai and KualaTahan,particularly during the second wave of ﬂooding

2. Delay in evacuation response for rescue and location of ﬂood victims at evacuation centres

3. Shortage of ﬂood relief assistance such as clothing, food,medicine etc at evacuation centres.

In response, the government took the initiative to strengthen the institutional framework by establishing the National Disaster Management Agency (NADMA). Previously, NADMA was managed by a section under the National Security Council where the scope of work was limited to coordination and supervision of agencies related to natural disasters. With NADMA, coordination between agencies improved signiﬁcantly, providing for more comprehensive ﬂood assistance and response.

To improve flood early warning, the government, through the Department of Irrigation & Drainage (DID) and the Malaysian Meteorological Department (MMD),implemented a new flood forecasting project, the National Flood Forecasting & Warning Programme (Program Ramalan & Amaran Banjir Negara or PRAB). The idea of PRAB was mooted as the existing flood forecasting and warning system had limitations in terms of forecast location, lead time and flood warning coverage.

CURRENT FLOOD FORECAST SYSTEM

The flood forecasting system began in 1971, with the first telemetric water level station established at the Sulaiman Bridge on the Klang River.The number of rainfall and water level telemetric stations has increased tremendously since, from less than 20 locations to 800 stations currently. Insitu flood siren warning systems have been established in areas affected by frequent flooding,mainly to provide early alerts of rising flood water.

Floodmodellingisdeﬁnedas“theprocessofimitatinga real phenomenon or a process with a set of mathematical formulae”. The purpose is to provide as much advance notice as possible of an impending ﬂood to the authorities and the public, which is to deliver reliable and timely information with enough lead time to allow people to take measures to protect themselves and to take appropriate actions.

In Malaysia, the ﬁrst mathematical model, called Sacramento Model (1973), was used to estimate water level at Sungai Pahang. Since 1981, the Sugawara Tank Model was used at the Kelantan River, with very reliable forecasts.The series of the usage ﬂood forecast models is shown in Figure 1 (refer to next page).

Tel : 03-9055 3010 (Hunting Line) Fax : 03-9055 3101 / 3121

Website : www.hitecmetal.com.my

E-mail : enquiry@hitecmetal.com.my

Office: No. 17-2, Jalan Tasik Utama 8, Medan Niaga Tasik Damai, 57000 Sungai Besi, Kuala Lumpur.

Special Features of HITEC METAL PEB Framing System

MAIN OBJECTIVES OF PRAB

PRABreferstoProgramRamalan&AmaranBanjir(inMalay) or National Flood Forecasting & Warning Programme (in English).Its three keywords represent:

• Forecasting which means how the system is able to calculate or estimate future conditions in particular water level forecast

• Warning which means dissemination tools or information to alert people so that early action can be taken

• NationalmeanstheimportanceofthePRABprogramme as a national agenda which will beneﬁt many people.

PRAB has two main objectives:

1. To develop a system which can forecast monsoon ﬂoods 7 days in advance, based on weather forecast data from the Malaysia Meteorological Department

2. To increase the capacity of the existing system for warning and dissemination of information about monsoon floods from 6 hours to 2 days earlier for the benefit of related agencies and population affected by the flood.

To achieve its objectives, there are 4 components to be implemented in an integrated manner using the latest technology (see Figure 2).These are:

1. Hydrological Data Detection System

2. Database and ICT Infrastructure System

3. Flood Modelling and Forecasting System

4. Flood Warning and Dissemination System.

Figure 2: Main components of PRAB

Figure 1: The evolution of flood forecast models in Malaysia

Since2000,theDepartmentofIrrigation&Drainagehasdevelopedatelemetry systemtomonitorrealtimerainfallandwaterlevelsfromhydrologicalstations. Under PRAB,hydrological stations will be increased to up to 2,000 stations to make sure there’s enough data and coverage to complement flood model requirements as well as to monitor flood conditions. Several stations will be equipped with new sensors for rainfall, water level, river flow, soil moisture and evaporation.The telemetry station has a compact and robust design to

A typical hydrological station

PULAU ILO, TASIK KENYIR (TYPE A - Above ground)

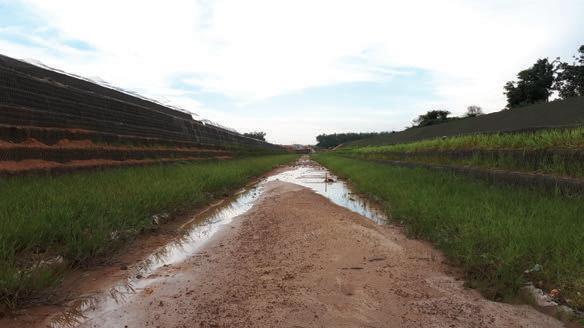

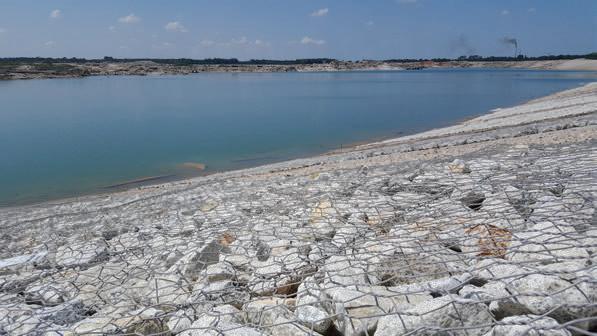

With more than 140 years in experience, Maccaferri offers customized product development and solutions to cater sophisticated challenges optimising value and simplifying your project.

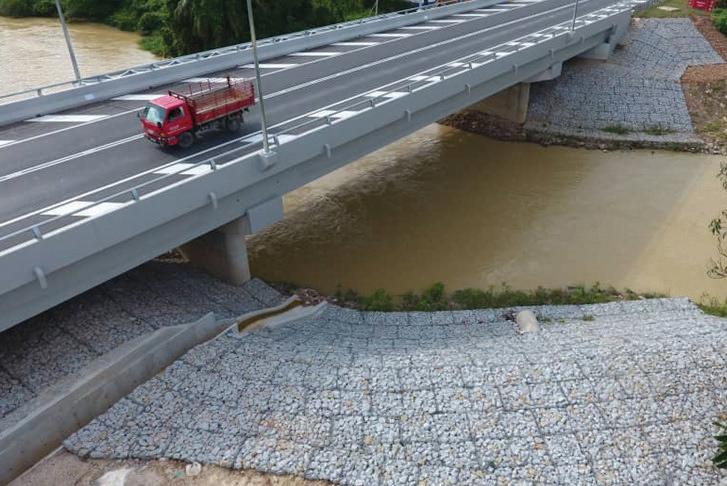

Coastal Protection, Marine Structures & Pipeline Protection Drainage of Structures Hydraulic Works

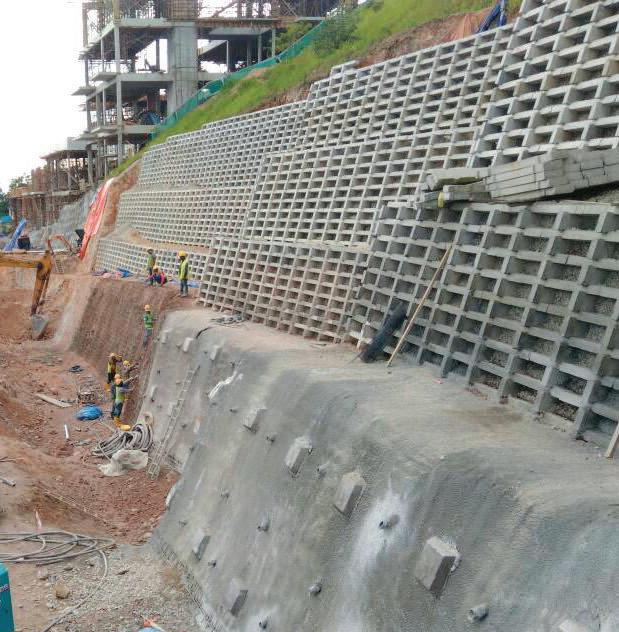

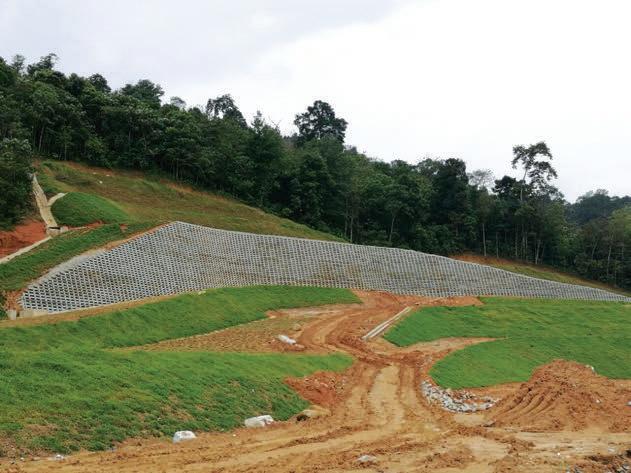

Retaining Walls & Soil Reinforcement

Environment, Dewatering & Landfill

FEATURE

deliver accurate measurements and is powered by a solar panel at 15 minutes interval data transfer.

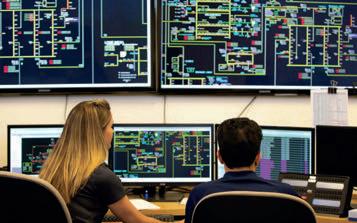

The Forecast Data Centre (FDC), a database and ICT system, was developed based on high performance and system redundancy platform.Currently,Terabyte Server and Virtualisation are used to store big sets of data from the DID telemetry system, geo-informatics data, weather forecast data and model simulation output. Centralising all data in one location in an integrated manner will improve the performance and time consumed for each component to complete the processing. FDC system also has a data cleaning system which will improve the quality of real-time hydrological data that could occur due to circumstances or conditions including sensor damage, communication breakdown and lack of power supply.

The FDC system links rainfall forecast data and hydrological measurement data to the National Flood Forecast & Warning System (NaFFWS), a modelling system that is able to process complex mathematical calculations consisting of hydrological, hydrodynamics and 2D mapping for flood hazard areas. NaFFWS will be developed for 41 river basins or almost 70% of flood prone areas. The flood modelling system will generate more than 20,000 points of interest, including the location of villages,towns,evacuation centres,mosques, main roads,government buildings,etc.

Public Infobanjir is a primary website medium for displaying and disseminating ﬂood information to the public in real time. The website, developed in 2000, is beingcontinuouslyimprovedtomeettheneedsofcurrent expectations and to suit the latest technology.In principle, it displays more than 800 rainfall stations and water level data from hydrological stations in remote and urban areas. It can provide early warning for different levels of rainfall and water level conditions,based on the threshold.

PRAB will be improving its website capability through two new elements.The ﬁrst is to develop a more informative and public user base interface. Simple web display and accurate information for rainfall and water level data are carefully developed.

The second element is to include an early flood warning bulletin containing a 7-day flood forecast to agencies and a 2-day flood forecast to the public.This information will be displayed in interactive ways,combining location maps of stations and locations of forecast flooding. Other than the Public Infobanjir website,other tools for disseminating flood forecastinformation include Facebook,Twitter,mobile apps, email,WhatApps and control flood sirens.

IMPLEMENTATION

The PRAB programme, divided into Phase 1 and Phase 2, will be implemented over 10 years,from 2015 to 2025.Phase 1 has been implemented for 3 major river basins: Sungai Kelantan,SungaiTerengganu and Sungai Pahang.

Phase 2, started in 2018, is expected to be completed by 2025.It will involve ﬂood forecasting models and setting up new hydrological monitoring stations in 38 river basins in the peninsula,Sabah and Sarawak.

Figure 4: PRAB coverage area for 41 river basins

Figure 3: Example of 7-day river level forecast simulation result

TRANSFORMATION AND ADVANCED TECHNOLOGY

The PRAB programme has targeted to adopt and transform theﬂoodforecastandwarningsystemtobemoreadvanced and to provide signiﬁcant impact to the public.There are four elements in the transformation plan:

1. Early flood forecast duration. The system will improve the advance flood forecast from 1 day to 7 days.The use of Numerical Weather Prediction (NWP) data from Weather Research & Forecasting (WRF) Model data will provide a 7-day rainfall forecast as input parameters to the flood model.

2. Early flood warning duration. The system will improve the advance flood warning from 6 hours to 2 days.The WRF model data will provide a 2-day rainfall forecast and the flood model will simulate 2 days in advance the flooding area.The accuracy of forecast simulation will be improved through continuous checking with observed rainfall and water level data.

3. Enhanced ﬂood warning database system. The database system is a key component of PRAB as all componentswillintegratewiththeForecastDataCentre Servers System as the central database system.The FDC will operate 24/7 to house data from more than 2,000 hydrological stations,data from multiple agencies,NWP and radar data,ﬂood modelling output,real-time CCTV and dissemination modules such as intelligent siren and public portals.

4. Wider coverage for ﬂood warning dissemination. Problems with communication coverage will limit the dissemination of warning to people in remote areas. The existing system, which can only forecast results at dedicated water level stations, will be improved to simulate the forecast level along the river and ﬂoodprone areas using the 2D analysis method.

ISSUES AND CHALLENGES

PRAB began in an ad-hoc manner, in reaction to the severe ﬂooding in 2014. The implementation of an advanced modelling system is crucial and requires a high commitment from the client,consultant,contractor and all related agencies.There are some issues and challenges.

1. One of the challenges is to have locally-made products using local material and innovation by local experts. Almost 50% of hydrological instrumentation, such as hydrological sensors, are imported. The difﬁculty in promoting and marketing the product to the restricted number of local customers, limits the efforts of local manufacturers.

2. PRAB has been using a flood forecast model developed in the United Kingdom.Allocating a certain amount of financial resources for licensing and technical supports will incur significant accumulated losses in the long run. However, it is also very challenging to develop our own flood model as, according to the existing model developer,this requires a lot of expertise and a very long

period of development (20-40 years).

3. Flash floods occur almost every month and happen over very short periods of time (1-6 hours).The impacted areasarealsorelativelysmall.However,thesituationcan be detrimental when it occurs in urban areas such as Penang and Kuala Lumpur.Therefore,an early warning system for flash floods is required and for this, the state of the art technology using radar and satellite can be explored.

4. There is a need to monitor how ﬂood alert messages are disseminated to the targeted people as well as the public’s ability to understand, react and share such alerts.The current delivery system needs to be improved to represent a proper stakeholder engagement which willhelptobetterunderstandthesituationandtodeliver a more dedicated type of information.

THE WAY FORWARD

The implementation of PRAB is in line with the United Nation’s Vision 2030 for the world, under Agenda 2030 of theSustainableDevelopmentGoalsNo.3andNo.11,which is to promote good health and well-being for the peoples and sustainable cities and communities.

PRAB will continue to be developed under the 12th Malaysia Plan, focusing on 38 river basins. It will be an important tool to reduce vulnerabilities and ﬂooding. It will contribute to national sustainable development and is an important ingredient for the future development strategy where Malaysians need to embrace the concept of“Living With Flood”.

Preparedness and the response action of the National Disaster Management authorities are highly dependent on the availability of accurate and timely ﬂood forecasting and timely dissemination to authorities responsible for civil protection and the general public.

Towards the new National Vision 2030: Shared Prosperity, four new ﬁelds will be explored and strategised: Re-Engineering, Big Data Analytics & Machine Learning, Impact Based Forecast and Flash Flood Forecast for rivers and urban areas.

In order to pursue these,service partnership and close cooperation with universities, research agencies and international bodies will be widened and strengthened. Innovative and creative solutions, with practical strategies, areimportanttobringMalaysiatothestatusofadeveloped country.

Authors’ Biodata

Ir. Sazali Osman is Senior Principal Assistant Director, National Flood Forecasting & Warning Centre, DID Malaysia.

Abdul Haﬁz Mohammad is Senior Assistant Director, National Flood Forecasting & Warning Centre, DID Malaysia.

Y.Bhg. Dato’ Ir. Hj. Mohd. Azmi bin Ismail is Director of Water Resources Management & Hydrology Division,Department of Irrigation & Drainage (DID), Malaysia.

BIOMEDICAL ENGINEERING, A CAREER PATH WITH A BRIGHT FUTURE

by Ir. Shamila Ariaratnam

On 14 December 2019,30 participants from various engineering disciplines attended a talk titled Biomedical Engineering, a Science, Technology, Engineering & Mathematics (STEM) career path with a bright future.

Held at Auditorium Tan Sri Chin Fung Kee,Wisma IEM, the talk was conducted by Ir.Amirah Abdul Rahman from the Ministry of Health Malaysia.

STEM is used when addressing education policies and curriculum choices in schools to improve competitiveness in science and technology development.The government has been encouraging STEM even in primary schools as it has implications on workforce development, national security concerns and immigration policies. Starting this year, the Ministry of Education has introduced STEM packages for Form Four students to choose from.

Biomedical Engineering is one of the ﬁelds of study that starts with STEM. It is the application of engineering

principles and design concepts to medicine and biology for healthcare purposes.The role of biomedical engineers is wide, especially with emerging ﬁelds such as artiﬁcial intelligence (bioinformatics), robotics, nanotechnology (biomedical sensors), medical devices, biomechanics, tissue engineering,medical imaging and prosthetics and orthotics.

According to an Espicom, Association of Malaysian Medical Industries (AMMI) analysis, the global medical device market has seen a 7.5% compound annual growth rate from 2013 to 2018, with a total export value of RM11.317 billion (2017) for the medical device market in Malaysia. On the other hand, the import value for the same year was RM6.268 billion.

Biomedical engineers can work in research and development activities focusing on next generation products, innovation of new products and strategic planning,identiﬁcation and recognising areas of medicine with signiﬁcant problems in need of technological solutions or entrepreneurship. Moreover, the healthcare facility landscape is alsoevolvingfromgeneralhospitals to specialised primary, secondary and tertiary care centres. Therefore, the role of biomedical engineers varies with the demographic of patients seen in different facilities. Additionally, if they are to join medical technology providers,their function will need to follow the equipment cycle that they are in, either sales, installation, testing and commissioning, repairs, periodical maintenance, application or after sales support.

Participants at the talk

To complement such diverse roles, biomedical engineers need to be equipped with necessary skills to take on these challenging tasks and responsibilities.The concluding slides touched on the acts and certiﬁcations related to the Biomedical Engineering ﬁeld such as Medical Device Act & Regulation, Private Healthcare Facility & Services Act, Malaysian Society for Quality in Health and Joint Commission International standards.

CONGRATULATIONS

Congratulations to Y.Bhg. Dato’ Ir. Prof. Dr Mohd Saleh Jaafar on his appointment as Ketua Pengarah Pendidikan Tinggi by Jabatan Pendidikan Tinggi.

Congratulations to Y.Bhg. Dato’ Ir. Hj. Nor Hisham bin Mohd Ghazali on his appointment as Ketua Pengarah, Pengairan dan Saliran Malaysia by Jabatan Pengairan dan Saliran Malaysia.

Congratulations to Y.Bhg. Dato’ Ir. Hj Mohd. Azmi bin Ismail on his appointment as Timbalan Ketua Pengarah, Sektor Bisnes by Jabatan Pengairan dan Saliran Malaysia.

Ir. Sharmila presenting a token of appreciation Ir. Amirah (left)

UNDERGROUND TUNNELLING IN THE KLANG VALLEY AND THE PURSUIT OF AN AUTONOMOUS TUNNEL BORING MACHINE

by Dr Boon Chia Weng

TheTunnelling & Underground SpaceTechnical Division (TUSTD) organised a technical talk on Underground Tunnelling in the Klang Valley and The Pursuit of an Autonomous Tunnel Boring Machine at the Malakoff Auditorium,Wisma IEM on 19 December 2019.A total of 60 participants attended.

Ir. Nanthakumar, the Technical Director of AECOM, presented the general scope of design works on the KVMRT Project, i.e. Sungai-Buloh Serdang Putrajaya (SSP) Line Underground Works Package,which consisted of 13.5 kms of underground tunnels and the construction of 10 new underground stations.

The alignment intersected with the 1st MRT line,i.e.the Sungai Buloh-Kajang (SBK) Line at Tun Razak Exchange (TRX)Station.Thedesignmanagementstructureconsisted of a lead design consultant and several detailed design

consultants as well as a design-and-technical team from the main contractor.

According to Ir. Nanthakumar, there were many design aspects to consider in the underground works package project, such as safety, constructability, durability, maintainability, environmental, aesthetics, line identity, station planning and architecture,some of which include interfacing with transit-oriented developments.

He talked about the different geologies with regards to the construction method adopted for each station, as well as their respective tunnel interfacing sequences,such as launching, retrieval and pull-through or bore-through. He also highlighted the various risks associated with tunnelling before ending his part of the talk.

Then Mr. Justin Chin, Acting General Manager of MMC-Gamuda KVMRT (T) Sdn. Bhd. and Project Lead

Dr Boon Chia Weng (left), presenting tokens of appreciation to the three speakers, Ir. Nanthakumar, Mr. Justin Chin and Mr. John Lim (left to right)

HAT-TYPE STEEL SHEET PILE

TECHNOLOGY FOR IMPROVEMENT OF CONSTRUCTION PRODUCTIVITY

by Ir. Chong Chee Meng

The Civil & Structural Engineering Technical Division (CSETD) organised an evening talk titled Hat-type Steel Sheet Pile Technology For Improvement Of Construction Productivity in Malaysia. The speaker was Dr Kazutaka Otsushi, a senior manager with Nippon Steel Southeast Asia Pte. Ltd. and the talk was held on 14 November 2019 at Malakoff Auditorium,Wisma IEM.

Dr Kazutaka is in charge of research and development, market development in ASEAN and technical support of steel sheet pile technology, design and construction in Singapore.He divided his talk into 5 sections:

1. ConceptofreductionfactorforERSSdesigninMSENcode

2. Introduction of hat-type steel sheet pile

3. Actual scale ﬁeld test in ASEAN to verify the validity of reduction factor

4. Hat-type sheet pile as development technology and track records of hat-type sheet pile. Insection1,hetalkedaboutthereductionfactorsrequired by the Eurocode 3 for ‘U’ type sheet pile due to interlock slippage.Hat-type sheet pile doesn’t require any reduction factors.

Section 2 was about the advantages of hat-type sheet pile and the installation method. The advantages are reduction of number of sheet pile, shortening of construction period,reduction in the number of interlocks and higher water tightness performance.

Dr Kazutaka explained that horizontal loading test is carried out at ﬁeld to verify the reduction factor and FEM (Finite Element Method which refers mostly to complex mathematical procedures used in an application solver) analysis is carried out to verify the ﬁeld test result.After that he shared some project references with the audience.

At the end of the talk,Dr Kazutaka answered questions raised by the audience in greater detail.CSETD chairman Ir. Chong then presented a token of appreciation to Dr Kazutaka.

UPCOMING ACTIVITIES

2-Day Course on “A Comparative study of Project Management Approaches”

Date:7-8 April2020 (Tuesdayto Wednesday)

Time:9.00a.m. –5.00p.m.

Venue:WismaIEM

ApprovedCPD:13.5

Speaker:Mr. RobertGan

Ir. Chong presenting a token of appreciation to Dr Kazutaka

THE WAY FORWARD FOR SMI/SMES IN INDUSTRY 4.0

PART 2: CURRENT CHALLENGES IN INDUSTRY 4.0 ECOSYSTEM

by Assoc. Prof.Ts. Dr Lee Wah Pheng

Part 2 of joint project by Urban Engineering Development (UEDSIG) and Mechanical EngineeringTechnicalDivision.

Building the Industry 4.0 ecosystem is a huge challenge because of the scale and complexity of converged networks and joint developments in the platforms provided by the different service providers. Hence, a standard reference architecture model seems essential. This model, known as RAMI 4.0 (Reference Architecture Model Industrie 4.0, Figure 1), was proposed by Germany Plattform Industrie 4.0 in June 2015[1]

infrastructure for interconnectivity in the Industry 4.0 ecosystem.Without this standard reference, they will be unable to integrate different systems, even within the same infrastructure and bigger investments may be required to overcome integration challenges through customisation.

RAMI 4.0 is a three-dimensional map with three axis – life-cycle value stream axis, hierarchy levels axis and architecture layers axis – to cater for product, production and business needs, respectively. This is the model for manufacturers to build profitable and sustainable manufacturing. However, the technologically know-how and investment to build the Industry 4.0 infrastructure compliance to RAMI 4.0 may be too high and nearly impossible for manufacturers themselves to do it alone. The government, technology companies, trade unions and academia are required to work together based on the reference architecture and structural model proposed by the Plattform Industrie 4.0[2]

The adoption of RAMI 4.0 allows all stakeholders such as enterprises, system integrators, network designers, software and hardware developers to have the same standard reference architecture on which to build the

The objective of hierarchy levels axis is to achieve vertical integration from the shop floor to top floor through manufacturing automation, mainly for production needs. It is the most established axis after the five levels Purdue Enterprise Reference Architecture (PERA) model proposed by Prof. Theodore J. Williams[3] in 1992. This model can be used to assist in manufacturing planning, reporting, materials handling and information gathering.

Figure 1: RAMI 4.0, proposed by Plattform Industrie 4.0

Industrie 4.0 ZVEI

Since then,many German and other Europe-based companies such as Siemens, MPDV and SAP had started to develop the systems and solutions based on PERA model which included PLC, SCADA, MES and ERP for control device,station,work centres and enterprise levels in PERA, respectively.

As a result, IoT, advanced robotic, smart sensor, edge and cloud computing were established. RAMI 4.0 added 2 more levels, namely product and connected world in the hierarchy levels axis, to make it 7 levels.

The systems and solutions for hierarchy levels are very matured now but it has two challenges in interoperability and autonomy (sovereignty) among the proprietary systems and solutions provided by the large manufacturing automation providers[4]. The interoperability and autonomy also attracted the attention of Plattform Industrie 4.0 and set it as two of the three guidelines for ecosystem in the paper, 2030 Vision for Industrie 4.0, published by the German Federal Ministry for Economic Affairs and Energy in October 2019[5] .

The life-cycle value stream axis is important for traceability to increase product value throughout its life-cycle to achieve four important objectives: Fastintroductiontomarket,increasegrowthrate,prolongthematurityandslow down the decline of product value in the market.It is also very useful for lean manufacturing to eliminate delay,waste and non-value adding processes.

Current systems such as product life-cycle management and supply chain management are very useful in manufacturing operations but they have challenges in autonomy,sustainability,non-unique and redundancy issues between the stakeholders, especially in the distributed manufacturing chain with many different SMI/SMEs.

Sustainability is the third guideline for ecosystem in 2030 Vision for Industrie 4.0[5]. Both hierarchy levels and life-cycle value stream axis are SMI/SME centric and are focused on production and product needs.They do not manage the business needs of many interrelated SMI/SMEs in the supply chain.

Sohowdoweovercomethislimitation?Thesolutionisinthearchitecture layers axis which caters to business needs,particularly business operation to ensure interoperability, autonomy and sustainability in between SMI/ SMEs in the whole Industry 4.0 ecosystem. However, the architecture layers axis is the least understood and is sometimes mistaken to be the hierarchy levels axis. Furthermore, the objective of each layer is not clearly deﬁned and there’s absence of affordable solutions for SMI/SMEs, particularly in the distributed manufacturing chain.

In order to implement an affordable Industry 4.0 for SMI/SMEs in the supply chain and build its ecosystem together, a new framework and connectivity standard need to be deﬁned and developed for each layer in the architecture layers axis.[to be continued…]

REFERENCES

[1] Dr.-Ing, Peter Adolphs, “RAMI 4.0 – An architecture Model for Industrie 4.0”, Plattform Industrie 4.0, Berlin, 18 June 2015

[2] https://www.plattform-i40.de/PI40/Redaktion/EN/Standardartikel/plattform-background.html

[3] Theodor J. Williams, “The Purdue Enterprise Reference Architecture: a technical guide for CIM planning and implementation”, ResearchTriangle Park, NC: Instrument Society ofAmerica, 1992

[4] SAPNewsCentre,“OpenIndustry4.0Alliance:AnOpenEcosystemfortheDigitalTransformation of Industrial Manufacturing Plants” SAP, 2April 2019

[5] Plattform Industrie 4.0, “2030 Vision for Industrie 4.0: Shaping Digital Ecosystems Globally”, Federal Ministry for EconomicAffairs and Energy (BMWi), October 2019.

Nehemiah Prestress

1140945-A

Nehemiah-OVM provides the following products and services:

- Post-tensioning solution provider

- Carpark Flat Slab

- Transfer Plate

- Beams, Box Girders

- Alternative design solutions

- Cable systems (stay cable, main cable, hanger)

- Bridge bearing and expansion joint

- Construction solutions (heavy lifting, ILM, etc)

- Monitoring, repairing and strengthening for structures

Head Office

Nehemiah Prestress Sdn Bhd 1140945-A

No. 45-3, Jalan PJU 5/20

The Strand, Kota Damansara

47810 Petaling Jaya

Selangor Darul Ehsan

Malaysia

Tel: (603) 6142 6638

Fax: (603) 6142 6693

Email: enquiry@nehemiahpt.com

Certified by the European Organization for Technical Approval

IEM MELAKA TECHNICAL VISIT TO KOTA KINABALU

IEM Melaka Branch organised a four-day technical visit to Kota Kinabalu, Sabah on 21-24 November 2019.The 12 participants were not only from Melaka but also from all over the country.

On Friday morning, 22 November, the group made a technical site visit to Sungai Moyog Flood Mitigation Project (RTB Sg. Moyog). This is a Federal Government-funded project, implemented by the Department of Irrigation & Drainage (DID) through DID Sabah’s supervision team headed by its engineer-in-charge,Ir.Choo KhimTze @ Irene Choo.After a project brieﬁng,we went on the site tour.

In the afternoon,we visited the Danish Hydraulic Institute (DHI) Environment & Water Sdn. Bhd., an international environmentandwaterconsultantspecialisinginnumerical modelling and simulation of water-related engineering solutions.

Its Technical Director gave us an overview of the company’s setup and specialisations, followed by a knowledge sharing session. Two case studies, a coastal development project and a river basin water balance related project,were presented and discussed.

We then returned to the hotel for a short rest before dinner.For many of us,this would be the ﬁrst time we were having a taste of local Kadazan-Dusun cuisine. It was an eye-opener.We also watched live dance performances and some of us joined in the traditional bamboo dance. The evening ended on a fabulous note with lots of exotic food, an entertaining live show and excellent fellowship.

On Saturday morning, we headed for Kampung Tempasak, Penampang where we were welcomed by Cik Liyana of Forever Sabah. Payment For Ecosystem Services (PES) is a pilot project undertaken by Forever Sabah to manage the Babagon water catchment through collaboration among stakeholders.

The project is divided into 2 phases. Phase 1 (2017-2018): Readiness Building Capacity

for Piloting Payment Ecosystem Services (PES) Scheme for Ecosystem Services in 3,000 hectares of Babagon watershed which is the biggest dam in Sabah.

Phase 2 (2018-2020): Developing and piloting Payment Ecosystem Services (PES) Scheme for Water Catchment Conservation in Sabah.

We visited Kg.Tempasak Penampang, one of the three project sites which was surrounded by forest. We took a boat ride from Babagon Dam and made a brief hike up the hill to view the Gravity Fed System Local Water Supply. We were then briefed on plans to construct a mini hydro.

Then we visited Tagal Hut to ﬁnd out more about Tagal Law in maintaining the sustainability and economic development of their river.For lunch at the village,we were served more local food.We also managed to take a dip in the clean and clear river which ﬂowed through the village.

In the evening was the ﬁnal, formal event, IEM Sabah’s 43rd Annual Dinner in Hakka Hall, Tanjung Lipat, Kota Kinabalu.The theme was Industrial Revolution, IR4.0. It was a wonderful night of sumptuous food,awards presentation, magniﬁcentshows&entertainmentandluckydraws.Kudos to IEM Sabah for yet another year of achievements.

by Ir. William Ho Ir. Sreedaran Raman

At IEM Sabah’s 43rd Annual Dinner

TECHNICAL VISIT TO FAVELLE FAVCO CRANES

by Ir. Dr Oh Seong

The Institution of Engineers Malaysia, Negeri Sembilan Branch (IEMNS) organised a technical visit to Favelle Favco Cranes (M) Bhd.at Senawang Industrial Park on 14 November 2019.

Led by Ir. Dr Oh Seong Por, the chairman of IEMNS, a group of 26 participants arrived at Favelle Favco and were welcomed by its engineering manager,Mr.Teo Han Fui.

The factory occupies a land size of 68,846 sq metres, with a built-up area of 16,986 sq m. It manufactures tailormade cranes such as construction tower cranes, offshore cranes,wharf cranes and wind turbine construction cranes.

Mr.Teo gave us a brief explanation of the crane design ﬂow.

Step 1: Client specifications are reviewed and design parameters such as lifting capacity (weight),distance and speed are identified. In addition, environment influences such as wind speed or wavelength are also considered. Next is the type of mounting for crane – moveable wheel, track, platform or supporting column. Safety requirements related to fire or explosion are also studied.

Step 2: Engineering analysis on the crane to determine load chart, component sizing, and winch selection is performed using free body diagram techniques and stress calculation in accordance to API 2C or AISC standards. Computer-generated ﬁnite element analysis is applied to study the high-stress location.

Step 3: Designing the mechanical and electrical system. Mechanical design determines the size of the winch, wire rope,engine,gearbox and hydraulic devices such as motor, pump and actuator. Detailed drawings of these parts are prepared for fabrication or component selection. Electrical design is aimed at establishing the power distribution from the client to the crane. This involves identifying the appropriate motor (AC and DC) capacity, air conditioning unitandlighting.Thecontrolsystemandsafeloadindicators of the crane are also ﬁnalised at this stage.

Step 4: The ﬁnalised design is submitted to the client for review and response for comment.If necessary,a 3rd party is engaged to verify and endorse the design.

Step 5: The endorsed crane design is handed over to

the production ﬂoor where various machines such as lathe machine, ﬂange cutter, rolling machine, laser cutter and welding machine are used to fabricate components which are then assembled together with standard purchased parts to produce the crane.

Step 6: Testing of the crane. The completed crane needs to be tested to verify its intended design functions, namely lifting capacity and lifting speed. Testing is performed at the testing yard. The Favelle Favco testing yard can handle 8 test units of crane simultaneously.

It has an in-house training centre equipped with hydraulic test kits and a crane simulator which provides a virtual training ground similar to the real situation for trainees to learn to control the crane. Our group had a wonderful experience trying the hydraulic test kits and operating the crane simulator. Overall, we spent 4 hours at Favelle Favco Cranes (M) Bhd. and posed for a group photograph with Mr. Teo before departing. Dr Oh also thanked Mr.Teo and presented him with a souvenir.

Por

Participants posing for a group photograph at the site

Participants trying their hand at operating the crane simulator (left) and the hydraulic test kits (right)

NANOSATELLITE UiTMSAT-2 MISSION IDEA SYMPOSIUM

by Nor Shazwaney

Atiqah binti Ibrahim

Fourteen members of IEM@FKE student section, UiTM Shah Alam, visited Kyushu Institute of Technology Kyushu (Kyutech) in Japan on 21-26 January 2019. They were led by Assoc. Prof. Ir. Dr Mohamad Huzaimy Jusoh,Director of UiTM Centre for Satellite Communication under the programme, Nanosatellite UiTMSAT-2 Mission Idea Symposium:An International Mobility Program (IMP) to Kyutech,Japan.

The aim was to enhance the students’ skills and involvement in practical projects by providing them with a platform for sharing their ideas. The UiTM Space Crew had already launched and deployed Malaysia’s ﬁrst nanosatellite, UiTMSAT-1, from International Space Station (ISS) into space on 29 June and 10 August 2018. Subsequently, this programme led to the development of nanosatellite project UiTMSAT-2, a continuous encouragement for students to be involved in high-tech critical thinking projects.

The students had prepared four missions for this programme: Automatic Identification System (AIS),

Store & Forward (S&F), Earth Storm Detector (EDS) and Satellite Camera.

AIS is an automatic tracking system for locating the whereabouts of sea-going vessels. It can capture and store at least 89% of AIS messages from ships anywhere in the world and then transmit these to ground stations for tracking the location of the vessels.

S&F allows the collecting of data in certain areas periodically and these are sent to ground control for analysis.The data is then used to monitor (rising) water levels as well as predict and alert ﬂooding,especially in rural areas along the east coast of the peninsula.

EDS is used to detect stormy weather and to provide alerts as a defensive step against natural disasters.

Lastly,the Satellite Camera enables the capturing of wider images from space,especially of places that may otherwise be inaccessible. Important images include that of illegal logging activities deep inside the jungle and of areas that may have lost connection due to natural disasters.

From left: Hasif Azami, Adizul Ahmad and Assoc. Prof. Ir. Dr Mohamad Huzaimy Jusoh with the students

The Institution of Engineers, Malaysia

IEM 61st Annual Dinner and Awards Night 2020 Programme Book IEM

Book Size: 210mm(W) x 285mm(H). Please provide extra 6mm for bleed area on all 4 sides

Printing Specifications : 230gsm art card (Cover), 105gsm art paper (Text), 4C + 4C, Staple binding, UV varnish on Cover

Quantity: 1,200 copies

Advertisement Format : High resolution PDF file, with crop marks, bleed area, text being outlined

Deadlines : : 20 March 2020 (Fri) (Ad Booking) 27 March 2020 (Fri) (Artwork Submission)

Run-On-Page (ROP)1,900

Double Page Spread (DPS)4,500

Remarks:

• Space availability is subject to booking on first-come-first-served basis

• Prices shown above exclude 15% Advertising Agency commission

• Please note that the above prices will be subjected to SST

• Any cancellation after signing the Advertising Contract will result in a 50% penalty charge

• Payment term: 14 days upon invoicing

Name of Company:

Company Stamp & Authorized Signature:

Date:

Contact Person(s):

Email Address:

Company logo will appear in the Acknowledgement Page in both IEM Dinner Programme Book and JURUTERA May 2020

For advertising enquiries, please contact:

+603 7493 1049 Fax: +603 7493 1047 Email: info@dimensionpublishing.com www.dimensionpublishing.com

Subscribe to IEM’s Publications Now!

Yes! I would like to be a subscriber of The Institution of Engineers, Malaysia’s publications

Name: _________________________________________________________________________________________________________

Mailing Address:_________________________________________________________________________________________________

Country: ________________________

Company/Institution:______________________________________________________________________________________________

Title: ____________________________________________________________________________________________________

Telephone No: _________________________ Fax: _________________________ Email: _________________________________

Please commence my subscription from: _________________________(month/year) Signature: _______________________________

To start your subscription of IEM’s publications, complete this form and mail it back to the address below. For faster processing, fax it to: +603 7493 1047. Thank you.

What is your primary job title?

Corporate Management (including chairman, president, proprietor, partner, director, vice president, general manager, division manager, import/exportmanager,othercorporatetitle)

Management (including project/contract/equipment/service/transport districtmanager,clerkofworks,othertechnicaloroperatingmanager)

Engineering/Design (including chief engineer, chief designer, civil/ highway/mechanical/planningengineer,otherengineering/designtitle)

Buying/Purchasing (including chief buyer, buyer, purchasing officer, otherbuying/purchasingtitle)

Titles allied to the field (architect, consultant, surveyor, research and development professor, lecturer, supervisor, superintendent, inspector orotheralliedtitle)

Others(pleasespecify)____________________________

What type of organisation do you work in? (Tick one box only)

Contractor

Sub-contractorspecialist

Designandbuildcontractor

Consultingengineering/architectural/quantitysurveyingpractice

Mining/quarrying/aggregateproductioncompany

Petroleumproducer

International/nationalauthorities

National/regional/localgovernment

Publicutilities(electricity,gas,water,deckandharbour,other)

Manufacturer

Distributor/importer/agent

Constructiondepartmentoflargeindustrial/Commercialconcern

Association/educationestablishment/research

Constructionequipmenthire/rentalcompany

Project/constructionmanagementconsultancy

Others(pleasespecify)_______________________________

What are the main activities of your organisation? (Tick all that apply)

Constructionsof: Manufacturerof:

Roads/bridges Constructionequipment

Dams/reservoirs/irrigation Cement

Harbours/offshore structures Other construction materials

Foundations/tunnels Distribution

Pipelines/refineries Construction equipment

Structures/steelwork Constructionmaterials

Building(commercial,industrial) Hire/rentalofconstructionequipment

Housing Design

Constructionmanagement Earth-moving/opencastmining

Deepmining Aggregateproduction

Others(Pleasespecify)_________________________________________

Rate (Please tick)

RM360.00 -12issuesofJURUTERA

RM84.00 -2issuesIEMJournal(Half-yearly)

Terms and Conditions:

1) Thesubscriptionistobeprepaid.

2) Pleasemakechequepayableto Dimension Publishing Sdn. Bhd.

3) Subscriptionsarenotrefundable.

4) Magazine/swillbesenttothemailingaddressgiven.

5) Studentsareentitledfora20%discountfromtheabovesubscriptionrate.

6) Students must submit a photocopy of the student identification card together withthepayment.

7) Theaboverateisinclusiveofdeliverychargesandapplicablein Malaysiaonly.

8) Additionaldeliverychargeswillapplytooverseassubscribers.

For subscription enquiries, please contact +603-7493 1049 or email to info@dimensionpublishing.com

MARRED BEAUTY OF DAL LAKE, KASHMIR

My wife and I ﬂew into Amritsar in early September 2018 and took the overnight sleeper bus for a 200km trip to Jammu, Kashmir, and then a Chevrolet MPV for the scenic 270km journey along winding mountain roads to the high Himalayan mountains of Kashmir Valley.

We took a shikara (row boat) over the tranquil, mirror-like Dal Lake to a wooden houseboat, our lodging for the week. Motorised boats are not allowed on the lake.

A tourist attraction, Dal Lake has been called Lake Of Flowers and Jewel In The Crown Of Kashmir.Along its 15km shoreline, Emperor Jahangir built Shalimar Bagh and Nishat Bagh, two grand Mughal-style gardens with scenic views of the beautiful lake.

Alas, Dal Lake is heavily polluted today! If efforts to arrest the degradation of the lake fail, it will jeopardise the boathouse tourism industry.

The lake once covered an area of 75 sq kms but has shrunk to 12 sq kms in the last two decades.Its depth is also down by nearly 12m.Dissolved oxygen levels are down from 10.2 mg/litre to 6.8 mg/litre (a level below 5mg/litre will cause stress to ﬁsh).

While ﬁngers are pointed at the current 1,200 boathouses, the actual source of pollution lies from the estimated 50,000 population along the shoreline and islands as well as Srinagar city. Houseboats are responsible for just three per cent of the pollution. In 2017, according to Srinagar’s Lakes & Waterways Development Authorities (LWDA), 50 MLD of sewage are discharged daily into the lake, of which 20 million litres are untreated.

To make things worse, 15 major drains discharge into the lake while agriculture and farming in the area means an overland ﬂow of pesticide, fertiliser and waste into the lake.LWDA also estimates that nearly 80,000 tonnes of silt,31,000 kg of nitrates and 4,000 kg of phosphates are added annually to the lake.

Kashmir’s turbulent political situation does not help, with only 435 of 6,000 families living in the lake area being rehabilitated. Attempts to relocate all the houseboats to one location for ease of infrastructure and facilities have failed. Since 1971, restoration plans include proposing a buffer of 200m and demolition notices to 300 hotels, restaurants,

ofﬁces and residences. In May 2019, the government stopped further registration of houseboats.

As for the houseboats, prototype innovative floating bio-digesters have been installed to treat sewage, with biogas being generated for cooking purposes. Inevitably, large ﬁnancing with implementation and enforcement of development and planning needs to be carried out.

The window of our 2-room houseboat looked out on the lake. Moored away from the busy, noisy shoreline meant a quiet and peaceful stay.

From the verandah, the long chain of houseboats set against the backdrop of the hills,was picturesque. We watched activities on the lake while lounging on the front verandah of the boat.

We had hot water, comfortable beddings and carpeted ﬂoors. Heaters were available only in winter and during our stay, the ceiling fan proved cooling both in the day and at night.

In a shikara row boat. Motorised boats are not allowed on the lake

Heavy vegetation growth will lead to eutrophication

Houseboats mirrored on the still surface of the lake

A Vice President in IEM, Ir. Ellias has over 35 years’ experience as a specialist consultant in Civil Engineering infrastructure for development, water resource, water conservation, environmental engineering and water quality. Ir. Ellias bin Saidin

Kepada Semua Ahli,

SENARAI

TEMUDUGA pROFESIONAL

Tarikh: 9 Februari 2020

CALON-CALON YANG LAYAK MENDUDUKI TEMUDUGA PROFESIONAL TAHUN 2020

Berikut adalah senarai calon yang layak untuk menduduki Temuduga Profesional bagi tahun 2020.

Mengikut Undang-Undang Kecil IEM, Seksyen 3.8, nama-nama seperti tersenarai berikut diterbitkan sebagai calon-calon yang layak untuk menjadi Ahli Institusi, dengan syarat bahawa mereka lulus Temuduga Profesional tahun 2019.

Sekiranya terdapat Ahli Korporat yang mempunyai bantahan terhadap mana-mana calon yang didapati tidak sesuai untuk menduduki Temuduga Profesional, surat bantahan boleh dikemukakan kepada Setiausaha Kehormat, IEM. Surat bantahan hendaklah dikemukakan sebulan dari tarikh penerbitan dikeluarkan.

Ir. Mohd Khir bin Muhammad FIEM, PEng Setiausaha Kehormat, IEM

PERMOHONAN BARU NamaKelayakan

KEJURUTERAAN AWAM

AZERAI BINALI RAHMANBE HONS (UiTM) (CIVIL, 2005)

KEJURUTERAAN ELEKTRONIK

CHOO CHEE WEEBE HONS (MMU) (ELECTRONICS MAJORING IN ROBOTICSAND AUTOMATION, 2006) ME (UMS) (ELECTRICAL& ELECTRONICS, 2011) PhD (UMS) (ELECTRICAL& ELECTRONIC, 2018)

KEJURUTERAAN MEKATRONIK

NASRULANUAR BINABD RAZAK BE HONS (IIUM) (MECHATRONICS, 2009)

PERMOHONAN BARU / PERPINDAHAN MENJADI AHLI KORPORAT NamaKelayakan

KEJURUTERAAN AWAM

HANIZAH BINTIARGADAN BE HONS (MALAYA) (CIVIL, 1999) ME (UTM) (CIVIL-STRUCTURE, 2007)

NORAIDAH BINTI YAHYA BE HONS (MALAYA) (CIVIL, 1999) ME (UTM) (CIVIL-STRUCTURE, 2007)

PERPINDAHAN AHLI

No. Ahli NamaKelayakan

KEJURUTERAAN AWAM

93542 CHIAYING SIM ME HONS (LEEDS) (CIVIL& STRUCTURAL, 2011)

KEJURUTERAAN ELEKTRIKAL

91034ANG KUAN SIMBE HONS (NEWCASTLE) (ELECTRICLA, 2016)

70566CHAN WEI-HOWBE HONS (UTAR) (ELECTRICAL& ELECTRONIC, 2014)

87396 LEE YUAN GENG BE HONS (USM) (ELECTRICAL, 2013)

87441 MUTHU KUMARANA/L GUNASEGARAN BE HONS (UNITEN) (ELECTRICALPOWER, 2013) M. Phil (MALAYA) (2016)

KEJURUTERAAN ELEKTRONIK

89532LEE CHER CHIABSc HONS (STATE UNIVERSITY OF NEW YORKAT BUFFALO) (ELECTRICAL, 2002) ME (UTeM) (MANUFACTURING SYSTEM, 2017)

KEJURUTERAAN INDUSTRI

85485SANTHIRAHASAN MUTHUSAMYBSc (PURDUE) (INDUSTRIAL, 2015)

KEJURUTERAAN MEKANIKAL

95971AHMAD MUZAKKIR BINAHMAD TAJUDDIN BE HONS (UTeM) (MECHANICAL-DESIGN & INNOVATION, 2012)

50184SIM SOO CHOONBE HONS (UMS) (MECHANICAL, 2009)

KEJURUTERAAN PEMBUATAN

100847MUHAMMAD FAROUQ BIN MUHAMMAD FAISAL BE HONS (UTeM) (MANUFACTURING (MANUFACTURING PROCESSES), 2008)

PERMOHONAN BARU/PERPINDAHAN MENJADI AHLI KORPORAT No. Ahli NamaKelayakan

KEJURUTERAAN AGRIKULTUR

79046NORHASHILABINTI HASHIM BE HONS (UPM) (BIOLOGY &AGRICULTURAL, 2004) MSc (UPM) (BIO-PRODUCTION MACHINERY, 2008) PhD (UPM) (BIOMECHANICAL, 2013)

KEJURUTERAAN AWAM

47903CHAI KOH SIONGME HONS (THE UNIVERSITY OF NOTTINGHAM) (CIVIL, 2011) PhD (THE UNIVERSITY OF NOTTINGHAM) (2011)

KEJURUTERAAN ELEKTRIKAL

80728MOHAMED ELAZIZI BIN MOHAMEDBE HONS (UiTM) (ELECTRICAL, 2013)

KEJURUTERAAN MEKANIKAL

50216AHMAD DANIALZULHILMI BINAHMAD NAZARI BE (REUTLINGEN UNIVERSITY) (MECHANICAL, 2011)

37490HOO CHOON LIH BE HONS (UKM) (MECHANICAL, 2009) PhD (UKM) (MECHANICAL& MATERIALS, 2016)

Pengumuman yang ke-137

SENARAI PENDERMA KEPADA WISMA DANA BANGUNAN IEM

Institusi mengucapkan terima kasih kepada semua yang telah memberikan sumbangankepadatabungBangunanWismaIEM.Ahli-ahliIEMdanpembacayang ingin memberikan sumbangan boleh berbuat demikian dengan memuat turun borang di laman web IEM http://www.iem.org.my atau menghubungi secretariat di +603-7968 4001 / 5518 untuk maklumat lanjut. Senarai penyumbang untuk bulan Januari 2020 adalah seperti jadual di bawah:

NO. NO. AHLI NAMA

130536MR. MOHD DALIAS BINAWI

271152MR. DURAIMOGANA/LVYRAVANATHAN 312004IR. SURAINI BIN RAMLI 425614MS. NUR SHAZWANI BINTI MUHAMMAD 515141IR. SOFIANABALKHIS BTE TAN SRI DATO' IR. TALHA 632678HJ. WAN SALLEHUDDIN BIN WAN ZAKIUDDIN 737023MR. SHOFI BINAHMAD 813881IR. YENG CHUAN BUU 902659IR. WEE KIM SIANG 1014225IR. MUHAMMADAKHIR BIN OTHMAN 11 26412IR. MOHAMAD FAHMI BIN MAMAT @ MOHAMAD 1224383MR. PANG WEI CHIN 1354313DR ZULKIFLLE BIN LEMAN 1429071MR.AHMAD FUAAD BINAHMAD SABKI 1529101MR.AMIR BIN MUSTAFA 1638039MR. GOH KHENG WEE 1716600MR. TAN KANG CHU 1820314IR. CHENG YEW LEONG 1937019MR. HUSSIEN BIN JUHARI 2022659MR. HABILBIN MD. NOOR 2118707MR. LIM WEI JIN 2213400MR. SEET JEN PING 2309122 IR. TAN SENG THIAN 2424823IR.AHMAD ZUBIR BIN MOHD YUSOF 2520097MR. MOHD FAUZI BIN SHAFIE 2623672MR. LOURDES RAJA/LDHOMNIC 2778457MR. MOHD FAIRUZ BIN MUHAMMAD PILOS 2849978MR. CHONG HOCK SIONG 2961124MS. NOORFAKHRIAH BINTI YAAKUB 3051657MR.ABDULLAH HARIS BIN MARHABAN 3116217MR. MUHAMMADASHRI BIN MUSTAPHA 32105571MR. MUTHUKUMARA/LKALIMUTHU 3366798MR. MOHAMED KHAIRULLAILBIN MOHAMED SALIM

3420197MS. HANI ZAIDABINTI ISMAIL 3539960IR. LOO WAI CHIAN

3617560IR. WONG SU KEN

3713420IR. TEONG CHOO CHEING

3816264MR. NG HOCK SENG

3980584IR. DR JAMALUDDIN BIN MAHMUD

4009646IR. CHAI SIEW KEY

4103438IR. CHEN YONG CHIN @ CHEN YUNG CHING

4241192IR. JAMAIATULLAILAH BINTI MOHD JAIS

4307205IR. LAU KOK LOONG 4441027 MS. SITI RAFIDAH BINTI MOSLIM 4503110IR. KONG KIN PONG 4633877IR. MULIADY BIN CHE HAMAT 4709033PROF. IR. DRAHMAD FADZILBIN HAJI MOHD. HANI 4840010 MR. TERRENCE SELVINA/LABRAHAM PATTU

4979001MR. MOHD IKHWAN BINAHMAD NAWAWI

5002224IR. SELVARATNAM S/O SINNADURAI

5133980MR.ARLEENEANSHAM @ LEE KIM SENG

5227607MR. YEN KIEN MIN

5315357IR. HOO CHEE SIAN

5451276MR. MOHD ILHAM BIN MUKHTAR

5536271IR. HO NYUK SHIONG

5659874MR. TAN WEI KEAT

5770241MR. SOON YU PIN

5809284IR. PROF. DR MOHD. ZAMIN BIN JUMAAT

KEAHLIAN

5901691 DATO' PADUKAIR. HJ. PROF. (DR) KEIZRULABDULLAH @ LIM TEIK KEAT

6044107 MR.AHMADAFZAINIZAM BIN MOKHTAR 6106789IR. MOHD. FAZLI BIN OSMAN

6204325IR. CHIAPIT SHIN, EDWIN 6315184IR. WONG NGIE SING, GEOFFREY 64104113MR. MUHAMMAD JASNI BIN OTHMAN 6545798 MR. SUBRAMANIAMA/LANPUALAGAN 6614947IR. LEE HONG FAH 6771674MS. NORIAH BINTI YUSOFF 68105783MR. HAH KWEE SIN 6925258IR. MOHAMAD FAIZALBIN SANI 7058049DR MOHAMMAD FADHLI BINAHMAD 7124833IR. WANAZHAR BIN SULAIMAN 7280577MR. SURENDRAN KANDASAMY 7328848MR. MOHD SHAHRILSHAH BIN MOHAMAD GHAZALI 7435559MS. SHARIFAH FATIMAH BINTI TUANKU HJ.ABDULLAH 7515881IR. KUMARI NALINIA/P P. SUBRAMANIAM 7608710IR. SYED IDRUS BINABD. RAHMAN 7727139IR. QUEK SWEE JIN 78102444MS. NIK MARNI BINTI NIK MOHAMAD PENA 7918237MR. SIRAJABIN BASHORA 8021275MR. YONG KOK HOONG 8138759MR. OOI JI REH 8228067IR. KHAIRULANWAR BINA. RAZAK 8317018IR. WONG KING SING 8428999MR. NURULHUDABIN ROMLI 8526486MS. HENG LEE SUN 8612051IR. WONG MOK FAR 87106205MR. RIZALMAN BIN DARUS 8841502MR. MUHAMMADAZAHARI BIN MUSTAPHA 8934847MR. SYED FAREED BIN SYED OMAR 9096930EN. FAIZALBIN MAHAMUD 9169488MR. SURIAN BIN RASOL 9204961IR.ASOK KUMAR S/O HARILALHIRAPATEL 9303902 IR.AB. MAJID BINAZIZ 9415805IR. LIM CHENG POH 9510076IR.ABDULRAHMAN BIN MOHAMED 9617568MR. CHAI SHOON LEONG 9731733MR. MOHDAZMI BIN JUSOH 9820293IR. DR ONG CHEE WEE 9987679MR. FAIZULBINABDULWAHAB 10007504IR. CHEO WEE WAH 10142536MR. LIEW SHAN CHIN 10218344IR. DR KAMALNASHARUDDIN BIN MUSTAPHA 10312809IR. DR MOHD SABRI BINABDULLAH 10408741IR. LEE KOKAN 10512755IR. SYEDABU HANIFAH BIN SYEDALWI 10614350 IR.AZHAR BINAHAMAD 10709817IR. HJ. SULAIMAN BIN MOHAMAD TAIB 10820091MR. LEE TIAN SIN 10924312IR. MOHD FARIS BINARIFFIN 110 07943DATO' IR. MUHAMMAD BUSHRO BIN MAT JOHOR 111 08701IR. JOHN SELVIN S/O HENRY SAMUEL

112 19258MR. WONG YANN JEH, STANLEY 113 17003MR. BOON HIN NAN

CONTINUATION OF FEBRUARY ISSUE 2020

PEMINDAHAN KEPADA AHLI ‘COMPANION’ No. Ahli Nama Kelayakan KEJURUTERAAN AWAM

15819BEH CHU CHIPB.E.HONS.(MALAYA)(CIVIL, 1995) 32832MOHD SABRI BIN HUSSINB.E.HONS.(UiTM)(CIVIL, 2009) 28098MUHAMMADASHRAF SHAH BIN ZAINAL ABIDIN SHAH

B.E.HONS.(USM)(CIVIL, 2009) 104175EZANIZAM BIN MAT SOOM

B.E.HONS.(USM)(CIVIL, 2000)

M.E.(UTM)(CIVIL-STRUCTURE, 2014)

PhD.(UTM)(GENERAL, 2018) 103633GOH SSU EE

B.E.HONS.(UNITEN)(CIVIL, 2005) 103634HAFEZUDDIN BIN IDRISB.E.HONS.(UTM)(CIVIL, 2008)

KEJURUTERAAN ELEKTRIKAL

44571EZRI EZANI BINABUB.E.HONS.(UTP)(ELECTRICAL& ELECTRONIC, 2008)

KEJURUTERAAN MEKANIKAL

8917DR NOORDIN BIN MOHD YUSOF

B.E.HONS.(UTM)(MECHANICAL, 1986) M.Sc.(CRANFIELD INST. OF TECH.)(ADV. MANUFACTURING TECHNOLOGY, 1990) PhD.(UTM)(2004)

103635WONG SOONG SENGB.E.HONS.(UNI. OF SUNDERLAND) (MECHANICAL, 1997)

PEMINDAHAN KEPADA AHLI SISWAZAH

No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM

80074 ADAM BINAZIZAN

B.E.HONS.(UNITEN)(CIVIL, 2017)

71065AMIRAH HUSNABT.ABDULHALIMB.E.HONS.(UTP)(CIVIL, 2015)

69336CHAN WAI SIMM.E.HONS.(THE UNI. OF NOTTINGHAM) (CIVIL, 2018)

21683CHIAM KIENG SUENGB.E.HONS.(UTM)(CIVIL, 2005)

96098CHUAKAR KEIB.E.HONS.(UniMAP)(CIVIL, 2018)

63941KOH CHIEW EEB.E.HONS.(UTHM)(CIVIL, 2017) 40542MOHAMAD WAZIR SHAFIQ BIN NORDINB.E.HONS.(UTM)(CIVIL, 2012) 67845 NUR HAZWANI BINTIABDAZIZ B.E.HONS.(UiTM)(CIVILINFRASTRUCTURE, 2016)

72953NUR HIDAYAH BINTI MUHAMAD RAPIENB.E.HONS.(UiTM)(CIVILINSFRASTRUCTURE, 2017)

47479SITI NORASHIKIN BINTI YUSOFFB.E.(UMP)(CIVIL, 2013)

69308SYAHRULSYAZWAN B. SHALBIB.E.HONS.(UiTM)(CIVIL, 2016)

72918TEY JIT MING

B.E.HONS.(UKM)(CIVIL& ENVIRONMENTAL, 2016)

72391WONG WOON KEONGB.E.HONS.(UTP)(CIVIL, 2018)

KEJURUTERAAN ELEKTRIKAL

90296LING JIT SHEN, DOUGLAS

56923 LOKE TJIAN RHU

B.E.HONS.(AIMST UNI.)(ELECTRICAL& ELECTRONIC, 2018)

B.E.HONS.(UMP)(ELECTRICAL-POWER SYSTEM, 2014)

70988ONG KHAI WOEIB.E.HONS.(UTP)(ELECTRICAL& ELECTRONIC, 2018)

76914SIM KAI SHENGB.E.HONS.(USM)(ELECTRICAL, 2018)

36188 YAU JIE YING

B.E.HONS.(UTM)(ELECTRICAL, 2012)

84824 ZAINAZRAAI BINAHMAD RAZLAN B.E.HONS.(UiTM)(ELECTRICAL, 2017)

52796ZULFADHLI BIN SOHOKB.E.(UMP)(ELECTRICAL-POWER SYSTEMS, 2012)

KEJURUTERAAN ELEKTRONIK

27233LIM JUN MINGB.E.HONS.(UTAR)(ELECTRONIC, 2008)

KEJURUTERAAN KIMIA

40122DR NORSUHADAT BINTI NORDIN

69440 KONG YUAN LIN

B.E.HONS.(UTM)(CHEMICAL-GAS, 2011) PhD.(UTM)(GAS ENGINEERING, 2016)

M.E.HONS.(THE UNI. OF NOTTINGHAM) (CHEMICAL, 2017)

22968RAIS MOHD HAZRI BIN MADONB.E.HONS.(UiTM)(CHEMICAL, 2005)

85004TING JUN XIANG,ALVIN B.E.HONS.(UTAR)(CHEMICAL, 2019)

KEJURUTERAAN MEKANIKAL

75412 CHANG YUAN DONG

86944 FAM YU XUAN

B.E.HONS.(NILAI UNI.)(MECHANICAL, 2017)

B.E.HONS.(UTAR)(MECHANICAL, 2018)

67528MOHAMAD SHAHARIN B. OMARB.E.HONS.(UiTM)(MECHANICAL, 2017)

32456 MUHAMADASNAWI BINAMRAN

B.E.HONS.(UiTM)(MECHANICAL, 2010)

87227MUHAMMADAMIRULHAFIZ BIN BOLHASSANB.E.HONS.(SWINBURNE UNI. OF TECH.) (MECHANICAL, 2018)

72679MUHAMMAD FIRDAUS BIN MOHDB.E.HONS.(UKM)(MECHANICAL, 2014)

89805PAVITREN RAVINDRANM.E.HONS.(HERIOT-WATT) (MECHANICAL, 2018)

75223YAP WAI LUN,ALANM.E.HONS.(THE UNI. OF NOTTINGHAM) (MECHANICAL, 2018)

PERMOHONAN MENJADI AHLI SISWAZAH

No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM

103105AHMAD ZUWAIRI BIN ZAINALABIDINB.E.HONS.(UiTM)(CIVIL, 2011)

103097 BOO YEE YING

B.E.HONS.(UTP)(CIVIL, 2018) 104195 CELISTAH BINTI TAMBUR

B.E.HONS.(UiTM)(CIVIL, 2013) 104210CHAI KOK SIONGB.E.HONS.(THE UNI. OF WARWICK) (CIVIL, 1997)

103644 CHAI YUAN WEI

103643CHANG WEI KIAT, KEVIN

B.E.HONS.(UKM)(CIVIL& ENVIRONMENTAL, 2018)

B.E.HONS.(CURTIN UNI. OF TECH.)(CIVIL & CONSTRUCTION, 2016) 103108CHONG CHAN KIATB.E.HONS.(SEGi UNI.)(CIVIL,2013) 103090FAIZULIKMALBIN MOHAMAD NASIRB.E.HONS.(UNISEL)(CIVIL, 2011) 104196HASNITABINTI HIRMANB.E.HONS.(UTM)(CIVIL, 2008) 104201HO SOCK HUIB.E.HONS.(UniMAP)(CIVIL, 2016) 103648HO VERN LOONGB.E.HONS.(MONASH UNI.)(CIVIL, 2018) 103101HOYYENG HON, DOMINIC

B.E.HONS.(MONASH UNI.)(CIVIL, 2018) 104202JOYCE SHAMINI RAJENDRANB.E.HONS.(UTP)(CIVIL, 2016) 104220 KATHRINAABDULLATIF

B.E.HONS.(UPM)(CIVIL, 2005) 103642KONG CHUNG MINGB.E.HONS.(CURTIN UNI. OF TECH.)(CIVIL & CONSTRUCTION, 2016) 103100 LAW YI WEI

B.E.HONS.(CURTIN UNI.)(CIVIL& CONSTRUCTION, 2018)

104189LEE CHAN HSIENB.E.HONS.(UTHM)(CIVIL, 2013) 103655 LEE YONG WEI

M.E.HONS.(THE UNI. OF NOTTINGHAM) (CIVIL, 2018)

KEAHLIAN

103657LIM KHEN KHAI, DICKSONB.E.HONS.(UPM)(CIVIL, 2016) 104181LIM WAYE HONGB.E.HONS.(UTP)(CIVIL, 2017)

104221MAISARAH BINTI JAMALNASIRB.E.HONS.(UTM)(CIVIL, 2018)

103102MOHD NORHAFIZI BINABD RAZAKB.E.HONS.(UTM)(CIVIL, 2018) 103649MUHAMMADASYRAF BIN ZAILUDINB.E.HONS.(UTM)(CIVIL, 2016) 103647MUHAMMAD FARID BIN GHAZALIB.E.HONS.(UniMAP)(CIVIL, 2016) 104206 MUSTAFAMOHAMMEDALIABIDALSAMAQ

B.Sc.(UNI. OF TECHNOLOGY BAGHDAD) (BUILDING & CONSTRUCTION ENGINEERING, 2009)

M.E.(UKM)(CIVIL, 2016) 103095NOORSHAFRI BIN PITAHB.E.HONS.(UTM)(CIVIL, 1999)

103104NUR HIDAYAH BINTI MAHADIB.E.HONS.(UTP)(CIVIL, 2018)

103103NUR LIYANAAFIQAH BINTIABD WAHIDB.E.HONS.(UTP)(CIVIL, 2015) 103652OOT ZHEN RUANB.E.HONS.(MONASH UNI.)(CIVIL, 2018) 104211POH SENG LEONG KEVINB.E.HONS.(UNI. OF LIVERPOOL)(CIVIL, 2016)

M.Sc.(ICL)(ENVIRONMENTAL ENGINEERING & BUSINESS MANAGEMENT, 2017)

104209 PORUMAN BINANDURONG

B.E.HONS.(UTHM)(CIVIL, 2010) 103637PRAKASH KRISHNANB.E.HONS.(UMP)(CIVIL, 2014) 103650TIONG ING HENG, TIMOTHY

B.E.HONS.(UNIVERSITY OF CANTERBURY)(CIVIL, 2015)

103107WAN MOHAMAD SHAHIR BIN WANAMRIB.E.HONS.(UPNM)(CIVIL, 2016) 103092 WONG SHU YAU

B.E.HONS.(IUKL)(CIVIL, 2013) 104218YIP CHEE ZIAHB.E.HONS.(UTAR)(CIVIL, 2019) 103646ZAFIRAH BINTI ZAFARULLAH KHANB.E.HONS.(UiTM)(CIVIL, 2007)

KEJURUTERAAN ELEKTRIKAL

104224 ERWINA/LEDWARD

B.E.HONS.(UNITEN)(ELECTRICAL POWER, 2014)

103636IZHAM BIN MD SATARB.E.HONS.(UNITEN)(ELECTRICAL POWER, 2017)

104217KUEH SWEE NGUAN,AARON

B.E.HONS.(SWINBURNE UNI. OF TECHNOLOGY)(ELECTRICAL& ELECTRONIC, 2015)

103639LEE WAN ZHENB.E.HONS.(UTM)(ELECTRICAL, 2003)

104222MOHAMMAD FARID ZAKWAN BIN MOHAMMAD FADZLI

B.E.HONS.(UiTM)(ELECTRICAL, 2017) 104194MOHD FARIZ BIN DAUDB.E.HONS.(UTP)(ELECTRICAL& ELECTRONICS, 2006)

104215MOHD FAUZI BIN MAHMUDB.E.HONS.(UniKL)(ELECTRICAL, 2018) 104223MOHD ZULFADHLI BINAYOBB.E.HONS.(UNISEL)(ELECTRICAL, 2011) 104187MUHAMMAD IQBALBIN SARMANB.E.HONS.(UTM)(ELECTRICAL, 2015) 103641MUHAMMAD ZULFAHMI BIN GHAZALIM.E.HONS.(THE UNI. OF MANCHESTER) (ELECTRICAL& ELECTRONIC, 2018) 103089TAN GAR MENG,ALVINB.E.HONS.(UNITEN)(ELECTRICAL POWER, 2012) M.E.(UNITEN) (ELECTRICAL, 2014)

KEJURUTERAAN ELEKTRONIK

104203 AZHAR BINABDULLAH

103645DR MOHAMAD FARID MISNAN

103651DR SYAMIMI BINTI MOHD NORZELI

B.E.HONS.(UTM)(ELECTRICAL, 2000)

M.E.(UTM)(ELECTRICAL-POWER, 2008)

BE.HONS.(UiTM)(ELECTRICAL, 2009)

PhD.(UiTM)(ELECTRICAL, 2018)

BE.HONS.(UiTM)(ELECTRICAL, 2009) PhD.(UiTM)(ELECTRICAL, 2017) 104216 KHAIRULANWAR BINABU BAKAR

B.E.HONS.(UNITEN)(ELECTRICAL& ELECTRONICS, 2014)

104192KHAIRULANWAR BIN LUKMANB.E.HONS.(MMU)(ELECTRONICSTELECOMMUNICATIONS, 2002)

104190MAHAZANI MOHAMAD

B.E.(KYOTO UNI.)(ENGINEERING, 2001)

M.E.(THE UNI. OF QUEENSLAND) (COMPUTER SYSTEMS ENGINEERING, 2007)

104191MOHAMMAD SYAFIQ BINAZEMIB.E.HONS.(UiTM)(ELECTRONICSINSTRUMENTATION, 2018)

104184 MOHDARIF BINABU BAKAR

B.E.HONS.(UniMAP)(BIOMEDICAL ELECTRONICS- 2017), 104180MOHD ESKANDAR MIRZABIN MOHD YUSOFB.E.HONS.(UPNM)(ELECTRICAL& ELECTRONIC-COMMUNICATIONS, 2011)

103106NUR FASIHAH BINTI MOHAMADB.E.HONS.(UTeM)(ELECTRONICTELECOMMUNICATION ELECTRONICS, 2015)

104193NUR SHAKIRABT ROSLANB.E.HONS.(MMU)(ELECTRONICSROBOTICS &AUTOMATION, 2011)

104186WAIDHUBAMARTIN KIZITOB.E.HONS.(UCSI UNI.)(COMMUNICATION & ELECTRONIC, 2013)

KEJURUTERAAN KIMIA

103654AHMAD FAIZALBINABDULLAHB.E.HONS.(UPM)(CHEMICAL, 2006) 103091ALFAROUQ BINABDULRAHAMANB.E.HONS.(THE UNI. OF MELBOURNE) (CHEMICAL, 2012) 104219MAH KAH HONGB.E.HONS.(UMP)(CHEMICALBIOTECHNOLOGY, 2014) M.Sc.(UMP)(2016)

103098MOHAMMAD RAHIMI BIN DOLLAH B.E.HONS.(UTM)(CHEMICAL, 2004) M.E.(UPM)(ENVIRONMENTAL, 2015)

KEJURUTERAAN MEKANIKAL

103653AHMAD LUQMAN BIN ISMAILM.E.HONS.(UNI. OF BIRMINGHAM) (MECHANICAL, 2018)

104182AHMAD NAZHAN BIN ZULKARNAINB.E.HONS.(UTP)(MECHANICAL, 2017)

104188 CHONG YEW LIM

B.E.HONS.(UTAR)(MECHANICAL, 2011)

104204DR PARAMASIVAM SIVAKUMAR B.E.(MADURAI KAMARAJ UNI.)(MECHANICAL, 1990)

M.E.(ANNAUNI.)(MECHANICAL, 2006) PhD.(ANNAUNI.)(MECHANICAL, 2011)

103094KAMALDEEP SINGHB.E.HONS.(THE UNI. OF WESTERN AUSTRALIA)(MECHANICAL, 2014)

104198KUANG XIANG HUIB.E.HONS.(THE UNI. OF MELBOURNE) (MECHANICAL,2012)

103088 LAI HONG YI M.E.HONS.(UNI. OF SOUTHAMPTON) (MECHANICAL/AEROSPACE, 2017)

103640 MOHAMADAZIM BIN MOHDADAM B.E.HONS.(UTM)(MECHANICAL, 2016)

104207MOHAMAD ZAIM HAMSHABIN MOHD HAMIDI B.Sc.(KOREAAEROSPACE UNI.) (MECHANICAL, 2018)

104205MOHAMEDAZHARUDDIN BIN RAJ MOHAMEDB.E.HONS.(UNITEN)(MECHANICAL, 2017)

103638MOHAMED HAFIZ BINABDULSAMADB.E.HONS.(VANDERBILT UNI.)(MECHANICAL, 2015) M.Sc.(ICL)(ADVANCED MECHANICAL ENGINEERING, 2016)

103656 MOHDANSARI BINAMIR HAMZAH B.E.HONS.(UTM)(MECHANICAL, 2015) 103587MOHD IZANYARHABINABDULRAHIMM.E.HONS.(UNI. OF LONDON) (MECHANICAL, 2005)

104174MOHD NOOR HARIZ BIN MOHD HILMINB.E.HONS.(IIUM)(MECHANICALAUTOMOTIVE, 2015)

104199MOHD TARMEZI BIN OMARB.E.HONS.(UKM)(MECHANICAL, 2003) 104185MUHAMMAD FAISALBIN OTHMANB.E.HONS.(UTP)(MECHANICAL, 2018) 104200MUHAMMAD FAIZ BIN MUHAMMAD ROSMANB.E.HONS.(UNITEN)(MECHANICAL, 2017) 104197SHANMUGASENNANA/LR VEERASENNANB.E.HONS.(UTHM)(MECHANICAL, 2006) 104208SITI NOOR BINTI MUHAMAD SHUKRIB.E.HONS.(UNITEN)(MECHANICAL, 2002) 103099 YIPYEW HAU

B.E.HONS.(MMU)(MECHANICAL, 2018) 104214YONG KOK WEE

KEJURUTERAAN MEKATRONIK 103093 CHENG YU SENG

KEJURUTERAAN METALLURGI 103096 LIM WUH TERNG

KEJURUTERAAN PEMBINAAN 104213 LAU YIT HUOI

B.E.HONS.(UTHM)(MECHANICAL, 2005) M.E.(UTHM)(MECHANICAL, 2009)

B.E.HONS.(USM)(MECHATRONICS, 2008)

B.E.HONS.(UniMAP) (METALLURGICAL, 2012) M.Sc.(NATIONALTAIWAN UNI.)(2015)

B.E.HONS.(THE UNI. OF LEEDS) (CIVILENGINEERING with CONSTRUCTION MANAGEMENT, 2011) M.Sc.(THE UNI. OF LEEDS) (ENGINEERING PROJECT MANAGEMENT, 2012)

KEJURUTERAAN PEMBUATAN 104183DR SAMI SALAMAHUSSEN HAJJAJB.E.HONS.(IIUM) (MANUFACTURING, 2003) M.Sc.(IIUM)(MANUFACTURING, 2007) PhD.(UNITEN)(ENGINEERING, 2018) 104212MAH SIU WENB.E.HONS.(UNI. OF GLASGOW) (MECHANICAL, 2016) M.Sc.(UCL)(ENGINEERING with FINANCE, 2017)

PEMINDAHAN KEPADA AHLI ‘INCORPORATED’ No. Ahli Nama Kelayakan

KEJURUTERAAN PEMBUATAN 85441ANIS 'AFIFI IZYANI BINTIAZIZANB.E.TECH.HONS.(UniKL)(MACHINE TOOLS MANUFACTURING, 2017)

PERMOHONAN MENJADI AHLI ‘INCORPORATED’ No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM 103630 TEE YI QIN

B.E.HONS.(THE UNIVERSITY OF DERBY) (CIVIL& INFRASTRUCTURE, 2018)

KEJURUTERAAN ELEKTRIKAL 104177RAJENDRAKUMAR GARGB.E.HONS.(KURUKSHETRAUNI.) (ELECTRICAL, 1982)

KEJURUTERAAN ELEKTRONIK

103632MOHD QHASSIMI BIN MOHD NOR HAMIZIB.E.HONS.(THE UNI. OF NOTTINGHAM) (ELECTRICAL& ELECTRONIC, 2015) 103808NURULAKLABIN MOHD DAWAMB.E.HONS.(UNI. OF WALES) (ELECTRONIC, 2005)

KEJURUTERAAN MEKANIKAL

103631NANTHAKUMARA/LPOOMALYB.E.HONS.(WARNBOROUGH UNI.)(MECHANICAL, 2005) M.Sc.(HERIOT-WATT- UNI.) (CONSTRUCTION PROJECT MANAGEMENT, 2017)

KEJURUTERAAN PEMBUATAN 104176TAN KOK HUI

B.E.HONS.(SHEFFIELD HALLAM UNI.) (MATERIALS & MANUFACTURING, 2005)

PERMOHONAN MENJADI AHLI ‘AFFILIATE’

No. Ahli Nama Kelayakan

KEJURUTERAAN MARIN 104179MOHAMMADARIF BIN MAT RAYANIB.App.Sc.(UMT)(MARITIME TECHNOLOGY, 2012)

PERMOHONAN MENJADI AHLI ‘ASSOCIATE’

No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM

104178MOHAMAD SAFWAN BIN MOHD NAWI Dipl.(POLITEKNIK TUANKU SULTANAH BAHIYAH)(CIVIL, 2011)

KEJURUTERAAN MEKANIKAL 103586MOHAMED IMRAN BIN MOHAMED FAROOKDipl.(UTM)(MECHANICAL, 2017)

PERMOHONAN BARU / PEMINDAHAN AHLI

Persidangan Majlis IEM yang ke-418 pada 15 July 2019 telah meluluskan sebanyak 1830 ahli untuk permohonan baru dan permindahan ahli. Berikut adalah senarai ahli mengikut disiplin kejuruteraan:

Senarai nama ahli dan kelayakan adalah seperti di bawah. Institusi mengucapkan tahniah kepada ahli yang telah berjaya. Ir. Mohd Khir bin Muhammad FIEM, PEng

Setiausaha Kehormat, Institusi Jurutera Malaysia, Sesi 2018/2019

PEMINDAHAN AHLI KEPADA AHLI FELLOW

No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM

18660YEONG CHIN CHOW, SIMONB.A.Sc (HONS (WINDSOR) (CIVIL, 1996)

18344KAMALNASHARUDDIN BIN MUSTAPHABE HONS (SHEFFIELD) (CIVIL& STRUCTURAL, 1984)

MSc (HERIOT-WATT) (STRUCTURAL, 1987) PhD (ASTON) (STRUCTURAL-FIRE, 1995)

09416YAP LEE CHORBSc (UNIVERSITY OF LONDON) (CIVIL, 1984)

KEJURUTERAAN KIMIA

23927CHOO CHEE MING BE HONS (UPM) (CHEMICAL, 2000) MESc (GRIFFITH) (ENVIRONMENTAL, 2002)

KEJURUTERAAN MEKANIKAL

20926 FAM YEW HIN BE HONS (SHEFFIELD) (MECHANICAL, 1999)

KEJURUTERAAN PETROLEUM

59192ABDULRAZAK BIN YAKOBBSc (COLORADO) (PETROLEUM, 1996)

PEMINDAHAN AHLI KEPADA AHLI SENIOR No. Ahli Nama Kelayakan

KEJURUTERAAN AWAM

29654HUZAIDIN BIN BORHANBE HONS (UTM) (CIVIL, 2000)

KEJURUTERAAN ELEKTRIKAL

27644 MUHAMMADALI BINABDULLAH BE HONS (UNI. OF GLAMORGAN, UK) (ELECTROMECHANICALPOWER SYSTEMS, 1997)

16318ROSLI BIN OMAR BE HONS (UTM) (CIVIL, 2000) MSc (USM) (ELECTRICAL& ELECTRONIC. 2002) PhD (MALAYA) (2012)

KEJURUTERAAN MEKANIKAL

19273 ABANGASRI BINARIFFIN BE HONS (UTM) (MECHANICAL, 1994)

PEMINDAHAN AHLI KEPADA AHLI KORPORAT No. Ahli Nama Kelayakan

KEJURUTERAAN AEROANGKASA

78472MOHD RASHDAN BIN SAADME HONS (MANCHESTER) (AEROSPACE, 2009) PhD (MANCHESTER) (AEROSPACE, 2013)

KEJURUTERAAN ALAM SEKITAR

26635JALINABINTI KASSIMBE HONS (UTM) (CIVILENVIRONMENTAL, 2006) MSc (UiTM) (CIVILENVIRONMENTAL, 2008)

KEJURUTERAAN AWAM

22157AHMAD FUAD BIN ZAINUDINBE HONS (UPM) (CIVIL, 2004) 60643AKHTAR NURFITRI BIN MAT ZAINBE HONS (UTM) (CIVIL, 2012) 99359ASMAFARAH BT ISMAILBE HONS (UTP) (CIVIL, 2009) 23651 AZINOORAZIDABINTIABU BAKAR BE HONS (USM) (CIVIL, 2000)

21643CHAN HUN BENG BE HONS (UTM) (CIVIL, 1997) MSc (UTM) (CONSTRUCTION MANAGEMENT, 2000)

39178 CHOO INNAIK BE HONS (UKM) (CIVIL, 2002)

64594CHOONG PAK LIMBE HONS (UTM) (CIVIL, 2011)

38346DAYALANA/LRAINOO RAJBE HONS (UTM) (CIVIL, 2007)

26382EDNALUNCHIBE HONS (USM) (CIVIL, 2001)

17725 JAWAANAK GARA BE HONS (UiTM) (CIVIL, 1999)

33623JOHNSON NDAWIEBE HONS (UiTM) (CIVIL, 2008)

93853JUDE TING MUI HENG BE HONS (MALAYA) (CIVIL, 2010) ME (UNIMAS) (CIVIL, 2014)

48115KENNY BIN PAPINGBE HONS (UiTM) (CIVIL, 2005)
