URBAN INTERVENTION

ANGANWADI

KIOSK

01

05

13

04

05

06

HUDCO

BIM

ADDITIONAL WORKS

19

23

26

01

URBAN INTERVENTION A SPACE FOR WITHDRAWAL

To create a welcoming, safe and inclusive space for women, promoting social interaction and community engagement.

Site: Malleswaram, Bengaluru Area: 50sqm- 200sqm Proposal: Park

1

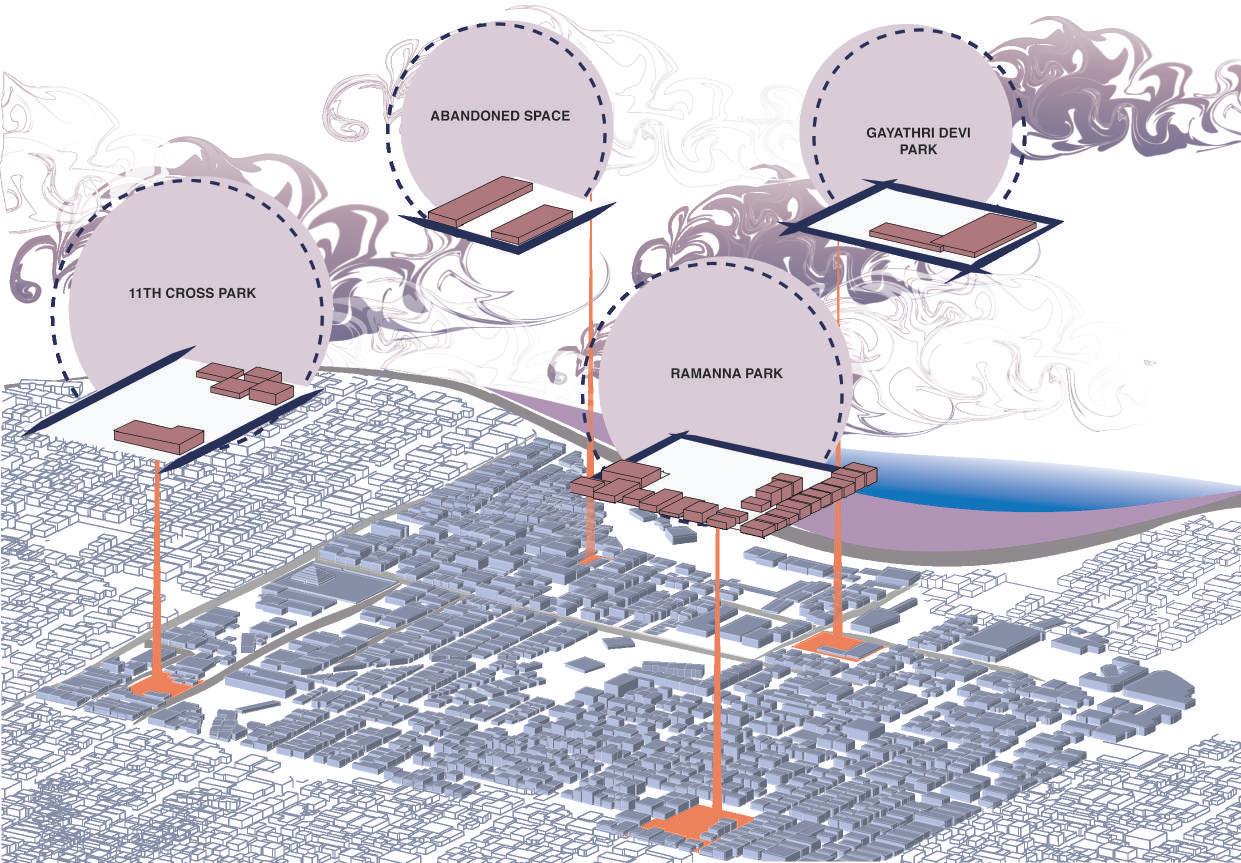

PROPOSED SITES

Present conditions of the road, Lighting features, movement patterns and density of male and female users were recorded and analysed.

11th cross Park

Abandoned Space

Gayathri Devi Park

Ramanna Park

The roadways leading to sites were not maintained and the parks were dominated by men most of the times with no specific activity for woemn to engage with and the spaces were not well lit.

2

SAFETY

FUNCTION

- Increasing Visibility - Adequate Lighting - Better Walkways

- Game Zone - Outdoor Gym Equipments - Childrens Play Equipments - Outdoor Library

COMFORT

ROADWAYS

- Ergonomic Seating - Adequate Shading - Greenary - Art

- Game Zone - Outdoor Gym Equipments - Childrens Play Equipments - Outdoor Library

Lighting

Reducing height of the compound wall

Furniture- Ergonomics Armrest

40cm

95-105

Trees Providing Shade and Greenary

Outdoor gym

3

Sit from both sides Footrest

45cm

15cm 50 cm

Children Equipments

75cm

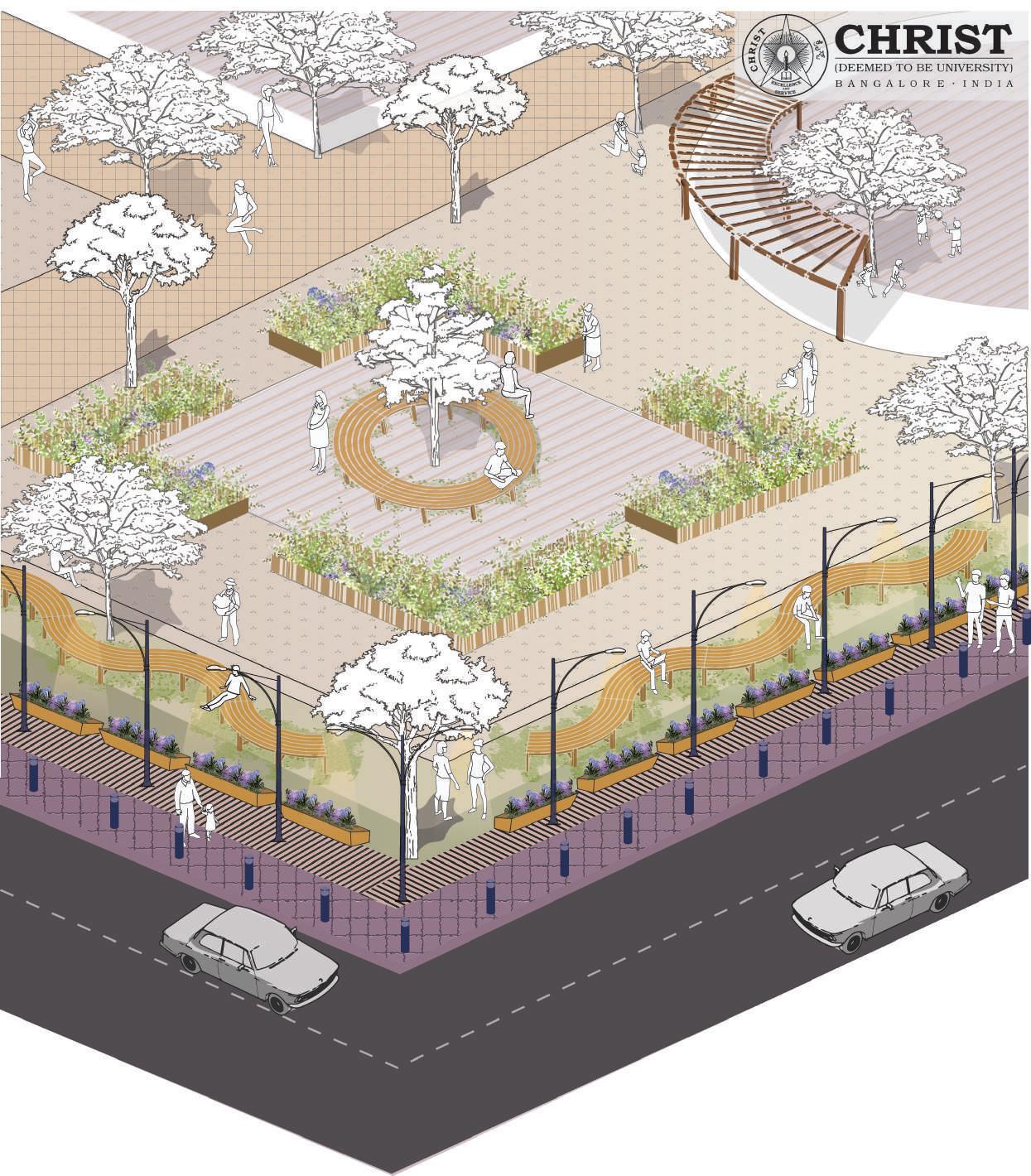

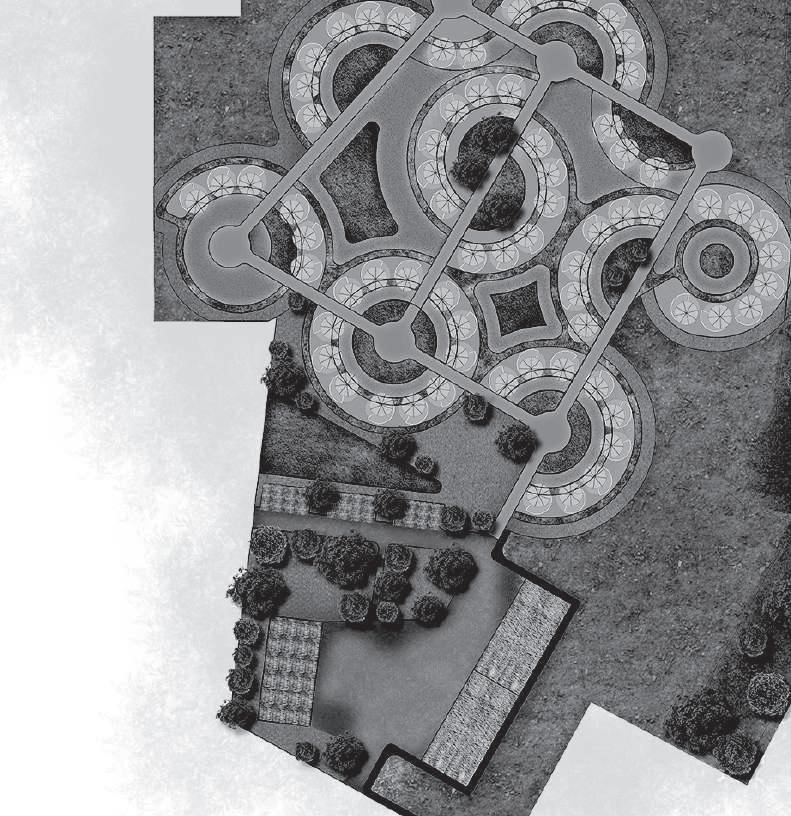

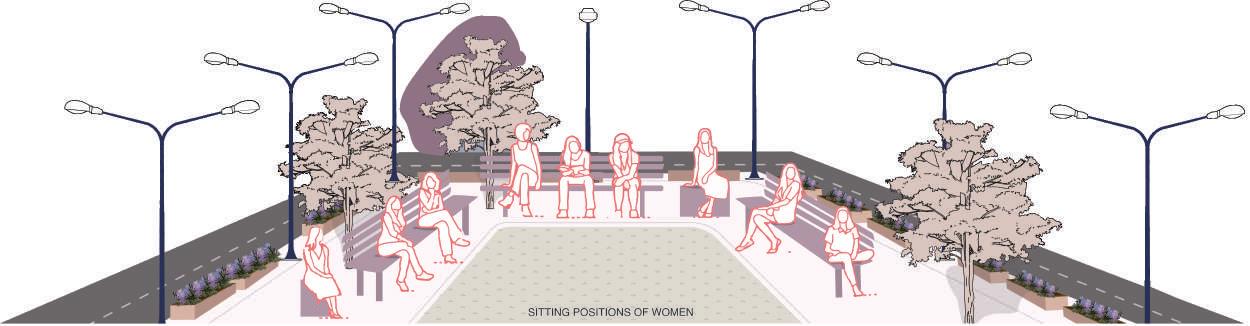

REDESIGNED PARK AND ROADWAY

The redesigned park would address the womens concerns by improving the condition of the park Itself and the surrounding roadways. The park will be designed to accommodate all age groups, with ergonomic furniture and play equipment for children. Art will also be included to make the space more attractive. Adequate lighting, footpaths, and shaded areas should be provided to improve accessibility and safety, making the park more welcoming.

4

02

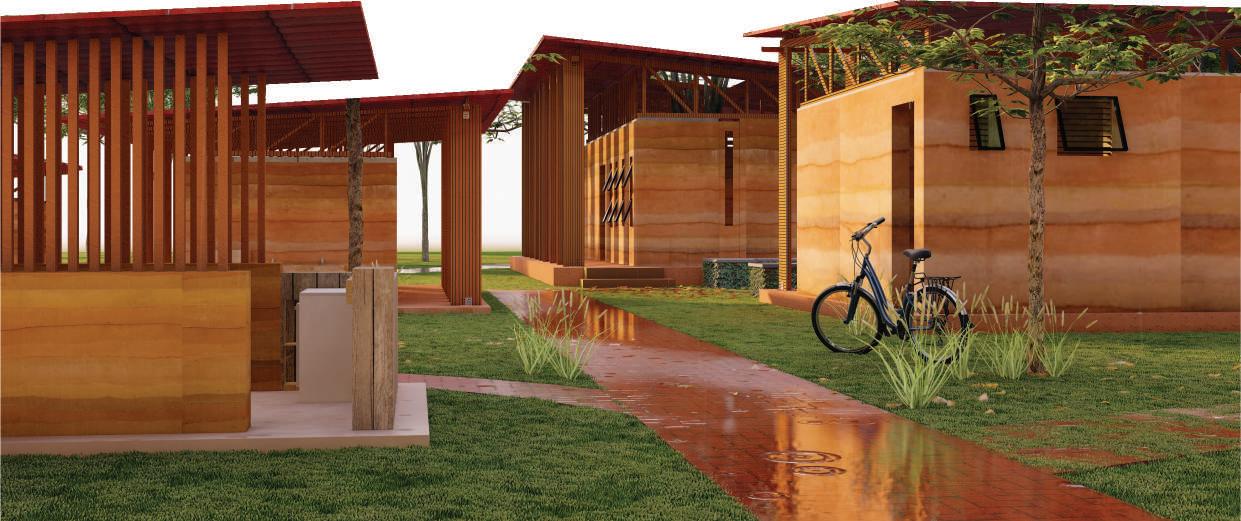

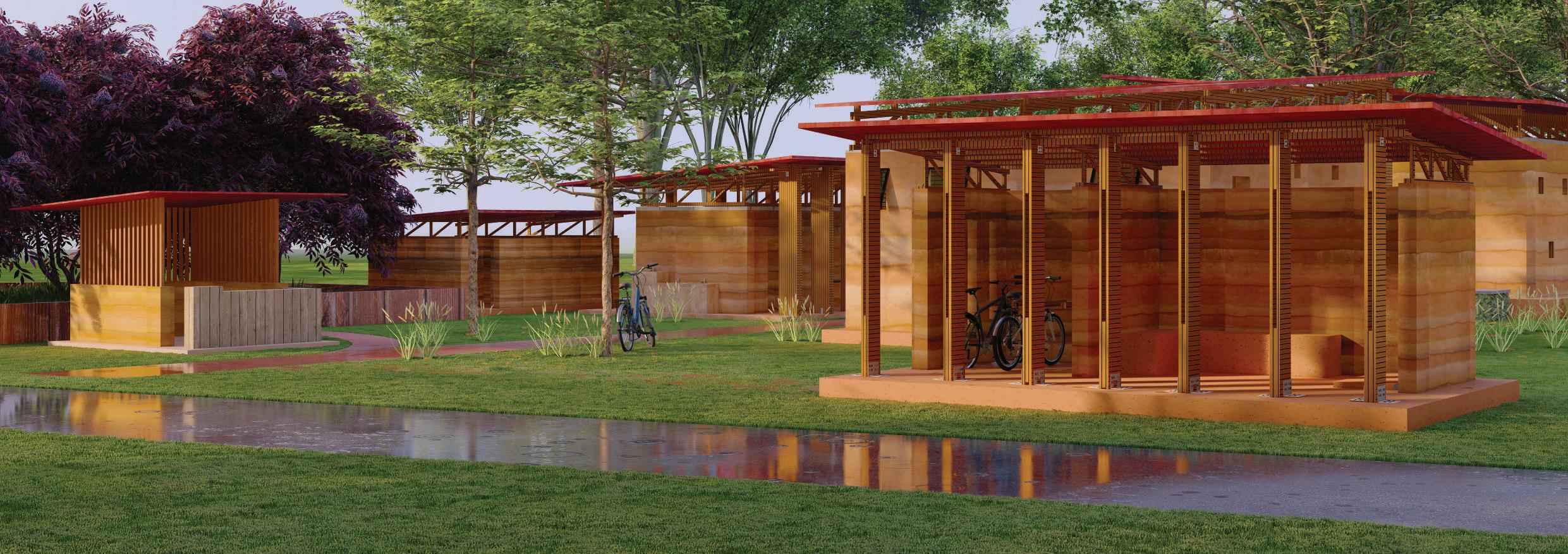

ANGANWADI CENTER WOMEN EMPOWERMENT

Empowering the women of appasandra, through an anganwadi proposal that would create a center of livelihood promoting their independance, safety and overall growth.

Site: Appasandra, Bengaluru Area: 1925 sqm Proposal: Womens opportunity center

5

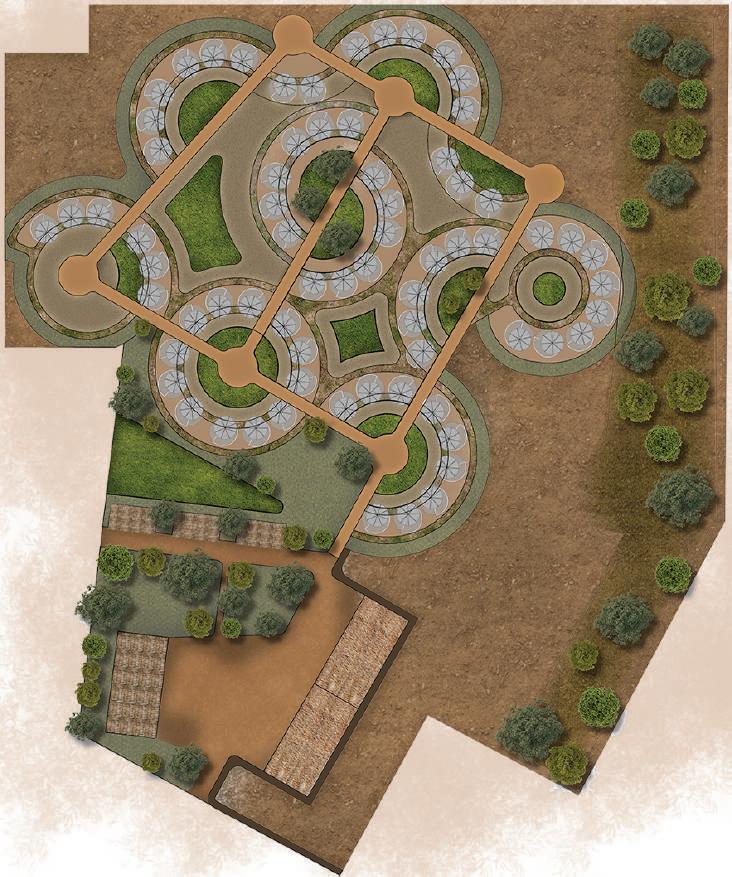

MASTER PLAN

4.5

1.5 3.5

2.5 1.5

6

2 1

1

2

3 3

7

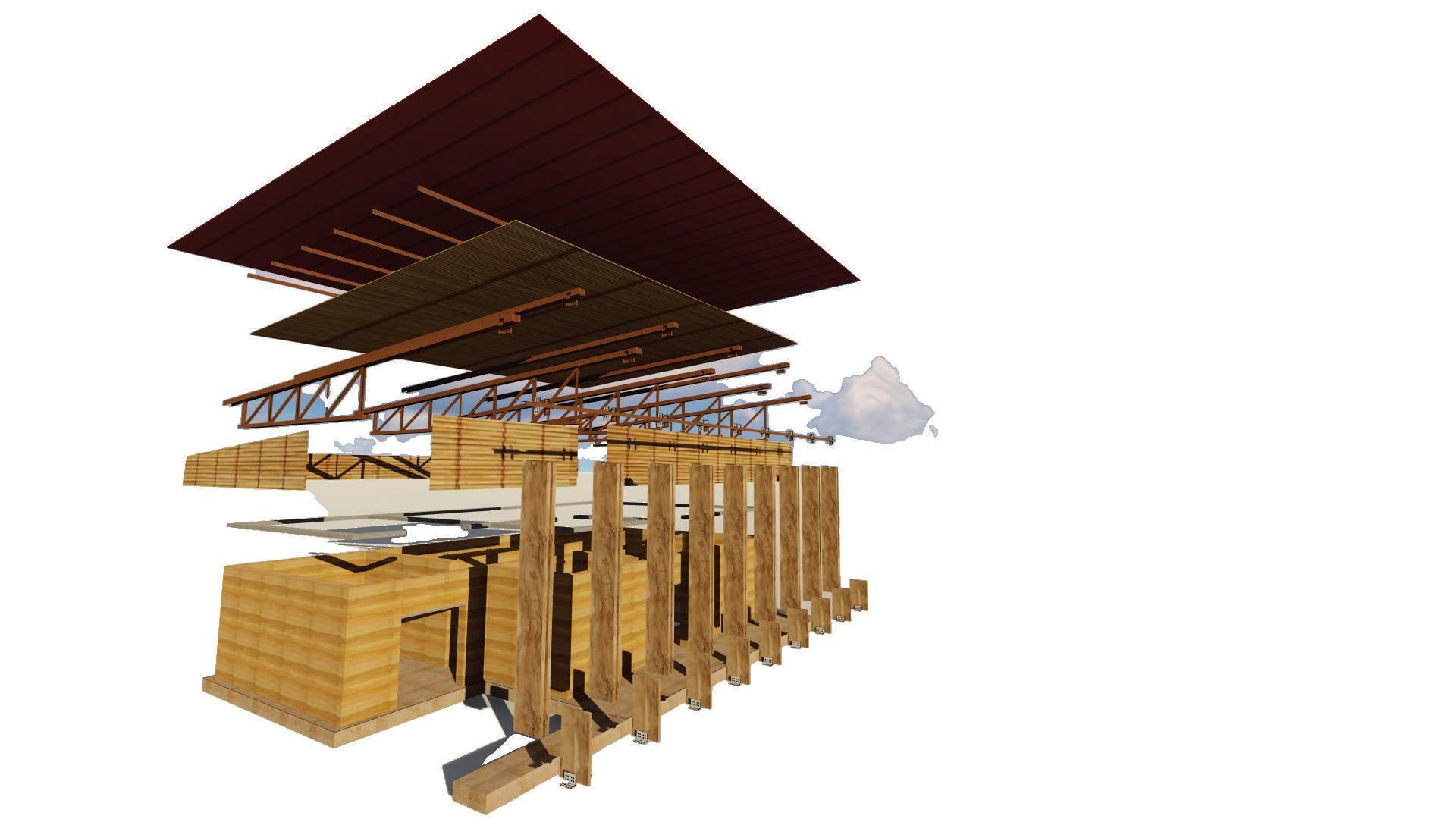

JOINERY DETAILS TRUSS: Verticle posts and diagonal members sandwiched between the double chords.

Use of Bolted connections.

Perlin resting on top of the truss members.

FINS: Use of L Metal Plate Horizontal member holding all fins together.

Wooden connecting pieces in between fins.

Top chords from the truss extending, to rest on the fin.

N

PAVILLION

1

2

PLAN | SCALE 1:1000

ROOF PLAN

450.0 cm

290.0 cm

290.0 cm 280.0 cm

30.0 cm 30.0 cm

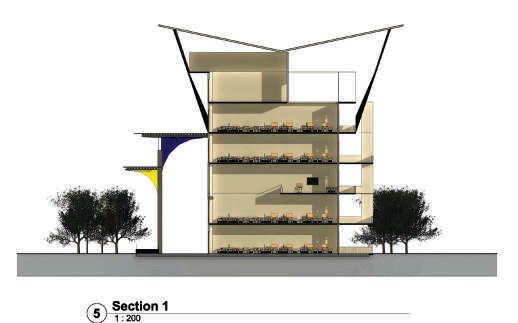

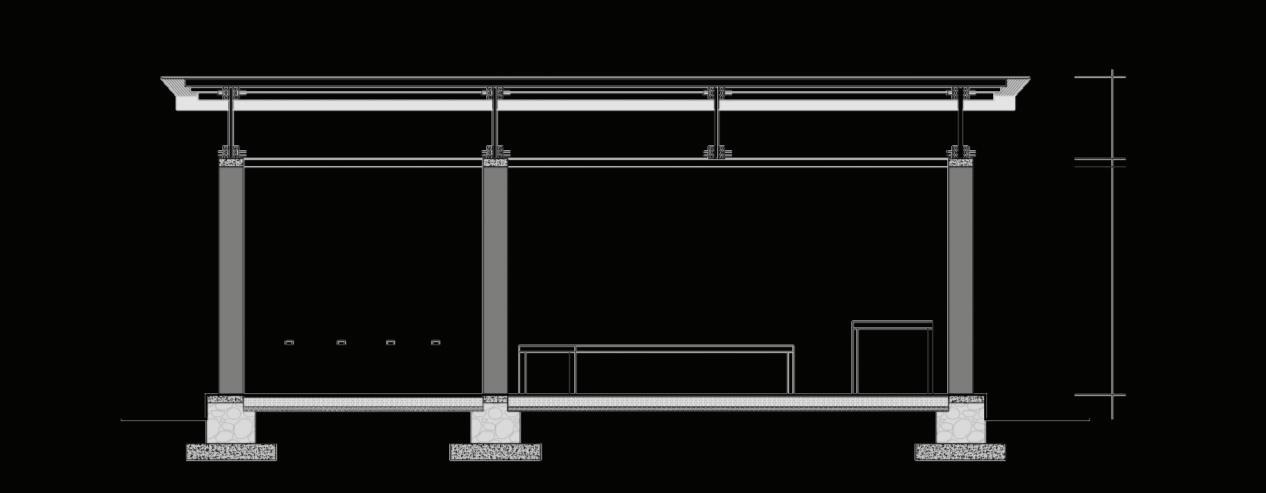

SECTION 1

SECTION 2

N

MANUFACTURING UNIT B

A

C

12190 6266

3172 900

W1

2401 2300

2386

W2

W1

1500

1260

1175

500

15508

1500

3548

2267

750

900

W1

D2

1458

300 1000

1517

1050

4

300

750

1458

W2

3812

1830

D3

900

W1

757

W1

750

2462

5166

W2 500

1480

W2

W2

500

1047

350

350

750

1662

1274

900

3812

3

1063

1350

STORAGE AND DISPATCH

750

5

D1

2014 900 1300

W2

500 764 500

ADMIN 1800

650

3548

730

1402

1300

W2 W2

3834

500 594 500

2196

1255

4

2

500

2000

W2

COURTYARD

1730

400 900

W2

WORKSPACE

1256

15508

3

1

1540

1402

W2

400 1402

W2 W2

1840

WASH SPACE

1300

601 500 500

CHANGING ROOM

2346

1700

W2

1900

2000

1760

577

500

2

500

1490

350

950

3613

900

980

3613

800

W1 597 500

1

900

569

350

1050

3834

350

500

1047

1030

1474

900

1212

2386

3172

6266

350

5

2401

12190

A

B

C

PLAN |SCALE: 1:1000

12943 1432 1566

9

400

1405

1439 1566

530

662

1386 1566

789

1465 1566

925

1429 1586

1040

1364

1464

1586

1191

ROOF DETAILS

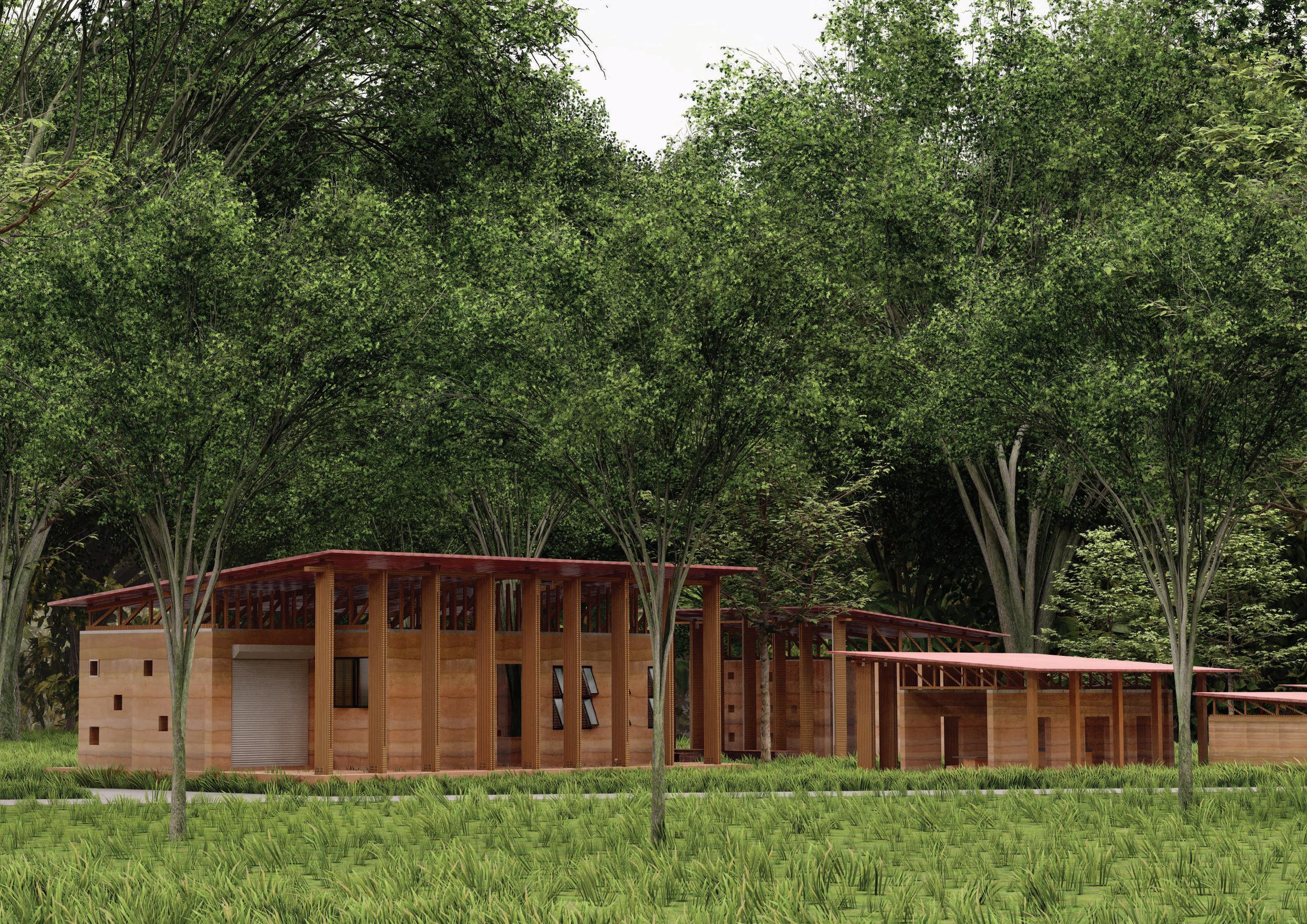

The Manufacturing Unit, accomodates all built in furniture and storage spaces.

The small courtyard inside makes up for a nice seating and relaxing space for a break away from the work commotion.

The outdoor veranda acts as a transition space connecting the indoor and outdoors. Long slit windows allows for natural ventialtion and provides nice view to the outside.

LEGENDS 1. Corrugated sheet 2. Wooden Perlins 3. Bamboo Grass Mat 4. Truss 5. Bamboo Grass Mat 6. Concrete Ring Beam 7. Rammed Earth walls 8. Upcycled wood Fins 9. L-Shaped metal plates

1 2

3

4

8

5

6

7

9

10

11

12

03

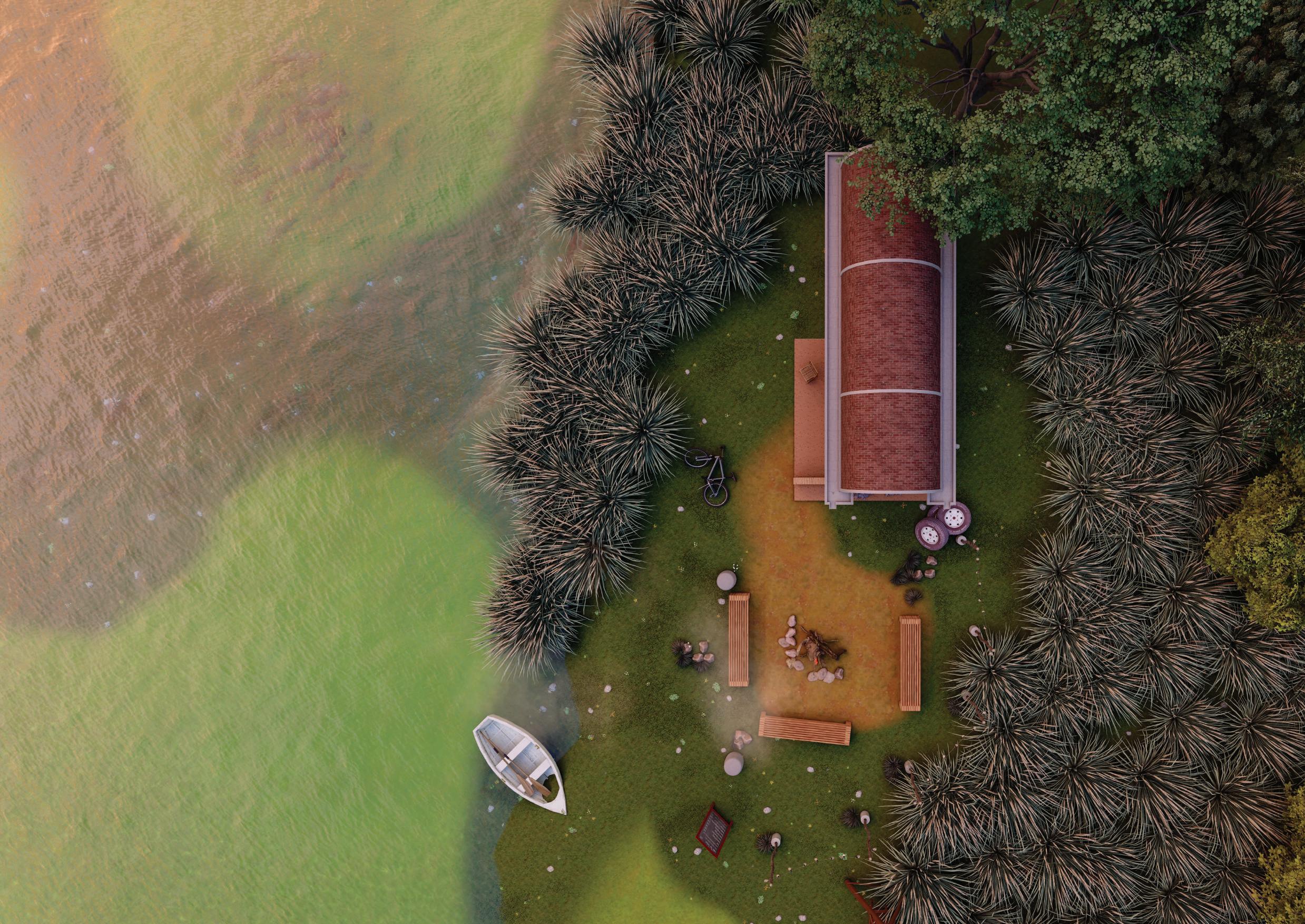

KIOSK LIBRARY FOR KIDS

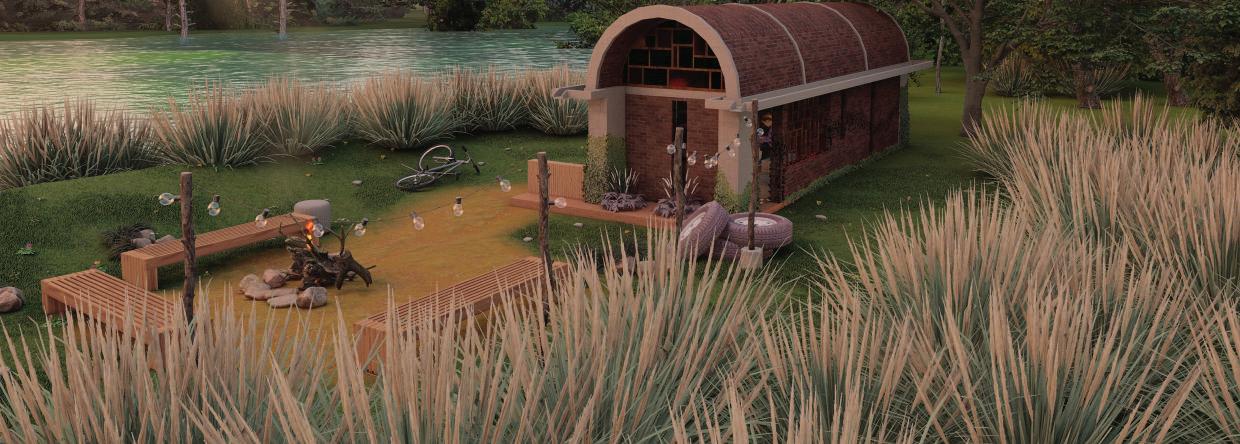

The exercise intends to illustrate that buildings also have an ecological significance beyond function & human scale; the quality of light, tactility of material, the obscure presence of the site.

Area: 20.6 sqm Proposal: Kiosk

13

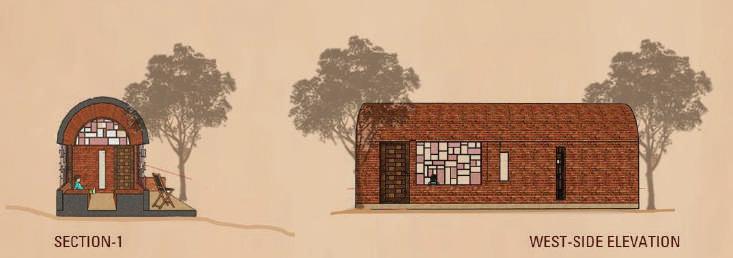

DESIGN EVOLUTION

PLAN

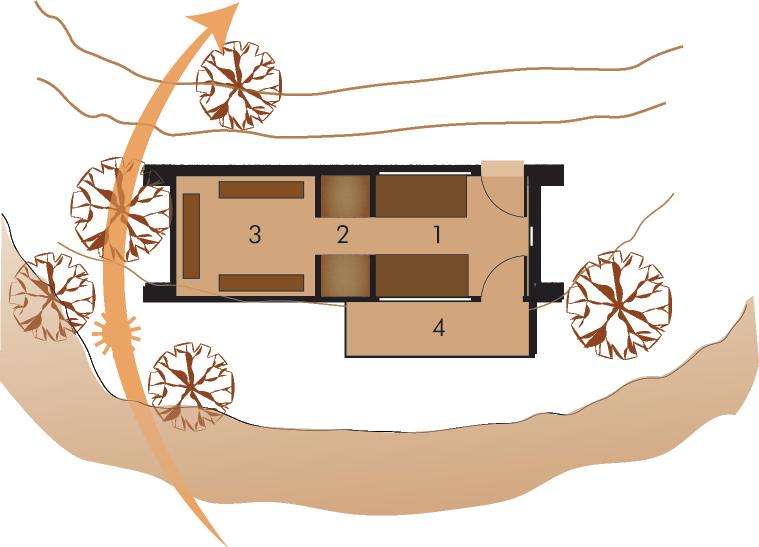

1. READING ROOM 2. TRANSITION SPACE 3. DIM LIT ROOM 4. PATIO

0

1

2

N

4

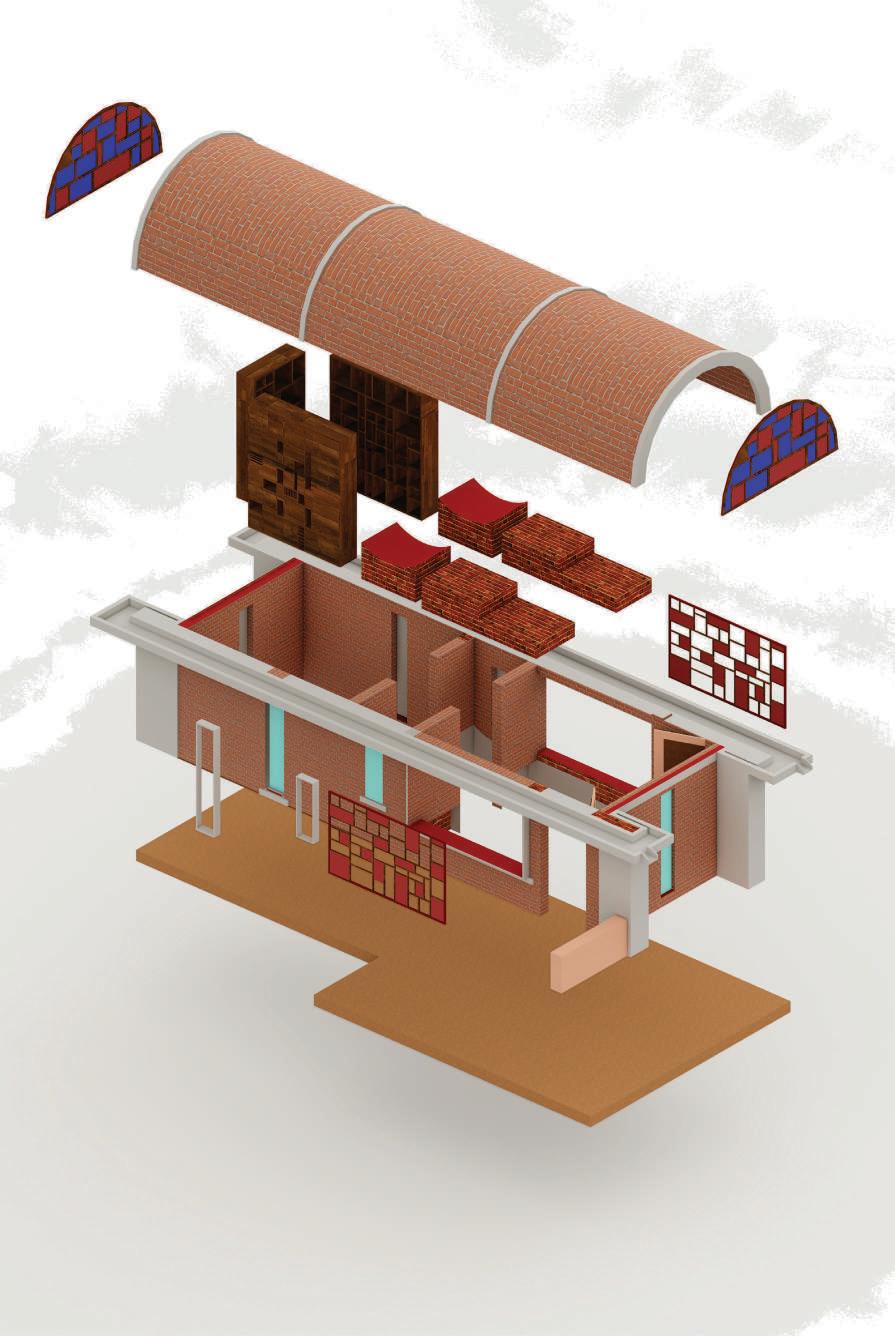

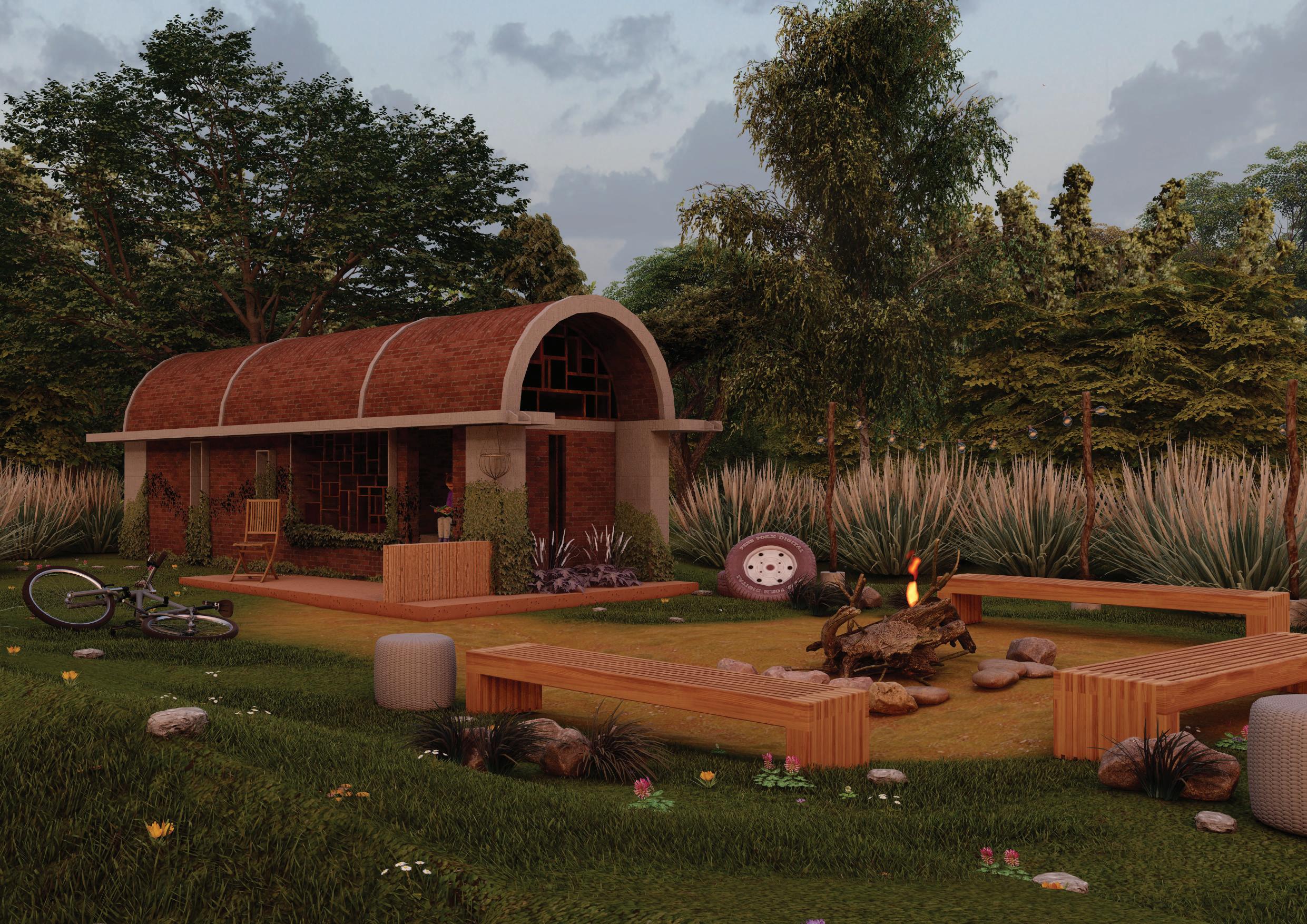

An experience, as one is captured by the warmth of the walls and tricks of the light.

14

1 Roof: Vault

Mortar RCC Beam CSEB Bricks: 230mm X 15mm X 75mm

3 Common sitting space

Designed for promotinng interaction.

2 Window: Tinted glass frame panel

To bring in light and colours.

4 Isolated Sitting space

Private cocoon like space.

5 BOOKSHELF

Made of upcycled wood.

1

5

4 3 2

15

16

17

18

04

HUDCO TROPHY 2021-2022

A design promoting local identities, cost-effective housing using adaptive vernacular solutions; which are simple, requiring indigenous skill sets, are easy to understand and can easily integrate with nature enabling optimum utility of space and flexibility.

Site: Khavda village, Kutch, Gujarat Area: 4.36 hectares Proposal: Community Housing

19

HOUSING CLUSTER

PATHWAYS

COMMON GREEN SPACE

COMMON POINT

OPEN SPACE

COMMERCIAL AREA

MASTERPLAN

Sensory analysis cluster level

VISUALLY CENTERED

VIEW TOWARDS GREEN SPACE

VISUAL PRIVACY FOR WORKSPACE

SENSITIVE TO SOUND

The villagers prefer to spend most of their time outdoors 9PM

6AM

WORKING OF UNIT OVER THE PERIOD OF A DAY

20

1

UNIT PLANS 1 Bathroom

Bedroom Multipurpose

6 Living room

Kitchen

Semi open work-

3

2

2

4

4

Workspace+ Verandha

G TYPOLOGY GROUNG FLOOR PLAN AREA - 28.6 SQM

5

5

Bathroom Bedroom

1 TATCH ROOF

3 STAIRCASE

5 VERANDAH

2 WASHROOM

4 BEDROOM

6 MULTIPURPOSE ROOM

Kitchen+Storage Living room

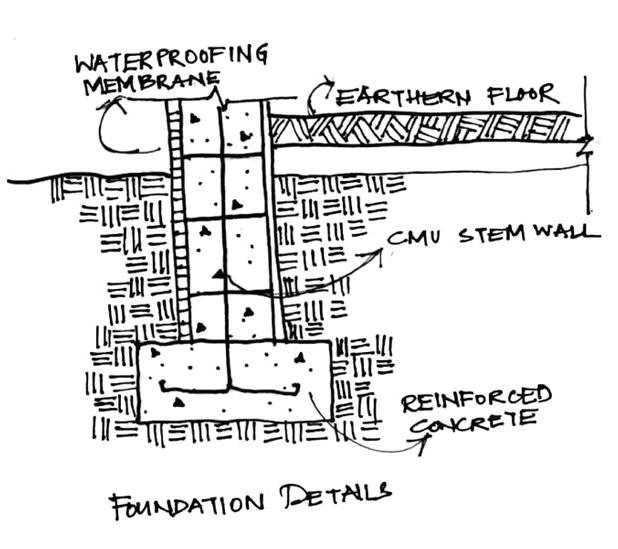

CONSTRUCTION DETAILS WALL

FOUNDATION

Workspace+ Verandha

G +1 TYPOLOGY GROUNG FLOOR PLAN AREA - 24.2 SQM

Multipurpose

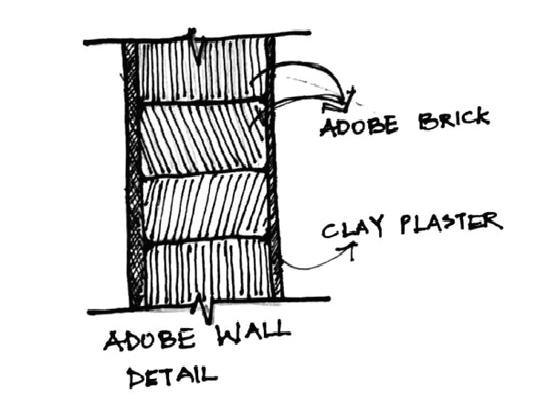

The adobe blocks are casted where there is access to good quality earth for block making, as well as ample sweet water for construction.

ROOF

MEZZANINE FLOOR PLAN AREA - 5 SQM

21

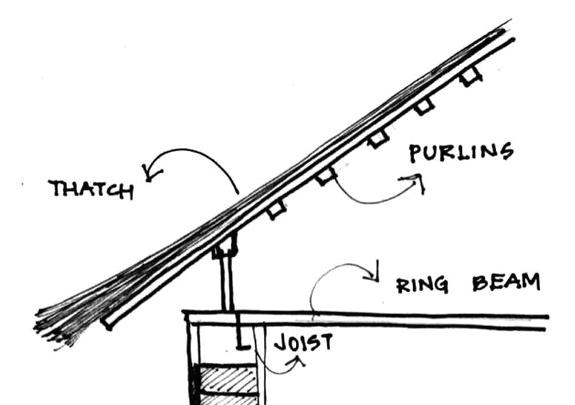

The roof is made of wooden under-structure with thatch as roofing material. The presence of mann and biladu - wooden elements for conical roofs are also commonly found in the region.

RCC circular foundation is used for the units, this allows for the earthquake loads to transfer easily through the foundation,

BEAM

Bamboo beams are placed over an RCC Ring Beam to support the mezzanine floor. The beams are tied using rope and a layer or half split bamboo is secured over it. On top of this layer, mud is placed and compacted.

MULTIPURPOSE

LIVING ROOM

G -4.3 SQM G+1 -5 SQM

G -7.5 SQM G+1 -6.4 SQM

Multipurpose room designed to facilitate activities such as additional storage, bed space, study place and can also be used as dinning area in the case of G-typology.

Living room acts as main gathering space, it accomodates inbuilt seating furniture,and space for an entertainment unit.

BATHROOM

BEDROOM

G -4.3 SQM G+1 -5 SQM

G -5.8 SQM G+1 -5.8 SQM

The washrooms are attached to main unit but given an access from the backside to maintain hygiene.

The bedroom is large enough to accomadate single bed cot and storage spaces. Its secluded from the main activity spaces, providing ample privacy.

VERANDHA

KITCHEN

G -3.2 SQM G+1 -3.2 SQM

G -5.5 SQM G+1 -5.8 SQM

Workspace is given access through the outside of the house. The large verandha space also functions as an extended workspace and display area. It is shaaded and can also accomodate outdoor furnitures.

The kitchen is designed as a semi enclosed space attached to the living area. The user in the kitchen can have easy view and access into the living room.

PUBLIC SEMI PRIVATE PRIVATE CIRCULATION

VENTILLATION

PRIVACY

SHADING

SOUND

VISUAL

22

05

23

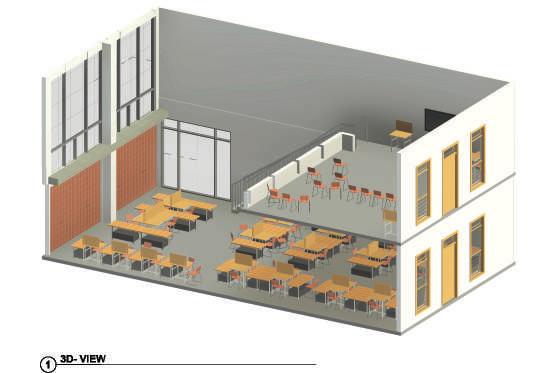

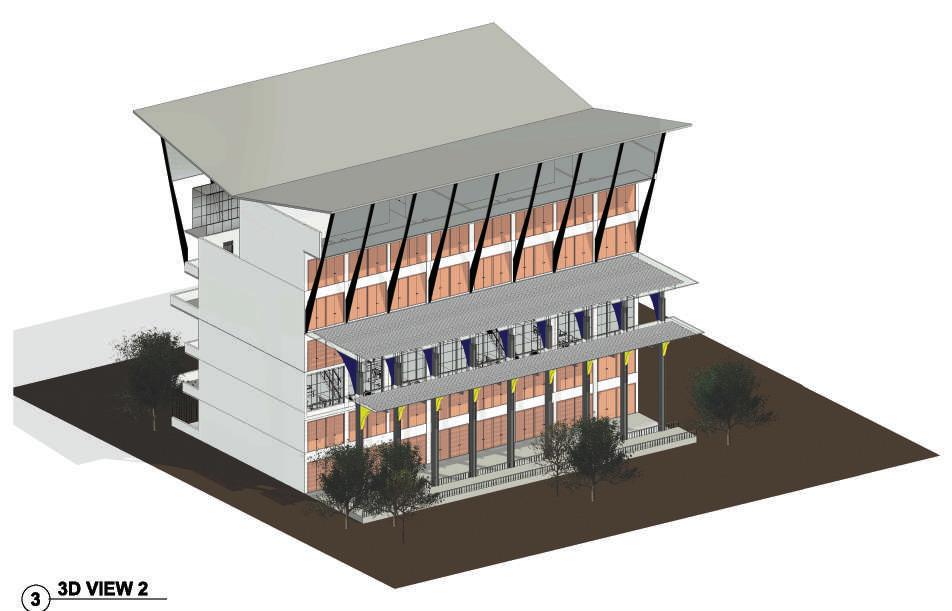

BIM

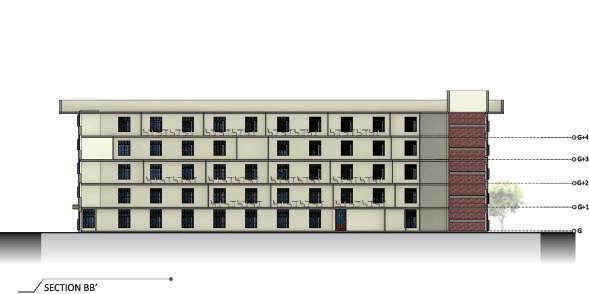

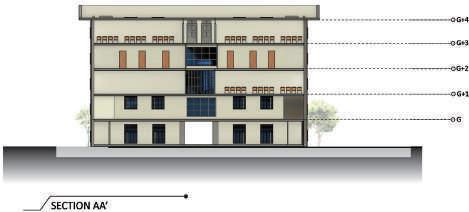

EXPLORATIONS

1666.5 SF 155 m²

STUDIO 5

1 STUDIO 153 m² 1643.2 SF

2

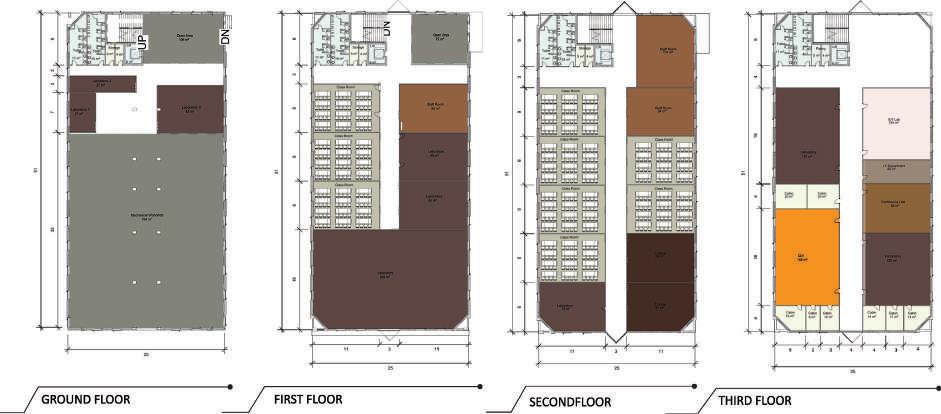

GROUND LEVEL PLAN 1 : 200

3

Level 1 1 : 200

24

06

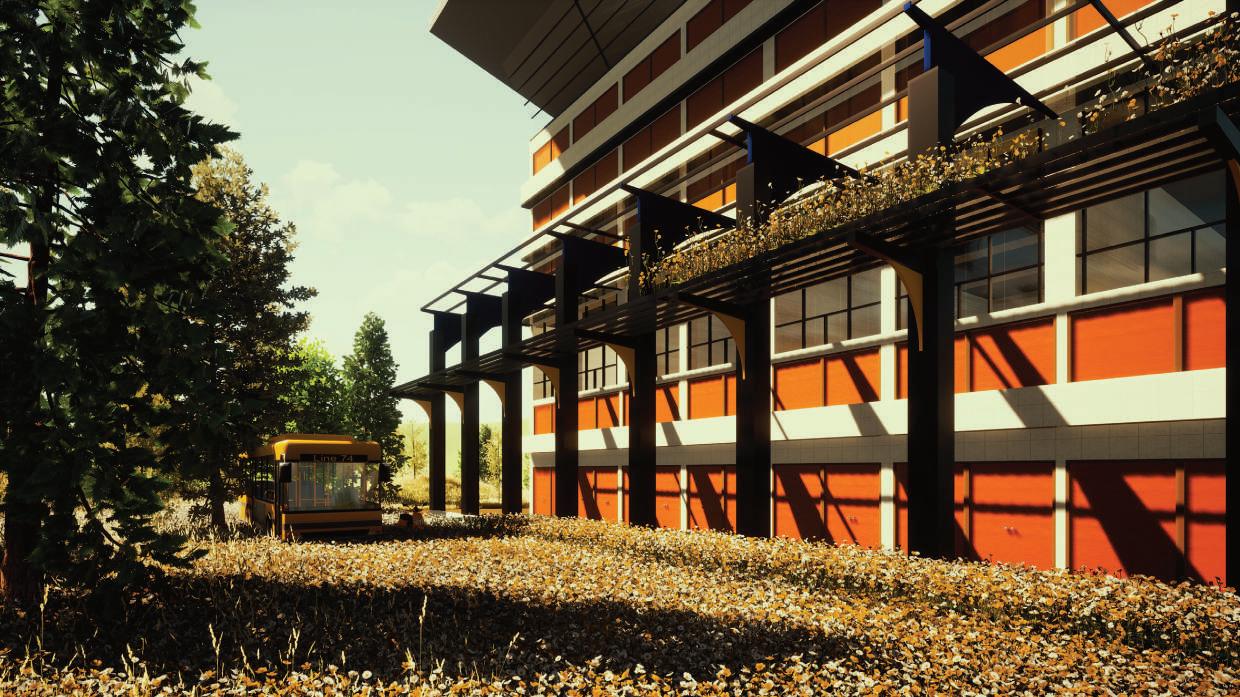

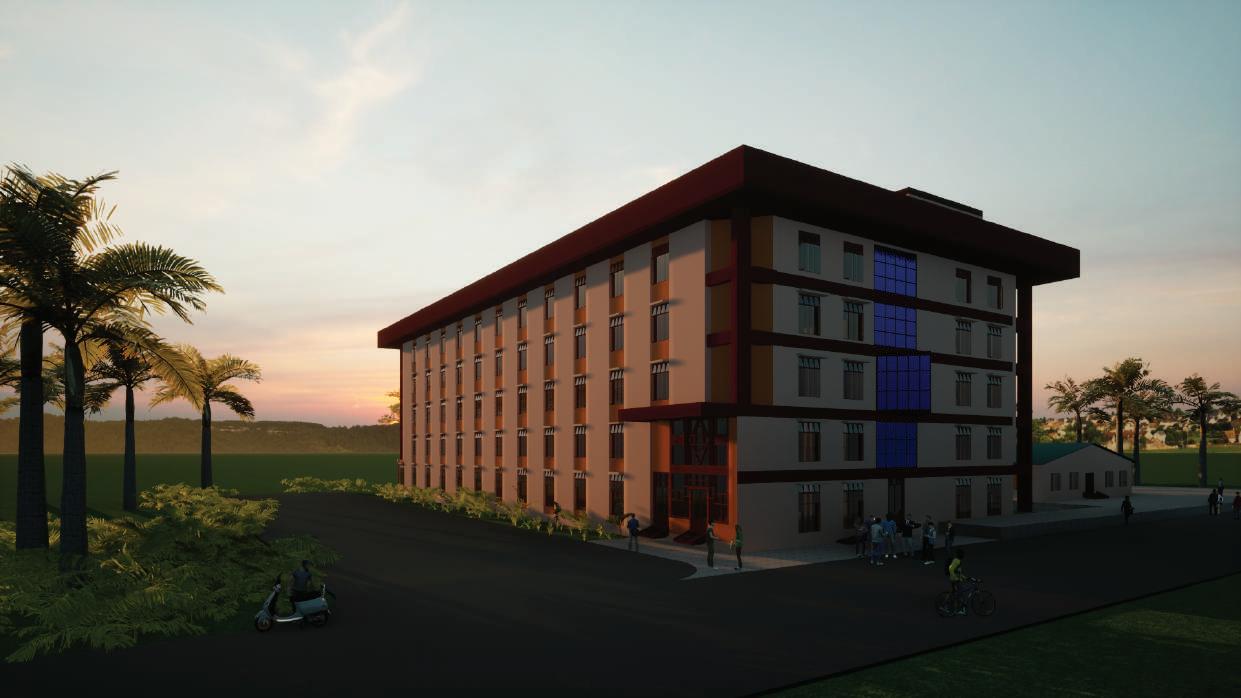

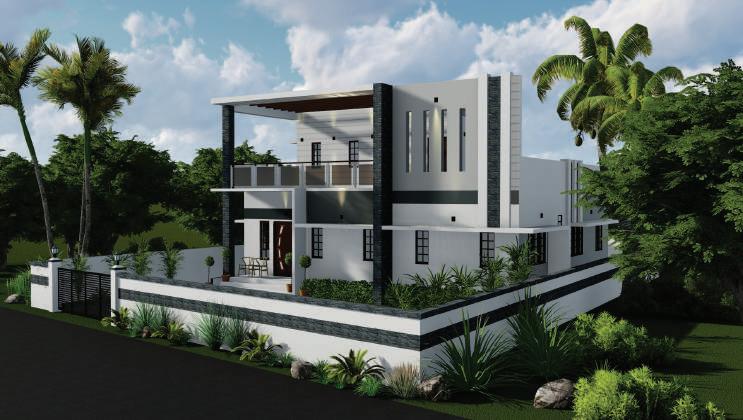

MISCELLANEOUS

25

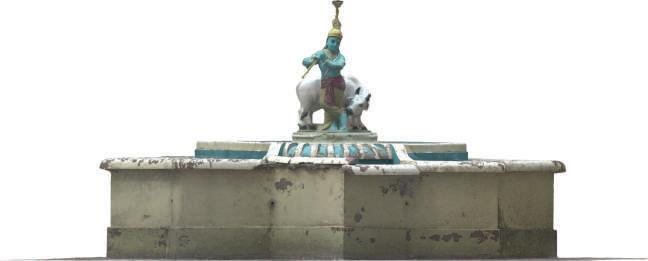

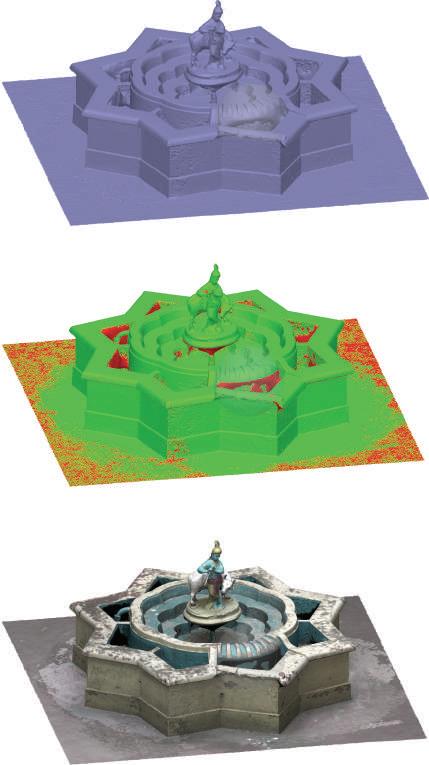

PHOTOGRAMMETRY SHADED

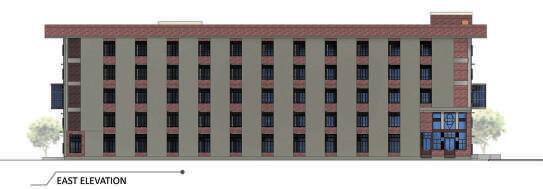

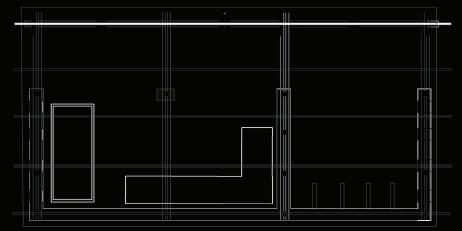

FRONT ELEVATION

CONFIDENCE

SOLID

PHOTOGRAPHS

26

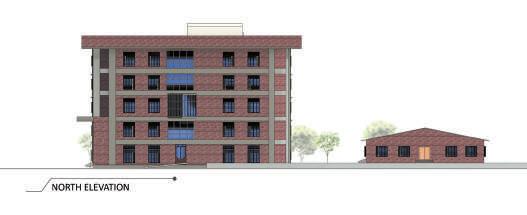

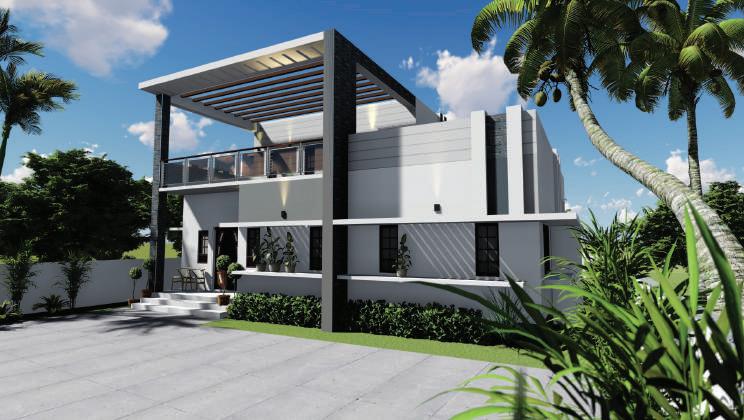

ELEVATION DESIGN AND MODEL

PRODUCT DESIGN Despite the numerous styles and designs of backpacks on the market, i found it very difficult to select a backpack suitable for my everyday day use. Most backpacks were either big, bulky, and heavy or too small to fit in my daily essentials. Specially being in this professional field, essentials of vast category are expected to be carried everyday, A LOT of Stationary- Needs several divisions , Tech- Gadgets- Laptop, Ipad, Design tools- Measuring tape, Set-square, Sheets, Books of various sizes etc. Hence, the idea to design and craft a bag that specially caters to the needs of people in this particular field evolved.

POORLY QUALITY BAGS WITH THE STITCHES COMMING OUT.

NOT ENOUGH SEGREGATION/ ORGANISATION

ZIPPERS NOT FUNCTIONING CORRECTLY./ TOO MANY ZIPPERS.

BOTTLES FALLING OFF FROM THE HOLDER.

CANNOT FIT LARGER BOOK SIZES

NEEDS SUPPORT TO STAND STRAIGHT.

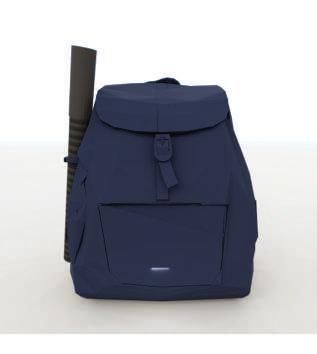

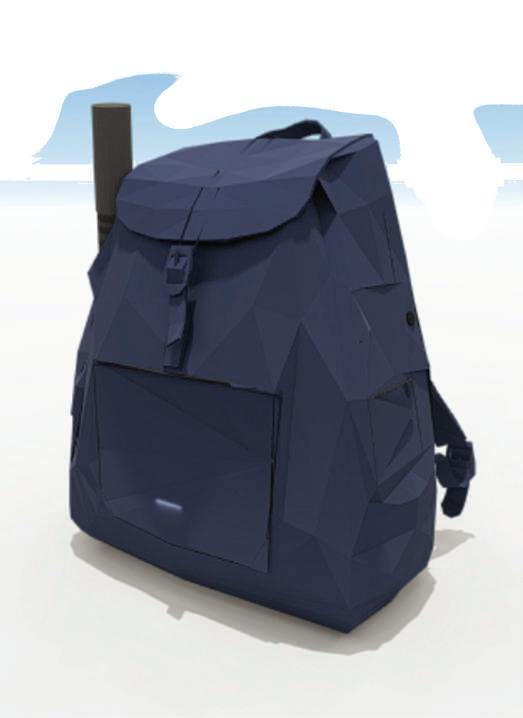

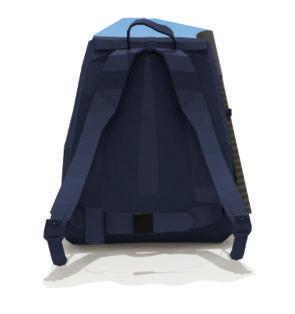

BACKPACK SIDE VIEWS

COMPARTMENT FOR BOOKS, STATIONORY ITEMS ETC. COMPARTMENT FOR TECH GADGETS 90 degree opening.

CHART HOLDER PROVISION

TOP VIEW

EXTERIOR POCKET

CABLE HOLE

48cm

FRONT VIEW

BACK VIEW

27 EXTERIOR POCKET

36cm

REFLECTIVE

WAIST STRAP

EXPANDABLE POUCH + RAIN COVER PROVISION

START-UP PROPOSAL CREATING DESIGNING, and Delivering

QUALITY

stationery materials, products and design solutions at student friendly prices.

BOOKS Themed cover illustrations Customize- No. of pages, gsm, Page style etc.

Yearly themed customiseable

NOTEPADS

SHEETS

Reusable notepad Personalised cover Detachable sheets Space for pens, Additional pouch storage etc.

Loose sheets of various gsm, style.

Gateway, buttersheets, plain, ruled etc.

Can be attached to our reusable notepad.

To- do lists.

JOURNALS Personalised Cover page.

Self- help/ organisational activities.

Sticky notes, stickers

Create a blog – Share notebook-related content to draw in potential customers, such as notebook reviews, journaling tips, and stationery news.

Promote your blog on social media platforms. Collab with other bloggers.

Offer discounts and promotions – Offer discounts for first-time customers or bulk orders. Hold seasonal sales, such as back-to-school sales, holiday sales, and summer reading sales.

Collaborate with notebook clubs and Universites/schools – Reach out to notebook clubs and Universites/schools to offer discounts to their members.

Host notebook giveaways and author interviews.

Partner with authors and publishers – Partner with authors and publishers to offer printing services for their notebooks. Offer discounts to their readers for printing their notebooks on your store.

Advertise on social media – Use social media platforms to promote your store, such as Facebook, Twitter, and Instagram. Use ads to target readers who are interested in your notebooks.

Attend book fairs and events – Attend book fairs and events to promote your store and meet potential customers.

Offer discounts and promotional materials to attract visitors.

CALENDERS

ONE STOP STATIONARY DESTINATION

STICKERS

NOTE EVERY RIDICULOUS DAY IMPLIMENTATION PLAN: 2

our niche is mixed, everything from minimal- elegant styles to a bit pop and funk, that complies eronomical productions.

1

Our Platform: we would have our website for easy user interface that allows users to purchase exactly what they have in mind with delivery details.

Create designs Develop designs for your notebooks and stationery. customized options for customers.

Add text, logos, or images.

Send for production.

MARKETING STRATEGIES

TARGET USER GROUP

S

Mainly Students and Working professionals.

-Catering to a larger customer base through online platform.

-Background of design field.

3

W

- Shift into digital platforms - Easy to duplicate.

- Competing with already established competitors.

4 Source materialsfrom suppliers for your paper, cover materials, and printing services.

Consider sourcing eco-friendly and sustainable materials.

5 Market your business. Use social media and online advertising to promote your business. Consider partnering with influencers or offering giveaways to attract customers.

6 Fulfill orders- fulfilling them promptly and provide excellent customer service to build a loyal customer base.

Business cards

Marketing solutions/ Banners/ posters

Bulk office/ University orders

O

BUSINESS MODEL

C

- Building connections trust worthy vendors.

- Finalising the design ergonomics of the products.

- Restricting Duplicates.

- Gaining trust of customers, being a instagram small business.

Personalised orders

NOTE EVERY RIDICULOUS DAY

Product: ALL IN ONE NOTE-PAD. Personalisation: - Stay organized.

- Sense of ownership and pride.

- Easily identify their own belongings, reducing the chances of lost or misplaced items.

- Incase of students, this could also help them with better organization of work and notes with respect to the course they have taken.

Helps formulate the product pricing.

- Higher institutional establishments in bangalore.

- Up and comming firms.

- Large user working groups.

Gift card, invitations

USP

EXPENSES:

FUTURE SCOPE: Document printing solutions.

NOTE EVERY RIDICULOUS DAY

RESEARCH

Material costs (paper, ink, etc.)

Labor costs (design, printing, shipping) Overhead costs (Travel, website hosting, etc.)

Marketing and advertising expenses. (Min. 2.5k) Taxes and legal fees Contingency fund for unexpected expenses

Competitors Established brand: - CLASSMATE ( ITC STATIONERY DIVISIONS ) - STAPLES - Other instagram famous competitors in the same category.

28

NOTE EVERY RIDICULOUS DAY

POSTERS

29

30

THANK YOU

Tesslyn Tony tesslyntony@gmail.com 9980367642
