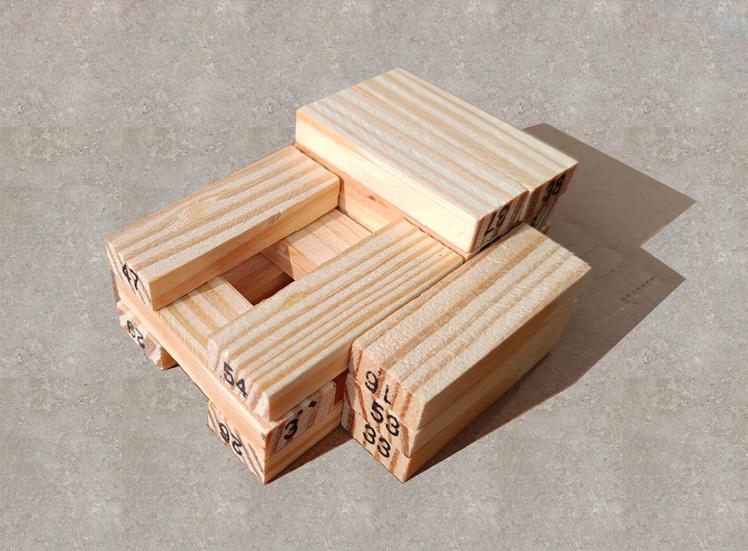

This portfolio contains selected works from design projects developed during last three years. The projects were chosen to highlight the diverse scale and approaches best in my education and experiences. Explorations of structures, contextual parameters and material palettes have been a part of the process.

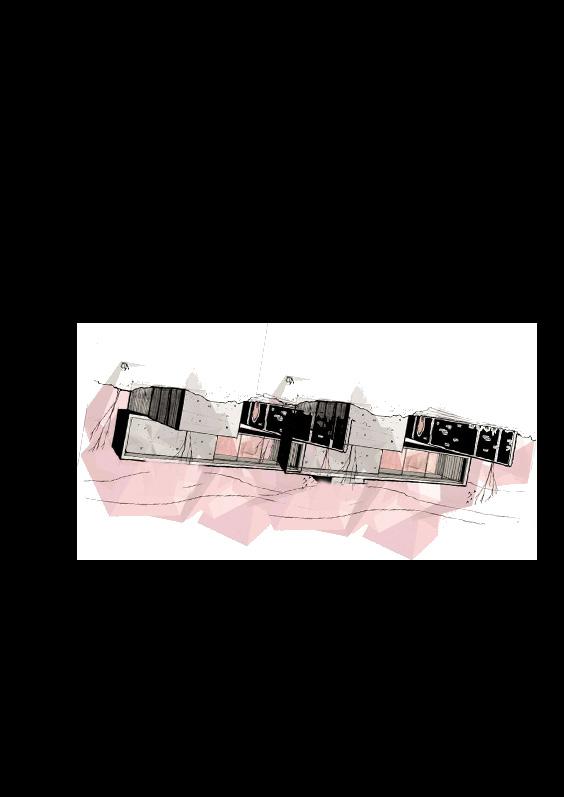

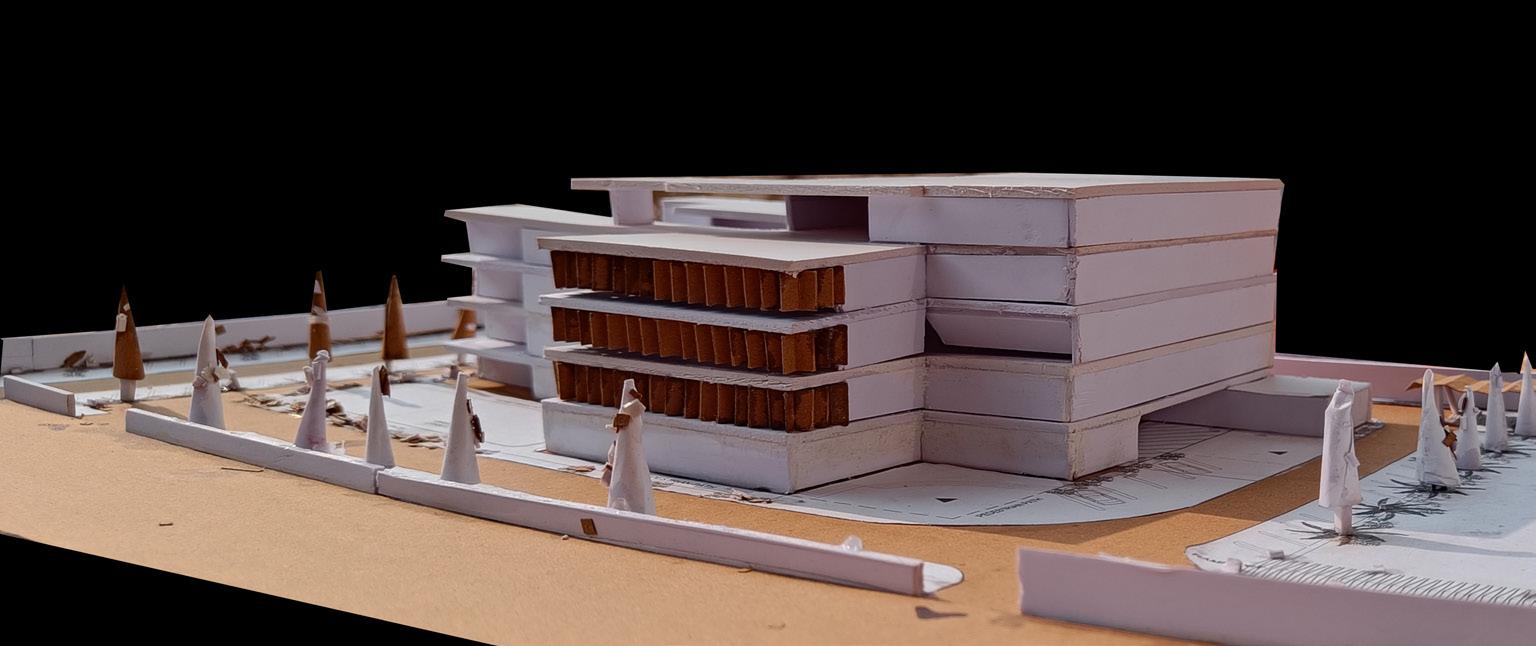

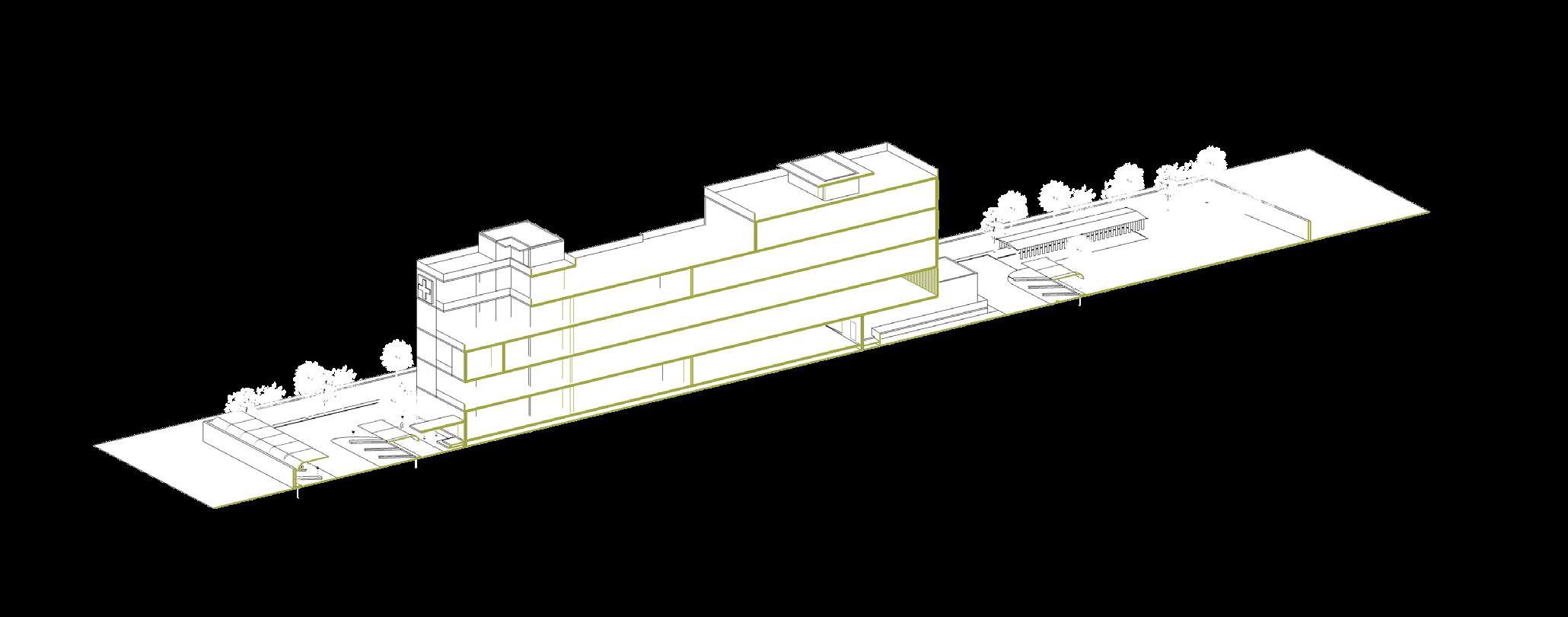

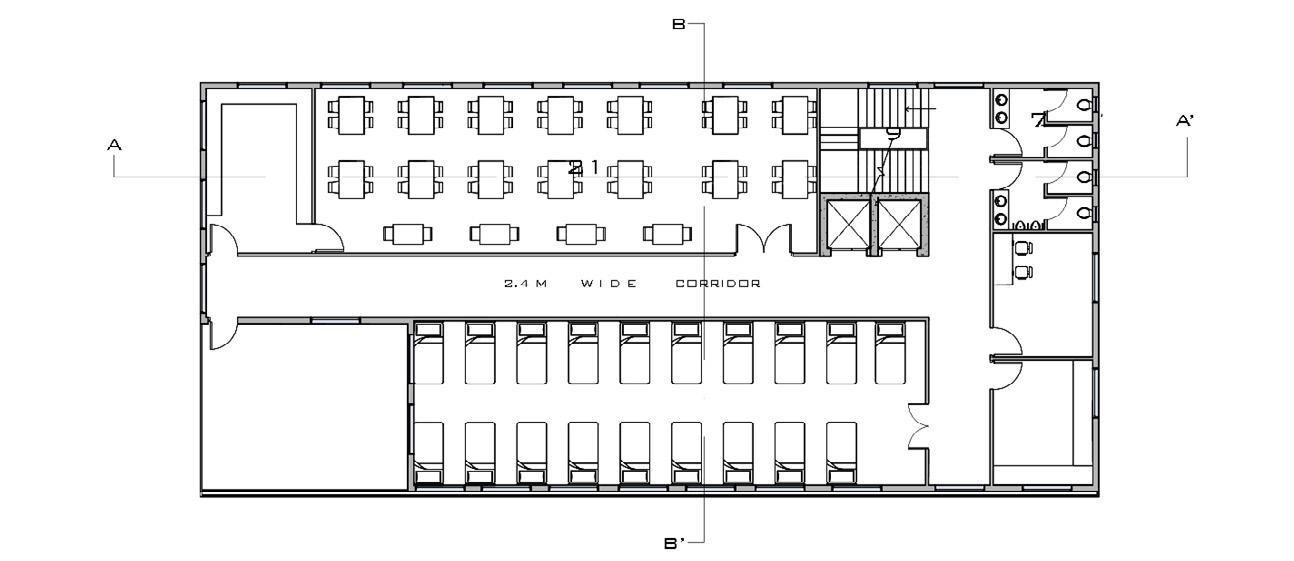

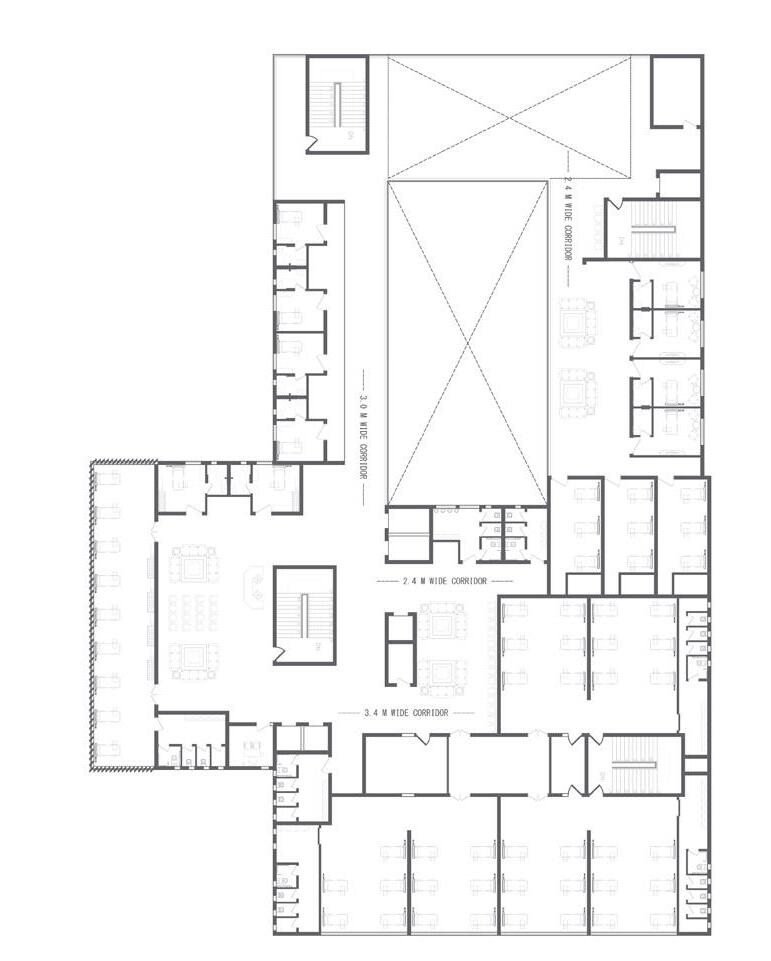

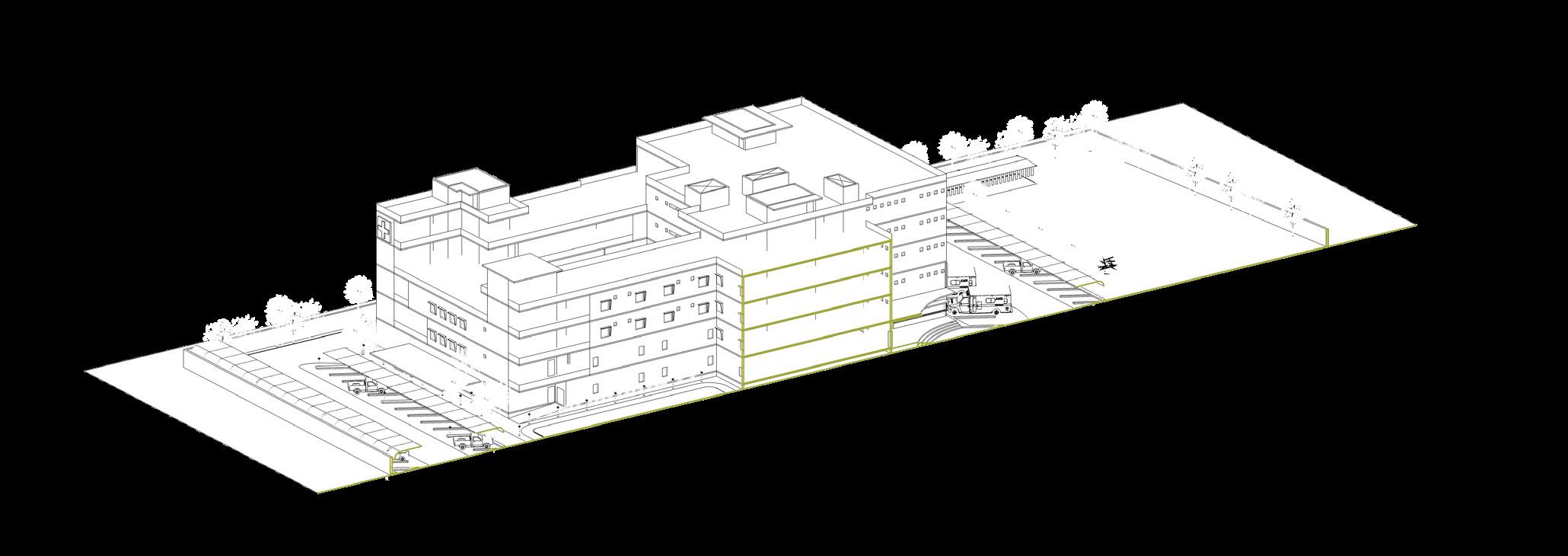

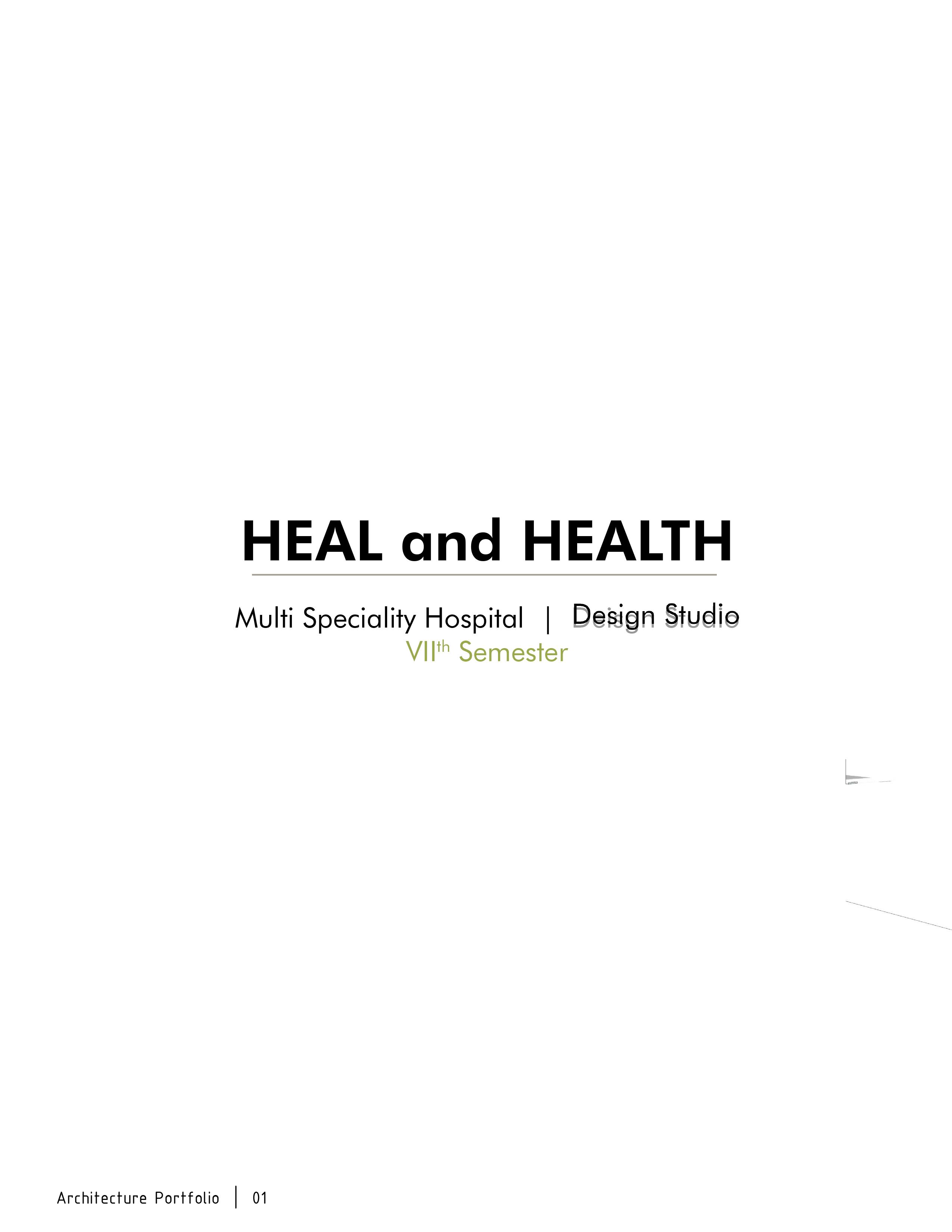

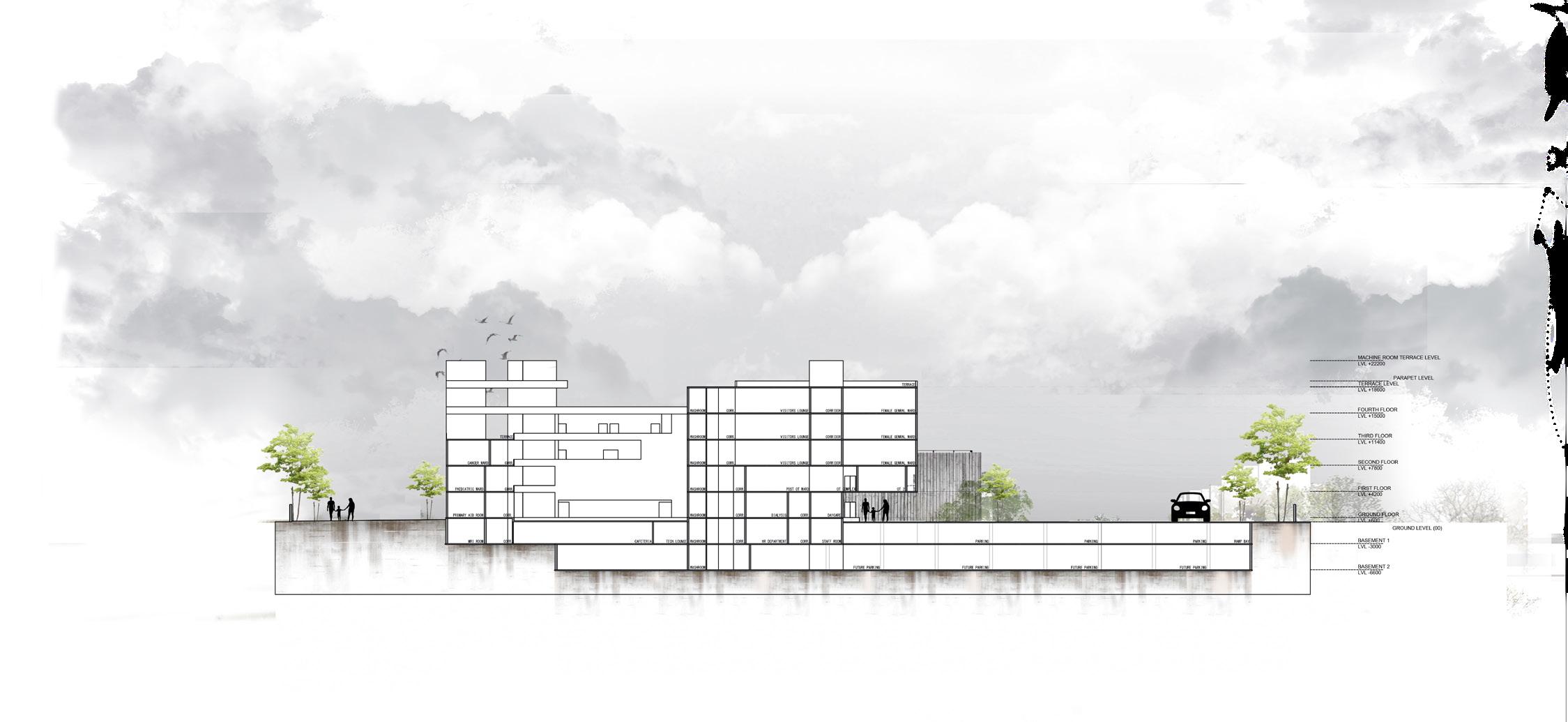

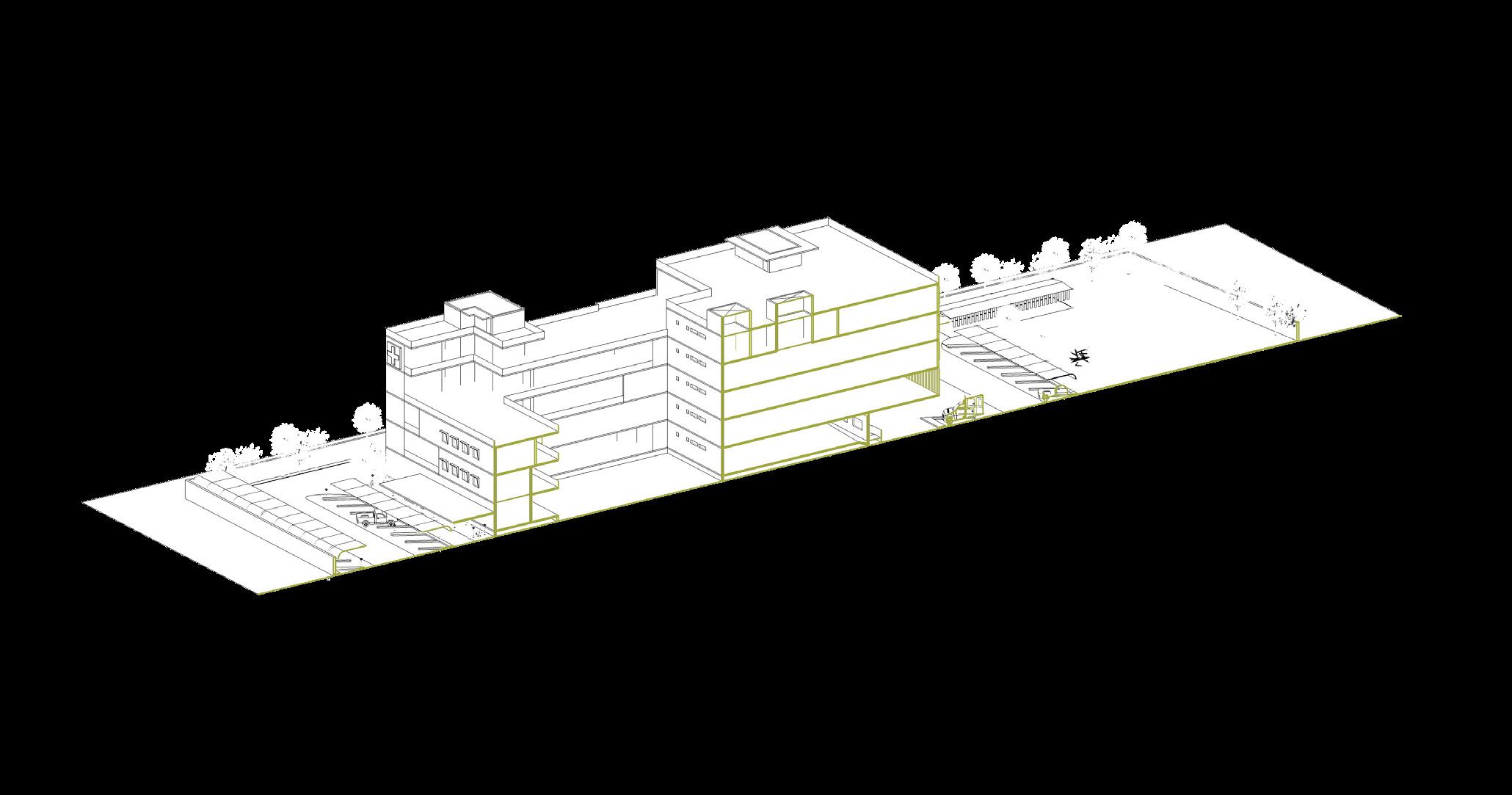

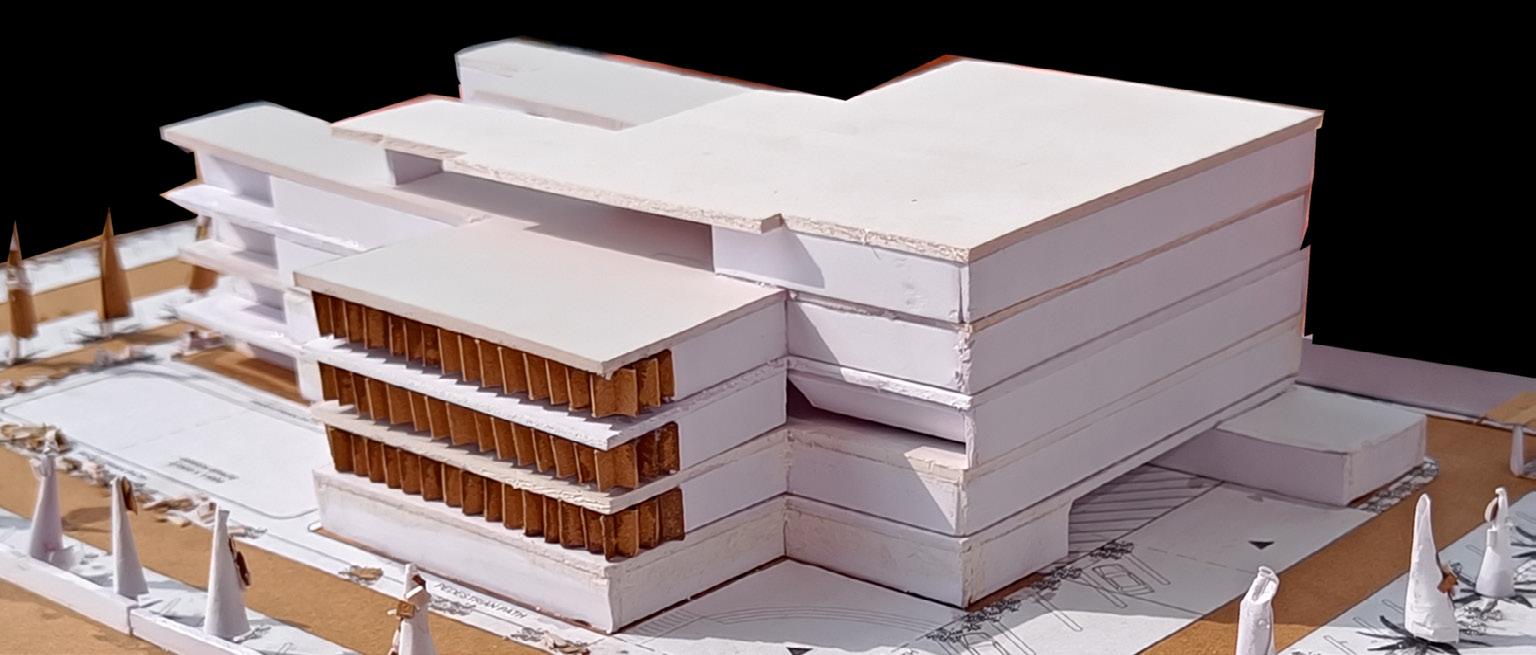

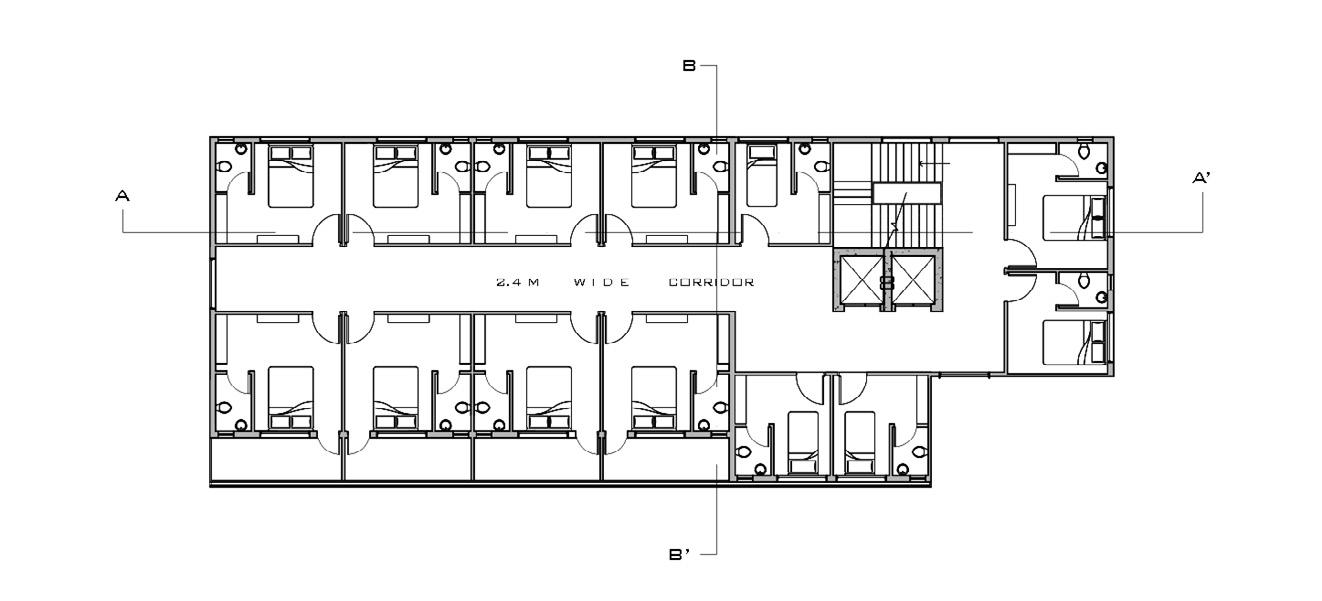

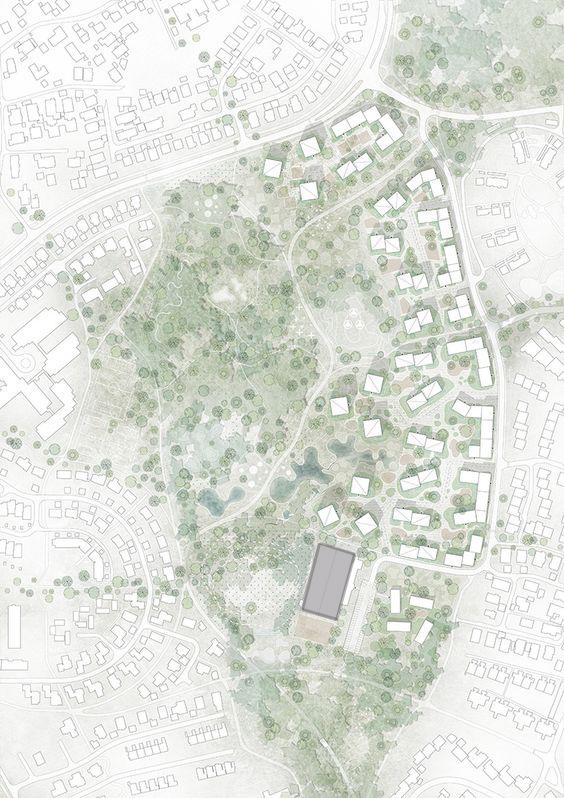

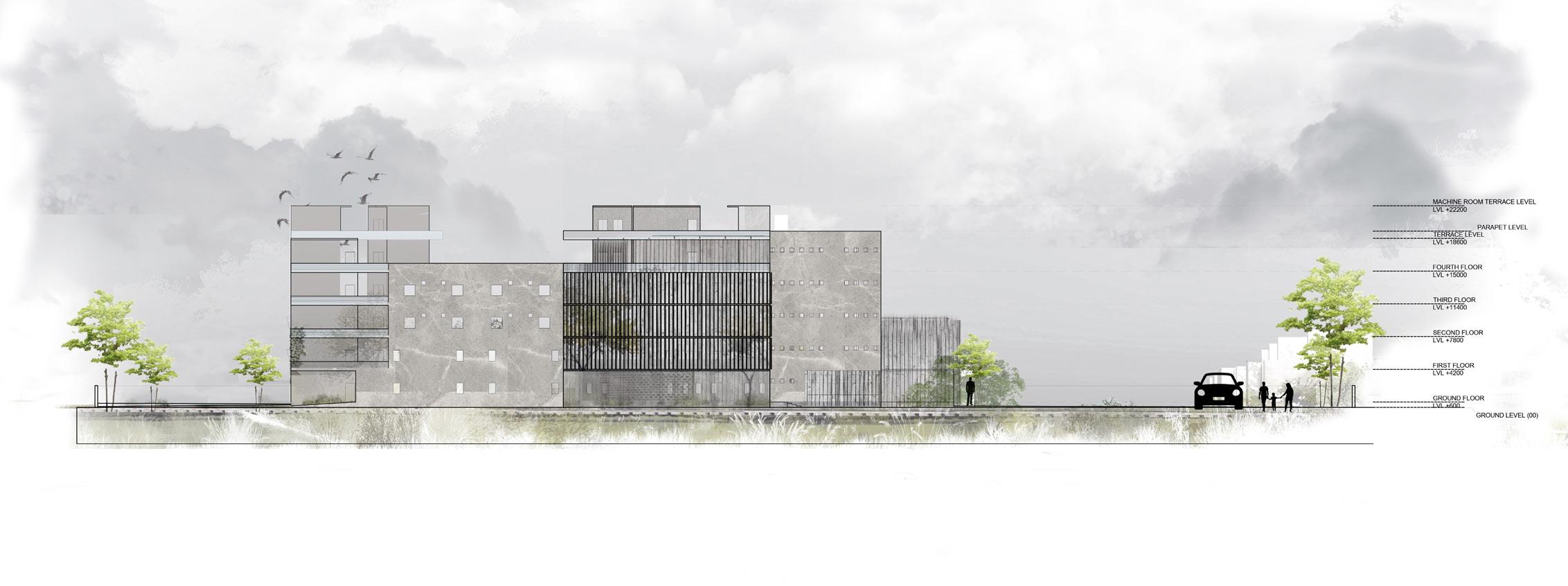

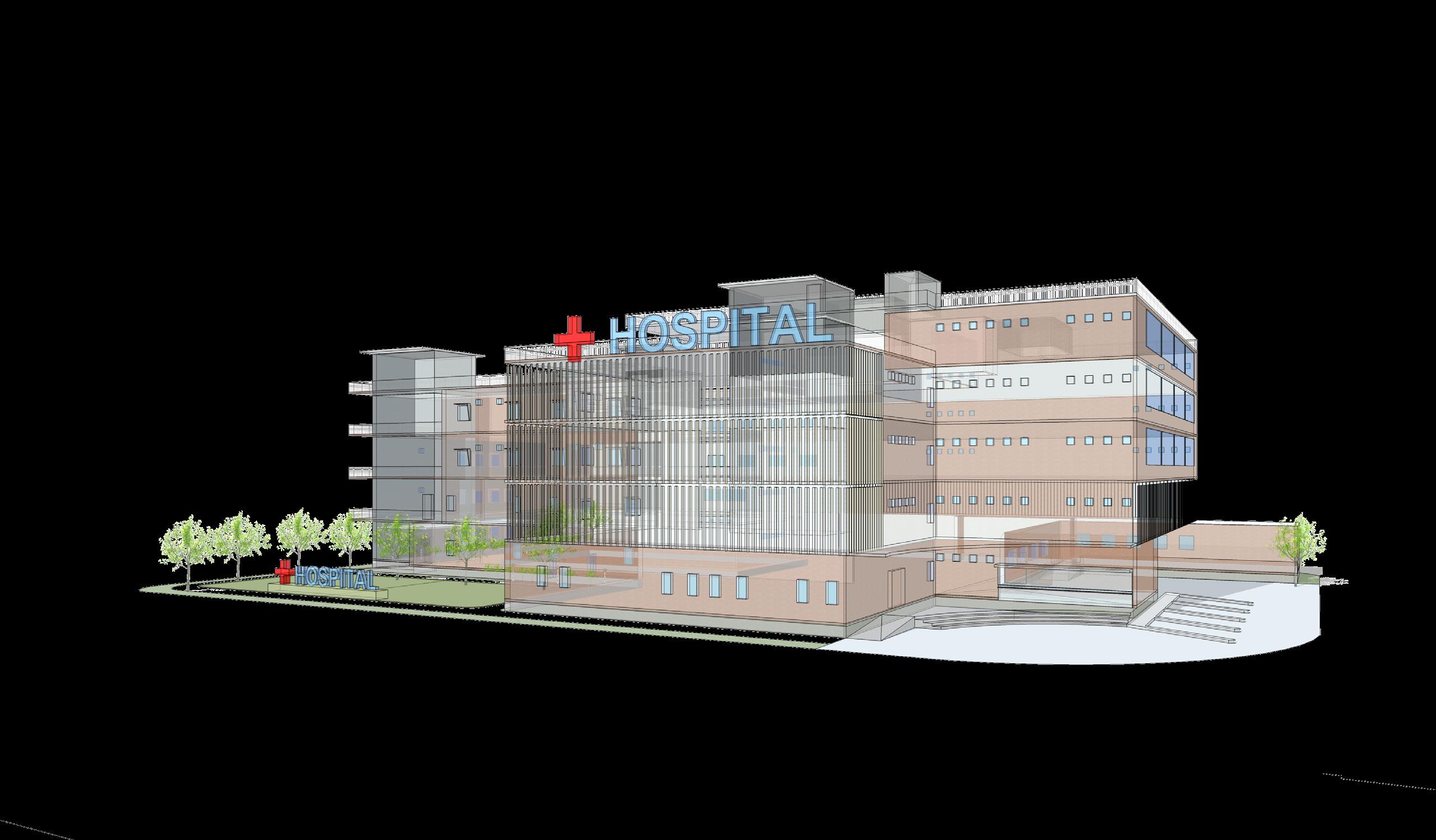

The brief was to design a 200 bedded multi speciality hospital, including an emergency block. The interlink among the components of a healthcare building and circulation of diverse user groups is the most crucial concern. Conscientious planning results in an efficient build environment.

Nature is the best healer. Integrating the nature habitat within the built spaces, provides a healthy and serene environment for the patients as well as for the doctors.

The space program includes:

OPD

Emergency Diagnostics

IPD Wards

Daycare Services

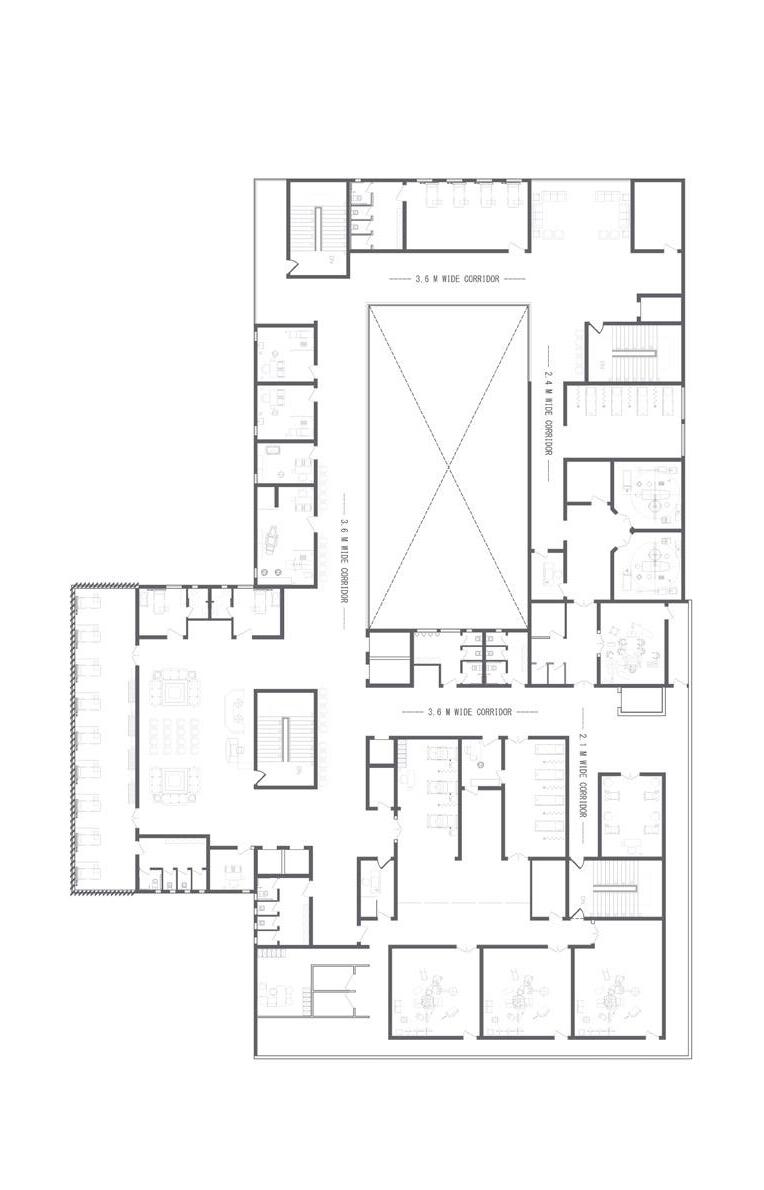

COURTYARD PLANNING

OPD & DIAGNOSTICS

ICU OVER EMERGENCY

IPD Wards

Courtyard OPD

Parking

ICU Wards

Open Terrace

Green Space

Parking

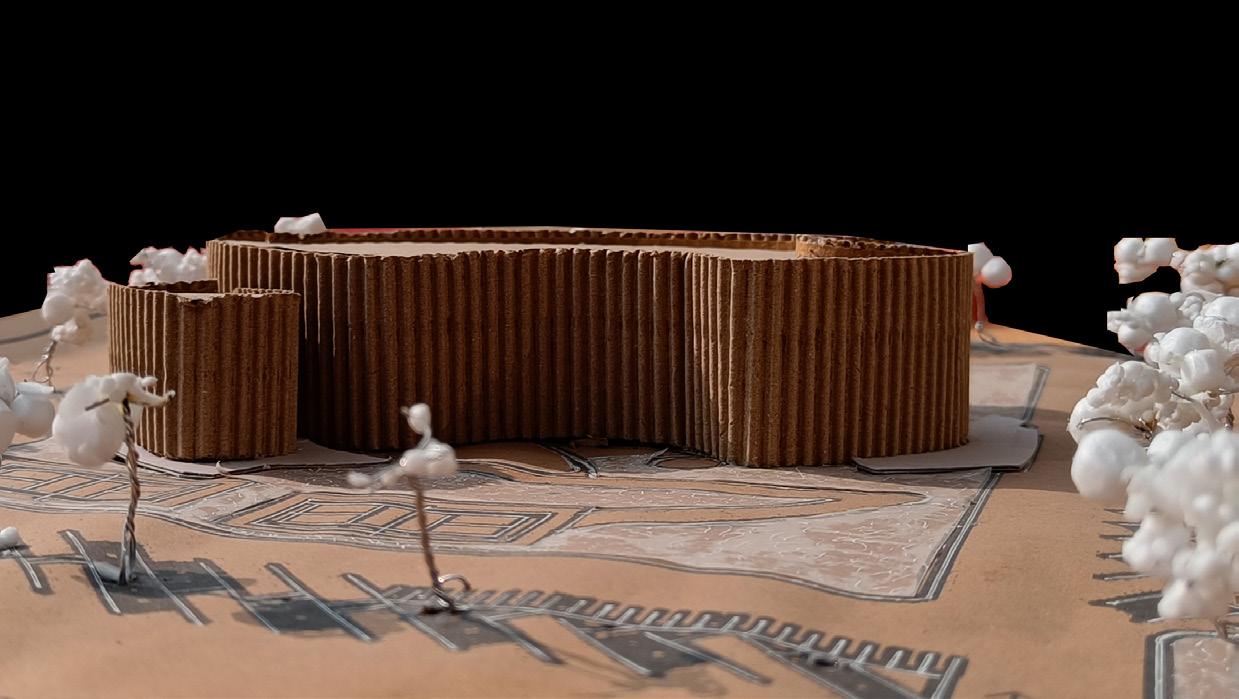

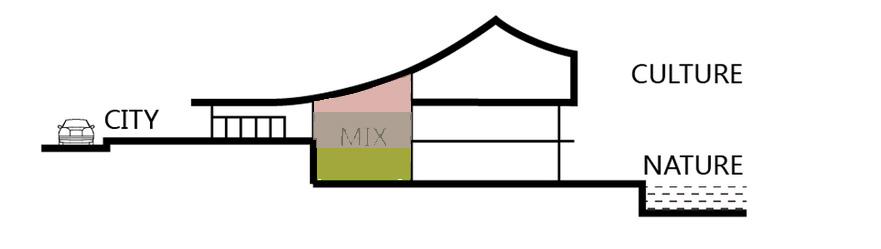

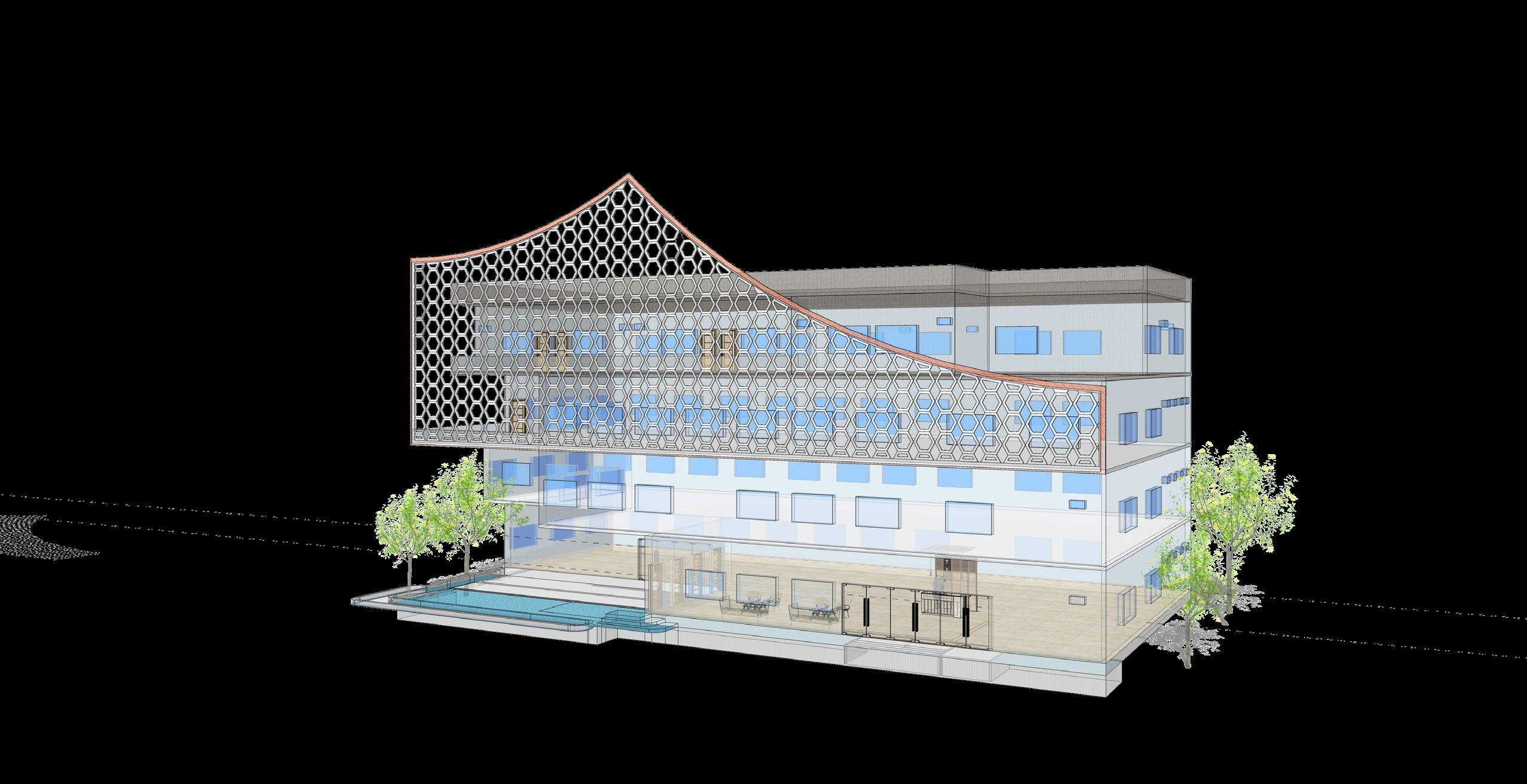

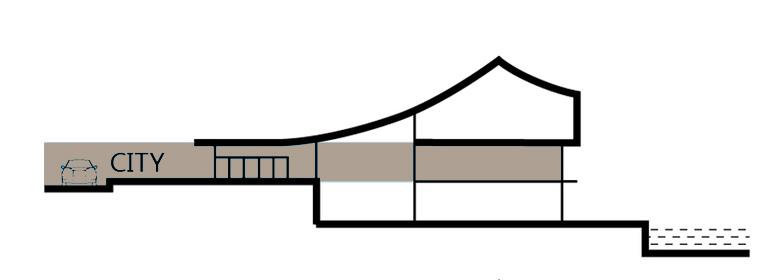

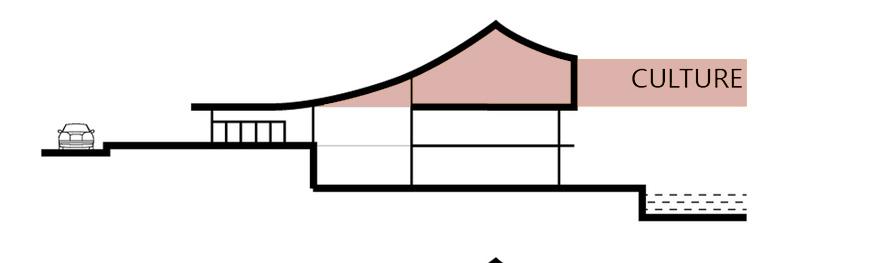

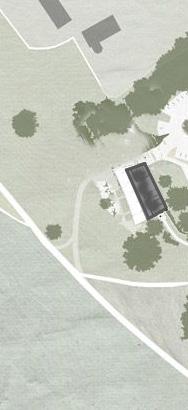

The brief was to design a Wellness Center, including an dormitory. The interlink among the components of a wellness cenetr with city, nature and culture is the most crucial concern. Conscientious planning results in an efficient build environment.

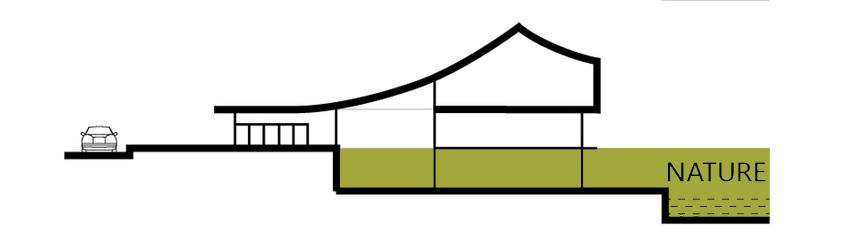

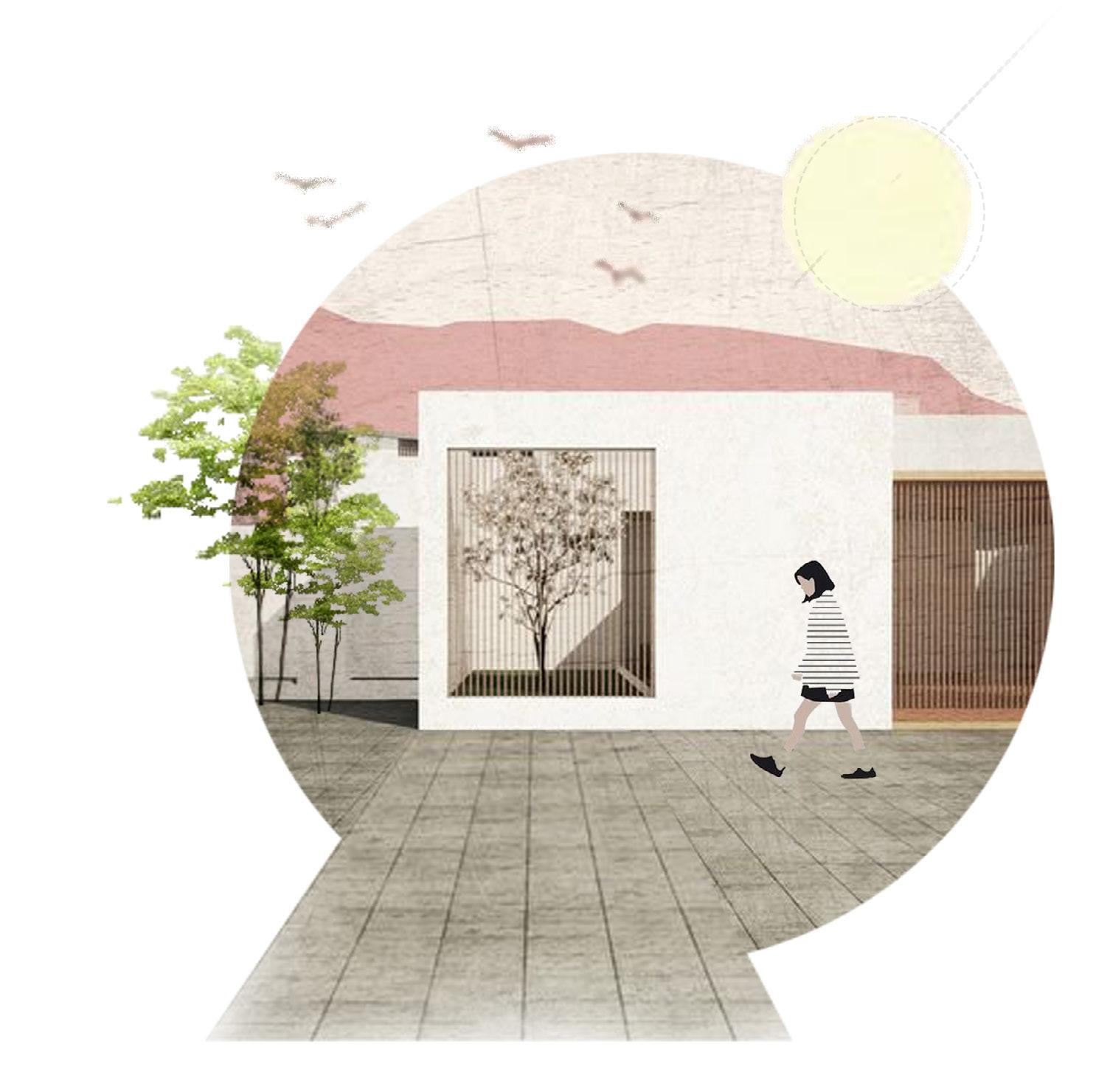

Integrating the nature habitat within the built spaces, provides a healthy and serene environment for the users of the building.

The space program includes:

Meditation Room

Therapy Room

Dormitory

Staff Quarter

Other Services

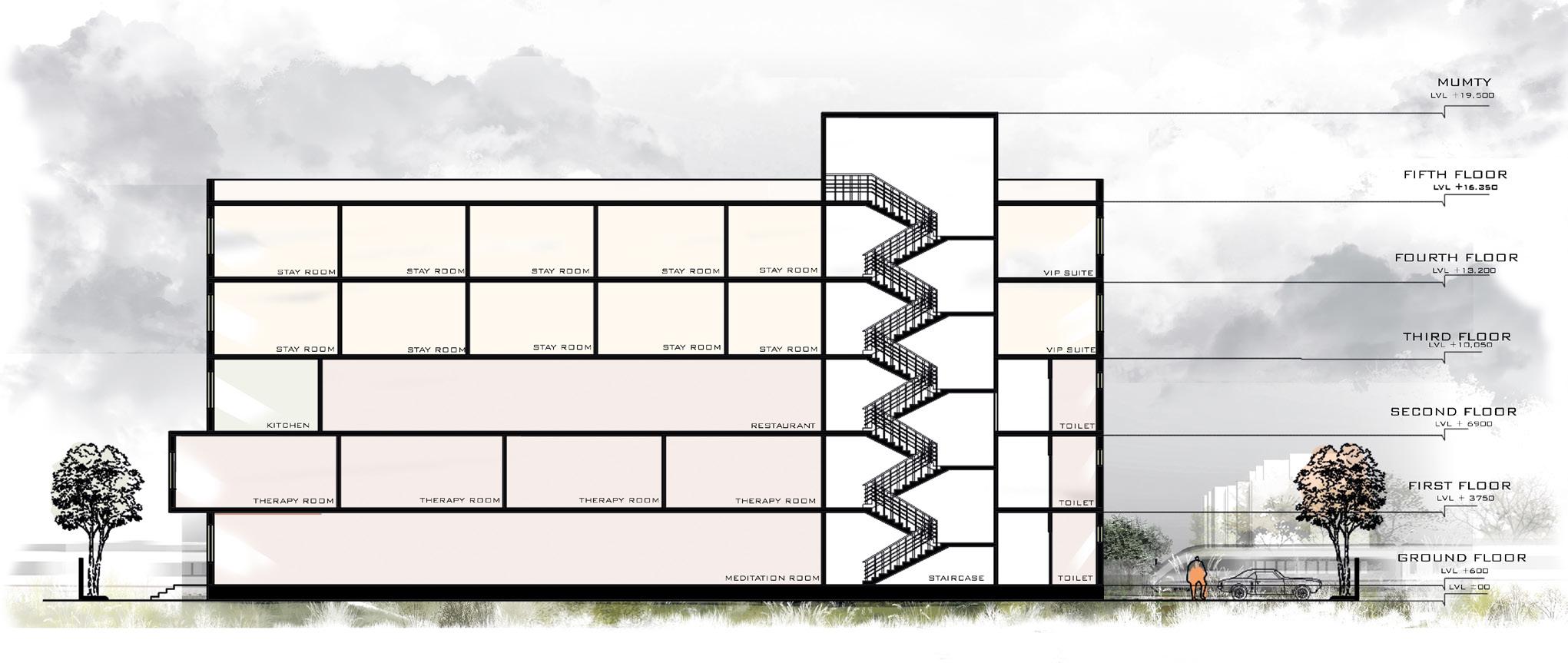

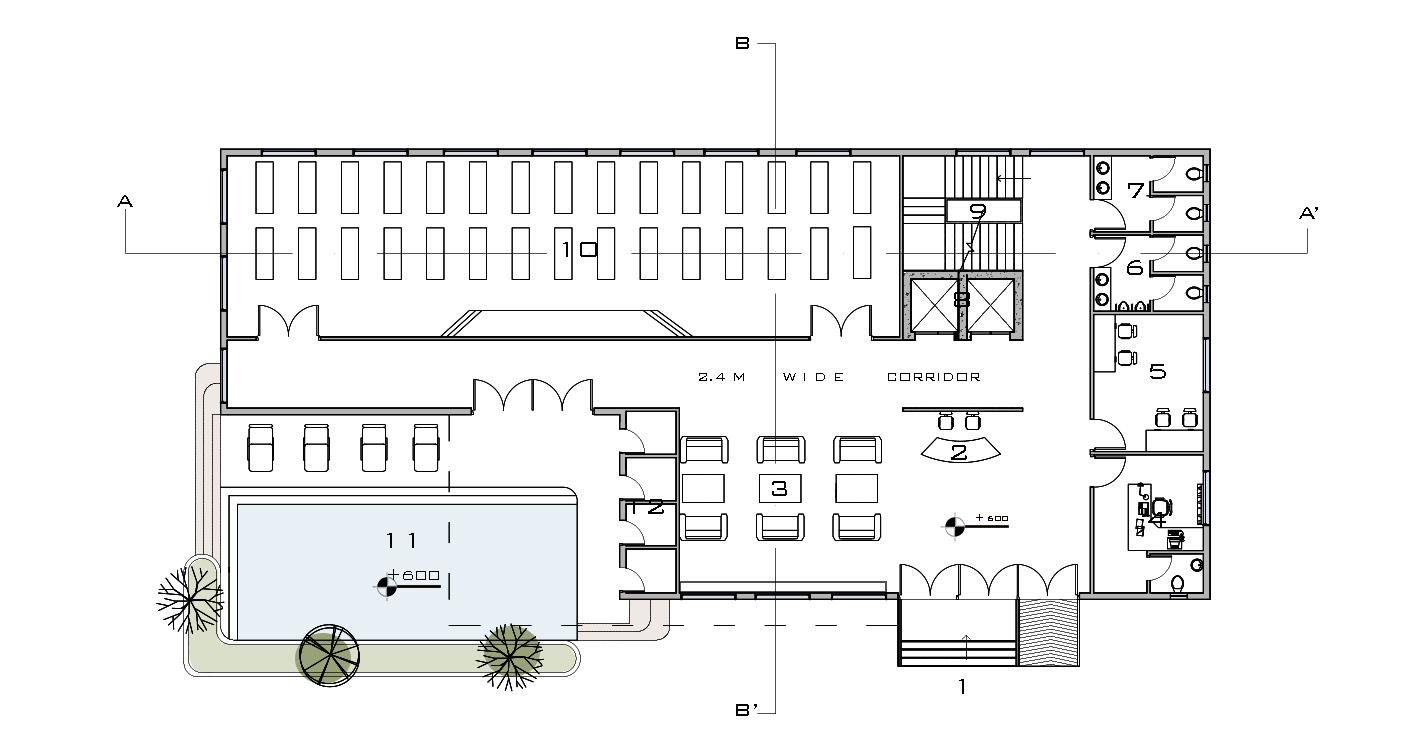

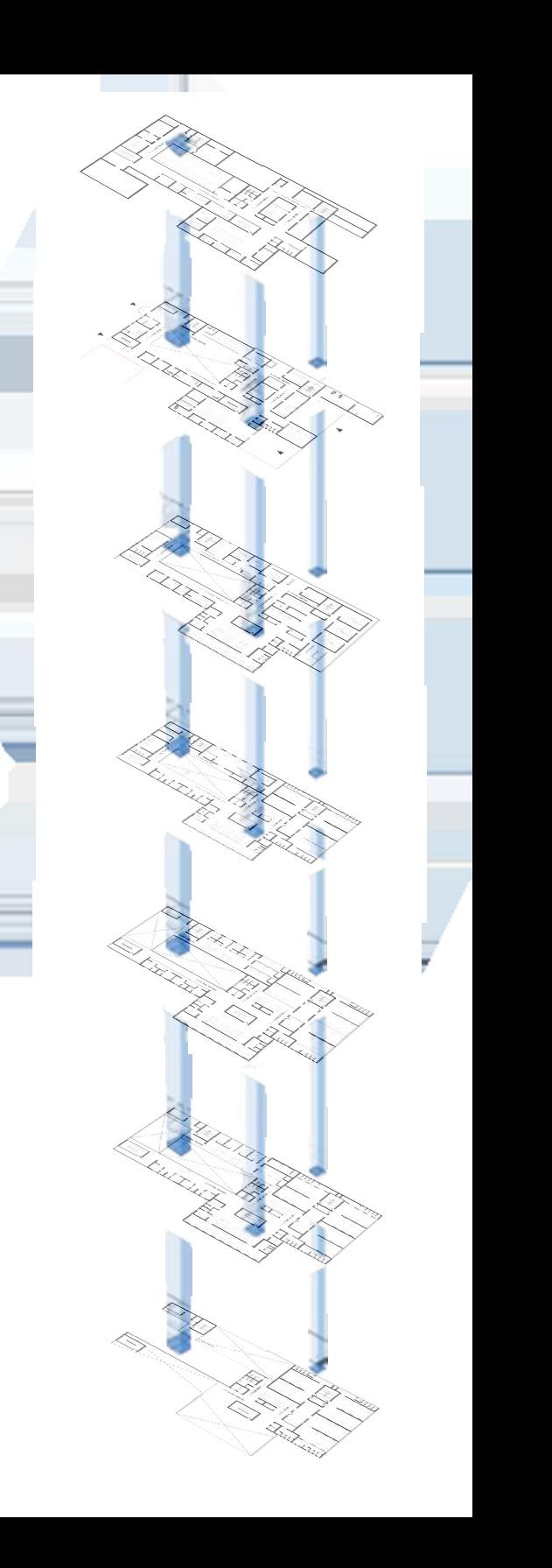

Ground Floor

First Floor

Second Floor

Third Floor

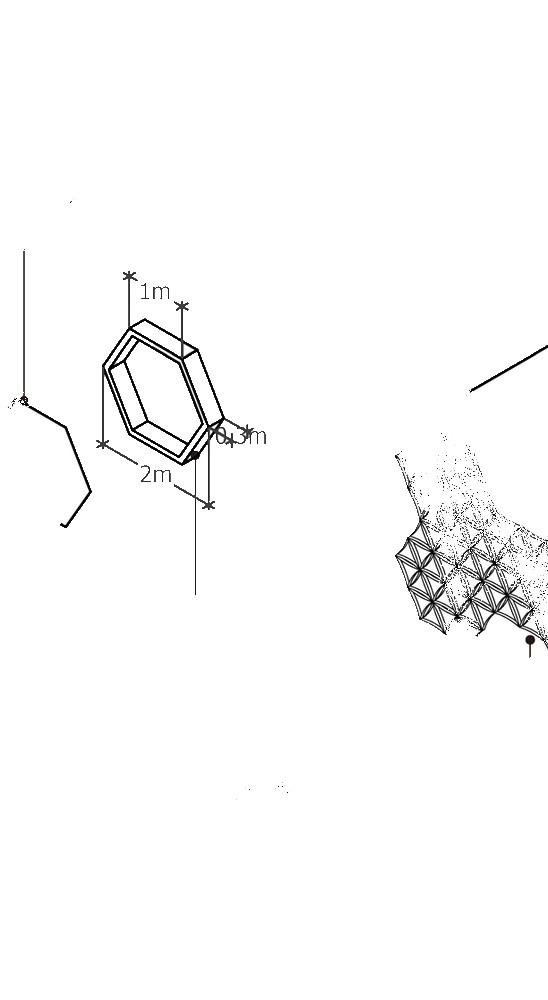

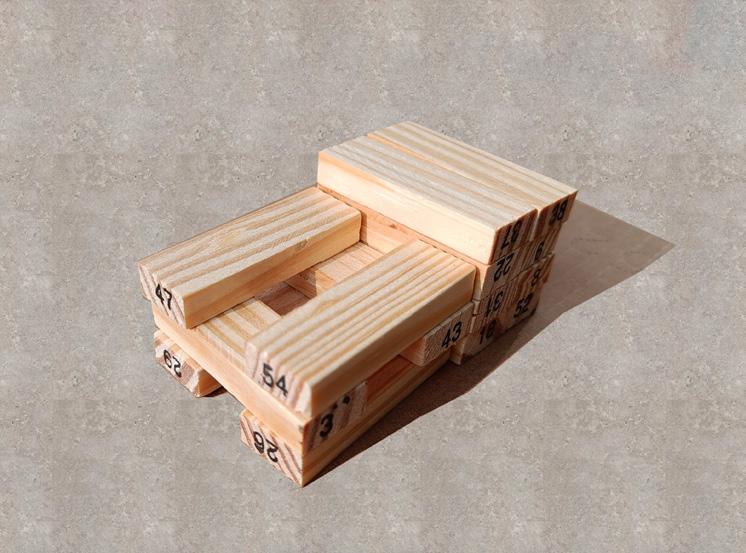

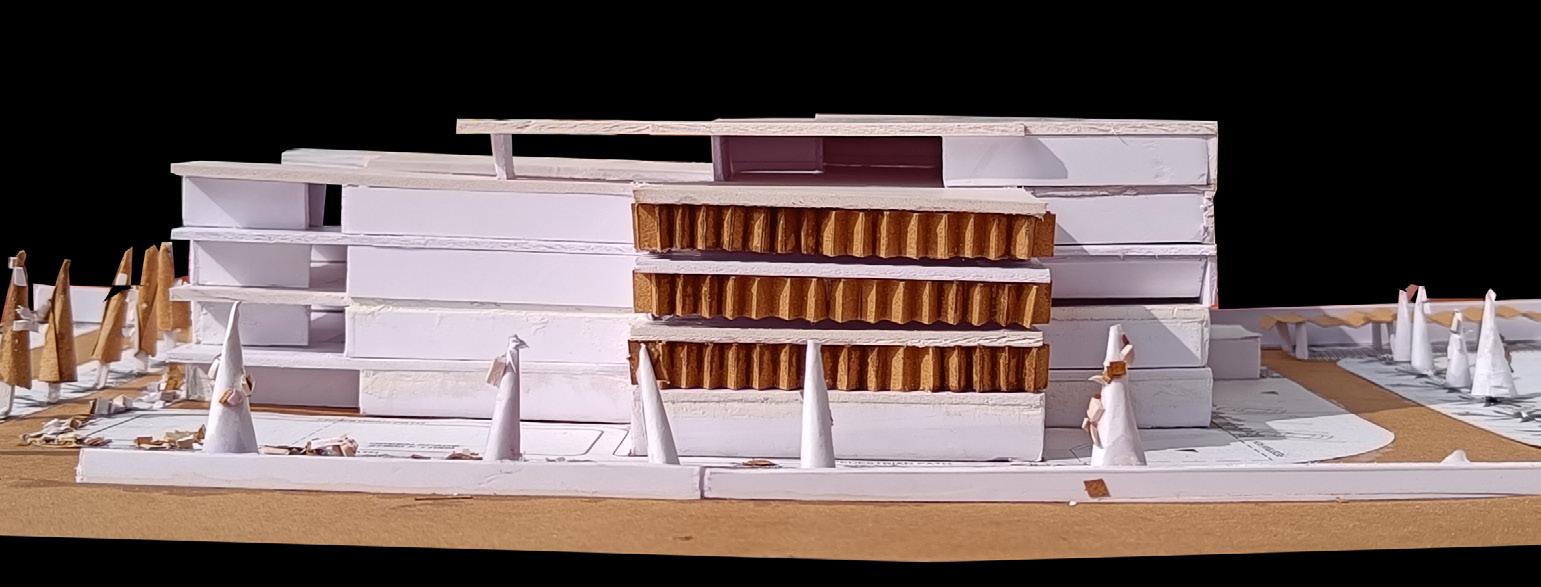

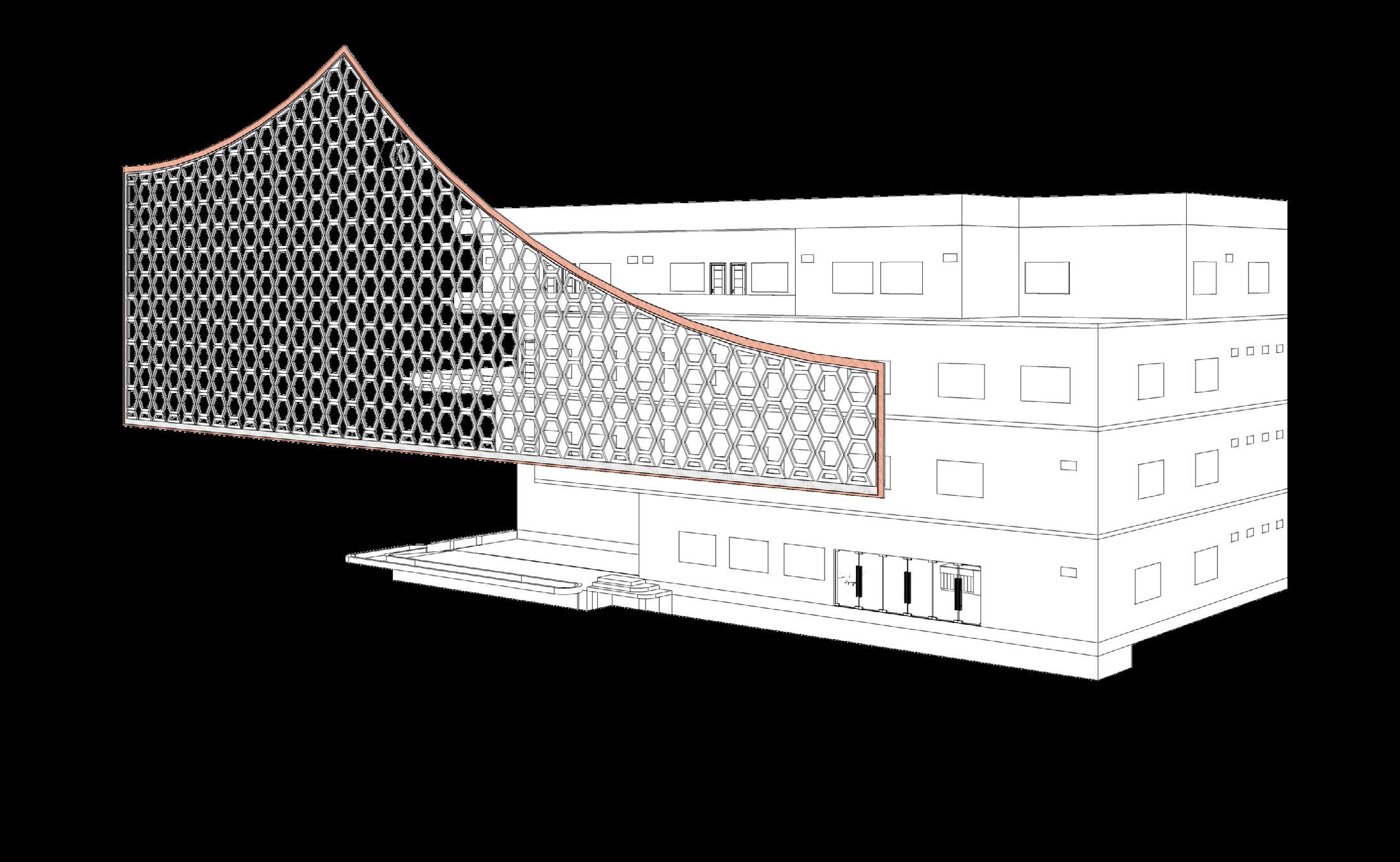

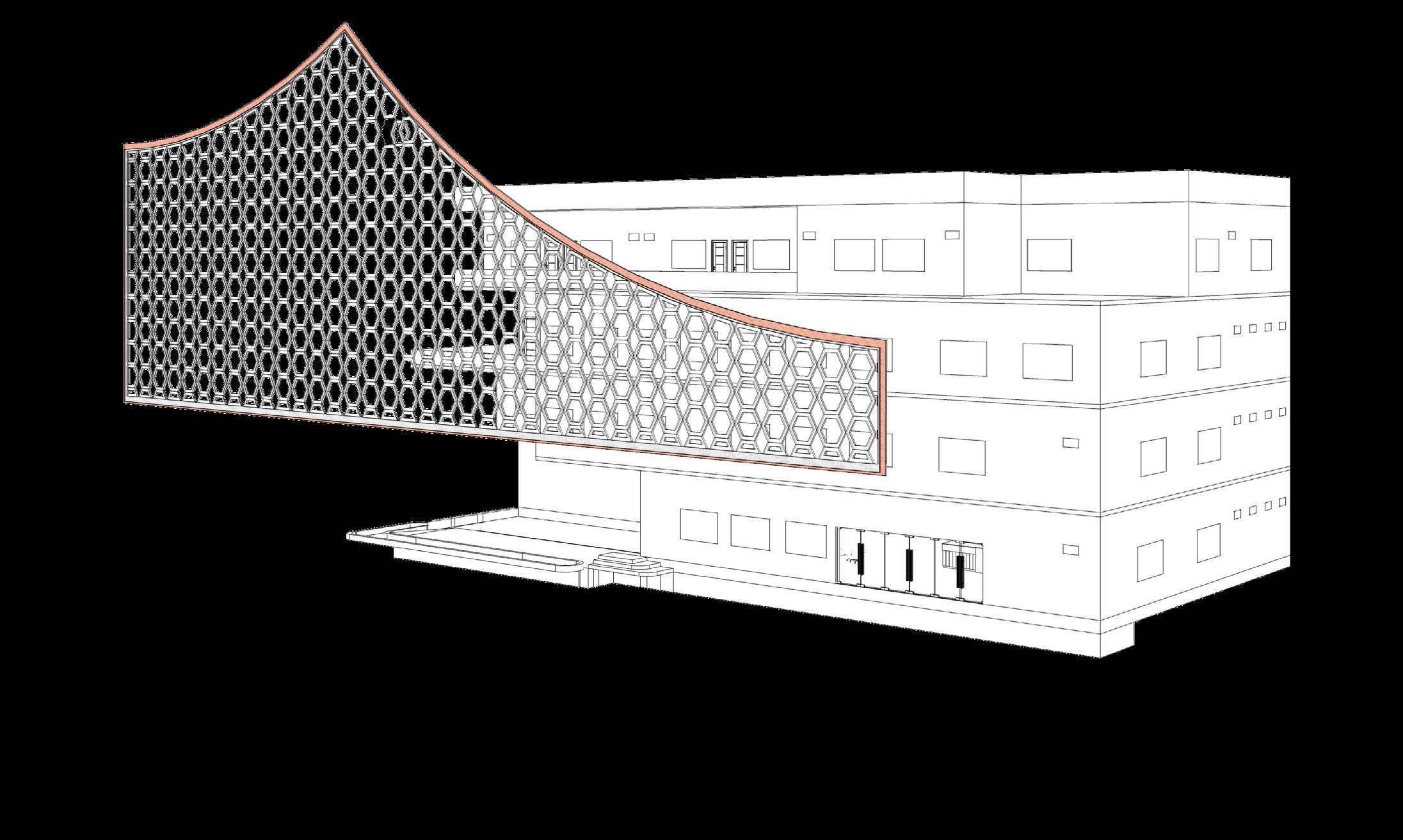

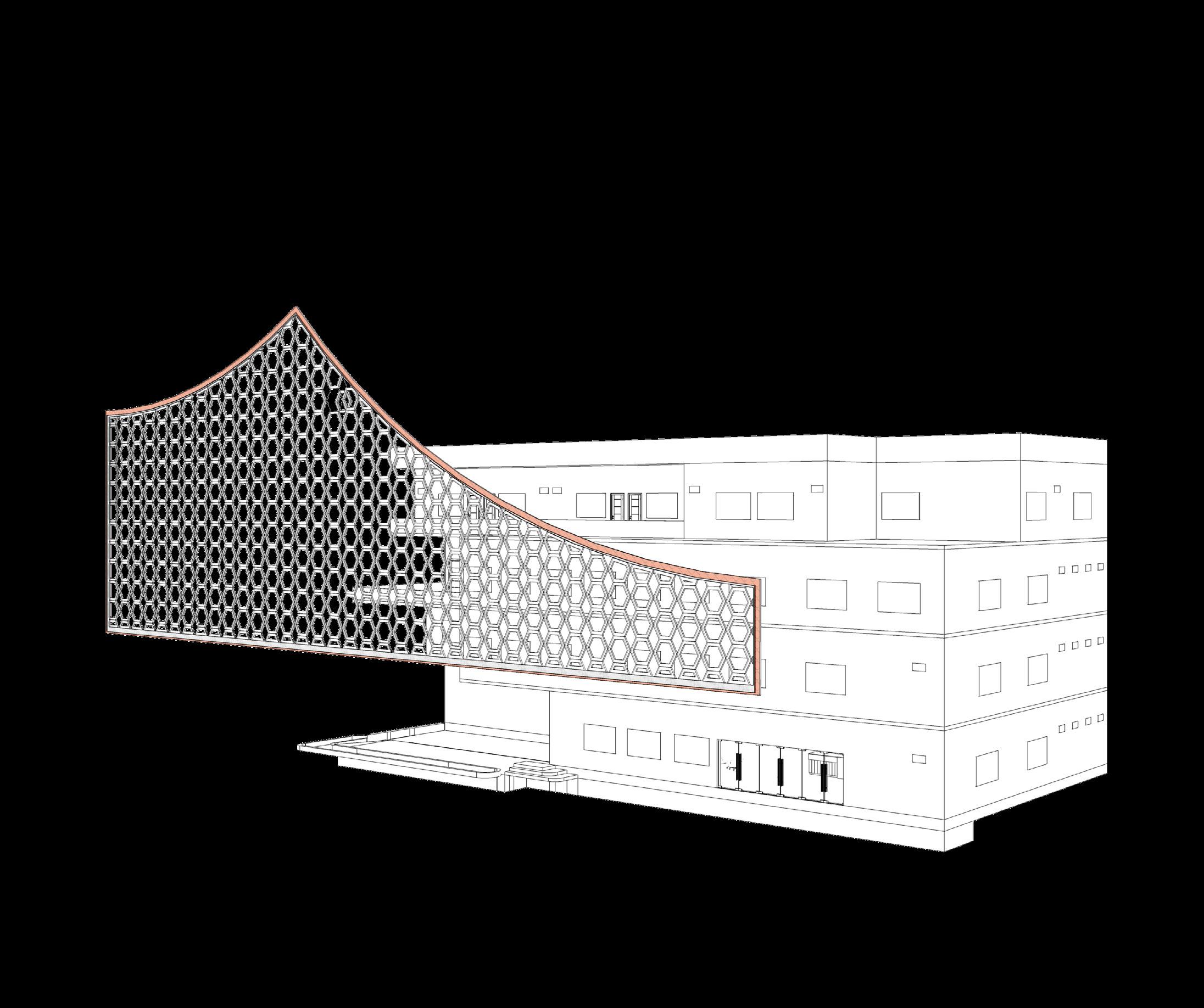

The design is based on having a modular unit that can be stacked, connected and function as one system. .

The hexagon model is chosen to allow maximum space efficiency, as well as its structural properties.

The cell can be designed as an additional to an existing window/ curtain wall or can be the actual structural base of the building envelope.

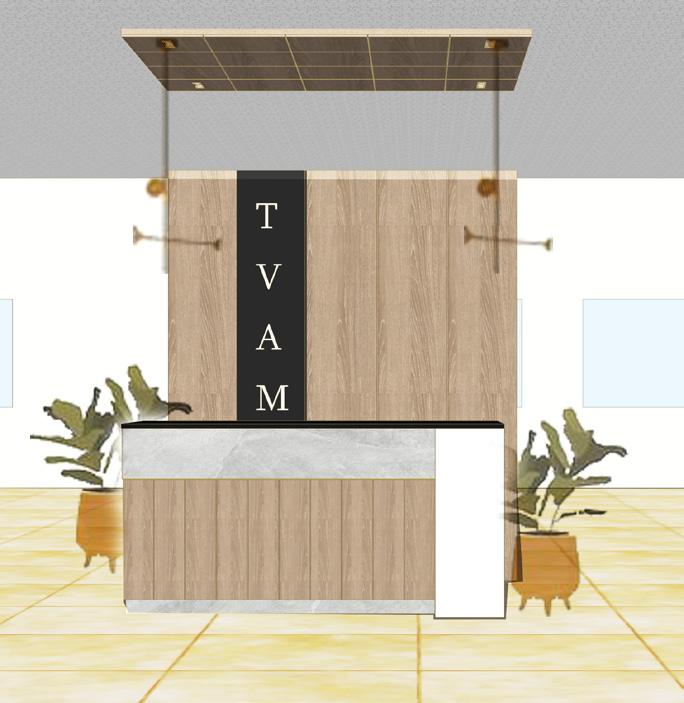

Entrance view

Waiting lobby view

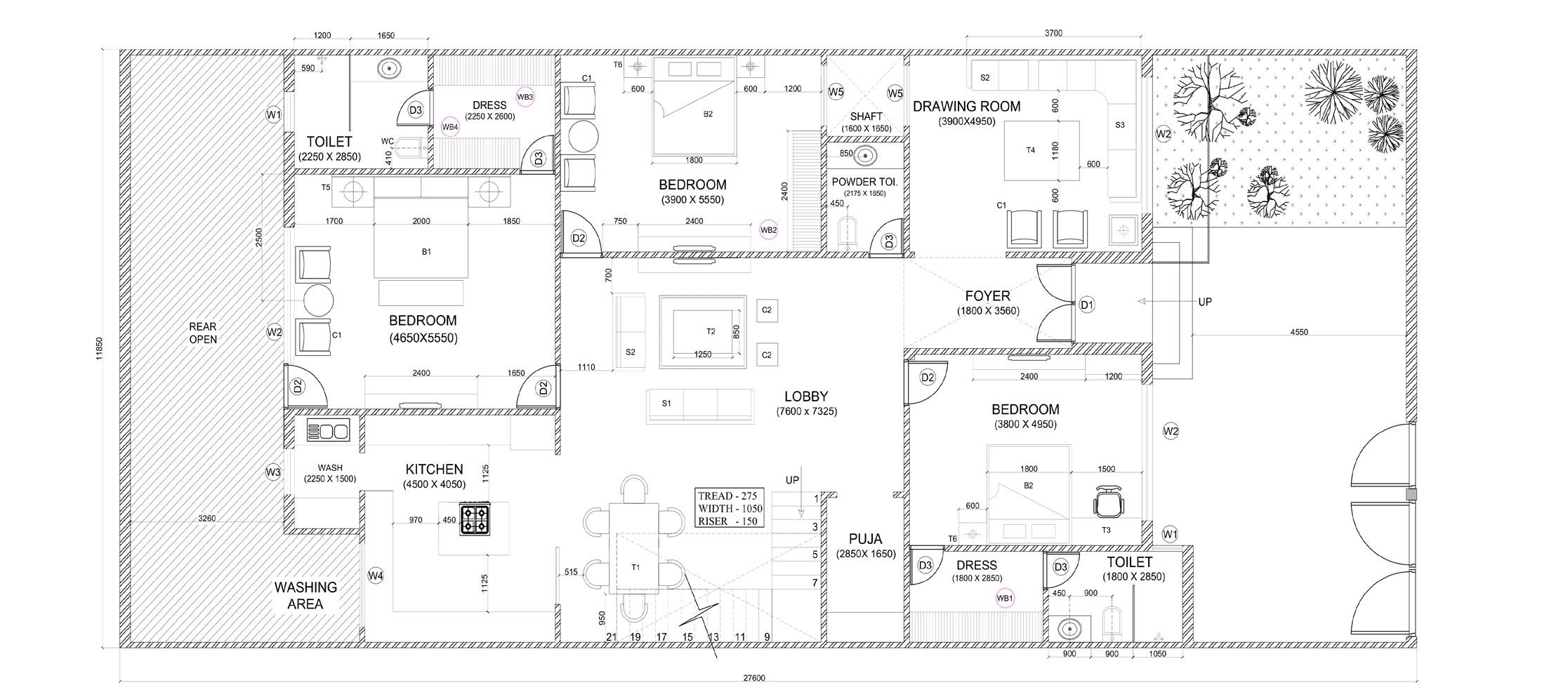

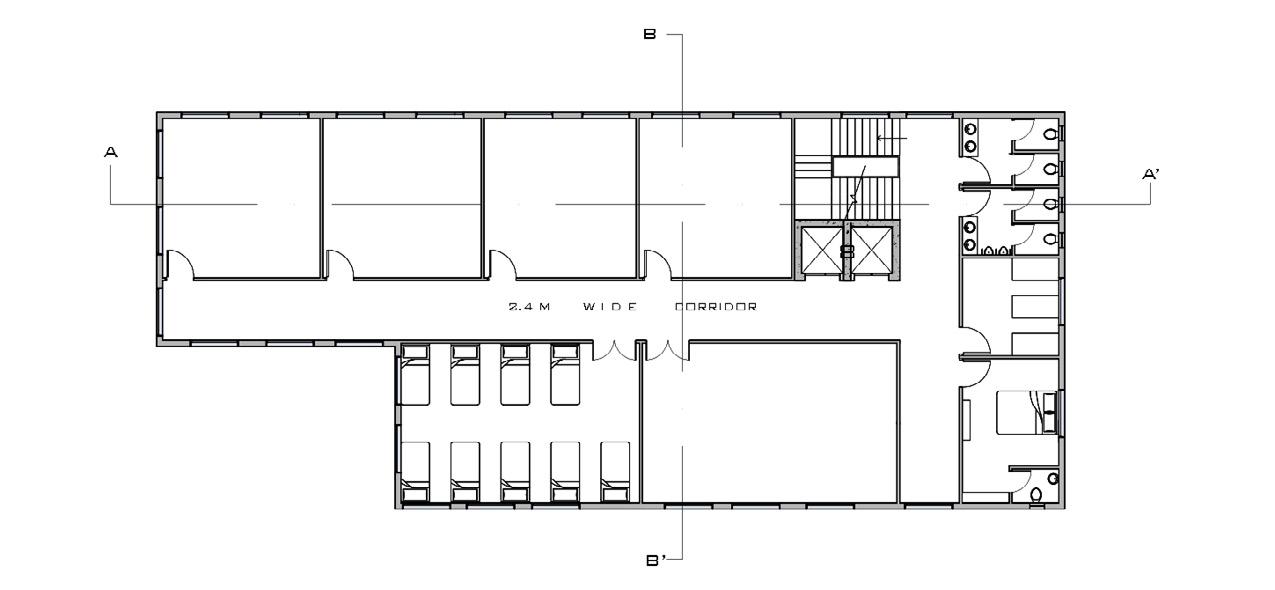

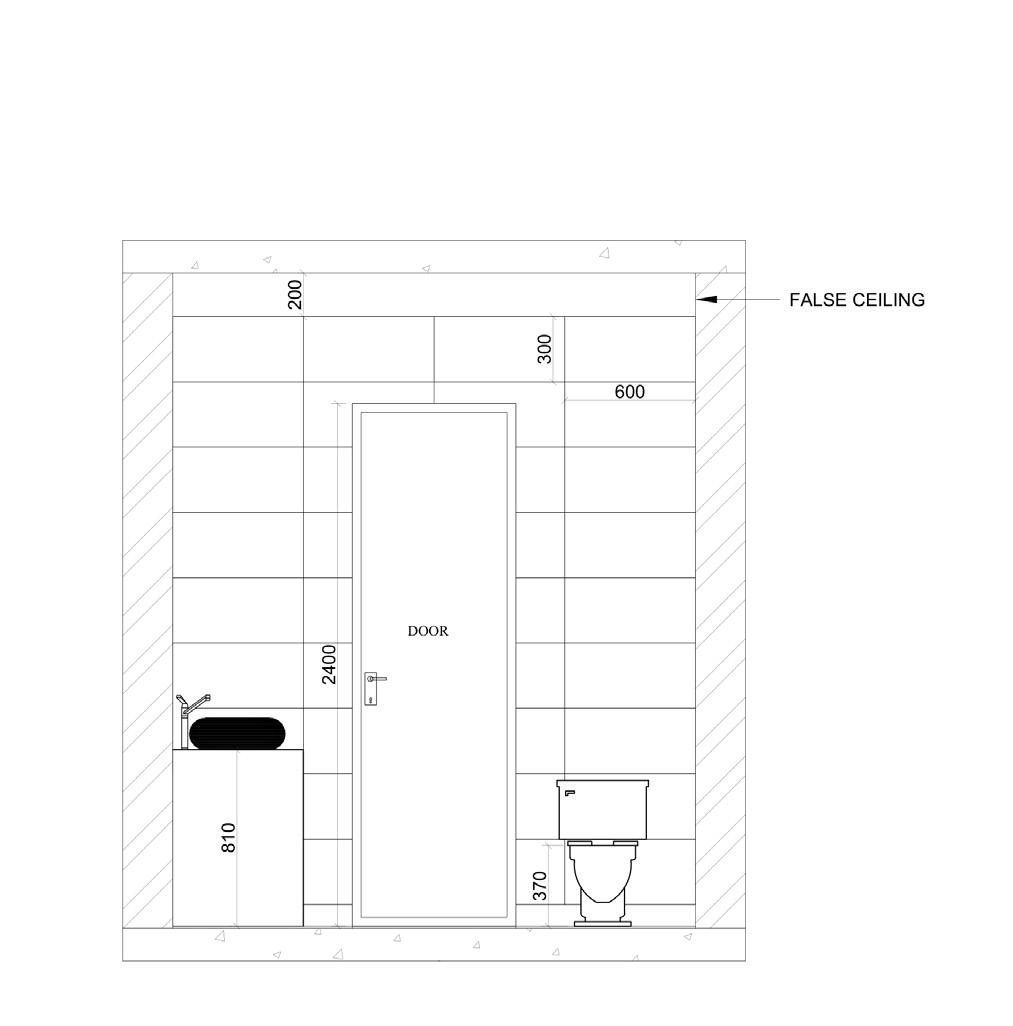

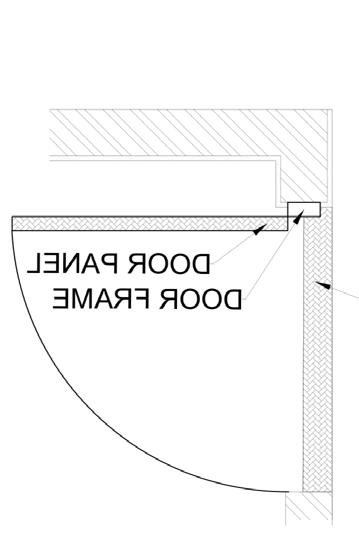

These Drawings are amalgamation of the drawings done in internship and in during college semesters. The Sheets include detailed plans, sections, elevations and interior details such as furniture layout, electrical layout, reflected ceiling plan, Flooring & other joinery details.

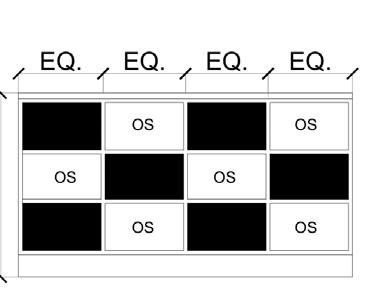

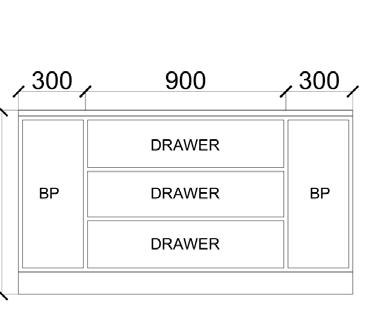

Furniture Layout

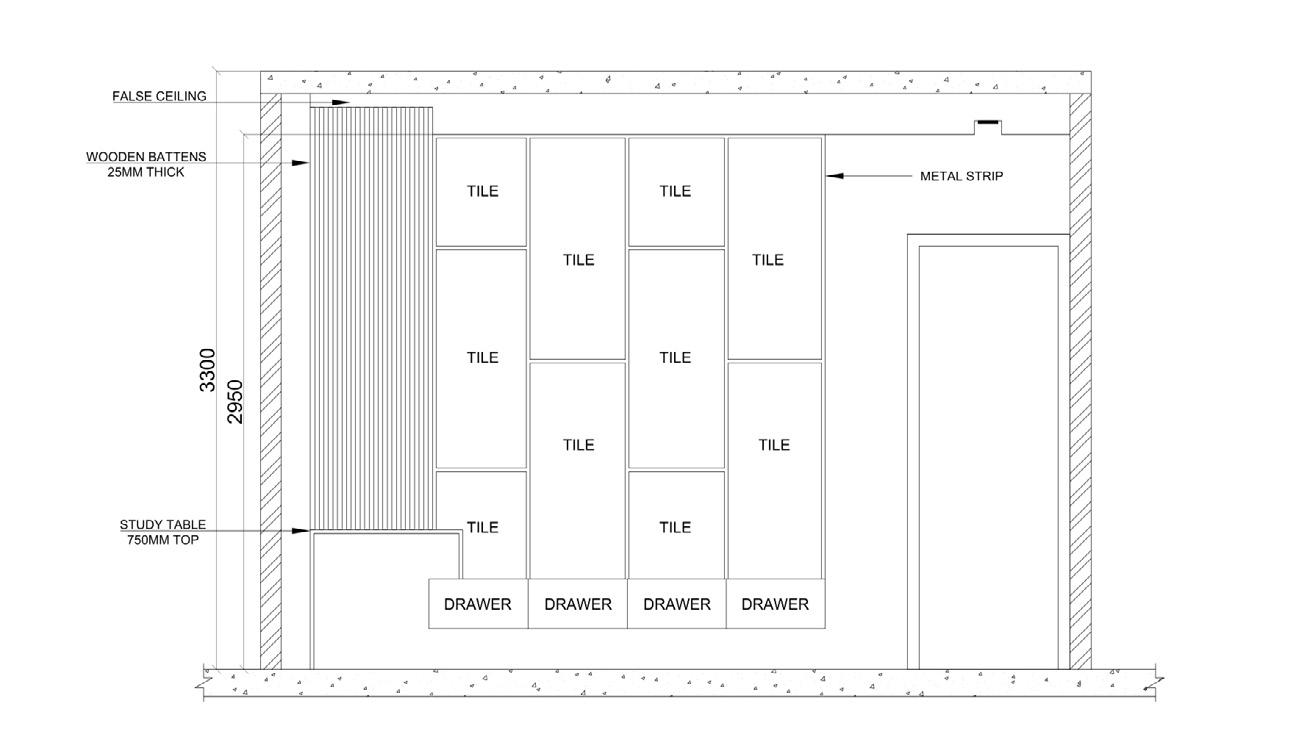

Led Panel Elevational Section

Bedside Elevational Section

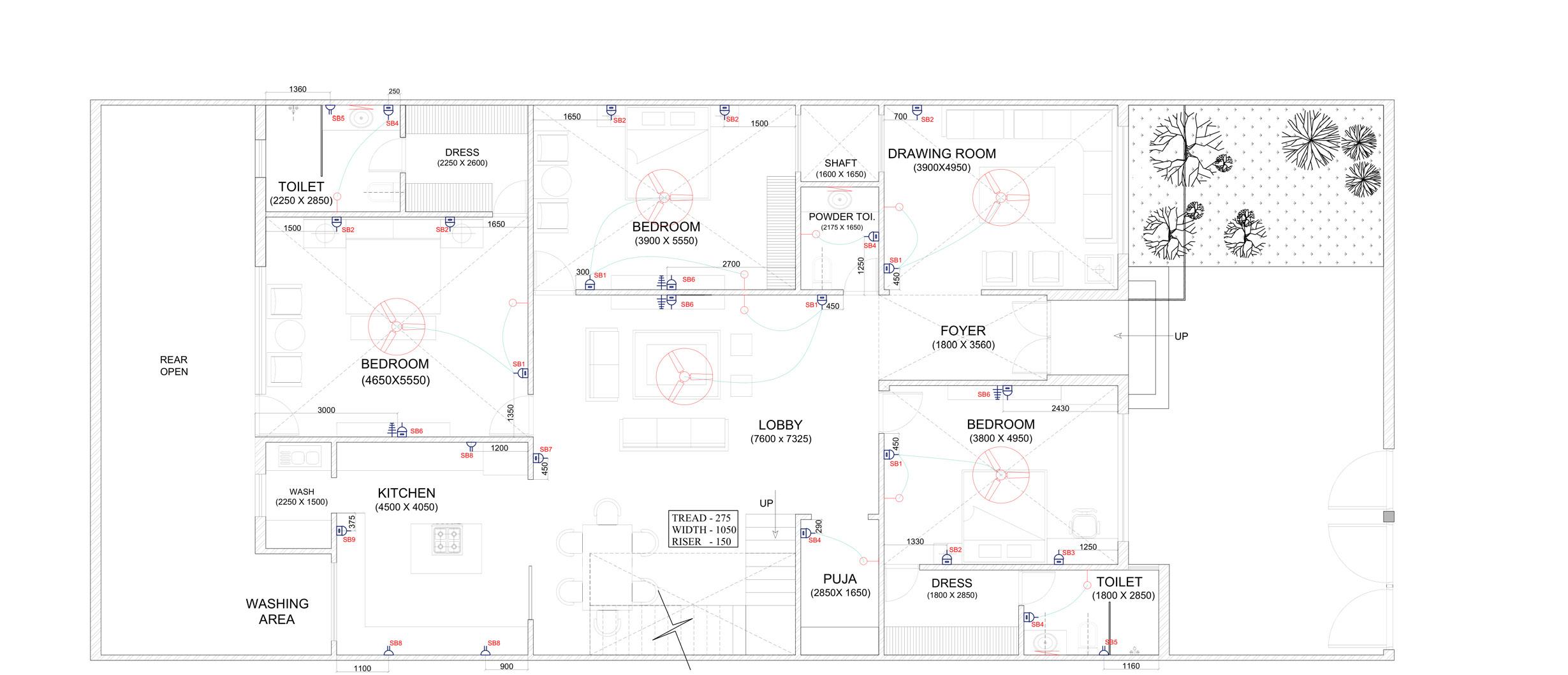

Electrical Layout

Section A-A’ Section B-B’

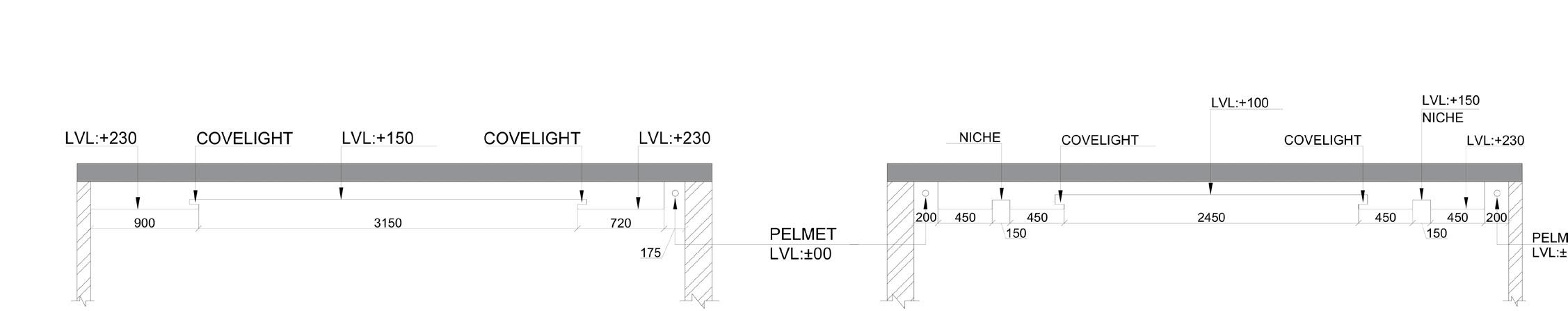

Reflected Ceiling Plan of Bedroom

Reflected Ceiling plan of Drawing Room

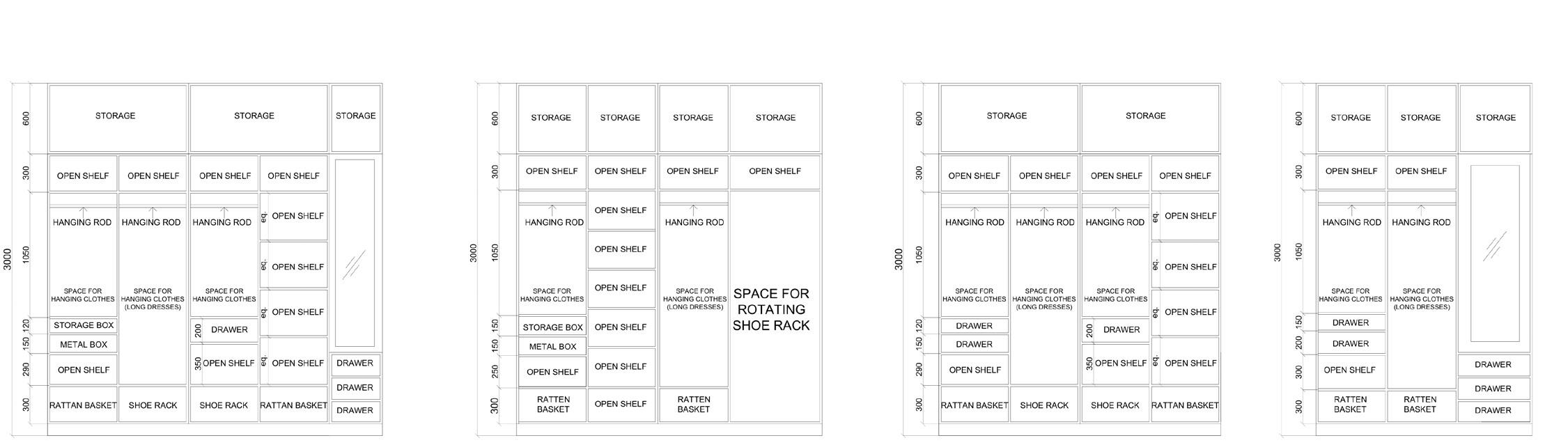

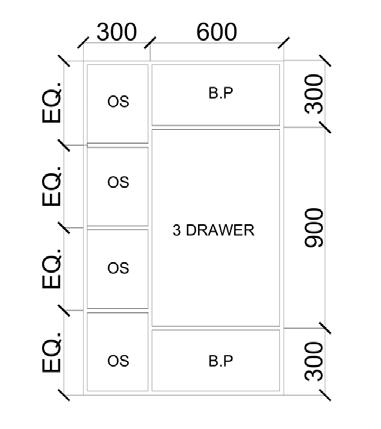

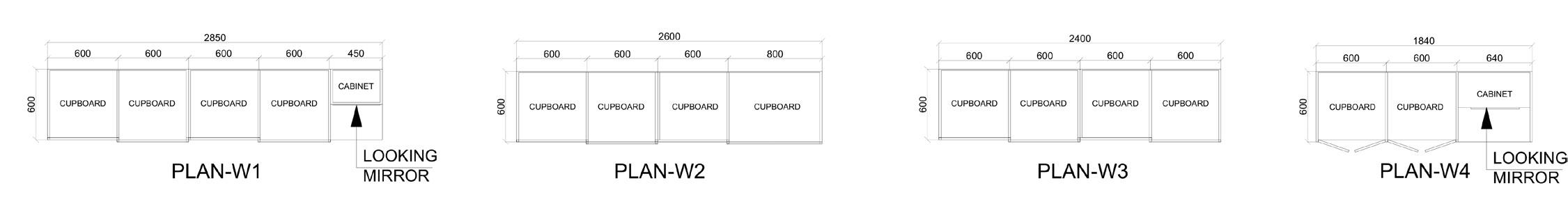

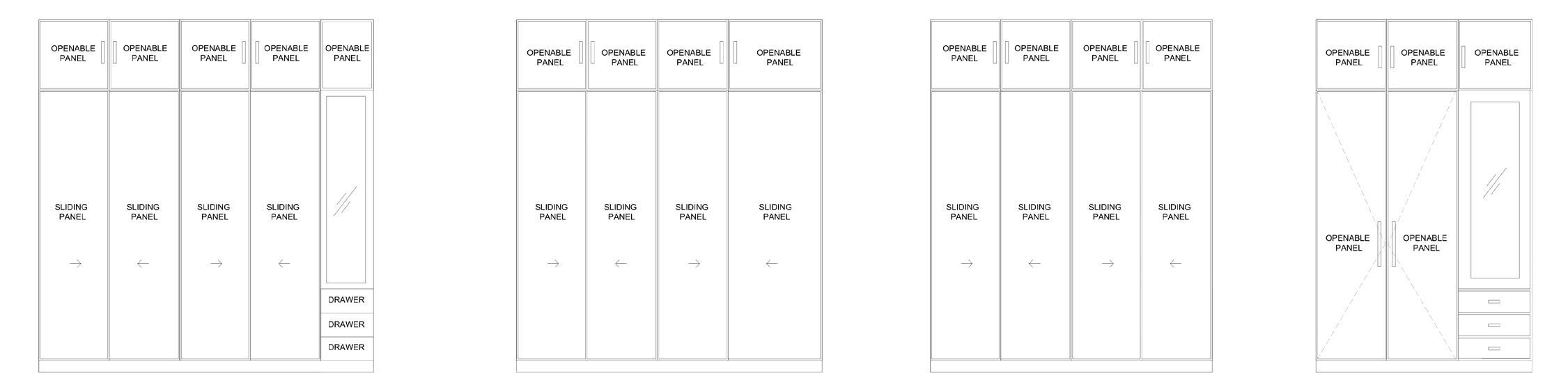

Wardrobe Detail

Material Detail :-

External Laminate action tesa highland pine

D. No. : 3003

Interior Laminate action tesa sapellic D. No. : 3015

W2

Wood :16mm HDHMR board 6 mm moisture resistant plywood.

Hinges :-

Stainless steel, Non hyraulic cabinet hingr, size 34 X 32 inch sliding wardrobe door track.

Wardrobe Acccessories :-

Hafele Rotating Shoe Rack

Material : Alumium (frame), Steel (runners and panels)

Finish : Black

Weight Bearing Capacity : 4 kg per panel

Soft opening and closing rotation : 180’ on both sides

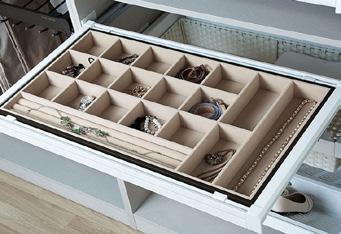

Storage Box

Material : Alumium (frame), Wood (base), Felt (storage box interior), Steel (runners)

Finish : Black

Weight Bearing Capacity : 30 kg

Runners : Soft Closing

Width Adjustment : 50 mm (25 mm on either side)

PVC Rattan Basket

Material : Aluminium (frame), PVC Rattan (basket), Steel (runners)

Finish : Black

Weight Bearing Capacity : 30 kg

Runners : Soft Closing

Width Adjustment : 50 mm (25 mm on either side)

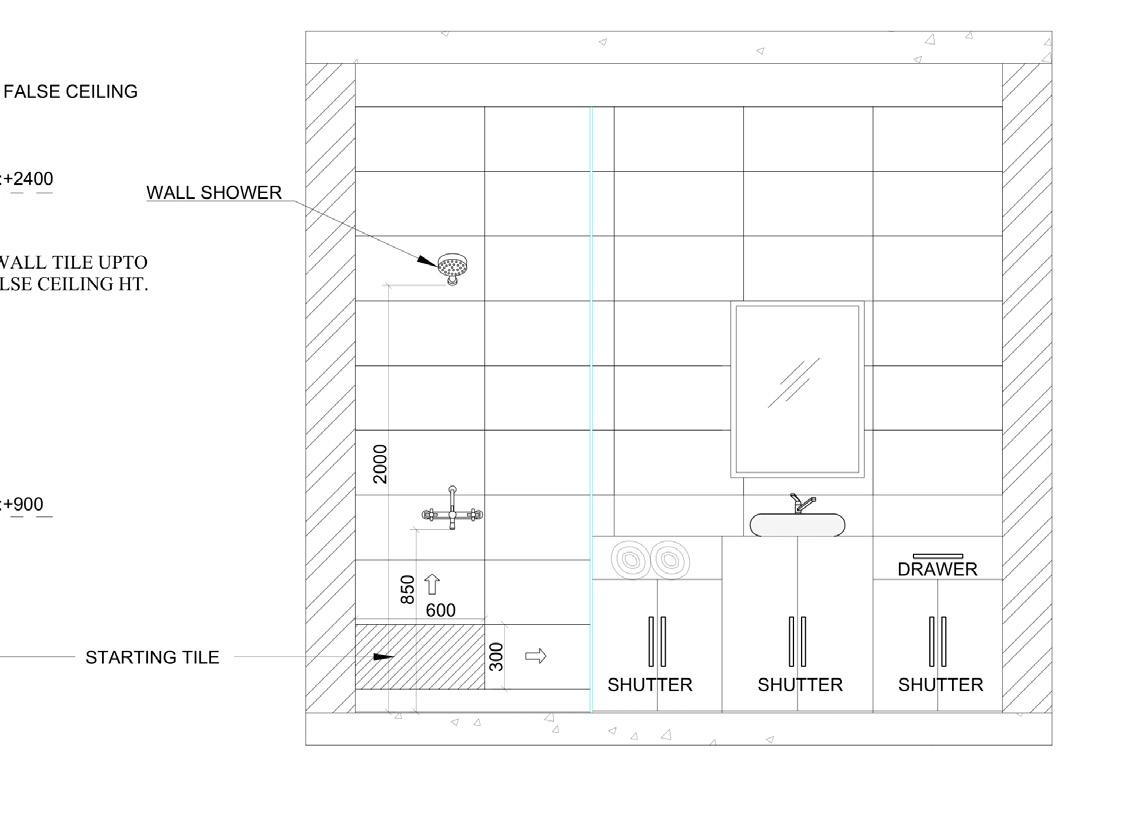

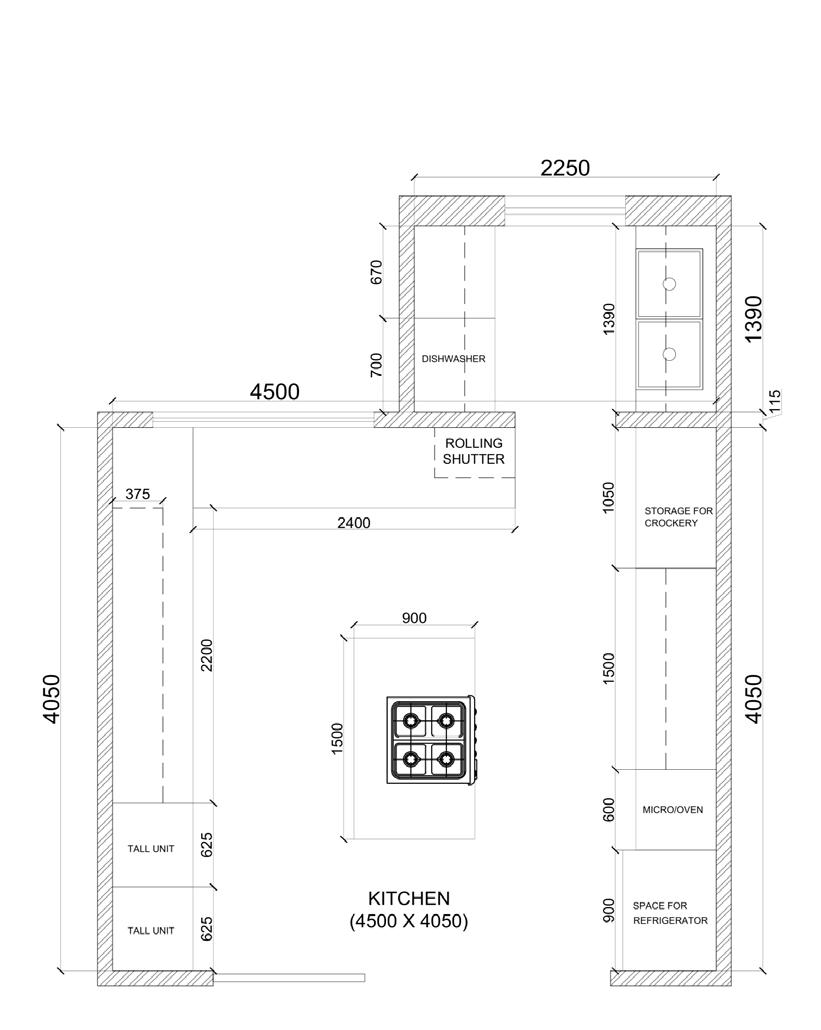

Above Counter Plan

Sectional Elevation A

Sectional Elevation B

Below Counter plan

Sectional Elevation C

Sectional Elevation D

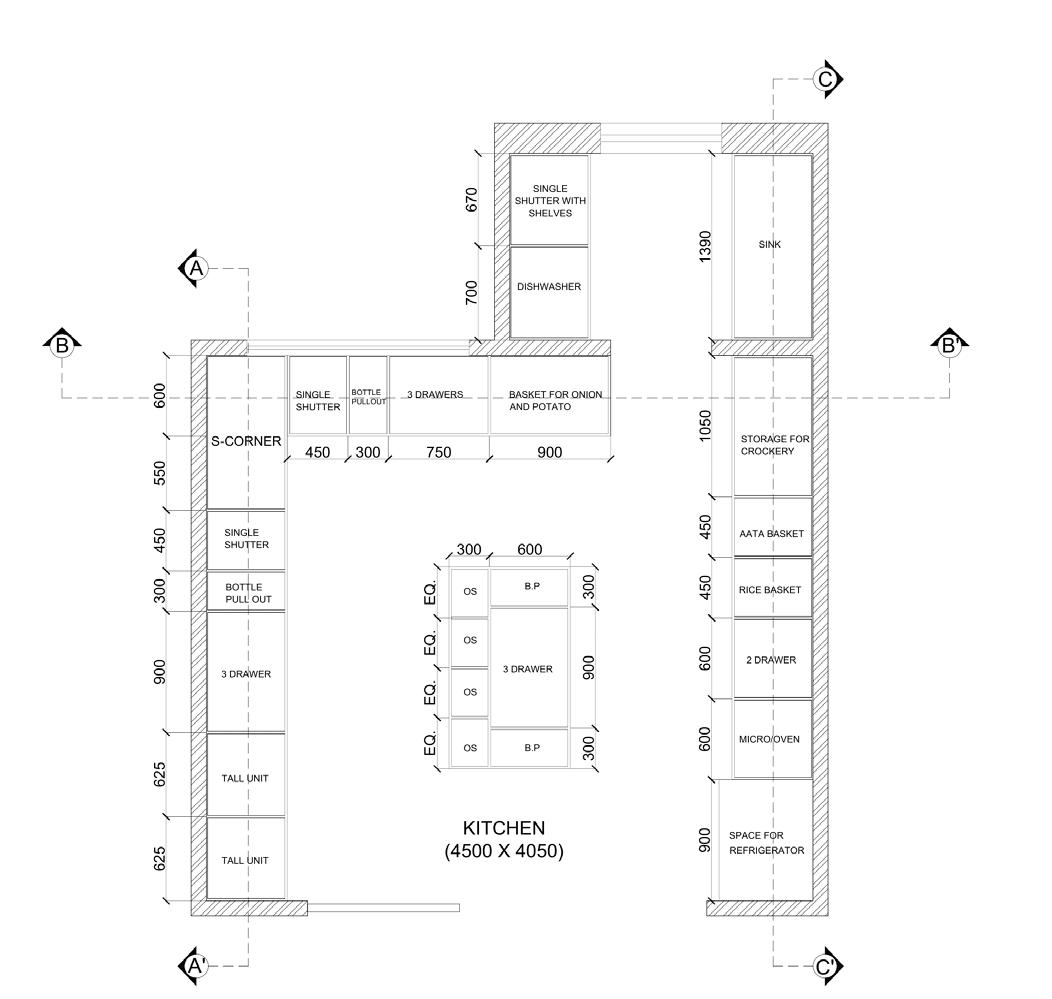

Above Counter Plan

Below counter Plan

Island Plan

Section A-A’

Section B-B’

Section C-C’

Elevation E Elevation D

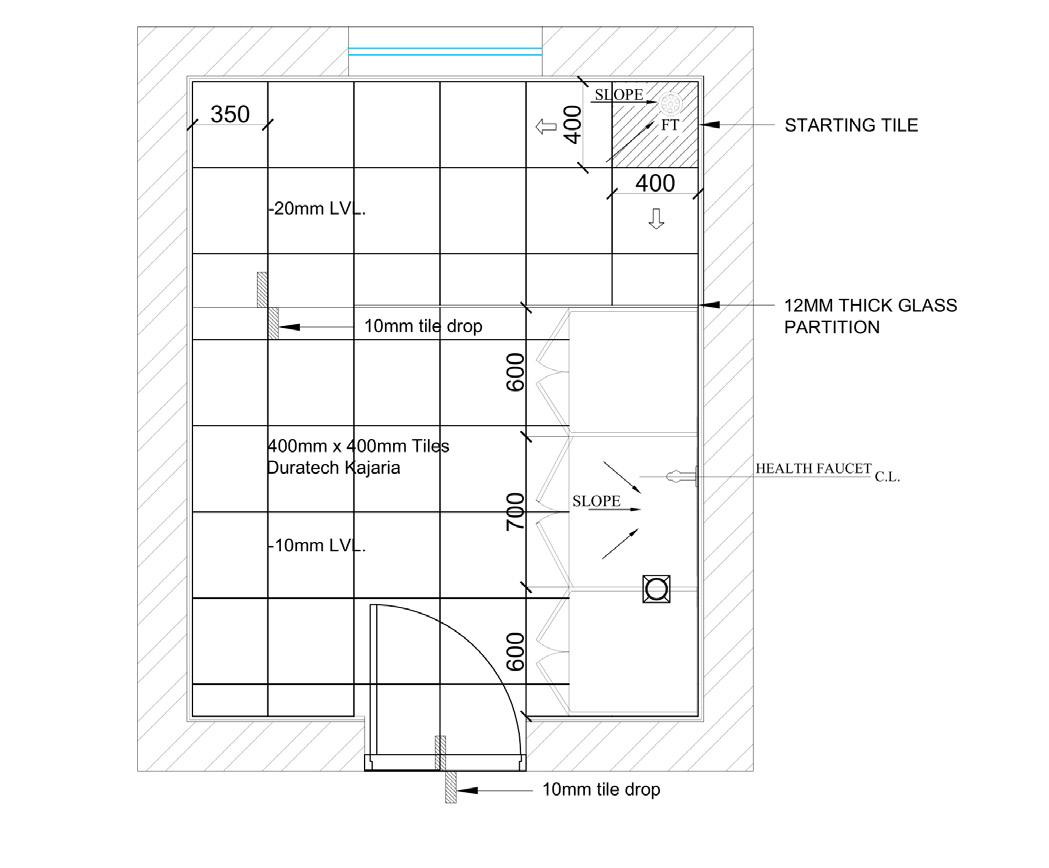

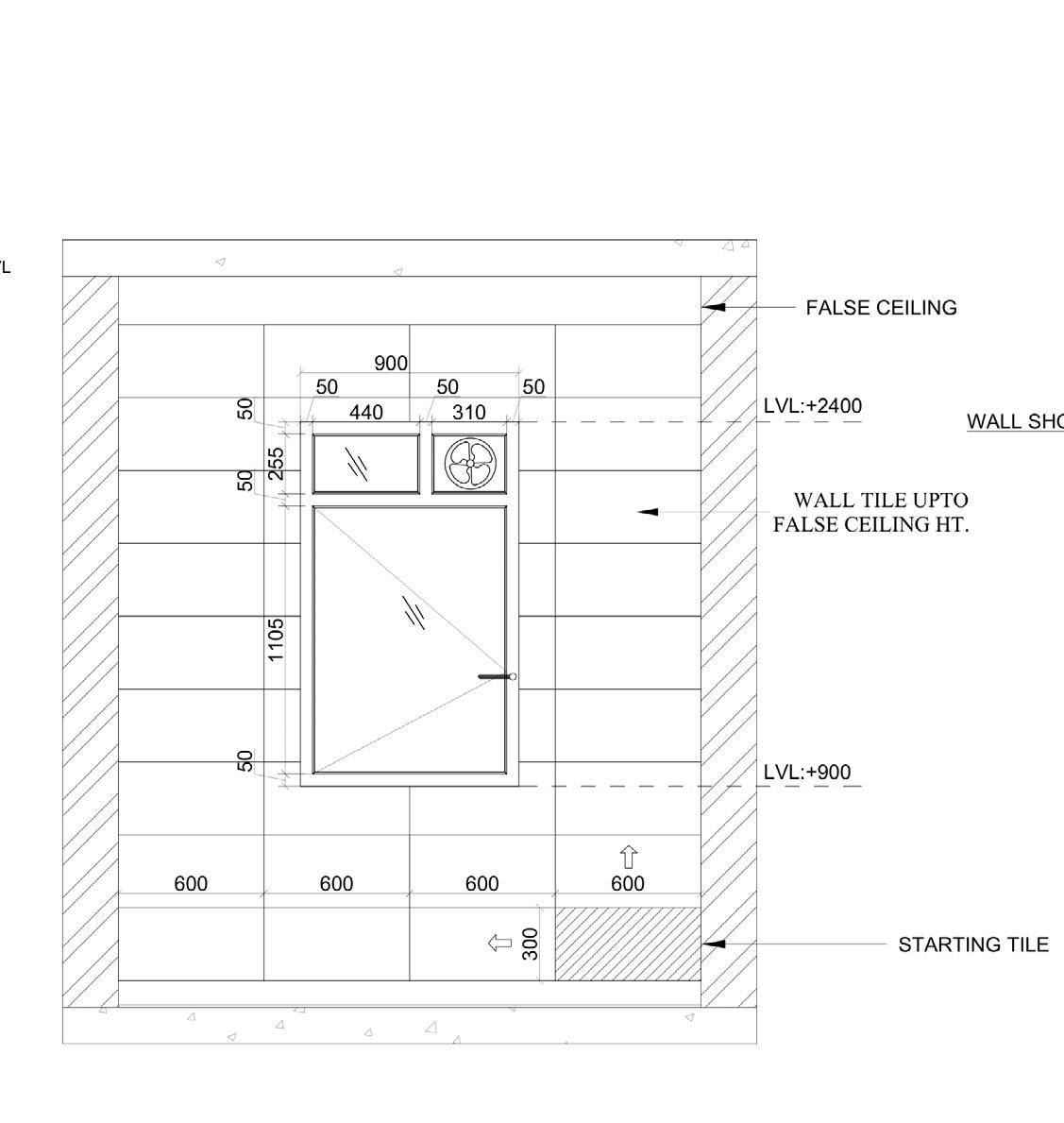

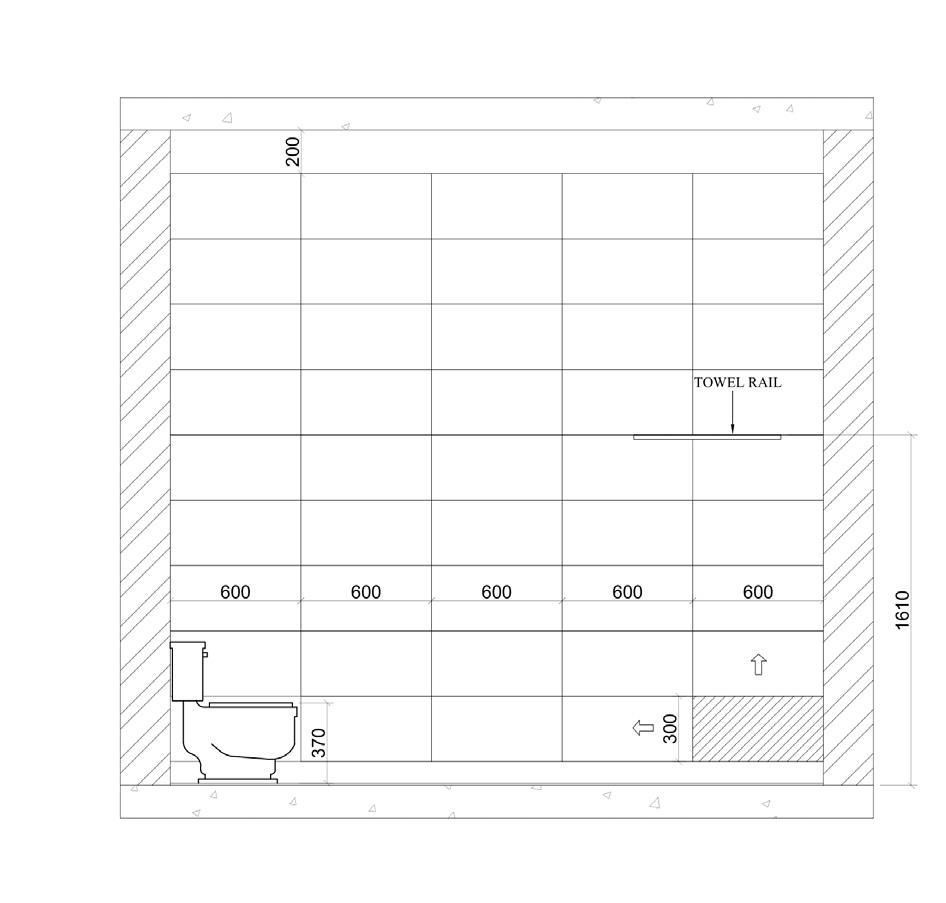

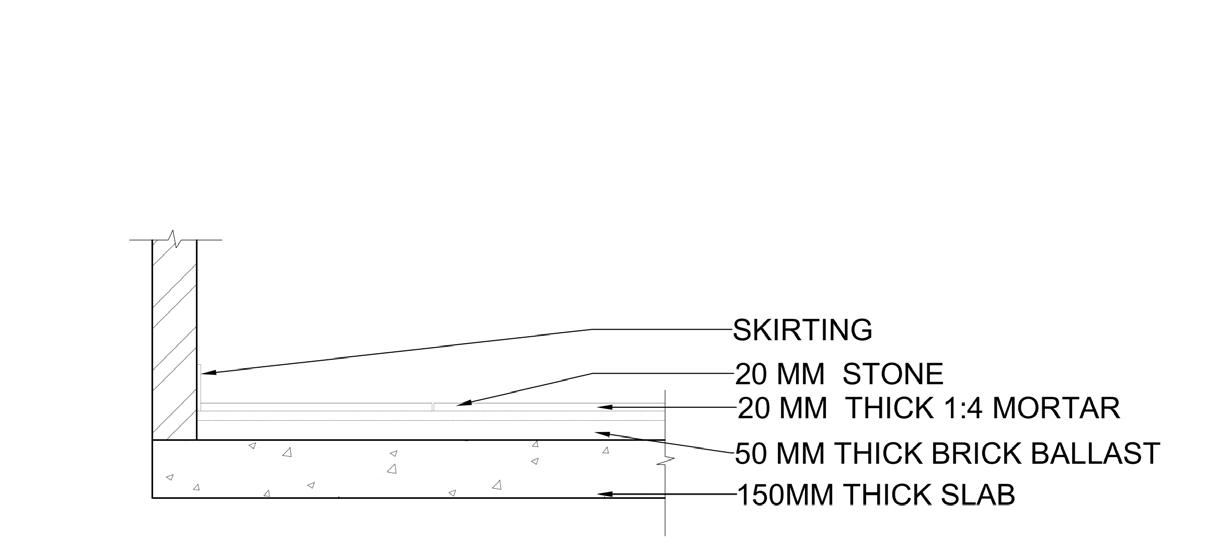

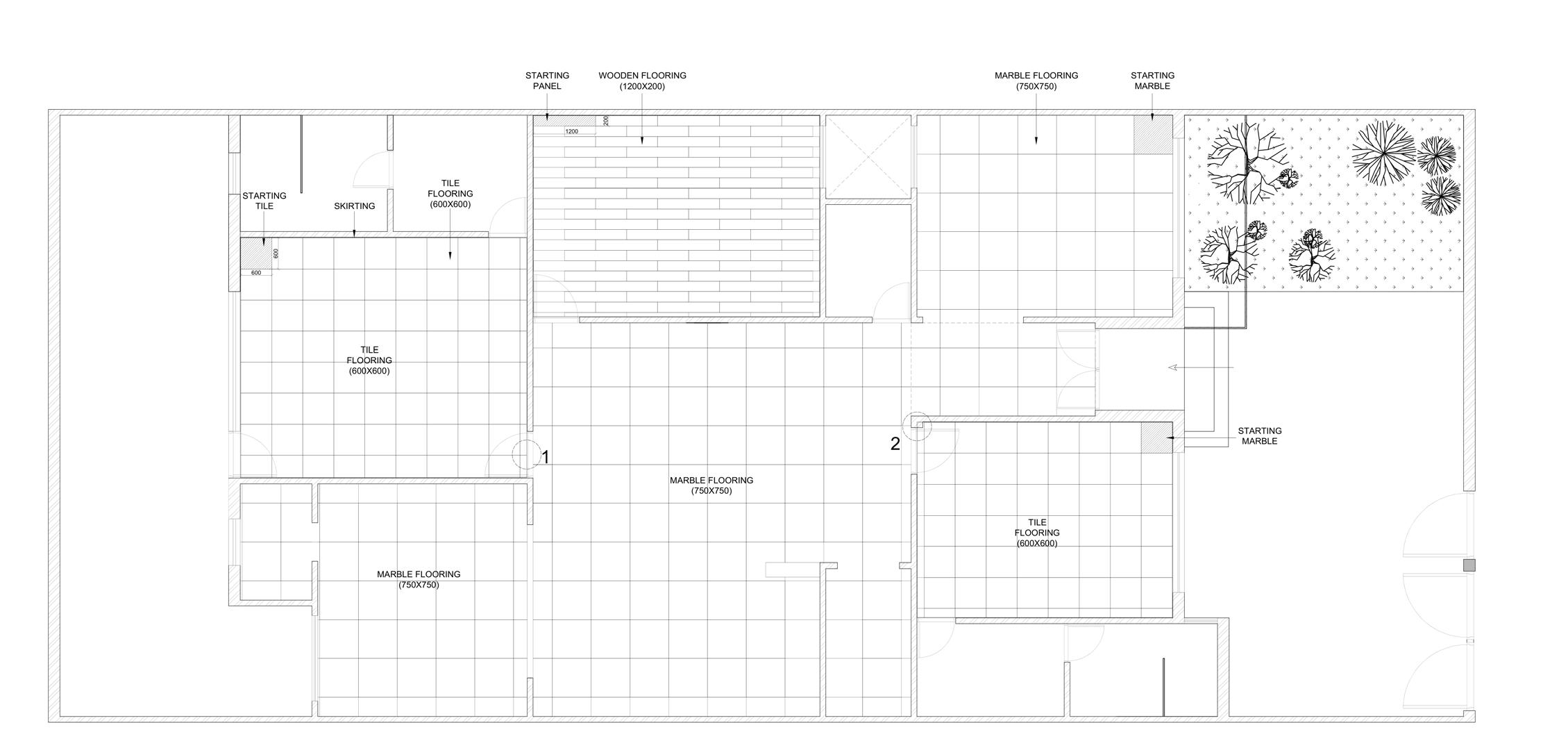

Flooring Detail

Detail at 1

Detail at 2

Wooden flooring

Marble flooring

Tile

Soul Therapy

Photography, Graphics & Illustrations

“A window to my soul”

My work resonates who am as a person. The texture of the pencil, the colours and the tones resonate my emotions which ultimately leads me to understand who I am as a person and what defines me. Using art as a medium for healing promotes self-exploration, understanding, self-esteem, and awareness.

Photography

Creativity is nothing but a set free mind...
