PORTFOLIO

School of Planning and Architecture, New Delhi

selected works 2020-2024

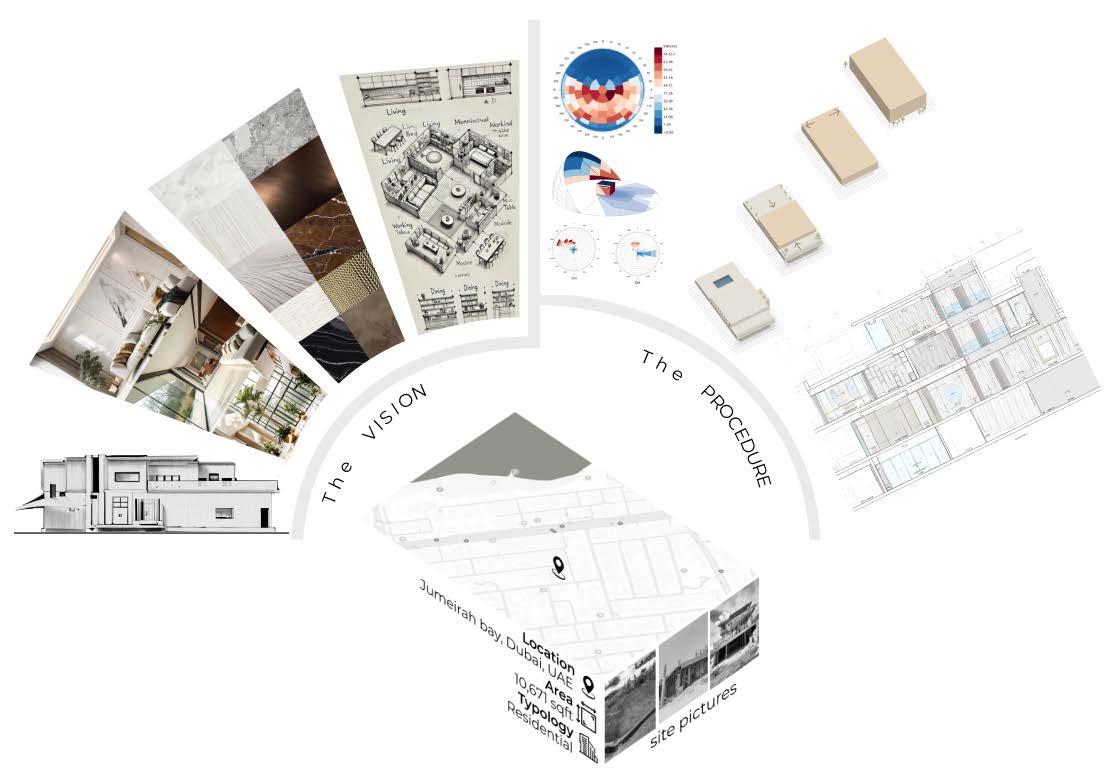

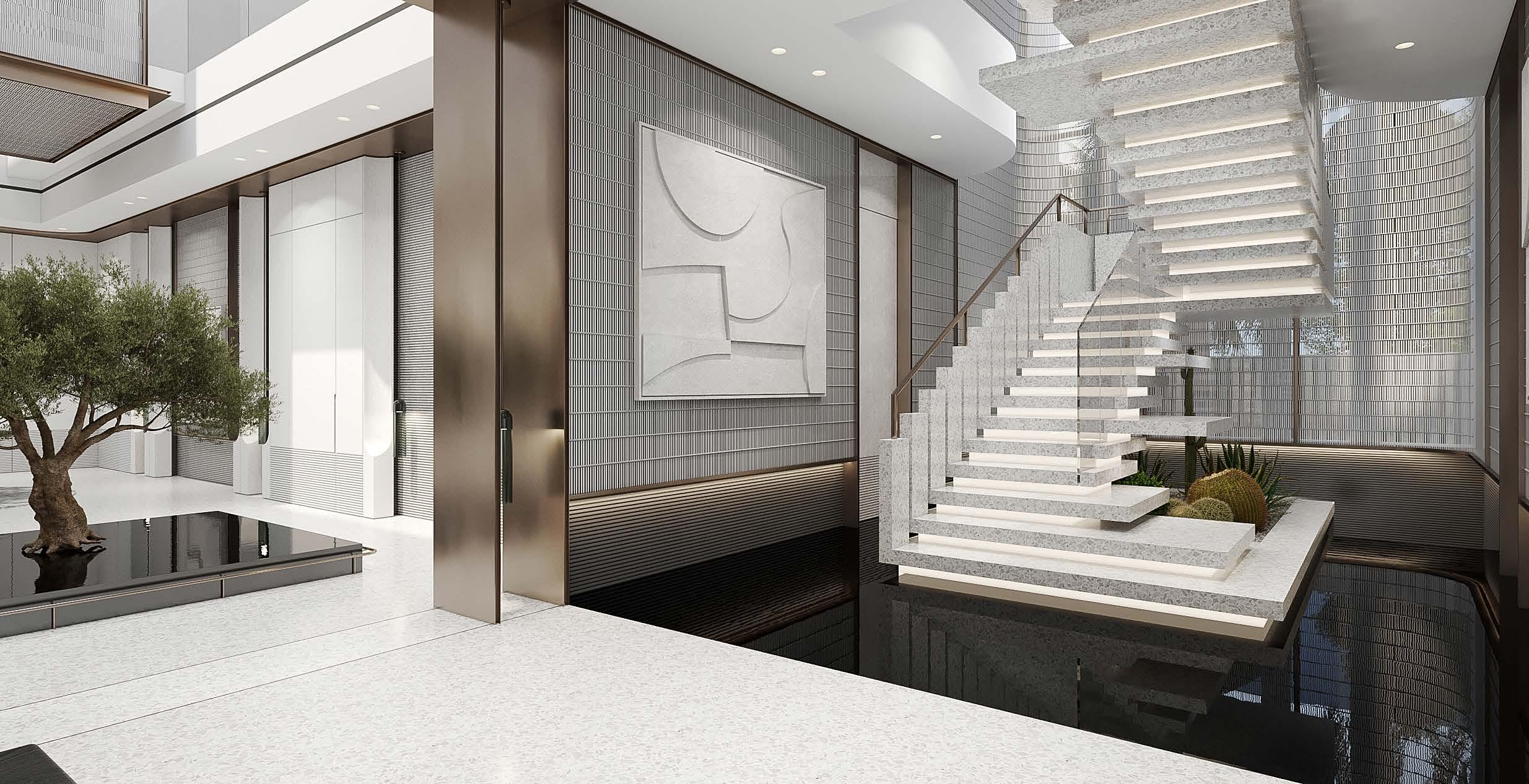

01 | JUMEIRAH BAY VILLA

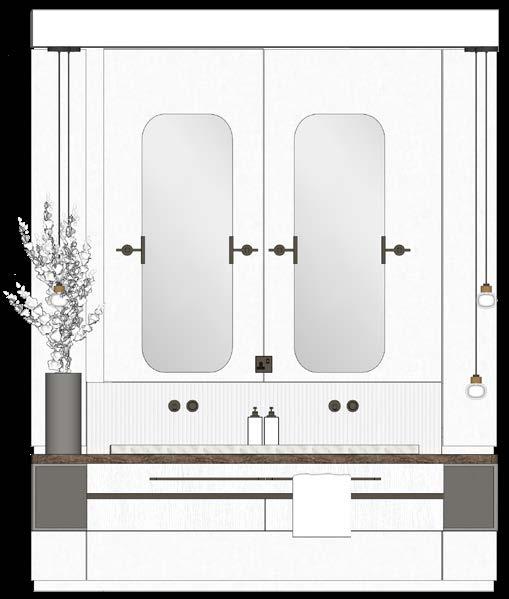

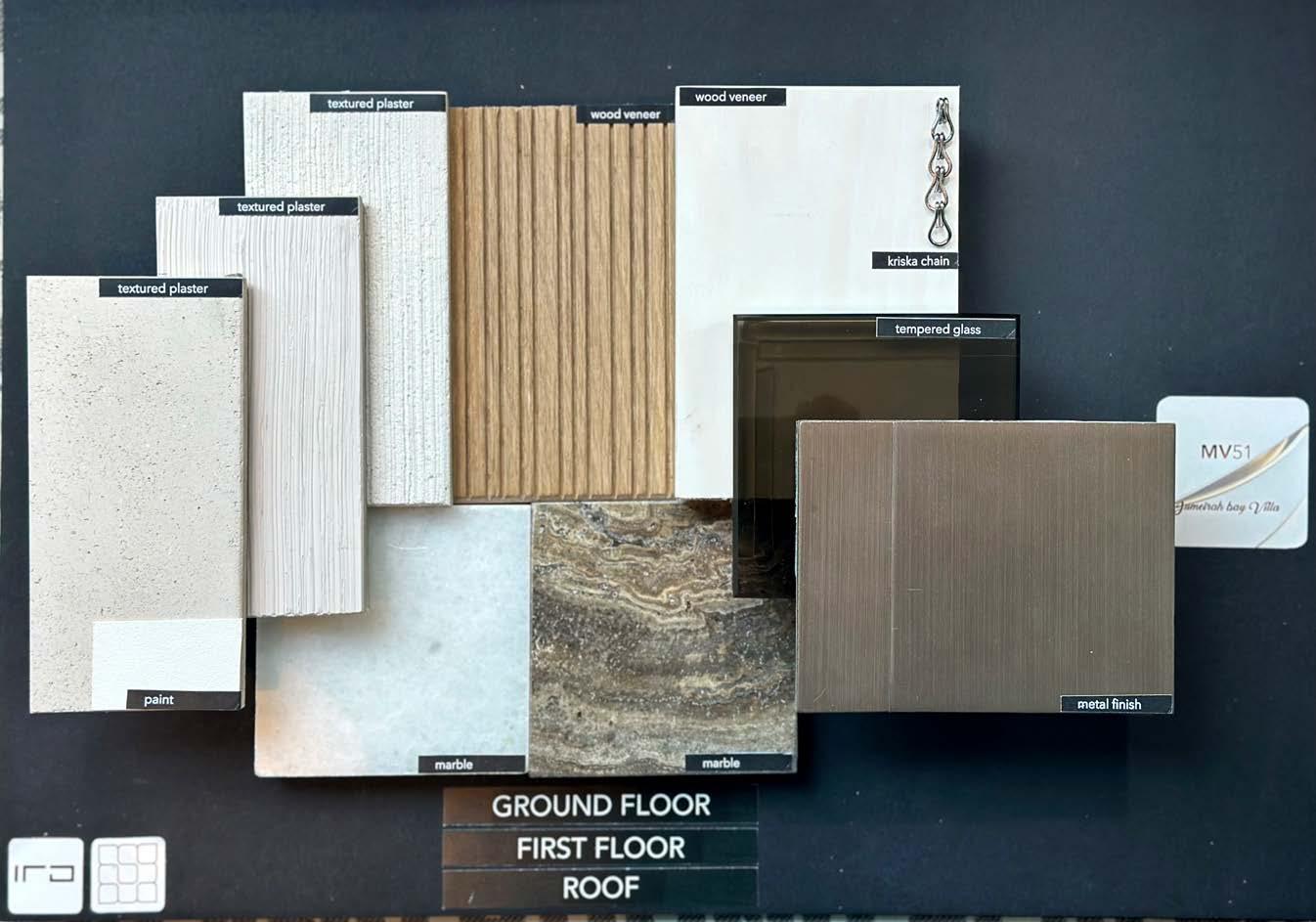

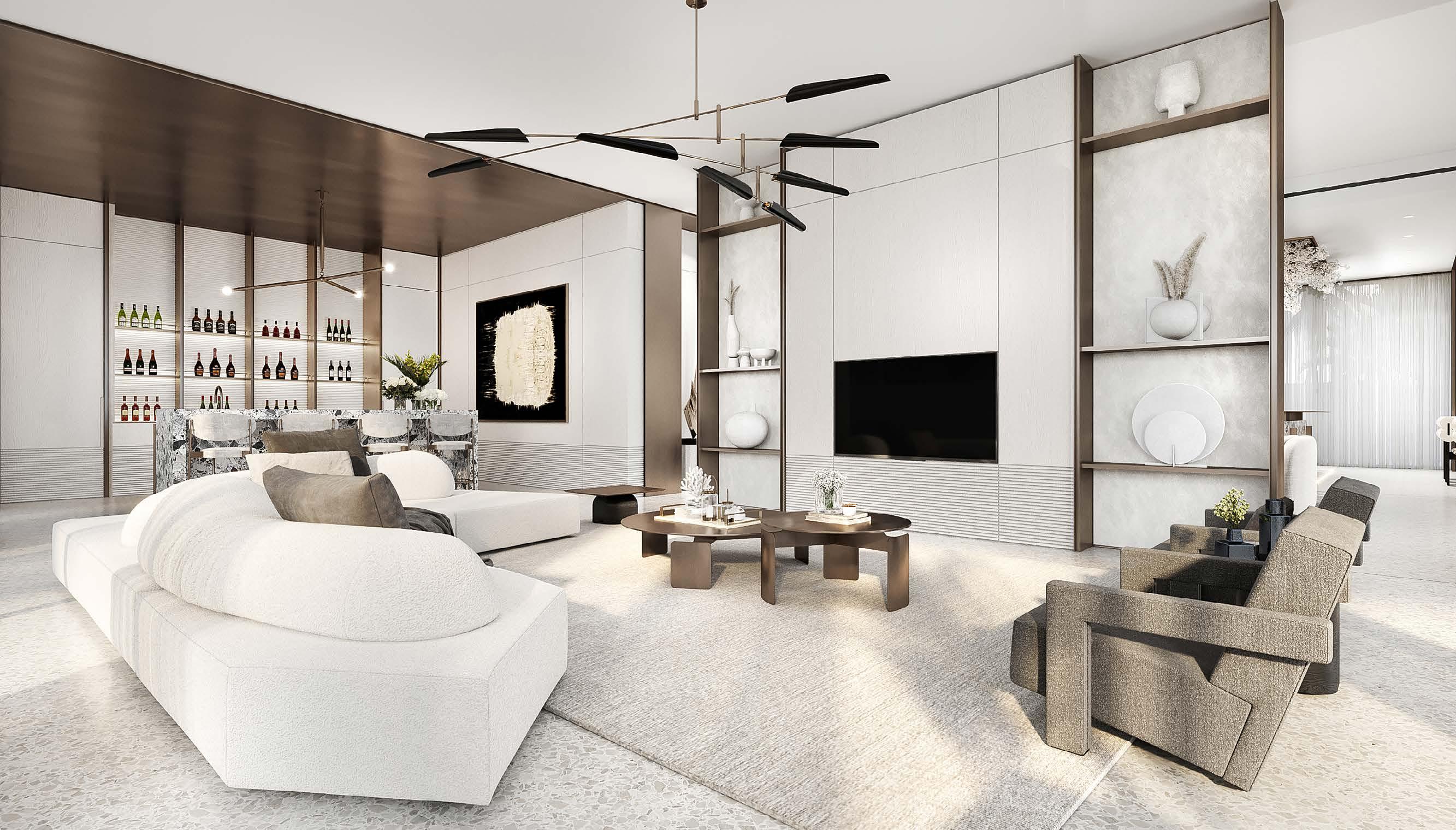

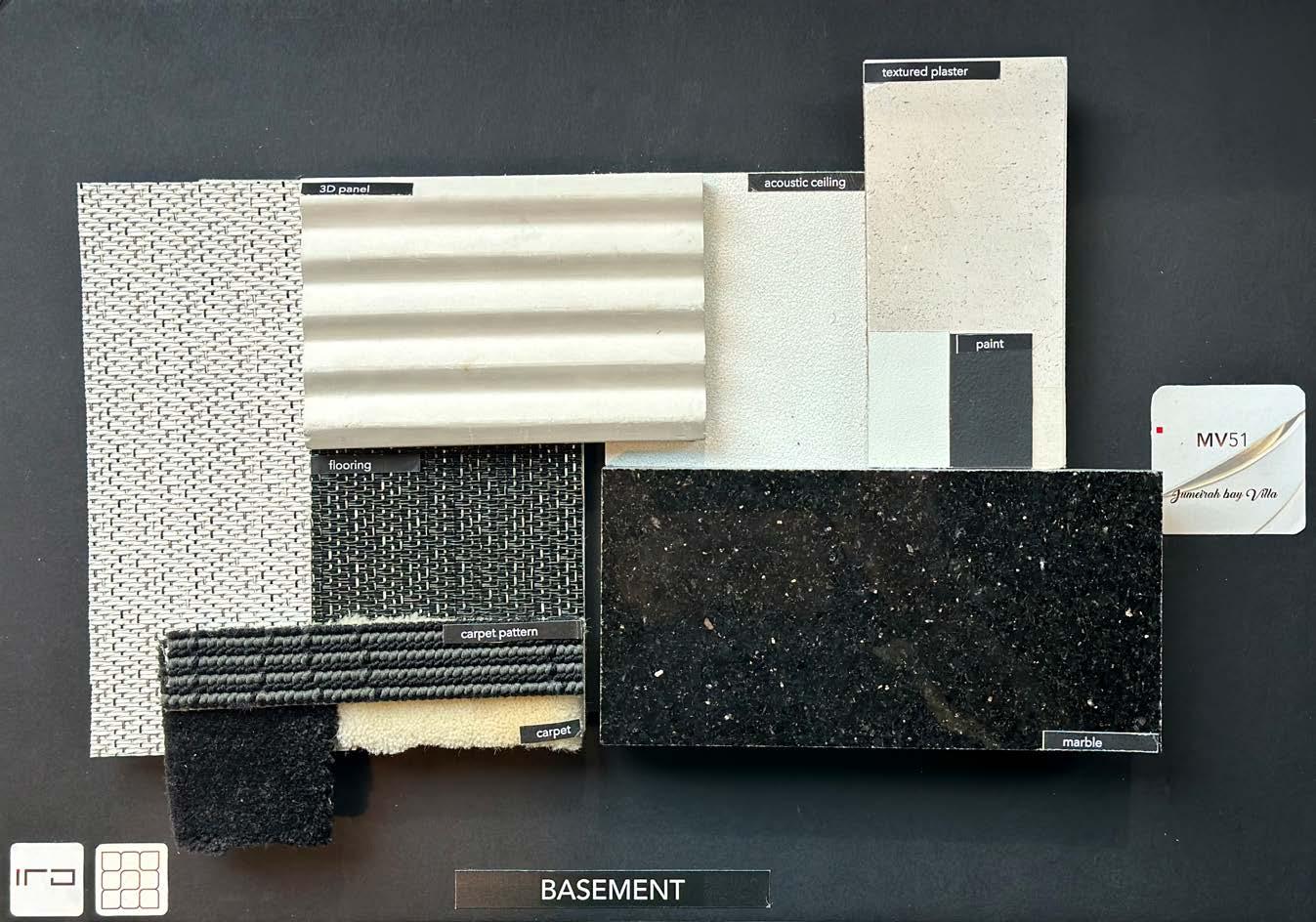

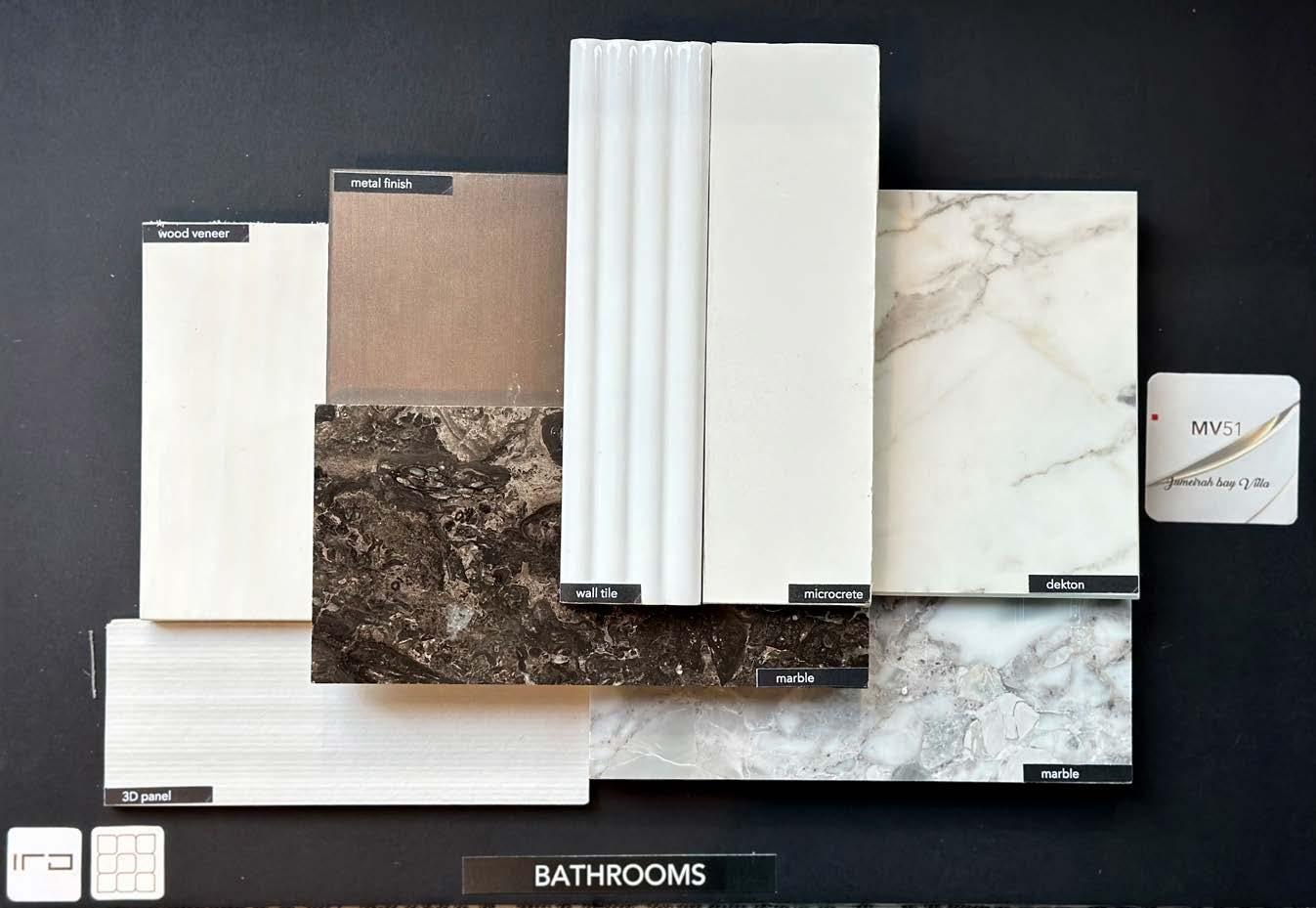

I collaborated with IRD on a six-month residential interior design project in Dubai. Tasked with creating a luxurious, high-end aesthetic interiors, I used premium materials such as white veneer and marble, complemented by bronze metal accents, black and brown marble highlights. I contributed to

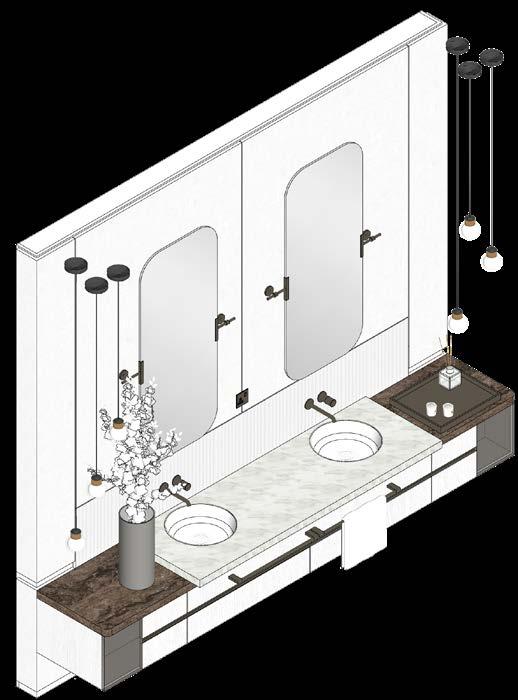

every stage of the design process, from conceptualizing bespoke vanity units to preparing detailed tender drawings. The project focused on creating a cohesive, elegant design for all interior spaces, excluding the BOH areas. This experience allowed me to refine my skills in luxury interior design and technical detailing.

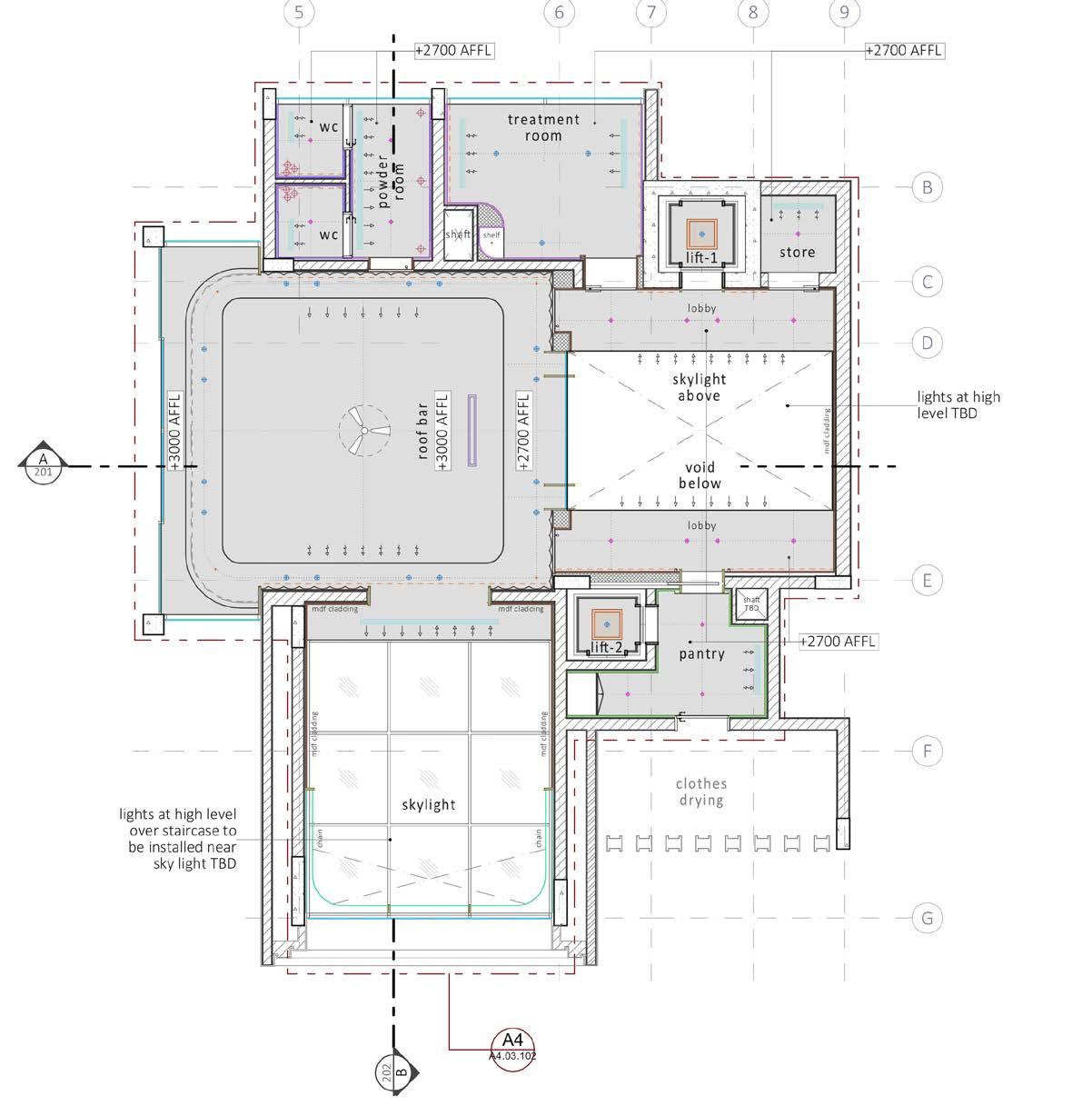

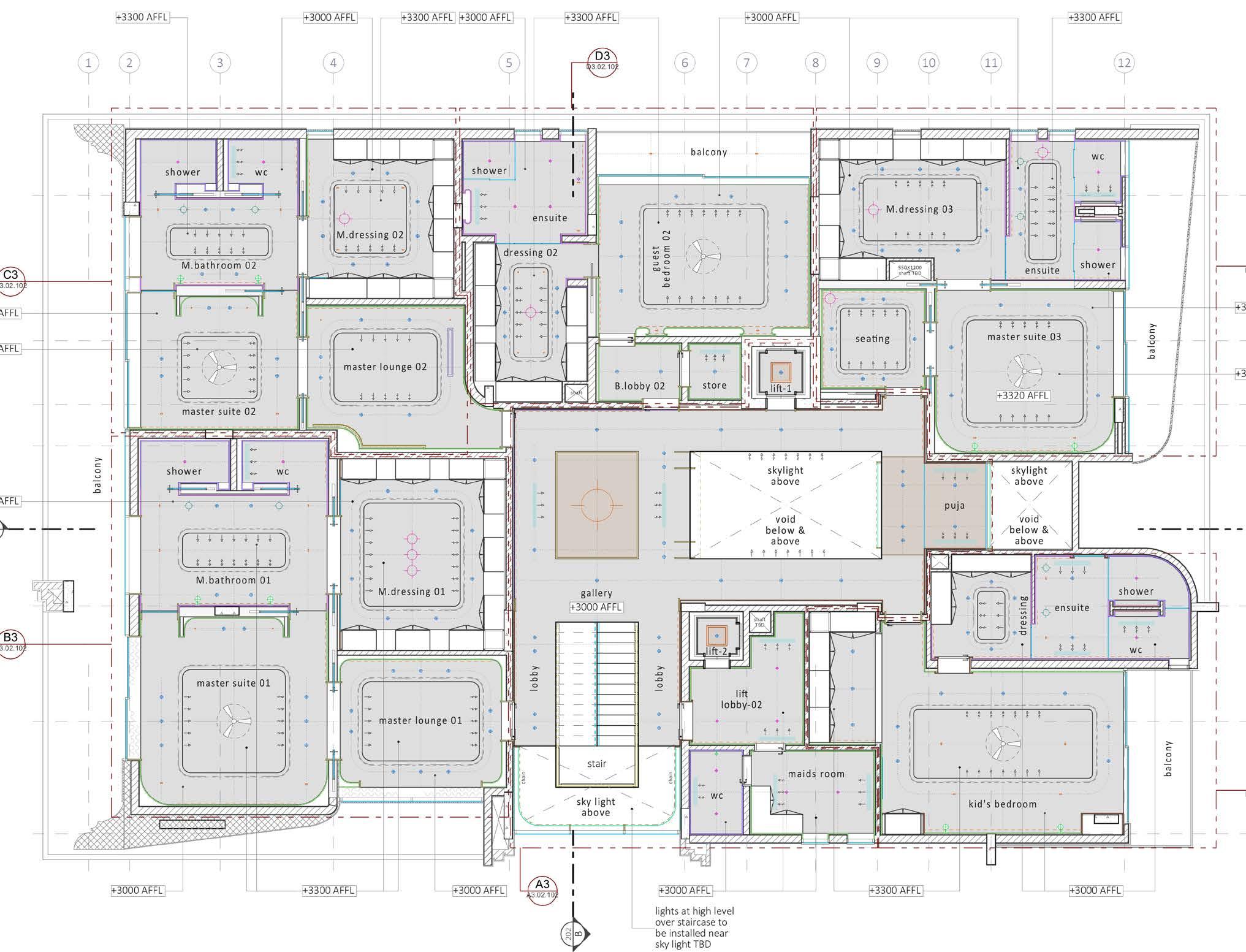

TENDER DRAWINGS

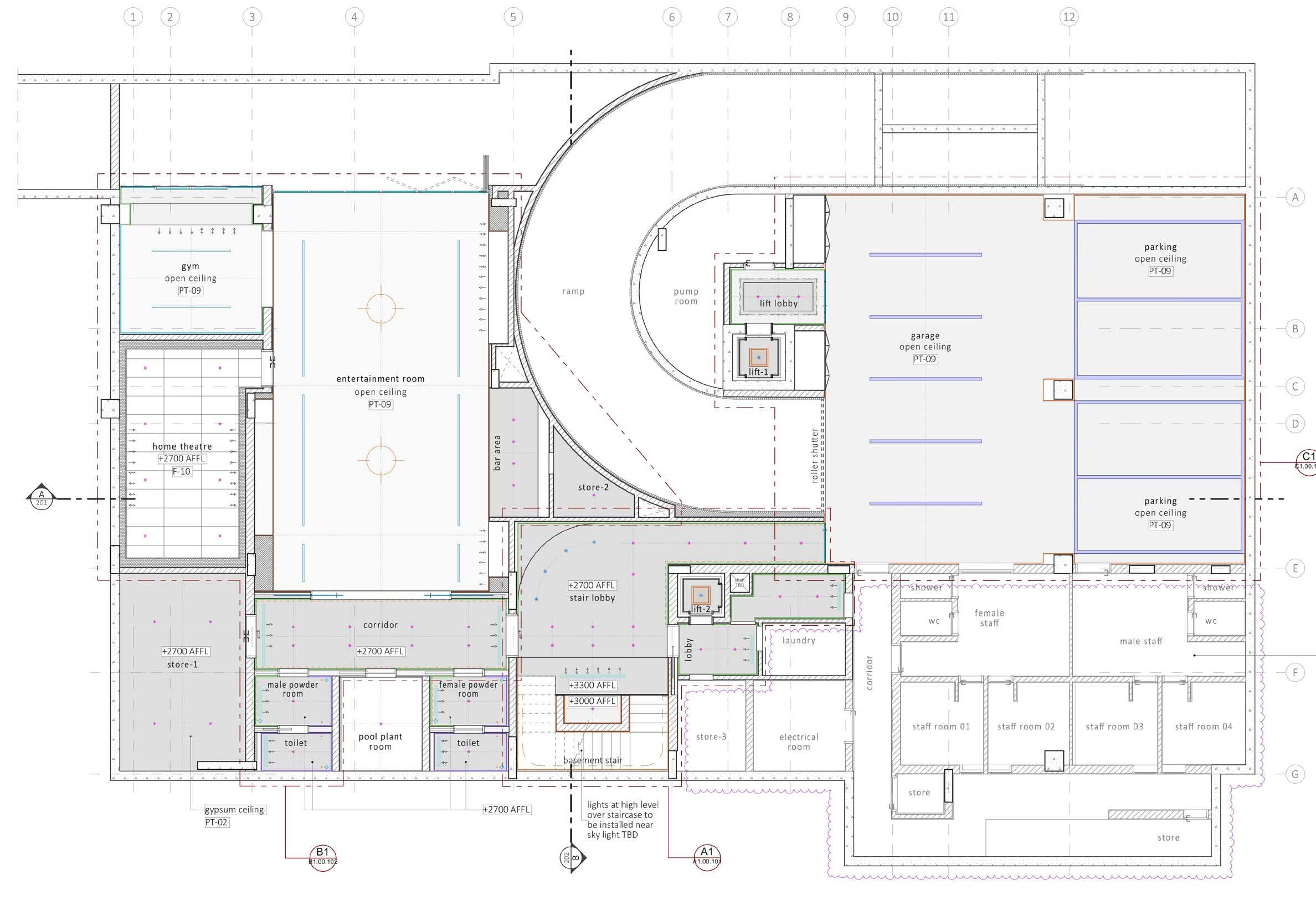

01 | Basement plan

02 | Ground floor plan

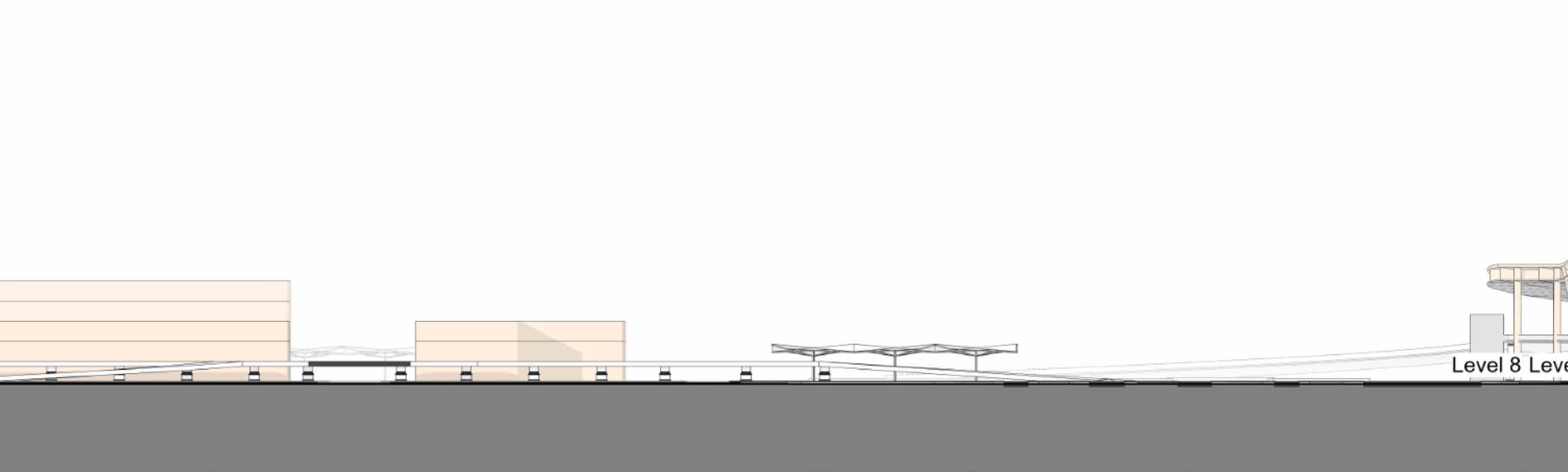

| Longitudnal Section

02 | SPORTS UNIVERSITY

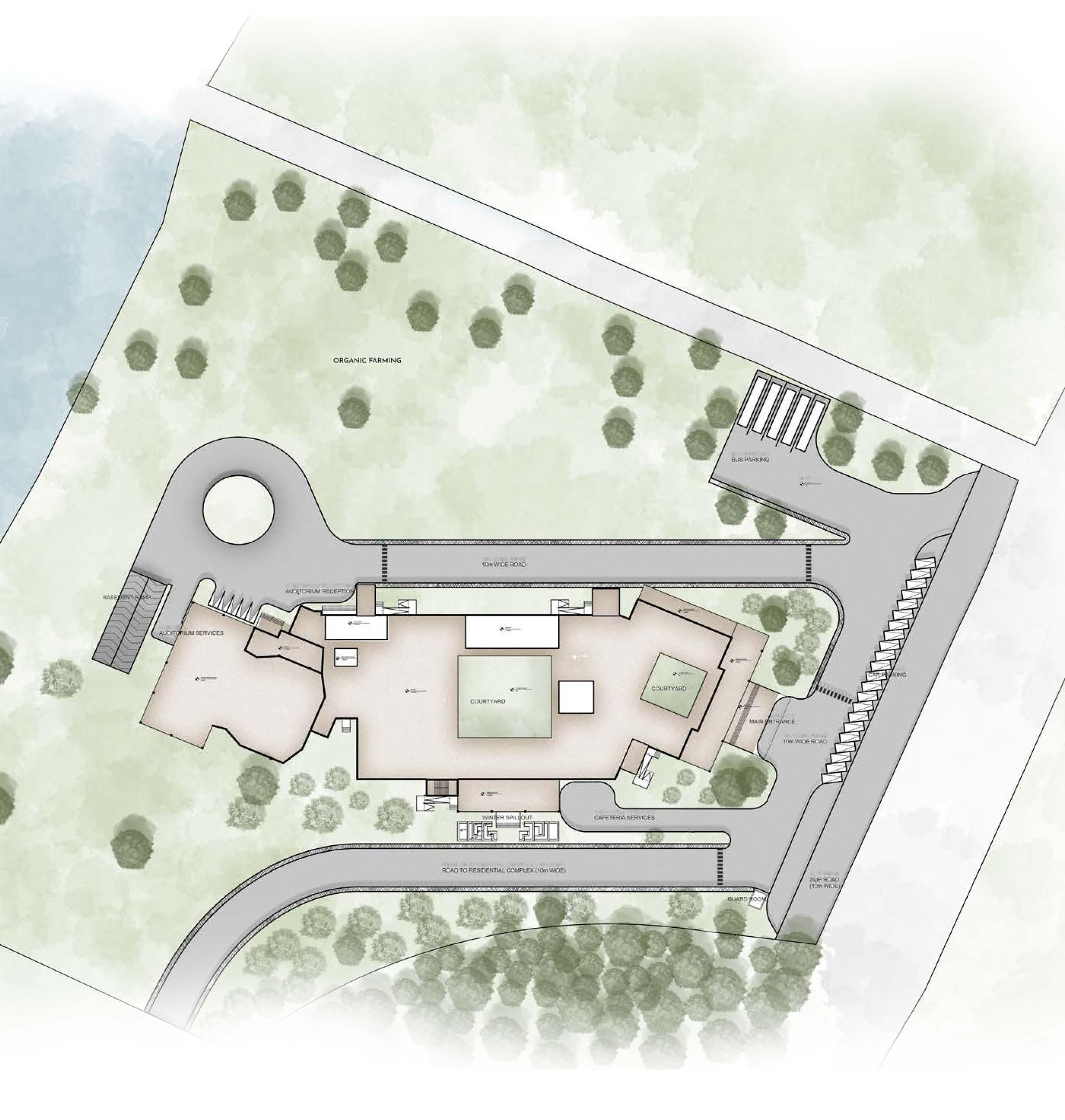

This project, part of Solar Decathlon India 2022-23, envisioned a sustainable, net-zero building for a sports university in Meerut, Uttar Pradesh, India. The project highlighted the need for innovative strategies for climate-responsive architecture, passive design, and

green technologies. It was evaluated based on criteria such as energy optimization, carbon emission, water harvesting, waste recycling, structural stability, and cost effectiveness. This visionary initiative aimed to address the potential of sustainable design in advancing educational infrastructure.

Iteration 02

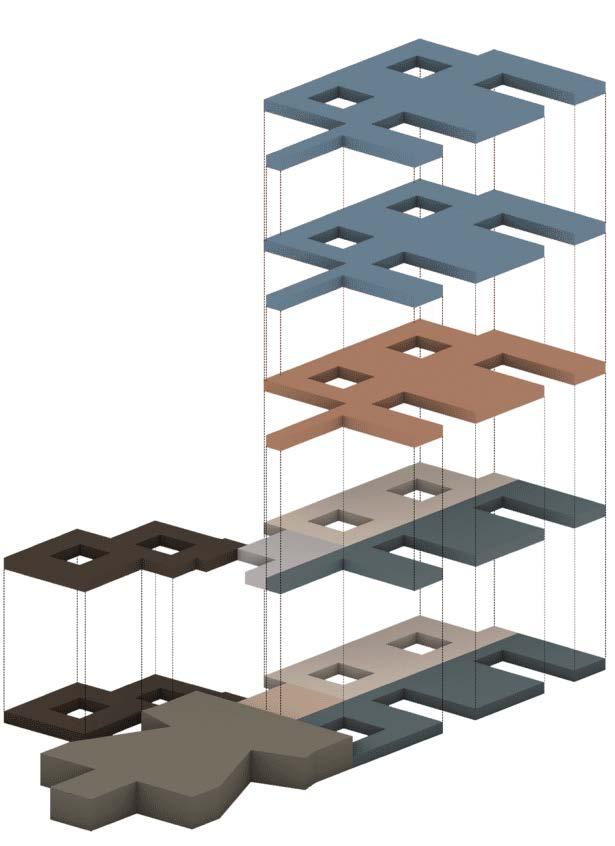

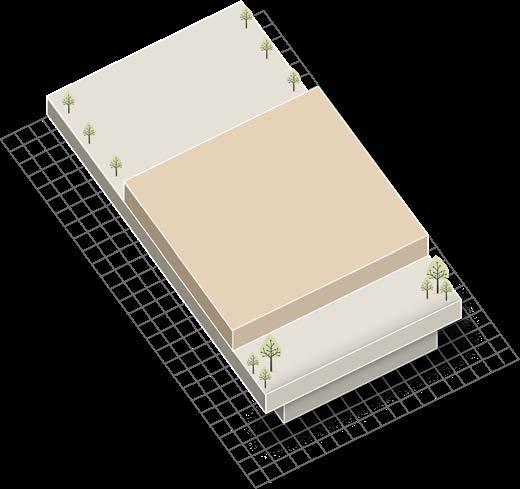

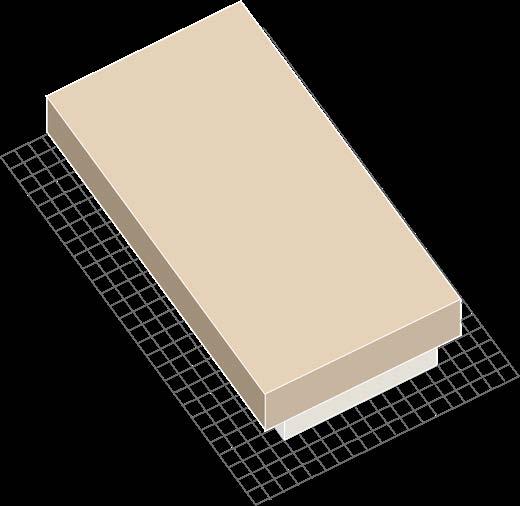

DESIGN ITERATIONS

Final design

Iteration 03

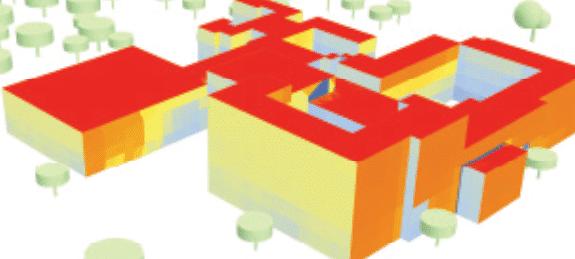

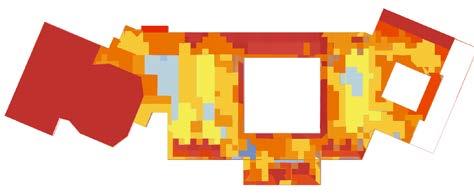

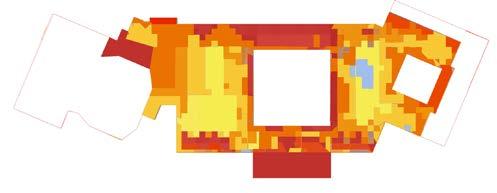

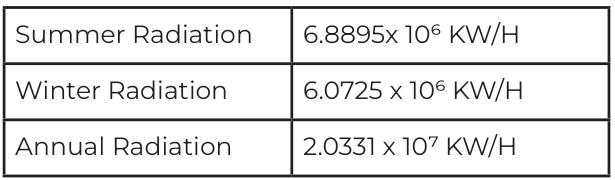

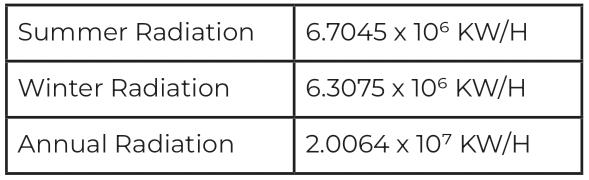

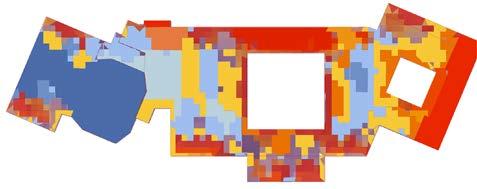

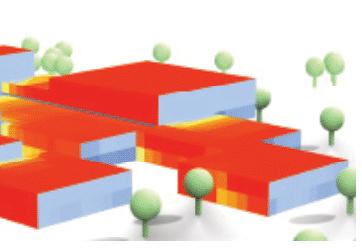

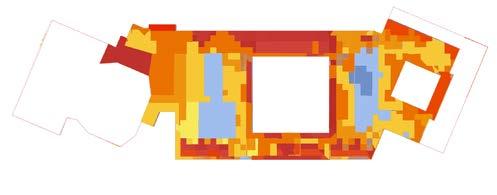

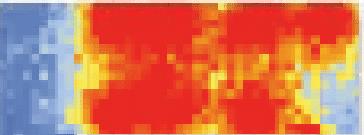

RADIATION ANALYSIS

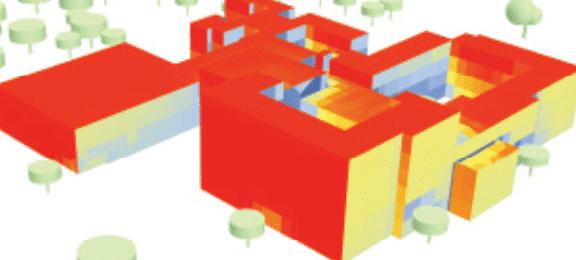

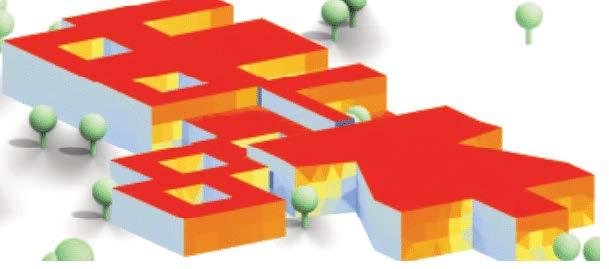

Summer radiation

Iteration 03

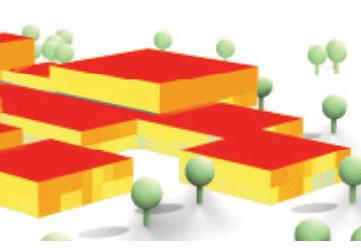

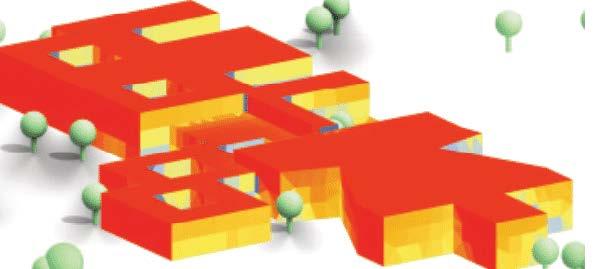

Winter radiation

Iteration 03

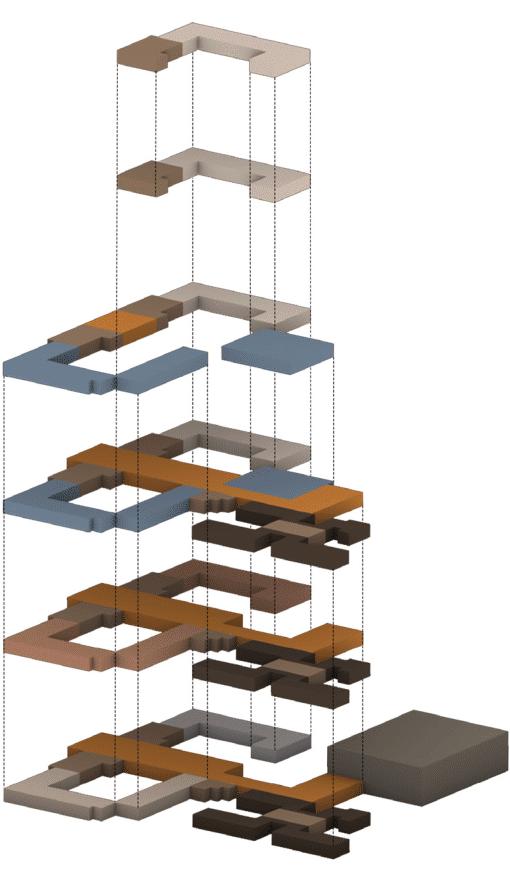

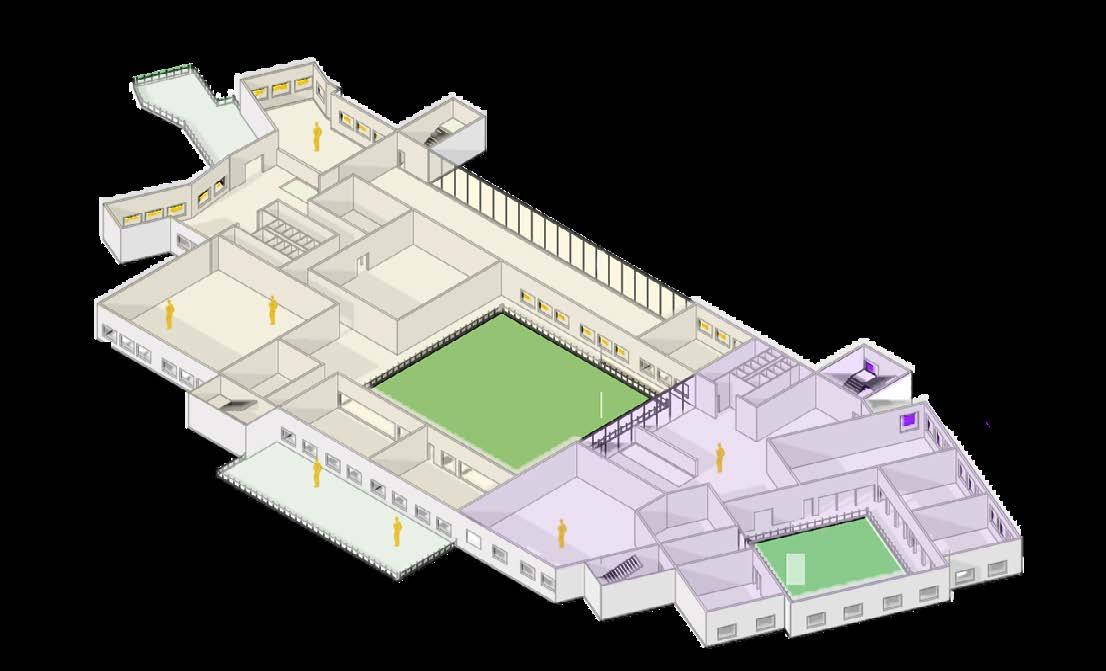

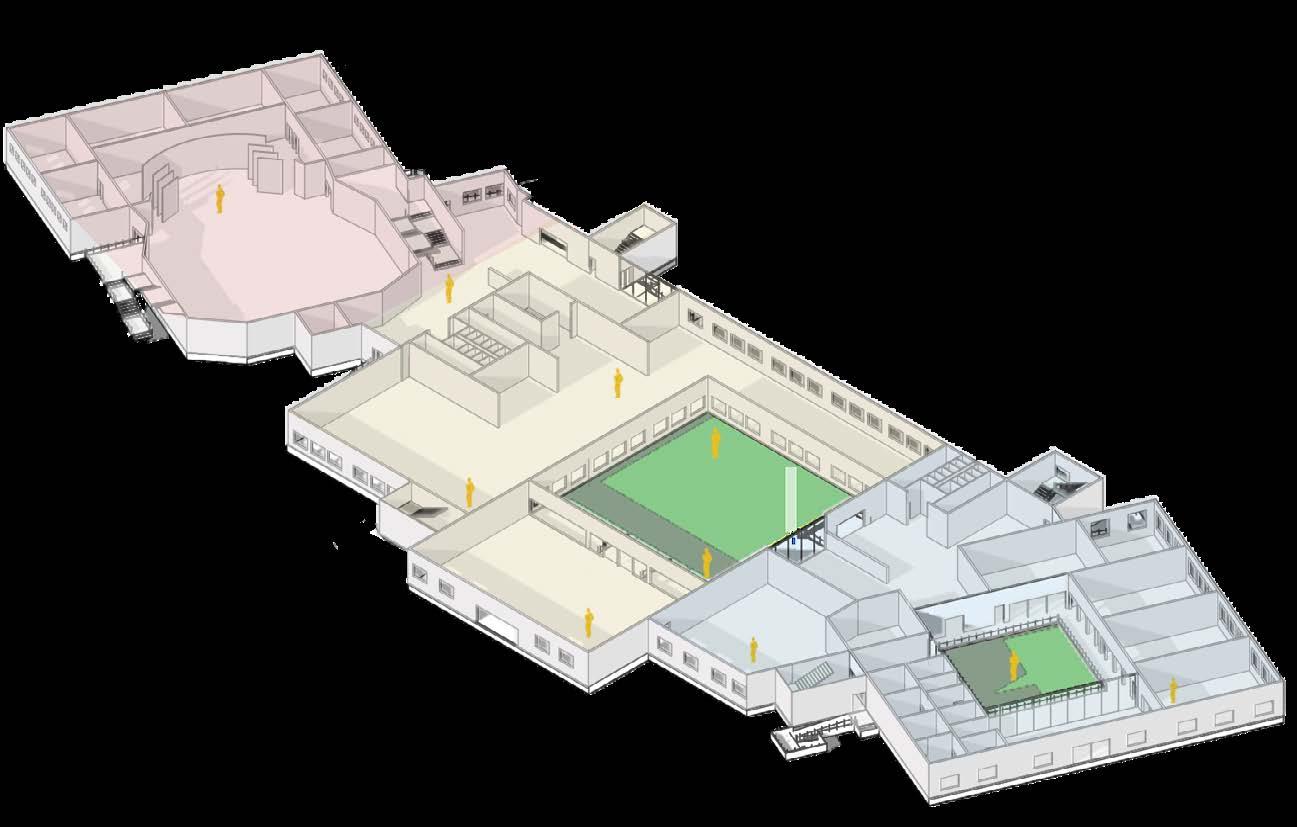

Iteration 03 classroom auditorium entrance administration cafeteria workshop library faculty block

green terrace courtyards

auditorium

student centric activity spaces

admin centric activity spaces

faculty centric activity spaces

PASSIVE STRATEGIES USED

01| Multilevel terraces - green roof-top gardens

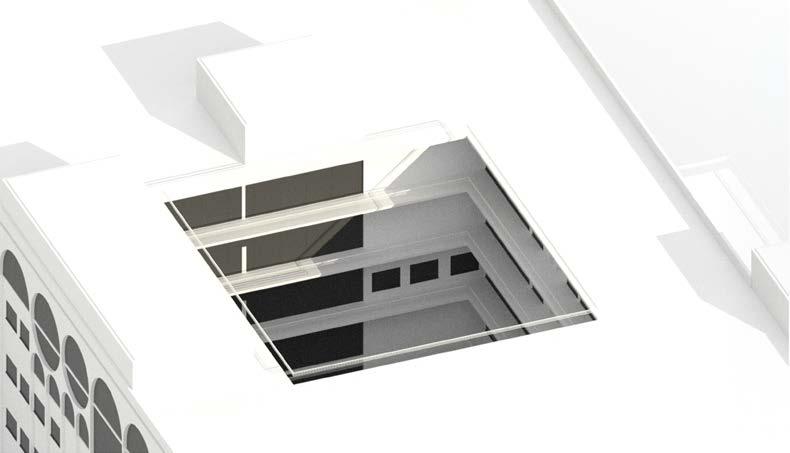

02| Courtyards - for natural ventilation in corridors

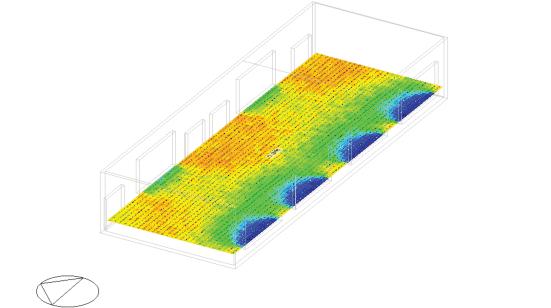

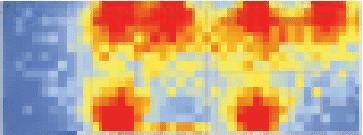

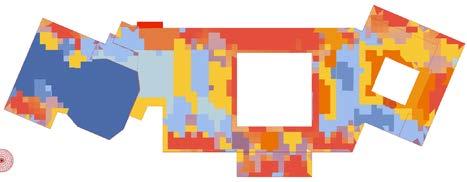

DAYLIGHT OPTIMIZATION : HONEYBEE

Basecase

Max. lux level is only 300 lux. Corridors don’t recieve sufficient light.

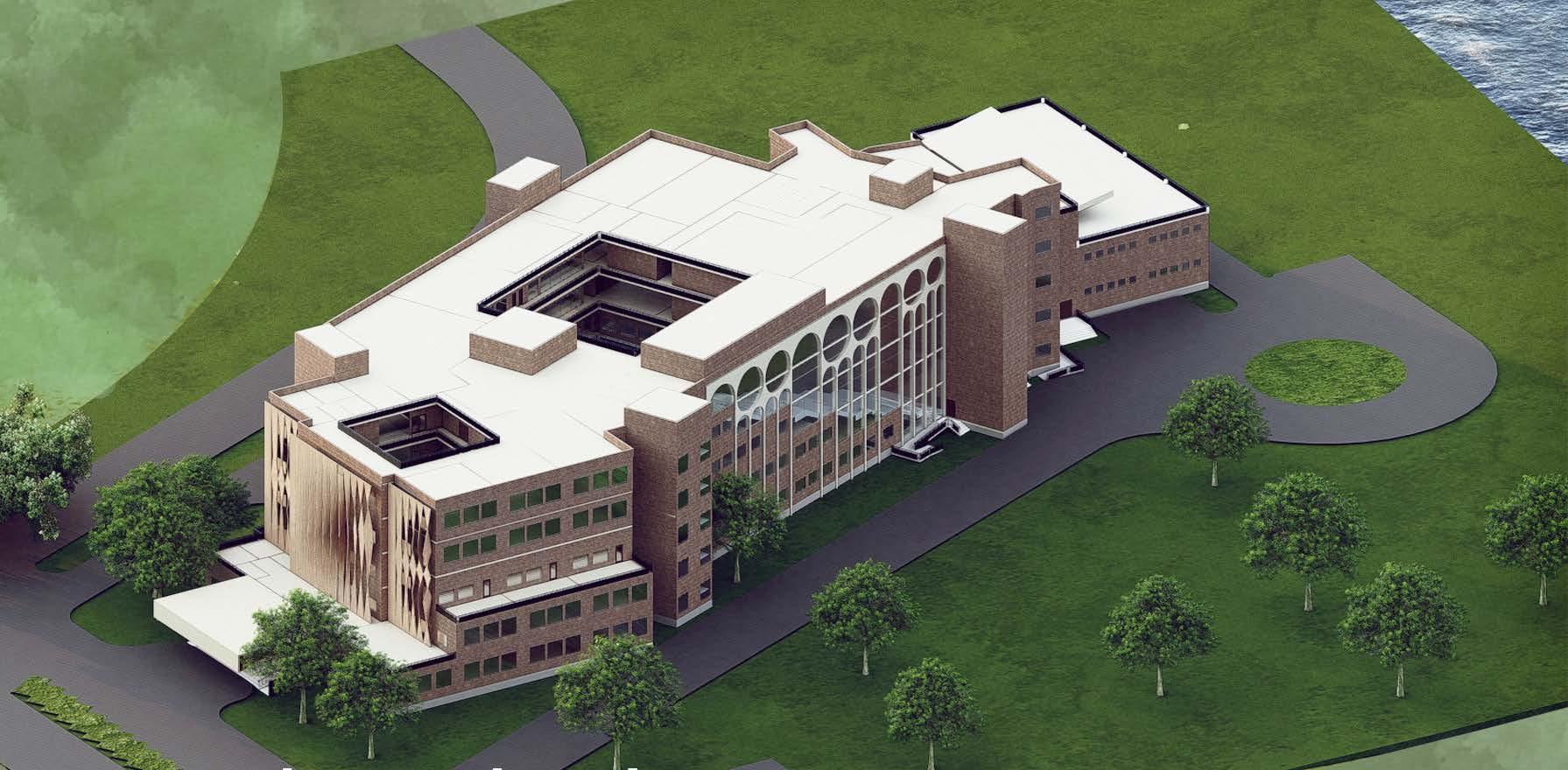

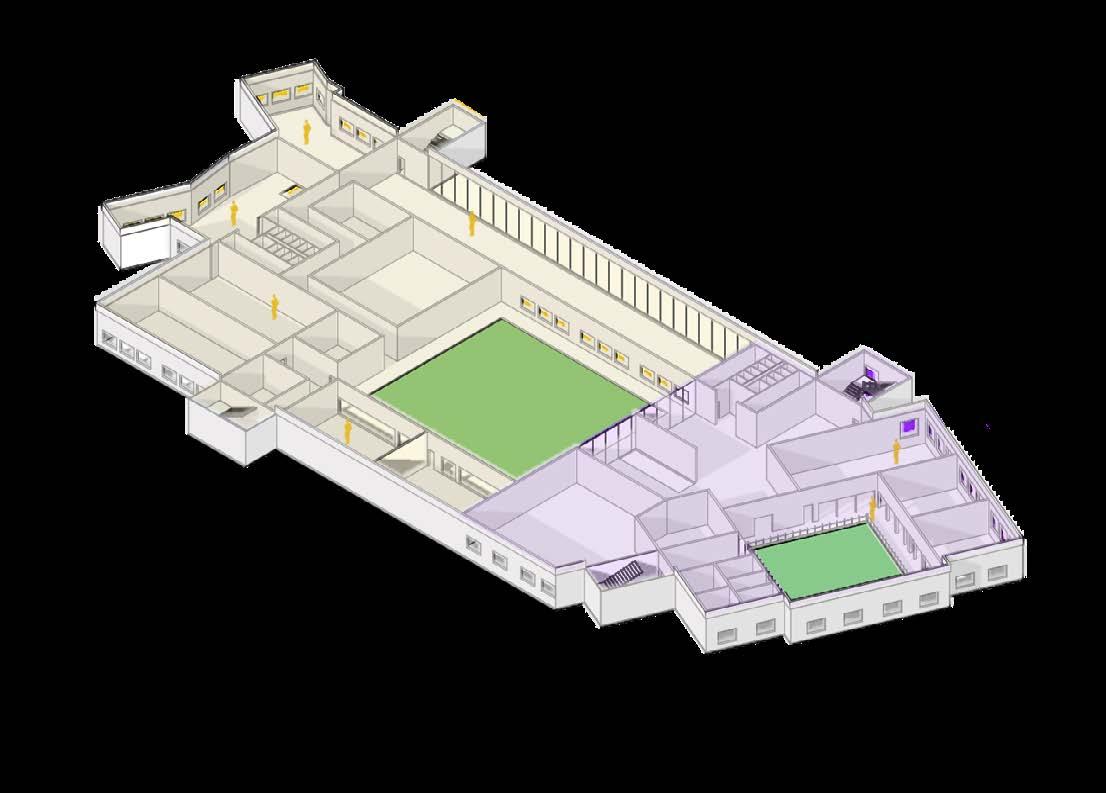

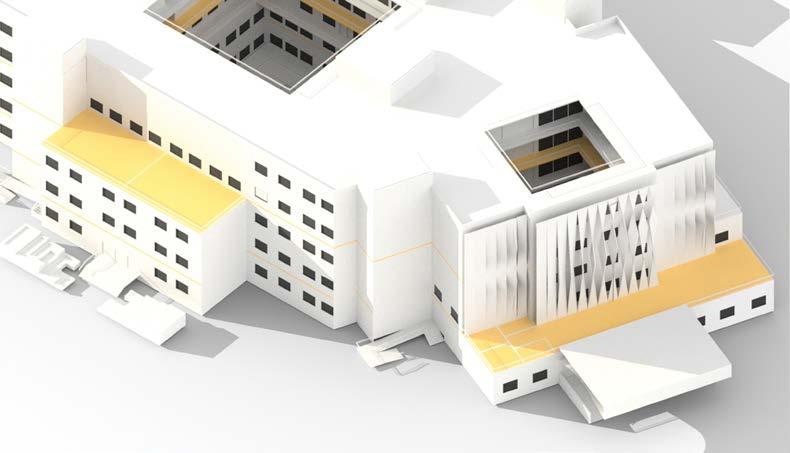

FINAL DESIGN MODEL

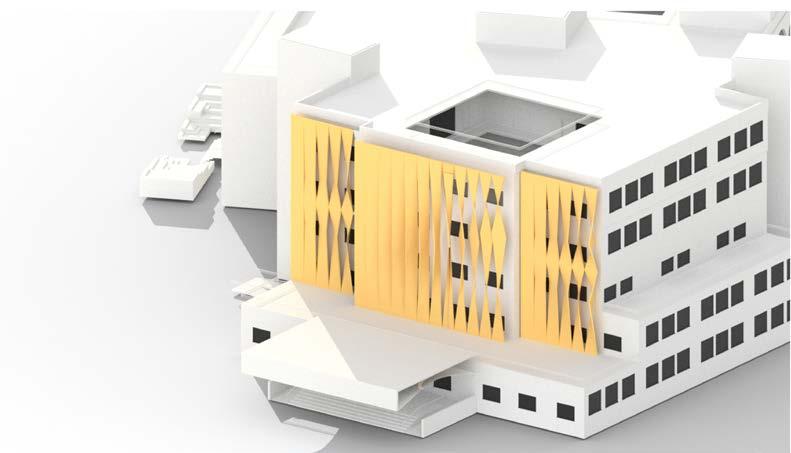

03| Parametric louvers - for shading on the East side and preventing glare

After applying passive strategies Useful daylight illuminance (UDI)

After adding light shelves, lux level becomes 600 lux. Corridors recieve sufficient light.

After incorporation of a light shelf and shading devices which will redirect the light the achieved UDI was 69.56

Integrating the passive strategies from the updated shoebox model into the final design led to efficient daylight distribution.

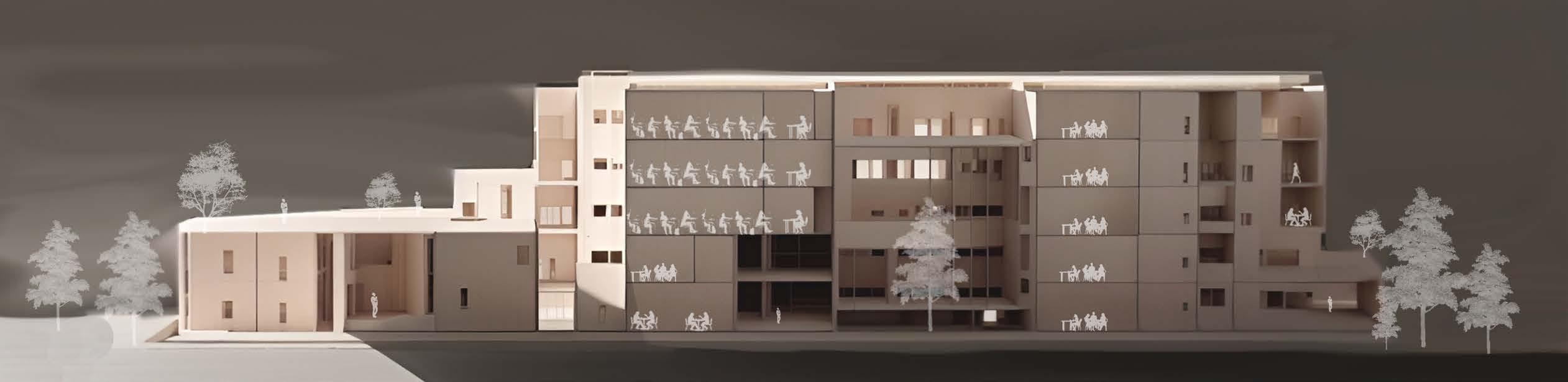

PHYSICAL MODEL

Auditorium (in blue) is placed on the west side to serve as a heat sink and hence is a closed space recieving no light.

Green roofs (in red) are exposed to natural light.

Classrooms and corridors recieve 600750 lux and 300-450 lux respectively.

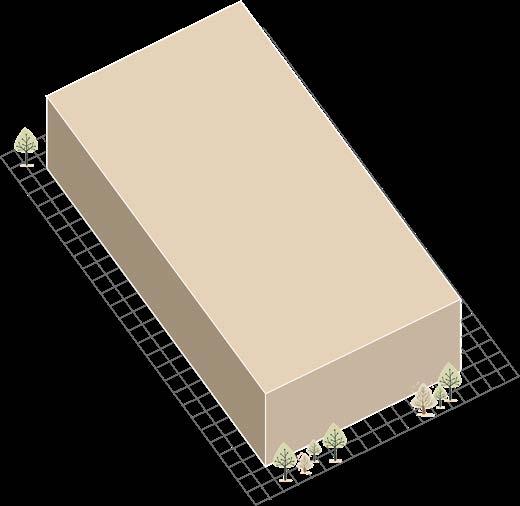

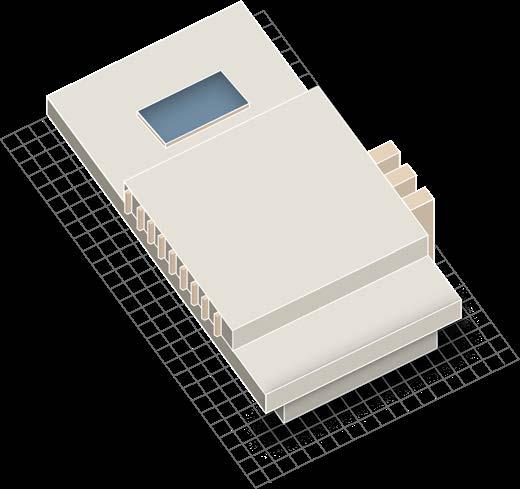

SHOEBOX MODEL

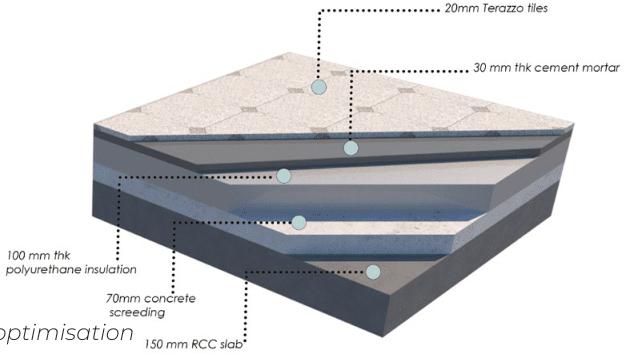

01| Roof construction

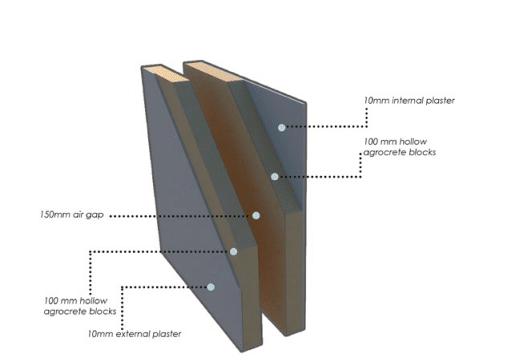

02| Wall construction *Agrocrete: biowaste mix material

WATER EFFICIENCY

By using GRIHA certified low flow fixtures of Jaquar and Kent Grand Plus Zero Water Wastage we have reduced the per capita demand by 65% (GRIHA base case) and 53% (NBC).

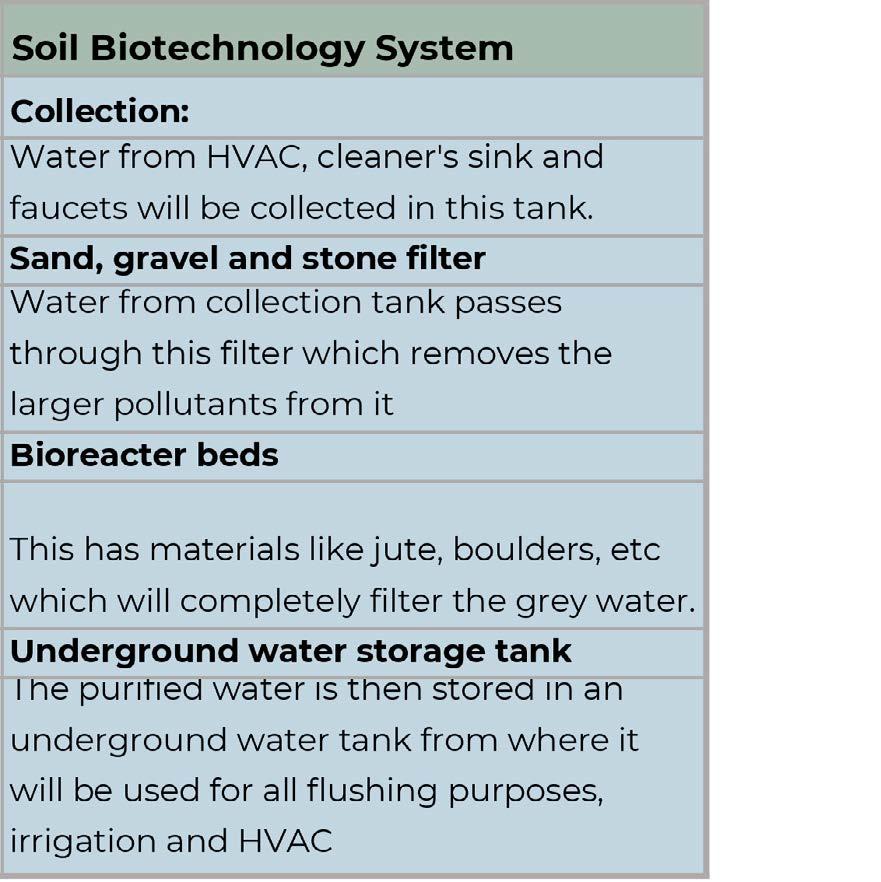

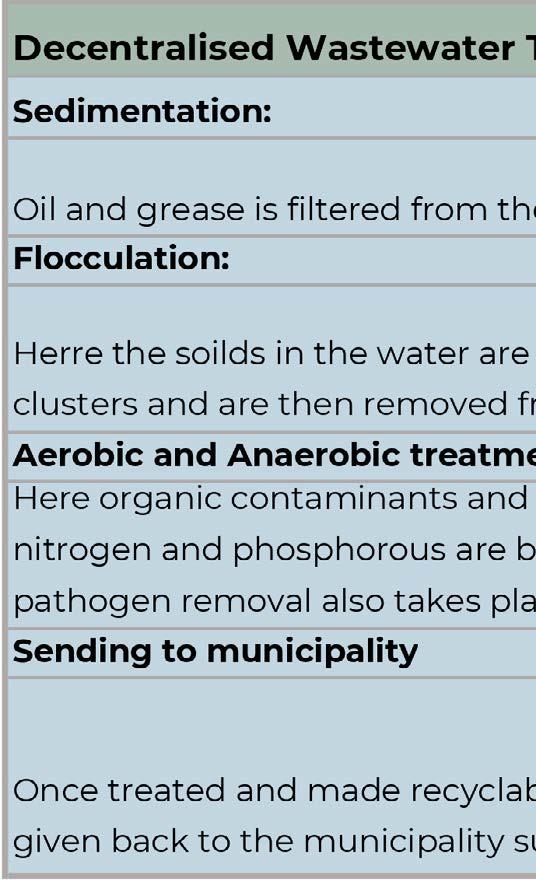

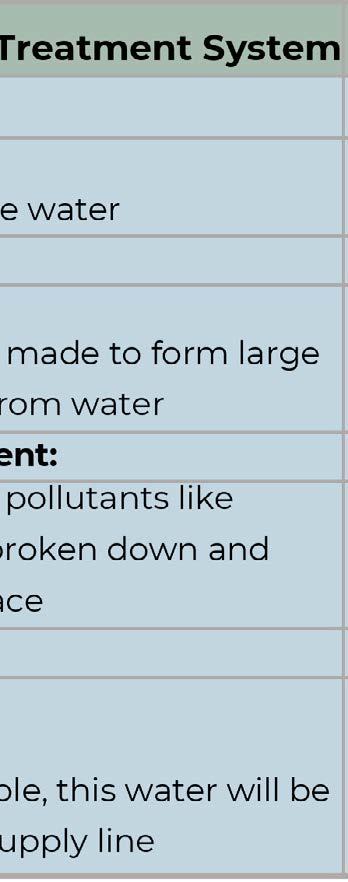

Grey water treatment

DETAILS OF FIXTURES

By using Kisan’s drip irrigation system, bioswales, and planting native trees, we have reduced the outdoor water consumption by 44% (from GRIHA basecase).

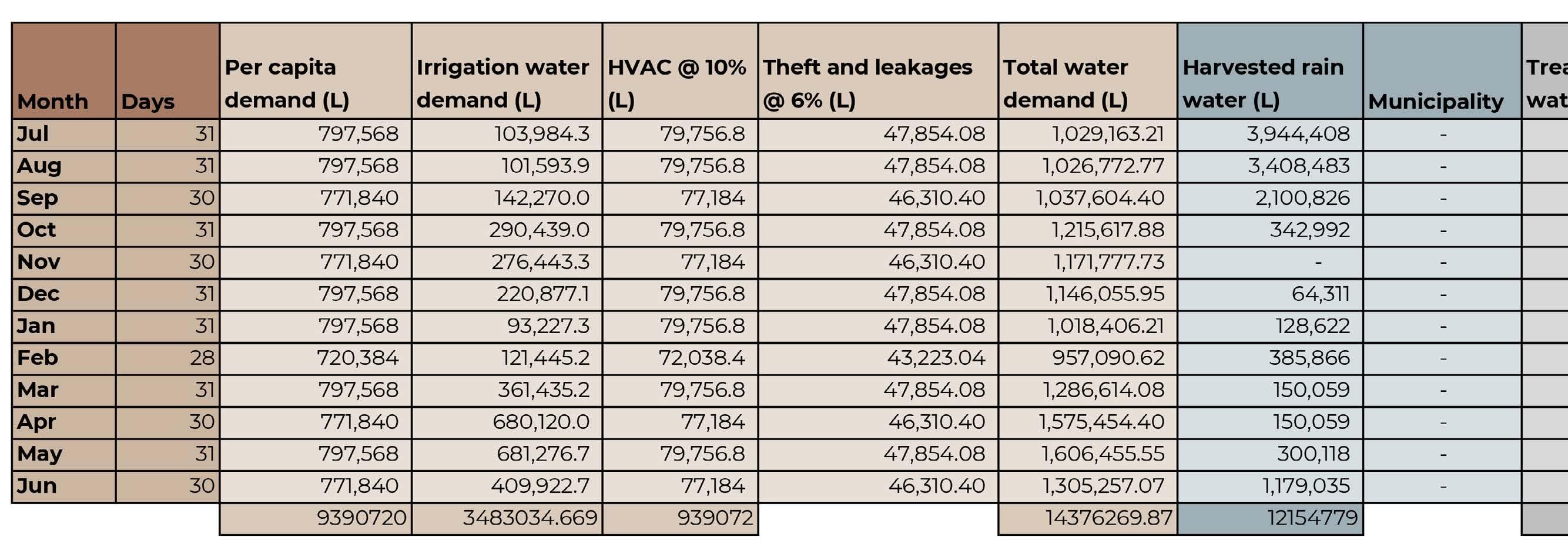

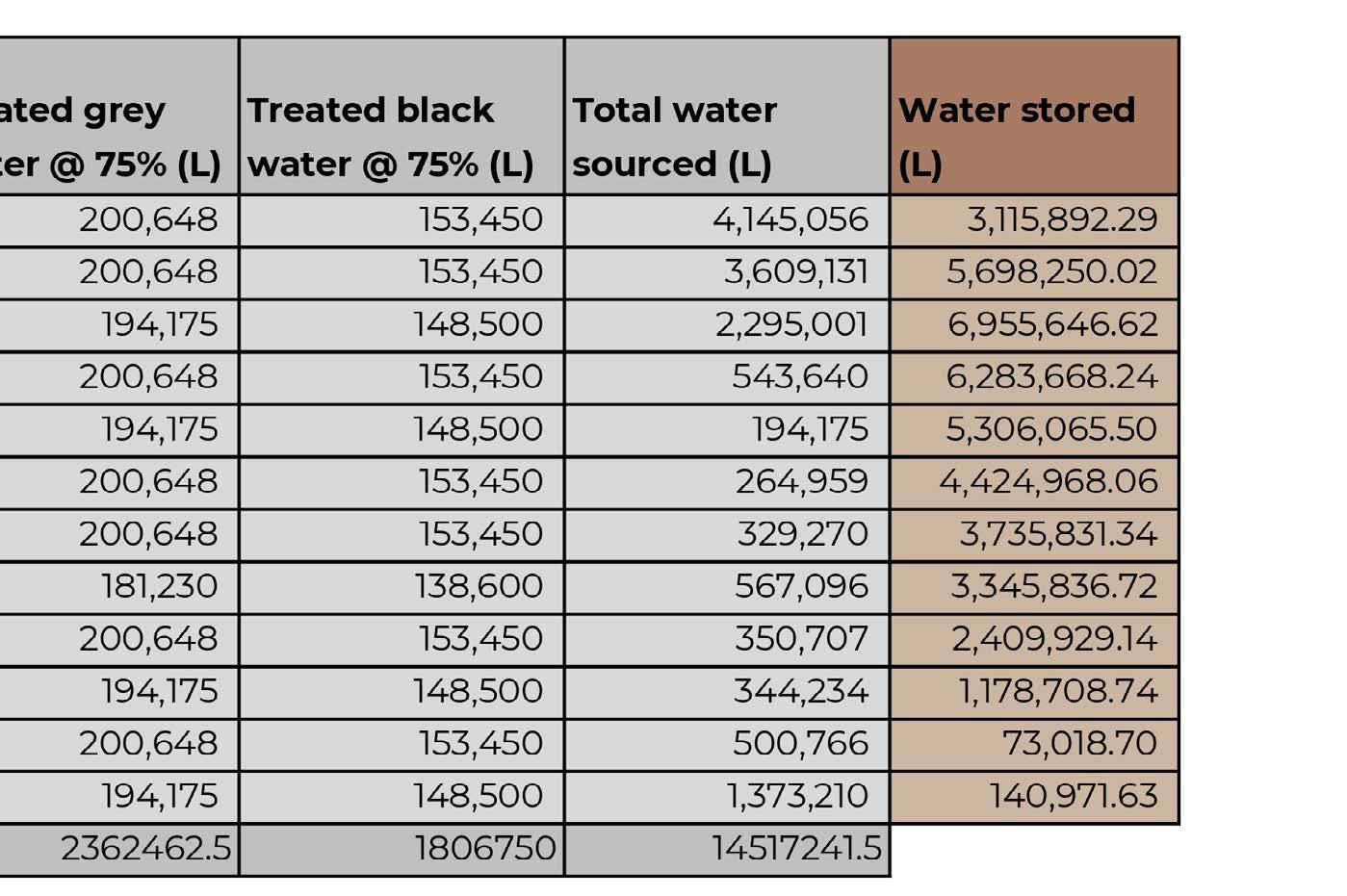

WATER CHART

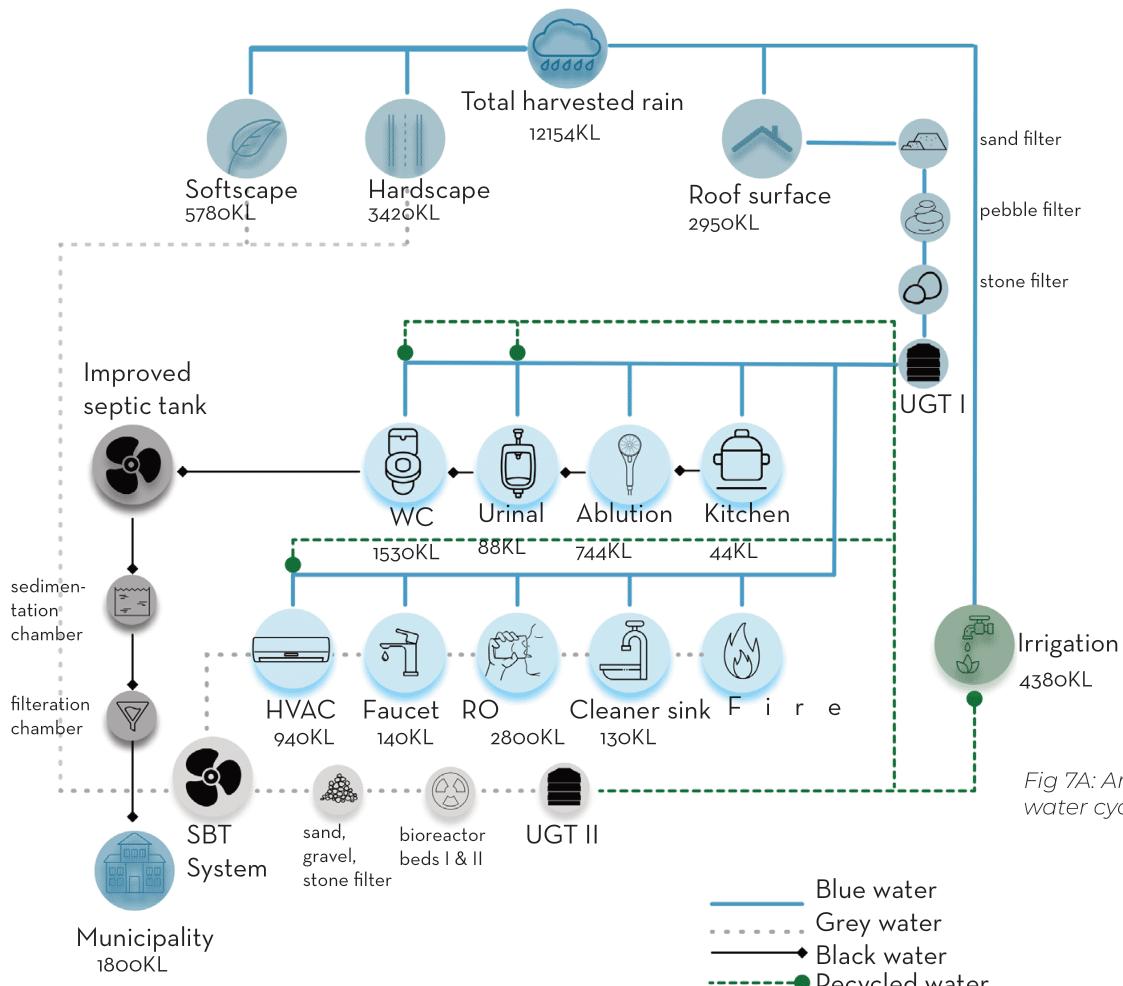

To make this educational building water efficient and independent of municipal water suppply, low flow techniques, innovative STPs, and landscape strategies were used. We reduced the LPD from 62.4 (GRIHA base case) and 45 (NBC) to 21LPD.

The excess treated later is sent to the residential unit for use, while the black water is treated and given back to the municipality line. Thus, the building is not only net zero, but net positive in water.

03 | URBAN ARCHITECTURE

This urban design project focused on developing a BusinessPrecinctDevelopment(BPD)centeredaround an Institutional Area in Karkardooma, Delhi, India It aimed to establish seamless linkages with the surrounding urban fabric, serving as a catalyst for the city’s growth by incorporating infrastructure such as hospitality, co-working spaces, housing, and social amenities while addressing sustainability in energy, water use, natural light, and ventilation. The main focus of the project was integration of public realms.

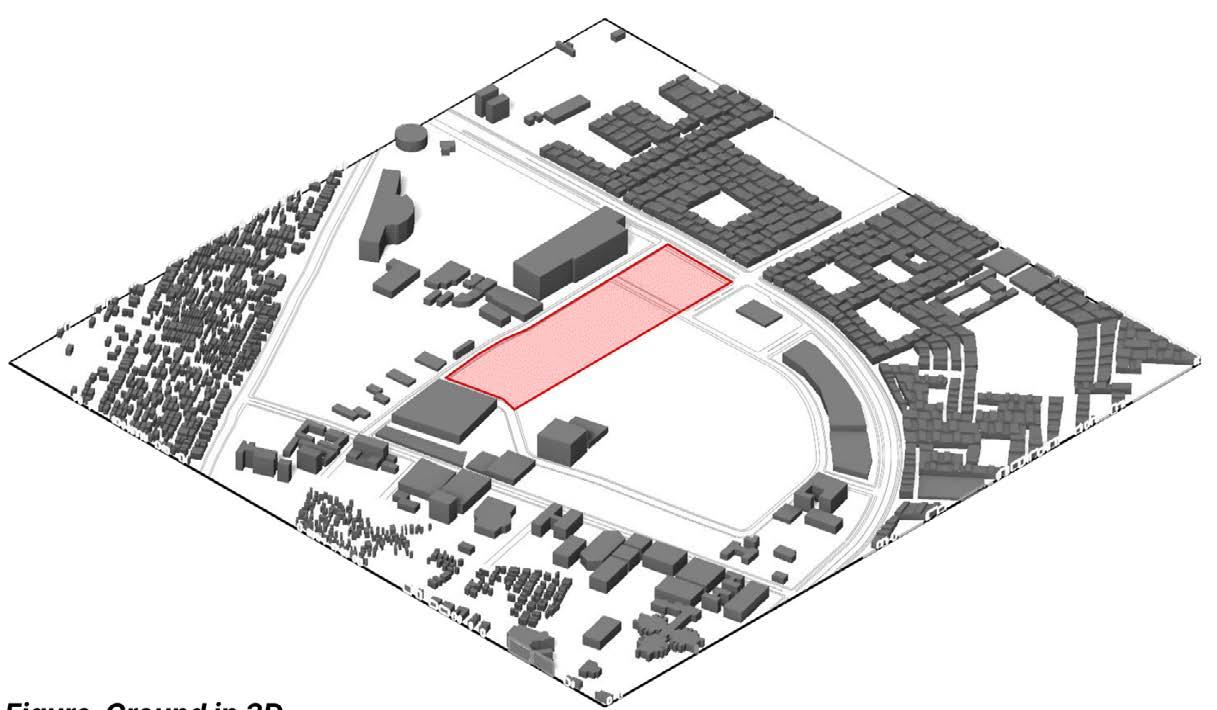

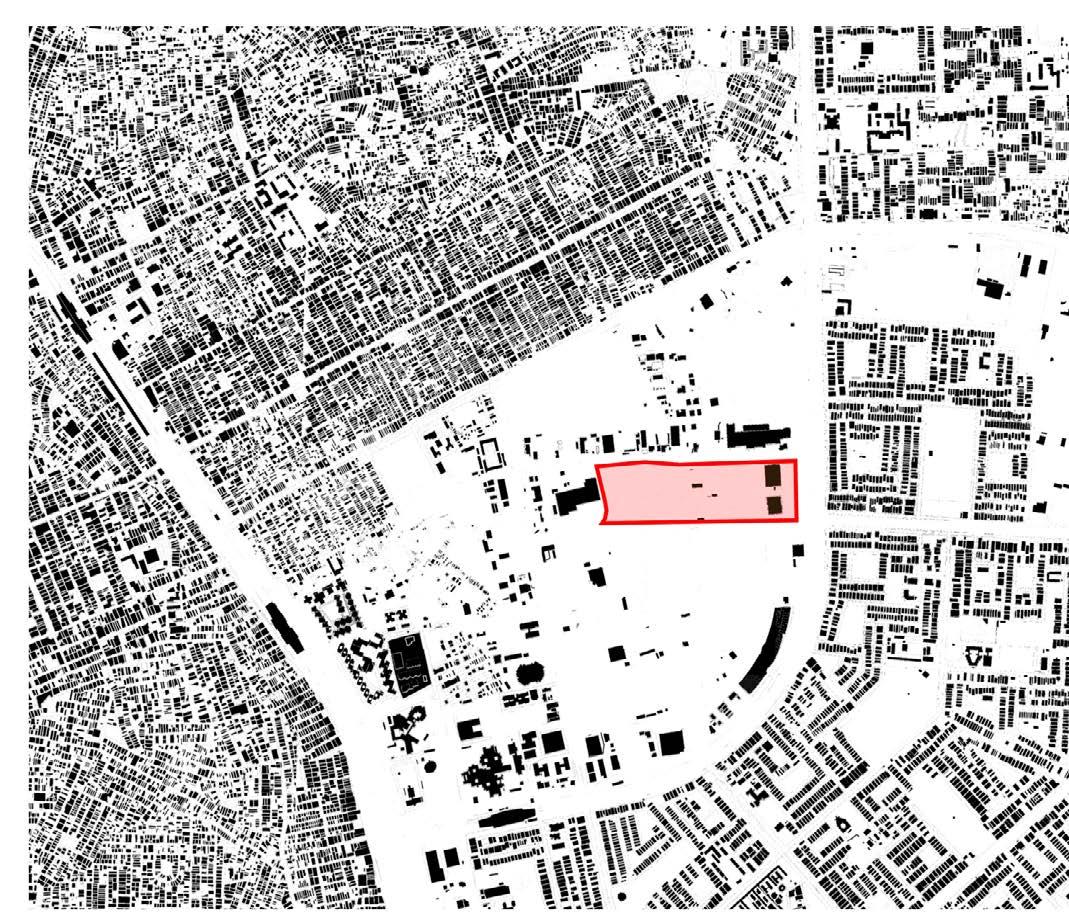

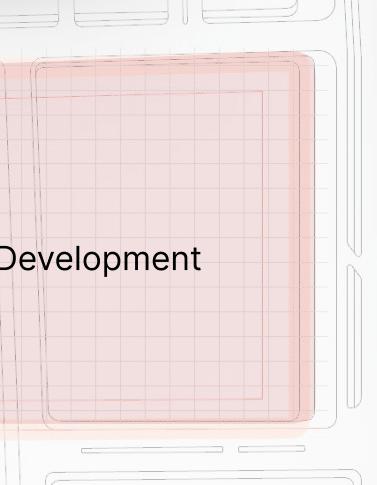

SITE LOCATION AND FIGURE GROUND

Diverse urban fabric with very little open areas and green spaces: ranges from planned plotted residences to organically grown urban villages.

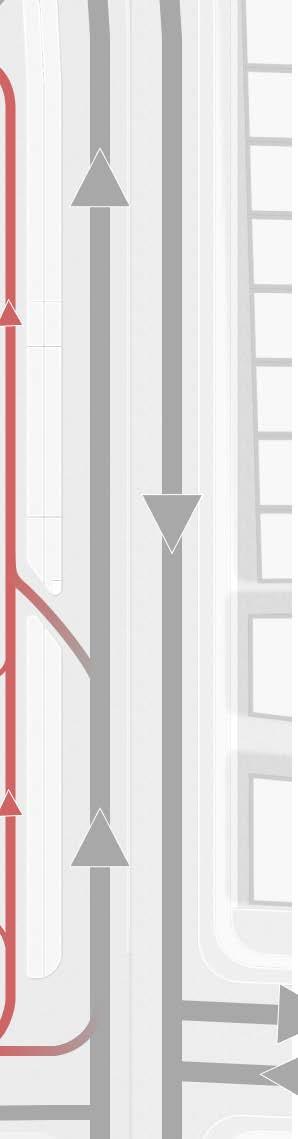

SITE ROADS

such social energy, main realms.

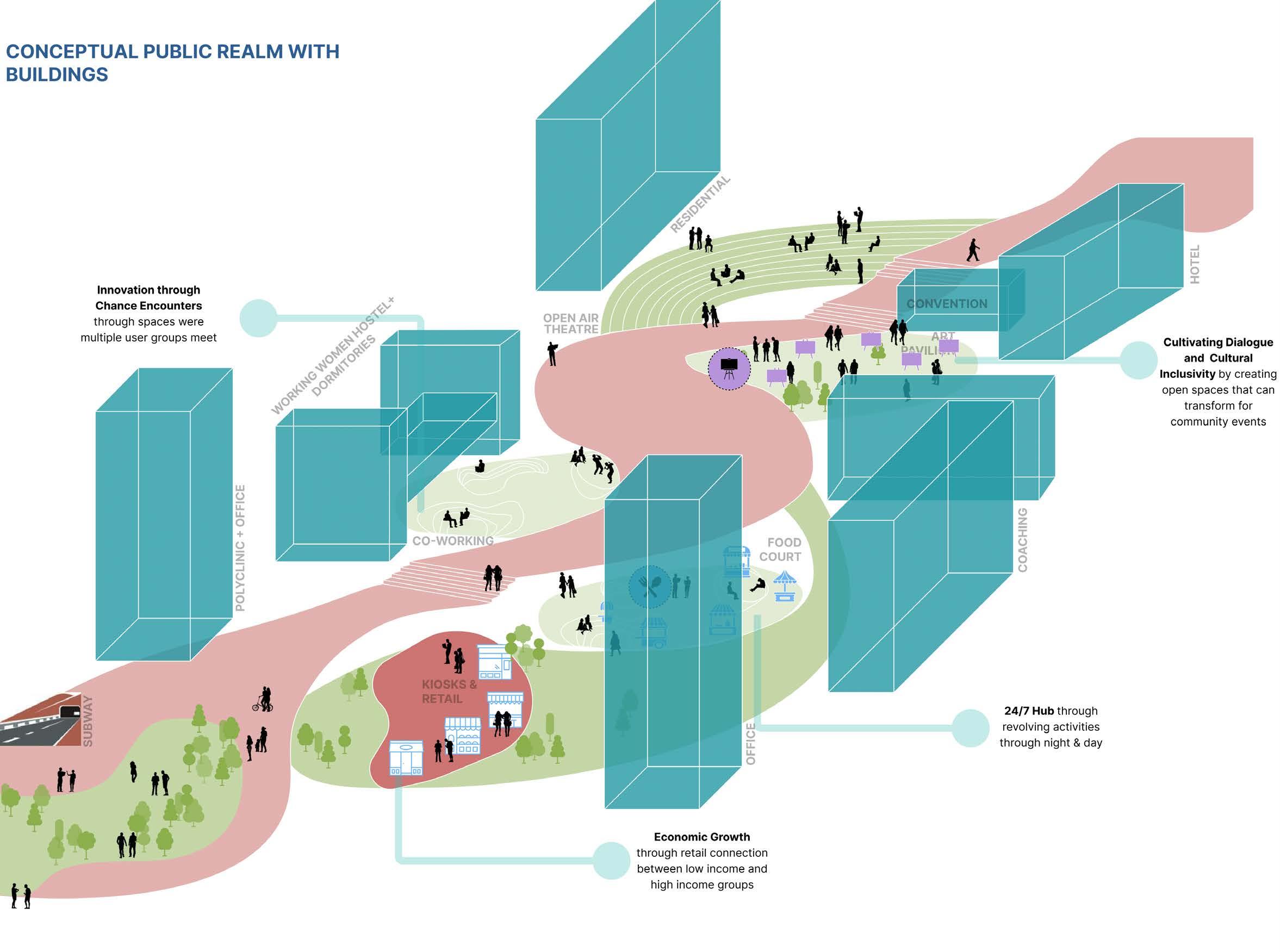

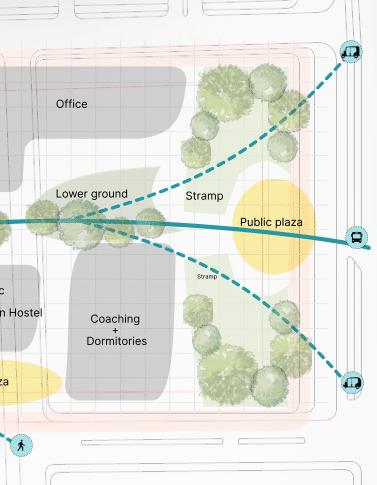

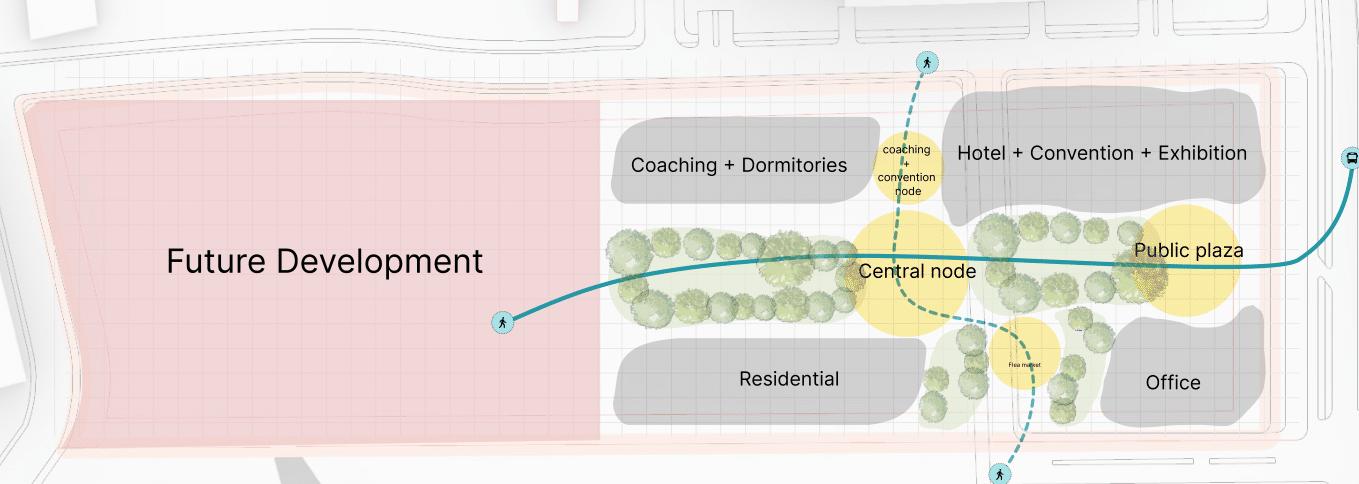

CONCEPT

Innovation through Chance Encounters through spaces were multiple user groups meet

FUNCTION ANALYSIS

Cultivating Dialogue and Cultural Inclusivity by creating open spaces that can transform for community events

24/7 Hub through revolving activities through night and day

Economic Growth through retail connection between low income and high income groups

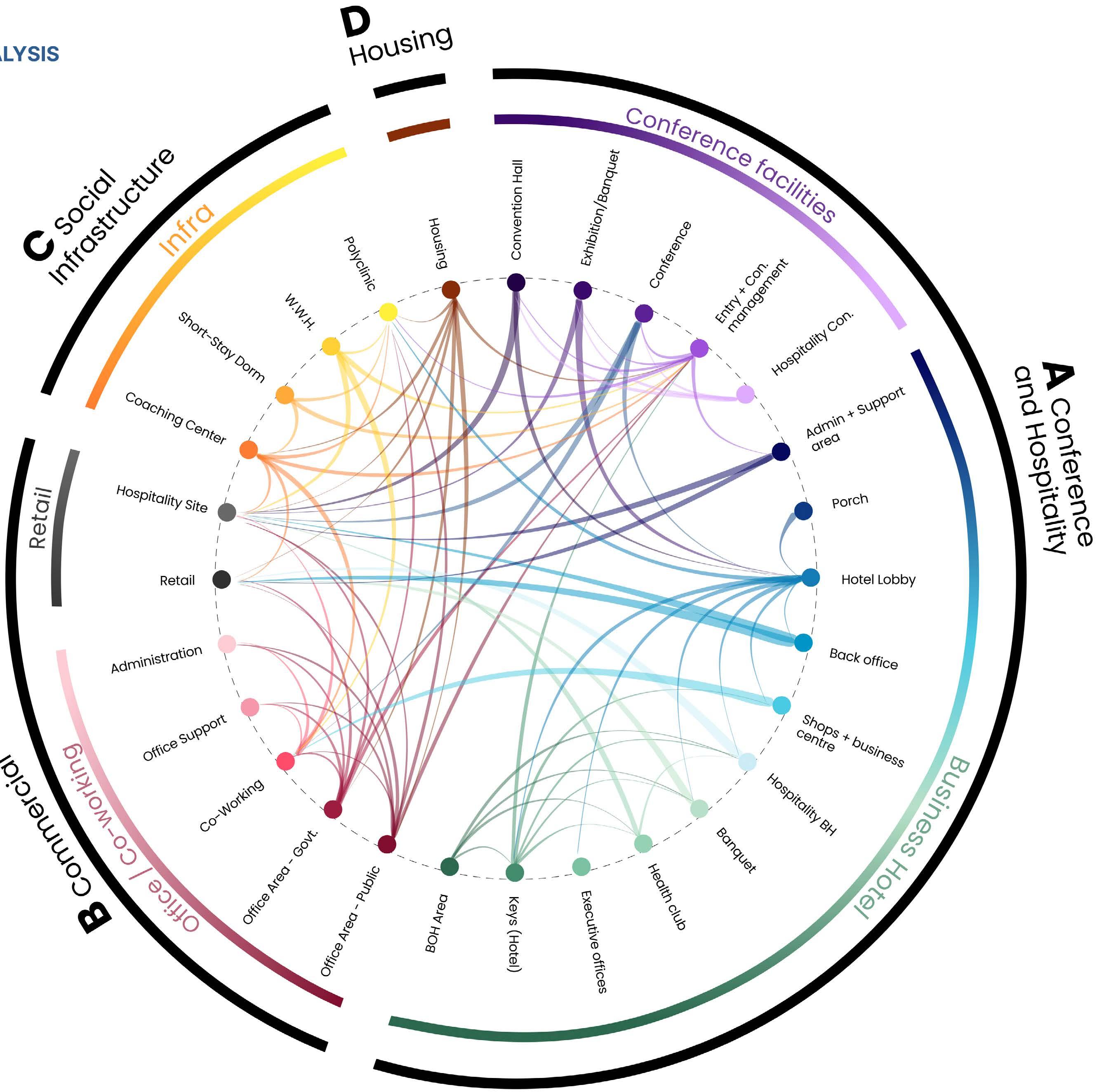

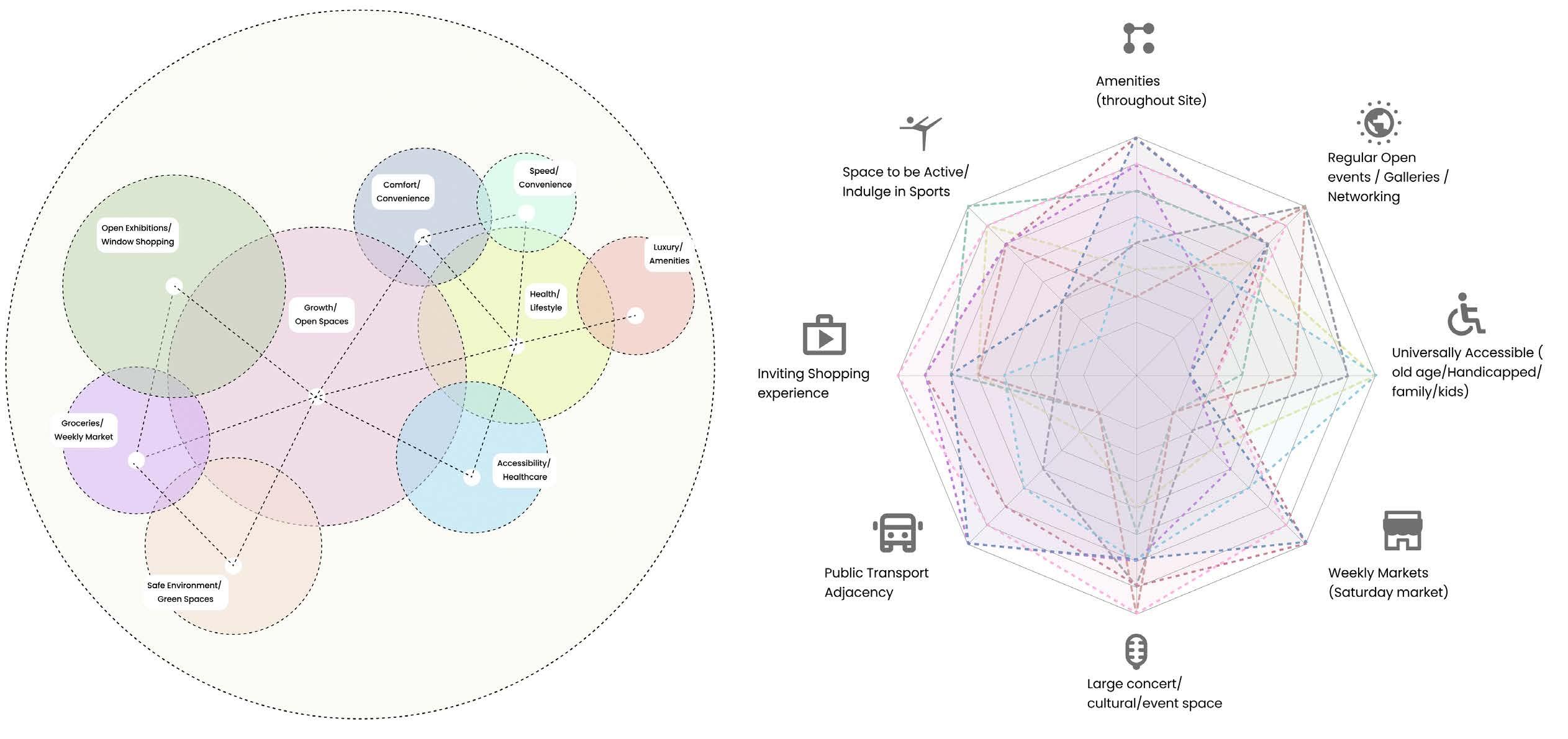

PROGRAM ANALYSIS

Understanding what are the most probable other functions that a user may want to use (thinner end of the line) when leaving from a particular space (thicker end of the line).

This helped in understanding which functions are more private (or public) than others.

DESIGN ITERATIONS

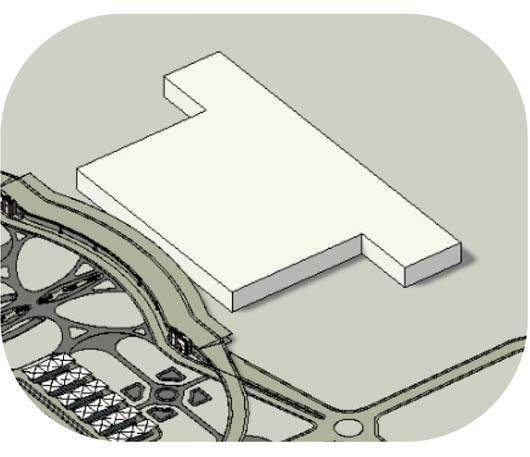

Iteration 01 | disconnected from public transport and site frontage

Iteration 03 | underuse of site frontage and greens

Iteration 02 | retail clustered along one section of the site

Iteration 04| less cohesivity between functions

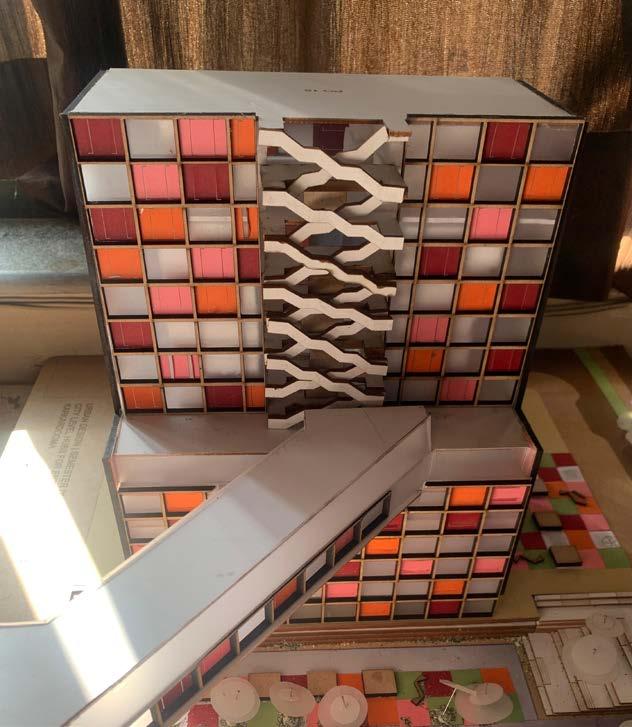

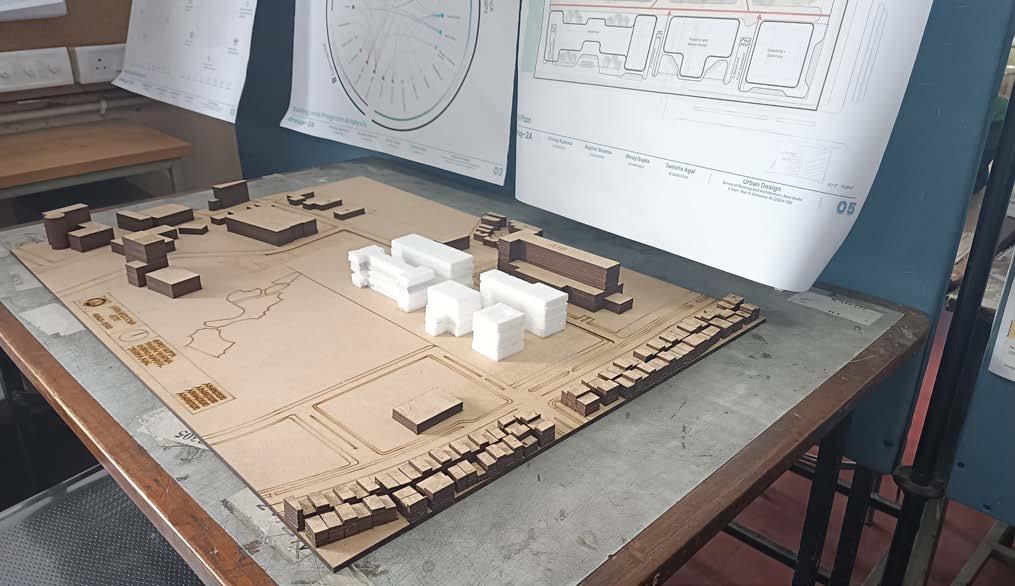

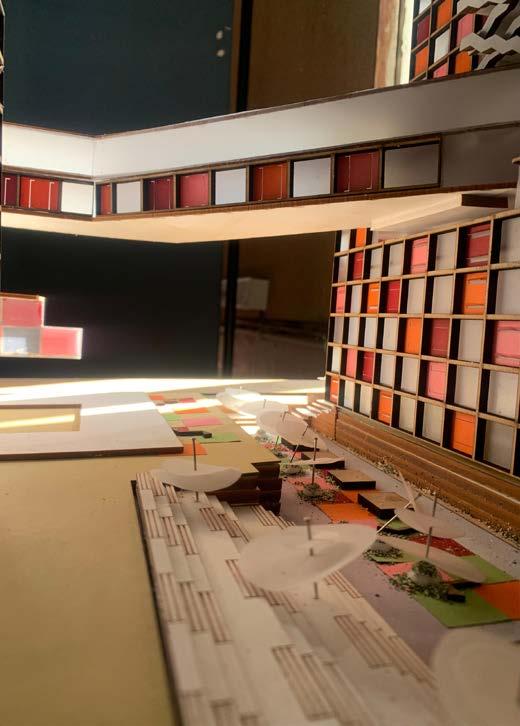

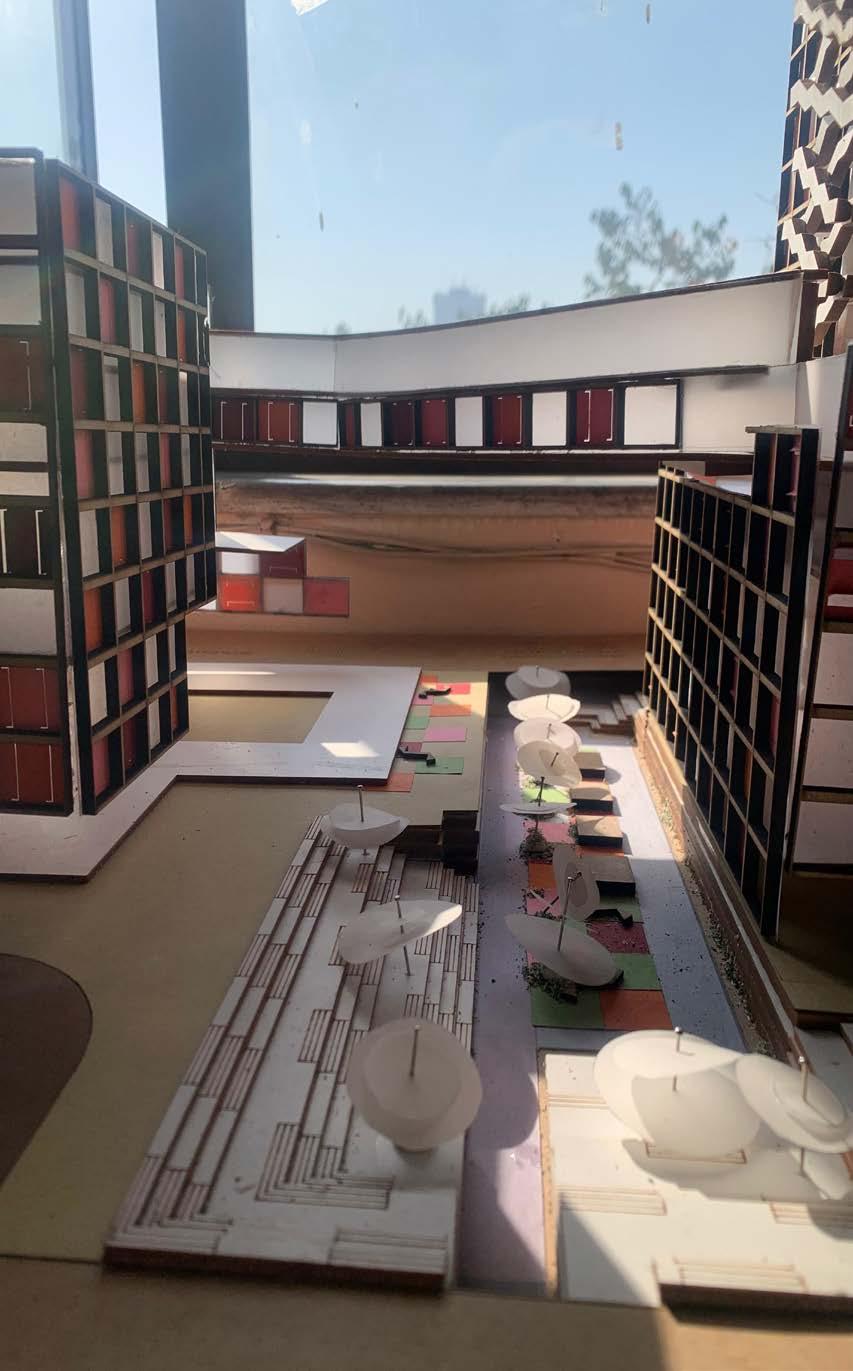

PHYSICAL MODELS AND SKETCHES

Exploratory model

Office building

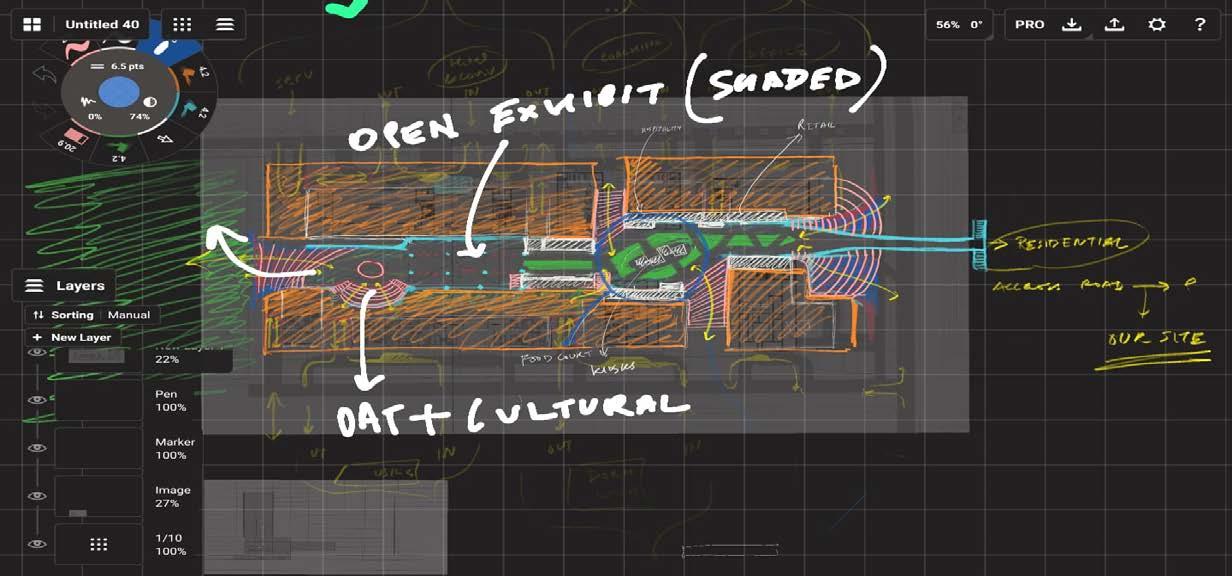

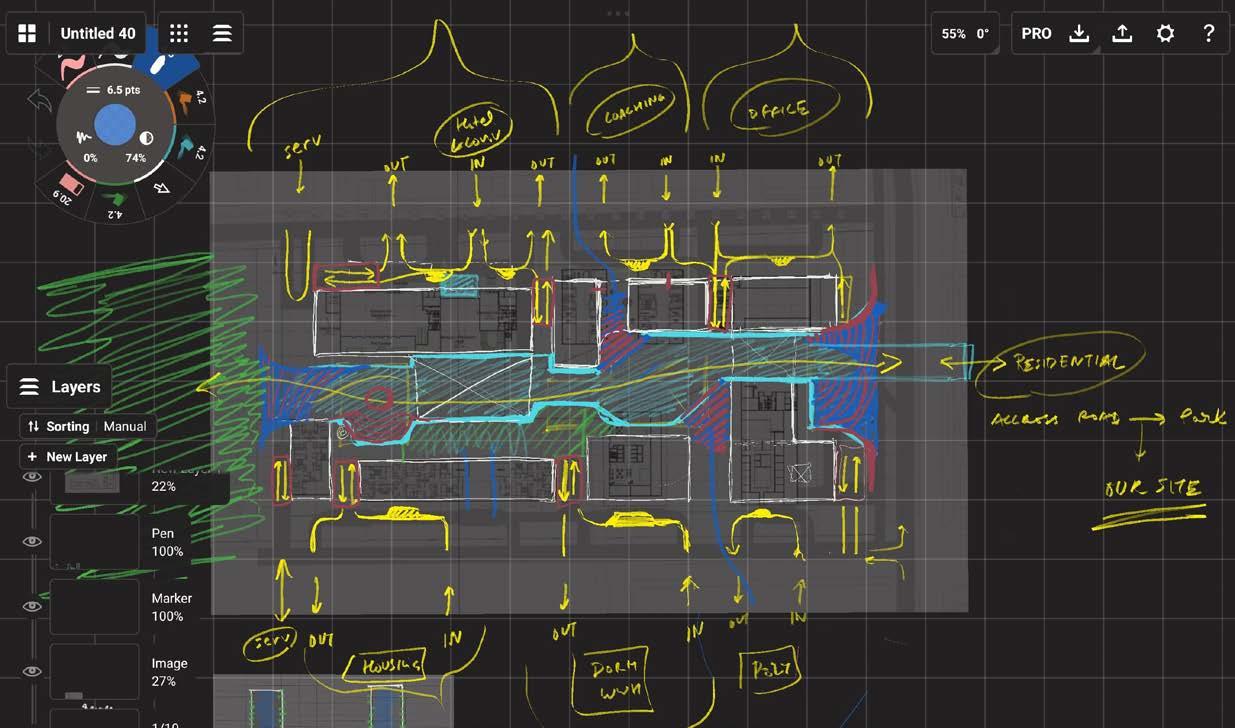

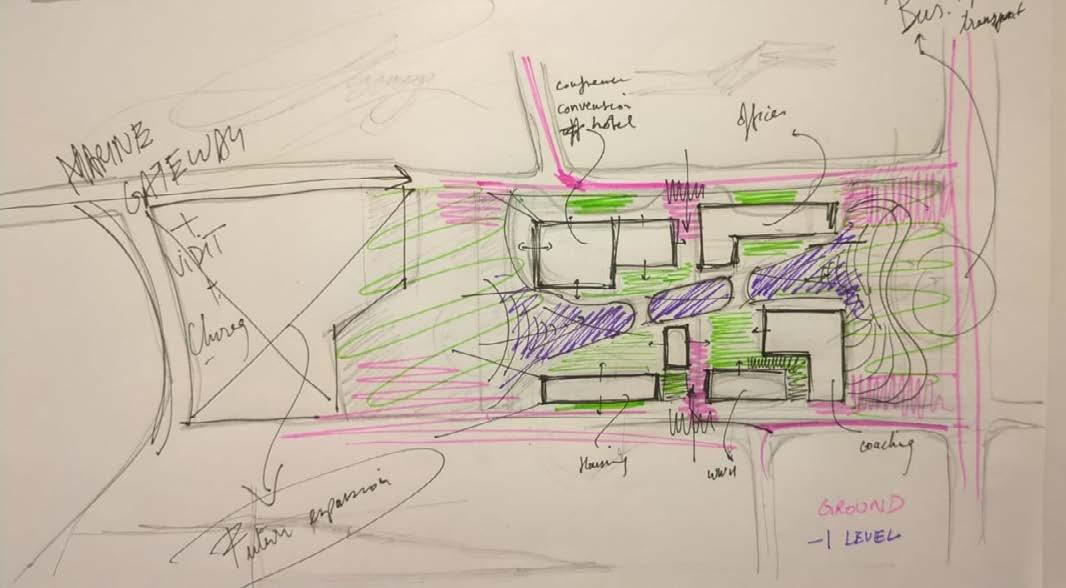

Site plan sketch

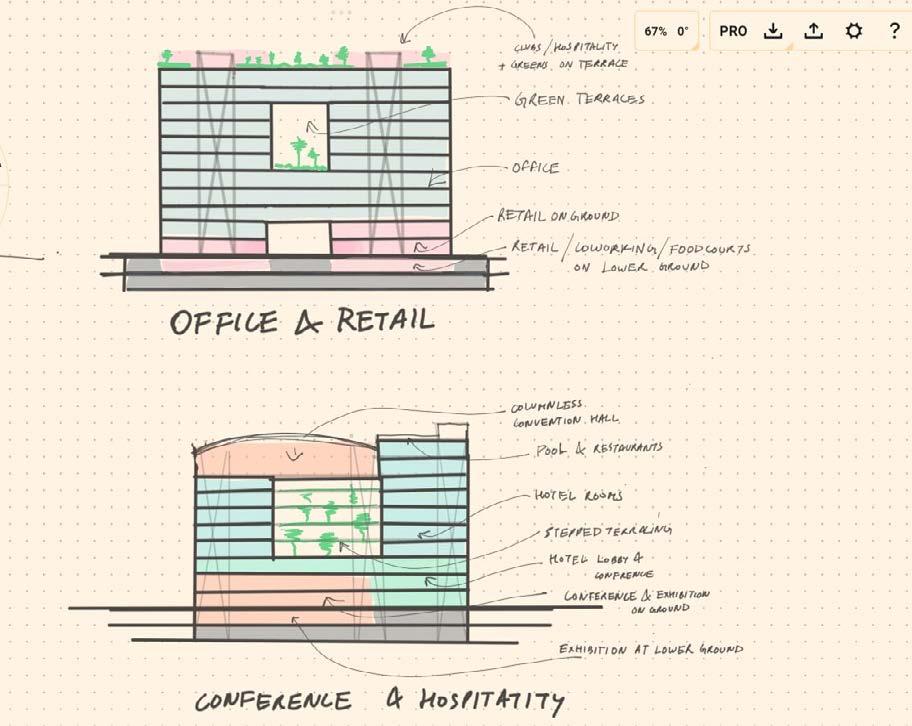

Building sketches

RESIDENTIAL

DORMS

02| LOWER GROUND

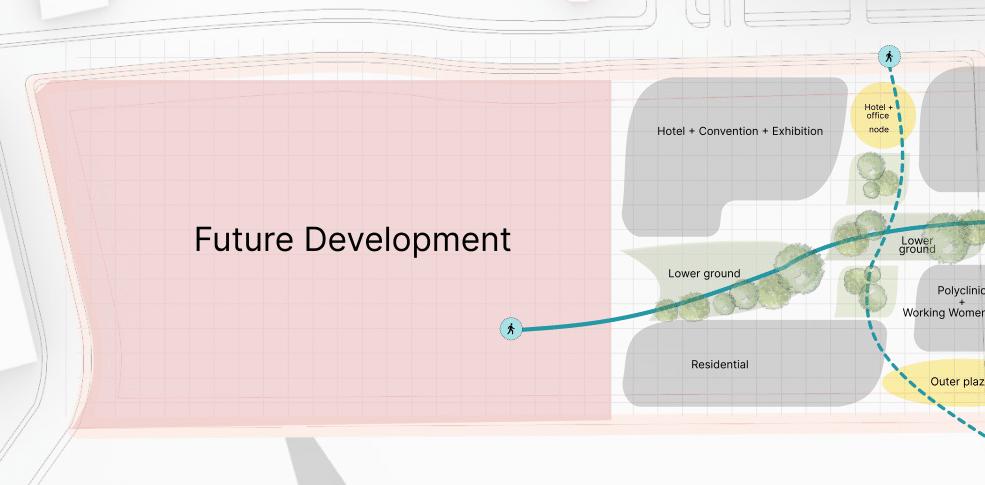

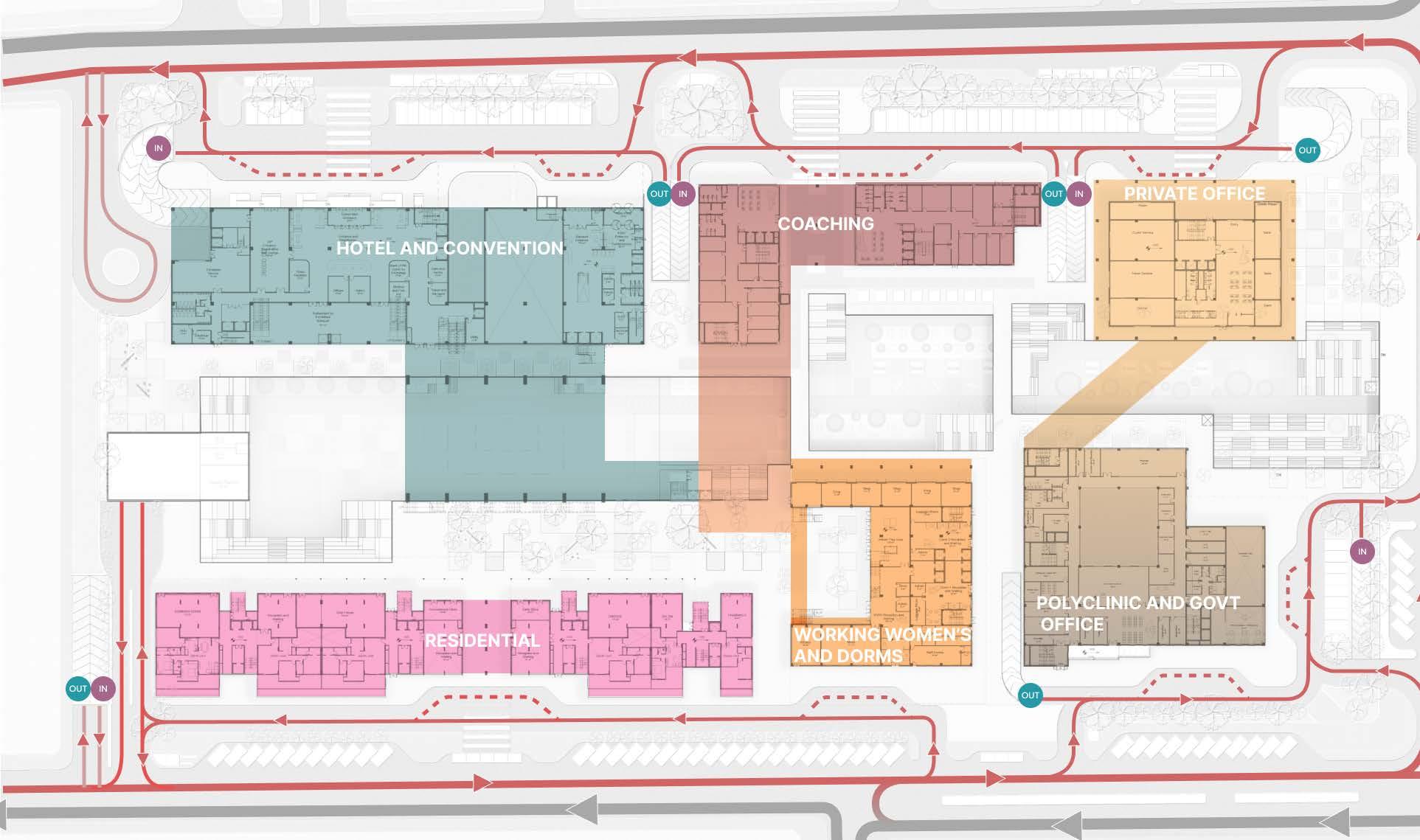

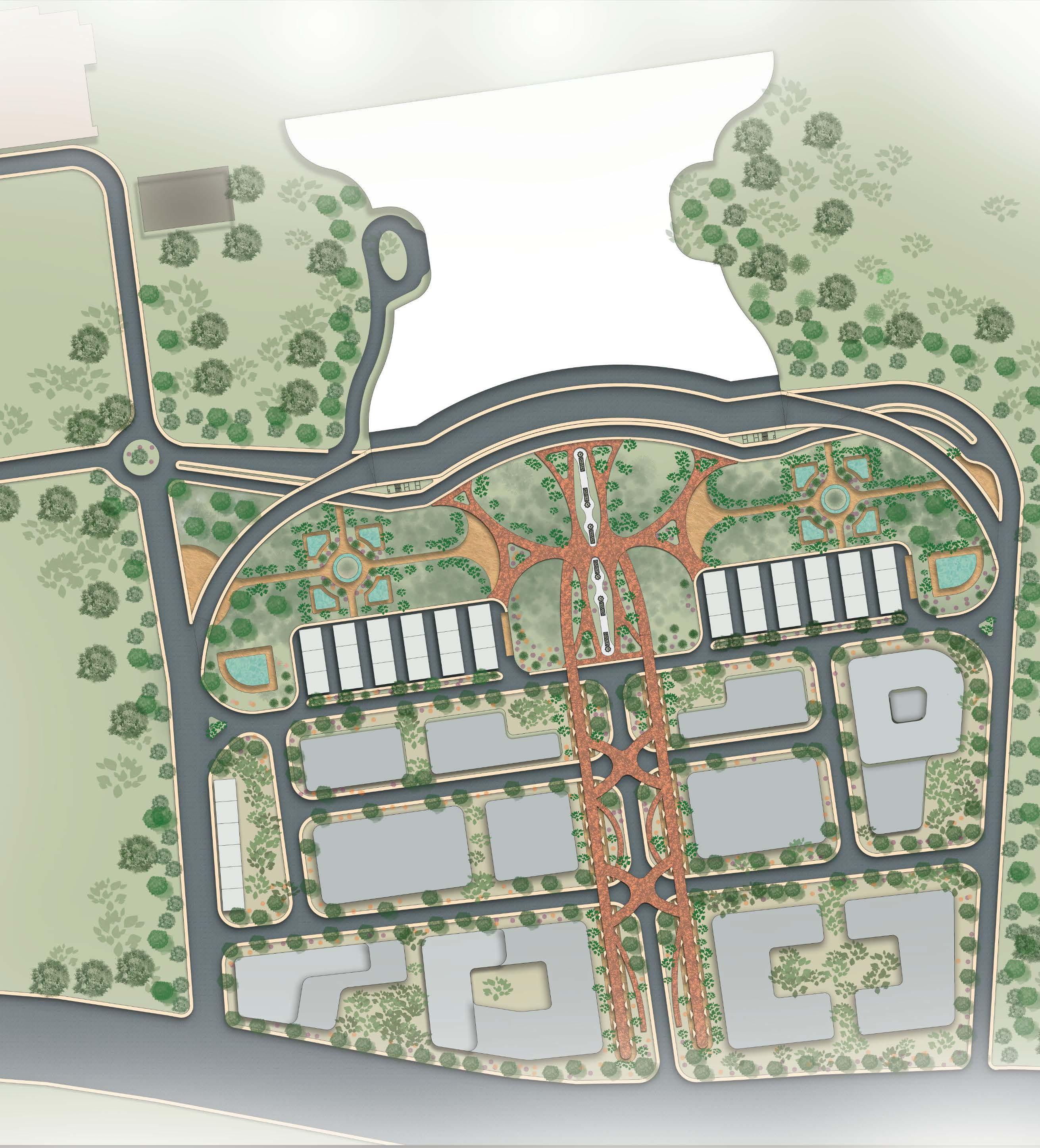

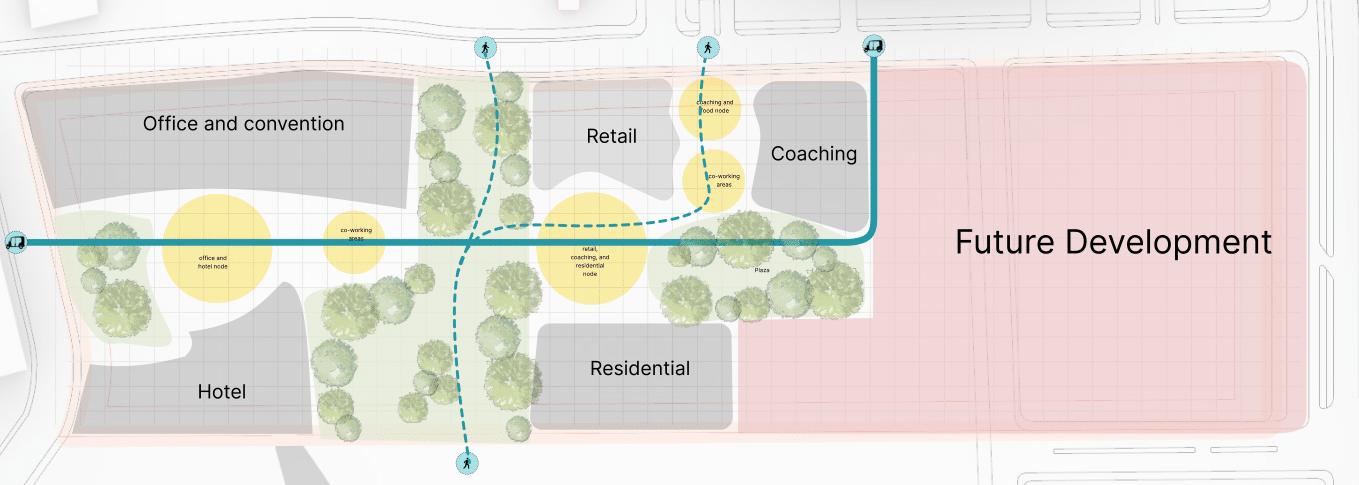

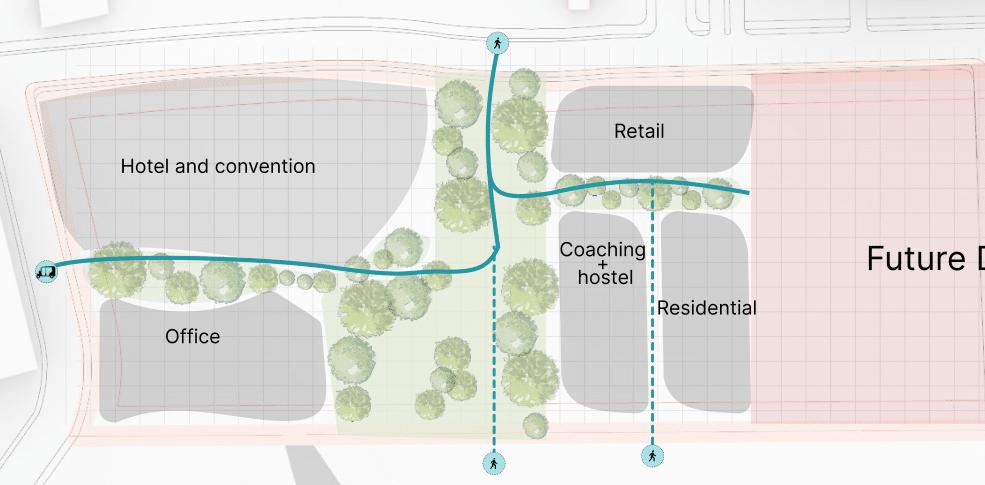

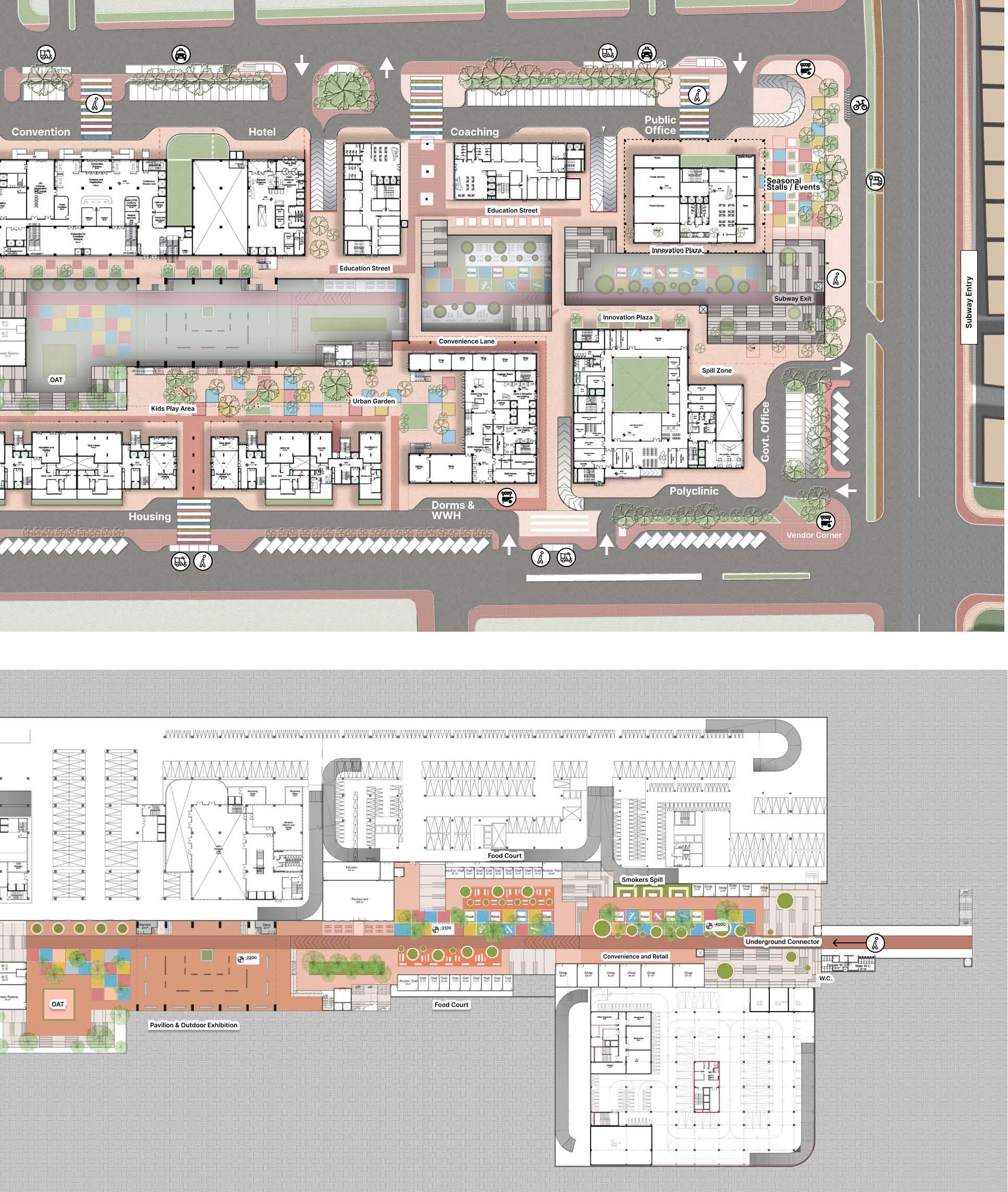

GROUND SITE PLAN

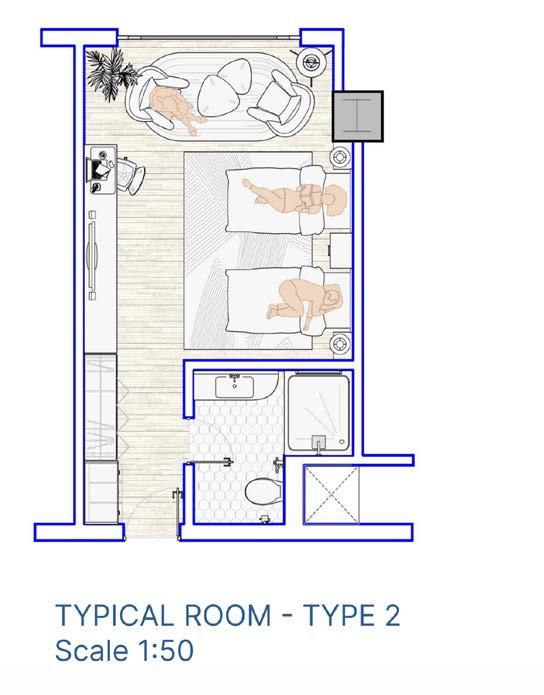

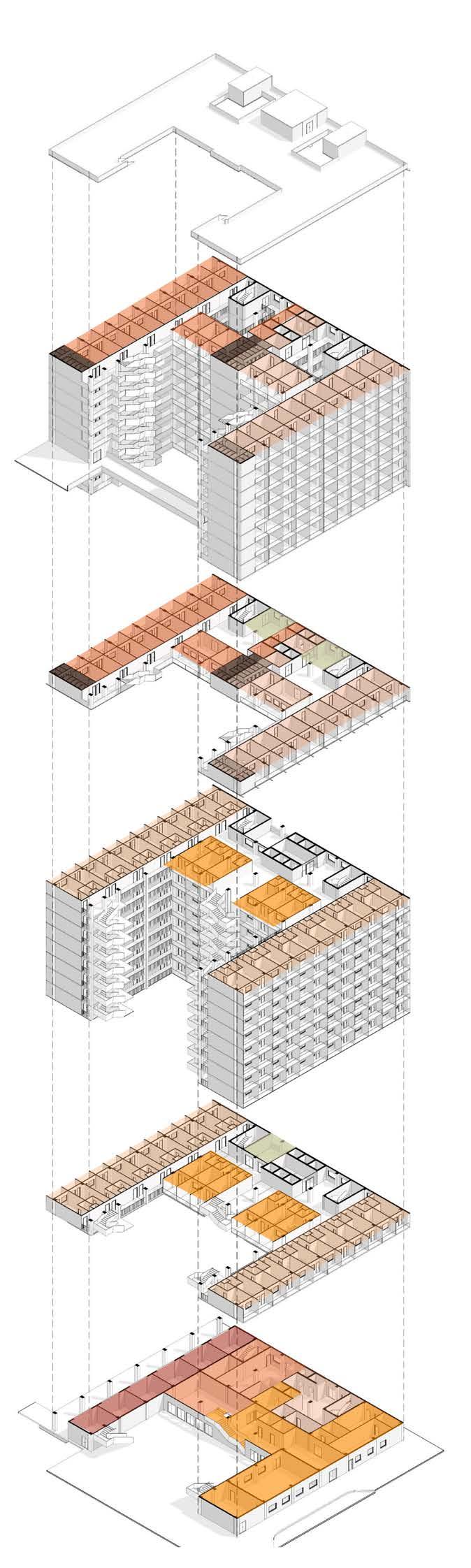

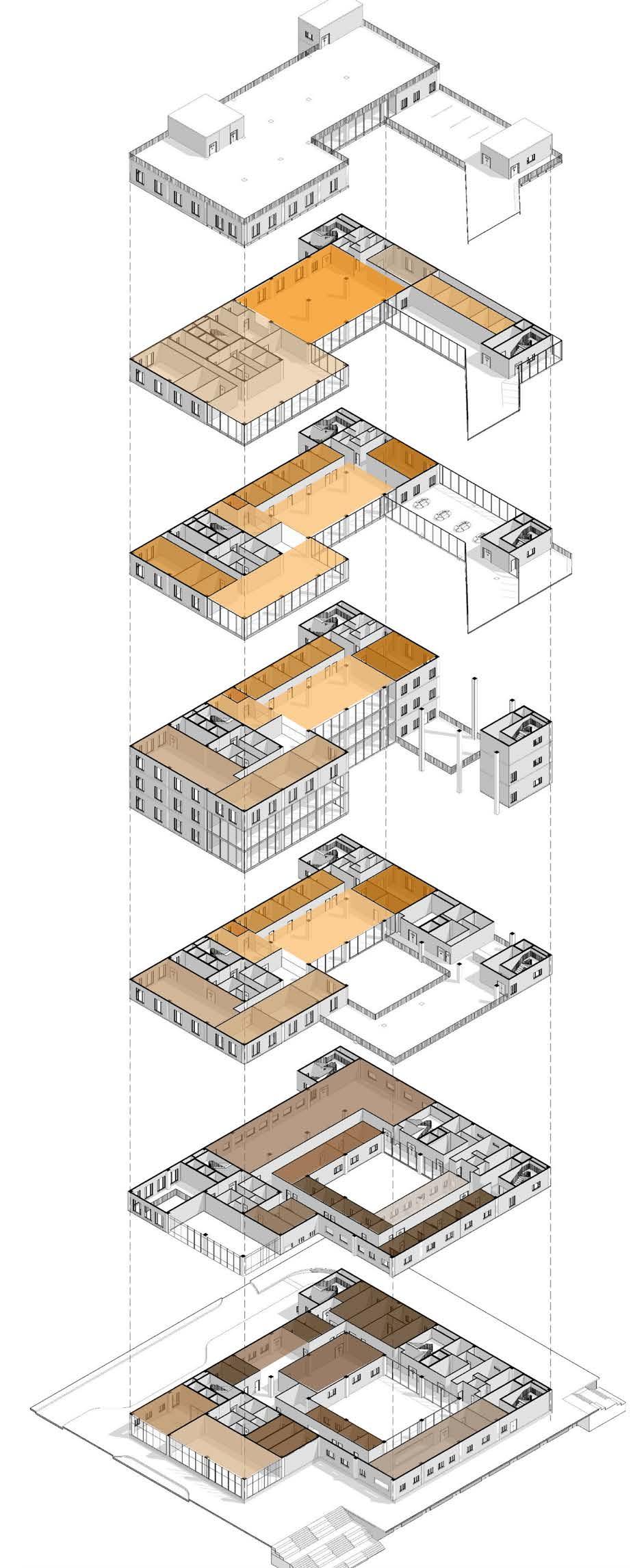

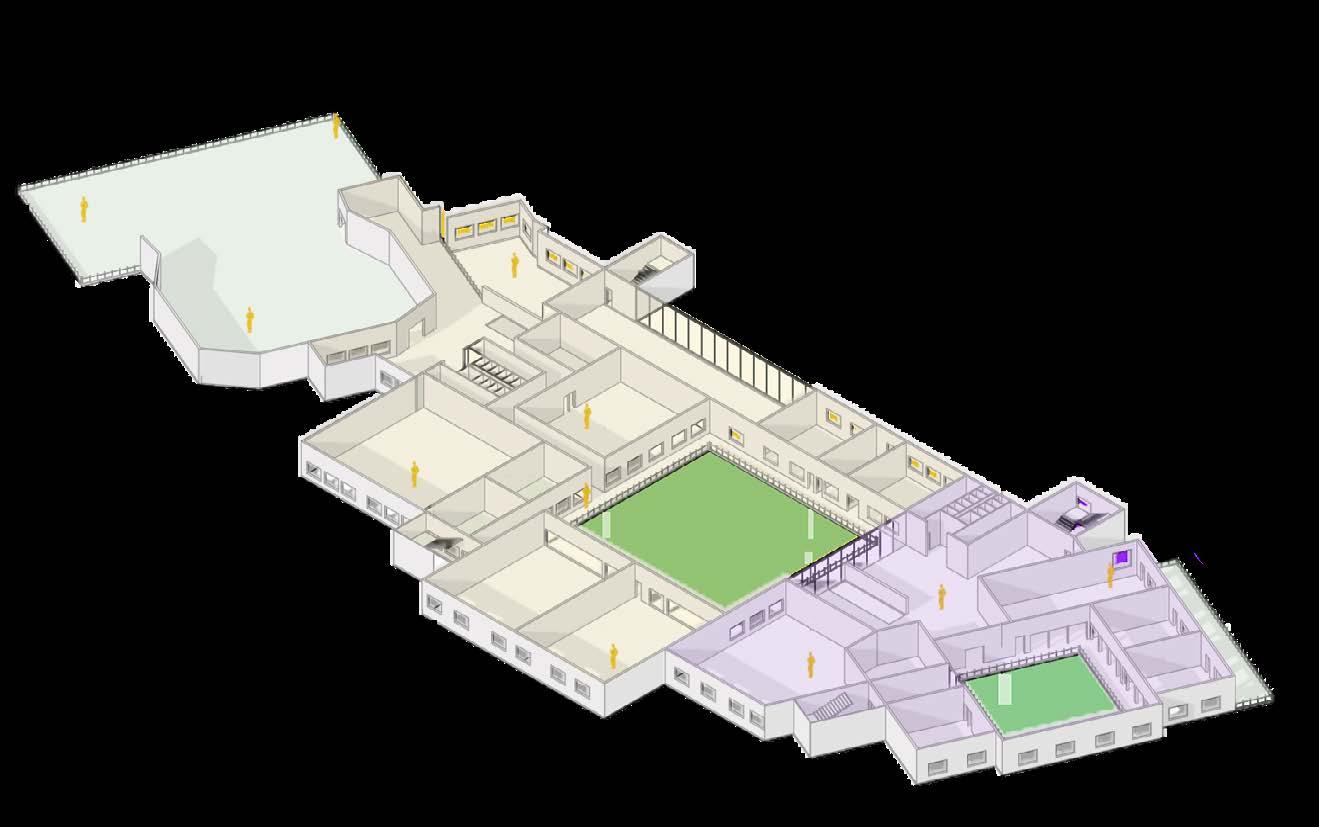

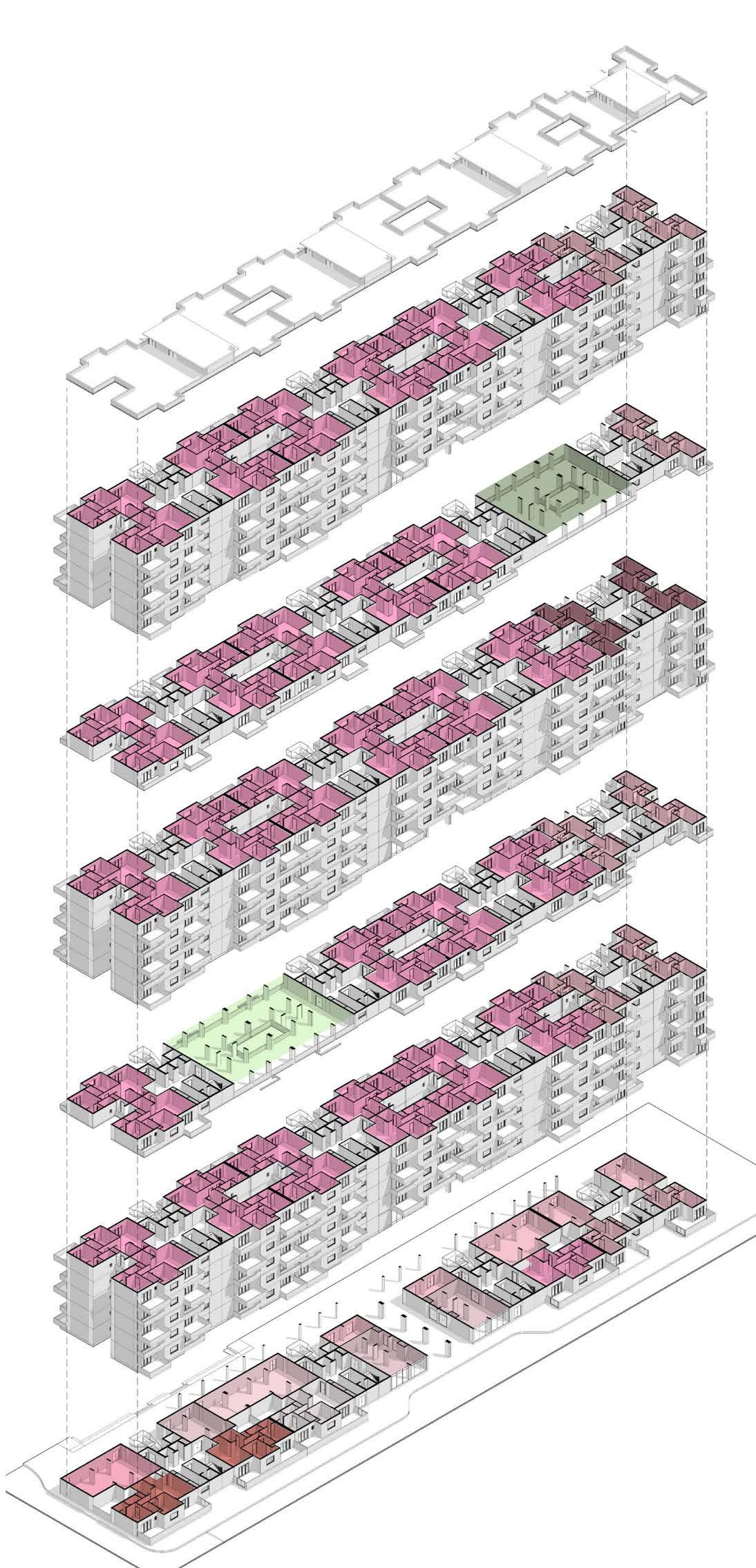

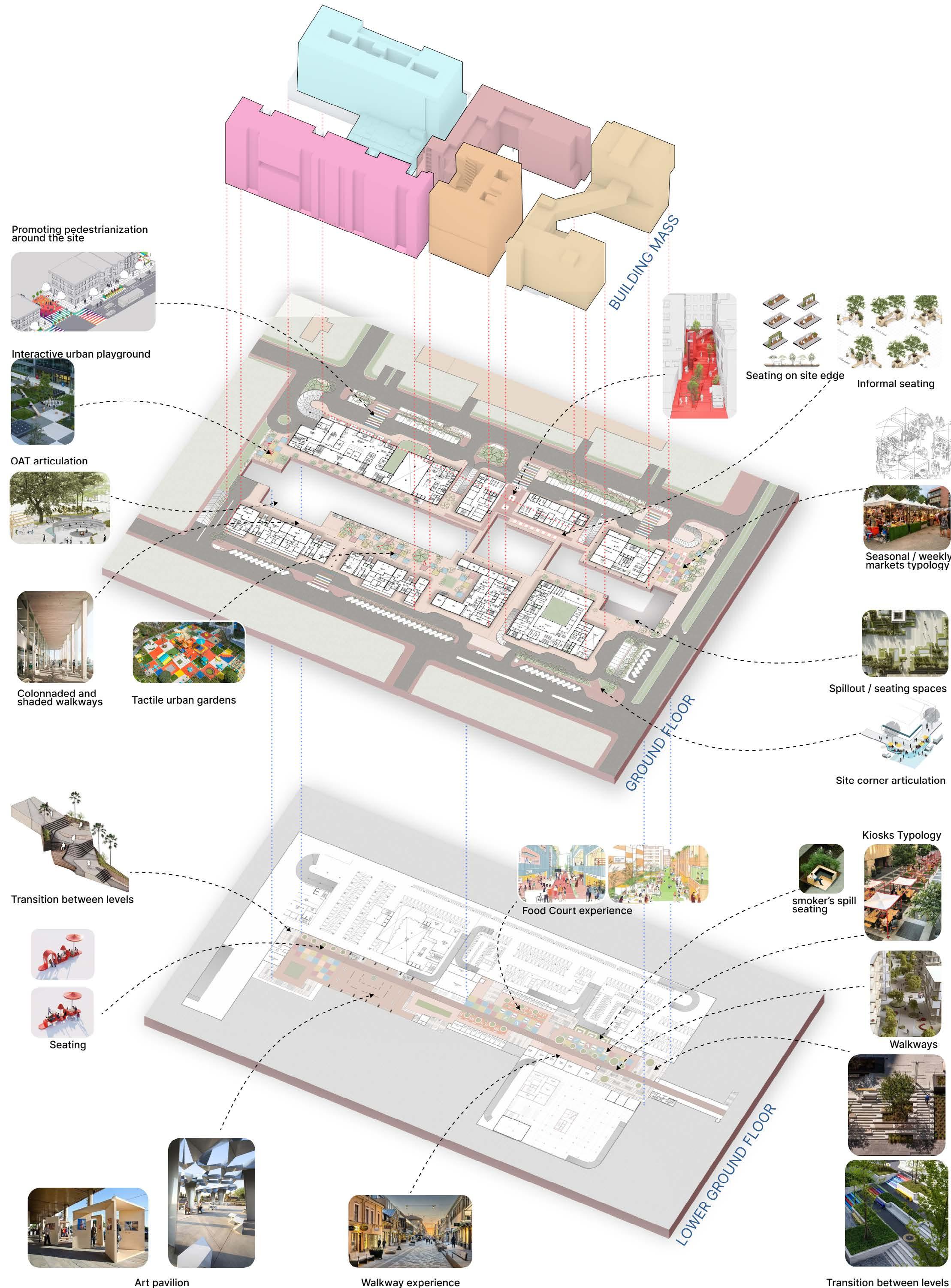

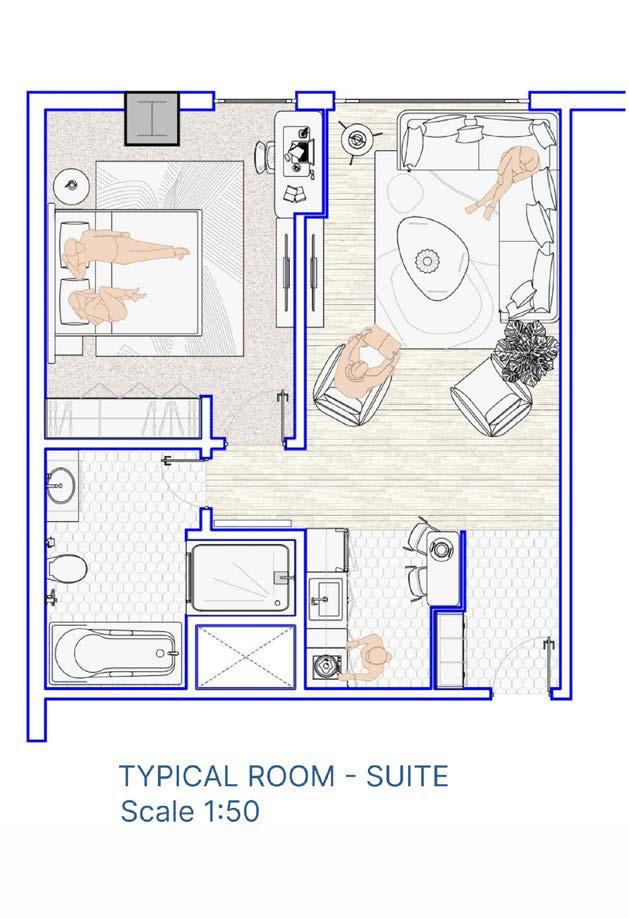

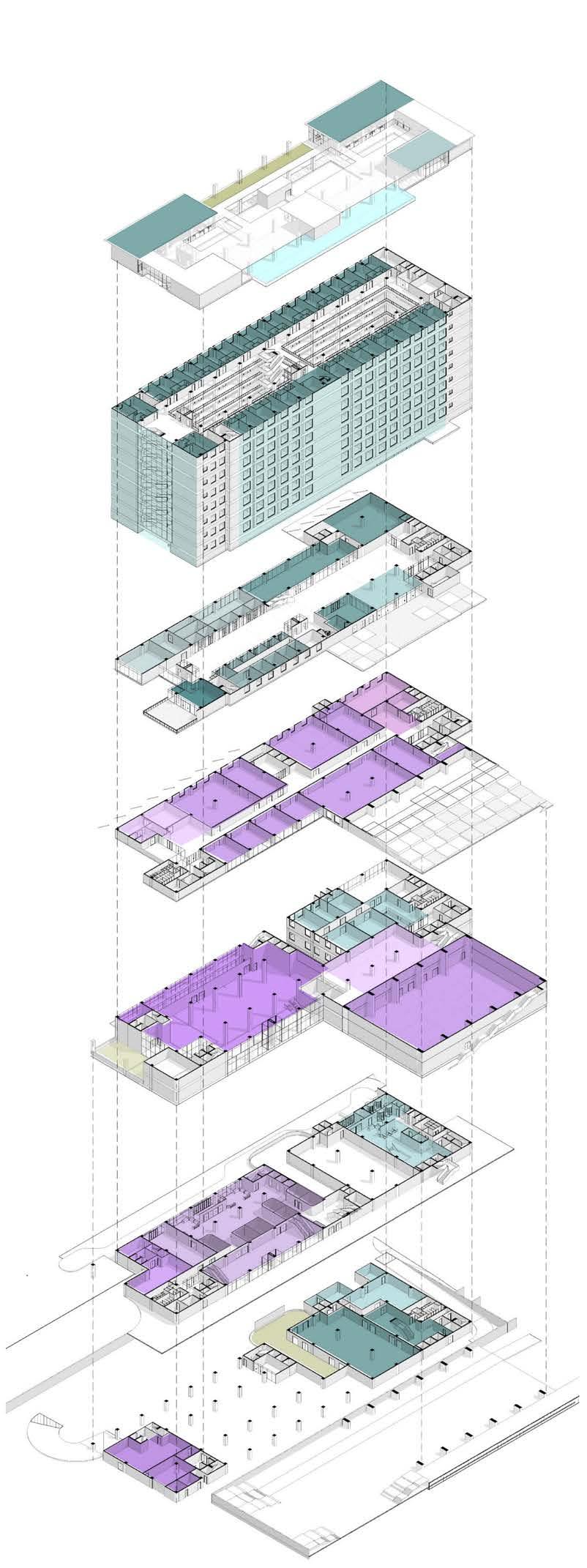

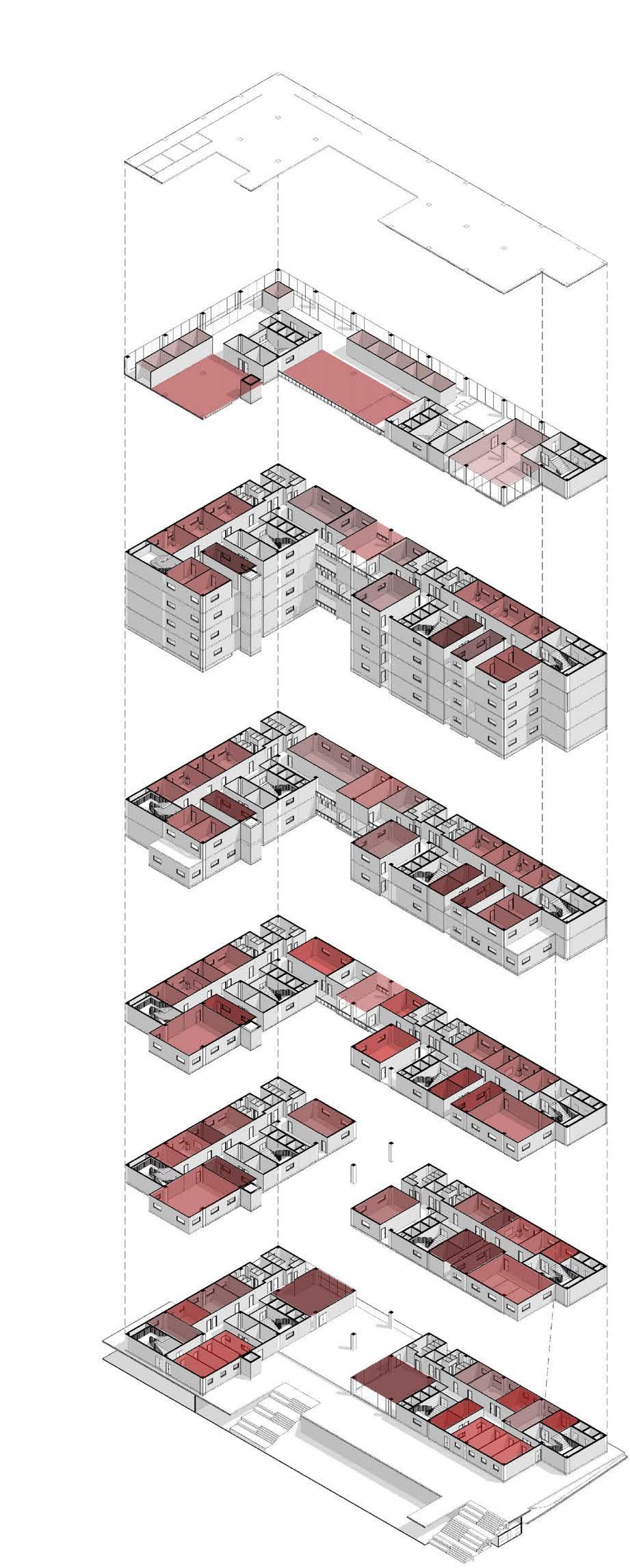

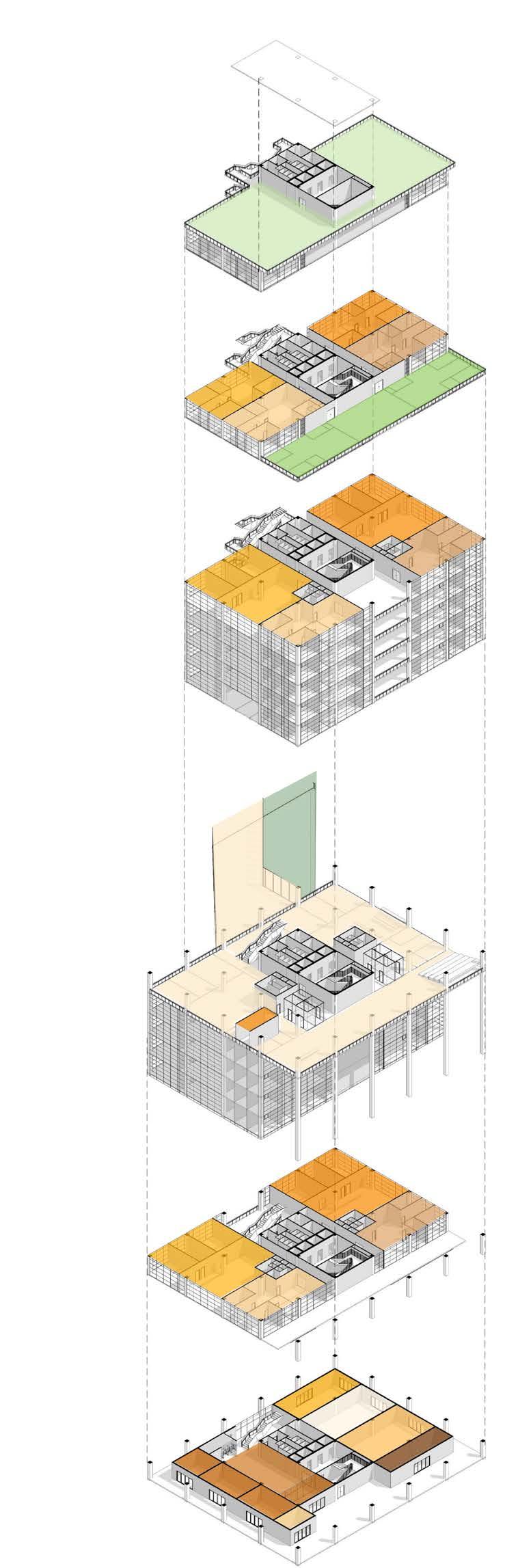

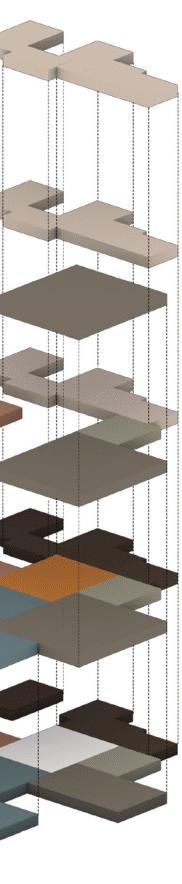

AXONOMETRIC DRAWINGS AND UNIT PLANS

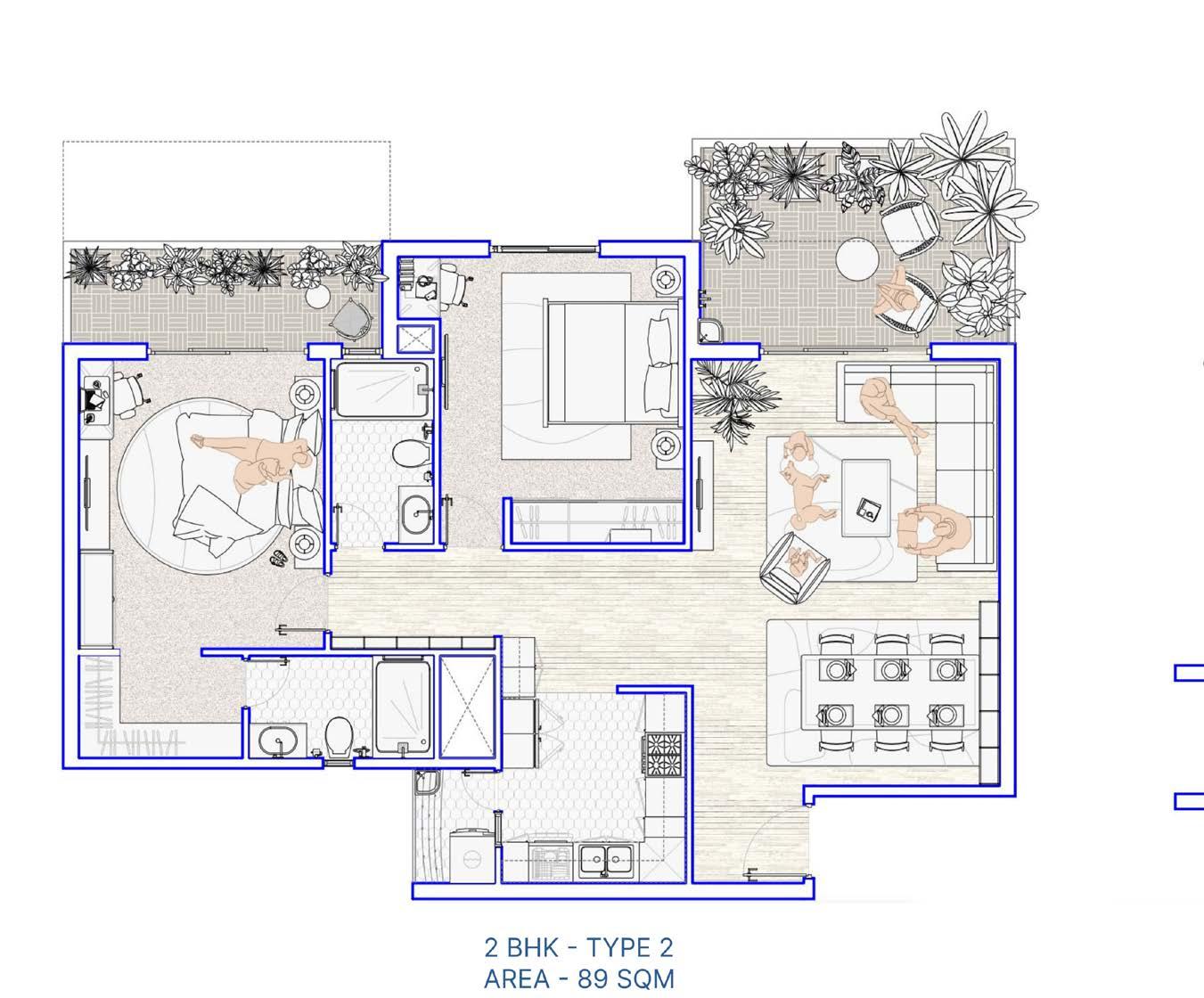

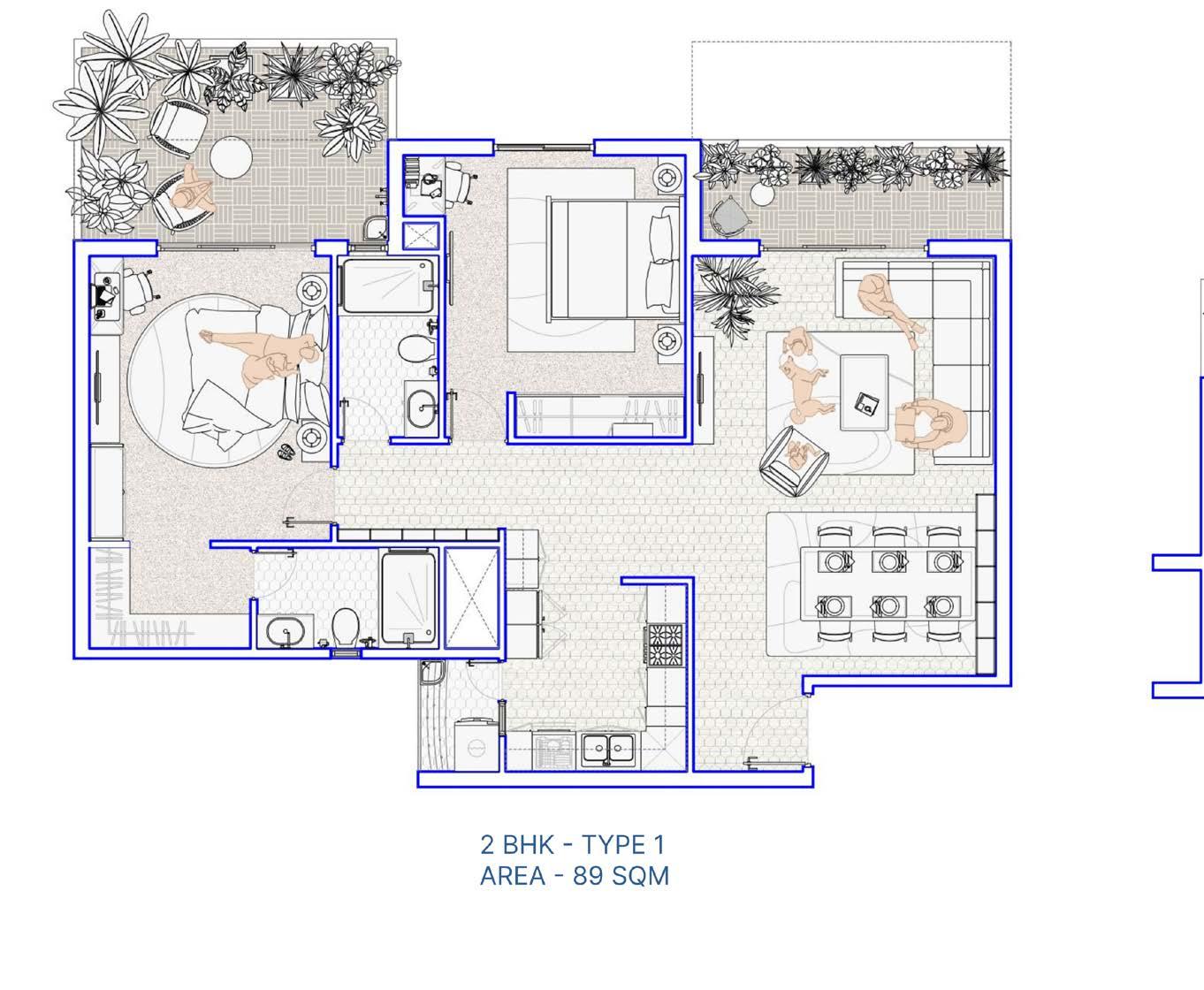

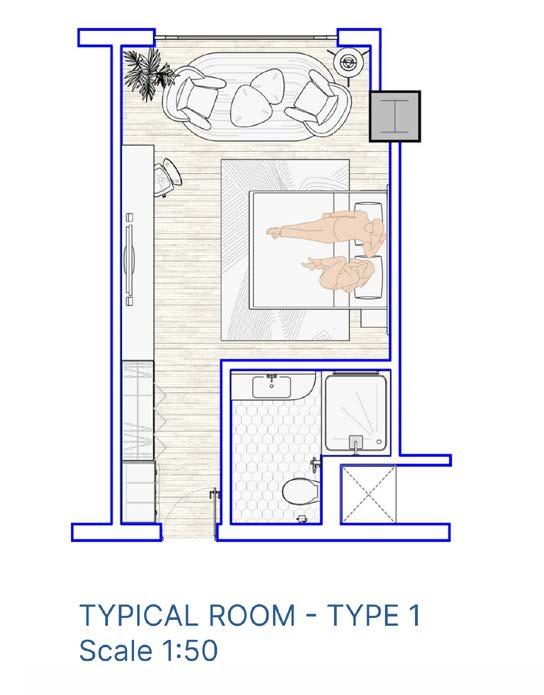

2BHK units

daily need stores

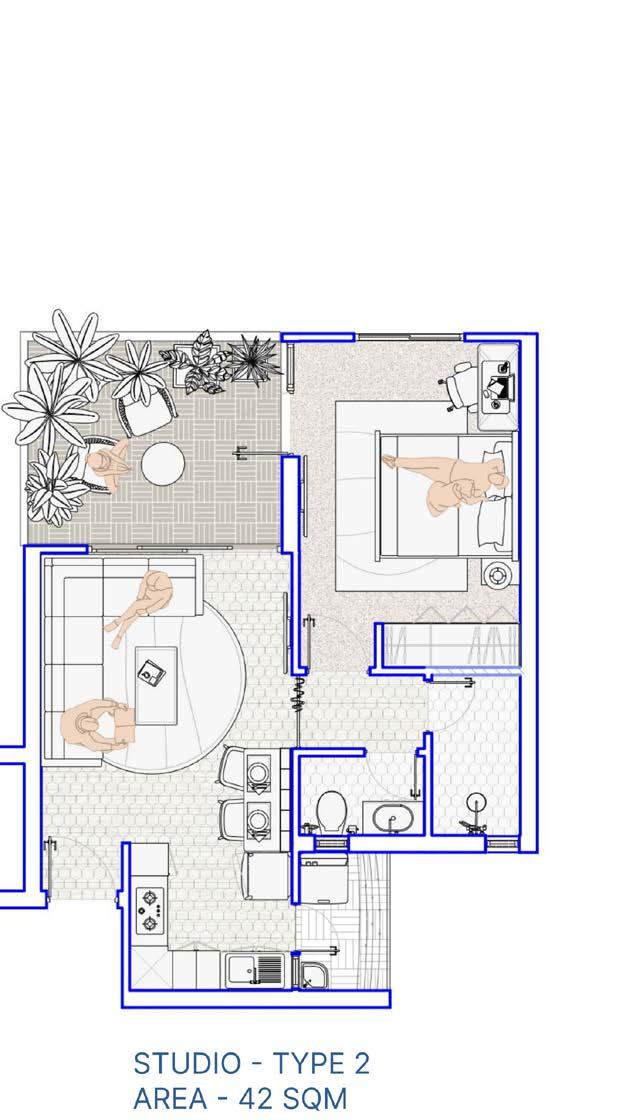

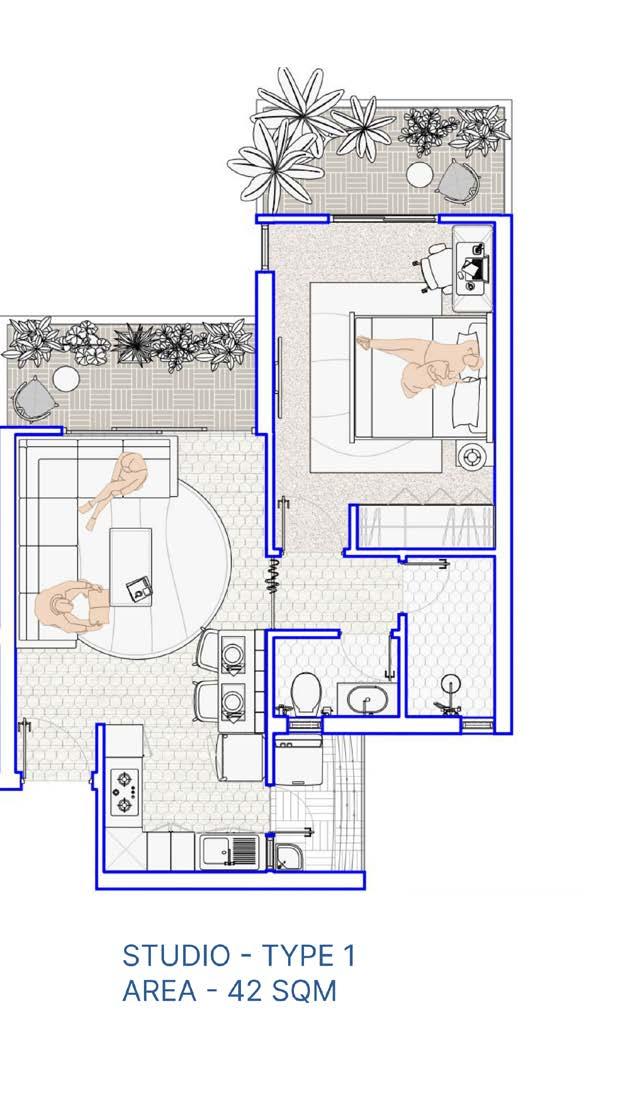

studio apartments

convention and exhibitions hotel

AXONOMETRIC DRAWINGS AND UNIT PLANS

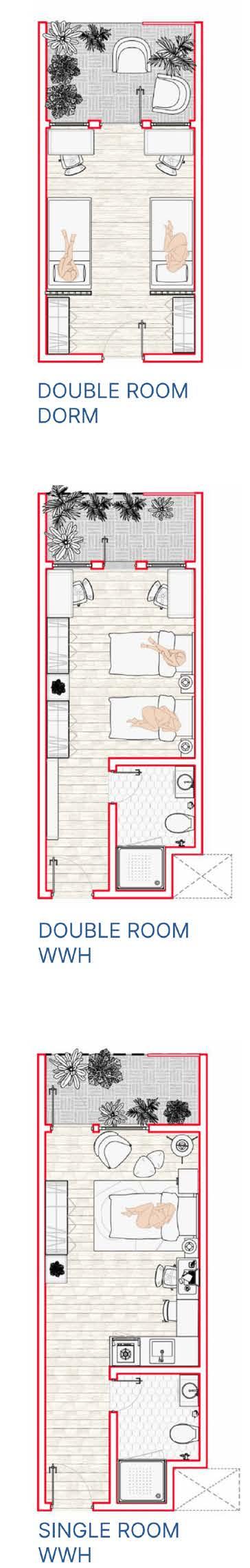

DORMITORIES

working women’s hostel

dorm 1

dorm 2

retail belt

COACHING INSTITUTES

faculty rooms

admin

pantry and lounge

polyclinic government office government office co-working area co-working area food court food court green spillouts

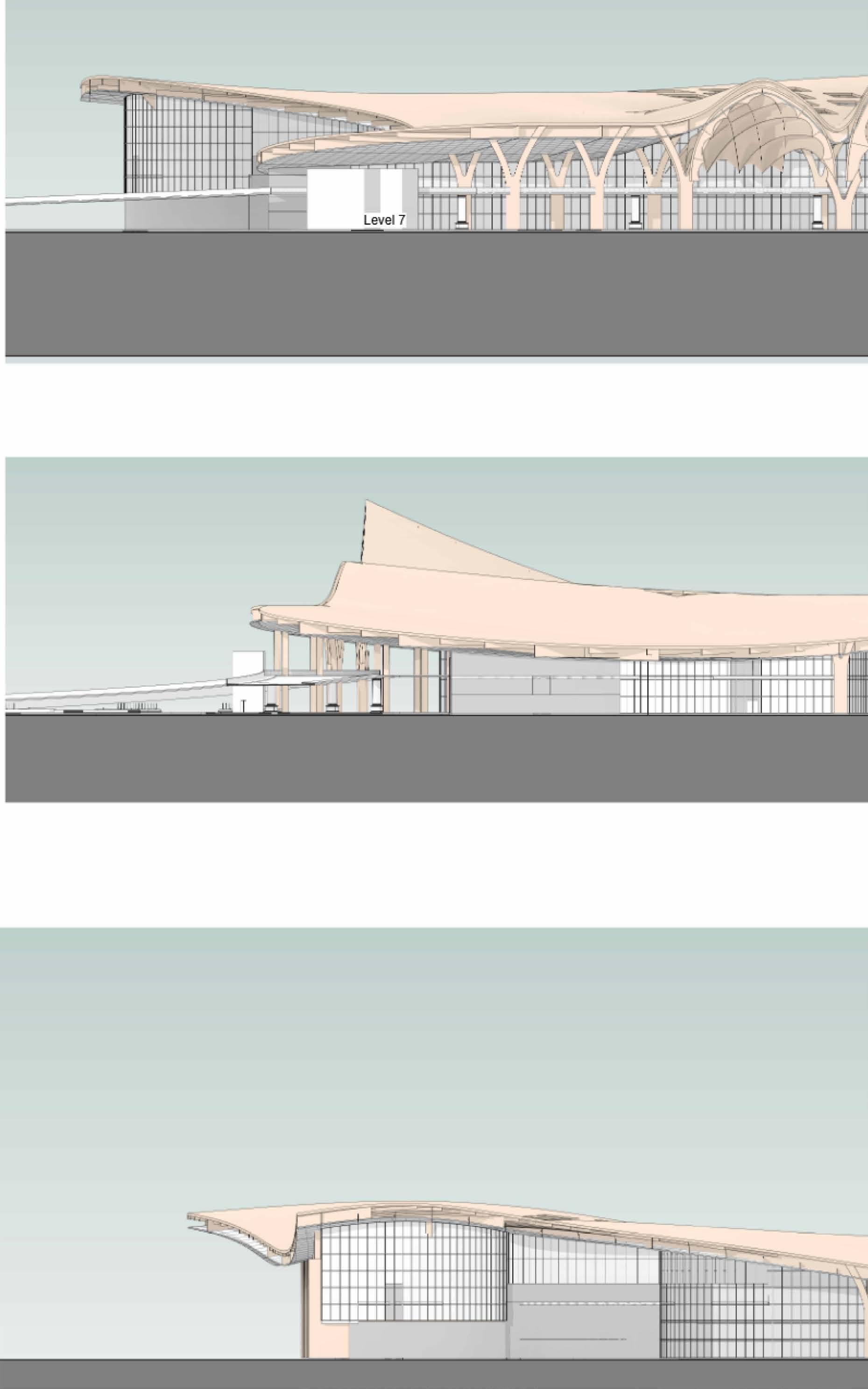

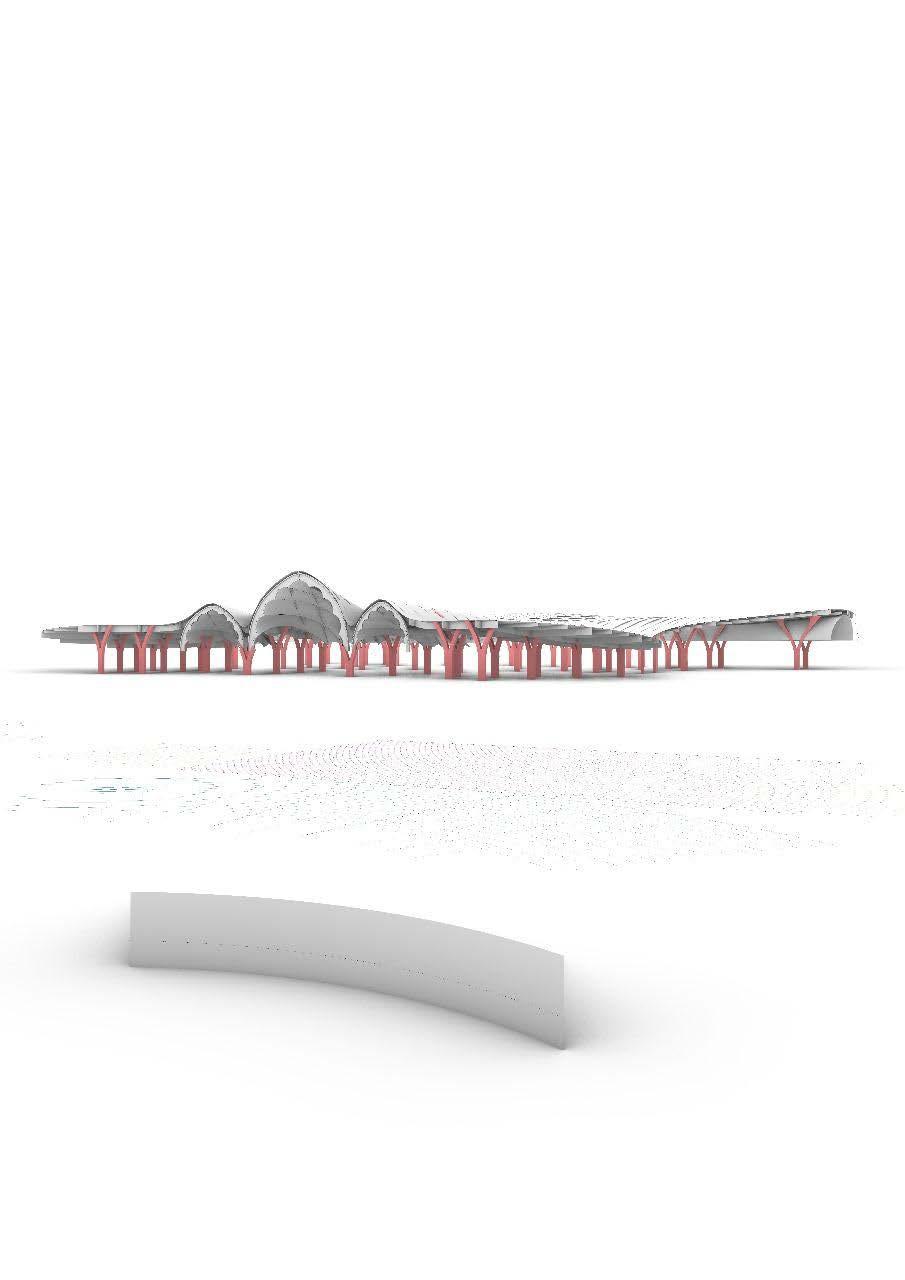

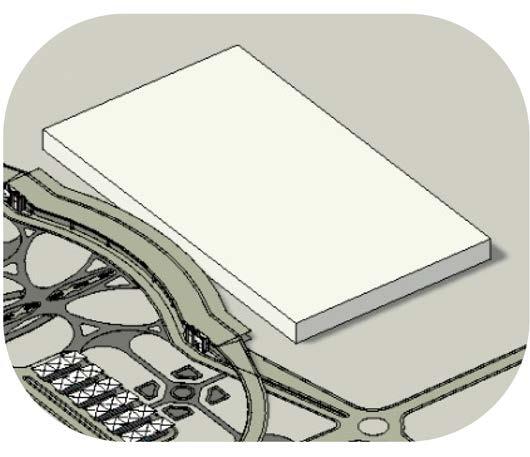

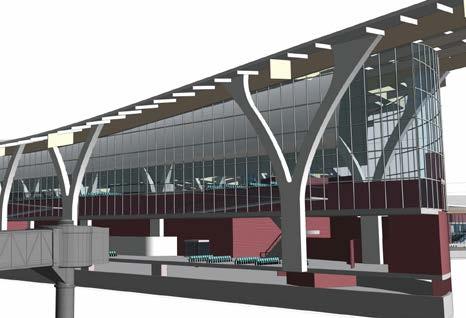

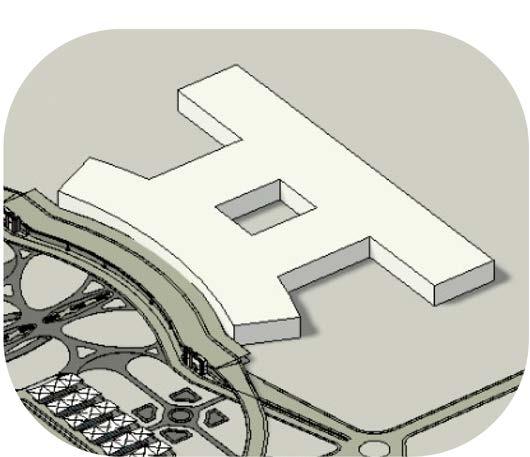

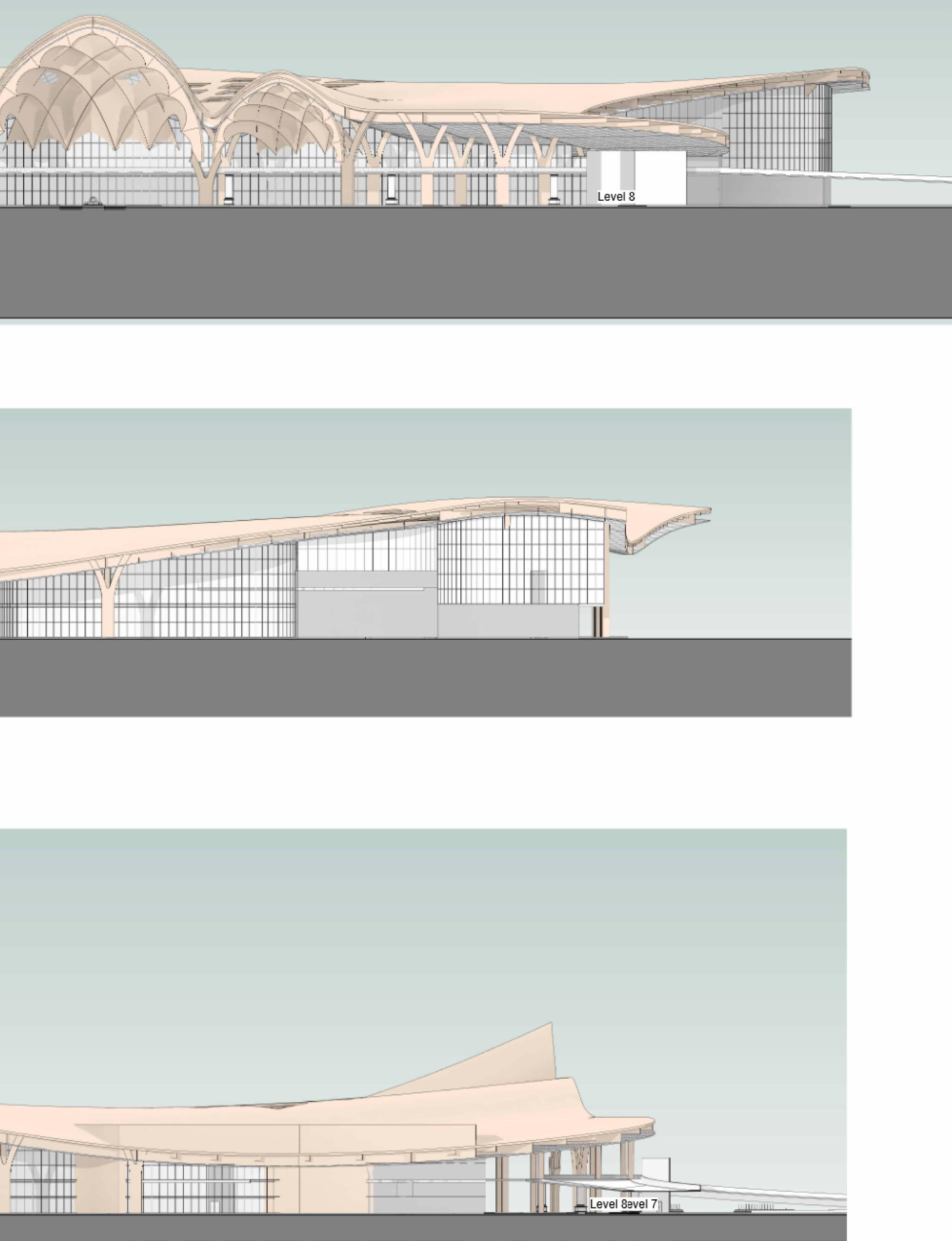

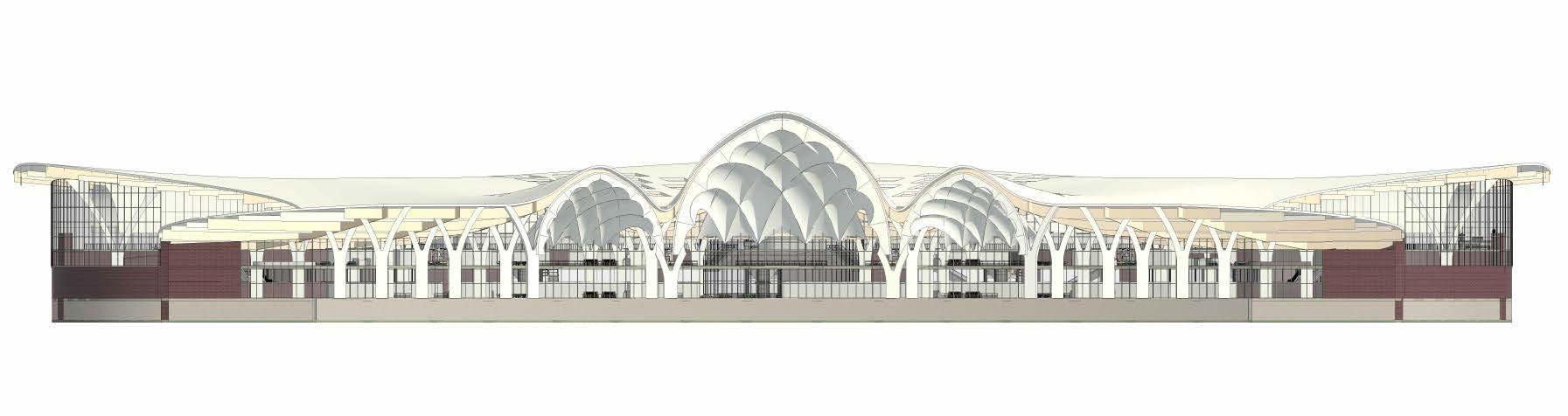

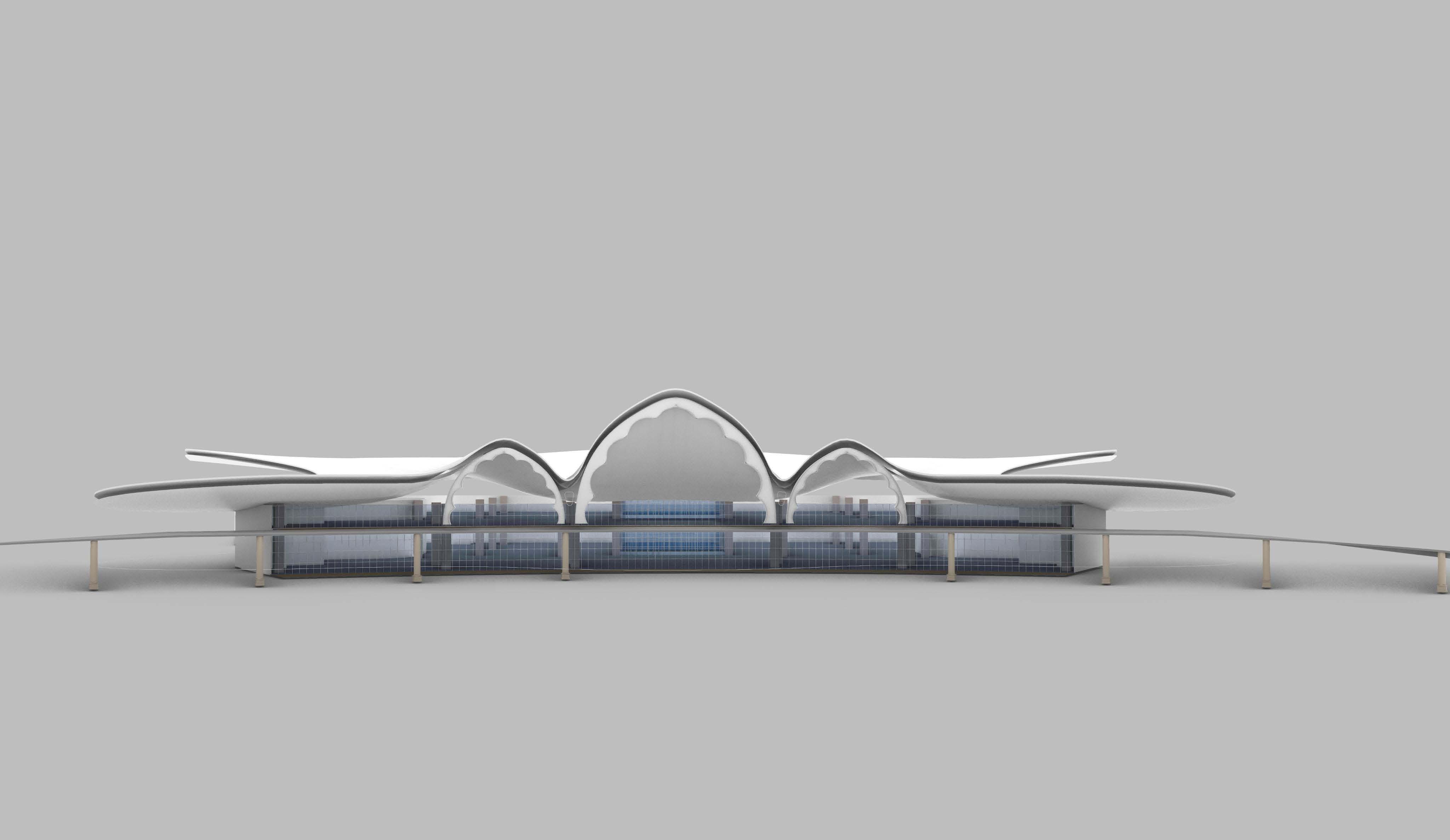

04 | AIRPORT

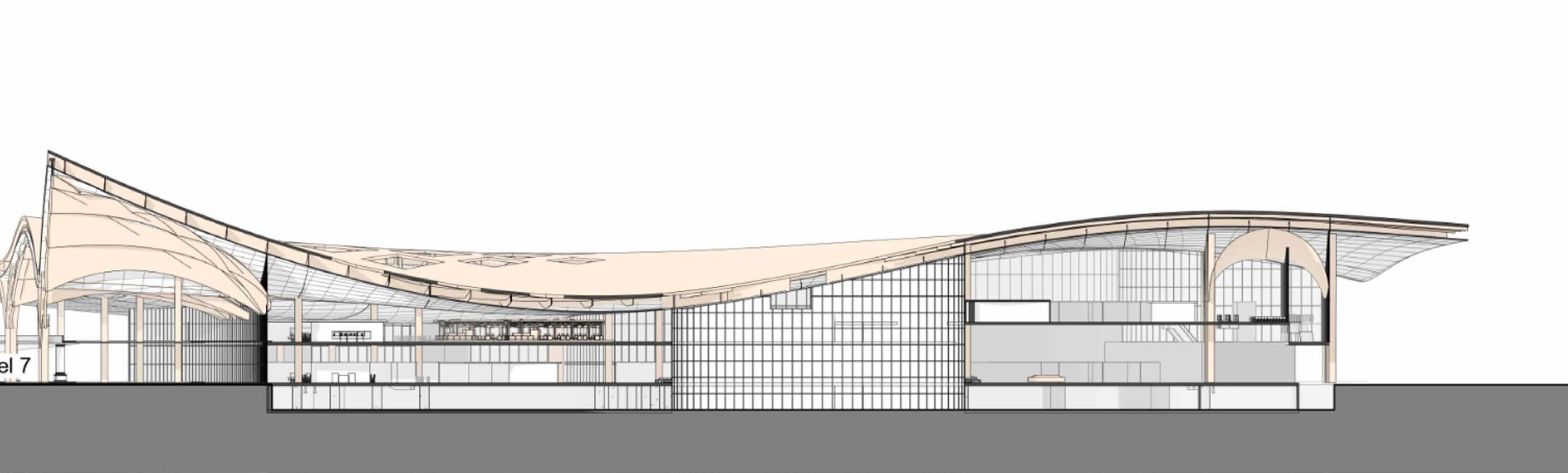

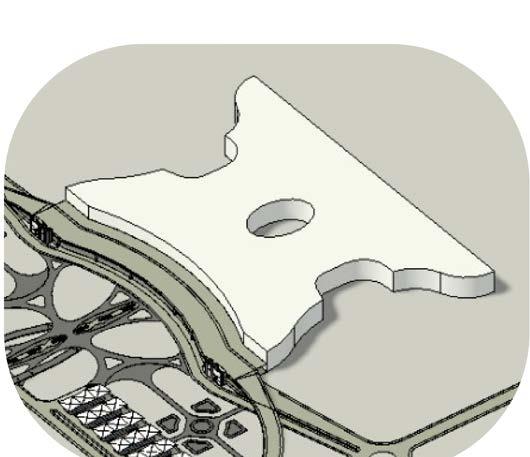

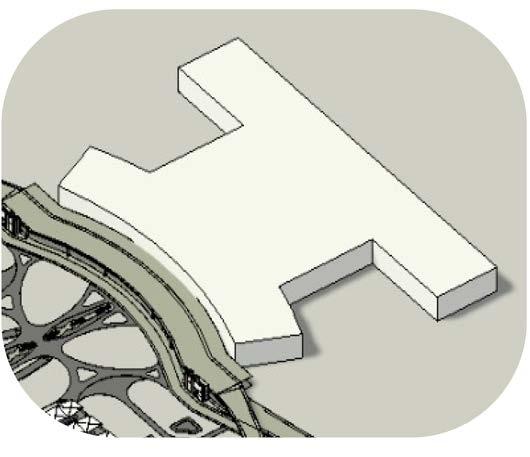

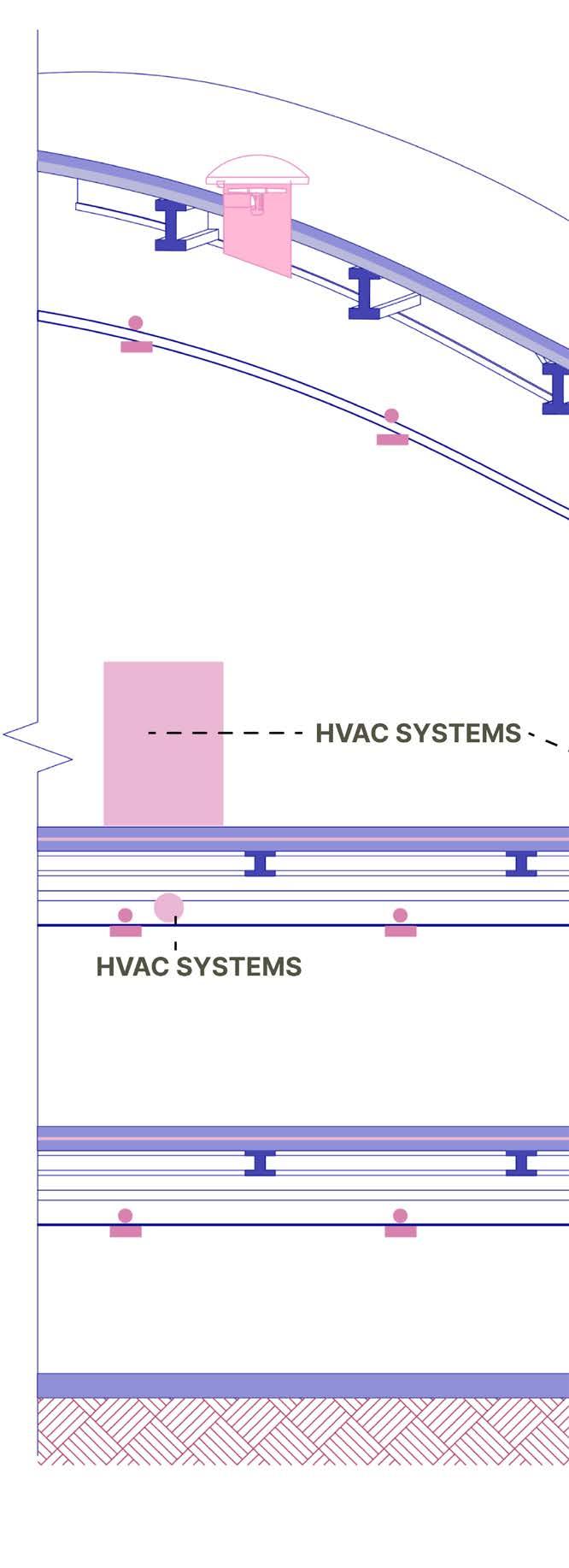

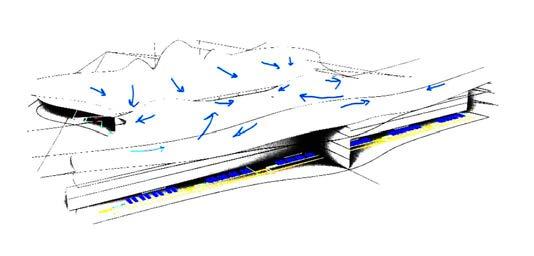

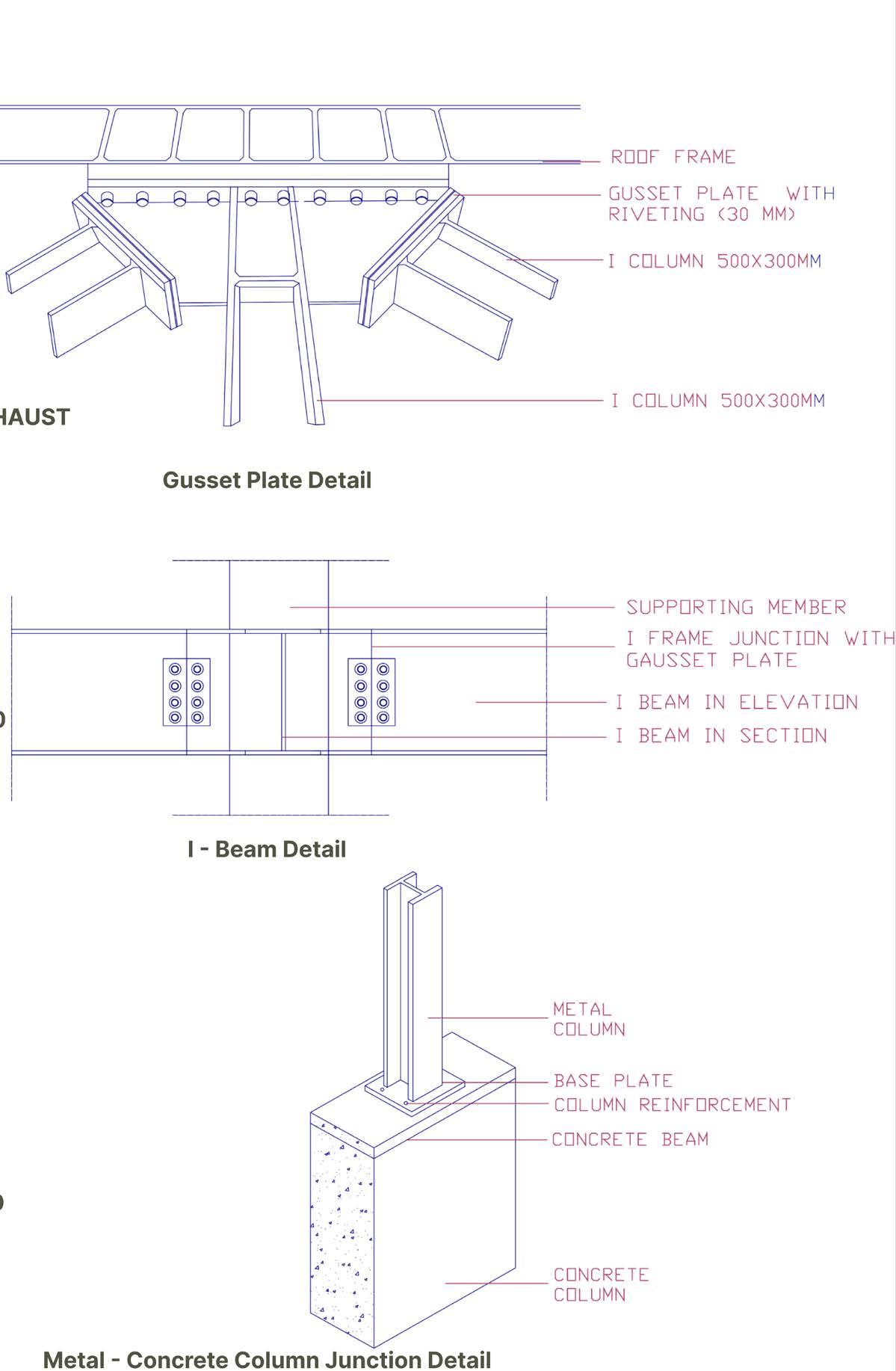

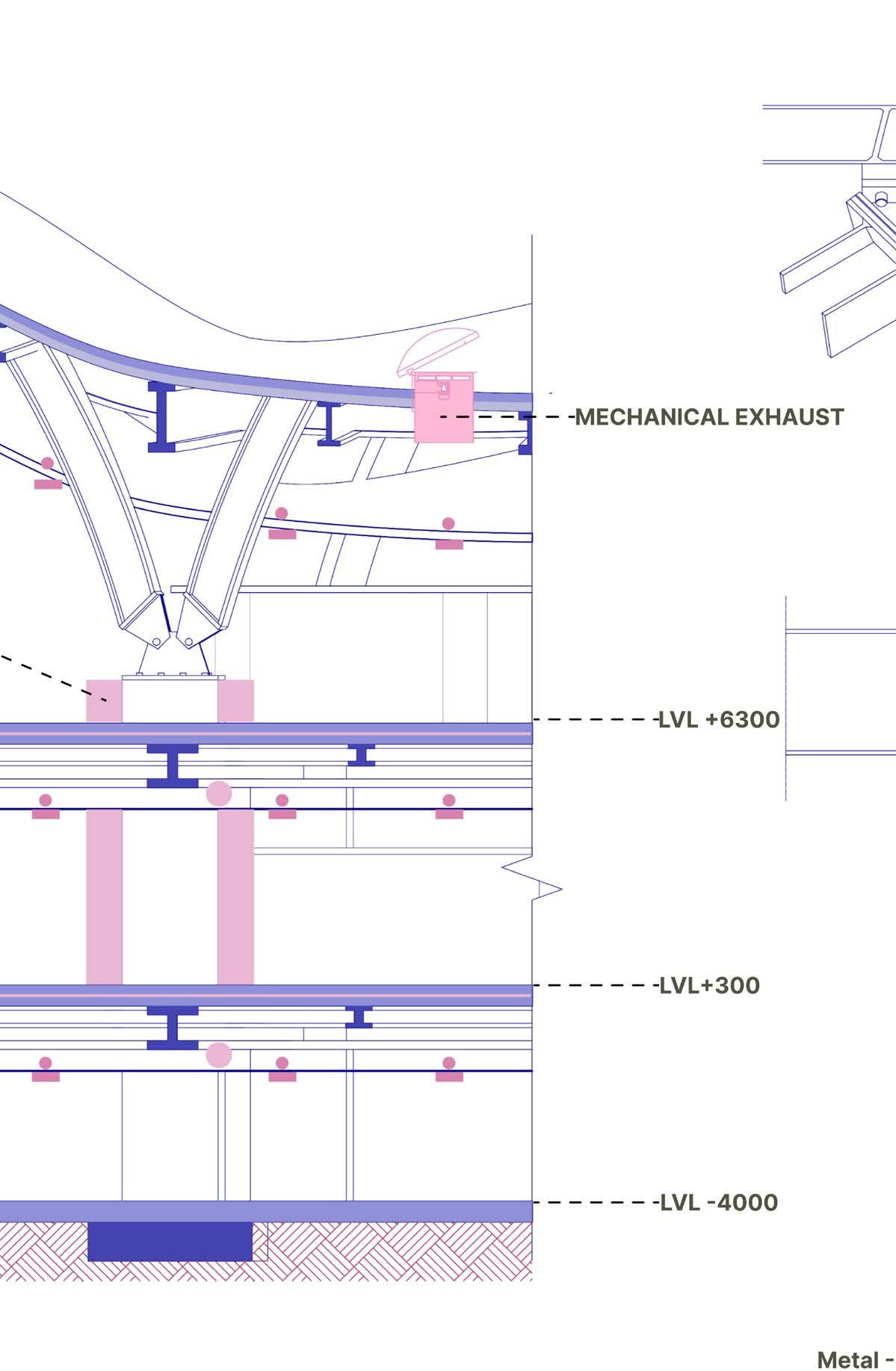

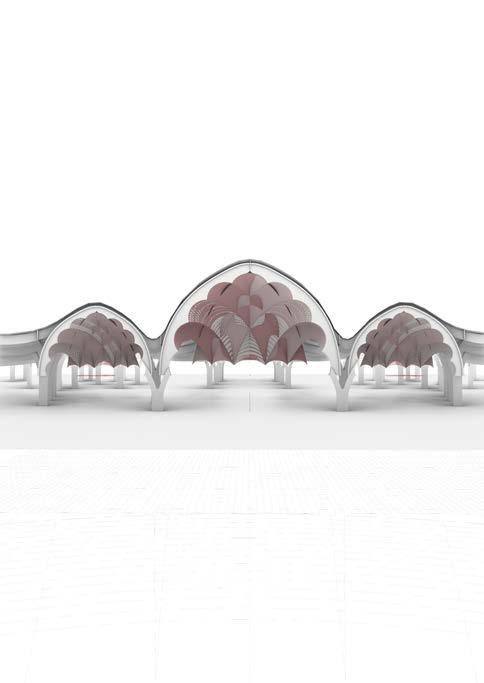

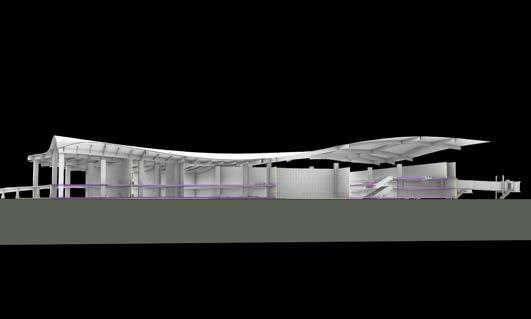

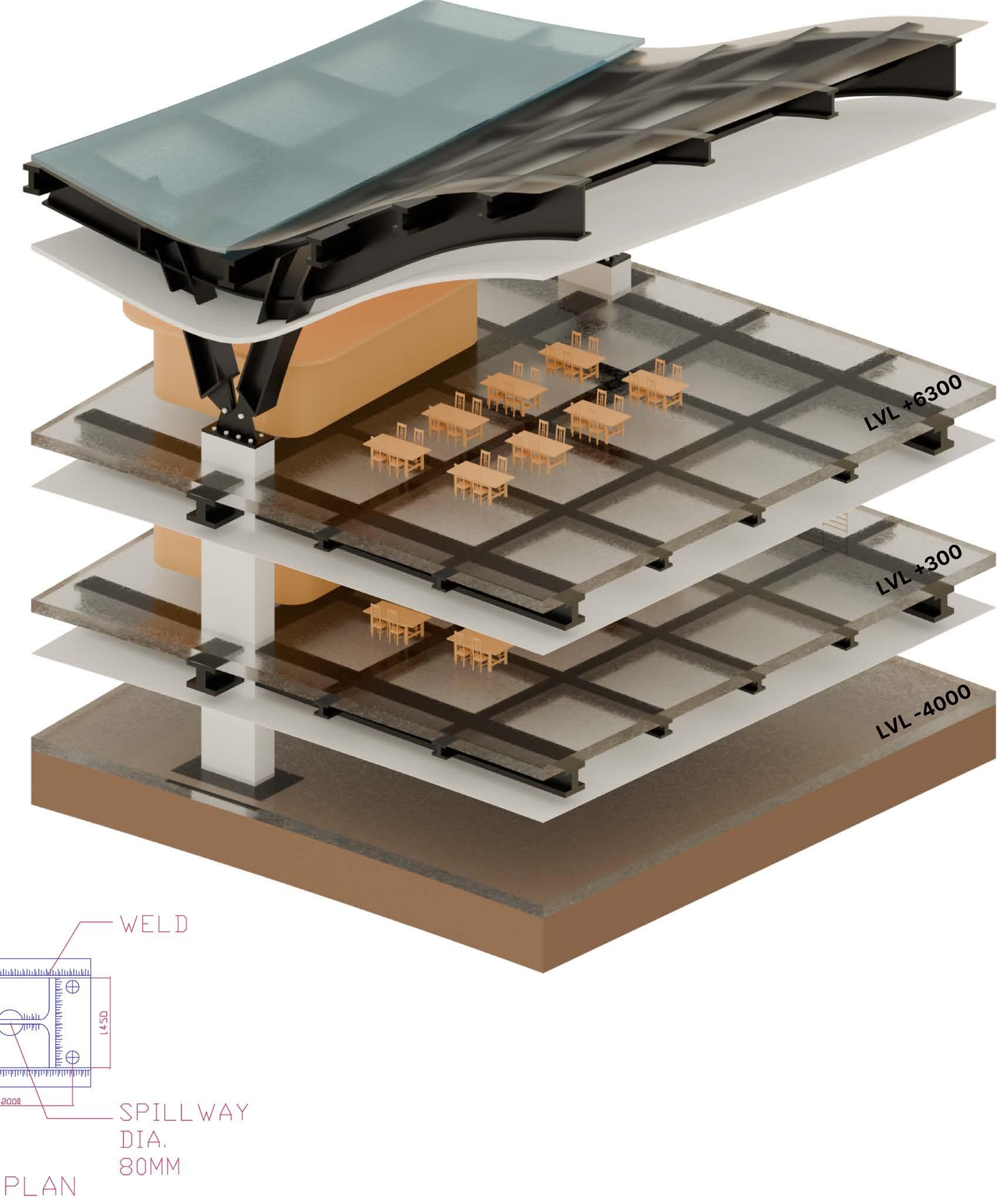

This project involved designing Udaipur Airport Terminal 1 to reflect the rich heritage and culture of Udaipur while integrating modern architectural practices. The design drew inspiration from the city’s traditional aesthetics, such as intricate detailing, local materials, and architectural motifs, creating a sense of place and cultural identity. Passive design strategies, including natural ventilation, daylighting, and thermal insulation, were employed to enhance energy efficiency and sustainability. Structural systems were carefully considered to support the design’s functionality and aesthetics, ensuring balance between tradition and innovation. The project highlighted a harmonious blend of cultural preservation and contemporary architectural solutions.
