ARCHITECTURAL PORTFOLIO
ENIYAN A Architect
TAMIL
TAMIL
TAMIL ENIYAN Architect
TamilEniyan
Dynamic and highly motivated architect with one year of professional experience in creating exceptional design solutions for residential and commercial interior projects. Proficient in generating detailed technical drawings, Skilled in utilizing advanced software tools to bring concepts to life with accurate 3D visualizations. Collaborative and effective communicator, adept at working closely with project lead and teams. I am eager to bring my technical knowledge, and unwavering passion for a dynamic and collaborative team.
Software skills
Work experience
• JUNIOR ARCHITECT (12 Months )
AmeyaDesign Pvt.Ltd. -Hyderabad, Telangana , India.
In the firm, I have been responsible for creating thorough technical drawings, curating material boards, quantifying materials, and facilitating coordination with on-site teams for healthcare projects.
• INTERNSHIP (6 Months )
Design Gravity -Architectural firm, Chennai, Tamilnadu, India. I have worked on residential and commercial interior projects.
Education
• UNDERGRADUATE DEGREE (2017-2022)
Ranganathan Architecture College, Coimbatore.
Bachelor of Architecture
(Anna University, Chennai, Tamil nadu, India)
• HIGHER SECONDARY (2014-2017)
Laurel Higher Secondary School, Pattukkottai.
(State board Syllabus)
Personal info
DOB : 05/12/1999
Nationality : Indian
Language : Tamil And English
Address : Room no : M02, Al Majid building, Next to united hyper market, Over lounge, Deira, Dubai.
Passport no : X9519276 valid until 29/06/2033
Visa type : Visit visa valid until 16/11/2023
Skill proficiency
• proficeintin generating detailed technical drawings
• Skilled in utilizing advanced software tools to bring concepts to life with accurate 3D visualizations
• Well-versed in creating conceptual sketches & drawings.
Competition trophieworks
• Shortlisted In Annual Nasa Design Competition
• Participated In ZakyantaDesign Competition
Organized By NIT Trichy
Photoshop
Vray Indesign Auto CAD Sketchup Revit Architecture Lumion Microsoft Office
Email : tamileniyan51299@gmail.com Mobile : + 971 543986956
CONTENTS
PROFESSIONAL PRACTICE SELECTED WORKS
INTEGRATED TOWNSHIP THESIS DESIGN
INTERNSHIP SELECTED WORKS

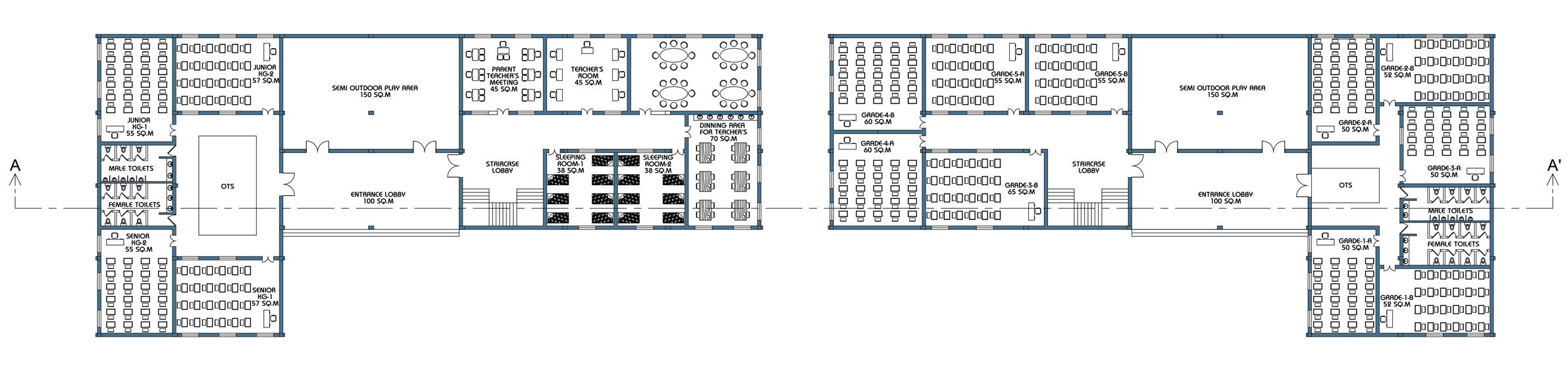

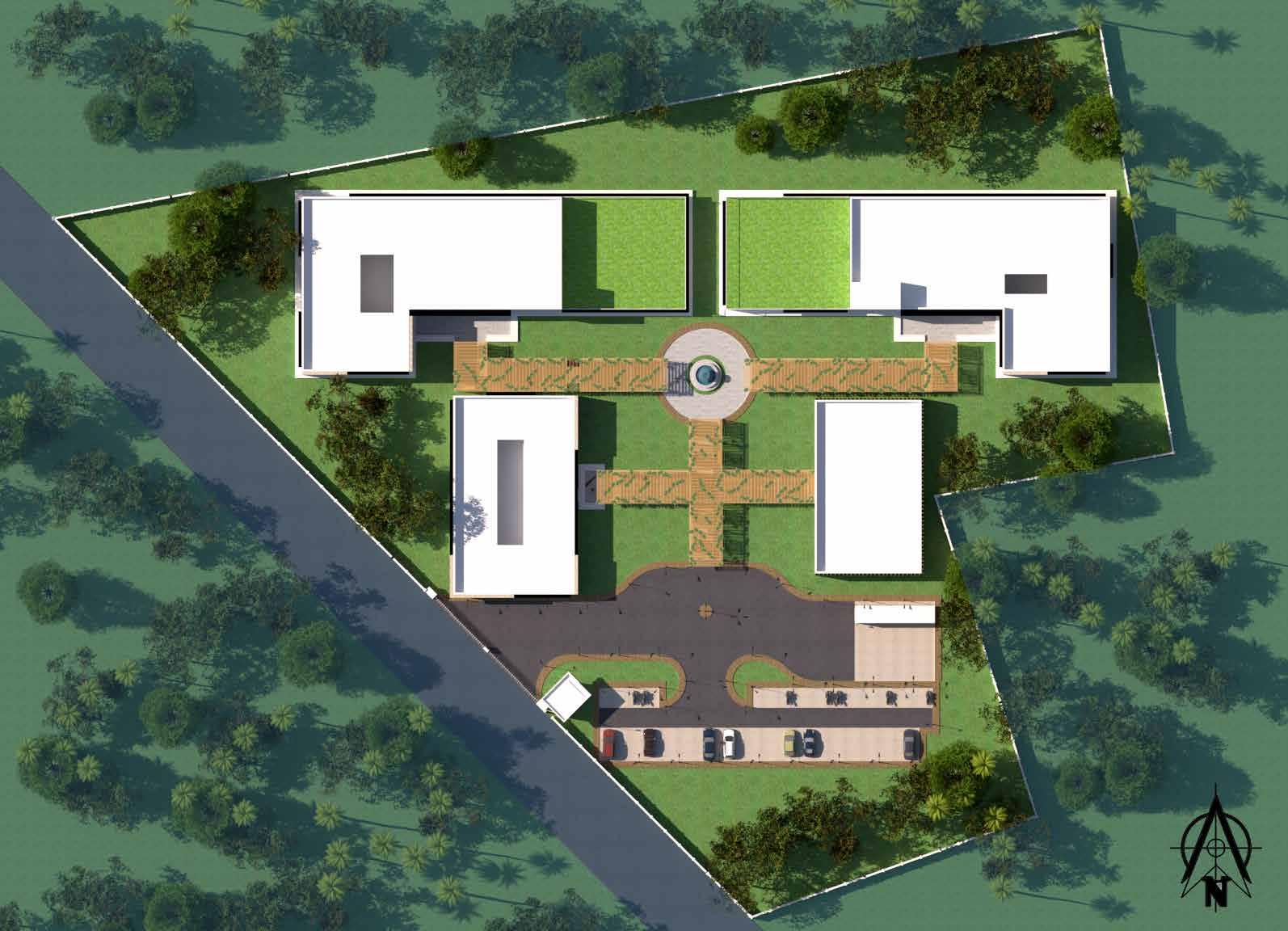

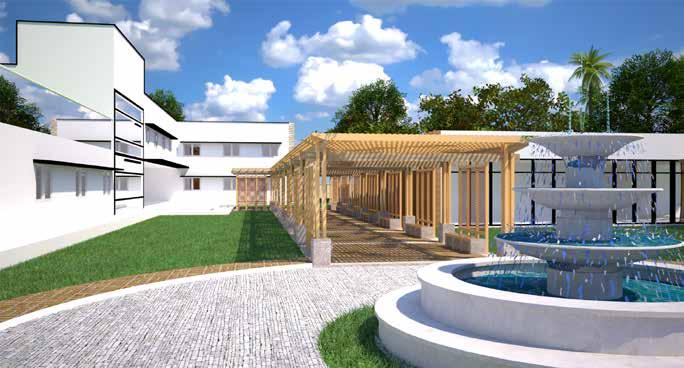

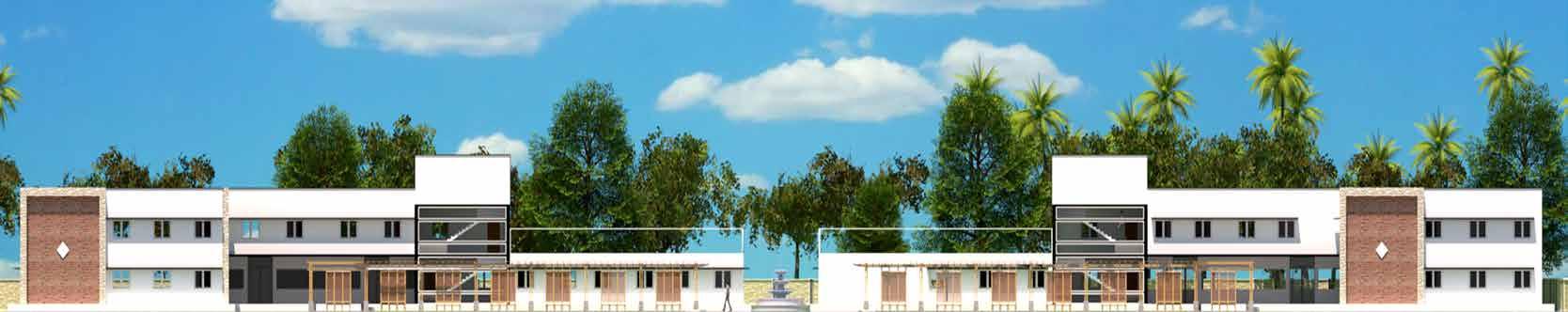

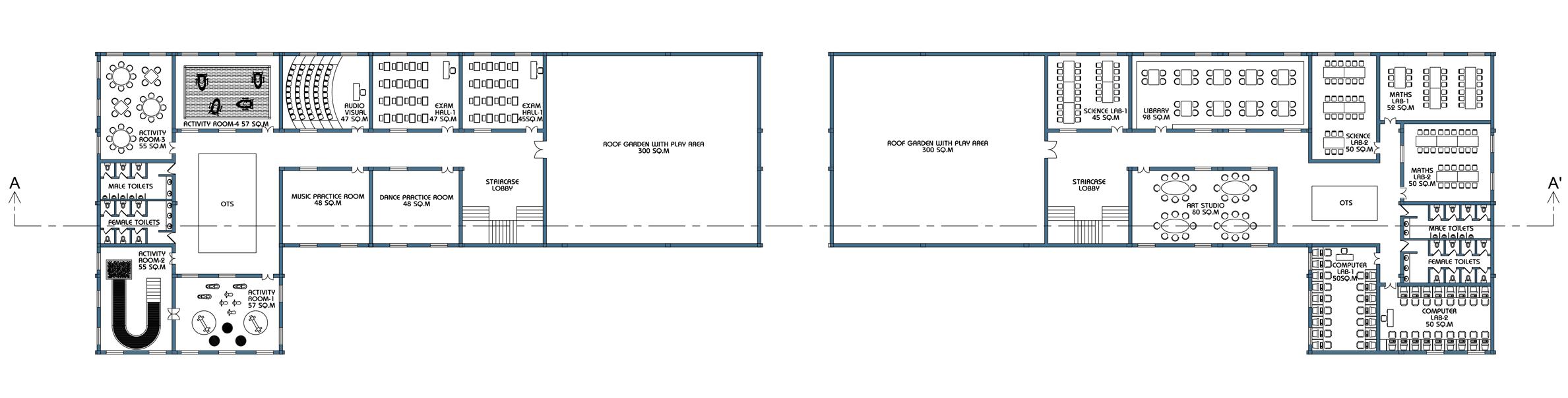

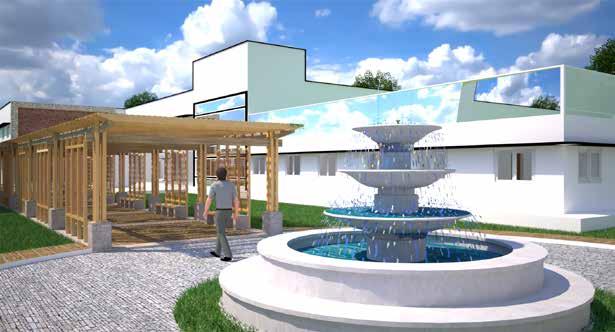

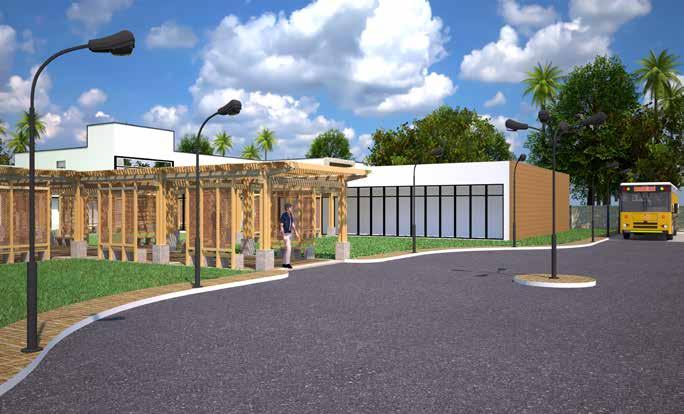

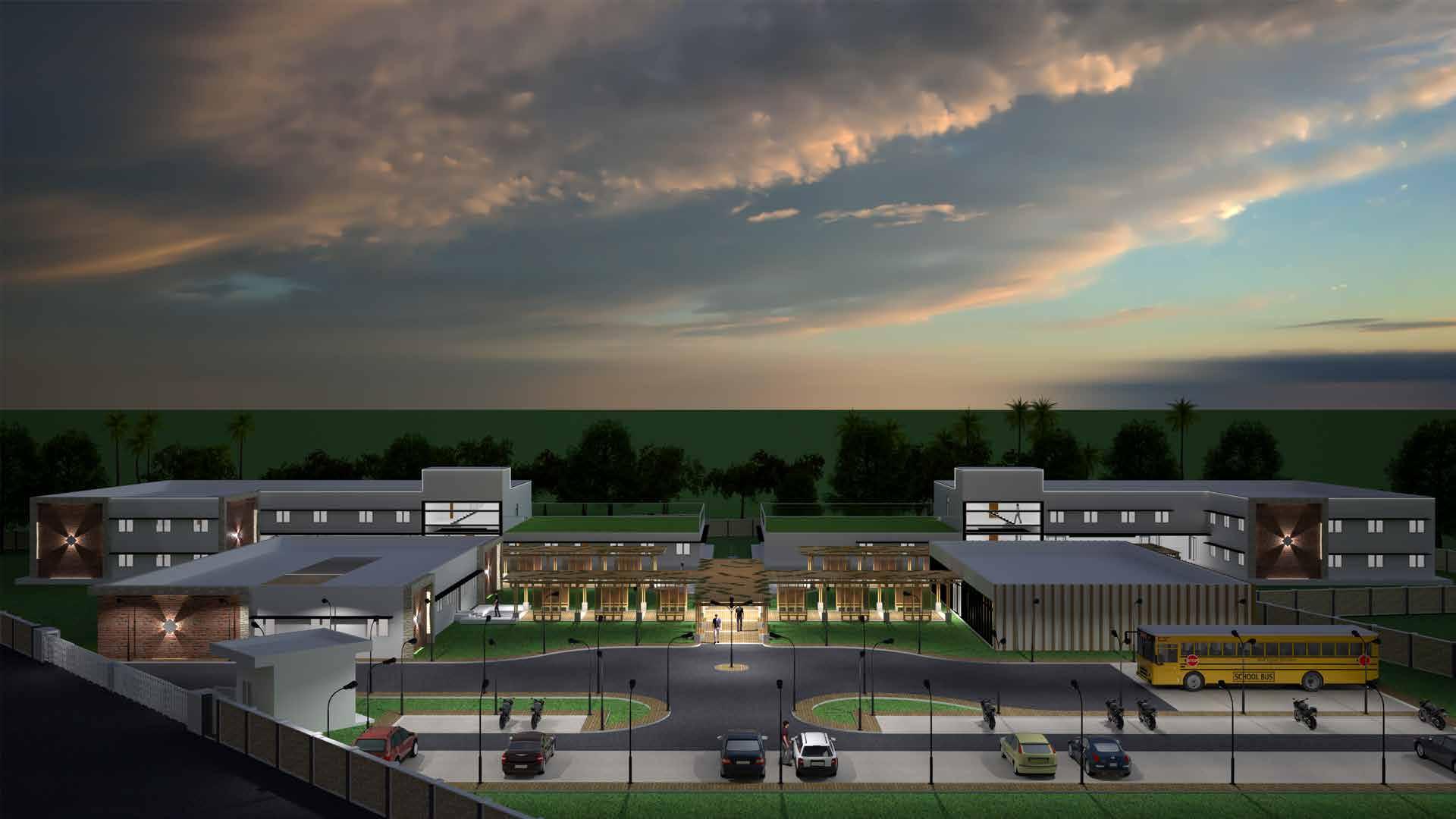

PRIMARY SCHOOL ACADEMIC DESIGN
PROFESSIONAL PRACTICE SELECTED WORKS
• ARETE HOSPITAL AT GACHIBOWLI, HYDERABAD
• KRISHNA SINDHURA HOSPITAL AT HITEC CITY, HYDERABAD
• MEDICOVER WOMEN & CHILD CARE HOSPITAL AT MADHAPUR, HYDERABAD
ARETE HOSPITAL AT GACHIBOWLI, HYDERABAD
GOOD FOR CONSTRUCTION
INTERIOR DRAWINGS
Arete Hospital is a comprehensive healthcare facility that offers a broad range of medical specialties in a general care setting. With a capacity of 240 beds, the hospital provides ample space to accommodate a large number of patients. Spread across fifteen floors, it offers a spacious and well-organized environment for medical services. Covering an area of 1680 square meters..

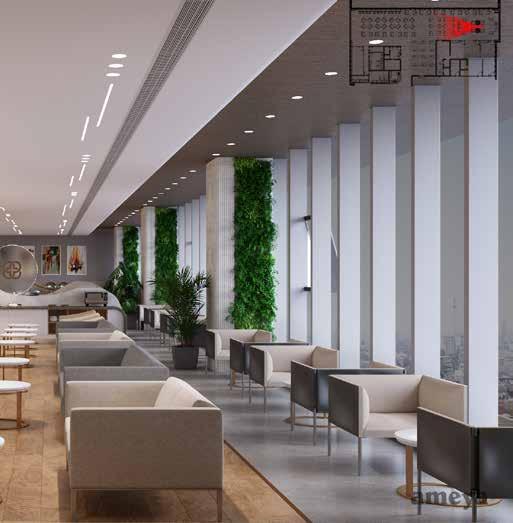

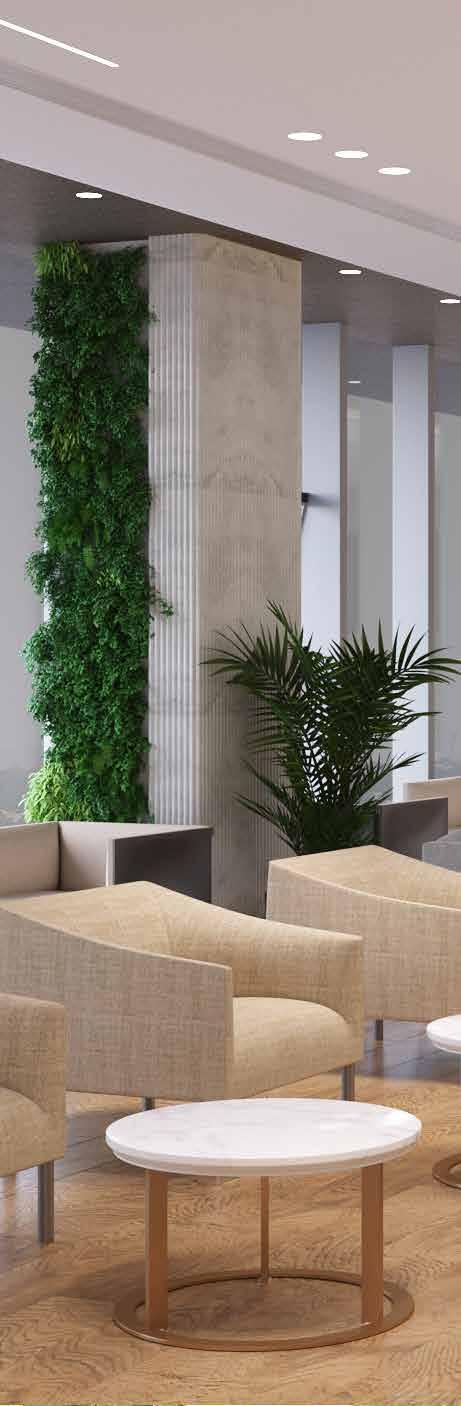

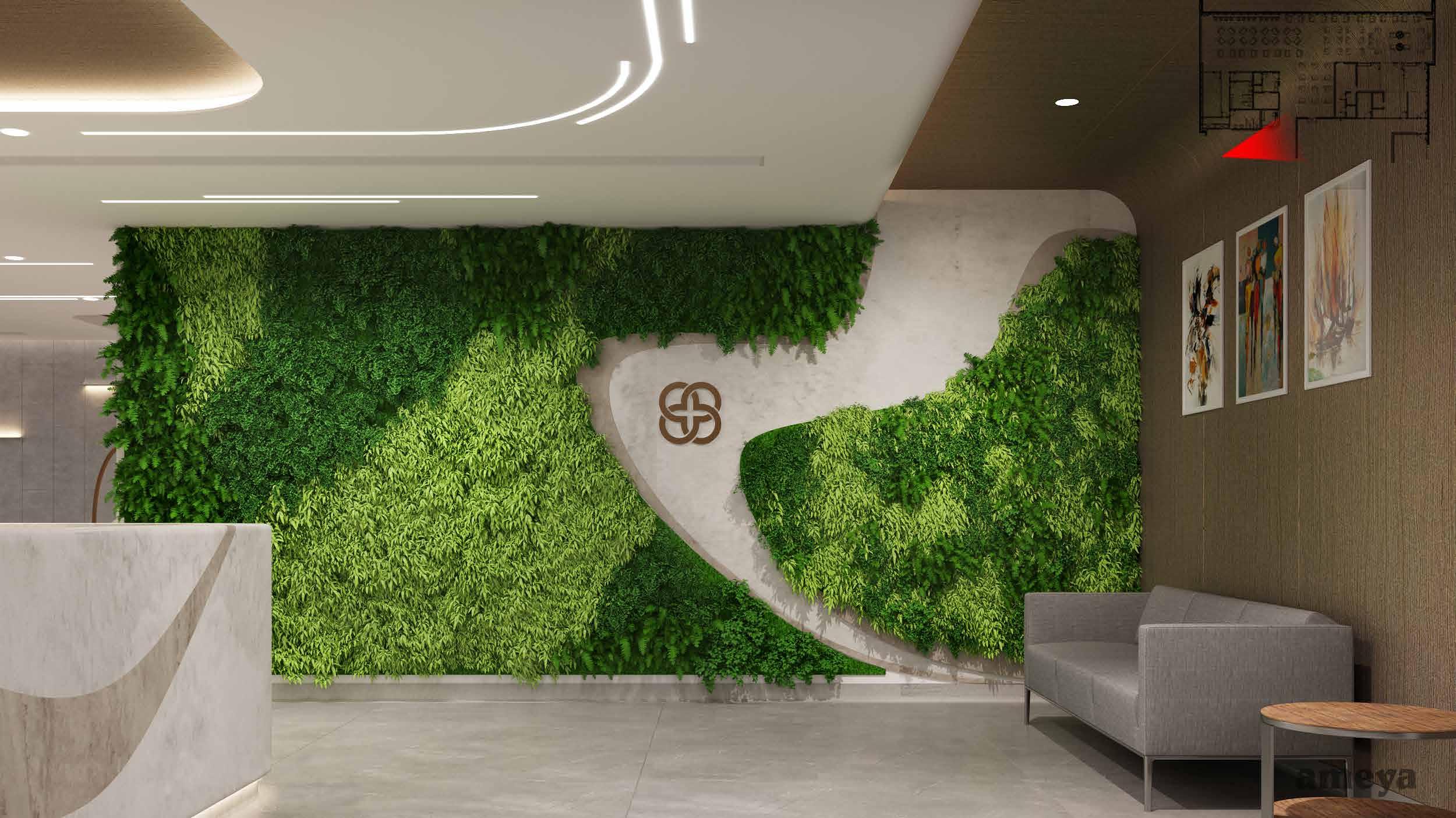

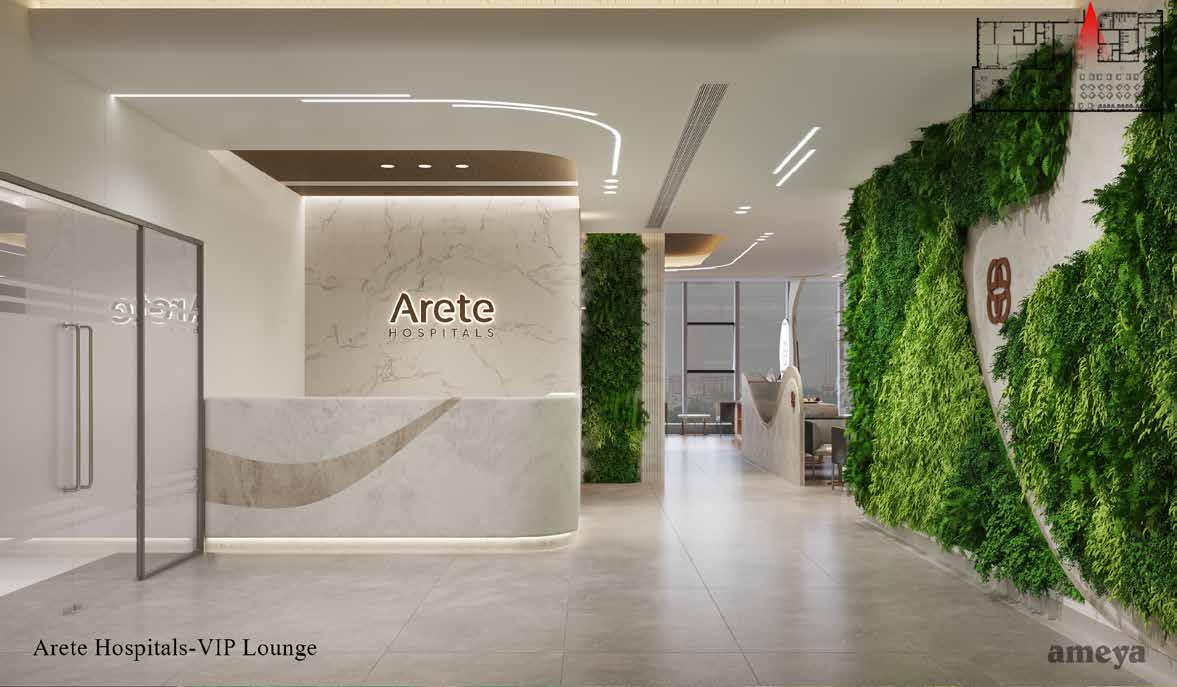

VIP WAITING LOUNGE
WORK DESCRIPTION
IN THIS PROJECT, I’VE BEEN INVOLVED IN CREATING COMPREHENSIVE TECHNICAL DRAWINGS ENCOMPASSING VARIOUS ASPECTS SUCH AS FURNITURE ARRANGEMENTS, FLOORING DESIGNS, REFLECTED CEILING PLANS, CARPENTRY SPECIFICATIONS, INTERIOR WALL SECTIONS, AND ELEVATIONS.
MATERIALS DESCRIPTION
THE PREDOMINANT MATERIALS USED IN THIS PROJECT ENCOMPASS CORIAN SOLID SURFACES, ALUMINUM SQUARE SECTIONS, FLUTED CORIAN SOLID SURFACE PANELS, WALL COVERINGS, TOUGHENED GLASS, VITRIFIED TILES FOR FLOORING, GYPSUM BOARD FOR THE CEILING, AND PLYWOOD.
GENERAL LEGEND SPECIFIC LOCATION ISSUE OF REVISIONS REMARKS NAME CHKD APPD DATE DRWN BLDG.ID CODE I_214_U_039
A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SIZE SCALE AS MENTIONED PROJECTION DATE DRWN BLDG.ID I_214_U_039 DESCRIPTION CODE VIP WAITING LOUNGE - SECTIONAL ELEVATIONS
VIP WAITING LOUNGE - CARPENTRY DETAILS CENTRE PARTITION & COLUMN
MATERIAL DESCRIPTION FOR CENTRE PARTITION
THE PRIMARY MATERIALS UTILIZED IN THIS CARPENTRY CONSIST OF CORIAN SOLID SURFACES, ALUMINUM SQUARE SECTIONS, FLUTED CORIAN SOLID SURFACE PANELS, TOUGHENED GLASS, AND PLYWOOD FOR SUPPORT AT THE REAR.
MATERIAL DESCRIPTION FOR COLUMN CARPENTRY WORK
THE PRINCIPAL MATERIALS USED IN THIS CARPENTRY INCLUDE FLUTED CORIAN SOLID SURFACES, ALUMINUM FRAMING FOR THE GREEN WALL AND PLYWOOD
A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SIZE SCALE AS MENTIONED RELEASED FOR INFORMATION REVIEW TENDER CONSTRUCTION AS-BUILT PROJECTION DATE DRWN BLDG.ID I_214_U_039_C_001 DESCRIPTION CODE
MASTER HEALTH CHECKHUP AREA
WORK DESCRIPTION
IN THIS PROJECT, I’VE BEEN INVOLVED IN CREATING COMPREHENSIVE TECHNICAL DRAWINGS ENCOMPASSING VARIOUS ASPECTS SUCH AS FURNITURE ARRANGEMENTS, FLOORING DESIGNS, REFLECTED CEILING PLANS, CARPENTRY SPECIFICATIONS, INTERIOR WALL SECTIONS, AND ELEVATIONS.
MATERIALS DESCRIPTION
THE PRINCIPAL MATERIALS USED IN THIS MASTER HEALTH CHECKUP AREA ENCOMPASS CORIAN SOLID SURFACES, METAL INLAY, GRANITE, FLUTED WOOD PANELS, PVC PANELS, TOUGHENED GLASS, WALL COVERINGS, VITRIFIED TILES FOR FLOORING, GYPSUM BOARD FOR CEILINGS, AND PLYWOOD FOR SUPPORT AT THE BACK.
MASTER HEALTH CHECKUP AREA
GENERAL LEGEND SPECIFIC NOTES LOCATION ISSUE OF PRINTS REVISIONS REMARKS NAME CHKD DATE DRWN DESCRIPTION CODE M8
- SECTIONAL ELEVATIONS
GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD DATE DRWN DESCRIPTION CODE M4 F9_1 PL FW MASTER HEALTH CHECKUP AREA - CARPENTRY DETAILS

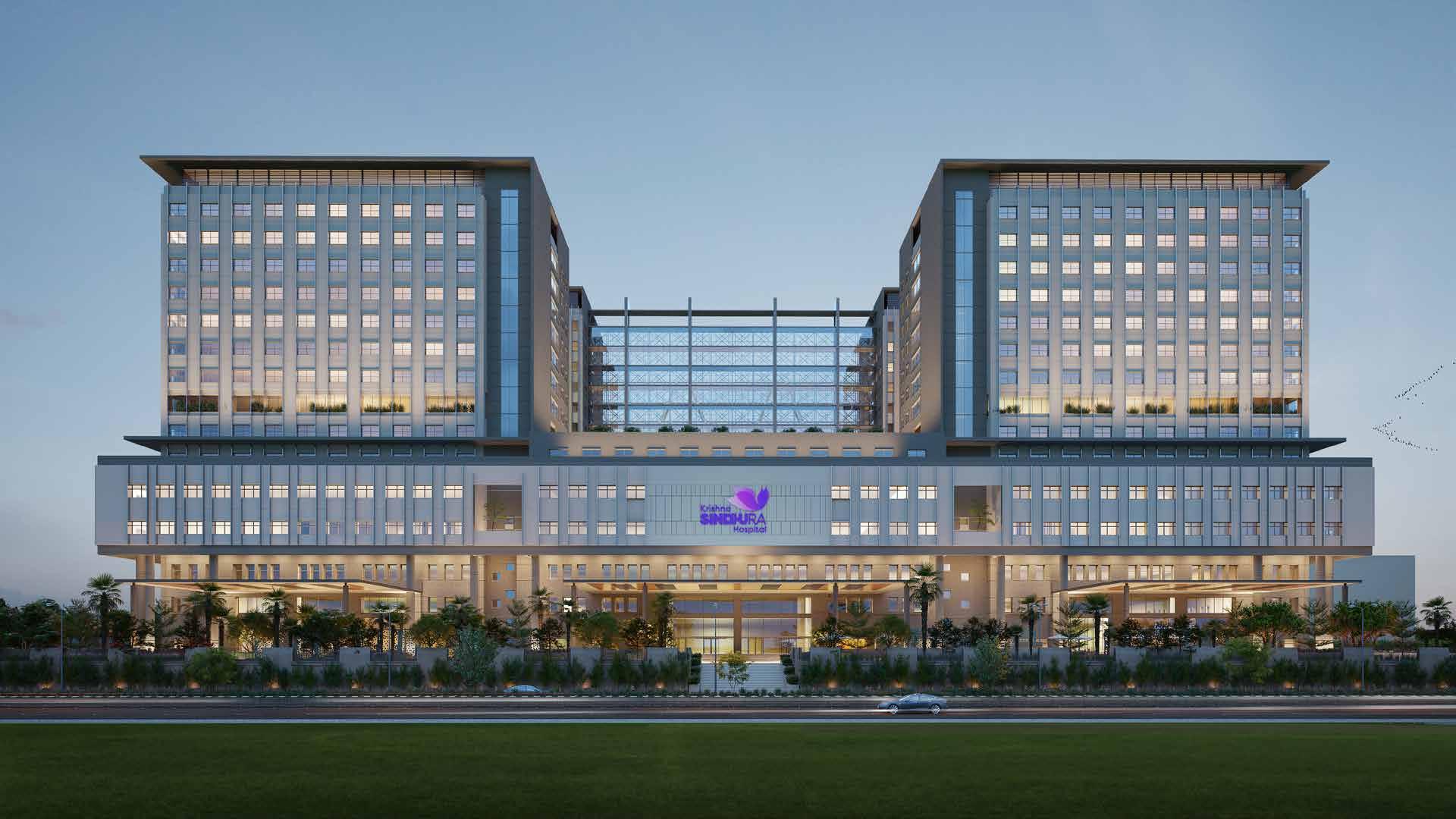

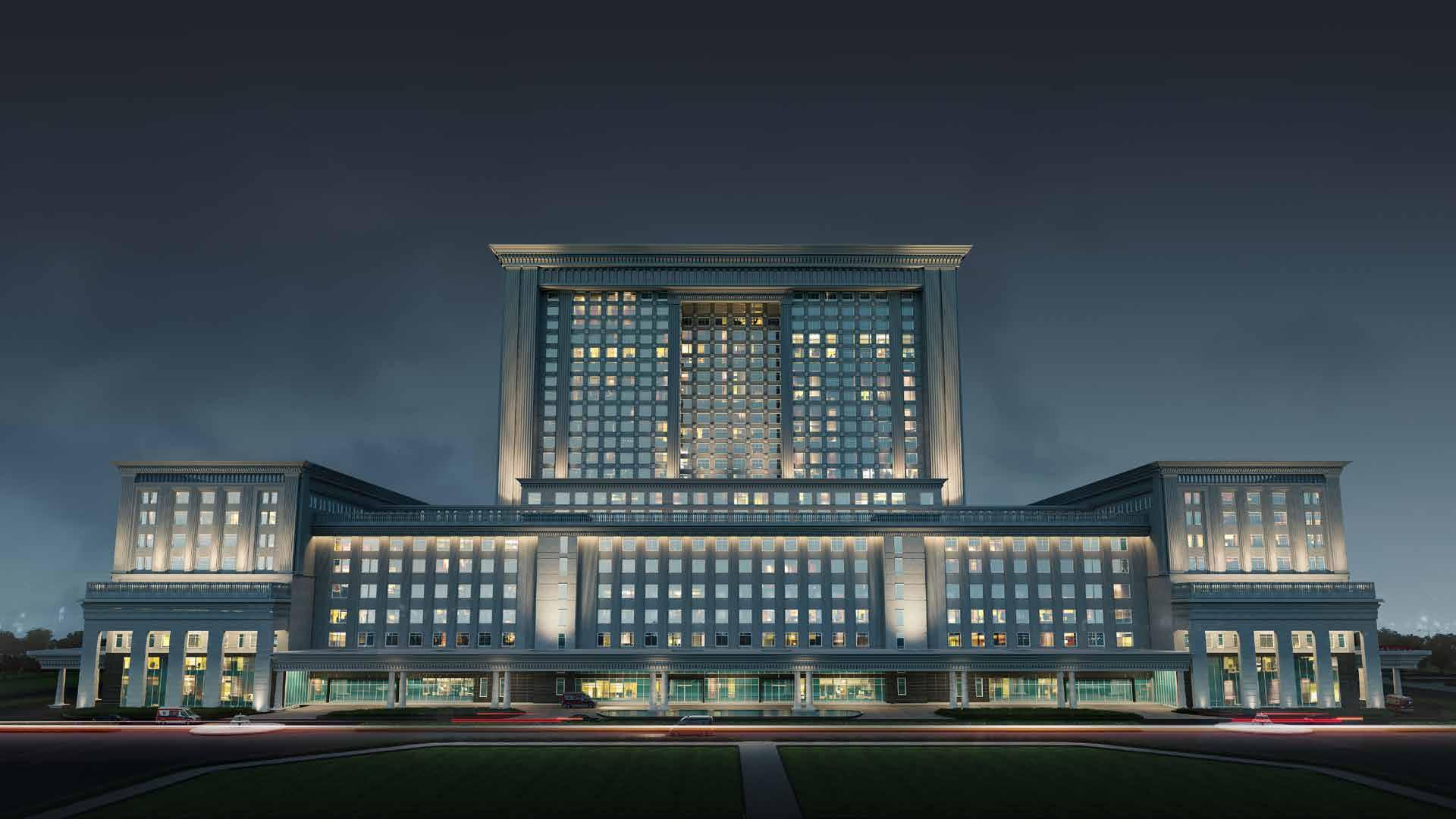

KRISHNA SINDHURA HOSPITAL AT HITEC CITY, HYDERABAD
GOOD FOR CONSTRUCTION
INTERIOR DRAWINGS
The hospital is a general trust hospital encompassing a wide range of medical specialties. With a capacity of 1080 beds, it stands as a significant healthcare facility. Spread across fifteen floors, the hospital provides ample space to cater to the diverse needs of patients. Covering an extensive area of 13,670 square meters, the hospital is equipped to accommodate a large number of patients and offer comprehensive medical services. From emergency care to specialized treatments, this hospital is committed to providing quality healthcare to its community.

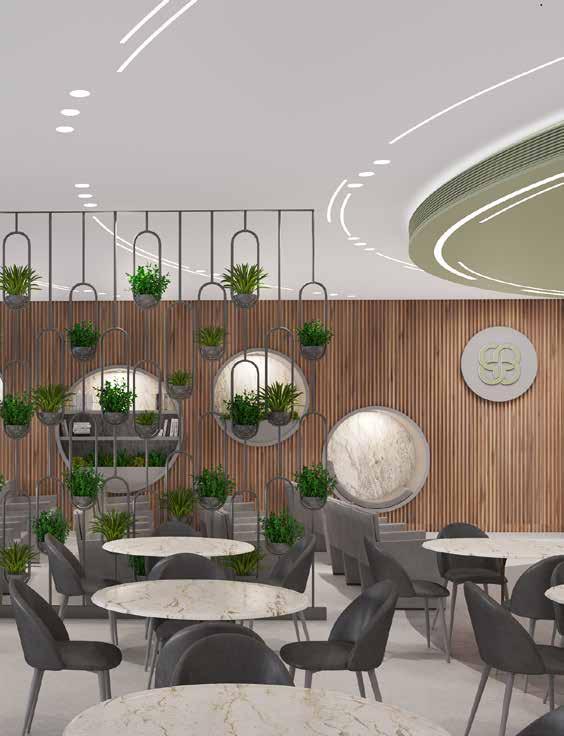

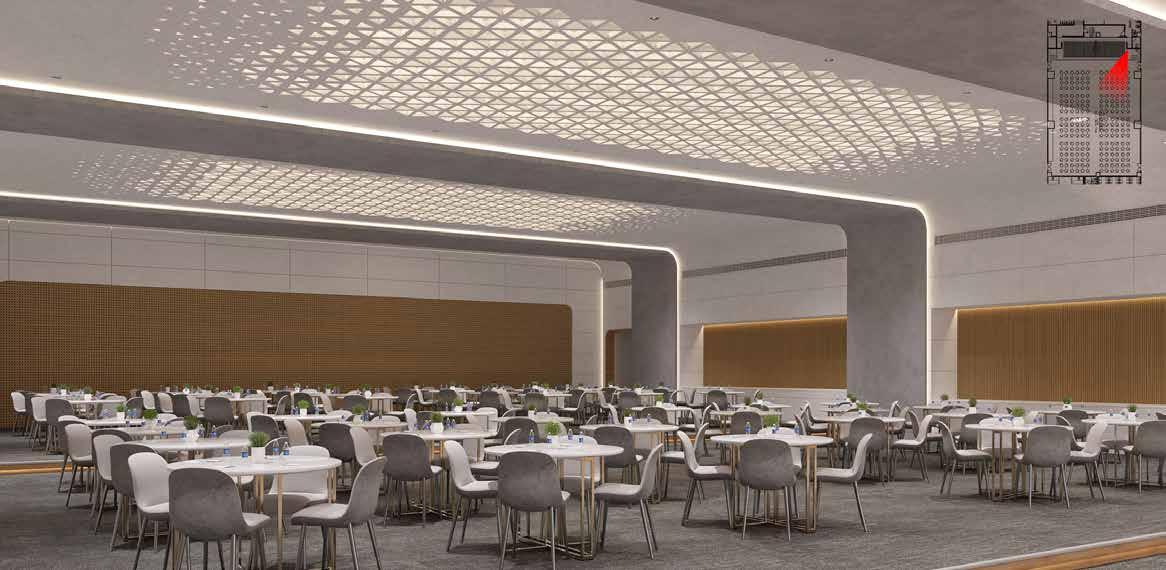

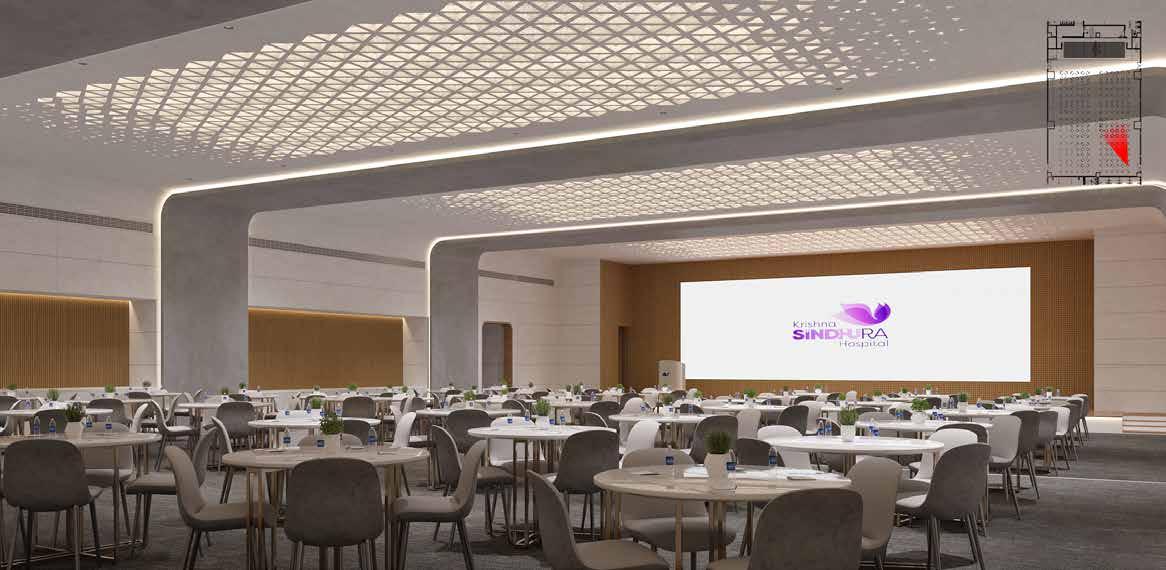

MULTI PURPOSE CONFERENCE HALL
WORK DESCRIPTION
IN THIS PROJECT, I’VE BEEN INVOLVED IN CREATING COMPREHENSIVE TECHNICAL DRAWINGS ENCOMPASSING VARIOUS ASPECTS SUCH AS FURNITURE ARRANGEMENTS, FLOORING DESIGNS, REFLECTED CEILING PLANS, CARPENTRY SPECIFICATIONS, INTERIOR WALL SECTIONS, AND ELEVATIONS.
MATERIAL DESCRIPTION
THE PRIMARY MATERIALS UTILIZED IN THIS CONFERENCE HALL INCLUDE CORIAN SOLID SURFACES, FLUTED WOOD PANELS, PERFORATED WOODEN PANELS, ECOCORE ACOUSTIC PANELS FOR THE SURROUNDINGS, AS WELL AS CARPET AND WOODEN FLOORING.
A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SIZE SCALE AS MENTIONED PROJECTION DATE DRWN DESCRIPTION CODE F14 M13 F17 EC1 M4 PL EC2 GW FF39 FF46 M4 FW TW SS H1 H2 H13 PW MULTI PURPOSE CONFERENCE HALL - SECTIONAL ELEVATIONS & DETAILS
A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SCALE AS MENTIONED PROJECTION DATE DRWN DESCRIPTION CODE F14 M13 F17 EC1 M4 PL EC2 GW FF39 FF46 M4 FW TW SS H1 H2 H13 PW MULTI PURPOSE CONFERENCE
HALL - CEILING DETAILS
MEDICOVER WOMEN & CHILD HOSPITAL AT MADHAPUR, HYDERABAD
GOOD FOR CONSTRUCTION INTERIOR DRAWINGS
The hospital is a prominent healthcare facility dedicated to mother and child care, offering a wide range of specialized medical services. With a capacity of 100 beds, it provides a nurturing and supportive environment for expectant mothers and children. Spread across five floors, the hospital boasts spacious facilities that accommodate various departments and services. Covering an area of 665 square meters, it is well-equipped to deliver comprehensive care and personalized attention to mothers and their children. Whether it’s prenatal care, pediatric services, and other specialized treatment,, this hospital prioritizes the well-being and health of both mother and child.

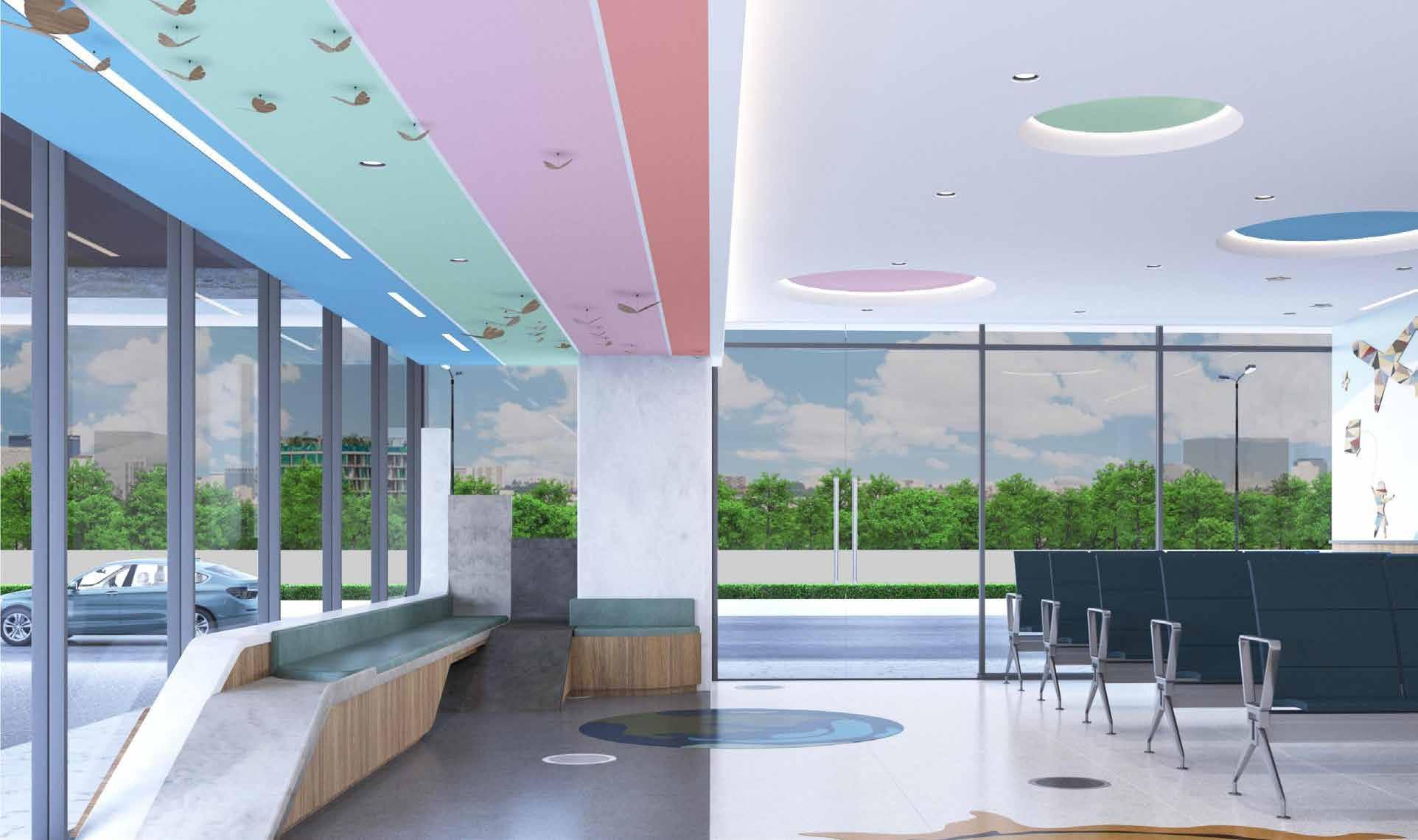

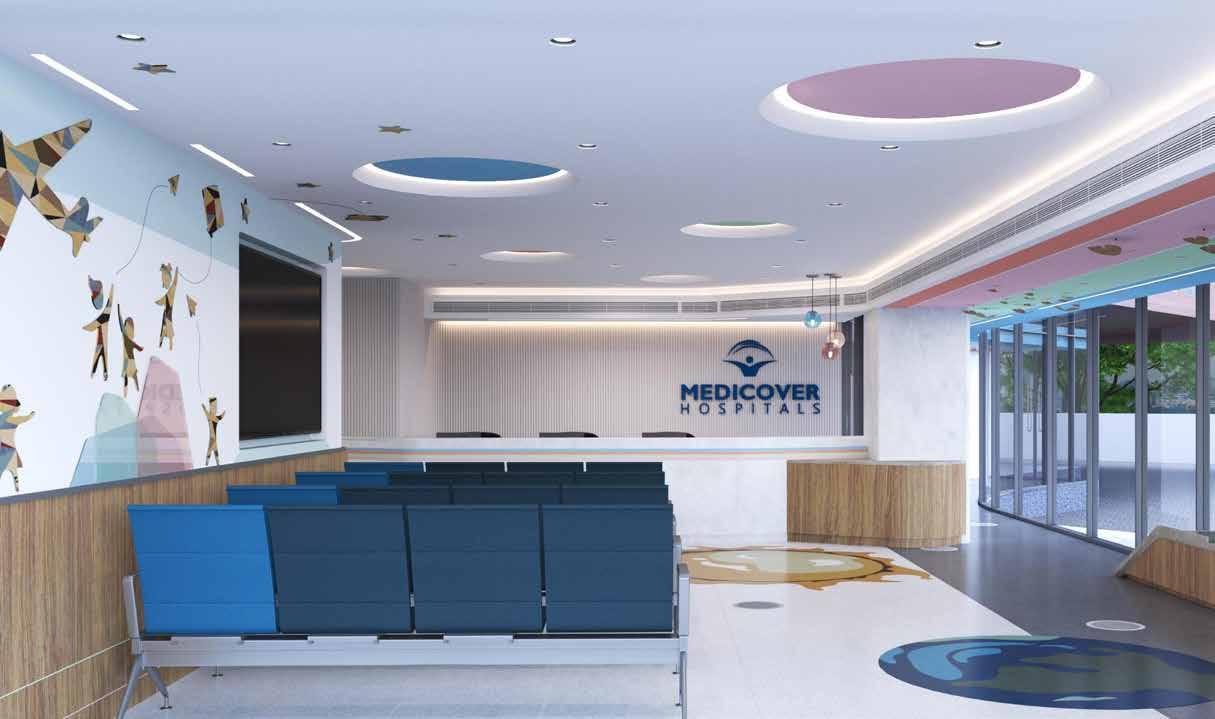

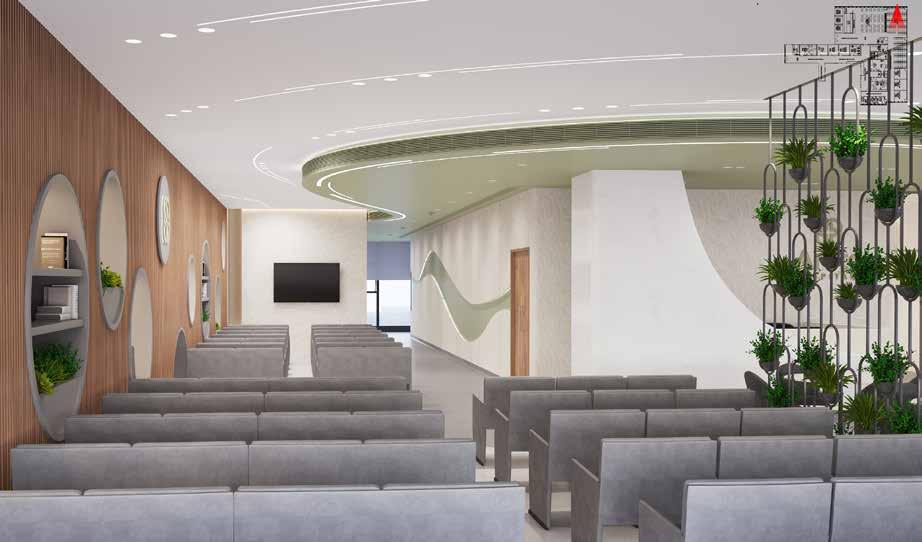

ENTRANCE LOBBY AND WAITING AREA
WORK DESCRIPTION
THROUGHOUT THIS PROJECT, MY INVOLVEMENT HAS PRIMARILY REVOLVED AROUND THE CREATION OF ALL-ENCOMPASSING TECHNICAL DRAWINGS. THESE DRAWINGS ENCOMPASS A WIDE RANGE OF ASPECTS SUCH AS FURNITURE ARRANGEMENTS, FLOORING DESIGNS, REFLECTED CEILING PLANS, CARPENTRY SPECIFICATIONS, AS WELL AS INTERIOR WALL SECTIONS AND ELEVATIONS.
MATERIALS DESCRIPTION
THE PRINCIPAL MATERIALS USED IN THIS ENTRANCE LOBBY & WAITING AREA ENCOMPASS CORIAN SOLID SURFACES, COLORED ACRYLIC GLASSES, ALUMINIUM FRAME, FLUTED WOOD PANELS, FLUTED GLASS, TERRAZZO FOR FLOORING, GYPSUM BOARD FOR CEILINGS.
A3 LEGEND ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD SHEET SIZE SCALE AS RELEASED FOR INFORMATION REVIEW TENDER CONSTRUCTION AS-BUILT DATE DRWN I_200_U_001 DESCRIPTION LEVELS CODE
LOBBY - SECTIONAL ELEVATIONS
MEDICOVER
ENTRANCE
shaftcom ELEVATOR 215 VA OR 50pe OBB +0.45 shaft RAMPDNTOBASEMENT-1 A3 I_200_U_001 DESCRIPTION CODE +50 MM LEVEL +675 MM LEVEL +6220 MM LEVEL +6020 MM LEVEL +6670 MM LEVEL +6970 MM LEVEL +0 MM LEVEL +450 MM LEVEL +0 MM LEVEL +2390 MM LEVEL +2380 MM LEVEL +1860 MM LEVEL GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SIZE SCALE AS MENTIONED PROJECTION DATE DRWN +6020 MM LEVEL +3110 MM LEVEL +3230 MM LEVEL +3230 MM LEVEL
ENTRANCE LOBBY - COUCH CARPENTRY DETAILS
A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SIZE SCALE AS MENTIONED RELEASED FOR INFORMATION REVIEW TENDER CONSTRUCTION AS-BUILT DATE DRWN LEVELS +450MM LEVEL +515MM LEVEL +450MM LEVEL +515MM LEVEL +650MM LEVEL +450MM LEVEL +515MM LEVEL +450MM LEVEL +0MM LEVEL +12MM LEVEL +688MM LEVEL +700MM LEVEL +1188MM LEVEL +1200MM LEVEL
WORK DESCRIPTION
IN THIS PROJECT, I’VE BEEN INVOLVED IN CREATING COMPREHENSIVE TECHNICAL DRAWINGS ENCOMPASSING VARIOUS ASPECTS SUCH AS FURNITURE ARRANGEMENTS, FLOORING DESIGNS, REFLECTED CEILING PLANS, CARPENTRY SPECIFICATIONS, INTERIOR WALL SECTIONS, AND ELEVATIONS.
MATERIALS DESCRIPTION
THE PRINCIPAL MATERIALS USED IN THIS KIDS PLAY AREA ENCOMPASS CORIAN SOLID SURFACES, EPDM-(ETHYLENE PROPYLENE DIENE MONOMER)RUBBER, FOAM, LAMINATE, EPDM RUBBER FOR FLOORING AND GYPSUM BOARD FOR CEILINGS.

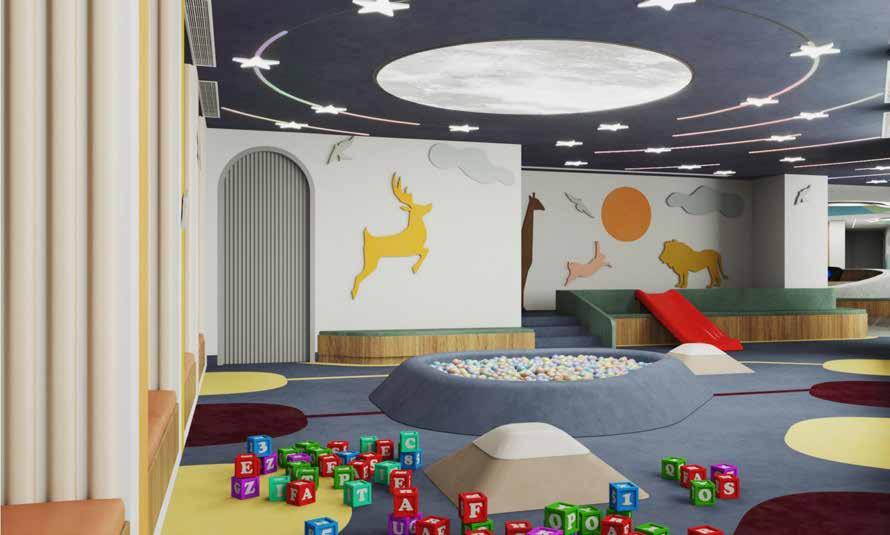

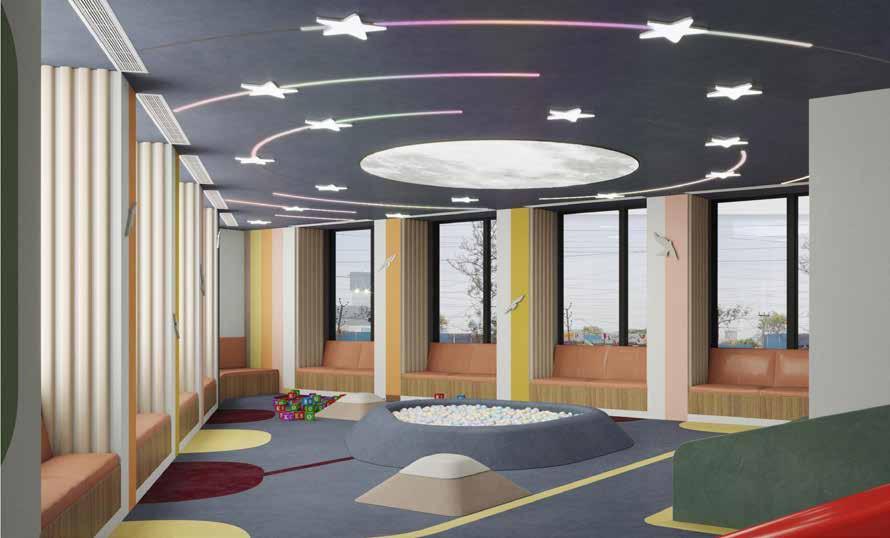

KIDS PLAY AREA
locati ELEVAT ELEVATO com A3 GENERAL NOTES LEGEND SPECIFIC NOTES LOCATION MAP ISSUE OF PRINTS REVISIONS REMARKS NAME SIGN DATE CHKD APPD SHEET SCALE MENTIONED PROJECTION DATE DRWN 01-Apr-23 DESCRIPTION CODE I_201_U_001, 023 & + MM LEVEL +55 MM LEVEL + MM LEVEL +55 MM LEVEL + MM LEVEL 55 MM LEVEL + MM LEVEL +55 MM LEVEL +55 MM LEVEL +2150 MM LEVEL +00 MM LEVEL +800 MM LEVEL +2600MM LEVEL +2200MM LEVEL +2200MM LEVEL KIDS PLAY AREA - SECTIONAL ELEVATIONS

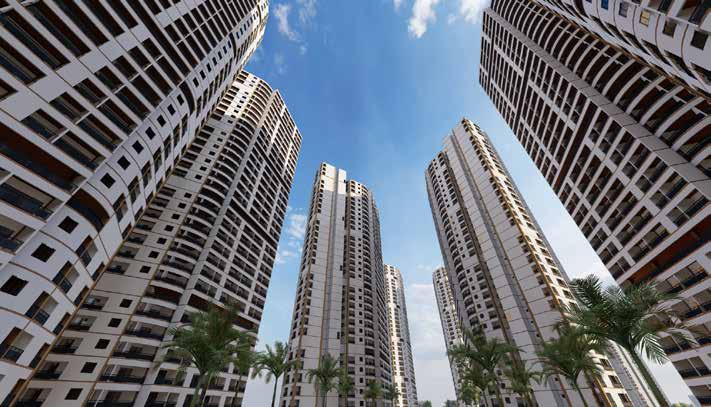

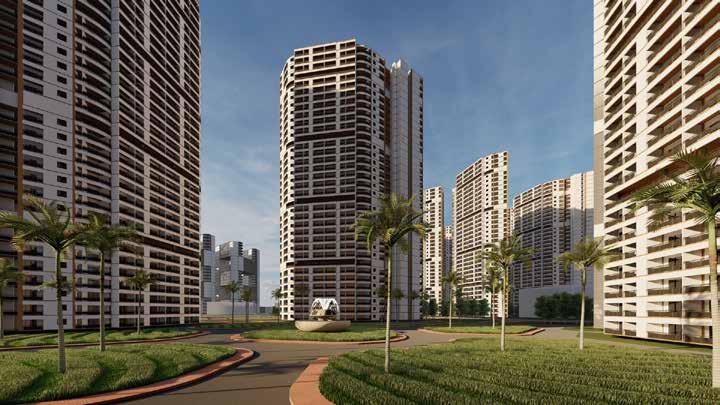

INTEGRATED TOWNSHIP
THESIS DESIGN
An integrated township is more than just a residential development, It incorporates essential amenities such as schools, healthcare facilities, office spaces, and commercial areas, catering to people of all income levels. This holistic approach ensures that residents have convenient access to key services and facilities within the township itself. By integrating these elements, an integrated township seeks to create a self-sustaining community that fosters a balanced and convenient lifestyle for its residents, promoting a sense of belonging and enhanced quality of life.
CONCEPT

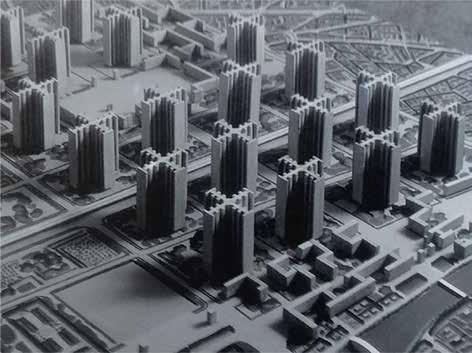

Le corbucier - Tower’s in the park
Part of a movement that sought to modernize cities through a rational reorganization of the urban form, “Towers in the Park” is a style of housing development that emphasizes a separation of uses and access to communal green space and amenities.
SITE DETAILS
Site location Thirumazhisai, chennai.
Road width 36m wide road
No of entry :1 entry and 1 exit and exit
Site area :100 acres
Plot coverage : 32%(129472.4sqm)
Permissible fsi 3.25
Building area (1310228.2 sqm)
Maximum building height : 108.45 m
maximum no of floors : 35 floors
minimum building height 13.7 m
minimum no of floors 3 floors
no of basement floors : 1 floor
setback given 16 m
OSR :10% (404685.6 sqm)

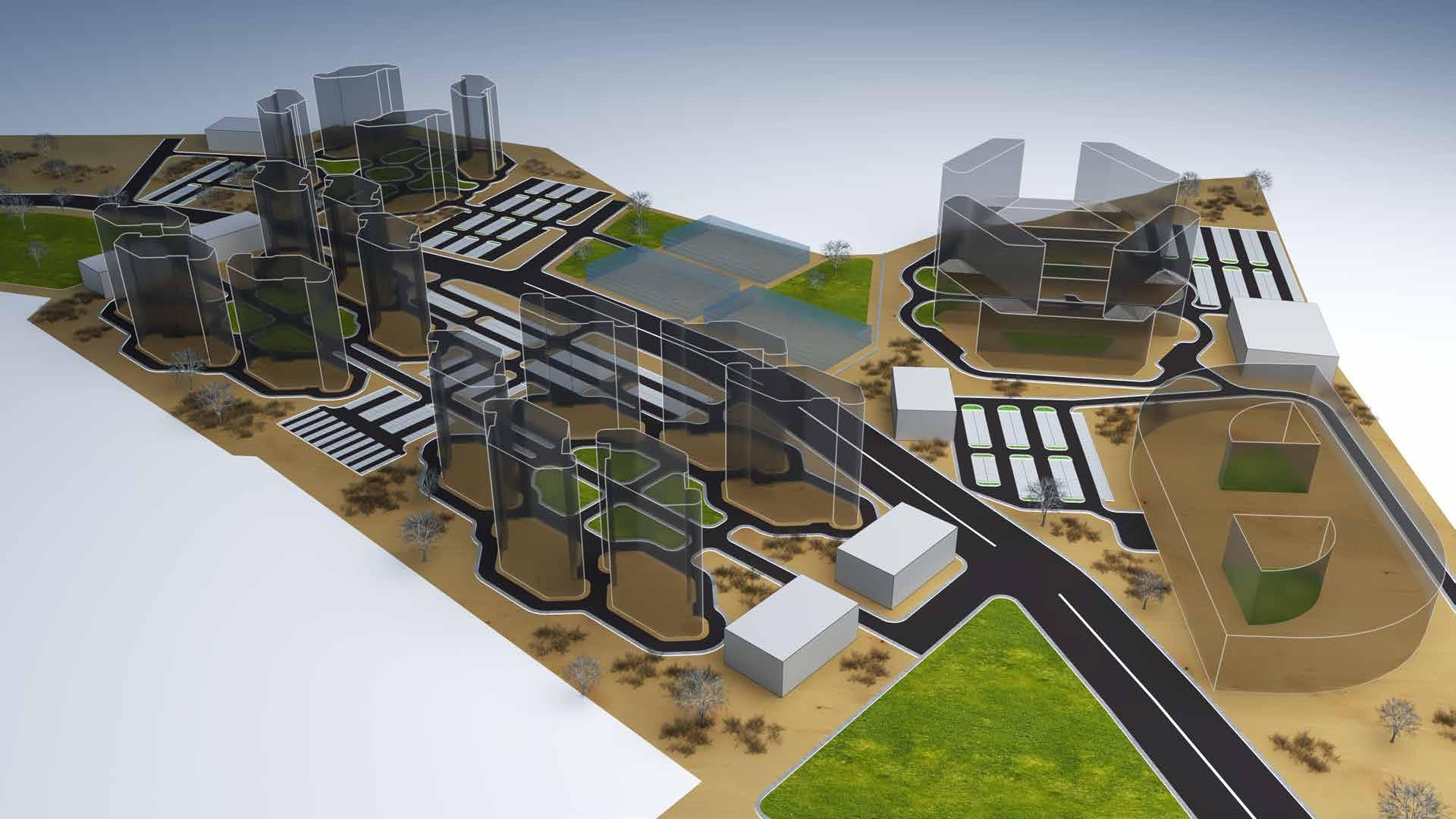

DESIGN PROCESS
APARTMENT OFFICE COMMERCIAL

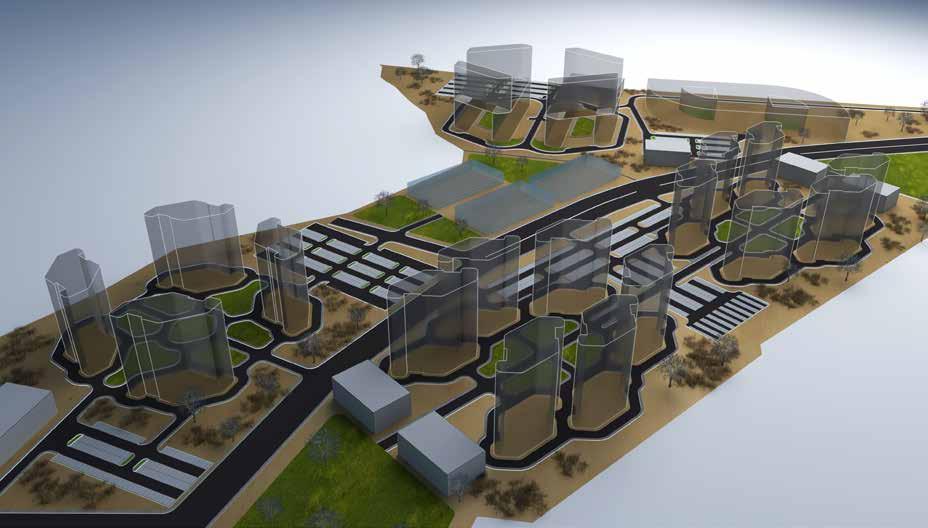

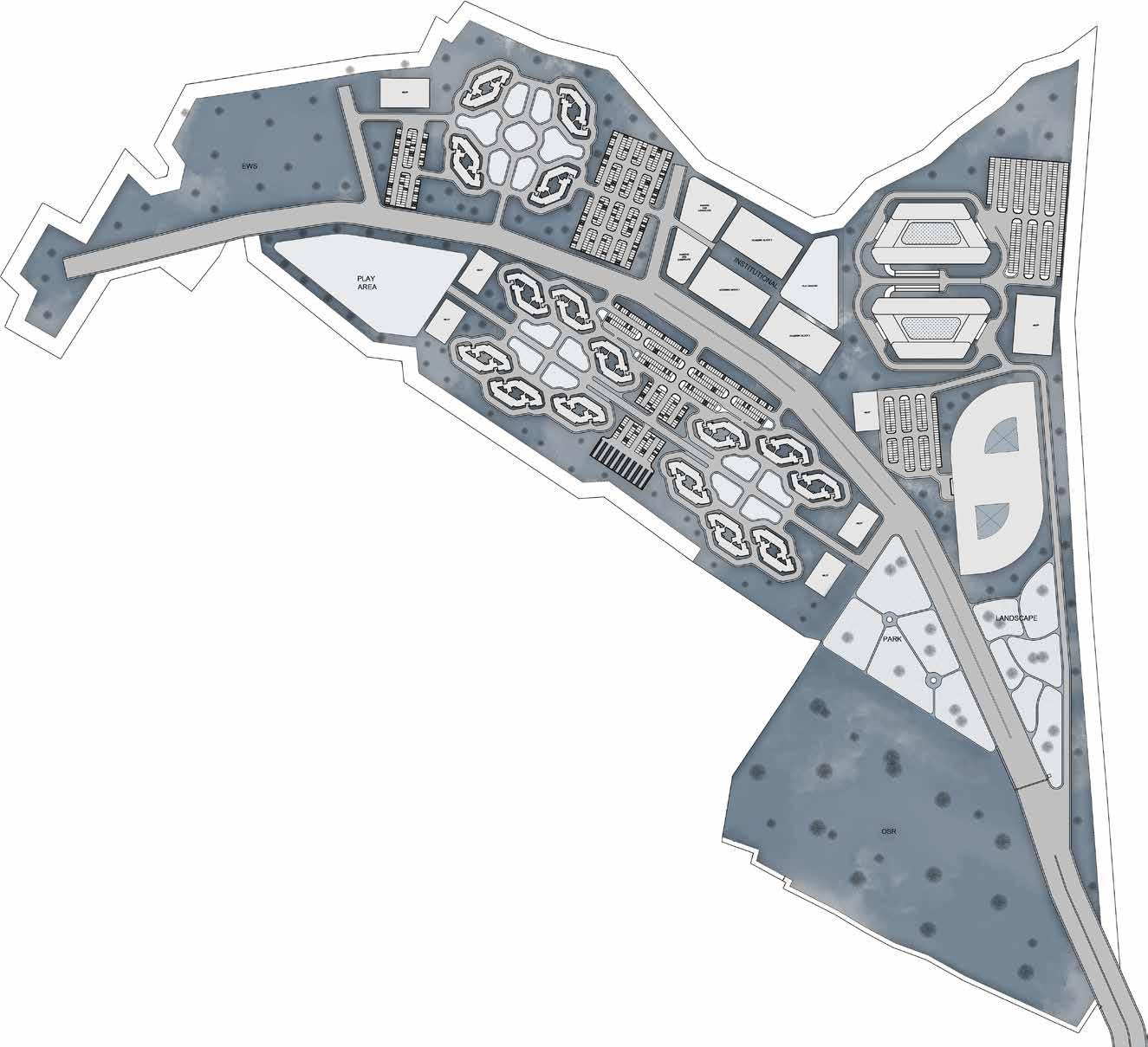

SITE PLAN
NOTE : THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE
FLOOR AREA DETAILS
Single floor area : 1014 sQ.M
1 BHK Single unit area (TYPE 1) : 80 SQ.M (TYPE 2) 75 SQ.M
2 BHK Single unit area : 107 SQ.M
No of 1 BHK in a floor : 4 UNITS
No of 2 BHK in a floor : 4 UNITS
SINGLE BLOCK
Total no of 1 BHK 124 UNITS
Total no of 2 BHK 124 UNITS
No of apartment floors : 31 Floors
No of service (refugee) floors : 4 Floors
Total floor area of single block 35,490 SQ.M
Total no of 1 & 2 BHK block : 8 BLOCKS
Total 1 & 2 BHK Apartment floor area 283,920 SQ.M
Total height of a block 108 M
Emergency stairs 2
Emergency lift : 2
Passenger lift : 4
Total no of OHT in single block : 5 OHT
No of OHT in a service floor : 1 OHT
Volume of single OHT : 42.4 CU.M
Total volume of water in a block : 212 CU.M
Total required water for a block 96 CU.M

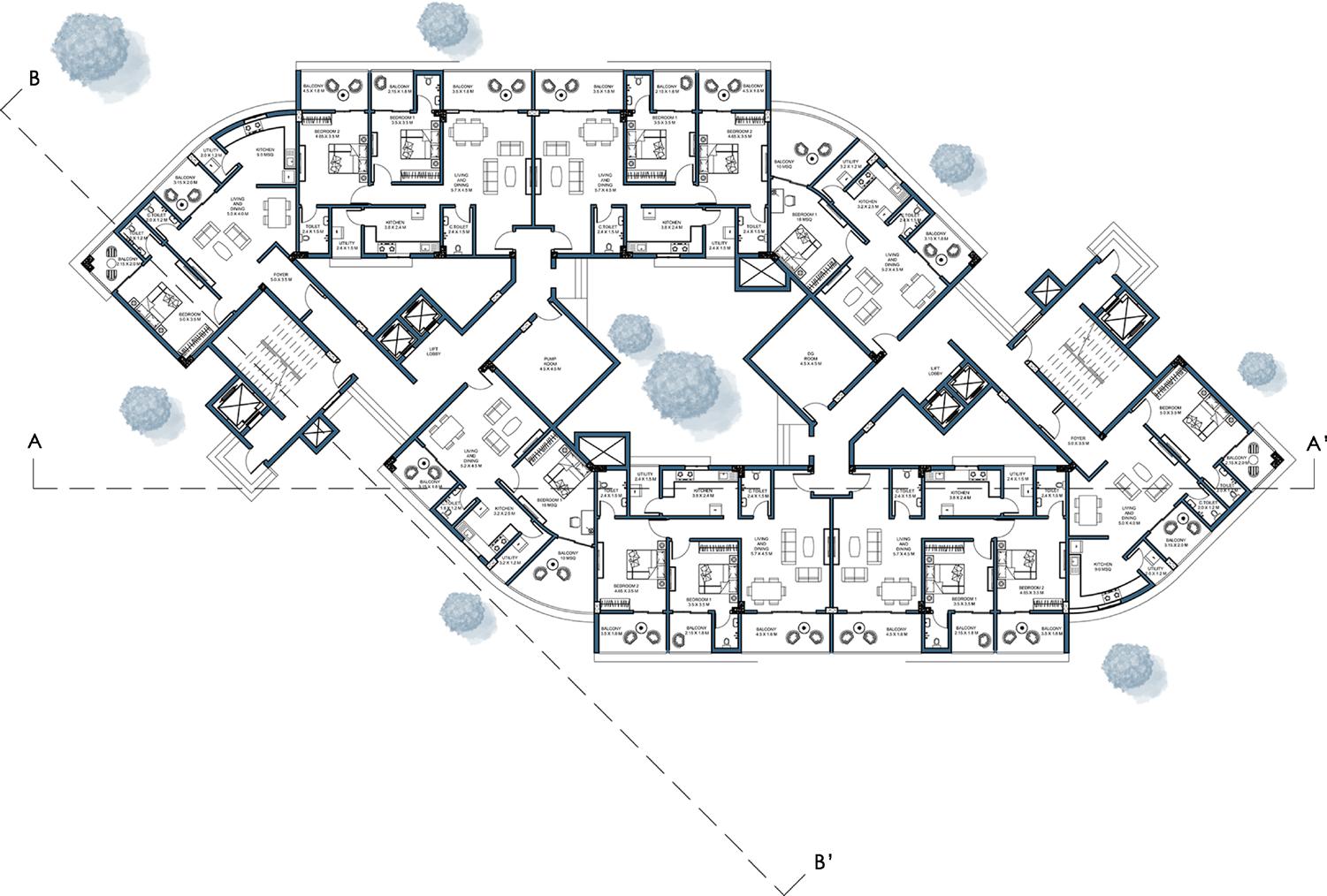

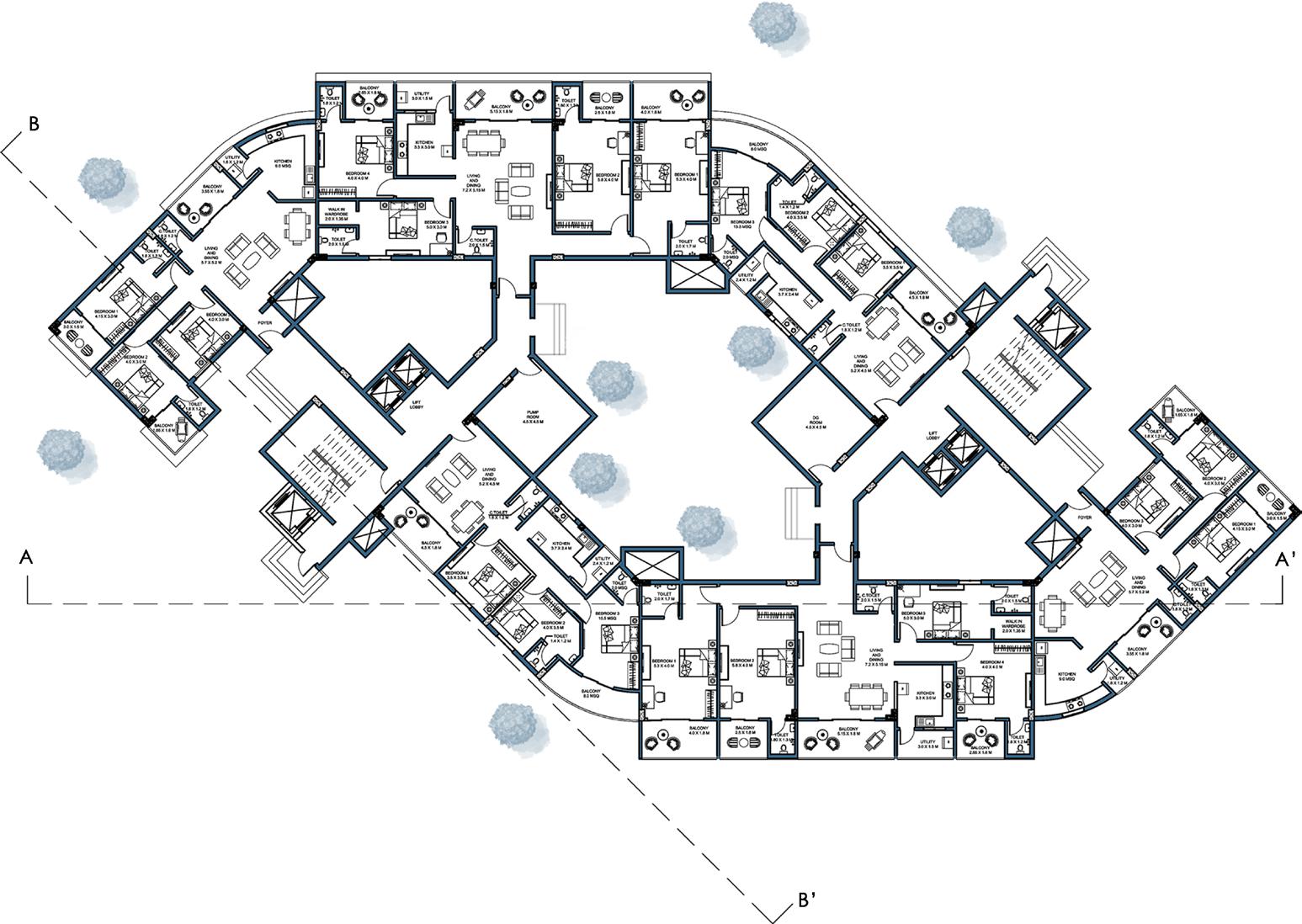

1 & 2 BHK APARTMENT FLOOR PLAN
NOTE : THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE .
FLOOR AREA DETAILS
Single floor area 1147 SQ.M
3 BHK Single unit area (TYPE 1) : 132 SQ.M (TYPE 2) : 125 SQ.M
4BHK Single unit area 189 SQ.M
No of 3 BHK in a floor : 4 UNITS
No of 4 BHK in a floor : 2 UNITS
SINGLE BLOCK
Total no of 3 BHK : 124 UNITS
Total no of 4 BHK : 62 UNITS
No of apartment floors 31 Floors
No of service (refugee) floors 4 Floors
Total floor area of single block : 40,145 SQ.M
Total no of 3 & 4 BHK block : 8 BLOCKS
Total 3 & 4 BHK Apartment floor area : 3,21,160 SQ.M
Total height of a block : 108 M
Emergency stairs : 2
Emergency lift 2
Passenger lift : 4
Total no of OHT in single block : 5 OHT
No of OHT in a service floor 1 OHT
Volume of single OHT : 43.2 CU.M
Total volume of water in a block 216 CU.M
Total requierd water for a block : 148 CU.M
3 & 4 BHK APARTMENT FLOOR PLAN
NOTE :
THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE .

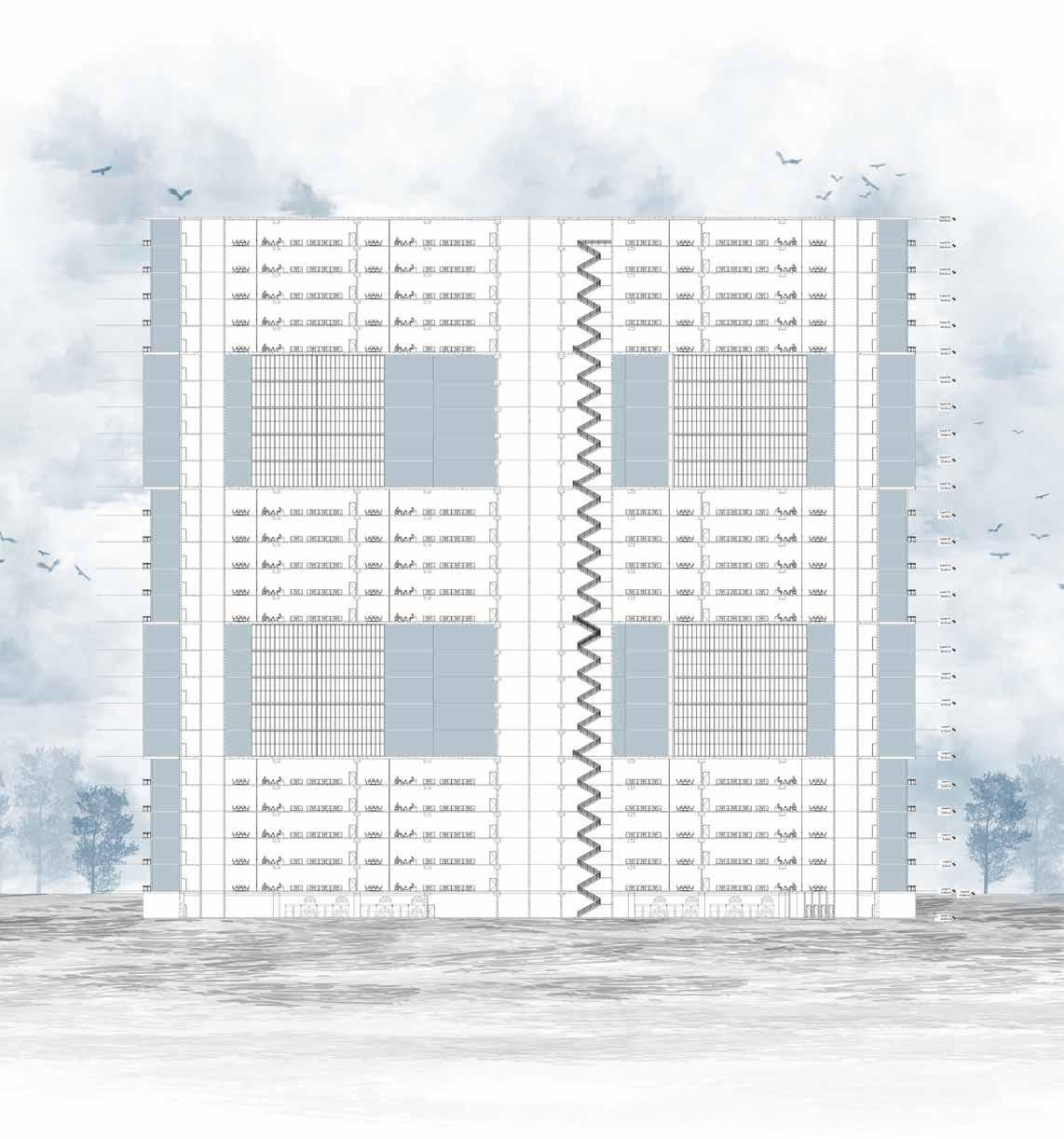

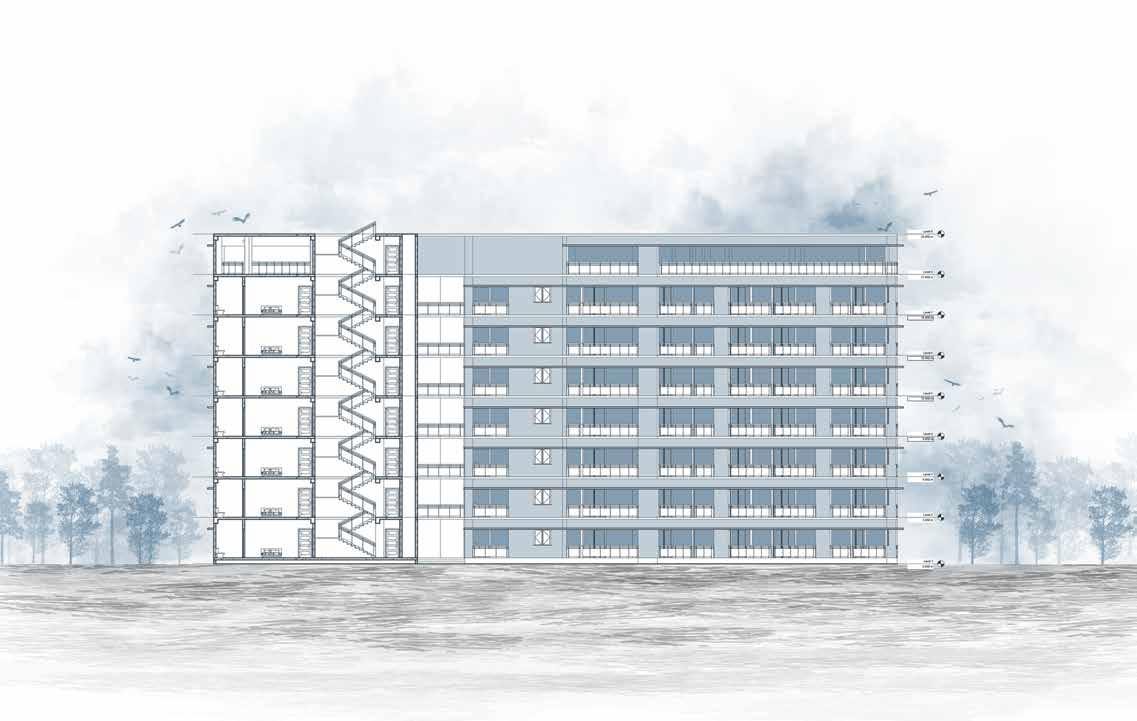

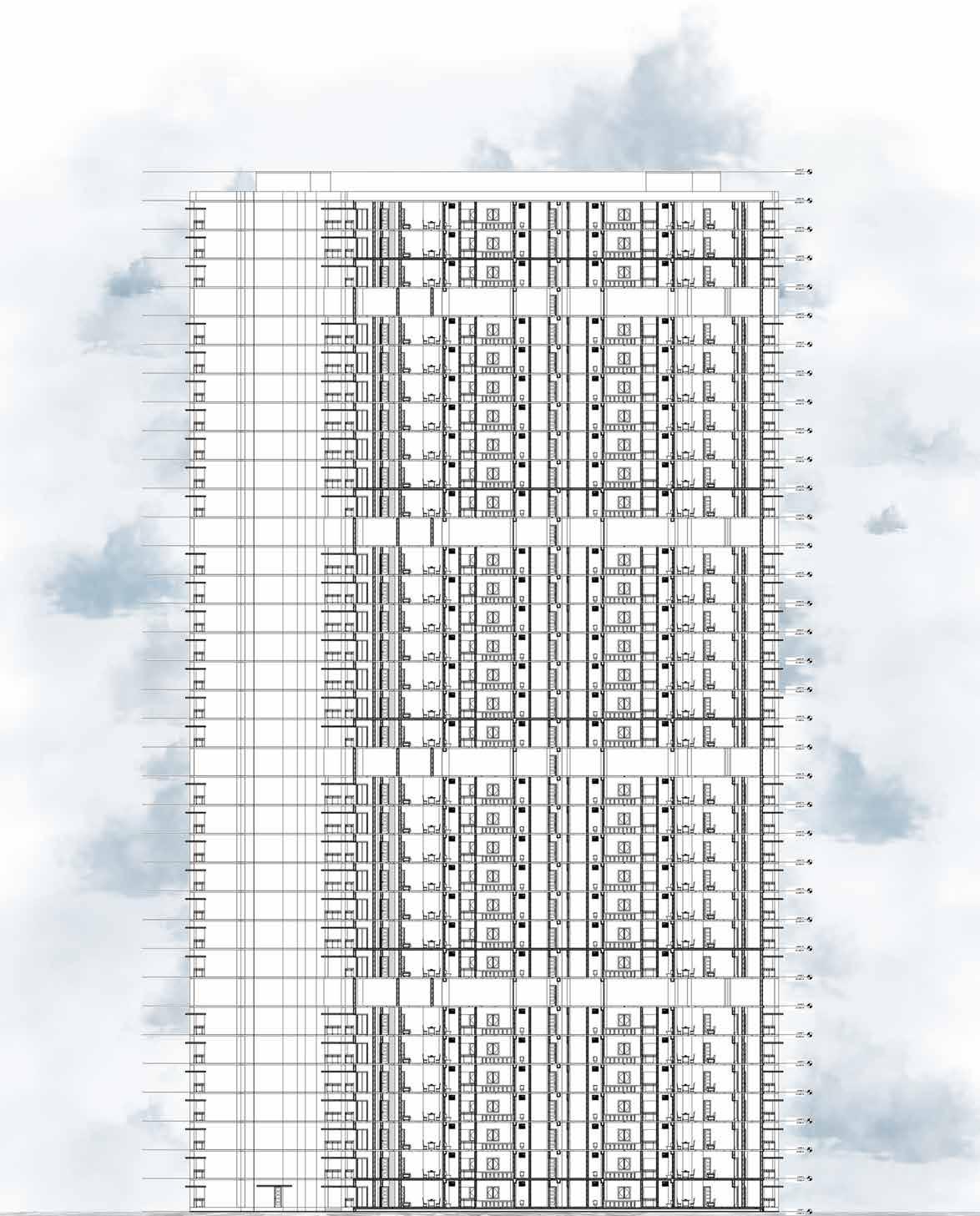

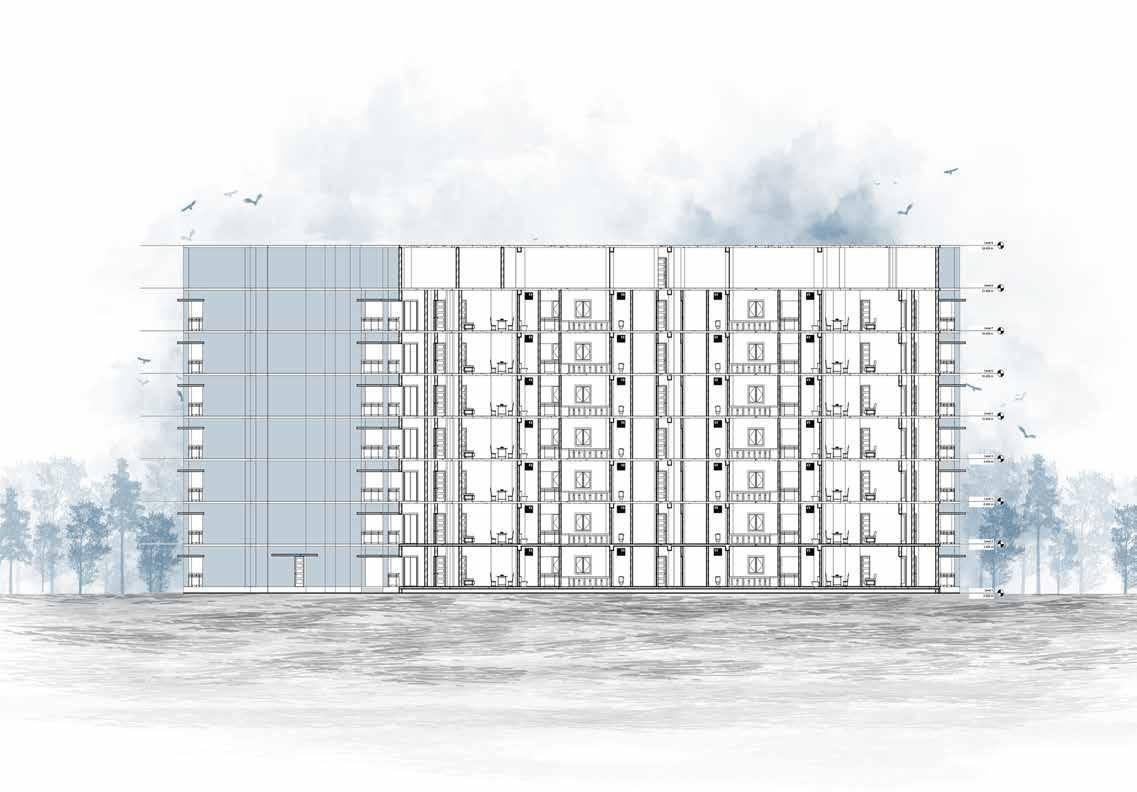

FULL BUILDING SECTION
SECTION AA’
SECTION BB’

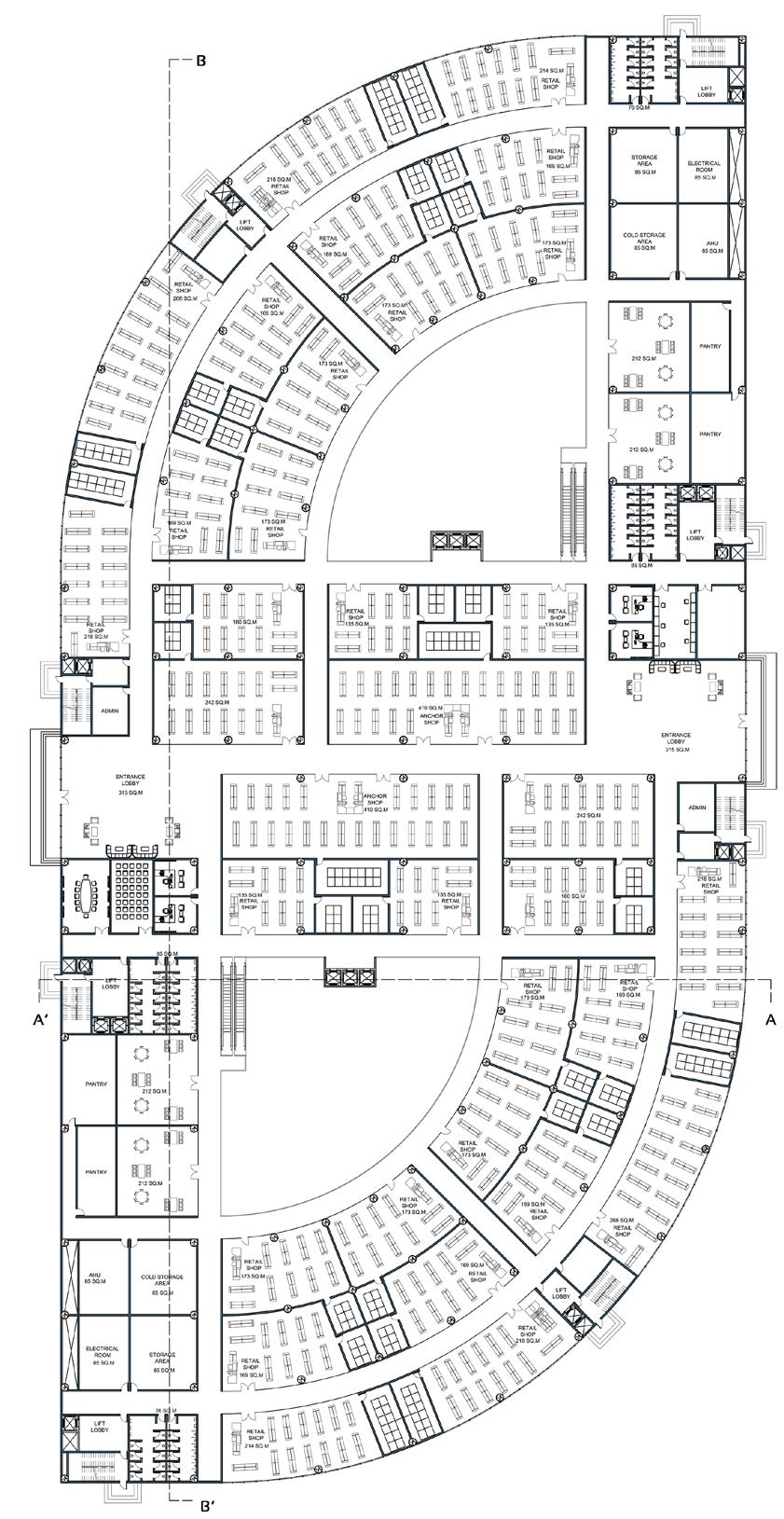

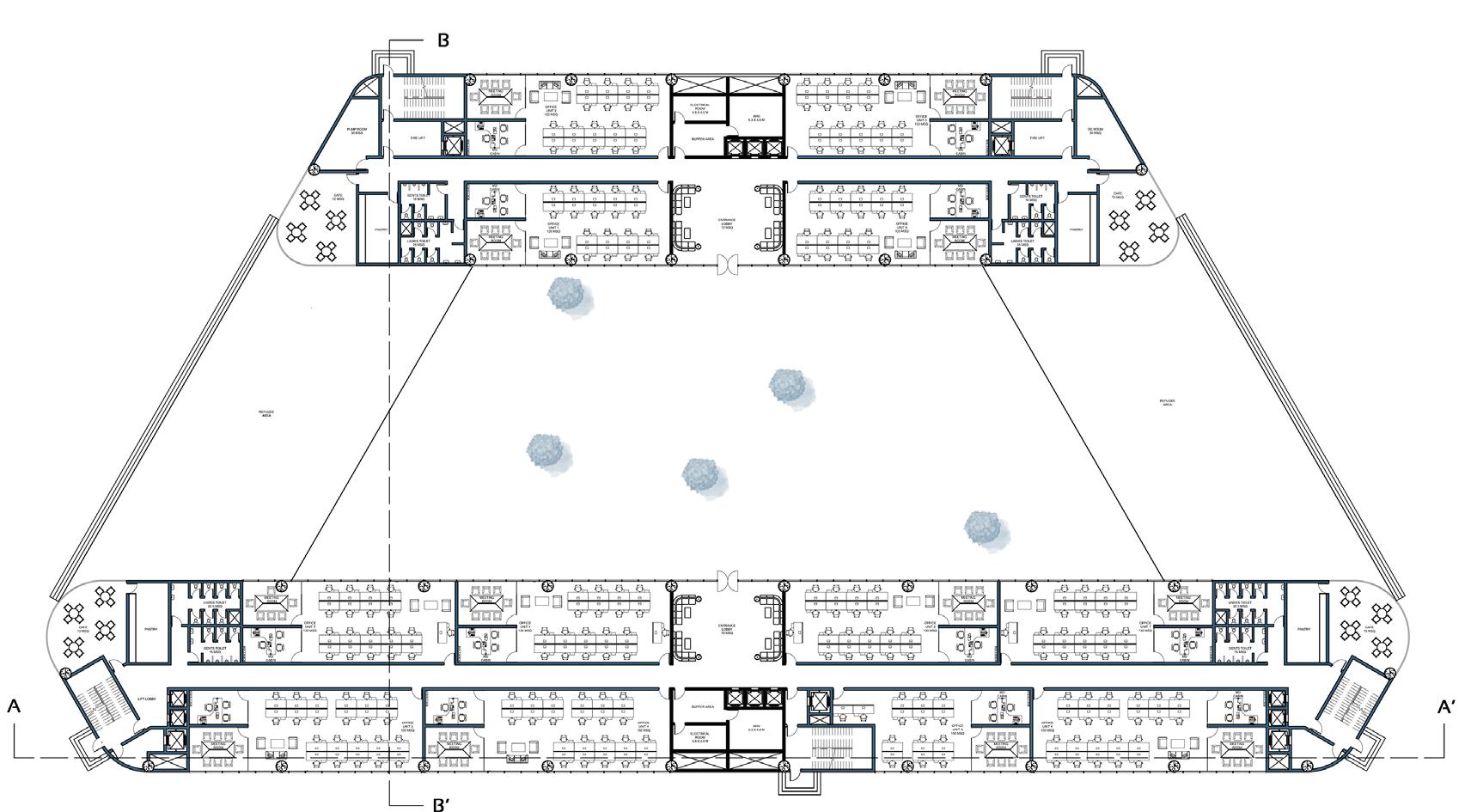

MUILTY TENET OFFICE GROUND FLOOR PLAN
NOTE : THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE .
FLOOR AREA DETAILS
Single floor area for ( G - G+4 ) floors : 1976 + 1258 : 3234 SQ.M
Total floor area of a single office building 70,930 SQ.M
Total floor area of both office blocks : 141,860 SQ.M
No of office units in one floor ( G G+4 ) : 12 units
No of office units in 15 floors ( G G+4 ) : 180 units
Total no of office units in a block 260 units
Total no of office units provided in 520 Office both blocks
Capacity of head count in one block Total floor area / 10 141,86 Persons
Total no of office blocks provided : 02 blocks
Total no of floors provided in a block : 25 floors
Total no of service floors provided : 05 floors in a block
of basement floors provided : 01 floor Maximum height of the block 113.85 M Total no of OHT in single block 6 OHT
No
Emergency
Emergency
Passenger
No
no
of OHT in a service floor : 1 OHT
stairs 05 Stairs
lift : 05 Lifts
lift 10 Lifts
of main entry and exit : 02 entry and exit

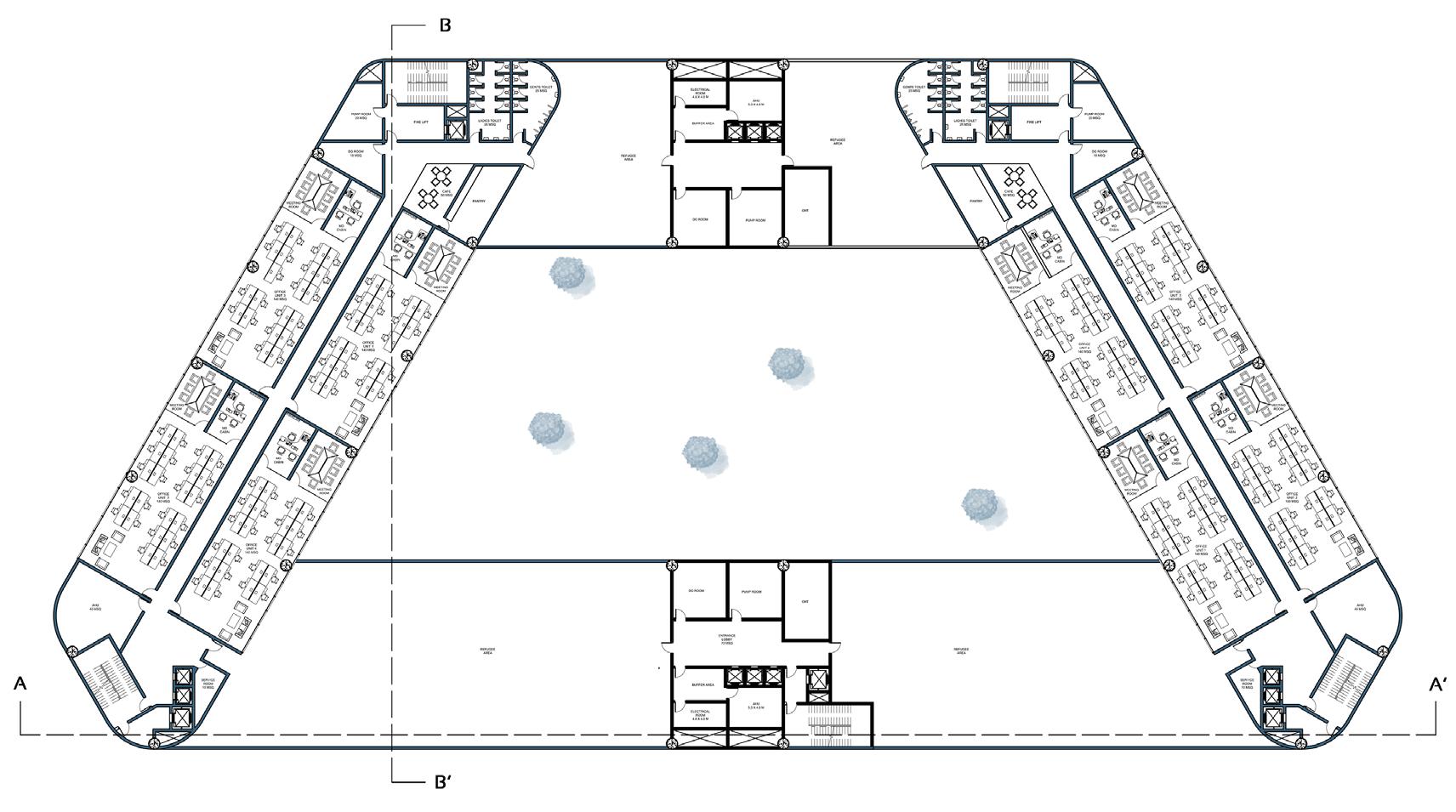

MUILTY TENET OFFICE FIFTH FLOOR PLAN
NOTE : THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE
FLOOR AREA DETAILS
Single floor area for ( G+5 G+9 ) : 1121 + 1121 : 2242 SQ.M
Total floor area of a single office building 70,930 SQ.M
Total floor area of both office blocks : 141,860 SQ.M
No of office units in one floor ( G+5 - G+9 ) : 08 units
No of office units in 10 floors ( G+5 - G+9 ) : 80 units
Total no of office units in a block : 260 units
Total no of office units provided in : 520 units both blocks
Capacity of head count in one block Total floor area / 10 141,86 Persons
Total no of office blocks provided : 02 blocks
Total no of floors provided in a block : 25 floors
Total no of service floors provided : 05 floors in a block no of basement floors provided : 01 floor
Maximum height of the block 113.85 M
Total no of OHT in single block : 6 OHT
No of OHT in a service floor : 1 OHT
Emergency stairs : 05 Stairs
Emergency lift 05 Lifts
Passenger lift : 10 Lifts
No of main entry and exit 02 entry and exit
NOTE :
THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE

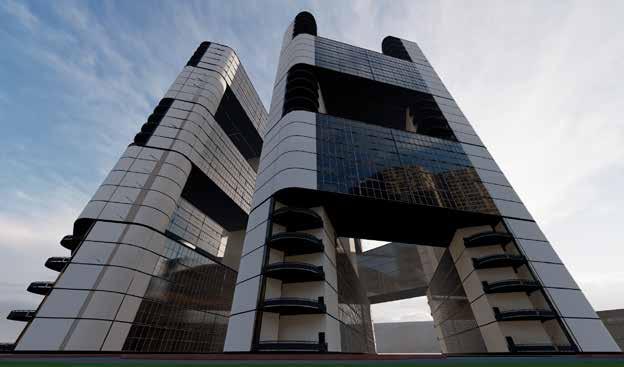

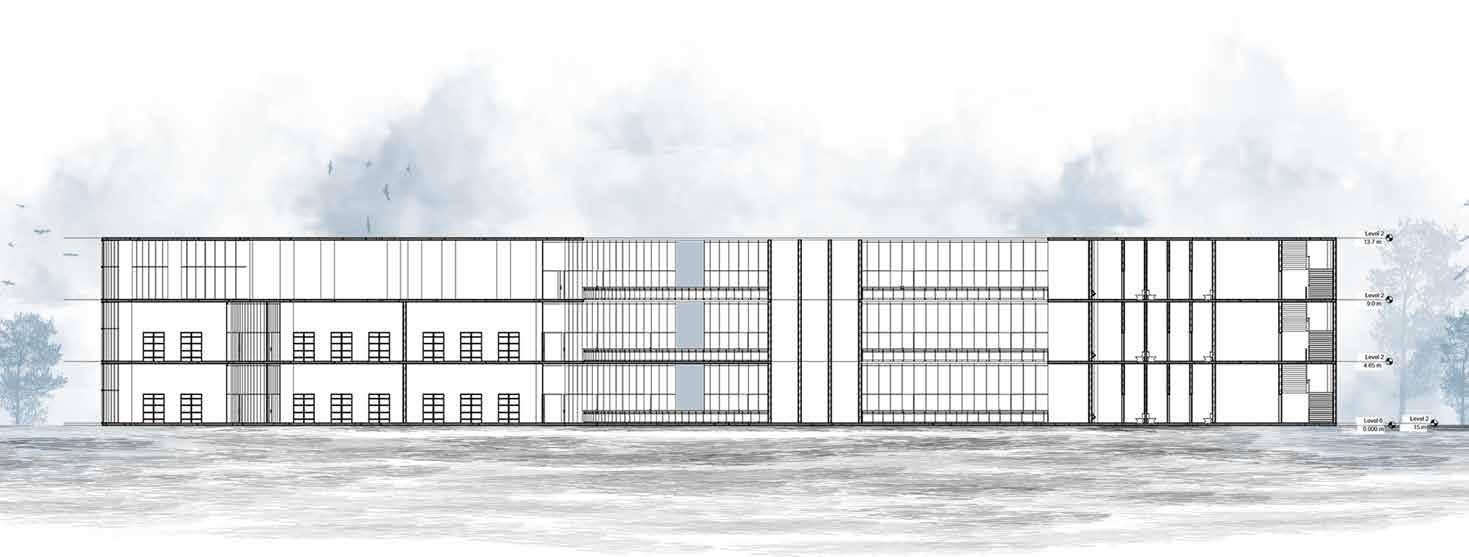

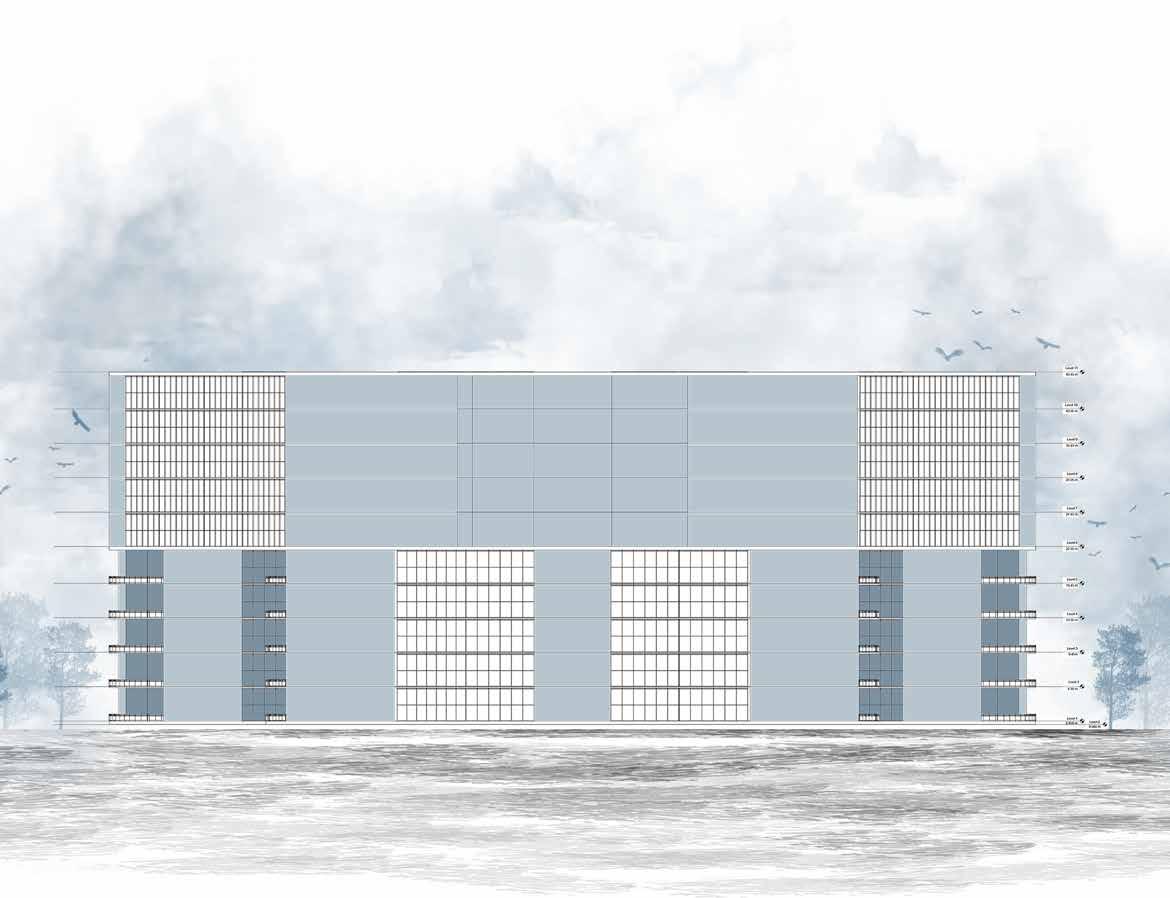

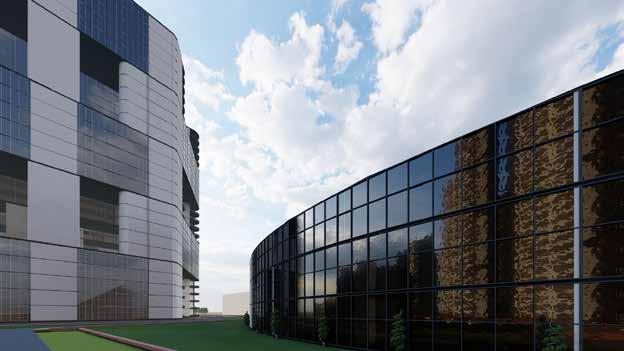

FRONT ELEVATION

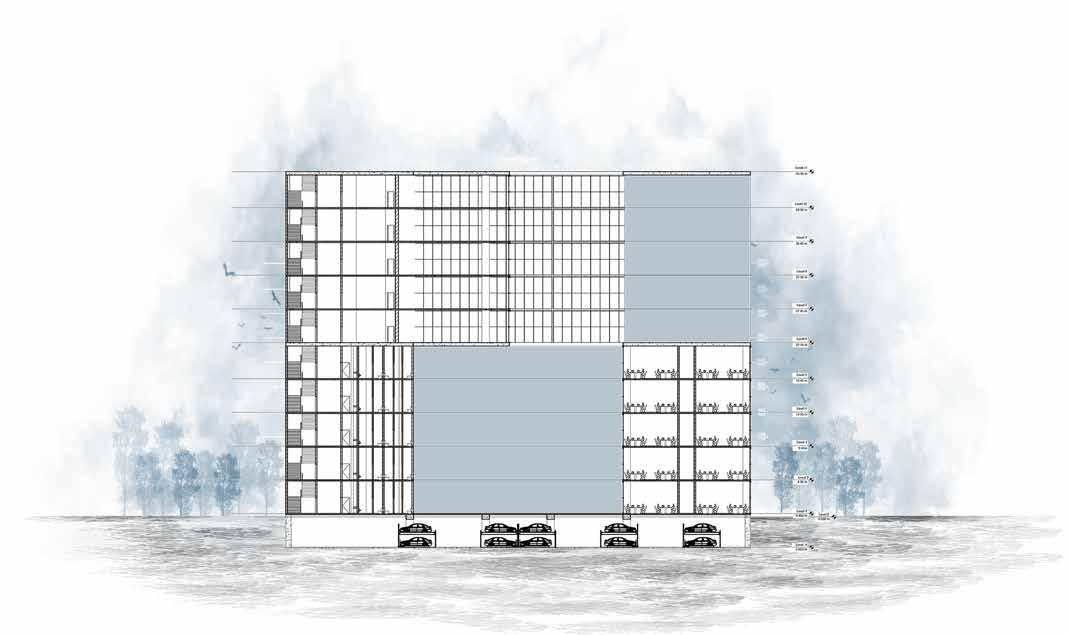

FULL BUILDING SECTION A A’ SECTION B B’

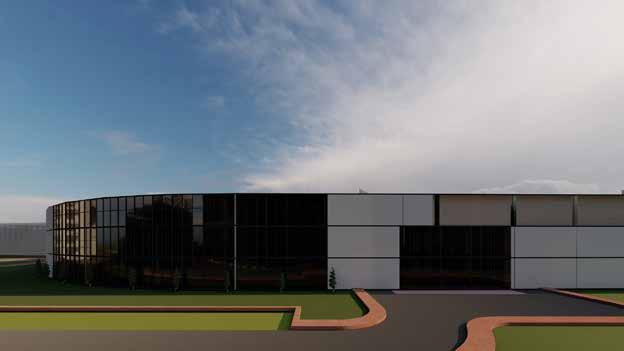

COMMERCIAL GROUND FLOOR PLAN
FLOOR AREA DETAILS
Total area of ground floor 15,120 SQ.M
No of shops in single floor 34 Shops
Minimum area of a shop 173 SQ.M
Maximum area of a shop : 410 SQ.M
Total no of floors : 3 Floors
No of cafe and food court : 4
Total area of the building ( G+3 ) : 41,728 SQ.M
Total height of the building : 13.7 M
No of entry and exit : 2 Entry and 2 Exit
Emergency stair : 8
Emergency lift : 8
Passenger lift : 8
Escalator : 2
NOTE :
THE SCHEMATIC DRAWING WAS DONE BY USING THE SOFTWARE REVIT ARCHITECTURE .
INTERNSHIP SELECTED WORKS
• PROPOSED RESIDENTIAL INTERIOR FOR MR.SIVA KUMAR AT MADIPAKKAM, CHENNAI
• PROPOSED COMMERCIAL INTERIOR FOR MR.SKP SRINIVASAN AT KANCHIPURAM, CHENNAI

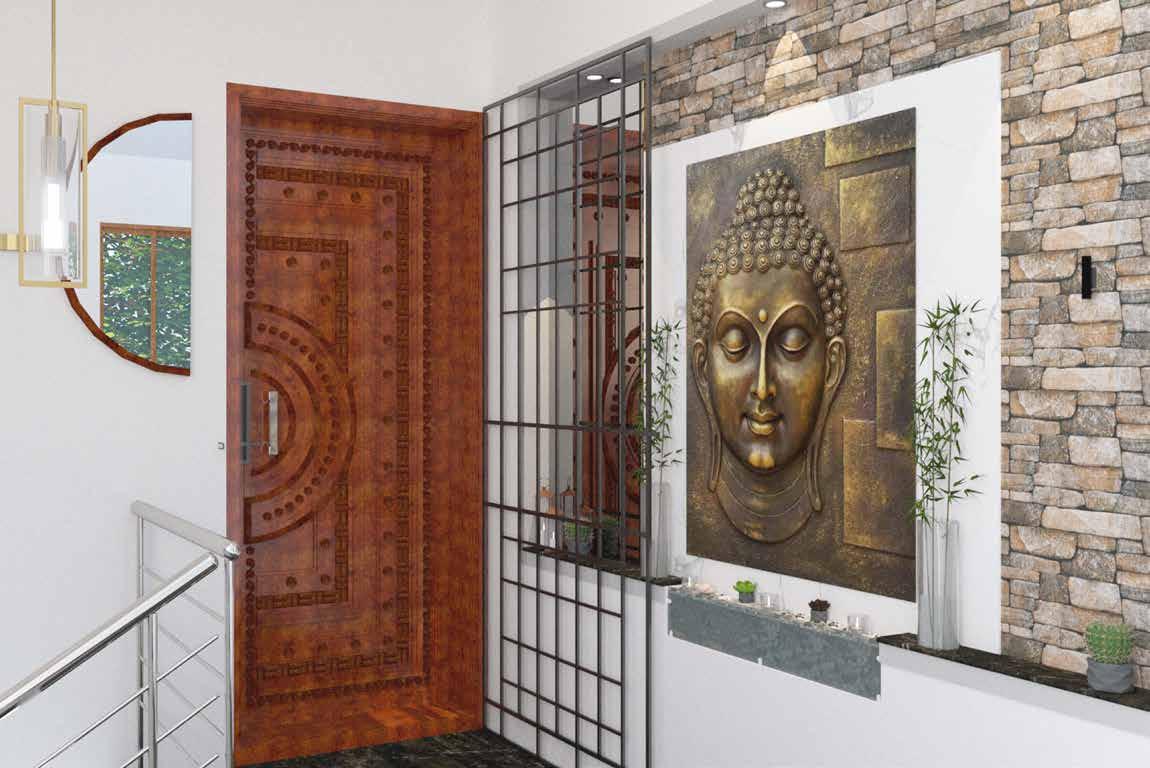

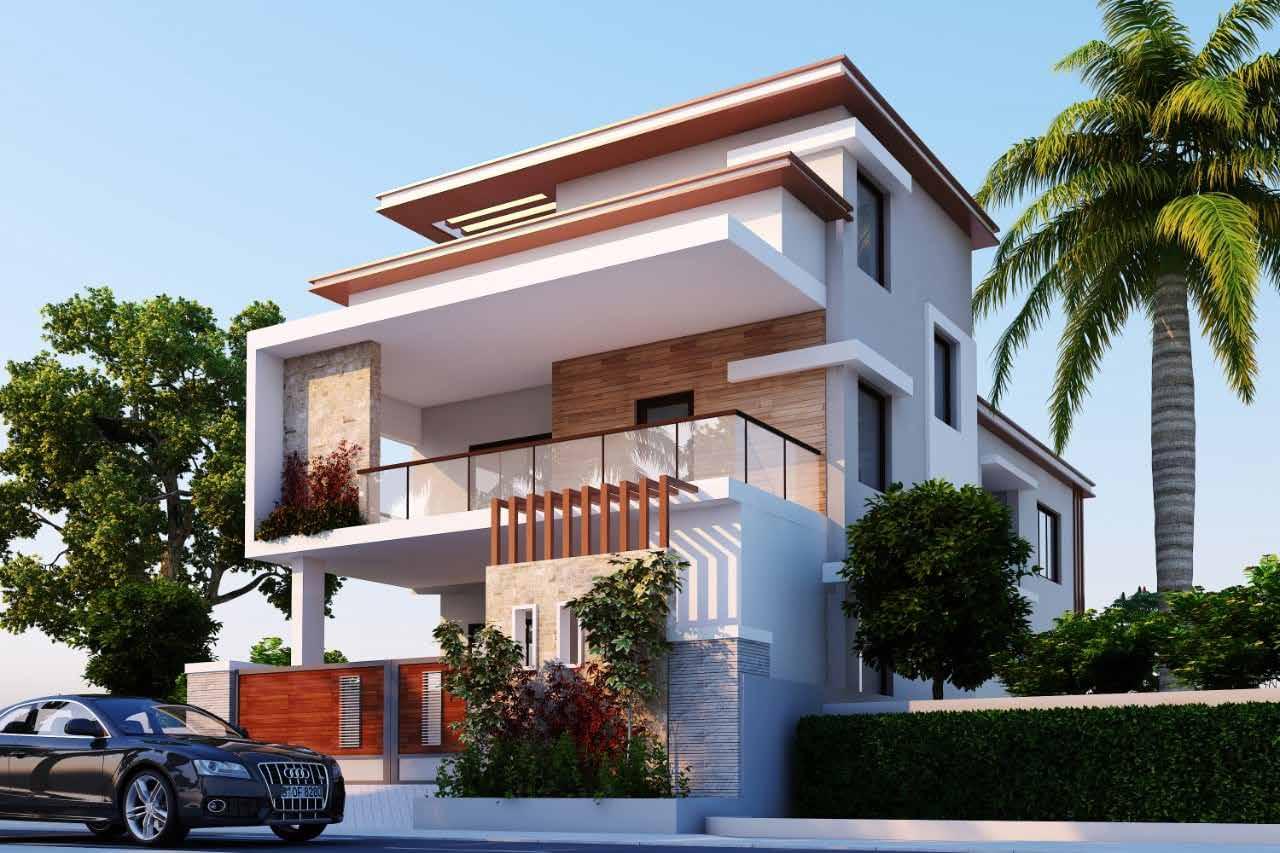

PROPOSED RESIDENTIAL INTERIOR FOR MR.SIVA KUMAR
GOOD FOR CONSTRUCTION
INTERIOR DRAWINGS, DESIGNED INTERIOR SPACES AND RENDERS
During my architecture internship, my primary responsibilities included designing spaces and creating technical drawings. Additionally, I was involved in various tasks such as creating 3D models, renders, and presentations. These activities allowed me to gain hands-on experience and contribute to my development as an architect.
SB, 7 ONE WAY SWITCHES & 25A DP SWITCH WITH INDICATOR FOR GEYSER 8M ELECTRICAL LEGEND CEILING LIGHT LF XX 25AMPS SOCKET FOR GEYSER AT 9'0"'HT from SFL LF_WALL LIGHT AT 9'0" HT from SFL MIRROR LIGHT at 7'0" HT from SFL 2'-7 1 2 2'-6" 3'-9" 4 1 2 9" 8'-10 1 2 9" 7'-6" 4 1 2 FT xx C D 3 C D 3 WC WB HF xx BT WM CL_+36'7" C1 GEY 1' 3'-71 2 " 3'-71 2 3'-71 2 1' 3'-9" 5'-1 1 2 3'-9" 3'-9" G 8M TOILET-04 12'101 2 x 7'6" SHOWER 6'6" x 3'6" 1'-10" r o W i h o r a g e 13'-31 2 41 2 " 9" 12'-101 2 3'-101 2 9" 1' 8' 4'-3" xx 2' 6" FT MI xx V3 D5 Glass CUBICAL to VENDOR details 41 2 6' 41 2 9" 6'-6" 13'-31 2 3' 3'-41 2 " 6" 3'-7 1 2 6'-6" 5'-4 1 2 1'-9" 1' 3'-6" 9" 6'-6" 6" xx ST 2" 1" Masonry Work on Hold Till Finalisation of Interior Design TR xx 2'-7 1 2 2'-6" 3'-9" 4 1 2 9" 8'-10 1 2 9" 7'-6" 4 1 2 FT xx C D 3 3 WC WB HF xx BT WM D A B C GEY F15 C1 W8 FFL SFL +25'11 2 +25'0" 13'-31 2 41 2 " 9" 12'-101 2 3'-101 2 9" 1' 8' 4'-3" xx 2' 6" FT MI xx V3 D5 Glass CUBICAL to VENDOR details 41 2 " 6' 41 2 9" 6'-6" 13'-31 2 3' 3'-41 2 6" 3'-7 1 2 6'-6" 5'-4 1 2 1'-9" 1' 3'-6" 9" 6'-6" 6" 2' SP 2' TOILET-04 12'101 2 X 7'6" xx ST 2" 1" 2' Masonry Work on Hold Till Finalisation of Interior Design TR xx 2'6"X3'0" 3'0''X7'0" DOOR AND VENTILATOR VENTILATOR1 - 1 DOOR D5 BRAND WB -SANITARYWARE WC-CODE C1 CEMENT PAINT SIZE F15 W8 TILE STARTING POINT SP CERAMIC TILE QNT WASH BASIN WATER CLOSET FINISHES WALL MIXER 1 WMCERAMIC TILE GEYSERSH SHOWER HEAD 1 2'0''X2'0''GEY XX XX ELETRICAL FITTINGS WALL FLOOR CEILINGCERAMIC HIGH LIGHTER TILE 1'0''X2'0'' -CLIENT SCOPE/PROVISION ONLY BATHROOM FIXTURES 1 BATHROOM FITTINGS MIRROR MI - - 1 2'-6"x2'-6" V3 --FT FLOOR TRAP-HF HEALTH FAUCET 1-2 244 18 32 JOHNSON JOHNSON JOHNSON AMBROSSIA LIGHT 1'0''X2'0'' AMBROSSIA HL CIMMERIAN GRIS BT BATH TUB JAQUAR KUS-WHT-35901 JAQUAR SLS-WHT-6751P180PPZ JAQUAR JBT-WHT-KUBIX180X 2'0''X1'5''X0'8" 5'11''X2'7''X1'7" JAQUAR -15L SKU ELM-WHT-V015 EXHAUST FAN Sweep (200mmX200mm) ORIENT ELECTRIC VENTILATOR DX EF XX 1 TR TOWEL ROD 2'0" Length 1 DG_RES_157 Annam DRAWING_SET-02 Drawing Title Job Title Project No. Drawn By Dewakar CONSTRUCTION Date R0 Drawing No. Checked By Scale Tamil eniyan Approved By Sheet No. Rev 12-10-2021 PROPOSED RESIDENCE FOR MR.SIVAKUMAR AT MADIPAKKAM, CHENNAI 01 PLAN 02 REFLECTED CEILING PLAN 1 OF 2 CD-5007 TOILET-04 DETAILS_ SECOND FLOOR 1":3' SP D C 1'-4" 1'-6" 1'-7" WB HF xx WC BT 2'-6" GEY SFL_ +25'-0" FFL_ +25'-1 " SFL_ +37'-0" MS.L Angle (50mm x 50mm x 5mm) if Extra Support Required MI xx Black Garnite (18mm Thk) Bevelled Top Corner (3mm) 1'-3" 9" 3' 9" 2'-6" 2' 2'-3" 5'-3" 1' 9' 2M 3'-101 2 8' 1'-3" 1'-3" V3 3' 3' 2' 1' 2' W8 W8 HT Black Garnite (18mm Thk) 12' 8" 3 1'-7" 2'-6" 6'-8" BT WM SH 4 3'-11 2 9" SFL_ +25'-0" FFL_ +25'-11 2 SFL_ +37'-0" V3 6" 5' 9' xx xx ST 1' 4' xx SP 1' 2' 12' 2M W8 EF xx LF 3 3'-9" 3'-9" 9' xx LF WC WB 1'-4" 4 7' SFL_ +25'-0" FFL_ +25'-11 2 SFL_ +37'-0" MI xx 101 2 2'-6" 2'-6" 1' 3' 2'-11 2 5'-31 2 SP 2' 1' 12' W8 xx LF D C 3'-2" 9' SFL_ +25'-0" FFL_ +25'-11 2 SFL_ +37'-0" D5 W8 W8 3'-2" xx LF 3'-3" 3'-3" Glass CUBICAL to VENDOR details SH xx SP 2' 1' 12' V3 4'-6" TR xx 1'-8" 1'-8" 2' W8 SFL LEGEND CL FINISHED FLOOR LEVEL FFL CEILING SOFFIT LEVEL STRUCTURAL FLOOR LEVEL xx CLIENT SCOPE AS PER CLIENT APPROVAL DG_RES_157 Annam DRAWING_SET-02 Drawing Title Job Title Project No. Drawn By Dewakar CONSTRUCTION Date R0 Drawing No. Checked By Scale Tamil eniyan Approved By Sheet No. Rev 12-10-2021 PROPOSED RESIDENCE FOR MR.SIVAKUMAR AT MADIPAKKAM, CHENNAI 03 ELEVATION - A 04 ELEVATION - C 02 OF 02 CD-5007 03 ELEVATION - A 04 ELEVATION - C 1":3' NOTE_ 01.All Tiles should be Approved by Client before Procurement. 02. Slope Ratio of 1:60 Should be maintained. 03.PVC Corner tile beading should be provided where ever required. 04. Water Closet should be fixed based on the Slope Ratio. Height of WC should be from the Finished Floor Level. 05. Floor Trap Should Place 9" or 6" from Wall to Center based on the Beam Layout. 06.Counter Storage should be taken care in Interior Scope. 07.Shower Cubical to vendor Details. 08.Toilet-04 Should Executed only after getting approved from the Client TOILET-04 DETAILS_ SECOND FLOOR
Note_ 01.4 Nos of 6Inch Butt Hinge Should Be Placed In 1/4
Door Should be Melamine Coat Polished
03.M.S.Rods to be Painted Black (Enamel Matt Finish) or As Per Clients Requirement.
04.Locking System should be approved by the silent before execution. Provision has to be made in electrical layout if going for Finger Print or Sensor
05.All the Edges should be Beveled by1mm to avoid sharp
3'-6"(ST.Clear) 21 2 21 2 LANDING 3'-2" 2" 2" 3'-1" 212"x10" Teak Wood Threshold 212"x10" Teak Wood Door Frame 13 4 Thk Teak Wood Shutter FOYER MD A A SFL_ ±0'0" FFL_ +0'2" 1 " Thk Teak Wood Shutter 212"x10" Teak Wood Door Frame 2 "x10" Teak Wood Threshold 8' SFL_ ±0'0" FFL_ +0'2" 22"x10" Teak Wood Door Frame 2 "x10" Teak Wood Threshold 8' 1 " Thk Teak Wood Shutter 1"x9" SS Handle As Per Clients Requirement
2 "x10" Teak Wood Threshold 2 "x10" Teak Wood Door Frame 13 4 Thk Teak Wood Shutter 3'-6"(ST.Clear) 21 2 21 2 FOYER LANDING MD 3'-2" 2" 2" 3'-1" A A' Lock As Per Client requirement 1"x9" SS Handle As Per Clients Requirement DT-A A SFL_ ±0'0" FFL_ +0'2" MS Box Section with Welded Joints (20x20mm) MS Box Section with Welded Joints (10x10mm) MS Box Section with Welded Joints (20x20mm) MS Latch and Lock with Welded Joints /as Per Clients Requirement 1" CD 1001 1 OF 1 DG_RES_157 Annam DRAWING_ SET-02 Drawing Title Job Title Project No. Drawn By Dewakar CONSTRUCTION Date R1 Drawing No. Checked By Scale Tamil eniyan Approved By Sheet No. Rev 03-11-2021 PROPOSED RESIDENCE FOR MR.SIVAKUMAR AT MADIPAKKAM, CHENNAI DOOR & WINDOWDETAILS (MAIN DOOR) 1"-3'6" 03 01 PLAN at 2'6" Lvl ELEVATION- A 09 SECTION- AA 04 BLOWN UP PLAN AT 2'5" 05 02 PLAN at 4'3" Lvl 9.8 63.5 19.1 31.2 9.8 231.3 12.7 12.7 38.1 12.7 12.7 25.4 25.4 19.1 25.4 19.1 63.5 12.7 12.7 12.7 12.7 50.8 25.4 12.7 19.1 31.6 63.5 19.1 9.6 9.6 304.8 12.7 19.1 63.5 30.3 89.8 9.6 19.1 63.5 12.7 12.7 38.1 12.7 12.7 25.4 25.4 12.7 19.1 25.4 63.5 19.1 9.6 31.6 9.6 139.7 139.7 139.7 139.7 139.7 139.7 139.7 139.7 139.7 139.7 139.7 182.6 182.6 139.7 139.7 139.7 139.7 139.7 139.7 139.7 155.5 139.7 155.4 139.7 65.0 50.8 19.0 50.8 25.4 19.0 12.7 50.8 25.4 25.4 50.8 50.8 762.0 22.4 863.6 50.8 50.8 50.8 50.8 508.0 28.7 63.5 63.5 50.8 50.8 63.5 115.6 20.7 26.1 89.6 17.0 24.3 38.1 12.7 27.0 352.0 25.6 12.7 12.7 19.0 19.0 25.4 12.7 12.7 12.7 19.0 25.4 50.8 18.9 50.9 65.0 63.5 63.5 50.8 50.8 63.5 115.6 20.7 26.1 89.6 17.0 24.3 38.1 12.7 27.0 25.6 12.7 12.7 19.0 19.0 25.4 12.7 12.7 12.7 19.0 25.4 50.8 18.9 50.9 65.0 65.0 50.8 19.0 50.8 25.4 19.0 12.7 65.0 50.8 19.0 50.8 65.0 50.8 19.0 50.8 25.4 19.0 12.7 08 ELEVATION-A BLOWN UP DETAILS SCALE _ 1:10 SCALE _ 1:10 SCALE _ 1:10 SCALE _ 1:36 SCALE _ 1:36 SCALE _ 1:36 SCALE _ 1:36
A
Spacing. 02.Main
Finish.
MD MAIN DOOR 3'6"X8'0" LEGENDS DETAIL - A 07 SCALE _ 1:10 BLOWN UP PLAN AT 4'21 2 " 4" 4" 6" 1' 6" 4" 4" 4" 4" 31 2 3" 31 2 3" 4" 4" 4" 1'-4 1 2 4" 4" 6" 1' 6" 4" GRILL ELEVATION- A 06 SCALE _ 1:36 MS Plate with Welded Joints (5mm ThK) MS Box Section with Welded Joints (20x20mm) 1" 4 1 2 4" 1 2 " 1" 4" 1" 2" 12.7 152.4 25.4 114.3 1066.8 52.5 52.5 19.1 961.8 38.1 124.0 124.0 10668.0 152.4 1367.0 1367.0 3'-6" 2" 2" 3" 52.5 52.5
Lock.
edges.

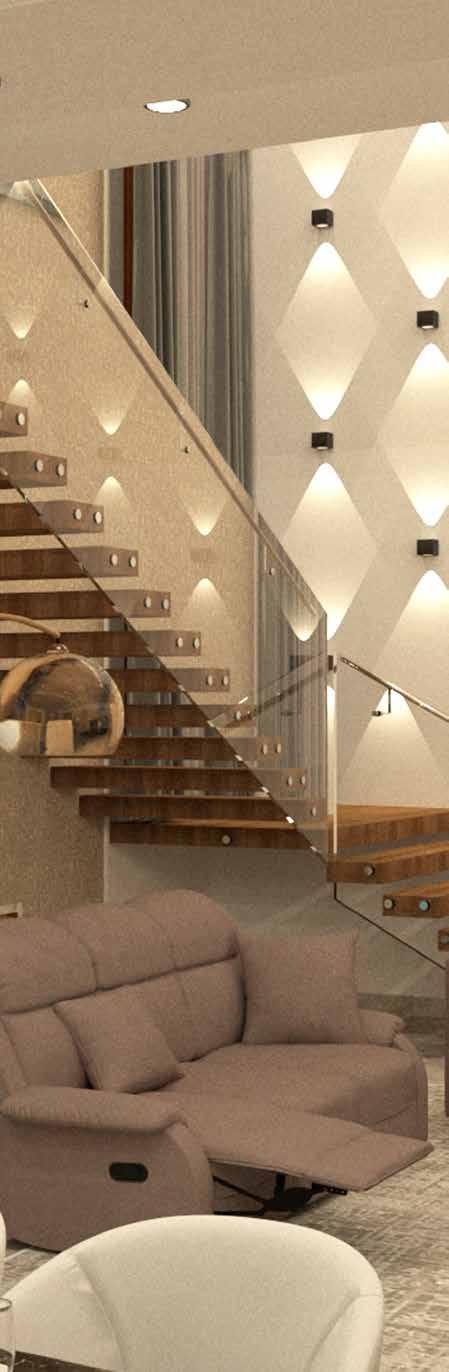

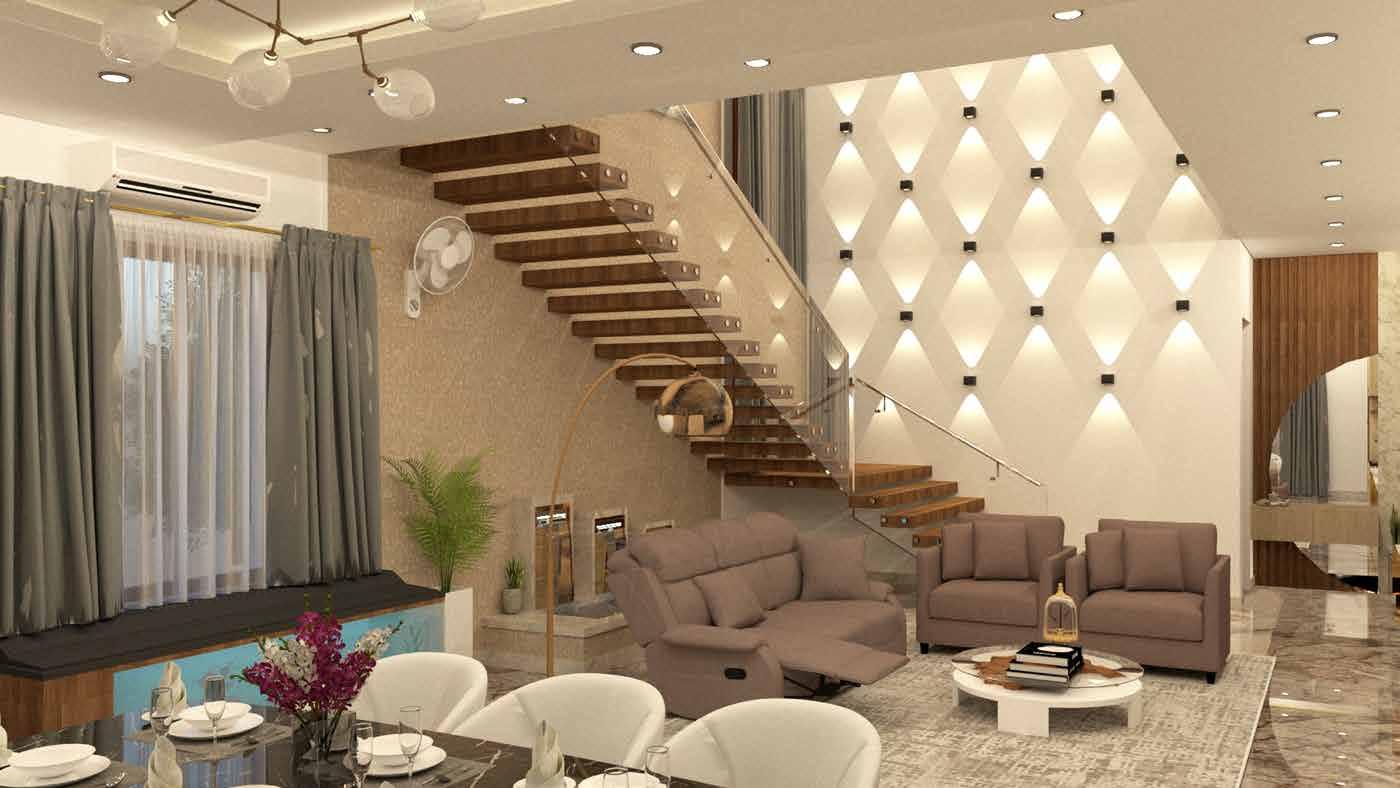

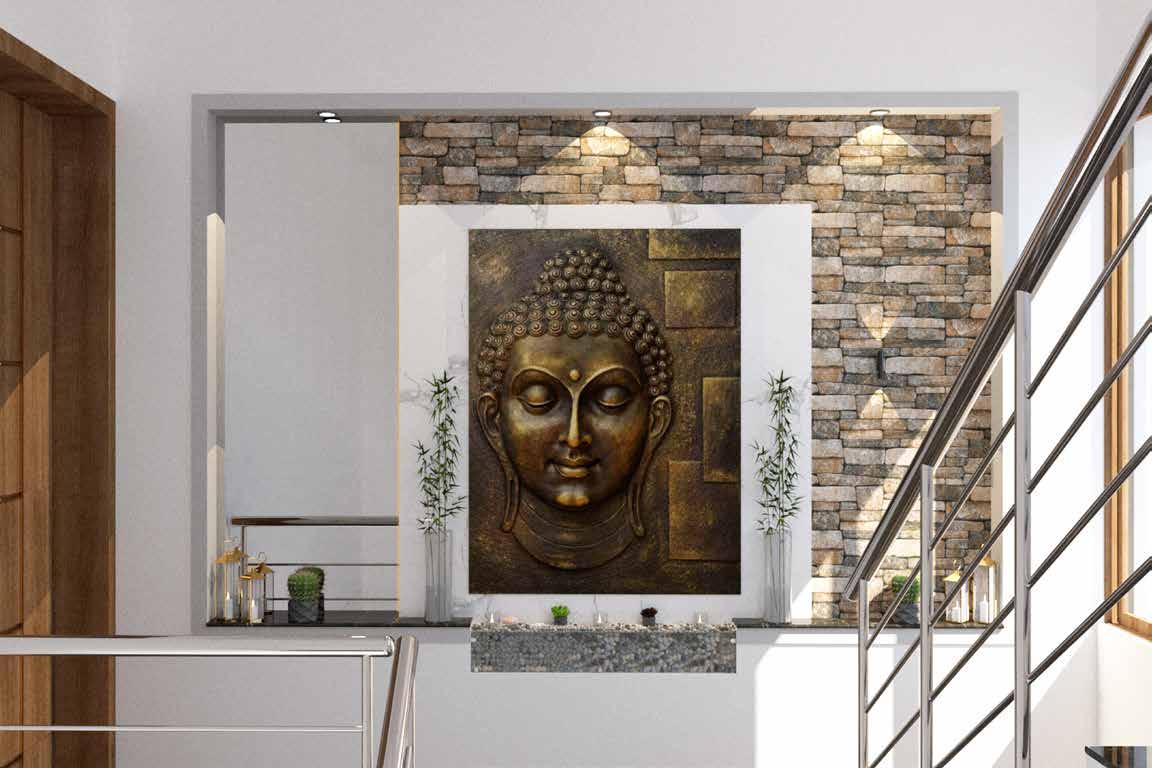

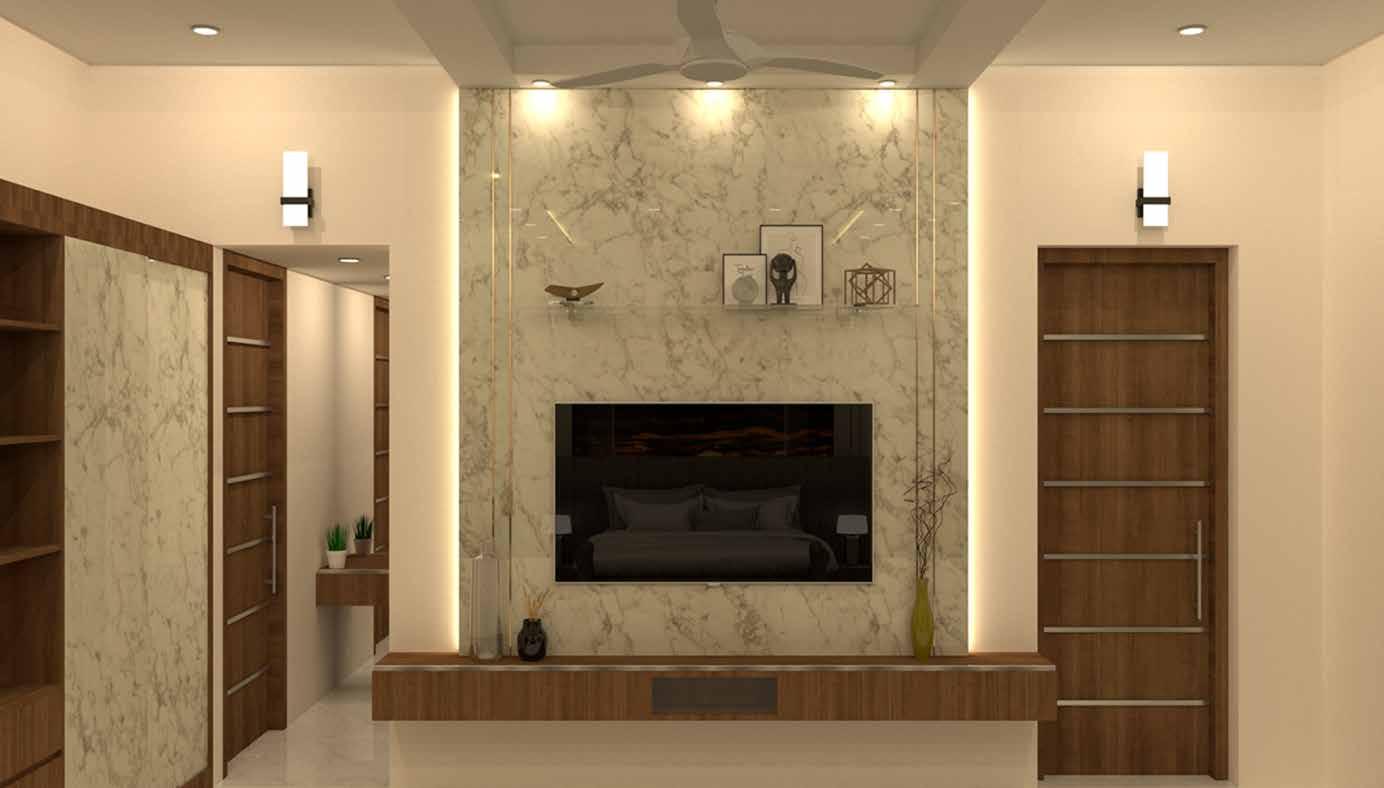

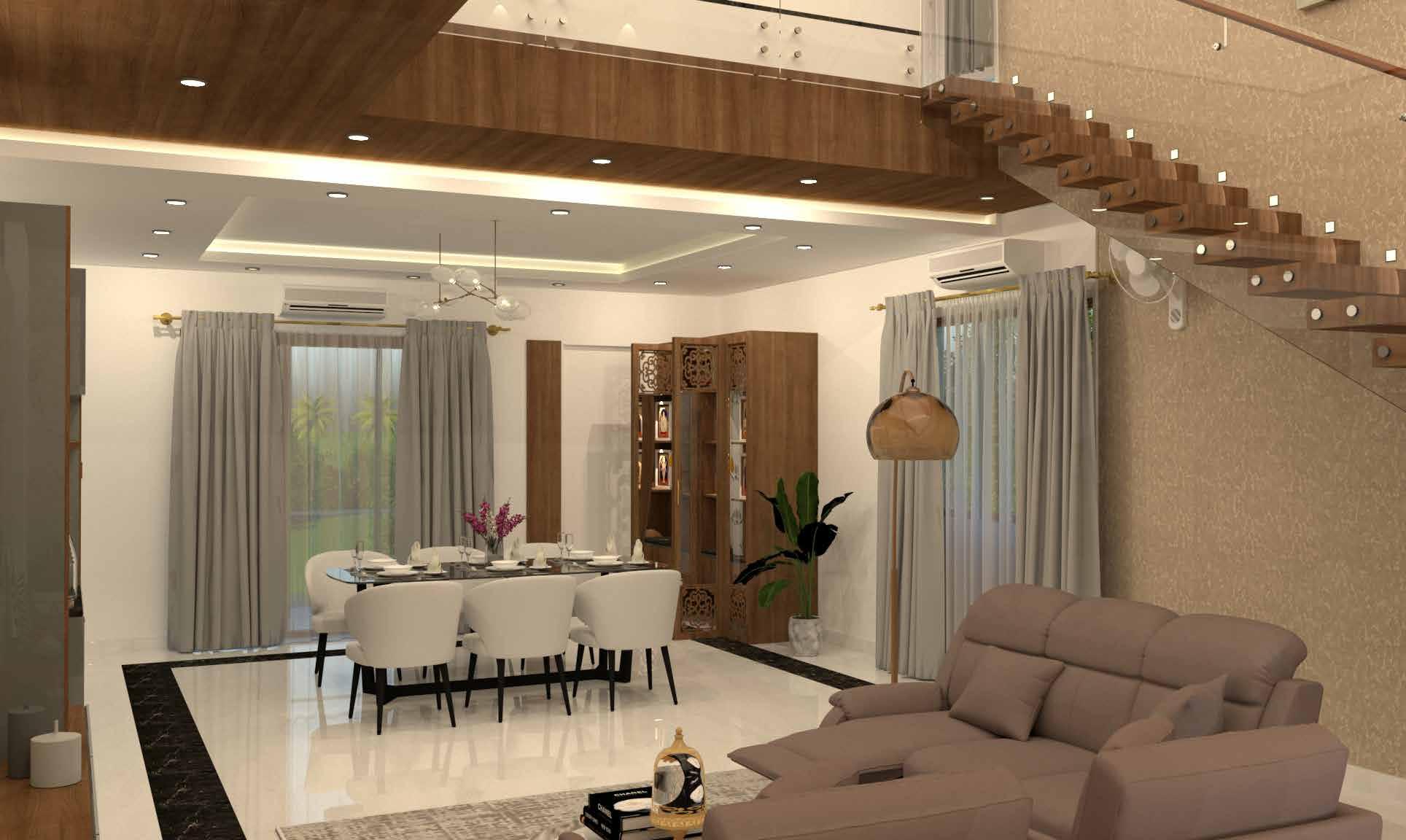

LIVING AND BEDROOM SPACES

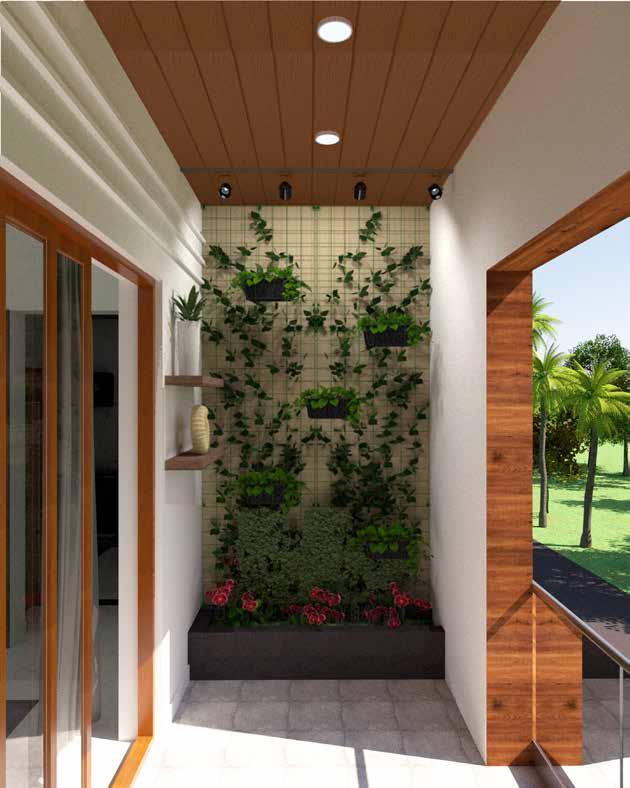

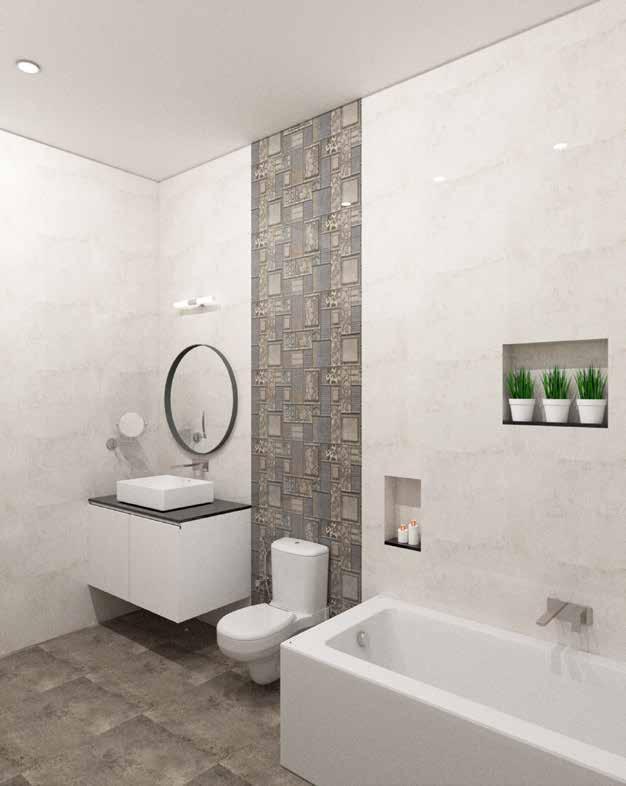

BALCONY AND WASH ROOM AREA

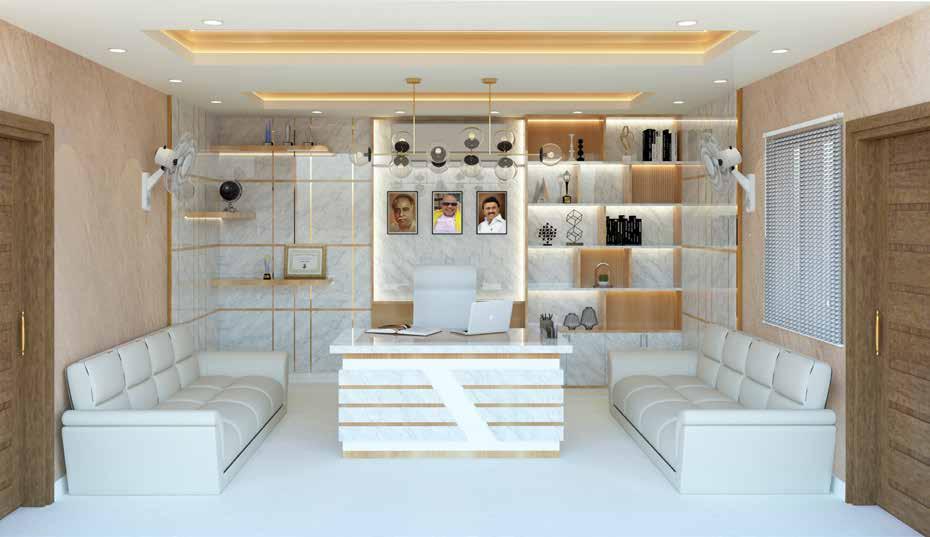

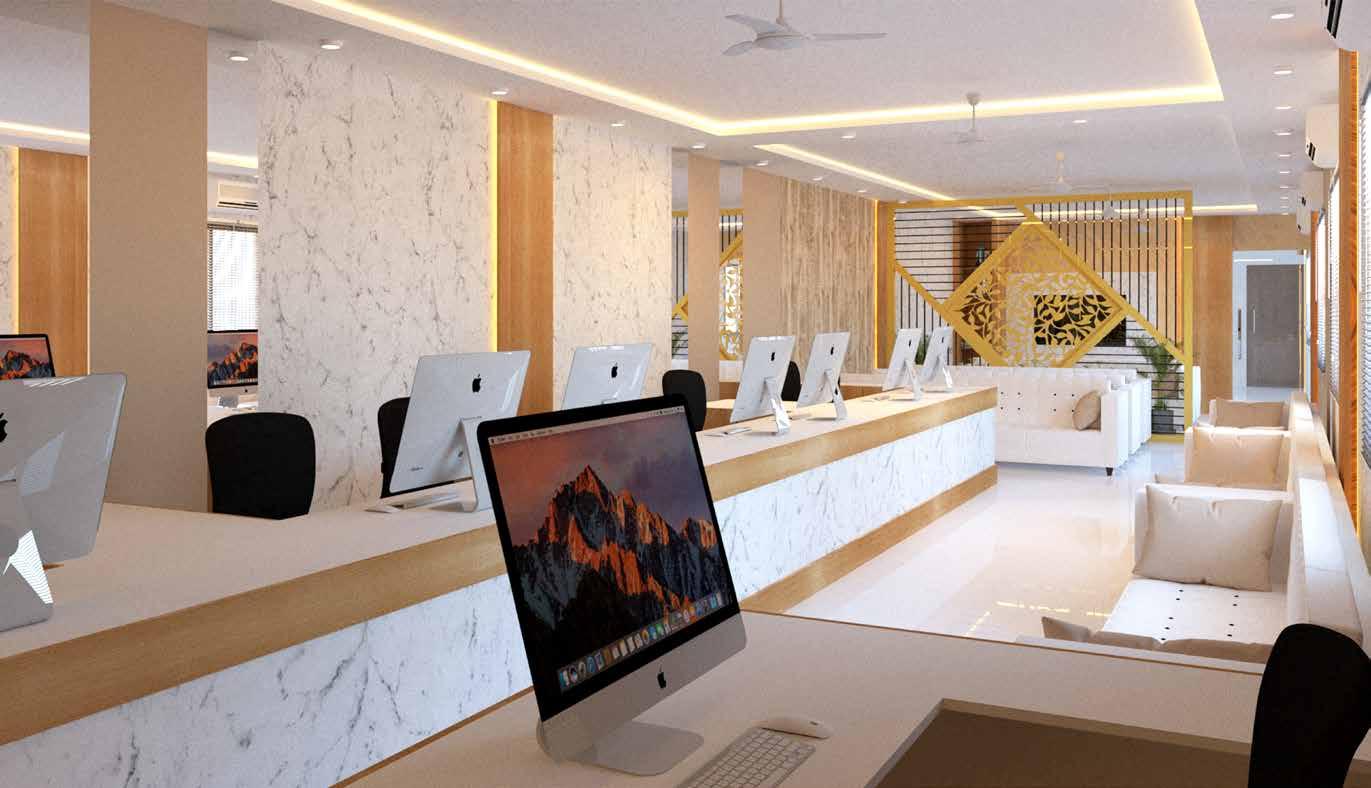

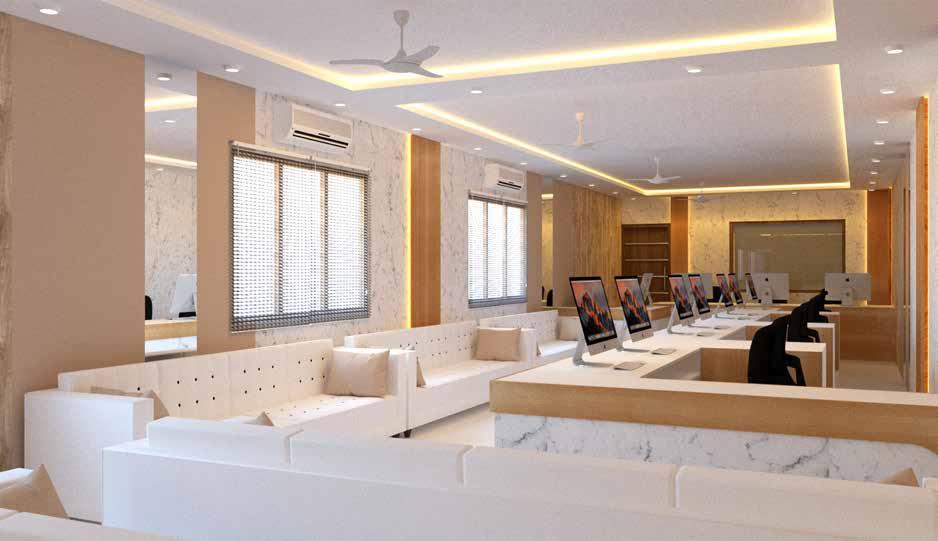

PROPOSED COMMERCIAL INTERIOR FOR MR.SKP SRINIVASAN
DESIGNED INTERIOR SPACES AND RENDERS

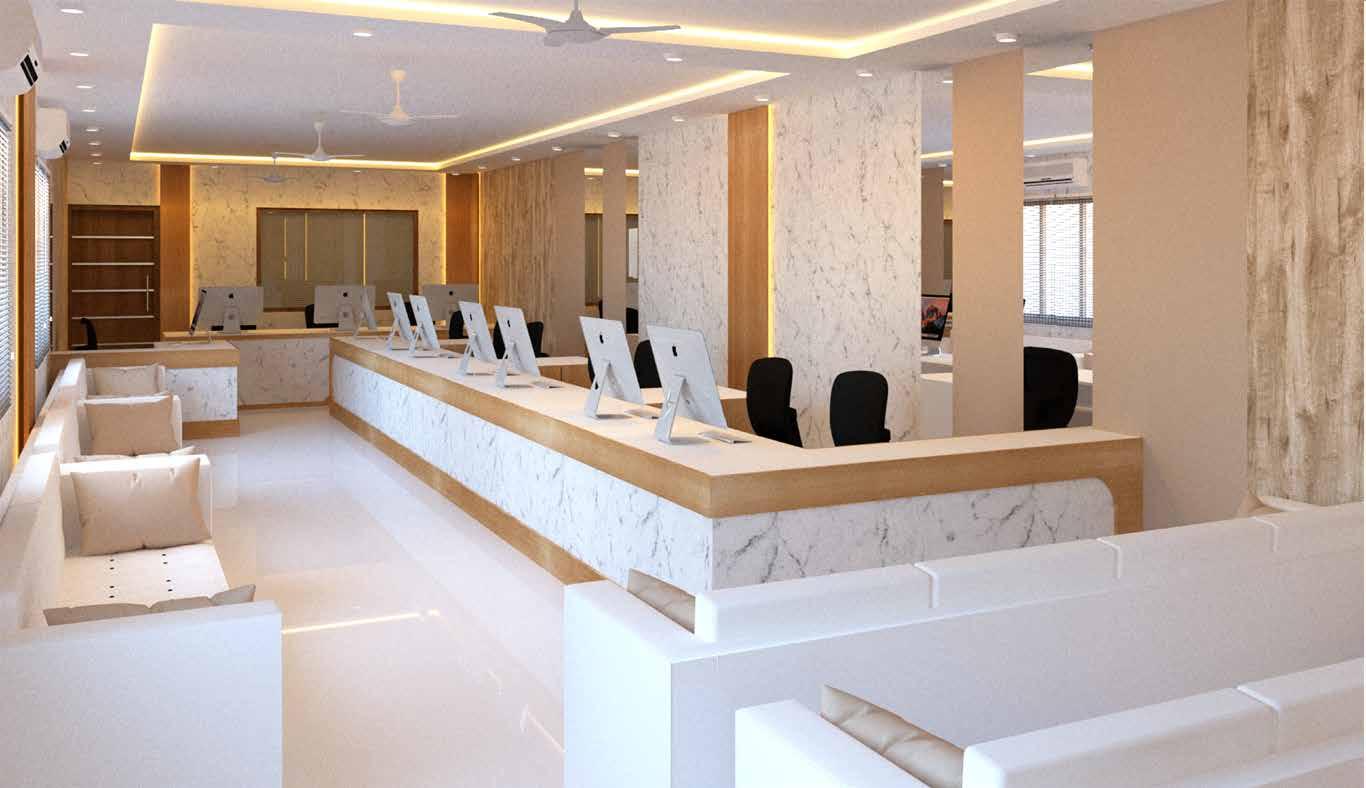

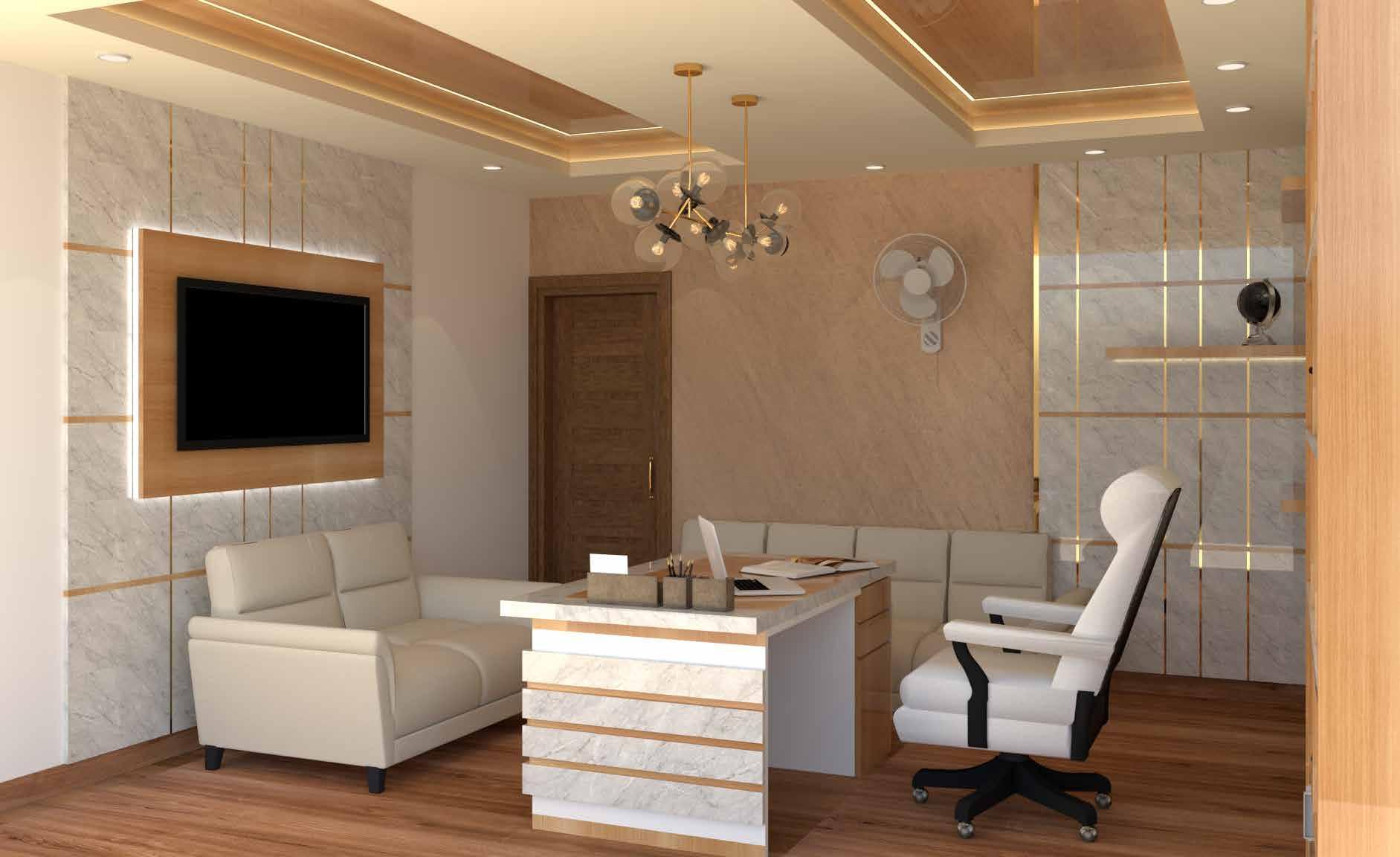

The project involves designing a small financial office space that will include working cabins, a reception area, waiting areas, and separate cabins for the managing director and secretary. The client is a politician and desires a luxurious look for the space.
Based on the client’s requirement, the design should prioritize creating a sophisticated and high-end ambiance throughout the office. Consider incorporating elements such as high-quality materials, elegant furniture, stylish lighting fixtures, and tasteful decor. The layout should be optimized for functionality, ensuring optimal use of space while maintaining a luxurious aesthetic.
WORKING CABIN AND WAITING AREAS
MANAGING DIRECTOR’S CABIN
PRIMARY SCHOOL
ACADEMIC DESIGN
The project involves designing a primary school that accommodates students from KG to Grade Five. The school should be well-designed and include all necessary facilities such as play areas, labs, art studios, and more. The design should focus on functional and proportional aspects.
To ensure functionality, the layout should be carefully planned to optimize traffic flow and accessibility. Consider factors like class sizes, corridors, and common areas to create a smooth and efficient school environment.
In terms of proportion, it is important to maintain a balanced and harmonious aesthetic throughout the two-floor structure. This includes proper scaling of spaces, careful consideration of room sizes, and maintaining visual appeal in terms of proportions and symmetry.
ACADEMIC BLOCK 1$ 2 GROUND FLOOR PLAN
SITE DETAILS
SITE LOCATION : COIMBATORE.
TOTAL SITE AREA : 2.8 ACRES
TOTAL BUILT-UP AREA : 3289 SQ.M
PLOT COVERAGE : 28.59 %
CONCEPT EVOLUTION
THE CONCEPT GOLDEN RECTANGLE IS USED TO EVOLVE THE DESIGN . THE EACH AND EVERY SPACES IN THE SCHOOL WERE SOLVED BY THE PRINCIPLE OF GOLDEN RECTANGLE.
ACADEMIC BLOCK 1$ 2 FIRST FLOOR PLAN
FRONT ELEVATION

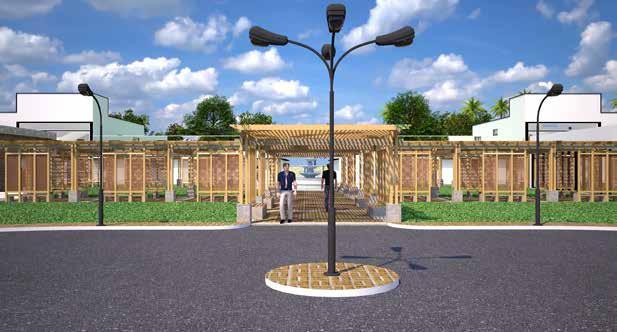

VIEWS

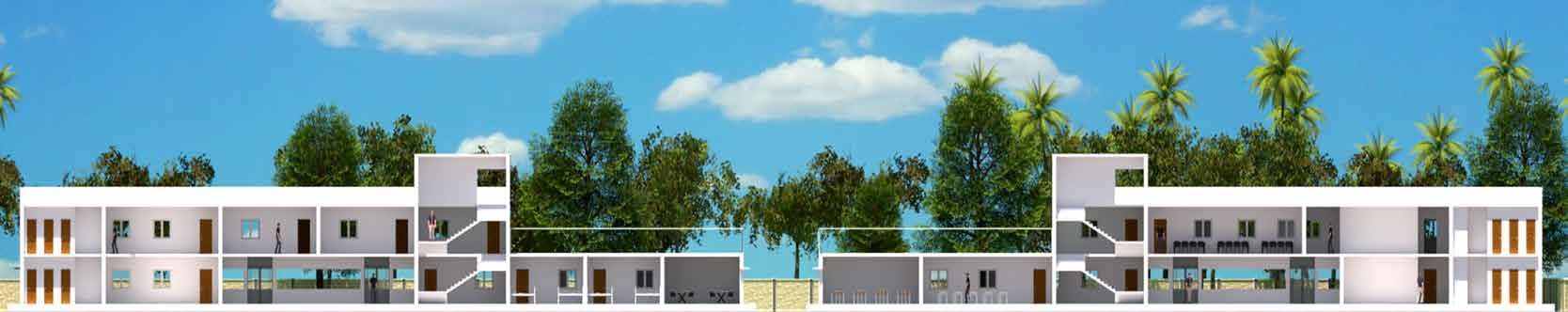

SECTION AA’
THANK YOU tamileniyan51299@gmail.com +971 543986956
