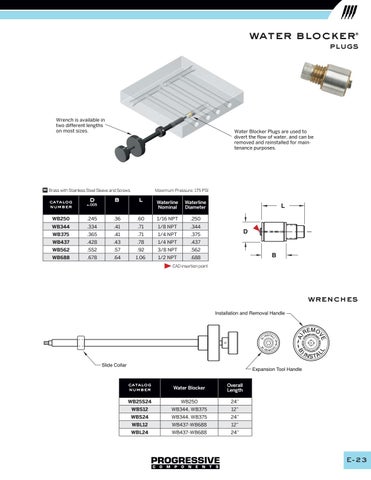

water blocker
®
plugs
Wrench is available in two different lengths on most sizes.
Water Blocker Plugs are used to divert the flow of water, and can be removed and reinstalled for maintenance purposes.
m Brass with Stainless Steel Sleeve and Screws
Maximum Pressure: 175 PSI
catalog number
±.005
d
b
l
WB250
.245
.36
.60
WB344
.334
.41
WB375
.365
.41
Waterline Nominal
Waterline Diameter
1/16 NPT
.250
.71
1/8 NPT
.344
.71
1/4 NPT
.375
WB437
.428
.43
.78
1/4 NPT
.437
WB562
.552
.57
.92
3/8 NPT
.562
WB688
.678
.64
1.06
1/2 NPT
.688
L
D
B
CAD insertion point
wrenches
IVE COMPO NE
®
6 ,0 NT TE
ER
C WREN H U.S. PA
Slide Collar
ATER BLO CK S•W
76,797 • P
ESS GR
NT
RO
Installation and Removal Handle
Expansion Tool Handle catalog number
Water Blocker
Overall Length
WB25S24
WB250
24”
WBS12
WB344, WB375
12”
WBS24
WB344, WB375
24”
WBL12
WB437-WB688
12”
WBL24
WB437-WB688
24”
E-23
