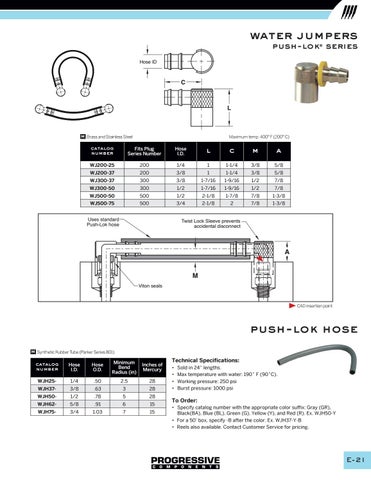

water jumpers
push-lok® series
Hose ID
C
L
m Brass and Stainless Steel
Maximum temp: 400° F (200° C)
catalog number
Fits Plug Series Number
WJ200-25 WJ200-37
Hose I.D.
l
c
m
a
200
1/4
1
1-1/4
3/8
5/8
200
3/8
1
1-1/4
3/8
5/8
WJ300-37
300
3/8
1-7/16
1-9/16
1/2
7/8
WJ300-50
300
1/2
1-7/16
1-9/16
1/2
7/8
WJ500-50
500
1/2
2-1/8
1-7/8
7/8
1-3/8
WJ500-75
500
3/4
2-1/8
2
7/8
1-3/8
Uses standard Push-Lok hose
Twist Lock Sleeve prevents accidental disconnect
A M Viton seals
CAD insertion point
push-lok hose m Synthetic Rubber Tube (Parker Series 801) catalog number
Hose I.D.
Hose O.D.
Minimum Bend Radius (in)
Inches of Mercury
WJH25-
1/4
.50
2.5
28
WJH37-
3/8
.63
3
28
WJH50-
1/2
.78
5
28
WJH62-
5/8
.91
6
15
WJH75-
3/4
1.03
7
15
Technical Specifications: • • • •
Sold in 24” lengths. Max temperature with water: 190˚ F (90˚C). Working pressure: 250 psi Burst pressure: 1000 psi
To Order: • Specify catalog number with the appropriate color suffix: Gray (GR), Black(BA), Blue (BL), Green (G), Yellow (Y), and Red (R). Ex. WJH50-Y • For a 50’ box, specify -B after the color. Ex. WJH37-Y-B • Reels also available. Contact Customer Service for pricing.
E-21
