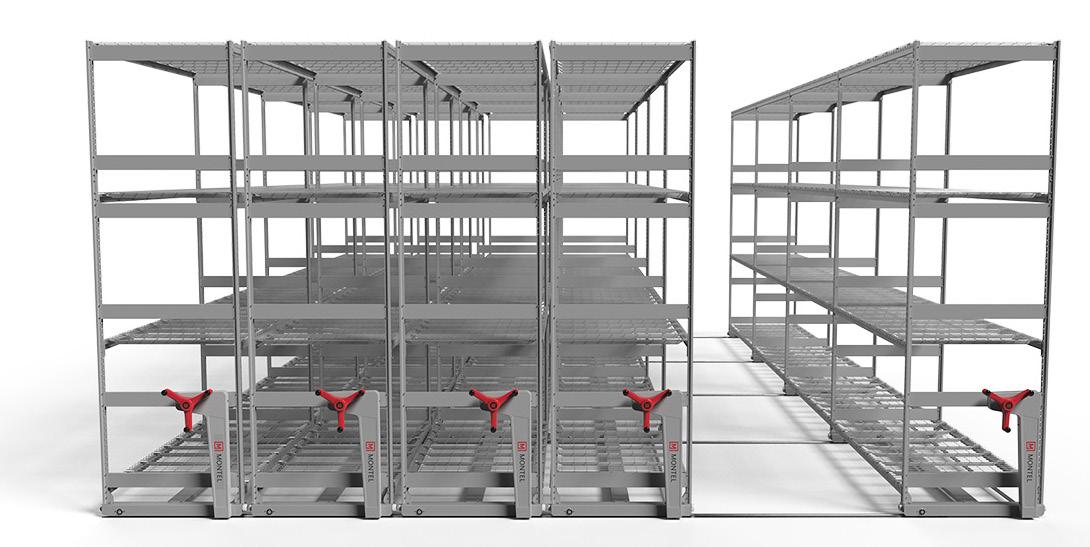

Bulk&Roll™
COMPATIBLE RACKING: Light-Duty Bolted BULKRAK™, 4D Wide Span™
DIMENSIONS & LOAD CAPACITY
Mobile Trolley Length Range:
Mobile Trolley Height:
Rail Height:
BULKRAK™ & 4D Wide Span™ Max Height on Trolley:
BULKRAK™ & 4D Wide Span™ Depth on Trolley:
BULKRAK™ & 4D Wide Span™ Width on Trolley:
BULKRAK™ Beams Adjustability:
(3.048 m)
(1.22 m) or 8' (2.44 m)
RAIL OPTIONS:
A
flexible mobile trolley system
that operates with minimal rails — almost railless when floor conditions permit
Surface-Mounted One-Piece Aluminum Rail
Rust-proof aluminum rail anchored directly to the floor surface. Rails are secured by dual aluminum connectors (single connector for the seismic rail option), ensuring precise continuity and preventing both vertical and horizontal movement. The low-profile design, with beveled edges on both sides, creates a pronounced slope ideal for carts, lift trucks, and frequent user access. Easy to install and clean, making it well-suited for high-use sports environments.
Minimal Rails
Only a single guide rail (rear or center) when floor conditions allow, enabling near-railless operation.
4D Wide Span™ Weight Load per Pair of Beams: 500 lb, 1,000lb, 1,500 lb (227 kg, 454kg, 680 kg)
BULKRAK™ & 4D Wide Span™ Bay Load Capacity:
BULKRAK™ Weight Load per Pair of Beams: Mobile System Load Capacity:

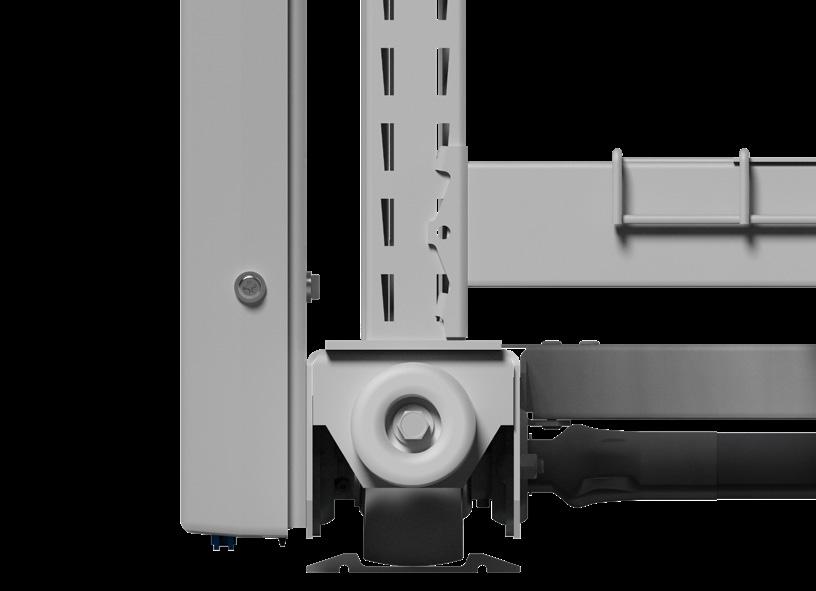

TECHNICAL SPECIFICATIONS:
• Rails: Made of aluminum bars up to 144” long and secured to the floor with concrete screws. Levelness of floor to be 1/2” maximum variation within 10’.
• Wheels: Made of a proprietary glass-filled nylon that is resistant to water and most chemical solvents. They have good abrasion and compression resistance andt hey won’t flat spot. They have an operating temperature of -45° to +350° Fahrenheit.
• Bearings: All wheel bearings are sealed ball bearings.
• Wheel Channels: Made of steel and are powder coated. Formed to be easy to clean. Capacity of 2,400lb per section.
• No Side Members: Wheel channels are linked at their center to create a free space for the workers shoes on both sides of the mobile.
• Drive Tube: Tubular drive shafts are made of 1.315'' (33.4mm)outside diameter by 1.045'' (26.5mm) inside diameter powder coated steel tubing.
• Handles: Are made of durable glass-filled nylon and have a push-button aisle locking mechanism.
• Chain Mechanisms: Chains are confined to hide mechanical hazards.
• Racking: Bolted Light-duty racking is made of bolted galvanized steel frames and powder coated steel beams.
SAFETY FEATURE:
Aisle-safety push-button lock located at the center of the SafeCrank™ handle
Glass-filled nylon durable wheels offering great weight capacity, is rust-free and lighter than steel
Aluminum rail is easy to install,
Drive tubes run the full length of the carriage to minimize distortion.

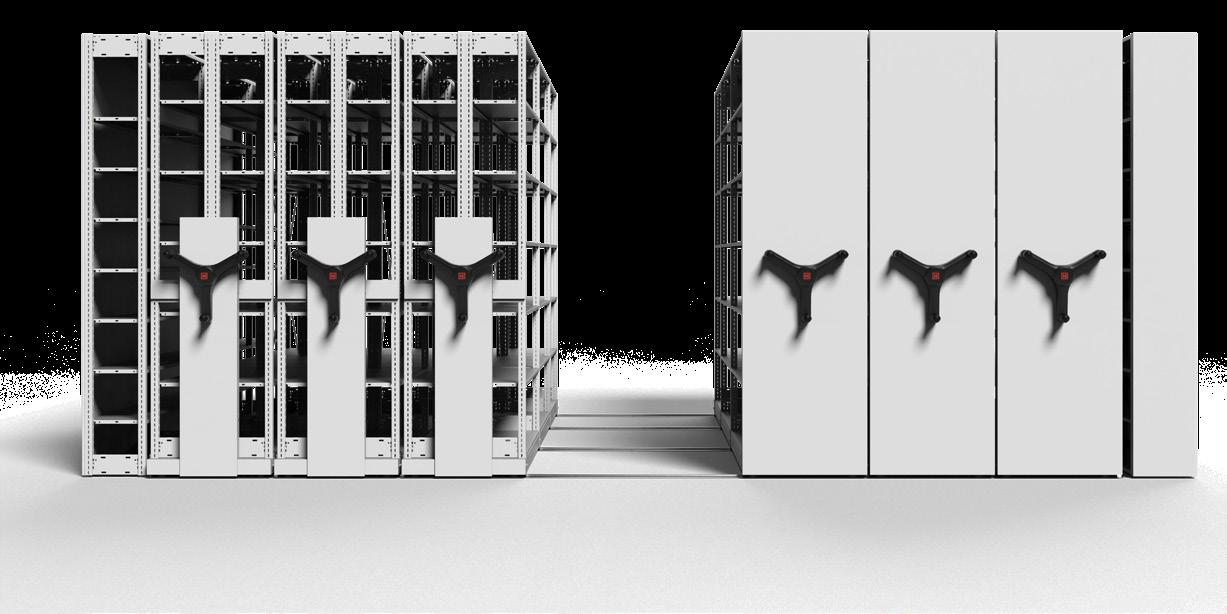

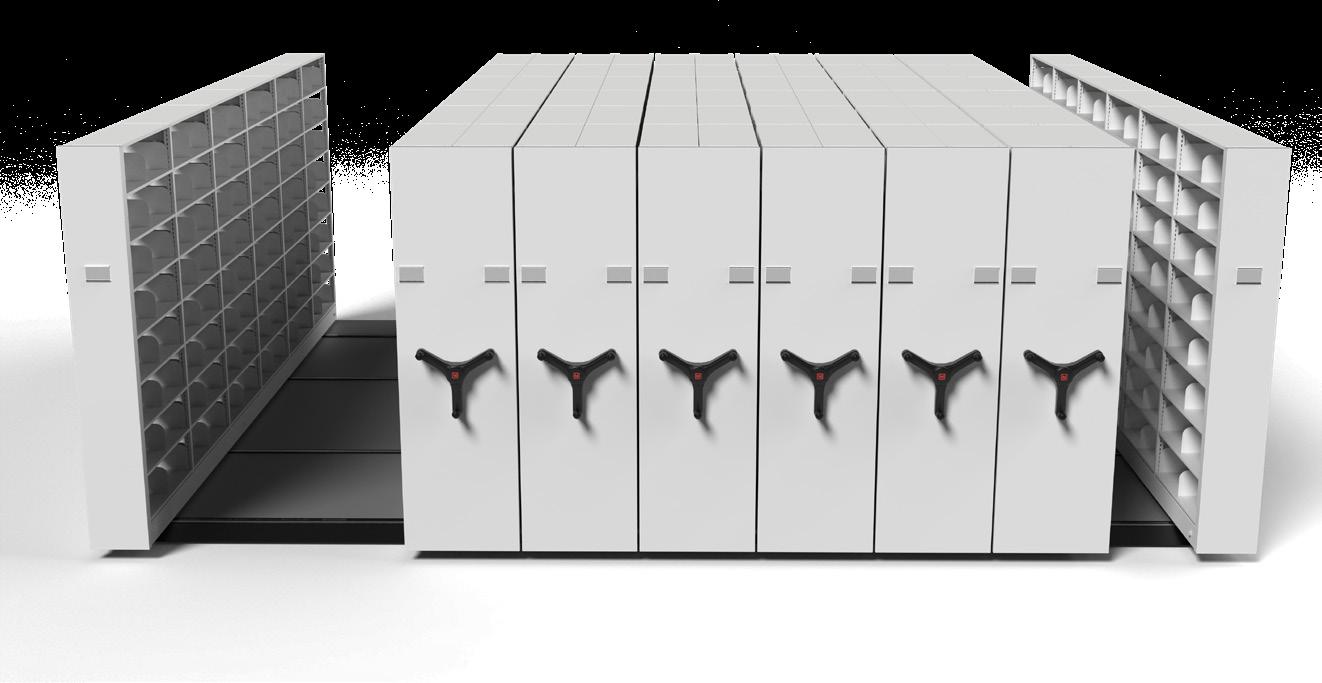

Mobilex ®
COMPATIBLE SHELVING: SmartShelf®, 4D Wide Span™, Aetnastak®
DIMENSIONS & LOAD CAPACITY
Mobile Carriage Length Range:
Mobile Carriage Height:
Rail Height:
SmartShelf® Height on Carriage:
4D Wide Span™ Height on Carriage:
SmartShelf® Depth on Carriage:
4D Wide Span™ Depth on Carriage:
SmartShelf® Width on Carriage:
SmartShelf® Shelves Adjustability:
4D Wide Span™ Beams Adjustability:
SmartShelf® Shelf Load Capacity:
4D Wide Span™ Beam Load Capacity:
SmartShelf® & 4D Wide Span™ Bay Load Capacity:
Mobile System Load Capacity:
3' to 60' (0.914 m to 18.288 m)
5 ¾ " (146 mm)
⅜" (9.5 mm) above floor level
60" (1,524 mm) to 120" (3,048 mm) Up to 144" (3,658 mm)
15" to 48" (381 to 1,219 mm)
24" (610 mm) to 114" (2,896 mm)
24" (610 mm) to 48" (1,219 mm)
Every 1" (25 mm)
Every 2" (51 mm)
300 lb (136 kg) with hooks;
500 lb (227 kg) with supports/reinforcements
500 lb (227 kg), 1,000 lb (454 kg), or 1,500 lb (680 kg) per pair of beams
500 lb (227 kg), 1,000 lb (454 kg), or 1,500 lb (680 kg) per pair of beams
1,000 lb per linear foot (454 kg) | Up to 45,000 lb (20,412 kg) per carriage
MOBILEX® EXTREME CONDITIONS STAINLESS STEEL OPTION
For environments with harsh conditions, we offer stainless steel hardened rails and wheels, treated against oxidation to ensure durability in corrosive environments. The low-profile surface-mounted rail is also available in stainless steel. This configuration is ideal for applications in clean rooms, hospitals, pharmaceutical manufacturing, cold storage, food manufacturing facilities, and offshore platforms, ensuring long-term performance in demanding settings.
Industry’s smoothest and best-in-class carriage system
TRACK & FLOOR SURFACE OPTIONS:
Recessed Two-Piece Track
Embedded directly into the concrete slab, this system combines an aluminum sub-rail that acts as a rust barrier for both the concrete floor and the hardened steel rails, treated against oxidation. The rails are connected using interlock steel connectors at the rails junctions, ensuring precise continuity and preventing both vertical and horizontal movement. The top-to-bottom jointless design eliminates splice joints, preventing bumps, misalignments, and track deflection. This option includes a built-in anti-tip track, ideal for seismic zones or systems with a high height-to-width ratio.
Floor-Mounted Two-Piece Track with Plywood Deck (Flush-Fit Channels) or Raised Concrete Pad
Installed with plywood decking integrated flush into the aluminum sub-rail or alternatively on a raised concrete pad. Rails are secured by interlock connectors, ensuring precise continuity and preventing both vertical and horizontal movement. Precision leveling screws offer more accuracy than traditional shimming. A built-in anti-tip track option is available.
Surface-Mounted One-Piece Steel Rail
A solid steel rail anchored directly to a leveled concrete slab. The rail is treated against oxidation for durability and designed with chamfered edges to reduce tripping hazards. Precision leveling screws offer more accuracy than traditional shimming.
SAFETY FEATURE:
Aisle-safety push-button lock located at the center of the SafeCrank™ handle.
SAFETY OPTION:
Gravity-Fed Mechanical Safety Brake with shock absorber, ensuring smooth braking. Recommended for public access environments and long carriages.
SafeAisle™
COMPATIBLE SHELVING: SmartShelf®, 4D Wide Span™, Aetnastak®
DIMENSIONS & LOAD CAPACITY
Mobile Carriage Length Range:
Mobile Carriage Height:
Rail Height:
SmartShelf® Height on Carriage:
4D Wide Span™ Height on Carriage:
SmartShelf® Depth on Carriage:
4D Wide Span™ Depth on Carriage:
SmartShelf® Width on Carriage:
SmartShelf® Shelves Adjustability:
4D Wide Span™ Beams Adjustability:
SmartShelf® Shelf Load Capacity:
4D Wide Span™ Beam Load Capacity:
SmartShelf® & 4D Wide Span™ Bay Load Capacity:
Mobile System Load Capacity:
3' to 45' (0.914 m to 13.716 m)
5 ¾ " (146 mm)
⅜" (9.5 mm) above floor level
15" to 48" (381 to 1,219 mm)
Every 1" (25 mm)
24" (610 mm) to 48" (1,219 mm) Every 2" (51 mm) 60" (1,524 mm) to 120" (3,048 mm) Up to 144" (3,658 mm) 24" (610 mm) to 114" (2,896 mm)
300 lb (136 kg) with hooks;
500 lb (227 kg) with supports/reinforcements
500 lb (227 kg), 1,000 lb (454 kg), or 1,500 lb (680 kg) per pair of beams
500 lb (227 kg), 1,000 lb (454 kg), or 1,500 lb (680 kg) per pair of beams
STANDARD SAFETIES:
Aisle-Entry People Counter
Integrated into the system, the Aisle-Entry People Counter counts users entering and exiting the aisles for maximum protection. This feature is standard in all configurations.
Infrared Foot-Level Safety Beam (One Side of Mobile Carriage)
Suitable only for very low traffic restricted areas and short mobile carriages, but not recommended for public access spaces.
Infrared Foot-Level Safety Beams (Both Sides of Mobile Carriage)
Suitable only for low to medium traffic restricted areas, but not recommended for public access spaces.

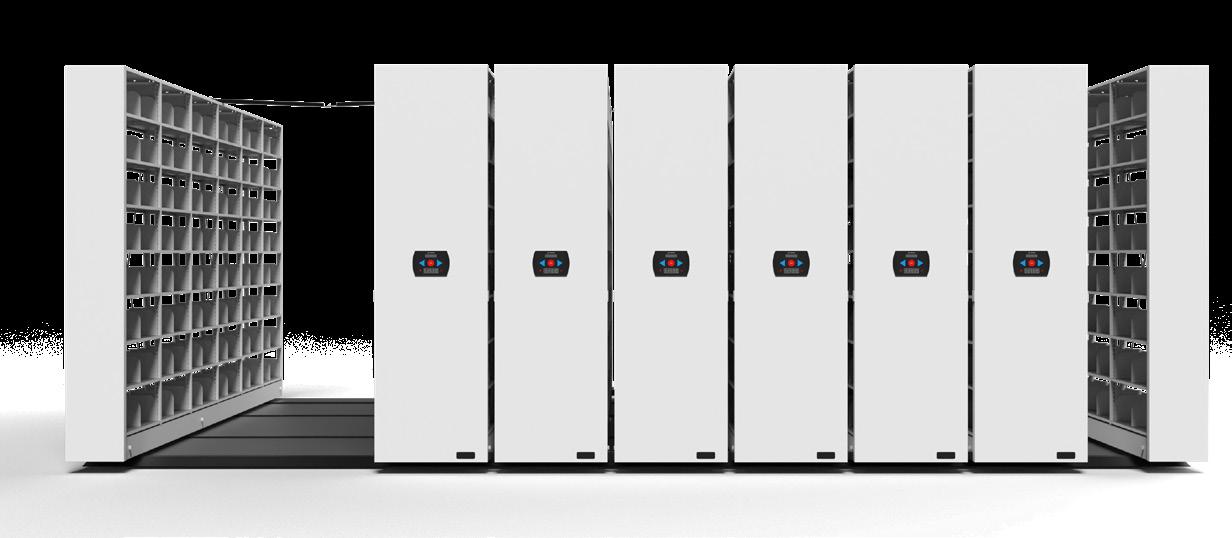

The most advanced powered system, designed with industry-leading safety features
Same track & floor surface and extreme conditions stainless steel option as Mobilex®
MOBILEX®/ SAFEAISLE™ TRACK & FLOOR SURFACE OPTIONS:
Recessed Two-Piece Track
Embedded directly into the concrete slab, this system combines an aluminum sub-rail that acts as a rust barrier for both the concrete floor and the hardened steel rails, treated against oxidation. The rails are connected using interlock steel connectors, ensuring precise continuity and preventing both vertical and horizontal movement. The jointless design eliminates splice joints, preventing bumps, misalignments, and track deflection. This option includes a built-in anti-tip track, ideal for seismic zones or systems with a high height-to-width ratio.
Floor-Mounted Two-Piece Track with Plywood Deck (Flush-Fit Channels) or Raised Concrete Pad
Installed with plywood decking integrated flush into the aluminum sub-rail or alternatively on a raised concrete pad. Rails are secured by interlock connectors, ensuring precise continuity and preventing both vertical and horizontal movement. Precision leveling screws offer more accuracy than traditional shimming. A built-in anti-tip track option is available.
Surface-Mounted One-Piece Steel Rail
A solid steel rail anchored directly to a leveled concrete slab. The rail is treated against oxidation for durability and designed with chamfered edges to reduce tripping hazards. Precision leveling screws offer more accuracy than traditional shimming.
ADVANCED OPTIONAL SAFETY:
Aisle LED Guard™
Complete Aisle-Detection Passive Safety System – The Aisle LED Guard™ ensures complete aisle-detection, covering every part of the aisle with no dead spots. This advanced option is designed to enhance safety further.
Note: The Aisle-Entry People Counter is already included when the Aisle LED Guard™ is selected, and the standard infrared foot-level safety beams are not required.

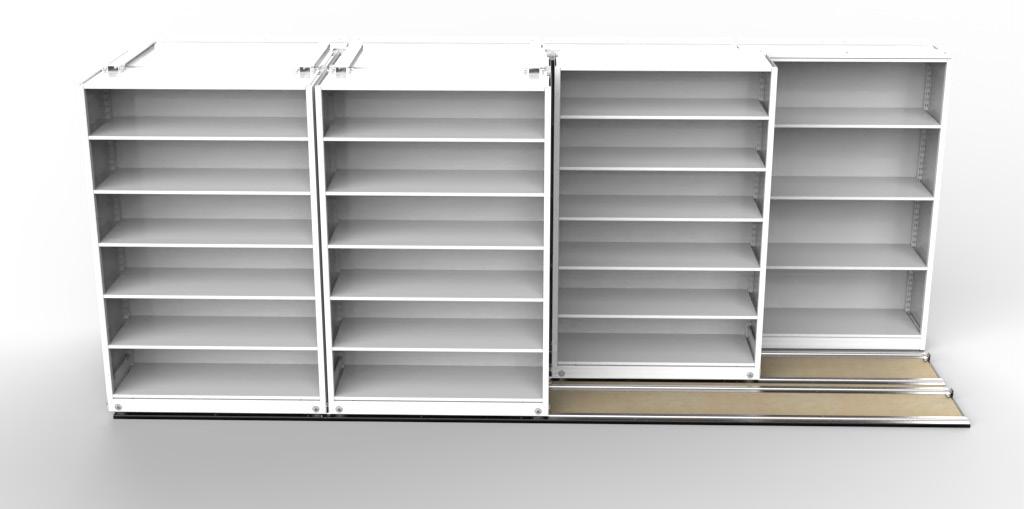

SmartGlide™

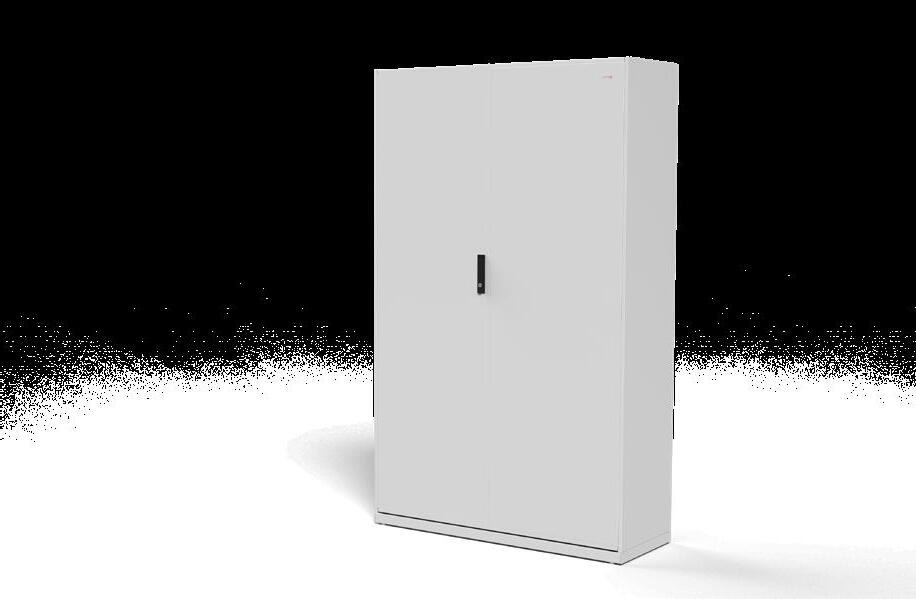

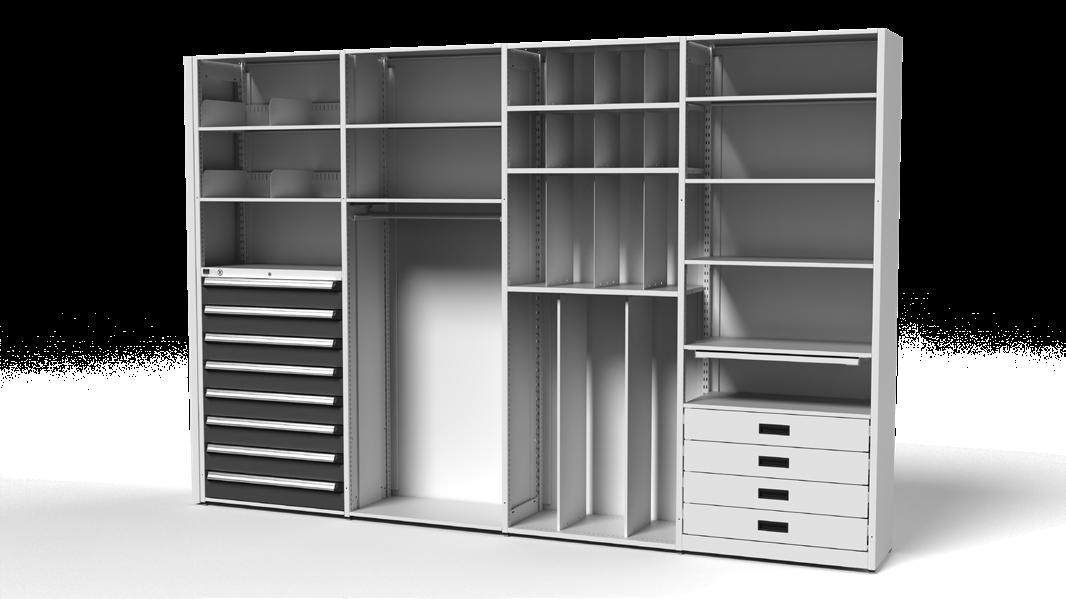

COMPATIBLE SHELVING: Cabinet-Style™, SmartShelf®
DIMENSIONS & LOAD CAPACITY
Movable System Length Range:
Movable Lateral Carriage Height:
Rail Height:
Cabinet-Style™ Height on Carriage:
SmartShelf® Height on Carriage:
Cabinet-Style™ Depth on Carriage:
SmartShelf® Depth on Carriage:
Cabinet-Style™ Width on Carriage:
SmartShelf® Width on Carriage:
SmartShelf® / Cabinet-Style™ Shelves Adjustability:
Cabinet-Style™ Shelf Load Capacity:
SmartShelf® Shelf Load Capacity:
SmartShelf® & Cabinet-Style™ Bay Load Capacity:
3' to 40' (0.914 m to 12.192 m)
3" (76 mm)
14 mm (9/16") above floor level or above veneer mounting
RAIL
The ideal solution for confined areas, limited spaces, or corridors where mobile systems cannot fit
& ANCHORING OPTIONS: One-piece galvanized rail
Surface-mounted – Anchored directly on the floor
Plywood veneer mounting – Anchored directly onto a plywood veneer
10" (254 mm) to 18" (457 mm)
10" (254 mm) to 18" (457 mm)
24" (610 mm) to 48" (1,219 mm)
24" (610 mm) to 48" (1,219 mm) Up to 96" (2,438 mm) Up to 88" (2,235 mm)
Every 1" (25 mm)
200 lb (91 kg) with hooks
300 lb (136 kg) with hooks
Up to 2,000 lb (907 kg)
Galvanized rails secured by interlock connectors, ensuring precise continuity and preventing both vertical and horizontal movement.
SAFETY FEATURE:
Anti-tip device mounted on top of the system.
TECHNICAL SPECIFICATIONS:
• Floor : The floors are made of 3/4“ (19mm) plywood decking.
• Rails : The rails are the same as the SmartSpace™ 2M and SmartSpace™ 2MA mobile systems. They are made of galvanized steel.
• Modular Carriage : The modular carriages are the same as the SmartSpace™ 2M and SmartSpace™ 2MA mobile systems. They are made of powder coated steel.
SmartSpace™ 2M
MANUAL LOW-PROFILE MOBILE SHELVING SYSTEM
COMPATIBLE SHELVING: SmartShelf®, Cabinet-Style™, also available with 4D Wide Span™
RAIL:
DIMENSIONS & LOAD CAPACITY
Mobile Carriage Length Range:
Mobile Carriage Height:
Rail Height:
SmartShelf® Height on Carriage:
Cabinet-Style™ Width on Carriage:
SmartShelf® Width on Carriage:
SmartShelf® Back-to-Back Depth on Carriage:
SmartShelf® Full-Depth on Carriage:
SmartShelf® / Cabinet-Style™ Shelves Adjustability:
4D Wide Span™ Beams Adjustability:
SmartShelf® Shelf Load Capacity:
Cabinet-Style™ Shelf Load Capacity::
SmartShelf® & Cabinet-Style™ Bay Load Capacity:
Mobile Carriage Load Capacity:
to 16' (4.88 m)
(76 mm)
mm (9/16 ") above floor level
8" (203 mm) to 24" (610 mm)
Every 1" (25 mm)
(610 mm) to 48" (1,219 mm) 16" (406 mm) to 48" (1,219 mm) Every 2" (51 mm) 24" (610 mm) to 48" (1,219 mm) Up to 120" (3,048 mm)
300 lb (136 kg) with hooks;
500 lb (227 kg) with supports/reinforcements
200 lb (91 kg) with hooks
Up to 2,000 lb (907 kg)
Up to 12,000 lb (5,443 kg)
SmartSpace™ Plus 2M
Light-duty manual mobile shelving system (without modular decking)
Surface-mounted, very low-profile galvanized rail to prevent corrosion, designed with no channels to eliminate debris collection. Rails are secured by interlock connectors at the rail junctions, ensuring precise continuity and preventing both vertical and horizontal movement.
SAFETY FEATURE:
None (manual – no SafeCrank™)
SAFETY OPTIONS:
• Foot-latch safety brake
• Anti-tip rail device
TECHNICAL SPECIFICATIONS:
• Powder coated steel carriage and components.
• Mobile Carriage Base features dual flanged steel wheels to match rails and permanently lubricated and shielded bearings.
• Standard and seismic rails deliver robust galvanized steel construction for effortless installation, while the adjustable floor’saluminum sub-rail with a steel insert ensures fast, snap-action setup.
• Availalble with sleek front panel for a refined finish or versatile columns to accommodate any shelving arrangement.
MANUAL LOW-PROFILE MOBILE SHELVING SYSTEM WITH MODULAR DECKING
Same as SmartSpace™ 2M, but supplied as SmartSpace™ Plus 2M with anchorless modular plywood decking for enhanced finish and leveling.
TRACK
• Floor-mounted two-piece track with flush-fit decking channels combines an aluminium sub-rail that acts as a rust barrier for both the concrete floor and the steel rods. Steel rods are secured with dowel pins to ensure precise alignment and to prevent both horizontal and vertical movement.
FLOOR
• Built-in decking levellers provide adjustability for the deck surface, and the surface can be covered with carpet, tile, or other finishings.
• Full-length tubes are inserted within the aluminum sub-rail channels underneath the plywood decking, providing continuous reinforcement and preventing deflection.
SmartSpace™ 2MA
MECHANICAL-ASSIST LOW-PROFILE MOBILE SHELVING SYSTEM Light-duty mechanical-assist mobile shelving system (without modular decking)
COMPATIBLE SHELVING: SmartShelf®, Cabinet-Style™, also available with 4D Wide Span™
DIMENSIONS & LOAD CAPACITY
Mobile Carriage Length Range:
Mobile Carriage Height:
Rail Height:
SmartShelf® Height on Carriage:
Cabinet-Style™ Width on Carriage:
SmartShelf® Width on Carriage:
SmartShelf® Back-to-Back Depth on Carriage:
SmartShelf® Full-Depth on Carriage:
SmartShelf® / Cabinet-Style™ Shelves Adjustability:
4D Wide Span™ Beams Adjustability:
SmartShelf® Shelf Load Capacity:
Cabinet-Style™ Shelf Load Capacity::
SmartShelf® & Cabinet-Style™ Bay Load Capacity:
Mobile Carriage Load Capacity:
to 24' (7.315 m)
(76 mm)
mm (9/16 ") above floor level
to 120" (3,048 mm)
Every 1" (25 mm)
(610 mm) to 48" (1,219 mm) 16" (406 mm) to 48" (1,219 mm) Every 2" (51 mm) 24" (610 mm) to 48" (1,219 mm)
300 lb (136 kg) with hooks;
RAIL:
Surface-mounted, very low-profile galvanized rail to prevent corrosion, designed with no channels to eliminate debris collection. Rails are secured by interlock connectors at the rail junctions, ensuring precise continuity and preventing both vertical and horizontal movement.
SAFETY FEATURE:
Aisle-safety push-button lock located at the center of the SafeCrank™ handle
SAFETY OPTION:
• Anti-tip rail device
TECHNICAL SPECIFICATIONS:
• Powder coated steel carriage and components.
• Mobile Carriage Base features dual flanged steel wheels to match rails and permanently lubricated and shielded bearings.
500 lb (227 kg) with supports/reinforcements
200 lb (91 kg) with hooks
Up to 2,000 lb (907 kg)
Up to 12,000 lb (5,443 kg) 8" (203 mm) to 24" (610 mm)
• Standard and seismic rails deliver robust galvanized steel construction for effortless installation, while the adjustable floor’saluminum sub-rail with a steel insert ensures fast, snap-action setup.
• Availalble with sleek front panel for a refined finish or versatile columns to accommodate any shelving arrangement.
SmartSpace™ Plus 2MA
MECHANICAL-ASSIST LOW-PROFILE MOBILE SHELVING SYSTEM WITH MODULAR DECKING
Same as SmartSpace™ 2MA, but supplied as SmartSpace™ Plus 2MA with anchorless modular plywood decking for enhanced finish and leveling.
TRACK FLOOR
• Floor-mounted two-piece track with flush-fit decking channels combines an aluminium sub-rail that acts as a rust barrier for both the concrete floor and the steel rods. Steel rods are secured with dowel pins to ensure precise alignment and to prevent both horizontal and vertical movement.
• Built-in decking levellers provide adjustability for the deck surface, and the surface can be covered with carpet, tile, or other finishings.
• Full-length tubes are inserted within the aluminum sub-rail channels underneath the plywood decking, providing continuous reinforcement and preventing deflection.

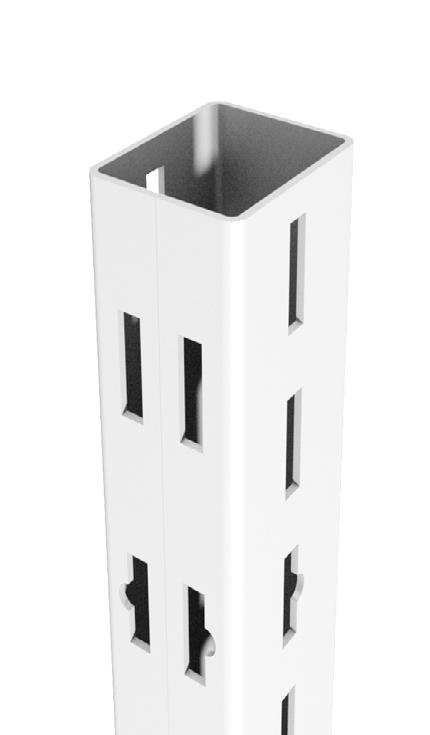

SmartShelf ®
DIMENSIONS & LOAD CAPACITY
Width:
Depth (back-to-back shelf) : 12", 13”, 15”, 16”, 18”, 20", 24”, 30”, 36”
Height: 30" to 120” (1" increments)
Load Capacity: Up to 500 lb per shelf

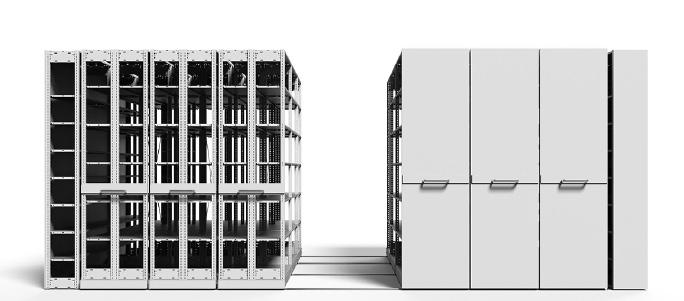

A fully adjustable 4-post hybrid shelving system that adapts to virtually any collection. SmartShelf® combines open and closed storage in one flexible solution, ideal for objects of varying size and shape
Welded Frame Integrating 2 Levels of Adjustments
24’’, 30’’, 36”, 39 3/8,” 42”, 48”, 54" 1"
TECHNICAL SPECIFICATIONS:
Hooked Type Shelf Adjustable at 1" Increments 1
Supported Type Shelf Adjustable at 1.5" Increments
• Upright Frame: Upright frames consist of two or more cross members welded to the top, bottom, and optionally the center of a 16-gauge 1-¼" x 1-½" rectangular steel upright. The upright have 1" spaced slots on the lateral sides,and 1-½" spaced slots on the back for flexible shelf and drawer configurations. Cross members are 4" high x ½" wide, made of 16-gauge steel with a hook design for easy attachment and welded to the posts.
• Hooked Type: All shelves and canopy tops are made from 18-gauge steel with a ¾" 'Four Bend' edge, secured to uprights with four steel hooks. Shelves feature a smooth, raw-edge-free surface and can be reinforced for heavier loads. They can be individually added, removed, or adjusted without affecting adjacent shelves. Canopy tops are providedonall sections,andshelves areadjustableon1" centersalongthefullheightof theuprights.
• Supported Type: Full-depth shelves are constructed from 22-gauge box-rolled steel with a ¾" 'Four Bend' edge. They are supported by two longitudinal supports and reinforcement channels. Shelves are also available in 18-gauge steel. Longitudinal supports are 3/4" (standard) or 1-¼" high (heavy-duty), made from 12-gauge steel with welded laws, and fit into slots on the posts. Reinforcement channels, also 3/4" (standard) or 1-1¼" high (heavy-duty), are 12-gauge steel and rest on the longitudinal supports.

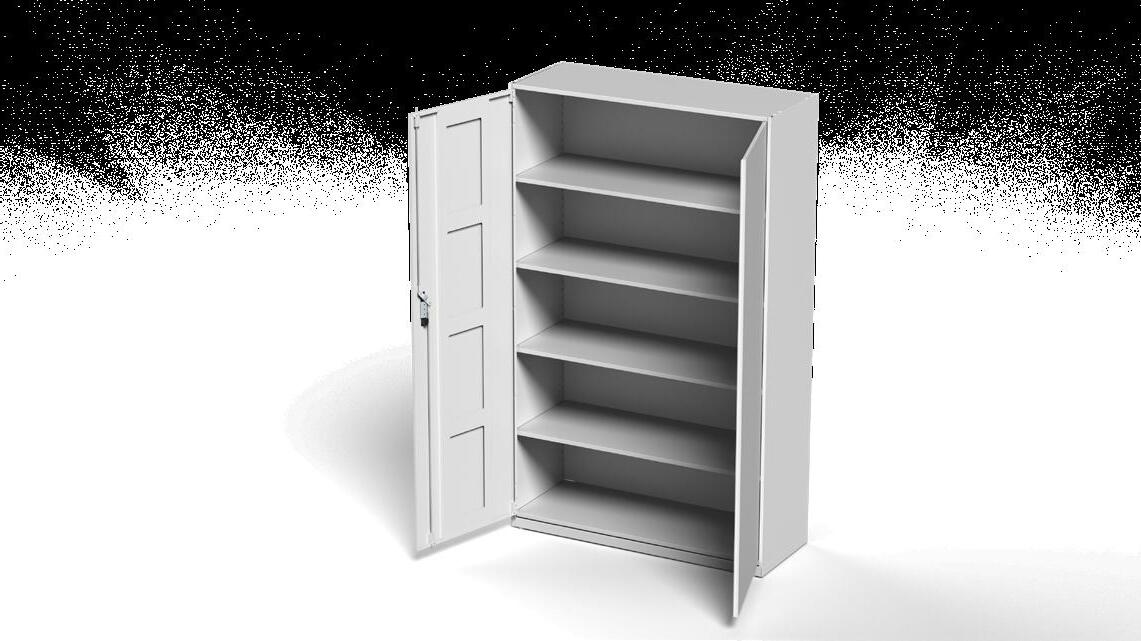

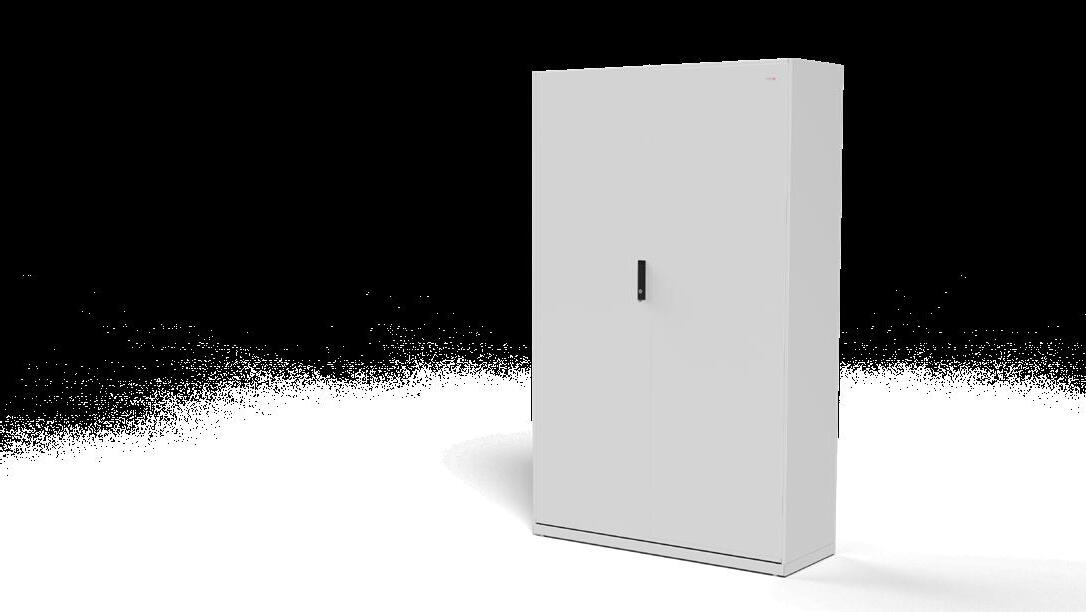

Cabinet Style
DIMENSIONS & LOAD CAPACITY
Width:
24", 30", 36"
Depth: 7", 8", 9", 10", 11", 12", 13", 14", 15", 16"
Height: 30" to 108" (1" increments)
Shelf Load Capacity: Up to 50 psf
Keep your sports facility organized with case-type shelving designed for gear, files, and everyday essentials.
TECHNICAL SPECIFICATIONS:
• Compatibility with our mobile storage systems.
• Interchangeable and configurable accessories which can be adapted to your needs, such as shelves and drawers.
• The optional pull-out shelf provides smooth access to heavy reference books and the like.
• Available in several colors, this shelving’s streamlined design enables it to blend perfectly with any environment.
• Security features : an entire unit can be locked, but it also comes with individually lockable security drawers to ensure the confidentiality of stored files and documents

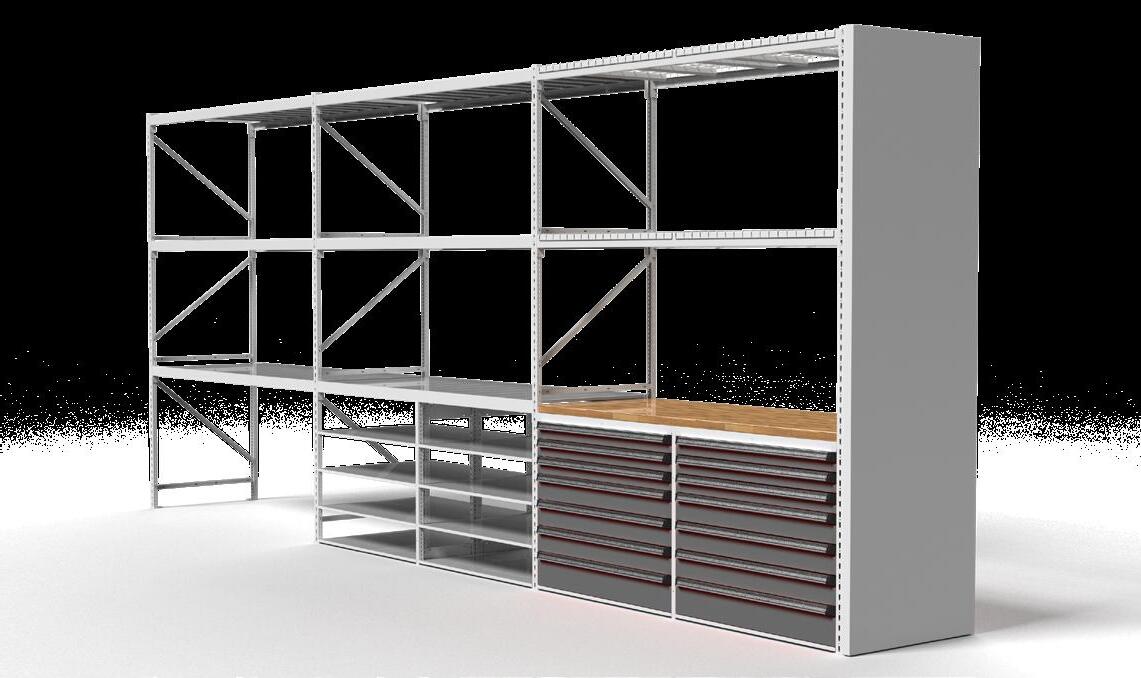

4D Wide Span
DIMENSIONS & LOAD CAPACITY
Load Per Bay:
Load Per Level:
Span:
Height:
Depth:
Up to 5,000 lbs per bay(2 268 kg)
3" Beam : 1,000 lbs per pair of beam (454 kg)
4" Beam : 1,500 lbs per pair of beam (680 kg)
4' to 8' (1.2 m to 2.4 m)
Up to 20' (6.1 m)
24" to 48" (610 mm to 1219 mm)
Engineered for bulk storage of heavy, oversized, or irregularly shaped items, its semi-industrial design ensures 100% shelf utilization with double-sided access, and it can be configured as a fixed or mobile system.
TECHNICAL SPECIFICATIONS:
• Upright Frame: An all-welded semi-industrial upright frame to enhance rigidity and stability.
• Posts: Made of 14Ga cold rolled steel formed into a C channel 2'' x 1 5/16'' (51mm x 33mm) with slots at every 2''(51mm) at the front for beams and slotted at every 1”(25.4mm) on the sides for SmartShelf accessories.
• 1,000 lb Beam: Made of 12Ga steel and formed 3" high with an integrated lip to serve as a step beam.
• 1,500 lb Beam: Made of 12Ga steel and formed 4" high with an integrated lip to serve as a step beam.
• Drop Panel: Made of 18Ga steel and sits flush with the top of the beams to provide an even storage surface.
• SmartShelf Four-Post Accessories: Compatible with all Montel's four post components and accessories (shelves, brackets, trays, canopy top,end panels, closed back,etc).

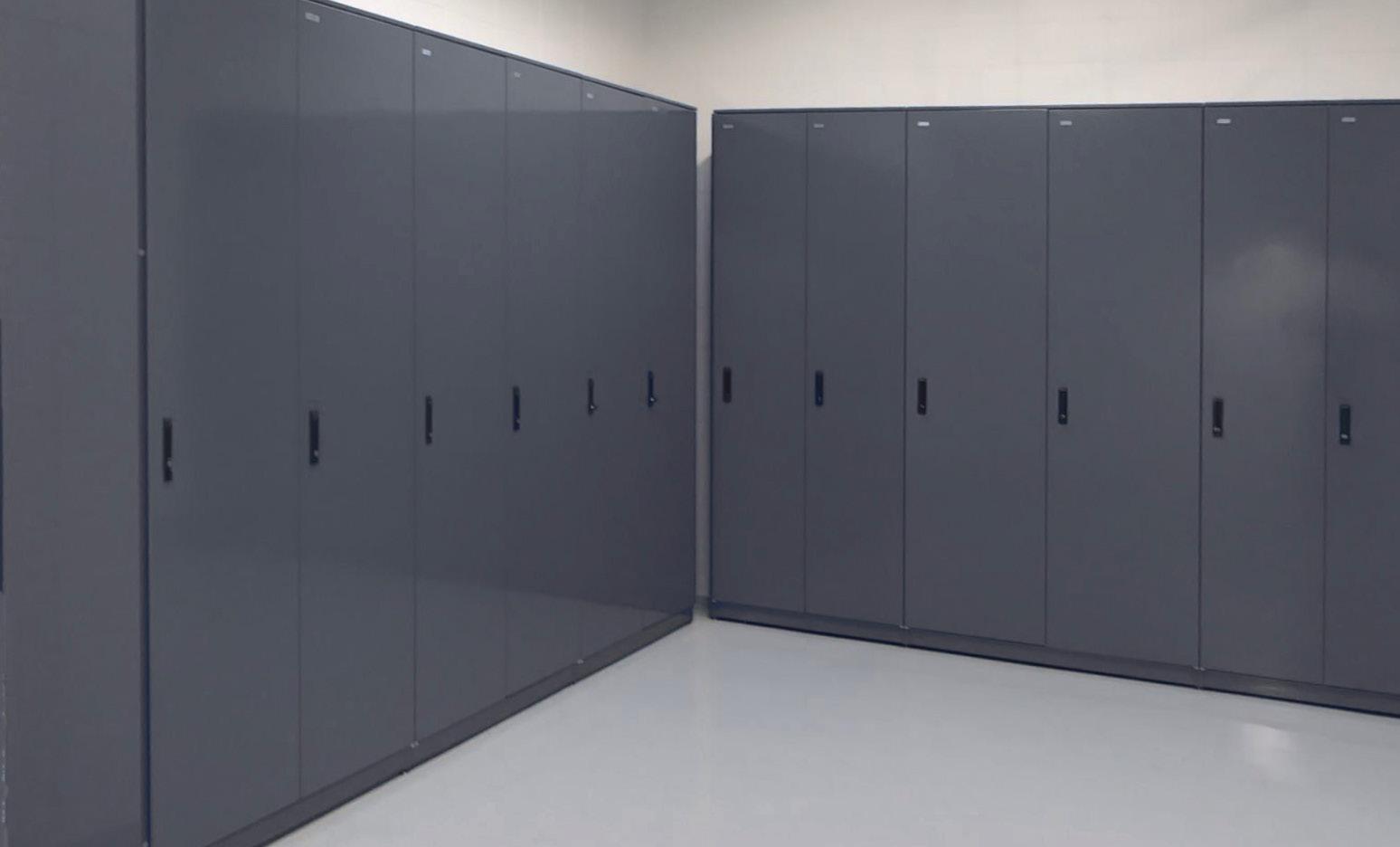

Locker-Style Shelving Solutions
CABINET-STYLE (CASE-TYPE SHELVING)
Smooth full-height partitions with no posts or exposed edges — nothing gets caught. Shelves adjust effortlessly at every 1" (25 mm), and the 4-bend shelf design ensures no sharp edges, improving safety and durability. Units can be equipped with lockable or non-lockable doors, balancing security with accessibility. This design maximizes usable space while maintaining a clean, furniture-like aesthetic.

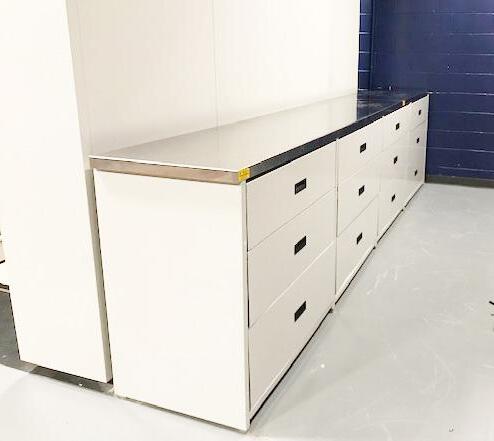

Worktables
TECHNICAL SPECIFICATIONS:
Both systems integrate a wide range of accessories, giving programs the flexibility to adapt as needs evolve.
SMARTSHELF® (FOUR-POST SHELVING):
A more economical option with square posts (not L&T like commodity shelving). Shelves adjust at every 1" (25 mm) without tilting or removing other shelves. Each shelf benefits from the 4-bend design — no sharp edges, stronger load capacity, and safer handling. SmartShelf also delivers up to ¾" (19 mm) more usable linear storage per shelf than typical L&T posts, a huge advantage across multi-tiered and multi-section systems. Lockable or non-lockable doors are also available.
+Built on the proven SmartShelf® shelving system, they share the same modular DNA, meaning most SmartShelf® accessories can be fitted or interchanged seamlessly.
Worktops: Counter-height tables come standard with a durable steel surface, with optional stainless steel or wood finishes.
Drawers: Available in commercial-grade or industrial-grade, with or without locks (not available on caster models).
Mobility: Tables can be mounted on lockable casters for flexible layouts.
Applications: Ideal for preparation, maintenance, and repairs — delivering a workspace built around the needs of sports teams.
