Hanger Bracket Rev 3 Eng

Hanger Bracket Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • • • •

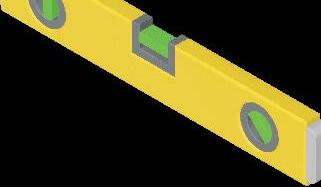

Drill With Drill Bit Wall Plugs With Matching Screws Bubble Level Screwdriver Drill Pencil Hammer Measuring Tape Masking Tape

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Step 1

Step 2

Step 3

Carefully turn the product over and choose one of the two available mounting methods:

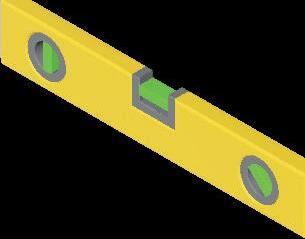

Method 1: Use a measuring tape to measure the distance between the mounting points. Transfer these measurements onto the wall with a pencil, making sure to keep the tape measure level with the help of a bubble level. If there are two hangers, remember to account for the distance between them.

Method 2: Stick masking tape onto the metal hanger. Mark the mounting hole locations on the tape with a pencil by poking through the holes. Carefully remove the tape from the hanger and stick it onto the wall. Make sure to flip the tape over to avoid a mirrored mounting points. Mark the hole positions on the wall.

Step 4

Step 5

Step 6

Drill holes at the marked points using a drill with a drill bit.

Insert wall plugs into the holes using a hammer.

Using a screwdriver drill, screw the screws into the wall plugs, leaving them slightly protruding from the wall.

3

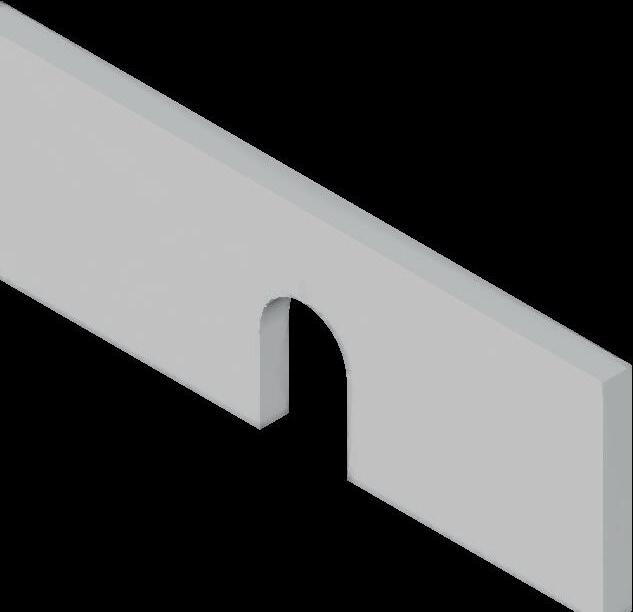

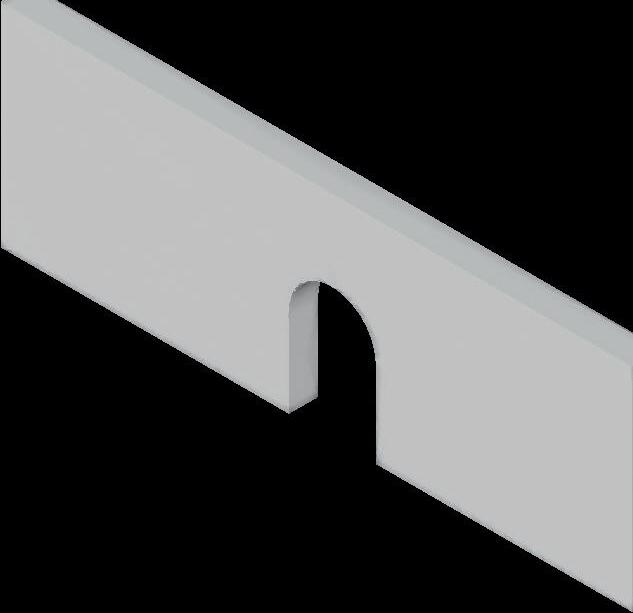

Step 7 Hang the product onto the screws using the mounting slots.
