Distance holders [Premium]
Installation guidelines
Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.
Please check all parts and tools are included before installation. Ensure the parts and tools are suitable for the product’s weight and size. Ensure the mounting surface is suitable for the product’s weight and size.
Installation should be carried out by quali ed personnel only. If you are not con dent with any part of the installation process, please contact a professional installer for assistance.
The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.
Required Tools
Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.
These instructions are provided as a guide only. Actual installation may vary depending on speci c circumstances and site conditions.
• Drill With Drill Bit
• Wall Plugs With Matching Screws
• Bubble Level
• Screwdriver Drill
• Pencil
• Hammer
E-mail: support@signage-group.com
Phone: +49 (0)30 863280590
Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr
O ce address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany
Step 1

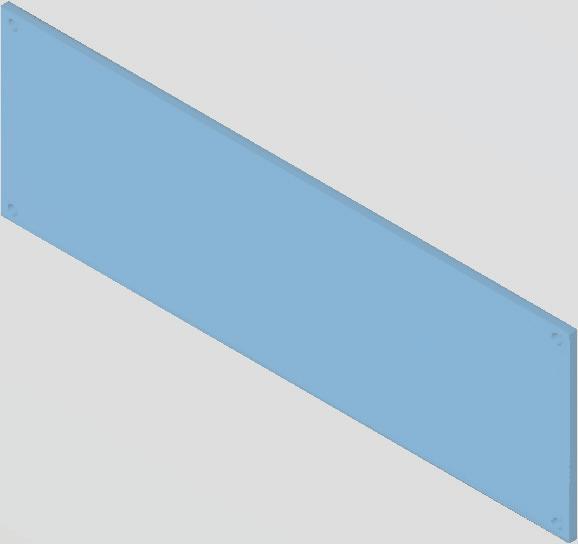

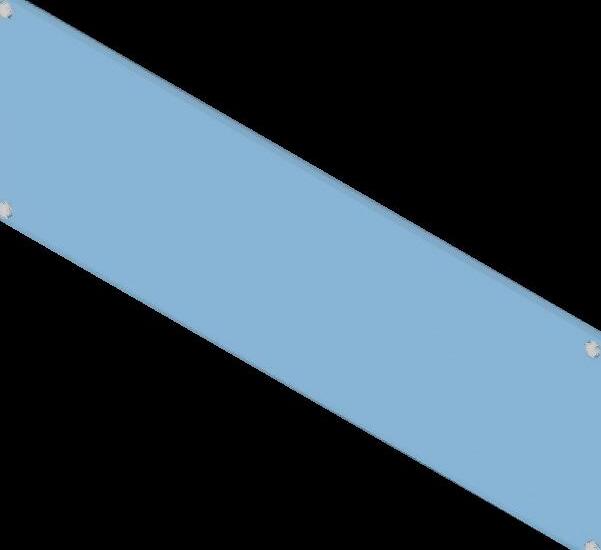

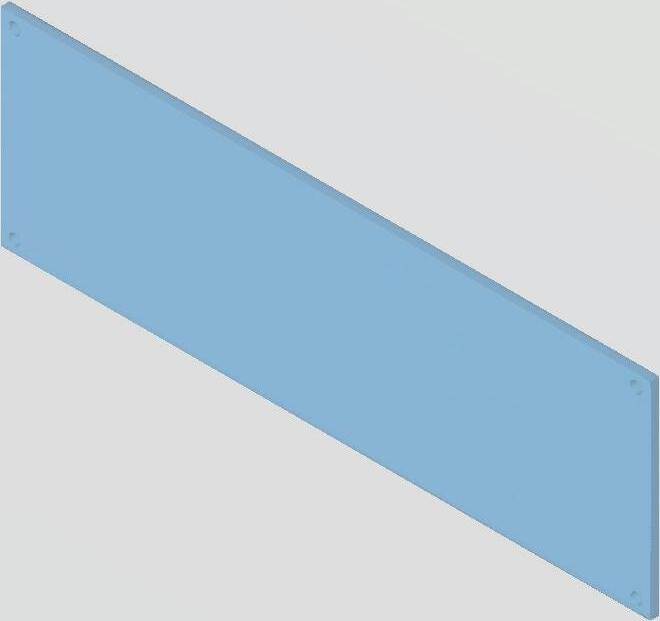

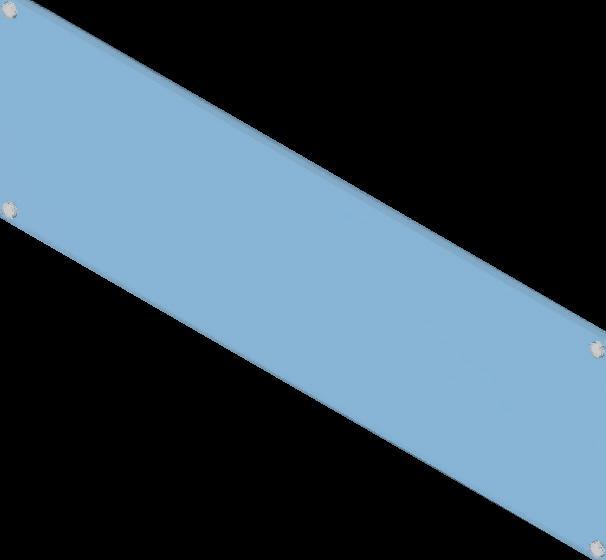

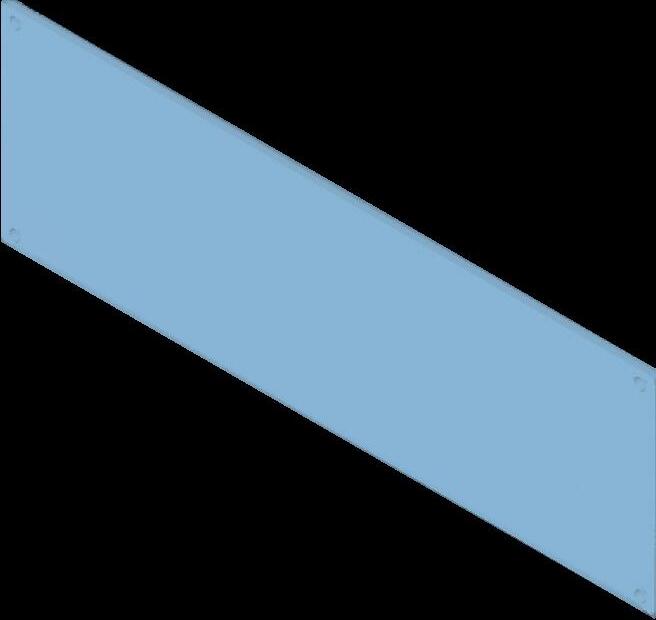

Place the plate against the wall and align it using a bubble level.
Step 4 Step 2 Step 5
Step 3

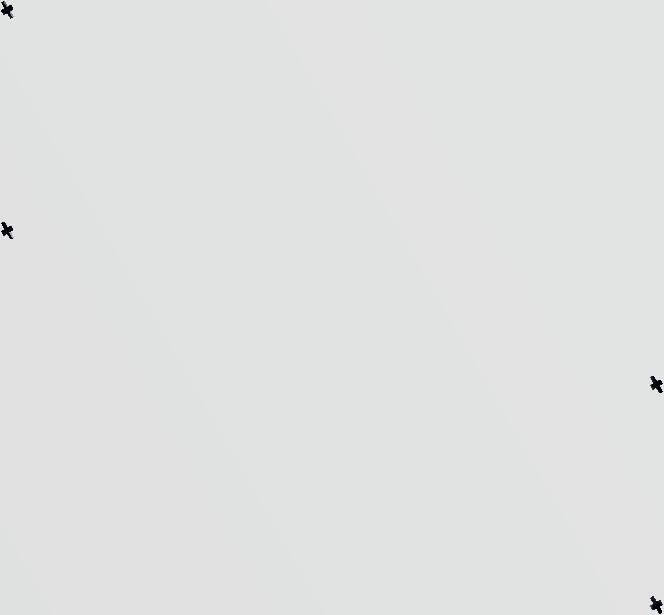

Mark the mounting points on the wall with a pencil. Handle the plate with care when marking drilling points. Applying excessive pressure may damage the product surface.
Remove the plate from the wall. Drill holes at the marked points.
Insert wall plugs into the drilled holes using a hammer.

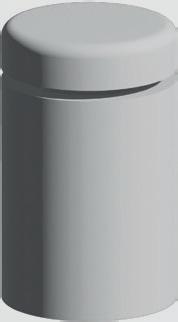

Take a steel distance holder and unscrew it into two parts.
Step 6

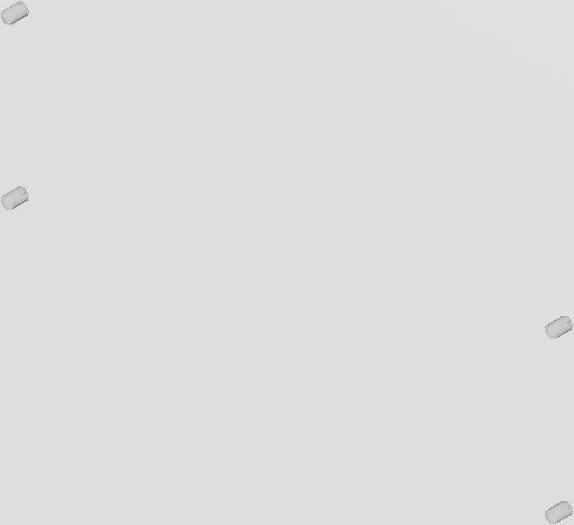

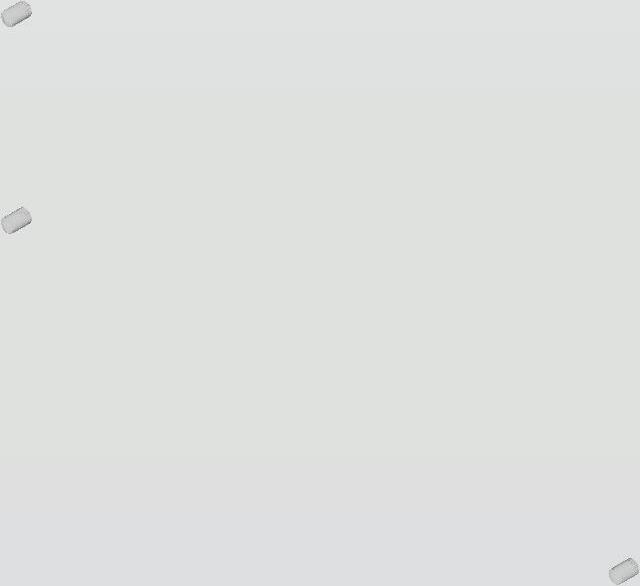

Take the larger part of the distance holder and screw it into the wall plug using a screw and screwdriver drill.
Step 7
Repeat this process for all the distance holders.
Step 8

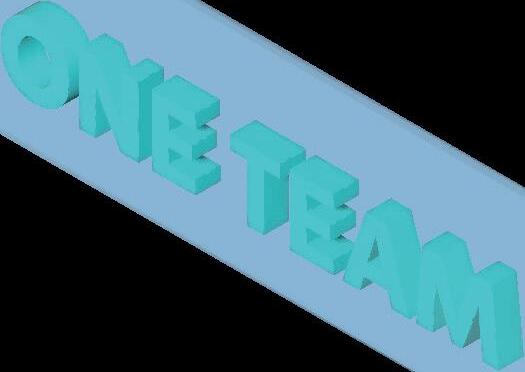

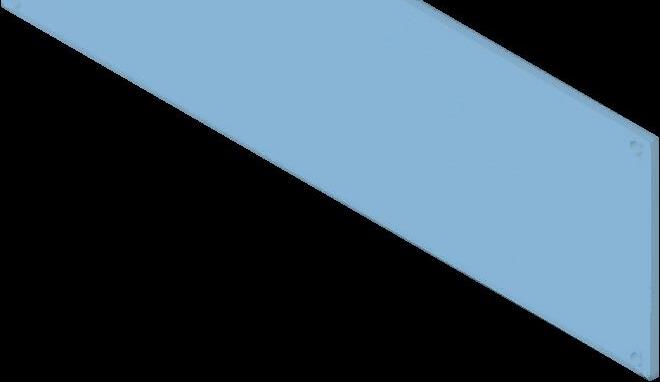

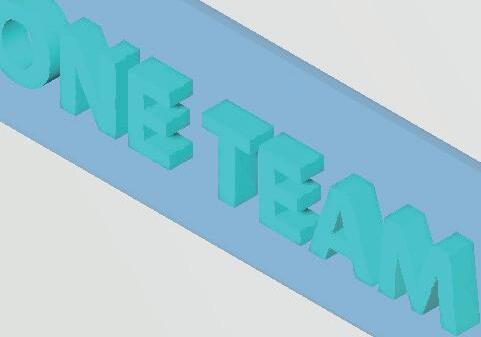

Place the plate onto the installed distance holders.
Step 9

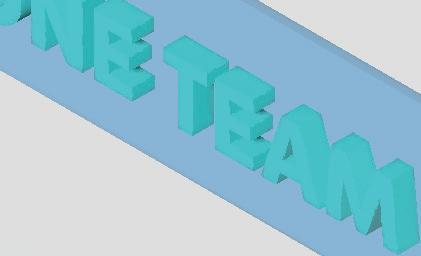

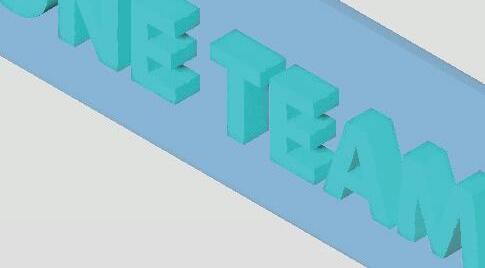

Secure the plate by attaching the second part of each distance holder.
