Distance holders [Premium] Rev 3 Eng

Distance holders [Premium] Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • •

Drill With Drill Bit Wall Plugs With Matching Screws Bubble Level Screwdriver Drill Pencil Hammer

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Step 1

Step 2

Step 3

Place the plate against the wall and align it using a bubble level.

Mark the mounting points on the wall with a pencil. Handle the plate with care when marking drilling points. Applying excessive pressure may damage the product surface.

Remove the plate from the wall. Drill holes at the marked points.

Step 4

Step 5

Step 6

Insert wall plugs into the drilled holes using a hammer.

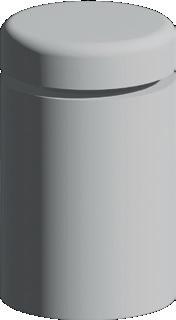

Take a steel distance holder and unscrew it into two parts.

Take the larger part of the distance holder and screw it into the wall plug using a screw and screwdriver drill.

3

Step 7

Step 8

Step 9

Repeat this process for all the distance holders.

Place the plate onto the installed distance holders.

Secure the plate by attaching the second part of each distance holder.
