AMORE STELLARE.

YEAR: 2024 pg. 6-13

01. 03.

RE.GEN.

YEAR: 2023

pg. 24-33

05.

THE SERPENTINE.

YEAR: 2023

pg. 42-45

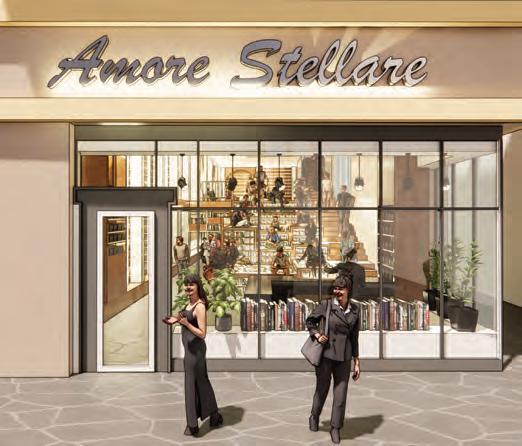

01 AMORE STELLARE

UPLIFTING

BEYOND TREVI

CAFE + BOOKSTORE | ROME, ITALY

CONTRIBUTING MEMBERS: SAMANTHA BRENNAN & FERNANDA ADRI LIMA

“Amore Stellare” cafe bookstore, drawing inspiration from Rome’s iconic Trevi Fountain, aligns with its surroundings by replicating its topography. Situated facing the fountain, the bookstore embodies its essence, with a focus on Romantic and Poetry books. Emulating the fountain’s steps, the interior design fosters a sense of spaciousness, illuminated by natural light pouring in from above. This strategic layout entices visitors to transition seamlessly from the bustling piazza to the tranquil atmosphere within. Key design elements include uplifting forms, maximizing light penetration, and fluidly integrating architectural features. By harmonizing with the Trevi Fountain’s aesthetic and ambiance, “Amore Stellare” not only pays homage to its inspiration but also creates an inviting space for book enthusiasts and café-goers alike to immerse themselves in literature and leisure.

piazza di trevi

Parti Diagram

PARTI DIAGRAM

Parti Diagram

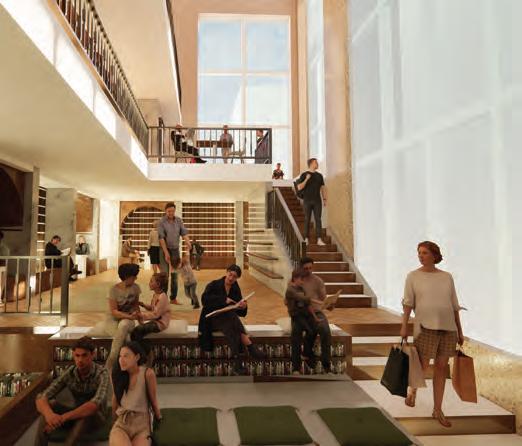

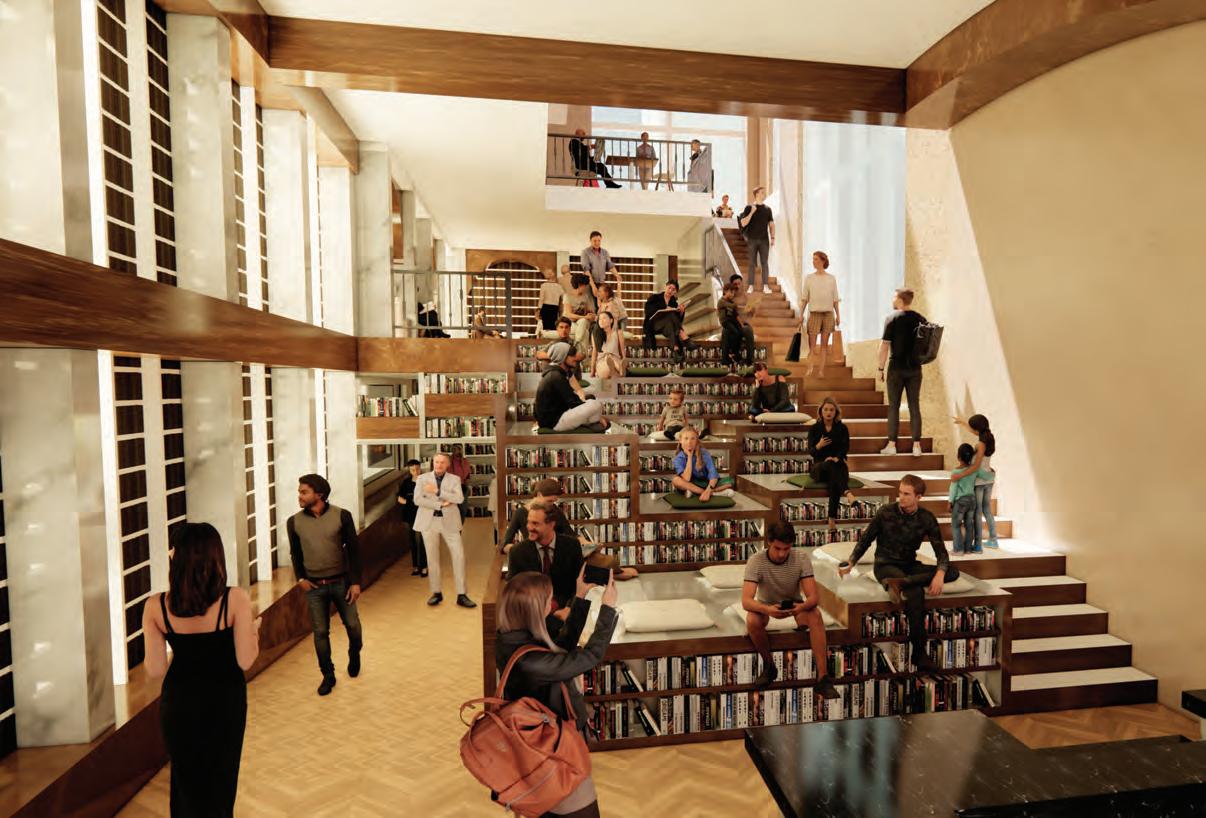

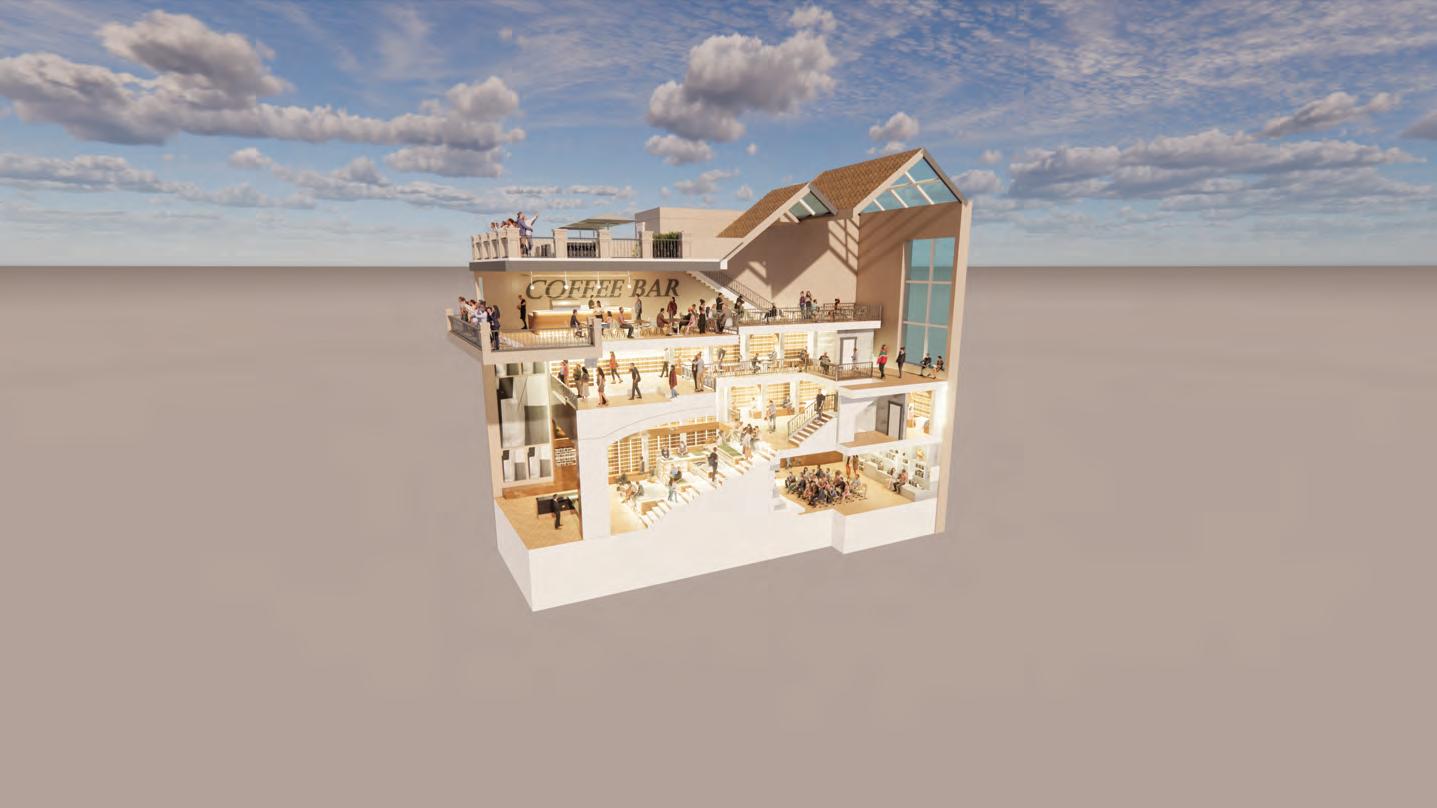

The building’s program spans four floors, each offering a unique experience. Upon entry, guests encounter a recessed seating area resembling the Trevi Fountain’s steps, leading to a mini amphitheater. From there, they can explore the bookstore or ascend to the lounge for a more intimate setting. The aroma of coffee and pastries lures patrons to the cafe, where they can enjoy a snack and conversation. A balcony provides a tantalizing glimpse of the fountain, while the roof terrace offers a panoramic view, allowing visitors to behold the piazza from a new perspective.

piazza di trevi ly | brennan | adri lima

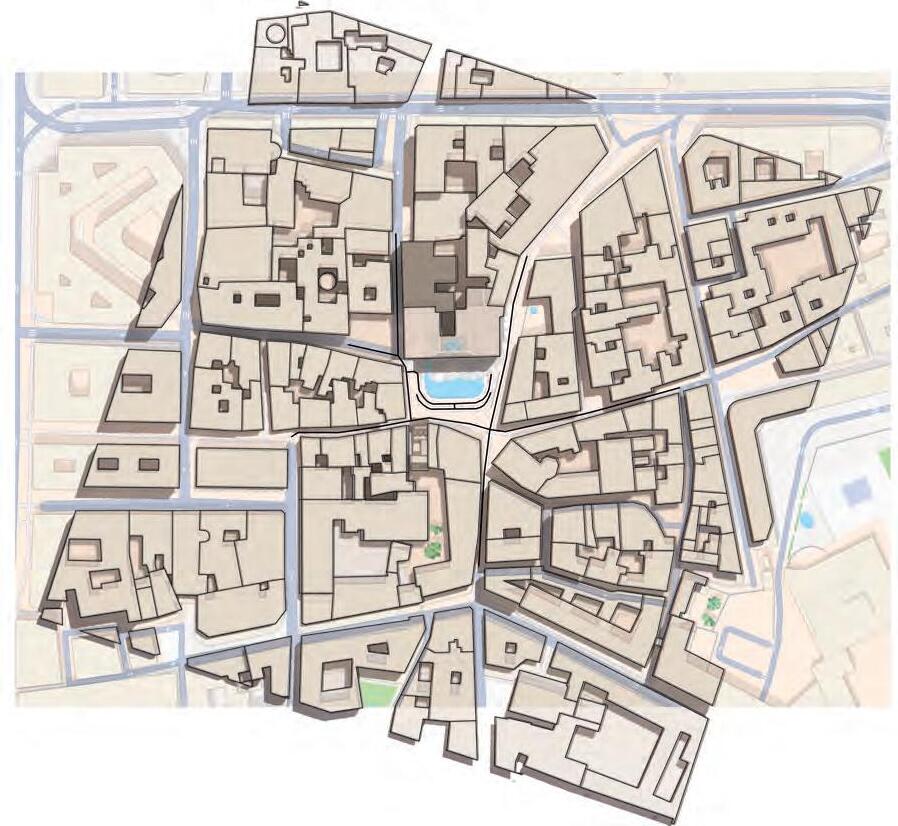

Figure Ground Plan

Site Analysis Diagrams

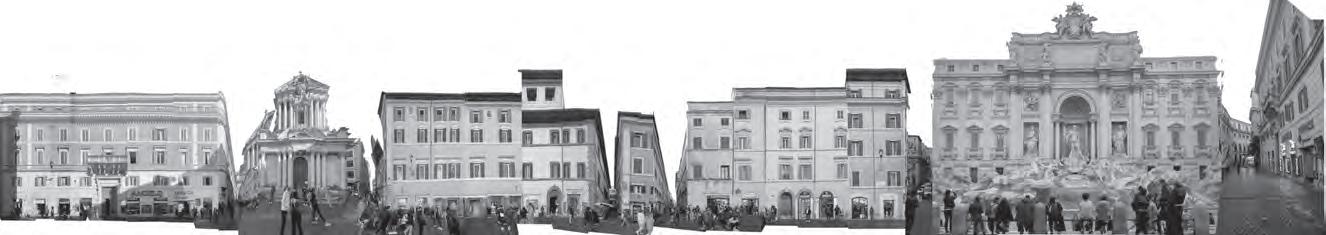

Boundary Montage of Piazza

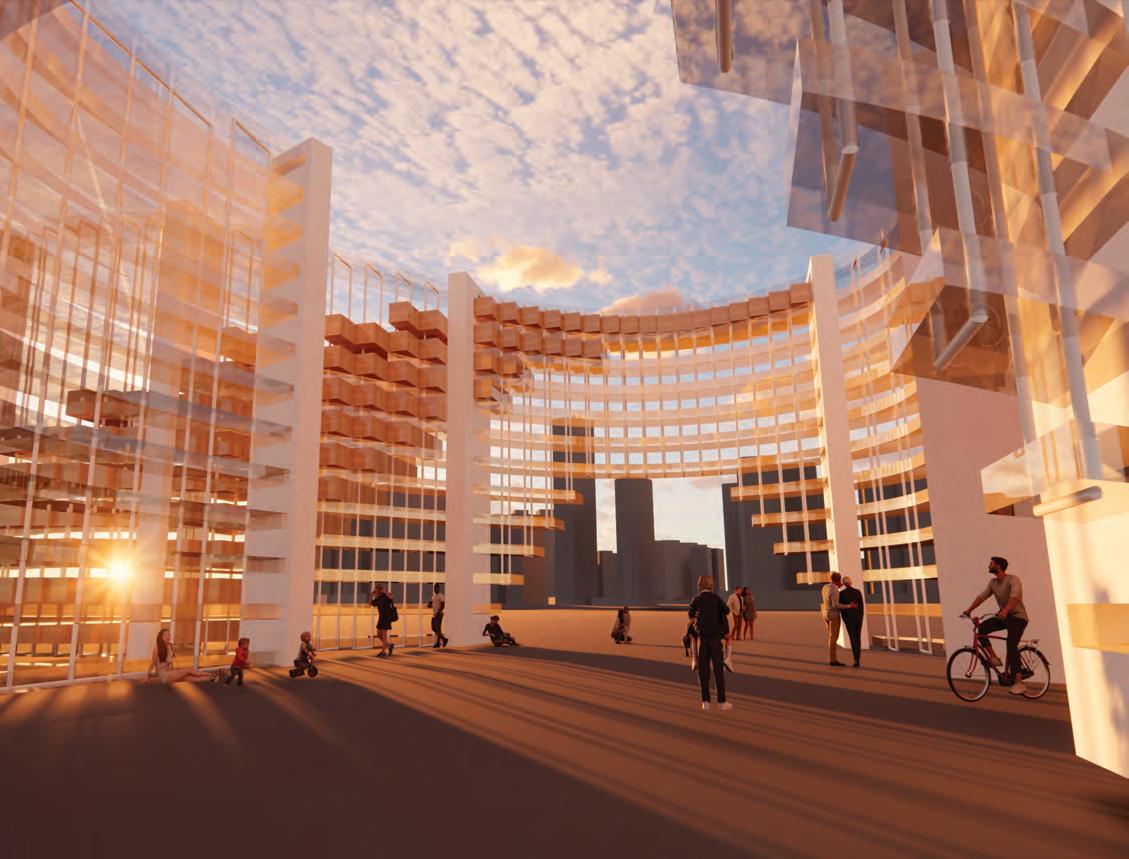

02 FIRST WARD REVITALIZING URBAN CORRIDORS

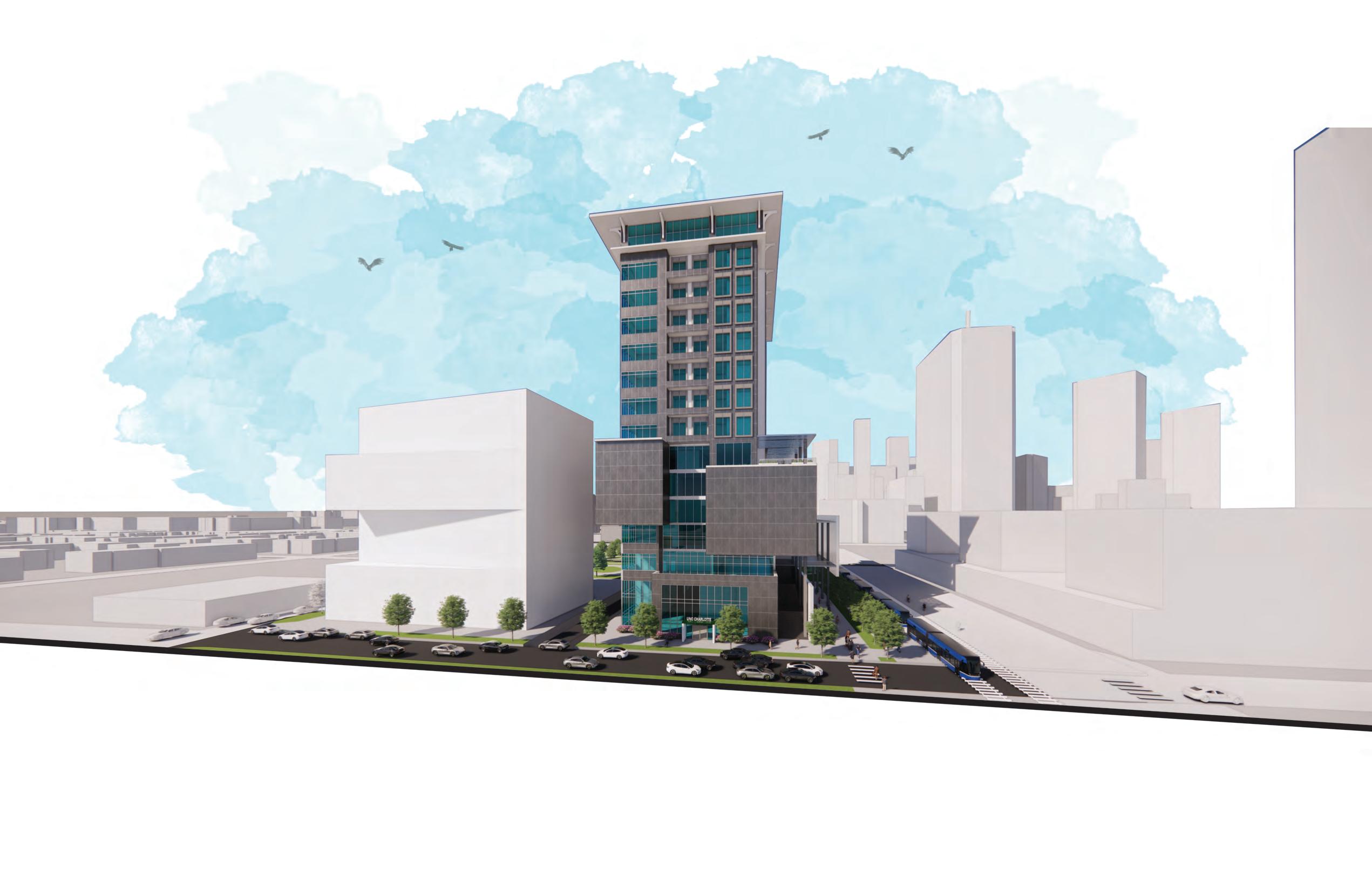

NEXT GEN INTEGRATED LEARNING RESIDENCE | CHARLOTTE, NC

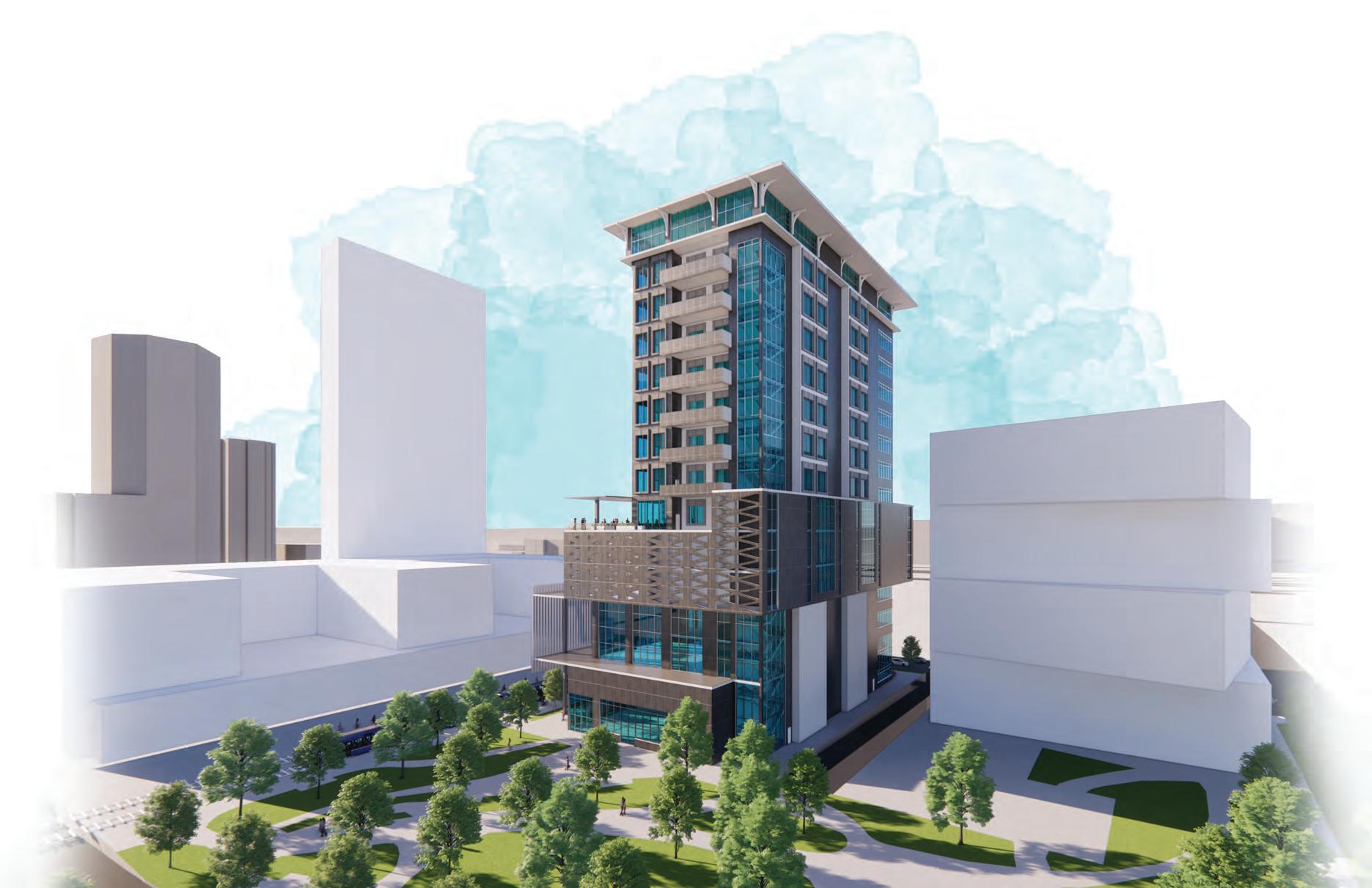

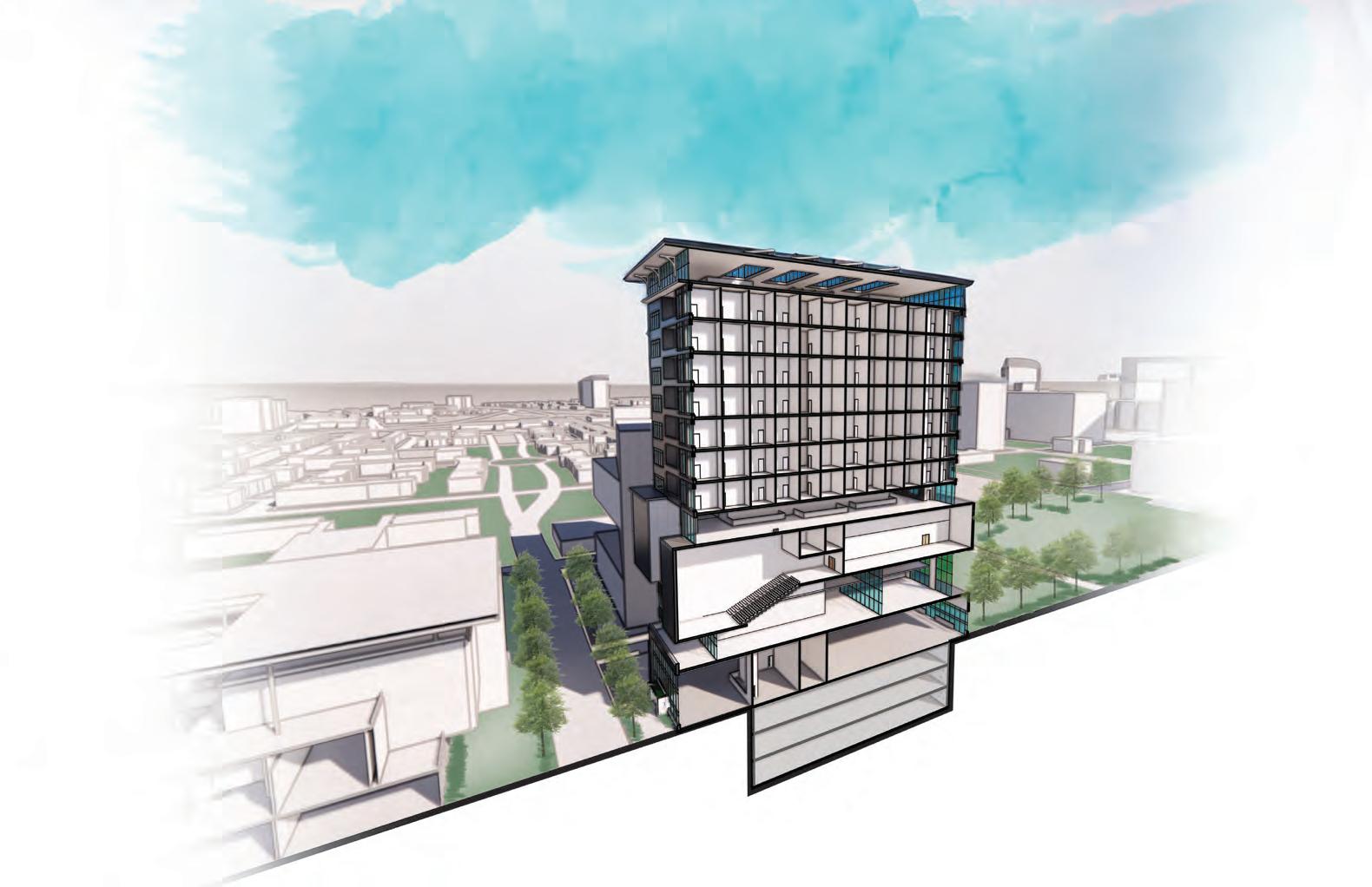

This projects represents a strategic initiative to redefine the integration of student residences and educational spaces. This innovative concept envisions a seamless blend of living and learning environments with direct access to an evolving transit hub. Placing student residences in Uptown Charlotte strategically enhances the university’s urban presence, contributing to the city’s academic and economic vitality. This model transcends conventional boundaries, fostering an enriched, interconnected ecosystem that revitalizes the student experience by harmonizing living, learning, and transit elements. The targeted focus on student living and educational spaces aims to provide a professional and academically enriching environment, enhancing not only the direct access to the transit station but also create a connection to UNC Charlotte Main Campus.

NORTHTRYONST

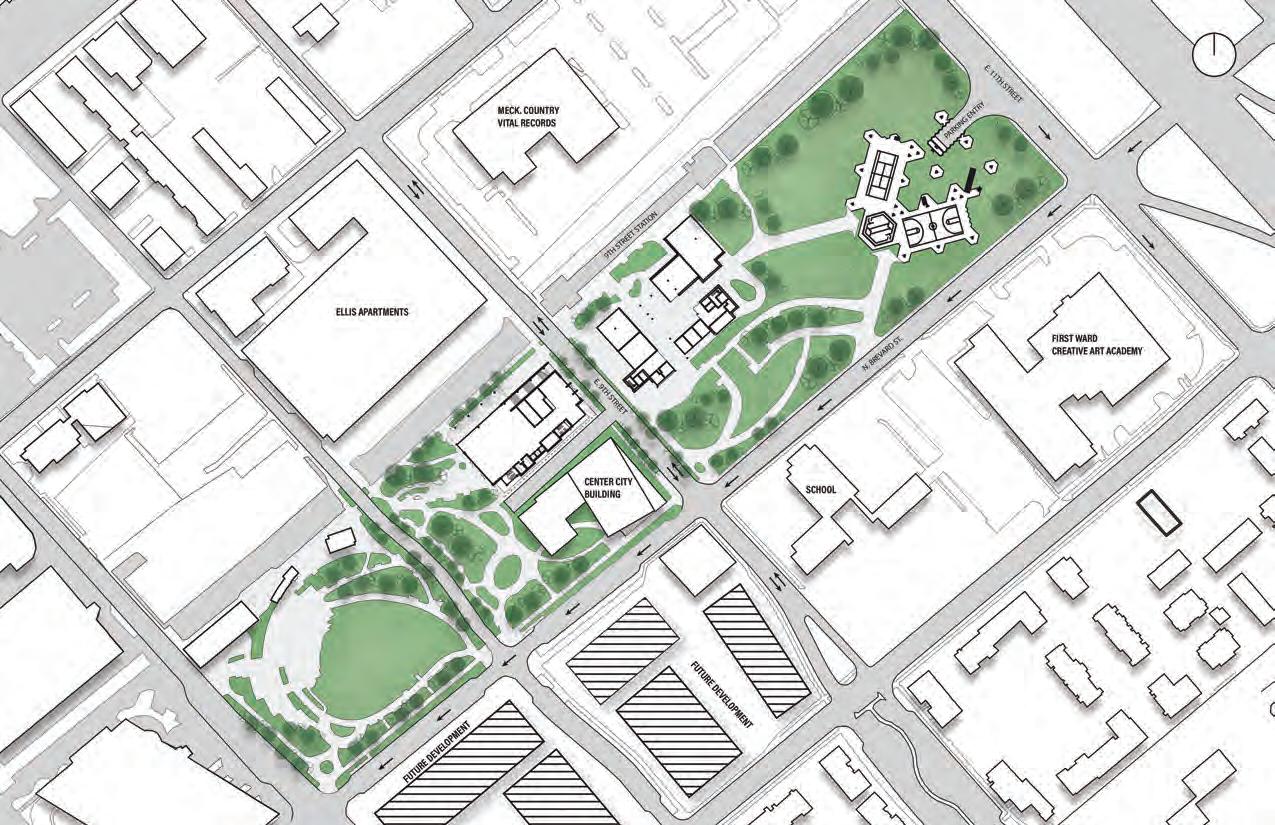

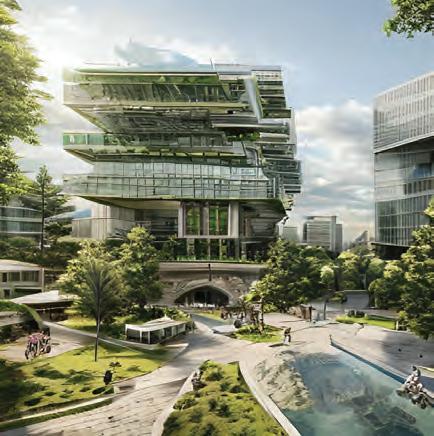

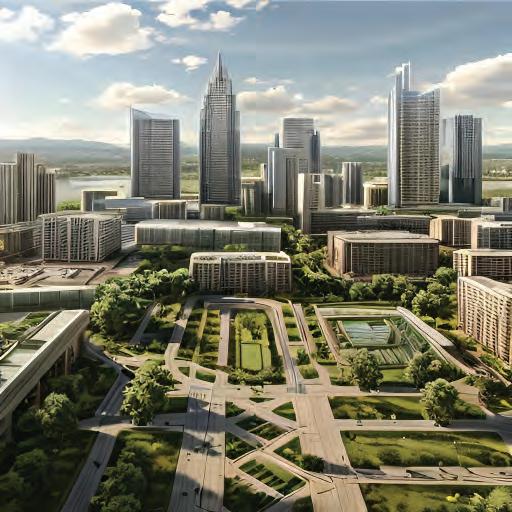

This development plan aims to reconnect the community by establishing a vibrant and welcoming district for the First Ward Neighborhood. This plan focuses on developing green spaces, educational institutions, and public amenity areas that complement one another in order to foster better integration between the current residential sector and the larger First Ward neighborhood. Underutilized parking spaces and dead zones are remodeled as parks and gathering places for recreational activities, as well as a link between public and private regions.

WHITEWHITEWHITEWHITEWHITEWHITEWHITEWHITE WHITE

DEMOGRAPHICS

WHITEWHITEBLACKHISPANICASIANWHITEBLACKHISPANIC BLACKHISPANICASIANWHITEBLACKHISPANIC

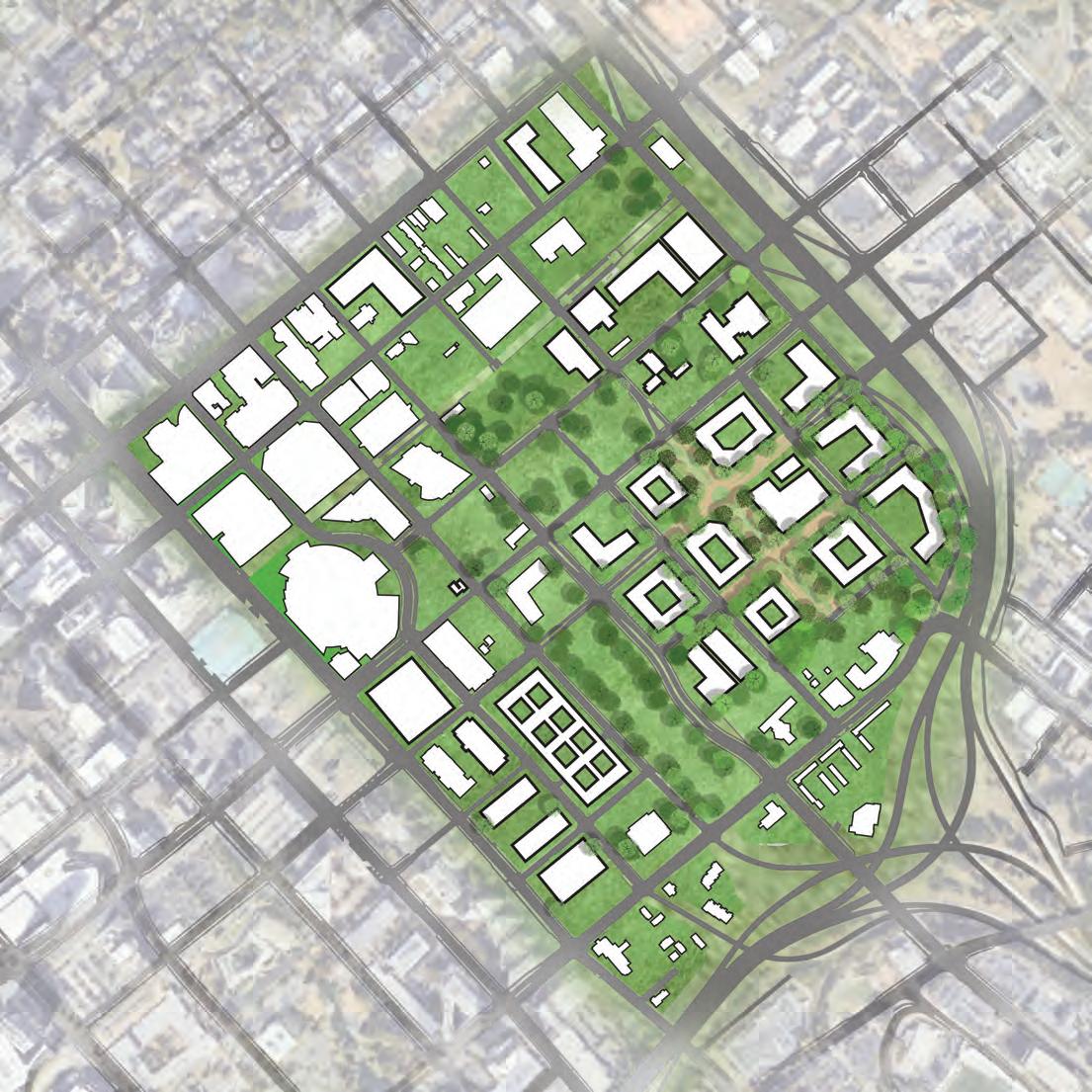

BLOCK PLAN | 1/256” = 1’-0”

WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE BLACKBLACKBLACKBLACKBLACK BLACKBLACKBLACKBLACKBLACKBLACK

WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITE WHITE WHITEWHITEWHITEWHITE BLACKBLACKBLACKBLACKBLACK BLACKBLACKBLACK BLACKBLACKBLACKBLACK BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK BLACK BLACKBLACKBLACKBLACKBLACKBLACKBLACKBLACK WHITEWHITEWHITEWHITEWHITEWHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITEWHITEWHITEWHITEWHITEWHITE WHITEWHITEWHITEWHITEWHITEWHITEWHITE

PARKING

9THSTREETSTATION

E.9THSTREET

BUILDING TYPES

DESIGN BEHAVIOR

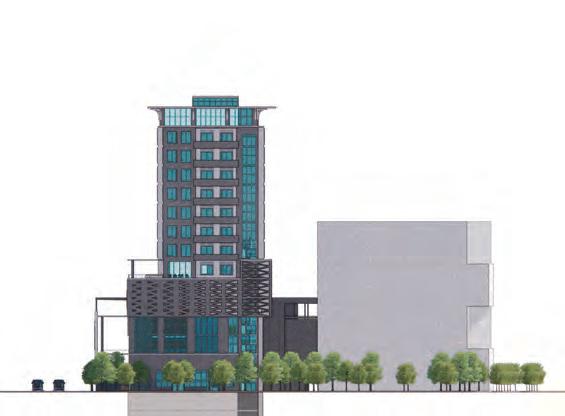

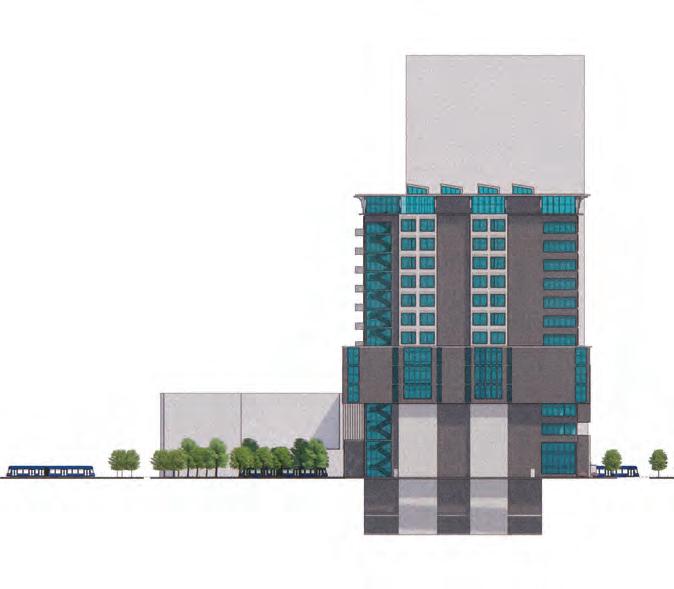

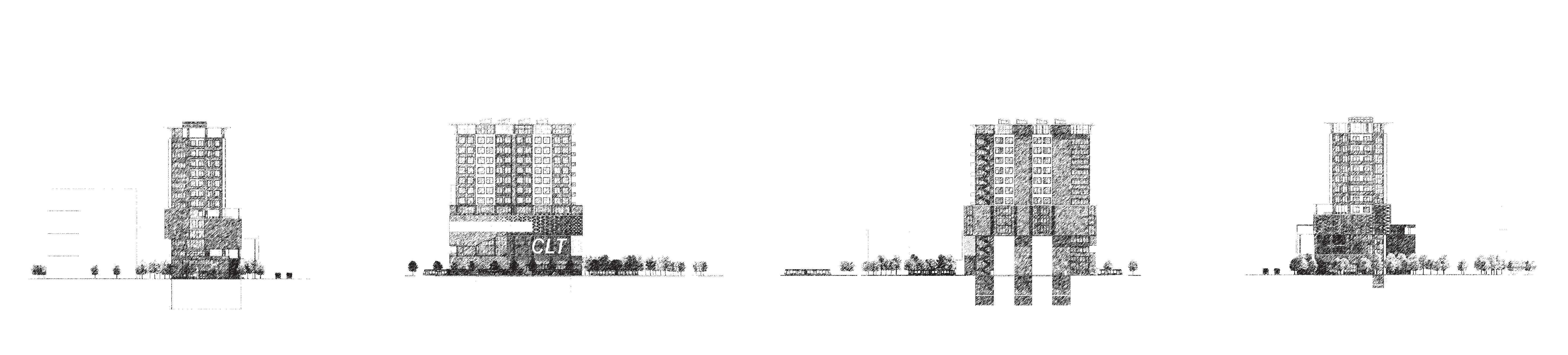

SW ELEVATION | 1/32” - 1’-0”

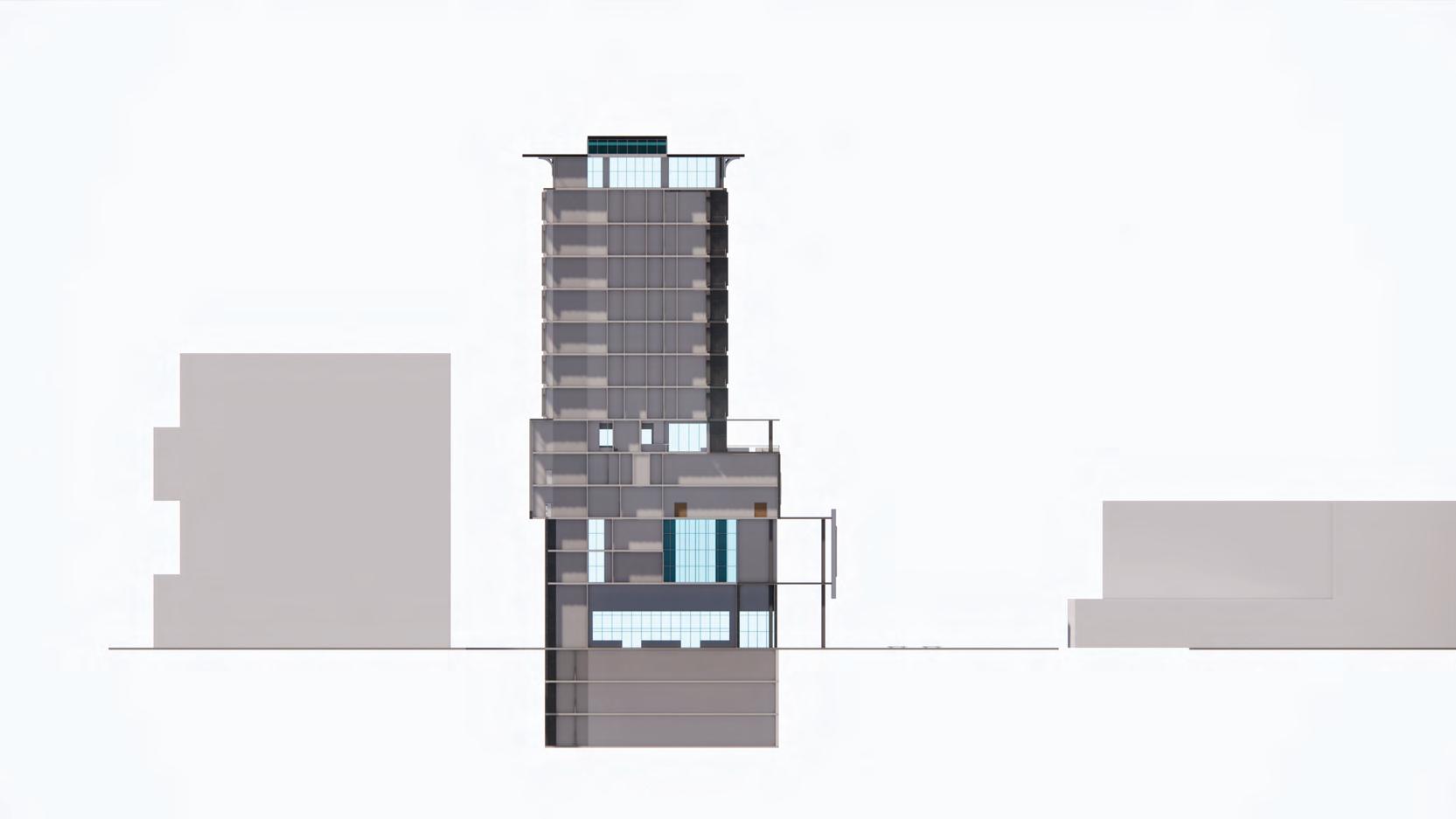

SE ELEVATION | 1/32” - 1’-0”

SOUTHWEST ELEVATION

03 RE. GEN A NEW BEGINNING

FARMER’S MARKET & RESOURCE CENTER | SEATTLE, WA

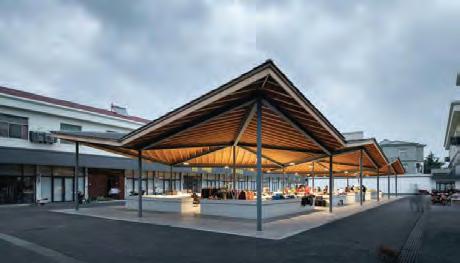

RE.GEN is a 45,000-square-foot social creative resource center symbolizing re-growth, seeks to transform a pier site into a vibrant gathering space for diverse users. The project aims to unite Ballard’s communities and support Seattle residents transitioning from homelessness, offering a fresh start. Like a Farmer’s Market, it features permanent and temporary stalls for small businesses, providing financial consulting services and a diverse learning center. This convergence fosters educational advancement. The use of Mass Timber Construction establishes a warm, atmospheric connection to the existing site, encouraging casual and lively movement. Together, these elements cultivate a sense of community among those contributing to the structure’s vitality.

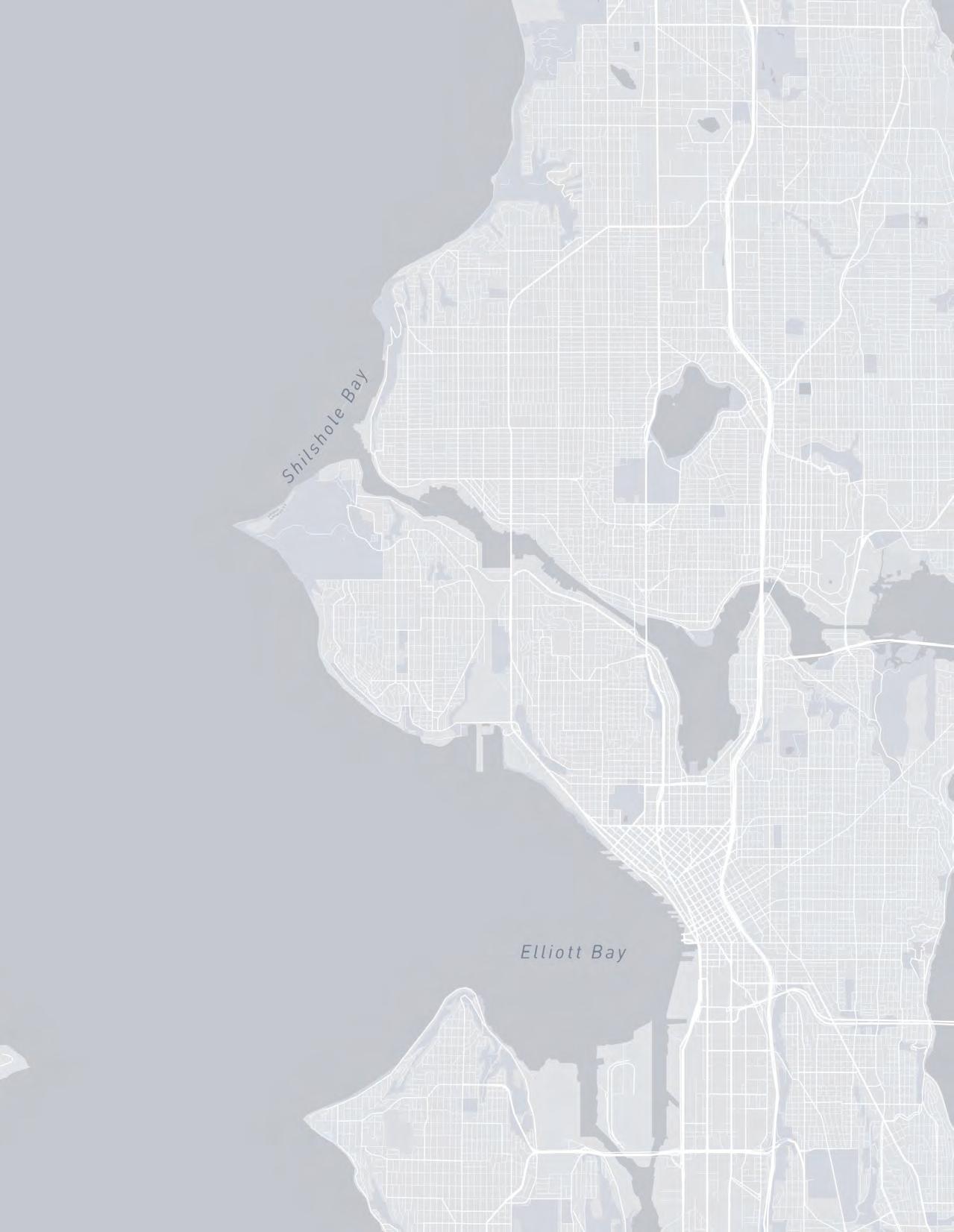

BALLARD NEIGHBORHOOD

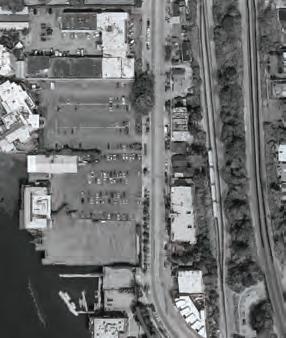

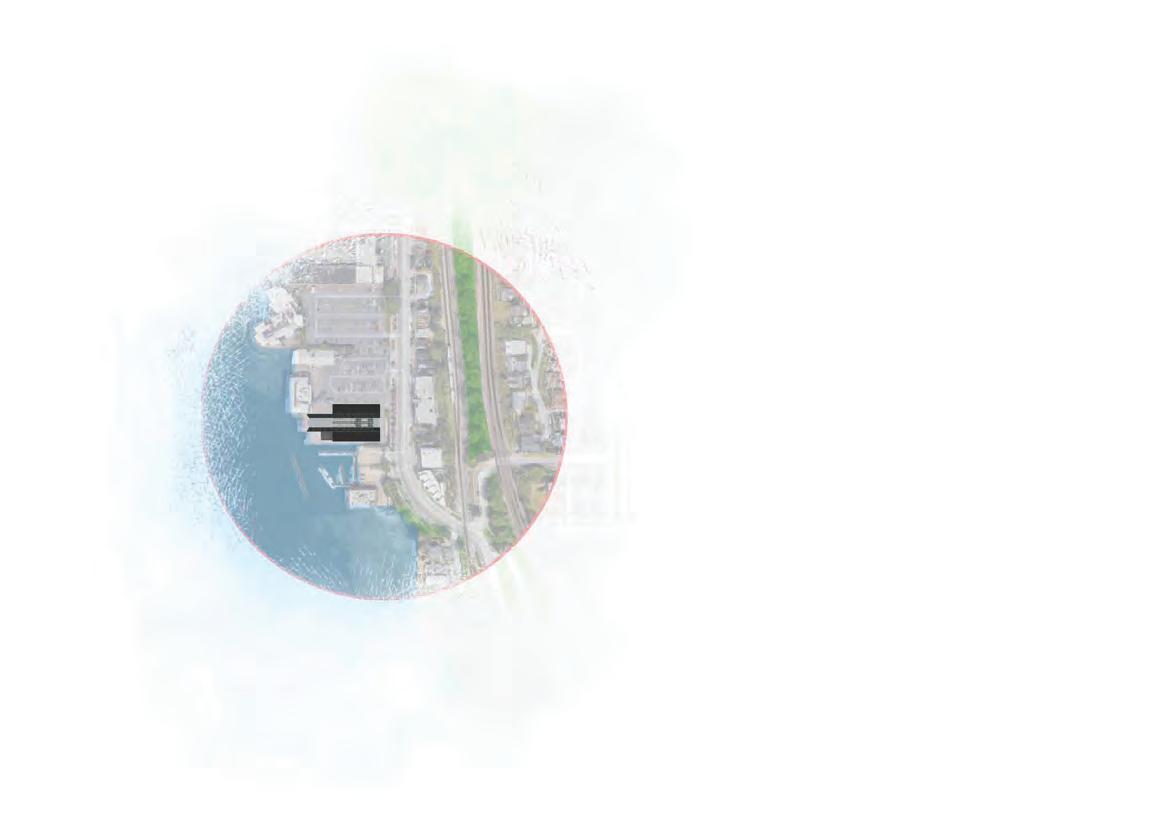

SITE

SEATTLE

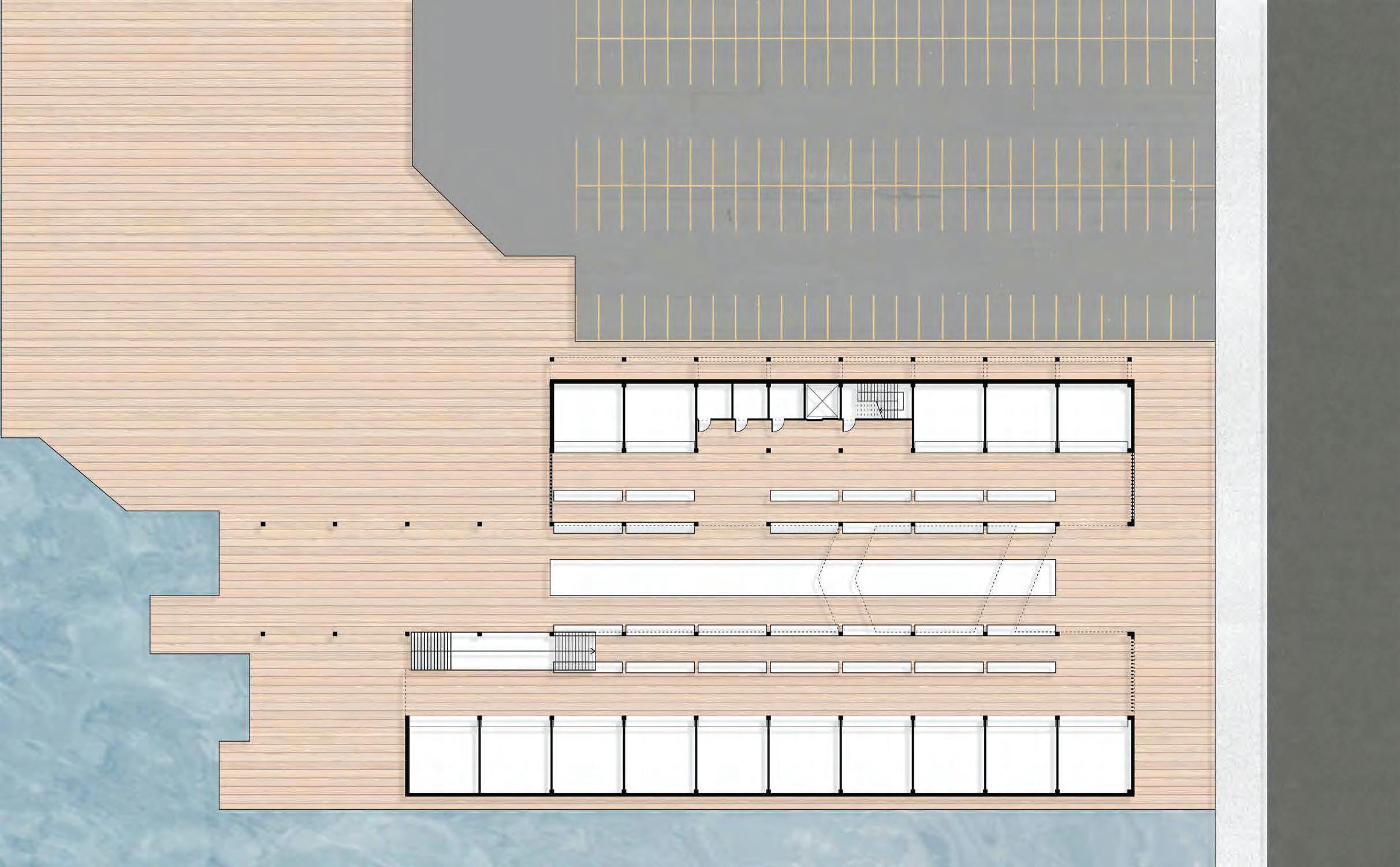

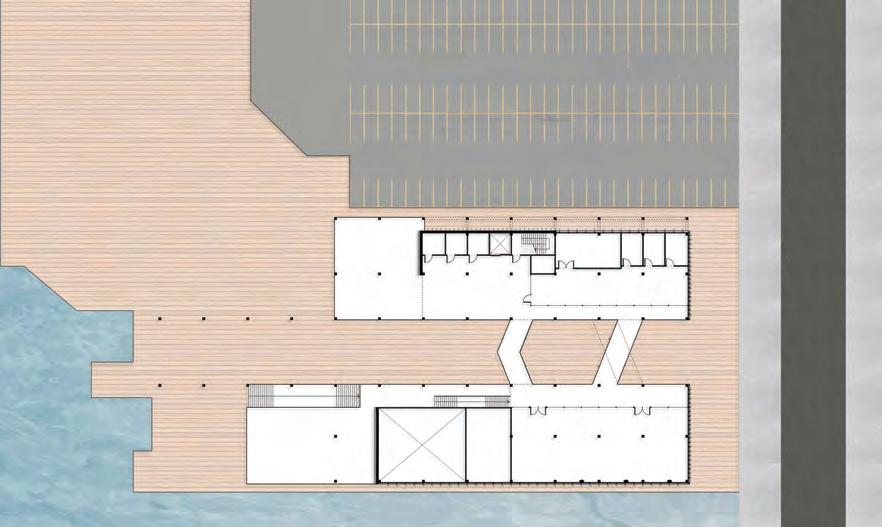

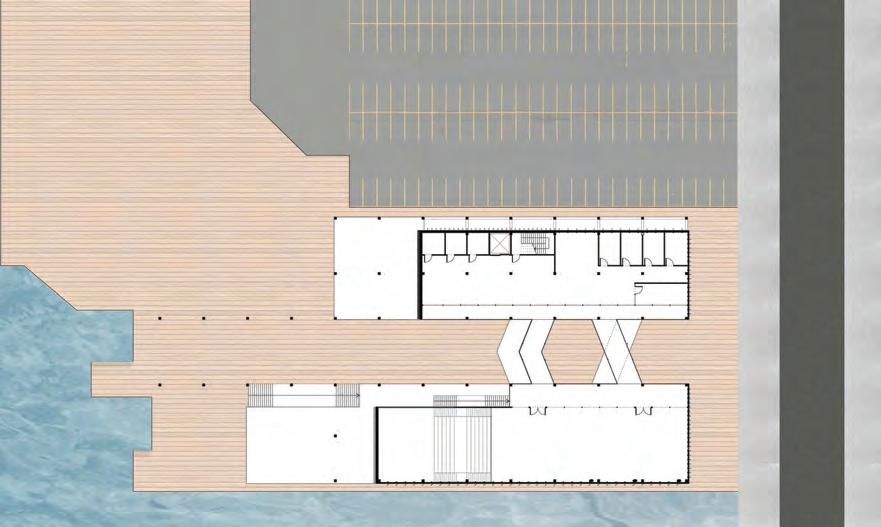

Located on a pier in Ballard, northwest Seattle, the design is shaped by considerations of circulation, emphasizing access from the main street and directing attention to scenic views of the lake and islands. A crucial factor is the integration of existing pier columns into the building’s structure. These columns serve as a foundational element, informing the overall architectural composition. The concept prioritizes seamless movement and appreciation of the natural surroundings, creating a harmonious connection between the site and the proposed building.

DESIGN BEHAVIOR

DESIGN BEHAVIORS

DESIGN BEHAVIOR

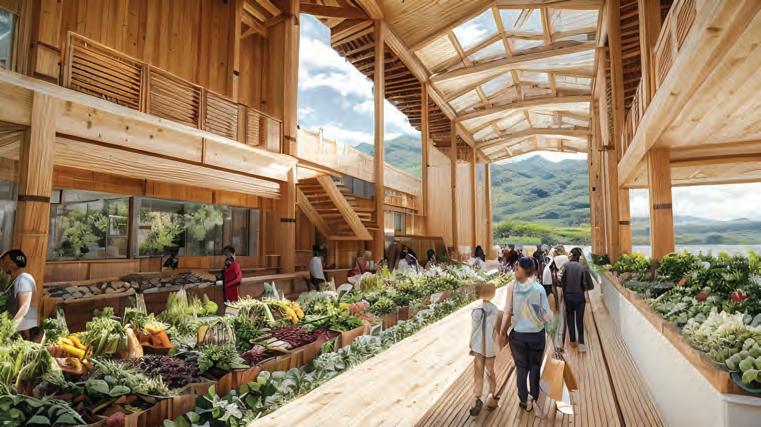

The incorporation of an open floor plan on the ground level profoundly influences the creation of an inviting spatial atmosphere. This design not only attracts existing residents to partake in shopping for produce but also encourages them to share the pier’s offerings and panoramic views with others. Positioned above, resource services provide direct accessibility for those in need, adding a layer of convenience to the overall experience.

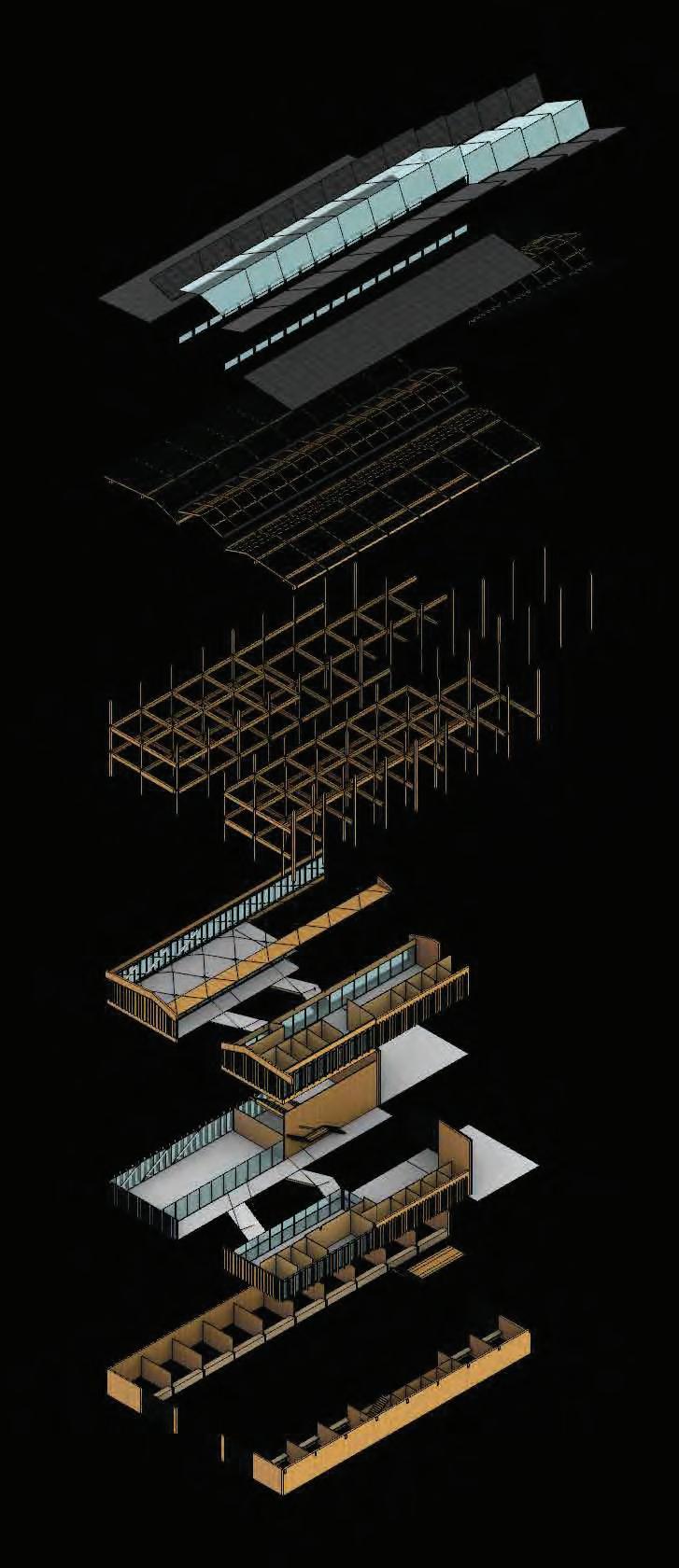

ROOF PANELS

RAFTERS & PURLINS

COLUMN GRID

AUDITORIUM & CONSULTING OFFICES

CULINARY LEARNING SPACE & ADMIN OFFICES

MARKET HALL

By elongating the concept, diverse spatial experiences unfold, enabling occupants to encounter various businesses and culminate their journey with a scenic view.

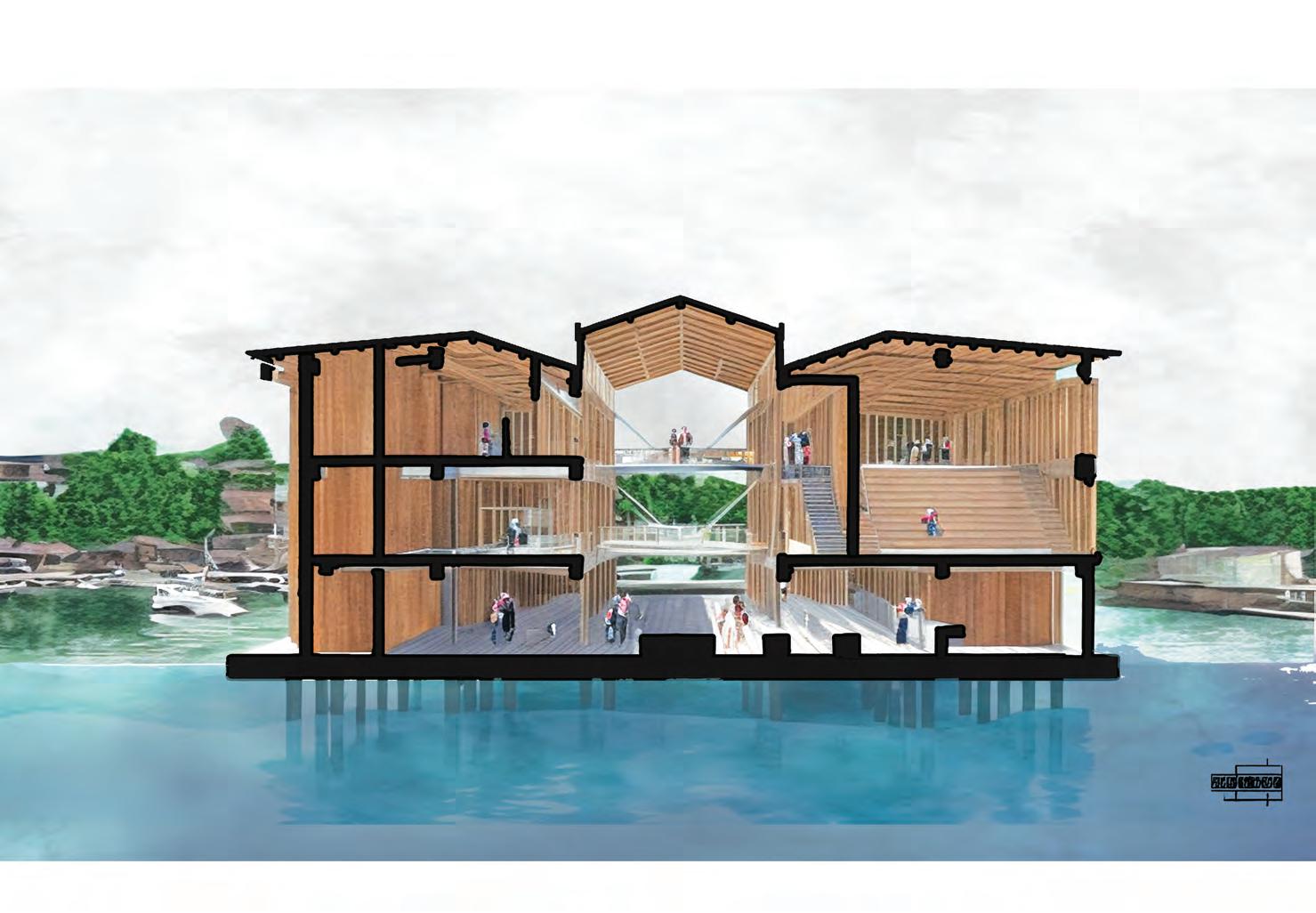

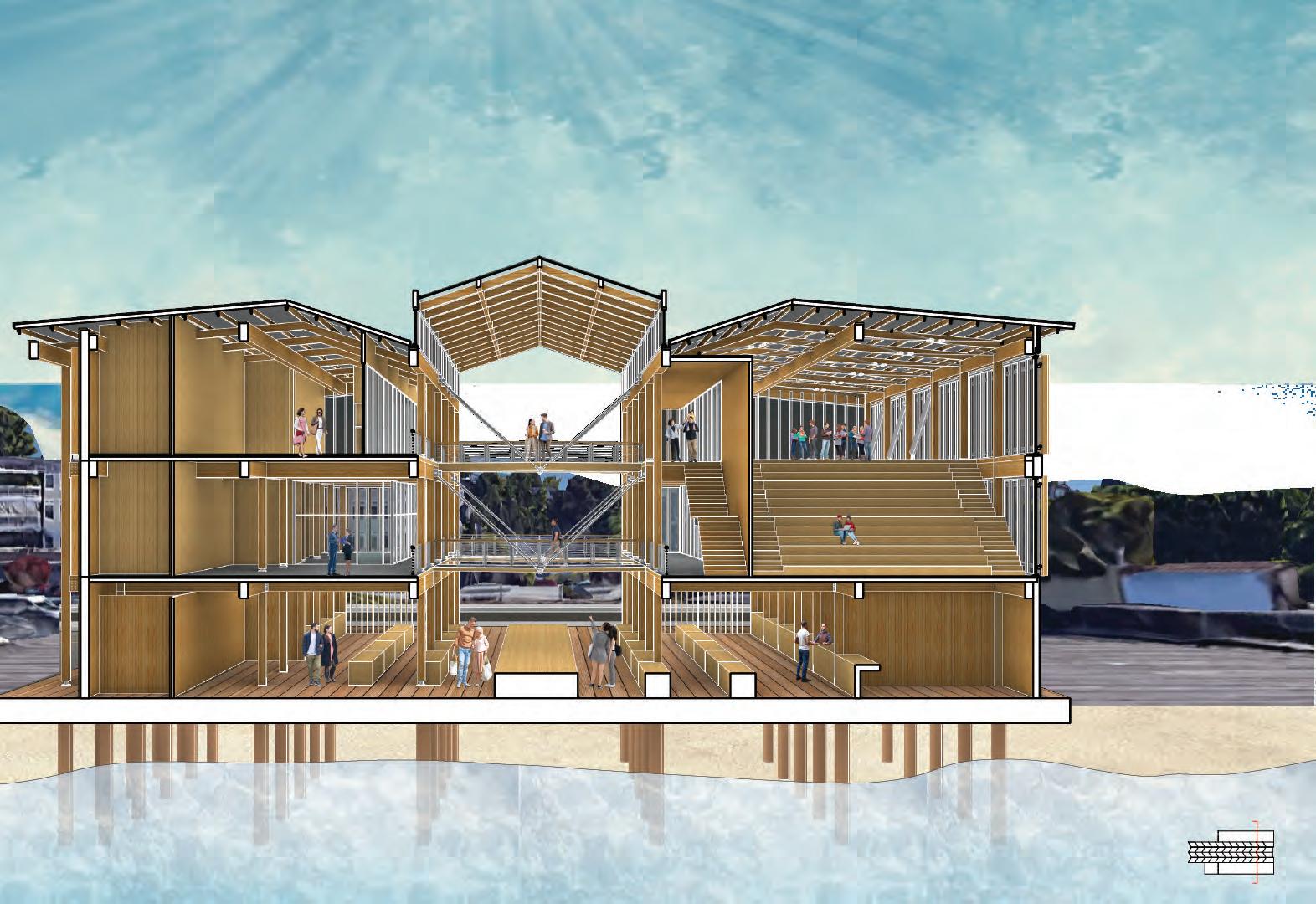

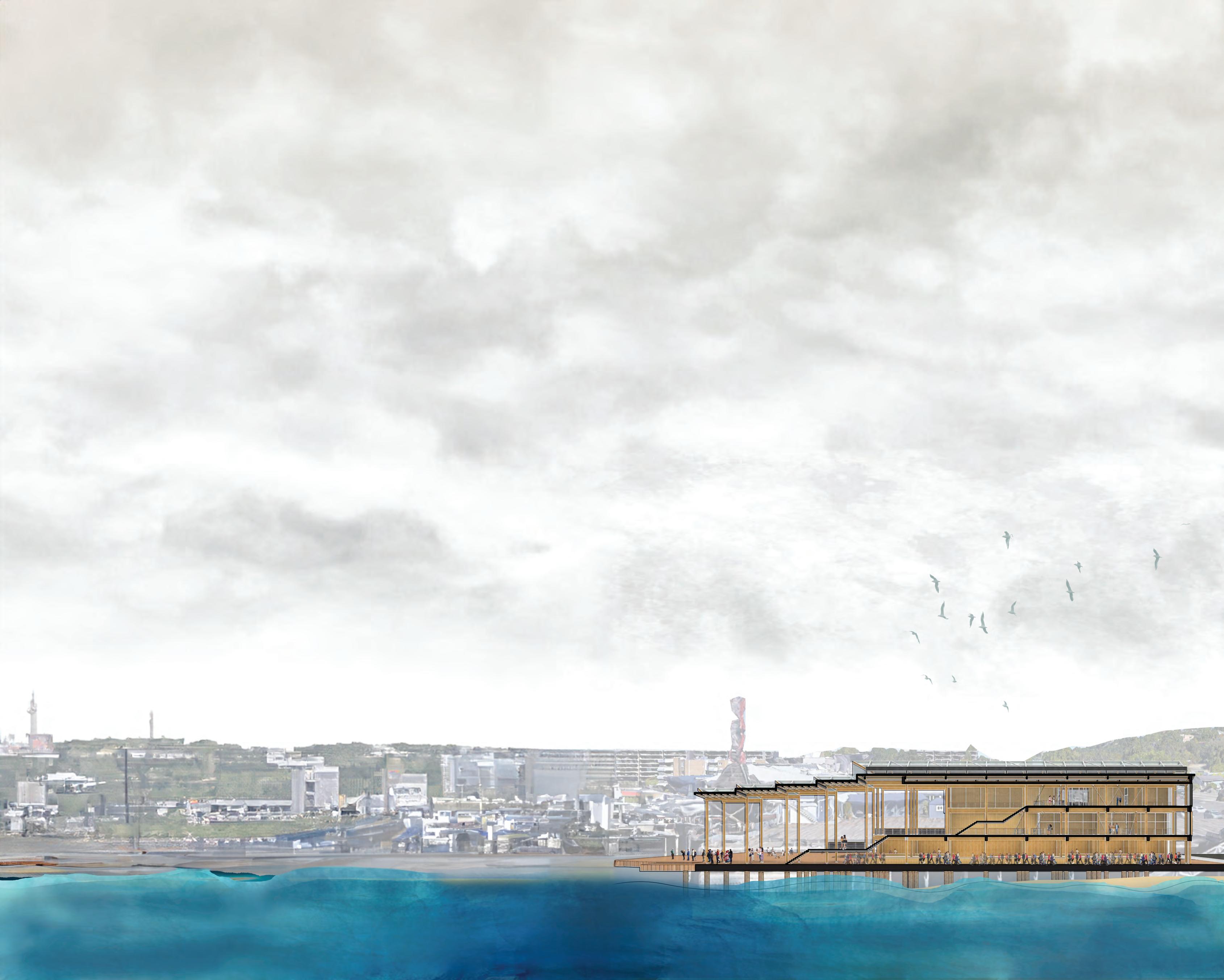

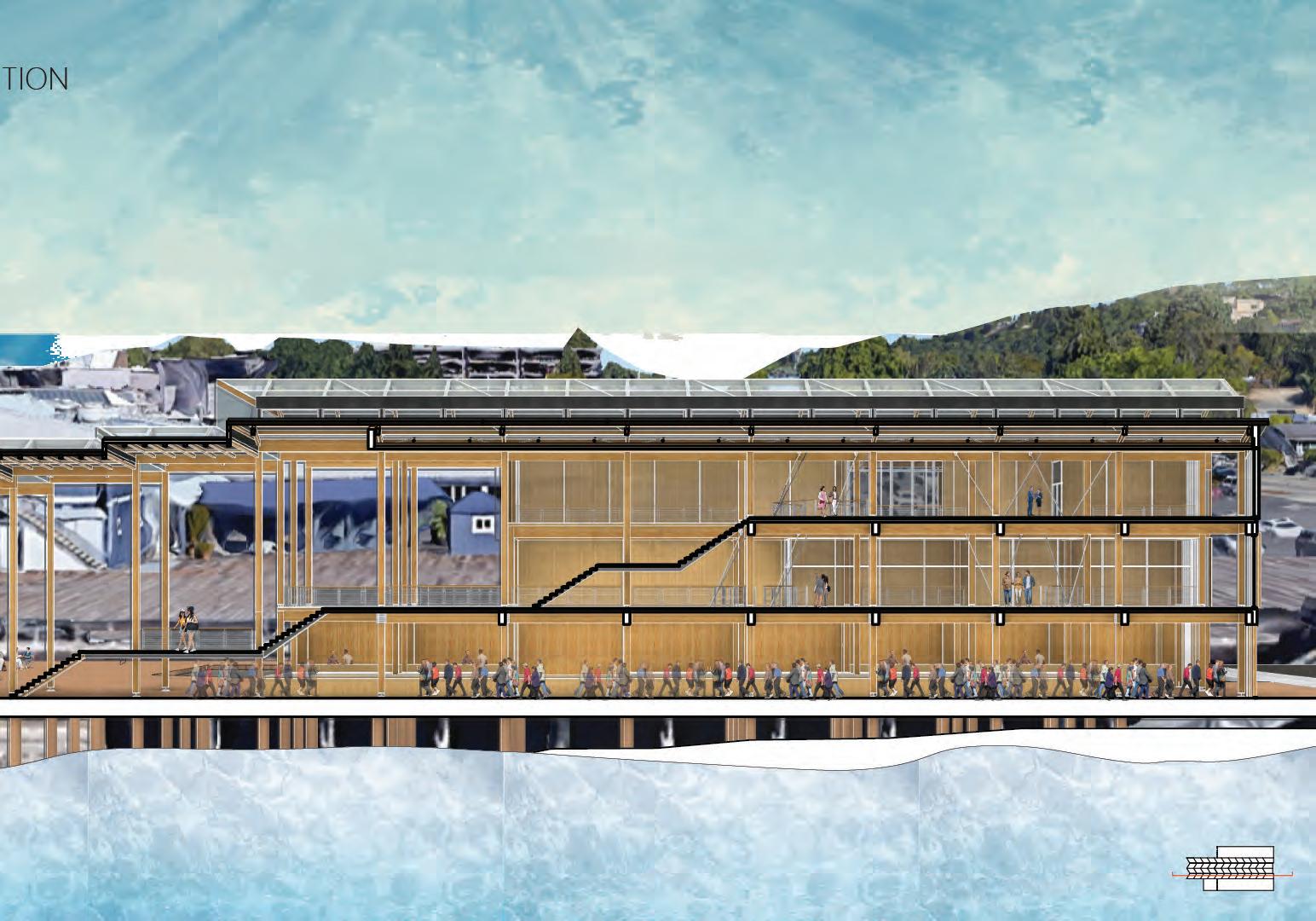

LONGITUDINAL SECTION | 1/24” = 1’-0”

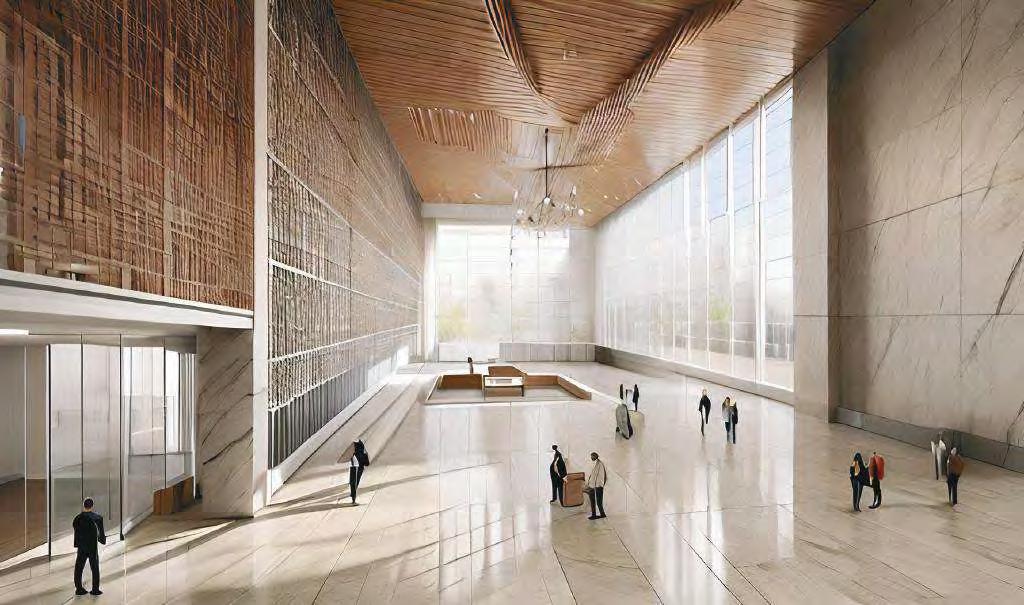

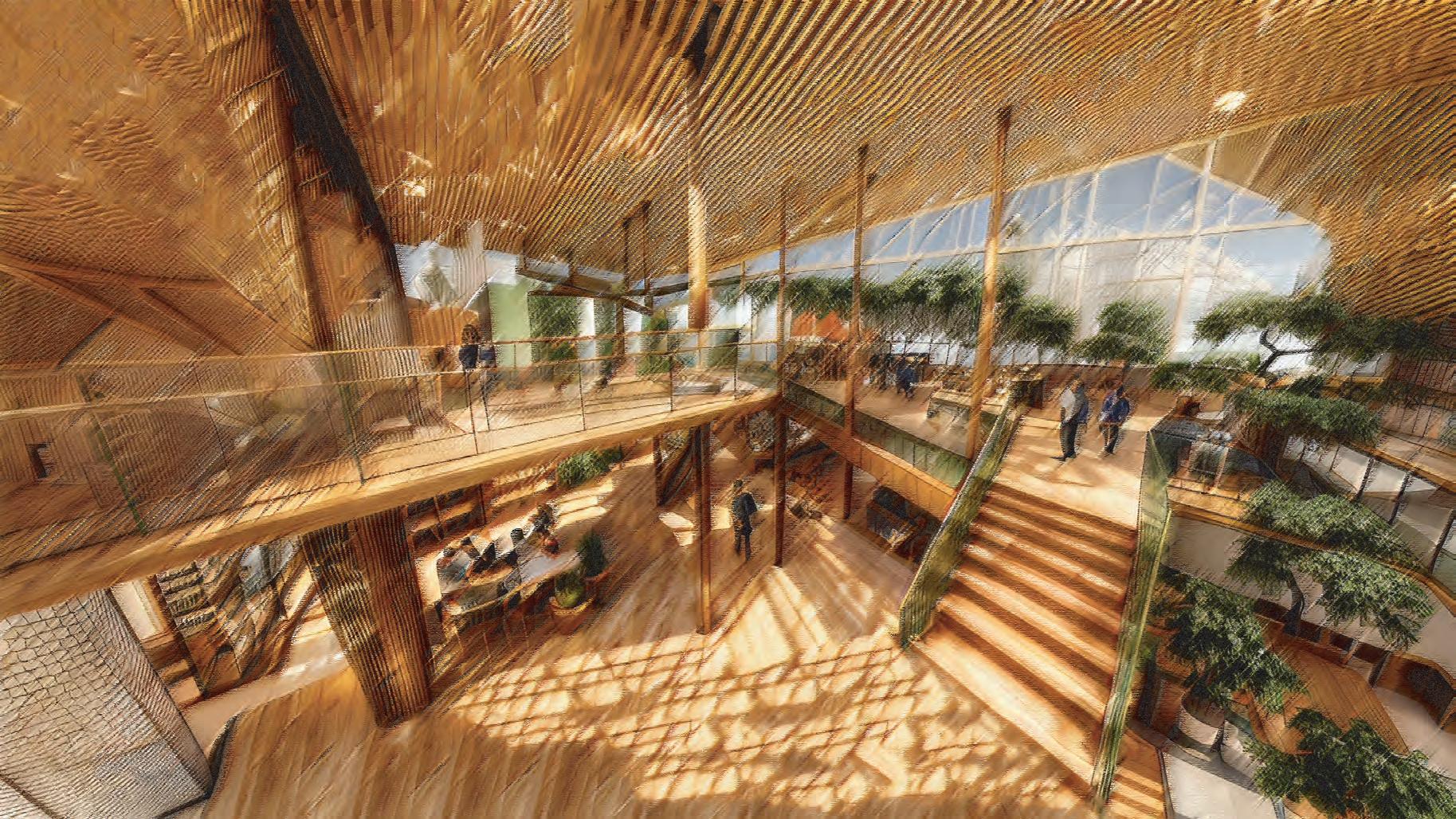

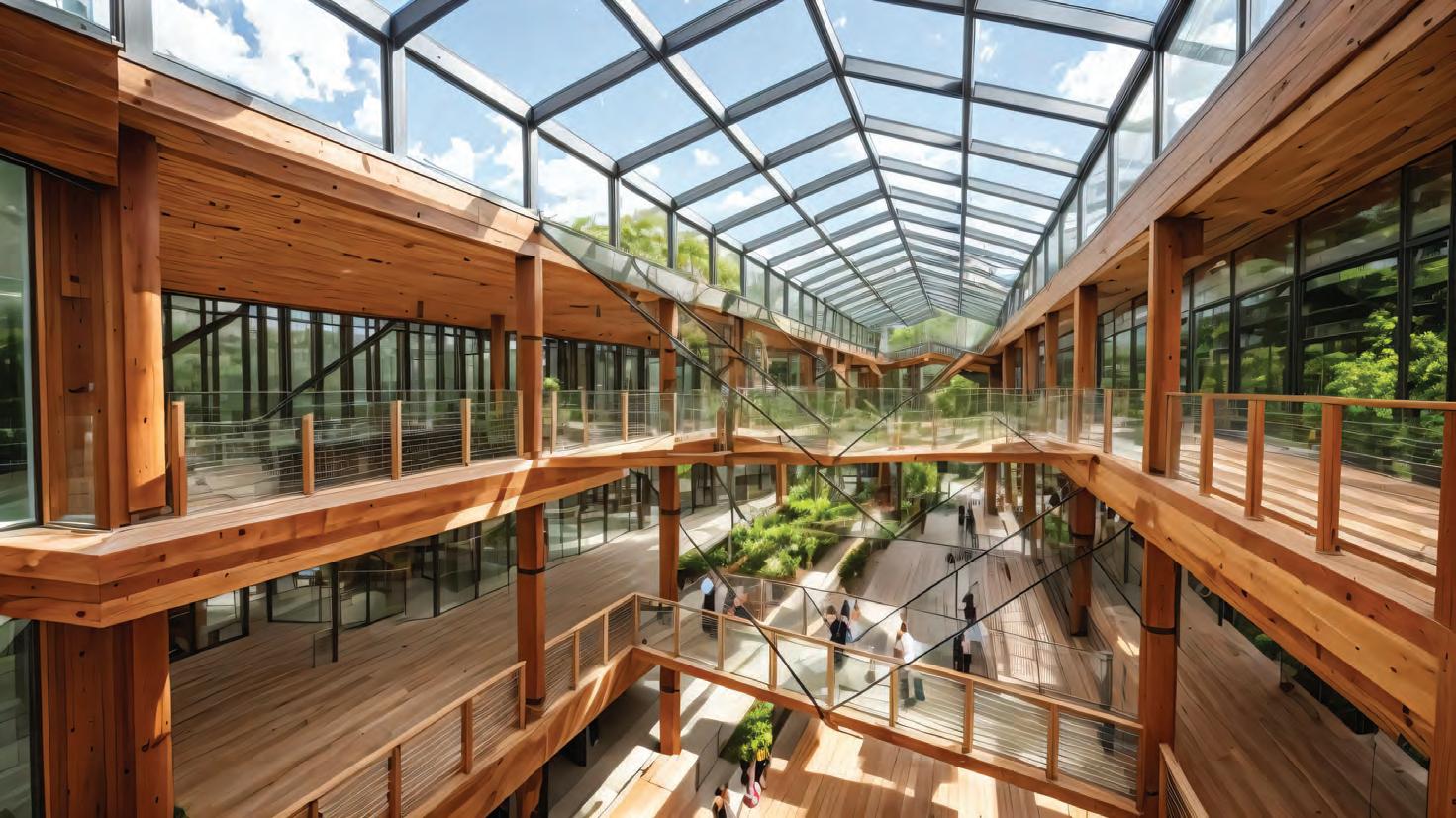

Atrium Center Panels

Street View of the Entry

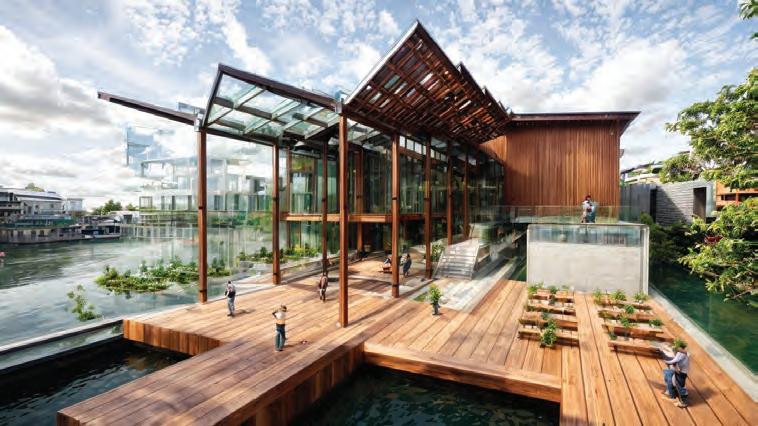

Terrace spaces opens up views

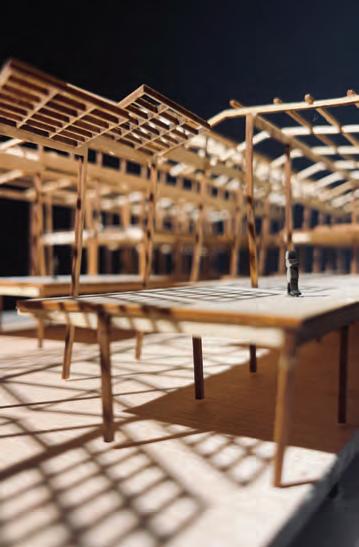

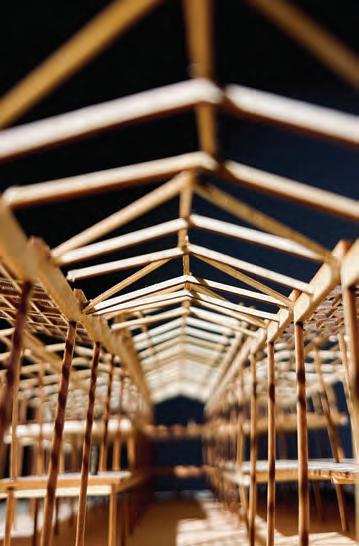

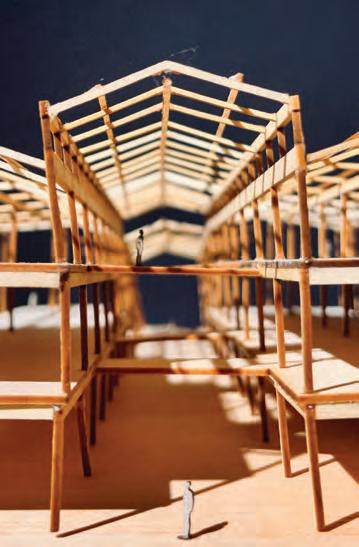

STRUCTURAL MODEL 1/16” SCALE

WALL SECTION 1/8” = 1’-0”

PLYWOOD SHEATHING SHOU SUGI BAN WOOD CLADDING

RIGID INSULATION NLT ROOF PANELS

2x_ PURLINS WITH STEEL ANGLE CONNECTOR PLATE

GLULAM BEAM WITH STEEL ANGLE CONNECTOR PLATE

GLULAM COLUMN

ALUMINUM PERFORATED LOUVERS ATTACHED WITH STEEL CONNECTORS

CUSTOMIZE STEEL PLATE CONNECTOR

DOUBLE PANE GLASS MULLION

HORIZONTAL BATTENS

2x6 HEADER

3-PLY CLT WALL PANEL (NON-STRUCTURAL)

5-PLY CLT FLOOR PANEL WITH ACOUSTIC MAT AND CONCRETE TOPPING

T-SHAPE STEEL PLATE CONNECTOR

WOOL MINERAL INSULATION SIBERIAN WOOD CLADDING

WALL SECTION

SCALE 1’ = 1/4”

CLOSE UP DETAIL 1/4” = 1’-0”

04

D I V E R G E

UNVEILING THE LANDSCAPE

WILDLIFE & RESEARCH CENTER | ASHEVILLE, NC

DIVERGE goes beyond a traditional public corridor, centering on a building intricately designed around the site’s optimal conditions. The project prioritizes seamless integration with the natural surroundings, transforming the structure into a harmonious element that enhances the overall environmental quality. Through thoughtful orientation, the building interacts synergistically with the landscape, creating a holistic and symbiotic relationship. This approach not only fosters dynamic views from the main street to the French Broad River but also emphasizes sustainability and coexistence. DIVERGE stands as a liason between architecture and nature, enriching the environment and inviting a heightened appreciation for the fusion of built forms with the natural world.

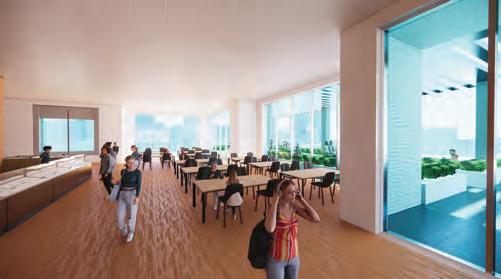

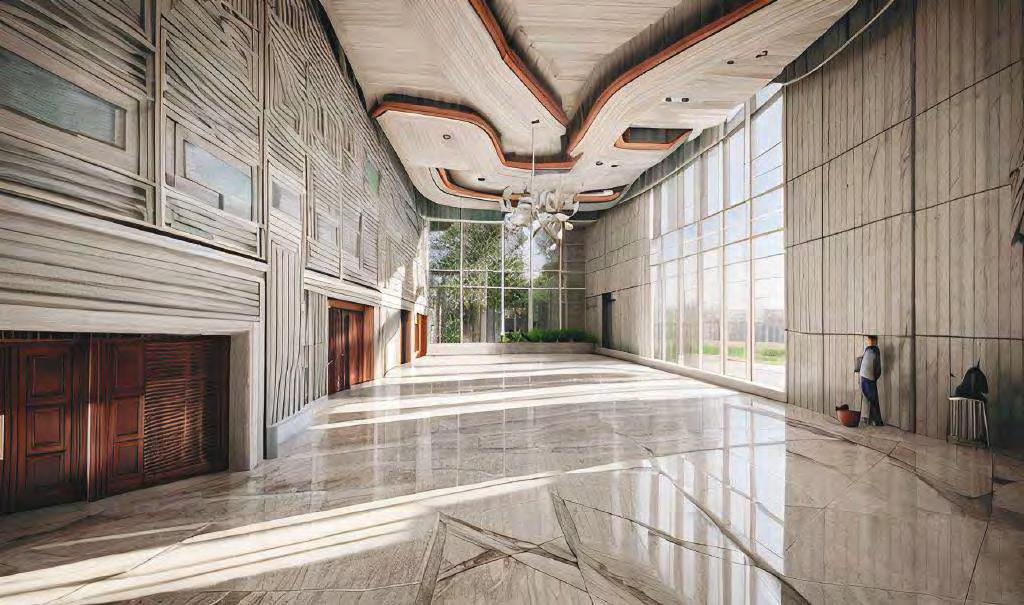

INTERIOR VIEW OF CAFE MARKET & SHOPS

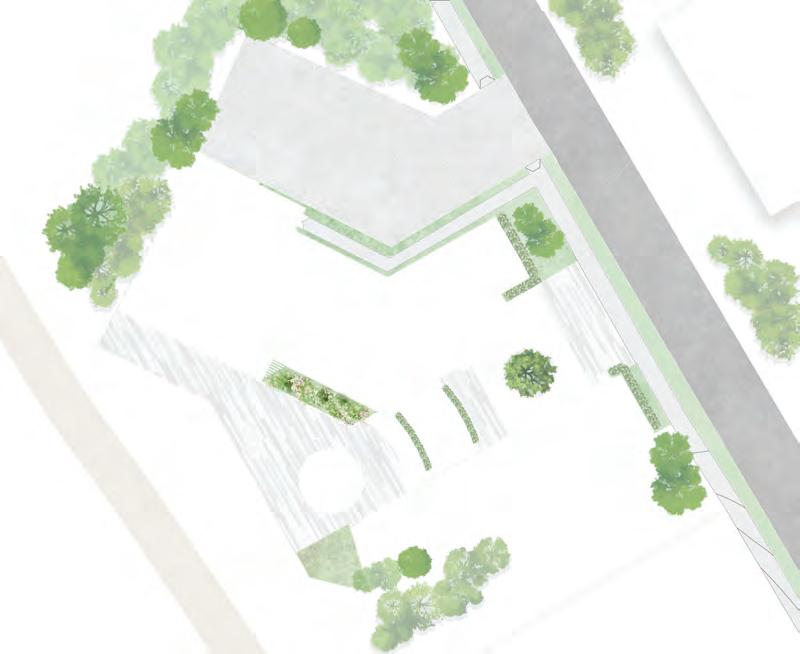

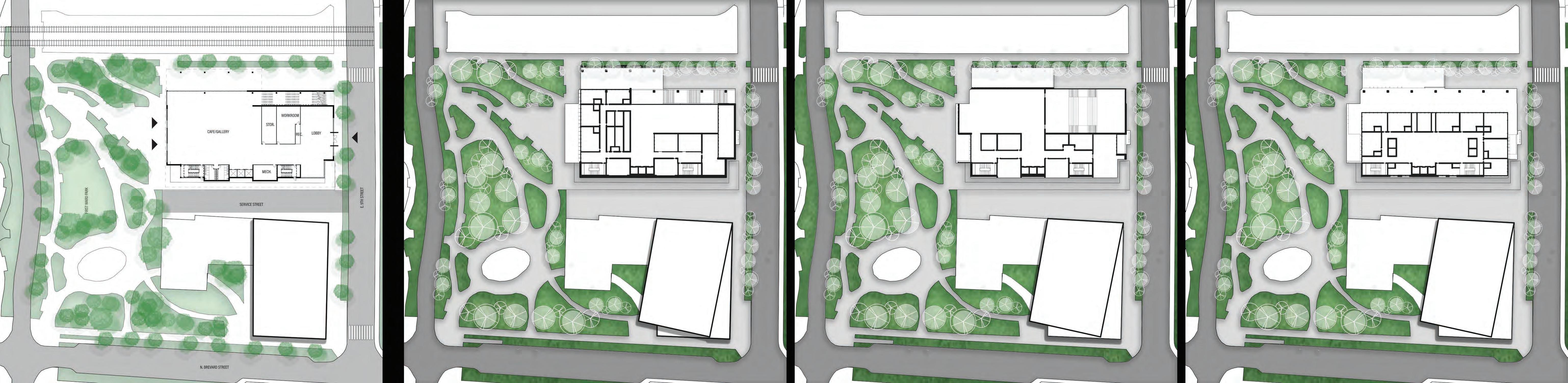

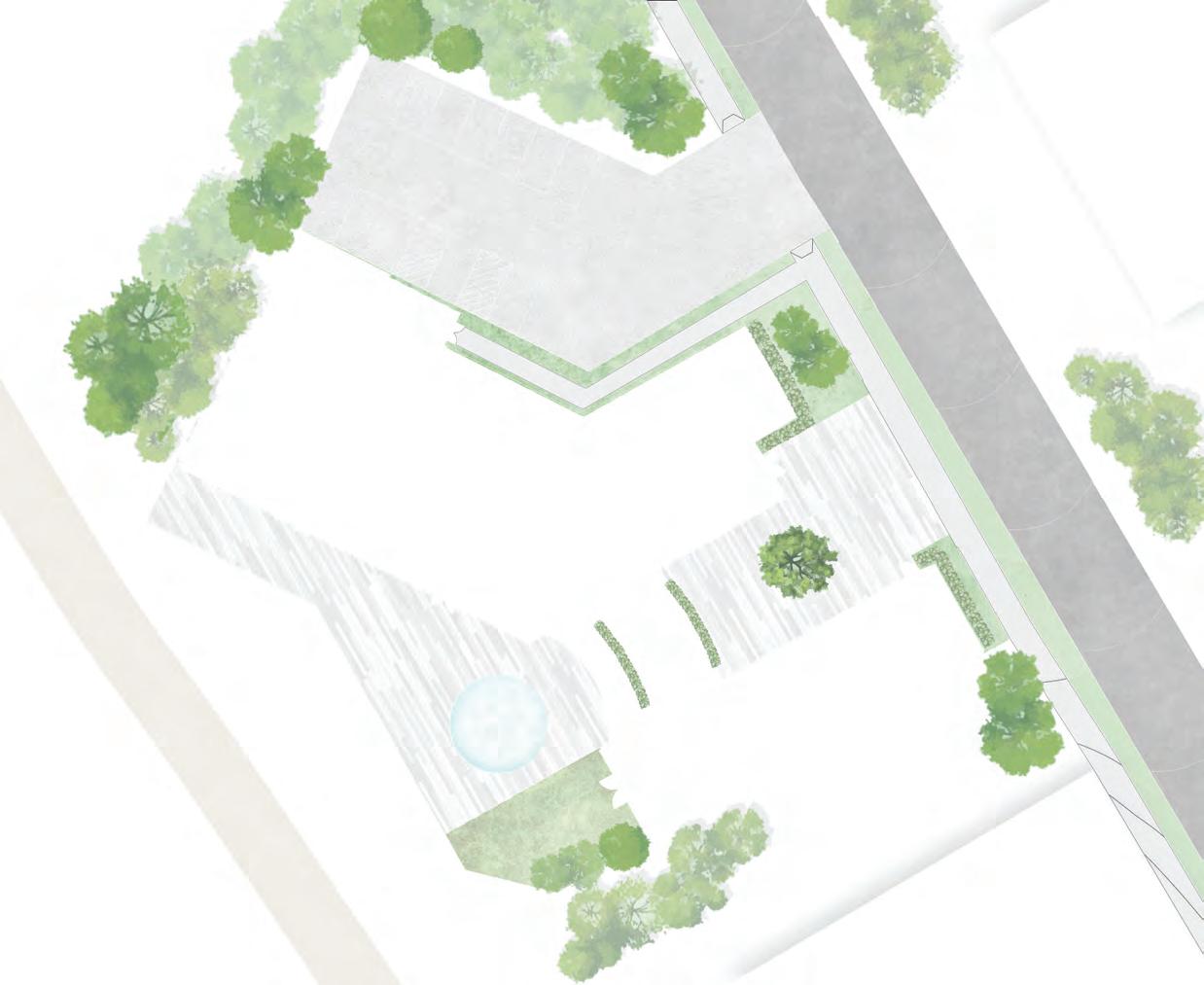

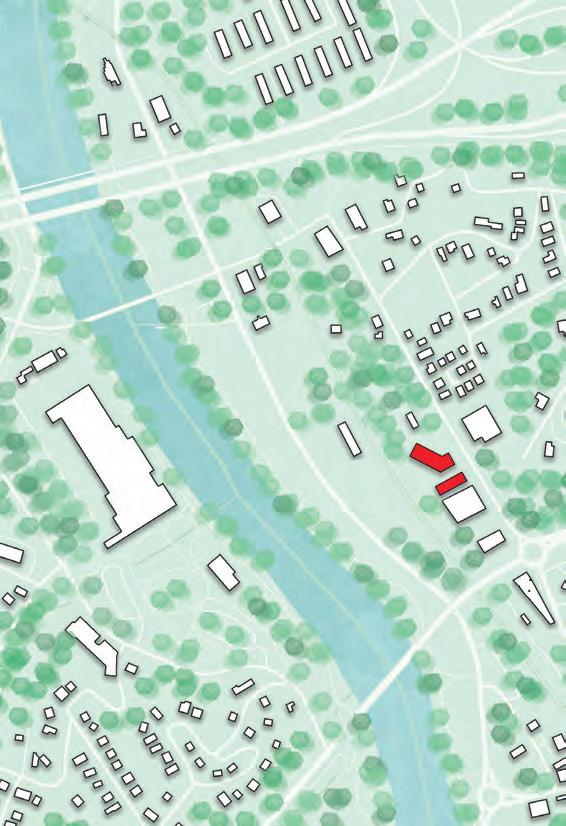

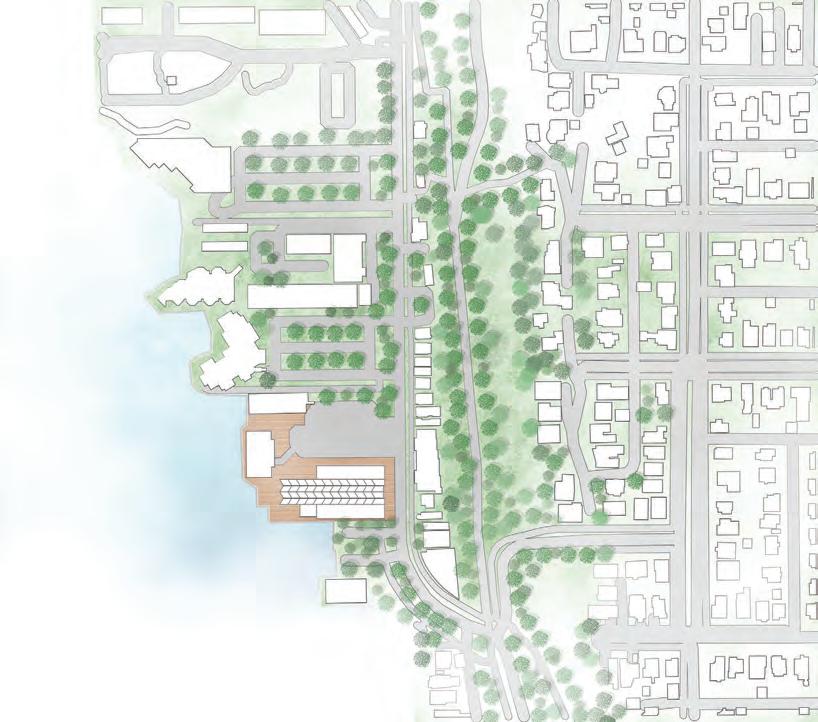

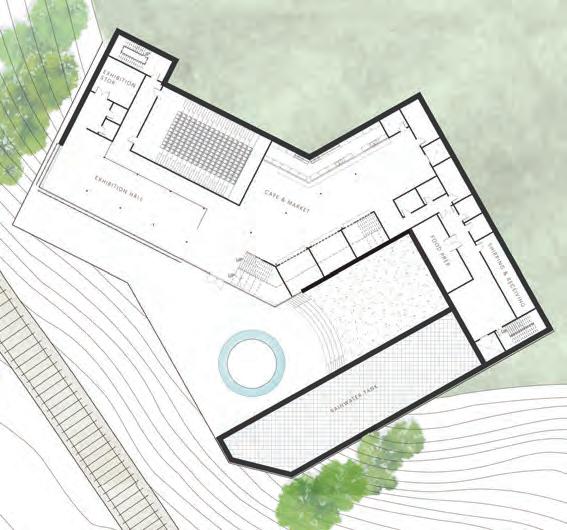

PROJECT SITE PLAN

&

PROGRAM DIAGRAM

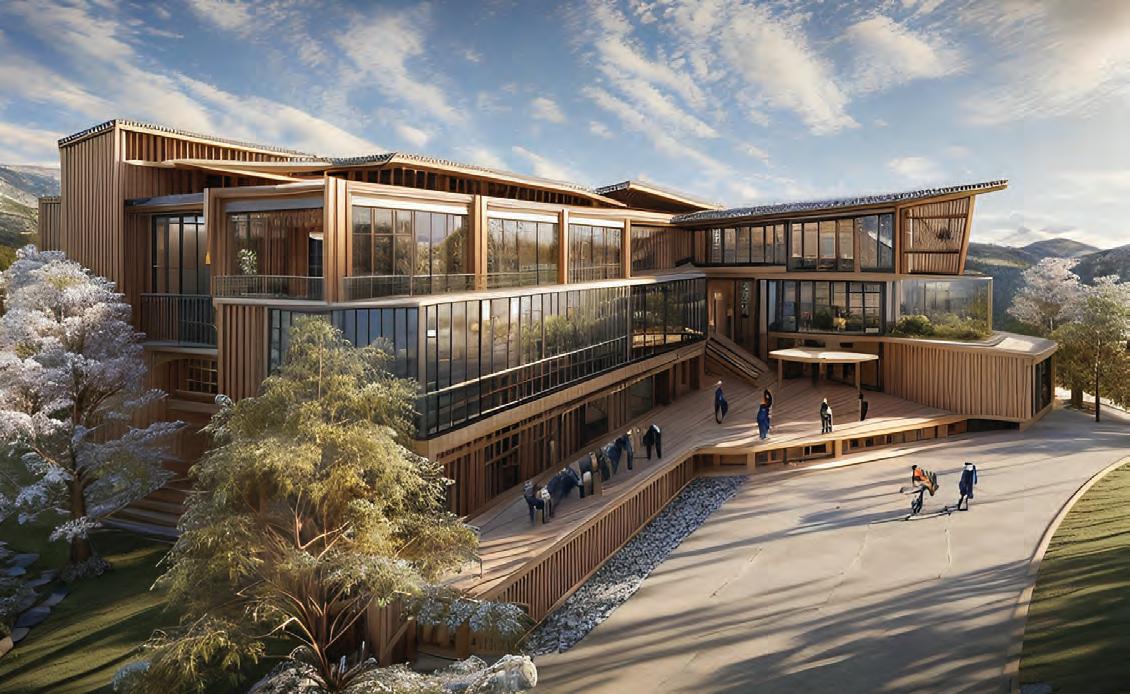

This plan unveils a public corridor, featuring landscaping and a grand staircase, leading seamlessly to an open landscape and plaza—an inviting space for people to gather and enjoy the scenery. The primary elevations are purposefully designed to face the landscape, ensuring a commanding presence for viewers below.

MAIN STREET

VISUAL ACCESS TO LANDSCAPE

B-B

1/24” = 1’-0”

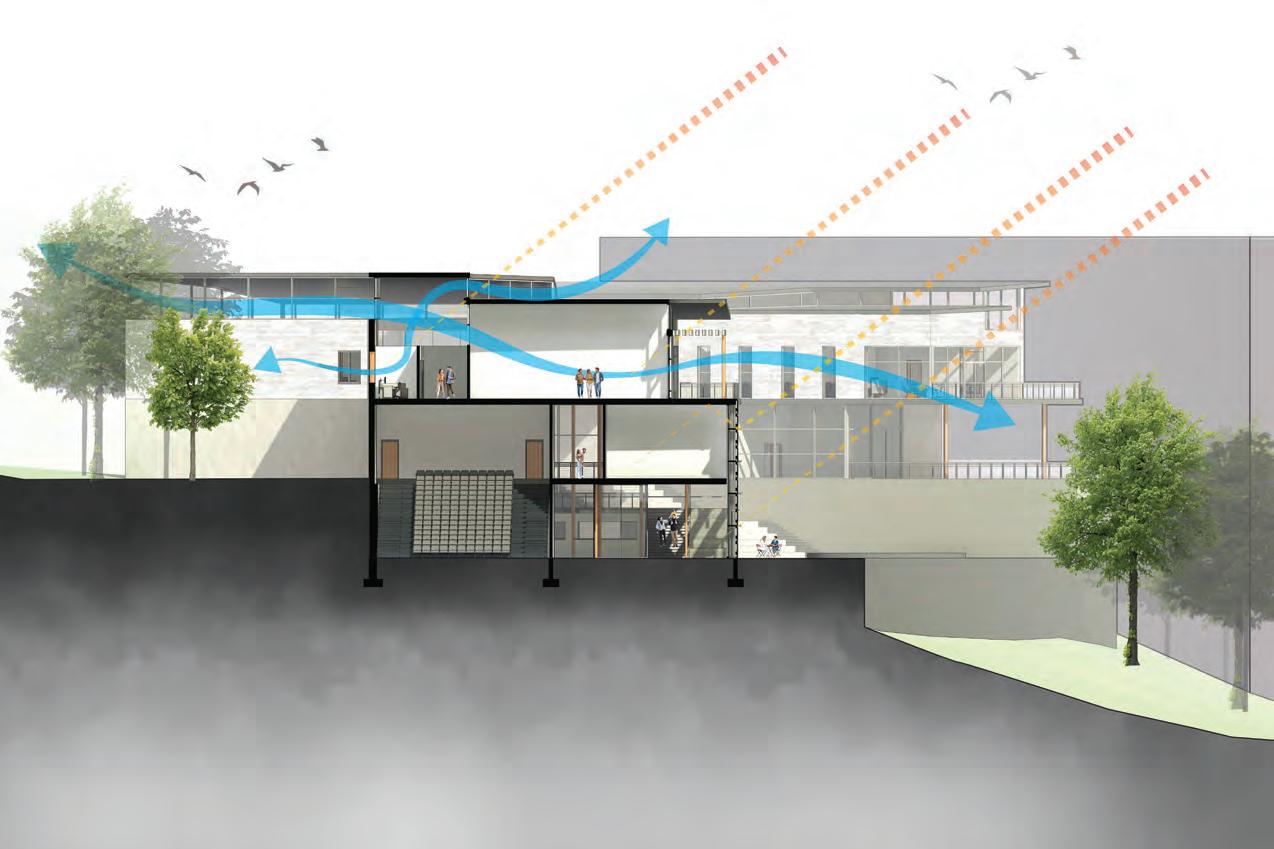

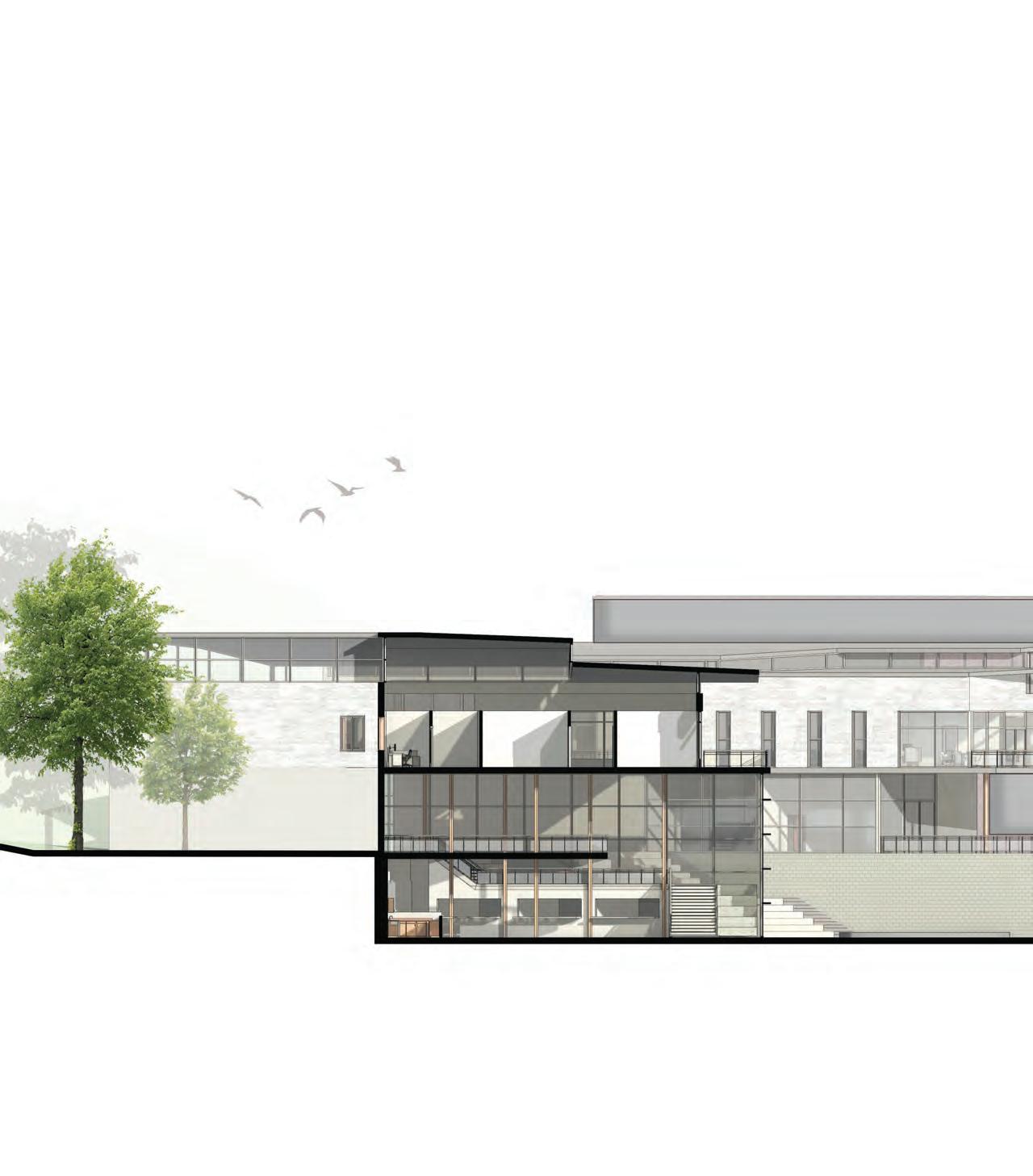

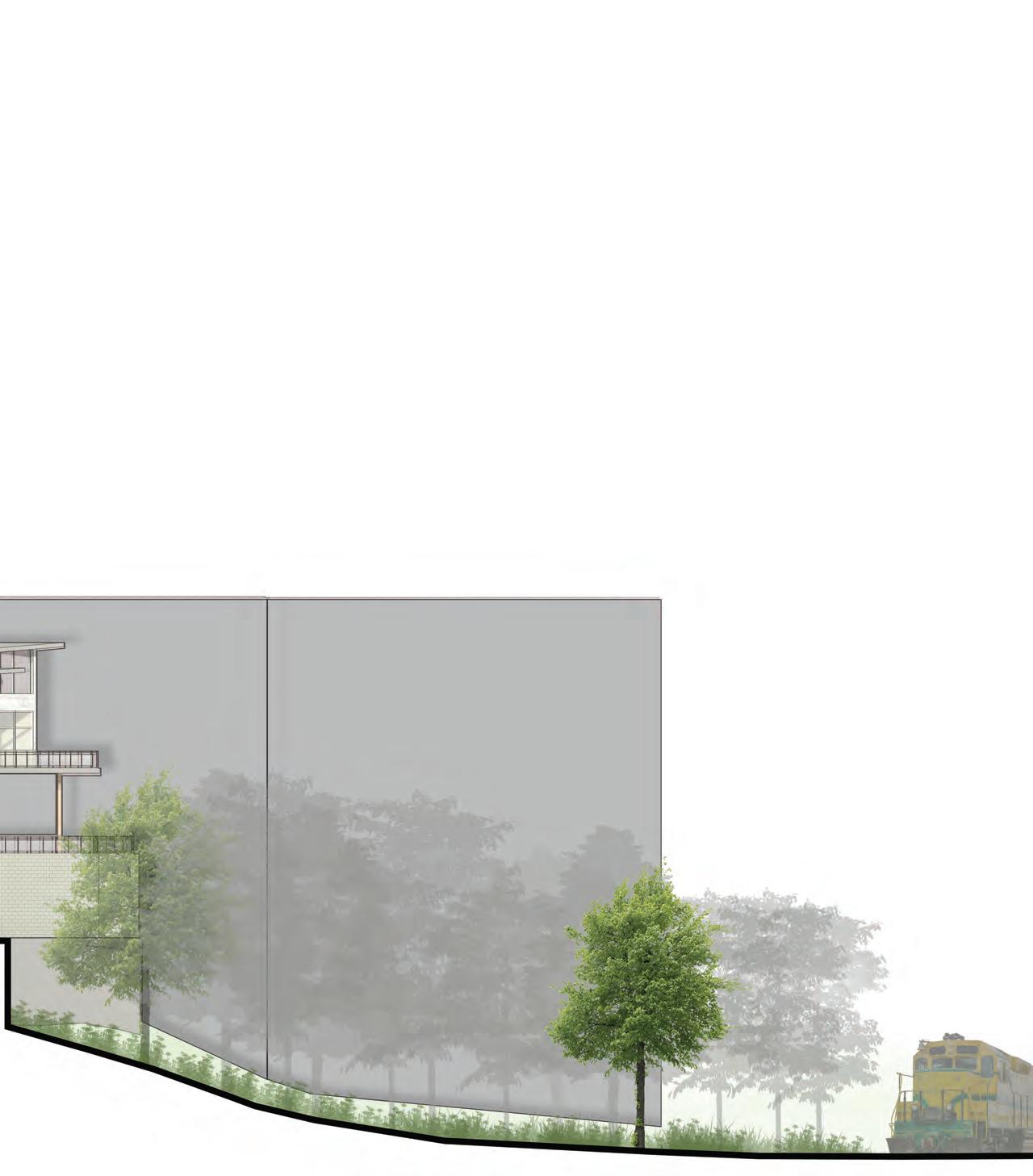

SECTION

SECTION A-A

1/16” = 1’-0”

SYDNEY LY | UNDERGRADUATE

Opening terrace spaces invite outdoor engagement, offering panoramic landscape views. Clestory windows introduce additional daylight and cross-ventilation into the building. A spacious open floor plan accommodates cafes and seating, with expansive curtain walls primarily oriented toward the landscape and French Broad River, ensuring an immersive connection with the scenic surroundings.

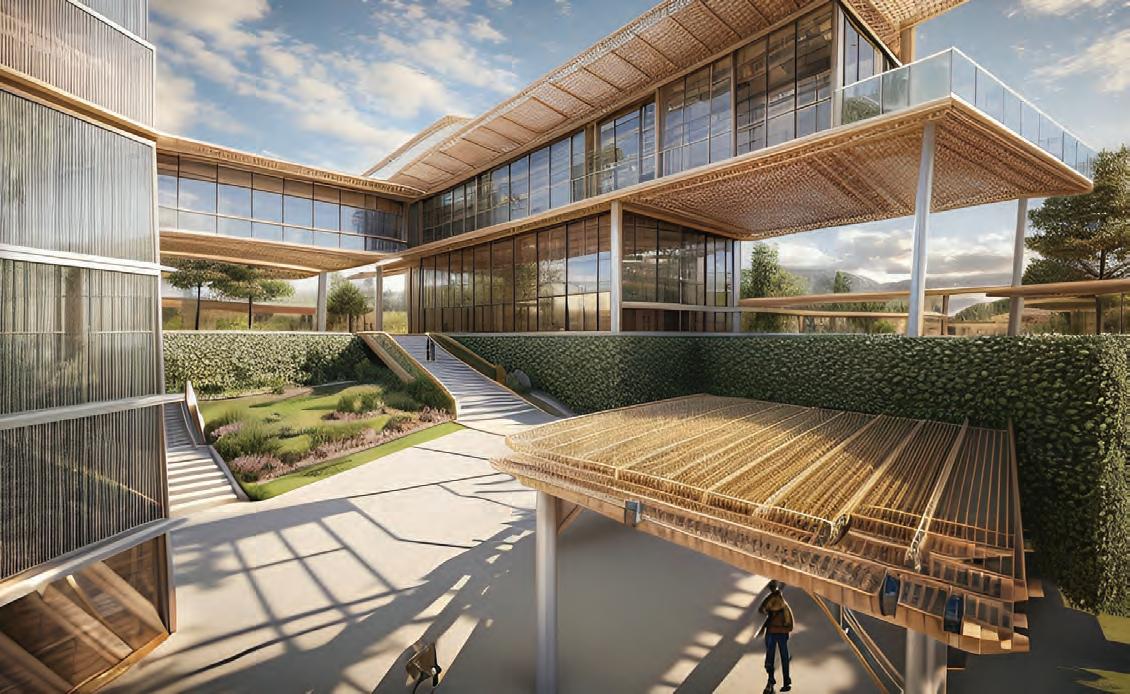

SOUTH VIEW PERSPECTIVE

BREEZEWAY

05 THE SERPENTINE A VERTICAL PAVILION

Celestial chords, timeless journey

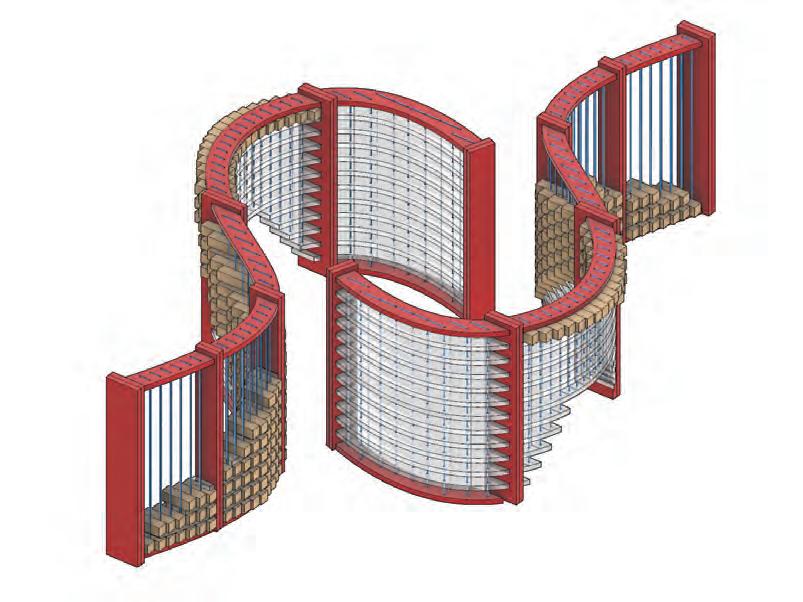

The SERPENTINE Pavilion stand as a centralized vertical structure, strives for tranquility and peace by exploring innovative structural systems. The project investigates hybrid systems, focusing on curvilinear and surface elements. Surface textures, inspired by repetition and the pushpull effect, complement the curvilinear form. This dynamic interplay creates a monumental moment within the pavilion. Unlike traditional shelters, the verticality adds a delicate touch, influencing the view and lighting. The structure harmoniously balances order and arithmetic, akin to a zither producing a calming atmosphere. Beyond a mere pavilion, it becomes a space for interaction, gathering, and a profound sense of tranquility.

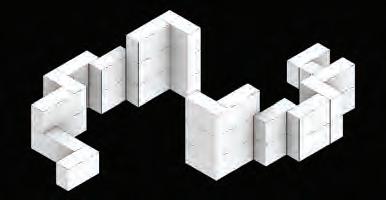

AGGREGATION

MODULE

CENTRALIZATION

DIVIDE

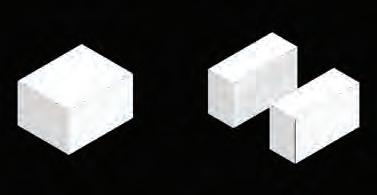

MODULE DIVIDE PROGRESSION DESIGN PROCESS

CENTRALIZATION

CENTRALIZATION

PIXELATION

AGGREGATION

AGGREGATION MODULE DIVIDE

CENTRALIZATION

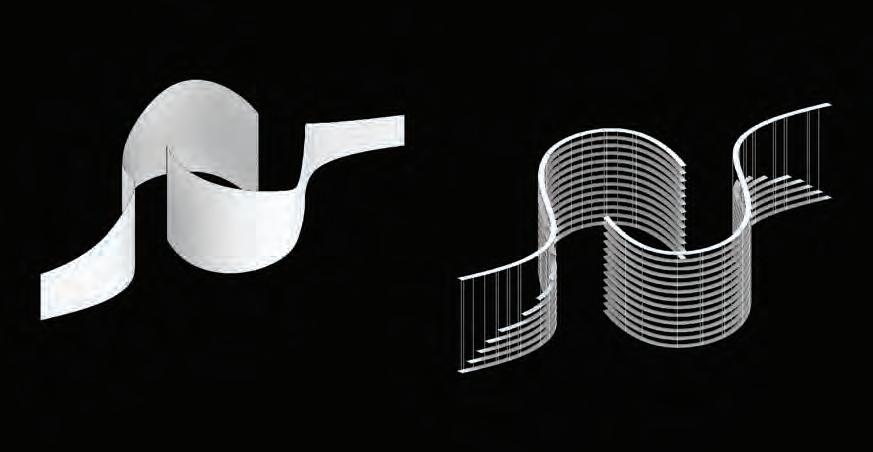

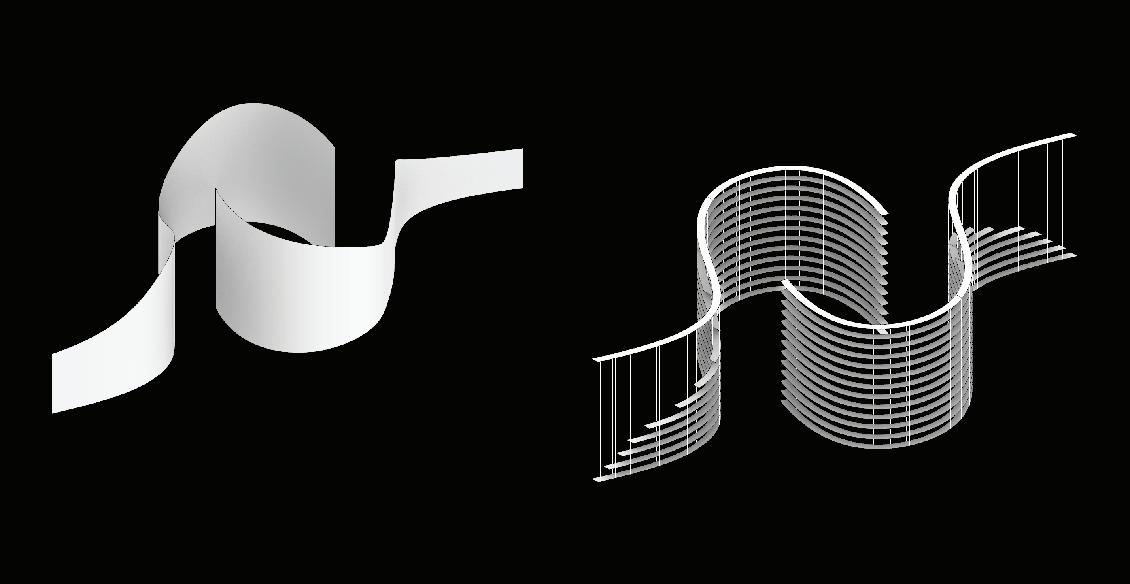

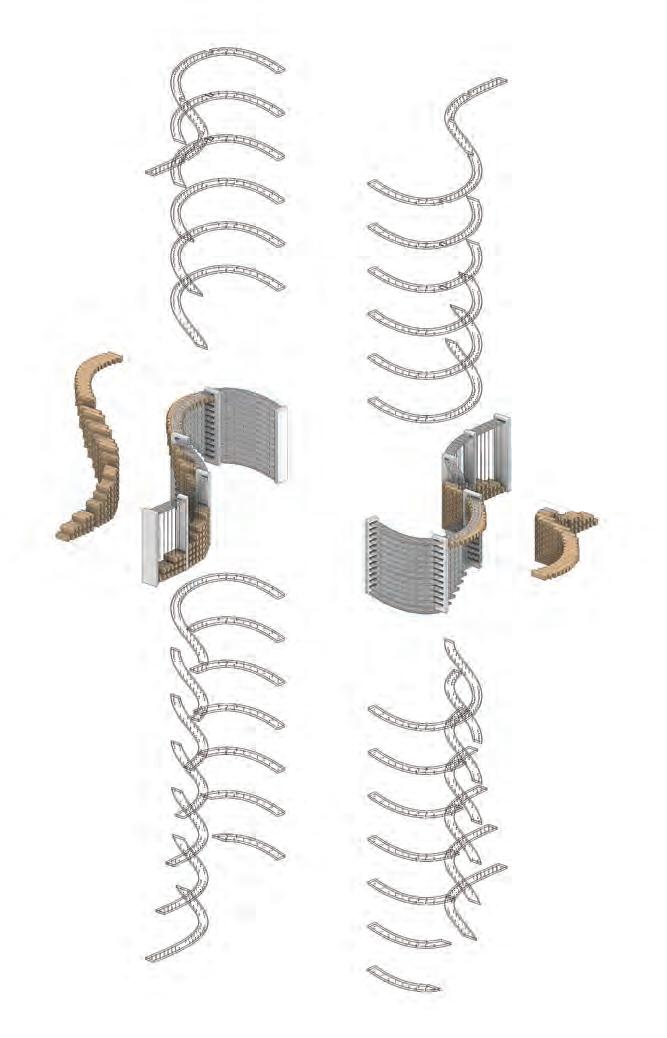

FORCE DIAGRAM

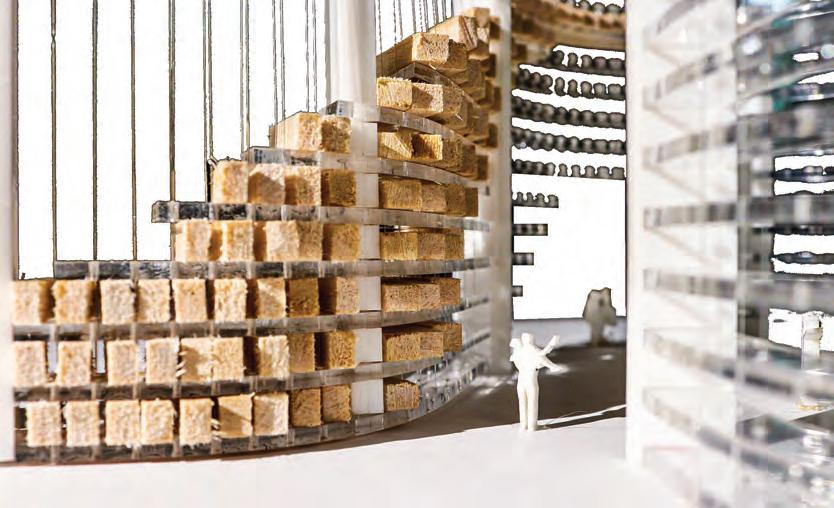

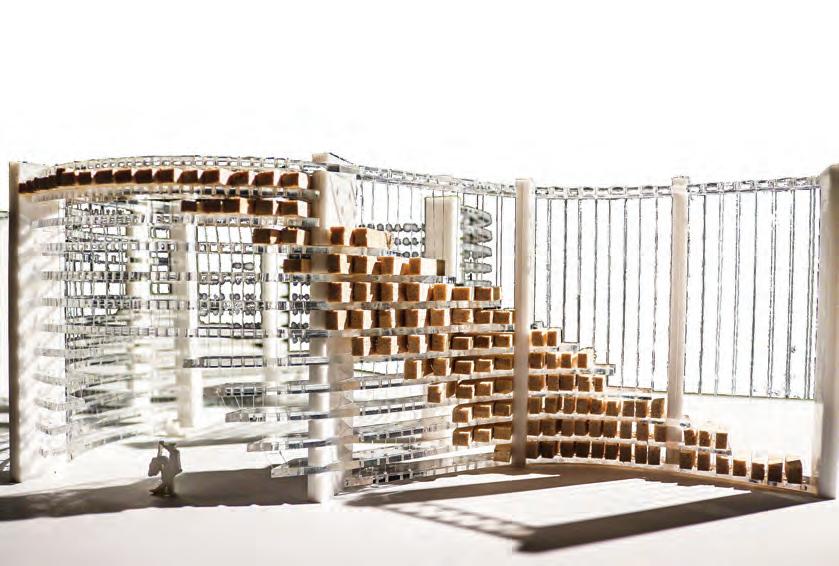

1/8” = 1’-0” PHYSICAL MODEL

1/8” = 1’-0” PHYSICAL MODEL

SMALL PROJECTS + PERSONAL WORKS

SIMPLICITY

SIMPLICITY

GEOLOGICAL VS MODERN TYPOLOGIES

COMPLEXITY

COMPLEXITY

RE-IMAGINING BOUNDARIES

WATERFRONT INTERACTION

MERGING THE DIFFERENCES

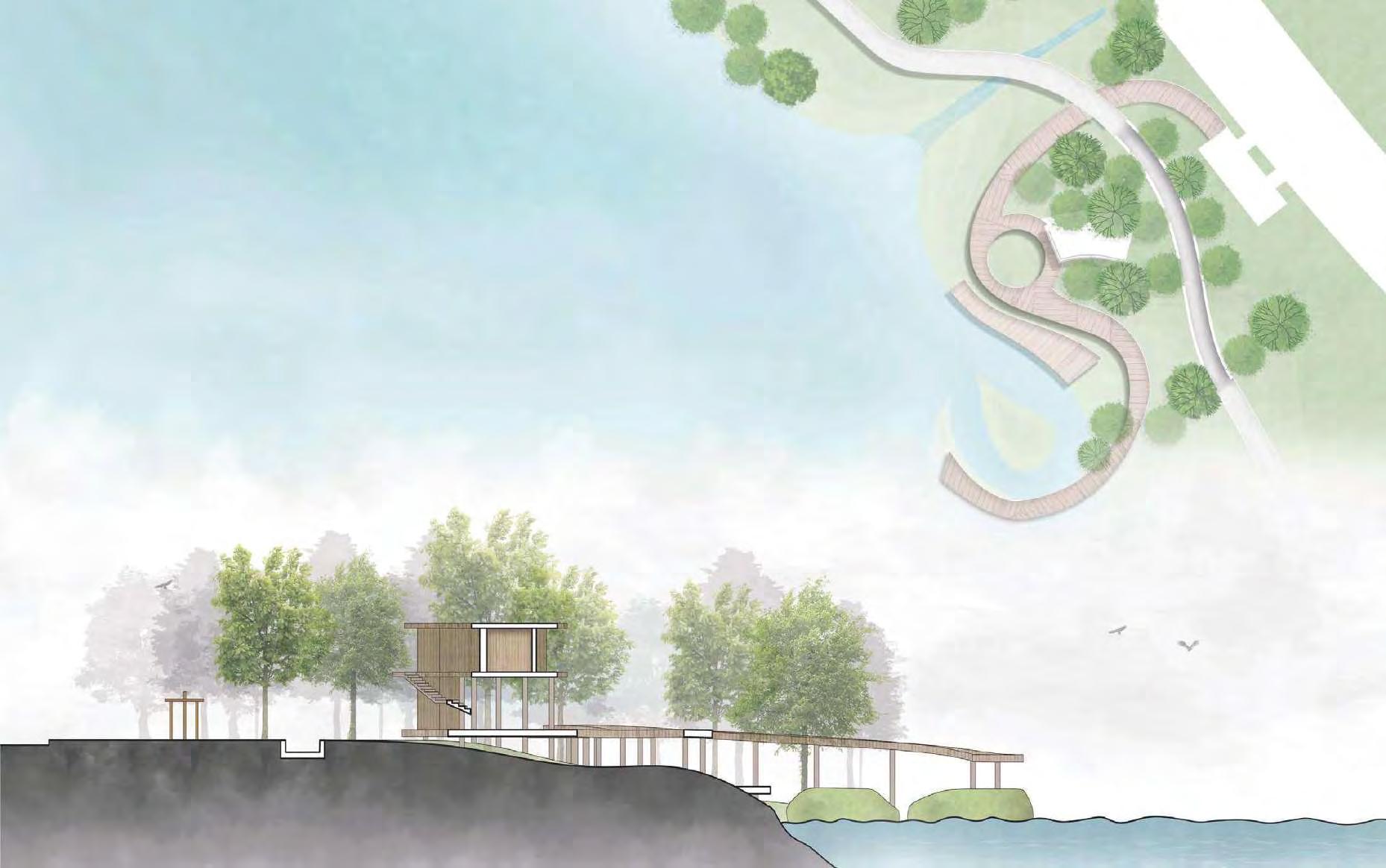

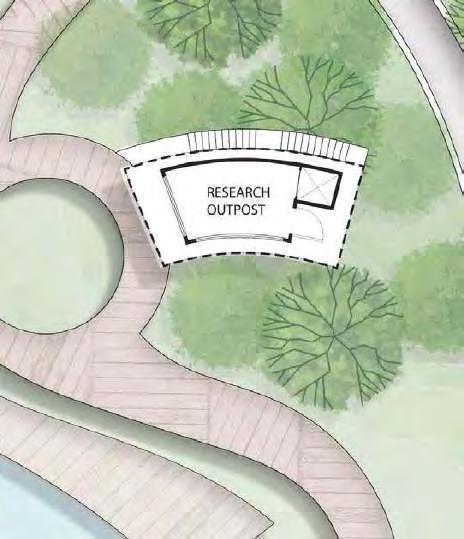

RE-IMAGINING BOUNDARIES in Asheville, North Carolina, transforms a park by integrating public and private spaces. Initially exploring separation, the project evolved to blend the two through strategic landscaping, influenced by existing conditions like the waterfront and a public bus station. Designed with flood levels in mind, a research post near the bus station serves as a unique meeting point. Careful placement of vegetation ensures unity while maintaining privacy. Subtle landscape carvings on the greenway provide a distinct experience, and an elevated curvilinear pathway expands views and interaction opportunities, allowing public and private spaces to coexist harmoniously.
