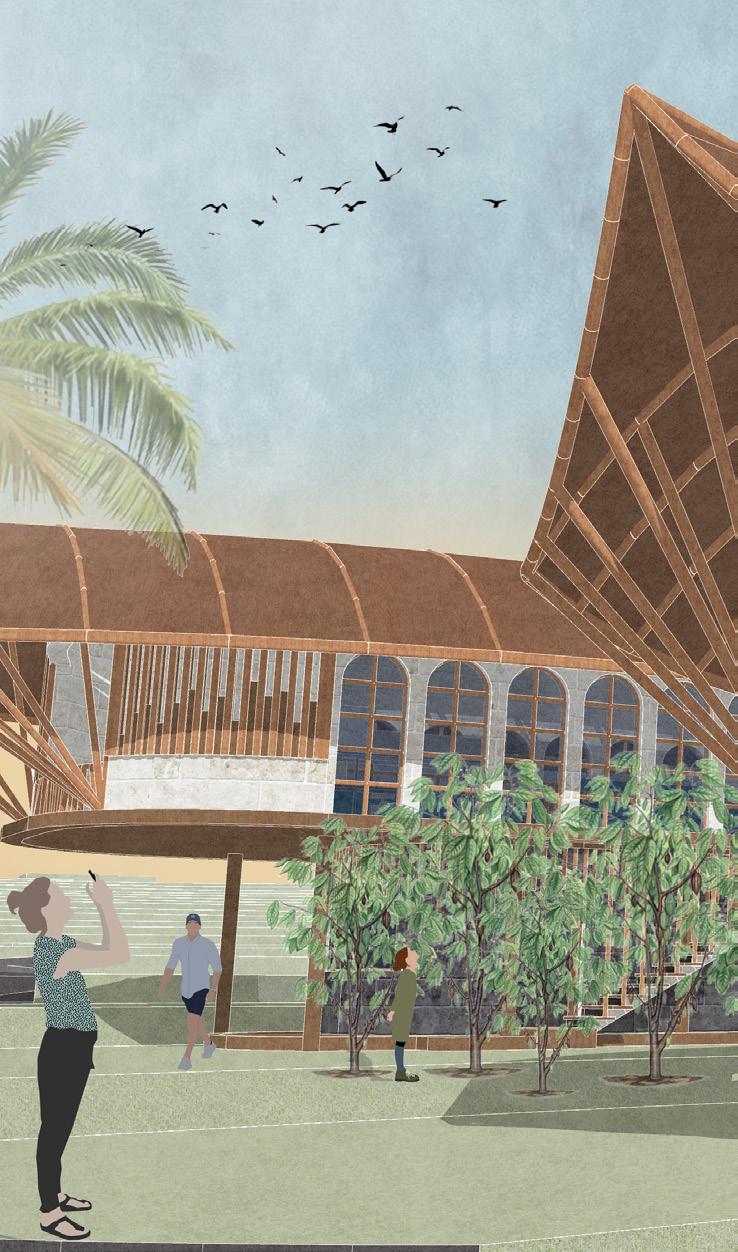

01 COCOA LOOP

Participant : Syafiah, Rangga, Tya, Steven, Ga Young, Yerim

Project : Classes

Location : Pecatu, Bali

Size Area : 1800 m2

Status : IAW Conceptual Project

Year : 2023

the project of the first team is to make a cacao class, why did we choose cacao to be used as a class because the main crop on an organic farm is cacao where the process of planting cacao is practically unique.

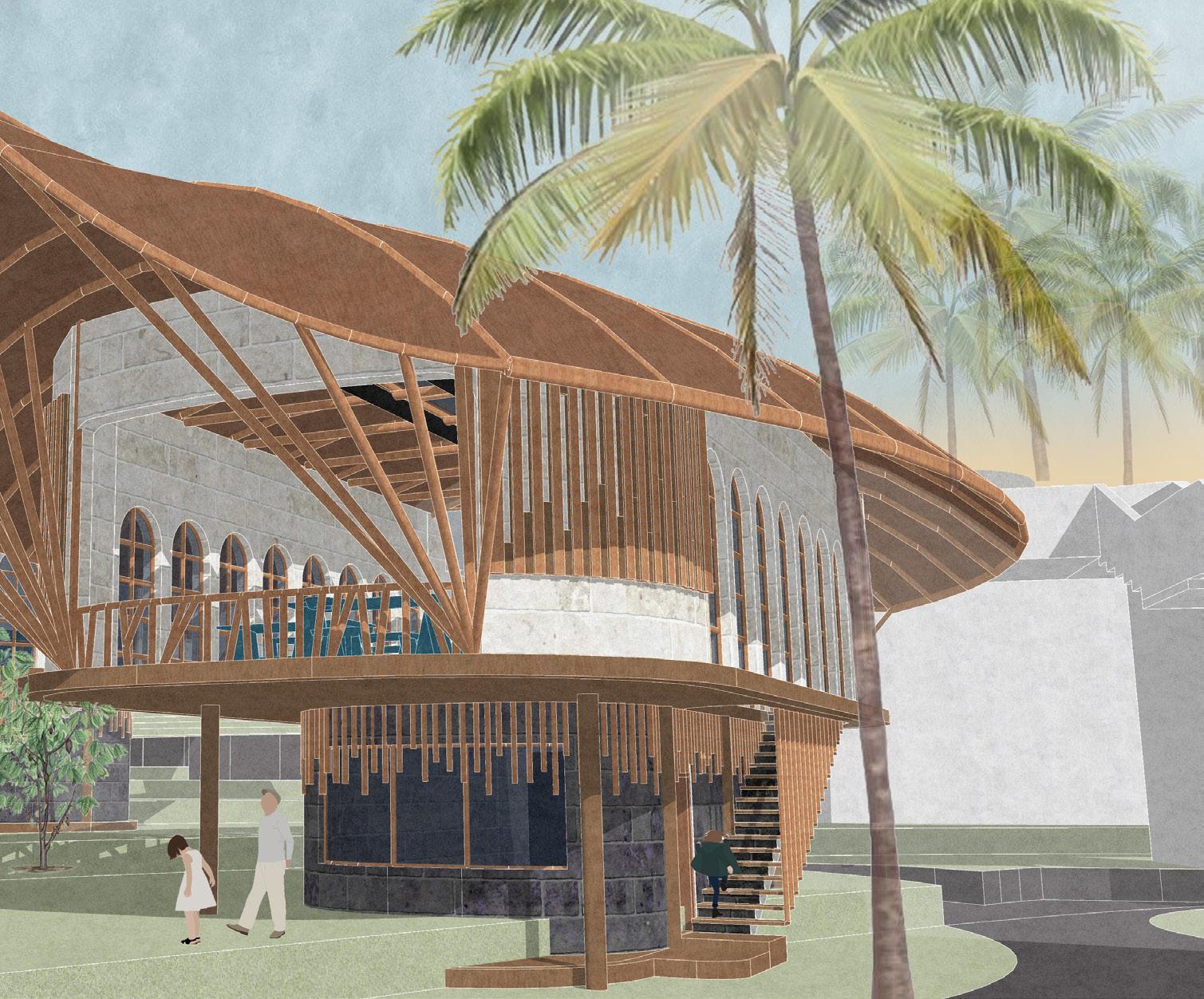

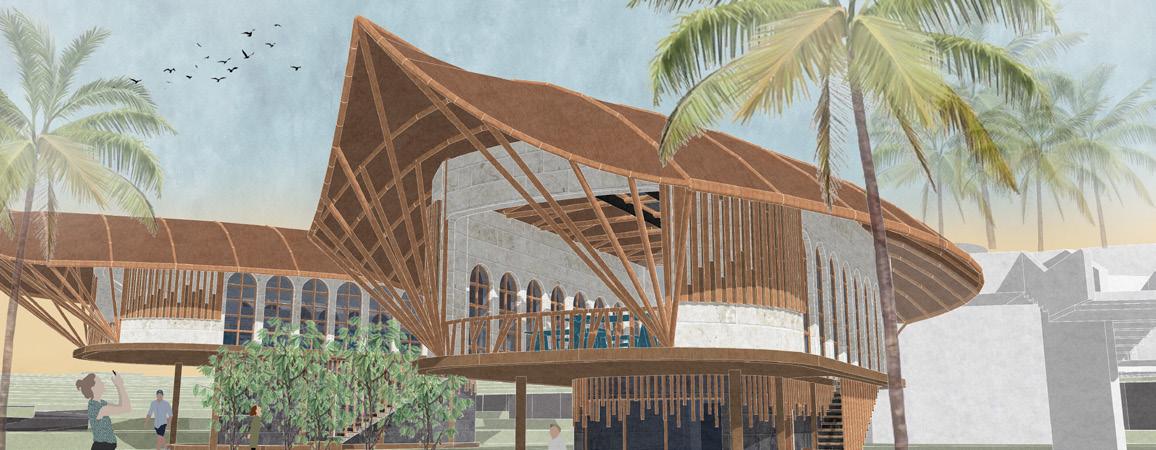

This cocoa class is open to the surrounding community and visitors, there are four cocoa classes on the first site, namely the growing class, in this class we can see the cocoa growth process from zero to fruition, the second class is harvesting, we can harvest cocoa pods directly from the tree. then in the third class is fermentation where this class explains how Fermentation certainly causes chemical changes in the seeds.

Fahriatul Syafiah. A 2019-2023

Architecture Portfolio

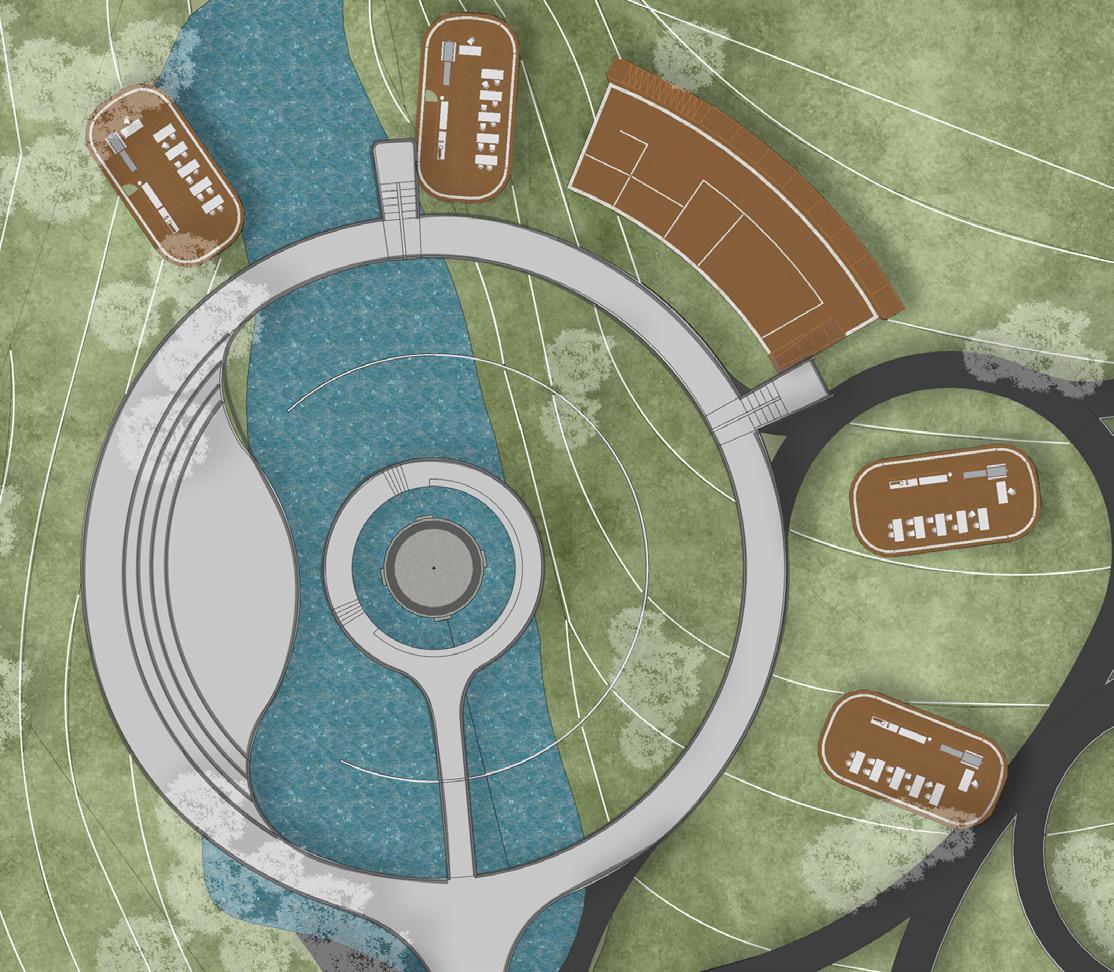

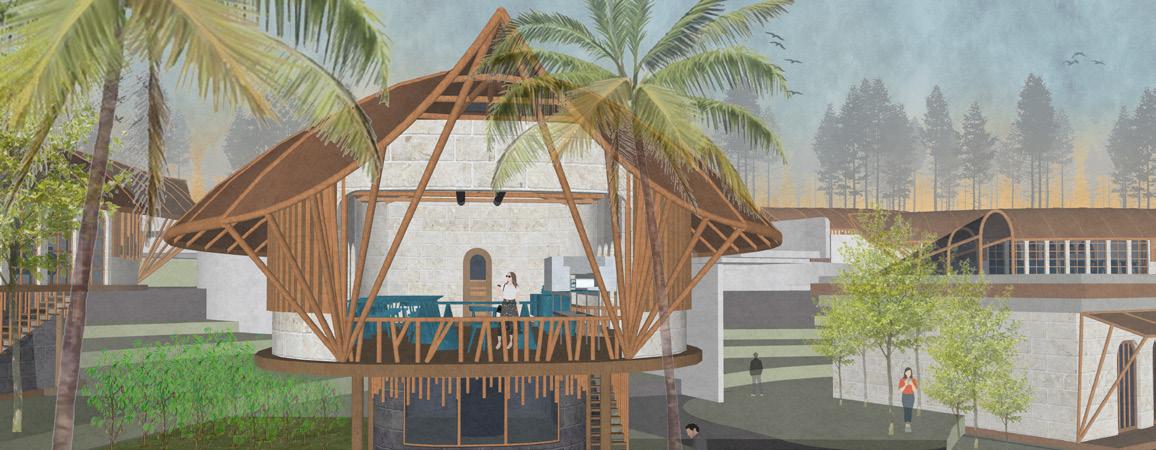

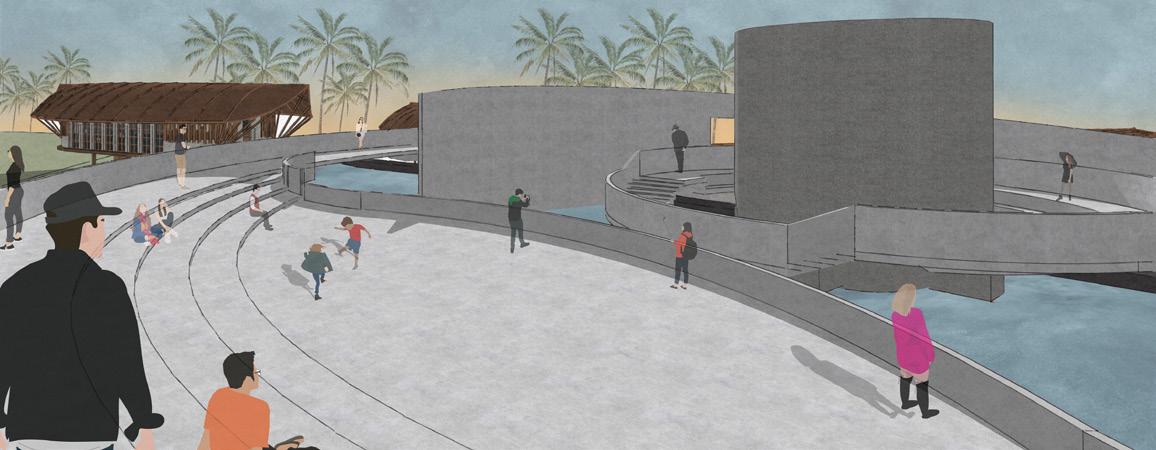

for this part of the stie plan there are four classes, one meeting room, amphitheatre, and pond. where this class is divided into four based on the process of growing chocolate until it becomes chocolate fruit. This meeting room is useful for holding meetings or joint discussions, while the amphitheater is made to enjoy the pond area.

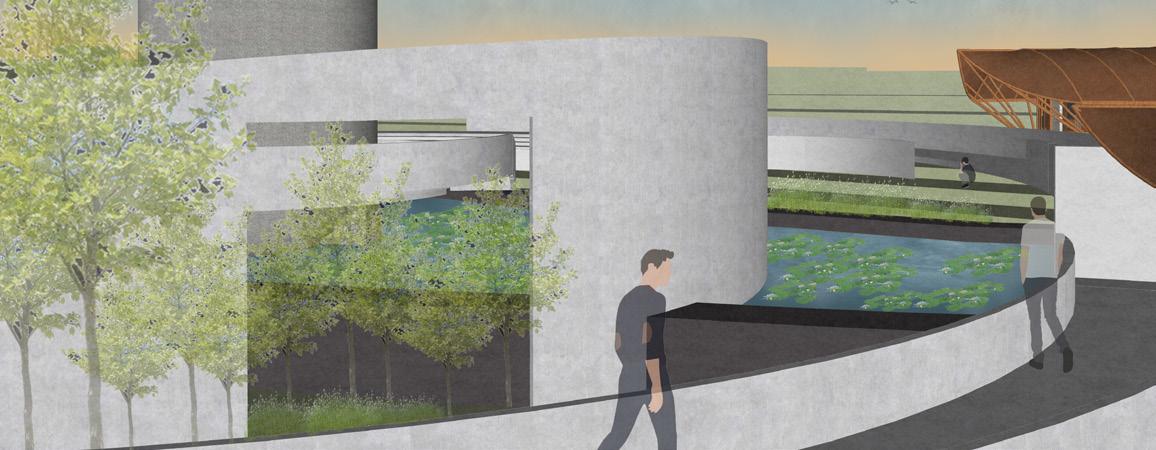

in the pond area there is a pond which cannot be changed at all so we only add lily plants there to beautify the pond which was not alive before.

Fahriatul Syafiah. A 2019-2023

1. Entrance 2. Amphitheater 3. Pond 4. Classes

5. Meeting Room 01

LEGEND 02 03 04 05

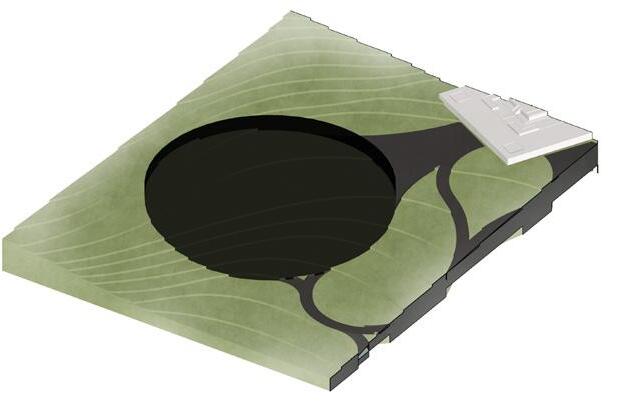

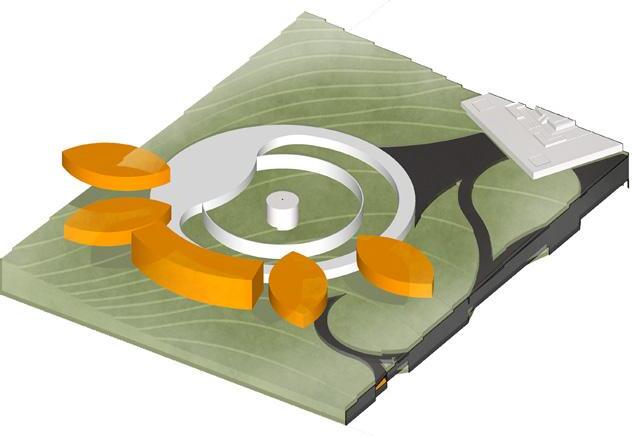

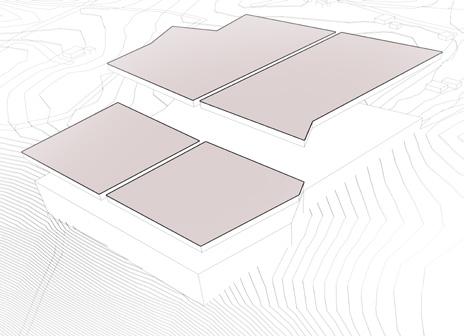

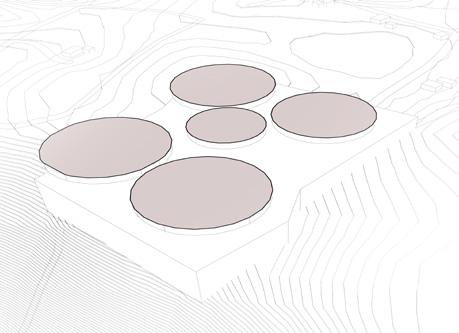

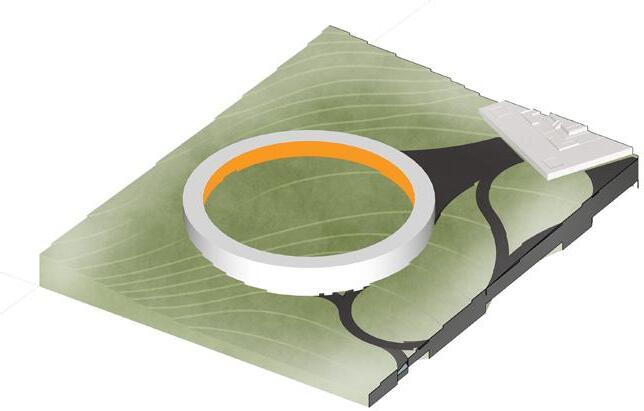

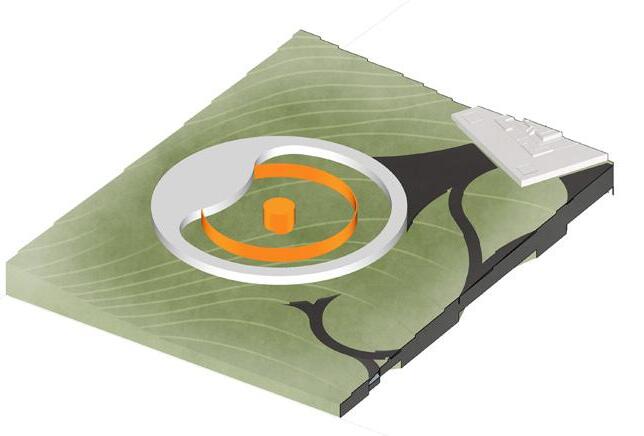

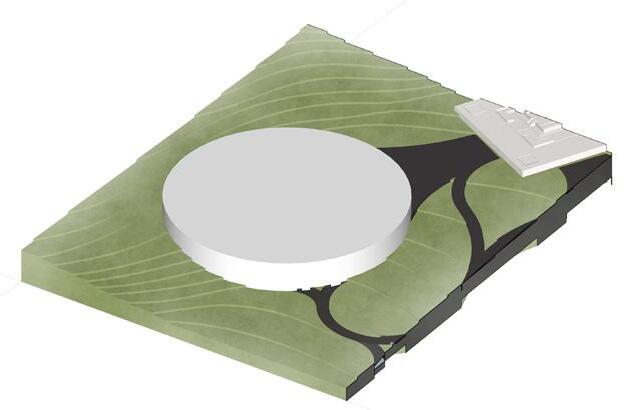

Architecture Portfolio 01 02 03 04 05 06 CREATE AREA CIRCULATION CREATE WALL LIFTING PULLING MASS MASSING PLACEMENT

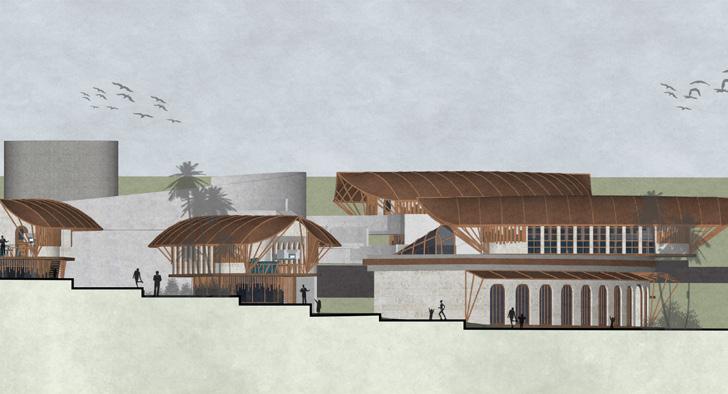

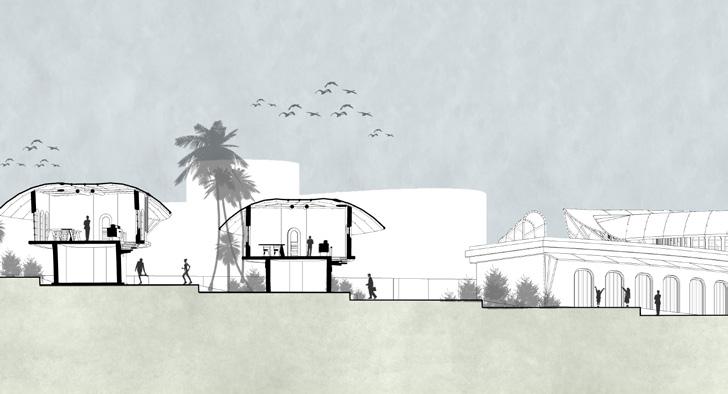

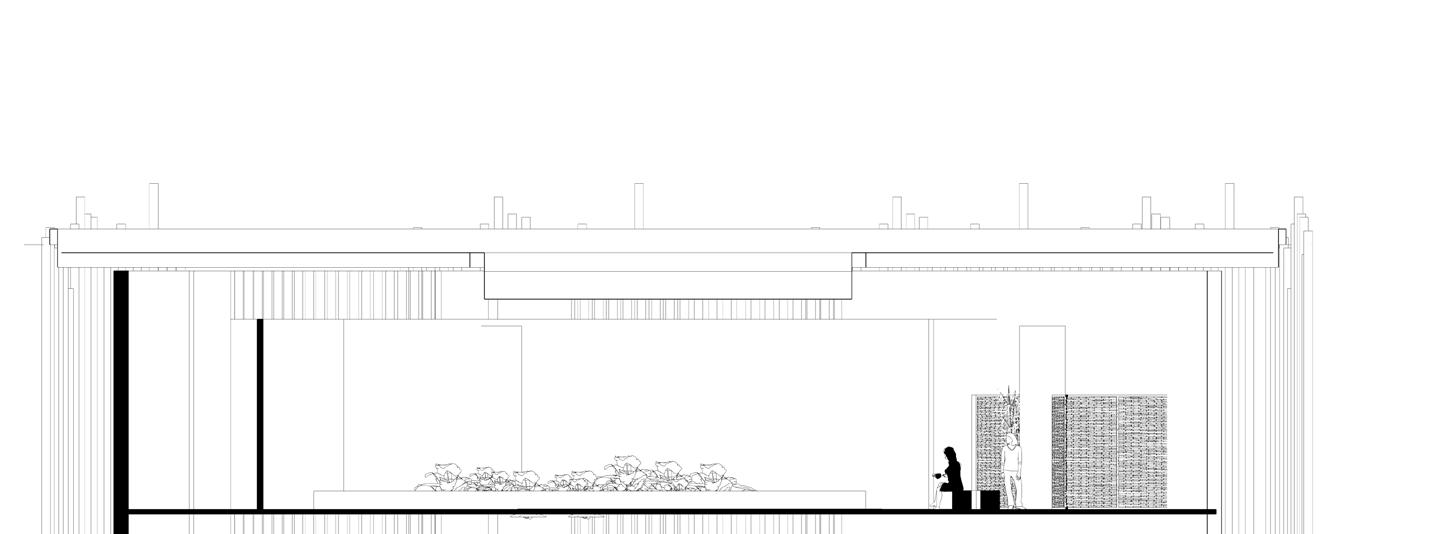

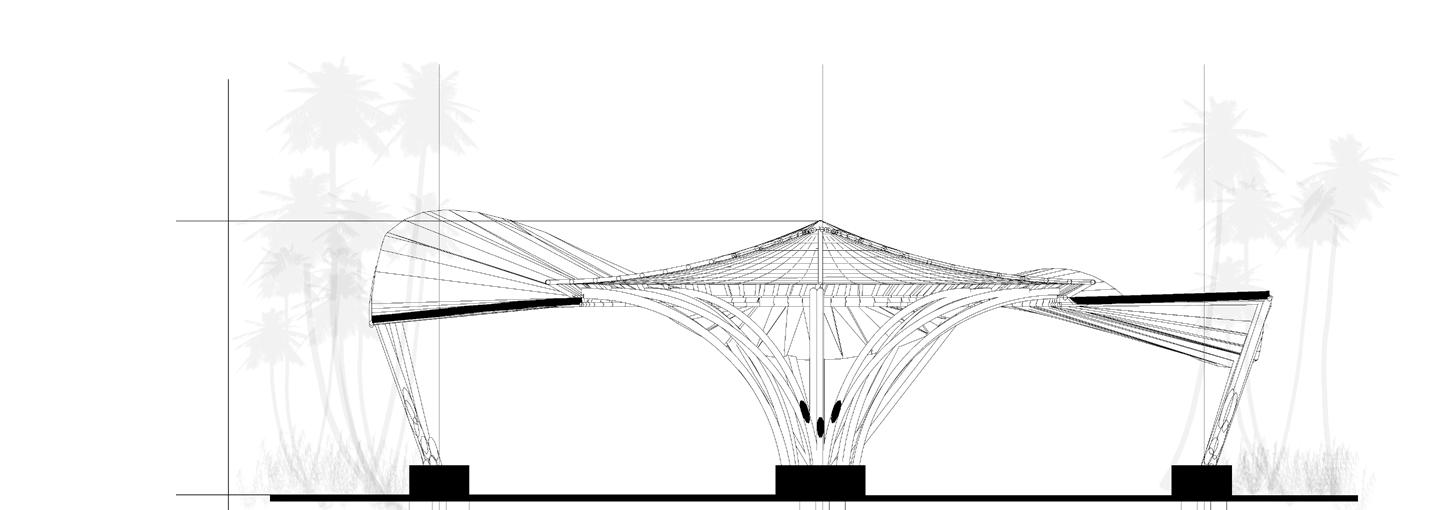

Fahriatul Syafiah. A 2019-2023 SECTION SECTION ELEVATION

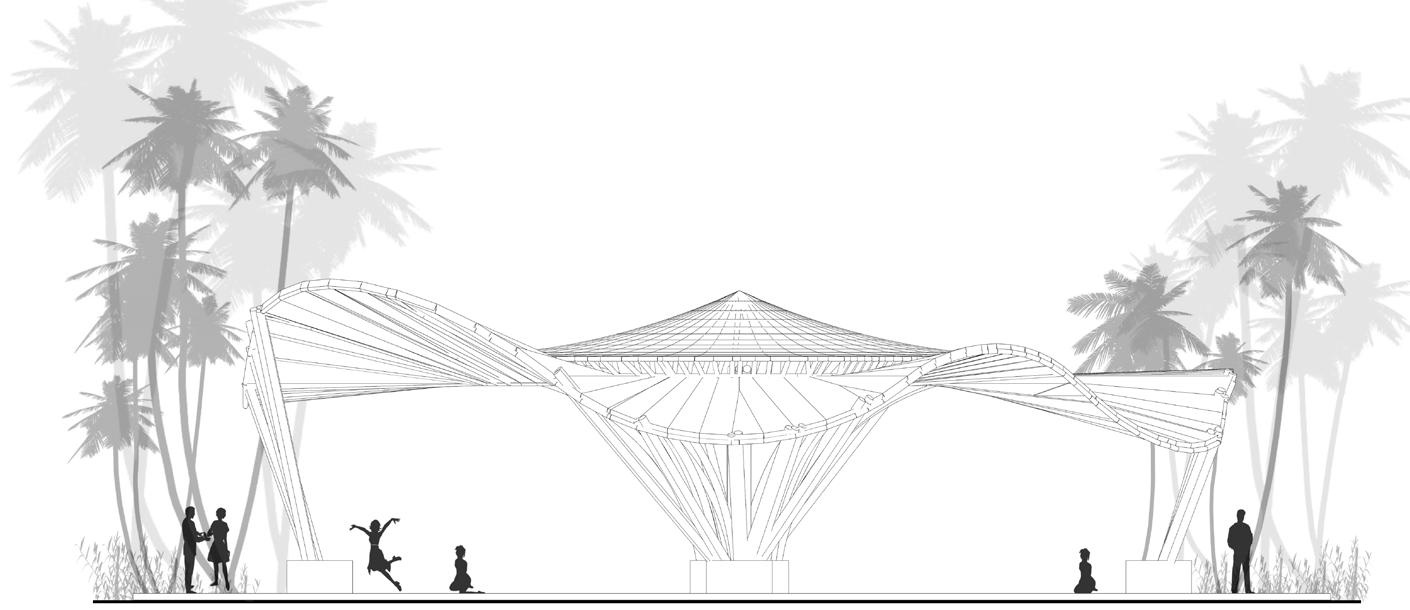

ELEVATION

Architecture Portfolio

LEGEND

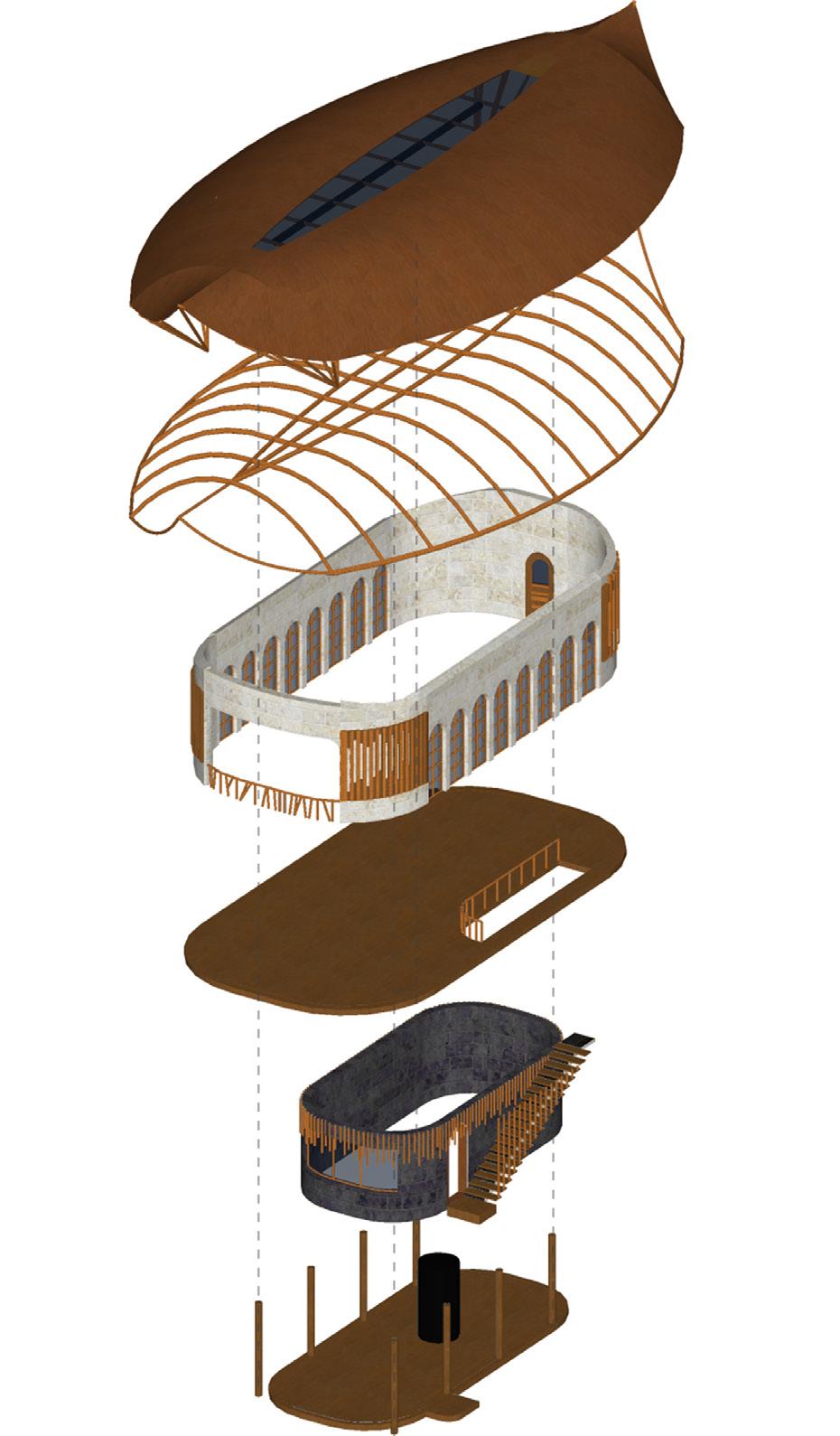

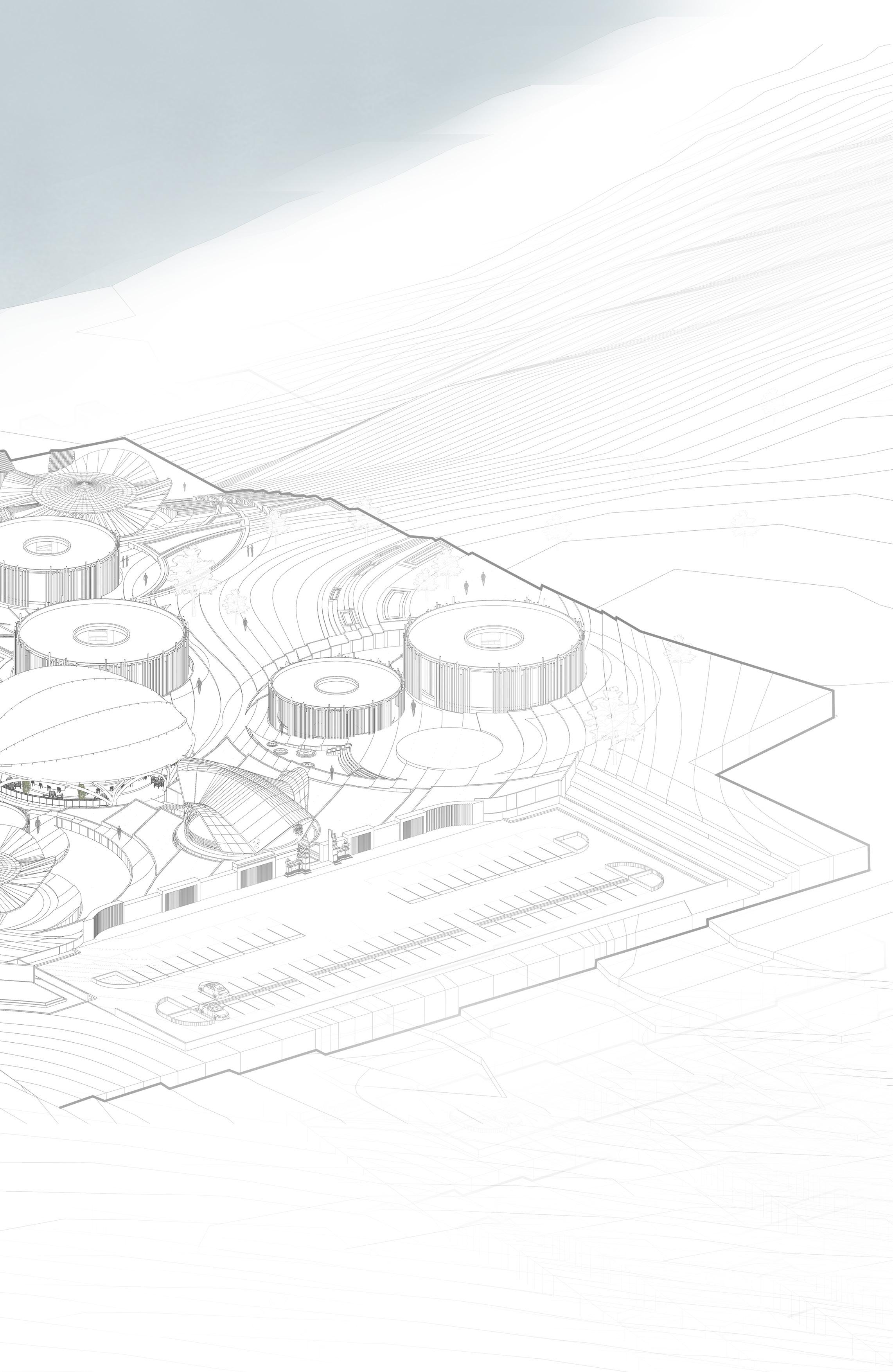

Fahriatul Syafiah. A 2019-2023 AXONOMETRY 01 02 03 04 05 06

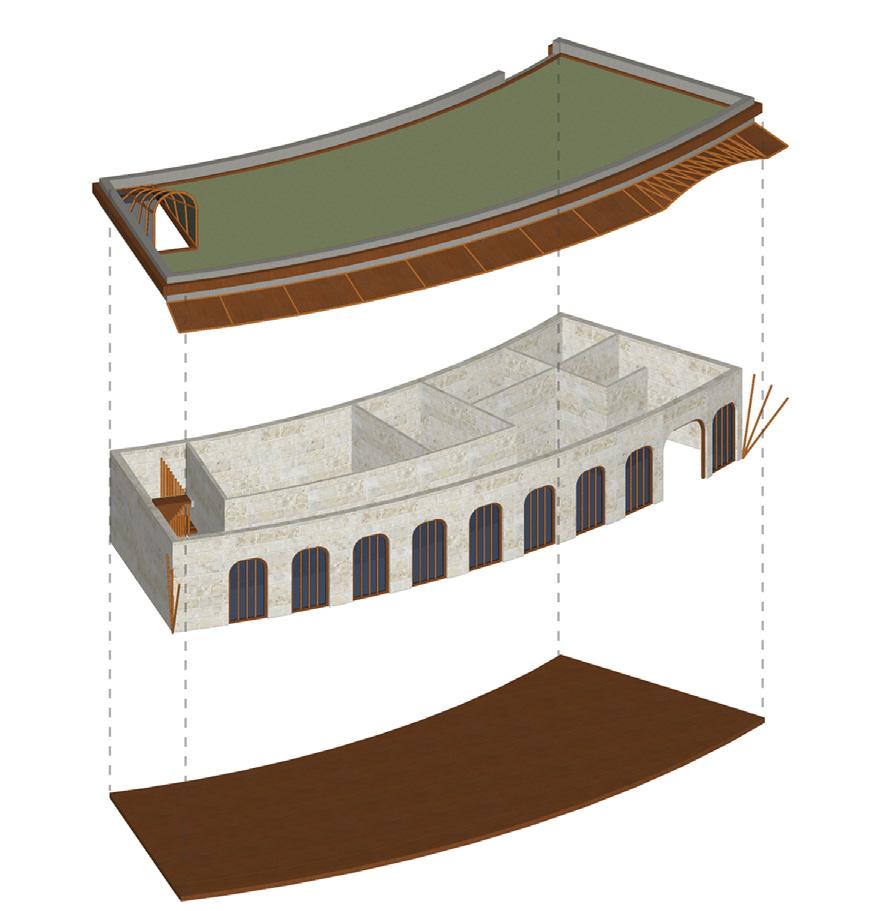

1. Bamboo Struckture 2. Palm Fiber 3. Lime Stone 4. Teak Wood 5. Natural Stone 6. Teak Wood

Architecture Portfolio

1. Green Roof 2. Lime Stone

LEGEND 01 02 03

3. Teak Wood

02 AYURVEDA HEALING CENTER

Project : Final Project Architecture

Location : Pecatu, Bali

Size Area : 2,8 Ha

Year : 2023

Project Achivement : Graded A

BACKGROUND STORY

In the present era, where technology has advanced so significantly, humans are competing to create a comfortable life and anything that can support the creation of that comfort. However, there is one fundamental goal for every human being, which is to have good health throughout their life. No individual is truly one hundred percent healthy throughout their life, as evidenced by the numerous people who experience difficulties in sleeping, quickly becoming fatigued, suffering from allergies, having trouble with memory, struggling to eliminate waste from the body, skin problems such as rashes or acne, respiratory issues, back pain, and so on.

Fahriatul Syafiah. A 2019-2023

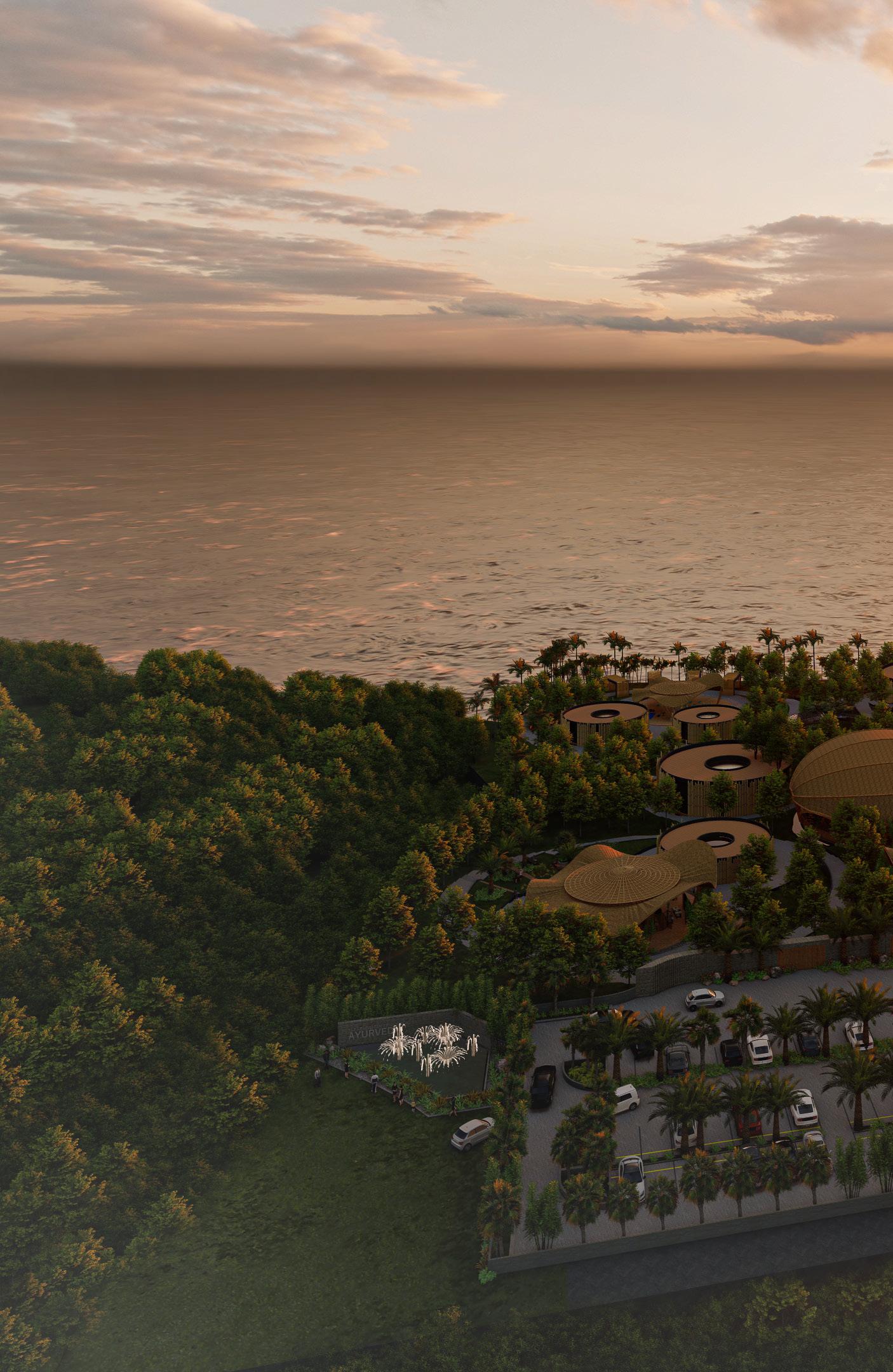

Bird Eye View

Fahriatul Syafiah. A Ayurveda Healing Center | Final Project

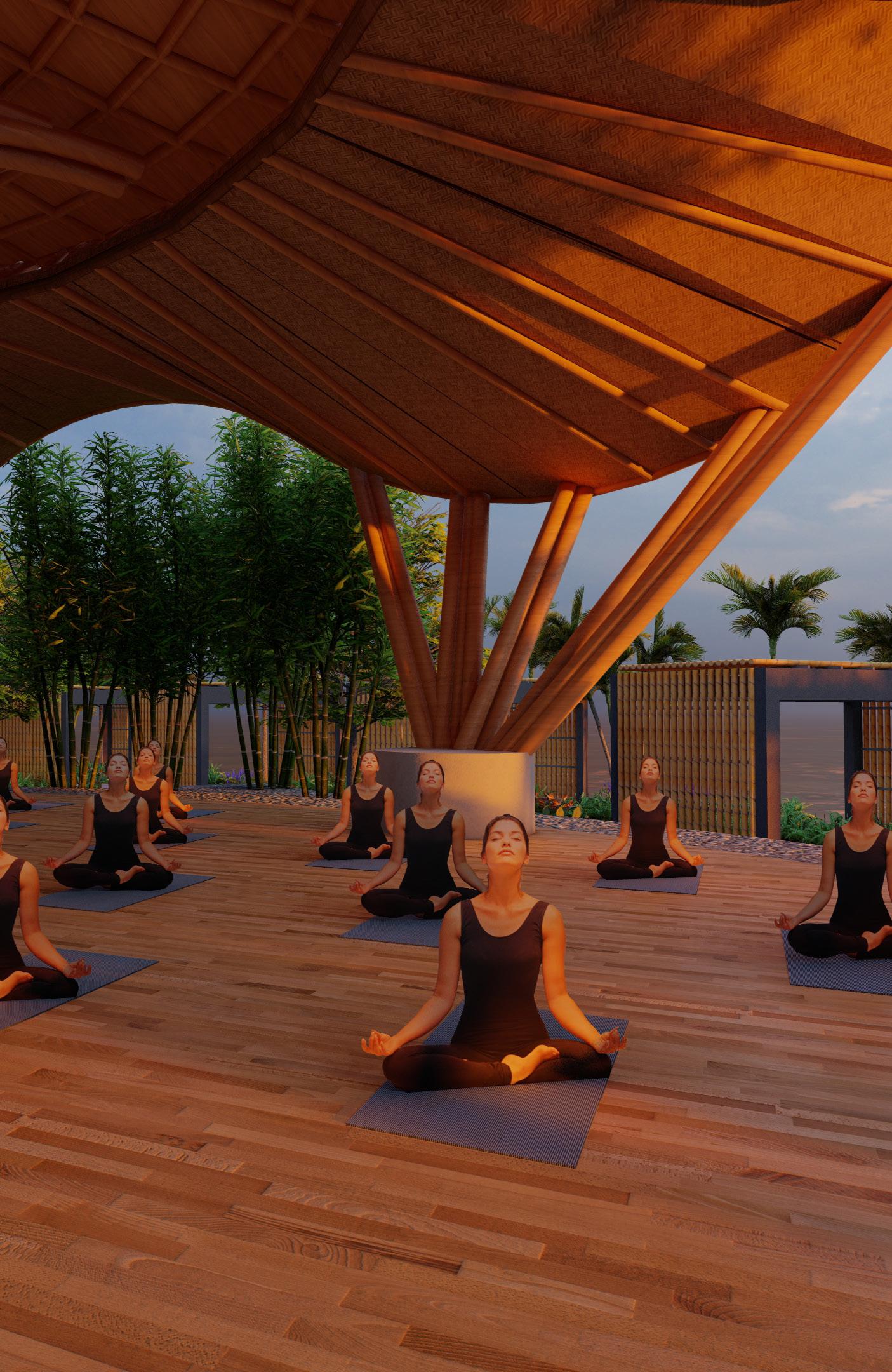

View Render

BETAK

Betak is Balinese means healthy; like; agile.

Meanwhile, according to the Big Indonesian Dictionary, the word healthy is a condition/state of the whole body and its parts that are free from disease.

Because the aim of this design is to restore the mental health of people who are suffering, and after seeking treatment at this traditional health center they will experience a condition that is always healthy and their body parts are free from pain/stress.

Ayurveda, which is a health science that has its roots in the Atharva Veda book from the Hindu holy book, is not widely known in Balinese society, where the majority of the population adheres to Hinduism, even though after independence in India in 1947 Ayurveda received recognition throughout India and is one of the six systems. which is officially recognized by the government.

Fahriatul Syafiah. A 2019-2023

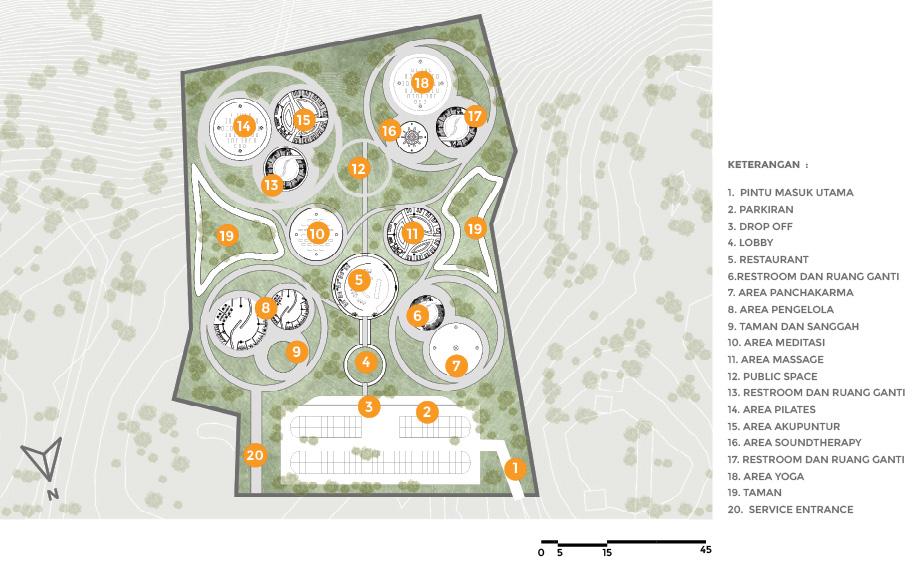

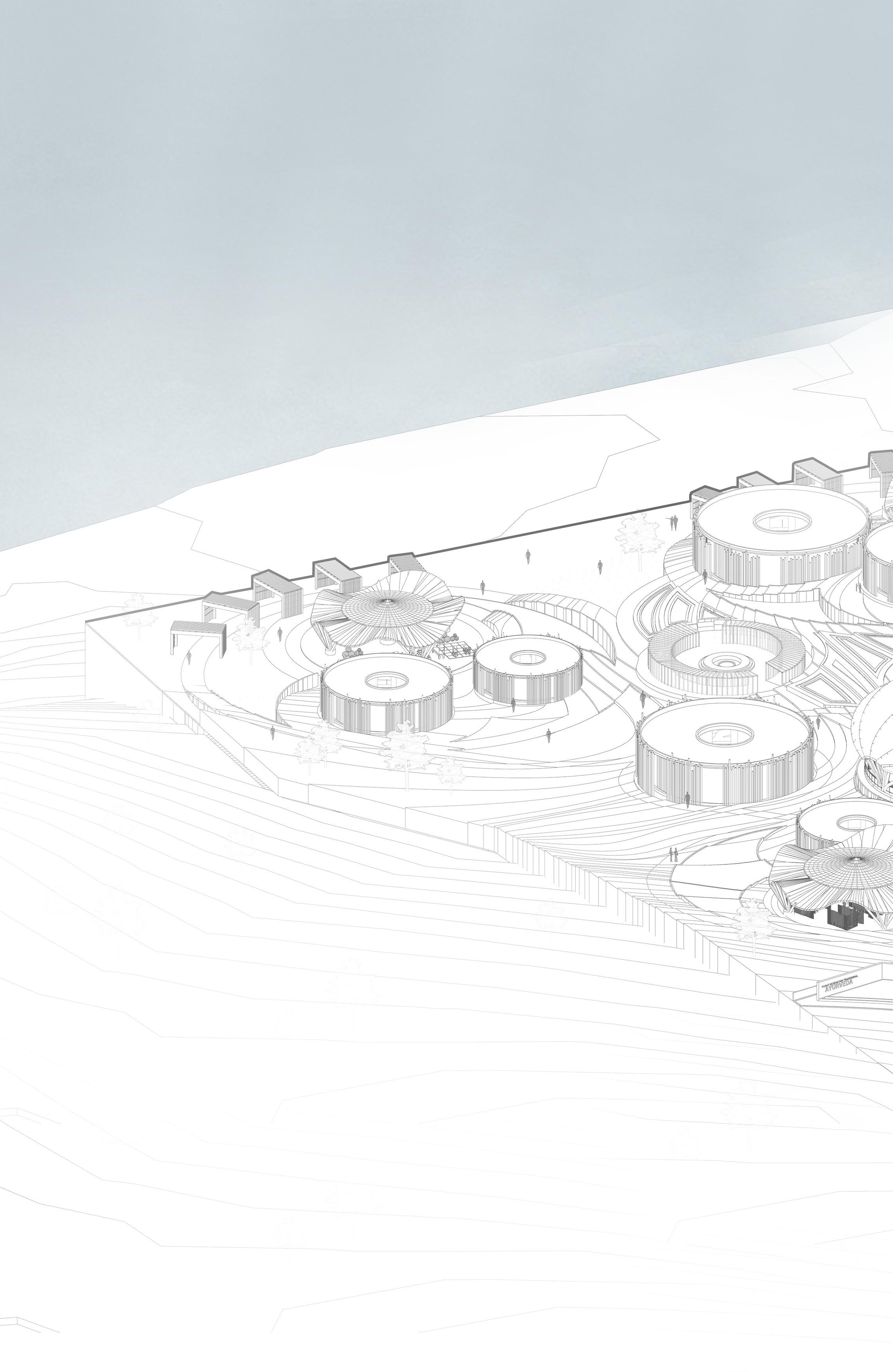

Architecture Portfolio SITEPLAN CUTTING CUTTING SEMI PUBLIC PUBLIC

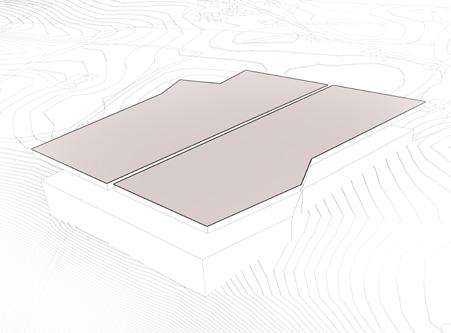

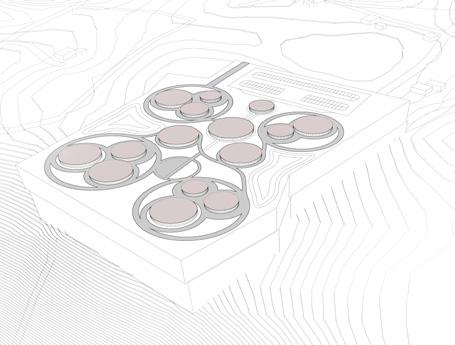

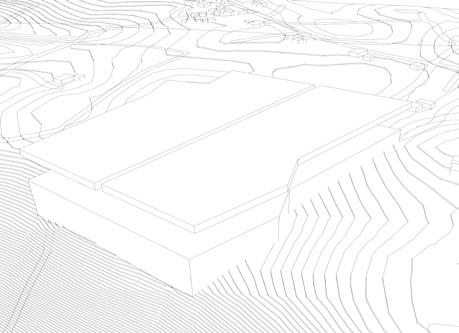

MASS PROCESSING

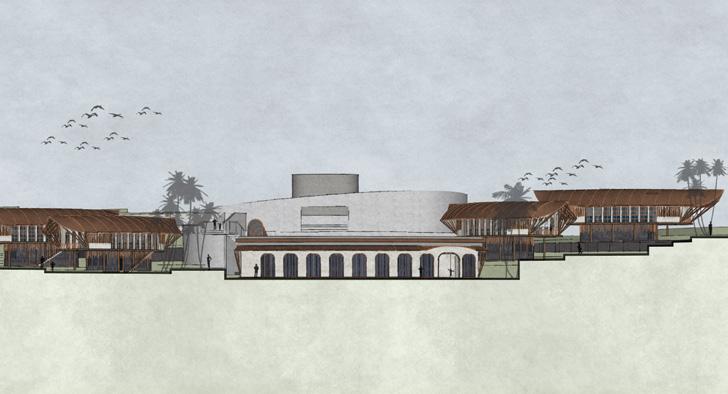

FRONT ELEVATION YOGA FRONT ELEVATION

Fahriatul Syafiah. A 2019-2023 Proyek UNIVERSITAS GUNADARMA CATATAN KEYPLAN 2000 1350 a b c 950 1300   a a  900 350 400  AREA RESTROOMLAKI-LAKI KARYAWAN FAKULTAS TEKNIK SIPIL DAN PERENCANAAN CATATAN ruang akupuntur laki laki a a 1800 900 900 a   1   ruang akupuntur kamar mandi kamar mandi perempuan laki-laki ruang loker RESTAURANT AREA RESTROOM

ACUPUNTURE AREA BATHROOM AREA

Architecture Portfolio

1  3     -7.00 AREA YOGA 1350 -7.00 AREA YOGA PERENCANAAN CATATAN KEYPLAN a a aaa a 1600 800 800 500 450 800 800 450 450 350 500 500 aa a Proyek UNIVERSITAS GUNADARMA 1200 900    -7.00 AREA RESTROOM AREARESTROOM WANITA KARYAWAN SECTION RESTROOM AREA YOGA AREA SECTION MANAGEMENT AREA YOGA AREA
