PORTFOLIO DRAFTING PROJECTS SUSIE SU 17 JUNE 2022
PLANNING APPROVAL
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:200 HUIXIN SU (SUSIE) PAULINE HALL 6/17/2022 2 1.01 1USE 2D CAD ASSESS 2 PART A SITE PLAN MR & MRS SMITH LOT 20 JONES STREET STIRLING 20.83M 29 . 69 M 29 . 69 M 20 83M LOT 20 SANDY SOIL JONES STREET 90 ° 90° 90° 90 ° 995 11.30 1116 995 10.00 10 50 11.00 11.00 10.50 10.00 LOT 40 SINGLE STOREY BRICK AND TILE TREE TREE VERGE KERB LOT 19 VACANT LOT 21 VACANT FFL 11 40 CONCRETE PAVED DRIVEWAY 5,940 6,000 5,060 2,220 1,500 CROSSOVER BY OWNER ASSEMED DATUM 10 0 NAIL AT BASE OF KERB PROPOSED RESIDENCE FFL 10 70 FGL 10 60 GARAGE FFL 10 614 FGL 10 60 PORCH FFL 10 614 N SITE PLAN SCALE - 1:200 OPEN SPACE ZONING R20 MIN TOTAL (% OF SITE) 50 % GROUND FLOOR AREA 238.95 m2 OPEN SPACE AREA 379.49 m2 SITE AREA 618.44 m2 SITE COVERAGE % = 38.64 % OPEN SPACE % = 61.36 %
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 6/17/2022 2 2.01 1USE 2D CAD ASSESS 2 PART A FLOOR PLAN MR & MRS SMITH LOT 20 JONES STREET STIRLING F F W 720 13,550 2,280 720 17,030 17,750 5,750 1,930 6,590 490 17,750 14,270 6,350 11,400 260 690 840 CARPORT CONCRETE 6600 x 6600 KITCHEN TIMBER 3900 x 5000 FAMILY TIMBER 5890 x 4700 BED 3 CARPET 3290 x 3550 BED 4 CARPET 3000 x 3550 B IR DESK DESK 2 x 620 BIR 4 x SHELF 4 x SHELF 18c x 7 5b (SW) 620 820 820 820 820 820 820 870 720 870 2 x 620 2 x 620 4 x SHELF DINING TIMBER 4700 x 5000 BED 2 CARPET 3580 x 2800 2 x 620 BED 1 CARPET 5250 x 3860 BIR 1500 FHO SHELF SHELF & RAIL WIR 2000 x 1900 820 FHO 4 x SHELF PANTRY 18c x 7 5b (SW) 25c x 10b (SD) 18c x 7 5b (SW) 14 c x 10 b SW ) 21c x 10b (AW) 26c x 23 5b 1 8 c x 7 5 b ( SW ) 14 c x 2 5 b ( A W ) PORCH PAVED 14 c x 2 5 b ( A W 14 c x 2 5 b A W ) E-01 3 01 E-04 3 02 E-02 3 01 E-03 3 02 FFL -1c FFL 10 700 (00c) CL 28c + WP 2 x 520 STORAGE 2 x 520 (-01c) UBO V V S TR ROLLER SHUTTER 820 BATH TILE 3000 x 2000 SHR 1200 x 1200 720 ENS TILE 2800 x 1900 SHR 1200 x 1000 WC 1710 x 900 L'DRY TILE 3000 x 1700 N GROUND FLOOR PLAN SCALE - 1:100
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 6/17/2022 2 3.01 1USE 2D CAD ASSESS 2 PART A ELEVATIONS 1,2 MR & MRS SMITH LOT 20 JONES STREET STIRLING 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA ROLLER SHUTTER FACE BRICK CL 28c + WP FL 0c NGL NGL 25c 4c 25c 25c 0c -1c TILED ROOF @ 24 5° PITCH 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA NGL NGL FACE BRICK CL 28c + WP FL 0c 25c 11c 25c 7c 25c 0c 25c 11c 25c 11c TILED ROOF @ 24 5° PITCH EAST ELEVATION SCALE 1:100 E-01 2 01 SOUTH ELEVATION SCALE 1:100 E-02 2 01
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 6/17/2022 2 3.02 1USE 2D CAD ASSESS 2 PART A ELEVATIONS 3,4 MR & MRS SMITH LOT 20 JONES STREET STIRLING 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA NGL NGL FACE BRICK CL 28c + WP FL 0c 25c 0c 25c 7c 25c 7c 25c 7c TILED ROOF @ 24 5° PITCH 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA NGL NGL CL 28c + WP FL 0c FACE BRICK 25c 11c TILED ROOF @ 24 5° PITCH WEST ELEVATION SCALE 1:100 E-03 2 01 NORTH ELEVATION SCALE 1:100 E-04 2 01
BUILDING
PERMIT
TERMITE
CONCRETE
SITE LEGEND:
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:200 HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 1.01 2USE 2D CAD ASSESS 2 PART B SITE PLAN MR & MRS SMITH LOT 20 JONES STREET STIRLING BDRY 20 83M BDRY 29 . 69 M BDRY 29 . 69 M BDRY 20.83M LOT 20 SANDY SOIL JONES STREET 90 ° 90° 90° 90 ° 995 1130 1116 9.95 10.00 10.50 1100 11 00 10.50 10.00 LOT 40 SINGLE STOREY BRICK AND TILE TREE TREE VERGE KERB LOT 19 VACANT LOT 21 VACANT FFL 11 40 CONCRETE 5 65m PAVED DRIVEWAY 5,940 6,000 2,220 1,500 6,720 5,060 CROSSOVER BY OWNER ASSEMED DATUM 10 0 NAIL AT BASE OF KERB SPOON DRAIN SEWER CONNECTION 1200ø SOAKWELL 1200ø SOAKWELL 1200ø SOAKWELL 100ø PROPERTY SEWER 300mm LIMESTONE RETAINING WALL TOP AT 11 300 1200ø PROPERTY SEWER AUTHORITY SEWER PROPOSED RESIDENCE FFL 10 850 FGL 10 750 GARAGE FFL 10 764 FGL 10 750 PORCH FFL 10 764 DP DP DP DP DP DP DP FWG FW FW FW FW FWG N SITE PLAN SCALE - 1:200 SITE COVERAGE / OPEN SPACE ZONING R20 MIN TOTAL (% OF SITE) 50 % GROUND FLOOR AREA 238.95 m2 OPEN SPACE AREA 379.49 m2 SITE AREA 618.44 m2 SITE COVERAGE % = 38.64 % OPEN SPACE % = 61.36 % ROOF
NOTE FINAL POSITION OF RWP S TO BE DETERMINED BY ROOF PLUMBER ON SITE
ALL DRAWINGS TO BE READ IN CONJUCTION WITH ENGINEERING SPECIFICATIONS
PLUMBER
WIND CLASSIFICATION T.B.A.
TO
ALL DOWNPIPES CONNECTED TO SOAKWELLS WITH PVC STORMWATER PIPE
STORMWATER DRAINAGE NOTE:
COUNCIL REQUIREMENTS
1
TREATMENT NOTE: CHEMICAL HANDSPRAYING IN ACCORDANCE WITH AS 3660
SLAB
AS PER
NOTE: RECESS SHOWER SLAB 30mm
MESH TO PORCH & GARAGE
ENG DETAILS
-
-
-
-
-
SEWER LINES
STORMWATER FROM DP
1200Ø x 900H SOAKWELL
FLOOR WASTE / FLOOR WASTE GULLY
HOSE TAP
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 2.01 2USE 2D CAD ASSESS 2 PART B FLOOR PLAN MR & MRS SMITH LOT 20 JONES STREET STIRLING W004 W-003 W-003 SD-001 W-003 W003 W002 W002 W002 W-001 F F W A 4 01 A 4 01 490 840 250 4,700 FAMILY 90 4,160 KITCHEN 90 750 P'TRY 90 6,670 GARAGE 230 250 3,550 BED 4 90 600 90 600 90 4,770 DINING 90 5,360 1,310 230 720 250 1,330 90 1,090 90 950 90 1,250 1,200 SHOWER 45090 90 1,700 L'DRY 90 1,380 90 1,330 90 250 3,550 BED 3 90 2,000 BATH 90 900 WC 90 1,700 L'DRY 90 2,800 BED 2 90 1,900 ENSUITE 90 3,860 BED 1 250 250 3,290 BED 3 90 600 90 3,000 BED 4 90 5,890 FAMILY 250 250 3,000 BATH 90 1,180 90 1,290 90 1,330 90 5,890 FAMILY 250 250 1,710 BATH 90 1,200 SHOWER 90 250 4,270 90 4,700 DINING 90 1,710 90 2,100 PANTRY 250 250 3,580 BED 2 90 600 90 250 2,800 ENSUITE 90 2,100 WIR 90 9,350 2,410 5,270 17,030 4,780 610 960 480 1,810 1,070 970 350 610 1,070 610 4,430 6,350 11,400 17,750 830 1,810 2,390 1,810 1,070 2,410 470 1,810 950 13,550 1,670 2,410 1,670 480 970 480 470 5,650 470 5,750 1,930 6,590 14,270 250 3,860 90 1,900 250 250 5,250 BED 1 90 1,740 ENTRY 90 6,600 GARAGE 250 3,900 260 250 5,250 BED 1 250 1,930 PORCH 230 6,110 GARAGE 250 1,800 SHELF & RAIL SHELF & RAIL SHELF & RAIL GLAZED SCREEN & DOOR GLAZED SCREEN & DOOR CUPBD UNDER 300mm O/H UBO & R/HOOD OVER GARAGE CONCRETE KITCHEN TIMBER FAMILY TIMBER BED 3 CARPET BED 4 CARPET B IR DESK DESK 2 x 620 BIR 4 x SHELF 4 x SHELF 620 820 820 820 820 820 870 870 720 870 2 x 620 2 x 620 4 x SHELF DINING TIMBER BED 2 CARPET 2 x 620 BED 1 CARPET BIR 1500 FHO SHELF SHELF & RAIL WIR 820 FHO 4 x SHELF PANTRY 26c x 23 5b PORCH PAVED E-01 3 01 E-04 3 02 E-02 3 01 E-03 3 02 2 x 520 STORAGE 2 x 520 -1 FL V V S TR ROLLER SHUTTER ENTRY M/H DP DP DP DP DP DP DP GAS HWU GAS/ELEC M/B -1 FL FWG FW FW FW FW FWG S 820 BATH TILE SHR 720 ENS TILE SHR WC L'DRY TILE N FLOOR PLAN SCALE - 1:100 SMOKE ALARM SHALL BE INSTALLED TO: - COMPLY WITH AS3786-1993 - SMOKE ALARMS - BE HARDWIRED TO MAIN POWER - HAVE A BATTERY BACKUP ROOF PLUMBER NOTE FINAL POSITION OF RWP’S TO BE DETERMINED BY ROOF PLUMBER ON SITE ALL DRAWINGS TO BE READ IN CONJUCTION WITH ENGINEERING SPECIFICATIONS CLIENT NOTE ALL DIMENSIONS STATED ON THIS DRAWING RELATE TO BRICKWORK SETOUT ONLY NO ALLOWANCE IS MADE FOR ADDITIONS OF PLASTER OR WALL FINISH WHERE THESE APPLY CARE SHOULD BE TAKEN TO INCLUDE SUCH ALLOWANCE IN CALCULATION FOR CLEARANCE REQUIRED FOR FUTURE FITTINGS AREAS: GROUND FLOOR 189.11 m2 GARAGE 46.86 m2 PORCH 2.97 m2 TOTAL AREA 238.94 m2 NOTES: * 250 CAVITY BRICK EXTERNAL WALLS UNLESS NOTED OTHERWISE * INTERNAL CLAY BRICK WALLS, PLASTERED UNLESS OTHERWISE NOTED * RECTANGULAR DOWNPIPES - POSITION OF DOWN PIPES ARE INDICATIVE ONLY * MANHOLE POSITION AND SIZE MAY CHANGE AT BUILDER S DISCRETION * HOT WATER SYSTEM TO BE 5* RATING OR MORE * SMOKE DETECTOR TO BE HARDWIRED W/- INTERNAL SEALED AND NONREMOVABLE BATTERY * USE SOLID CORE ENTRY DOORS * USE POWDER COATED ALUMINIUM FRAMED WINDOWS
GSEducationalVersion Assessment No.: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865, WA Tel (08) 9242 0455 Assessment Name: Assessment: (circle) Student Name: Scale: Lecturer Name Date: Drawing No.: Drawing Name: Client Submission No Checked By Satisfactory Not Yet Satisfactory 1:1 USE 2D CAD HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 2.02 ASSESS 2 PART B WINDOW SCHEDULE MR & MRS SMITH LOT 20 JONES STREET STIRLING 2ID SD-001 W-001 W-002 W-003 W-004 PLAN PREVIEW ELEVATION 2,410 2 , 143 2,410 1 , 800 610 1 543 1,810 1 , 543 2,410 1 , 200 QTY 1 1 3 4 1 Width 2,410 2,410 610 1,810 2 410 Height 2,143 1,800 1,200 1,543 1 200 Glass Glass - Clear Glass - Clear Glass - Clear Glass - Clear Glass - Clear WINDOW SCHEDULE WINDOW SCHEDULE SCALE - 1:100
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 3.01 2USE 2D CAD ASSESS 2 PART B ELEVATIONS MR & MRS SMITH LOT 20 JONES STREET STIRLING 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA ROLLER SHUTTER FEATURE ENTRY DOOR ALUM FRAMES FACE BRICK CL 28c + PLATE FL 0c NGL NGL 25c 4c 25c 25c 0c -1c TILED ROOF @ 24 5° PITCH 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA ALUM FRAMES NGL NGL FACE BRICK CL 28c + PLATE FL 0c 25c 11c 25c 7c 25c 0c 25c 11c 25c 11c TILED ROOF @ 24 5° PITCH 7c DP DP DP GAS HWU GAS/ELEC M/B EAST ELEVATION SCALE 1:100 E-01 2 01 SOUTH ELEVATION SCALE 1:100 E-02 2 01
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:100 HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 3.02 2USE 2D CAD ASSESS 2 PART B ELEVATIONS MR & MRS SMITH LOT 20 JONES STREET STIRLING 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA ALUM FRAMES NGL NGL FACE BRICK CL 28c + PLATE FL 0c 25c 0c 25c 7c TILED ROOF @ 24 5° PITCH 25c 7c 25c 7c 2,425 480mm BOXED & LINED EAVES GUTTER & FASCIA ALUM FRAMES NGL NGL CL 28c + PLATE FL 0c FACE BRICK 25c 11c TILED ROOF @ 24 5° PITCH DP DP DP WEST ELEVATION SCALE 1:100 E-03 2 01 NORTH ELEVATION SCALE 1:100 E-04 2 01
GSEducationalVersion Assessment No.: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865, WA Tel (08) 9242 0455 Assessment Name: Assessment: (circle) Student Name: Scale: Lecturer Name Date: Drawing No.: Drawing Name: Client Submission No Checked By Satisfactory Not Yet Satisfactory 1:50 USE 2D CAD HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 4.01 ASSESS 2 PART B SECTION A MR & MRS SMITH LOT 20 JONES STREET STIRLING 2D1 5 01 D2 5 01 2,425 480mm BOXED & LINED EAVES 250 CAVITY BRICK WALL PLASTERBOARD CEILING & CORNICE HARDWALL PLASTER REINF CONCRETE SLAB TO STRUC ENGR DETAILS ON COMPACTED FILL & APPROVED WPM CONCRETE STRIP FOOTING TO STRUC ENGR DETAILS KITCHEN DINING BED 2 FL 0c TILED ROOF @ 24 5° PITCH CL 28c + PLATE ROOF TIMBERS TO TIMBER FRAMING CODE & AS 1684 SECTION A SCALE 1:50 A 2 01
HARDWALL PLASTER
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:10 HUIXIN SU (SUSIE) PAULINE HALL 7/06/2022 2 5.01 2USE 2D CAD ASSESS 2 PART B DETAILS MR & MRS SMITH LOT 20 JONES STREET STIRLING 480 TRADITIONAL TIMBER ROOF & CEILING FRAME TO AS 1684 & NCC BCA ROOF TILES AT 24º PITCH 38x38mm TILE BATTEN COLORBOND METAL GUTTER & FASCIA 250mm CAVITY BRICKWORK EAVES TRIMMER EAVES STRUT F/C EAVES LINING PLASTERBOARD CEILING & CORNICE
CEILING LEVEL 28c + PLATE 250mm
70
19mm
REINF CONCRETE SLAB TO STRUC ENGR DETAILS APPROVED WPM ON CLEAN COMPACTED FILL CONCRETE STRIP FOOTING TO STRUC ENGR DETAILS WEEPHOLE TO EVERY 4TH PERPEND PARGE RAFT EDGE BEAM FLOOR LEVEL 0c EAVES DETAIL SCALE 1:10 D1 4.01 FOOTING DETAIL SCALE 1:10 D2 4 01
CAVITY BRICKWORK HARDWALL PLASTER
x
MDF SKIRTING
SITE SURVEY
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:200 HUIXIN SU (SUSIE) SIMON MAXWELL 25/05/2022 4 3 of 3 1 SIMON MAXWELL CPPBDN5110 INSPECT AND ASSESS SITES AT4 - SITE EVALUATION 2 SITE PLAN - MEASURED #### ### N 40,801 40,819 20,181 20,178 3,821 7,515 1,210 6,120 1,517 3,010 1,280 6,420 1,860 13,782 6,547 750 4,100 2,500 2,050 5,020 1,850 10,560 12,410 2,920 2,927 1,770 1,770 1,825 10,680 4,400 2,030 3,370 10,200 20,193 30,393 9.910 9.820 9.9329.825 9.8389.940 9.830 9.963 9.833 9.091 9.091 9.381 9.851 9.886 10.076 10.046 9.836 TBM 10.00 89.94° 90.01° 89.99° 90.06° 475mm W x 680mm H STONE B'DRY WALL CHAINLINK FENCE & GATE TELSTRA SERVICE BOX 115mmØ LOW TIMBER RAIL/FENCE POWER DOME DP 140mm Ø BOLLARDS 140mm Ø BOLLARDS 600sq x 750mm H STONE PIER COLOURED CONCRETE SLAB STREET LAMP SIGN POST INCOMING WATER LOT 451 DP60309 LOT 440 DP 48767 LOT 802 DP 302707 LOT 803 DP 302707 LOT 450 ABERDEEN STREET CAR PARKING 500x500mm CONC PAV 500x500mm CONC PAV HEDGE HEDGE LAWN LAWN ASPHALT DRIVEWAY 300x200mm CONC PAV CROSSOVER SINGLE STOREY RENDERED BRICK & METAL ROOF SINGLE STOREY STONE & TILE 2- STOREY RENDERED MASONRY & METAL ROOF 2-STOREY RENDERED MASONRY & METAL ROOF PRIVATE CAR PARK ASPHALT DRIVEWAY TICKET MACHINE SEWER LINE G 1 : 3 7 G 1 27 G 1 2 8 10000 9 500 ACCESS NOT POSSIBLE FL 10 000 SITE PLAN SCALE 1:200
GSEducationalVersion Assessment No.: Satisfactory Assessment: (circle) Not Yet Satisfactory Student Name: Scale: Lecturer Name: Date: Drawing No.: Submission No: Checked By: North Metropolitan TAFE Level 3, 30 Aberdeen Street, NORTHBRIDGE 6865 WA Tel (08) 9242 0455 Assessment Name: Drawing Name: Client: 1:200 HUIXIN SU (SUSIE) SIMON MAXWELL 4/16/2022 3 1 #1 SIMON MAXWELL CPPBDN5110 INSPECT AND ASSESS SITES TO INFORM THE DESIGN PROCESS SURVEY PLANS SITE PLAN - CUT & FILL XYZ C/O DENADA SURVEYS 246 (#10) JINDINGA WAY A A B B C C D D 7 7 6 6 5 5 4 4 3 3 2 2 1 1 1,000 1,000 1,000 1,000 13.022 13.200 13.377 13.560 12.554 12.736 12.965 13.265 12.087 12.370 12.672 12.969 11.860 12.076 12.374 12.672 11.660 11.829 12.078 12.377 11.457 11.632 11.848 12.176 11.260 11.438 11.639 12.061 S1 S1 S2 S2 CUT AREA 189 90 m2 FILL AREA 176 79 m2 PROPOSED 300MM RETAINING WALL PROPOSED 300MM RETAINING WALL CUT LINE FILL LINE 1150 1200 1250 1300 1350 HOUSE PAD LEVEL 12 20 SAND PAD LEVEL 12 10 SAND PAD LEVEL 12 10 1,688 17,154 1,898 277 18,842 2,175 807 86 TOP OF LEVEL SAND 12.10 TOP OF SLAB 12.20 EXISTING GRADE CUT FILL PROPOSED GROUND LINE SLOPE RATIO 1 2 SLOPE RATIO 1 2 11 0 1 0 12 0 1 0 13 0 847 9,451 9,602 705 10,298 10,307 478 358 TOP OF SLAB 12.20 TOP OF LEVEL SAND 12.10 EXISTING GRADE CUT FILL PROPOSED GROUND LINE SLOPE RATIO 1 2 SLOPE RATIO 1 2 11 0 1 0 12 0 1 0 13 0 CUT AREA (m2) FILL AREA (m2) 189 90 176 79 CUT & FILL AREA CALCULATION SITE PLAN - CUT & FILL 1:200 SECTION ' S 2 ' 1 : 200 SECTION ' S 1 ' 1 : 200

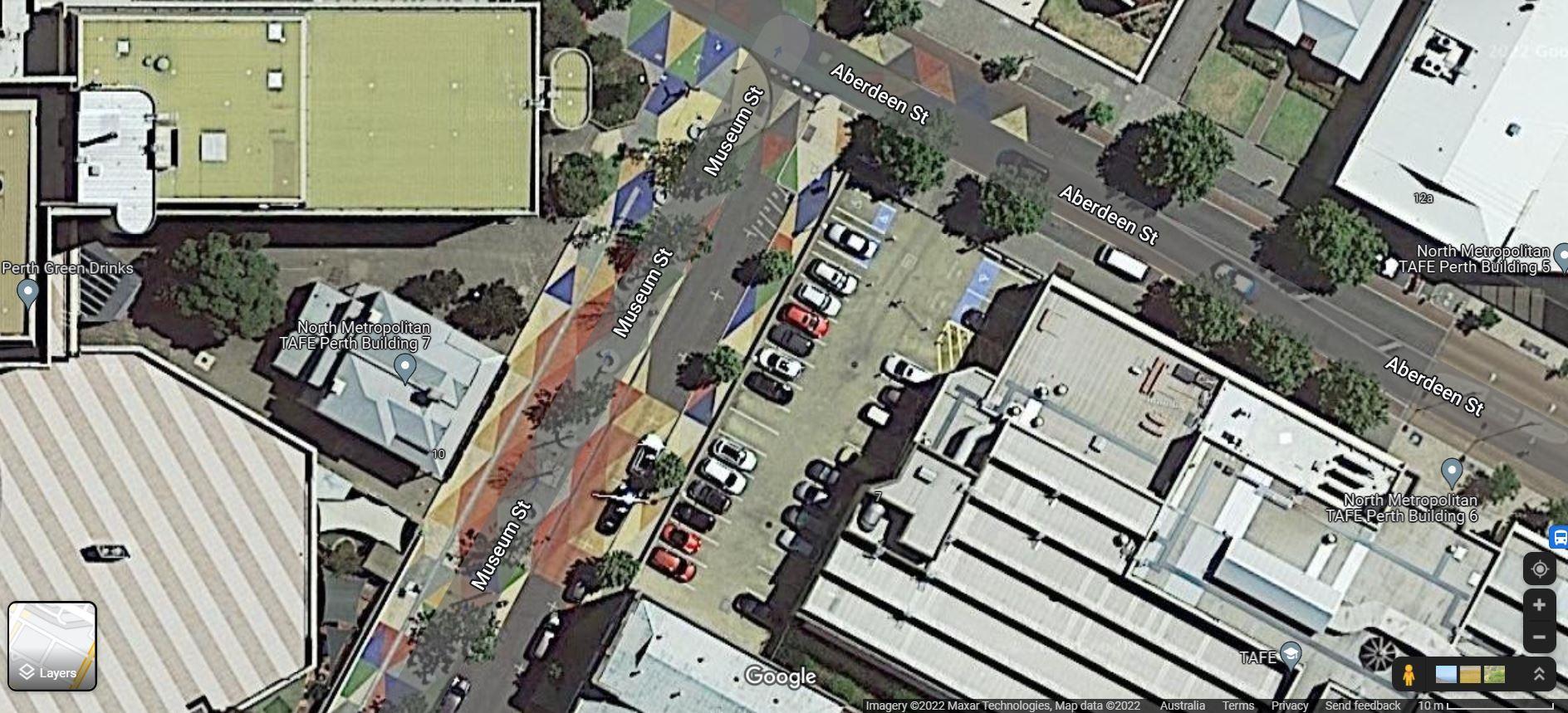

CPPBDN5110 AT2 - ASSESSMENT 2 Aberdeen Street Perth WA PROJECT NAME DRAWING TITLE DRAWING NO 3 REVISION NO Status SUSIE SIMON MAXWELL zone 5 - warm temperate SITE PLAN - SITE MEASUREMENTS (TASK 4) 5,197 39,987 19,160 1,802 11,200 1,929 11,094 BOUNDARY WALL BRICK CONC PV FOOTPATH 45,120 90.35° 89.83° MUSEUM STREET 5 N ABERDEEN STREET MUSEUM STREET BEAUFORT STREET LOT 1286 LOT Y60 LOT 1285 SITE LEGEND 700MM DIA STORMWATER DRAIN 1 4M X 1 2M STORMWATER MANHOLE BOLLARDS SIGN POSTS LAMP POST TREES STORMWATER DRAINAGE PIPE RAINWATER DOWNPIPE NBN MANHOLE P5 ELECTRICAL MANHOLE 800MM DIA STORMWATER MANHOLE CAR PARKING SPACE STANDARD 5 4 X 2 4M N ABERDEEN STREET LOCATION PLAN SCALE 1 1000 PRE-SITE VISIT PLAN - SERVICES & GOOGLEMAPS OVERLAY SCALE 1 200 SITE PLAN - MEASURED SCALE 1 200
