Supreme Heating Product Pricing Catalogue 2022-2023

WELCOME

Supreme Heating, an Australian owned and operated business for over 32 years.

A market leader in the pool heating industry with a passion for renewable and sustainable future at the heart of our business. Together with our employees we strive to be well equipped and knowledgeable in heating, hot water and solar electrical applications.

Our commitment to our customers is evident with after sales support, 24/7 service, reliability and quick turnaround coupled with integrity, honesty and transparency.

With branches and distributor agents Australia wide, we are here to support our customers find a solution that helps maximise efficiencies sustainably.

Our customers and employees are the foundation of our success and we hope to continue working together in years to come.

On behalf of the team, we would like to thank you for being a customer of Supreme Heating. We value the trust you have put in our products and are honoured to be a part of your business.

Colin Mauger Founder & Director

Affordable, Efficient Pool & Spa Heating Solutions

ROUND PROFILE

BRING THE POWER OF THE SUN TO YOUR SERVICE WITH SUPREME.

Heatseeker Solar Pool Heating

The Heatseeker (Round) strip profile is made from a specially formulated PVC Nitrile material which capitalises on the available energy from the sun.

Width: 135mm Consists of 8 circular shaped tubes 7.5 lineal metres per square metre

Warranty

Ten (10) year limited warranty.

ELLIPTICAL PROFILE

Heatseeker Plus Solar Pool Heating

The Heatseeker Plus (Elliptical) strip profile is made from a specially formulated PVC Nitrile material which capitalises on the available energy from the sun.

Width: 110mm Consists of 8 elliptical shaped tubes 9 lineal metres per square metre

Warranty

Twenty (20) year limited warranty.

Product Code Product Description Unit Price

Solar Collector - 4m2 rolls

SCOLL135B Heatseeker (Round) Profile PVC-N - Black roll $195.00

Solar Collector Kit

SHSBK Heatseeker (Round) Profile PVC-N - Black m2 $90.00

Solar Collector - 4m2 rolls

SCOLL110B Heatseeker (Elliptical) Profile PVC-N - Black roll $240.00

Solar Collector Kit

SHSPLUSBK Heatseeker (Elliptical) Profile PVC-N - Black m2 $110.00

(Strip)

Solar

Kit

Inclusions

System Size m2 20m2 24m2 28m2 32m2 36m2 40m2 44m2 48m 52m2 56m2 60m2

Collector Rolls

Compact Ball Valve 40mm

Drainage Loop

Elbows - Black - 40mm x 45°

Elbows - Black - 40mm x 90°

End Caps - Black - 40mm

Joiners - Black - 40mm

Joining Barbs 6.5mm Manifold Clips

Pressure Sleeves** ÷4 Repair Kit

Roof Glue - 300ml Tubes

Solar Manifolds - 6m

Swing Check Valve - 40mm*

Vacuum Relief Valve & Tee Gall Saddles

Pressure Gauge Kit Installation Guide User Guide

5 1 1 6 6 2 4 40 8 80 1 9 1 1 1 6 1 1 1

6 1 1 6 6 2 4 48 10 96 1 10 1.5 1 1 6 1 1 1

7 1 1 6 6 2 4 56 10 112 1 11 1.5 1 1 6 1 1 1

8 1 1 6 6 2 4 64 14 128 1 12 2 1 1 6 1 1 1

** Applicable for use with the purchase of Heatseeker Plus profile.

* Applicable for use with the purchase of a solar pump.

9 1 1 6 6 2 4 72 14 144 1 14 2 1 1 6 1 1 1 08 8

10 1 1 6 6 2 4 80 14 160 1 15 2 1 1 6 1 1 1

11 1 1 6 6 2 4 88 14 176 1 16 2 1 1 6 1 1 1

12 1 1 6 6 2 4 96 16 192 1 17 2.5 1 1 6 1 1 1

13 1 1 6 6 2 4 104 16 208 1 19 2.5 1 1 6 1 1 1

14 1 1 6 6 2 4 112 16 224 1 20 2.5 1 1 6 1 1 1

15 1 1 6 6 2 4 120 6 240 1 20 2.5 1 1 6 1 1 1

BIRD & HAIL

Heatseeker Suntuf Pro Solar Pool

Heating

The Heatseeker Suntuf Pro panels are injection moulded from a high-grade formulated polymer, selected for its outstanding heat transfer properties and its exceptional durability.

Each Suntuf Pro panel consists of a multitude of miniature solar absorber tubes to maximise its surface area exposed to the sun. The solar absorber tubes are highly resistant to bird and hail damage due to a thick circular wall structure.

Warranty

Fifteen (15) year limited warranty. Seven (7) year limited wildlife warranty.

SSUNTUFFM2 Heatseeker Suntuf Pro Installation Cost per m² $200.00

EXTRAS

STRENCH Trenching and plumbing >6m metre $80.00

SPLUMB Above ground plumbing >6 metre $25.00

LIMITATIONS

Roof Pitch .30° POA

Slate or shingle roofs POA

Concrete cutting POA

Internal plumb inclusive of acoustic logging & roof penetration POA

Eave penetration POA

SOLAR COLLECTOR - PANELS

SSUNTUFPRO12 Heatseeker Suntuf Pro Panel 1.2m L x 0.6m W panel $119.00

SSUNTUFPRO15 Heatseeker Suntuf Pro Panel 1.5m L x 0.6m W panel $125.80

SSUNTUFPRO18 Heatseeker Suntuf Pro Panel 1.8m L x 0.6m W panel $132.30

SSUNTUFPRO21 Heatseeker Suntuf Pro Panel 2.1m L x 0.6m W panel $143.75

SSUNTUFPRO24 Heatseeker Suntuf Pro Panel 2.4m L x 0.6m W panel $152.50

SSUNTUFPRO27 Heatseeker Suntuf Pro Panel 2.7m L x 0.6m W panel $157.45

SSUNTUFPRO30 Heatseeker Suntuf Pro Panel 3.0m L x 0.6m W panel $164.00

SSUNTUFPRO33 Heatseeker Suntuf Pro Panel 3.3m L x 0.6m W panel $172.85

SSUNTUFPRO36 Heatseeker Suntuf Pro Panel 3.6m L x 0.6m W panel $177.80

SSUNTUFPRO39 Heatseeker Suntuf Pro Panel 3.9m L x 0.6m W panel $184.60

SSUNTUFPRO42 Heatseeker Suntuf Pro Panel 4.2m L x 0.6m W panel $193.35

COMPONENTS

Top Clamps each $16.00

Bottom Clamps each $15.00

Vertical Clamps each $18.00

Stainless Rods each $4.00

Coupling Male Assembly each $10.00

Coupling Female each $7.00

Blank-Off Male Assembly each $8.00

Blank-Off Female each $5.00

Panel Nut each $6.00

Nut Locking Clip each $1.20

Manifold To Pipe Clip each $6.00

Panel Joiner Clip each $1.50

Locking Spanner Tool each $10.00

SPECIFICATIONS

PANEL LENGTH

0.9 m to 4.2 m with 300 mm increments

Panel width m 0.6

Overall surface area m2 0.6 x Panel Length

Effective surface area m2 0.5 x Panel Length

Required flow rate L/min 1.8 x Panel Length

Weight dry kg 1.79 x Panel Length

Weight wet kg 4.35 X Panel Length

No. of tube supports ea 3 for every metre

Filled area weight kg/m2 5.2

Panel Width: 600 mm

Panle Length: starting from 900 mm up to 4.2 m

Note: Longer panels up to 5.4 m are available. Additional delivery charges apply.

AquaGen 5 Controller

The AquaGen 5 Controller is designed for systems where the pool has provisions for solar

Warranty

Three (3) year limited warranty.

Code

SAQUAGEN5 AquaGen 5 Digital Controller

AquaGen 5BR Battery Remote Controller

The AquaGen 5BR Controller is designed for systems where the pool has provisions for solar. This controller has a battery remote roof sensor, which eliminates the need for conduit and underground wiring.

Warranty

Three (3) year limited warranty.

Product Code Product Description

SAQUAGEN5BR AquaGen

AquaGen 5PV Remote Controller

The AquaGen 5PV Controller is designed for systems where the pool has provisions for solar. This controller has a photo voltaic remote roof sensor, which eliminates the need for conduit and underground wiring.

Warranty

Three (3) year limited warranty.

Product Code Product Description

SAQUAGEN5PV AquaGen

AquaGen 5RT Controller

The AquaGen 5RT Controller is designed for systems where the pool is plumbed into the existing pool plumbing and operates the filter time-clock and solar pump.

Warranty

Three (3) year limited warranty.

Product Code Product Description Unit Price

SAQUAGEN5RT AquaGen 5RT Digital Controller Time Clock each $900.00

AquaGen 5RTPV PV Remote Controller

The AquaGen 5RTPV Controller is designed for systems where the solar is plumbed into the existing pool plumbing and operates the filter time-clock and solar pump. This controller has a photovoltiac remote roof sensor, which eliminates the need for conduit and underground wiring.

Warranty

Three (3) year limited warranty.

Product Code Product Description Unit Price

SAQUAGEN5RTPV AquaGen 5RTPV Digital Controller Time Clock PV Remote each $1450.00

AquaGen 5CD Remote Controller

The AquaGen 5CD Controller is designed for systems where the solar is plumbed into the existing pool plumbing and operates the filter time-clock and solar pump. This controller is fitted with current detection on the AUX power socket, so the solar pump can only operate if the current load on the AUX socket is within an operational range.

Warranty

Three (3) year limited warranty.

Product Code Product Description Unit Price

SAQUAGEN5CD AquaGen 5CD Remote Controller each $900.00

SS Series Solar Pumps

A high performance, high head pump ideally suited for solar applications. The SS series solar pump is designed to operate at high pressures when high pressure is desired.

The SS series pumps are designed for systems where the pool has provisions for solar.

Warranty

Two (2) year limited warranty.

Product

SPUMPSS50 SS50 - 0.5hp 16m² - 36m²

16m² - 24m² each $650.00

SPUMPSS75 SS75 - 0.775hp 36m² - 50m² 24m² - 50m² each $650.00

SSPUMP100 SS100 - 1.0hp > 50m² > 50m² each $650.00

SSPUMPS125 SS125 - 1.25hp Specific Applications each $800.00

AB Series Solar Pumps

A high flow, whisper quiet design with full volume water flow especially suitable for spa booster pumps and solar pumps installed in a flooded suction situation.

The AB series pumps are designed for systems where the solar is plumbed into the existing pool plumbing.

Warranty

Two (2) year limited warranty.

SPUMPAB50 SSAB50 - 0.5hp 16m² - 36m²

16m² - 24m² each $700.00 (Booster)

SPUMPSAB75 SSAB75 - 0.75hp > 36m > 36m each $700.00 (Booster)

Product Code Product Description Unit Price

SLEADPOOLPLUS Replacement Sensor Cable - Plus Series - Pool each $80.00

SLEADROOFPLUS Replacement Sensor Cable - Plus Series - Roof each $100.00

SLEADONPOOL2 Replacement Sensor Cable - Pool each $80.00

SLEADONROOF2 Replacement Sensor Cable - Roof each $100.00

SMAN110B-135B Solar Manifold (available in 1m, 3m & 6m lengths) metre $70.00

SCLIP1 Manifold Clip each $6.00

SSLEVBLACK Pressure Sleeve (set of 4) set $2.00

SVACV2 Vacuum Relief Valve each $50.00

SVACVA Vacuum Relief Valve with Adapter each $70.00

SGLUEROOF Roof Glue - 300ml Tube each $18.00

SCAB100GB Sensor Cable metre $1.50

SCOND19B Sensor Conduit metre $4.50

SHEAT1 Cable Joining Heatshrink Pieces - 2.5cm each $0.50

STIESB Cable Ties - 200mm Weather Resistant each $0.65

SFILT2 Inline Solar Filter each $275.00

Replacement Cartridge for Inline Solar Filter each $175.00

SGROM6 Grommets each $0.60

SBARB61 Joinng Barbs - 6.5mm each $0.60

SBARB10MM Joining Barbs - 10mm each $3.00

Product Code

Product Description

Unit Price

SPIPE40X6W1 Pressure Pipe - 40mm x 6m (PN9) - White length $45.00

SPIPE50X6W Pressure Pipe - 50mm x 6m (PN9) - White length $70.00

SPIPE40MMCL9BL Pressure Pipe - 40mm x 6m (PN9) - Black length $70.00

SELBO112WX45 Elbow - White - 40mm x 45° each $3.25

SELBO112WX90 Elbow - White - 40mm x 90° each $3.50

SELBO2WX45 Elbow - White - 50mm x 45° each $5.00

SELBO2WX90 Elbow - White - 50mm x 90° each $5.00

SELBO112BX45 Elbow - Black - 40mm x 45° each $4.50

SELBO112BX90 Elbow - Black - 50mm x 90° each $4.50

SCAPS40W End Cap - White - 40mm each $4.00

SCAPS2W End Cap - White - 50mm each $4.50

SCAPS112B End Cap - Black - 40mm each $4.50

SJOIN112W Joiner / Coupling - White - 40mm each $3.50

SJOIN2W Joiner / Coupling - White - 50mm each $4.00

SJOIN112B Joiner / Coupling - Black - 40mm each $4.00

STEES112W Tee - White - 40mm each $4.00

STEES2W Tee - White - 50mm each $7.50

STEES112B Tee - Black - 40mm each $7.50

SBUSH40X32 Reducing Bush - White - 40mm x 32mm each $4.50

SBUSH40X50 Reducing Bush - White - 40mm x 50mm each $5.00

SPRIM500CLEAR PVC Priming Fluid - Clear - 500ml each $15.00

SGLUECLEAR480ML PVC Solvent Cement - Clear - 480ml each $18.00

SCHCK40/50 Swing Check Valve - Top Inspection - 40/50mm each $95.00

S2WAY40 2 Way Valve - 40mm each $95.00

S2WAY50 2 Way Valve - 50mm each $100.00

S3WAY40 3 Way Valve - 40mm each $100.00

S3WAY50 3 Way Valve - 50mm each $120.00

SBALL112W Compact Ball Valve White - 40mm each $75.00

SBALL112B Compact Ball Valve Black - 40mm each $75.00

SSADD40GALV Pipe

SSADD50GALV Pipe

SSADD40B Pipe

SSLABSML Concrete

SBARB10X6 Reducing Barb - 6.5mm x 10mm each $5.00

SGAGE50 Pressure Gauge - 50MM each $70.00

DUALBOOST

Reduce Operating Costs

Heatseeker DualSun

Supreme Heating’s multiple Award winning Heatseeker DualSun has succeeded to unite in one single panel two technologies to utilise the sun’s energy: solar photovoltaics for electricity generation and solar thermal for heated water production. Designed and manufactured in France, Heatseeker DualSun has received an overwhelmingly positive response from the Australian market.

DualSun, designed for maximum flexibility, allows the panel to be compatible with numerous systems covering an array of building energy requirements.

The advantages of the panel don’t stop there. The water circulation through the panel cools the photovoltaic cells which increase their efficiencies. More than just two technologies, DualSun has created a synergy that maximises the sun’s energy.

Warranty

Ten (10) year product warranty with twenty five (25) year PV performance warranty.

Heatseeker DualSun systems must be designed and approved by both Supreme Heating and a Clean Energy Council (CEC) accredited installer. Heatseeker DualSun PV/T panels must also be installed by a CEC accredited installer. Thermal plumbing requirements must be carried out by Supreme Heating.

Heatseeker DualSun will be priced on application due to the complexity and individualised nature of the system.

To gain an understanding of your requirements and to evaluate the feasibility of your solar project, please contact Supreme Heating on 1300 787 978.

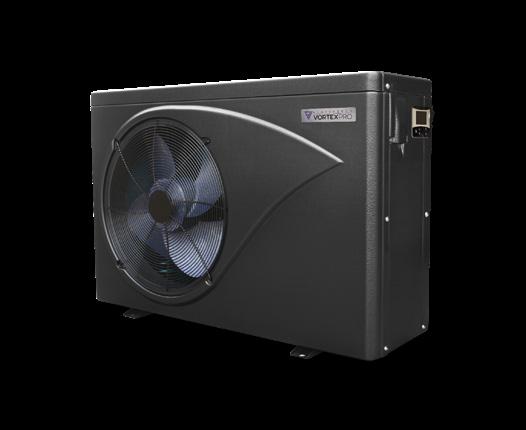

Heatseeker VortexE Inverter Heat Pumps

Our Heatseeker VortexE inverter heat pumps are designed to heat the pool by extracting heat from the outside air. The unique and innovative DC inverter technology uses a variablespeed compressor which offers greater efficiency and lower operating costs. The spiral titanium heat exchanger combined with the super-quiet operation and soft start technology further enhances the efficiency and life span of the Heatseeker VortexE heat pump.

Warranty

COP 5.6-9.6 5.9-10.3 5.7-9.9

Performance at Air 15°C, Water 26°C, Humidity 70% Heat Capacity kW 6.3 8.5 11.3

COP 4.3-5.9 4.2-5.9 4.4-6.0

General

Rated input power at air 15°C kW 0.26-1.46 0.36-2.02 0.48-2.56

Rated input current at air 15°C Amps 1.13-6.34 1.56-8.78 2.08-11.13

Circuit Breaker Amps 10.0 15.0 20.0

Power Supply 240v / 50Hz / 1PH

Pool Volume - Cold Climate Litre <20,000 <30,000 <40,000

Pool Volume - Warm Climate Litre <30,000 <40,000 <50,000

Advised Flow Rate L/min 70 100 135

Compressor Linda

Heat Exchanger Spiral titanium tube in PVC

Casing Black ABS

Noise Level (1m) dBA 41.6-53.5 43.9-54.0 46.2-57.3

Weight / Dimensions

Net Weight kg 46 49 60

Net Dimensions L x W x H mm 872 x 349 x 654 872 x 349 x 654 872 x 349 x 654 Eco-friendly R32 refrigerant. The sizing of heat pumps are based on pool volume for seasonal swimming with the use of a Heatseeker Diamond Pool Cover.

SNOVAS10 Heatseeker

allows you to vary or modulate the speed of the variable-speed swimming pool pump. This performance of the heat pump and maximises energy Heatseeker NovaS inverter heat pumps provide lower delivering outstanding electrical savings and reducing consumption by up to 30%. warranty on titanium heat exchanger warranty on compressor, evaporator and other

Model 10kW 13kW 17kW 20kW Model Type

Cool Discharge Side Fan Quantity 1 Performance at Air 27°C, Water 26°C, Humidity 80% Heat Capacity kW 9.5 13 16.5 20 COP 6.4-13.5 5.8-13.1 6.2-13.6 6.5-13.8

Performance at Air 15°C, Water 26°C, Humidity 70%

Heat Capacity kW 7.1 9.2 12.6 14.5 COP 4.7-7.4 4.5-7.1 4.7-7.4 4.8-7.5

General

Rated input power at air 15°C kW 0.20-1.51 0.27-2.04 0.32-2.68 0.35-3.02

Rated input current at air 15°C Amps 8.4 10.9 16.6 17.5 Circuit Breaker Amps 15 15 20 25 Power Supply 240v / 50Hz / 1PH Pool Volume - Cold Climate Litre <20,000 <30,000 <40,000 <50,000 Pool Volume - Warm Climate Litre <30,000 <40,000 <50,000 <60,000 Advised Flow Rate L/min 53 66 86

Heatseeker VortexPro Inverter Heat Pumps

Description

The Heatseeker VortexPro offers the ability to dynamically vary the working frequency of the inverter compressor, boasting even greater performance. This, coupled with the synchronisation of the fan and compressor speeds, optimises air flow to and from the heat pump. The enhanced technology of the VortexPro provides up to 50% higher efficiency with a COP of up to 15 compared to an on/off heat pump.

Warranty

Thirty (30) year limited warranty on titanium heat exchanger element, ten (10) year warranty on compressor, evaporator and other components.

SVORTEXPRO10 Heatseeker VortexPro 10kW Inverter Heat Pump each $4500.00

SVORTEXPRO13 Heatseeker VortexPro 13kW Inverter Heat Pump each $5500.00

SVORTEXPRO17 Heatseeker VortexPro 17kW Inverter Heat Pump each $6750.00

SVORTEXPRO21 Heatseeker VortexPro 21kW Inverter Heat Pump each $8000.00

SVORTEXPRO28 Heatseeker VortexPro 28kW Inverter Heat Pump each $9500.00

SVORTEXPRO35T Heatseeker VortexPro 35kW Inverter Heat Pump each $11000.00

Model 10kW 13kW 17kW 21kW 28kW 35kW

Fan Quantity 1

Performance at Air 26°C, Water 26°C, Humidity 80%

Heat Capacity kW 9.8 13.3 17.3 21.0 27.3 35.2

COP 6.9-15.3 6.4-15.4 5.9-15.5 5.7-15.2 6.2-15.3 5.5-15.5

Performance at Air 15°C, Water 26°C, Humidity 70%

Heat Capacity kW 6.8 9.4 11.4 14.3 18.0 24.0

COP 4.6-7.7 4.4-7.8 4.3-7.8 4.2-7.7 4.6-8.1 4.5-8.0

General

Rated input power at air 15°C kW 0.21-1.4 0.27-2.1 0.3-2.6 0.36-3.3 0.53-3.8 0.63-5.15

Rated input current at air 15°C Amps 0.91-6.1 1.17-9.1 1.3-11.3 1.57-14.3 2.3-16.5 0.91-7.4

Circuit Breaker Amps 10.0 15.0 20.0 20.0 20.0 15.0

Power Supply 240v / 50Hz / 1PH

Pool Volume - Cold Climate Litre <20,000 <30,000 <40,000 <50,000 <60,000 <80,000 Pool Volume - Warm Climate Litre <30,000 <40,000 <50,000 <60,000 <70,000 <100,000 Advised Flow Rate L/min 60 100 125 150 180 230

Compressor Twin-rotary Mitsubishi DC Inverter

Heat Exchanger Spiral titanium tube in PVC Casing Black ABS Noise Level (1m) dBA 38.6-49.9 41.3-54.0 43.1-53.8 43.5-54.9 43.5-54.9 42.6-54.7 Weight / Dimensions

Net Weight kg 49 52 63 68 90 117 Net Dimensions L x W x H mm 961x340x658 961x340x658 961x420x658 961x420x758 1092x420x958 1162x530x958

Warranty

Inverter

Fan Quantity

Performance at Air 26°C, Water 26°C, Humidity 80%

Heat Capacity kW 60.00 110.0

COP 6.2-16.1 6.0-16.2

Performance at Air 15°C, Water 26°C, Humidity 70%

Heat Capacity kW 40.00 81.0 COP 4.6-8.1 4.8-8.1

General

Rated input power at air 15°C kW 1.0-8.7 2.0-16.8

Rated input current at air 15°C Amps 1.5-12.6 2.9-24.2

Circuit Breaker Amps 25.0 50.0

Power Supply 380v / 50Hz / 3PH

Greater functionality & more comfort

The Heatseeker Vortex Switch and Vortex Link are ancillary products that assist in the primary operation of the heat pump.

Plug & Play

A plug and play automation unit recommended for heat pump systems with independent circulation pumps. Can be fitted during the installation of the heat pump meaning no additional hassle or explanation required for the electrician.

Optional extra.

All in one system

An all in one system for autonomous control of heat pumps in line with the filtration system. This unit permits the heat pump to run outside of filtration hours set by sanitation timers allowing for full automatic heat demand.

Optional extra.

SVORTSWITCH VortexSwitch each $275.00

SVORTEXLINK VortexLink each $695.00

NOVASWITCH NovaSwitch each $275.00

NOVALINK NovaLink each $695.00

each $2000.00

Heat Pump Features

Below is a quick reference guide to our domestic and commercial heat pump models and features.

HEATING AND COOLING

Heating and cooling, including automatic mode to suit all pool temperature requirements and weather conditions

SMART CLIMATE CONTROL

The Heatseeker VortexSwitch & VortexLink assist in the primary operation of the pump offering greater functionality

SPIRAL TITANIUM HEAT EXCHANGER

The spiral titanium heat exchanger is more efficient than standard exchangers and ensures maximum heat transfer

WIFI ENABLED

Our heat pump range allows users to easily control their heat pump remotely with the Smarter Pool iOS or Android

VARIABLE SPEED COMPRESSOR

Our compressor technology creates higher efficiencies by only drawing the power it needs for the pool

ECO FRIENDLY REFRIGERANT

Natural refrigerants have strong thermodynamic properties, low energy consumption and are environmentally friendly

Product Code

VortexE NovaS VortexPro VortexC

Heating & cooling P P P Heat only P COP 9.9 13.0 15.0 16.0 Automatic defrost P P P Operating range 10°C - 43°C 0°C - 43°C -7°C - 43°C -7°C - 43°C Spiral titanium heat exchanger P P P P Twin rotary DC compressor P P P DC brushless fan motor P P P Wi-Fi enabled P P P P Built in timer App based P App based App based Controller LED LED LED LED

Casing Black ABS Black ABS Black ABS Black ABS

R32 Eco friendly refrigerant P P P R410A Eco friendly refrigerant P Optional

VortexSwitch P P P

VortexLink P P P

NovaSwitch P NovaLink P

$143 $160 $178 $190 $214 $238 $249 $261 $291 $315 $327 $339 $368

$156 $175 $194 $207 $233 $259 $272 $285 $318 $343 $356 $369 $402

$168 $190 $211 $225 $253 $281 $295 $309 $344 $371 $386 $400 $435

$181 $204 $227 $242 $272 $302 $318 $333 $370 $401 $416 $431 $469

$194 $219 $243 $259 $292 $324 $340 $356 $397 $429 $446 $462 $502

$207 $233 $259 $276 $311 $346 $363 $380 $423 $458 $475 $492 $536

$220 $248 $275 $294 $330 $367 $386 $404 $450 $487 $505 $523 $569

$233 $262 $292 $311 $350 $389 $408 $428 $476 $515 $535 $554 $603

$246 $277 $308 $328 $369 $410 $431 $451 $503 $544 $564 $585 $636

$264 $296 $329 $351 $395 $439 $461 $483 $538 $582 $604 $626 $681

$276 $311 $346 $369 $415 $461 $484 $507 $564 $611 $634 $657 $714

$289 $326 $362 $386 $434 $482 $507 $531 $591 $639 $663 $687 $748

$302 $340 $378 $403 $454 $504 $529 $554 $617 $668 $693 $718 $781

$315 $355 $394 $420 $473 $526 $552 $578 $644 $696 $723 $749 $815

$328 $369 $410 $438 $492 $547 $575 $602 $670 $725 $752 $780 $848

$341 $384 $427 $455 $512 $569 $597 $626 $697 $754 $782 $811 $882

$354 $399 $443 $472 $531 $590 $620 $649 $723 $782 $812 $841 $915

$367 $413 $459 $490 $551 $612 $643 $673 $750 $811 $842 $872 $949 $380 $428 $475 $507 $570 $634 $665 $697 $776 $840 $871 $903 $982 $393 $442 $491 $524 $590 $655 $688 $721 $803 $868 $901 $934 $1016

$115 $130 $144 $154 $173 $192 $202 $211 $235 $254 $264 $274 $298

$130 $146 $162 $173 $194 $216 $227 $238 $265 $286 $297 $308 $335

$144 $162 $180 $192 $216 $240 $252 $264 $294 $318 $330 $342 $372

$158 $178 $198 $211 $238 $264 $277 $290 $323 $350 $363 $376 $409

$173 $194 $216 $230 $259 $288 $302 $317 $353 $382 $396 $410 $446

$187 $211 $234 $250 $281 $312 $328 $343 $382 $413 $429 $445 $484

$202 $227 $252 $269 $302 $336 $353 $370 $412 $445 $462 $479 $521

$216 $243 $270 $288 $324 $360 $378 $396 $441 $477 $495 $513 $558

$230 $259 $288 $307 $346 $384 $403 $422 $470 $509 $528 $547 $595

$245 $275 $306 $326 $367 $408 $428 $449 $500 $541 $561 $581 $632

$259 $292 $324 $246 $389 $432 $454 $475 $529 $572 $594 $616 $670

$274 $308 $342 $365 $410 $456 $479 $502 $559 $604 $627 $650 $707

$293 $329 $366 $390 $439 $488 $512 $537 $598 $647 $671 $695 $756

$307 $346 $384 $410 $461 $512 $538 $563 $627 $678 $704 $730 $794

$322 $362 $402 $429 $482 $536 $563 $590 $657 $710 $737 $764 $831

$336 $378 $420 $448 $504 $560 $588 $616 $686 $742 $770 $798 $868

$350 $394 $438 $467 $526 $584 $613 $642 $715 $774 $803 $832 $905

$365 $410 $456 $486 $547 $608 $638 $669 $745 $806 $836 $866 $942

$379 $427 $474 $506 $569 $632 $664 $695 $774 $837 $869 $901 $980

$394 $443 $492 $525 $590 $656 $689 $722 $804 $869 $902 $935 $1017

$408 $459 $510 $544 $612 $680 $714 $748 $833 $901 $935 $969 $1054 $422 $475 $528 $563 $634 $704 $739 $774 $862 $933 $968 $1003 $1091 $437 $491 $546 $582 $655 $728 $764 $801 $892 $965 $1001 $1037 $1128

$451 $508 $564 $602 $677 $752 $790 $827 $921 $996 $1034 $1072 $1166 $466 $524 $582 $621 $698 $776 $815 $854 $951 $1028 $1067 $1106 $1203 $480 $540 $600 $640 $720 $800 $840 $880 $980 $1060 $1100 $1140 $1240 $494 $556 $618 $659 $742 $824 $865 $906 $1109 $1092 $1133 $1174 $1277 $509 $572 $636 $678 $763 $848 $890 $933 $1039 $1124 $1166 $1208 $1314

$523 $589 $654 $698 $785 $872 $916 $959 $1068 $1155 $1199 $1243 $1352

$538 $605 $672 $717 $806 $896 $941 $986 $1098 $1187 $1232 $1277 $1389 $552 $621 $690 $736 $828 $920 $966 $1012 $1127 $1219 $1265 $1311 $1426 $571 $643 $714 $762 $857 $952 $1000 $1047 $1166 $1261 $1309 $1357 $1476 $586 $659 $732 $781 $878 $976 $1025 $1074 $1196 $1293 $1342 $1391 $1513

$216 $243 $270 $288 $324 $360 $378 $396 $441 $477 $495 $513 $558

$234 $263 $211 $225 $253 $281 $295 $309 $344 $371 $386 $400 $435

$252 $284 $315 $336 $378 $420 $441 $462 $515 $557 $578 $599 $651

$270 $304 $338 $360 $405 $450 $473 $495 $551 $596 $619 $641 $698

$288 $324 $360 $384 $432 $480 $504 $528 $588 $636 $660 $684 $744

$306 $344 $383 $408 $459 $510 $536 $561 $625 $676 $701 $727 $791

$324 $365 $405 $432 $486 $540 $567 $594 $662 $716 $743 $770 $837

$342 $385 $428 $456 $513 $570 $599 $627 $697 $755 $784 $812 $884

$366 $411 $458 $488 $549 $610 $641 $671 $747 $808 $839 $869 $946

$384 $432 $480 $512 $576 $640 $672 $704 $784 $848 $880 $912 $992

$402 $452 $503 $536 $603 $670 $704 $737 $821 $888 $921 $955 $1039

$420 $472 $525 $560 $630 $700 $735 $770 $858 $928 $963 $998 $1085

$438 $493 $548 $584 $657 $730 $767 $803 $894 $967 $1004 $1040 $1132

$456 $513 $570 $608 $684 $760 $798 $836 $931 $1007 $1045 $1083 $1178

$474 $533 $593 $632 $711 $790 $830 $869 $968 $1047 $1086 $1126 $1225

$492 $554 $615 $656 $738 $820 $861 $902 $1005 $1087 $1128 $1169 $1271

$510 $574 $638 $680 $765 $850 $893 $935 $1041 $1126 $1169 $1211 $1318 $528 $594 $660 $704 $792 $880 $924 $968 $1078 $1166 $1210 $1254 $1364 $546 $614 $683 $728 $819 $910 $956 $1001 $1115 $1206 $1251 $1297 $1411

$564 $635 $705 $752 $846 $940 $987 $1034 $1152 $1246 $1293 $1340 $1457 $582 $655 $728 $776 $873 $970 $1019 $1067 $1188 $1285 $1334 $1382 $1504 $600 $675 $750 $800 $900 $1000 $1050 $1100 $1225 $1325 $1375 $1425 $1550

$618 $695 $773 $824 $927 $1030 $1082 $1133 $1262 $1365 $1416 $1468 $1597 $636 $716 $795 $848 $954 $1060 $1113 $1166 $1299 $1405 $1458 $1511 $1643 $654 $736 $818 $872 $981 $1090 $1145 $1199 $1335 $1444 $1499 $1553 $1690 $672 $756 $840 $896 $1008 $1120 $1176 $1232 $1372 $1484 $1540 $1596 $1736

SR Series Pool Rollers

The SR series pool rollers are made from a stainless steel frame and powder coated for added protection in coastal regions. The rollers include a hand wheel and brake to ensure your cover is easy to wind on and off. The heavy duty castor wheels allow for full mobility and the ease to store away from the pool if necessary. Each roller comes with a fully adjustable strap system to fix to the blanket and a UV resistant cover to protect your pool cover from the sun’s rays while it is stored on the roller.

The lower profile frame system is ideal for applications where the height is restricted, eg: where the roller is placed in an enclosed area / box.

Warranty

Five (5) year pro-rata warranty.

Integrated Roller System

This premium pool cover system is hidden out of sight to maximise your pool area, leaving uninterrupted aesthetics and ample space. A sleek-finished aluminium lid hides the sturdy stainless steel roller beneath your paved area or decking.

To use your Integrated Roller System, all that is required is a flip of the lid where you will pull your pool cover into position. To roll up the pool cover with ease, use the waist height handle to wind it back.

Warranty

Five (5) year pro-rata warranty.

SBLANKETBOX3 Integrated

Service Charges

Supreme Heating’s on-site service offers replacements, repairs and maintenance of existing pool heating systems and affliliated products.

Service Price

Service call out fee $250.00

Labour $160 p/h Materials POA

Travel Allowance

Please speak to your local Supreme Heating representative

Pricing

• Pricing is effective from 1st October 2022. All prices are inclusive of GST and do not include freight. Prices are subject to change without notice.

National Support Office

2/19 Enterprise Drive, Bundoora VIC 3083 P : (03) 9460 4200 info@supremeheating.com.au www.supremeheating.com.au ABN: 88 007 400 213 ACN: 007 400 213

New South Wales 19/24 Anzac Avenue Smeaton Grange NSW 2567 P : (02) 4648 4766 solar.nsw@supremeheating.com.au

Queensland

Coomera, QLD 4209 P : (07) 3807 6308 contact@supremeheating.com.au

South Australia

19/11-31 Port Wakefield Gepps Cross SA 5094 P : 0437 947 375 solarsa@supremeheating.com.au

Western Australia

Wangara WA 6065 P : 1300 787 978 solarwa@supremeheating.com.au
