BALL VALVES - FLOATING & TRUNNION MOUNTED
API 622 & ISO 15848-1 API 607 6th & 7th Ed. & ISO 10497 Fugitive Emission Certified Firesafe Certified
www.australianpipelinevalve.com.au
QUALITY VALVE MANUFACTURER

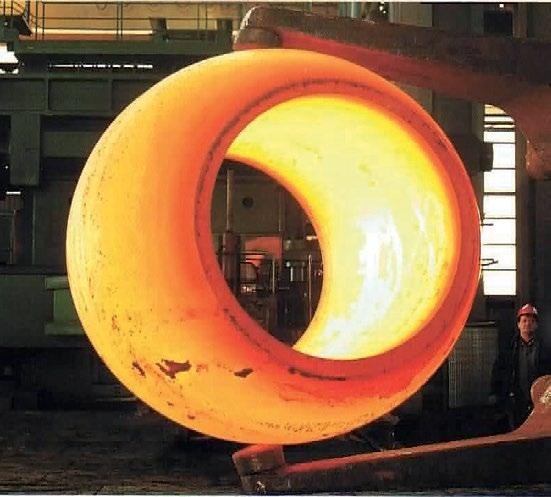

QUALITY COMMITMENT Quality is Our First Priority. Consistent product quality and a proven track record makes Australian Pipeline Valve a dependable choice where total reliability is the number one concern. Since its founding, APV’s philosophy has been focused on quality. Our valves are manufactured in full compliance to worldwide standards (such as ASME/ANSI, API, EN, ISO, BS, AS).
70-78 Stanbel Road Salisbury Plain South Australia 5109 Telephone +61 (0)8 8285 0033 email: admin@australianpipelinevalve.com.au
www.australianpipelinevalve.com.au
FIRESAFE CERTIFIED API 607 5TH, 6TH & 7TH EDITION, API 6FA & ISO 10497
CONTENTS Standards & Specifications
4
Valve Materials & Service Applications
5
Firesafe and Fugitive Emission Certificates
7

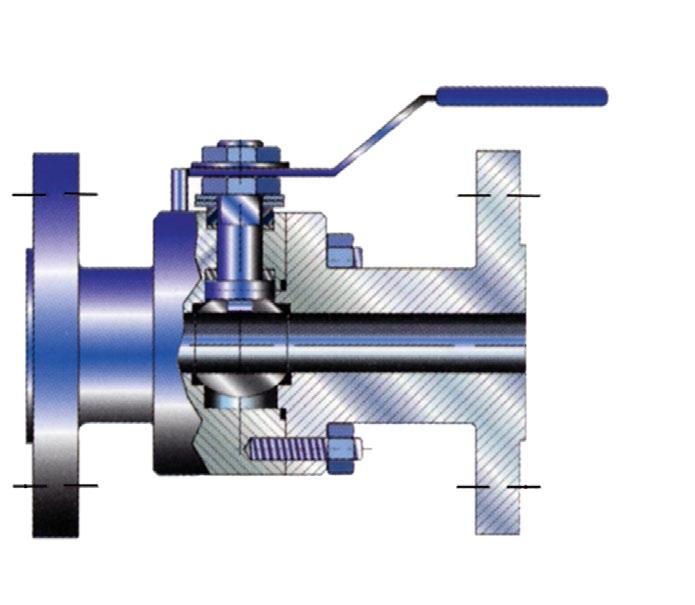

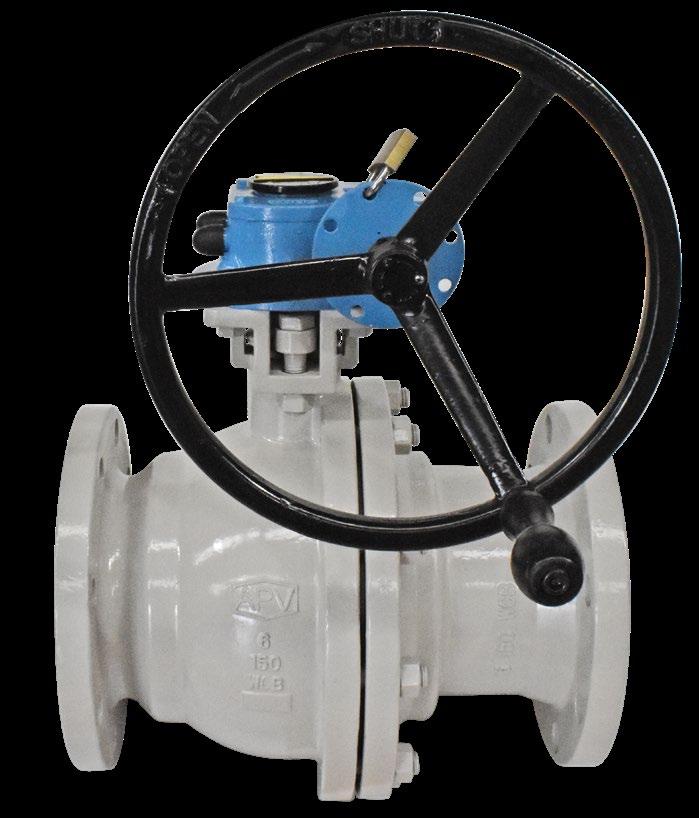

Process Ball Valve Floating SLFSBV01 - Class 150 to 1500
11
Process Ball Valve Floating SLFSBV01-DBB - Class 150 to 1500
18

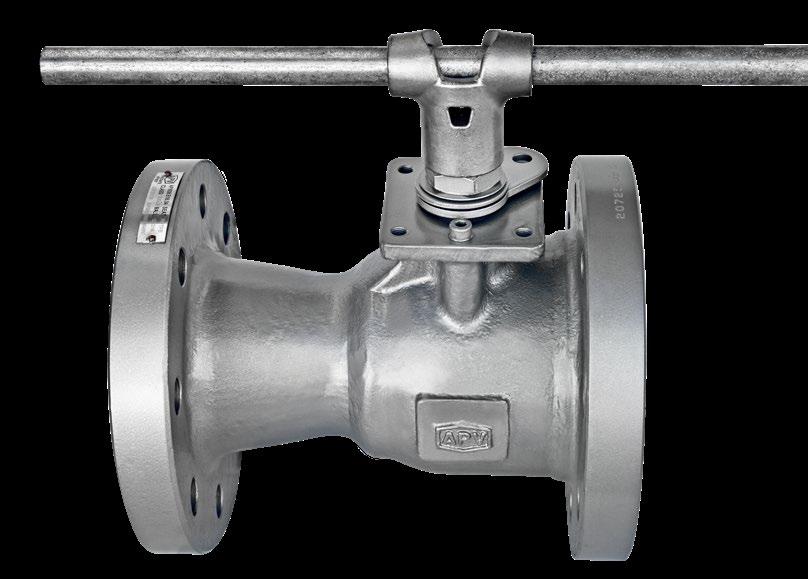

Process Ball Valve Floating SLFSBV02 - Class 150 to 600
20
SLFSBV01/BV02 Part Number System
23

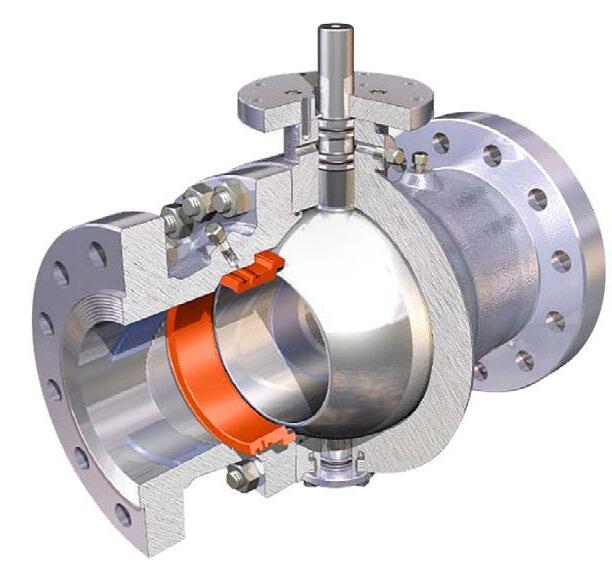

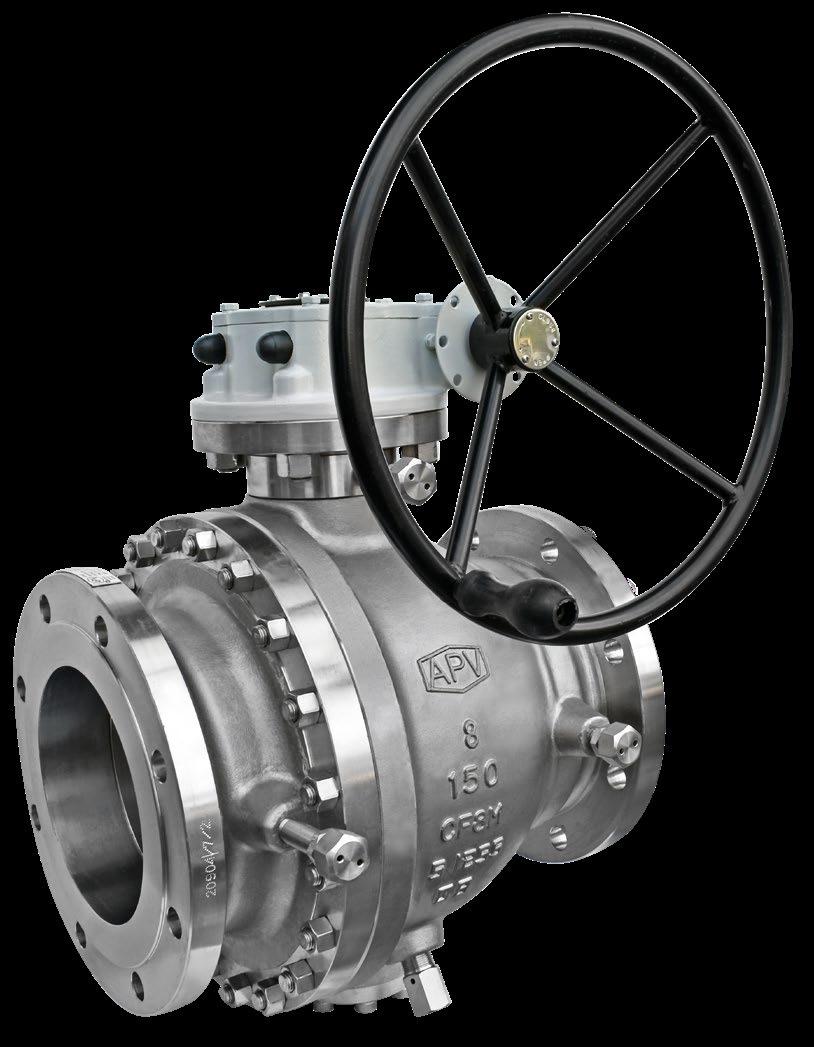

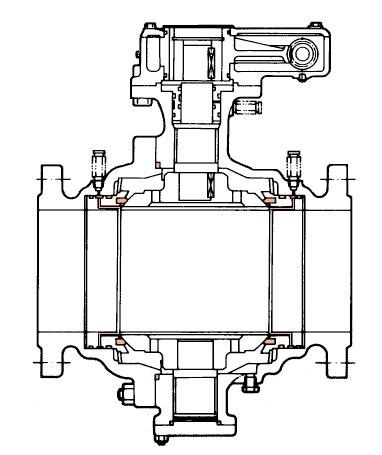

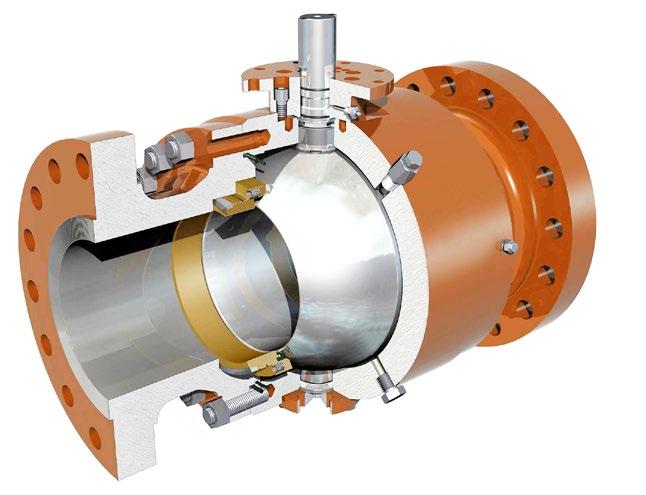

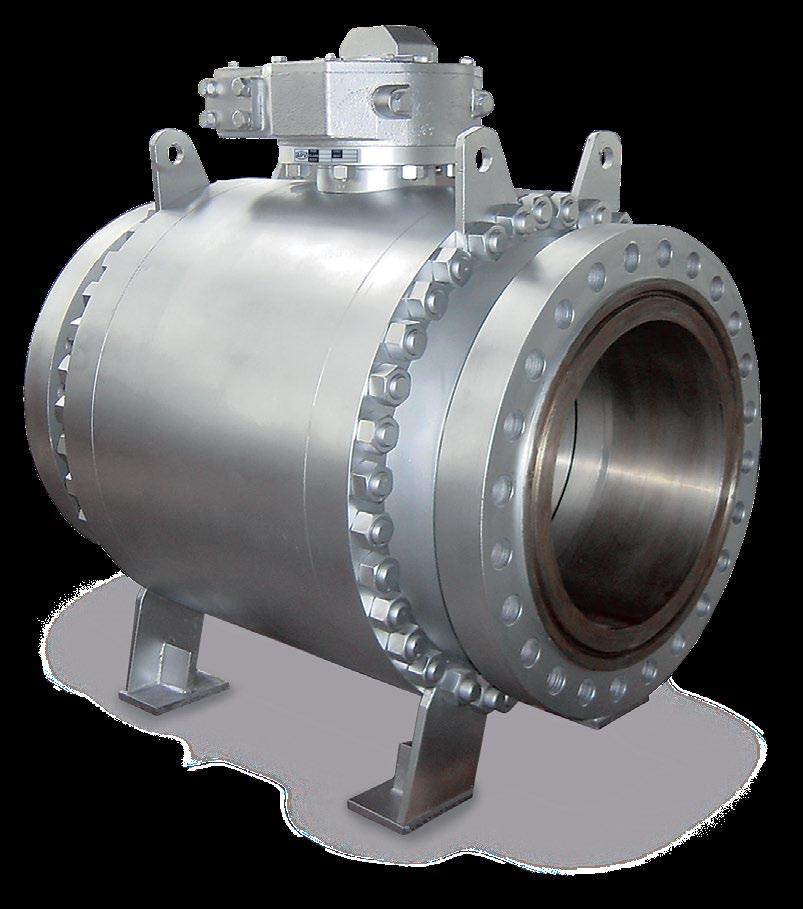

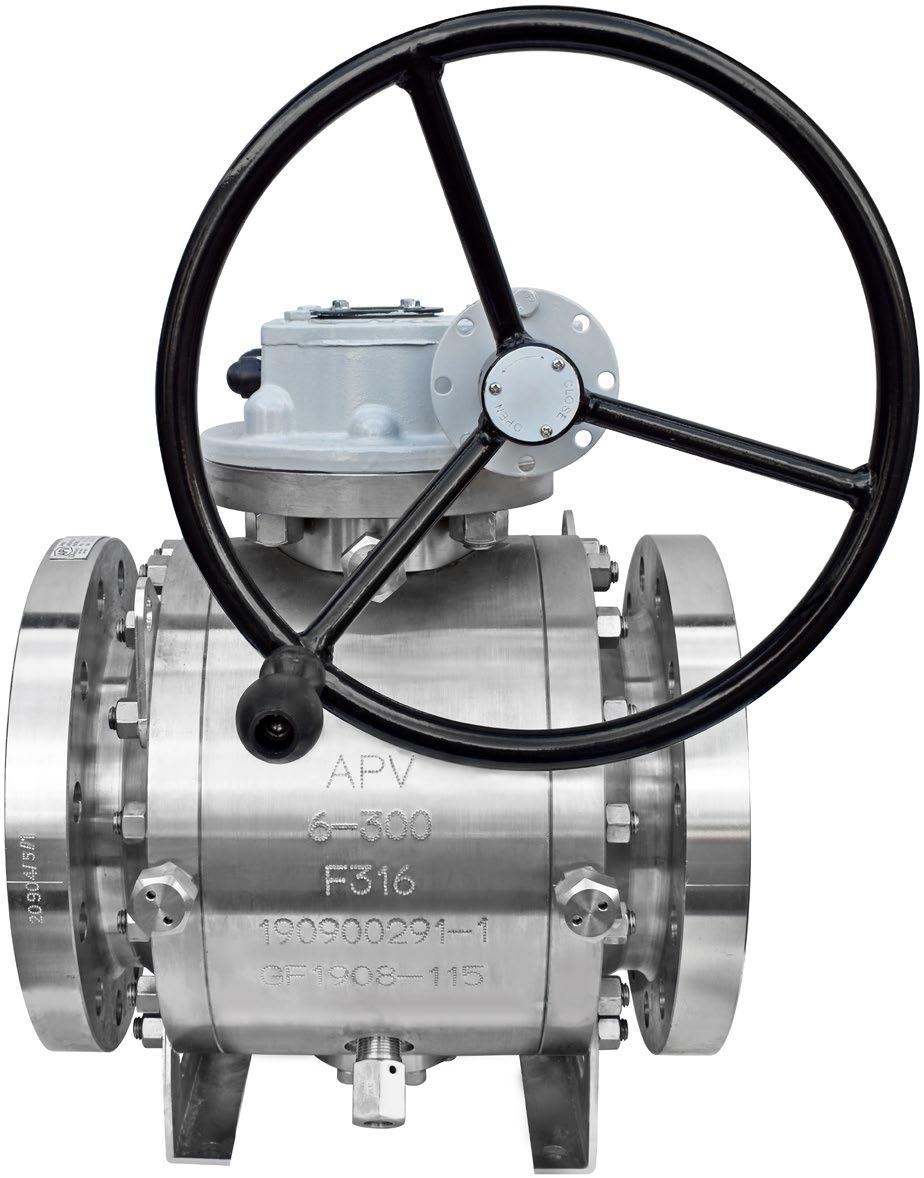

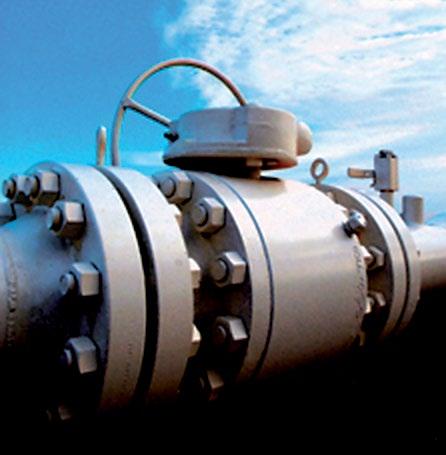

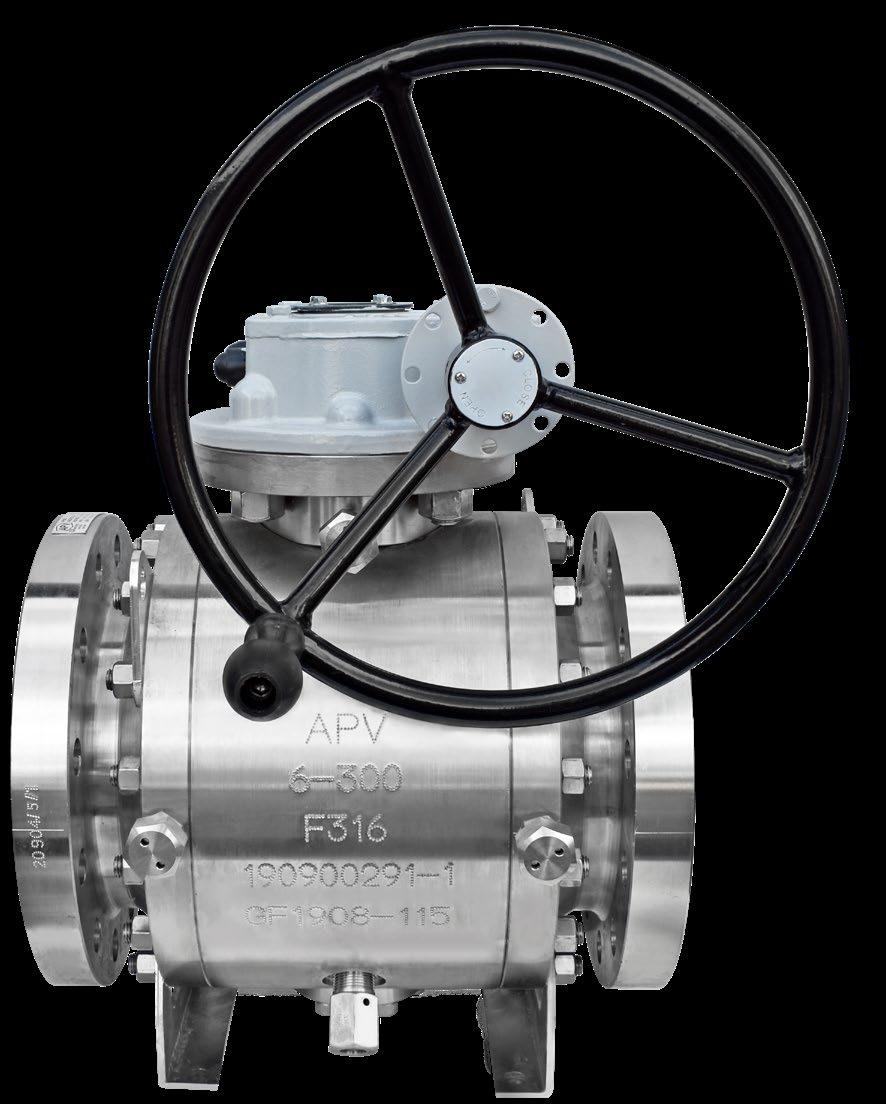

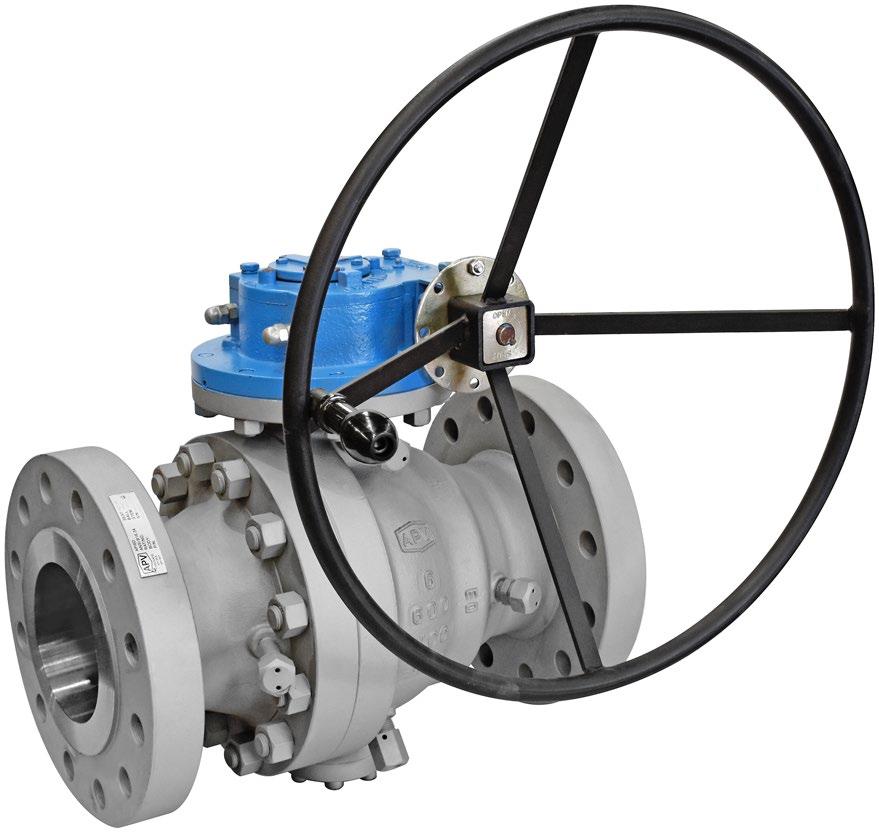

API 6D Pipeline Ball Valve Trunnion BVF100 - Class 150 to 2500
24
BVF100 Part Number System
40

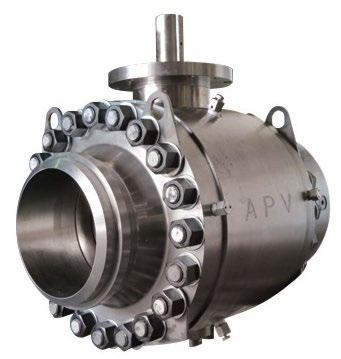

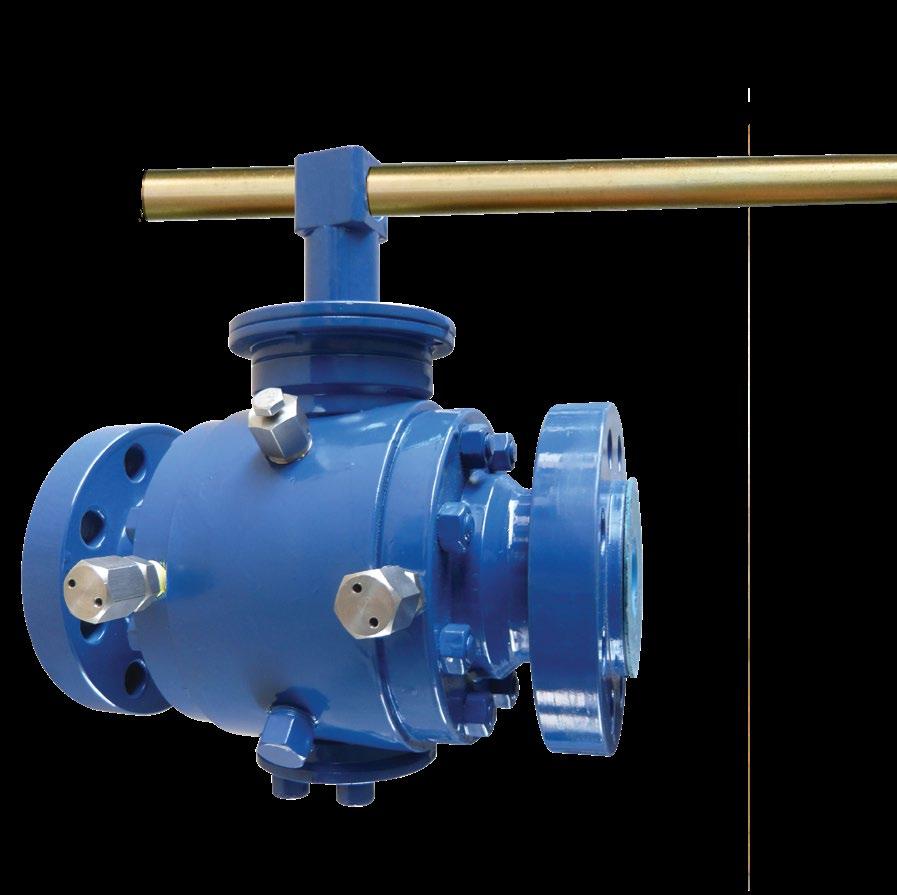

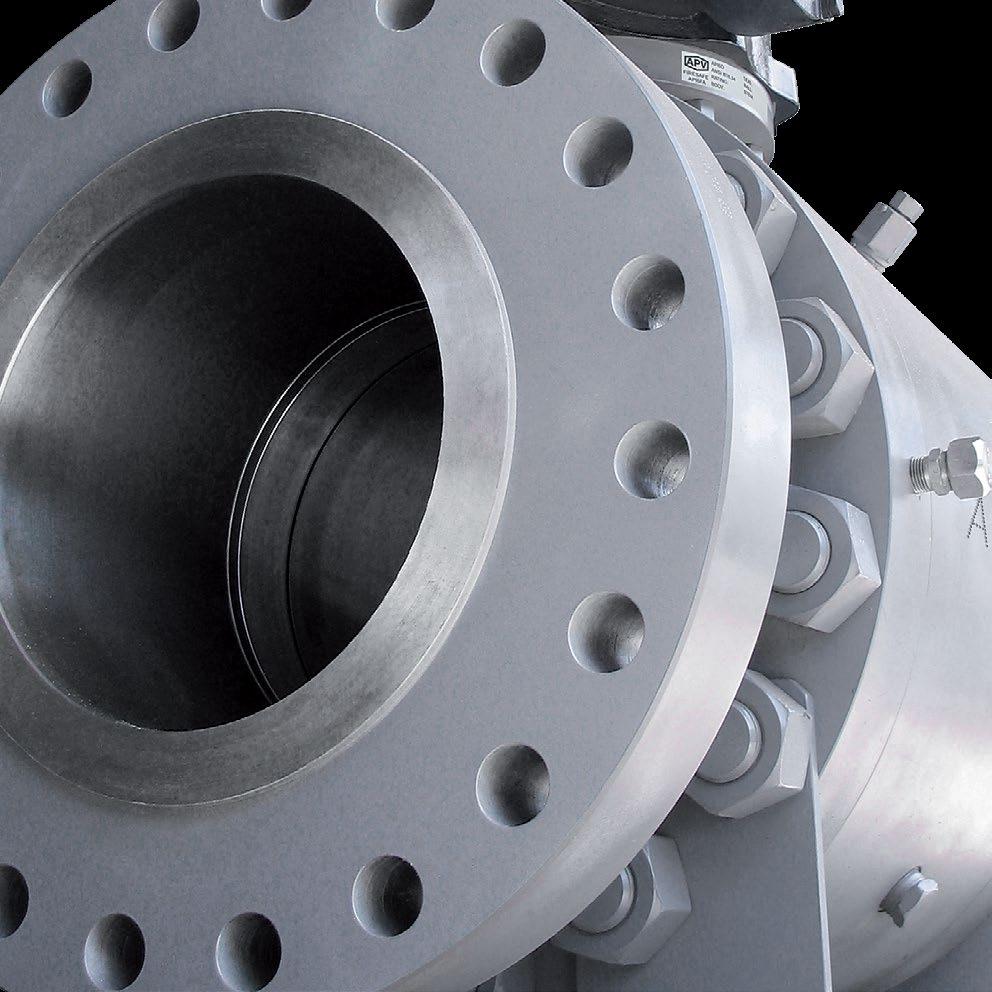

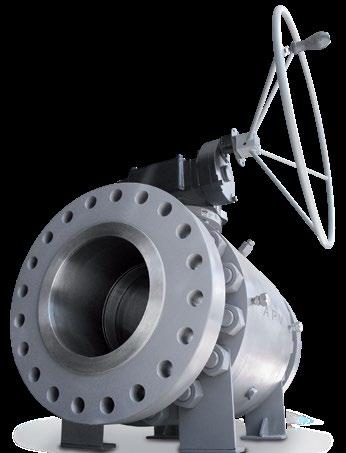

API 6D Pipeline Ball Valve Trunnion FS9000 - 150 to 1500
41
FS9000 Part Number System
52
Technical Liability Limitations
54
© Copyright Australian Pipeline Valve 1990 - 2023 Edition Catalogues, photos, brochures and technical publications are the exclusive property of Australian Pipeline Valve. Any unauthorised reproduction in total or in part, shall result in prosecution. Products and data sheets in this publication are subject to change at anytime without notice. Australian Pipeline Valve reserves the right to carry out amendments to products and materials.
AU S T R A L I A N P I P E L I N E VA LV E
3
STANDARDS AND SPECIFICATIONS
STANDARDS AND SPECIFICATIONS Australian Pipeline Valve valves are designed, manufactured and tested in accordance with API, ANSI, ASME, and BS requirements. The following list contains the most important applicable standards for ball valves. Australian Pipeline Valve valves may be produced in accordance with other international standards on request. API - American Petroleum Institute • • • • •
API 6D API 6FA API 598 API 607 API Q1
Specification for Pipeline Valves (Gate, Plug, Ball and Check Valves) Specification for Fire Test For Valves Valve Inspection and Testing Fire Test for Soft-Seated Quarter-turn Valves Specification for Quality Programs for the Petroleum and Natural Gas Industry
ANSI - American National Standard Institute • • • •
B16.5 B16.10 B16.25 B16.34
Steel Pipe Flanges and Flange Fittings Face to Face and End to End Dimensions of Valves Butt-Welding Ends Valves, Flanged, Threaded, and Welding End
British Standard • BS 5351 • BS 6755 • BS 5146 • BS 1503 • BS 5160 • BS 2080 • BS 4504
Steel Ball Valves for the Petroleum, Petrochemical and Allied Industries Testing of Valves Inspection and Test of Valves Steels for Fired and Unfired Pressure Vessels Steel Pipe Flanges and Flanged Fittings for the Petroleum Industry Face-to-Face, Center to Face, End to End, and Centre to End Dimensions of Flanged and Butt-Welding End Steel Valves for the Petroleum, Petrochemical and Allied Industries Flanges and Bolting for Pipes, Valves and Fittings
ISO - International Organisation for Standardisation • ISO 9001 • ISO 5211
Quality Systems - Model for Quality Assurance in Design, Development, Production, Installation and Servicing Valve Actuator Attachment
MSS - Manufacturers Standardisation Society • SP6 • SP25 • SP72
Standard Finishes for Contact Faces of Pipe Flanges and Connecting-End Flanges of Valves and Fittings Standard Marking System for Valves, Fittings, Flanges and Unions Ball Valves with Flanged or Butt-Welding Ends for General Service
NACE - National Association of Corrosion Engineers •
4
MR0175
Sulfide Stress Cracking Resistant Metallic Materials for Oil Field Equipment
AU S T R A L I A N P I P E L I N E VA LV E
VALVE MATERIALS & SERVICE APPLICATIONS
VALVE MATERIALS & SERVICE APPLICATIONS VALVE CASTING MATERIALS ASTM Casting Specification
Common Designation
Service Applications
ASTM A216 Grade WCB
Carbon Steel
Non-corrosive applications including water, oil and gases at temperatures between -20°F (-30°C) and +800°F (+425°C)
ASTM A352 Grade LCB
Low Temp Carbon Steel
Low temperature applications to -50°F (-46°C). Not for use above +650°F (+340°C).
ASTM A352 Grade LCB
Low Temp Carbon Steel
Low temperature applications to -50°F (-46°C). Not for use above +650°F (+340°C).
ASTM A352 Grade LC1
Low Temp Carbon Steel
Low temperature applications to -75°F (-59°C). Not for use above +650°F (+340°C).
ASTM A352 Grade LC2
Low Temp Carbon Steel
Low temperature applications to -100°F (-73°C). Not for use above +650°F (+340°C).
ASTM A352 Grade LC3
3 1/2% Nickel Steel
Low temperature applications to -150°F (-101°C). Not for use above +650°F (+340°C)
ASTM A217 Grade WC6
1 1/4% Chrome 1/2% Moly Steel
Non-corrosive applications including water, oil and gases at temperatures between -20°F (-30°C) and +1100°F (+593°C).
ASTM A217 Grade C9
2 1/4% Chrome
Non-corrosive applications including water, oil and gases at temperatures between -20°F (-30°C) and +1100°F (+593°C).
ASTM A217 Grade C5
5% Chrome 1/2% Moly
Mild corrosive or erosive applications as well as non-corrosive applications at temperatures between -20°F (-30°C) and +1200°F (+649°C).
ASTM A217 Grade C12
9% Chrome 1% Moly
Mild corrosive or erosive applications as well as non-corrosive applications at temperatures between -20°F (-30°C) and +1200°F (+649°C).
ASTM A487 Grade CA6NM
12% Chrome Steel
Corrosive application at temperatures between -20°F (-30°C) and +900°F (+482°C).
ASTM A217 Grade CA15
12% Chrome
Corrosive application at temperatures up to +1300°F (+704°C)
ASTM A351 Grade CF8M
316 SS
Corrosive or either extremely low or high temperature non-corrosive services between -450°F (-268°C) and +1200°F (+649°C). Above +800°F (+425°C) specify carbon content of 0.04% or greater.
ASTM 351 Grade CF8C
347 SS
Primarily for high temperature, corrosive applications between -450°F (-268°C) and +1200°F (+649°C). Above +1000°F (+540°C) specify carbon content of 0.04% or greater.
ASTM A351 Grade CF8
304 SS
Corrosive or extremely high temperatures non-corrosive services between -450°F (-268°C) and +1200°F (+649°C). Above +800°F (+425°C) specify carbon content of 0.04% or greater.
ASTM A351 Grade CF3
304L SS
Corrosive or non-corrosive services to +800°F (+425°C).
ASTM A351 Grade CF3M
316L SS
Corrosive or non-corrosive services to +800°F (+425°C).
ASTM A351 Grade CN7M
Alloy 20
Good resistance to hot sulfuric acid to +800°F (+425°C).
ASTM 743 Grade M3-35-1
Monel
Weldable grade. Good resistance to corrosion by all common organic acids and salt water. Also highly resistant to most alkaline solutions to +750°F (+400°C).
ASTM A743 Grade N-12M
Hastelloy B
Is well suited for handling hydrofluoric acid at all concentrations and temperatures. Good resistance to sulphuric and phosphoric acids to +1200°F (+649°C).
ASTM A743 Grade CW-12M
Hastelloy C
Good resistance to strong oxidation conditions. Good properties at high temperatures. Good resistance to sulphuric and phosphoric acids to +1200°F (+649°C).
ASTM A743 Grade CY-40
Inconel
Very good for high temperature service. Good resistance to strongly corrosive media and atmosphere to +800°F (+425°C).
ASTM B62
Bronze
Water, oil or gas: up to 400°F (205°C). Excellent for brine and seawater service.
AU S T R A L I A N P I P E L I N E VA LV E
5
VALVE MATERIALS & SERVICE APPLICATIONS
VALVE MATERIALS & SERVICE APPLICATIONS STANDARD FORGED VALVE MATERIALS ASTM Designation
Description
Common Service Recommendations Body/Bonnet Material
Casting Comparison
A105(1)
Carbon Steel
General service such as oil, oil vapor, gas, steam and water at temperatures -20° to 1000°F (-28°C to 537°C)
A216-WCB
A350-LF2
Low Temperature Carbon Steel
Suitable for temperatures -50°F and not above 650°F (-45°C and not above 343°C)
A352-LCB
A182-F11(2)
1-1/4% Cr, 1/2% Mo Alloy Steel
For high temperatures from -20° to 1100°F to minimise graphitisation (-28°C to 593°C)
A217-WC6
A182-F22(3)
2-1/4% Cr, 1% Mo Alloy Steel
For services requiring greater strength than F11 at temperatures from -20° to 1100°F (-28°C to 593°C)
A217-WC9
A182-F6
5% Cr, 1/2% Mo Alloy Steel
For corrosive/erosive refinery use requiring resistance at temperatures from -20° to 1100°F (-28°C to 593°C)
A217-C5
A182-F9
9% Cr, 1% Mo Alloy Steel
For services involving media with higher sulphur content to combat oxidation to 1100°F (593°C)
A217-C12
A182-F304
18% Cr, 8% Ni Stainless Steel
For corrosive services and atmospheres from -20° to 1000°F (-28°C to 537°C)
A351-CF8
A182-F316
18% Cr, 8% Ni, 2% Mo Stainless Steel
For superior resistance to corrosion to 1000°F (537°C)
A351-CF8M
(1) Permissible but nor recommended for prolonged use above 800ºF (425ºC) (2) Consideration should be given to the possibility of excessive oxidation (scaling) when used above 1050ºF (563ºC)
SPECIAL FORGED VALVE MATERIALS Material
Description
Service Recommendations
HASTELLOY
Nickel Alloy
Good high temperature properties. Excellent corrosion resistance in hydrochloric acid.
INCONEL INCOLOY
Nickel Alloy
For high temperature service. Used for nuclear applications.
MONEL
Nickel-Copper Alloy
For corrosive service up to 842°F (450°C). Resistant to sea water, acids, alkalies.
TITANIUM
Metal
Good resistance to corrosion together with low specific weight
ASTM A182 F51
Ferritic-Austenitic ‘Duplex’ Stainless Steel
Very high strength, resistance to corrosion, pitting and stress corrosion in chloride media.
ASTM A182 F55
Ferritic-Austenitic ‘Super Duplex’ Stainless Steel
Higher strength, resistance to corrosion, pitting and stress corrosion in chloride media.
ASTM A182 F44
Austenitic Stainless Steel
Very high strength, high resistance to corrosion
STANDARD TRIM MATERIALS Trim Description
Application
Electroless Nickel Plated
For oil & gas and general services requiring long service life and superior hardness and good corrosion resistance.
13% Cr, Type 410 Stainless Steel
For oil & gas and general services requiring long service life with superior hardness and good corrosion resistance. Also superior strength for high pressure balls and stems.
Type 316 Stainless
For liquids and gases corrosive to 410 Stainless Steel up to 850°F (455°C)
Type F51/S31803 Duplex Stainless
For liquids and gases corrosive to 410 Stainless Steel up to 850°F (455°C) requiring longer service with superior hardness and good corrosion resistance. Also superior strength for high pressure balls and stems.
Monel
For corrosive service to 842°F (450°C) such as acids, alkalies, salt solutions, etc.
NACE
Specially treated specific hardness trim combined optionally with B7M Bolts and 2HM nuts to meet NACE MR-01-75 requirements
Note: This chart is for general reference only. Australian Pipeline Valve recommends that customers’ engineers analyse service requirements and specify the materials they consider optimum for their service conditions.
6
AU S T R A L I A N P I P E L I N E VA LV E
CERTIFICATES

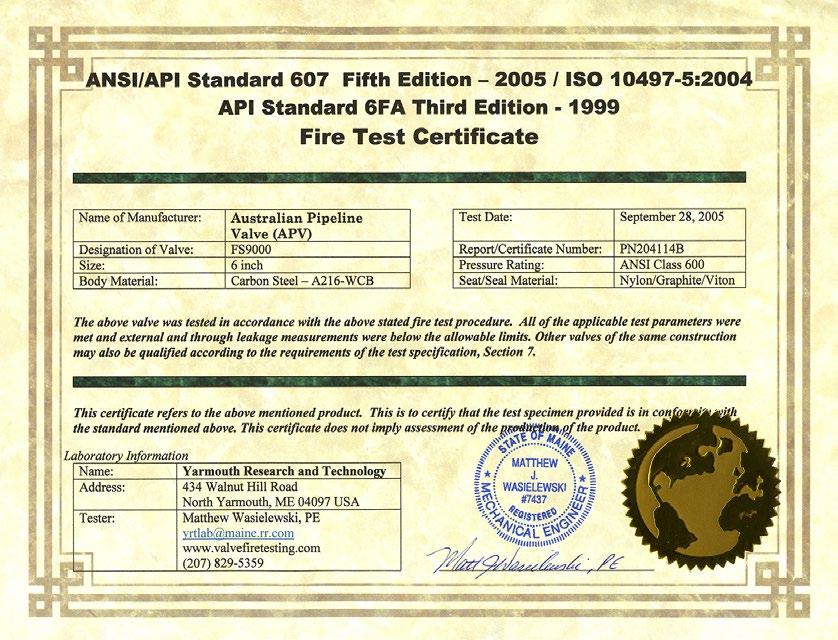

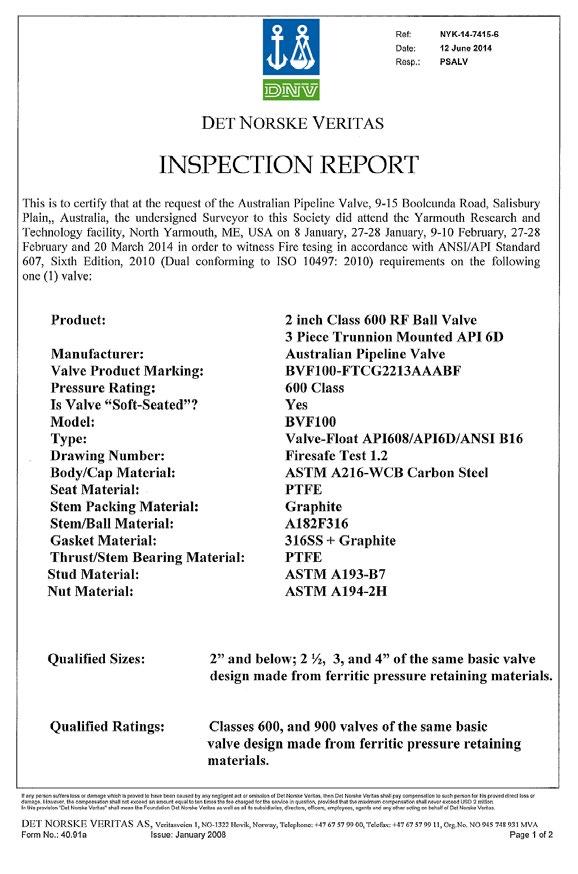

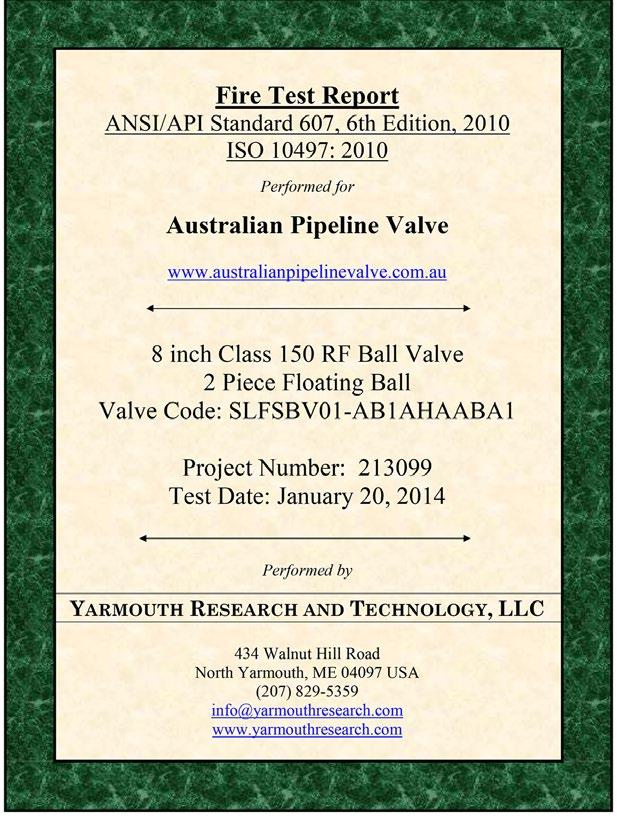

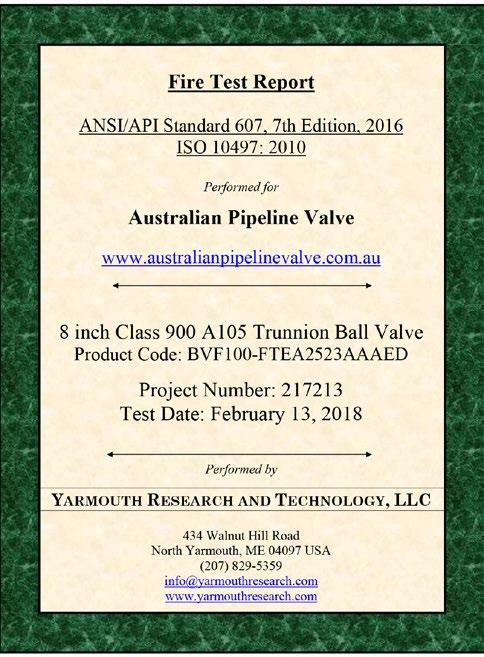

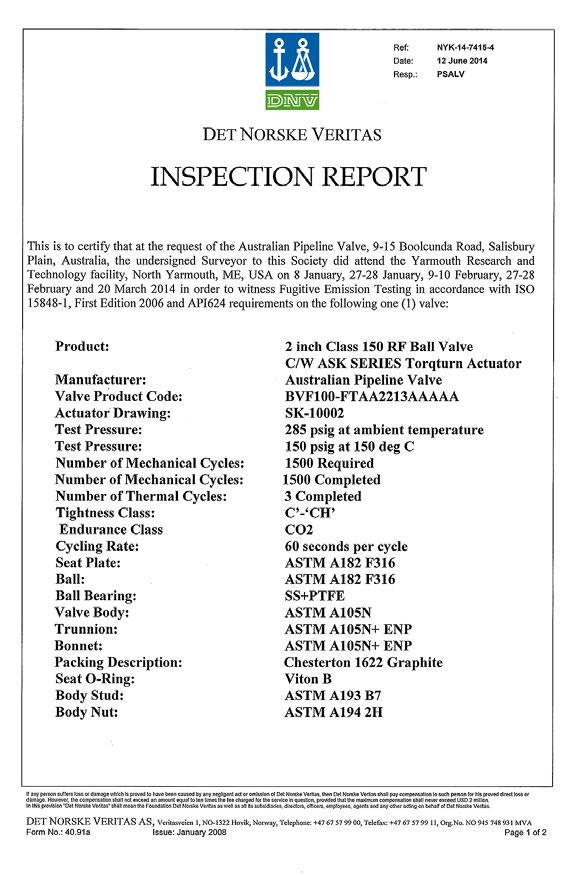

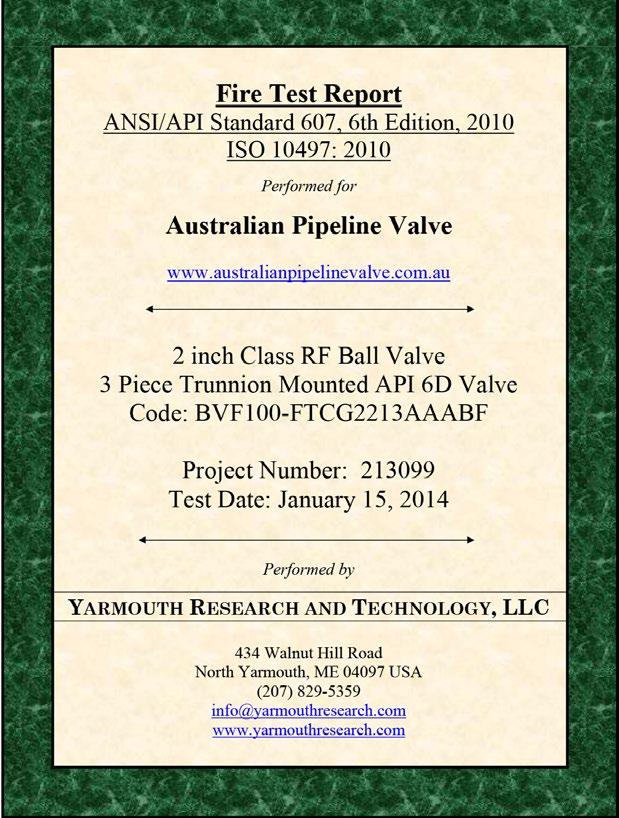

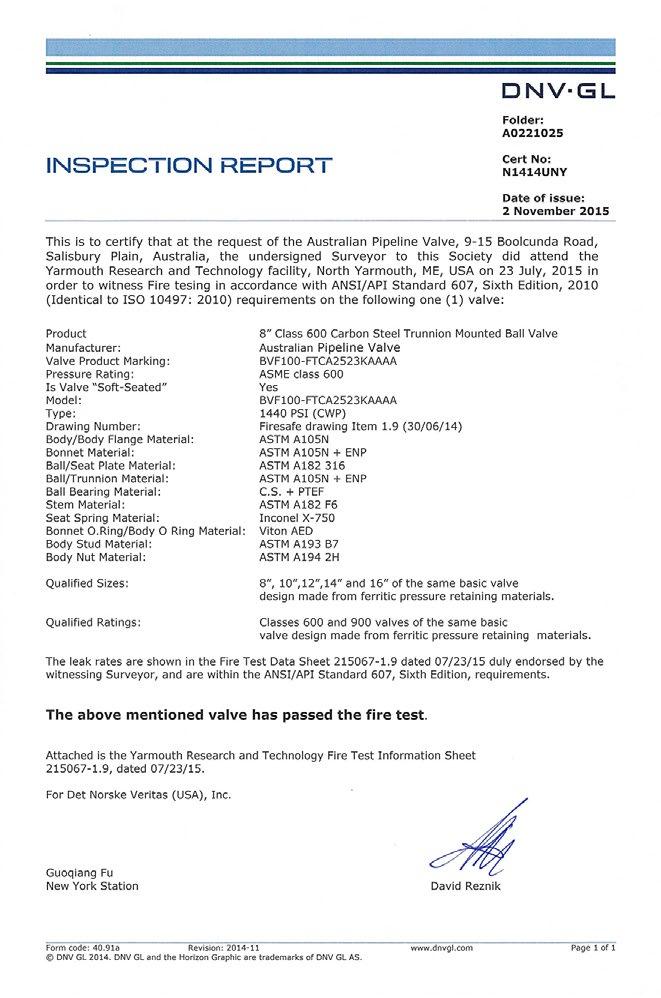

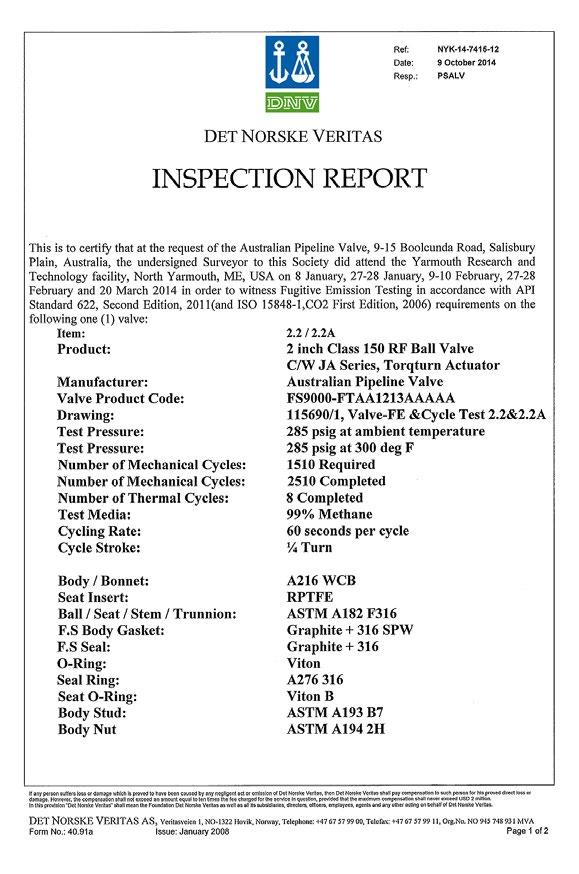

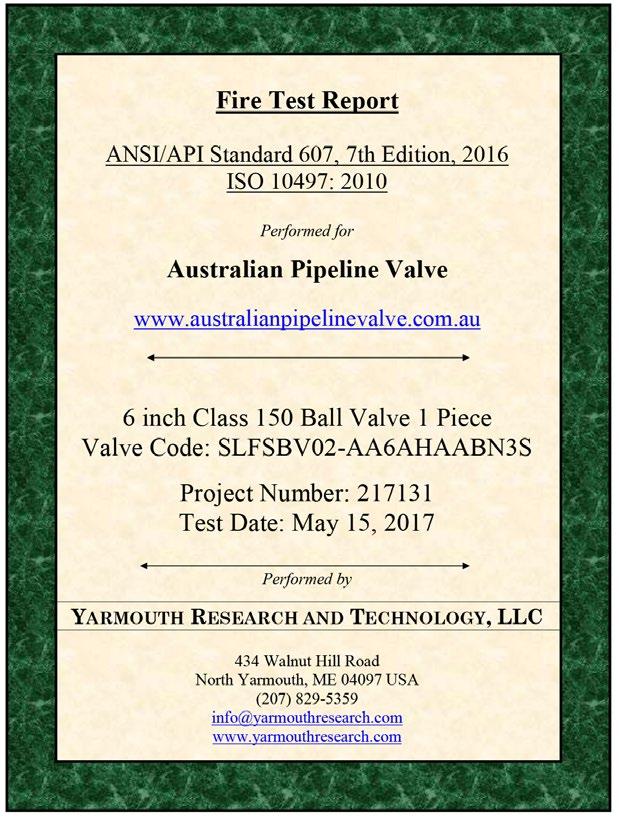

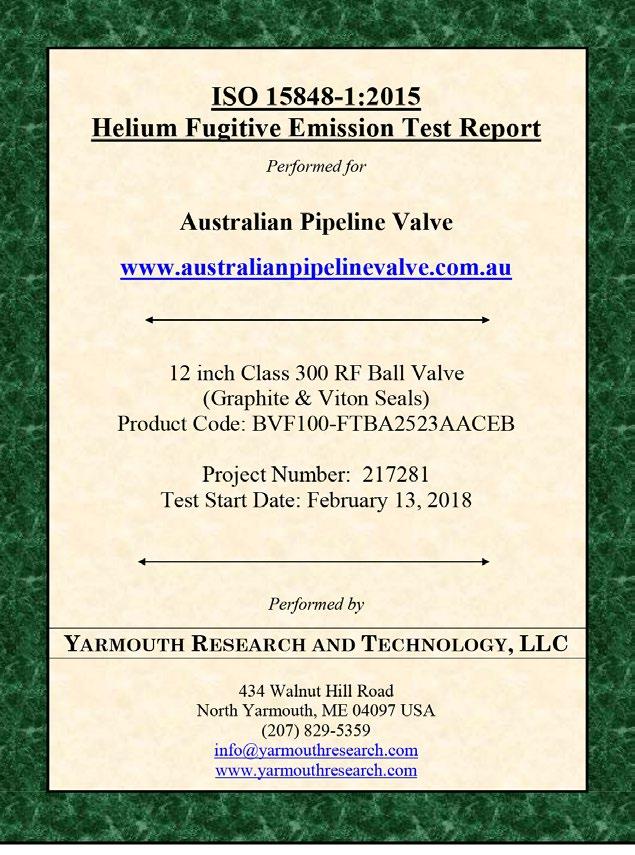

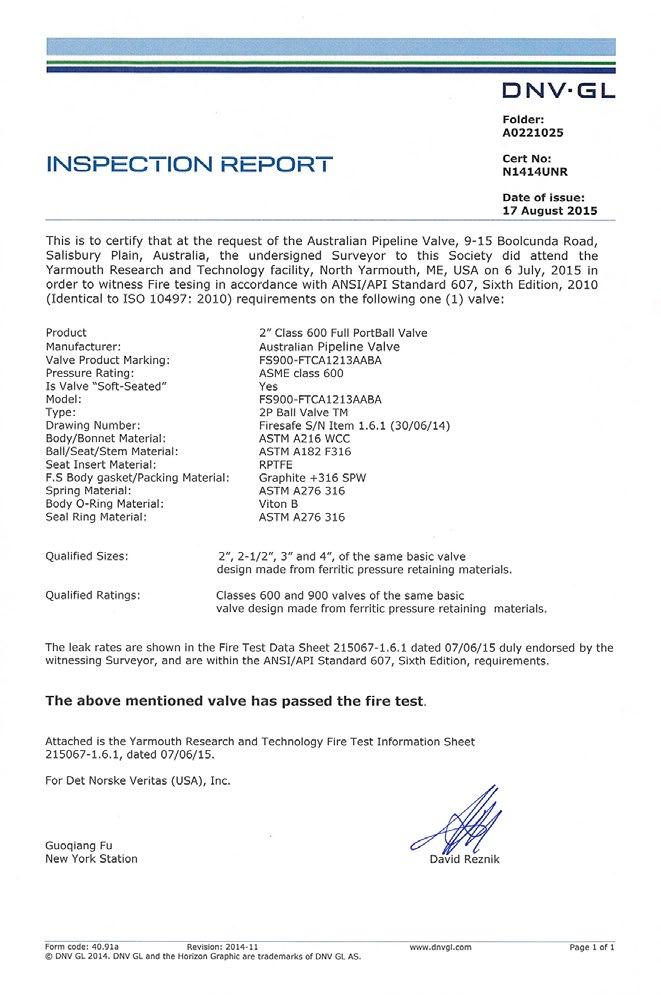

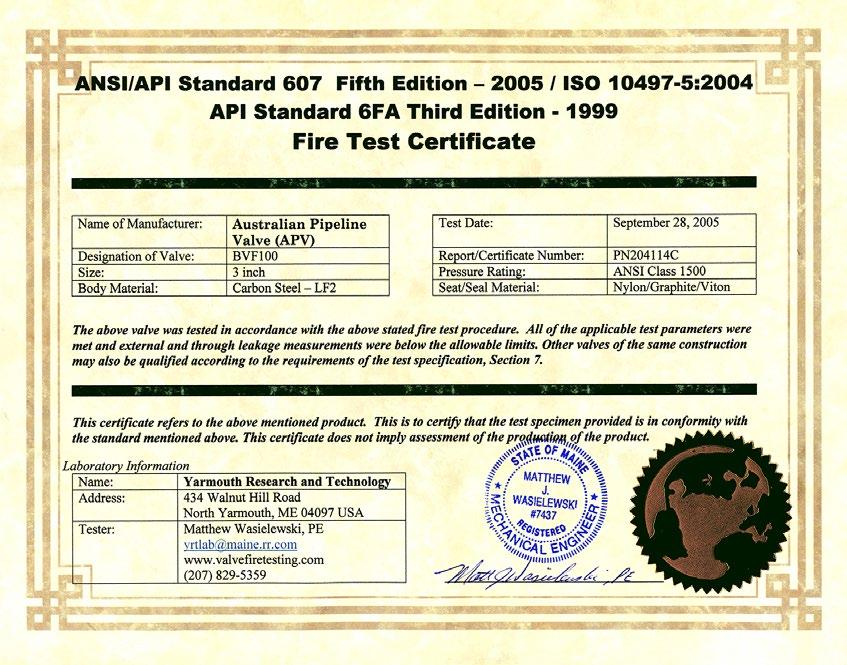

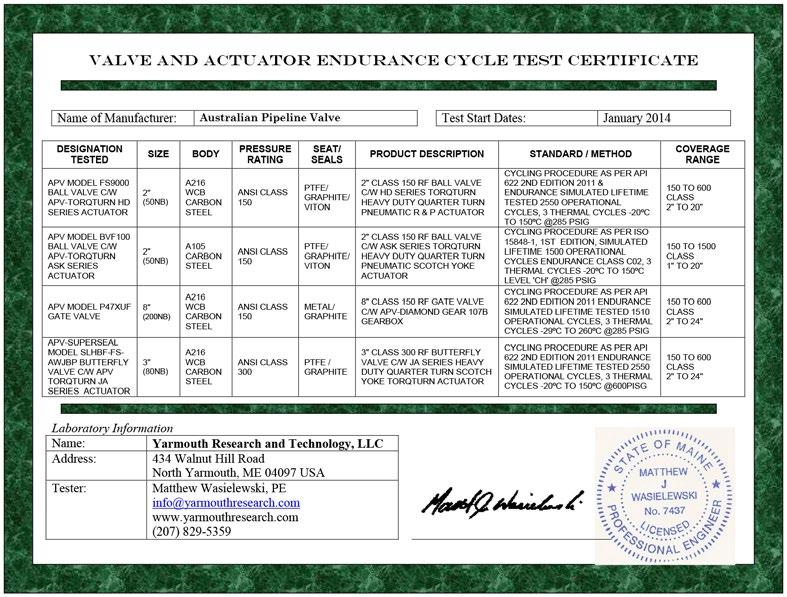

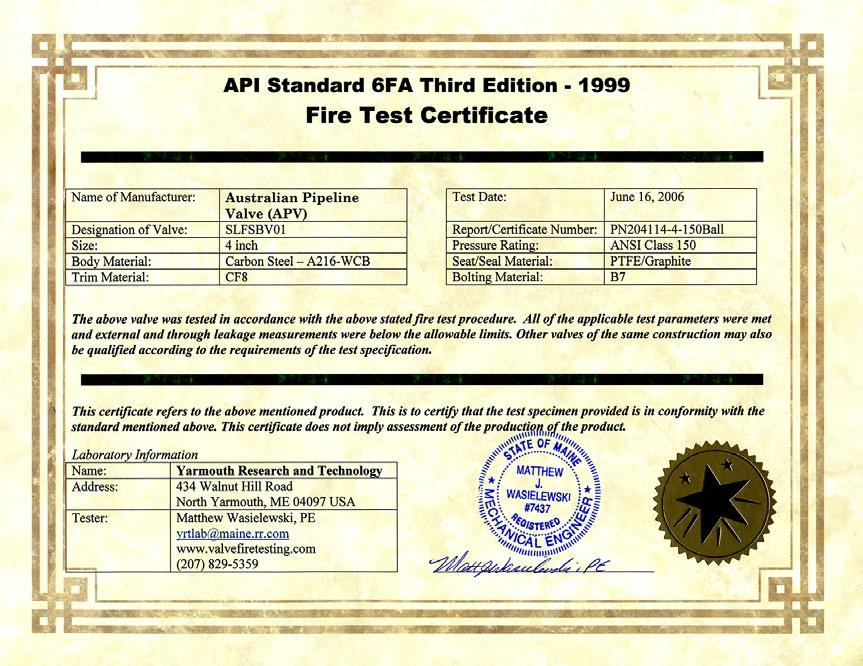

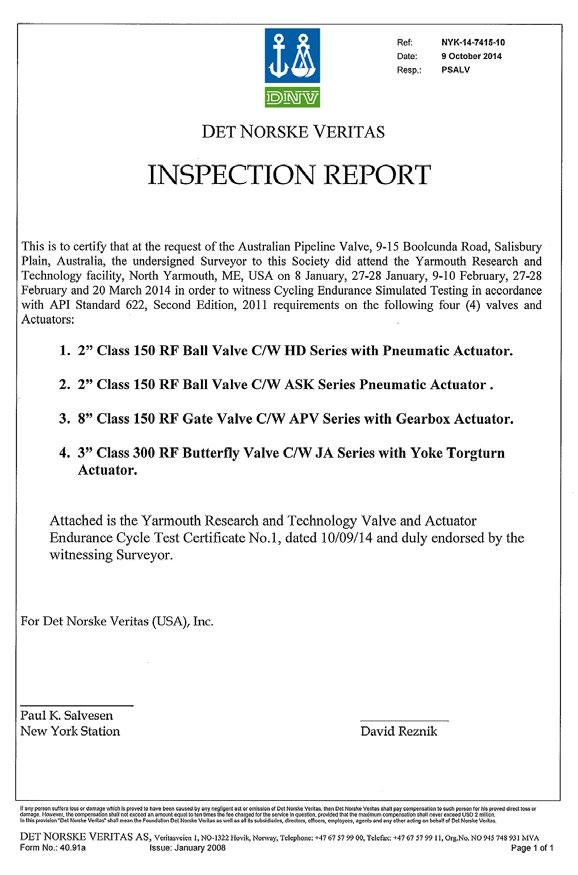

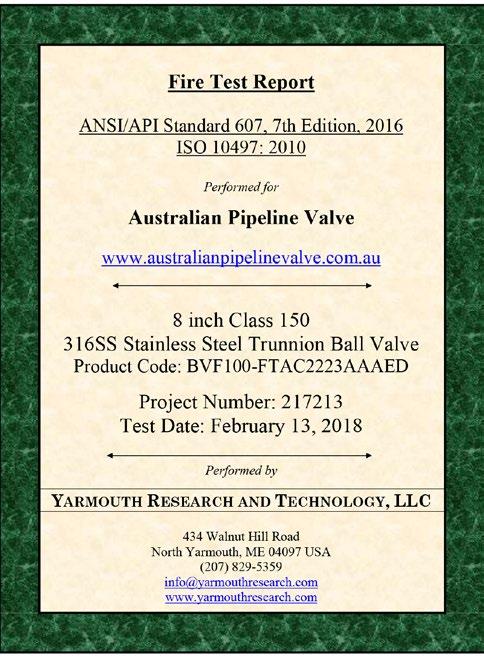

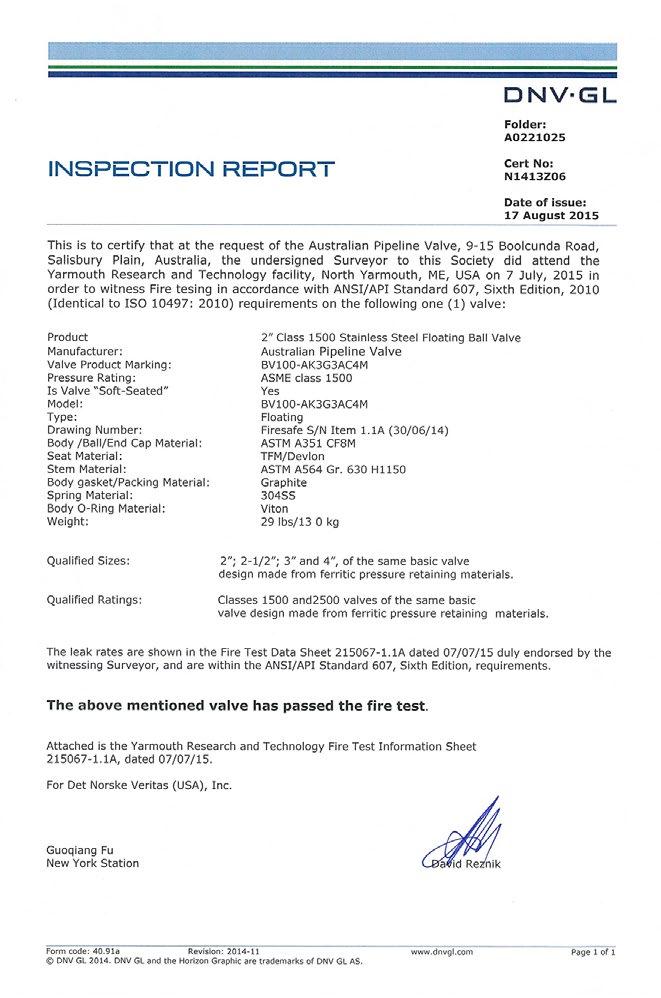

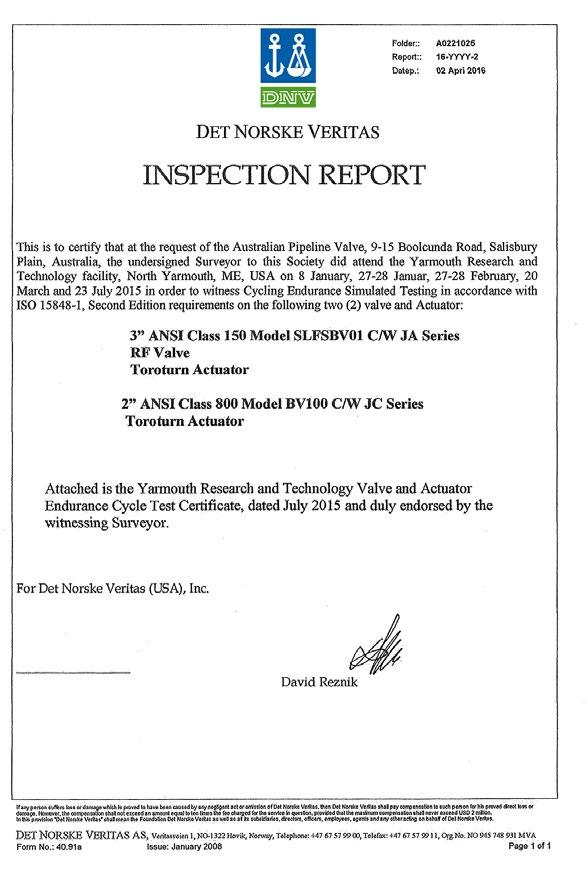

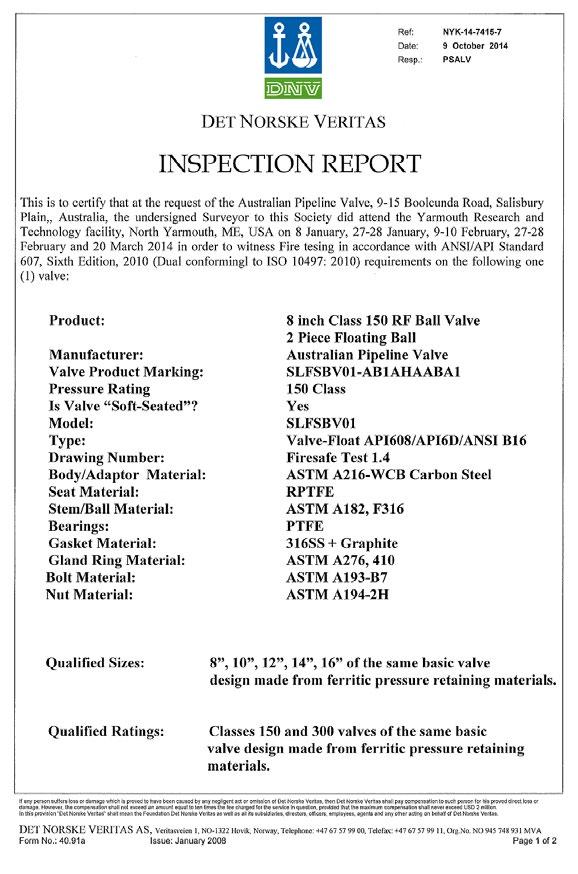

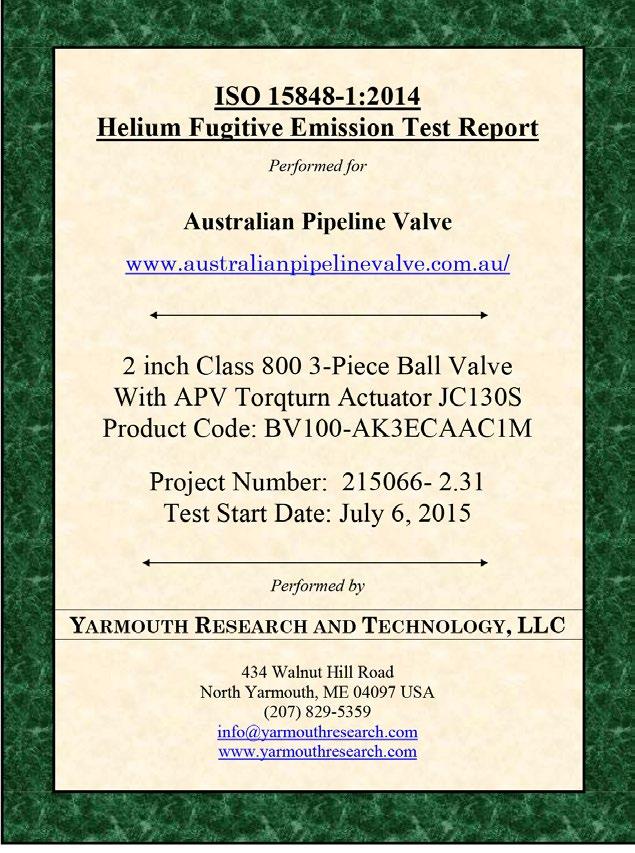

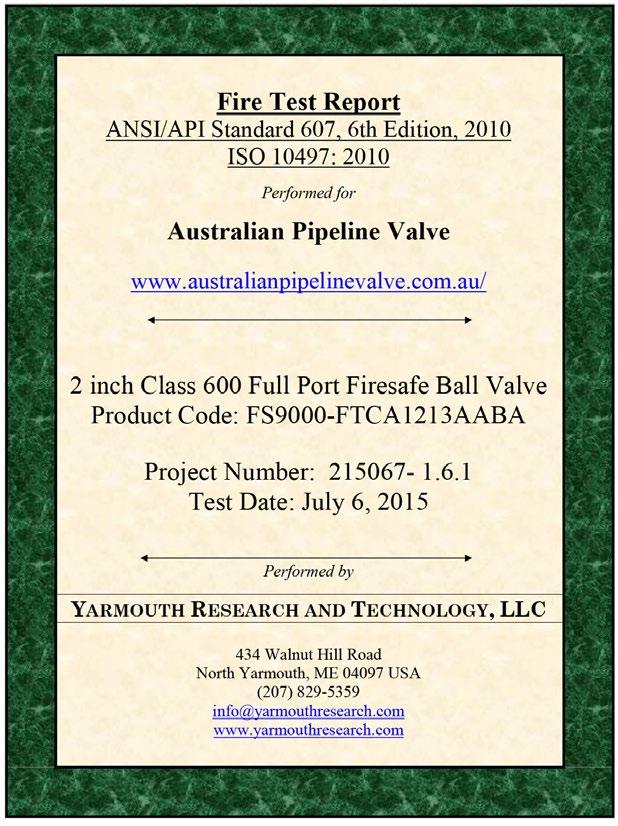

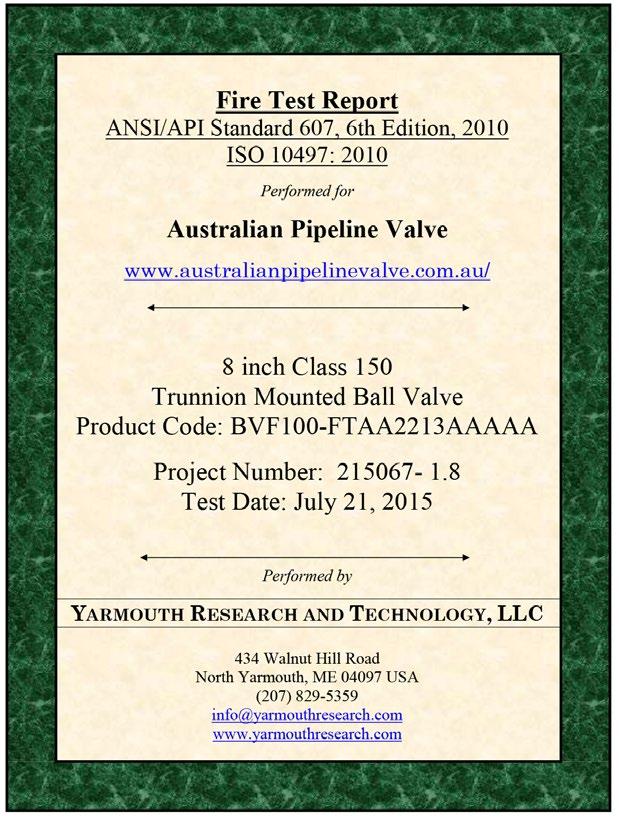

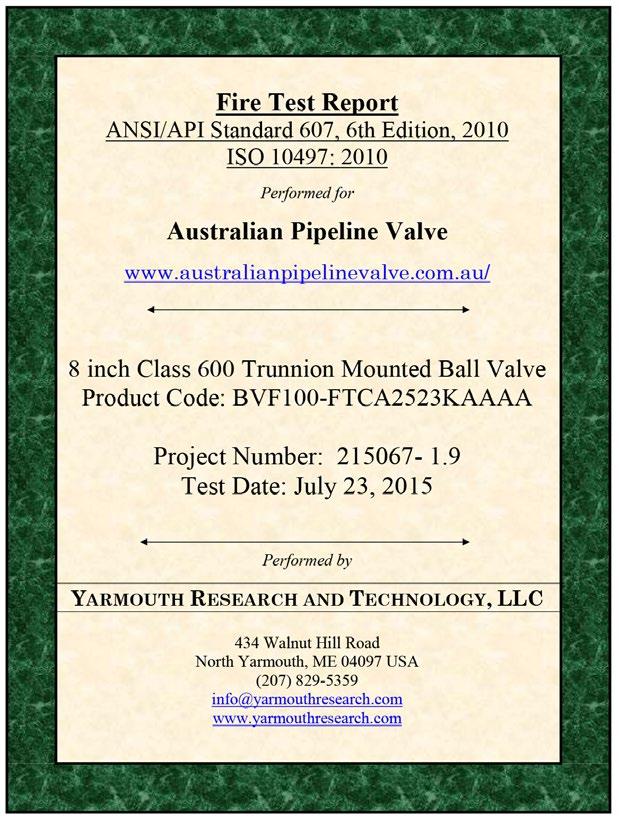

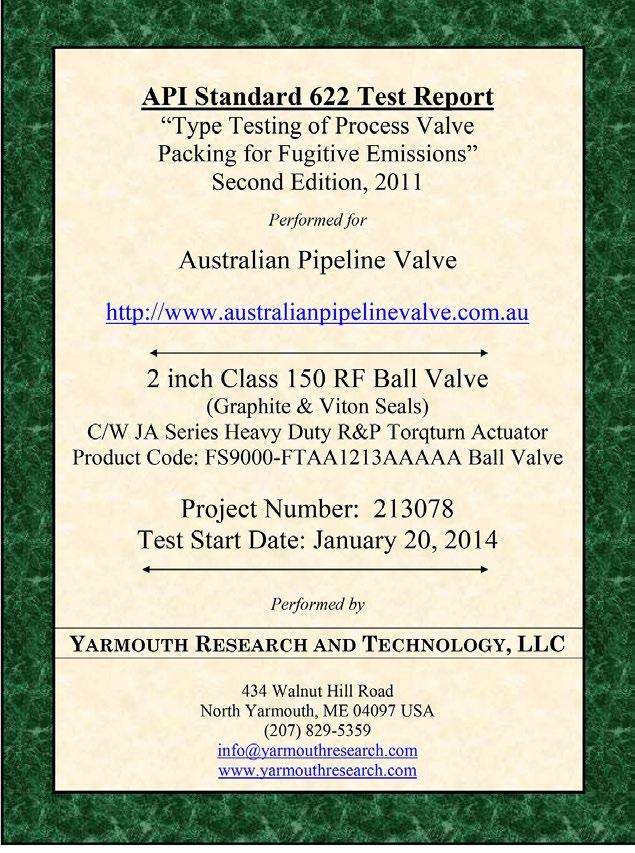

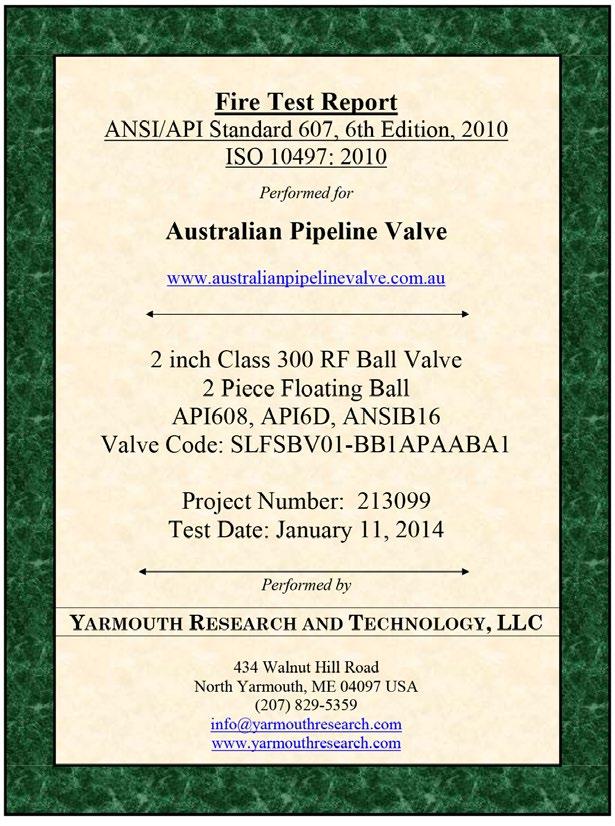

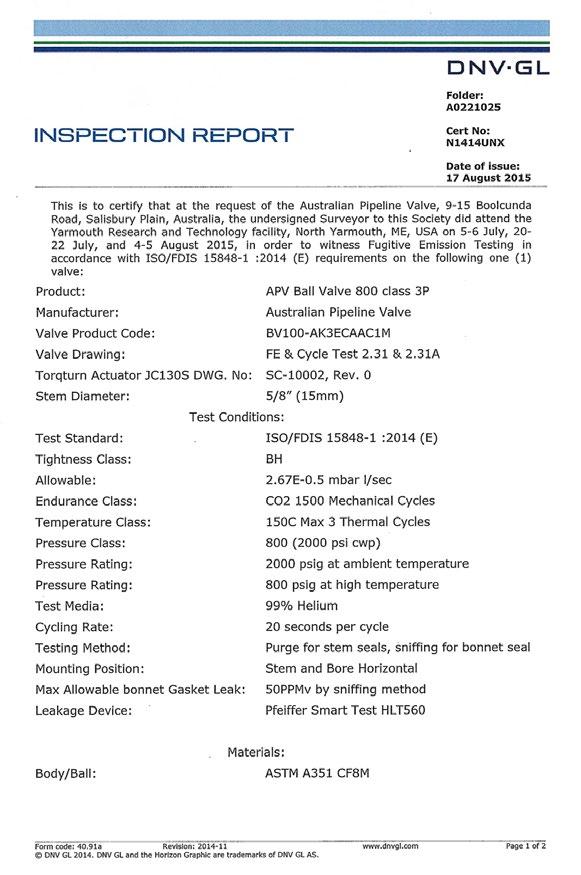

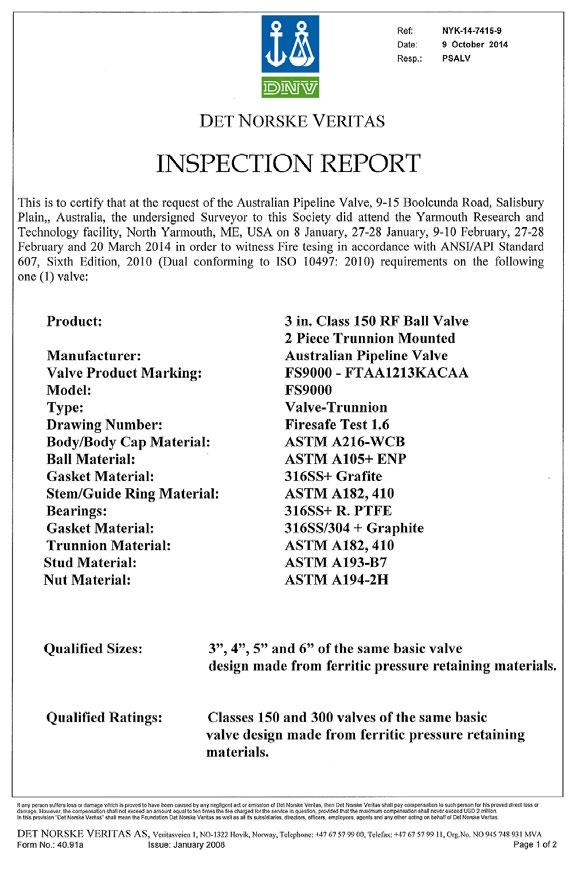

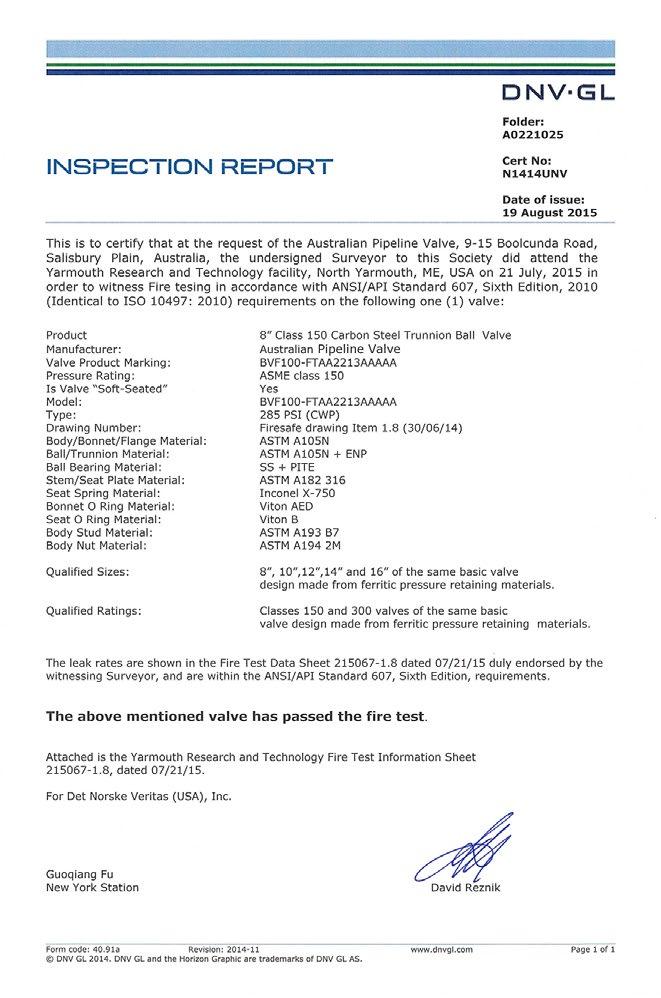

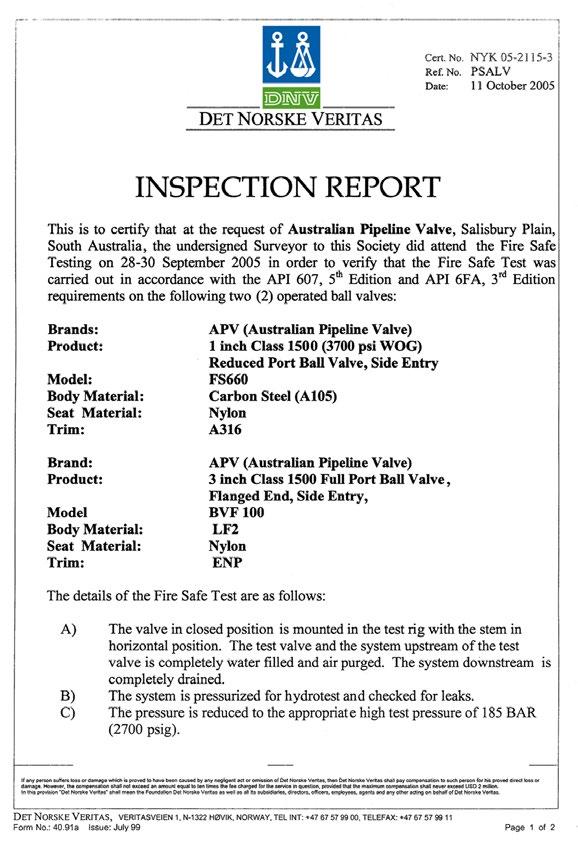

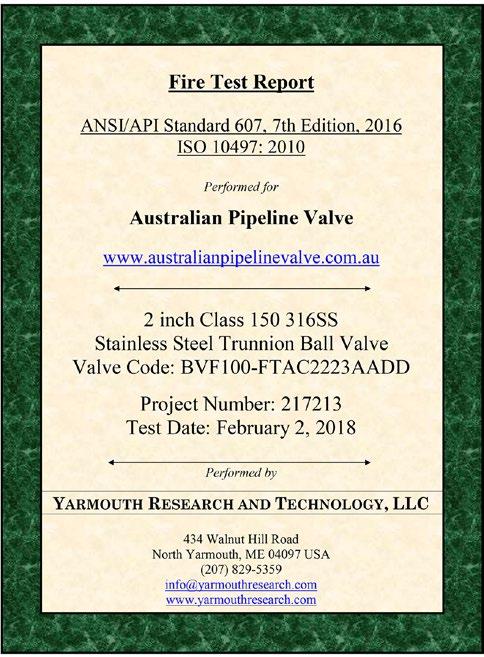

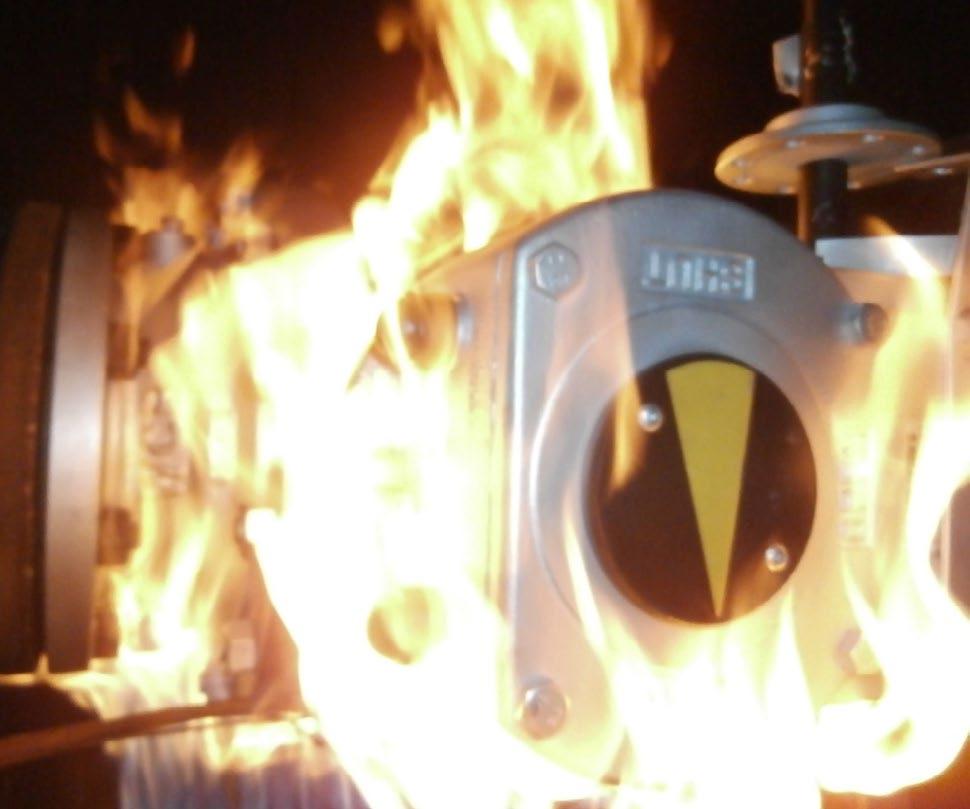

FIRESAFE & FUGITIVE EMISSIONS CERTIFICATES DNV WITNESSED Australian Pipeline Valve is one of the few companies in the world to hold firesafe certification to the latest 6th edition of API 607 and ISO 10497. In addition, APV ball valves are fugitive emission certified to ISO 15848.

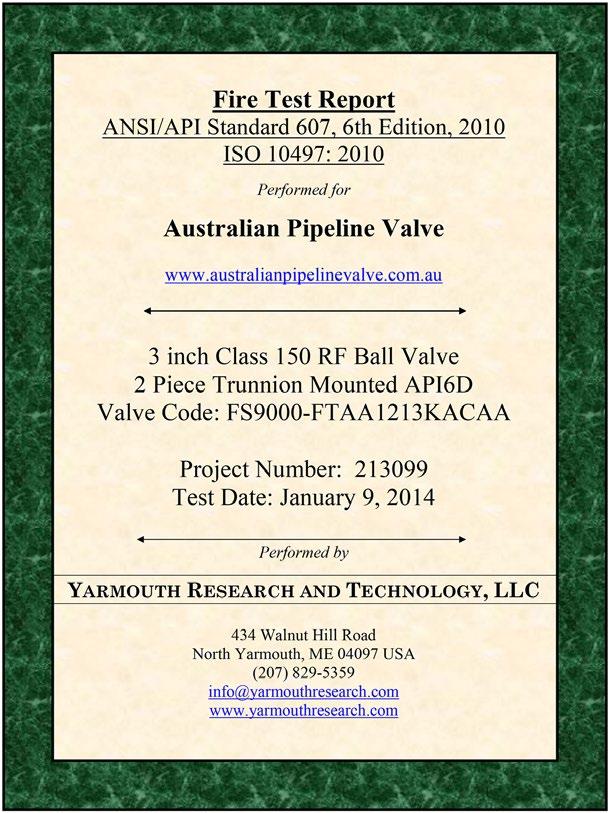

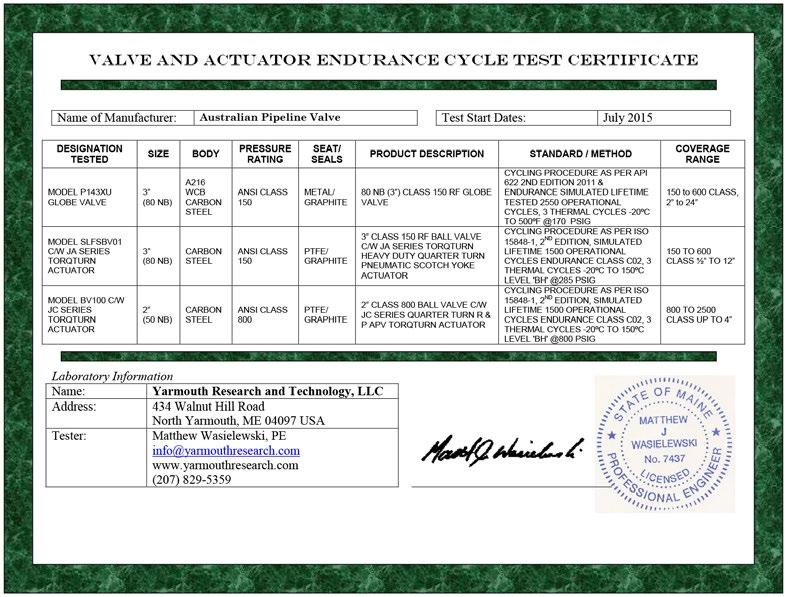

Endurance Test Certified

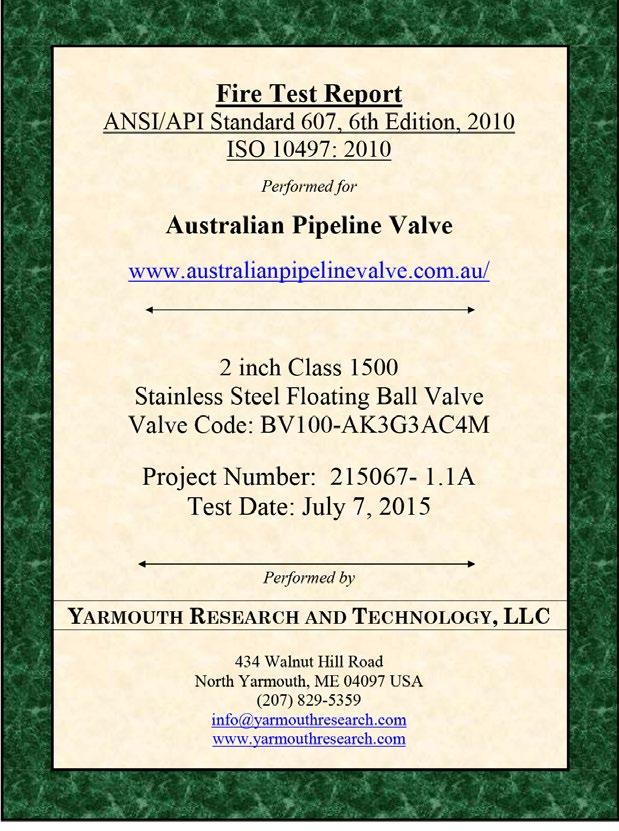

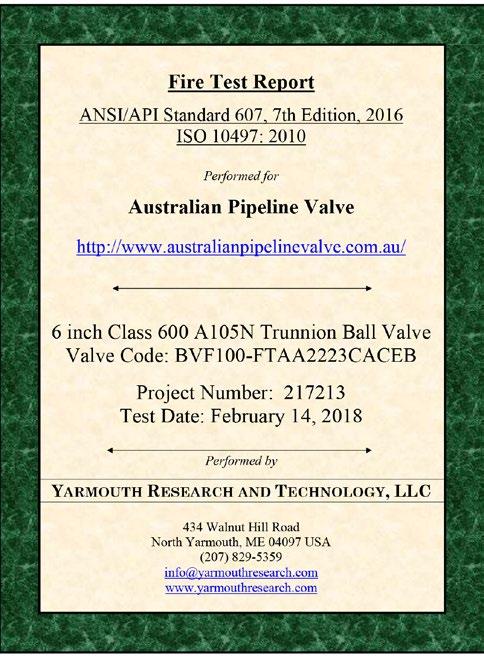

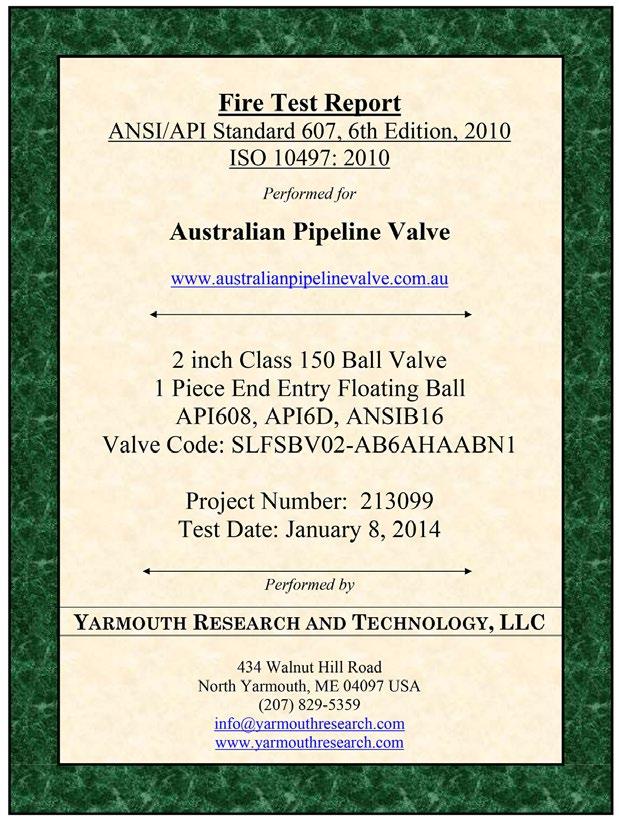

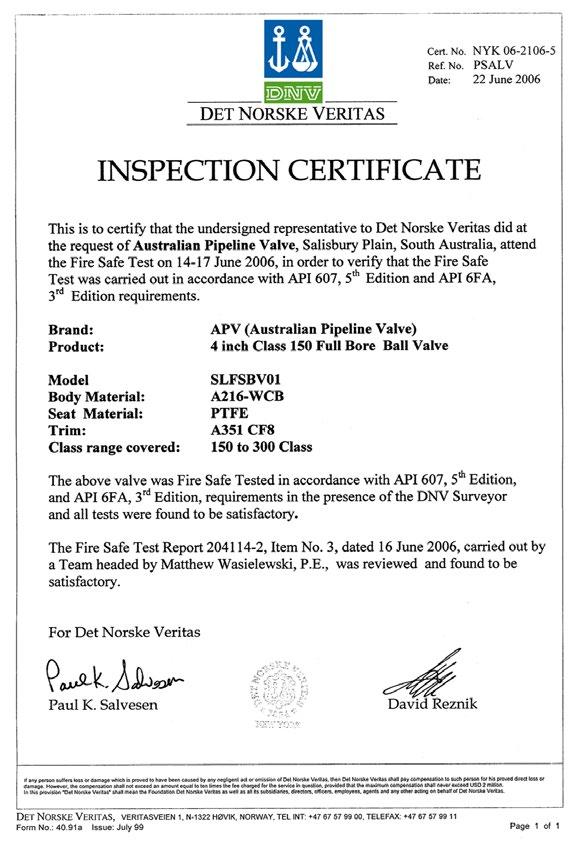

API 607 6th & 7th Ed. & ISO 10497 Firesafe Certified
AU S T R A L I A N P I P E L I N E VA LV E

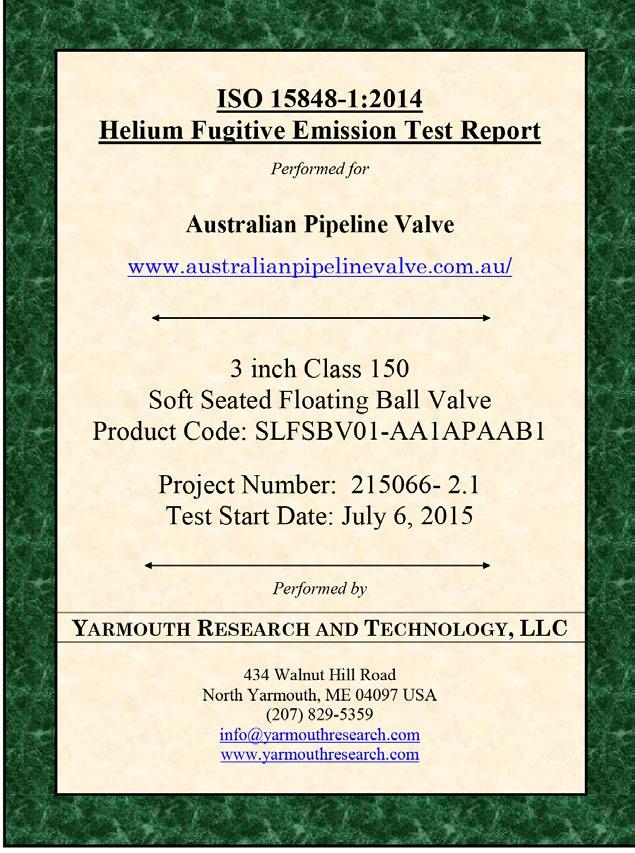

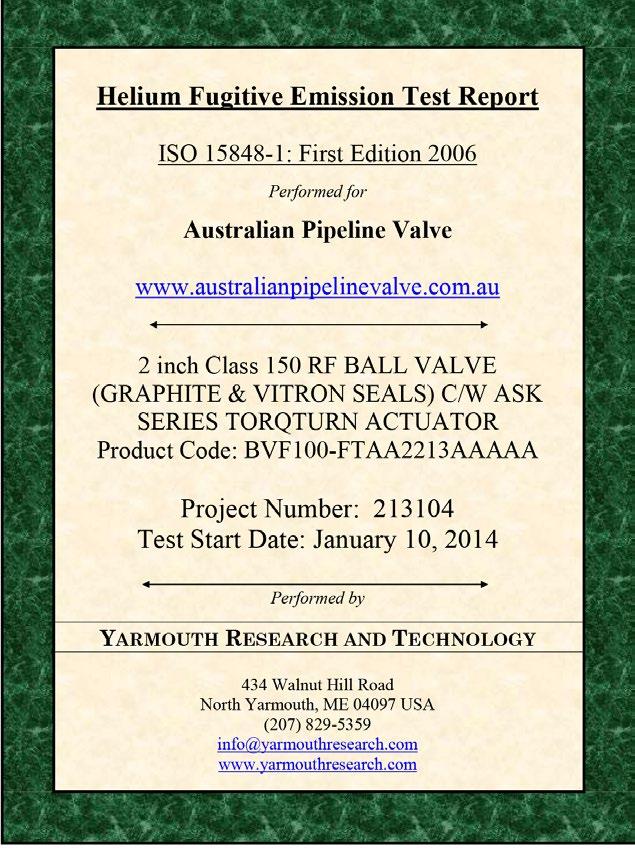

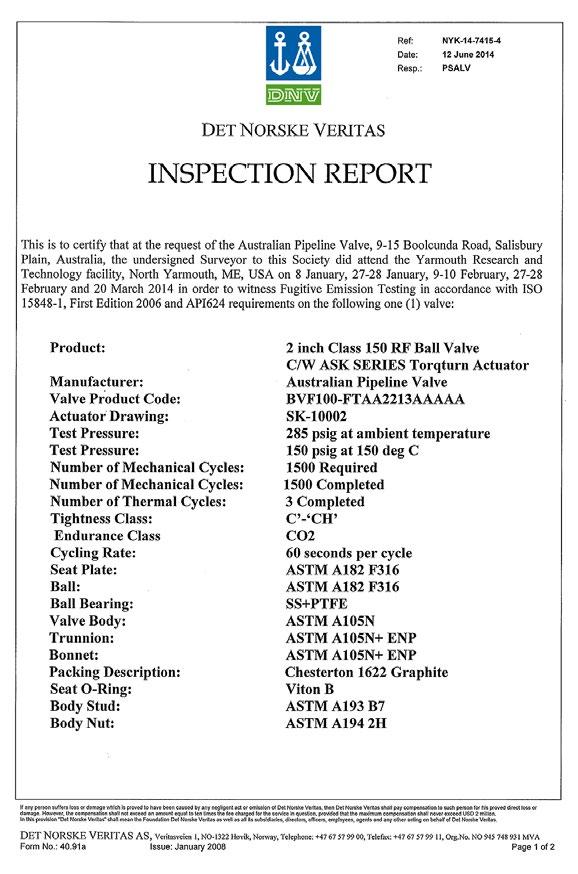

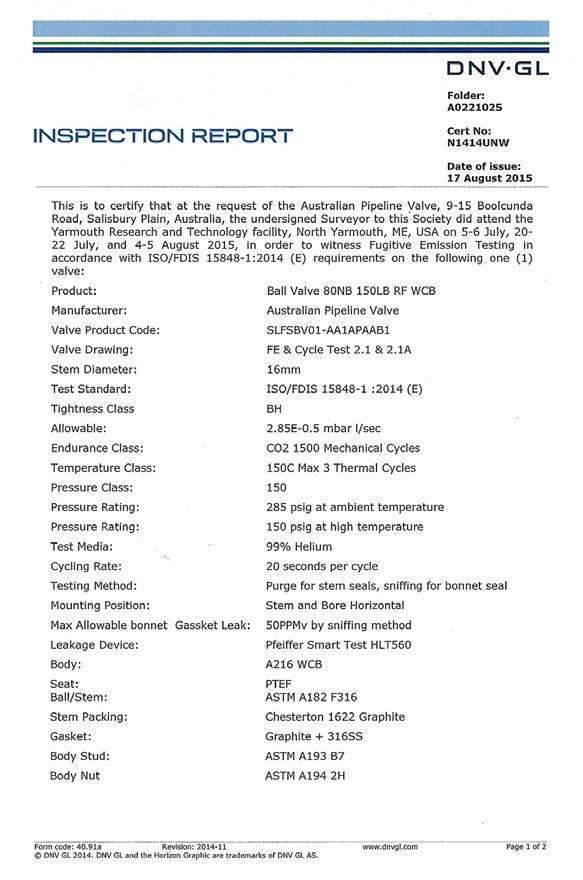

API 622 & ISO 15848-1 Fugitive Emission Certified
7
CERTIFICATES
FIRESAFE & FUGITIVE EMISSIONS CERTIFICATES
8
AU S T R A L I A N P I P E L I N E VA LV E
CERTIFICATES
FIRESAFE & FUGITIVE EMISSIONS CERTIFICATES
AU S T R A L I A N P I P E L I N E VA LV E
9
CERTIFICATES
FIRESAFE & FUGITIVE EMISSIONS CERTIFICATES
10
AU S T R A L I A N P I P E L I N E VA LV E

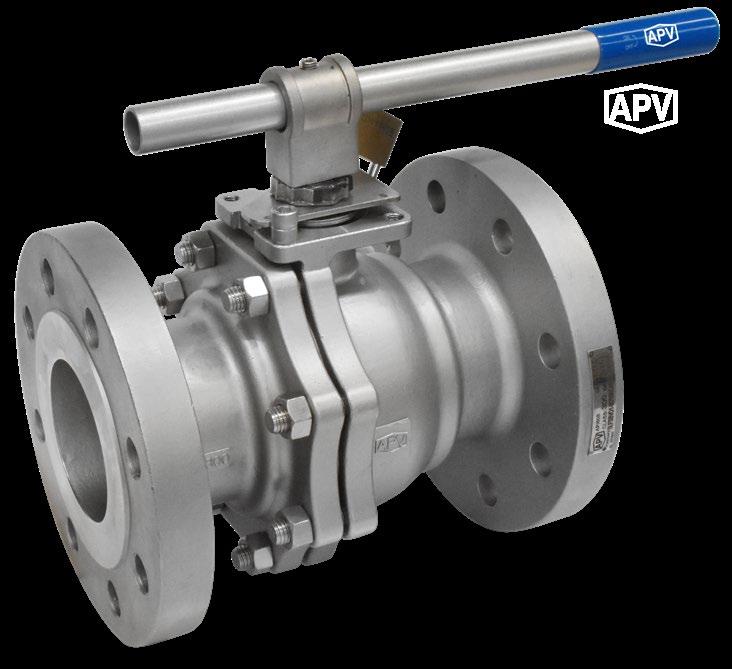

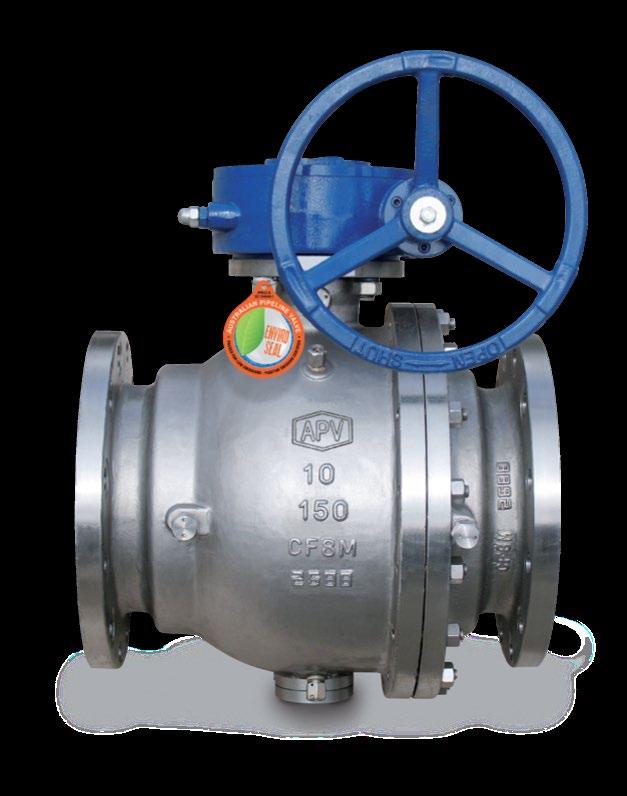

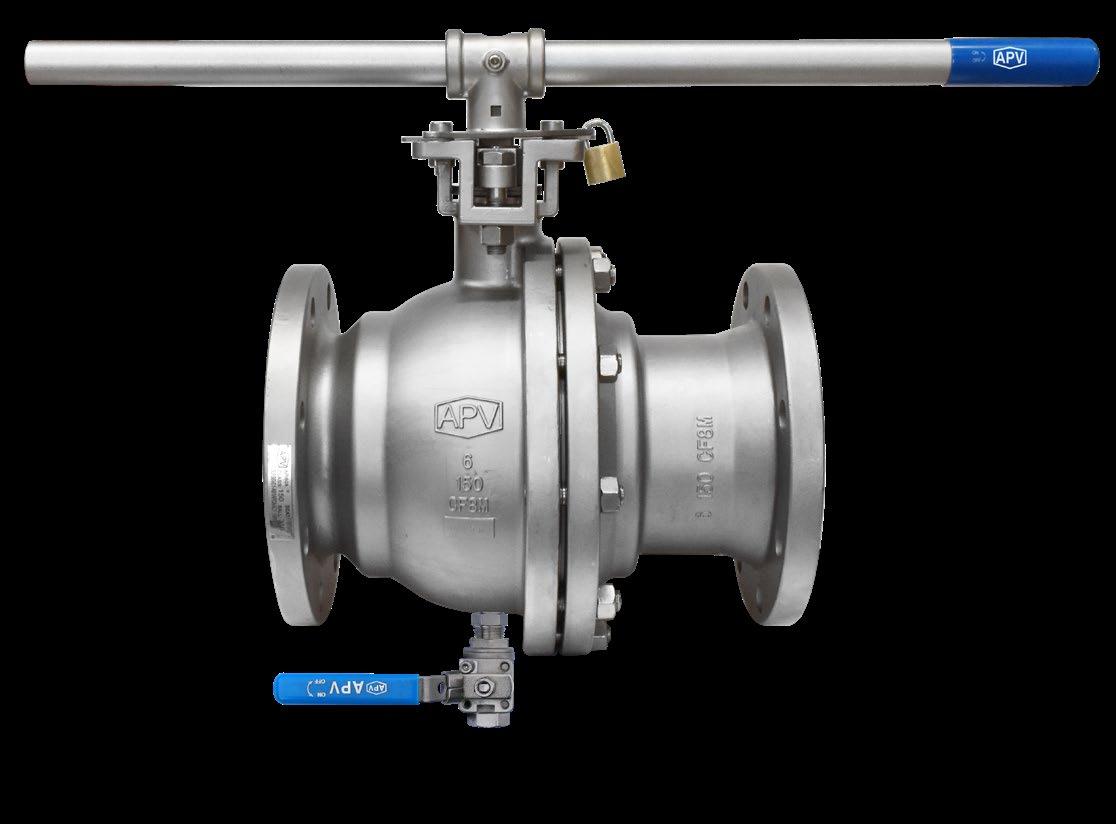

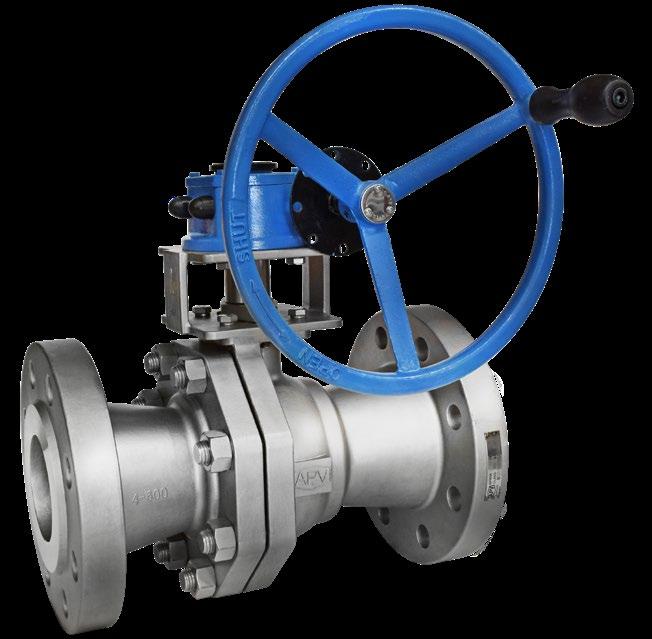

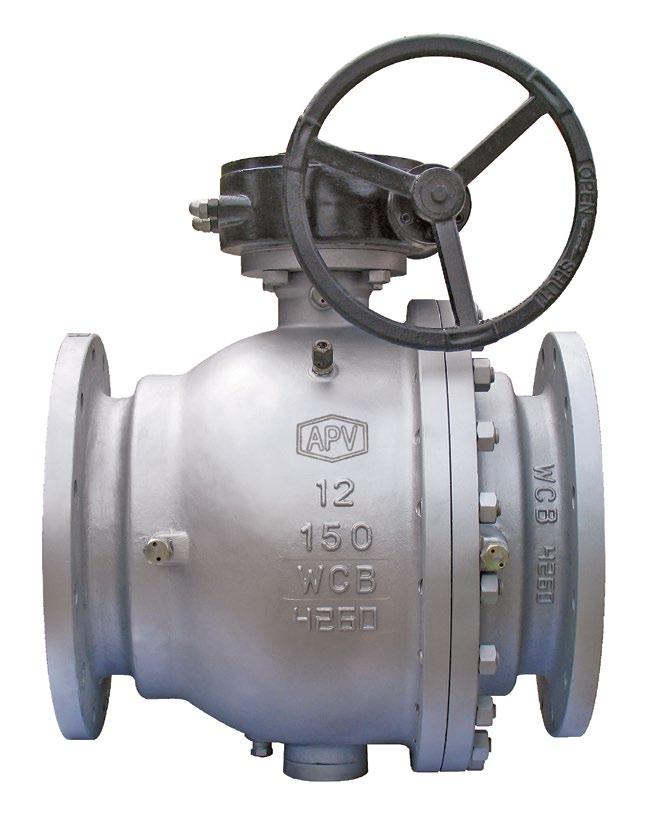

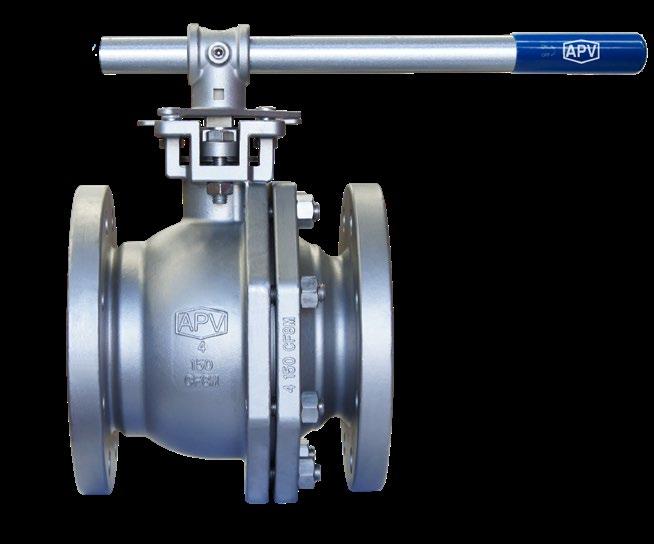

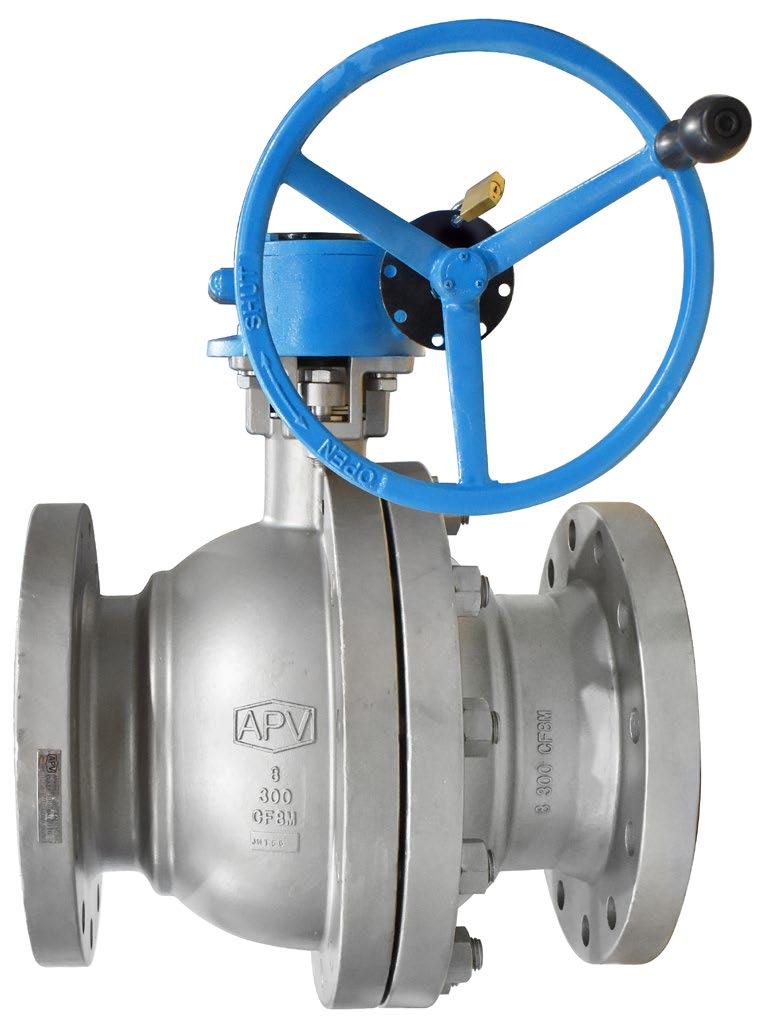

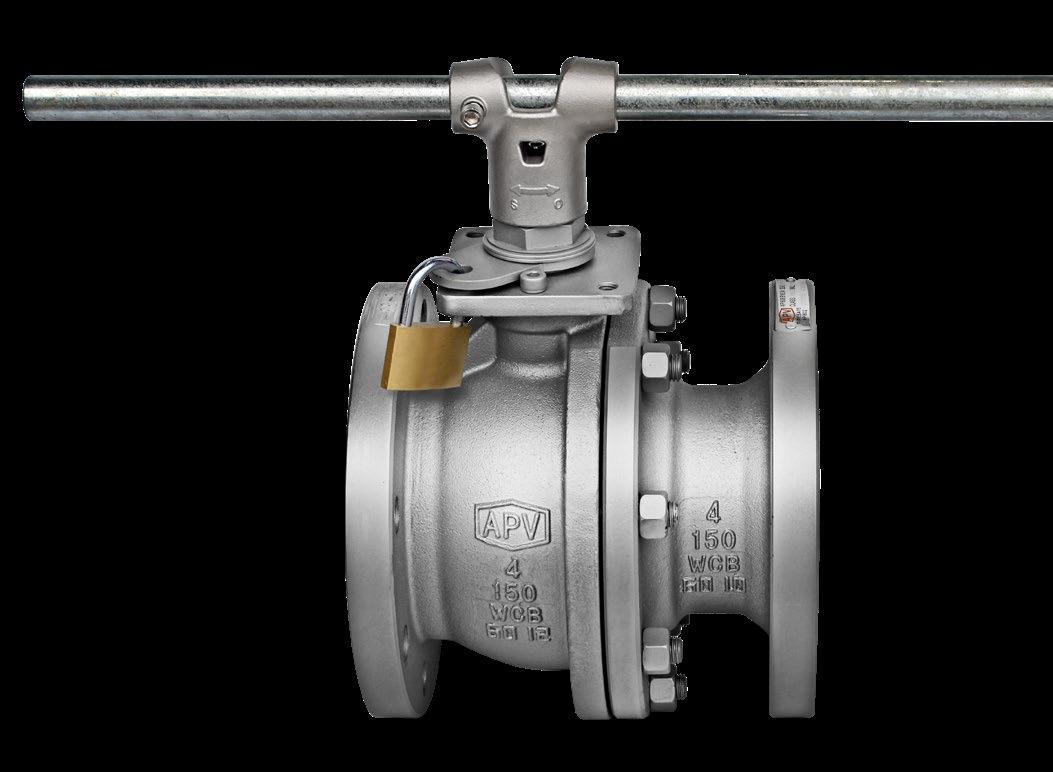

SLFSBV01 BALL VALVES

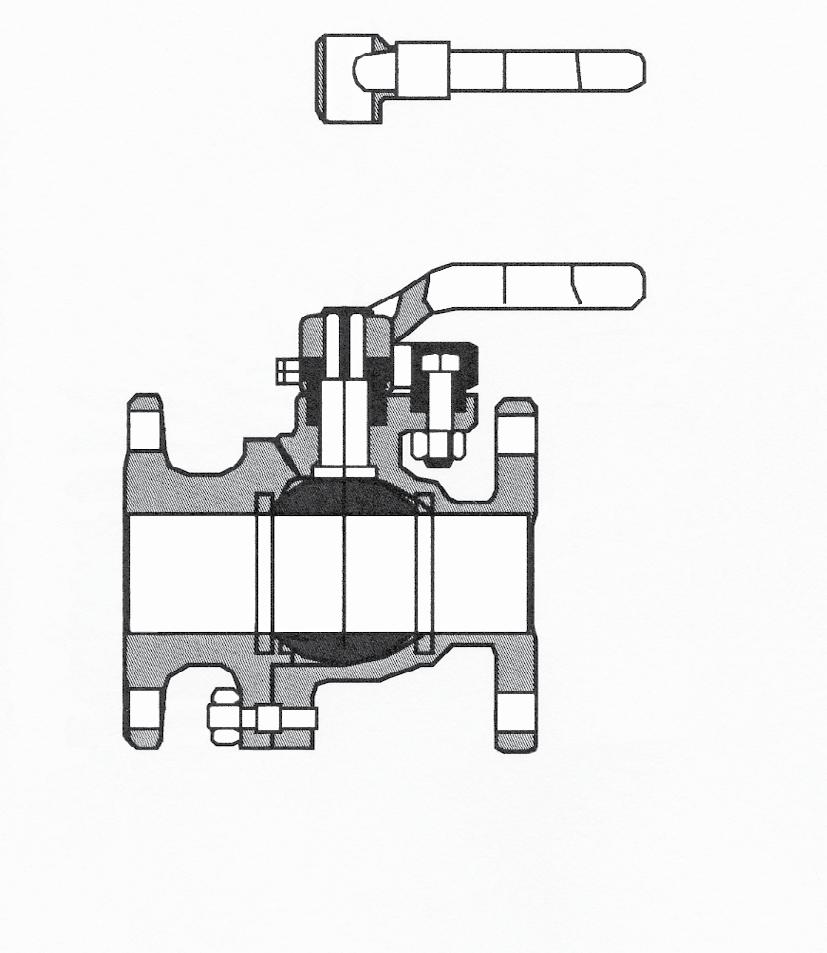

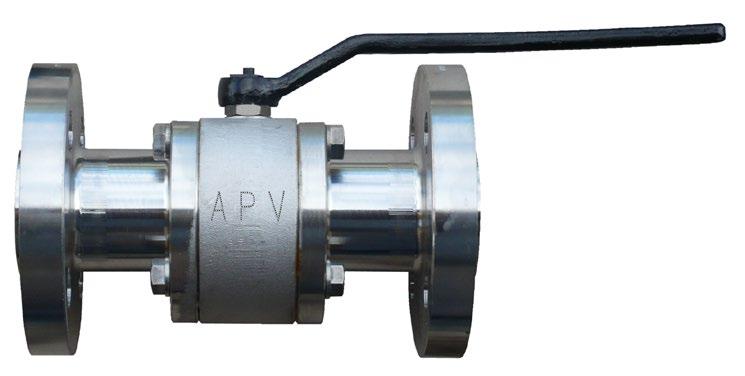

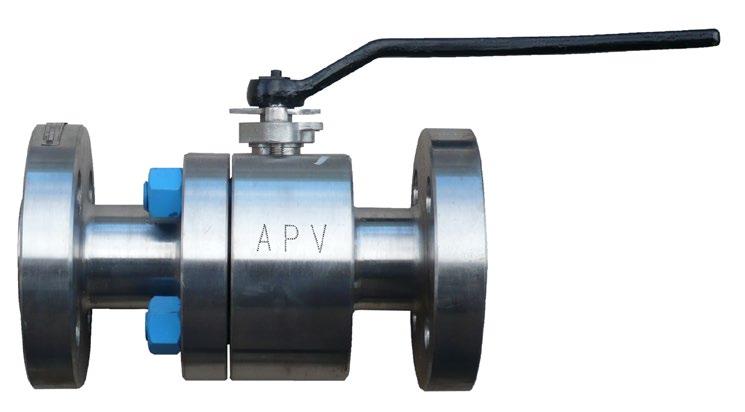

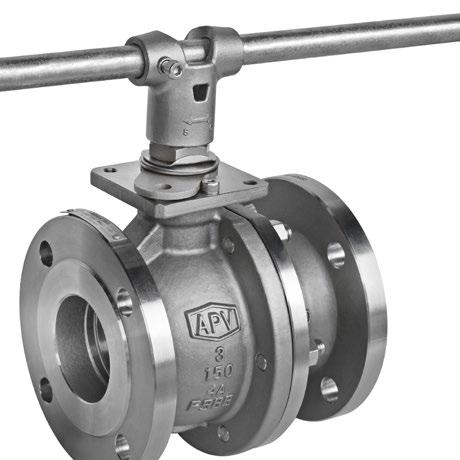

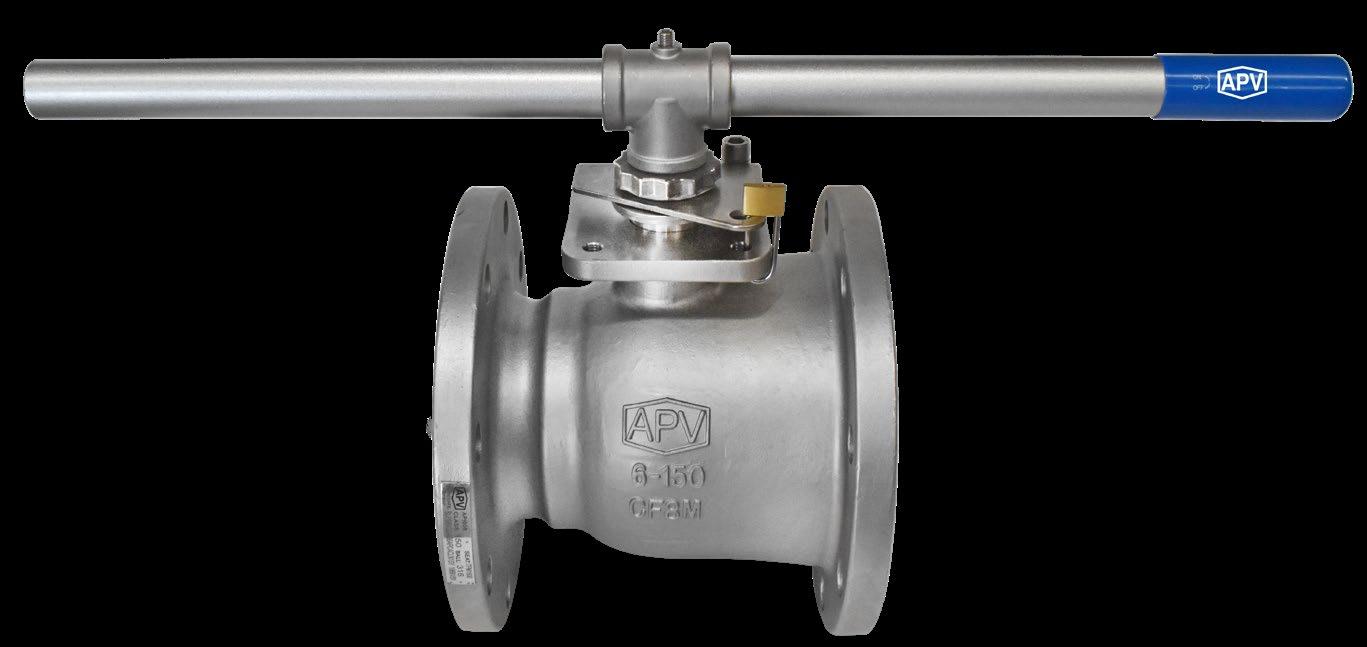

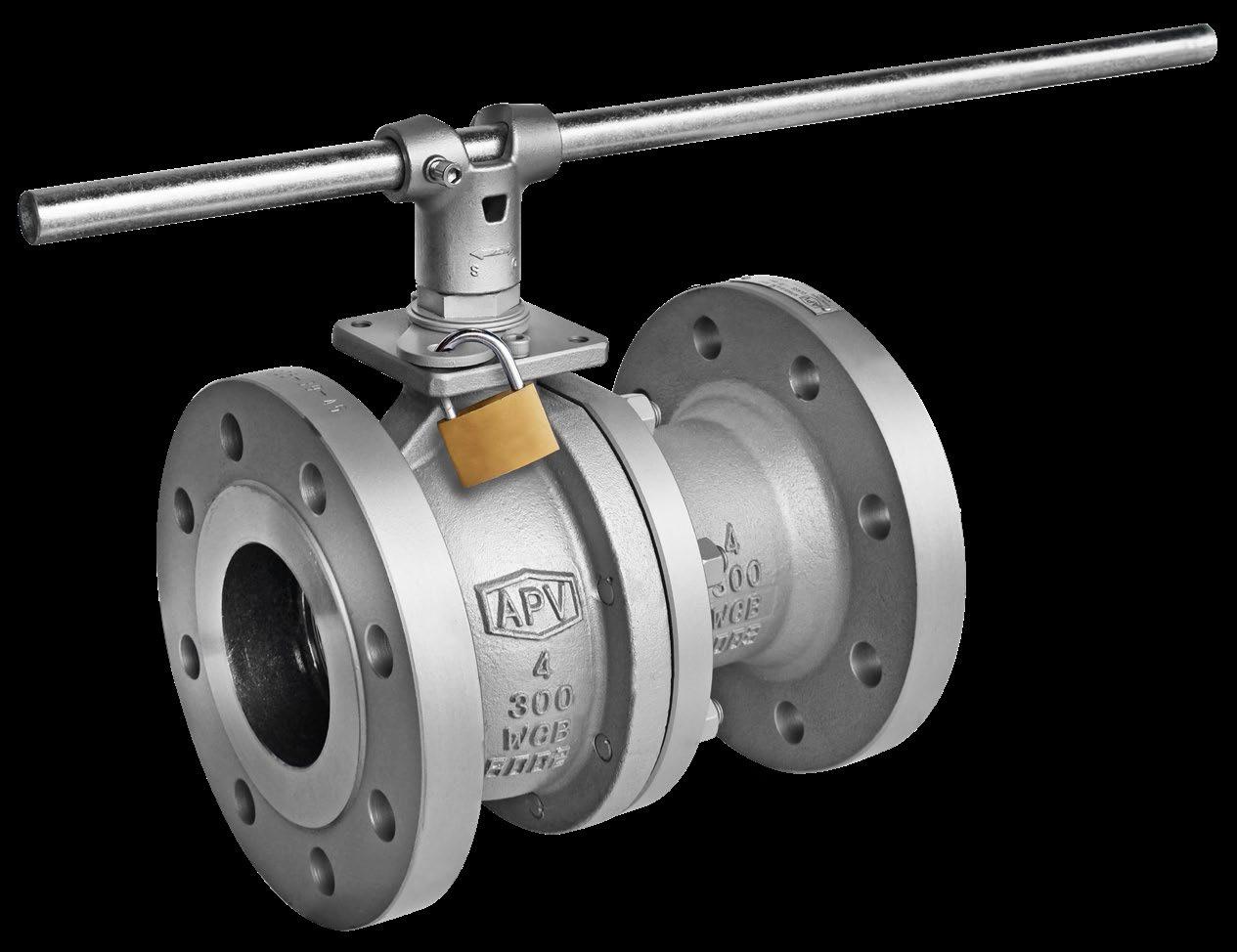

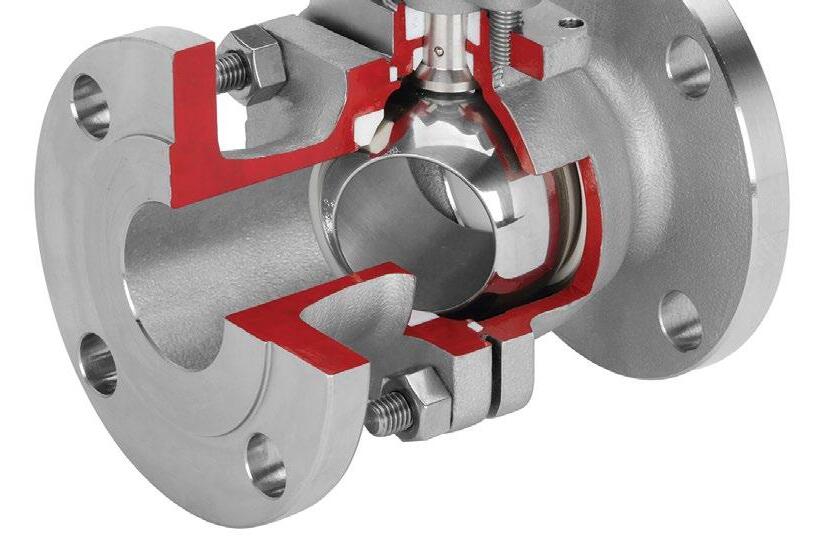

SLFSBV01 SERIES FLOATING TYPE API 608 / 6D BALL VALVES 2 PIECE, SPLIT BODY, FULL BORE, ANSI 150 TO 1500LB ASTM A351 - CF8M & CF8 AND ASTM A216 - WCB NACE MR0175 (CLASS III BOLTING) FOR SOUR SERVICE ISO 5211 TOP flange for Actuation • API 6D & API 608 • 250NB (10”) & over trunnion mounted * • Full bore solid ball • Investment Cast or Forged • Split Body 2 piece design • Anti Blow-Out Stem • Anti-Static Device • Firesafe Design to API 607 and API 6FA • Temperature Range -25°C to 230°C • Also available in metal seats and PEEK seats • Also available in Monel, Duplex, Alloy 20 etc.

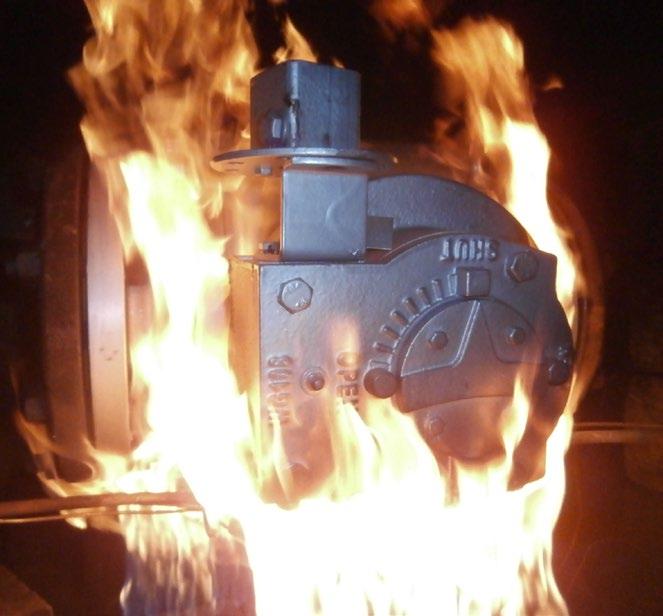

Endurance Test Certified
API 607 6th & 7th Ed. & ISO 10497 Firesafe Certified
ISO 15848-1 Class CO2 Fugitive Emission Certified

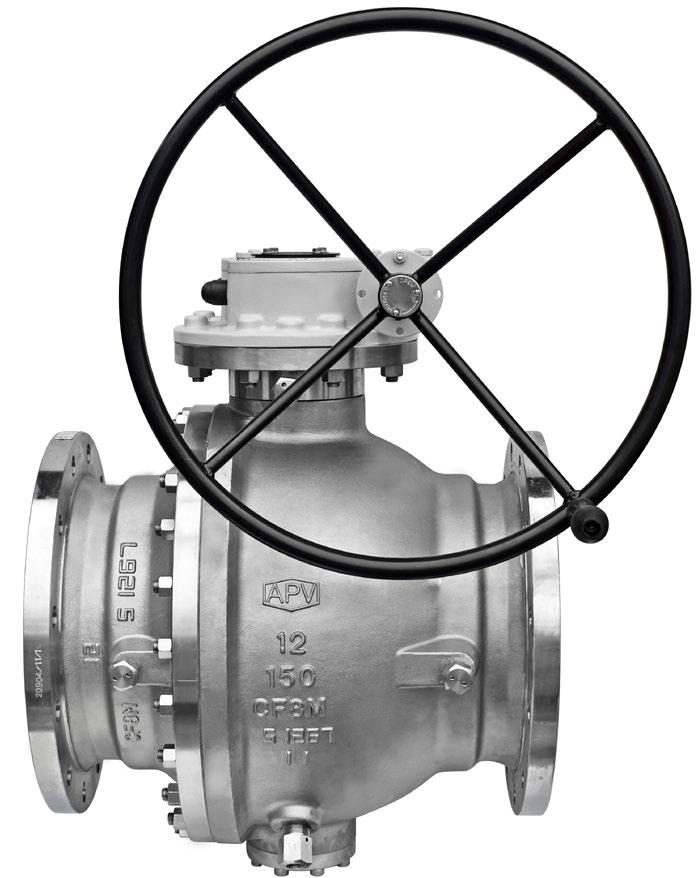

* 250NB (10”) & 300NB (12”)150LB avaliable in floating and trunnion Standards Face to Face
ANSI B16.10
Flange Dimensions
ANSI B16.5
Wall Thickness
ANSI B16.34
Basic Design
API 608/API 6D
Testing
API 598
Firesafe Design
API 607

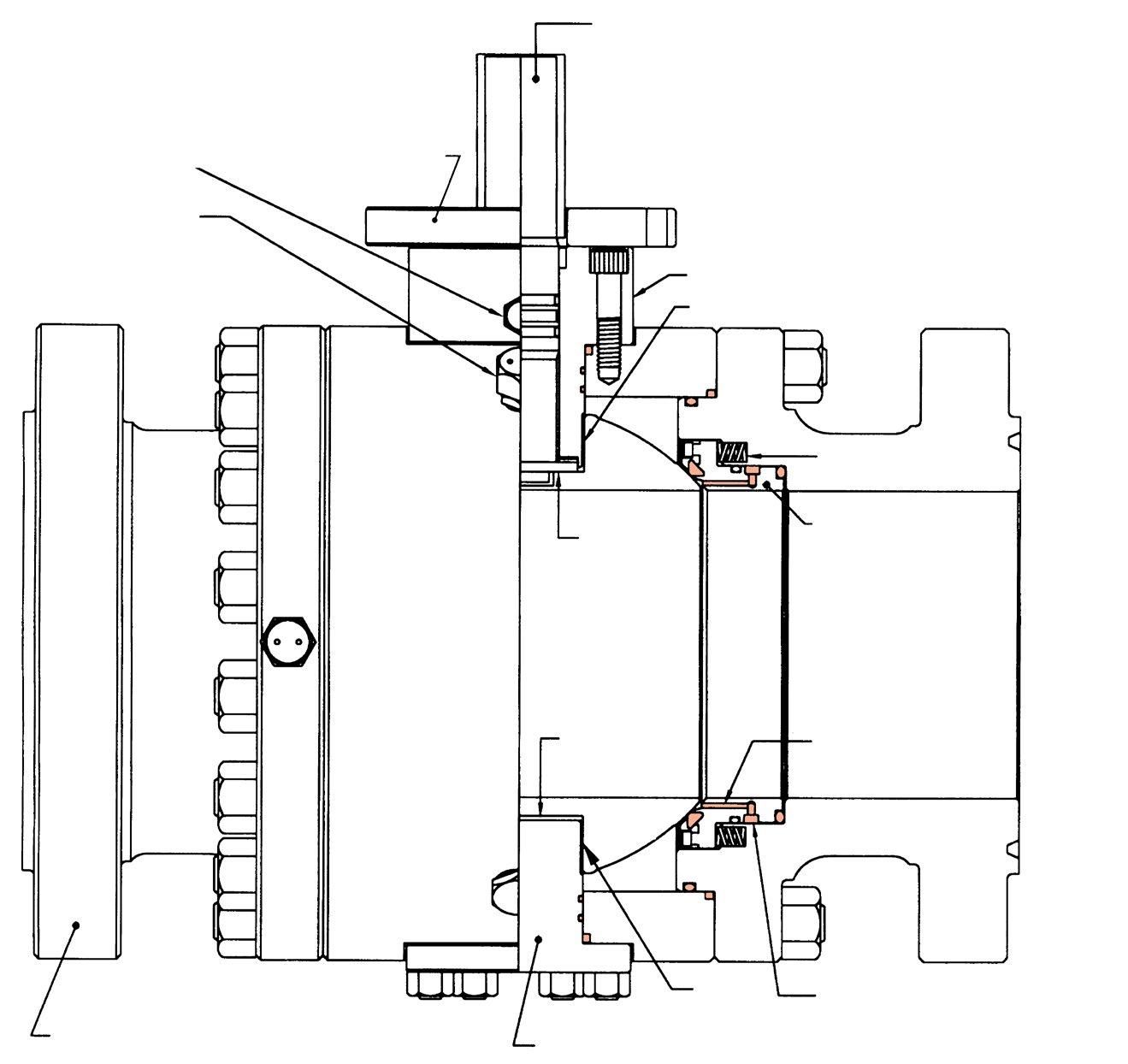

No.
E
22
Part Name
Materials
1
Body Cap
ASTM A216 WCB
2
Stud
ASTM A193 B7M
3
Nut
ASTM A194 2HM
4
Seat
RPTFE
5
Gasket
PTFE
6
Gasket
Graphite
7
Ball
ASTM A182 F316
8
Body
ASTM A194 2HM
9

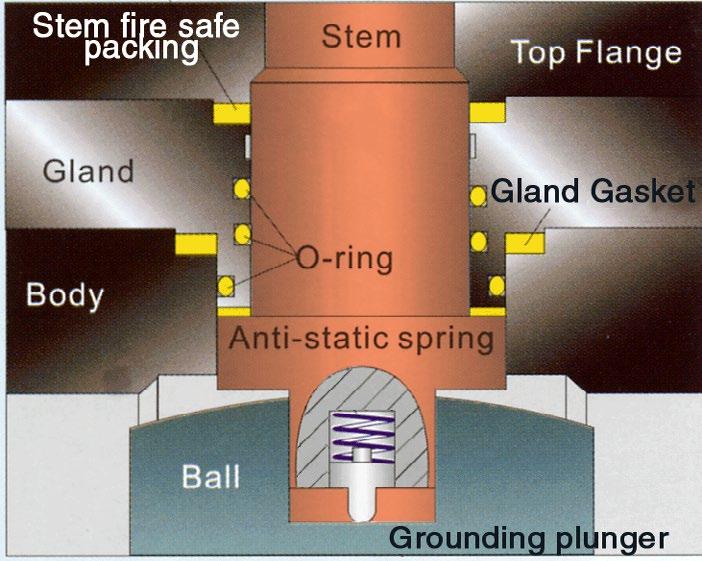

Anti Static Spring
SS316
10
Anti Static Ball
SS316
11
Thrust Washer
25% GFPTFE
12
O-Ring
Viton AED
13
Stem (1)
ASTM A276 F316
14
Stem Packing (2)
Graphite Chesterton #1622
15
Gland
SS316
16
Stop Plate / Lock Device
A3+ZP
17
Belleville Packing Springs
SS301
18
Gland Nut
ASTM A194 2H
19
Locking Washer
SS316
20
Screw
ASTM A193 B7
21
Stop Bolts - Allen Key
ASTM A193 B7
22
Screw
SS316
23
Washer
SS316
24
Wrench
STEEL+ZP
25
Handle Adaptor
SS316
26
Pipe Handle
CS+ZP
22 20 21
25
26
22 19
Slide Pole Lever 80NB ~ 100NB (3” ~ 4”)
E
24
18 23
17
Size 50NB (2”) Wrench 16
15
14
13
10 D
9
12 11
A
7
ØM-N
8 4 5
3 6
1
Shell - kPa (PSIG)
Seat - kPa (PSIG)
Air
652.90 kPA (80 PSIG)
652.90 kPA (80 PSIG)
Hydrostatic 150 Class
3,031.59 kPA (425 PSIG)
2,342.12 kPA (325 PSIG)
Hydrostatic 300 Class
7,857.92 kPA (1125 PSIG)
5,789.49 kPA (825 PSIG)
Hydrostatic 600 Class
15,442.15 kPA (2225 PSIG)
11,477.67 kPA (1650 PSIG)
Hydrostatic 900 Class
23,198.76 kPA (3350 PSIG)
16,993.48 kPA (2450 PSIG)
Hydrostatic 1500 Class
38,539.596 kPA (5575 PSIG)
28,369.829 kPA (4100 PSIG)
2
OG T
L
Indicative guide only, refer to as-built drawing. (1) Stem smoothness Ra 0.2 ~ 0.6 µm (superior to API requirements) (2) Stuffing box smoothness ≤Ra 1.6 µm (superior to API requirements)
Test Pressure
K
16
20
AU S T R A L I A N P I P E L I N E VA LV E
Heavy Duty Clamp Lever 50NB (2”)
21
11
SLFSBV01 SERIES

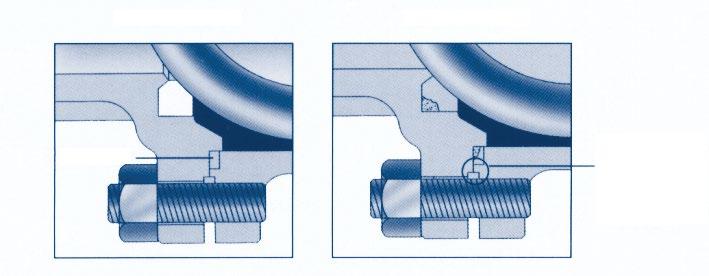

SLFSBV01 SERIES BODY GASKET

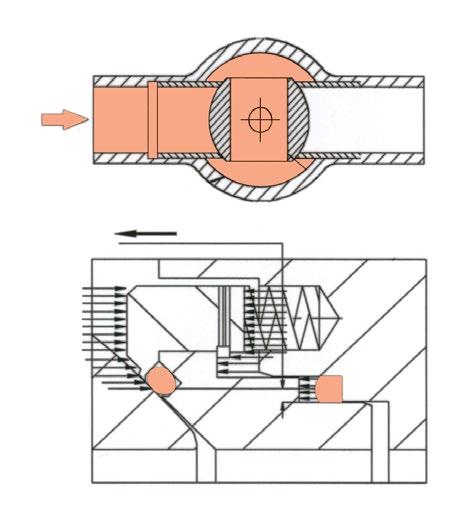

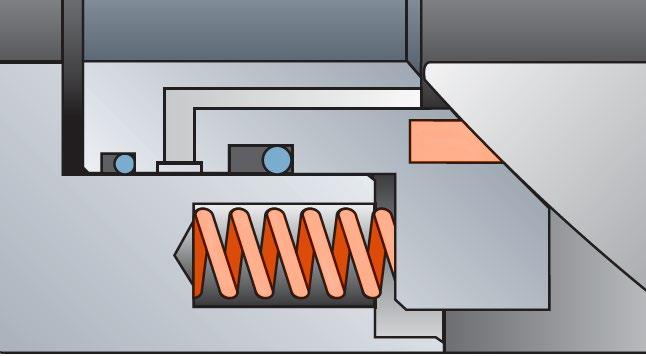

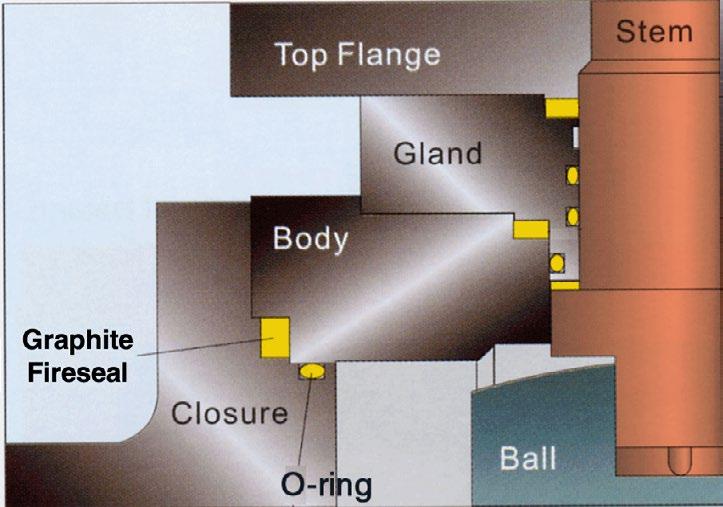

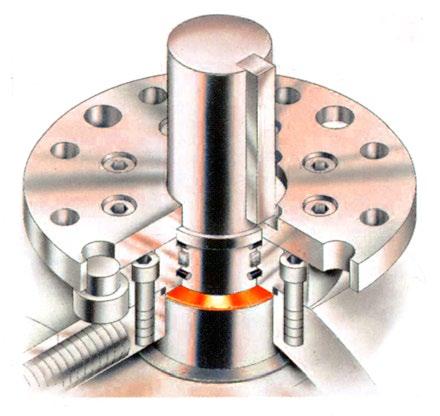

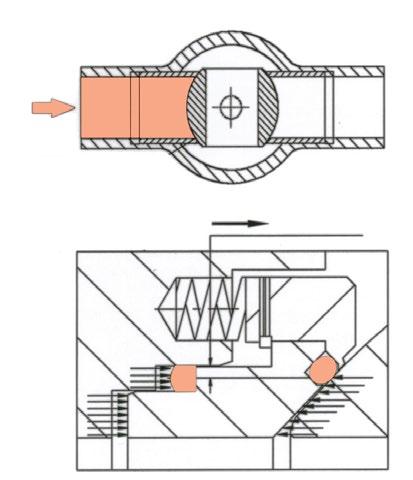

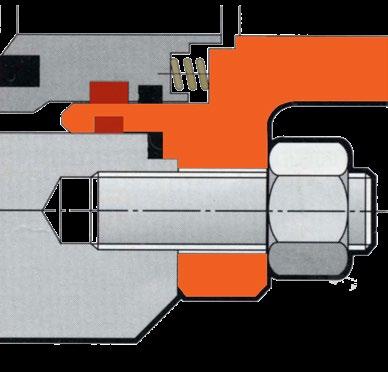

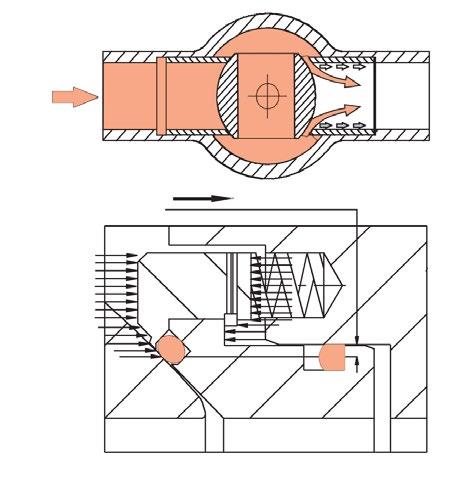

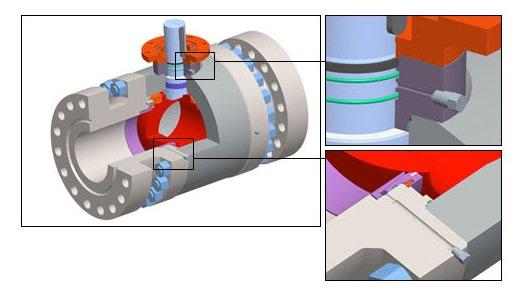

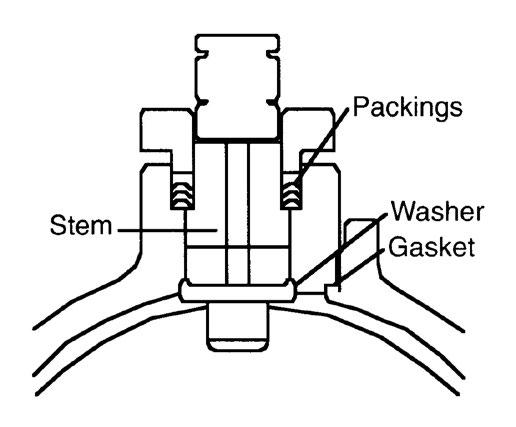

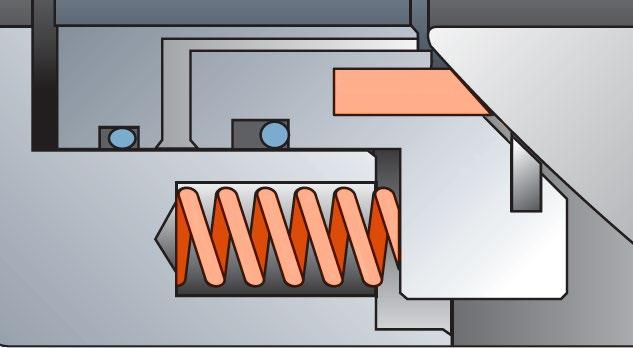

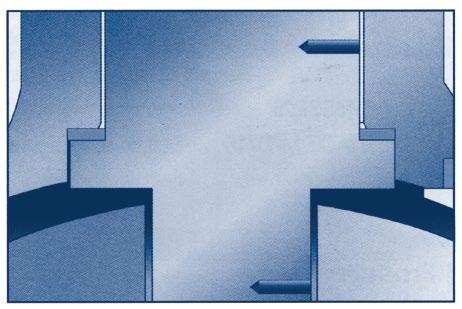

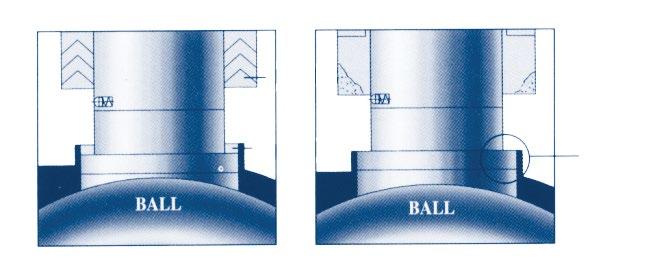

Gasket is designed so that the outer circumference of the gasket is in metal to metal contact with the valve body flange.
API 607 6th & 7th Ed. & ISO 10497 Firesafe Certified
ISO 15848-1 Class CO2 Endurance Test Certified
AS 4617, AS 4629

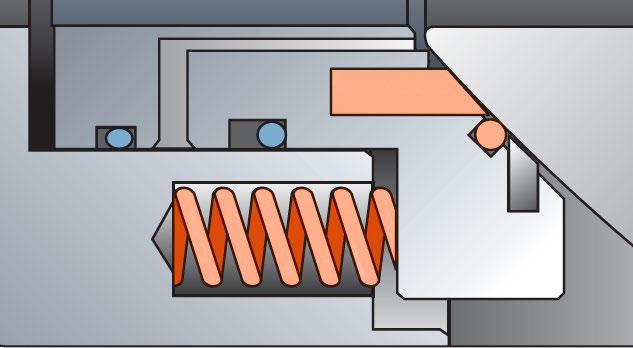

BODY SEAT

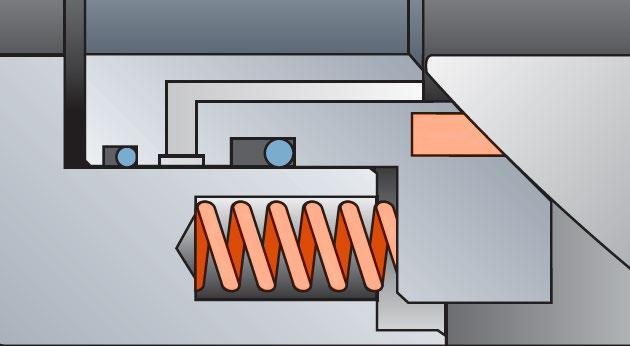

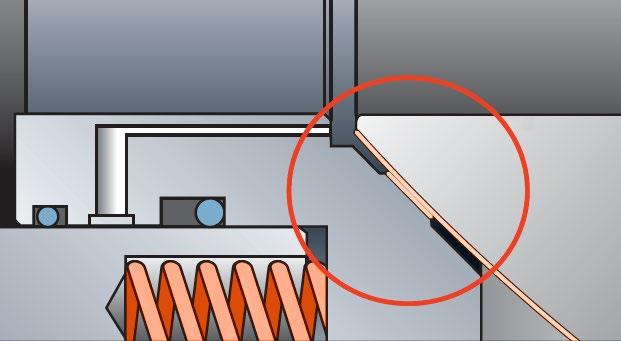

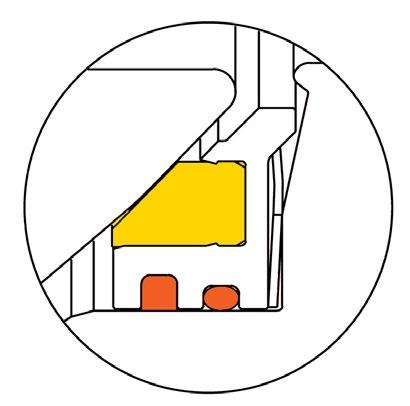

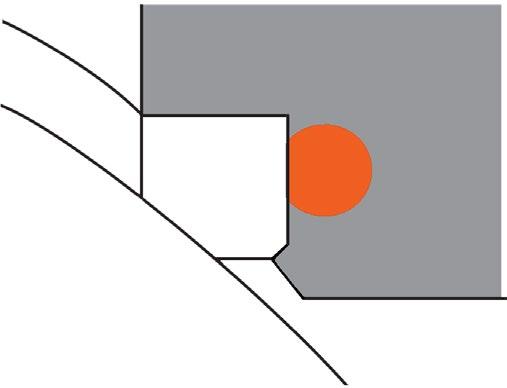

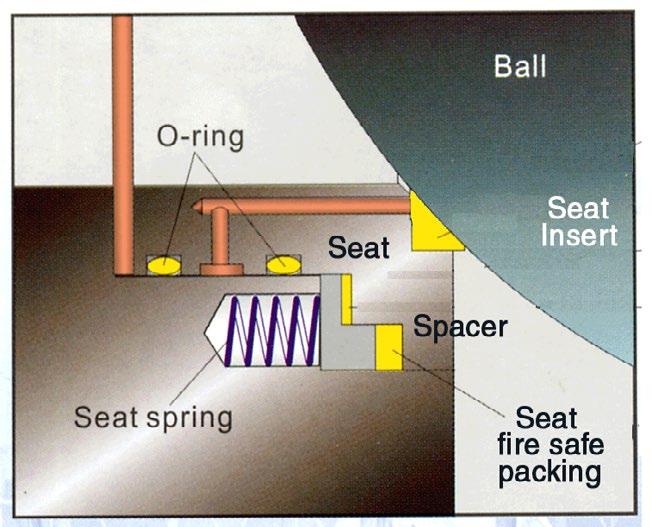

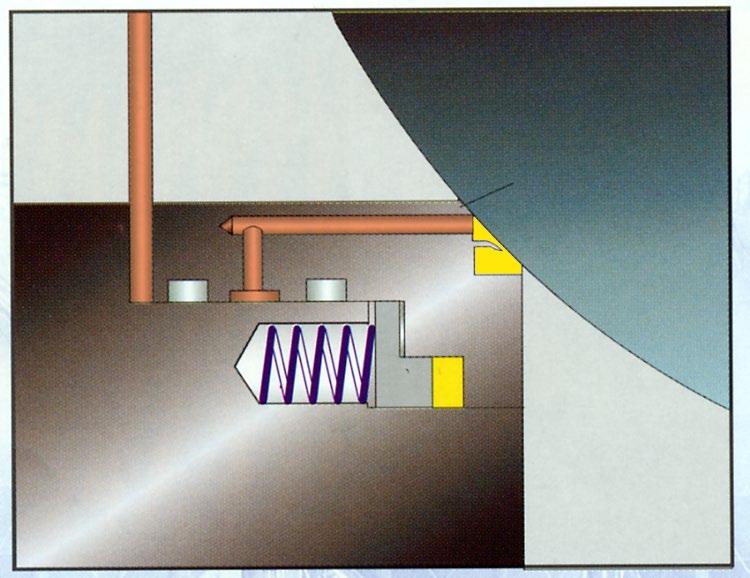

The seat is carefully designed for perfect sealing at low and high pressure ranges, as well as for minimised operating torque. If the seat ring is burnt, the ball is pressed against the metal body by fluid pressure, effecting a seal.

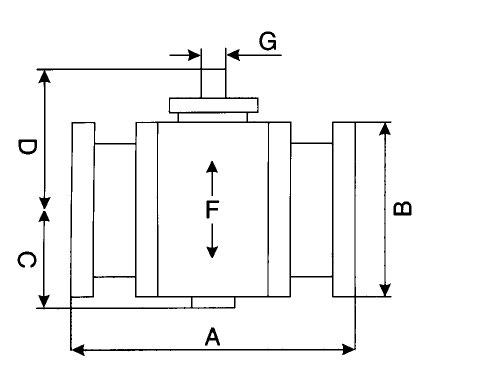

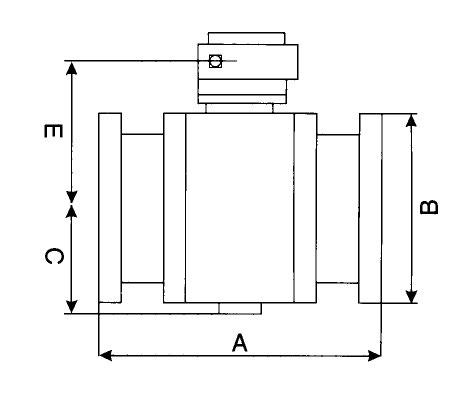

DIMENSIONS ANSI-150LB Size (in)
1/2”
3/4”
1”
Size (mm)
15
20
25
1-1/4” 1-1/2” 32
40
2”
2-1/2”
3”
4”
5”
6”
8”
50
65
80
100
125
150
200
A
15
20
25
32
38
50
64
78
98
123
150
200
L
108
117
127
140
165
178
190
203
230
356
394
457
K
89
98
108
117
127
152
178
190
229
254
279
343
D
90
90
110
110
130
140
155
175
180
230
260
290
E
160
175
175
175
230
230
340
340
340
380
510
720
Weight (kg)
2
3
3
4
7
9
16
19
33
50
65
120
Torque (Nm) breakaway
11
19
34
44
51
67
90
135
259
451
632
1127
CV
10
20
50
130
160
330
450
600
1200
2700
3300
9000
(Encapsulated)
Body Gasket
DIMENSIONS ANSI-150LB Size (in)
10”
12”
14”
Size (mm)
250
300* 350*
-
-
-
-
-
-
-
-
-
A
250
302
352
-
-
-
-
-
-
-
-
-
L
533
610
686
-
-
-
-
-
-
-
-
-
K
406
433
533
-
-
-
-
-
-
-
-
-
D
-
-
-
-
-
-
-
-
-
-
-
-
E
-
-
-
-
-
-
-
-
-
-
-
-
Weight (kg)
160
430
-
-
-
-
-
-
-
-
-
-
Torque (Nm) breakaway
1242
903
-
-
-
-
-
-
-
-
-
-
CV
12000
-
-
-
-
-
-
-
-
-
-
-
Live Semi Flexible Lip and Heal Design Seat with Large Contact Face
Body Seat
Packings Washer Gasket
Stem
*Trunnion support ball, see FS9000.
DIMENSIONS ANSI-300LB Size (in)
1/2”
3/4”
1”
1-1/2”
2”
2-1/2”
3”
4”
6”
8”
10”
12”
Size (mm)
15
20
25
40
50
65
80
100
180
200
250
300*
A
15
20
25
38
50
64
78
98
150
200
250
300
L
140
152
165
190
216
241
283
305
403
502
568
648
K
95
115
125
156
165
191
210
254
318
381
445
520
D
94
94
94
115
120
155
162
191
290
340
420
470
E
160
160
160
230
230
340
400
750
1000
1500
-
-
Weight (kg)
3
4
5
10
16
22
31
52
105
170
-
-
Torque (Nm) breakaway
106
142
33
66
85
157
203
316
768
1354
2417
3615
CV
23
46
50
160
330
450
600
1200
3300
9000
-
-
Blowout Proof Stem
Packings Bearing Washer Gasket
*Trunnion support ball, see FS9000. Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 25% factor is included, but torques assume clean wet fluids like water/oil. Torques shown are for RPTFE for PTFE seats torques are 30% lower. TFM1600 energised low torque seats also available.

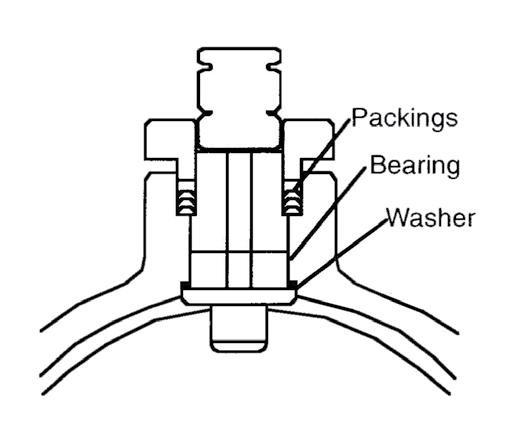

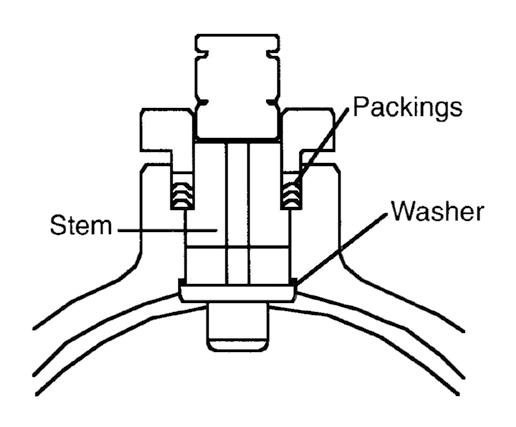

Stem Packing Stem Stem Collar Body
Optional direct mount pad with adjustable packing gland which is accessable for tightening without disassembly. API 608 compliant.
Austenitic Direct Mount Version
12
AU S T R A L I A N P I P E L I N E VA LV E
Antistatic Devices
Ball
Anti-Static
SLFSBV01 SERIES
SLFSBV01 SERIES DESIGN High tensile High Strength Stem Adapts readily to our wide range of pneumatic and electric actuators. Blow-out proof design.
Anti-Static device Ensures electrical conductivity

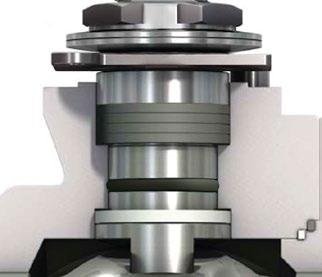

Packing Multi-ring adjustable packing offers secure, dynamic sealing with low torque. Elastomer free design option.
Vent Hole Pressure balanced hole in ball
Flanges ASME (ANSI) CI. 150/300/600 flanges are standard. Other end connections are also available.
Encapsulated Body Seal With secondary metal to metal body sealing. Live loaded seats Flexible cavity relief capable seats.

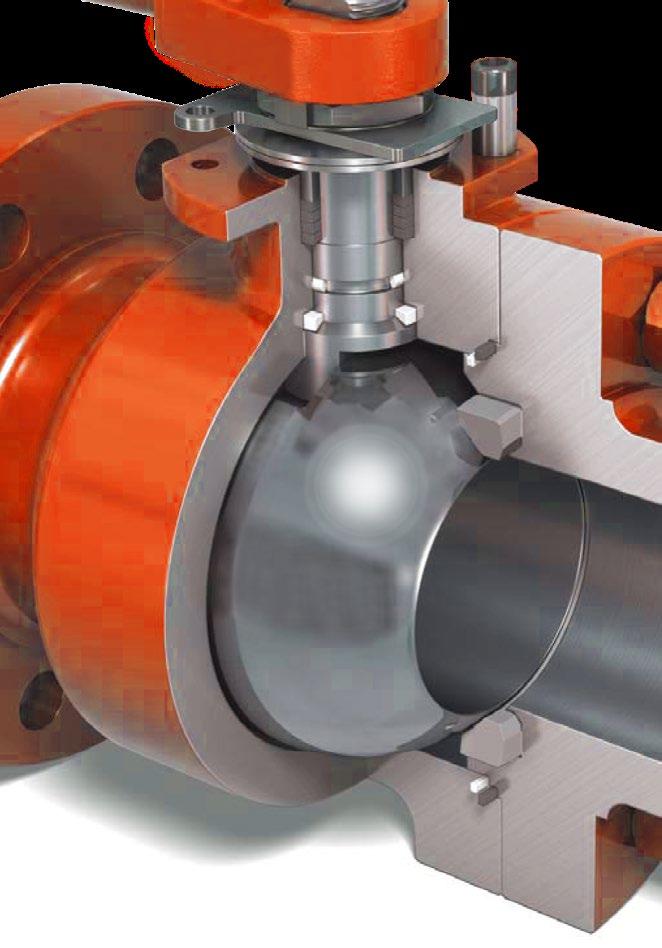

Rugged heavy-Duty Body We offer a lifetime guarantee on our casting if the valves are used within our design parameters. Heavy wall to ANSI B16 dual conforming API 608.
High Flow Capacity Full bore opening offers higher Cv values and ensures lower pressure drops. Stem assembly The stem rotates in a reinforced PTFE bearing which eliminates excessive load on the packing and helps to reduce torques. Design varies according to size/class. (Direct mount pad version, refer to drawing.)
Vent Hole
Ball port
Packing Gland Bearing Stem Thrust Bearing/Washer Anti-static device Protects against potentially dangerous electrostatic discharges.
AU S T R A L I A N P I P E L I N E VA LV E

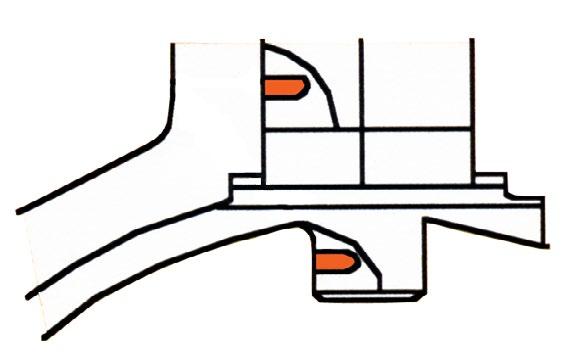

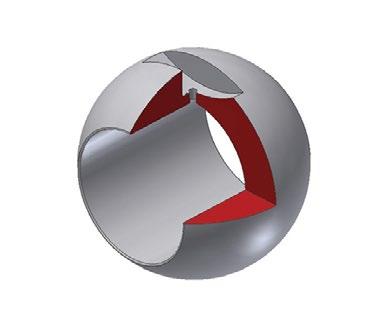

Safety (Vent) Hole Pressure balanced design. Relieves the pressure differential between the body cavity and the ball port to prevent buildup of trapped pressure and to prolong the life of the stem packing/seals. (80NB & above) Seat design. Low and high pressure zero leakage capability. Large contact face. Flexible design and radial grooves on sides of seats ensure upstream pressure balances cavity pressure.
13
SLFSBV01 SERIES
SLFSBV01 SERIES API 607 6th & 7th Ed. & ISO 10497 Firesafe Certified
ISO 15848-1 Class CO2 Endurance Test Certified

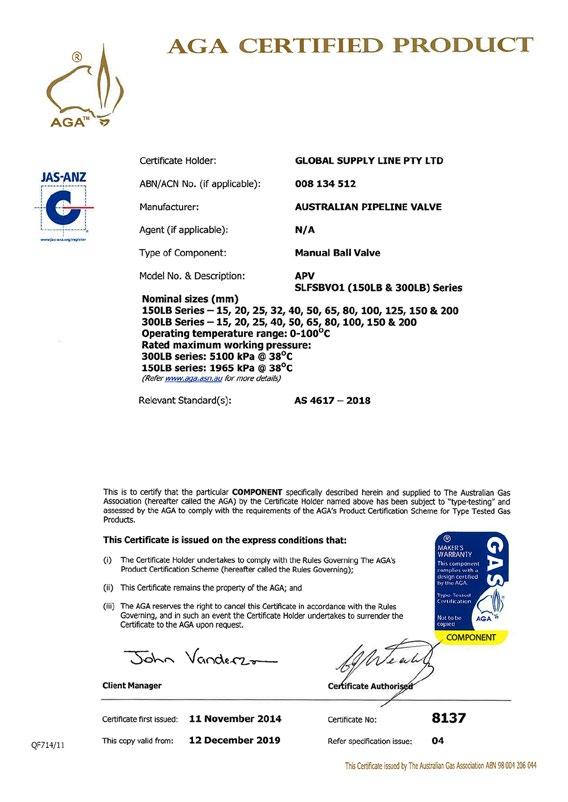

AS 4617, AS 4629
E
DIMENSIONS ANSI-600LB Size (in)
1/2” 3/4x1/2” 3/4” 1x3/4”
1”
1-1/4x1” 1-1/4” 1-1/2x-1/4” 1-1/2” 2x1-1/2”
2”
Size (mm)
15
20x15
20
25x20
25
32x25
50
32
40x32
40
50x40
A
15
15
19
19
25
25
32
32
38
38
50
D
82
82
87
87
92
92
105
105
108
108
119
E
145
145
170
170
170
170
270
270
270
270
270
L (RF)
165
190.5
190.5
216
229
229
241
241
292
292
292
L (BW)
165
190.5
190.5
216
216
229
229
241
241
292
292
L (RTJ)
163.5
190.5
190.5
216
216
229
229
241
241
295
295
Weight (kg)
5
7
7
9
10
14
15
17
18
20
22
Torque (Nm) breakaway
18
18
21
21
45
45
80
80
91
91
125
4”
6x4”
D
ØA
RF / BW / RTJ L
DIMENSIONS ANSI-600LB Size (in)
2-1/2x2” 2-1/2” 3x2”
3”
4x3”
Size (mm)
65x50
80
100x80 100 150x100*
65
80x50
A
50
65
50
76
76
102
102
-
-
-
-
-
D
119
150
119
163
163
187
187
-
-
-
-
-
E
270
380
270
380
380
470
470
-
-
-
-
-
L (RF)
330
330
356
356
432
432
559
-
-
-
-
-
L (BW)
330
330
356
356
432
432
559
-
-
-
-
-
L (RTJ)
333
333
359
359
435
435
562
-
-
-
-
-
Weight (kg)
27
28
33
38
75
78
150
-
-
-
-
-
Torque (Nm) breakaway
125
140
125
195
195
350
350
-
-
-
-
-
Forged 3 Piece 600~2500LB
For 600LB to 200NB (8”) Floating see BVF100-F26 (Ball Special) *150 x 111mm standard bore also available. Refer to drawing.
DIMENSIONS ANSI-900/1500LB Size (in)
1/2”
3/4x1/2”
3/4” 1x3/4”
1”
1-1/2x1” 1-1/4” 1-1/2x1/4” 1-1/2” 2x1-1/2”
2”
Size (mm)
15
20x15
20
25
32x25
50
25x20
32
40x32
40
50x40
A
15
15
19
19
25
25
32
32
38
38
50
D
82
82
87
87
92
92
105
105
108
108
119
E
145
145
170
170
170
170
270
270
270
270
270
L (RF)
216
229
229
254
254
279
279
305
305
368
368
L (BW)
216
229
229
254
254
279
279
305
305
368
368
L (RTJ)
216
229
229
254
254
279
279
305
305
371
371
Weight (kg)
10
11
14
15
17
19
23
25
28
30
34
Torque (Nm) 900*
21
21
33
33
68
68
90
90
135
135
139
Torque (Nm) 1500*
35
35
42
42
120
120
250
250
305
305
390
Forged 2 Piece 150~1500LB
65NB~100NB Refer to drawing. 2500LB (up to 40NB) Refer to drawing. Also see BVF100-F26 (Special Service Ball Valves) for floating to 150NB 900/1500lb. Also see model BV100 3 piece.
2 Piece 600 Class Cast
14

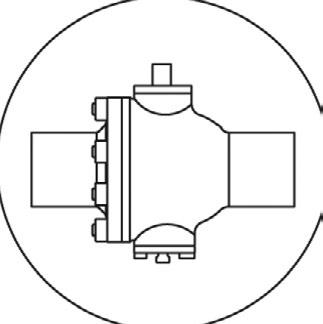

Welding End: PE / BW / SW
AU S T R A L I A N P I P E L I N E VA LV E
SLFSBV01 BALL VALVES
SLFSBV01 SERIES FLOATING TYPE BALL VALVES 2 PIECE, SPLIT BODY, FULL BORE, ANSI 150 TO 1500LB
ANSI B16.10
Flange Dimensions
ANSI B16.5
12
Wall Thickness
10 9
Basic Design
8
26
23
C
Materials
1
End Cap
ASTM A351 CF3
2
Body
ASTM A351 CF3
3
Ball
ASTM A351 CF3
4
Seats (Energised)
TFM 1600
5
Stem (1)
ASTM A182 304L
6
Anti Static Ball & Spring
AISI 304L
7
Thrust Washer/Seal ’L’
TFM 1600
8
Packing V-type (2)
TFM (PTFE)
6 5 Ød
Part Name
4 B
3
D A
2
9
Bushing
ASTM A276 304L
10
Gland
ASTM A276 304L
11
Belleville Washer Set
AISI 301
12
Stem Nut
ASTM A194-8
13
Locking Cap
AISI 304
15
Handle Adaptor
ASTM A351 CF83
16
Set Screw
A2-70 SS
17
Allen Key Screw
A2-70 SS
18
Pipe Handle
A53+Zinc Plated
19
Handle Sleeve
ASTM A194 2H
21
Body Gasket
304L SW GRP+PTFE Filled
22
Bolts
ASTM A193 B8
23
Nuts
ASTM A194 8
24
Stop Bolt
A2-70 SS
25
Stop Nut
A2-70 SS
26
Stop & Lock Plate
AISI 304S
27
Circlip
AISI 304S
1 T
N-øh
Detail B
A-A

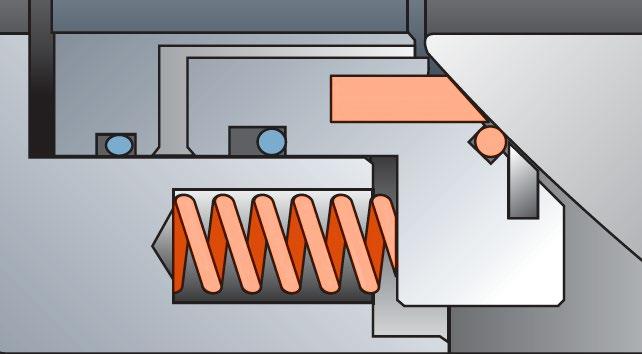

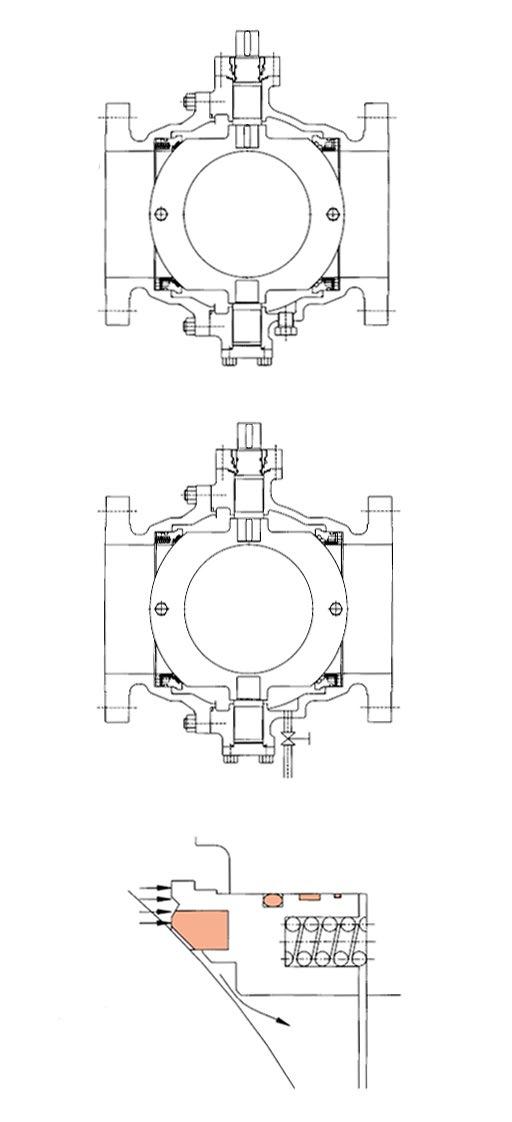

Live Flexible Lip Seat Design
Inside Flange
24 25
8
End Cap Body Gasket Body
Detail D Gasket Lock Device
f
L
ØB
P (Stem Ø)
H
A
7
No.
F
22
21
API 598
4-A
27
ØR
Testing
11
H1
Face to Face
9
ØD
Standards
18
ØC
* 250NB (10”) & 300NB (12”)150LB avaliable in floating and trunnion
W 15 17 16
13
A
ASTM A351 - CF8M & CF8 AND ASTM A216 - WCB NACE MR0175 (CLASS III BOLTING) FOR SOUR SERVICE ISO 5211 TOP flange for Actuation • API 6D & API 608 • AGA approved for AS 4617, AS 4629.1 & AS 4629.2 • 250NB (10”) & over trunnion mounted * • Full bore solid ball • Investment Cast or Forged • Split Body 2 piece design • Anti Blow-Out Stem • Anti-Static Device • Firesafe Design to API 607 and API 6FA • Temperature Range -25°C to 230°C • Also available in metal seats and PEEK seats • Also available in Monel, Duplex, Alloy 20 etc.
(Encapsulated)
2 7 5
Detail C
Elastomer Free Stem Design
Mount Pad
AU S T R A L I A N P I P E L I N E VA LV E
15
SLFSBV01 SERIES
SLFSBV01 SERIES DESIGN Pressure Ratings with Reinforced - PTFE
WCB-300LB CF8M-300LB CF8-300LB
D WCB-150LB
C
B
A
CF8M-150LB
CF8-150LB
* Bolted gland disc direct mount pad (side access version) shown, gland nut extra, see below.
A. Valve size 15A (1/2”) to 25A (1”) B. Valve size 40A (1-1/2”) to 65A (2-1/2”) C. Valve size 80A (3”) to 100A (4”) D. Valve size 125A (5”) to 250A (10”) Carbon PTFE & PEEK will do higher temperatures
ADJUSTABLE PRELOADED GLAND*
Ensures even packing adjustment without need for continuous adjustment. (*Gland nut design shown available all sizes)
MULTI-STAGE PACKING
PTFE or ELASTOMER STEM SEAL
Fugitive emission prototype certified (when FE grade packing fitted). Stem sealant injection is not required. Can also be specified elastomer free for a wider range of service and temperature conditions.
ANTI-STATIC STEM DEVICE
Cavity relief hole in ball stem slot.
PTFE THRUST SEAL
BODY SEALS
Can be specified Elastomer free, Graphite outer, PTFE inner (with secondary metal to metal overlap). Larger sizes and higher pressures are always dual seals or spiral wound + graphite or PTFE filled.

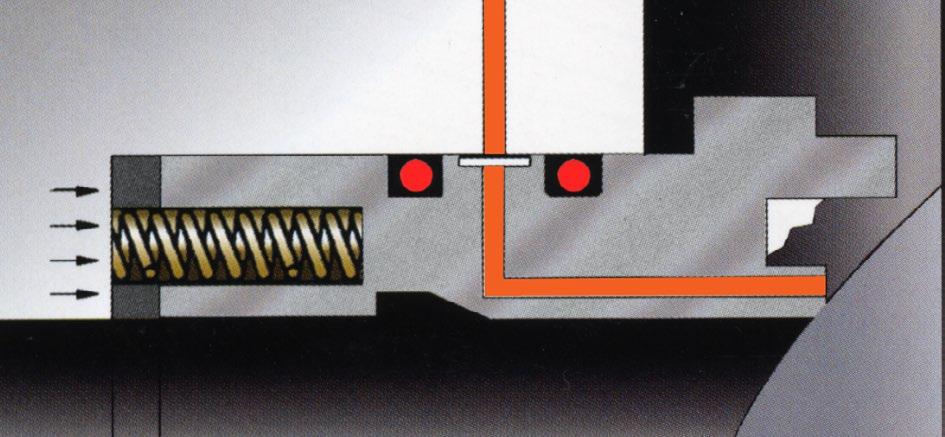

LARGE SURFACE AREA SEAT RINGS HEEL & TOE ENERGISED SEAT DESIGN Complies to most low emission standards. Seat sealant injection is not required. Low and high pressure zero leakage capability. Can be specified elastomer free for a wider range of service and temperature conditions. Inherently self relieveing capable due to flexible design and radial relieving grooves on sides of seals.
Designed to outlast other valves in a wider range of service conditions.
16
AU S T R A L I A N P I P E L I N E VA LV E
Our valve design can be specified with inert elastomer free seals, providing a wider service and temperature range whilst at the same time specifying extra body and stem seals on larger sizes and higher pressures.
SLFSBV01 SERIES
SLFSBV01 SERIES FIRESAFE DESIGN
FIRESAFE CERTIFIED API 607 5TH, 6TH & 7th EDITION AND API 6FA 3RD EDITION
• CONTACT BETWEEN STEM AND VALVE SHELL BEFORE FIRE STEM
AFTER FIRE STEM
PACKING
METAL TO METAL CONTACT
• CONTACT BETWEEN BALL AND VALVE SHELL AFTER FIRE
One of the many requirements of today’s industries is that ball valves must have a metal to metal seal in case the non-metallic seals are destroyed or burned by fire or other means. The design provides assurance to the user handling flammable or hazardous fluids should the non-metallic seals be damaged.
BODY
BODY
BALL
Australian Pipeline Valve ball valves are designed and built to meet stringent specifications for anti-static protection.
FIRE SAFE DESIGN
BACK SEAT
BEFORE FIRE
ANTI-STATIC DESIGN
METAL TO METAL CONTACT
BALL
• VALVE SHELL COUPLING BEFORE FIRE
AFTER FIRE
METAL TO METAL CONTACT
GASKET

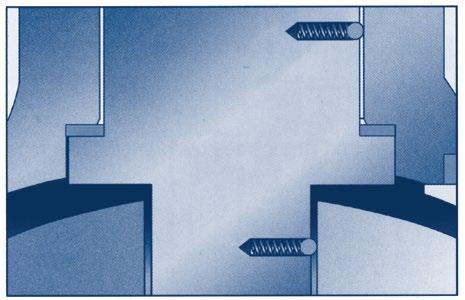

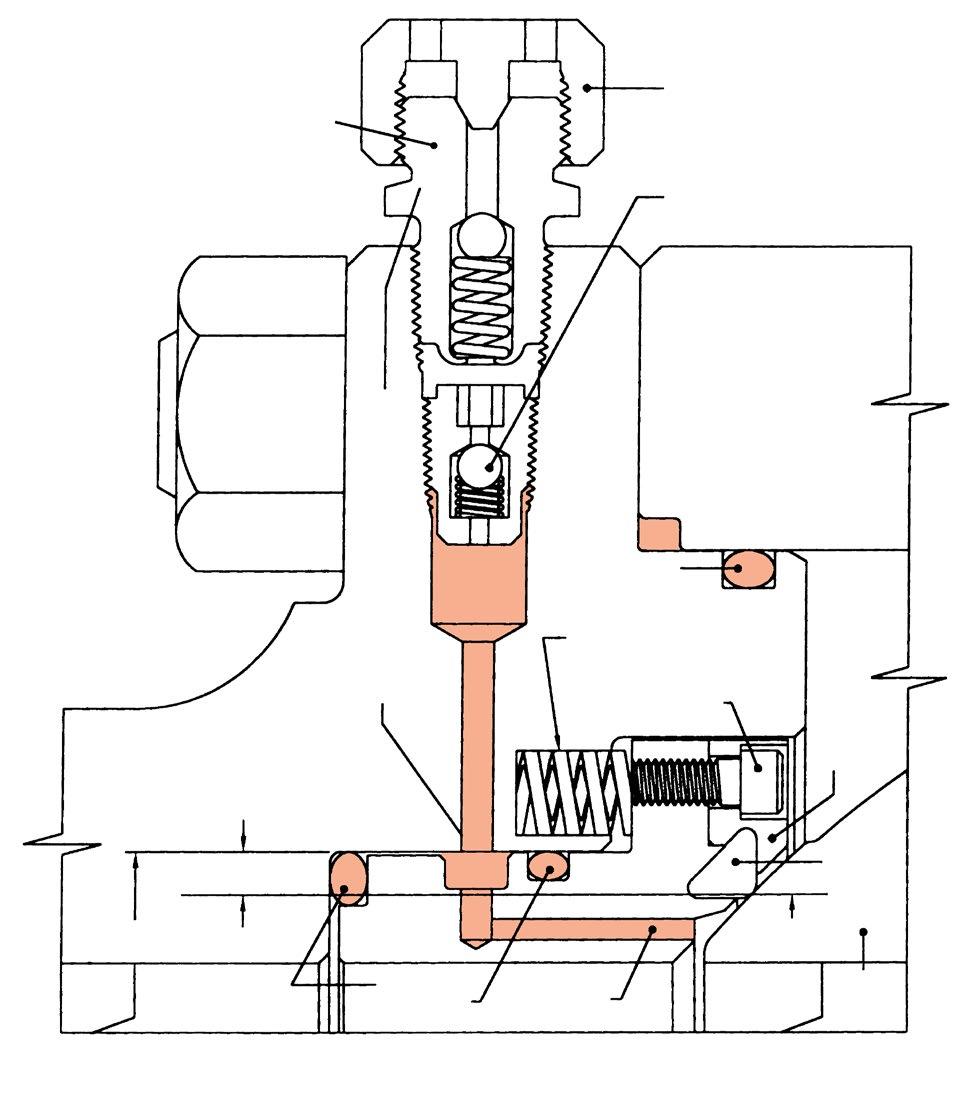

Anti-Static Device Spring loaded pins between the ball, stem and body which prevents static throughout the valve.
Australian Pipeline Valve was one of the first brands in the world to obtain Firesafe certification (DNV witnessed) to the 7th edition of API 607, ISO 10497.

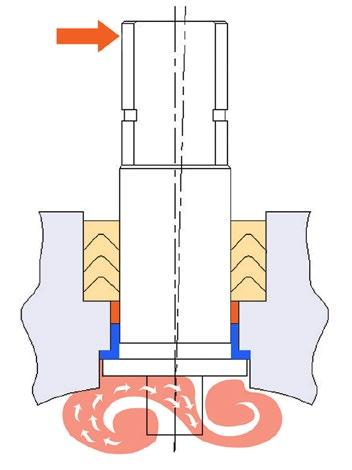

BLOW OUT PROOF STEM Conventional Stem Seal
APV Stem Seal Stem centre
Stem centre
Side loading
Side loading

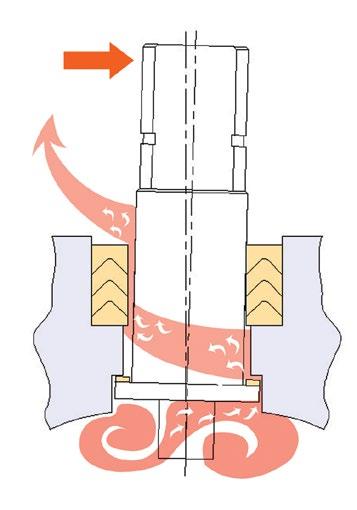

APV Stem Seal For larger sizes, a combination of PTFE stem bearing* and PTFE thrust bearing or O-Ring or 316SS bushing maintains continuous contact under moderate side loading.
PTFE Thrust-bearing/ O-Ring Seal* Gap
Moderate stem loading can create a gap which could cause leakage through packing.
Sealing

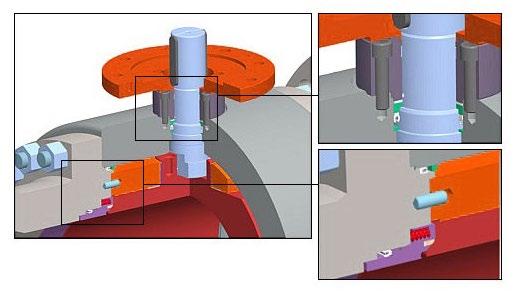

Blow-out proof stem Stem is internally assembled ‘back seated’ to eliminate possibility of blowout. * Depending on size/class one O-Ring is fitted in lieu of a PTFE bearing. For stainless steel body no O-Ring design is an option, (more packing in lieu) due to chemical & temperature limitations of elastomer.
AU S T R A L I A N P I P E L I N E VA LV E
17
SLFSBV01-DBB SERIES
SLFSBV01-DBB DOUBLE BLOCK & BLEED FLOATING TYPE BALL VALVES 2 PIECE, SPLIT BODY, FULL BORE, ANSI 150 TO 1500LB ASTM A351 - CF8M & CF8 AND ASTM A216 - WCB NACE MR0175 (CLASS III BOLTING) FOR SOUR SERVICE ISO 5211 TOP flange for Actuation (most sizes) • API 6D & API 608 • 10” & over trunnion mounted * • Full bore solid ball • Split Body 2 piece design • Anti Blow-Out Stem • Anti-Static Device • Firesafe Design to API 607 and API 6FA • Temperature Range -29°C to 230°C • Sealant injection facility & body drain available on request • Also available in metal seats and PEEK seats • Also available in Monel, Duplex, Alloy20 etc.
ISO 15848-1 Class CO2 Fugitive Emission Certified
API 607 6th Ed. & ISO 10497 Firesafe Certified
* 10” 150 avaliable in floating and trunnion No. Part Name
Stainless Steel CF8M Carbon Steel
Stainless Steel CF8
1
Body *4
ASTM A351 Gr. CF8M
ASTM A216 Gr. WCB
ASTM A351 Gr. CF8
2
Nut *3
ASTM A194 Gr. 8
ASTM A94 Gr. 2H
ASTM A194 Gr. 8
3
Bolt *3
ASTM A193 Gr. B8
ASTM A193 Gr. B7
ASTM A193 Gr. B8
4
Cap *4
ASTM A351 Gr. CF8M
ASTM A216 Gr. WCB
ASTM A351 Gr. CF8
5
Body Gasket
PTFE
Graphoil / Spiral
PTFE
6
Ball
ASTM A351 Gr. CF8M
ASTM A216 Gr. CF8
ASTM A351 Gr. CF8
7
Seat *1
Reinforced TFE + Viton
Reinforced TFE + Viton
Reinforced TFE + Viton
(Carbon or Glass) (Carbon or Glass)
(Carbon or Glass)
8
Thrust Washer
PTFE
PTFE
PTFE
9
Stem
ASTM A276 Gr. 316
ASTM A276 Gr. 304
ASTM A276 Gr. 304
10
Packing
PTFE or Graphoil
Graphoil
PTFE or Graphoil
11
Bearing
PTFE
PTFE
PTFE
12
Gland
ASTM A351 Gr. CF8
ASTM A351 Gr. CF8
ASTM A351 Gr. CF8
13
Stopper *5
ASTM A276 Gr. 304
ASTM A276 Gr. 304
ASTM A276 Gr. 304
14
Handle *2
ASTM A536 Gr. FCD45
ASTM A536 Gr. FCD45 ASTM A536 Gr. FCD45
15
15
Snap Ring
ASTM A276 Gr. 304
ASTM A276 Gr. 304
ASTM A276 Gr. 304
14
16
Gland Nut *6
ASTM A194 Gr. 8
ASTM A194 2H
ASTM A194 Gr. 8
13
17
Gland Bolt *6
ASTM A193 Gr. B8
ASTM A193 B7
ASTM Gr. B8
12
18
Energising O-Ring Viton/HNBR/EPDM
Viton/HNBR
Viton/HNBR/EPDM
11
16
10
17
*1 *2 *3 *4 *5 *6
Also available in “PEEK” or CPTFE for high temperature Gear operator: 250NB 300# & over; 300 NB 150# & over NACE class 1 or II on request Also available in Forged Locking Device Optional Gland Nut can be yoke type as shown and unibolt and belleville spring depending on size/class
DBB Ball Valves are suited for services requiring double block and bleed.
(Pole Lever) E
9
7 6
Face to Face
ANSI B16.10
4
Flange Dimensions
ANSI B16.5
3
Wall Thickness
ANSI B16.34
2
Basic Design
API 608/API 6D
1
Testing
API 598
Firesafe Design
API 607
Test Pressure
Shell
Seat
Air
80 PSIG
80 PSIG
Hydrostatic 150#
425 PSIG
325 PSIG
Hydrostatic 300#
1125 PSIG
825 PSIG
Hydrostatic 600#
2225 PSIG
1650 PSIG
Hydrostatic 900#
3350 PSIG
2450 PSIG
Hydrostatic 1500#
5575 PSIG
4100 PSIG
AU S T R A L I A N P I P E L I N E VA LV E
A
18
8
K
A
5
Standards
18
Direct Mount Pad Version Shown
ØM-N L
OG
T
14
2
13
3 16
17
SLFSBV01-DBB SERIES
SLFSBV01-DBB SERIES BODY GASKET
Gasket is designed so that the outer circumference of the gasket is in metal to metal contact with the valve body flange.
BODY SEAT
The seat is carefully designed for perfect sealing at low and high pressure ranges, as well as for minimised operating torque. If the seat ring is burnt, the ball is pressed against the metal body by fluid pressure, effecting a seal. For double block & bleed service the seat is energised against the ball to allow double block & bleed. The energised seat will ensure the first seat seals against the ball in both directions, at low & high pressure.
6
1
7 19
21
Gasket
Body Gasket
Energised Seat
21
PTFE Seat
18
Optional BCR Style Energised Seat
18 O-Ring
Body Seat
DIMENSIONS ANSI-150LB Size (in) Size (mm) A L K D E Weight (kg) Torque (Nm) breakaway
CV
1/2” 15 15 108 89 90 160 2 13 10
3/4” 20 20 117 98 90 175 3 23 20
1” 1-1/4” 1-1/2” 25 32 40 25 32 38 127 140 165 108 117 127 110 110 130 175 175 230 3 4 7 40 49 61 50 130 160
2” 2-1/2” 3” 50 65 80 50 64 78 178 190 203 152 178 190 140 155 175 230 340 340 9 16 19 81 108 162 330 450 600
4” 5” 6” 8” 100 125 150 200 98 123 150 200 230 356 394 457 229 254 279 343 180 230 260 290 340 380 510 720 33 50 65 120 312 542*2 759*2 1353 1200 2700 3300 9000
Packings Washer Gasket
Stem
Blowout Proof Stem
Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 20% factor is included, but torques assume clean wet fluids like water/oil.
DIMENSIONS ANSI-150LB Size (in) Size (mm) A L K D E Weight (kg) Torque (Nm) breakaway
CV
10” 250 250 533 406 160 1491 12000
12” 300 302 610 433 430 -
14” 350 352 686 533 -
-
-
-
-
-
-
-
-
-
Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 20% factor is included, but torques assume clean wet fluids like water/oil.
Packings Bearing Washer Gasket
Stem and V Type Packing
DIMENSIONS ANSI-300LB Size (in) Size (mm) A L K D E Weight (kg) Torque (Nm) breakaway
CV
1” 1-1/2” 15 20 25 38 165 190 125 156 94 115 160 230 5 10 40 80 50 160
2” 2-1/2” 3” 25 32 40 50 64 78 216 241 283 165 191 210 120 155 162 230 340 400 16 22 31 103 188 244 330 450 600
4” 50 98 305 254 191 750 52 379 1200
6” 65 150 403 318 290 1000 105 921 3300
8” 80 200 502 381 340 1500 170 1625 9000
10” 100 250 568 445 420 2901 -
12” 125 300 648 520 470 4338 -
Stem Stem Collar Body -
-
Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 20% factor is included, but torques assume clean wet fluids like water/oil.
AU S T R A L I A N P I P E L I N E VA LV E
Antistatic Devices
Ball
Anti-Static
19
SLFSBV02 SERIES
SLFSBV02 SERIES FLOATING TYPE API 608/6D BALL VALVES 1 PIECE, UNI BODY, REDUCED BORE, ANSI 150 TO 600LB ASTM A351 - CF8M & CF8 AND ASTM A216 - WCB NACE MR0175 FOR SOUR SERVICE ISO 5211 TOP flange for Actuation (optional) • API 6D & API 608 • AGA approved for AS 4617, AS 4629.1 & AS 4629.2 • Reduced bore*, solid ball • Investment Cast or Forged • Uni Body 1 piece design • Anti Blow-Out Stem • Anti-Static Device • Firesafe Design to API 607 and ISO 10497 • Temperature Range -25°C to 230°C • Also available in metal seats and PEEK seats • Also available in Monel, Duplex, Alloy 20 etc.
API 607 6th & 7th Ed. & ISO 10497 Firesafe Certified
ISO 15848-1 Class CO2 Fugitive Emission Certified
*Full bore available up to 25NB (1”) No. Part Name
Stainless Steel CF8M Carbon Steel
Stainless Steel CF8
1
Body (4)
ASTM A351 Gr. CF8M
ASTM A216 Gr. WCB
ASTM A351 Gr. CF8
2
Gland Yoke (7)
ASTM A351 Gr. CF8M
A216 Gr. WCB
ASTM A351 Gr. CF8
ASTM A194 2H
ASTM A194 Gr. 8
AISI 304
AISI 304
2A Gland Nut/Bolt (7) ASTM A194 Gr. 8 2B
Gland Retainer (7) AISI 316
2C Gland Bolt (7)
ASTM A193 Gr. B8
ASTM A193 B7
ASTM Gr. B8
3
AISI 316
AISI 304
A2 Stainless
3A Snap Ring (3)
ASTM A276 Gr. 304
ASTM A276 Gr. 304
ASTM A276 Gr. 304
2A
4
Cap (4)
ASTM A351 Gr. CF8M
ASTM A216 Gr. WCB
ASTM A351 Gr. CF8
16
5
Body Gasket
PTFE
Graphoil / Spiral
PTFE
5A Body Seal (6)
Graphite
Graphite
Graphite
6
Ball
ASTM A351 Gr. CF8M
ASTM A216 Gr. CF8
ASTM A351 Gr. CF8 Reinforced TFE
Screw
Seat (1)
Reinforced TFE
Reinforced TFE
(Carbon or Glass)
(Carbon or Glass)
(Carbon or Glass)
8
Thrust Washer
PTFE
PTFE
PTFE
7
9
Stem (8)
ASTM A276 Gr. 316
ASTM A276 Gr. 304
ASTM A276 Gr. 304
10
Packing (9) (10)
PTFE or Graphoil (10)
Graphoil (10)
PTFE or Graphoil (10)
11
Bearing
PTFE
PTFE
PTFE
12
Stopper (5)
ASTM A276 Gr. 304
ASTM A276 Gr. 304
ASTM A276 Gr. 304
13
Handle (2)
ASTM A536 Gr. FCD45
ASTM A536 Gr. FCD45 ASTM A536 Gr. FCD45
14
Anti Static Device
Stainless Steel
Stainless Steel
Stainless Steel
15
O-Ring (3)
Viton/PTFE
Viton
Viton/PTFE
16
Belleville Washer
AISI 304
AISI 311
AISI 304
17
Stop Device
AISI 304
Carbon Steel ZP
AISI 304
(1) Also available in “PEEK” or CPTFE for high temperature (2) Gear operator: ≥200NB 300# and ≥250NB 150# (3) Design depends on size & class (4) Also available in Forged (5) Locking device optional (6) Or PTFE if non firesafe (7) Gland (2) can be uni-nut (2A) as shown or yoke type depending on size and class (8) Stem smoothness Ra 0.2 ~ 0.6 µm (superior to API requirements) (9) Stuffing box smoothness ≤Ra 1.6 µm (superior to API requirements) (10) Chesterton 1622 FE packing
20
13 17
11
12
2B 10 9
15
11
14
8
4
5A
5
6
ANSI B16.10 ANSI B16.5 ANSI B16.34 API 608/API 6D API 598 API 607 Shell 80 PSIG 425 PSIG 1125 PSIG 2225 PSIG 3350 PSIG 5575 PSIG
1
(50NB ~ 150NB)
ADJUSTABLE PRELOADED GLAND
ELASTOMER PRIMARY STEM SEAL
Seat 80 PSIG 325 PSIG 825 PSIG 1650 PSIG 2450 PSIG 4100 PSIG
7
Uni-Nut Yoke Version
Ensures even packing adjustment without need for continuous adjustment.
Standards Face to Face Flange Dimensions Wall Thickness Basic Design Testing Firesafe Design Test Pressure Air Hydrostatic 150# Hydrostatic 300# Hydrostatic 600# Hydrostatic 900# Hydrostatic 1500#
3
PTFE THRUST SEAL
AU S T R A L I A N P I P E L I N E VA LV E
BELLEVILLE/SPRING WASHERS MULTI-STAGE PACKING
Stem sealant injection is not required. Can also be specified elastomer free for a wider range of service and temperature conditions.
ANTI-STATIC STEM DEVICE
SLFSBV02 SERIES
SLFSBV02 SERIES BODY GASKET
Gasket is behind a threaded metal to metal end closure. The SLFSBV02 can be supplied elastomer free for chemical or higher temperature applications.
BODY SEAT
The seat is carefully designed for perfect sealing at low and high pressure ranges, as well as for minimised operating torque. If the seat ring is burnt, the ball is pressed against the metal body by fluid pressure, effecting a seal. E
D
P
A
K
Live Semi Flexible Lip and Heal Design Seat with Large Contact Face
Body Seat X
Y
L
Packings
DIMENSIONS ANSI-150LB Size (in)
1/2” 3/4”
1”
1-1/2” 2”
3”
4”
6”
8”
10”
12”
14”
16”
Size (mm)
15
20
25
40
A
15
20
25
38
50
80
100
150
200
250
300
350
400
50
78
98
148
200
250
300
350
P
9.5*
15*
20*
400
32
40
58
80
111
144
187
241
267
L
108
117
305
127
165
178
203
230
267
292
330
356
381
K
89
406
98
108
127
152
190
229
279
343
405
433
535
597 -
D
90
80
100
117
134
149
189
227
264
307
-
-
E
160
160
160
210
210
340
380
490
690
690
-
-
-
Weight (kg)
1.6
2
2.7
5.1
7.9
14
25
43
77
114
230
270
390
Torque (Nm) breakaway
6
9
10
21
25
40
90
180
250
600
-
-
-
Kv m3/h
7
10
26
107
140
300
600
1000 2000 4100
-
-
-
Washer
Stem
Blowout Proof Stem
Packings Bearing Washer
* Also available in full bore up to 25NB (1”). 250NB ~ 400NB Refer to Drawing. Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 20% factor is included, but torques assume clean wet fluids like water/oil.
DIMENSIONS ANSI-300LB Size (in)
1/2” 3/4”
1” 1-1/2” 2”
3”
4”
6”
8”
10”
12”
14”
16”
Size (mm)
15
25
50
80
100
180
200
250
300
350
400
20
40
A
12
19
25
38
50
78
98
150
200
250
300
350
400
P
9.5*
15*
20*
32
40
58
80
111
144
187
241
267
305
L
140
152
165
190
216
283
305
403
419
457
502
762
838
K
95
115
125
156
165
210
254
318
381
445
520
585
650
D
81
94
98
115
130
149
180
227
260
-
-
-
-
E
160
160
160
210
213
348
445
497
698
-
-
-
-
Weight (kg)
1.6
2.1
4
8
10
21
28
70
110
295
402
420
490
Torque (Nm) breakaway
10
12
16
30
35
60
150
280
420
-
-
-
-
Kv m3/h
7
10
26
107
140
300
600
1000 2000
-
-
-
-
* Also available in full bore up to 25NB (1”) Torque is maximum breakaway at maximum differential (running torque is approx 1/3 of breakaway). A 20% factor is included, but torques assume clean wet fluids like water/oil. 15NB ~ 150NB 600LB Refer to Drawing. 250NB ~ 400NB 300LB Refer to Drawing.
AU S T R A L I A N P I P E L I N E VA LV E
Stem Packing Stem Stem Collar Body Antistatic Devices
Ball
Anti-Static
21
SLFSBV02 SERIES
SLFSBV02 SERIES FIRESAFE FEATURES FIRESAFE CERTIFIED API 607 6TH EDITION AND IS0 10497
ANTI-STATIC DESIGN • CONTACT BETWEEN STEM AND VALVE SHELL BEFORE FIRE STEM
AFTER FIRE STEM
PACKING
FIRE SAFE DESIGN METAL TO METAL CONTACT
BACK SEAT
• CONTACT BETWEEN BALL AND VALVE SHELL BEFORE FIRE
AFTER FIRE
BODY
BODY
BALL
Australian Pipeline Valve ball valves are designed and built to meet stringent specifications for anti-static protection.
METAL TO METAL CONTACT
BALL
One of the many requirements of today’s industries is that ball valves must have a metal to metal seal in case the non-metallic seals are destroyed or burned by fire or other means. The design provides assurance to the user handling flammable or hazardous fluids should the non-metallic seals be damaged. APV ball valves are certified to meet or exceed the requirement of API 607 6th and 7th edition and ISO 10497. Pressure Ratings with Reinforced - PTFE
WCB-300LB
Blow Out Proof Stem
CF8M-300LB CF8-300LB
Internally inserted, “back seated” blow out proof stem assures fire safety and blow out prevention by retaining stem in the valve at all pressures.
D
C
B
A
WCB-150LB CF8M-150LB
Anti-Static Device
CF8-150LB
Spring loaded pins between the ball, stem and body which prevents static throughout the valve.
Australian Pipeline Valve was one of the first brands in the world to hold Firesafe certification (DNV witnessed) to the 6th & 7th edition of API 607 as well as ISO 10497.
Vent Hole
Ball port
22
Safety (Vent) Hole Pressure balanced design. Relieves the pressure differential between the body cavity and the ball port to prevent buildup of trapped pressure and to prolong the life of the stem packing/seals. (80NB & above)
A. B. C. D.
Valve size 15A (1/2”) to 32A (1/4”) Valve size 50A (2”) to 80A (3”) Valve size 100A (4”) to 125A (5”) Valve size 150A (6”) to 250A (10”)
Carbon PTFE will do higher temperatures
Seat design. Low and high pressure zero leakage capability. Large contact face. Flexible design and radial grooves on sides of seats ensure upstream pressure balances cavity pressure.
AU S T R A L I A N P I P E L I N E VA LV E
SLFSBV01/BV02 SERIES
SLFSBV01/BV02 SERIES PART NUMBER SYSTEM
S
L
F
S
B
V
0
1
-
A
B
1
A
H
A
A
B
A
1
S Y
2
3
4
5
6
7
8
9
10
11
12
1
Model
4
Body & Bore Type
7
Body Material
9
Stem Packing
SLFSBV01 (Firesafe) SLBV01 (Non Firesafe) SLFSBV02 (Firesafe) SLBV02 (Non Firesafe) SLFSBV01-DBB (Firesafe) -V suffix (V-Port)
1
Full bore 2 piece
A
WCB
2
Full bore 3 piece
B
CF8
3
Full bore welded body
C
CF8M
Reduced bore 2 piece
D
CN7M / A20
A B C Z
PTFE Graphite Graphite + PTFE Special
Reduced bore 3 piece
E
Hastelloy
Reduced bore 1 piece
F
Inconel
G
LCB
10
Bolting
H
CD3MN/F51/4A
A
B7
I
WC9
B
B7M
J
WC6
C
B8
K
WC5
D
B8M
1
2
Pressure Class
A
Class 150
B
Class 300
C
Class 600
D
Class 800
E
Class 900
F
Class 1500
G
Class 2500
K
AS/BS Table E
L
AS/BS Table F
M
AS/BS Table H
Z
Special
4 5 6
5 A
Raised Face
B
Ring Joint
L
LF2
E
Duplex
C
Buttweld
M
304
F
L7
Threaded
N
A105
G
L7M
P
CF3
H
B16
Q
CF3M
N
None
R
316L
Z
Special
S
316
11
Body Gasket
1
Spiral GRP Filled
2
Spiral PTFE Filled
3
Graphite
Trim Code
4
Graphite & Viton
5
PTFE
D E
Socket Weld
F
RF Flanged x B/W
G
Flat Face
Z
Special
6 3
Operation
End Connection
Seat
C
Carbon reinforced PTFE
T
CE3MN / 5A / F53
U
CD3MNCUN / 6A / F55
Y
LCC
Z
Special
A
Bare Stem
D
Devlon
B
Lever Handle
E
PEEK
C
Gear Operator
G
Graphite
A
316 / CF8M
6
Spiral GRP + PTFE Inner
H
Glass Reinforced PTFE
B
304 / CF8
7
Graphite & PTFE Inner
or TF1600 + GF
C
A105 / WCB + ENP (.003”)
Z
Special
N
Nylon
D
LCB / LF2 + ENP (.003”)
12
Optional Suffix
Blank M S V Y Z
Long Pattern Direct Mount Pad Short Pattern Viton Seat Seals NACE Special
Z
Special
8
P
Pure PTFE or TFM1600
E
F51 / CD3MN / 4A
T
Tefzel
F
A20
V
Viton
G
316L / CF3M
X
NBR
H
Monel
Z
Special
J
304L / CF3
*Metal
T
CE3MN / 5A / F53
U
CD3MNCUN / 6A / F55
Z
Special
* For metal seat see separate part number system in the ‘Special Service Ball Valves Catalogue’.
AU S T R A L I A N P I P E L I N E VA LV E
23
BVF100 SERIES

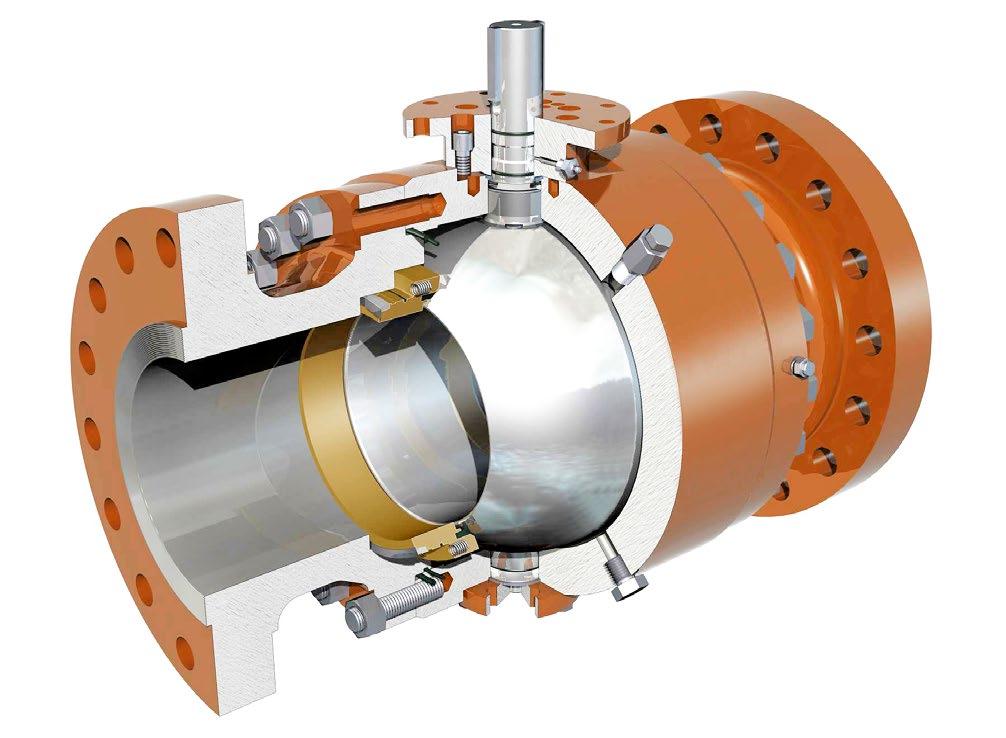

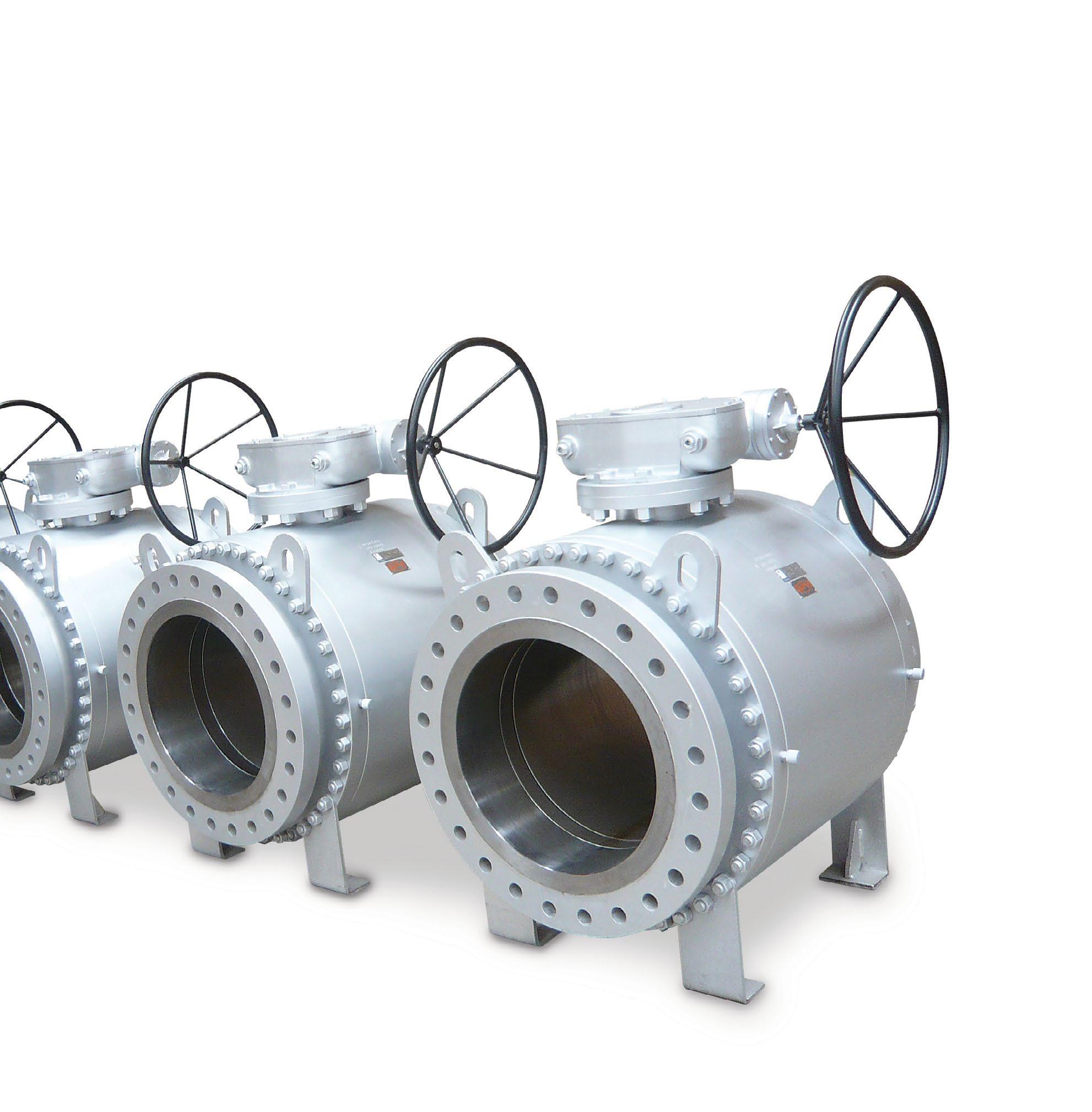

BVF100 SERIES API 6D FORGED 3 PIECE BODY TRUNNION BALL VALVES 1/2” - 36” ANSI CLASS - 150/300/600/900/1500/2500
Endurance Test Certified
API 607 6th & 7th Ed. & ISO 10497 ISO 15848-1 Class CO2 Firesafe Certified Fugitive Emission Certified
Design and construction conforms to API 6D specifications, tested to API 607 & 6D standards. Independent loaded upstream and downstream seats provide a tight shut-off and allow the valves to be used for bi-directional flow. Spring loaded seat design provides low and high pressure sealing and body cavity pressure relief due to self relieving seat design. Suitable for single or double block and bleed applications. BVF100 Series 3 Piece Ball Valves have an emergency seal facility, blow-out proof stem, full through-conduit bore, electroless nickel plated or stainless trim and are anti-static. Stem and gland seals can be replaced in-line for ease of maintenance. Available with locking devices, stem extensions, pipe pups, and actuation. The full range of APV valves can meet NACE standard MR-10-75, latest edition if necessary. APV was one of the first brands in the world to have firesafe certification to API 607 6th and 7th Edition, as well as being Firesafe Certified (DNV witnessed) to API 6FA 3rd Edition & ISO 10497-2010.

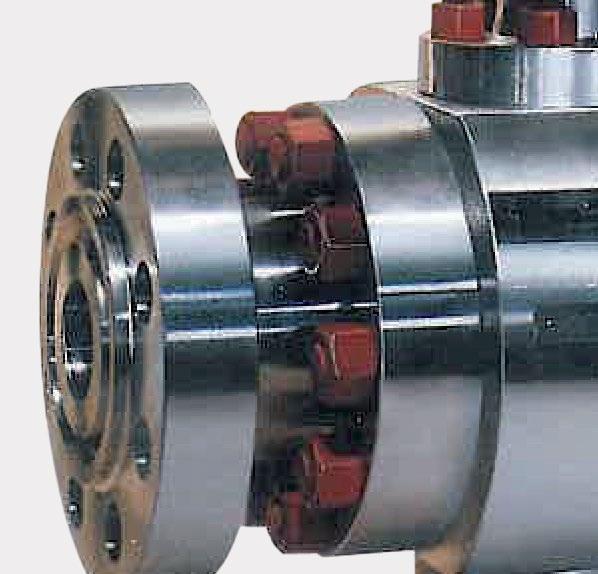

FEATURES • Forged Construction • Rugged Anti-Corrosive Gear Design • Seat Lubrication Facility • Body Bleed and Drain Ports
• Enclosed, Encapsulated Triple Barrier Stem Seals • Blowout Proof Stem Design • Emergency Stem Lubrication Fitting • Self Lubricating PTFE coated Trunnion Bearings
This catalogue is general in it’s nature and the design and materials can change at any time. This catalogue is to be used as a guide only.
This brochure is general in its nature and subject to change without notice.
24
AU S T R A L I A N P I P E L I N E VA LV E
BVF100 SERIES
BVF100 SERIES BALL VALVE DESIGN FEATURES FIRESAFE CERTIFIED API 607 5TH, 6TH & 7TH EDITION AND API 6FA 3RD EDITION
SUPER FIRESAFE DESIGN When non-metal sealing materials are decomposed or deteriorated by a plant fire, the edge of the metal seat retainer preloaded by the seat spring comes into contact with the ball to provide metal to metal shut off of the line fluid to minimise internal leakage through the valve bore. APV ball valves are also antistatic design
ANTI BLOW-OUT STEM
EXTERNAL LEAKAGE PREVENTION Leakage from the valve stem area is prevented by double sealing with 2 O-rings and a graphite gland gasket. Leakage through the valve body joint is also prevented by double sealing with elastomer O-ring and graphite body gasket. After a fire has deteriorated the O-rings, the graphite gland gasket, body gasket and stem seals are the measure that prevents external fluid leakage.
The stem is separate from the ball. The lower end of the stem is designed with an integral collar to be blowout-proof.
ANTI-STATIC DEVICE Antistatic device is a standard feature of APV ball valve. A spring-loaded pin assures the electrical continuity, between ball, stem and body, so as to avoid sparks during turning of the stem to open and close the valve, which could be dangerous in case of hazardous area installation.
INTERNAL LEAKAGE PREVENTION When non-metal materials such as O-ring, seat insert and spacer are decomposed or deteriorated by fire, the edge of the metal seat preloaded by the seat spring comes into contact with the Ball to shut off the line fluid to minimise internal leakage through the valve bore. Also the fire safe flexible graphite seat area packing will be compressed by the seat spring to prevent fluid leakage between the valve body and the seat.
Before Fire

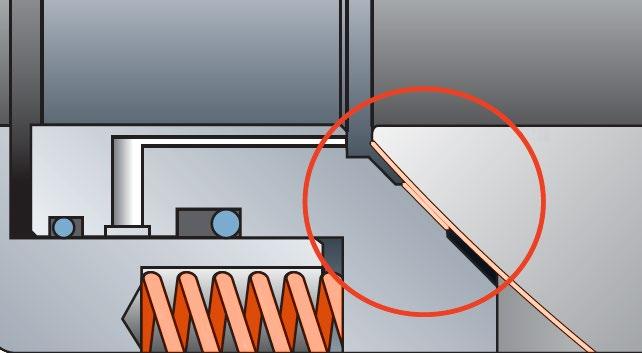

After Fire Metal-metal contact
This brochure is general in its nature and subject to change without notice.
AU S T R A L I A N P I P E L I N E VA LV E
25
BVF100 SERIES

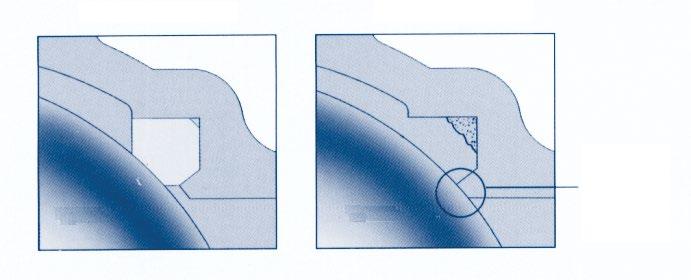

BVF100 SERIES BALL VALVE DESIGN FEATURES - SEATING TYPES APV CONVENTIONAL SOFT SEAT INSERT APV seat inserts can be ordered in a variety of materials whilst still complying to API seat test requirements for “bubble-tight shut off” for oil & gas applications as well as specialised fluid transmission applications in chemical and mining sectors.
APV CONVENTIONAL SOFT SEAT INSERT + SCRAPER The A-PMSS+S® design is the same as the A-PMSS® above except for the addition of a scraper. On conventional trunnion ball valve seating systems, APV offers the PR-A-PMSS+S® seat design option (8” and above). A protective scraper ring is inserted in front of the soft seat insert to remove solid particles, dirt or debris that could damage or clog the contact area between ball and soft seat insert ring. This feature assures that the working area of the seat will be clean allowing the seats to work effectively. This design prolongs seat life whilst only minimally increasing cost & is particuarly advantageous for valves that cannot be removed from the line for repair such as buttweld valves, welded body valves, buried service valves as well as known non clean service applications.
Conventional Seat
A-PMSS+S®
APV COMPOSITE SEAL SEAT SYSTEM APV Double or Triple seal seat design is ideal for applications that require redundant sealing when start up conditions are known to have debris in the line and where removing the valve is not possible. This design offers lower torque and superior low pressure shut-off whilst providing zero leakage reliability at an affordable price compared to metal seated. Multiple material types are employed for each seal providing a combination of resilient and superhard properties to deal with a wide range of entrained particulates and debris. Even if one or even two of the seals are damaged an effective seal can usually be maintained.
A-TRS®
APV METAL TO METAL SEATS APV has extensive experience in the supply of valves for applications such as high temperature corrosive and/or erosive/abrasive environments. Various hard face material can be employed on the ball and seat face. Refer to the APV Special Service Ball Valve Catalogue.
26
Metal to Metal
AU S T R A L I A N P I P E L I N E VA LV E
BVF100 SERIES
BVF100 SERIES BALL VALVE DESIGN FEATURES - SEAT & STEM SEALING SEAT DESIGN APV piston-action seats are floating type & allow the automatic relief of excess pressure from the body to the pipeline. The helical seat springs that provide a uniform initial low pressure seat sealing load against the ball are fully enclosed in individual housings. Independent floating spring loaded seats are always in contact with ball to provide an effective tight seal even at low differential pressures. Independent upstream & downstream seats permit draining of fluid from the body cavity, allowing double block & bleed operation. With the single sealing feature, when the valve is closed there is an automatic body cavity release of over pressure to the line through the downstream seat. The pre-tightened seat springs are preset to automatically relieve excess cavity pressure caused by thermal expansion down stream once pressure exceeds the API 6D (6.8) maximum (1.33 times the valve pressure rating at 38°C at the time of publishing this catalogue)
SAFETY CAP
SEALANT INJECTION FITTING
CHECK VALVE
BALL
BODY-END O-RING SEAT SPRING
SEAT RETAINER RING
SECONDARY SEAL CHANNEL
BODY
HOLDING SCREWS
END SEAT INSERT
HEIGHT OF THE DIFFERENTIAL AREA
A combination of double sealing features on the downstream side and single sealing on the upstream seat is available on request. This configuration maintains the sealing capacity of the valve in case of failure of the up stream seat and release of the body cavity over pressure through the up stream seat.
D2
D1 SEAT O-RINGS
SEALANT GROOVE
BALL

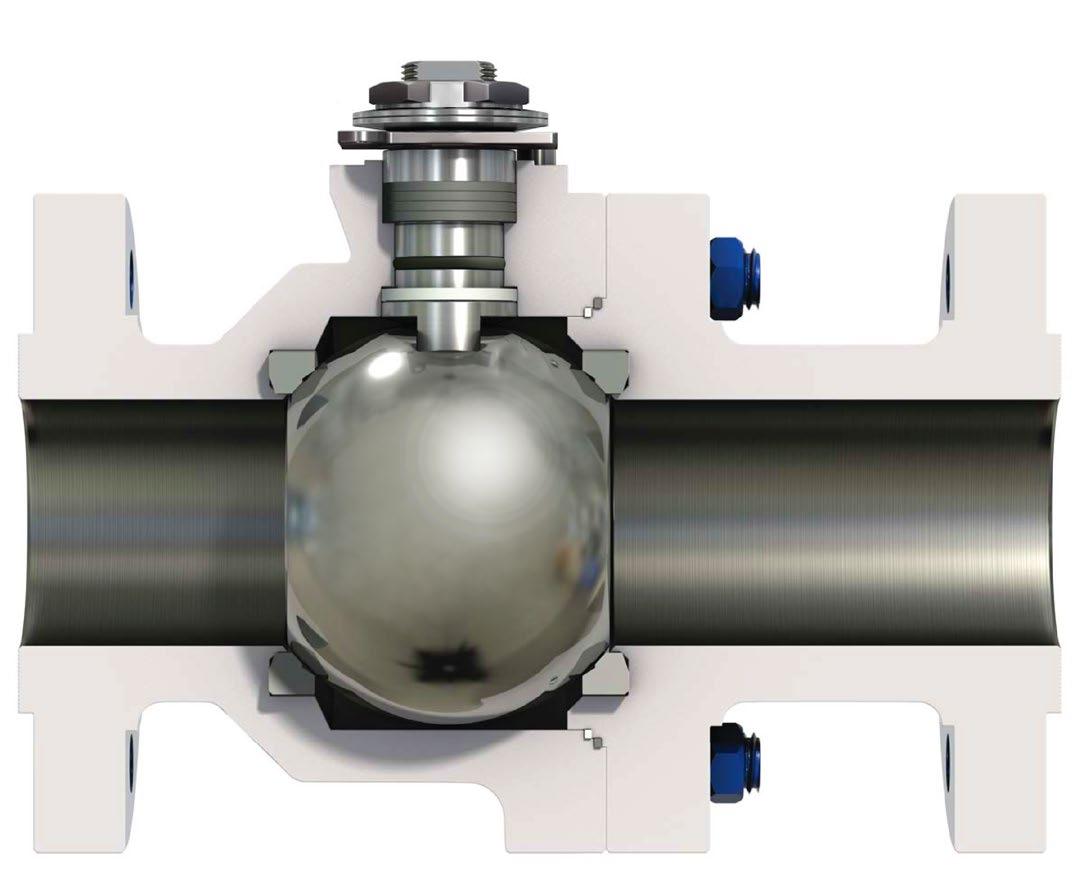

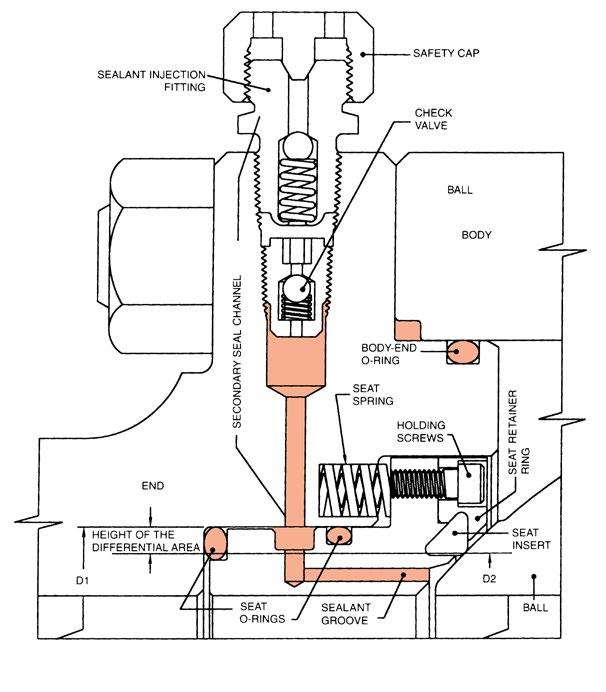

Cross-Section Seat Sealant Injection System (design varies according to size and class)

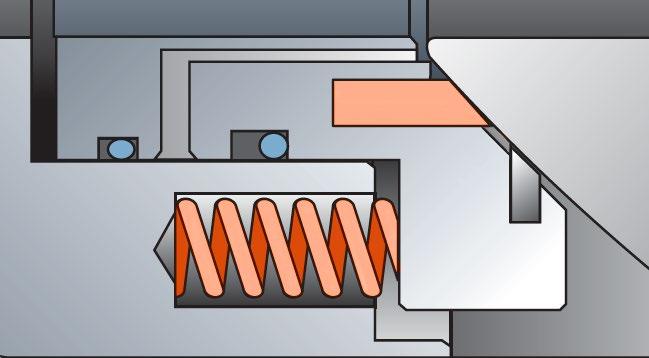

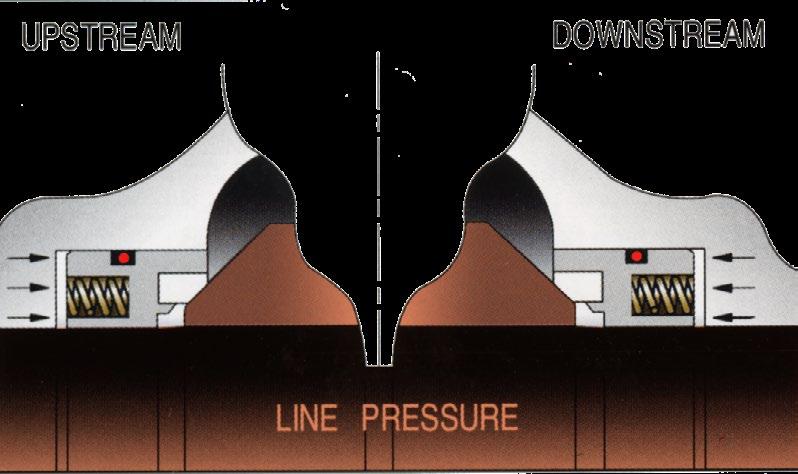

PISTON-ACTION SEATS As line pressure increases the seat reacts to the force of the pressure to form an effective seal. In the absence of line pressure, coil springs around the seat unit provide a tight seal by keeping the seat in contact with the ball.

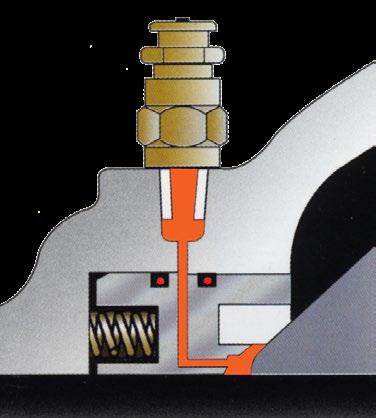

SEALANT INJECTION APV ball valves ordinarily require no lubrication. Configuration shows a secondary temporary sealing mechanism to inject sealant directly to the seats in case the seats are ever damaged by foreign matters or in event of an accident.

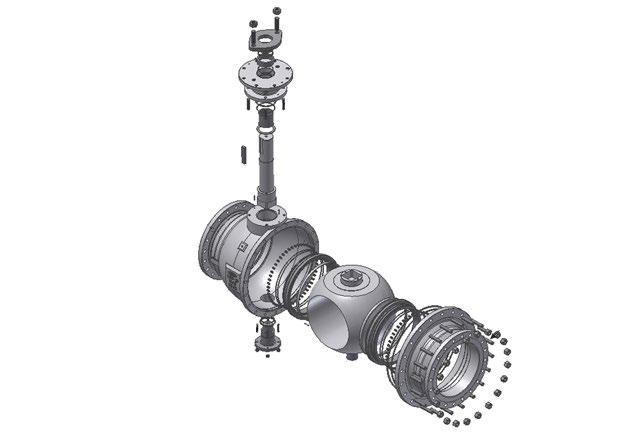

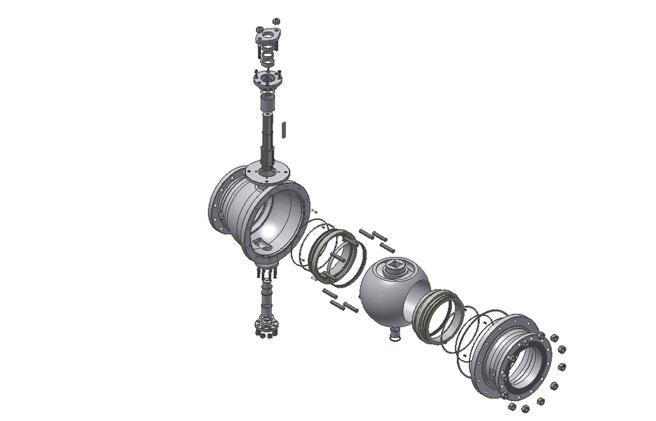

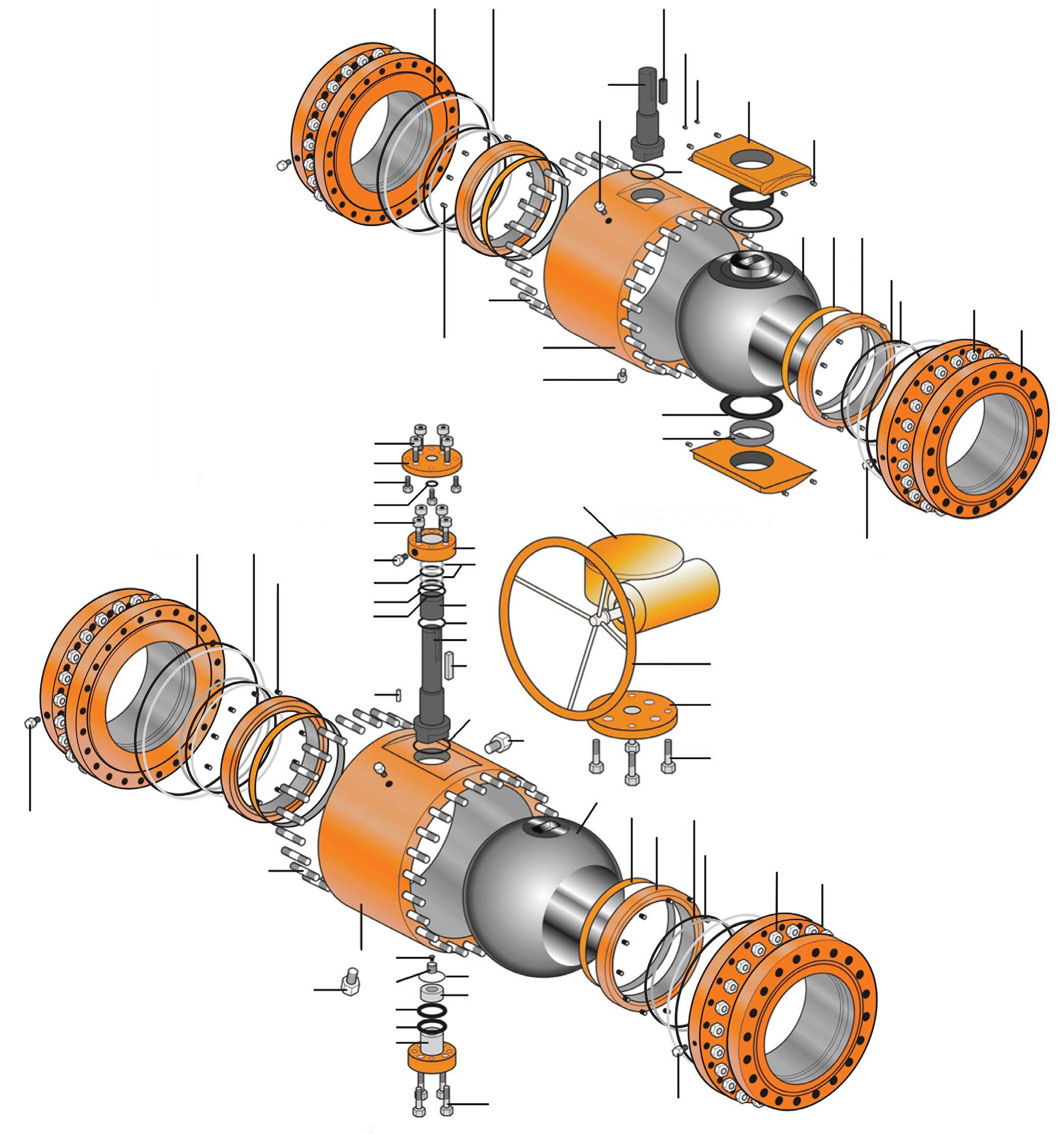

Exploded View Stem Sealing and Sealant Injection

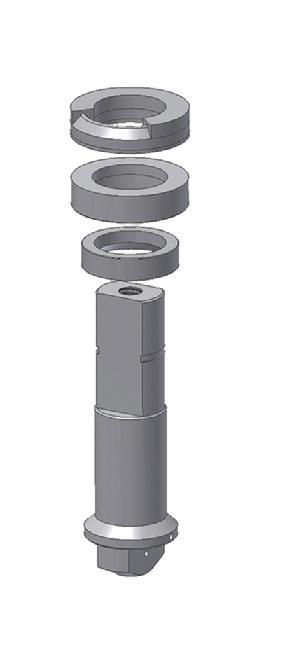

Exploded View Seat & Upper Stem
AU S T R A L I A N P I P E L I N E VA LV E
27
BVF100 SERIES
BVF100 SERIES BALL VALVE DESIGN FEATURES SEAT & STEM SEALING PISTON-ACTION SEATS As line pressure increases the seat reacts to the force of the pressure to form an effective seal. In the absence of line pressure, coil springs behind the seat provide a tight seal by keeping the seat in contact with the ball surface. Independent floating spring loaded seats are always in contact with the ball to provide an effective tight seal even at low differential pressure. Independent upstream and downstream seats permit draining of fluid from the body cavity, so allowing double block & bleed operation (closed position only). With the optional single sealing feature, there is automatic body cavity release of over pressure to the line through the down stream seat.
Self relieving seat design during cavity over-pressurisation
Pressure
Pressure Body Pressure
ENERGISE
RESPONSE
SELF RELIEVING SEATS (STANDARD) Ball
In self relieving condition, excessive internal body pressure is automatically relieved both upstream & downstream into the line by excessive pressure forcing the seats away from the ball.
Ball
Second Seal
First Seal DPE seat design during cavity over-pressurisation
DOUBLE PISTON EFFECT (DPE) SEATS With the ‘DPE’ seat option, if a leakage occurs in the upstream seat, the pressure entering the body cavity pushes the downstream seat against the ball & valve seals. Line pressure forces a seal against the floating seat.
Pressure
Pressure Body Pressure RESPONSE
ENERGISE
Ball
Ball
An external body relief valve is installed to protect the body cavity from excess pressure which can be vented to atmosphere or recycled back to the upstream side of the valve or to flare. First Seal
Second Seal
TRIPLE BARRIER STEM SEAL DESIGN Leakage from the stem area is prevented by double barrier sealing with O-Rings as well as graphite fireseals. Leakage through the valve body joint is also protected by double sealing with an O-Ring and a flexible graphite gasket. After a fire has deteriorated the O-Rings, graphite packing and secondary seal ensure prevention of external fluid leakage.
Graphite

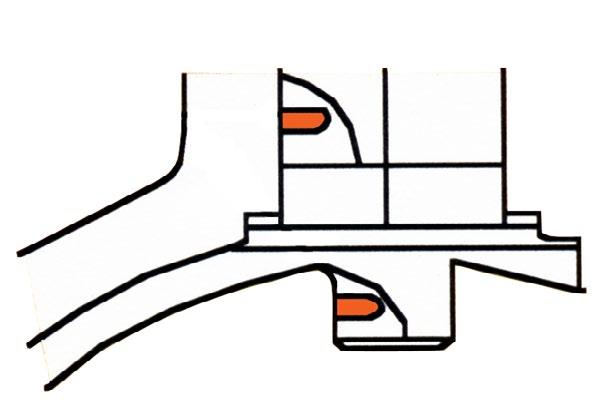

DOUBLE BLOCK AND BLEED Whether in the open or closed position, pressure on each side of the ball is blocked from the body cavity by the seat ring. The cavity can be blown down or drained (only in closed position) through the body port to indicate line isolation is effective.
EMERGENCY SEALING FUNCTION Piston action seats are standard and provide bi-directional sealing.
28
In case of fluid leaks from the seat or stem sealing area, a sealant can be supplied through the injection fitting to temporarily prevent leakage.
AU S T R A L I A N P I P E L I N E VA LV E
BVF100 SERIES
BVF100 SERIES BALL VALVE DESIGN FEATURES - STEM SEAL & SEAT RATINGS CHARACTERISTICS OF THE STEM SEAL The main stem seal is formed using two O-rings protected by two back-up rings to avoid extrusion. The design of the stem seal allows for the injection of plastic packing or grease sealant to form an emergency seal. The stem bearing washer and the upper and lower trunnion bearings are made from reinforced teflon with a stainless steel backing. This assures a low friction coefficient and high corrosion resistance.

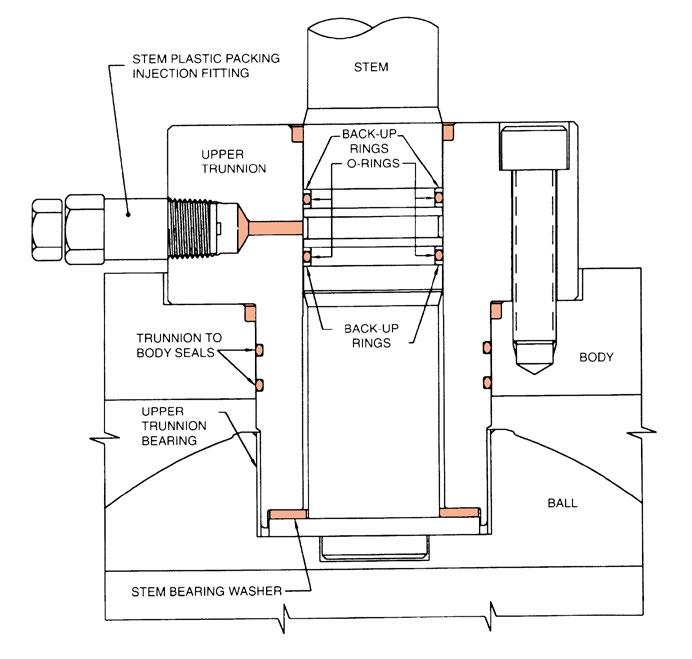

Cross-Section Stem Sealant Injection System STEM PLASTIC PACKING INJECTION FITTING
STEM
CAP SUPPLIED BACK-UP RINGS O-RINGS
UPPER TRUNNION
GREASE NIPPLE BACK-UP RINGS
TRUNNION TO BODY SEALS
BODY
UPPER TRUNNION BEARING
BALL
STEM BEARING WASHER
PRESSURE/TEMPERATURE LIMITATIONS OF SOFT SEAT INSERT SEAT MATERIAL BAR 500
PSI 7250 PEEK
DEVLON V
400
5800
DELRIN
300
4350 P.C.T.F.E. (KEL 'F)
200
2900 REIFORCED PTFE
100
1450 VI RGI N PTFE
0
0
°C
-200
-150
-100
-50
0
+50
+100
+150
+200
+250
+300 °C
°F
-328
-238
-148
-58
+32
+122
+212
+392
+392
+482
+572 °F
AU S T R A L I A N P I P E L I N E VA LV E
29
BVF100 SERIES
BVF100 SERIES MATERIAL SPECIFICATION FORGED TRUNNION BALL VALVE FLANGED / BW ENDS API 6D • API 6D • Flanged & Butt weld ends • 3P split body, side entry • Trunnion mounted ball, low operating torque • Fire safe API 607, ISO 10497 • Anti-static device, BS 5351 19 • Double block & bleed • Pressure self relieving seats • Self Lubricating PTFE coated Trunnion Bearings
15
Internal Trunnion Plates 200NB ~ 1200NB (8”~ 48”)
32 31 30
3
7-1
34
7-2
OPERATING CONDITION
18
Operating Temperature -29ºC~+185ºC*
5
Pressure Rating PN 20, 50, 64, 100, 150 Class 150, 300, 400, 600, 900, 1500, 2500
6
4 13 14
28
2 22
* Low and high temperature service also available
1 35
Conventional Trunnion Design 50NB ~ 1200NB (2”~ 48”)
19
15
24 23
26 9 27 21 26
37 25
8 17
25 11 10 12
22
23 24 3 38
32 33
36 18
34
27 5
25
6
13
4
14 29
28
1 30 35
31 16
24 23
20 7
27
25
The above is a general overview and design varies depending on size and class. (Refer to actual as built drawing.)
30
29
AU S T R A L I A N P I P E L I N E VA LV E
2
BVF100 SERIES
BVF100 SERIES MATERIAL SPECIFICATIONS INDEPENDENT STEM
STEM SEAL PLASTIC INJECTION FITTING
ADAPTOR FLANGE
BODY VENT VALVE* UPPER TRUNNION TRUNNION BEARING / THRUST RING
HELICAL SPRINGS STEM BEARING WASHER
SEAT RETAINER
BODY
TRUNNION BEARING WASHER
SEALANT INJECTION GROOVES
BALL
BILL OF MATERIALS No.
Part Name
TRUNNION BEARING ADAPTOR
This drawing is general and for indicative purposes only and may vary according to size and class. (Refer to actual as built drawing if more accurate detail is required.)
CIRCUMFERENTIAL SECONDARY SEALANT DISTRIBUTION GROOVE
LOWER TRUNNION
Material Low Temp
Carbon Steel
Stainless Steel
Duplex Steel
ASTM A350 LF2
ASTM A105N
ASTM A182 F316
ASTM A182 F51/F53/F55
1&2
Body & Closure
3&4
Stem & Seat Ring
ASTM A350 LF2 + ENP / A182 F6a / ASTM A105N + ENP / 4140 + ENP / F304 / F316 / F51 A182 F6a / F304 / F316 / 17-4PH
ASTM A182 F316/F51
ASTM A182 F51/F53/F55
Ball
ASTM A350 LF2 + ENP / A182 F6a / ASTM A105N + ENP / A694 F60 + F304 / F316 / F51 ENP /A182 F6a / F316 / F51
ASTM A182 F316/F51
ASTM A182 F51/F53/F55
5 6 7 7-1 7-2 8 9 10 & 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 & 27 28 29 30 31 32 33 34 & 35 36 37 & 38
Seat Insert Trunnion Mounting Trunnion Block Trunnion Block Pin Stuffing Box Connection Plate Stem O-Ring Gland O-Ring Seat O-Ring Seat Subseal Closure O-Ring Trunnion O-Ring Backup Ring Gland Gasket Closure Gasket Trunnion O-Ring Stem Packing Seat Spring Bearing Thrust Washer Sealant Fitting Screw Stud Nut Grounding Ball Grounding Spring Stem Key Positioning Pin Vent Plug & Drain Plug Connection Plate Gear & Handwheel
PTFE / RPTFE / Nylon / Devlon / PEEK LF2 + ENP / F51 ASTM A105 + ENP / 4140 + ENP ASTM A182 F316/F51 ASTM A182 F51/F53/F55 LF2 + ENP / F51 ASTM A105 + ENP / 4140 + ENP ASTM A182 F316/F51 ASTM A182 F51/F53/F55 SS410 / SS304 / SS316 SS316 SS316 / S31803 / S32205 LF2 + ENP ASTM A105 + ENP ASTM A182 F316 ASTM A182 F51/F53/F55 LF2 + ENP ASTM A105 + ENP ASTM A182 F316 ASTM A182 F51/F53/F55 Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® / Graphite Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® PTFE / Nylon / PEEK SS + Graphite / SS + PTFE SS + Graphite / SS + PTFE Viton-B / Viton AED / Viton GLT / Aflas / Elast-o-lion 985® PTFE / Graphite 17-4 / Inconel X 750 SS + PTFE / SS + Nitriding PTFE / RPTFE / Devlon / PEEK Stainless Steel ASTM A320 L7 / L7M + ZP ASTM A193 B7(M) + ZP ASTM A193 B8(M) CL 1/2 ASTM A320 L7 / L7M + ZP ASTM A193 B7(M) + ZP ASTM A193 B8(M) CL 1/2 ASTM A194 7L / 7ML + ZP ASTM A194 2H(M) + ZP ASTM A194 8(M) CL 1/2 Stainless Steel Duplex Steel Stainless Steel Duplex Steel AISI 1045 S31803 / S32205 316 Stainless Steel Duplex Steel 316 Stainless Steel Duplex Steel LF2 / ASTM A105N ASTM A105N ASTM A182 F316 ASTM A182 F51 Ductile Iron, Carbon Steel Assembly
1500LB and 2500LB refer to drawing. O-ring and backing rings specified in larger sizes. The above specifications are general in nature and subject to change without notice.
AU S T R A L I A N P I P E L I N E VA LV E
31
BVF100 SERIES

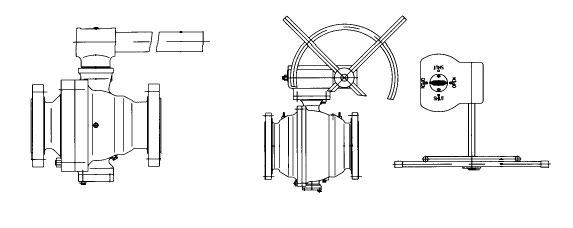

BVF100 SERIES DIMENSIONS 150LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3* 4x3* 4x4* 6x4* 6x6* 8x6* 8x8 10x8 10x10 12x10 12x12 14x12 14x14 16x14 16x16 18x16 18x18 20x18 20x20 24x20 24x24 26x26 28x28 30x30** 36x36**
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 50.80 (2.00) 50.80 (2.00) 76.20 (3.00) 76.20 (3.00) 101.60 (4.00) 101.60 (4.00) 152.40 (6.00) 152.40 (6.00) 203.20 (8.00) 203.20 (8.00) 254.00 (10.00) 254.00 (10.00) 304.80 (12.00) 304.80 (12.00) 336.55 (13.25) 336.55 (13.25) 387.35 (15.25) 387.35 (15.25) 438.15 (17.25) 438.15 (17.25) 488.95 (19.25) 488.95 (19.25) 590.55 (23.25) 635.00 (25.00) 685.80 (27.00) 736.60 (29.00) 876.30 (34.50)
G 22.86 (0.90) 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 95.25 (375) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 100.33 (3.95) 100.33 (3.95) 107.95 (4.25) 114.30 (4.50)
A 177.8 (7.00) 203.20 (8.00) 203.20 (8.00) 228.60 (9.00) 228.60 (9.00) 393.70 (15.50) 393.70 (15.50) 457.20 (18.00) 457.20 (18.00) 533.40 (21.00) 533.40 (21.00) 609.60 (24.00) 609.60 (24.00) 685.80 (27.00) 685.80 (27.00) 762.00 (30) 762.00 (30.00) 863.60 (34.00) 863.60 (34.00) 914.40 (36.00) 914.40 (36.00) 1066.80 (42.00) 1066.80 (42.00) 1143.00 (45.00) 1244.60 (49.00) 1295.40 (51.00) 1524.00 (60.00)
A 190.5 (7.50) 215.90 (8.50) 215.90 (8.50) 241.30 (9.50) 241.30 (9.50) 406.40 (16.00) 419.10 (16.50) 469.90 (18.50) 469.90 (18.50) 546.10 (21.50) 546.10 (21.50) 622.30 (24.50) 622.30 (24.50) 698.50 (27.50) 698.50 (27.50) 774.70 (30.50) 774.70 (30.50) 876.30 (34.50) 876.30 (34.50) 927.10 (36.50) 927.10 (36.50) 1079.50 (42.50) 1079.50 (42.50) 1155.70 (45.50) 1257.30 (49.50) 1308.10 (51.50) 1536.70 (60.50)
Centre Top D 165.1 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 242.82 (9.56) 262.64 (10.34) 309.63 (12.19) 337.57 (13.29) 375.92 (14.80) 403.86 (15.90) 422.40 (16.63) 453.14 (17.84) 474.73 (18.69) 508.00 (20.00) 508.00 (20.00) 566.42 (22.30) 577.85 (22.75) 610.87 (24.05) 654.05 (25.75) 687.07 (27.05) 687.07 (27.05) 731.52 (28.80) 822.45 (32.38) 1270.00 (50.00) 1332.23 (52.45) 1416.05 (55.75) 1623.06 (63.90)
Flange O.D. B 152.4 (6.00) 190.50 (7.50) 190.50 (7.50) 228.60 (9.00) 228.60 (9.00) 279.40 (11.00) 279.40 (11.00) 342.90 (13.50) 342.90 (13.50) 406.40 (16.00) 406.40 (16.00) 482.60 (19.00) 482.60 (19.00) 533.40 (21.00) 533.40 (21.00) 596.90 (23.50) 596.90 (23.50) 635.00 (25.00) 635.00 (25.00) 698.50 (27.50) 698.50 (27.50) 812.80 (32.00) 812.80 (32.00) 1263.65 (49.75) 1320.80 (52.00) 1406.65 (55.38) 1616.20 (63.63)
Weld End A 216.00 (8.50) 283.00 (11.12) 283.00 (11.12) 305.00 (12.00) 305.00 (12.00) 457.00 (18.00) 457.00 (18.00) 521.00 (20.50) 521.00 (20.50) 559.00 (22.00) 559.00 (22.00) 635.00 (25.00) 635.00 (25.00) 762.00 (30.00) 762.00 (30.00) 838.00 (33.00) 838.00 (33.00) 914.00 (36.00) 914.00 (36.00) 991.00 (39.00) 991.00 (39.00) 1143.00 (45.00) 1143.00 (45.00) 1245.00 (49.00) 1346.00 (53.00) 1397.00 (55.00) 1727.00 (68.00)
Centre Bottom C 112.776 (4.44) 132.59 (5.22) 141.22 (5.56) 161.04 (6.34) 165.10 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 263.65 (10.38) 283.46 (11.16) 308.10 (12.13) 336.04 (13.23) 352.55 (13.88) 380.49 (14.98) 393.70 (15.50) 421.64 (16.60) 436.63 (17.19) 467.11 (18.39) 476.25 (18.75) 509.27 (20.05) 520.70 (20.50) 556.26 (21.90) 619.25 (24.38) 884.68 (34.83) 924.56 (36.40) 984.76 (38.77) 1131.32 (44.54)
Centre Gear E 226.06 (8.90) 245.87 (9.68) 281.69 (11.09) 301.50 (11.87) 303.78 (11.96) 323.60 (12.74) 370.59 (14.59) 398.53 (15.69) 436.88 (17.20) 464.82 (18.30) 502.41 (19.78) 532.89 (20.98) 554.74 (21.84) 585.22 (23.04) 613.41 (24.15) 646.43 (25.45) 679.45 (26.75) 712.47 (28.05) 756.92 (29.80) 789.94 (31.10) 825.50 (32.50) 861.06 (33.90) 931.42 (36.67) 1420.11 (55.91) 1482.34 (58.36) 1573.53 (61.95) 1780.54 (70.10)
Weight Kg (Lbs.) Flanged
Weld End
18 (40) 23 (50) 32 (70) 41 (90) 55 (120) 68 (150) 227 (500) 273 (600) 341 (750) 386 (850) 470 (1034) 650 (1430) 773 (1700) 841 (1850) 1068 (2350) 1182 (2600) 1386 (3050) 1568 (3450) 2000 (4400) 2250 (4950) 2409 (5300) 2545 (5600) 3955 (8700) 4773 (10500) 5455 (12000) 6818 (15000) 11364 (25000)
14 (30) 16 (35) 25 (55) 34 (75) 43 (95) 55 (120) 182 (400) 227 (500) 295 (650) 341 (750) 440 (968) 600 (1320) 705 (1550) 750 (1650) 977 (2150) 1068 (2350) 1250 (2750) 1409 (3100) 1795 (3950) 2023 (4450) 2182 (4800) 2341 (5150) 3614 (7950) 4295 (9450) 4909 (10800) 6136 (13500) 10227 (22500)
* Lever Operator **30x24 & 36x30 refer to drawing. Notes:- Sizes 1/2” to 1-1/2”, 2-1/2” & 5” also available, drawing on request. Short pattern design also available in larger sizes.
32
AU S T R A L I A N P I P E L I N E VA LV E
BVF100 SERIES
BVF100 SERIES DIMENSIONS 300LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3* 4x3* 4x4* 6x4* 6x6* 8x6* 8x8 10x8 10x10 12x10 12x12 14x12 14x14 16x14 16x16 18x16 18x18 20x18 20x20 24x20 24x24 26x26 28x28 30x30** 36x36**
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 50.80 (2.00) 50.80 (2.00) 76.20 (3.00) 76.20 (3.00) 101.60 (4.00) 101.60 (4.00) 152.40 (6.00) 152.40 (6.00) 203.20 (8.00) 203.20 (8.00) 254.00 (10.00) 254.00 (10.00) 304.80 (12.00) 304.80 (12.00) 336.55 (13.25) 336.55 (13.25) 387.35 (15.25) 387.35 (15.25) 438.15 (17.25) 438.15 (17.25) 488.95 (19.25) 488.95 (19.25) 590.55 (23.25) 635.00 (25.00) 685.80 (27.00) 736.60 (29.00) 876.30 (34.50)
G 22.86 (0.90) 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 100.33 (3.95) 100.33 (3.95) 107.95 (4.25) 114.30 (4.50)
A 215.90 (8.50) 282.58 (11.13) 282.58 (11.13) 304.80 (12.00) 403.23 (15.88) 403.23 (15.88) 403.23 (15.88) 501.65 (19.75) 501.65 (19.75) 568.33 (22.38) 568.33 (22.38) 647.70 (25.50) 647.70 (25.50) 762.00 (30.00) 762.00 (30.00) 838.20 (33.00) 838.20 (33.00) 914.40 (36.00) 914.40 (36.00) 990.60 (39.00) 990.60 (39.00) 1143.00 (45.00) 1143.00 (45.00) 1244.60 (49.00) 1346.20 (53.00) 1397.00 (55.00) 1727.20 (68.00)
A 231.78 (9.13) 298.45 (11.75) 298.45 (11.75) 320.68 (12.63) 419.10 (16.50) 419.10 (16.50) 419.10 (16.50) 517.53 (20.38) 517.53 (20.38) 584.20 (23.00) 584.20 (23.00) 663.58 (26.13) 663.58 (26.13) 777.88 (30.63) 777.88 (30.63) 777.88 (30.63) 854.08 (33.63) 930.28 (36.63) 930.28 (36.63) 1009.65 (39.754) 1009.65 (39.75) 1165.23 (45.88) 1165.23 (45.88) 1270.00 (50.00) 1371.60 (54.00) 1422.40 (56.00) 1755.90 (69.13)
Centre Top D 165.10 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 262.64 (10.34) 309.63 (12.19)) 309.63 (12.19) 337.57 (13.29) 375.92 (14.80) 403.86 (15.90) 422.40 (16.63) 453.14 (17.84) 474.73 (18.69) 508.00 (20.00) 533.40 (21.00) 566.42 (22.30) 577.85 (22.75) 610.87 (24.05) 654.05 (25.75) 687.07 (27.05) 687.07 (27.05) 731.52 (28.80) 822.45 (32.38) 1270.00 (50.00) 1332.23 (52.45) 1416.05 (55.75) 1623.06 (63.90)
Flange O.D. B 165.10 (6.50) 209.55 (8.25) 209.55 (8.25) 254.00 (10.00) 317.50 (12.50) 317.50 (12.50) 317.50 (12.50) 381.00 (15.00) 381.00 (15.00) 444.50 (17.50) 444.50 (17.50) 520.70 (20.50) 520.70 (20.50) 584.20 (23.00) 584.20 (23.00) 647.70 (25.50) 647.70 (25.50) 711.20 (28.00) 711.20 (28.00) 774.70 (30.50) 774.70 (30.50) 914.40 (36.00) 914.40 (36.00) 1263.65 (49.75) 1320.80 (52.00) 1406.65 (55.38) 1616.20 (63.63)
Weld End A 215.90 (8.50) 282.58 (11.13) 282.58 (11.13) 304.80 (12.00) 457.20 (18.00) 457.20 (18.00) 457.20 (18.00) 520.70 (20.50) 520.70 (20.50) 558.80 (22.00) 558.80 (22.00) 635.00 (25.00) 635.00 (25.00) 762.00 (30.00) 762.00 (30.00) 838.20 (33.00) 838.20 (33.00) 914.40 (36.00) 914.40 (36.00) 990.60 (39.00) 990.60 (39.00) 1143.00 (45.00) 1143.00 (45.00) 1244.60 (49.00) 1346.20 (53.00) 1397.00 (55.00) 1727.20 (68.00)
Centre Bottom C 112.78 (4.44) 132.59 (5.22) 141.22 (5.56) 161.04 (6.34) 184.91 (7.28) 220.73 (8.69) 220.73 (8.69) 240.54 (9.47) 263.65 (10.38) 283.46 (11.16) 308.10 (12.13) 336.04 (13.23) 352.55 (13.88) 380.49 (14.98) 393.70 (15.50) 421.64 (16.60) 436.63 (17.19) 467.11 (18.39) 476.25 (18.75) 509.27 (20.05) 520.70 (20.50) 556.26 (21.90) 619.25 (24.38) 884.68 (34.83) 924.56 36.40) 984.76 (38.77) 1131.32 (44.54)
Centre Gear E 226.06 (8.90) 245.87 (9.68) 281.69 (11.09) 301.50 (11.87) 323.60 (12.74) 370.59 (14.59) 370.59 (14.59) 398.53 (15.69) 436.88 (17.20) 464.82 (18.30) 502.41 (19.78) 532.89 (20.98) 554.74 (21.84) 585.22 (23.04) 613.41 (24.15) 646.43 (25.45) 679.45 (26.75) 712.47 (28.05) 756.92 (29.80) 789.94 (31.10) 825.50 (32.50) 861.06 (33.90) 931.42 (36.67) 1420.11 (55.91) 1482.34 (58.36) 1573.53 (61.95) 1780.54 (70.10)
Weight Kg (Lbs.) Flanged
Weld End
27 (60) 32 (70) 45 (100) 55 (120) 100 (220) 250 (550) 250 (550) 295 (650) 386 (850) 409 (900) 568 (1250) 750 (1650) 864 (1900) 909 (2000) 1182 (2600) 1318 (2900) 1568 (3450) 1795 (3950) 2273 (5000) 2409 (5300) 2500 (5500) 2705 (5950) 4205 (9250) 5318 (11700) 6364 (14000) 7727 (17000) 11818 (26000)
20 (45) 25 (55) 36 (80) 41 (90) 82 (180) 214 (470) 214 (470) 255 (560) 336 (740) 355 (780) 491 (1080) 659 (1450) 777 (1710) 818 (1800) 1045 (2300) 1205 (2650) 1409 (3100) 1614 (3550) 2045 (4500) 2182 (4800) 2273 (5000) 2432 (5350) 3841 (8450) 4773 (10500) 5727 (12600) 6955 (15300) 10636 (23400)
* Lever Operator **30x24 & 36x30 refer to drawing. Notes:- Sizes 1/2” to 1-1/2”, 2-1/2” & 5” also available, drawing on request. Short pattern design also available in larger sizes.
AU S T R A L I A N P I P E L I N E VA LV E
33
BVF100 SERIES
BVF100 SERIES DIMENSIONS 600LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3* 4x3* 4x4* 6x4* 6x6* 8x6 8x8 10x8 10x10 12x10 12x12 14x12 14x14 16x14 16x16 18x16 18x18 20x18 20x20 24x20 24x24 26x26 28x28 30x30 36x36
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
* Lever Operator
34
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 50.80 (2.00) 50.80 (2.00) 76.20 (3.00) 76.20 (3.00) 101.60 (4.00) 101.60 (4.00) 152.40 (6.00) 152.40 (6.00) 203.20 (8.00) 203.20 (8.00) 254.00 (10.00) 254.00 (10.00) 304.80 (12.00) 304.80 (12.00) 336.55 (13.25) 336.55 (13.25) 387.35 (15.25) 387.35 (15.25) 438.15 (17.25) 438.15 (17.25) 488.95 (19.25) 488.95 (19.25) 590.55 (23.25) 635.00 (25.00) 685.80 (27.00) 736.60 (29.00) 876.30 (34.50)
G 22.86 (0.90) 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 100.33 (3.95) 100.33 (3.95) 107.95 (4.25) 114.30 (4.50)
A 292.10 (11.50) 355.60 (14.00) 355.60 (14.00) 431.80 (17.00) 431.80 (17.00) 558.80 (22.00) 558.80 (22.00) 660.40 (26.00) 660.40 (26.00) 787.40 (31.00) 787.40 (31.00) 838.20 (33.00) 838.20 (33.00) 889.00 (35.00) 889.00 (35.00) 990.60 (39.00) 990.60 (39.00) 1092.20 (43.00) 1092.20 (43.00) 1193.80 (47.00) 1193.80 (47.00) 1397.00 (55.00) 1397.00 (55.00) 1447.80 (57.00) 1549.40 (61.00) 1651.00 (65.00) 2082.80 (82.00)
A 295.28 (11.63) 358.78 (14.13) 358.78 (14.13) 434.98 (17.13) 434.98 (17.13) 561.98 (22.13) 561.98 (22.13) 663.58 (26.13) 663.58 (26.13) 790.58 (31.13) 790.58 (31.13) 841.38 (33.13) 841.38 (33.13) 892.18 (35.13) 892.18 (35.13) 993.78 (39.13) 993.78 (39.13) 1095.38 (43.13) 1095.38 (43.13) 1200.15 (47.25) 1200.15 (47.25) 1405.26 (55.33) 1405.26 (55.33) 1460.50 (57.50) 1562.10 (61.50) 1663.70 (65.50) 2098.80 (82.63)
Centre Top D 165.10 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 242.82 (9.56) 262.64 (10.34) 309.63 (12.19) 337.57 (13.29) 375.92 (14.80) 403.86 (15.90) 422.40 (16.63) 453.14 (17.84) 474.73 (18.69) 508.00 (20.00) 533.40 (21.00) 566.42 (22.30) 577.85 (22.75) 610.87 (24.05) 654.05 (25.75) 687.07 (27.05) 687.07 (27.05) 731.52 (28.80) 822.45 (32.38) 1034.80 (40.74) 1136.90 (44.76) 1224.28 (48.20) 1359.92 (53.54)
Flange O.D. B 165.10 (6.50) 209.55 (8.25) 209.55 (8.25) 254.00 (10.00) 317.50 (12.50) 317.50 (12.50) 317.50 (12.50) 381.00 (15.00) 381.00 (15.00) 444.50 (17.50) 444.50 (17.50) 520.70 (20.50) 520.70 (20.50) 584.20 (23.00) 584.20 (23.00) 647.70 (25.50) 647.70 (25.50) 711.20 (28.00) 711.20 (28.00) 774.70 (30.50) 774.70 (30.50) 914.40 (36.00) 914.40 (36.00) 1263.65 (49.75) 1320.80 (52.00) 1406.65 (55.38) 1616.20 (63.63)
Weld End A 292.10 (11.50) 355.60 (14.00) 355.60 (14.00) 431.80 (17.00) 431.80 (17.00) 558.80 (22.00) 558.80 (22.00) 660.40 (26.00) 660.40 (26.00) 787.40 (31.00) 787.40 (31.00) 838.20 (33.00) 838.20 (33.00) 889.00 (35.00) 889.00 (35.00) 990.60 (39.00) 990.60 (39.00) 1092.20 (43.00) 1092.20 (43.00) 1193.80 (47.00) 1193.80 (47.00) 1397.00 (55.00) 1397.00 (55.00) 1447.80 (57.00) 1549.40 (61.00) 1651.00 (65.00) 2082.80 (82.00)
Notes:- Sizes 1/2” to 1-1/2” also available, drawing on request.
AU S T R A L I A N P I P E L I N E VA LV E
Centre Bottom C 112.78 (4.44) 132.59 (5.22) 141.22 (5.56) 161.04 (6.34) 165.10 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 263.65 (10.38) 283.46 (11.16) 308.10 (12.13) 336.04 (13.23) 352.55 (13.88) 380.49 (14.98) 393.70 (15.50) 421.64 (16.60) 436.63 (17.19) 467.11 (18.39) 476.25 (18.75) 509.27 (20.05) 520.70 (20.50) 556.26 (21.90) 619.25 (24.38) 806.20 (31.74) 986.79 (38.85) 1066.80 (42.00) 1202.44 (47.34)
Centre Gear E 226.06 (8.90) 245.87 (9.68) 281.69 (11.09) 301.50 (11.87) 303.78 (11.96) 323.60 (12.74) 370.59 (14.59) 398.53 (15.69) 436.88 (17.20) 464.82 (18.30) 502.41 (19.78) 532.89 (20.98) 554.74 (21.84) 585.22 (23.04) 613.41 (24.15) 646.43 (25.45) 679.45 (26.75) 712.47 (28.05) 756.92 (29.80) 789.94 (31.10) 825.50 (32.50) 861.06 (33.90) 931.42 (36.67) 1159.26 (45.64) 1287.02 (50.67) 1381.76 (54.40) 1517.40 (59.74)
Weight Kg (Lbs.) Flanged
Weld End
32 (70) 36 (80) 55 (120) 64 (140) 100 (220) 136 (300) 273 (600) 318 (700) 545 (1200) 614 (1350) 773 (1700) 864 (1900) 1000 (2200) 1182 (2600) 1341 (2950) 1500 (3300) 2068 (4550) 2318 (5100) 2677 (5890) 2977 (6550) 3023 (6650) 3364 (7400) 5250 (11550) 6227 (13700) 10227 (22500) 10909 (24000) 17136 (37700)
25 (55) 30 (65) 43 (95) 52 (115) 82 (180) 114 (250) 227 (500) 264 (580) 445 (980) 491 (1080) 627 (1380) 700 (1540) 809 (1780) 977 (2150) 1091 (2400) 1250 (2750) 1705 (3750) 1905 (4190) 2191 (4820) 2432 (5350) 2477 (5450) 2750 (6050) 4659 (10250) 5227 (11500) 9205 (20250) 9818 (21600) 15409 (33900)
BVF100 SERIES
BVF100 SERIES DIMENSIONS 900LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3* 4x3* 4x4* 6x4* 6x6 8x6 8x8 10x8 10x10 12x10 12x12 14x12 14x14 16x14 16x16 18x16 18x18 20x18 20x20 24x20 24x24
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
* Lever Operator
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 50.80 (2.00) 50.80 (2.00) 76.20 (3.00) 76.20 (3.00) 101.60 (4.00) 101.60 (4.00) 152.40 (6.00) 152.40 (6.00) 203.20 (8.00) 203.20 (8.00) 254.00 (10.00) 254.00 (10.00) 304.80 (12.00) 304.80 (12.00) 336.55 (13.25) 336.55 (13.25) 387.35 (15.25) 387.35 (15.25) 438.15 (17.25) 438.15 (17.25) 488.95 (19.25) 488.95 (19.25) 590.55 (23.25)
G 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 100.08 (3.94) 100.08 (3.94) 100.08 (3.94)
A 368.30 (14.50) 381.00 (15.00) 381.00 (15.00) 457.20 (18.00) 457.20 (18.00) 609.60 (24.00) 609.60 (24.00) 736.60 (29.00) 736.60 (29.00) 838.20 (33.00) 838.20 (33.00) 965.20 (38.00) 965.20 (38.00) 1028.70 (40.50) 1028.70 (40.50) 1130.30 (44.50) 1130.30 (44.50) 1219.20 (48.00) 1219.20 (48.00) 1320.80 (52.00) 1320.80 (52.00) 1549.40 (61.00) 1549.40 (61.00)
A 371.48 (14.63) 307.98 (12.13) 384.18 (15.13) 460.38 (18.13) 460.38 (18.13) 612.78 (24.13) 612.78 (24.13) 739.78 (29.13) 739.78 (29.13) 841.38 (33.13) 841.38 (33.13) 968.38 (38.13) 968.38 (38.13) 1038.23 (40.88) 1038.23 (40.88) 1139.83 (44.88) 1139.83 (44.88) 1231.90 (48.50) 1231.90 (48.50) 1333.50 (52.50) 1333.50 (52.50) 1568.45 (61.75) 1568.45 (61.75)
Centre Top D 184.91 (7.28) 204.72 (8.06) 240.54 (9.47) 260.35 (10.25) 262.64 (10.34) 282.45 (11.12) 329.44 (12.97) 357.38 (14.07) 395.73 (15.58) 423.67 (16.68) 442.21 (17.41) 472.95 (18.62) 494.54 (19.47) 527.56 (20.77) 553.21 (21.78) 586.74 (23.10) 597.66 (23.53) 630.68 (24.83) 673.86 (26.53) 706.88 (27.83) 718.82 (28.30) 751.33 (29.58) 843.28 (33.20)
Flange O.D. B 215.90 (8.50) 241.30 (9.50) 241.30 (9.50) 292.10 (11.50) 292.10 (11.50) 381.00 (15.00) 381.00 (15.00) 469.90 (18.50) 469.90 (18.50) 546.10 (21.50) 546.10 (21.50) 609.60 (24.00) 609.60 (24.00) 641.35 (25.25) 641.35 (25.25) 704.85 (27.75) 704.85 (27.75) 787.40 (31.00) 787.40 (31.00) 857.25 (33.75) 857.25 (33.75) 1041.40 (41.00) 1041.40 (41.00)
Weld End A 368.30 (14.50) 381.00 (15.00) 381.00 (15.00) 457.20 (18.00) 457.20 (18.00) 609.60 (24.00) 609.60 (24.00) 736.60 (29.00) 736.60 (29.00) 838.20 (33.00) 838.20 (33.00) 965.20 (38.00) 965.20 (38.00) 1028.70 (40.50) 1028.70 (40.50) 1130.30 (44.50) 1130.30 (44.50) 1219.20 (48.00) 1219.20 (48.00) 1320.80 (52.00) 1320.80 (52.00) 1549.40 (61.00) 1549.40 (61.00)
Centre Bottom C 112.78 (4.44) 132.59 (5.22) 141.22 (5.56) 161.04 (6.34) 165.10 (6.50) 184.91 (7.28) 220.73 (8.69) 240.54 (9.47) 263.65 (10.38) 283.46 (11.16) 308.10 (12.13) 336.04 (13.23) 352.55 (13.88) 380.49 (14.98) 393.70 (15.50) 421.64 (16.60) 436.63 (17.19) 467.11 (18.39) 476.25 (18.75) 509.27 (20.05) 520.70 (20.50) 556.26 (21.90) 619.25 (24.38)
Centre Gear E 276.86 (10.90) 295.66 (11.64) 331.47 (13.05) 351.54 (13.84) 353.57 (13.92) 373.38 (14.70) 420.37 (16.55) 448.31 (17.65) 485.14 (19.10) 514.60 (20.26) 552.20 (21.74) 582.68 (22.94) 604.52 (23.80) 635.00 (25.00) 663.19 (26.11) 696.21 (27.41) 729.23 (28.71) 762.25 (30.01) 806.45 (31.75) 839.47 (33.05) 875.28 (34.46) 910.84 (35.86) 981.20 (38.63)
Weight Kg (Lbs.) Flanged
Weld End
55 (120) 64 (140) 82 (180) 100 (220) 145 (320) 200 (440) 318 (700) 409 (900) 705 (1550) 727 (1600) 841 (1850) 1045 (2300) 1318 (2900) 1545 (3400) 1750 (3850) 1818 (4000) 2159 (4750) 2477 (5450) 3205 (7050) 3886 (8550) 4568 (10050) 5205 (11450) 6091 (13400)
43 (95) 50 (110) 66 (145) 80 (175) 102 (225) 159 (350) 255 (560) 327 (720) 564 (1240) 582 (1280) 673 (1480) 841 (1850) 1068 (2350) 1250 (2750) 1409 (3100) 1455 (3200) 1727 (3800) 1932 (4250) 2568 (5650) 3114 (6850) 3659 (8050) 4159 (9150) 4886 (10750)
Note:- Sizes 1/2” to 1-1/2” also available, drawing on request
AU S T R A L I A N P I P E L I N E VA LV E
35
BVF100 SERIES
BVF100 SERIES DIMENSIONS 1500LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3* 4x3* 4x4 6x4 6x6 8x6 8x8 10x8 10x10 12x10 12x12 14x12 14x14 16x14 16x16 18x16 18x18 20x18 20x20 24x20 24x24
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
* Lever Operator
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 50.80 (2.00) 50.80 (2.00) 76.20 (3.00) 76.20 (3.00) 101.60 (4.00) 101.60 (4.00) 146.05 (5.75) 146.05 (5.75) 193.68 (7.63) 193.68 (7.63) 241.30 (9.50) 241.30 (9.50) 288.93 (11.38) 288.93 (11.38) 317.50 (12.50) 317.50 (12.50) 361.95 (14.25) 361.95 (14.25) 438.15 (17.25) 438.15 (17.25) 457.20 (18.00) 457.20 (18.00) 571.50 (22.50)
G 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 95.25 (3.75) 100.08 (3.94) 100.08 (3.94) 100.08 (3.94)
A 368.30 (14.50) 469.90 (18.50) 469.90 (18.50) 546.10 (21.50) 546.10 (21.50) 704.85 (27.75) 704.85 (27.75) 831.85 (32.75) 831.85 (32.75) 990.60 (39.00) 990.60 (39.00) 1130.30 (44.50) 1130.30 (44.50) 1257.30 (49.50) 1257.30 (49.50) 1384.30 (54.50) 1384.30 (54.50) 1536.70 (60.50) 1536.70 (60.50) 1663.70 (65.50) 1663.70 (65.50) 1943.10 (76.50) 1943.10 (76.50)
A 371.48 (14.63) 473.08 (18.63) 473.08 (18.63) 549.28 (21.63) 549.28 (21.3) 711.20 (28.00) 711.20 (28.00) 841.38 (33.13) 841.38 (33.13) 1000.13 (39.38) 1000.13 (39.38) 1146.18 (45.13) 1146.18 (45.13) 1276.35 (50.25) 1276.35 (50.25) 1406.53 (55.38) 1406.53 (55.38) 1558.93 (61.38) 1558.93 (61.38) 1685.93 (66.38) 1685.93 (66.38) 1972.95 (77.68) 1972..95 (77.68)
Centre Top D 1200.15 (7.88) 29.96 (8.66) 255.78 (10.07) 275.59 (10.85) 277.88 (10.94) 282.45 (11.12) 344.68 (13.57) 372.62 (14.67) 410.97 (16.18) 438.91 (17.28) 457.20 (18.00) 488.19 (19.22) 509.78 (20.07) 542.80 (21.37) 568.45 (22.38) 601.98 (23.70) 612.90 (24.13) 645.92 (25.43) 645.92 25.43 722.12 (28.43) 734.06 (28.90) 766.57 (30.18) 858.52 (33.80)
Flange O.D. B 215.90 (8.50) 266.70 (10.50) 266.70 (10.50) 311.15 (12.25) 311.15 (12.25) 393.70 (15.50) 393.70 (15.50) 482.60 (19.00) 482.60 (19.00) 584.20 (23.00) 584.20 (23.00) 673.10 (26.50) 673.10 (26.50) 749.30 (29.50) 749.30 (29.50) 850.90 (33.50) 850.90 (33.50) 914.40 (36.00) 914.40 (36.00) 984.25 (38.75) 984.25 (38.75) 1168.40 (46.00) 1168.40 (46.00)
Weld End A 38.10 (1.50) 469.90 (18.50) 469.90 (18.50) 546.10 (21.50) 546.10 (21.50) 704.85 (27.75) 704.85 (27.75) 831.85 (32.75) 831.85 (32.75) 990.60 (39.00) 990.60 (39.00) 1130.30 (44.50) 1130.30 (44.50) 1257.30 (49.50) 1257.30 (49.50) 1384.30 (54.50) 1384.30 (54.50) 1536.70 (60.50) 1536.70 (60.50) 1663.70 (65.50) 1663.70 (65.50) 1943.10 (76.50) 1943.10 (76.50)
Centre Gear E 292.10 (11.50) 310.90 (12.24) 346.71 (13.65) 366.52 (14.43) 368.81 (114.52) 388.62 (15.30) 436.88 (17.20) 463.55 (18.25) 497.84 (19.60) 529.59 (20.85) 566.42 (22.30) 596.90 (23.50) 619.76 (24.40) 647.70 (25.50) 678.18 (26.70) 711.20 (28.00) 744.22 (29.30) 777.24 (30.60) 777.24 (30.60) 854.71 (33.65) 891.54 (35.10) 925.83 (36.45) 996.95 (39.25)
Weight Kg (Lbs.) Flanged
Weld End
55 (120) 77 (170) 109 (240) 132 (290) 250 (550) 318 (700) 545 (1200) 636 (1400) 73 (1700) 977 (250) 1432 (3150) 1705 (3750) 1977 (4350) 2114 (4650) 2386 (5250) 2795 (6150) 3455 (7600) 4795 (10550) 4795 (10550) 5773 (12700) 7227 (15900) 8682 (19100) 12318 (27100)
43 (95) 61 (135) 91 (200) 107 (235) 200 (440) 273 (600) 432 (950) 523 (1150) 614 (1350) 795 (1750) 1136 (2500) 1364 (3000) 1591 (3500) 1705 (3750) 1909 (4200) 2250 (4950) 2750 (6050) 3841 (8450) 3841 (8450) 4636 (10200) 5795 (12750) 6955 (15300) 9864 (21700)
Note:- Sizes 1/2” to 1-1/2” also available, drawing on request 00.00
36
Centre Bottom C 128.02 (5.04) 1147.83 (5.82) 156.46 (6.16) 276.28 (6.94) 180.34 (7.10) 200.15 (7.88) 235.97 (9.29) 255.78 (10.07) 278.89 (10.98) 298.70 (11.76) 323.34 (12.73) 351.28 (13.83) 367.79 (14.48) 395.73 (15.58) 408.94 (16.10) 436.88 (117.20) 451.87 (17.79) 482.35 (18.99) 482.35 (18.99) 524.51 (20.65) 535.94 (21.10) 571.50 (22.50) 634.49 (24.98)
AU S T R A L I A N P I P E L I N E VA LV E
Manufacturers Standard - No Standards
BVF100 SERIES
BVF100 SERIES DIMENSIONS API 6A
Lever Operated
Gear Operated
2000 PSI Nominal Diameter Inches 2 1/16* 2 9/16* 3 1/8"* 4 1/16"* 7 1/16" 9" 11" 13 5/8" 16 3/4" 21 1/4"
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 52.39 (2 1/16") 65.09 (2 9/16") 79.38 (3 1/8") 103.19 (4 1/16") 155.58 (6 1/8") 203.20 (8.00) 254.00 (10.00) 304.80 (12.00) 387.35 (15.25) 508.00 (20")
G 22.86 (0.90) 26.92 (1.06) 38.10 (1.50) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75)
A 292.10 (11.50) 355.60 (14.00) 355.60 (14.00) 431.80 (17.00) 558.80 (22.00) 660.40 (26.00) 787.40 (31.00) 838.20 (33.00) 990.60 (39.00) 1193.80 (47.00)
A 295.28 (11.63) 333.00 (13 7/64") 358.78 (14.13) 434.98 (17.13) 561.98 (22.13) 663.58 (26.13) 790.58 (31.13) 841.38 (33.13) 993.78 (39.13) 1200.15 (47.25)
Centre Top D 165.10 (6.50) 155.00 (6 7/64") 220.73 (8.69) 242.82 (9.56) 309.63 (12.19) 375.92 (14.80) 422.40 (16.63) 474.73 (18.69) 577.85 (22.75) 687.07 (27.05)
Flange O.D. B 165.10 (6.50) 191.00 (7 33/64") 209.55 (8.25) 317.50 (12.50) 317.50 (12.50) 381.00 (15.00) 444.50 (17.50) 520.70 (20.50) 647.70 (25.50) 774.70 (30.50)
Weld End A 292.10 (11.50) 355.60 (14.00) 355.60 (14.00) 431.80 (17.00) 558.80 (22.00) 660.40 (26.00) 787.40 (31.00) 838.20 (33.00) 990.60 (39.00) 1193.80 (47.00)
Centre Bottom C 112.78 (4.44) 124.00 (4 7/8") 141.22 (5.56) 165.10 (6.50) 220.73 (8.69) 263.65 (10.38) 308.10 (12.13) 352.55 (13.88) 436.63 (17.19) 520.70 (20.50)
Centre Gear E 226.06 (8.90) 245.87 (9.68) 281.69 (11.09) 303.78 (11.96) 370.59 (14.59) 436.88 (17.20) 502.41 (19.78) 554.74 (21.84) 679.45 (26.75) 825.50 (32.50)
Weight Kg (Lbs.) Flanged
Weld End
32 (70) 36 (80) 55 (120) 100 (220) 273 (600) 545 (1200) 773 (1700) 1000 (2200) 2068 (4550) 3023 (6650)
25 (55) 30 (65) 43 (95) 82 (180) 227 (500) 445 (980) 627 (1380) 809 (1780) 1705 (3750) 2477 (5450)
* Lever Operator
3000 PSI Nominal Diameter Inches 2 1/16"* 2 9/16"* 3 1/8" 4 1/16"* 7 1/16" 9" 11" 13 5/8" 16 1/4" 20 3/4"
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 52.39 (2 1/16") 65.09 (2 9/16") 79.38 (3 1/8") 103.19 (4 1/16") 155.58 (6 1/8") 203.20 (8.00) 254.00 (10") 304.80 (12.00) 387.35 (15.25) 508.00 (20")
G 26.92 (1.06) 36.00 (1 27/64") 38.10 (1.50) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 95.25 (3.75) 100.08 (3.94)
A 368.30 (14.50) 381.00 (15.00) 381.00 (15.00) 457.20 (18.00) 609.60 (24.00) 736.60 (29.00) 838.20 (33.00) 965.20 (38.00) 1130.30 (44.50) 1320.80 (52.00)
A 371.48 (14.63) 422.00 (16 39/64") 384.18 (15.13) 460.38 (18.13) 612.78 (24.13) 739.78 (29.13) 841.38 (33.13) 968.38 (38.13) 1139.83 (44.88) 1333.50 (52.50)
Centre Top D 184.91 (7.28) 110.00 (4 21/64") 240.54 (9.47) 262.64 (10.34) 329.44 (12.97) 395.73 (15.58) 442.21 (17.41) 494.54 (19.47) 597.66 (23.53) 718.82 (28.30)
Flange O.D. B 215.90 (8.50) 244.00 (9 39/64") 241.30 (9.50) 292.10 (11.50) 381.00 (15.00) 469.90 (18.50) 546.10 (21.50) 609.60 (24.00) 704.85 (27.75) 857.25 (33.75)
Weld End A 368.30 (14.50) 422.00 (16 39/64") 381.00 (15.00) 457.20 (18.00) 609.60 (24.00) 736.60 (29.00) 838.20 (33.00) 965.20 (38.00) 1130.30 (44.50) 1320.80 (52.00)
Centre Bottom C 112.78 (4.44) 124.00 (4 7/8") 141.22 (5.56) 165.10 (6.50) 220.73 (8.69) 263.65 (10.38) 308.10 (12.13) 352.55 (13.88) 436.63 (17.19) 520.70 (20.50)
Centre Gear E 276.86 (10.90) 197.00 (7 3/4") 331.47 (13.05) 353.57 (13.92) 420.37 (16.55) 485.14 (19.10) 552.20 (21.74) 604.52 (23.80) 729.23 (28.71) 875.28 (34.46)
Weight Kg (Lbs.) Flanged
Weld End
55 (120) 38 (140) 82 (180) 145 (320) 318 (700) 705 (1550) 841 (1850) 1318 (2900) 2159 (4750) 4568 (10050)
43 (95) 30 (110) 66 (145) 102 (225) 255 (560) 564 (1240) 673 (1480) 1068 (2350) 1727 (3800) 3659 (8050)
* Lever Operator
AU S T R A L I A N P I P E L I N E VA LV E
37
BVF100 SERIES
BVF100 SERIES DIMENSIONS API 6A
Lever Operated
Gear Operated
5000 PSI Nominal Diameter Inches 2 1/16"* 2 9/16"* 3 1/8"* 4 1/16" 7 1/16" 9" 11" 13 5/8"
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 52.39 (2 1/16") 65.09 (2 9/16") 76.20 (3 1/8") 101.60 (4 1/16") 146.05 (6 1/8") 193.68 (7.63) 241.30 (9.50) 288.93 (11.38)
G 26.92 (1.06) 36.00 (1 27/64") 38.10 (1.50) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25)
A 368.30 (14.50) 469.90 (18.50) 469.90 (18.50) 546.10 (21.50) 704.85 (27.75) 831.85 (32.75) 990.60 (39.00) 1130.30 (44.50)
A 371.48 (14.63) 422.00 (16 39/64") 473.08 (18.63) 549.28 (21.3) 711.20 (28.00) 841.38 (33.13) 1000.13 (39.38) 1146.18 (45.13)
Centre Top D 1200.15 (7.88) 110.00 (4 21/64") 255.78 (10.07) 277.88 (10.94) 344.68 (13.57) 410.97 (16.18) 457.20 (18.00) 509.78 (20.07)
Flange O.D. B 215.90 (8.50) 244.00 (9 39/64") 266.70 (10.50) 311.15 (12.25) 393.70 (15.50) 482.60 (19.00) 584.20 (23.00) 673.10 (26.50)
Weld End A 38.10 (1.50) 422.00 (16 39/64") 469.90 (18.50) 546.10 (21.50) 704.85 (27.75) 831.85 (32.75) 990.60 (39.00) 1130.30 (44.50)
Centre Bottom C 128.02 (5.04) 124.00 (4 7/8") 156.46 (6.16) 180.34 (7.10) 235.97 (9.29) 278.89 (10.98) 323.34 (12.73) 367.79 (14.48)
Centre Gear E 292.10 (11.50) 197.00 (7 3/4") 346.71 (13.65) 368.81 (114.52) 436.88 (17.20) 497.84 (19.60) 566.42 (22.30) 619.76 (24.40)
Weight Kg (Lbs.) Flanged
Weld End
55 (120) 38 (170) 109 (240) 250 (550) 545 (1200) 773 (1700) 1432 (3150) 1977 (4350)
43 (95) 30 (135) 91 (200) 200 (440) 432 (950) 614 (1350) 1136 (2500) 1591 (3500)
* Lever Operator 00.00
38
AU S T R A L I A N P I P E L I N E VA LV E
Manufacturers Standard - No Standards
BVF100 SERIES
BVF100 SERIES DIMENSIONS 2500LB
Lever Operated
Nominal Diameter Inches 2x2* 3x2* 3x3 4x3 4x4 6x4 6x6 8x6 8x8 10x8 10x10 12x10 12x12
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
Gear Operated
Size mm (inches)
End to End Dimensions mm (inches)
Body Dimensions mm (inches)
Ball Bore
Stem
RF
RTJ
F 44.45 (1.75) 44.45 (1.75) 63.50 (2.50) 63.50 (2.50) 88.90 (3.50) 88.90 (3.50) 133.35 (5.25) 133.35 (5.25) 180.98 (7.13) 180.98 (7.13) 225.43 (8.88) 225.43 (8.88) 266.70 (10.50)
G 26.92 (1.06) 38.10 (1.50) 38.10 (1.50) 42.93 (1.69) 42.93 (1.69) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 50.80 (2.00) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25) 57.15 (2.25)
A 450.85 (17.75) 577.85 (22.75) 577.85 (22.75) 673.10 (26.50) 673.10 (26.50) 914.40 (36.00) 914.40 (36.00) 1022.35 (40.25) 1022.35 (40.25) 1270.00 (50.00) 1270.00 (50.00) 1422.40 (56.00) 1422.40 (56.00)
A 454.03 (17.88) 584.20 (23.00) 584.20 (23.00) 682.63 (26.88) 682.63 (26.88) 927.10 (36.50) 927.10 (36.50) 1038.23 (40.88) 1038.23 (40.88) 1292.23 (50.88) 1292.23 (50.88) 1444.63 (56.88) 1444.63 (56.88)
Centre Top D 240.79 (9.48) 260.60 (10.26) 296.42 (11.67) 316.23 (12.45) 316.23 (12.45) 338.33 (13.32) 385.32 (15.17) 413.26 (16.27) 451.61 (17.78) 479.55 (18.88) 495.30 (19.50) 528.32 (20.80) 549.91 (21.65)
* Lever Operator
Flange O.D. B 234.95 (9.25) 304.80 (12.00) 304.80 (12.00) 355.60 (14.00) 355.60 (14.00) 482.60 (19.00) 482.60 (19.00) 552.45 (21.75) 552.45 (21.75) 673.10 (26.50) 673.10 (26.50) 762.00 (30.00) 762.00 (30.00)
Weld End A 450.85 (17.75) 577.85 (22.75) 577.85 (22.75) 673.10 (26.50) 673.10 (26.50) 914.40 (36.00) 914.40 (36.00) 1022.35 (40.25) 1022.35 (40.25) 1270.00 (50.00) 1270.00 (50.00) 1422.40 (56.00) 1422.40 (56.00)
Centre Bottom C 134.62 (5.30) 188.47 (7.42) 196.85 (7.75) 215.90 (8.50) 220.98 (8.70) 240.79 (9.48) 276.86 (10.90) 296.42 (11.67) 319.53 (12.58) 339.34 (13.36) 363.98 (14.33) 391.92 (15.43) 408.43 (16.08)
Centre Gear E 332.74 (13.10) 351.54 (13.84) 387.35 (15.25) 409.16 (16.03) 409.45 (16.12) 429.26 (16.90) 477.52 (18.80) 504.19 (19.85) 536.45 (21.12) 570.23 (22.45) 607.06 (23.90) 637.54 (25.10) 660.40 (26.00)
Weight Kg (Lbs.) Flanged
Weld End
95 (210) 145 (320) 250 (550) 318 (700) 364 (800) 591 (1300) 864 (1900) 1068 (2350) 2273 (5000) 2773 (6100) 3045 (6700) 3864 (8500) 4318 (9500)
75 (165) 116 (255) 200 (440) 250 (550) 295 (650) 477 (1050) 682 (1500) 841 (1850) 1818 (4000) 2205 (4850) 2432 (5350) 3091 (6800) 3455 (7600)
Note:- Sizes 1/2” to 1-1/2” also available, drawing on request
GENERAL NOTES Flanges in accordance with ANSI B16.5 Welding ends according to ANSI B16.25 Bore sizes (F) according to API 6D End to end dimensions according to API 6D or 6D4 Approximate weights Lever operated - as shown*
AU S T R A L I A N P I P E L I N E VA LV E
39
BVF100 SERIES
BVF100 SERIES PART NUMBER SYSTEM
B
V
F
1
0
0
-
1
1
Model BVF100 BVF100-QF BVF100-RG
2
Port
F
Full
R
Reduced
Z
Special
3
A
C
C
A
2
3
4
5
6
7
8
9
10
11
12
13
14
A
A105N Carbon Steel
1
Viton B
A
Raised Face*
A
Bare Stem
B
304 Stainless
Viton AED*
B
Ring Joint
B
Lever Handle
2
C
316 Stainless
3
Buna/NBR
C
Butt Weld
C
Gear Operator
D
Alloy 20
4
Viton GLT AED
D
Threaded
D
Locking Lever
E
Hastelloy
5
PTFE
E
Socket Weld
E
Locking Gear Op.
F
Inconel
6
HNBR/E985
F
RF Flanged X B/W
Z
Special
G
LF2 Carbon Steel
9
Special
H
Unmachined RF/RJ
H
Duplex F51
Z
Special
I
LF6 Carbon Steel
L
Duplex F55
Z
Special
6
Construction
*FR58/90 or equivalent.
3 Piece Design
3
Welded Body
4
DB&B (Dual Ball)
E
C
Operation
2
600 lb
3
13
Trunnion Mounted
C
1
Ends
T
300 lb
2
11
2 Piece Design
B
2
O-Ring / Seals
1
150 lb
A
8
Floating
A
C
Body
Ball Support
Pressure
T
5
F
4
F
7
Seat Insert
1
PTFE
2
RPTFE
3
CPTFE
900 lb
4
Nylon
F
1500 lb
5
Devlon V
G
2500 lb
6
Graphite
H
3000 psi
7
PEEK
I
5000 psi
J
10,000 psi
*3.2~6.3µm
9
Secondary Seals
12 Ball / Seat Retainer
14
Bolting
1
PTFE
A
316 Stainless
A
B7
2
RPTFE
304 Stainless
B
B7M
3
Graphite
C
A105/F52+ENP* .075mm
C
B8
4
Metal
B8M
Other
LF2+ENP* .075mm
D
5
D E
Duplex F51 S31803
E
Duplex
10
Stem
A
316 Stainless
B
304 Stainless
C
A105 + ENP
D
LF2 + ENP
E
F51 / S31803
F
17-4 PH SS
J
4140 + ENP
K
410/F6 Stainless
8
Delrin/POM
9
Other
L
F55 Duplex
*Metal
Z
Special
B
F
Inconel
F
L7
G
Alloy 20
G
L7M
H
Hastelloy
H
B16
K
410/F6 Stainless
Z
Special
L
Duplex F55
M
4140 + ENP*
Z
Special
* ≤ 500Hv hardness.
*For metal seat see separate part number system in the ‘Special Service Ball Valves Catalogue’.
40
AU S T R A L I A N P I P E L I N E VA LV E
FS9000 SERIES
FS9000 SERIES CAST 2 PIECE BODY API 6D TRUNNION MOUNTED BALL VALVE 1/2”-36” ANSI CLASS - 150/300/600/900/1500
Endurance Test Certified
API 607 6th Ed. & ISO 10497 Firesafe Certified
ISO 15848-1 Class CO2 Fugitive Emission Certified
Double Block & Bleed
Fire-safe API 6FA/607
Sealing of Gland Assembly
Pneumatic or Gear Operation
Self-relieving Seats
Full Throughconduit
Drain Plug
Operational Reliability
Bubble Tight Shut-off
Quick Seal Recovery
Stem Extensions
Resistance to Bending Stress
This catalogue is general in it’s nature and the design and materials can change at any time. This catalogue is to be used as a guide only.
AU S T R A L I A N P I P E L I N E VA LV E
41
FS9000 SERIES
FS9000 SERIES BALL VALVE DESIGN FEATURES - OVERVIEW API TRUNNION MOUNTED BALL VALVE MANUFACTURING SPECIFICATIONS Specification
Standards
General design standard
API 6D
Pressure-temperature rating
ASME B16.34
Face to face dimensions
ASME B16.10
Flange type and dimensions
ASTM B16.5
Butt-weld ends
ASME B16.25
Inspection and test
API 6D/API 598
TRUNNION MOUNTED BALL VALVE DESIGN FEATURES UP STREAM SEALING TWO-WAY VALVE The up-stream seal of the valve is effected by the advanced spring pre-tightening seats which automatically adjust. The twoway valve has two seats that can be sealed in both directions, so there’s no limitation of flow direction during installation.
As line pressure increase the seat reacts to the force of the pressure to form an effective seal. In the absence of line pressure, coil springs around the seat unit provide a tight seal by keeping the seat in contact with the ball.
Up stream Down stream
DOUBLE BLOCK & BLEED VALVE Being “up-stream side sealing”, the valve can bleed out the trapped fluid in the body cavity when the valves is in fully open or fully close position. The fluid is intercepted by seats on up stream and down stream side.
The stem packing or O-ring may be replaced under working pressure. Bleeding the dirty fluid periodically can reduce damage of the sealing surface and prolong the service life of the valve.
Up stream
AUTOMATIC RELIEF OF THE CAVITY If the pressure of the body cavity unusually increases due to thermal expansion, APV ball valves automatically relieve the pressure by compressing the spring in the spring pre-tightening seat package. The excess pressure will then be relieved back downstream.
42
Optional seat designs can be specified to relieve pressure only back upstream or in the case of Double Piston effect seals (DPE). Pressure can be relieved to atmosphere via an external body relief valve.
AU S T R A L I A N P I P E L I N E VA LV E
Down stream
FS9000 SERIES
FS9000 SERIES BALL VALVE DESIGN FEATURES - OVERVIEW Cross-Section Seat Area
FULL BORE OR REDUCED BORE Full bore and reduced bore are available in all sizes. Full bore is full through conduit bore size to API 6D to facilitate pigging operations.
SEALANT INJECTION SYSTEM When the seat and / or stem sealing system is damaged, the grease injection valve can inject sealant into the valve for temporary sealing.
Under normal circumstances Australian Pipeline Valve valves require no lubrication.
Cross-Section Stem Area*
STEM SEALING SYSTEM Two O-rings are utilised in the stem area for reliable performance, as well as a graphite fireseal.
FLEXIBLE OPERATION The seat and stem bearing has a Teflon coating which is low friction and self-lubricates to reduce the valve operation torque.
*Design will vary depending on size & class
OPERATORS The valve may be operated by hand, pneumatic operator, motor, hydro-pneumatic operator and hydraulic operator, etc.
Stem extensions for underground service applications can also be fitted.
TRUNNION BEARINGS
NACE
Self lubricating PTFE coated trunnion bearings top and bottom.
The full range of APV valves can meet NACE standard MR-10-75, latest edition if necessary.
AU S T R A L I A N P I P E L I N E VA LV E
43
FS9000 SERIES
FS9000 SERIES BALL VALVE DESIGN FEATURES - FIRESAFE FIRESAFE CERTIFIED API 607 5TH & 6TH EDITION AND API 6FA 3RD EDITION
SUPER FIRESAFE DESIGN When non-metal sealing materials are decomposed or deteriorated by a plant fire, the edge of the metal seat retainer preloaded by the seat spring comes into contact with the ball to provide metal to metal shut off of the line fluid to minimise internal leakage through the valve bore. APV ball valves are also antistatic design
ANTI BLOW-OUT STEM
EXTERNAL LEAKAGE PREVENTION Leakage from the valve stem area is prevented by double sealing with 2 O-rings and a graphite gland gasket. Leakage through the valve body joint is also prevented by double sealing with elastomer O-ring and graphite body gasket. After a fire has deteriorated the O-rings, the graphite gland gasket, body gasket and stem seals are the measure that prevents external fluid leakage.
The stem is seperate from the ball. The lower end of the stem is designed with an integral collar to be blowout-proof.
ANTI-STATIC DEVICE Antistatic device is a standard feature of APV ball valve. A spring-loaded pin assures the electrical continuity, between ball, stem and body, so as to avoid sparks during turning of the stem to open and close the valve, which could be dangerous in case of hazardous area installation.
INTERNAL LEAKAGE PREVENTION When non-metal materials such as O-ring, seat insert and spacer are decomposed or deteriorated by fire, the edge of the metal seat preloaded by the seat spring comes into contact with the Ball to shut off the line fluid to minimise internal leakage through the valve bore. Also the fire safe flexible graphite seat area packing will be compressed by the seat spring to prevent fluid leakage between the valve body and the seat.
Before Fire
After Fire Metal-metal contact
This brochure is general in its nature and subject to change without notice.
44
AU S T R A L I A N P I P E L I N E VA LV E
FS9000 SERIES
FS9000 SERIES BALL VALVE DESIGN FEATURES - SEATING APV CONVENTIONAL SOFT SEAT INSERT APV seat inserts can be ordered in a variety of materials whilst still complying to API seat test requirements for “bubble-tight shut off” for oil & gas applications as well as specialised fluid transmission applications in chemical and mining sectors.
APV CONVENTIONAL SOFT SEAT INSERT + SCRAPER The A-PMSS+S® design is the same as the A-PMSS® above except for the addition of a scraper. On conventional trunnion ball valve seating systems, APV offers the PR-A-PMSS+S® seat design option (8” and above). A protective scraper ring is inserted in front of the soft seat insert to remove solid particles, dirt or debris that could damage or clog the contact area between ball and soft seat insert ring. This feature assures that the working area of the seat will be clean allowing the seats to work effectively. This design prolongs seat life whilst only minimally increasing cost and is particuarly advantageous for valves that cannot be removed from the line for repair such as buttweld valves, welded body valves, buried service valves as well as known non clean service applications.
Conventional Seat
A-PMSS+S®
APV COMPOSITE SEAL SEAT SYSTEM APV Double or Triple seal seat design is ideal for applications that require redundant sealing when start up conditions are known to have debris in the line and where removing the valve is not possible. This design offers lower torque and superior low pressure shut-off whilst providing zero leakage reliability at an affordable price compared to metal seated. Multiple material types are employed for each seal providing a combination of resilient and superhard properties to deal with a wide range of entrained particulates and debris. Even if one or even two of the seals are damaged an effective seal can usually be maintained.
A-TRS®
APV METAL TO METAL SEATS APV has extensive experience in the supply of valves for applications such as high temperature corrosive and/or erosive/abrasive environments. Various hard face material can be employed on the ball and seat face. Refer to the APV Special Service Ball Valve Catalogue. Metal to Metal
External Trunnion Version
AU S T R A L I A N P I P E L I N E VA LV E
45
FS9000 SERIES
FS9000 SERIES BALL VALVE DESIGN FEATURES - SEAT & STEM SEALING PISTON-ACTION SEATS As line pressure increases the seat reacts to the force of the pressure to form an effective seal. In the absence of line pressure, coil springs behind the seat provide a tight seal by keeping the seat in contact with the ball surface. Independent floating spring loaded seats are always in contact with the ball to provide an effective tight seal even at low differential pressure. Independent upstream and downstream seats permit draining of fluid from the body cavity, so allowing double block & bleed operation (closed position only). With the optional single sealing feature, there is automatic body cavity release of over pressure to the line through the down stream seat.
Self relieving seat design during cavity over-pressurisation
Pressure
Pressure Body Pressure
ENERGISE
RESPONSE
SELF RELIEVING SEATS (STANDARD) Ball
In self relieving condition, excessive internal body pressure is automatically relieved both upstream & downstream into the line by excessive pressure forcing the seats away from the ball.
Ball
Second Seal
First Seal DPE seat design during cavity over-pressurisation
DOUBLE PISTON EFFECT (DPE) SEATS With the ‘DPE’ seat option, if a leakage occurs in the upstream seat, the pressure entering the body cavity pushes the downstream seat against the ball & valve seals. Line pressure forces a seal against the floating seat.
Pressure
Pressure Body Pressure RESPONSE
ENERGISE
Ball
Ball
An external body relief valve is installed to protect the body cavity from excess pressure which can be vented to atmosphere or recycled back to the upstream side of the valve or to flare. First Seal
Second Seal
TRIPLE BARRIER STEM SEAL DESIGN Leakage from the stem area is prevented by double barrier sealing with O-Rings as well as graphite fireseals. Leakage through the valve body joint is also protected by double sealing with an O-Ring and a flexible graphite gasket. After a fire has deteriorated the O-Rings, graphite packing and secondary seal ensure prevention of external fluid leakage.
Graphite
DOUBLE BLOCK AND BLEED Whether in the open or closed position, pressure on each side of the ball is blocked from the body cavity by the seat ring. The cavity can be blown down or drained (only in closed position) through the body port to indicate line isolation is effective.
EMERGENCY SEALING FUNCTION Piston action seats are standard and provide bi-directional sealing.
46
In case of fluid leaks from the seat or stem sealing area, a sealant can be supplied through the injection fitting to temporarily prevent leakage.
AU S T R A L I A N P I P E L I N E VA LV E
FS9000 SERIES
FS9000 SERIES MATERIALS FOR MAIN PARTS Parts Body Packing Support Ball Stem Seals Seating Retainer Packing Gasket Bearings Spring Stud Nut O-Rings
Standard WCB A216-WCB A105-1025 A105+ENP .003” A216-WCB+ENP .003” A182-F6a A105-1025+ENP .003”
A193-B7 A194-2H
SS Trim WCB A216-WCB A102-1025 A182-316 A182-316 316 or 17-PH
Full SS CF8/CF3 CF3M/CF8M A351-CF8, CF3 A351-CF8M,CF3M A182-F304,F304L A182-F316, F316L A182-F304, F304L* A182-F304,316L* A351-CF8, CF3* A351-CF8M, CF3M* A182-F304, F304L A182-F316 ,F316L PTFE / PEEK (PPL) / Nylon 316 A182-F304, F304L A182-F316, F316L PTFE / PEEK (PPL) / Graphite PTFE / PEEK (PPL) / Graphite PTFE / PEEK (PPL) / 316+PTFE INCONEL X750 A193-B7M A193-B8, B8M A193-B8, B8M A194-2HM A194-8, 8M A194-8, 8M Viton B / Buna / Viton AED / Viton GLT / Elast-O-Lion® 985 / Aflas
LCB, LCC LCC/LCB A352-LCB, LCC A182-F304 A182-F304 or F316 A352-LCB, LCC+.003”ENP A182-F304 or 316 A182-F304 or F316
A320-L7M A194-7ML
* ENP or hard chrome surfacing for smoothness and hardness in some sizes and classes
Remarks All materials conform to ASTM standard.
The P-T rating is not only governed by the body material, but is further defined by the material of seat, packing and gasket. The selection of sealing material is dependant upon the medium passing through valve, valve working temperature, pressure and velocity of flow. As the P-T rating varies according to different valve working conditions, the following P-T rating value is calculated assuming stable valve working condition.
We can provide alternative body and trim materials according to valve working conditions or customer’s requirements. We also reserve the rights to improve the valve material according to relative standard.
Pup Ends
Extended Stem
Cryogenic Stem
PRESSURE/TEMPERATURE SOFT SEAT INSERT MATERIAL BAR 500
PSI 7250 PEEK DEVLON V
400
5800
DELRIN
300
4350 P.C.T.F.E. (KEL 'F)
200
2900 REIFORCED PTFE
100
1450 VN VI RGI N PTFE
0
0
°C -200
-150
-100
-50
-0
+50
+100
+150
+200
+250
+300 °C
°F -328
-238
-148
-58
+32
+122
+212
+302
+392
+482
+572 °F
AU S T R A L I A N P I P E L I N E VA LV E
47
FS9000 SERIES
FS9000 SERIES DIMENSIONS
F
H2
H2
W
H1
H1
E
L
W
L
CLASS 150 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 150) DN
2”
2-1/2”
3”
4”
5”
6”
8”
10”
12”
14”
16”
18”
20”
24”
28”
d1
51
64
76
102
127
152
203
254
305
337
387
438
489
591
686
RF
178
191
203
229
356
394
457
533
610
686
762
864
914
1067
1245
BW
216
241
283
305
381
457
521
559
635
762
838
914
991
1143
1346
H1
102
114
127
152
184
219
273
360
395
430
470
550
580
700
800
H2
107
125
152
178
300
330
398
495
580
625
670
698
840
1050
1100
E
-
-
-
-
-
-
116
116
171
171
257
257
257
150
83
F
-
-
-
-
-
-
350
350
420
420
400
400
400
410
650
W
230
400
400
650
1050
1050
600
600
800
800
800
800
800
800
800
Wt (Kg) RF
12
16
22
35
58
74
230
360
460
576
864
1280
1600
3540
4500
L
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged). Short pattern design also available.
CLASS 300 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 300) DN
2”
2-1/2”
3”
4”
5”
6”
8”
10”
12”
14”
16”
18”
20”
22”
24”
28”
d1
51
64
76
102
127
152
203
254
305
337
387
438
489
540
591
686
RF
216
241
283
305
381
403
502
568
648
762
838
914
991
1092
1143
1346
BW
216
241
283
305
381
457
521
559
635
762
838
914
991
1092
1143
1346
H1
102
114
127
152
184
219
273
360
395
430
470
550
580
640
700
800
H2
107
125
152
178
300
330
398
495
580
625
670
698
840
945
1050
1100
E
-
-
-
-
-
-
116
116
171
171
257
257
257
257
150
83
F
-
-
-
-
-
-
350
350
420
420
400
400
400
400
410
650
W
230
400
400
650
1050
1050
600
600
800
800
800
800
800
800
800
800
Wt (Kg) RF
15
24
30
55
87
118
280
420
560
640
1030
1542
2100
1920
4200
5300
L
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged). Short pattern design also available.
CLASS 400 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 400) DN
2”
2-1/2”
3”
4”
6”
8”
10”
12”
14”
16”
20”
24”
28”
d1
51
64
76
102
152
203
254
305
337
387
489
591
686
RF
292
330
356
406
495
597
673
762
826
902
1054
1232
1397
BW
295
333
359
410
498
600
676
765
829
905
1060
1241
1410
H1
114
124
133
159
250
294
395
445
500
530
660
800
900
H2
168
155
197
235
300
374
445
512
550
615
810
10010 1180
E
-
-
-
-
116
171
171
257
257
257
150
83
123
F
-
-
-
-
350
420
420
400
400
400
410
650
735
W
400
650
650
1050
600
800
800
800
800
800
800
800
800
Wt (Kg) RF
23
35
49
91
192
355
640
880
1100
1540
2800
5300
5700
L
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged)
48
AU S T R A L I A N P I P E L I N E VA LV E
FS9000 SERIES
FS9000 SERIES DIMENSIONS
F
H2
H2
W
H1
H1
E
W L
L
CLASS 600 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 600) DN
2”
2-1/2”
3”
4”
6”
8”
10”
12”
14”
16”
20”
24”
28”
d1
51
64
76
102
152
203
254
305
337
387
489
591
686
L
RF & BW
292
330
356
432
559
660
787
838
889
991
1194
1397
1549
RTJ
295
333
359
435
562
664
791
841
892
994
1200
1407
1562
H1
114
124
133
159
250
294
395
445
500
530
660
800
900
H2
108
155
197
235
300
374
445
512
550
615
810
1010
1180
E
-
-
-
-
116
171
171
257
257
257
150
83
123
F
-
-
-
-
350
420
420
400
400
400
410
650
735
W
400
650
650
1050
600
800
800
800
800
800
800
800
800
Wt (Kg) RF
35
38
55
102
232
390
710
960
1700
1970
3250
5800
6700
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged)
CLASS 900 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 900) DN
2”
2-1/2”
3”
4”
6”
8”
10”
d1
51
64
76
102
152
203
254
RF & BW
368
419
381
457
610
737
838
RTJ
371
422
384
460
613
740
841
H1
217
241
259
297
360
322
420
H2
126
158
191
216
270
394
502
E
-
116
116
116
171
171
257
F
-
350
350
350
420
420
400
W
650
600
600
600
800
800
800
Wt (Kg) RF
50
60
80
125
270
540
930
L
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged)
CLASS 1500 DIMENSIONS mm (Flange dimensions refer to ASME B16.5 CLASS 1500) DN
2”
2-1/2”
3”
4”
6”
8”
d1
51
64
76
102
152
203
RF & BW
368
419
470
546
705
832
RTJ
371
422
473
549
711
841
H1
126
158
191
216
296
378
H2
217
241
259
297
365
475
E
-
116
116
116
171
257
F
-
350
350
350
420
400
W
650
600
600
600
800
800
Wt (Kg) RF
50
75
117
216
380
680
L
Note:- Sizes 1/2” to 1-1/2” also available. (2 Piece Forged)
AU S T R A L I A N P I P E L I N E VA LV E
49
FS9000 SERIES
FS9000 SERIES STANDARD MATERIALS OF CONSTRUCTION II
37
16
35 27
7
32
25
II
1
9 14
34
38 39
17 33
12
20
29
18
10 *
4
11
3
26
I
19 30 31 2
23
I 28
22
24
5
36
* Internal Trunnion design shown available 150NB (6”) and over.
50
AU S T R A L I A N P I P E L I N E VA LV E
6
15
13
8
21
FS9000 SERIES
FS9000 SERIES STANDARD MATERIALS No.
Parts
Carbon Steel
Stainless Steel
Low Temp. Service (-46°C)
1
Body
ASTM 216-WCB
2
Adaptor
ASTM A216-WCB
ASTM A351-CF8M
ASTM A352-LCB/LCC
3
Ball
ASTM A216-WCB/A105+ENP ASTM A351-CF8M
ASTM A351-CF8M ASTM A182-F316
ASTM A352-LCB/LF2+ ENP ASTM A182-F316
4
Seat Assembly
See 5,6
See 5,6
See 5,6
5
Seat Insert
RPTFE / Nylon / Devlon / POM
RPTFE / Nylon / Devlon / POM
RPTFE / Nylon / Devlon / POM
6
Seat Ring
ASTM A105 ENP/F6A/316
ASTM A182-F316/17-4PH
7
Stem
ASTM A276-410 ENP/F6A/316
8
Pin
ASTM A276-410 ENP/F6A/316
ASTM A182-F304/316 ASTM A276-304/316/S31803/17ASTM A276-316/S31803/17-4PH 4PH ASTM A276-316 ASTM A276-304/316
ASTM A351-CF8M
ASTM A352-LCB/LCC
9
Washer
ASTM A276-304/316
ASTM A182-F316
ASTM A182-F304/316
10
Trunnion*
ASTM A105 ENP/F6A/316
ASTM A182-F316/17-4PH
ASTM A350-LF2 ENP/316/17-4PH
11
Gasket
Spiral Wound Graphite
Spiral Wound Graphite
Spiral Wound Graphite
12
Gasket
Spiral Wound Graphite
Spiral Wound Graphite
Spiral Wound Graphite
13
Gasket
PTFE
PTFE
PTFE
14
Gasket
Flexible Graphite
Flexible Graphite
Flexible Graphite
15
Gasket
Flexible Graphite
Flexible Graphite
Flexible Graphite
16
Retaining Nut
ASTM A276-410 ENP/316
ASTM A276-316
ASTM A276-304/316
17
Top Flange
ASTM A105/ASTM A182-F316
ASTM A182-F316
ASTM A350-LF2/F316
18
Thrust Plate
RPTFE/316+PTFE/Phenolic Gr.L
RPTFE/316+PTFE/Phenolic Gr.L
RPTFE/316+PTFE/Phenolic GR.L
19
Trunnion Bearing
A182 F316+PTFE
A182 316+PTFE
A182-F316+PTFE
20
Trunnion Bearing
A182 F316+PTFE
A182 316+PTFE
A182-F316+PTFE
21
Seat Follower
ASTM A105 ENP/316
ASTM A182+F316
ASTM A350-LF2 ENP/3162
22
Plug/Vent
ASTM A276-316
ASTM A276-316
ASTM A276-316
23
Plug
ASTM A576-1025 + ZP
ASTM A276-316
ASTM A276-316
24
Springs
Inconel X750
Inconel X750
Inconel X750
25
O-Ring
Viton B/Viton AED/HNBR
Viton B/Viton AED/HNBR/Aflas
HNBR/Elast-O-Lion 985/Viton GLT
26
O-Ring
Viton B/Viton AED/HNBR
Viton B/Viton AED/HNBR/Aflas
HNBR/Elast-O-Lion 985/Viton GLT
27
O-Ring
Viton B/Viton AED/HNBR
Viton B/Viton AED/HNBR/Aflas
HNBR/Elast-O-Lion 985/Viton GLT
28
O-Ring
Viton B/Viton AED/HNBR
Viton B/Viton AED/HNBR/Aflas
HNBR/Elast-O-Lion 985/Viton GLT
29
O-Ring
Viton B/Viton AED/HNBR
Viton B/Viton AED/HNBR/Aflas
HNBR/Elast-O-Lion 985/Viton GLT
30
Stud
ASTM A193-B7 + ZP ASTM A193-B7M + ZP
ASTM A193-B8/B8M
ASTM A350-L7 + ZP ASTM A320-L7M + ZP
31
Nut
ASTM A194-2H + ZP ASTM A194-2HM + ZP
ASTM A194-8/8M
ASTM A194-4 + ZP ASTM A194-7M + ZP
32
Screw
ASTM A194-2H + ZP ASTM A194-2HM + ZP
ASTM A193-B8/B8M
ASTM A320-L7 + ZP ASTM A320-L7M + ZP
33
Bolt
ASTM A194-2H + ZP ASTM A194-2HM + ZP
ASTM A193-B8/B8M
ASTM A320-L7 + ZP ASTN A320-L7M + ZP
34
Pin
ASTM A576-1045
ASTM A276-304/316
ASTM A276-304
35
Key
ASTM A576-1045
ASTM A276-304/316
ASTM A276-304
36
Injection Fitting Assembly
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
37
Gear Operator
Iron Case
Iron Case
Iron Case
38
Name Plate
Stainless Steel
Stainless Steel
Stainless Steel
39
Rivet
Stainless Steel
Stainless Steel
Stainless Steel
Note: Other trim materials are optionally available. This bill of material is indicative only, parts do vary according to trim, size and class. * Internal Trunnion shown available 150NB (6”) and over.
AU S T R A L I A N P I P E L I N E VA LV E
51
FS9000 SERIES
FS9000 SERIES BALL VALVE CV VALUE / EXPLODED VIEW Size 50mm (2”) to 300mm (12”) Packing
Adaptor Plate Stem bearing
Stem
Body O-ring Stud bolt Ball Seat retainer Body gasket Closure
*Trunnion Trunnion bearing
Hex Nut Ball bearing
*Internal trunnion designs available 150NB (6”) and over
Size 350mm (14”) to 600mm (24”) Gland
Packing
Adaptor plate
Stem bearing
Stem
Body O-ring Ball Seat retainer Closure
*Trunnion
Stud bolt Hex nut Ball bearing Body gasket
*Internal trunnion designs available 150NB (6”) and over
CV VALUE Size 2” 3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 26” 28”
Class 150 500 1300 2300 5400 10000 17800 26000 32000 44000 58000 75000 111200 111200 143000
Class 300 470 1100 2200 5400 10000 17100 25000 31000 42000 56000 72000 102000 102000 123000
Class 600 400 1000 1800 4500 8900 14500 22000 28000 39000 51000 66000 92000 98000 12200
Class 900 360 1000 1800 4300 8400 14000 21000 26000 36000 47500 60000 86000 91000 11200
The above shows the Cv value for our trunnion mounted ball valve.
52
AU S T R A L I A N P I P E L I N E VA LV E
Class 1500 360 900 1600 4000 7900 13000 19000 24000 33000 42000 52000 52000
FS9000 SERIES
FS9000 SERIES PART NUMBER SYSTEM
F
S
9
0
0
0
-
1
1
Model FS9000
2 F
Port Full
R
Reduced
Z
Special
3
Ball Support
F
Floating
T
Trunnion Mounted
4
Pressure Class
A
150 lb
B
300 lb
C
600 lb
D
800 lb
E
900 lb
5
F
T
C
A
1
2
1
3
C
A
C
C
A
2
3
4
5
6
7
8
9
10
11
12
13
14
8
O-Ring / Seals
11
Ends
13
Operation
Body
A
A105 / WCB Carbon Steel
1
Viton B
A
Raised Face*
A
Bare Stem
B
304 / CF8 Stainless
2
Viton AED*
B
Ring Joint
B
Lever Handle
C
316 / CF8M Stainless
3
Buna/NBR
C
Butt Weld
C
Gear Operator
D
Alloy 20
D
Threaded
Locking Lever
Hastelloy
Viton GLT AED
D
E
4
F
Inconel
5
PTFE
E
Socket Weld
E
Locking Gear Op.
G
LF2 / LCB Carbon Steel
6
HNBR/E985
F
RF Flanged x B/W
Z
Special
H
Duplex F51 / CD3MN / 4A
9
Special
H
Unmachined RF / RJ
I
WCC / LF6 Carbon Steel
*FR 58/90 or equivalent.
Z
Special
J
LCC Carbon Steel
L
Duplex F55/A995 6A
Z
Special
6
Construction
1
2 Piece Design
2
3 Piece Design
3
Welded Body
4
DB&B (Dual Ball)
7
Seat Insert
*3.2~6.3µm.
9
Secondary Seals
12
Ball/Seat Retainer
14
Bolting
1
PTFE
A
316 Stainless
A
B7
2
RPTFE
B
304 Stainless
B
B7M
3
Graphite
C
A105N+ENP .075mm*
C
B8
4
Metal
LF2+ENP .075mm*
D
B8M
5
Other
E
Duplex F51
E
Duplex
F
Inconel
10
Stem
A
316 Stainless
B
304 Stainless
C
A105/F52 + ENP
D
LF2/F52 + ENP
E
Duplex F51 / 531803
Graphite
F
17-4 PH SS 4140 + ENP
1
PTFE
2
RPTFE
3
CPTFE
4
Nylon
5
Devlon V
F
1500 lb
G
2500 psi
H
3000 psi
7
PEEK
J
I
5000 psi
8
Delrin/POM
K
410/F6 Stainless
J
10,000 psi
9
Other
L
Duplex F55/A890 6A
Z
Special
*Metal
Z
Special
6
D
G
Alloy 20
H
Hastelloy
K
410/F6 Stainless
L
Duplex F55/A890 6A
Z
Special
F
L7
G
L7M
H
B16
Z
Special
* ≤ 500 Hv hardness
*For metal seat see separate part number system in the ‘Special Service Ball Valves Catalogue’.
AU S T R A L I A N P I P E L I N E VA LV E
53
TECHNICAL
CONSIDERATIONS OF TECHNICAL RISK / LIMIT OF LIABILITY TO CLIENT FOR BALL VALVES Australian Pipeline Valve don’t consider in our design the following factors of risk: 1.
Australian Pipeline Valve ‘Standard’ ball valves can be used in a temperature range between -28.8 to +200°C. (Note, pressure limitations apply above 38°C refer to Pressure/Temperature charts.) For service temperatures below -28.8°C ball valve construction materials shall be submitted to an impact test at the minimum service temperature. For temperatures outside of the range of -28.8°C to +200°C ball valves have to be provided with seats, seals and body material able to withstand the temperature degree required.
2.
The onus is on the customer to specify all materials of construction and service conditions. Australian Pipeline Valve shall assume standard materials and conditions if not otherwise specified.
3.
Australian Pipeline Valve ‘Standard’ ball valves are not equipped with devices suitable to avoid internal over-pressures caused by incorrect operations of process or by-fluids & liquids subjected to an increase of volume and/or pressure (these devices, such as the over-pressure hole in the ball or safety seats are available upon request).
4.
Australian Pipeline Valve ‘Standard’ ball valves are not designed with special devices to withstand a sudden thermal jump (thermal shock).
5.
In general Australian Pipeline Valve ‘Standard’ ball valves are not mechanically designed to bear overloads due to exceptional atmospheric or natural phenomenon’s (such as earthquakes).
6.
In general Australian Pipeline Valve ‘Standard’ ball valves are not designed to bear loads on flanges, on pipe connections or pipeline.
7.
In general Australian Pipeline Valve ‘Standard’ ball valves can’t withstand ice inside their bodies (in this case user must specify the optional stem extension for insulating, avoiding the presence of residual product inside the valve).
8.
Australian Pipeline Valve ‘Standard’ ball valves are not suitable for low temperature service below -29°C (-20°F) unless provided with cryogenic stem extension and other modifications (available on request).
9.
Australian Pipeline Valve ‘Standard’ ball valves are suitable for ‘industrial’ oxygen (not medical) service when supplied degreased and packed in polyethylene bags only.
10. The compatibility between ball valves construction materials and medium is selected by the user. The user is ultimately responsible for verifying the compatibility between medium and materials. 11. Abrasive or dirty service, high temperature service, low temperature service, vacuum service, near zero pressure service and other special applications should be clearly stated when requesting quotation.
BALL VALVE START-UP
Before installing the ball valve onto the pipe-line it is mandatory for the user to verify the compatibility of the ball valve with service conditions (medium, temperature and pressure). With reference to standard ball valves held in stock the reseller and end user will have to assure themselves of the compatibility with the use of conditions required by the customer. Australian Pipeline Valve ball valves must be only used for on-off (fully open/fully closed) service. Before using the ball valve in a potential explosive atmosphere it’s necessary: • • • • •
To verify the compatibility between the ball valve and the zone in which the ball valve should be installed. To foresee the pipe-line ground condition on which the ball valve should be installed. To check that the temperature of the ball valve surface is not higher than the flammable point of the atmosphere in which the ball valve is installed (in this case specify an insulating cover device for the valve and an extension for the wrench) Before installing ball valves with welding ends to make sure that the process of welding is carried out in accordance with all the safety requirements of the classified zone. To avoid mechanical knocks during the installation that may cause sparks.
STATIC ELECTRIC EFFECT The APV fire safe ball valves are provided with anti-static devices for ball-stem-body. When service conditions require electrical continuity to prevent static discharge, the user is responsible for specifying static grounding.
LIQUIDS WITH HIGH FLUID VELOCITY When ball valves are to be utilised on liquids with very high velocity, check with the valve distributor or manufacturer for appropriate advice to minimise the possibility of seat deformation, especially when they are highly pressurised on high temperature line. THROTTLING SERVICE Ball valves are generally not recommended for throttling service, as both the fluid flow and the leading edge of the ball can damage or deform the resilient ball seats causing leakage. High fluid velocity or the presence of solid particles in suspension will further reduce seat life in throttling applications. • • • •
Do not open the bonnet or cap when bearing pressure. Valve is not equipped with pressure access device. User should check it by other method through it’s piping system. Do not touch the surface of the valve on high temperature. Not allowed for unstable fluid, otherwise specified with category III in Declaration of conformity or/and in this user manual. Lock design on the handle to avoid the valve operated by non-related people is optional requested by the user.
Australian Pipeline Valve cannot be held responsible for damage caused by use of the product especially if it is improper use or modified.
54
AU S T R A L I A N P I P E L I N E VA LV E
AUSTRALIAN PIPELINE VALVE BRAND RANGE - CATALOGUES
COMPLETE PRODUCT LINE “Australian Pipeline Valve
Product Brochure
Ball Valves Floating & Trunnion Mounted
Ball Valves Floating Small Bore
Ball Valves Special Service
Gate, Globe & Check Valves - Cast Steel
Gate, Globe & Check Valves - Forged Steel
Plug Valves Lubricated, Sleeved & Lined
Oilfield Products Valves & Wellheads
produces isolation, control and flow reversal protection products for severe and critical service media in utility, steam, pipelines, oil & gas and process industries. APV valves and pipeline products form the most
APV FAMILY OF BRANDS RANGE - CATALOGUES
competitive portfolio in the market.”
Diamond Gear Gearboxes
Flowturn Ball Valves Multiway & Deadman
Flowturn Gate, Globe & Check Valves
Flowturn Instrument Valves
Flowturn Strainers & Sight Glasses
Steamco Steam Valves
Supercheck Wafer Check Valves
Superseal Butterfly Valves
Superseal Industrial Ball Valves
Torqturn Actuators
TwinLok Tube Fittings
Uniflo Check Valves
Contact us for your local stockist/distributor View our catalogues at www.australianpipelinevalve.com.au
www.australianpipelinevalve.com.au LOCAL DISTRIBUTOR
QUALITY ASSURANCE AND CERTIFICATION We are continually improving all facets of quality assurance. Full metallurgical and test certificates are always supplied for all pressure retaining parts, we also provide it on all major trim components. We have endeavoured to provide a broad outline of our range and capabilities. Because we are continually developing new products for our customers this catalogue will, to some extent be incomplete. This catalogue is a general overview only, individual drawings and data sheets can be furnished on request. If you have any requirement in the field of valves, please contact us for a prompt response. Continuous development of Australian Pipeline Valve products may necessitate changes in the design or manufacturing processes. Australian Pipeline Valve reserves the right to effect any such changes without prior notice.
© Australian Pipeline Valve 1990 - 2023 Edition
