About Through Hole Assembly
Through-hole assembly is a method of printed circuit board (PCB) assembly in which all connections are made through the holes in the circuit board. For many years, through-hole assembly has been one of the widely used methods of producing PCBAs. Even though there are several other new and updated assembly techniques available today, through-hole PCB assembly is simple, reliable, and cost-effective.
Through-Hole PCB Assembly Services
Suntronic provides the best quality Through-Hole PCB Assembly services. We are serving clients from different industrial sectors and they are extremely satisfied with our services.
Through-hole assembly is still irreplaceable in some applications, such as electrolytic capacitors, connectors, and large transformers.
Our PCB assembly services include both automated and manual techniques, where the latter is mostly employed for complex assemblies.
Through-Hole PCB Assembly Capabilities The following capabilities have been developed over several years and allow us to better serve our customers: Through-Hole Assembly is provided for single, double-sided, and high-density multilayer boards. Cutting-edge automated insertion equipment for axial and radial component placement. We use automated wave soldering equipment to solder the Through Hole Components.
Through-Hole PCB Assembly Process
The following are the steps involved in through-hole assembly:
The first step is to mount each component on a separate surface mount PCB (SMPCB).
The SMPCB then goes into a pick-and-place machine, which moves along a conveyor belt.
The machine then picks up the components from the SMPCB and places them on circuit board, which was drilled as per the design requirement.
Then the components are soldered to the board.
Lastly, the circuit board is cleaned and tested before being wrapped up and sent to its destination.
Testing Through-Hole Assembly Our comprehensive Through-Hole Testing capabilities allow us maintain quality and affordability. Below are some testing protocols: In-circuit testing Automated optical inspection (AOI) Automated X-ray inspection Solder Paste Inspection
Application of Through Hole PCB
Transformers Connectors

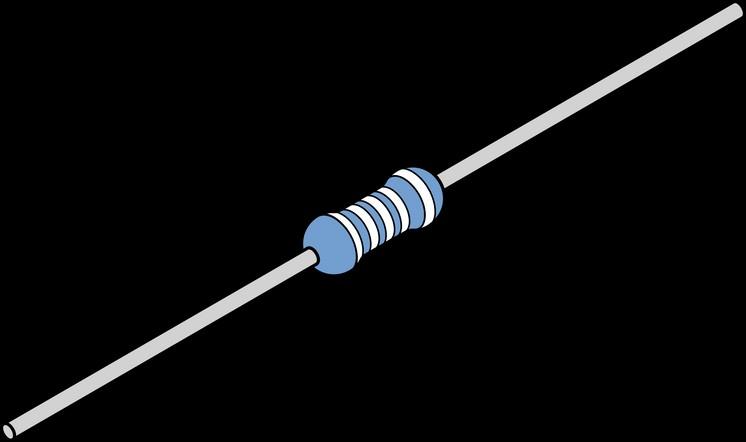

Semi-conductors Resistors Diodes
Capacitors
Features of the Through-Hole Assembly Highly Reliable Easy for manual operation Higher durability Lower manufacturing efficiency Limited PCB design
Benefits of the Through-Hole Assembly
Several benefits of through-hole PCB assembly include:
Easy to assemble and have a higher yield rate.
The assembly process is straightforward and simple to perform.
It guarantees higher density, wider choices of components, better electrical performance and better design capability.
This assembly process guarantees stronger bonds between the circuit and its components
THT assembled boards own high heat tolerance
