SOLUTION ORDERING GUIDE
1RU LGX Compact Patch Panel

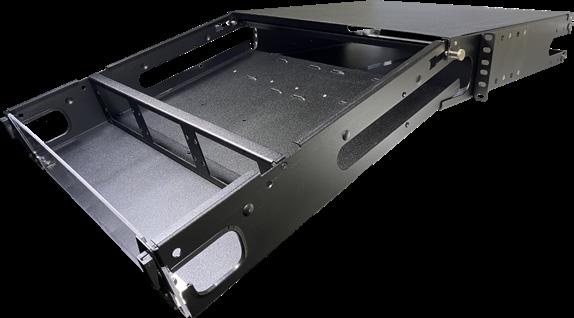

The 1RU LGX Compact Patch Panel is designed for applications with limited space and requiring hardware with an efficient and small-scale footprint.
ORDERING INFORMATION
2RU Flush Mount Panels
ORDERING INFORMATION
Instructions: Choose between the following options:
1. Panel Assembly: Choose from two configurations (LGX Interconnect Panels/Bulkheads or LGX Cassettes) tailored to meet specific installation and cable management needs.
2. Customize your own 2RU Flush Mount Panels: Purchase the faceplate and rear frame according to the required adapters (LGX Interconnect Panels/Bulkheads or LGX Cassettes).
FT02FMFP-6LGX-INTERCONNECT
FT02FMFP-6LGX-CASSETTES
FT02FMFP-6LGX-FACEPLATE
FT02FMFP-6LGX-REARFRAME
FT02FMFP-6LGX-REARFRAMECASSETTE
Fiber Patch Panel, Flush Mount, 2RU LGX Interconnect Panels/Bulkheads Panel Assembly; Holds up to 6 LGX Interconnects/Bulkheads; Includes Cable Management Frame.
Fiber Patch Panel, Flush Mount, 2RU LGX Cassettes Panel Assembly; Holds up to 6 LGX Cassettes; Includes Cable Management Frame.
UNASSEMBLED
Interconnect Panels/ Bulkheads 6
6
Fiber Patch Panel, Flush Mount, 2RU Faceplate Only, for LGX Interconnect Panels/Bulkheads only; Holds up to 6 LGX Interconnects/ Bulkheads; For use with FT02FMFP-6LGX-REARFRAME. LGX Interconnect Panels/ Bulkheads 6
Fiber Patch Panel, Flush Mount, 2RU Rear Frame with Faceplate Attachment Hardware, for LGX Interconnect Panels/Bulkheads only; Rear Frame Only. For use with FT02FMFP-6LGX-FACEPLATE. LGX Interconnect Panels/ Bulkheads 6
Fiber Patch Panel, Flush Mount, 2RU Rear Frame with Faceplate Attachment Hardware, for use with LGX Cassettes only; Rear Frame Only. For use with FT02FMFP-6LGX-FACEPLATE.
Cassettes 6
Standard Ribbon Central Tube Cables
OVERVIEW
Armored OSP Central Tube
Interlocking Armored I/O Riser Central Tube
I/O Riser Central Tube
Interlocking Armored ISP Riser Central Tube
ISP Riser Central Tube
Interlocking Armored ISP Plenum Central Tube
ISP Plenum Central Tube
ORDERING INFORMATION
Instructions: Create a part number by using this character set and codes.
SE – 1 22 3333 4
8 PureAccess® G.657.A1 Bend Insensitive Single-Mode Fiber
1 50 μm Multimode Fiber
(SM Only)
RR Interlocking Armored Indoor/Outdoor Riser
RG Indoor/Outdoor Riser
RL Interlocking Armored Indoor Riser
RP Indoor Riser
RH Interlocking Armored Indoor Plenum
RU Indoor Plenum
Multimode
Multimode 10 Gb (850/1300 nm)
OVERVIEW
OSP All Dielectric Central Tube
Interlocking Armored O/I LSHF Riser Central Tube
O/I LSHF Riser Central Tube
I/O LSHF Riser Central Tube
Interlocking Armored ISP Riser Central Tube
ISP Riser Central Tube
Flexible ISP Riser Central Tube
ISP LSHF Riser Central Tube
ISP Plenum Central Tube
Ruggedized ISP Plenum Cordage
Flexible ISP Plenum Cordage
ORDERING INFORMATION
Freeform Ribbon™ Central Tube Cables
SEL’s Patented Freeform Ribbon™ enables high-fiber density within a small cable diameter which in turn helps with limited duct space. The 12-fiber ribbons may be spliced to a conventional ribbon, pliable ribbon, or non-ribbonized (single) fibers, as well as connectorized with both MPO and all industry-standard connectors. In addition the non-preferential bend axis allows for easy installation in space-constrained areas.
Instructions: Create a part number by using this character set and codes.
SE – 1 22 3 4444 5
LSHF Riser (NFPA 130)
LSHF Riser (CPR Rated, and NFPA 130)
Riser (CPR Rated)
LSPHF Riser RJ Indoor/Outdoor LSHF Riser (CPR Rated)
Indoor Plenum RT Indoor/Outdoor LSHF Riser
Indoor Plenum Cordage RL Interlocking Armored Indoor Riser
Flexible Indoor Plenum Cordage
ORDERING INFORMATION
Instructions: Create a part number by using this character set and codes.
