SU LATT MYINT UC BERKELEY’ 2023 PORTFOLIO
PEOPLE’S URBAN INSTITUTE
CORNER OF BRYANT AND 3RD ST, SAN FRANCISCO
THE URBAN INSTITUTE SERVES A VARIETY OF PURPOSE NOT ONLY FOR THE VISITORS BUT ALSO TO THE NEIGHBOURHOOD. THE EXTERIOR OF THE BUILDING IS DESIGNED IN A CIRCULAR MANNER TO CREATE A WELCOMING GESTER TOWARDS THE BUILDING AS THEY WALK ALONG THE STREETS. WHILE MOST OF THE SPACES ARE KNOWN AS FUNCTIONAL SPACES, THE NEGATIVE SPACES CREATE AN OUTDOOR, GREEN SPACE FOR RELAXATION. THE SPRIAL STAIRS ALLOWS TO VIEW THE LIVELY NEIGHBORDHOOD WHILE GOING UP TO DIFFERENT FLOORS.
SECTION
ELEVATION
A A B
SPATIAL STRATEGY
Spatial Strategy
PROGRAMMATIC BY LAYERS
Programmatic by Layers
Public Space (Corridors, Lobby)
Education Spaces (Exhibition, Workshop)
Gathering Spaces (Lecture, Meeting Rooms/Events)
Cafe / Kitchen
Vertical Circulation (Stairs, Lift/Elevator)
Facilities Spaces (Storage, Toilets, Utility/Garbage
Workspaces: Research Area
Workspaces: O ce Spaces / Desks Area
Green/Landscape Areas
public
Floor Plan 1 Floor Plan 2 Floor Plan 3 Floor Plan 4 Gathering spaces Workspaces Education
area Floor Plan 5
1. Exhibition 2. Research Center 3. Event Space 4. Lobby 5. Storage 1 2 3 4 5 Floor Plan 1 Section B Section A 1’ = 1/8” 16’ 8’ 4’ 2’ 0 FLOOR PLAN 1 FLOOR PLAN 2 6. Event Space 7. Research Center 8. Exhibition with city model 9. Storage 10. Utilities 6 7 8 9 10 Floor Plan 2 Section B Section A 1’ = 1/8” N 16’ 8’ 4’ 2’ 0
FLOOR PLAN 3
FLOOR PLAN 4
11. Exhibition 12. Public meeting 13. O ces 14. Terrace 11 12 13 14 Floor Plan 3 Section B Section A 1’ = 1/8” 16’ 8’ 4’ 2’ 0 15. Workshop 16. Research center 17. Lecture 15 16 17 Floor Plan 4 Section B Section A Section A Section B 1’ = 1/8” N 16’ 8’ 4’ 2’ 0
18. Terrace 18 Floor Plan 5 Section A Section B 1’ = 1/8” 16’ 8’ 4’ 2’ 0 Section B 9 10 11 12 13 14 8. Terrace 9. Reserach Center 10. Lecture Hall 11. Exhibition 12. Terrace 13. Exhibition 14. Research Center 8 1’ = 1/8” 16’ 8’ 4’ 2’ 0
FLOOR PLAN 5
SECTION
PROGRAMMATIC

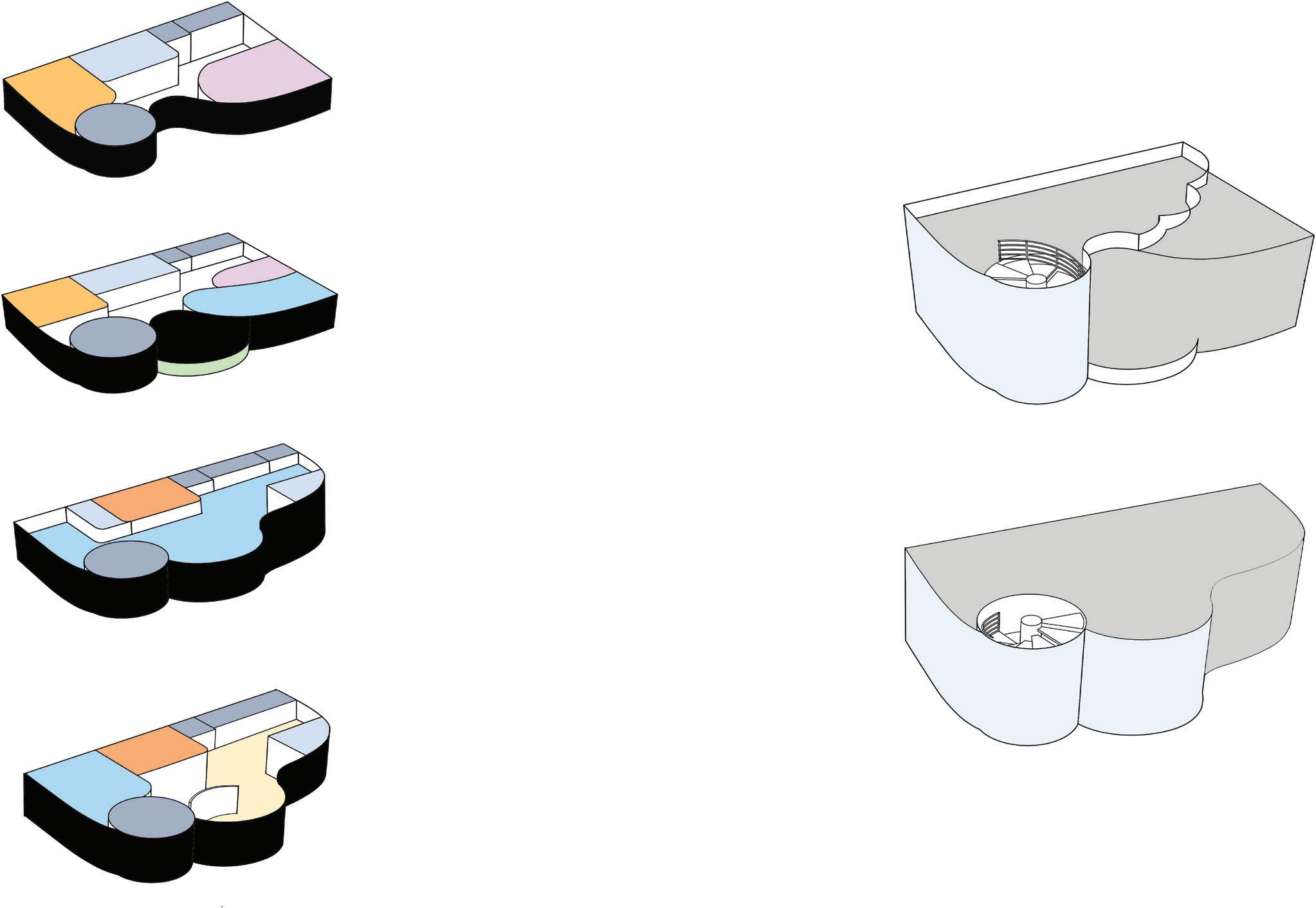

Programmatic Strategy Private Public Exhibition Exhibition Research Event spaces O ces Exhibition meeting room Workshop Lecture
STRATEGY
PRECEDENT STUDY : HOUSE IN BALSTHAL,
DIAGRAM 1
2
3 SWITZERLAND
DIAGRAM
DIAGRAM
RESTAGING URBAN FORMS
5433 SAN PABLO AVENUE, OAKLAND

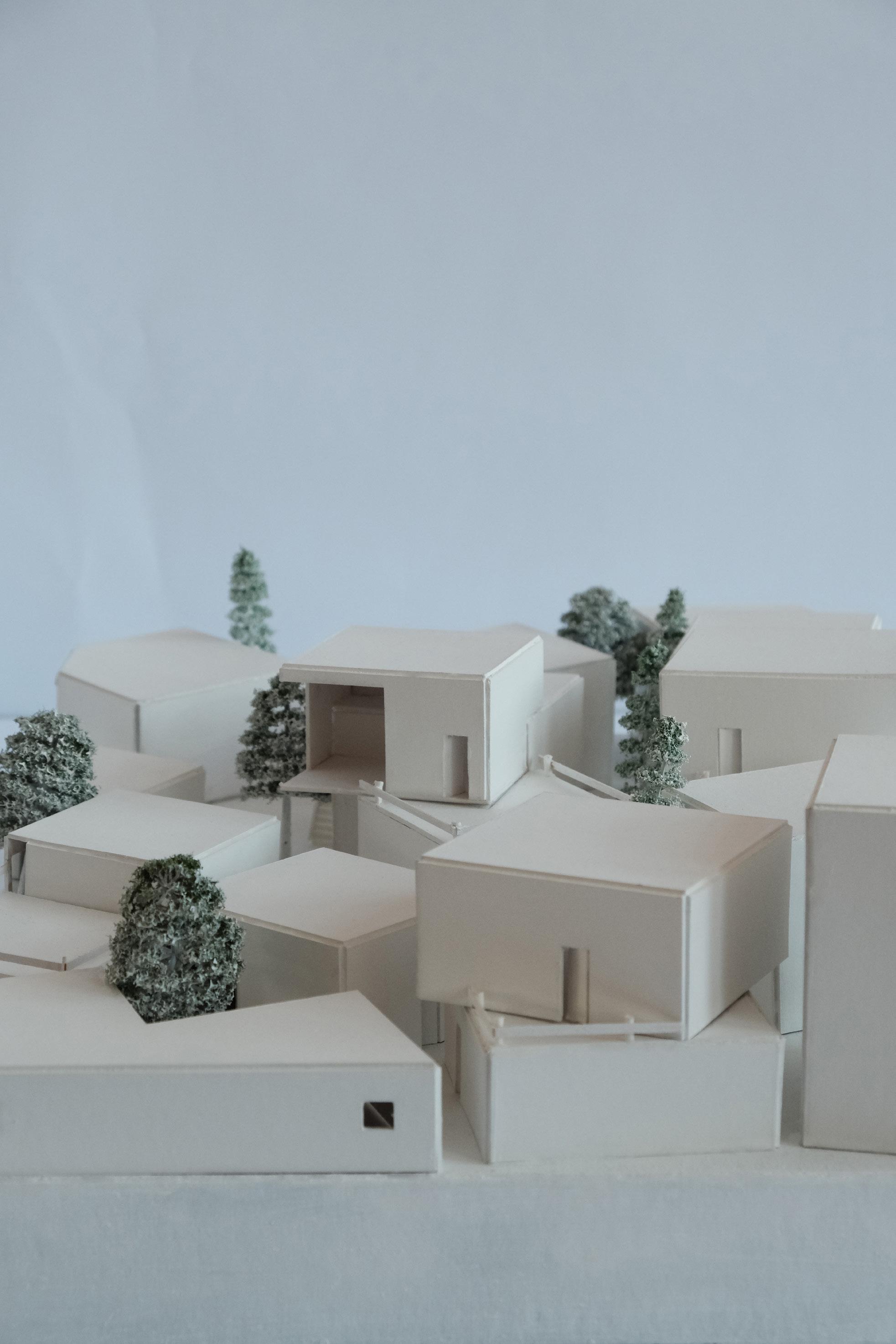

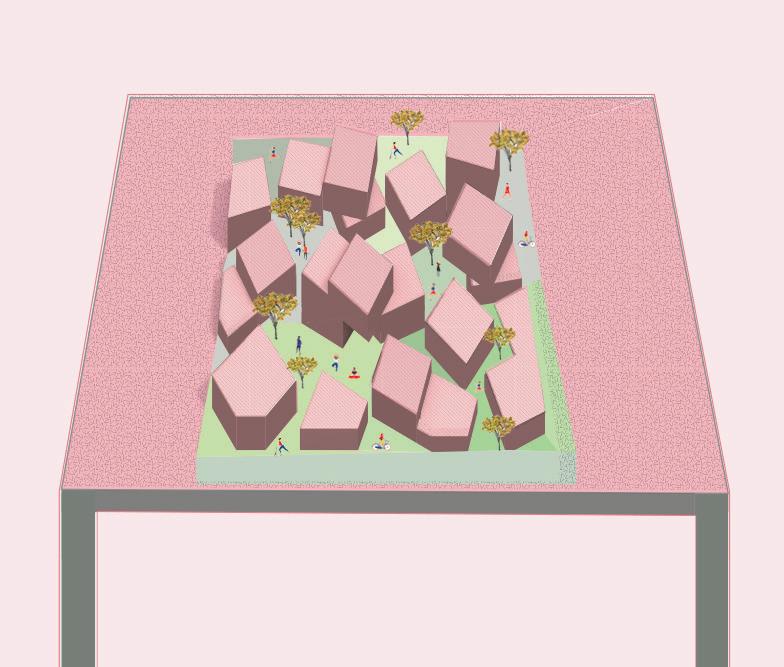

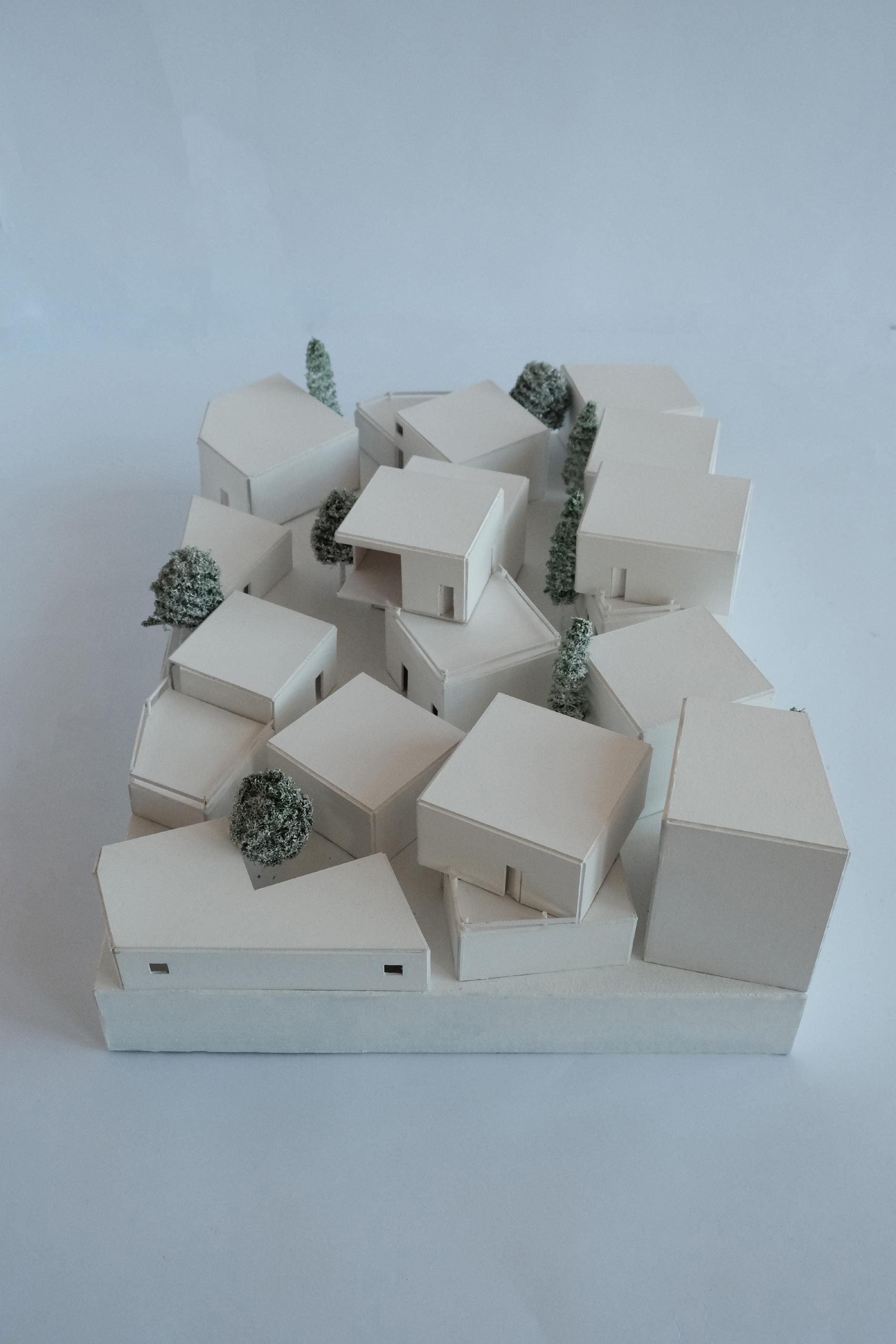

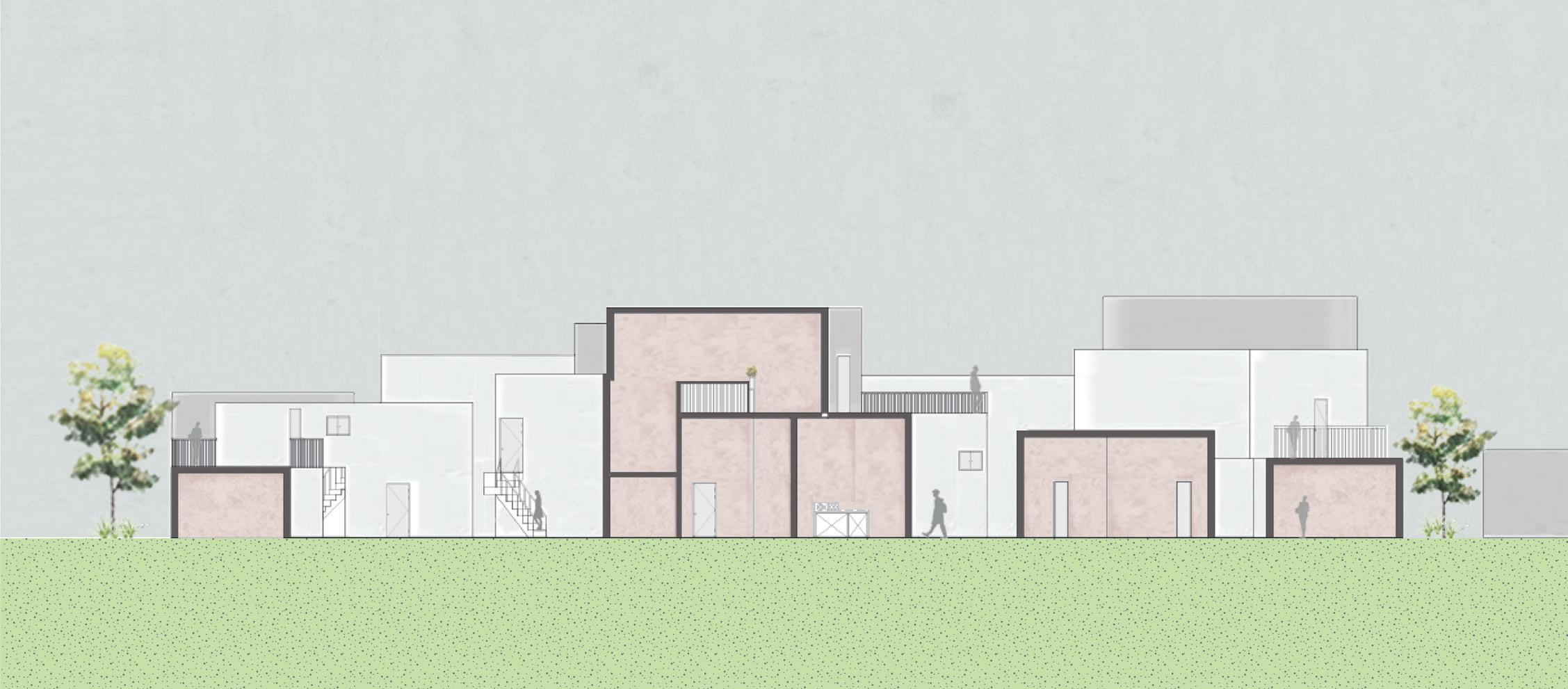

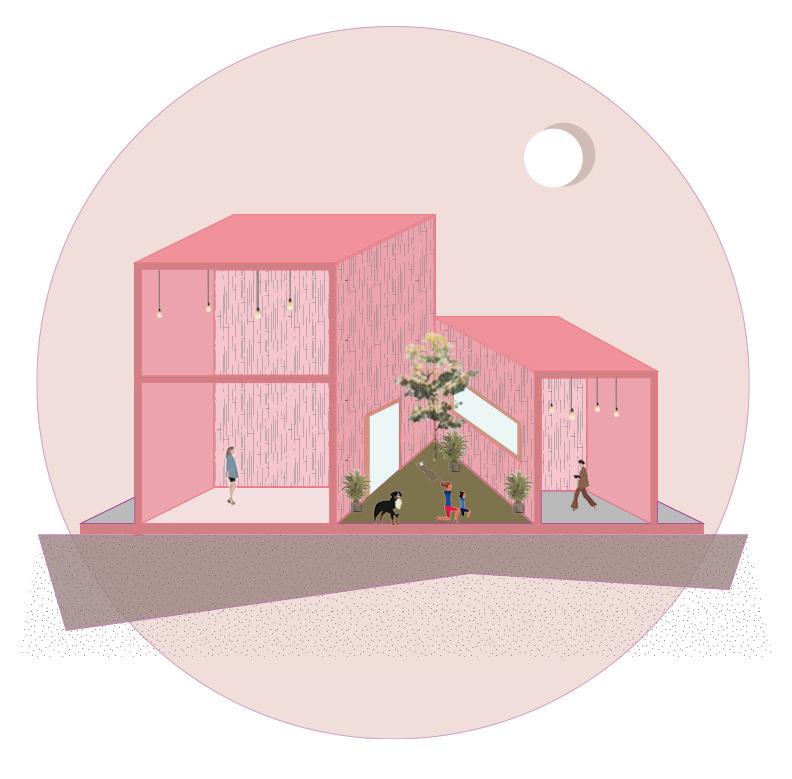

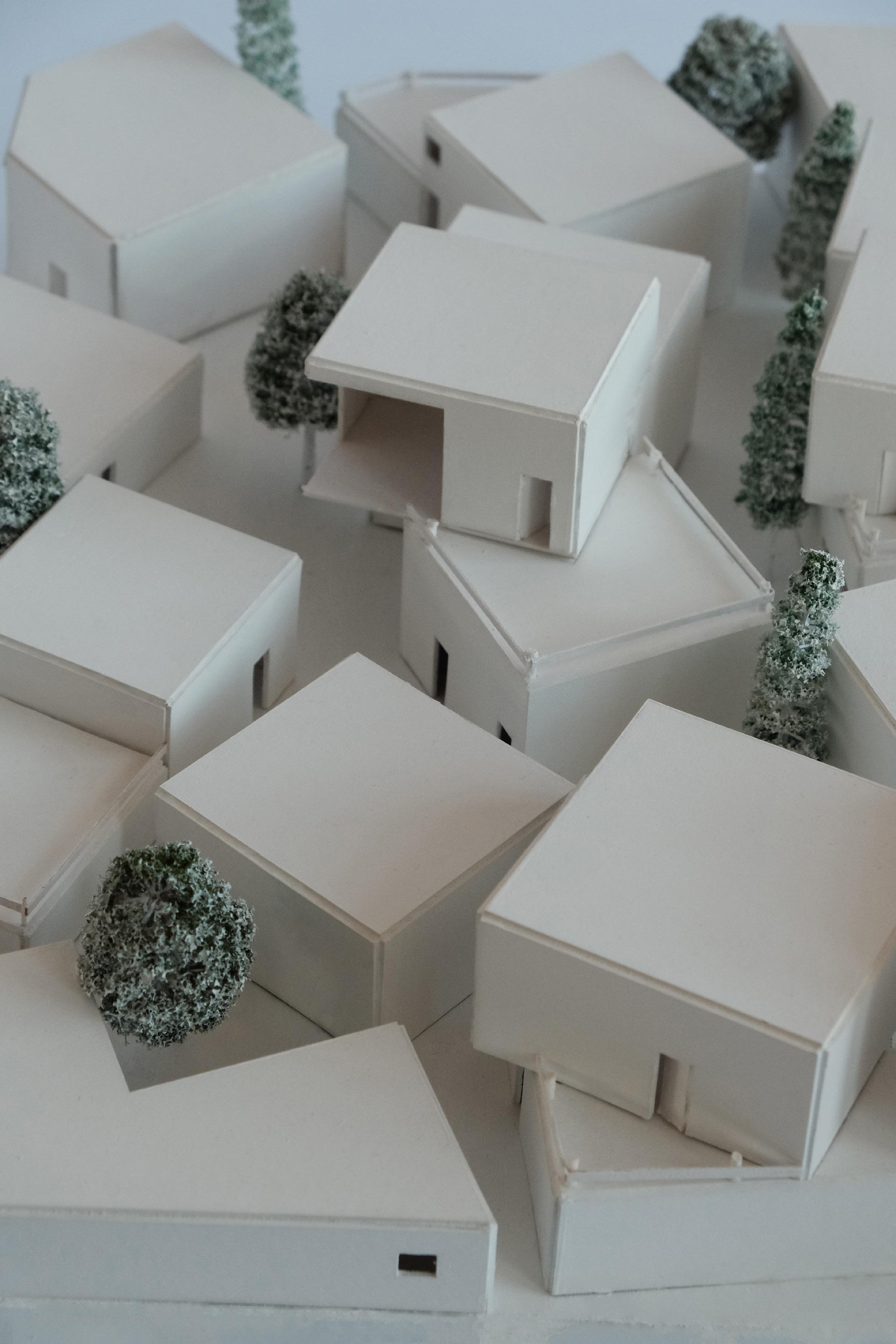

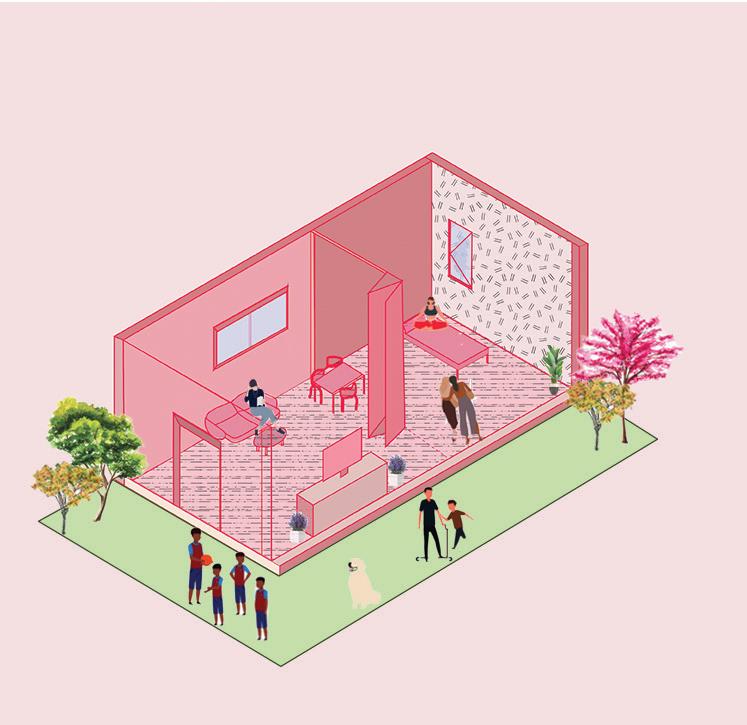

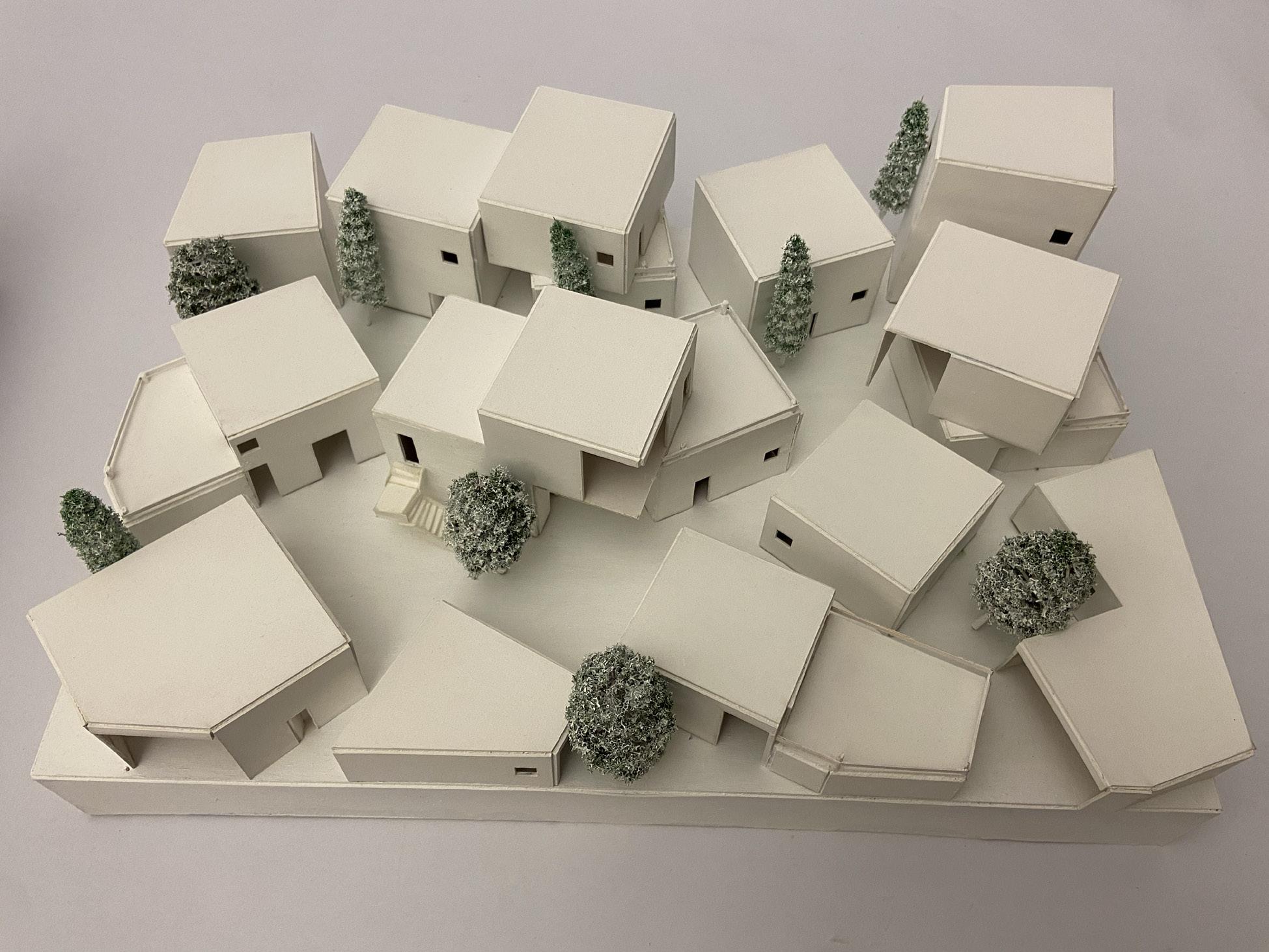

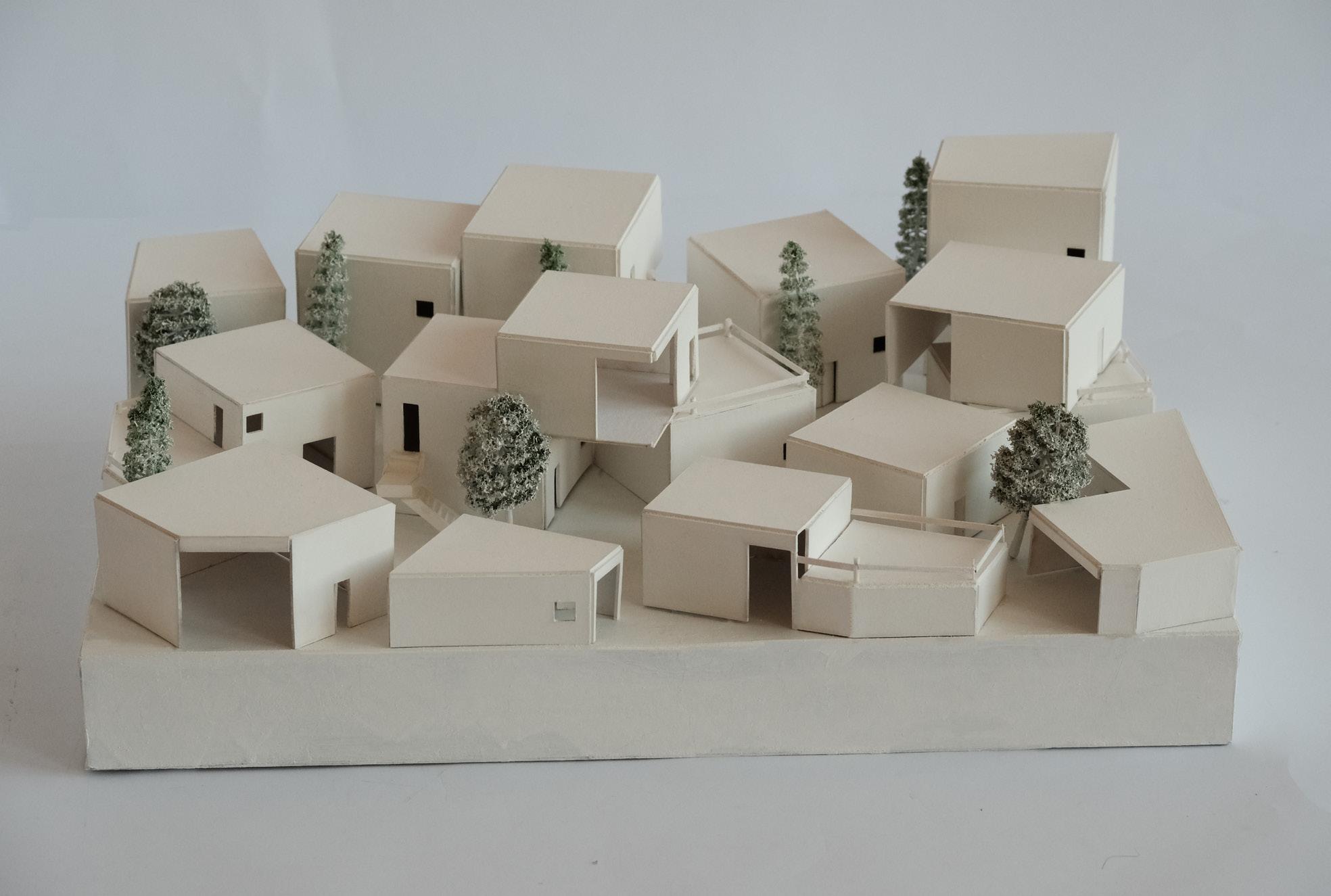

THIS PROJECT IS DESIGNED FOR AFFORDABLE HOUSINGS NEAR THE CAMPUS, UC BERKELEY DUE TO THE HIGH DEMAND IN HOUSINGS AND EXPENSIVE RENT. THE IDEA IS TO DECONSTRUCT A HOUSE AND RESTAGE URBAN ROOMS PROVIDING ONE OR TWO STORY HOUSES FOR STUDENTS AND FAMILIES WHO PREFERS TO HAVE PRIVACY. IN THIS HOUSING, NOT ONLY DOES EACH ROOM HAS DIFFERENT CHARACTERISTICS - SOME CLOSER TO THE MAIN ROAD, SOME WITH TERRACE AND ALLEYWAYS; COMMUNCAL SPACES SUCH AS CATERIA, GYM AND OUTDOOR RESTING AREAS ARE ALSO PROVIDED. THIS PROJECT’S INTENTION IS TO GIVE A SENSE OF COMMUNITY AND ACCOMMODATE WITH FACILITIES WHILE BEING ABLE TO LIVE IN AFFORDABLE HOUSING.

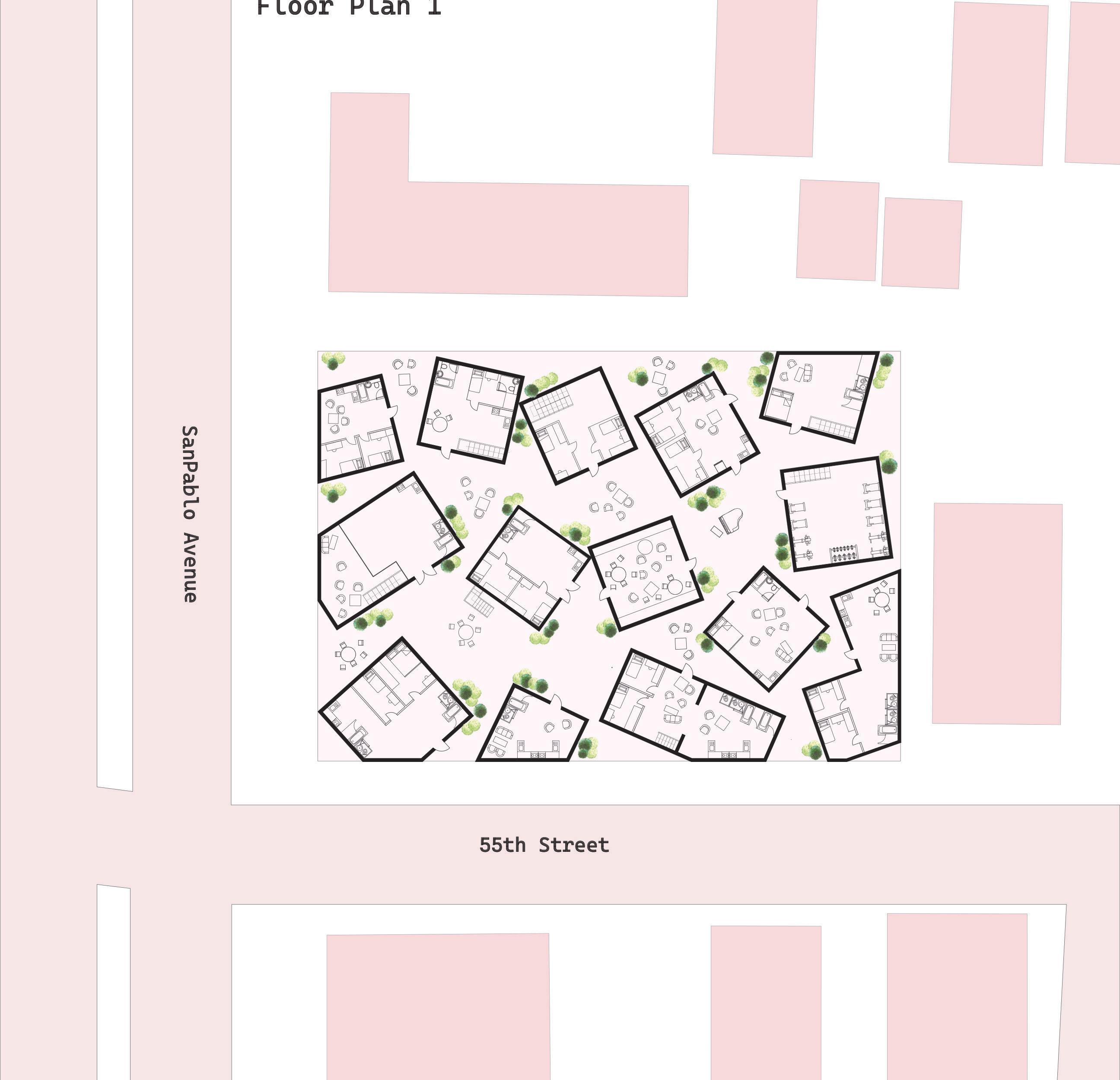

FLOOR PLAN 1
FLOOR PLAN 2

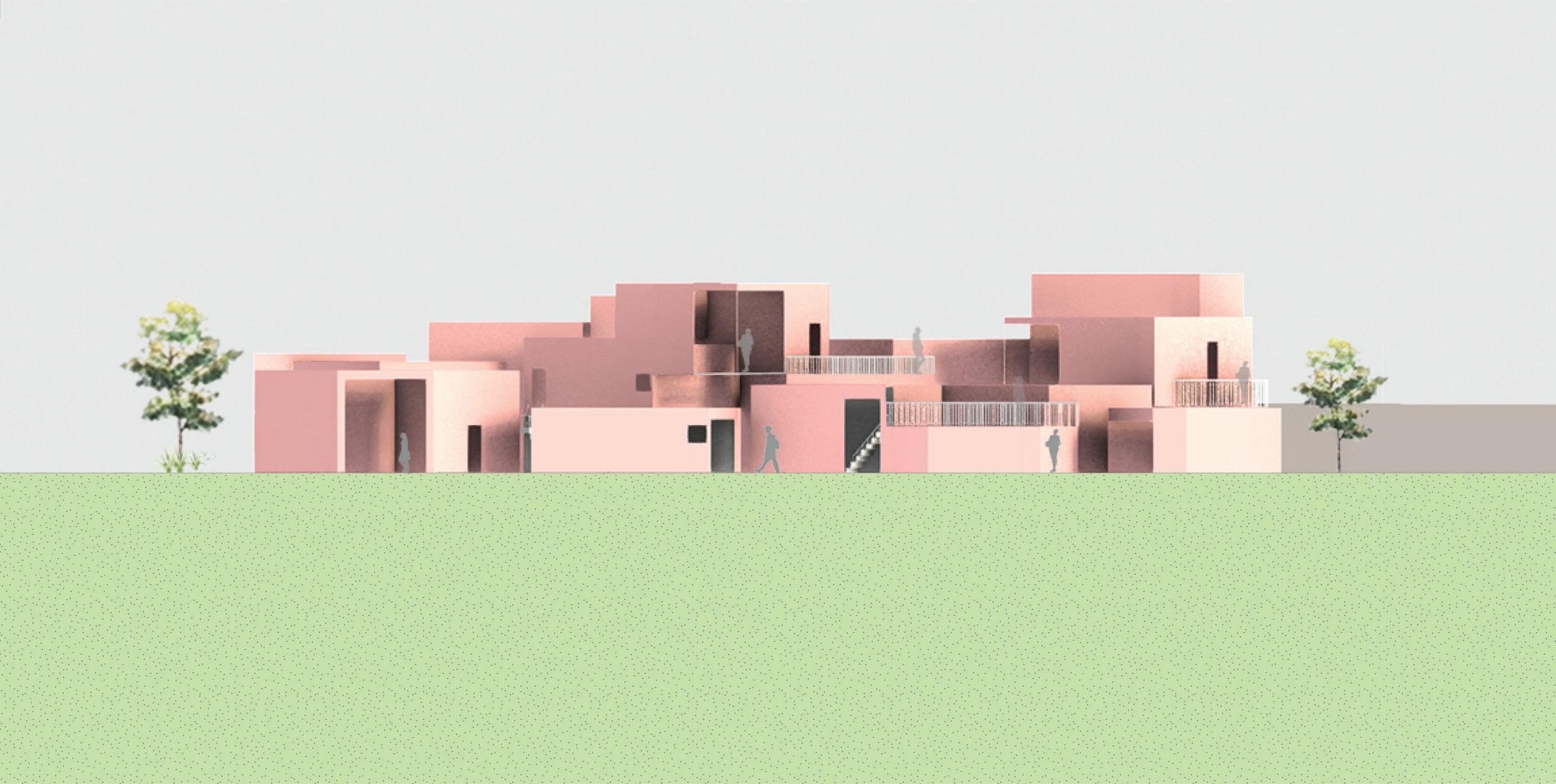

EL.EVATION SECTION
CHAMBER OF PROVOCATIONS: RESTAGING ROOF
WHAT WOULD HAPPEN IF WE DESIGN BUILDINGS FROM THE ROOF INSTEAD OF THE GROUND? THIS PROJECT IS ABOUT RETHINKING HOW ROOFS CAN BE DEFINED AND WHAT ROOF DOES IN ARCHITECTURE.

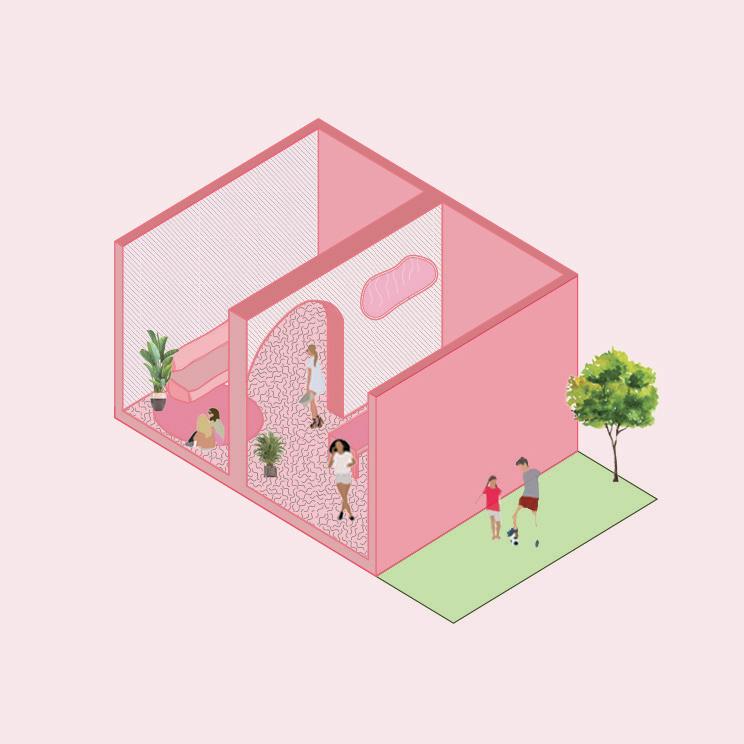

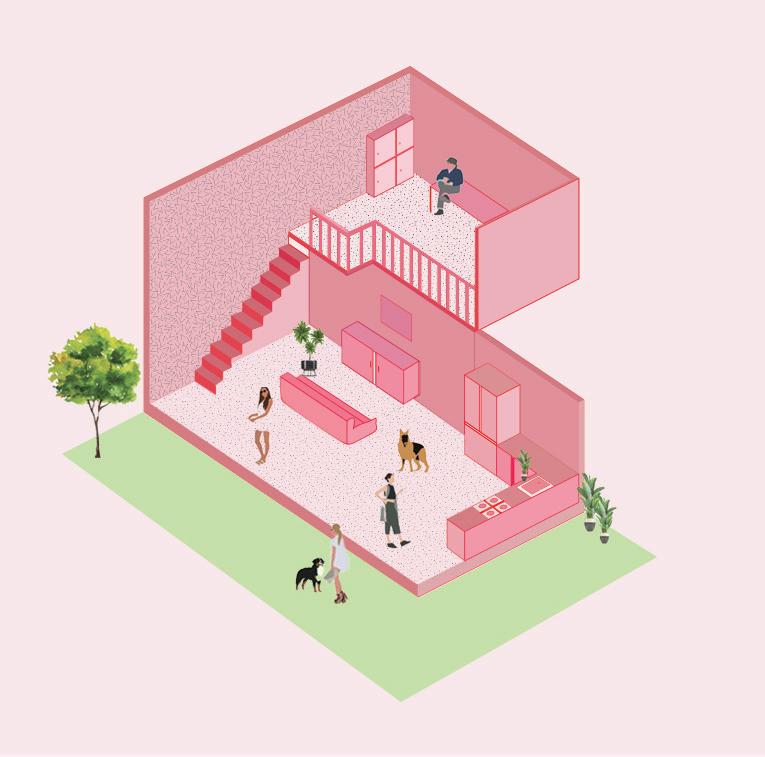

AXNOMETRIC DRAWING OF DIFFERENT FUNCTIONS UNDER A SINGLE ROOF
Conference Room Workshop O ces O ces Food Pantry Gym Cafe POSSIBILITIES OF FUNCTIONS
POSSIBILITIES OF FUNCTIONS
PART MUSEUM AND PART SOMETHING ELSE
INTERSECTION OF TELEGRAPH AVENUE AND 22ND STREET

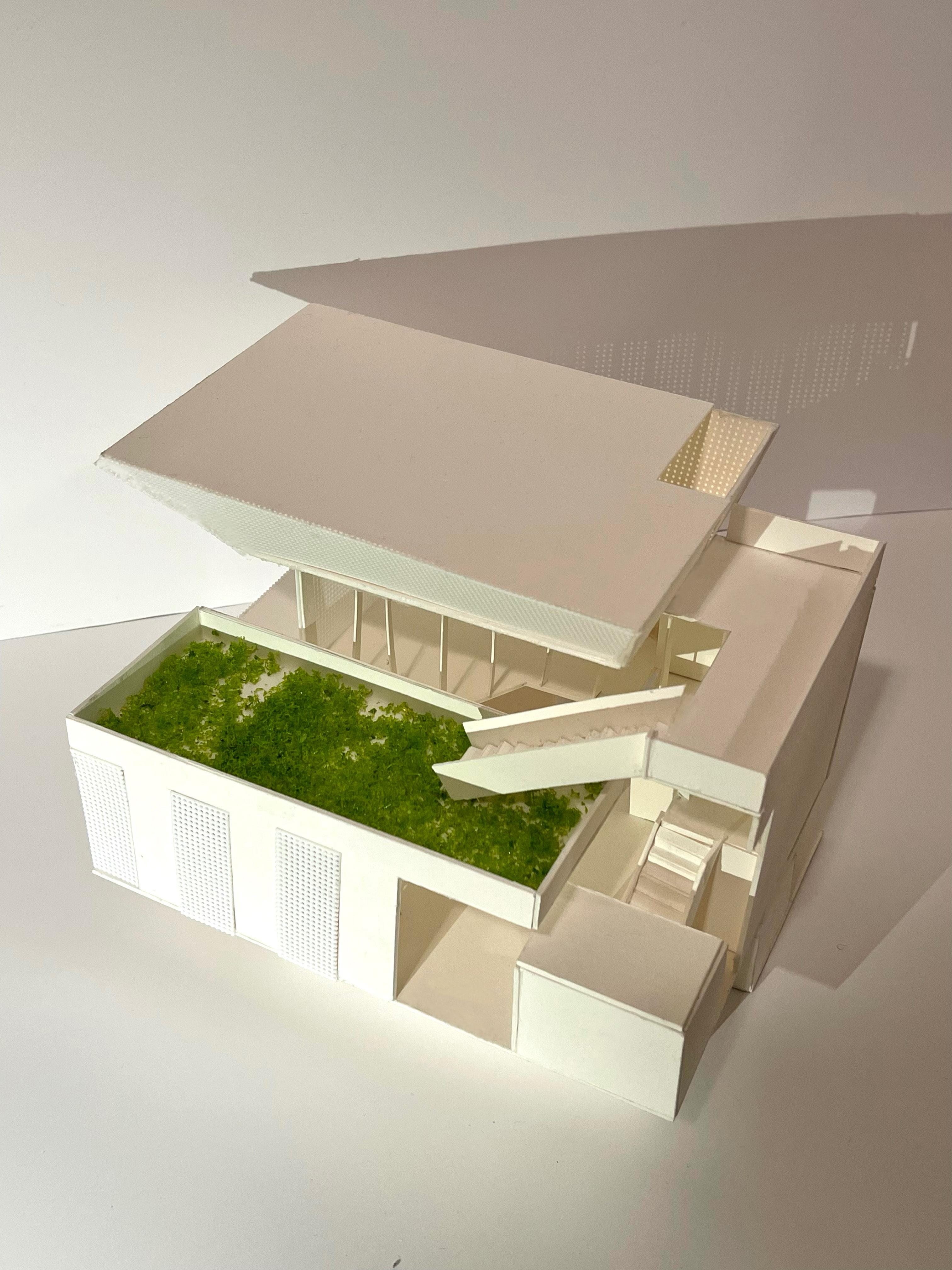

A MUSEUM PROJECT BASED IN OAKLAND IS DESIGNED FOR EASIER ACCESIBILITY TO THE BUILDING THROUGH THREE ENTRANCES AND DOUBLE-HEIGHTED LOBBY FOR MORE INTERACTION AND VISIBILITY FROM ALL ASPECTS.
FLOOR PLAN 1
0 2’ 4’ 8’ 16’ 1’-0” = 3/32
Floor Plan 1 - Cafe 2 - Restroom 3 - Children’s area 4 - Bike Area 5 - Commercial Space 6 - Lobby Area 7 - Storage 22nd street 1 3 4 5 6 A B 7 7 Telegraph Ave 2
First
FLOOR PLAN 2
FLOOR PLAN 3
0 2’ 4’ 8’ 16’ 1’-0” = 3/32 Second Floor Plan 7 - O ces 8 - Library 9 - Computer room 10 - Restroom 11 - Community Meeting Room 7 8 9 10 11 A B Telegraph Ave 22nd street 0 2’ 4’ 8’ 16’ 1’-0” = 3/32 Third Floor Plan 12 - Gallery Space 13 - Restroom 22nd street 13 12 Telegraph Ave A B
0 2’ 4’ 8’ 16’ 1’-0” = 3/32 Fourth Floor Plan 14 - Gallery space 15 - Outdoor terrace 16 - Storage 17 - Skylight 18 - Roof 22nd street 12 15 16 17 18 15 A B FLOOR PLAN 4 gallery spaces cafe light double-height lobby area Wild Card lobby
0 2’ 4’ 8’ 16’ 1’-0” = 3/32 Section A 1 - Gallery 2 - O ces 3 - Community meeting room 4 - Cafe 5 - Restroom 6 - Children’s area 1 1 1 2 2 3 4 5 6 SECTION A 0 2’ 4’ 8’ 16’ 1’-0” = 3/32
B 1 1 2 3 6 5 4 7 1 - Gallery 2 - O ces 3 - Community meeting room 4 - Commercial Space 5 - Restroom 6 - Storage 7 - Library
B
Section
SECTION

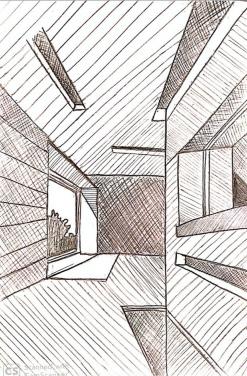

ABSTRACT DRAWINGS: ORDER AND UNCERTAINTY

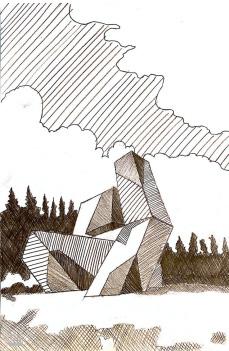

ABSTRACT DRAWINGS: ORDER AND UNCERTAINTY

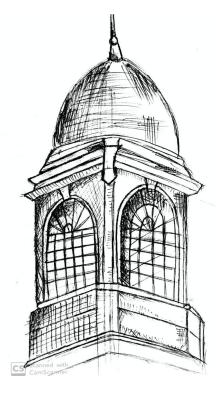

PERSONAL DRAWINGS
