Architecture Portfolio

SUBHALAKSHMI

I’minterestedincreatingstoriesandmemoriesthatpeoplecanexperienceratherthan theexternalform.I’mcuriousaboutcreatingconceptualideas.Iadmireplacescloseto nature and would like to create spaces that connect with the cultural environment. I’m fascinatedbyhistoricarchitecture,itsgrandness,andthememoriesthatitrepresents. Opentolearningnewideas,andlookingforwardtogainingknowledgeona workingforte.

I’m SUBHALAKSHMI, an Architecture Graduate from Crescent School of Architecture, Chennai.

NAME : S.SUBHALAKSHMI

D.O.B : 18.05.2001

ACADEMIC HISTORY

HIGH SCHOOL -2018 (12th)

Golden Gates Matriculation Hr.Sec.School, Salem

COLLEGE - 2018-2023

BS Abdur Rahman Crescent University, Chennai

WORK EXPERIENCE

Worked as an intern at Trispace Studio,Chennai, in collaboration with Digital Institution-x. ( Dec -2019 )

Worked as a Freelance Graphic Designer at Sima, Hyderbad. (2021)

Worked as an Intern at PRAGRUP ARCHITECTS, Banglore (Jan’22 - May’22 )

COMPETITIONS

FINALIST - at INSDAG National Competition on Steel (Stadium)

Piscina Wellness Architecture Competiton - 2021 (Aquatic Centre)

The Labyrinth by Arch8 - 2021 (Maze House)

Visitor centre Competition by Architrerrax - 2021

WORKSHOPS

Parametric workshop conducted I DigitalInstituion-x

Blender workshop , Meal Build, I Alleszandro Zomperelli

Dubai 2020 expo workshop in collaboration with I Heroit-Watt University

Architecture Animation Workshop I Archcult

Dream Flake V3.0 Rhino 7 I DesignMorphine

PROFICIENCY

ADDRESS :

No,18, South-east Layout, Fairlands, Salem - 636 016

CONTACT : +91 8903581503

sruthisreram18@gmail.com

sruthi.squiggles

LANGUAGES KNOWN

Conceptulisation I 3d modelling I Graphic design Leadership quality I Team worker I Outgoing

“Designisnothingbutahumbleunderstandingofmaterials,a naturalinstinctforsolutionsandrespectfornature.”

-B.V. Doshi

Page-5

Page-19

Page-31

Page-41

Page-37

GHARA SAMAJ, Communityhousing

Page-11

Page-25

ADRI, Multi-event Stadium

PETRICHOR, Aquatic centre

FLOURITE CRYSTALS, Pavilion

SHAMUDH, Conservation centre

KULAAH, Mixed use development

ATHURALYA, Multi-speciality Hospital

SEMESTER - 6 I TYPE : COMMUNITY HOUSING

SITE : JAISALMER, RAJASTHAN I

HOUSING I GENRE : WORKSHOP PROJECT

PROJECT TYPE : GROUP (TEAM OF 3)

GHARA SAMAJ

GHARA SAMAJ

The housing project acts as a growth of community spaces in the under developed desert areas in the outskirts of jaisalmer.This project acts as an alternative approach towards the traditional form of houses built in a contemporary/modern way.

The approach of this project is to create a interactive communal space using parametric techniques, which goes along with the culture and tradition of Rajasthan.

The site is located in the outskirts of Jaisalmer which is a developing city which has a growing population. This housing is for the regional population of Rajasthan which doesn’t affect much of the habitual life.

To create a co-living space which help people to enjoy the city in different perspectives, as the housings are arranged in layered heights.

DISCRETE ELEMENTS

The main discrete elements are simpler units of pathways and slabs that connects and grows along the site creating different levels of housings. These slabs acts as the base for the housing units to rest on top.

BASIC AGGREGATIONS

Simple pathways and stairs that connects and grows along the ste

Connections grows to form a community of spaces

Elements are aggregated in layers to give freedom for expansion and growth of space

Slab for Gathering space

Ramp for Vertical movement

Pathway for horizontal movement

Stairs for Vertical movement

Slab to act as base for Housing units

double height spaces are provided to create interative spaces.jaali walls are provided for ventialtion.

the ventilations are given in the sides and in the sloped roof to induce stack effect inside the space and produce cool air movement

thick walls made up of adobe and composite materials which helps in thermal insualtion

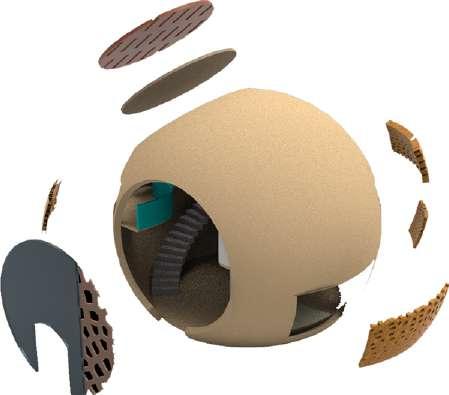

EXPLODED VIEW

One BHK Housing

Entrance

Adobe walls

Two BHK Housing

Entrance

Three BHK Housing

Entrance

Thactched Roofs are provided to dilute the amount of lighting entering into the building.

Pergolas to hold

Thatched Roof

Jaali Windows

Adobe walls

Pergolas to hold

Thatched Roof

Pergolas to hold

Jaali Windows

Jaali Windows

The housing is spread out horizontally throughout the site, as to use traditionally available materials and to avoid mechanical methods of movements.

FLOOR PLAN

Ground floor plan

MATERIALS

First floor plan

Thatch - helps in cooling Used in roofing

Adobe- helps in thermal insulation

Jaali - helps in airflow Stack effect

Pergolas - helps in aestheicts and structure

Ground floor plan

Ground floor plan

First floor plan

First floor plan

Second flooor plan

First floor plan

One BHK

Two BHK

Three BHK

SECTIONAL PERSPECTIVE

The Thatched roof helps in the cooling of the spaces inside and helps is ventilation evenly spread at both the levels

Jaali works are provided for ventilation and controlled lighting, small lobby spaces are provided in each bedroom for relaxation.

Providing levels and double height spaces in a compact house which helps in expanding the spatial quality

View of Entrance Lobby

View of Living and Dining

View of Bedroom

SEMESTER - 10 I

TYPE : DUGONG CONSERVATION

SITE : MANORA, PATTUKOTTAI, THANJAVUR

CENTRE I GENRE : THESIS PROJECT

THANJAVUR I SITE AREA : 10.5 ACRES

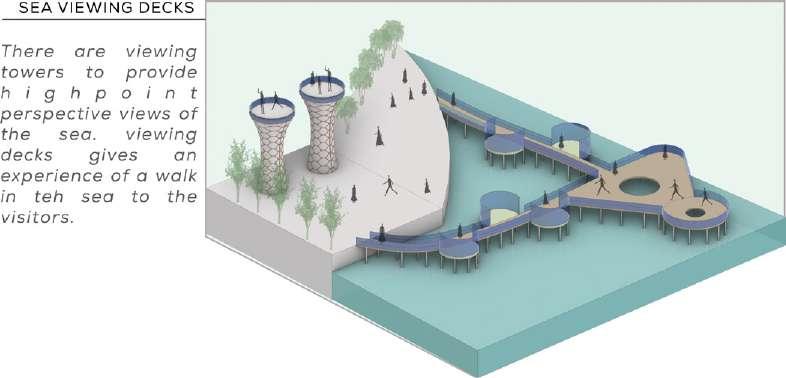

SHAMUDH

SHAMUDH

THESIS SYNOPSIS :

The aim of the thesis is to reserve and conserve sea cows and improvetheknowledgeofmarinemammalstothevisitorsandlocals. It aims to provide a functional, aesthetic, and environmentally friendly space for the conservation of wildlife animals and to increase the educationandlivelihoodofthepeopleinthesurroundings.

CONCEPT :

The main concept is ORGANIC ARCHITECTURE . The aim was to create a relationship between water, man and nature. To create a small urban environment in which people and visitors can enjoy their in serenity.

To create different spaces and functions incorporating coastal management strategies, sustainable and green ideologies to create a aethetic combination of spaces together in one plane.

GARDENING : Dugongs require a large amount of food. Eventhough the entire requirements cannot be achieved by farming. Some of the needs can be satisfied by gardening and farming lettuce in the site.

Connecting pathways between blocks

Form iteration with waterbody

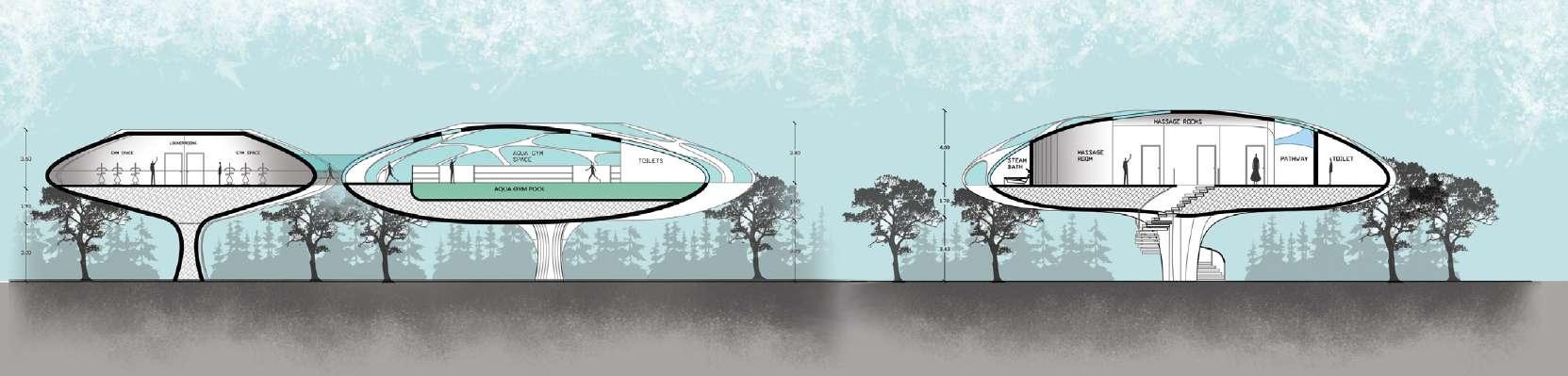

Main dugong pool area section

GROUND FLOOR PLAN

Tetrapods with mangroves in between them gives out natural safety

GROUND FLOOR PLAN

FIRST FLOOR PLAN

MUSEUM ,AQUARIUM BLOCK SECTION

CONSERVATION BLOCK SECTION

SEMESTER - 9 I

TYPE : MULTI-EVENT STADIUM

SITE : KIRIBURU, JHARKHAND I

ADRI STADIUM

I GENRE : COMPETITION PROJECT (FINALIST)

SITEAREA:23560sq.m

ADRI STADIUM

BRIEF :

The aim is to design a multi-event stadium in kiriburu, considering steel as the main material and elements in the design. the design needs to be functional yet unique and it should act as a landmark in the rural area.

CONCEPT :

As the site is situated on top of the mountain, the main idea is to merge the stadium design along with the landscape of that area. The rhythmic flow of the design through parametric approach will allow the building to stand out rather than being out of place in a remote town.

Likewise, in this design different elements come together to form a rhythmic space. The planning is based on musical curves which are modified to create the form.

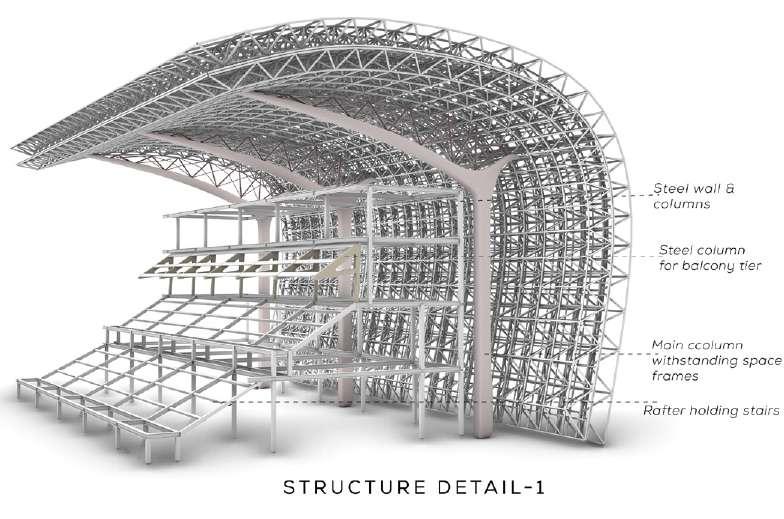

STEEL ELEMENTS

BLOCK C (AUDIENCE GALLERY)

CORE LEVEL 1 SEATING

GROUND FLOOR

SECOND FLOOR PLAN

BLOCK A (DORMITORY)

SECTION - AA

SECOND FLOOR

BLOCK C (AUDIENCE GALLERY)

CORE

LEVEL 1 SEATING

LEVEL 2 SEATING

BLOCK A (DORMITORY)

BLOCK B (VIP)

BLOCK B (VIP)

View of seatings from ground

View of VIP Lounge

View of Concourse

PETRICHOR

SEMESTER - 7 I TYPE : AQUATIC CENTRE I

SITE : BARCELONA, SPAIN I

I

GENRE : COMPETITION PROJECT

PROJECT TYPE : TEAM OF 3

PETRICHOR

BRIEF :

The aim was to design an aquatic center space just in front of the Sagrada Familia, an architectural marvel made by Antoni Gaudi. It should be suitable for a public bath, swimming pools, spa pools, etc.

CONCEPT :

The main concept was to create a forest environment that grows organically using vertical( trees) and horizontal(pond) elements.

The columns and catenary structures symbolize the elements from Sagrada Familia. The main entry focuses on two giant waterfalls and a long waterslide which top gives a great view of the cathedral.

The space is designed in such a way that the users connect to different spaces at different levels.

SPACE DEVELOPMENT

Existing trees on the site of Plaza De Gaudi.

Existing trees - Positive space Other spaces - Negative space Converting negative spaces into positive by building vertical elements in site.

Replaced, Restored and Recreates 90% of the existing trees in the site.

Bird watching columns are provided in such a way that the birds are free, and users are in a cage

FORM DEVELOPMENT

Analysing the site conditions and how the growth can be obtained around the site.

2.FLOOR PLATES

Determining different levels of spaces, and placing it in relation to the growth

3.MAIN ELEMENTS

Incorporating the main elements of The design, and defining entries and exits

4. LEVELS DEFINITION

Defining the difference between ground and other levels through series of columns.

5. DETAILING

Detailing of spaces and incorporating The conceptual ideas

Defining the users’ circulation spaces Through different levels

Vertical columns on different levels provide different visual perspective of Sagrada Familia

Each column has patterns of water droplet which connects the circulation.

1.GROUND PLATE

6. USER CIRCULATION

View of sagrada familia from spa pool

Bird-Watching columns

View of Plaza De Gaudi pond

VIEWS OF DESIGN

Shading columns with water

VIEW OF SAGRADA FAMILIA FROM OPEN POOL SPA

SEMESTER - 9 I TYPE : MIXED-USE BUILDING

SITE : PARANUR, CHENGALPATTU, CHENNAI

KULAAH MIXED DEVELOPMENT

BUILDING I GENRE : ACADEMIC PROJECT

CHENNAI I SITE AREA : 18,565 sq,m

KULAAH MIXED DEVELOPMENT

BRIEF :

The aim is to design a Mixed-use development Building in a 4.6 acre site overlooking a lake in Paranur. The mixed- use builsing should consists of functions like, housings, theatre sapces, shopping spaces, office spaces, restaurant and leisure spaces

CONCEPT :

The main concept is COMMUNITY ARCHITECTURE. The concept is more concentrated on creating multi funtional community spaces for different kind of people. as they can hang-out, work together, and gather around and interact in a green- interactive zones.

The basic form is developed using stacking of different units and empty soaes, conceaved as green pockets, these will then be joined by interactive plates and pathways in different levels.

The main sustainablity features include stepped terrace spaces. all the residences will include green terraces. all residences have natural ventilation which will reduce the use of mechanical add ons.

1 BHK

2 BHK

3 BHK

Daylighting along with green balcony spaces

Green terraces overlooking the lake view

Rain-water harvesting and Solar powered terraces.

Green sapces acts as a solar barriers in the south and west side.

Cross-ventilation in housings to improve micro climate

Interactive green sapces, between and within the housing areas

GROUND FLOOR PLAN

APARTMENT

APARTMENT

FLOURITE CRYSTALS

SEMESTER - 6 I TYPE : PAVILION DESIGN

SITE : CSA CAMPUS

I GENRE : WORKSHOP PROJECT

I

PROJECT TYPE : TEAM OF 3

FLOURITE CRYSTALS

BRIEF :

To design a Pavilion space in our college campus, and to experiment with software skills. The pavilion is developed with a basic concept of aggregation of elements, derived from fluorite crystals.

CONCEPT:

The growth is organic, from a starting point aggregated and branched all over the space. This pavilion acts as shading and relaxing space.

The elements are aggregated from the lines by connecting the various constellation points. These clusters of clouds were formed as a leisure space at the bottom. From the crystal, it produces gradient-colored reflections on the ground during the day and emissive colors during the night.

By providing a pathway at the top, users can experience a different perspective of the institute building. This pathway allows users to experience the aggregation crystals from a human’s point of view.

Element- 1 Three Legged

Element- 2 FourLegged

Element- 3 Five Legged

Mortise and Tenon Joints

Connected Joints

These clusters are held in place with columns emerging from the ground to surface of the pathway.

Elements emitting light and colors during and night creates ambiance and change the character of the space.

Creating an atmosphere at the higher level surrounded by the different colored crystals with gradient reflections.

ISOMETRIC VIEW

MATERIALS

Growth of the aggregated elements creating gradient reflections of the floor

Polyethylene terephthalate glycol (petg), with its translucency creates colored reflections.

Wooden planks are used in the construction of the pathway along and inbetween the elements.

Leisure space with organic seatings arranged in different levels

Organic columns support the aggregated elements and pathways.

View from the institute and the access to the second floor of the institute from the pavilion.

Pathway at the top level of the pavilion

ATHURALYA HEALTH CENTRE

SEMESTER - 7 I TYPE : MULTISPECIALITY HOSPITAL

SITE : OMR,SHOLINGANALUR,CHENNAI

HOSPITAL I GENRE : WORKSHOP PROJECT

OMR,SHOLINGANALUR,CHENNAI I SITEAREA:5100sq.m

ATHURALYA HEALTH CENTRE

BRIEF :

The aim is to design a multi-specialty 200 bedded hospital with operation theater consultation rooms, maternity, inpatient department with radiology and lab facilities. This design aims to solve functional aspects with MEP services.

CONCEPT :

The main concept is HEALING ARCHITECTURE , It is to design a hospital that will be interactive and has both indoor and outdoor spaces and their connectivity.

There are green pockets and Healing gardens have been incorporated in the design to make the patient feel at ease and it will also reduce the duration of the patient’s stay.

The aim was to avoid fully closed monotonous corridor space in the hospital. So, the main circulation of all the spaces will be around the atrium facing greeneries and lighting through the skylight.

Emergency Entrance view Courtyard atrium space with skylight

LEVELLED HEALING GARDEN SPACES

AREA AND ZONES :

Ground floor : Entrance lobby and Emergency (1850sq.m)

First floor : Out-patient and Laboratory (1800sq.m)

Second floor : Radiology dept and Admin (1800sq.m)

Third floor : Maternity dept and CSSU (1800sq.m)

Fourth floor : Operation Theatre and ICU (1850sq.m)

Fifth floor : In-Patient dept and Kitchen (1840sq.m)

Sixth floor : In-Patient and Cafe (1840sq.m)

Seventh floor : In-Patient and Gym, Yoga (1830sq.m)

Eigth floor : In-Patient wards (1820sq.m)

GROUND FLOOR PLAN

miscellaneous WORKS

ABSTRACT MODELLINGS, GRAPHIC DESIGN AND MODELS ETC

MADE WITH BLENDER

UNKNOWN YUGAM -23

Aconceptualexperimentalproject,donetoevolvedifferentiterationsusinngsimpletoolsfromRhino3dmodellings.The iterationsarerepresentedashistoriccutstonestructuresexcavatedfromanarchoelogicalsite,whichcanbeputtouse on different ways

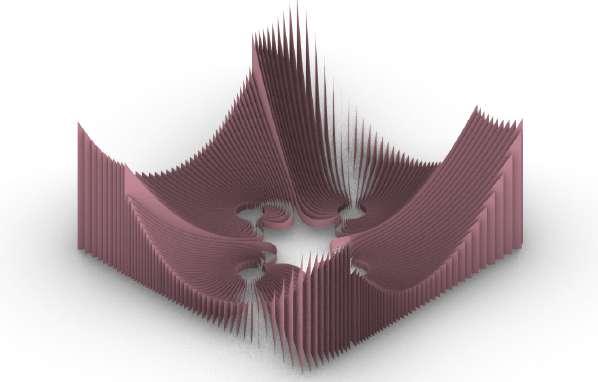

MAGNETIC CONTOURS

Anexperimentalproject,usingmagneticfieldlinesgeneratedfromGrasshopper,whcicharethentranformedtoformdifferent levels of surfaces, could be used as landscapes or pavilions.

ABSTRACT MODELLINGS

Software used :Blender 2.81

Software used

Software used :Blender 2.81 used :Blender 2.81

Softwareused:Photoshopcc2018

Software used :Blender 2.81
