THE FIREFLY LOUNGE
AJMAN HOTEL . VIP OUTDOOR BAR
Contents 4 Breif Received 6 Existing Conditions 8 Materials Inspiration 10 Proposed Layout 12 Mood Images
Breif:
BY CLIENTScope of work:
1. Pergola for lounge area with flooring options (WPC decking or outdoor suitable flooring)
2. Space cooling ( Cooling from the bottom side)
3. MEP for this area (drainage , Plumbing, Electrical )
4. BAR equipment with BAR setup with POS and networking
5. Utilization of existing washroom - need inputs from your side
AJMAN HOTEL
4200 X25 4200 X21 220 2100 1880 220 X19 X18 X20 X22 4200 X23 X24 1850 X26 1650 250 200 1552 6325 2153 200 3771 7051 10050 6366 7707 6047 3080 100 8216 -05

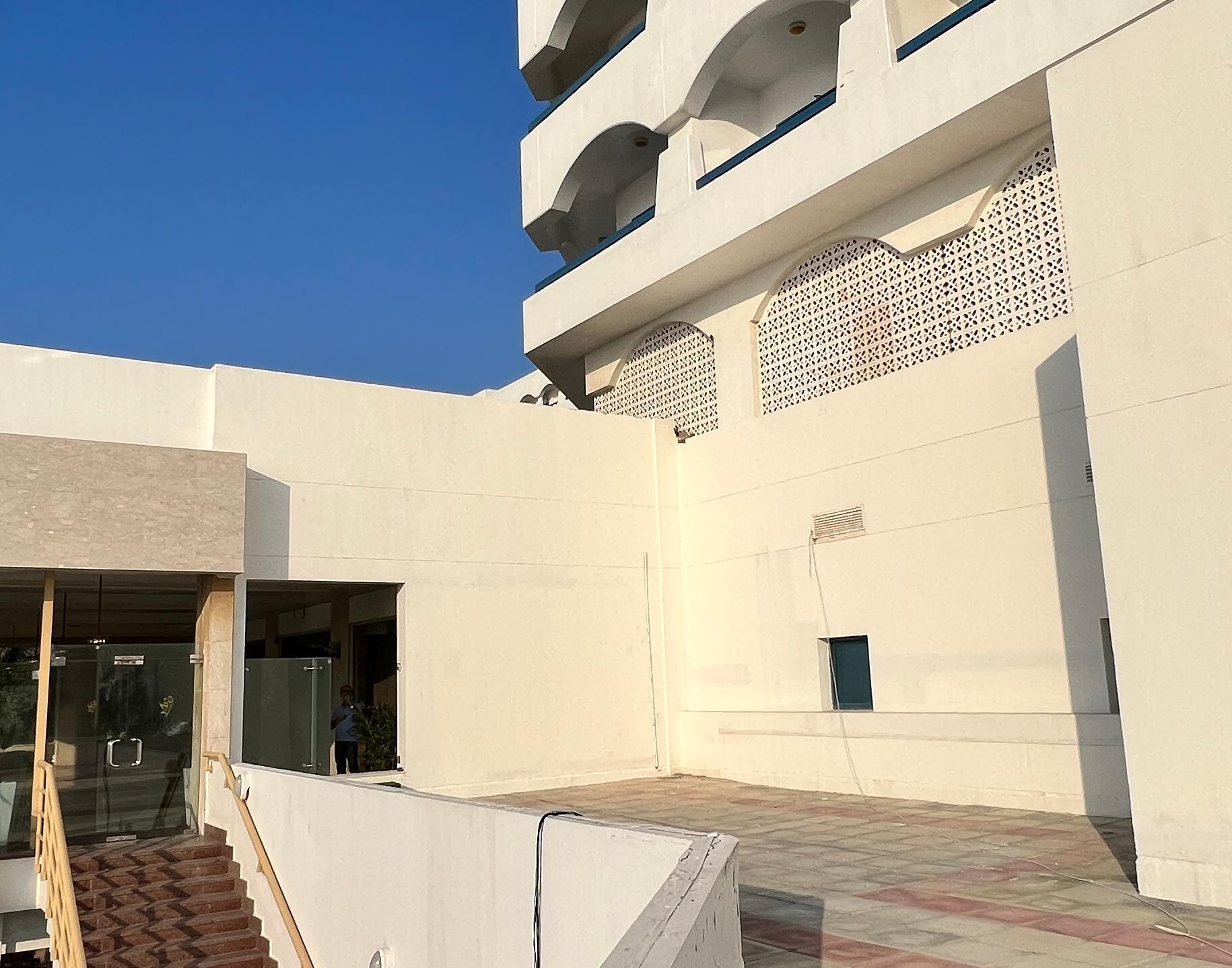

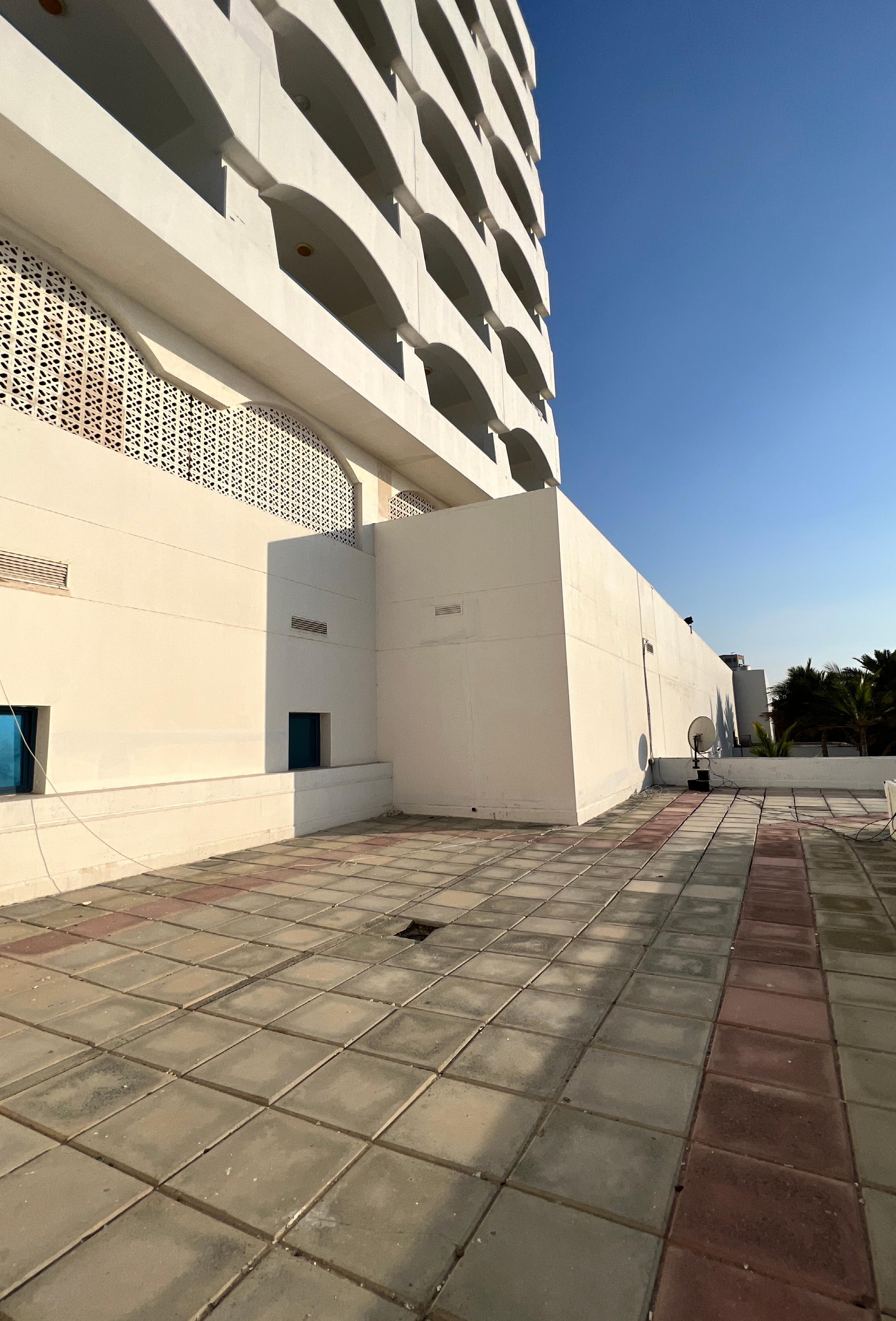

EXISTING SITE CONDITIONS
AJMAN HOTEL
Proposed Area
LOCATION
The proposed area for the climate controled outdoor lounge is located on the first floor adjacent to the newly proposed royal suites.
The area will need a complete renovation and upgrade. Starting with the floor leveling and finishes treatment, MEP overhaul, and providing access tothe toilets.
-07

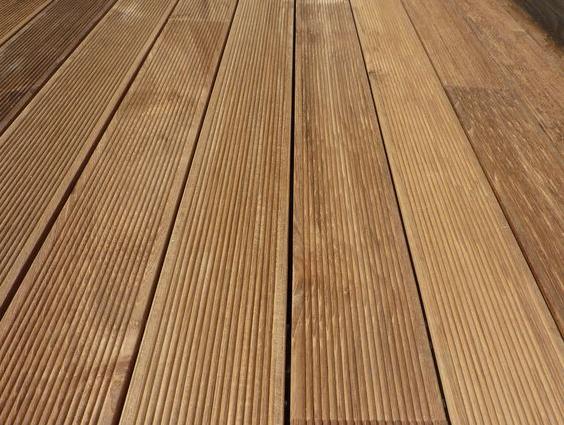

Lush plants Teak wood Soft lights
MATERIALS
4200 220 2100 1880 220 1552 6325 2153 3771 6366 7707 6047 3080 proposed layout AJMAN HOTEL
4200 4200 1850 2153 7051 10050 8216 -011

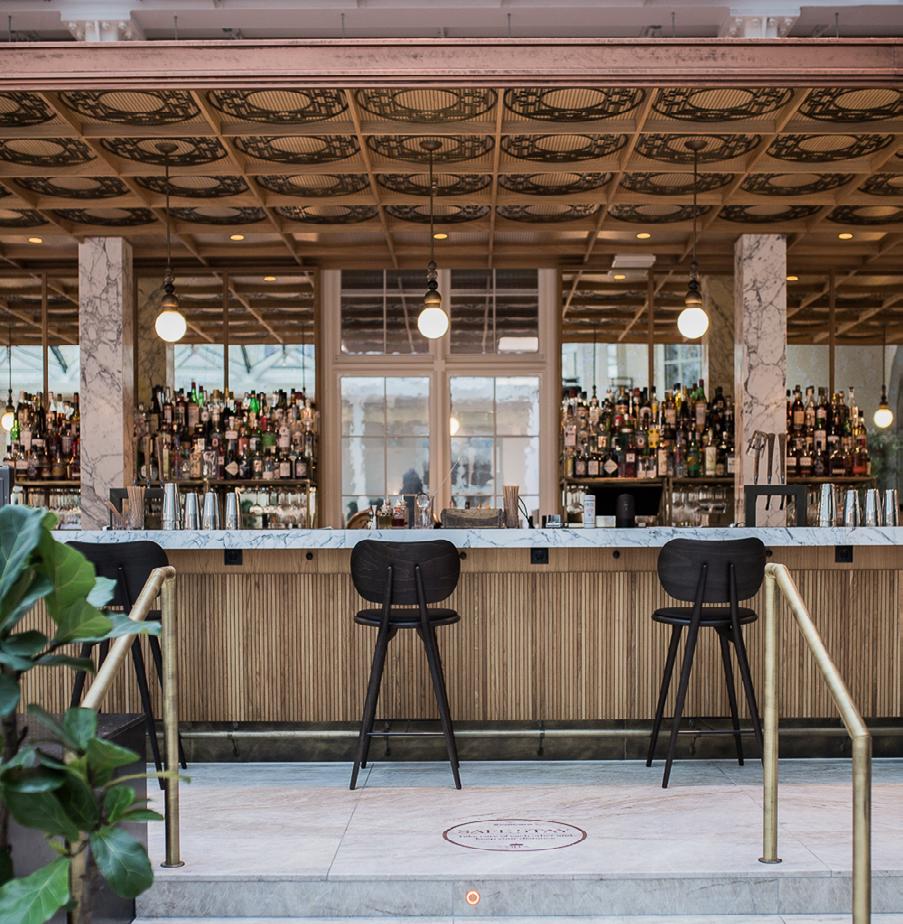

Mood Images
Pergolas, soft-scapng proposed to provide an “Alfresco” style of setting while having AC outlets distributed around the space. Main lighting source will be from Firefly lights and soft mood lights while the back of the bar wall would act as an attractive feature wall.
AJMAN HOTEL
-013
BY RAWAAD J SAADÉ| STUDIORJS & AL MUTAWASIT FURNITURE & DECOR LLC
