V.0.0.2.217-AseriesSMALLMODELS
V.0.0.0.207-AseriesBIGMODELS
V.0.0.1.105-referencestation AUTONOMOUSROBOT NEWFIRMWARE
10/04/2024
01/02/2022Confidential Presentationtitle
1
What’snew?
1. FIRMWAREUPDATESPROCEDURES
2. NEWFUNCTIONS
01/02/2022Confidential Presentationtitle
2
FIRMWAREUPDATESPROCEDURES
V.A.R.0.0.2.217-AseriesSMALLMODELS
V.A.R.B0.0.0.207-AseriesBIGMODELS
V.0.0.1.105-referencestation
01/02/2022Confidential Presentationtitle 3
Robotfirmwareupdate
A Updatetherobotsoftware
Afterupdatingtherobotfirmware, theAPPwillaskfortwomoreupdates fortherobot:thelocationmodule andthedatamodule.
01/02/2022Confidential Presentationtitle
4

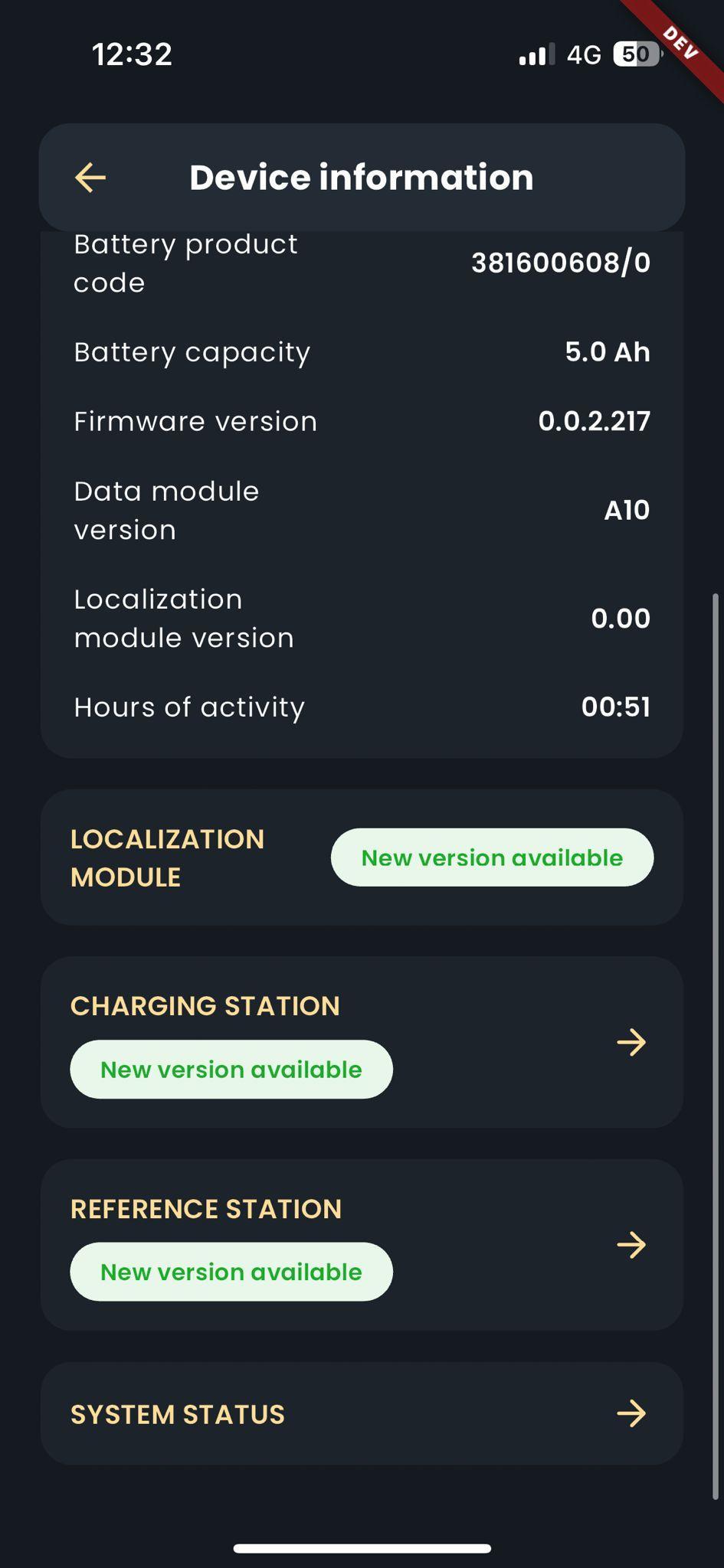

Robotlocalisationmoduleupdate
Updatetherobotlocalisationmodule
ROBOTMUSTBEINSIDETHEBASE
Afterupdatingthelocalisation module,theAPPwillasktoupdate thedatamodule.
01/02/2022Confidential Presentationtitle
B
5
Robotdatamoduleupdate
C Updatetherobotdatamodule
ROBOTMUSTBEINSIDETHEBASE
Alltherobotupdatesarecompleted. Then,proceedtoupdatethe referencestation.
01/02/2022Confidential Presentationtitle
6
Referencestationfirmwareupdate
A Updatethereferencestation firmware
Afterupdatingthereferencestation firmware,theAPPwillaskfortwo moreupdatesforthereference station:localisationmoduleanddata module.
01/02/2022Confidential Presentationtitle
7
Referencestationlocalisationmoduleupdate
B Updatethereferencestation localisationmodule
Afterupdatingthelocalisation module,theAPPwillasktoupdate thedatamodule.
01/02/2022Confidential Presentationtitle
8
Chargingbasefirmwareupdate
01/02/2022Confidential Presentationtitle
9
Updatechargingbasefirmware.
NEWFUNCTIONS
V.A.R.0.0.2.217-AseriesSMALLMODELS
V.A.R.B0.0.0.207-AseriesBIGMODELS
V.0.0.1.105-referencestation
01/02/2022Confidential Presentationtitle 10
Newfunctions
● Customisablezonecuttingorder
● Zonedeactivation
● GoAway
● Temporaryno-cuttingzone
● Obstaclenotification
● Longexit
01/02/2022Confidential Presentationtitle
11
Customisablezonecuttingorder
Thankstothezoneprioritisationfeature,youcaneffortlessly customisethemowingorderbyrearrangingzonesdirectlyin theApp,accordingtoyourpreferencesforapersonalised lawncareexperience.
Usethe'Move'buttontomovethe gardenzonesinthelistofzonesin theorderyouwant,thensave.
01/02/2022Confidential Presentationtitle
12
Zonedeactivation
Nowyoucanstopthemowinginadesiredarea. Therobotwillnotmowtheselectedzoneuntilthisfunctionis deactivated,butitwillstillpassthroughthiszonetoreach otherconnectedareas.
Selectthedesiredzoneandpressthe “deactivate”buttontodisablethe gardenzone.
Therobotwillnotcutthiszoneuntil thisfunctionisdeactivated,butthe robotwillstillpassthroughthiszone toreachotherconnectedzones
01/02/2022Confidential Presentationtitle
13
Goaway
Nowitispossibletotemporarilyexcludefromthemowingareathe zoneneededaroundtheuser.Youcanselectaradiuswithintheapp basedonyourphone'slocationorbyselectingthedesiredpointon thegardenmap.TheAppidentifiesacircledareainwhichtherobot willnotworkforaspecifictimerangechosenbytheuser.
A Onthegardenmap,pressthepoint whereyouwanttosettheGoAway area. Youcanalsosetthispointusingthe GPSpositionprovidedbythephone.
01/02/2022Confidential Presentationtitle
14
B Selecttheradiusofthecircular“go away”zonetobeset.
01/02/2022Confidential Presentationtitle
15
Goaway
C Selecttheexpirationdayandhourof the“goaway”zone.
01/02/2022Confidential Presentationtitle
16
Goaway
01/02/2022Confidential Presentationtitle
17
away
D Savethesettings. Theexpirationdateandhourare displayed
Go
Temporaryno-cuttingzones
BysimplyaccessingtheSTIGA.Goapp,youcanselectapartofthe areabetweentwopoints,AandB,wheretherobotmowerdoesnot havetoworkforacertainperiodoftime,whichyouselectdirectlyin theapp.Onceconfirmed,thetemporaryno-cutareaishighlighted inyellowintheapp.
A Selectthegardenzoneinwhichyou wanttosetatemporary no-cuttingzone
01/02/2022Confidential Presentationtitle
18
Temporaryno-cuttingzones
B Usetheslidertoselectthestartand endpointsofthetemporary no-cuttingzone. Thetwopointsareconnectedbya straightlinetocreatetheno-cutting zone.
01/02/2022Confidential Presentationtitle
19
Temporaryno-cuttingzones
C Selecttheexpirationdayandhourof the“temporaryno-cutting”zone.
01/02/2022Confidential Presentationtitle
20
Temporaryno-cuttingzones
D Savethesettings. Theexpirationdateandhourare displayed.
01/02/2022Confidential Presentationtitle
21
Obstaclenotification
Youwillreceiveanotificationwhentherobotdetectsatleast3 consecutiveclosehitsduringitsmowingsession.Afterthesessions hascompleted,youwillreceiveanotificationthatshowsyouallthe obstaclesfound.
Then,throughtheApp,youcanchoosebetween3differentoptions:
1)removetheobject;
2)registertheobstacle;
3)continuetomanagetheobstaclebydetectingtheimpact.
A Activatethefunctioninthesetting page
01/02/2022Confidential Presentationtitle
22
Obstaclenotification
B
Iftherobotbumpsintoanobstaclein thegardenatleast3timesandthe3 bumpsarewithin80cmofeach other,itwillbedetectedasan obstacle.
Whentherobotreturnstothe chargingstation,apushnotification issenttotheuser.
01/02/2022Confidential Presentationtitle
23
Obstaclenotification
C Whenyouopenthealert,itlistsall theobstaclesfoundduringthe mowingsessionandshowstheir positiononthegardenmap. Youcanthenclosethenotification andignorethewarning,orcheckthe gardenandphysicallyremovethe obstaclesorrecordthemonthemap.
01/02/2022Confidential Presentationtitle
24
Obstaclenotification
DIfyouwanttorecordtheobstacles foundbytherobot,selectfromthe listtheonesyouwanttoregisteron themap.
Thenusetheslidertoselectthe radiusofthecircularno-cutzone thatwillbecreated,thensavethe settings.
01/02/2022Confidential Presentationtitle
25
Longexit
Normally,whentherobotleavesthechargingbase,itdetachesitself fromthechargingstationandthenimmediatelyturns180°toleave itsbase.Sometimes,itischallengingwhenthechargingbaseis installedinalimitedareaorspace.Thankstothenew"longexit" function,allmanoeuvresareeasier.Infact,therobotreversesfora distanceof2metersfromthebaseandthenturns180°tostart cuttingortofollowthedockingpathwithease.
Whenthisfunctionisenabled,the robotwillimmediatelyleavethebase atstartupandperformalong backwardmanoeuvrefor2metres.
Onlythenwilltherobotsearchfora satellitesignal.
