“The basic motto of the community center is to cherish community activities and try to preserve the originality of community which it once was.”
SOCIO-CULTURAL ASPECT
• Inhabitant = Newar Community
• Linked by traditional Jatra Route
• Major Temple complex
• Bound by the beliefs and values of the area
ECONOMICAL ASPECT
• Most of the land are Agricultural land
• Near by people = Farming
• Facilities like hospitals, pharmacy, School and shops are accessible
ECOLOGICAL ASPECT
• Suited in-between two hills
• Hilly Region trees (Narrow leaved Ash, Pine, Dhupi )
• Migration birds and crane
• Protected area

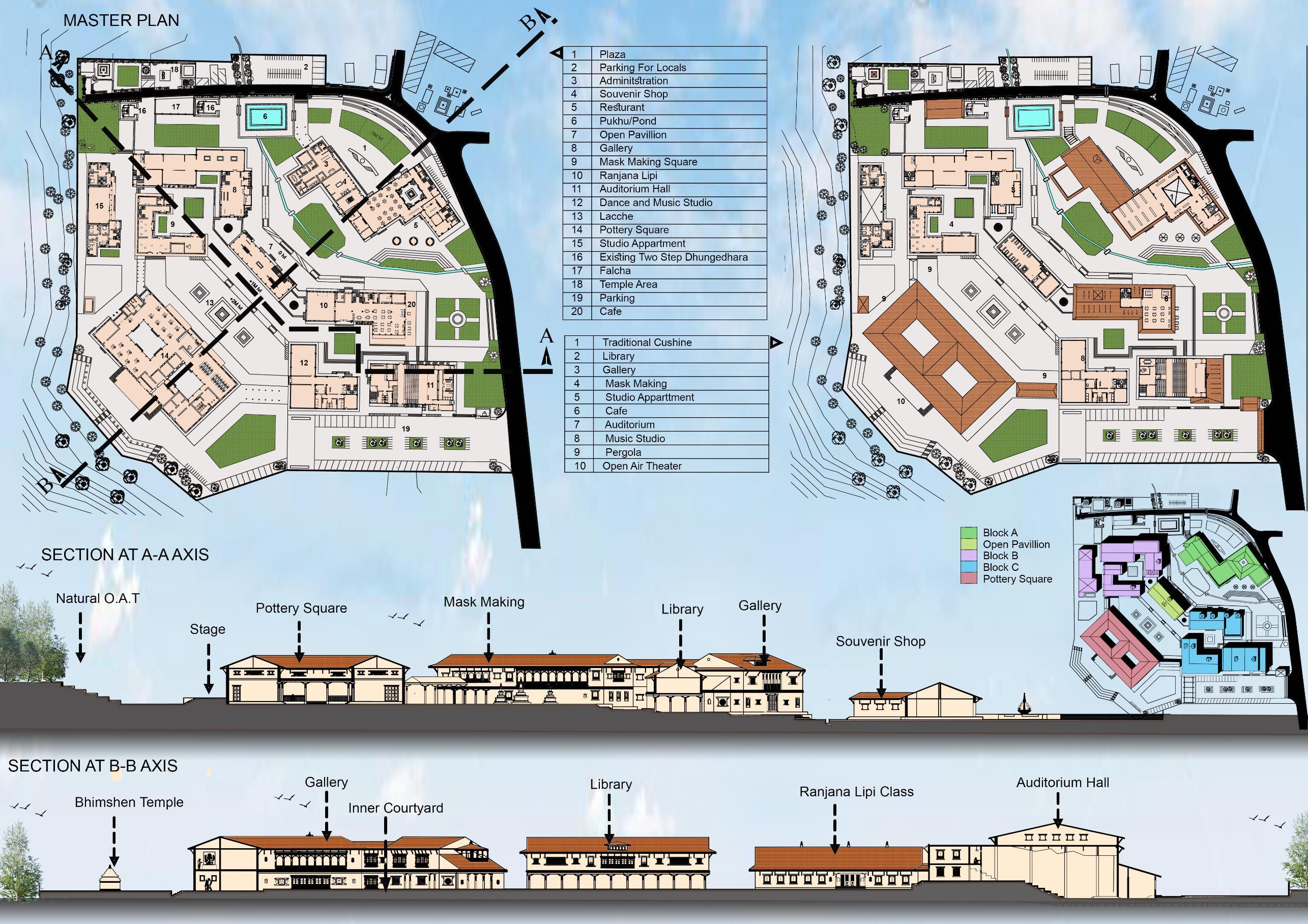

AT A-A AXIS
PLACE MAKING IN THIMI
• Transition through
• Simplicity but
• Balance
• Enclosure
Gallery and Mask Making
Ranjana Lipi Hall
Lacchi

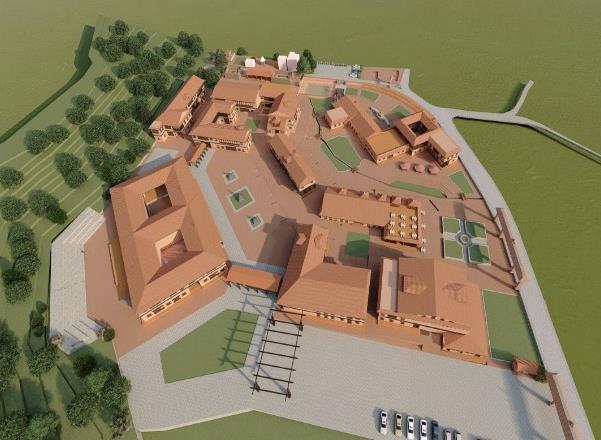

Arial View

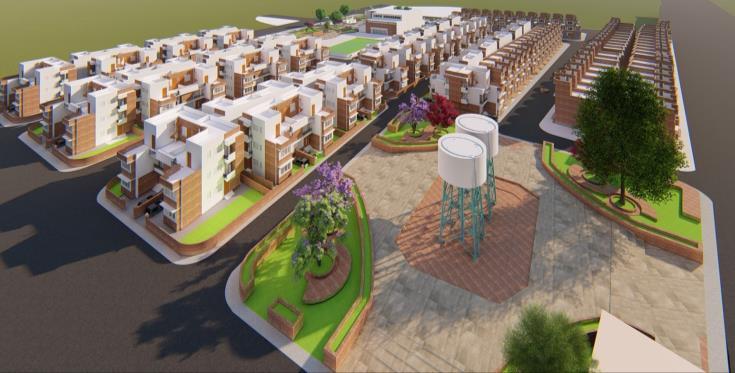

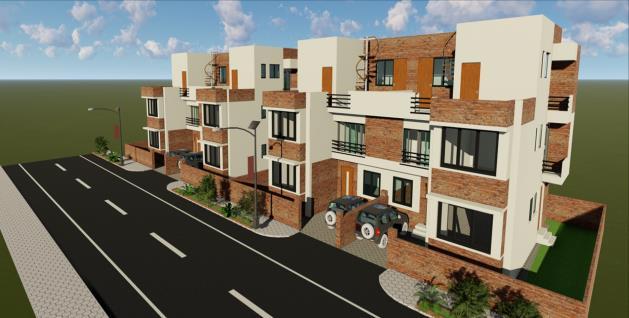

2. Neighbhourhood Planning

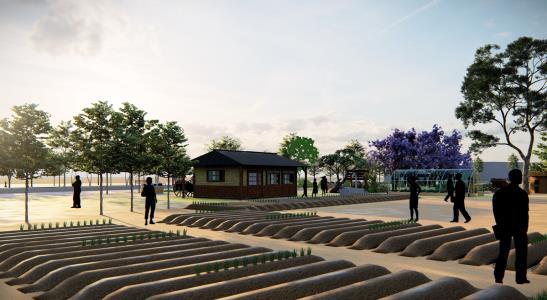

The Neighborhood planning project was conducted as a component of the Design Studio in Harrisidhhi, Lalitpur The project aimed to achieve pedestrian-friendliness, sustainability, accessibility, and social interaction Diverse housing units were designed to align with the sociocultural needs of the site The entire design of the neighborhood mirrors the character of Nepalese Architecture through the use of materials and design principles, seamlessly incorporating contemporary perspectives. Neighborhood is togetherness of life, Space and Building coexisting with each other.

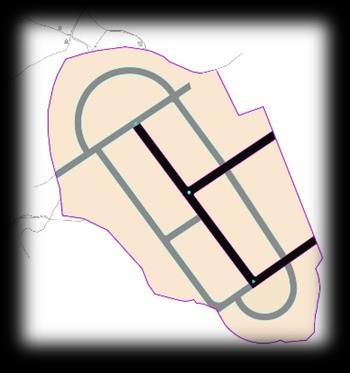

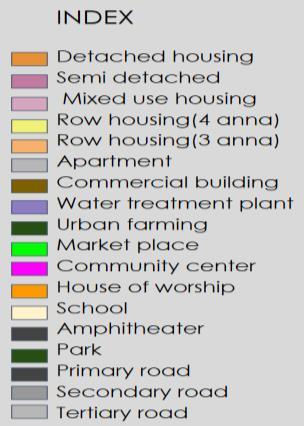

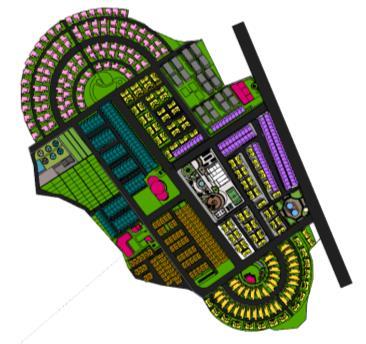

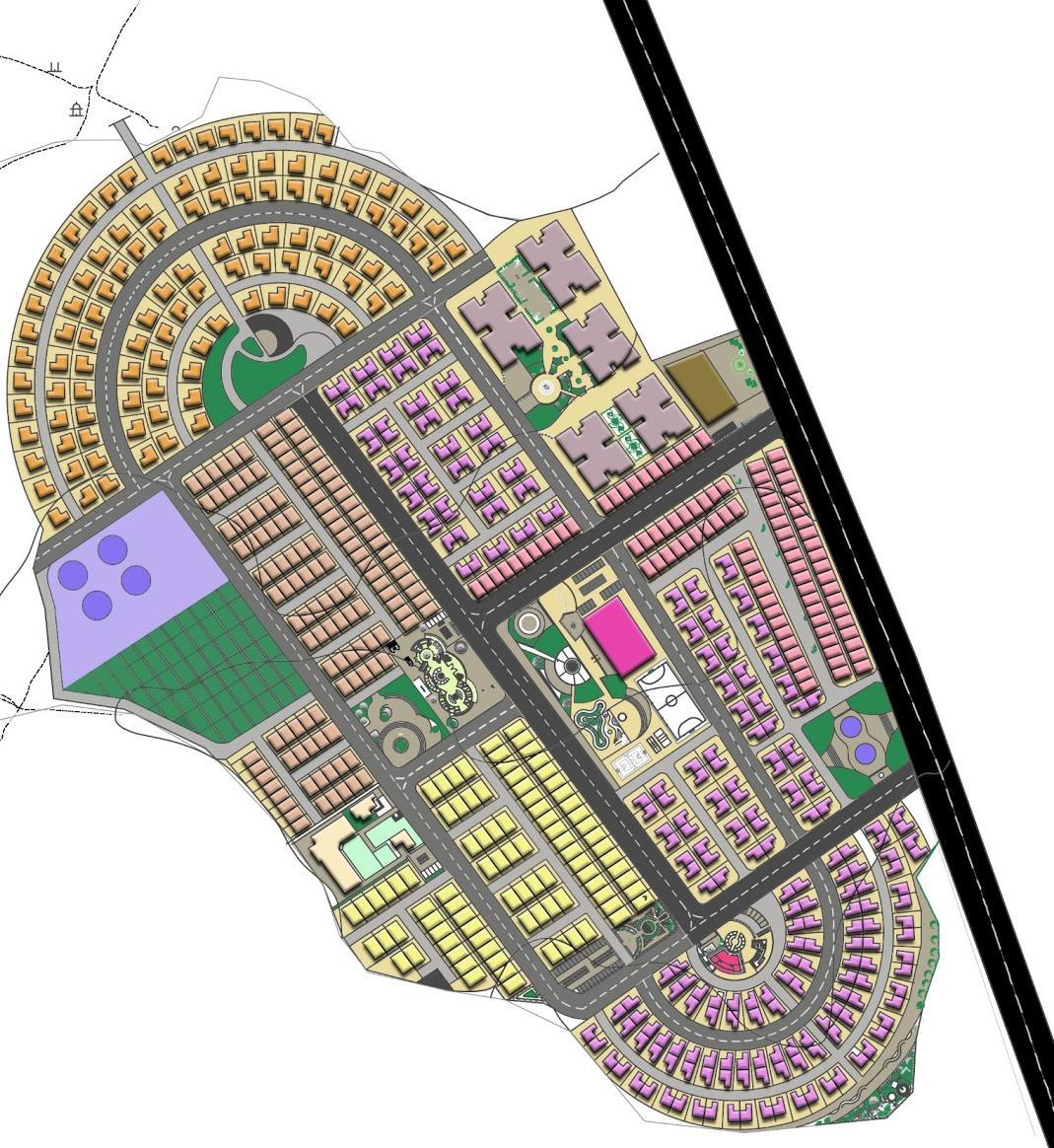

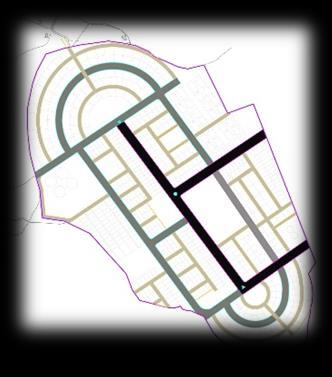

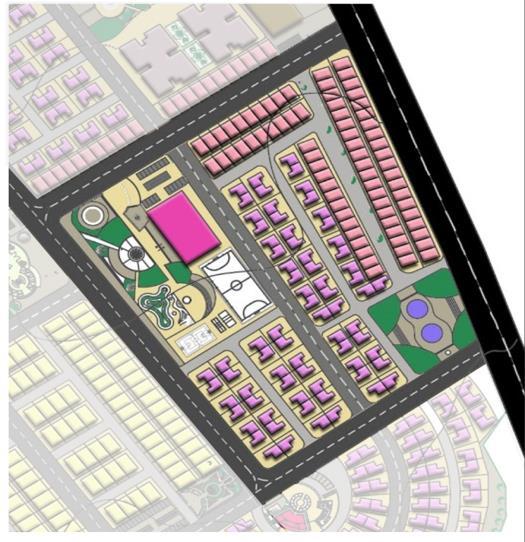

MASTER PLAN
at B-B
Primary Road
Secondary Road
Tertiary Road
Unit details
• Detached Building = 108 unit
• Semi detached building = 169 unit
• Row house = 314 unit
• Apartment = 252 unit

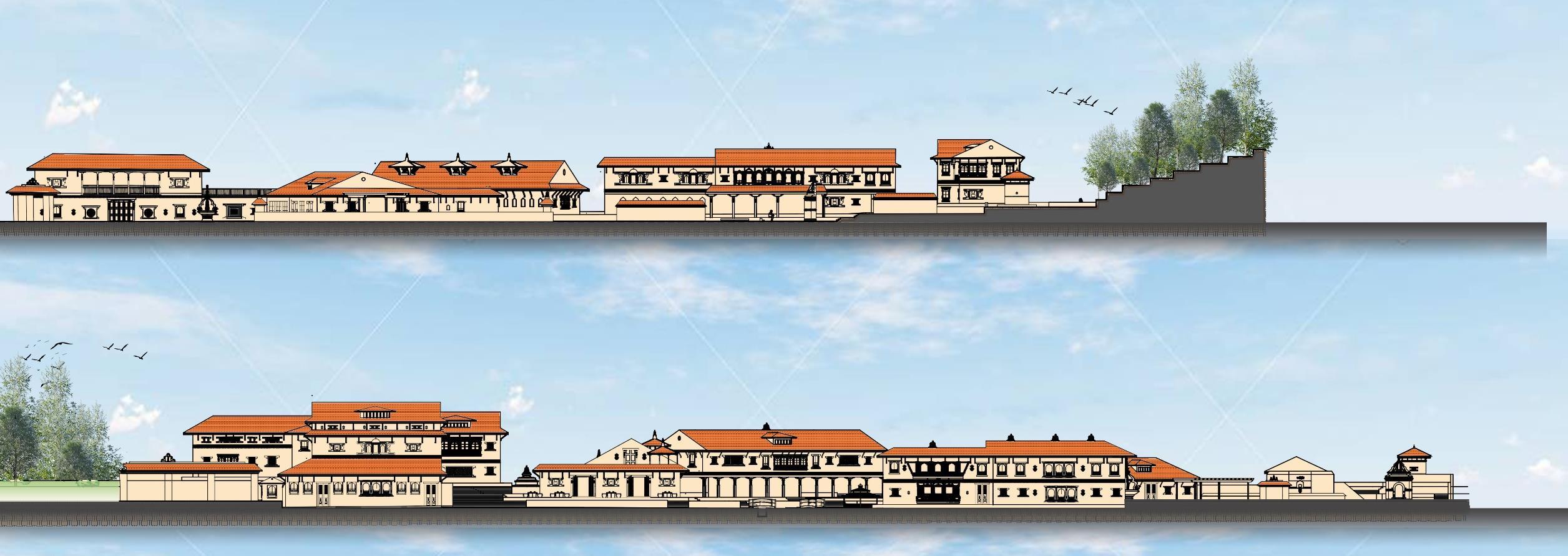

Section
1. COMMUNITTY CENTER
• Plot Area = 7835.57 sq.m
• Plot Dimension = 118 *67m
• Total Build up Area = 2624.42 sq.m
• Total units =1
• Tentative Cost = Approx. 9 crore with land cost Rs.30,0000
SECTION AT X-X

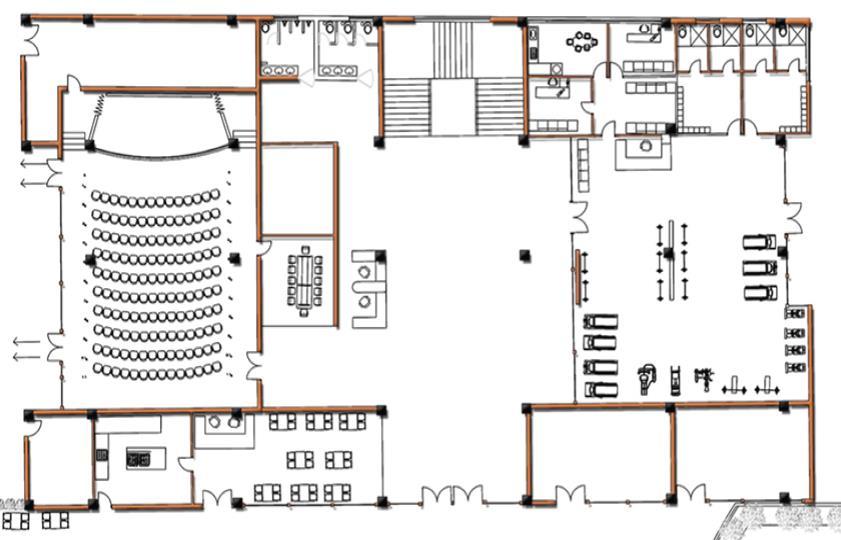

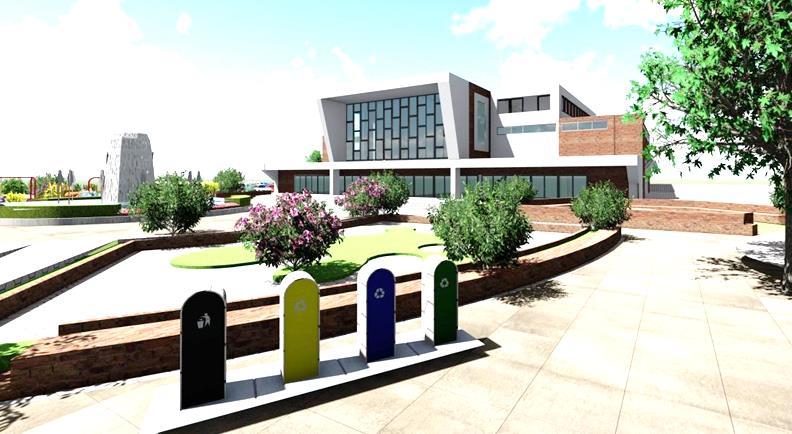

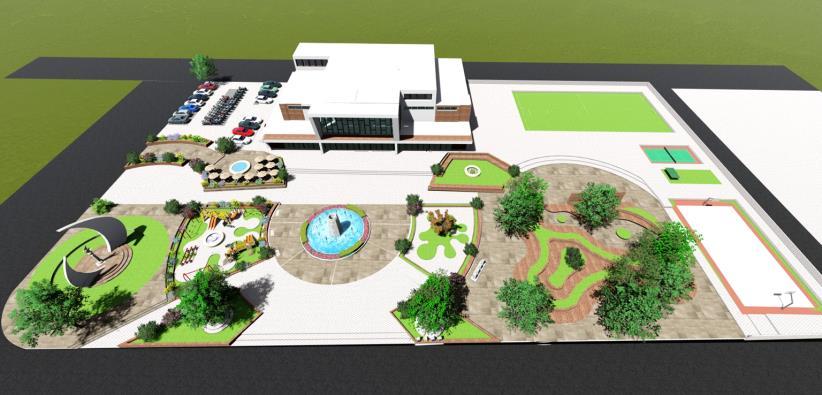

Community Center

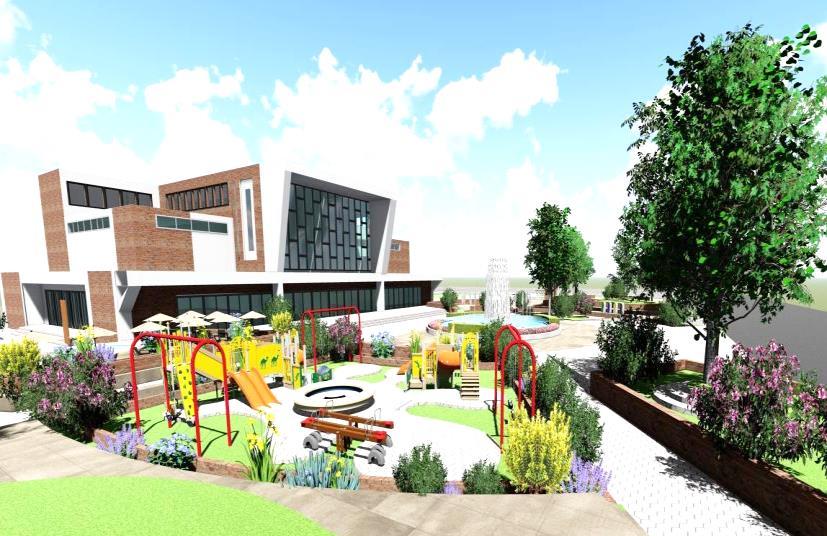

View From Children Play Area

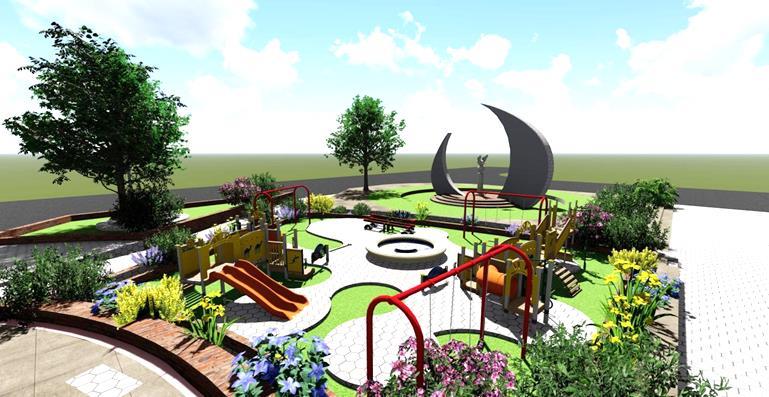

Children Play Area

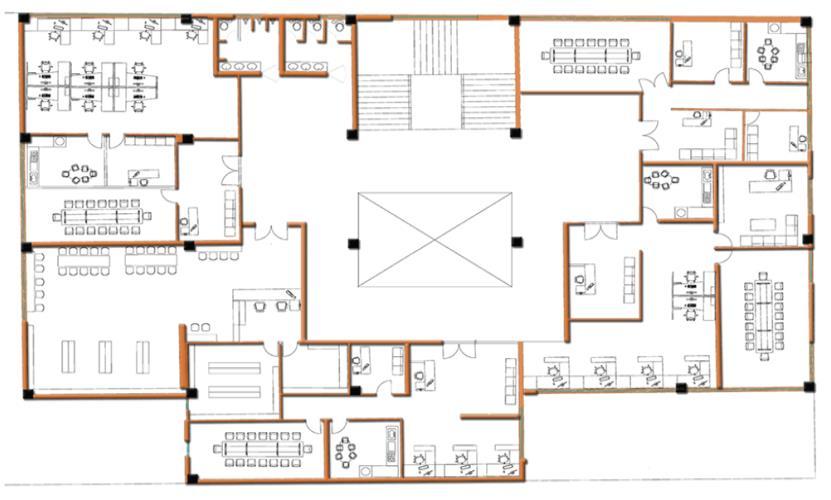

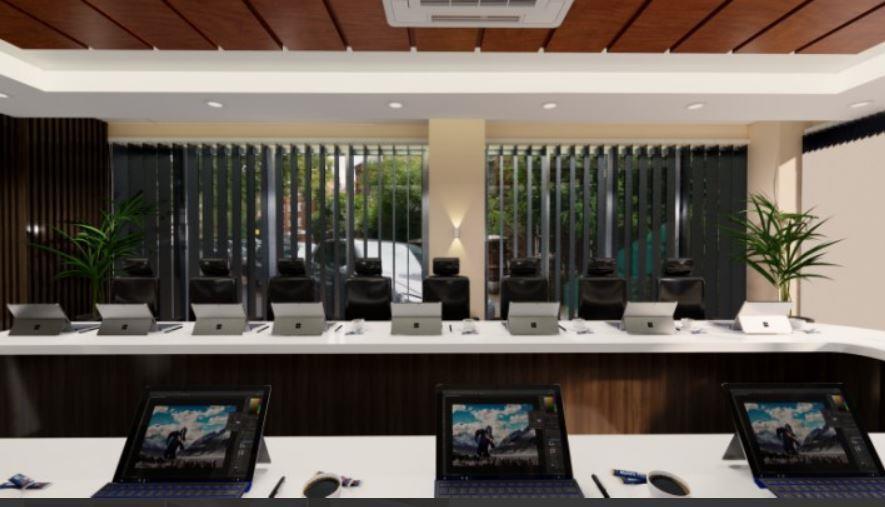

FIRST FLOOR PLAN –OFFICE SPACES
SECTOR 1 Community Center Sector

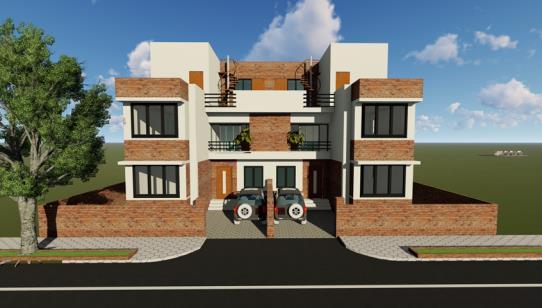

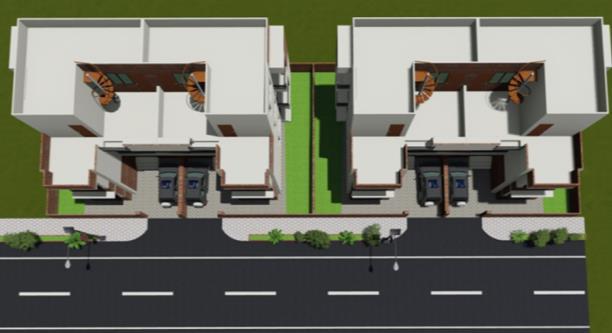

2. Semi-Attached Building
• Plot Area = 273.06 sq.m
• Plot Dimension = 21 *13m
• Total Build up Area of two unit = 345.11 sq.m
• Build up Area of one unit = 172.55 sq.m
• Total units = 72
• Tentative Cost = Approx. 84 lakh with land cost 32,0000
SECTOR 1 Community Center Sector

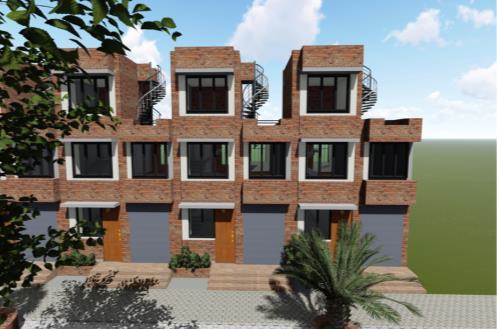

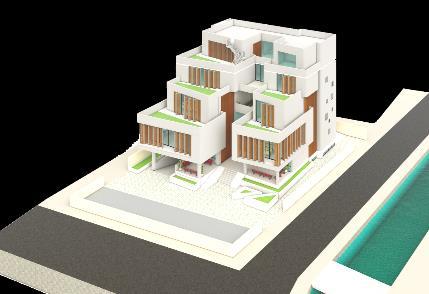

3. Mixed Used Building
• Plot Area - 100.24 sq.m
• Plot Dimension - 7m*14.32 m
• Total Build up Area - 183.28 sq.m
• Plinth Area - 83.78 sq.m
• Total units - 74 units
• Tentative Cost - Approx. 87 lakh with land cost Rs. 320000

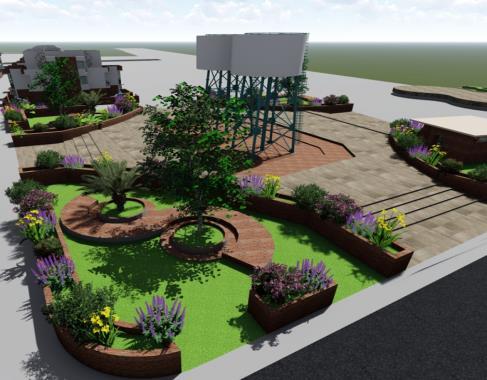

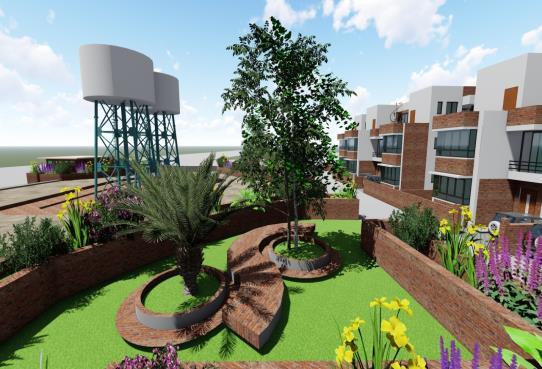

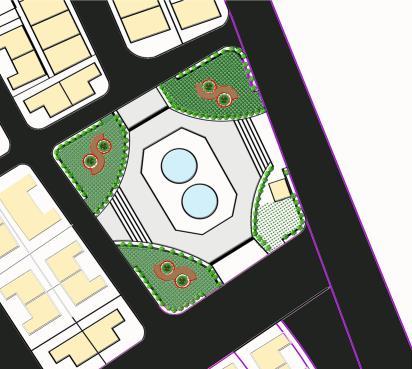

4. Water Tank
Conceptual Development

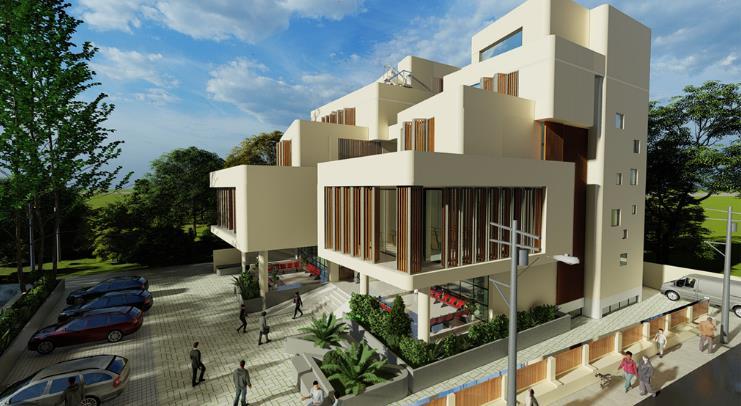

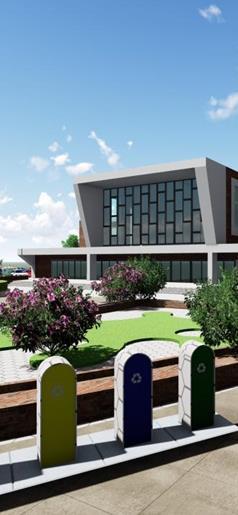

The institute building is strategically located near Balkhu Khola in the Chandragiri region, occupying a spacious site area of 3 Ropani Characterized by a contemporary and modern design, the architectural concept embraces innovation and functionality. With a ground coverage of 31.6%, the building effectively utilizes its surroundings while maintaining a harmonious balance with the natural environment

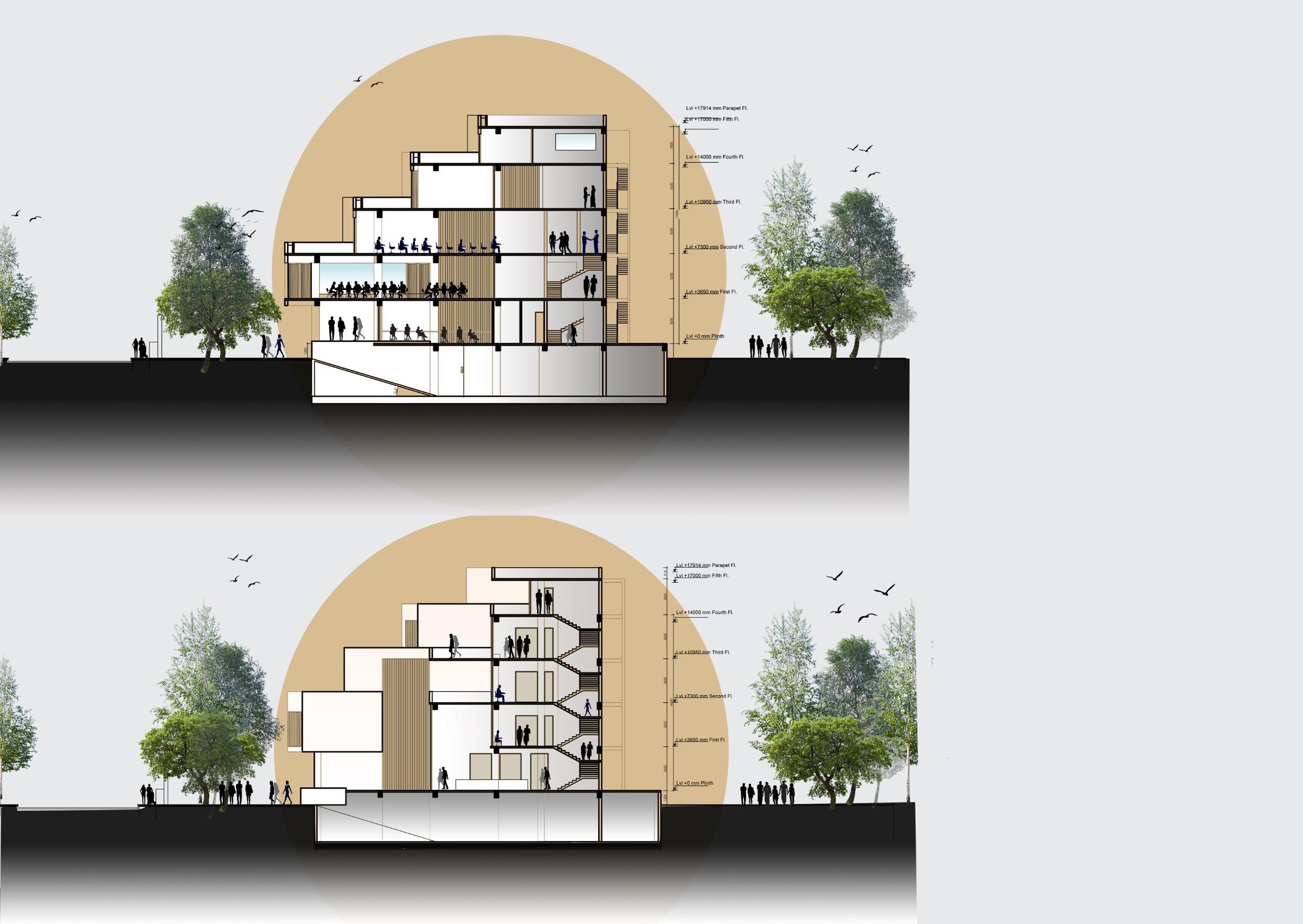

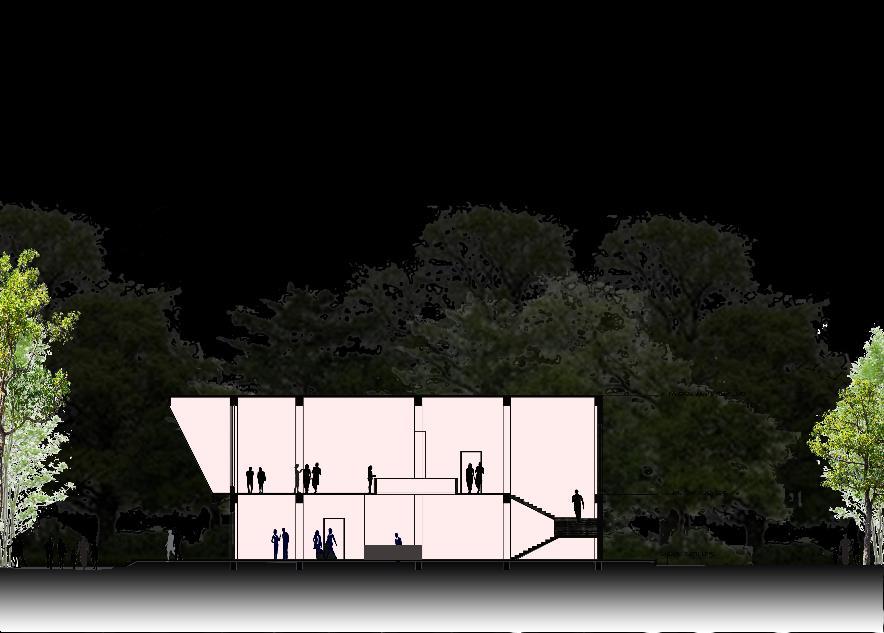

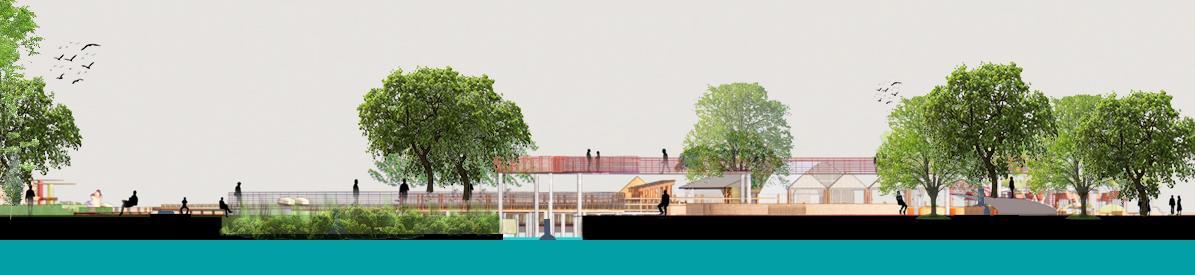

SECTION AT B-B AXIS
View from River bridge

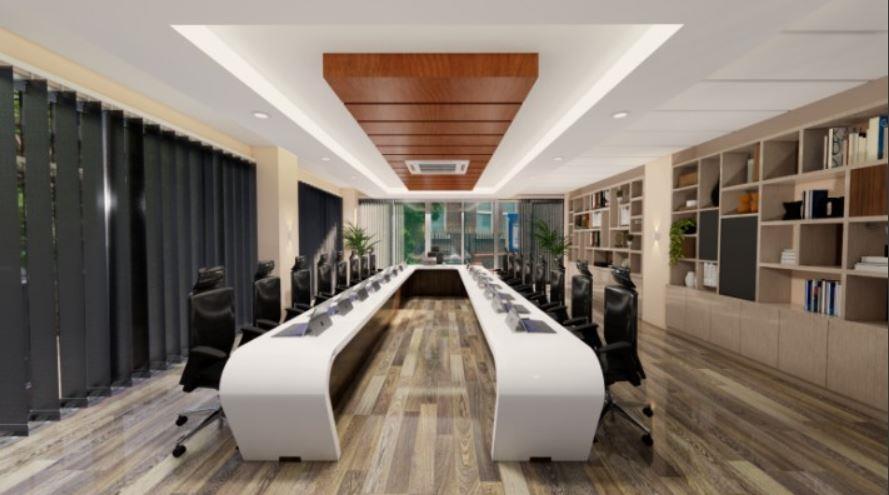

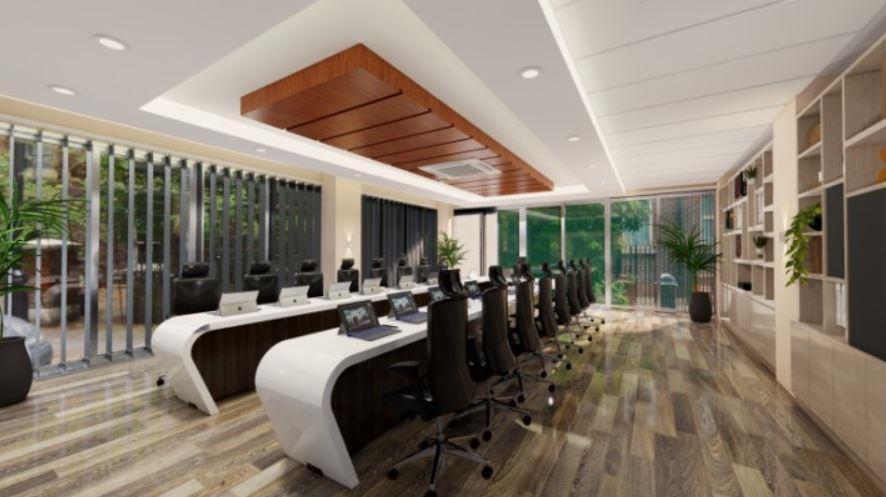

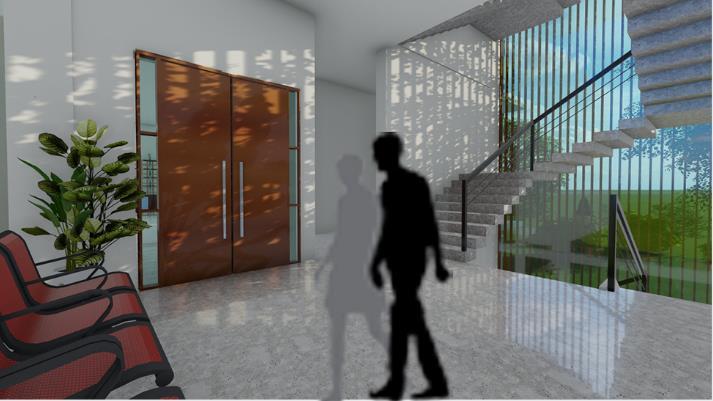

Meeting Room
Meeting Room

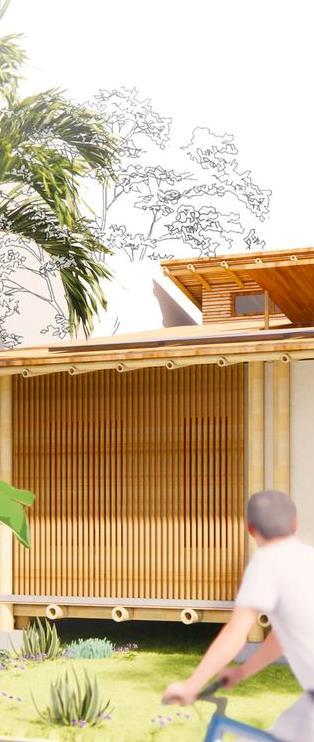

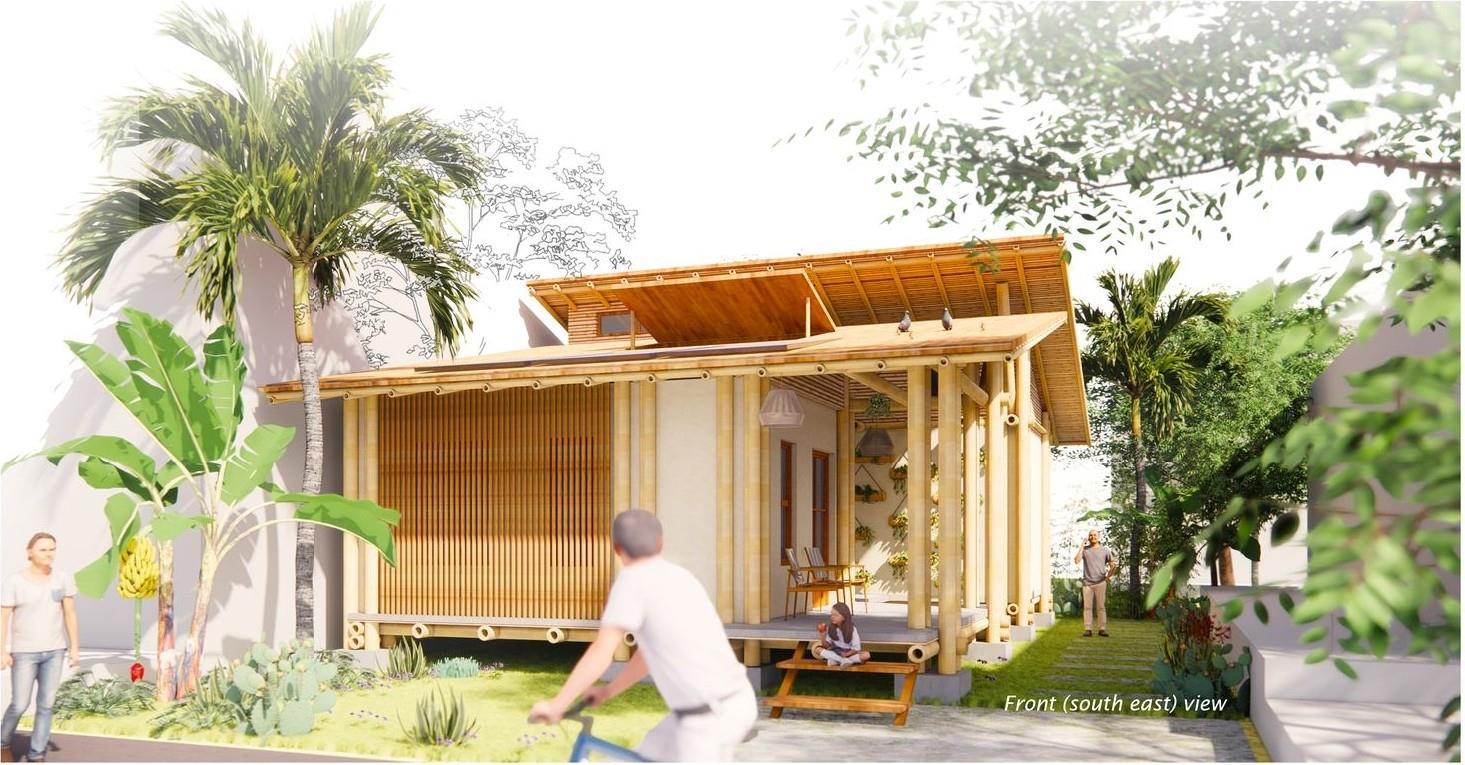

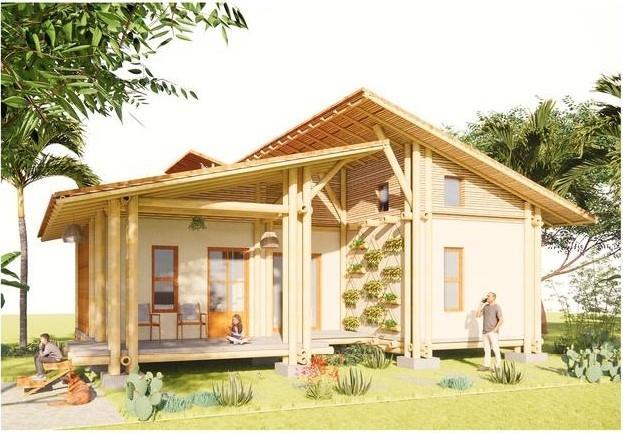

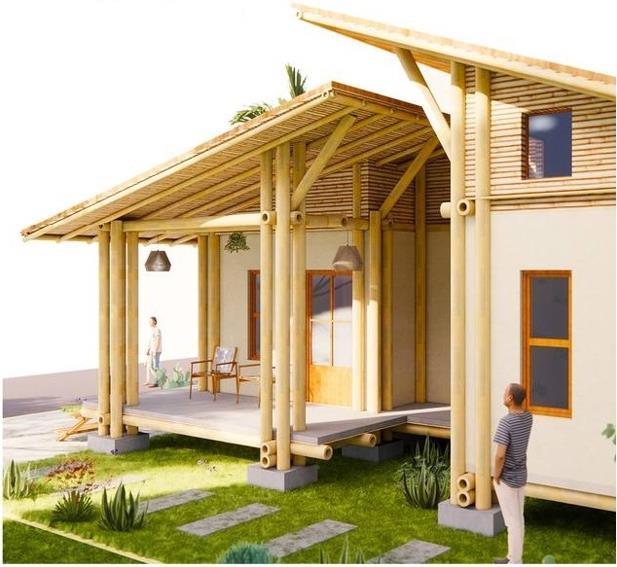

4. THE SELF - SUFFICIENT BAMBOO MODULE
Majority of individuals nowadays cannot afford to buy a home, yet the desire for homeownership persists.. Well-designed, low-cost housing addresses budget, sustainability, and comfort. Applying passive solar design and planning functional spaces with local materials achieves these goals. The site in the Terai region of Nepal aims to create a replicable modular house.
Family activities center around the kitchen and dining areas, making a simple architectural form cost-effective. Additional amenities like solar power, rainwater harvesting, and hydroponics ensure self-sufficiency. Locally sourced bamboo and Compressed Stabilized Earth Blocks reduce costs.
PROGRAMS
Cook - eat space with courtyard connection
Living room with verandah connection: where most conversations happen
No openings in west to avoid harsh sunlight For courtyard Rain water harvest & stack ventilation space for semi open space
Expandable module for larger family and bigger budget
Light weight
bamboo attic walls.
Solar panels on south facing slope
Bamboo roof
Dried bamboo leaf for insulation

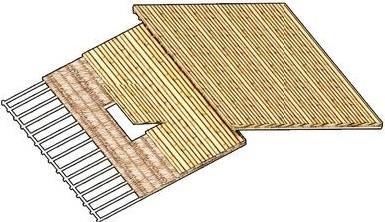

Bamboo roof details
Bamboo rafters - 4" diameter
Bamboo wall (light - weight structure)
Half cut bamboo floor
Floor joists - Bamboo 6"diameter
CSEB Blocks with interlocking technology (reduces the cost of mortar)
Walls- CSEB(Compressed Stabilised Earth Blocks with interlocking technology)
3" thickfloor
Bamboo posts tied together
Bamboo joist supporting floor
Concrete foundation
Rain water harvest tank through surface run-off
Road and site

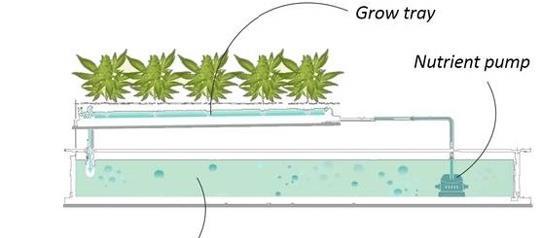

HYDROPONICS SYSTEM
Replacing soil with mineral rich nutrient water solution that maximized space and allows plants to grow 50%faster. It further facilitates micro climate
CSEB and lime plaster walls
Bamboo connection
Bamboo roof detail

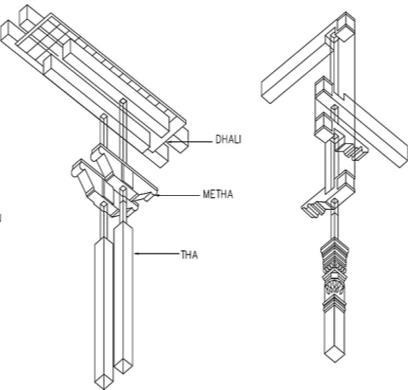

Bamboo beam and post connection

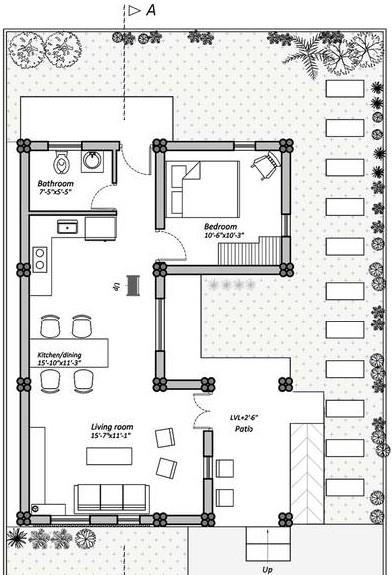

SITE PLAN
Site area: 2000.33 sq.ft
Built - up area: 710 sq. ft.

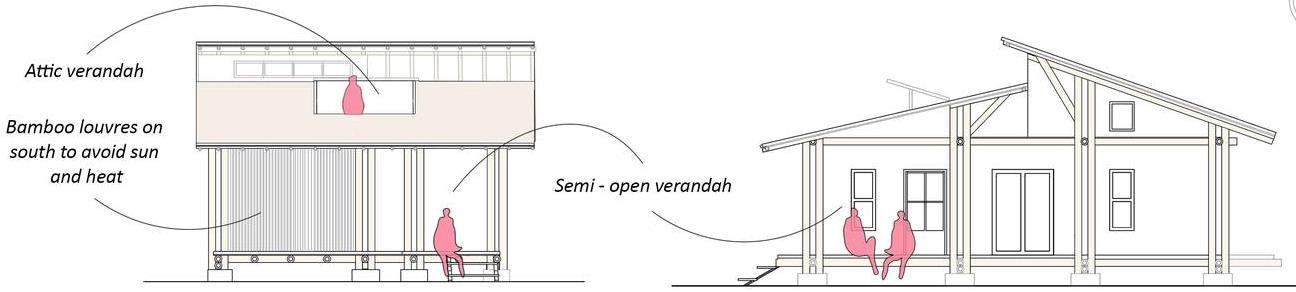

Bamboo louvres on south to avoid sun and heat
SOUTH ELEVATION
Semi - open verandah

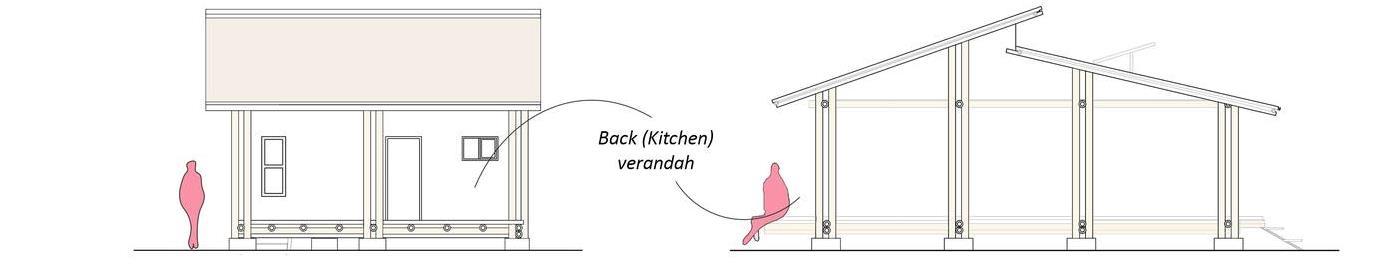

Back (Kitchen) Verandah
NORTH ELEVATION
EAST ELEVATION WEST ELEVATION Attic Bedroom door

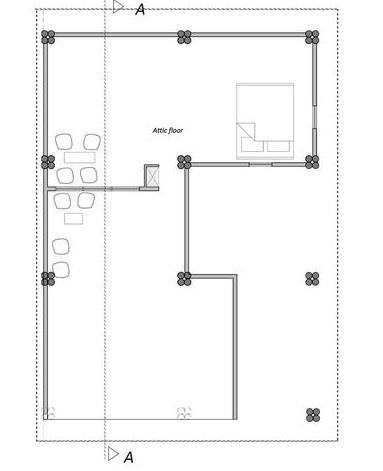

Attic verandah
6. SHIDDHIKALI TEMPLE PROJECT

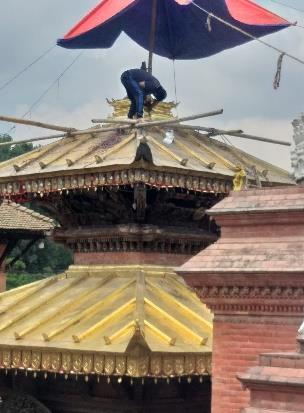

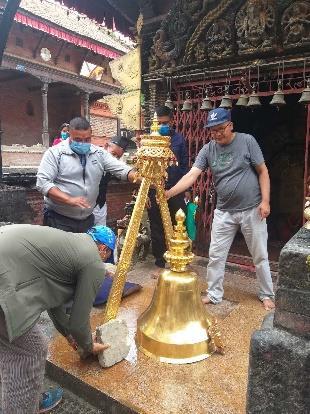

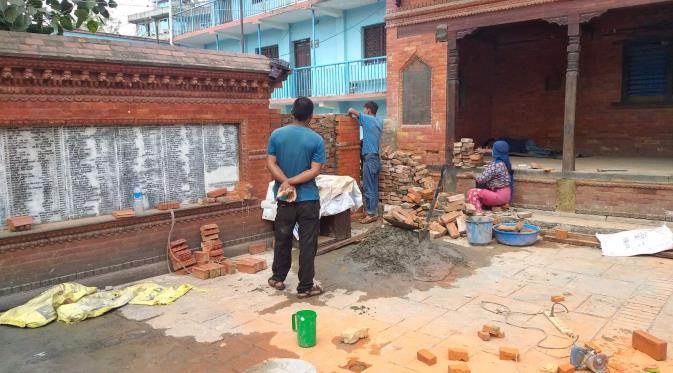

The renovation and landscape project focuses on Shiddhikali Temple and its premises, a significant landmark within the Madhyapur Thimi region, renowned as one of the eight major temple complexes This historical landmark was built during the Malla Dynasty which holds cultural and architectural significance, making it a pivotal element of the renovation and landscape initiative.
As part of the renovation and landscape project, careful attention is being given to preserving the historical charm of Shiddhikali Temple, ensuring that its cultural heritage is seamlessly integrated with the modern enhancements. The project aims to revitalize the temple complex as a timeless and culturally rich focal point of Thimi Area.
Cycle lane Jatra Route
Main Road
Tree
Sattal/Open Pavillion
Spot
Bhimshen Shrine
Chautari Open Playground
Spot Viewing Deck Chautari
Falcha/Rest house
Ceremonial Pavilion Bajan Kritan
Shiddhikali Mai Temple
Shrine

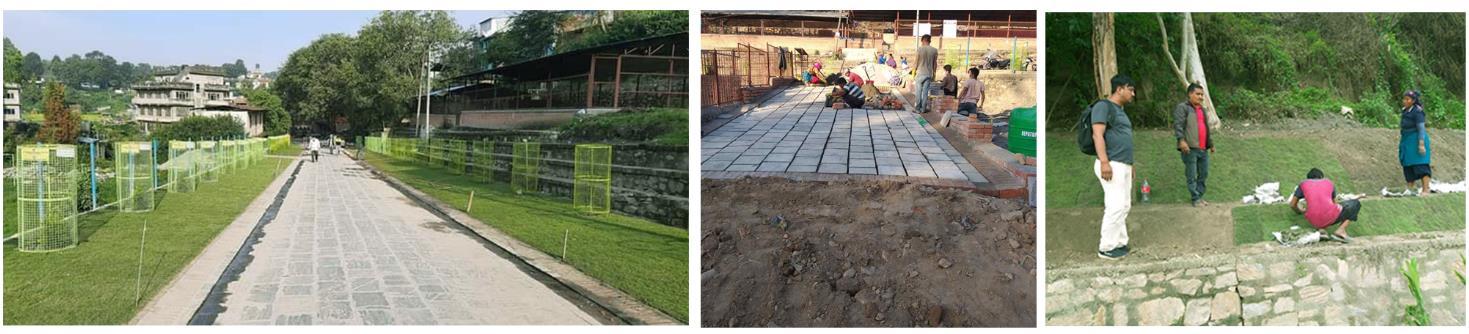

Pathway (Jatra Route-No defined pathway before)
Ramp
Laying Bermuda Grass

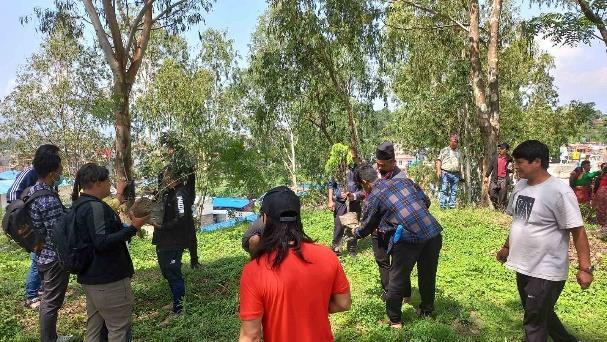

Plantation Program on hill

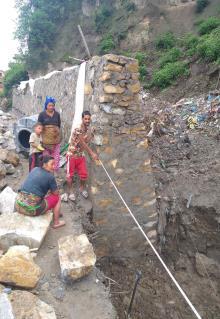

Retaining Wall

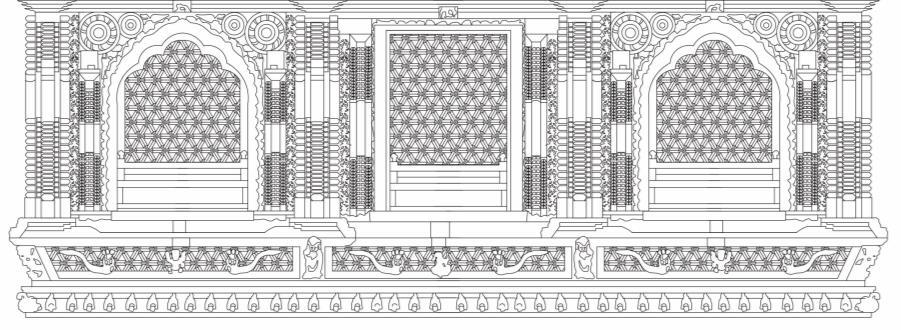

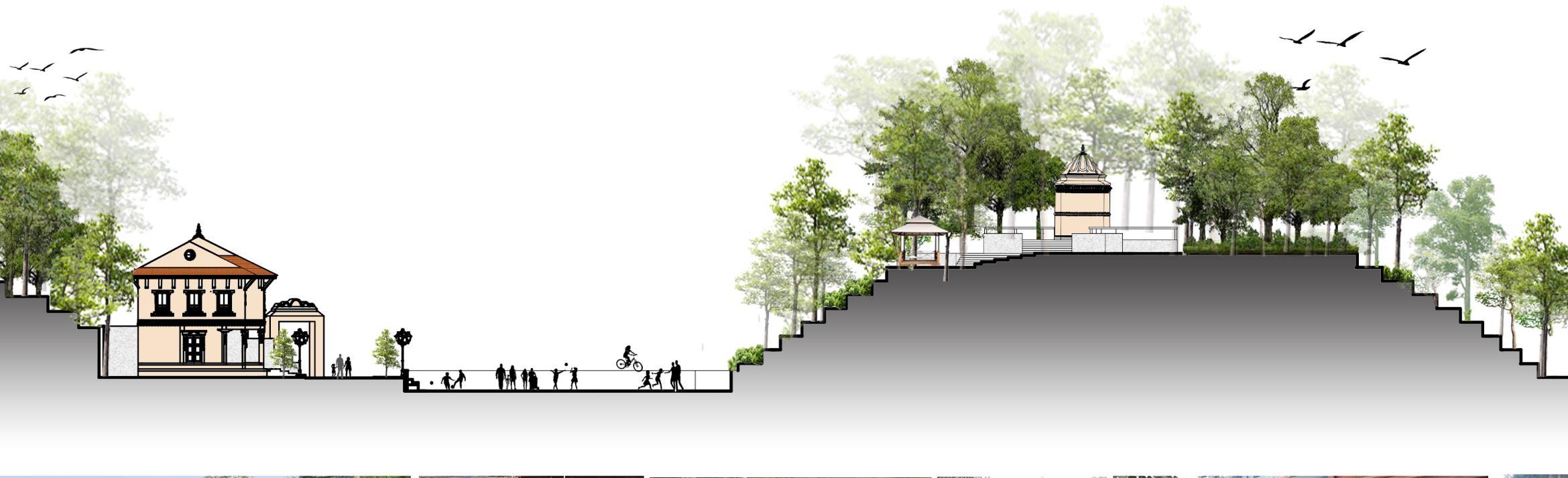

Section of Sha Jhya

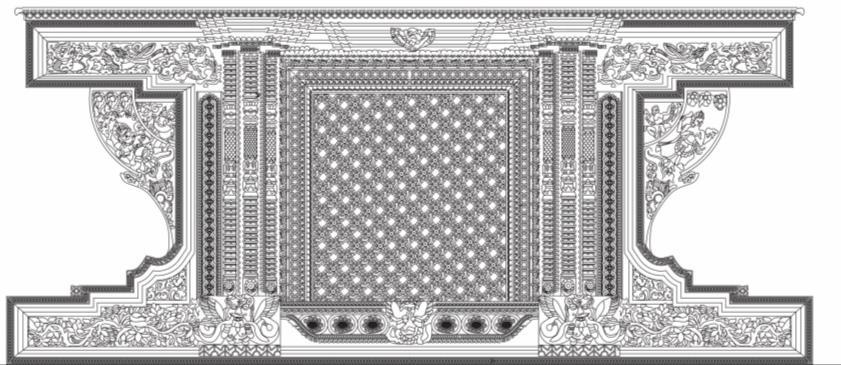

Vertical Section of Tiki Jhya

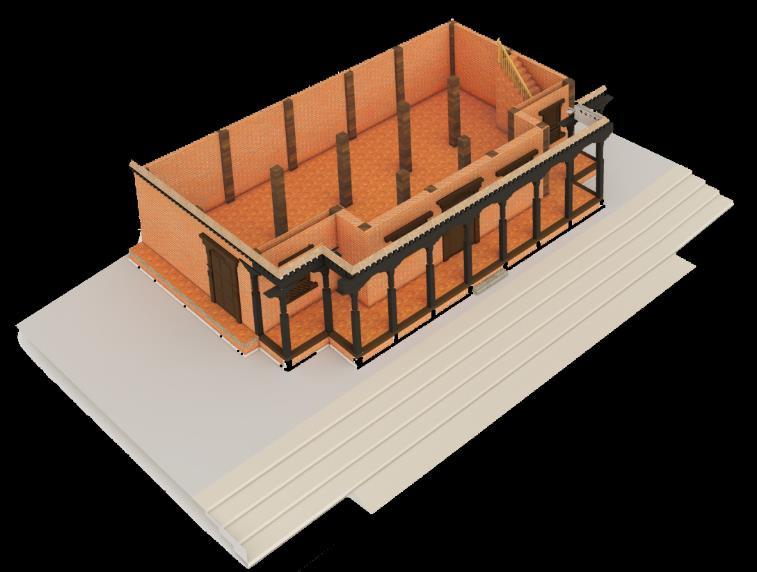

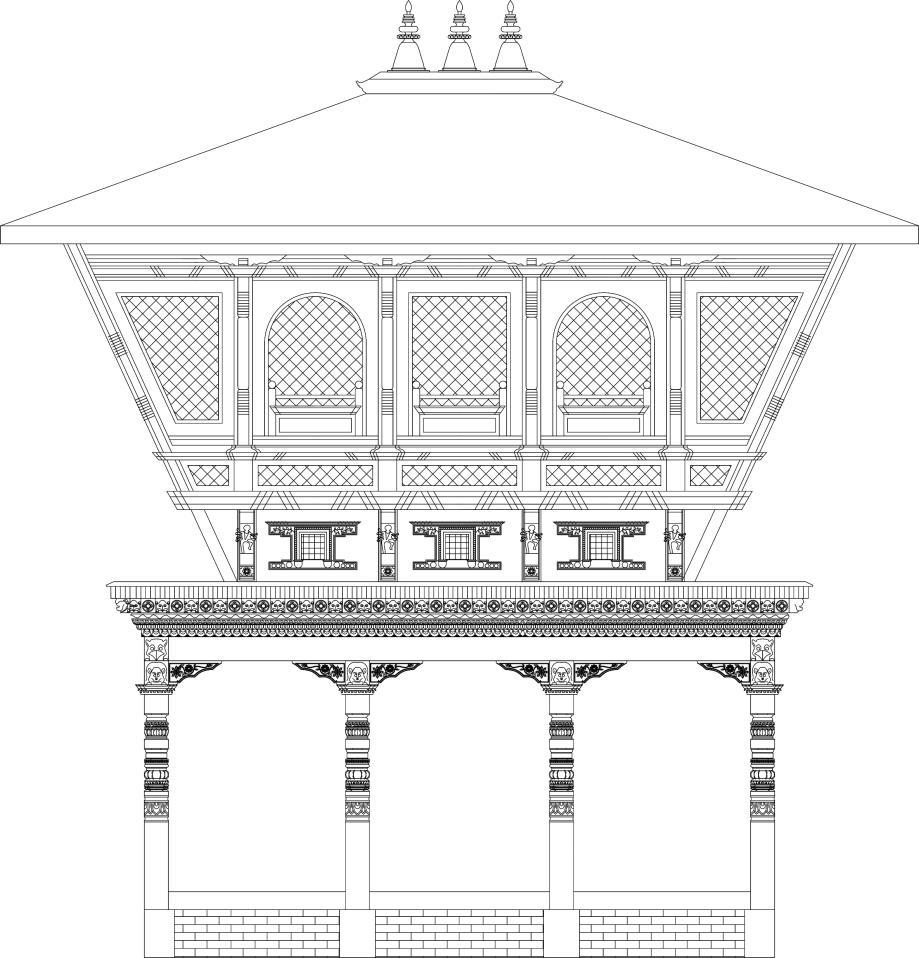

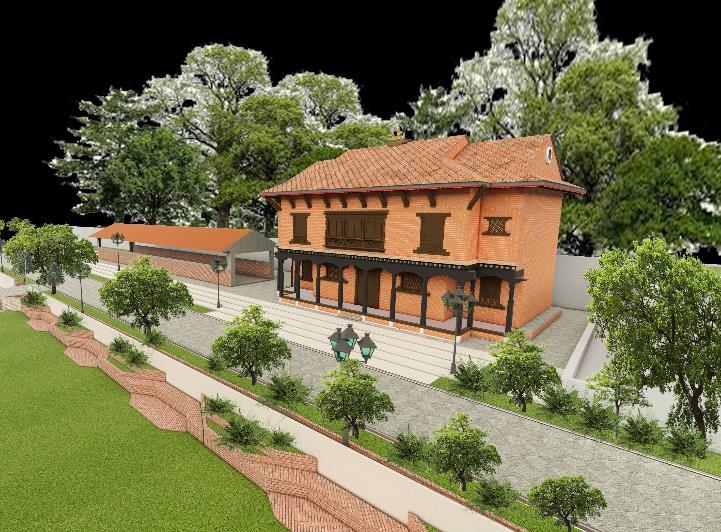

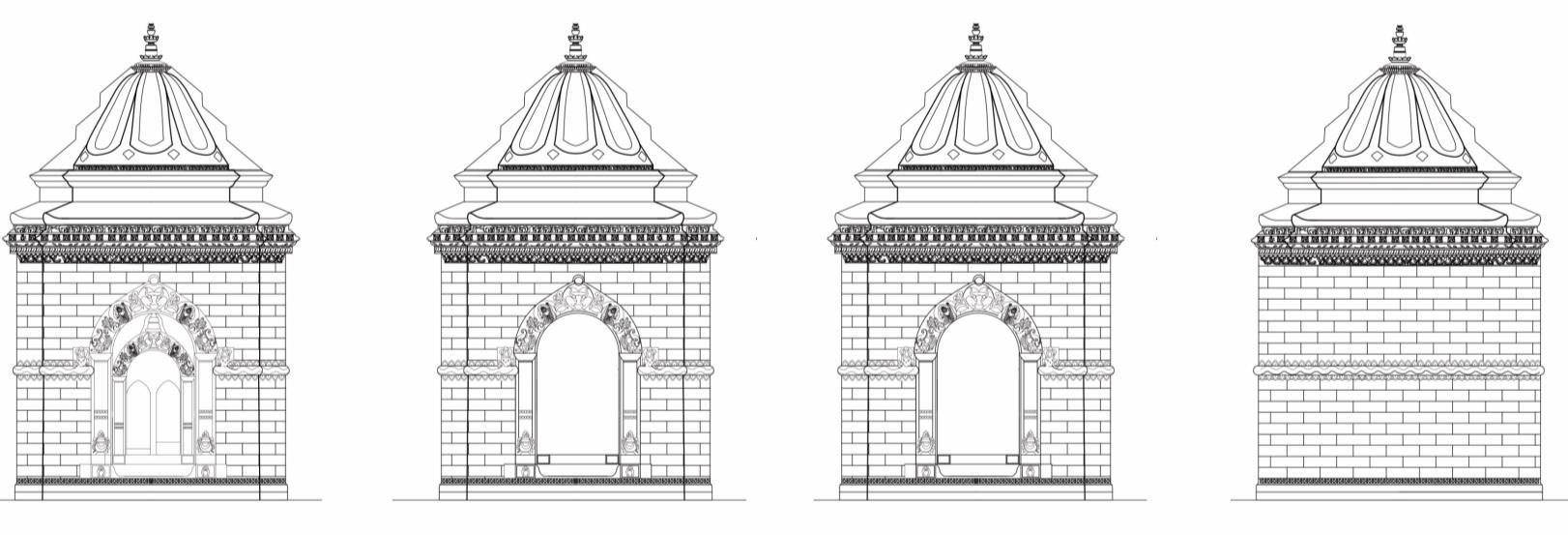

DRAWING OF THE BHIMSEN SHRINE

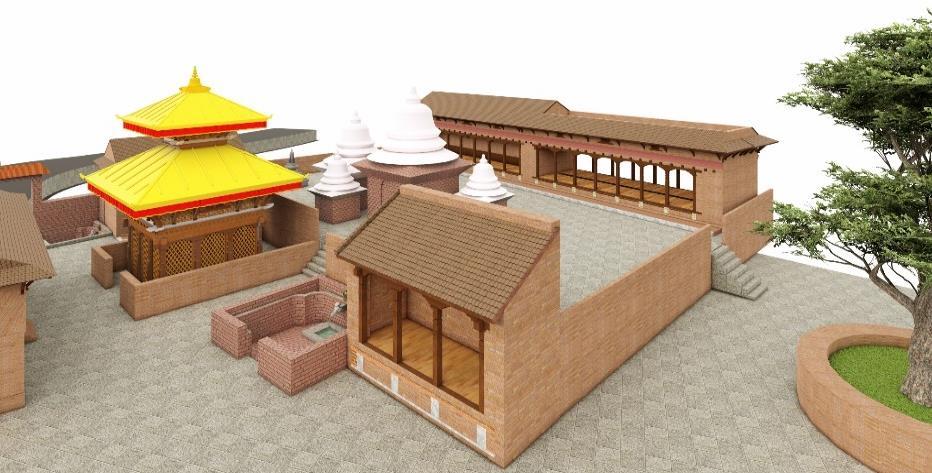

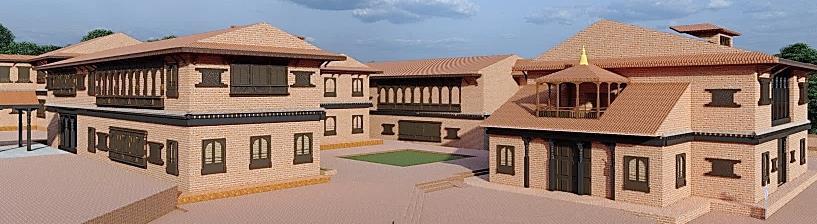

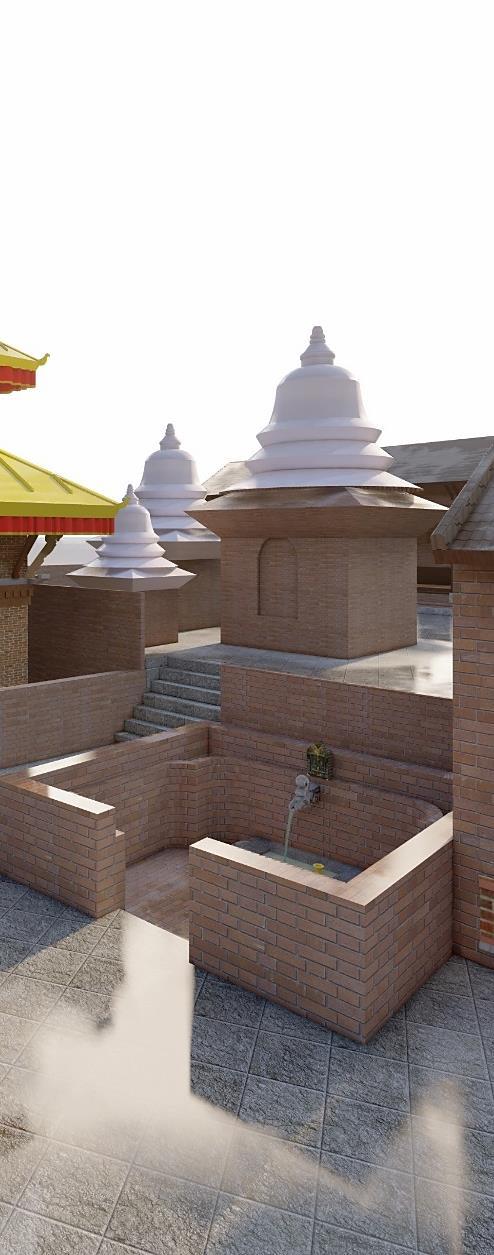

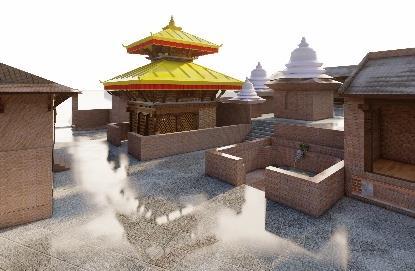

Shiddhikali Temple Complex
Sattal
Chautari

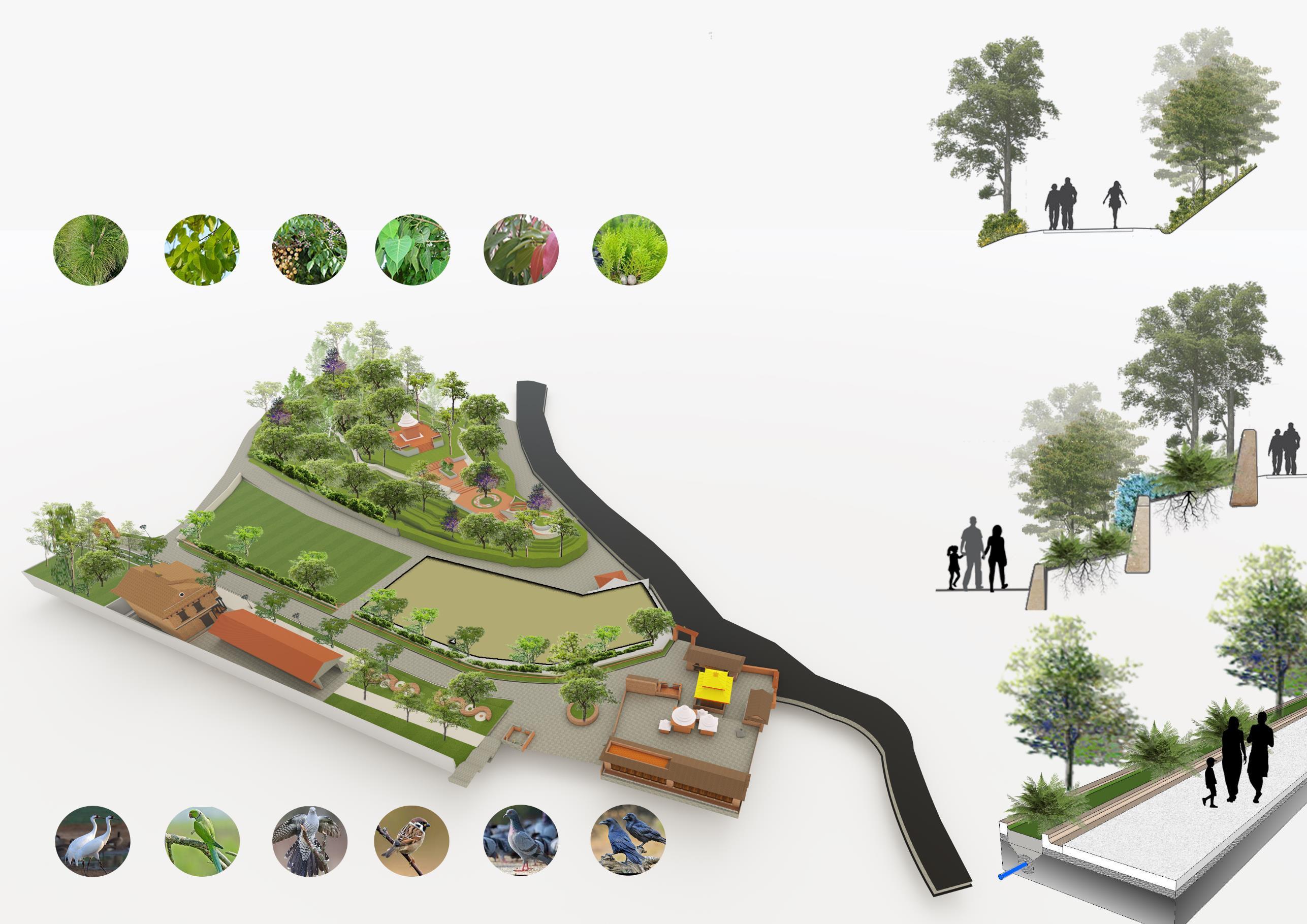

Arial View of Temple Complex

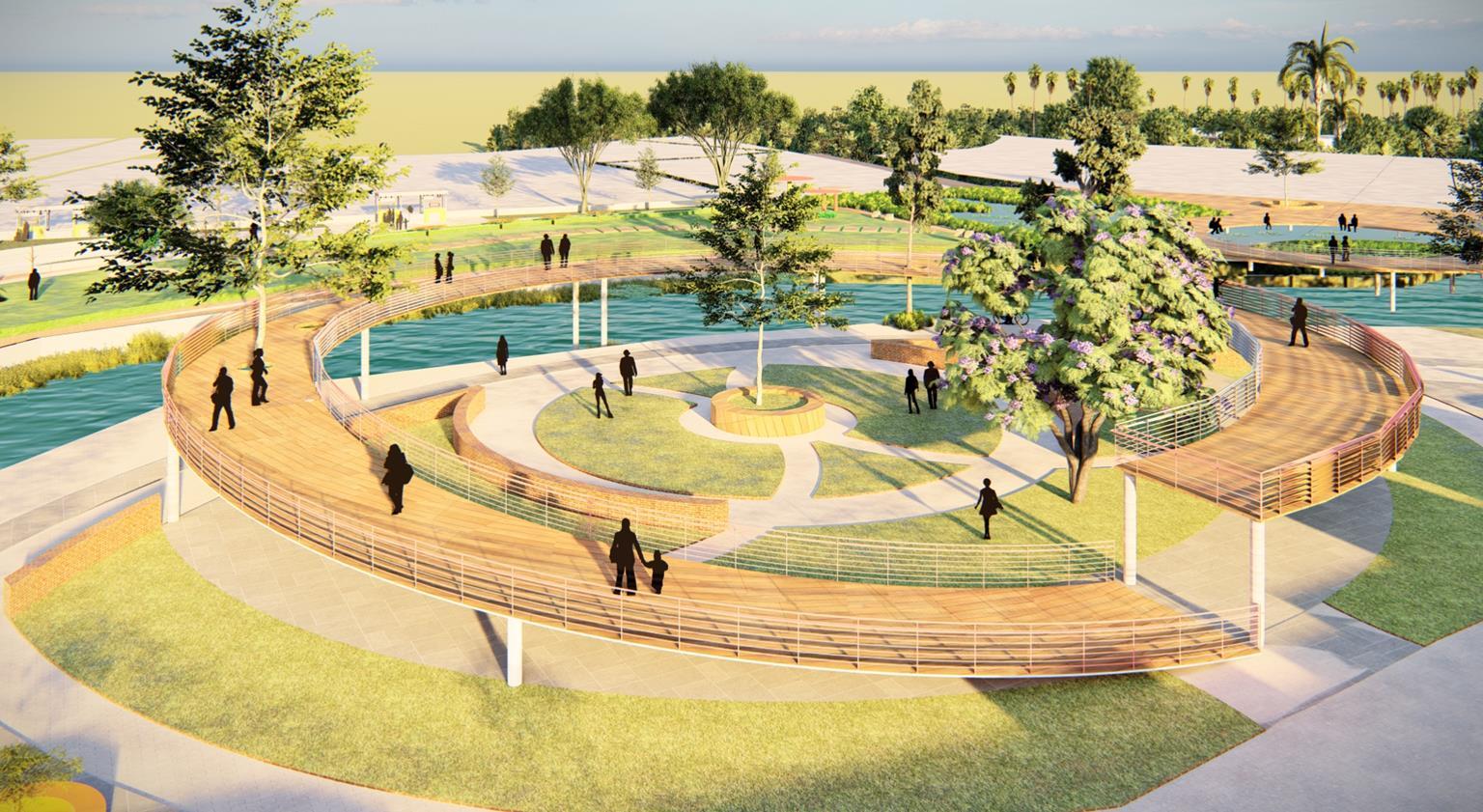

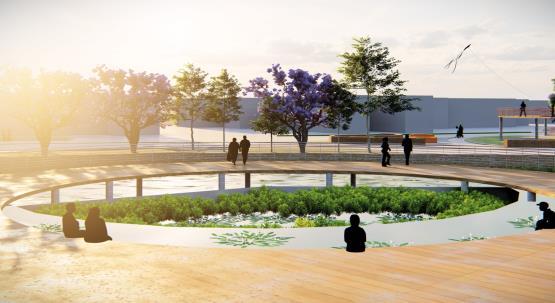

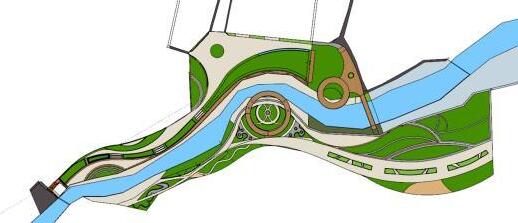

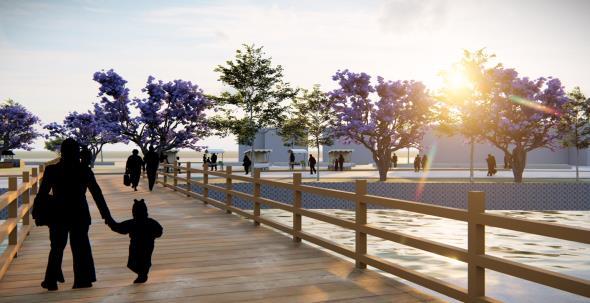

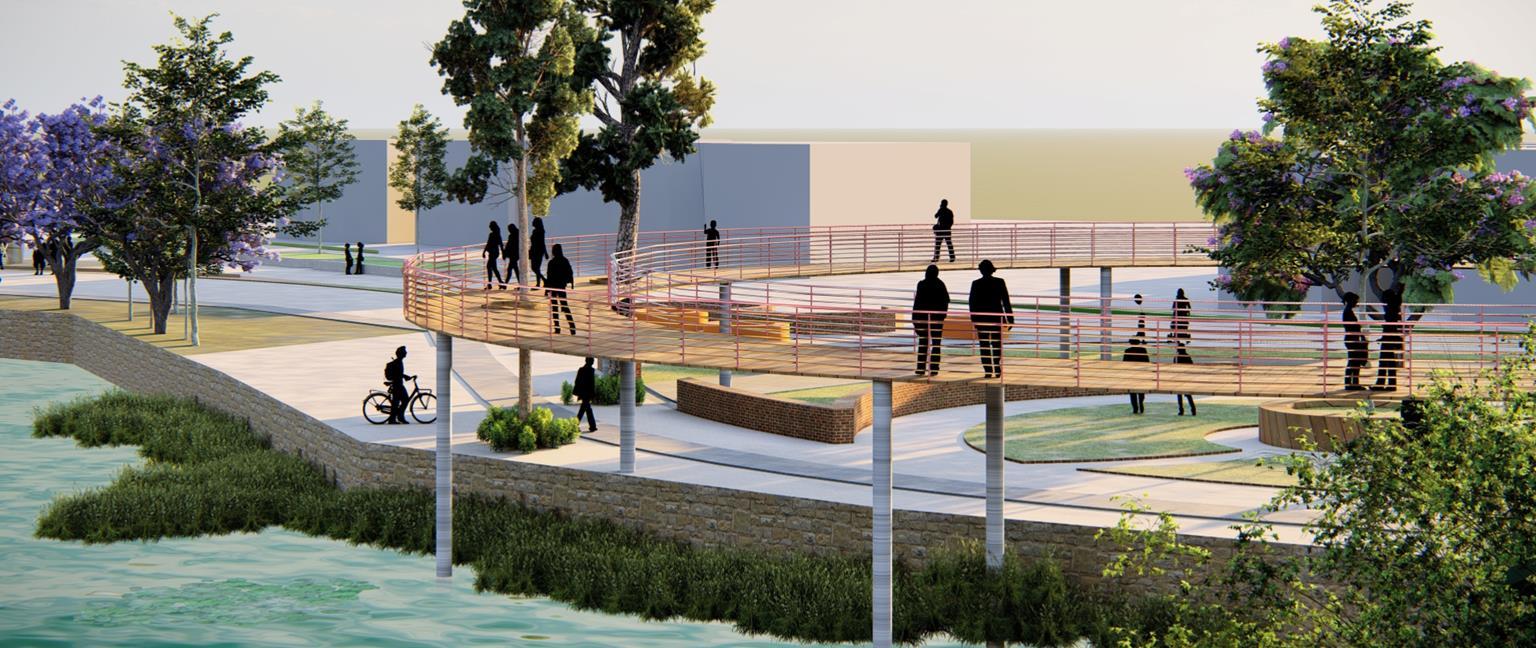

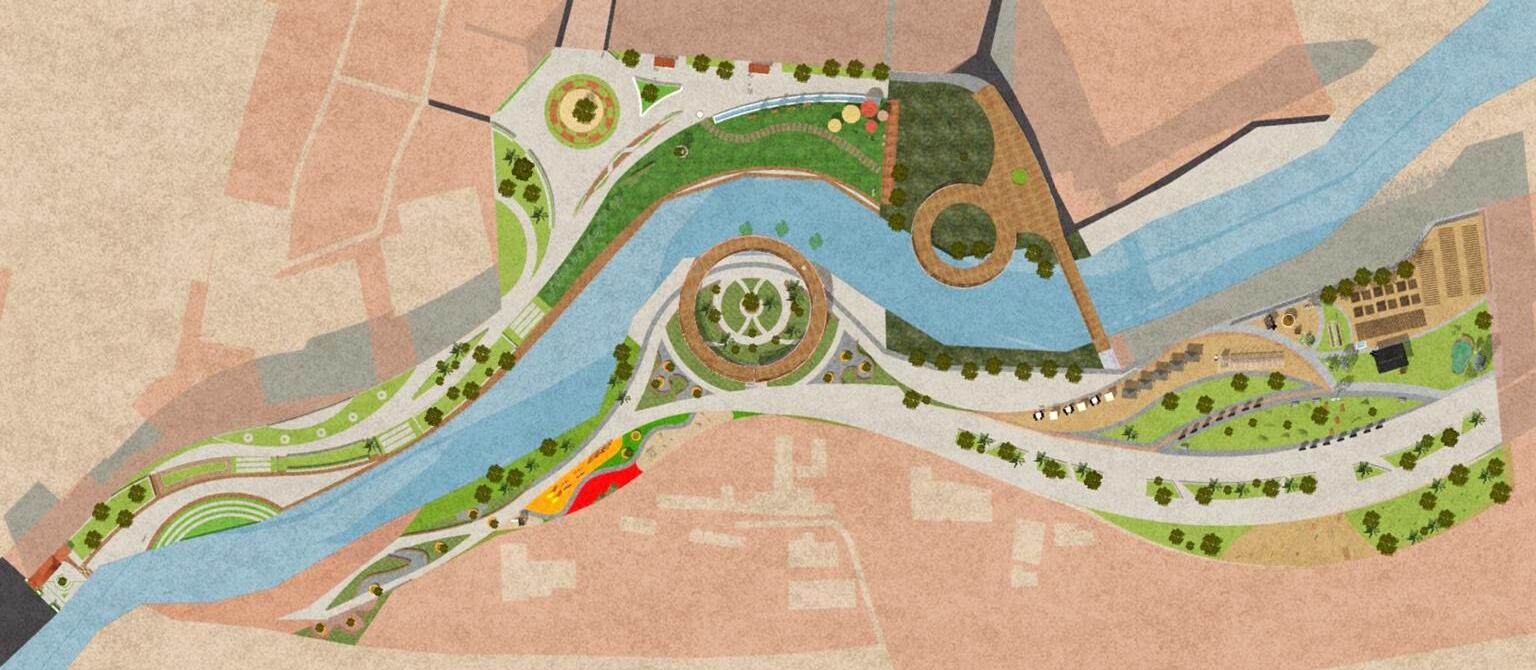

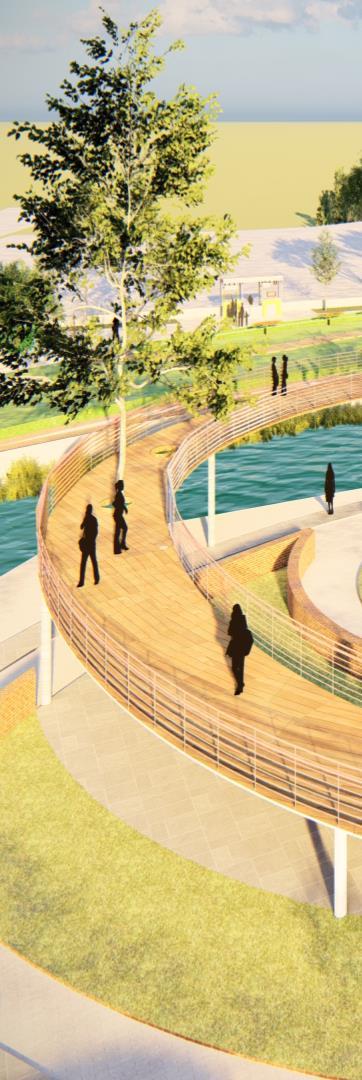

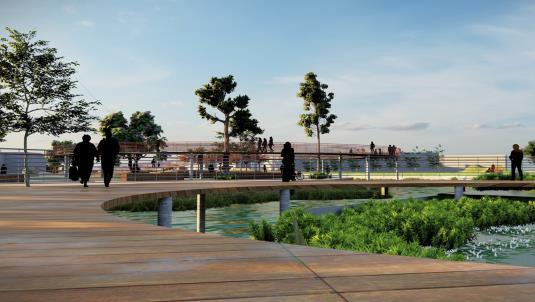

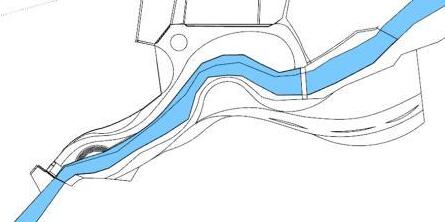

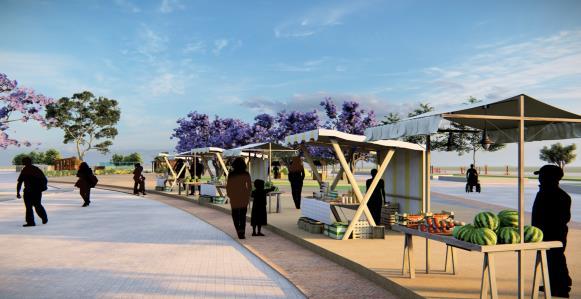

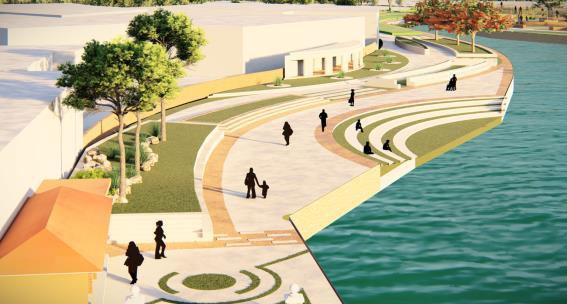

6. MANAHARA RIVER FRONT DESIGN
The 83 sq. km site northeast of Kathmandu Valley, spanning 28 km from NE to SW, records a maximum monthly rainfall of 567 mm (Sankhu Station, 1980–2004), with a designated 2.1hectare area (41-5-1-2).

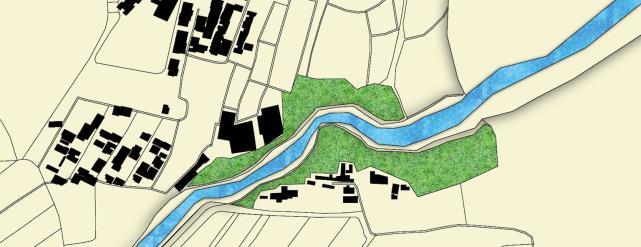

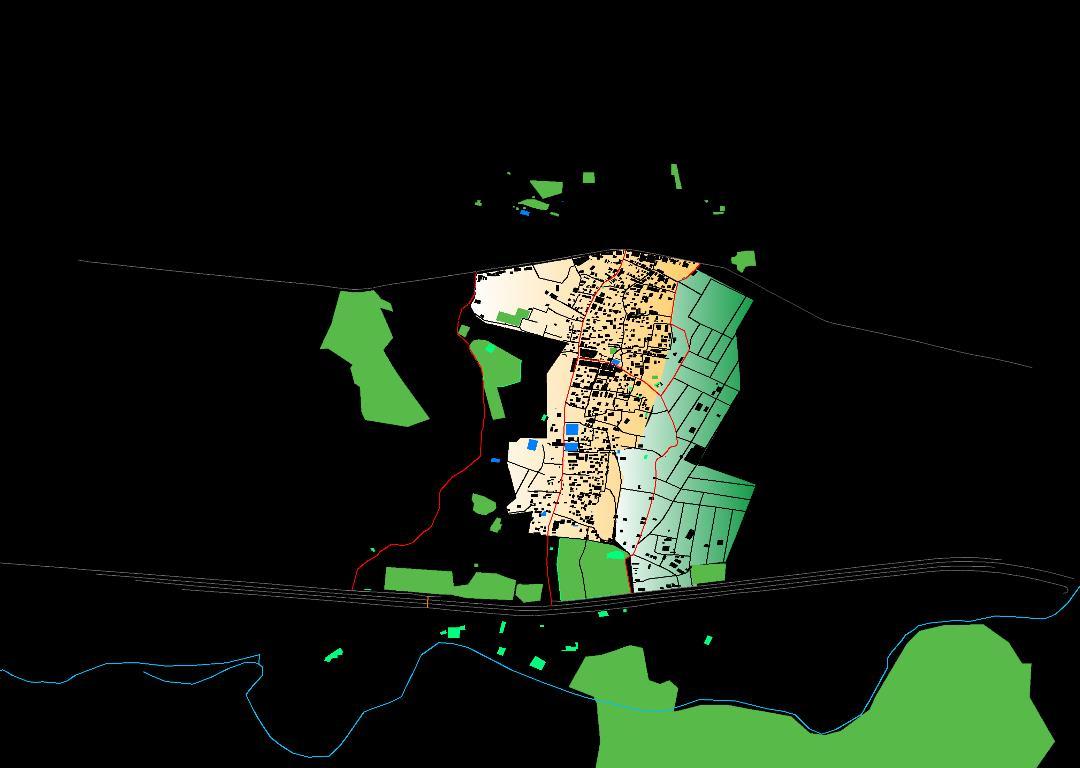

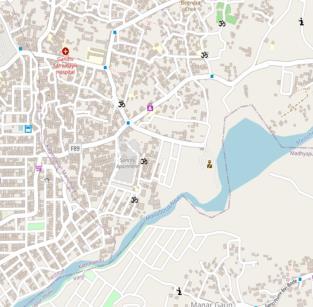

LOCATION MAP

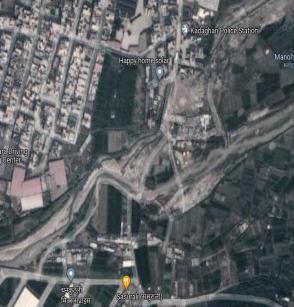

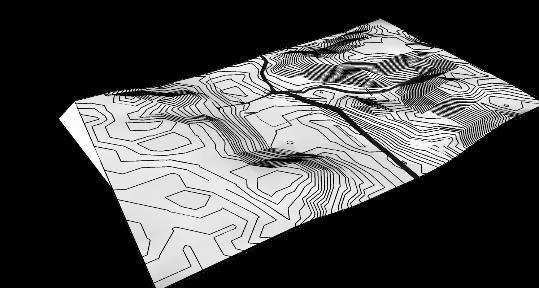

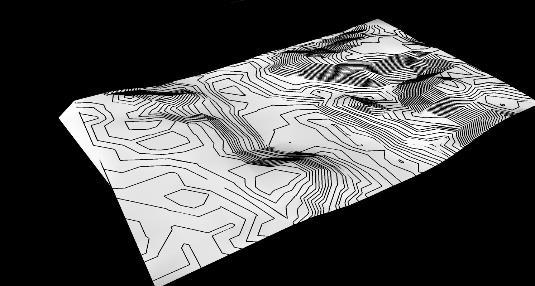

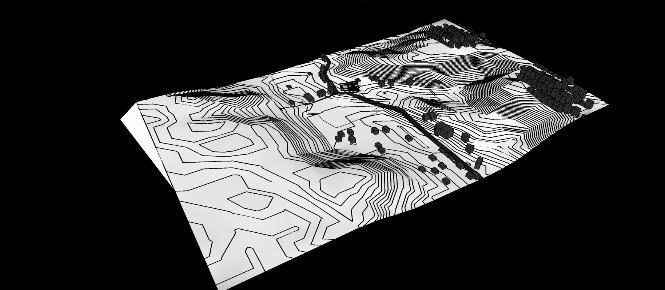

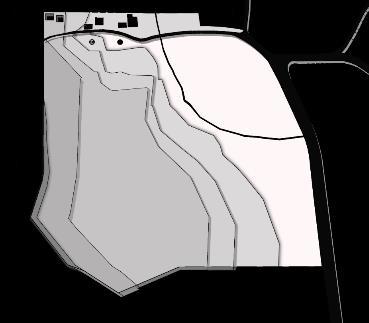

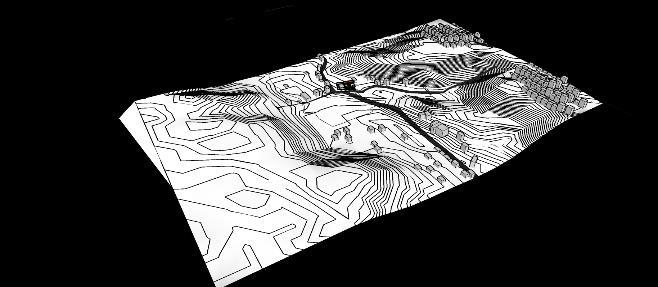

Terrain Map Satellite Map
Connection With Surrounding
CONCEPTUA IDEA

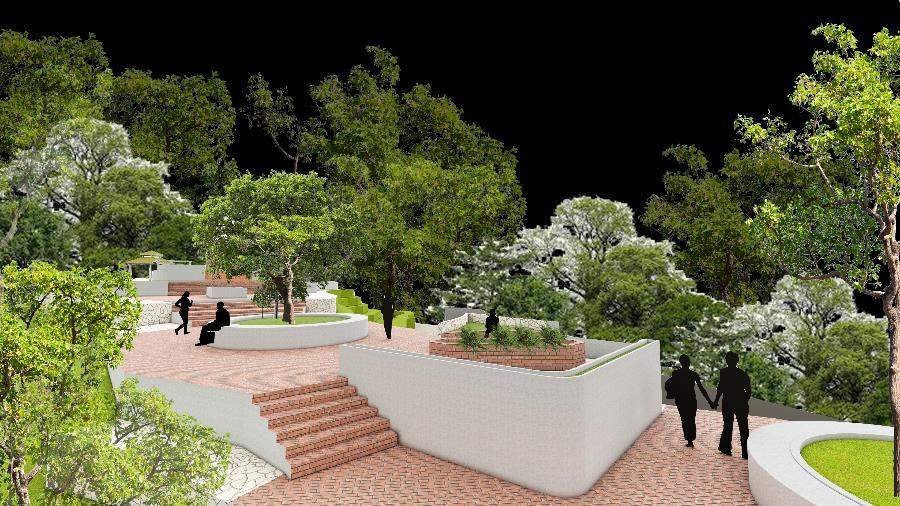

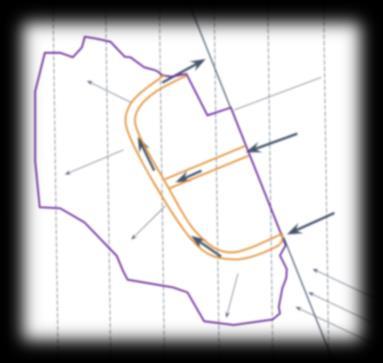

• Connection with surrounding
• Soft and Hard Landscape
• Further Development of Master plan

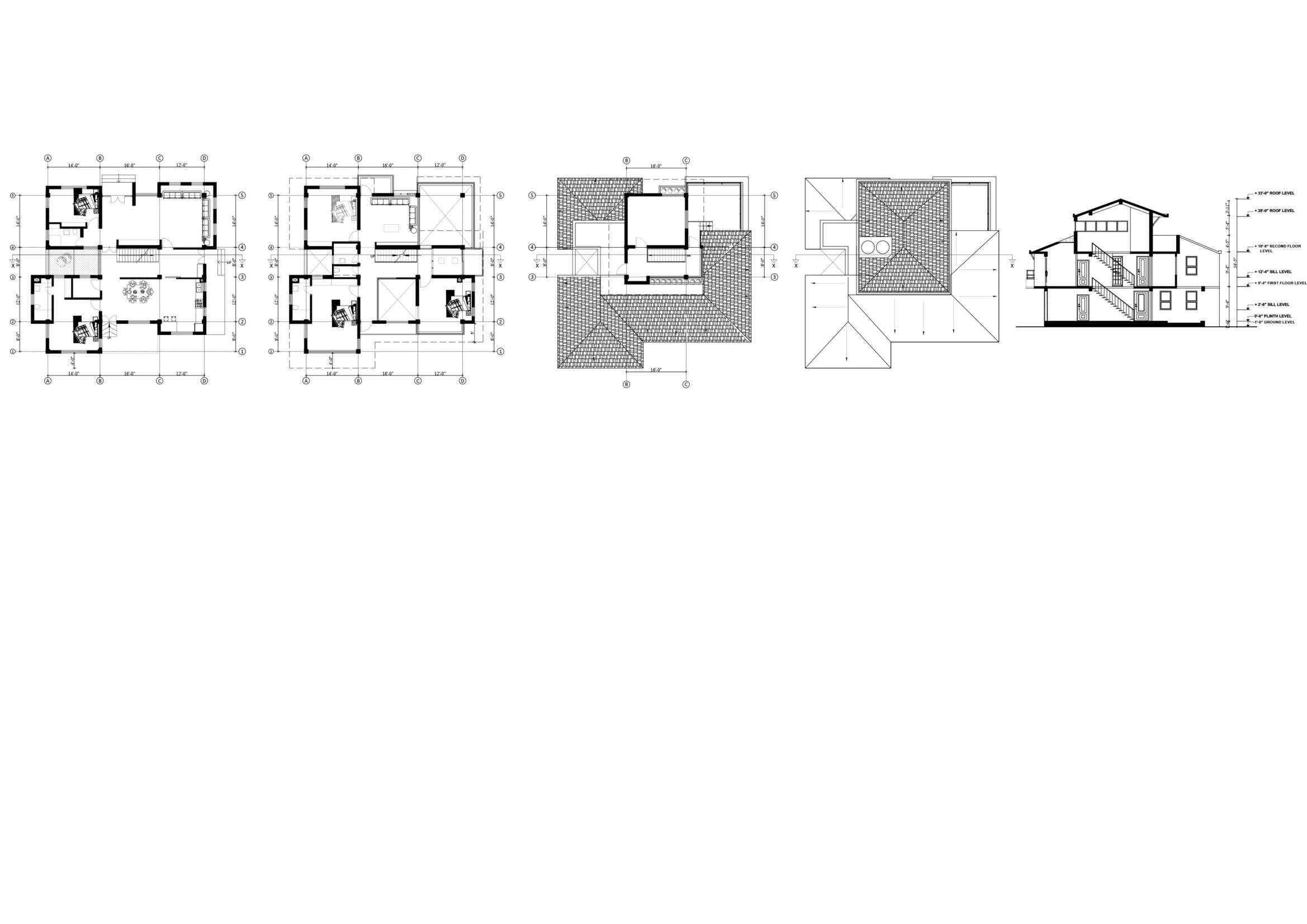

7. OTHER RESIDENTIAL PROJECTS

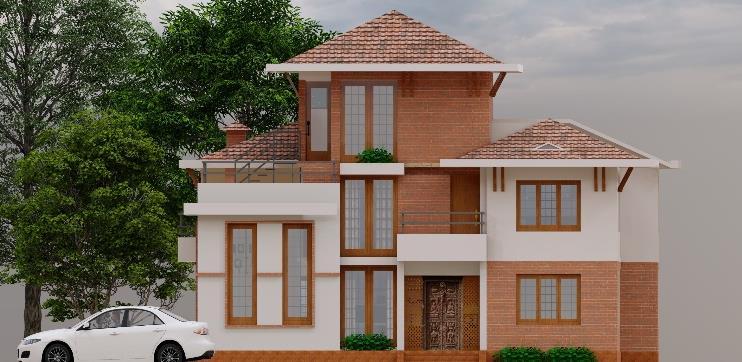

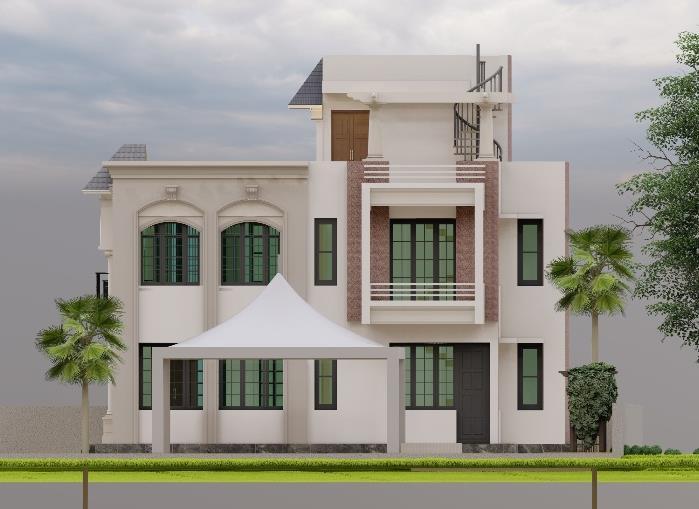

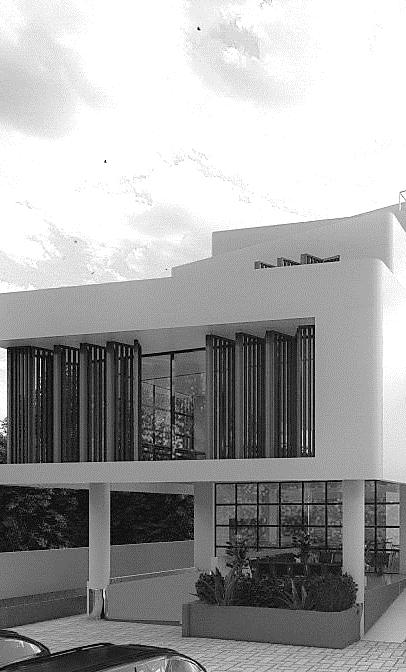

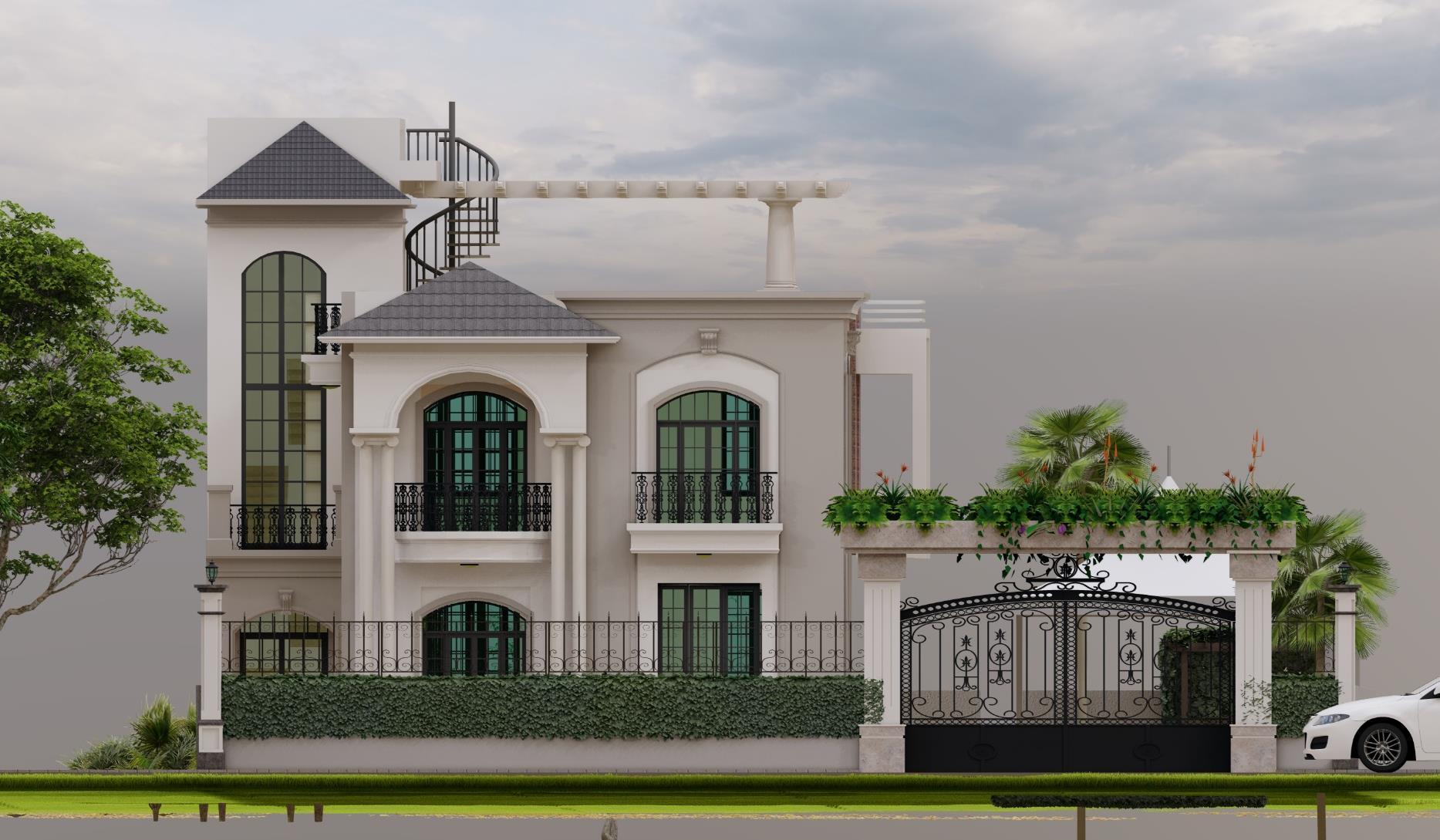

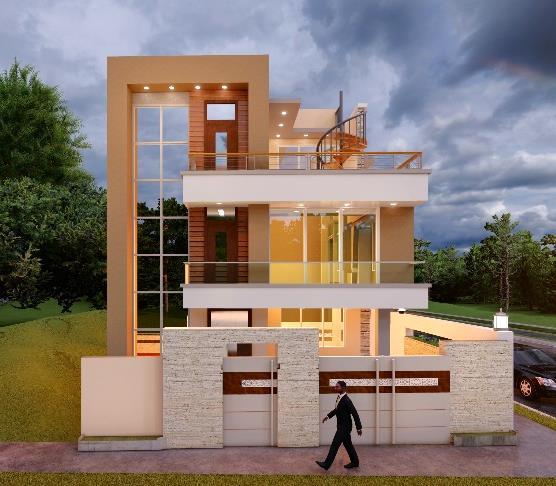

SOUTH FACADE
7. OTHER RESIDENTIAL PROJECTS

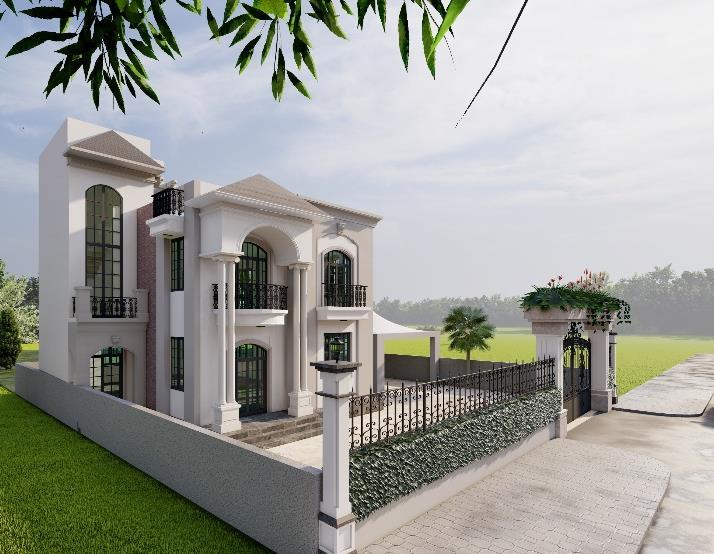

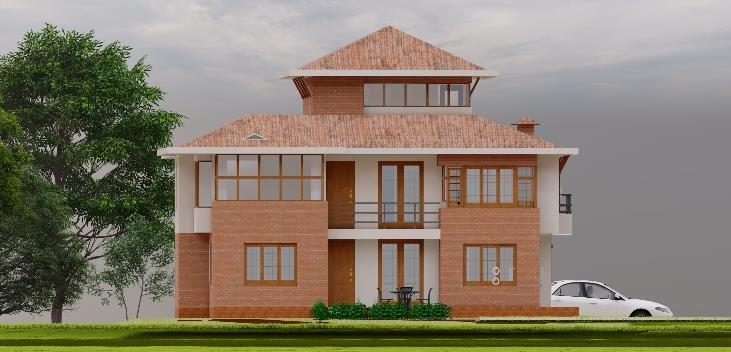

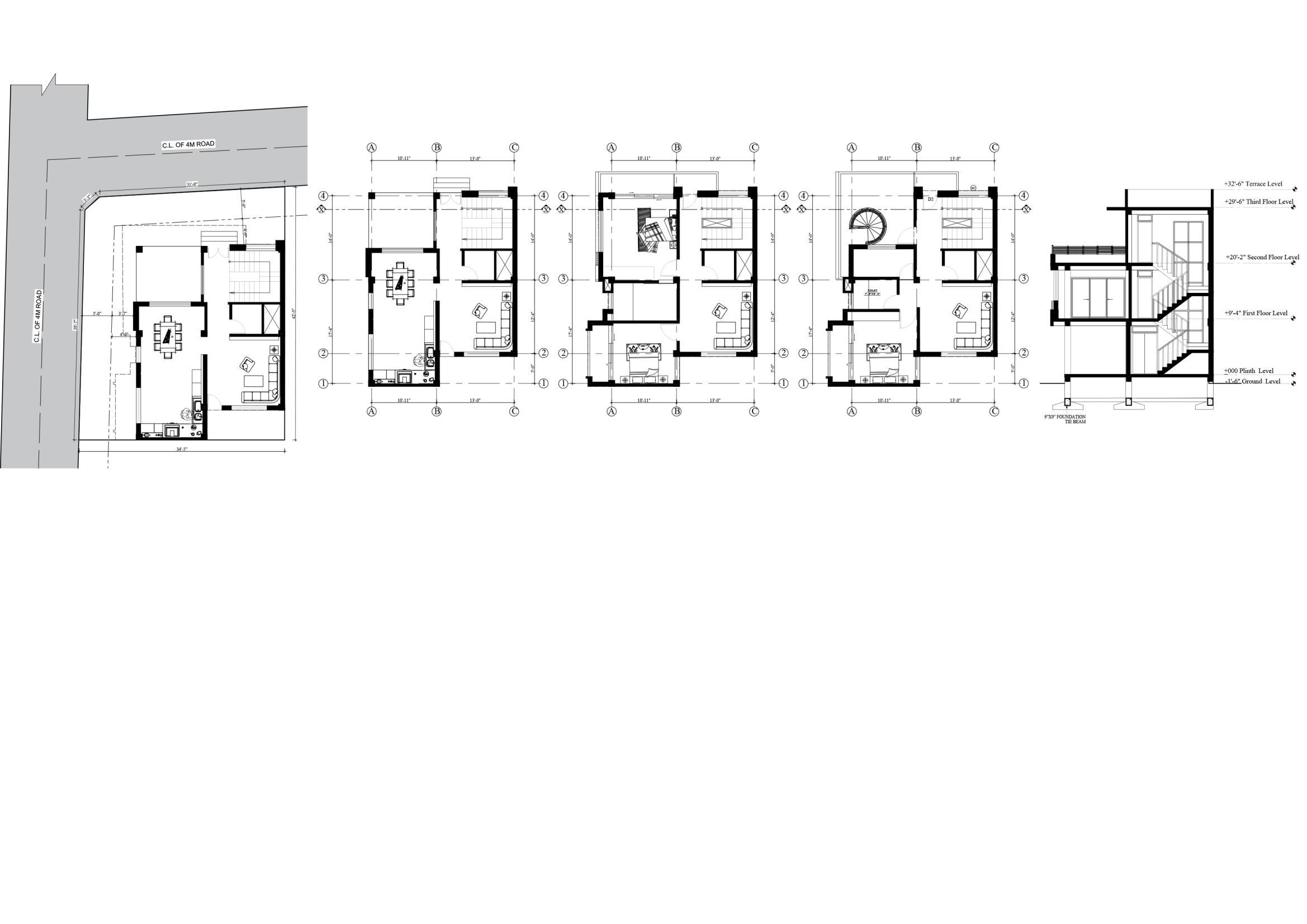

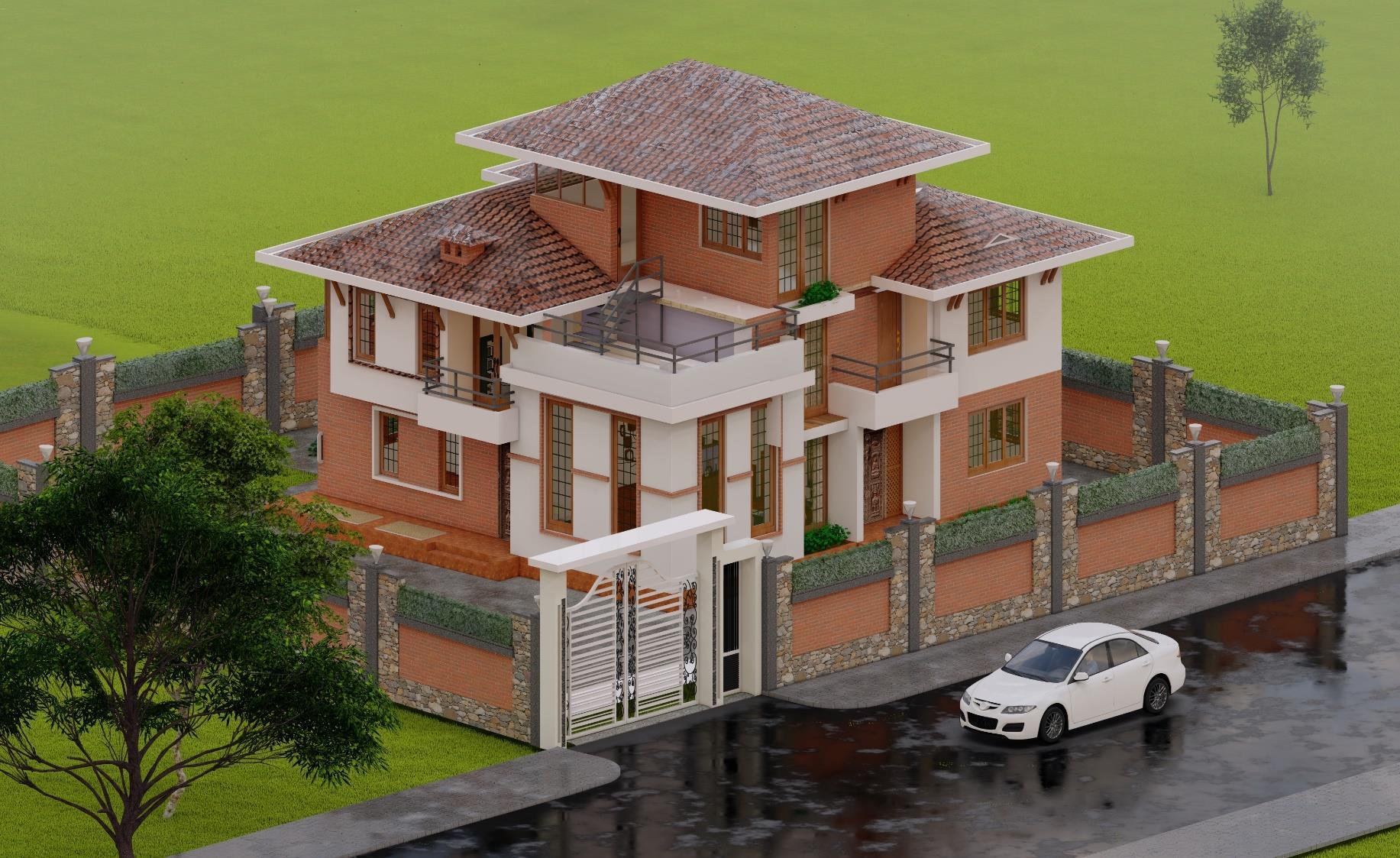

Bhisombari Residence:
It is an open-planned residential building built in the area of 6863.2 SQ.FT and is located on the base of Swyambhu nath hill. It blends modern and traditional architecture and is designed for a family of four.
