Architecture Portfolio 2023
Steven Gideon
Dreams Without Goals, Are Just Dreams and They Ultimately Fuel Disappointment.
- Denzel Washington
1 2 3 4
Vault Of Silence | San Diego, California
P6-9 | Fall 2016
Steven Gideon | Designer | Drafting | Rendering 3D Modeling
Educatorium | College Station, Texas
P10-17 | Fall 2019
Samuel Kuhn | Designer | Rendering | 3D Modeling Steven Gideon | Designer | Drafting | 3D Modeling| Rendering
Circle Of Life | Austin, Texas
P18-21 | Spring 2020
Steven Gideon | Designer | Drafting | Rendering 3D Modeling | Model Fabercation
Rotter House | College Station, Texas
P22-25 | Fall 2017
Steven Gideon | Designer | Drafting | Rendering 3D Modeling Contents
04|Table of Contents
Vault of Silence|Salk Institute
San Diego CA
The Vault of Silence is a minimalist addition to the Salk Institute that seamlessly integrates with the natural surroundings, promoting introspection and reconnection with nature. Its transparent structure allows uninterrupted movement for visitors and natural light to penetrate within the space while interlocking concrete blocks provide shelter.
The entrance is marked by an elegant gateway, leading visitors onto a pathway that bridges over the surrounding fountain. Facing west, the Vault offers breathtaking views of the surrounding landscape. The roof ends at a balcony that extends over a cliffside, providing a unique vantage point to observe the natural beauty below.

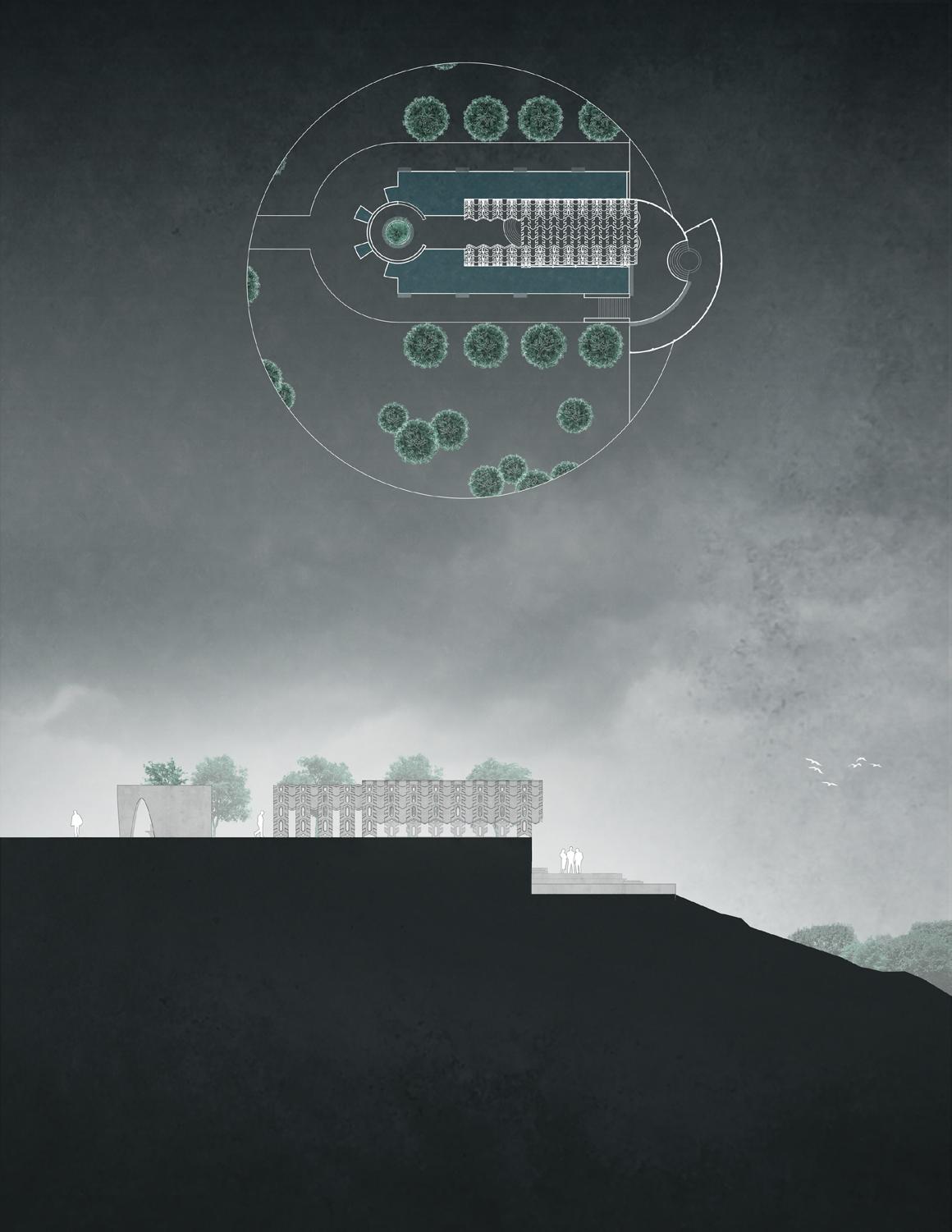

06|North Elevation|Plan View

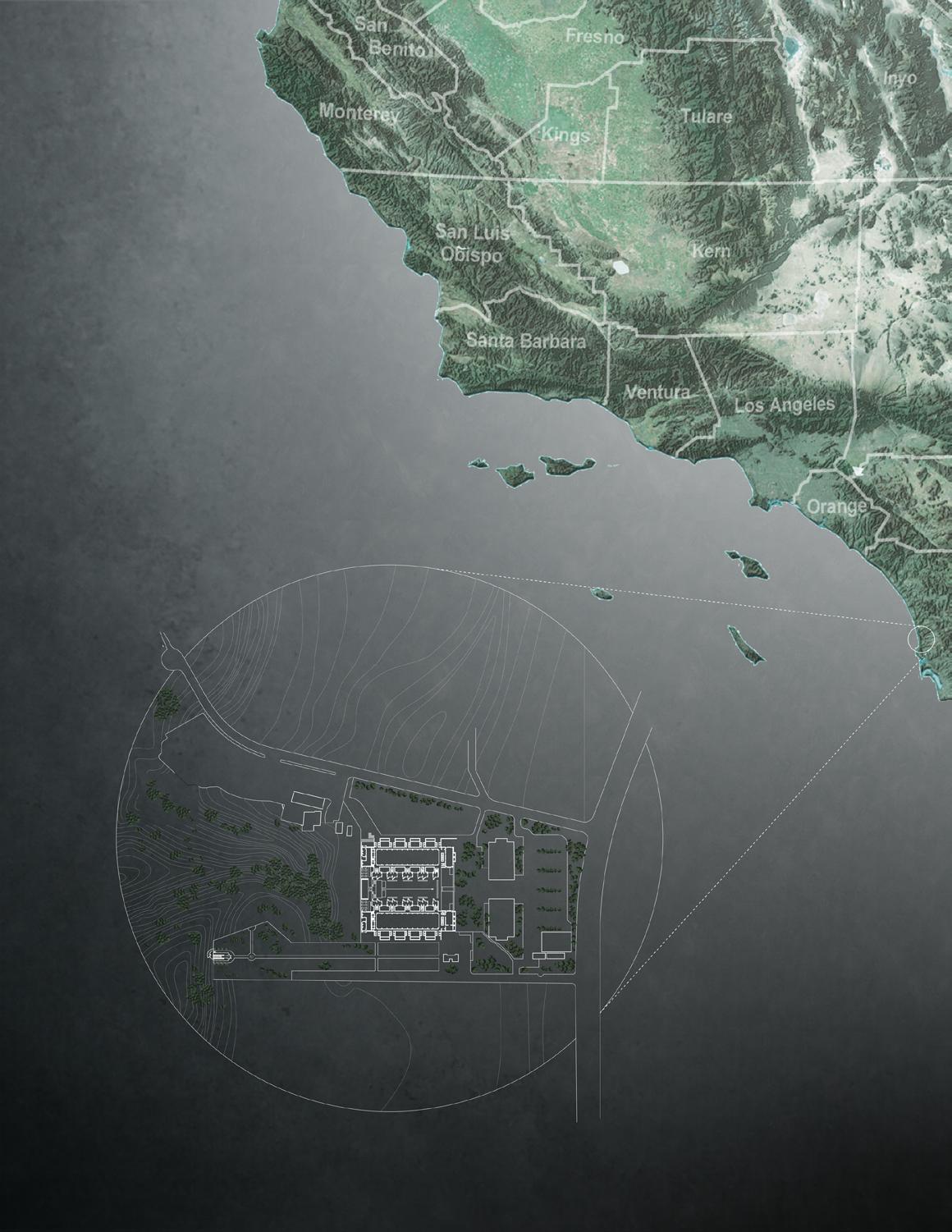

Site Plan|Location|07
Interlocking
Precast Blocks
Interlocking Precast Block with window opening
Reinforced
Conrete
Retaining Wall
WaterProof Glass Barrier

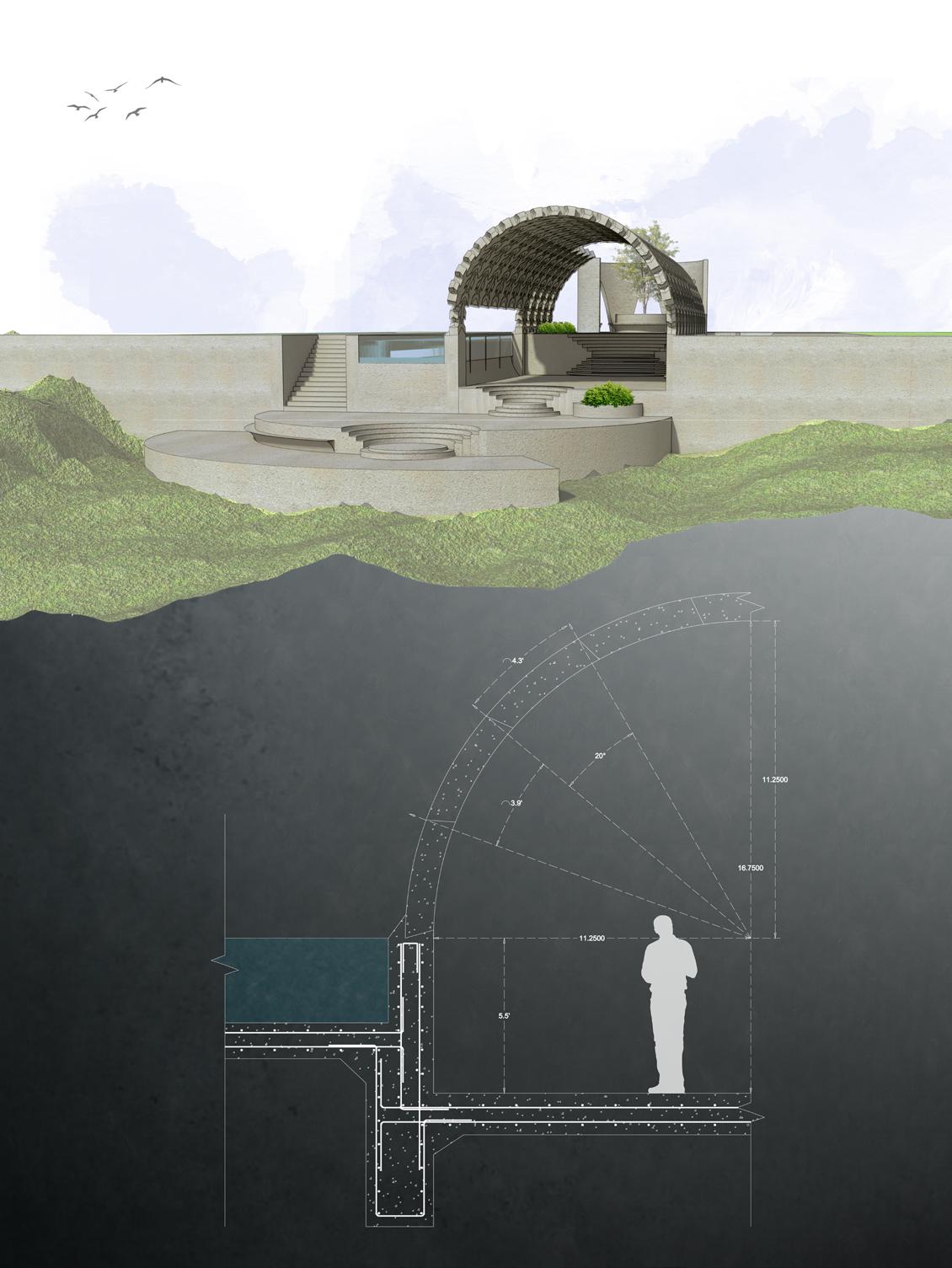

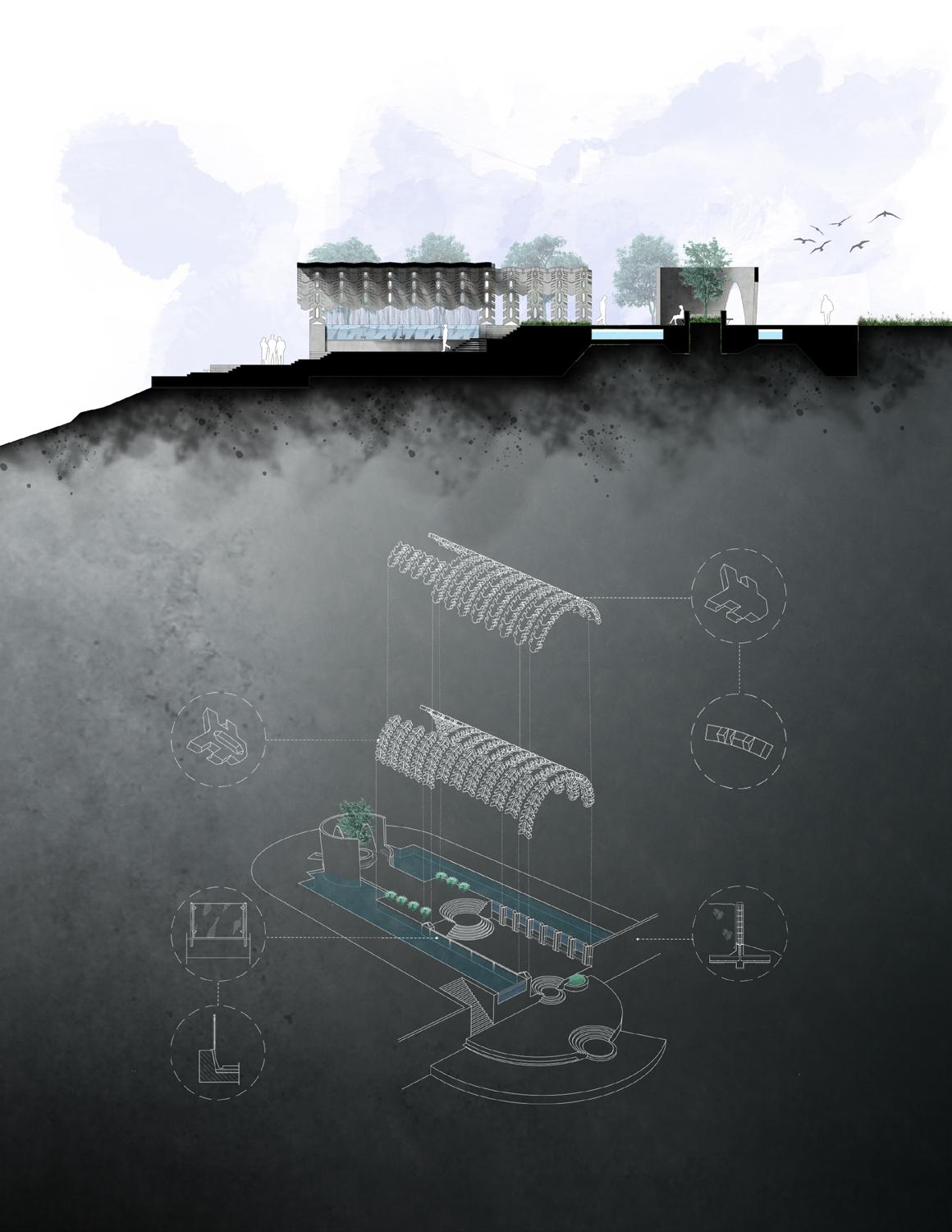

08|South Section|Axonometric Detail
Perspective|Detail Drawing|09
Educatorium for Texas A&M University College Station TX
This is an open educational project located at Texas A&M in College Station. The Open Education Project at Texas A&M in College Station is an innovative design that seamlessly integrates with its surroundings while providing a space for education. The project is located on a regularly used open plot of land within the campus that serves as a place of play, relaxation, study, or a means of cutting through to get to classes. The L-shaped box design mirrors an existing volume of trees, enclosing a central courtyard that slopes downward, shifting the perception of the ground plane and leading towards the lower half of the building.

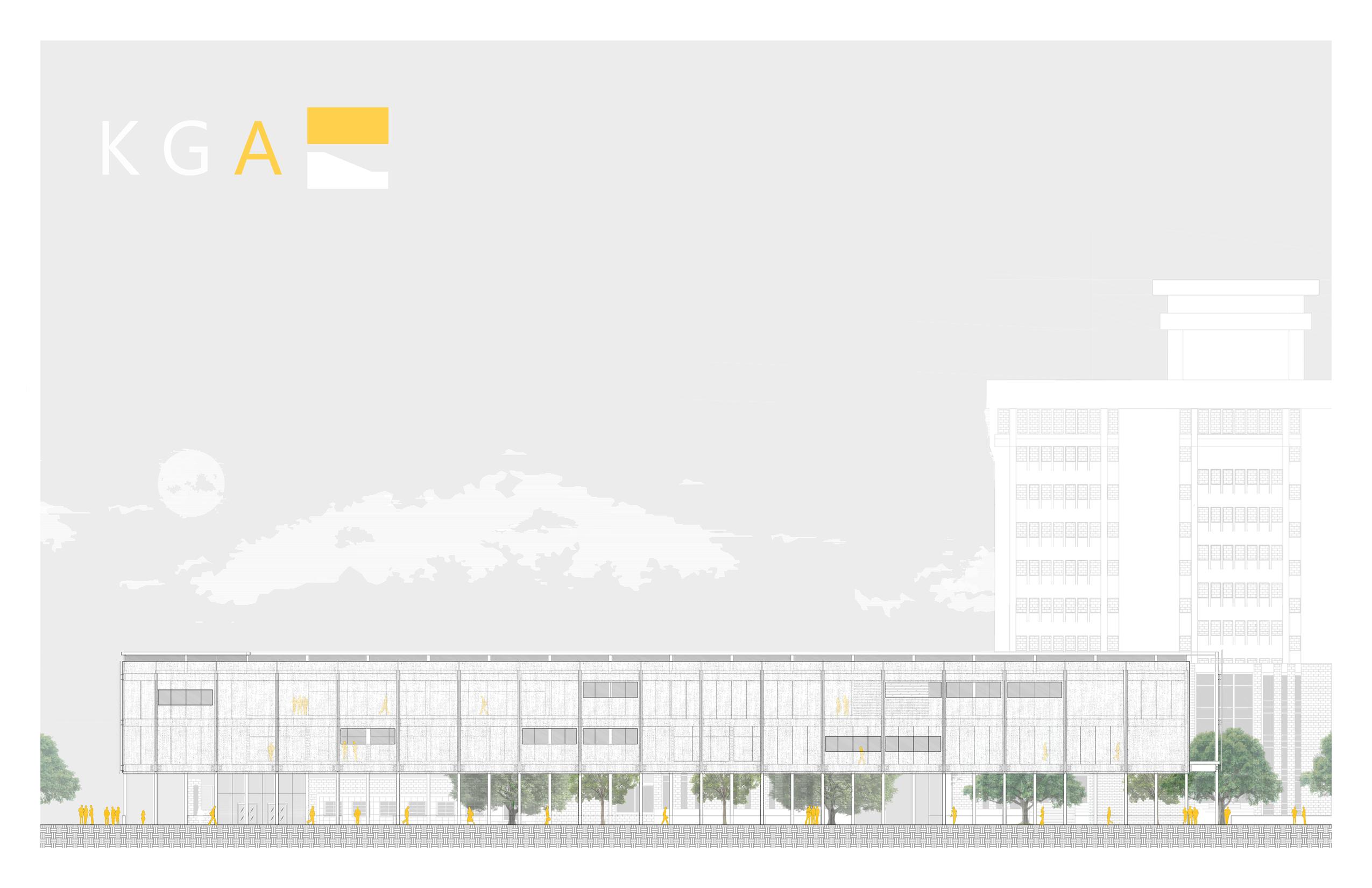

10|South Elevation
The box is lifted off the ground plane, returning it to the public and allowing for access and circulation through the site. The building’s structure features a combination of steel and concrete, with a facade of glass and metal panels that provide natural light and ventilation while also creating a visually stunning appearance. The interior spaces are flexible and open, with ample room for gathering and learning.
The Open Education Project aims to enhance education and community engagement while addressing environmental concerns through thoughtful architecture and design. It is a true testament to the potential for architecture to create spaces that not only serve a practical purpose but also inspire and promote sustainable living
11

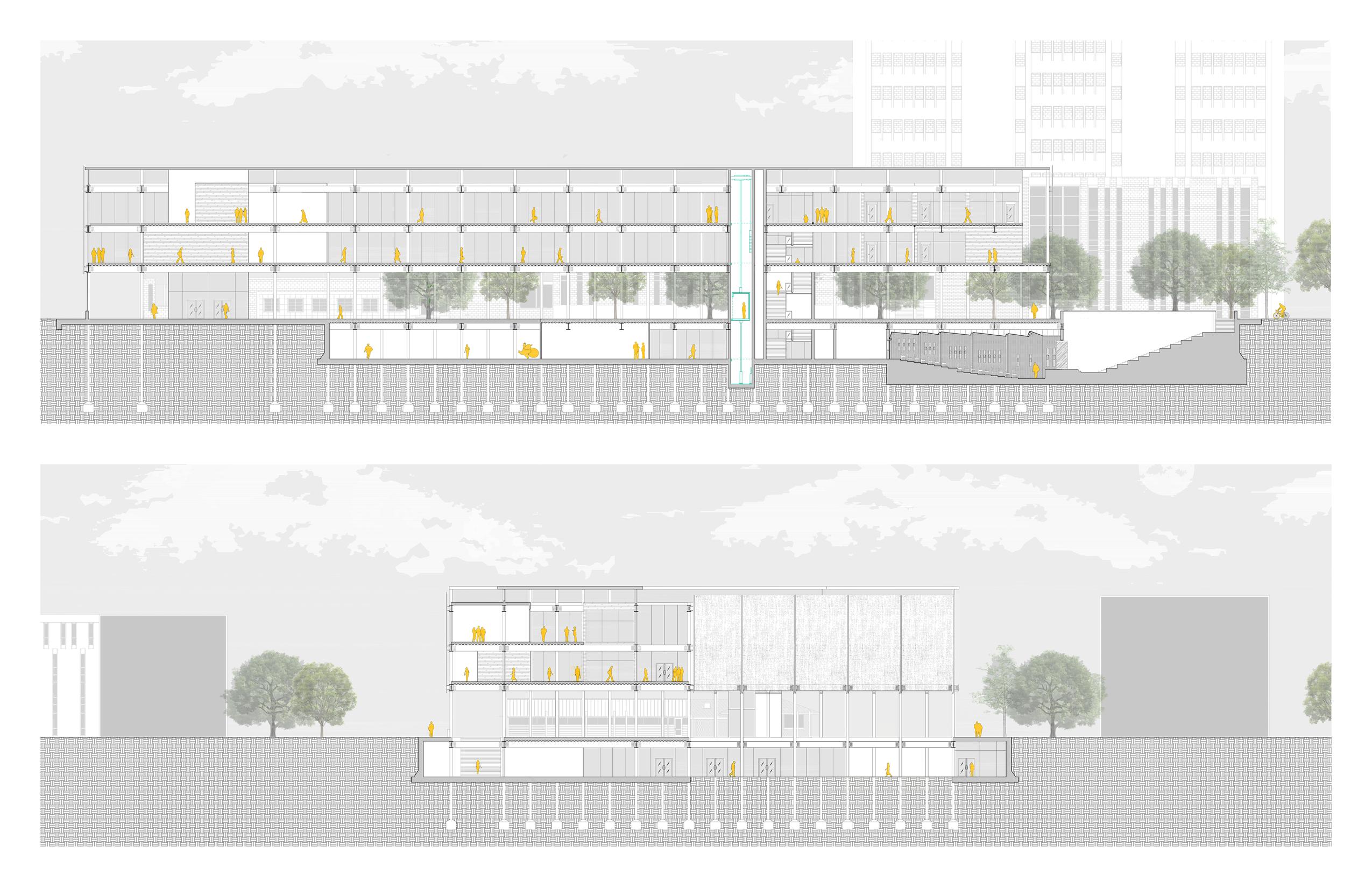

12|South Section
Eastern Section|13

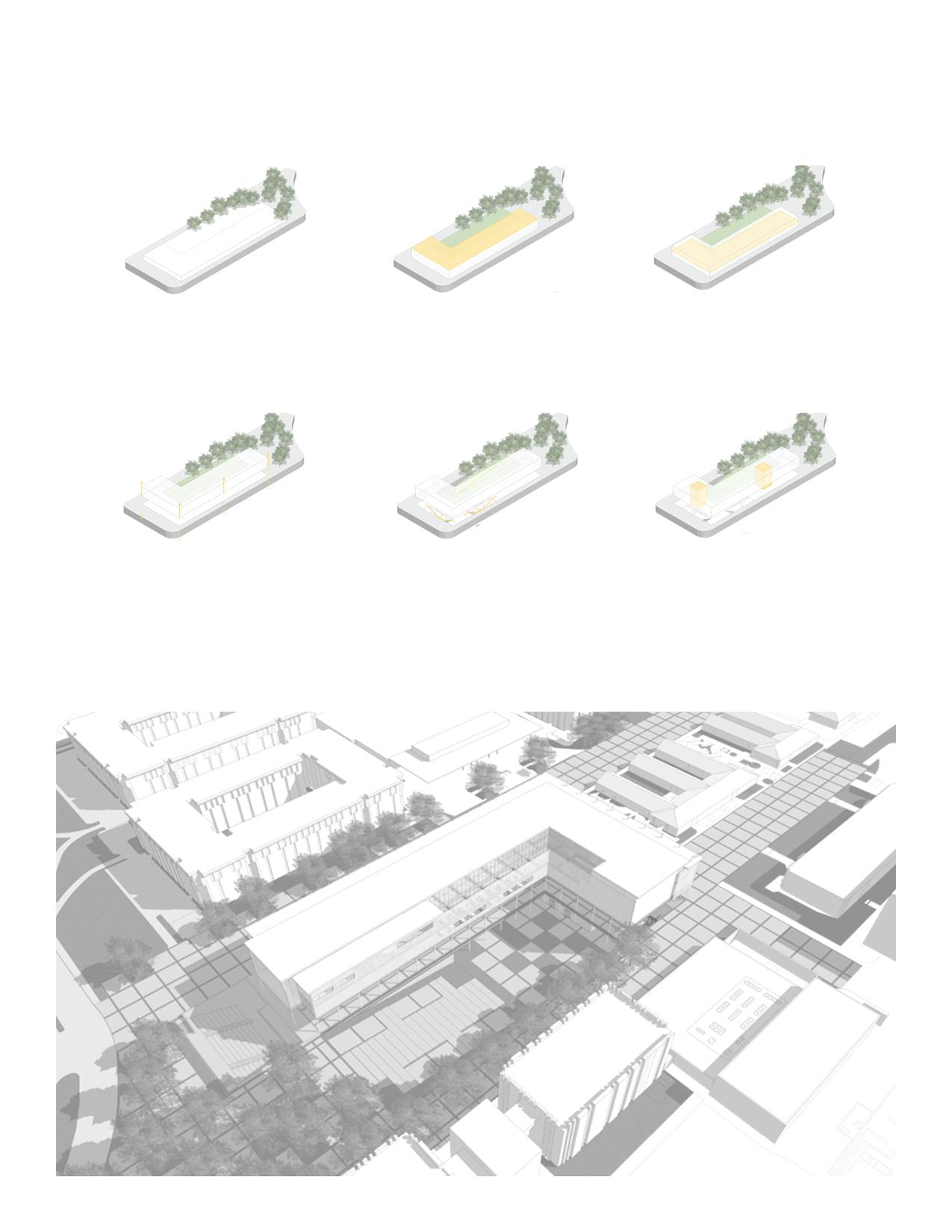

2 1 3 5 4 6 14|Perspective|Design Flow
K G A Re ective Cover Vapor Barrier Foam Insulation Cast in Place Slab 3” Corrugated Steel Decking 3/4” Gypsum Schock Thermal Break Re ective Cover Vapor Barrier Foam Insulation Cast in Place Slab Nelson Stud 3” Corrugated Steel Decking 2” Toping Slab Foam Insulation Board Cast in Place Slab Nelson Stud 3” Corrugated Steel Decking 17” Deep Steel Channel Schock Thermal Break Cast in Place Slab Nelson Stud 3” Corrugated Steel Decking Schock Thermal Break Cast in Place Slab Nelson Stud 3” Corrugated Steel Decking 9” HSS Round Tube Bell Flooting Cardboard Carton Form Wall Detail W18 x 65 Wide Flange W18 x 65 Wide Flange Design Details|Detail Drawing |15
16|Floor Plans First Second Lower Level 0 20 40 60 80 100

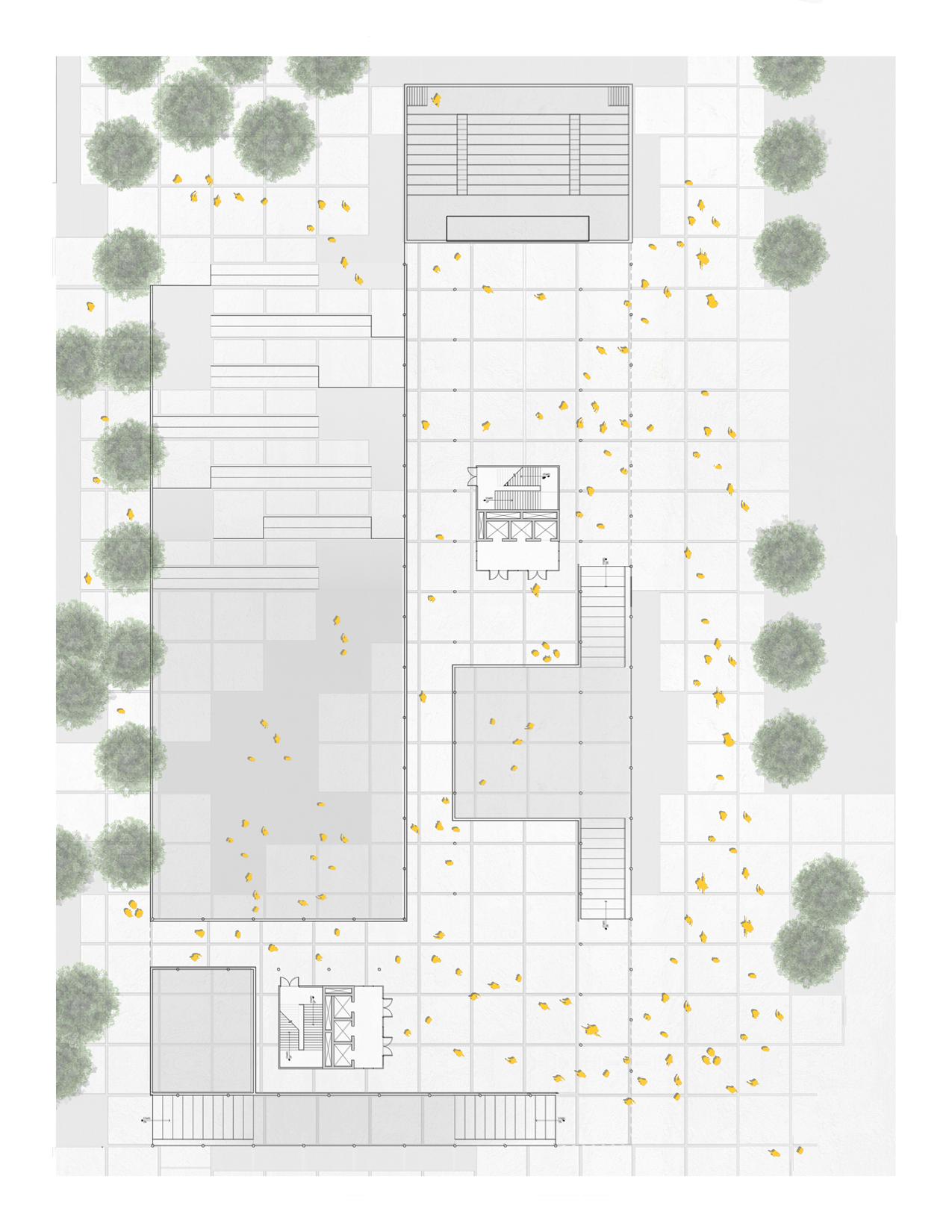

Site Plan|Traffic Flow |17
Circle of Life|Kingsbury Commons
Pease Park
Austin Texas
18|Location Map
The Pavilion at Kingsbury Commons in Pease Park is a symbolic structure constructed entirely from recycled materials. The use of recycled materials in the construction process, including reclaimed plastics, wood and metal, showcases the beauty and potential of repurposing discarded materials. The project sheds light on the importance of our relationship with the environment and the potential creative solutions to environmental challenges.
It represents the circle of life, from beginning and growth to peaking and decay, reminding us of our connection to nature. By showcasing what can be built from waste, the Pavilion inspires a sustainable future. It surrounds a singular tree, emphasizing nature as the central element in the never-ending circle of life

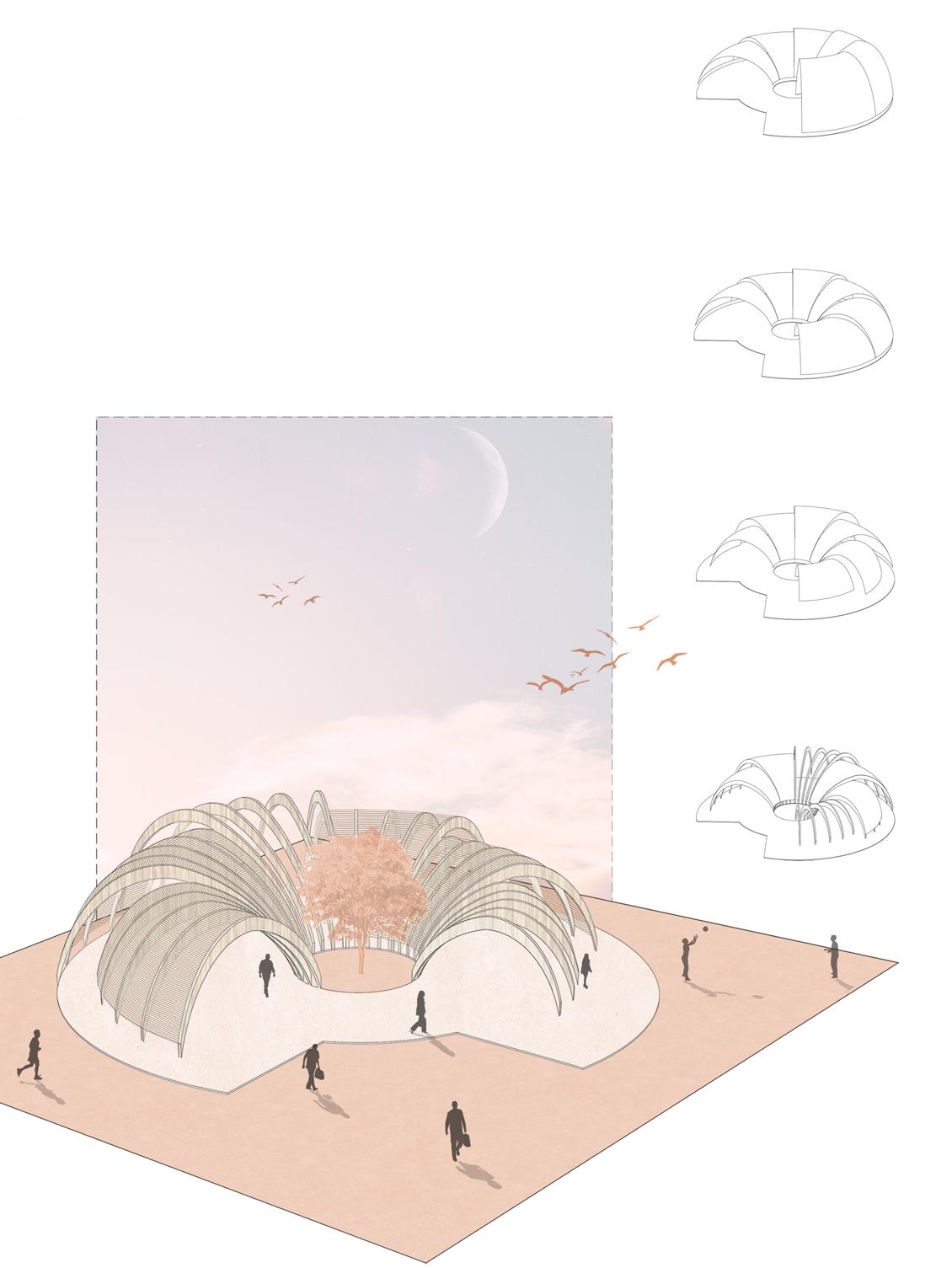

Perspective|Design Flow |19
Rope made from old fish nets and other plastic waste from the ocean
Cross laminated timber structure made from recycled materials

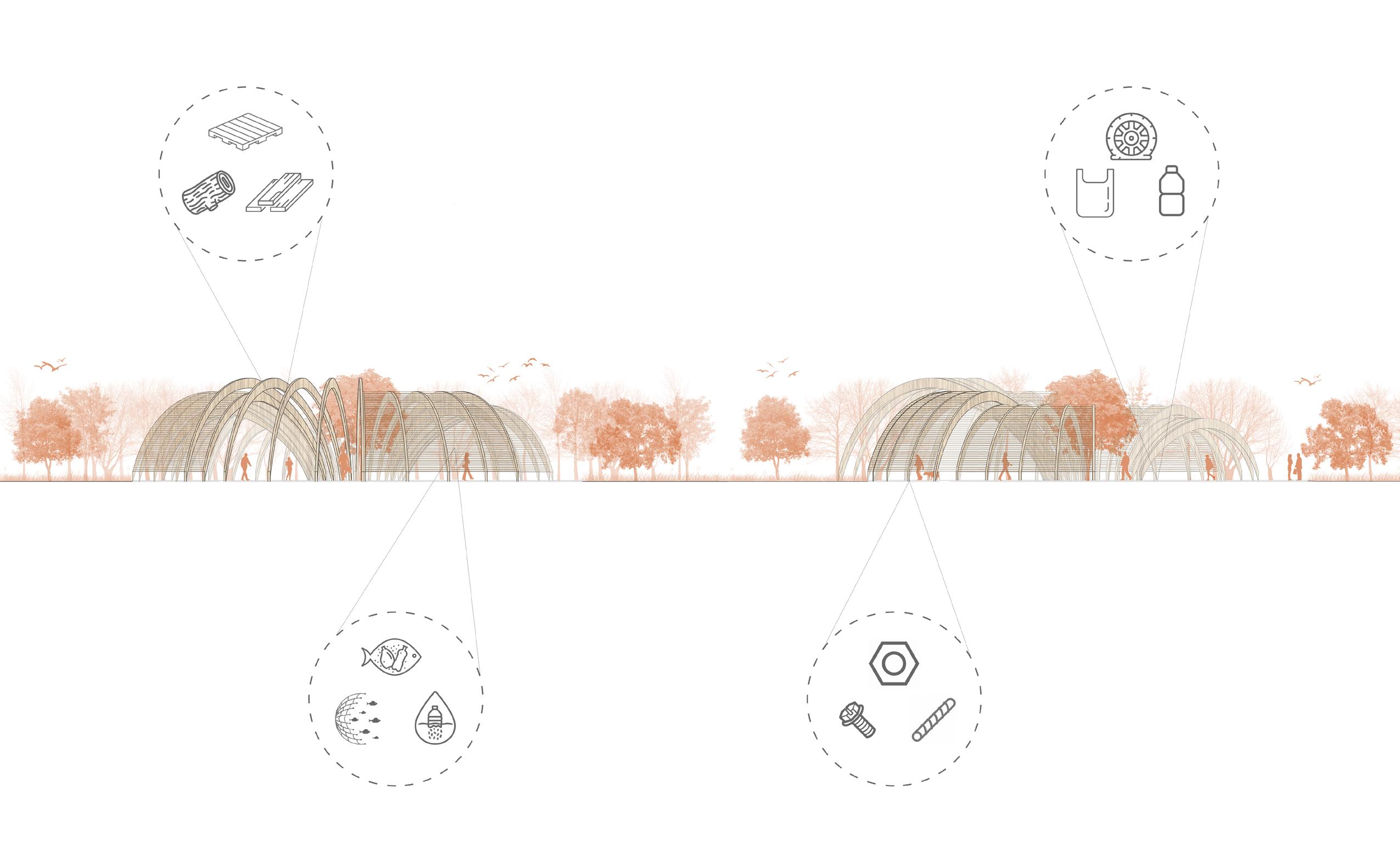

20|South Elevation
Concrete foundation made from both hard-to-recycle and recyclable plastics and rubber
Plate Connecters and metal brackets and fasteners from unused/reused materials from other construction projects
Materials|North Elevation |21
Rotter House |
The primary objective of this project was to design a residence that effectively delineates private and public spaces. The private area serves as a tranquil retreat where family members can engage in their personal activities and enjoy moments of seclusion within the comfort of their home. On the other hand, the public domain embodies an expansive and interconnected space that seamlessly integrates with the surrounding environment, fostering a welcoming atmosphere for friends and guests.
College

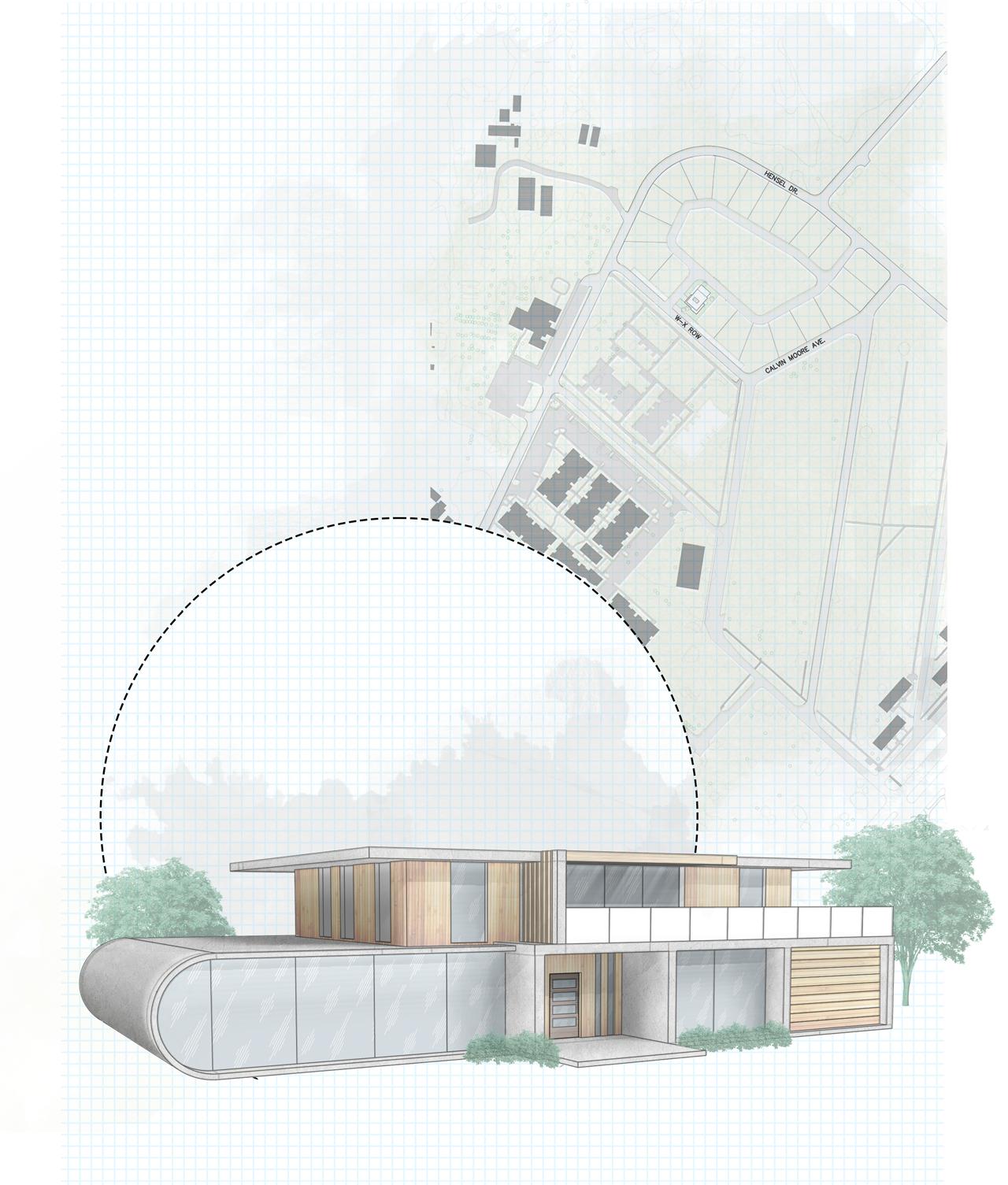

22|Perspective|Location Map
Station Texas

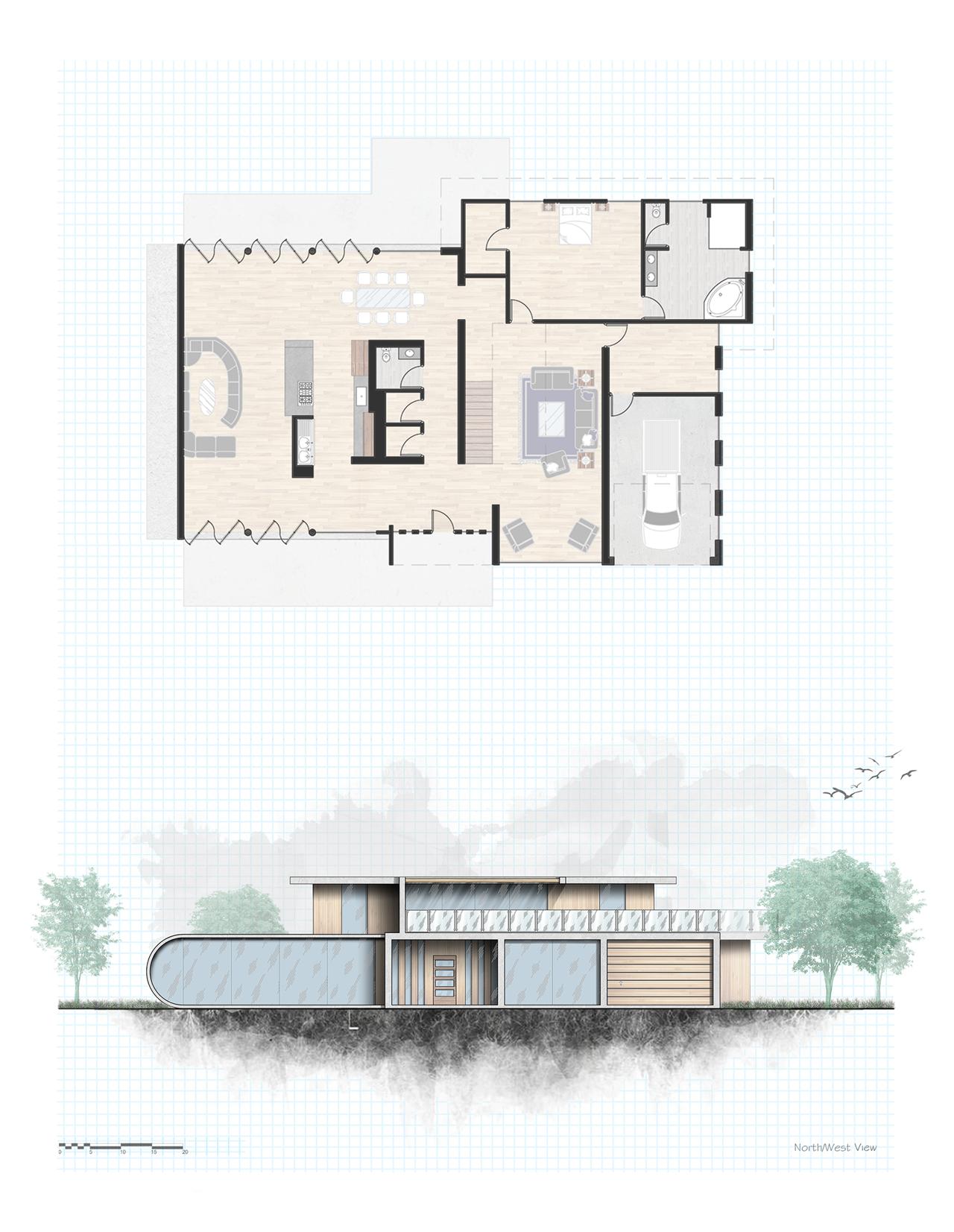

First Floor|NorthWest Elevation|23

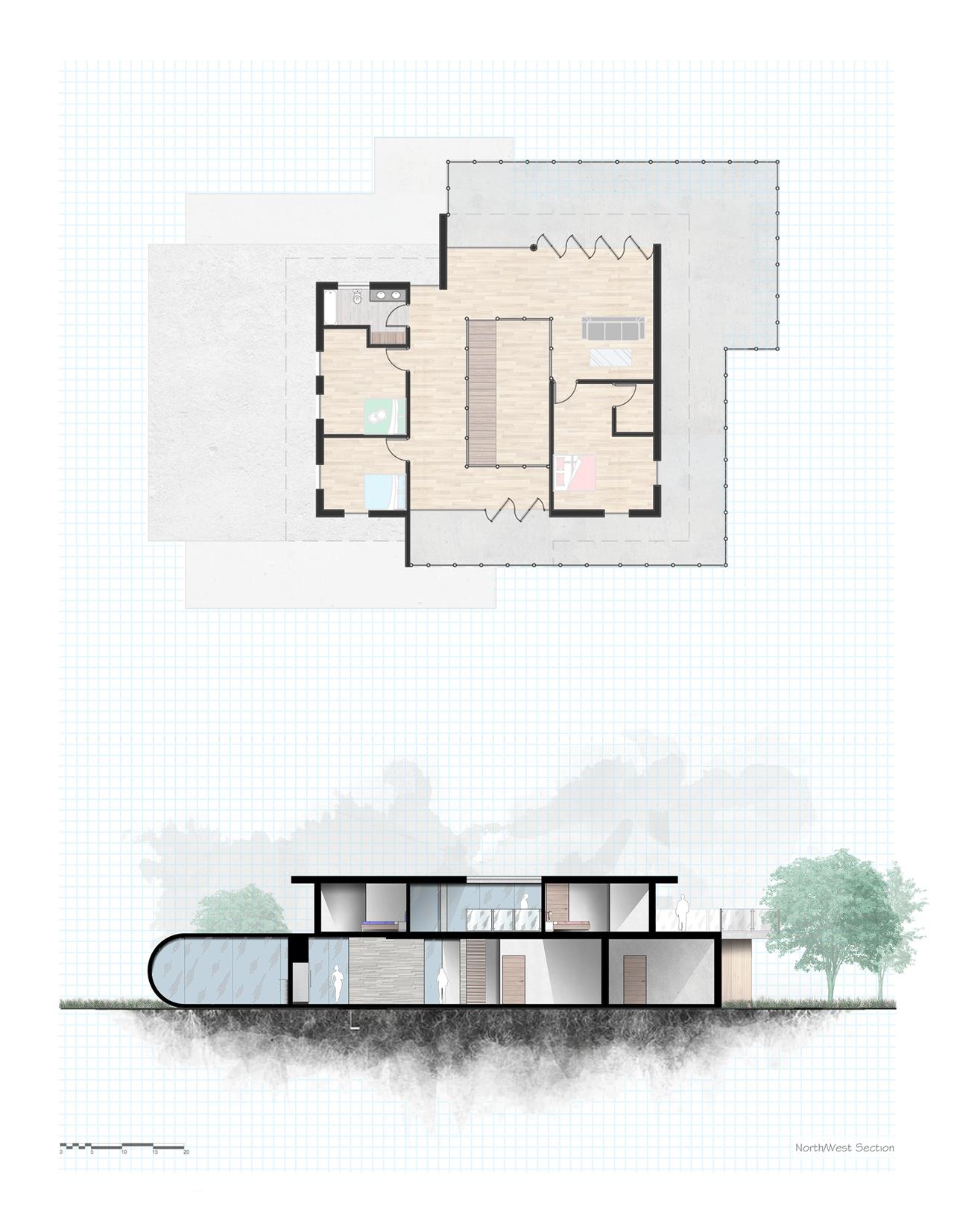

24|Second Floor|NorthWest Section
Detail Drawings|25 Precast Concrete Wall to Foundation Framless Glass Window Detail Drawing 5 8 " 17 8 " 8" 4" Round metal cover for structural column
Even A Brick Wants to Be Something.
- Louis Kahn
Architecture Portfolio Thank You
