WELCOME FROM THE EDITOR

FEATURED ARTICLES

WELCOME FROM THE EDITOR

AbouttheEditor

AllanKnightisoneofthesciencecurriculumconsultantswithSchool CurriculumandStandards Hehastaughtscience,includingseniorschool chemistryandphysics,athighschoolandbeenauniversitychemistry lecturer Hehasco-authoredanumberofseniorsecondarychemistry textbooksandwrittenteacherresourcesforseniorsecondaryphysicsforWA andotherAustralianstates

Welcome to the second issue of SCIOS - Secondary for 2024!

In this issue, Heather Valentine describes how to develop multiple questions on assessment design, Wendy Payne from the Department of Biodiversity, Conservation, and Attractions describes education resources developed as part of the Return to 1616 Dirk Hartog Island restoration project and Lyndon Smith provides data on trends in ATAR course enrolments and university enrolments

We hope that you find the articles informative and interesting

Allan Knight (SCIOS - Secondary Editor)

ASSESSMENT DESIGN - MULTIPLE CHOICE

Heather Valentine

HeatherhasbeenalowerschoolscienceandPhysicsandChemistryteacherfortwentyyears Herrecentrolein TeachingandLearninghasgivenherinsightintotheartofteachingandthescienceoflearning Sheiskeentoshare examplesofbestpracticetopeers

Each category of assessment has its advantages and limitations It does not stand alone as a single measure of student achievement, but part of a suite of tasks throughout an academic year Designing assessment tasks requires consideration of various key factors In this article, I will be discussing Multiple Choice Questions that feature in most Science assessments This is the first of a two-part series on Assessment Design

MULTIPLE CHOICE QUESTIONS

ADVANTAGES

Highly objective and reliable for testing large cohorts

Can assess student learning across a wide range of disciplinary knowledge

Efficient for assessment of concepts and marking

Easy to implement as an online test

A bank of questions can be recombined on several occasions

LIMITATIONS

Questions can frequently test lower order thinking skills

Students receive ineffective feedback

Students may acquire false knowledge as 75% of the information is inaccurate

Designing effective questions is time consuming

Designing effective questions that test higher order thinking is challenging

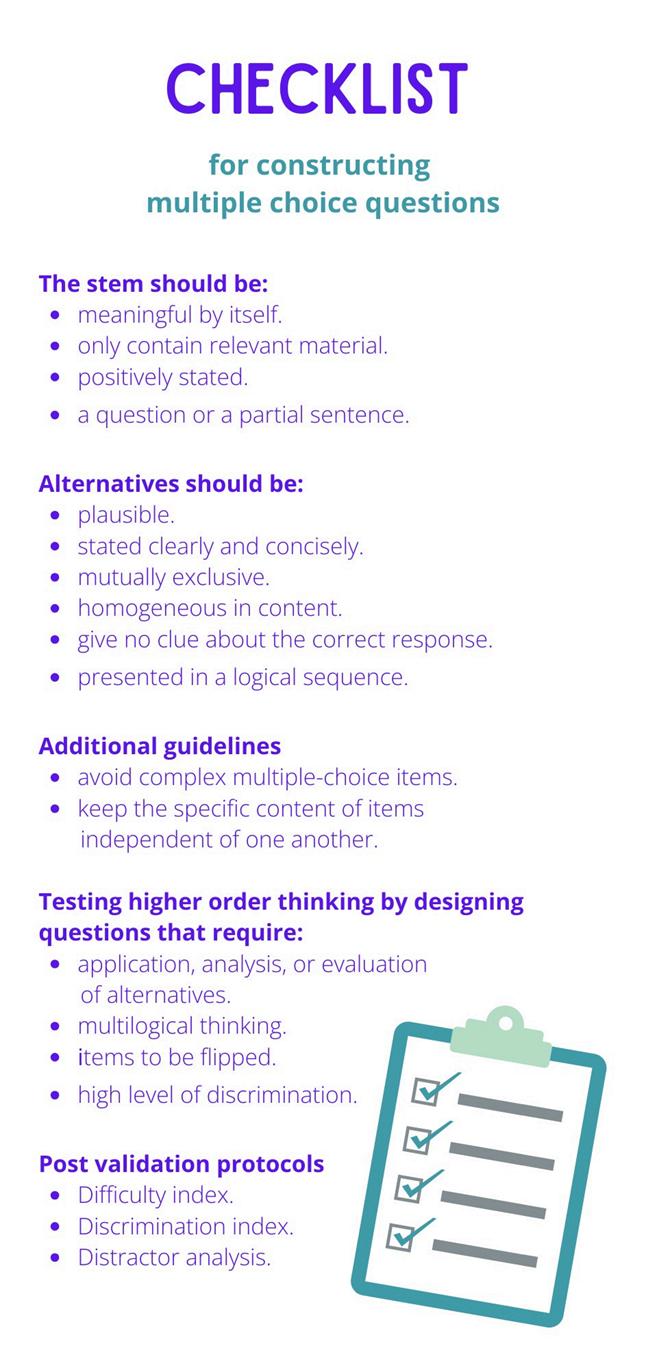

TECHNIQUES FOR WRITING EFFECTIVE MULTIPLE-CHOICE QUESTIONS

Test comprehension and critical thinking, not just recall knowledge

Use simple sentence structure and precise wording

Put most of the words in the question stem, rather than in the answers

Write the stem as a complete question when possible

Make all distractors plausible, a similar length and presented in a logical order

Focus the question on a single learning outcome

EFFECTIVE ALTERNATIVES SHOULD BE:

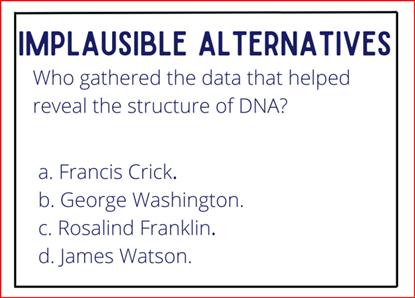

plausible - Implausible alternatives are non-functional distractors and should not be used Common student errors provide the best source of distractors

stated clearly and concisely - Items that are excessively wordy assess students’ reading ability rather than their attainment of the learning outcome mutually exclusive - Alternatives with overlapping content may be considered “trick” items by students Excessive use can erode trust and respect for the testing process homogeneous in content - Alternatives that are heterogeneous in content can provide clues to students about the correct answer, decreasing the validity of the assessment. giving no clue about the correct response - Alternatives should have grammar consistent with the stem, that is parallel in form, similar in length and uses similar language presented in a logical sequence to avoid bias toward certain positions

AN EFFECTIVE STEM SHOULD:

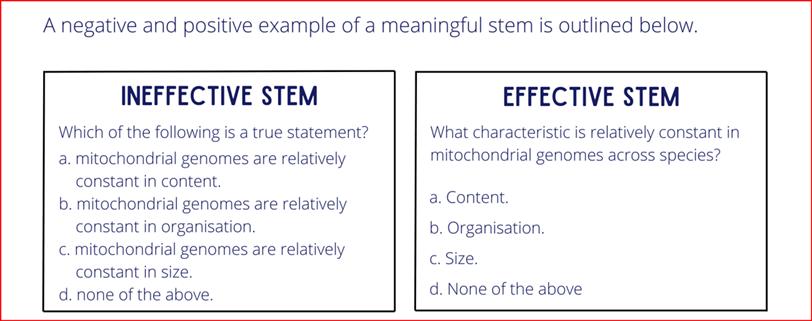

be meaningful by itself and present a definite problem, allowing the focus on the learning outcome

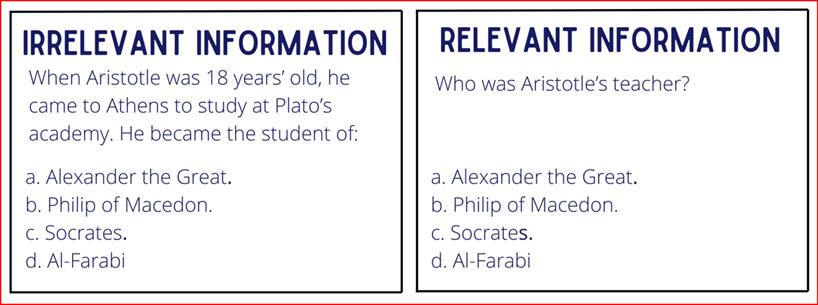

only contain relevant material to increase the reliability and validity of the test scores

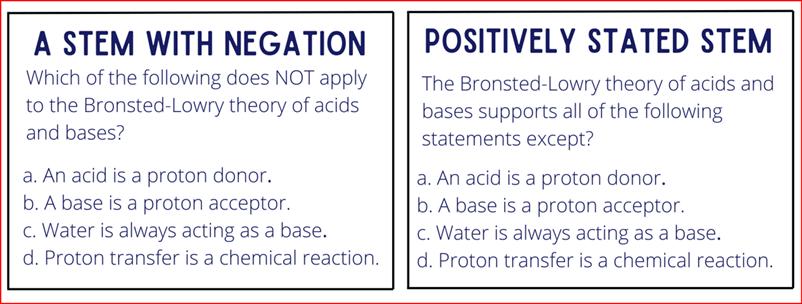

be positively stated to align with learning outcomes

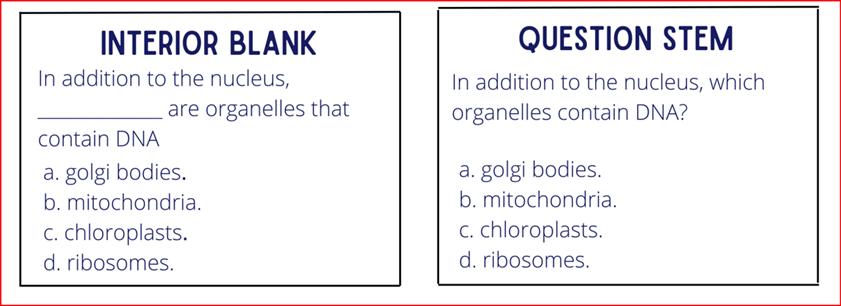

be a question or a partial sentence. A question stem is preferable to support the student to focus on answering the question rather than holding the partial sentence in working memory

TESTING HIGHER ORDER THINKING

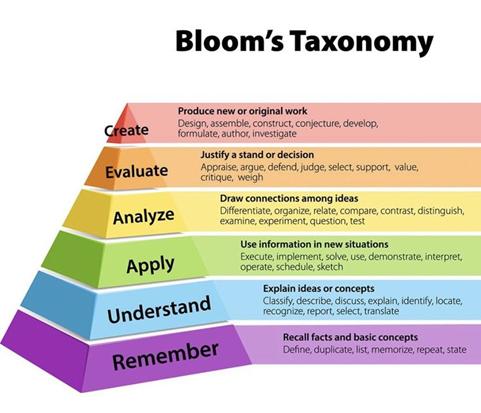

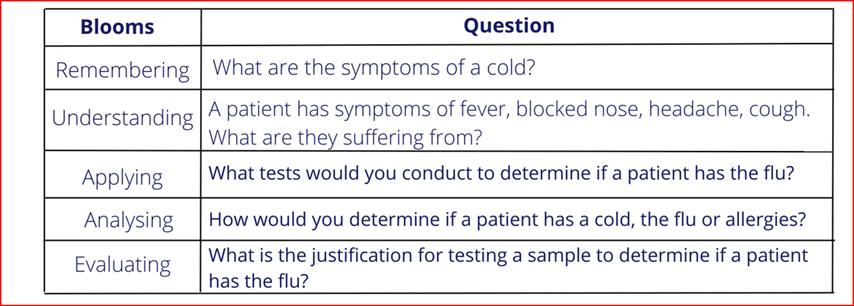

When writing multiple choice items to test higher-order thinking, design questions that focus on higher levels of cognition requiring application, analysis, or evaluation of alternatives

(source:https://schoolworkhelpernet/wp-content/uploads/2020/11/Benjamin-Bloom-Taxonomyjpg)

Rather than lower order questions that focus on remembering and understanding, rewrite the questions to focus on applying, analysing, or evaluating

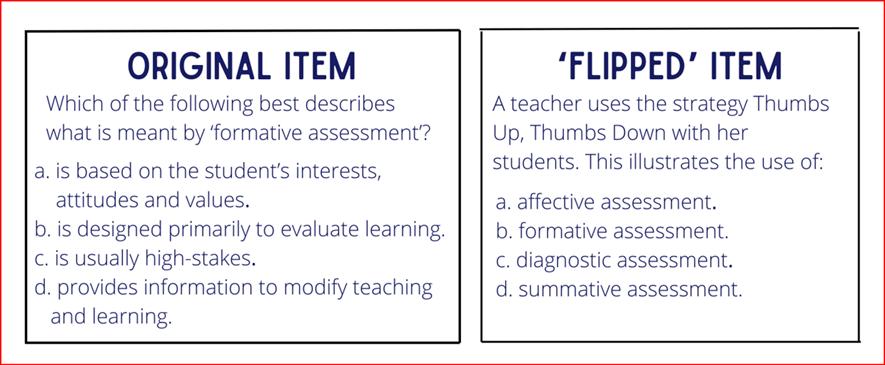

Items can be ‘flipped’, by presenting the specific instance in the item stem, and asking the student to identify the underlying rule or concept instead The correct response requires the students to have a complete understanding of the alternative distractor concepts

POST VALIDATION PROTOCOLS

Statistical analysis of the results can give insights into the validity of the items in multiple choice questions and used to inform future planning

Difficulty index:

If more than 70% of the cohort answered the questions correctly, it is considered to be too easy.

If fewer than 30% answered it correctly, it is too hard. Between these two parameters, the question is acceptable.

Review those questions whose percentages are close to those parameters

Table 1 shows a spreadsheet with the percentage of students getting each question correct

Questions 1, 4, and 11 are too easy

Questions 3, 6, and 20 are too hard

Questions 2, 10, and 19 can be reviewed to make them easier to interpret.

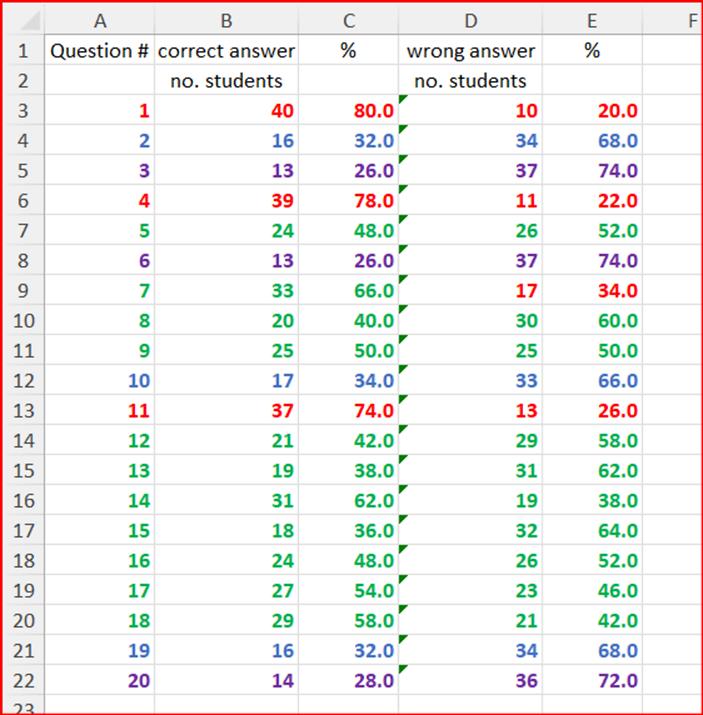

Table 1: Percentage of students getting each question correct for a set of multiple-choice questions

Discrimination index

This demonstrates how well the item can distinguish between students in the top 27% and those in the bottom 27% of the cohort

To ensure stability, it is preferable that the groups include larger numbers (greater than 100) of students Each multiple-choice question needs to be individually analysed

It can be determined by:

Where:

U is the number of students in the top group who answered the question correctly.

L is the number of students in the lower group who answered the question correctly

N is the number of students in the largest of the two groups

When more students in the lower group than in the upper group selected the correct answer of the item, the question is invalid

Range of the discrimination index Item category (Table 2)

D ≥ 0.40 very good

0.30 ≤ D ≤ 0.39 reasonably good (possibly subjected to improvement)

0.20 ≤ D ≤ 0.29 marginal (necessity of revision)

D ≤ 0.19 poor (necessity of major revision or elimination)

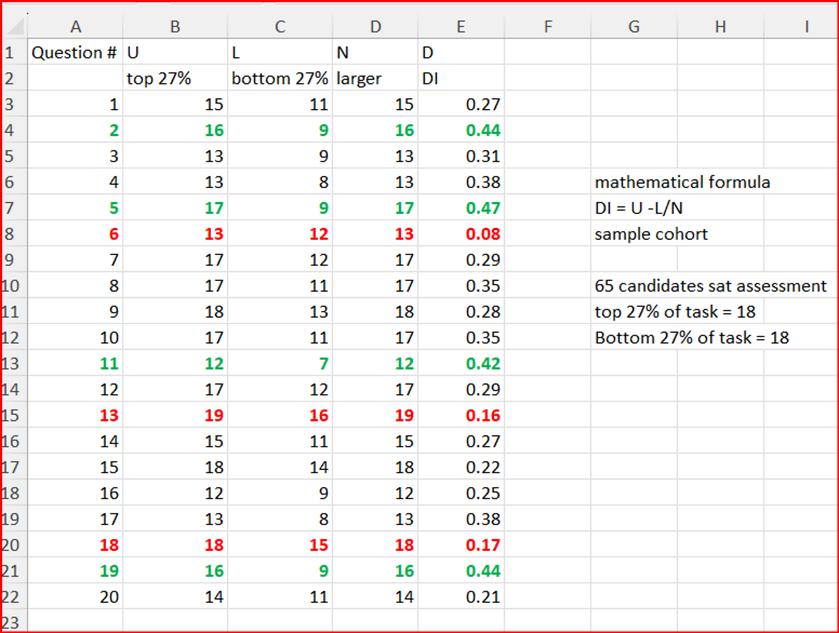

Table 2: Discrimination index for each question for a set of multiple-choice questions

Distractor analysis examines the quality of the distractors Each distractor must be both plausible and incorrect

One simple approach of distractor analysis includes determination of the proportion of students who selected each of the alternatives (see Table 3 for exemplar spreadsheet) These proportions can be particularly informative

For example, when the proportion of students who selected a given distractor is greater than the proportion of students who selected the correct answer, then the item should be examined to determine if the correct answer is mistaken

The distractor analysis can also reveal implausible distractors For example, if the students consistently fail to select a given distractor, this may be evidence for its implausibility

Distractors not selected by 5% or more of the students are considered ineffective and should be revised or eliminated

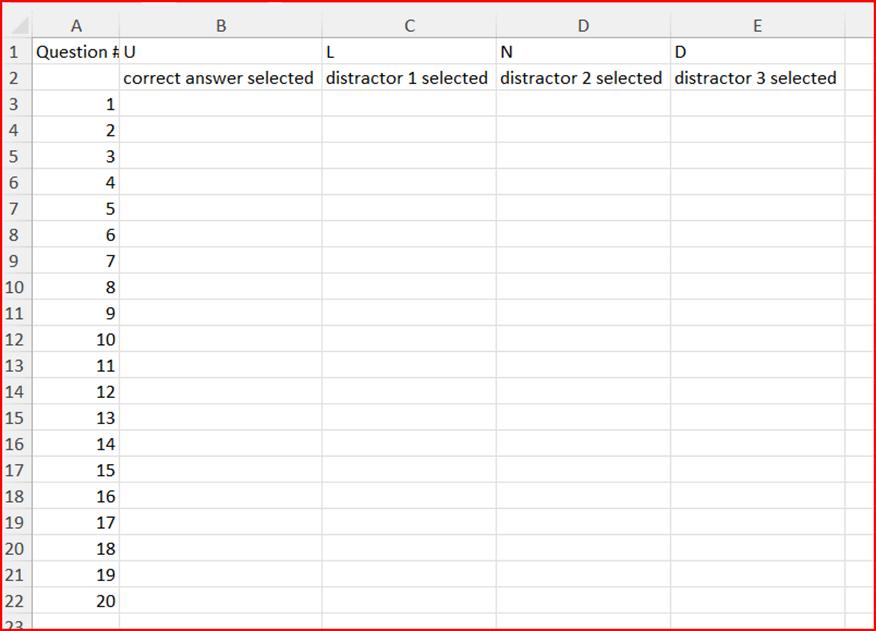

Table 3: Exemplar spreadsheet for determining the proportion of students who selected each of the alternatives in a set of multiple-choice questions

In the next issue of SCIOS, I will be discussing the features of Short Answer Questions This is part of an ongoing collaboration between Laetitia Riches, a Languages Teacher at Duncraig Senior High School, and I This project all started as an incidental conversation we had when standing by the photocopier one day Laetitia has been pivotal in the development of this project and her ongoing contribution is invaluable I presented the findings on Multiple Choice Questions and Short Answers at the STAWA Conference in April of this year The aim is to prepare two presentations each year at subsequent annual conferences

References/Resources:

Brame, C , (2013) Writing good multiple choice test questions Retrieved from 28th November 2023 https://cft vanderbilt edu/guides-sub-pages/writing-good-multiple-choice-test-questions/

https://www csu edu au/division/learning-teaching/assessments/assessment-types/exams/multiplechoice-questions

https://www elearning fse manchester ac uk/fseta/writing-multiple-choice-questions-a-handy-guide/

https://www sproutlabs com au/blog/how-to-write-effective-multiple-choice-questions/ https://tatp utoronto ca/teaching-toolkit/assessments/assessment-writing-guide/tips-rmultiple-choice/

Bothell, T W (2001) 14 Rules for Writing Multiple Choice Questions

Chan, C (2009) Assessment: Short Answer Questions, Assessment Resources@HKU, University of Hong Kong [http://ar talic hku hk]

https://crowdmark com/blog/eight-tips-for-designing-short-answer-questions/

https://carleton ca/tls/teachingresources/assessing-student-work/short-answer-questions/

Jovanovska, J (2018) Designing effective multiple-choice questions for assessing learning outcomes

Leacock, C & Chodorow, M (2003) C-rater: Automated Scoring of Short-Answer Questions Computers and the Humanities 37: 389–405

Monash University Language and learning online (2007) Breaking down the question Retrieved 29 July 2011, from http://www muelc monash edu au/lls/llonline/study/exam-it/3 2 2 xml

Scully, D (2017) Constructing Multiple Choice Items to Measure Higher-Order Thinking

University of Adelaide Academic Learning and Language Learning Guide (2009) Short answer exams Retrieved 29 July 2011, from http://www adelaide edu au/clpd/all/learning guides/learningGui de shortAnswerExams pdf

University of Wisconsin (2001) Communication in the Biological Sciences Answering essay and short answer exam questions

Retrieved 29 July 2011, from http://www uwlax edu/biology/communication/answeringessay questions htm

https://www matrix edu au/beginners-guide-to-acing-hsc-english/how-to-prepare-for-short-answerquestions/

RETURN TO 1616: EDUCATION RESOURCE FOR PRIMARY AND SECONDARY SCHOOLS

Wendy Payne

WendyisacommunityengagementofficerintheScienceDirectorate–BiodiversityandConservationScienceatthe DepartmentofBiodiversity,ConservationandAttractionsandhasbeeninvolvedinthedevelopmentofresourcesfor theReturnto1616DirkHartogIslandNationalParkEcologicalRestorationProject

When teaching students about restoration of the Australian environment, finding education resources with valuable, real-world examples for students to study can be a challenge It can be even more challenging to find examples that provide a positive outlook for the future The free Return to 1616 Education Resource is both real world and positive, and offers so much more for both students and teachers

The resource is based on a Department of Biodiversity, Conservations and Attractions (DBCA) project that is happening right now in Western Australia (WA) The Dirk Hartog Island National Park Return to 1616 Ecological Restoration Project is one of the most important restoration projects in Australia and of global significance.

When first encountered by Europeans in 1616, the island was pristine Since that time, the introduction of feral cats, goats and sheep have degraded the island and many of its original native animals became locally extinct The Return to 1616 restoration project began in 2012 and aims to turn back the hands of time and restore the island’s ecology to something more closely resembling that seen by early explorers Since its inception, the project has made Dirk Hartog the world’s largest island to have achieved the complete eradication of feral cats, goats and sheep and is making amazing progress with native fauna reintroductions

The education resource was officially launched in 2022 at the Science Teachers Association of WA conference CONSTAWA and more recently was showcased in 2023 at the Australian Science Teachers Association, CONASTA 70 where the theme “space to innovate” allowed some of the more intriguing aspects of the resource to be displayed in a workshop including exercises using virtual reality and 3D imaging technology

Although the Return to 1616 Education Resource was originally intended for students from

Kindergarten to Year 6, it has recently been revised to include students up to Year 10 In addition, WA Year 11 and 12 geography students are now using the package to study global environmental change The education resource is also closely allied with the Science Teachers Association of WA’s (STAWA) material produced for Year 9 students studying ecosystems and chemistry

The resource has many exciting exercises and is vast, which can be overwhelming To assist teachers in choosing exercises appropriate for their year and subject, the package has been “salami sliced” into “bite-sized” pieces to make the resource easily accessible and user friendly Activities are divided up by subject and year level, detailing the relevant achievement standards and assessment pointers The education resource meets achievement standards in English, HASS, Technologies and Science and, to assist teachers in assessing student progress, it also provides a teacher section with Assessment Pointers up to year 10 All activities are easy to download as either PDF files or PowerPoint slides

The official home for the education resource is on Sharkbay org where more Return to 1616 background information can be found To make the resource more readily accessible to teachers Australia wide, it has also been made available on Scootle

To assist teachers and students with projects involving science as a human endeavour, the resource also contains an information hub that boasts an impressive array of study resource material including magazine articles, newsletters and key scientific publications written on the project available from the DBCA online library

With ongoing updates to keep up to date with the restoration project as it progresses, the Return to 1616 Education Resource promises to be a tremendous educational tool for years to come The project is funded by the Gorgon Barrow Island Net Conservation Benefits Fund and runs through to 2030

SharkBaybandicootphoto-SteveReynolds(DBCA)

THE FUTURE OF ATAR - SOME NOTES AND DATA

Lyndon Smith

In the last 70 years, Australia has moved to a more University focus. In 1950, some 4% of Australians attended a university and now government and universities are advocating at least 50% Figure 1 shows the rise in university attendance in Australia and correlates it against the financial models adopted such as full fee, no fee and the modern Higher Education Contribution Scheme where the government pays varying proportions of the university fee depending on the perceived worth of the course to Australia

For those entering university directly from high school, an ATAR score has been the main mechanism through which universities have selected these students into their courses Figure 2 data suggests that interest in ATAR is waning

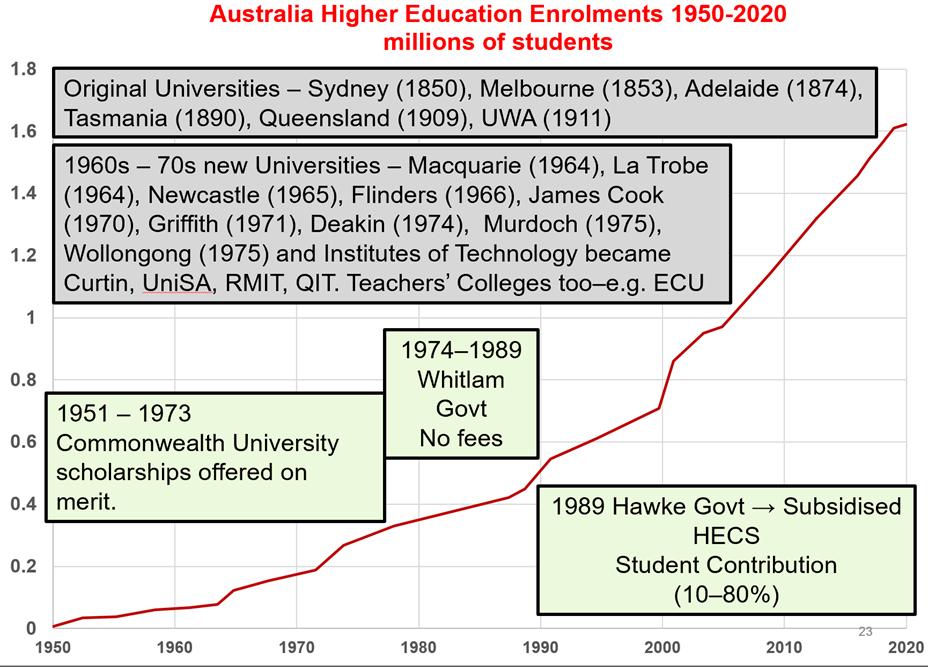

Figure 1: University attendance in Australia correlated against financial models

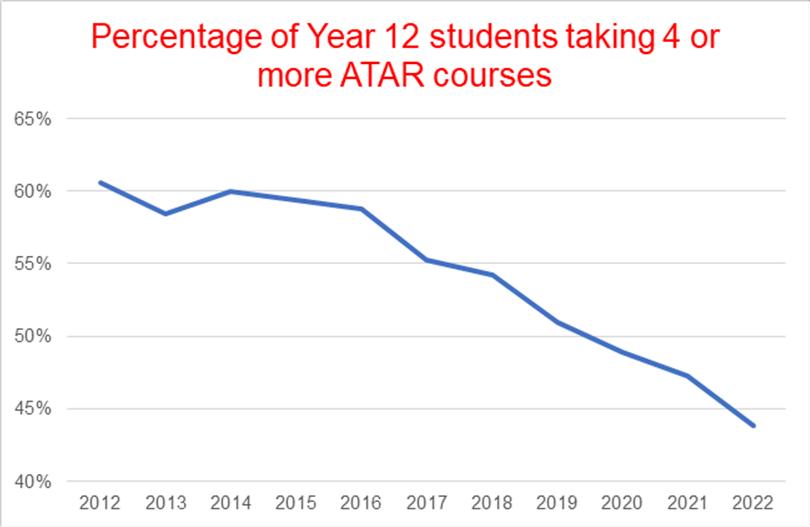

Figure 2: ATAR course enrolment trends (source: School Curriculum and Standards Authority Annual Report 2022–23 p 40)

Recommendations have been proposed to support ATAR by broadening its base In the “Pathways to Post-School Success – Review of Western Australian senior secondary pathways” the Expert Panel Report (Consultation Draft March 2024) they state in recommendations 19 and 20:

Rec 19: SCSA and TISC to work to expand the types of courses and programs that can contribute to an ATAR, with a view to expanding what students are able to have recognised through an ATAR

Rec 20: SCSA to commit to working with DTWD and TISC to enable as many VET qualifications as possible to contribute to the combined score from which an ATAR is calculated; and to implement this change as quickly as possible, drawing on SCSA’s current WACE refreshment process

The report is now open for public consultation and for those interested in making a submission on the recommendations in the report the draft report and a link for making a submission can be found here https://pathwaysreview wa edu au/expert-panel-report-consultation-draft

In determining the ATAR score, TISC uses a scaling process to bring all the WACE examinations onto the same scale For example, in 2023 Integrated Science ATAR had an examination mean of 59 00 and was scaled to have a mean of 45 5 The inclusion of VET courses will require a process that brings the achievements in these courses onto the same scale as the achievements in WACE ATAR courses

While University applications and University entrance has grown, the essential degrees of medicine, dentistry, physiotherapy, pharmacy, engineering etc have had high subsidies from the government and high application rates from students

The funding has been to address perceived needs in Australia

Funding Cluster Part of Funding Cluster

Funding Cluster 1 Law, Accounting, Administration, Economics, Commerce, Communications, Society and Culture

Funding Cluster 2 Education, Clinical Psychology, English, Mathematics, Statistics, Allied Health, Other Health, Built Environment, Computing, Visual and Performing Arts, Professional Pathway Psychology, Professional Pathway Social Work Education, Postgraduate Clinical Psychology, English, Mathematics or Statistics

Allied Health, Other Health, Built Environment, Computing, Visual and Performing Arts, Professional Pathway Psychology4 or Professional Pathway Social Work

Funding Cluster 3 Nursing, Indigenous and Foreign Languages, Engineering, Surveying, Environmental Studies, Science Nursing, Indigenous and Foreign Languages

Engineering, Surveying, Environmental Studies or Science

Funding cluster 4

Dentistry, Veterinary Science, Pathology

You will note nursing and teaching only cost the student $4445 per year while a BA in Society and Culture costs 400% more

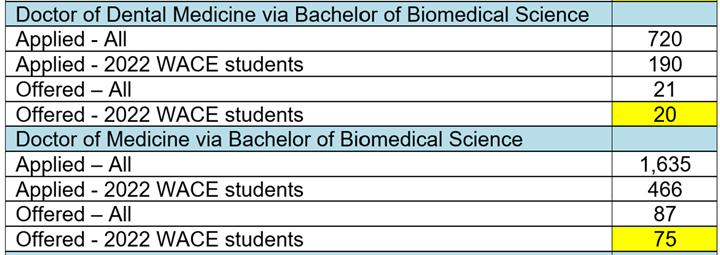

In 2023, Curtin University reported

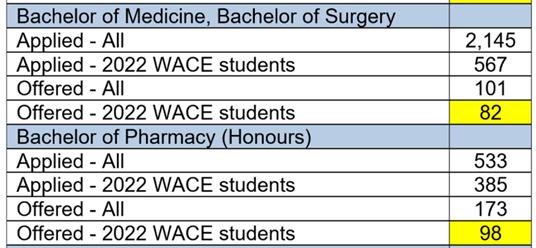

The UWA reported similarly

These courses are in high demand and it might be expected that this would be reflected in ATAR science course enrolments in secondary schools

However, the absolute numbers show a decline in enrolments in recent years with some sciences such as physics seen to suffer more than others (Figure 3) The anomalous dramatic decrease in 2014 is referred to as “The half cohort” because, 12 years earlier, half the students spent an extra half year in preschool and that small cohort flowed through in Year 12 in 2014

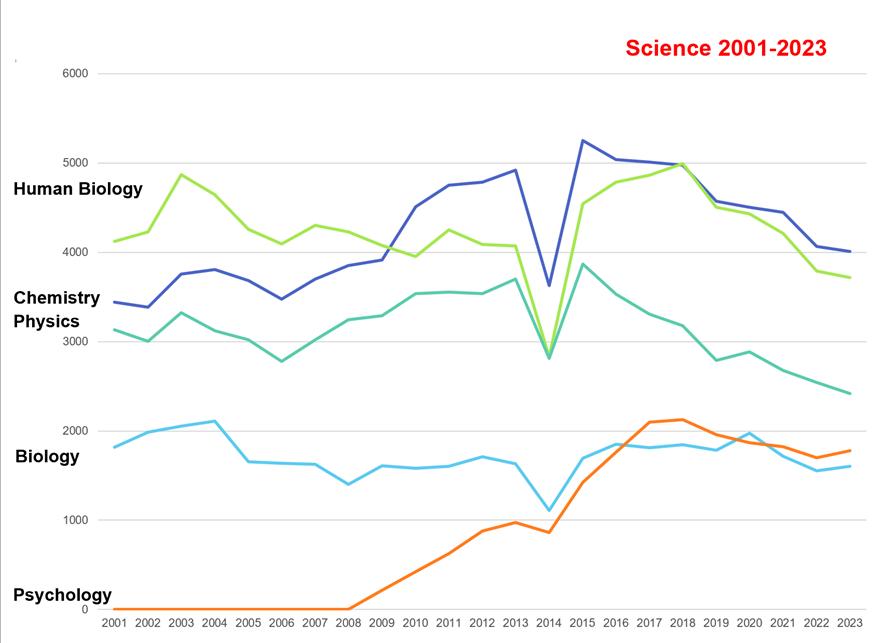

Figure 3: Absolute Enrolments in WACE ATAR Science courses 2001–2023
