PARTS & ACCESSORIES
WHY PAY MANUFACTURERS’ LIST PRICE?
As a major O.E.M. Star Cooling Towers receives substantial discounts ranging from 20–50% off component manufacturers’ list prices. We split these O.E.M. discounts with the purchaser, saving you 10 –25%. STAR can absolutely help you secure the lowest price for your replacement parts!
Drawing from a vast library of construction and mechanical drawings, combined with extensive experience in the industry, Star Cooling Towers is highly qualified to provide you with:

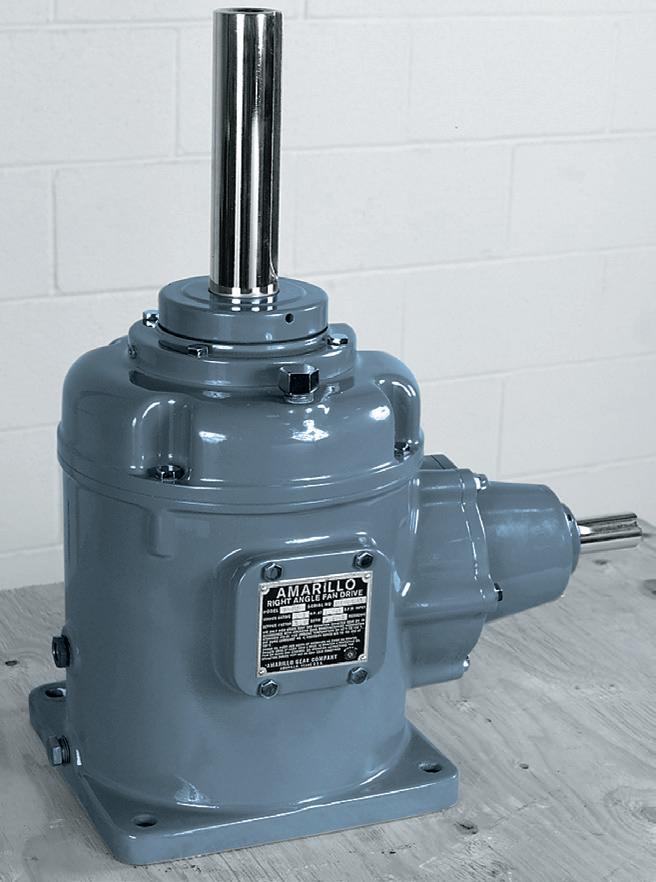

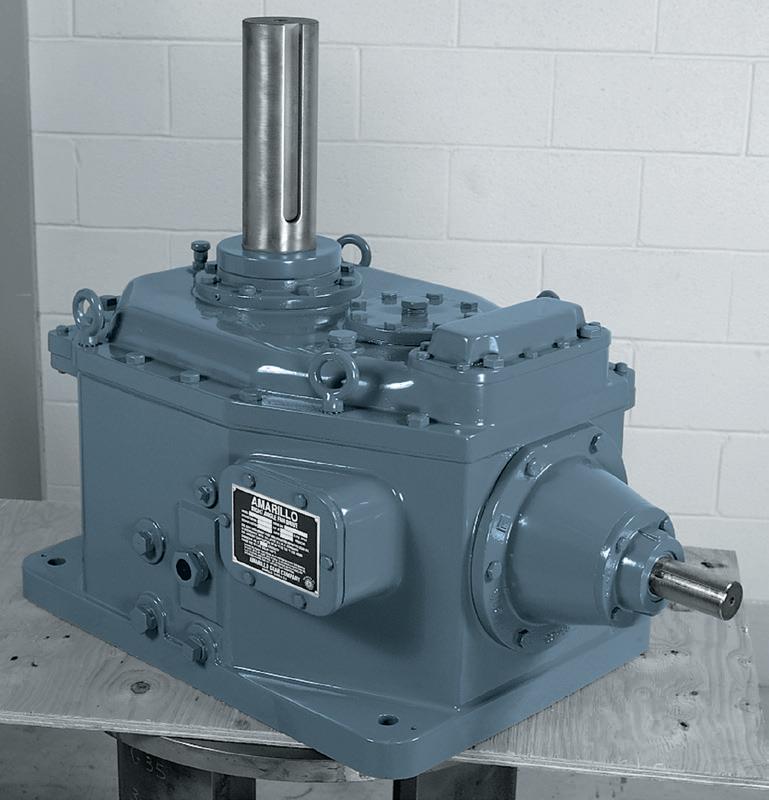

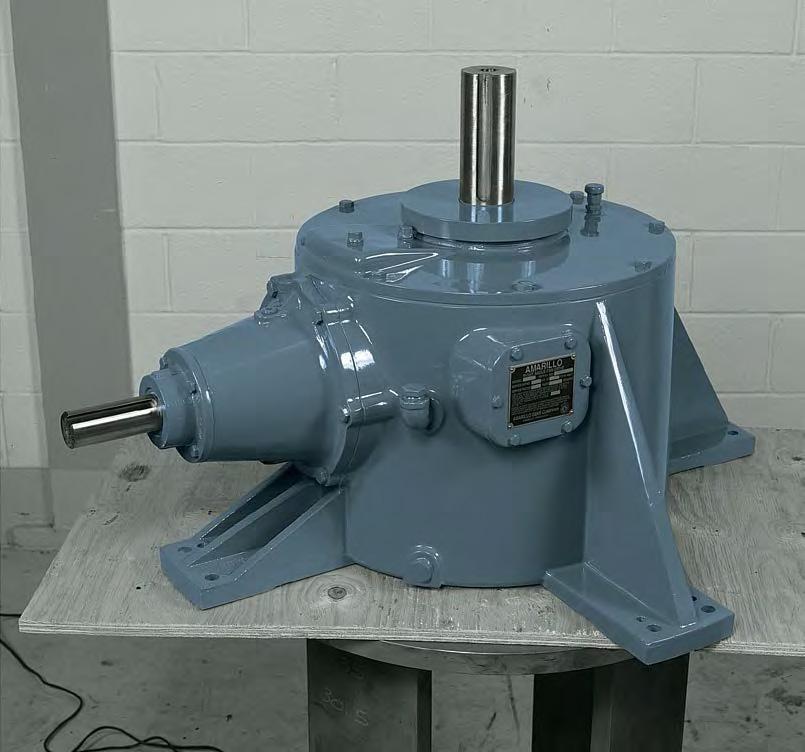

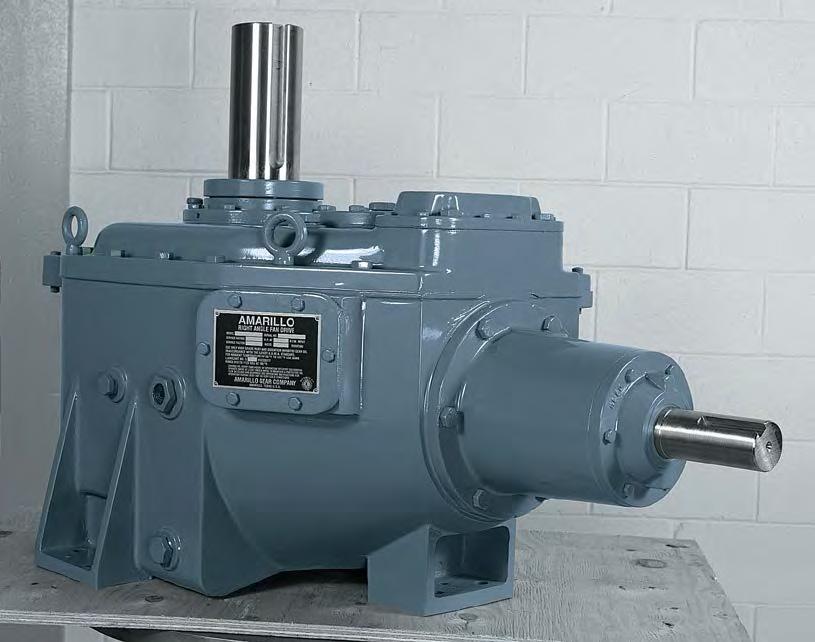

THE EXACT REPLACEMENT PART FOR YOUR COOLING TOWER—REGARDLESS OF THE MANUFACTURER
GENERIC REPLACEMENT PARTS FOR YOUR MARLEY COOLING TOWER
FAST DELIVERY, COMPUTERIZED ORDER ENTRY AND SCHEDULING OF PARTS SHIPMENTS
SAVINGS OF 10–25%
FRP FAN STACKS
MECHANICAL SUPPORTS / CROSSOVER PIPES
FAN DECKING
HEADER
FRP STAIRWAYS & ESCAPE LADDERS
MECHANICAL ACCESS PLATFORMS

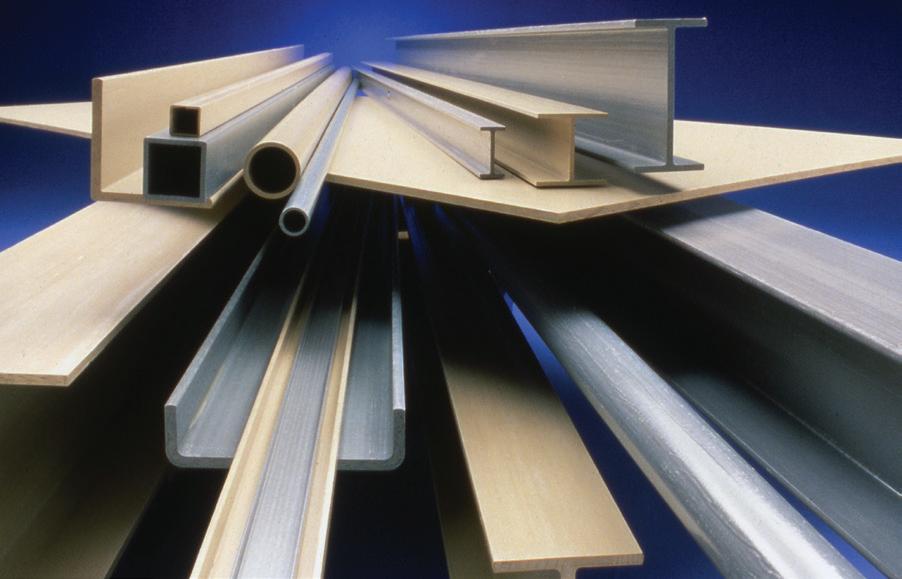

FRP SHAPES & DECKING

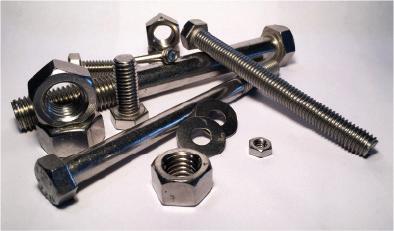

MISCELLANEOUS ITEMS

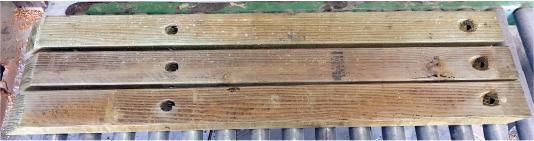

LUMBER & PLYWOOD

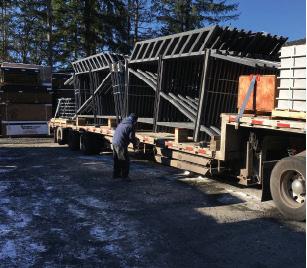

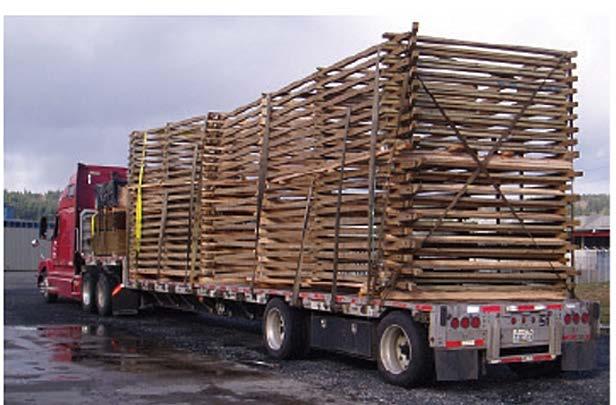

PRE-ASSEMBLIES
PARTS SUPPORT CENTER
Give us a call, shoot a quick email, or submit your questions or parts requirements using our form and a STAR representative will respond promptly via email with prices, availability and product information.
More than 60 years of experience in securing the best prices on parts.

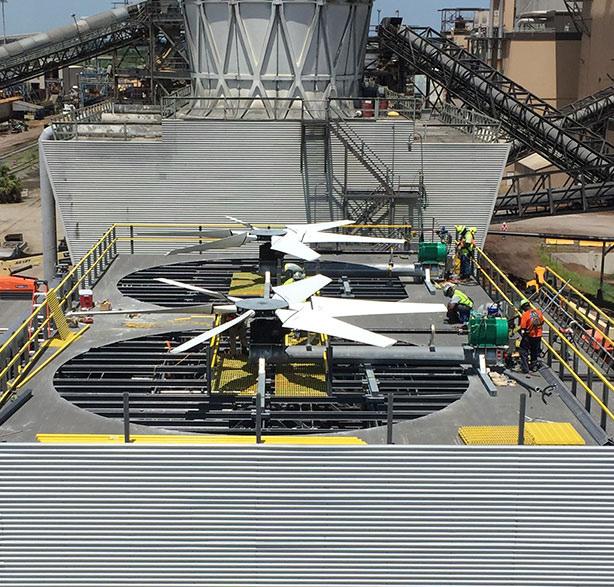

FANS (HUDSON)

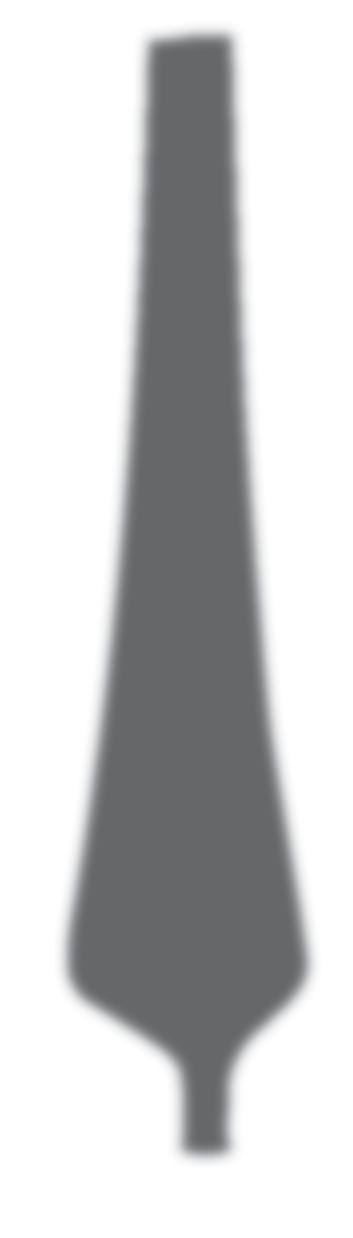

Hudson Products Tuf-Lite® is a single-piece, hollow and lightweight blade constructed from fiberglass-reinforced epoxy resin. The uniqueness of a Fiberglass Reinforced Plastic (FRP) mold construction method allows the blades to be formed in an efficient airfoil shape with a gradual transition in the angle of attack, blade width, and thickness. Standard sizes are available from 5–40 feet in diameter.

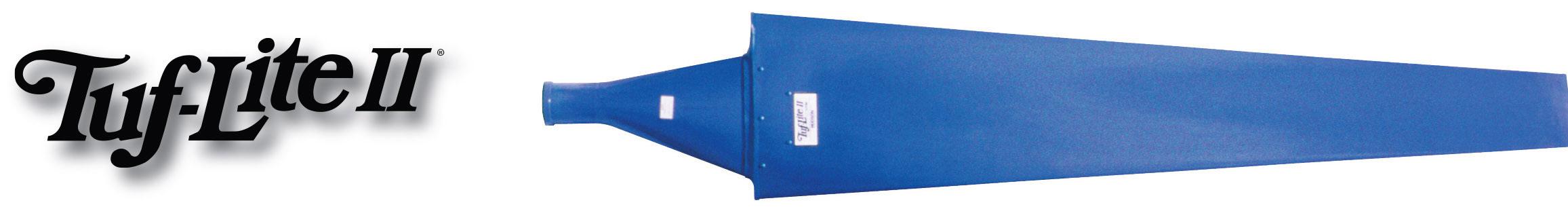

Tuf-LiteII® is a two-piece blade constructed from fiberglass-reinforced vinyl ester resin. It is lightweight, corrosion resistant, and incorporates patented Tuf-Edge® leading edge protection. Standard sizes are available from 6–40 feet in diameter.

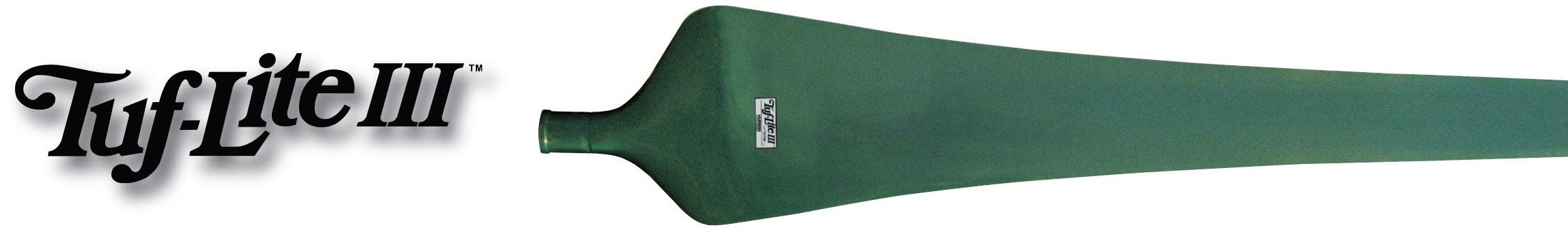

Tuf-Lite III® is a refined and enhanced one-piece blade constructed from fiberglassreinforced vinyl ester resin coupled with leading and trailing edge protection and superior “UV” protection. Developed from the most severe strength-testing program to date, Tuf-Lite III® blades are individually balanced, interchangeable and will install in HUDSON hub designs. Initial sizes are from 28 feet to 10 meters in diameter.
AHistoryBuiltonExcellence
AtHUDSON,weunderstandthereismoreto thedesignandproductionoffanbladesthan patentedtechnology.Weunderstandthatthere ismorethanestablishingthehigheststandards inamanufacturingprocess,andweunderstand thatthereismorethanprovidingthehighest qualityproductsandservicestoourclients–weunderstandthatHudsonhasahistory.
Ahistorydevelopedovermanyyearsofproducing thefinestfanbladesintheindustry.Weonce againraisethestandardwiththeintroductionof thelatestmemberofourfamousTuf-Lite® lineage.
Withahistoryoffanbladeproduction since1955,Hudsoncontinuestopush thelimitsofaxialflowfantechnology.
•HUDSON’sHighestefficiency bladetodate
•Developedfromthemostsevere strengthtestingprogramtodate
•OnepieceFRPconstruction
•Leadingandtrailing edgeprotection
•Superior“UV”protection
•Individuallybalanced, interchangeableblades
•Installsincurrent Hudsonhubdesign
•Sizerangesfrom11ft.to14ft. and20ft.to10metersindiameter
Rexnord ® Addax ®
Features
Low weight
High strength to weight ratio
Corrosion resistant
Low coefficient of thermal expansion
Continuous fiber composite spacer flange
Unitized flex element
High misalignment capacity
Benefits
Ease of installation
Reduced vibration
Extended ser vice life
Dimensional stability
Reduced stresses
Infinite fatigue life
Low cost of ownership
Reduced maintenance

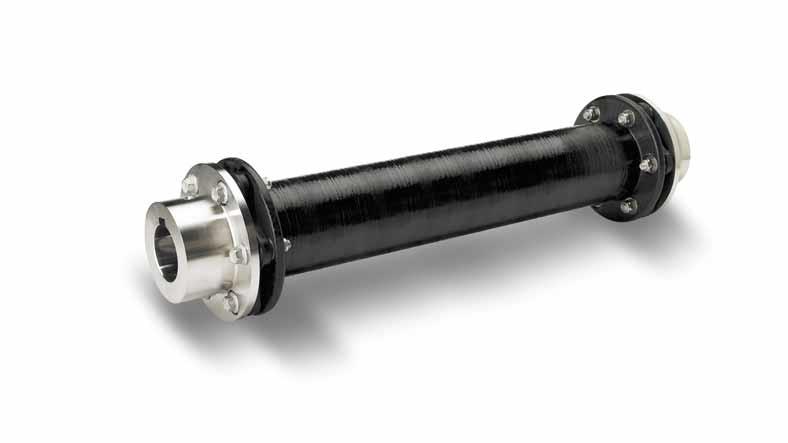

Addax® was the first advanced composite cooling tower coupling introduced in 1987. Addax® coupling systems are installed and in ser vice world wide.
Choose a Rexnord ® Addax ® Composite Coupling as YOUR cooling tower coupling if you are currently using a steel coupling or an alternative composite coupling.
You want a trusted name when it comes to providing engineered p owe r t rans mi ss i on prod u ct s t h a t imp r ove p ro d uc tivi t y an d effi ciency Rexnord provides superior products for your industrial a pplication s wo r l d wid e We wo r k closely with you t o r ed uce maintenance costs, eliminate redundant inventories and prevent equipment downtime Rexnord ®
With more than 50.000 Addax ® couplings installed around the world, Rexnord has the most experience of any composite cooling tower coupling manufacturer. The Rexnord ® Addax ® coupling provides the best value with corrosion resistance, high misalignment, fatigue resistance, low weight and ease of installation.

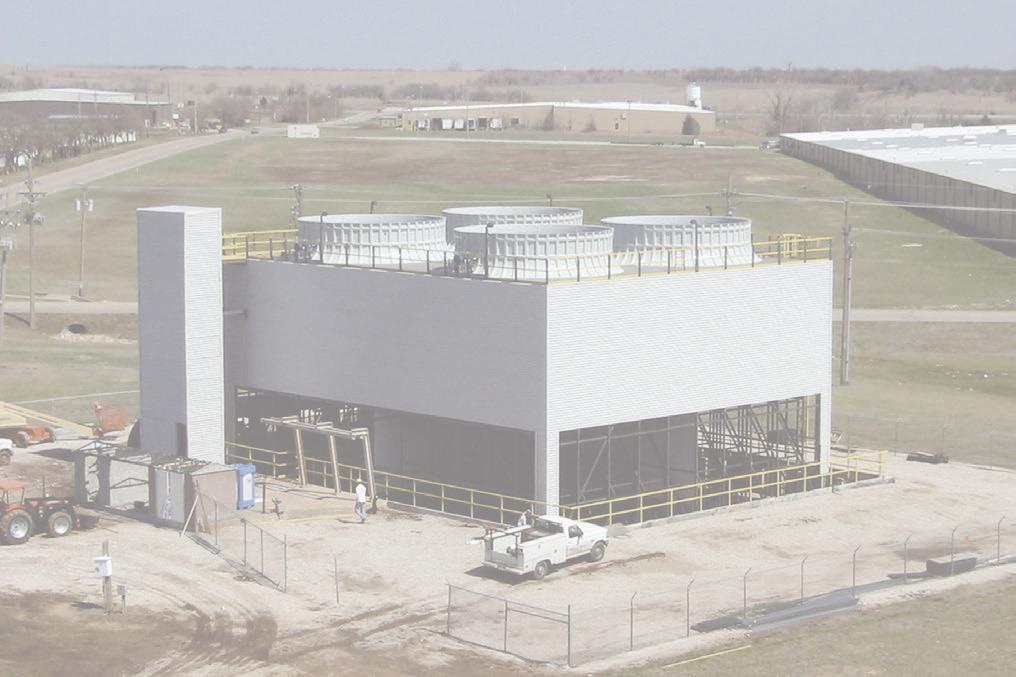

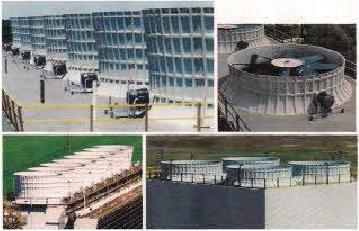

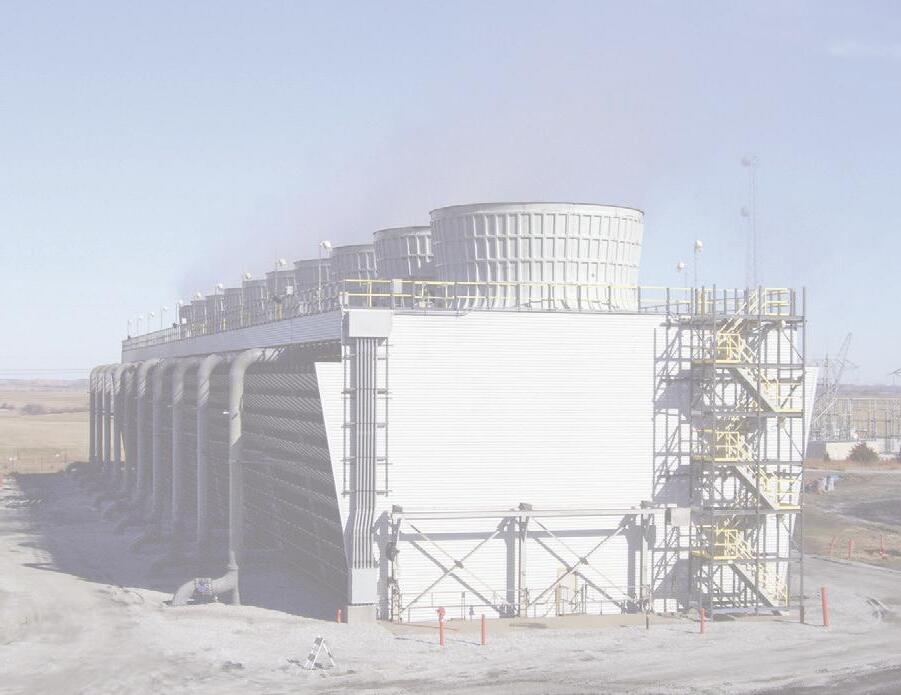

STAR FAN STACKS

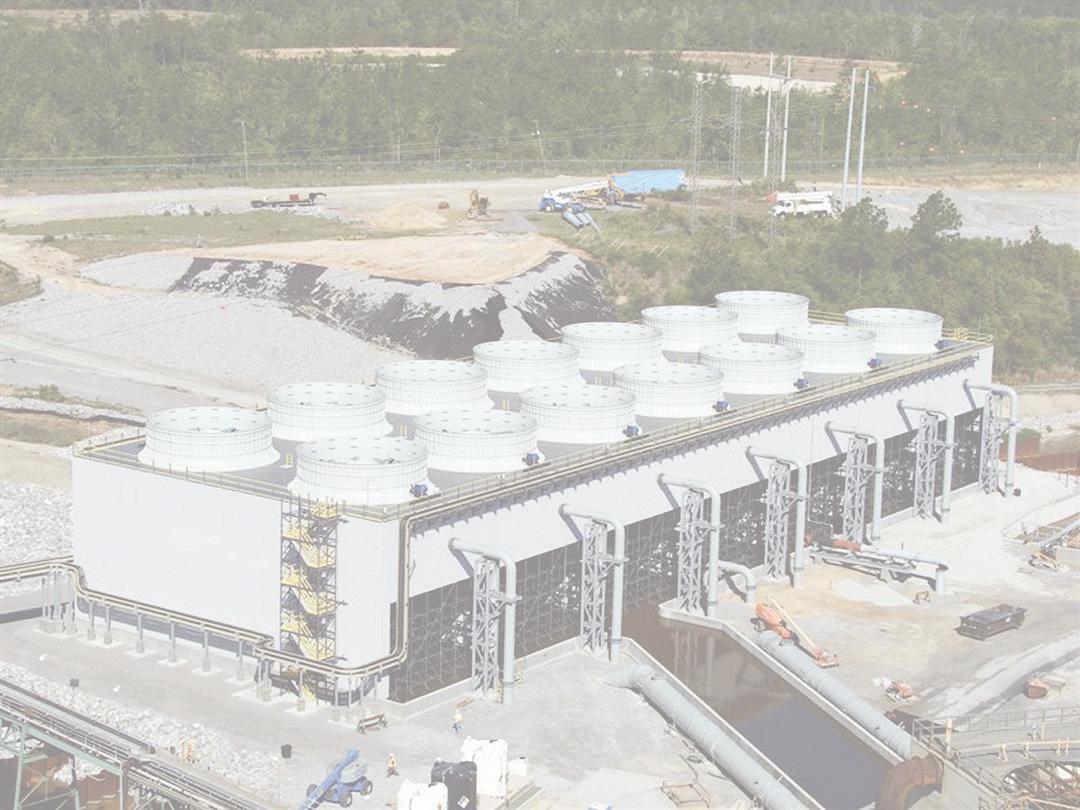

COOLING TOWER FAN STACKS
WIDE SELECTION OF SIZES—100 DIFFERENT STOCK PROFILES WITH CUSTOM MOLDS AVAILABLE
RESINS AVAILABLE IN GENERAL PURPOSE OR CLASS I OR CLASS II FIRE RETARDANT FORMULATIONS
COLORS AVAILABLE IN THE STANDARD MIST GRAY OR OPTIONAL CUSTOM COLORS
FIBERGLASS FAN CYLINDERS FOR COOLING TOWERS
MAT AND WOVEN FABRICS ARE SPECIFICALLY ENGINEERED INTO LAMINATE TO PROVIDE THE STRUCTURAL REQUIREMENTS NEEDED TO MAKE THE FINEST FAN STACKS IN THE INDUSTRY!
RESINS AVAILABLE IN GENERAL PURPOSE OR CLASS I OR CLASS II FIRE RETARDANT FORMULATIONS

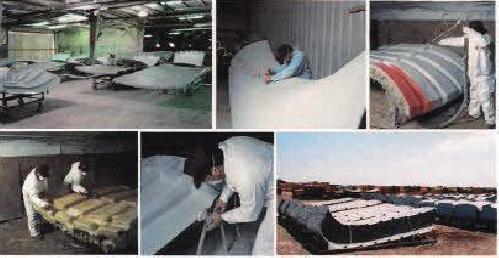

MOLDING MAKES THE DIFFERENCE!
In the past, the shortcoming of most fan stacks was the inability to produce molds that would yield precise radius dimensions and fan tip clearances.
CNC machining does make a difference. We CNC our fan stack tooling to 0.001” tolerance to ensure accurate tip clearance without the need for shims or
spacers. Precise fan stack radius dimensions eliminate “clover-leafing” that occurs with inaccurate tooling. All this technology results in a fan stack that is accurate and reduces installation issues, providing years of trouble-free service without the need for constant adjustment.
WHAT MAKES STAR FAN STACKS BETTER THAN THE COMPETITION?
Our fan stacks are constructed using the strongest laminate schedule of any fan stack currently in the industry. The strength of the stack is evident in the laminate schedule and the overall weight of the stack. This results in more material and greater overall strength, and the additional mass results in lower harmonic frequencies. All this adds up to a fan stack that is capable of withstanding high winds and seismic loads while reducing vibration levels across the entire spectrum.
Each fan stack has horizontal and vertical ribs to ensure superior strength, and the top, bottom and side flanges are wider and thicker than our competitor’s fan stacks.
HORIZONTAL RIBS ARE 8” WIDE VERSUS THE COMPETITOR’S WITH LITTLE OR NO HORIZONTAL RIBBING
VERTICAL RIBS ARE 6” WIDE VERSUS 5”
SIDES AND TOP FLANGE ARE 4” WIDE VERSUS 2-1/2”
BOTTOM FLANGE IS 6-1/2” WIDE VERSUS4-1/2”
SIDES AND BOTTOM FLANGE IS 5/16” THICK VERSUS1/4”
TOP FLANGE IS 1/4” THICK VERSUS 3/16”
THICKNESS BEHIND RIB IS NOMINAL 3/16” VERSUS 1/8”
CUSTOM PROFILES AVAILABLE UPON REQUEST

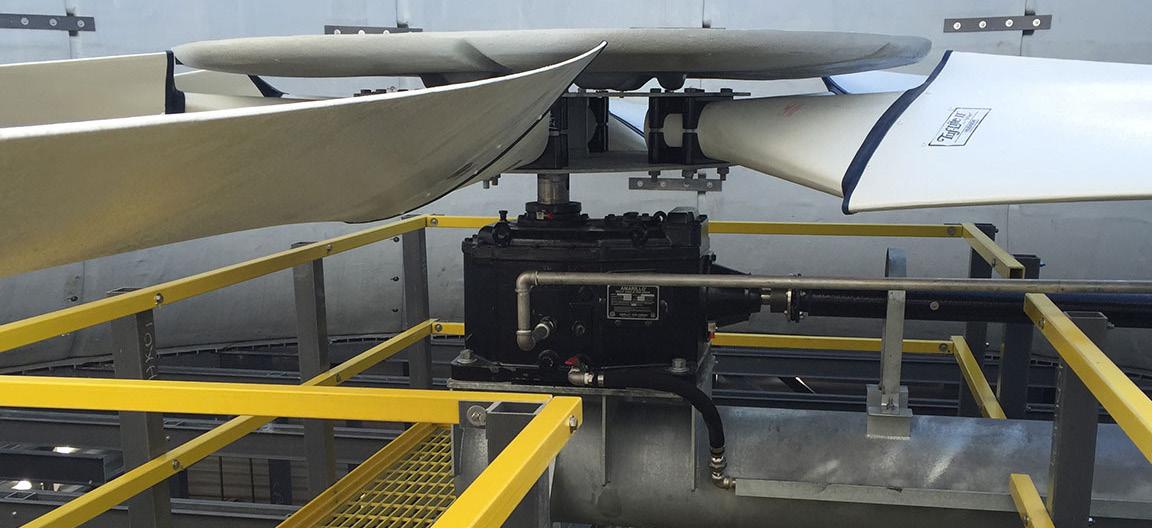

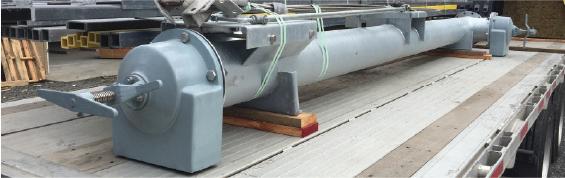

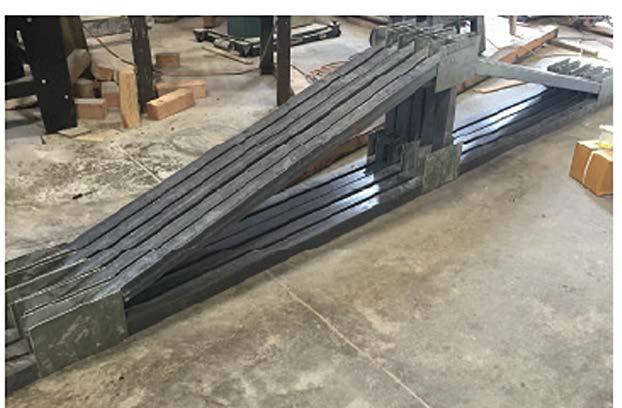

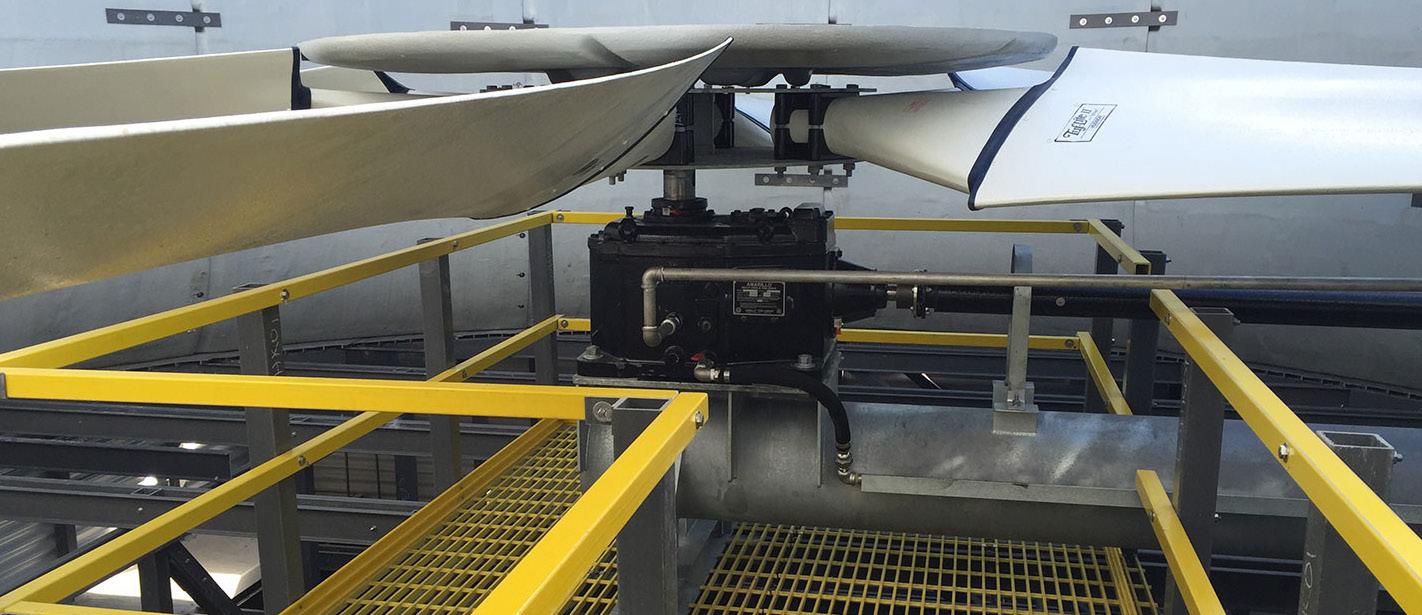

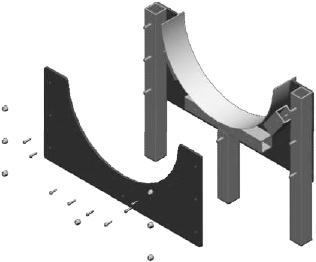

MECHANICAL SUPPORTS

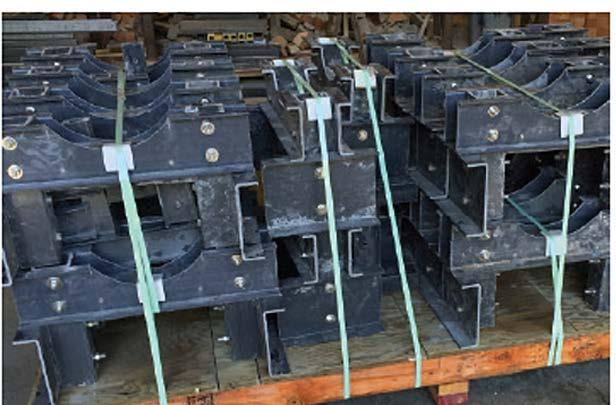

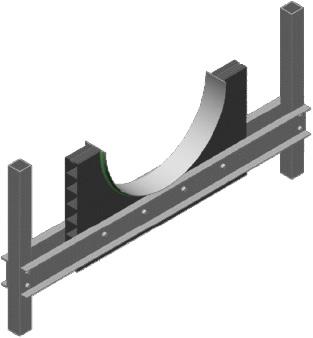

UNITIZED STEEL MOTOR AND GEAR SUPPORTS
REGARDLESS OF MAKE OR MODEL, STAR COOLING TOWER’S VAST LIBRARY OF MECHANICAL SUPPORT FABRICATION DRAWINGS ALLOWS FOR THE FAST AND ACCURATE SHOP FABRICATION OF REPLACEMENT MECHANICAL SUPPORTS.
TORQUE TUBE, I BEAM, CHANNEL AND SQUARE TUBE SUPPORTS.
W SHAPES ASTM A572 (GRADE 50), ANGLES & PLATES ASTM A36, TUBE ASTM A500, AND PIPE ASTM A105 C.S.
SHOP WELD WITH MINIMUM ¼” FILLET UNLIMITED (E70XX)
HOT DIPPED GALVANIZED AFTER FABRICATION.

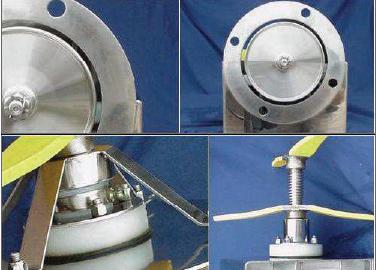

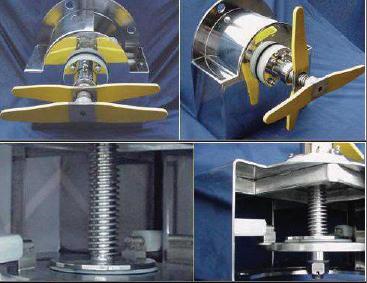

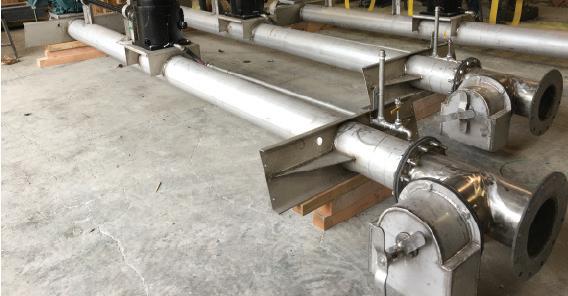

FLOW CONTROL VALVES & CROSSOVER PIPES
Flow control valves are available as epoxy-coated cast iron or stainless steel in sizes 6"–20". Mechanocal equipment supports (torque tubes) are available in stainless steel or as hot-dipped galvanized (HDG) steel, and can be made for most types of cooling towers.
FAN DECKING

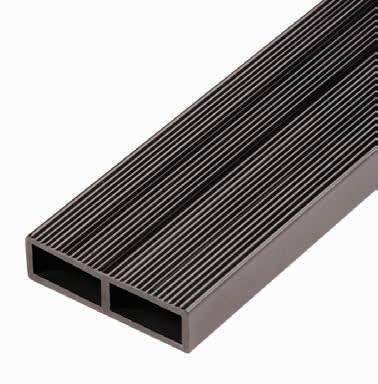

PULTRUDED FIBERGLASS PANEL DECKING SYSTEM
Star Cooling Towers decking system panels interlock and overlap to form a safe, strong working surface on your cooling tower. Manufactured of pultruded fiberglass reinforced polyester, the lightweight, high strength and corrosionresistant design offers quick, easy installation. It is available with a gritted surface for fan decks and hot water basin applications.
Important features include:
CORROSION RESISTANT
NONSKID WALKING SURFACE
LIGHT WEIGHT
EASY TO MAINTAIN
WILL NOT ROT OR DECAY
STRONG
FIRE RETARDANT
NONCONDUCTIVE
UV-PROTECTED
EASY, QUICK INSTALLATION
The Star decking system is available in 1-1/8" deep panels, 24" wide. Normally gritted and available in 20' through 36' standard lengths. The panels interlock and overlap to form a continuous, solid surface. The quick screwdown construction system ensures rapid installation and reduced field labor costs. The standard resin system is a slate gray fire retardant polyester resin meeting the requirements of Class 1 rating of 25 or less per ASTM E-84 and the self-extinguishing requirements of ASTM D365. The resin is UV-inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UVprotection. Other resins and colors are available upon request.
SAFDECK TWO SPAN LOAD/DEFLECTION DATA
Maximum deflections shown are based on a deflection of approximately L/100. To calculate the maximum deflection for a simply supported continuous.
u = Uniform
u = Typical
c = Concentrated load in lbs/ft of width (N/m of width).
c = Typical deflection under concentrated load in inches (mm).

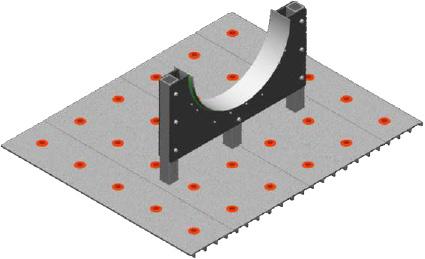

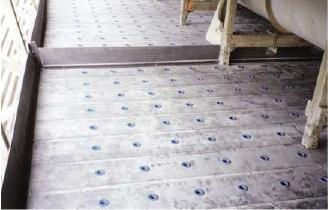

HOT WATER BASINS
STARPLANK PULTRUDED FIBERGLASS PANEL
Star Plank hot water basin panel system interlocks and overlaps to form a safe, strong working surface on your cooling tower.
Manufactured of pultruded fiberglass reinforced polyester, the lightweight, high strength and corrosion-resistant design offers quick, and easy installation.
Important features include:
CORROSION RESISTANT
LIGHT WEIGHT
EASY TO MAINTAIN
WILL NOT ROT OR DECAY
STRONG
FIRE RETARDANT
NONCONDUCTIVE
UV-PROTECTED
EASY, QUICK INSTALLATION
The STAR Plank hot water basin system is available in 1-1/8" deep panels, 24" wide. Normally available in 20' through 36' standard lengths. Other lengths are available through special order. The panels interlock and overlap to form a continuous, solid surface. The quick screw-down construction system ensures rapid installation and reduced field labor costs. The standard resin system is a light gray fire retardant polyester resin meeting the requirements of Class 1 rating of 25 or less per ASTM E-84 and the self-extinguishing requirements of ASTM D-635. The resin is UV inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV protection. Other resins and colors are available upon request.
NOZZLES, CROSS FLOW & COUNTERFLOW

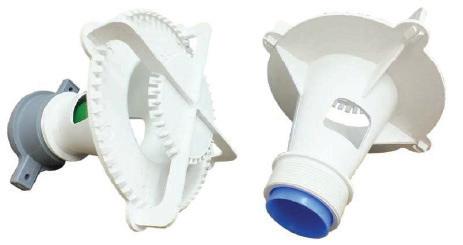

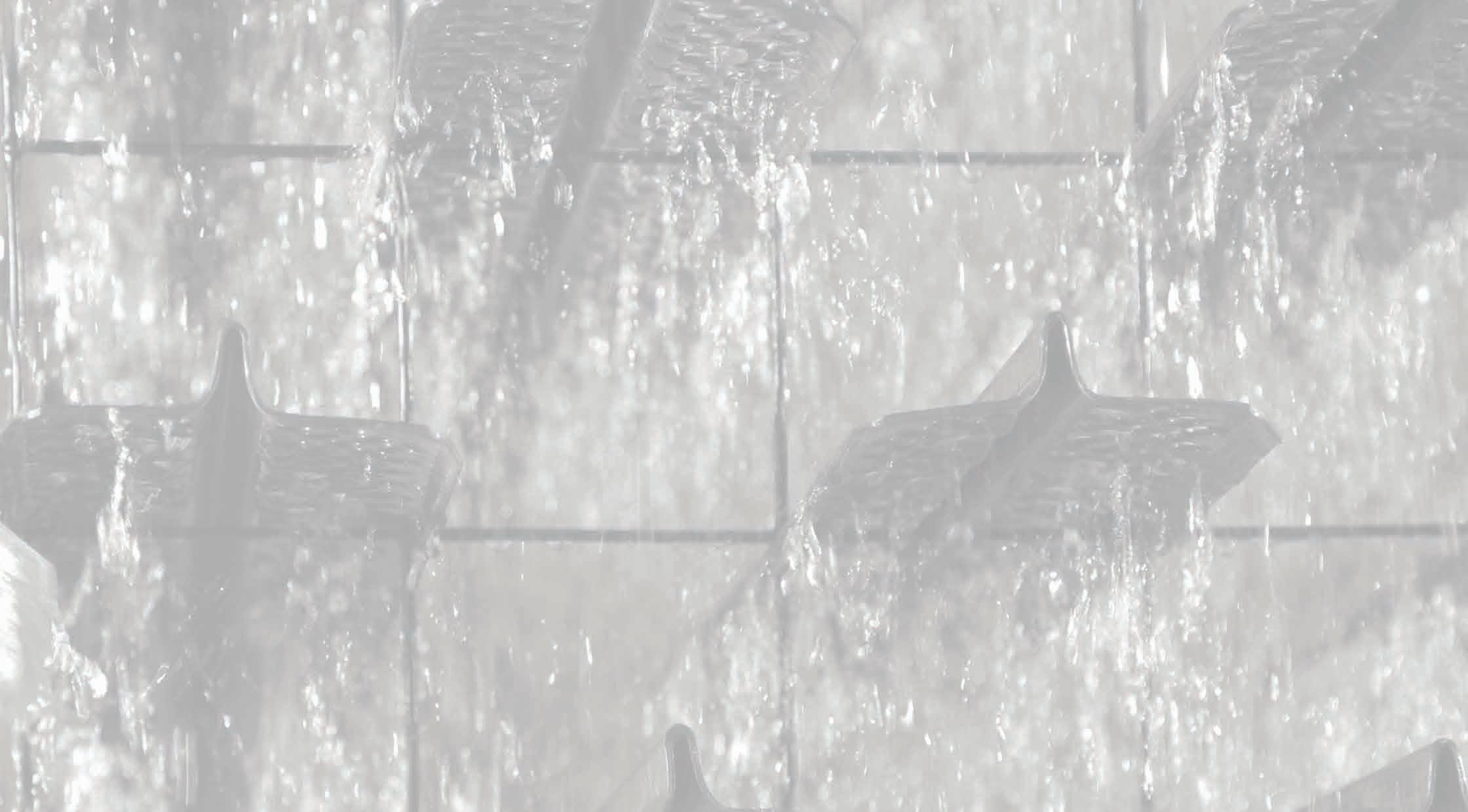

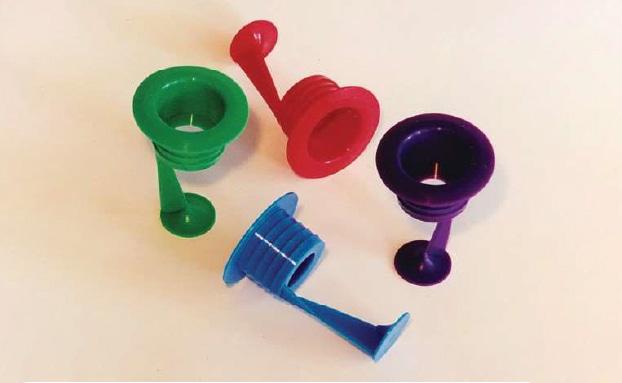

PRECISION-FLO™ CROSSFLOW NOZZLES
Star Cooling Towers Precision-Flo water distribution nozzle is a non-clogging nozzle designed specifically for all crossflow cooling tower applications. It provides excellent flow characteristics utilizing a one piece design with single support distribution plate. This produces a uniform distribution pattern helping to enhance the cooling tower’s thermal performance.
A unique color coding system allows for easy identification of the correct orifice size. Available orifice sizes range from .625" to 1.375".
The Star Precision-Flo crossflow nozzle is easily installed and can be easily removed for cleaning or replacement.
The nozzle is manufactured of inert high strength injection molded polypropylene for outstanding corrosion resistance and strength.
PRECISION-FLO™ COUNTERFLOW NOZZLES
The Star Cooling Towers PFC™ PrecisionFlo counterflow distribution nozzle is an efficient, nonclogging nozzle designed specifically for all counterflow cooling tower applications.
The patented PFC design provides excellent flow characteristics and a very uniform spray pattern, enhancing the cooling tower’s thermal performance. A unique color coding system allows for easy identification of the correct orifice size, from .75" to 1.5".
The PFC nozzle is easily installed—it attaches to the distribution lateral with a PVC adapter using standard 2" NPT threads. Other 2" threads are available on request. The nozzle can be easily removed for cleaning or replacement.
The Star PFC nozzle is manufactured of inert high strength injection molded polypropylene for outstanding corrosion resistance. Gusseted teeth enhance the nozzle’s strength. Plus, the bottom plate locks into place for additional security.
FILM FILL MEDIA

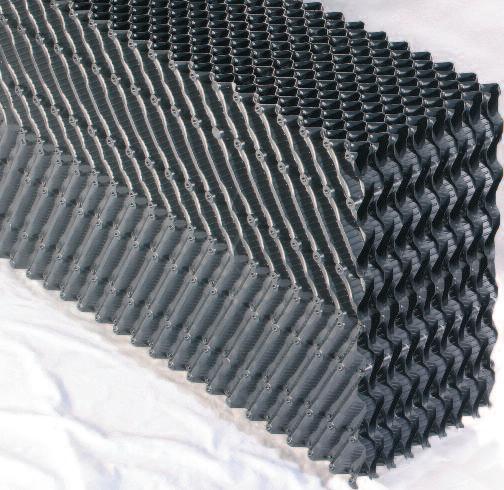

Accupac® Film Fill Media
Cooling tower fills with the highest thermal performance and product quality. Available in a broad selection of sheet spacings, flute designs, sheet thicknesses, and plastic compositions.
... for CoUnTer flow Towers

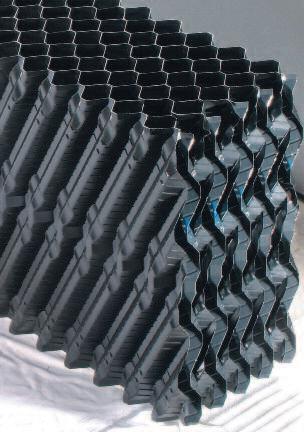

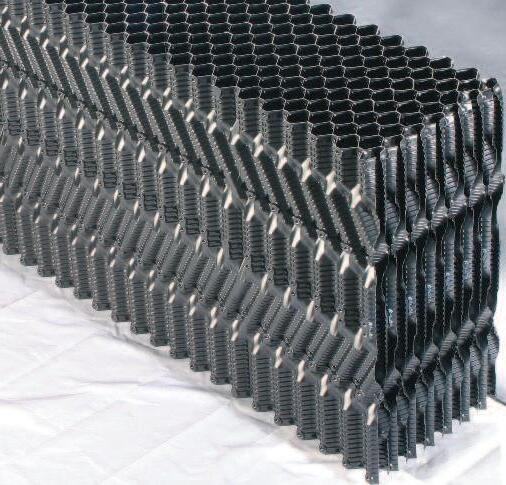

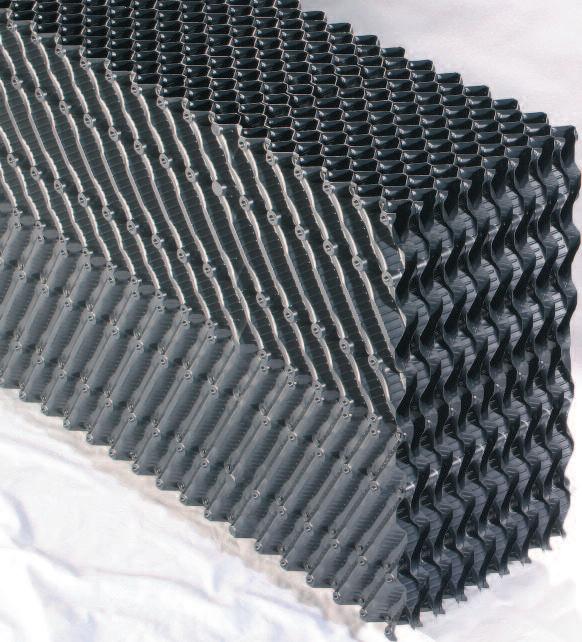

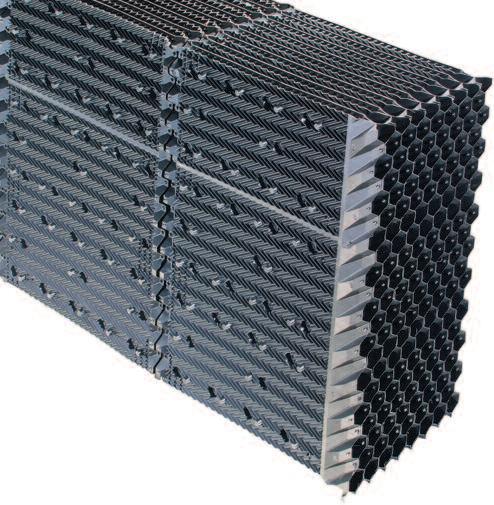

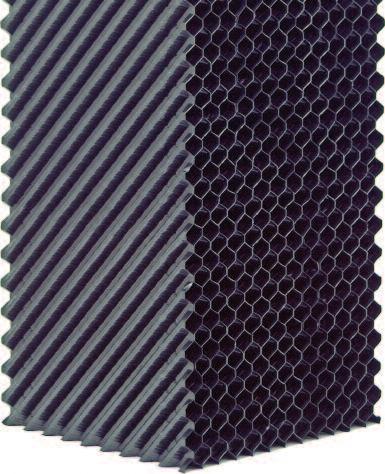

CROSS-FLUTED

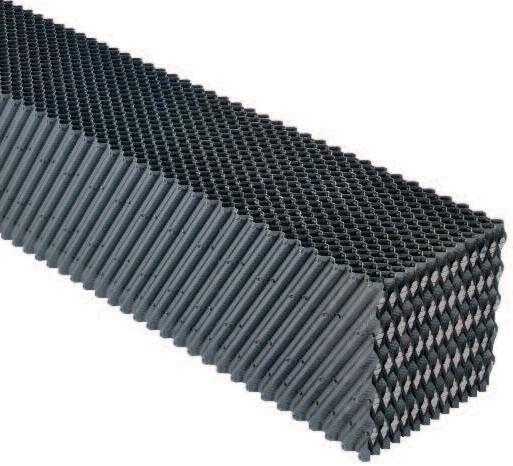

AccuPac® Cross-Fluted Fills improve water distribution by splitting the water stream as it descends through the fill pack. Brentwood’s CF1900/CF1900MA design splits the water stream 8 times in a 12” (305 mm) vertical path. High thermal performance (high KaV/L) and low pressure drop are achieved through engineered flute/microstructure design and the highest manufacturing standards.
FEATURES & BENEFITS
•Bonded edge with dedicated bond points for added durability
•Engineered microstructure for improved water distribution and thermal mixing
•High thermal performance
•Improved water distribution
•Proprietary edge cutting technology produces square packs that efficiently direct water to both sides of sheet
•Material exceeds Cooling Technology Institute (CTI) Standard 136 (see below*)
ApplIcATIoNS
CF1200 & CF1200MA: For use in factory-assembled counterflow towers (HVAC and general industrial applications) and as a distribution pad in 3.94”(100 mm) and 5.90” (150 mm) depths. Beveled Tips (left) promote drainage for lowest pressure drop.
“Ma” Technology
PATENT NuMBERS
6,544,628 AND 6,640,427 u.S. AND INT’L PATENTS
...
CF1900 & CF1900MA: The popular choice for field-erected or factory-assembled counterflow cooling towers. Can also be used in crossflow towers. For use in Power, Refining, Chemical, Steel, and Food Processing applications where water quality is “good”.
CFS3000: For the same applications as the CF1900 and CF1900MA, but the CFS3000’s larger channels decrease fouling potential in low-quality water.
CF1900MA
CFS3000
Beveled Tips
Male/Female attachment tabs align with and nest into the adjoining sheet’s tabs.
Attachment tabs are pressure-sealed ...
creating a strong, permanent bond without glue, solvents, or adhesives!

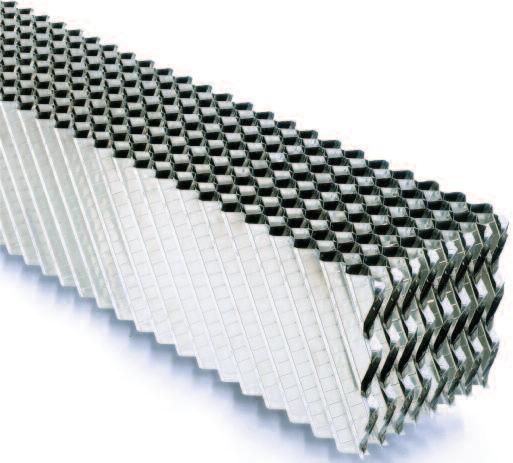

CF1900SS
Double-Folded Edges
OF21MA
CF1900SS: The choice for ultimate heat sink towers and use in any critical-application counterflow or crossflow cooling tower (field-erected or factoryassembled).
With the same exceptional thermal performance and strength of our PVC packs, Brentwood’s stainless steel fills offer these additional advantages:
•Stainless steel provides the ultimate in performance, durability, and service life
•Rated to high temperatures up to 500°F (260°C)
•Chemical and corrosion resistant ... lasts virtually forever
•Non-flammable
•Similar in weight to plastic fills, significantly lighter than ceramic fills
•Double-folded edge for durability & safety (above)
•Reinforcing rib microstructure for superior water distribution, thermal mixing, and high strength-to-weight ratio
TECHNICAL SUPPORT
Thermal (KaV/l) Curves and Pressure Drop Curves are available for all Brentwood film fills to assist in selecting the appropriate fill capacity for your design. other Brentwood technical bulletins include installation recommendations, Product selection for specific water Quality, Thermal ratings, and Product storage recommendations.

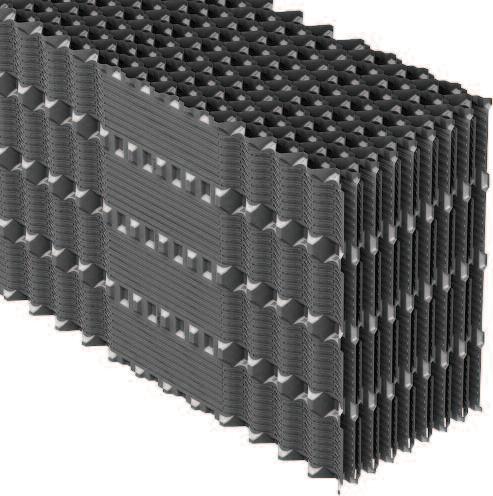

AccuPac® Offset Vertical Fill combines the lowfouling characteristics of vertical flow with the enhanced water distribution of our cross-fluted designs. The OF21MA’s high KaV/L thermal performance and low pressure drop are similar to the CF1900/CF1900MA design, but with lower potential for fouling.
FEATURES & BENEFITS
•High thermal performance
•Lower fouling potential
•Bonded edge with dedicated bond points for added durability
•Adhesive-free Mechanical Assembly (MA) technology is environmentally-friendly and allows fill packs to be assembled on-site without glue
•Proprietary edge cutting technology produces square packs that efficiently direct water to both sides of sheet
•Material exceeds Cooling Technology Institute (CTI) Standard 136 (see below*)
ApplIcATIoNS
OF21MA: For use in counterflow cooling towers (field-erected and factory-assembled installations) in Power, Refining, Chemical, Steel, and Food Processing applications where water quality is “average”. (See Brentwood Fill Selection/Water Quality Table)
* Brentwood sheet thicknesses are quoted in final gauges (as measured in field) of .008” (.203 mm), .010” (.254 mm), .015” (.381 mm), or your specific requirement. All Brentwood fill products are available in PVC and are uV stabilized. The PVC compounds used in Brentwood fills have outstanding resistance to weather exposure and are nearly impervious to chemical degradation by alkali, acids, greases, fats, oils, and biological attack. Brentwood PVC has excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. HPVC (high temperatures), PP (polypropylene), and ABS plastics are also available for special applications.

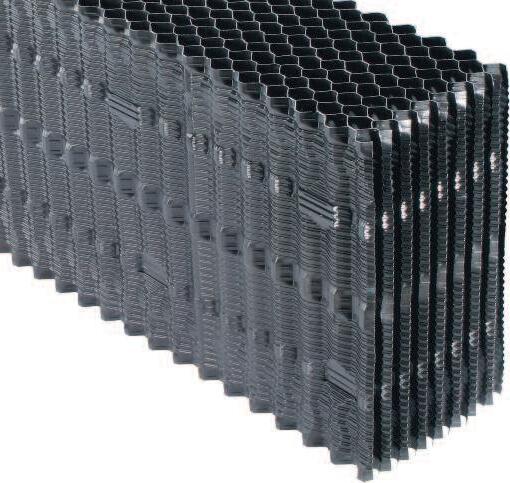

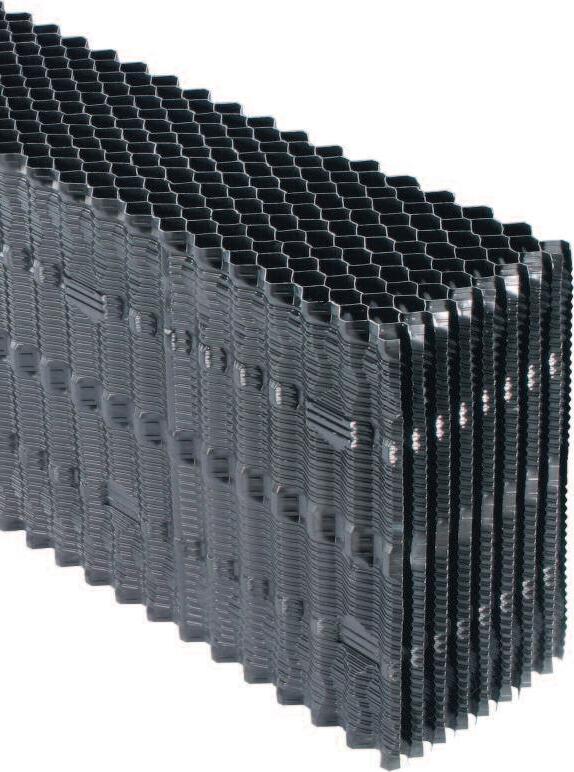

AccuPac® Vertical Flow Fills feature vertical flow channels with large openings that allow the higher water velocities necessary to create an anti-fouling environment in the fill. In the VF19PLuS we’ve added an engineered micro-structure to the flutes to improve water distribution and thermal mixing.
FEATURES & BENEFITS
•Anti-fouling design
•Bonded edge with dedicated bond points for added durability
•Extensively tested by a third party in an operating natural draft cooling tower serving a large utility power plant
•Material exceeds Cooling Technology Institute (CTI) Standard 136 (see below*)
ApplIcATIoNS
VF19PLUS**: For use in counterflow cooling towers where water quality is “poor” (poor make-up water or process contamination). Typical applications are Power, Refining, Chemical, Mining, and Food Processing.
VF3800: For the same counterflow applications as the VF19PLuS, the VF3800 has larger, 38 mm flute openings and no microstructure ... for conditions where fouling potential is greater.
AccuClean AFVF19**: For use in counterflow cooling towers for utility and industrial applications where surface waters are used for make-up. Typical applications are Power, Refining, Chemical, Mining, and Food Processing.
•Anti-fouling, 19 mm pitch vertical flow design with engineered microstructure for high water velocity, improved water distribution, and thermal mixing
•Produced in metric fill air travel depths and lengths
•Extensively tested by a third party in an operating natural draft cooling tower serving a large utility power plant
•Available in rigid PVC and high-temperature HPVC
AccuClean AFVF19MA**: All the features and performance of the AFVF19, plus these additional advantages:
•Brentwood’s patented mechanical assembly (“MA”) technology
•Greater flexibility for non-standard lengths
•Imperial pack dimensions (See back page)
** Because a cooling tower spray system’s washing effect reduces the fouling potential of the top 12” (305 mm) of fills, a top layer of OF21MA or CF1900/CF1900MA can improve overall performance.
VF19PLuS
VF3800
AFVF19MA

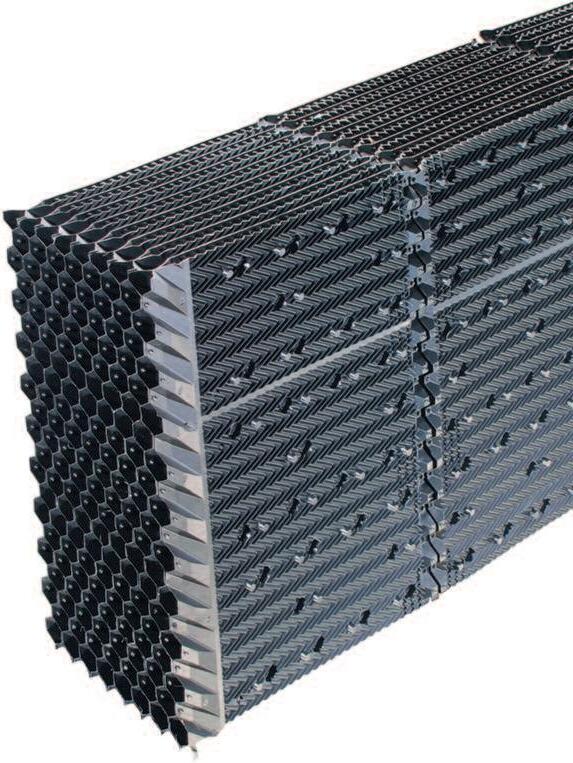

... for Cross flow Towers
“HERRINGBONE”
AccuPac® Cross Flow “Herringbone” Fill uses a proven “herringbone” surface design engineered to distribute water evenly over the entire fill area for high thermal performance. The fill packs have honeycomb bonded edges on the air inlets and outlets, plus interlocking offsets that space the sheets and form strong, stackable packs. “Herringbone” fills with integral inlet louvers (XF75IL) and drift eliminators (XF75ID) complete this efficient, high-performance, crossflow media system.
FEATURES & BENEFITS
•Superior air/water management for high thermal performance
•Engineered “herringbone” surface for even water distribution
•Bottom-supported for durability and ease of installation
•Integral inlet louvers eliminate “splash out”
Brentwood's XF125 has cross-corrugated sheets with a built-in internal slant. The sheets have alternating flute angles of 45° and 15°, which allow the fill to be installed vertically and without an angle cut. The XF125 provides for a simple installation that saves space in the tower, which means savings for both assembly and material costs.
FEATURES & BENEFITS
•Has an excellent internal water distribution at a wide range of air velocities
•Highest thermal performance per unit volume of any crossflow fill
Includes Base Supports, Fill Support Beams, and Front/Back Retainers. Available in a variety of sizes & configurations.
•Integral drift eliminators reduce drift loss
ApplIcATIoNS
XF75: Designed on a 5° angle for easy installation in package crossflow towers (for HVAC and general industrial use).
XF75IL: Integral Inlet Louver with fill section for use with XF75 media.
XF75ID: Integral Drift Eliminator with fill section for use with XF75 media. Other drift eliminators can be added for ultra-low drift loss.
•Simple construction and assembly requirements
•Available in PVC and HPVC
• Proprietary edge cutting technology that directs water to both sides of sheet
•Material exceeds Cooling Technology Institute (CTI) Standard 136 (See inside*)
ApplIcATIoNS
The XF125 is designed for package crossflow cooling towers where the fill is to be installed without an external slant or in evaporative coolers and pre-coolers. Water quality must be “good” to “very good”.
XF125
XF75
XF75IL
XF75ID
XF SUPPORT SYSTEM
COOLING TOWER FILMFILL MEDIA
CoUnTer flow Cross-flUTeD fills
CF1200MA & CF1200 69 ft2/ft3 (226 m2/m3) 11.7 mm30°
CF1900 48 ft2/ft3 (157.5 m2/m3) 19
CF1900MA 48 ft2/ft3 (157.5 m2/m3) 19 mm30°
D: 3.9” (100)*
W: 6” (153)
l: 1’ (305)
D: 6” (153)
W: 6” (153)
l: 1’ (305)
D: 12” (305) W: 6” (153) l: 1’ (305)
D: 12” (305)
6” (153)
2’ (610)
(305)
D: 11.8” (300)
W: 12” (305)
l: 10’ (3048)
D: 24” (610)
W: 24” (610)
l: 12’ (3658)
D: 24” (610) W: 24” (610) l: 10’ ( 3048)
D: 12” (305) W: 12” (305)
(1829)
(610)
D: 11.8” (300)
W: 12” (305)
l: 4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048)
D: 12” (305) or 24” (610)
W: 12” (305) or 24” (610)
l: 4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048)
D: 12” (305) or 24” (610) W: 12” (305) or 24” (610) l: 4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048)
D: 12” (305)
12” (305)
4’ (1220) or 6’ (1829)
1’ (305) D: 24” (610)
CoUnTer flow offseT VerTiCal fill
(300)
ft2/ft3 (154 m2/m3)
ft2/ft3 (138 m2/m3)
AFVF19MA 44 ft2/ft3 (144 m2/m3) 19 mm0°
D: 11.8” (300)
D: 9.8” (250)
D: 11.8”
D: 24” (610) W:
4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048) D: 24” (610)
12” (305) or 24” (610)
D: 11.8” (300) or 23.6” (600) W: 18” (458) l: 4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048) D: 23.6” (600)
18” (458)
( 3048)
D: 35.4” (900) W: 24” (610)
12’ (3658)
D: 39.4” (1000)
23.6” (600) W: 12” (305) or 24” (610)
4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048)
W: 23.3” (592)
l: 120.4” (3058)
D: 23.6” (600) W: 24” (610) l: 10’ ( 3048)
D: 24” (610) W: 24” (610) l: 12’ (3658) AFVF19
D: 12” (305) W: 6” (153) l: 2’ (610)
D: 19.7” (500) W: 12.4” (315) l: 80.3” (2038), 120.4” (3058)
or 10’ (3048)
24” (610)
D: 24” (610) W: 12” (305) l: 4’ (1220), 6’ (1829), 8’ (2439), or 10’ (3048) D: 24” (610) W: 12” (305) l: 12’ (3658) Cross
XF SUPPORT SYSTEM (Base Supports; Fill Support Beams; and Front/Back Retainers) see Brentwood system support drawings.
Cross flow Cross-flUTeD fill
XF125 64 ft2/ft3 (210 m2/m3) 12.5
D: 12” (305) W: 12” (305) l: 12’ (3658)
* This depth applies to the CF1200 only. Minimum depth for the CF1200MA is 11.8” (300 mm).
(3048)
or 12’ (3658)
© Copyright 2011 Brentwood Industries, Inc.
Brentwood Industries, Inc. ,P.O. Box 605, 610 Morgantown Road, Reading, PA 19603, USA, Phone 1-610-236-1100, Fax 1-610-236-1199, Email ctsales@brentw.com Brentwood Asia, Ltd ., A3 Floor, Le Concorde Tower, 202 Rajchadapisek Road, Huaykwang, Bangkok 10310, Thailand, Phone 662-694-1060-2, Fax 662-694-1063, Email asiasales@brentw.com

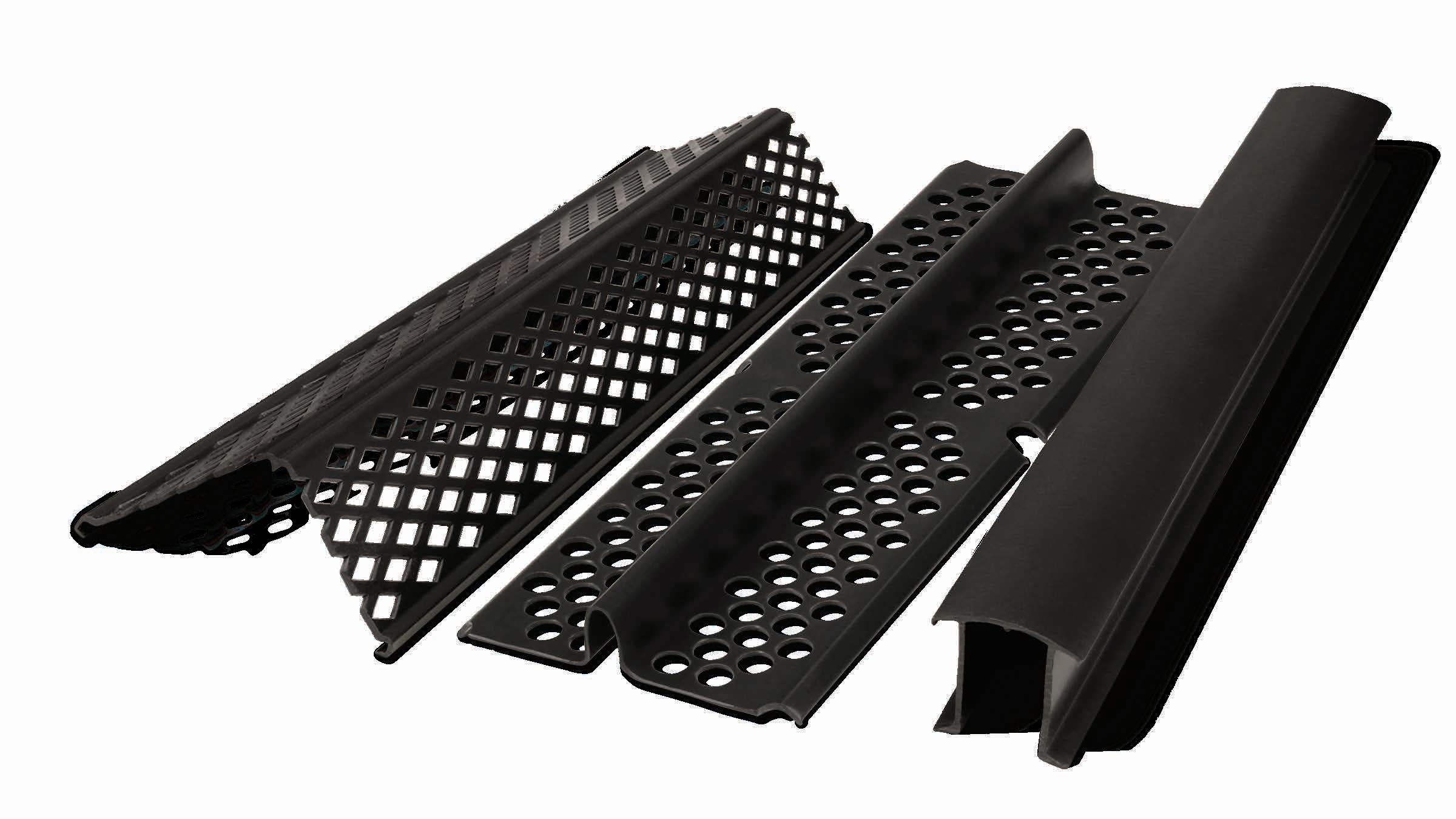

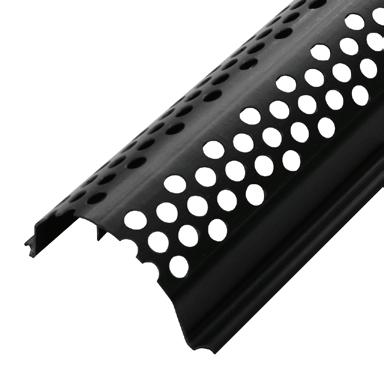

SPLASH FILL MEDIA

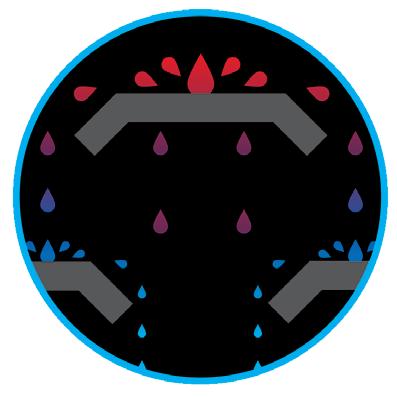

Brentwood’s Splash Fills are foulingresistant and capable of handling dirty water applications, while also achieving high thermal performance.
Features
• A nti-fouling design.
• Incr ease air-water interface to allow for accelerated cooling and evaporation.
• For us e in highly compromised waters.
• Mate rial exceeds Cooling Technology Institute (CTI) Standard 136.
V Bar
Pi Bar
Kelly Bar
Splash Bar Media
Brentwood’s AccuPac ® Splash Fills are utilized when compromised waters are used for make-up, when there may be a high degree of dust or sand in the environment, or when process contaminants may be harmful to film-type fills. By interrupting the water stream with splash surfaces that cause the water droplets to break up into smaller droplets, the greatest amount of water surface can be exposed to the cooling air.
Applications
Kelly Bar & Kelly Bar HD
A durable, high-performance splash bar that maximizes practicality, the Kelly Bar features an inverted V stiffener for strength and support and can be supplied in a heavy-duty version for longer spans.
V Bar & V Bar HD
T he V Bar is an industry-leading splash bar, featuring a unique stiffening center rib that improves strength for maximum spans. Heavy-duty V Bar is available at twice the normal thickness for northern climates where extreme ice loads are possible.
Pi Bar
D esigned for extra-dirty water applications where a 2-inch-wide bar is desired, the Pi Bar’s domed top enhances the splash effect and sloping feet help shed accumulation of solids. It provides for maximum spans and increased fouling reduction capability.
Splash Fill Product Details
Para Bar 1.78 in (45 mm) 4.16 in (106 mm)
Lath .43 in (11 mm) 1.5 in (38 mm)
* Contact Brentwood to discuss span recommendations for specific applications.
PVC Lath
T he Lath splash fill is a lightweight PVC replacement for wooden lath in crossflow or counterflow towers. It features a reinforcing rib for strength and is highly resistant to chemicals and biological attack.
Para Bar & Para Bar LS
T he Para Bar is durably engineered, featuring a parabolic shape for strength and support. It is used as a direct replacement for similar to like profile splash bars and can be supplied in a long-span version for increased span capability. BRENTWOOD INDUSTRIES, INC.
CELLULARDRIFTELIMINATORS
C ounterflow A ppliCAtions
Brentwood Counterflow Cellular Drift Eliminators arespecifically-designedtoachievemaximumdrift removal.Unlikeotherdrifteliminatorsdesignedfor bothcounterflowandcrossflowtowers,Brentwood’s counterfloweliminatorshavesignificantlylowerpressuredropthandual-purposeeliminators.
C rossflow A ppliCAtions
Brentwood Crossflow Cellular Drift Eliminators arespecifically-designedtoachievemaximumdrift removalincrossflowapplicationsbyprovidingan upwardflowpathandasteepwaterdrainageangle thatdirectsthecollecteddriftbacktothewetsectionof thetowerevenwhenimpactedbywaterspray.
BrentwoodACCU-PACCellularDriftEliminatormodulesareconstructedof aseriesofsinusoidal-shaped,corrugated,CTISTD-136,PVCsheetsthatare mechanicallyassembledtomatingsinusoidalstructuralwavestoformclosed cells.Thesecellsforcethedriftdropletscarriedintheairstreamtomakethree distinctchangesindirection.Thisdiversionoftheairflowcreatescentrifugal forcesonthedriftdroplets,forcingthemtobecapturedbyinertialimpaction withthecellwallsandtherebyremovingthedropletsfromtheairstream.
C ounterflow C ellulAr Drift eliMinAtors
CF80MAx Counterflow Cellular Drift Eliminators arespecifically-designedforapplicationsrequiring verylowdriftlevelsincounterflowCoolingTowers, EvaporativeCoolingsystems,TurbineIntakeHoods,and Scrubbers,providingthebestdriftremovalefficiency. Withfield-verifieddrifttestresultsof.0005%perCTI Standard140(theindustrystandardfortestingofcooling towerdrift),thereisnoneedtousedoublelayersofdrift eliminatorstoachievehighdrift-reductionefficiency.
FEATURES & BENEFITS
•BeveledDrainageTip design(right)reduces pressuredropbyupto25% (basedonairvelocityof 800fpm[4.1m/s])over non-beveleddesigns.
•Patented“MA” (MechanicalAssembly)Technologyforenvironmentallyfriendlyglue-freepacks
•HeavydutyCF80MAxmodulesarestrongenough tospan6ft(1.8m),requiringfewersupportbeamsand lessairblockage.
•Canbefieldcutforatightfitaroundcolumnsand otherstructureswithoutsacrificingstructuralintegrity. Dri-Sealsarerecommendedformaximumperformance.
•AllBrentwoodCellularDriftEliminatormodules "nest"withtheadjoiningmodules(below)toprovide "seamless"panelinstallations.
•RawmaterialmeetsCTIStandard136andhasaflame spreadratingof25orlessperASTME84.
CF150MAx Counterflow Cellular Drift Eliminators, arecost-effective,high-efficiencycellulardrifteliminatorsdesignedspecificallyforcounterflowCooling TowersandEvaporativeCoolingsystems.Withover10 millionsquarefeetinstalledworldwide,the150-series hasbeenourmostpopulardrifteliminator.
FEATURES & BENEFITS
•Engineeredflutedesign provideshighperformanceat acost-effectiveprice.
•Patented“MA”(Mechanical Assembly)Technologyfor environmentally-friendly glue-freepacks
•HeavydutyCF150MAx modulesarestrongenough tospan6ft(1.8m),requiring fewersupportbeamsand lessairblockage.
•Canbefieldcutforatight fitaroundcolumnsandother structureswithoutsacrificing structuralintegrity.
•AllBrentwoodCellularDrift Eliminatormodules"nest"with theadjoiningmodules(below left)toprovide"seamless"panel installations.
•RawmaterialmeetsCTI Standard136andhasaflame spreadratingof25orlessper ASTME84.
“MA” technology
PAT.NOS.6,544,628and6,640,427 U.S.ANDINT’LPATENTS
Attachment tabs are pressure-sealed ...
... creating a strong, permanent bond without glue, solvents, or adhesives!
CF150MAx
CF80MAx
Male/Female attachment tabs align with and nest into the adjoining sheet’s tabs.
Beveled Drainage Tips
C rossflow C ellulAr Drift eliMinAtors
XF80MAx Crossflow Cellular Drift Eliminators providethebestavailabledriftremovalefficiencyon themarkettoday.Theupwardflowpath,steepwater drainageangle,and“tunedventurisection”makethis theidealproductforfactory-builtcrossflowtowers.
FEATURES & BENEFITS
•Theupwardflowpathand steepwaterdrainageangle maximizesthedriftremovalfor crossflowapplications,making itfully-effectiveevenwhen installedvertically.
•Theengineeredventuridesign (right)increasesthevelocityof theexitairflowto“scrubout” smallerdroplets.
•The.86”(21.8mm)flutespacingeffectivelyremovesdrift(atthelowestpressure drop)incrossflowtowerswithhighair velocitiesupto800fpm(4.0m/s).
•Patented“MA”(MechanicalAssembly) Technologyforenvironmentally-friendly, glue-freepacks
•Canbefieldcutforatightfitaround columnsandotherstructureswithout sacrificingstructuralintegrity.
•AllBrentwoodCellularDriftEliminator modules"nest"withtheadjoiningmodules (farleft)toprovide"seamless"panel installations.
•RawmaterialmeetsCTIStandard136 andhasaflamespreadratingof25or lessperASTME84.
XF150MAx Crossflow Cellular Drift Eliminators arespecifically-designedtoachievemaximumdrift removalefficiencyinCrossflowCoolingTowersby providinganupwardflowpathanddischargeangleof 40-55°fromhorizontal(dependingoninstallationangle) andmolded-indrainagechannelsthatdirectthecollected driftbacktothewetsectionofthetowerevenwhen impactedbywaterspray.
FEATURES & BENEFITS
•Theupwardflowpathanddischargeangleof40-55° increasesfanefficiencybyreducingpressuredrop.
•Installedatthestandard10°fromvertical(asshownat leftonBrentwoodXF-600Supports),XF150MAxmodules arestrongenoughtospan10ft.(3.0m),requiringfewer supportbeamsandlessairblockage.
•Patented“MA”(MechanicalAssembly) Technologyforenvironmentally-friendly, glue-freepacks
•Canbefieldcutforatightfitaround columnsandotherstructureswithout sacrificingstructuralintegrity.
•Highsurfacearea(fluteheightof1.50" [38mm])provideshighperformanceata cost-effectiveprice.
•AllBrentwoodCellularDriftEliminator modules"nest"withtheadjoiningmodules (farleft)toprovide"seamless"panel installations.
•RawmaterialmeetsCTIStandard136 andhasaflamespreadratingof25orless perASTME84.
XF150MAx
XF80MAx
XF150Max shown on Brentwood XF600 Supports
Tuned Venturi Section
CELLULARDRIFTELIMINATORS
Counterflow
CF80MAx
(21.8mm) 5.25in (133mm) 12in (305mm) or 18in (457mm)
CF150MAx 1.500in (38.1mm) 5.25in (133mm)
Crossflow
12in (305mm) or 18in (457mm)
2to12ft.(610to3658mm) in1ft.(305mm)increments upto6ft.(1829mm)andin 2ft.(610mm)increments over6ft.(1829mm)
2to12ft.(610to3658mm) in1ft.(305mm)increments upto6ft.(1829mm)andin 2ft.(610mm)increments over6ft.(1829mm)
.013in (.33mm)
Standard
.020in (.51mm)
HeavyDuty
.015in (.38mm)
Standard
.020in (.51mm)
HeavyDuty
XF80MAx .86in (21.8mm) 5.25in (133mm) 24in (610mm)
XF150MAx 1.500in (38.1mm) 5.25in (133mm)
*Nominalsheetthicknessafterforming
(305mm) or 18in (457mm)
**Counterflow:Testedatamaximumairtemperature of115°F(46°C)with2inch(51mm)widesupports.
Crossflow:Testedatamaximumairtemperatureof 115°F(46°C)installedata10°maximumangle.
MATERIALS
AllBrentwoodCellularDriftEliminatorsare madefromPVCmaterialthatmeetsCTI (CoolingTechnologyInstitute)Standard136and areUVprotected.ThesePVCcompoundshave outstandingresistancetoweatherexposure,and arenearlyimpervioustochemicaldegradation byalkalisandacids,grease,fats,oils,andbiologicalattack.PVChasanexcellentfireratingdue toitsself-extinguishingcharacteristics.
2to12ft.(610to3658mm) in1ft.(305mm)increments upto6ft.(1829mm)andin 2ft.(610mm)increments over6ft.(1829mm)
2to12ft.(610to3658mm) in1ft.(305mm)increments upto6ft.(1829mm)andin 2ft.(610mm)increments over6ft.(1829mm)
PRESSURE DROP
.013in (.33mm)
Standard .020in (.51mm)
HeavyDuty
.015in (.38mm)
Standard .020in (.51mm)
HeavyDuty
1.0lbs/ft2 (4.9kg/m2) 1.4lbs/ft2 (6.8kg/m2)
(2.4m)
(3.0m)
Brentwood Industries, Inc. ,P.O. Box 605, 610 Morgantown Road, Reading, PA 19603, USA, Phone 1-610-236-1100, Fax 1-610-236-1199, Email ctsales@brentw.com Brentwood Asia, Ltd ., A3 Floor, Le Concorde Tower, 202 Rajchadapisek Road, Huaykwang, Bangkok 10310, Thailand, Phone 662-694-1060-2, Fax 662-694-1063, Email asiasales@brentw.com
FLOW CONTROL VALVES
HEAVY DUTY STAINLESS STEEL
OPTIMIZE YOUR PERFORMANCE WITH THE VARI-FLOW SS SERIES DISTRIBUTION VALVE
The “Vari-Flow” distribution valve is a direct replacement valve for all existing crossflow Cooling Tower distribution valves.
MANUFACTURED ENTIRELY FROM 304L OR 316L STAINLESS STEEL AND UHMW-PE PLASTIC
“VARI-FLOW” VALVE FEATURES A 30% LARGER DISCHARGE AREA AND 40% REDUCTION IN WEIGHT COMPARED TO CONVENTIONAL DISTRIBUTION VALVES
PATENTED INTERNAL GUIDE AND SUPPORT SYSTEM
INTERNAL GUIDE AND SUPPORT SYSTEM THAT SUPPORTS THE STEM AND DISC THROUGHOUT ITS’ FULL LENGTH OF TRAVEL
CAN BE UTILIZED TO BALANCE THE WATER FLOW THROUGHOUT YOUR COOLING TOWER AND OPTIMIZING ITS’ PERFORMANCE
BUSHING ASSEMBLY REPLACES EASILY FROM THE VALVE EXTERIOR MAINTENANCE FREE OPERATION
POSITIVE SHUT-OFF
ALLOWS FOR COMPLETE AND POSITIVE SHUT-OFF OF THE WATER STREAM
NO PERSISTENT LEAKING
Along with the internal guide system which centers the disc and places the disc surface parallel to the seating face, an improved gasket system allows complete and positive shut-off of the water stream without the persistent leaking associated with conventional valves.
HEAVY DUTY GALVANIZED
The Star Cooling Towers flow control valve for cooling towers is manufactured to meet or exceed OEM specifications. It is a direct, drop-in replacement for all crossflow cooling tower applications and does not require modifications to your existing system.
Important features ofthe Star Cooling Towers flow control valve include:
RUGGED CONSTRUCTION
POSITIVE, LOCKING BAR
HEAVY DUTY GALVANIZED CAST IRON BODY
STAINLESS STEEL VALVE STEM AND HARDWARE
SIMPLE, TROUBLE-FREE DESIGN
HEAVY-DUTY NEOPRENE GASKET
STANDARD ANSI#125 FLANGE
HEADER SUPPORT
FRP CROSSFLOW SADDLE
The Star Cooling Towers FRP header saddle is designed to fit your distribution system needs. The saddle is CNC machined from vacuum infused products to a high tolerance ensuring proper field fit-up and ease of installation. Saddle sizes vary to fit pipes from 12" up to 72" diameter. Custom sizes and shapes are available based on your design needs.
FRP COUNTERFLOW
SADDLE
The Star Cooling Towers FRP header saddle is designed to fit your distribution system needs. The saddle is CNC machined from pultruded products to a high tolerance ensuring proper field fit-up and ease of installation. The saddles are built from a panel system making them very versatile in achieving several sizes to fit pipes from 12" up to 36" diameter. Custom sizes and shapes are available based on your design needs.
STAIRWAYS & ESCAPE LADDERS
HEAVY DUTY GALVANIZED STAIRWAYS
The STAR pre-engineered fiberglass stairway provides safe, easy access to your cooling tower. Its lightweight, yet rugged design offers quick, easy installation.
Important features include:
PRE-ENGINEERED, MODULARIZED DESIGN
NON SKID WALKING SURFACE
LIGHTWEIGHT
EASY TO MAINTAIN
WILL NOT ROT OR DECAY
STRONG
CORROSION RESISTANT
NON CONDUCTIVE
UV-PROTECTED
EASY, QUICK INSTALLATION
MECHANICAL ACCESS PLATFORMS
DURABLE, LIGHTWEIGHT & STRONG FIBERGLASS
Star Cooling Towers offers fiberglass equipment access walkways and work platforms for permanent or temporary use. They are corrosion-resistant, slipresistant, ultraviolet-resistant, strong, lightweight, and fire-retardant.
The strong, light fiberglass panels or grating can be custom-designed for the best fit around mechanical equipment for maintenance and service.
Fiberglass is light enough to handle without the heavy equipment steel grating requires. Also, no need for scaffolding and planking, saving field labor and downtime.
Corrosion resistance and a gritted surface provide a durable, slipresistant, safe, walkway for distribution
basins and plenum walkways.Available in solid or grated designs. Molded-in color means you skip costly recurring maintenance such as painting or coating.
Contact Star Cooling Towers for custom-designed and installed fiberglass platforms or walkways, and handrails, in accordance with OSHA design specifications, for your cooling tower regardless of age or manufacturer.
STRUCTURAL SHAPES & DECKING
FIBERGLASS SHAPES FOR WOOD REPLACEMENT
Star Cooling Towers pultruded fiberglass structural shapes allow you to replace deterioratedwood columns, beams, and decks on your cooling towers with strong, lightweight, rot-resistant fiberglass.
Standard shapes include: 2" x 4", 2" x 6", 4" x 4", and decking. The pultruded fiberglass reinforced polyester (FRP) designs offer quick, easy installation and many other advantages over traditional wood.
Important features include:
FIRE RETARDANT
ENVIRONMENTALLY FRIENDLY
LIGHTWEIGHT
EASY TO MAINTAIN
WILL NOT ROT OR DECAY
STRONG
CORROSION RESISTANT
NON CONDUCTIVE
UV-PROTECTED
EASY, QUICK INSTALLATION
CONSISTENT
WEATHER RESISTANT
PULTRUDED FIBERGLASS SHAPES FOR WOOD REPLACEMENT
THE BETTER ALTERNATIVE TO WOOD
Unlike wood, Star Cooling Towers structural FRP shapes offer superior resistance to a broad range of chemicals. They are virtually unaffected by moisture or immersionin water and do not require chemical preservative treatment. They are inert and easily disposed of in landfills.
The Star structural FRP shapes are stronger, with higher structural design values than traditional wood. And, they are approximately half the total weight of comparable wood sizes.
Star structural FRP shapes are available with a standard resin system of slate gray fire retardant polyester resin meeting the requirements of Class1 rating of 25 or less per ASTME-84 and the self-extinguishing requirements of ASTMD-635. The resin is UV inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV protection. Other resins and colors are available upon request.
Compare the advantages of Star Cooling Towers structural FRP shapes to traditional structural wood. You will discover a better, cost-effective choice for your coolingtower refurbishing projects.
Note: The mechanical properties of dimensional FRP profiles differ significantly from those of dimensional lumber. It is important to examine the structural profile’s required mechanical performance to determine the suitability of dimensional FRP in the intended application. Please consult Star Cooling Towers when designing with dimensional FRP shapes and decking.
COOLING TOWER HARDWARE
FULL SELECTION OF CONNECTORS AND ACCESSORIES FOR MOST OEM TOWERS IN THE FIELD
LOUVER ARMS & BRACE BARS
ANCHOR SHOES
BAC-Pritchhard Style cast-iron anchor shoe
Stainless steel Series 15 anchor shoe
HDG anchor shoe with shear puck

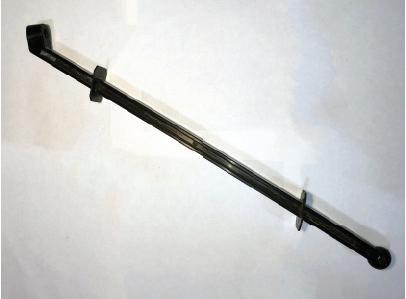

Marley Louver Arm - Standard 600 Type (FRP & Douglas Fir)
Plastic Louver Arm Support (with Pin)
NOZZLES, ADAPTERS, & PARTS
Spiral Target (Short & Long stem)
Nozzle Hole Plug (1 3/4”)
ATP Sprayer with Orifices
Universal End Cap
BAC Nozzles (XF-4 through 7)
BAC Counterflow (AA, A, & B)
Nozzle Adapters
Fisher/PSI Nozzle
Target Nozzle
SFF Nozzles with Orifices
Rubber Branch Grommets
CONTROLS, SWITCHES, FITTINGS, & MISCELLANEOUS PARTS
Flow Control Valve
Shear Puck
Neoprene Gasket
Structural Shear Bushing
Bulkhead Fitting
Access Door/Hatch Hardware
BOLTING HARDWARE
We stock series 300 stainless steel bolting hardware in diameters from 1/4"–1 1/2", available in lengths from 1"–12". Full-thread rods are also available in 3/8" and 1/2" diameter, cut to order. Associated hardware available in these sizes includes:
FLAT WASHERS
LOCK WASHERS
FENDER WASHERS
HEX NUTS
NYLON INSERT LOCK NUTS
LUMBER & PLYWOOD
LUMBER & PLYWOOD WITH CERTIFIED GRADE STAMPING
Most sizes of cooling tower grade, No. 1 and better structural Douglas Fir dimensional lumber and plywood. Redwood is also available upon request.
STRUCTURAL REDWOOD
DOUGLAS FIR TREATMENT CERTIFICATION
ASSAY
CORE SAMPLES MOE TESTING
SPLASH BOX ASSEMBLIES, LOUVER SUPPORTS, FILL HANGER SUPPORTS
FABRICATE COMPONENTS FOR MOST OEM TOWERS
FABRICATE HOT WATER BASIN DECKING
PIPE SADDLE SUPPORTS
WALKWAY COMPONENTS
TONGUE & FAN GROOVE FAN DECK REDWOOD
GRID DECKS, REDWOOD AND DOUGLAS FIR LATHE
REDWOOD GRID DECK FABRICATION
SPLASH DECK FABRICATION
PRE-ASSEMBLIES
PRE-ASSEMBLED BENTS, TRUSSES, PIPE SADDLES, MECHANICAL EQUIPMENT
In addition to access ladders, doors, and splash boxes, we also offer preassembled bents, trusses, pipe saddles, mechanical equipment, and more, available in both Douglas fir and FRP construction.
OEM Replacement Parts
