C ON TE N T S
I
NO ZZLES ,

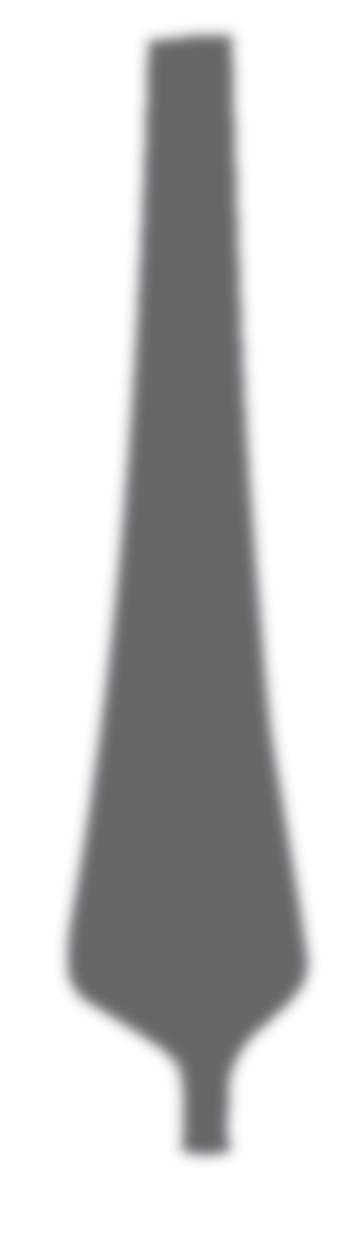

FANS (HUDSON)

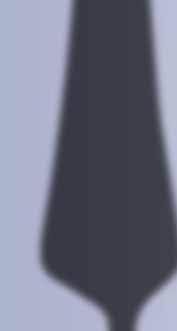

Hudson Products Tuf-Lite® is a single-piece, hollow and lightweight blade
Reinforced Plastic (FRP) mold construction method allows the blades to be formed

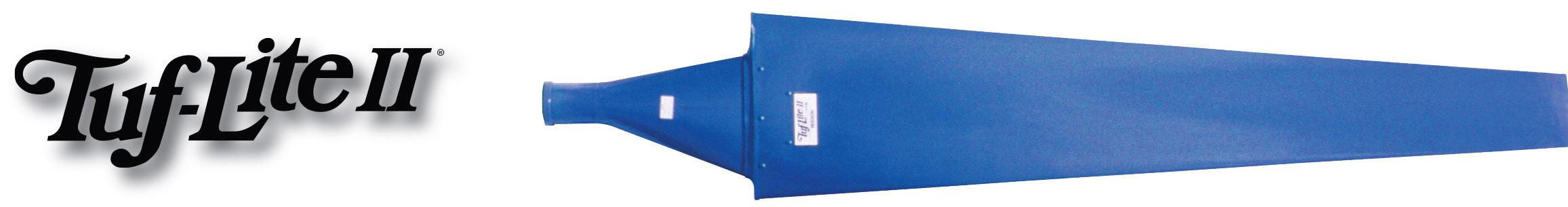

Tuf-LiteII®

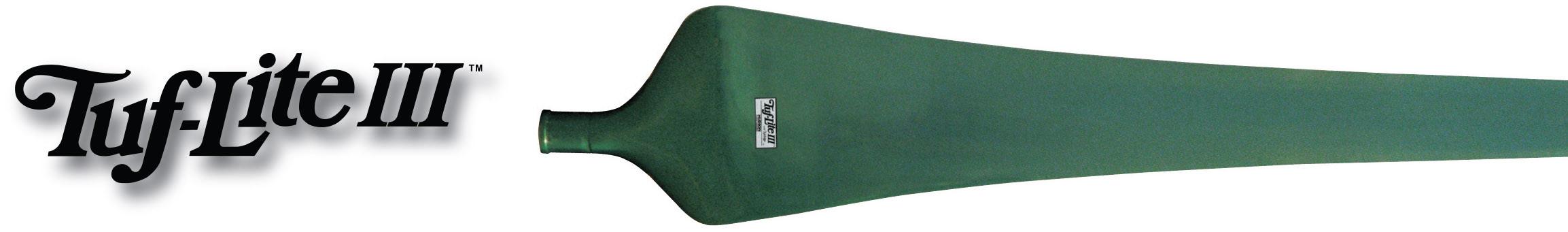

Tuf-Lite III®
reinforced vinyl ester resin coupled with leading and trailing edge protection program to date, Tuf-Lite III® blades are individually balanced, interchangeable and

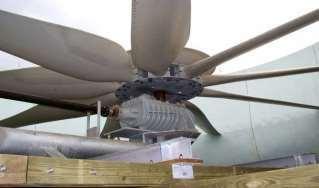

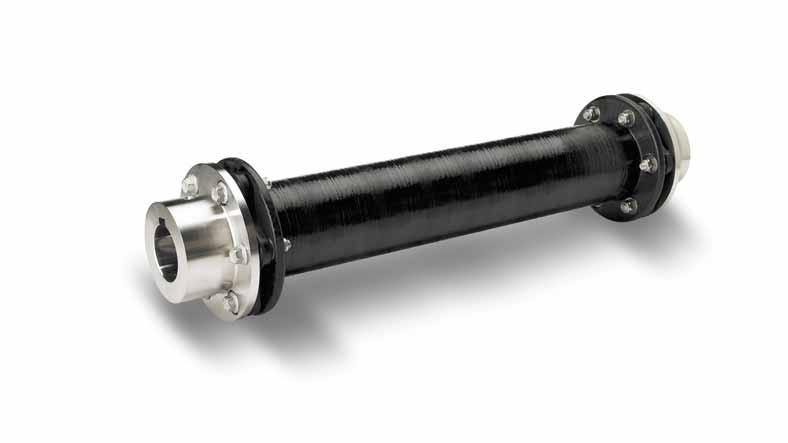

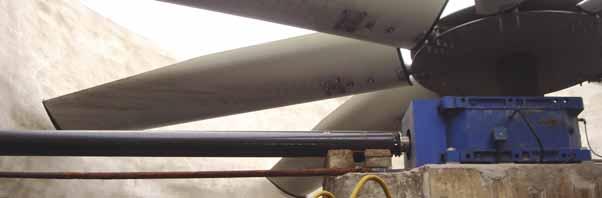

Addax® was the first advanced composite cooling tower coupling introduced in 1987. Addax® coupling systems are installed and in service world wide.
Choose a Rexnord® Addax® Composite Coupling as YOUR cooling tower coupling if you are currently using a steel coupling or an alternative composite coupling.
Rexnord ® Addax ® Cooling Tower Coupling
You want a trusted name when it comes to providing engineered power transmission products that improve productivity and efficiency. Rexnord provides superior products for your industrial applications world wide. We work closely with you to reduce maintenance costs, eliminate redundant inventories and prevent equipment downtime.
With more than 50.000 Addax® couplings installed around the world, Rexnord has the most experience of any composite cooling tower coupling manufacturer. The Rexnord® Addax® coupling provides the best value with corrosion resistance, high misalignment, fatigue resistance, low weight and ease of installation.

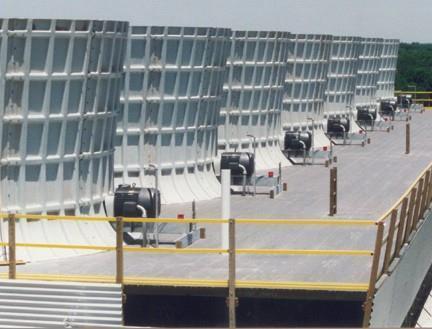

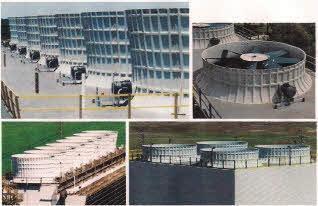

Star Fan Stacks
Cooling Tower Fan Stacks
Cooling Tower Fiberglass Fan Cylinders
• Wide selection of sizes – 100 different stock profiles with custom molds available
• Resins available in general purpose or Class I or Class II Fire Retardant formulations
• Colors available in the standard Mist Gray or optional custom colors
• Hand laid with layers of woven and mat fabrics to maintain product consistency

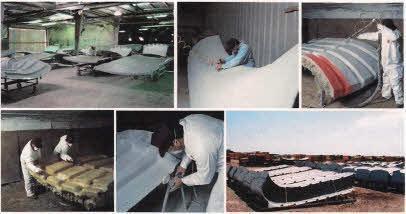

Molding Makes The Difference!

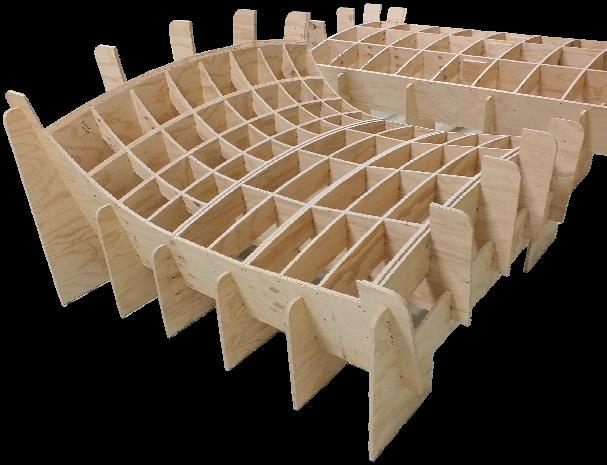

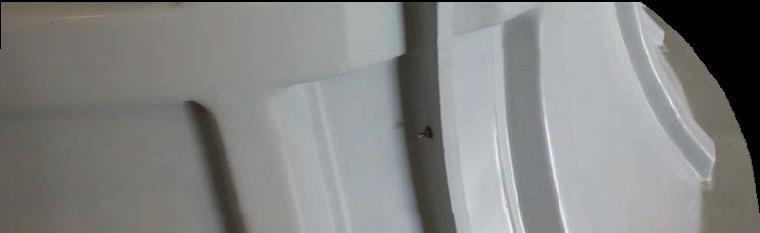

In the past, the shortcoming of most fan stacks was the inability to produce molds that would yield precise radius dimensions and fan tip clearances.
CNC machining does make a difference. We CNC our fan stack tooling to 0.001” tolerance to ensure accurate tip clearance without the need for shims or spacers. Precise fan stack radius dimensions eliminate “clover-leafing” that occurs with inaccurate tooling. All this technology results in a fan stack that is accurate and reduces installation issues, providing years of trouble-free service without the need for constant adjustment.
What Makes Star Fan Stacks Better Than The Competition?
Our fan stacks are constructed using the strongest laminate schedule of any fan stack currently in the industry. The strength of the stack is evident in the laminate schedule and the overall weight of the stack. This results in more material and greater overall strength, and the additional mass results in lower harmonic frequencies. All this adds up to a fan stack that is capable o f withstanding high winds and seismic loads while reducing vibration levels across the entire spectrum.
Each fan stack has horizontal and vertical ribs to ensure superior strength, and the top, bottom and side flanges are wider and thicker than our competitor's fan stacks.
Horizontal ribs are 8” wide versus the competitor’s with little or no horizontal ribbing
Vertical ribs are 6” wide versus 5”
Sides and top flange are 4” wide versus 2-1/2”
Bottom flange is 6-1/2” wide versus4-1/2”
Sides and bottom flange is 5/16” thick versus1/4”
Top flange is 1/4” thick versus 3/16”
Thickness behind rib is nominal 3/16” versus 1/8”
Custom profiles available upon request

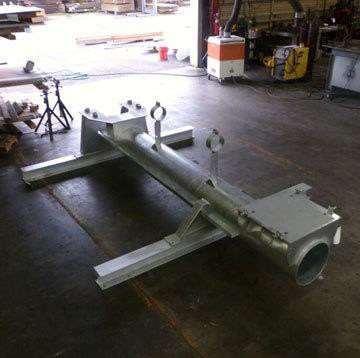

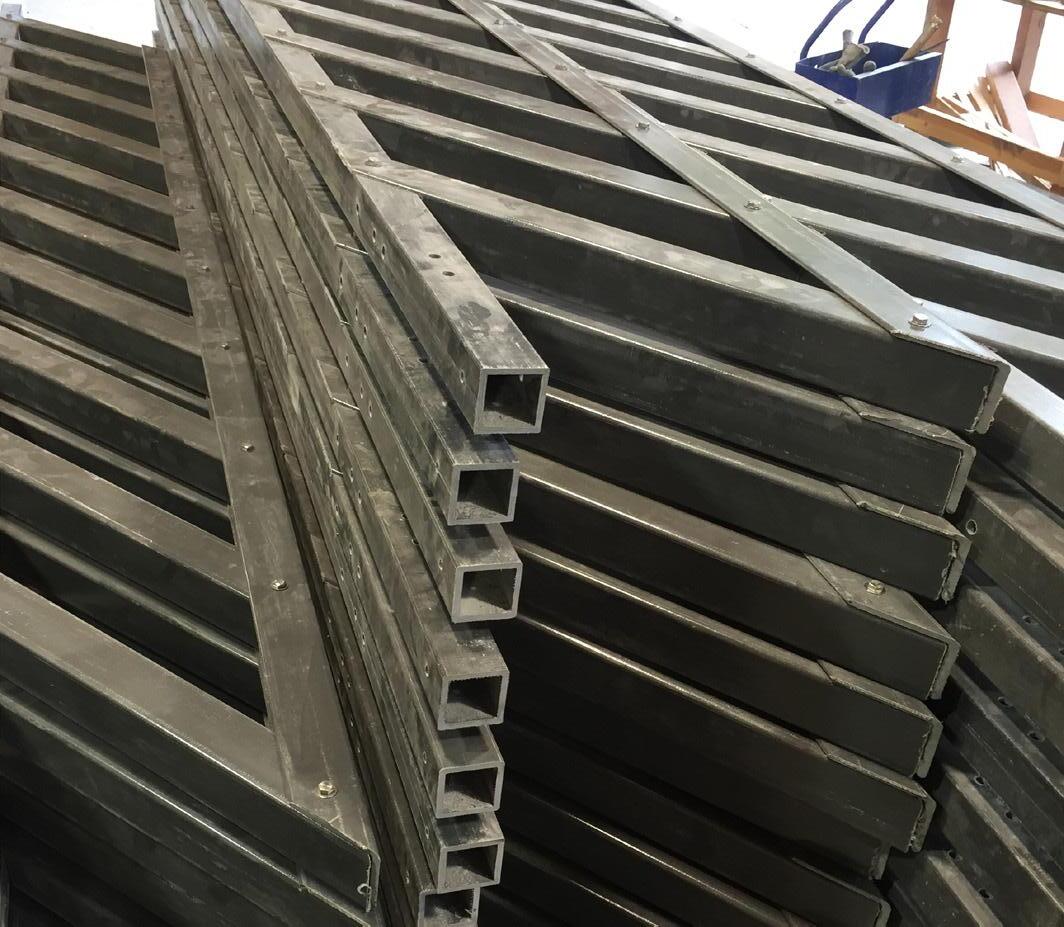

Mechanical Supports

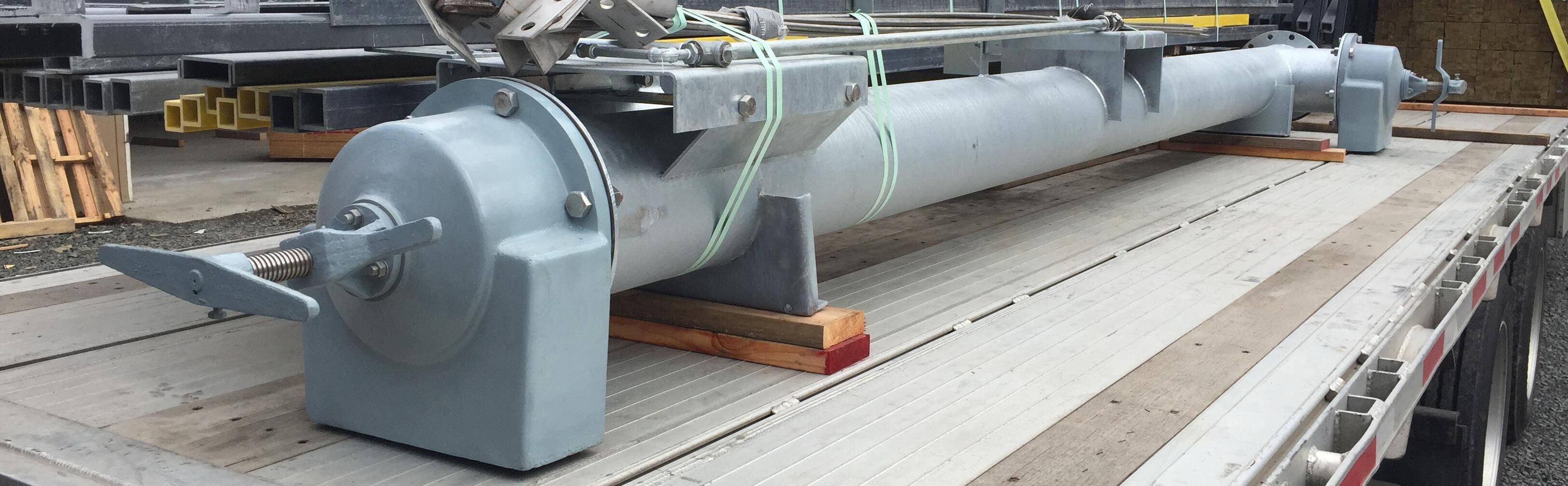

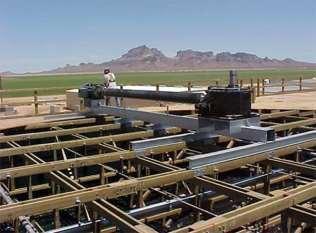

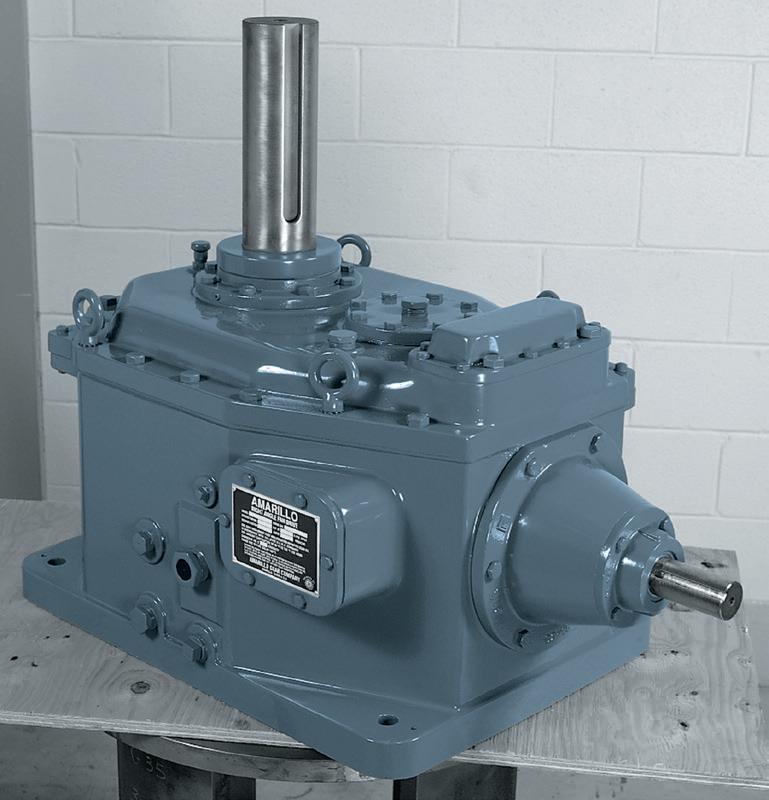

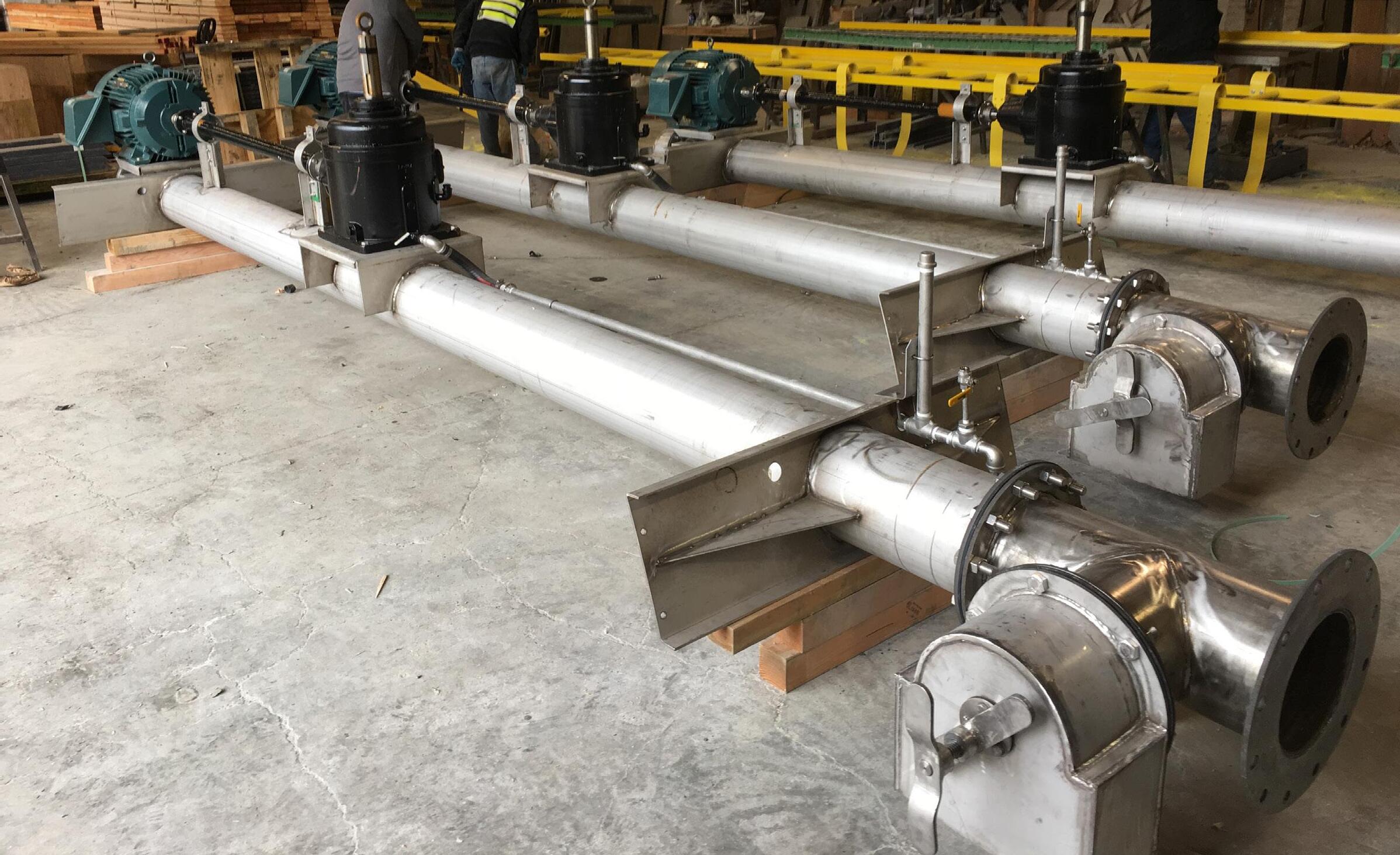

Unitized Steel Motor and Gear Supports
Regardless of make or model, Star Cooling Tower’s vast library of mechanical support fabrication drawings allows for the fast and accurate shop fabrication of replacement mechanical supports.
Torque tube, I beam, channel and square tube supports.
W shapes ASTM A572 (Grade 50), Angles & Plates ASTM A36, Tube ASTM A500, and Pipe ASTM A105 C.S.
Shop weld with minimum ¼” FILLET Unlimited (E70XX)
Hot dipped galvanized after fabrication.
FLOW CONTROL VALVES & CROSSOVER PIPES
Flow control valves are available as epoxy-coated cast iron or stainless steel in sizes steel or as hot-dipped galvanized (HDG) steel, and can be made for most types of

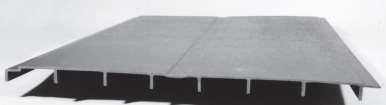

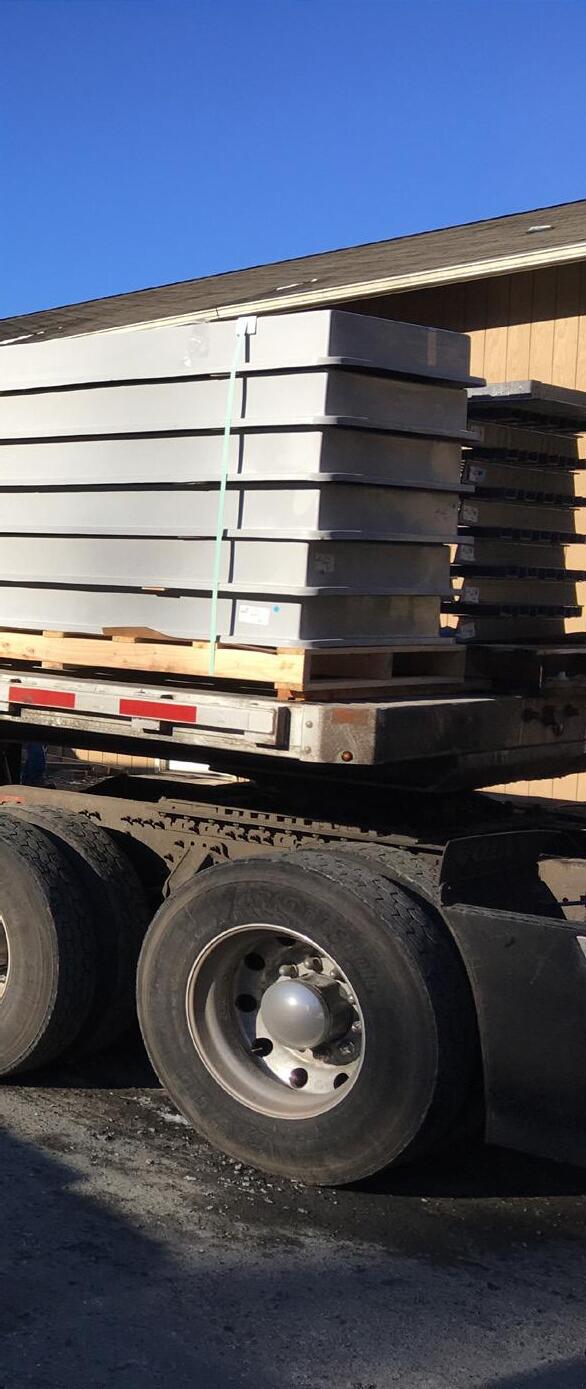

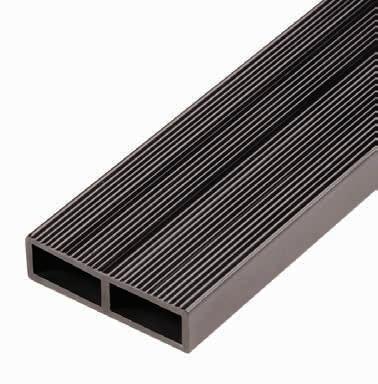

Pultruded Fiberglass Panel Decking System
Star Cooling Towers decking system panels interlock and overlap to form a safe, strong working surface on your cooling tower. Manufactured of pultruded fiberglass reinforced polyester, the lightweight, high strength and corrosion-resistant design offers quick, easy installation. It is available with a gritted surface for fan decks and hot water basin applications.
Importan t featur es include:
Corrosion resistant
Nonskid walking surface
Light weight
Easy to maintain
Will not rot or decay
Strong
Fire retardant
Nonconductive
UV-protected
Easy, quick installation
The Star decking system is available in 1-1/8” deep panels, 24” wide. Normally gritted and available in 20’ through 36’ standard lengths. The panels interlock and overlap to form a continuous, solid surface. The quick screw- down construction system ensures rapid installation and reduced field labor costs.
The standard resin system is a slate gray fire retardant polyester resin meeting the requirements of Class 1 rating of 25 or less per ASTM E-84 and the self-extinguishing requirements of ASTM D365. The resin is UV-inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV-protection. Other resins and colors are available upon request.
Safdeck Two Span Load/Deflection Data
u
c =
c
StarPlank
Pultruded Fiberglass Panel

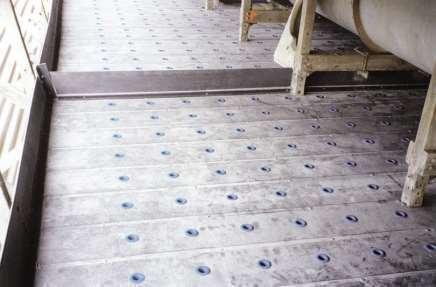

Hot Water Basin
Star Plank hot water basin panel system interlocks and overlaps to form a safe, strong working surface on your cooling tower.
Manufactured of pultruded fiberglass reinforced polyester, the lightweight, high strength and corrosion-resistant design offers quick, and easy installation.
Important features include:
• Corrosion resistant
• Fire retardant
• Nonconductive
• UV-protected
• Easy, quick installation
• Strong
• Lightweight
• Easy to maintain
•Will not rot or decay
StarPlank
Pultruded Fiberglass Panel
Hot Water Basin
The STAR Plank hot water basin system is available in 1-1/8 deep panels, 24 wide. Normally available in 20 through 36 standard lengths. Other lengths are available through special order. The panels interlock and overlap to form a continuous, solid surface. The quick screw-down construction system ensures rapid installation and reduced field labor costs. The standard resin system is as late gray fire retardant polyester resin meeting the requirements of Class 1 rating of 25 or less per ASTM E-84 and the self-extinguishing requirements of ASTM D-635. The resin is UV inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV protection. Other resins and colors are available upon request.

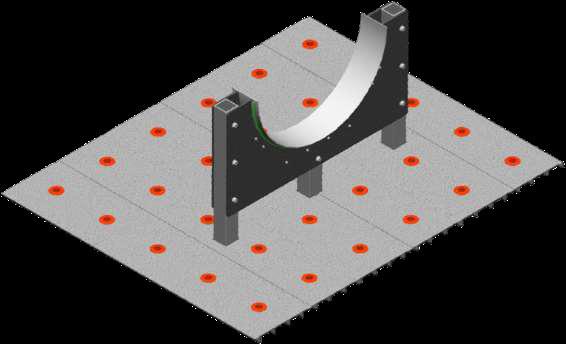

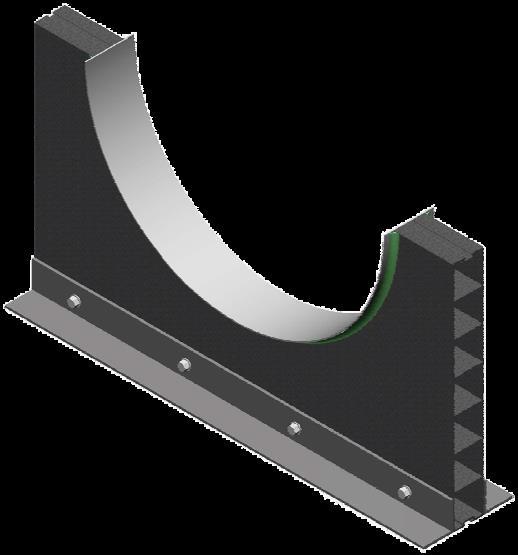

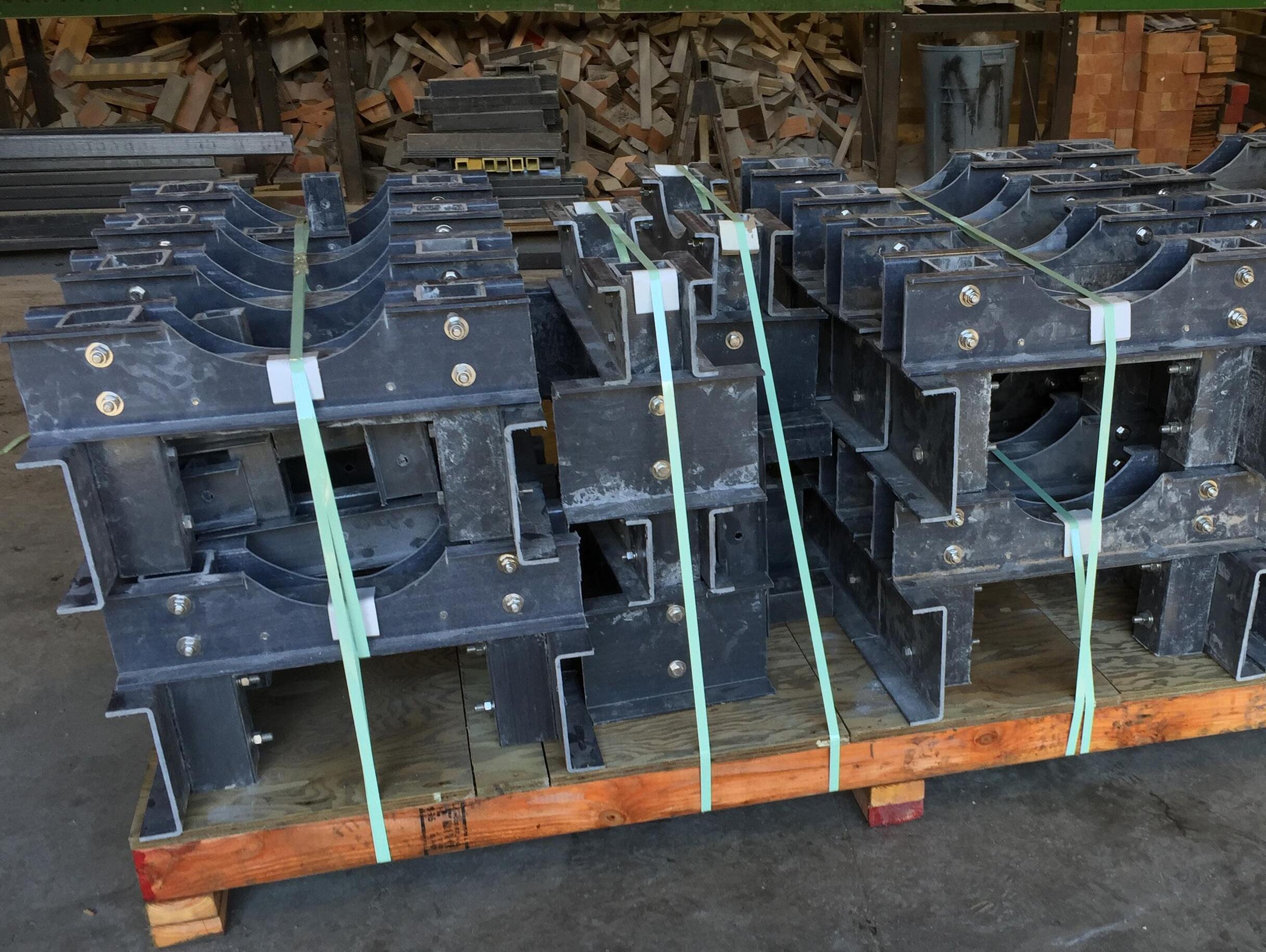

The Star Cooling Towers FRP header saddle is designed to fit your distribution system needs. The saddle is CNC machined from vacuum infused products to a high tolerance ensuring proper field fit-up and ease of installation. Saddle sizes vary to fit pipes from 12” up to 72” diameter. Custom sizes and shapes are available based on your design needs.

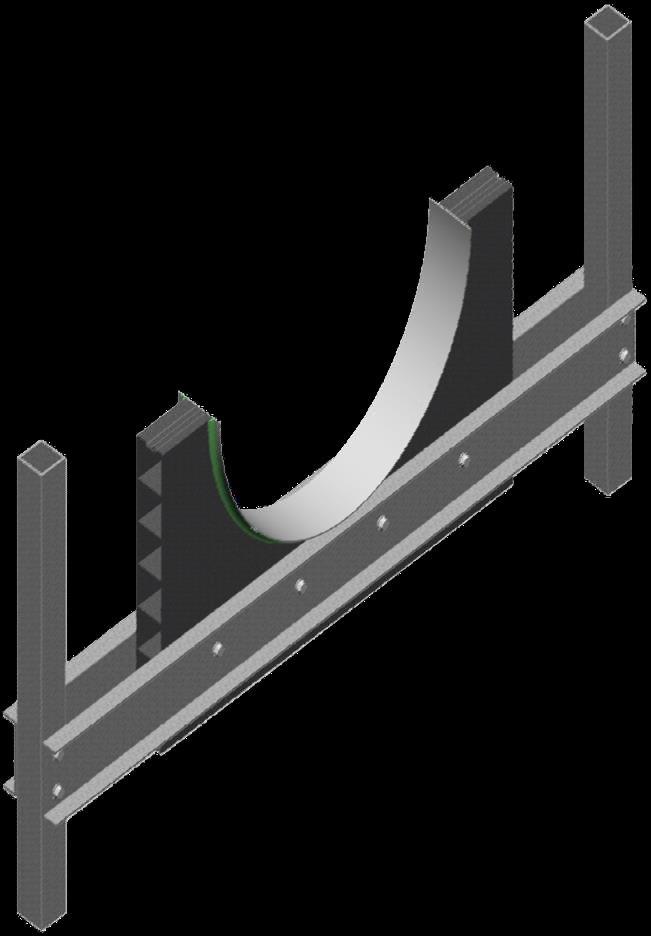

Header Support
FRP Crossflow Saddle
The Star Cooling Towers FRP header saddle is designed to fit your distribution system needs. The saddle is CNC machined from pultruded products to a high tolerance ensuring proper field fit-up and ease of installation. The saddles are built from a panel system making them very versatile in achieving several sizes to fit pipes from 12” up to 36” diameter. Custom sizes and shapes are available based on your design needs.
Header Support
FRP Counterflow Saddle

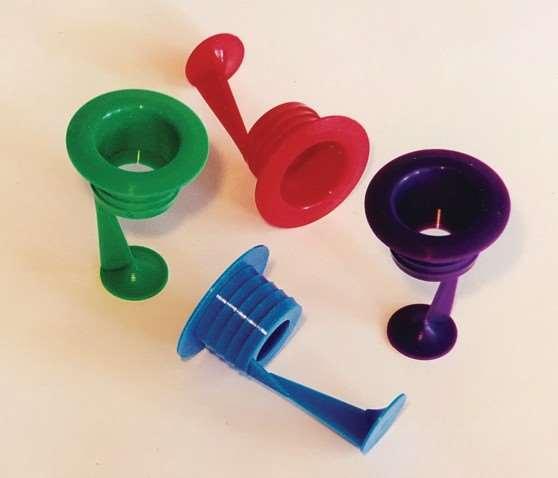

Precision-Flo™
Crossflow Nozzles
Star Cooling Towers Precision-Flo water distribution nozzle is a non-clogging nozzle designed specifically for all crossflow cooling tower applications. It provides excellent flow characteristics utilizing a one piece design with single support distribution plate. This produces a uniform distribution pattern helping to enhance the cooling tower’s thermal performance.
A unique color coding system allows for easy identification of the correct orifice size. Available orifice sizes range from .625” to 1.375”.
The Star Precision-Flo crossflow nozzle is easily installed and can be easily removed for cleaning or replacement.
The nozzle is manufactured of inert high strength injection molded polypropylene for outstanding corrosion resistance and strength.

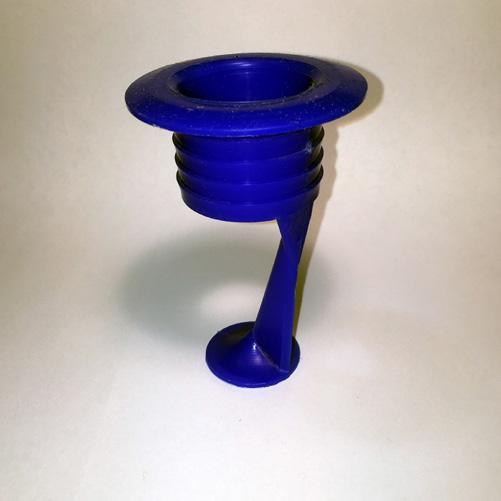

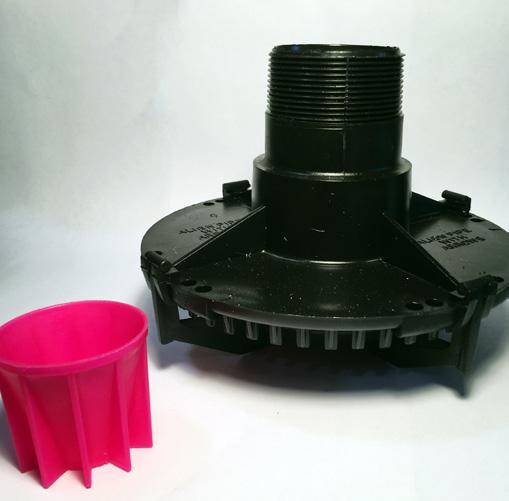

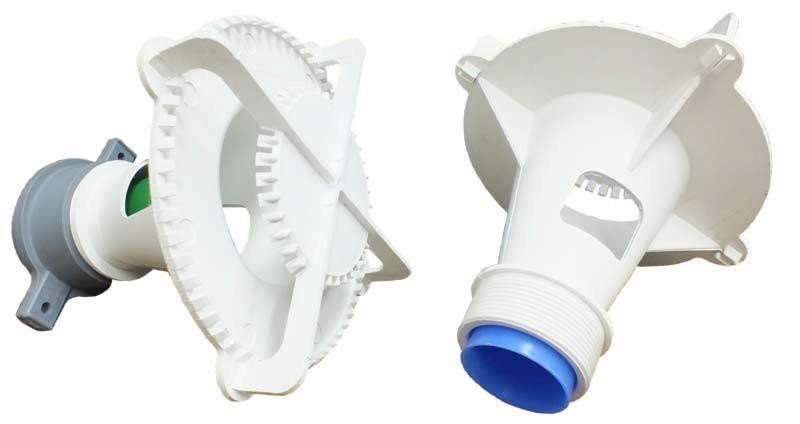

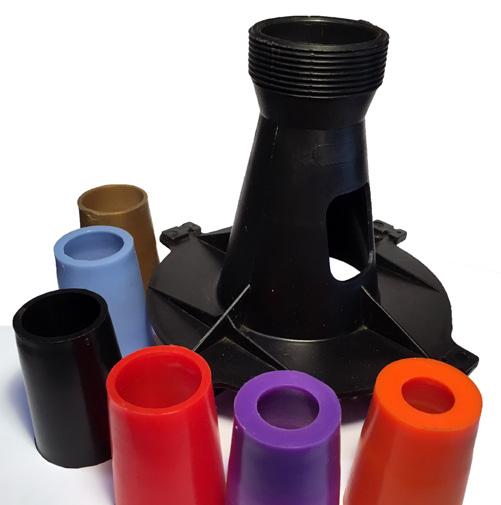

Precision-Flo™ Counterflow Nozzles
The Star Cooling Towers PFC™ Precision-Flo counterflow distribution nozzle is an efficient, nonclogging nozzle designed specifically for all counterflow cooling tower applications.
The patented PFC design provides excellent flow characteristics and a very uniform spray pattern, enhancing the cooling tower’s thermal performance. A unique color coding system allows for easy identification of the correct orifice size, from .75” to 1.5”.
The PFC nozzle is easily installed – it attaches to the distribution lateral with a PVC adapter using standard 2” NPT threads. Other 2” threads are available on request. The nozzle can be easily removed for cleaning or replacement.
The Star PFC nozzle is manufactured of inert high strength injection molded polypropylene for outstanding corrosion resistance. Gusseted teeth enhance the nozzle’s strength. Plus, the bottom plate locks into place for additional security.

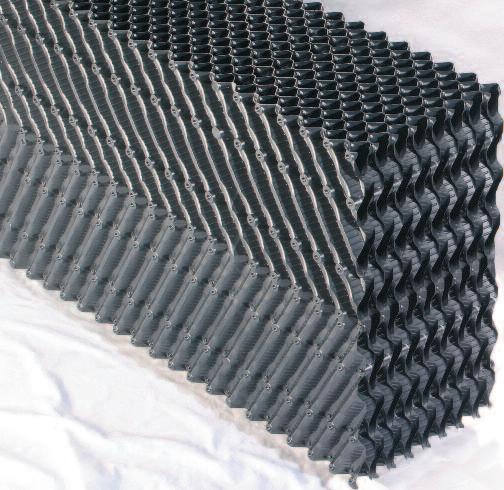

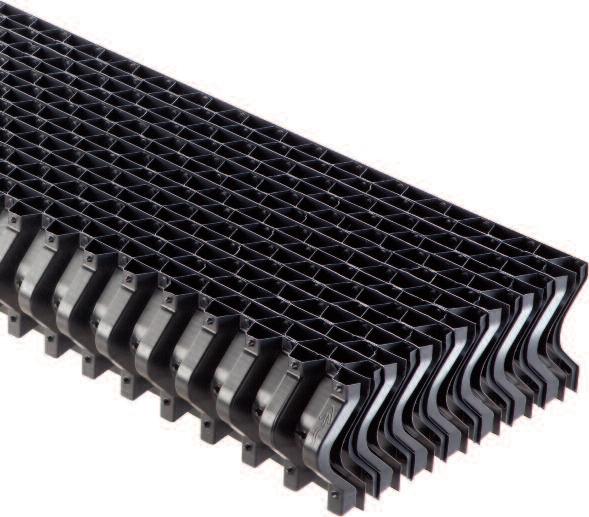

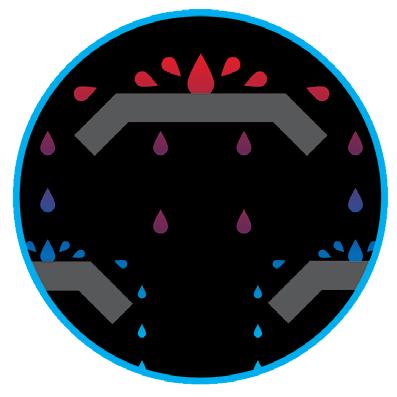

Brentwood’s Splash Fills are foulingresistant and capable of handling dirty water applications, while also achieving high thermal performance.
Features
• A nti-fouling design.
• Incr ease air-water interface to allow for accelerated cooling and evaporation.
• For us e in highly compromised waters.
• Mate rial exceeds Cooling Technology Institute (CTI) Standard 136.

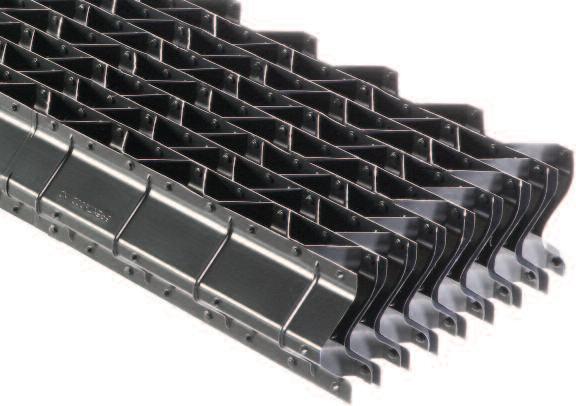

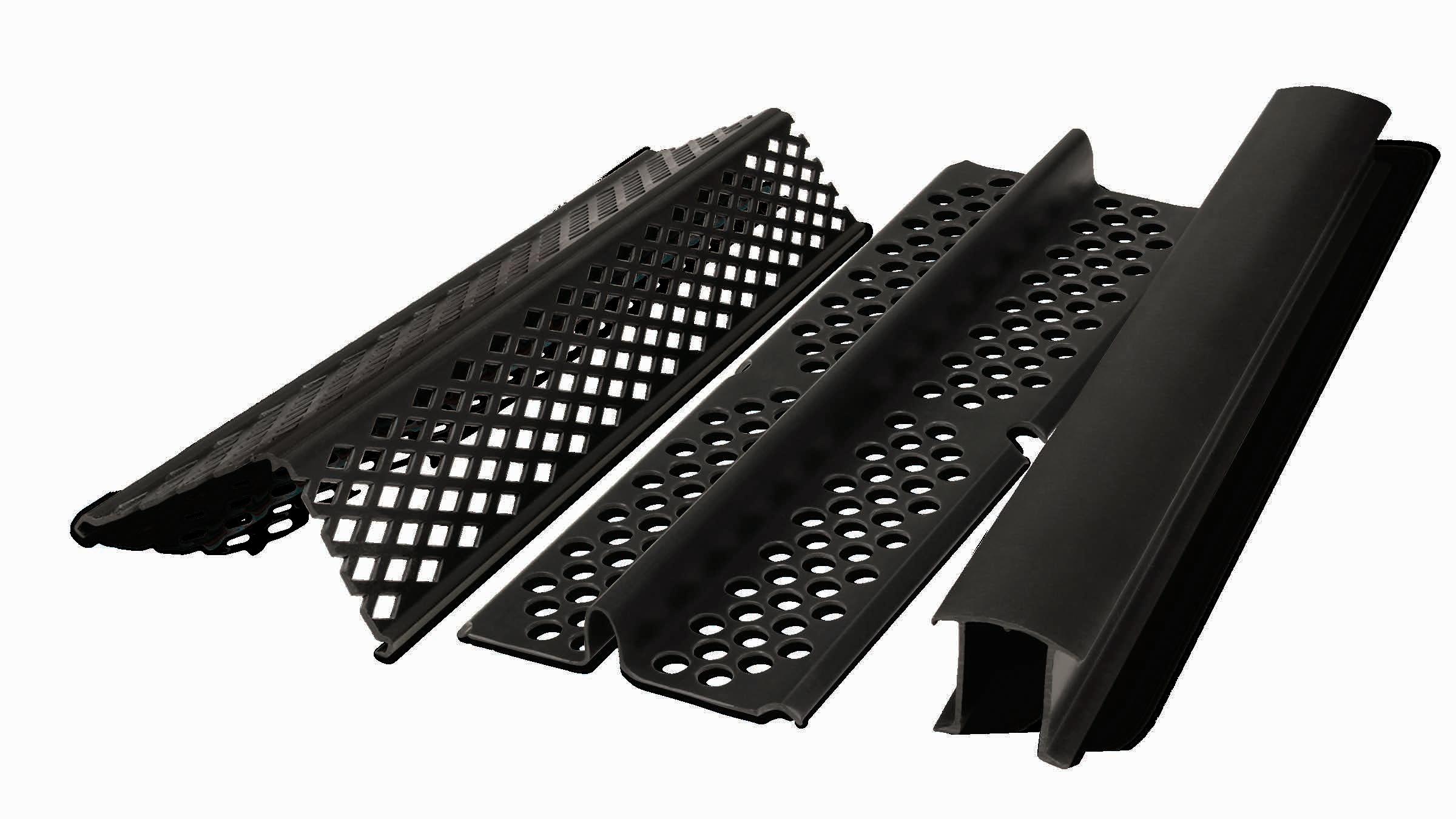

V Bar
Pi Bar
Kelly Bar

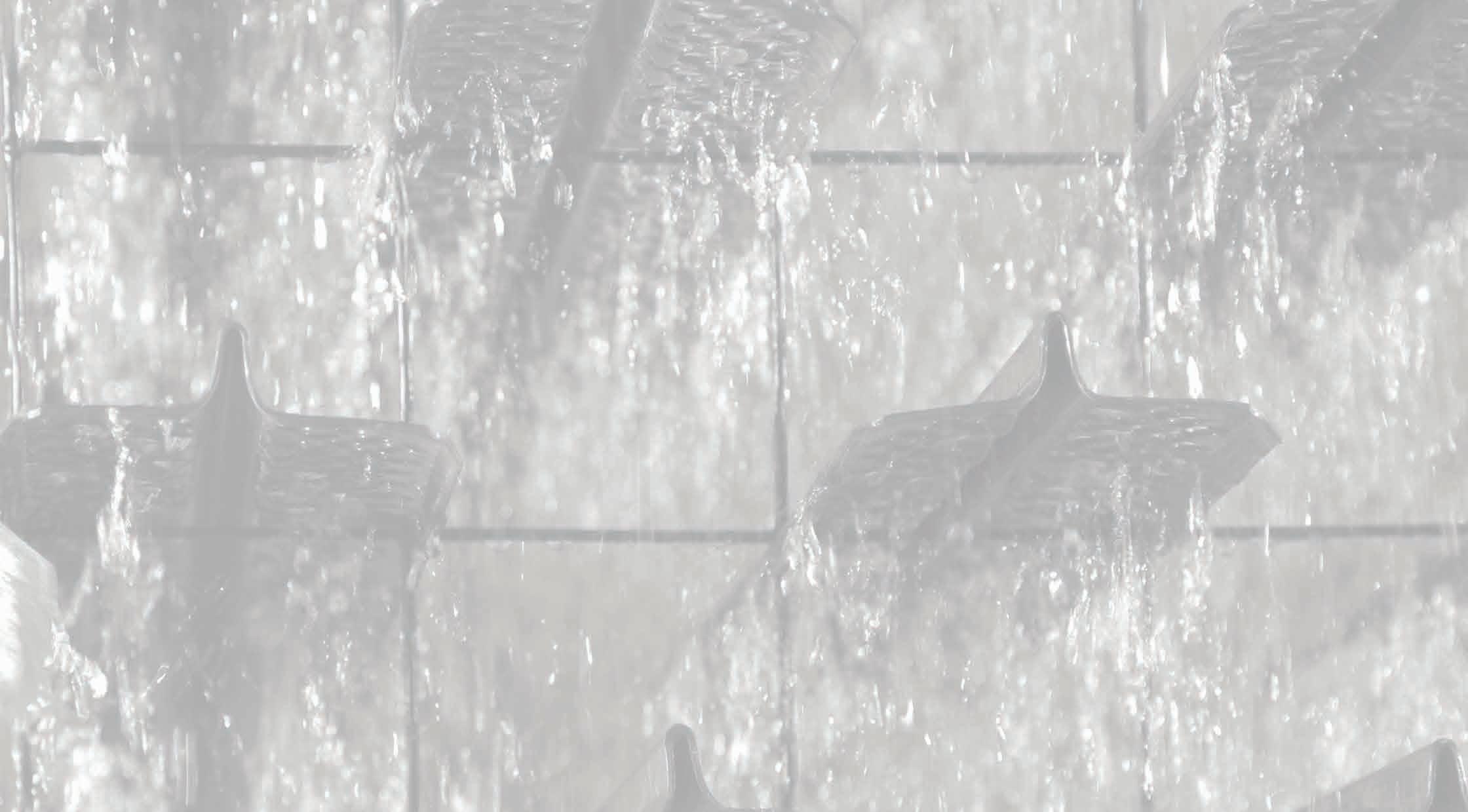

Splash Bar Media
Brentwood’s AccuPac ® Splash Fills are utilized when compromised waters are used for make-up, when there may be a high degree of dust or sand in the environment, or when process contaminants may be harmful to film-type fills. By interrupting the water stream with splash surfaces that cause the water droplets to break up into smaller droplets, the greatest amount of water surface can be exposed to the cooling air.
Applications
Kelly Bar & Kelly Bar HD
A durable, high-performance splash bar that maximizes practicality, the Kelly Bar features an inverted V stiffener for strength and support and can be supplied in a heavy-duty version for longer spans.
V Bar & V Bar HD

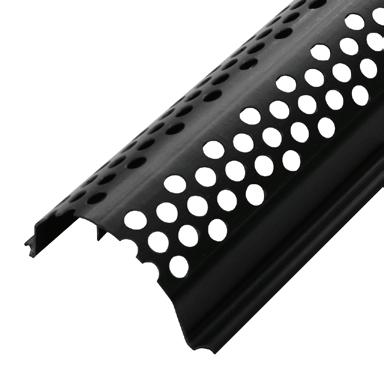

T he V Bar is an industry-leading splash bar, featuring a unique stiffening center rib that improves strength for maximum spans. Heavy-duty V Bar is available at twice the normal thickness for northern climates where extreme ice loads are possible.
Pi Bar
D esigned for extra-dirty water applications where a 2-inch-wide bar is desired, the Pi Bar’s domed top enhances the splash effect and sloping feet help shed accumulation of solids. It provides for maximum spans and increased fouling reduction capability.
Splash Fill Product Details
Para Bar 1.78 in (45 mm) 4.16 in (106 mm)
Lath .43 in (11 mm) 1.5 in (38 mm)
* Contact Brentwood to discuss span recommendations for speci c applications.
PVC Lath
T he Lath splash fill is a lightweight PVC replacement for wooden lath in crossflow or counterflow towers. It features a reinforcing rib for strength and is highly resistant to chemicals and biological attack.
Para Bar & Para Bar LS
T he Para Bar is durably engineered, featuring a parabolic shape for strength and support. It is used as a direct replacement for similar to like profile splash bars and can be supplied in a long-span version for increased span capability. BRENTWOOD INDUSTRIES, INC.

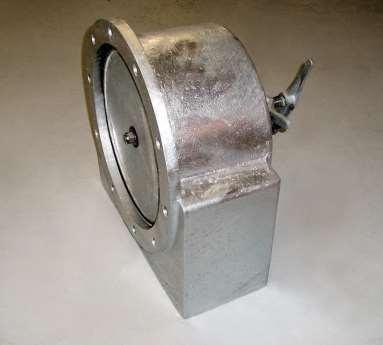

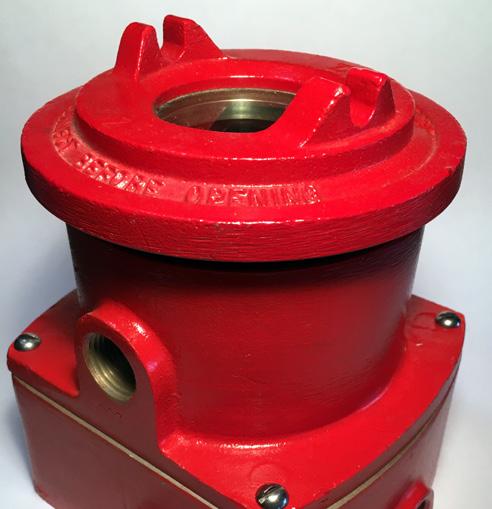

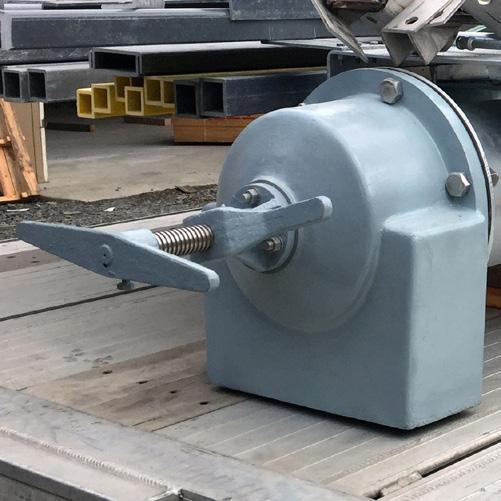

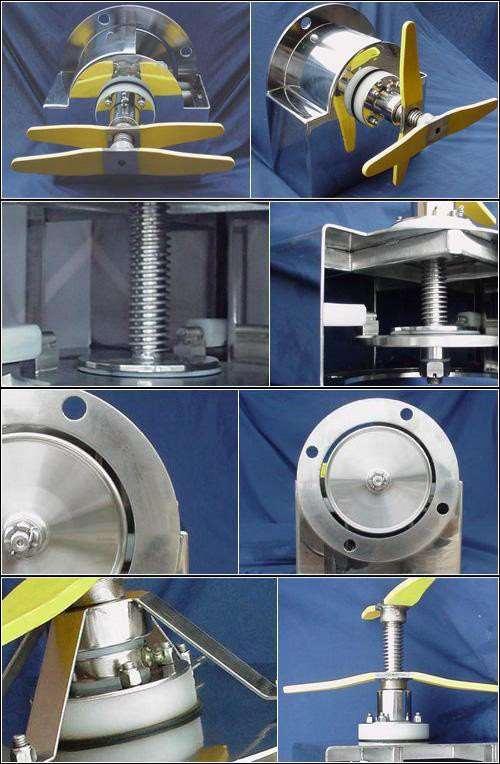

The Star Cooling Towers flow control valve for cooling towers is manufactured to meet or exceed OEM specifications. It is a direct, drop-in replacement for all crossflow cooling tower applications and does not require modifications to your existing system.
Important features of the Star Cooling Towers flow control valve include:
• Simple, trouble-free design
• Heavy-duty neoprene gasket
• Rugged construction
• Positive, locking bar
• Heavy duty galvanized cast iron body
• Stainless steel valve stem and hardware
• Standard ANSI #125 flange
Flow Control Valve
Heavy Duty Stainless Steel
Star FRP Stairways
The Star pre-engineered fiberglass stairway provides safe, easy access to your cooling tower. Its lightweight, yet rugged design offers quick, easy installation.
Important features include:
• Pre-engineered, modularized design
• Nonskid walking surface
• Lightweight
• Easy to maintain
• Will not rot or decay
• Strong
•Corrosion resistant
• Nonconductive
• UV-protected
•Easy, quick installation
Ladder System

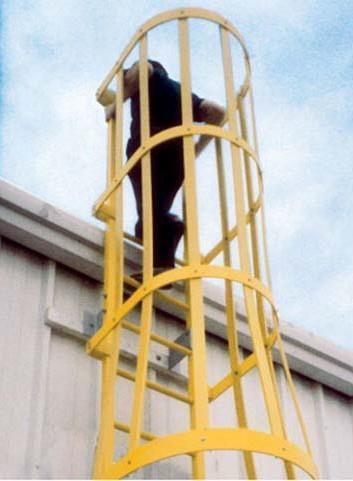

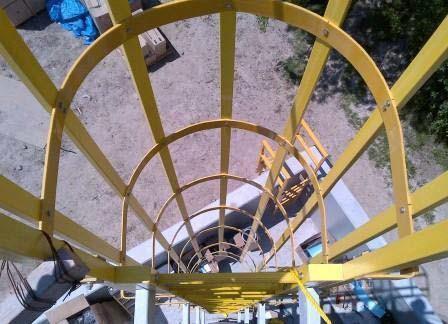

Caged Escape Ladder

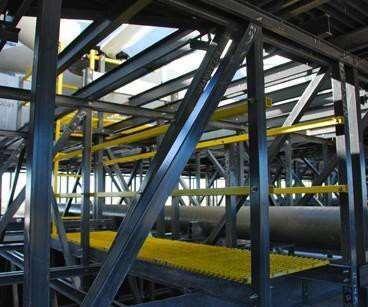

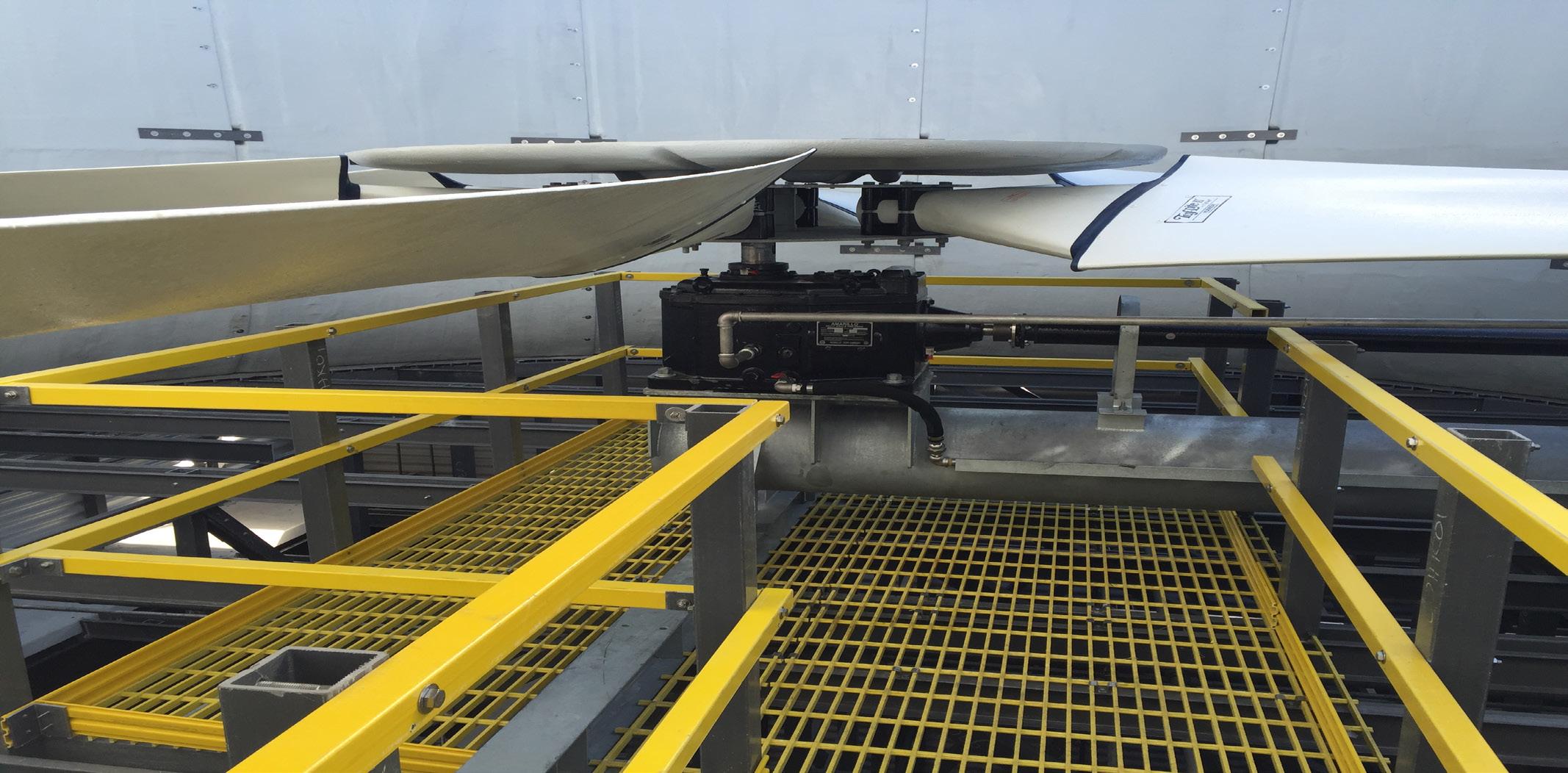

Maintenance Platform
Durable, lightweight & strong fiberglass

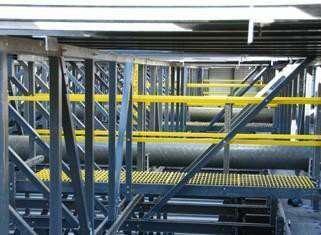

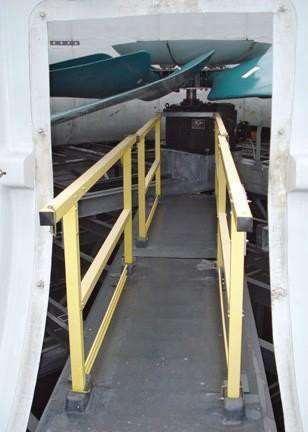

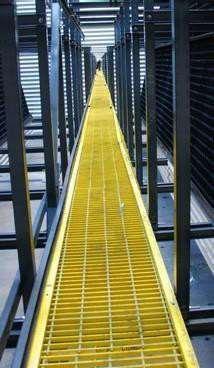

Star Cooling Towers offers fiberglass equipment access walkways and work platforms for permanent or temporary use. They are corrosion-resistant, slipresistant, ultraviolet-resistant, strong, lightweight, and fire -retardant.
The strong, light fiberglass panels or grating can be custom -designed for the best fit around mechanical equipment for maintenance and service
Fiberglass is light enough to handle without the heavy equipment steel grating requires. Also, no need for scaffolding and planking, saving field labor and downtime.
Corrosion resistance and a gritted surface provide a durable, slip-resistant, safe, walkway for distribution basins and plenum walkways. Available in solid or grated designs.
Molded-in color means you skip costly recurring maintenance such as painting or coating.
Contact Star Cooling Towers for custom-designed and installed fiberglass platforms or walkways, and handrails, in accordance with OSHA design specifications, for your cooling tower regardless of age or manufacturer.
Maintenance Platform
Durable, lightweight & strong fiberglass

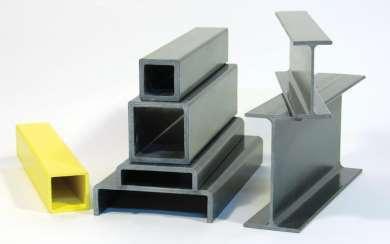

Fiberglass Shapes for Wood Replacement
Star Cooling Towers pultruded fiberglass structural shapes allow you to replace deteriorated wood columns, beams, and decks on your cooling towers with strong, lightweight, rot-resistant fiberglass.
Standard shapes include: 2″ x 4″, 2″ x 6″ , 4″ x 4″, and decking. The pultruded fiberglass reinforced polyester (FRP) designs offer quick, easy installation and many other advantages over traditional wood.
Important features include:
• Corrosion resistant
• Fire retardant
• Nonconductive
• UV-protected
• Easy, quick installation
• Environmentally friendly
OEM Replacement Parts
• Strong
• Lightweight
• Easy to maintain
•Will not rot or decay
• Consistent
•Weather resistant
Star Cooling Towers is a complete cooling tower supply company, offering a wide range of products to the cooling tower industry since 1951. Our large selection of quality OEM (Original Equipment Manufacturer) replacement parts are compatible with most models and manufacturers of cooling towers and they offer a high quality, reliable, low-cost alternative to expensive original equipment parts.
Call today for more details on these innovative components.
Structural FRP
Pultruded
Fiberglass Shapes for Wood Replacement
The Better Alternative to Wood
Unlike wood, Star Cooling Towers structural FRP shapes offer superior resistance to a broad range of chemicals. They are virtually unaffected by moisture or immersion in water and do not require chemical preservative treatment. They are inert and easily disposed of in landfills.
The Star structural FRP shapes are stronger, with higher structural design values than traditional wood. And, they are approximately half the total weight of comparable wood sizes.
Star structural FRP shapes are available with a standard resin system of slate gray fire retardant polyester resin meeting the requirements of Class1ratingof 25 or less per ASTME-84 and the self-extinguishing requirements of ASTMD-635. The resin is UV inhibited and the composite includes a surface veil on all exposed surfaces for enhanced corrosion and UV protection. Other resins and colors are available upon request.
Compare the advantages of Star Cooling Towers structural FRP shapes to traditional structural wood. You will discover a better, cost-effective choice for your cooling tower refurbishing projects.
Note: The mechanical properties of dimensional FRP profiles differ significantly from those of dimensional lumber. It is important to examine the structural profile’s required mechanical performance to determine the suitability of dimensional FRP in the intended application. Please consult Star Cooling Towers when designing with dimensional FRP shapes and decking.
LOUVER ARMS & BRACE BARS

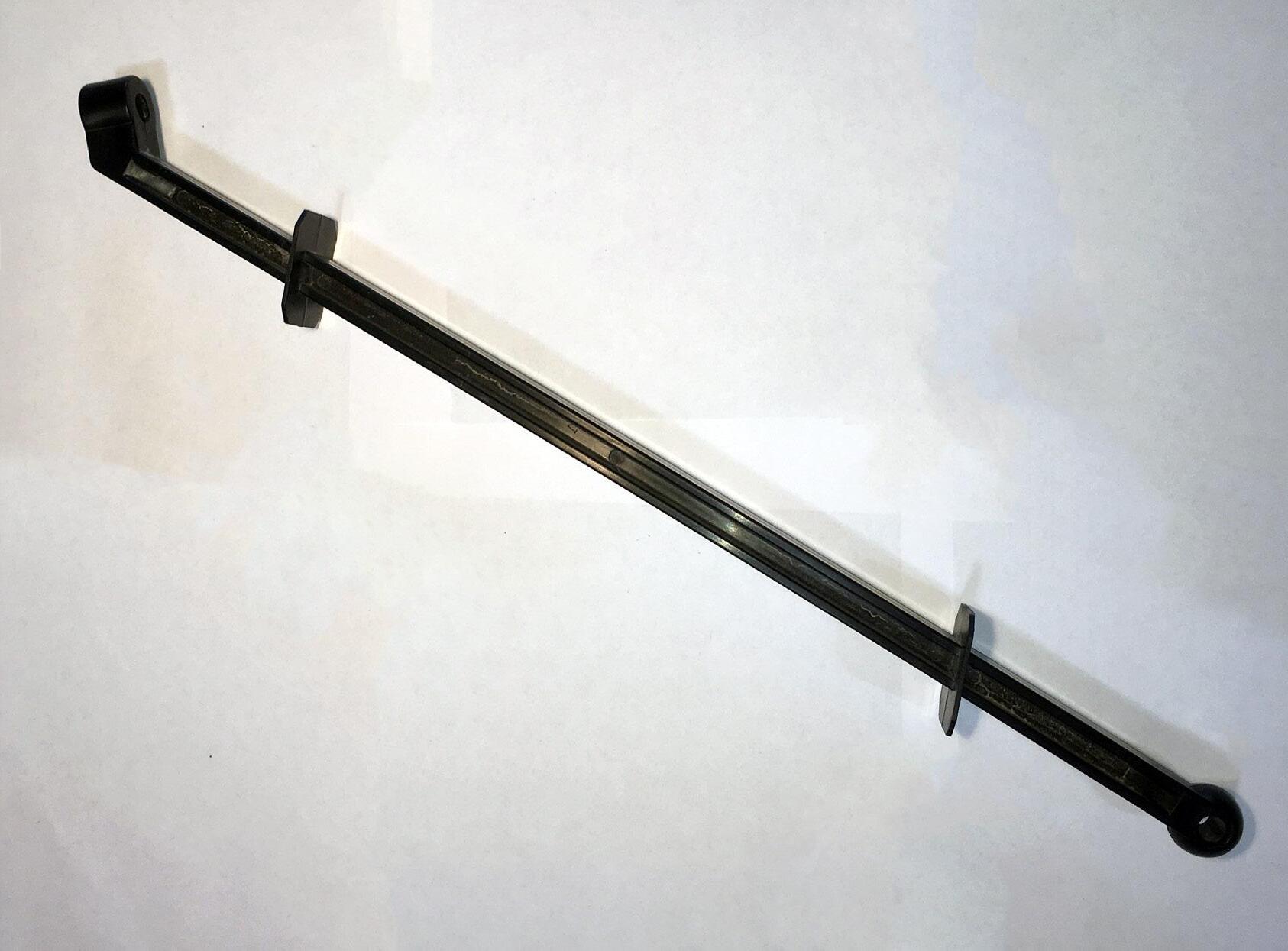

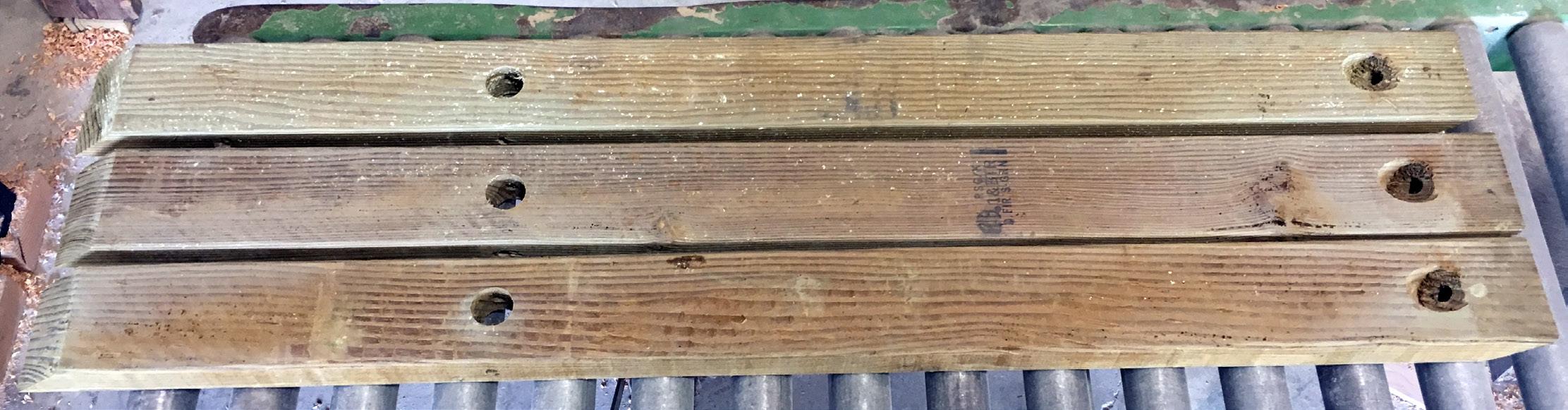

Marley Louver Arm - Standard 600 Type (FRP & Douglas Fir)
Plastic Louver Arm Support (with Pin)

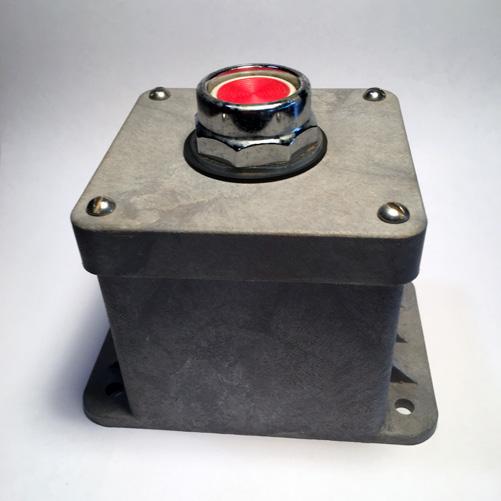

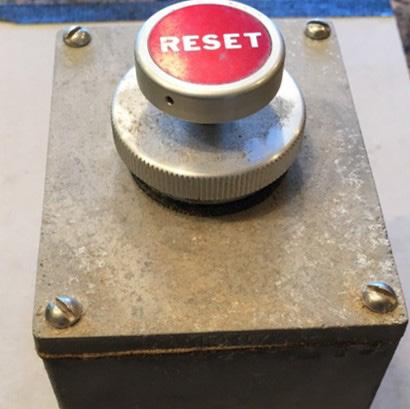

CONTROLS, SWITCHES,
NOZZLES, ADAPTERS, & PARTS

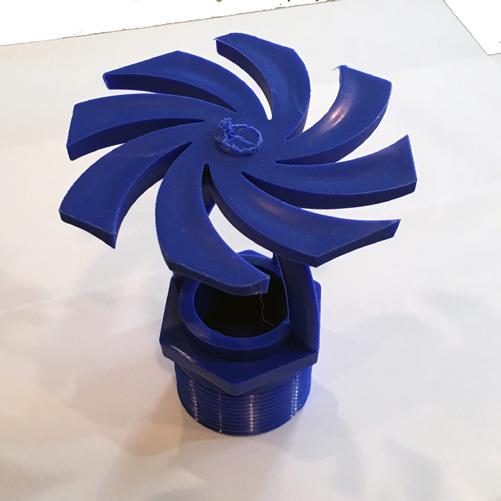

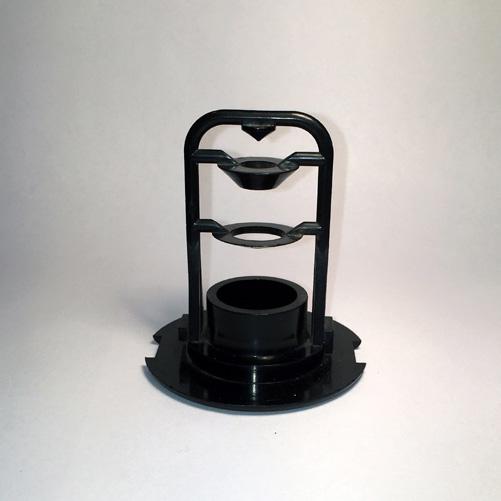

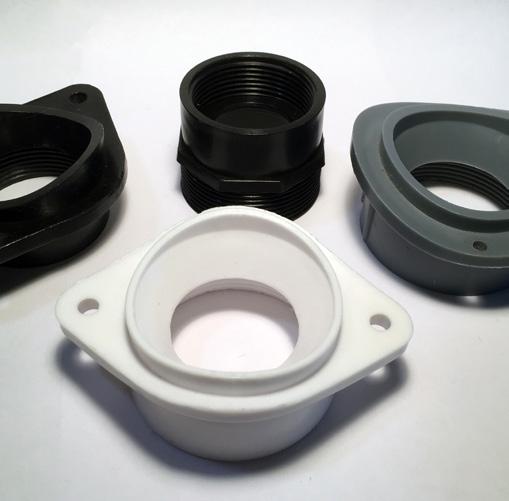

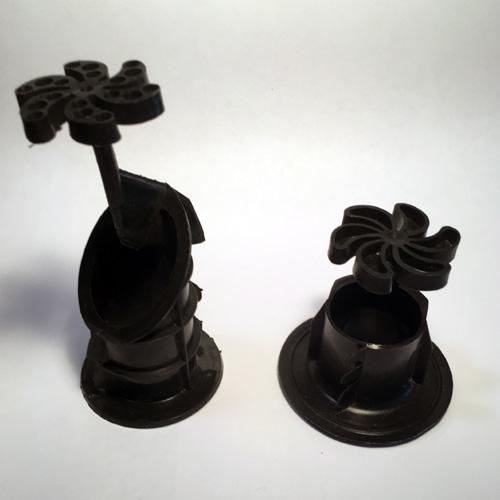

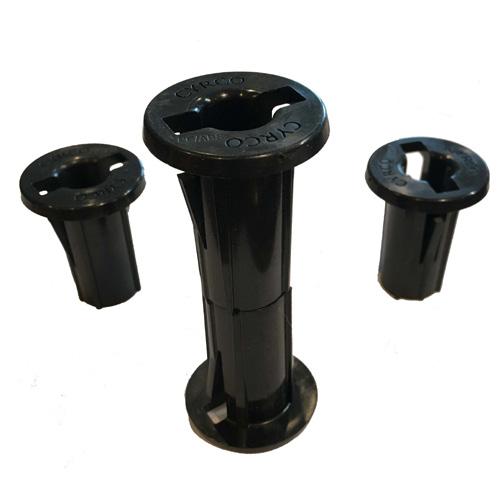

SFF Nozzles ATP Sprayer Nozzle Adapters
Spiral Target (Short & Long Stem)
BAC Nozzles (XF-4 thru -7)

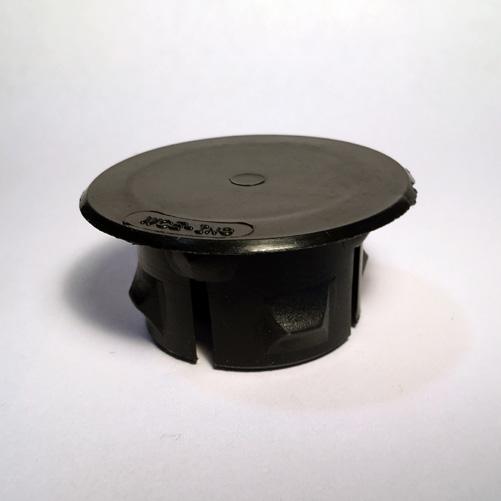

Target Nozzle Nozzle Hole Plug (1 3/4”)
(AA, A, & B)

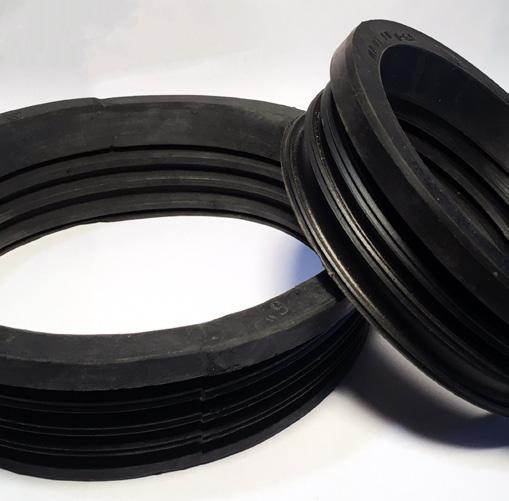

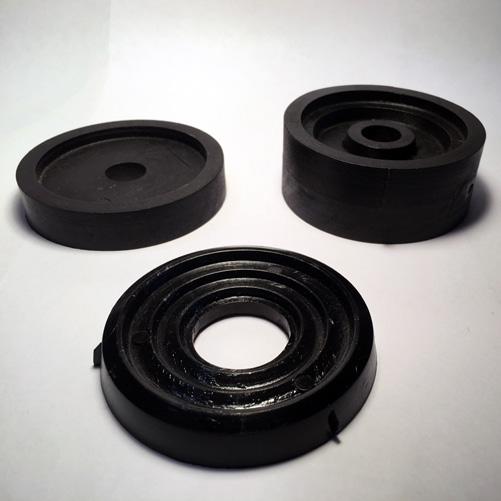

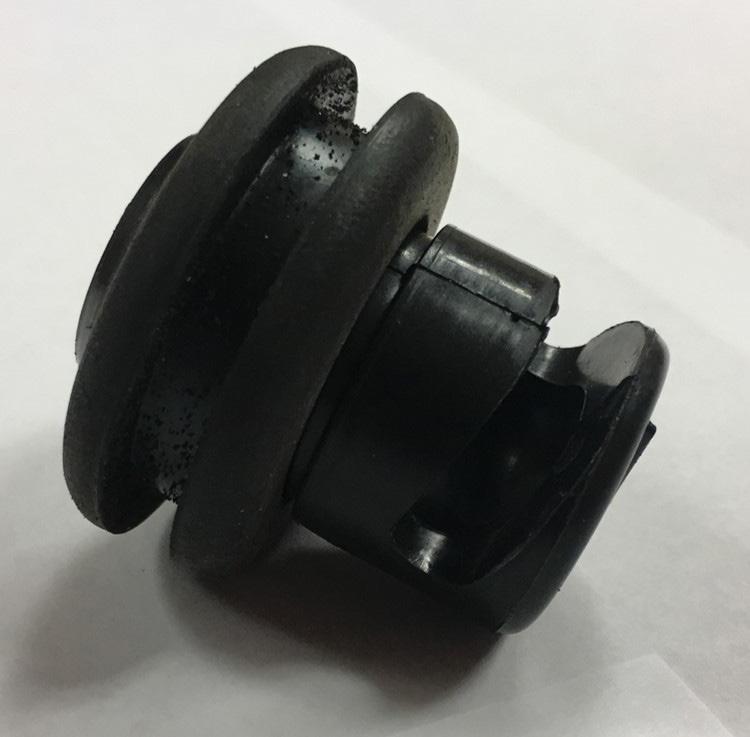

Rubber Branch Grommets
End Cap
Nozzle

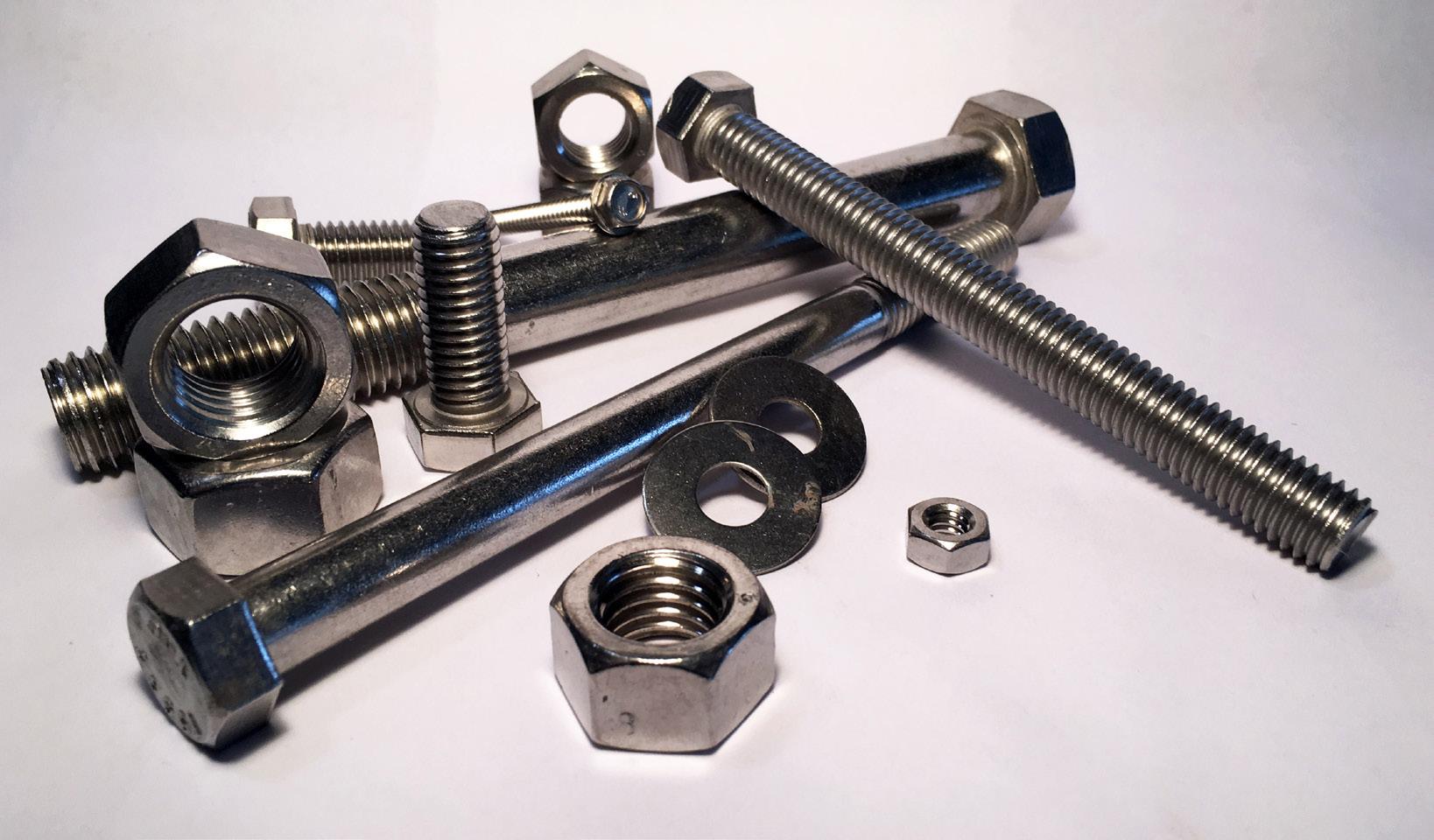

BOLTING HARDWARE
We stock series 300 stainless steel bolting hardware in diameters from 1/4” - 1 1/2”, available in lengths from 1”
these sizes includes:
-Flat washers
-Lock washers
-Fender washers
-Hex nuts
-Nylon insert lock nuts

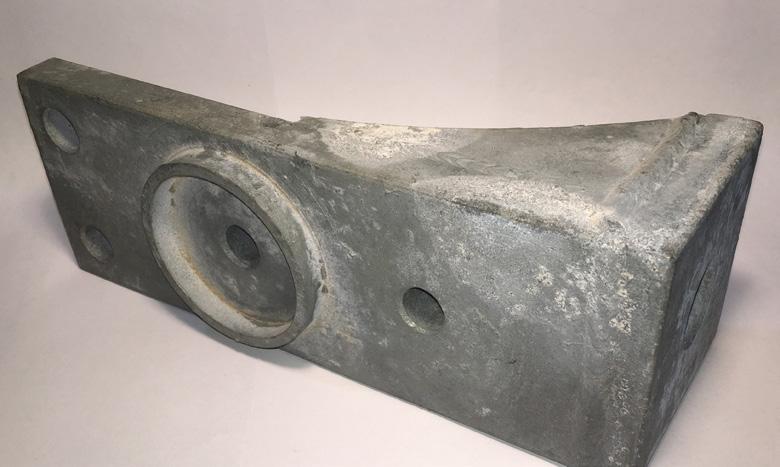

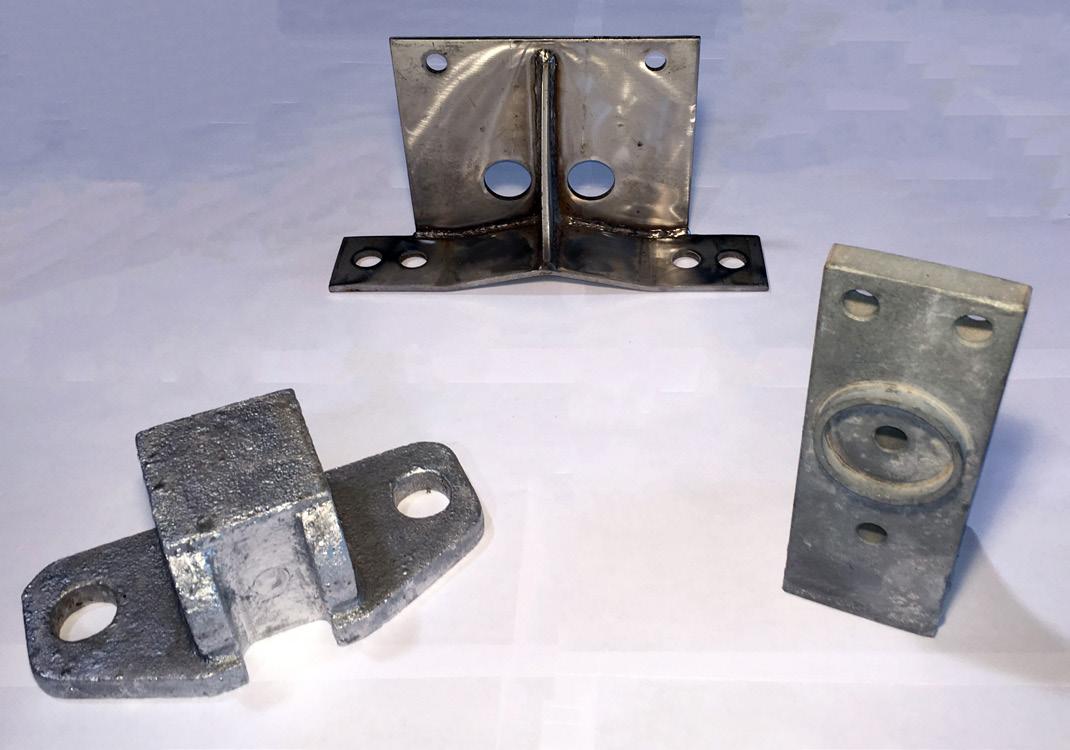

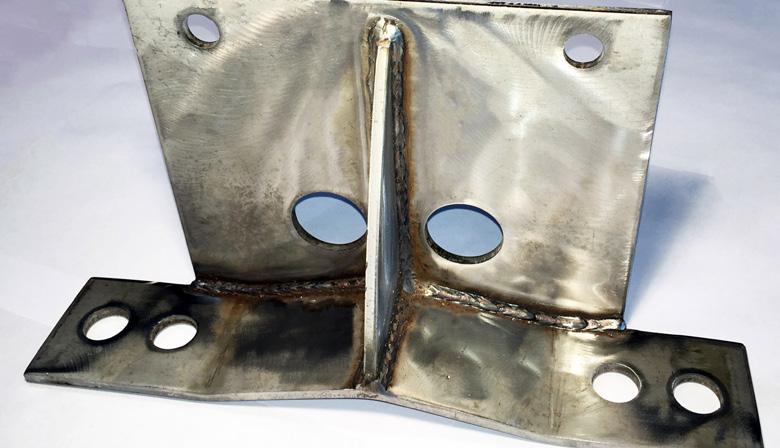

ANCHOR SHOES

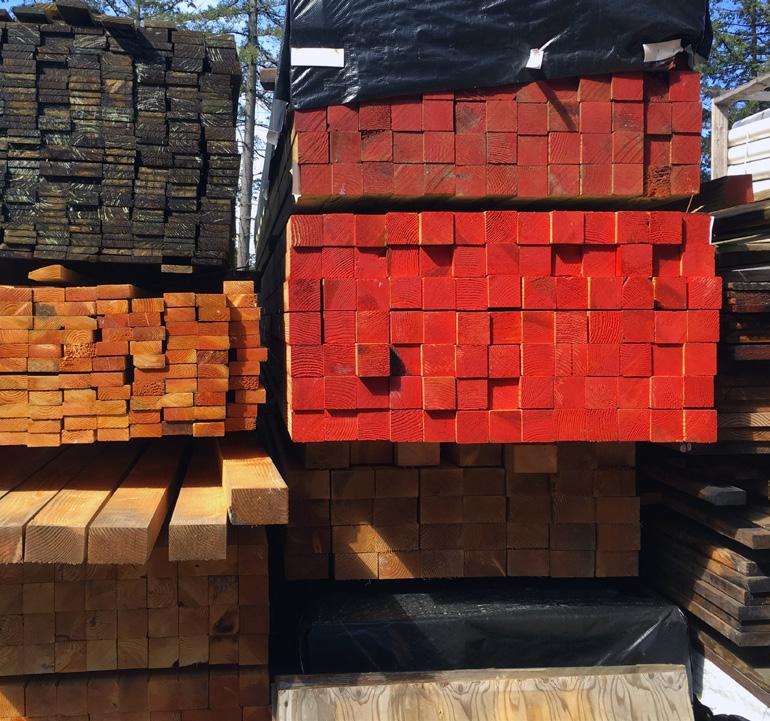

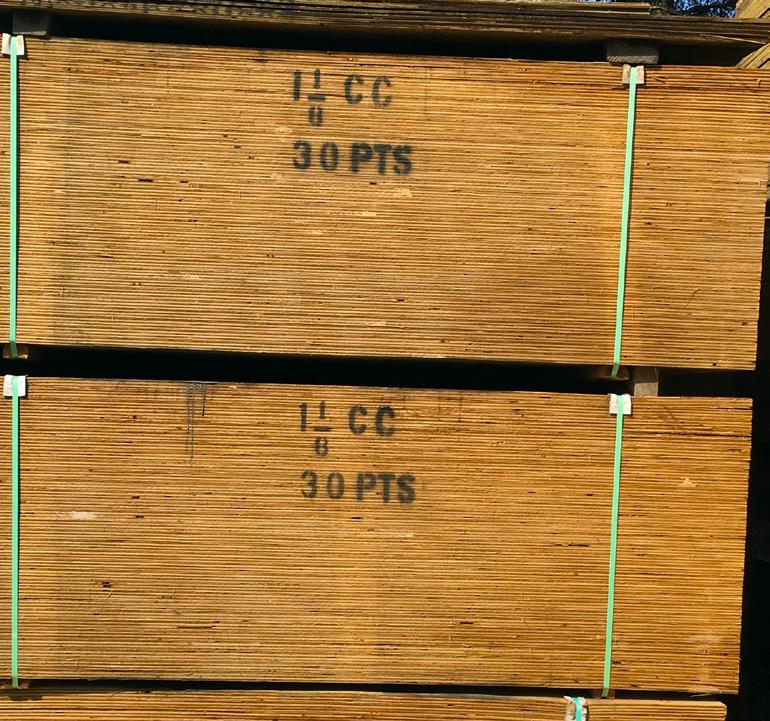

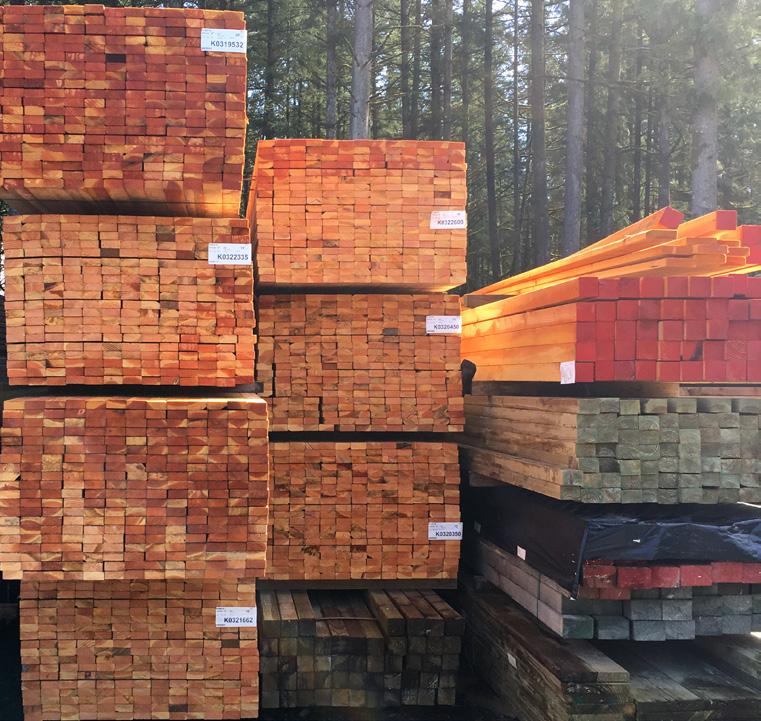

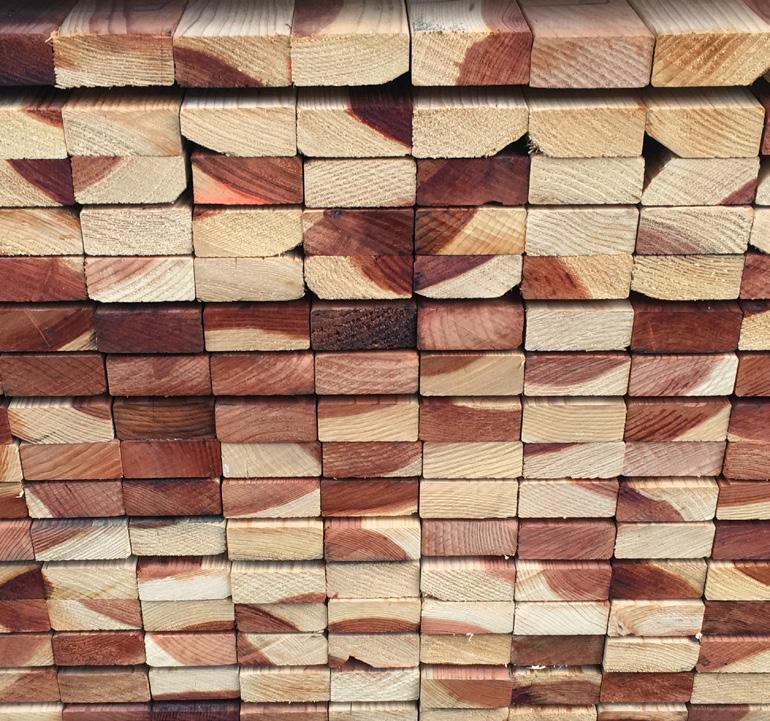

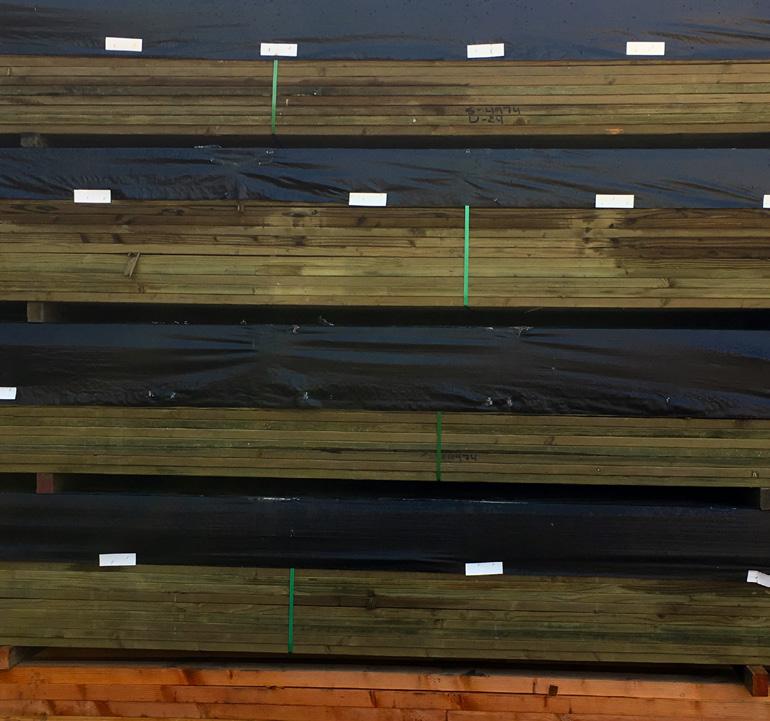

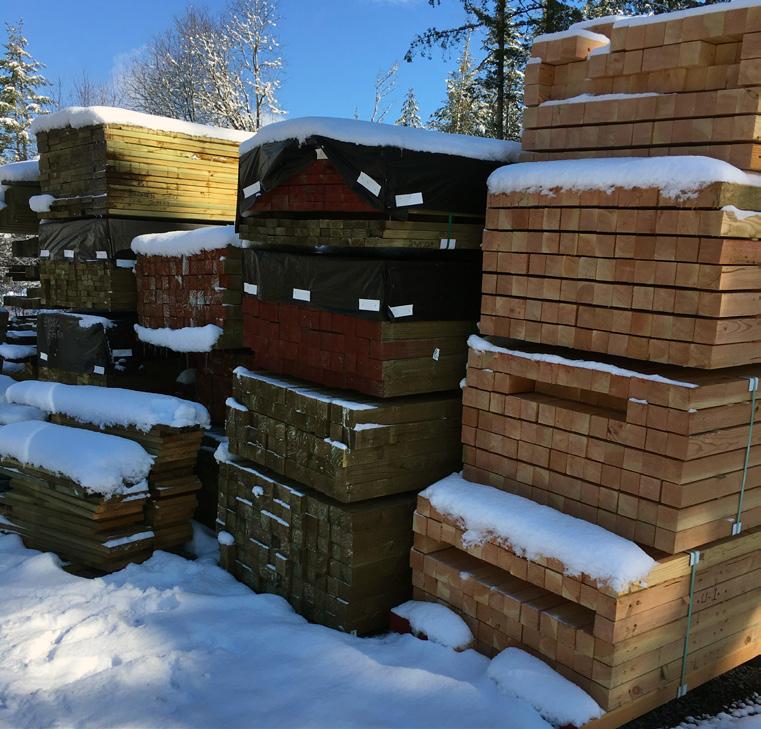

LUMBER & PLYWOOD

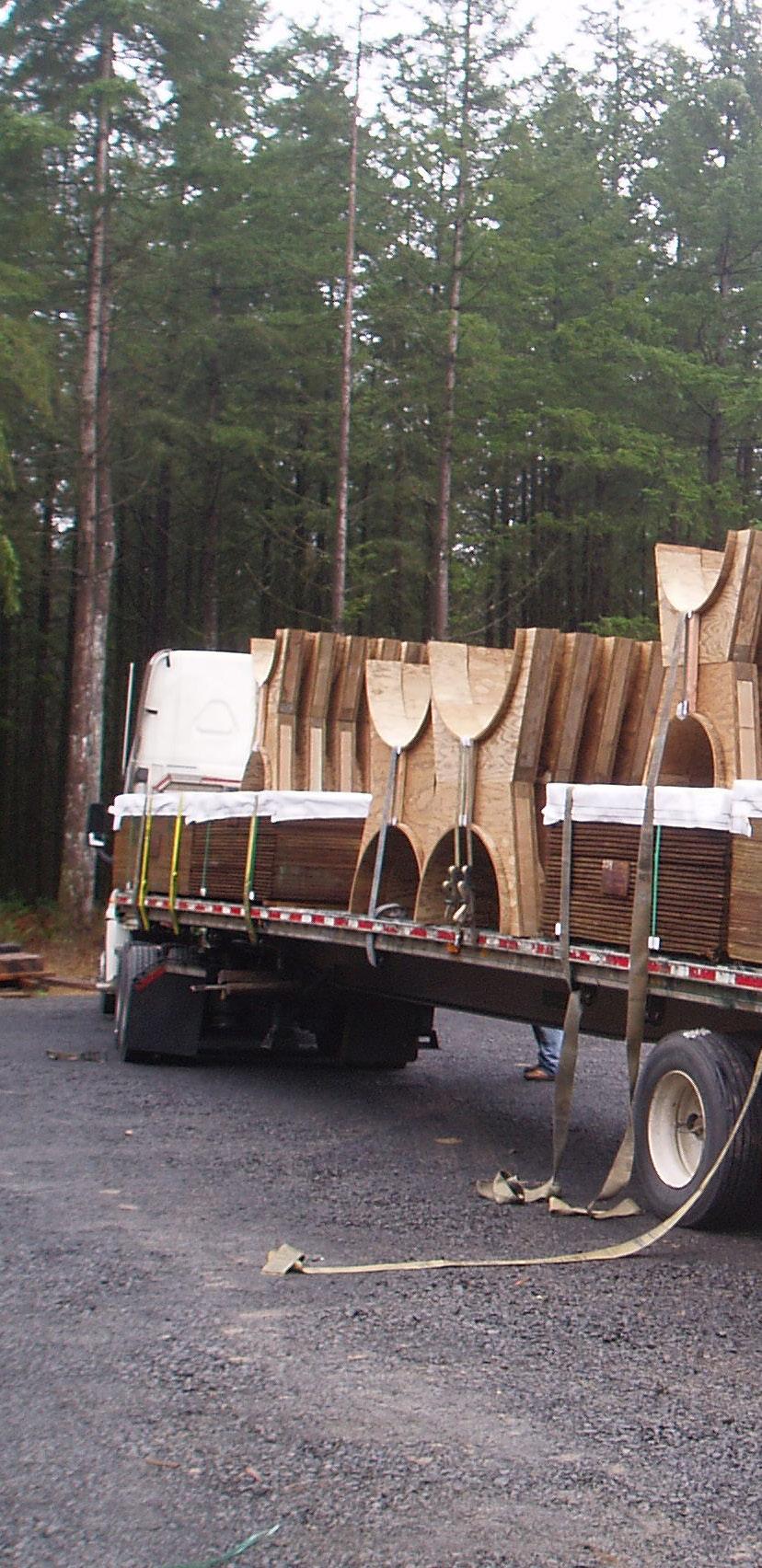

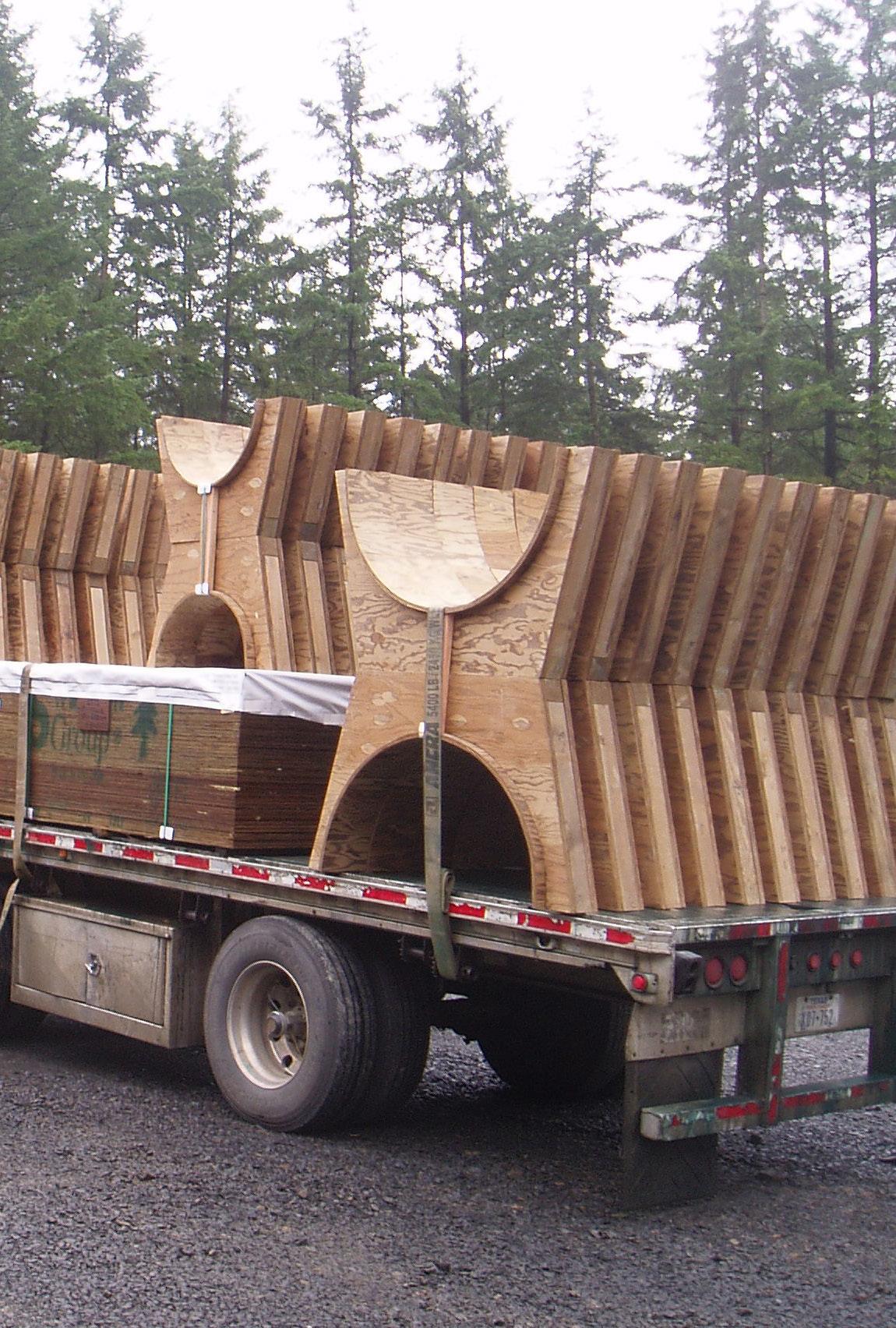

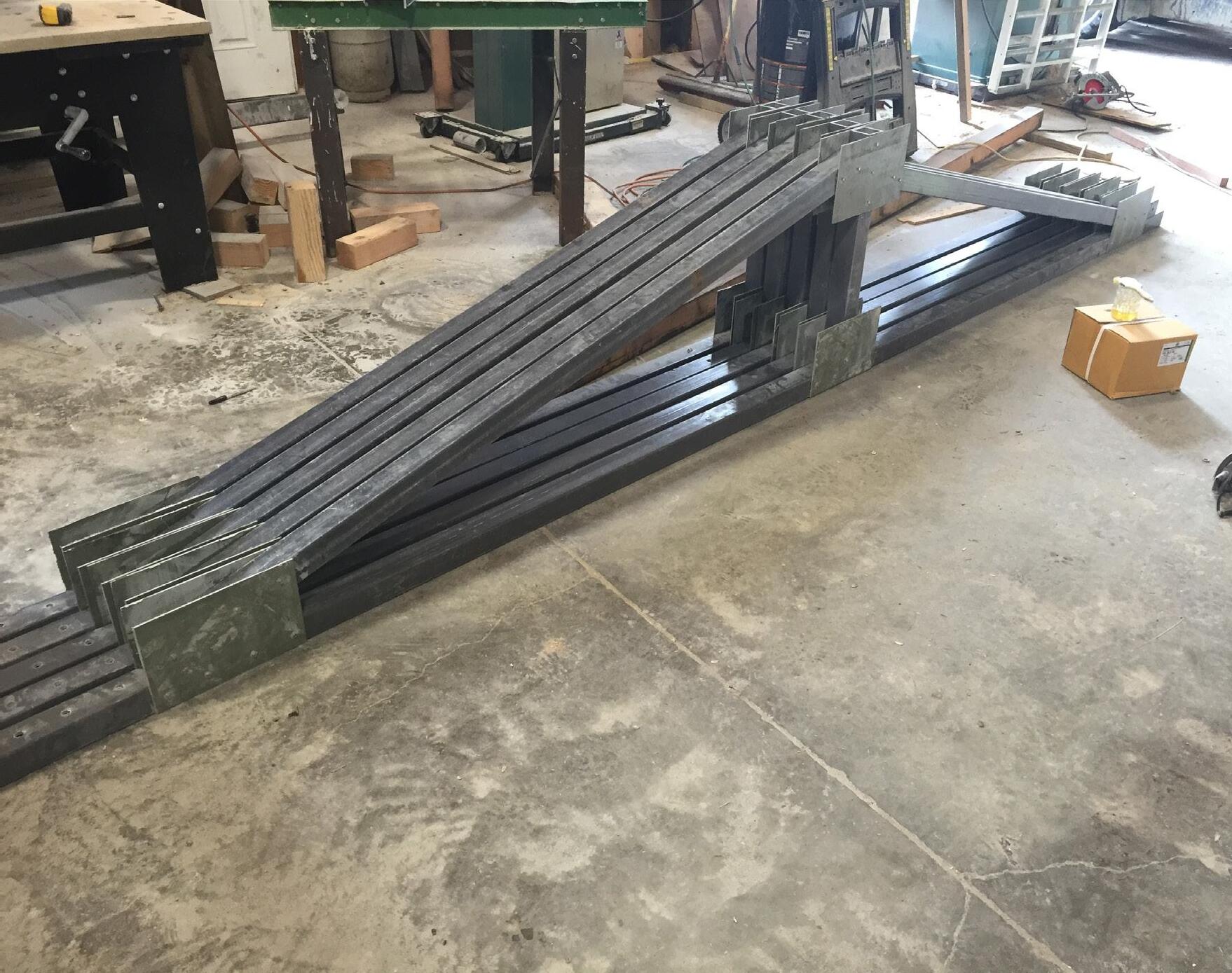

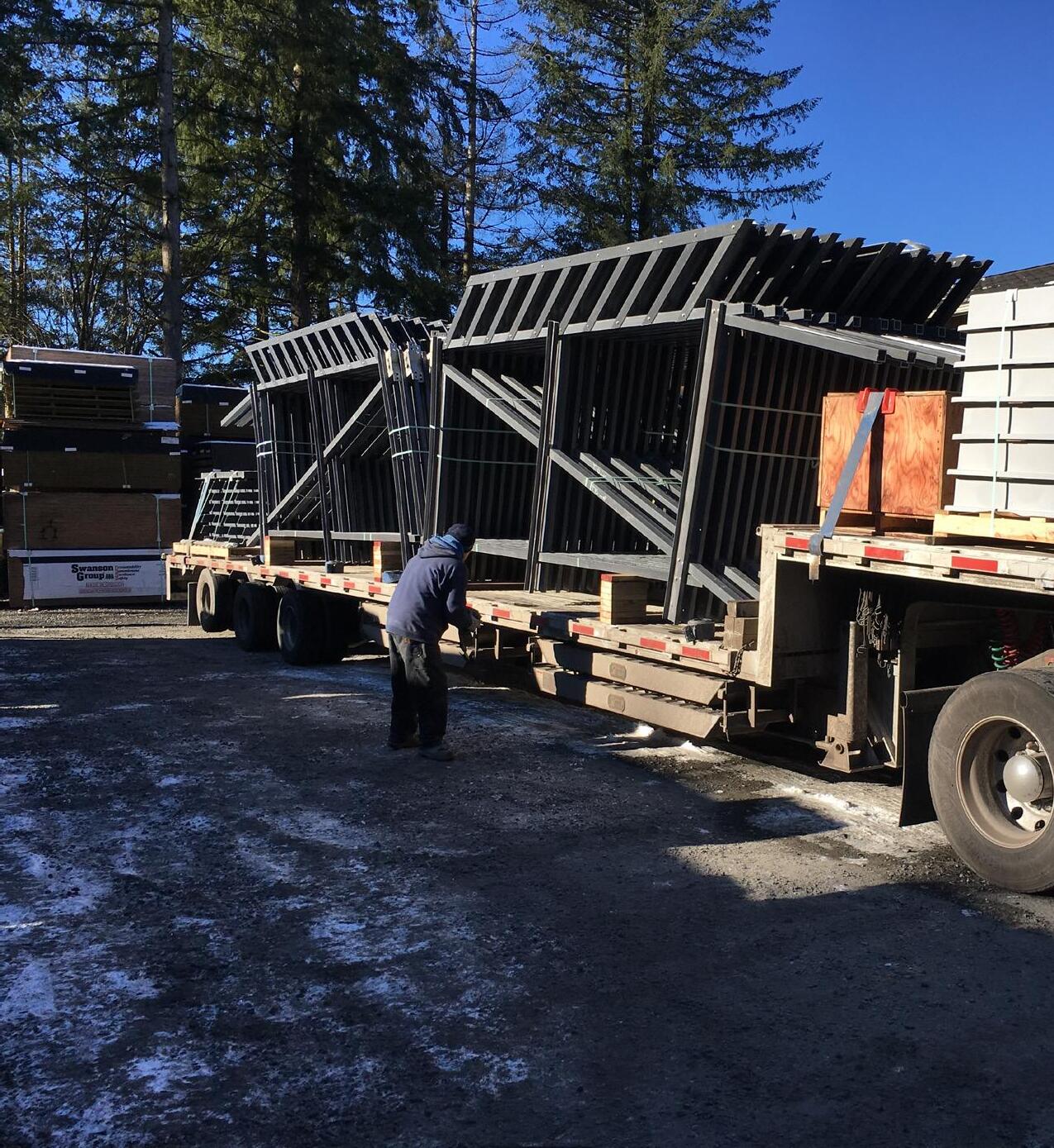

PRE-ASSEMBLIES

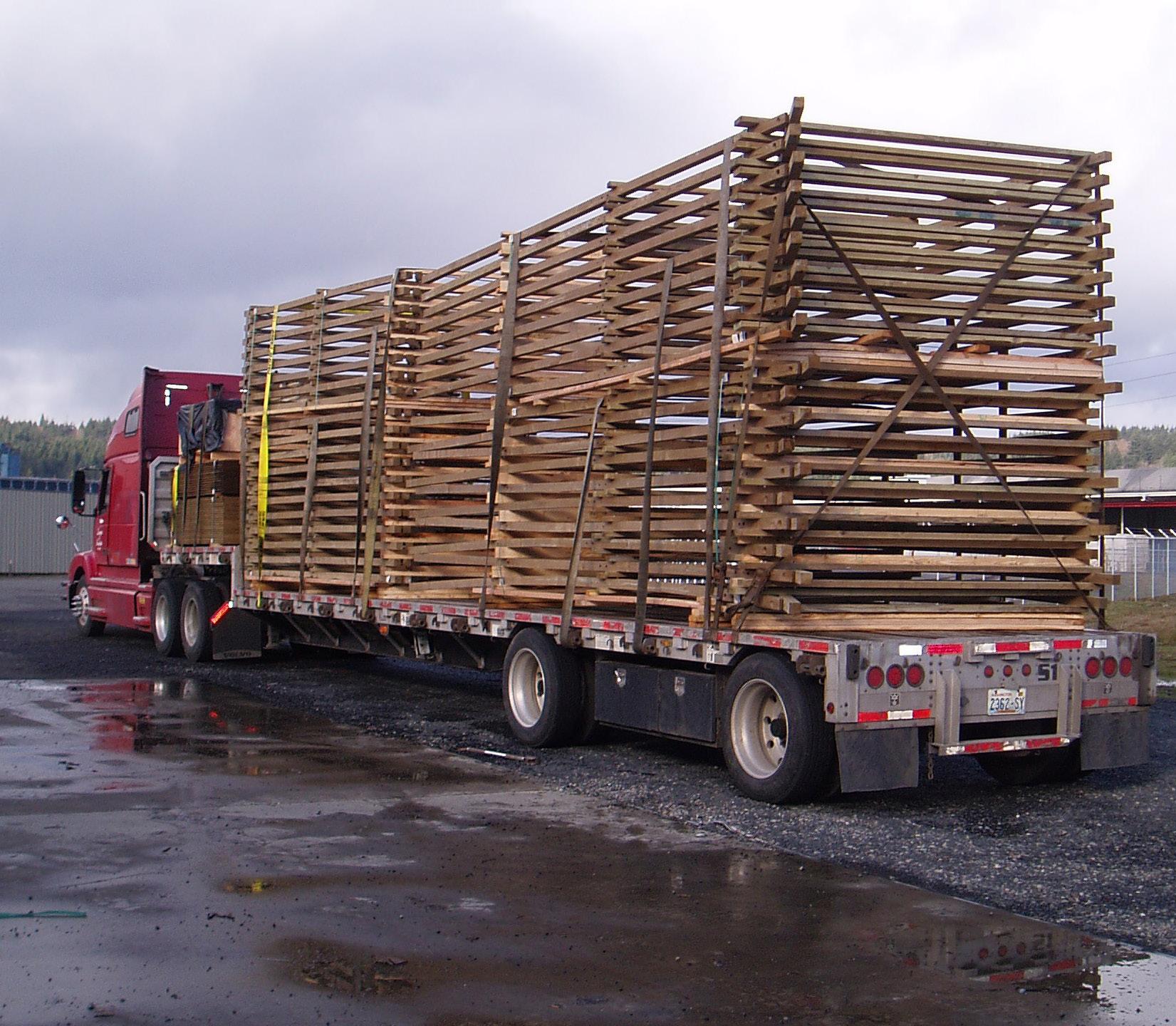

In addition to access ladders, doors, assembled bents, trusses, pipe saddles, mechanical equipment, and more,
OEM Replacement Parts
StarCooling Towers is a complete cooling tower supply company, offering a wide range of products to the cooling tower industry since 1951. Our large selection of quality OEM (Original Equipment Manufacturer) replacement parts are compatible with most models and manufacturers of cooling towers and they offer a high quality, reliable, low-cost alternative to expensive original equipment parts.
Call today for more details on th innovative component .
