SAMANTHA MCCULLAR
INTERIOR DESIGN PORTFOLIO
CONTENTS
BLENDED GOLDFINCH GROVE
ALPINE HAVEN
MODERN LUXE
DOWN TO DETAILS
RESIDENTIAL RESIDENTIAL RESIDENTIAL 01 02 03 04 05
HIGHER EDUCATION CCRC
GOLDFINCH GROVE
CONTINUING CARE RETIREMENT COMMUNITY
Time Span: 4 months
Group Project: Concept and design collaboration with Mira Selk and Sophia Trojcevksi
Our group was tasked with repurposing the old Park Fair Mall in Des Moines, IA into a senior living community. The design suits the needs of our users by providing a facility that supports resident’s autonomy and social support. Our design choices are derived from the Support Theory and the Environmental Load Theory. This research based care cultivates a harmonious environment that allows residents to have access to a variety of experiences within the community to connect with others, nature and with themselves.
01

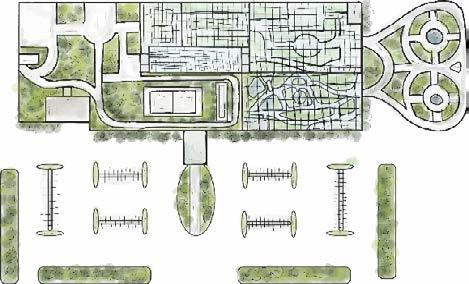

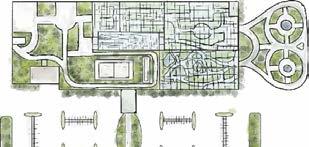

SKETCHED SITE PLAN
FLOOR PLAN KEY
RECEPTION
INDEPENDANT LIVING
A key driver in our spatial planning was to ensure that independent and assisted living apartments remained closeby to help elimate hesitation for those switching from independant to assisted. The residents would still be in close contact with those they are familiar with.
ASSISTED LIVING
AMENITY
COMMUNITY
WELLNESS I
WELLNESS II
SECOND FLOOR FLOORPLAN

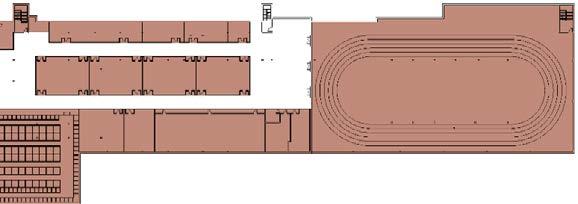

BASEMENT FLOORPLAN

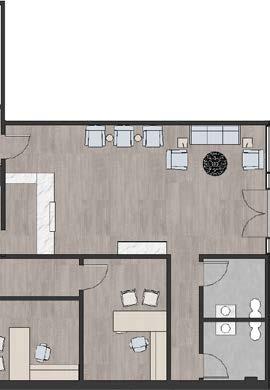

FIRST FLOOR FLOORPLAN

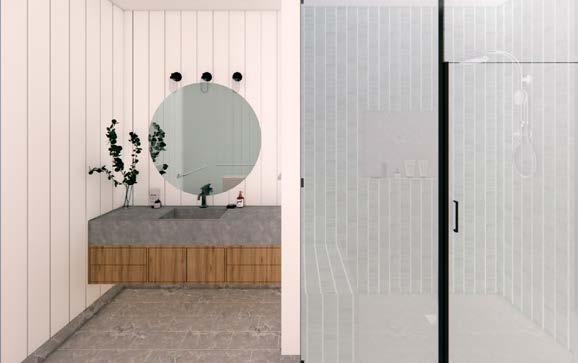

BATHROOM
KITCHEN

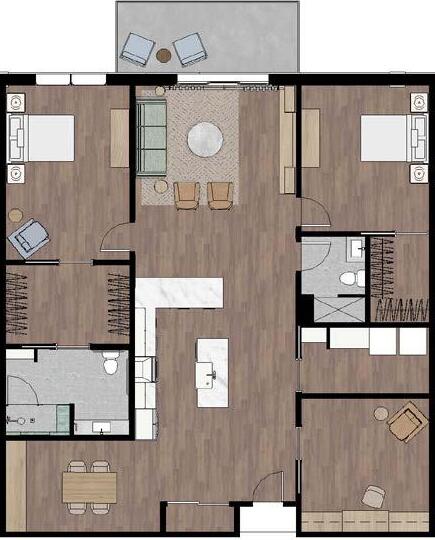

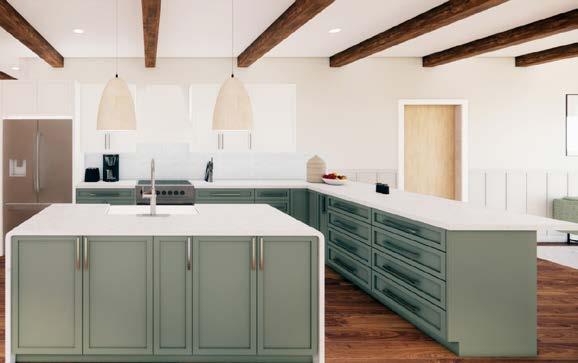

INDEPENDANT LIVING APARTMENT

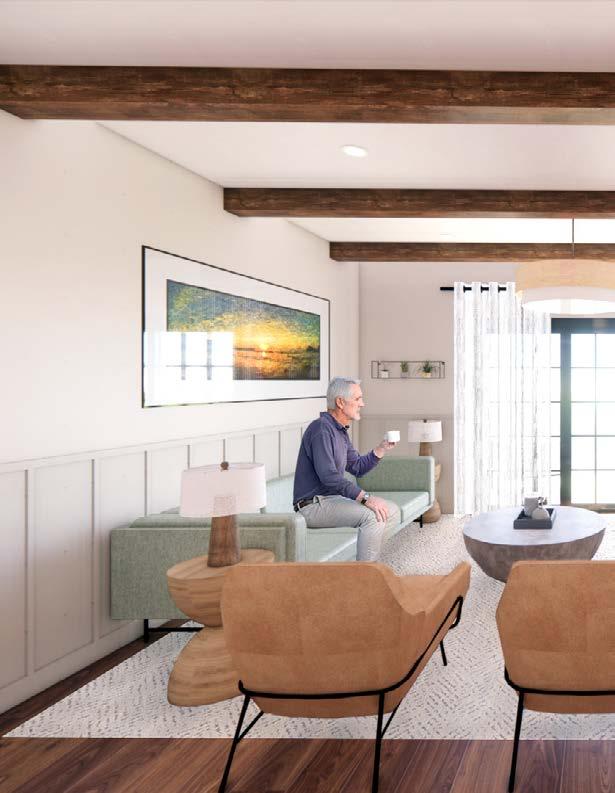

LIVING ROOM
PRIMARY BEDROOM
PRIMARY BATH BALCONY
KITCHEN
DINING
BEDROOM 2
LAUNDRY
DEN
KITCHEN BATHROOM
BATH
W.I.C.
W.I.C.
LIVING ROOM
WELLNESS II SUITE
COMBINED DR. AND DENTAL OFFICE
5 2 6 3 3 3 3 7 9 9 4 8 10 10

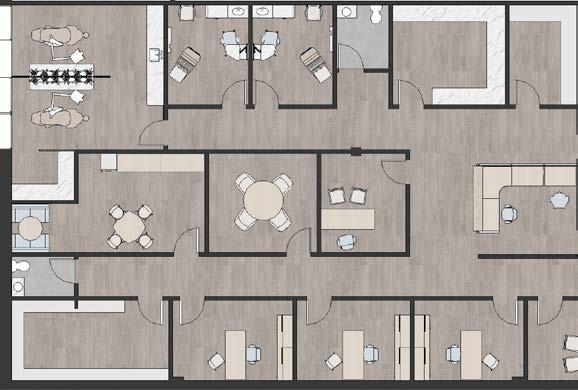

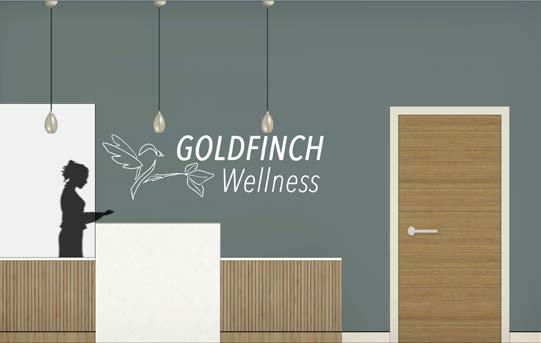

RECEPTION NURSE STATION STAFF OFFICE SUPPLIES BREAKROOM CONFERENCE CONSULTATION DENTAL EXAM MEDICAL EXAM LAB WORKROOM/PREP 1 1 5 2 6 3 3 7 9 4 8 10 RECEPTION DESK ELEVATION

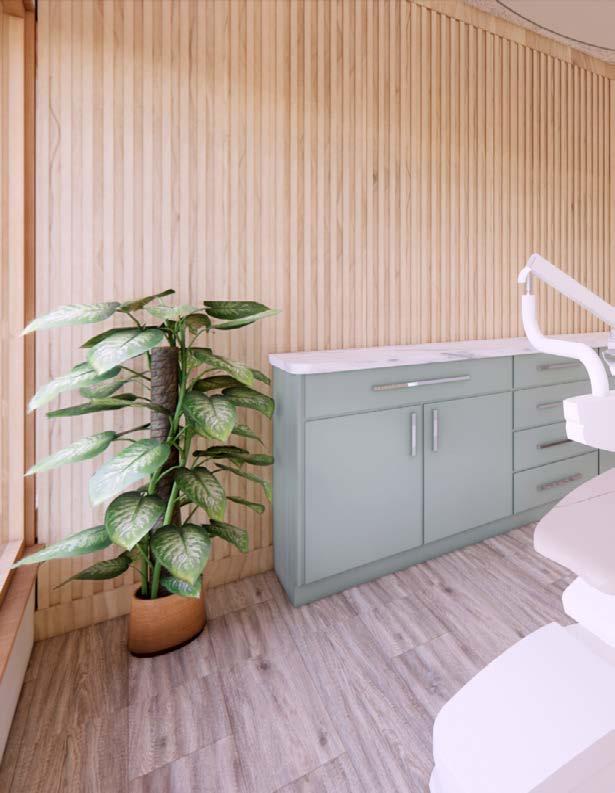

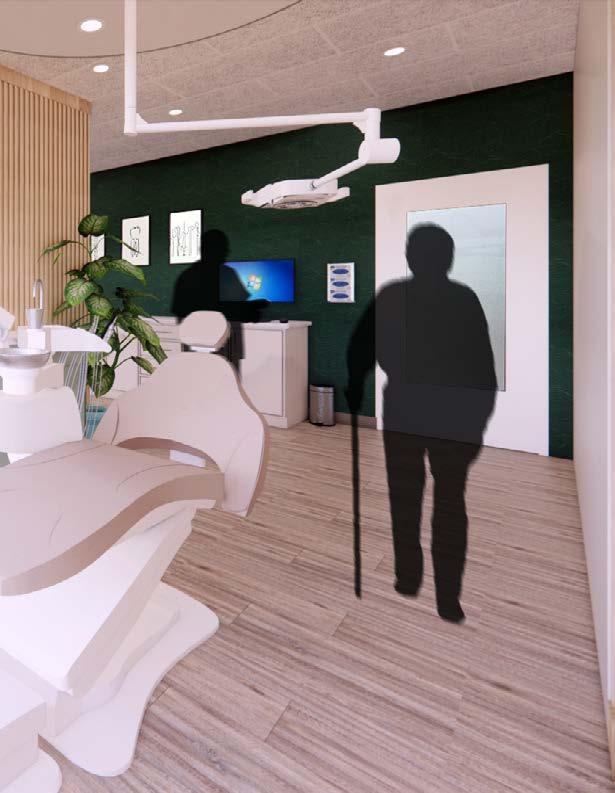

DENTAL EXAM ROOM

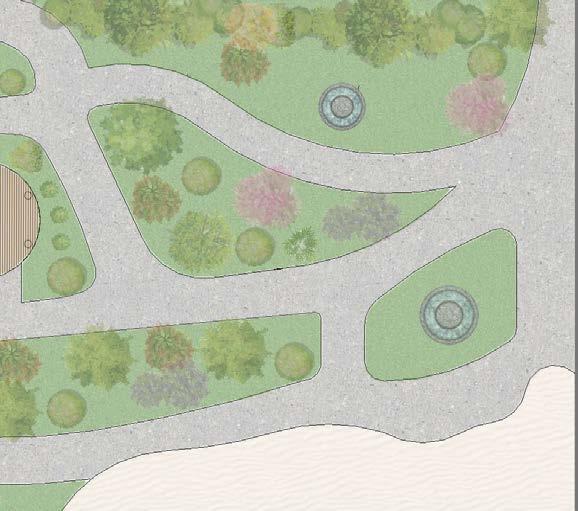

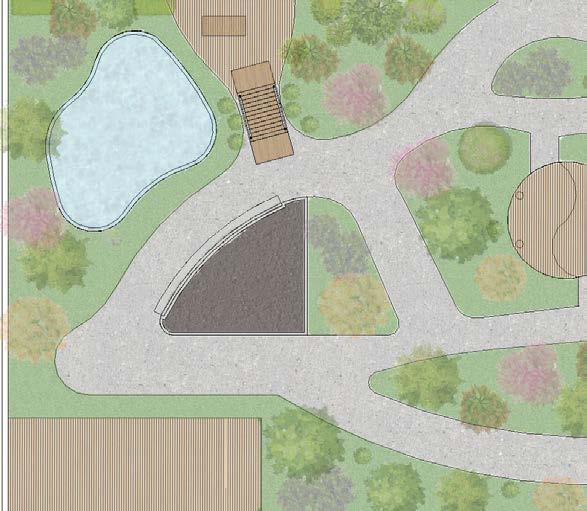

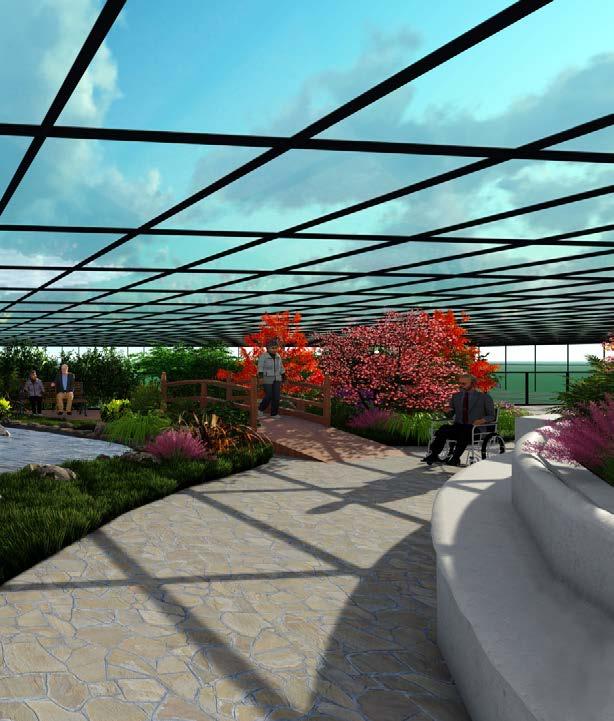

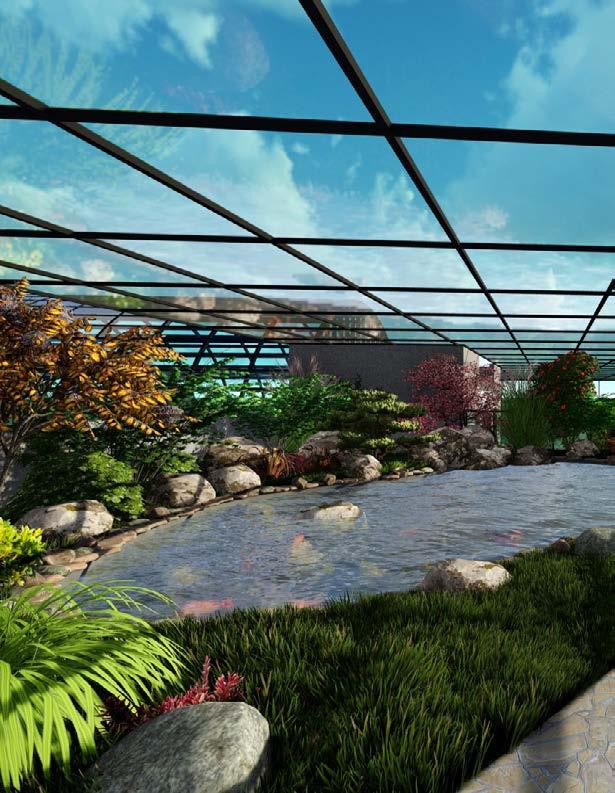

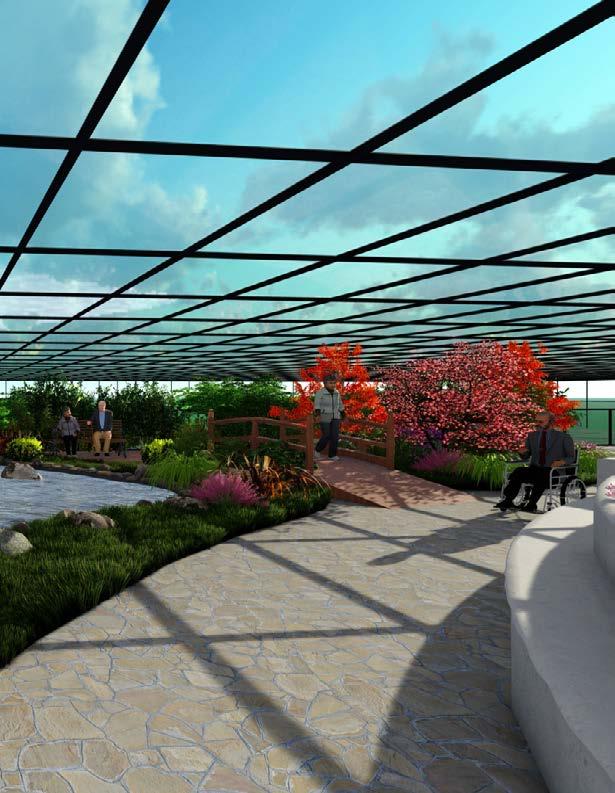

ROOFTOP WALKING GARDEN
GARDEN
ROOFTOP
02 BLENDED

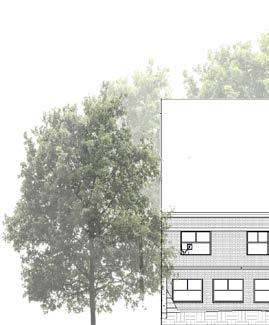

HIGHER EDUCATION BUILDING
Time Span: 2 months
Group Project: Concept and design collaboration with Gracie Stark and Saige Sturtevant
Blended is a new International Student Center on the Iowa State Campus that has been repurposed from the existing Landscape Architecture Building. The new center connects the different cultures of students and Iowa State. The design promotes and recognizes diversity through flexible spaces and furniture. A key driver in the project design is the Project Refuge theory in which promotes wellbeing and allows the users to feel safe and comforable in the interior environment by “seeing without being seen.”
b
USERS
IEOP STUDENTS
GRADUATE STUDENTS
USERS NEEDS
PHISIOLOGICAL
TEMPERATURE CONTROL
LIGHTING
STAFF AND FACULTY MEMBERS
PSYCHOLOGICAL
PRIVACY SECURITY
INTERACTION SOCIAL NEEDS
ACOUSTICS
NATURAL SUNLIGHT
PROGRAMMING & DESIGN DEVELOPMENT
MOOD BOARD
PRIVATE SOCIAL PUBLIC ZONES

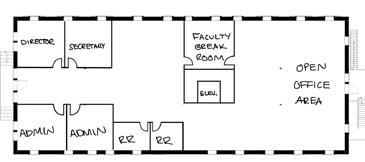

PLANS
BLOCKSECOND FLOOR
FIRST FLOOR
FLOOR
GROUND
1 6 5 4 3 2 LOUNGE SPACE GRADUATE OPEN OFFICES RESTROOMS JANITORS PRAYER WELLNESS

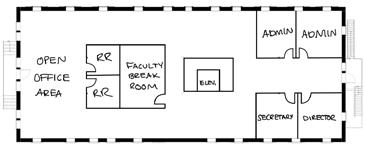

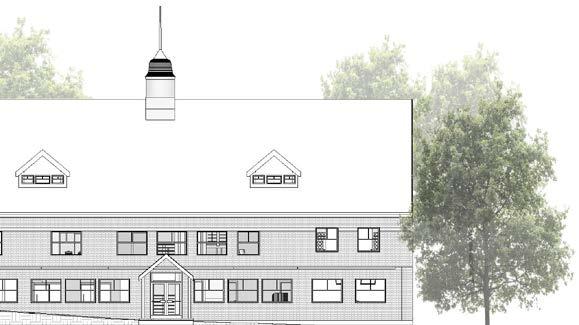

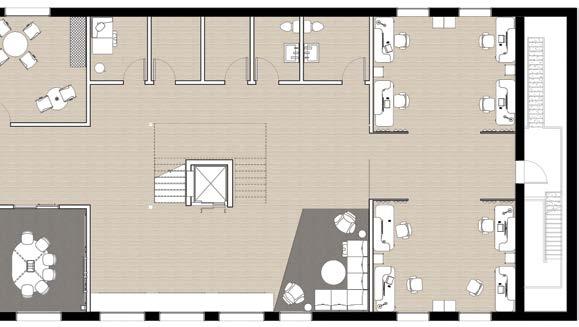

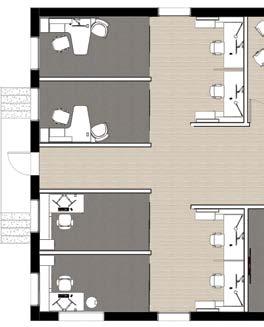

FLOOR FLOOR PLAN EXTERIOR ELEVATION JANITORS CLOSET PRAYER ROOM WELLNESS ROOM FACULTY BREAK ROOM FACULTY OPEN OFFICES PRIVATE OFFICE 1 9 8 7 7 6 5 4 3 3 2 2
FIRST

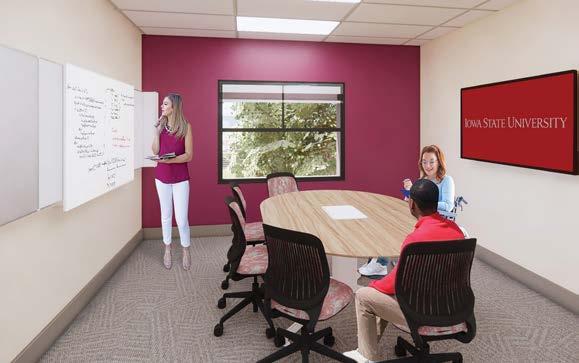

MEETING ROOM
LOUNGE
MILLWORK DETAIL
CUSTOM MADE FURNITURE

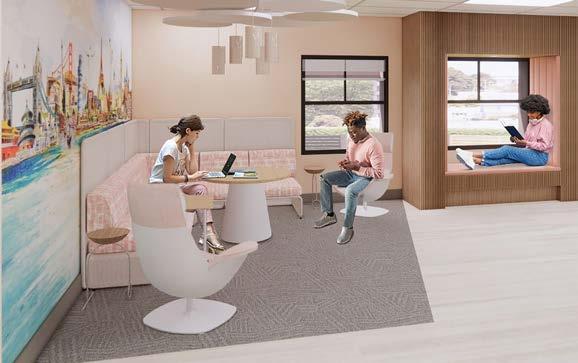

LOUNGE WINDOW BOOTH

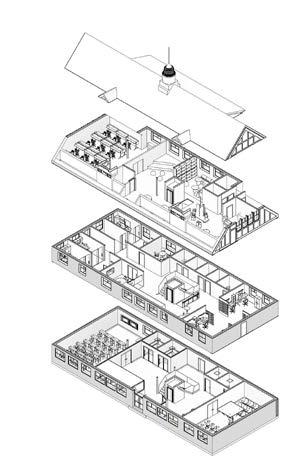

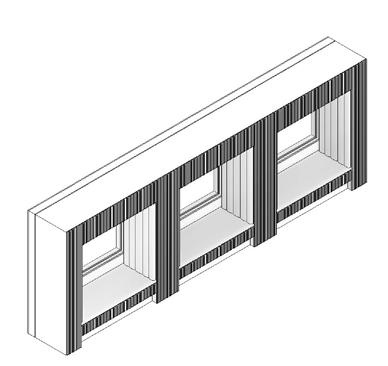

AXONOMETRIC VIEW

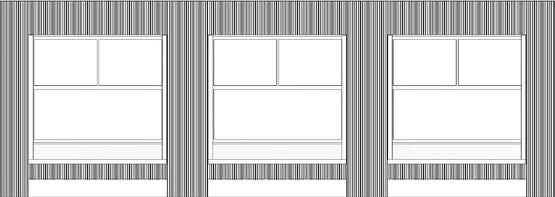

BOOTH ELEVATION
ROOM

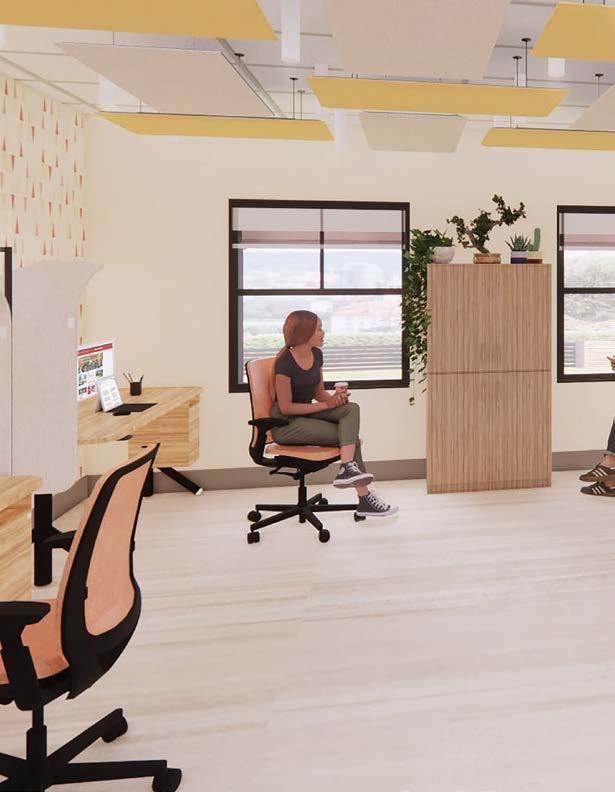

LOUNGE

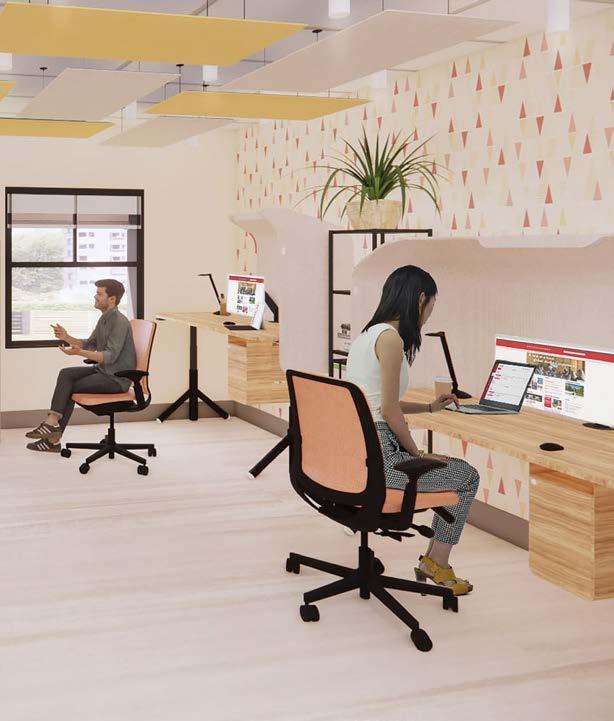

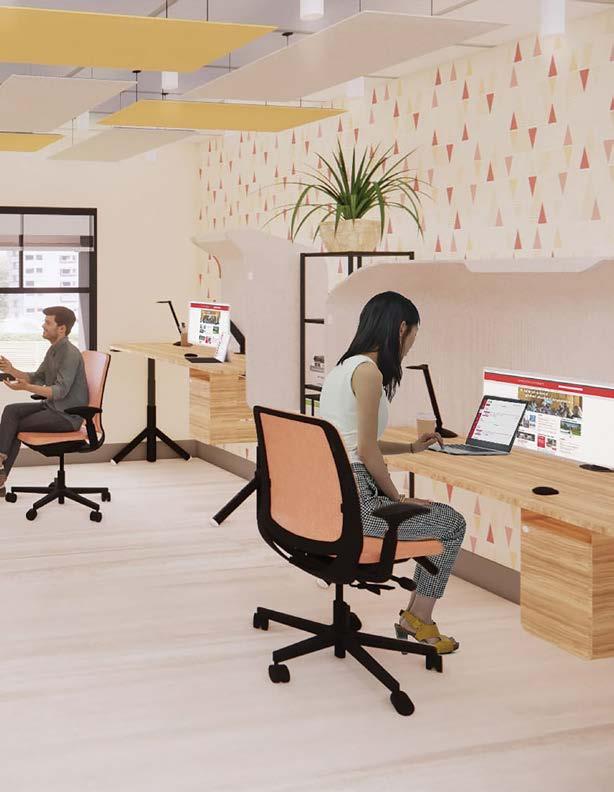

OPEN GRAD OFFICES
RCP NOTES
Dropped Ceiling @ 9' AFF
Acoustic panels hang 1' below dropped ceiling @ 8' AFF
3' 5 7/32" 4'1 9/16" 3'10 7/16" 2' 9 13/16" 3' - 6" 5' - 0 5/32" 3' 6" 3' 4 7/16" 3' 10 23/32" 3'3" 3' 3" 3' 10 23/32" 3' - 5" 3' - 3" 3' - 2 15/32" 0'5 5/16" 2' 8 11/16" 3'6" 3'5 15/16" 2'0 5/32" 4' - 6 29/32" 6' - 6 11/32" 3' 11 1/2" 1' 11 7/16" 3'11 1/2" 2'2 29/32" 4' - 6 29/32" 6' - 6 11/32" 4' - 6 29/32" 6' - 6 11/32" 2' 6 11/32" 3'11 1/2" 3' 11 1/2" 2'3 15/16" 4' - 10 7/8" 6' - 2 3/8" 6' 0" 3' 10 3/4" 6' - 4 11/32" 3' - 7 21/32"0' - 0" 4'4 7/16" 3' - 7 3/8" 0' - 0" 4'4 7/16" 2'11" 2'5 31/32" 7' - 0 21/32" 8' - 0" 8' - 0" 4' 0" 2'6 9/16" 8' - 0" 8' - 0" 8' - 0" 6' 0" 8'1 5/16" 7' - 11 7/8" 8' - 0" 6' - 4 11/32" Prayer Room 210 Wellness Room 209 Faculty Break Room 208 Open Faculty Office 203 Corridor 217A Group Meeting Room 201 Open Faculty Office 202 Faculty Office 205 Faculty Office 204 Secretary Office 206 Directors Office 207 open Stairs 217D
1/4" = 1'-0" 1 1ST RCP 9' AFF 8'
Armstrong Acoustical Cloud Panel
Snowsound Oversized Acoustical Panel
2' x 4' ACT System Compound Ceiling
Rectangle Recessed Light Fixture
Suspended direct light fixture
Rectangle LED Downlight
Round LED Downlight
6" Recessed LED
Exit sign
0' 2' 4' 8' 16' 3' - 7 3/8" 4'4 7/16" 4'4 7/16" 3' - 0 3/8" 4' - 8 3/4" 4'4 7/16" 8' - 0" 7' - 11 3/4" 4' - 0 1/4" 2'9 9/16" 6'0" 6'0" 6'0" 8' - 0" 8' - 0" 6'0" 6' 0" 8' - 0" 8' - 0" 5'0" 2' - 8 9/16" 3' - 3" 3' - 7" 3' - 6" 3' - 6" 3' 2" 3' 6" 3'5 15/16" 3' 7" 3'3 7/16" 4'5 9/16" 3' - 6" 3' - 5" 3' - 7" 3' - 6" 3' - 5" 3' - 7" 5' - 1 9/16" 2'4 29/32" 3'11 1/8" 2'1 1/16" 1'5 19/32" 2'6 3/8" 2'9 9/16" 0' - 2 7/8" 0' - 5 25/32" 0' - 5 1/2" 0' - 7 11/16" 3' - 11 9/16" A931 2 ADA Restroom 213 Restroom 212 Janitors Closet 211 Lounge Space 216 Corridor 217B Corridor 217C Open Grad Office 215 Open Grad Office 214 open to above
CONSTRUCTION DOCUMENTS
RCP LEGEND
Scale Checked by Drawn by Date Project number Original drawing is A1(840mm x 594mm). Printed on ARCH D (24in x 36in). Do not scale contents of this drawing. Sheet Number Sheet Title Project name Key Plan Professional Seals Description No. Approved by Prepared For Company logo As indicated REFLECTED CEILING PLAN1ST 21.001.01 International Student Center Sam M. Gracie S. A302 612 FARM HOUSE LN AMES, IA 50011-1068 SGS Designs 715 Bissell Rd Ames, IA 50011 Julie Irish IOWA STATE UNIVERSITY AFF
All outlets 15" AFF unless specified
All switches 48" AFF unless specificed
GFI GFI TV TD TD TD TD TD D D D 2 2 2 2 2 2 2 2 3 3 3 Open Faculty Office 203 Directors Office 207 Secretary Office 206 Faculty Office 205 Faculty Office 204 Open Faculty Office 202 Faculty Break Room 208 Group Meeting Room 201 Wellness Room 209 Prayer Room 210 Corridor 217A 1' - 6" 3' - 8 3/4" 2'0 27/32" 3'4" 5'1" 3'6 7/16" 5' - 7 15/16" 5' 6 7/16" 4'5" 3' 8 21/32" 6'1 7/16" 3' 10 23/32" 0' - 6 3/8" 9' - 4 7/16" 5' - 0" 1' - 0" 6' - 0" 7' - 6" 6' - 6" 1' - 0" 3'4 9/32" 6' - 6" 0' - 9" 6' - 3" 2' - 9" 7' - 0" 1'0 3/4" 0' - 8" 2' - 10" 7' - 11 17/32" 6' - 0" 4'3 1/32" 2' - 11 3/4"0' - 6" 3' - 6" 4' 9 1/2" 6' - 0" 3' - 7 7/8" 1' - 1 1/8" 3' 8 3/8" 5'9 9/32" 9' - 5 5/16" 1' - 6" 0' - 10" 0' - 7" 0' - 5" 0' - 5 3/8" 0' 8 29/32" 0'6 3/32" 6'6" 3' - 7 3/8" 5'3" 4' 6" 4' 9" 1'0" 5'6" 4' - 3 15/32" 7' - 10" 8' - 2 1/2" 7' - 10 1/4" 5' - 2 3/4" 1'0" 4' - 0 9/32" 3' - 7" 0' -0'8" - 6" 2' 7" 3' - 0" 3' - 6" 3' 11" 3' 11" 0' - 6" 0' - 7" 4' 0" Stairs 217D
POWER POWER AND DATA LEGEND
1/4" = 1'-0" 1 1ST POWER & DATA PLAN
Power panel
TV
Internet
Duplex GFCI Outlet
Duplex Outlet
Floor Outlet-duplex
Dimmer Switch
Single Switch
Double Switch
Three-way Switch
CONSTRUCTION DOCUMENTS GFI GFI GFI GFI 2 2 2 2 2 3 3 TV TD GFI D 2 3 0' 2' 4' 8' 16' Janitors Closet 211 Restroom 212 Corridor 217B ADA Restroom 213 Open Grad Office 214 Corridor 217C Open Grad Office 215 Lounge Space 216 7' - 10" 7' - 1 7/16" 5' - 5" 4' - 2 27/32" 12' - 10 1/8" 5'8" 1'0" 1'7" 2' 4" 3' - 10" 4'0" 1' 6" 3' - 10" 0' - 6" 4' - 1 13/32" 0' - 6" 0'6 29/32" 1'0 29/32" 3' 9" 8'2 1/16" 3'5" 8' - 2" 5' - 10 9/16" 3'8 19/32" 8' 0 13/32" 8' - 2" 5' - 2 3/4" 8' 2 23/32" 2' 11" 0' - 8 1/2" 2' 3" 4'6" 3' - 2 5/8" 3'6 1/2" 0' - 7 5/8" 1'6" 1' - 0" Stairs 217D POWER AND DATA LEGEND
Scale Checked by Drawn by Date Project number Original drawing is A1(840mm x 594mm). Printed on ARCH D (24in x 36in). Do not scale contents of this drawing. Sheet Number Sheet Title Project name Key Plan Professional Seals Description No. Approved by Prepared For Company logo As indicated POWER & DATA PLAN - 1ST 21.001.01 International Student Center Author Checker A212 612 FARM HOUSE LN AMES, IA 50011-1068
Designs 715 Bissell Rd Ames, IA 50011 Approver IOWA STATE UNIVERSITY
SGS

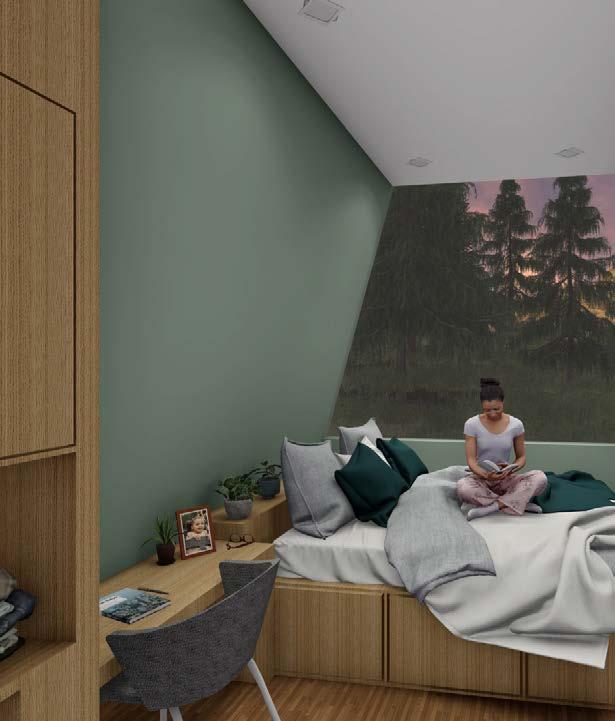

ALPINE HAVEN
RESIDENTIAL TINY HOME
Time Span: 1 Month
Solo Project
Alpine Haven, located in the mountainous ranges of Montana, is designed for a couple looking to connect with nature and escape the hectic life of the city. Alpine Haven aims to be sustainable by using locally sourced and recyclable material for construction while giving ample space for simple and efficient living. With being equipped with off-grid systems, such as solar panels and a rooftop garden with a rainwater harvesting system, and automated modular glass panels, Alpine Haven provides the user with the capabilities to interact and connect with their surrounding environment.
03
1.
INSPIRATION
SHAPE OF MOUNTAIN
2.
SIMPLIFY
TAKE OUT HARSH CURVES AND SIMPLIFY TO CONE SHAPE
3.
4.
GEOMETRICAL FLATTEN TOP AND PUSH OUT SIDES
5.
SPLIT SPLIT SHAPE INTO TWO SEPERATE AREAS OF HOME
PUSH APART
PUSH THE TWO SHAPES APART AND ADD CONNECTING SECTION BETWEEN
6.
DETAILS
ADD WINDOWS, FLOORS, SOLAR PANELS, AND GARDEN

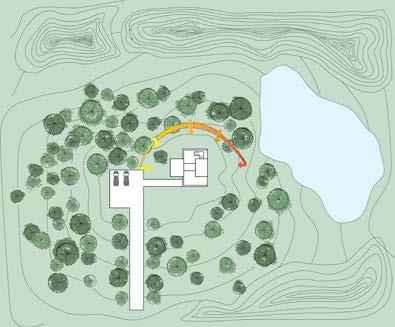

SITE PLAN

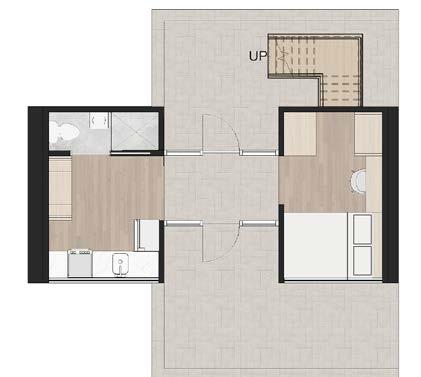

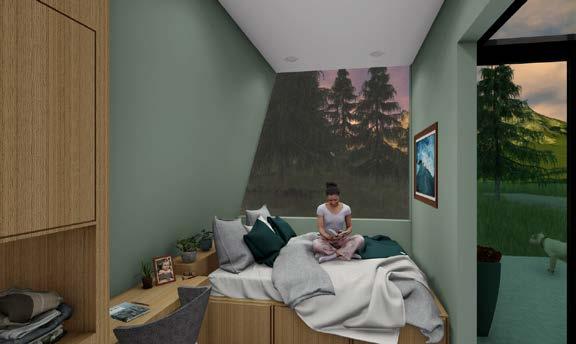

FLOORS, GARDEN PUSH FLOOR PLAN 1 2 3 KITCHEN BATHROOM BEDROOM LAUNDRY/STORAGE 1 2 3 4 4 BEDROOM

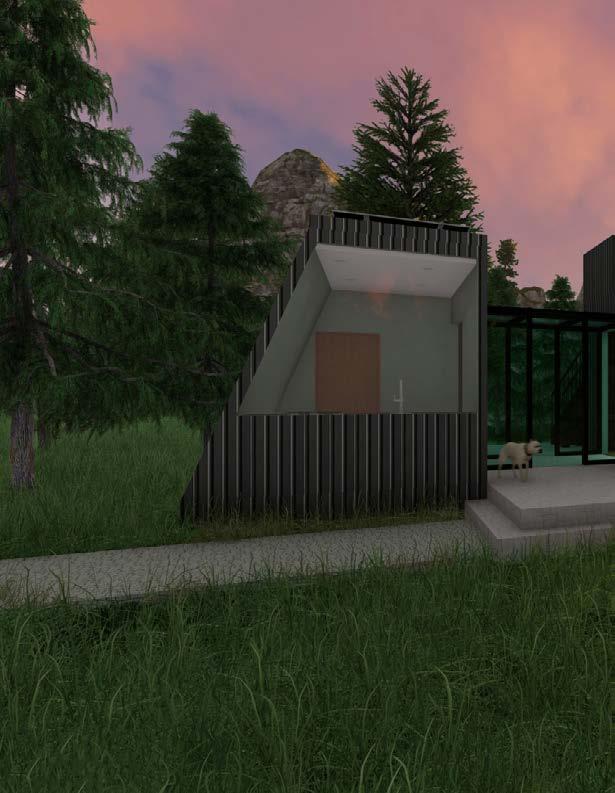

EXTERIOR VIEW
04 MODLUXE RETREAT
RESIDENTIAL FURNISHING
Time Span: 2 Months
Professional Work
ModLuxe Retreat, a 6,000 sq. ft. home located in Dallas, TX, is a residential furnishing project that blends modern luxury with the simplicity and elegance of minimalistic design that prioritizes comfort and style. Over the course of just two months, from conceptualization to installation, every aspect of the home was curated to reflect the client’s love for clean lines, sophisticated accents, and a neutral color tone palette.

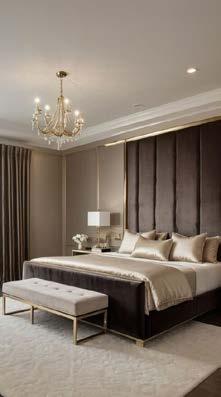

A floor-to-ceiling upholstered headboard envelops the plush king-sized bed, draped in silky linens and accentuated by oversized pillows, creating an intimate and luxurious retreat. Rich, darker tones add a touch and allure, infusing the space with a sensual atmosphere.

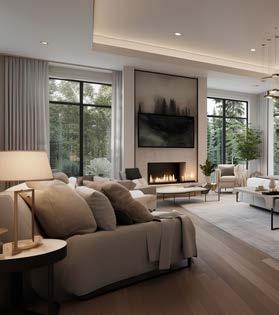

FIREPLACE PERSPECTIVE

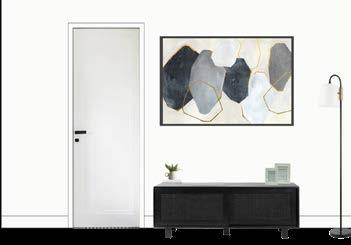

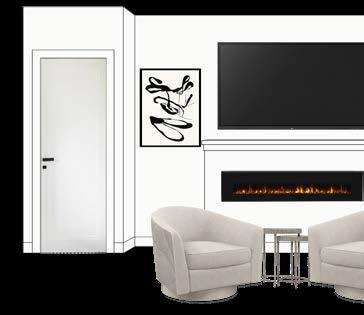

FIREPLACE ELEVATION

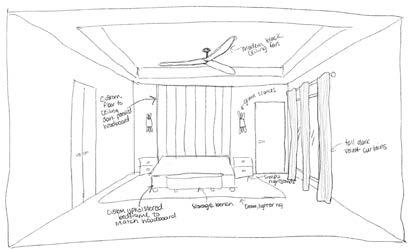

PRELIMARY SKETCH

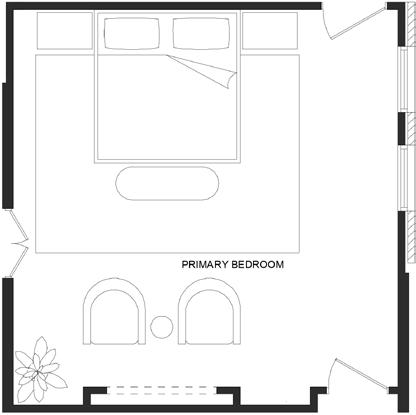

SPATIAL PLAN

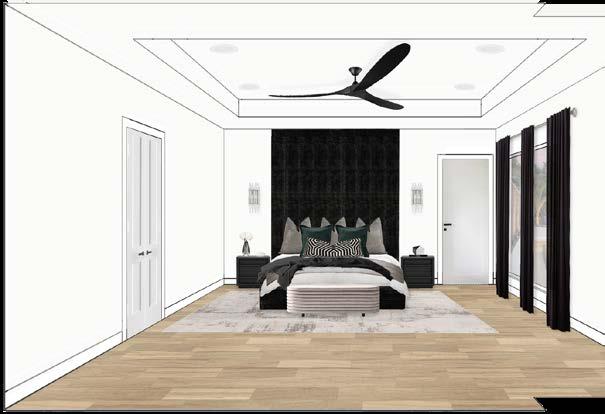

PERSPECTIVE
PRIMARY BEDROOM

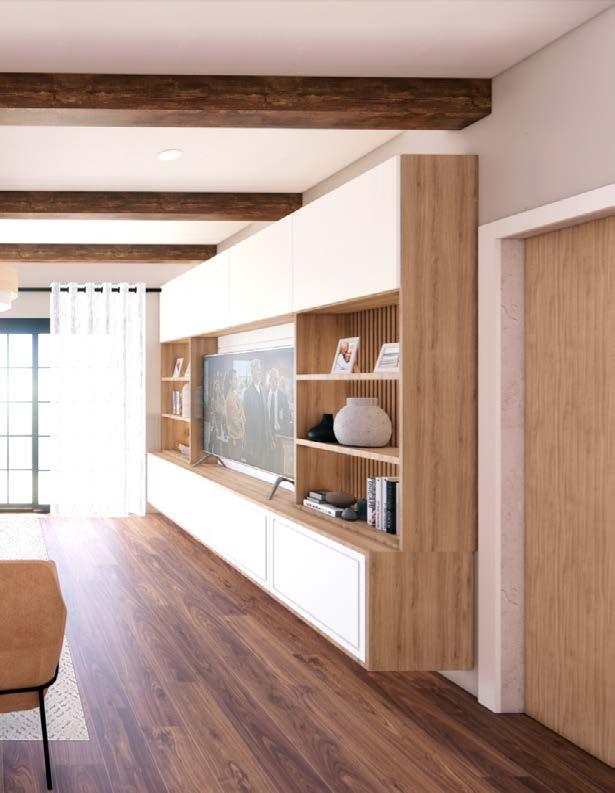

CONSOLE PERSPECTIVE

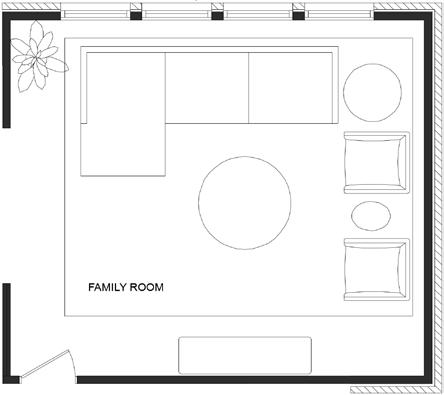

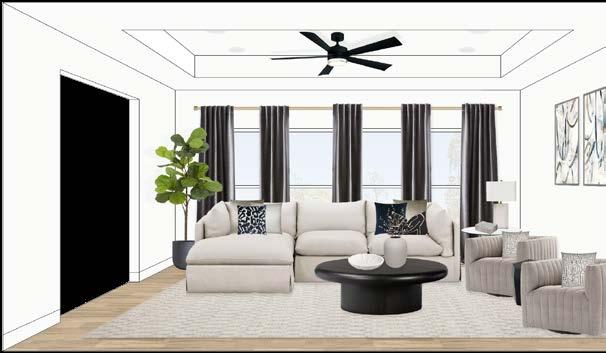

SPATIAL PLAN CONSOLE WALL PERSPECTIVE FURNITURE PIECES FAMILY ROOM
PERSPECTIVE

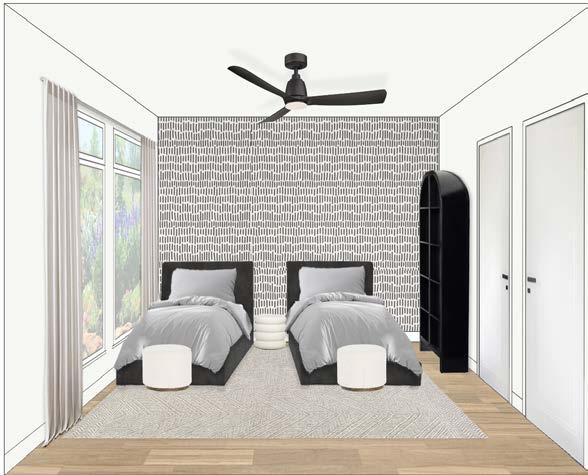

With the the clients having a boy and a girl in this room, we wanted to keep the color palette neutral. The wallpaper and rug patterns bring in a youthful aspect to the space and the styling pieces in the bookcase and art were great ways to add color to the room.

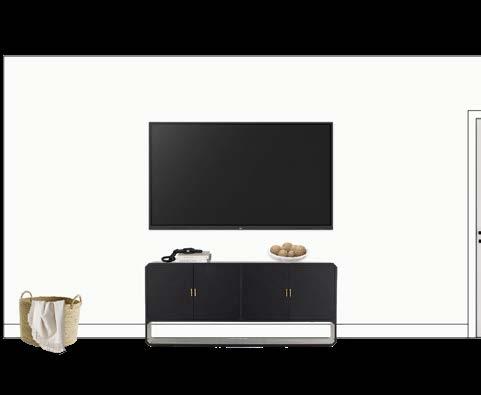

CONSOLE WALL
WALL PERSPECTIVE FURNITURE AND STYLING
SPATIAL PLAN

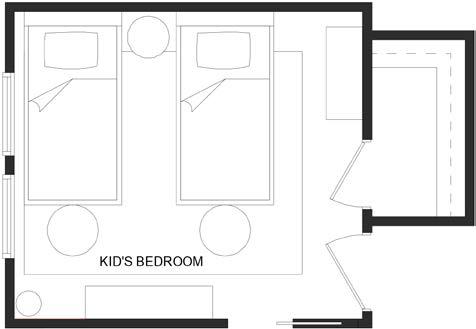

KIDS BEDROOM
Email: samanthamccullar@gmail.com | LinkedIn: samantha-mccullar
