ALASKA AT HOME AFFORDABLE HOME PACKAGES Engineered for Arctic Conditions

Standard Package Criteria Roof Load Trusses*

Live Load square foot Dead Load Top Chord square foot Dead Load Bottom Chord square foot Wind Loading

50# per 10# per 5# per

Wall Loading* Wind Loading

125 mph

Insulation Specifications Walls with EPS Floor with Soffit Panel

R-34 R-47

Vapor Barrier 6 mil Poly

*Built to local load specifications

125 mph

Exterior Package Materials List Foundation System AWW 4 x 12 pads AWW 6 x 6 Glulam per plan Simpson Hangers

Floor System

BCI per plan Versarim per plan 3/4" Insulated tongue and groove 29 oz. construction adhesive 8D Galvanized box nails 1-5/8" type C S/R screws Tyvek 9 x 150 HomeWrap

Wall System

1/2" x 4' x 8' CDX 2 x 4 x 92" 5/8" stud 2 x 6 hem fir plates 2 x 4 hem fir plates 2 x 10 doug fir Tyvek 9 x 150 HomeWrap Tyvek tape 8D galvanized box nails 12D galvanized box nails

Roof Truss System

5/8" CDX 5/12 Pitched Trusses, 18" cantilever, 14" heel 14" I-joist truss blocking 2 x 4 hem fir truss lateral bracing Ice and water shield Synthetic Felt Arctic gable vents 12D galvanized box nails 8D galvanized box nails Simpson H1 hold down T-50 Arrow staples

ASC Roofing System

Nor-Clad 29 ga.

Nor-Clad painted steel roofing Nor-Clad painted eave Nor-Clad painted universal ridge Nor-Clad painted sidewall Masterflash Top closure Bottom closure Neoprene tape #14 x 1" painted wood screws 3/4" painted stitch screws

Additional Criteria/Notes:

ASC Klondike Metal Siding

36” Coverage Installation: Horizontal or Vertical Suitable for high wind regions Manufactured ONLY in Anchorage, AK

Alpine Vinyl Window System

Living room - Casement and picture windows Bedrooms - Casement 36 x 42 window Kitchen/Entry - Casement 36 x 36 window Dining room - Casement and picture windows

Exterior Door System

Fiberglass pre-hung, 3'0 x 6'8" Keyed lock Deadbolt

Miscellaneous

Porch decking and handrail 2 x 6 x 8' UltraDeck Porch balusters - 2 x 4' UltraDeck Exterior doors - Exterior latex paint 3" brush Paintable silicone 1-1/2" galvanized roofing nails 16D galvanized casing nails Crating

Interior Package Materials List Insulation & Vapor Barrier Floor - R-38 x 16" unfaced Ceiling - R-38 x 24" unfaced Walls - R-21 x 15" unfaced, with R-11 x 23" 6 mil Vapor Barrier Poly tape

Plumbing & Heating System

White bathtub Shower surround White toilet 19" white lavatory Double stainless steel kitchen sink Washer hook-up kit 10' x 3" ABS pipe 10' x 1-1/2" ABS pipe 3" coupling 3" x 3" x 1-1/2" WYE Kitchen faucet Bath faucet Tub and shower faucet Pex hot water baseboard heater with boiler & 50 gallon water heater ABS glue Pex Plumbing System Solder Flux

Electrical System

(Complete package to weatherhead) 125 Amp breaker box 125 Amp meter base 100 Amp breaker 250' 12/2 romex Single gang box Double gang box Single pole switch 3-way switch 250' 12/3 wire 10/3 wire

Electrical System con't Receptacles Ground fault receptacle Ceiling boxes Red nuts Yellow nuts Ground rod Ground rod clamp Ground rod wire Double switch cover Single receptacle covers Single switch covers 20 Amp breakers 30 Amp breakers Wire staples Bath fan with piping Smoke alarms LED Light Fixtures 50 Amp breaker

Floor Covering System Luxury Vinyl Plank Flooring LVP - 20 Mil Patented Locking System –OR– Shaw Carpet Carpet pad Carpet tack DIY carpet seam tape 72" gold carpet bar 25# Fixall 3/8" Plywood underlayment Elmers glue

Interior Trim System

12" x 12' particle board shelving 16" x 12' particle board shelving (some plans) Closet rod Rod and shelf brackets Plasterboard & Paint System Rosettes 5/8" x 4' x 8' plasterboard Privacy lockset Liteline plasterboard mud Passage lockset Plasterboard tape Bi-fold knobs 8' nail on plasterboard OSC Spring door stop 5 gallon PVA primer Hinge pin door stop 5 gallon interior latex semi-gloss paint Shims 1 gallon exterior latex paint Primed colonial casing Paint roller kit Toilet paper holder Towel bar Towel ring Interior Door System Shower rod Bedrooms - Pre-Hung Strand Oak Medicine cabinet Utility - Pre-Hung Strand Oak MDF 1 x 8 x 16' Closets - Pre-Hung Strand Oak 6D bright finish nail 4D bright finish nail

Cabinet & Countertop System Kitchen - KCD Cabinets Bathroom - KCD Cabinets Laminate countertops

Appliance System

30" vented white range hood 30" white electric or gas range 18 cu. ft. white refrigerator

Duplex Additional Materials R-11 x 16 sound insulation

Additional Criteria/Notes:

1

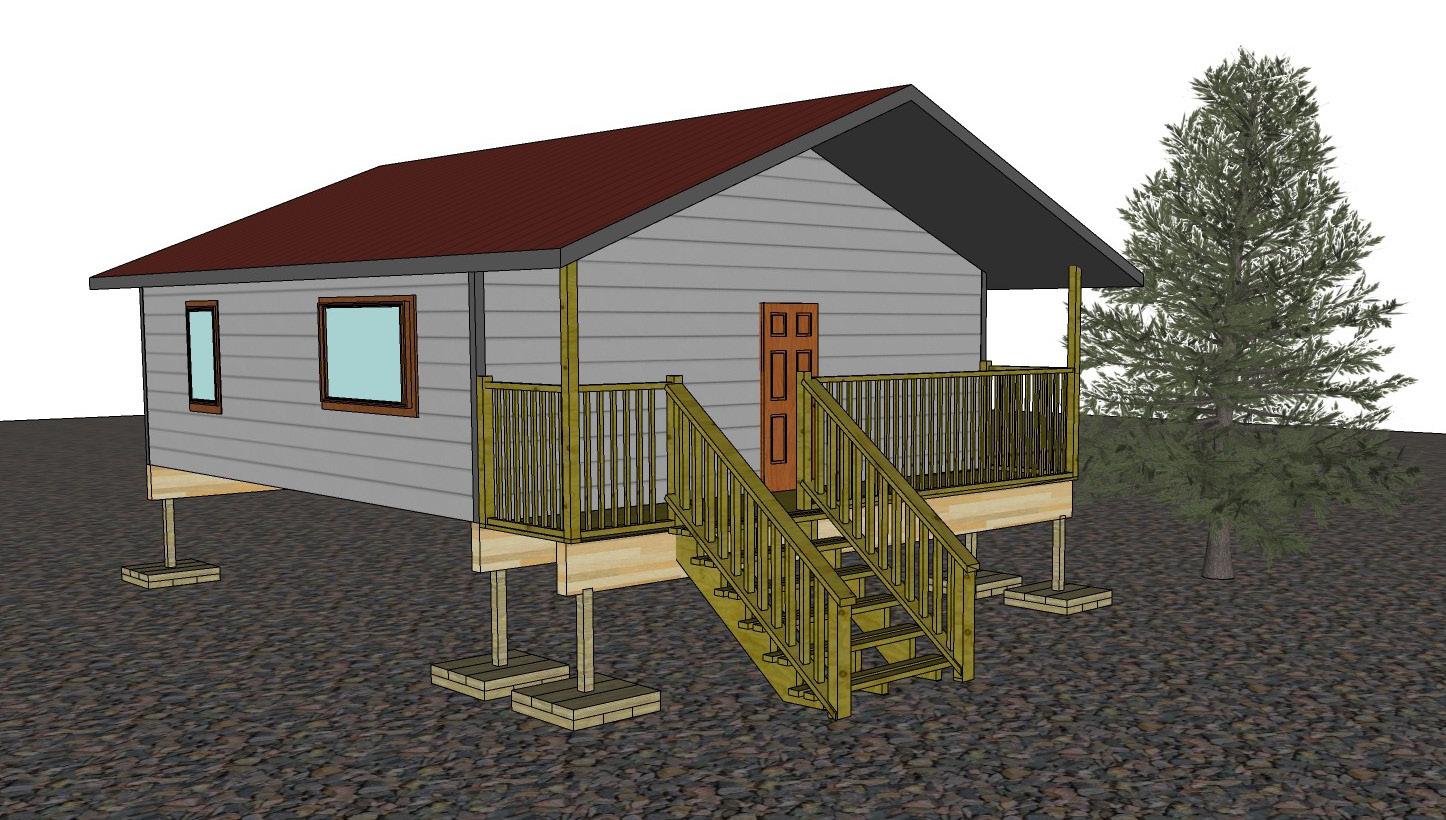

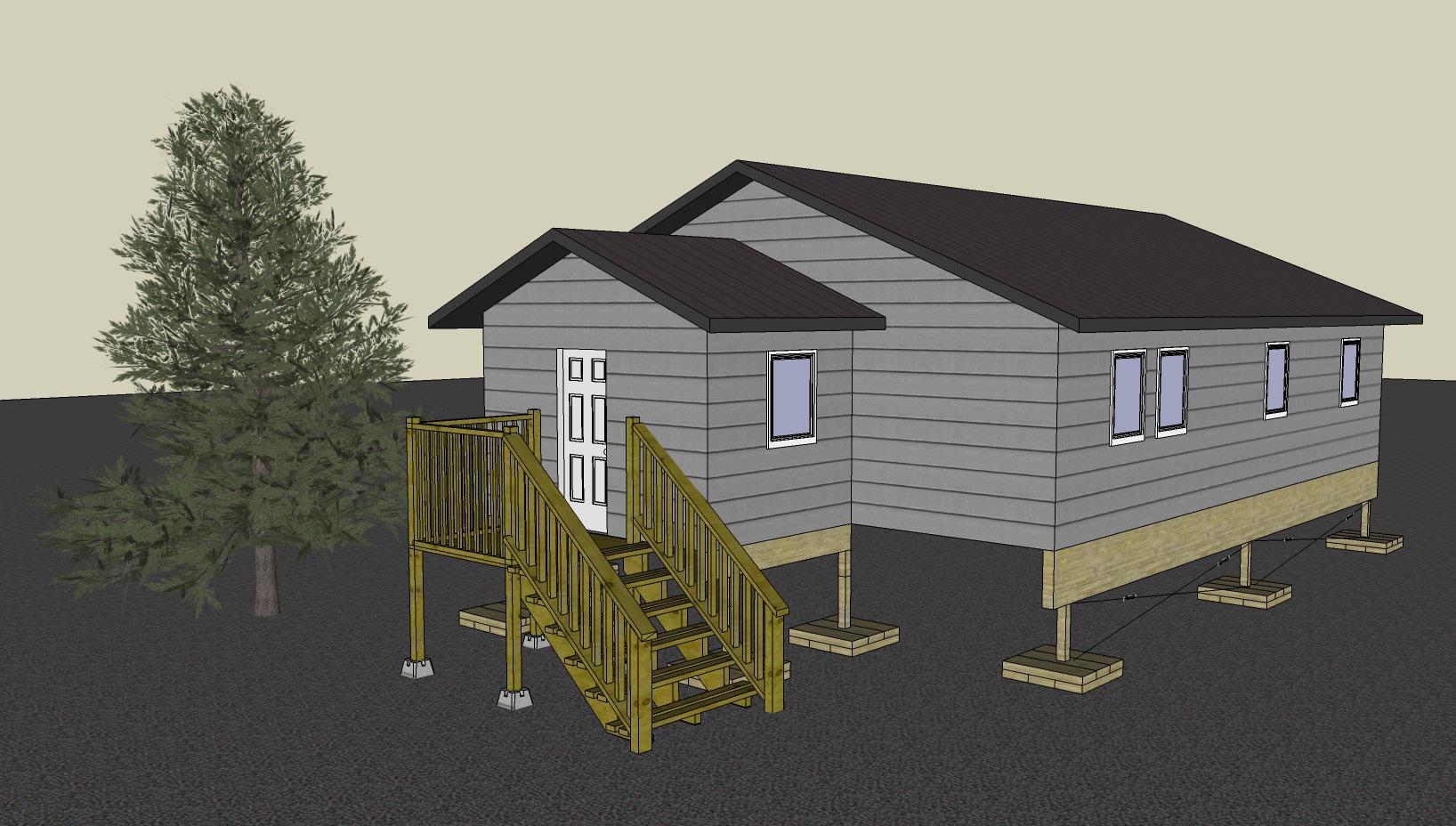

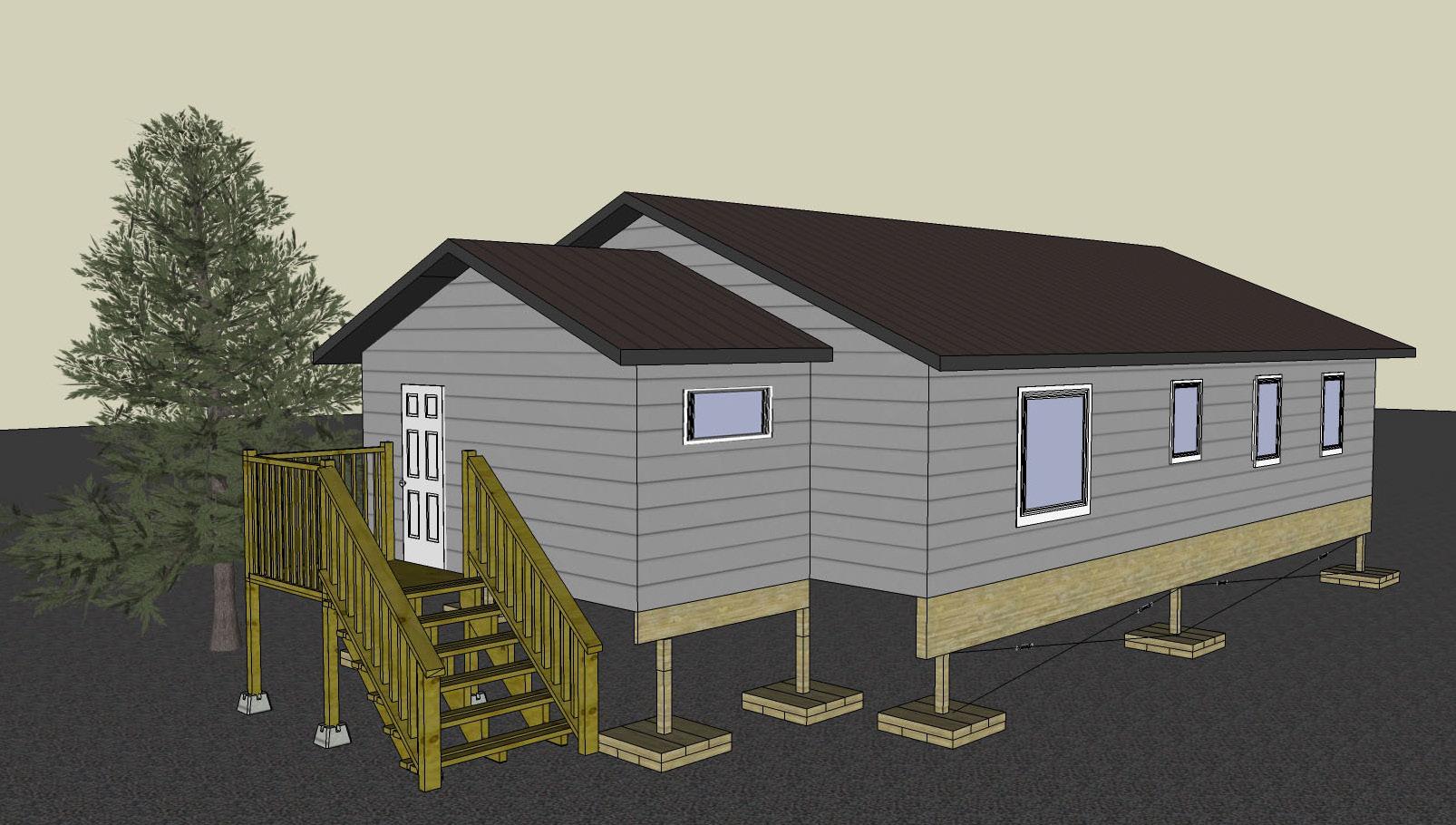

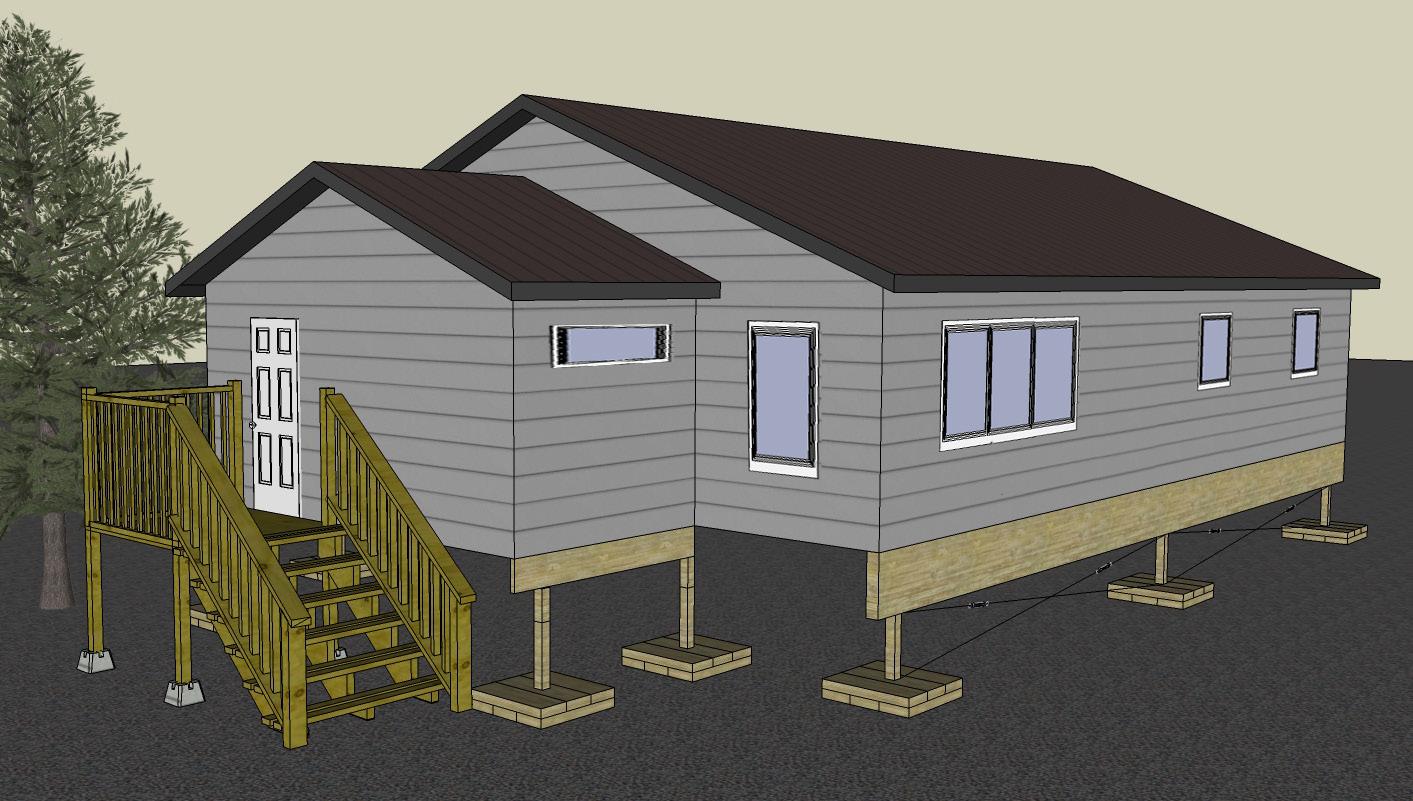

SBS PLAN #472 472 SQ. FT. | 1 BATHROOM | COVERED PORCH

NOTE: Actual product may differ from rendering or floor plan depicted.

2

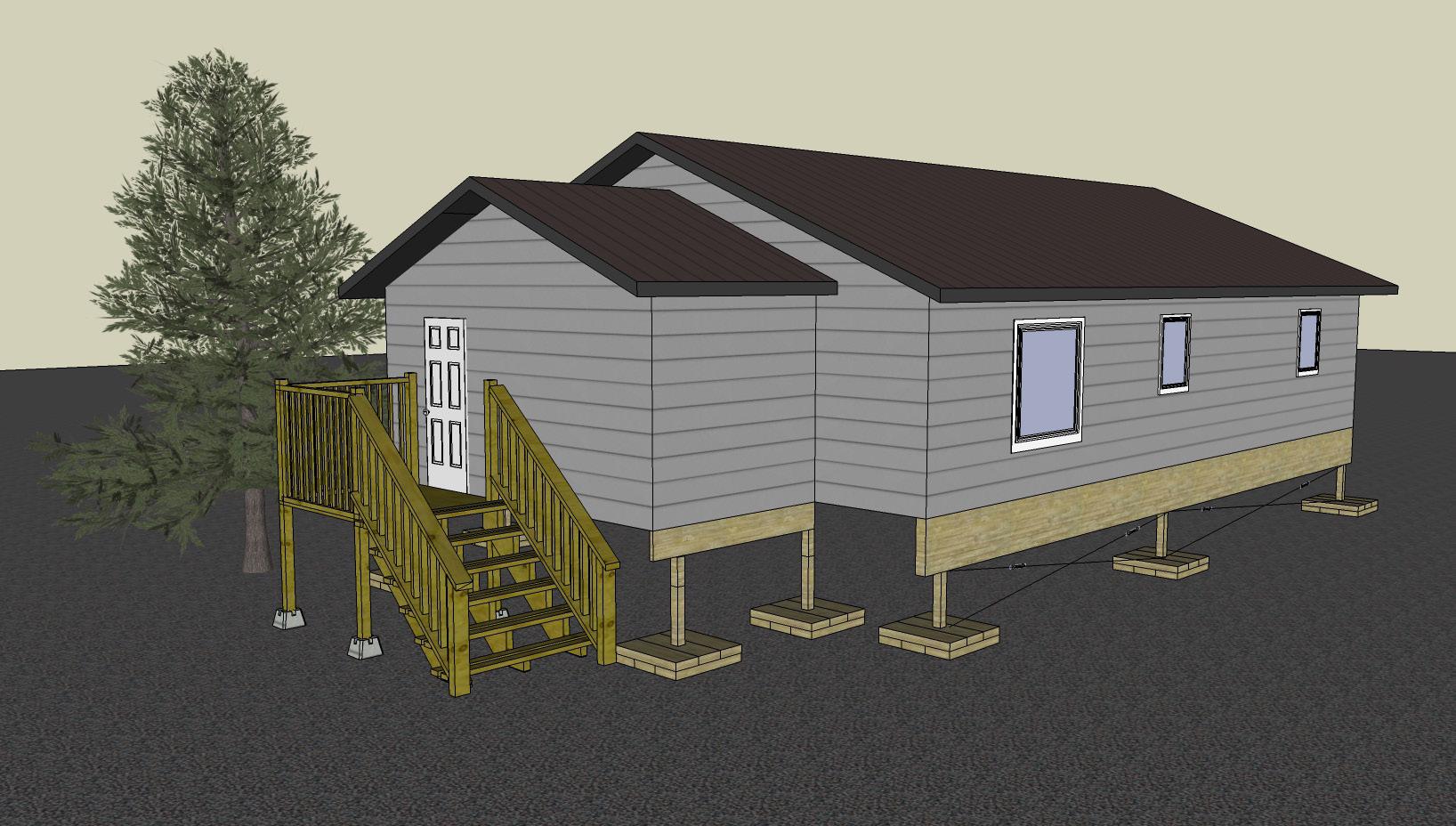

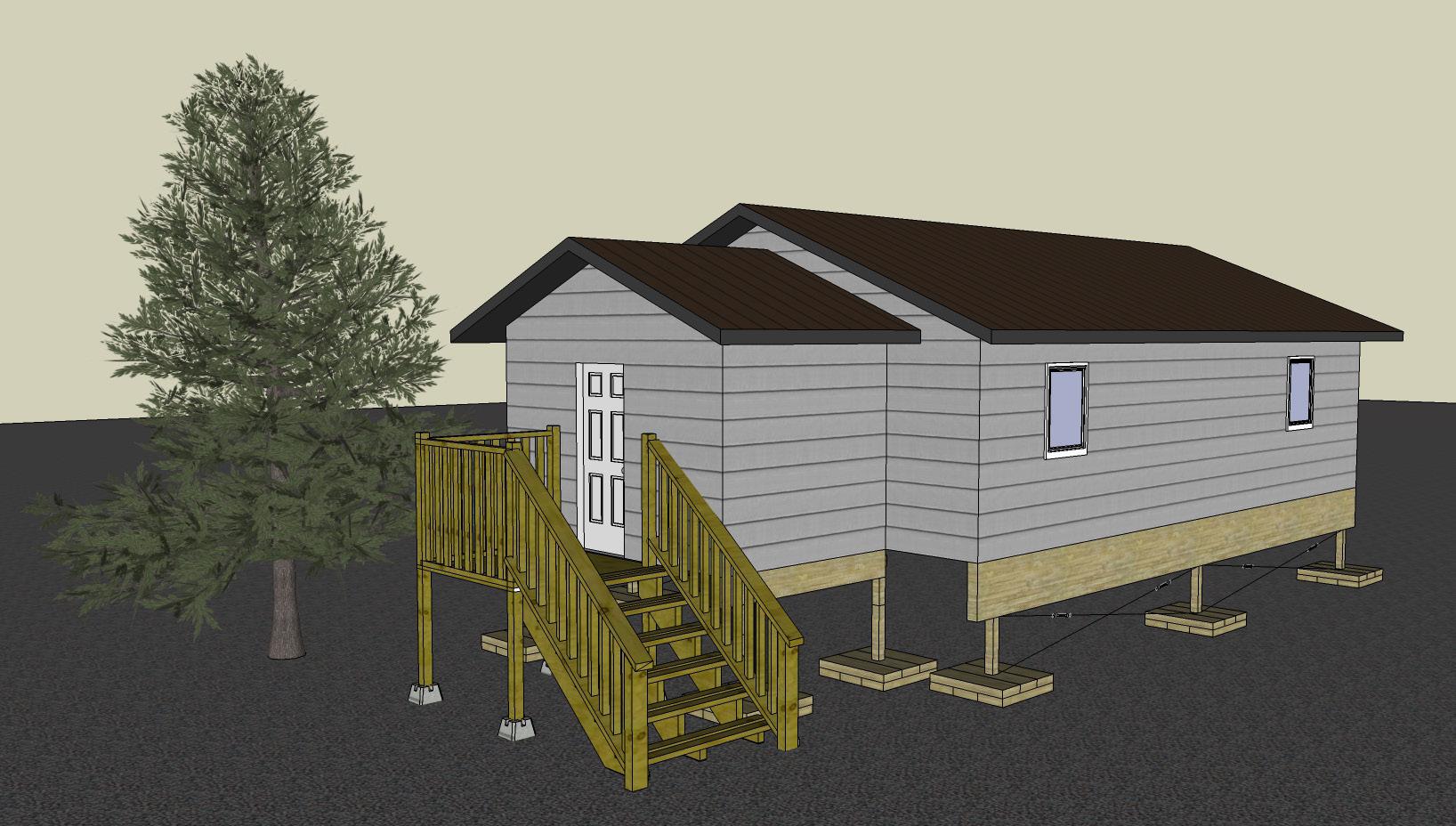

SBS PLAN #520 520 SQ. FT. | 1 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

3

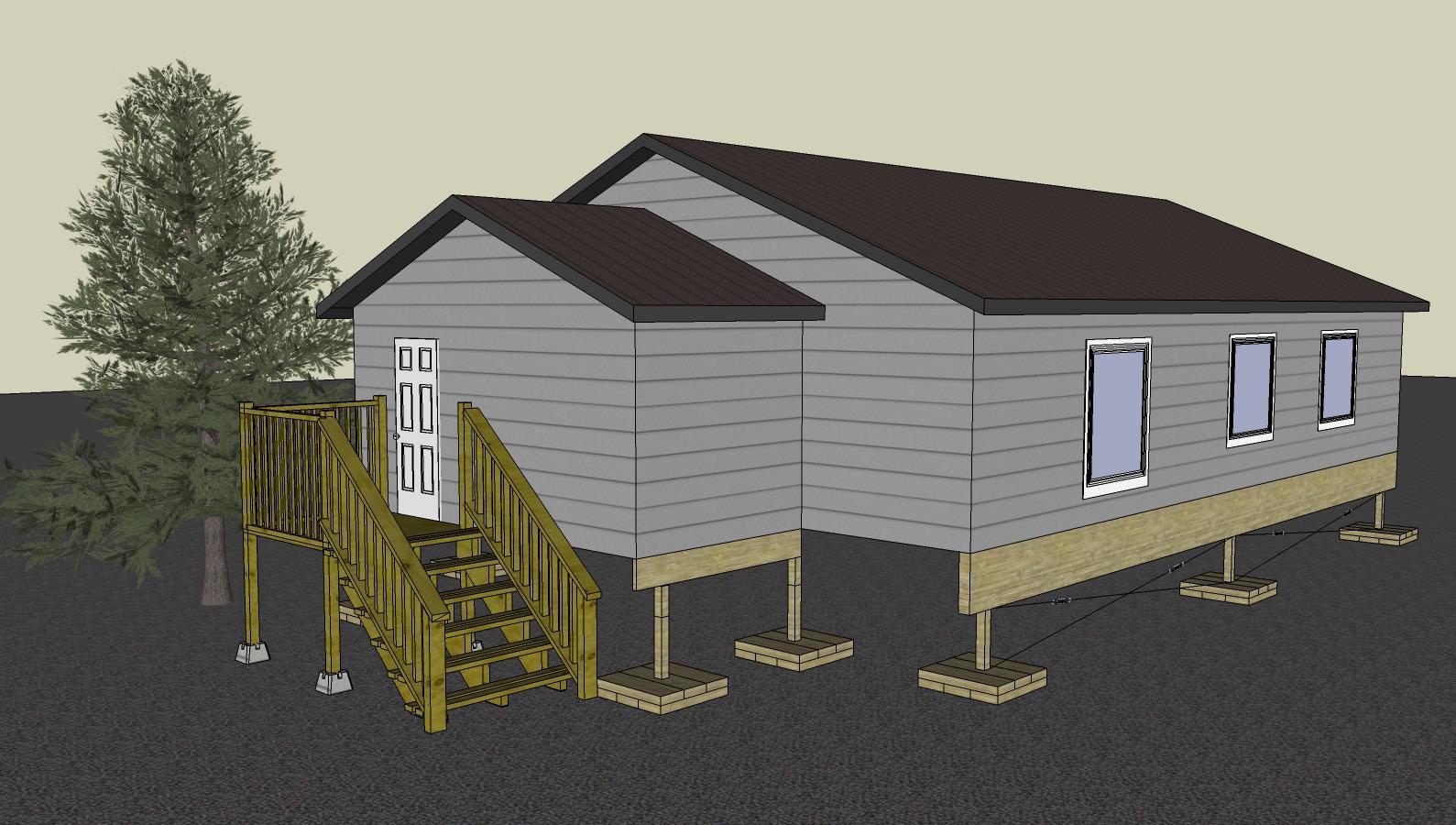

SBS PLAN #624 624 SQ. FT. | 2 BEDROOM | 1 BATHROOM | COVERED PORCH

NOTE: Actual product may differ from rendering or floor plan depicted.

4

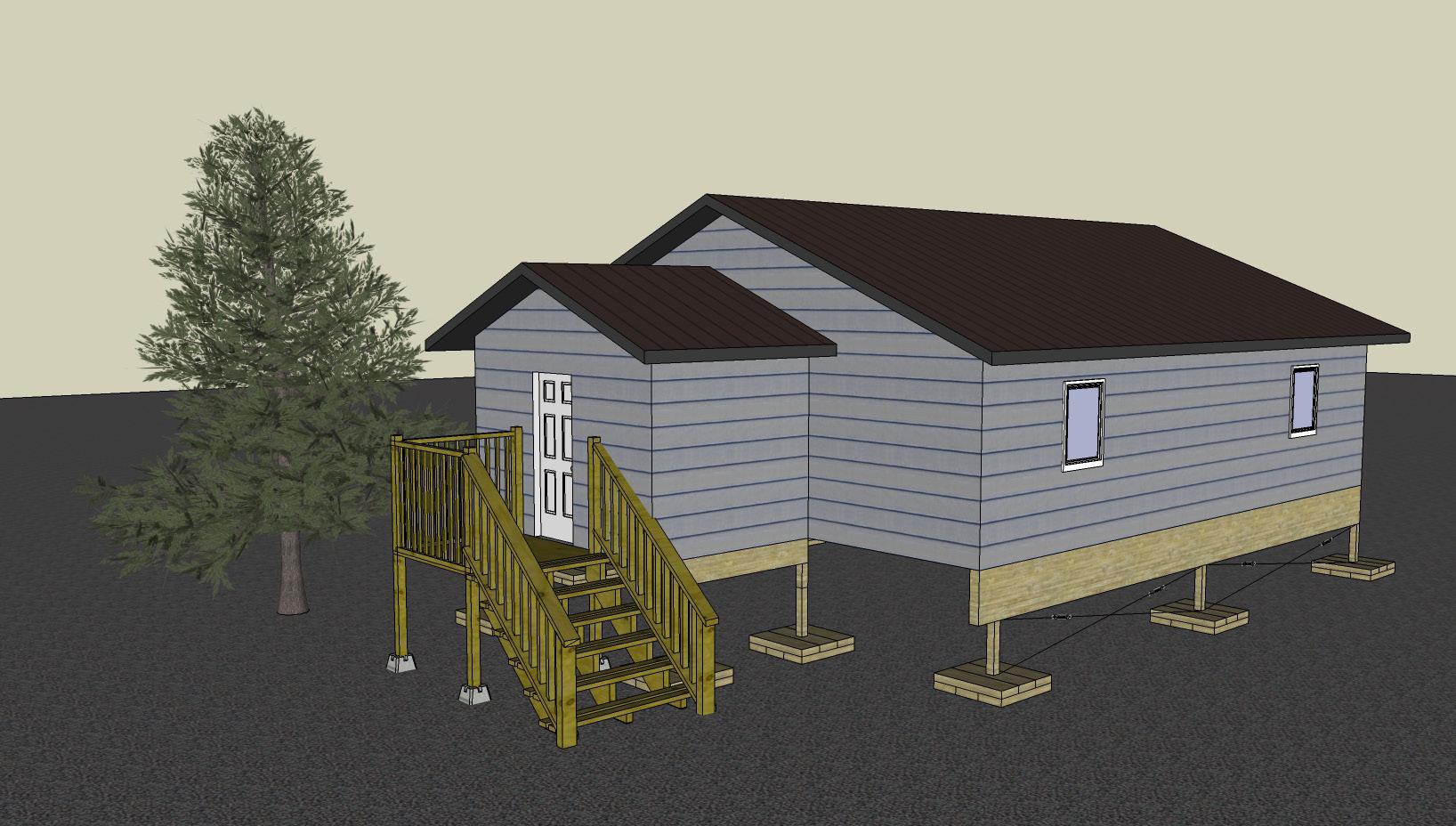

SBS PLAN #736 736 SQ. FT. | 2 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

5

SBS PLAN #928 928 SQ. FT. | 2 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

6

SBS PLAN #1076 1076 SQ. FT. | 3 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

7

SBS PLAN #1208 1208 SQ. FT. | 2 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

8

SBS PLAN #1232 1232 SQ. FT. | 4 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

9

SBS PLAN #1488 1488 SQ. FT. | 3 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

10

SBS PLAN #1552 1552 SQ. FT. | 3 BEDROOM | 2 BATHROOM | ARCTIC ENTRY

One of our most popular floorplans!

NOTE: Actual product may differ from rendering or floor plan depicted.

11

SBS PLAN #1568 1568 SQ. FT. | 4 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

12

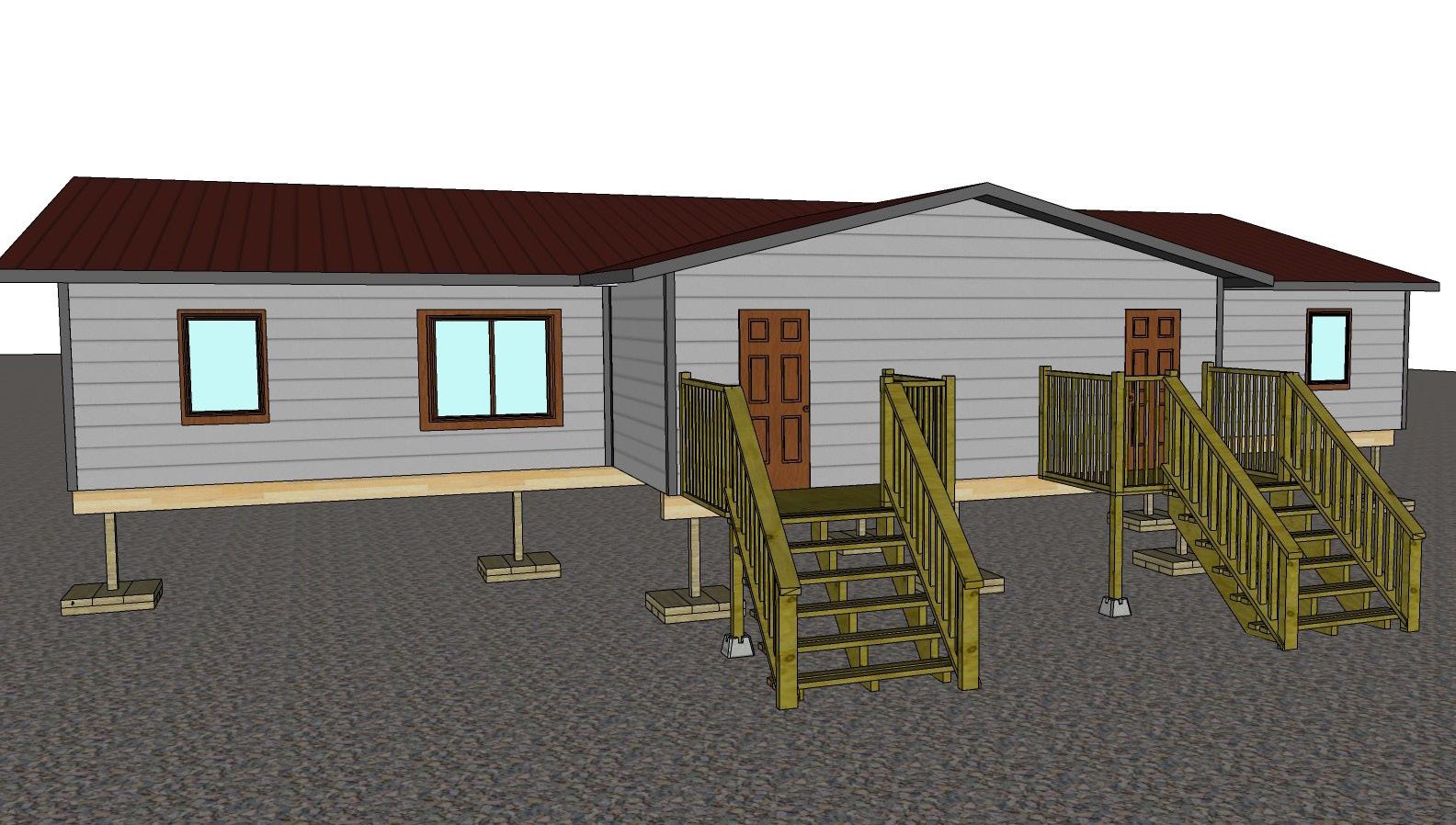

SBS PLAN #1904 DUPLEX 1904 SQ. FT. | 2 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

NOTE: Actual product may differ from rendering or floor plan depicted.

13

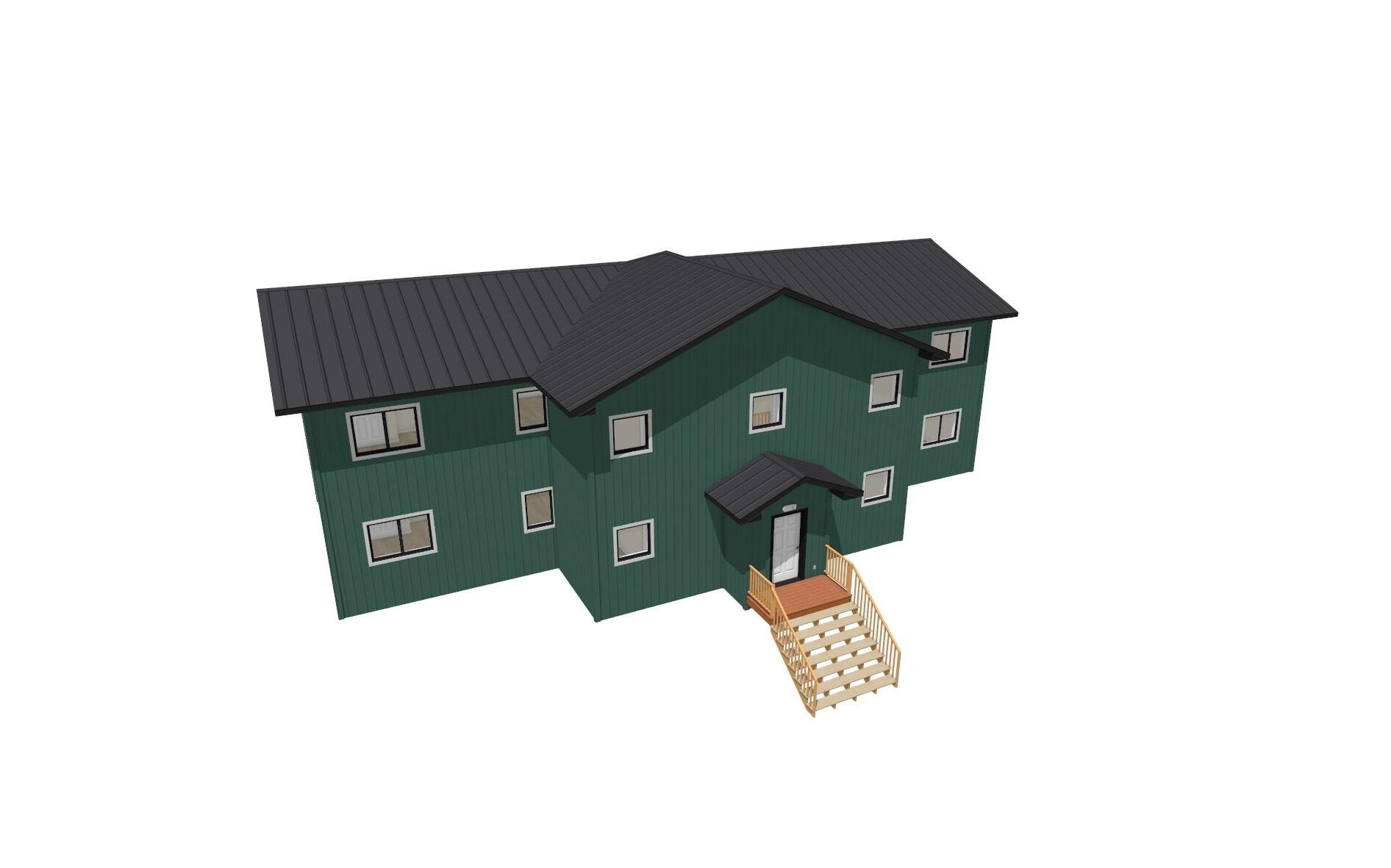

SBS PLAN #4312 4-PLEX FOUR UNIT PLAN 4312 SQ. FT. | 2 STORY EACH UNIT | 2 BEDROOM | 1 BATHROOM | ARCTIC ENTRY

New floorplan!

METAL PANEL ROOFING METAL PANEL SIDING

7'-11 1 4"

GHEST RIDGE 25.5'

8'-1 1 8"

OP OF PLATE 17.6'

8'-1 1 8"

LING - 1ST FLOOR 8.1'

818 SMOKY BAY WAY # 262 HOMER, AK 99603 (907) 299-1286 BROCKTREE.COM

- 1ST FLOOR

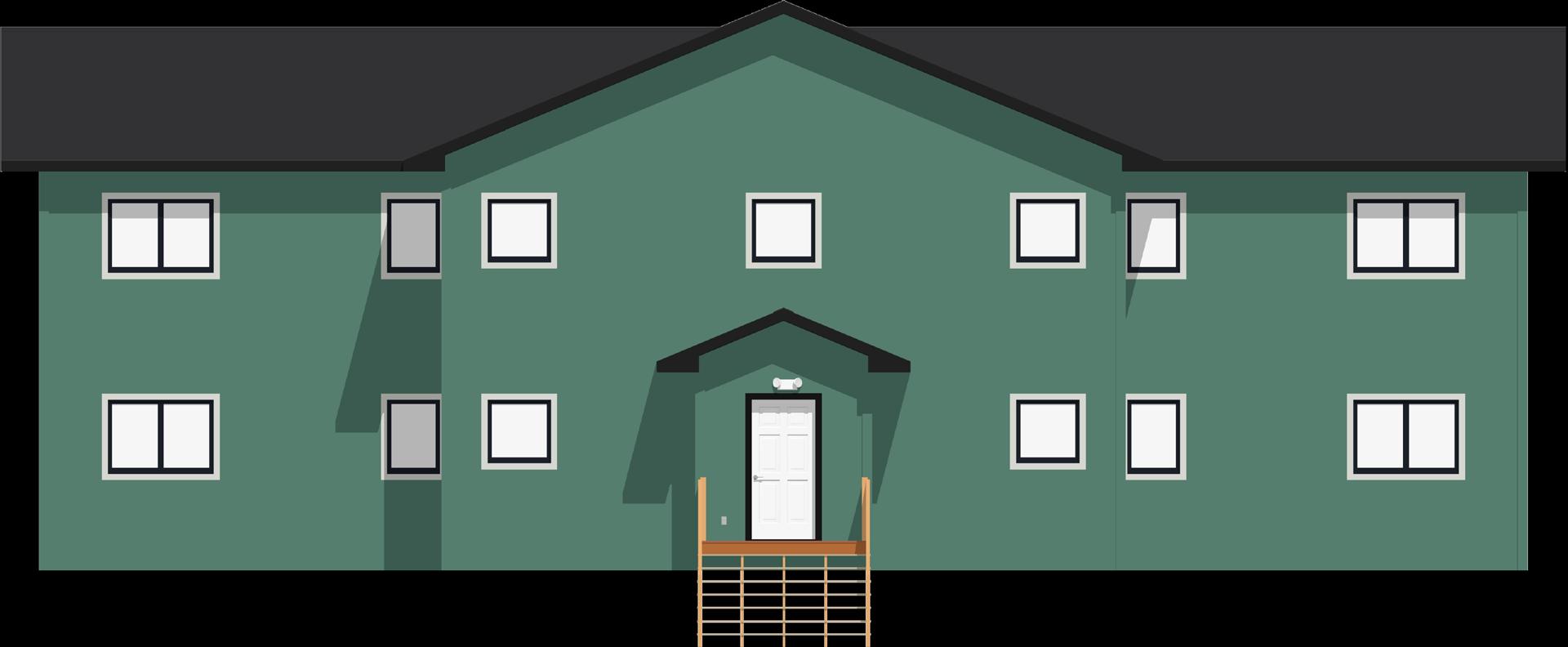

FRONT ELEVATION

SPENARD BUILDERS SUPPLY 40x70 4-PLEX

SCALE: 1/4" = 1'-0"

REHTO LLA OT '01 .NIM SERUTCURTS

A-2 ELEVATIONS

DRAFT

NOTE: Actual product may differ from renderings or floor plans depicted.

LEFT ELEVATION SCALE: 1/8" = 1'-0"

SPW 11/14/2023 PROJECT SHEET #:

2 of 14

14

DESOPORP GNIDLIUB

© SPENARD BUILDERS SUPPLY EXPRESSLY RESERVES ITS COMMON LAW COPYRIGHT AND OTHER PROPERTY RIGHTS IN THESE PLANS. THESE PLANS ARE NOT TO BE REPRODUCED, CHANGED, OR COPIED IN ANY FORM OR MANNER WHATSOEVER, NOR ARE THEY TO BE ASSIGNED TO ANY THIRD PARTY WITHOUT FIRST OBTAINING THE EXPRESS WRITTEN PERMISSION AND CONSENT OF SPENARD BUILDERS SUPPLY.

1'-4 3 4"

- 2ND FLOOR

0 L LE LI KN

REH SER

.

FILE: C:\USERS\KRISTINA\DROPBOX\AUTO CAD\01 DWG\CURRENT\SBS_FOUR PLEX.DWG

SCALE: 1/4" = 1'-0"

NOTE: Actual product may differ from renderings or floor plans depicted.

LEFT ELEVATION

SCALE: 1/8" = 1'-0"

1'-4 3 4"

8'-1 1 8"

7'-11 1 4"

FILE: C:\USERS\KRISTINA\DROPBOX\AUTO CAD\01 DWG\CURRENT\SBS_FOUR PLEX.DWG

Revision

3/15/2023

TS

FIRST FLOOR

X

Revisions

Revision

XX/XX/XX

- First Floor Plan

Sheet Contents

A-2

ELEVATIONS

DRAFT

KEB

Architectural 11/14/2023

PROJECT SHEET #:

SPW

TS

2A1.01 of 14

SPENARD BUILDERS SUPPLY EXPRESSLY RESERVES ITS COMMON LAW COPYRIGHT AND OTHER PROPERTY RIGHTS IN THESE PLANS. THESE PLANS ARE NOT TO BE REPRODUCED, CHANGED, OR COPIED IN ANY FORM OR MANNER WHATSOEVER, NOR ARE THEY TO BE ASSIGNED TO ANY THIRD PARTY WITHOUT FIRST OBTAINING THE EXPRESS WRITTEN PERMISSION AND CONSENT OF SPENARD BUILDERS SUPPLY.

8'-1 1 8"

X

BROCKTREE.COM

AK 99603 c 2023 REDesign HomesHOMER, (907) 299-1286

FRONT ELEVATION

10900 E. Yarrow Rd Palmer AK. 99645 907.250.0124 kristina@redesign-homes.com 818 SMOKY BAY WAY # 262

3/15/23

OOR

SPENARD BUILDERS SUPPLY Four Plex Location 40x70 4-PLEX

PLOT DATE:

Location

Four Plex

SECOND FLOOR

Revisions XX/XX/XX

- Second Floor Plan

Sheet Contents

METAL PANEL ROOFING METAL PANEL SIDING

KEB

Architectural

A2.01

15

c 2023 REDesign Homes

3/15/23

10900 E. Yarrow Rd Palmer AK. 99645 907.250.0124 kristina@redesign-homes.com

PLOT DATE:

SBS PLAN #4312 – FIRST FLOOR UNIT EACH FIRST FLOOR UNIT 1015 SQ. FT. | 2 BEDROOM | 1 BATHROOM

NOTE: Actual product may differ from renderings or floor plans depicted.

16

SBS PLAN #4312 – SECOND FLOOR UNIT EACH SECOND FLOOR UNIT 1015 SQ. FT. | 2 BEDROOM | 1 BATHROOM

NOTE: Actual product may differ from renderings or floor plans depicted.

17

Home Finishes & Decor Options ASC Metal Roofing

• 29 gauge • 36” panel coverage (width), trapezoidal rib on 9” centers • Exposed fastened, low profile panel • Applies over open framing or solid substrate

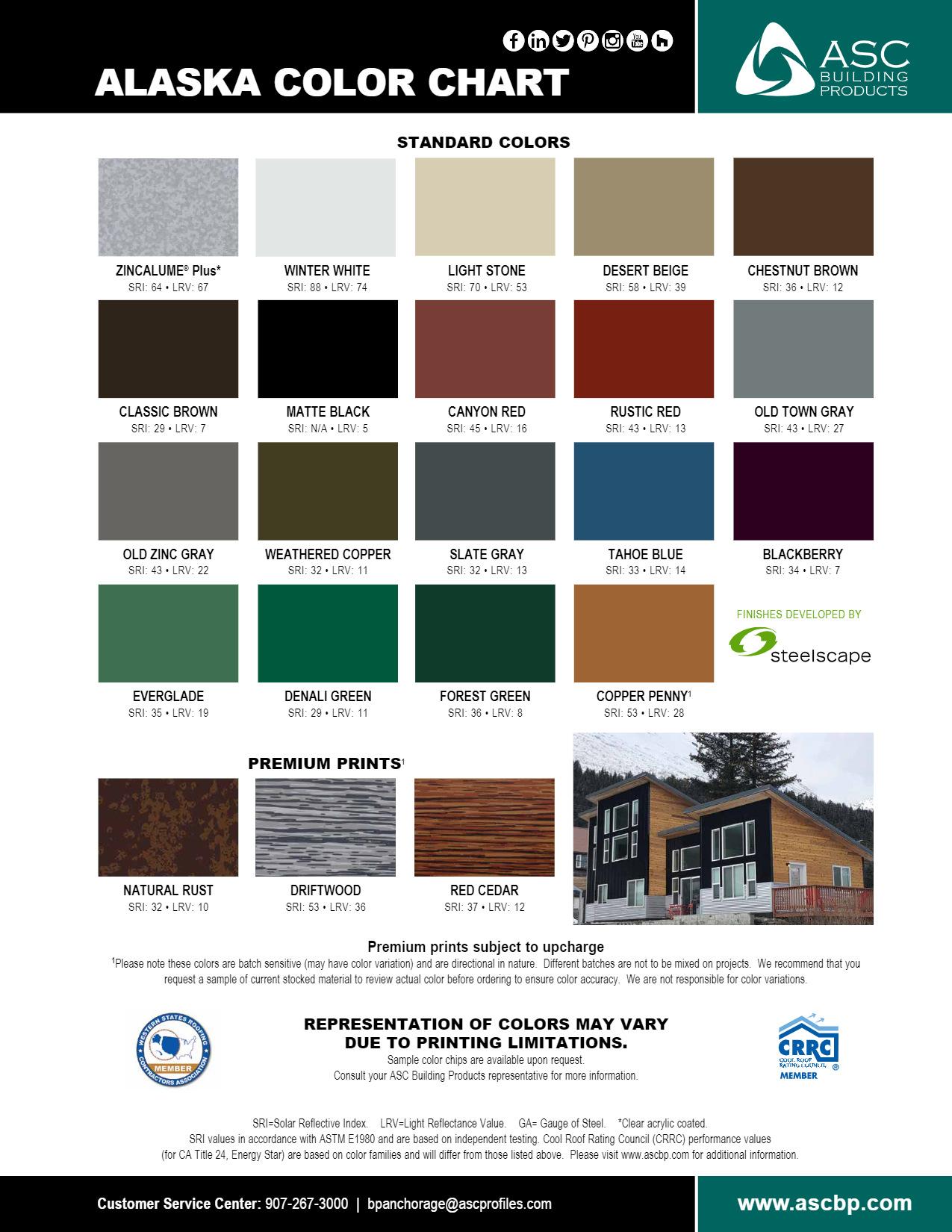

ALASKA COLOR CHART Consider the many advantages a metal roof can offer your home.

✔ Weather Resistant ✔ Non-combustible ✔ Maintenance

✔ Appeal ✔ Strength ✔ Applications

Strata Rib Skyline Roofing® panels feature the look of a standing seam panel with a concealed, through fastener design.

With clean lines and lasting performance, Skyline Roofing panels have long been a top choice for ASC Klondike Metal Siding residential roofing.

Nor-Clad Strata Rib® panel is a light gauge, exposed fastener

panel with 36" coverage used in residential roof and wall applications.

Nor-Clad® panel is a light gauge, exposed fastener panel with 36" coverage used in residential roof and wall applications.

> 36" Net Coverage.

> 36" Net Coverage.

Klondike® metal siding is suitable for extreme climates and > fastened Roof Installation: Minimum 3:12 slope. high wind conditions. This structural exposed > 16" Net Coverage. metal siding system is an ideal application for residential and Horizontal or Vertical. > Wall Installation: > Roofcommercial, Installation: Minimum exterior3:12 or slope. interior siding, wainscoting, and trailer > 29ga available standard. > 26gaskirting availableprojects. standard. Klondike® metal siding offer builders flexible design options with panels that can be installed vertically or > Matching polycarbonate panels available. > Subtle striations available. horizontally as well as provide a variety of colors to choose from.available.

Klondike® metal siding provide a safer alternative to > Notching other traditional building materials.

> Roof Installation: Minimum 3:12 slope. > Wall Installation: Horizontal or Vertical. > 29ga available standard. > Matching polycarbonate panels available.

COPPER PENNY

NATURAL RUST

RED CEDAR

FOREST GREEN

TAHOE BLUE

DENALI GREEN

SLATE GRAY

EVERGLADE

WEATHERED COPPER

BLACKBERRY

OLD ZINC GRAY

●

OLD TOWN GRAY

●

RUSTIC RED

●

CANYON RED

●

●

●

●

●

●

●

●

MATTE BLACK

> 26ga available standard.

CLASSIC BROWN

> Wall Installation: Horizontal.

> 29ga available standard.

CHESTNUT BROWN

> Wall Installation: Horizontal or Vertical.

DESERT BEIGE

> 16" Net Coverage.

LIGHT STONE

> 36" Net Coverage.

WINTER WHITE

TriLap® Steel Siding is a concealed fastener steel siding panel with the appearance of three widelapped boards. The product is for use in domestic and military residential construction and small, light commercial developments.

ZINCALUME® PLUS

Klondike® Siding panel is an economical, structural, exposed fastened metal siding system suitable for extreme climates and is also ideal for residential and commercial, exterior or interior siding, wainscoting, and trailer skirting.

DRIFTWOOD

ASC Metal Roofing and Siding Color Chart”

Limited Lifetime Warranty for residential applications. ●

●

16" SKYLINE ROOFING®

●

18

and style at a budget-friendly price. are perfect for any space offering functionality classic cabinets in our Value Series and style at a budget-friendly price.

5 Year 5 Year

Series PremierOptions Home Finishes & Decor Premier Series

NES

Premier Series

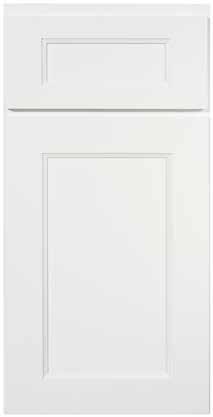

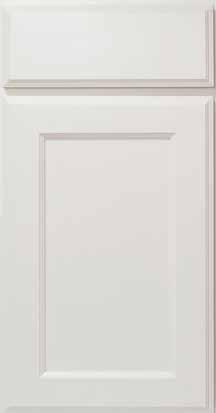

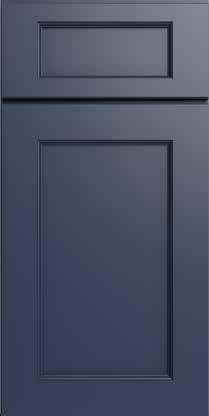

KCD Cabinets

Our Premier Series offers distinctive touches and superb craftsmanship, satisfying either the traditional or modern design palette with a look to fit any lifestyle. The classic cabinets insatisfying our Value Series are aftsmanship, perfect for any space offering to fit any lifestyle. functionality and The style at a budget-friendly price. e offering functionality

ENOX UNTRY EN (LL)

NAPA HITE NW)

SHAKER SAND SHAKER (SS) SAND (SS)

SHAKER DESIGNER SHAKER WHITE SLAB DESIGNER (SW) WHITE SLAB (SW)

SHAKER DESIGNER SHAKER WHITE 5PC DESIGNER (SW) WHITE 5PC (SW)

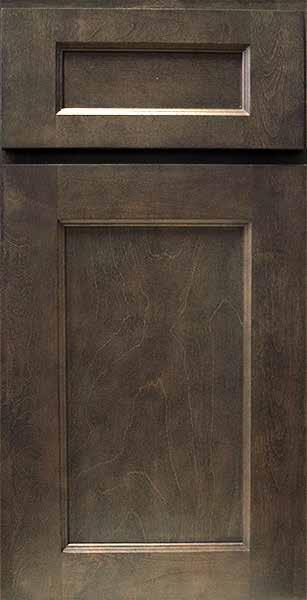

SHAKER ESPRESSO SHAKER (SE) ESPRESSO (SE)

LENOX COUNTRY LENOX LINEN (LL) COUNTRY LINEN (LL)

BROOKLYN MODERN BROOKLYN GRAY MODERN (BG) GRAY (BG)

BROOKLYN SLATE BROOKLYN (BS) SLATE (BS)

BROOKLYN MIDNIGHT BROOKLYN (BM) MIDNIGHT (BM)

BROOKLYN BRIGHT BROOKLYN WHITE BRIGHT (BW) WHITE (BW)

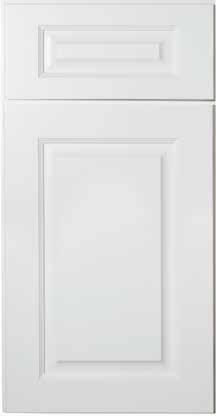

NAPA WHITE NAPA (NW) WHITE (NW)

Value Series

LENOX CANVAS LENOX (LV) CANVAS (LV)

Value Series Value Series

5 Year

Spring Carnival 1876-52

TAYLOR WHITE TAYLOR (TW) WHITE (TW)

4762-60 Spring Carnival Mystique 1876-52 Dawn

4952-22 4762-60 Mystique Typhoon Ice Dawn Antique

4952-22 Typhoon Ice Antique

Spring Carnival 1876-52

4762-60 Mystique Dawn

4952-22 Typhoon Ice Antique

Spring Carnival 1876-52

4762-60 Mystique Dawn

4952-22 Typhoon Ice Antique

Spring Carnival 1876-52

4762-60 Mystique Dawn

4952-22 Typhoon Ice Antique

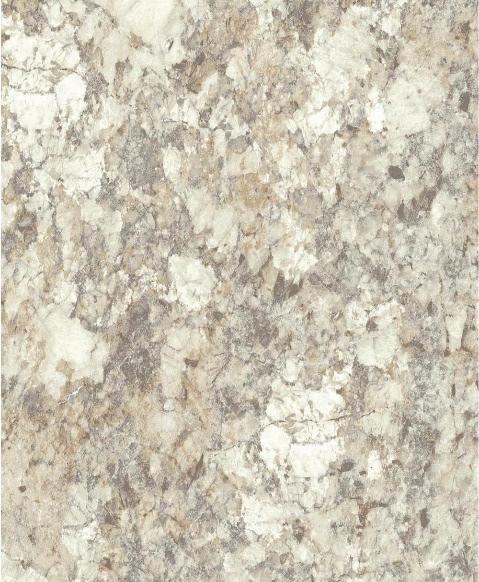

Because a typical kitchen countertop must withstand a range of abuses from vegetable chopping to plant potting yet remain smooth and sanitary with the wipe of a sponge, different work centers may call for unique surfaces. Consider the alternatives, then tailor each countertop to its specific purposes.

There are several ways to purchase countertops, depending on the material and your budget. Some laminates are available prefabricated in standard sizes; however most countertops are built to specifications.

Your countertop will be made at our countertop manufacturing facility by experienced professionals.

Pick the style right for you!

7732-58 AndorraButter Shadow Rum 4998-22 Granite

4904-38 Andorra Desert ShadowSprings 4998-22

4904-38 Desert Springs

7732-58 Butter Rum Granite

Andorra Shadow 4998-22

4904-38 Desert Springs

7732-58 Butter Rum Granite

Andorra Shadow 4998-22

4904-38 Desert Springs

7732-58 Butter Rum Granite

Andorra Shadow 4998-22

4904-38 Desert Springs

(Subject to manufacturer’s updates)

3687-58 Calcutta Autumn Marble 4925-07 Indian Slate

7022-58 3687-58 Natural AutumnCanvas Indian Slate

7022-58 Natural Canvas

Calcutta Marble 4925-07

3687-58 Autumn Indian Slate

7022-58 Natural Canvas

LENOX CANVAS (LV)

Preform Series ValueCountertop

TAYLOR WHITE (TW)

7732-58 Butter Rum Granite

Calcutta Marble 4925-07

19

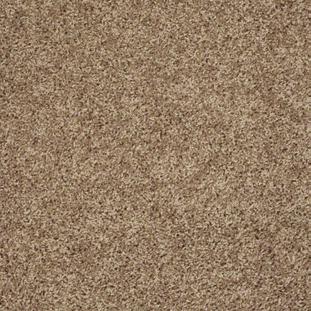

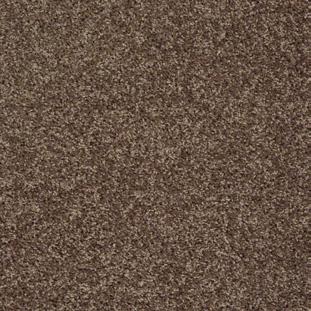

Home Finishes & Decor Options Coastal or Creekside Carpet • 25oz Textured Cut Pile • 100% BCF PET Polyester • 10 Year Quality Warranty

Pebble

Saddle

Snare

Charm

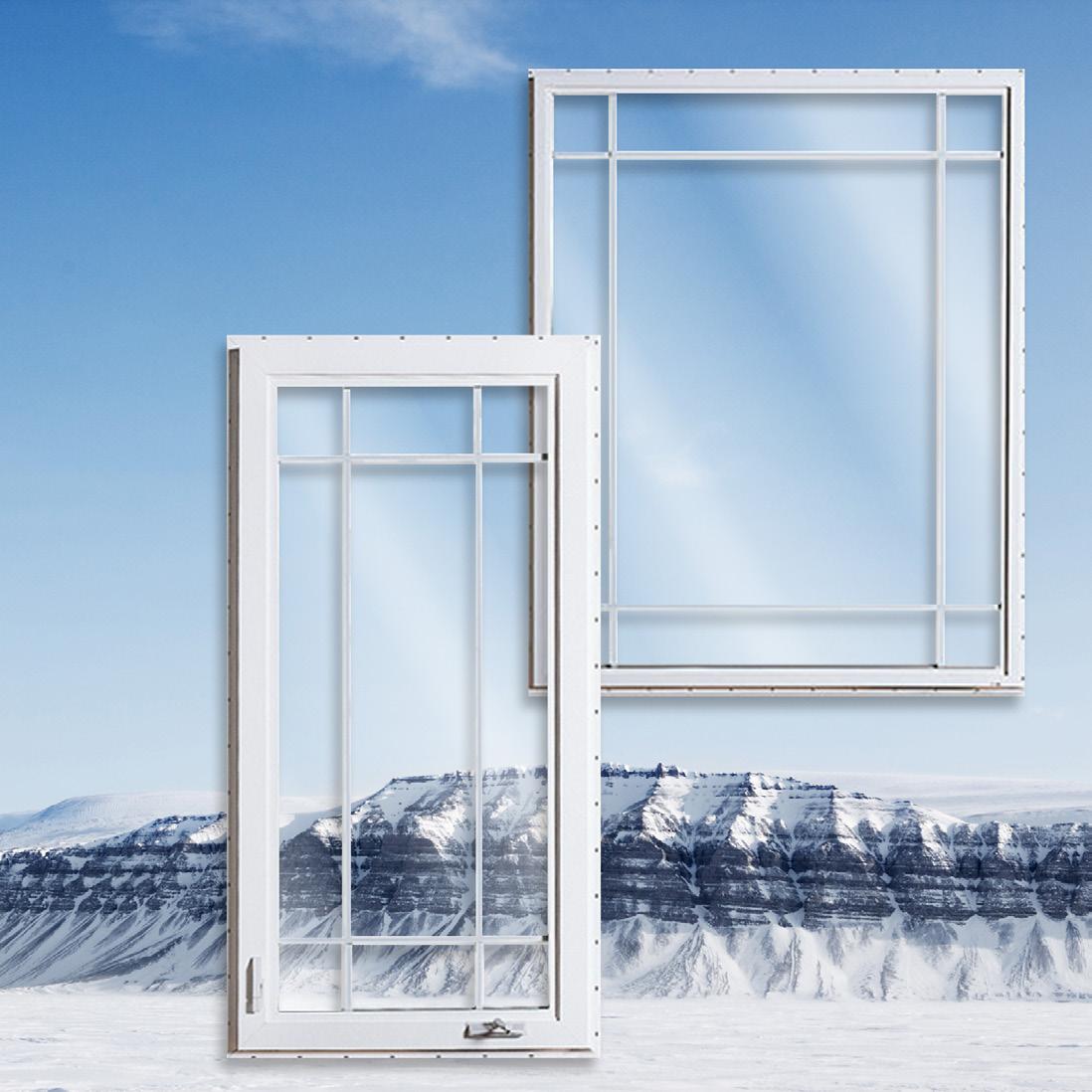

80 Series Windows

The Alpine 80 Series is the ultimate in vinyl window technology. Our heavy-duty vinyl frames combined with 1” insulated, Low-E Glass, make these windows some of the most energy efficient produced.

Only Alpine can merge incredible performance, extreme efficiency and superior durability into a premiere vinyl window collection that’s as strong as it is beautiful. Alpine 80 Series Vinyl Windows are constructed with strong, heavy-duty frames and sashes to provide windows you’ll enjoy for the life of your home.

Colors

Andover Collection - Luxury Vinyl Plank Flooring

MSI’s Everlife® Waterproof Flooring stands up to the busiest of homes and commercial spaces, with the ultimate worry-proof flooring. Create affordable, easy-care floors with a range of today’s most on-trend designs, backed by industry leading warranties and 100% waterproof performance.

onde

Blythe

Dakworth

Abingdale

Bayhill Blonde

Blythe

ANDOVER COLLEC HighcliffeTotal Greigethickness Kingsdown Gray

Core thickness 20

Dakworth

XPE Backing

Whitby White

Make your selections and Fax to 1-907-261-9206 or Email: general.ruralsales@sbsalaska.com Name of Buyer

Home Plan# Selection

Address Phone

Fax

Email

From your road, looking at the house, which side is the front door? _________________________________________________________________

ASC Metal Roofing & Siding - Color Selection • Zincalume Plus • Classic Brown

• Winter White • Matte Black

• Light Stone • Canyon Red

• Desert Beige • Rustic Red

• Chestnut Brown • Old Town Gray

• Old Zinc Gray

• Weathered Copper

• Slate Gray

• Tahoe Blue

• Blackberry

• Everglade

• Denali Green

• Forest Green

• Copper Penny

Premium Prints:

• Natural Rust

• Driftwood

• Red Cedar

Roofing Color:

_____________________________________________________________________

Siding Color:

_____________________________________________________________________

Alpine Windows: q Vinyl Casement (Standard)

q Triple Pane

Exterior Doors: q Fiberglass 6-Panel (Standard)

q Sunburst Lite (Full Glass)

q Sunburst Half-Lite (Half Glass)

KCD Cabinets - Color Selection q Sand q Design White Slab q Design White 5pc q Espresso q Country Linen q Canvas q Modern Gray q Slate q Midnight q Bright White q Napa White q Taylor White Preform Countertops - Color Selection • Spring Carnival • Andorra Shadow

• Mystique Dawn • Desert Springs

• Typhoon Ice • Calcutta Marble

• Butterum Granite • Natural Canvas

Bathroom Color: ____________________________________________________________________ Kitchen Color:

____________________________________________________________________

Everlife Luxury Vinyl Plank Flooring - Color Selection q Abingdale q Bayhill Blonde q Blythe q Dakworth q Hatfield q Highcliffe Greige q Kingsdown Gray q Whitby White Shaw Coastal/Creekside Carpet - Color Selection q Pebble q Saddle q Snare q Charm

Signature

Date

Product availability is subject to change.

21

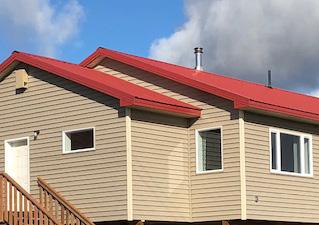

Thank you for your interest in “Alaska at Home”. Our home packages have been designed with Alaskans in mind. Affordable, comfortable housing that will stand-up to tough weather conditions. We’ve made a point of selecting building materials that have a proven record in rural communities with materials like metal roofing and siding, R-34, R-38 and R-47 insulation and energy rated vinyl windows.

Our program offers a wide selection from a Tiny Home to 4-Plex. Complete blueprints and itemized materials list are included with each package. We can customize any plan to your specific needs.

The strength of our program is service. No one has more experience than Spenard Builders Supply when it comes to rural Alaska. We understand the challenges of a short building season. We’ve developed freight options that provide more flexibility to your building plans. Your home package will be backed by a team of professionals that know Alaska. From Utqiagvik to Sitka, SBS has been making dreams come true for over 70 years.

We look forward to working with you.

FOR MORE INFO VISIT SBSALASKA.COM &

ASK SBS Rural Sales Department Phone: 1-800-844-9313 4412 Lois Drive Fax: 1-907-261-9206 Anchorage, Alaska 99517 Email: general.ruralsales@sbsalaska.com Store Hours: Monday - Friday 8 a.m. - 6 p.m. & Saturday 8:30 a.m. - 5 p.m.
