Cross-Bronx Ribbonway
Tidal Wave of Education

Architecture is no standard practice. It’s one of those fields that holds infinite solutions to infinite problems. To this day, in a world of emerging innovations and fresh possibilites, everyone is always learning. I want to learn with you.

No two jobs are ever alike. Every one provides new challenges, new stakes, and therefore new opportunities to learn.

Each project feels like stepping into a portal that leads to its own world.

I’m committed to results and always have questions. A company’s success is rooted in the weight pulled by everyone involved. So, my goal is to contribute to your objectives while learning more about what this line of work holds for me in the future.

I’m ready to grow, understand, and practice. Let’s help each other!

Architectural Design 6Community Design

ARCH 402 Spring 2025

Cross-Bronx Expressway

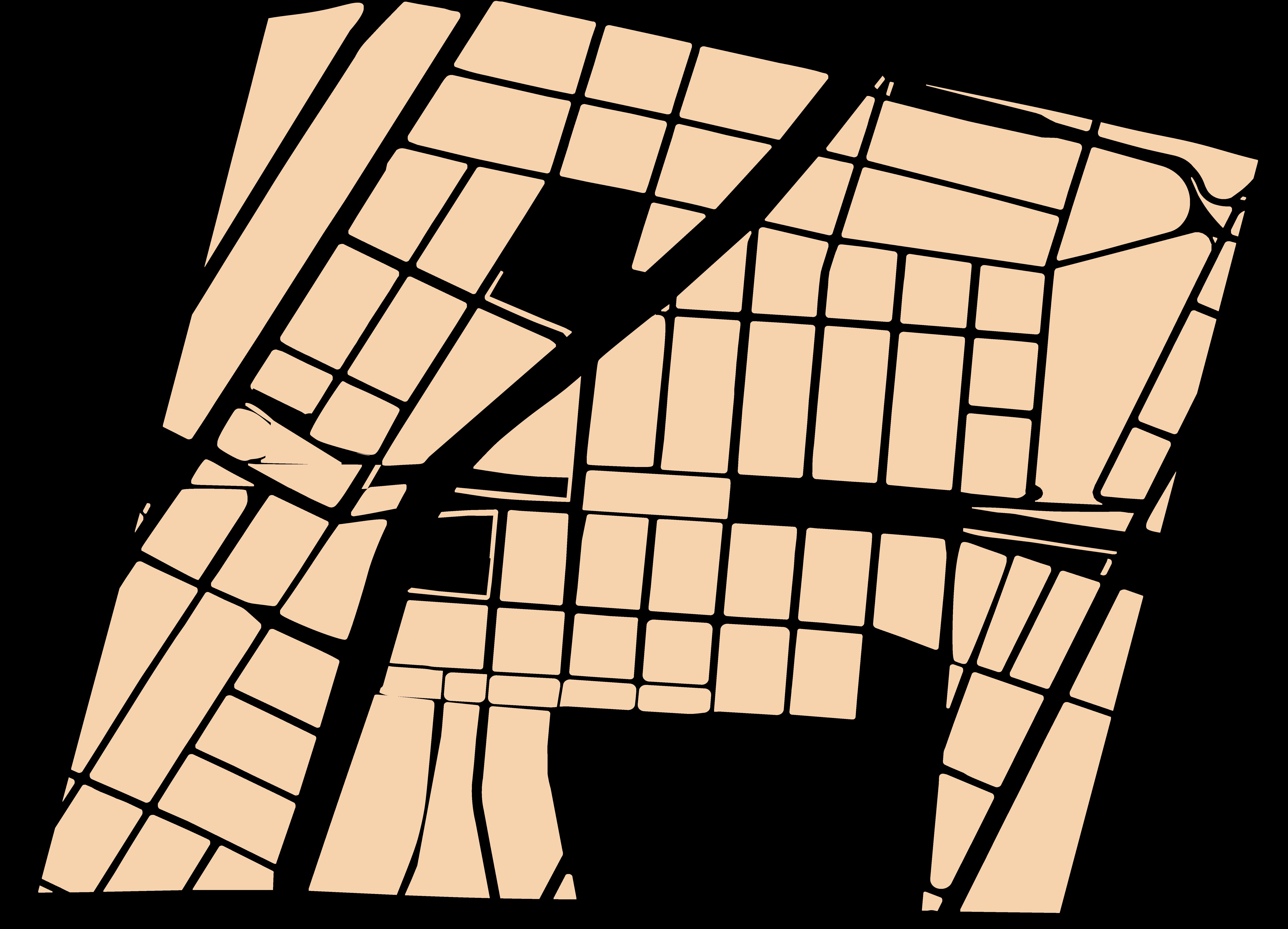

How can we stitch the strict divide in the borough from the Cross-Bronx Expressway?

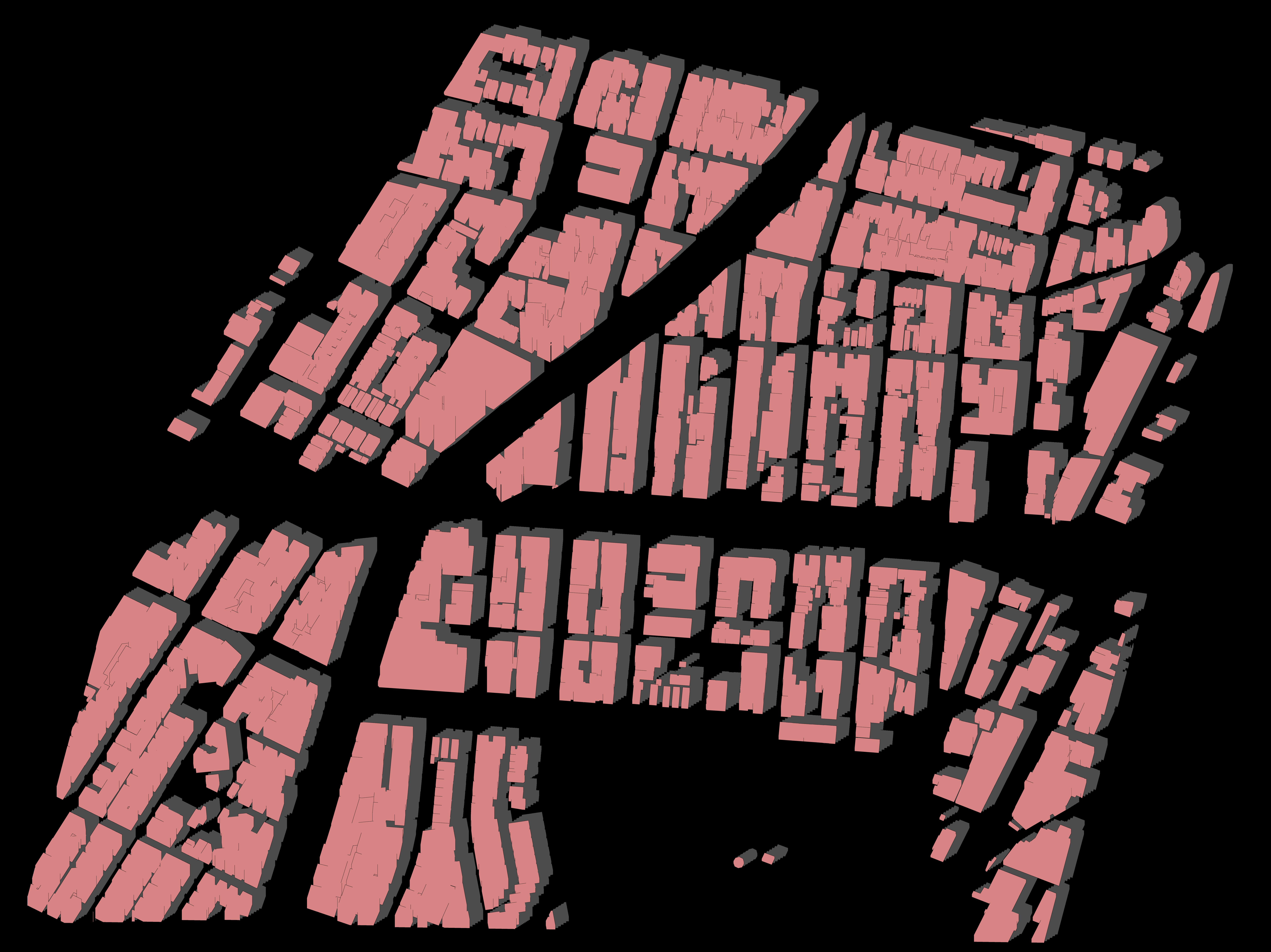

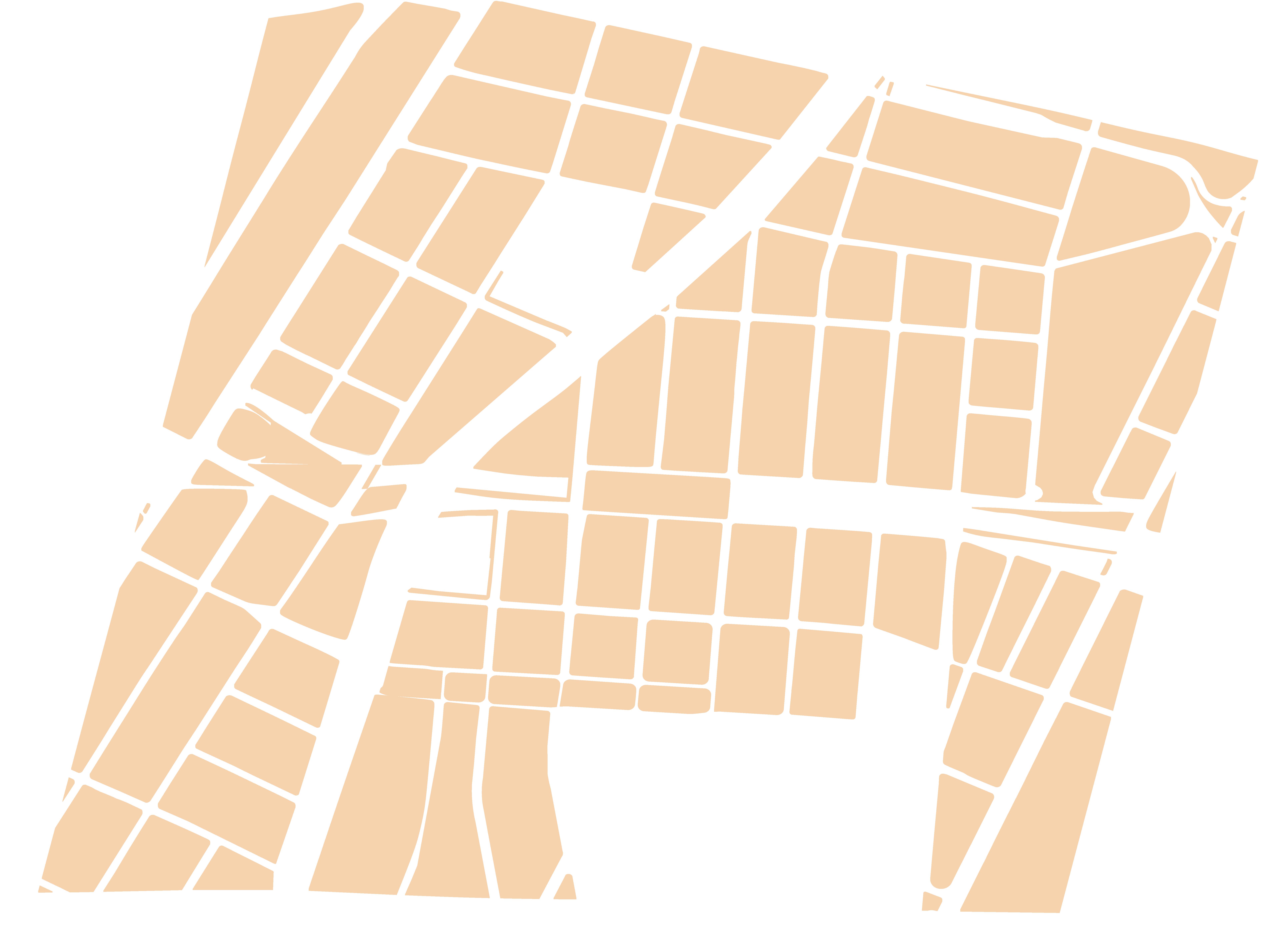

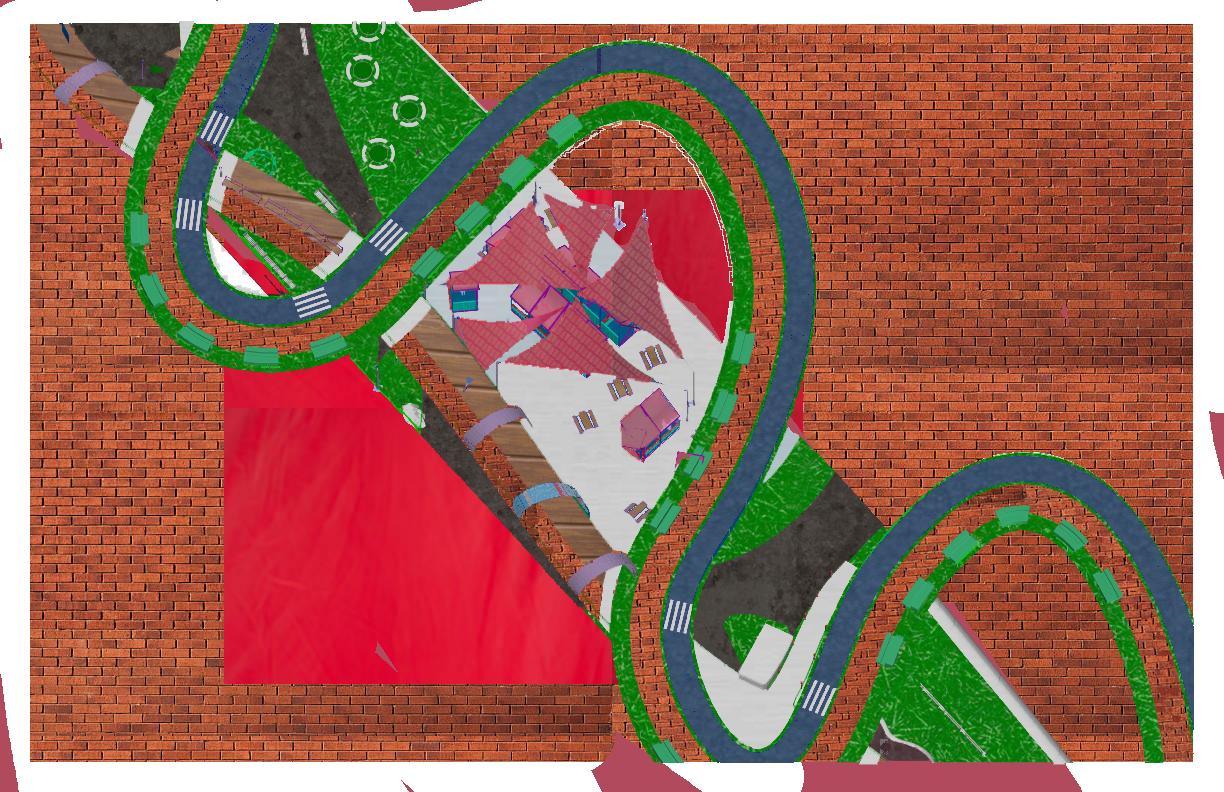

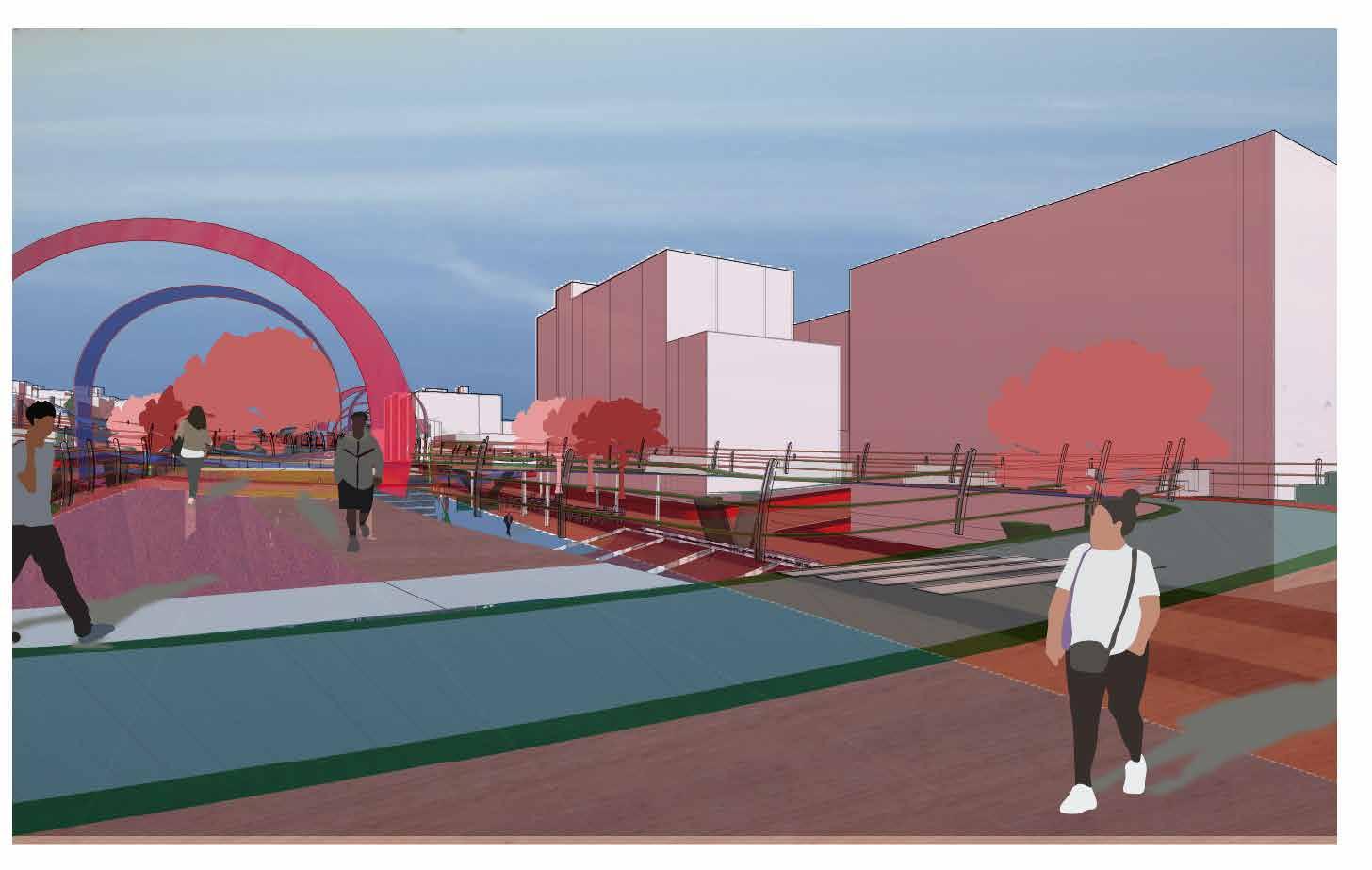

In this urban proposal, we tie both halves of the Bronx divided together with a “ribbon” wrapped around the expressway. The ribbon is made up of predestrianfriendly park trails with multiple access points.

The ribbon is a community uniter. It interconnects public programs and spaces to provide stronger and more inclusive community ties throughout. Nearby public facilities, parks, and more make up the foundation of a better connected city.

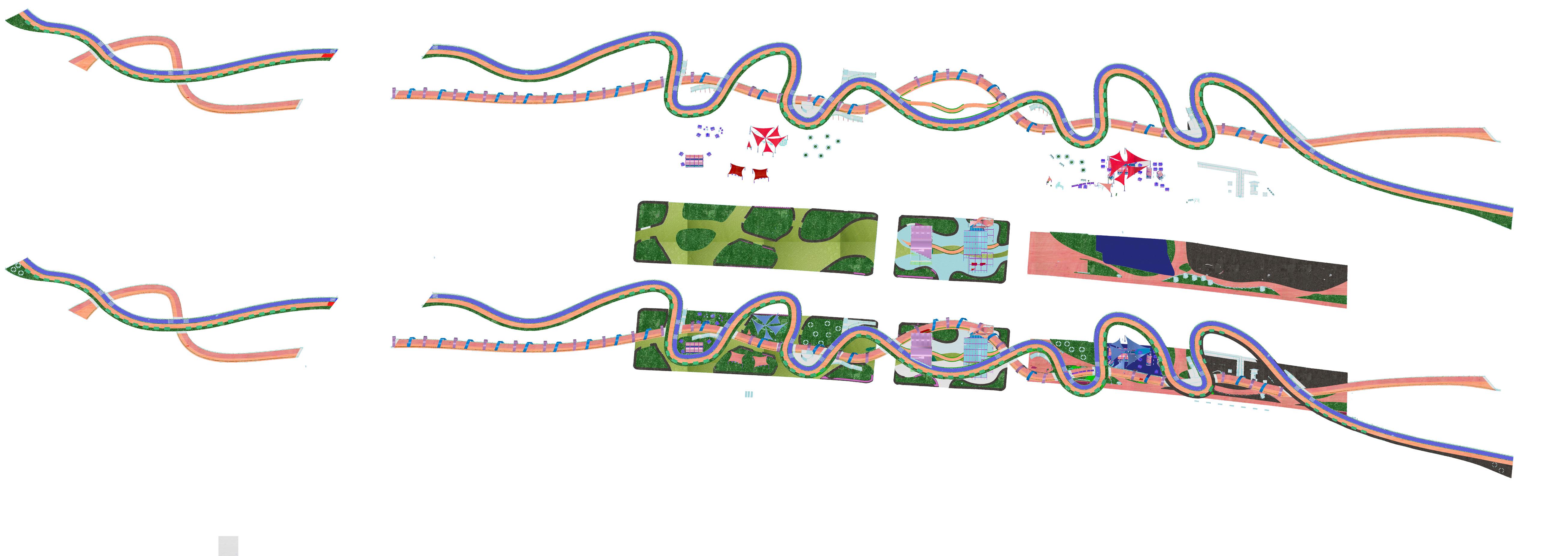

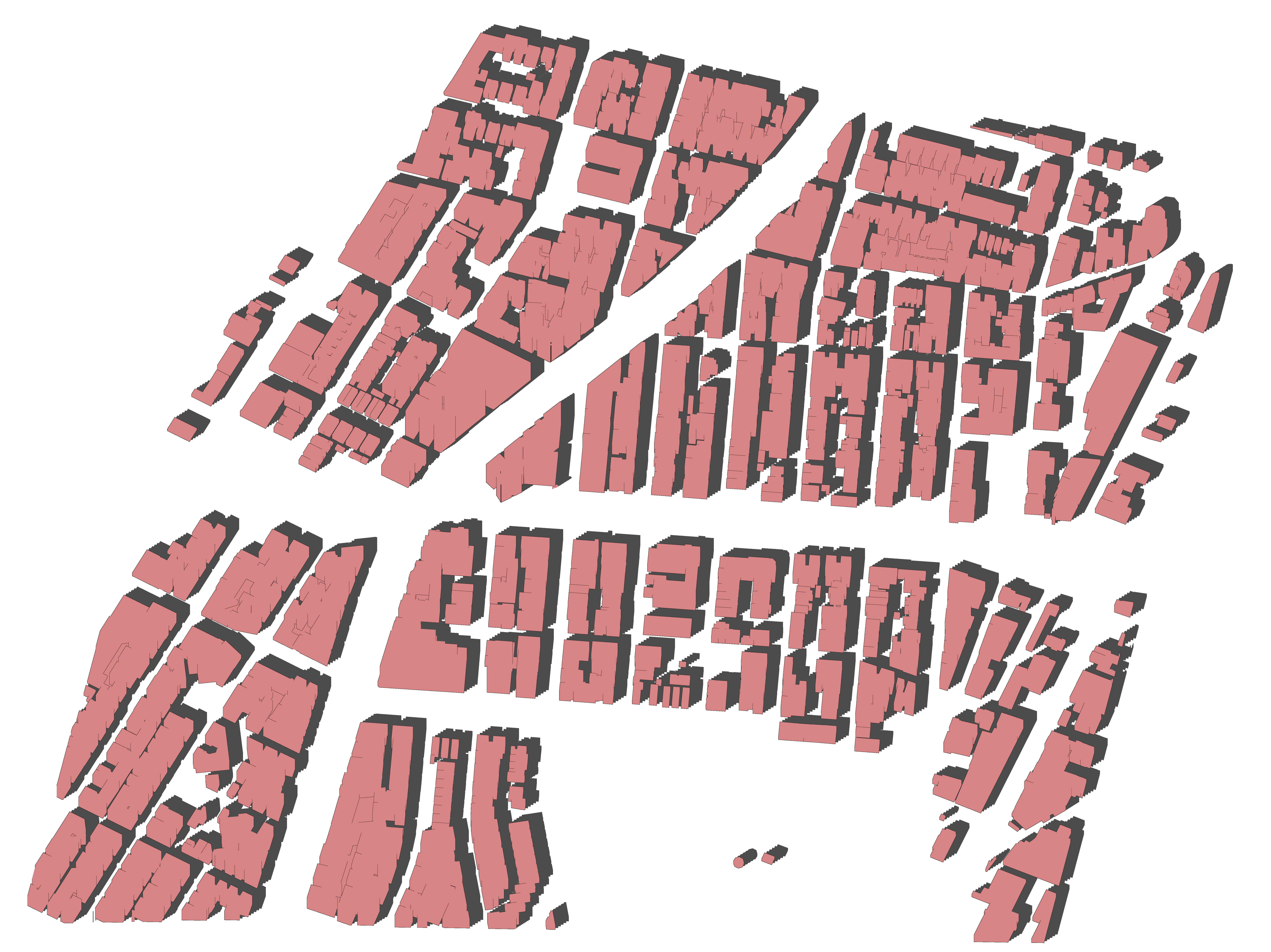

TECHNICAL AXON With corresponding perspectives

PROPOSED SECTION Covers entire ribbonway

TECHNICAL

AXON

Typical expressway capping details

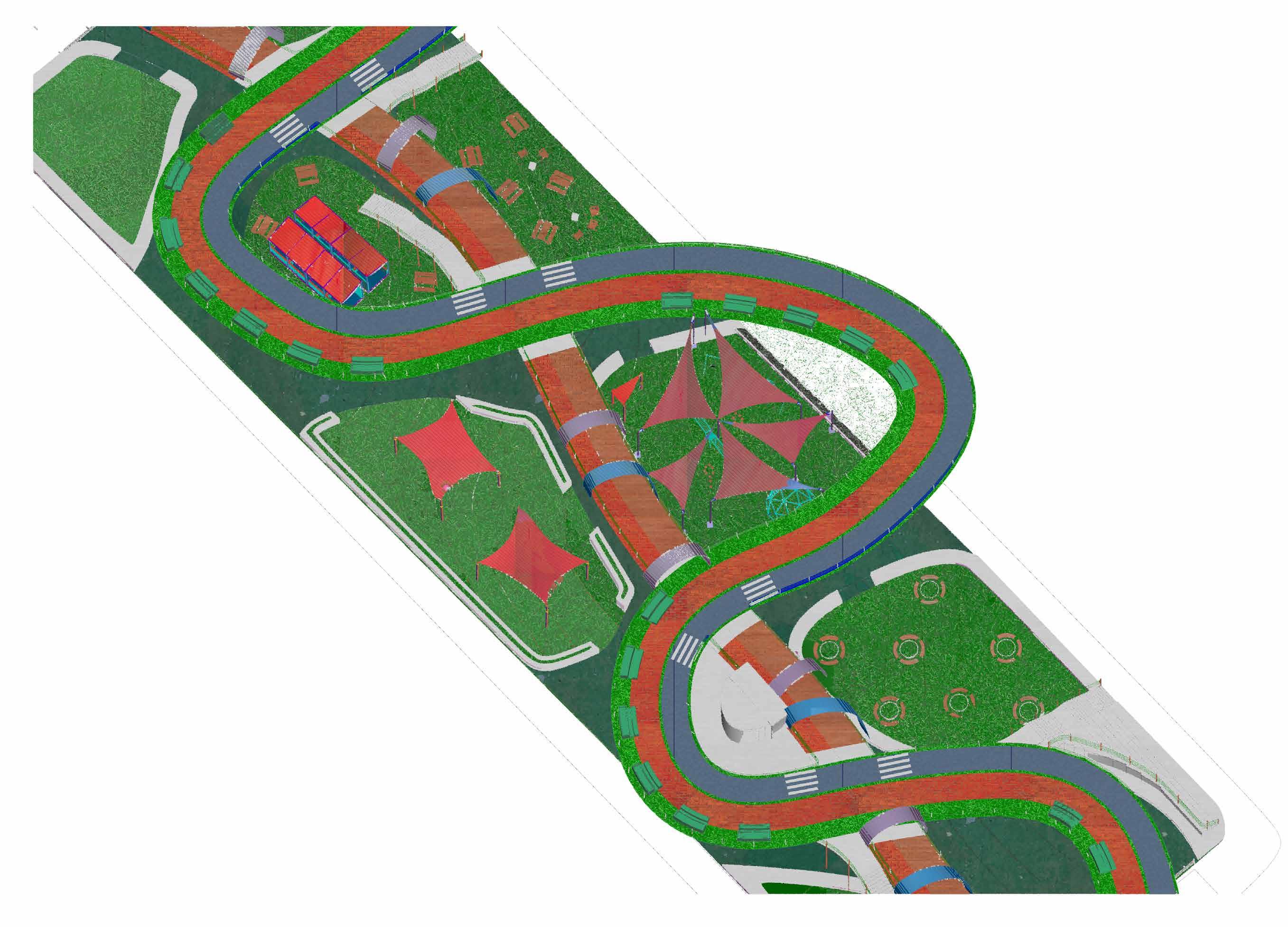

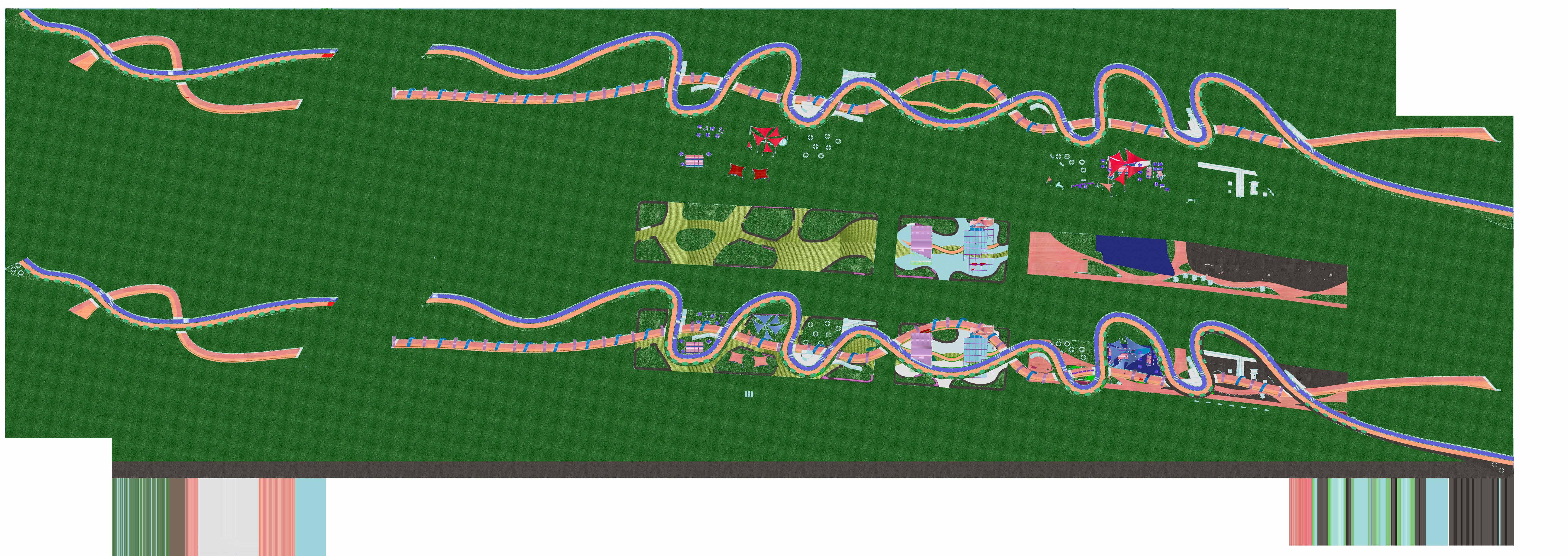

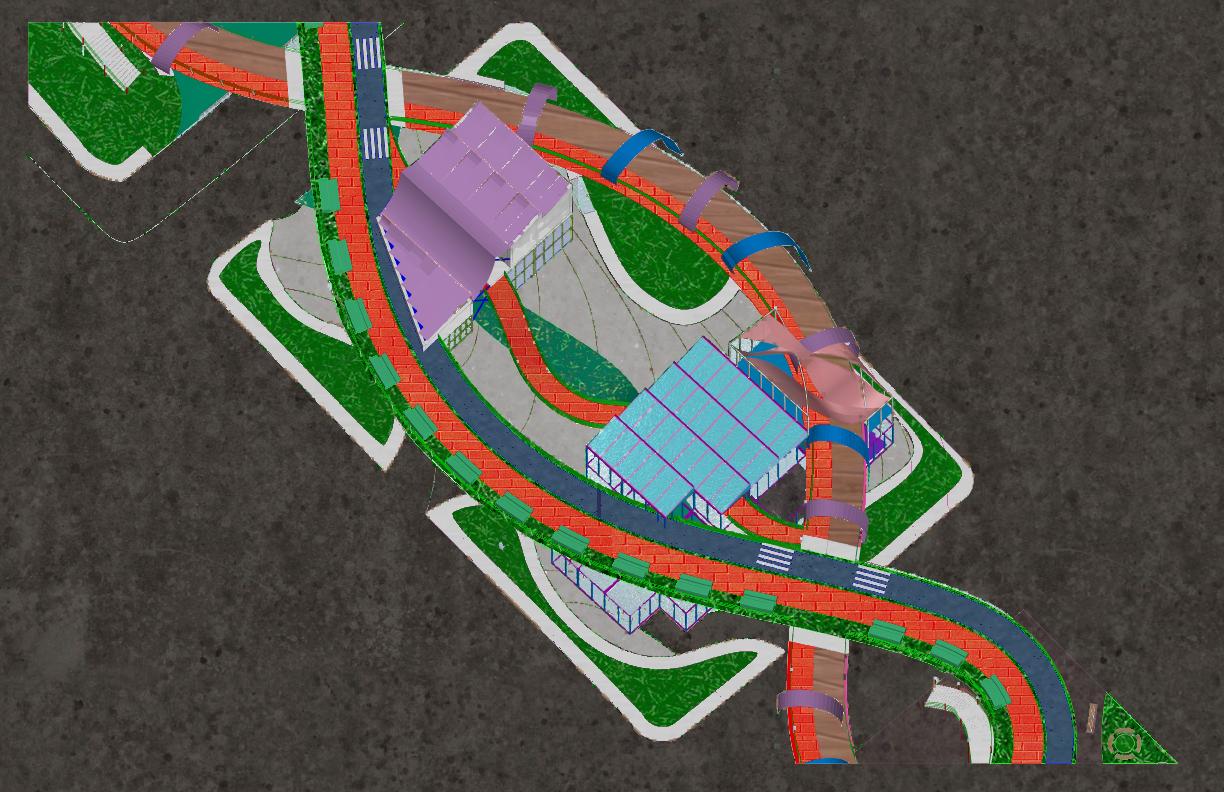

INTERSECTION AXON Zoomed into activity within the ribbonway

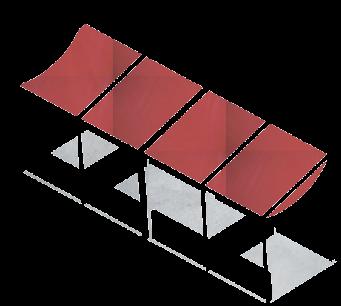

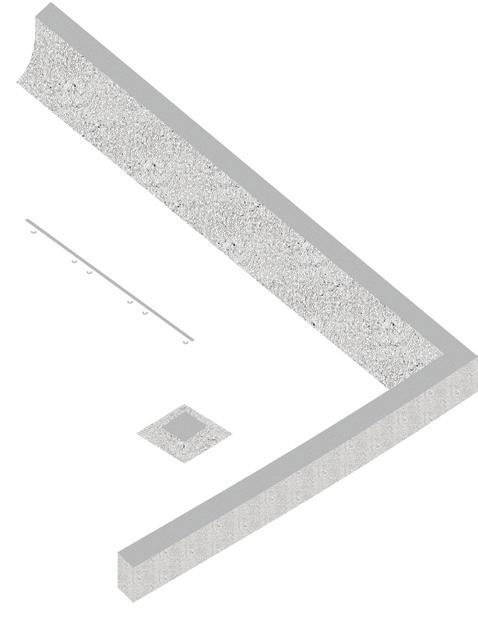

KIT OF PARTS

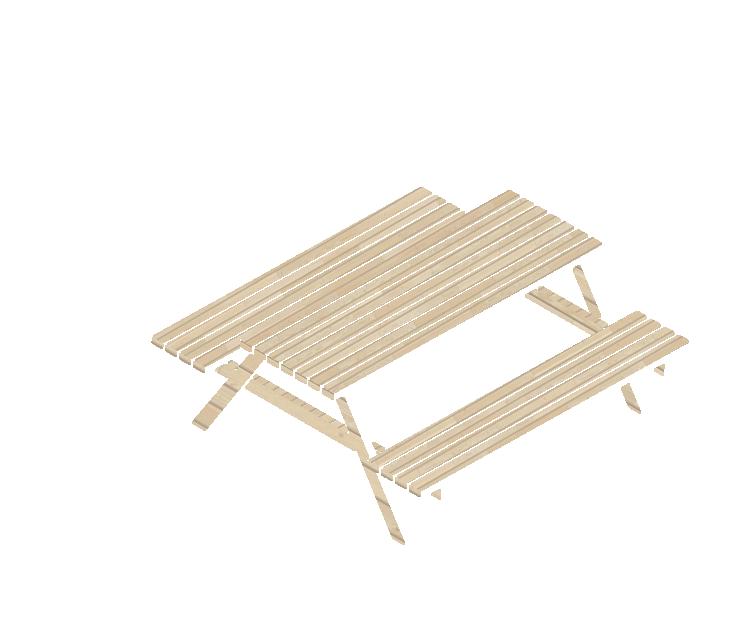

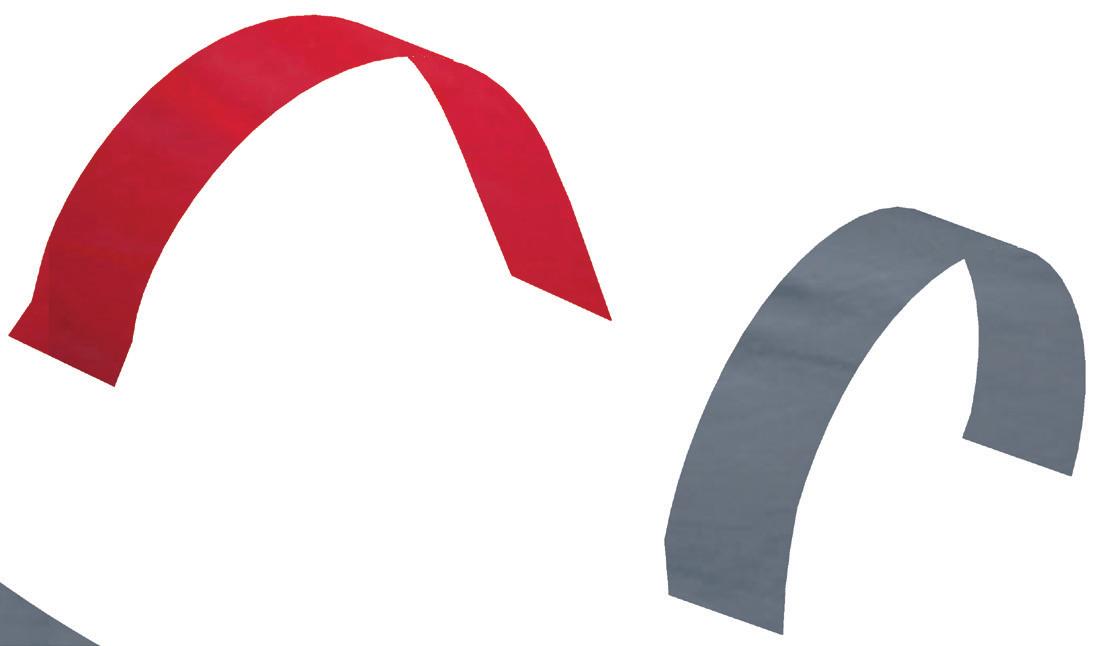

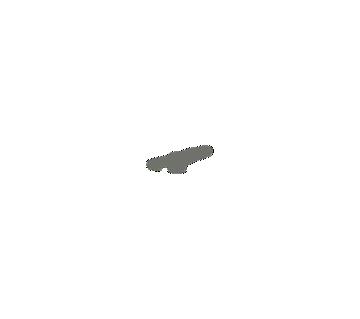

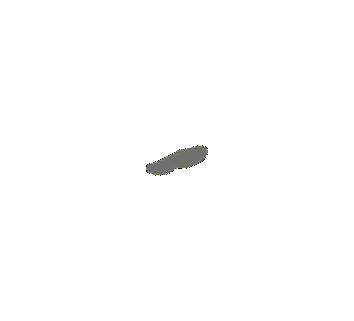

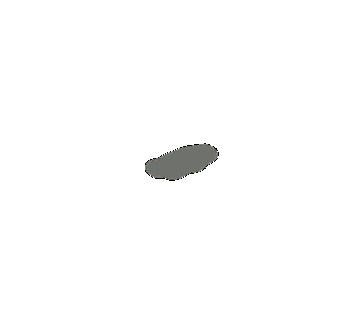

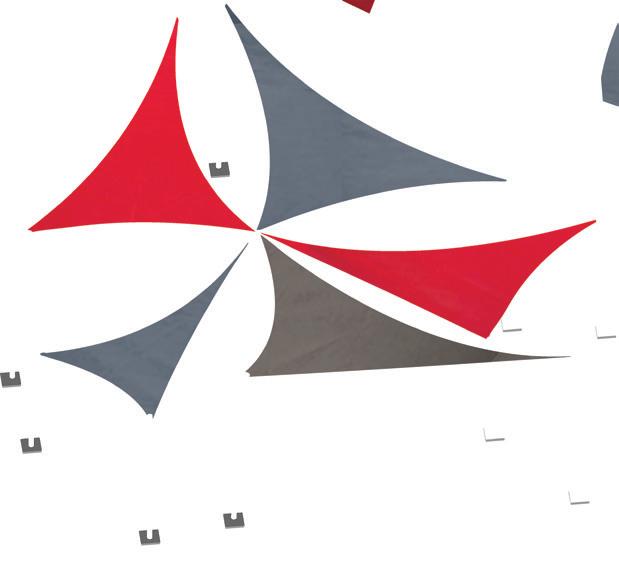

Recurring elements used within the ribbonway

INTERSECTION AXON Zoomed into activity within the ribbonway

KIT OF PARTS

Recurring elements used within the ribbonway

II

Architectural Design 5Comprehensive Design

ARCH 401 Fall 2024

Tidal Wave of Education

What if we could ride the waves to a center of learning and fluid motion?

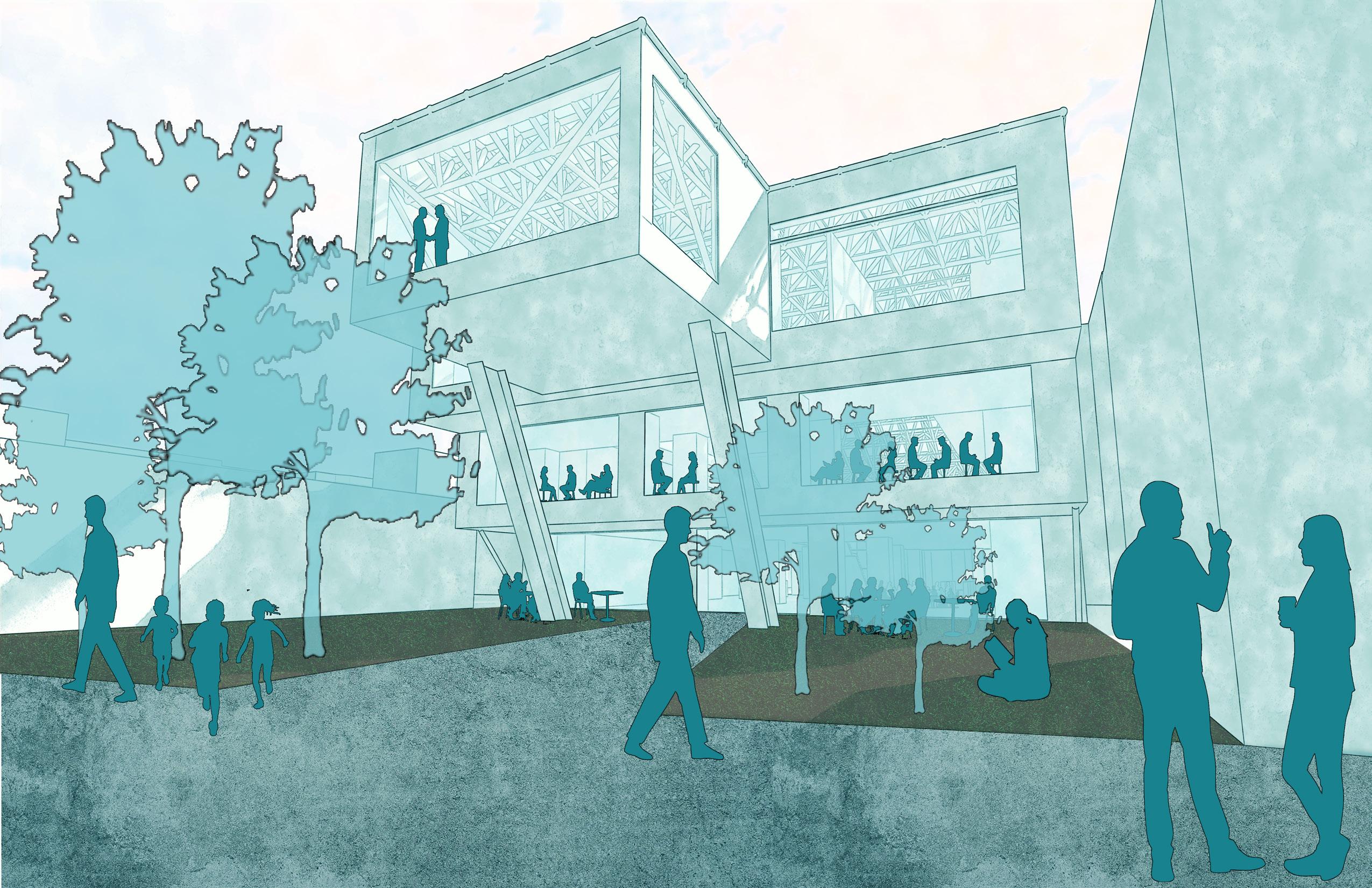

An overhaul and addition made to the Clinton Hill Library in Brooklyn, this project promotes fluid circulation, one-way orientation, and stacked cantilevers that give the occupants the feeling of “riding the waves.”

This communal library is the metaphorical tidal wave. It swoops up the occupants at Washington Avenue and lets them flow to the crests of the wave, which lead to cantilevered views and isolated programme.

Second Floor Structure

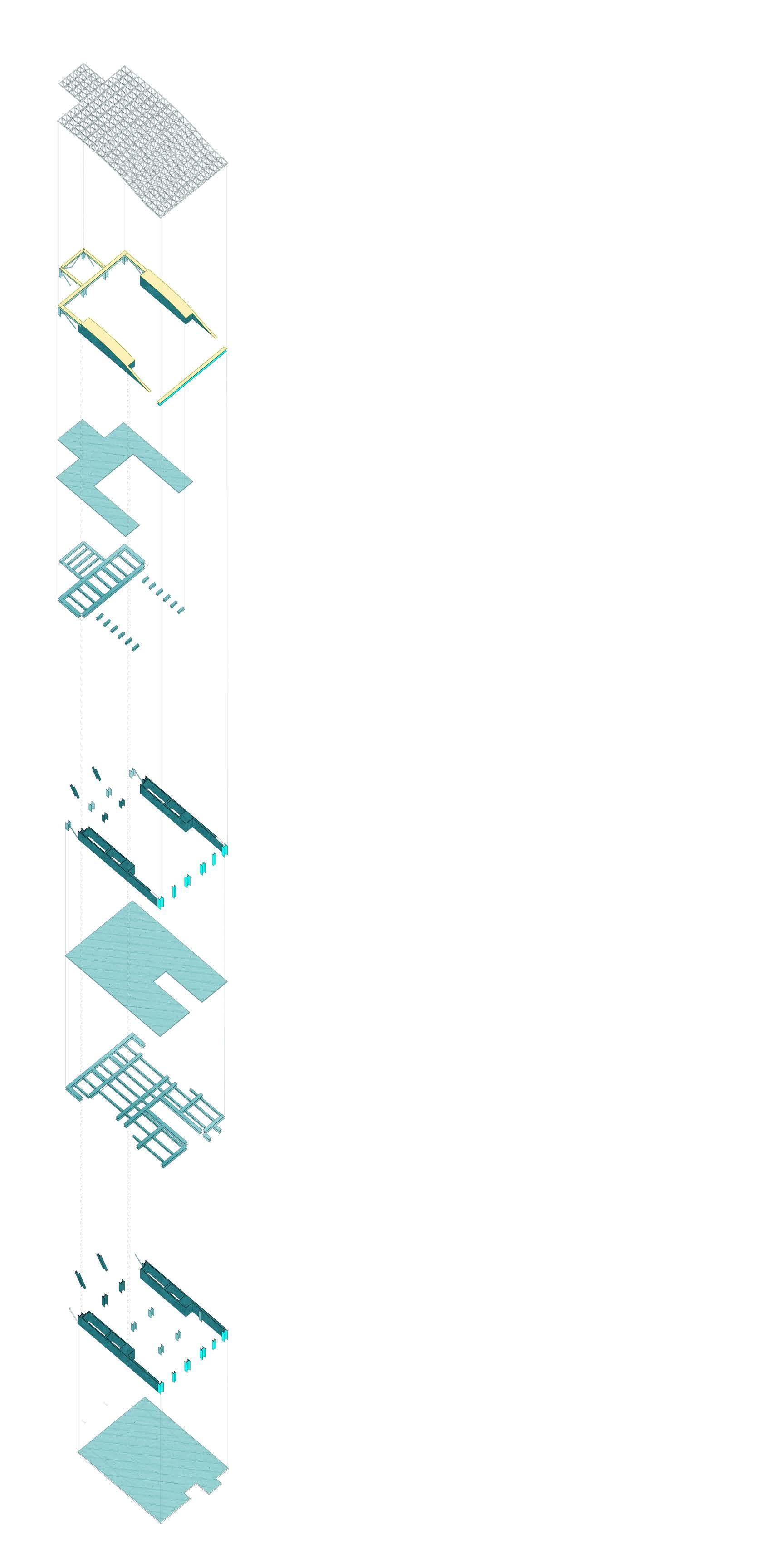

Structural Axonometric

W44 Steel Girders

W36 Steel Beams

Reinforced Concrete Core (Restroom, Fire Stairs, Elevator) Steel Cross-Bracing

Reinforced Concrete Shear Wall

W44 Steel Columns

First Floor Structure

Steel Beam System (supporting Second Floor)

Placement of Space Frame

One-Story Columns/Beams

Front Facade Columns/Beams

Continuous Columns/Walls

W36 Steel Columns
2’ Reinforced Concrete Slab on Grade
4” Concrete Slab sitting atop Beams

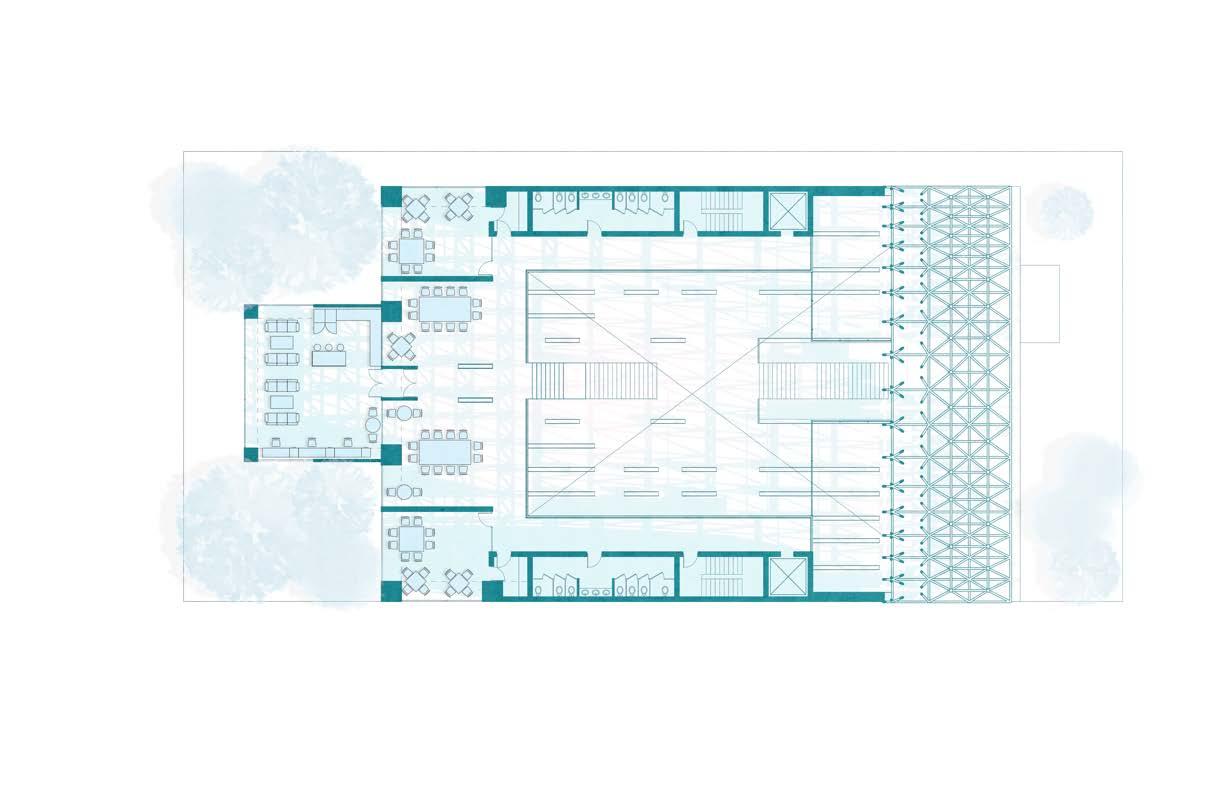

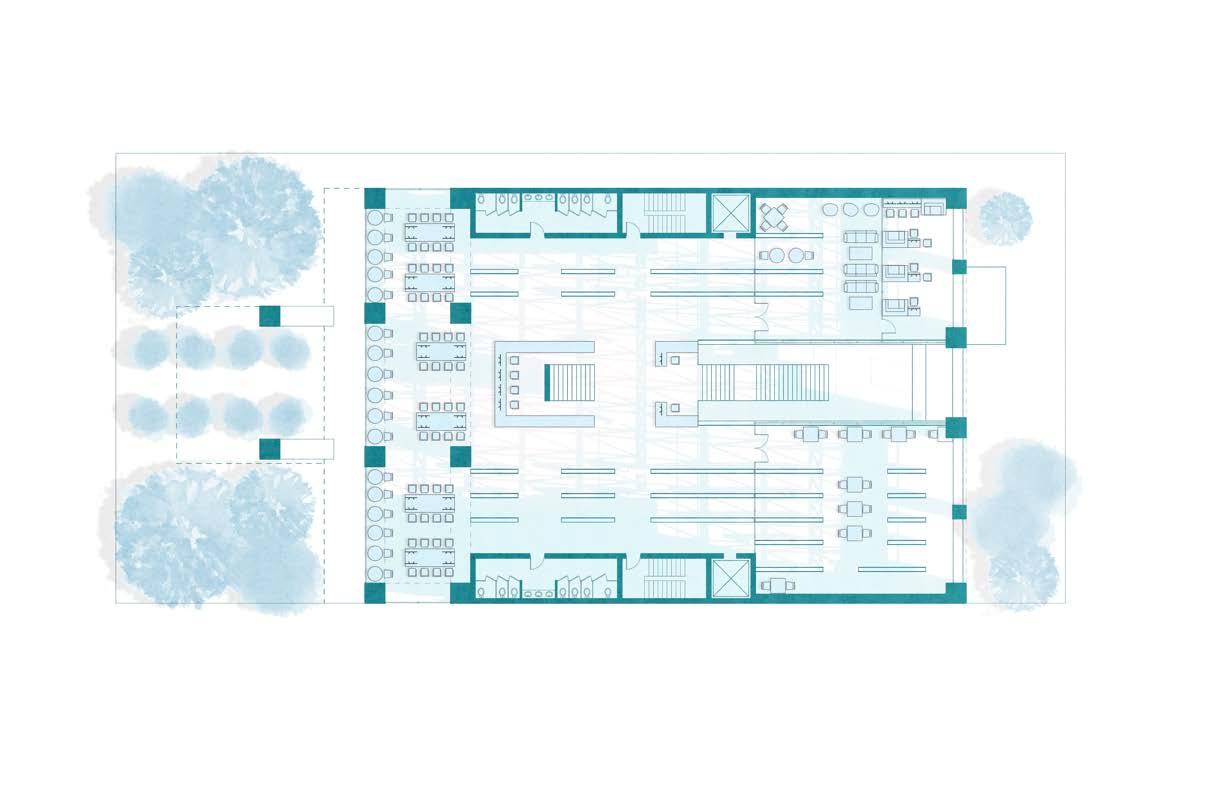

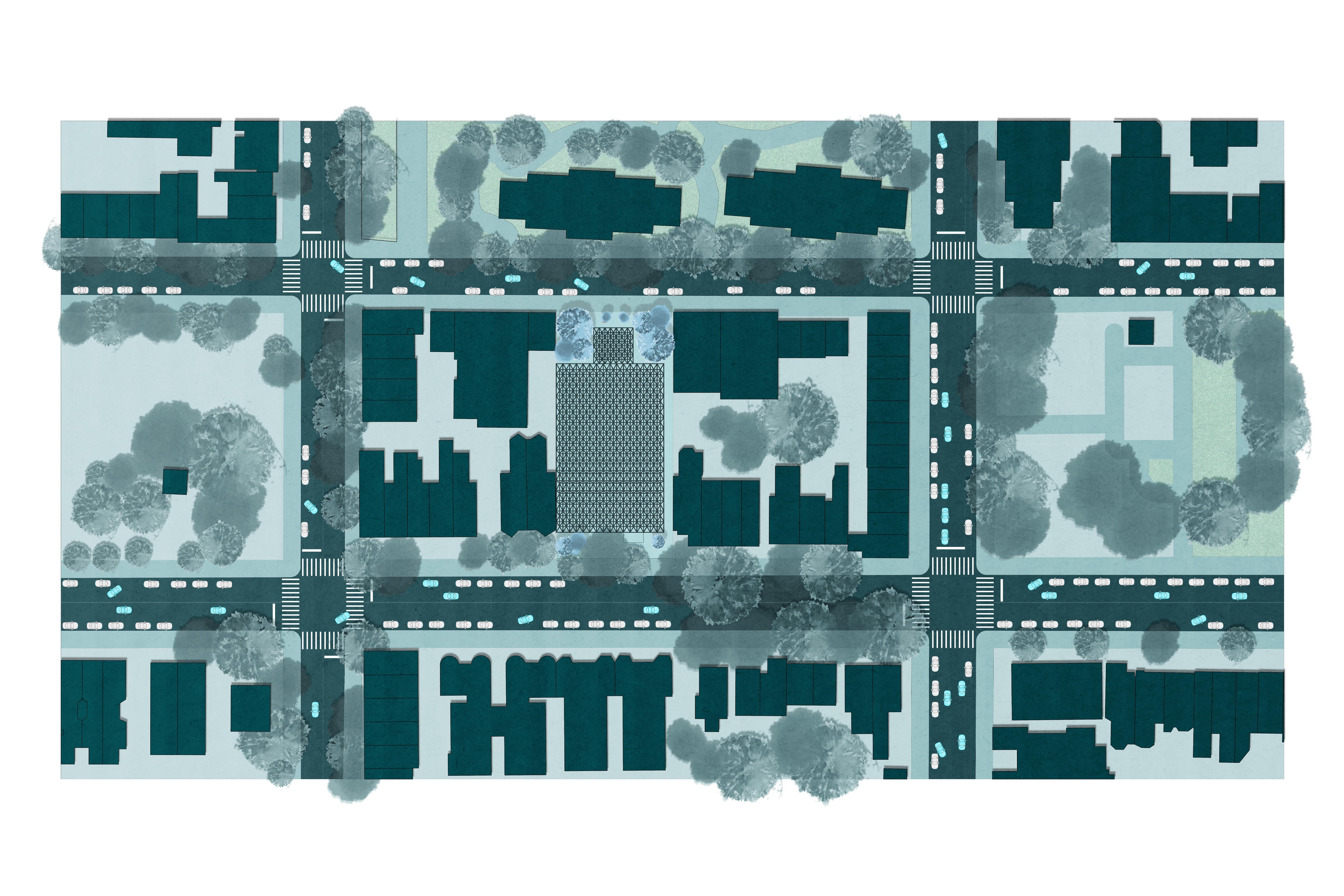

Floor Plan

Second Floor Structure

W44 Steel Girders

W36 Steel Beams

Floor)

First Floor Structure

Placement of Space Frame

One-Story Columns/Beams

Front Facade Columns/Beams

Continuous Columns/Walls

Reinforced Concrete Core (Restroom, Fire Stairs, Elevator) Steel Cross-Bracing
W44 Steel Columns
W36 Steel Columns
2’ Reinforced Concrete Slab on Grade
4” Concrete Slab sitting atop Beams
Reinforced Concrete Core (Restroom, Fire Stairs, Elevator) Steel Cross-Bracing
Reinforced Concrete Shear Wall

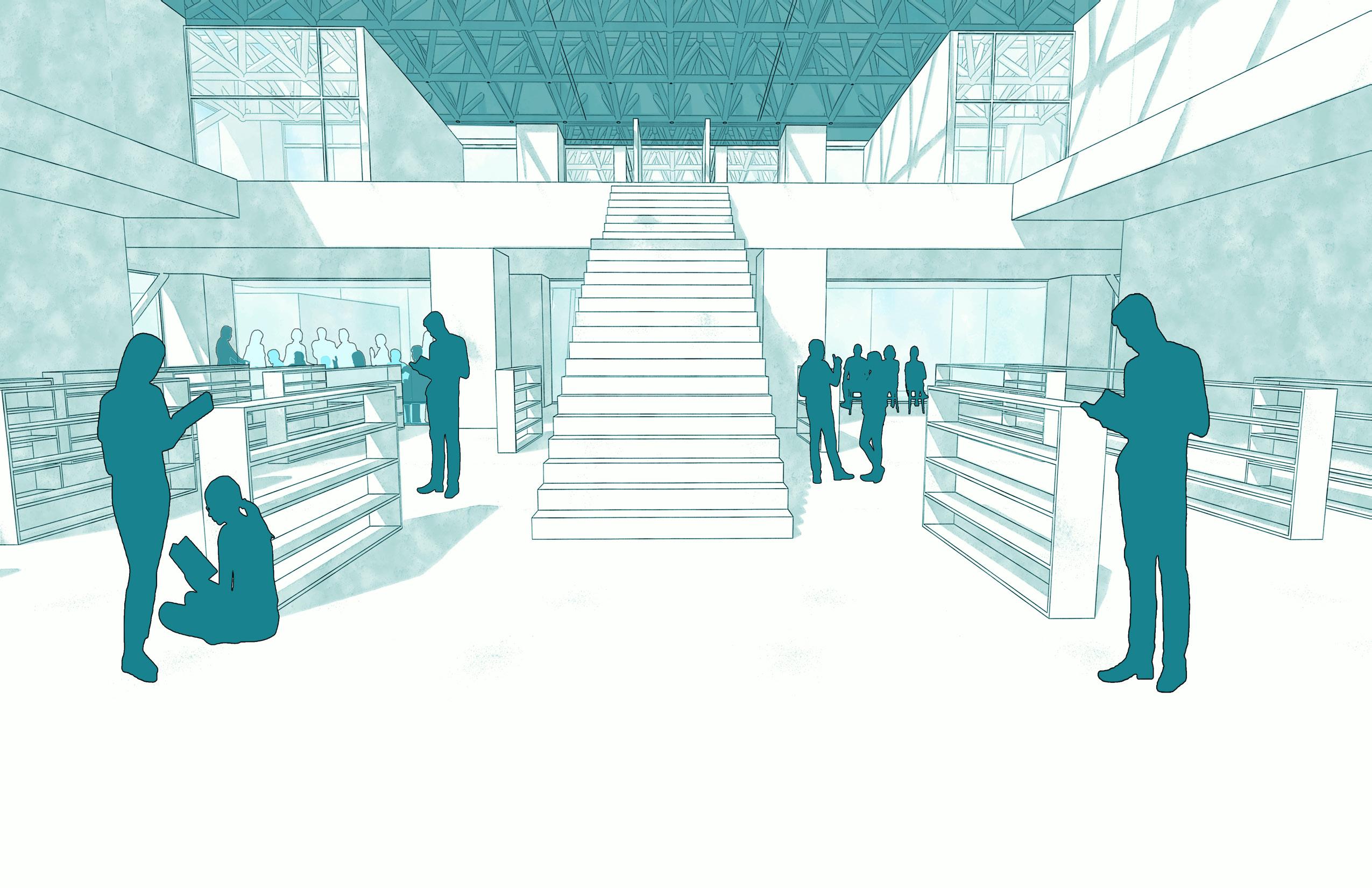

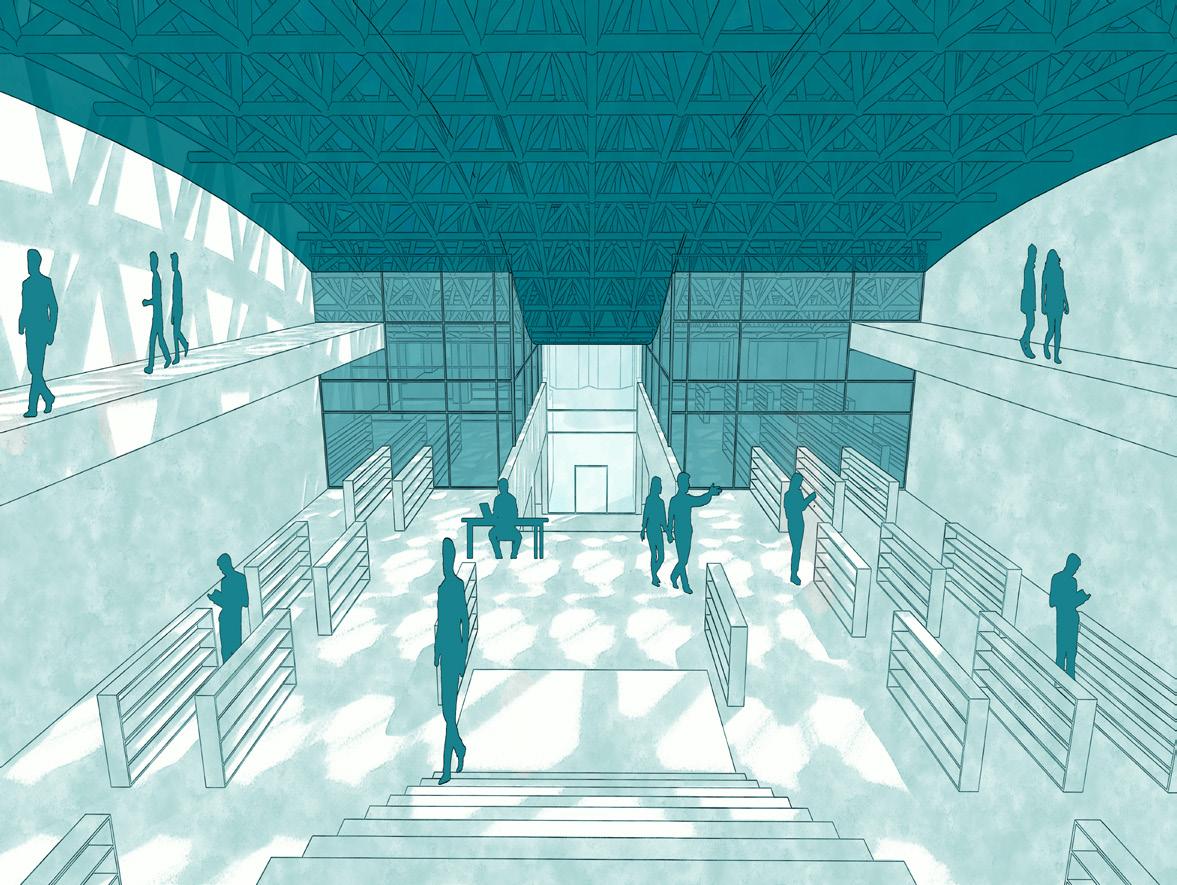

General Reading Room

Reinforced Concrete Core (Restroom, Fire Stairs, Elevator) Steel Cross-Bracing

Reinforced Concrete Shear Wall

W44 Steel Columns

W36 Steel Columns

First Floor Structure

Placement of Space Frame

One-Story Columns/Beams Front Facade Columns/Beams

Continuous Columns/Walls

Multi-Purpose Room by night (Black Box)

2’ Reinforced Concrete Slab on Grade

Placement of Space Frame

One-Story Columns/Beams

Front Facade Columns/Beams

Continuous Columns/Walls

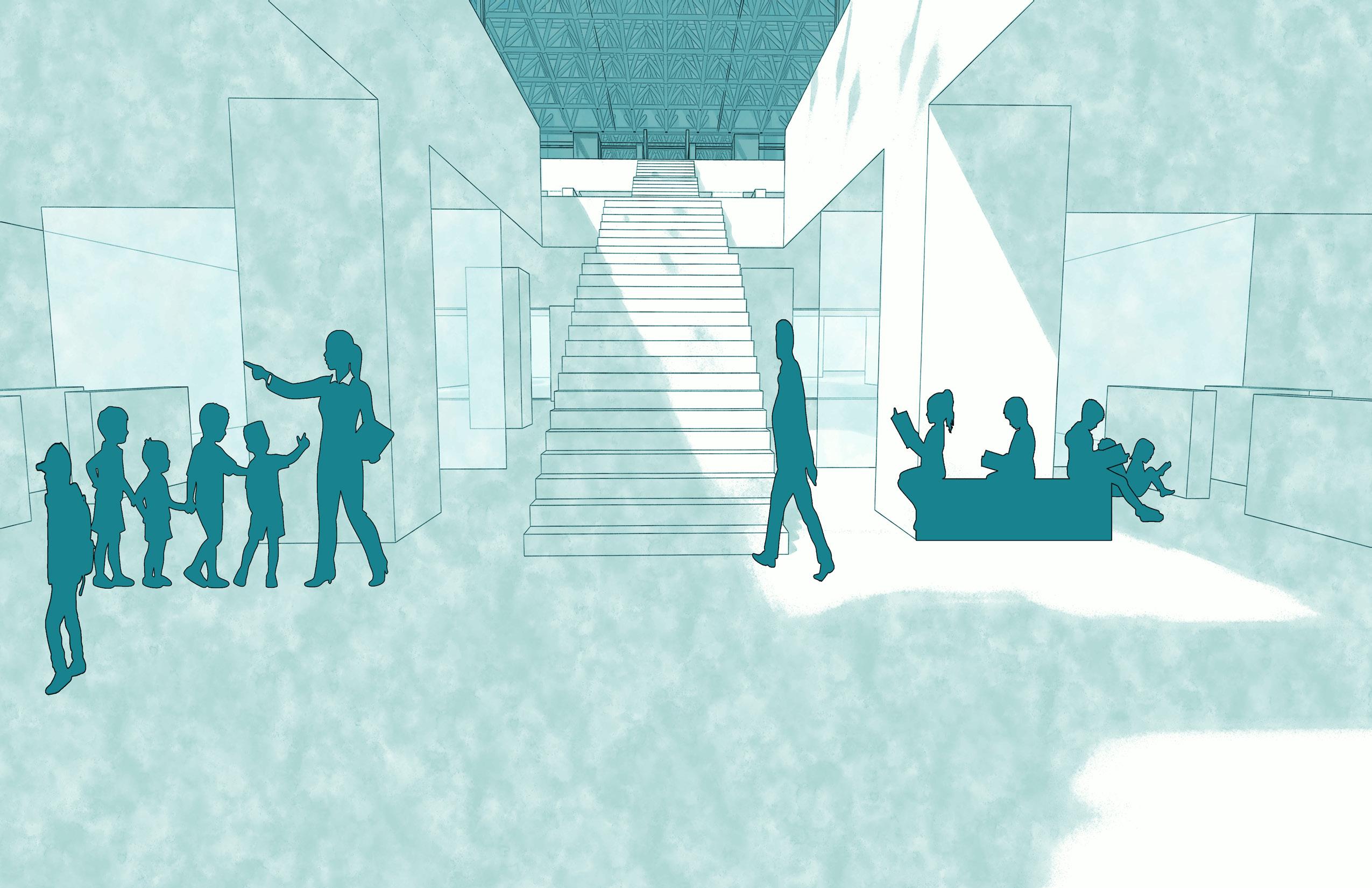

Lobby / Children’s Reading Room

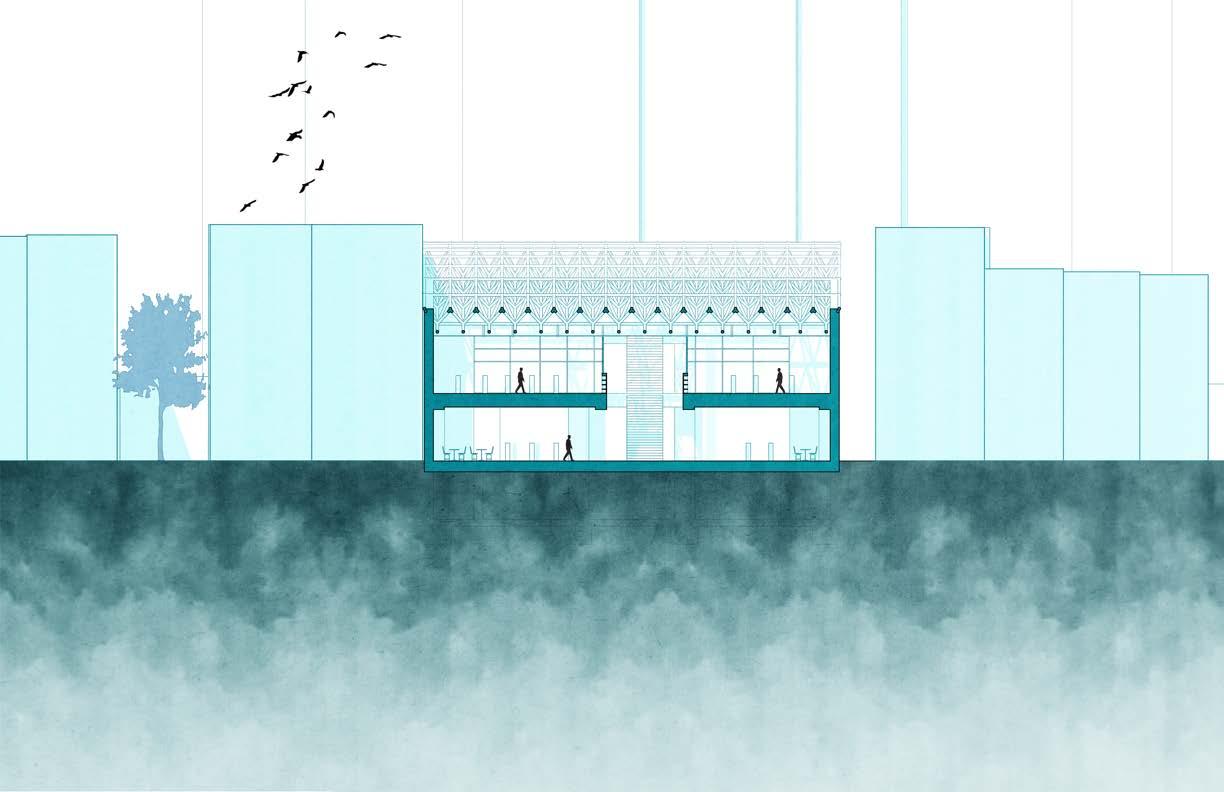

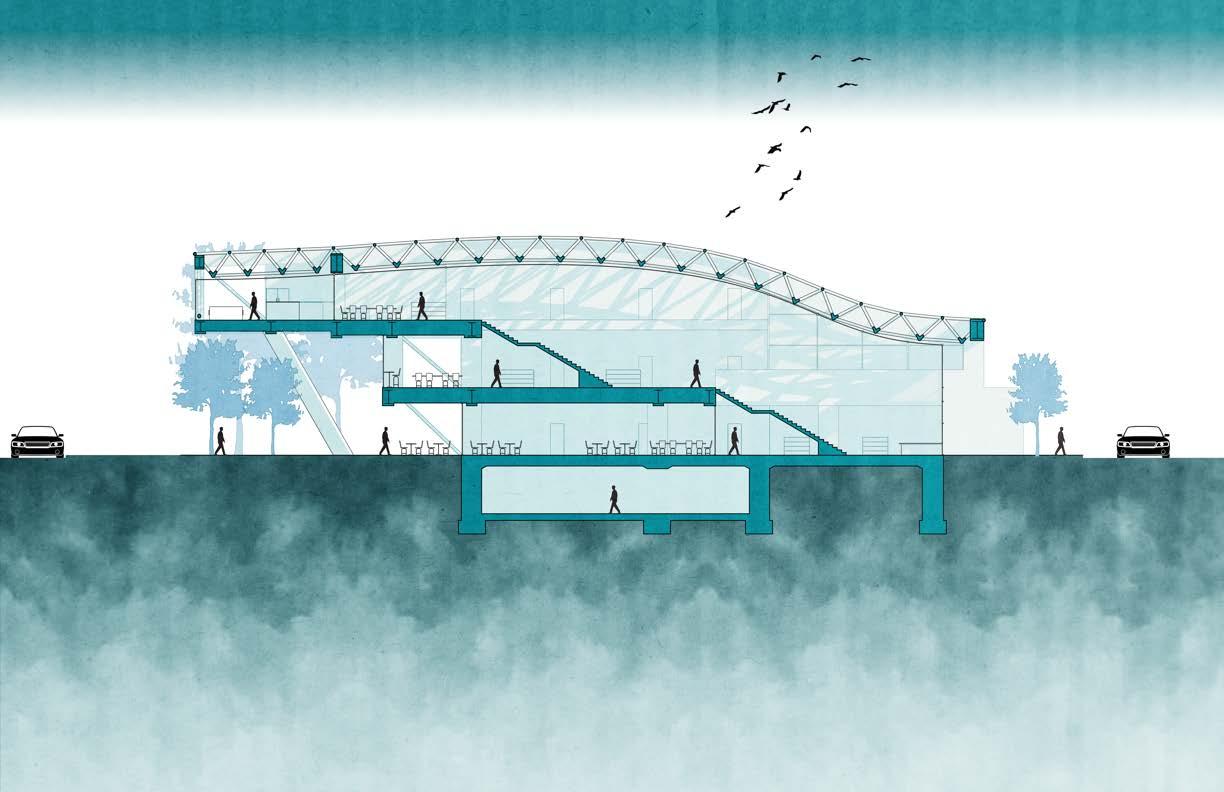

Transversal Section 1 (Double Height)

Transversal Section 2 (Secluded Coves)

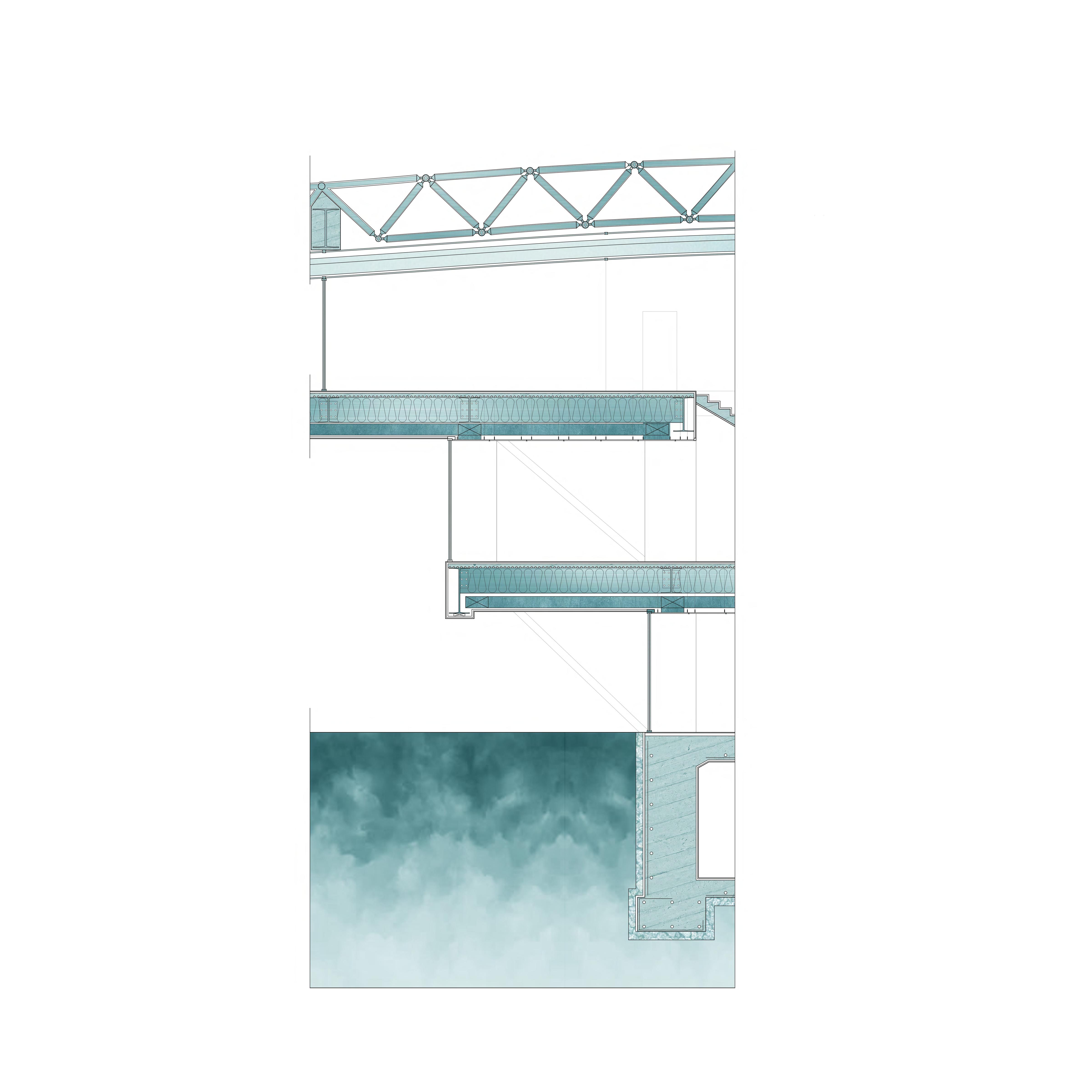

CEILING / ROOF DETAILS

Spherical Node

Bolt

Alumnium Pipe

W44x335 Steel Beam

Concrete Reinforcement

3/8” Glass Paneling

6” Insulated Air Gap

6” Transparent Polycarbonate Sheet

1’ Transparent Insulation Material (T.I.M.) Sheet

3/8” Glass Paneling

WALL / FLOOR DETAILS

3/8” Double Glass Pane

1” Finish Board

1.5” Gypsum Board

4” Concrete Slab Metal Decking

W36x194 Steel Beam Bolted Metal Angle Batt Insulation

HVAC Supply Duct Trail

3.5’ Suspended Cable Acoustic Ceiling Tile Metal Cross-Bracing

FOUNDATION DETAILS

8” Gravel Infill

1.5” Rigid Insulation Waterproofing Membrane

Steel-Reinforced Concrete Foundation

3’x4’ Steel-Reinforced Concrete Footing

CEILING / ROOF TRANSPARENCY

Besides the space frame, the roof is comprised of only transparent/translucent materials: glass. polycarbonate sheets, and even transparent insulation material (T.I.M.). So, although multiple layers separate the space from the open sky, plenty of natural sunlight can filter through and illuminate the building.

Space Frame

A great long-span option. Comprised of recycled aluminum, its overall light weight cuts transportation and construction energy usage down significantly. Its openness allows an abundance of natural light inside the spaces.

Double-Skinned

The roof is comprised of a 6” air gap polycarbonate and glass dual facade. flows inside at Washington Avenue expelled as warm air at Waverly naturally regulates internal temperatures.

Mechanical Ventilation

In a Forced-Air Heating/Cooling system, supply ducts in the floor and return ducts in the walls connect to a single furnace/air handler unit found in the cellar level.

Double-Skinned Roof gap separating a facade. Cool air Avenue and is Waverly Avenue. This temperatures.

The double-facade roof can also help guide rainwater into the gutter system that connects into 1 of 2 cisterns in the cellar level. This water can then be pumped back up into the building for functional purposes (toilet water, etc.)

Existing Layout

The entire rest of the building is built on top of the existing layout of the current Clinton Hill Library. This minimizes construction energy usage and costs.

Floor 3 Overlook

North Shore Historical Museum

A BIMintensive “As-Built” survey

I took measurements of Long Island’s North Shore Historical Museum and projected them into Revit, complete with plans, elevations, sections, and detailed callouts.

Typical Roof Front Awning

Detailed Callouts

Callouts include typical foundation, wall, and roof structure. They also include more specific details like awning installation, bathroom layout, and cellar columns.

IV

Miscellaneous Work

Visual Arts

“Bridge the Gap” - Bridge Concept

Country House Concept

“The Pitchfork”Skyscraper Concept

“Round the Clock”Mixed-Use Building Concept

One-Story Building Concept

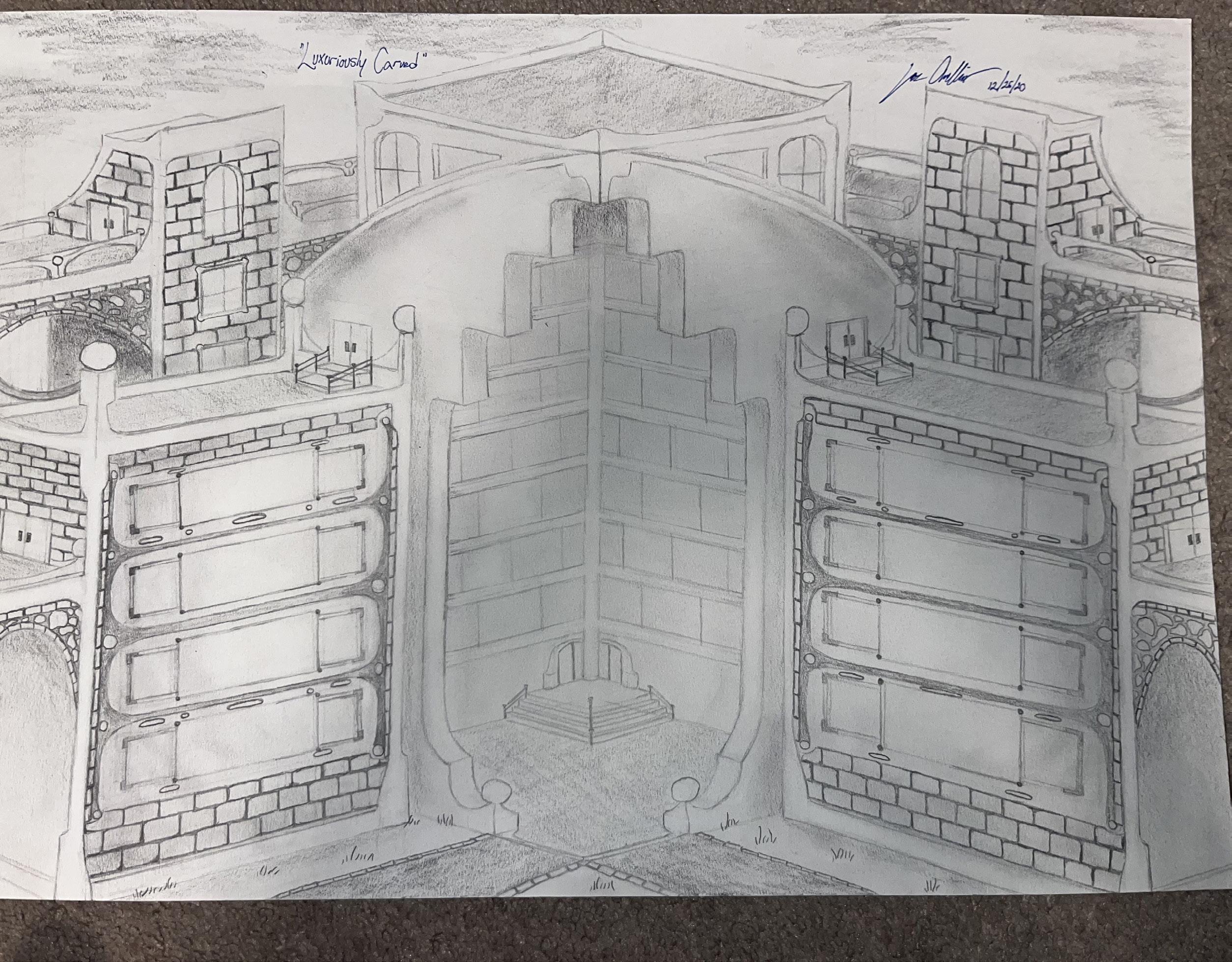

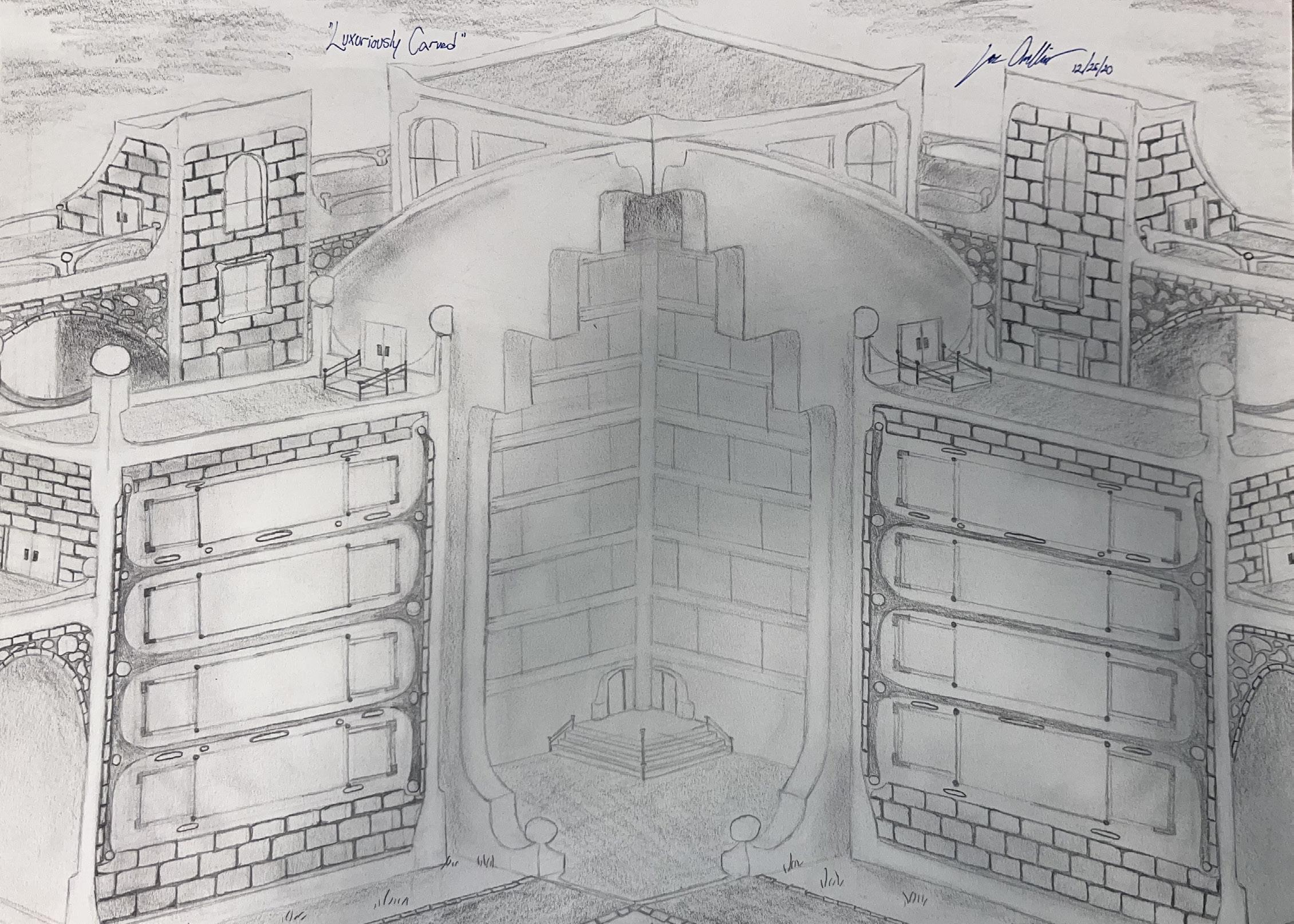

“Luxuriously Carved” - Hotel Concept
