® 1 TABLE OF CONTENTS INTRODUCTION Somfy’s 40mm Motor Range MOTOR SPECIFICATIONS ®Sonesse 40 WT ®Sonesse 40 RTS LS 40 WT ®ALTUS 40 RTS CONTROL ACCESSORIES ®Radio Technology Somfy (RTS) ®Somfy Digital Network - animeo IP Wired Controls MECHANICAL ACCESSORIES, LIGHT GAP SPECIFICATIONS & BRACKET PROJECTIONS ® AcmedaSomfyDecorator Type ®RollEase Skyline Somfy CTS 40 ® ®RollEase and ZMC Fascia & Cassette Solutions Additional Somfy Brackets, Crowns & Drives for 400 Series Motors 2120191816-1714-1512-131110-1189762

® ® ® ®

Acmeda is a registered trademark of Acmeda International Group Incorporated. RollEase is a registered trademark of RollEase Inc. - Stamford, CT. Crestron is a registered trademark of Crestron Electronics, Inc. ZMC is a registered trademark of ZMC Window Coverings Universal Remote Control, Inc. is a trademark of Universal Remote Control, Inc.

®The Sonesse 40 Range with patent pending technology features a newly designed brake, rotor and gearbox to further reduce motor operating sound. Available in both RTS and wired versions, the Sonesse 40 can be used in a variety of interior window covering applications.

®Power, Simplicity, and Convenience - Altus 40 (RTS)

Somfy’s 40mm Motor Range

The LS 40 motor is Somfy’s original 40 mm solution. This robust and durable motor is available in a wide variety of torques and speeds and is a dependable source for exterior applications.

Solar/Roller Shades

2

®The Altus 40 RTS features an integrated radio receiver within the motor which eliminates any wiring between the motor and controls. Available in two torques 4Nm and 9Nm, the Altus 40 RTS is ideal for exterior product applications.

® ®This document is a presentation of accessories and specifications related to the Sonesse 40 (RTS & Wired), Altus 40 RTS and LS 40 Wired motors. It provides the technical information needed to order, fabricate, and sell the complete range of Somfy’s 40 mm motors. For additional information regarding any of the products in this document including motors, power sources, controls, interfaces, etc., please reference www.somfysystems.com where detailed instructions are available for download.

Proven Strength and Reliability – LS 40 (Wired)

®Conveniently Quiet - Sonesse 40 (RTS & Wired)

As with all Somfy products, motors are backed by a 5 year warranty.

ExtAwningseriorSolar Screens

WIRED TECHNOLOGY

3

Rolling Shutters

Roman/Woven Shades

Sheer Horizontal Shades

Offers control via standard AC switching.

®Radio Technology Somfy (RTS) allows wireless radio control of motorized window coverings via the RTS family of controls.

Horizontal Blinds

RTS Hand-held Remote

4

dBA 55

The volume scale below appears on all Sonesse range specification pages and designates the motor’s level of sound output.

SOMFY DESIGNED FOR SILENCE - Quietness Scale

®The Sonesse range of motors are rated according to their quietness. dBA < 44 <dBA

40

The most compact, adaptable and quiet 40 mm AC motor dedicated to interior window coverings.

The Sonesse 40 range features 4 patents pending that reduce motor operating sound. The brake, rotor, and gearbox are all specially designed to absorb sources of noise. Available in both RTS and Wired, the Sonesse 40 can be used to motorize a variety of applications. The Sonesse 40 is compatible with Somfy’s full range of controls and accessories including the Telis Modulis RTS, a hand-held remote with a scroll wheel exclusively designed for the precise control of blind slats.

®

Sonesse 40 - Designed to set the new acoustic standard.

Telis Modulis

®

<< 42 dBA ®RollEase crown and drive kit ™Acmeda crown and drive kit Somfy crown and drives for cylindrical and octagonal tubes

Asynchronous, maintenance-free motor with enhanced rotor design provides increased efficiency and precise operation.

5

Innovative helical gearbox ensures uniform sound quality in both up and down directions.

New and improved spring brake eliminates stopping and tilting noise.

WIRED TECHNOLOGY

120VWiredAC / 60 Hz 4 conductor cable white = neutral red = direction 1 black = direction 2 green = ground 404S2 1001553 406A2 1001556 409R2 1001557 Offers control via AC power switching. WIRED TECHNOLOGY ®Sonesse 40 WT © SOMFY SYSTEMS, INC. 12/09 L-0060 All specifications are subject to changes. Voltage Supply 120V AC Index protection rating IP 44 (interior use only) Limit switch type Progressive Adjustment (PA) Dimensions Type of power cable 404S2 406A2 409R2 404S2 406A2 409R2 Technical features Temperature working Range Insulation class Class 1 for 32°F to 140°F (0°C to 60°C) 120 V AC 2 holes for self tapping mounting screws (diameter: 4mm, depth: 9.4 mm) Self tapping mounting screws are included with each motor 13.7 (max) NomiTorquenal Voltage Rated Current ThSpeedermal Protection Sound Level* CL3L2L1able Length Sound level: According to standards ISO 3741 NF 31022 in dBA ref 1pW at nominal torque without end product * Fabrication recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. NOTE: Illustration dimensions in millimeters (mm). Limit Switch Capacity 40 Turns SpecificDimensionsations 4 4236.95NmArpmdBA 6 44241.2NmArpmdBA 9 14.98NmArpm40dBA120 V / 60 Hz 4 minutes 18.19 in. (462 mm) 17.36 in. (441 mm) 18.82 in. (478 mm) 19.45 in. (494 mm) 18.62 in. (473 mm) 20.08 in. (510 mm) 19.45 in. (494 mm) 18.62 in. (473 mm) 20.08 in. (510 mm) 6.5 ft. (2 m) 6 40 dBA < 42 dBA 55 <dBA << 44 dBA R R

®Sonesse 40 RTS © SOMFY SYSTEMS, INC. 12/09 L-0060 All specifications are subject to changes. 120VRTS AC / 60 Hz 3 conductor cable Voltage Supply 120V AC Index protection rating IP 44 (interior use only) Limit switch type Electronic (RTS) Dimensions Type of power cable 404S2 406A2 409R2 404S2 406A2 409R2 white = neutral black = live green = ground ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls. Technical features Temperature working Range Insulation class Class 1 for 120 V AC 32°F to 140°F (0°C to 60°C) 2 holes for self tapping mounting screws (diameter: 4mm, depth: 9.4 mm) Self tapping mounting screws are included with each motor 13.7 (max) NomiTorquenal Voltage Rated Current ThSpeedermal Protection Radio Frequency Sound Level* 4 4236.95NmArpmdBA 6 44241.2NmArpmdBA 9 14.98NmArpm40dBA433.42 MHz 120 V / 60 Hz 4 minutes CL3L2L1able Length 19.84 in. (504 mm) 18.90 in. (480 mm) 20.35 in. (517 mm) 21.06 in. (535 mm) 20.12 in. (511 mm) 21.57 in. (548 mm) 21.06 in. (535 mm) 20.12 in. (511 mm) 21.57 in. (548 mm) 11.5 ft. (3.5 m) Sound level: According to standards ISO 3741 NF 31022 in dBA ref 1pW at nominal torque without end product. * 404S2 1001636 406A2 1001637 409R2 1001638 Fabrication recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. NOTE: Illustration dimensions in millimeters (mm). Limit Switch Capacity 250 (limitTurnsedto 3 minutes of rotation without stop) SpecificDimensionsations 7 40 dBA < 42 dBA 55 <dBA << 44 dBA R R

LS 40 WT 404S2 1020005 404R2 1021003 409R2 1023029 412R2 1024020 Offers control via AC power switching. WIRED TECHNOLOGY 120VWiredAC / 60 Hz 4 conductor cable white = neutral red = direction 1 black = direction 2 green = ground © SOMFY SYSTEMS, INC. 12/09 L-0060 All specifications are subject to changes. Voltage Supply 120V AC Index protection rating IP 44 Limit switch type Progressive Adjustment (PA) Dimensions Type of power cable 404S2 404R2 409R2 404S2 404R2 409R2 Technical features Temperature working Range Insulation class Class 1 for 14°F to 104°F (-10°C to 40°C) 120 V AC 2 holes for self tapping mounting screws (diameter: 4mm, depth: 9.4 mm) Self tapping mounting screws are included with each motor. 13.7 (max) NomiTorquenal Voltage Rated Current ThSpeedermal Protection Sound Level CL3L2L1able Length NOTE: Illustration dimensions in millimeters (mm). Limit Switch Capacity 40 Turns SpecificDimensionsations 4 36.95NmArpm 59 dBA 4 16.85NmArpm 9 161.2NmArpm120 V / 60 Hz 56.5minutesft.(2 m) 412R2 17.0 in. (442 mm) 16.57 in. (421 mm) 18.03 in. (458 mm) 17.0 in. (442 mm) 16.57 in. (421 mm) 18.03 in. (458 mm) 17.0 in. (442 mm) 16.57 in. (421 mm) 18.03 in. (458 mm) 17.0 in. (442 mm) 16.57 in. (421 mm) 18.03 in. (458 mm) 412R2 12 81.2NmArpm 8 R R

404S2 1020105 409R2 1001643 13.7 (max) 2 holes for self tapping mounting screws (diameter: 4mm, depth: 9.4 mm) Self tapping mounting screws are included with each motor Altus 40 RTS® ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls. © SOMFY SYSTEMS, INC. 12/09 L-0060 All specifications are subject to changes. RTS120V AC / 60 Hz 3 conductor cable Voltage Supply 120V AC Index protection rating IP 44 Limit switch type Electronic (RTS) Dimensions Type of power cable 404S2 409R2 404S2 409R2 white = neutral black = live green = ground Technical features Temperature working Range Insulation class Class 1 for 120 V AC 14°F to 104°F (-10°C to 40°C) NomiTorquenal Voltage Rated Current ThSpeedermal Protection Radio Frequency Sound Level CL3L2L1able Length 23 ft. (7 m) NOTE: Illustration dimensions in millimeters (mm). Limit Switch Capacity 250 (limitTurnsedto 3 minutes of rotation without stop) SpecificDimensionsations 19.57 in. (497 mm) 18.62 in. (473 mm) 20.08 in. (51036.954mm)NmArpm 59 dBA 9 161.15NmArpm 433.42 MHz 120 V / 60 Hz 5 minutes19.57 in. (497 mm) 18.62 in. (473 mm) 20.08 in. (510 mm) 9 R R

Telis 1 RTS Lounge Single Channel 1810650Remote Telis 4 RTS Lounge Five Channel1810652Remote Telis 1 RTS Silver Single Channel 1810639Remote Telis 4 RTS Silver Five Channel1810641Remote Telis 1 RTS Pure Single Channel 1810632Remote Telis 4 RTS Pure Five Channel 1810633Remote Telis 1 RTS Patio Single Channel 1810643Remote Telis 4 RTS Patio Five Channel1810645Remote CONTROL ACCESSORIES ®RADIO TECHNOLOGY SOMFY (RTS) TELIS COLLECTION Wall Switches shown in white. Also available in finishes. black, ivory, and almond Shown above assembled with engraved channel buttons. DecoFlex Tabletop RTS Accessory1811051**Black DECOFLEX WIREFREE™ WALL SWITCHES & TABLE TOP ACCESSORIES - Custom engraved buttons are now available DecoFlex Tabletop RTS Accessory1811185**White DecoFlex Tabletop RTS Accessory1810972**Silver **DecoFlex Switch sold separately from Table Top Accessory DecoFlex 1 Channel RTS Wireless Wall Switch DecoFlex 5 Channel RTS Wireless Wall Switch DecoFlex 3 Channel RTS Wireless Wall Switch DecoFlex 4 Channel RTS Wireless Wall Switch DecoFlex 2 Channel RTS Wireless Wall Switch black ivory almond Telis 1 Soliris RTS 1810647Patio Telis 1 Soliris RTS 1810635Pure 10 Telis 4 Modulis RTSScr1811235PurewithollWheel Telis 1 Modulis RTSScr1811234PurewithollWheel Telis 16 Channel RTS Pure Remote with On-screen1811081display Telis 16 Channel RTS Silver Remote with On-screen1811082display Telis 1 Chronis RTS Silver On-scr1805238Timerwitheendisplay Telis 1 Chronis RTS Pure Timer with On-screen1805237displayTelis4SolirisRTSPatio1811243 NOTE: Custom Engraved buttons are now available. CONTROL ACCESSORIES Learn more about controls and accessories and download RTS brochure at www.somfysystems.com/controls.

®RADIO TECHNOLOGY SOMFY (RTS) 16 CHANNEL INTERFACE Universal RTS Interface 16-Channel (Converts IR, RS232, RS485 to RTS) 11 ®Z-Wave to RTS Interface II ZRTSI II SOMFY animeo IP is a total solar management system utilizing Somfy-powered intelligent motorized window coverings as well as digital keypads and weather sensors. The system’s controllers, sensors and keypads can be added to both new and existing Somfy Digital Network installations for comprehensive solar management as either a stand-alone solution or integrated into third party control systems. An intuitive user interface allows for simplified commissioning, building management and technical support, featuring drag-and-drop programming, motor auto discovery and at aglance system status update. animeo IP® ®animeo IP Building Controller 1822314Please visit www.somfysystems.com/animeo to learn more. Please visit www.somfysystems.com/controls for additional control information. Sunis Indoor WireFree™9013707RTS Thermo Sunis Indoor WireFree™9013708RTS SUNIS & THERMO SUNIS INDOOR SENSORS Soliris RTS Sun and Wind Sensor 901250024V SOLIRIS SENSOR Eolis RTS Wind Sensor 901249924V EOLIS SENSOR RTS1810791Repeater RTS Dry Contact Interface Single Channel RTS REPEATER DRY CONTACT INTERFACEOUTDOOR RECEIVERS Outdoor Lighting 1810875Receiver myLink™ Control window coverings, awnings, screens and rolling shutters with a smartphone or tablet A simple on-screen setup wizard helps users create timed events, scenes and more. Compatible with iOS and Android. 1811403 WiFi to RTS Interface CONTROL ACCESSORIES 1811265 1810872 Universal RTS 1810627Receiver 1811403

Paddle Switch 1800377(Ivory) Momentary Paddle Switch 1800378(White)

Single

WIRED TECHNOLOGY

SPECIALTY SWITCH

Maintained

Double Pole, Double Throw Paddle Switch 1800376(Ivory) Single Gang Paddle Switchplate 9011966(Ivory) 5 position Momentary/Maintained Rocker Switch Switchplate1800388(Whitincludede)

Toggle Switch 1800382(Ivory)

Toggle Switch 1800383(White)

Maintained Paddle

Momentary

Standard

Paddle Switch 1800374(White)

Maintained

Toggle Switch 1800381(White)

Momentary

Momentary

12 CONTROL ACCESSORIES

Maintained

Switch 1800373(Ivory)

Double Pole, Double Throw Paddle Switch 1800375(White)

Maintained

Toggle Switch 1800380(Ivory)

(single

Maintained

DECORATOR PADDLE SWITCHES & SWITCHPLATES

DECORATOR TOGGLE SWITCHES pole, double throw) & SWITCHPLATES

Metal Toggle Switchplate 9011954(White) Standard Metal Toggle Switchplate 9011953(Ivory) Plastic Toggle9011962(IvorSwitchplatey)Plastic Toggle9011963(WhitSwitchplatee)

Gang Paddle Switchplate 9011967(White)

AC

WIRED CONTROLS & SWITCHES

13 WIRED TECHNOLOGY INDIVIDUAL GROUP CONTROL II (IGC II) (110V AC) CONTROL ACCESSORIES GROUP CONTROL SYSTEM II (GCS II) STANDARD INDIVIDUAL GROUP CONTROL (IGC) (110V AC) WIRED AC CONTROLS & SWITCHES IGC 3N1 (31810523Motors) IGC AND IGC II OPTIONS (110V AC) IGC II Gang Electric Box 3.5” 9013166Deep IGC RTS Radio 1810481Receiver Group Control System II (GCS II) 1810476 GCS II RTS Radio 1810854Receiver IGC II (Single1810522Motor) IGC II (Single 1810535Motor) IGC II 3N1 (3 1810536Motors)

14 10 5 2 7 9 6 3 8 5 6 Standard Brackets Light GapIdler Side Motor Side .53 in. (13.5 mm) .76 in. (19.3 mm)* ®MOTOR (SONESSE 40 SHOWN) ®CROWN ADAPTOR 44 MM TUBE (ACMEDA TYPE) ®DRIVE WHEEL 44 MM (ACMEDA TYPE) ®MOTOR BRACKET ADAPTOR PLATE (ACMEDA TYPE) ®MOTOR & IDLER BRACKET KIT 40P (ACMEDA TYPE) ®PLASTIC BRACKET COVER 40P KIT (ACMEDA TYPE) ®IDLER END PLUG 44 MM TUBE (ACMEDA TYPE) 44 M ALUMINUM TUBE (16 FT. MAX LENGTH) ®TUBE SPLINE 44 MM TUBE (ACMEDA TYPE) M4 x 12 MM SCREWS MOTOR BRACKET COMBO SET 122 MM x 122 MM1110987654321 REFER TO INDIVIDUAL 400 SERIES SPEC SHEET 901378217806871780688901377490137809013778901378990137909013791100405B 4 1 * With motor bracket adaptor plate #9013789 11 11 4.79 ” mm)(121.6 3.6 ” mm)(91.6 2.26 ” mm)(57.5 .88 (22.3 mm) .79 (20 mm) 1.97 (50 mm) 2.75 ” mm)(70 mm)(451.8 1.97 (50 mm) mm)(702.75 1.8 ” mm)(45 .79 (20 mm) 400 SERIES MECHANICAL ACCESSORIES ®Acmeda System DIMENSIONS AND LIGHT GAP SPECIFICATIONS STANDARD BRACKET COMPONENTS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART Please Note: For maximum torque limitations please refer to manufacturer’s specifications. 4.79 (121.6 mm) 3.6 (91.6 mm) 2.26 (57.5 mm) 4.79 ” mm)(121.6 3.6 ” mm)(91.6 2.26 ” mm)(57.5 4.79 (121.6 mm) 3.6 (91.6 mm) 2.26 (57.5 mm)

15 15 1516 14 17 .53 in. (13.5 mm) .76 in. (19.3 mm)* Intermediate Brackets Light Gap Idler Side Motor Side .79 in. (20 mm) 15 * With motor bracket adaptor plate #9013789 .84” (21 mm) 1.57 ” mm)(40 1.97” (40 mm) 2.36 ” mm)(60 Intermediate DIMENSIONS AND LIGHT GAP SPECIFICATIONS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART ®INTERMEDIATE MALE IDLER END PLUG (ACMEDA TYPE) ®INTERMEDIATE BRACKET & COVER KIT 40P (ACMEDA TYPE) ®INTERMEDIATE FEMALE IDLER END PLUG (ACMEDA TYPE) ®INTERMEDIATE BRACKET & COVER KIT 40P, 0-90 DEGREES (ACMEDA TYPE) 901378590137839013786901378717161514 400 SERIES MECHANICAL ACCESSORIES A ®cmeda System INTERMEDIATE BRACKET COMPONENTS Please Note: For maximum torque limitations please refer to manufacturer’s specifications. 16 14

16 3 2 7 5 10 1 Idler SideMotor Side .82 in. (21 mm) .82 in. (21 mm) 6 4 2 8 9 1.2 (30 mm)1.97 (50 mm) 2.94 ” mm)(75 1.78 ” mm)(45 Standard Brackets Light Gap Motor Idler 400 SERIES MECHANICAL ACCESSORIES Somfy Decorator Type DIMENSIONS AND LIGHT GAP SPECIFICATIONS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART ®MOTOR (SONESSE 40 SHOWN) CROWN AND DRIVE (SOMFY 40 MM x 1.5 MM ROUND TUBE) CROWN AND RUBBERIZED DRIVE (SOMFY 40 MM x 1.5 MM ROUND TUBE) MOTOR BRACKET (DECORATOR TYPE)* IDLER END BRACKET (DECORATOR TYPE)* IDLER END PLUG (8 MM DIA. PIN-DECORATOR TYPE) 40 MM ROUND DRIVE ONLY (FOR USE WITH IDLER END PLUG) SOMFY 40 MM ROUND TUBE (20 FT. MAX LENGTH) CORD CLIPS FOR ROMAN SHADE APPLICATIONS CORD TAKE-UP REEL (40 MM TUBE) M4 x 12 MM SCREWS REFER TO INDIVIDUAL 400 SERIES SPEC SHEET 178115290122001781153914754495006889500685950068390166549012224100405B STANDARD BRACKET COMPONENTS 2a 2a *Maximum motor torque - 4 Nm. (Removable parts must be screwed together to achieve maximum motor torque.) Maximum motor torque - 4 Nm (Removable parts must be screwed together to achieve maximum motor torque.) Notch: 400 Series A B 10MM 7MM 1098765432a21

17 11 Intermediate Bracket Light Gap .63 in. (16 mm) 12 11 12 Idler Side Motor Side .82 in. (21 mm) .82 in. (21 mm) 11 1.2 (30 mm)1.97” (50 mm) 2.94 ” mm)(75 1.78 ” mm)(45 DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART INTERMEDIATE BRACKET KIT (DECORATOR TYPE)* 40 MM ROUND DRIVE ONLY (FOR USE WITH INT. BRACKET)1211 91475449500687 400 SERIES MECHANICAL ACCESSORIES Somfy Decorator Type DIMENSIONS AND LIGHT GAP SPECIFICATIONS INTERMEDIATE BRACKET COMPONENTS *Maximum motor torque - 4Nm (Removable parts must be screwed together to achieve maximum motor torque.) Maximum motor torque - 4 Nm (Removable parts must be screwed together to achieve maximum motor torque.)

18 ®CROWN AND DRIVE WITH SKYLINE MOTOR MOUNT PLATE FOR ROLLEASE 2” TUBE MOTOR MOUNT CLIP ®ROLLEASE SKYLINE SERIES BRACKETS 2” ®ROLLEASE SKYLINE SERIES IDLER END PLUG IDLER ADAPTOR COLLAR 2” PROFILE TUBE ®ROLLEASE 2” TUBE CORD CLIPS FOR ROMAN SHADE APPLICATIONS 2” TUBE TAKE-UP REEL - ROLLEASE 2” TUBE M4 x 12 MM SCREWS ®ROLLEASE SKYLINE SERIES INTERMEDIATE LINK SYSTEM ®ROLLEASE DOUBLE BRACKET ®ROLLEASE DOUBLE BRACKET COVERS ®MOTOR (SONESSE 40IdlerSHOWN)Side Motor Side .53 in. (13.5 mm) .82 in. (21 mm) 13121110987654321 REFER TO INDIVIDUAL 400 SERIES SPEC SHEET 90172679016616901636717811519138028178179890163665059165901632590172559016352100405B Standard Brackets Light Gap2.2” (55.8 mm) 2.88 ” mm)(73mm)(54.52.12 .71 (18 mm) 2.2” (55.8 mm) mm)(732.882.12 ” mm)(54.5 .636 in. (16.2 mm) Intermediate Brackets Light Gap .53 in. (13.5 mm) .82 in. (21 mm) 400 SERIES MECHANICAL ACCESSORIES ®RollEase Skyline STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART Please Note: For maximum torque limitations please refer to manufacturer’s specifications. 3 7 1 10 45 4 8 9 11 6 2 6 6 2 2 12 12 13 13

19 7 6 5 5 1 2a 3 3 4 8 400 SERIES MECHANICAL ACCESSORIES Somfy CTS 40 CORD TAKE-UP SYSTEM (CTS) DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART ®CROWNMOTOR AND DRIVE KIT (40 MM OCTAGONAL TUBE) CROWN AND RUBBERIZED DRIVE KIT (40 MM OCTAGONAL TUBE) MOTOR / IDLER BRACKET (FOR 57 MM x 51 MM HEADRAIL) IDLER END PLUG FOR 40 MM OCTAGONAL TUBE CTS 40 (FOR 57 MM x 41 MM HEADRAIL) SOMFY 40 MM OCTAGONAL TUBE (20 FT. MAX LENGTH) 57 MM x 51 MM (2” x 2 1/4”) GUTTER RAIL OR SIMILAR M4 x 12 MM (SONESSESCREWS40 SHOWN)8765432a21 REFER TO INDIVIDUAL 400 SERIES SPEC SHEET 178115417811189012274950073690166559012225 CONTACT100405BMANUFACTURER 2 1781134 - 2” Slat Clips for Wood Blinds (White) 1781135 - 2” Slat Clips for Wood Blinds (Ivory) 1781136 - 2” Slat Clips for Wood Blinds (Brown) 1781133 - Ladder Crimp Optional Accessories:

20 BRACKET, FASCIA, AND CASSETTE SOLUTIONS ®RollEase ™SKYLINE BRACKET AND FASCIA ACCESSORIES Please Note: For maximum torque limitations please refer to manufacturer’s specifications INTERMEDIATE BRACKET SOLUTIONS DUO SHADE FASCIA COMPONENTS Please Note: For maximum torque limitations please refer to manufacturer’s specifications BRACKET, FASCIA, AND CASSETTE SOLUTIONS > ®ZMC

400 SERIES MECHANICAL ACCESSORIES CROWNS AND DRIVES Allows the use of 500 Series crowns and drives with 400 Series motors -Black composite -Maximum motor torque - 13 Nm 9013763Part # -Motor mounting screws included -10 mm square stud Zinc plated steel -Maximum motor torque 13 Nm 9147334Part # 400 SERIES MOTOR BRACKET 400 SERIES to 500 SERIES MOUNTING CONVERSION BRACKET -Compatible with RollEase Bracket Stainless steel -Maximum motor torque - 4 Nm 9012258Part # -Black composite Allows 400 Series motors to be used w/ 500 Series Star Head motor brackets -Maximum motor torque - 9 Nm -2 screws included 9500659Part # NEW 400 Series Crown and Rubberized Drive for 40 mm Octagonal Tube Part # 9016655* 40 mm Round Set 9012224 400 Series Part # Drive for 40 x 1.0 mm Round Tube 9132142 400 Series Part # 400 SERIES *Due to material composition it is recommended to apply a silicon-based lubricant to drive adaptor surface prior to motorized roller tube assembly. 400 Series drive stop with screw (part #9147894) should also be used to prevent drive disengagement during installation or removal. 400 Series “LO” Bracket w/ a Square Stud400 SERIES to 500 SERIES Adaptor Kit 400 Series Drive Stop w/ Screw -Prevents drive disengagement from 400 series motor shaft -1 screw included 9147894*Part # 21 400 Series Crown for 40 x 0.8 mm Octagonal Tube Part # 9147327 400 Series Drive for 40 x 0.8 mm Octagonal Tube Part # 9147545 40 mm Octagonal Set 9012225 400 Series Part # 400 Series Crown for 40 x 1.5 mm Round Tube Part # 9147330 400 Series Drive for 40 x 1.5 mm Round Tube Part # 9147544 NEW 400 Series Crown and Rubberized Drive for 40 mm x 1.5 mm Round Tube 9016654*Part # 400 Series Part # Crown for 40 x 1.0 mm Round Tube 9132143 10.4 29 2 O 38 29 29 4 O 38

6100 Broken Sound Pkwy. N.W. Suite 14

CN: (905) 564-6446

FLORIDA

F: (609) 395-1776

P: 1-800-66-SOMFY (76639)

121 Herrod Blvd. Dayton, NJ 08810

Boca Raton, FL 33487

SOMFY NORTH AMERICAN HEADQUARTERS

L-0173 Copyright Somfy Systems, Inc 6/2015© www.somfysystems.com

SOMFY ULC

15291 Barranca Parkway Irvine, CA 92618-2201

P: (800) 22-SOMFY (76639)

CALIFORNIA

SOMFY Canada Division 5178 Everest Drive Mississauga, Ontario L4W2R4

F: (905) 238-1491

P: (800) 22-SOMFY (76639)

Binh NGUYEN Project Specification Manager M +84 (0) 906 372 117/88SOMFYbinh.yen.nguyen@somfy.com528(THAILAND)COLTDPanjitTowerF8,SoiSukhumvit 55, Sukhumvit Road, Bangkok, 10110 Thailand

F: (561) 995-7502

NJ: (609) 395-1300

SOMFY SYSTEMS INC

F: (949) 727-3775

P: (800) 22-SOMFY (76639)

®Sonesse 30 RTS

®Sonesse 30 Databook HOME MOTION by

Somfy Systems, Inc., is a global leader in the manufacturing of strong, intelligent and quiet motors for both interior and exterior window coverings. For more than four decades, engineers at Somfy have been designing products for both the residential and commercial markets to motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling shutters, exterior solar screens, projection screens and more. Somfy motorization systems are easily integrated with security, HVAC, and lighting systems, providing total home or building automation. Somfy recently celebrated the production and sales, throughout the world, of 100 million motors since 1969. This accomplishment further reinforces that Somfy is the worldwide leader in the manufacturing of interior and exterior window covering motors.

Somfy understands that training and support are critical to success. Somfy's Expert 2.0 Program has been developed to provide a platform for those who want to enhance their expertise of motorization and control solutions. Contact Somfy directly or visit www.somfypro.com to learn more and sign up for training.

E X P E R T

WHY SOMFY?

Somfy has a production capacity of more than 70,000 motors per day

Somfy operates in 60 countries, with 76 subsidiaries, and 51 agencies spread across 5 continents. With 7 production centers, Somfy is an efficient and reactive industry leader. Thanks to its strict quality standards, Somfy is able to satisfy the needs of over 270 million users worldwide.

Somfy

has a committed Customer Support team comprised of Somfy motor and control specialists available for assistance: Somfy Corporate Headquarters 800–22–SOMFY (76639) General Customer Service CustomerSer877–210–5327vice_us@somfy.com Standard Purchase Order Ordering_us@somfy.com Rush Purchase Order ExpeditedShippingOrders_us@somfy.com Accounting Inquiries AccountsReceivable@somfy.com Technical Support 877 – 233 – 0019 TechnicalSupport_us@somfy.com Warranty Claim Requests us_Return@somfy.com

Somfy has a network of 15,000 trained professional installers throughout the world.

Somfy motors have over 600 standards approvals worldwide. Somfy has certified over 100 patents since the year 2000. Every Somfy motor goes through an extensive quality assurance process including testing in extreme environmental conditions, for electrostatic discharge, mechanical shock, and high life cycle.

TABLE OF CONTENTS MOINTRODUCTIONTORSPECIFICATIONS ®Sonesse 30 Sonesse 30 DCT CONTROL ACCESSORIES ®Radio Technology Somfy (RTS) Digital Motor Interfaces WiRS485redTechnologyanimeoIP POWER AND WIRING ACCESSORIES PTransformersower/Control Distribution Panels Power/Control Distribution Enclosure Options ®Sonesse 30 RRTSS485 ® ® ®Sonesse 30 RTS Control & Plug-in Style Power ®Sonesse 30 RTS Control & Power Distribution ®Sonesse 30 RS485 Control & Power Distribution ®Sonesse 30 DCT Dry Contact & Plug-In Style Power ®Sonesse 30 DCT Dry Contact & Power Distribution MECHANICAL ACCESSORIES, LIGHT GAP SPECIFICATIONS & BRACKET PROJECTIONS Acmeda System ®Somfy Decorator Type ®RollEase & Skyline Louvolite ®Somfy CTS 40 ®RollEase Fascia ®ZMC Crowns and Drives 98777765432 10, 22,20,18,14,1513121116171921232425262728

RollEase is a registered trademark of RollEase Inc Crestron is a registered trademark of Crestron Electronics, Inc ZMC is a registered trademark of ZMC Window Coverings.

®

®Z-Wave is a registered trademark of Zensys, Inc. and its subsidiaries.

® ®ZigBee is a registered trademark of ZigBee Alliance.

®Universal Remote Control, Inc is a registered trademark of Universal Remote Control, Inc

This document presents the accessories and specifications related to the Somfy Sonesse 30 range. It provides the technical information needed to order, fabricate, and sell the award-winning quiet motors. For additional information regarding any of the products in this document including motors, power sources, controls, interfaces etc., please reference www.somfypro.com, where detailed instructions are available for download.

As with all Somfy products, the Sonesse 30 motors are backed by a 5 year warranty.

Offers control via contact closure switching (dry contact). DRY CONTACT

®Sonesse 30 motors are designed to automate a broad range of window covering applications which include:

®Radio Technology Somfy (RTS) allows wireless radio control of motorized window coverings via the RTS family of controls.

WCMA Award Winner, for Most Innovative Overall Design.

®The award winning Sonesse 30 range is putting window coverings in motion with quiet precision. The motors are engineered with superior noise reduction technology from a distance of 3 feet

®The compact, low-profile Sonesse 30 motors are designed for tubes as small as 1.5” in diameter and are easily concealed within headrails, cassette systems or smaller pocket sizes. The motors feature speed regulation for precise alignment of adjacent shades and are low-voltage which simplifies installation. and are barely heard

2

Conveniently Quiet

A new generation of intelligent motors that are controlled and ®monitored via Somfy Digital Network solutions and animeo IP total solar management system.

Solar/Roller Shades Horizontal BlindsSheer Horizontal Shades

® ®

Pleated/Cellular ShadesRoman/Woven Shades

®The Sonesse 30 motors are available with a variety of control options and easily integrate with home automation systems. They also feature the ability to adjust to precise intermediate positions for increased control flexibility.

®

Sound level measured at 3 feet from end product at maximum torque.

®Sonesse 30 RTS Performances MotVoltage*orPower Connection Nominal load starting current * Nominal load current * Maximum current during programming * TherSpeedTorquemal Minimumprotectioninsidediameter of tube **Sound level RF control range (may vary) 2pin24VDCJST, 2mm pitch 1.8A for max. 300ms 3.2A.8A for 300ms. 17.7 in. lbs. (2Nm) 6-28 rpm (programmable) 2.5 65<1.22minutesin.(31mm)44dBAft. ®SONESSE 30 RTS ®Sonesse 30 RTS 16 in. (408) .35 in. (9) Dimensions - in. (mm) 31ø Voltage Supply DC Index Protection Rating IP 30 Limit Switch Type Electronic Limit Switch Capacity 35 Turns Technical features Temperature Working Range 32°F to 140°F (0°C to 60°C) Insulation Class Class III Included Cable Part #1001524 Minimum window width bracket to bracket for roller shades (inches): Ø1.23 in. (44) 1.13 in. (29) Acmeda 44mm tube and hardware ®RollEase 1.5” tube w/ Skyline Hardware RollEase 1.5” tube w/ R8 Hardware® 18 5/8” 19 5/8” 18 1/2” * Regulated power supply required NOTE: Power cable is included with motor. Antenna Must not come in contact with metal. May need to be repositioned for optimal range ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls. 3 Mounting holes Ø 3.0mm, Depth 7.04mm Accepts M3.5mm x 9mm screw for plastic min.

Fabrication Recommendations:

Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor.

Interior Tube Diameter (ID) > 31mm must be Arespected.motorcrown adapter between motor and end product tube is required to ensure concentric operation of motor.

ST30 Series Drive Stop and Screw (included with crown and drive), are recommended to prevent noise and drive wheel separation from motor shaft. Level:

24V DC POWER CABLE stripe = positive white = negative 2 7.5’ConductorLength Warranty year Power Connector **Sound

Performances MotVoltage*orpower connector Motor RS485 connector Motor DCT connector Nominal load starting current * Nominal load current * Maximum current during programming * TherSpeedTorquemal Minimumprotectioninsidediameter of tube **Sound level 224VDCpinJST, 2mm pitch 1.8A for max. 300ms 3.2A.8A for 300ms. 17.7 in. lbs. (2Nm) 6-28 rpm (programmable) 2.5 43441.22minutesin.(31mm)dBApinJST,2mmpitchpinJST,2mmpitch ®SONESSE 30 RS485 ®Sonesse 30 RS485 Somfy Digital Network (SDN), is Somfy’s proprietary digital communication backbone compatible with industry standard RS485 16 in. (408) .35 in. (9) 4 ®Sonesse 30 RS485 Dimensions in. (mm) 31ø Voltage Supply DC Index Protection Rating IP 30 Limit Switch Type Digital Limit Switch Capacity 35 Turns Technical features Temperature Working Range 32°F to 140°F (0°C to 60°C) Insulation Class Class III 24V DC POWER CABLE Included Cables red = RS485 A black = RS485 B green = Bus power GND Warranty yearPart #1000658 Minimum window width bracket to bracket for roller shades (inches): Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor. Interior Tube Diameter (ID) > 31mm must be Arespected.motorcrown adapter between motor and end product tube is required to ensure concentric operation of motor ST30 Series Drive Stop and Screw (included with crown and drive), are recommended to prevent noise and drive wheel separation from motor shaft Ø1.23 in. (44) 1.13 in. (29) Acmeda 44mm tube and hardware RollEase 1.5” tube w/ Skyline Hardware RollEase 1.5” tube w/ R8 Hardware ® ® 18 5/8” 19 5/8” 18 1/2” * Regulated power supply required NOTE: Power/Control motor cables are included with motor. Does not include Limit Setting Tool # 9014599 or Dry Contact Closure (DCT) Cable # 9014793 required for setting limits. min. stripe = positive white = negative 2 7.5Conductor ’ Length RS 3 7.5Conductor ’ Length 485 COMMUNICATION CABLE Mounting holes Ø 3.0mm, Depth 7.04mm Accepts M3.5mm x 9mm screw for plastic white = N/A cut off DCT RS485PowerConnectorConnectorConnector **Sound Level: Sound level measured at 3 feet from end product at maximum torque.

Mounting holes Ø 3.0mm, Depth 7.04mm M3.5mm x 9mm screw for plastic

DRY CONTACT Performances MotVoltage*orpower connector Motor DCT connector Nominal load starting current * Nominal load current * Maximum current during programming * TherSpeedTorquemal Minimumprotectioninsidediameter of tube **Sound level 224VDCpinJST, 2mm pitch 1.8A for max. 300ms 3.2A.8A for 300ms. 17.7 in. lbs. (2Nm) 6-28 rpm (programmable) 2.5 4<441.22minutesin.(31mm)dBApinJST,2mmpitch

NOTE: Power/Control motor cables are included with motor. Does not include Limit Setting Tool # 9014599 required for setting limits. PowerConnectorConnector Level:

Sound level measured at 3 feet from end product at maximum torque.

®SONESSE 30 DCT ®Sonesse 30 DCT Offers control via contact closure switching (dry contact) 16 in. (408) .35 in. (9) 5 ®Sonesse 30 DCT Dimensions in. (mm) 31ø Voltage Supply DC Index Protection Rating IP 30 Limit Switch Type Dry Contact Limit Switch Capacity 35 Turns Technical features Temperature Working Range 32°F to 140°F (0°C to 60°C) Insulation Class Class III DCT COMMUNICATION CABLE Included Cables Part #1000668 Minimum window width bracket to bracket for roller shades (inches): Ø1.23 in. (44) 1.13 in. (29) Acmeda 44mm tube and hardware RollEase 1.5” tube w/ Skyline Hardware RollEase 1.5” tube w/ R8 Hardware ® ® 18 5/8” 19 5/8” 18 1/2” * Regulated power supply required white/blue = up blue = stop white/orange = down orange = ground min. Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor Interior Tube Diameter (ID) > 31mm must be Arespected.motorcrown adapter between motor and end product tube is required to ensure concentric operation of motor. ST30 Series Drive Stop and Screw (included with crown and drive), are recommended to prevent noise and drive wheel separation from motor shaft. 24V DC POWER CABLE Stripe = positive white = negative 2 7.5Conductor ’ Length 4 7.5Conductor ’ Length Warranty year

**Sound

Accepts

DCT

®Sonesse 30 Control Accessories Telis 4 Modulis RTSScr1811235PurewithollWheel Telis 1 Modulis RTSScr1811234PurewithollWheel Wall Switches shown in white. Also available in finishes.black, ivory, and almond Shown assembled with printed channel buttons. Custom engraved buttons are also available. DECOFLEX WIREFREE™ RTS WALL SWITCHES DecoFlex 1 Channel RTS WireFree™ Wall Switch DecoFlex 5 Channel RTS Wall SwitchWireFree™ DecoFlex 3 Channel RTS Wall SwitchWireFree™ DecoFlex 4 Channel RTS Wall SwitchWireFree™ DecoFlex 2 Channel RTS Wall SwitchWireFree™ BLACK IVORY ALMOND (1 & 5 channel only) SHADE SHADE SHADE DININGBEDROOMSHADESHEERRMFOYERDININGBEDROOMSHEERRMBEDROOMSHEER TDecoFlexableTopAccessory Black 1811051* WireFree™ RTS TDecoFlexableTopAccessory White 1811185* WireFree™ RTSTDecoFlexableTopAccessory Silver 1810972* WireFree™ RTS *DecoFlex Switch sold separately from Table Top Accessory 6 Telis 1 RTS Lounge Single Channel 1810650Remote Telis 4 RTS Lounge Five Channel 1810652Remote Telis 1 RTS Silver Single Channel 1810639Remote Telis 4 RTS Silver Five Channel 1810641Remote Telis 1 RTS Pure Single Channel 1810632Remote Telis 4 RTS Pure Five Channel 1810633Remote Telis 1 RTS Patio Single Channel 1810643Remote Telis 4 RTS Patio Five Channel 1810645Remote Telis 16 Channel RTS Pure Remote with On-screen1811081display Telis 16 Channel RTS Silver Remote with On-screen1811082display INDOOR RTS SENSORS RTS REPEATER RTS Repeater (extends RTS 1810791range) TELIS RTS HAND-HELD REMOTE COLLECTION Telis 1 Chronis Silver WireFree™1805238Timer SHADESHEER TABLE TOP ACCESSORIES Telis 1 Chronis Pure WireFree™1805237Timer Sunis9013707IndoorWireFree™ RTS Thermo Sunis 9013708IndoorWireFree™ RTS

White:

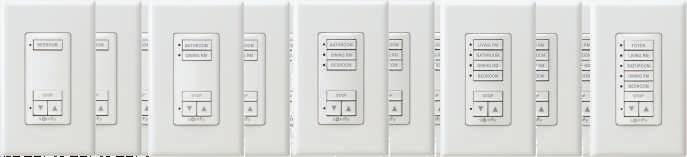

7 WIRED TECHNOLOGY Sonesse 30 DCT White Wall Switch - 1800219 Ivory ® Wall Switch - 1800220 R 9014599 equired for setting limits ®for Sonesse 30 DCT and ®Sonesse 30 RS485 motors. LIMIT SETTING TOOL ® ®NOTE: For additional information regarding ZigBee or Z-Wave controls, contact Somfy Systems, Inc. DIGITAL MOTOR INTERFACES ZDMI ZBDMI ®Z-Wave to RTS 1811265Interface ®Z-Wave to Digital Motor1870171Interface ®ZigBee to Digital Motor1870220Interface RTS MOTOR INTERFACES DRY CONTACT SWITCHES RTS Dry Contact Interface Single1810493Channel DRY CONTACT16 CHANNEL RTS INTERFACEZRTSI White: 6 Button 1811252 Black: 6 Button 1811311 Ivory: 6 Button 1811334 White: 8 Button 1811253 Black: 8 Button 1811312 Ivory: 8 Button 1811335 Almond: 6 Button 1811314 Almond: 8 Button 1811313

6 Button 1811288 Black: 6 Button 1811328 Ivory: 6 Button 1811332 White: 8 Button 1811289 Black: 8 Button 1811329 Ivory: 8 Button 1811333 Almond: 6 Button 1811330 Almond: 8 Button 1811331 animeo IP is a total solar management system utilizing Somfy -powered intelligent motorized window coverings as well as digital keypads and weather sensors. The system’s controllers, sensors and keypads can be added to both new and existing Somfy Digital Network installations for comprehensive solar management as either a standalone solution or integrated into third party control systems. An intuitive user interface allows for simplified commissioning, building management and technical support, featuring drag-and-drop programming, motor auto discovery and at a-glance system status update. ® ® animeo IP® ®animeo IP Building Controller 1822314 DECOFLEX DIGITAL KEYPAD Stand-alone SDN animeo IP® Visit www.somfypro.com/animeo to learn more SOMFY

1 Motor 24V DC 1.25A 1822209 1 Motor 24V DC 2.5A 1822116 5 Motors 24V DC 10A 1822119 10 Motors 24V DC 20A 1822123 2 Motors 24V DC 5A 1822118 7 Motors 24V DC 15A 1822122 2 Motors 24V DC 5A 9011994 5 Motors 24V DC 10A 9011995 10 Motors 24V DC 20A 9014245 D:3.94”W:2.58”W:4.94”W:8.94” 4.93”:L 4.93”:L 4.93”:L With 5 ft. cable - 18 AWG With 6 ft. AC cable With 6 ft. cable - 18 AWG 3.5” x 2.3” x 1.3” 4” x 2.5” x 1.3” 2.7” x 7.1” x 8.5” 2” x 7.1” x 8.5” 2.7” x 7.1” x 8.5” D:3.94” D:3.94” 2.7” x 7.1” x 8.5” 4.93” x 2.58” x 3.94” 4.93” x 4.94” x 3.94” 4.93” x 8.94” x 3.94” 8 # of Motors Dimensions Nominal Load Part # # of Motors Dimensions Nominal Load Part # # of Motors Dimensions Nominal Load Part # # of Motors Dimensions Nominal Load Part # # of Motors Dimensions Nominal Load Part # # of Motors Dimensions Nominal Load Part # ®Sonesse 30 Power Accessories - Transformers Plug-In Wired Plug-In Wall Type Plug-In Floor Type Din Rail Mount Din Rail Mount Plug-In Table/Shelf Type Din Rail Mount

F1 F3 F5 F7 F92 2 2 2 2 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 T B2 4 3 2 1RSRS-24VDC+24VDC485485 B4 B6 B8 TB10 T T T 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 4 3 2 1RSRS-24VDC+24VDC485485 2 2 2 2 2F2 F4 F6 F8 F10 Din Rail Snaptrack #9014430Connector OptionalDinRail 10 Motor Power/Control Distribution Panel 4 Conductor, #1870194 5 Motor Power/Control Distribution Panel 4 Conductor, #1870193 6Dimensions: ” x 3.25” x 1.5” Din Rail is available in 14” lengths #9011975 T B1 4 3 2 1 F6 F7 F8 F9 F10 RSRS-24VDC+24VDC485485 B2 4 3 2 1RSRS-24VDC+24VDC485485 B3 4 3 2 1RSRS-24VDC+24VDC485485 B4 4 3 2 1RSRS-24VDC+24VDC485485 B5 4 3 2 1RSRS-24VDC+24VDC485485 T T T T SDN IN 6Dimensions: ” x 3.25” x 1.5” SDN OUT 24V DC IN (Motor Power) To Motor Power To Motor RS485 SDN IN SDN OUT 24V DC IN (Motor Power) To Motor Power To Motor RS485 Bus Line Power Indication 9 Optional Mounting Accessory ®Sonesse 30 Power/Control Motor Cables (optional) ®Sonesse 30 Dry Contact Closure (DCT) Cable (7.5’ length) ®Sonesse 30 RS485 Control Cable (7.5’ length) ®Sonesse 30 24V DC 2 Conductor Power Cable (7.5’ length) # 9014793 # 9015842 # 9014794 Snaptrack (Included) Snaptrack (Included) Power/Control Distribution Panels Bus Line Power Indication

5 MOTOR - #1870196 Power/Control Distribution Enclosure Options 12” 18” 10 MOTOR - #1870192 10 Kit Includes: 1 - 5 Motor Power/Control 1 - 24V DC 10 Amp Power Supply 1 - 12” x 12” x 6.25” Enclosure Kit Includes: 1 - 10 1 - 24V DC 20 Amp Power Supply 1 - 18” x 18” Enclosure Motor Power/Controlx6.25 ” Distribution Panel - #1870194 #9014245 12” 18” Distribution Panel - #1870193 #9011995 NOTE: For detailed connections please reference pp. 14 -15

10 Motor Power Panel 18” 18” 15 MOTOR - #1870197 20 MOTOR - #1870198 11 18” 18” Kit Includes: 2 - 10 Motor Power/Control 2 - 24V DC 20 Amp Power Supply 1 - 18” x 18” x 6.25” Enclosure Distribution Panel - #1870194 #9014245 Kit Includes: 1 - 5 Motor Power/Control 1 - 10 Motor Power/Control 1 - 24V DC 10 Amp Power Supply 1 - 24V DC 20 Amp Power Supply 1 - 18” x 18” x 6.25” Enclosure Distribution Panel - #1870193 Distribution Panel - #1870194 #9014245#9011995 NOTE: For detailed connections please reference pp. 14 -15

Sonesse 30 RTS Control & Plug-in Style Power® TELIS PURE 1810632RTS ™DECOFLEX WIREFREE RTS WALL SWITCH 5 1810813CHANNEL 16 CHANNEL UNIVERSAL RTS INTERFACE1810872(RS232Serial or RS485) or IR 12 SUGGESTED POWER STRIP SPECIFICATIONS 10 outlets spaced to accommodate transformers Illuminated on/off switch with cover 15-amp circuit breaker 15 ft. power cord Heavy-duty metal case Keyhole slots on removable mounting brackets 8 motor maximum APPLICATION EXAMPLE ®Z-WAVE TO RTS 1811265INTERFACE To Power 120V AC 16 Gauge 2 150ConductorFT.MAX. 24V DC 1.66A Wall Mount Plug-in1822209Transformer Junction box to be specified to meet local codes. SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RTS SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RTS Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RTS 3RD Party Controller (For example: Crestron , Universal Remote Control, etc...) ® For additional RTS controls see page 6 DININGBEDROOMSHADESHEERRMFOYER Power strip purchased separately SOMFY

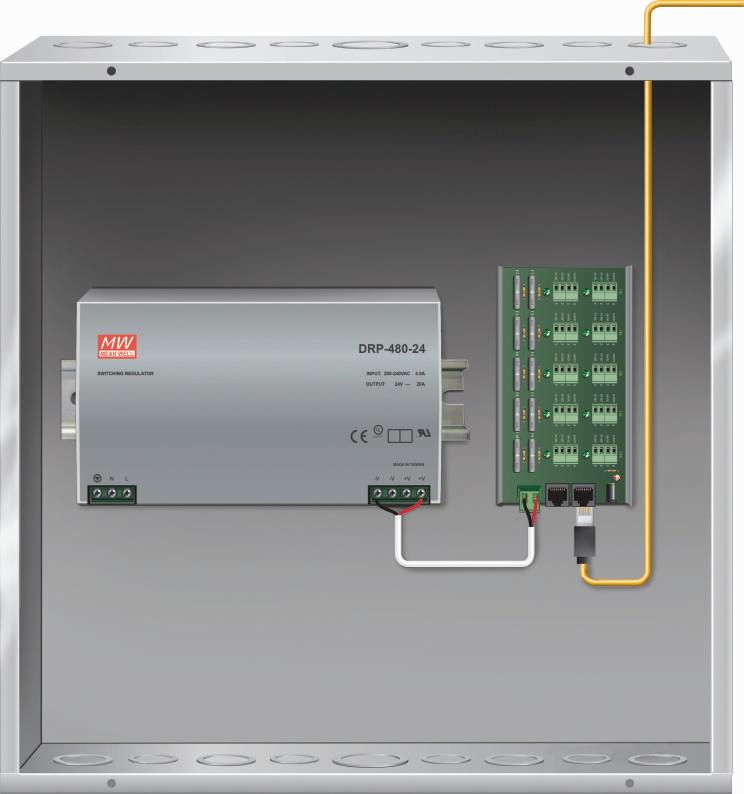

Sonesse 30 RTS Control & Power Distribution® 13 APPLICATION EXAMPLE 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RTS 16 Gauge 2 150ConductorFT.MAX. Also Available 5 motor To Power 120V AC 16 AWG Stranded, Olympic style 3133 or equivalent TELIS PURE 1810632RTS ™DECOFLEX WIREFREE RTS WALL SWITCH 5 1810813CHANNEL 16 CHANNEL UNIVERSAL RTS INTERFACE1810872(RS232Serial or RS485) or IR ®Z-WAVE TO RTS 1811265INTERFACE 3RD Party Controller (For example: Crestron , Universal Remote Control, etc...) ® DININGBEDROOMSHADESHEERRMFOYER For additional RTS controls see page 6 SOMFY

To Motor SDN IN SDN OUT L N -V -V +V +V 2/G Conductor L = Line (Hot) (Black) N = Neutral (White) = Earth ground (Green) 14 Sonesse 30 RS485 Control & Power Distribution® Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RS485 5063281G01 Node ID: 06:00 1E See Motor Connection Types Page 15 ®Sonesse 30 24V DC 2 Conductor Power Cable Control Cable (7.5’ length) (included w/ motor) See Detail Page 15 ®Sonesse 30 RS485 16 AWG Conductor2 RED BLACK+NOTE: AC wiring in accordance with local codes

Motor Connection Types Phoenix Style Phoenix Contact *Mfr. #1827143 Power/Control Distribution Board Connector Super “B” ConnectorsType Dolphin Components **Mfr. #DC-100-P ® ®Connection to Z-Wave or ZigBee Digital Motor Interface From Power Supply 24V DC in *24V DC to motor *RS485 Com Cable ®* Included with Z-Wave to Digital Motor Interface and the ZigBee Digital Motor Interface.® 16 AWG Stranded, Olympic style 3133 or equivalent RED BLACK+16 AWG 2 Conductor 24/2 Colemanpr Model 97295 or equivalent + 24V DC - 24V DC Data- (RS485 B) Data + (RS485 A) 15 Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 RS4855063281G01 Node ID: 06:00 1E 16 AWG Stranded, Olympic style 3133 or equivalent *Mfr. #1857906 Red = A Black = B Green = (ConnectedGroundtopower -) White = N/A (Cut off) RS485 Control Cable (included with motor) ®Sonesse 30 ®Sonesse 30 24V DC 2 Conductor Power Cable Strip (+), White (-)SDN Cable Pinout1 - Data + 2 - Data3 – N/A 4 - Power + 5 - Power + 6 – N/A 7 - Ground8 - Ground - EIA/TIA 568B Motor Cable Pre-wirePre-wire CableMotor ®Sonesse 30 24V DC 2 Conductor Power Cable Strip (+), White (-) *As part of the specification on the Sonesse 30 RS485 motor, when a separate wire is not present for RS485 ground, connect the ground to the - 24V DC wire. SDN IN/OUT SUGGESTEDCONNECTIONBOARDPOWER WIRE SONESSE 30 RS485 CONTROL CABLE BOARD POWER POWER/CONTROLCONNECTIONDIST.BOARD CONNECTION SUGGESTED BUILDING WIRE Data + (RS485 A) Data - (RS485 B) *- 24V DC + 24V DC 1234 PowerGreenBlackRed White Power Stripe **All part numbers listed are for reference only. These are not Somfy part numbers

Sonesse 30 DCT Dry Contact & Plug-In Style Power® ®Sonesse DCT wall1800219switch Wired in parallel APPLICATION EXAMPLE Dry Contact 16 Cat5e cable To Power 120V AC 16 Gauge 2 24V150ConductorFT.MAX.DC1.66AWall Mount Plug-in1822209Transformer 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 DCT Junction box to be specified to meet local codes. SUGGESTED POWER STRIP SPECIFICATIONS 8 MOTOR MAXIMUM 10 outlets spaced to accommodate transformers Illuminated on/off switch with cover 15-amp circuit breaker 15 ft. power cord Heavy-duty metal case Keyhole slots on removable mounting brackets 3RD Party Controller (For example: Crestron , Universal Remote Control, etc...) ® Power strip purchased separately NOTE: A maximum of 8 motors can be wired to 1 switch or Dry Contact input. Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 DCT Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 DCT DRY CONTACT

Sonesse 30 DCT Dry Contact & Power Distribution® 10 Motor Power Panel #1870192 Sonesse 30 DCT wall1800219switch ® Switch to be wired to theinputnon-isolatedports 17 APPLICATION EXAMPLE Made in USA 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 DCT Made in USA SOMFY 74300-France 28 rpm 0.8A IP 30 2Nm 24VDC Sonesse 30 DCT Cat5e cable Cat5e cable 16 Gauge 2 150ConductorFT.MAX. Also Available 5 motor To Power 120V AC 16 AWG Stranded, Olympic style 3133 or equivalent 3RD Party Controller (For example: Crestron , Universal Remote Control, etc...) ® DRY CONTACTNOTE: A maximum of 8 motors can be wired to 1 switch or Dry Contact input.

x

SILENT DRIVE WHEEL 44MM (ACMEDA TYPE)

DRIVE WHEEL 44MM (ACMEDA TYPE)

Sonesse 30 Hardware Systems > Acmeda System® 11 6 3 8 10 7 4 9 6 7 2 Standard Brackets Light GapIdler Side Motor Side .53 in. (13.5mm) .67 in. (17mm)* ®SONESSE 30 MOTOR

44M

PLASTIC BRACKET COVER 40P KIT (ACMEDA TYPE)

®SONESSE 30 TO LS40 ADAPTER KIT

MOTOR & IDLER BRACKET KIT 40P (ACMEDA TYPE)

TUBE SPLINE 44MM TUBE (ACMEDA TYPE) 9MM BRACKET COMBO SET 122mm 122mm

(RTS #1001524, RS485 #1000658, DCT #1000668)1211104a432156789 901378290140661780687178068890137749013780901377890137899015259901379090137919013776 5 1 * With motor bracket adapter plate #9013789 12 14 (121.6mm)4.79” (91.6mm)3.6” (57.5mm)2.26” .88” (22.3mm) .79” (20mm) 1.97” (50mm) (60mm)*2.56” (40mm)*1.6” 4.79” (121.6mm) 3.6” (91.6mm) 2.26” (57.5mm) (121.6mm)4.79” (91.6mm)3.6” (57.5mm)2.26” 1.97” (50mm) (60mm)*2.56” (40mm)*1.6” .79” (20mm) 4a 18 STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART Solar/Roller Shades Roman/Woven Shades 2

MOTOR BRACKET ADAPTER PLATE (ACMEDA TYPE)

SCREWS MOTOR

CROWN ADAPTER 44MM TUBE (ACMEDA TYPE)

M3.5 x

IDLER END PLUG 44MM TUBE (ACMEDA TYPE) ALUMINUM TUBE (16 FT. MAX LENGTH)

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART 14 14 15 13 16 .53 in. (13.5mm) .67 in. see(17mm)notebelow Intermediate Brackets Light Gap Idler Side Motor Side .79 in. (20 mm) 14 * With motor bracket adapter plate #9013789 Solar/Roller Shades Roman/Woven Shades .84” (21mm).84” (21mm) (40mm)1.6” 1.97” (50mm) (60mm)2.36”(40mm)1.6” 1.97” (50mm) (60mm)2.36” Intermediate O0-90 Intermediate* 19 Sonesse 30 Hardware Systems > Acmeda System® INTERMEDIATE BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS

INTERMEDIATE BRACKET KIT 40P, DEGREES (ACMEDA TYPE)

INTERMEDIATE BRACKET & COVER KIT 40P (ACMEDA TYPE)

& COVER

901378590137839013786901378713 14 15 16

INTERMEDIATE MALE IDLER END PLUG (ACMEDA TYPE)

0-90

INTERMEDIATE FEMALE IDLER END PLUG (ACMEDA TYPE)

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART ®SONESSE 30 MOTOR (RTS #1001524, RS485 #1000658, DCT #1000668) ®SONESSE 30 TO LS40 ADAPTER KIT CROWN AND DRIVE (SOMFY 40MM x 1.5MM ROUND TUBE) MOTOR BRACKET (DECORATOR TYPE) IDLER END BRACKET (DECORATOR TYPE) IDLER END PLUG (DECORATOR TYPE) 40MM ROUND DRIVE (FOR USE WITH IDLER END PLUG) SOMFY 40MM ROUND TUBE (20FT. MAX LENGTH) CORD CLIPS FOR ROMAN SHADE APPLICATIONS CORD TAKE-UP REEL (40MM TUBE) M3.5 x 9MM SCREWS (Must be ordered separately when used with CROWN AND RUBBERIZED DRIVE (SOMFY 40MM x 1.5MM ROUND TUBE) 4 3 8 6 11 1 Idler SideMotor Side .82 (21mm)in..79 (20mm)in. 57 3 11103A321456789 90140661781152901220017811539147544950068895006859500683901665490122249013776 2 9 10 Solar/Roller Shades Roman/Woven Shades 1.2” (30mm)1.97” (50mm) (75mm)2.94” (45mm)1.78” Standard Brackets Light Gap Motor Idler 20 Sonesse 30 Hardware Systems > Somfy Decorator Type® STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS 3A 3A ®Sonesse 30 motor range.) Notch: 400 Series A B 10MM 7MM2

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART INTERMEDIATE BRACKET KIT (DECORATOR TYPE) 40MM ROUND DRIVE (FOR USE WITH INTERMEDIATE BRACKET) 12 Intermediate Bracket Light Gap .63 (16mm)in. 13 12 13 Idler Side Motor Side .82 (21mm)in. .79 (20mm)in. 1312 91475449500687 Solar/Roller Shades Roman/Woven Shades 12 1.2” (30mm)1.97” (50mm) (75mm)2.94” (45mm)1.78” 21 INTERMEDIATE BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS Sonesse 30 Hardware Systems > Somfy Decorator Type®

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART SONESSE 30 CROWN AND DRIVE FOR ROLLEASE 1.5” TUBE MOTOR ADAPTER PLATE FOR ROLLEASE R8 BRACKET WITH SCREWS ROLLEASE 1.5” KIT ROLLEASE 2” ROLLEASE 1.5” TUBE CORD CLIPS FOR ROMAN SHADE APPLICATIONS TAKE-UP REEL - ROLLEASE 1.5” TUBE M3.5 x 9MM SCREWS ® MOTOR (RTS #1001524, RS485 #1000658, DCT #1000668) ® ® ® BRACKET R8 SERIES FOR SOMFY 40MM ROUND TUBE ® BRACKET KIT R8 SERIES FOR SOMFY 2” ROUND TUBE ® ® 5 2 7 Idler Side Motor Side .59 (15mm)in. .64 (16.3mm)in. 321 4, 4A & 3 5, 5A & 3 9876 90140661780786901220090179139012313901231190140739013775 2 5 4 4A 6 1 4 Roman/Woven Shades Sheer Horizontal Shades 3 9 8 .62” (16mm) (48mm)1.88” 1.50” (38.1mm) Solar/Roller Shades .62” (16mm) 1.50” (38mm) (38mm)1.50” Standard Brackets Light Gap 22 Sonesse 30 Hardware Systems > RollEase Standard®® STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS 5A

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART SONESSE 30 CROWN AND DRIVE FOR ROLLEASE 1.5” TUBE MOTOR BRACKET ADAPTER PLATE ROLLEASE SKYLINE SERIES BRACKETS 1.5” ROLLEASE SKYLINE SERIES IDLER END PLUG ROLLEASE 1.5” TUBE CORD CLIPS FOR ROMAN SHADE APPLICATIONS TAKE-UP REEL - ROLLEASE 1.5” TUBE M3.5 x 9MM SCREWS ROLLEASE SKYLINE SERIES INTERMEDIATE LINK SYSTEM ® MOTOR (RTS #1001524, RS485 #1000658, DCT #1000668) ® ® ® ® ® ® Idler Side Motor Side .53 (13.5mm)in. .72 (18.3mm)in. 10987654321 901636790140661780786901220090179139017912901791090163789013775 Roman/Woven Shades Sheer Horizontal Shades Solar/Roller Shades Standard Brackets Light Gap2.2” (55.8mm) (73mm)2.88”(54.5mm)2.12” .71” (18mm) 2 3 6 1 9 5 4 4 7 8 2.2” (55.8mm) (73mm)2.88”(54.5mm)2.12” .636 (16.2mm)in. 10 Intermediate Brackets Light Gap 23 .53 (13.5mm)in. .72 (18.3mm)in. ®Sonesse 30 Hardware Systems > RollEase Skyline® STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS 2

CROWN AND DRIVE (LOUVOLITE 40MM TUBE) WITH SCREWS

® (RTS #1001524, RS485 #1000658, DCT #1000668)

MOTOR BRACKET ADAPTER PLATE WITH SCREWS (LOUVOLITE SYSTEM 40)

Idler Side Motor Side .61 (15.7mm)in. .75 (19mm)in. 21 2, 4, 10 3, 4A, 10 104a456789 SEE PAGES 2 & 3 90155559013716901555490137159016013901407290143339013775 CONTACT9014066LOUVOLITE Solar/Roller Shades Roman/Woven Shades 2.90” (74mm) (68.6mm)2.70”(43.7mm)1.72” 2.90” (74mm) (67.3mm)2.65”(42mm)1.66” .87” (22mm) .87” (22mm)Standard Brackets Light Gap 2 or 3 4 9 1 10 7 5 5 3.25” (83mm) (79mm)3.1”1.75”(44mm) 3.25” (83mm) (79mm)3.1”(44mm)1.75” .87” (22mm) .87” (22mm) 11 8 6 4A 10 6 LOUVOLITE 45MM TUBE11 CONTACT LOUVOLITE 9014045 * KIT TO BE USED WITH MOTOR BRACKET ADAPTER PLATE (LOUVOLITE SYSTEM 40), CATALOG #9014072 24 (LOUVOLITE SYSTEM 45) (LOUVOLITE SYSTEM 40) 40 45 Sonesse 30 Hardware Systems > Louvolite® STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS

CROWN AND DRIVE, MOTOR BRACKET ADAPTER PLATE WITH SCREWS

CROWN AND DRIVE, MOTOR BRACKET ADAPTER PLATE WITH SCREWS

MOTOR & IDLER BRACKET KIT (LOUVOLITE SYSTEM 40)

LOUVOLITE 40MM TUBE

SCREWS M3.5 x 9MM

MOTOR BRACKET ADAPTER PLATE WITH SCREWS (LOUVOLITE SYSTEM 45)

SONESSE 30 MOTOR

COLLAPSIBLE END PLUG (LOUVOLITE SYSTEM 40)

*MOTOR & IDLER BRACKET KIT (LOUVOLITE SYSTEM 45)

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART

COLLAPSIBLE END PLUG (LOUVOLITE SYSTEM 45)

DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART (LOUVOLITE SYSTEM 45) (LOUVOLITE SYSTEM 40) SONESSE 30 MOTOR ®SONESSE 30 TO LS40 ADAPTER WITH SCREWS CROWN AND DRIVE KIT 40MM OCTAGONAL TUBE MORUBBERIZEDTOR/IDLER BRACKET (FOR 57MM x 51MM HEADRAIL) IDLER END PLUG FOR 40MM OCTAGONAL TUBE CTS 40 (FOR 57MM x 41MM HEADRAIL) SOMFY 40MM OCTAGONAL TUBE (20FT. MAX LENGTH) 57MM X 51MM (2” x 2 1/4”) GUTTER RAIL OR SIMILAR M3.5 x 9MM SCREWS ® (RTS #1001524, RS485 #1000658, DCT #1000668) CROWN AND DRIVE KIT 40MM OCTAGONAL TUBE9876543a321 1781154178111890122749500736901665590122259013776 CONTACT9014066MANUFACTURER 1 3 4 4 5 7 6 6 8 9 Roman/Woven Shades Cellular/Pleated Blinds Horizontal Blinds 25 Sonesse 30 Hardware Systems > Somfy CTS 40® CORD TAKE-UP SYSTEM (CTS) 3 3a 3a 2 2

SKYLINE™ BRACKET AND FASCIA ACCESSORIES* C80/C120 CASSETTE ACCESSORIES* Roman/Woven Shades Sheer Horizontal Shades Solar/Roller Shades C80 C120 26 ®Bracket, Fascia and Cassette Solutions > RollEase 3” Round Fascia3” Square Fascia4” Square Fascia 4” Round Fascia

Roman/Woven Shades Sheer Horizontal Shades Solar/Roller Shades ** Available through ZMC Window Coverings, Inc.® 27 INTERMEDIATE BRACKET SOLUTIONS** DUO SHADE FASCIA COMPONENTS** Bracket, Fascia and Cassette Solutions > ZMC

CROWNS AND DRIVES 9014045Part # TUBE PROFILE (not to scale) SET ø 1.5 in. / Round40mm 9013775Part # 9013776Part # 9013938Part # 9012224Part # 9013790Part # 9015259Part # 9014333Part # 9012225Part # ø 1.5 in. / 40mm Octagonal 400 Series Crown and Drive Set* (for 40mm octagonal tube) ®Sonesse 30 to 400 Series Adapter Kit ®(adapts Sonesse 30 to all 400 Series crowns and drives) Crown, Drive, Motor Mount Plate and 3.5 x 9mm Screws ®(for Louvolite System 45) Soft Drive Wheel (ST30/LT30 type for 44mm Tube)Acmeda Drive Wheel (LS40 type for Acmeda 44mm Tube)* 400 Series Crown and Drive Set* (for Somfy 40mm x 1.5” round tube)® Crown, Drive, Motor Mount Plate and 3.5 x 9mm Screws ®(for Louvolite System 40) * ®NOTE: Must be used with Sonesse 30 to 400 Series Adapter Kit # 9013776 ø 1.5 in. / 38mm RollEase® ø 45mm Louvolite ø 1.5 in. / 40mm Louvolite 28 Sonesse 30 Mechanical Accessories® ®Crown and Drive Set for RollEase 1.5”/38mm Tube 9016654Part # 9016655Part # Compatible with all 400 series crowns and drives. øAcmed44mma øAcmed44mma 400 Series Crown and Rubberized Drive Set* (for Somfy 40mm x 1.5” round tube)® 400 Series Crown and Rubberized Drive Set* (for 40mm octagonal tube) 400 Series Crown and Drive for HD 4” Silhouette* (Quartette™) Part # 90137919016953Part # 400 Series Crown Adapter for 44mm Tube*Acmeda 9013791Part # 400 Series Crown Adapter for 44mm Tube*Acmeda ø 50mm Hunter Douglas SETTUBE PROFILE (not to scale)

SOMFY ULC

SOMFY NORTH AMERICAN HEADQUARTERS

CN: (905) 564-6446

P: (800) 22-SOMFY (76639)

P: (800) 22-SOMFY (76639)

FLORIDA

F: (905) 238-1491

CALIFORNIA

5178 Everest Drive Mississauga, Ontario L4W2R4

F: (609) 395-1776

121 Herrod Blvd. Dayton, NJ 08810

P: 1-800-66-SOMFY (76639)

P: (800) 22-SOMFY (76639)

NJ: (609) 395-1300

© Copyright Somfy Systems, Inc 6/2014 HOME MOTION by L-0060 www.somfysystems.com

SOMFY SYSTEMS INC

6100 Broken Sound Pkwy. N.W. Suite 14

F: (949) 727-3775

SOMFY Canada Division

15291 Barranca Parkway Irvine, CA 92618-2201

Boca Raton, FL 33487

F: (561) 995-7502

Binh NGUYEN Project Specification Manager M +84 (0) 906 372 117/88SOMFYbinh.yen.nguyen@somfy.com528(THAILAND)COLTDPanjitTowerF8,SoiSukhumvit 55, Sukhumvit Road, Bangkok, 10110 Thailand

® ®Sonesse 50 500 Series Databook HOME MOTION by

(76639) General Customer Service CustomerSer877–210–5327vice_us@somfy.com Standard Purchase Order Ordering_us@somfy.com Rush Purchase Order ExpeditedShippingOrders_us@somfy.com Accounting Inquiries AccountsReceivable@somfy.com Technical Support 877 – 233 – 0019 TechnicalSupport_us@somfy.com Warranty Claim Requests us_Return@somfy.com

Somfy understands that training and support are critical to success. Somfy's Expert Program has been developed to provide a platform for those who want to enhance their expertise of motorization and control solutions. Contact Somfy directly or visit www.somfypro.com to learn more and sign up for training.

Somfy motors have over 600 standards approvals

Somfy Corporate Headquarters 800–22–SOMFY

Somfy operates in 60 countries, with 78 subsidiaries, and 52 agencies spread across 5 continents. With 8 production centers, Somfy is an efficient and reactive industry leader. Thanks to its strict quality standards, Somfy is able to satisfy the needs of over 270 million users worldwide.

WHY SOMFY?

specialists available for assistance:

Somfy is the leading global manufacturer of strong, intelligent, quiet motors and electronic controls for interior and exterior window coverings with more than 110 million motors produced since 1980. For more than four decades, Somfy engineers have designed products for both the commercial and residential markets to motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling shutters, exterior solar screens and projection screens. Somfy motorization systems are easily integrated with security, HVAC and lighting systems providing total home or building automation.

and

Somfworldwide.yhas certified over 100 patents since the year 2000. Every Somfy motor goes through an extensive quality assurance process including testing in extreme environmental conditions, for electrostatic discharge, mechanical shock, and high life cycle. Somfy has a network of 15,000 trained professional installers throughout the world.

Somfy has a committed Customer Support team comprised of Somfy motor control

Somfy has a production capacity of more than 70,000 motors per day

E X P E R T

is a registered trademark of RollEase Inc. - Stamford, CT® ® ZMC is a registered trademark of ZMC Window Coverings® ® Z-Wave is a registered trademark of Zensys, Inc. and its subsidiaries® iPad and iPhone are registered trademarks of Apple, Inc® ®

RollEase

Introduction 2-3 ®Sonesse 50 RA 4 ®Sonesse 50 PA 5 ®Sonesse 50 RTS 6 ®Sonesse ULTRA 50 RTS 7 ®Sonesse 50 ILT2 8 ®Sonesse 50 RS485 9 ®Sonesse ULTRA 50 RS485 292630-3127-282523-242321-222019181716151413121110Somfy 2” System ZMAcmedaCFascia & Cassette Solutions Somfy CTS 50mm System ®RollEase Silent Pin TABLE OF CONTENTS CONTROL ACCESSORIES SOMFY’S 500 SERIES MOTOR RANGE SONESSE 50 MOTOR RANGE® HARDWARE SYSTEMS, LIGHT GAP SPECIFICATIONS & BRACKET PROJECTIONS MECHANICAL ACCESSORIES Motor Brackets Idler Brackets End Caps Intermediate Brackets New Rigid Links CMiscellaneousMOMechanical Accessories Crowns and Drives Standard and CMO Product Kits 4440-43393837373634-3532-33 1 ®Radio Technology Somfy (RTS) Digital Motor Interfaces Wired Controls LT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50 RA LT50 RA CMO LT50 PA ®LT50 Altus RTS LT50 RTS CMO ®LT50 OREA RTS OXIMO™ 50 RTS SUNEA™ RTS CMO LT50 ILT2 LT50 RS485 LT

50 MOTOR RANGE

®

year warranty 2 Motor Identification Key Torque(Nm) Range-Voltage120VRange2230VRange1 R:SpeedRolling Shutter = 14 rpm A: Awning = 20-24 rpm S: Screen = 32-38 rpmMotor Diameter 4 for 40mm 5 for 50mm 6 for 60mm ®Sonesse RTS

by

The wired, digital, bi-directional bus control allows for more sophisticated functions (positioning of motor in any position, polling the motor status …) and can provide compatibility with third party control systems in either commercial or residential markets.

Dry

Electronic Limit Switch Unit with Integrated RTS Somfy Technologies Somfy’s 500 Series Motor Range 510 S2 RH Control Technology (If other than Standard Wired) Motor Head Style (If other than Standard Star Head) RH = Round Head PA = Progressive Adjustment PS = Progressive Adjustment Switch CMO = Compact Manual Override RTS = Radio Technology Somfy ILT = Intelligent Limit Technology RS485 = Somfy Digital Network INFRARED DRY CONTACT ILT PROTOCOL Includes Somfy patented antenna that is integrated into the power cord for enhanced reception. ®Sonesse 6Nm Motor S

products, motors are

WIRED TECHNOLOGY

Is a dry contact input a basic low voltage control. ILT2 range is compatible with almost any home automation systems.

By simply plugging an IR sensor to the control input, ILT can be immediately controlled by any Somfy IR remote without any configuration operation.

As all Somfy backed a 5

Radio Technology Somfy Radio Technology Somfy (RTS) allows wireless radio control of motorized applications via the RTS family of controls.

Wired Technology Offers control via standard AC switching Contact

ILT-Intelligent Limit Technology

RS485 R 485 is another control method that uses a two-wired bus. Due to the open source nature of the RS485 protocol many building management systems and home automation systems use this protocol to communicate to devices. Systems that can use the RS485 connection can be programmed to Somfy RS485 motors or controllers to operate the installation.

IR-Infrared

with

3

Our motors undergo rigorous endurance, acoustic, radio, mechanical, electrical and safety tests in our 65,000 sq. ft. quality control and testing facility.

Newly patented and improved spring brake eliminates stopping and tilting noise.

®Compatibility with Somfy’s animeo IP system

Motor position feedback

All SOMFY motors are UL Recognized and can be found under the following file numbers: E60495, E60888, E63714

®WHY CHOOSE SOMFY’S SONESSE RANGE?

A newly patented, asynchronous, high quality, maintenance-free motor that provides perfect rotary part alignment supported by roller bearings.

Superior Quality:

Collision detection

Residential and commercial markets

More than 600 approved standards worldwide Manufactured and sold over 100 million motors

Wired simple push-button limit setting

Compatible with leading industry hardware solutions

Compatible with all Somfy Snap-on drive wheels

Wide Range of Solutions: Simplified Fabrication and Installation:

Motor auto discovery

RTS, wired and RS485 integrated network options

Plug-incableoption eliminates the need for an electrician. Motor cable length can be customized to meet your installation requirements.

Advanced design enables simple “Snap-On” connection for roller tube adapters.

Multiple intermediate positions

Can be installed in 6 different orientations

R C R

Available with UL approved 5-15P NEMA plug-in motor

Innovative and patented helical gearbox ensures uniform sound quality in both up and down directions.

Utilizes existing fabrication methods on the market today

Improved RS485 commissioning process:

Simple Electrical Connection:

RTS limits are set via radio transmitter

* Sound level measured at 3 feet from end product at maximum rated torque.

*Uniform quiet operation in both the up and down directions under 40dBA.

All Somfy Motors are UL and CSA Recognized

Backward compatibility provides seamless integration with existing Somfy Digital Network projects.

Quiet and Strong:

Streamlined Programming:

Interior and exterior applications

Stronger torque for larger applications including multi-banded/ coupled window coverings

504S2 1030061 Offers control via power switching ®Sonesse 50 RA 120VWiredAC / 60Hz 4 conductor cable white = neutral red = direction 1 black = direction 2 green = ground WIRED TECHNOLOGY 506S2 1001814 Warranty year Star Head and Round Head Motors (rapid limit adjustment) 504S2RH 1030062 506S2RH 1001812 Voltage Supply 120V AC, 60Hz Index Protection 504 - IP 31 (interior use) Limit Switch Type Rapid Adjustment RA Limit Switch Capacity 46 Turns Technical Features Temperature 504: 32°F to 140°F (0°C to 60°C) 504 CL3L2L1able Length 6.5ft (2 m) Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. L3 L1 L2 20 ø 63 47ø min.17.5253.95 Insulation Class Class 1 for 120V AC Wiring Do not parallel wire 506 - IP 44 (interior & exterior use) Interior use 506 23.7 in (603 mm) 23.2 in (590 mm) SH 24.3 in (616 mm) 6.5ft (2 m) Working Range Dimensions RH 24.1 in (613 mm) 506: -4°F to 158°F (-20°C to 70°C) Interior and exterior use L3 L1 L2 47ø 253.95 16.95max.14.3max. ø 49.6 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 4 mm (cat #100405B). Depth 9 mm spaced 1.14” (29 mm) apart Rating 20.03 in (712 mm) 27.60 in (701 mm) SH 28.58 in (726 mm) 504 NominalTorque Voltage Rated Current TherSpeedmal Protection *Sound Level 4 120VNm / 60Hz <432.95Arpmminutes44dBA 506 6 120VNm / 60Hz <5321.2Arpmminutes40dBATSpecificationsypeofpower cable Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor. Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor. 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. *Sound Level: Sound level measured at 3 feet from end product at maximum rated torque. Dimensions STAR ROUNDHEADHEAD R RH 28.46 in (723 mm) 4 R C US

504S2PA 1030063 5 NomiTorquenal Voltage Rated Current TherSpeedmal Protection Sound Level Dimensions CL3L2L1able Length 28.33 in (719.5 mm) 28.01 in (711.5 mm) 28.48 in (723.5 mm) 6.5ft (2 m) 4 120VNm / 60Hz 44432.95ArpmminutesdBA ®Sonesse 50 PA (Progressive Limit Adjustment) 120VWiredAC / 60Hz 4 conductor cable white = neutral red = direction 1 black = direction 2 green = ground Progressive Adjustment PA Voltage Supply 120V AC, 60Hz Index Protection Rating IP 44 Limit Switch Type Limit Switch Capacity 29 Turns Temperature Working 32°F to 140°F (0°C to 60°C) Insulation Class Class 1 for 120V AC Wiring Do not parallel wire Range L3 L1 L2 20 ø 63 47ø min.17.5253.95 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart STAR HEAD Technical Features Dimensions Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. *Sound Level: Sound level measured at 3 feet from end product at maximum rated torque. Specifications Offers control via power switching WIRED TECHNOLOGY Warranty year R R Type of power cable

®Sonesse 50 RTS 120VRTS AC / 60Hz 3 conductor cable Voltage Supply 120V AC, 60Hz Index Protection 504 - IP 31 (interior use) Limit Switch Type Electronic RTS Limit Switch Capacity 250 Turns 504S2 1030065 Type of power cable 504 white = neutral black = hot green = ground ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls. Technical Features Temperature 504: 32°F to 140°F (0°C to 60°C) 6 NominalTorque Voltage Rated Current TherSpeedmal Protection Radio *SoundFrequencyLevel 504 CL3L2L1able Length 30.83 in (783 mm) 30.31 in (770 mm) SH 31.34 in (796 mm) 6.5ft (2 m) Fabrication Recommendations: Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. 4 120VNm / 60Hz <433.42432.95ArpmminutesMHz44dBA L3 L1 L2 20 ø 63 47ø min.17.525 Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor. Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. 3.95 Insulation Class Class 1 for 120V AC Warranty year Antenna Integrated into power cord. Power cord must be at least 12 inches and must not come in contact with metal 506S2 1001809 Wiring Parallel wiring allowed in accordance with NEC and local electrical codes *Sound Level: 506 - IP 44 (interior & exterior use) Interior use 506 506 25.7 in (653 mm) 25.2 in (640 mm) SH 26.2 in (666 mm) 6.5ft (2 m) 6 120VNm / 60Hz <433.425321.2ArpmminutesMHz40dBA Sound level measured at 3 feet from end product at maximum rated torque. Star Head and Round Head Motors 504S2RH 1030066 506S2RH 1001806 Working Range Dimensions RH 26.1 in (663 mm) STAR HEAD 506: -4°F to 158°F (-20°C to 70°C) Interior and exterior use ROUND HEAD L3 L1 L2 47ø 253.95 16.95max.14.3max. ø 49.6 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 4 mm (cat #100405B). Depth 9 mm spaced 1.14” (29 mm) apart Rating Dimensions R RH 31.22 in (793 mm) R C US Specifications

®Sonesse ULTRA 50 RTS 120VRTS AC / 60Hz 3 conductor cable Voltage Supply 120V AC, 60Hz Index Protection IP 31 (interior use) Limit Switch Type Electronic RTS Limit Switch Capacity 250 Turns Type of power cable white = neutral black = hot green = ground ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls. Technical Features Temperature 32°F to 140°F (0°C to 60°C) 7 NominalTorque Voltage Rated Current TherSpeedmal Protection Radio *SoundFrequencyLevel SJTWL3L2L1 PowerCable Length Fabrication Recommendations: Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. L3 L1 L2 21.5 ø 63 47ø min.17.525 Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor. Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. 3.95 Insulation Class Class 1 for 120V AC Warranty year Antenna Integrated into power cord. Power cord must be at least 12 inches and must not come in contact with metal 506S2 1002562 Wiring Parallel wiring allowed in accordance with NEC and local electrical codes *Sound Level: (Interior use only) 506 506 31.7 in (807 mm) 31.3 in (796 mm) SH 32.3 in (821 mm) 9.8ft (3 m) 6 120VNm / 60Hz <433.42424.95ArpmminutesMHz38dBA Sound level measured at 3 feet from end product at maximum rated torque. Star Head and Round Head Motors 506S2RH 1002564 Working Range Dimensions RH 32.2 in (818 mm) STAR ROUNDHEADHEAD L3 L1 L2 47ø 253.95 17.514.3max.max. ø 49.6 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 4 mm (cat #100405B). Depth 9 mm spaced 1.14” (29 mm) apart Rating Dimensions COMINGSOON R C US Specifications

1 95/49 6 2 44/62 1 89/48 ®Sonesse 50 ILT2 504S2RH 1030077 NomiTorquenal Voltage Rated Current TherSpeedmal Protection Sound Level Dimensions 504S2RH PowL3L2L1er Cable Length 30.83 in (783mm) 30.31 in (770mm) 31.06 in (789mm) 6.5ft (2m) 4 120VNm / 60Hz <432.95Arpmminutes44dBA Data Cable Length 8.2ft (2.5m) / 4 wires / 120VILT: AC / 60 Hz 3 threads by wire Type of power cable Optional cables with NEMA plugs available in 3ft, 6ft, 12ft, 18ft, 24ft. RJ9 phone connectors A new generation of intelligent LT motors that can be controlled and monitored via Somfy digital network solutions. RJ9 Pin Outs Optional Data Cables: ILT white data cable - 1 ft. (.3m) ILT white data cable - 5 ft. (1.5m) Part #9209060 Part #9209061 ILT white data cable - 25 ft. (7.5m) ILT white data cable - 50 ft. (15m) Part #9012343 Part #9012344 4 1 3 2 PIN COLOR 4 RED 3 BLUE 2 WHITE 1 YELLOW ILT DryProtocolContactIRContact OPENIR GNDGNDGND +5V- CLOSEDATA white = neutral black = hot green = ground DRY CONTACT ILT PROTOCOL Electronic Voltage Supply 120 AC, 60Hz Index Protection IP 44 Limit Switch Type Limit Switch Capacity 300 Turns Temperature Working 32°F to 140°F (0°C to 60°C) Insulation Class Class 1 for 120V AC 504S2Range 1030094 L3 L1 L2 20 ø 63 47ø 17.5min.253.95 STAR ROUNDHEADHEAD L3 L1 L2 47ø 253.95 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 5 mm. Technical Features Dimensions 11.7 max. 13.7 max.Specifications Fabrication Recommendations:

Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended.

Operational noise level is reduced when motor, tube, and accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor Interior Tube Diameter (ID) > 47mm must be respected.

A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor.

500 Series Drive Stop and Screw (9910004) included with Sonesse series motors only, is recommended to prevent noise and drive wheel separation from motor shaft.

504S2 30.83 in (783mm) 30.31 in (770mm) 31.34 in (796mm) 1.6ft (.5m) 1ft (.3m) / 4 wires / RJ9 phone connectors(included) Star Head and Round Head Motors Data cable Rating 8 Warranty year R R

ø 63 ®Sonesse 50 RS485 506S2 1002286 120V AC / 60Hz 3 conductor cableA new generation of intelligent motors that are controlled and monitored via Somfy digital network solutions and animeo IP total solar management system. Star Head Motor Voltage Supply 120V AC, 60Hz Index Protection Limit Switch Type Electronic Limit Switch Capacity 300 Turns Type of power cable white = neutral black = hot green = ground Technical Features Temperature NominalTorque Voltage Rated Current TherSpeedmal Protection *Sound Level SJTWL3L2L1 Power Cable Length Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. L3 L1 L2 20 47ø min.17.5253.95 Insulation Class Class 1 for 120V AC Warranty year Wiring Parallel wiring allowed in accordance with NEC and local electrical codes IP 44 (interior & exterior use) 25.7 in (653 mm) 25.2 in (640 mm) 26.2 in (666 mm) 9.8 ft (3 m) 6 120VNm / 60Hz <5321.2Arpmminutes40dBA Working Range Dimensions Specifications STAR HEAD -4°F to 158°F (-20°C to 70°C) Interior and exterior use 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart Rating Data Cable Customizable and available in various lengths Data Cable: RJ9/RJ45 (sold separately) 4 GND1 + RS485 3 Not Used * Power Out ** RJ45 connects to networkRJ9 connects to motor 8 GND 7 Not Used 6 Not Used 5 Not Used4 Not Used * 3 Not Used 2 - RS485 1 + RS485 (must be ordered separately) 2 Power Out *** Data cable (black) for animeo IP networks ** Data cable (grey) for powering external modules 2.5 ft long 8 ft long 12 ft long 24 ft long #9018548#9018547#9018546#9018545 2.5 ft long 8 ft long 12 ft long 24 ft long #9018544#9018543#9018542#9018541 Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. *Sound Level: Sound level measured at 3 feet from end product at maximum rated torque. R 4 Cond. 26AWG modular cable with RJ9 on one end and ®RJ45 other end - (RTS, Z-Wave , ZigBee modules)® 4 Cond. 26AWG modular cable with RJ9 on one end and RJ45 other end - (SDN - animeo IP) GREY POWERBLACKPOWERWITHOUTWITHOUTOUT Dimensions 9 R C US

ø 63 ®Sonesse ULTRA 50 RS485 506S2 1002566 120V AC / 60Hz 3 conductor cable A new generation of intelligent motors that are controlled and monitored via Somfy digital network solutions and animeo IP total solar management system. Star Head Motor Voltage Supply 120V AC, 60Hz Index Protection Limit Switch Type Electronic Limit Switch Capacity 300 Turns Type of power cable white = neutral black = hot green = ground Technical Features Temperature NominalTorque Voltage Rated Current TherSpeedmal Protection *Sound Level SJTWL3L2L1 Power Cable Length Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. L3 L1 L2 21.5 47ø min.17.5253.95 Insulation Class Class 1 for 120V AC Warranty year Wiring Parallel wiring allowed in accordance with NEC and local electrical codes IP 31 (interior) 32.5 in (827 mm) 32.1 in (816 mm) 33.1 in (841 mm) 9.8 ft (3 m) 6 120VNm / 60Hz <424.95Arpmminutes38dBA Working Range Dimensions Specifications STAR HEAD 32°F to 140°F (0°C to 60°C) (Interior use only) 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart Rating Data Cable Customizable and available in various lengths Data Cable: RJ9/RJ45 (sold separately) 4 GND1 + RS485 3 Not Used * Power Out ** RJ45 connects to networkRJ9 connects to motor 8 GND 7 Not Used 6 Not Used 5 Not Used4 Not Used * 3 Not Used 2 - RS485 1 + RS485 (must be ordered separately) 2 Power Out *** Data cable (black) for animeo IP networks ** Data cable (grey) for powering external modules 2.5 ft long 8 ft long 12 ft long 24 ft long #9018548#9018547#9018546#9018545 2.5 ft long 8 ft long 12 ft long 24 ft long #9018544#9018543#9018542#9018541 Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube to ensure quiet performance of the motor Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. *Sound Level: Sound level measured at 3 feet from end product at maximum rated torque. 4 Cond. 26AWG modular cable with RJ9 on one end and ®RJ45 other end - (RTS, Z-Wave , ZigBee modules)® 4 Cond. 26AWG modular cable with RJ9 on one end and RJ45 other end - (SDN - animeo IP) GREY POWERBLACKPOWERWITHOUTWITHOUTOUT Dimensions 10 COMINGSOON R C US

4 38.7ANmrpm 6 38.95ANmrpm Wired 120V AC / 60 Hz 4 conductor cable Type of power cable white = neutral red = direction 1 black = direction 2 green = ground 504S2 1030006 506S2 1032023 520R2 1041026 510S2 1037036 525A2 1043024 515S2 1039027 LT50 RA Optional cables available in 6ft, 12ft, 24ft. 10 381.3ANmrpm 15 381.8ANmrpmNomiTorquenal Voltage Rated Current TherSpeedmal Protection 15 201.1ANmrpm Dimensions L3L2L1 (Star Head only) Cable Length 19.88 in (505 (513(49019.29mm)inmm)20.20inmm) 20.67 in (525 (533(51020.10mm)inmm)20.98inmm) 23.82 in (605 (613(59023.23mm)inmm)24.13inmm) 20.67 in (525 (533(51020.10mm)inmm)20.98inmm) 515A2 1039024 540R2 1049042550R2535A2 1047013 530R2 1045026 20 141.1ANmrpm 25 201.6ANmrpm 30 141.5ANmrpm 40 141.8ANmrpm35 202.1ANmrpm 50 142.1ANmrpm 530515A2 535 540 550 21.85 in (555 (563(54021.26mm)inmm)22.17inmm) 20.67 in (525 (533(51020.10mm)inmm)20.98inmm) 21.85 in (555 (563(54021.26mm)inmm)22.17inmm) 21.85 in (555 (563(54021.26mm)inmm)22.17inmm) 23.82 in (605 (613(59023.23mm)inmm)24.13inmm) 23.82 in (605 (613(59023.23mm)inmm)24.13inmm) 23.82 in (605 (613(59023.23mm)inmm)24.13inmm) 120V / 60Hz 6.5 ft (2m) Rapid Adjustment RA Voltage Supply 120V AC, 60Hz Index Protection Rating IP 44 Limit Switch Type Limit Switch Capacity 46 Turns Temperature Working 14°F to 140°F (-10°C to 60°C) Insulation Class Class 1 for 120V AC R Warranty year L3 L1 L2 20 ø 63 47ø min.17.5253.95 STAR ROUNDHEADHEAD L3 L1 L2 47ø 253.95 16.95max.14.3max. ø 49.6 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 4 mm (cat #100405B). Depth 9 mm spaced 1.14” (29 mm) apart Technical Features Dimensions 504S2RH 1030005 506S2RH 1032016 520R2RH 1041028 510S2RH 1037026 525A2 1043025515S2RHRH 1039019 Range Specifications 5 minutes Sound Level (RH only) 52 dBA 55 dBA 56 dBA 56 dBA NA NANA NA NA NA NA L3 (Round Head only) 506 510S2504 520515S2 525 20.08 in (510 mm) 20.87 in (530 mm) 24.02 in (610 mm) 20.98 in (533 mm) 22.05 in (560 mm) 22.17 in (563 mm) Star Head and Round Head Motors (rapid limit adjustment) Wiring Do not parallel wire Offers control via power switching WIRED TECHNOLOGY 530515A2 535 540 550506 510S2504 520515S2 525 11 1051019

25 201.6ANmrpm Dimensions 23.39 in (594 mm) 22.80 in (579 mm) 23.90 in (607 mm) 30 141.5ANmrpm 530R2 CMO 12 Rapid Adjustment (RA) (includes manual override) 525A2 CMO 1043010 530R2 CMO 1045017 550R2 CMO 1051014 535A2 CMO 1047006 540R2 CMO 1049026 LT50 RA CMO Optional cables available in 6 ft, 12 ft, 24 ft. 35 202.1ANmrpm 535A2 CMO 40 141.8ANmrpm 540R2 CMO 50 142.1ANmrpm 550R2 CMO 26.14 in (664 mm) 25.55 in (649 mm) 26.65 in (677 mm) (Rapid Limit Adjustment - Compact Manual Override) 525A2 CMO NomiTorquenal Voltage Rated Current TherSpeedmal Protection CL3L2L1able Length 120VWiredAC / 60Hz 4 conductor cable Type of power cable white = neutral red = direction 1 black = direction 2 green = ground 530R2 CMO 535A2 CMO 540R2 CMO 550R2 CMO525A2 CMO 23.39 in (594 mm) 22.80 in (579 mm) 23.90 in (607 mm) 26.14 in (664 mm) 25.55 in (649 mm) 26.65 in (677 mm) 26.14 in (664 mm) 25.55 in (649 mm) 26.65 in (677 mm) 120V / 60Hz 5 minutes 6ft (1.8 m) Center Line of Override Shaft HEX .275”/7mm or SQUARE .236”/6mm L1 L2 47ø .79/20 L3 Ø.48/12 Ø.96/24 .98/25.16/4 Ø4.5/114 .49/12.5 3.39/86 Voltage Supply 120V AC, 60Hz Index Protection Rating IP 44 Limit Switch Type Limit Switch Capacity 34 Turns Temperature Working Range 14°F to 104°F (-10°C to 40°C) Insulation Class Class 1 for 120V AC Wiring Do not parallel wire Offers control via power switching WIRED TECHNOLOGY Technical Features DimensionsSpecifications Warranty year R R

6 5538.95ANmrpmdBA Dimensions 20.67 in (525 mm) 20.08 in (510 mm) 20.98 in (533 mm) 5 in. (.12 m) 6 5538.95ANmrpmdBA 120VWiredAC / 60Hz 4 conductor cable Type of power cable PA white = neutral red = direction 1 black = direction 2 green = ground 506S2PA 1032042 506S2PS 1032082 535A2PA 1047298 510S2PA 1037042 510R2PA 1037395 50 PA 10 55381.3ANmrpmdBA 10 NA14.7ANmrpm 35 Nm NA 23.82 in (605 mm) 23.23 in (590 mm) 24.13 in (613 mm) 3.28ft (1 m) (Progressive Limit Adjustment) NomiTorquenal Voltage Rated Current TherSpeedmal Protection Sound Level CL3L2L1able Length 506S2PS* 510S2PA 510R2PA 535A2PA506S2PA 120VWiredAC / 60Hz 5 conductor cable Type of power cable PS white = neutral red = direction 1 black = direction 2 grey = power switching green = ground 20.67 in (525 mm) 20.08 in (510 mm) 20.98 in (533 mm) 5 in. (.12 m) 21.85 in (555 mm) 21.26 in (540 mm) 22.17 in (563 mm) 5 in. (.12 m) 19.88 in (505 mm) 19.29 in (490 mm) 20.19 in (513 mm) 5 in. (.12 m) 13 120V / 60Hz 202.1Arpm 5 minutes 506S2PS* 510S2PA 510R2PA 535A2PA506S2PA *Progressive Limit Adjustment with external power switching capability when limit is reached. 14°F to 104°F (-10°C to 40°C) Progressive Adjustment PA Voltage Supply 120V AC, 60Hz Index Protection Rating IP 44 Limit Switch Type Limit Switch Capacity 29 Turns Temperature Working Insulation Class Class 1 for 120V AC Wiring Do not parallel wire Range L3 L1 L2 20 ø 63 47ø min.17.5253.95 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart STAR HEAD Technical Features Dimensions Specifications Offers control via power switching WIRED TECHNOLOGY LT Warranty year R R

®LT50 Altus RTS RTS 120V AC / 60 Hz 3 conductor cable 506S2 1032500 510S2 1037501 525A2 1043287 Type of power cable white = neutral black = hot green = ground 530R2 1037507 535A2 1037509 540R2 1037510 550R2 433.4210375116Nm1.1A38rpmMHz506 CL3L2L1able Length 23.82 in (605 mm) 10 433.42381.3ANmrpmMHz 510 25 433.42201.6ANmrpmMHz 30 433.42141.5ANmrpmMHz 35 433.42202.1ANmrpmMHz 40 433.42141.8ANmrpmMHz 50 433.42142.1ANmrpmMHz 23.23 in (590 mm) SH 24.13 in (613 mm) 25.79 in (655 (64025.20mm)inmm) SH 26.10 in (663mm) 525 25.79 in (655 (663(64025.20mm)inmm)26.10inmm) 530 25.79 in (655 (663(64025.20mm)inmm)26.10inmm) 535 26.57 in (605 (683(66025.98mm)inmm)26.89inmm) 540 26.57 in (605 (683(66025.98mm)inmm)26.89inmm) 550 26.57 in (605 (683(66025.98mm)inmm)26.89inmm) Optional cables with NEMA plugs available in 3ft, 6ft, 12ft, 18ft, 24ft. NomiTorquenal Voltage Rated Current TherSpeedmal Protection Radio Frequency 6.5 ft (2 m) 6.5 ft (2 m) 12.3 ft (3.75 m) 6.5 ft (2 m) 12.3 ft (3.75 m) 6.5 ft (2 m) 6.5 ft (2 m) 120V/60Hz5minutes 506 510 525 530 535 540 550 120V AC, 60Hz IP Elec44tronic RTS 250 14°FTurnsto104°F (-10ºC to 40ºC) Class 1 for 120V AC Antenna Integrated into power cord. Must be at least 12 inches and must not come in contact with metal Warranty year L3 L1 L2 20 ø 63 47ø min.17.5253.95 STAR ROUNDHEADHEAD L3 L1 L2 47ø 253.95 16.95max.14.3max. ø 49.6 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 4 mm (cat #100405B). Depth 9 mm spaced 1.14” (29 mm) apart Technical Features Dimensions 506S2 RH 1037519 510S2 RH 1037521 32°F to 140°F (0°C to 60°C) Star Head Round Head RH 24.02 in (610 mm) RH 25.98 in (660mm) (Round Head limited to 3 minutes of rotation without stop) Specifications Star Head and Round Head Motors Voltage Supply Index Protection Limit Switch Type Limit Switch CapacityInsulatTemperatureionClassWorkingRangeRating Dimensions ®Radio Technology Somfy (RTS) allows for coverings via the RTS family of controls. wireless radio control of motorized window 14

25 201.6ANmrpm 525 30.47 in (774 mm) 29.88 in (759 mm) 30.98 in (787 mm) 12 ft (3.6 m) 30 141.5ANmrpm 530530 120VRTS AC / 60Hz 3 conductor cable Type of power cable white = neutral black = hot green = ground 15 Rapid Adjustment RA and Electronic 525A2 CMO 1043020 530R2 CMO 1045014 550R2 CMO 1051012 535A2 CMO 1047010 540R2 CMO 1049013 LT50 RTS CMO Optional cables with NEMA plugs available in 6 ft, 12 ft, 18 ft, 24 ft. 35 202.1ANmrpm 535535 40 141.8ANmrpm 540540 50 142.1ANmrpm 5505506 ft (1.8 m) 12 ft (3.6 m) 6ft (1.8 m) 6ft (1.8 m) (Compact Manual Override) 525 Center Line of Override Shaft HEX .275”/7mm or SQUARE .236”/6mm NomiTorquenal Voltage Rated Current TherSpeedmal Protection Radio Frequency CL3L2L1able Length L1 L2 47ø .79/20 L3 Ø.48/12 Ø.96/24 .98/25 Receiver Integrated in motor tube .16/4 120V / 60Hz 5 433.42minutesMHz Ø4.5/114 .49/12.5 3.39/86 120V AC, 60Hz IP 3444Turns 14°F to 104°F (-10°C to 40°C) Class 1 for 120V AC R Warranty year Antenna Integrated into power cord. Must be at least 12 inches and must not come in contact with metal Wiring Parallel wiring allowed in accordance with NEC and local electrical codes 30.47 in (774 mm) 29.88 in (759 mm) 30.98 in (787 mm) 30.47 in (774 mm) 29.88 in (759 mm) 30.98 in (787 mm) 30.47 in (774 mm) 29.88 in (759 mm) 30.98 in (787 mm) 30.47 in (774 mm) 29.88 in (759 mm) 30.98 in (787 mm)SpecificDimensionsations Voltage Supply Index Protection Rating Limit Switch Type Limit Switch Capacity WTemperatureInsulationClassorkingRange Dimensions Technical Features ®Radio Technology Somfy (RTS) allows for wireless radio control of motorized window coverings via the RTS family of controls.

16 35 Nm 20 433.42rpmMHz Dimensions 535 26.57 in (675 mm) 25.98 in (660 mm) 26.89 in (683 mm) 50 Nm 14 26.8925.9826.57433.42rpmMHzin(675mm)in(660mm)in(683mm) 550 120VRTS AC / 60Hz 3 conductor cable Type of power cable white = neutral black = hot green = ground 535A2 1037522 550R2 1037523 Please Note: ®Orea RTS motor is specifically designed for cassette awnings only. Automatic limit setting in the UP direction. L3 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013) Depth 13 mm Spaced 1.89” (48 mm) apart L1 L2 20 ø 63 47ø min.17.5 25 535 550 NomiTorquenal Voltage Rated Current TherSpeedmal Protection Radio Frequency Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. CL3L2L1able Length 3.95 120V / 2.1A60Hz 5 13.1minutesft(4m) 120V AC, 60Hz IP Elec44tronic RTS 250 Turns Specifically designed for use in cassette awnings only Technical Features SpecificDimensionsations WAntennairing Voltage Supply Index Protection Rating Limit Switch Type Limit Switch Capacity WTemperatureInsulationClassorkingRange 14°F to 104°F (-10°C to 40°C) Class 1 for 120V AC Integrated into power cord. Must be at least 12 inches and must not come in contact with metal Parallel wiring allowed in accordance with NEC and local electrical codes ®Radio Technology Somfy (RTS) allows for coverings via the RTS family of controls. wireless radio control of motorized window 50 Orea RTS®LT Warranty year R R

Electronic RTS 525A2 1033035 Oximo™ 50 RTS Star Head Voltage Supply 120V AC, 60Hz Index Protection Rating IP 44 Limit Switch Type Limit Switch Capacity 200 Turns Temperature Working Range 14°F to 104°F (-10°C to 40°C) Insulation Class Class 1 for 120V AC Antenna Integrated into power cord. Must be at least 12 “ and must not come in contact with metal. Technical Features DimensionsSpecifications ®Radio Technology Somfy (RTS) allows for coverings via the RTS family of controls. wireless radio control of motorized window Wiring Parallel wiring allowed in accordance with NEC and local electrical codes. NomiTorquenal Voltage Rated Current TherSpeedmal Protection Radio Frequency Dimensions CL3L2L1able Length Optional cables with NEMA plugs available L3 L1 L2 20 ø 63 47ø min.17.15 253.95 25.79 in (655 mm) 25.20 in (640 mm) 26.10 in (663 mm) 6.5 ft (2 m) 25 120VNmAC / 60Hz 433.424201.6ArpmminutesMHz in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft 120VRTS AC / 60Hz 3 conductor cable Type of power cable white = neutral black = hot green = ground 17 Warranty year R R

25 201.6ANmrpm Dimensions 27.40 in (696 mm) 26.93 in (684 mm) 28.35 in (720 mm) 35 202.1ANmrpm fast connector male 18 525A2 CMO 1114230 535A2 CMO 1116266 550R2 CMO 1118167 ™Sunea RTS CMO Optional fast connector cables with NEMA plugs available in 12 ft, 18 ft, 24 ft. 50 142.1ANmrpm (Compact Manual Override) NomiTorquenal Voltage Rated Current TherSpeedmal Protection Radio Frequency L3L2L1 47ø L3 32 max. 27.40 in (696 mm) 26.93 in (684 mm) 28.35 in (720 mm) Type of power cable - SJTW + 18 in. L2 L1 27.40 in (696 mm) 26.93 in (684 mm) 28.35 in (720 mm) ø 95 4 4 433.42120Vminutes/60HzMHz 29.6 78 535A2 CMO 550R2 CMO525A2 CMO 18 Center Line of Override Shaft HEX .275”/7mm or SQUARE .236”/6mm Specifically designed for use in cassette and standard retractable awnings only (Do not cut fast connector cable) TSpecificDimensionsationsechnicalFeatures 120V AC, 60Hz IP Elec44tronic RTS 250 Turns Voltage Supply Index Protection Rating Limit Switch Type Limit Switch Capacity WirAntennaingTemperatureInsulationClassWorkingRange 14°F to 104°F (-10°C to 40°C) Class 1 for 120V AC Integrated into power cord. Must be at least 12 inches and must not come in contact with metal Parallel wiring allowed in accordance with NEC and local electrical codes ®Radio Technology Somfy (RTS) allows for coverings via the RTS family of controls. wireless radio control of motorized window 535A2 CMO 550R2 CMO525A2 CMO Warranty year R

LT50 ILT2 NomiTorquenal Voltage Rated Current TherSpeedmal Protection Sound Level 6 Nm 120V / 60Hz 5538.95ArpmdBA Optional cables with NEMA plugs available in 3ft, 6ft, 12ft, 18ft, 24ft. DimensionsL1L2L3PowerCable Length 23.82 in Data Cable Length 506S2 1100019 515S2 1100026 535A2 1030075 15 5381.8ANmrpmminutes56dBA 23.23 in35 202.1ANmrpm58dBA 24.13 in 506 515 535 A new generation of intelligent LT motors that can be controlled and monitored via Somfy digital network solutions. DRY CONTACT ILT PROTOCOL Electronic Voltage Supply 120V AC, 60Hz Index Protection IP 44 Limit Switch Type Limit Switch Capacity 300 Turns Temperature Working -4°F to 158°F (-20°C to 70°C) Insulation Class Class 1 for 120V AC 506S2RH 1030074 515S2RH 1103017 535A2RH 1030076 Range Technical Features Dimensions Specifications 24.02 in 535RH (included) (605mm) (590mm) (613mm) (610mm) 26.57 in 26.57 in 6.5ft (2m) 1ft (.3m) / 4 wires / RJ9 phone connectors25.98in25.98in 26.89 in 26.89 in 5ft (1.5m) / 4 wires / RJ9 phone connectors26.77in26.77in(675mm) (660mm) (683mm) (680mm) (675mm) (660mm) (683mm) (680mm) Optional Data Cables: ILT white data cable - 1 ft. (.3m) ILT white data cable - 5 ft. (1.5m) Part #9209060 Part #9209061 ILT white data cable - 25 ft. (7.5m) ILT white data cable - 50 ft. (15m) Part #9012343 Part #9012344 4 1 3 2 PIN COLOR 4 RED 3 BLUE 2 WHITE 1 YELLOW ILT DryProtocolContactIRContact OPEN-IR GNDGNDGND +5V- CLOSEDATA 120VILT: AC / 60 Hz 3 threads by wire Type of power cable white = neutral black = hot green = ground 506 515 535 Star Head and Round Head Motors Data cable 1 95/49 6 2 44/62 1 89/48 L3 L1 L2 20 ø 63 47ø 17.5min.253.95 STAR ROUNDHEADHEAD L3 L1 L2 47ø 253.95 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart 2 mounting holes for self tapping screws. Dia. 5 mm. 11.7 max. 13.7 max. Rating 19 RJ9 Pin Outs Warranty year R

ø 63 515S2 1002427 120V AC / 60Hz 3 conductor cable A new generation of intelligent motors that are controlled and monitored via Somfy digital network solutions and animeo IP total solar management system. Star Head Motor Voltage Supply 120V AC, 60Hz Index Protection Limit Switch Type Electronic Limit Switch Capacity 300 Turns Type of power cable white = neutral black = hot green = ground Technical Features Temperature NominalTorque Voltage Rated Current TherSpeedmal Protection *Sound Level SJTWL3L2L1 Power Cable Length Optional cables with NEMA plugs available in 3 ft, 6 ft, 12 ft, 18 ft, 24 ft. L3 L1 L2 20 47ø min.17.15253.95 Insulation Class Class 1 for 120V AC Warranty year Wiring Parallel wiring allowed in accordance with NEC and local electrical codes IP 44 (interior & exterior use) 26.57 in (675 mm) 25.98 in (660 mm) 26.89 in (683 mm) 9.8 ft (3 m) 15 120VNm/ 60Hz <4381.8Arpmminutes55dBA Working Range Dimensions Specifications STAR HEAD -4°F to 140°F (-20°C to 60°C) Interior and exterior use 2 mounting holes for self tapping screws. Dia. 5 mm (cat #9670013). Depth 13 mm spaced 1.89” (48 mm) apart Rating Data Cable Customizable and available in various lengths Data Cable: RJ9/RJ45 (sold separately) 4 GND1 + RS485 3 Not Used * Power Out ** RJ45 connects to networkRJ9 connects to motor 8 GND 7 Not Used 6 Not Used 5 Not Used4 Not Used * 3 Not Used 2 - RS485 1 + RS485 (must be ordered separately) 2 Power Out *** Data cable (black) for animeo IP networks ** Data cable (grey) for powering external modules 2.5 ft long 8 ft long 12 ft long 24 ft long #9018548#9018547#9018546#9018545 2.5 ft long 8 ft long 12 ft long 24 ft long #9018544#9018543#9018542#9018541 Fabrication Recommendations: Operational noise level is reduced when motor, tube, and mechanical accessories are properly adapted to motorized applications. Free play must be minimized between the accessories and the end product tube Interior Tube Diameter (ID) > 47mm must be respected. A motor crown adapter between motor and end product tube is required to ensure concentric operation of motor 500 Series Drive Stop and Screw (9910004) is recommended to prevent noise and drive wheel separation from motor shaft. Somfy Soft Clip Drive Wheel Adapters (brown in color) are not recommended. *Sound Level: Sound level measured at 3 feet from end product at maximum rated torque. R 4 Cond. 26AWG modular cable with RJ9 on one end and RJ45 other end - (RTS, Z-Wave , ZigBee modules)® ® 4 Cond. 26AWG modular cable with RJ9 on one end and RJ45 other end - (SDN - animeo IP) GREY POWERBLACKPOWERWITHOUTWITHOUTOUT Dimensions 535A2 1002288 35 120VNm/ 60Hz <4202.1Arpmminutes55dBA 515 535 50 RS485LT 20

Telis 1 RTS Lounge Single Channel 1810650Remote Telis 4 RTS Lounge Five Channel1810652Remote Telis 1 RTS Silver Single Channel 1810639Remote Telis 4 RTS Silver Five Channel1810641Remote Telis 1 RTS Pure Single Channel 1810632Remote Telis 4 RTS Pure Five Channel 1810633Remote Telis 1 RTS Patio Single Channel 1810643Remote Telis 4 RTS Patio Five Channel1810645Remote 21 ®RADIO TECHNOLOGY SOMFY (RTS) TELIS COLLECTION Wall Switches shown in white. Also available in finishes. black, ivory, and almond Shown above assembled with printed channel buttons. DecoFlex Table Top RTS Accessory1811051**Black DECOFLEX WIREFREE™ WALL SWITCHES & TABLE TOP ACCESSORIES DecoFlex Table Top RTS Accessory1811185**White DecoFlex Table Top RTS Accessory1810972**Silver **DecoFlex Switch sold separately from Table Top Accessory DecoFlex 1 Channel RTS Wireless Wall Switch DecoFlex 5 Channel RTS Wireless Wall Switch DecoFlex 3 Channel RTS Wireless Wall Switch DecoFlex 4 Channel RTS Wireless Wall Switch DecoFlex 2 Channel RTS Wireless Wall Switch black ivory almond Telis 1 Soliris RTS 1810647Patio Telis 1 Soliris RTS 1810635Pure CONTROL ACCESSORIES Telis 4 Soliris RTS 1811243Patio Telis 4 Modulis RTSScr1811235PurewithollWheel Telis 1 Modulis RTSScr1811234PurewithollWheel Telis 16 Channel RTS Pure Remote with On-screen1811081display Telis 16 Channel RTS Silver Remote with On-screen1811082display Telis 1 Chronis RTS Silver Timer with On-screen1805238display Telis 1 Chronis RTS Pure Timer with On-screen1805237display NOTE: Custom Engraved buttons are now available. Learn more about controls and accessories and download RTS brochure at www.somfysystems.com/controls

CONTROL ACCESSORIES ®RADIO TECHNOLOGY SOMFY (RTS) 22 Universal RTS Interface 16-Channel (Converts IR, RS232, RS485 to RTS) ® ®Z-Wave to RTS Interface 2 SUNIS & THERMO SUNIS INDOOR SENSORS Soliris RTS Sun and Wind Sensor 24V SOLIRIS SENSOR Eolis RTS Wind Sensor 24V EOLIS SENSOR Sunis Indoor WireFree™ RTS Thermo Sunis Indoor WireFree™ RTS RTS Repeater RTS Dry Contact Interface Single Channel RTS REPEATER DRY CONTACT INTERFACEOUTDOOR RECEIVERS Outdoor Lighting 1810875Receiver Universal RTS 1810627Receiver 16 CHANNEL INTERFACEZRTSI II myLink™ Control window coverings, awnings, screens and rolling shutters with a smartphone or tablet A simple on-screen setup wizard helps users create timed events, scenes and more. Compatible with iOS and Android. 18114031811265 1810872 WiFi to RTS Interface 18104931810791 901250090124999013707 9013708

An intuitive user interface allows for simplified commissioning, building management and technical support, featuring drag-and-drop programming, motor auto discovery and at aglance system status update.

23 CONTROL ACCESSORIES GROUP CONTROL SYSTEM II (GCS II) IGC AND IGC II OPTIONS (110V AC) IGC II Gang Electric Box 3.5” 9013166Deep IGC RTS Radio 1810481Receiver Group Control System II (GCS 1810476II) GCS II RTS Radio 1810854Receiver WIRED AC CONTROLS & SWITCHES WIRED TECHNOLOGY STANDARD INDIVIDUAL GROUP CONTROL (IGC) (110V AC) IGC 3N1 (31810523Motors)(SingleIGCMotor)1810522 IGC II (Single1810535Motor) IGC II 3N1 (31810536Motors) INDIVIDUAL GROUP CONTROL II (IGC II) (110V AC) DIGITAL MOTOR INTERFACES ZDMI ZBDMI animeo IP®

animeo IP is a total solar management system utilizing Somfy-powered intelligent motorized window coverings as well as digital keypads and weather sensors. The system’s controllers, sensors and keypads can be added to both new and existing Somfy Digital Network installations for comprehensive solar management as either a stand-alone solution or integrated into third party control systems.

Visit www.somfypro.com/animeo to learn more ®animeo IP Building Controller 1822314 ®Z-Wave to Digital Motor1870171Interface ®ZigBee to Digital Motor1870220Interface

DECORATOR TOGGLE SWITCHES throw) & SWITCHPLATES

Single

(single pole, double

Momentary

DECORATOR PADDLE SWITCHES & SWITCHPLATES

Paddle Switch 1800377(Ivory) Momentary Paddle Switch 1800378(White) Maintained Double Pole, Double Throw Paddle Switch 1800375(White) Maintained Double Pole, Double Throw Paddle Switch 1800376(Ivory) Single Gang Paddle Switchplate 9011966(Ivory) 5 position Momentary/Maintained Rocker Switch Switchplate1800388(Whitincludede)

Toggle Switch 1800380(Ivory) Momentary Toggle Switch 1800383(White) Momentary Toggle Switch 1800382(Ivory) Maintained Toggle Switch 1800381(White) Standard Metal Toggle Switchplate 9011954(White) Standard Metal Toggle Switchplate 9011953(Ivory) Plastic Toggle9011962(IvorSwitchplatey)Plastic Toggle9011963(WhitSwitchplatee)

WIRED CONTROLS & SWITCHES

Paddle Switch 1800374(White)

Maintained

Gang Paddle Switchplate 9011967(White)

Maintained

Maintained

SPECIALTY

SWITCH

AC

WIRED TECHNOLOGY Please visit somfysystems.com/controls for additional control info.

Paddle Switch 1800373(Ivory)

CONTROL ACCESSORIES 24

25 4 mm 28 mm 87654321 500 SERIES HARDWARE SYSTEMS > SOMFY 2” SYSTEM STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART 1 2 4 5 3 6 7 8 3.78 ” mm)(96 3.15” (80 mm) 2.17 ” mm)(55 1.38 (35 mm) mm)(552.17 3.15” (80 mm) 1.38 (35 mm) mm)(963.78 Motor - LT50 shown LT50 Universal Motor Bracket LT50 Idler Bracket with 10 mm hole nylon bearing 2” Round LT50 - Hard Clip 2” Collapsible End Cap (silent) - 10 mm shaft (requires notch in tube) 2” Universal End Cap - Collapsible 10 mm shaft (requires notch in tube) 2” Aluminum Tube LT50 2” Universal Intermediate Bracket Kit (requires notch in tube) Refer to individual 500 Series Spec Sheet 9410648178114894208009013592920608894106359410651 4 .46 (11.7 MINIMUMmm)DIM. INTERMEDIATE BRACKET .875” (22.2 mm) 1” (25.4 mm)

500 SERIES HARDWARE SYSTEMS > SOMFY CTS50 SYSTEM STANDARD BRACKET COMPONENTS 1110987654321 DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART Motor - LT50 shown CTS50 Motor Mount Bracket CTS50 Motor Idler Bracket 2” LT Drive for CTS50 tube CTS50 Idler End Cap CTS50 Kit (cone, cradle bearing, tilting rod, end cover) CTS50 Aluminum Tube CTS50 Aluminum Headrail Headrail End Caps Headrail Cover Headrail Mounting Bracket Refer to individual 500 Series Spec Sheet 1781111178110717811051781106178115017811291781113970408017811121781110 21 3 4 5 6 6 7 26 8 11 9 10 COMPLETE ASSEMBLY 9 11

500 SERIES HARDWARE SYSTEMS > ACMEDA STANDARD BRACKET COMPONENTS mm)(91.53.6” 3.15” (80 mm)33.64 mm (28 mm) mm)(943.7” DIMENSIONS AND LIGHT GAP SPECIFICATIONS mm91.5mm)(552.17” DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART 3.15” (80 mm)3.15” (80 mm) mm)(552.17” mm)(552.17” 1.13” (281.13”mm) .75” (19 mm) .91” (23 mm) 12 3 4A 5 9 6 7 8 4 10 10 Idler Side Motor Side TMMotor (Sonesse 50 RTS) ST50 Crown 56 mm tube ST50 Drive Wheel 56 mm tube ST50 Round Head Motor Bracket 55P ST50 Star Head Motor Bracket 55P ST50 Motor Bracket Cover 56 OD Aluminum Sonesse 50 tube (ft) - White Powder Coat 56 OD Aluminum Sonesse 50 tube (ft) - Mill Finish ST50 Auto Plug End 56 mm tube ST50 Adjustable Idler Bracket - Ceiling Mount 55P ST50 Adjustable Idler End Bracket - Wall Mount 55P ST50 Idler Bracket Cover ST50 Screw Plate Cover ST50 Mounting Shim ST50 Bracket Leveling Adjuster Tool Non-Adjustable Idler Bracket 55P Refer to individual 500 Series Spec Sheet 9014683178074290141249014113901411290142389014110901409717807431780744901411190141359014109901412690141251312111098876654A4321 1 27 11 11 12 13

500 SERIES HARDWARE SYSTEMS > ACMEDA INTERMEDIATE BRACKET COMPONENTS (STANDARD & 0-90°) 5543211 DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART - Standard DIMENSIONS AND LIGHT GAP SPECIFICATIONS (INTERMEDIATE) ST50 Intermediate Bracket wall mount 55P ST50 Intermediate Drive 56 mm tube ST50 Intermediate Receiver 56 mm tube ST50 Bracket Leveling Adjuster Tool 56mm OD Aluminum Sonesse 50 tube (ft) - white powder coat 56mm OD Aluminum Sonesse 50 tube (ft) - mill finish ST50 Intermediate Bracket ceiling mount 55P 1780743178074417807429014121901411490142409014120 Intermediate Light Gap.98” (25 mm) INTERMEDIATE BRACKET (showing star head motor) 33.64 mm (28 mm) mm)(943.7”mm91.5mm)(552.17” 3.15” (80 mm)3.15” (80 mm) mm)(552.17” 1.13” .75” (19 mm) .91” (23 mm) Idler Side Motor Side 1 6 2 3 7 7 5 8 8 5 28 INTERMEDIATE STANDARD INTERMEDIATE 0° - 90° ST50 Intermediate Bracket ceiling mount 55P / 90° ST50 Intermediate Bracket wall mount 55P / 90° ST50 Intermediate Receiver 56mm tube 90° (spacer included) 56mm OD Aluminum Sonesse 50 tube (ft) - white powder coat 56mm OD Aluminum Sonesse 50 tube (ft) - mill finish ST50 Bracket Leveling Adjuster Tool Spacer (included with 9014123)10988766 DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART - 0° to 90° 178074217807431780744901412390142399014122NA 10 10 9 4

500 SERIES HARDWARE SYSTEMS > ®ROLLEASE SILENT PIN SYSTEM STANDARD BRACKET COMPONENTS DIMENSIONS AND LIGHT GAP SPECIFICATIONS 1 2 4 5 3 6 7 4 5 4321 4 & 5 9876 DESCRIPTIONIMAGE CATALOG NUMBER PRODUCT CHART Motor - LT50 shown ®Rollease “Silent Pin” Motor Bracket (white) ®Rollease “Silent Pin” Idler Bracket (wall and ceiling mount - white) ®Rollease “Silent Pin” Crown only for Rollease 2.5” (63 mm) tube ®Rollease “Silent Pin” Crown and Drive Adapter for Rollease 2.5” (63 mm) tube ®Rollease “Silent Pin” Idler End Pin 2.5” O.D Aluminum Tube 3.25” O.D. Aluminum Tube ®Rollease “Silent Pin” Crown and Drive Adapter for Rollease 3.25” (83 mm) tube Refer to individual 500 Series Spec Sheet 90168551782096178134390168579015234901685690168599016858 3.15” (80 mm)1.35” (34 mm) 2.5 ” mm)(64 4.25 ” mm)(108 3.15” (80 mm) 1.35” (34 mm) 2.5 ” mm)(64 4.25 ” mm)(108 .94 (24 mm) .94 (24 mm) 29 8 9 9

4”

30 Contact ZMC for Items and Part Numbers: www.zmc.ca

500 SERIES HARDWARE SYSTEMS > ZMC

Motor Brackets and Accessories for Somfy 500 Series Motors Adjustable U-joint Indexable Fascia Bracket for Somfy 500 MotorsSeries

Motor U-joint Indexable Bracket for Somfy 500 MotorsSeries

Standard Roller Tube and Acccessories

5.5” Smart Head Box System for Somfy 500 MotorsSeries

7” Fascia System for Somfy 500 MotorsSeries Smart Head Box System for Somfy 500 MotorsSeries

4” Fascia Brackets for Somfy 500 MotorsSeries

31 Contact ZMC for Items and Part Numbers: www.zmc.ca

500 SERIES HARDWARE SYSTEMS > ZMC

7"

- Maximum motor torque - 100 Nm

Part # 9763508

- Maximum system load - See note below

- Zinc plated steel

- Zinc plated steel

holes for M8 screw on 60 mm diameter

- Lateral space requirement for installation: 28 mm

Part # 9012262 100 22 17.5 100 - Assembled to accept Inch Series threaded screws 1/4 - 20, 5/16 - 18 (nuts molded into bracket) Part # 9910021 Part # 9420631 Part # 9910001 O 75 O 67 LT50/60 Motor Bracket with ½" Conduit Connector

Spring ring needs to be replaced with locking spring ring # 9910002 to obtain maximum torque and load capability

- Horizontally and vertically adjustable

- Maximum motor torque - 85 Nm or 100 Nm when locking spring ring # 9910002 is used.

With M8 and M6 nuts molded in bracket Same as above

- For use with LT FTS 60

- Cotter Pin included

- Maximum motor torque - 85 Nm

- Maximum motor torque - 40 Nm

#

- Maximum system load - See note below

- Black oxide finish

- Zinc plated steel

-

- Maximum motor torque - 25 Nm

requirement for installation:

- 2 countersunk

- For welding to mounting plates of all kinds. Lateral space requirement for installation: 23 mm + thickness of mounting plate

Motor Bracket With Spring Ring

- Maximum motor torque - 85 Nm

- Zinc plated steel

- Zinc plated steel

- Maximum system load - 200 kg. (441 Lbs.)

500 BRACKETS

Part 9206029

- Compatible with # 1781098 idler end bearing support

- For ceiling and wall installation in combination with # 9012263

- Zinc plated steel, gauge 3 (0.24 in.)

32

- Lateral space requirement for installation: 28 mm

- Maximum motor torque - 25 Nm

500 SERIES MECHANICAL ACCESSORIES

- Four mounting holes provided

- Maximum system load - 200 Kg. (441 Lbs.) when used with locking spring ring # 9910002

- Includes universal bracket with spring ring

- Four mounting holes provided

Universal Bracket with Spring Ring

(120 mm x 120 mm) 120 100 120

Part # 9763503

- Lateral space 27 mm

Motor Bracket With Spring Ring

- .807 in. diameter through hole

- Maximum motor torque - 85 Nm or 100 Nm depending on spring ring and quality of weld

- Maximum system load - See note below

- Must be used with either spring ring # 9206033, or locking spring ring # 9910002 (not included)

- Maximum system load - 57 Kg. (126 Lbs.)

- Compatible with idler bracket # 9430603 and intermediate bracket # 9420763

- Maximum motor torque - 85 Nm or 100 Nm when used with locking spring ring # 9910002, and 5/16 - 18 or M8 bolts without molded nuts

- Maximum system load - See note below

- Four mounting holes provided with a through hole in the center of the bracket

- Maximum system load - See note below

- Steel bracket without surface treatment

Universal Bracket with Spring Ring - Zamak Aluminum Alloy Material - 2 holes for M6 hex or 1/4 - 20 flat head screw on 48 mm diameter - 2 holes for M8 hex screw on 60 mm diameter

- Must be used with spring ring # 9206033 or locking spring ring # 9910002 (not included)

Spring ring must be ordered seperatly (not included)

- Maximum motor torque - 100 Nm

(100 mm x 100 mm) 100 100

85.5

Part # 9701091Part # 9510658Part # 9410665Part # 9012250 240 11 40 30 25 157 53 60 140 80 60 80 120 80 O 20.5 48 60 95 68 55 Part # 9430601 Heavy Duty Angle Plate"U" Shape LS Style Motor Bracket for 10 mm Square Stud Universal LT50 Motor Bracket (LS Style) for 10 mm Square Stud LT50 Motor Angle Bracket Motor Bracket LT60 FTS

- Must use locking spring ring # 9910002 to obtain full torque and load capability.

- Maximum system load - 200 Kg. (441 Lbs.) when used with locking spring ring # 9910002

- Lateral space requirement: 28 mm

Weld-on Bracket Without Spring Ring

- Zinc plated steel

- Compatible with brackets # 9012263, 9701310 and 9132065

SERIES MOTOR

- Maximum motor torque 80 Nm

Part # 9420602

- Allows for easy removal of LT motor without removing entire bracket. It disassembles in 2 pieces with one part remaining attached to structure

- Zinc plated steel

- Maximum motor torque Black

35Nm when used with Locking Spring Ring -

adjustable

-

steel

- Zinc plated

-

for new LT applications - 35 Nm for replacing LS motor with LT motor -

- Two mounting

- Maximum system load See note

holes with molded in M5 nuts 60 mm apart

Part # 9410639 80 48 95 55 LT50 Angle Plate with Elongated Holes

below 134 60 Adjustable

- Compatible with idler end bearing support # 1781098 and intermediate bearing support # 9146011

- Maximum system load - See note below

not included

- Maximum system load - 130 Kg. (287 Lbs.) or 200 Kg. (441 Lbs.) with locking spring ring # 9910002

- Compatible with idler bracket # 9410635, # 9410633 and intermediate bracket # 9410648

500 SERIES MECHANICAL ACCESSORIES 500 SERIES MOTOR BRACKETS Part # 9708461 LT50 Compact Bracket Heavy Duty Angle Plate with Universal Motor Bracket Heavy Duty Angle Plate - Part # 9420604

- Maximum system load See note Motor Bracket with Spring Ring

- Zinc plated steel - yellow

33

- Three adjustment positions possible

- Comes with two

- Maximum motor torque - 50 Nm

- Maximum system load - 115 Kg. (254 Lbs.)

- Maximum load - 69 Kg. (152 Lbs.) Allowing Adjustment

- Zinc plated steel

70191 37.5 34 60 124 50

- Maximum motor torque Nm

50

- Maximum motor torque - 85 Nm or 100 Nm when used with locking spring ring # 9910002

- Mounting screws # 9670013

- Maximum motor torque Nm

- Zinc plated steel

- Angle plate (zinc plated steel)

nylon material 60

- Without molded nuts

- LO LT motor bracket with a 10 mm stud. Vertical pin hole

- Zinc plated steel

load - 70 Kg. (154 Lbs.) Same as above, except pin hole is horizontal 60 3 25 48

- Maximum motor torque - 50 Nm

- Lateral space requirement for

- 25

below 2 x M8 80 96 48 LT50 Universal Motor Bracket LT50 Adjustable Universal Motor BracketLT50/60 Radial Motor Bracket Retrofit Brackets “LO" LT50 Motor Bracket Part # 9420620 Part # 9410651 Part # 9002550 Part # 9206021 Part # 9410612 Part # 9703948 Part # 9206020

installation: 27 mm

5 mm motor mounting screws

80 8060 60 55 9595 99

- Maximum motor torque Nm Maximum system

- With two M8 screws and nuts included

- Same as above but without the universal motor bracket

- Maximum motor torque - 50 Nm

- Horizontally and Vertically

- Zinc plated steel

- Maximum system load - 115 Kg. (254 Lbs.)

50

having stationary 16

- Maximum system load 130 Kg. (287 Lbs.) Used with end cap mm Cotter Zinc plated steel Maximum motor torque 100 Nm

(70 x

diameter shaft -

- Horizontally and vertically adjustable

34 LT LT

40 60 68 38 LT Idler End Bracket (inside diameter 10 mm) Heavy Duty Idler Bracket*

- Zinc plated steel

-

Same but with a 12 mm ID Nylon Ball Bearing 1781030 Idler Bracket*

- Zinc plated steel

Part # 9410635 Part #

- Maximum motor torque - 50 Nm

- Maximum system load - up to 130 Kg. (287 Lbs.)

-

- Zinc plated steel with a 10 mm round insert surrounded by rubber

- Maximum system load - 70 Kg. (154 Lbs.)

55 95 68 O 49 80 35 60 -

- Zinc plated 10 mm square shaft Adaptable for Nichibei headrail 70) Maximum motor torque - 10 Nm

- Zinc plated steel

Part

- Same as above with 12 mm insert

- Adaptable for Nichibei headrail (70 x 70)

as

except

- Zinc plated steel

- Used with # 9410803 or # 9028665 ball bearings

- 10 mm ID Nylon ball bearing

Same above pin hole

- Can be mounted on # 9410637

- Attaches directly to LT50 motor head (48 mm on center)

- Maximum motor torque - 50 Nm

95 8048 60 35 22 500 SERIES MECHANICAL ACCESSORIES 500 SERIES MOTOR BRACKETS Part # 9410715 LT50 HA Motor Bracket* LT RH Motor Bracket Part # 9910017 Part # 9410637 Part # 1781110

- Maximum motor torque - 25 Nm

Part 9410740

175 80 O 10, 12

- Allows flush mounting of the motor head against the mounting surface

-

- 10 mm square stud

Ball Bearing with 12 mm ID

Part

- Maximum motor torque - 50 Nm # 9002540

- Maximum motor torque - 50 Nm

- Maximum motor torque - 20 Nm

is horizontal 84 34 50 dia. 110 O 4.2 29 500 SERIES IDLER BRACKETS Part # 9910016 LT50 Angle Bracket* CTS50 Motor Mounting Bracket* (Cord Take-Up System) 80 60 95 68 48 55 40 38 68 60 48 6-M4 2- O 5.3

- Compatible with motor brackets # 9410665 and # 9410651

Part # 9012657

- Pin hole is vertical

- For ceiling and wall installation

pin holding end cap's shaft included -

- Maximum motor torque - 10 Nm

Part # 9410633 Part # 9132065 Part # 1781112 48 O 10 mm O 60 50 Round Anti-Vibration

- Zinc plated steel

#

- Maximum motor torque - 50 Nm

with ball bearings -

- Zinc plated steel

Part # 9410803 # 9028665

- Can reduce sound levels by 2-4 dB

- Adjustable bearing location

- Mounting Screws # 100405B included

-

Idler Bracket 10 mm Ball

Part # 9701310

Ball Bearing Holder Bearing and Holder

KitCTS50 Motor Idler Bracket* (Cord Take-Up System)

50 Idler Bracket with 14 mm ID Bearing*

Ball Bearing with 10 mm ID

- Zinc plated steel

- LT range - 100 Nm

- Sintered Brass in a zinc plated steel plate

SERIES

- FTS range - 25 Nm

- Maximum system load - 200 Kg. (441 Lbs.)

- LT range - 100 Nm

- Used with end cap having stationary 16 mm diameter shaft

- Cast aluminum

- Maximum motor torque:

- Maximum system load - 130 Kg. (287 Lbs.)

- Compatible with bracket # 9420604

- Cotter pin 6.3mm x 80 mm (zinc plated) # 132444A

500 IDLER BRACKETS

# 9410635, # 9410633 and motor brackets # 9410665 and # 9410651

- Open end of the “U” must face up

- Two screws and cotter pin included

- Zinc plated steel, gauge 3(0.2391 in.)

- Idler bearing securing screw included

- Compatible with # 9127808

- Mounting hardware included

- Compatible with bracket # 9420604

- Maximum motor torque when properly installed with cotter pin:

- FTS range - 55 Nm

48 With 16 mm Dia. Shaft (no hardware) Idler End 12 mm Nylon Ball Bearing with HolderIdler End Bearing Support for 14 mm Diameter Shaft* Part # 1781098 Part # 9146007 Part # 9146011 Same as above but hardware not included Part # 9430610 Heavy Duty Idler Bracket with Idler End Cap Holder Idler End Cap Holder and Cotter Pin 120 60 157 20 2320 16 16 O 12 Idler Bearing (for Ø 12mm Shaft)“U” Shaped Idler Bracket White Dress Cover for Idler Brackets

Part # 9430603 Part # 9540786 Part # 9127808 Part # 1781015Part # 9002519 35

- Maximum motor torque - 40 Nm

- Used with end cap having stationary 16 mm diameter shaft

- Maximum system load - 115 Kg. (254 Lbs.)

- Maximum motor torque when properly installed with cotter pin:

- Two threaded mounting holes for M5 screws

- Nylon material

- Zinc plated steel

- Maximum motor torque - 40 Nm

- White composite

- Compatible with shaft # 1781011 and brackets # 9012250 and # 9146001

- FTS range - 55 Nm

500 SERIES MECHANICAL ACCESSORIES

- Maximum motor torque 50 Nm

- Zinc plated steel

- LT range - 100 Nm

- Maximum system load - 115 Kg (254 Lbs.)

- Maximum system load - 200 Kg. (441 Lbs.)

- Black nylon

- For tube 50 x 1.5 mm

# 9129633

Approx.

- For tube diameter 2.0" (50 mm)

- Maximum motor torque - 50 Nm

- Extruded aluminum shaft with heavy duty ball bearings

- Used with #

- Adaptable to any tube profile using matching LT drives

2.5" Tube Idler End Cap without Shaft 2.75” Tube Idler End Cap without Shaft

- Directly compatible with 2” tube and requires notched 2" tube and 2" drive held in place with retaining clip included

- Shaft Diameter 0.39" (10 mm)

- For tube diameter 2.5" (63 mm)

with

- Black composite ball

must use

138 213 100

500 SERIES MECHANICAL ACCESSORIES 36

# 9129631

- To be used with Idler bracket accepting stationary shaft # 9430643

Die Cast End Cap* Molded Composite End Cap* 2" Tube Idler End Cap without Shaft2” Anti-Vibration End Cap*

- Cast aluminum with set screw

bearing

- For tube diameter 2" (50 mm)

- Both end caps are adaptable to other tube profiles using LT50 motor crowns and drives. SOMFY recommends using these end caps in conjunction with the LT drive.

- End cap is adaptable to all tubes with LT50/60 crown and drive sets

Same as Above but with 12 mm Shaft

- Cast aluminum with set screw #

- Maximum motor torque: - FTS range - 55 Nm

- LT range - 100 Nm

- With FTS - 25 Nm

- Maximum motor torque - 50 Nm

500 SERIES END CAPS

- Same torque & load rating as above.

9701116

Part

- Maximum system load - 200 Kg. (441 Lbs.)

- Maximum motor torque - 40 Nm

NOTE: Set screw Lock-tight prevent screw vibrating free.

1781112

Part # 9128101 Part # 9132087 Part # 9700958 Part

- Maximum system load - 40 Kg. (88 Lbs.)

- Maximum system load - See note

- For tube diameter 2" (50 x 1.5 mm, 50 x 1.6 mm)

below

- Cast aluminum with set screw

- With awning - 50 Nm

- Zinc plated steel parts with molded rubber

Part

- Shaft Diameter 0.39" (10 mm)

# 9129632

- Shaft diameter 0.40" (10 mm)

Part

plated steel shaft Compresses to 12mmRetaining Clipattaches#4210017here Universal End Cap with 10 mm Collapsible Shaft Heavy Duty End Cap with 16 mm Diameter Shaft Roller Tube End Cap with 12 mm Hole* Idler End Cap for CTS 50 Tube 13 mm Square Drive Shaft with 12 mm Diameter Shaft 13 mm Square Drive Shaft with 14 mm Diameter Shaft Roller Tube End Cap with 10 mm Hole*- Zinc plated steel shaft Part # 1781009 Part # 1781011 Part # 9420674 Part # 60903170 Part # 9701288 Same as above but with 12 mm shaft Part # 9420800 Part # 9420802 Part # 1781113 Part # 9420801 Part # 9701380 Same as above but with shorter pin Part # 9420814 Same as above but with 14 mm Shaft

- Zinc

from

to

- Shaft Diameter 0.59" (15 mm)

- Maximum motor torque:

- Recommended tube used included with 2” LT drives

Rigid Link - 1 Link Rigid Link - 2 Links Rigid Link - 2 Links

- Cast aluminum drives, with set screw - set screw must use lock tight to prevent screw from vibrating free

- Zinc plated steel bracket

- Maximum motor torque: FTS range - 55 Nm, LT range - 100 Nm

- Heavy gauge 3 (0.24 in.), zinc plated steel

- Zinc plated steel bracket

- Maximum motor torque - 15 Nm

rigid links per rolling shutter

- Composite end caps

- Minimum of 2

hanging load per rigid link. Rigid Link - 1 Link

- Slat Size: .32 in. (9 mm)

- Maximum torque stopping load: 14 Nm

- Maximum motor torque:

- The 4 drives are not included and must be specified separately

- Square shaft # 1781018 also sold separately

- Zinc plated steel bracket

500 SERIES MECHANICAL ACCESSORIES 37 500 SERIES INTERMEDIATE BRACKETS Part # 9002541 LT50 Adjustable Intermediate Support Bracket for a 2" TubeHeavy Duty LT Intermediate Support Bracket* LT50 Intermediate Bracket with 16 mm ID Bearing LT Intermediate Bracket for 2" Tube Only LT50 Flexible Intermediate Bracket Kit for 2" Tube 130 175 72 95 72 95 55

- Maximum system load - 69 Kg. (152 Lbs.)

- Compatible with LT brackets # 9410665, # 9410651, # 9410635, and # 9410633

o- Maximum angle up to 30

- Slat Size: .55 in. (14 mm)

- Maximum torque stopping load: 10 Nm

- Maximum torque stopping load: 10 Nm

Part # 9420673 Part # 9012204 Part # 9012319Part # 9410648 Part # 9012203 LT50 Adjustable Intermediate Support Bracket for a 2.5" Tube Part # 9012318 NEW RIGID LINKSPart # 9019327 Part # 9019328 Part # 9019329 Part # 9019330 Recommended to be used in conjunction with Oximo motor. Number and location of Rigid Links:

- 16 mm bearing plate # 9146011 also sold separately

- Do not exceed 33 lbs (15 kg)

- Maximum torque stopping load: 14 Nm

- Maximum system load - 28 Kg. (60 Lbs.)

FTS range - 25 Nm, LT50 range - 50 Nm

- Maximum system load - 69 Kg. (152 Lbs.)

- Requires notched 2” tube for transfer of torque

- Maximum effective motor torque - 7 Nm

- Will adapt to any tube profile using tube matching LT drives

- Zinc plated steel

- Slat Size: .32 in. (9 mm)

- Extruded aluminum shaft with heavy duty roller bearing

- Slat Size: .55 in. (14 mm)

0Same as above except for maximum angle up to 45

- Cast aluminum drives and flexible coiled steel shaft

- Maximum system load - 69 Kg. (152 Lbs.)

- Maximum motor torque: FTS range - 25 Nm, LT50 range - 50 Nm

- Spring type stainless steel

- Spring type stainless steel

500 SERIES MISCELLANEOUS

Spring Ring

- Black finished steel

- Same as above but with a screw adaptable to the LT60 operators

Part # 9910002

- Allows easy setting of the LT motor limit switches before connecting the motor to the controlling device

Pull-off

- Must be used with all brackets in combination with the 6100R2 motor or installations where flexing of the tube is abnormally high

LT50 RH Motor Mounting Screws- Flat Head, Self Tapping Tri lobe 4 mm Dia. (9 mm Deep)

Cotter Pin

Cable - 4 Wire

O 1.5 Fastening Clip

- Allows for easy hand removal from the bracket

Tube

The input of the ABS wheel fits the LT50 motor shaft. The output shaft will accept any of the LT50 drive wheels. Drive retaining washer is included. In the up direction, 30 Nm can be lifted. If an obstacle is detected in the down direction then the motor will spin freely and not damage the product. A momentary switch or Somfy controls having 3 min. time out are required. -- Material ABS - Maximum tape width - 9 mm Outside dia. 89 mm- Material - Cast aluminum alloy - Shipped unassembled in 4 pieces - Adjustable tape width O 109mm Same as above but with greater torque threshold which is required to activate the ABS 2" Tube Take-up Reel 40mm tube take-up reel 50 x 1.5 mm Tube Cord Take-up Reel 63 x 1.5 mm Tube Cord Take-up Reel Anti-Blocking System (ABS) for(130mm6050326) - Outside dia. 66 mm Part # 1781151 Part # 1781152 Part # 9146035 Part # 9146071 Left Rotation Part # 9705415Right Rotation Part # 9705414 - CMO ABS left rotation - maximum motor torque - 30 Nm - CMO ABS right rotation - maximum motor torque - 30 Nm Left Rotation Part # 9706003Right Rotation Part # 9706004 38

Part # 9206033

- Used with brackets and motors rated up to 100 Nm

Part # 100405B

LT60 Stop Wheel

Spring Ring

- Screws into the motor output shaft to prevent drive from coming off shaft

- Made out of spring steel

- Same as above, but for the FTS (Fabric Tension System)

Motor Mounting ScrewsSelf Tapping Tri lobe 5 mm Dia. (13 mm Deep)

Part # 9012201

with Loop

500 SERIES MECHANICAL ACCESSORIES

Locking Spring Ring

LT50

- Used with Brackets and Motors rated up to 80 Nm maximum

Flat

Part # 9685025

- for 2" (50 mm) O.D.

- 3.5

Part # 9206015

Part # 9910004

- Stainless steel spring type

ABS Wheel - Right Rotation - Maximum motor torque - 30 Nm

mm x 45 mm

Part # 9012117

mm Fabric

LT50 Stop Wheel

Tool for Spring Ring

- for 2.5” (63

Fabric Fastener

Part # 9138028

mm) O.D. Tube

ABS Wheel - Left Rotation - Maximum motor torque - 30 Nm

- Black composite stop

Part # 9012116

Part # 9012194

Tester

Head,

- Used with Brackets and Motors rated up to 80 Nm maximum

Part # 43500020

- Locking screw must be secured to prevent motor from disengaging from the universal bracket

Part # 9670013

FTS Tester Cable - 5 Wire

Awning Eye with 4" (100 mm) Long 7 mm Hex Shaft LT CMO Awning Eye Compatible with Geiger Crank Handles Part # 9707287 CMO MECHANICAL ACCESSORIES 9685148Part # L

- U.S. thread 1/4 - 20, 5/16 - 18 threads

- Converts a CMO motor head to be compatible with standard LT brackets

- Black finished aluminum alloy

- Maximum system load - See note below

# 9012778

#

#

- Maximum motor torque - 100 Nm (must be used with 5/16 - 18 bolts at maximum torque)

- Allows the motor to be rotated in o60 increments

CMO Round Awning Motor Bracket

500 SERIES MECHANICAL ACCESSORIES

- Maximum motor torque - 80 Nm

Part 9910041

CMO Motor Limit Setting Tool

- Zinc plated steel

- Maximum system load- See note below

- Stainless steel stop washer & socket head screw (also sold separately)

Part # 9910019 Part # 9015802

Part

- Maximum system See note

- For round link bars (Dia. 16 x 1 mm)

Part

Sunea Hex

Shaft

- Delivered without motor mounting screws

Standard Motor Mounting Bracket

Awning Eye with 2.36" (60 mm) Long 7 mm Hex Shaft Part # 9016332 DIA. 100 77 77 Part # 9012293

Part # 9910051 CMO Motor Bracket

- Fits most shutter end caps

- Maximum system load - See note below

- Zinc plated steel

- Maximum motor torque - 100 Nm

- Zinc

- Maximum system load - See note below

below

- Black composite

- Maximum motor torque - 100 Nm (must be used with 5/16 - 18 bolts at max. torque)

# 9910045

- Allows setting the travel limits of the motor when the limit switch buttons are hard to access

- Allows for different orientation of the

- Zinc plated steel

LT50 Differential Torque Tube Connectors

39 DIA. 95

Part

105 156 100 100 16

LT and LT CMO Motor Mounting Plate CMO 100 x 100 mm LT

- For square link bars (16 x 1 mm)

plated steel

- U.S. thread 1/4 - 20, 5/16 - 18 threads

- Stainless steel pin for eyepiece mounting to 7 mm Hex shaft

- Delivered with two motor mounting screws

- Maximum motor torque - 50 Nm

Awning Eye with 2.36" (60 mm) Long 7 mm

- Delivered without motor mounting screws

Sunea RTS CMO Universal Bracket

# 9420648

Part 9708549

CMO ME Square Awning Motor Bracket

- Zinc plated steel shaft

CMO

- Zamak aluminum alloy material

- Maximum system load - See note below

- Maximum motor torque - 100 Nm

- Length of the shaft is (100 mm) 4"

load -

LT CMO motor head in 15 increments

- Allows for easy replacement of the BMOM/ BMO motor utilizing existing mounting holes

L CMO Awning Eye with 6.5" (165 mm) Long 7 mm Hex Shaft Part # Part # 96851968513614

- U.S. thread 1/4 - 20, 5/16 - 18 threads

- Black finished aluminum alloy

- Delivered with two motor mounting screws (3/16” Socket Head)

CMO

500 SERIES MECHANICAL ACCESSORIES CROWNS AND DRIVES 9707025Part # Part # 9751001 Part # Part # 97070319420342 Part # 9707026 Part # 9012231 Part # 9012233 Part # Part # 90122329012246 Part # 9206089 Part # 9206088 Part # Part # 92060269206028 Part # Part # 92060419206019 60 mm Octagonal LT50 Crown 2.0” Round LT50 Drive (50 mm x 1.5 mm) - Soft clip 2.0” Round LT50 Drive (50 mm x 1.5 mm) - Hard clip 2.75" Round LT50 Crown 2.75" Round LT60 Crown 2.5" Round LT50 Crown 2.5" Round LT50 Set "Hard Clip" 60 mm Octagonal LT50 Set TUBE PROFILE CROWN DRIVE SET No Crown is Needed 2.5" Round LT Drive (63 mm x 1.5 mm) - Soft clip 2.5" Round LT Drive (63 mm x 1.5 mm) - Hard clip 2.75" Round LT50 Set 2.75" Round LT60 Set 2.75" Round LT Drive (70 mm x 1.5 mm) - Soft clip 2.75" Round LT Drive (70 mm x 1.5 mm) - Hard clip 60 mm Octagonal LT Drive 40 ø 2 in. / 50 mm ø 2.5 in. / 63 mm ø 2.75 in. / 70 mm ø 60 mm Octagonal IMBAC Part # 9751002 SM 65 LT50 Crown - 3 Grooves SM 65 LT Drive Part # 9707030 ø 65 mm MADOPRON Sun Master Part # 9707024 Part # 9012240Part # 9751004 I65 LT50 Drive I65 LT50 SetI65 LT50 Crown ø 65 mm IMBAC

Part # 9707034 500 SERIES MECHANICAL ACCESSORIES CROWNS AND DRIVES TUBE PROFILE CROWN DRIVE SET Part # 9012237 DS 70 LT Drive (0.8 -1 mm wall thickness) (3 mm offset) DS 70 LT50 Set (3 mm offset) Part # 9761002Part # 9705340 Part # 9012247 70 mm Octagonal LT Drive 70 mm Octagonal LT60 Set70 mm Octagonal LT60 Crown DS 70 LT50 Crown (3 mm offset) Part # 9751005 41 ø 70 mm DOHNER ø 70 mm Octagonal IMBAC Part # 9761002 Part # 9012328 Part # 9011878 Part # 9012234 70 mm Octagonal LT Drive 70 mm Octagonal LT60 Crown 70 mm Octagonal LT50 Set70 mm Octagonal LT50 Crown (includes 2.5” LT50 Step-up Adapter #9707026) 70 mm Octagonal Aluminum LT50/60 Drive Part # 9705340 ø 70 mm Octagonal IMBAC ø 70 mm Octagonal IMBAC Part # 9012227 70 mm Octagonal Aluminum LT50/60 Drive Wheel Kit (crown not included) Part # Part # 92771679012329 Part # 9761011 Part # 9012235 Part # 9997118 P72 LT60 Crown (4 mm offset) P72 LT50 Crown Set (4 mm offset) P72 LT50 Set (4 mm offset) AMA/P71 LT50 Crown AMA/P71 LT50 Drive Part # 9751015 P72 LT Drive (4 mm offset) ø 72 mm PERMA ø 71 mm AMA

500 SERIES MECHANICAL ACCESSORIES CROWNS AND DRIVES TUBE PROFILE CROWN DRIVE SET Part # 9762012 LT60 Drive (78 mm) Part # 9761004Part # Part # Part # 9707639 9707639* + 9707026* DS 78/D LT50 Crown (2.5 mm offset) * Both parts required for LT50 compatibility DS 78/D LT Drive (2.5 mm offset) LT60 Crown (78 mm) Part # 9761012 DS 78/D LT60 Crown (2.5 mm offset) 42 ø 78 mm MHZ ø 78 mm IMBAC Part # Part # 97070279705341 Part # 9707037 Part # 9707640 Part # 9707640* + Part # 9707026* Part # 9012238 Part # 9012239 DS 78 LT50 Crown DS 78 LT60 Crown DS 74 LT50 Crown DS 78/R LT50 Crown (4.4 mm offset) * Both parts required for LT50 compatibility DS 74 LT50 Set DS 78 LT50 Set DS 74 LT50 Drive Part # 9751009 DS 78 LT50/60 Drive Part # 9761001 DS 78/R LT Drive (4.4 mm offset) DS 78/R LT60 Crown (4.4 mm offset) Part # 9761005 ø 78 mm MITSAVILA ø 78 mm IMBAC ø 74 mm DOHNER Part # 9707035 Part # 9705776 DS 85 LT50 Crown DS 85 LT60 Crown DS 85 LT Drive Part # 9761003 ø 85 mm DOHNER

500 SERIES MECHANICAL ACCESSORIES CROWNS AND DRIVES TUBE PROFILE CROWN DRIVE SET Part # Part # 90126569520312 Part # 9420370 Part # 9420303 Part # Part # 94203049420309 Part # 9690085 Part # 9420300 Part # 9012222 Part # 9012236 Part # 9012248 Part # 9012221 3.5" Round LT Drive (89 mm x 2 mm) 4.0" Round LT Drive (102 mm x 2 mm) 4.0" Round LT Drive (101.6 mm x 3.6 mm) I85 LT Drive I85 LT60 Set 3.5" Round LT50 Set 3.5" Round LT60 Set 4.0" Round LT60 Set4.0" Round LT60 Crown 3.5" Round LT50 Crown (81 mm x 1 mm) 3.5" Round LT60 Crown (89 mm x 2 mm) I85 LT60 Crown 43 ø 4” / 102 mm ø 3.5” / 89 mm ø 85 mm IMBAC

Qty. in package - 2 each

M6 x 30 mm hex head cap screw SS

1/4

1/4 - 20 x 1.25 hex head SS 18-8 bolt

1/4 flat washer SS 18-8

CMO awning bracket with ME US thread

1/4 - 20 x 1.25 hex head SS 18-8 bolt

CMO awning bracket with US thread

Nut hex 1/4 - 20 18-8 SS

1/4 split lock washer 18-8

M6 x 20 mm hex head

SS 18-8 1/4 split lock washer 18-8

Qty. in package - 2 each

1/4 flat washer SS 18-8 split lock washer 18-8 cap screw SS

Plastic bag 5 x 6 x .04

1/4 - 20 x 1 flat washer

Lock washer split M6 SS A2

1/4 - 20 x 1.25 hex head SS 18-8 bolt

hex head SS

bolt

CMO awning override short shaft

1/4 split lock washer 18-8

Qty. in package - 2 each

Qty. in package - 2 each

Qty. in package - 2 each

Qty. in package - 2 each

Nut hex 1/4 - 20 18-8 SS

CMO ME awning bracket with US thread

Nut hex 1/4 - 20 18-8 SS

Plastic bag 5 x 6 x .04

Qty. in package - 2 each

1/4 - 20 x 1.25 hex head SS 18-8 bolt

1/4 - 20 x 7/8 socket head cap screw

1/4 split lock washer 18-8

1/4 flat washer SS 18-8

hex head SS 18-8 bolt 1/4

1/4 split lock washer 18-8

Plastic bag 5 x 6 x .04

1/4 - 20 x 3/4 hex head SS 18-8 bolt

CMO awning bracket with US thread

Plastic bag 5 x 6 x .04

44

Qty. in package - 2 each

500 SERIES MECHANICAL ACCESSORIES 500 SERIES STANDARD AND CMO PRODUCT KITS U.S. 3/4” SS Hardware Kit Part # 9012297 U.S. 1” SS Hardware Kit U.S. 1.25” SS Hardware Kit Metric 20 mm SS Hardware Kit Metric 25 mm SS Hardware Kit Metric 30 mm SS Hardware Kit CMO Round Awning Override Kit CMO ME Square Awning Override Kit CMO Awning Kit without Awning Eye CMO ME Awning Kit without Awning Eye Part # 9012298 Part # 9012299 Part # 9012300 Part # 9012301 Part # 9012302 Part # 9012348 Part # 9012349 Part # 9012362 Part # 9012363 M6 x 25 mm hex head cap screw SS Lock washer split M6 SS A2 M6 flat washer SS A2 1/4 - 20 x 3/4 hex head SS 18-8 bolt 1/4 flat washer SS 18-8 1/4 split lock washer 18-8

1/4 - 20 x 1.25 18-8

1/4 - 20 x 7/8 socket head cap screw

1/4 - 20 x 3/4 hex head SS 18-8 bolt

1/4 flat washer SS 18-8

Qty. in package - 2 each

Lock washer split M6 SS A2

Nut hex 1/4 - 20 18-8 SS

1/4 flat washer SS 18-8

M6 flat washer SS A2

Qty. in package - 2 each

CMO awning override short shaft

M6 flat washer SS A2

F: (949) 727-3775

CN: (905) 564-6446

FLORIDA

P: (800) 22-SOMFY (76639)

SOMFY ULC

P: (800) 22-SOMFY (76639)

SOMFY NORTH AMERICAN HEADQUARTERS

SOMFY Canada Division 5178 Everest Drive Mississauga, Ontario L4W2R4

F: (905) 238-1491

F: (561) 995-7502

NJ: (609) 395-1300

P: 1-800-66-SOMFY (76639)

Binh NGUYEN Project Specification Manager M +84 (0) 906 372 117/88SOMFYbinh.yen.nguyen@somfy.com528(THAILAND)COLTDPanjitTowerF8,SoiSukhumvit 55, Sukhumvit Road, Bangkok, 10110 Thailand

121 Herrod Blvd. Dayton, NJ 08810

CALIFORNIA

SOMFY SYSTEMS INC

F: (609) 395-1776

15291 Barranca Parkway Irvine, CA 92618-2201

P: (800) 22-SOMFY (76639)

6100 Broken Sound Pkwy. N.W. Suite 14 Boca Raton, FL 33487

© Copyright Somfy Systems, Inc 2/2015 HOME MOTION by L-0174 www.somfysystems.com
