Solcon Industries Product Catalogue

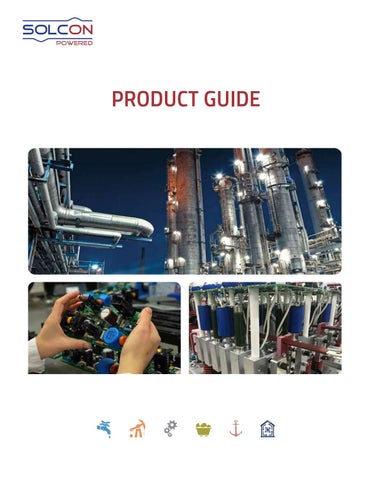

PRODUCT GUIDE

CONTENTS Medium Voltage Soft Starters & Software HRVS-DN PowerStart SCR-Based Medium Voltage Soft Starter 2.3 - 13.8kV.................................................................. 4 DriveStart2 IGBT-Based Medium Voltage Soft Starter up to 11kV .................................................................. 6

Low Voltage Soft Starters iStart Advanced, Digital Low Voltage Soft Starter 17-1100A, 208-690V ........................................ 7 RVS-DN Heavy Duty, Digital Low Voltage Soft Starter 8-3000A, 220-1200V .................................... 8 RVS-AXO Compact, Analog Low Voltage Soft Starter 3-75A, 220-500VV.............................................. 9

MORE THAN A SMART START

RVS-AX Analog, Low Voltage Soft Starter 8-170A, 220-600V ............................................................... 9

Control Products Solbrake DC Injection Brake 8-820A, 208-690V ............................................................................................10 TPS Low Voltage Thyristor Power Systems up to 1200V ...................................................................11 MV-TPS Medium Voltage Thyristor Power Systems up to 13.8kV ..........................................................11 HRVS-TX Medium Voltage Inrush Current Limiter up to 100MVA, 36kV .................................................12

Protection Relays MPS-3000 Motor Protection Relay..........................................................................................................................13 MPS-6 Motor Protection Relay..........................................................................................................................13 TPR-6 Temperature Protection Relay ............................................................................................................14 MIP-6 Motor Insulation Protection Relay .....................................................................................................14

MEDIUM VOLTAGE SOFT STARTERS

HRVS-DN PowerStart

MODELS | 2.3-13.8kV, 60-1,800A

2.3-13.8kV, up to 48MW

Mains Voltage (kV)

The HRVS-DN is a heavy duty Medium Voltage Soft Starter, designed for all Medium Voltage AC induction motors.

The HRVS-DN’s sophisticated motor control technology ensures smooth acceleration and deceleration as it minimizes the effects of high in-rush currents and mechanical torque shock.

2.3

Advanced features include customizable starting curves, unique voltage and current measurements, as well as monitoring capabilities.

The flexible design, enhanced motor the HRVS-DN the starting solution of choice for Medium Voltage applications - even under the most demanding conditions.

The HRVS-DN’s flexible configuration is designed to meet the requirements of new applications, retrofits and OEM customization.

3.3

It is available with Marine approvals and with ProGear, Solcon’s fully Type Tested Arc Resistant switchgear.

Advanced Features

Integral Protections

# # # # # # # #

# # # # # # # # # # # # # # # # # #

# # # # # # # # #

Configurable starting & stopping characteristics Enhanced motor protection package User friendly setup and operation Multi-soft start and multi-soft stop Unique synchronous motor starting module Pump and load control Advanced Electronic Current & Potential Transformer (ECPT) utilizes fiber optics for complete isolation between Low and Medium Voltage sections Partial Discharge test according to EN50178/625.1 Direct Power Factor Capacitor connection 45-65Hz Auto-tracking frequency range Easy to conduct Low Voltage test EMC compliant design and tested Communication : Modbus / Profibus / DeviceNet / Anybus Compact 2-phase control configuration (optional) Event recorder logs 99 events and includes real-time clock Multi-language interface

4.16

Bypass open Under Voltage Under current Current unbalance Phase sequence Maximum start time Electronic overload Instantaneous over current 100-850% Time over current Over Voltage Numb er of starts Under/over frequency External fault Power ON no start Thermal modeling Phase loss Shorted SCR Over load class trip

6.6

4

Rated Motor Current kW (A) (kW) 60 110 200 320 400 500 600 700 800 1,000 60 110 200 320 400 500 600 700 800 1,000 60 110 200 320 400 500 600 700 800 1,000 70 140 250 300 400 500 600 700 800 1,000 1,200 1,400 1,600 1,800

200 360 660 1,060 1,330 1,660 2,000 2,300 2,660 3,330 280 520 950 1,530 1,910 2,390 2,850 3,325 3,820 4,780 360 660 1,200 1,930 2,410 3,010 3,610 4,210 4,820 6,030 670 1,340 2,390 2,870 3,820 4,780 5,736 6,740 7,650 9,570 11,500 14,000 16,000 18,000

Mains Voltage (kV)

10

11

Starter Current (A)

Motor kW (kW)

70 140 250 300 400 500 600 700 800 1,000 1,200 1,400 1,600 1,800 70 140 250 300 400 500 600 700 800 1,000 1,200 1,400 1,600 1,800

1,020 2,040 3,650 4,300 5,800 7,250 8,700 10,150 11,600 14,500 17,400 22,000 25,000 28,000 1,100 2,200 4,000 4,800 6,400 8,000 9,600 11,200 12,800 16,000 19,200 22,400 25,600 28,800

Mains Voltage (kV)

13.8

Starter Motor Current kW (A) (kW) 70 140 250 300 400 500 600 700 800 1,000 1,200 1,000 1,200

1,400 2,800 5,000 6,000 8,000 10,000 12,000 14,000 16,000 20,000 24,000 20,000 24,000

How To Order - example HRVS-DN - 1000A - 3.3kV Rated Current

Mains Voltage

-

230V Control Voltage

115VAC, 230VA 125VDC, 220VDC C

-

230V

-

3P

Control Input Voltage

Options

115VAC, 230VAC 110VDC, 125VDC 220VDC

2P - 3M - 3P - 3D - 3A - 4 - 5- M- MSS - SDL - U -

2-phase control Modbus Profibus DeviceNet Anybus Insulation test Analog output Marine standard Multi motor soft-start/stop Solcon Data Logger UL & CUL standard

CONTROL PANEL - (MVCP) RS485 connection

Add-on Option Cards board connection

Options # # # # # # #

* Fiber-optic to DL Blaster (service tool) * Fiber-optic to ECPT

External HMI connection

HMI installation on MV Cabinet door or remote site (up to 25 meters) Quad adjust - 4 starting configuration settings Multi-language support including Russian and Chinese Data Logger Option - remote maintenance and diagnostics Integrated data logger and waveform capture PC software (C-Plot) available for system support Advanced 99 event log recorder Multi-Start controller Available as upgrade for an existing HRVS-DN installation

RS232 connection

Fiber-optics to firing-boards

Power connection

Large HMI Interface LCD, 4x16 format

6

7

MEDIUM VOLTAGE SOFT STARTERS

DRIVESTART

MODELS | UP TO 11kV & 18.5MVA - Inverter Section Only

UP TO 11KV, up to 8.5MVA The first of its kind IGBT based Medium Voltage Soft Starter

kV

Technical Specifications

3.3

# # # # #

Input voltage - Up to 6.6kV 50/60Hz +10% -15 Power range - Up to 6.6kV, 8.5MVA Mains starting current – 10% to 120% of motor rated current Starting torque - Up to 160% of motor rated torque Internal synchronization system (bypass)

4.16

Optimized for applications that require a low starting current and/or a high starting torque

Saving costs, energy and space while meeting top performance requirements

# # # #

#

#

Provides full torque start Starts at nominal motor current or lower Enables motor starting from weak electrical networks Reduces motor heat at start enabling use of standard motors Reduces peak network demand

Blue Box Control Technology # # # # #

Full control and monitoring of the system IEC, UL and cUL conformed Full graphic HMI - 10” colour screen Easy set-up from touch screen Wireless connection for data transfer

#

#

6.6

More economical than a Medium Voltage VFD, yet provides similar soft start and soft stop features Integrated bypass protects against energy loss during operation, optimizes energy efficiency and reduces operational costs Streamlined design drastically reduces the footprint requirements

10

SECOND GENERATION 11

Multiple device connection And data transmission

Rated Capacity kVA 550 - 1000 1,300 - 1,750 2,200 - 2,500 2,850 3,600 - 3,850 5,200 - 5,500 700-1,250 1,650-2,250 2,750-3,200 500 - 1,100 1,200 - 2,000 2,250 - 3,600 4,000 - 5,100 5,400 - 5,700 6,400 - 7,700 8,250 - 11,000 500 - 1,600 1,700 -3,080 3,350 - 4,600 5,000 - 5,400 5,850 - 6,600 7,000 - 8,700 10,500 - 11,700 13,500 - 16,500 625 - 1,750 1,850 - 3,400 3,750 - 6,000 6,600 - 8,400 8,700 - 9,500 11,500 - 12,800 15,000 - 18,300

Rated Current A 93 - 178 228 - 312 385 - 440 500 635 - 675 914 - 962 97 - 178 229 - 312 382 - 440 44 - 93 105 - 178 197 - 312 350 - 440 472 - 500 560 - 675 722 - 962 29 - 93 98 - 178 193 - 266 289 - 312 338 - 381 404 - 500 606 - 675 779 - 962 33 - 93 97 - 178 197 - 312 346 - 440 457 - 500 604 - 675 787 - 962

Unit Dimensions (mm) H W D

2,495 2,495 2,595 2,570 3,110 3,110 2,460 3,064 3,064 2,460 2,460 3,064 3,064 3,064 3,164 3,164 2,460 2,783 3,064 3,064 3,064 3,064 3,119 3,239 2,460 2,873 3,064 3,064 3,064 3,170 3,290

2900 3,500 4,200 4,700 6,900 7,400 2,600 4,500 5,400 2,500 2,600 4,800 6,200 6,800 7,400 11,100 3,400 5,400 7,100 7,300 8,300 11,400 12,500 14,100 3,700 6,600 8,100 11,800 13,000 15,700 16,700

1100 1300 1,300 1,400 1,600 1,700 1,900 1,400 1,500 1,600 1,900 1,400 1,500 1,500 1,600 1,600 1,700 1,300 1,500 1,500 1,500 1,500 1,500 1,600 1,700 1,500 1,500 1,500 1,500 1,600 1,700

Weight (kg) Min' Max'

4,500 6,250 8,000

13,500 3,800 7,600 10,000 2,950 3,800 7,100 10,100 11,700 14,950 22,500 3,700 6,000 9,900 11,900 13,050 19,650 21,400 25,800 4,100 8,100 11,400 21,100 22,300 29,000 35,500

5000 6,800 8,400 9,600 11,300 13,700 4,600 7,900 10,200 3,700 4,600 8,000 10,300 11,800 16,950 25,500 5,000 7,150 11,800 13,000 14,200 20,400 22,400 28,800 5,400 9,500 14,000 21,700 22,400 30,000 37,500

* For reference purposes only. * Contact us for more information about a best matched solution for your requirements.

Many Pre-Programmed Scenarios # # # # # #

Single motor start Multi motor start DriveStart2 and Soft starter combinations Full redundancy of DriveStart2 Double bushbar solutions Integrated Data Logger and wave form capture for all major system signals including current and voltage for remote diagnostics and failure analysis

DRIVESTART2 IS CERTIFIED ACCORDING TO IEC 61800

6

i S TART

17 - 1100A, 208 - 690V

MODELS | 17-1100 A, 208-690 V, 2 or 3-phase with internal bypass

Easy to commission and simple to operate

Model

The iStart is Solcon’s most advanced soft starter, with built-in bypass and 2 or 3-phase control. It incorporates enhanced soft-start and soft-stop characteristics, to provide the best solution for a wide range of applications.

The comprehensive motor protection package guarantees long term reliability while the built-in bypass ensures excellent performance, all in a small versatile design.

Rated Current Unit Dimensions (mm) Weight (kg) (A) H W D 17 31 44 61 72 85 95 105 145 170 220 230 310 350 430 515 590 690 720 850 960 1100

A

B

C

D

Advanced Features

Comprehensive Protection Package

E

# # #

# # # # # # # # # # # # #

G

# # # # # # # # # # # # # #

Universal Interchangeable Control Module Multi-language user interface Real-time, online, 99 event and trip log (including currents, voltages) Optimized for high efficiency motors (IE3) 2-phase mode for on-site phase fault operation Basic, professional and expert set-up menus User defined metering Monitoring of 3-phase voltages, 3-phase currents and power factor USB interface for setup and software updates Option cards include analogue output Including thermistor, three thermal sensors, motor insulation monitor Auto reset for selected faults 3 Thermistor inputs Frequency auto tracking 45-65 Hz Inline and inside delta connection AC/DC (Sizes A, B, C) 3 Current transformers Economical 2-phase units available

Under voltage Phase sequence Sheer-pin current Under current Overload classes (IEC, NEMA) Current imbalance Ground fault Excessive number of starts Excessive starting time Soft starter over temperature Programmable external fault Phase loss Inside delta wrong connection alarm

H I

# # #

2 or 3-Phase Control

245

122

147

3.2

+

+

275

132

208

5.2

+

+

388

175

234

10.9

+

+

555

365

275

37

+

+

644

365

285

38

+

+

791

480

302

56

+

+

791

510

305

60

+

+

815

559

316

85

+

+

How To Order - example i START

-

31A Rated Current

Soft Start & Soft Stop Functions # # #

Internal Bypass

Acceleration control Current limit start 6 adjustable curves for pumps, generators, standard and torque controlled applications Soft stop Kick start Restart delay (3 sec)

7

-

480V

-

230V

-

230V

-

3P

Mains Voltage

Control Voltage

Control Input Voltage

Options

480V - 208-480 600V - 208-600 690V - 208-690

95 - 230V (A,B,C) 115 - 230V (D)

95 - 230VAC 24VDC

2P - 3M - 3P - 3D - 3A - 4 - 5- D- 6 - 8-

2-phase control Modbus Profibus DeviceNet Anybus Motor Insulation Monitor Analog output Remote Keypad 3xRTD thermal sensor Conformal coating

LOW VOLTAGE SOFT STARTERS

RVS - DN

Models | 8-3000A, 220-690V

8 - 3000A, 220 - 1200V

Model

The RVS-DN is a heavy duty, advanced, reliable Soft Starter designed to operate under severe conditions.

Rated Current (A) 8 17 31 44 58 72 85 105 145 170 210* 310* 390* 460* 580 820 950 1,100 1,400 1,800 2,150 2,400 2,700 3,000

A

It is designed and manufactured to start the most demanding applications, such as those in Marine and Mining installations. Advanced features such as pump control, slow speed, electronic reverse and enhanced motor protection make it one of the best and most popular soft starters in the industry.

B

C

D

Advanced Features

Comprehensive Protection Package

# # # # # # # # # # #

# # # # # # # # # # # # # # #

#

Robust construction Advanced starting & stopping characteristics User friendly set up and operation Line or Inside delta connection - up to 690V Ambient operating temperature: up to 60°C Motor insulation tester Communication - Modbus, Profibus, DeviceNet Thermistor input Analog output 45-65Hz Auto-tracking frequency range Operable without bypass contactor at 50°C up to 820A Designed to meet Marine Industry standards up to 3000A

Soft Start and Soft Stop Functions # # # # # # # #

E

Too many starts & start inhibit time Long start time (Stall protection) Shear pin (jam) with adjustable delay Electronic overload with selectable curves Under current Phase loss Phase sequence and Under/Over frequency Under/Over voltage Load loss (motor not connected) External fault Shorted SCR Starter over temperature protection Motor insulation test (option) Motor thermistor (option) When using “Preparation for Bypass” protection remains active

F G

Models | 105-580A, 1,000-1,200V

Unit Dimensions Motor kW Weight (mm) @400V (kg) H W D 4 7.5 15 22 30 37 45 55 75 90 110 160 200 250 315 450 560 630 800 950 1,250 1,400 1,575 1,750

Model H

4.5 310

153

170

6.0

Rated Current Unit Dimensions (mm) Weight (A) (kg) H W D 105 170 210 310 390 460 580

I

7.5

J 385

274

238

14.5

455

380

292

32

455 640 710 660 1,100

380 470 470 623 723

292 302 302 290 370

39 48 65 83.5 170

1,300 750

392

240

1,300 900

410

350

400

325

300

20

500

592

345

55 60

650

* Dimensions differ with Marine approvals.

How To Order - example RVS-DN

-

31A Rated Current

Soft start and soft stop Soft stepless acceleration & deceleration Current limiting Torque & current control for optimized acceleration and deceleration Pump control program Dual adjustment two start/stop characteristics Slow speed with electronic reverse Pulse start

8

-

480V Mains Voltage

-

230V Control Voltage 115VAC 230VAC 110VDC

-

24V

-

3P

Control Input Voltage

Options

90VAC, 230VAC 24VAC/DC 48VAC/DC

3D - DeviceNet 3M - Modbus 3P -Profibus 4 - Insulation test 5 - Analog output 8 - Conformal coating 9 - Preparation for bypass contactor D - Remote display M - Marine approval (A-C) U - UL standard (A-C)

650

400

85

RVS - Ax0

RVS - AX

3 - 75A, 220 - 500V

8 - 170A, 220 - 600V

Compact analogue soft starter

The RVS-AX provides an optimal solution for small to medium size motors and is an ideal cost effective replacement for Star- Delta and Auto-Transformer type starters. It is easy to install and operate with built-in Current Limit and Motor Protection, integral bypass and 3-phase control. Control voltage is not required to operate the RVS-AX.

The RVS-AXO provides a cost effective solution for small to medium size motors. This simply designed soft starter expands further the analogue capabilities of the reputable cornerstone of Solcon’s soft starters.

Apart from its built-in motor protection, this soft starter eliminates the need for excess wiring and space making it a perfect replacement for StartDelta and Auto-Transformer Type starters.

Featuring built-in Modbus communication protocol for remote monitoring, the RVS-AXO awards it’s users a reduction of downtime for optimal productivity.

Features # # # # # # #

Built-in bypass Soft start & soft stop Start / Stop with voltage free contact End of acceleration contact Compact foot print DIN Rail mounting (8-22A) Suitable for single phase motor

Comprehensive Motor Protection # # # # # # #

Opencurrent Protection Undercurrent Protection Current Imbalance Protection Phase Loss Protection Phase Sequence Protection Over Temperature Protection Internal Logic Fault Protection

# # # # # #

Compact & Easy to Install Three-Phase Control Wide Range Control Voltage Modbus RTU Settings & Monitoring DIN Rail mounting (8-22A) Suitable for single phase motor

Features

Models | 100V-240V Model

Models | 8-170A, 220-600V

Unit Dimensions (mm) Motor A @400V / 500V H W D

A B C

1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37

Model

175

92

95

A

200

108

105

B

Rated Motor kW Unit Dimensions (mm) Weight (kg) Current (A) @400V H W D

C 222

125

132

D

8 17 31 44 58 72 85 105 145 170

4 8 15 22 25 37 45 55 75 90

How To Order - example

How To Order - example

RVS-AXO -

RVS-AX -

1.5A - 400V Load Current

# # # # #

Mains Voltage

Mains Voltage

105

2.6

275

129

185

5

380

120

185

8.4

380

172

195

11.8

Options

230V, 400V, 440V, 480V 600V

9

120

U

31A - 480V Rated Current

232

Built-in motor protection Built-in bypass (31-170A) Soft start & soft stop Current limit Start / Stop with voltage free contact

DC INJECTION BRAKE

SOLBRAKE

8 - 170A, 220 - 600V The Solbrake electronic brake provides fast, smooth, frictionless braking of standard motors by injecting controlled DC current into the motor windings after the line contactor has opened. This DC current induces a stationary magnetic field which exerts a braking torque on the rotor.

Advanced Features

CONTROL & PROTECTION

# Reduces stopping time of high inertia loads and increases production rate in machine tools and safety of hazardous machines # Adjustable braking time # Auto stop - DC Injection stops when the motor stops # DIN Rail mounting (Rated current 10A) # Soft, smooth stopping, preventing wear and tear of mechanical parts # Adjustable braking torque, matching load size and required stop time # Auto stop, reducing motor heating

Models | 8-820A, 208-690V

How To Order - example SOLBRAKE

Rated Motor Unit Dimensions Weight (mm) Model Current kW (kg) (A) @400V H W D 10 5 75 45 105 0.7 A B C D E

17 31 58 105 210 310 390 460 820

7.5 15 30 55 90 110 160 220 470

190

65

114

1.4

280

154

160

5.2 5.7

384

224

222

12

384

224

222

13.2

-

31A - 400V Rated Current

Mains Voltage 230V, 400V, 480V, 600V, 690V

10

8 Options 8 -Conformal coating E -30 sec braking time

THYRISTOR POWER SYSTEM

TPS

MV - TPS

8 - 1500A, 230 - 1200V

Up to 13.8kV, 500A

The TPS is a heavy duty 3-phase power unit for controlling the voltage applied to either inductive or resistive heating elements.

Medium voltage heater controller The MV-TPS is a heavy duty, fully digital, zero-crossing, phase-control, 3-phase control power unit for all types of resistive loads.

It is a heavy duty, digital, zero crossing and phase control power system.

The MV-TPS is intended for voltage control of Medium Voltage heating applications. Using Medium Voltage drastically reduces the amount of cable required, the size of the heating elements, the size of the electrical equipment cabinets and saves costly step-down transformers and switchgear versus a Low Voltage system.

Advanced Features # # # # # #

Range: 8-1500A, 230-1200V, 50/60Hz Zero crossing & phase control (field programmable) Comprehensive protection package Communication: Modbus Line and Inside delta connection Synchronized mode (up to 10 units)

Models | Up to 690VAC Rated Load kW Unit Dimensions (mm) Weight Model Current @400V (Kg) (A) H W D 8 17 31 44 58 72 85 105 145 170 210 310 390 460 580 820 950 1100 1400 1500

A

Models | 1200VAC Rated Current Motor kW Unit Dimensions (mm) Weight (A) (kg) @1000V H W D 55 105 160 200

95 182 277 346

550

280

346

B C

33.5

D E F G

6 12 21 30 40 50 59 73 100 118 145 215 270 318 401 567 657 761 969 1038

Advanced Features

291

172

185

6.3 6.3 6.4 6.5 6.5 6.5

390

172

195

8.5

385

274

238

14.5

455

380

292

31

555 640 640

380 470 470

292 302 302

51 53 53

4.16

172

6.6 11 13.8

# # # #

-

31A Rated Current

Models | Up to 13.8kV, 500A Rated Mains Voltage Current (kV) (A)

Consult Factory 1225

1050

471

Heater kW @6.6kV

70 140 300 500 70 140 300 500

2000

Unit Dimensions (mm) H W D 1,573 1,032

1000 Consult Factory

How To Order - example

How To Order - example TPS

Fully programmable, 15 protection functions Load unbalance alarm to detect a faulty element, even in a parallel connected element system Under power level alarm to detect faulty element in case the system is designed to work unbalanced Two-line, 16 character LCD screen displays actual values, statistical & maintenance data

-

400V

-

230V

-

24V

-

MV-TPS

3M

-

70A Rated Current

Mains Voltage

Control Voltage

Control Input Voltage

Options

400V, 480V, 600V, 690V, 1000V

115VAC - 230VAC

90VAC, 230VAC

3M - D - 5 - 8 - D - Sync - P -

-

4.16kV Mains Voltage

-

230V Control Voltage 115VAC - 230VAC 125VDC, 220VDC

Modbus Remote key pad Analog output Conformal coating Remote Panel mounting Synchronization mode Potentiometer control

11

-

230V Control Input Voltage 90VAC, 230VAC 110VDC, 125DC

-

3M Options 3M - D - 5 - 8 - D - Sync - P -

Modbus Remote key pad Analog output Conformal coating Remote Panel mounting Synchronization mode Potentiometer control

685

INRUSH CURRENT LIMITER

HRVS - TX

Up to 100MVA, 36KV

MOTOR CONTROL IS OUR NATURE

Models | Up to 36kV, 100MVA

The HRVS-TX eliminates transformer inrush current for all types of Medium Voltage Transformers, up to 100 MVA at 36kV. It is the ideal current limiting solution for Medium Voltage Transformers. Its sophisticated control ensures the elimination of the magnetizing inrush current, eliminating nuisance tripping as well as dynamic shock to the transformer windings. The current limiter can be supplied as IP31-54 with options such as Line and Bypass vacuum contactors and optional circuit breakers, disconnect switches, main and control protection fuses and transformer protection relays.

Mains Voltage (kV)

Max Current (A)

Max Power (kVA)

600 1,200 600 1,200 600 1,200 600 1,200 1,600 600 1,200 1,600 600 1,200 1,600 1,200 1,600

3,400 6,900 4,300 8,600 6,900 13,700 11,400 22,900 30,500 14,300 28,700 38,200 22,900 45,700 61,000 74,800 99,800

3.3 4.16 6.6 11

13.8

Advanced Features # # # # # # # # # # # # # #

Integral Current Limiting Relay (TSR-6) Ambient operating temperature -10°C to 50°C Reduced inrush current and dynamic shock Applicable models for any transformer Partial Discharge (Korona) test for each transformer starter Wide 40-70Hz range for fluctuating frequency systems IP31-standard, Higher standard available Transformer temperature protection relay (optional) Heavy duty design Communication - RS485 Modbus Unique starting characteristics User friendly, easy setup and operation Electronic Potential Transformer (optional) Exten ded protection package (optional)

22 36

How To Order - example HRVS-TX

-

2 Supply Voltage

-

4.16kV

-

230V

Control Input Voltage

Thermal Sensor

0 - 250 AC/DC

3R - 3RTD (Pt100)

1- 110VAC

20

M

-

12

Options M -

Modbus

Unit Dimensions (cm) H

W

D

230

180

110

230

210

110

230

250

110

240

330

120

250

450

120

MOTOR PROTECTION AND CONTROL RELAY

MOTOR PROTECTION SYSTEM

MPS - 3000

MPS - 6

The MPS-3000 provides a comprehensive motor protection and control package.

Monitoring 3-phase currents and voltage together with 10 RTD/Thermistor temperature inputs it provides an ideal solution for Medium and Large Low Voltage Motors.

The MPS-6 is a Motor Protection System that offers protection, control and supervision for Low Voltage high power motors and is also suitable for motors operating in a Motor Control Center (MCC).

Advanced Features

Advanced Features

# # # # # #

# #

# # # # #

Monitoring 3 temperature inputs, 3-phase current, voltage and energy Power measurement (3-phase voltage measurement) Statistical data of last 10 trips, with time and date stamp RTD bias for thermal overload Multiple Thermal Overload curves Too Many Starts pre-alarm, configurable to energize dedicated output relay Capture and display of min and max RMS, average of 3-phase current, one voltage, min and max frequency Ground Fault setting during start eliminates nuisance trips MODBUS communication, remote parameter programming, control and supervision.

Programmable discrete inputs/output 4 programmable analog outputs

3 27 32L 37 46 47 48 49R 49/51 50 50G 50G/N 51L 51R 55 59 66 74

Communication failure / Internal failure Under-voltage Under Power Level 1/2 Under current Level 1/2 Current Imbalance Level 1/2 Phase sequence/loss Max. Start Time High Temp. Level 1/2, sensors 1-10 Thermal Capacity Level 1/2 Over Current Level 2 - Short Ground Fault Level during starting Ground Fault Level 1/2 Load Increase - Alarm Over Current Level 1 - Jam Lead / Lag PF / Low Power Factor Over-voltage Level 1/2 Too Many Starts Level 1 Welded contactor (MPS 3000c)

#

# # # # # # #

MPS-6 How To Order - example

Unit Dimensions (mm) Weight Model (kg) H W D

Comprehensive Protection Package ANSI/IEEE PROTECTIONS C37.2

#

MPS 3000 MPS-6 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ -

√ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √

Monitoring 3-phase currents, single phase voltage and 3 temperature inputs Power measurement (single phase voltage measurement) Statistical data of last 10 trips with time and date stamp RTD Bias for thermal overload Multiple Thermal Overload curves Too Many Starts pre-alarm, configurable to energize dedicated output relay No Start Process - starting method, allowing switching to run, if I > 10% Capture and display of min and max RMS average of 3-phase current, one voltage, min and max frequency Ground Fault setting during start elimination nuisance trip MODBUS communication (up to 19200 bps) - remote parameter programming, control and supervision 6 programmable discrete inputs and outputs

MPS-6

144

96

107

MPS - 6

5

-

1.5

2

-

C/T Secondary 1 - 1A 5 - 5A

Models | MPS-3000 Model Vertical Horizon

MPS -3000

Unit Dimensions (mm) Weight (kg) H W D 310 140

134 310

140 134

-

P Relay Type

P - Motor Protection Relay C - Motor Protection Controller

3.1

13

-

3T

-

M

-

Control Voltage

Thermal Sensor

Options

2 - 100-230V

3R - 3 RTDs (Pt100) 3T - 3 Thermistors

M - Modbus P - Profibus

V Construction V - Vertical H - Horizontal

-

1P Thermal Sensor

1P -10 RTD Platinum 1C -10 RTD Copper TP -4 Thermistors+6 RTD (Pt100) TC -4 Thermistors+6 RTD (Copper)

-

2 Thermal Sensor

2 - 110-230VAC 2S -110-230V AC/DC w/ separate AUX-3 - 19-60VDC

-

M Options 2- Trip on disconnected RTD M- Modbus P- Profibus

TEMPERATURE PROTECTION RELAY

MOTOR INSULATION PROTECTION RELAY

TPR - 6

MIP - 6 The MIP-6 monitors the level of deterioration in the insulation of Low and Medium Voltage Motors. It measures the motor’s insulation resistance and displays the actual and average highs and lows over a predefined period of time.

The TPR-6 Temperature Protection Relay is designed to protect electric motors, transformers and other systems from overheating. The TPR-6 has up to 14 temperature inputs that can be programmed to measure thermistors (PTC or NTC) and RTDs (Pt100).

Two types of units available: # #

Advanced Features # # # # # # # # # #

Advanced microprocessor based circuitry Display of operating RTD or Thermistor Data, Fault and Statistics Programmable inputs and outputs RS-485 communication with MODBUS protocol Easy installation and friendly operation Two level protection for Alarm and Trip Selection between Trip and Trip fail-safe Analog output related to any input or input combinations RTD / Thermistor selection - RTDs 100 ohm Platinum (PT100) - Thermistor - PTC or NTC Disconnected sensor protection

Advanced Features # # # # # # # # # # # # # # # # #

Protection Features # # # # #

RTD / Thermistor with two levels for each input Thermistor PTC / NTC selection Over temperature Alarm and Trip to each input Continuous analog output signal External fault 1 and 2

Protection Functions Exact input can be assigned to any of the following items: # # # # #

Low Voltage Medium Voltage with an additional resistor box (up to 15kV Medium Voltage motors)

Alarm only - Relay A Trip only - Relay B Fan (Trip, Alarm)- Relay C Trip/Alarm- Relay D Enabling Auto Reset

Monitors insulation deterioration of Low / Medium Voltage motors Displays the present and average insulation resistance on LCD Monitoring while motors are de-energized Programmable parameters Microprocessor based technology Alarm / Trip Setpoint in the range of 0.1 to 60 Mega Ohms Utilizes up to 48 VDC test voltage to increase personnel safety Illuminated LCD display with 2 lines of 16 characters each Six keys for easy programming Three LEDs for easy status indication Deterioration monitoring by storing history with time stamp Unauthorized parameter modification prevention Four C/O 8 Amp., 250V programmable signaling relays Analog 0/4-20mA output for remote reading Modbus communication Control Voltage: 85-230VDC/AC (50/60Hz) Operating Temperature Range 0°C to +50°C (default - all units) -10°C to +60°C (optional)

Models Model MIP-6

How To Order - example

Models Model

Unit Dimensions (mm) H

W

D

TPR-6

144

96

107

TPR - 6 Weight (kg) 0.8

-

14 Temperature Inputs

6 - 6 Temperature Inputs 14 - 14 Temperature Inputs

-

2 Control Voltage 2 - 100-230V

-

M Options 8 -Conformal coating M Modbus P - Profibus

14

How To Order - example Unit Dimensions (mm) H W D 144

96

107

MIP - 6

-

LV

-

M

Weight (kg) Mains Voltage

0.5

LV -230-690VAC MV1 -690-7200VAC MV2 -7200-13800VAC

Options 5 -Analog output 8 -Conformal coating M - Modbus

Solcon Industries is a dynamic, high-tech power electronics company that remains at the forefront of design, development and manufacturing of industrial motor starting and control systems.

Solcon’s consistent investment in research and development, along with a strong global partner network and worldwide customer base, are the keys to our success.

Solcon offers a complete range of Low and Medium Voltage Soft Starters for a wide range of standard and heavy duty applications. Solcon also manufactures industry-leading Motor Protection Relays and Control Products.

A deep understanding of the market needs and application requirements have enabled Solcon to upgrade existing product lines and introduce new, innovative solutions to the market making us a market leader.

Solcon deploys advanced technology and field research to implement the highest quality criteria, guaranteeing long-term reliability to our customers.

We take pride in providing custom solutions for the toughest applications including the Mining, Marine, Water, and Oil & Gas Industries.

Solcon is accredited with ISO 9001:2000.

Our products are designed to meet international standards such as CE, UL, cUL, Ex, EAC, Lloyds, Germanischer Lloyds, DNV, BV, ABS, RINA, KR, NK-Class, RMRS, CCS and other approvals are also available.

Certifications & Standards

15

MEETING YOUR NEEDS ACROSS INDUSTRIES

Solcon Industries Ltd. www.solcon.com

contact@solcon.com
