Table of Contents 01 Renegade Classroom

Spring 1st Year 02 Bug Project Fall 2nd Year 03 Norman Equine Therapy Center Fall 2nd Year 04 Norman Urban Farming Center Spring 2nd Year 05 Norman Boat House Fall 3rd Year

01

RENEGADE CLASSROOM The purpose of this project was to design a stand-alone structure, open to the elements most of the time, but providing the possibility of closure to keep the interior furnishings and finishes protected. This project explored the entry sequence and separation of public and private spaces. The first open space in the classroom opens up to a courtyard connecting the restrooms and office/kitchen spaces.

01

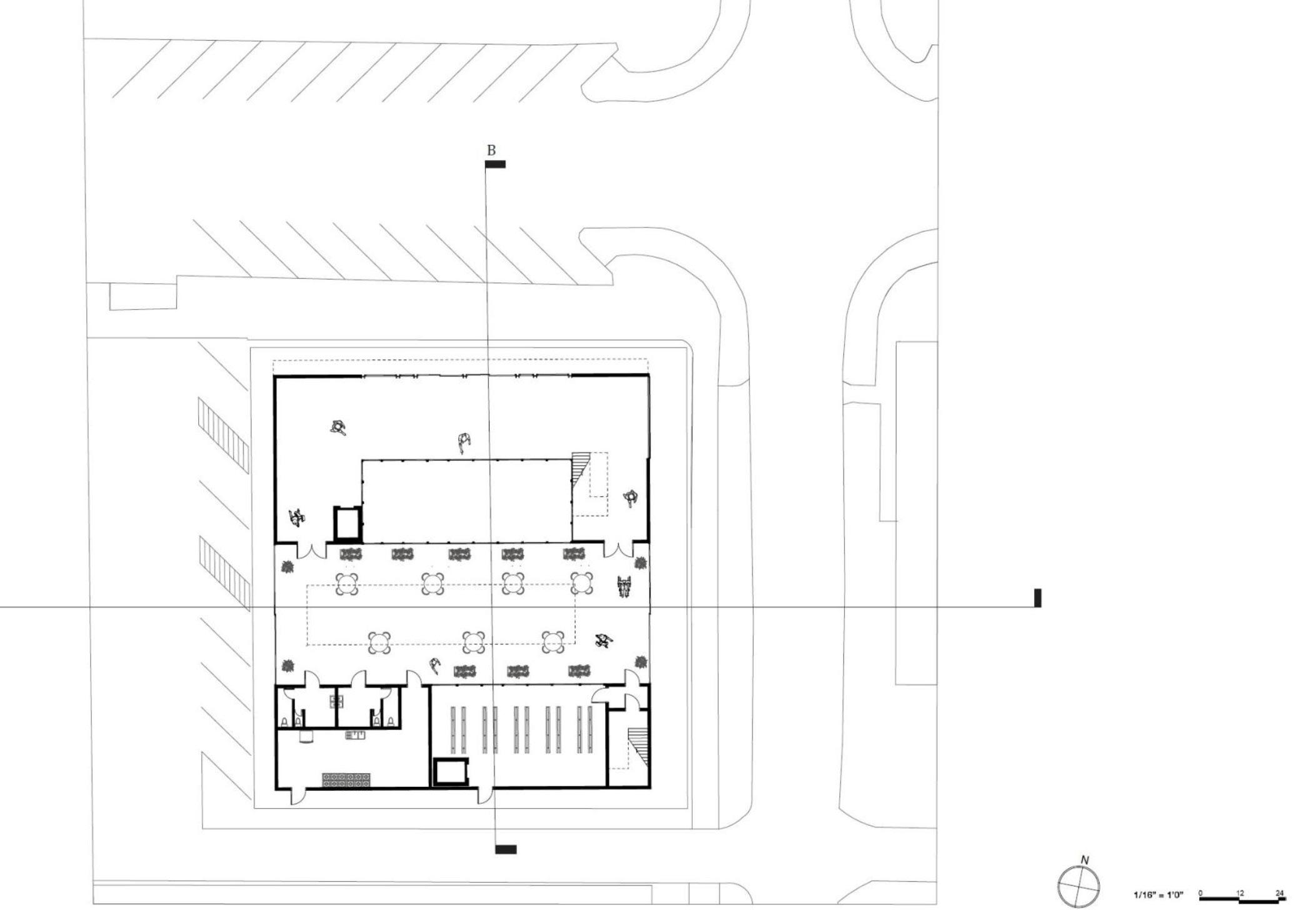

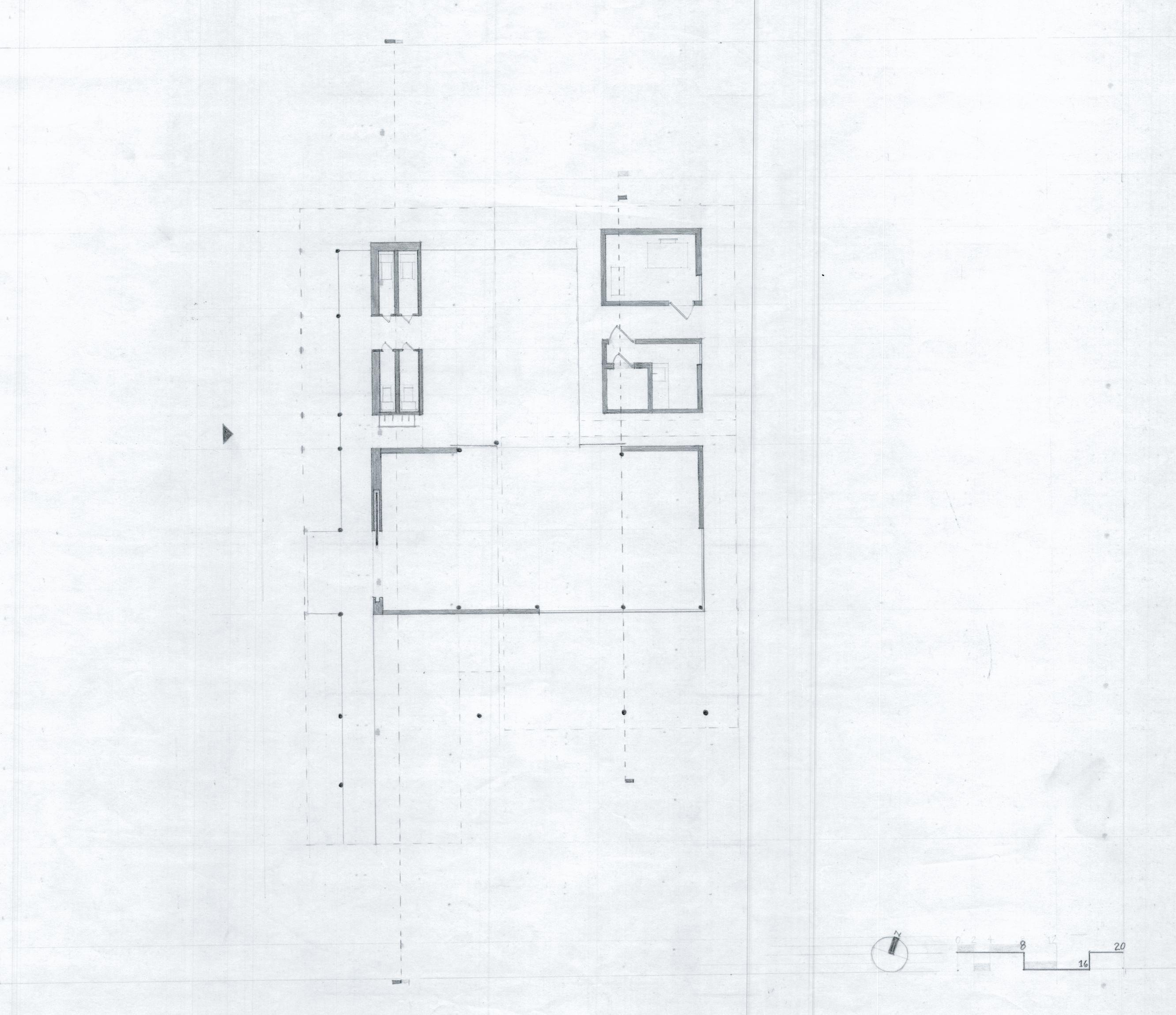

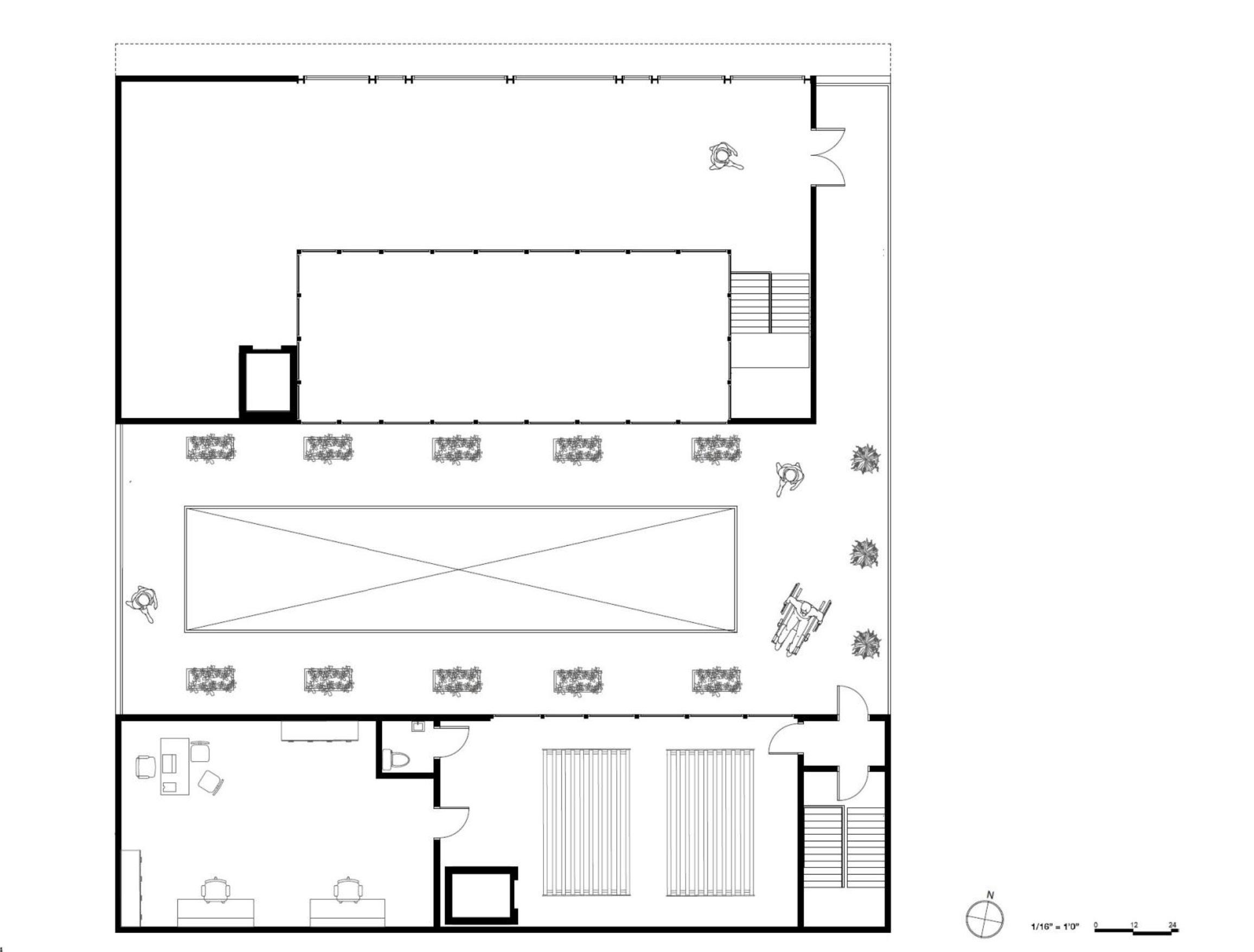

Floor Plan

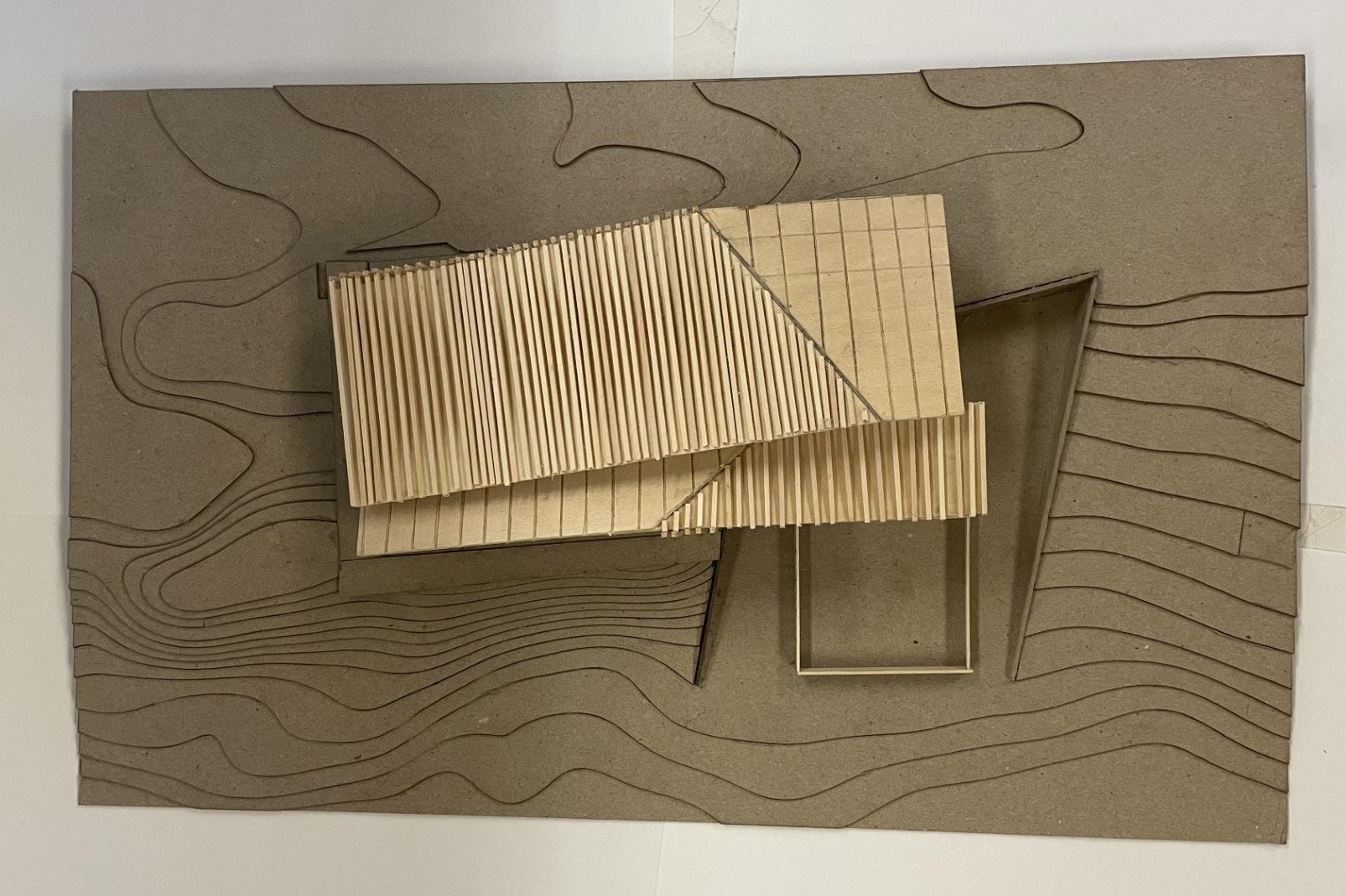

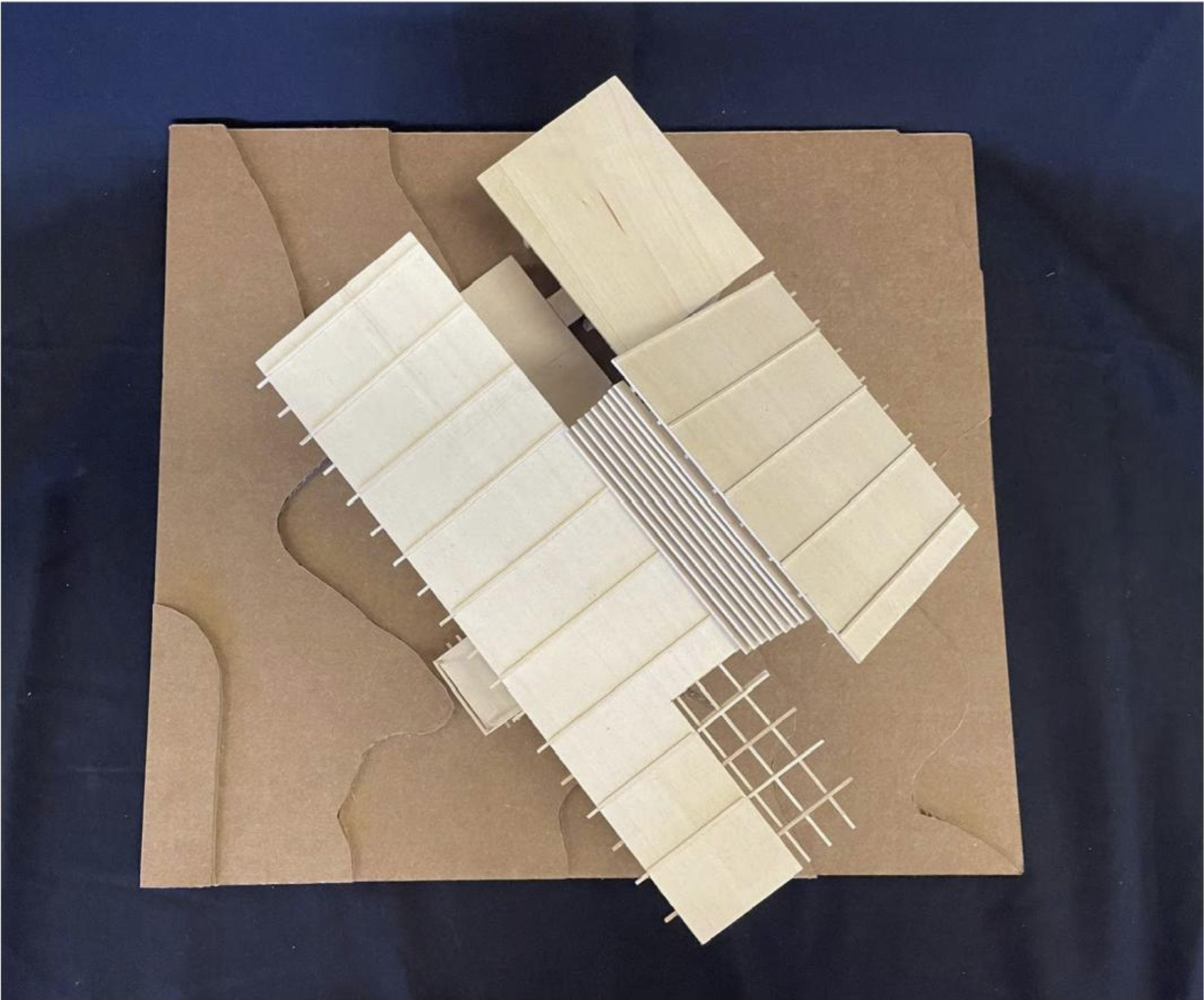

Handcut Model from Above

01

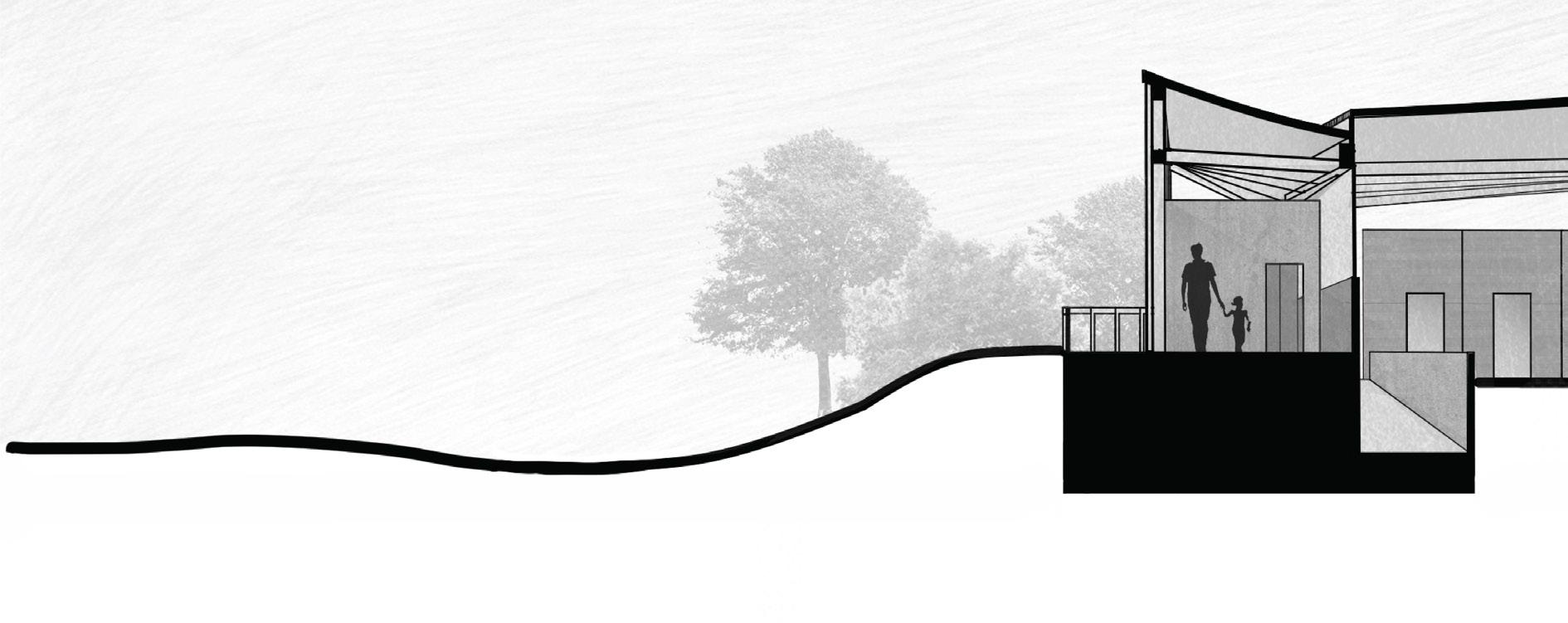

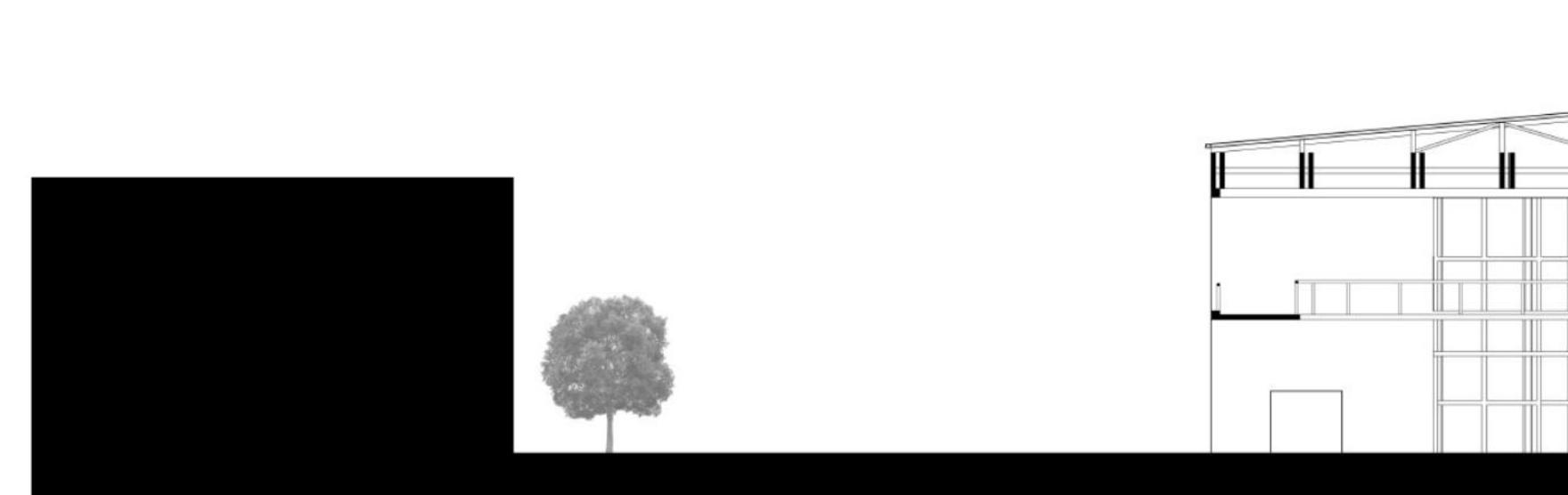

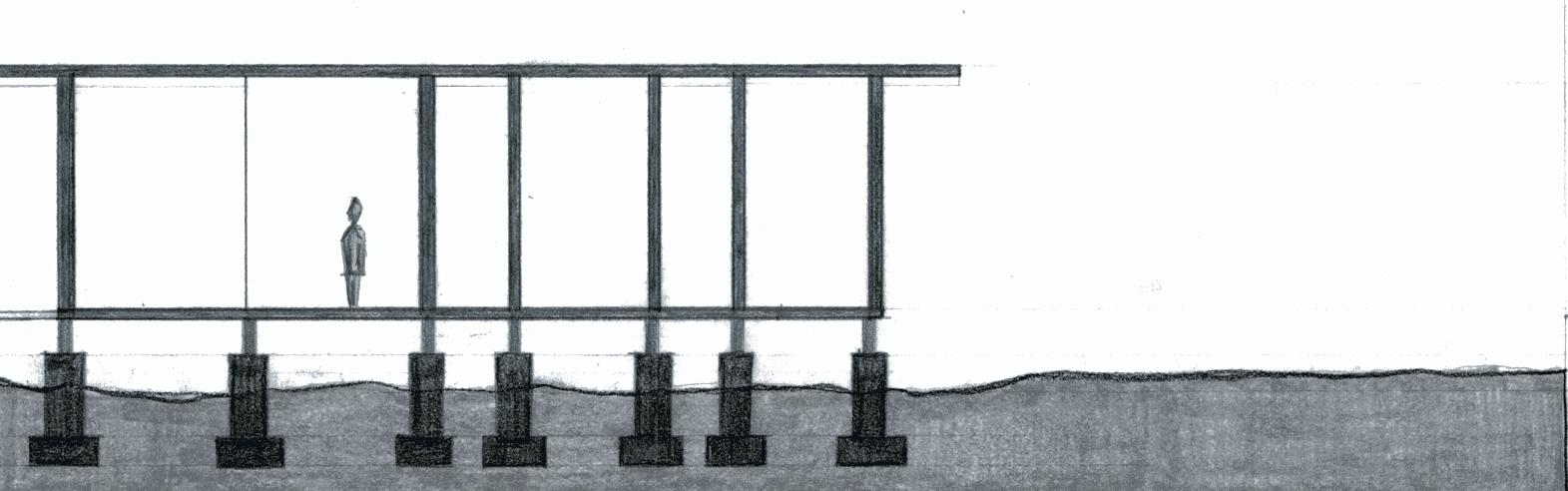

Section A

Section B

Elevation

02

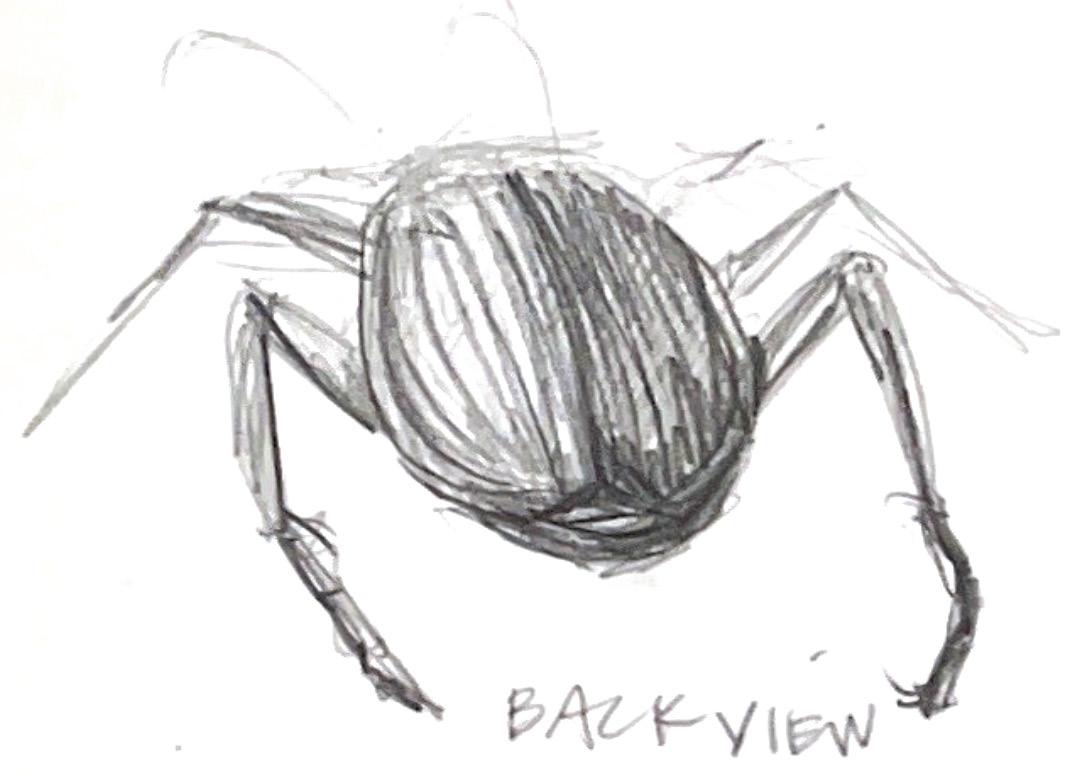

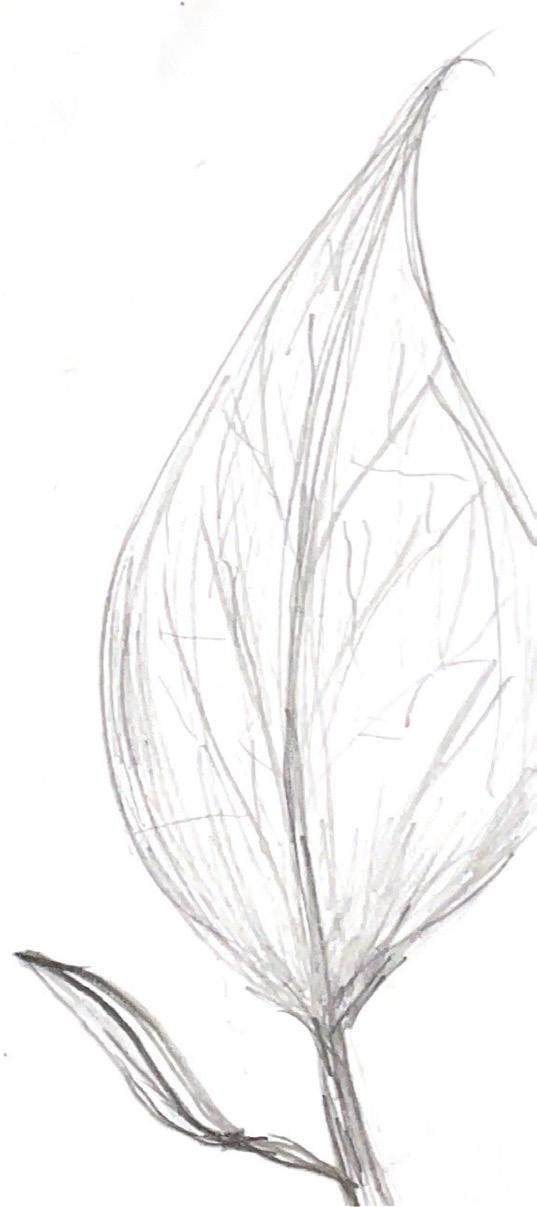

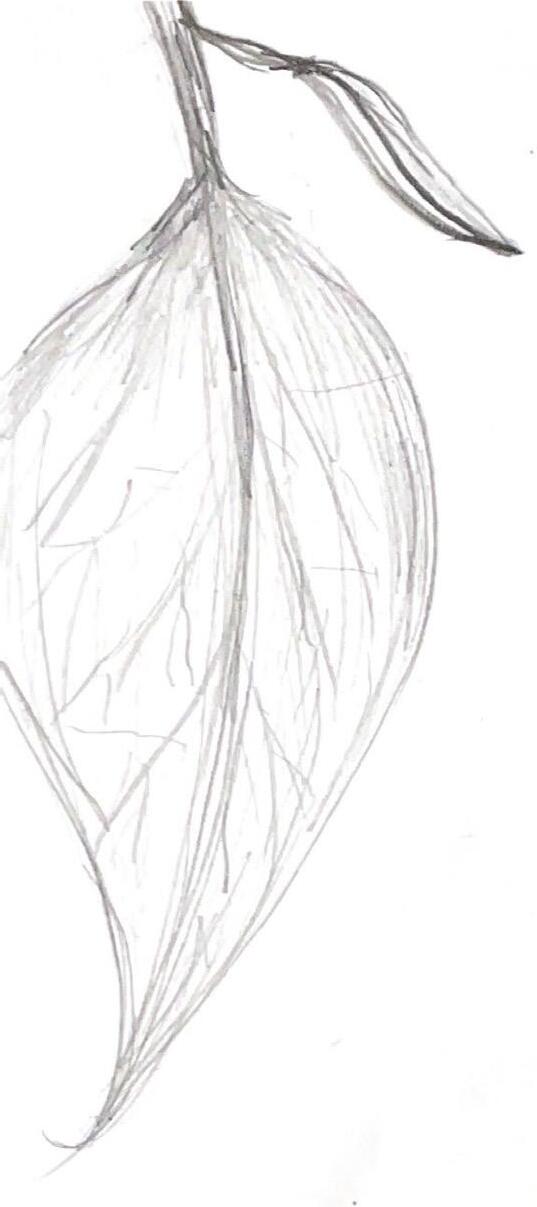

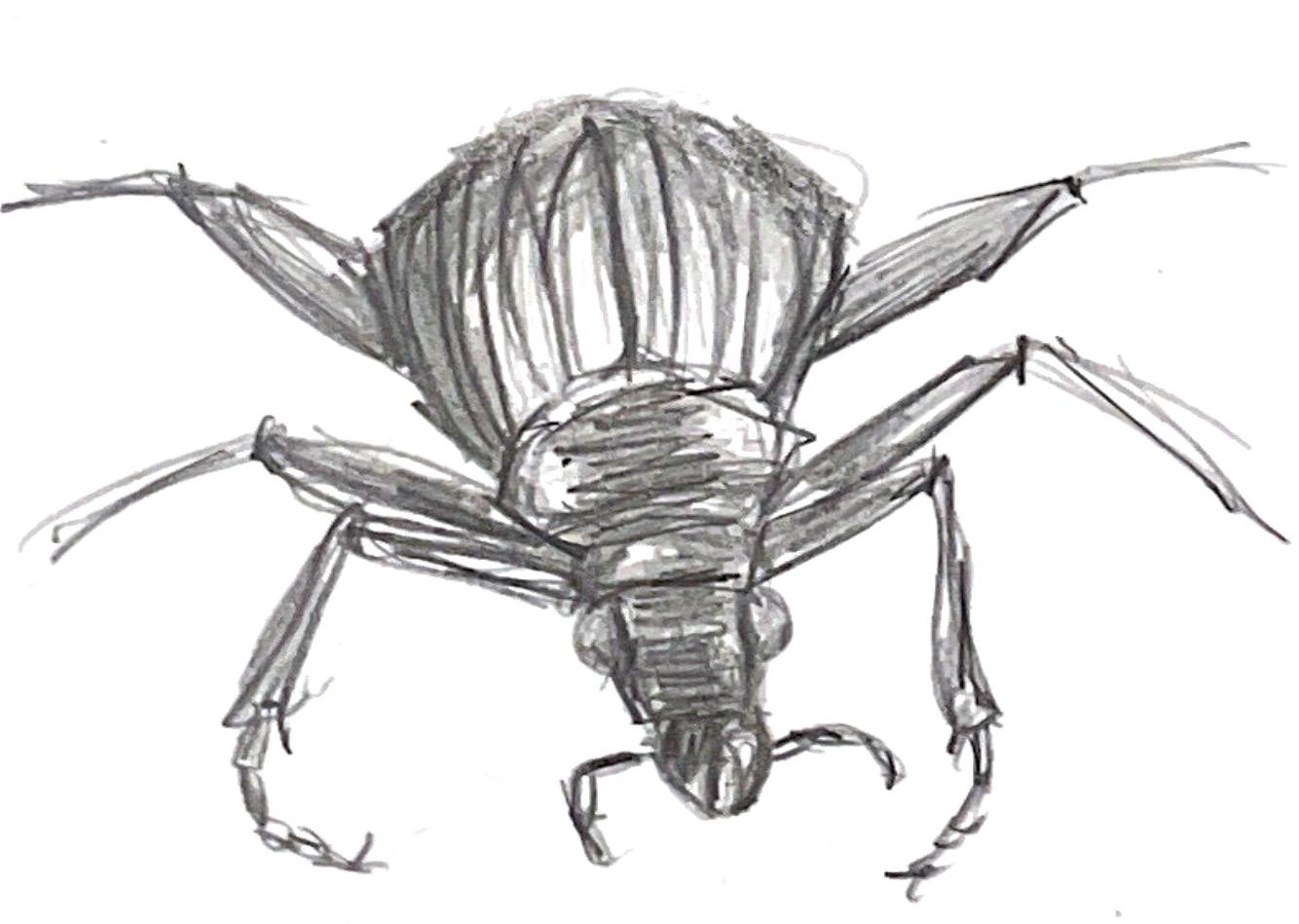

BUG PROJECT The concept for this project was to assign a habitat for the bug that you were assigned. Through research, each student should be able to design a habitat that would sustain their bug. First research about the bug was conducted and then sketches and drawings were made to show the make up of the bug. I designed a habitat that mimicked a leaf like structure that focused on the contrast of transparent v. opaque surfaces.

02

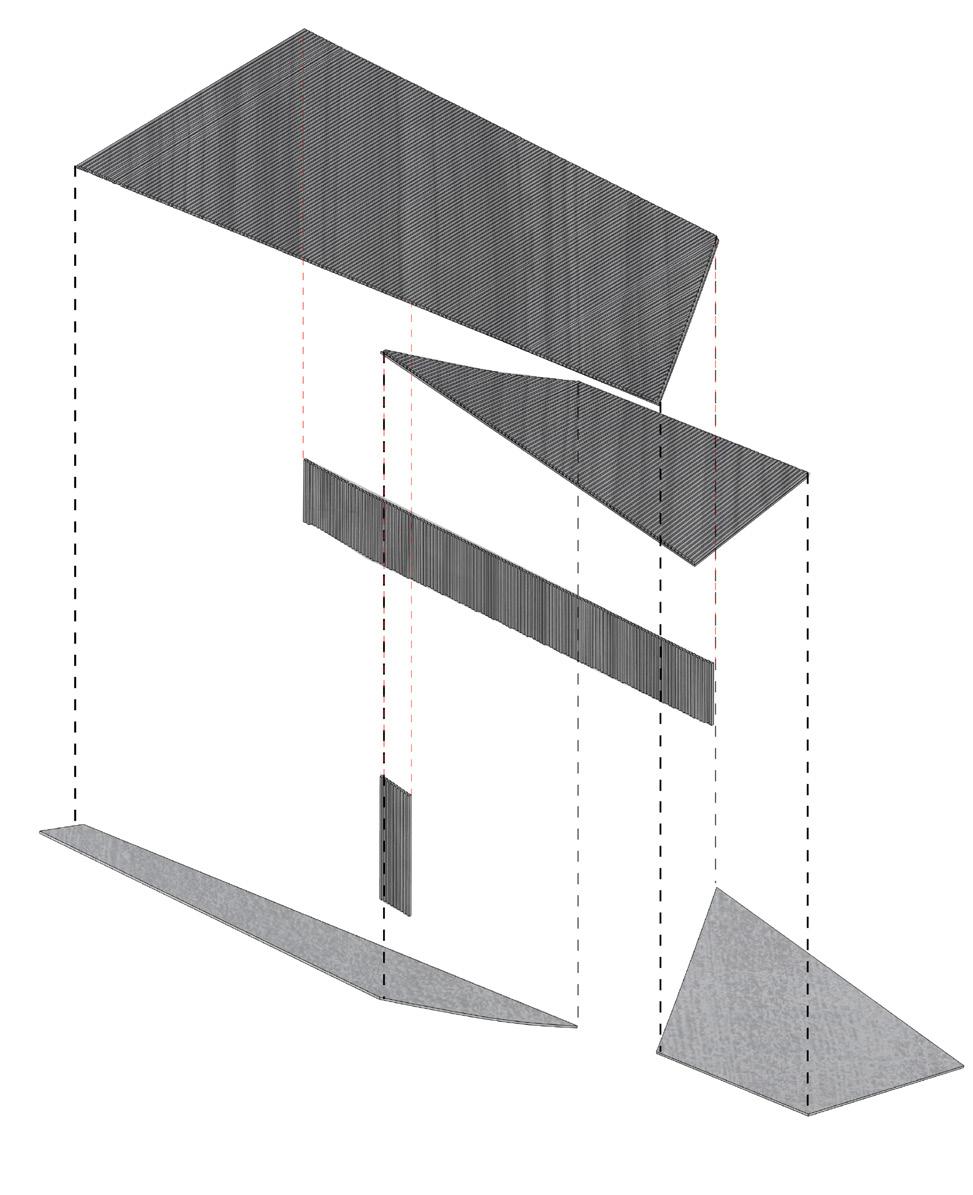

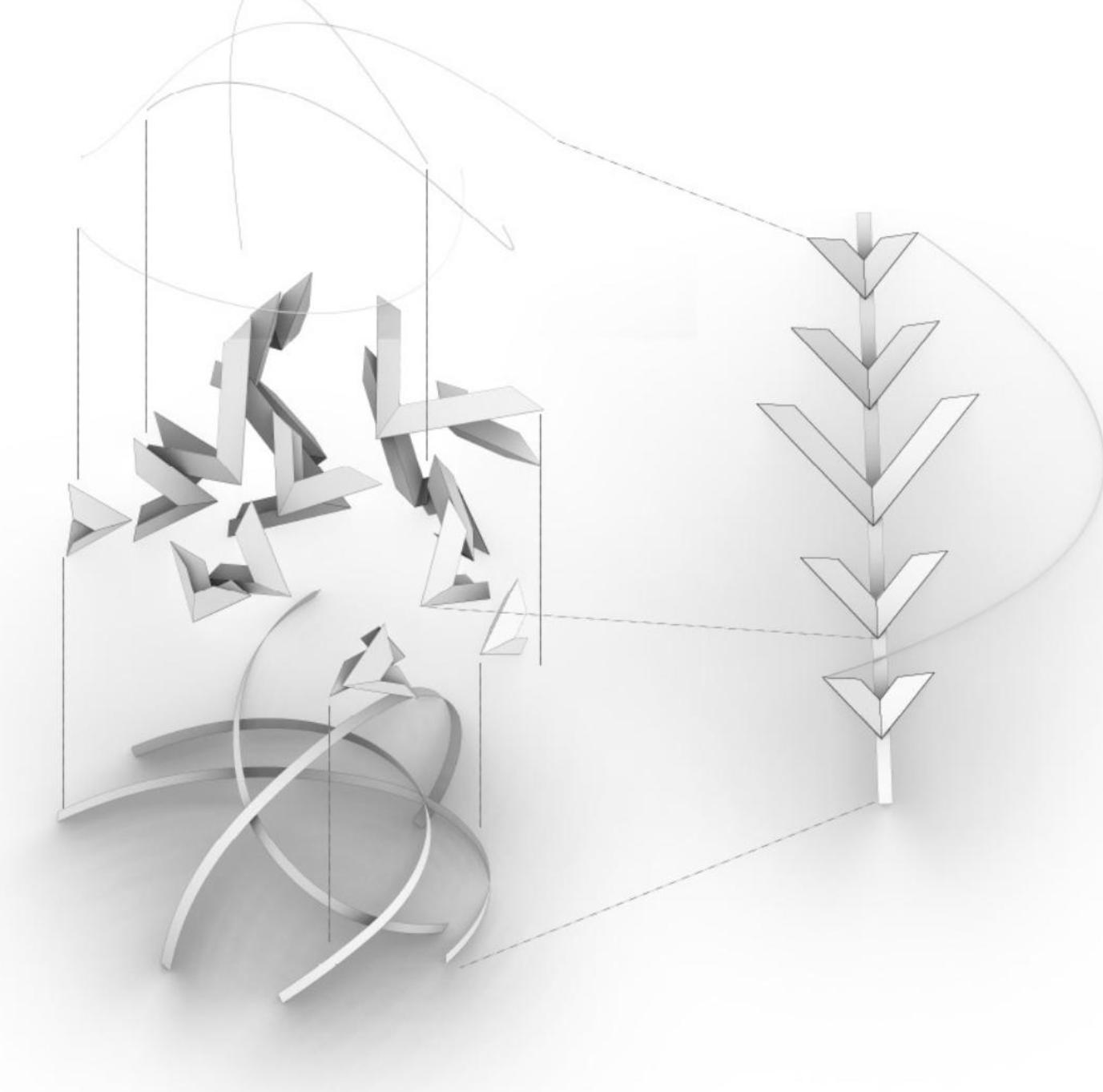

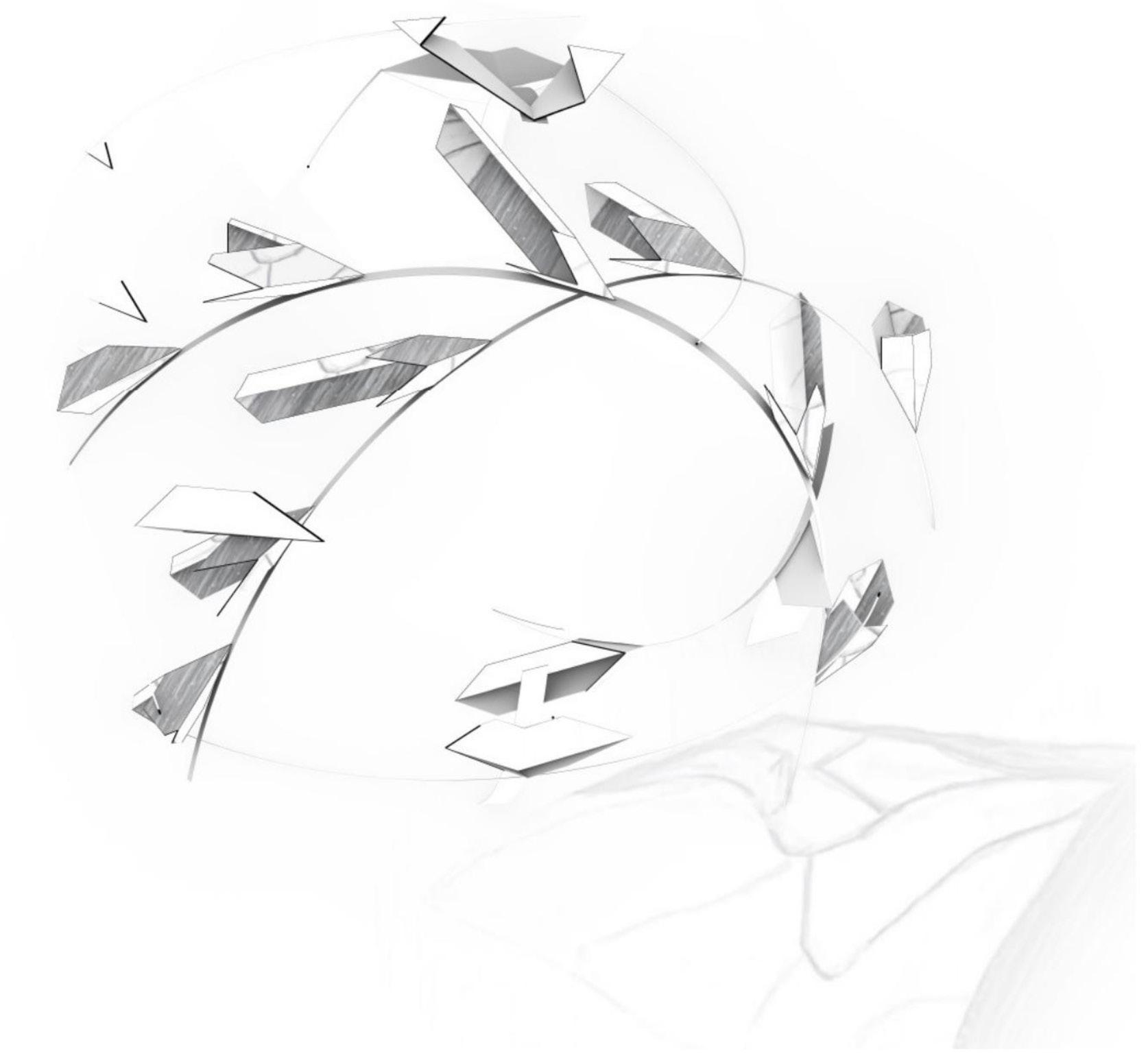

Axonometric Diagram

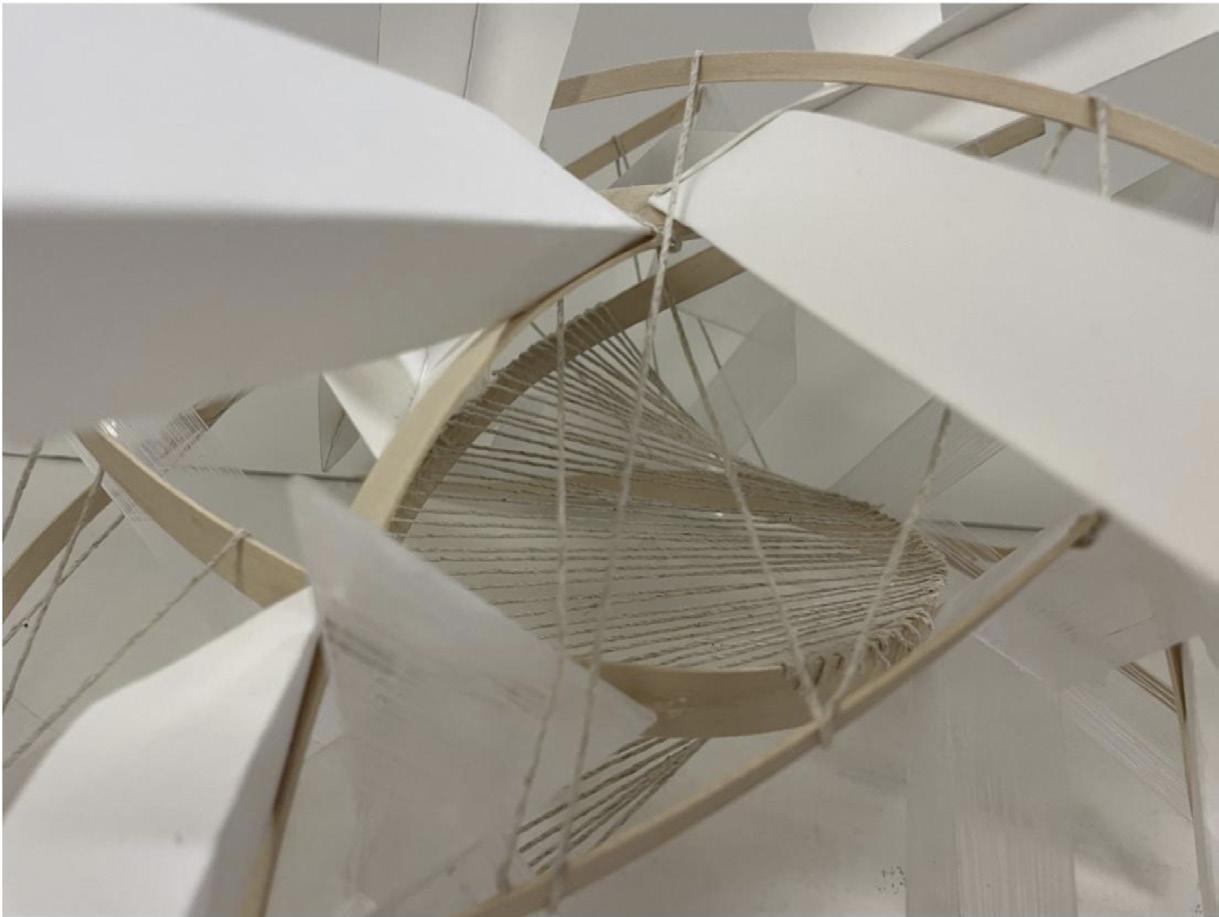

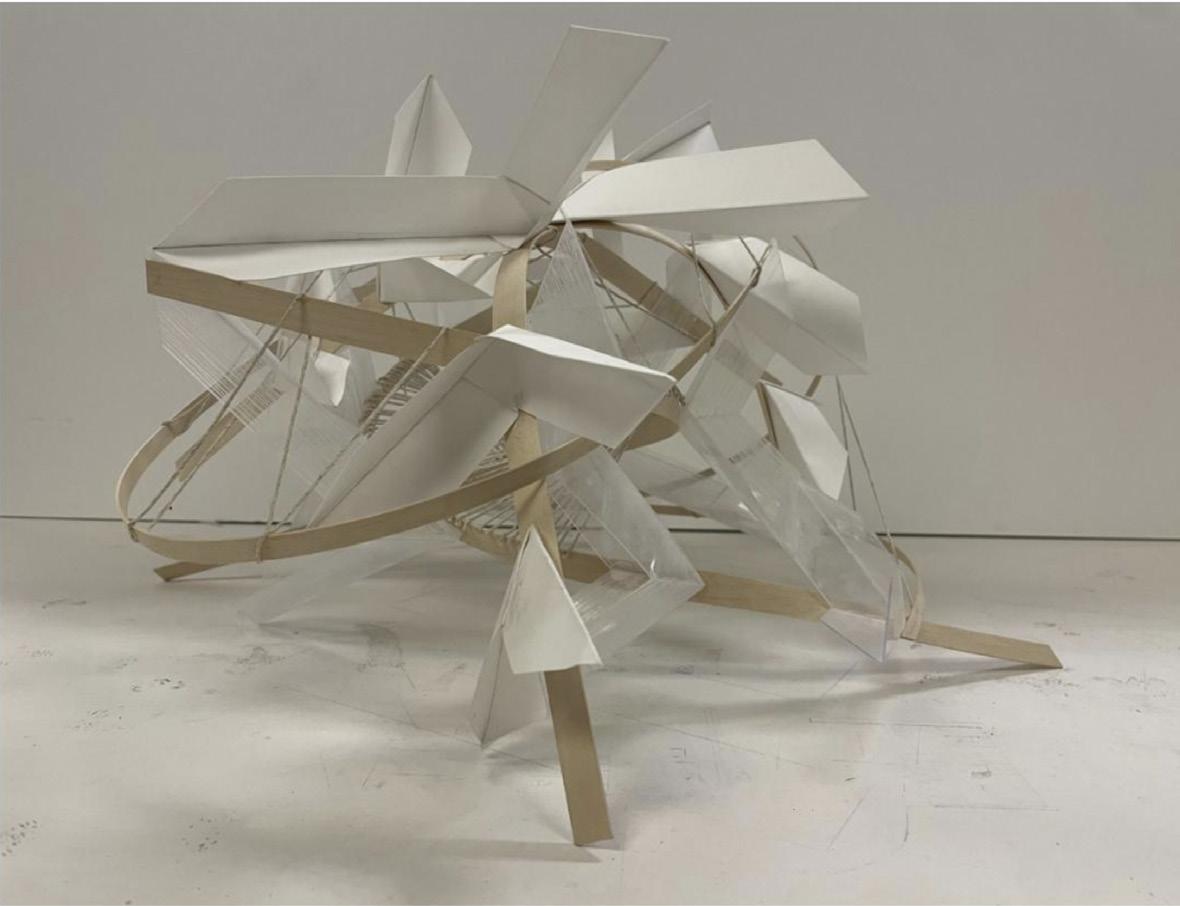

Model Images

Hybrid Plan drawing

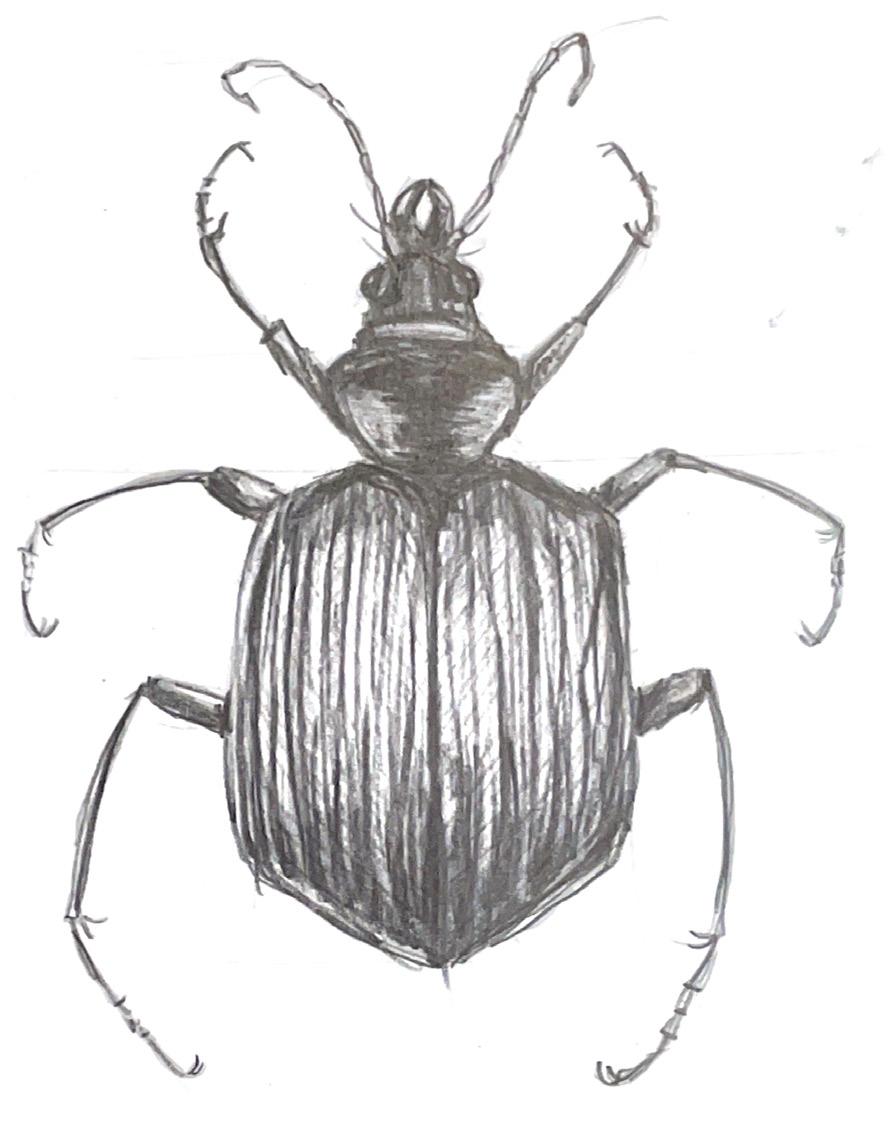

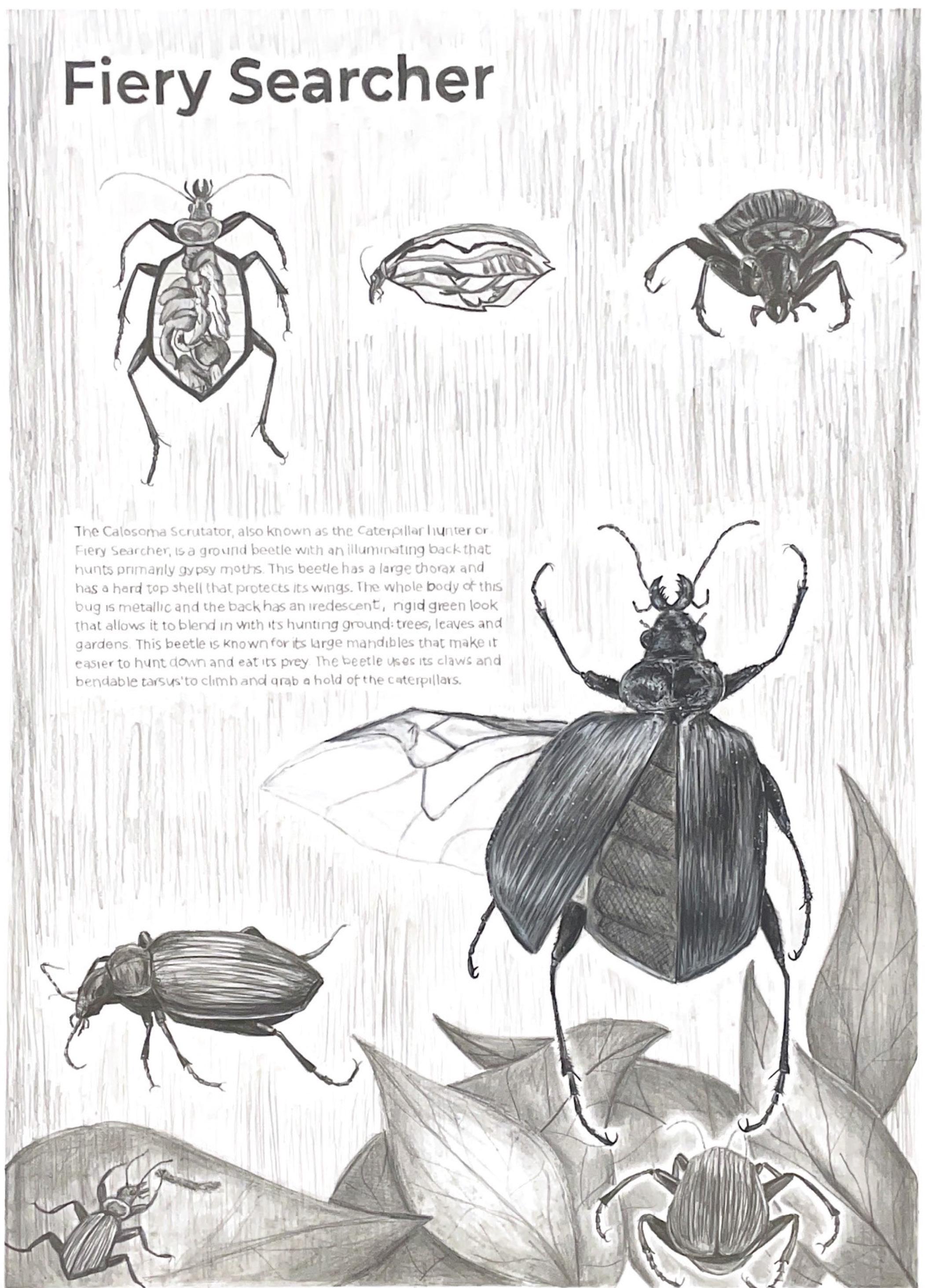

Hand drawn board

03

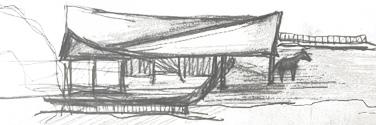

NORMAN EQUINE THERAPY CENTER The purpose of this project was to design an all inclusive and accessible horse stable that accommodates a summer camp for children with disabilities. The project had to feature ramps, different grades of land, and a riding area. The horse space and human space is divided by a cement wall that meets with a glass panel. The human space is higher creating a moment where people can observe the horses, nature, and riders all at once. The visitors and riders enter on an elevated walkway that creates a resting point where they can observe everything at once. The path leads into the reception and then around to the stables. The horses and riders proceed down a ramp that runs underneath the elevated viewing point.

03

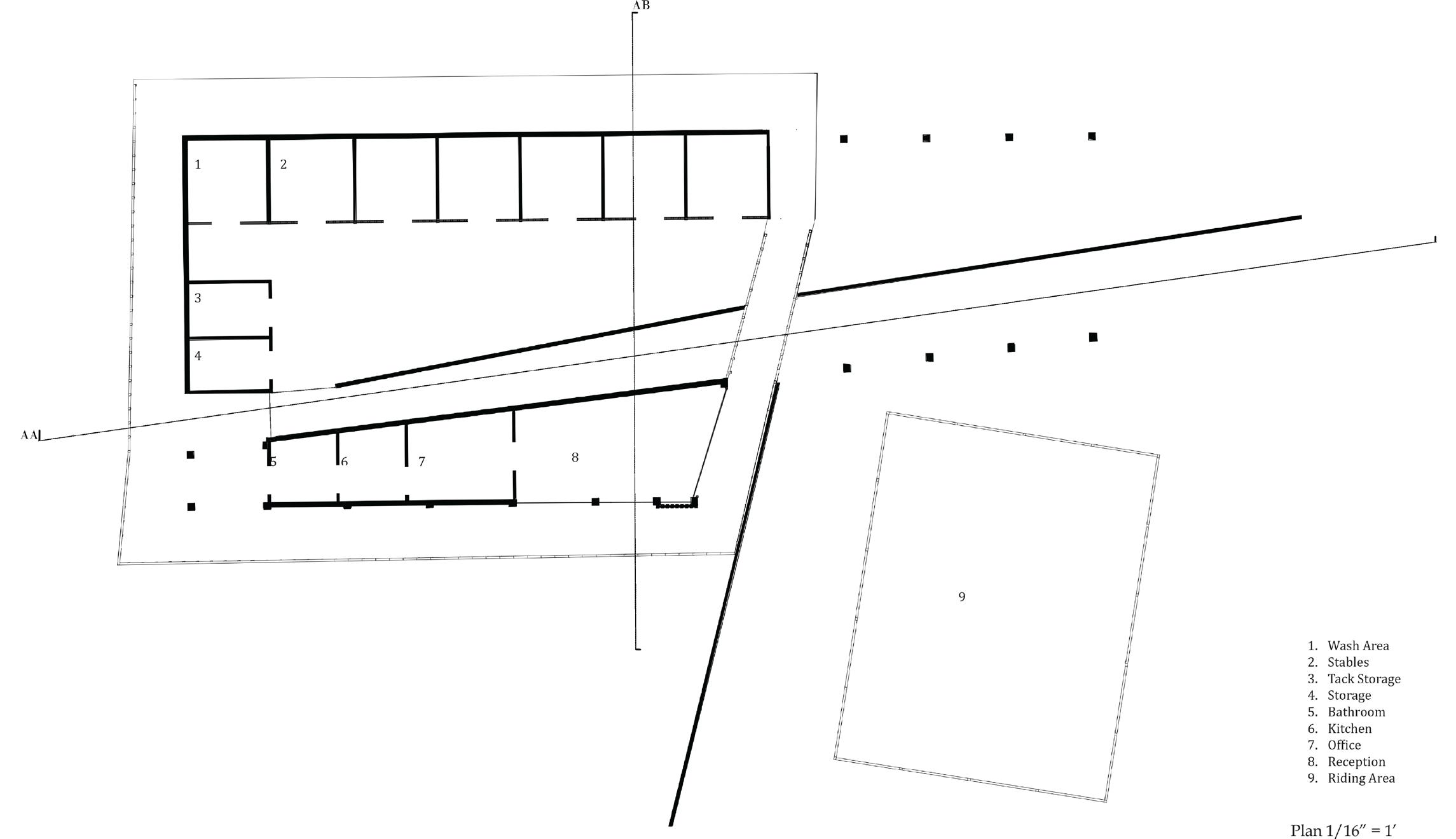

Floor plan

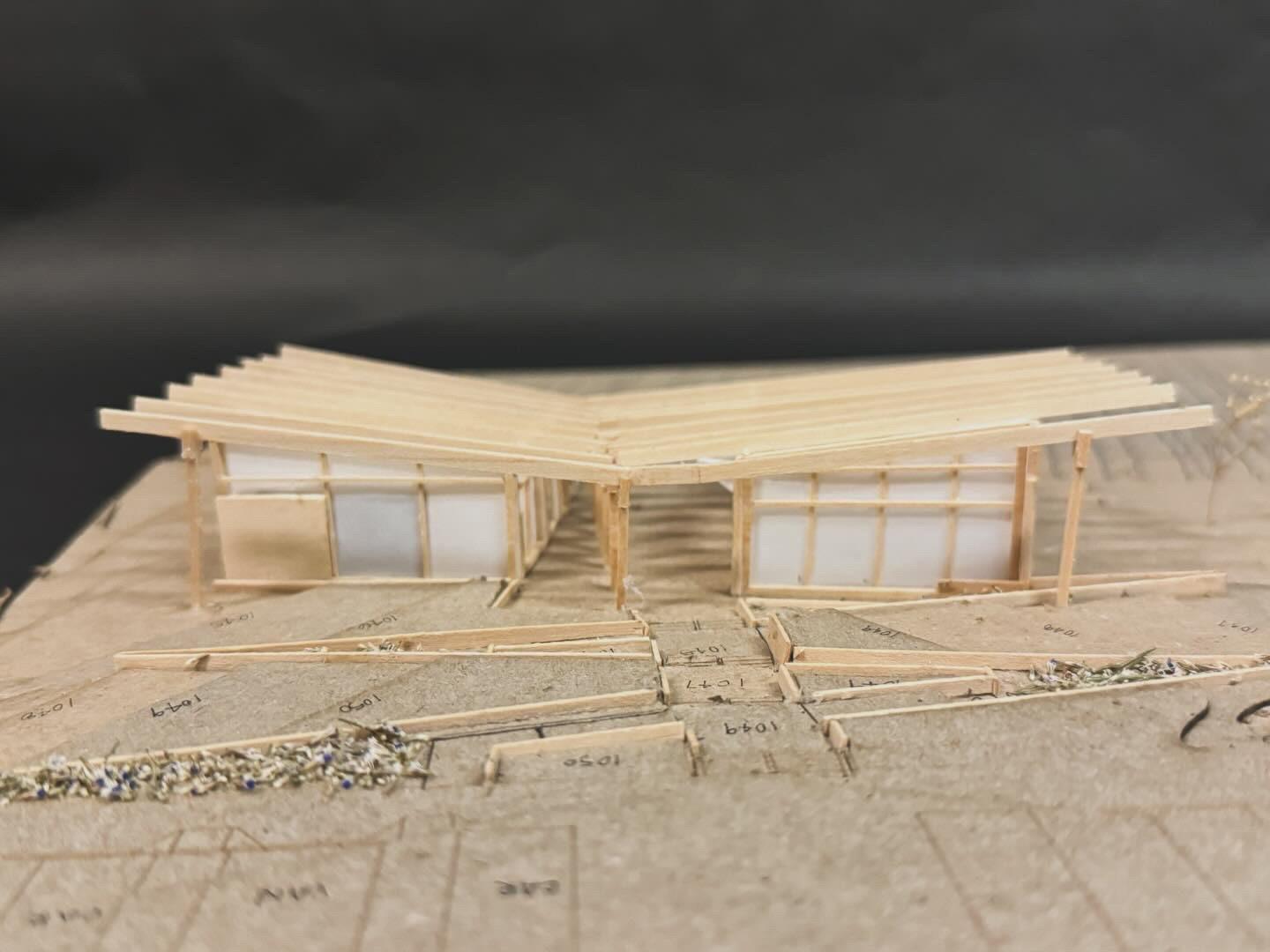

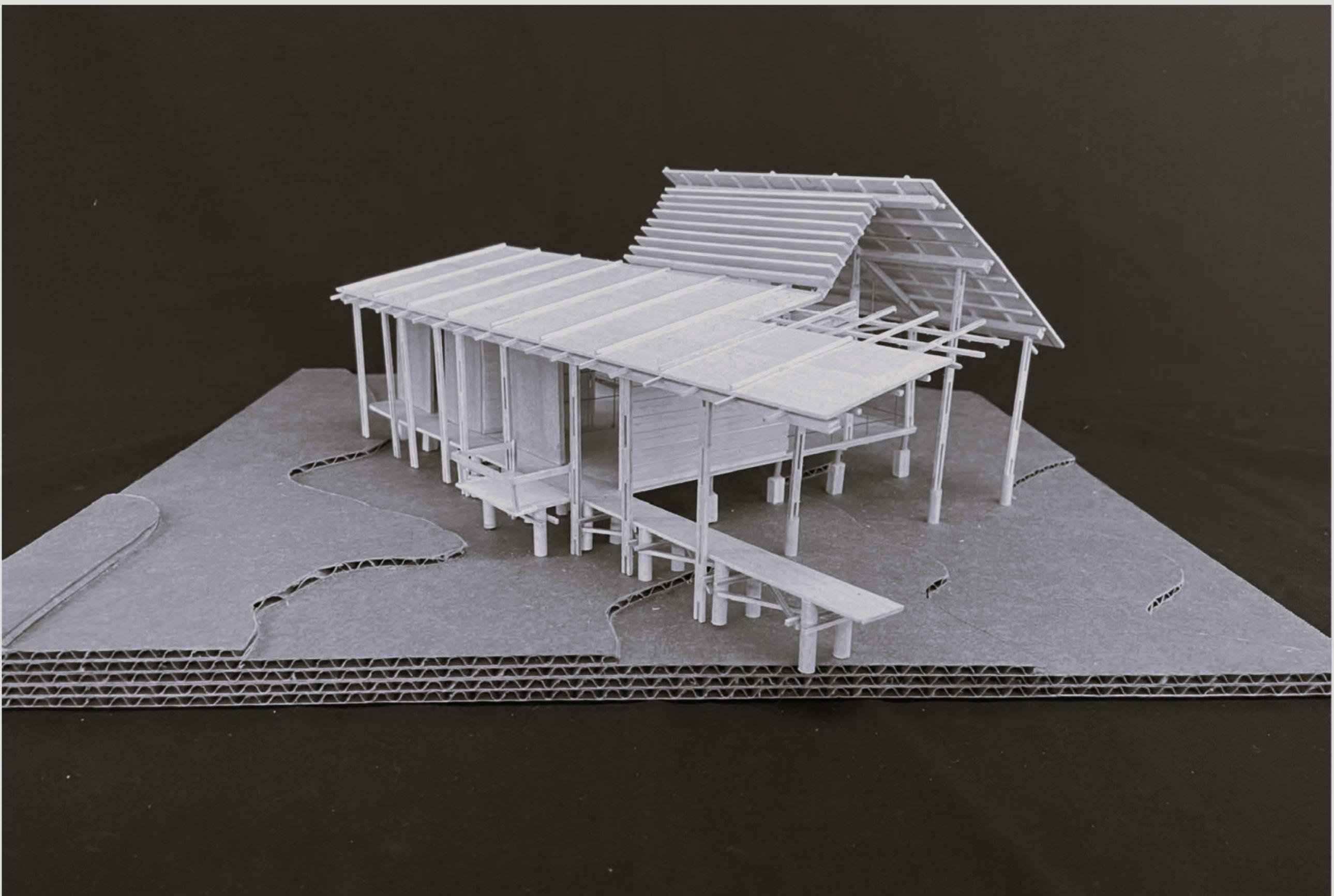

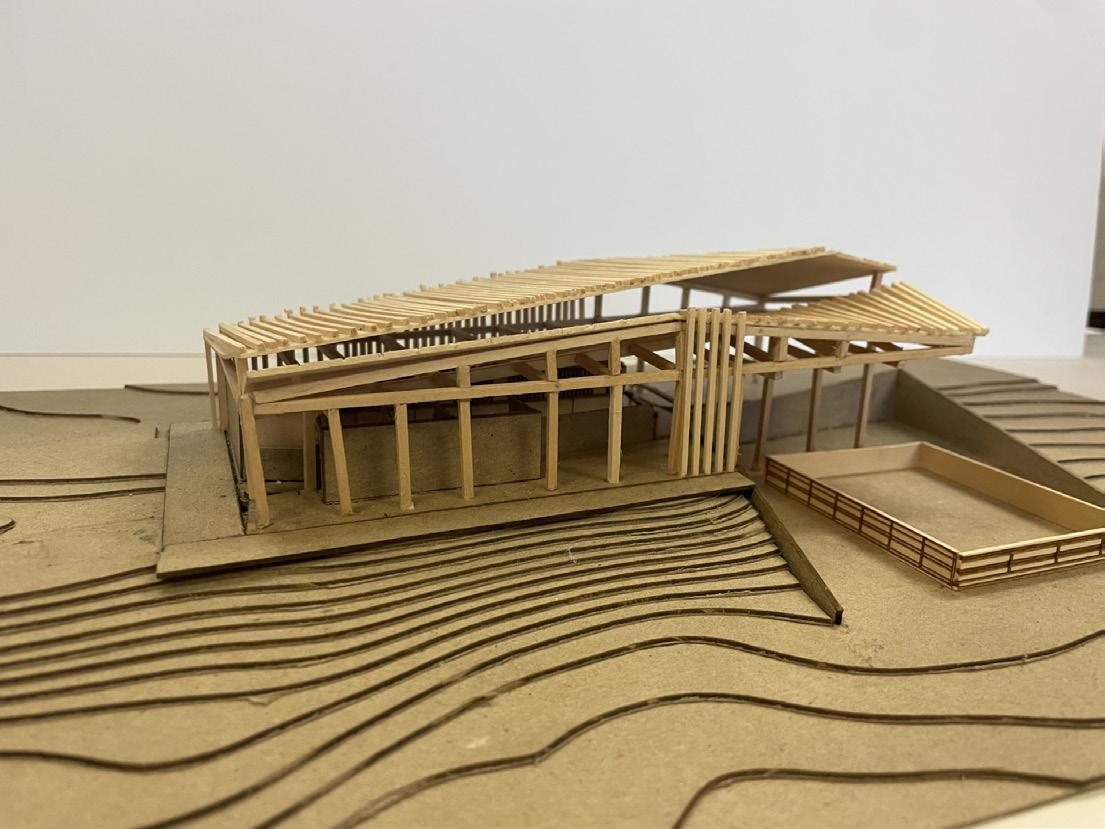

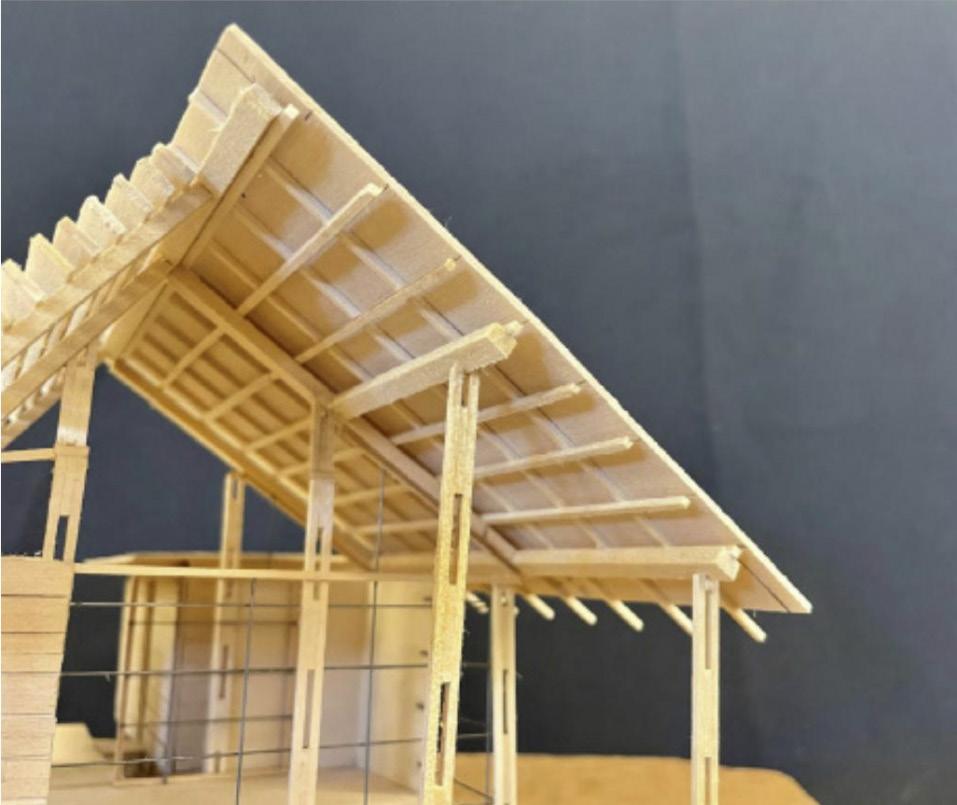

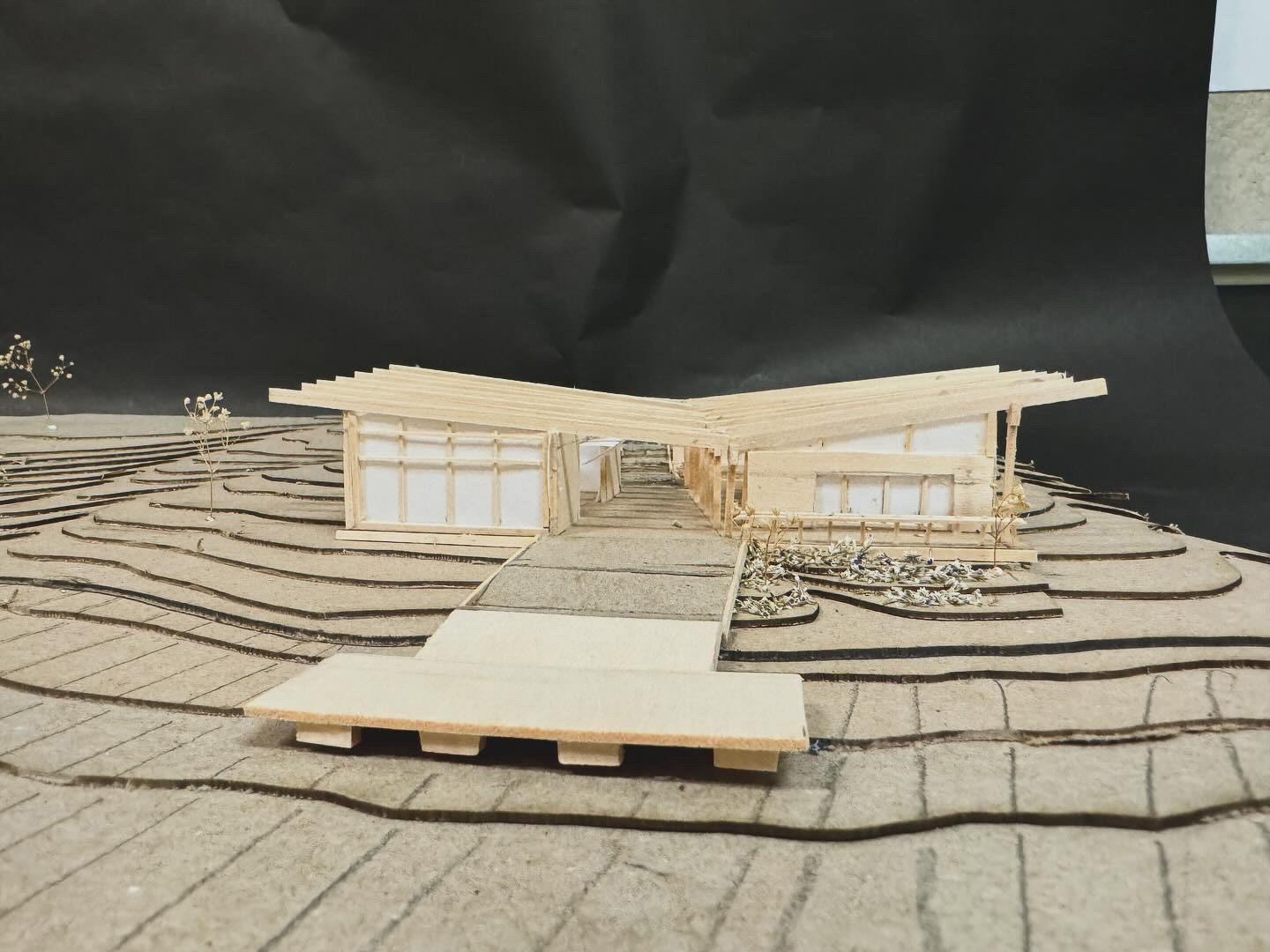

Hand made Model

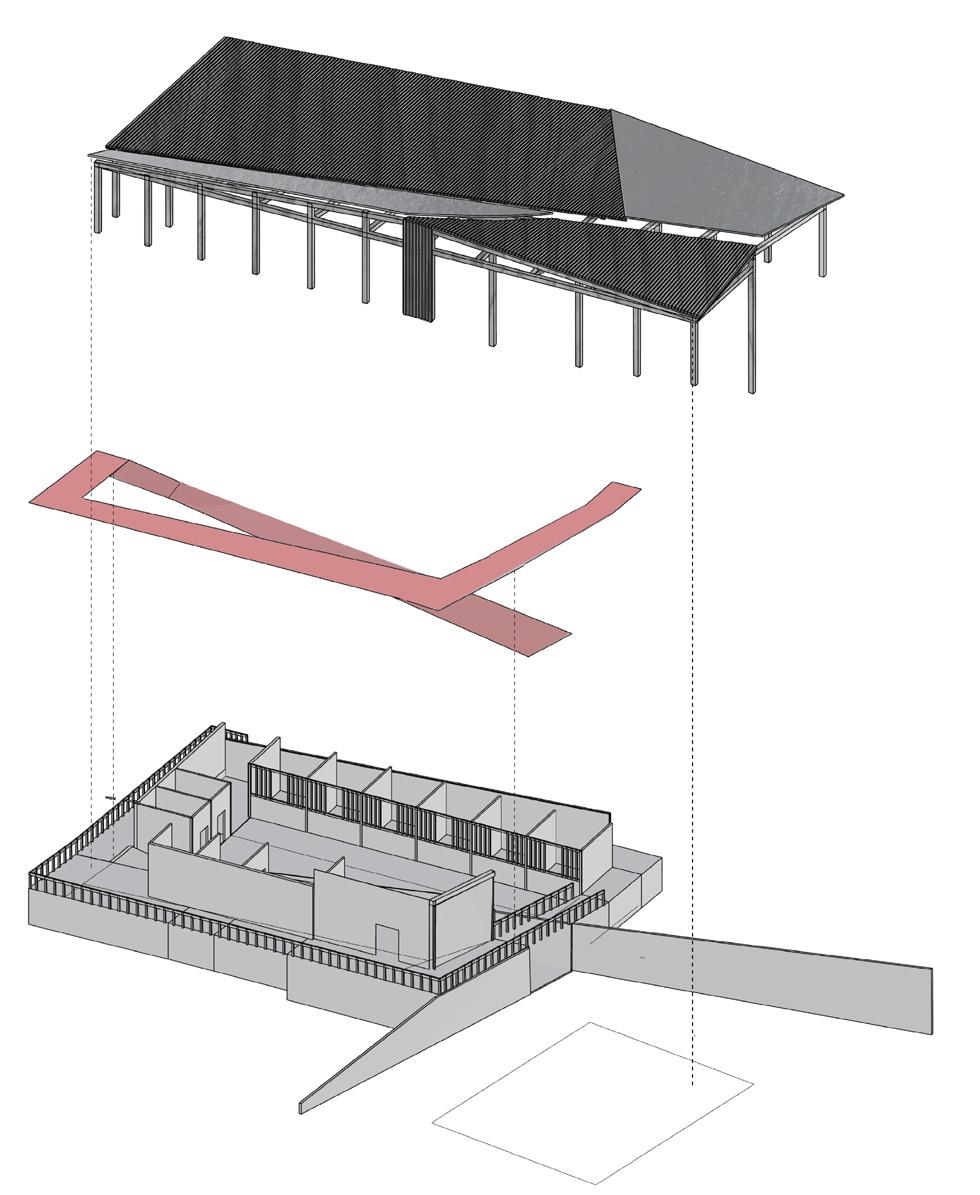

Axonometric Drawings

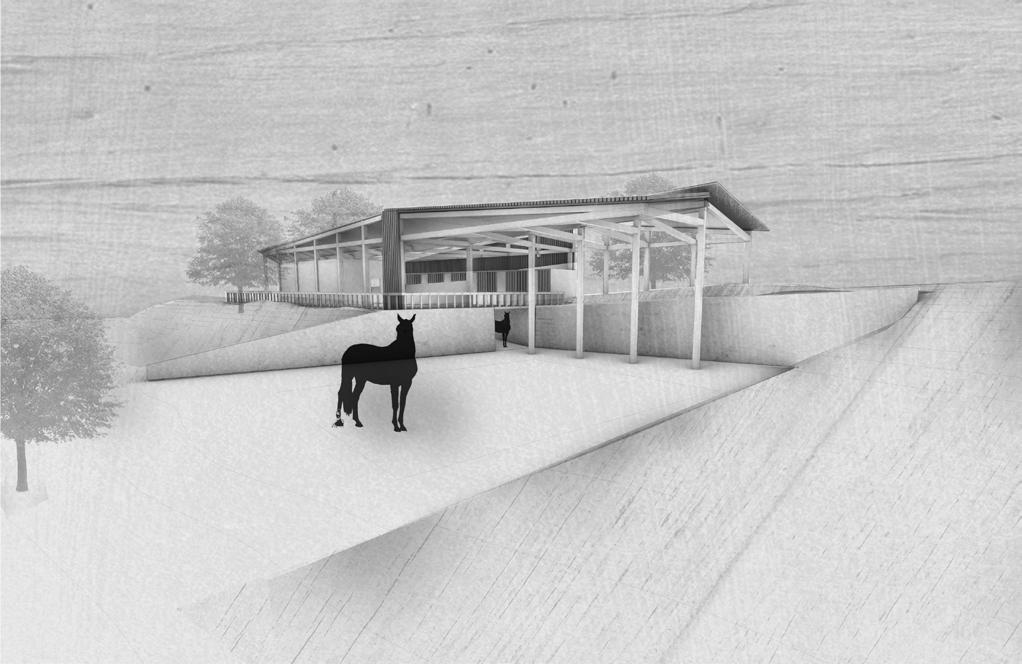

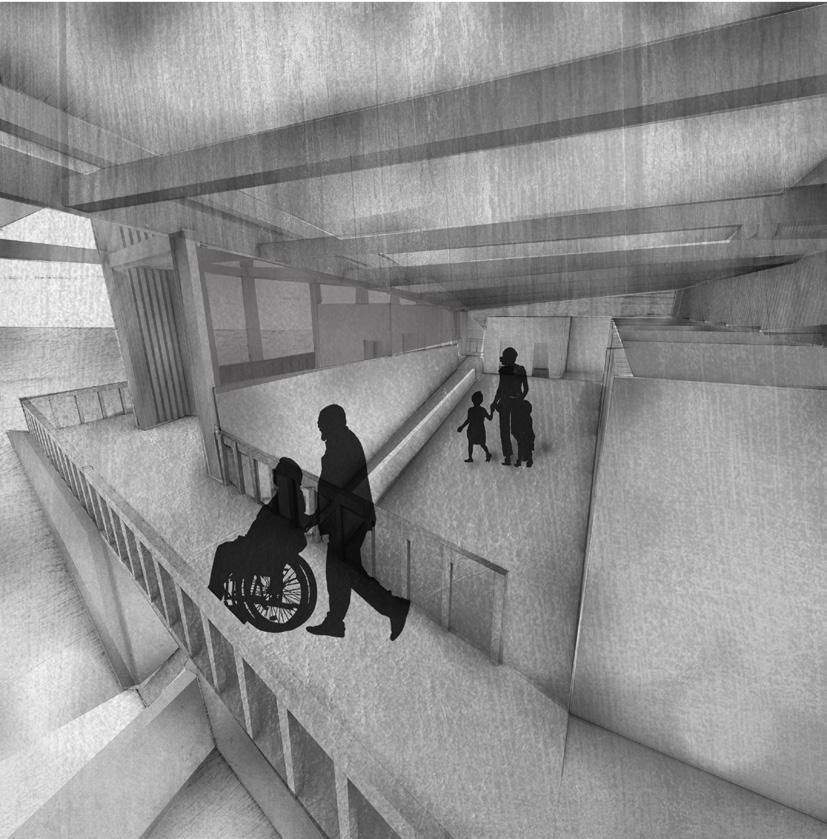

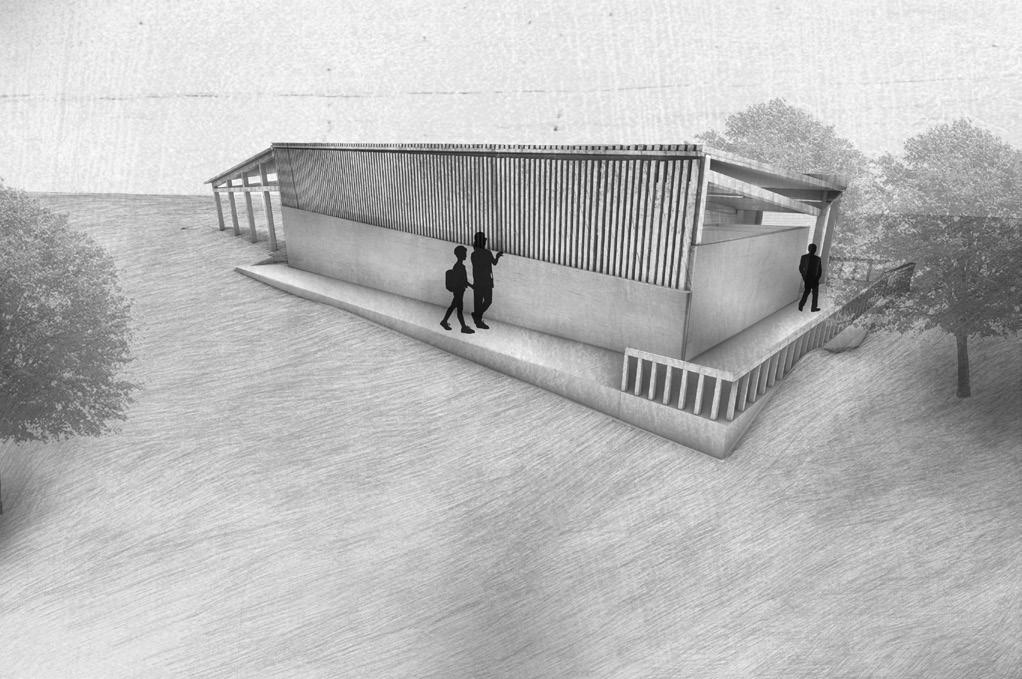

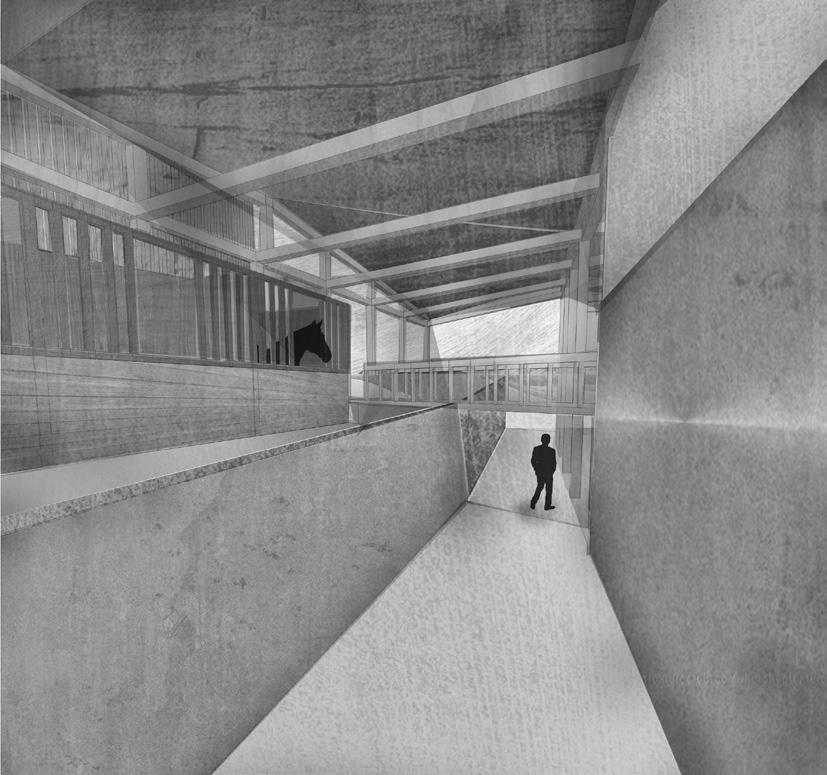

Renderings

03

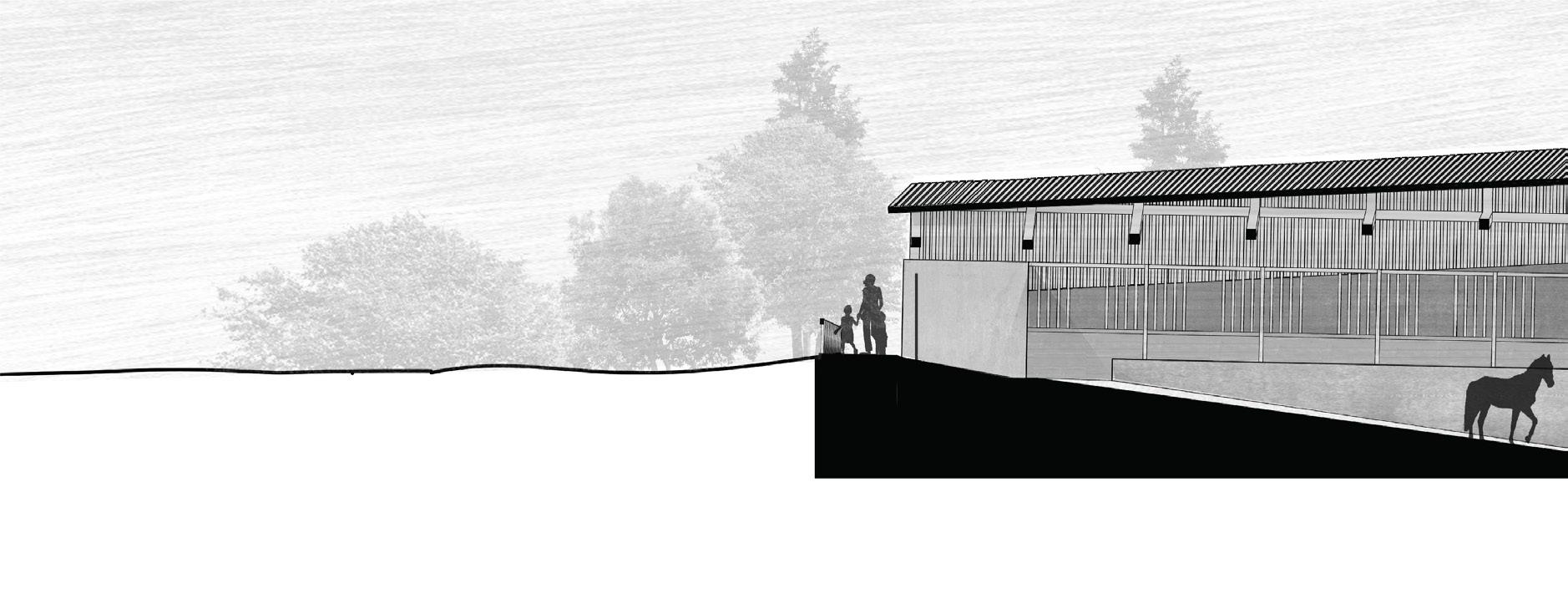

Section AA 1/16” = 1’

Section AB 1/8” = 1’

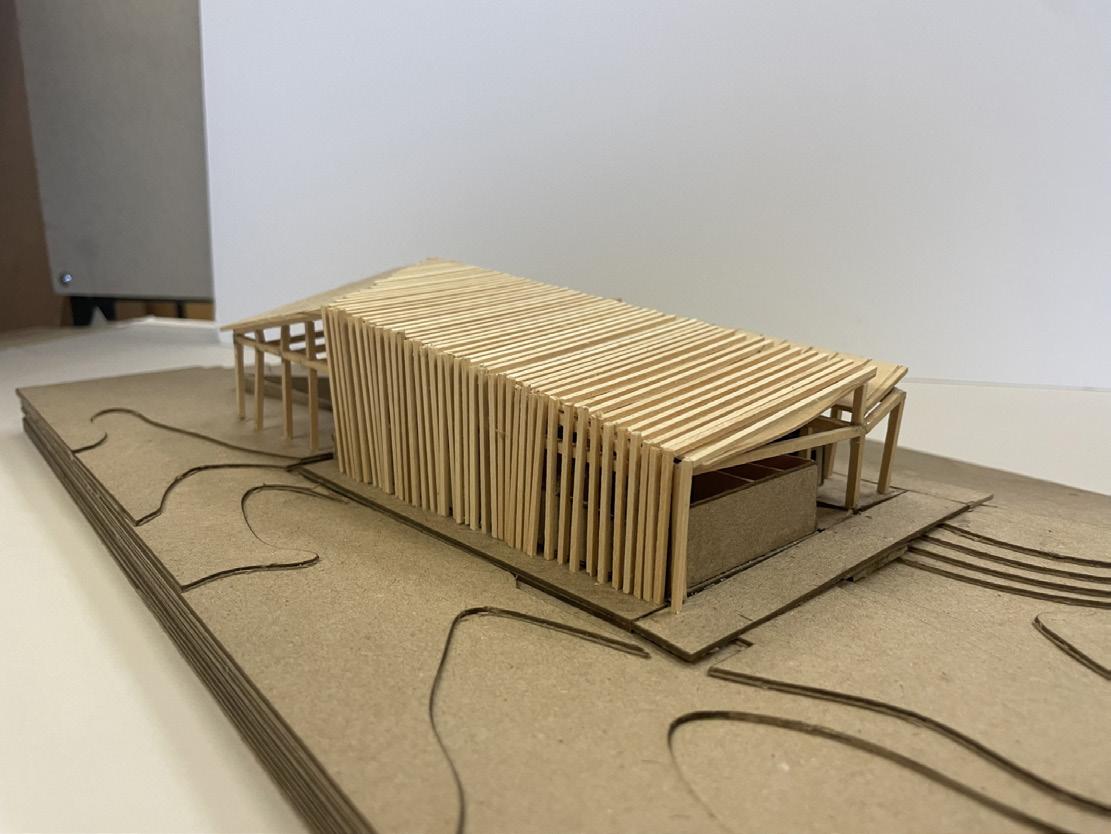

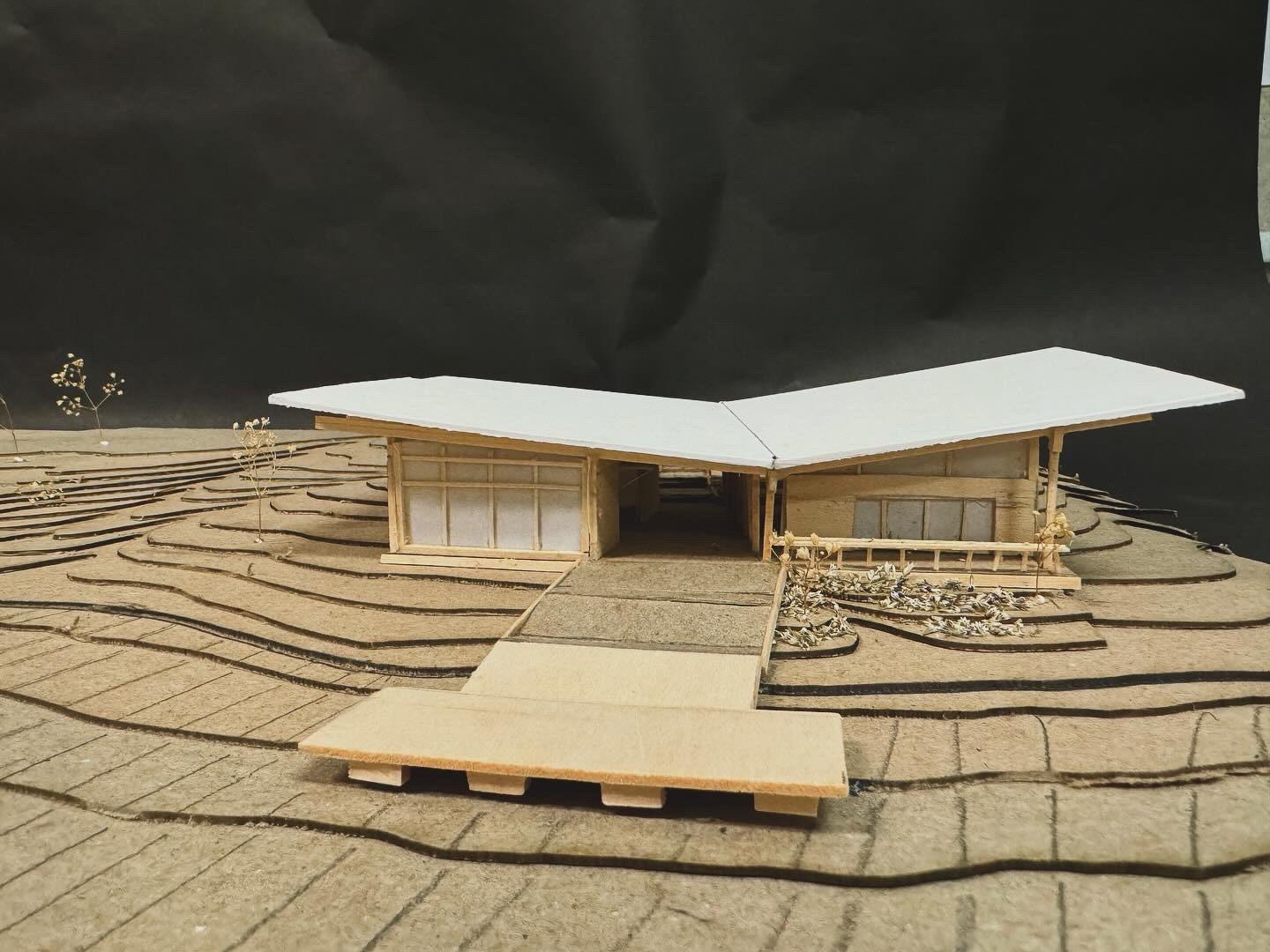

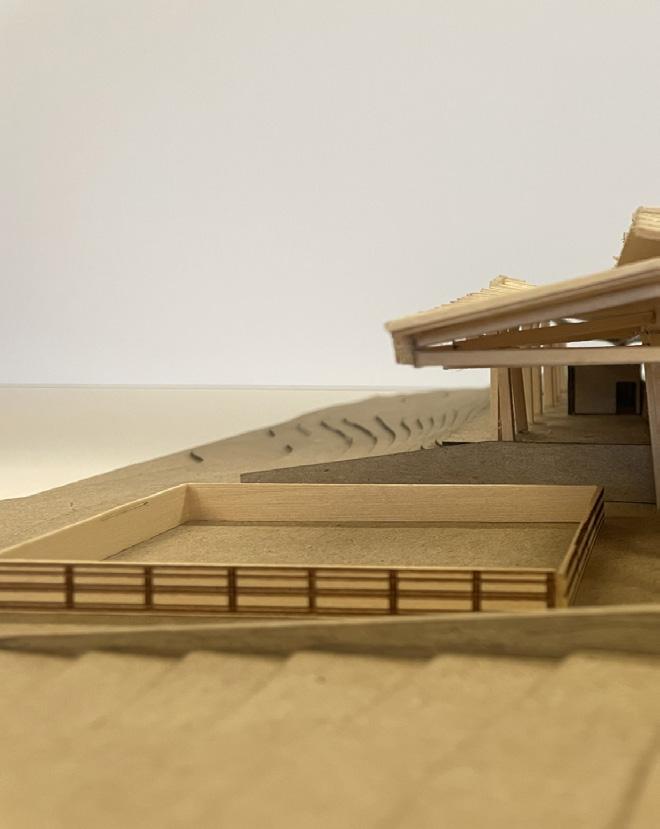

Model Photos

04

NORMAN URBAN FARMING CENTER The main concept of this project was to make a center where people can come and learn about different ways to farm. The viewer would be immersed in different parts of nature throughout the building. Each section of the building is separated by a series of parallel walls. These walls connect the greenhouse, outdoor cafe area and the hydroponic space. This natural flow creates an environment where the viewer can’t tell whether they are inside or outside. The circulation was designed initially using a parti diagram exercise and ultimately the design came together through assigning the program.

04

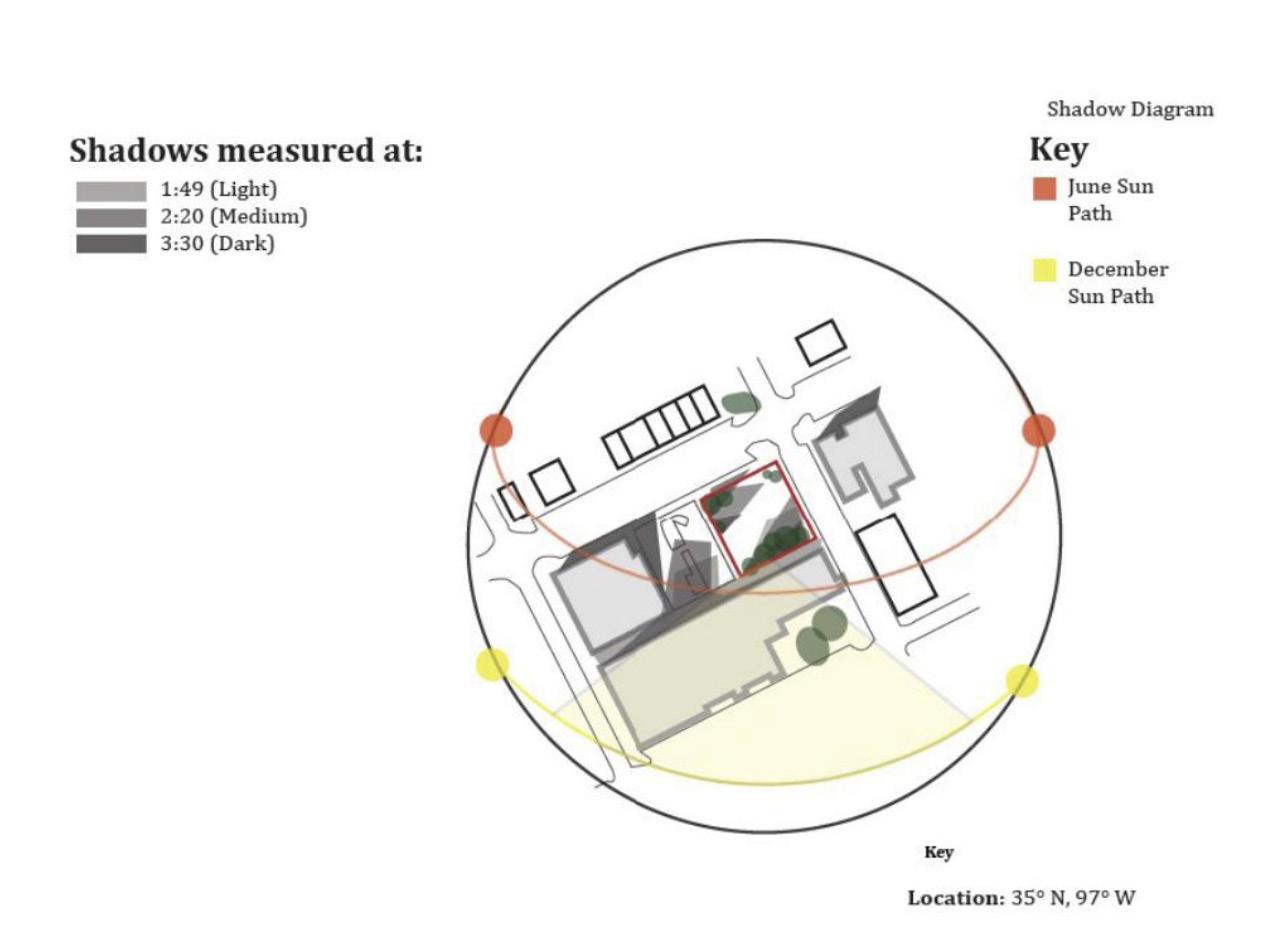

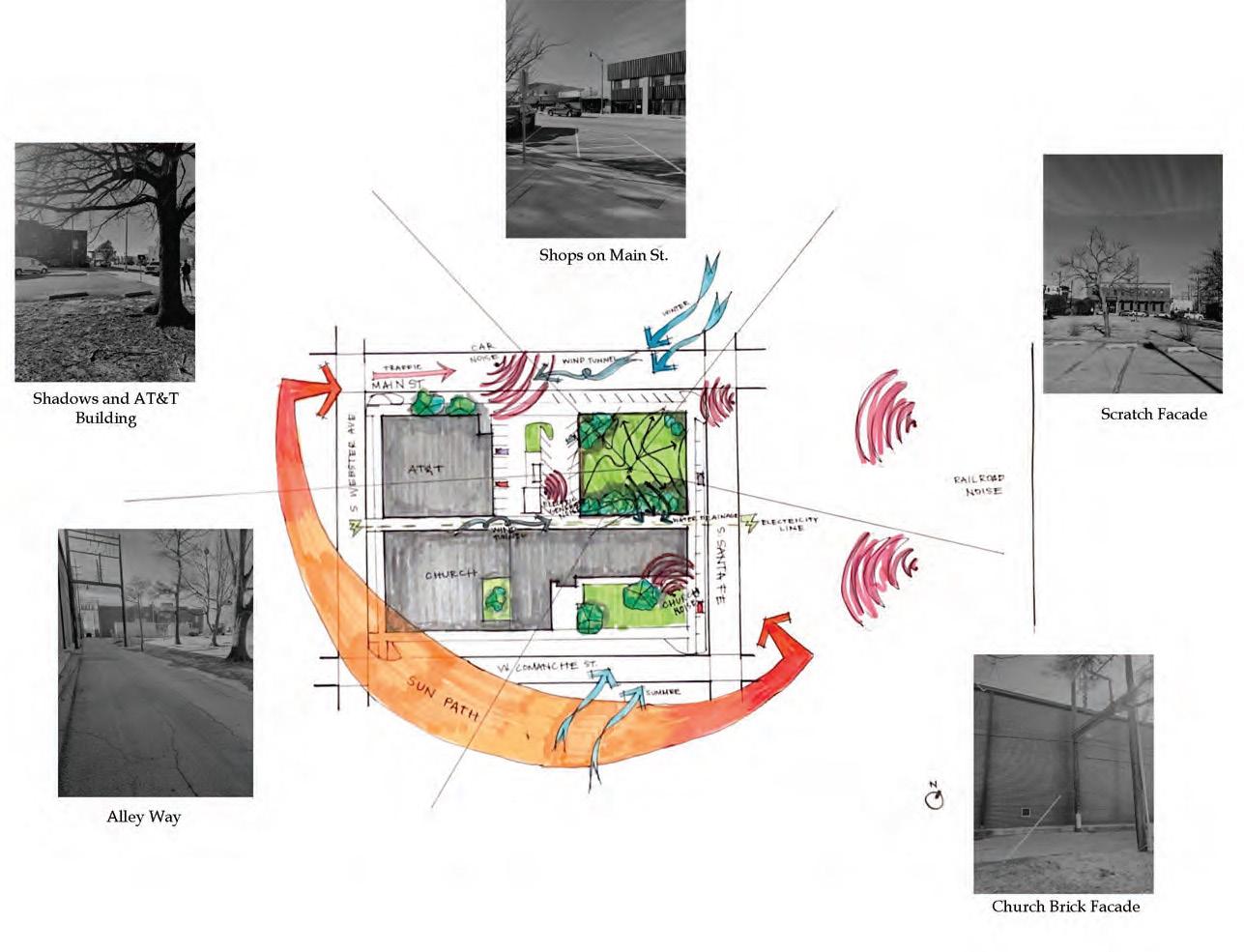

Shadow Diagram

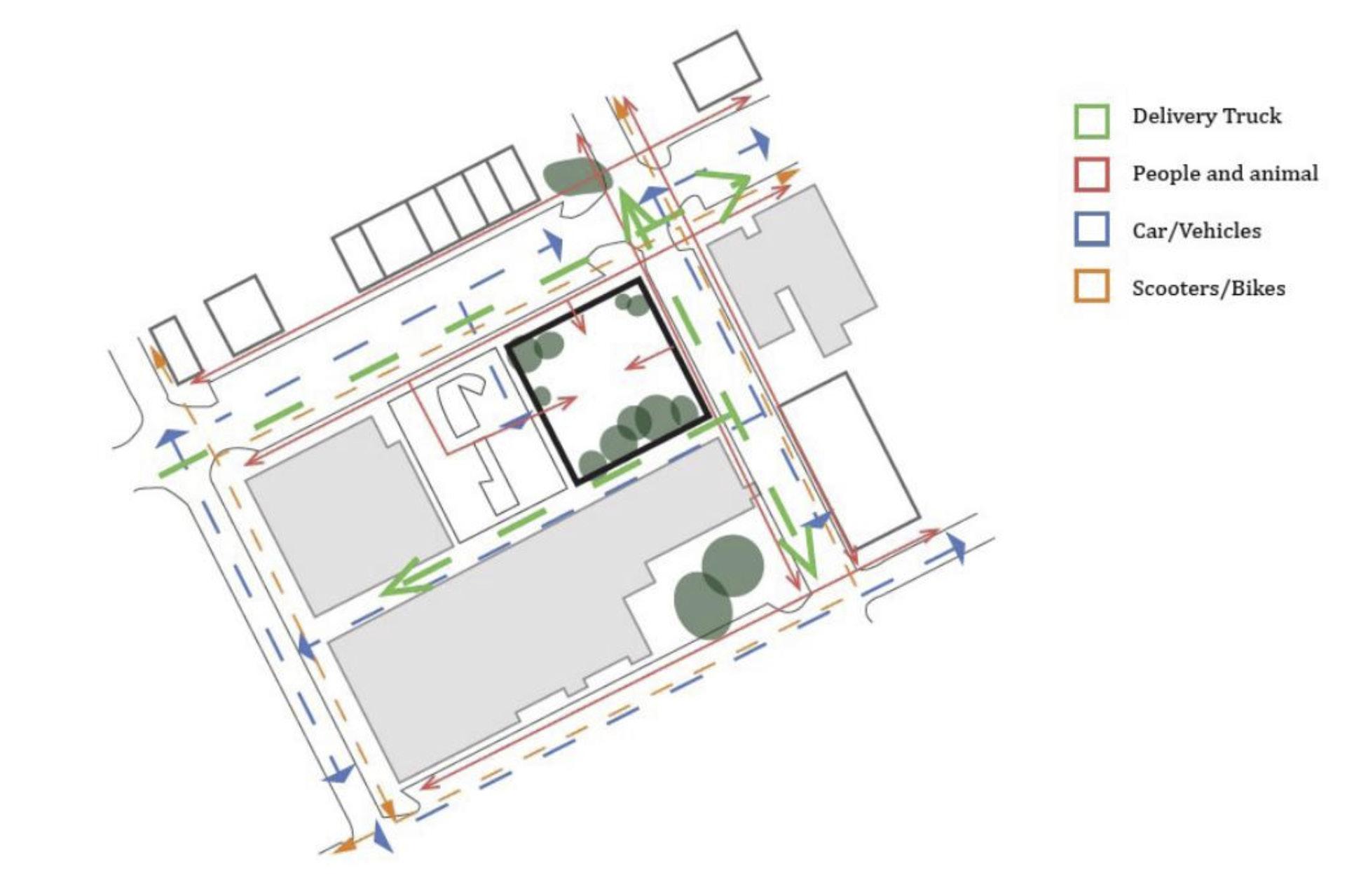

Circulation Diagram

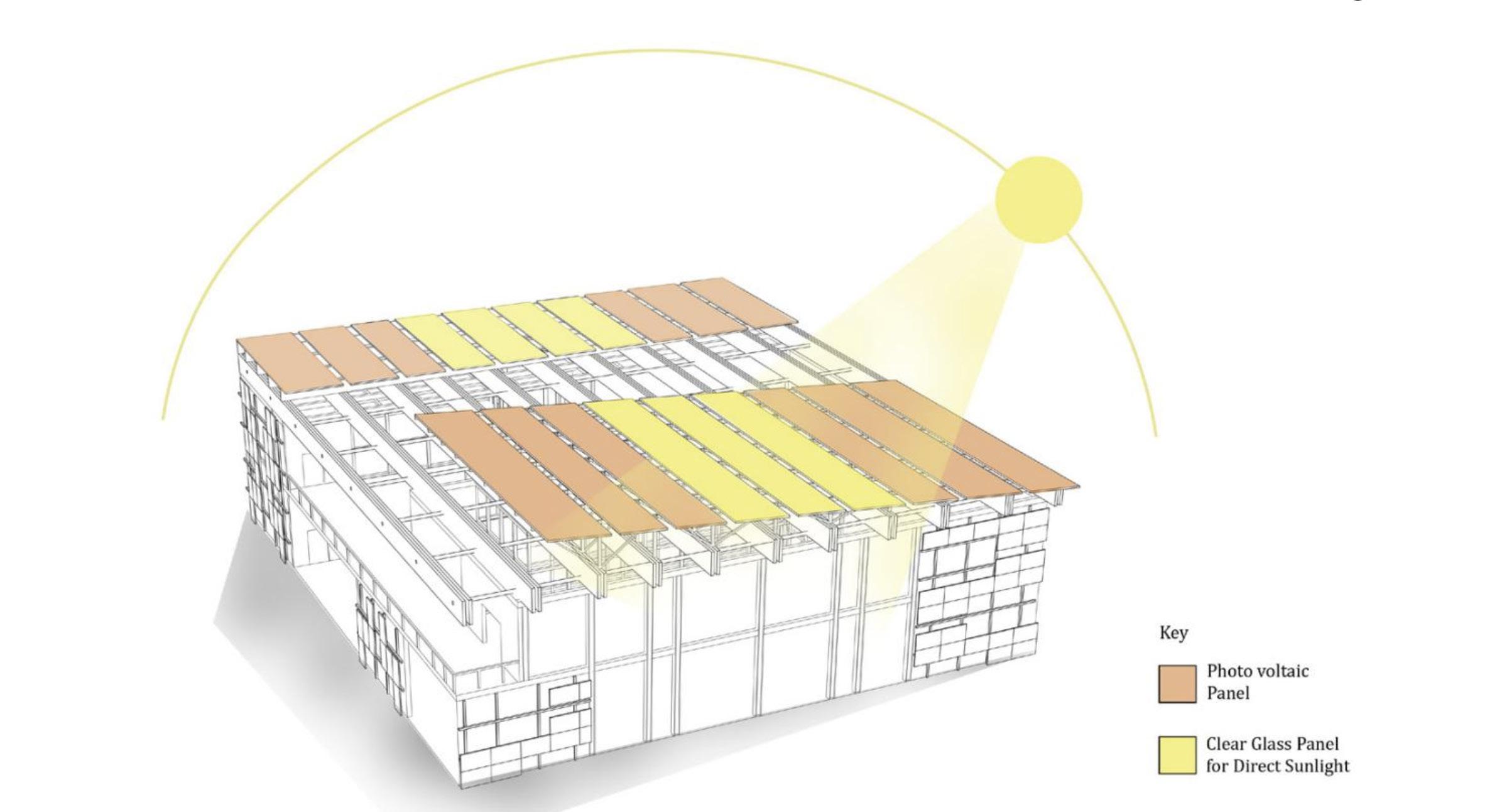

Solar Panel Diagram

Roof Axon Diagram

04

Floor Plan Level 1

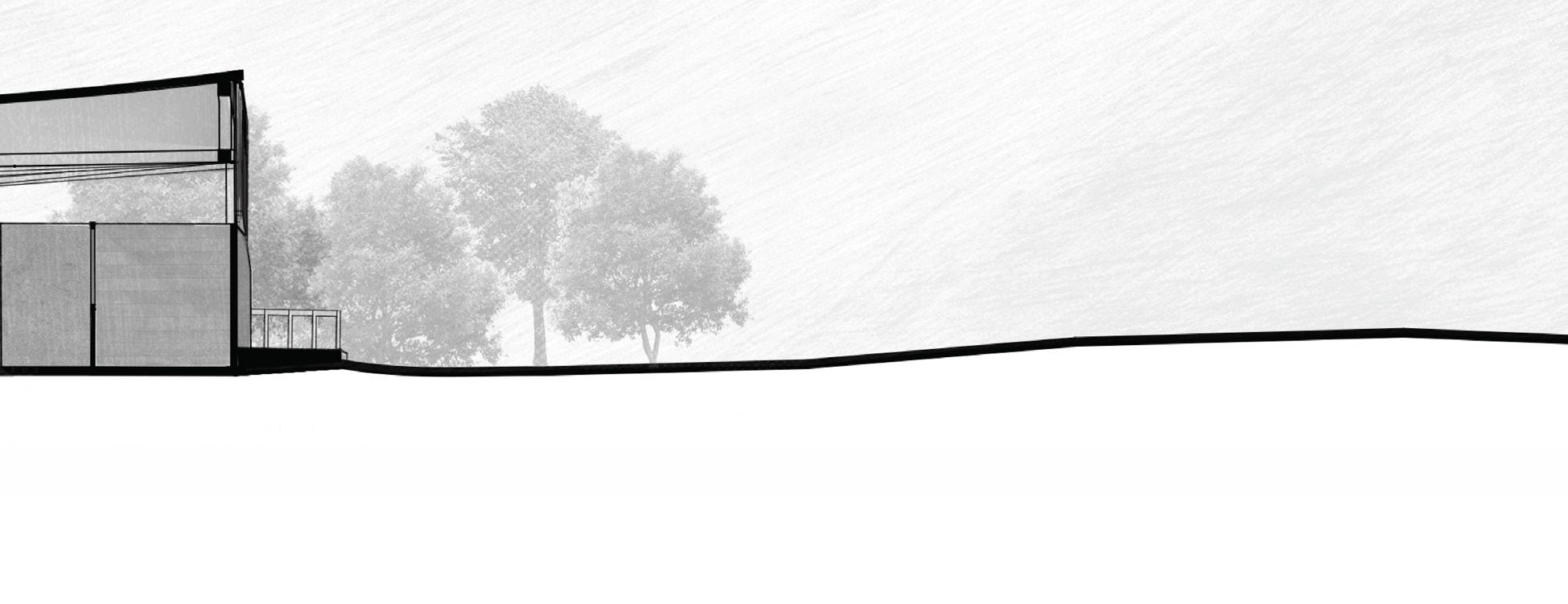

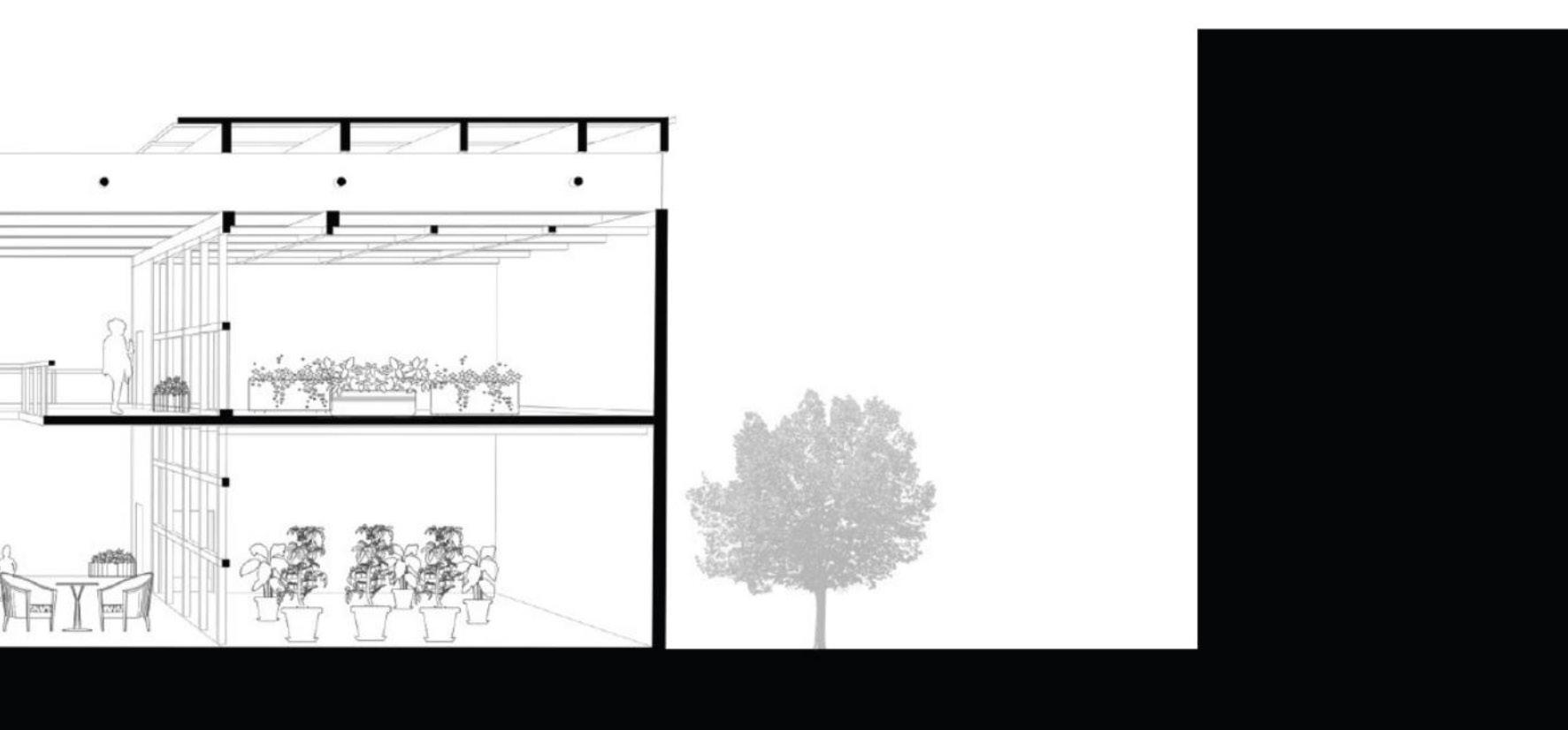

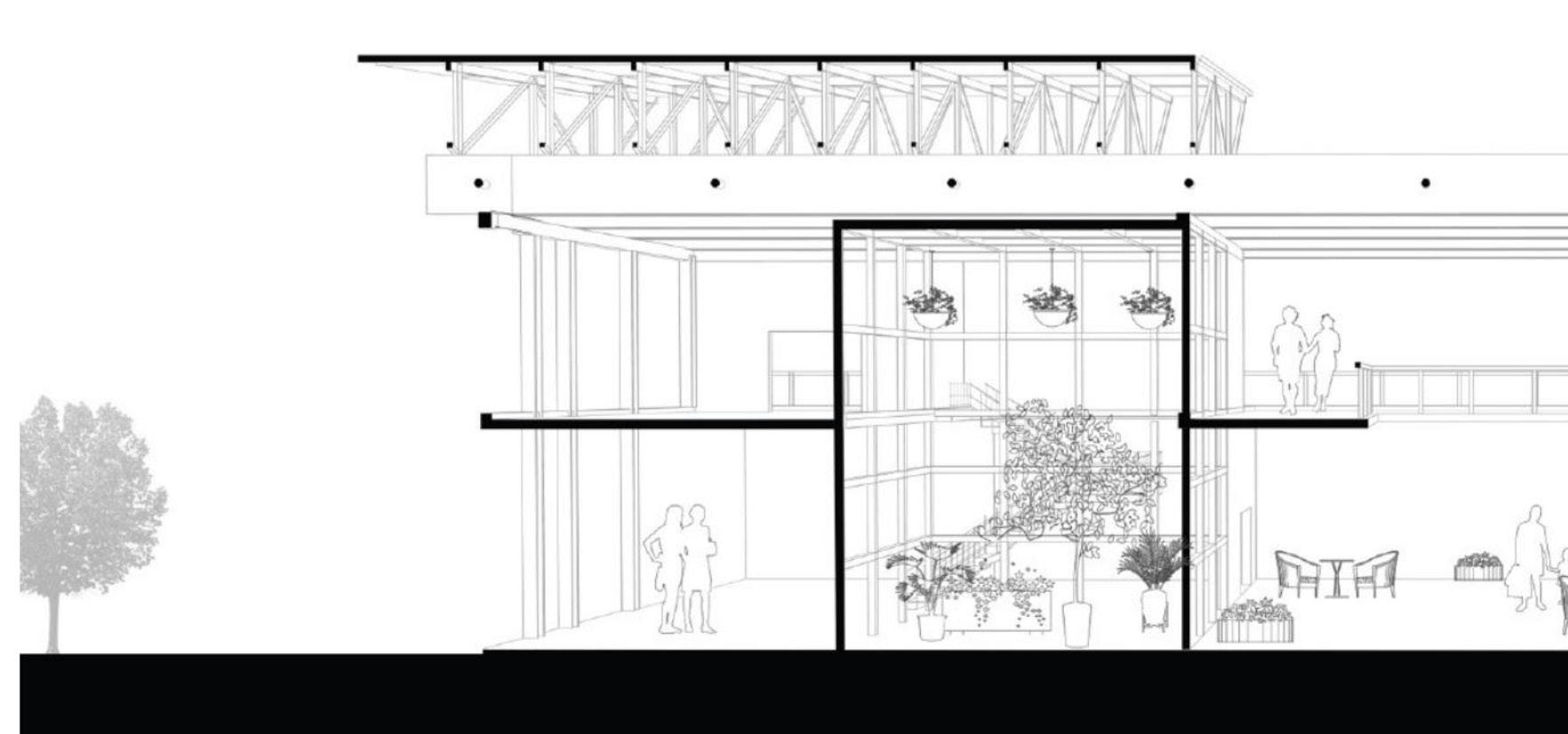

Section A 1/16” = 1’

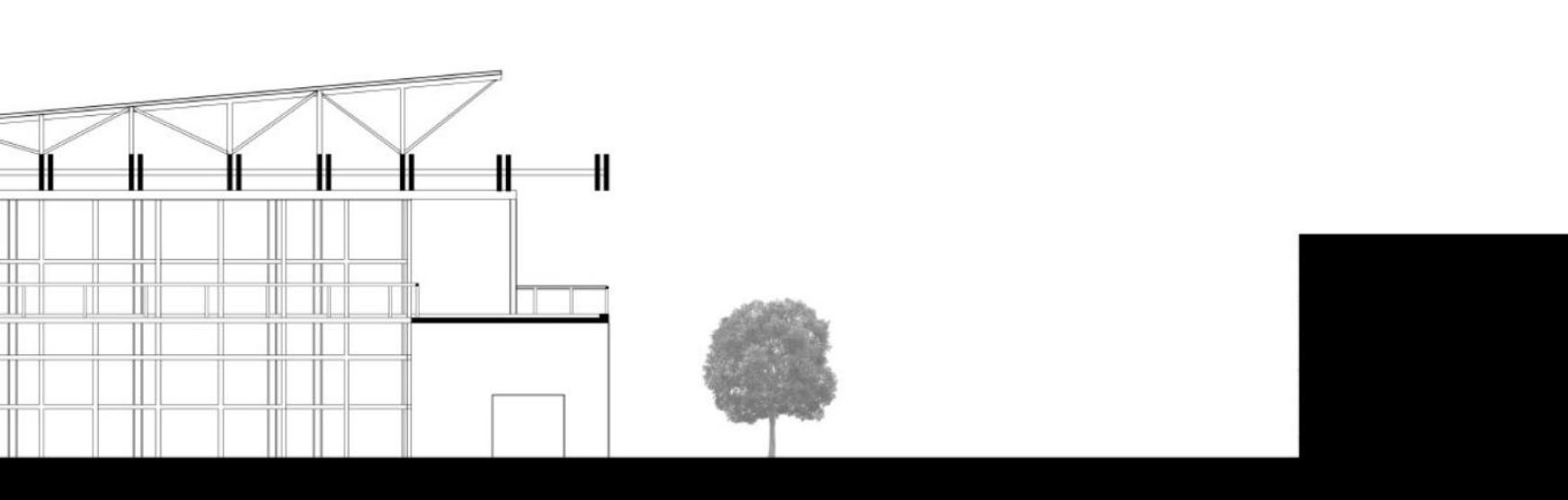

Section B 1/8” = 1’

Floor Plan Level 2

04

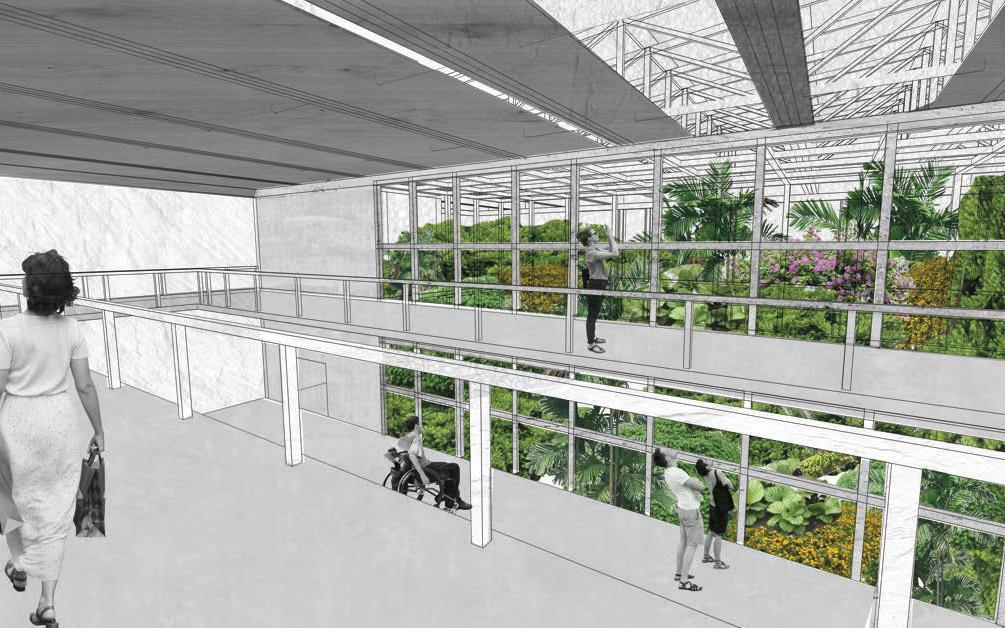

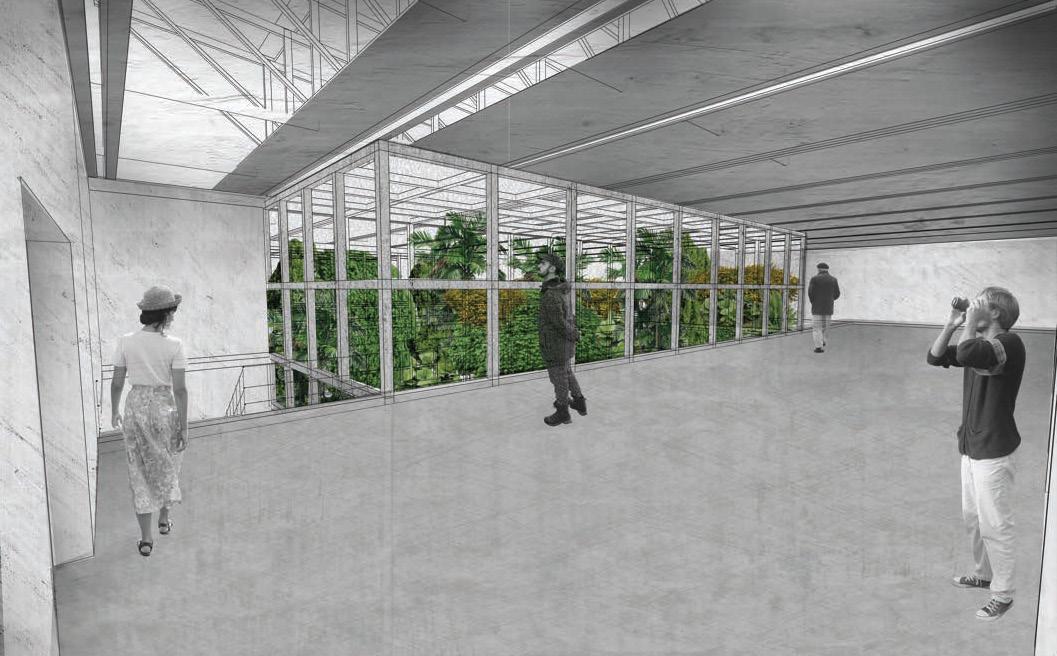

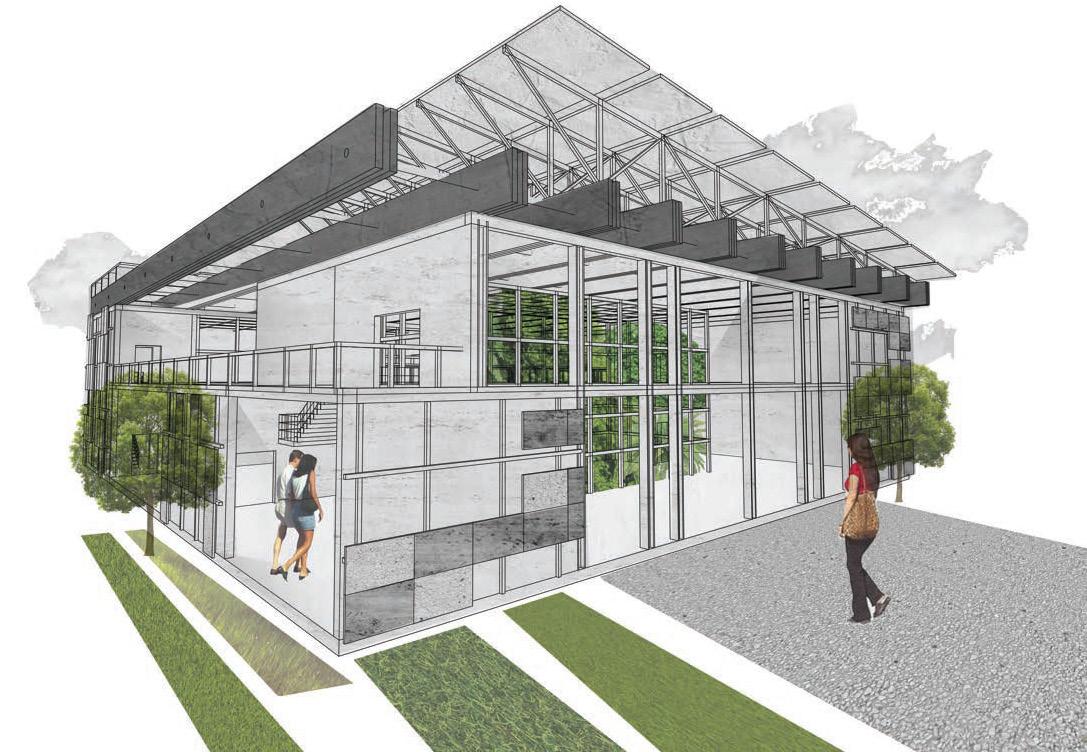

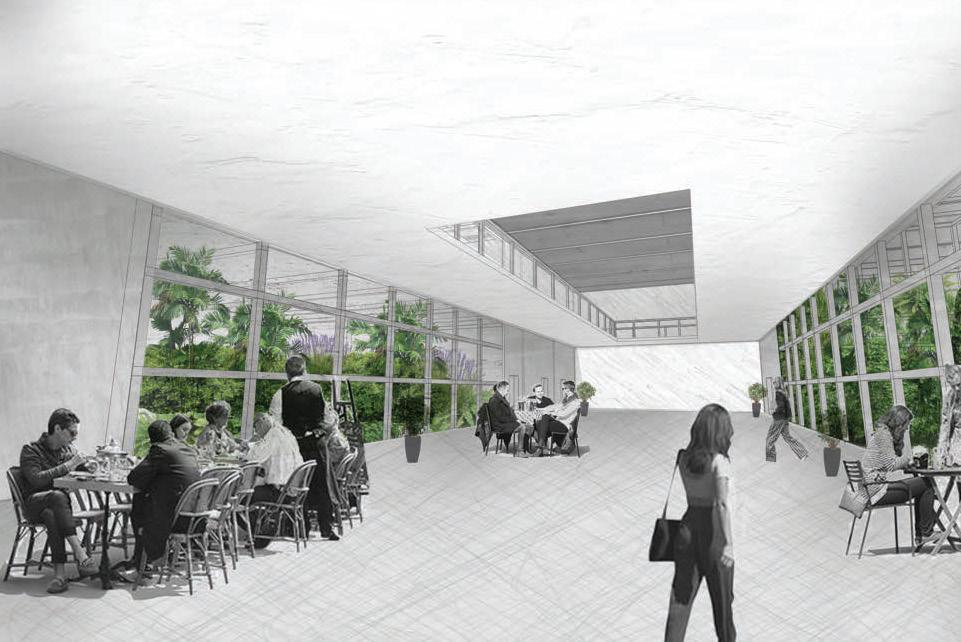

Renderings

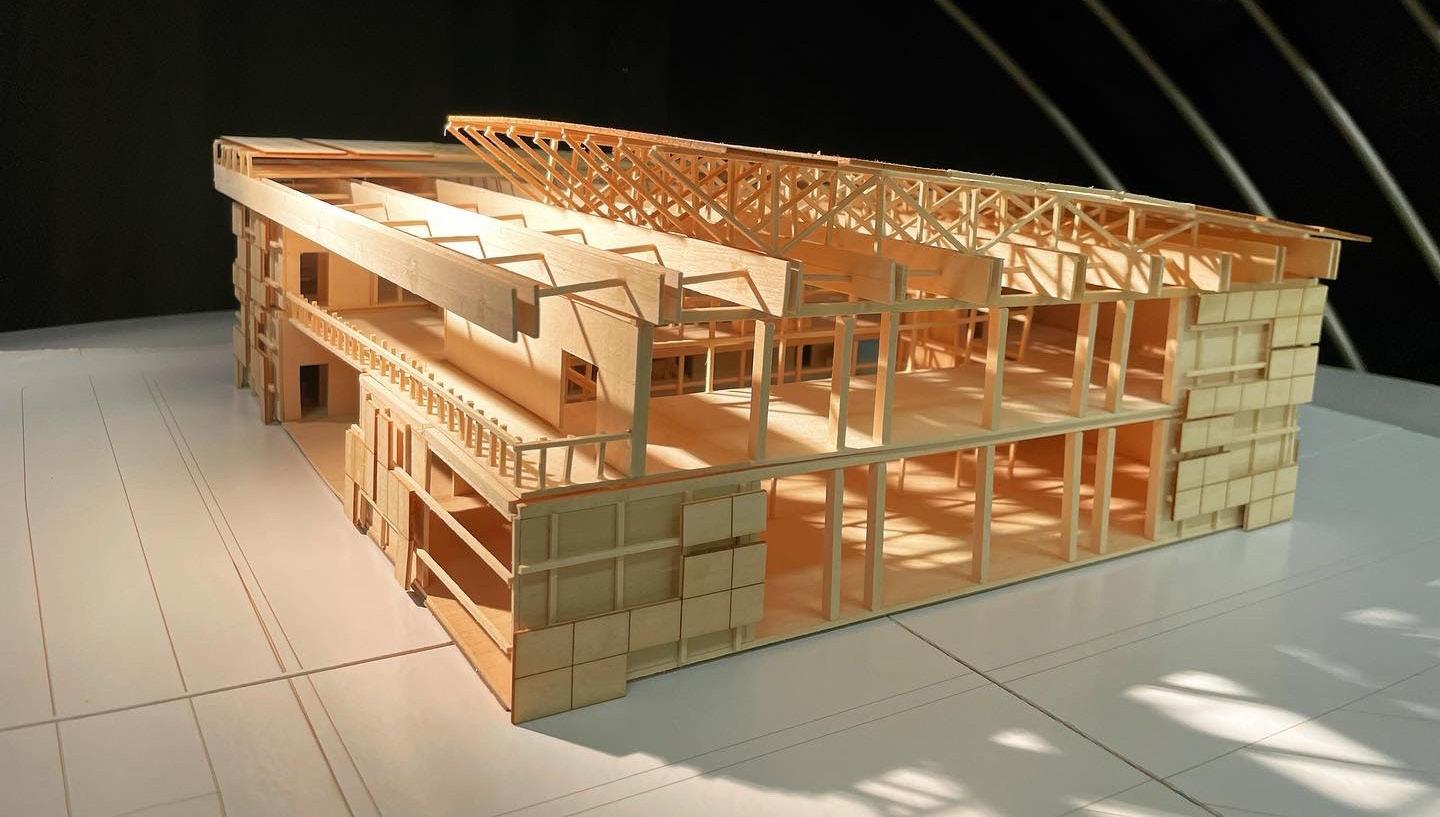

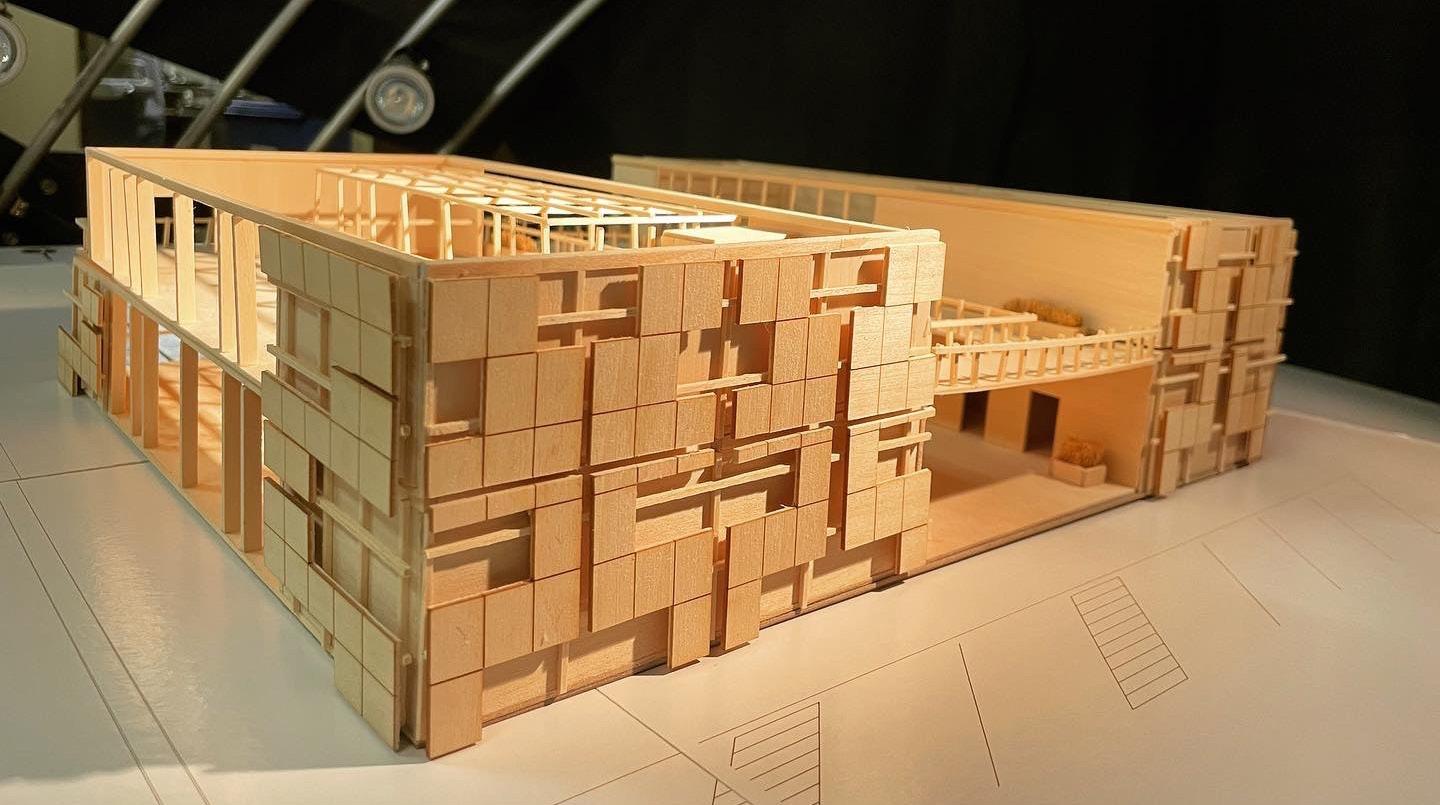

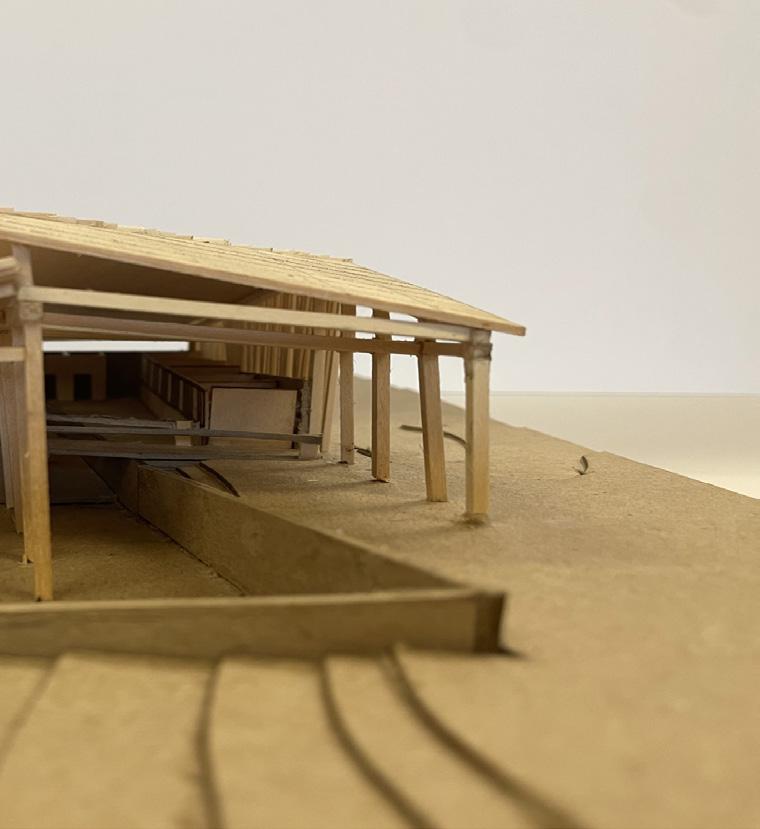

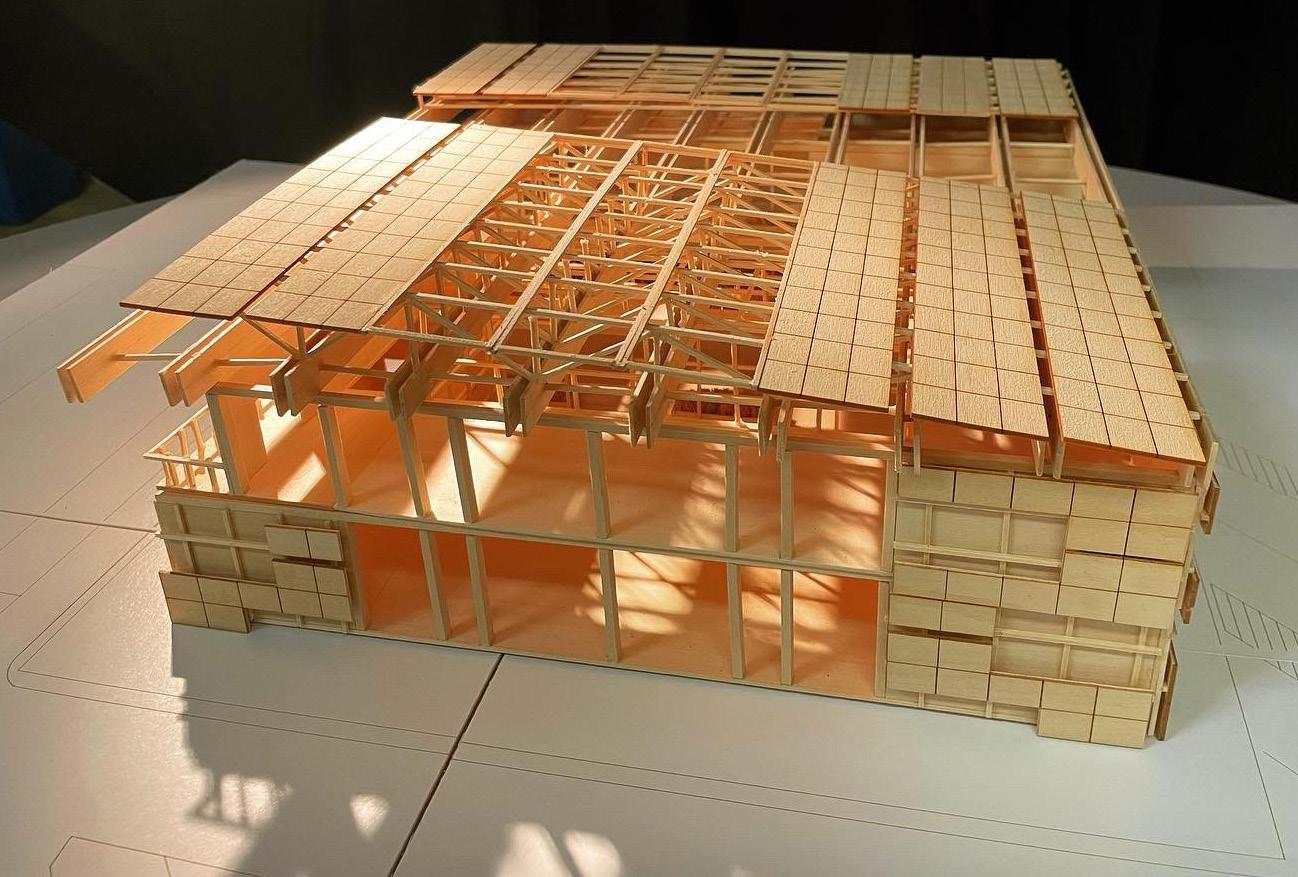

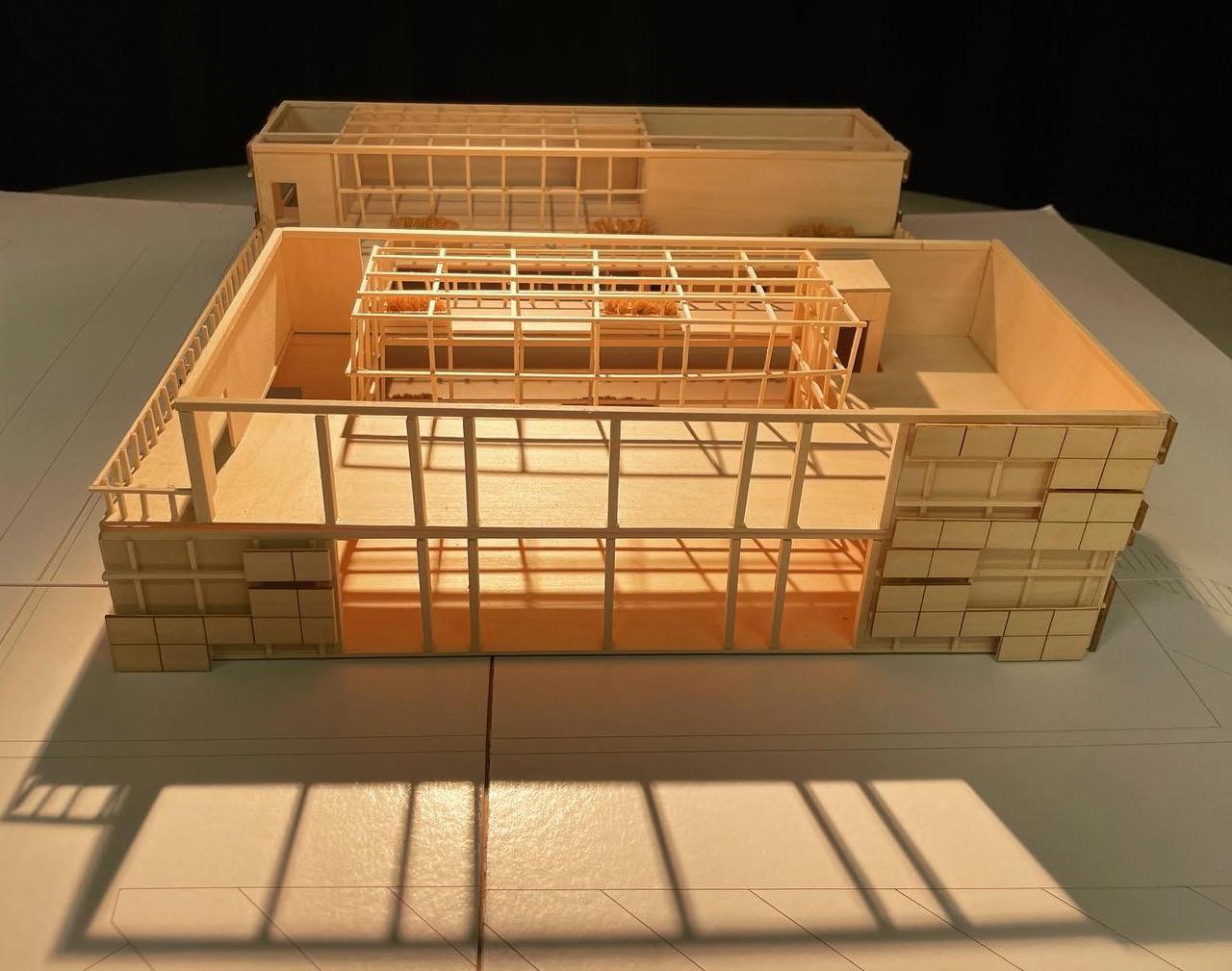

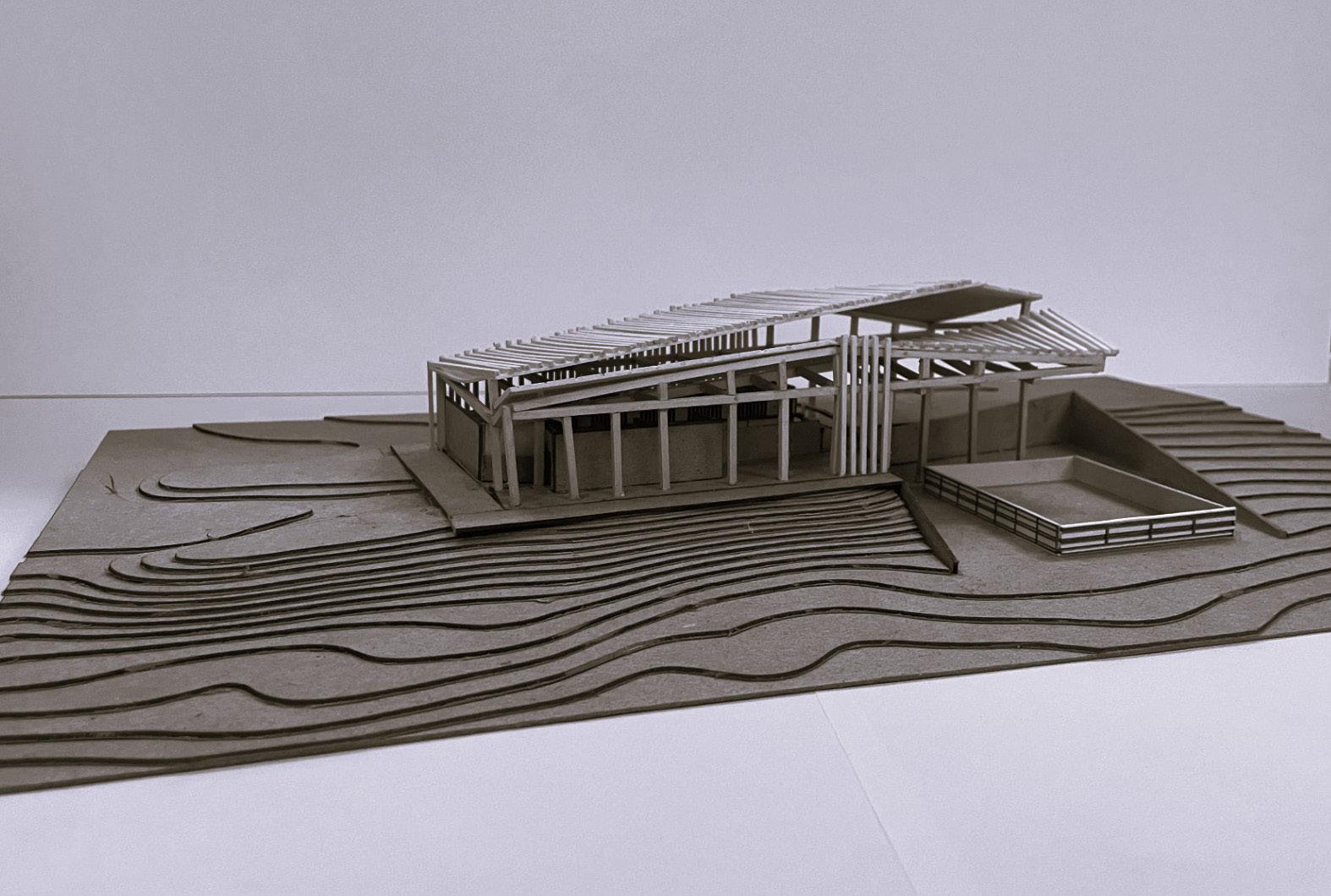

Hand made Model

05

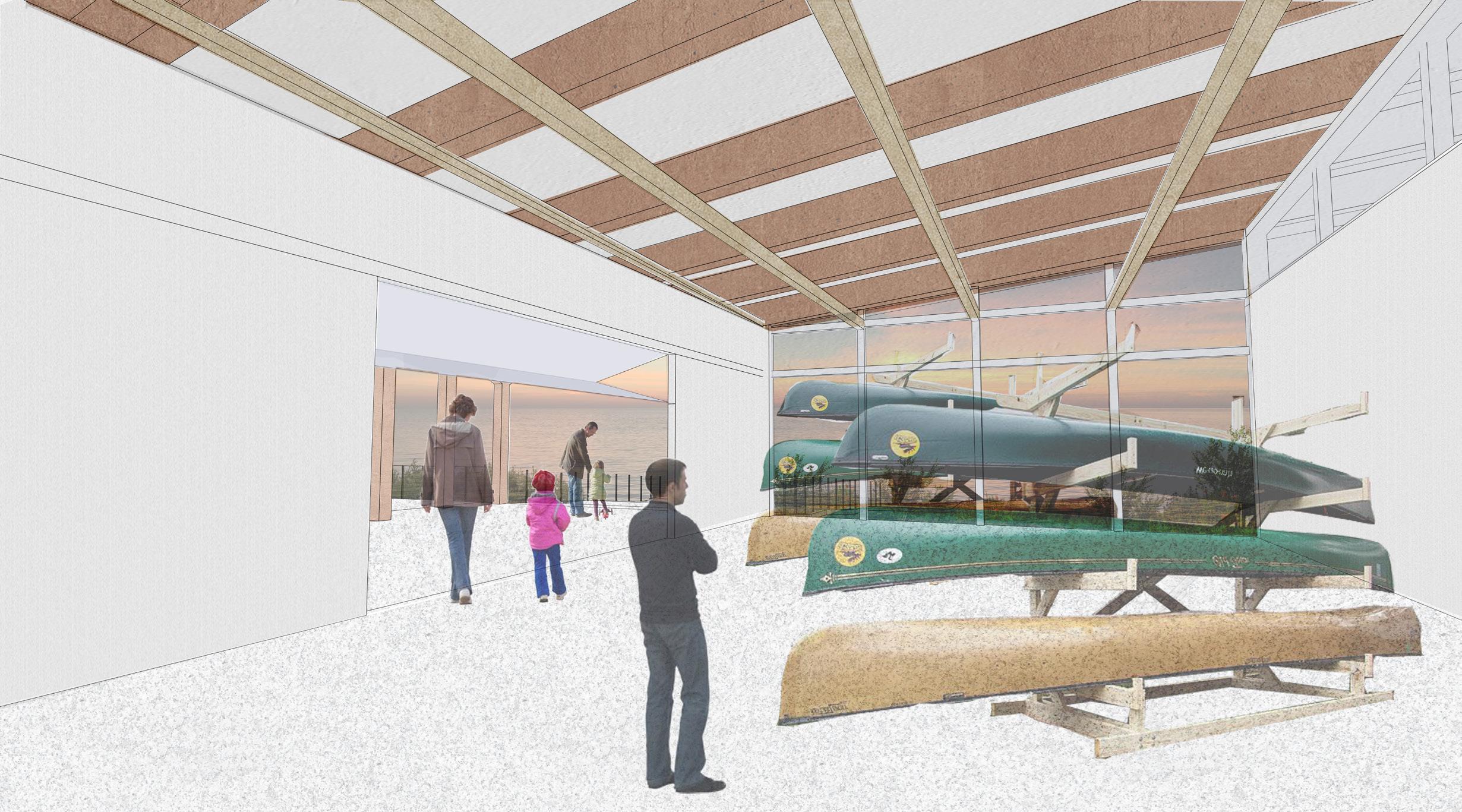

NORMAN BOAT HOUSE The Lake Thunderbird Boat house explores two main concepts while battling the problem of accessing the building on a sloped site. Upon arriving at the site you are greeted with a pathway that braids down the slope, connecting pathways with terraced planters. There are central stairs leading down to the building and a winding ramp that intertwines with the stair landings. Once you arrive at the building, there are two separate functions connected by a gathering circulation space under one roof. The spaces connect in a way that viewers are able to see the boat storage and people walking down to the water. The central axis leads down to the water to a hinge connected dock. Looking back up from the water you are able to see the axial connection of the building and people gathering outside as well as the braiding landscape. This space allows for its guests to celebrate nature and wate activities.

05

8

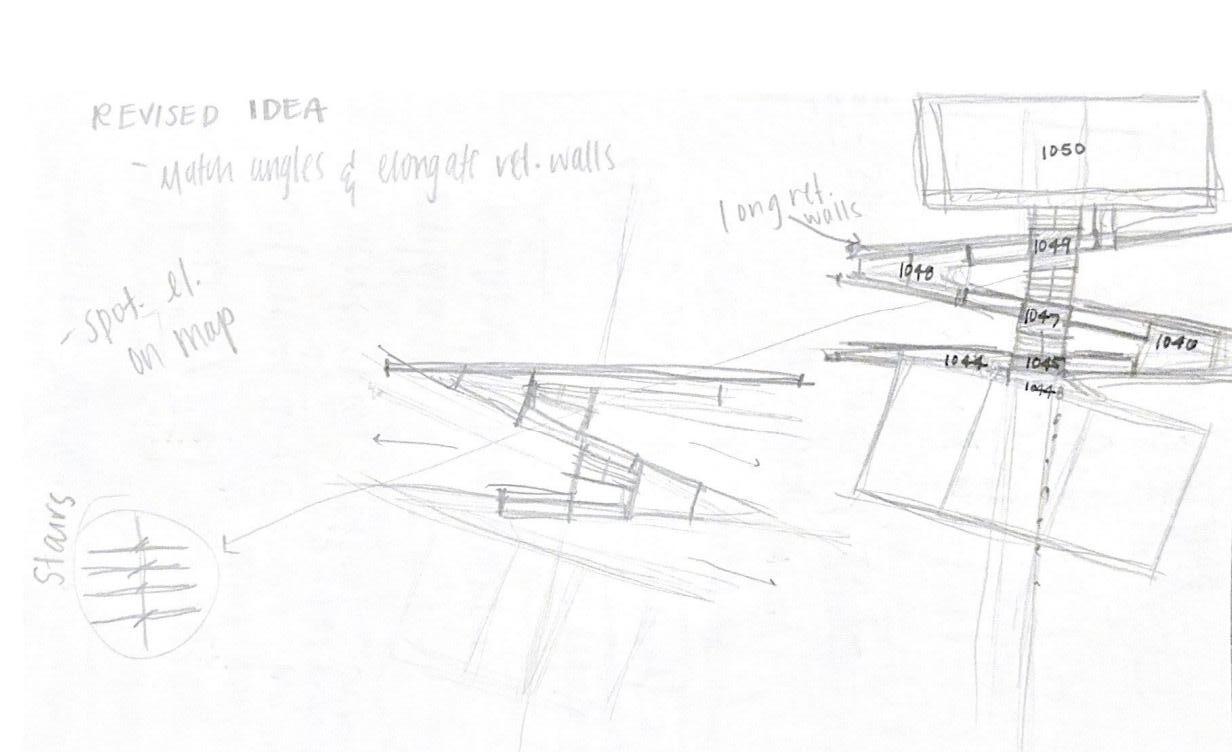

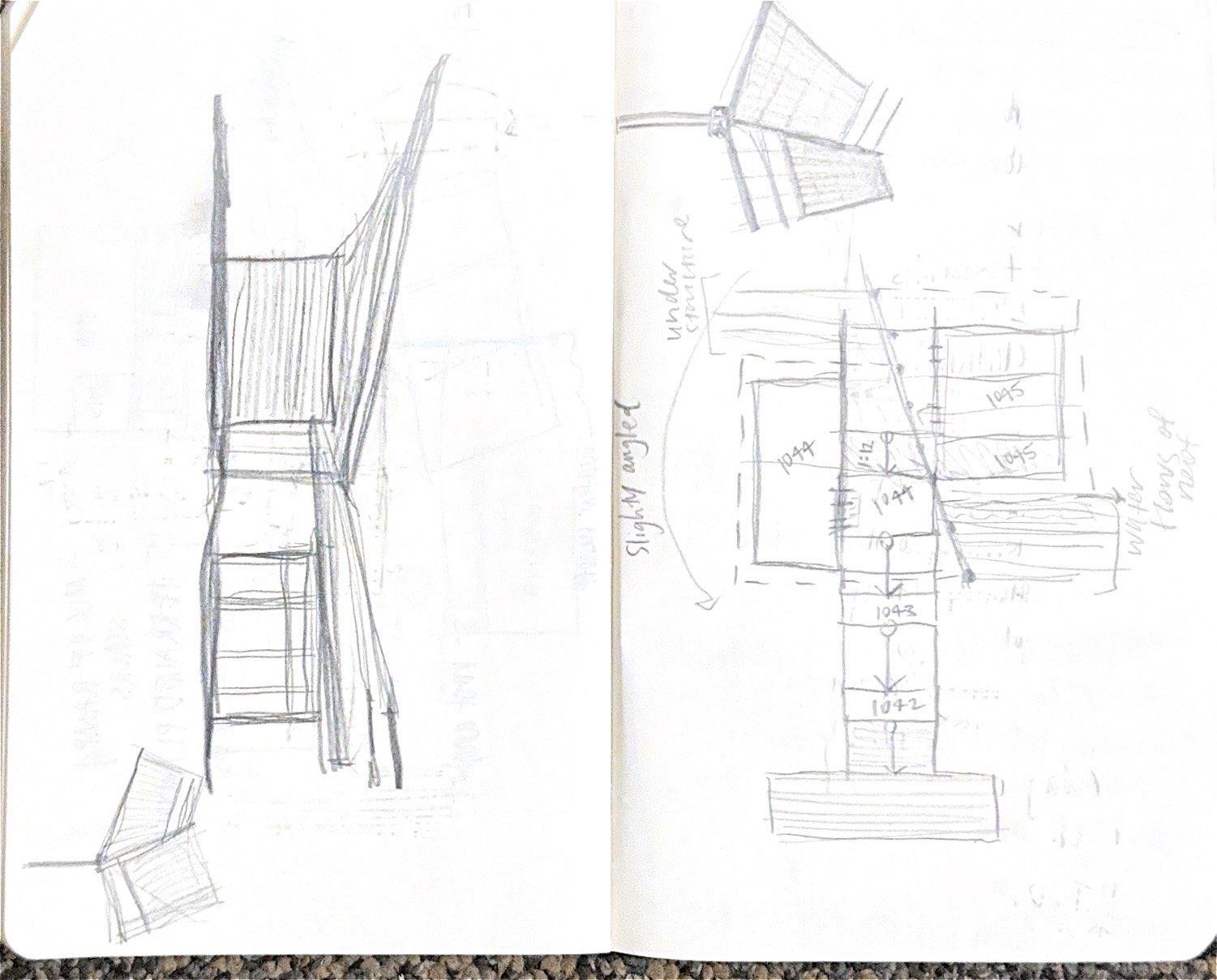

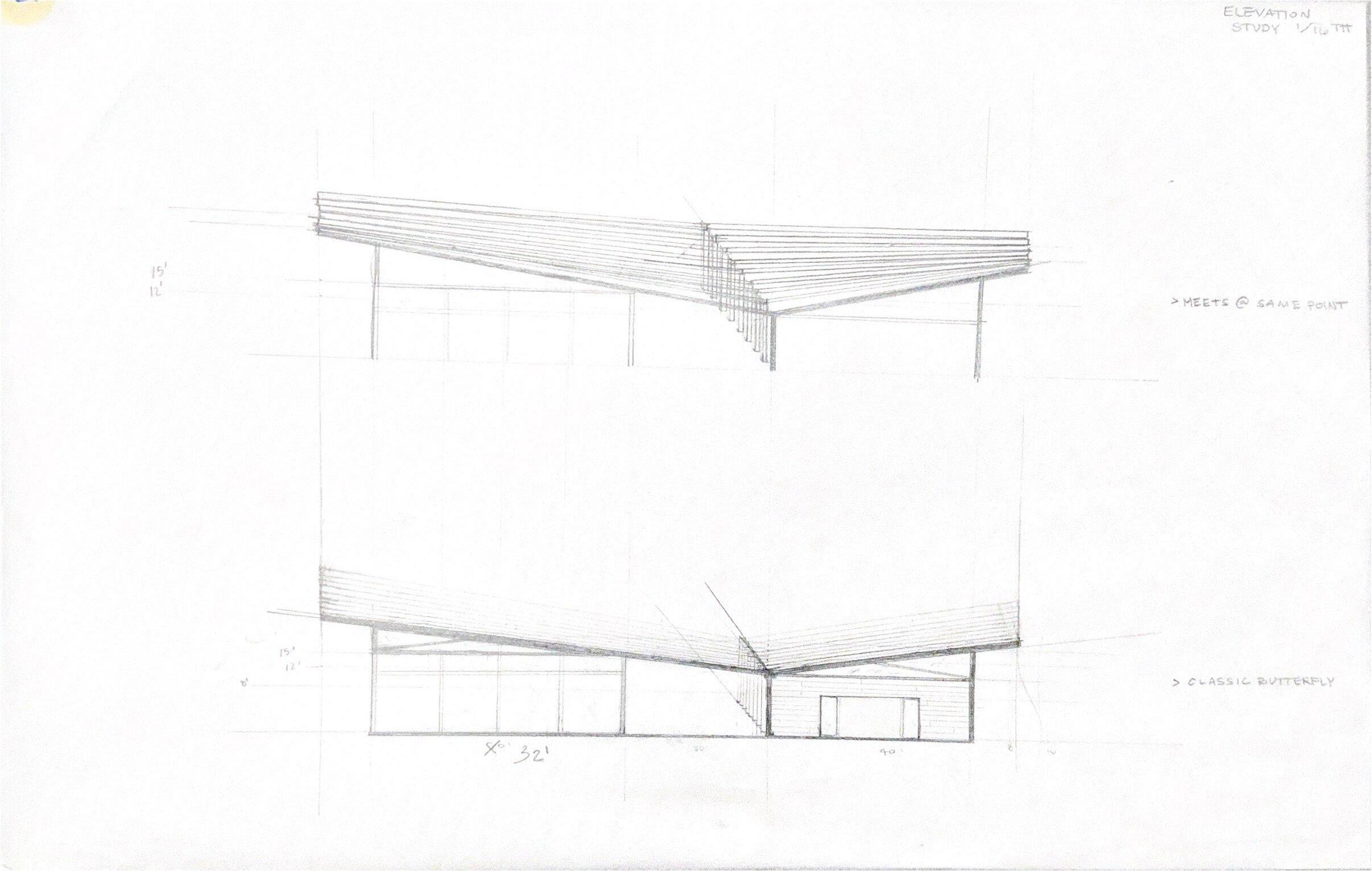

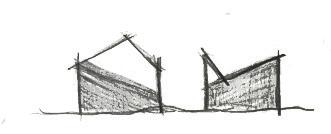

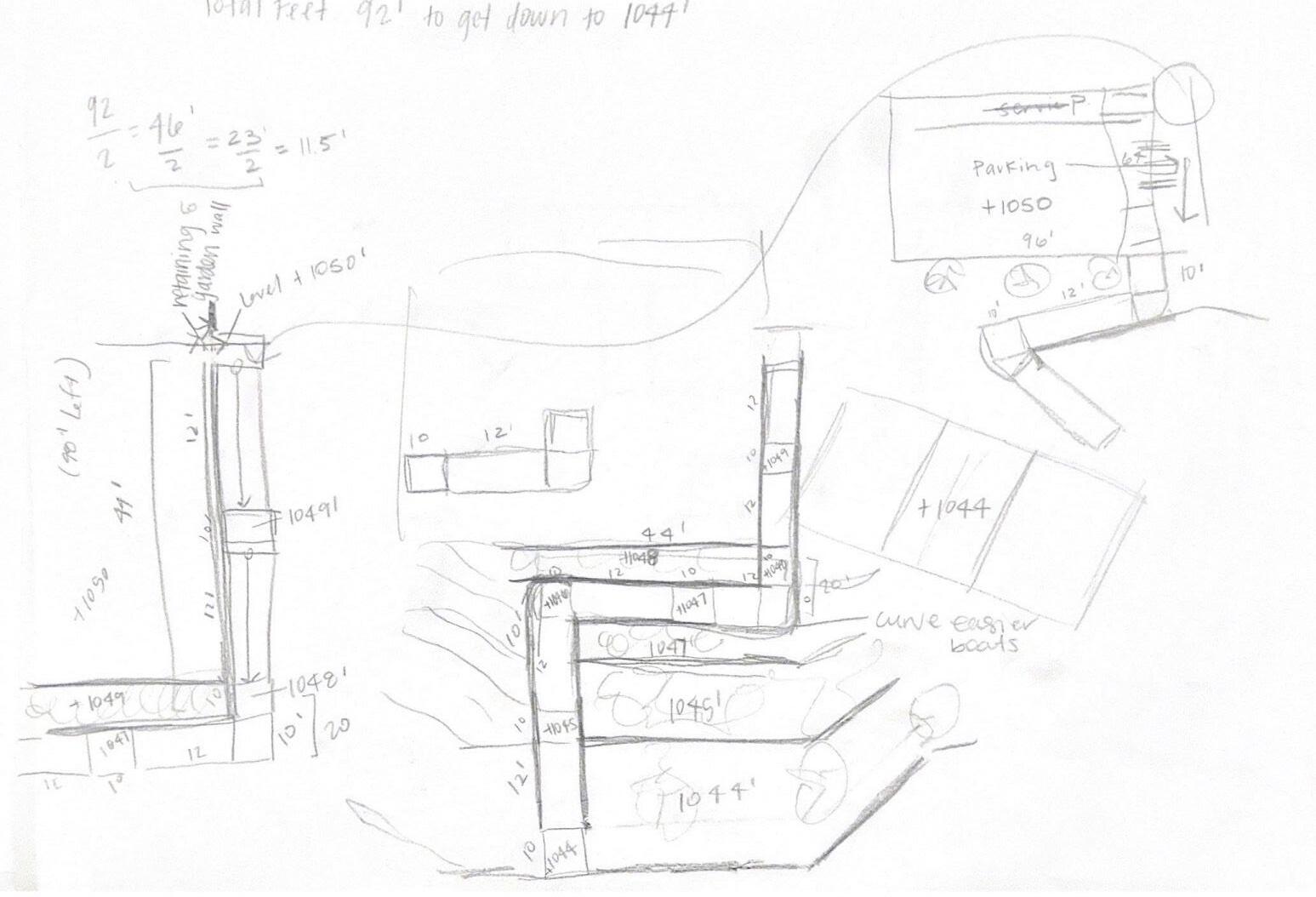

Sketches

Little River Marina

Choctaw Rd

Site

Alameda St.

1052

1051

1050

1052

HPS 1053

+1051.5

1051

HPS 1053

+1051.5

1049

1050

1048

1049

1047

1048

1047 10%

10%

TS 1050

TS 1050

10%

+1050.5

1050 +1050

1050

1:12

1045

BS 1047.25

+1049

TS 1047

TS 1047

+1046 BS 1045.25 BS 1044.25

+1045

1046

BS 1044.25

+1044

TS 1045

TS 1045

1:12

+1044

1044

1:12

+1045

1043

+1046

+1047

BS 1045.25

1047

1045 1:12

1049

1043

1048

+1047

1044 1048

1049

BS 1047.25

+1048 +1048

1046

+1050

TS 1049

TS 1049

1:12

1046

1044

1:12

+1049

1047

+1050

BS 1049.25

BS 1049.25

1049 1048

1045

8.3%

10%

8.3%

+1050.5

8.3%

10%

1046

1043 1045

+1044

1042

1044

1042 1042

1041

+1044

1041 +1044

1040

+1044

1041

+1044 1040

+1044 1040

+1044

Avg. Water 1039

+1043

1040

+1042

Avg. Water 1039

+1041-1040

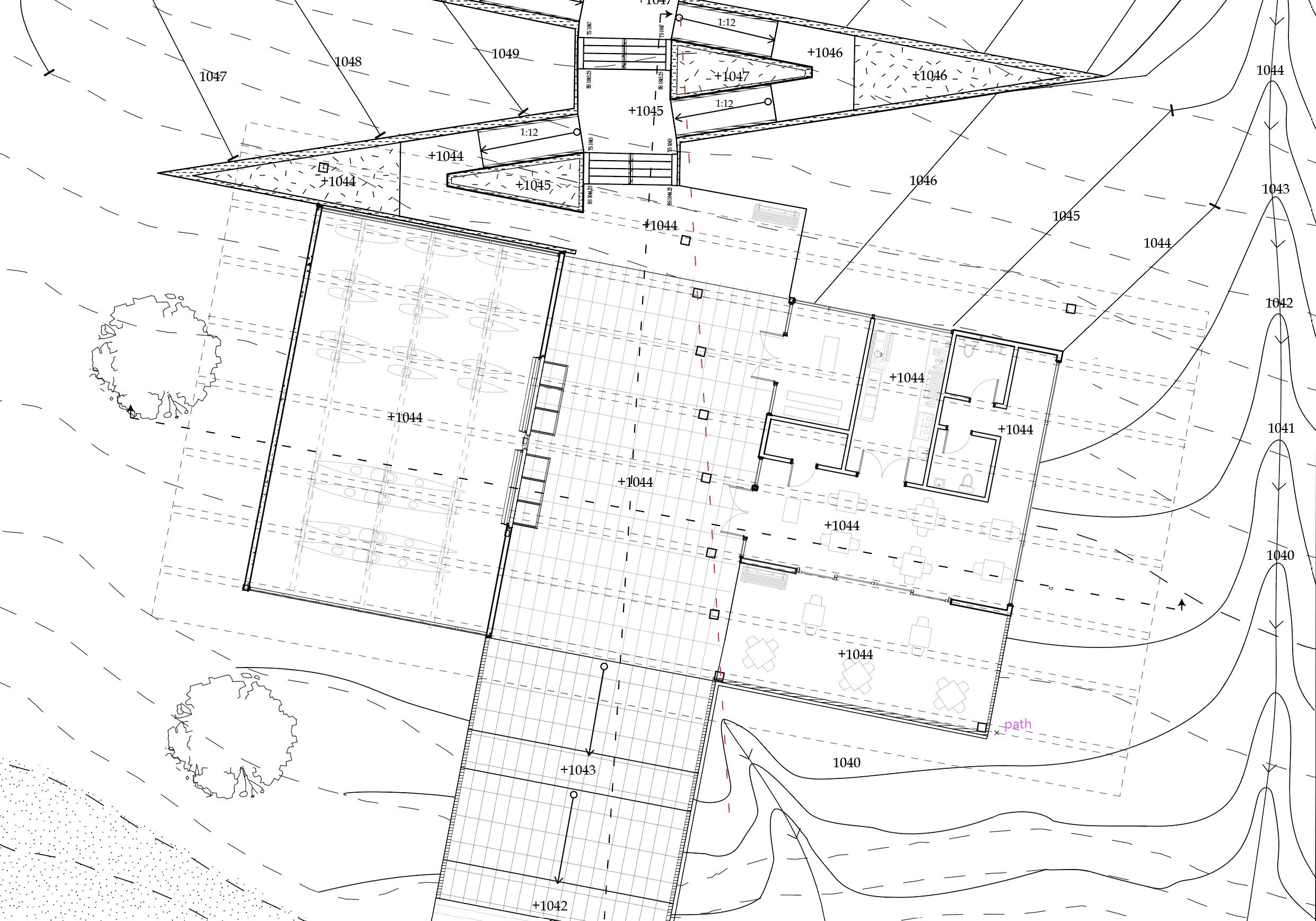

Floor Plan 1/16” = 1’

Floor Plan 1/8” = 1”

A

Car

Van

10%

10%

TS 1050

TS 1050

1050

Van

Car

10%

8.3%

8.3%

10%

BS 1049.25

BS 1049.25

_+1050 1049

1:12

1047

1:12

1050

BS 1047.25

+1049 BS 1047.25

+1048

+1048

TS 1049

1:12 B

TS 1049

+1049

1048

1:12

TS 1047

TS 1047

+1047

+1047

BS 1045.25

BS 1045.25

1046

+1045

+1044

A

Detail Plan 1/8” = 1’

+1046 1049

TS 1045

TS 1045

BS 1044.25

+1044

BS 1044.25

+1044

+1046

B 1:12

+1045 1:12

+1050 +1050

1048

1047

1046

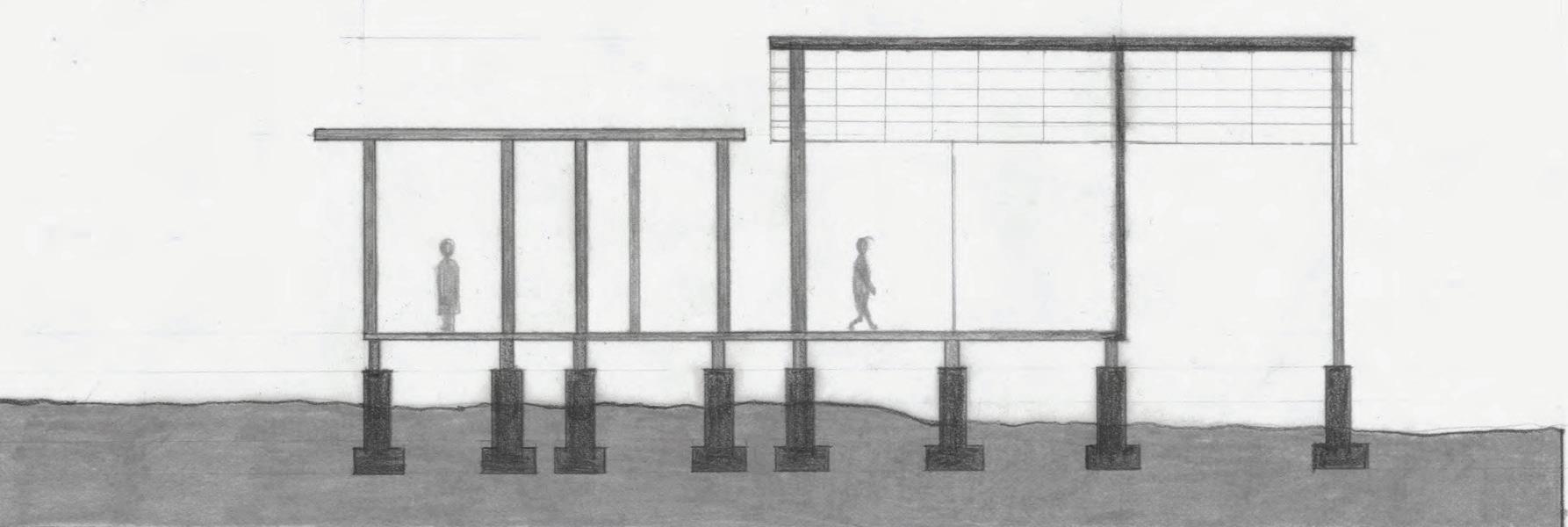

Section A

15 Feet 12 Feet

Section A

Section A 1/8” = 1’

15 Feet

1/8th Section B

12 Feet

6% Slope

Water - 1040-1039

Section B 1/16” = 1’

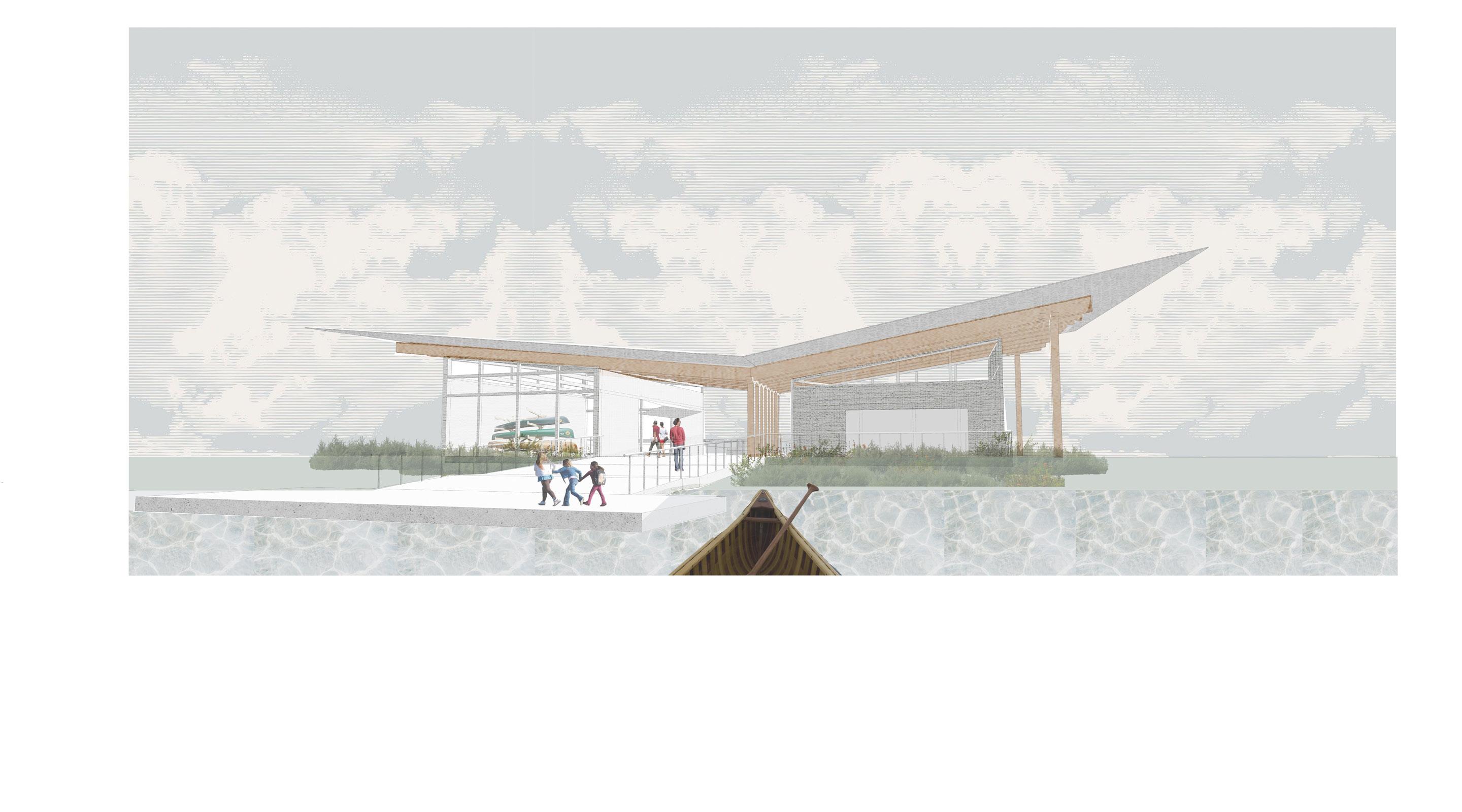

Elevation from Dock

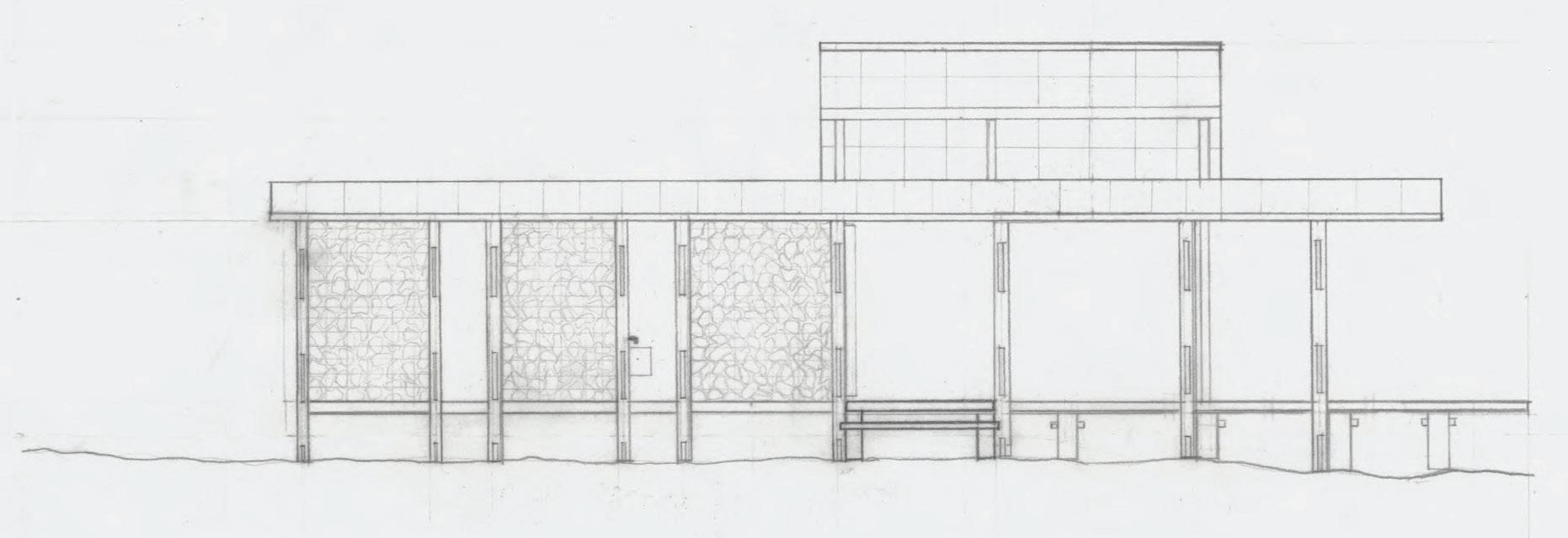

Elevation from Pathway
