2200 SRM 1936
Electrical Schematic and System Description

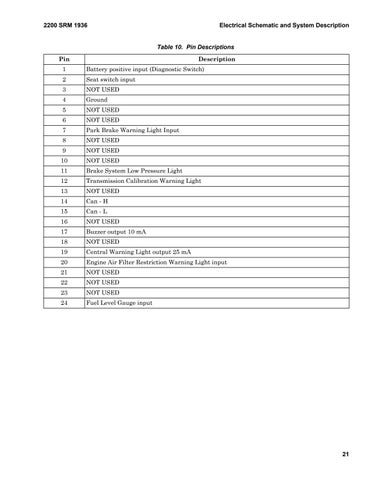

Table 10. Pin Descriptions Pin
Description
1
Battery positive input (Diagnostic Switch)
2
Seat switch input
3
NOT USED
4
Ground
5
NOT USED
6
NOT USED
7
Park Brake Warning Light Input
8
NOT USED
9
NOT USED
10
NOT USED
11
Brake System Low Pressure Light
12
Transmission Calibration Warning Light
13
NOT USED
14
Can - H
15
Can - L
16
NOT USED
17
Buzzer output 10 mA
18
NOT USED
19
Central Warning Light output 25 mA
20
Engine Air Filter Restriction Warning Light input
21
NOT USED
22
NOT USED
23
NOT USED
24
Fuel Level Gauge input
