Catalogue 2023
Social Distance assortment
www.smit-visual.com
Symbols used
Subject to product and/or model changes.
Subject to printing errors.
Actual colours may differ from those shown.
Unless stated otherwise, the dimensions in this catalogue are: Height
Width x Depth.
Disclaimer: -
-
-
-
x
Electricity required Environmentally friendly
Ready to use, no assembly required
Lightweight product
Customisation available
Printing possible
Assembly material included Dry wipe board surface
Magnetic board surface
Board surface suitable for push pins
Surface suitable for projection
Slides horizontally
Acoustic material
Height adjustable foot
Profiles available in any RAL colour
Lockable Wheeled
UV-resistant material
Weatherproof / splashproof
Height adjustable
Rotatable
C K Y M
Whiteboard Extra Hygienic Enamel
Writing surface of white enamelled steel, fused at 800°C
The whiteboard surface is equipped with Extra Hygienic Enamel. This new technology incorporates silver micro particles that eliminate 99% of all bacteria present within 24 hours. And this happens during the entire lifespan of the product.
Suitable for very intensive and long-term use
Anodised or aluminium frame with plastic corner pieces
Size Article number
120 x 300 cm 11103.860
120 x 240 cm 11103.861
120 x 200 cm 11103.862
120 x 150 cm 11103.863
90 x 180 cm 11103.864
90 x 120 cm 11103.865
Includes mounting materials and 30 cm pen tray
Can be mounted vertically or horizontally
Magnetic, dry wipe max 12 0
www.smit-visual.com 4 Whiteboards
EXTRA HYGIENIC
max
5,5
300 1,5
Partition Wall Extra Hygienic Enamel
Stable partition wall with double sided Extra Hygienic Enamel The whiteboard surface is equipped with Extra Hygienic Enamel. This new technology incorporates silver micro particles that eliminate 99% of all bacteria present within 24 hours. And this happens during the entire lifespan of the product. - Complete set inclusing 2 feet free standing, 2 shafts and a 3- way and 4-way connector piece Up to 4 walls can be joined together on one foot with coupling elements - Quick and easy mounting
We make it visible 5 Partition walls
180x120
120
1 EXTRA HYGIENIC
Size Article number
cm 13006.821 140x120 cm 13006.820 2
185 145

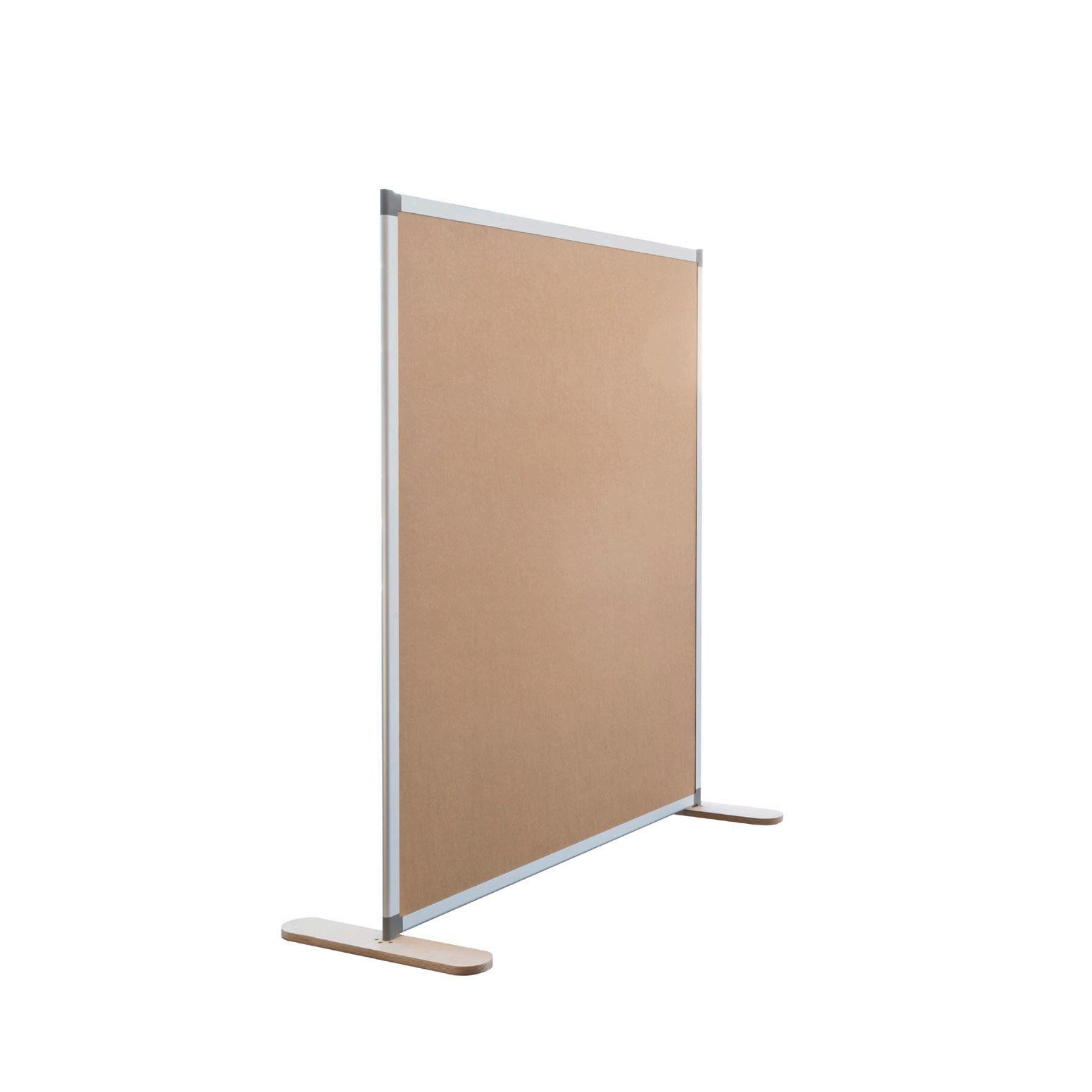

Partition wall Natural
A stable partition wall made with a thick panel of honeycomb cardboard and a plywood wooden base, both FSC®-certified Complete set inclusing 2 plywood feet free standing, 2 shafts and a 3- way and 4-way connector piece
- The material is lightweight, which makes this wall very suitable for setups that change regularly. Up to 4 walls can be joined together on one foot with coupling elements
- Quick and easy mounting
www.smit-visual.com 6 Scheidingswanden
Size Article number 180x120 cm 13006.841 140x120 cm 13006.840 2 120 185 145 1
We make it visible 7 Verrijdbare schermen
Verrijdbaar scherm - vol transparant Size Article number 190x126 cm 13018.221 190x80 cm 13018.220 50 2,1 190 80 190 126
These versatile screens are movable and very lightweight The high-grade plexiglass consists of 70% acrylate and 30% polystyrene The anodised aluminium frame rests in a white steel base on 4 plastic wheels with brakes - Quick and easy to set up
Light weight movable board with transparent plexiglass
The high-grade plexiglass consists of 70% acrylate and 30% polystyrene
Black aluminium frame with plastic corner pieces
Stable black steel frame
Four high-quality wheels, two of which have brakes
www.smit-visual.com 8 Movable screens
Movable Work Board - fully transparent Size Article number 120x150 cm 13019.020
Light weight movable board with double sided Extra Hygienic Enamel
The whiteboard surface is equipped with Extra Hygienic Enamel. This new technology incorporates silver micro particles that eliminate 99% of all bacteria present within 24 hours. And this happens during the entire lifespan of the product. Four castor wheels, two of which have brakes - Quick and easy to set up
We make it visible 9 Movable screens
Movable screen - Extra Hygienic Enamel Size Article number 190x126 cm 13018.216 190x80 cm 13018.214 50 2,1 190 80 190 126 EXTRA HYGIENIC
- Plexiglass partition with 2 wooden 3-way feet The T-shaped feet allow for up to 3 partitions to be linked together Plexiglass thickness: 5mm. This prevents the partition from wobbling The high-grade plexiglass consists of 70% acrylate and 30% polystyrene - Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm.
www.smit-visual.com 10 Partitions
Partitions desk/table, plexiglass - wooden feet Size Article number Combi set Seperate screen (without feet) 58x75 cm 13012.031 13012.001 58x120 cm 13012.032 13012.002 58x160 cm 13012.033 13012.003 58 cm 75 cm 120 cm 160 cm 5 mm
Plexiglass partition with 2 clamps for a single desk
- Clamp can be fixed to desks and tabletops with a thickness up to 34 mm
Clamp can hold screens with a thickness between 2 and 28 mm Plexiglass thickness: 5mm. This prevents the partition from wobbling The high-grade plexiglass consists of 70% acrylate and 30% polystyrene
- Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm
We make it visible 11 Partitions
Partitions desk/table, plexiglass - desk clamp single desk Size Article number Combi set Seperate screen (without clamps)
cm 13012.011
cm 13012.012 13012.002 58x160 cm 13012.013 13012.003 58 cm 75 cm 120 cm 160 cm 5 mm
58x75
13012.001 58x120
Plexiglass partition with 2 clamps for a double desk - Clamp can be fixed to desks and tabletops with a thickness up to 34 mm
Clamp can hold screens with a thickness between 2 and 28 mm Plexiglass thickness: 5mm. This prevents the partition from wobbling The high-grade plexiglass consists of 70% acrylate and 30% polystyrene - Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm
www.smit-visual.com 12 Partitions
Partitions desk/table, plexiglass - desk clamp double desk Size Article number Combi set Seperate screen (without clamps) 58x75 cm 13012.021 13012.001 58x120 cm 13012.022 13012.002 58x160 cm 13012.023 13012.003 58 cm 75 cm 120 cm 160 cm 5 mm
- Safety glass partition with 2 clamps for a single desk - Clamp can be fixed to desks and tabletops with a thickness up to 34 mm Clamp can hold screens with a thickness between 2 and 28 mm Safety glass thickness 4 mm tempered glass. - The safety glass is safe to use and fire resistant - Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm
We make it visible 13 Partitions
Partitions desk/table, safety glass - desk clamp single desk Size Article number Combi set Seperate screen (without clamps) 58x75 cm 13012.211 13012.201 58x120 cm 13012.212 13012.202 58x160 cm 13012.213 13012.203 58 cm 75 cm 120 cm 160 cm 4 mm
Safety glass partition with 2 clamps for a double desk - Clamp can be fixed to desks and tabletops with a thickness up to 34 mm
Clamp can hold screens with a thickness between 2 and 28 mm Safety glass thickness 4 mm tempered glass.
- The safety glass is safe to use and fire resistant - Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm
58x75 cm 13012.221 13012.201 58x120 cm 13012.222 13012.202 58x160 cm 13012.223 13012.203
www.smit-visual.com 14
Partitions desk/table, safety glass - desk clamp double desk Size Article number Combi set Seperate screen (without clamps)
Partitions
4 mm
58 cm 75 cm 120 cm 160 cm
Partition with 2 clamps for a single desk
Antimicrobial whiteboard side with a lifetime warranty on writing and perfect erasing. In addition, the surface is scratch proof.
The whiteboard surface is equipped with Extra Hygienic Enamel. This new technology incorporates silver micro particles that eliminate 99% of all bacteria present within 24 hours. And this happens during the entire lifespan of the product.
The acoustic side consists of PET felt made of recycled PET bottles.
Acoustic value: NRC 0,30
- Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm Thickness: 18 mm
- Clamp can be fixed to desks and tabletops with a thickness up to 34 mm Clamp can hold screens with a thickness between 2 and 28 mm
We make it visible 15
Partitions desk/table, whiteboard/pinnboard - desk clamp single desk Size Article number Combi set Seperate screen (without clamps) 58x75 cm 13012.1 11 13012.101 58x120 cm 13012.112 13012.102 58x160 cm 13012.113 13012.103 58 cm 75 cm 120 cm 160 cm 18 mm Partitions
Partition with 2 clamps for a double desk Antimicrobial whiteboard side with a lifetime warranty on writing and perfect erasing. In addition, the surface is scratch proof.
The whiteboard surface is equipped with Extra Hygienic Enamel. This new technology incorporates silver micro particles that eliminate 99% of all bacteria present within 24 hours. And this happens during the entire lifespan of the product.
The acoustic side consists of PET felt made of recycled PET bottles.
Acoustic value: NRC 0,30
- Edges and corners are finished safely, without sharp parts. The corners have a radius of 5 mm Thickness: 18 mm
- Clamp can be fixed to desks and tabletops with a thickness up to 34 mm
Clamp can hold screens with a thickness between 2 and 28 mm
www.smit-visual.com 16
desk/table,
double
Partitions
whiteboard/pinnboard - desk clamp
desk Size Article number Combi set Seperate screen (without clamps)
58x75 cm 13012.121 13012.101 58x120 cm 13012.122 13012.102 58x160 cm 13012.123 13012.103
58 cm 75 cm 120 cm 160 cm 18 mm Partitions
Easy installation without damaging the existing partition element
Utilises existing desk partition components
Lightweight, stable construction
Polished rims without sharp edges, rounded corners
Installation is possible on all partition elements up to 34 mm thick
Simple, hygienic cleaning; resistant to alcohol-based cleaning agents
We make it visible 17
extension panel Size Article number 30x160 cm 13012.049 Partitions 30
160 cm 5 mm
Plexiglass
cm
www.smit-visual.com 18 Desk clamp for Partitions Desk/table Description Article number Desk clamp Single desk 14013.160 Desk clamo Double desk 14013.161 - Clamp can be fixed to desks and tabletops with a thickness up to 34 mm Can hold screens with a thickness between 2 and 28 mm Fixed connection to the desk is a requirement in some cleaning contracts Ideal for height-adjustable desks Stable construction Accessories 14013.160 14013.161 Maten en marges - Bureauklem Eind- 14013.160 Maten in mm Maten en marges - Bureauklem Tussen - 14013.161 Maten in mm 14013.160 14013.161
We make it visible 19 Accessories Set of 2 pieces Maximum desk thickness: 5,2 cm Maximum panel thickness: 19 mm - Steel clamp with black powder coat finish Adjustable in 3 positions to allow multiple desk mounting options of panels Protective foil prevents damage to the desk surface Solid construction Set adjustable clamps for Partitions Desk/table Article number 14013.162
Description
Foot
Foot
www.smit-visual.com 20 Accessories
Triplex base For plexiglass with a thickness of 5 mm Quick and easy to set up and take down Stable construction Can be expanded with modules in all setups
feet for Partition Plexiglass 5 mm
Version Article number
Oiled
Wooden
4-weg +-shape 14013.170
3-weg T-shape 14013.171
14013.170 14013.172 14013.171
Foot 2-weg L-shape 14013.172
Connection piece 2-weg L-shape 51401.054
Connection piece 3-weg T-shape 51401.055
Connection piece 4-weg +-shape 51401.056
We make it visible 21 14013.170 Plastic connection piece to link plexiglass partitions at the top for improved stability Suitable for 5 mm plexiglass Connection piece for Partition Plexiglass
Version Article number
Description
Accessories 14013.172 14013.171
www.smit-visual.com 22
Article number 14015.163 Gel dispenser
- Offers a (semi) permanent solution to desinfect - The steel frame is finished with a white matt powder coating Including a 1L bottle of disinfecting gel Tissues can be placed in the opening underneath, which can then be disposed of in the waste bag (40L) mounted behind the lower opening Totem Gel Dispenser
Stay safe
We make it visible 23
www.smit-visual.com 24 T +31(0)40-280 85 00 F +31(0)40-286 76 15 E info@smit-visual.nl Spaarpot 120-122 5667 KZ Geldrop The Netherlands
