HERITAGE RESIDENCES

Vertical living project

SITANAN KUMPHUNDEE

Vertical living: Heritage residences Sitanan Kumphundee 64120500038

Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

Vertical living: Heritage residences Sitanan Kumphundee 64120500038 ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

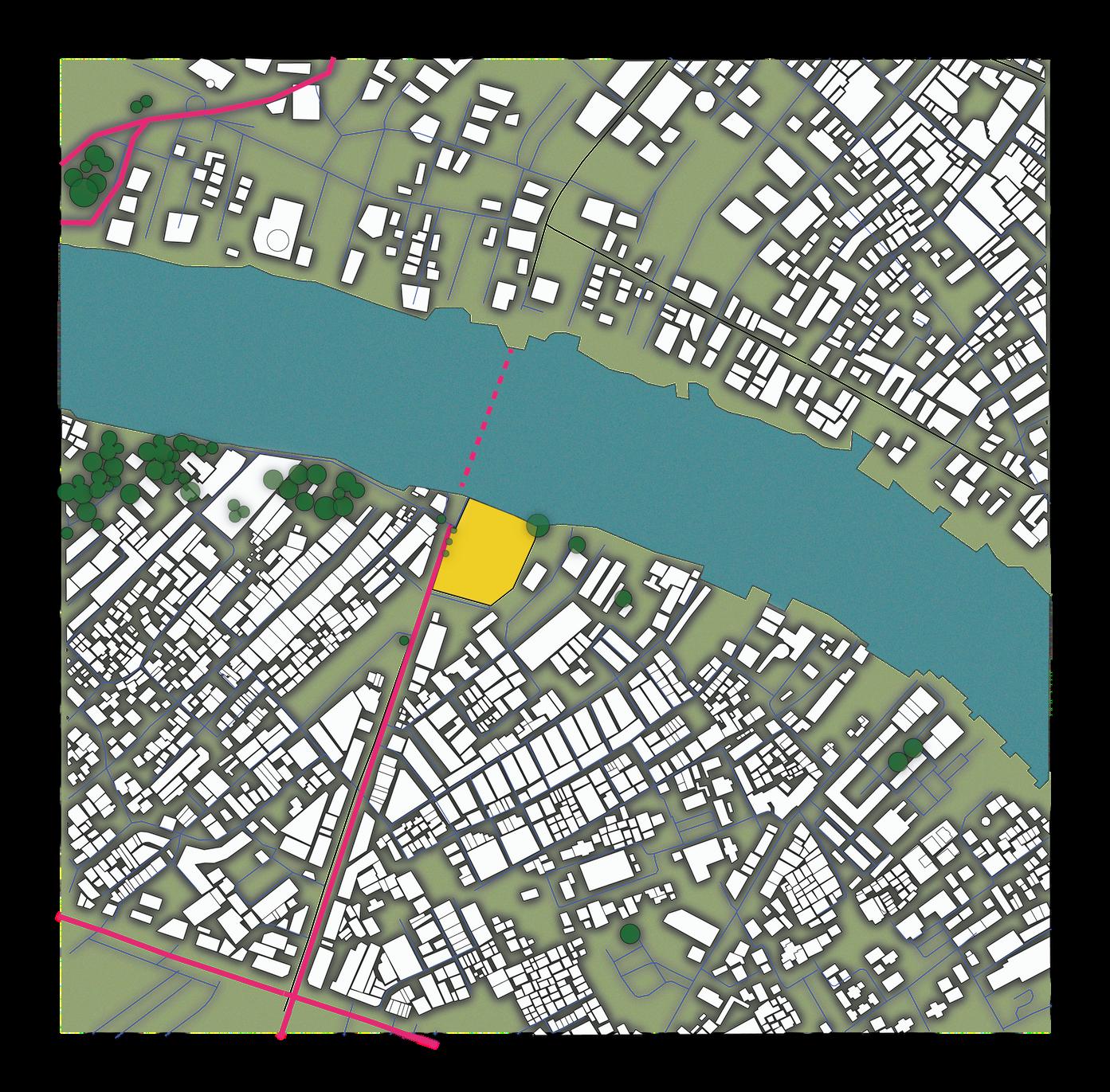

Vertical living: Heritage residences Sitanan Kumphundee 64120500038

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

Staffs

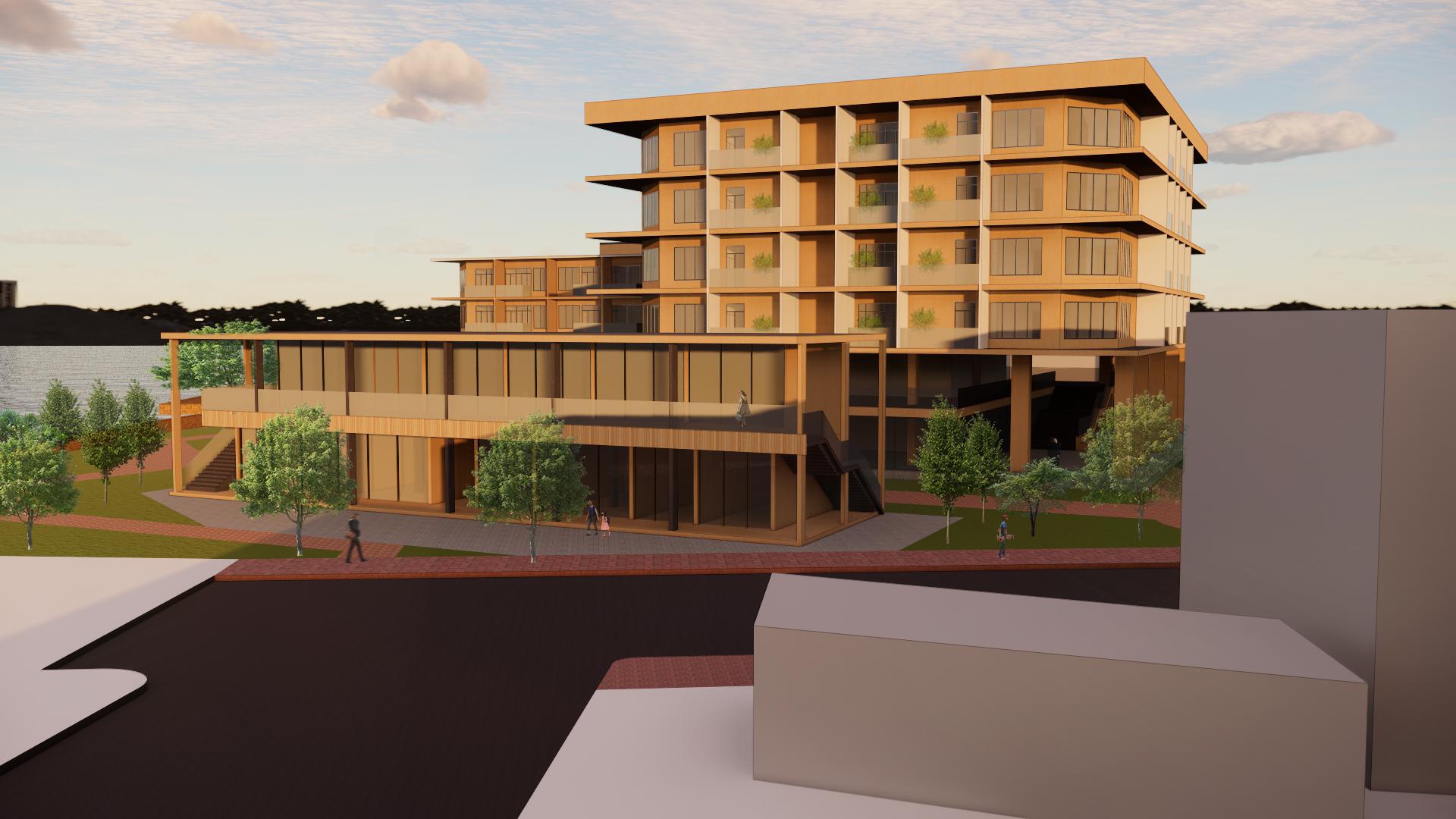

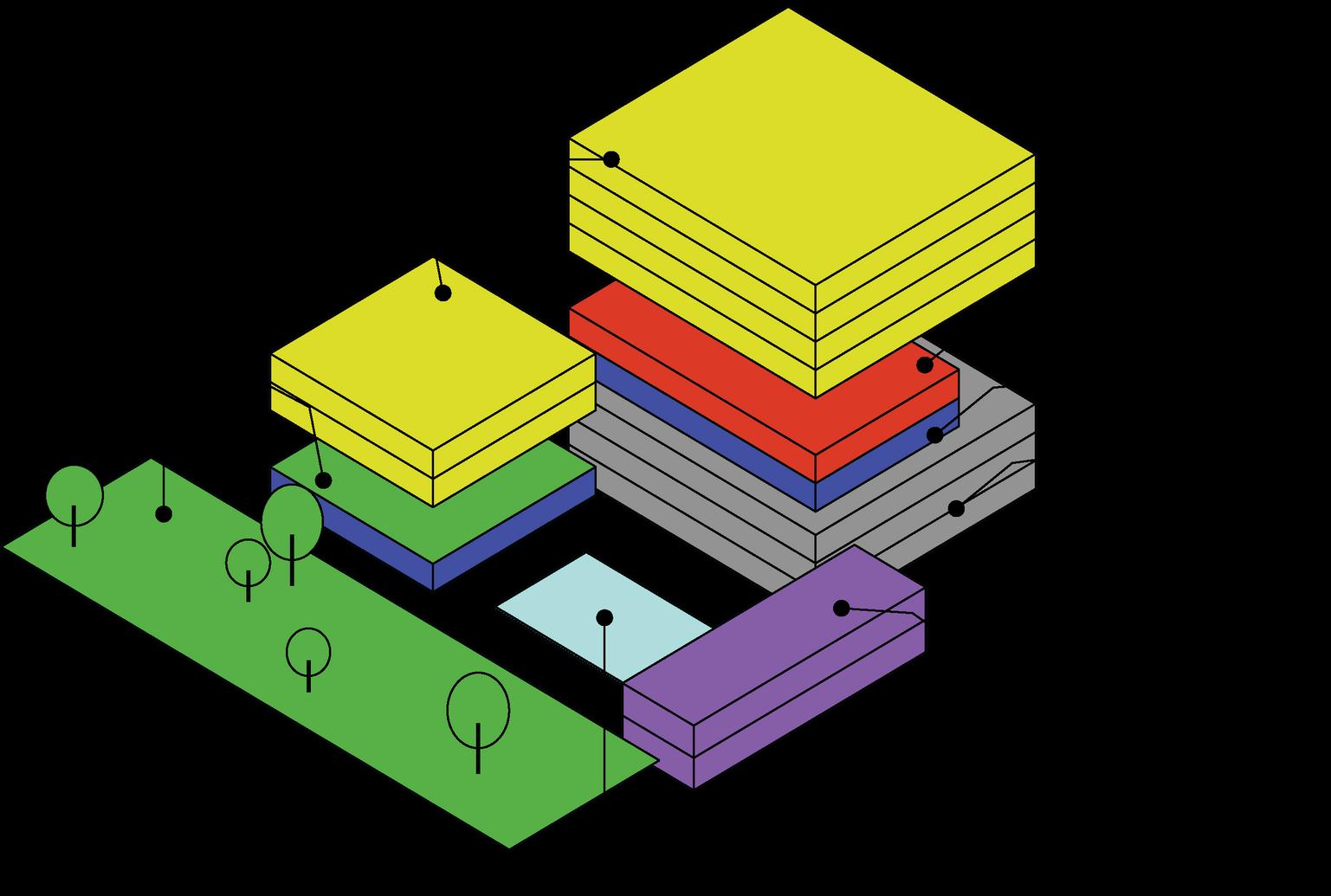

Start from mass Separate the boundary of each piece into three pieces

Make the different level of each piece follow the set back

separate into three buildings Cut the lower part of each piece to create the raised floor

Put the column to lift the floor up and create the sense of traditional house

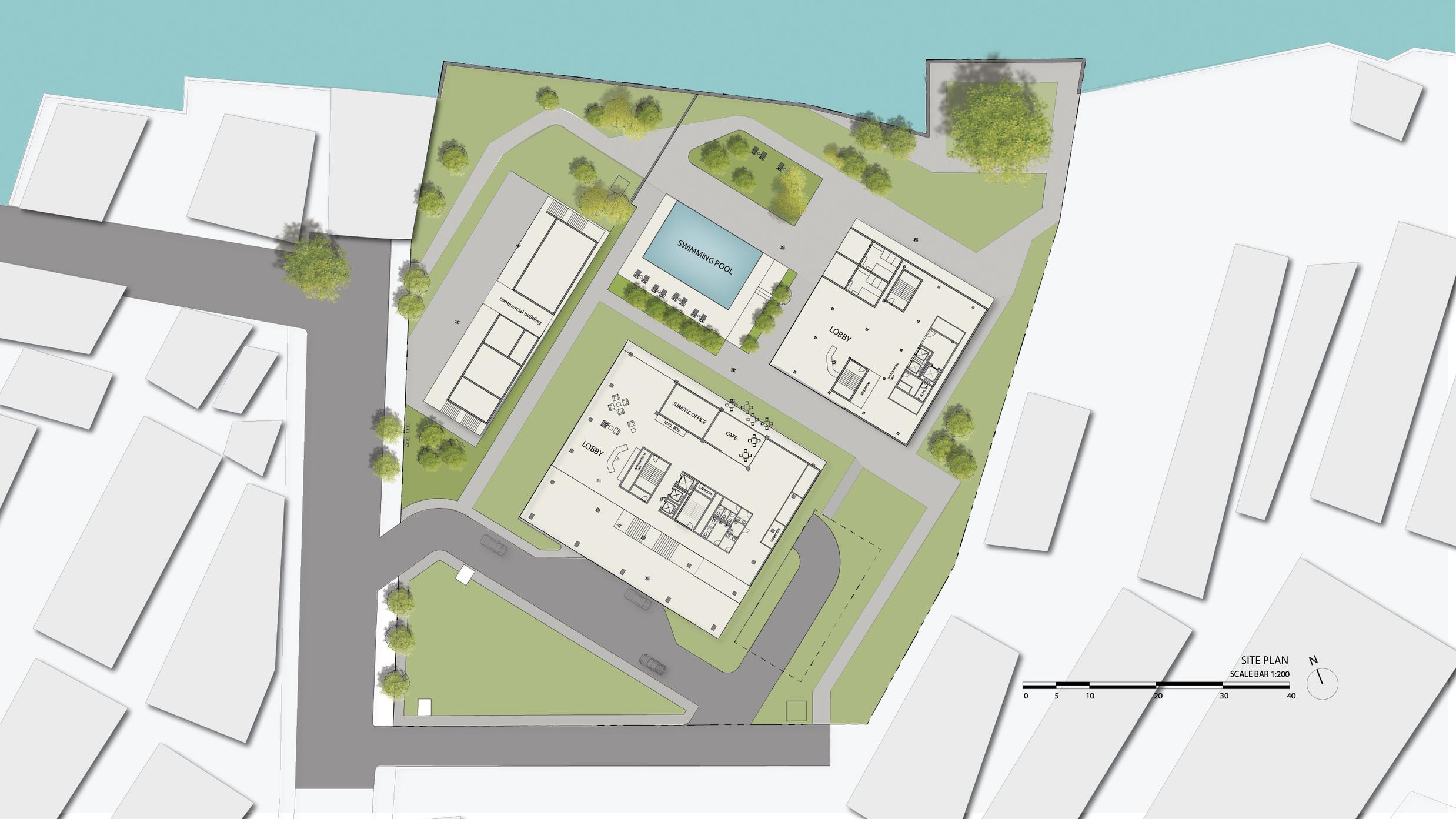

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

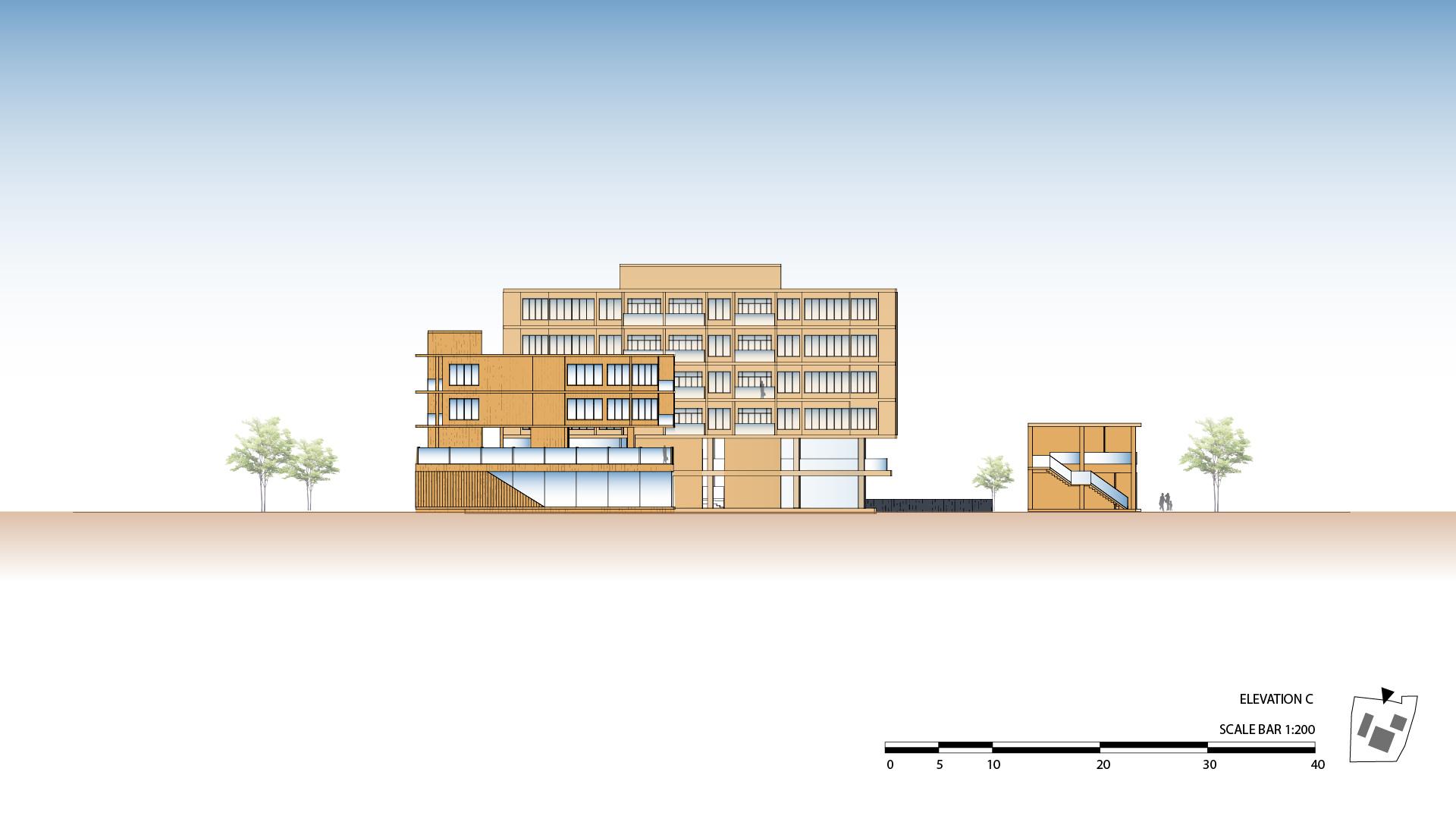

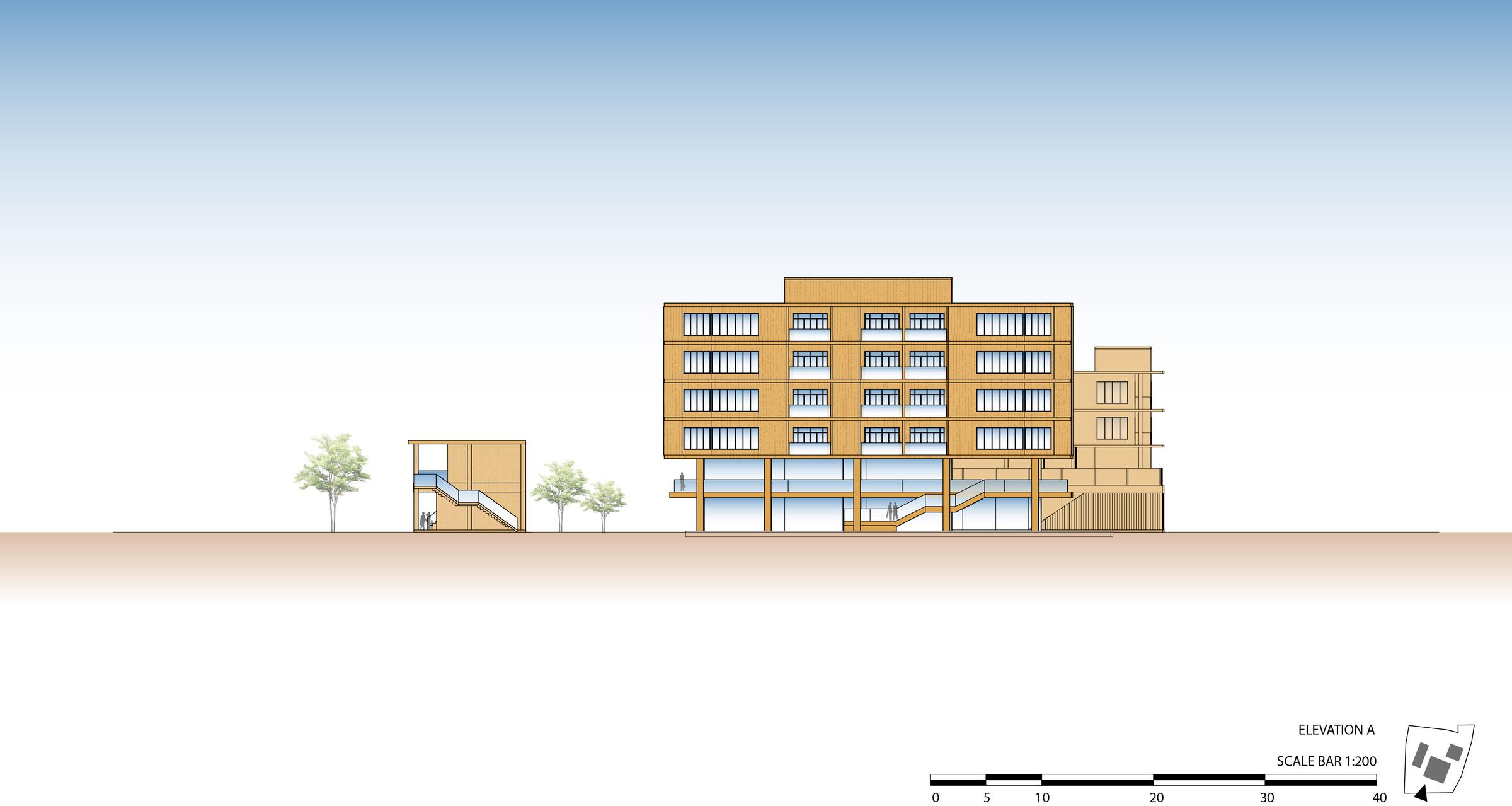

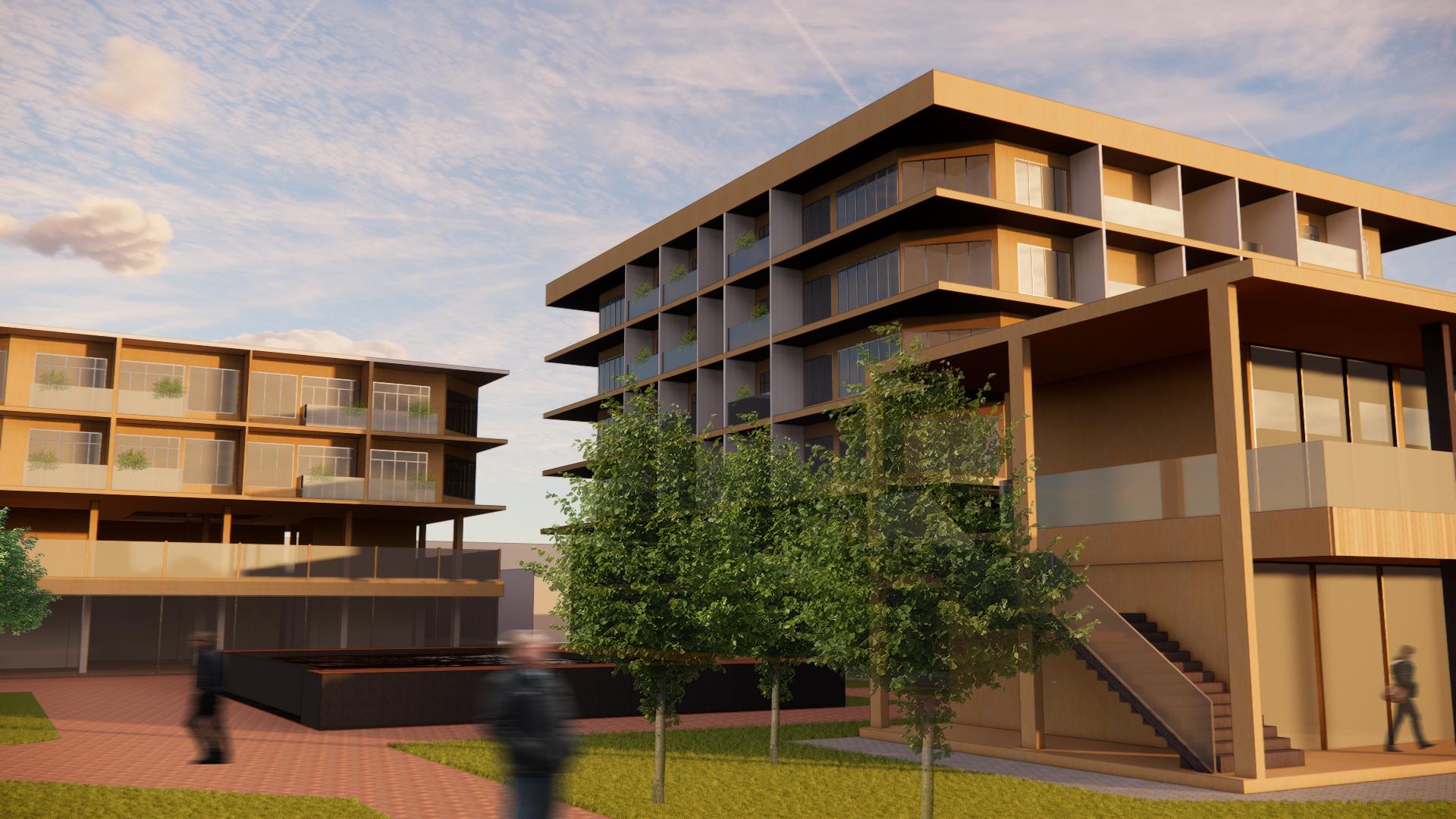

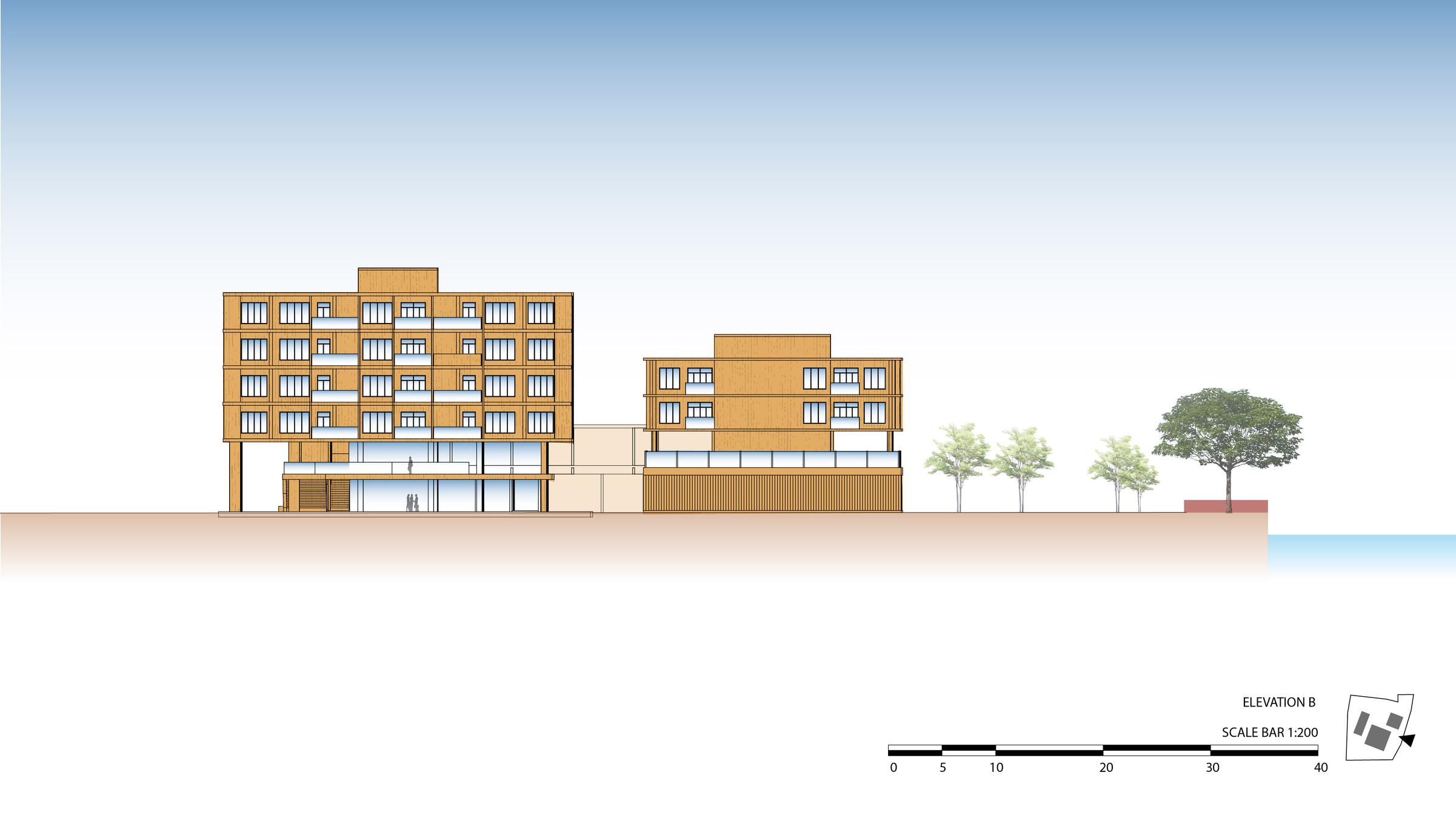

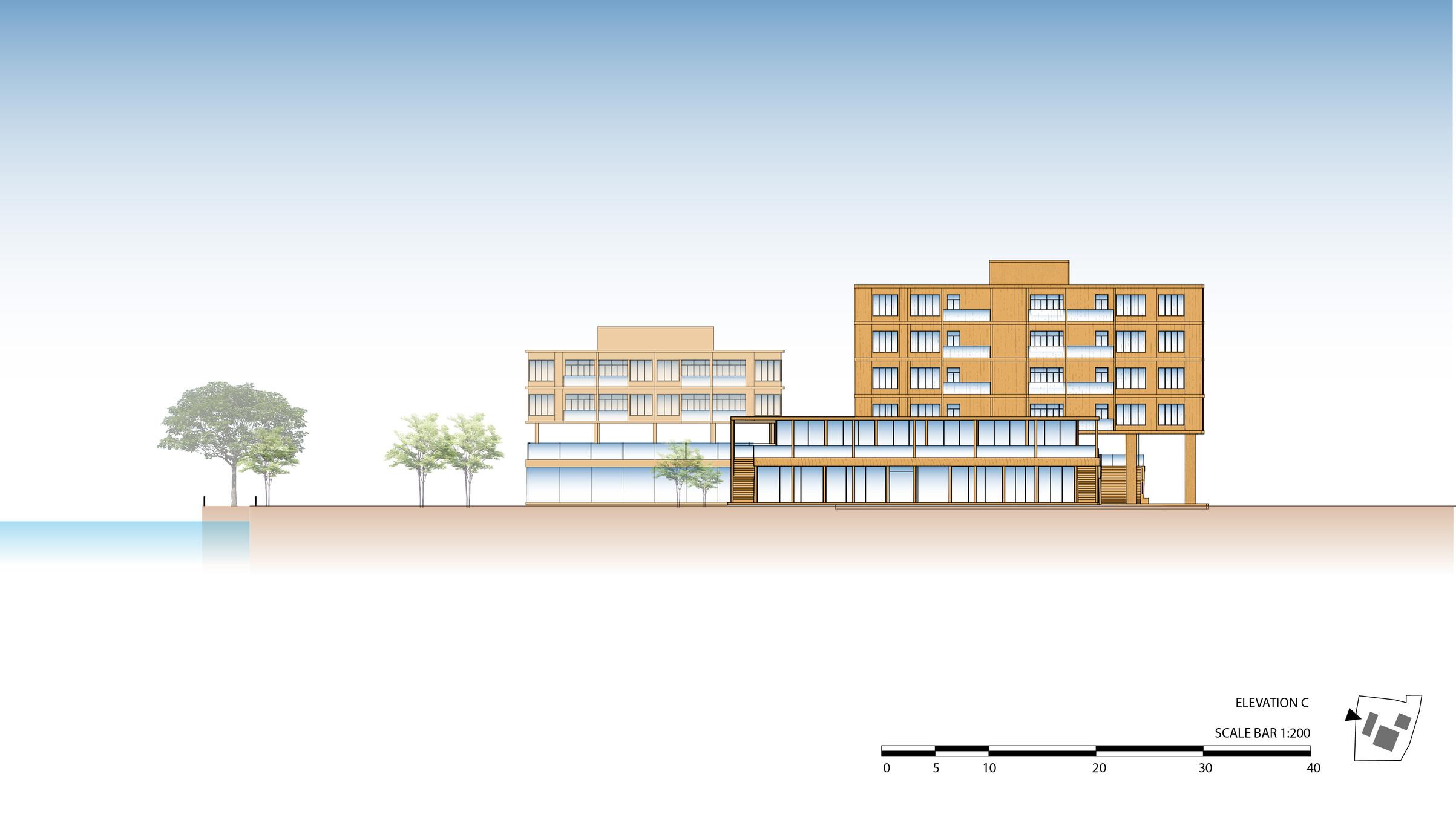

Vertical living: Heritage residences Sitanan Kumphundee

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

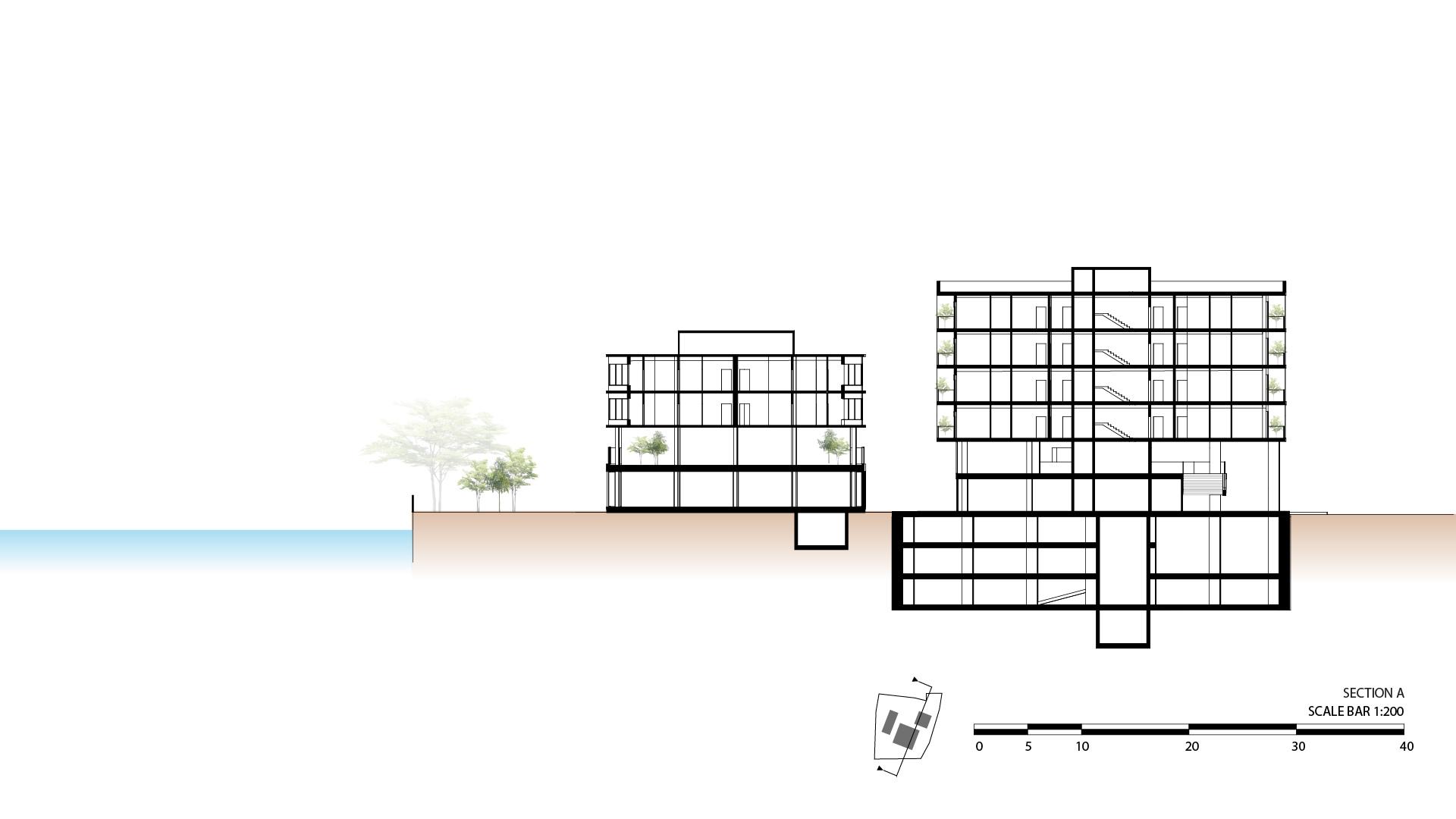

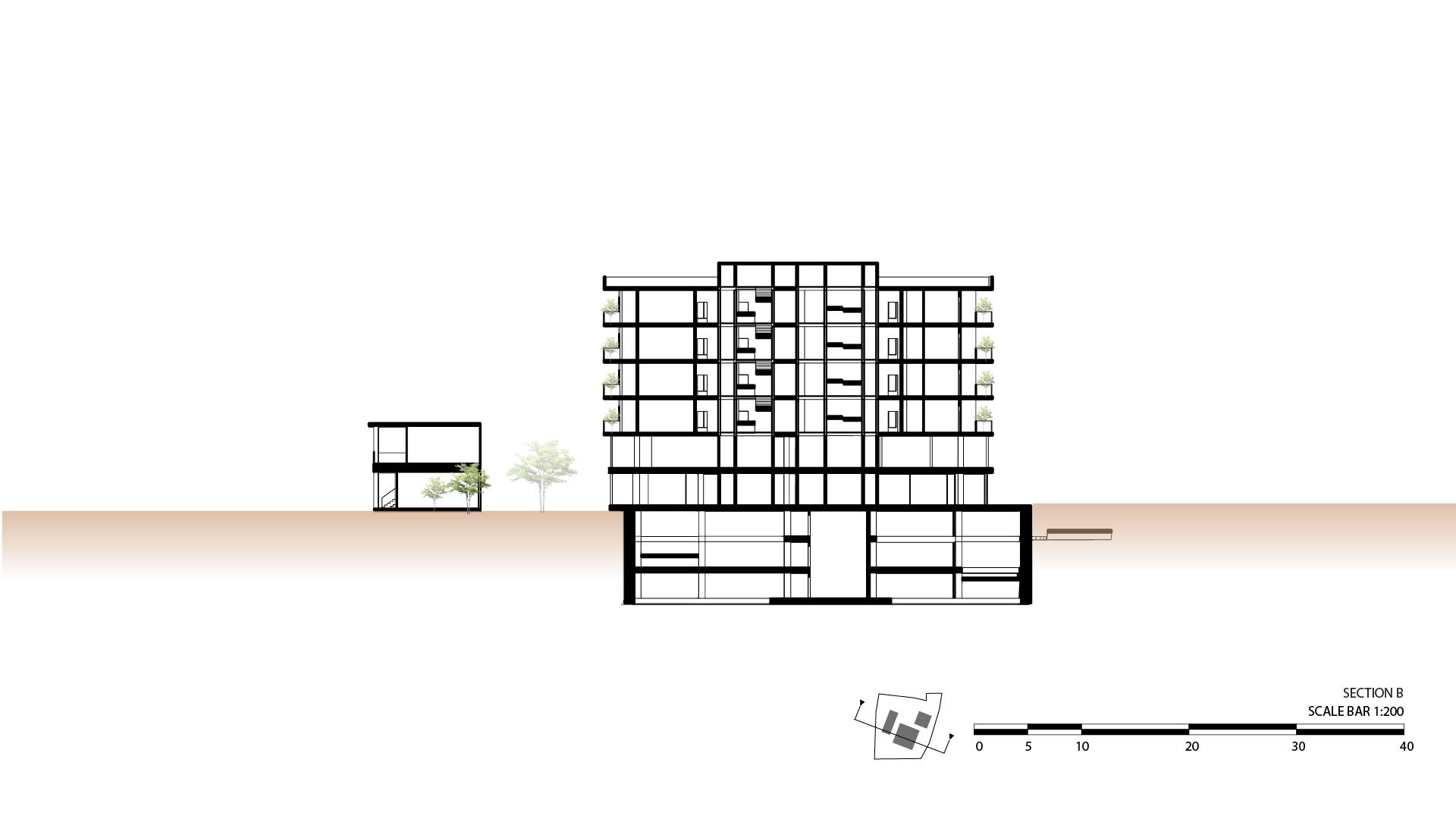

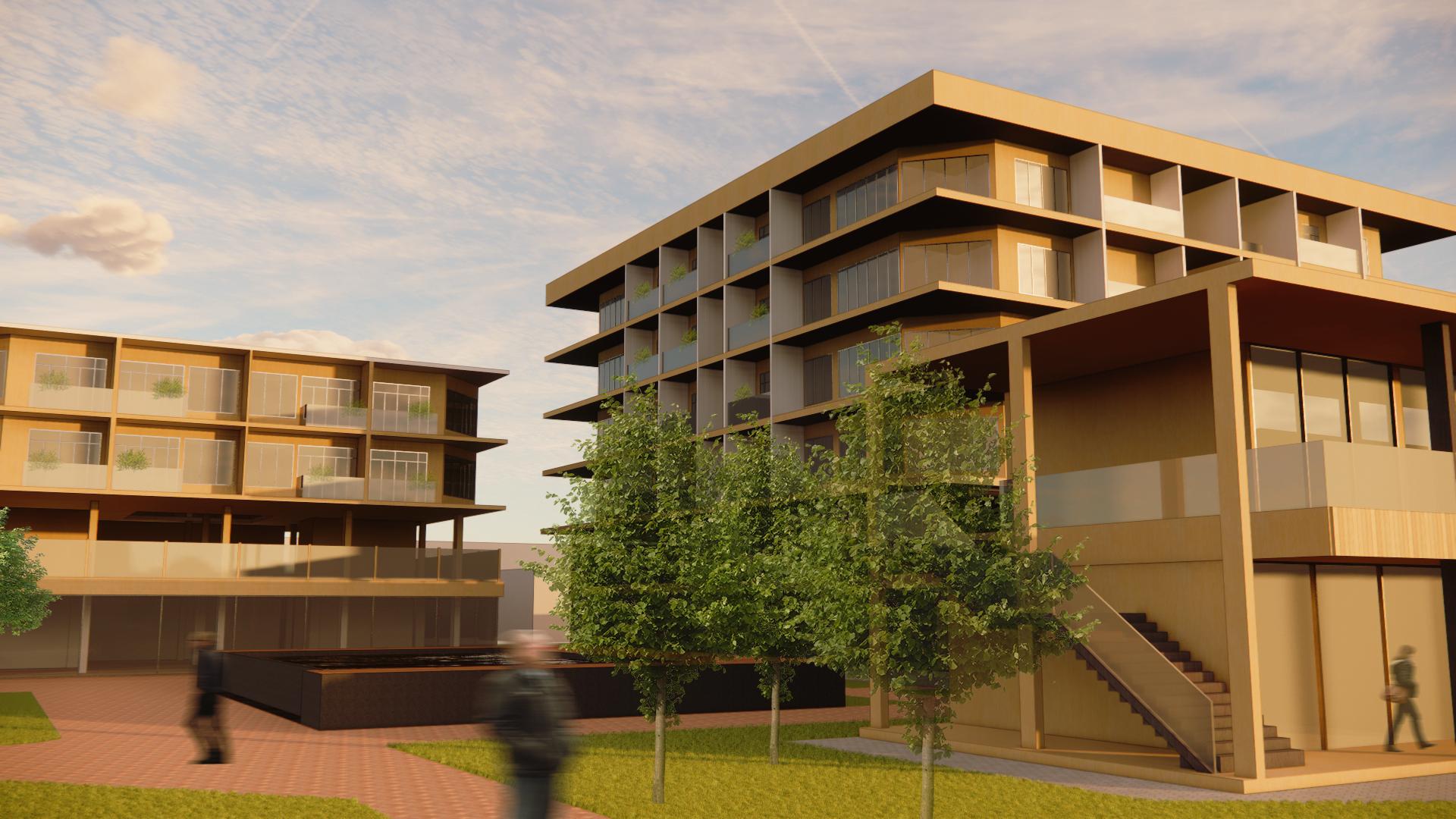

Vertical living: Heritage residences Sitanan Kumphundee

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

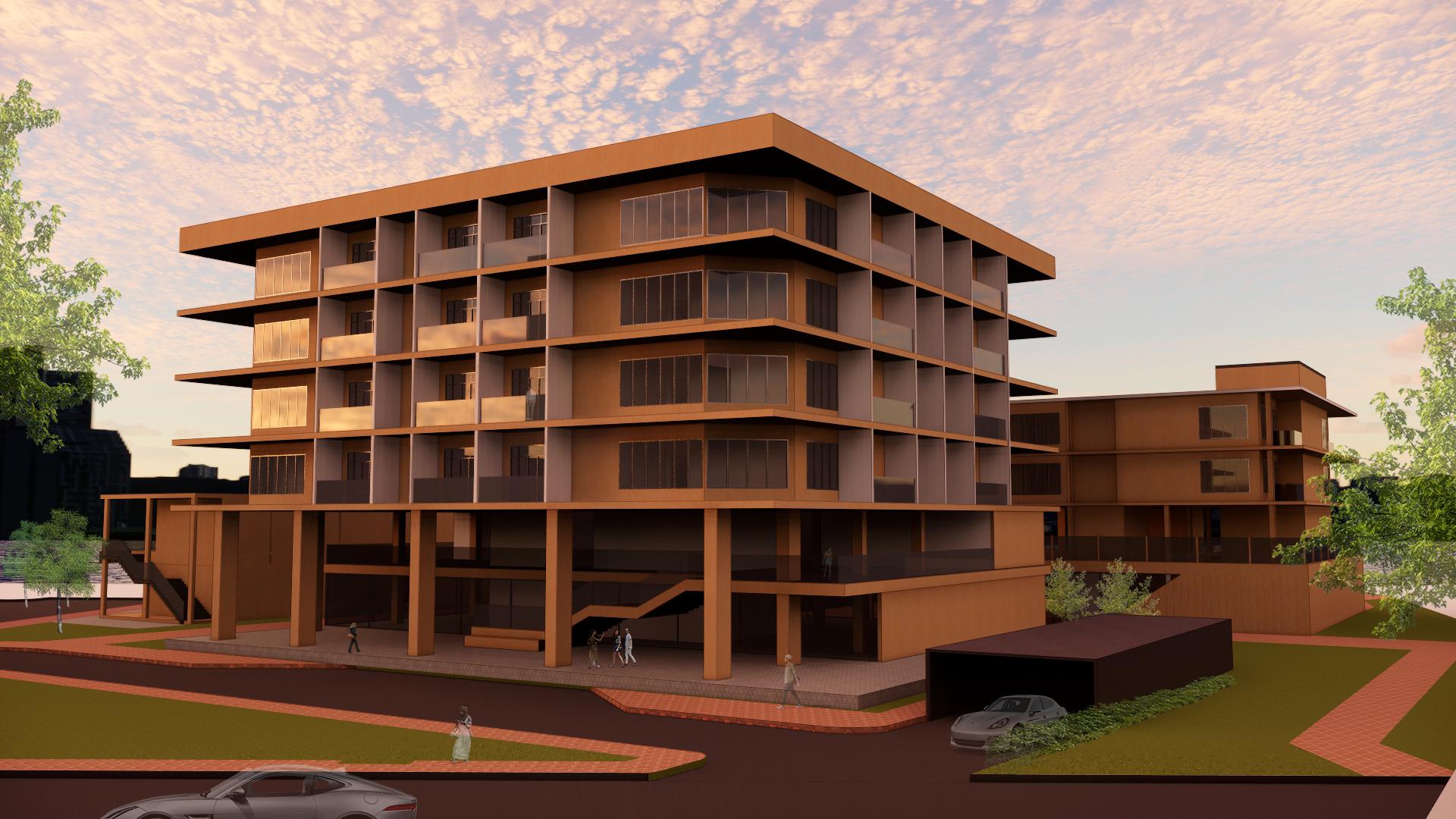

Vertical living: Heritage residences Sitanan Kumphundee

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

Vertical living: Heritage residences Sitanan Kumphundee

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

ARC343 Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

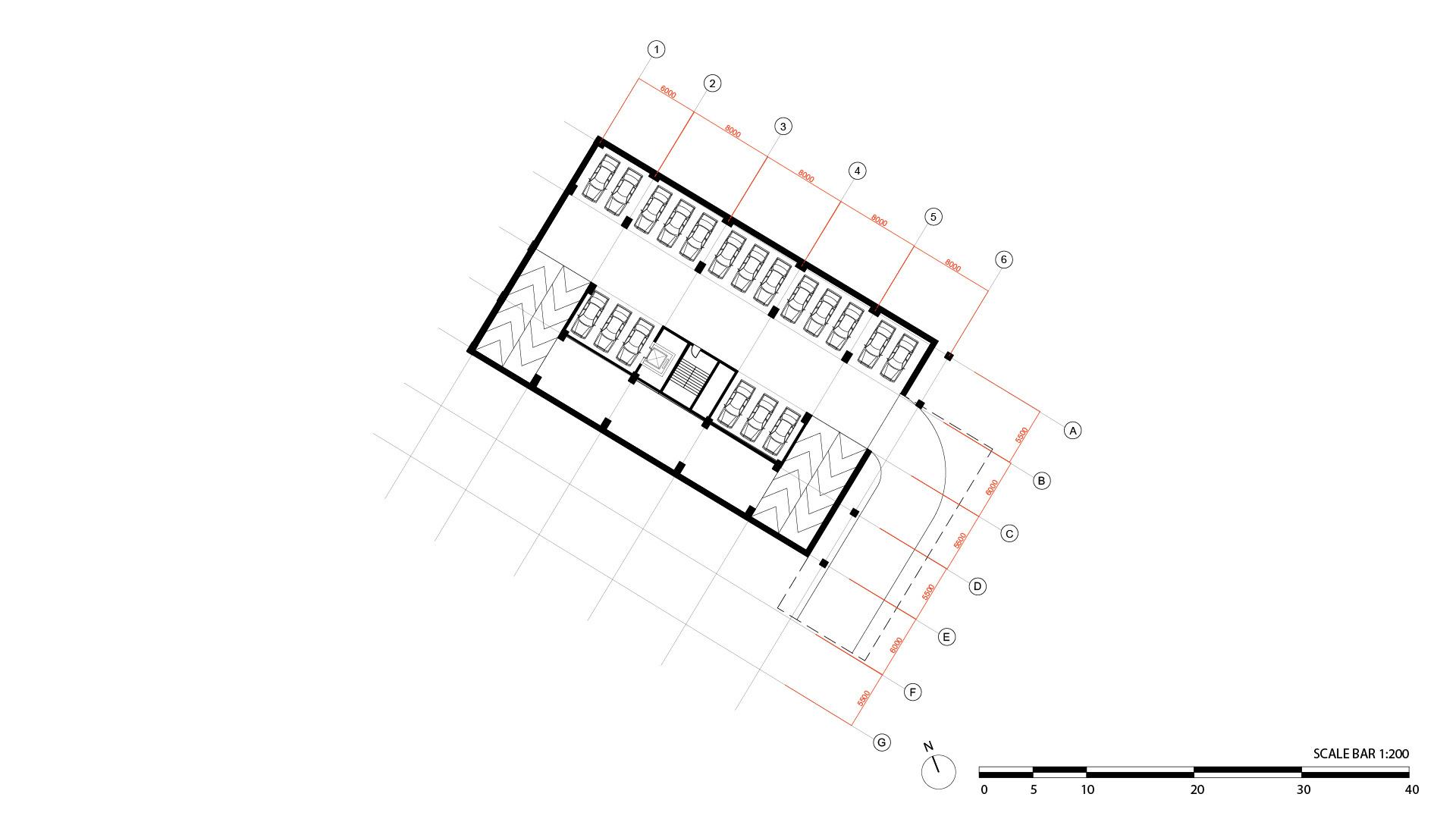

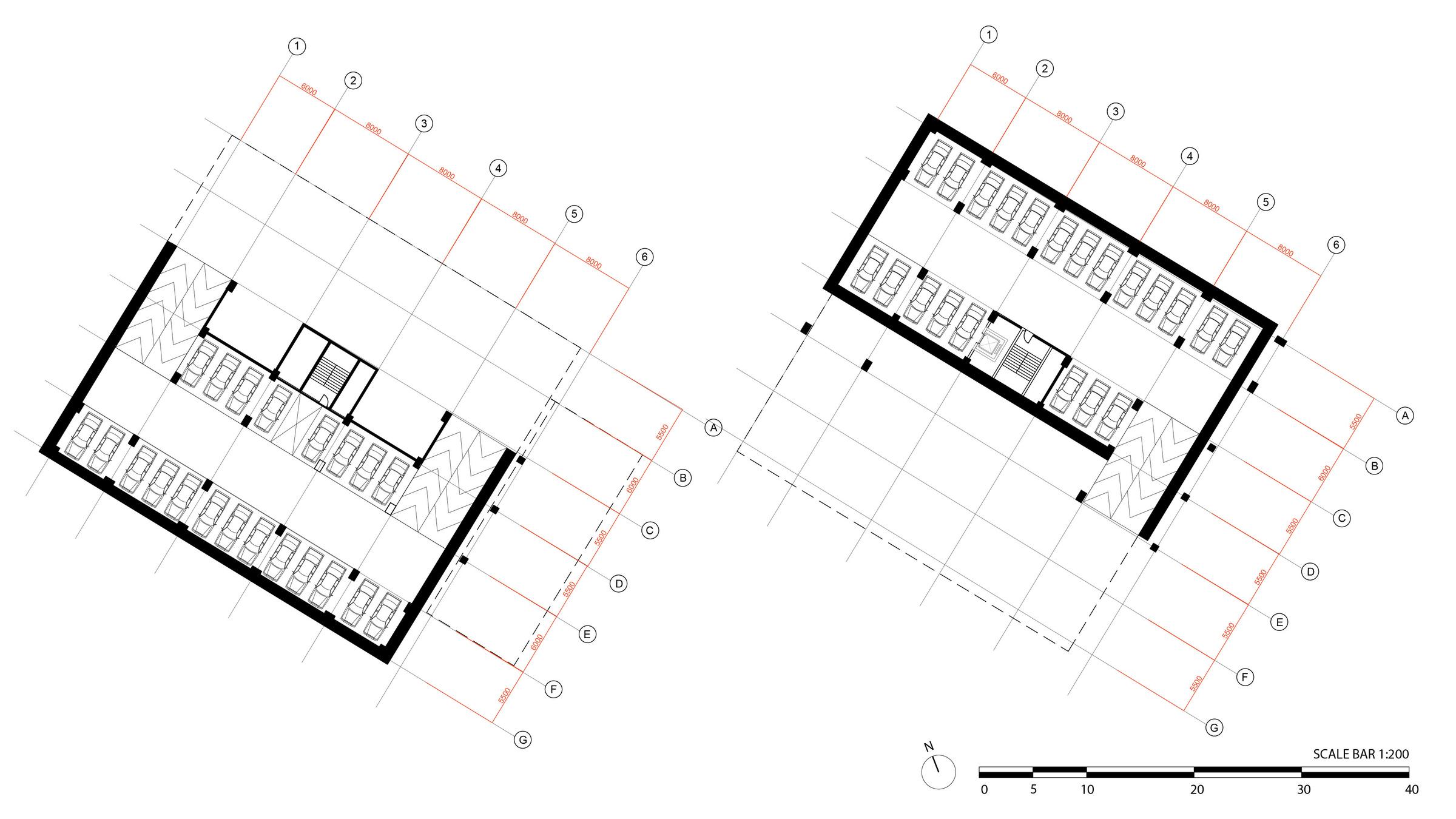

G3 Car parking floor plan

G2 Car parking floor plan Vertical

Michael Paripol Tangtrongchit

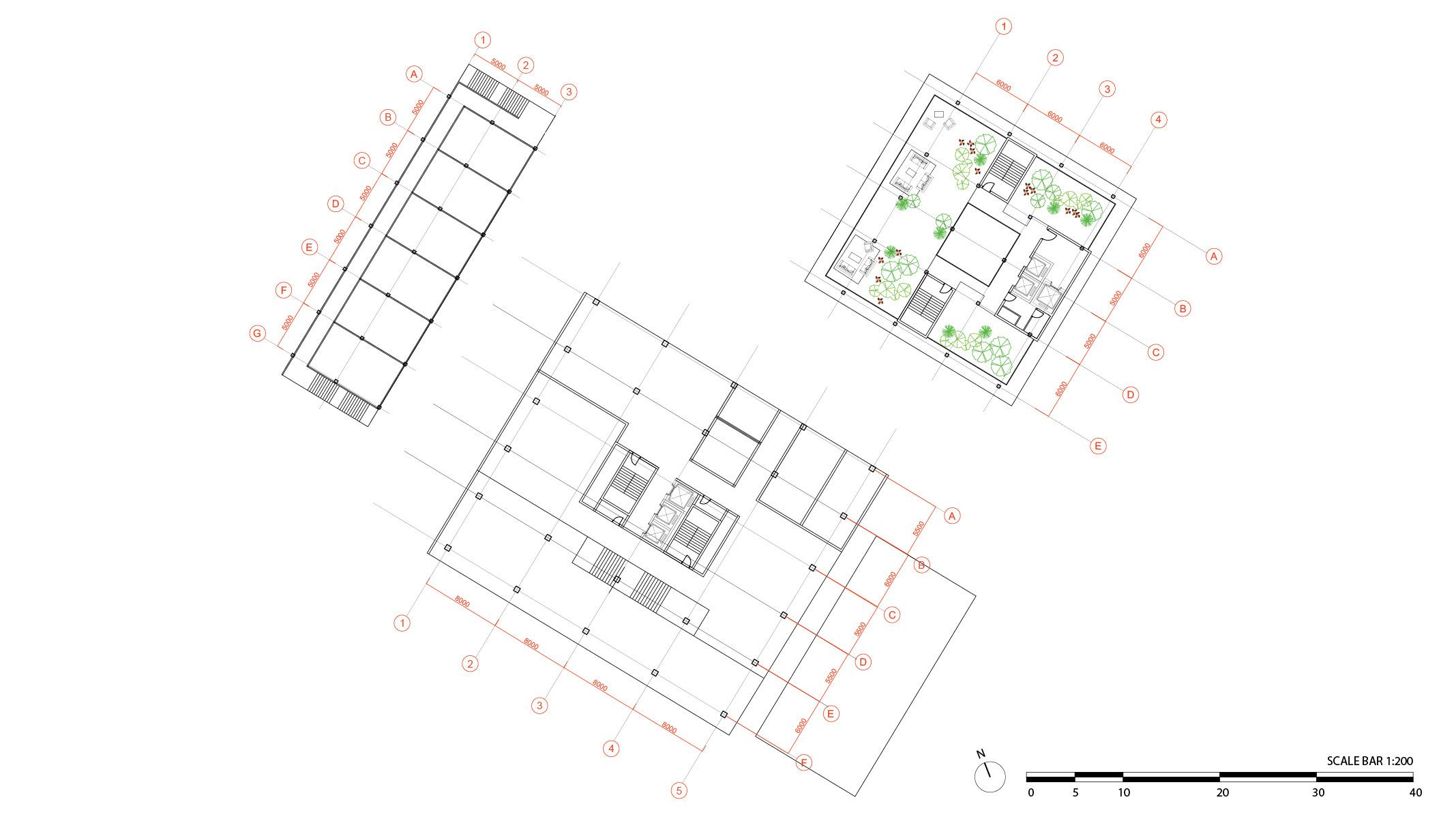

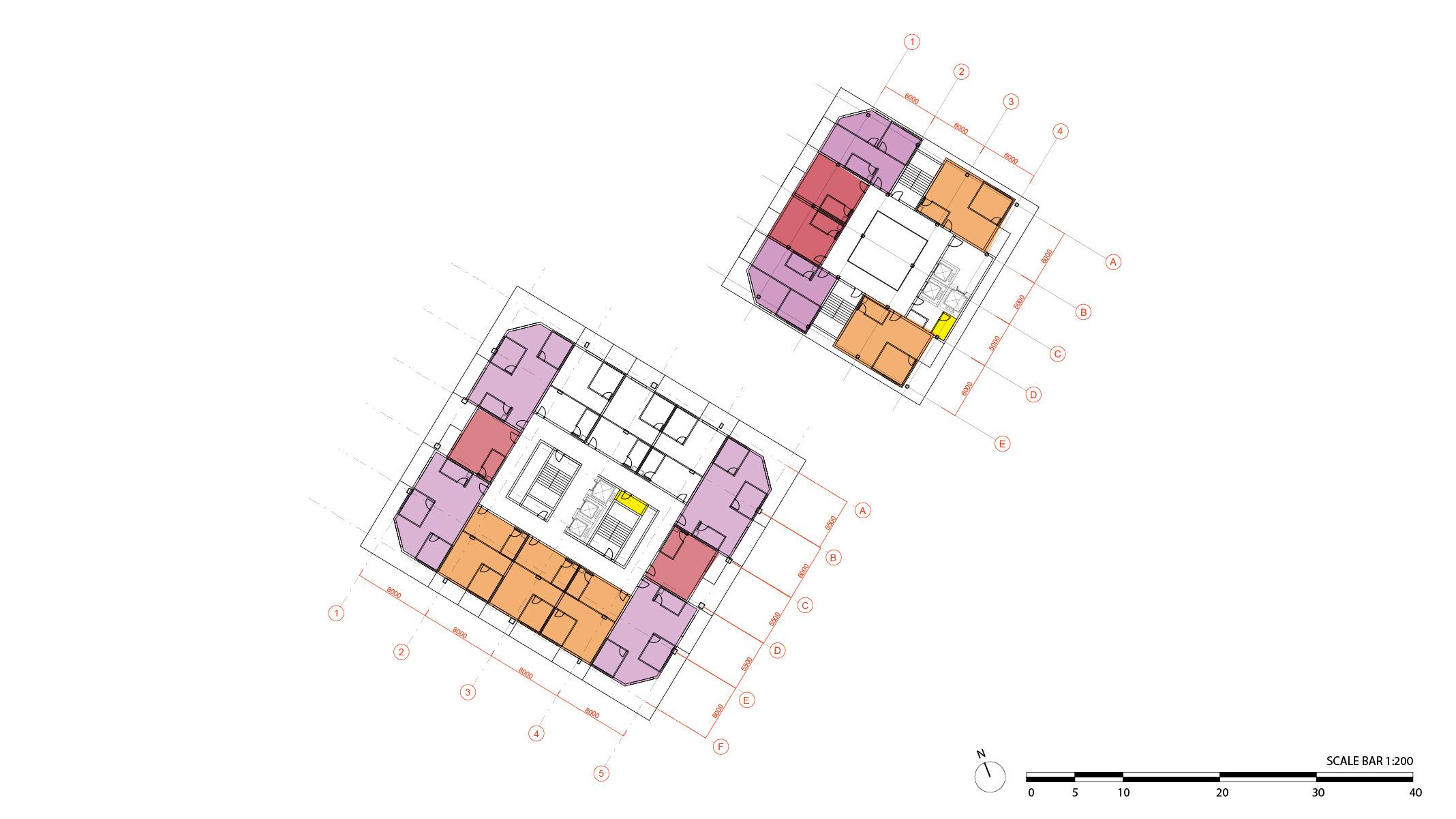

3rd - 4th floor plan

Architecture Design Studio III Semester 1/2023 Instructor; Michael Paripol Tangtrongchit

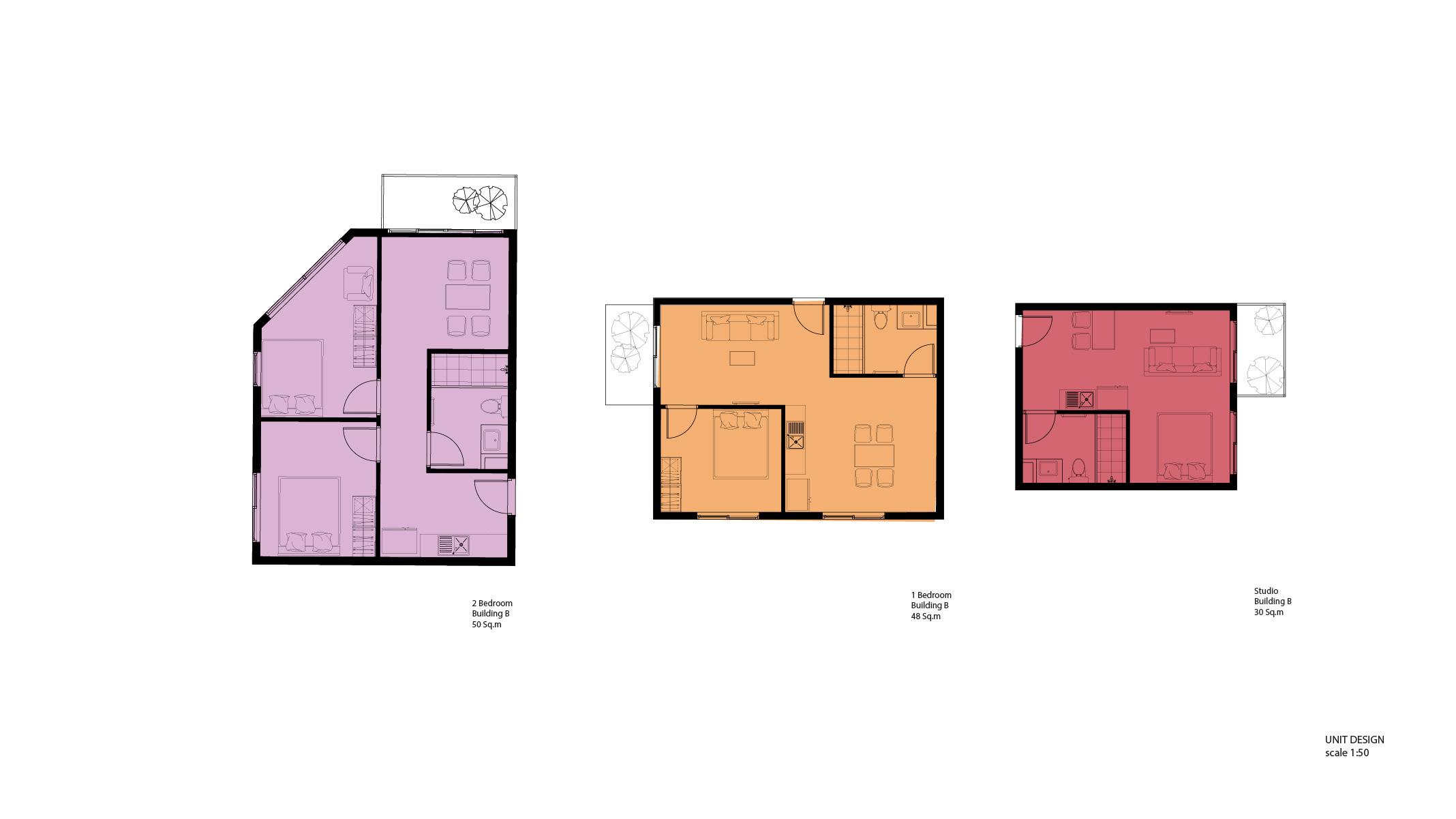

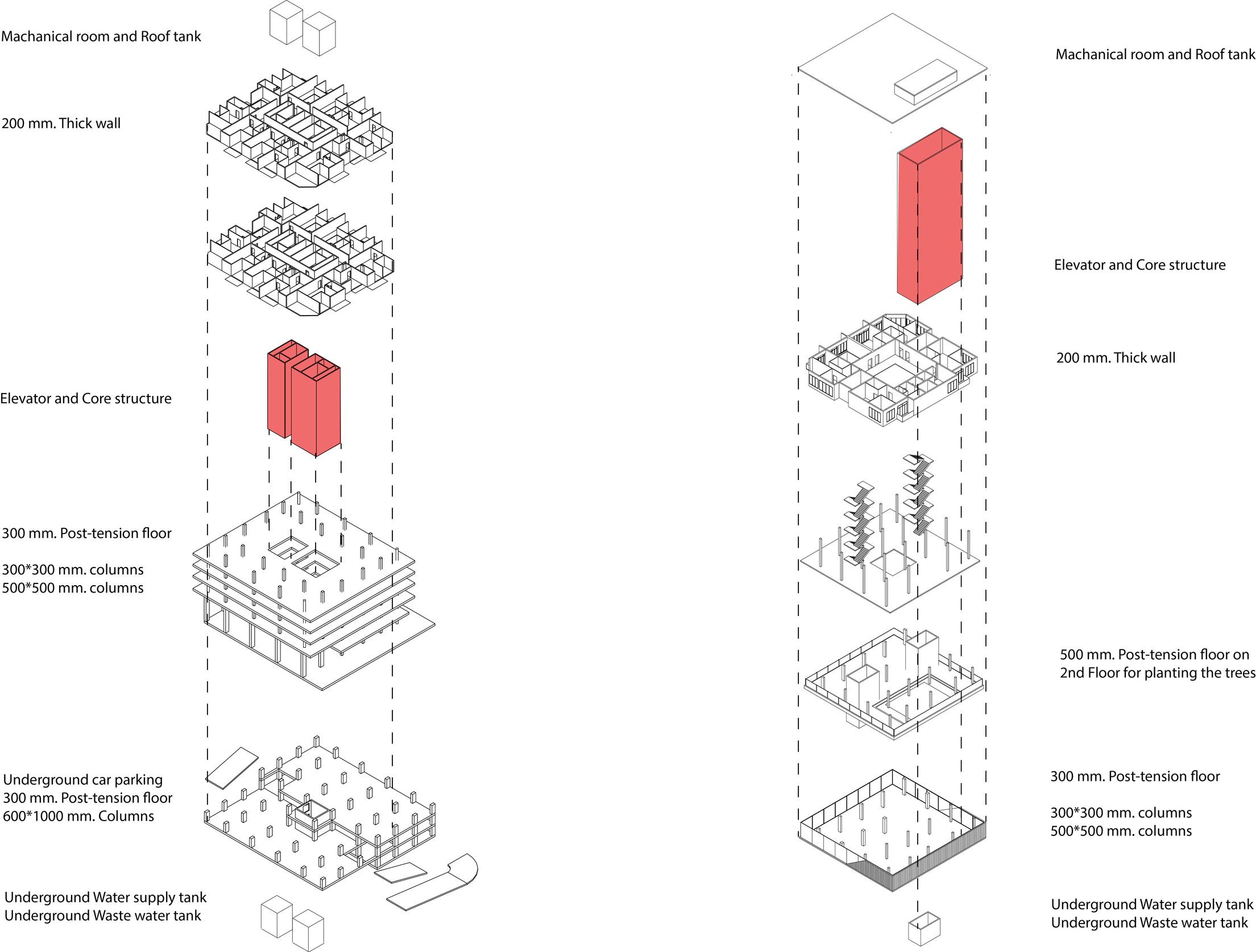

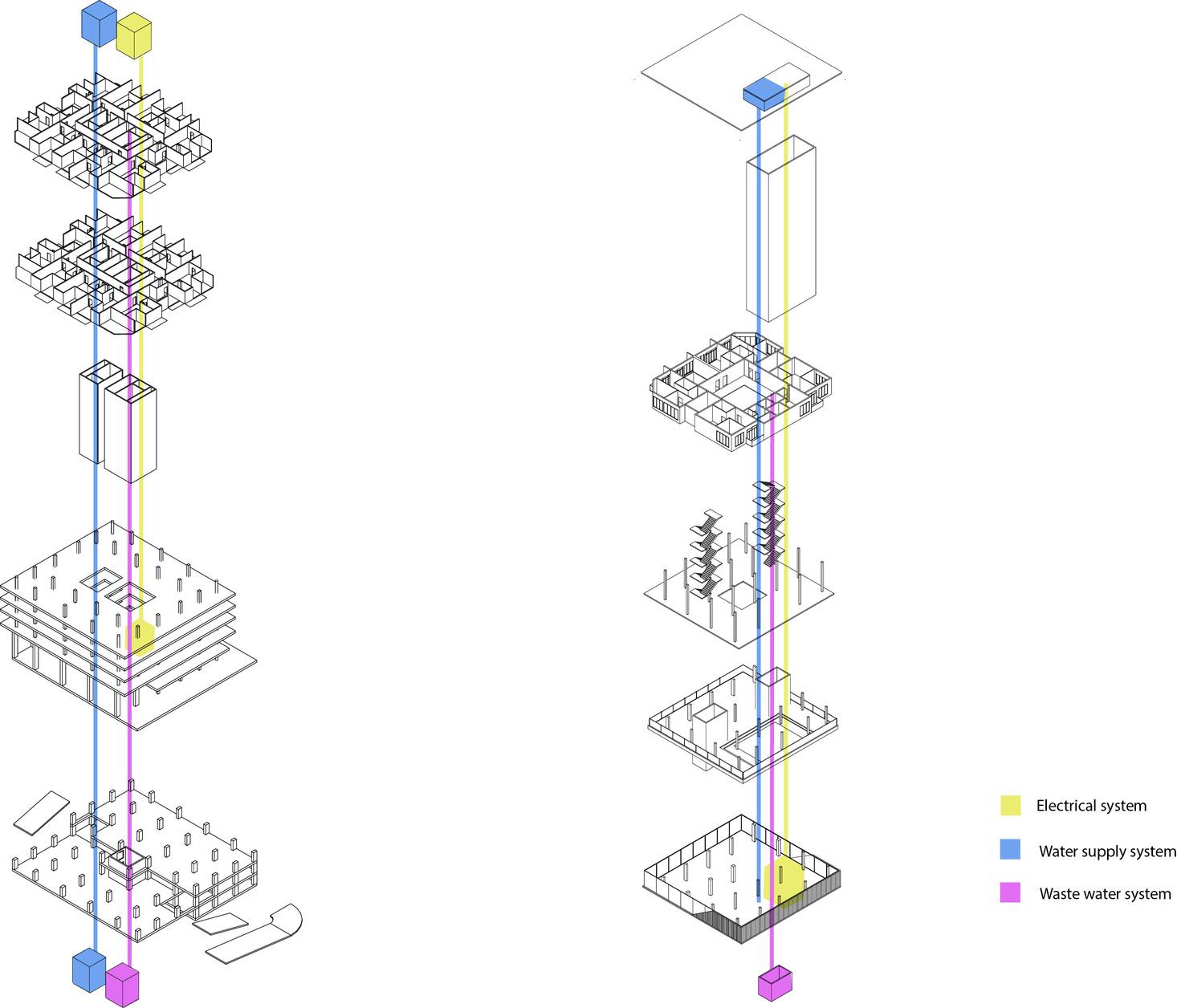

There are roof tank and underground water tank to be a water supply for each floor in residential area. There are shaft spaces near the core structure for contain the pipes. Besides, there is waste water tank at the underground, connect to the bathroom from each residential units. For the electrical system, it start from the MDB room at the first floor then distribute electricity to the EE room on each floor.

Instructor; Michael Paripol Tangtrongchit

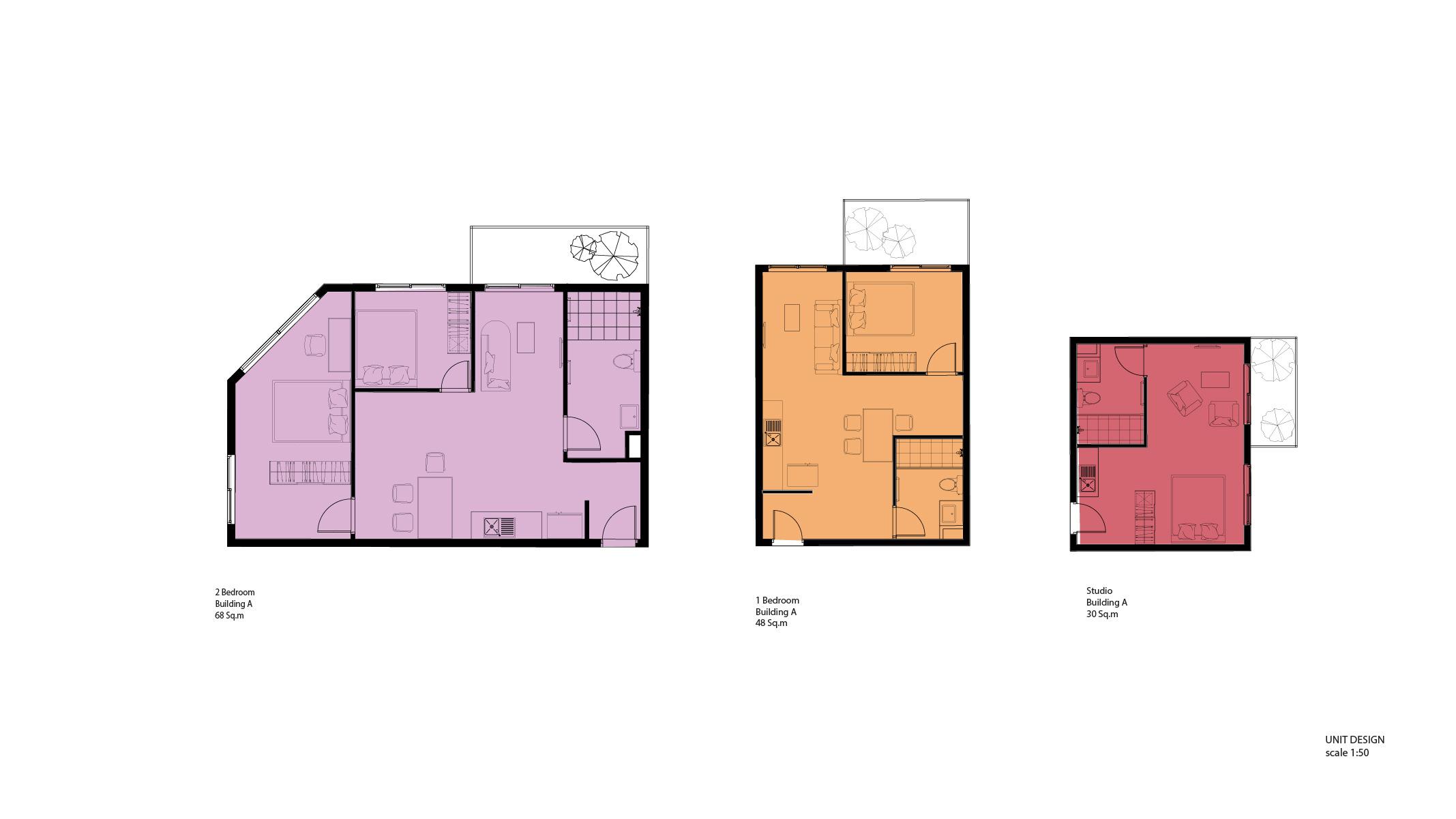

ProgramingandArea

Number of units 66

Programming Underground Floor; Ground Floor;

Building A Parking 1,906

Building A 710

Building B 550

Commercial Building 360

Pool & Pool Deck 268

2nd Floor;

Building A Sharing space and Co-

Building B Sharing space 445

3rd to 6th Floor;

Building A Residential units 877*4

Building B Residential units 476*2

Total GFA: 8,833 sq.m.

Saleable area: 3,830 sq.m. Efficiency
