CRiCKET STADiUM ACADEMIC

2022

TiNY HOUSE COMPETITION

2

2022

HABiTAT CENTER ACADEMIC

2023

MiSCELLANEOUS

4

1

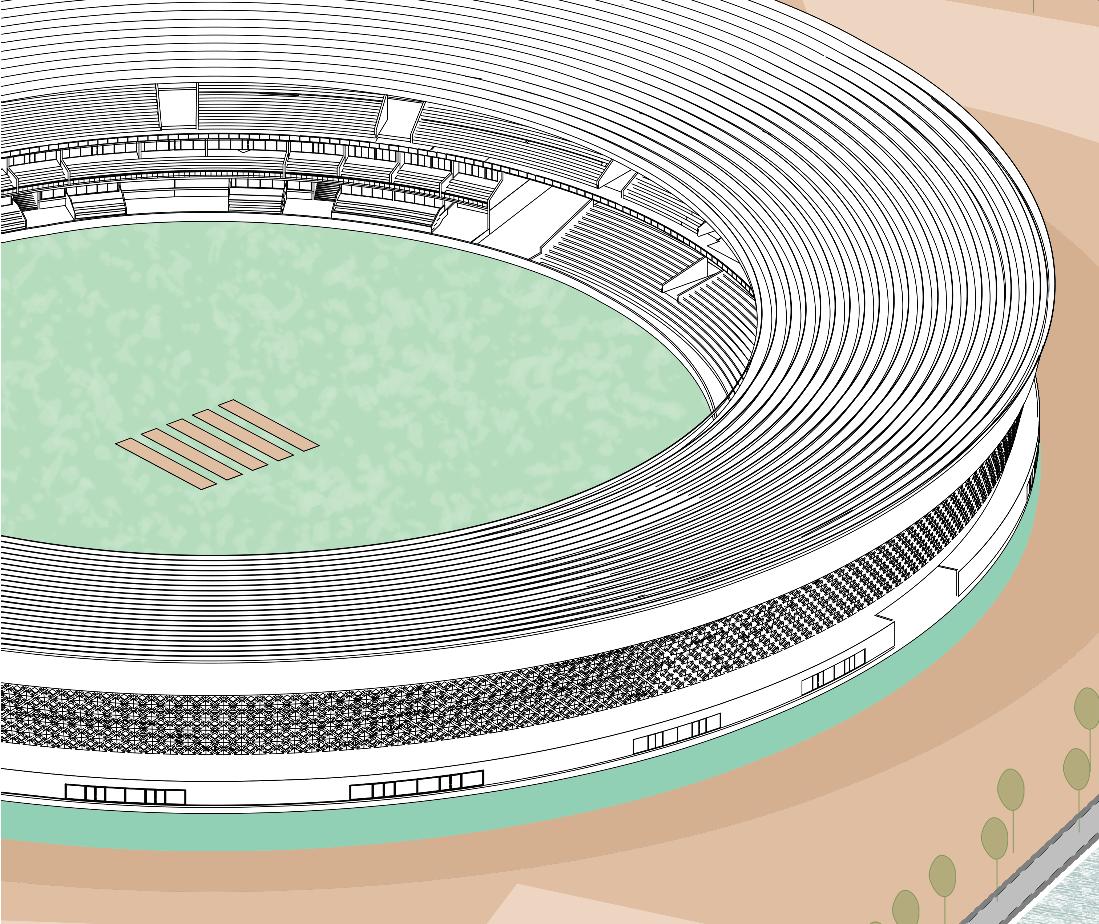

CRiCKET STADiUM, CHANDiGARH ACADEMIC | INDIVIDUAL | 2022

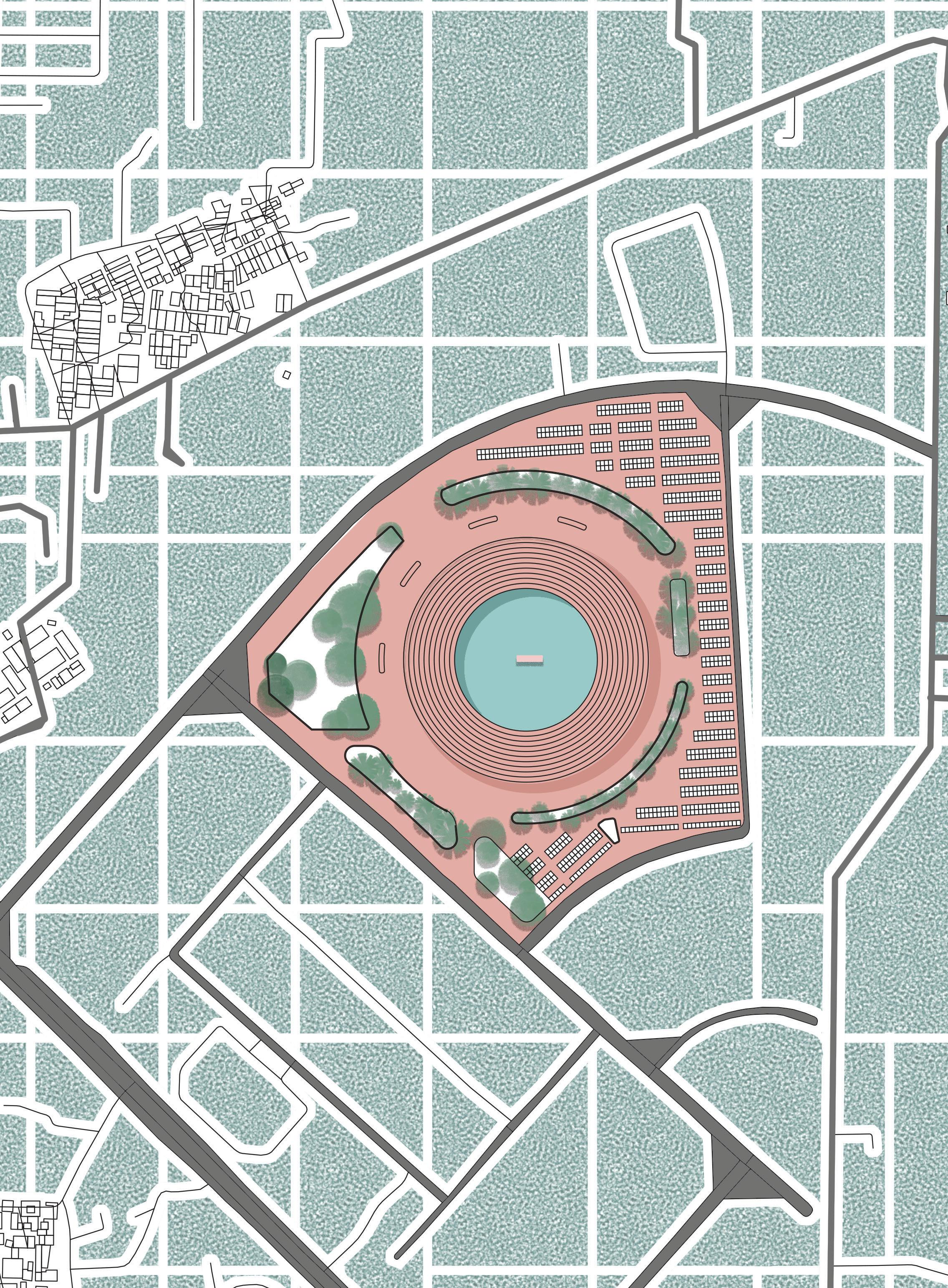

Designing an international level Cricket stadium facilitating training and practice of players. This academic project presents a captivating exploration of form and structure as we unveil our vision for an iconic cricket stadium and integrated training facilities. From envisioning the grandeur of the stadium’s aesthetic to delving into the complexities of its structural systems.

| REVIT | GRASSHOPPER | PHOTOSHOP | ILLUSTRATOR | RHINO |

1

2

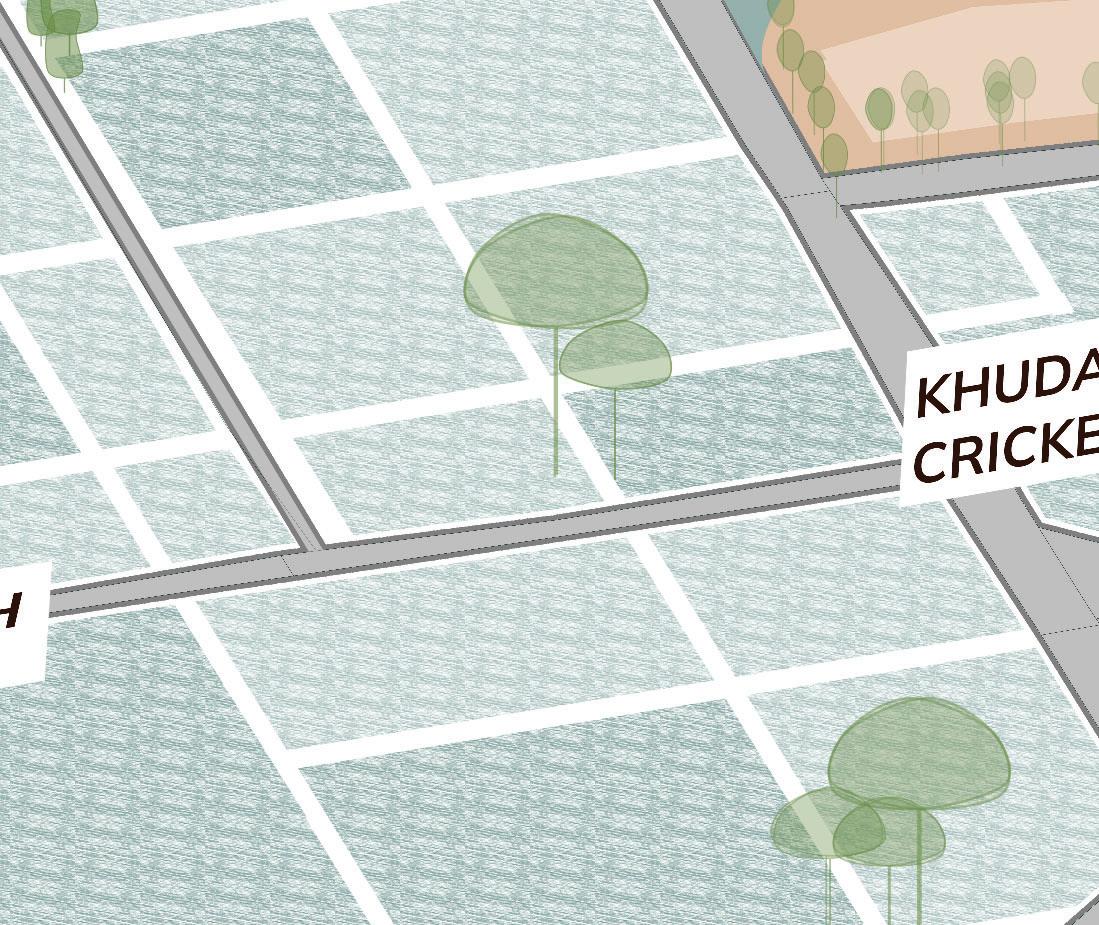

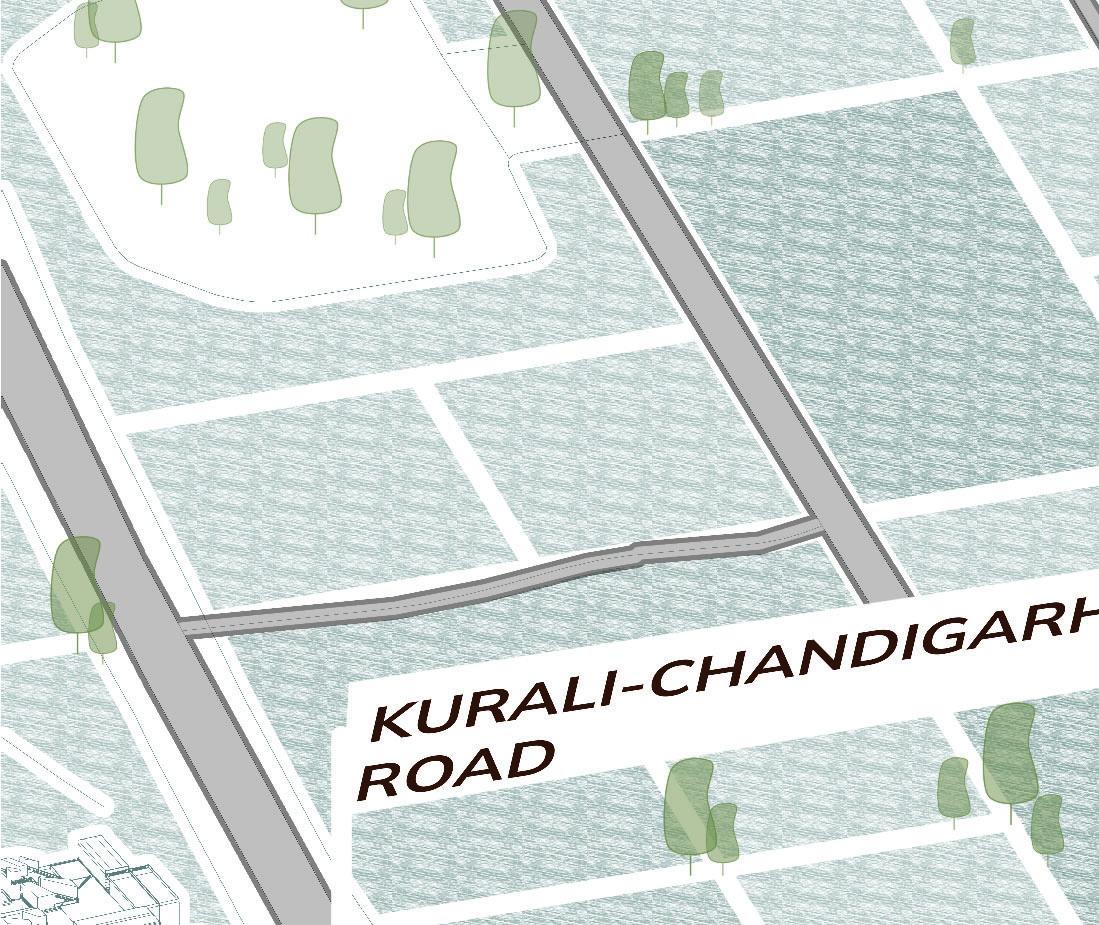

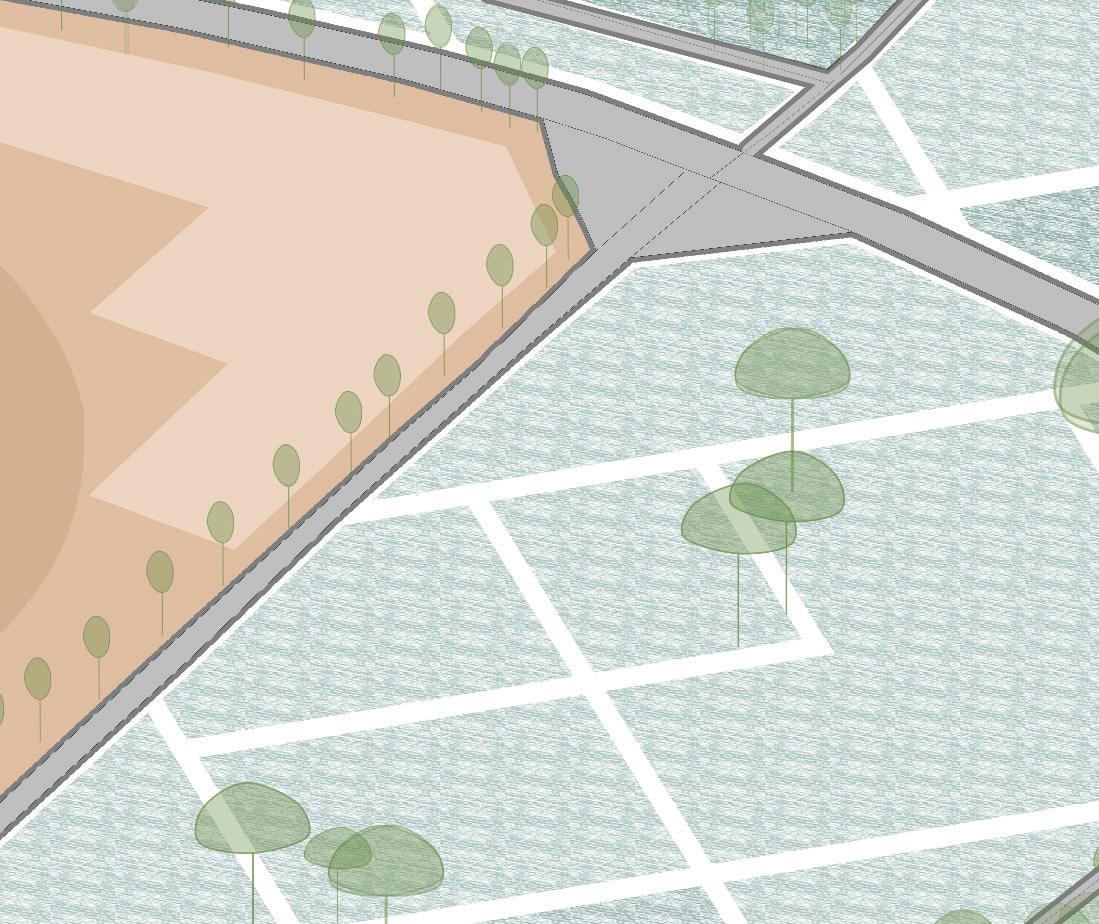

NDIGARH

3

CHANDIGARH

NEW CHA

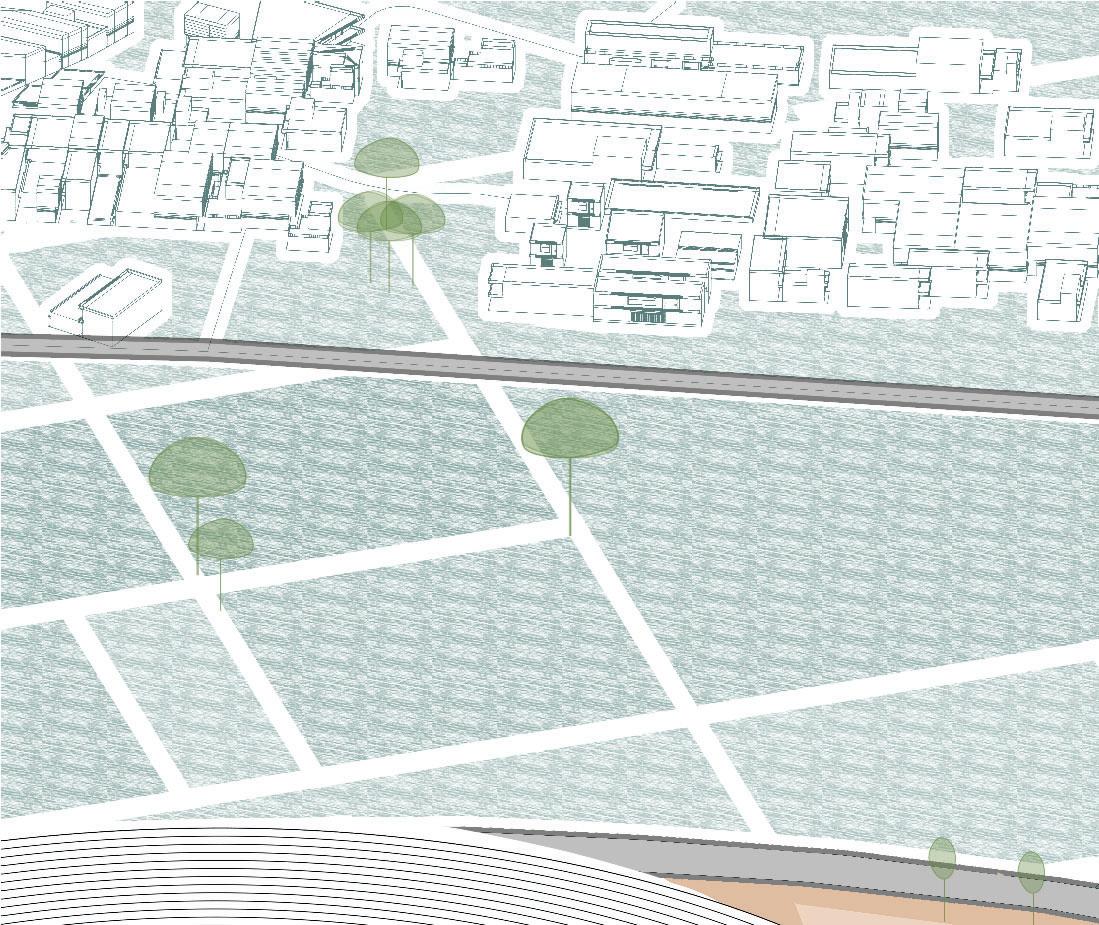

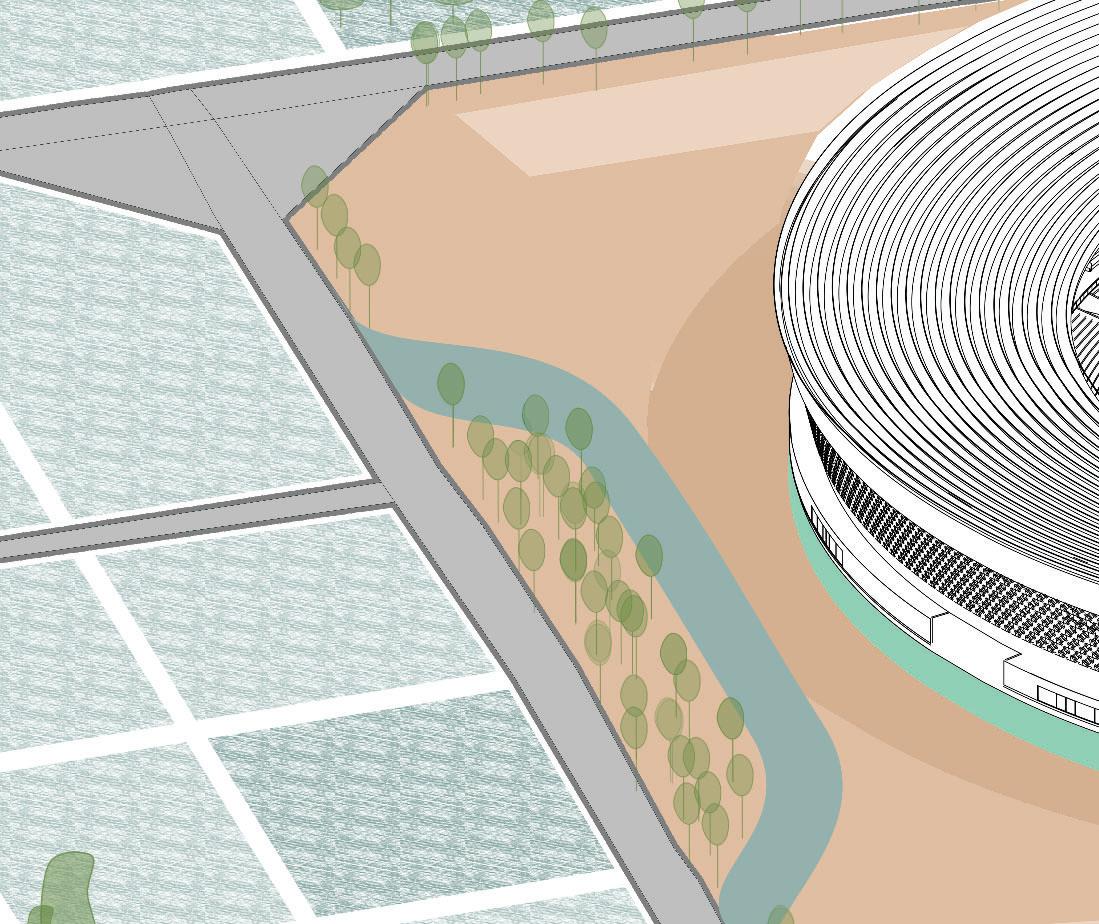

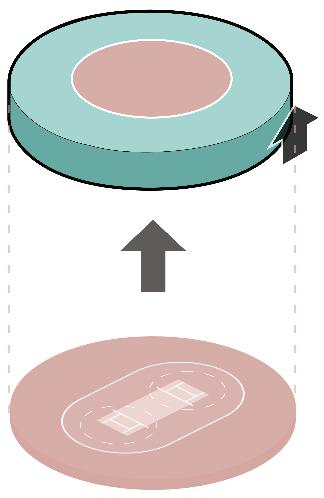

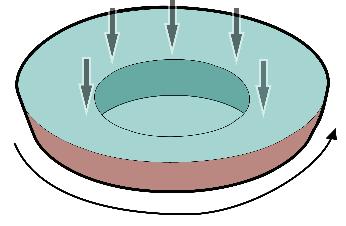

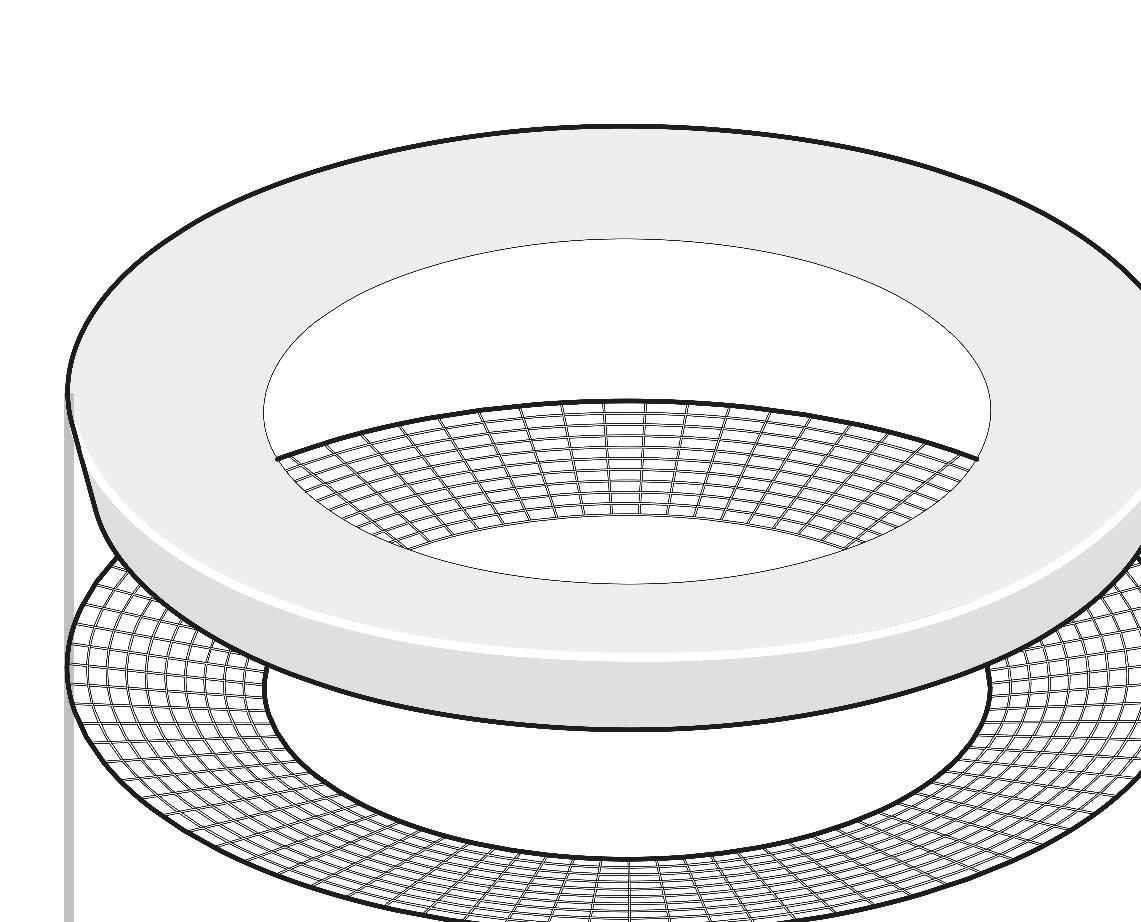

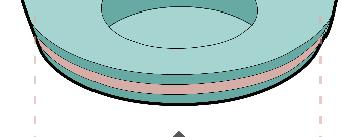

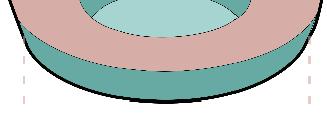

Concept Development

EXTRUSION

FIELD CUT

ANGLED ROOF

PATTERN LATTICE

Commentary Box, Media Box Vip Boxes, Players Seating Public Seating

Zoning Diagram

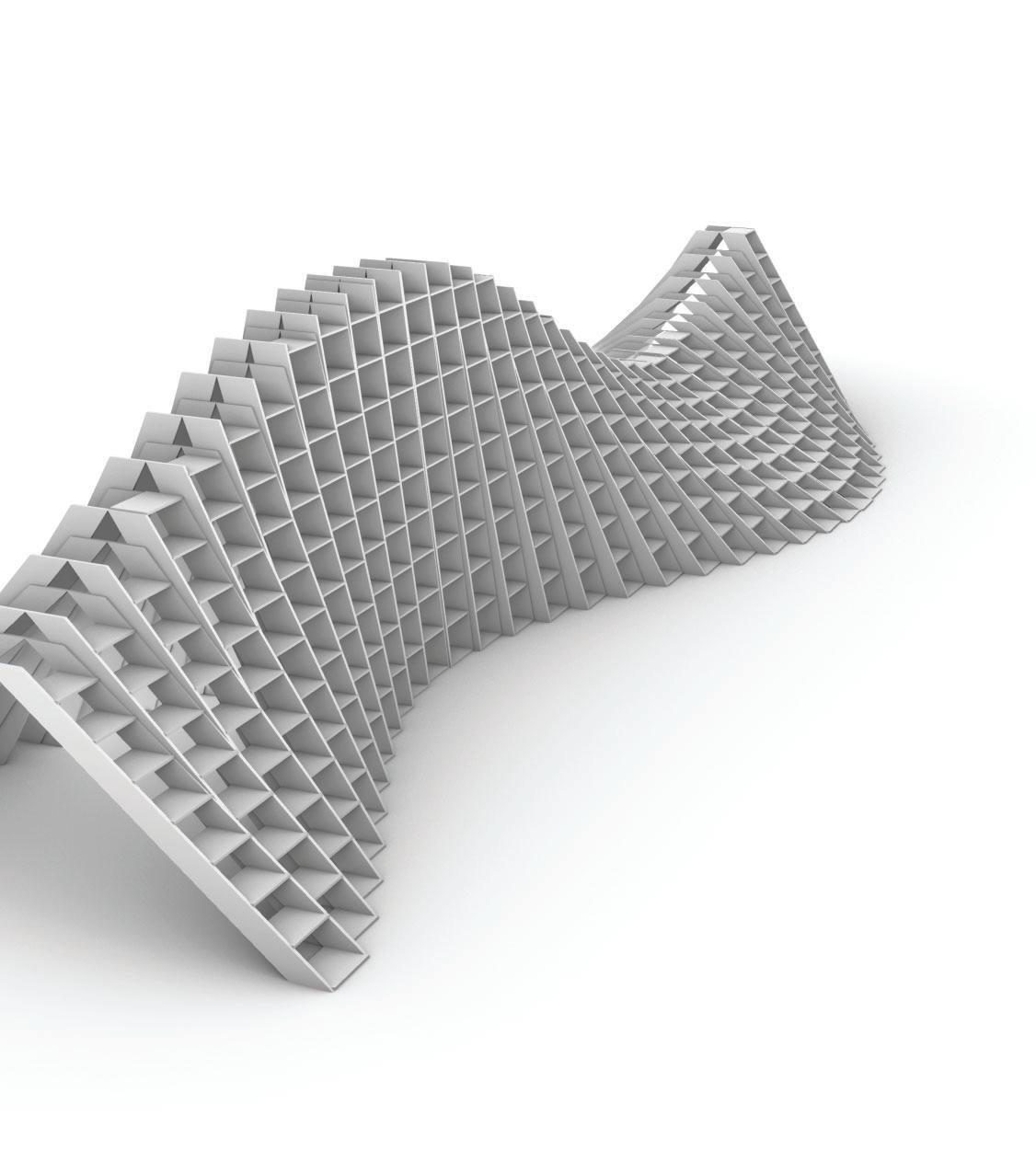

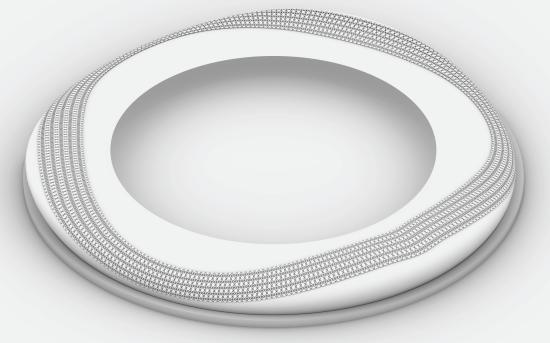

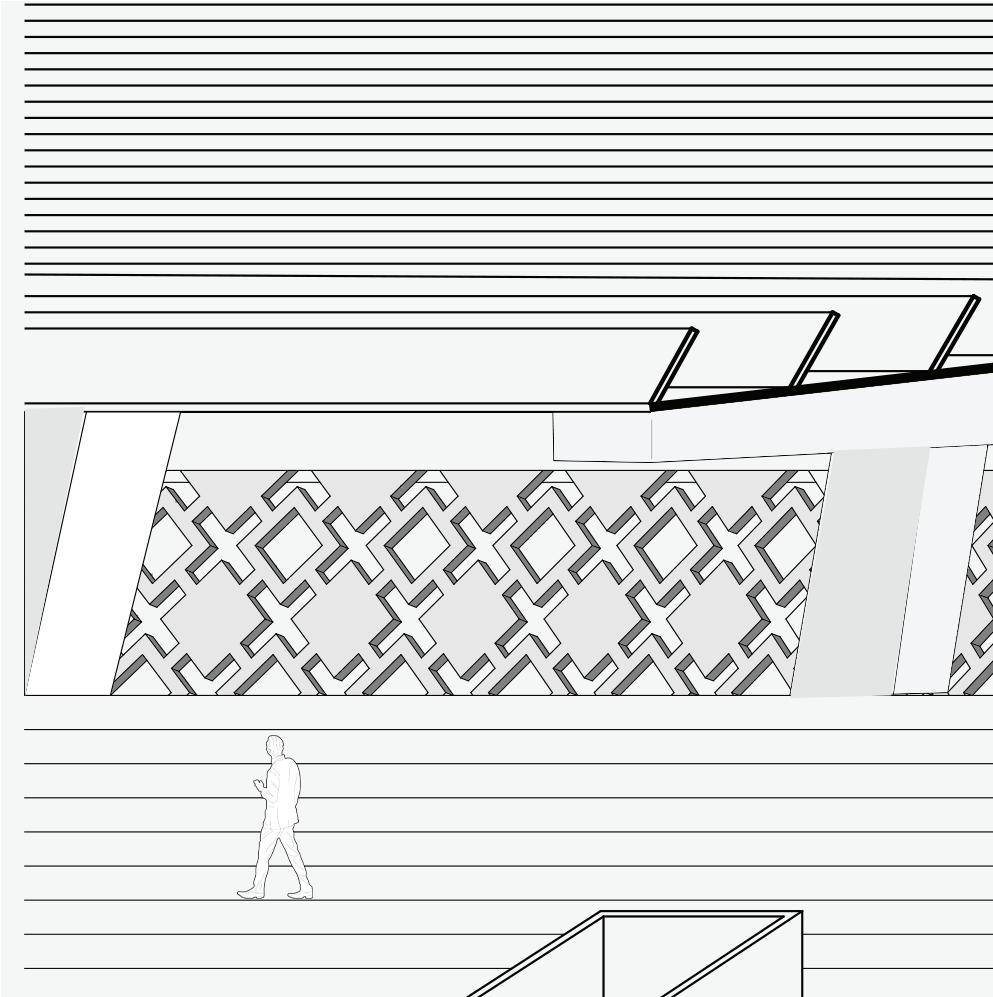

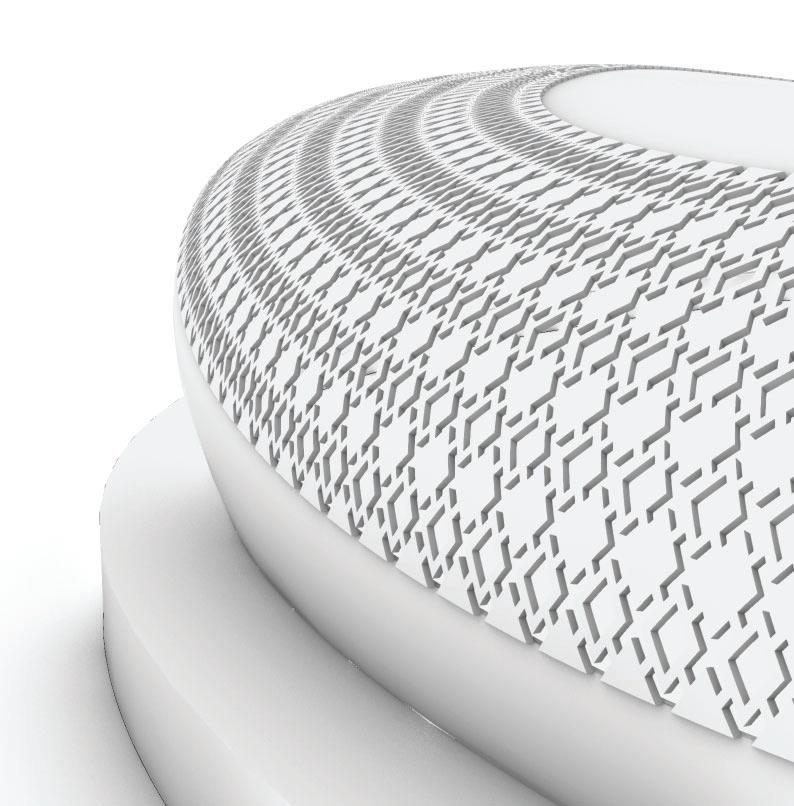

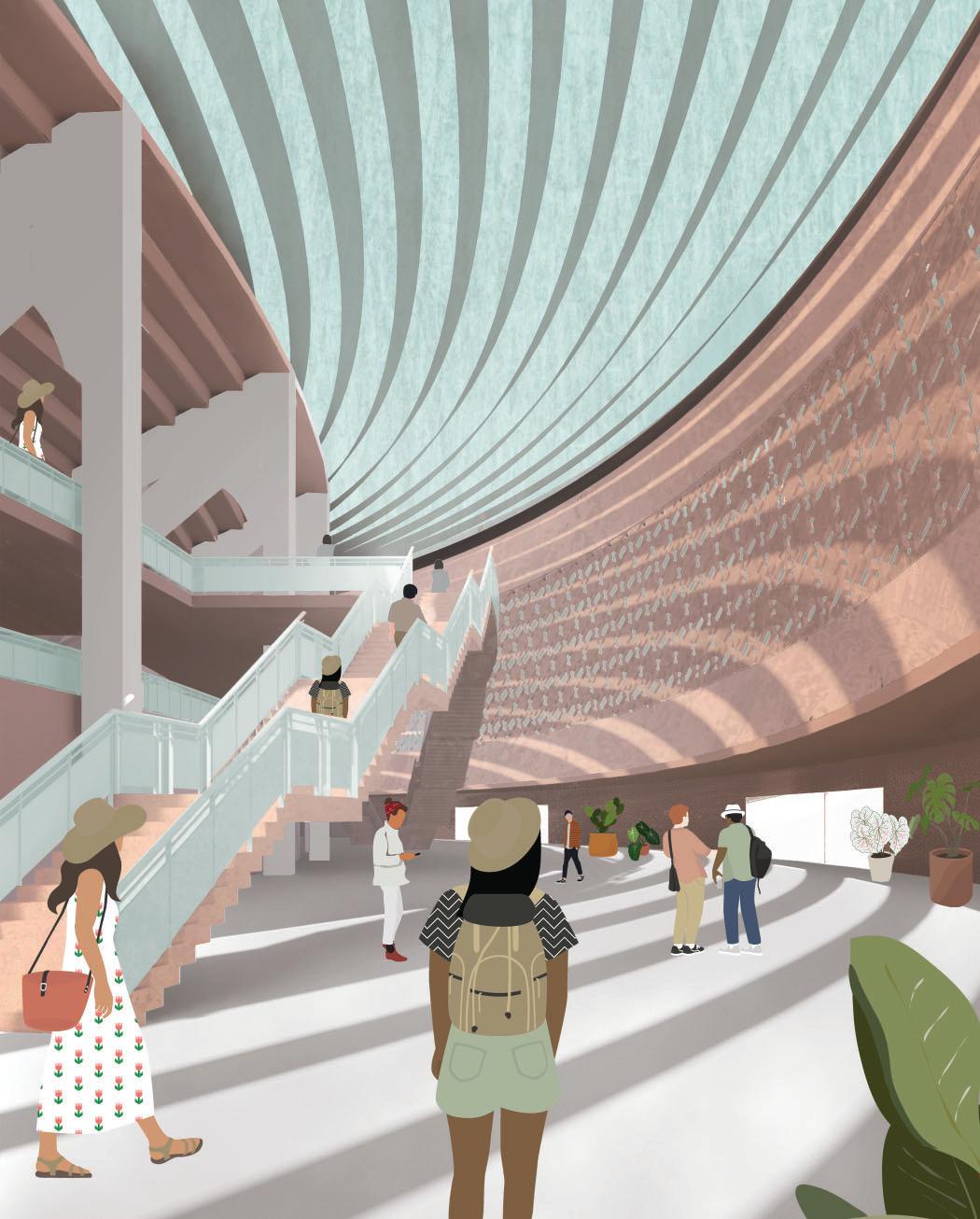

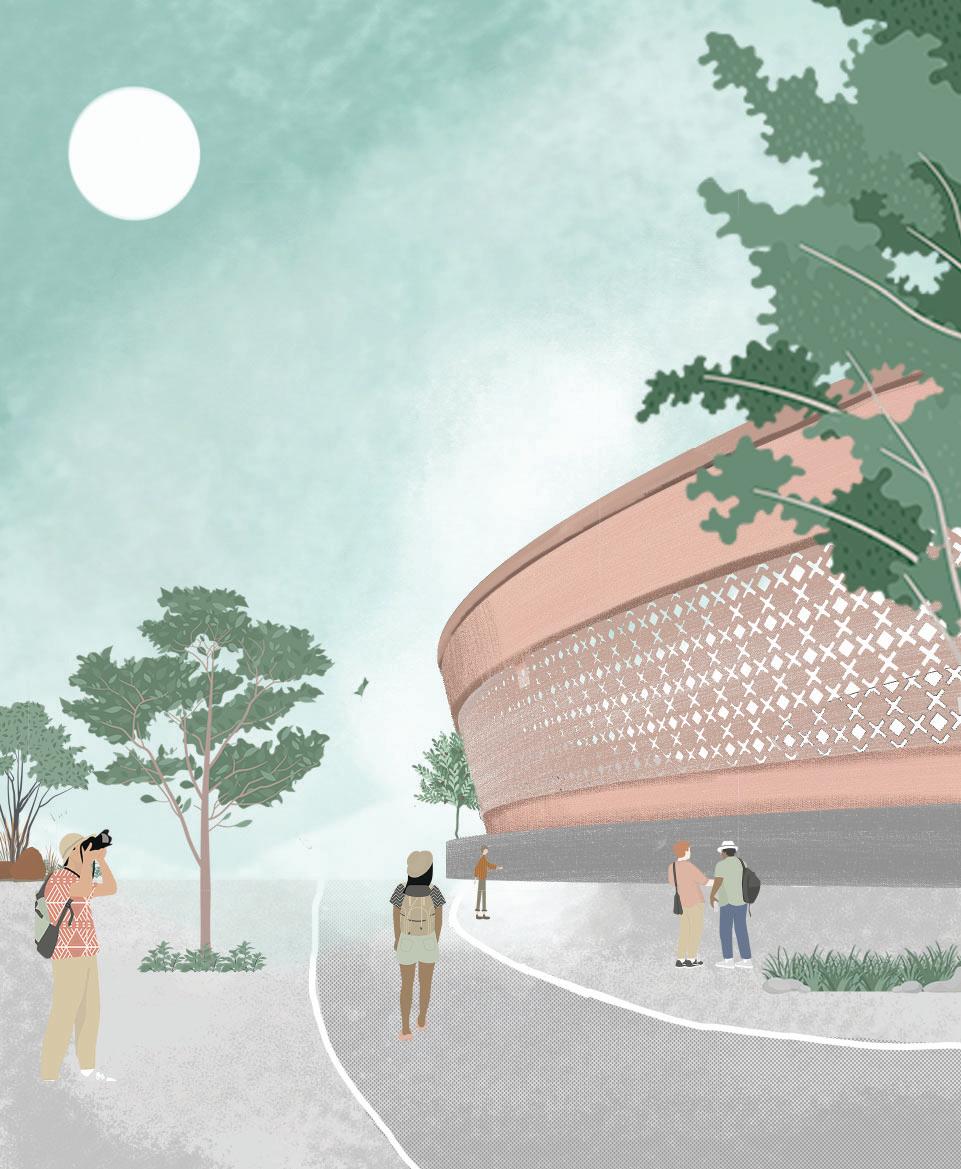

LATTICE PATTERN The idea behind the form was to present the indian architectural style and traditional culture by use of local elements of design.

The pattern was inspired by different lattices (jalis) in Indian architecture.

REPEATED PATTERN

REPEATING UNIT

4

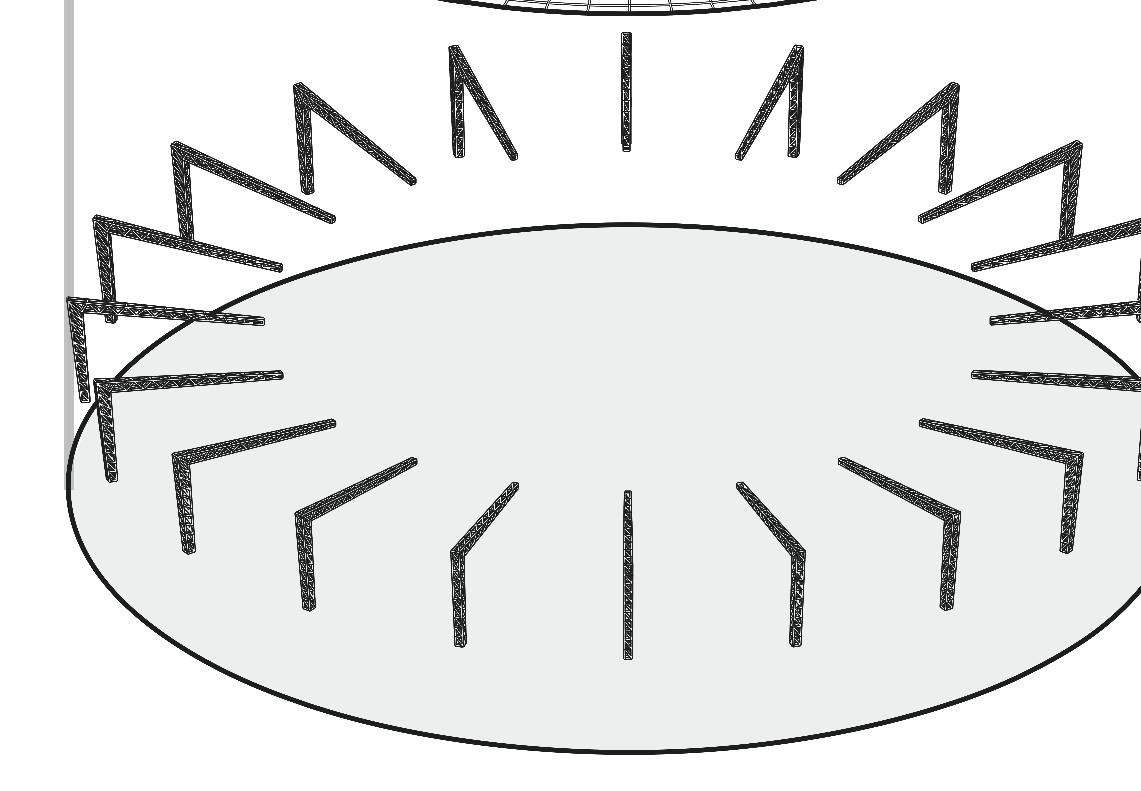

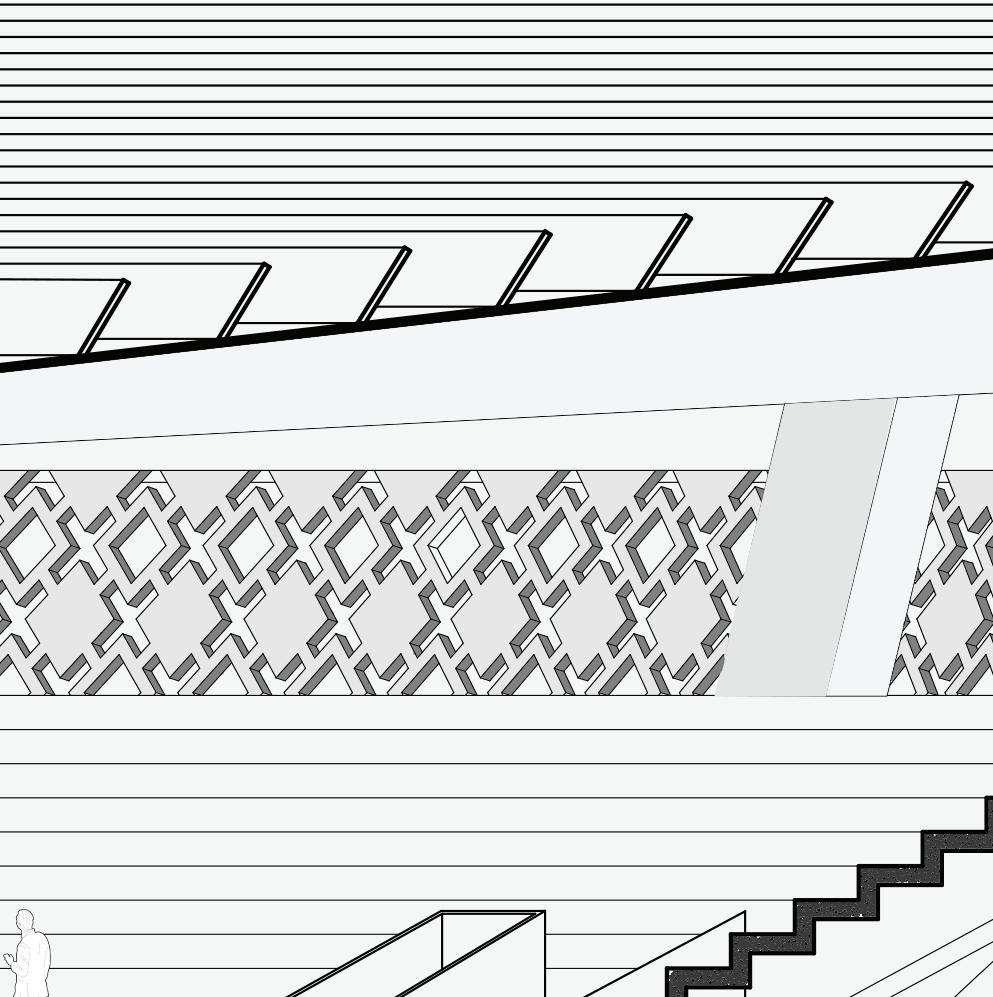

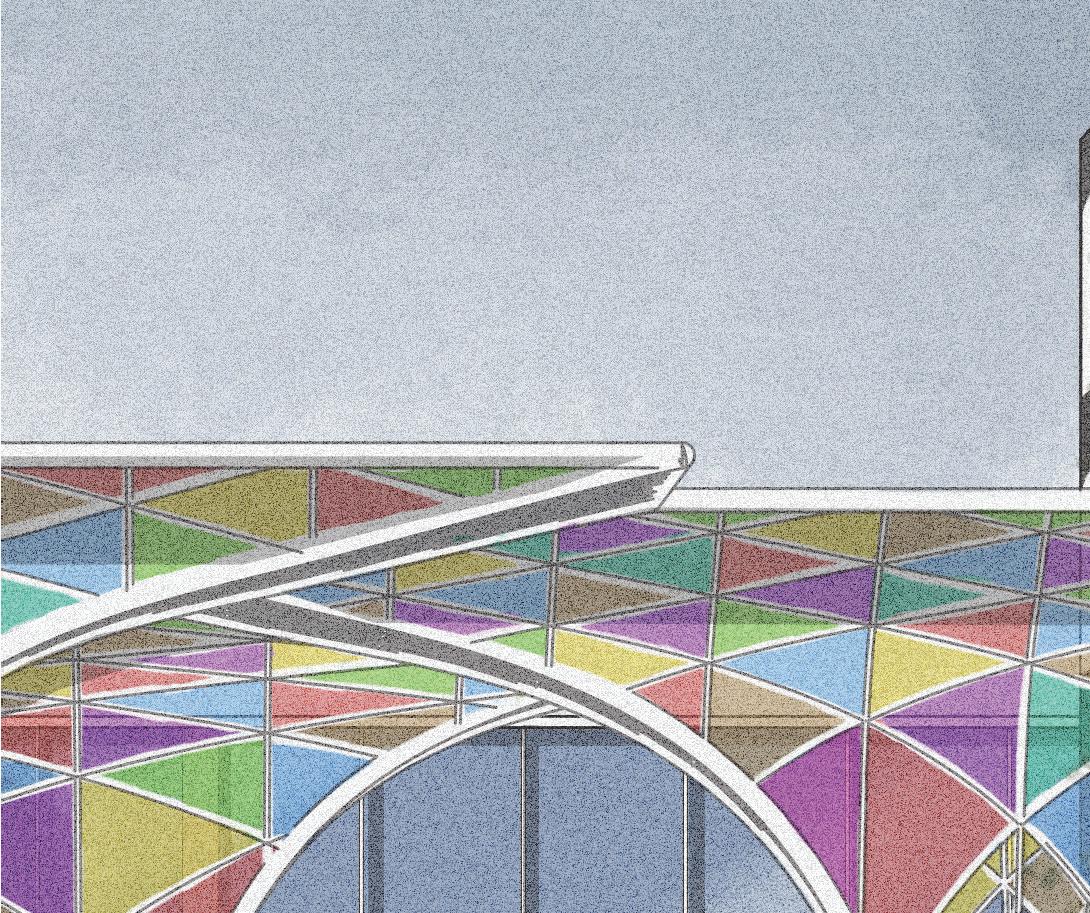

Slanting louvers for shading Groove track holding louvers Frosted transparent acrylic sheets Supporting structure

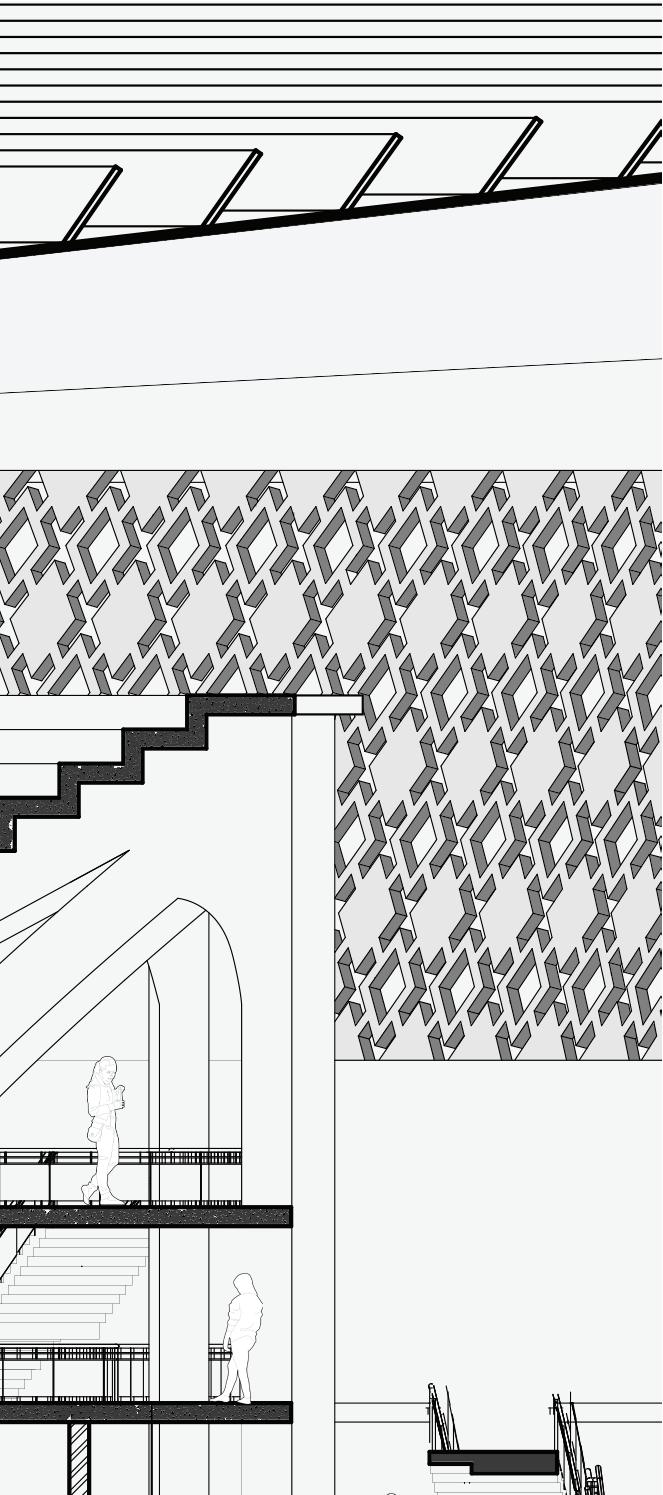

Roofing detail

5

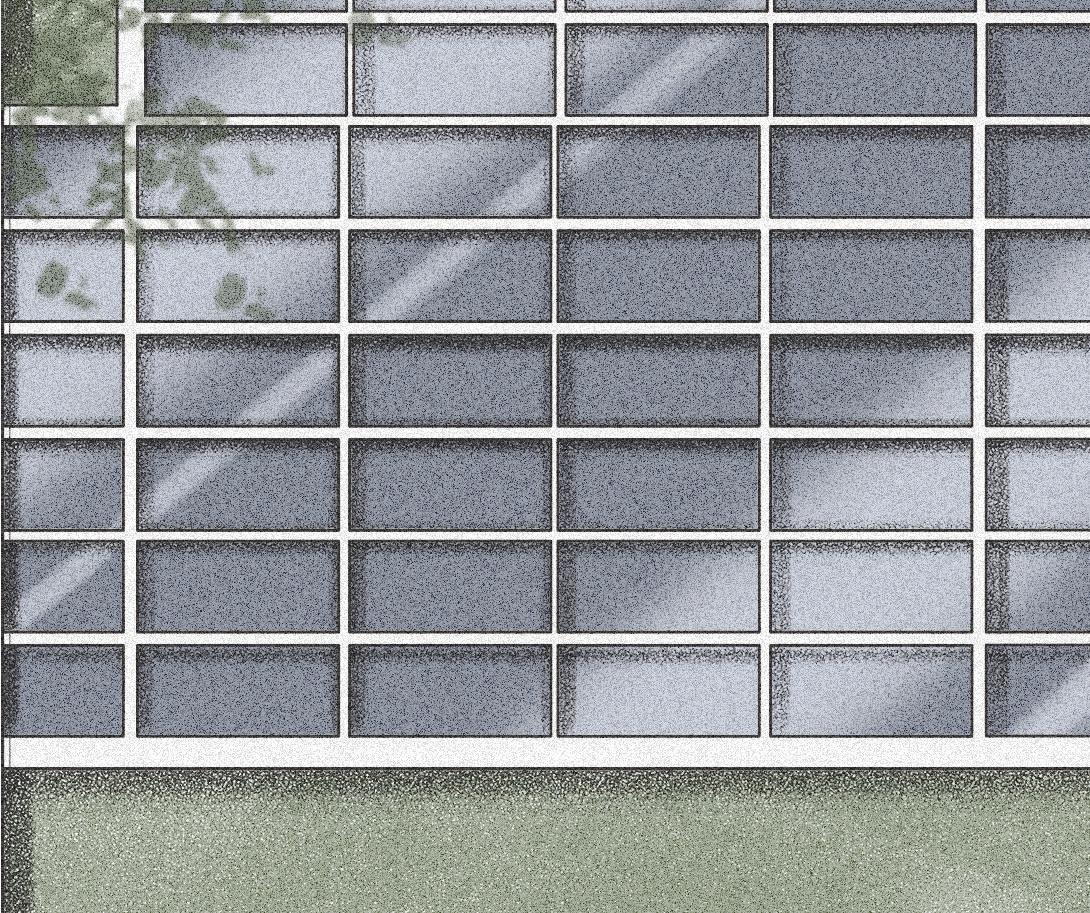

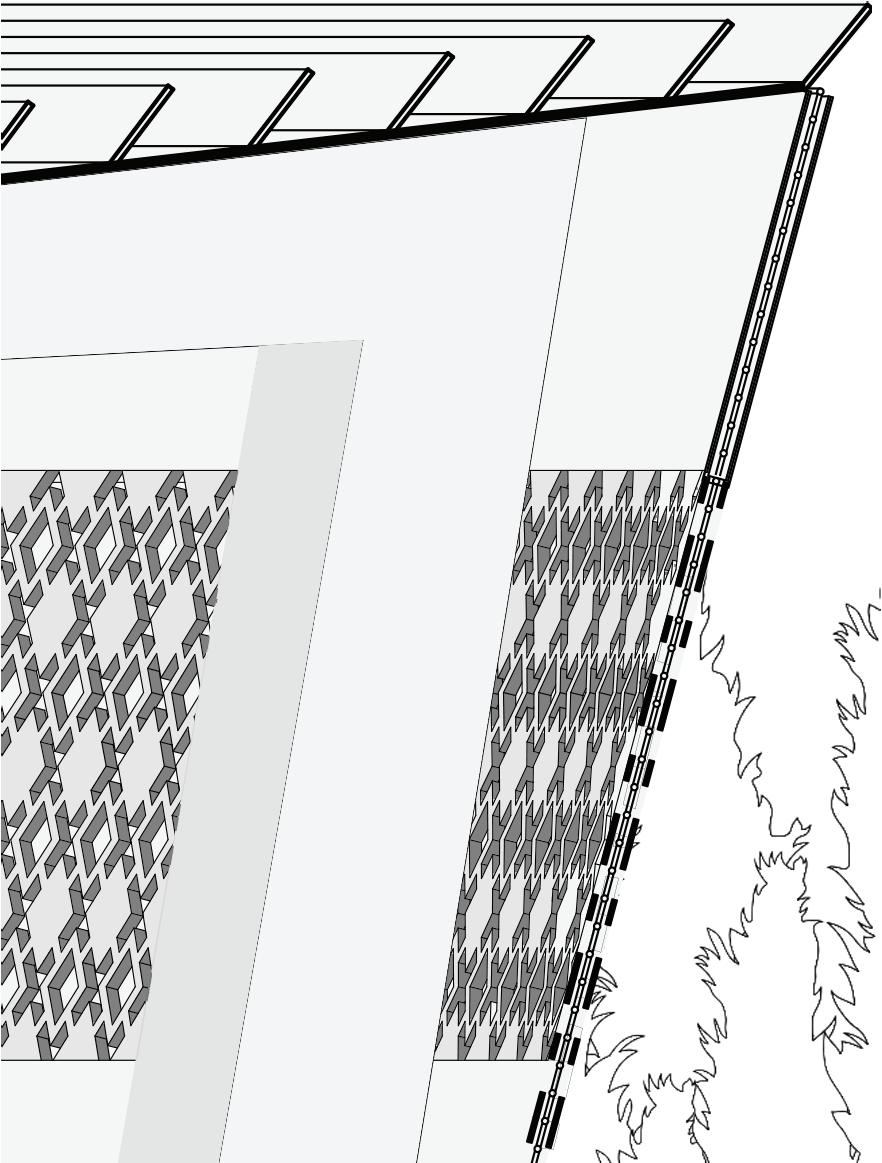

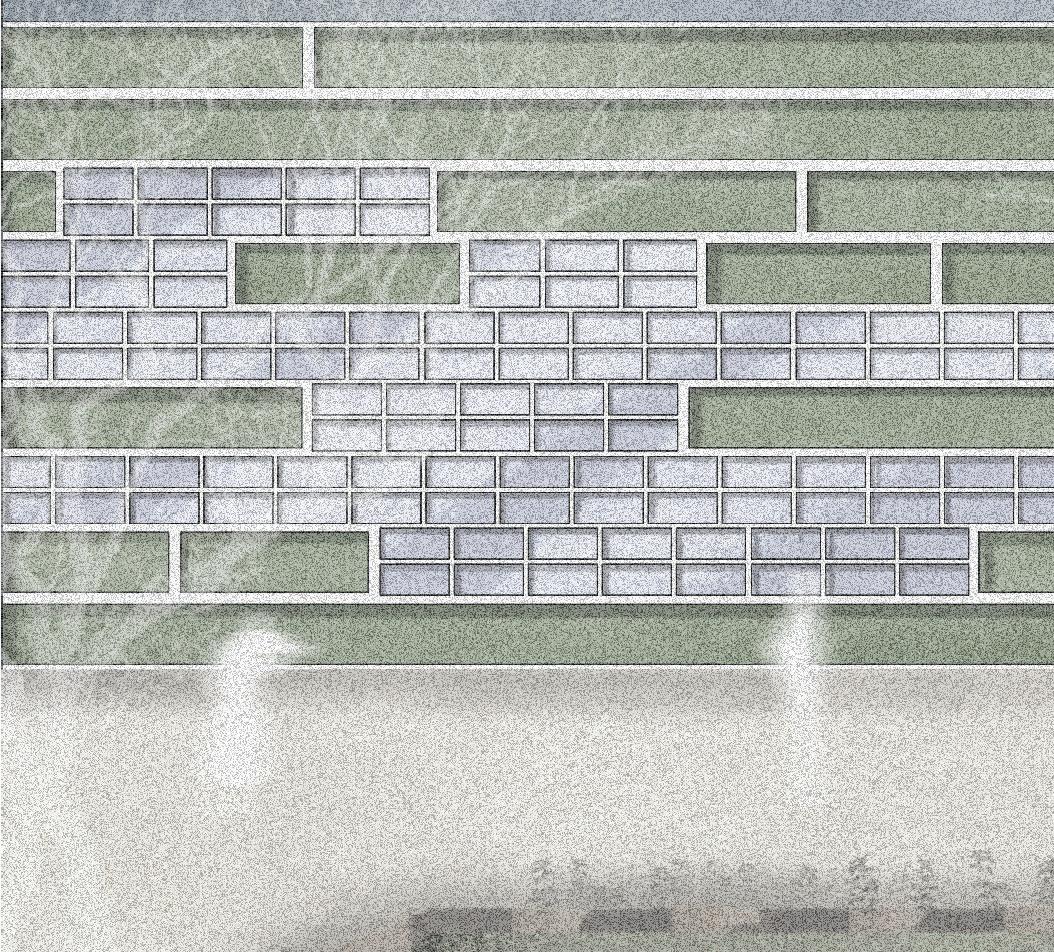

Panelling detail

Panellinng sheets Steel mullions Fastners

4

3

2

1

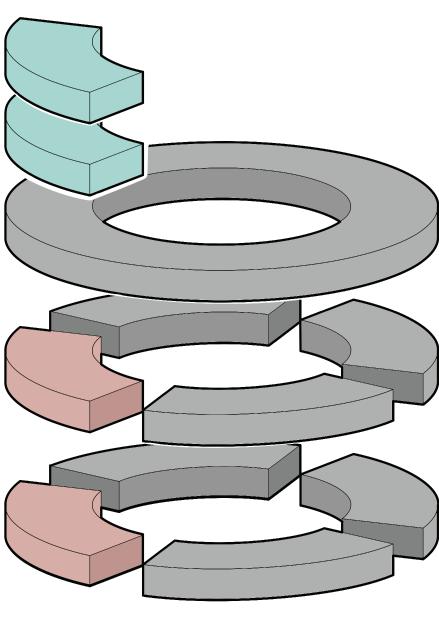

1. Floor Plate 2. 3d Truss system

3. Steel gerders and purlins 4. Facade and roofing

The C- value was calculated based on the radius of the field for both stands. The total height of the seating was achieved by making a basic section. The roofing dimensions were calculated later on depending on the shading angles. A normal 3d truss has been used for supporting the roofing and facade. A web of steel members further support the panelling and louvers on the roof.

6

UPPER SEATING ROW TV STUDIOS

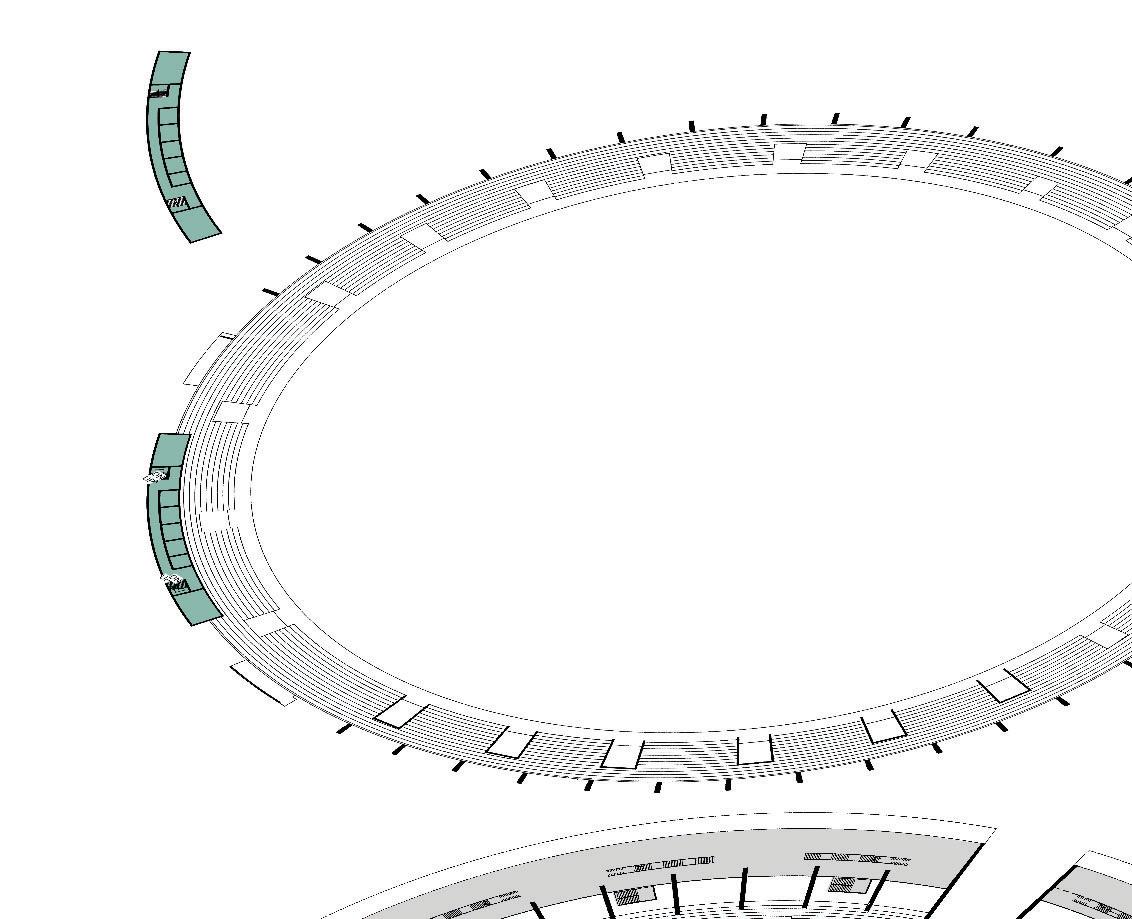

FIRST FLOOR

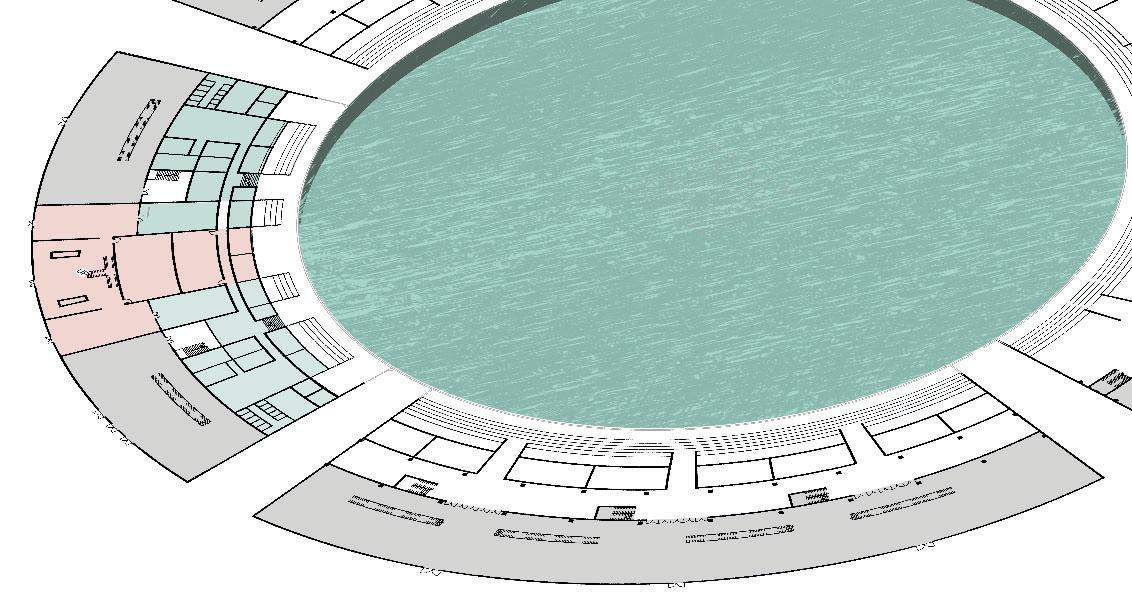

Corporate, Players Entry V.I.P Lounge Public Normal Seating

GROUND FLOOR

Public Premium Seatng, Corporate, Players Entrance, Players Lounge, Public Normal Seating

Media, Players Area

7

Corporate, VIP Lounge

Public vertical circulation

8

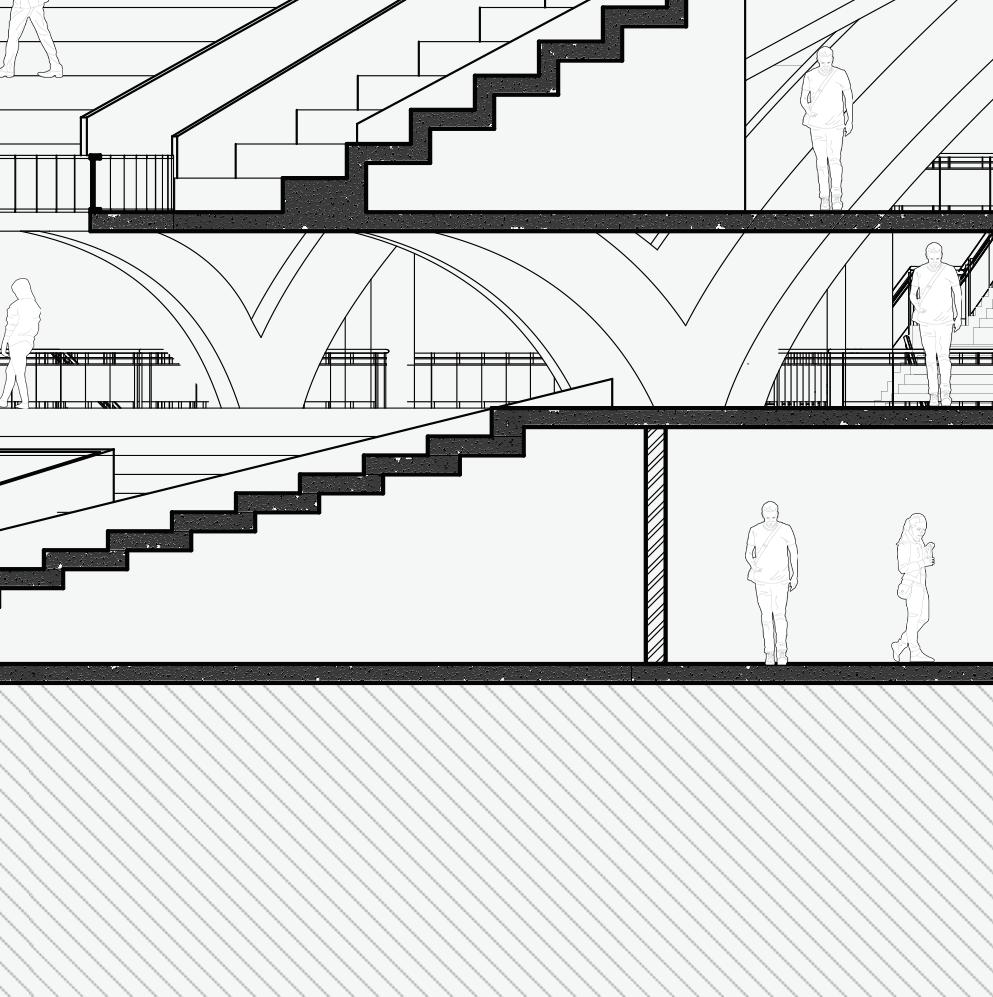

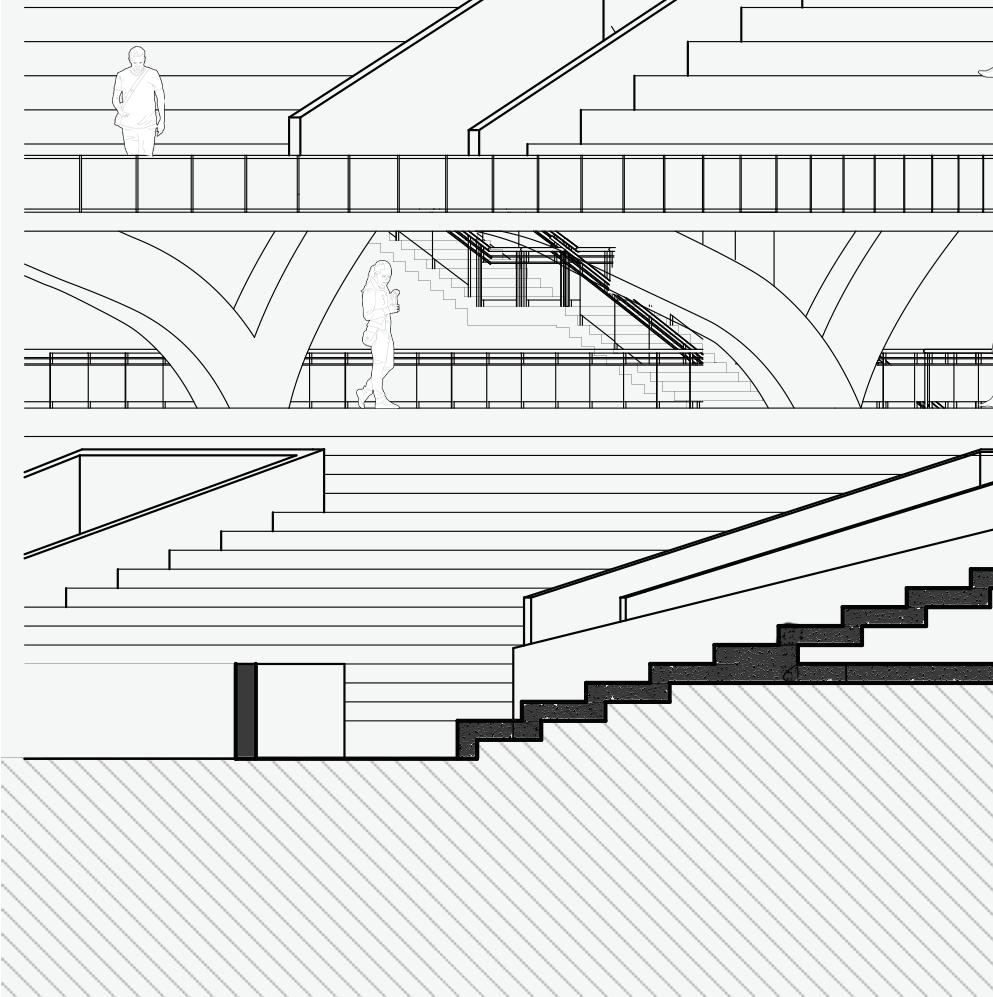

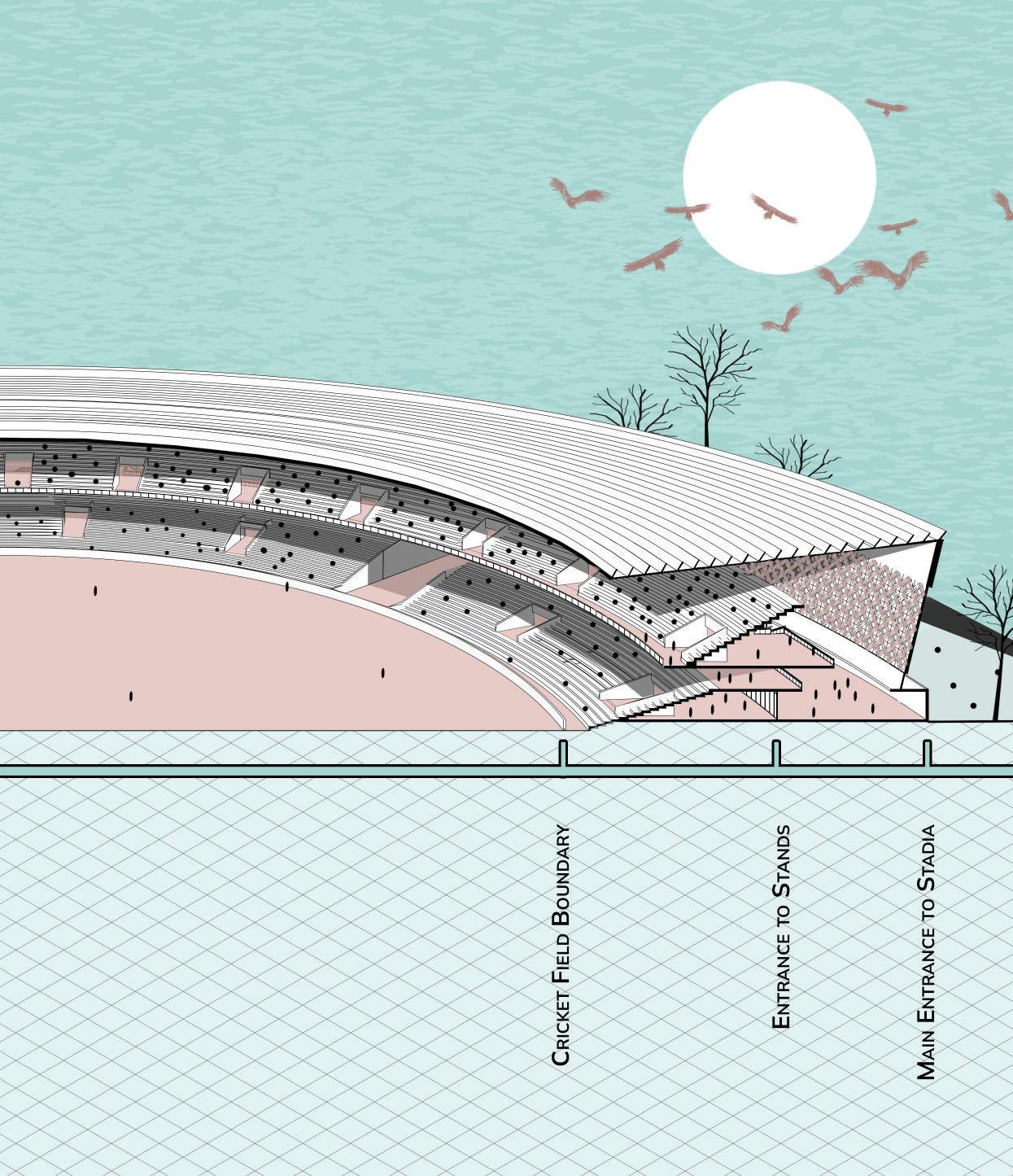

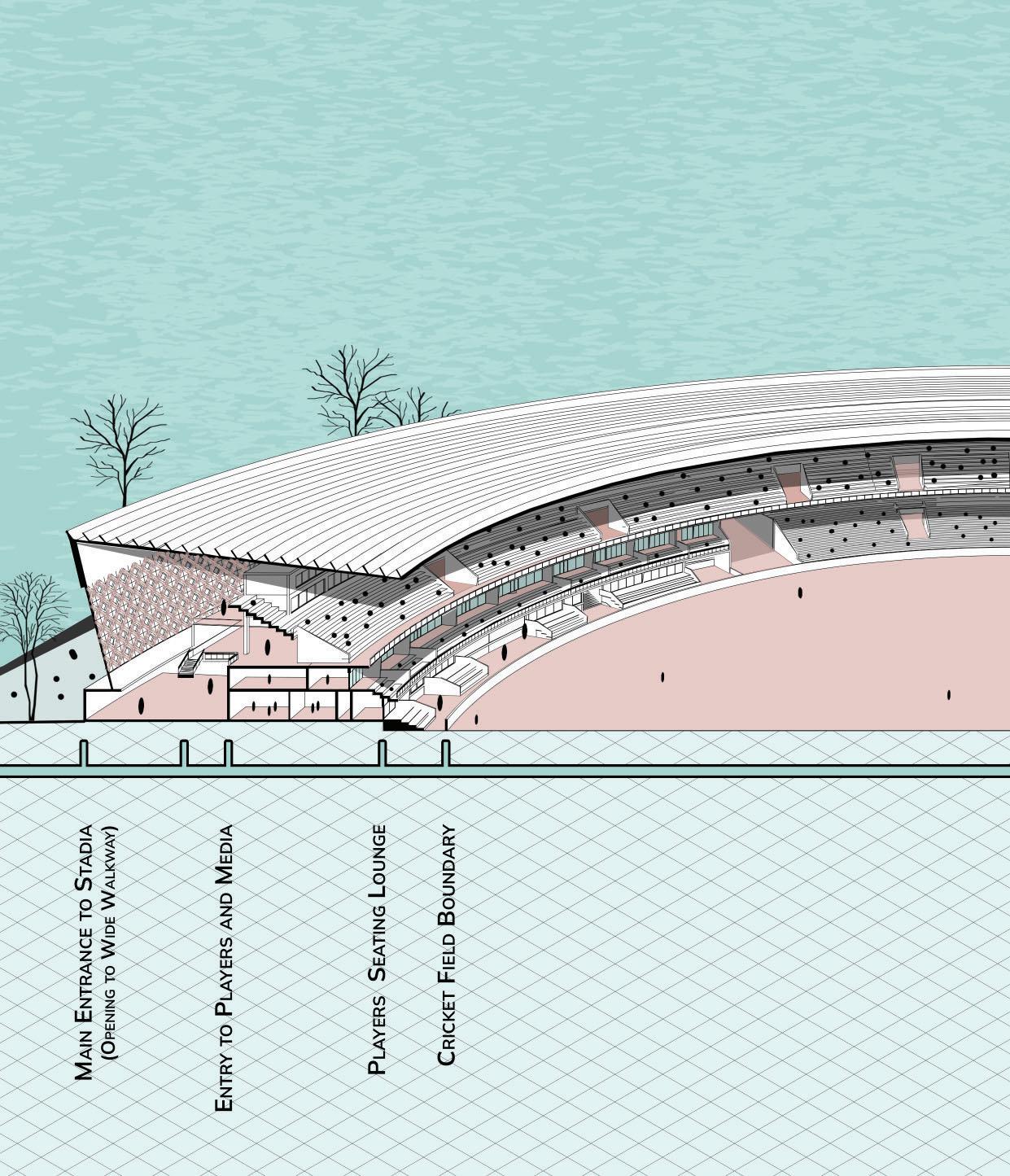

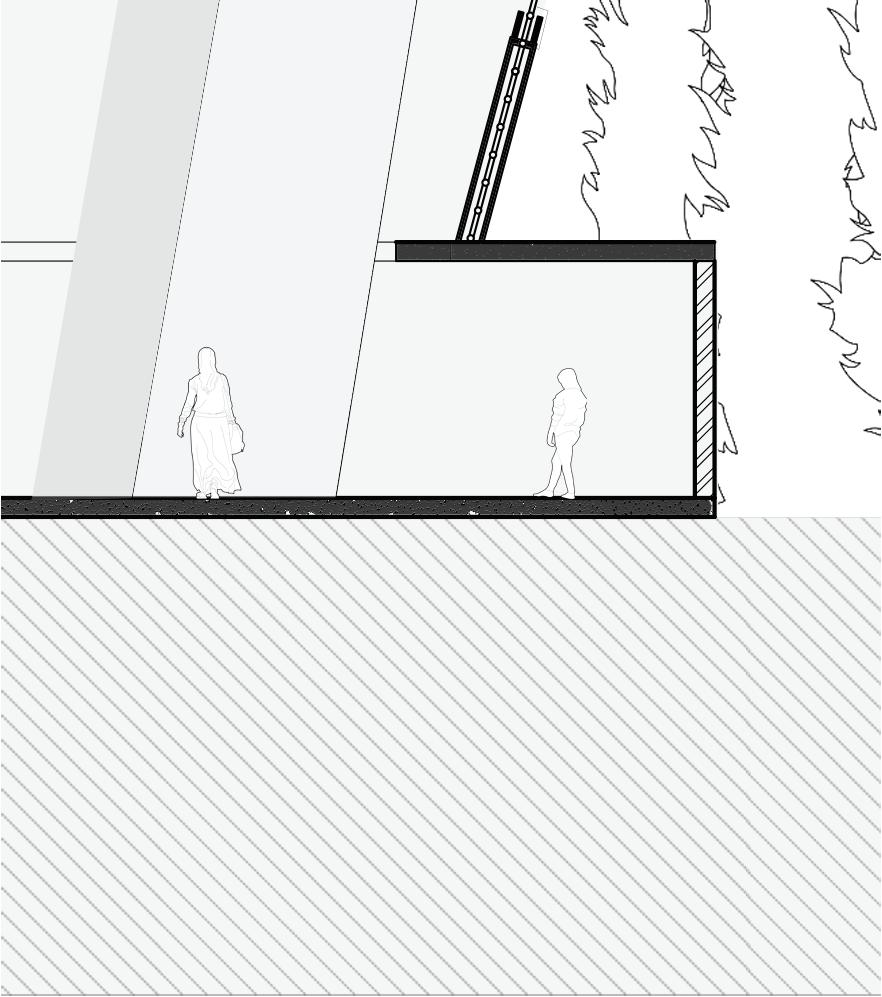

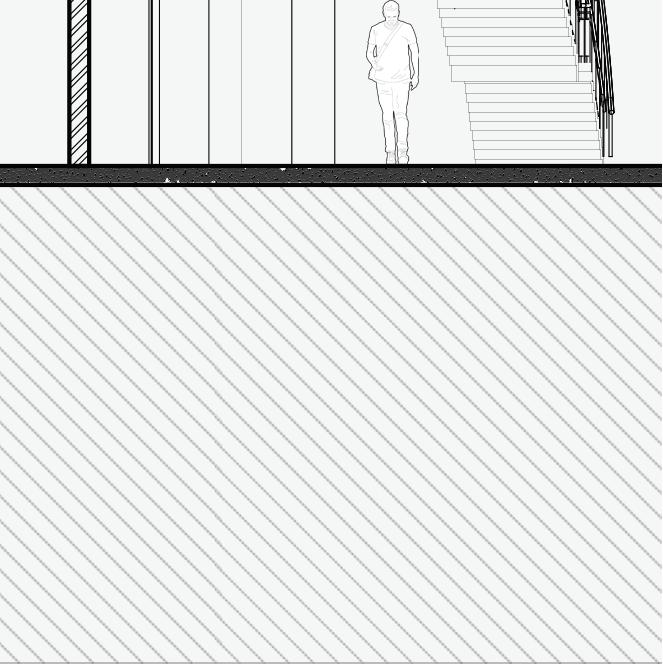

PERSPECTIVE SECTION

9

10

11

12

2

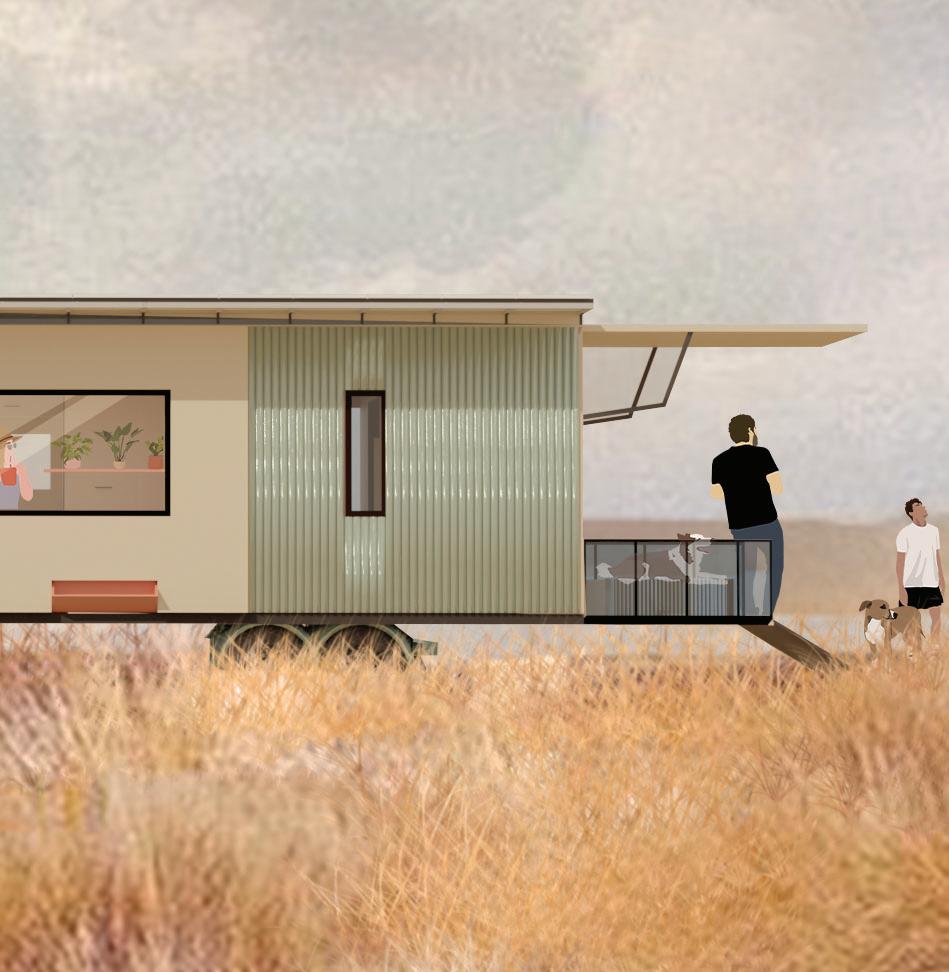

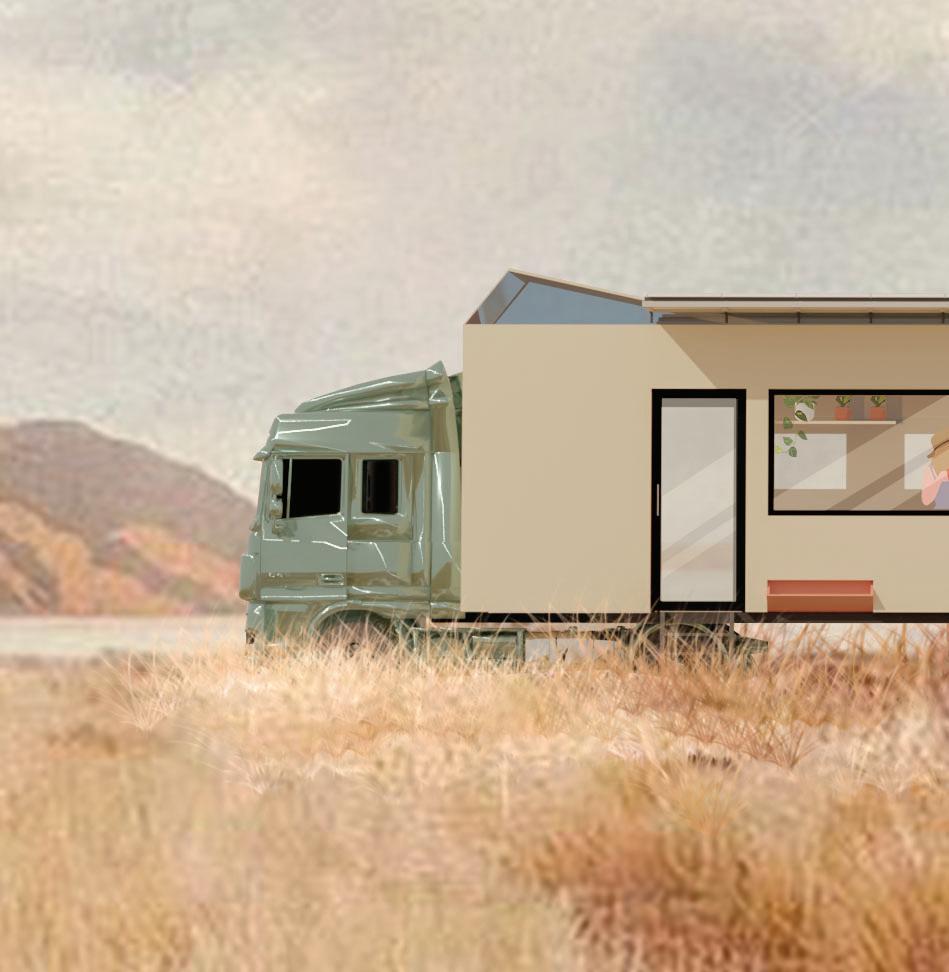

TiNY HOUSE, BOMBAY Competition | GROUP OF 2 | 2022

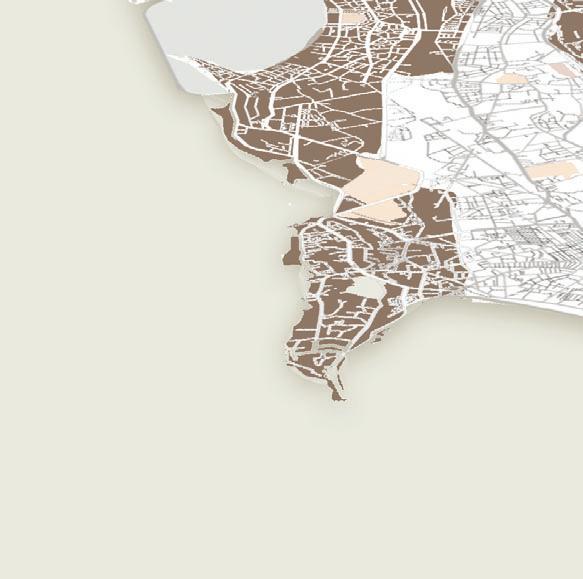

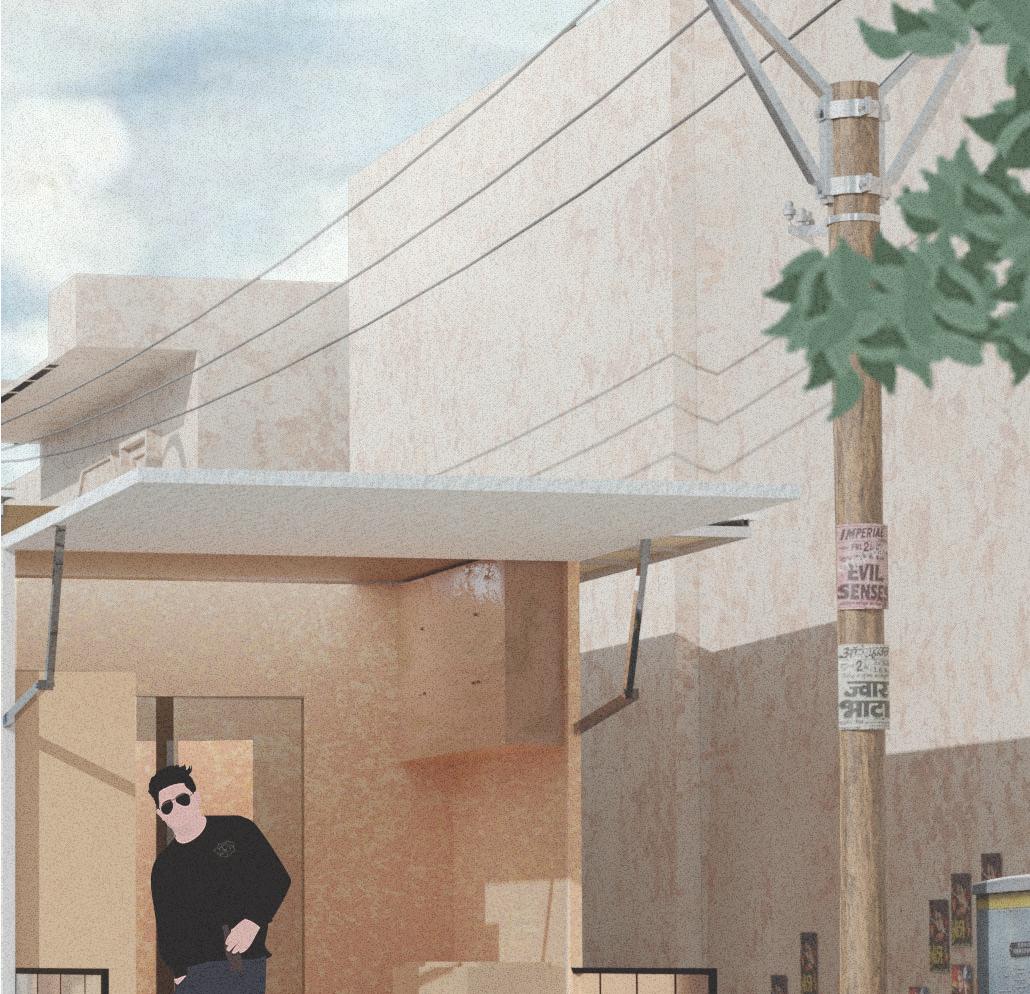

Mumbai, a major Indian city representing 5% of the nation’s population, harbours the highest count of street dogs in the country. Despite numerous organisations working to rehome them, these creatures are still shunned by most because of their appearance and health. The “PAWSe” initiative proposes a mobile home, serving as interim shelter for street dogs, alongside a dedicated workspace for the two individuals passionately pursuing this project. This design aligns with the brief’s goals of creating a humble, adaptable tiny house with optimum spatial͙consideration. | AUTOCAD | SKETCHUP | PHOTOSHOP | ILLUSTRATOR | BLENDER

13

14

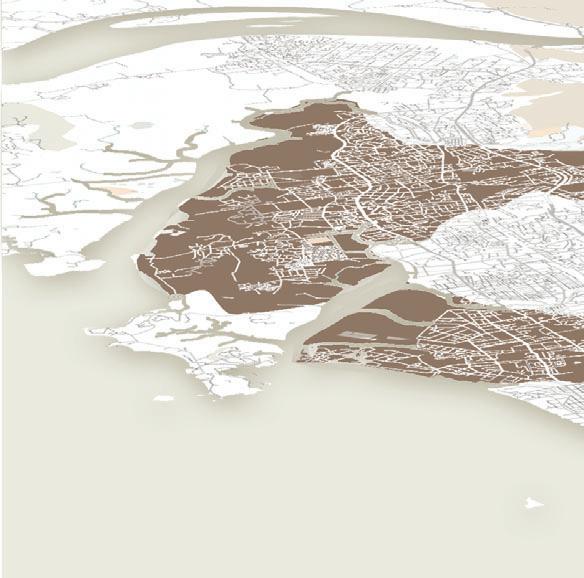

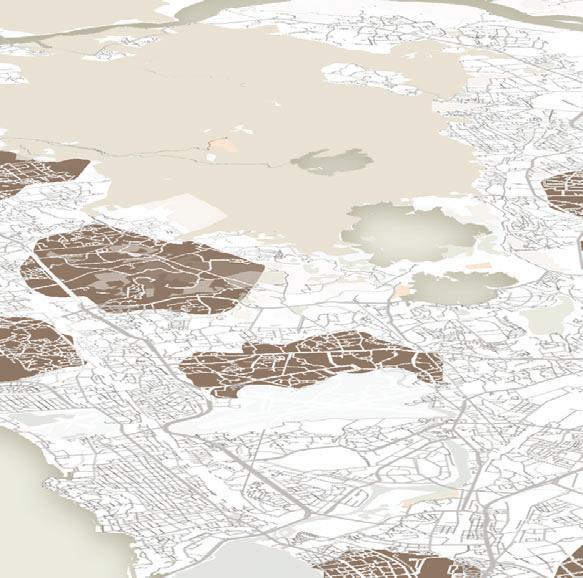

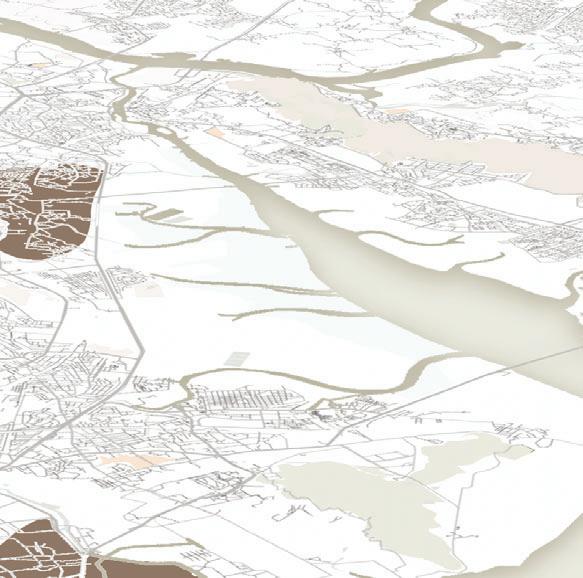

OSHIWARA 4916 ANDHERI WEST 5838

MALAD 8450 ANDHERI EAST 6590

MALABAR HILLS 1273 NANA CHOWK 1132

“Architecture is not just about designing buildings, it’s also about creating spaces that embrace even the stray and the forgotten, providing shelter not only for people but for every living soul that͙seeks͙refuge.”

- Sanjay Mohapatra

15

These street dogs are so dirty and disgusting

I know right, and they are everywhere

Let’s clean you up and get you vaccinnated...

T This person actually cares about me, maybe people are nice too...

Why is she being so nice, might be a trap. I am so hungry though

to go to the shelter

hungry?

Mommy, I want this one, he is so energetic and happy

So many toys yay...

He is my friend, so I will let him do it

I have a family now...

16

3 4

2

5

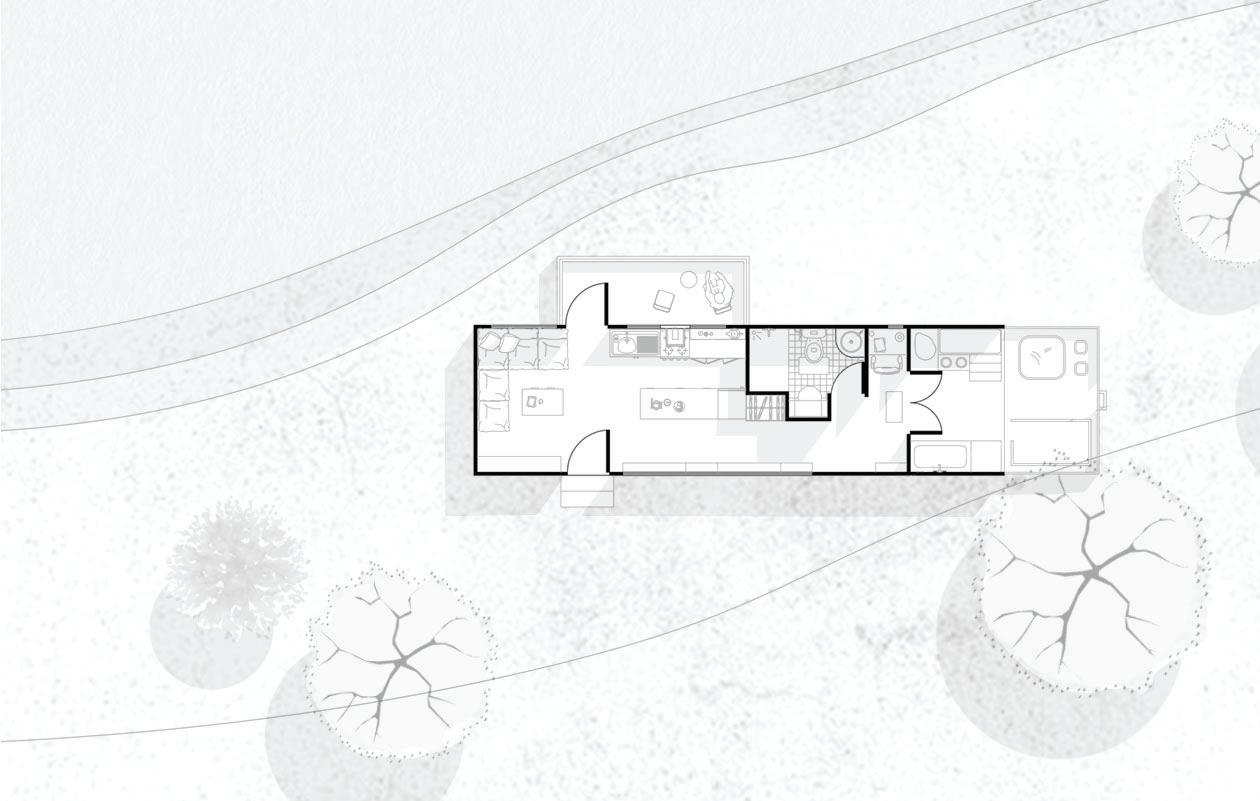

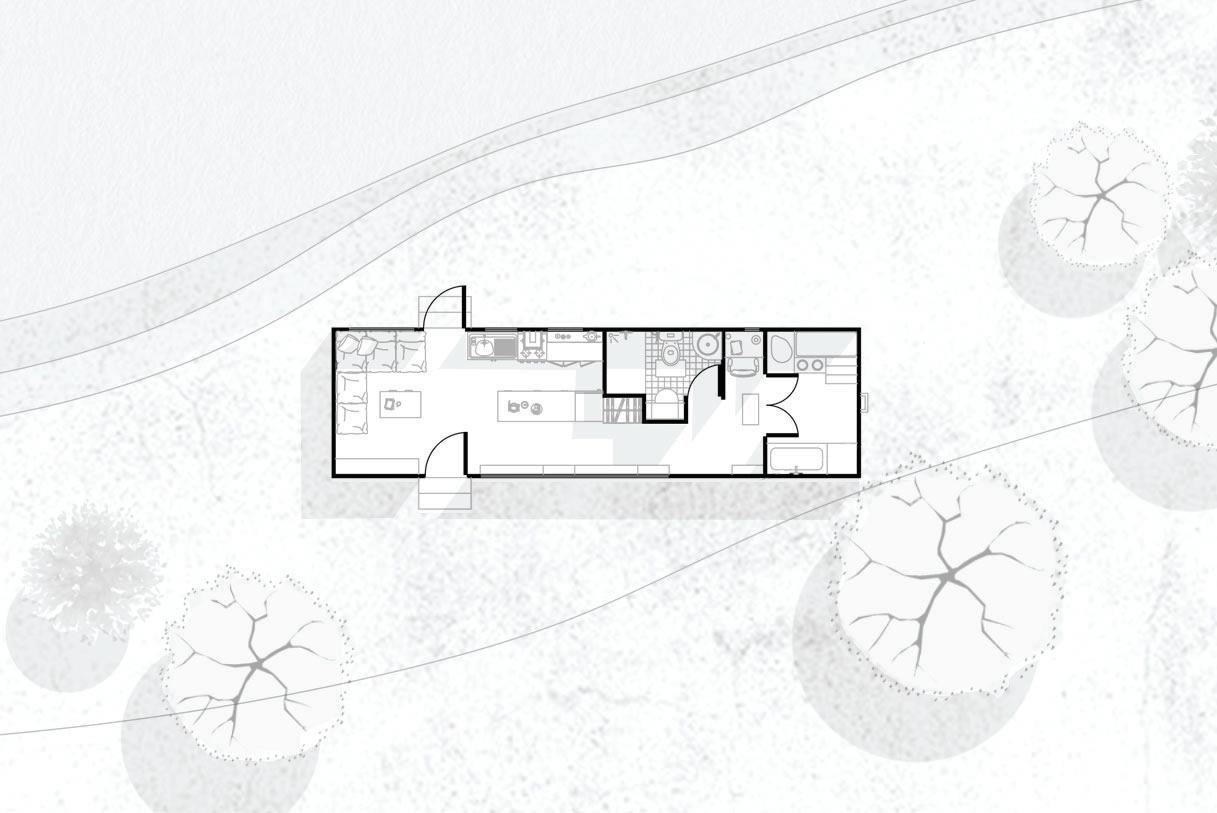

Typical Floor Plan

0

2000

8000

0

2000

8000

3 2

Typical Floor Plan (Expanded)

17

4

5

6

6

3 1

5 4

2

1. Bedroom 2. Living Room 3. Kitchen 4. Dining 5. Washroom 6. Work Zone

18

19

20

3

MP STATE HABiTAT CENTER, BHOPAL Academic | INDIVIDUAL | 2023

A habitat center is a mixed use facility, acting as a convention center, an office complex and a hotel all rolled into one site. This typology was originally formed by Ar. Joseph A.Stein and the only complex present is the Indian Habitat Center in Delhi, India.

Like minded individuals come together to discuss matters of relevance to the habitat, the MP State Habitat Center acts as one such center designed for the same purpose. Located in Bhopal, in central India, the complex aims to be a midpoint for the country’s activities. | REVIT | PHOTOSHOP | ILLUSTRATOR | RHINO | GRASSHOPPPER |

21

22

1

3

4

5

7

2

8 9

6 10 8 11

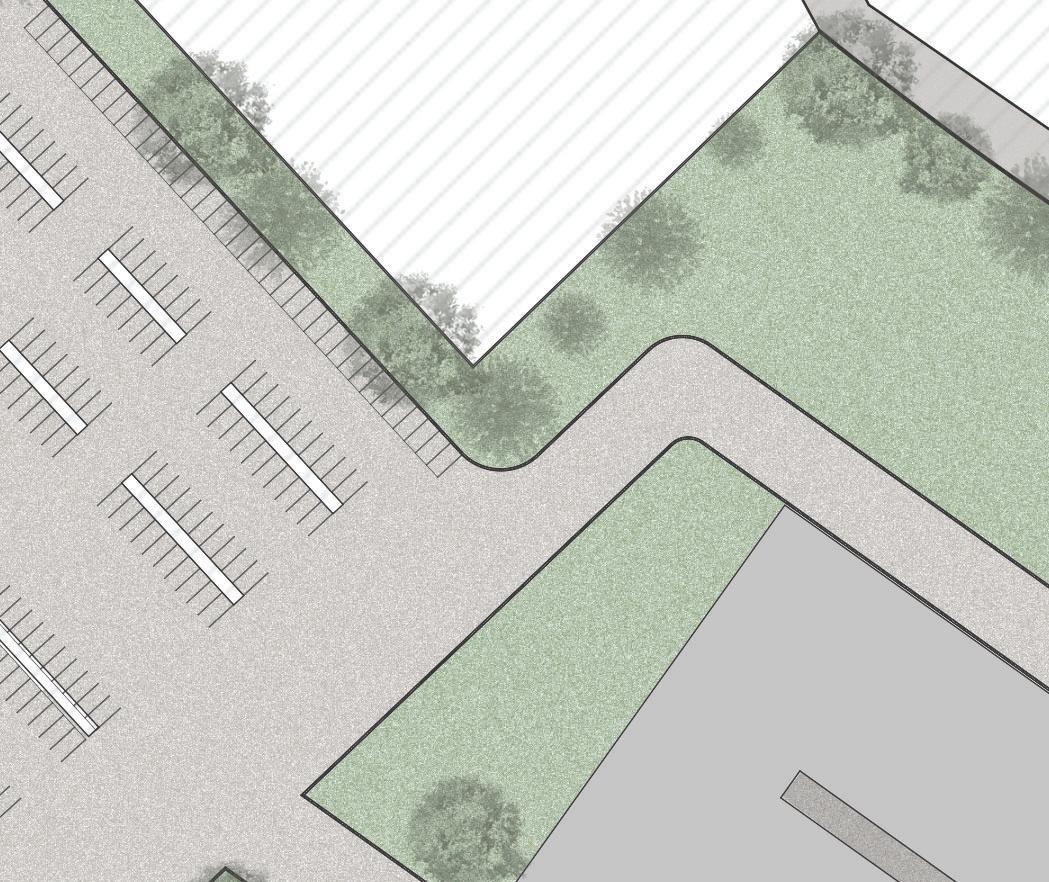

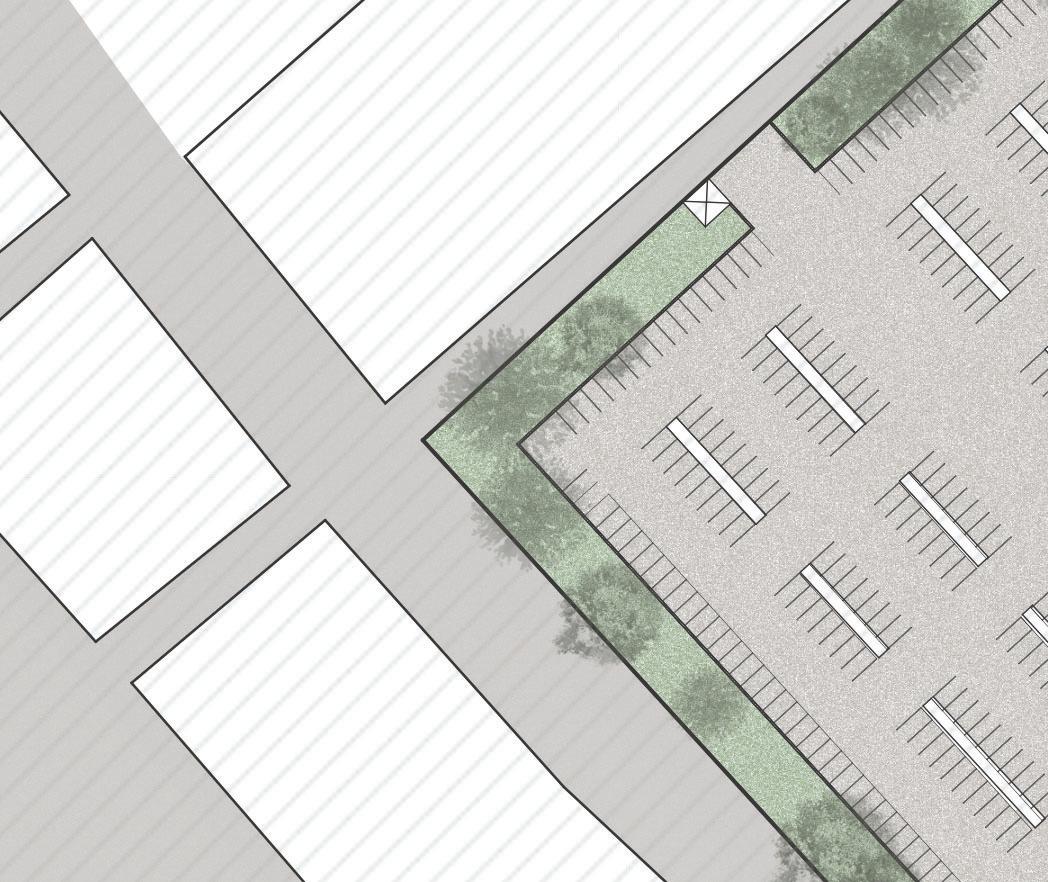

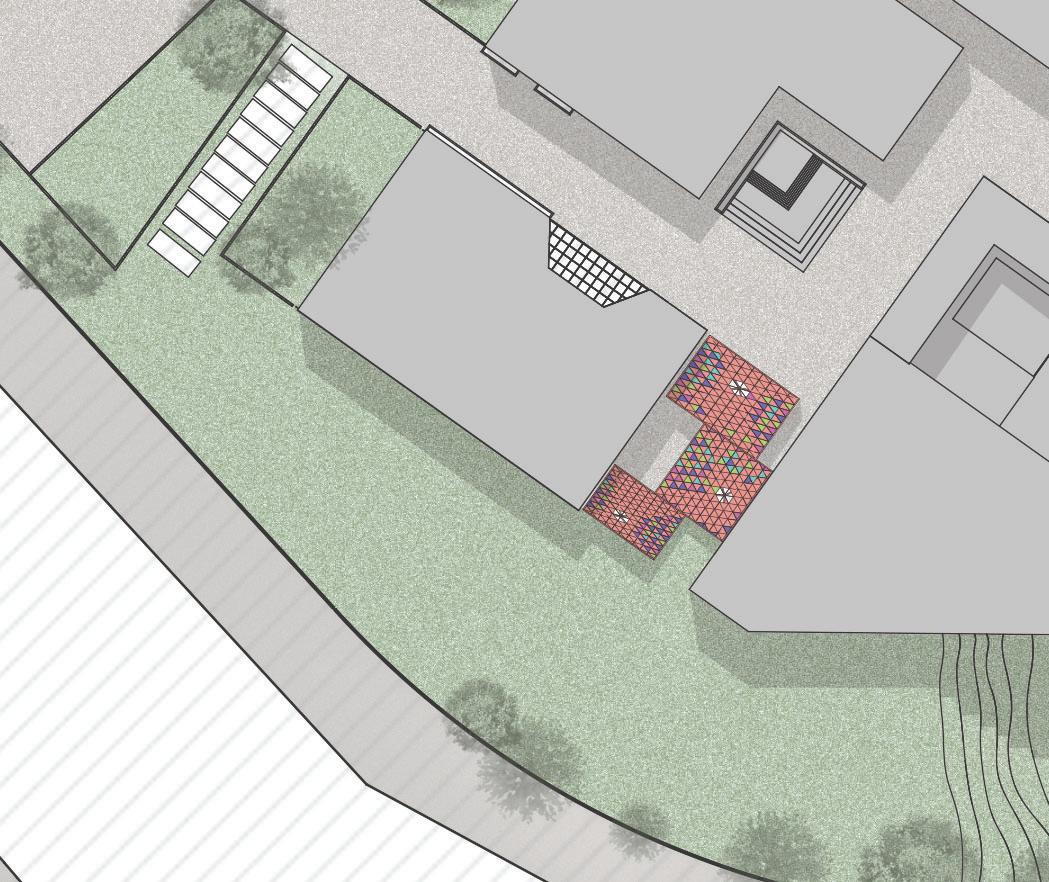

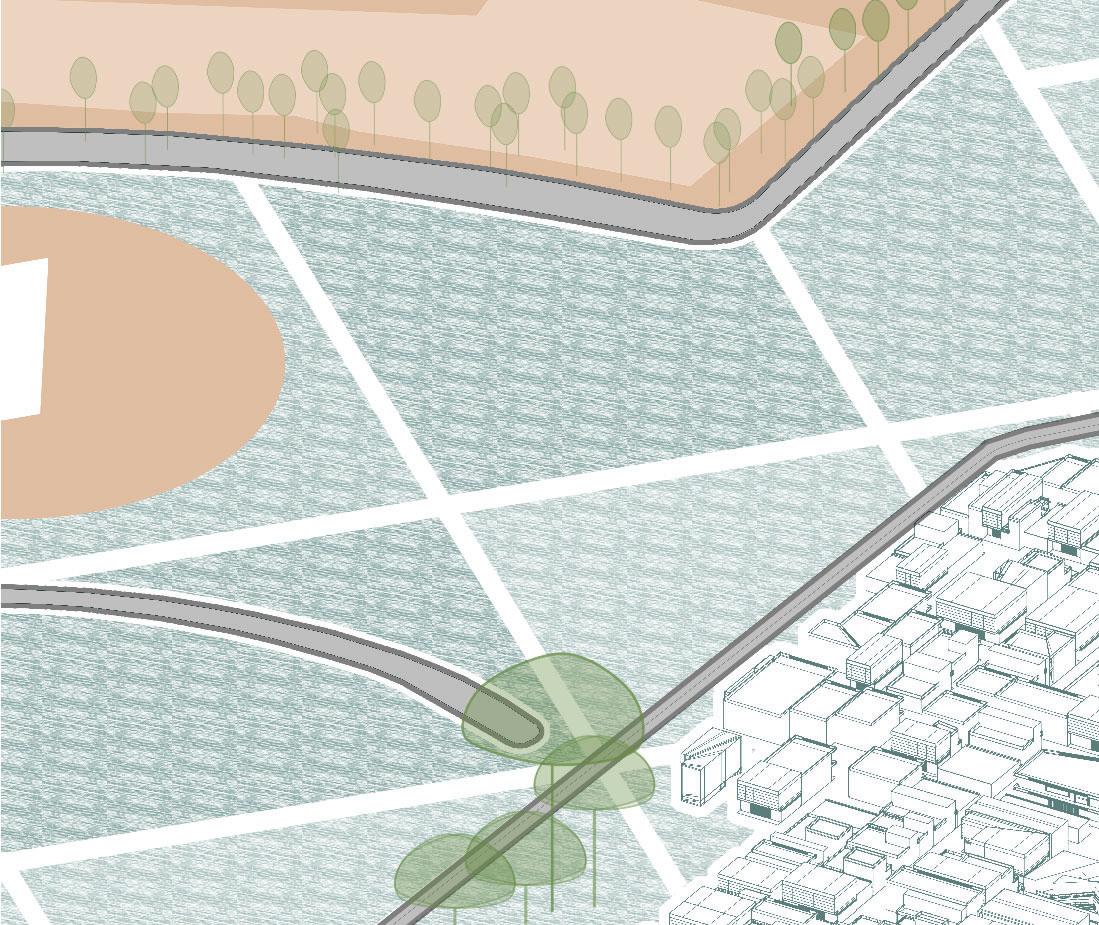

1. Tatya Tope Stadium, Bhopal 2. Main Entrance 3. Secondary Entrance 4. Parking 5. Entrance Foyer 6. Hotel 7. Club and Cafe 8. Auditorium 9. Office Building 10. Banquet Hall 11. Lawn

23

1

2

3

Rectangular block used for the built mass of the center to accomodate all the functions. oriented in the north south direction as per the analysis.

Circualtion space has been subtracted from the mass for providing access and separation between different functional spaces.

Space for the courtyard has been subtracted to work as a central meeting space for social interactions and working as good navigation point.

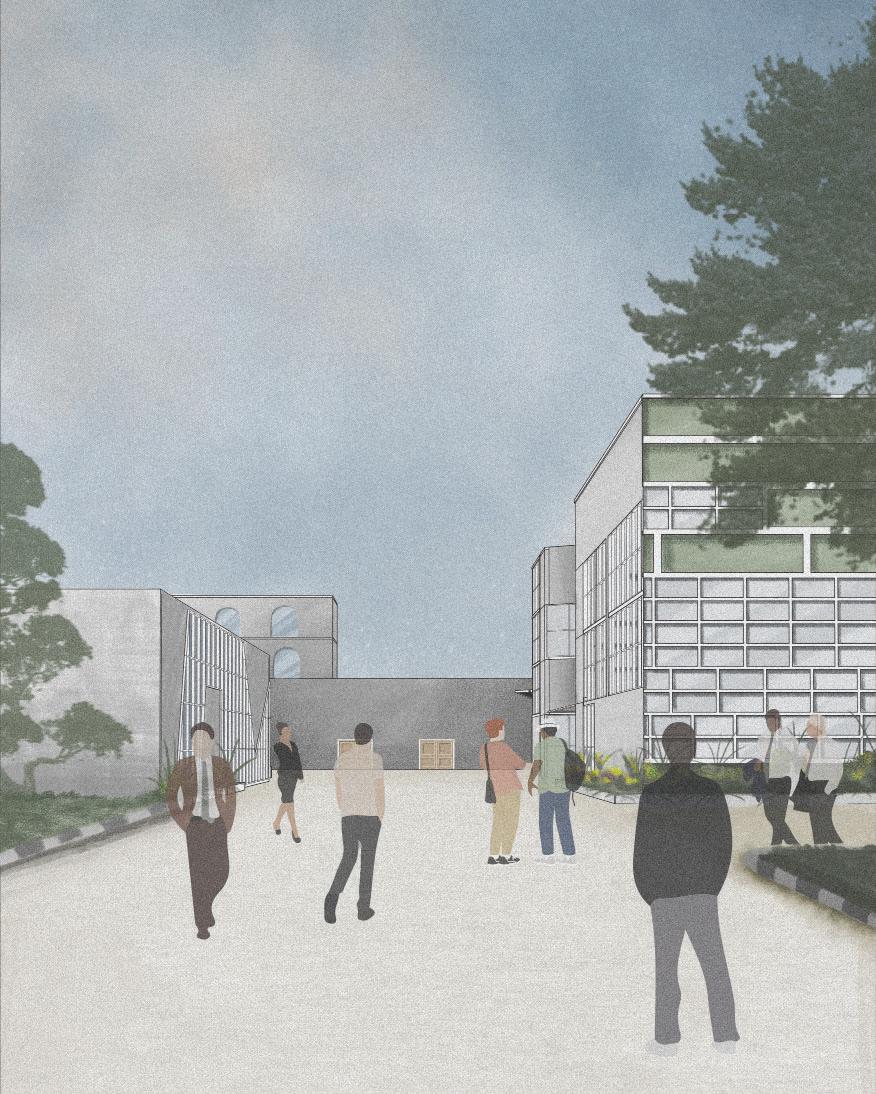

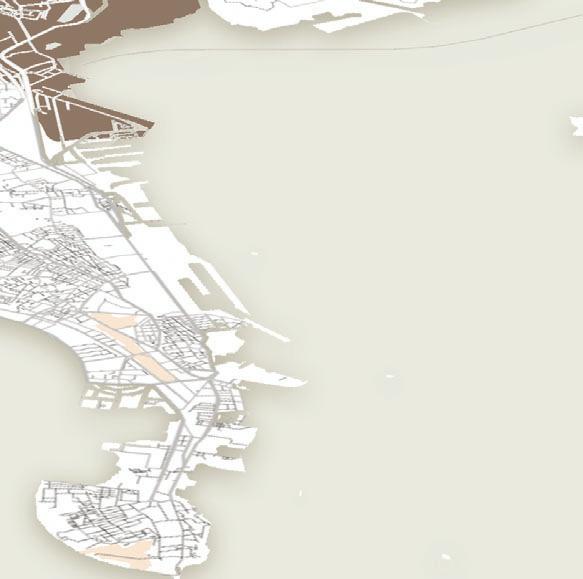

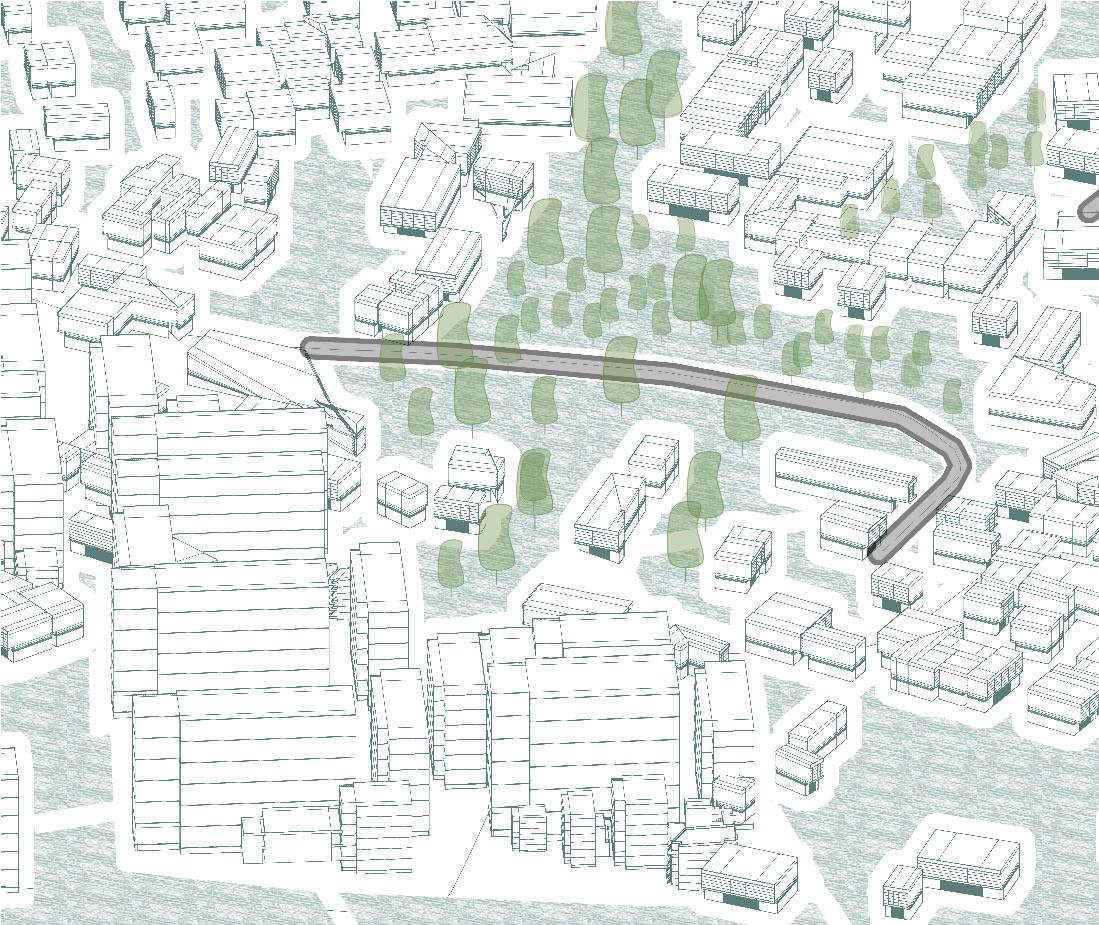

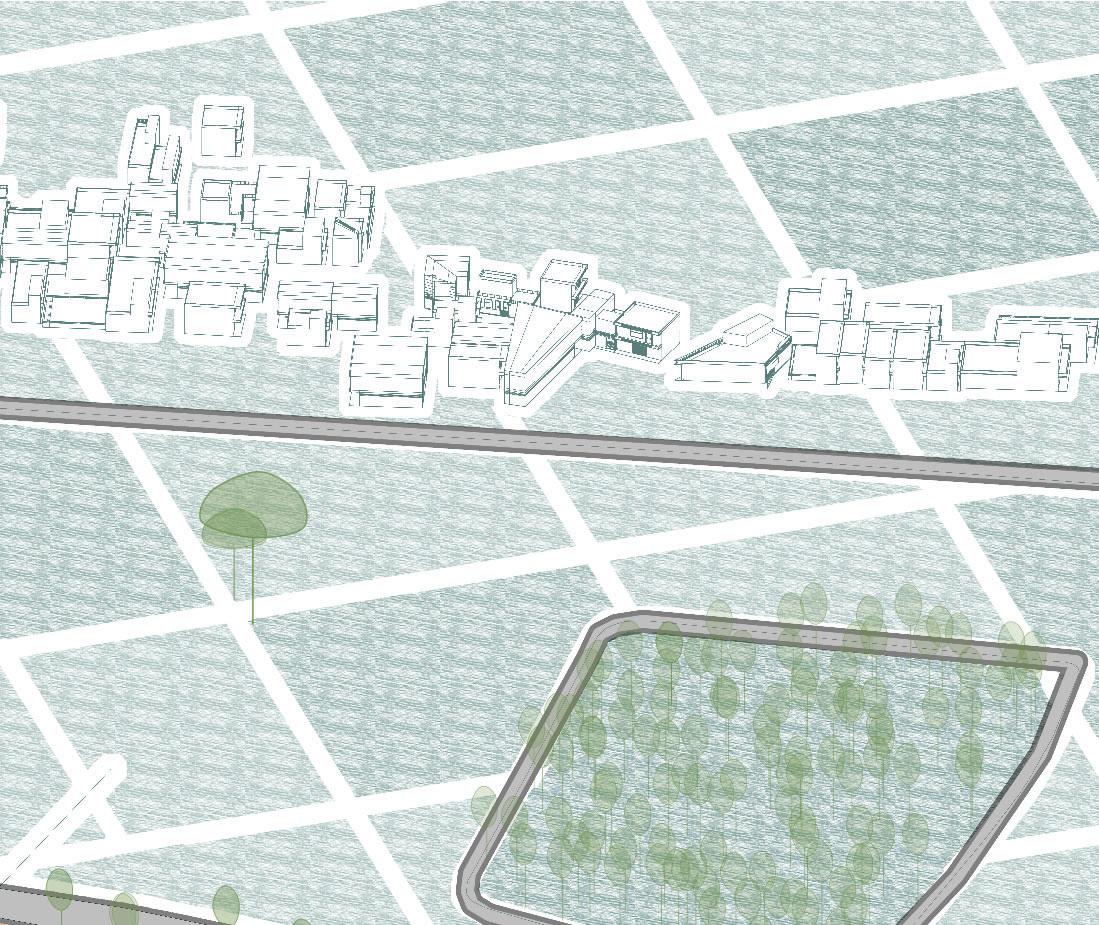

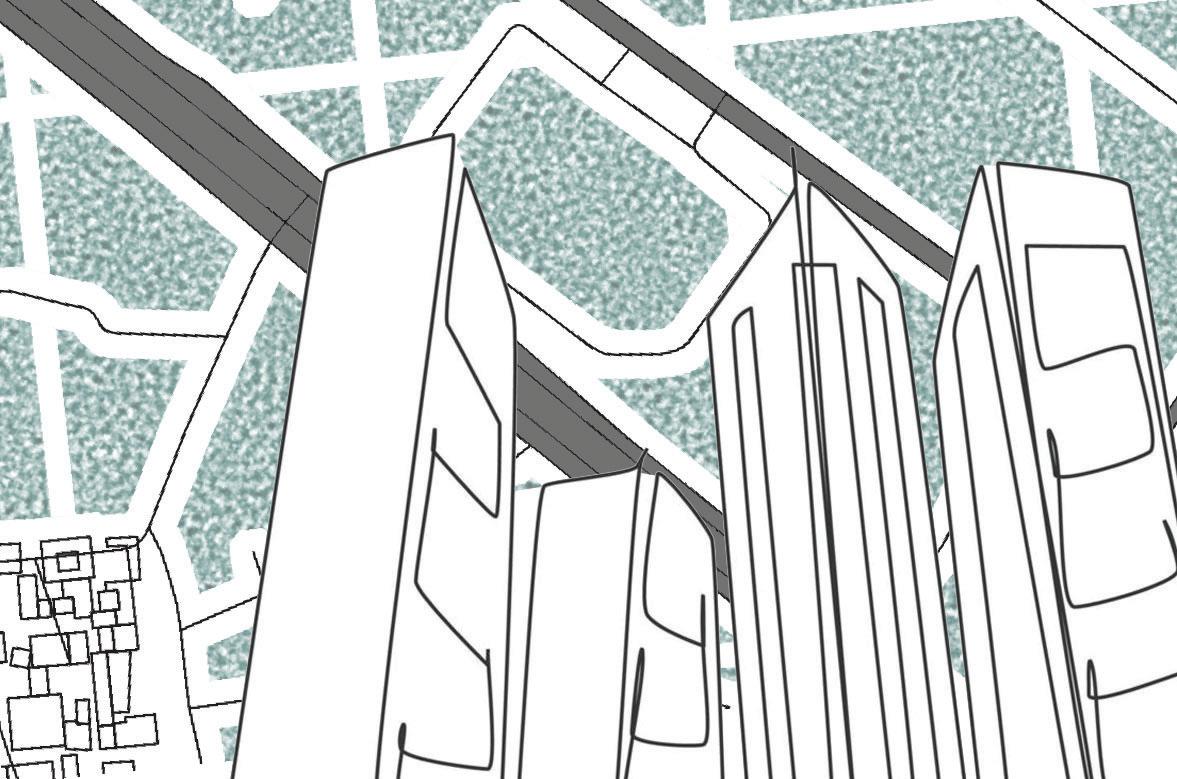

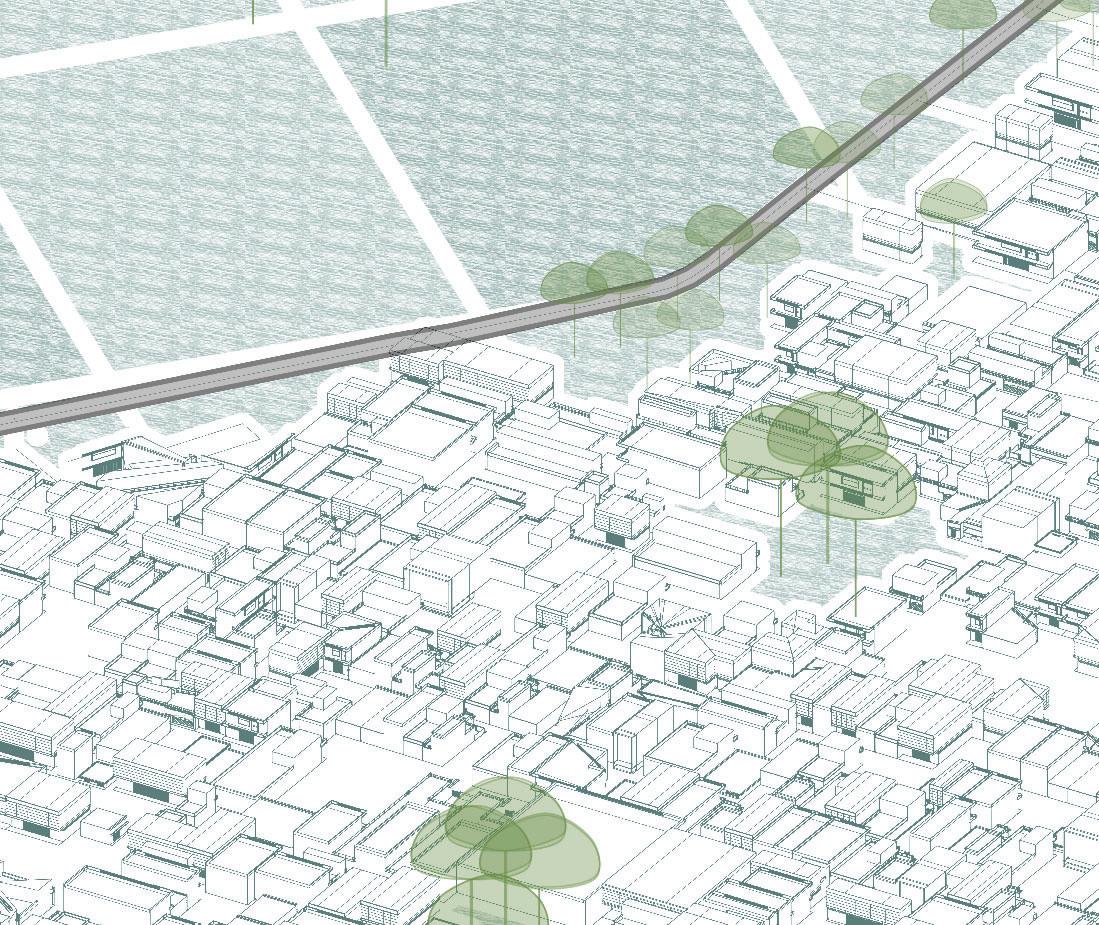

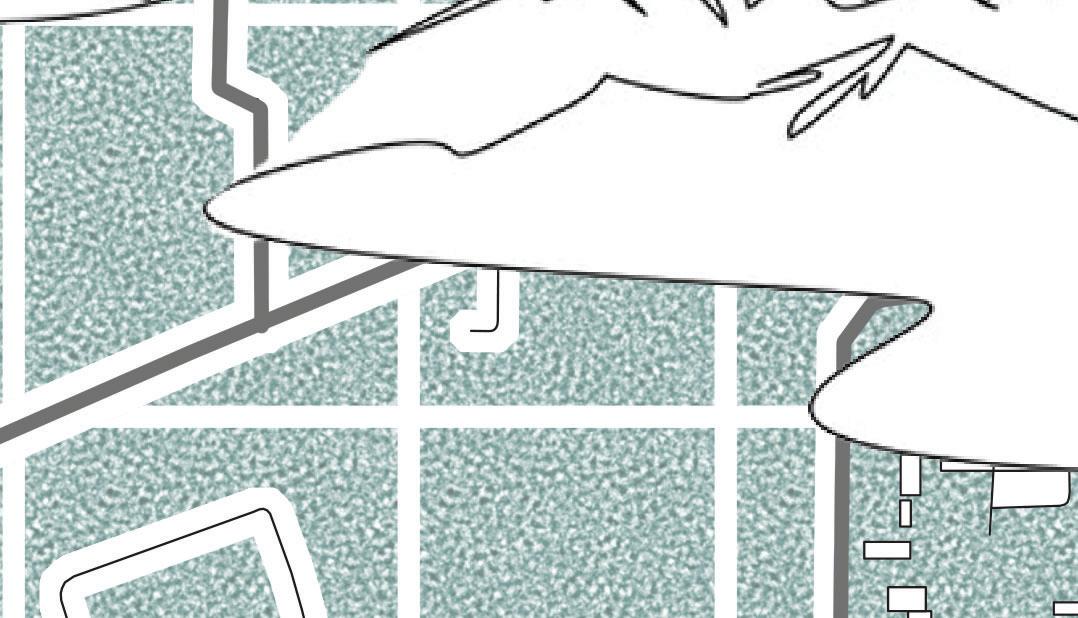

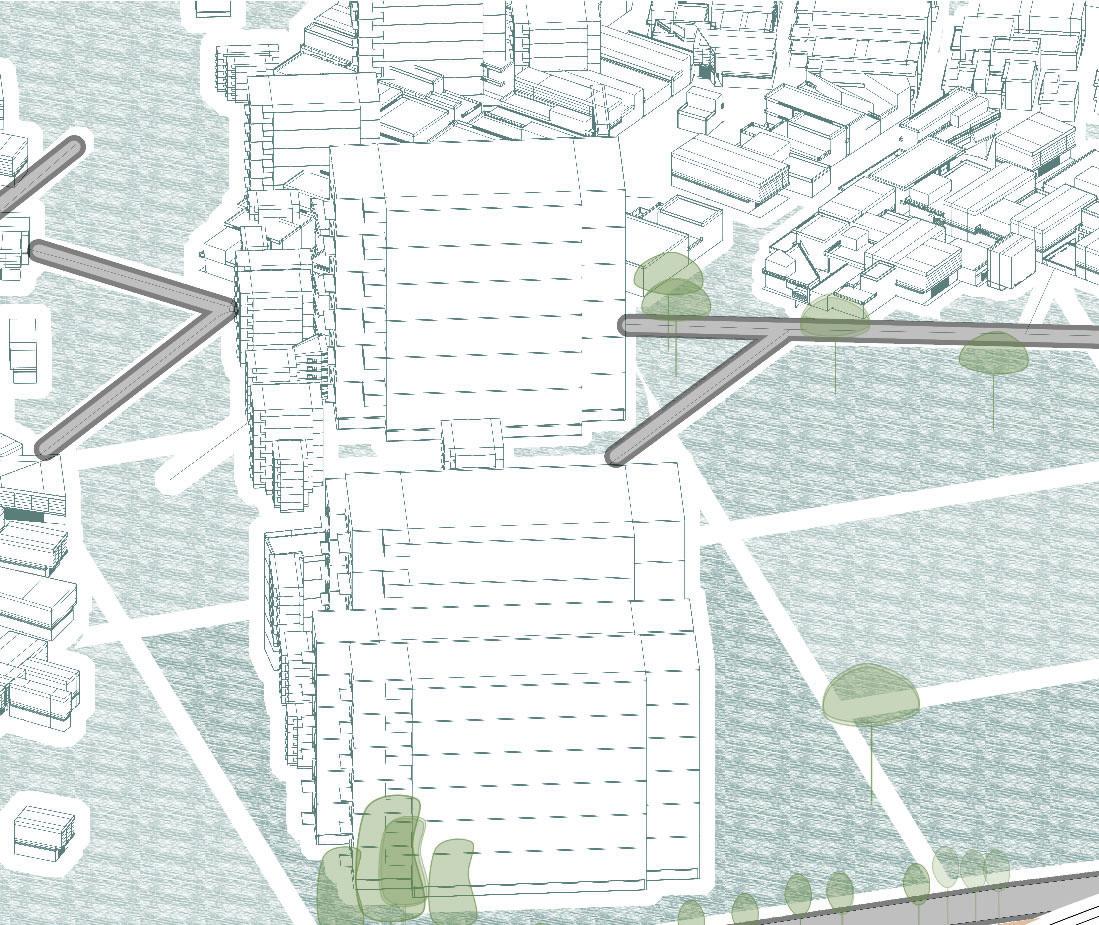

Conte extu ual a Analysis: s: de eve velo lopi lo p ng g region n witth it buiild ldin i gs and oth in t er building ng of pu ubl blic icc int ntter e est with ver ery y mode ern loo ook k, fi k, fia at glass facade es, large bu builillt ma m ss ss, ettc.

Conttex Co extu ual Ana aly lysi s s: Progre si esssive e and a de evelo opi p ng reg e ion le l ad ading to pro rogre essive si ve des e ig ign th hin inking g and d app pproacch towards de wa desi sign si gning gn g sp s ac a ess and n form. m.

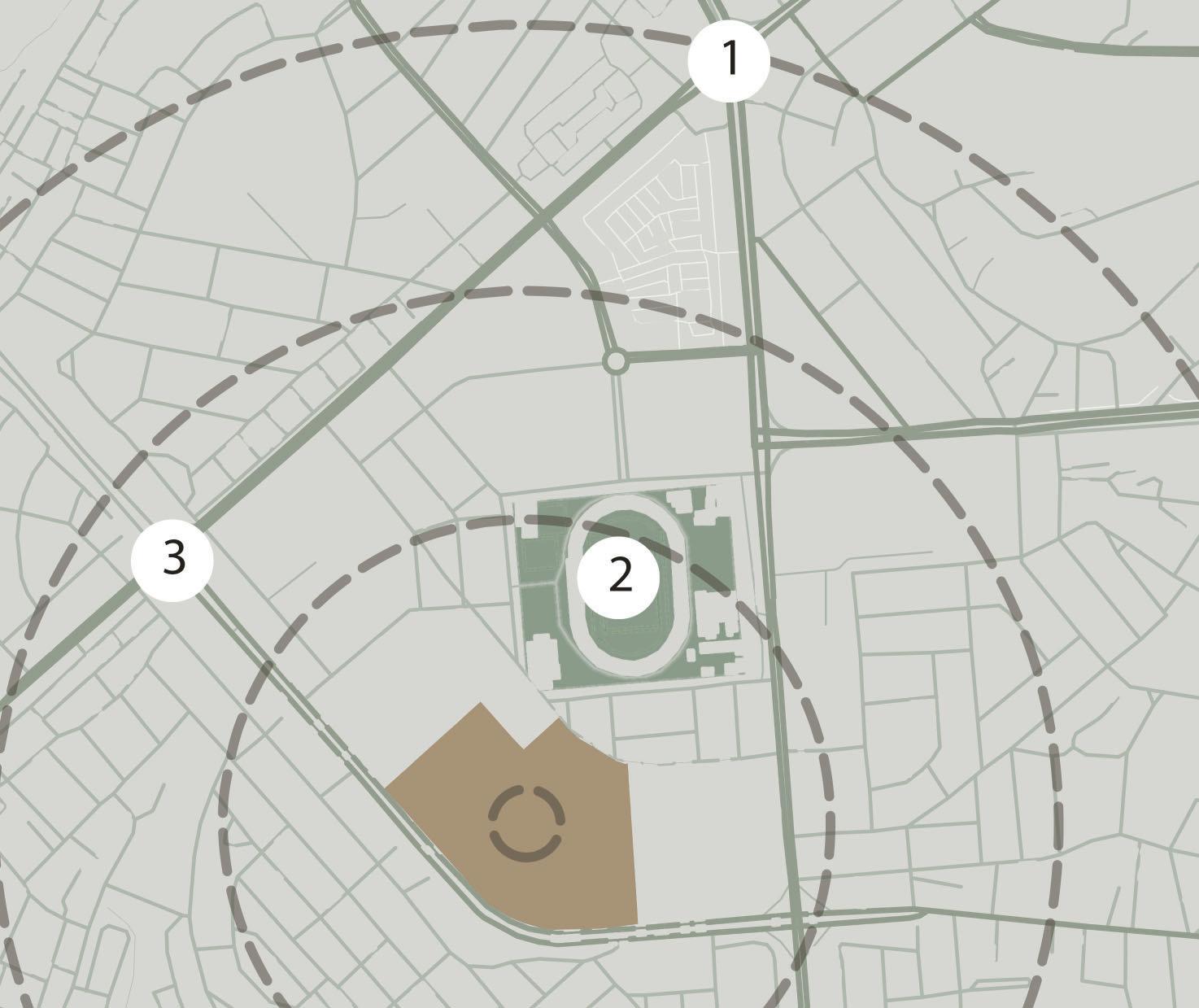

1. New Market, Bhopal

2. Tatya Tope Stadium, Bhopal

3. Smart city road

24

2 1

3

4

3 3

3

3

3

5 6

8 7

10

1.

2.

3.

4.

5.

Entrance Lobby Cafe Services Seminar Hall Exhibition Hall

6. Club House 7. Resturant 8. Hotel and Banquet Hall 9. Auditorium 10. Office Block

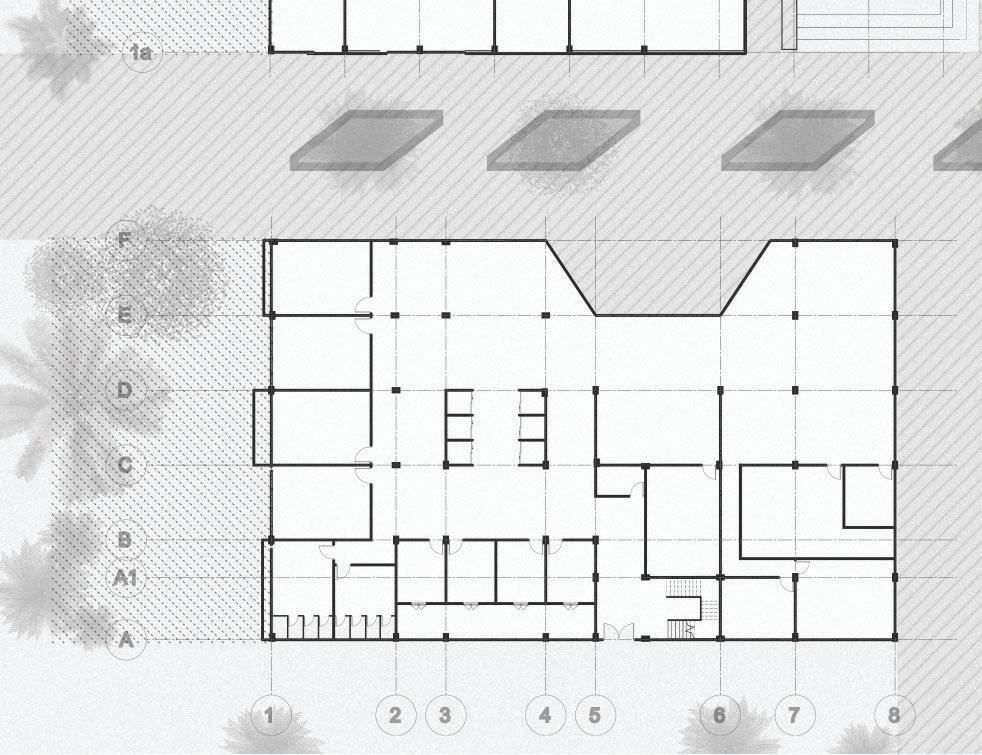

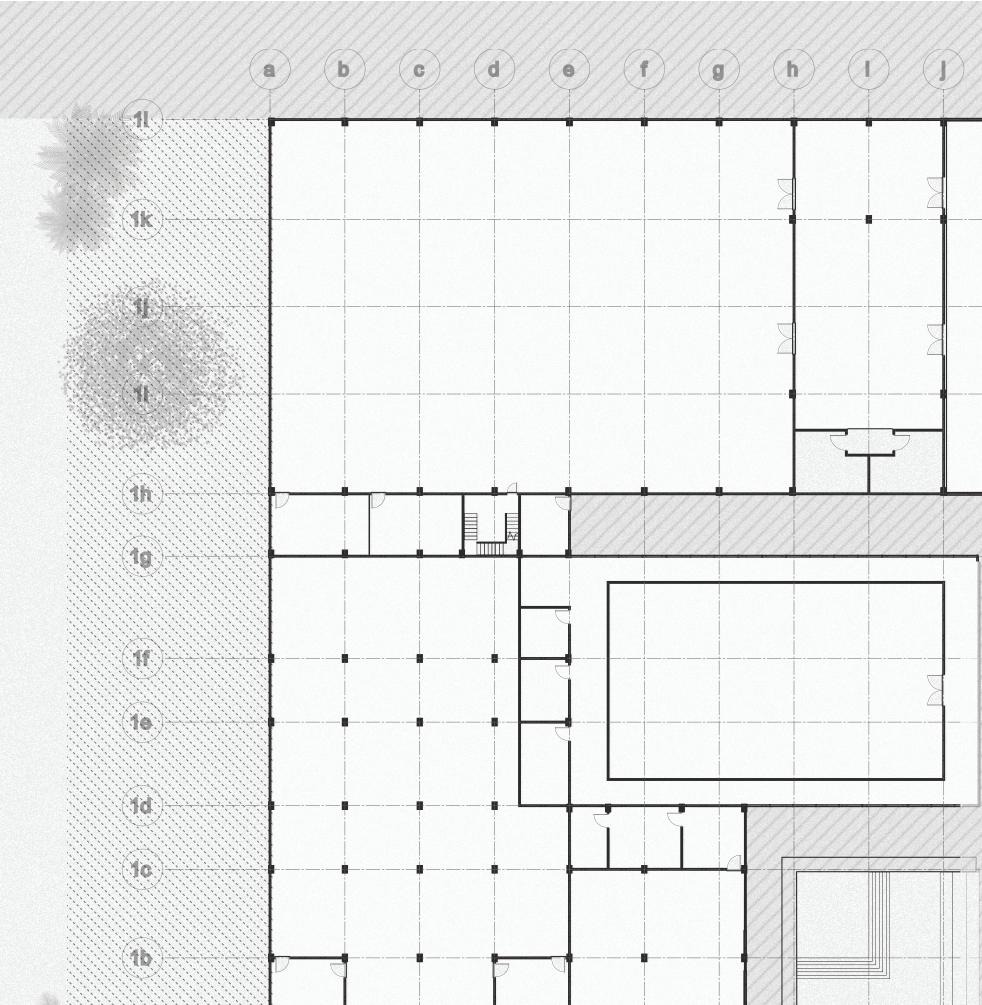

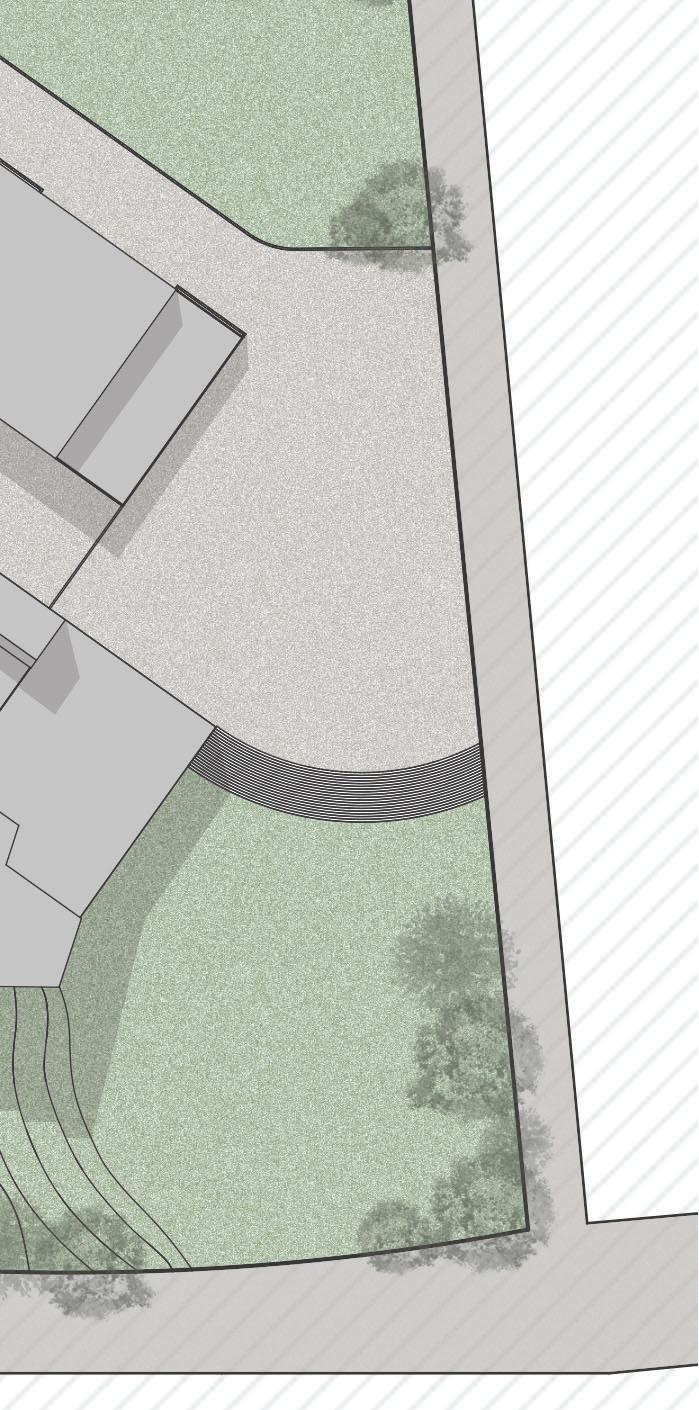

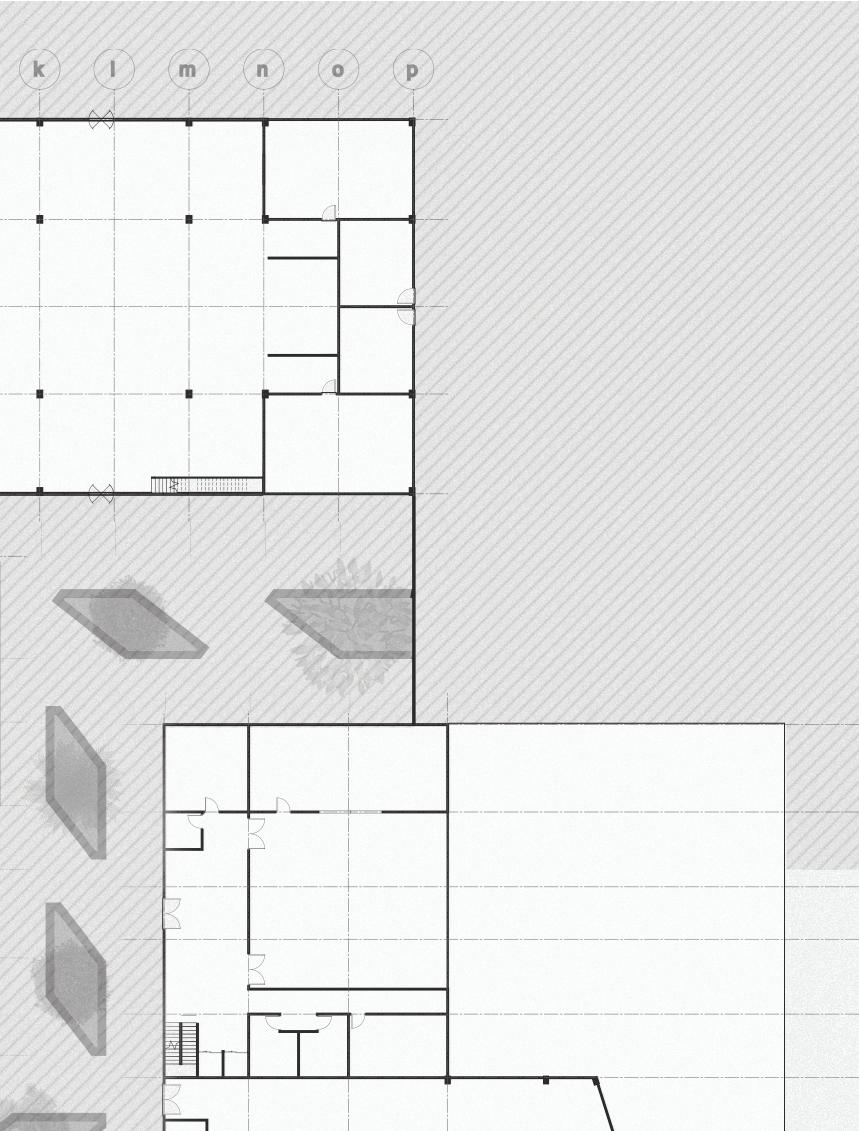

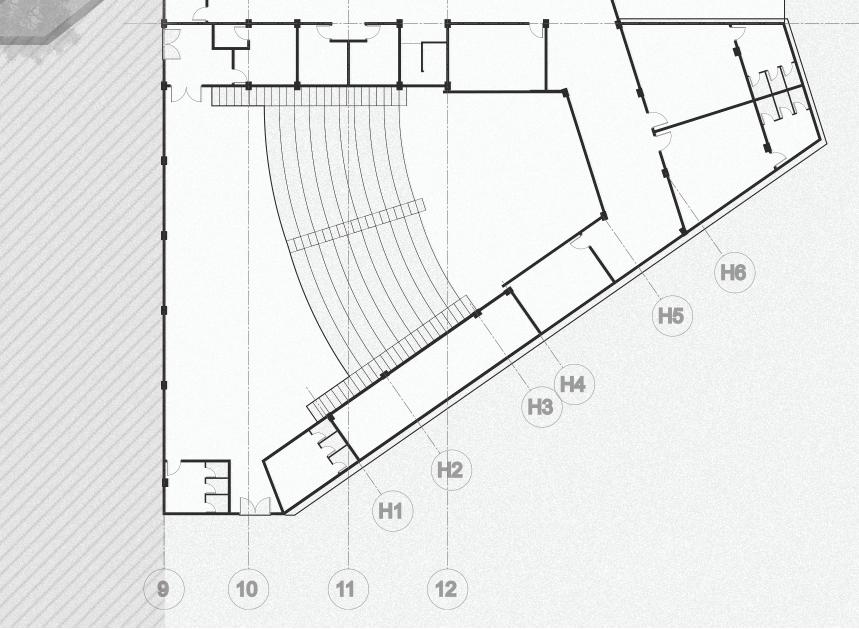

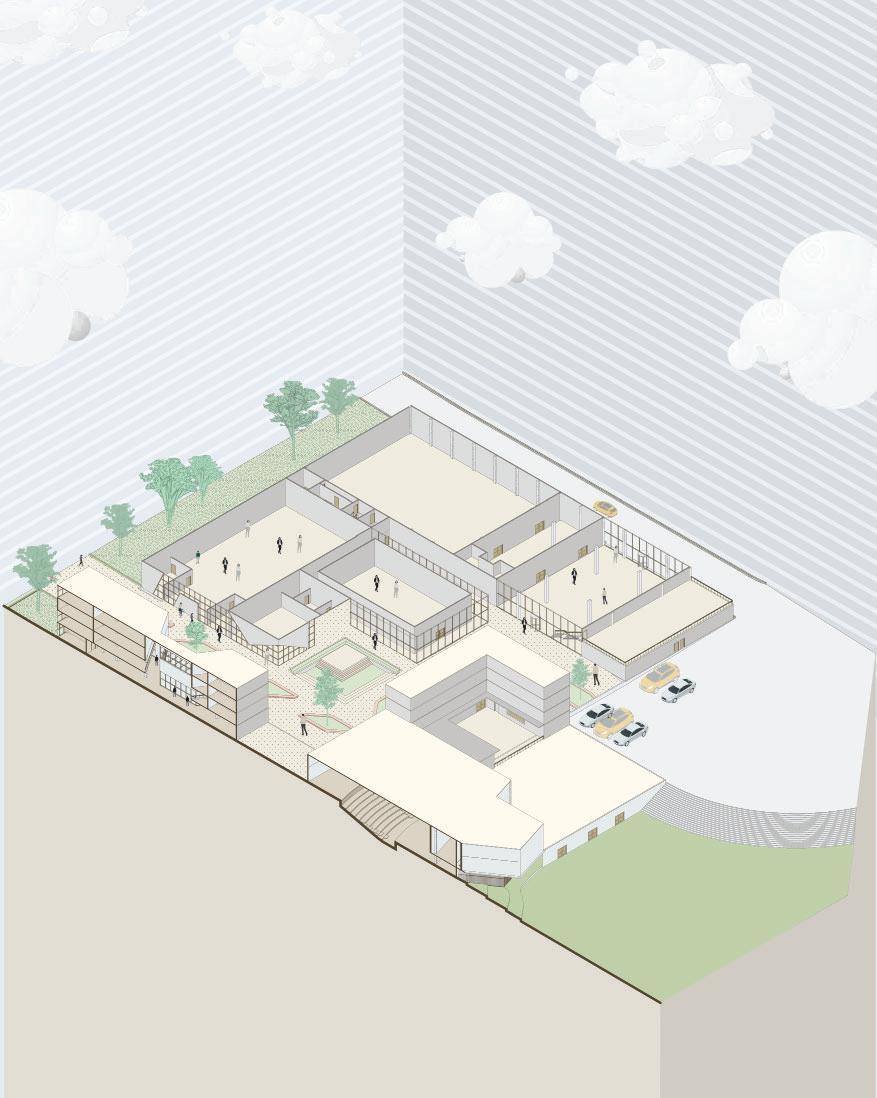

Ground Floor Plan

25

9

0

20000

40000

26

27

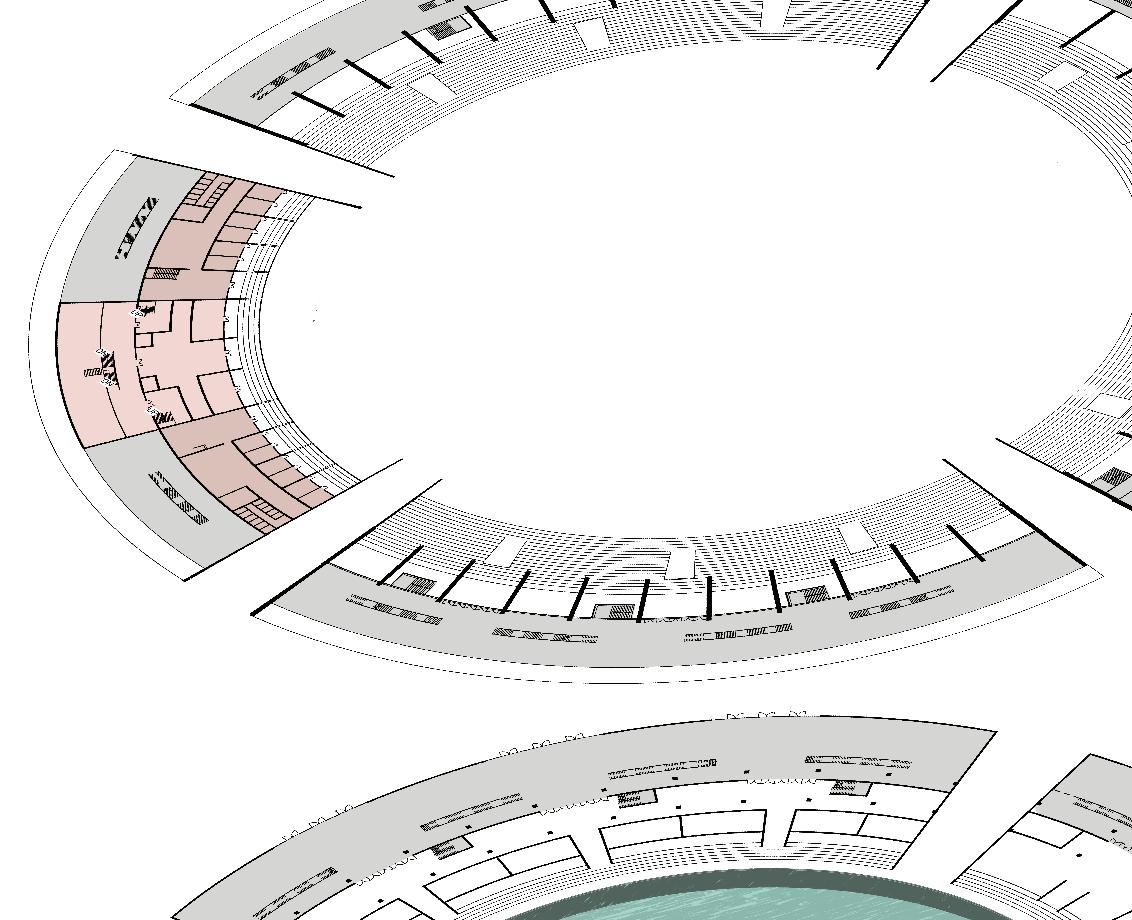

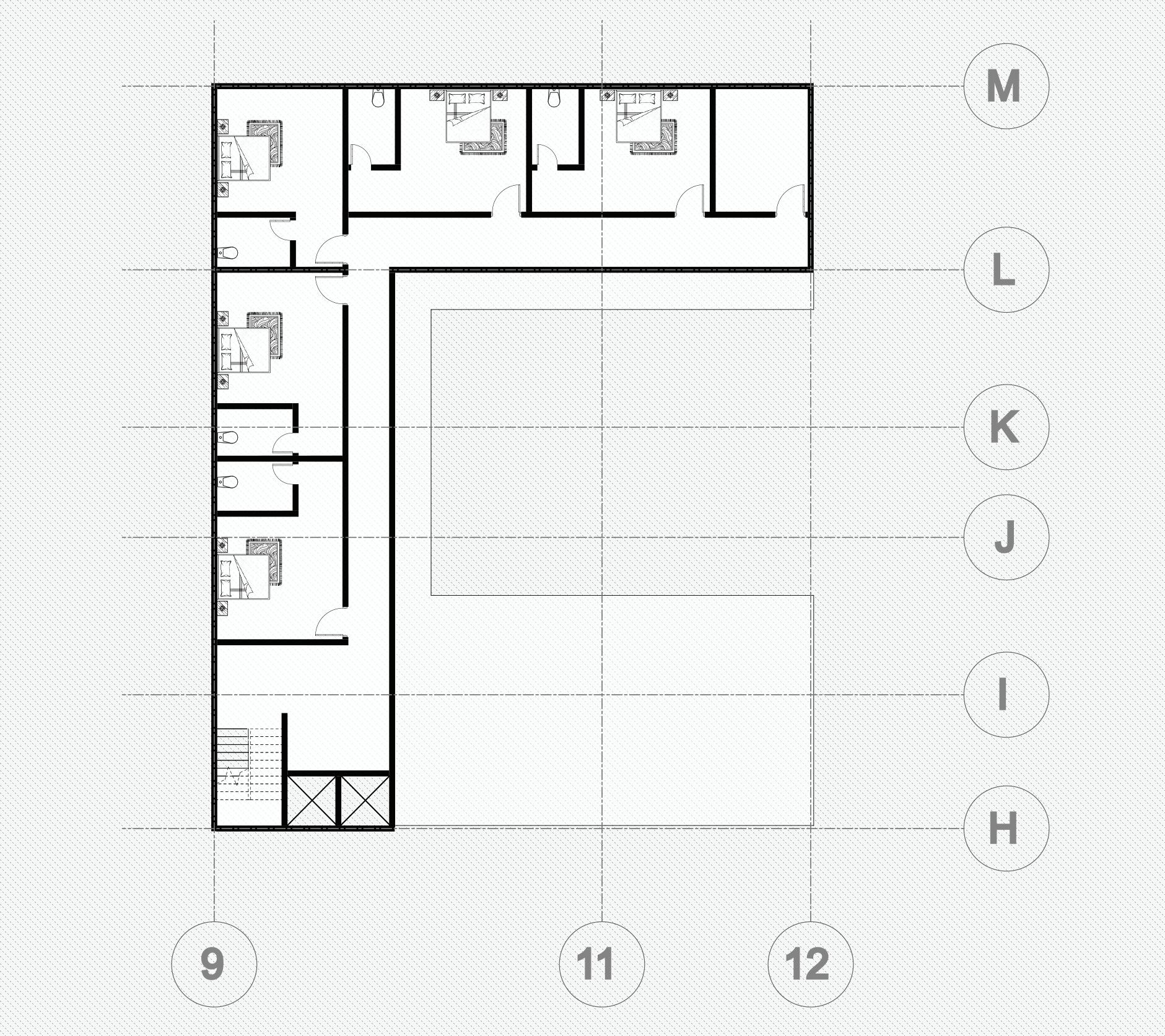

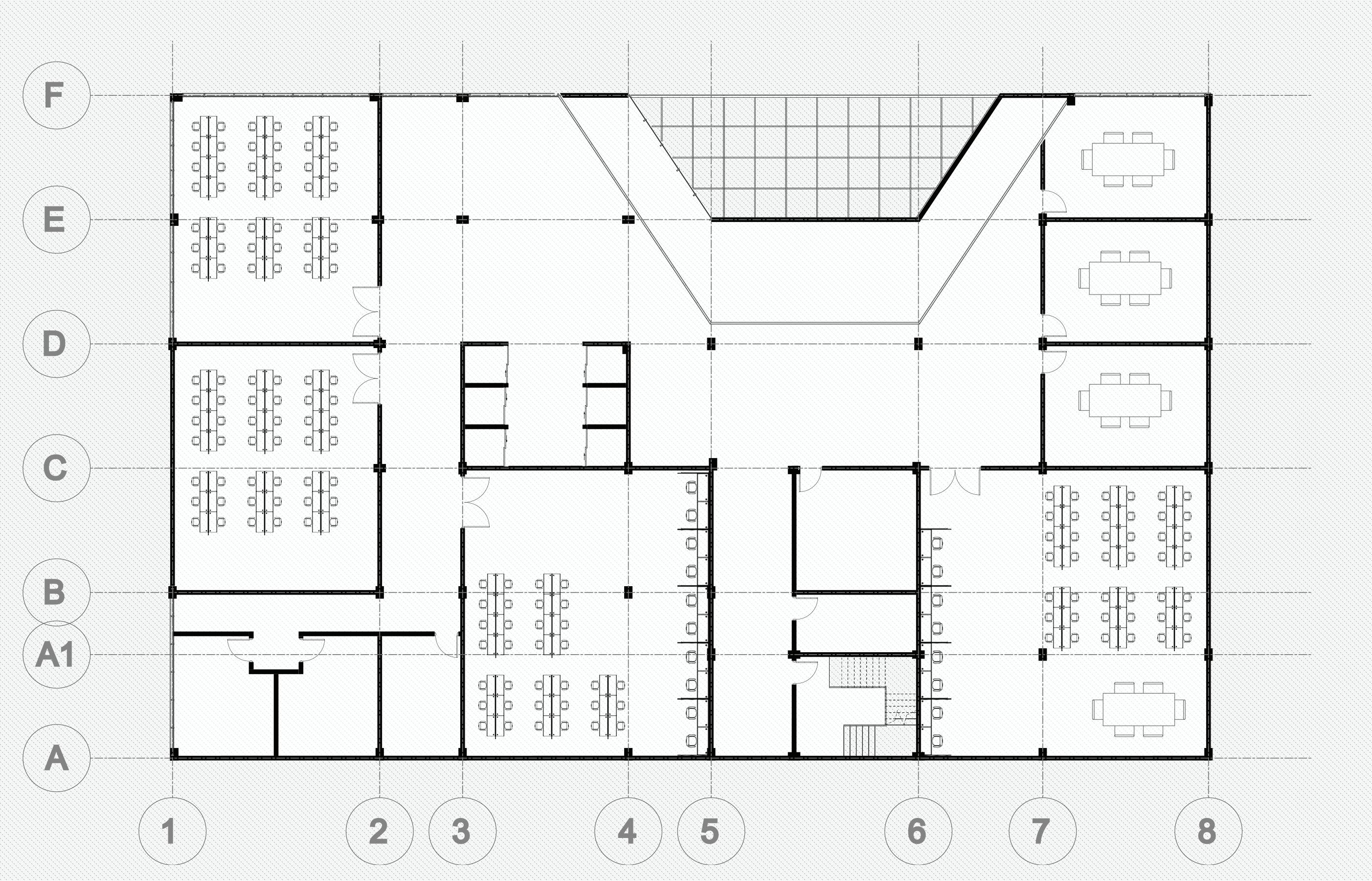

Typical Floor Plans 2 1

2 1

1

A. Hotel Block 1. Bedroom 2. Toilet 3. Service room 4. Vertical circulation

3

2 1 2

B. Office Building 1. Office 2. Lift Lobby 3. Pantry 4. Meeting rooms 5. Washrooms 6. Storage 7. Cleaning room 8. Fire Escape Staircase

2 1

4

8000

0

16000

4

4 1

2

1

4

3

1

1

7 5

5

6

8

28

29

30

31

MISC...

32

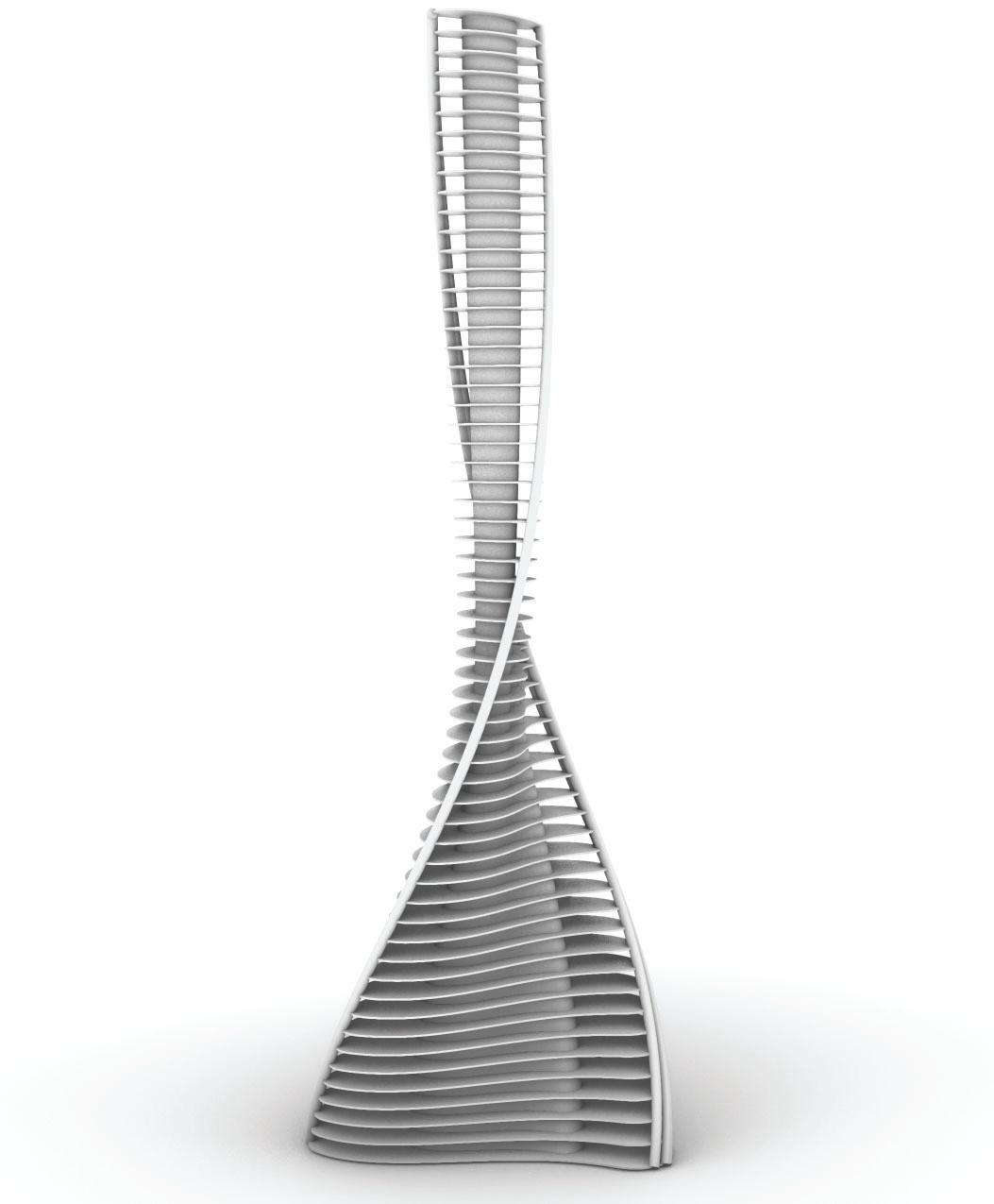

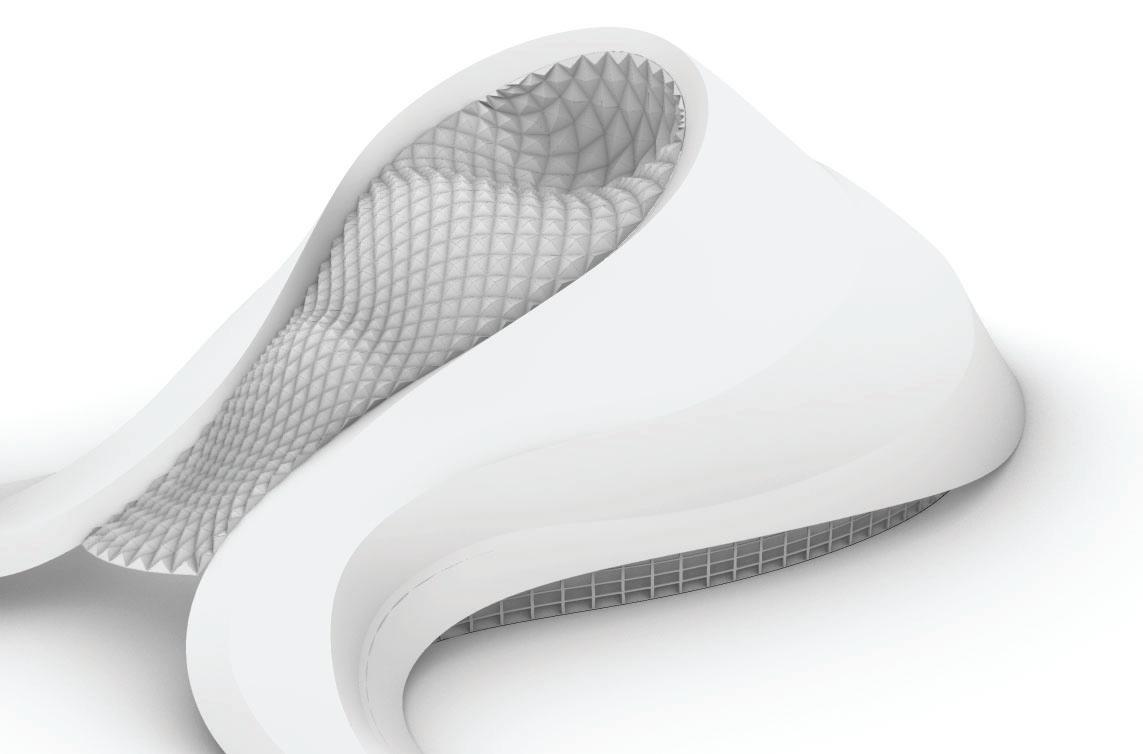

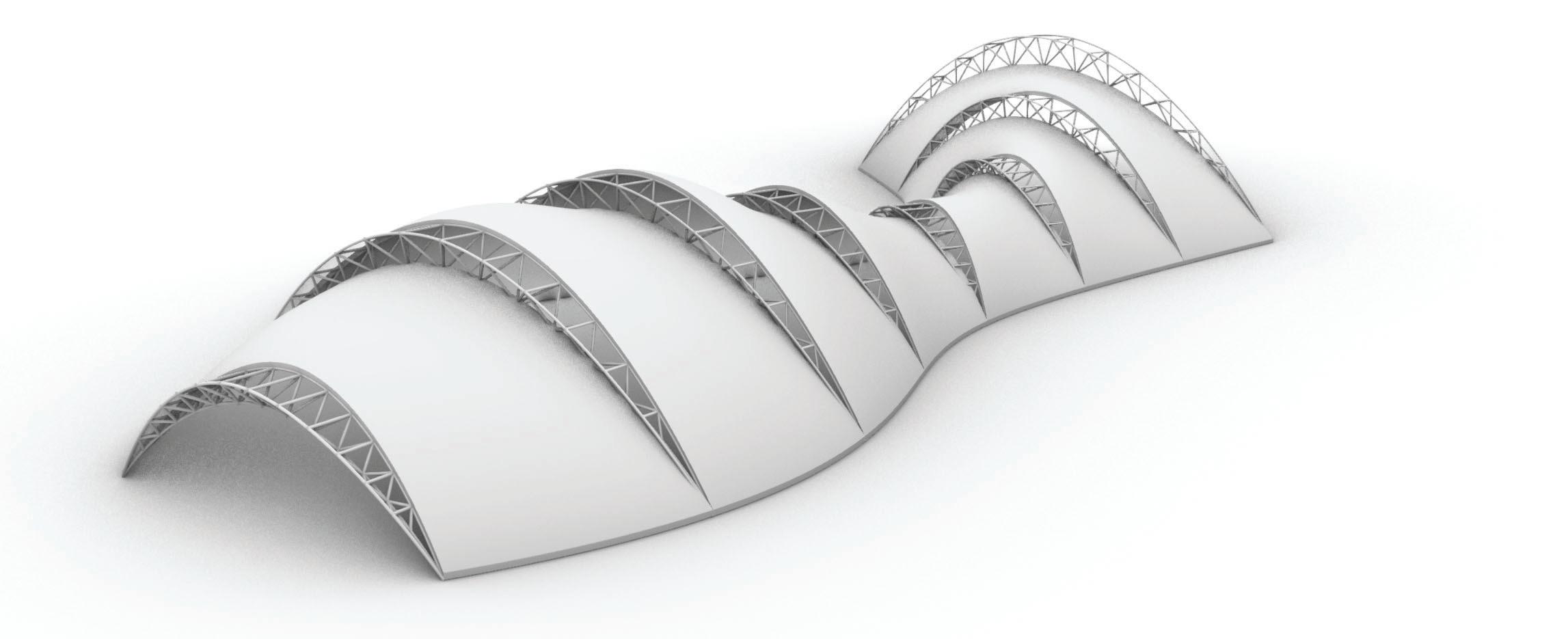

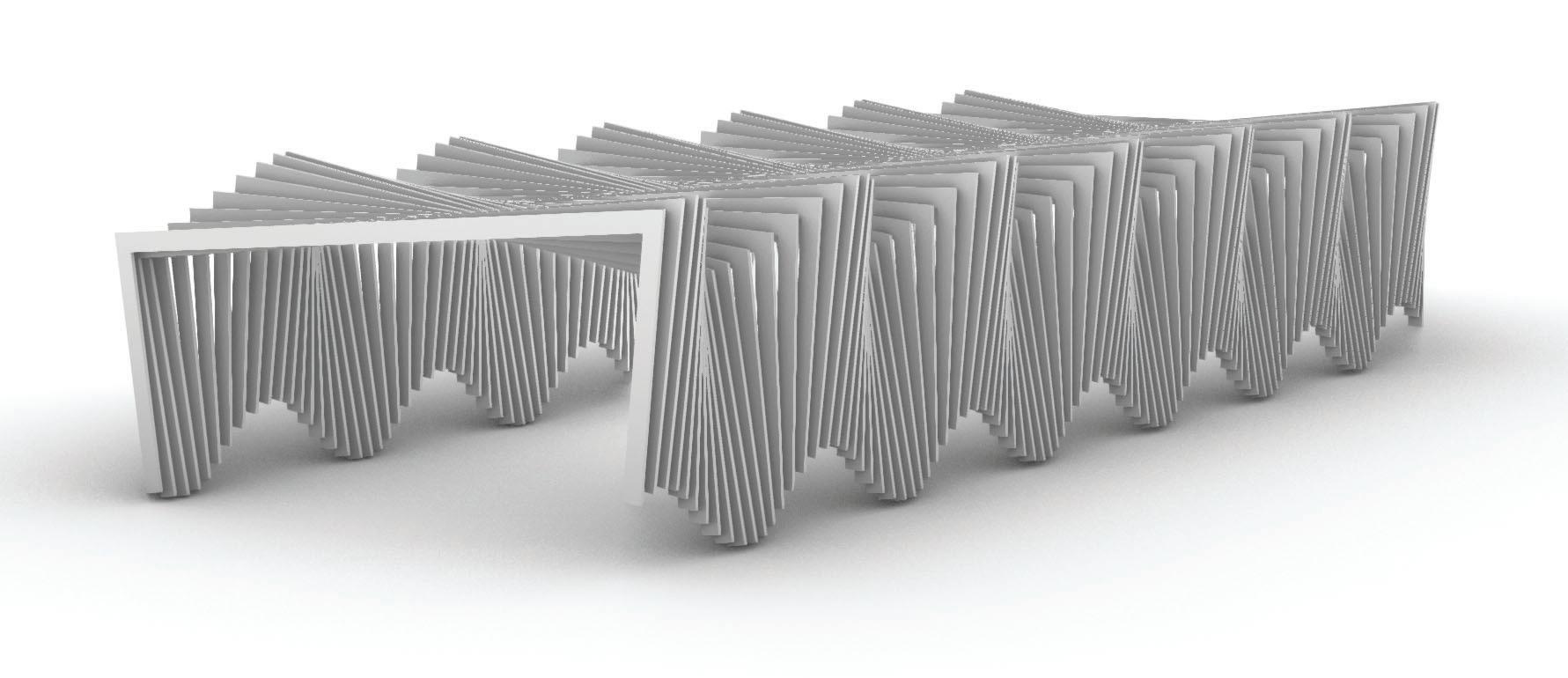

Rhino/ Grasshopper exploration 33

34

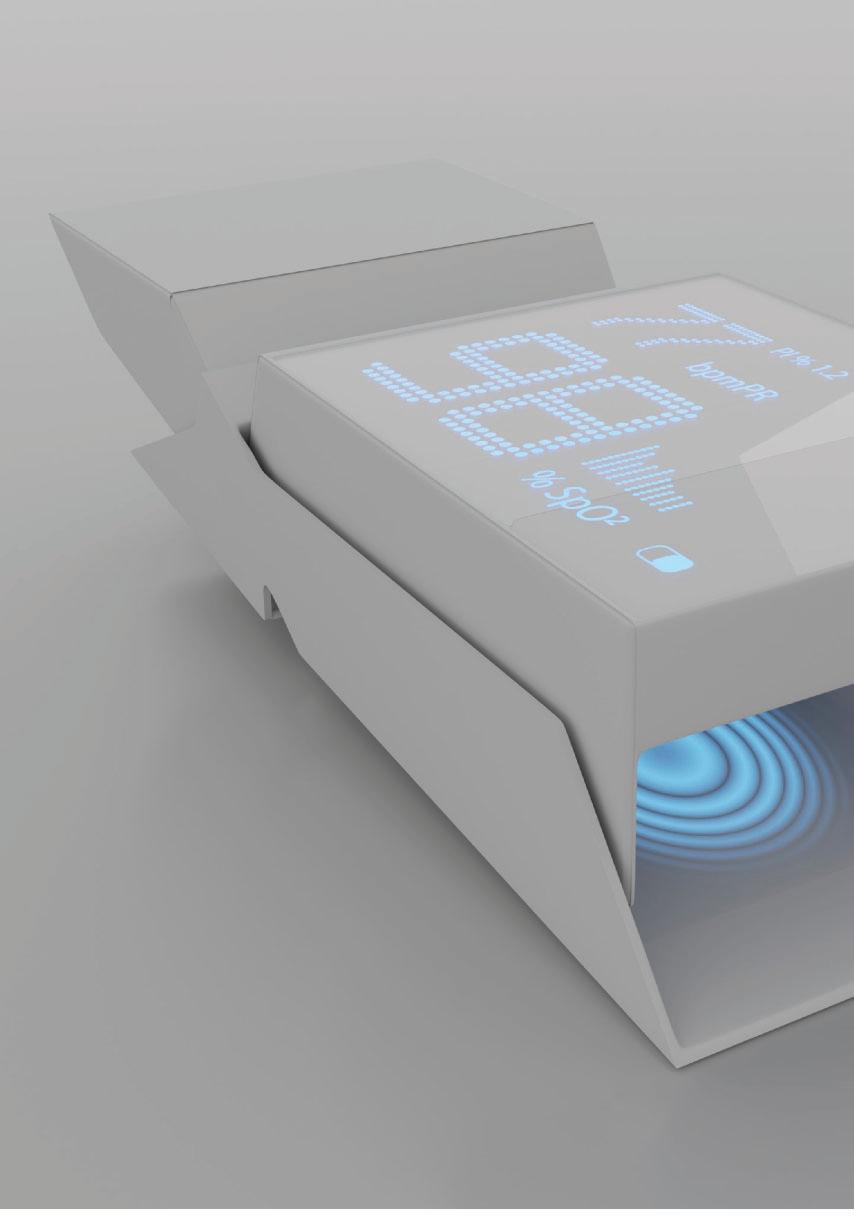

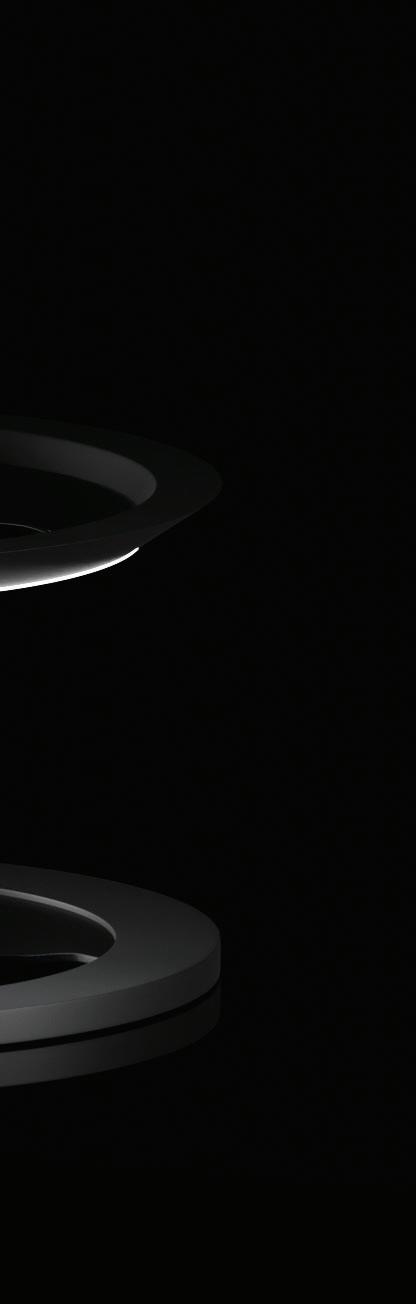

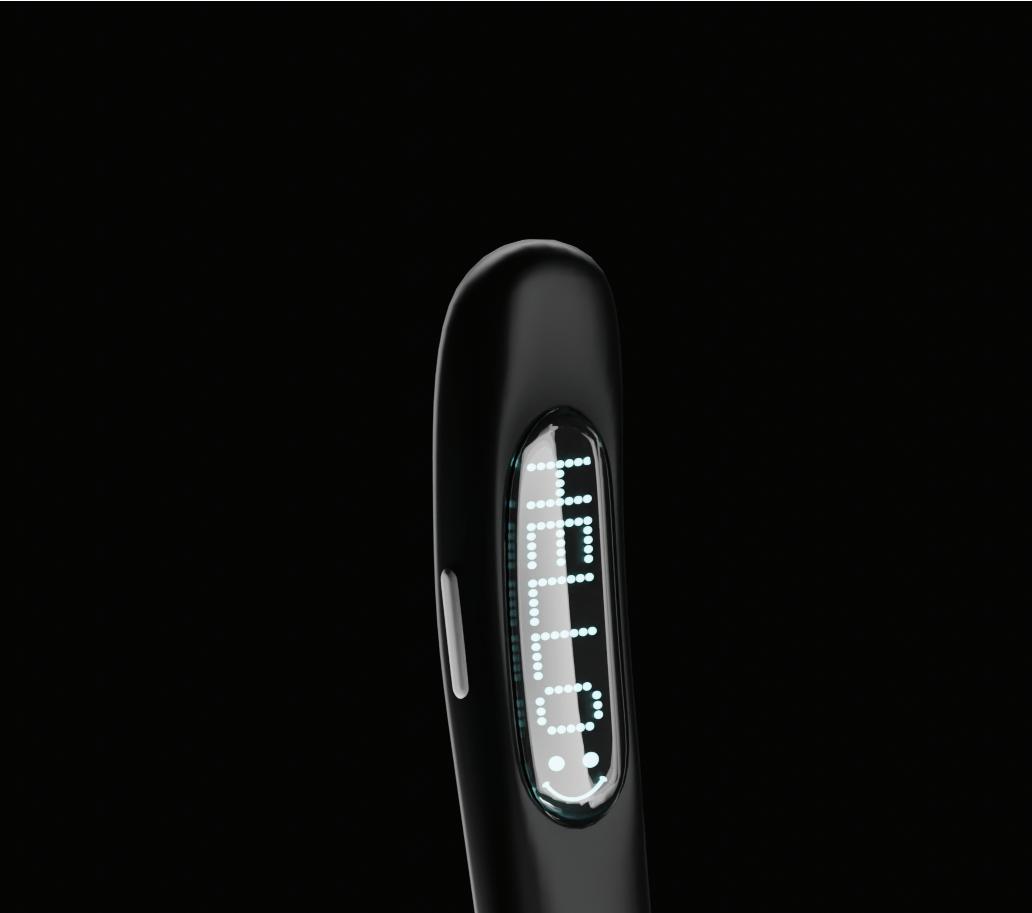

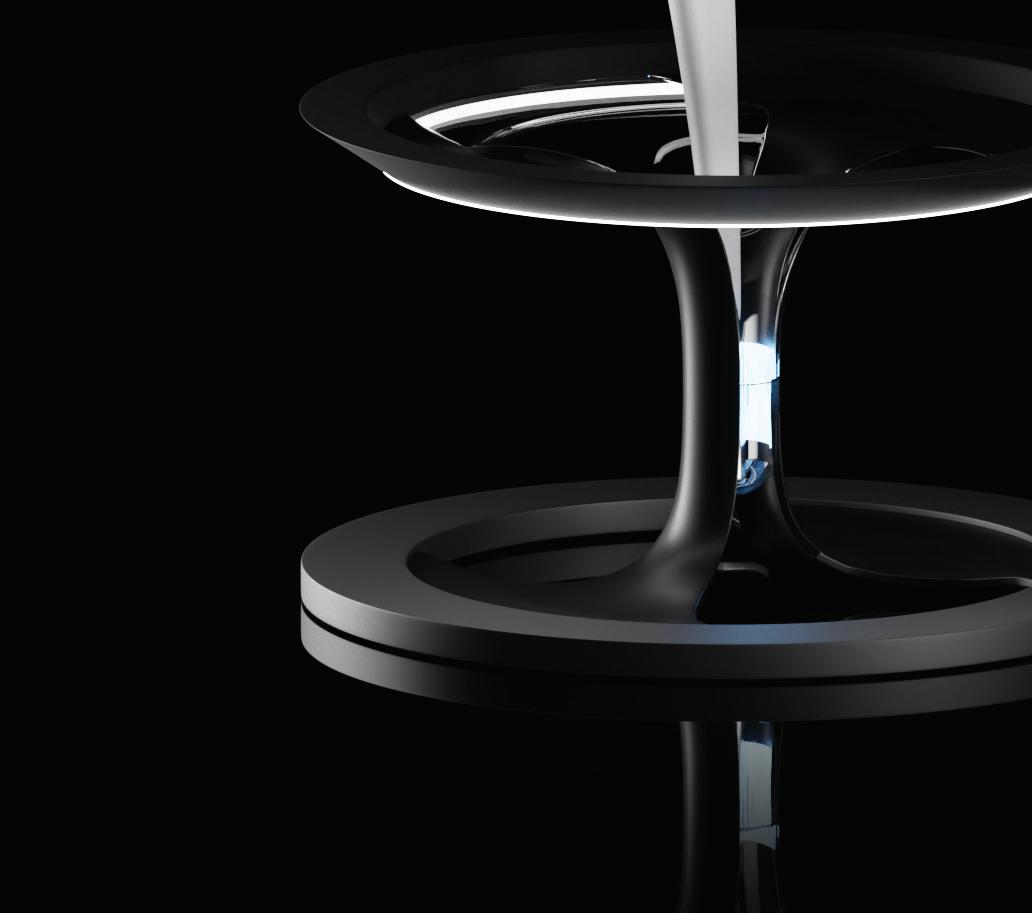

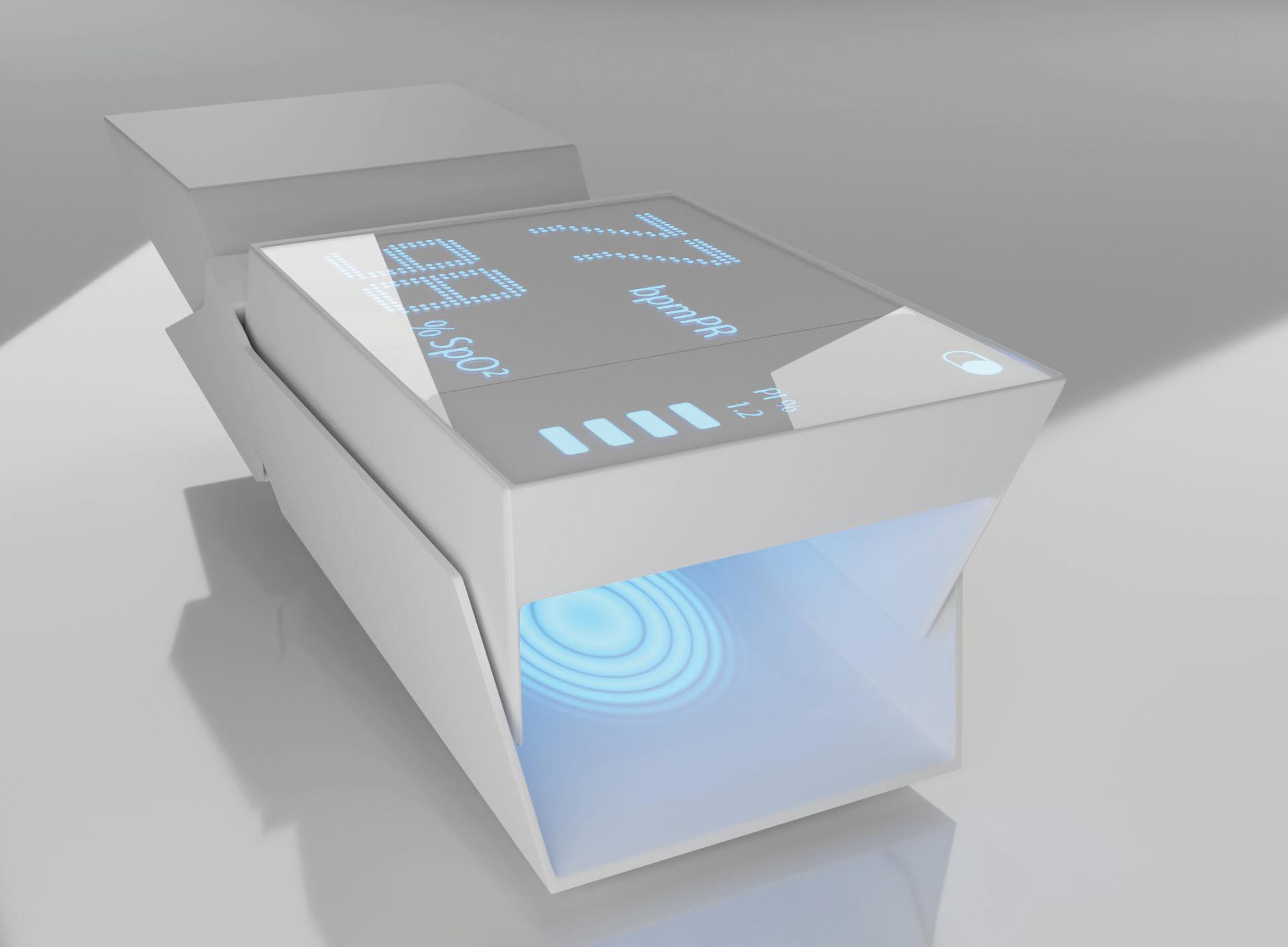

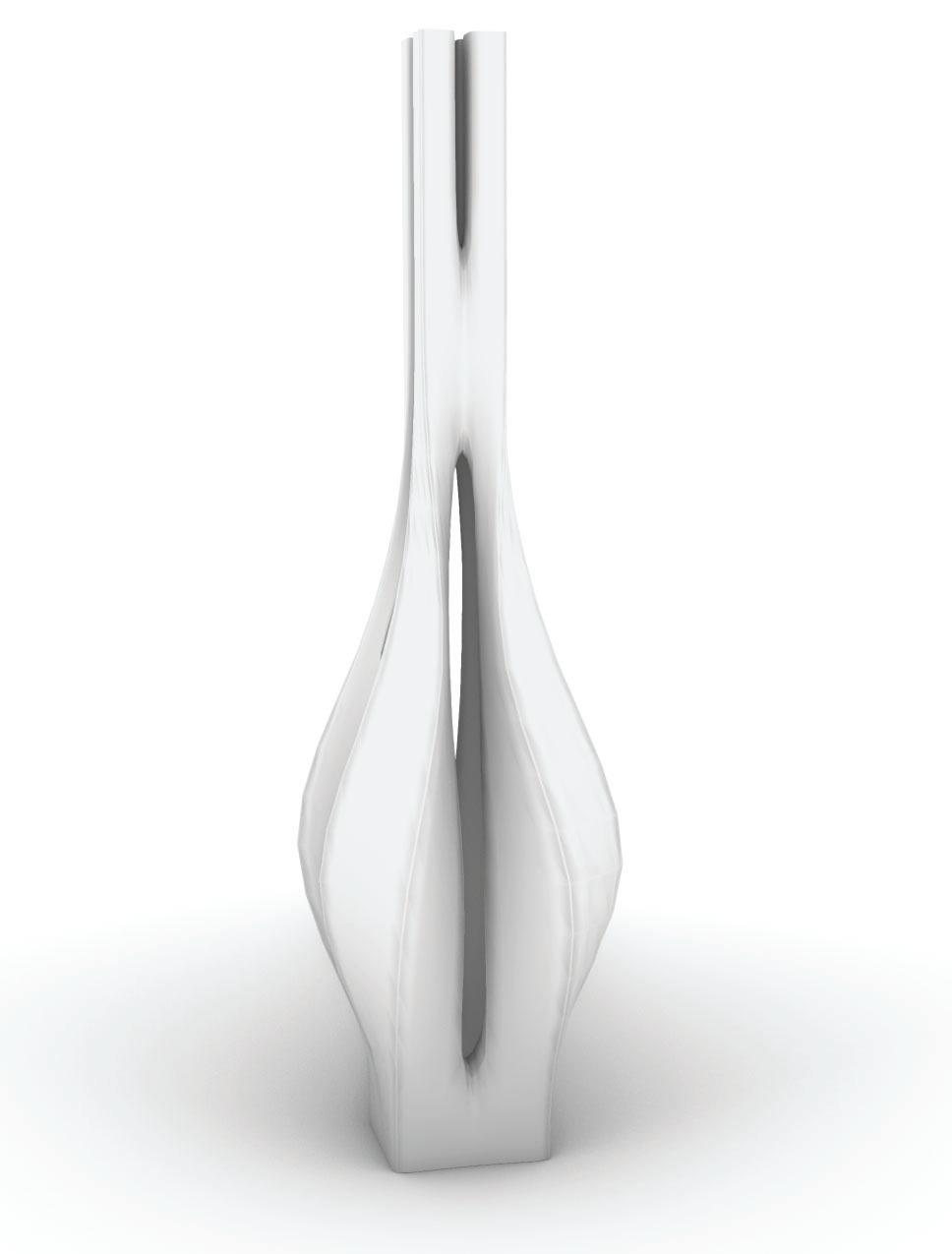

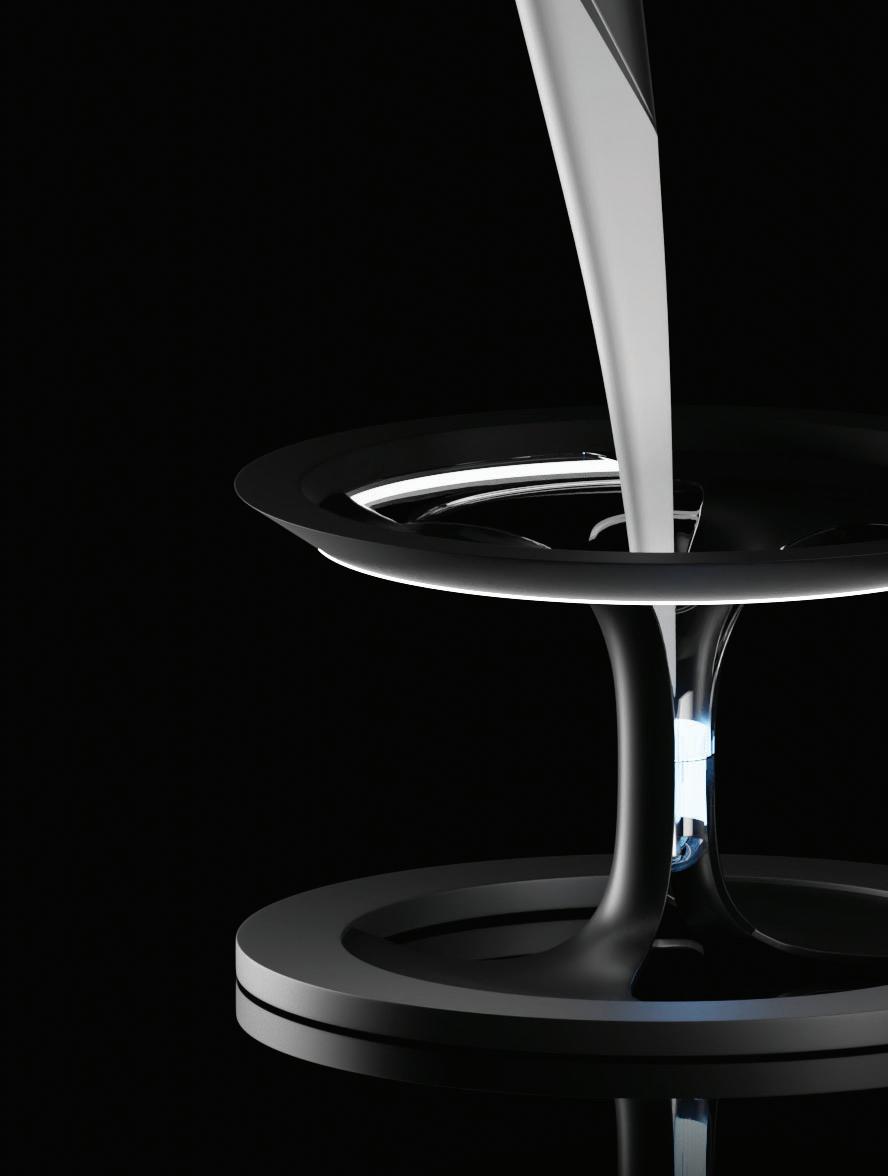

Product design 35

36

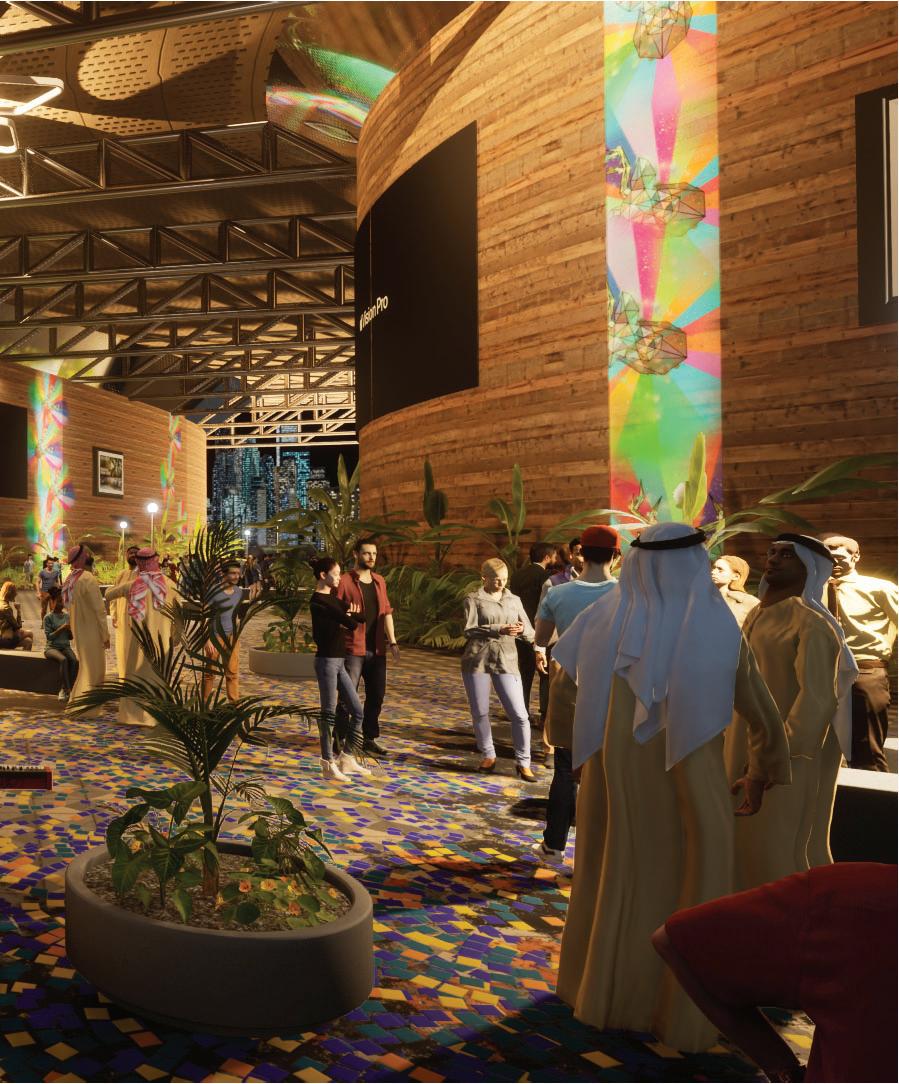

Freelance 37

38

Art expression 39

40
