Student Work 2019-2022
Interior Design Portfolio
Sifon Gilbert Portfolio
SIFON GILBERT
1 / 42
Sifon Gilbert Portfolio
2 / 42
Sifon Gilbert Portfolio
Welcome Hi, I’m Sifon Gilbert I am an interior design student at the University of North Texas, Denton. As an international student, I am passionate about using what I have learned to benefit my country of origin and globally by improving the lives of others through design, and I am constantly looking to learn new things.
3 / 42
Sifon Gilbert Portfolio
4 / 42
Sifon Gilbert Portfolio
Index 04 06
About Me
Residential
18 24
Hospitality
Coporate
34
Creative Works
5 / 42
Sifon Gilbert Portfolio
About Me Sifon Gilbert
S.G
6 / 42
Interior Design Student
S.G
SIFON GILBERT
Sifon Gilbert Portfolio
P ROF I L E A reasonable and self-driven Interior Design student with demonstrated experience in design-related software applications. Strong analytical and teamwork skills that would prove beneficial to the firm. Hardworking and reliable Interior Design student with strong ability in Space Planning and Presentation Techniques using Revit, Adobe Suite, and AutoCAD. Highly organized, proactive, and hardworking student eager to gain experience through an internship.
C ONTAC T Teleph.:
+1 (469)-978-4557
Email:
sifon.gilbert@gmail.com
Portfolio
S K I L LS AutoCAD Revit SketchUP Enscape Adobe Suite Microsoft Office AGI32
E DUCA T I ON University of North Texas Expected Graduation in May 2022
Bachelor of Fine Arts in Interior Design Minor in Drawing and Painting UNT IDSA member Honor Roll since Fall 2019 Related course work in Revit, AutoCAD, Space Planning
P ROJ E CT E X P E R I E NC E Office Design Project University of North Texas Developed a complete design concept for office space through space planning and providing specifications for finishes, fabrics, and furniture to achieve the client’s vision. Through Revit, SketchUp, and Enscape created contract documents and renderings for the final presentation. The outcome of the project was that I was able to understand how to apply building codes to a project, research green materials, and learn how to specify them.
Restaurant Design Project University of North Texas Researched Sensory Design and created a series of concepts to aid in the design iteration. Prepared 2D and 3D presentations and drawings using Revit, Photoshop, and PowerPoint to generate concept images, plans and present design direction. The project’s outcome was that I learned about restaurant design, means of egress, and how to calculate the number of exits.
Residential Design Project University of North Texas Engaged in extensive research on Universal Design on creating a home that supported aging in place and created a home using Sketch Up, Revit, and Enscape to create renderings for final presentation. I learned that universal design is more than ADA regulation but more about creating a space for everyone. I also learned how to work with and around building constraints.
V OL UN T E E R E X P E R I E N C E Art Volunteer
Denton, Texas
June 2021- Current
The Art Room Denton Helped answer art/ design related questions and assisted people with their projects. I also contributed to a collaborative art project, Roots and Branches, 2021, showcased at Cumberland Presbyterian Children’s Home.
Volunteer UNT Food Pantry
November 2019- March 2020 Denton, Texas
Supported at the front desk and accepted donations. Assisted with distribution by packaging items and letters.
7 / 42
Sifon Gilbert Portfolio
RESIDENTIAL 8 / 42
Sifon Gilbert Portfolio
9 / 42
Sifon Gilbert Portfolio

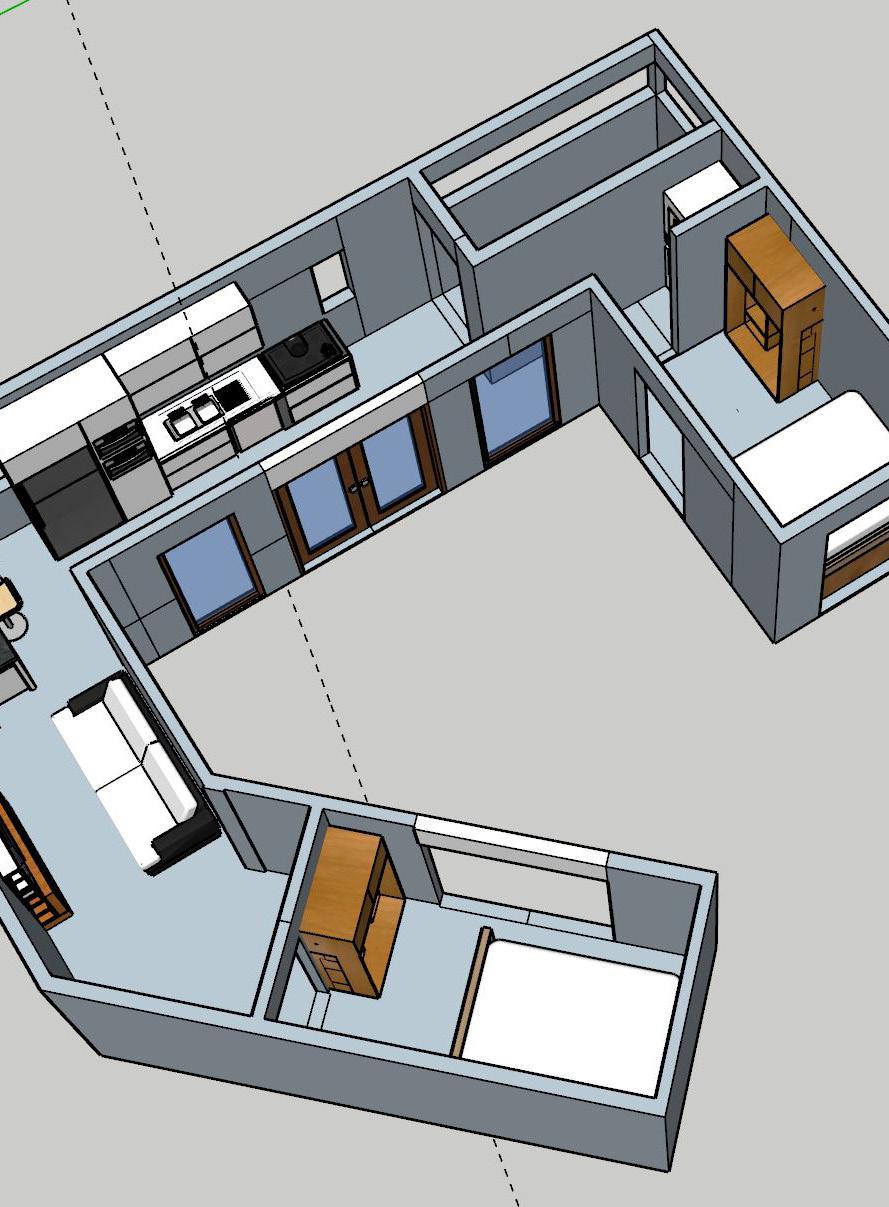

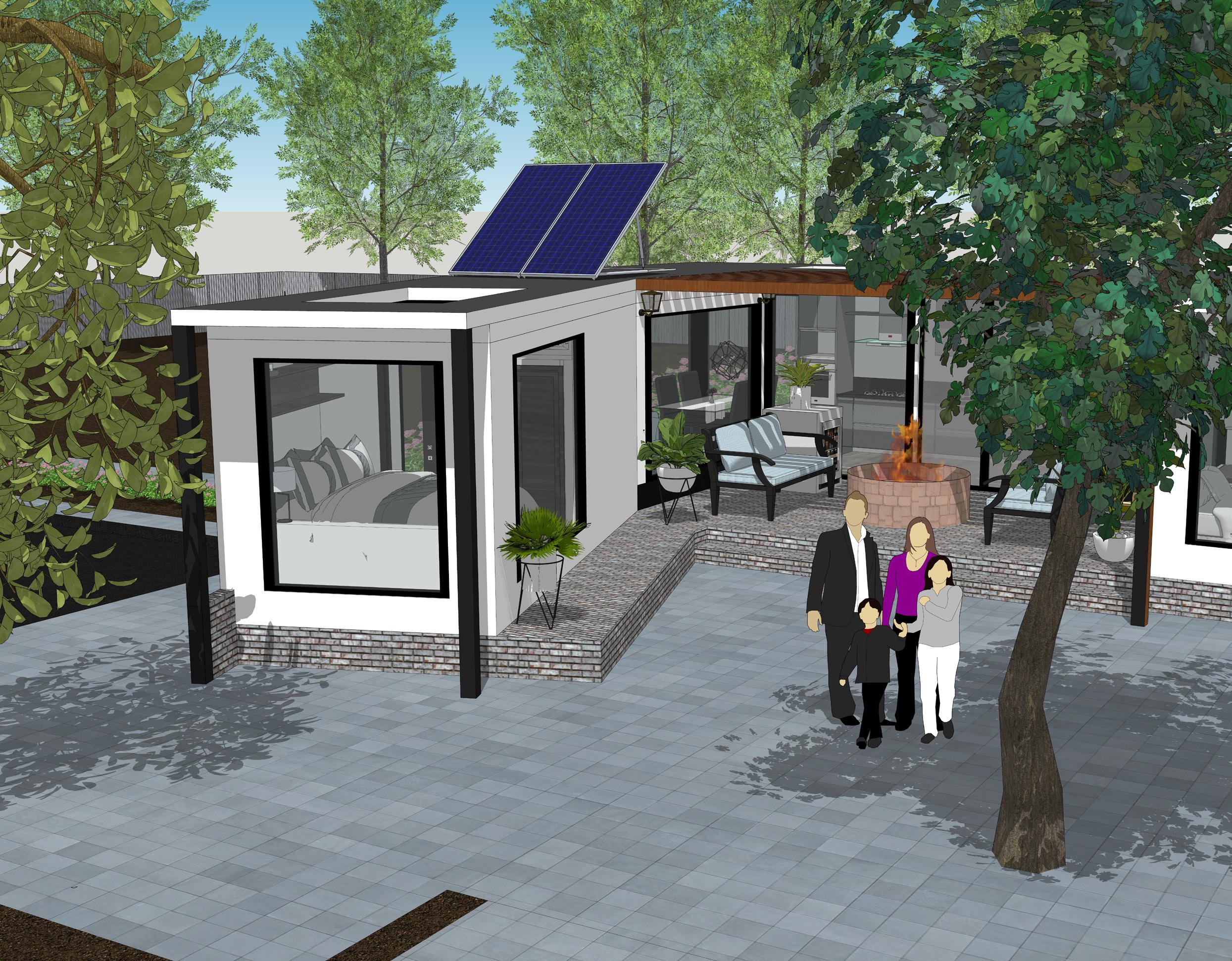

MODULAR HOME SOFTWARE: Sketchup
10 / 42
Sifon Gilbert Portfolio

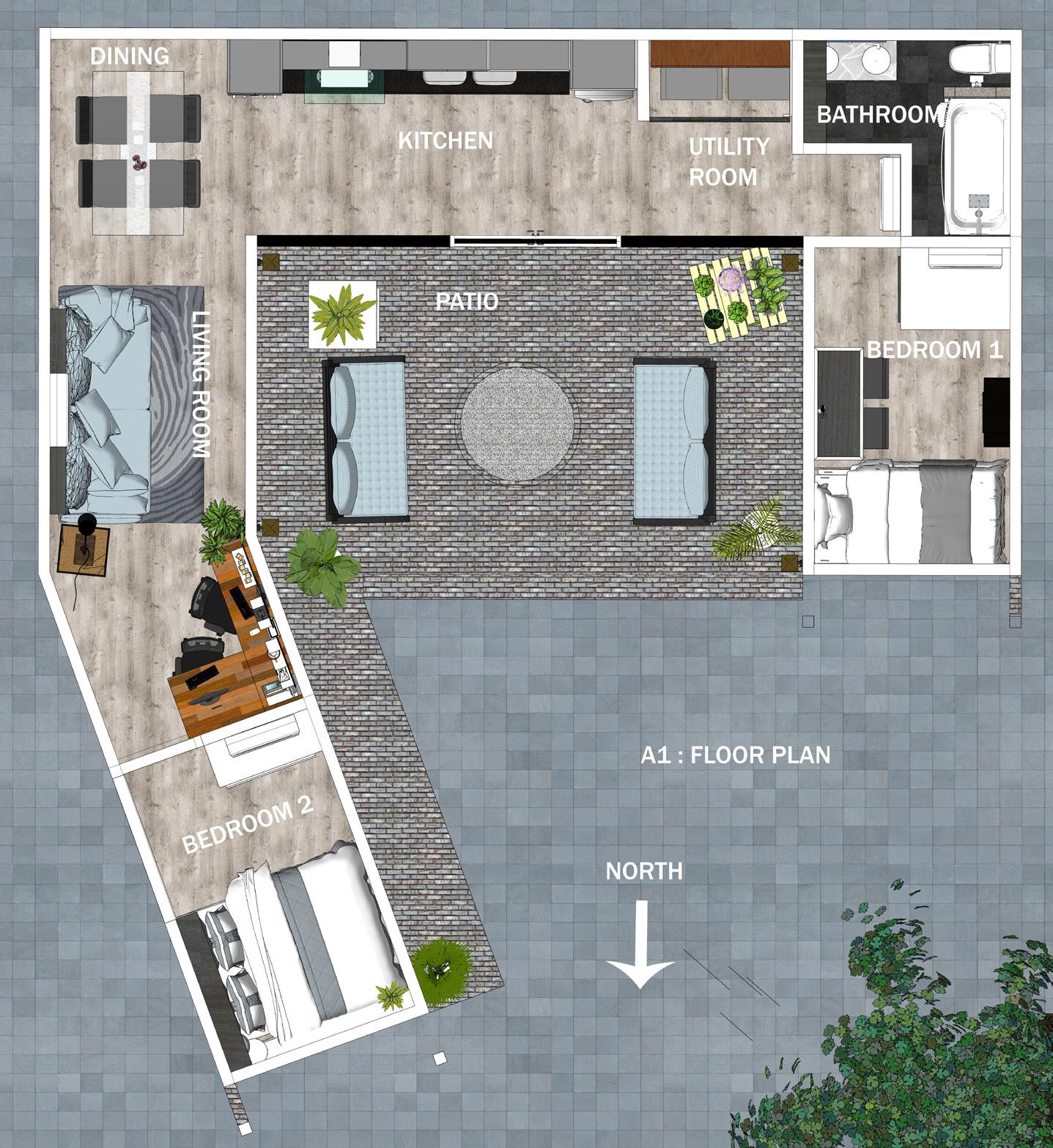

Floor Plan
Floor Plan
Objective
The objective of this project was to learn about sustainability interior design. We were given four shipping containers and asked to reconfigure them to create a modular home
Concept
To create a home that simplifies life by sharing a common space and minimizing the impact on the environment. The design of the house would incorporate nature into the overall design which would have a positive effect on health and healing and wellness of the people
11 / 42
Sifon Gilbert Portfolio

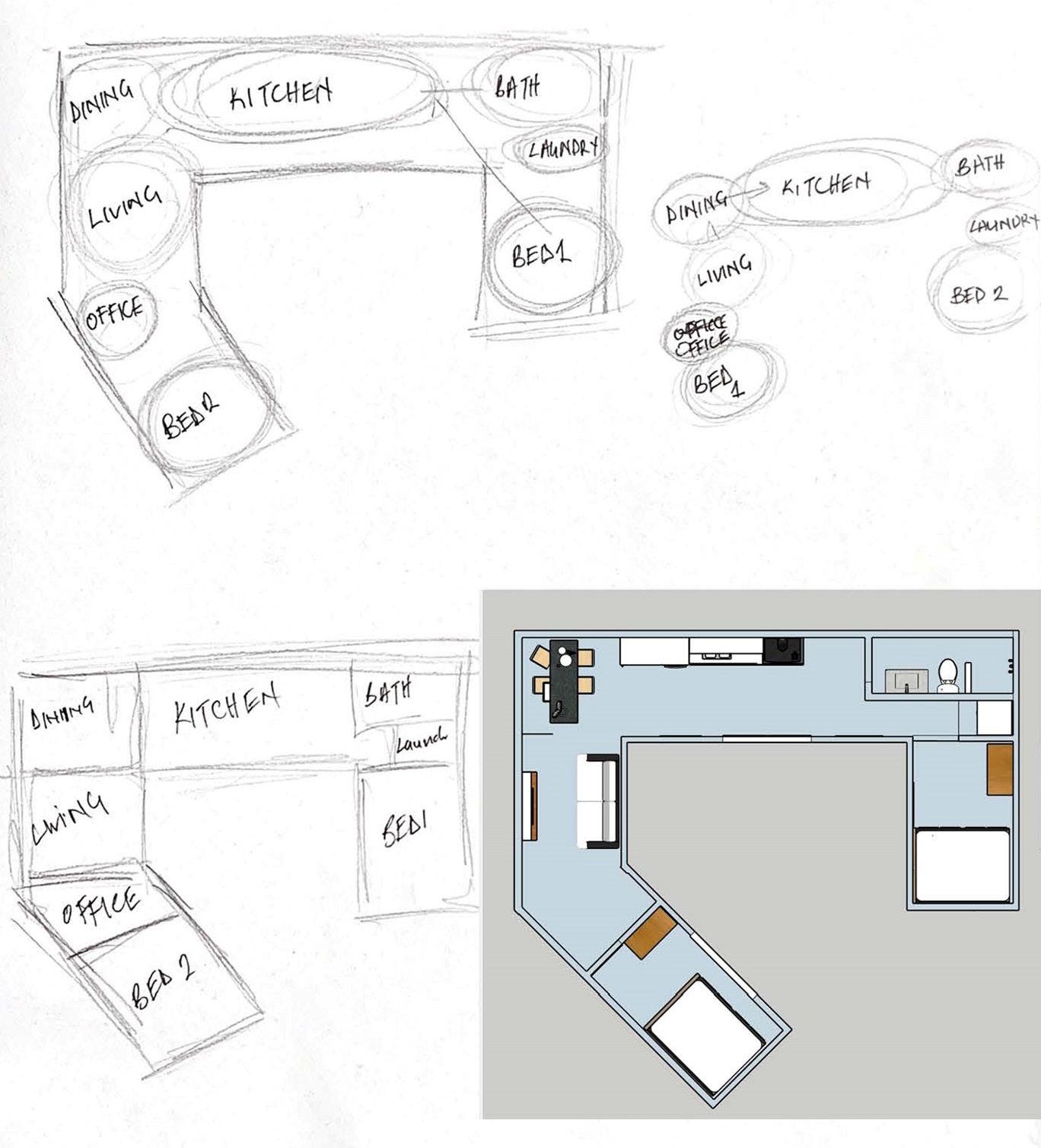

Process

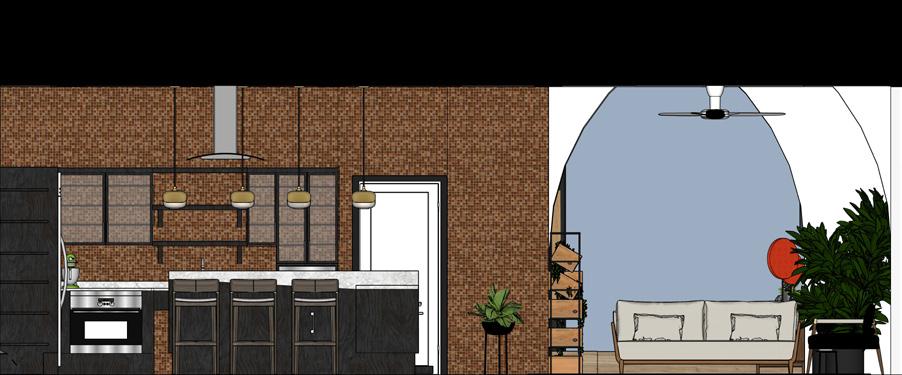

Kitchen Elevation
Reflected Ceiling Plan
While I was sketching my ideas, I kept in mind that I wanted an open concept home. I also wanted to incorporate a lot of natural light . In comparison to the final model I switched the master bedroom with the second bedroom ( assuming it would be used be children) so it would be easier to access the bathroom.
12 / 42

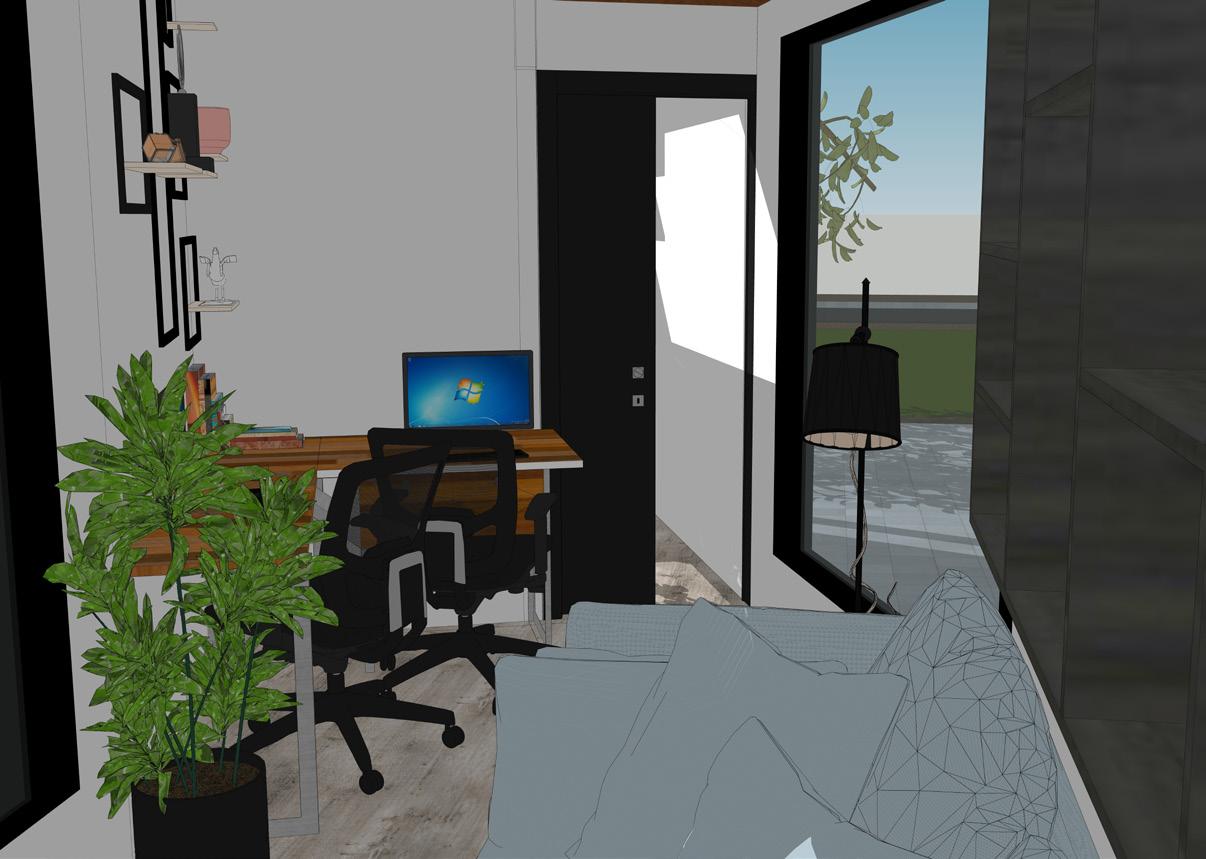

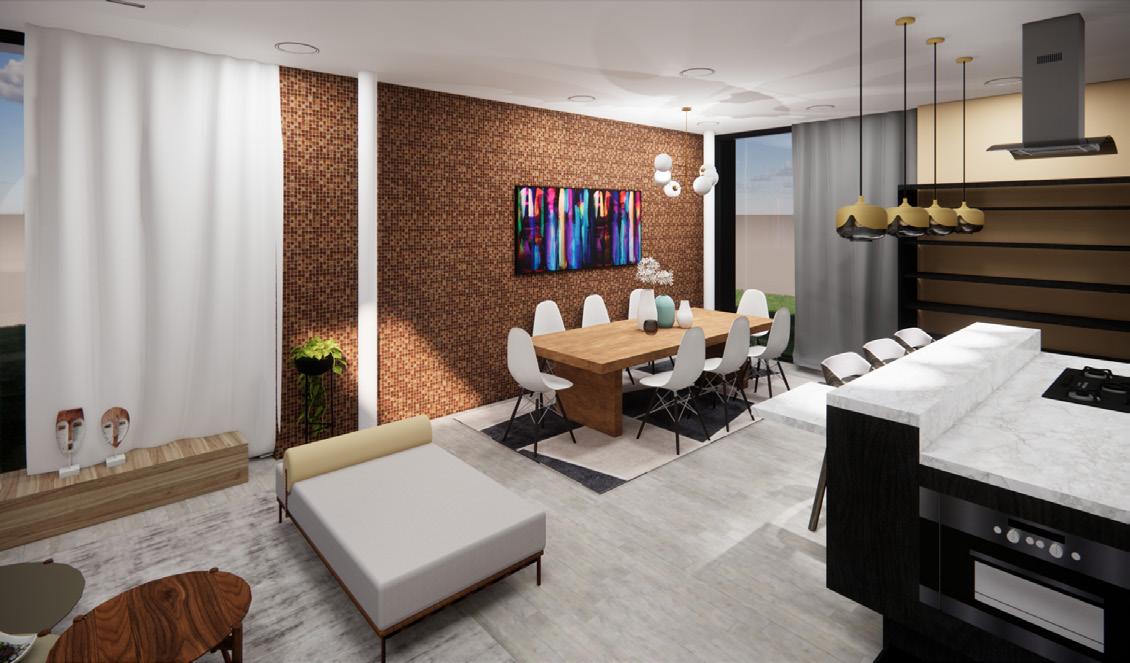

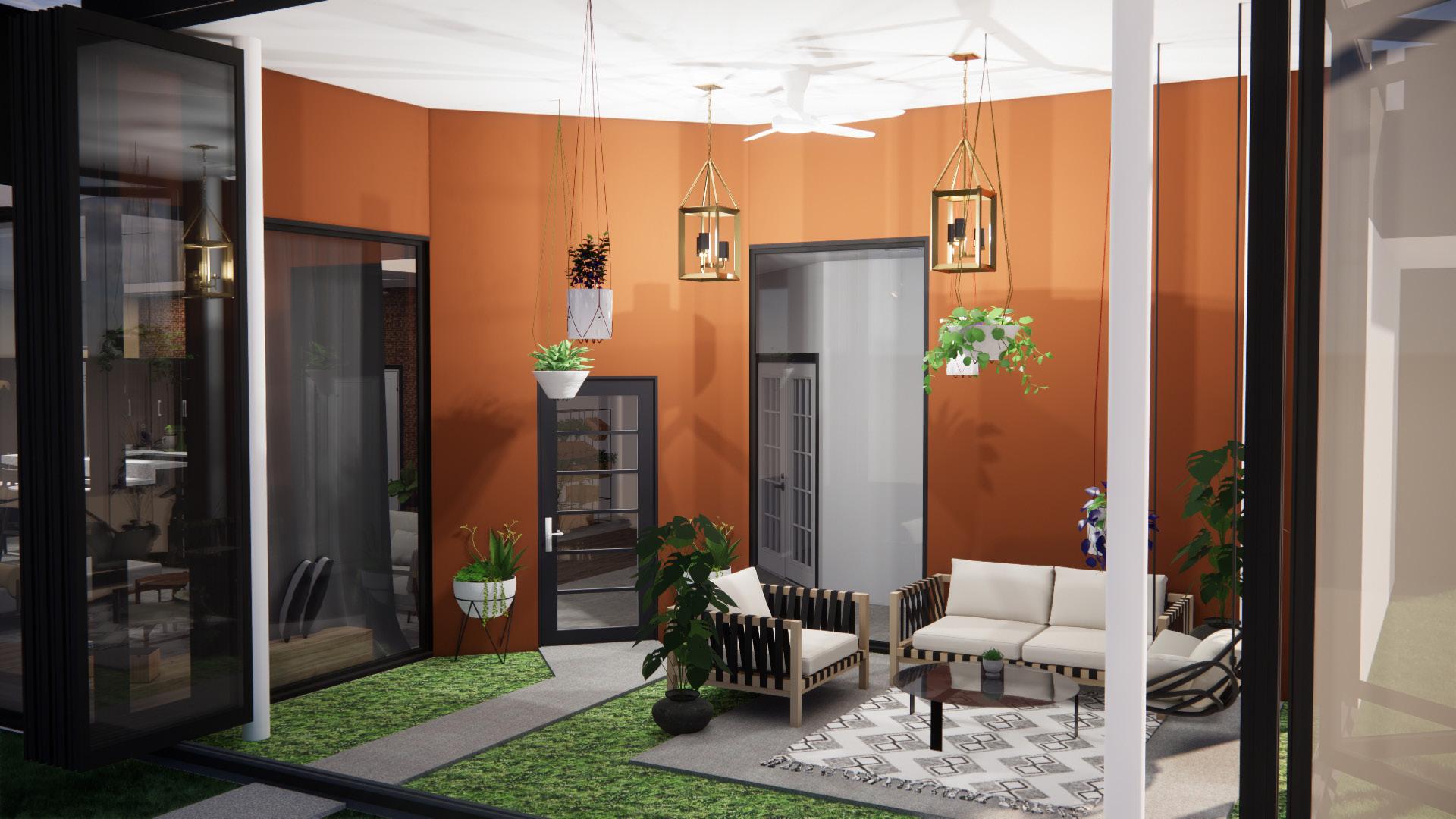

Living Room
Kitchen

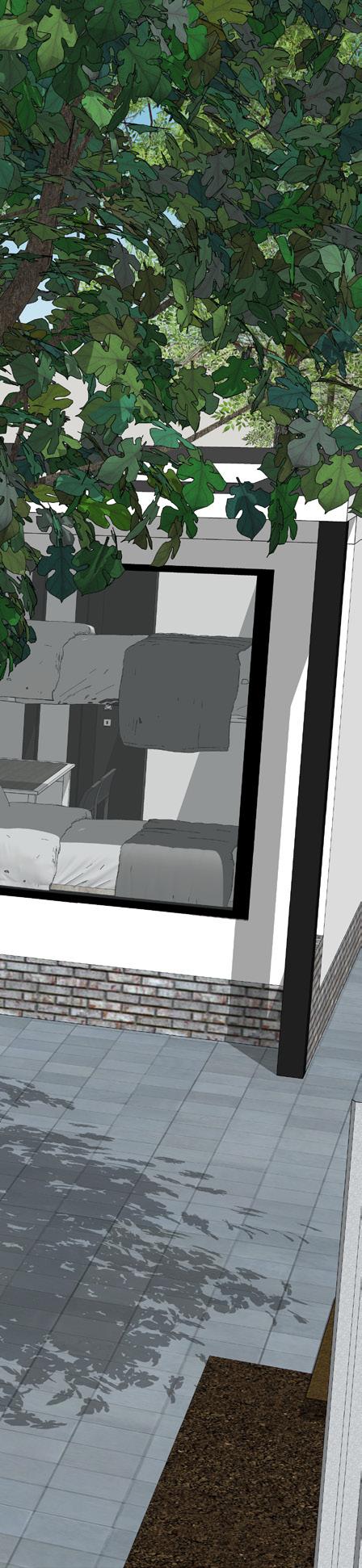

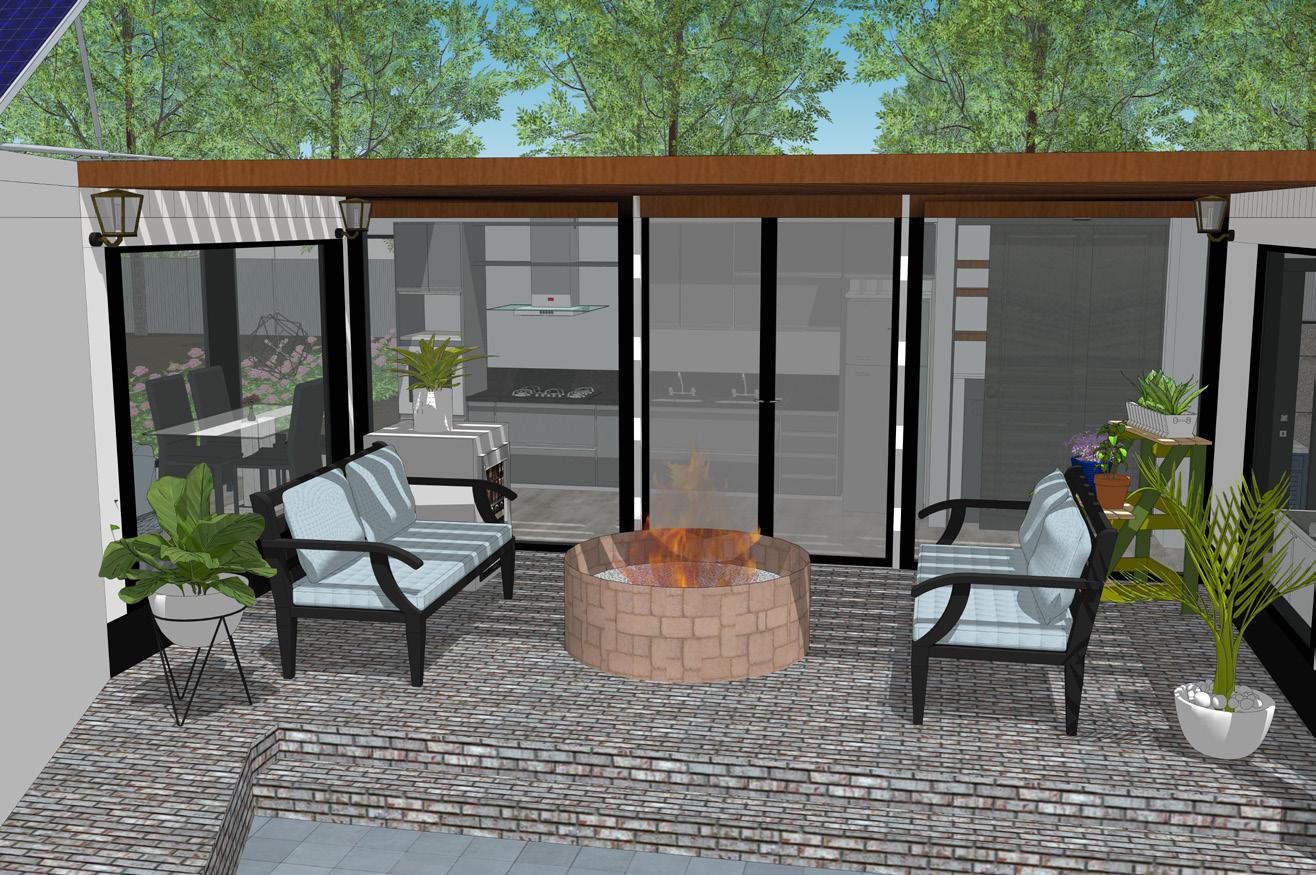

Porch
Sifon Gilbert Portfolio
13 / 42
Aging in A Modern World SOFTWARE: Sketchup, Enscape
Objective
The objective of this home was to research an interior design theory and apply that to a residential design project.
The Client Old age is part of the life cycle that everyone will eventually get to. There is an overstatement of held beliefs that the elderly cannot do things for themselves and depend on individuals, which is not the case for all the elderly in our society. Chidera and Ayo want to feel connected to society; although they are not as young as they were, they still want to be able to be in a space that is modern but also suited for their age too. Their biggest concern
14 / 42
is wheelchair accessibility for Ayo, who often has problems moving around their old home and being able to move within their home comfortably. They also want to be able to invite people to their new home. Chidera also wants the color palette of the home to be limited, and he also wants a porch to enjoy outside and take care of his plants. They both also want to incorporate a lot of natural light in their home. They want their home to be unique.
Residential Design Project(Spring 2020)
Sifon Gilbert Portfolio
Sifon Gilbert Portfolio
Concept

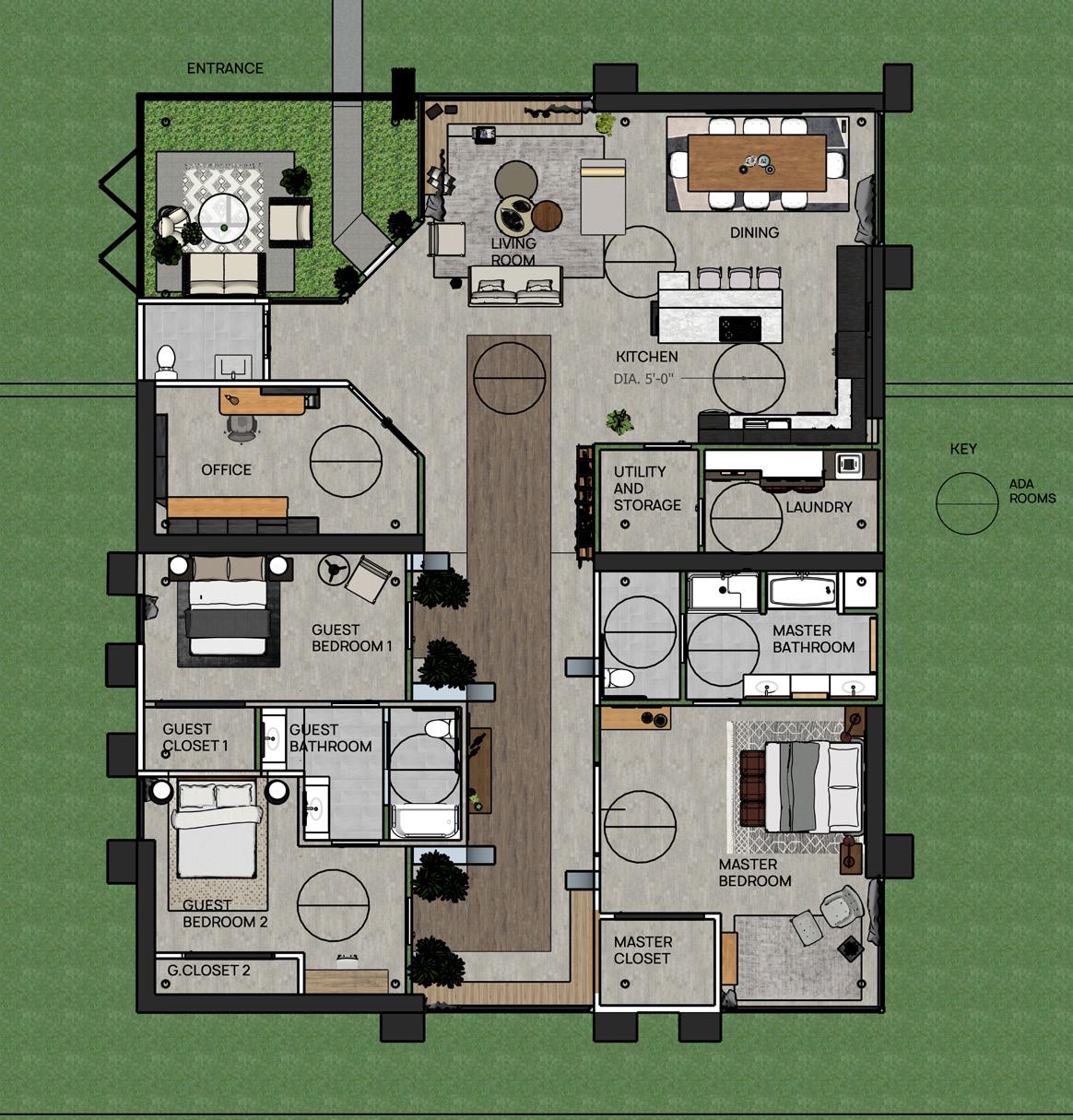

Floor Plan
Designing a space that focuses on functionality, simplicity, clean lines, and monochromatic colors that creates an uncluttered and simple space, making the home a free-flowing space. Also, the concept of universal design would make it possible for the client to age within the space without adapting or specialized, making it easier for everyone regardless of their age, size, disability, or ability. This design would encompass an open floor plan, textures, color, shape, and universal design principles.
Kitchen Elevation
Ergonomics is an aspect of universal design that focuses on improving functionality and productivity; it makes a home more comfortable by making activities like cooking and cleaning routines easier.
Perceptible Information

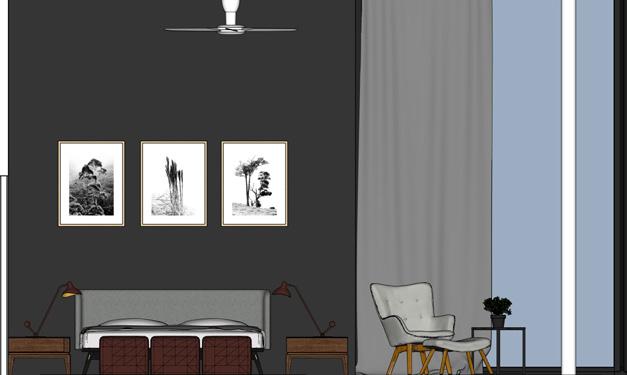

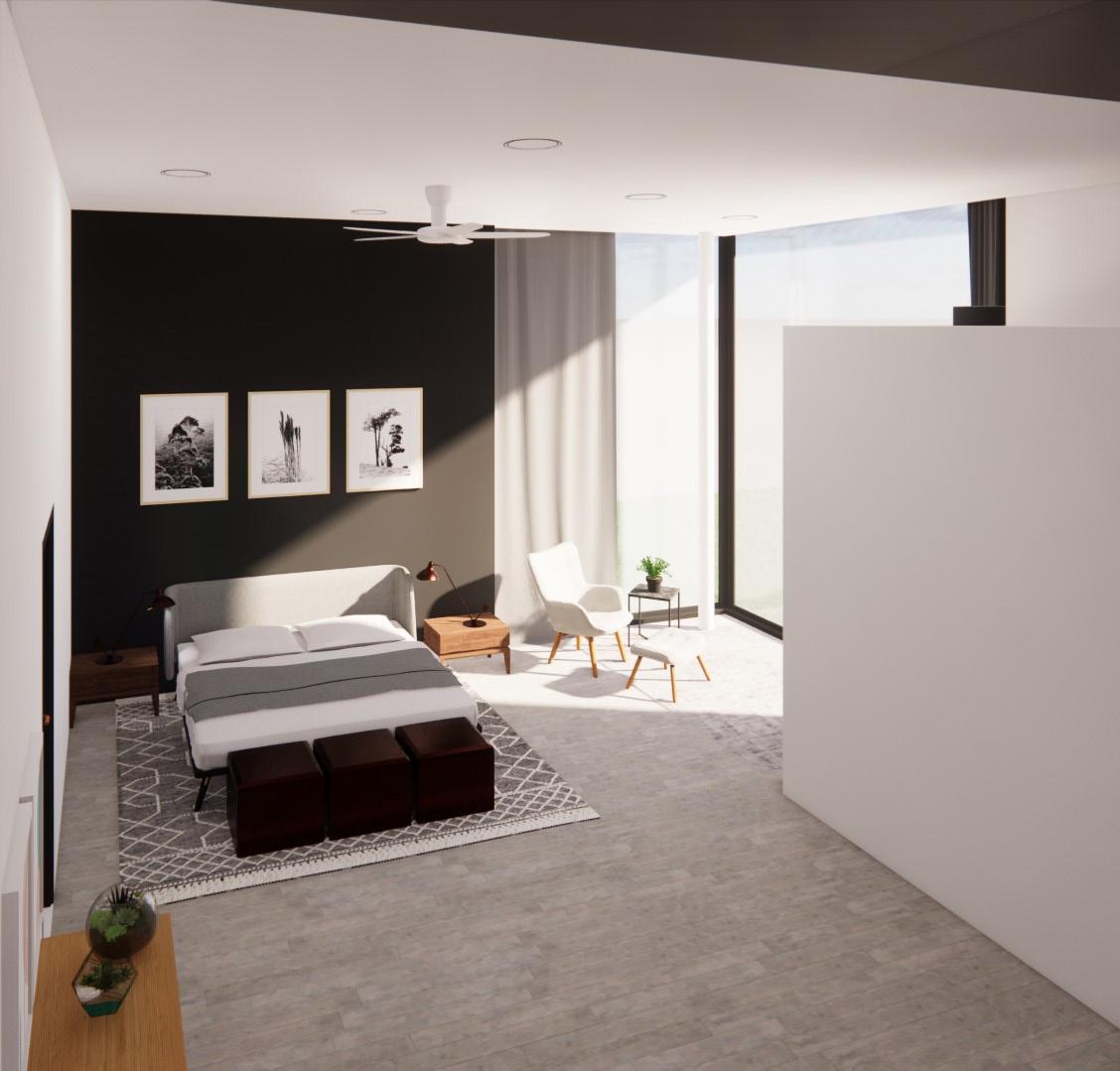

Master Bedroom Elevation
People in the house would be able to navigate their way through the house because the walkways and busy areas have been made more prominent with the help of sky lights. Also open and see through shelving were added to the kitchen so it would be easier to spot items.
15 / 42
Sifon Gilbert Portfolio

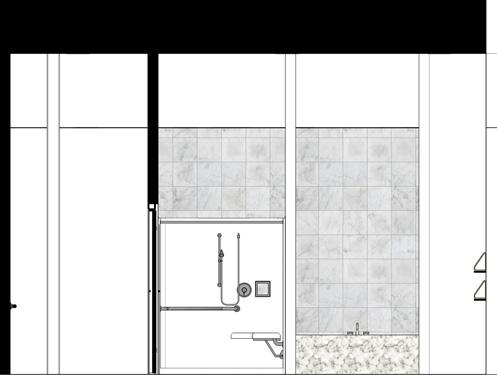

Master Bathroom Elevations
Tolerance for Error Design of the house and is easy to navigate. Elimination of unnecessary elements for example walls. The public area is open concept which makes it easier to move around.
Equitable Use Everyone is able to have access to the entrance house. For example ,the powder room is acceble to everyone.
Flexibility in Use Accommodation for the people of all ages, sizes and abilities for example the kitchen and bathrooms
Reflected Ceiling Plan
16 / 42

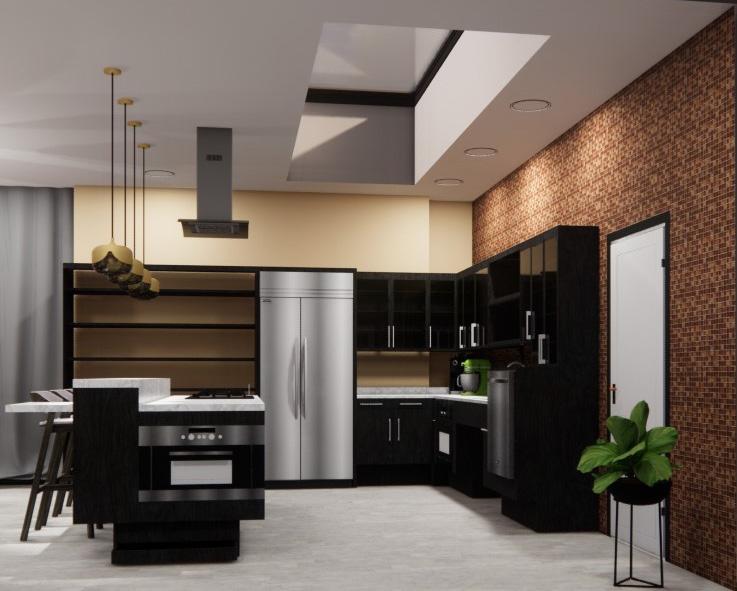

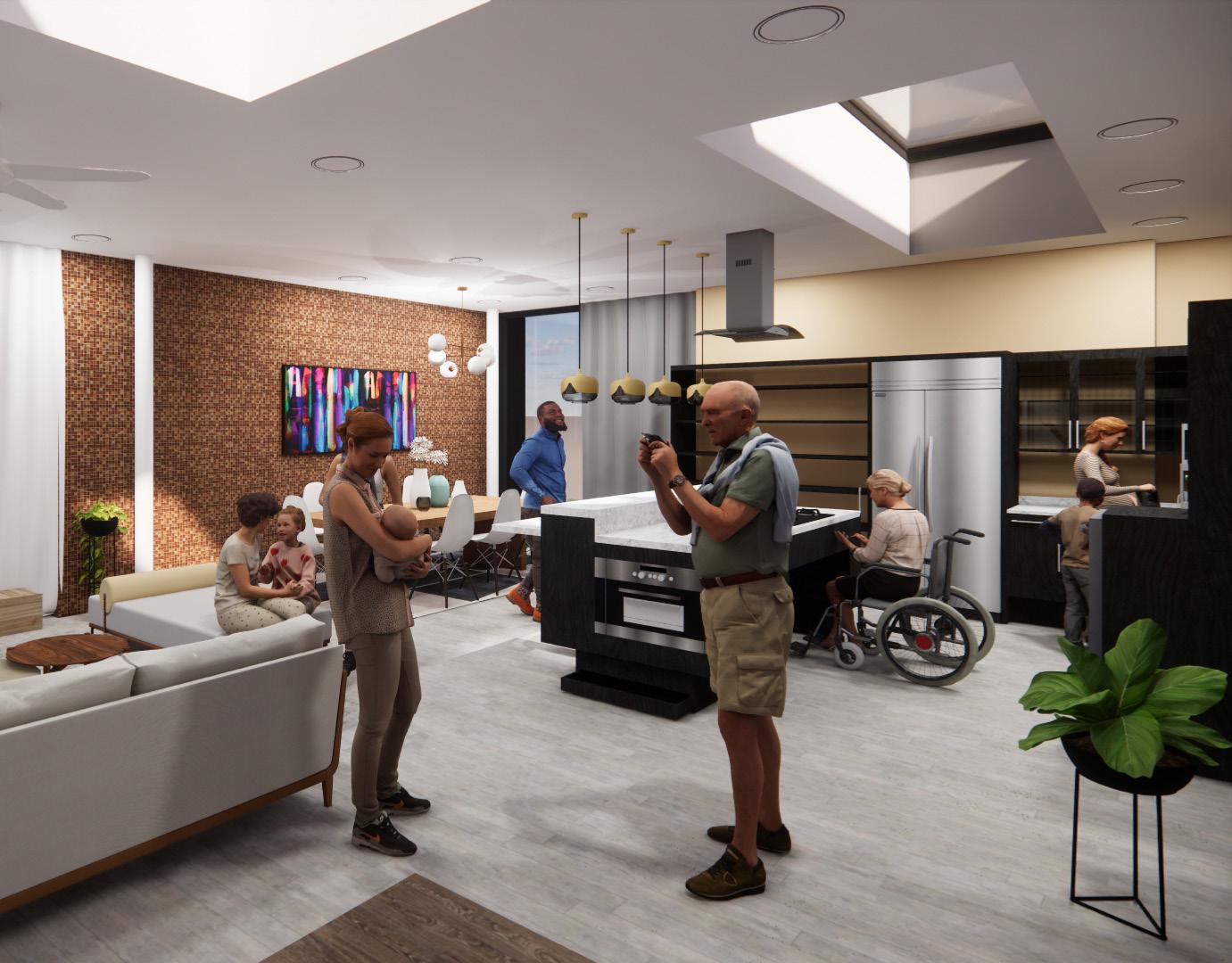

Kitchen Perspective
Sifon Gilbert Portfolio
Low Physical Effort

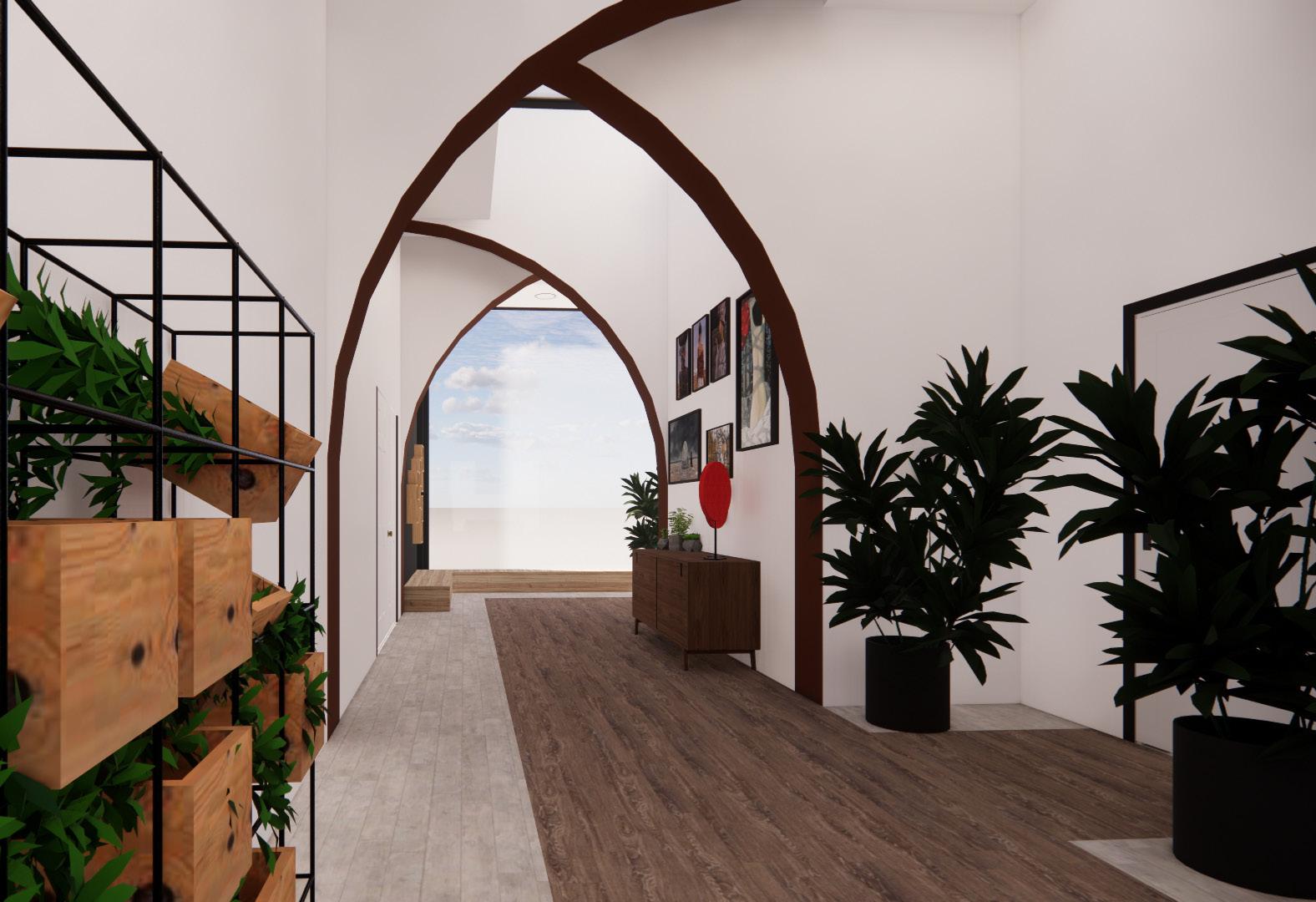

Hallway Perspective
The design of the space can be used efficiently with out exerting much energy. For example in, kitchen the dishwashers, oven and microwave have been placed at a height that is accessible to every one.
Size and Space for Approach and Use Appropriate size and space is provided for each space within the house. For example, in the hallway adequate space is provided for those who use assistive devices
17 / 42
Sifon Gilbert Portfolio
Simple and Intuitive Design of the house and is easy to navigate. eleimation of unnecessary elements for example walls. The public area is open concept which makes it easier to move around.
18 / 42
Sifon Gilbert Portfolio
Public Space

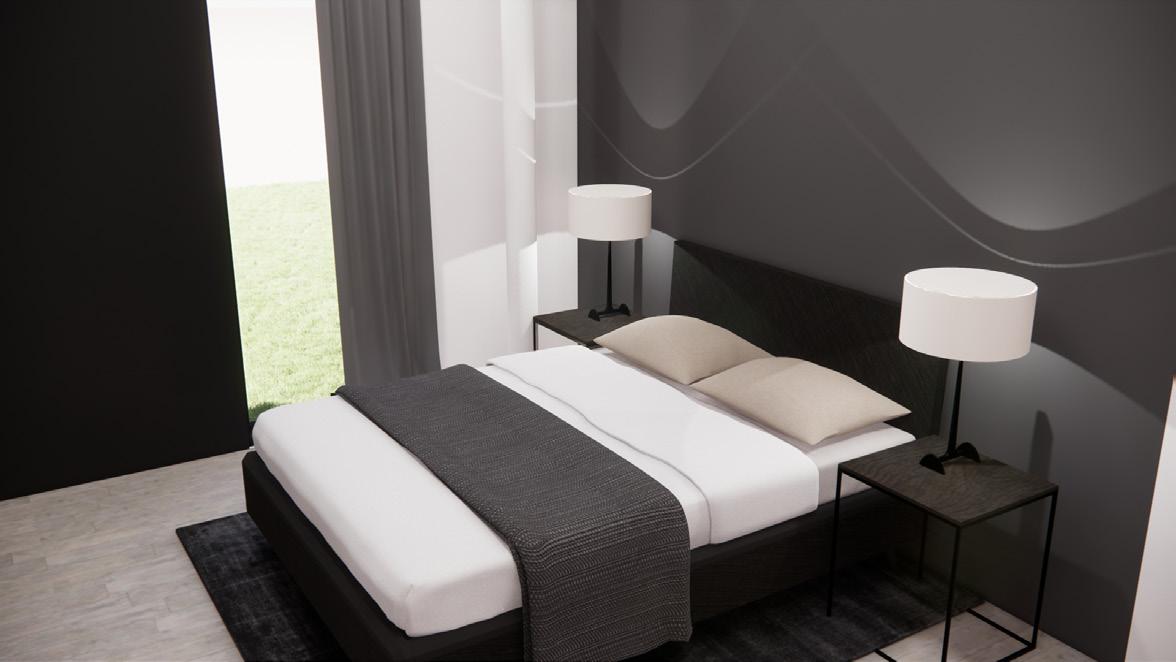

Private Space
Best of Lorem Award Year 2021
19 / 42
Sifon Gilbert Portfolio
HOSPITALITY 20 / 42
Sifon Gilbert Portfolio
21 / 42

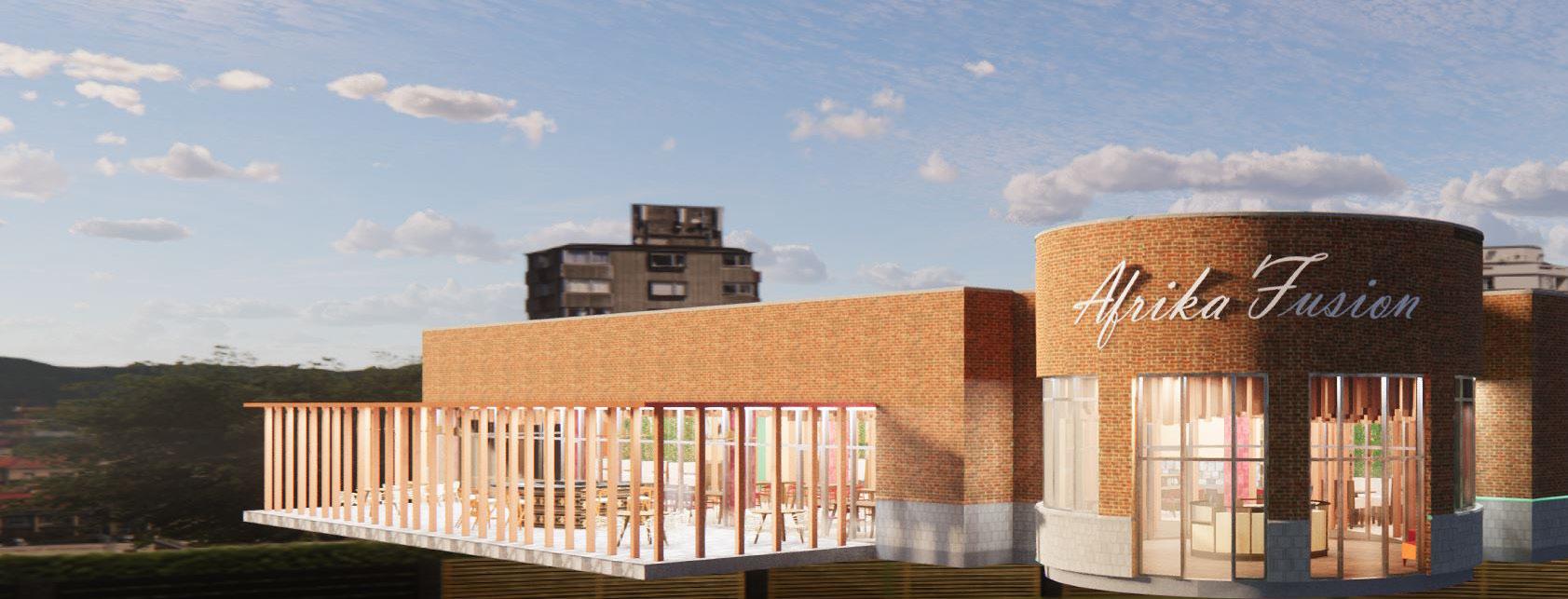

Afrika
Sifon Gilbert Portfolio
Big Concept To create a warm space that is a center of attraction for the African culture. The concept of the space would be based on sensory design, creating a space for four senses; smell,sound, touch, and sight. (Yu, 2009)

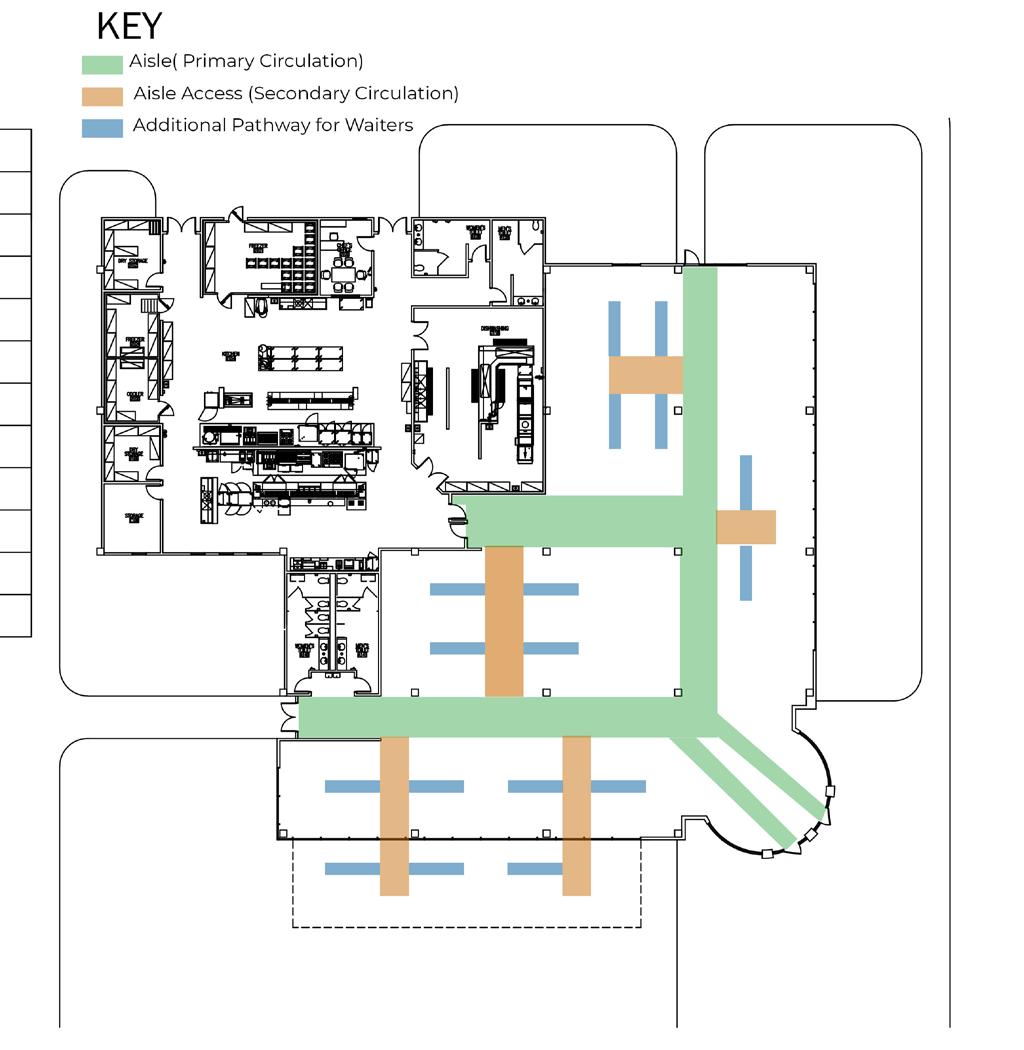

Circulation Analysis
22 / 42

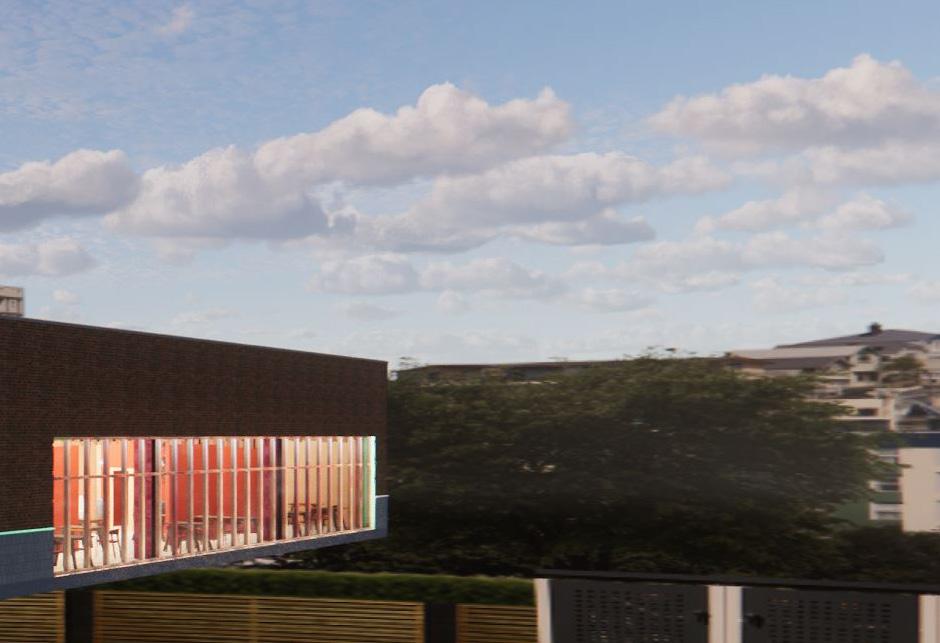

Site Analysis
Fusion
Sifon Gilbert Portfolio
SOFTWARE: Sketchup ,Revit, AutoCAD, Enscape
Objective The objective of this project was to research a chosen interior design style and location, then create a kitchen and analyze the interior space.
•
Smell- Slight fragrances would make the space feel cleaner and fresher; the discharge of a light fragrance may make the space more favorable (Yu, 2009)Adding a kitchen to the dining area would create a home like environment, and the sizzle sounds would associate the patrons with fresh food. (Levin 2009)
•
Sound-Background sound is important to restaurant design; a space for live music would be added to the space because, without sound, the space would feel lifeless and unreal, without a flow or rhythm. (Pocock, 1989)
•
Touch- The use of different materials with different colors, patterns, and textures on surfaces that the patrons regularly touch would affect their perception and feeling of that space. ( Malnar & Vodvarka, 2004). Movement is also an important aspect of touch, and different ceiling heights would be incorporated into the space to create an awareness of space (Tuan, 1977)
•
Sight-A grand display would be added to the entrance to suggest that something incredible awaits on the other side (Malnar & Vodvarka, 2004). Recessed ceiling lights would also be added to the ceiling to create illumination within the space that would benefit the patrons psychologically and physically. (Maas, Jayson, and Kleiber, 1974)
Restaurant and Bar Design Project (Spring 2021)
Small Concepts
23 / 42
Sifon Gilbert Portfolio
Floor Plan

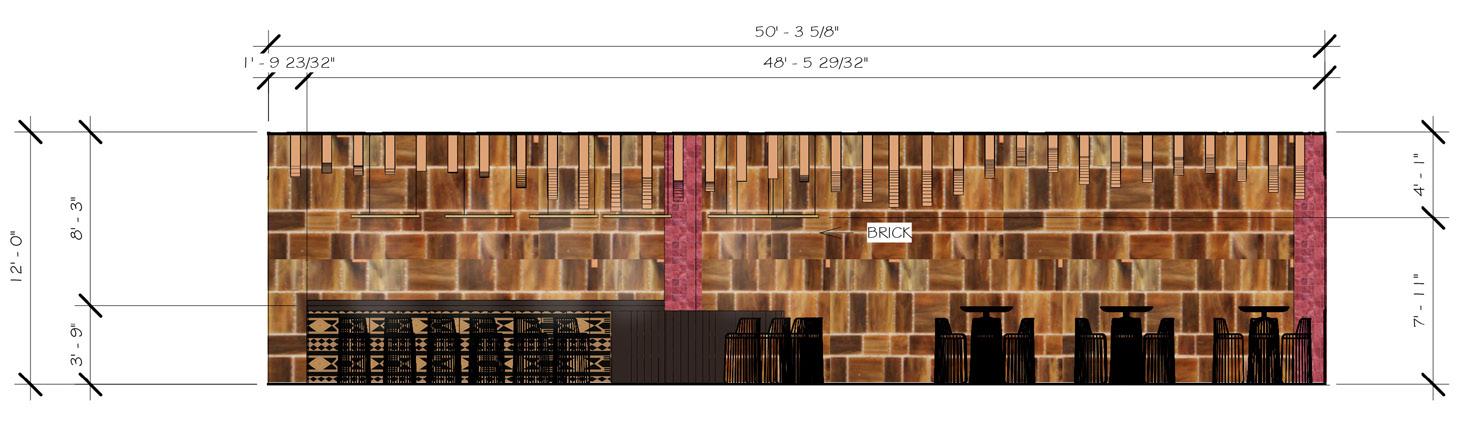

Bar Elevation

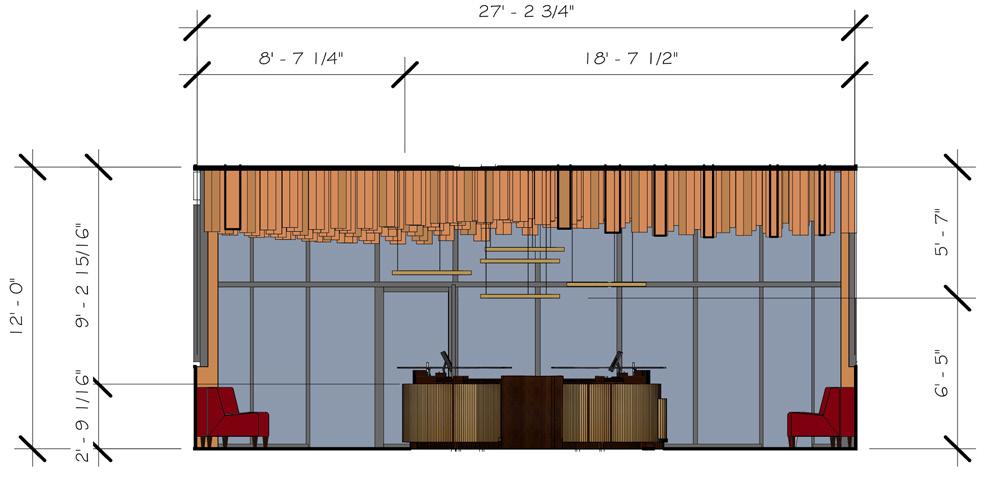

Reception Elevation
Bar
24 / 42

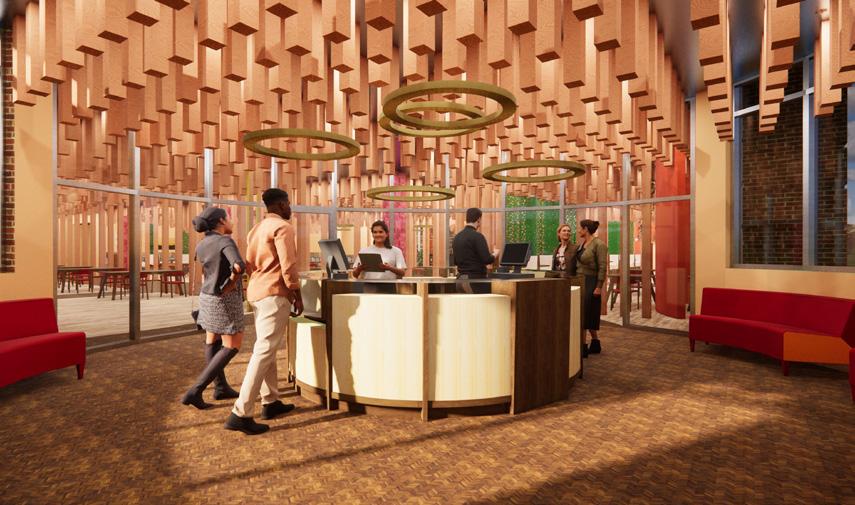

Reception
Sifon Gilbert Portfolio

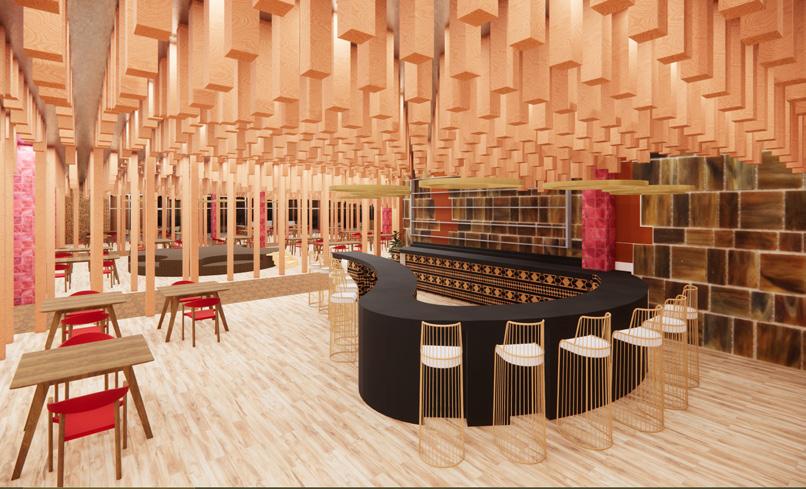

I wanted to create something dramatic for the ceiling, so I used 6 x 6-inch wood columns with varying heights that formed a wave-like pattern around the restaurant.
Seating
Stage Area

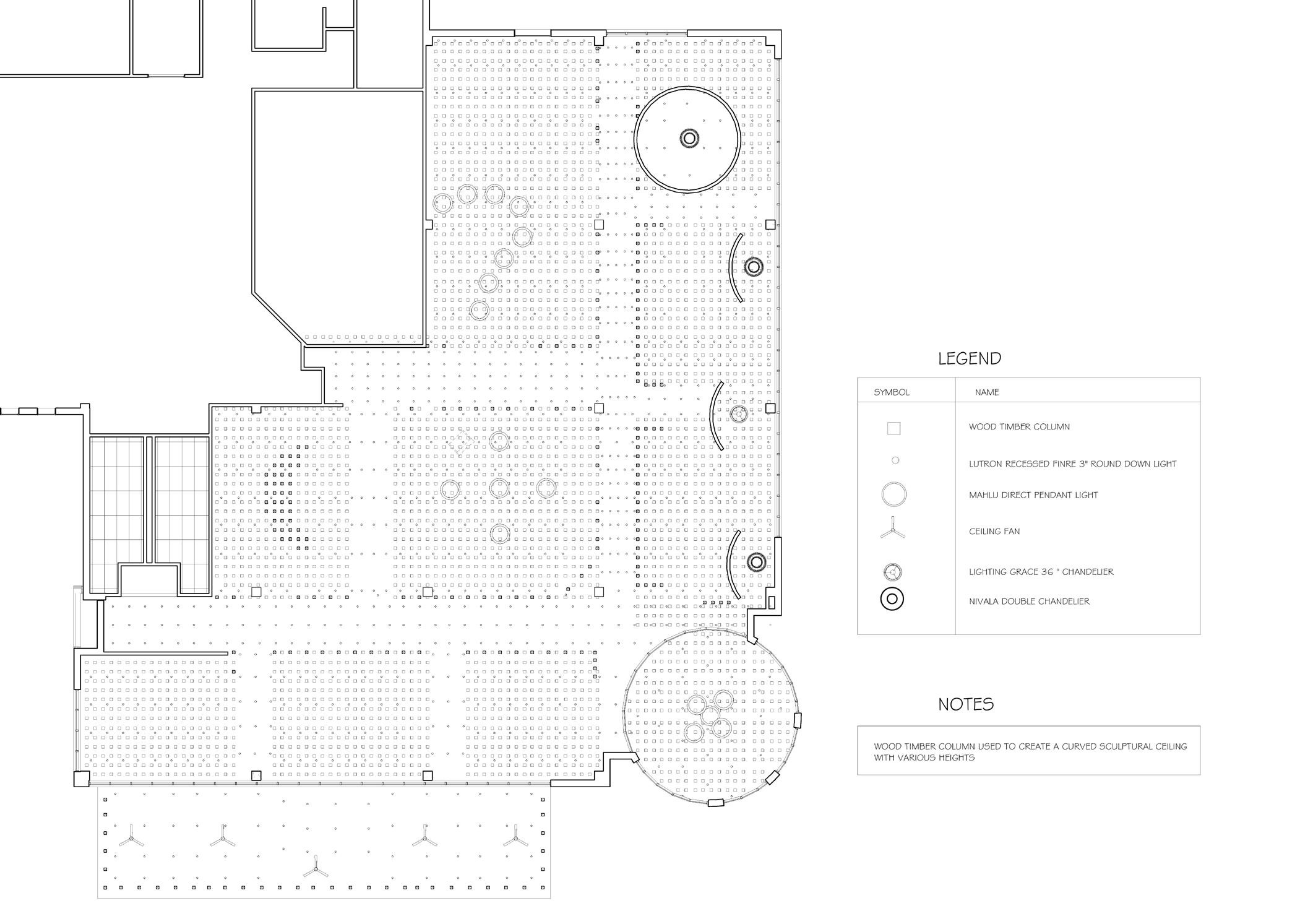

Reflected Ceiling Plan
25 / 42
Sifon Gilbert Portfolio
CORPORATE 26 / 42
Sifon Gilbert Portfolio
27 / 42
Sifon Gilbert Portfolio
True Blue Energy Office Design Project
SOFTWARE: Revit, AutoCAD,Enscape,Sketchup
This project aims to create an office space that would be the headquarters for a client of our choice.
Client Overview True-Blue Energy Services Limited is a fully indigenous company with proven capacity for supporting clients/major projects in the areas of Pre-Commissioning Services, Maintenance of Production Facilities, Training, Procurement, Warehousing, Lease, Installation and Maintenance of OEM and non OEM products.
Concept Statement To create a contemporary space about the now and the future of True Blue, the space would also reflect True Blue’s core values of community, service, collaboration and quality. There would also focus on the training department, creating an environment suitable for learning and training to peak standards. Furthermore, creating an environment that prioritizes the well-being and privacy of the employees to promote a sense of belonging within the office.

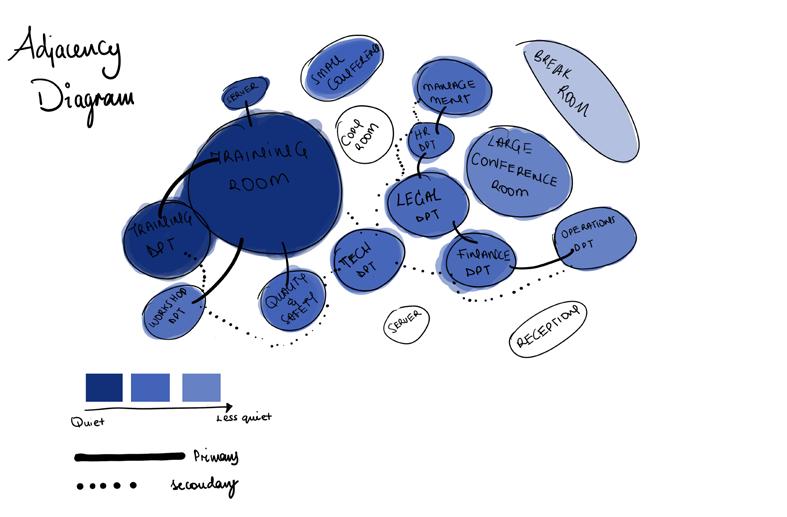

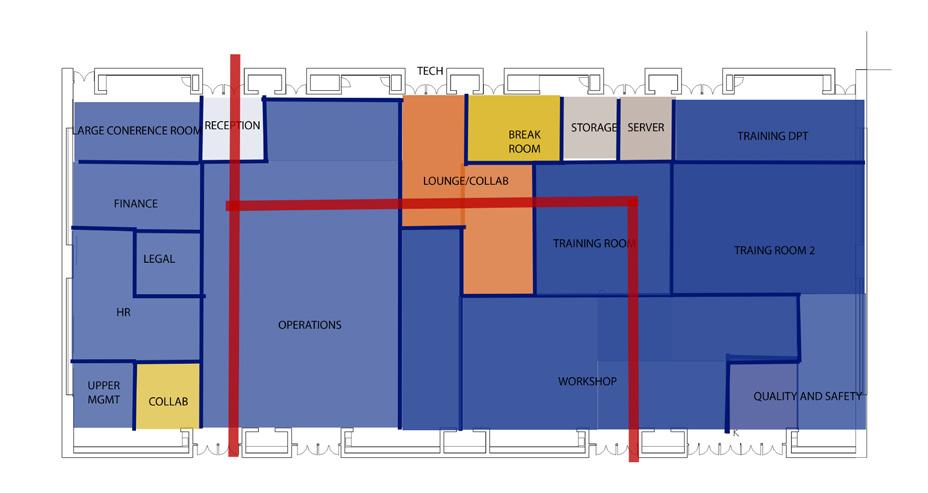

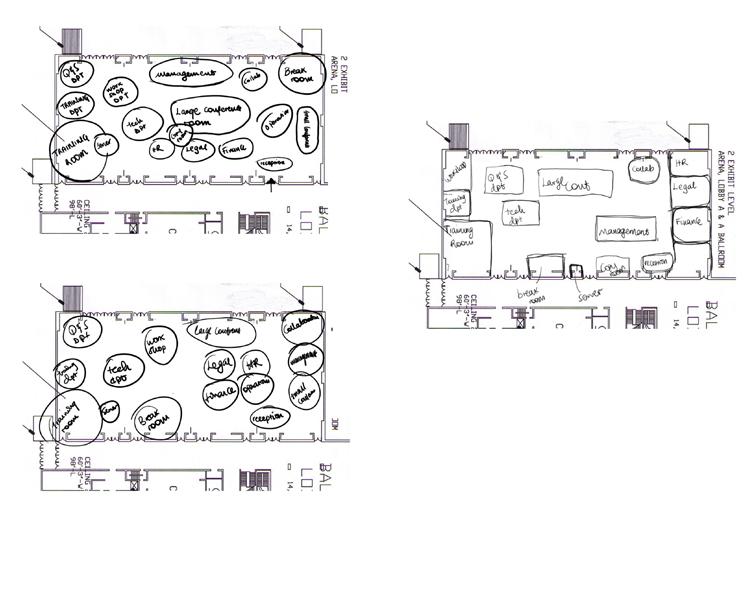

The Process
28 / 42
Office Design Project (Fall 2021)
Objective
Sifon Gilbert Portfolio

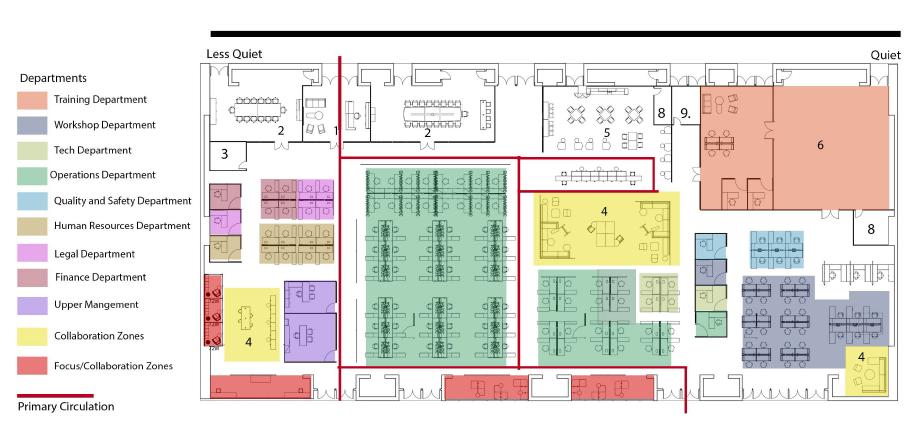

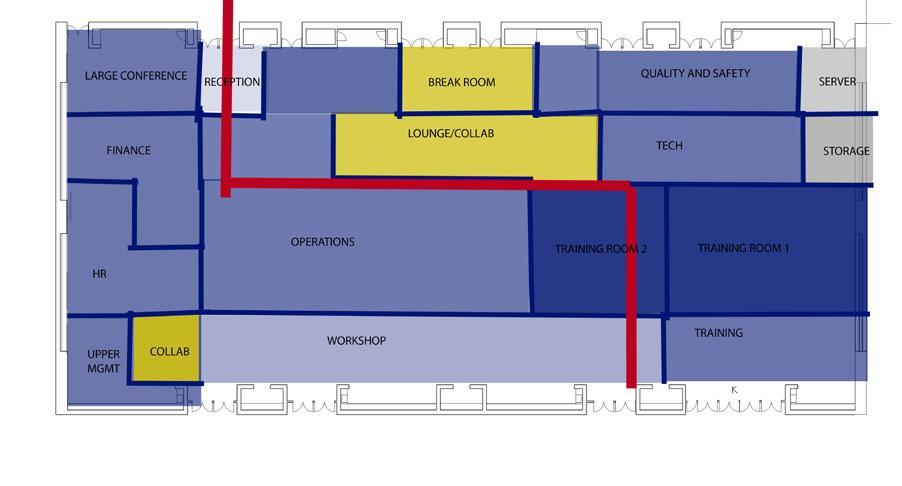

Floor Plan
Design Strategies •
Break room would be the central hub of the office space.
•
Different ceiling heights to would be incorporated to create a sense of space.
•
Use of Ceiling baffles to create a dropped ceiling would be placed in the more private areas and would also be good for acoustics.
•
Multiple collaboration zones within the space to foster movement, socialization in order to create a sense of community in the office.
•
Quiet rooms would also be implemented to receive calls without distractions around the office, particularly the more private areas, not to lose a connection to nature.
29 / 42
Sifon Gilbert Portfolio
Reception
Materials
Carpet
Upholstery

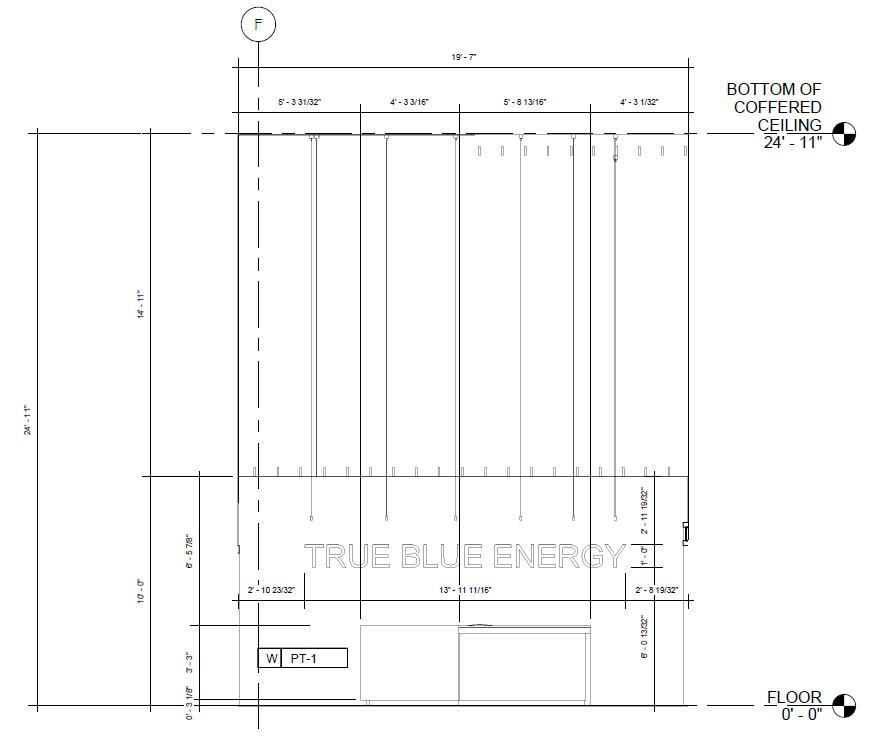

Elevation
30 / 42
Sifon Gilbert Portfolio
Break Room

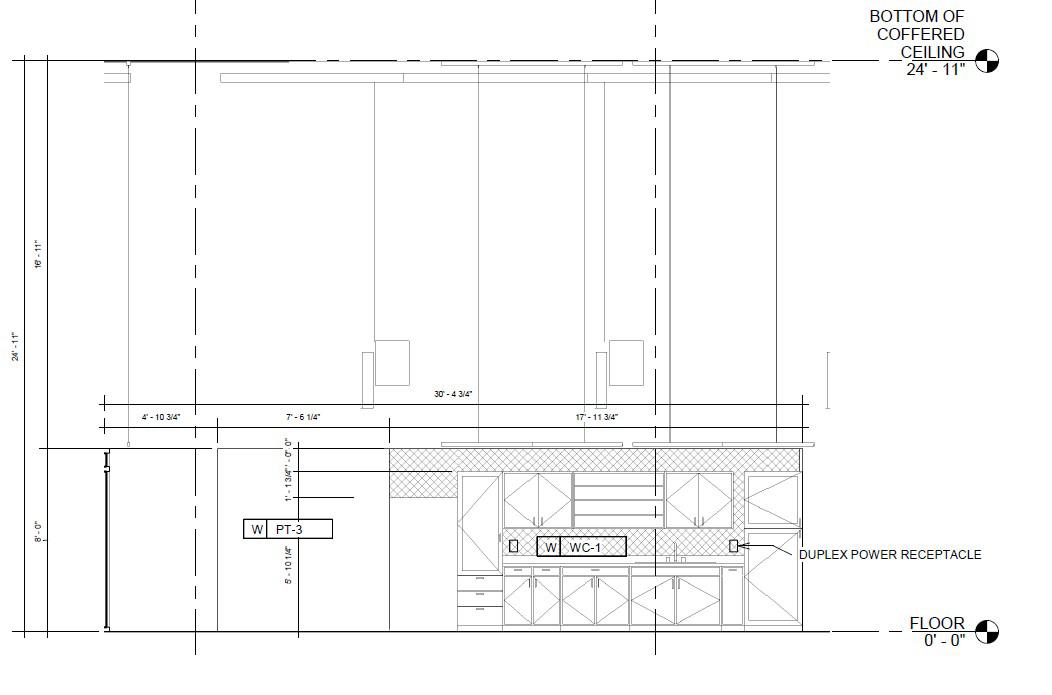

Elevation
Carpet
Wallcovering
Interior Wall Paint
Materials
31 / 42
Sifon Gilbert Portfolio
32 / 42

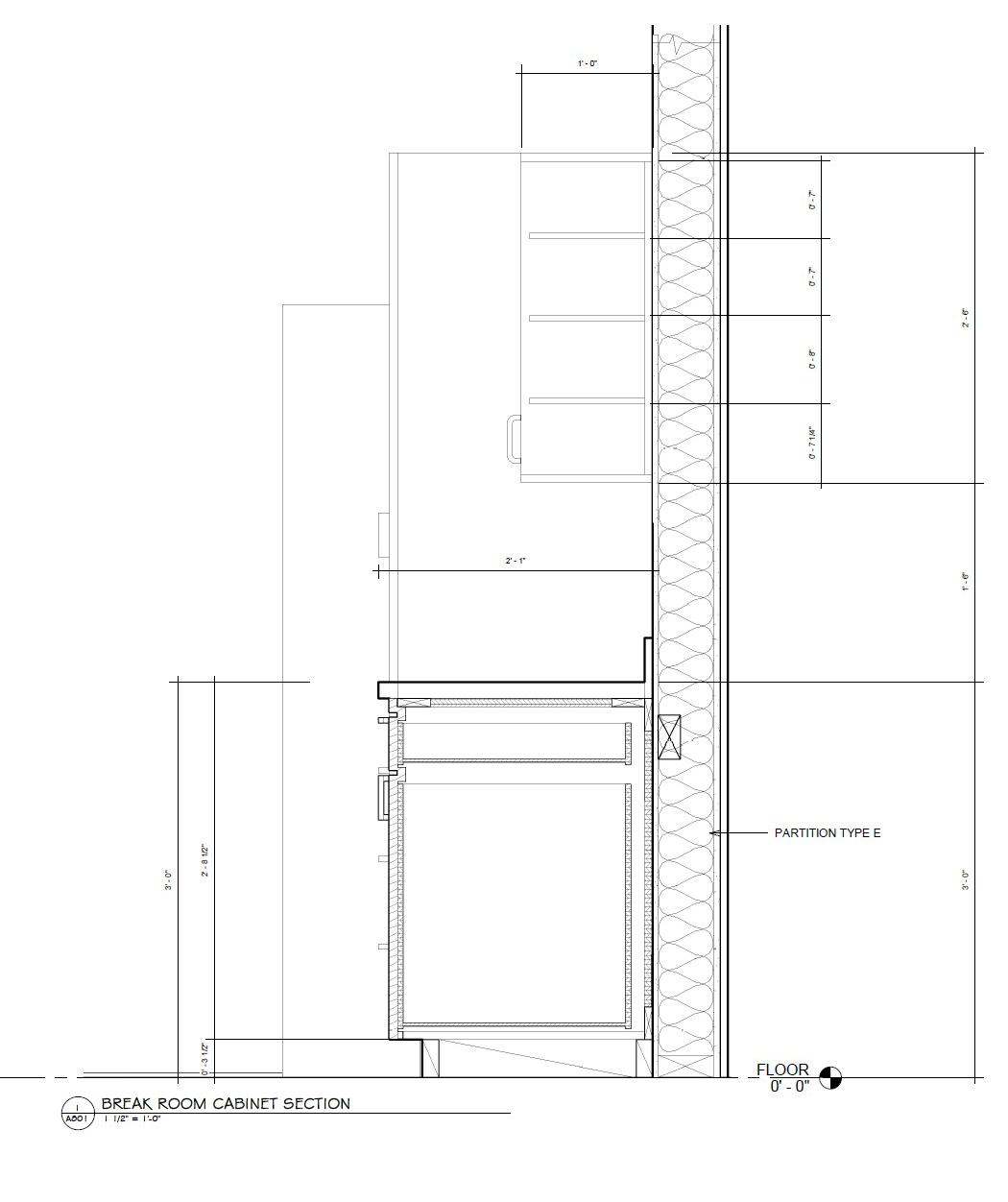

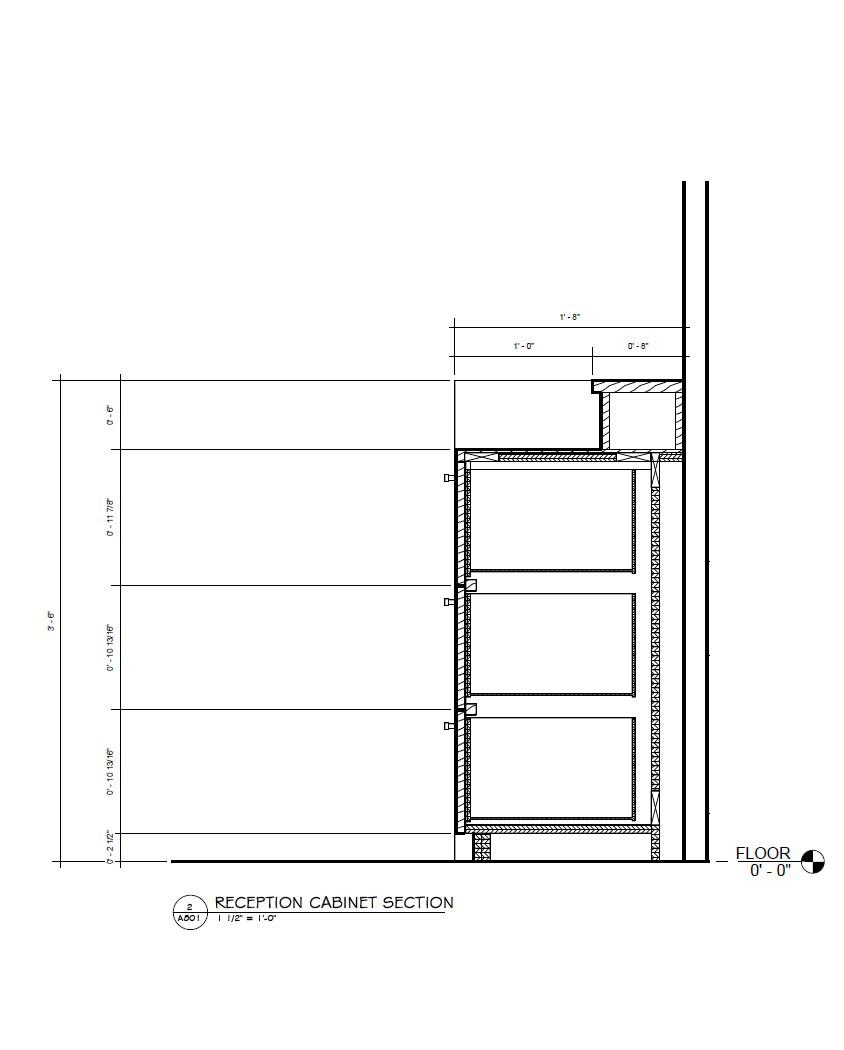

Cabinet Sections
Sifon Gilbert Portfolio
Specifications for Floor Covering
Floor Covering Interface CSI Division and Photo
Description • • •
09600 Flooring
•
Manufacturer: Interface Name: Mist 104621 Collection: Aeriel Collection AE310 Product:Carpet Tile
Green Specifications Single & Multi-Attribute • • •
CRI Green Label Plus #GLP0820
• • • • • •
LCA’s Environmental Impact ISO 14000, ISO 14040, ISO 14044 Cool Carpet: ALL Interface modular carpet sold in North America isthird party verified climate neutral Cool Carpet. EPD: A comprehensive life cycle assessment (LCA) is performed to ISO standards to develop an EPD, after which both the EPD and LCA must be third party verified. NSF/ANSI 140 Gold Level
Specification • • • • • • • • • •
Modular, 50 cm x 50 cm• • Backing System • Yarn Manufacturer • Yarn System Color System • Construction • Preservative Protection • Soil/Stain Protection • • Pile Thickness • Pile Density
Standards 1388202500 GlasBac® Tile Aquafil 100% Recycled Content Type 6 Nylon 100% Solution Dyed Tufted Texture Loop Intersept® Protekt2® 0.100 in., 2.5 mm 5,760
Socially Responsible Attributes
• • •
Total Recycled • Content • Indoor Air Quality Pill Test •
61% CRI Green Label Plus #GLP0820 Passes
LEED CI v4 and WELL Categories
Interface was the industry’s first to publish an EPD (Environmental Product Declaration), which evalu- WELL Categories ates consistent factors based on full lifecycle assessContributes towards a USGBC or ment (LCA). We now have Published EPDs for more • CaGBC LEED Innovation Credit. than 99% of our products gobally.
Manufacturer, Company, Product Preview Profile Information • • • •
More..
• •
Located in USA It was foundedin 1973 by Ray Anderson. He introduced the concept to America and started a commercial flooring revolution that would spread around the world. Interface is now a global leader in modular flooring, offering an intergrated collection of carpet tiles and resilient flooring. • Significance- It is a sustainable choice. • •
Guaranteed intersept treated carpet, with proper maintenance, shows no mold or bacterial growth when tested per the ASTME2471 Standard Test Method. Intersept is EPA approved for safe use in carpet, water insoluble and contains no halogens, heavy metals, phenols or formaldehyde. Through ourReEntry program and partnerships withour fiber suppliers and recycling centers throughout North America, separated Type6 and 6,6 nylon are recycled into new 6 and 6,6 nylon, while separated GlasBac®and similar competitor backings are recycled into GlasBac®RE non-virgin PVC backing using our Cool Blue™ technology.The result? Products with up to 81% total recycled content, including as much as 35% post-consumer content.
33 / 42
Focus Space
Circultion Path
Sifon Gilbert Portfolio
34 / 42

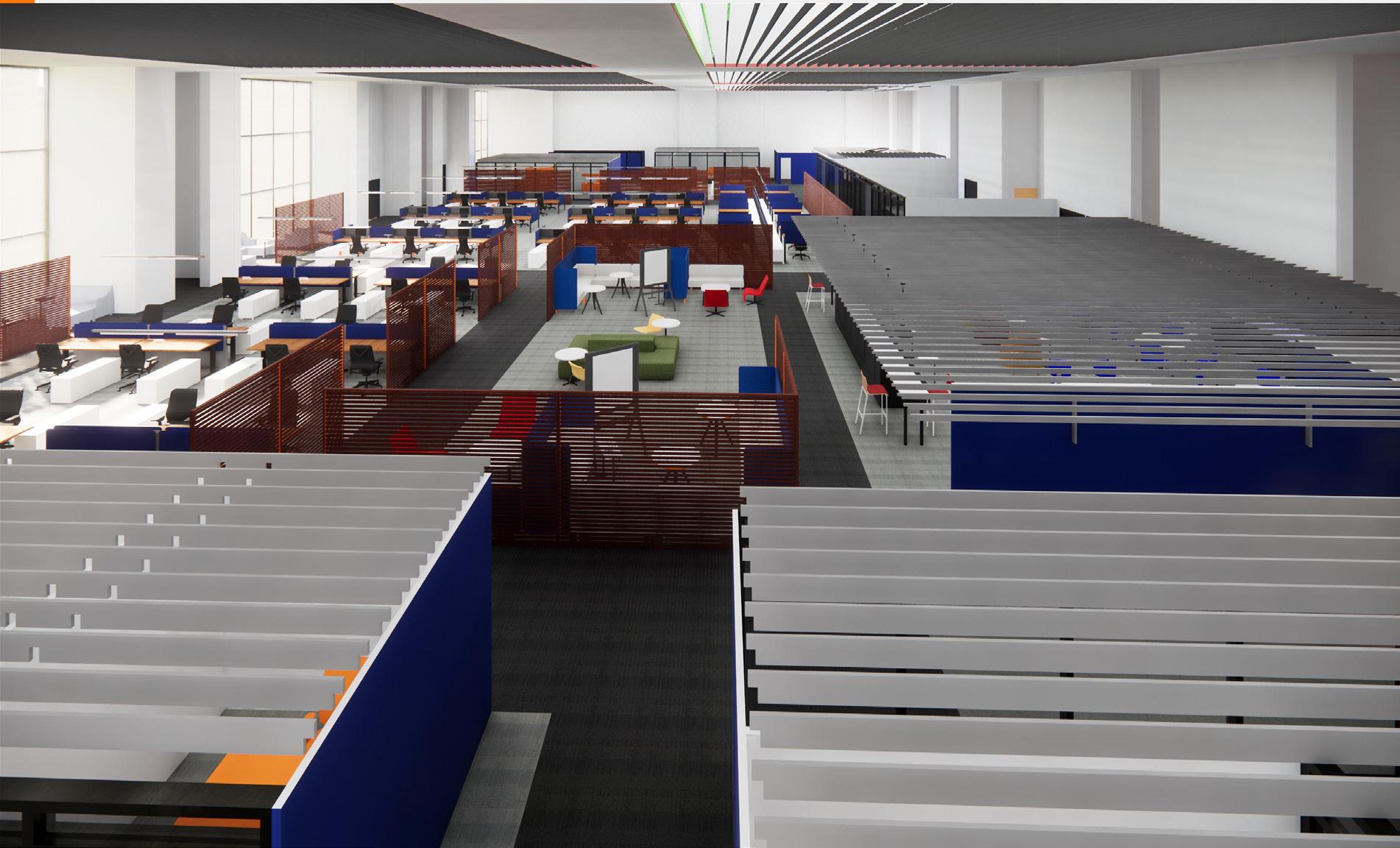

Birds Eye View of the Ofice

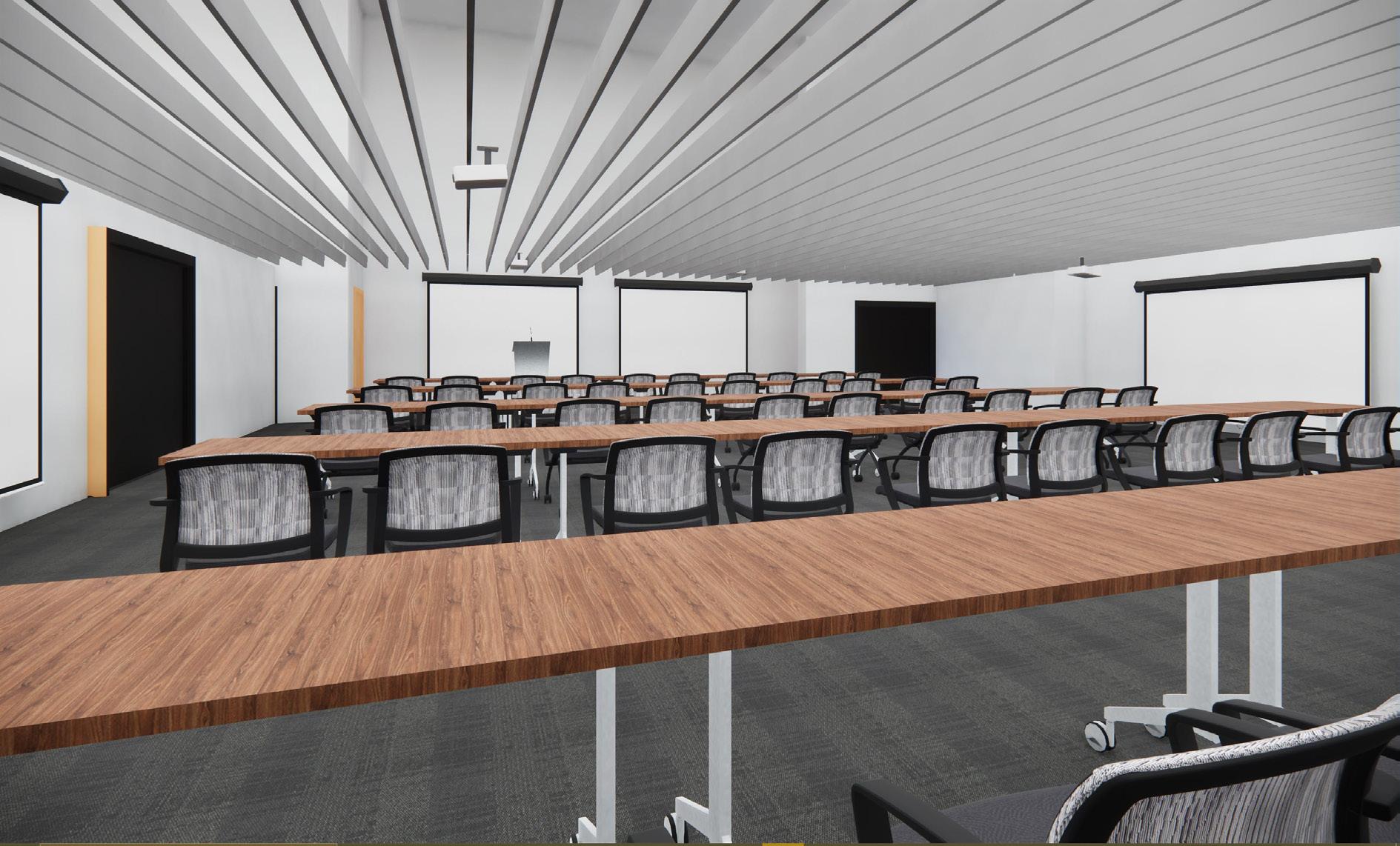

Trainong Room
Sifon Gilbert Portfolio
35 / 42
Sifon Gilbert Portfolio
CREATIVE WORK 36 / 42
Sifon Gilbert Portfolio
KS 37 / 42
Sifon Gilbert Portfolio Charcoal on Paper
Oil Paint on Canvas
38 / 42
Oil Paint on Canvas
Oil Paint on Canvas
Sifon Gilbert Portfolio Photoshop
Photoshop
Photoshop
Water Color Crayons on Bristols
39 / 42
Sifon Gilbert Portfolio
THANK YOU 40 / 42
Sifon Gilbert Portfolio
41 / 42
Selected Works 2019 / 2022
Interior Design Portfolio
Sifon Gilbert Portfolio
42 / 42
