Sideshift Product Catalogue

BOW + STERN THRUSTER SYSTEMS

“Your product has changed my boating experience and I cannot thank you enough.”

Donald Sinovoi - New York, NY, USA

TABLE OF CONTENTS

Stress-Free Docking with Sideshift Thrusters ....................................................................................................................................... 02 Monohull Bow and Stern Thrusters ...................................................................................................................................................... 06 Retractable Pontoon Thrusters .............................................................................................................................................................. 12 Retractable Houseboat Thrusters ......................................................................................................................................................... 16 Accessories ............................................................................................................................................................................................... 21 Selector Guide .......................................................................................................................................................................................... 22

XX

“Not only does it relieve the stress in docking, it makes it fun. I would like to just say thank you and keep up the amazing service.”

Scott Atkins - Wallaceburg, ON, Canada 32’ Cruisers Yacht

STRESS-FREE DOCKING WITH SIDESHIFT THRUSTERS At Sideshift we do one thing and we do it well: We take the stress out of docking your boat! Our revolutionary bow and stern thruster technology sets the standard for affordable, powerful, and easy-to-install thruster solutions for all types of boats.

Since introducing the industry’s first externally mounted bow thruster in 2001, thousands of customers in over forty countries have experienced the Sideshift difference. Does the thought of taking your boat out on the water on a windy day make you feel more stressed out than excited? Are you using your boat less and less because of your fear of docking? You are not alone, and that’s where we can help. When you purchase a bow or stern thruster system from Sideshift, you’re dealing with the industry pioneers behind external thruster technology.

At the heart of it, our mission is to help boaters experience the joy and excitement of a day on the water without the stress of docking. Boating should be about enjoying time with family and friends, and relaxing and having fun – and Sideshift products are all about making that happen. We make safe and stress-free docking easy, affordable and available for virtually any type of boat, in any type of weather condition.

Significantly lower installed cost, more responsive performance, no mounting holes below the waterline, virtually silent operation. These are only a few of the many benefits you receive when choosing a Sideshift thruster system.

Heavy duty universal mounting system requires no holes below the waterline Reliable 2.5hp, 5hp or 7.5hp thruster motor for superior performance in any docking situation

Interlux anti-foul paint over epoxy primer inhibits marine growth Durable aluminum and stainless steel materials Rugged 8” aluminum propellor Aluminum anodes protect against corrosion

FEEL THE FREEDOM. NOT THE STRESS.

02

THE LEADER IN EXTERNAL THRUSTER TECHNOLOGY Easy Do-It-Yourself Installation Sideshift bow and stern thrusters are a great DIY project, or can be installed by any marine service department or boatyard. No previous experience or special tools are required. Our unique universal mounting system requires no holes below the waterline, eliminating the risk of leaks associated with all other types of thruster systems. In fact, while other brands of thrusters can take days to install and should only be done by a professional, Sideshift thrusters can normally be installed in a few hours, saving you thousands of dollars in installation costs.

Instant response Universal mounting system fits any dual or triple tube pontoon boat

Durable anodized aluminum and stainless steel housing

Fully retractable thruster arm with fast 5 second deployment time

Thomson Max JacTM electric actuator rated IP 69 K and built to perform in harsh environments including salt water Reliable 2.5hp, 5hp or 7.5hp thruster motor for superior performance in any docking situation

Rugged 8” aluminum propellor

03

Our revolutionary external mounting systems place the thruster further forward, or astern on the boat, creating significant leverage and superior performance over other thruster systems. Powered by heavy-duty water cooled motors with 8” aluminum propellers, our unique prop-in-water design delivers stronger, more immediate performance than conventional tunnel thrusters. In stressful docking situations, seconds count, and Sideshift delivers the performance you need. And since all our products are mounted externally to your hull you will enjoy completely silent operation, without the noise and vibration common to other types of thrusters.

THE LEADER IN EXTERNAL THRUSTER TECHNOLOGY Wireless joystick control All Sideshift thruster systems include our advanced 2.4Ghz wireless joystick controls that greatly simplify installation by eliminating wire-runs through the boat. When installing both bow and stern thrusters, or for boats with existing bow thrusters, you can add our dual wireless joystick option for easy single-handed operation of both thrusters, providing true 360-degree control in any situation. And for total wireless freedom, every Sideshift system includes our remote keyfob allowing easy operation from anywhere on the boat or dock.

World-class quality When you purchase a bow or stern thruster system from Sideshift, you’re dealing with the industry pioneers behind external thruster technology. All our products have been designed and purpose-built for the most extreme weather conditions. Using only the highest quality materials, all our thruster systems are hand-assembled in our state-ofthe-art production facility. And we provide a comprehensive two-year warranty backed up by the most responsive product support team in the industry.

Heavy duty mounting system fits any transom, swim platform or outboard motor Durable aluminum and stainless steel materials

Interlux anti-foul paint over epoxy primer inhibits marine growth Rugged 8” aluminum propellor

Reliable 2.5hp, 5hp or 7.5hp thruster motor for superior performance in any docking situation

Aluminum anodes protect against corrosion

04

“Both thrusters work flawlessly… I love how quiet they are and I never have any concerns about docking where ever I go.”

Doug Maxwell - Richmond, BC, Canada 3870 Bayliner

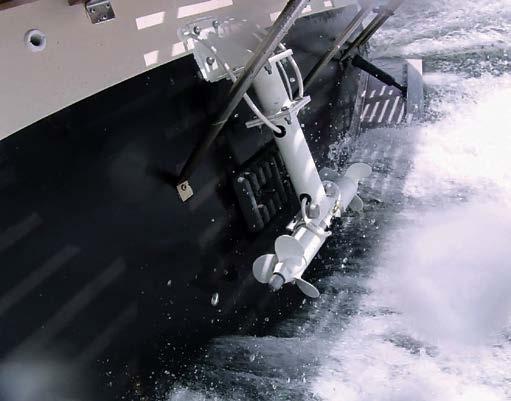

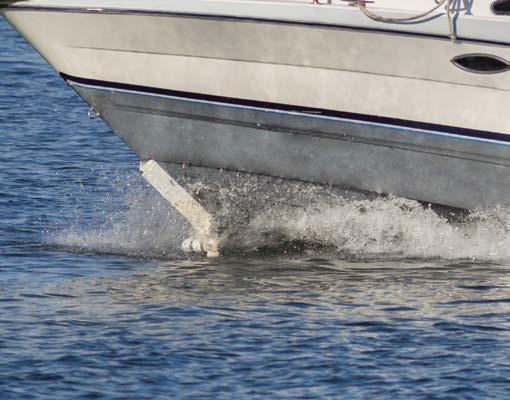

MONOHULL BOW AND STERN THRUSTERS Sideshift offers a complete range of externally mounted bow and stern thrusters for boats up to 50ft in length. They’re the ideal solution for any V-hull style boat including cruisers, sports boats, sailboats, trawlers, and monohull-style houseboats.

No expensive tunnel is required, and our unique universal mounting system requires no holes below the waterline, eliminating the risk of leaks associated with all other types of thruster systems.

Did you know that according to BoatUS Insurance, a full 44% of sinkings are a result of failed fittings below the waterline?

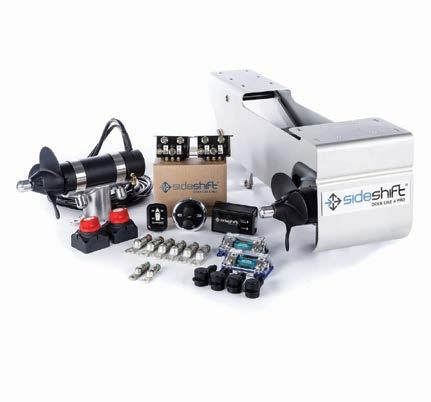

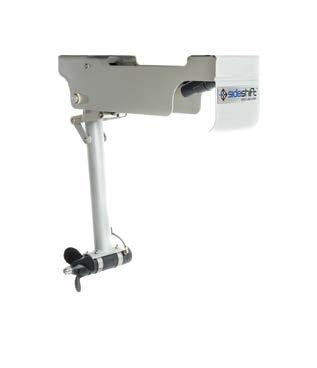

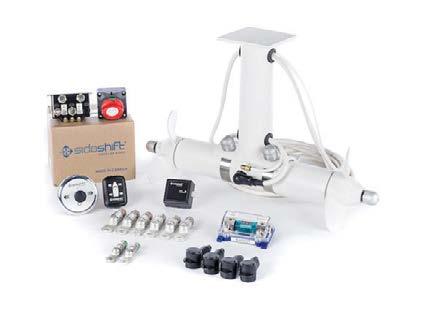

SS230 Bow Thruster

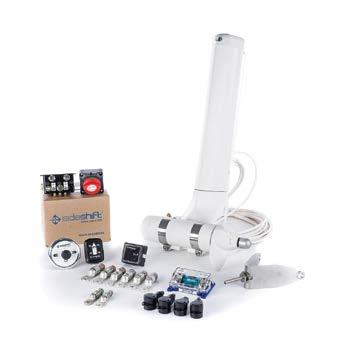

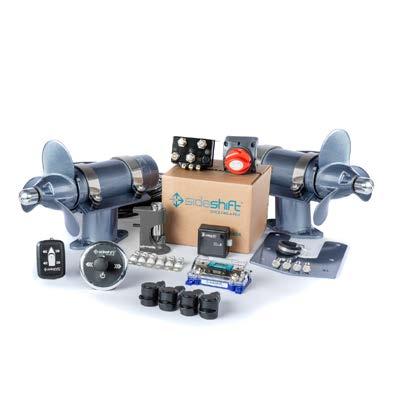

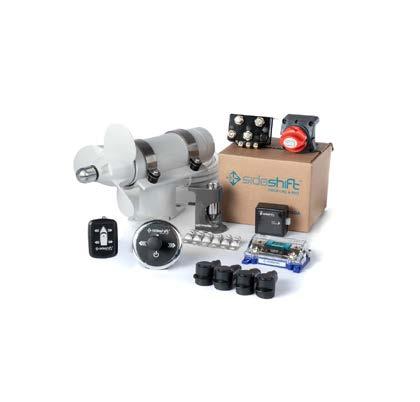

SHIPPED AS A COMPLETE KIT INCLUDING •

Thruster

•

Motor controller

•

Wireless joystick

•

Wiring harness and mounting hardware

•

Fuse with digital voltage indicator

•

Battery switch

•

Wireless remote key fob ST340 Stern Thruster

FEEL THE FREEDOM. NOT THE STRESS.

06

BOW THRUSTERS SS230

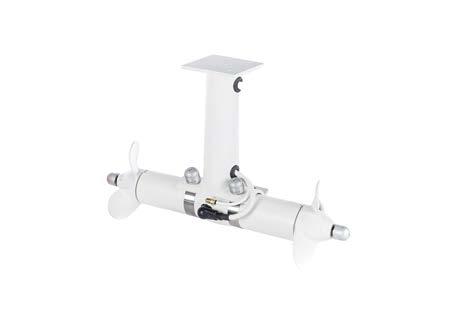

SS230 Bow Thruster

The SS230 Bow Thruster is perfect for boats up to 30′ in length. The unit mounts on the exterior of a V-shaped bow which creates a forward pivot point that gives the boater optimum control. No expensive tunnel in the hull is required and all mounting holes are above the waterline. Providing an immediate response with our powerful water cooled 12V motor, the heavy-duty 8″ aluminum propeller quickly positions the boat in any weather condition. Saltwater proven, the rugged aluminum and stainless steel bow thruster is anode protected to prevent corrosion and finished with anti-fouling paint over epoxy primer.

SS230 BOAT SIZE

Up to 30’

HORSEPOWER

2.5

VOLTAGE

12 V DC

CURRENT

300 Amps

LAYOUT

Single Prop

COLOUR OPTIONS

07

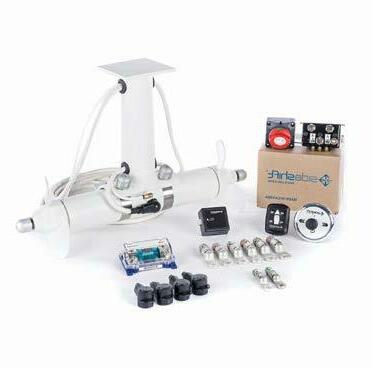

BOW THRUSTERS SS340/SS350

SS340 Bow Thruster

The SS340 and SS350 Bow Thrusters are perfect for boats up to 50′ in length. The units mount on the exterior of a V-shaped bow which creates a pivot point advantage for optimum control. No expensive tunnel in the hull is required and all mounting holes are above the waterline. Providing an immediate response with our powerful water cooled 12V or 24V motor, the heavy-duty dual 8″ aluminum propellers provide effortless lateral control in any docking situation. Saltwater proven, the rugged aluminum and stainless steel bow thruster is anode protected to prevent corrosion and finished with anti-fouling paint over epoxy primer.

SS340

SS350

BOAT SIZE

30-40’

35-50’

HORSEPOWER

5

7.5

VOLTAGE

12 V DC

24 V DC

CURRENT

500A

400A

LAYOUT

Dual Prop

Dual Prop

COLOUR OPTIONS

08

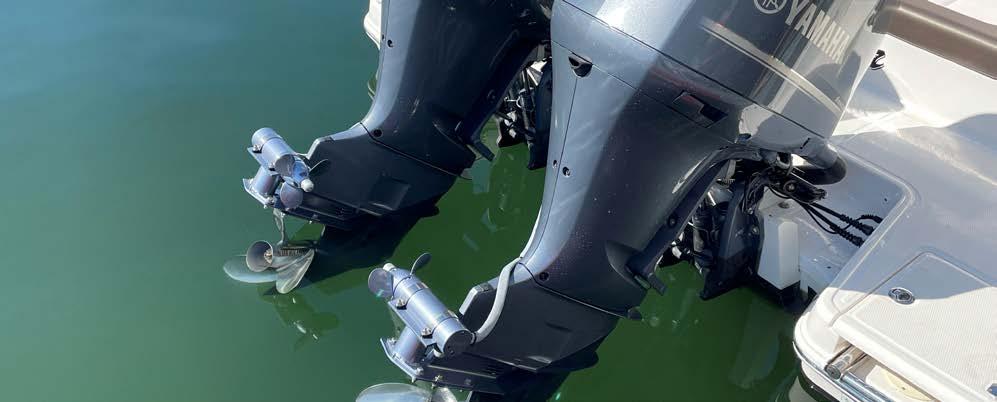

OUTBOARD-MOUNTED STERN THRUSTERS ST230/ST230-DUAL

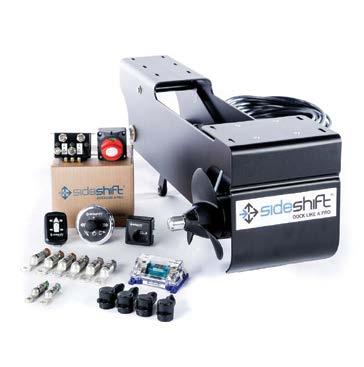

ST230-Dual Stern Thruster

An easy-to-install stern thruster solution that attaches directly to any outboard or sterndrive powered boat from singles to multiple engine setups. The thruster mounts to the cavitation plate of any outboard motor or I/O for easy in-water installation, and completely eliminates the mounting issues common to most outboard or sterndrive powered boats. And for boats with existing factory bow thrusters, you can add our dual wireless joystick option for easy single-handed operation of both thrusters, providing true 360-degree control in any situation.

09

ST230

ST230-DUAL

BOAT SIZE

Up to 30’

30-40’

HORSEPOWER

2.5

5

VOLTAGE

12 V DC

12 V DC

CURRENT

300A

500A

LAYOUT

Single Prop

Dual Prop

COLOUR OPTIONS

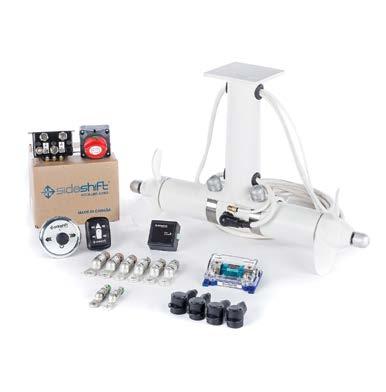

TRANSOM-MOUNTED STERN THRUSTERS ST340/ST350/ST350D

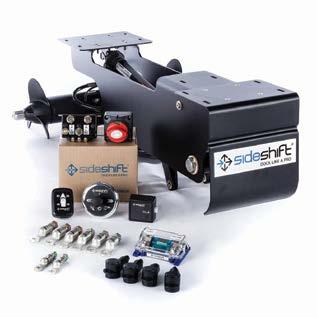

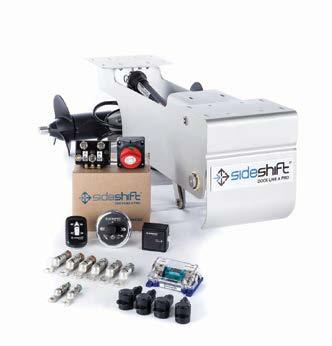

ST340 Stern Thruster

The ST340 and ST350 Series Stern Thrusters are ideal for inboardpowered boats up to 70’ in length, and for houseboats up to 80’ in length; the unit mounts either to a transom or to the underside of a swim platform and all mounting holes are above the waterline.

The powerful water cooled 12V or 24V motor provides immediate response, and the heavy-duty dual 8” aluminum propellers provide effortless docking control in any docking situation. And for boats with existing factory bow thrusters, you can add our dual wireless joystick option for easy single-handed operation of both thrusters, providing true 360-degree control in any situation.

ST340

ST350

ST350D

BOAT SIZE

30-40’

35-50’

50-70’

HORSEPOWER

5

7.5

15

VOLTAGE

12 V DC

24 V DC

24 V DC

CURRENT

500A

400A

400A x 2

LAYOUT

Dual Prop

Dual Prop

Four Prop

COLOUR OPTIONS

10

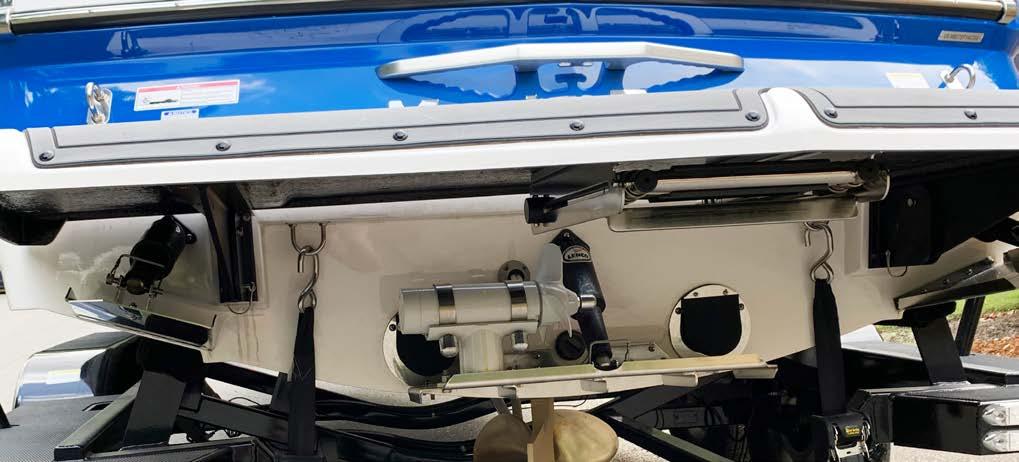

WAKE/SPORTS BOAT STERN THRUSTERS WB230

WB230 Wakeboat Stern Thruster

The WB230 Stern Thruster has been developed specifically for wakeboats with a horizontal wake-shaping plate for extremely easy mounting requiring no holes below the waterline.

The thruster can also be mounted to the boat’s transom on models where there is sufficient space and side clearance. The powerful, water-cooled 12V motor and heavy-duty 8” aluminum propeller provide instant lateral thrust for stress-free docking and open-water maneuvering.

The thruster is anode protected and available in three beautiful polychromatic (metal flake) colours to complement the high-end look of any sports boat.

WB230 BOAT SIZE

Up to 30’

HORSEPOWER

2.5

VOLTAGE

12 V DC

CURRENT

300A

LAYOUT

Single Prop

COLOUR OPTIONS

11

“Customer service is top-notch! Highly recommend this product to anyone who owns a pontoon boat….makes boating very enjoyable.”

John Mooney - Fort Pierce, FL, USA 32’ Suntracker Pontoon

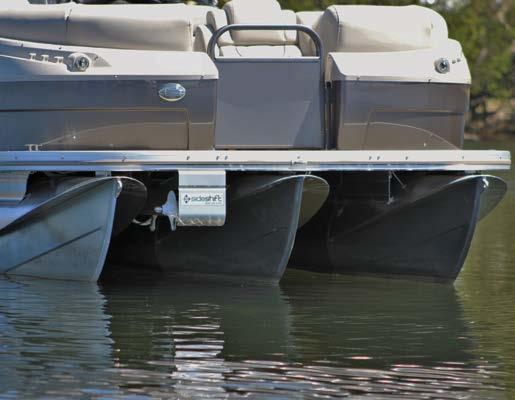

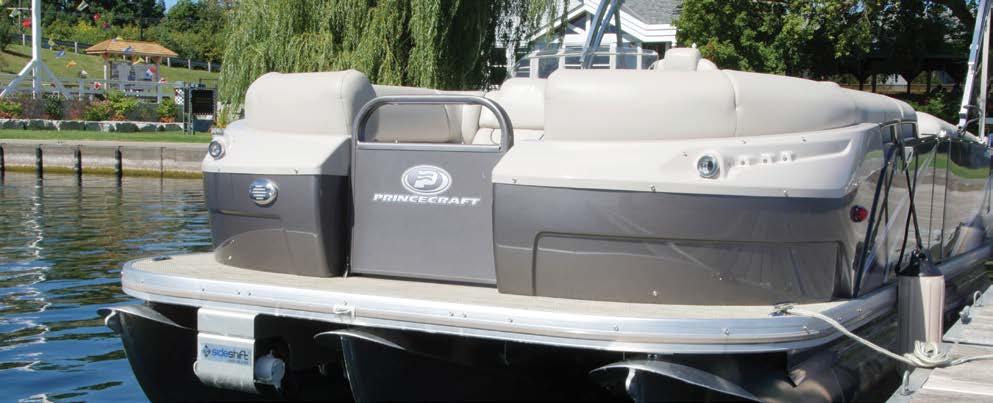

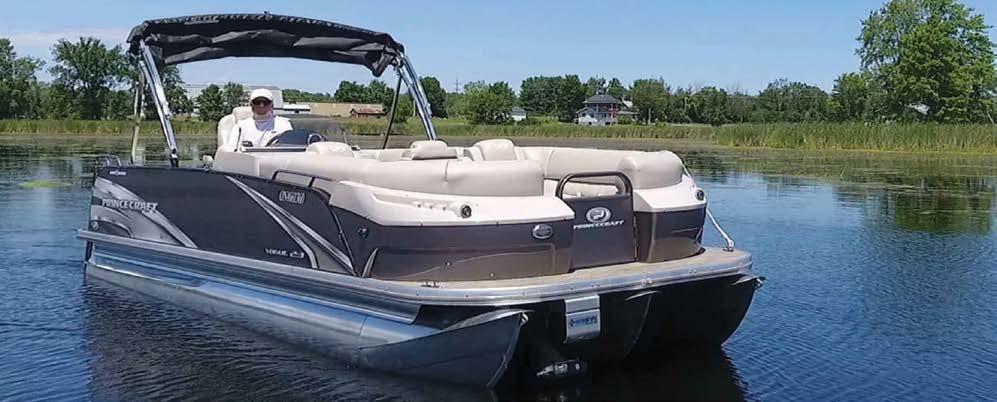

RETRACTABLE PONTOON THRUSTERS Introducing the first fully retractable thruster designed for today’s modern pontoon boat. Universal mounting for any dual or triple tube boat, precision guidance is right at your fingertips with the simple joystick control.

To deploy, simply press the helm-mounted actuator switch and within seconds the PT230 drops down into position, stopping automatically at the perfect depth. From here precision guidance is right at your fingertips with the simple joystick control to quickly move your bow in any direction, regardless of wind or current. Not only does docking become much easier and safer, but you will experience stress-free handling and control in all close quarter situations.

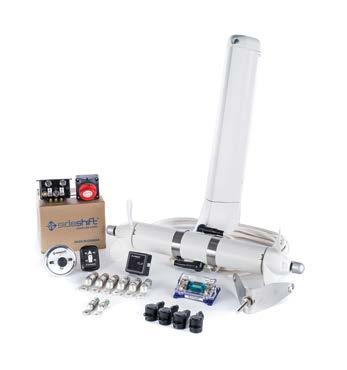

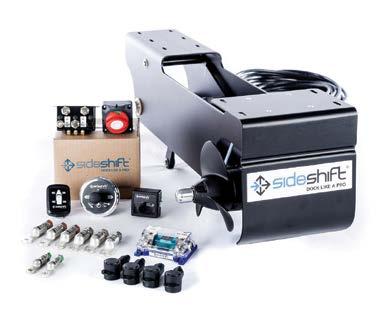

SHIPPED AS A COMPLETE KIT INCLUDING •

Thruster

•

Motor controller

•

Wireless joystick

•

Wiring harness and mounting hardware

•

Fuse with digital voltage indicator

•

Battery switch

•

Wireless remote key fob

PT230 Retractable Pontoon Thruster

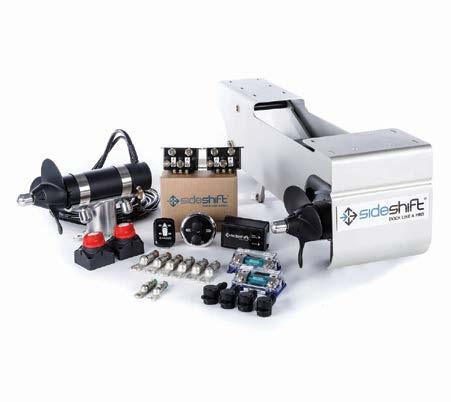

PT360 Joystick Docking System

FEEL THE FREEDOM. NOT THE STRESS.

14

RETRACTABLE PONTOON THRUSTERS PT230

PT230 Retractable Pontoon Thruster

The PT230 Pontoon Thruster is a fully retractable, 2.5 horsepower thruster that is perfect for pontoon boats of any size. The unit mounts to the underside of the deck on any dual or triple tube boat. The compact, low profile housing design keeps the PT230 out of harm’s way at all speeds, including wide open throttle. As well, it doesn’t interfere with beaching or trailering your boat.

Saltwater proven, whisper quiet and water-cooled, the PT230 Pontoon Thruster features a rugged 8” aluminum prop, marine-grade anodized aluminum housing and stainless steel hardware.

PT230 BOAT SIZE

Up to 35’

HORSEPOWER

2.5

VOLTAGE

12 V DC

CURRENT

300A

LAYOUT

Single Prop

COLOUR OPTIONS

15

PONTOON JOYSTICK DOCKING SYSTEM PT360

PT360 Joystick Docking System

Introducing the marine industry’s first joystick docking system for single-engine pontoon boats.

The fully retractable bow thruster and outboard-mounted stern thruster are controlled through the helm-mounted wireless joystick for effortless maneuvering of any dual or triple tube pontoon boat. Move your boat with confidence in any direction – sideways, diagonally, rotate in place – all with the smooth and silent power of Sideshift’s proven thruster technology.

PT360 BOAT SIZE

Up to 35’

HORSEPOWER

2.5 Bow & Stern

VOLTAGE

12 V DC

CURRENT

300A/Thruster

LAYOUT

Single Prop

COLOUR OPTIONS

16

“Works fantastic… what a huge difference these make. Should be standard on every houseboat.”

Tim McNamara - New Palestine, IN, USA 58’ Jamestown Houseboat

RETRACTABLE HOUSEBOAT THRUSTERS With their shallow draft and significant windage, houseboats can be extremely difficult to handle around a dock – even on the best of days. The HB series sets the standard for a powerful, easy-to-install retractable thruster that fits all houseboats up to 100′ in length.

To deploy, simply press the helm-mounted actuator switch and from here precision guidance is right at your fingertips. And installation couldn’t be simpler with the wireless joystick control which completely eliminates wire-runs through the boat. Not only does docking become much easier and safer, but you will experience stress-free handling and control in all close quarter situations.

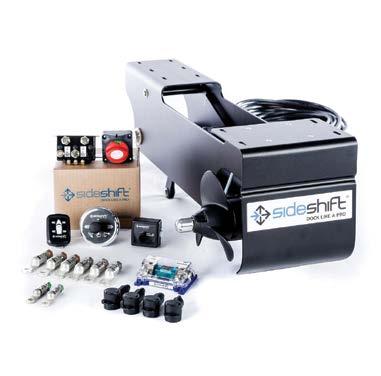

SHIPPED AS A COMPLETE KIT INCLUDING •

Thruster (Dual Thrusters w/HB350D)

•

Motor controller

•

Wireless joystick

•

Wiring harness and mounting hardware

•

Fuse with digital voltage indicator

•

Battery switch

•

Wireless remote key fob

HB350 Retractable Houseboat Thruster

HB340 Retractable Houseboat Thruster

FEEL THE FREEDOM. NOT THE STRESS.

18

RETRACTABLE HOUSEBOAT THRUSTERS HB340/HB350/HB350D

HB350 Retractable Houseboat Thruster

The HB340 and HB350/HB350D retractable thrusters are ideal for houseboats between 40’ and 100’ in length. With up to 15hp to control even the largest boats, these multi-prop thrusters are mounted to the underside of the deck to provide a strong pivot point advantage for optimum control in any weather.

HB340

HB350

HB350D

BOAT SIZE

Up to 40’

40-75’

75-100’

HORSEPOWER

5

7.5

15

VOLTAGE

12 V DC

24 V DC

24 V DC

CURRENT

500A

400A

400A

LAYOUT

Dual Prop

Dual Prop

Four Prop

COLOUR OPTIONS

19

HOUSEBOAT FIXED-MOUNT STERN THRUSTERS ST340/ST350/ST350D

ST350 Stern Thruster

The ST340 and ST350 Series Stern Thrusters are an ideal complement to our HB Series retractable bow thrusters.

Identical in horsepower to the HB series, these thrusters will provide ample power for even the largest houseboats.

The units mount either to a transom or to the underside of a swim platform and all mounting holes are above the waterline. The powerful water cooled 12V or 24V motor provides immediate response, and the heavy-duty dual 8” aluminum propellers quickly pull the boat quietly and smoothly.

ST340

ST350

ST350D

BOAT SIZE

Up to 40’

40-75’

75-100’

HORSEPOWER

5

7.5

15

VOLTAGE

12 V DC

24 V DC

24 V DC

CURRENT

500A

400A

400A

LAYOUT

Dual Prop

Dual Prop

Four Prop

COLOUR OPTIONS

20

ACCESSORIES

Single/Dual Propeller Anode Kit (AK-S-2)

Single Joystick - Fixed Mount Thrusters

15” Stern Extension Bracket (EX1-13)

Transom Mount Bracket (EX1-11)

Dual Joystick Kit - Fixed Mount Thrusters

Dual Joystick Retractable Thrusters

Dual Joystick - Fixed Mount Thrusters

Single Joystick Kit Retractable Thrusters

5” Stern Extension Bracket (EX1-12)

Single Joystick Kit - Fixed Mount Thrusters

10” Stern Extension Bracket (EX1-10)

Dual Joystick Kit Retractable Thrusters

21

SELECTOR GUIDE MONOHULL Bow Up to 30’

30-40’

PONTOON BOAT

Stern w/Inboard Engine 40-50’

Up to 30’

30-40'

35-50’

50-70’

Stern w/Outboard or I/O Engine

Bow

Stern

Bow/ Stern

Up to 30’

Up to 35’

Up to 35'

Up to 35'

30-40’

HOUSEBOAT Bow Up to 40’

45-75’

Stern w/Inboard Engine Up to 40'

40-75’

Stern w/Outboard or I/O Engine Up to 40’

40-75’

SS230 SS340 SS350 WB230

(Wakeboats only)

ST340 ST350 ST350D ST230 ST230-Dual PT230 PT360 HB340 HB350

* for Houseboats greater than 75’ please contact factory

22

ABOUT SIDESHIFT Canadian-based Sideshift is focused on one simple mission: We take the stress out of docking your boat. Our revolutionary thruster technology sets the standard for affordable, powerful and easy-to-install thruster solutions for any type of boat. For over 15 years, thousands of customers in over forty countries have experienced the Sideshift difference.

CORPORATE OFFICE

CONTACT US

303-130 Industrial Ave.

Toll-Free (North America): 1.877.325.4787

Carleton Place, ON

Direct Dial: +1.613.686.6011

Canada K7C 3T2

Email: info@sideshift.com

Visit Sideshift.com for details or call 1.877.325.4787
