Architectural Portfolio with CV 2022

Siddhesh Sunil Adsul

Srishti sector-5, Jatayu CHSL., Flat no. A/32, Dr. Babasaheb Ambedkar Road, Mira Road (East),Thane - 401107, Maharashtra, india

India is blessed with rich tribal culture and traditional background which is quiet indigenous and diversifed throughout the extent of the nation. Tribal population here is over-dependent on agriculture and forest-related livelihood sources.

However, since post-independence period more than half of the country’s tribal population now resides outside their traditional habitats in search of job opportunities and livelihood.

This distress migration amid an ominous rural economy has renedered their ability to utilize the abundant supply of forest resources and traditional practices useless.

The central idea was to develop a self-sustainable tribal development module by channelizing their resources and skill sets and integrating it with the idea of tourism to bridge the growing gap between the tribal and rural population.

Faculty : Prof. Rajratna Jadhav(guide) Prof. Vinit Mirkar

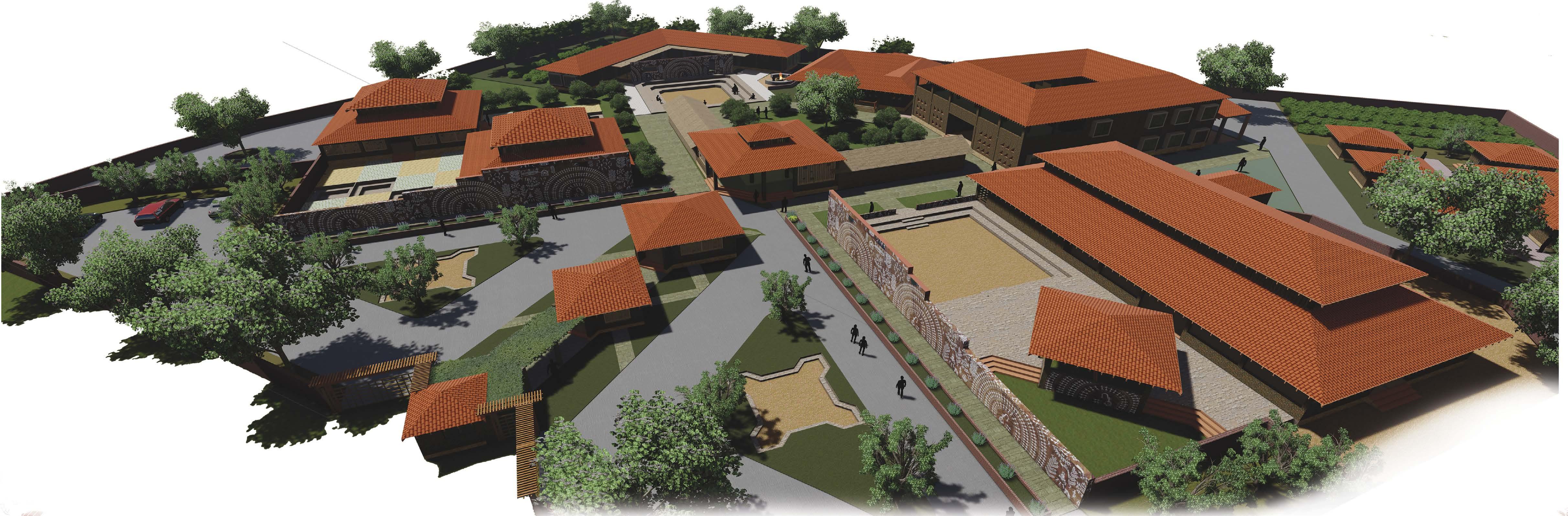

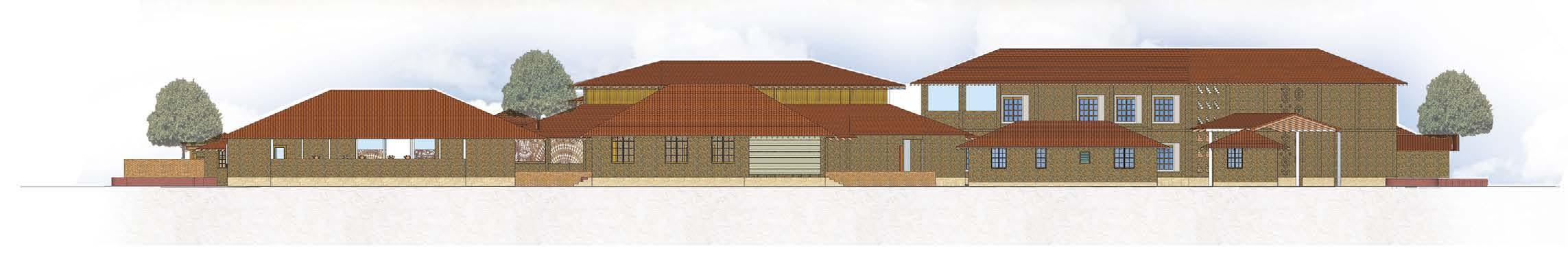

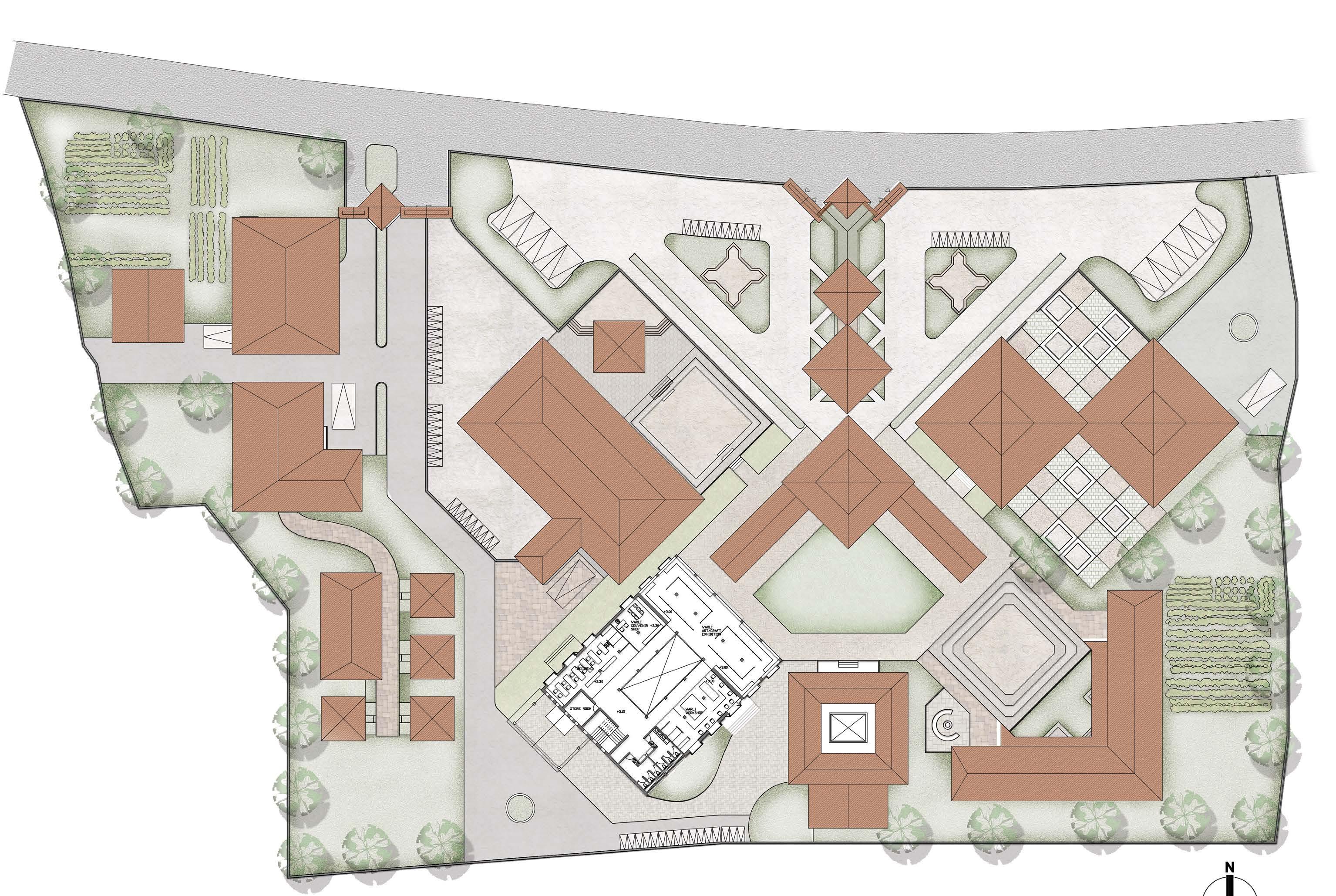

Resource and Development centre for Warli Tribes at Haladpada

Design Dissertation Project : Under-graduate , 2018

The village has approximately 250 hectares of land under forest reservation and all their construction materials like bamboo, timber, karvi stems, clay for bricks, medicines and various food source comes from the forset. Abundunt forest resources, river trench and easily accessible site from National Highway-48 gives a geographical benefit to the site for sustainable development.

Settlement study and analysis

Typology 1 Typology 2 Typology 3

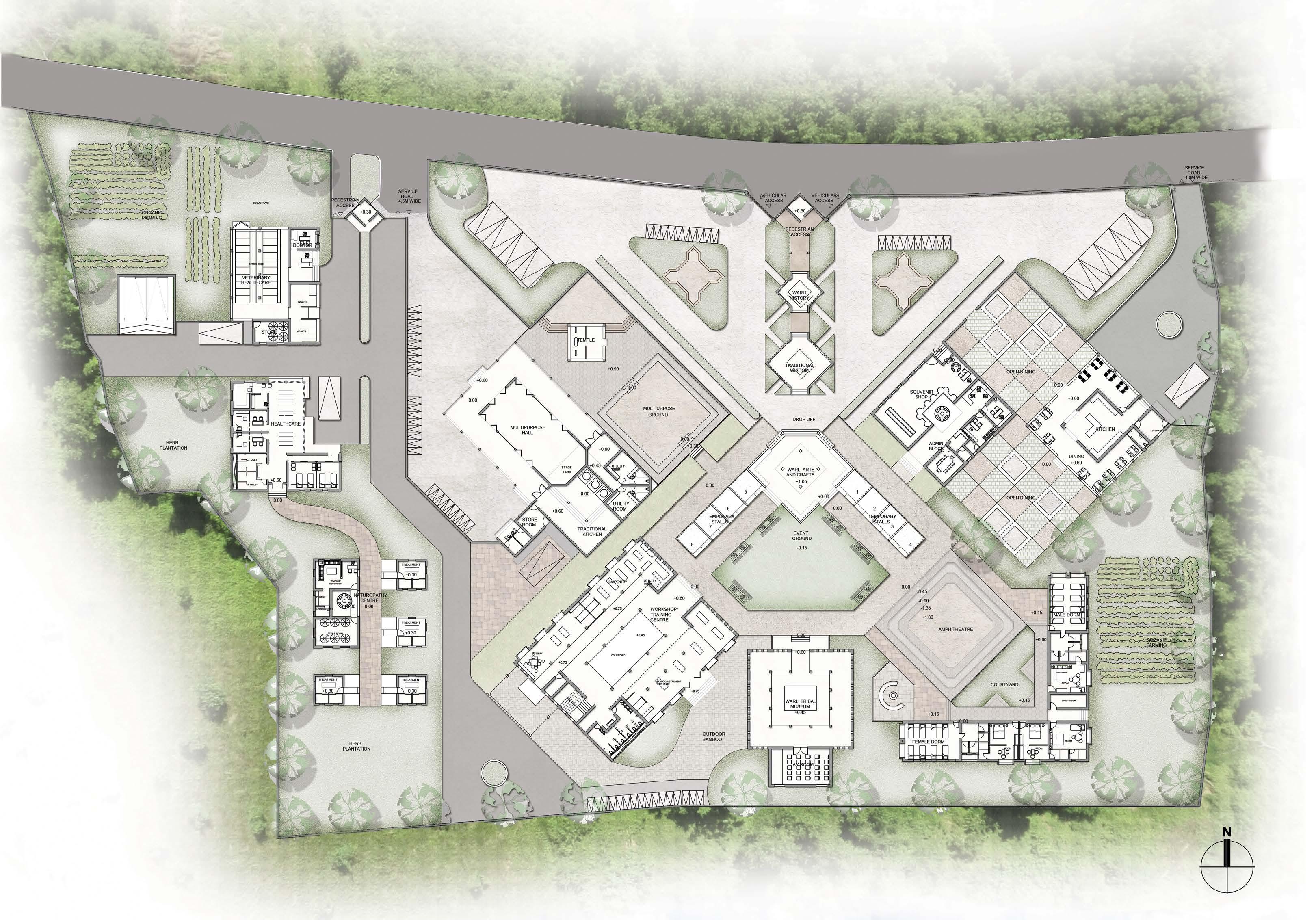

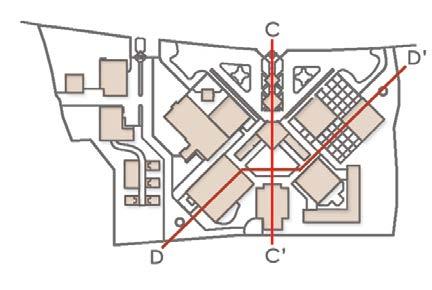

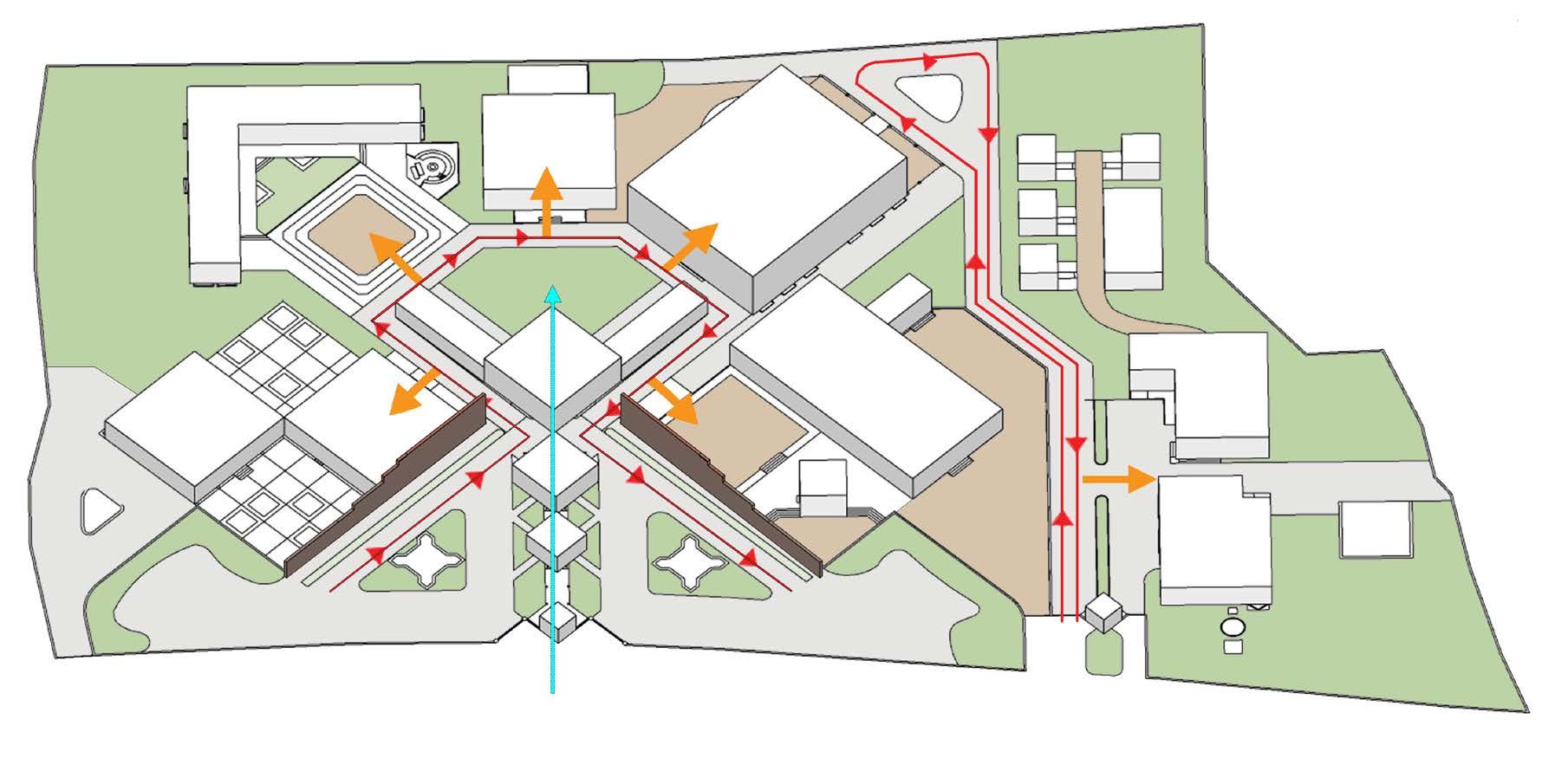

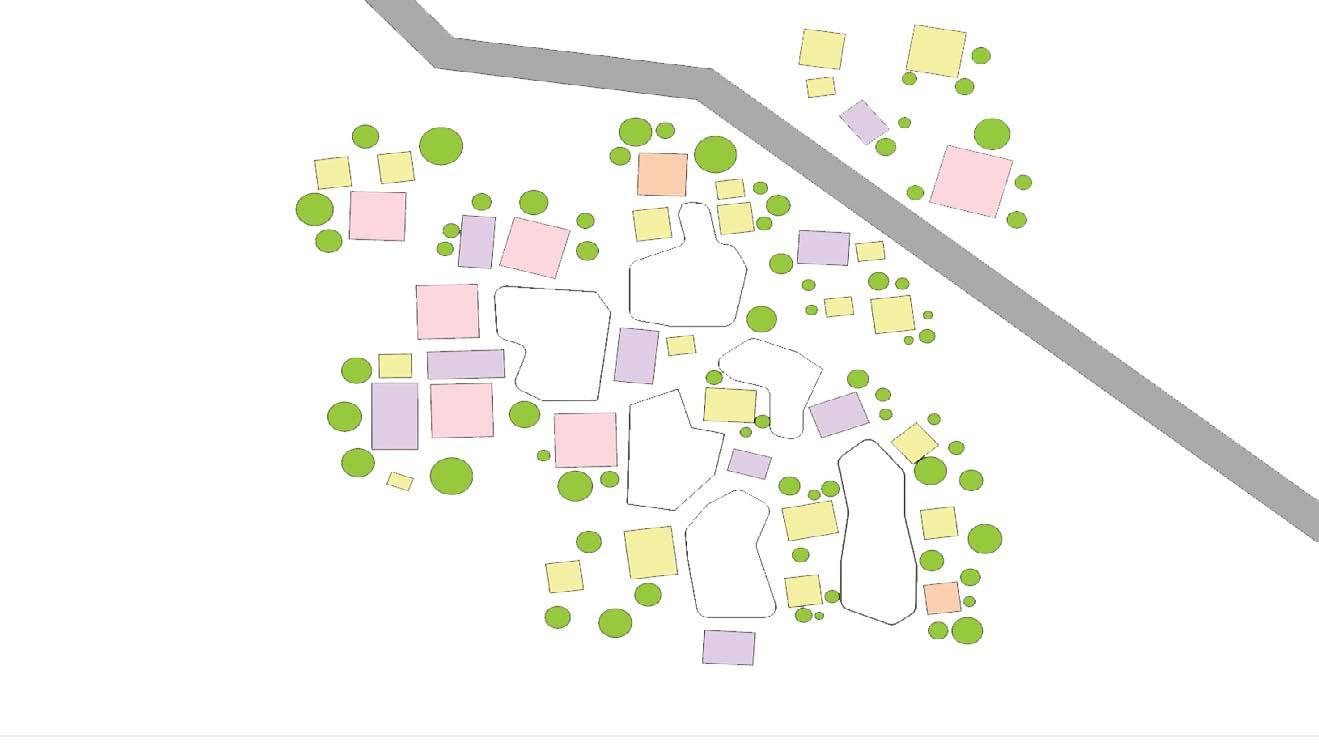

The circulation represents the cluster housing pattern of tribal settlements along with open communal grounds for interactions, central courtyards and surrounding landscape for vegetation and organic farming. Visitors are directed in a radial pathway along the blocks and a tangential pathway leading straight towards the tribal museum.

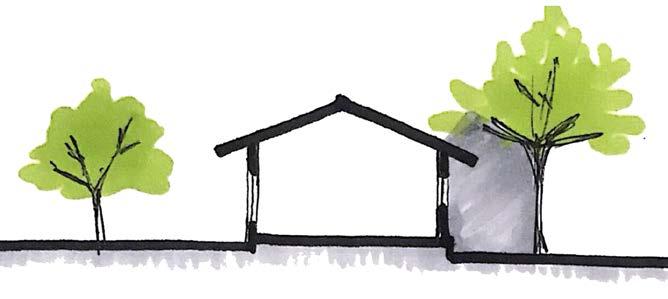

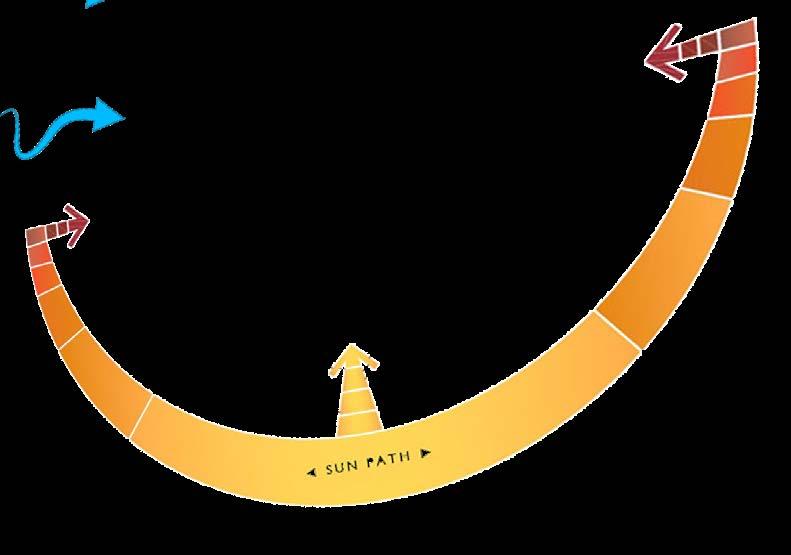

Passive design stratergies

Timid trees avoiding natural light obstruction. Walkway shaded from direct sunlight. Typology

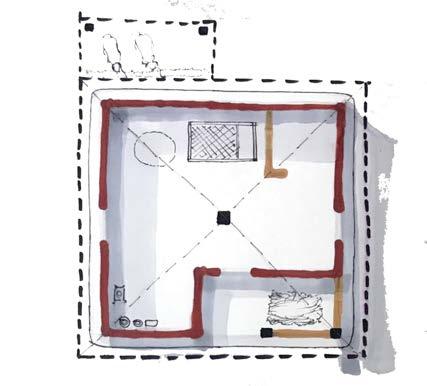

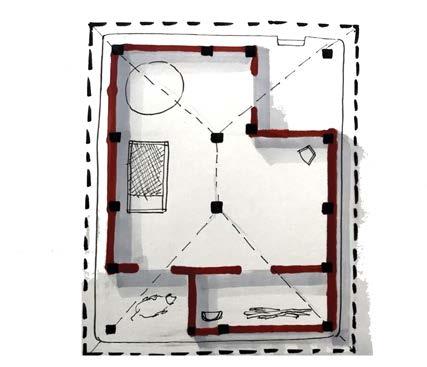

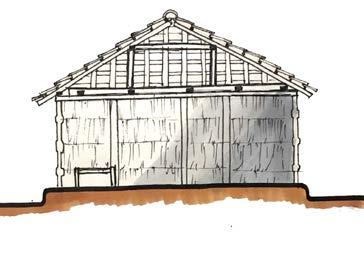

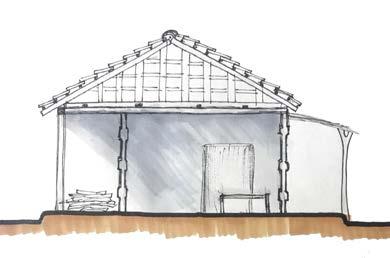

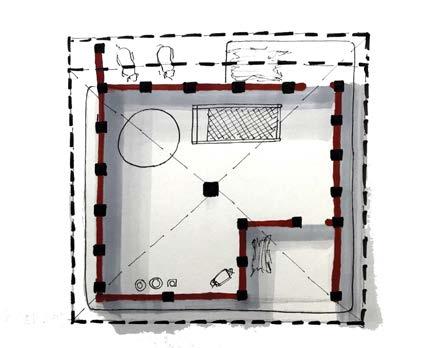

Basic buildig principles

• The basic building materials are locally available that includes bamboo, timber, karvi stems(straws), dry hay, quarried bricks and mud/cowdung. Walls are made out of Karvi/ jowar branches with cowdung/mud.

• Floor are basically a mixture of mud layer with cow dung and murum mati(soft soil). Roofs are thatched with dry hay or manglore tiles. Window openings are carved out of the wattle and doub walls.

• Timber piers are used to support the main structural roof of the house.

Use of tribal resources like ayurvedic herbs and medicines are indulged into Naturopathy centre as ancient healing methods to attract tourism.

Modern healthcare centre facilities and veterinary ward for emergency treatments of tribal population and their cattles made available into the centre.

Community ground can be used by the tribal people for various community gatherings and host traditional weddings that can be experienced by visitors.

Tribal temple

Tribal Workshop functions as the heart of this centre supporting the revival of local practice in tribal arts & craftsmenship like paintings, pottery, handicrafts, etc. along with revenue generation and tourism.

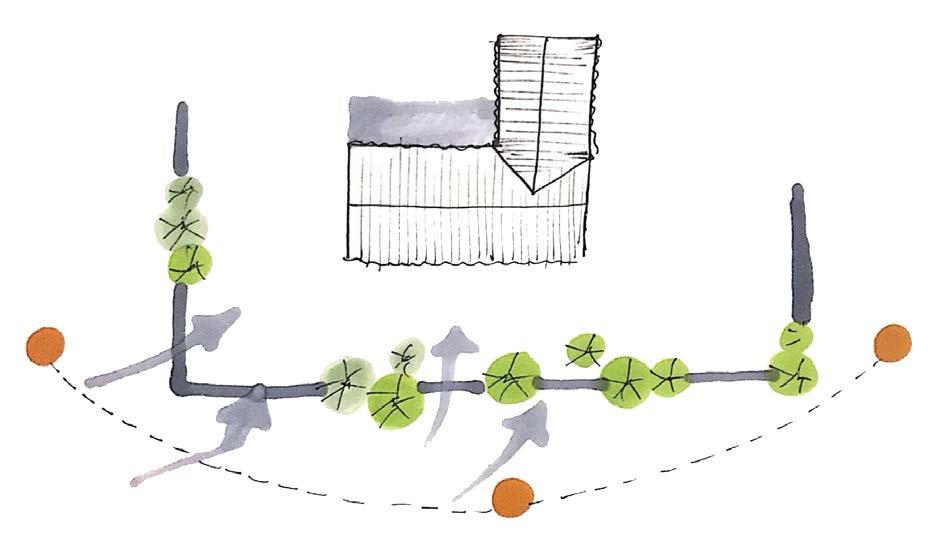

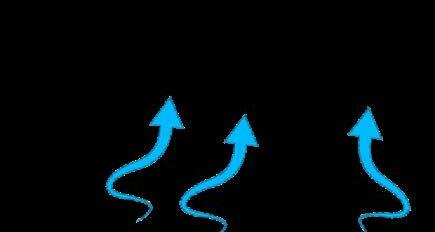

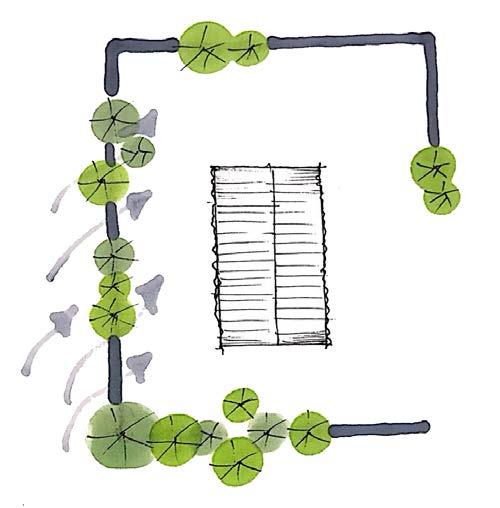

South west direction of wind. Trees are planted to narrow the air path and filter the light and ventilation reaching the house.

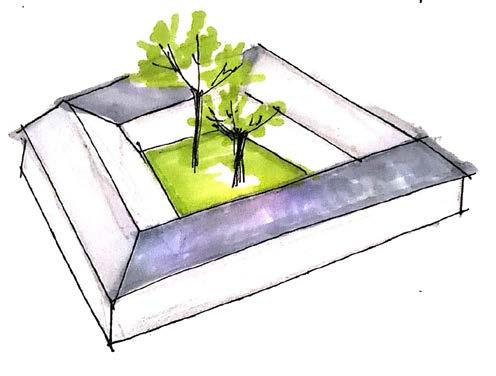

Courtyard is been used to increase light and ventilation efficiently.

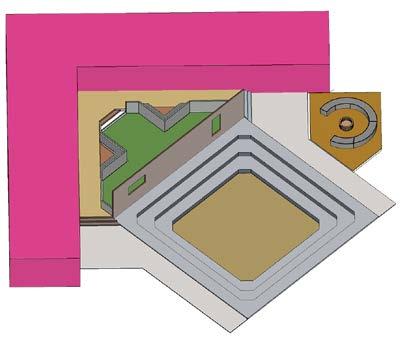

Acomodation block consist of dormitory and individual rooms which open up into an amphitheatre and a fire pit to promote clutural exchange through group interactions.

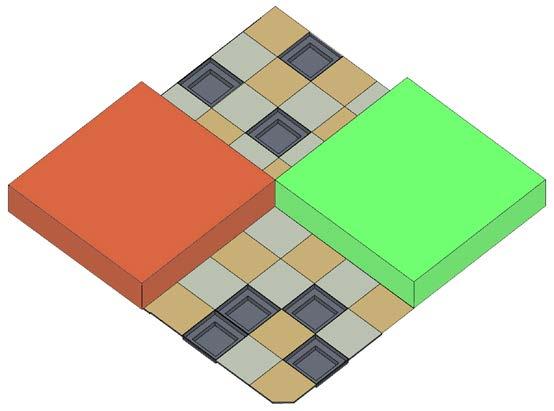

Admin block and kitchen are alligned in a square grid that opens up into outdoor dining area and interactive seating spaces into smaller square grids.

Southern side must be shaded with trees and ground surface should be green to reduce heat gain. Walkway should be on the north side to avoid excessive heat.

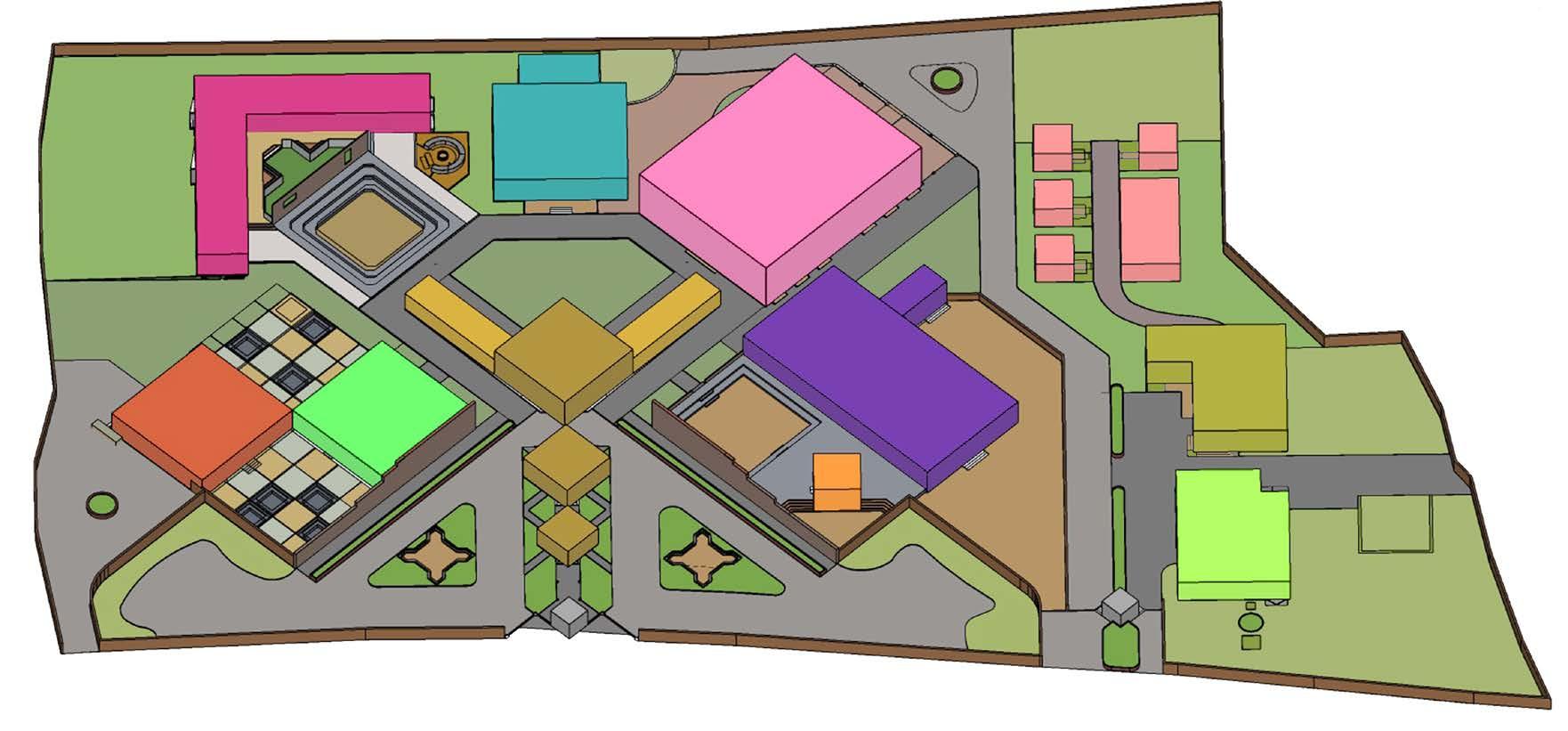

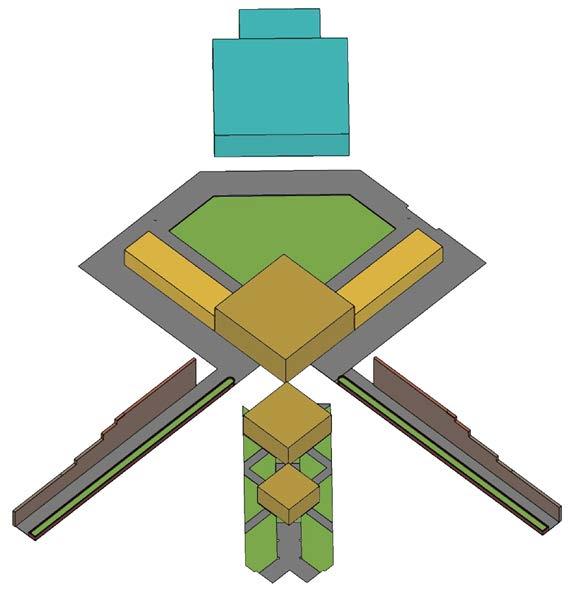

Kisok blocks have been placed in interception to the public pathway right from the entrance which directs them to the tribal museum right through the central exhibition ground for exploring while experiencing tribal culture visually.

NH 48 Udhava Road

Haladpada Hamlet

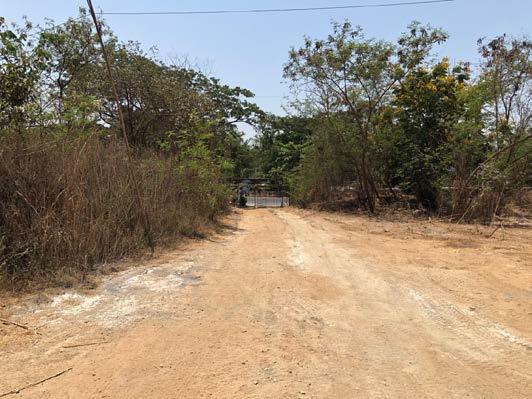

River trench Site

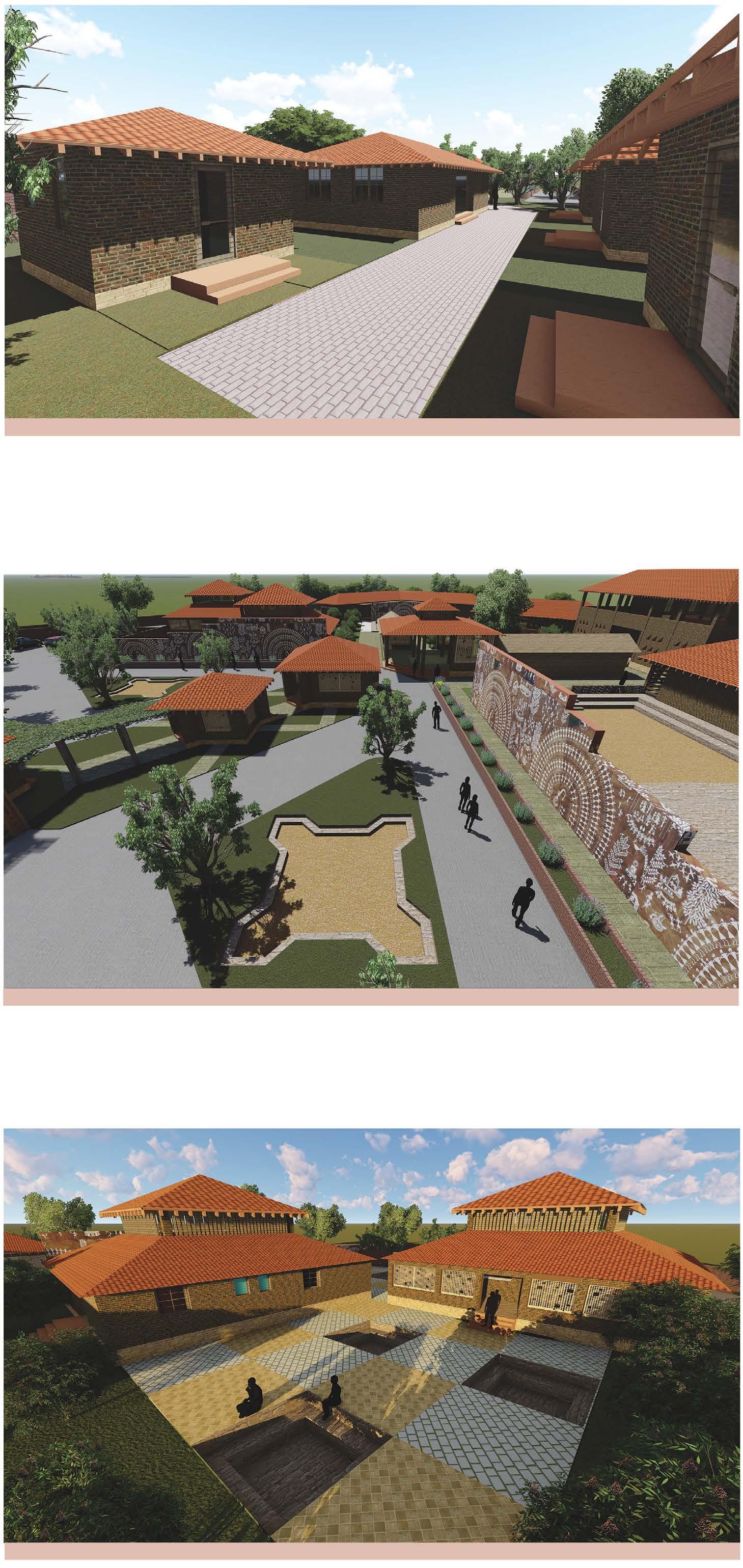

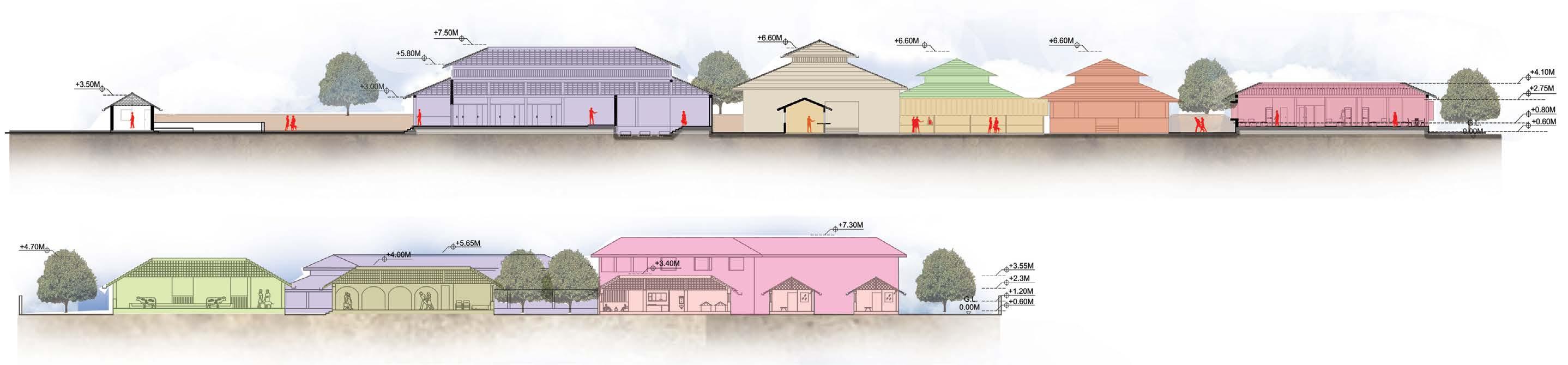

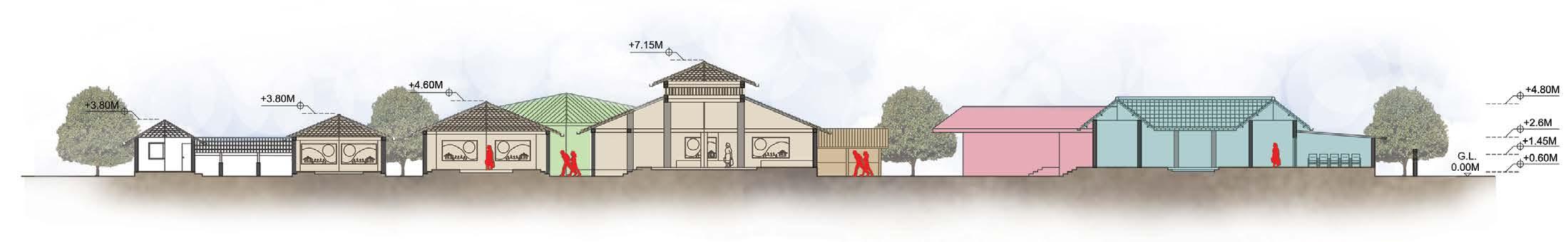

VIEW FROM AMPHITHEATRE CENTRAL EXHIBITION GROUND

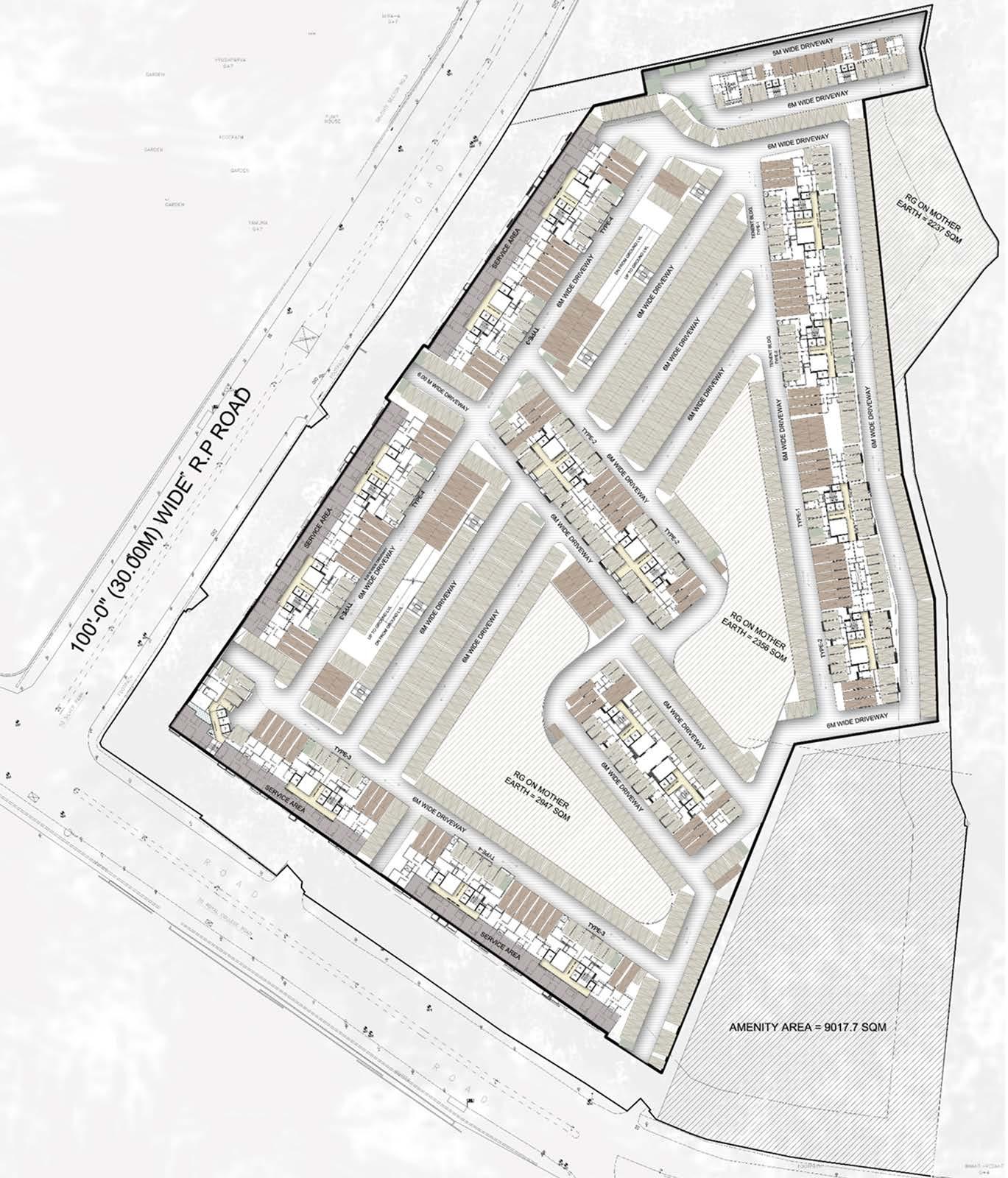

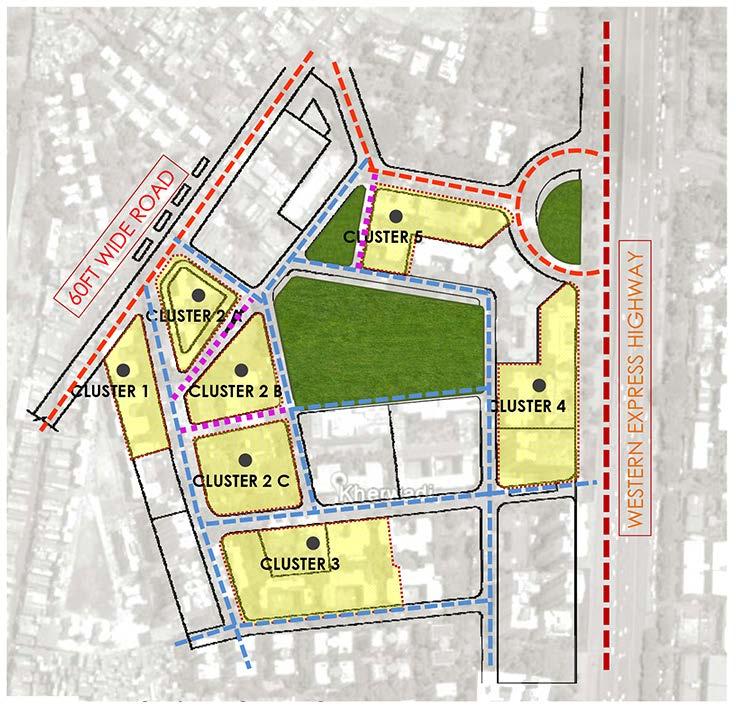

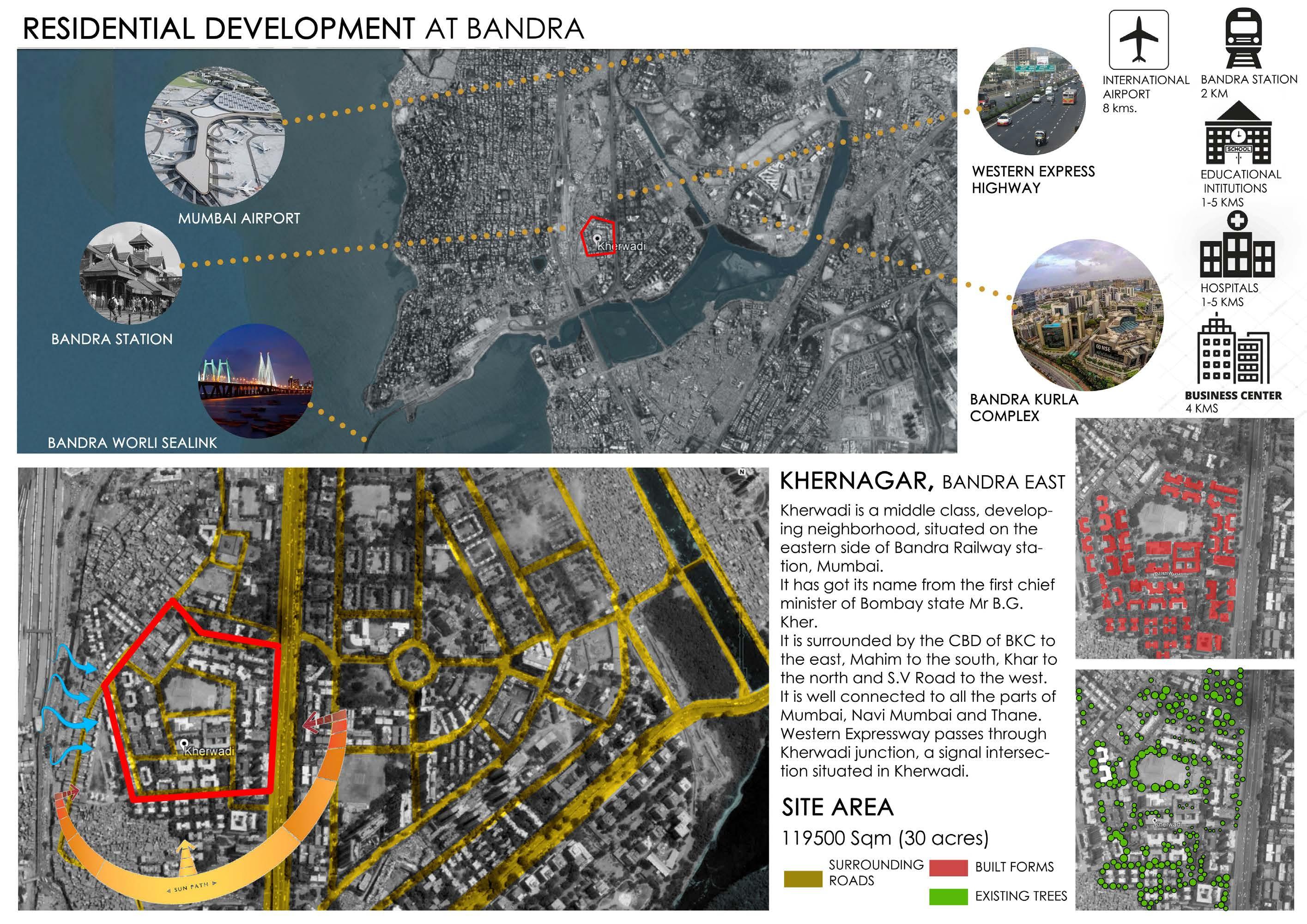

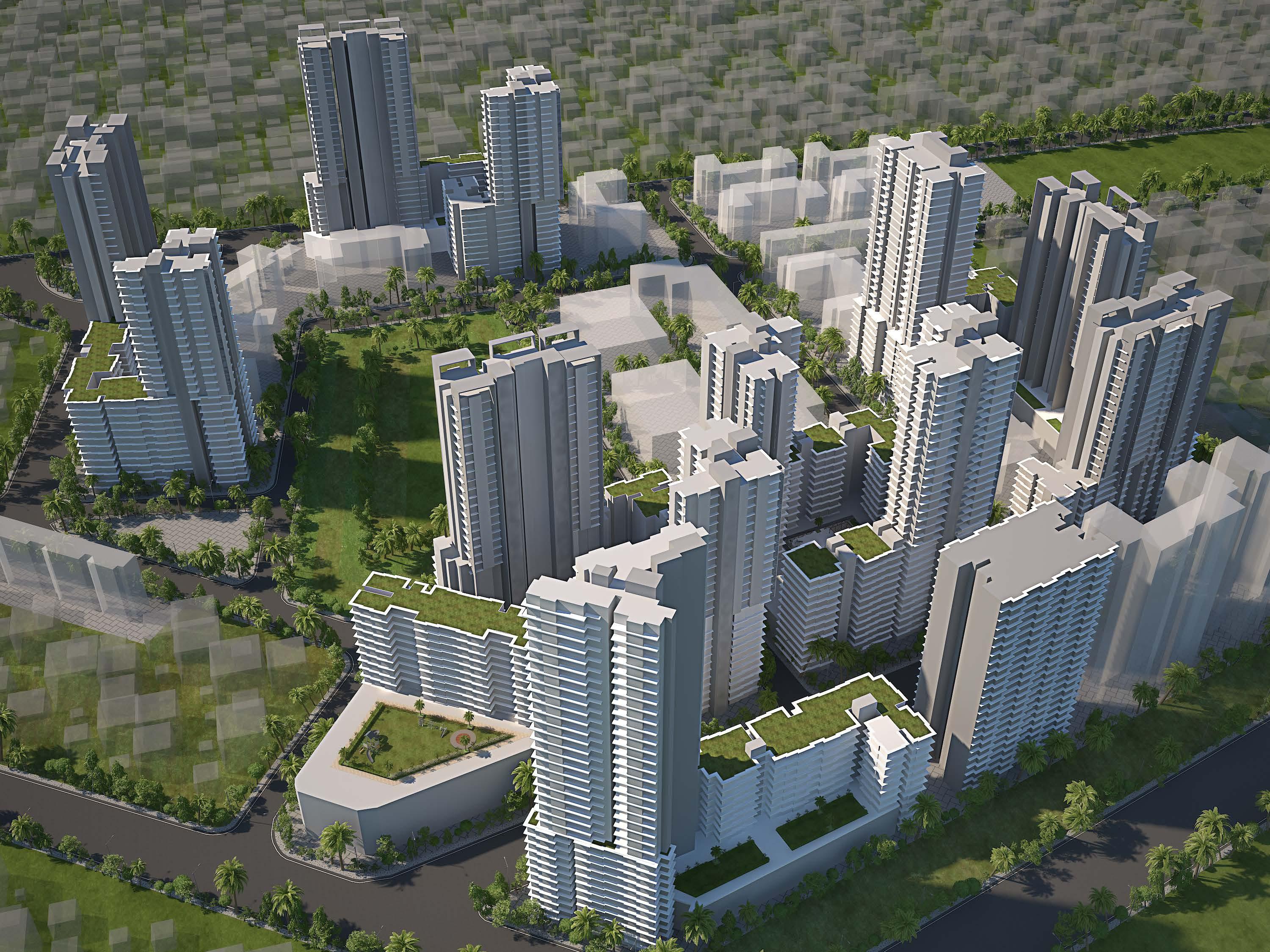

RESIDENTIAL MASTERPLAN FOR KHERWADI EAST (REDEVELOPMENT PROJECT 1)

PROJECT BRIEF

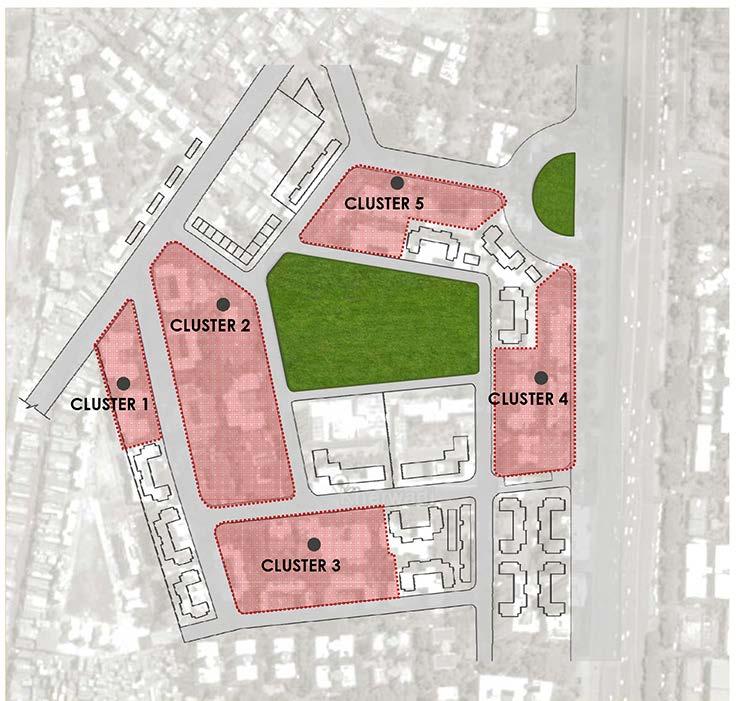

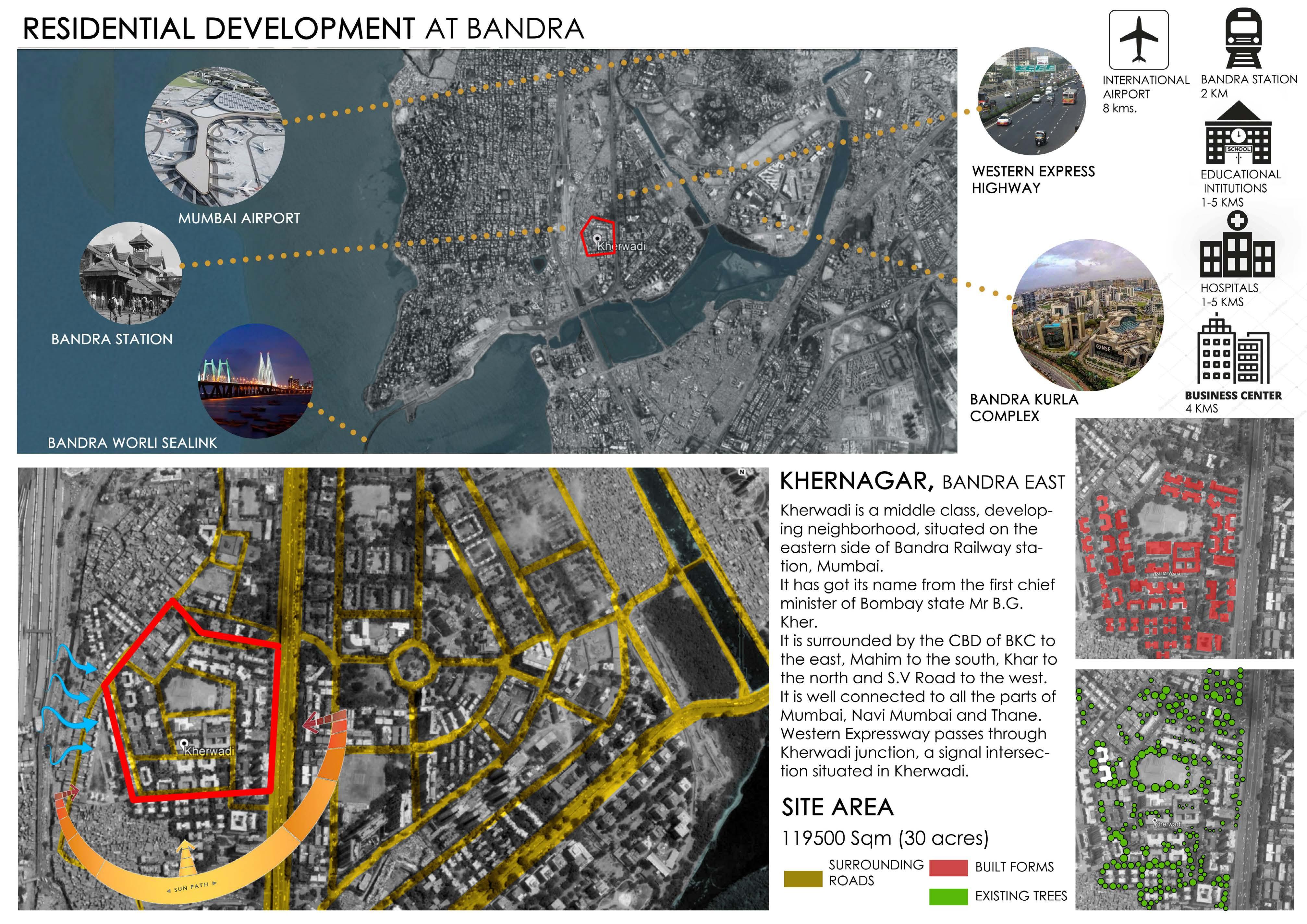

Redevelopment project for 5 clusters of residential complexes in Khernagar (East), Bandra. The design intent was to infuse the essence of traditional bandra housing character into the modern building facades and emphasizing the street views of the masterplan with respect to its nodes and corners inspired by the colonial architecture.

DESIGN APPROACH

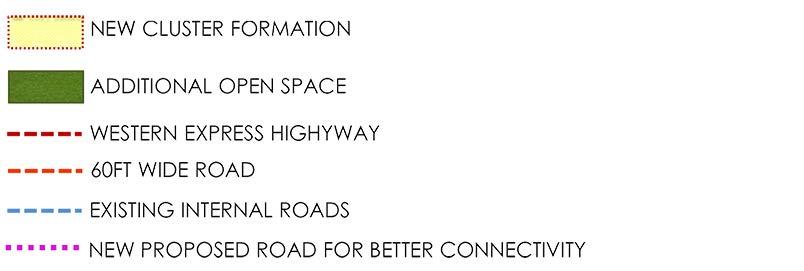

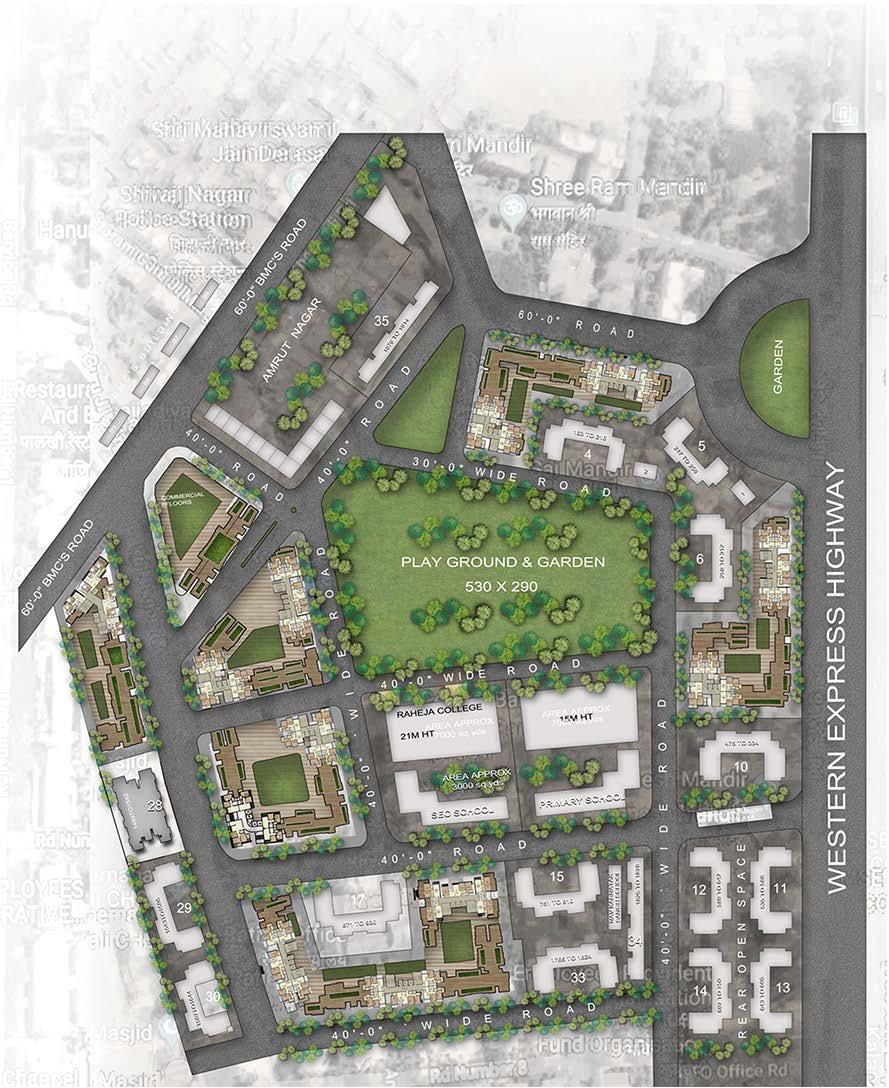

Background study of old private residential structures and villas of Bandra, documenting the traditional architecture and decoding its various patterns, materials and elements. Analysing the existing masterplan layout and modifying it on an urban scale for better connectivity and characteristic visual appeal in built and unbuilt spaces.

DESIGN CONCEPT

• The aim is to bring Bandra's cultural essence and strengthen past foot prints of its character via architecture.

• Using the details of past architectures, the design will reform and give the place a better overall appeal.

• The design will be a modern icon of an urban city which has its trails and depictins of its cultural bonds and heritage.

March 2019 - September 2019 | Professional work at MQA Redevelopment+Sales Housing, Mumbai

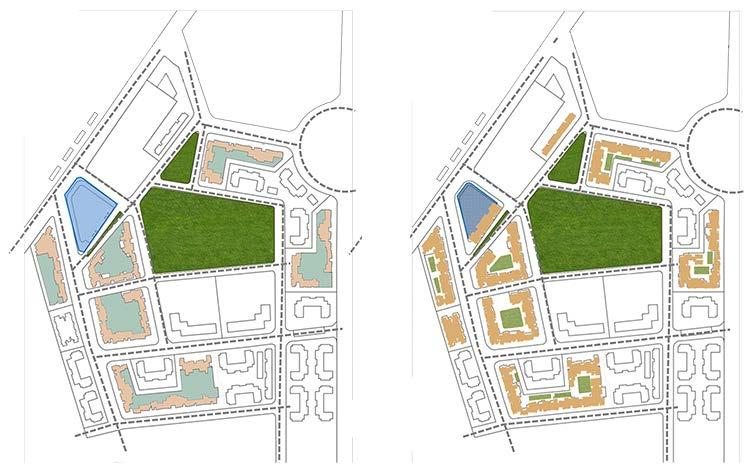

CHARACTER DEVELOPMENT OF MASTERPLAN ESSENCE OF BANDRA

ARCHITECTURAL LANGUAGE OF BANDRA

TEXTURES • GEOMETRY

•

Bandra, is a trendy suburb of Mumbai, has its own aura and ambience which is closely remniscent of the streets of Goa, with its colonial architecture.

Bandra, a trendy suburb of Mumbai, has its own aura and ambience which is closely reminiscent of the streets of Goa, with its colonial architecture.

• ELITE

• COLORFUL

ELITE

• COLORFUL

• ECHO OF THE COLONIAL ERA

• ECHO OF THE COLONIAL ERA

• TIMELESS

• TIMELESS

Vertical slits of stained glass imitating the character of the old structures of Bandra

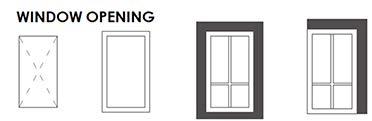

Enhancing window cutouts using vertical fins

Mullion pattern creating visual play

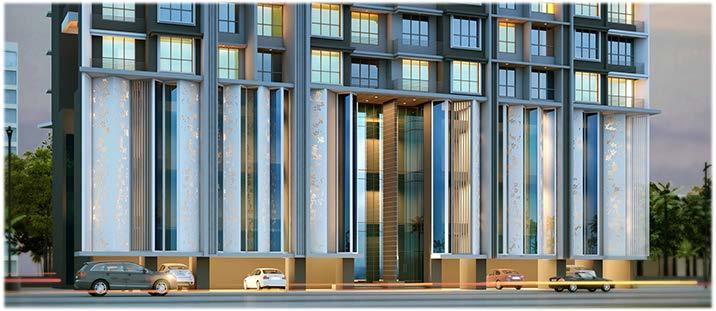

Vertical glazing to break the monotony and to enhance the verticality of the facade

Screen perforations for light and ventilation

Vertical folds that create an animation on the facade Staircase block in glass

Shop front

Carrying the same language of podium to the crown

Duplex flat on the top with double height glazing

STAINED GLASS METAL RAILINGS

BRICK AND STONE CLADDING

COLORFUL FACADE

BAY WINDOWS

INSET WOODEN PANELS AND LATTICE RAILINGS

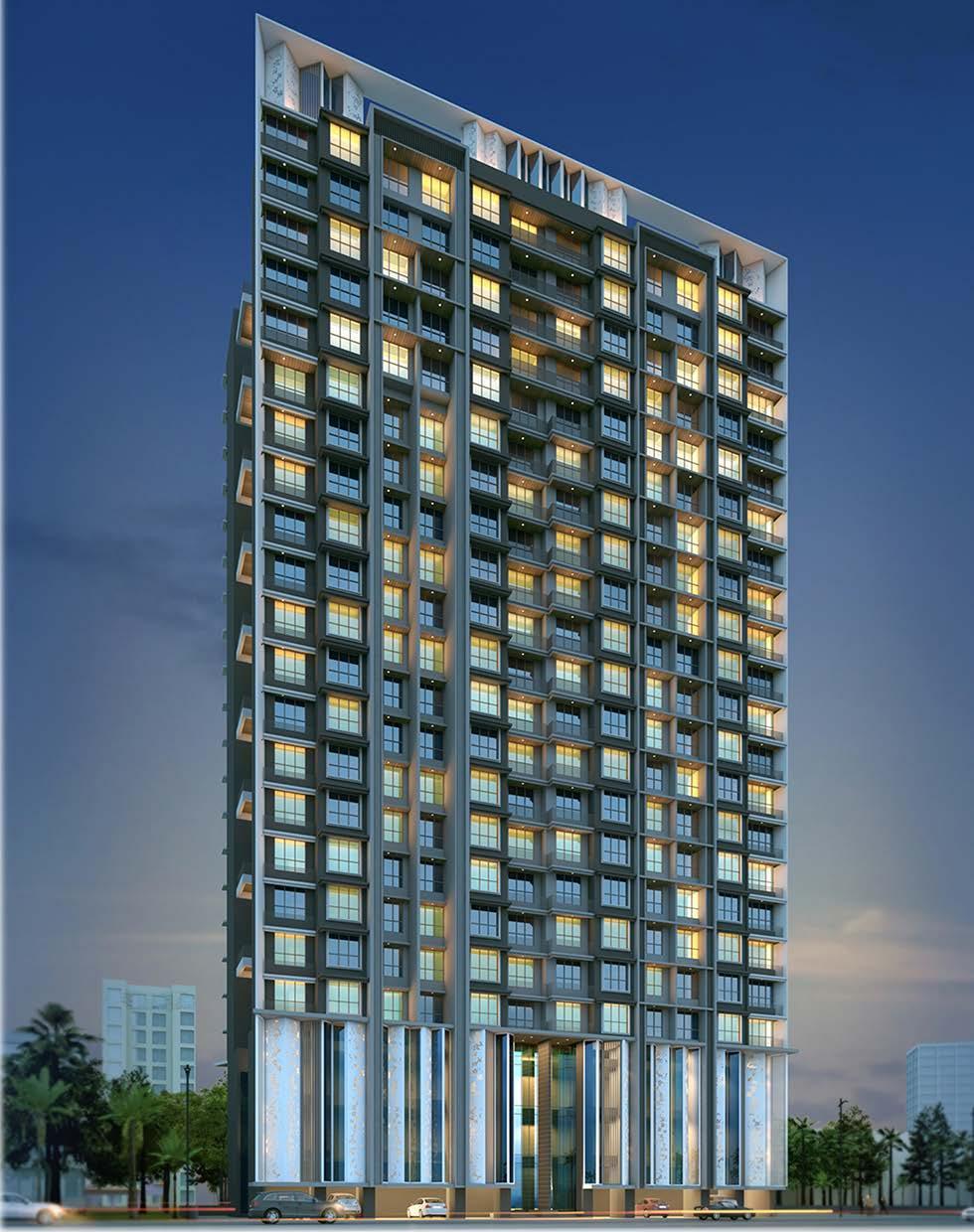

TOWER CROWN DESIGN

THE FOLDS CREAE A DIFFERENT VISUAL EXPERIENCE FROM EITHER DIRECTIONS VERTICAL FOLDS ANIMATE THE FACADE DURING MOVEMENT

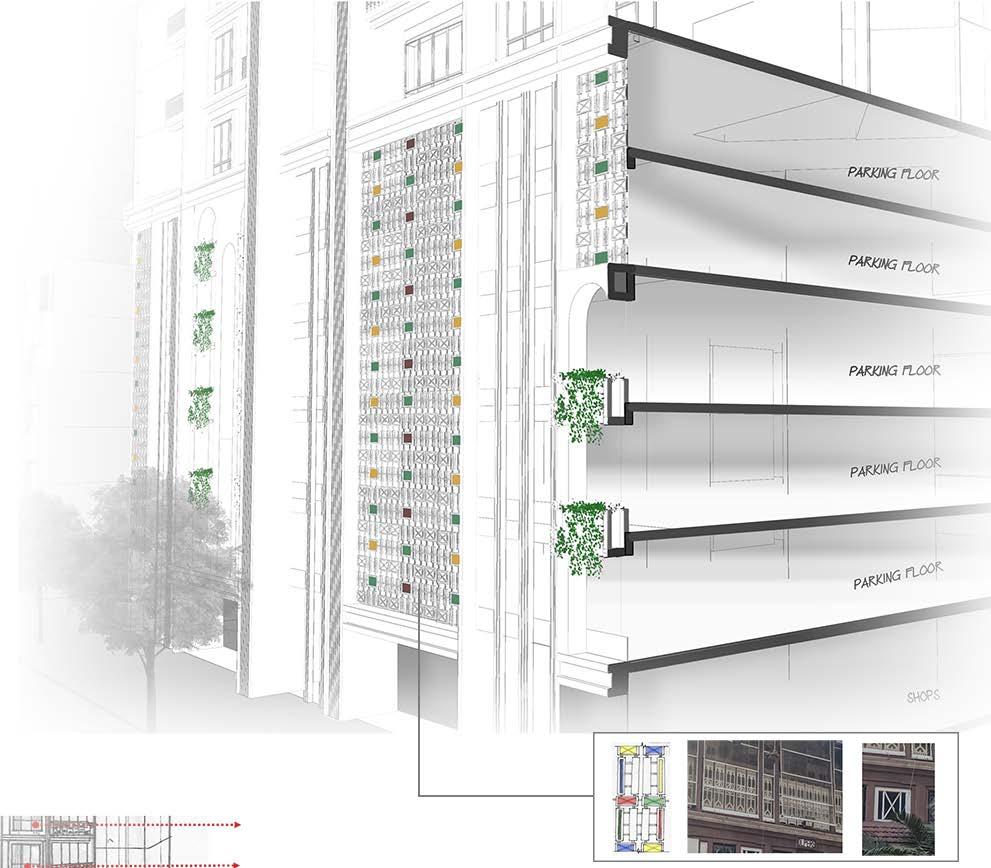

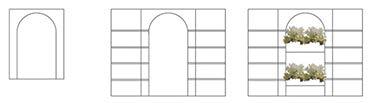

SCREEN WALL USING THE TRADITIONAL GEOMETRY AND STAINED GLASS ALTERNATE WINDOW DETAILING WITH GRAPHICAL CUTOUTS

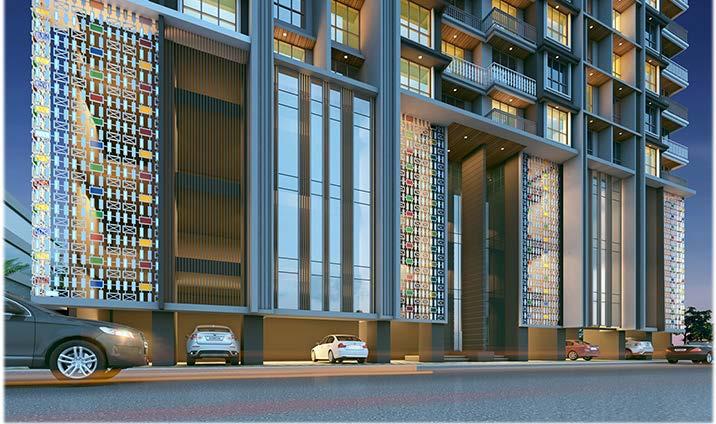

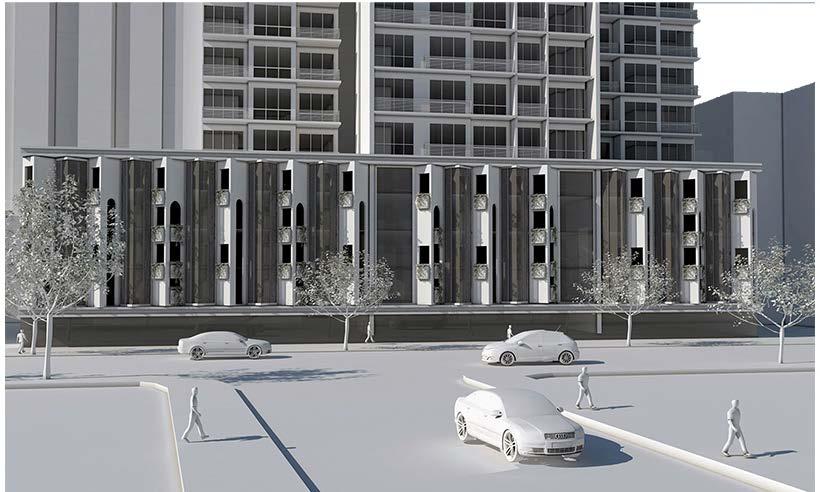

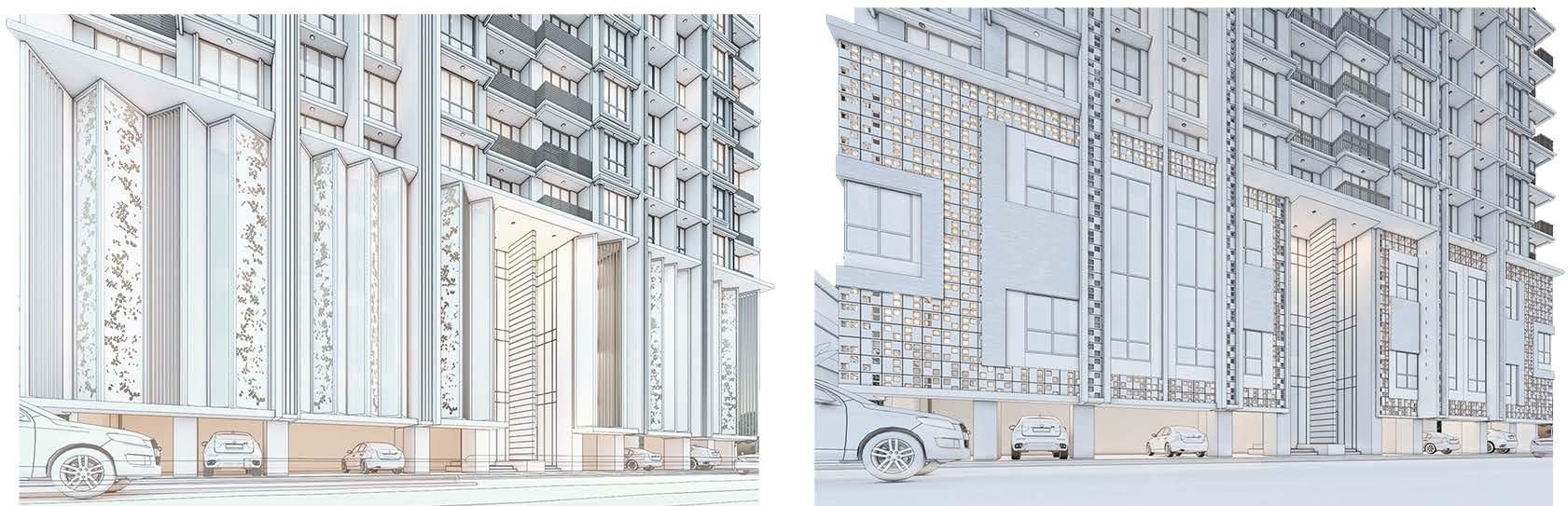

The monotony of a plain surface is broken down by using vertical glazing and horizontal inserts of stained glass pattern at regular intervals for the podium level.

The different geometries of the colonial architecture of bandra are adopted for the podium facade design and the overall facade of the building. Each cluster would have its own geometry and character that would define its streets, nodes & junctions. The diversity in the facades would create a unique mental perception for every cluster.

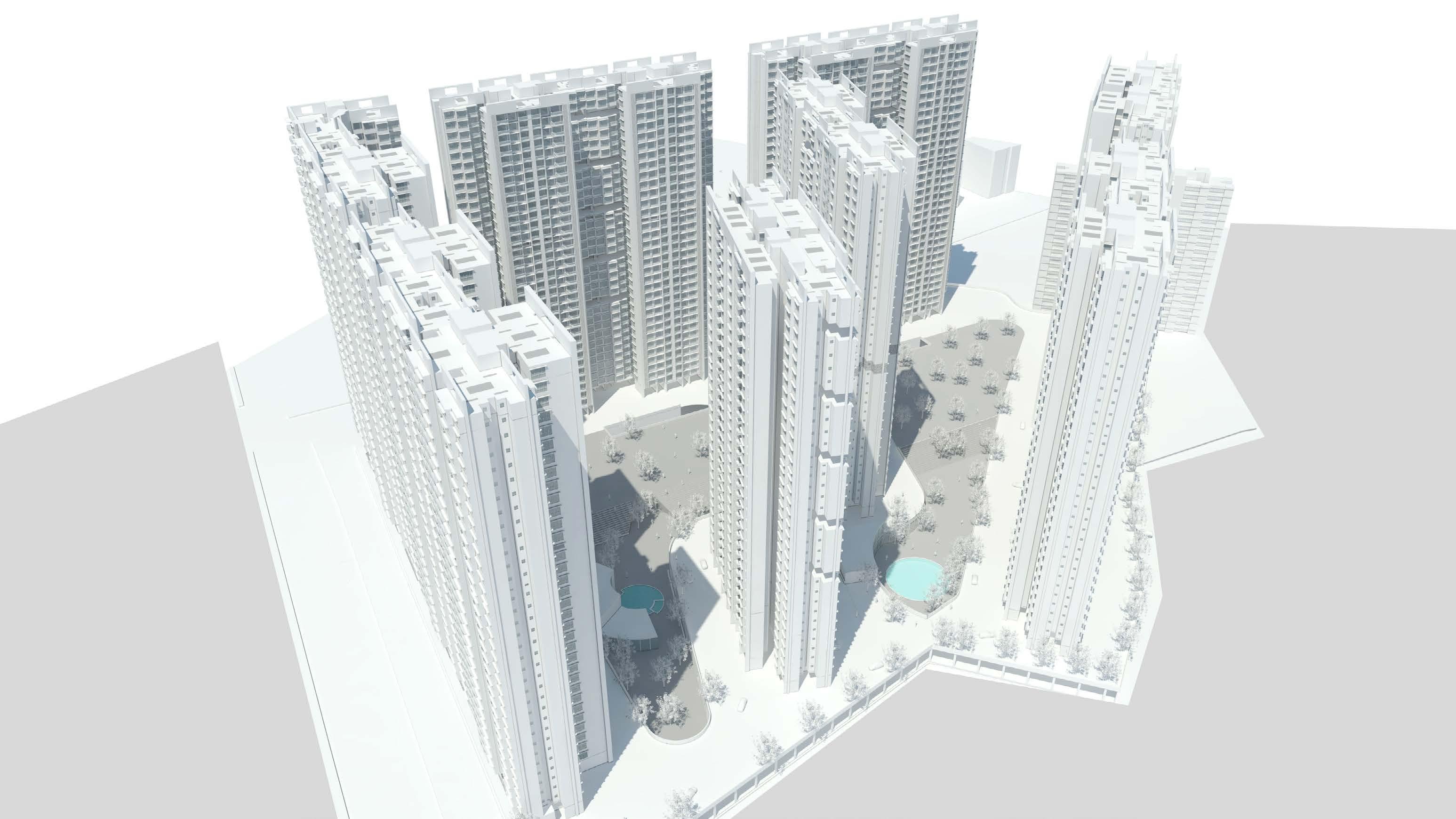

SRISHTI RESIDENTIAL COMPLEX (REDEVELOPMENT PROJECT 2)

PROJECT BRIEF

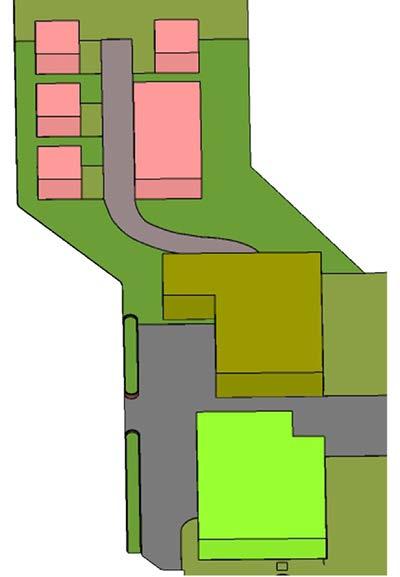

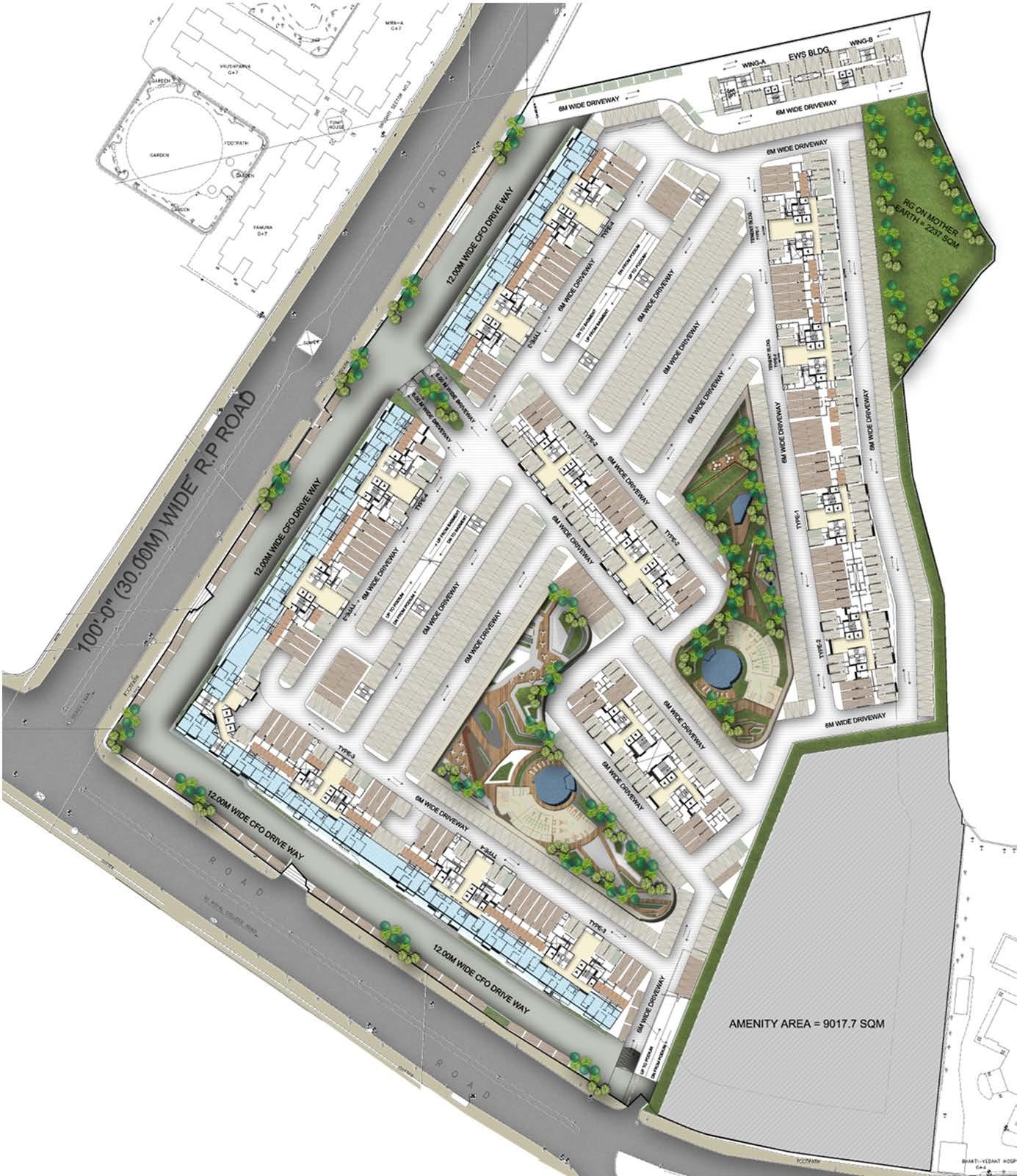

Srishti is a residential housing masterplan consisting of both sales and tenement building components. The company aims to redevelop the existing buildings on plot-B by amalgamating Plot-A&C for maximum sale building ratio and up-scaling the living experience for the owners.

DESIGN APPROACH

Planning and desiging masterplan layout as per local municipal guidelines with respect to its design bylaws. The aim was to efficiently consume the FSI after combining the plots to attain maximum sales output for the client and upgrading the lifestyle of existing tenants with better amenities and living condition.

RESPONSIBILITIES

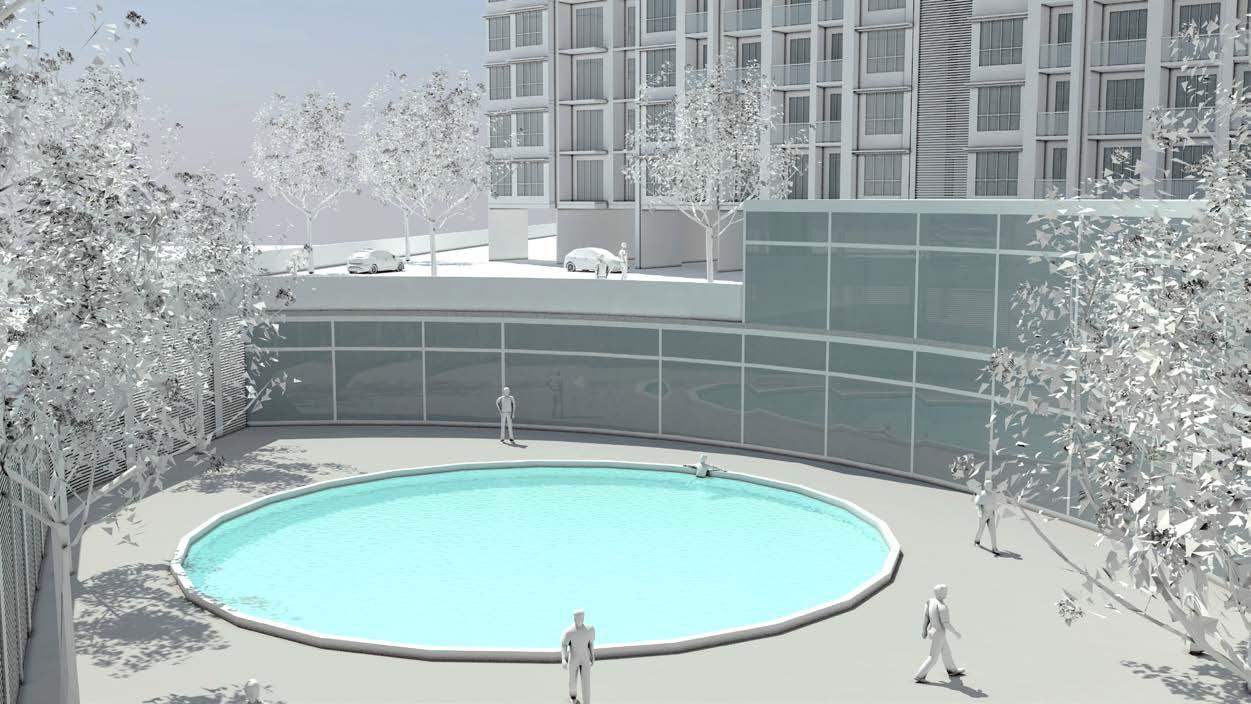

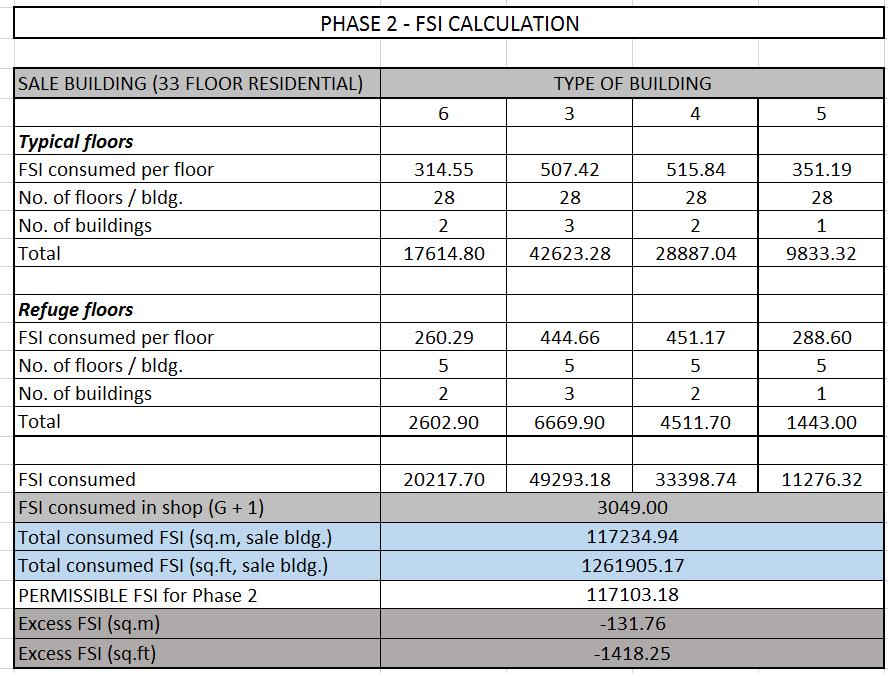

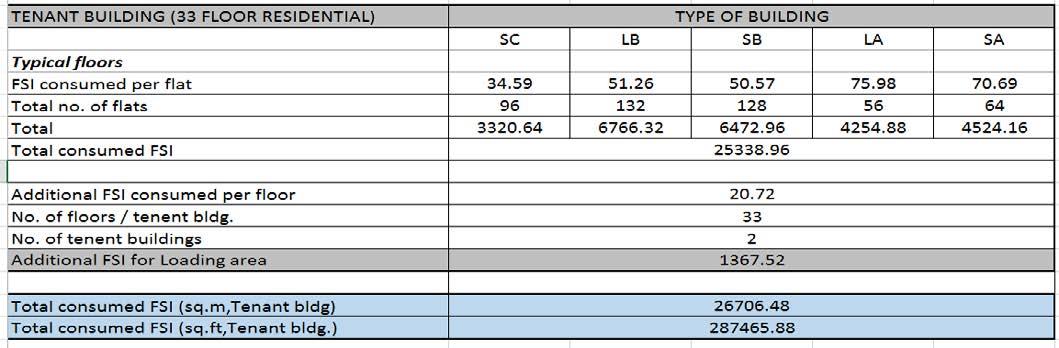

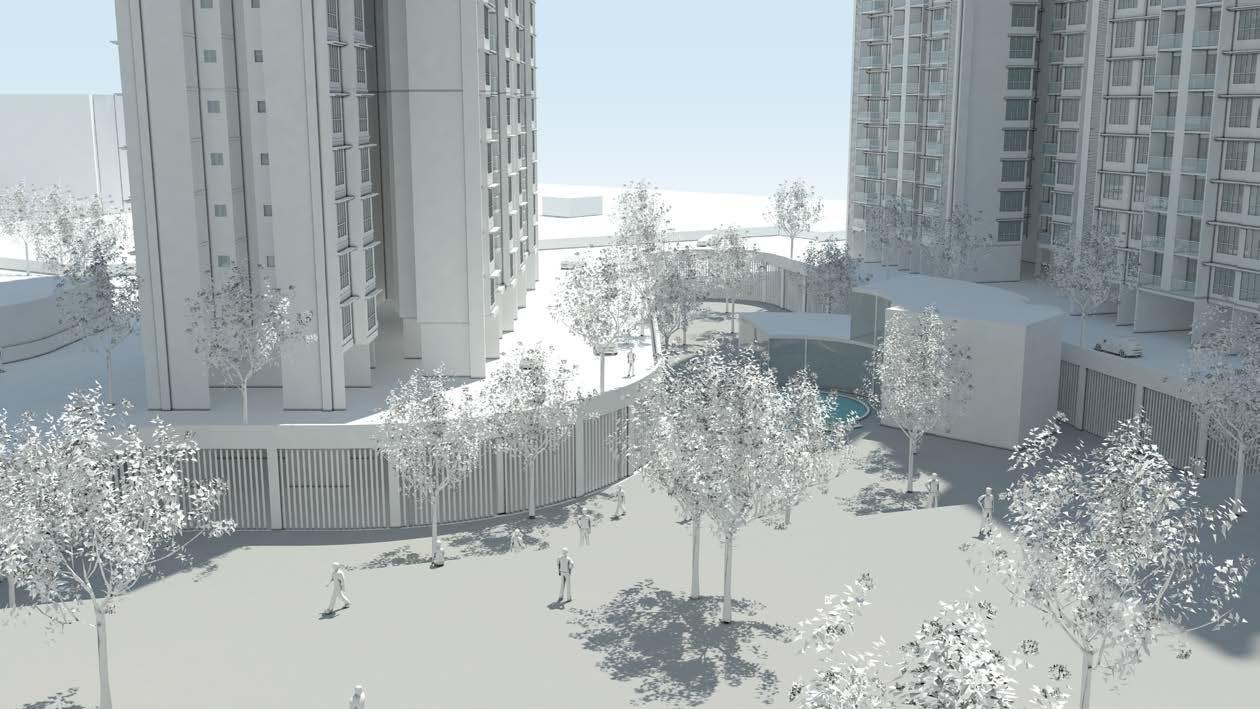

Schematic planning of towers as per the product mix of 1,2&3BHK units with respect to the building norms, designing recreational ground(RG) and club house, FSI and parking area calculations, producing schematic presentation drawings and 3D renders, attending client meetings for presenting the progressive work and ammending changes until the finalized stage. The project is curretly under construction at phase-2 and is expected to be completed by 2024.

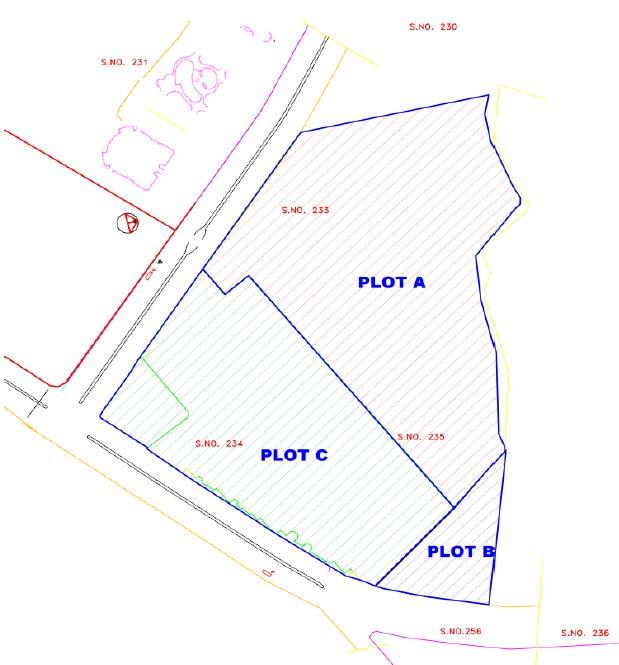

A - 33,150 Sqm

B - 4,730 Sqm

C - 26,946 Sqm

SITE AREA 64,826 Sqm (16 acres)

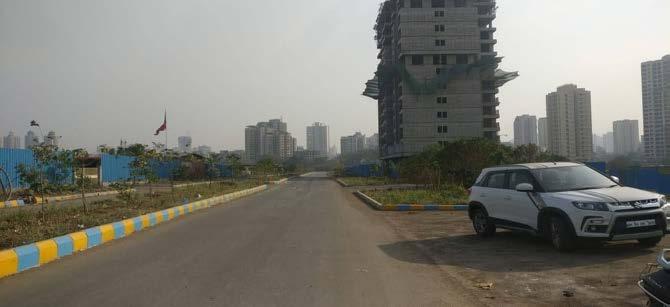

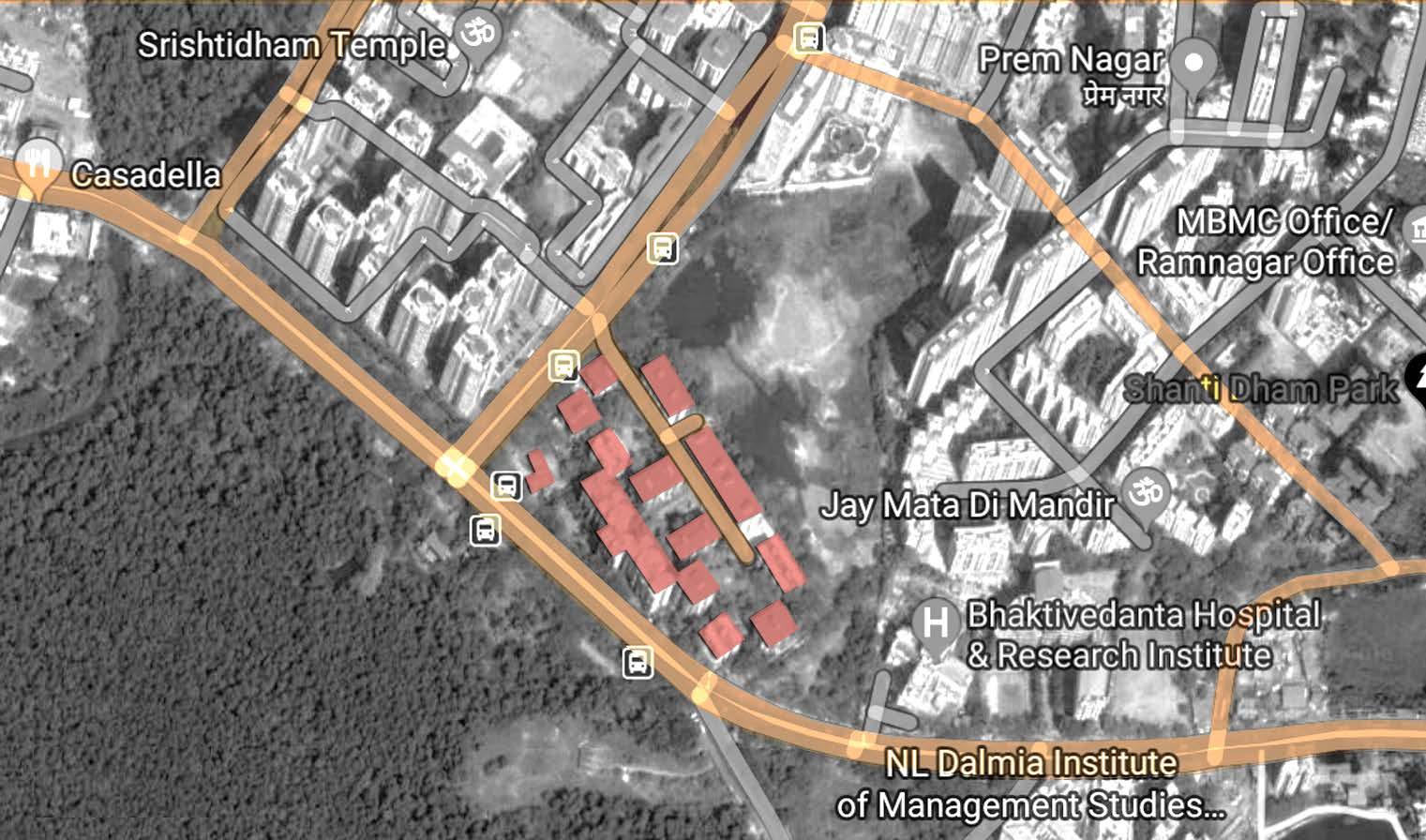

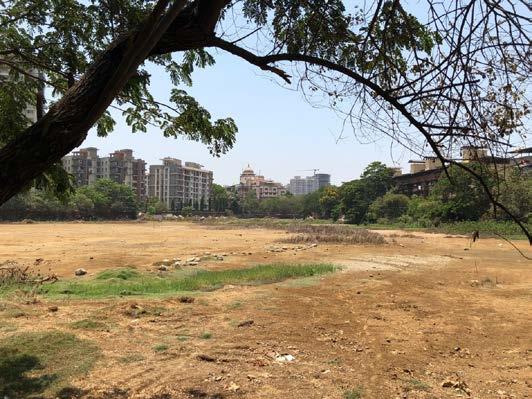

SITE DESCRIPTION

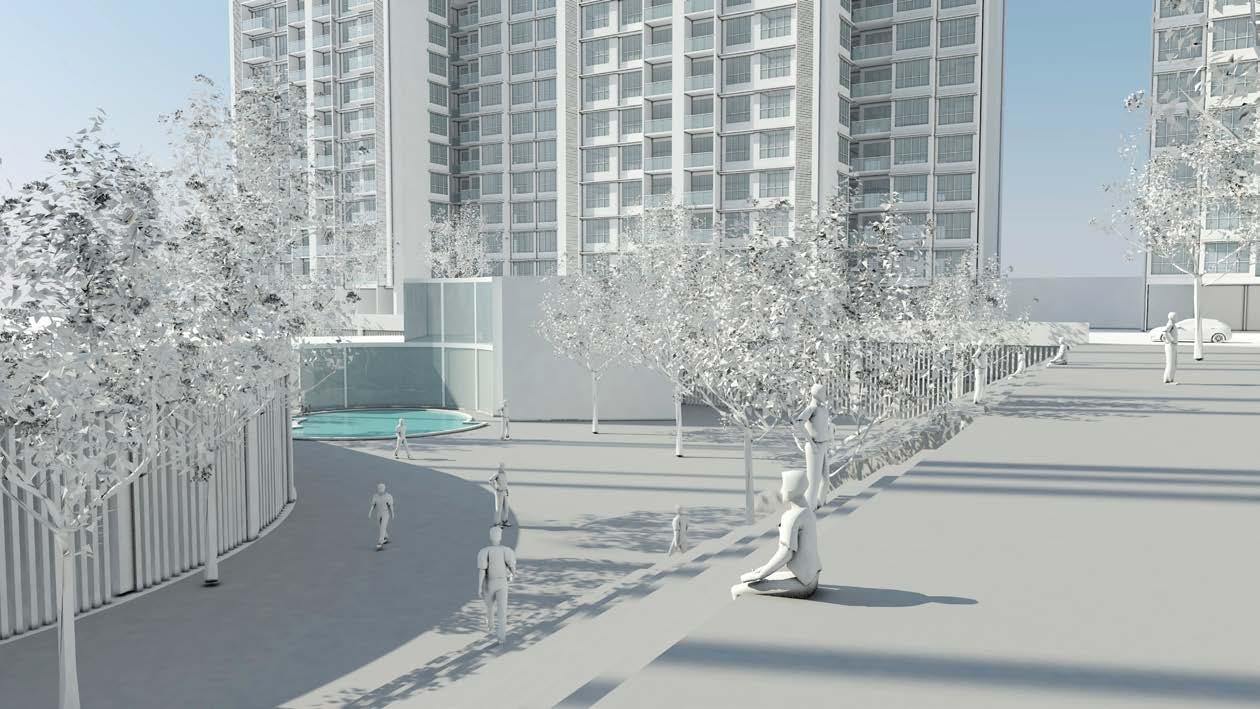

• Srishti is a mix development township situated in Mira Road east region consisting a well developed and well planned area.

• The Plot is surrounded by roads from two sides that further connects to Mira road station(1.5km) and western express highway(0.6km). Thus, making it an easily accessible site.

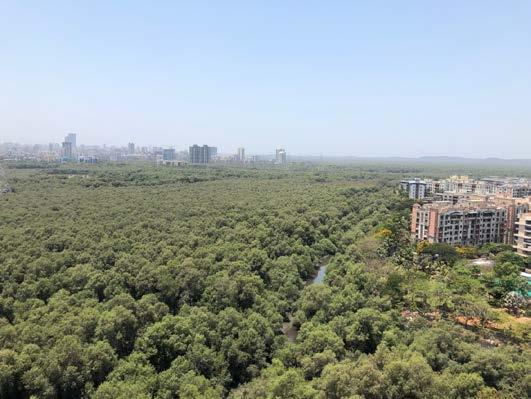

• Plot has frontage of the Mangrove area providing both the view along with light and ventilation with the road of approximately 30m wide in the south.

• West road is approximately 12m wide with major residential complexes in the north and Bhaktivedanta Hospital at its eastside.

January 2019 - July 2019 | Professional work at MQA

Redevelopment+Sales Housing, Mira-Bhayander, Thane

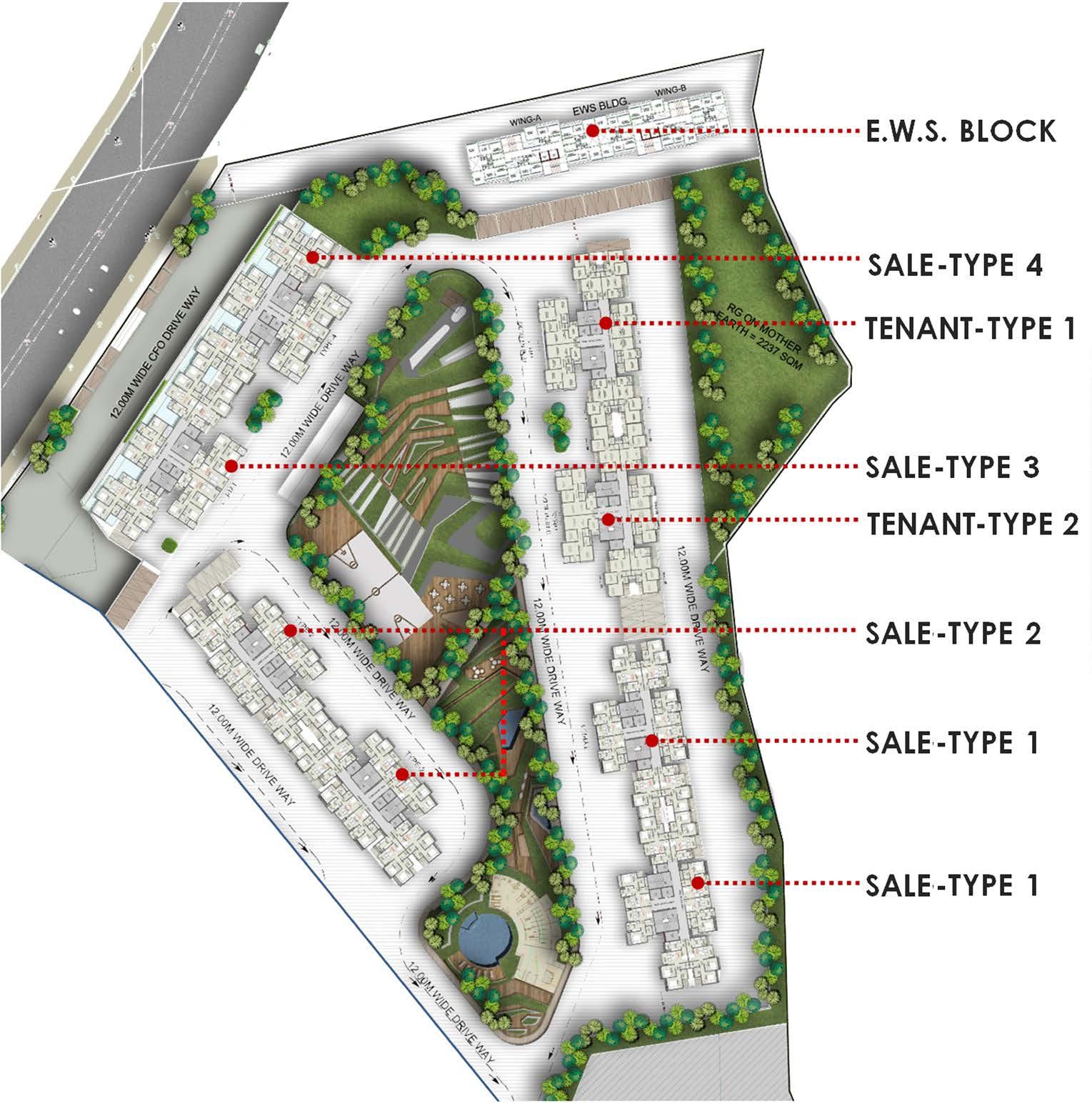

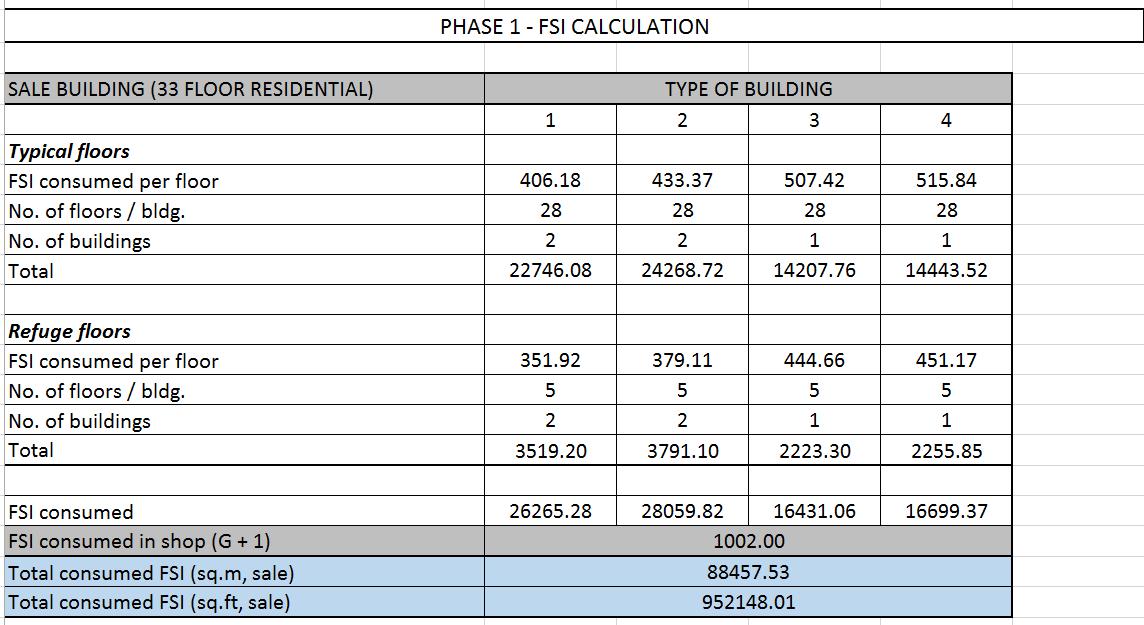

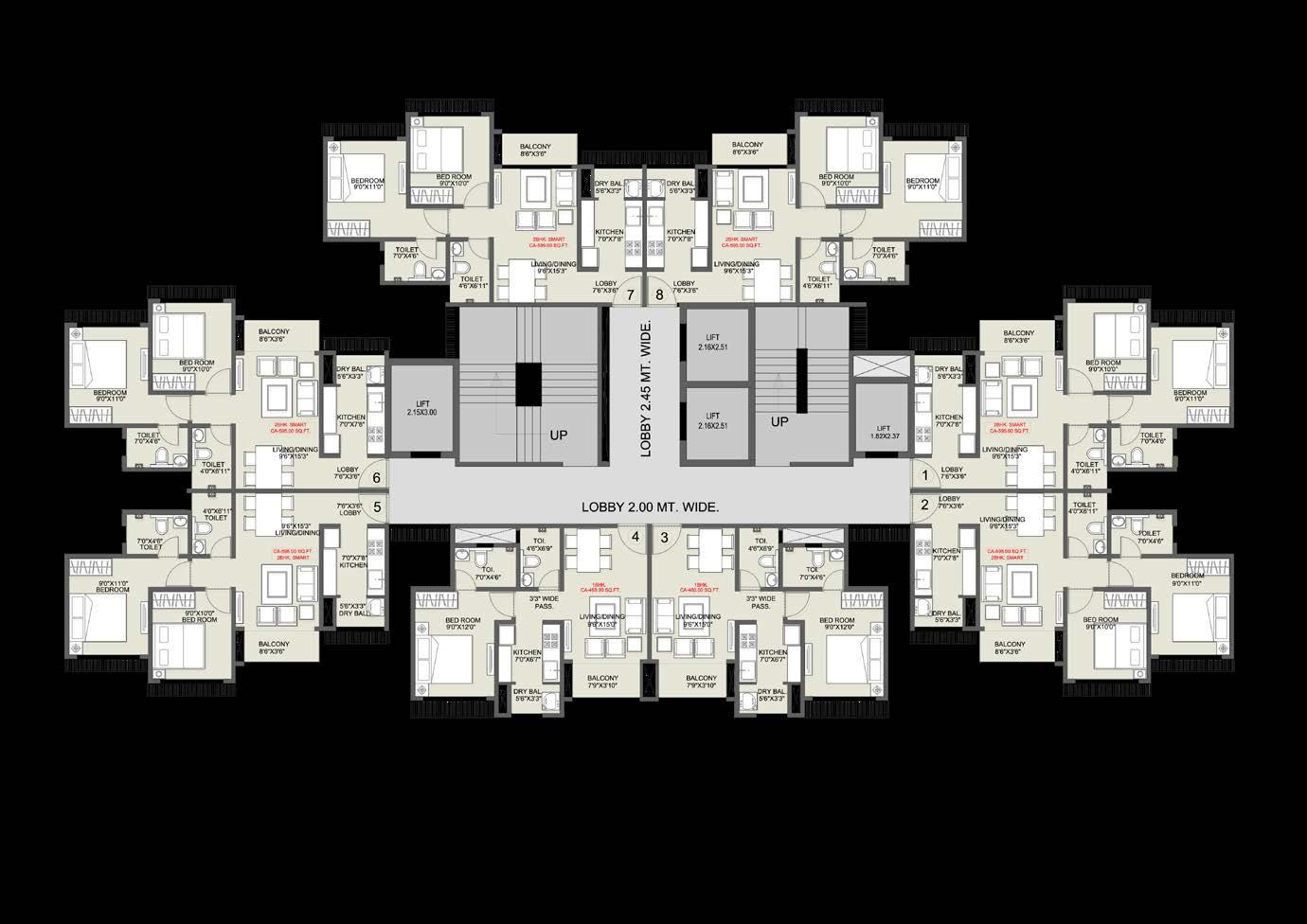

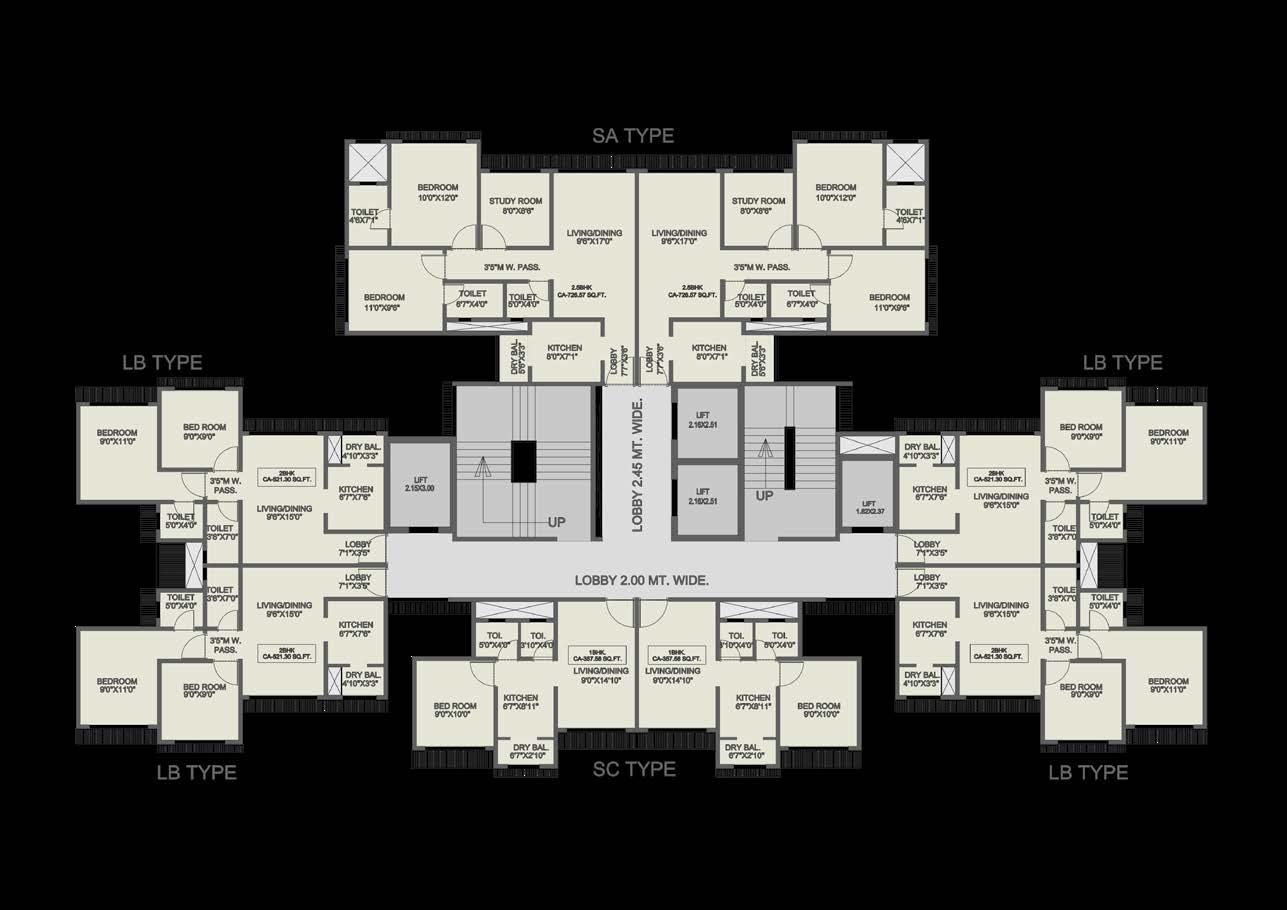

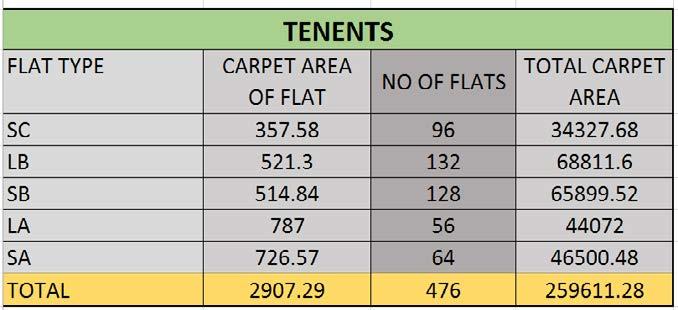

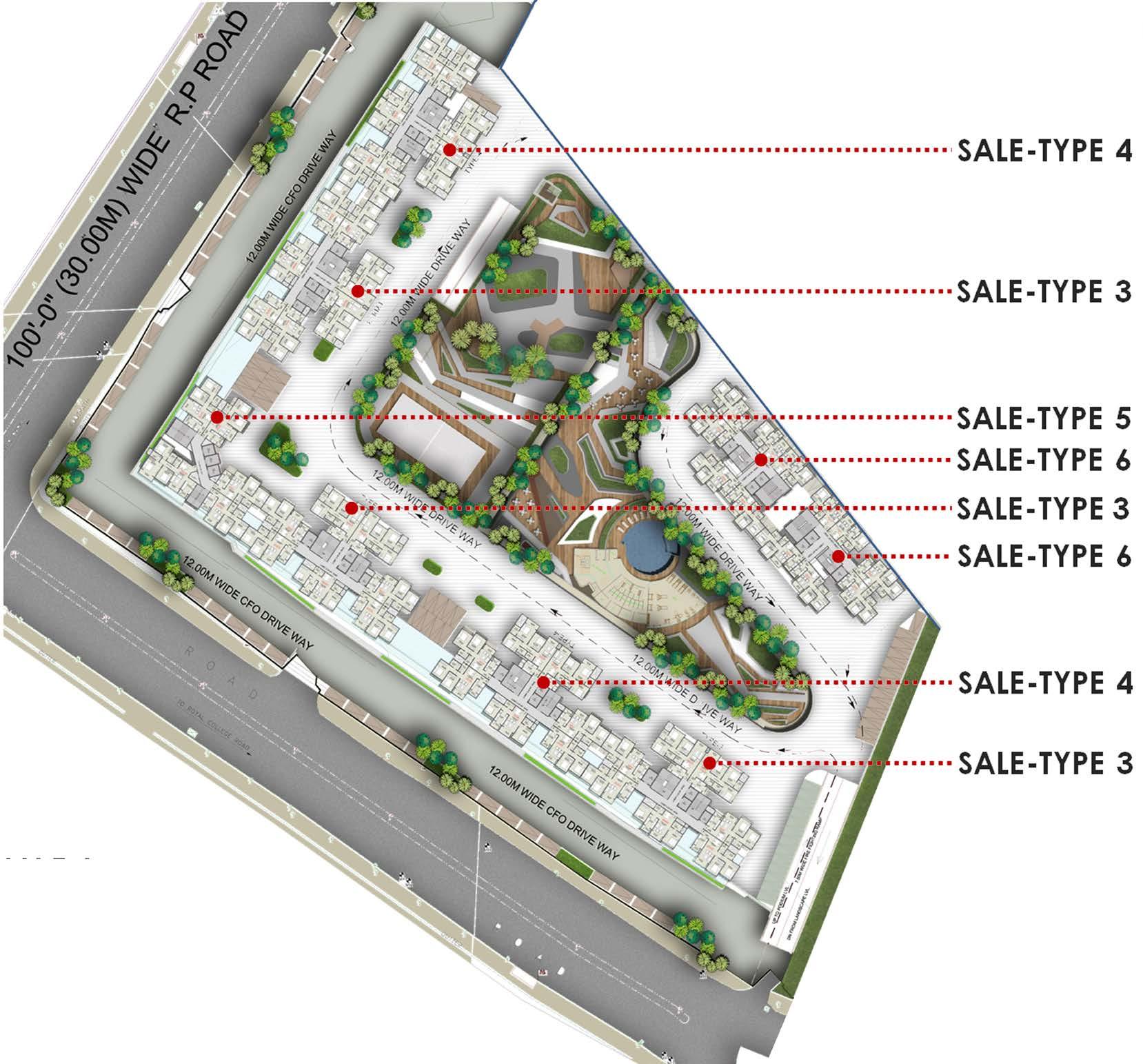

PHASE - 1 SALE & TENANT BUILDINGS

PHASE -2 SALE BUILDINIGS

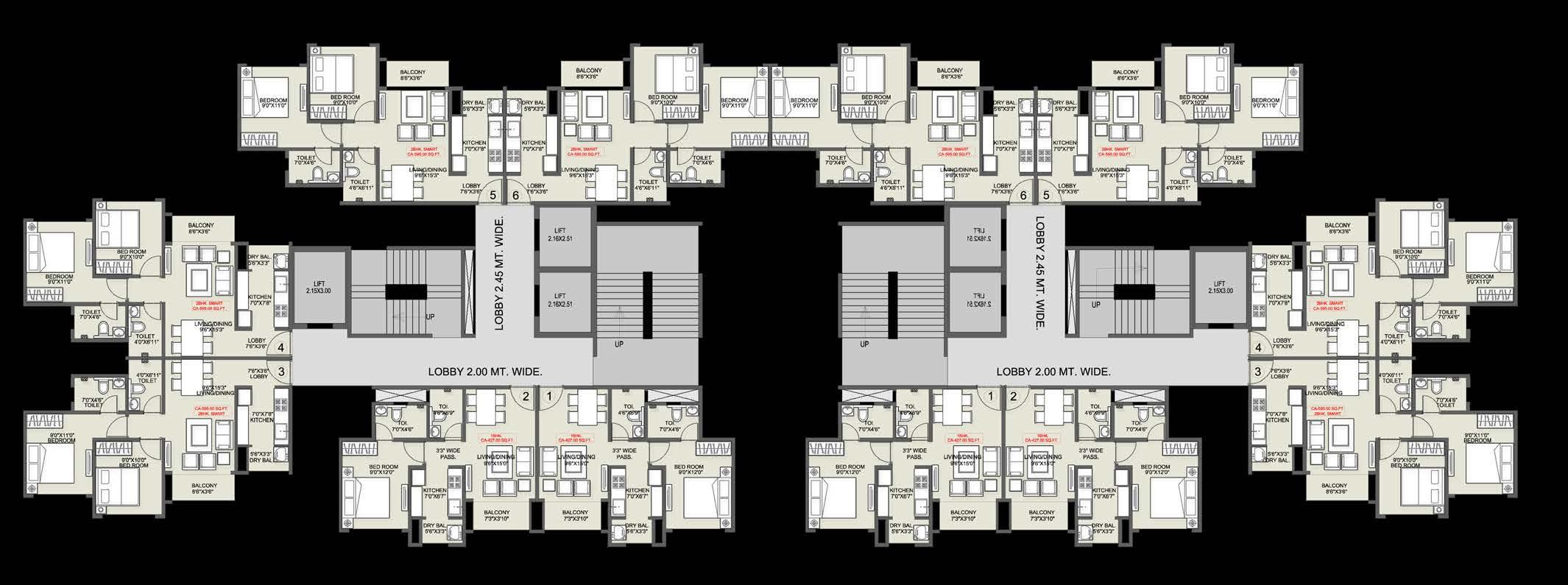

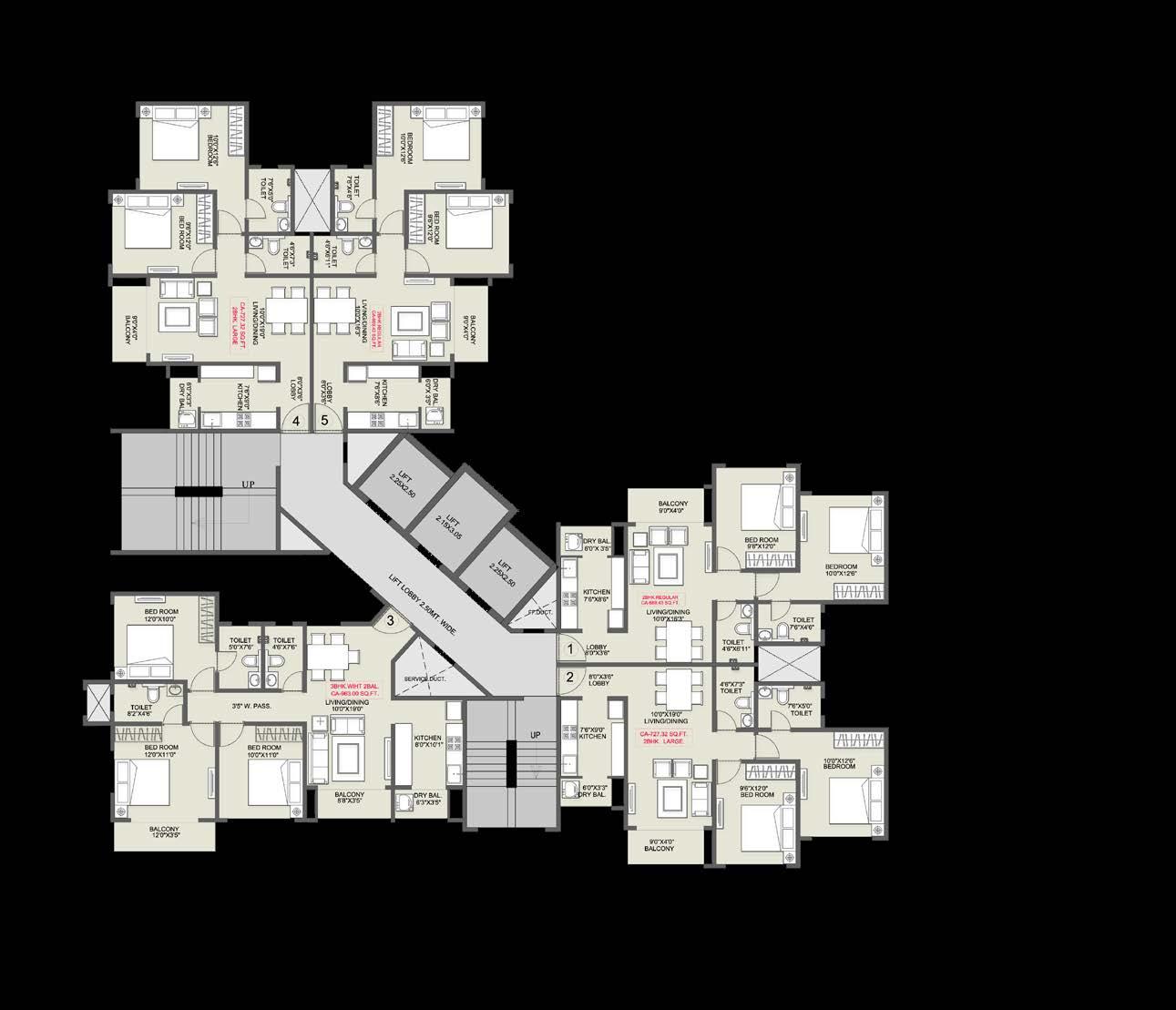

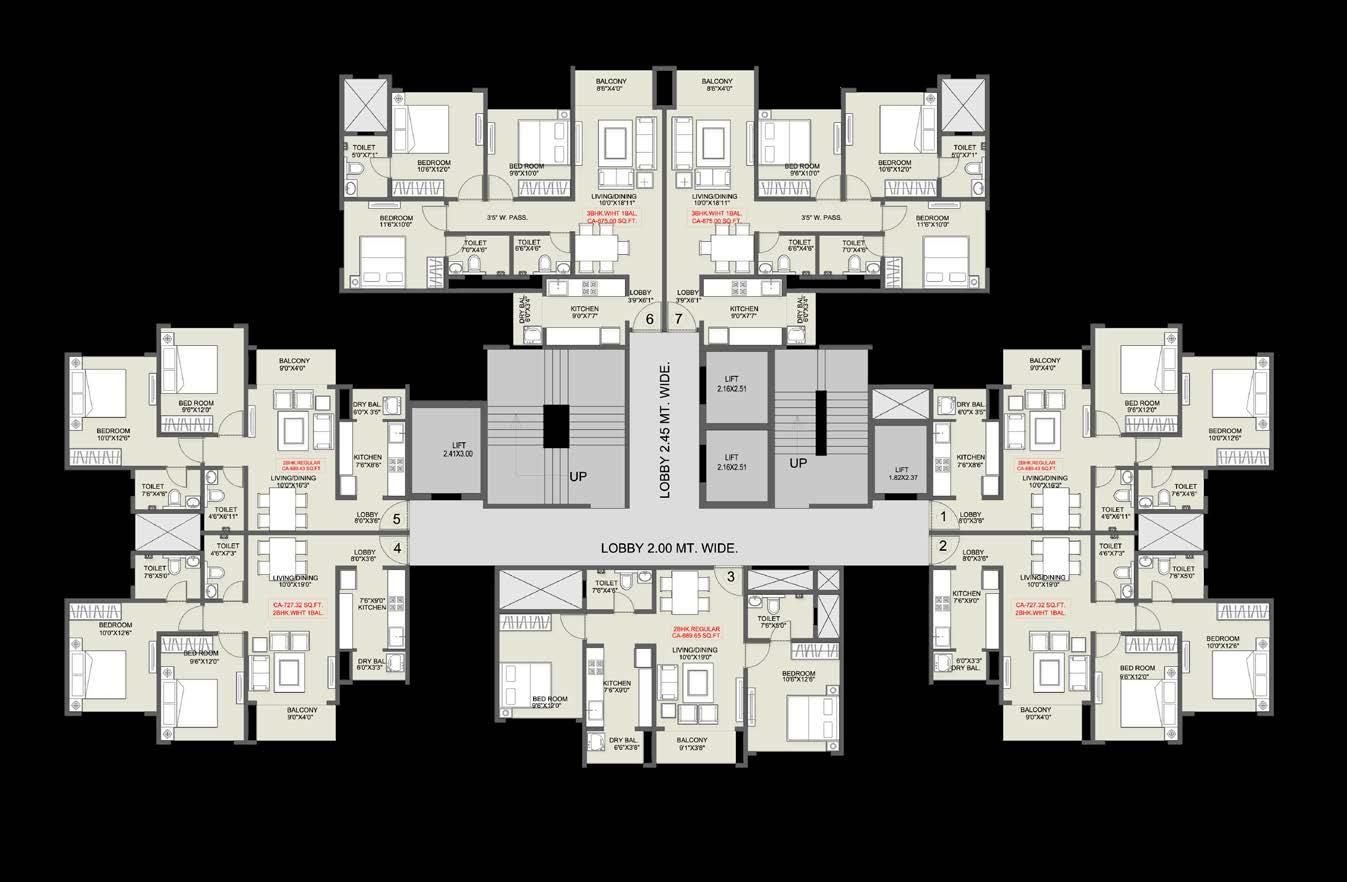

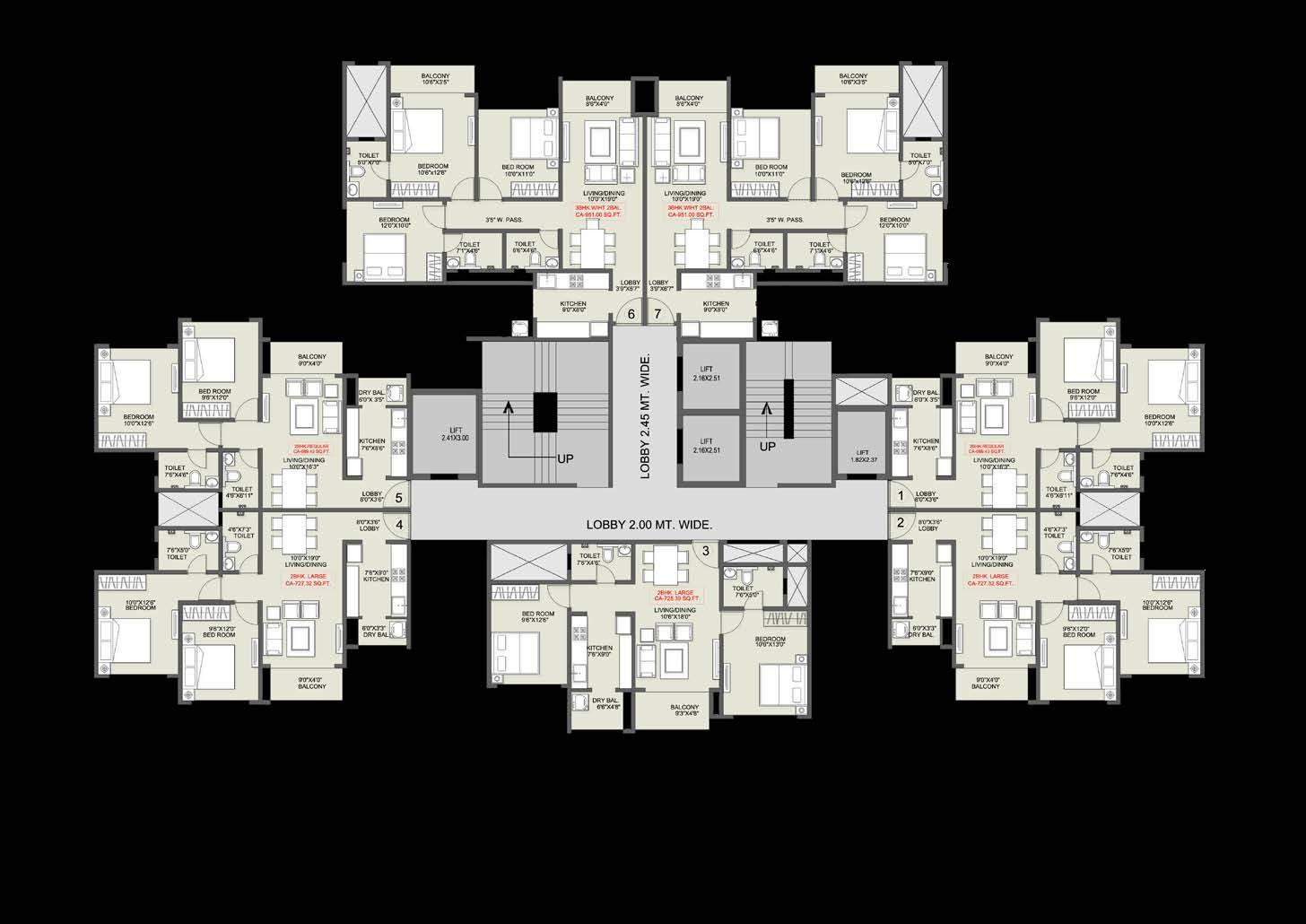

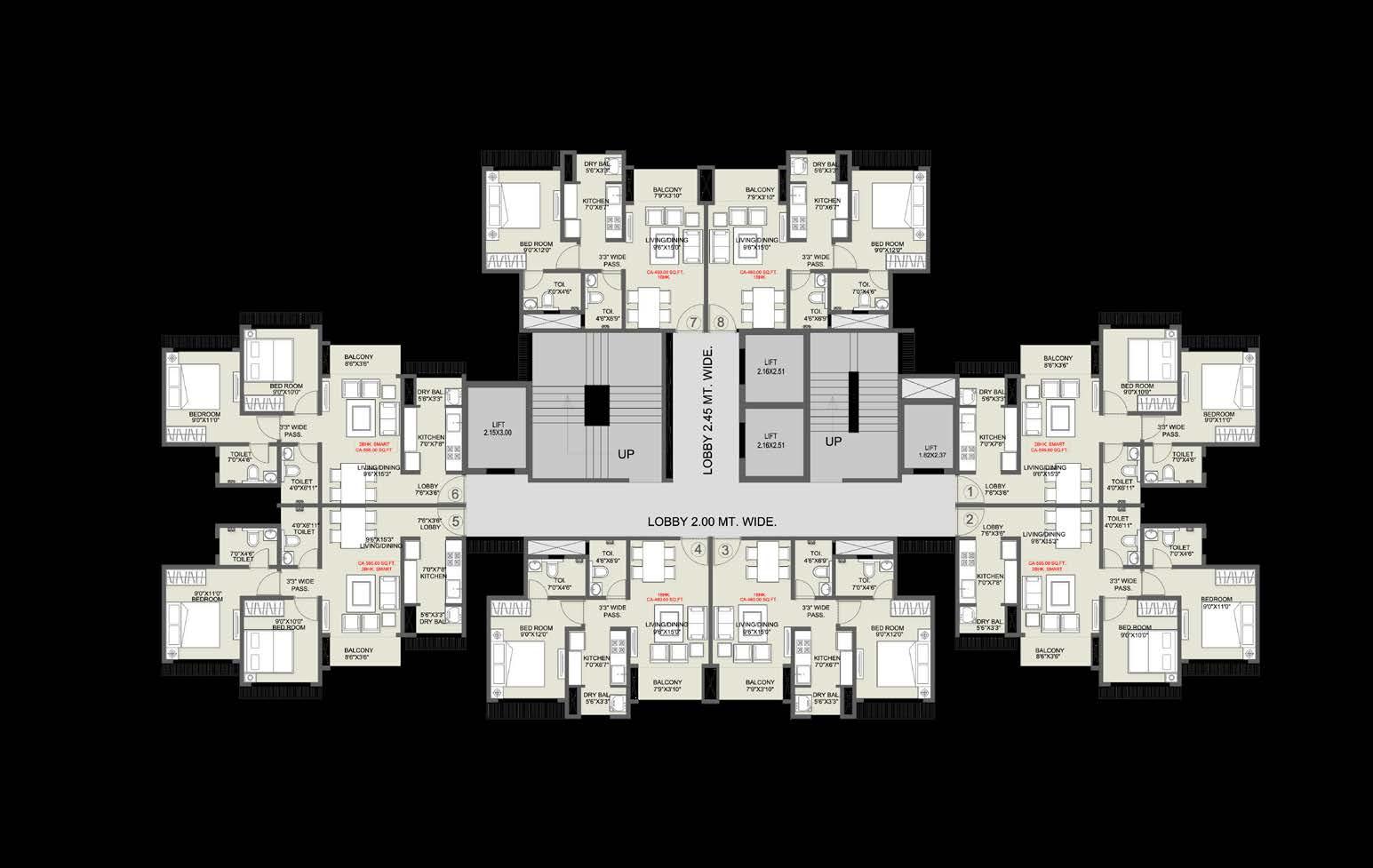

1,2,5,6 - 2BHK SMART 595 sq.ft. C.A. 3,4,7,8 - 1BHK 460 sq.ft. C.A.

TYPE 2

TYPE 3

TYPE 4

TYPE 5

1,2,5,6,7,8 - 2BHK SMART 595 sq.ft. C.A. 3,4, - 1BHK 460 sq.ft. C.A.

1,3,5 - 2BHK REGULAR 690 sq.ft. C.A., 2,4 - 2BHK LARGE 727 sq.ft. C.A. 6,7, - 3BHK (1BALCONY) 875 sq.ft. C.A.

TYPE 6

1,5 - 2BHK REGULAR 690 sq.ft. C.A. 2,4 - 2BHK LARGE 727sq.ft. C.A. 3, - 3BHK (2BALCONY) 964 sq.ft. C.A.

1,2, - 1BHK 460 sq.ft. C.A. 3,4,5,6 - 2BHK SMART 595 sq.ft. C.A.

1,5 - 2BHK REGULAR 690 sq.ft. C.A., 2,3,4 - 2BHK LARGE 725 sq.ft. C.A. 6,7, - 3BHK (2BALCONY) 950 sq.ft. C.A.

TYPE 1

TYPE 2

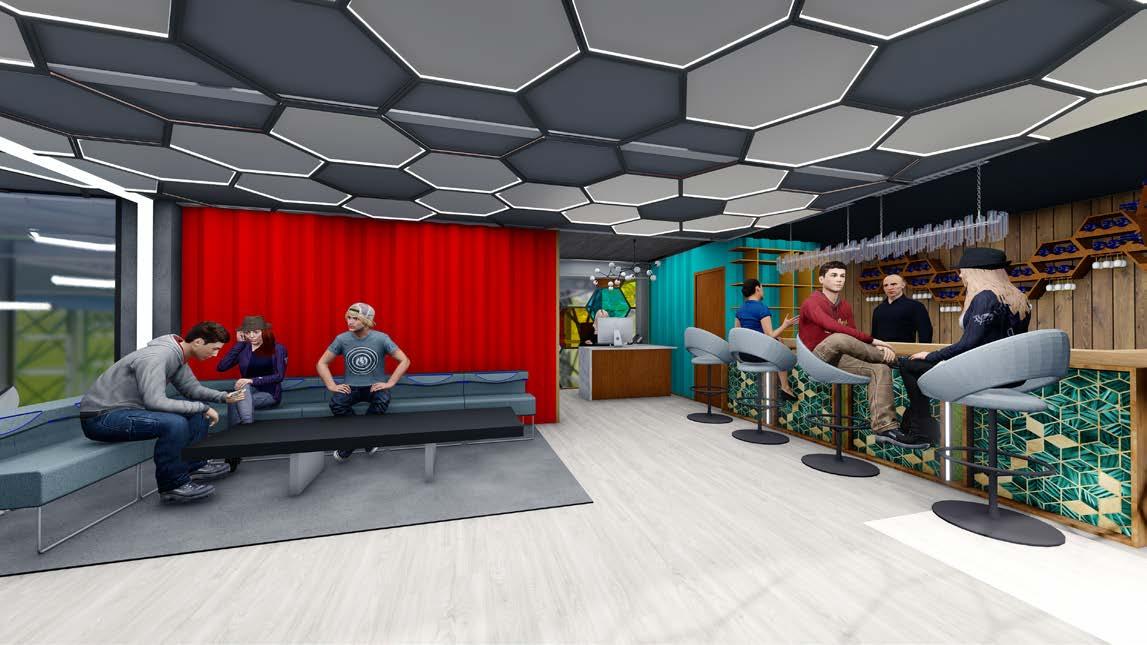

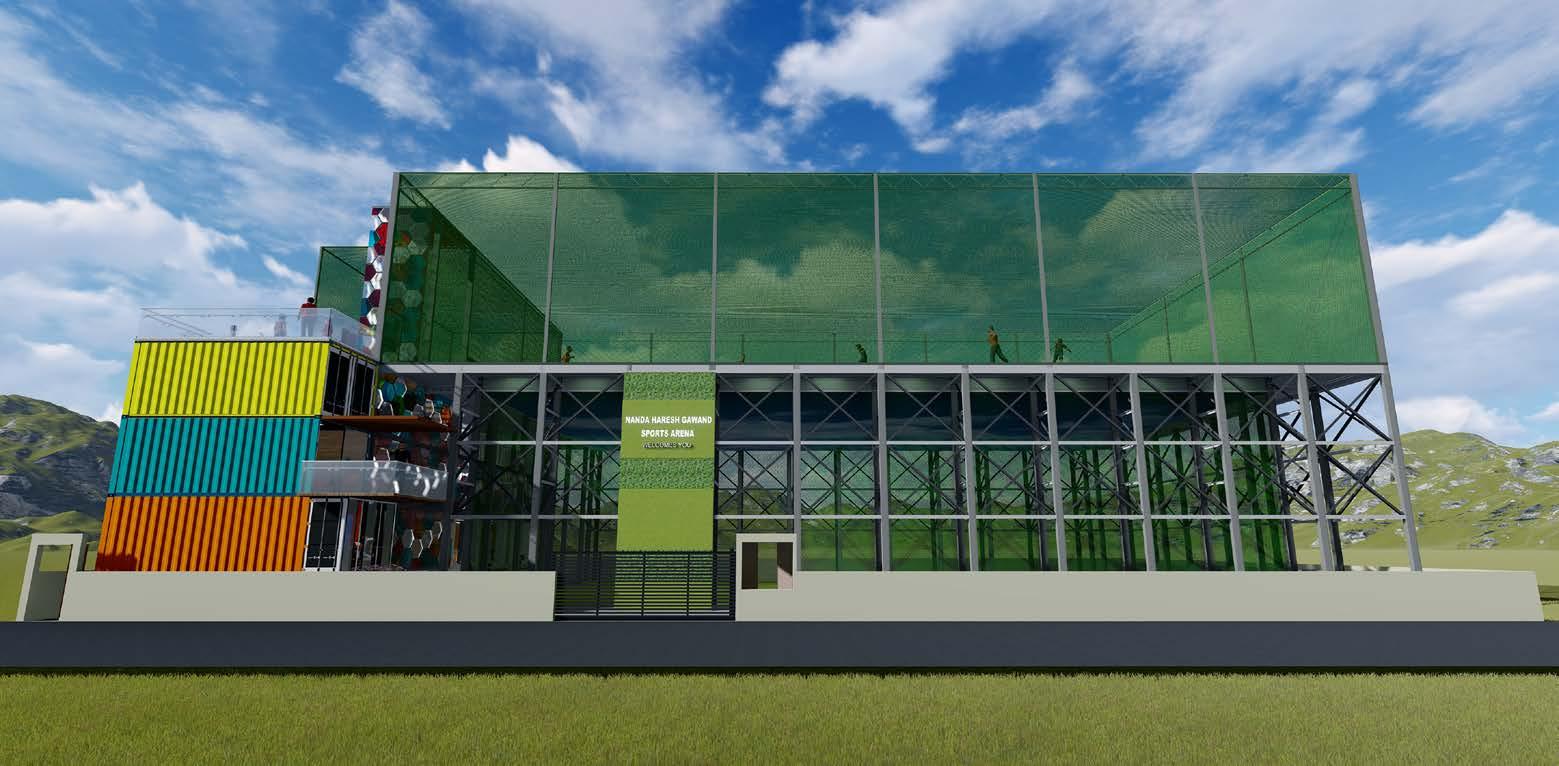

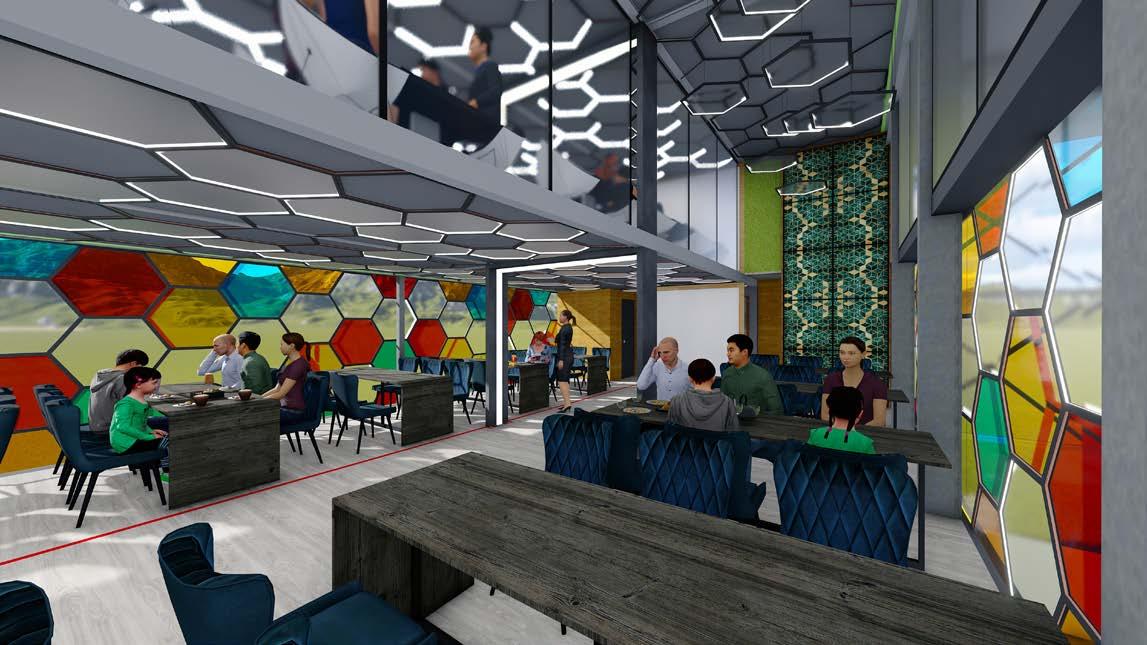

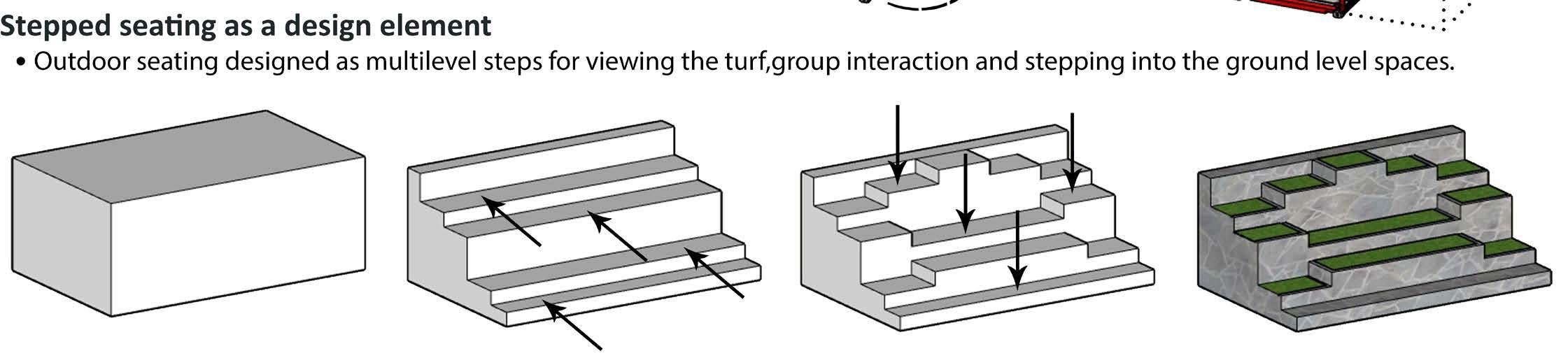

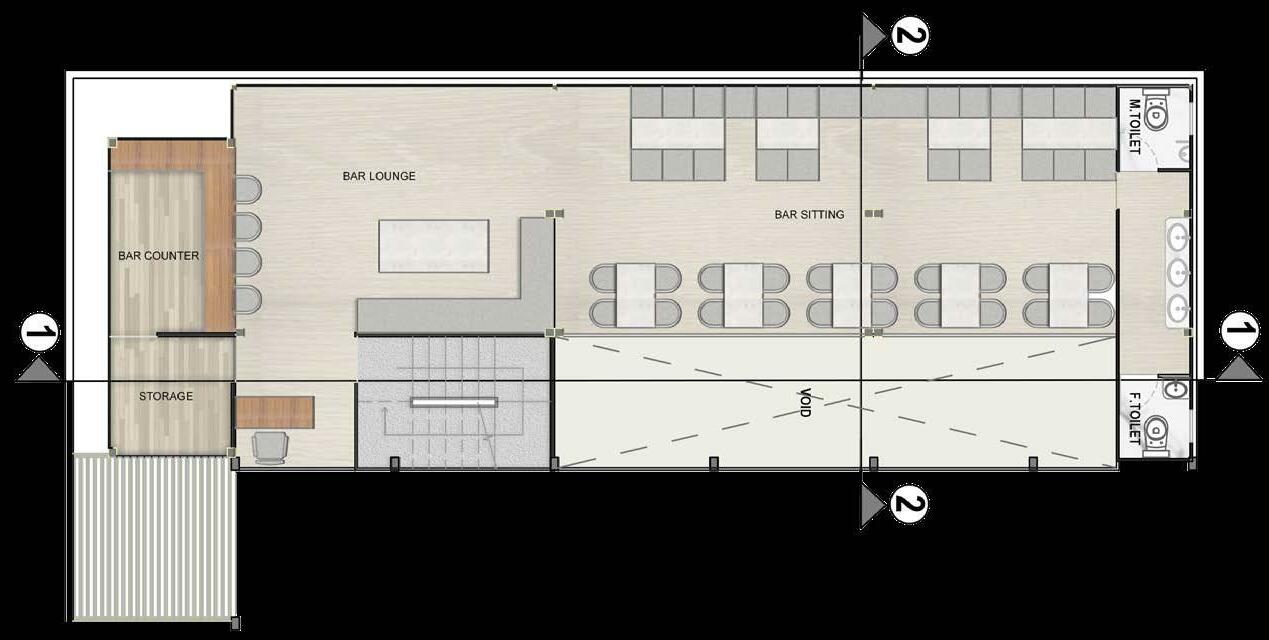

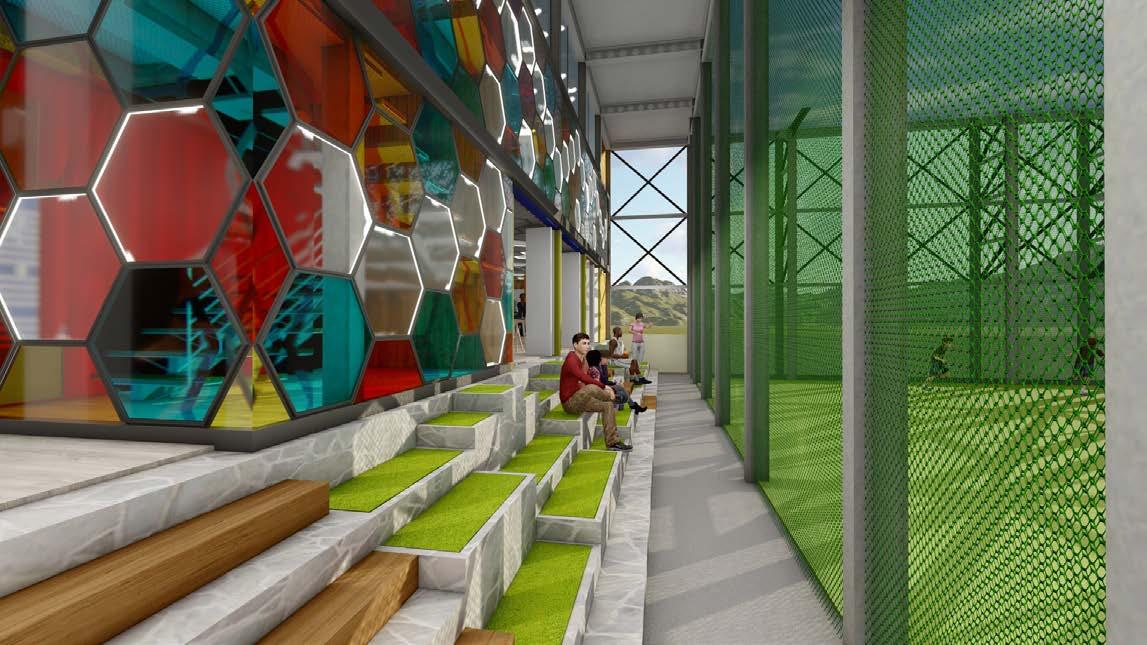

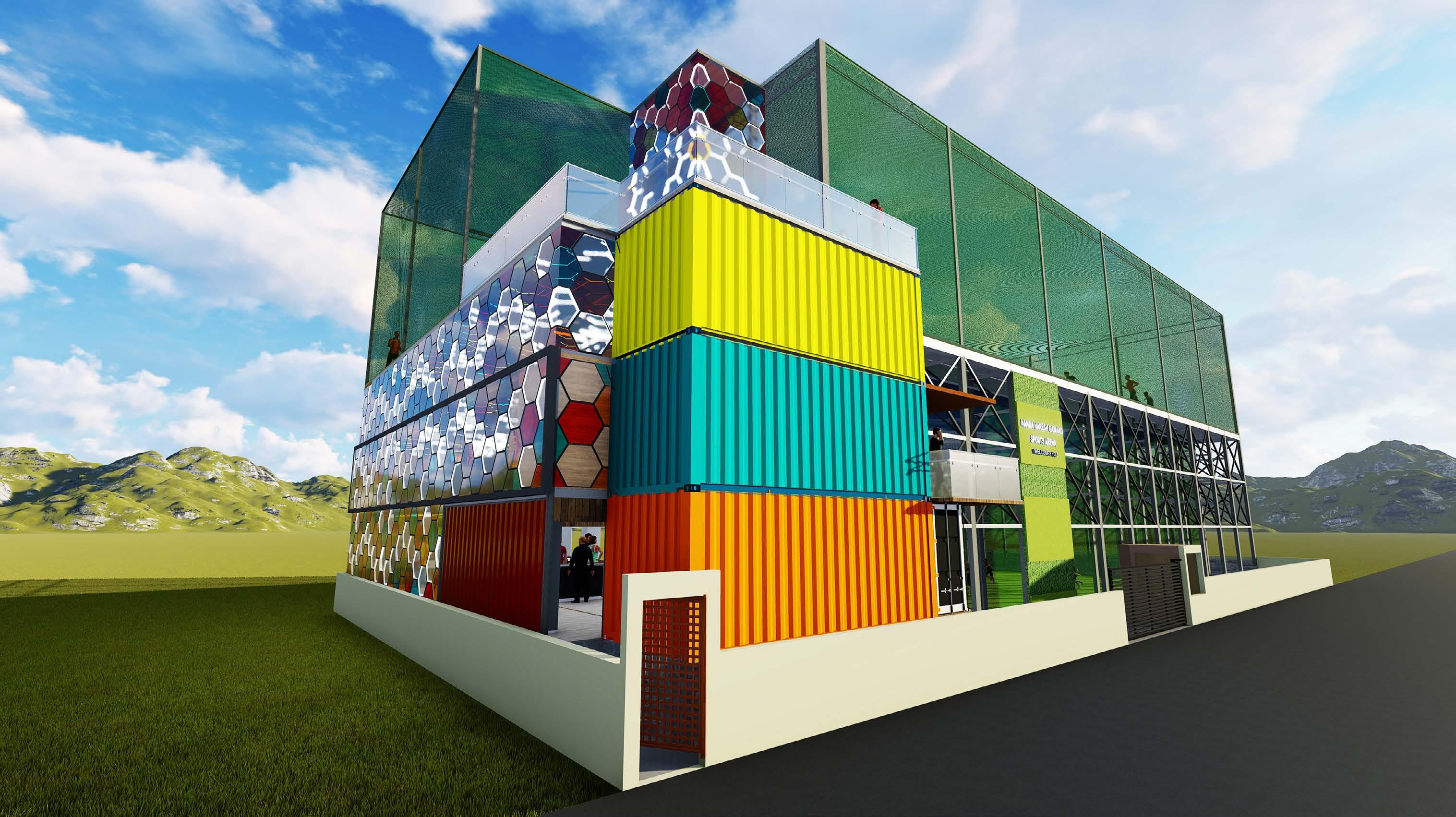

SPORTS ARENA HUB

January 2022 - at present | Project head for Yakshashri Architects

Type : Public use & Sports

PROJECT BRIEF

The aim was to achieve a sustainable design solution for for the given brief of having leisure space for public use and probably the first ever multilevel sports turf in India which would be a signature design for future frenchise of the company within Maharashtra. The idea was developed by using shipping containers as a design module due to its design flexibility, high durability and strength, transportation versatility, ease of execution on site and low costing, makinig it highly sustainable as a structural material.

RESPONSIBILITIES

Representing the company as the project Architect by producing and presenting concept drawings, design development drawings to the client and vendors for technical & structural specifications, guiding the in-house team for progressive work during various design stages.

The project aims to be completed in the mid of 2023.

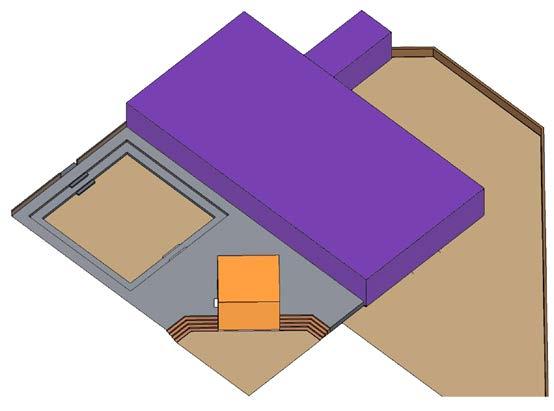

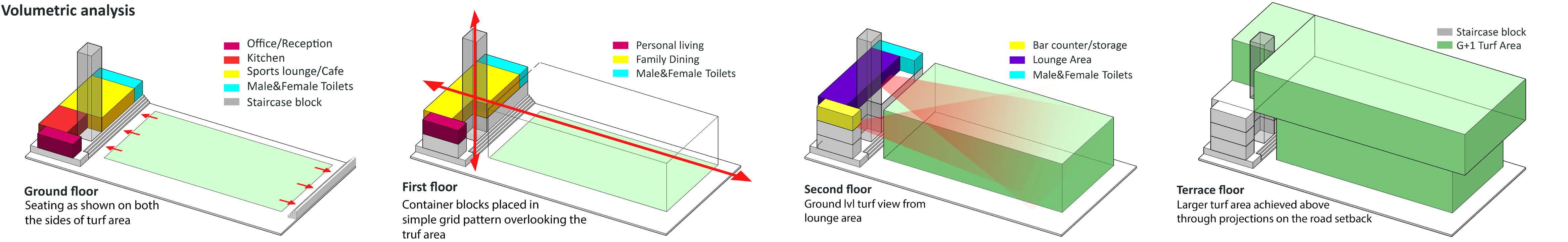

Parking space to be amalgamated on approval 5,246SQ.FT

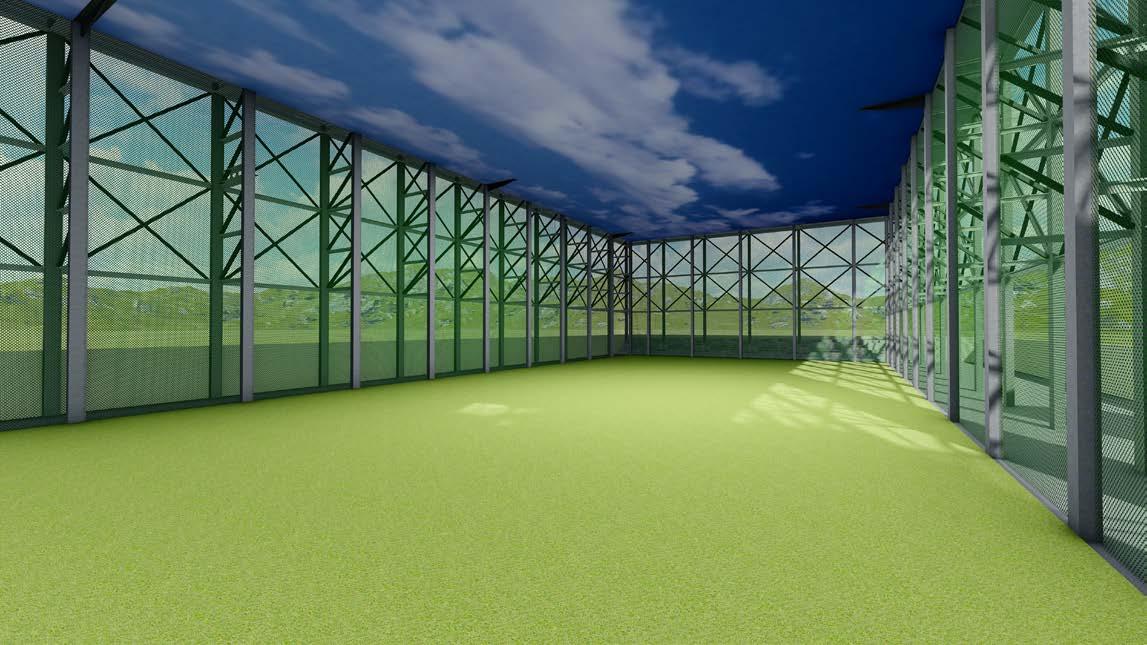

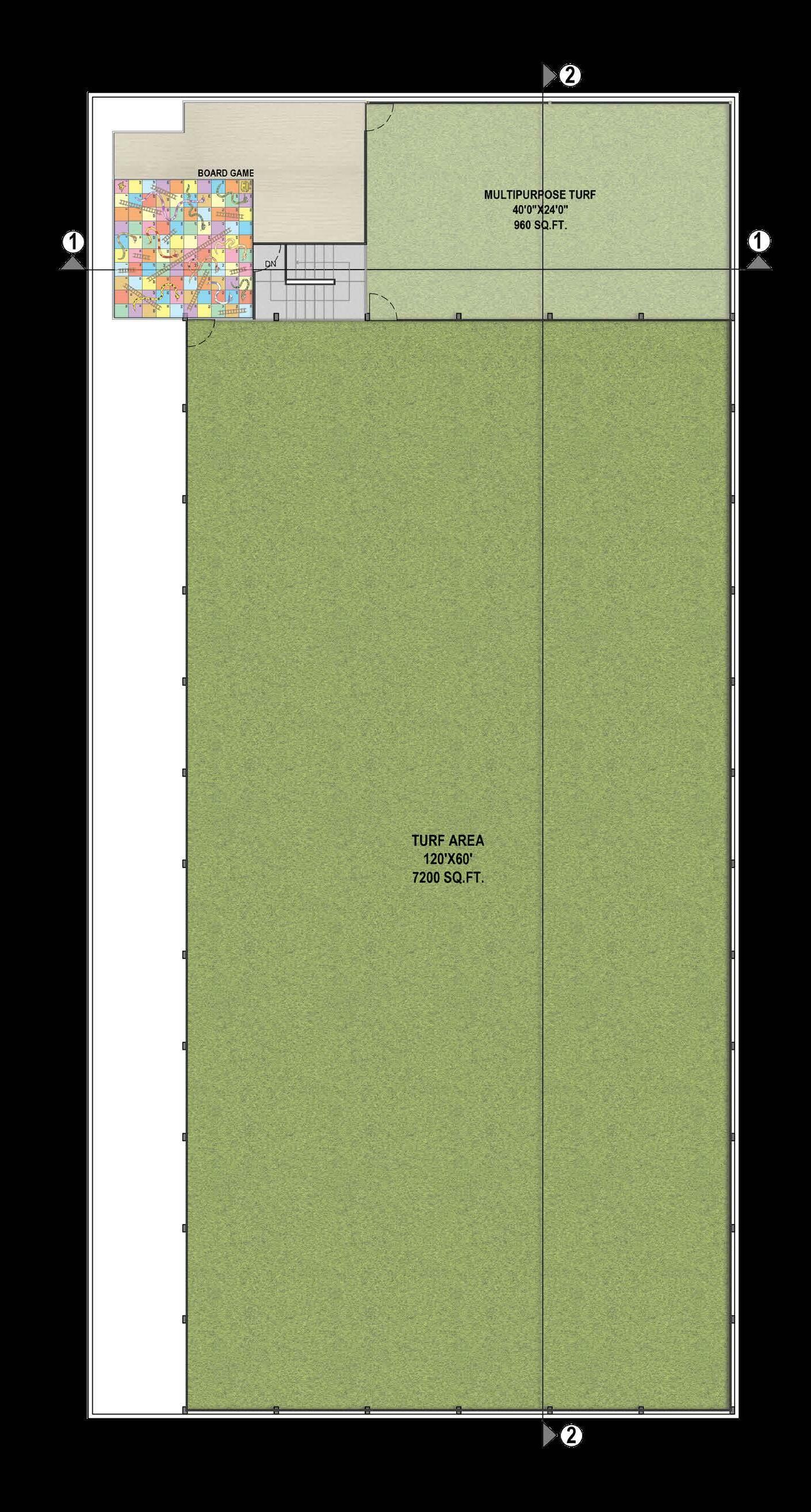

- Turf area 7,200 SQ.FT.

- Container space 2,800 SQ.FT.

NET PLOT AREA 15,246SQ.FT. (0.35 Acre)

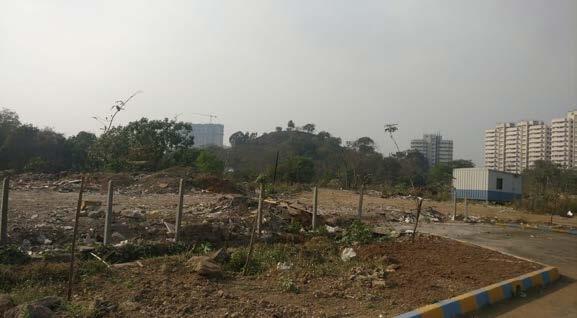

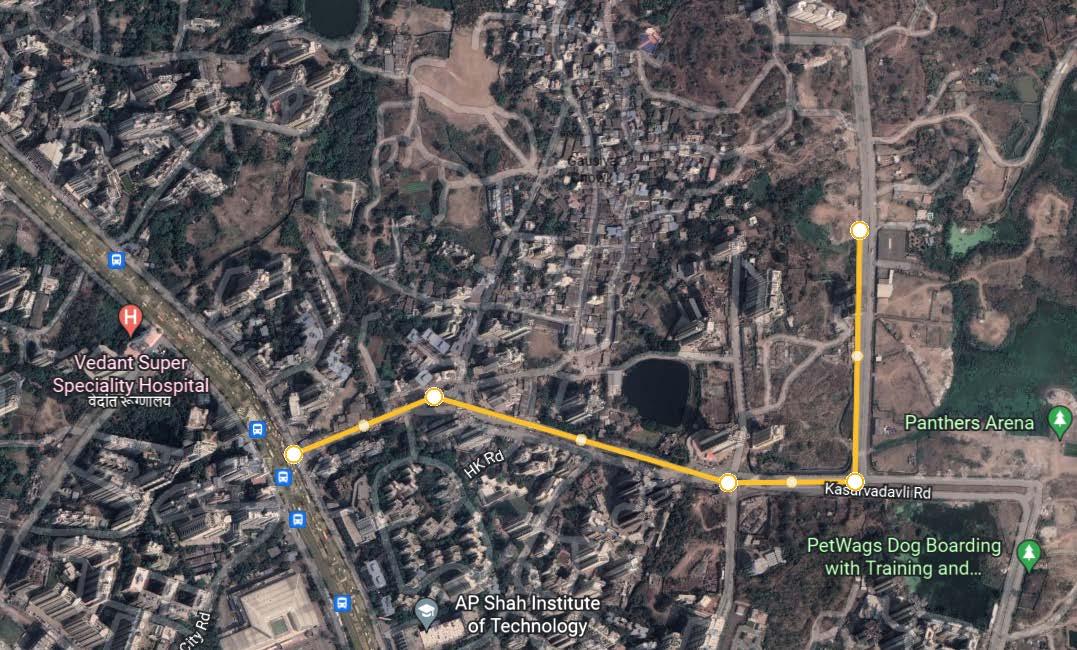

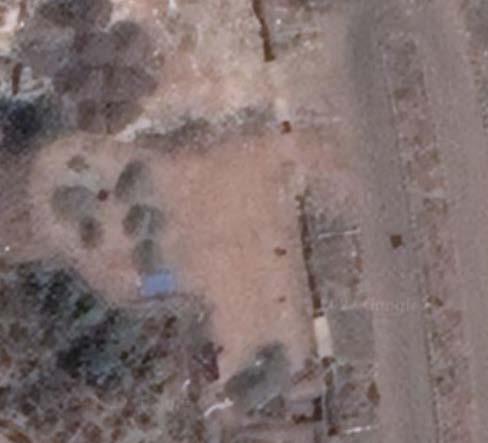

The site is located in the vicinity of the dense footprint of residential and commercial complexes in Thane, being easily accessible by 30m wide road and approximately 1,270m from the main road at its west.

30m wide Ghodbunder Rd Kasarvadavali bus stop Proposed site 15,246 sq.ft.

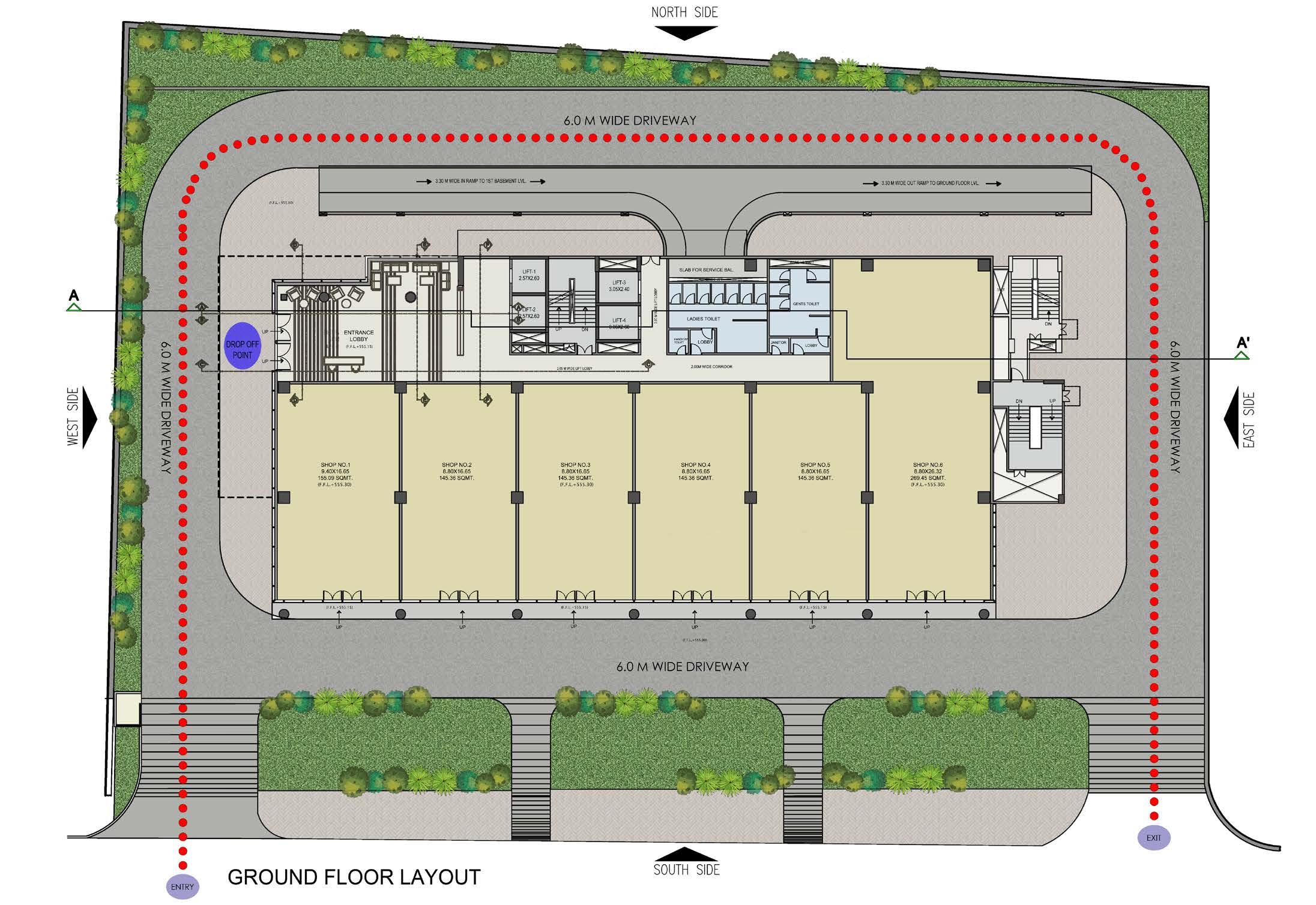

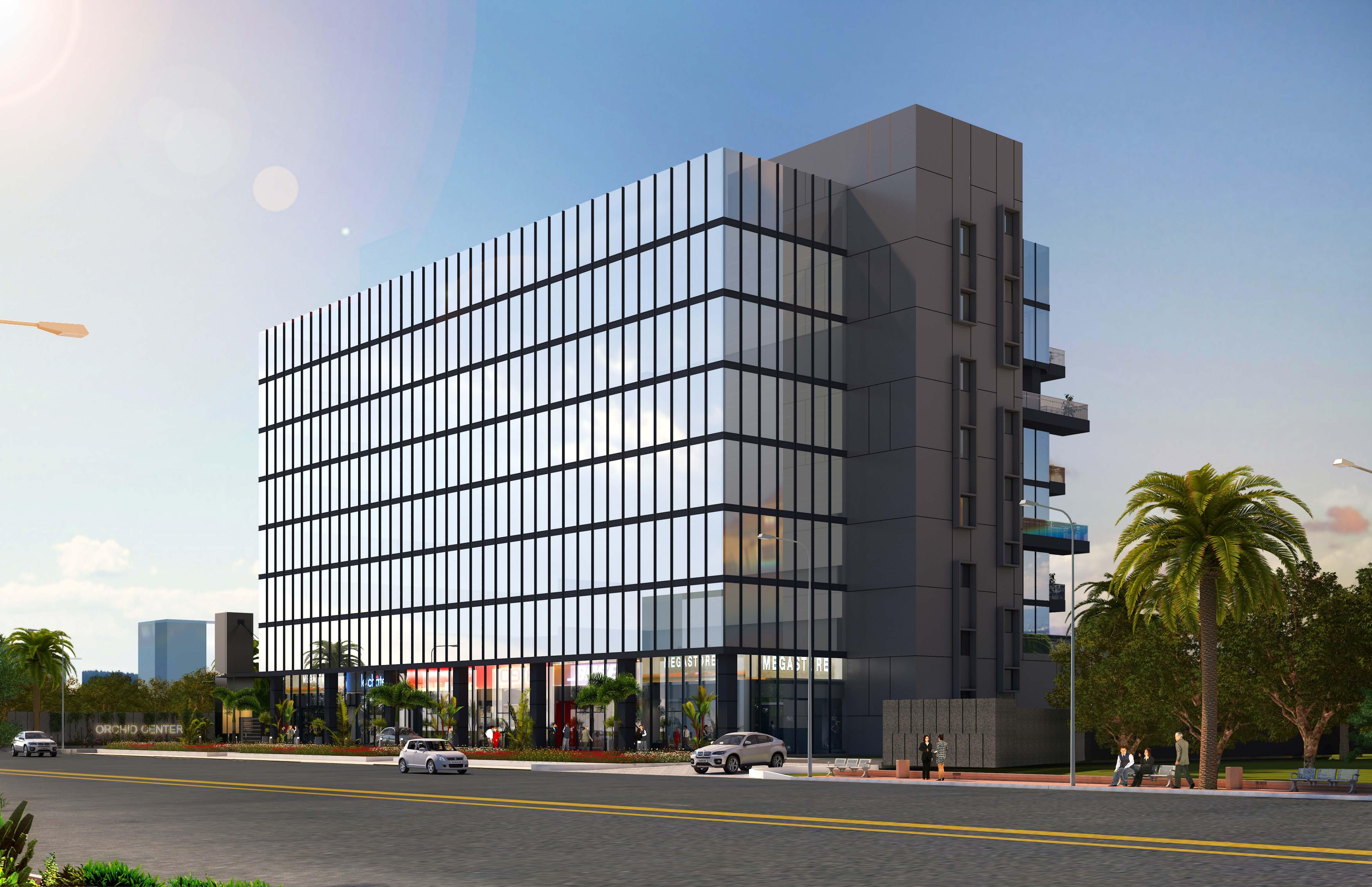

ORCHID CENTRE COMMERCIAL PROJECT, PUNE

INDIVIDUAL | PROFESSIONAL WORK AT MQA AUGUST 2018 - January 2019 | STATUS : COMPLETED

ROESPONSIBILITIES

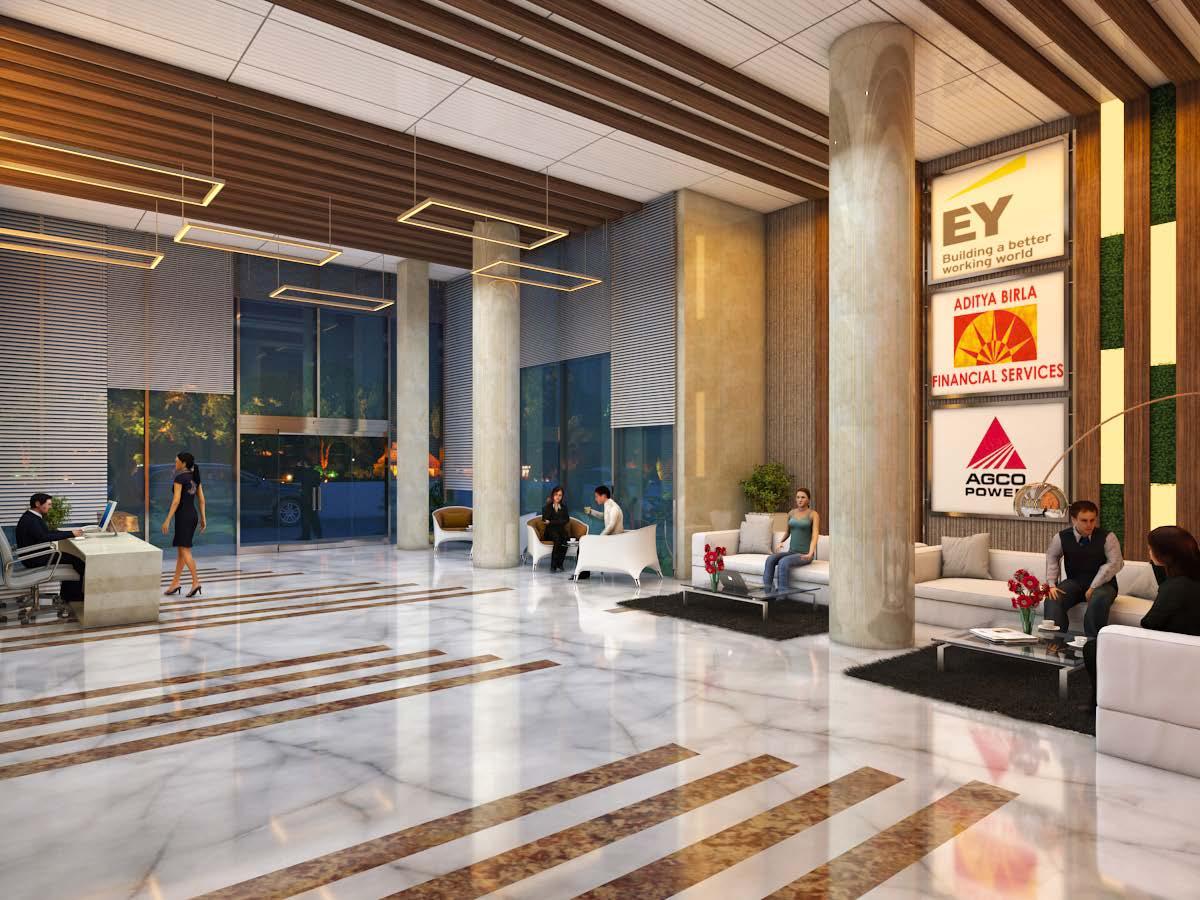

Planning and designing the entire scheme of the project with respect to its site development, building elevation design, lobby interior design and detailing. Producing working drawings for coordinating with MEP & HVAC consultants for design execution, 3D renders and views.
