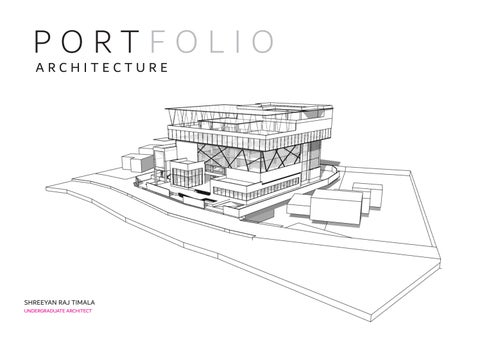

Undergrad Architectural Portfolio

PORT FOLIO

ARCHITECTURE

SHREEYAN RAJ TIMALA

UNDERGRADUATE ARCHITECT

SEE ...................................................... 2018

Kavya School New Baneshwor, Kathmandu

+2 .......................................... (2018-2020)

Kathmandu World School Gundu, Bhaktapur

Bachelors ........................ (2021-Present)

Himalaya College Of Engineering Chyasal, Lalitpur

Drafting (AutoCAD / Hand Drafts)

3D (Sketchup)

Render (Lumion / V-Ray)

Others

(Photoshop/Indesign/ Model Making)

Leadership Team Work

Quick Learner

Highly Motivated

Agile Mindset

Continious Development Oriented Initiative Driven Quality Focused

SHILADEVI SCHOOL

EXPANSION PROJECT

TERM : FOURTH SEMESTER

PROJECT : PRIMARY SCHOOL

TYPE : STONE MASONARY

SITE :DHOKSAN

AREA :1888 SQ. M.

PROJECT BRIEF:

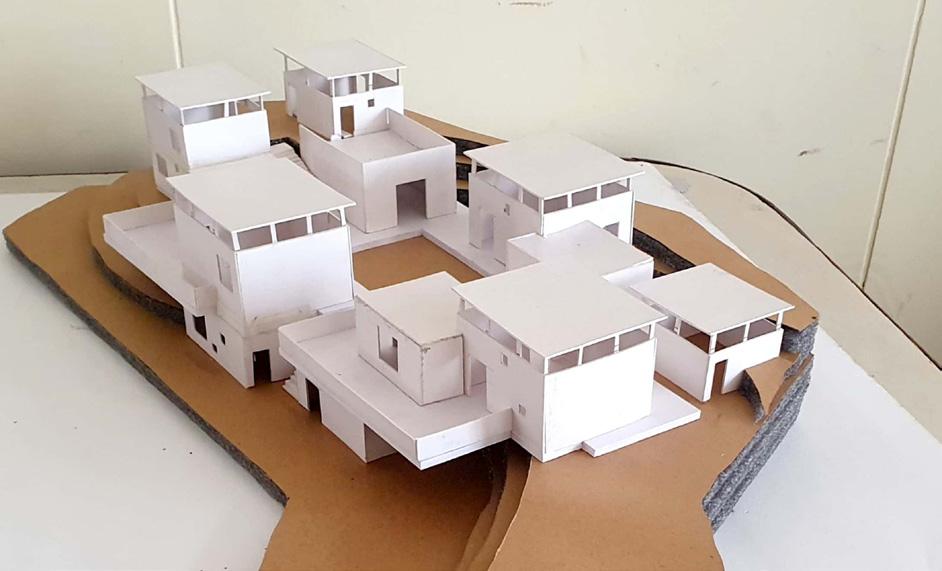

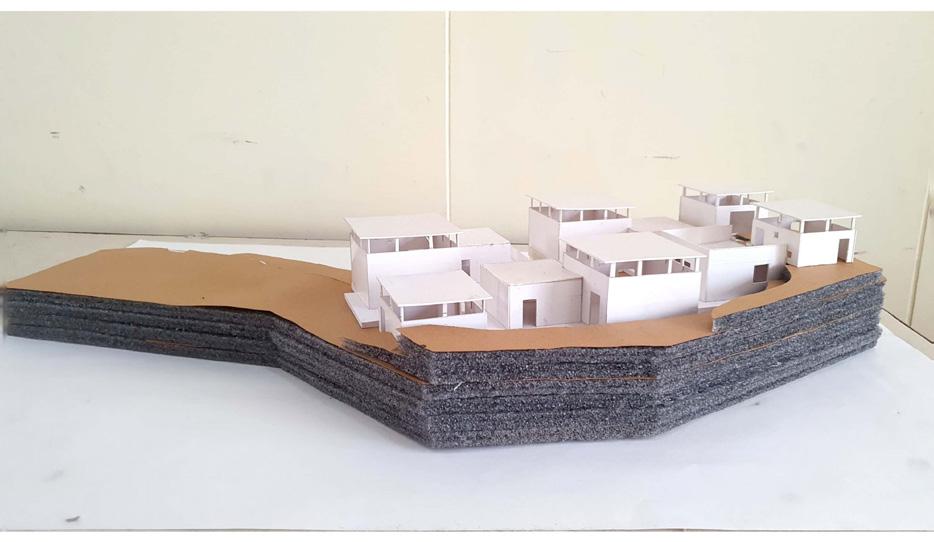

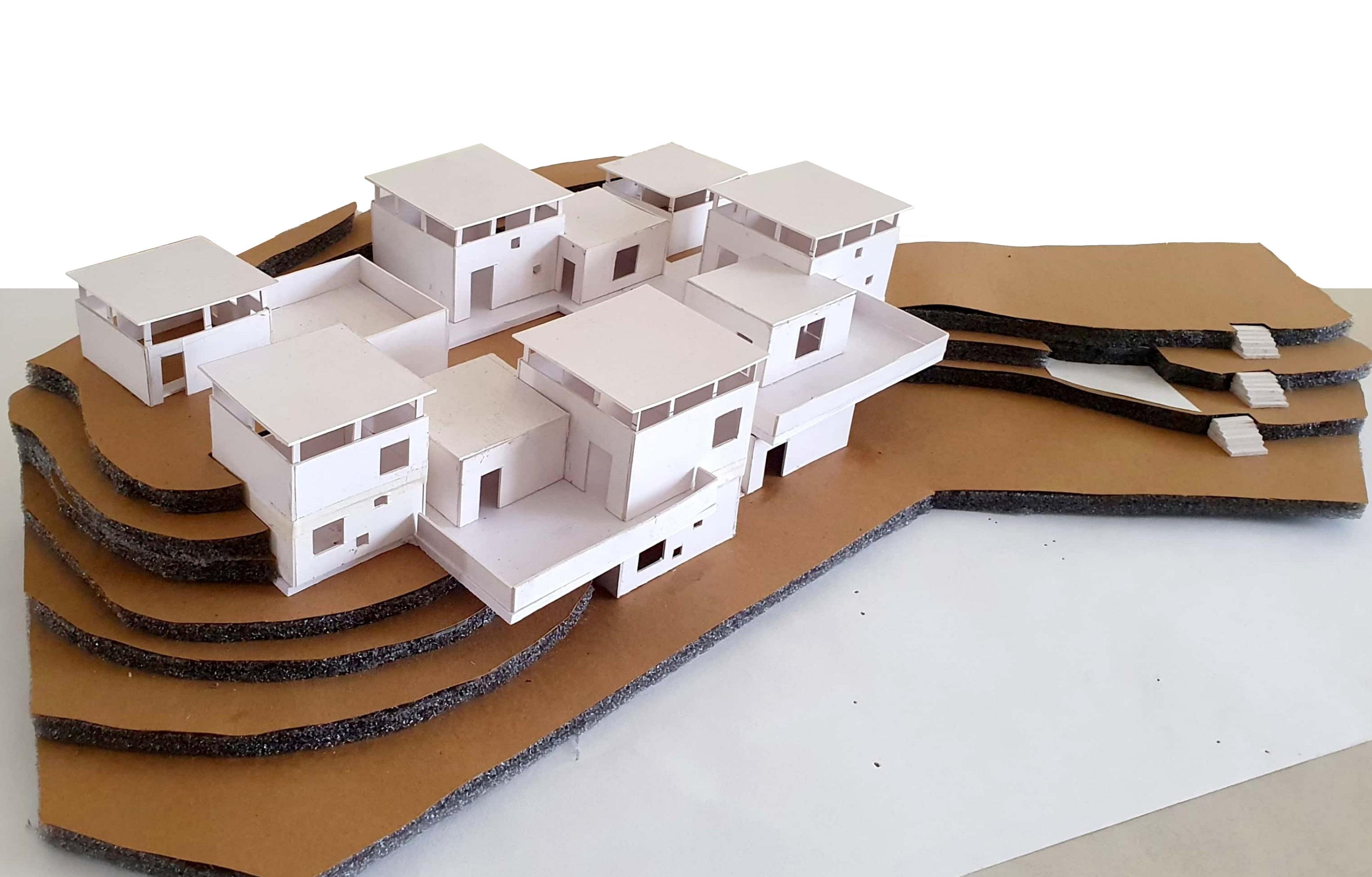

In this project we were tasked to expand shree shiladevi school to high school by building kindergarten and primary school. The building was asked to be low tech and environment friendly. The school should have 6 classes accomodating 18 students each.

CONCEPT: (SECOND HOME)

For me school should not be a home but it must be like a second home that fills the gap of facilities that home cannot provide. While researching regarding the facilities what home lacks I came to a conclusion with three subjects:

1. Interaction

2. Sense of responsibbility

3. Individual growth to mental simulation

Thus, my concept revolves around fullfillment of these conditions by creating interacvtive school where children can develop together interacting with eachother. This type of school will help student develop a mindset which enables them to adpat anywhere in this fast-paced modern world.

CONTOUR

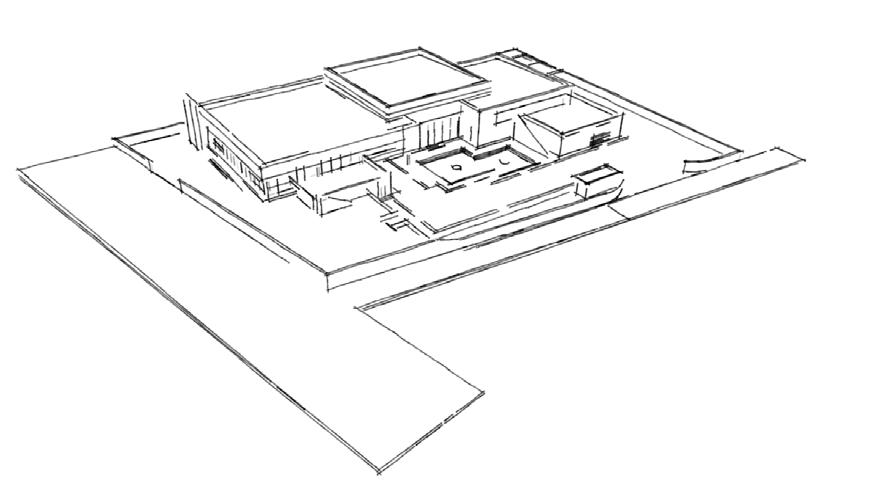

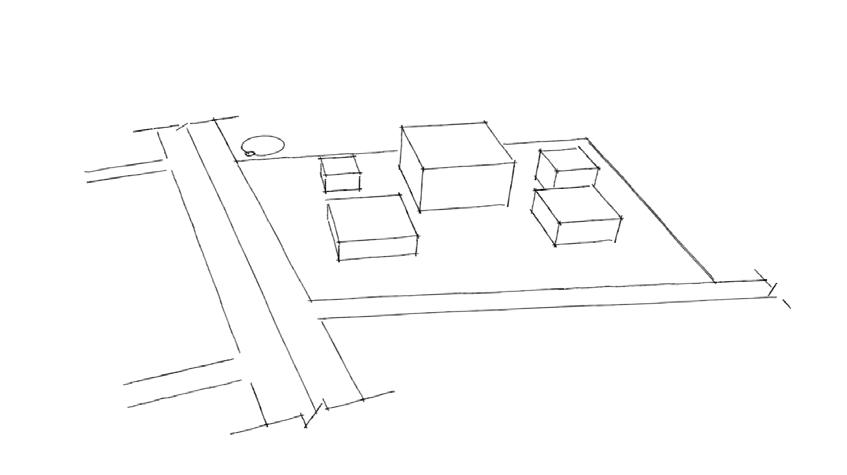

SITE STRATEGY

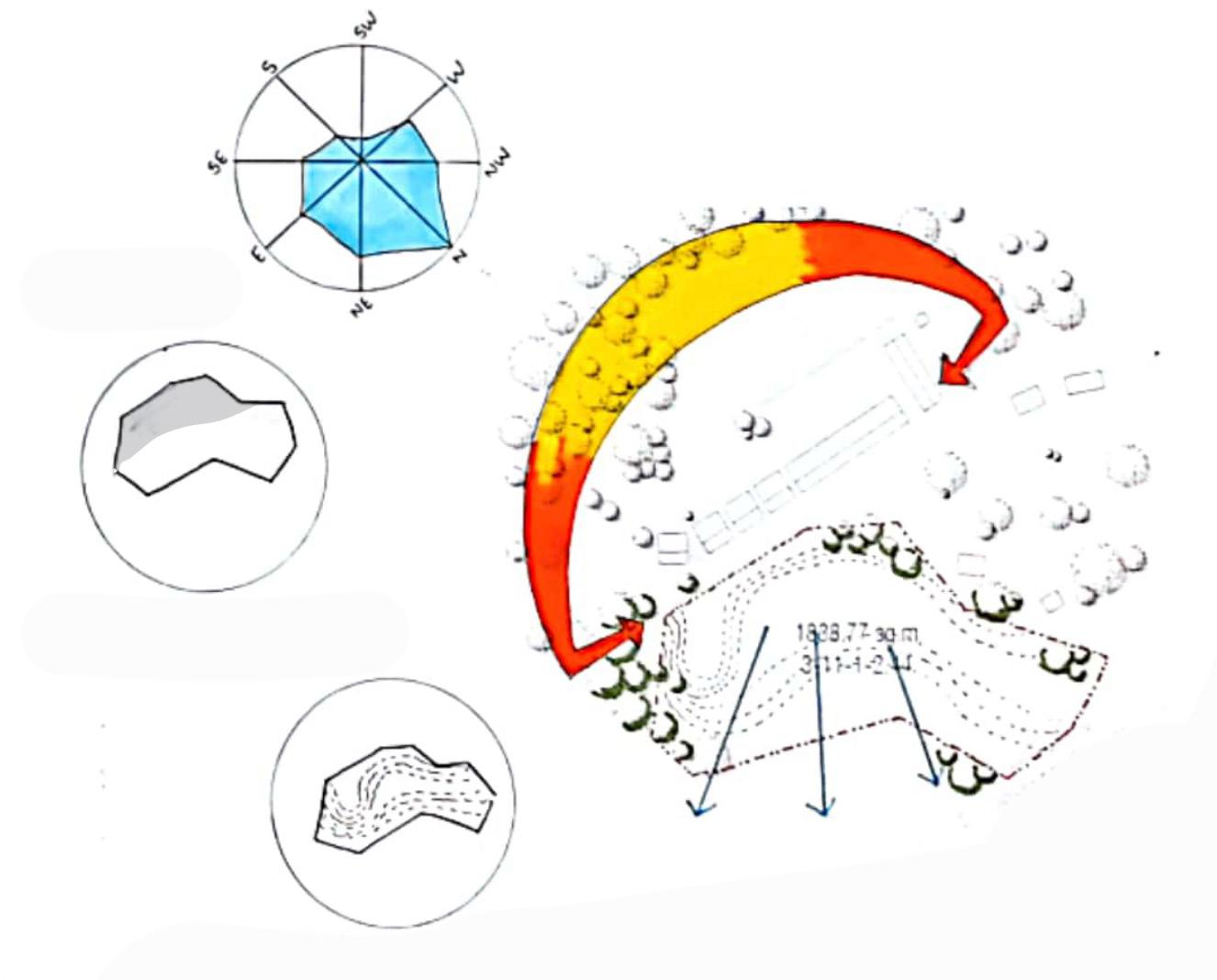

SITE ANALYSIS

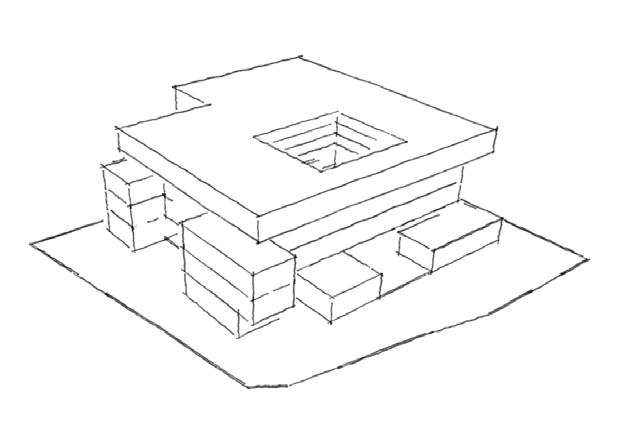

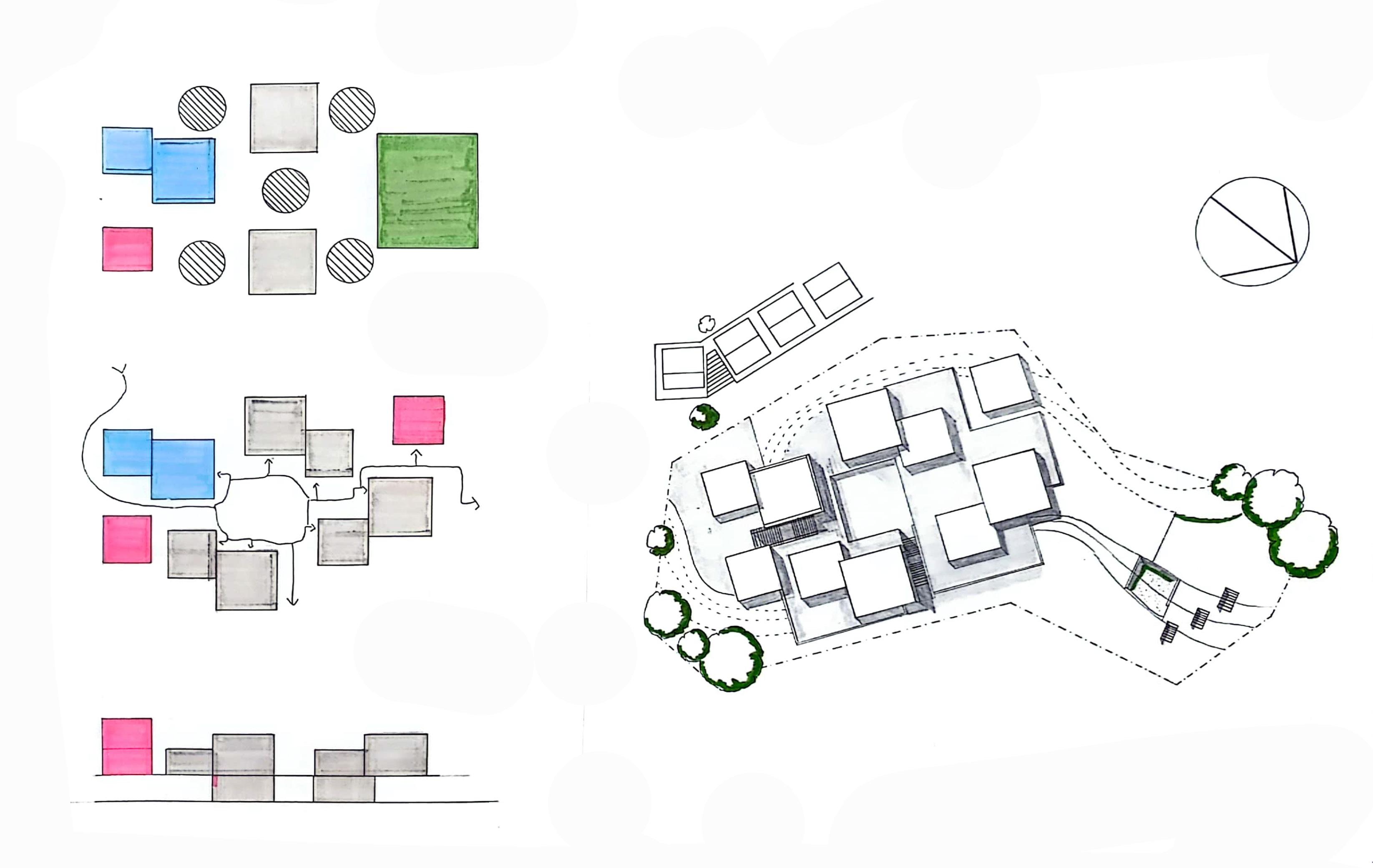

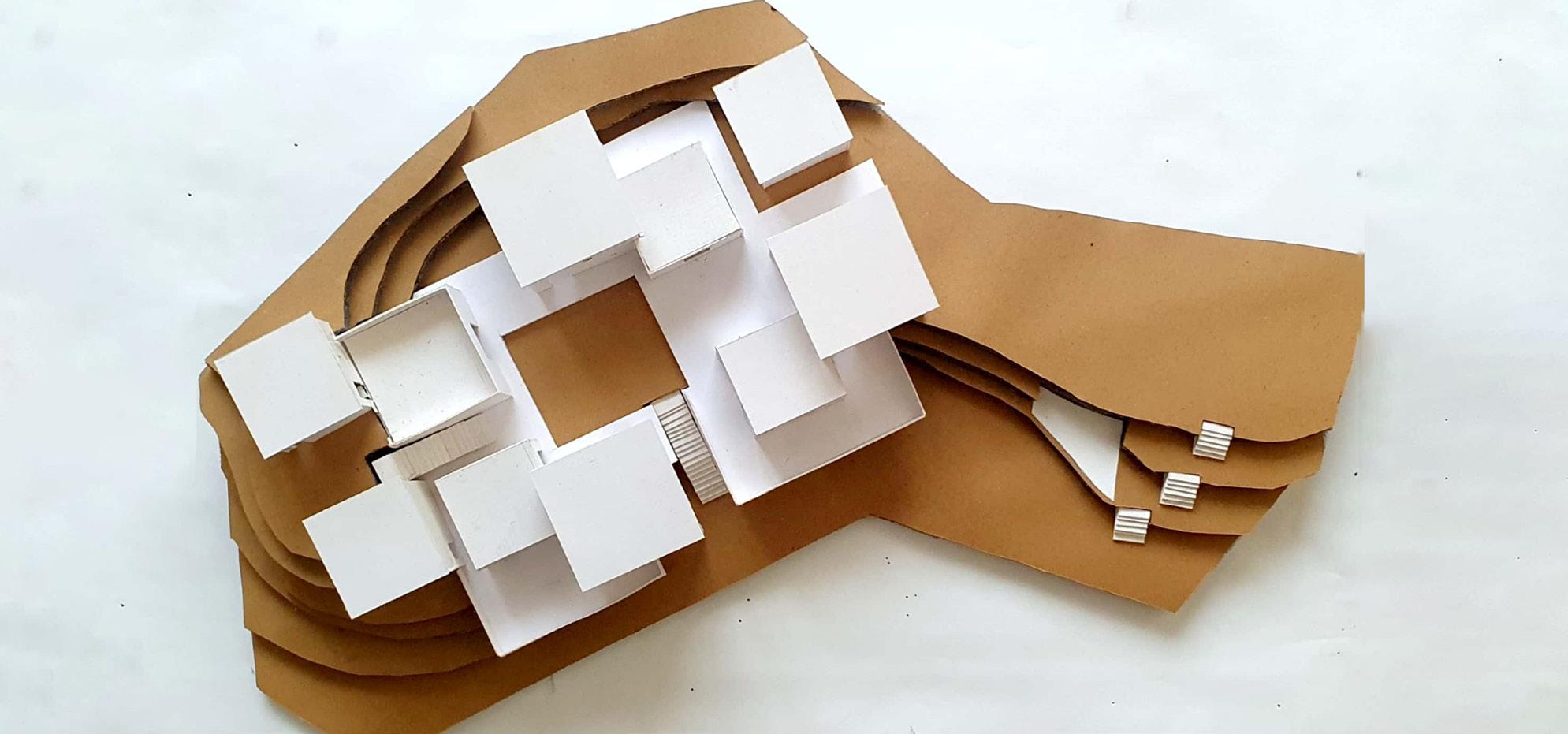

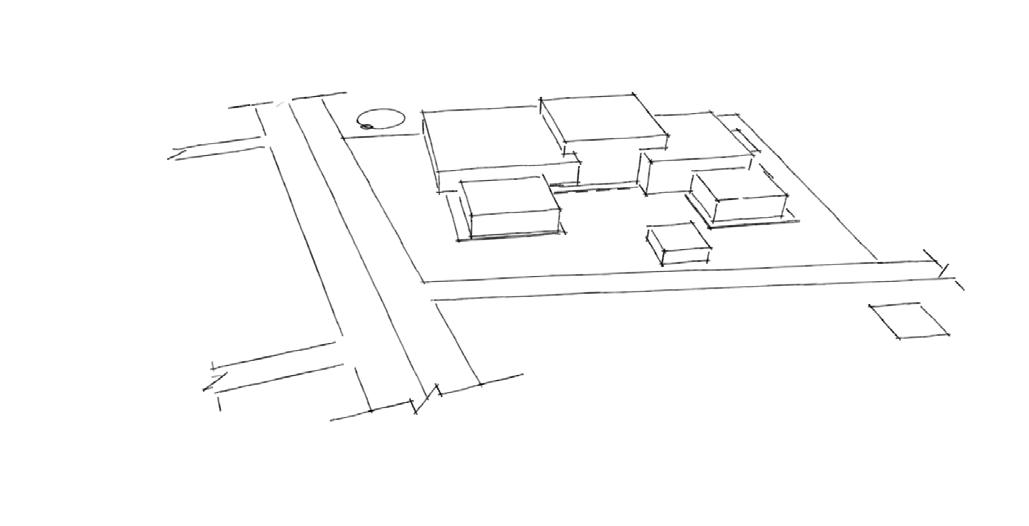

MASSING CONCEPT

CONCEPT:

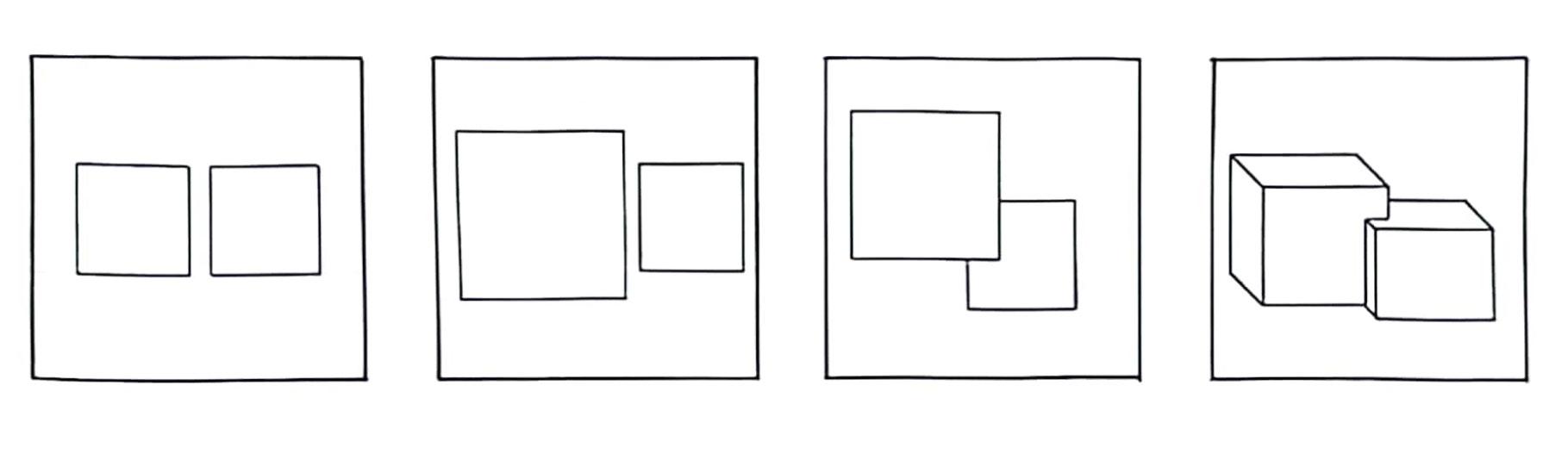

Two classes attcahed to eachother where one is of kindergarden and the other is for primary. primary class acting as guardian to the kindergarten.

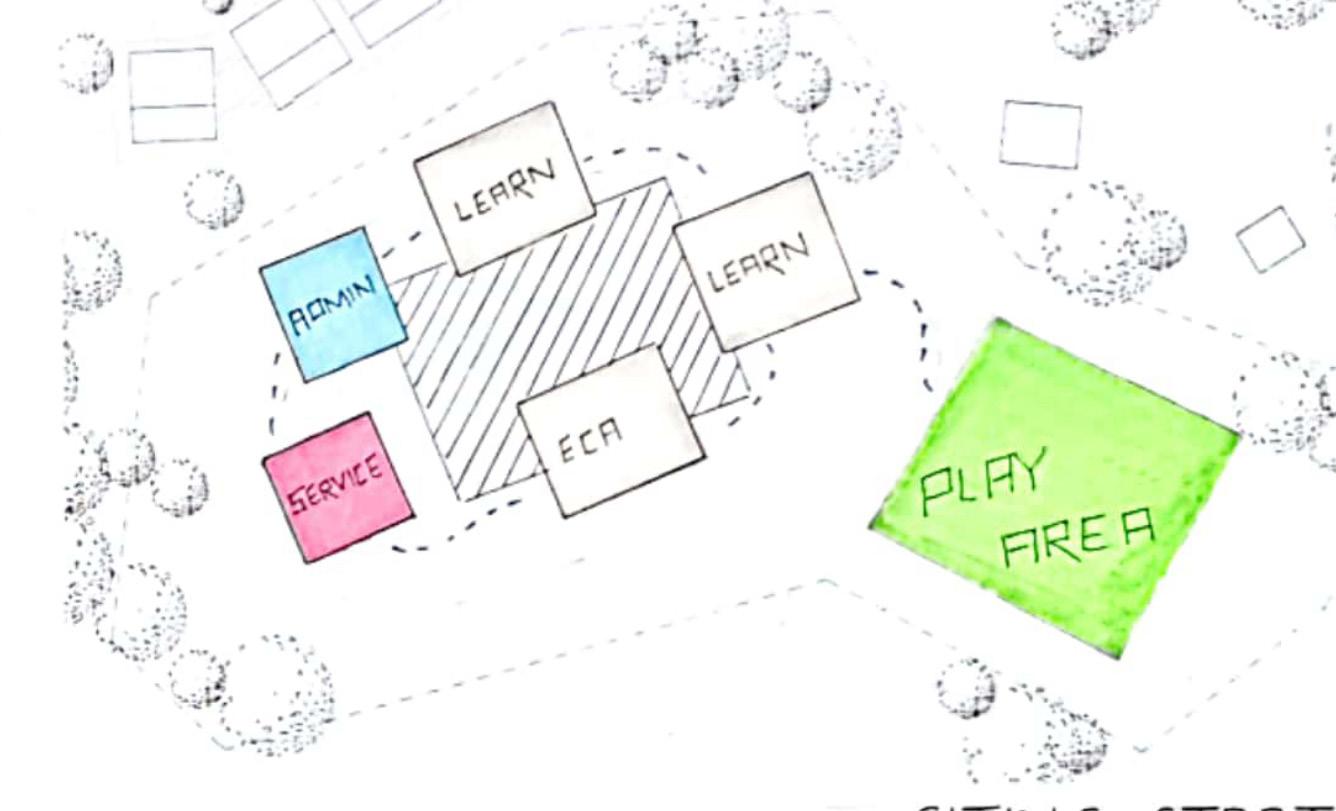

Buffer around every two classes as a interactive space between the two.

SHADED

HORIZONTAL

VERTICLE

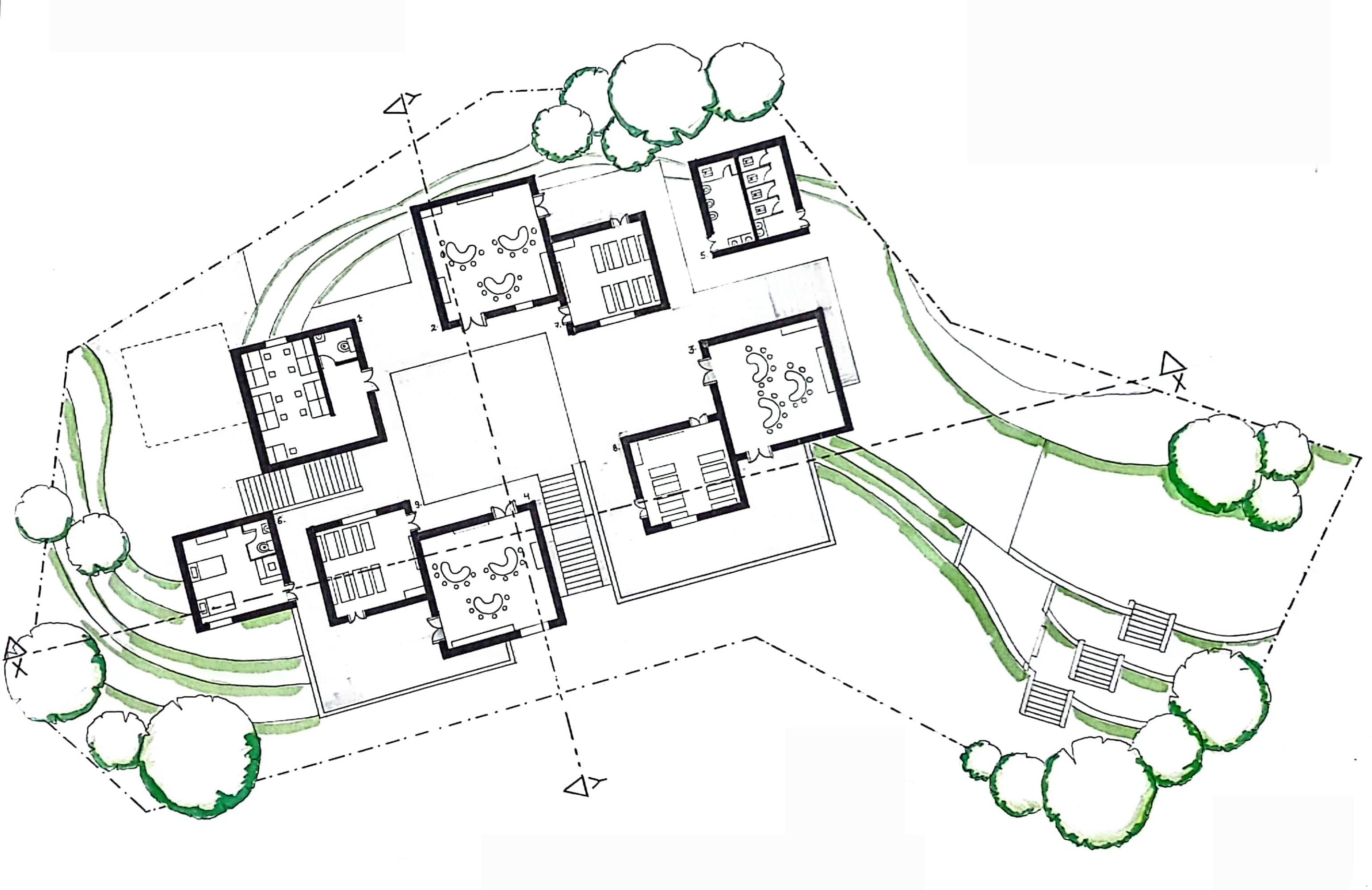

MASTER PLAN

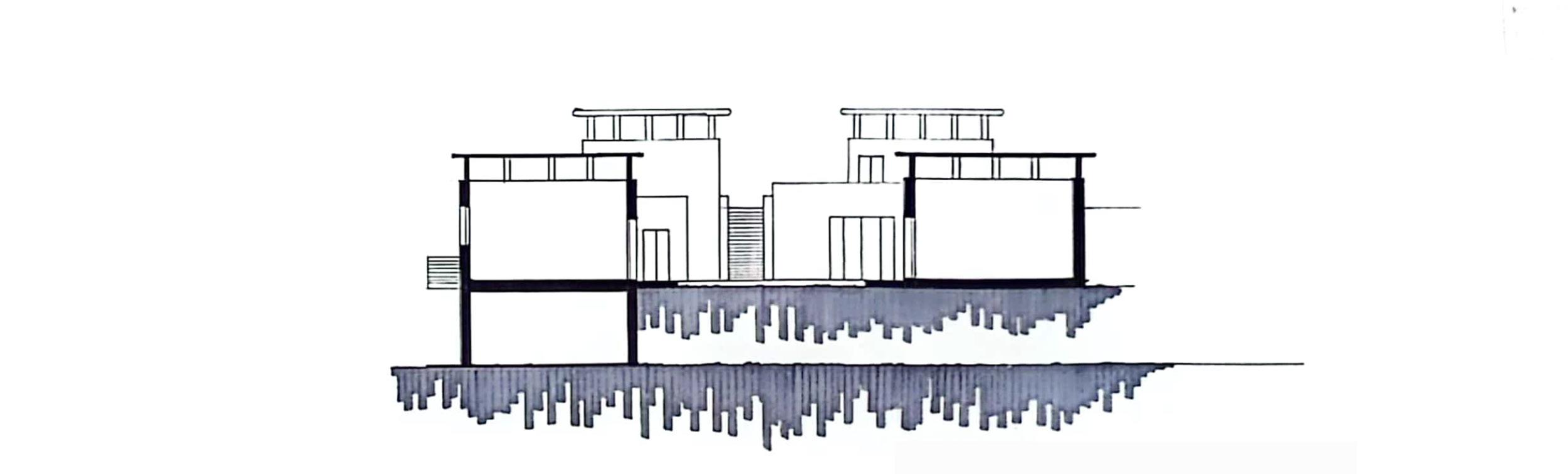

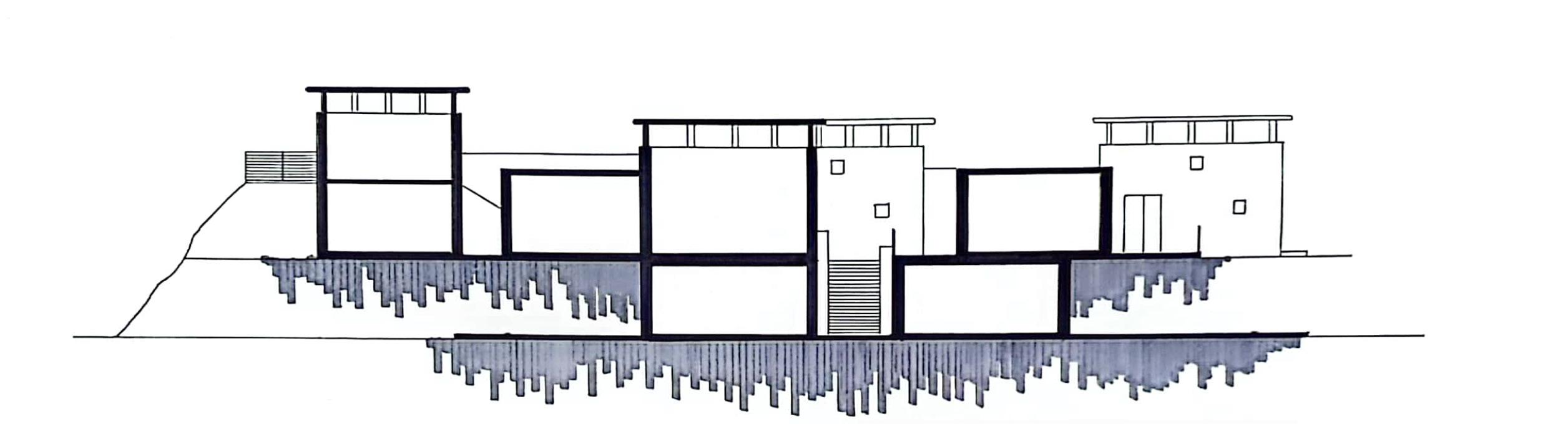

SECTION AT X:X

SECTION AT Y:Y

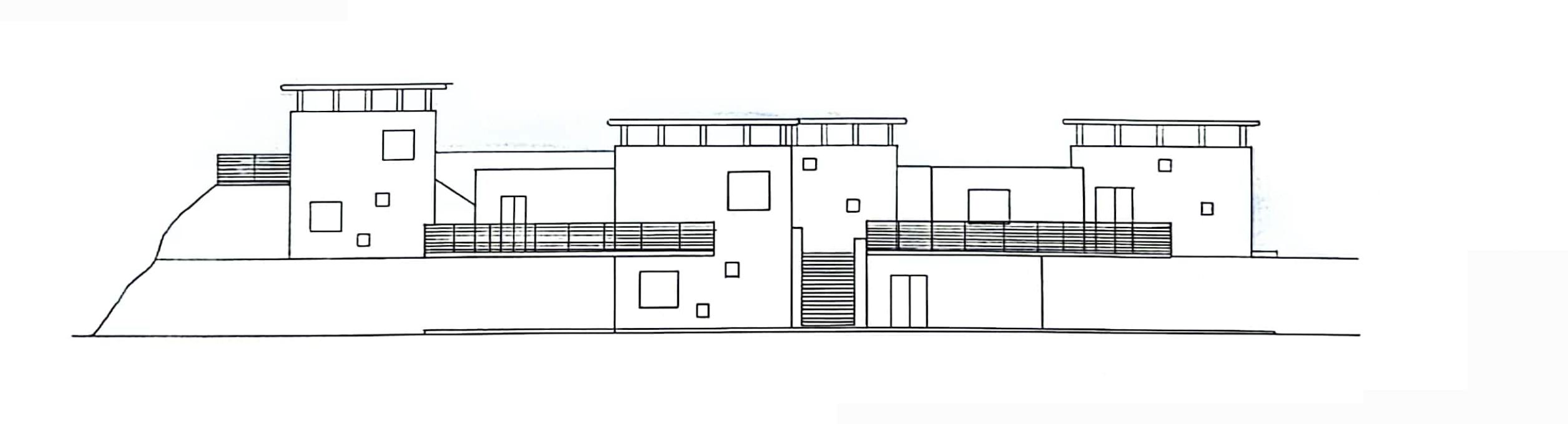

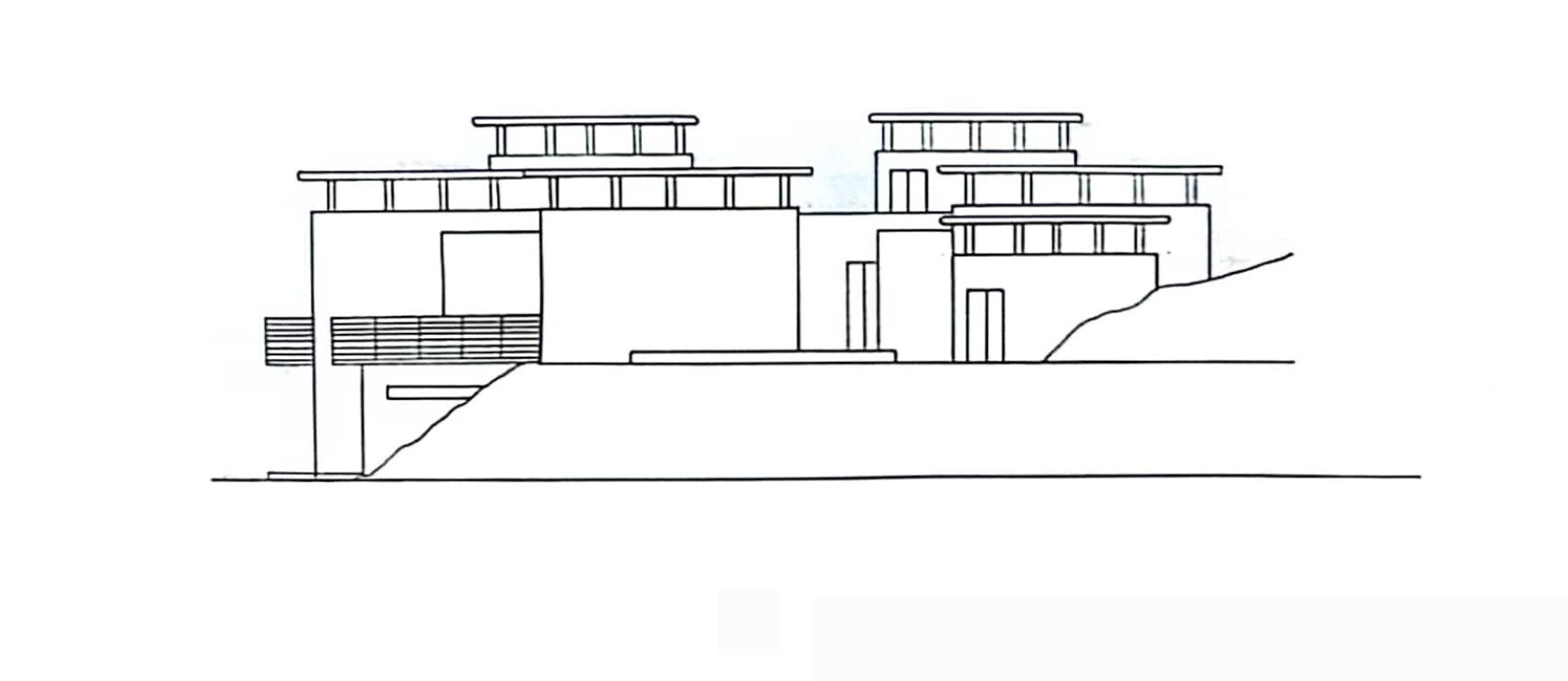

FRONT ELEVATION

SIDE ELEVATION

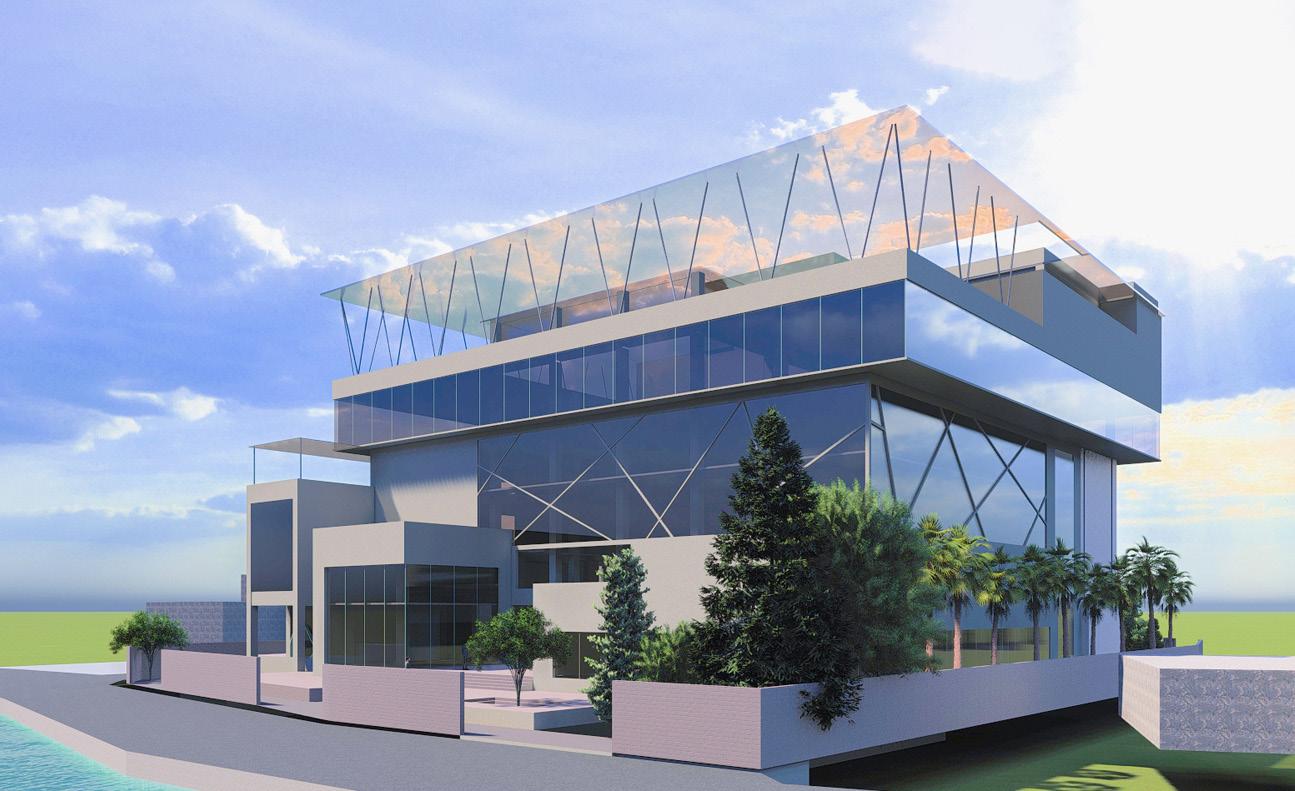

TETRIS TOWER

COMMERCIAL COMPLEX

TERM : FIFTH SEMESTER

PROJECT : MIXED USED BUILDING

TYPE : RCC

SITE : CHABAHIL

AREA : 4576.42 SQ.M

PROJECT BRIEF:

The objective of the project was to design a mixed used commercial complex. Students were assigned with respective anchorshops which they had to study about and design the mall based on it. The options were gamingzone, movie hall, gym and banquet.

CONCEPT:

I was assigned gamingzone as my anchor shop. Therefore the whole project was based on “tetris” a builing block game. There are 5 different blocks of tetris. The entire planning was based on placement of these 5 blocks in different sizes. The connecting square boxes acted as showroom space and the blocks as a whole provided the form of the building.

MASSING CONCEPT

· ACCESSIBILITY.

SITE ANALYSIS

ZONING CONCEPT

ADMIN OFFICE RESTAURANT

GAME ZONE

FOOD COURT OFFICE RETAIL BASEMENT BASEMENT RETAIL

· VEHICULAR MOVEMENT.

· VIEW TO SITE.

· VIEW FROM SITE.

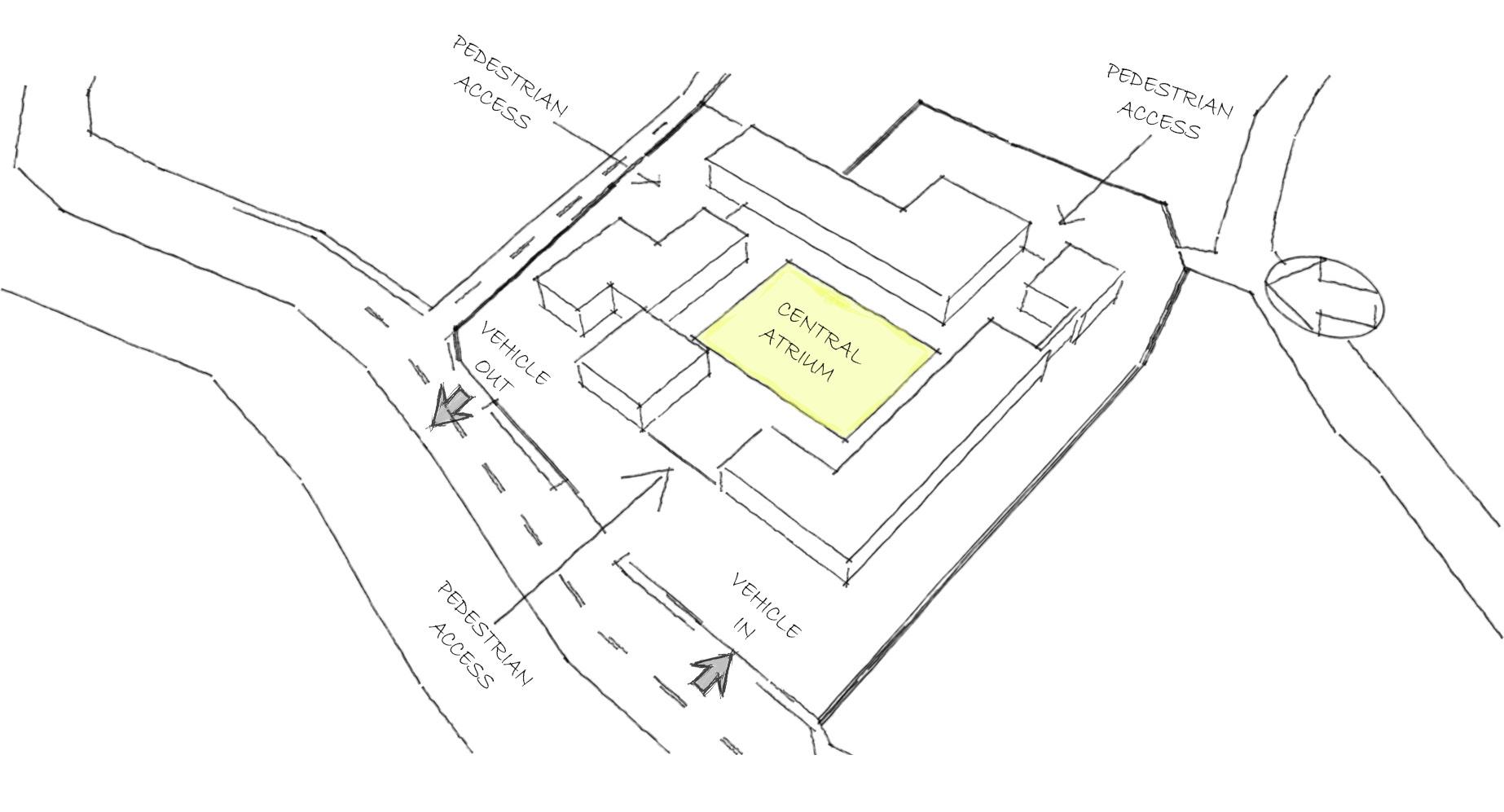

• Central atrium

• 3 Way access

• Facade exposure

CONCEPT:

MASSING STRATEGY:

· BLOCK IN COTEXT TO TETRIS BLOCKS.

· STACKING.

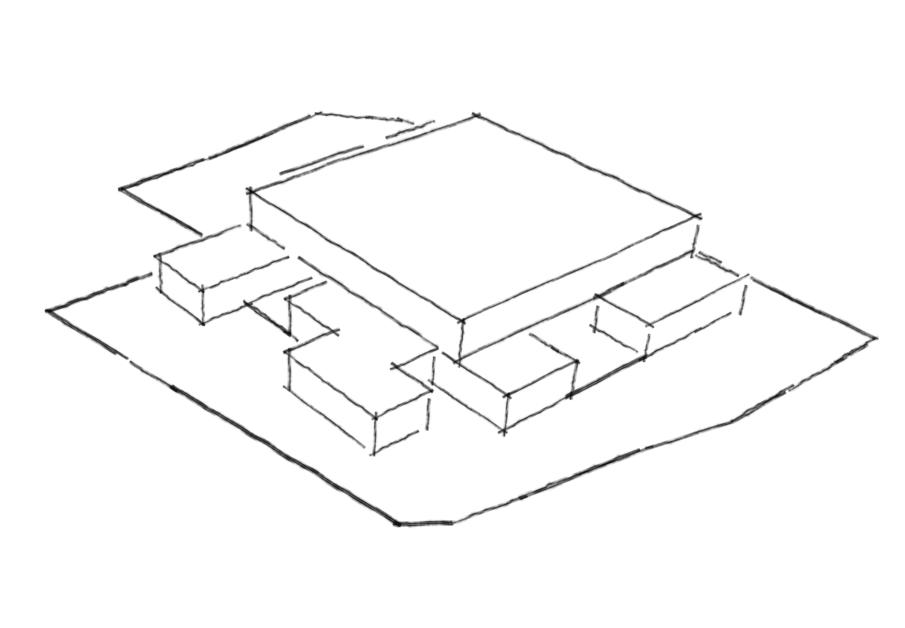

The placement of lego blocks is done incontext to the site boundry where the centralised sqaure box connects all the tetris blocks. The final form is generated after addition and subtraction done to the block mass according to functional requirements.

· CONNECTION OF BLOCKS.

SITING

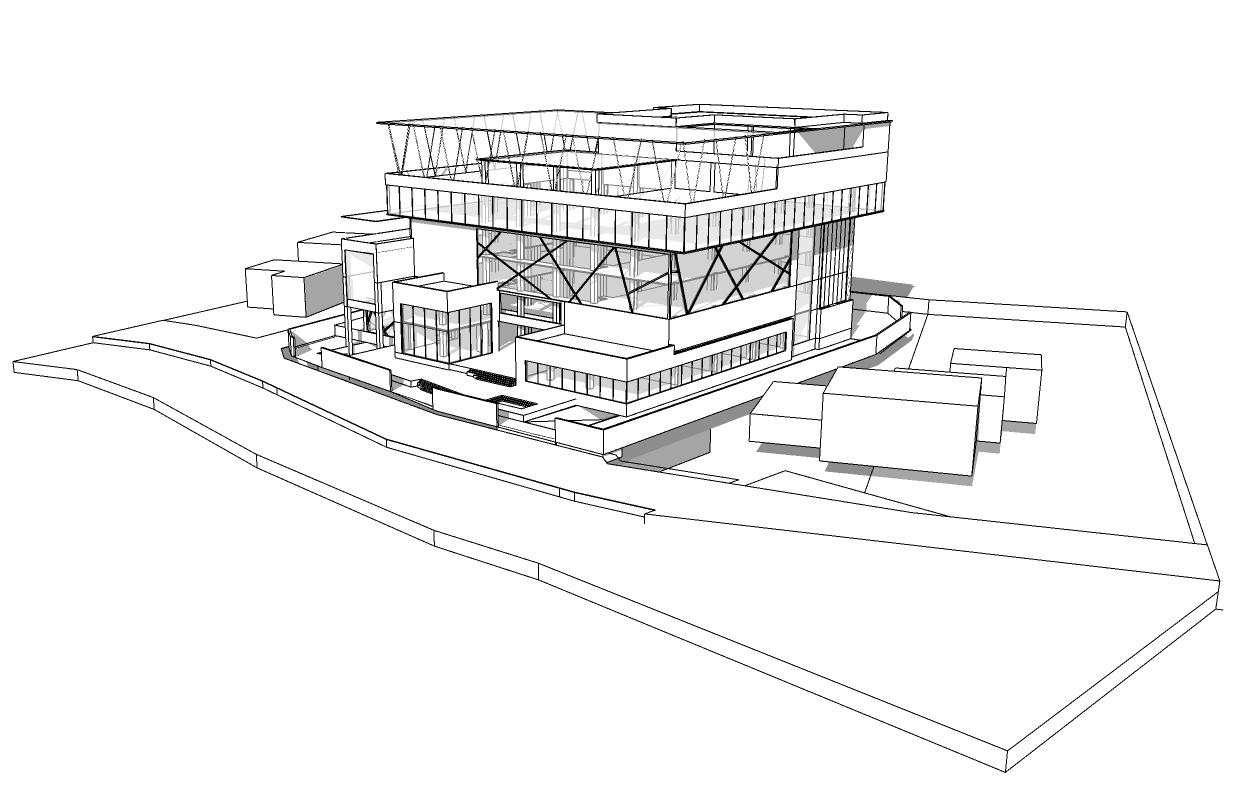

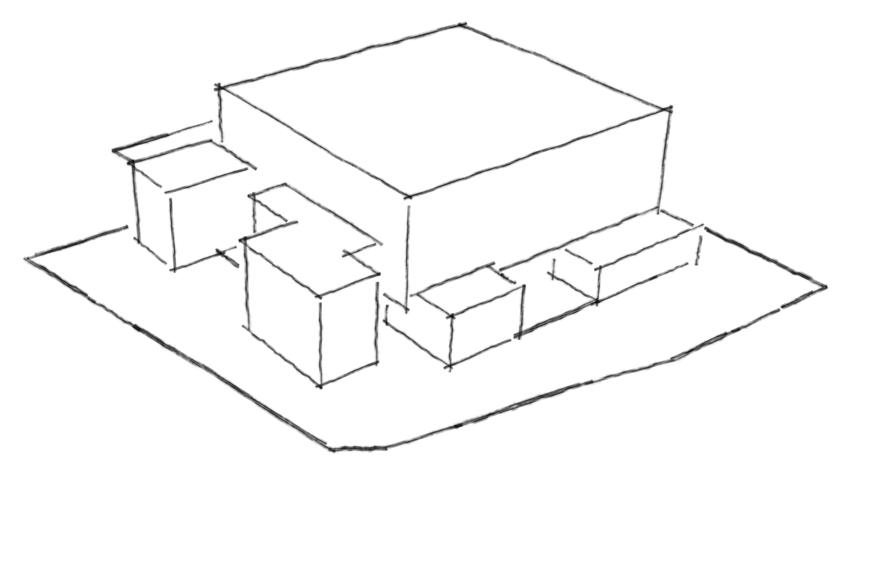

MASSING

LASERMAXX

ARCADE

GAMEZONE

FOURTH FLOOR (GAMING ZONE)

FOURTH FLOOR (GAMING ZONE)

UPPER BASEMENT PARKING

RETAIL: 57.9%

RETAIL : 57.9%

NO OF CARS:51

SERVICE:6.5%

SERVICE :6.5%

CIRCULATION :35.6%

CIRCULATION:35.6%

BOWLING ARENA

SECTION AT X:X

PLINTH LEVEL (LVL +1500)

GROUND LEVEL (LVL 0)

BASEMENT LEVEL (LVL -3000)

+21500 5TH FL LVL

+17500 4TH FL LVL

+1500 PLINTH LVL +5500 1ST FL. LVL +9500 2ND FL. LVL +13500 3RD FL. LVL

+25500 6TH FL LVL +000 GROUND LVL

-3000 UPPER BASEMENT LVL

-7500 LOWER BASEMENT LVL

RAMP SECTION

SECTION AT Y:Y

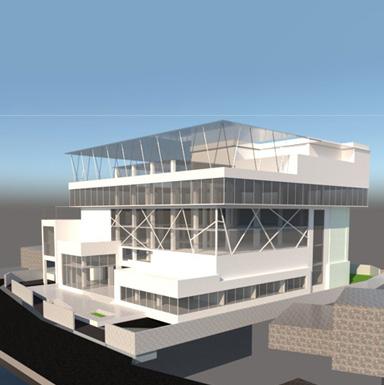

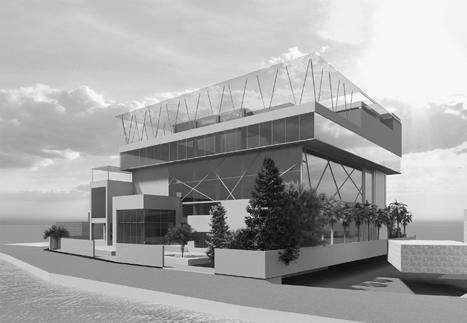

TETRIS TOWER

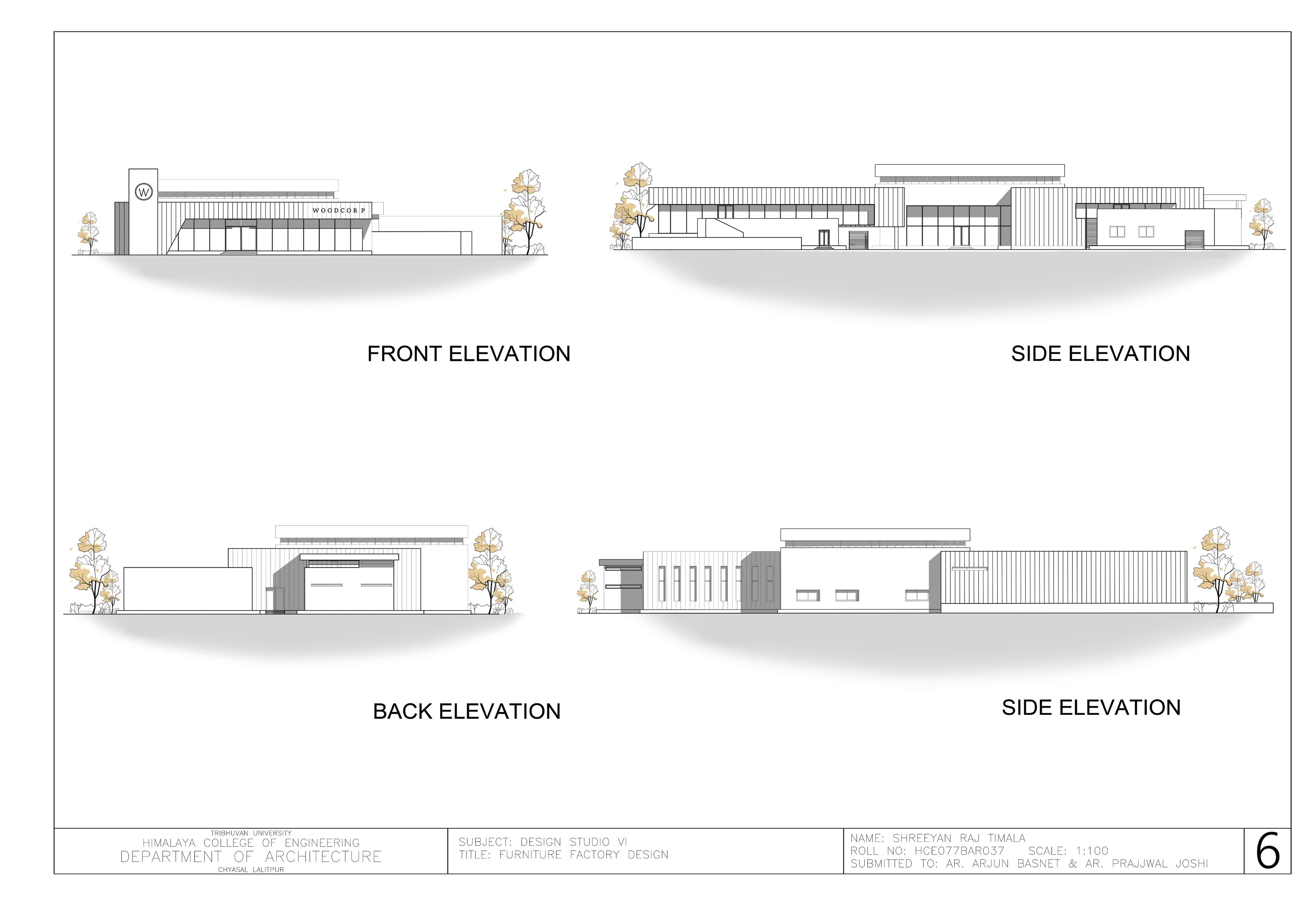

FRONT ELEVATION

RIGHT ELEVATION

LEFT ELEVATION

BACK ELEVATION

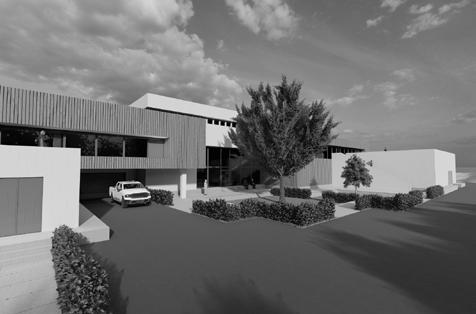

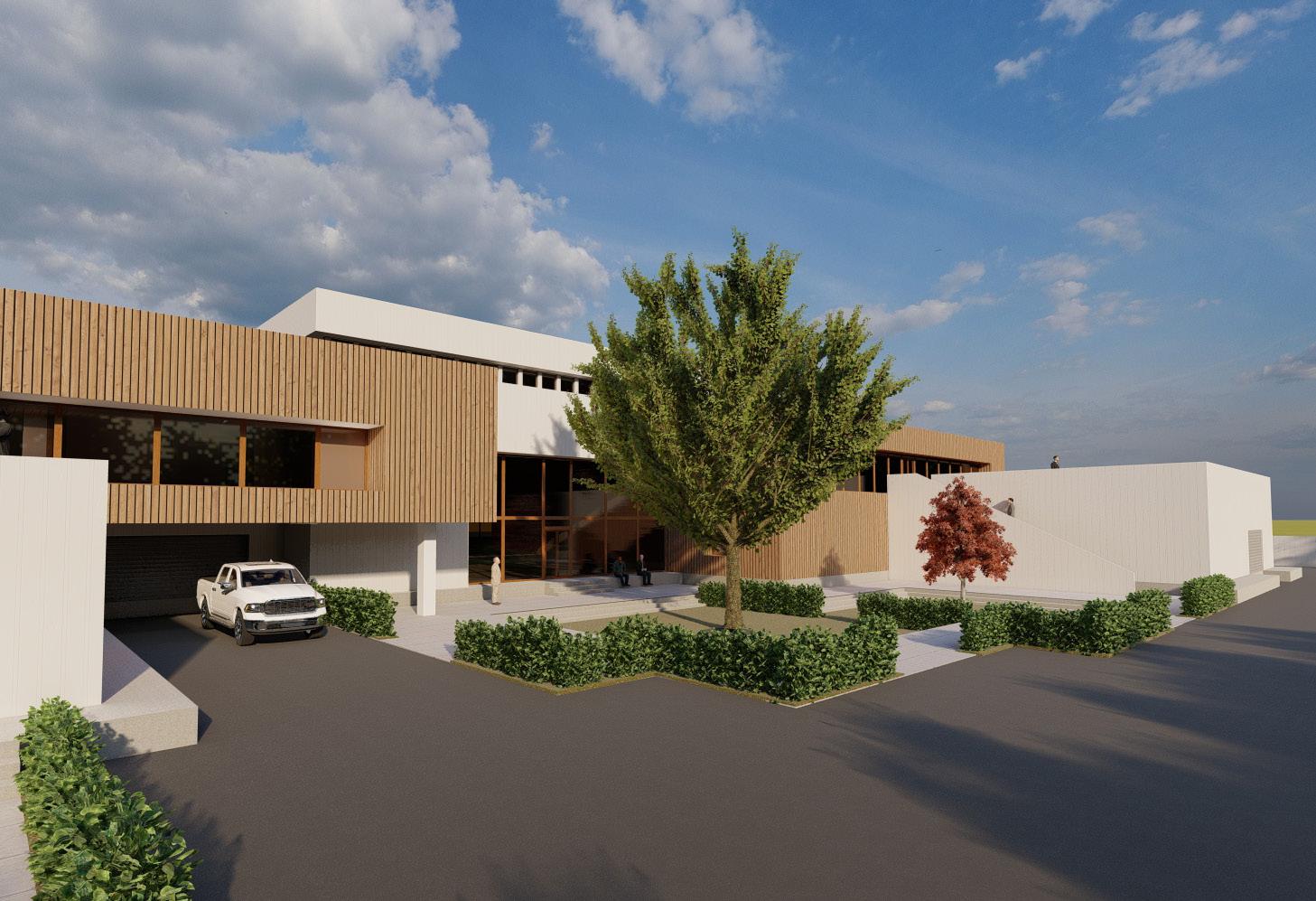

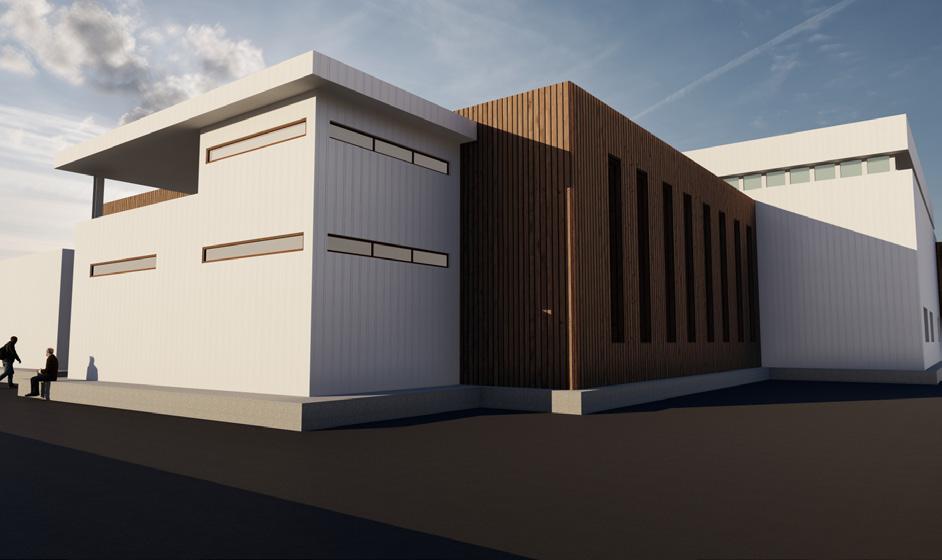

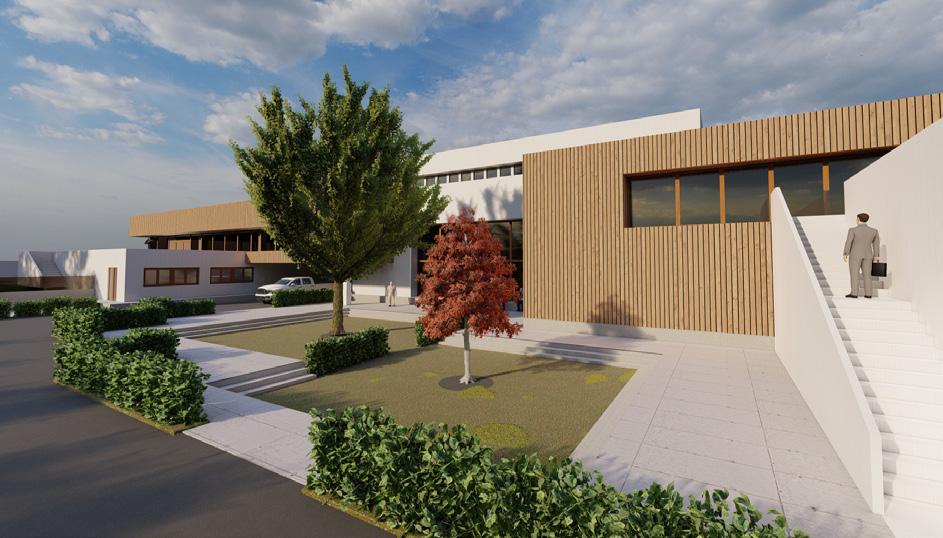

WOODCORP

FURNITURE FACTORY

TERM : SIXTH SEMESTER

PROJECT : FURNITURE FACTORY

TYPE : DRYWALL CONSTRUCTION

SITE : SANOTHIMI,BHAKTAPUR

AREA : 6423.68 SQ.M

PROJECT BRIEF:

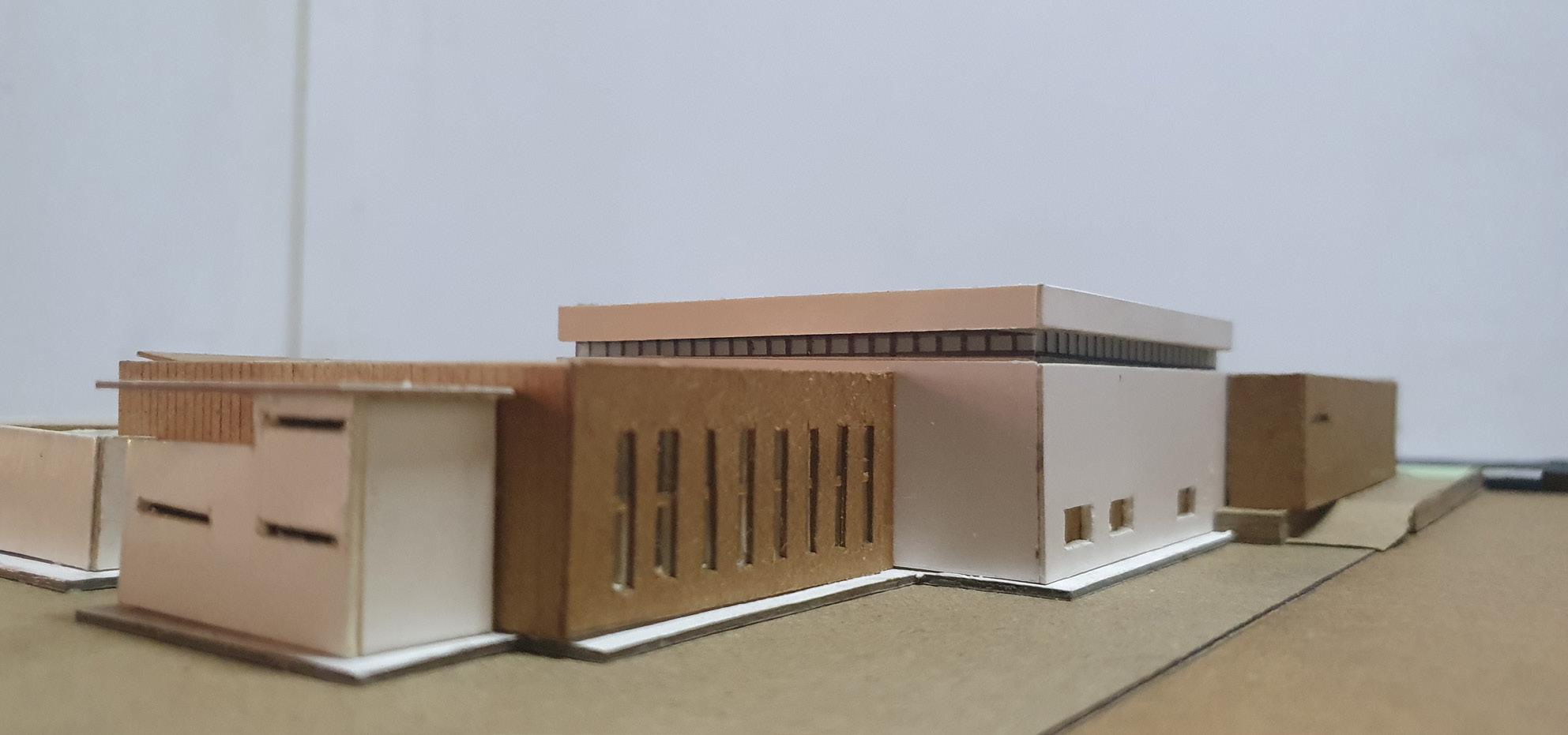

The objective of the project was to design a furniture manufacturing unit. Students were assigned with task to study and design the factory using dry wall construction method. I chose composite panels as the material for drywall construction. It has both aesthetic as well as functional value with proper insulation.

WOODCORP:

Woodcorp is a medium scale furniture factory that specializes in designing sofas and tables. The factory consist of production area, showroom, administrative, canteen and storage spaces. Woodcorp aspires to be the nation’s top furniture manufacturer by providing all the amenities needed for both employees and clients. Staffs in all work in the factory, including showroom staffs and admins.

CONCEPT:

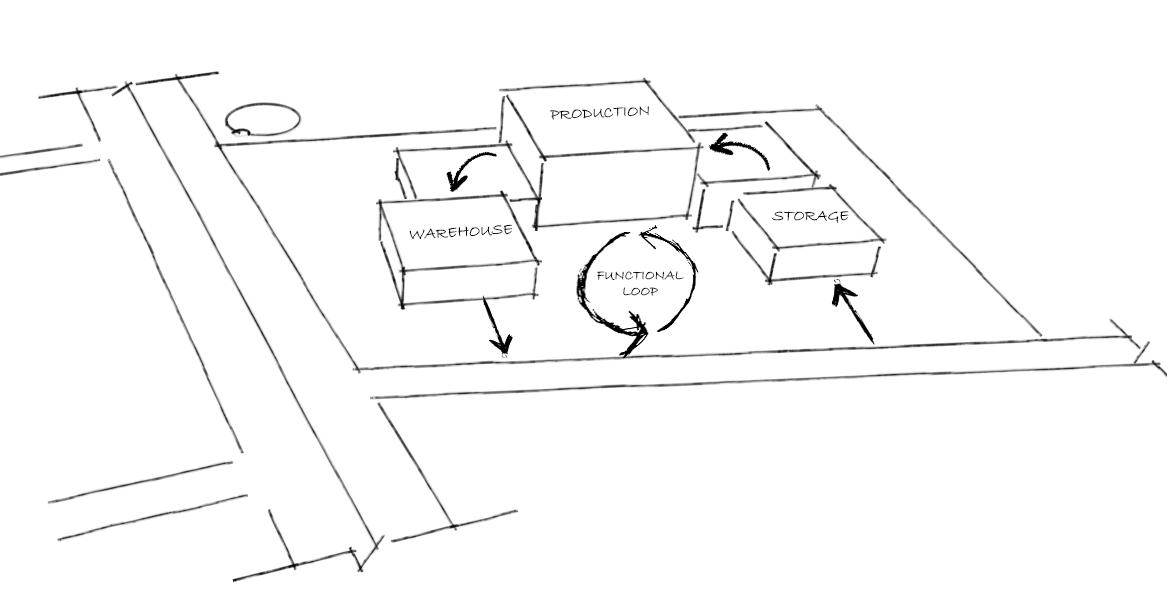

The entire concept is based on creation of functional loop. The connection of storage , production and warehouse in a loop like structure with ease of access between the three is the key aspect of good factory design.

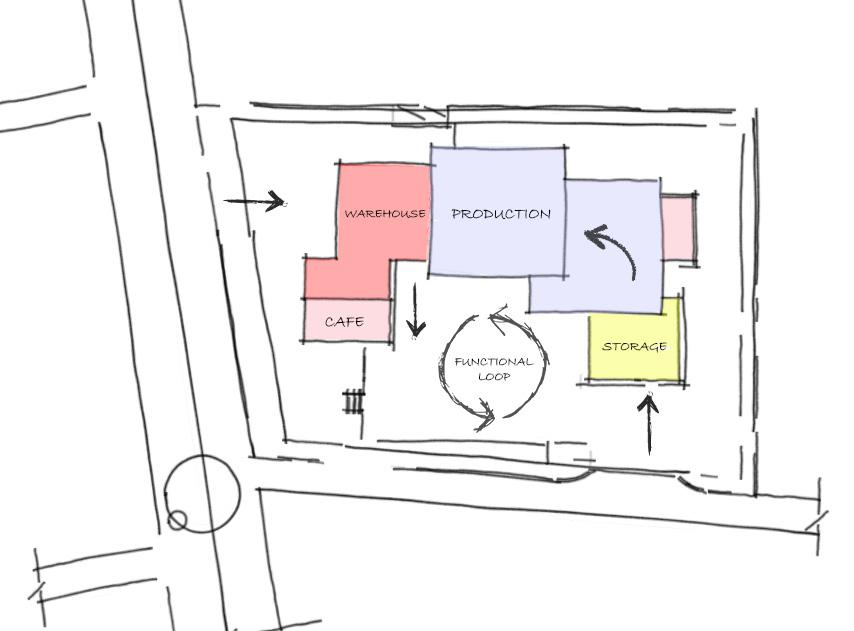

ZONING CONCEPT

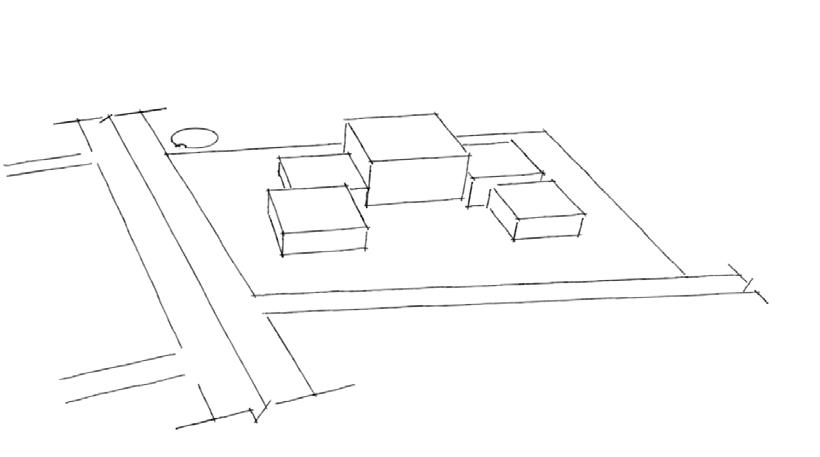

MASSING CONCEPT

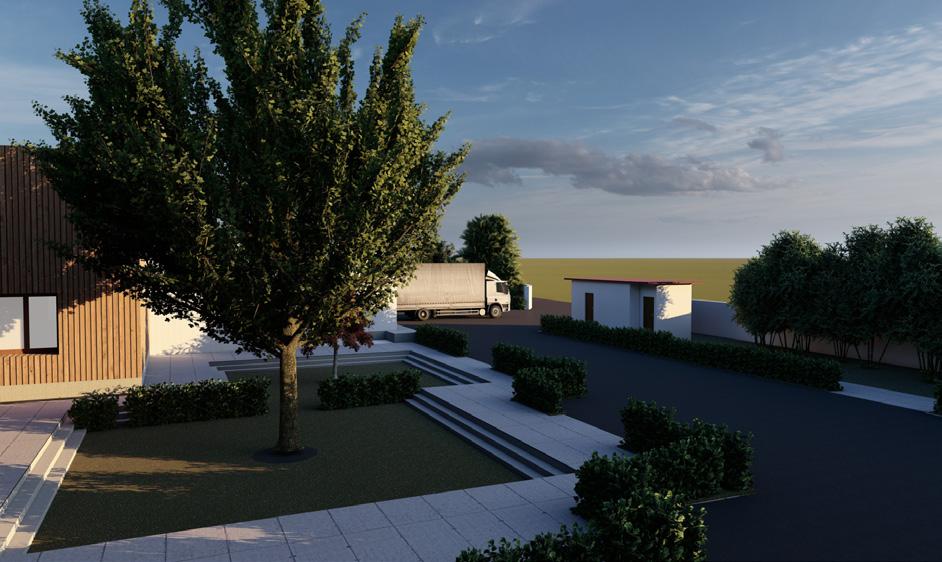

MASTER PLAN

SITE AREA: 6423.68 SQ.M

NUPPER GROUND FLOOR PLAN

AREA: 2450 SQ.M

SECTION AT Y:Y

SECTION AT X:X

MISCELLENEOUS

BRIEF:

Here are various project that i have done throughout my bachelors degree. The projects given below are some of the notable projects that ive done till date from my class assignments to sketches and models that i made or had my contribution in.

PROJECTS:

1. Bedroom Design

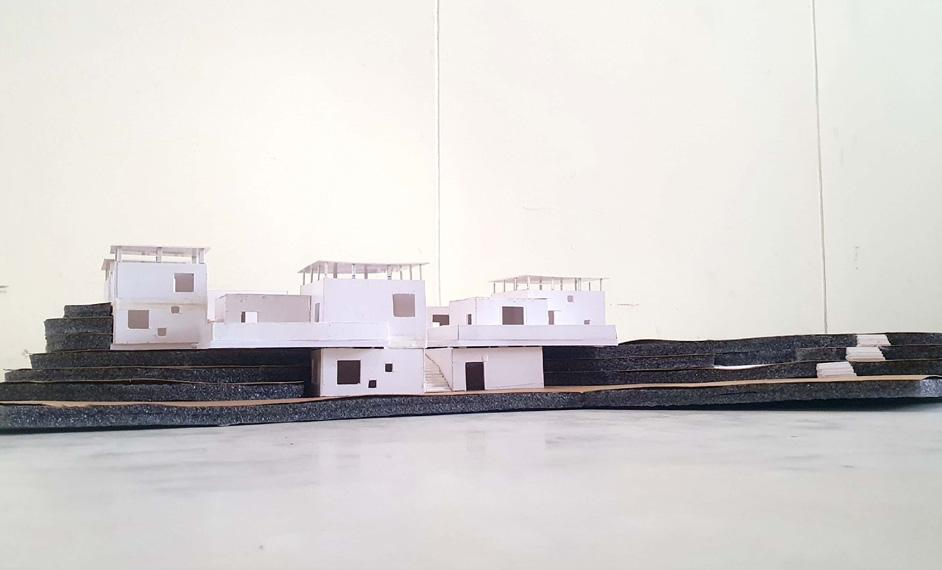

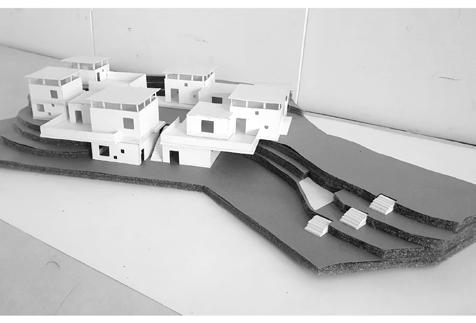

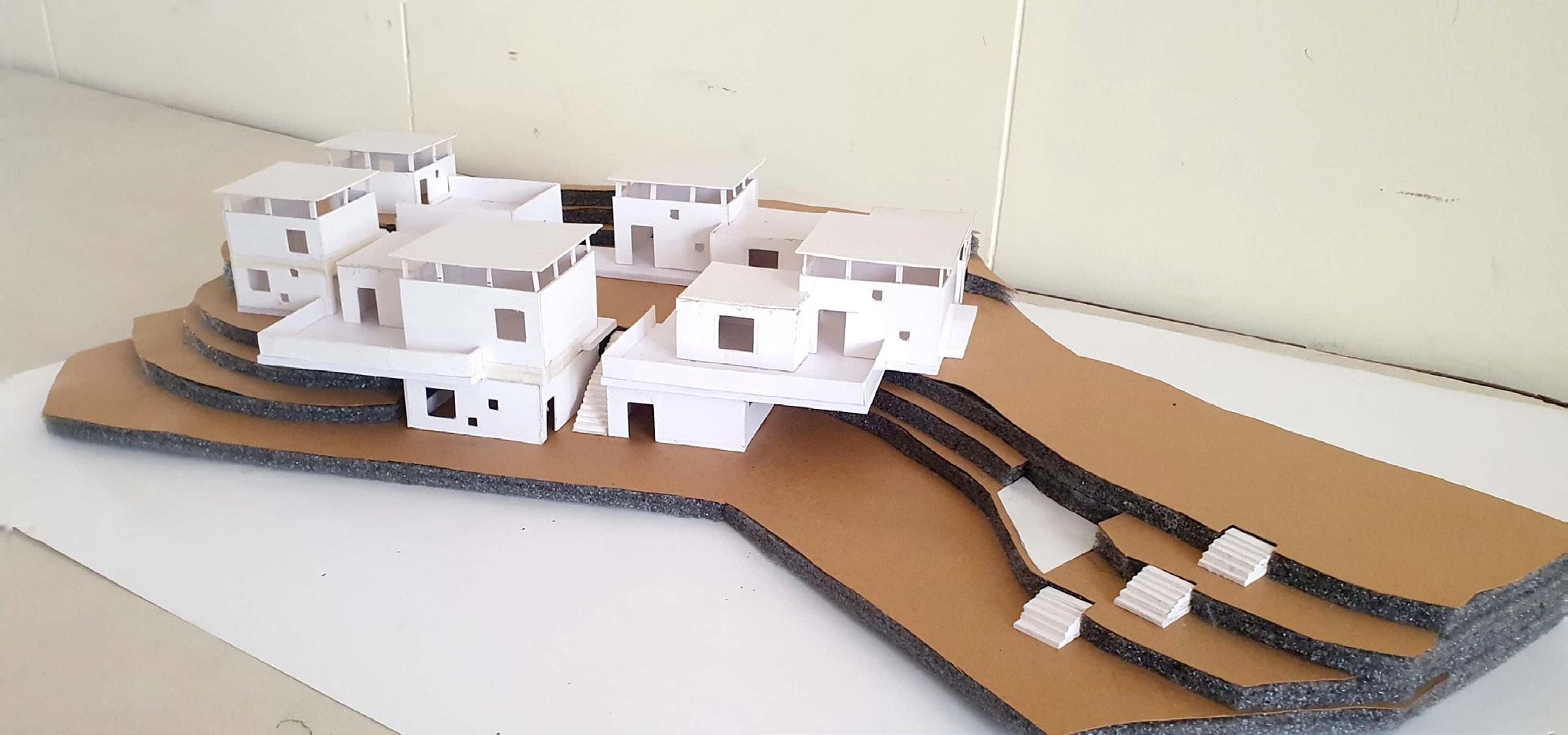

2. Models:

• Resdidence

• Architect Studio

• Thesis Models

• Stapler City

3. Sketches

PERCEPTION

NAME & ITS MEANING

TERM :FIRST SEMESTER

PROJECT :PERCEPTION

PROJECT BRIEF:

In this project we were tasked to provide the meaning of our name through graphical perception. Here i have described how the meaning of my name was derived and shown its graphical representation.

MEANING AND CONCEPT:

- MEDIATATING BODY

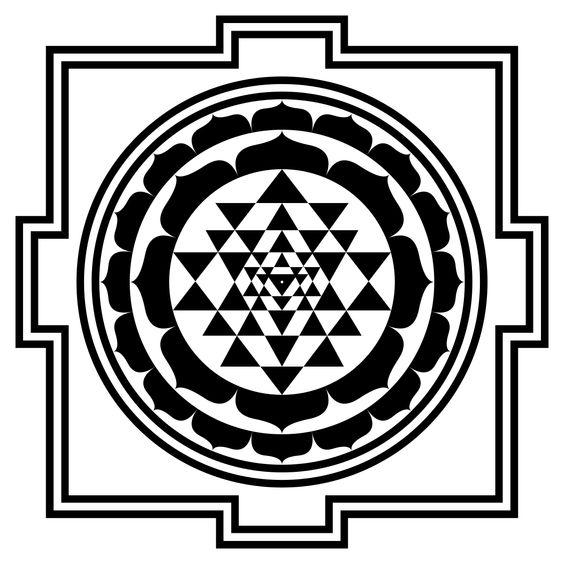

- SHRI-YANTRA

- COSMOS

Shreeyan derieved from the word shri-yantra which is a form of mystical diagram used in the shri vidhya school of hinduism. It consist of nine interlocking triangles that surround a central point known as bindu. These triangles represents the cosmos and its link with human body. It is a complex sacred geometry used for worship devotion and meditation. Shri means rsplidence wealth and prosperity where as yantra means instrument or machine in sanskrit. The sacred symbol is in use for thousands of year and its origin is still clouded in mystery.

Here in this diagram, the shadow represents the meditating human body. The geometrical diagram is of shri-yantra and the background is of cosmos. The diagram is the graphichal perception of the meaning of my name shreeyan where shri-yantra links human to the cosmos.

BEDROOM DESIGN

(FIRST SEM)

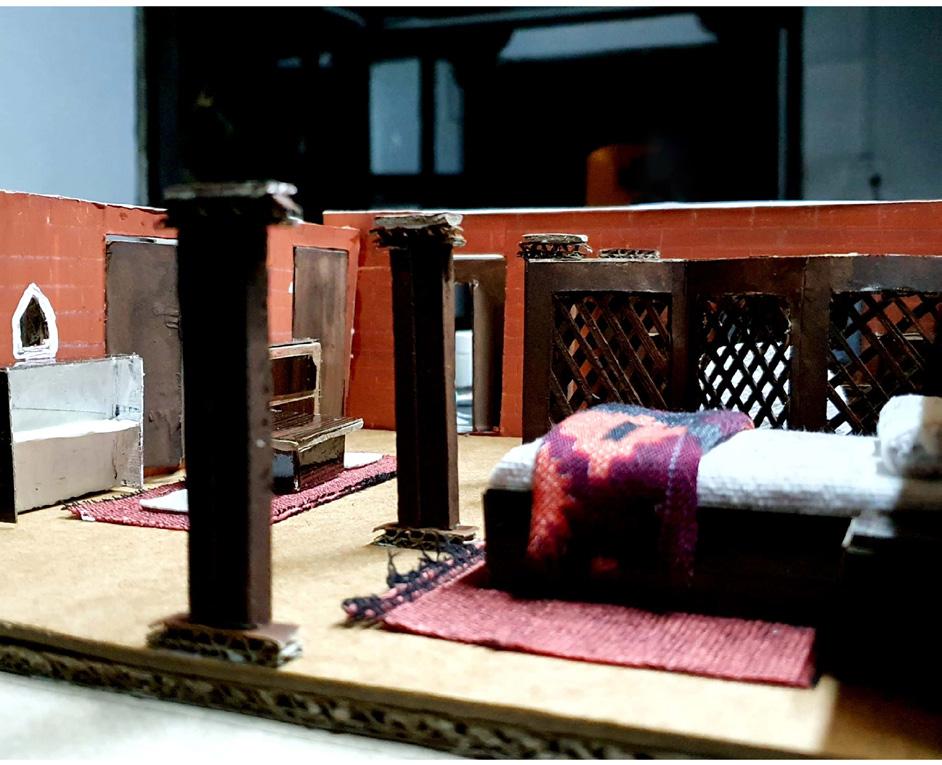

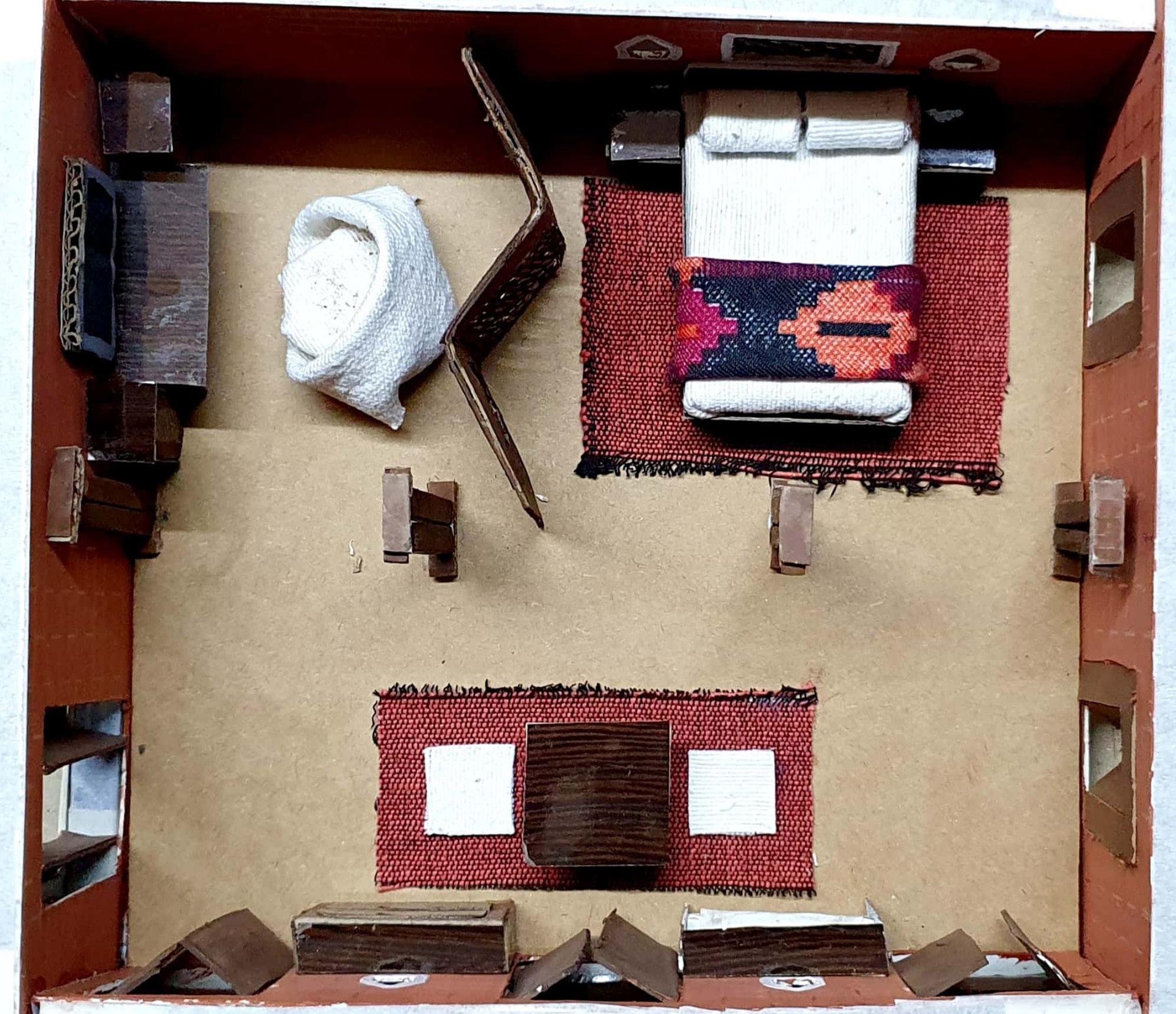

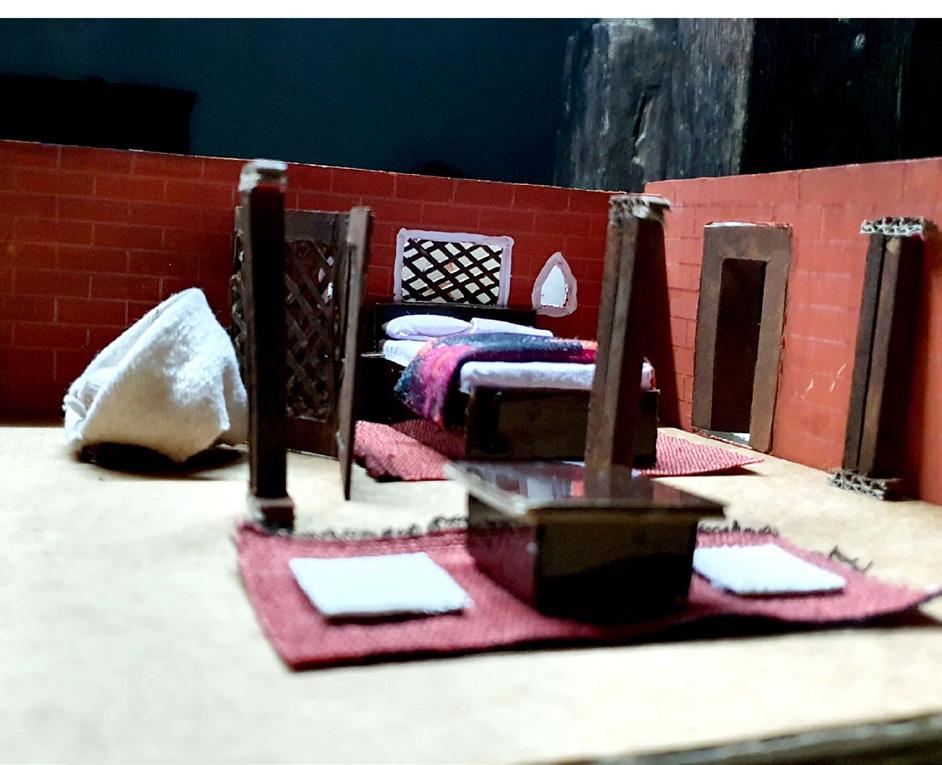

Here I have tried to retain traditional newari design for this bedroom with little modern touch. The given room was a remodeling project where the room was of traditional newari house.

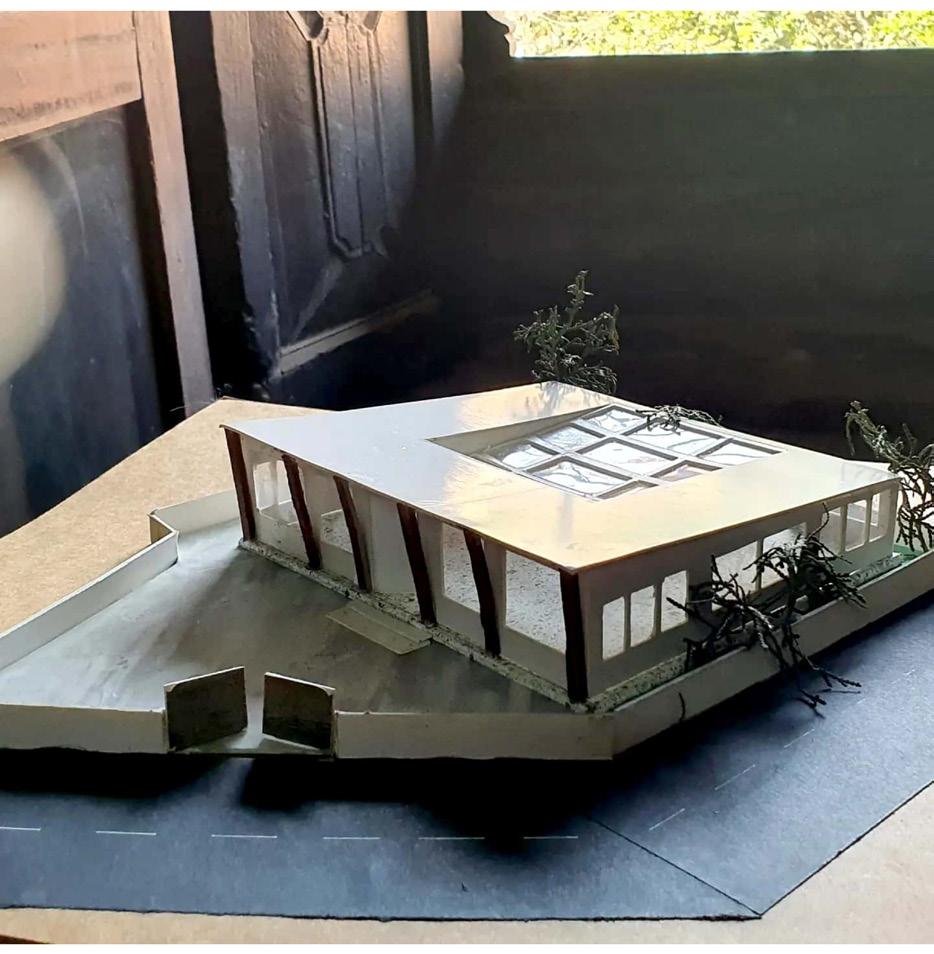

ARCHITECT STUDIO (SECOND SEM)

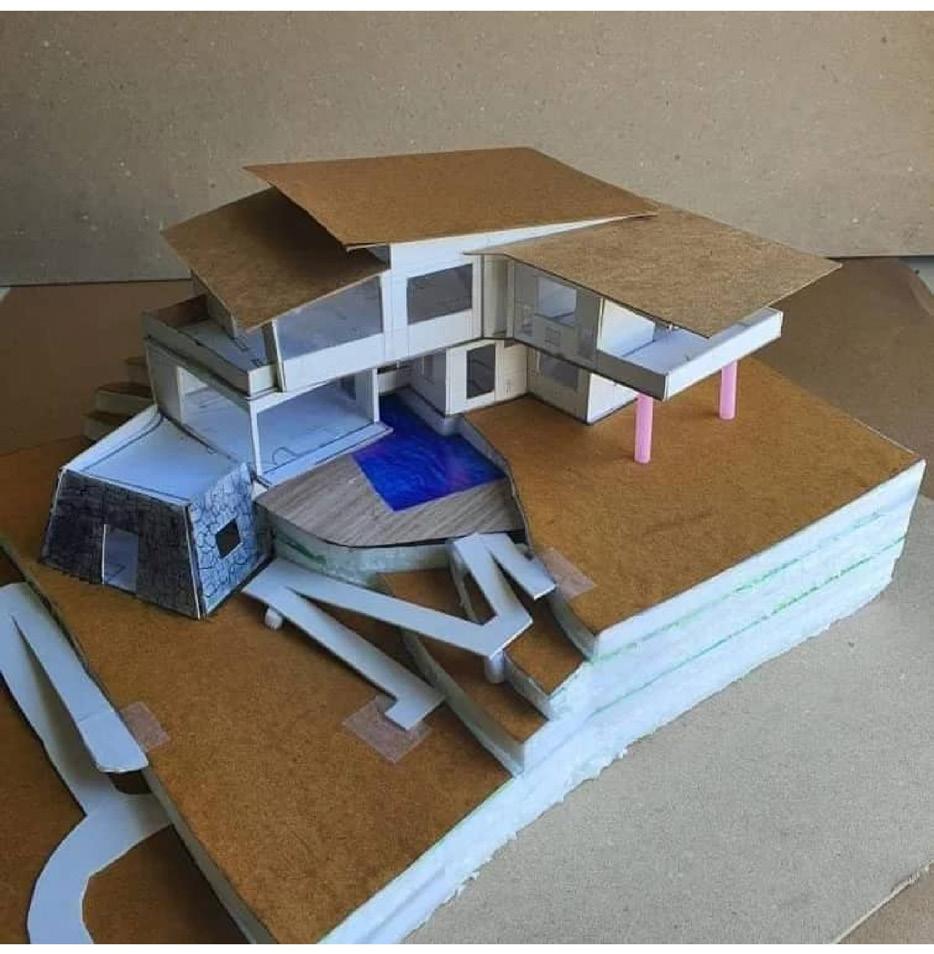

RESIDENCE (THIRD SEM)

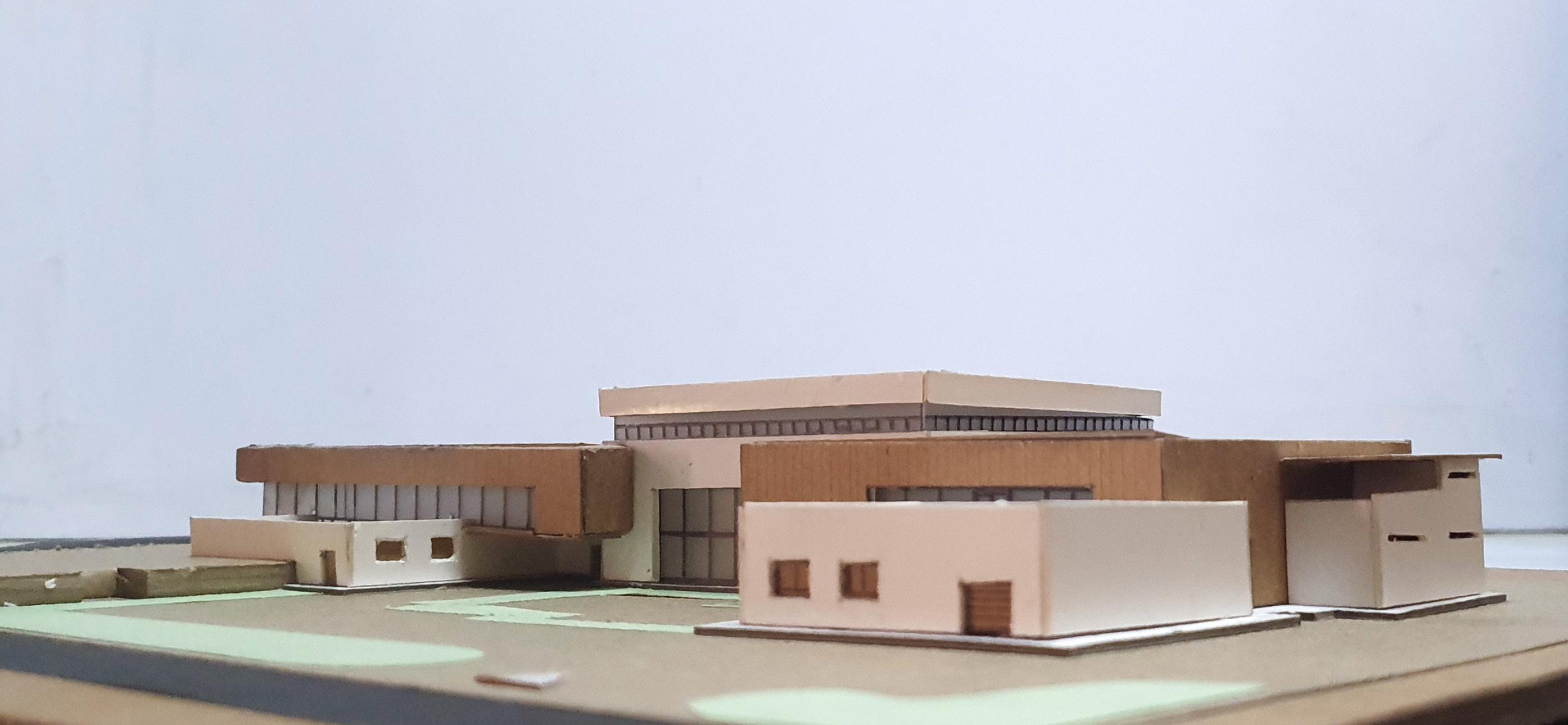

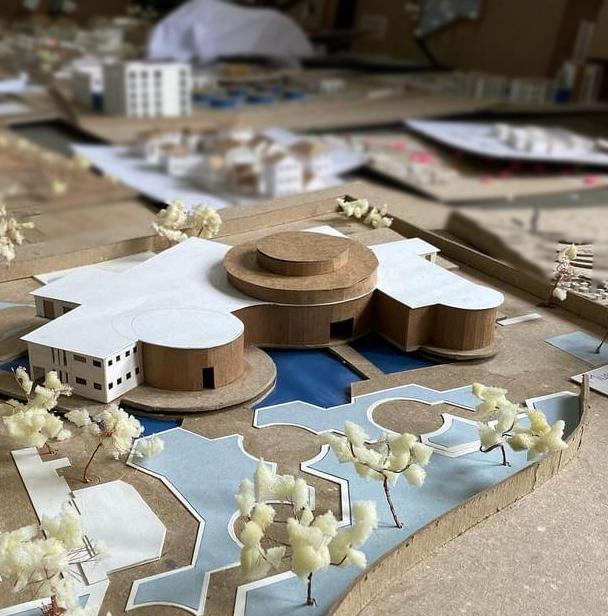

THESIS MODEL

THESIS MODEL

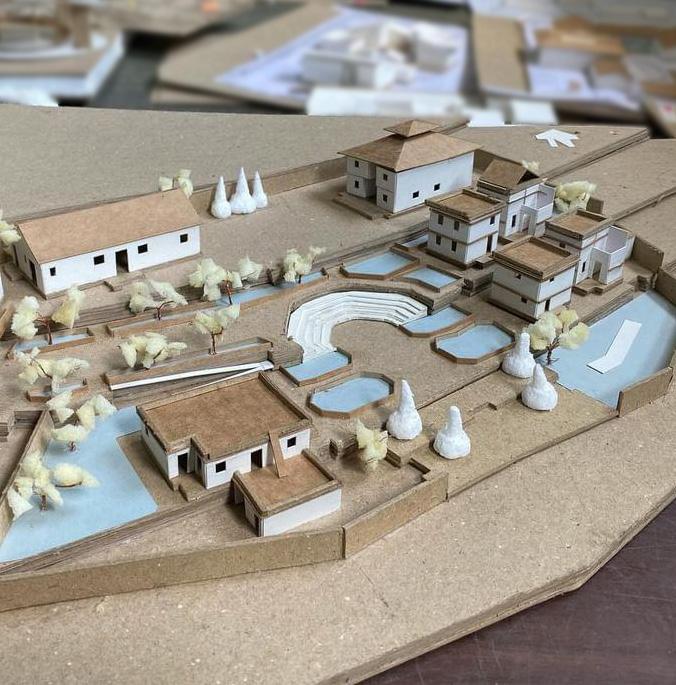

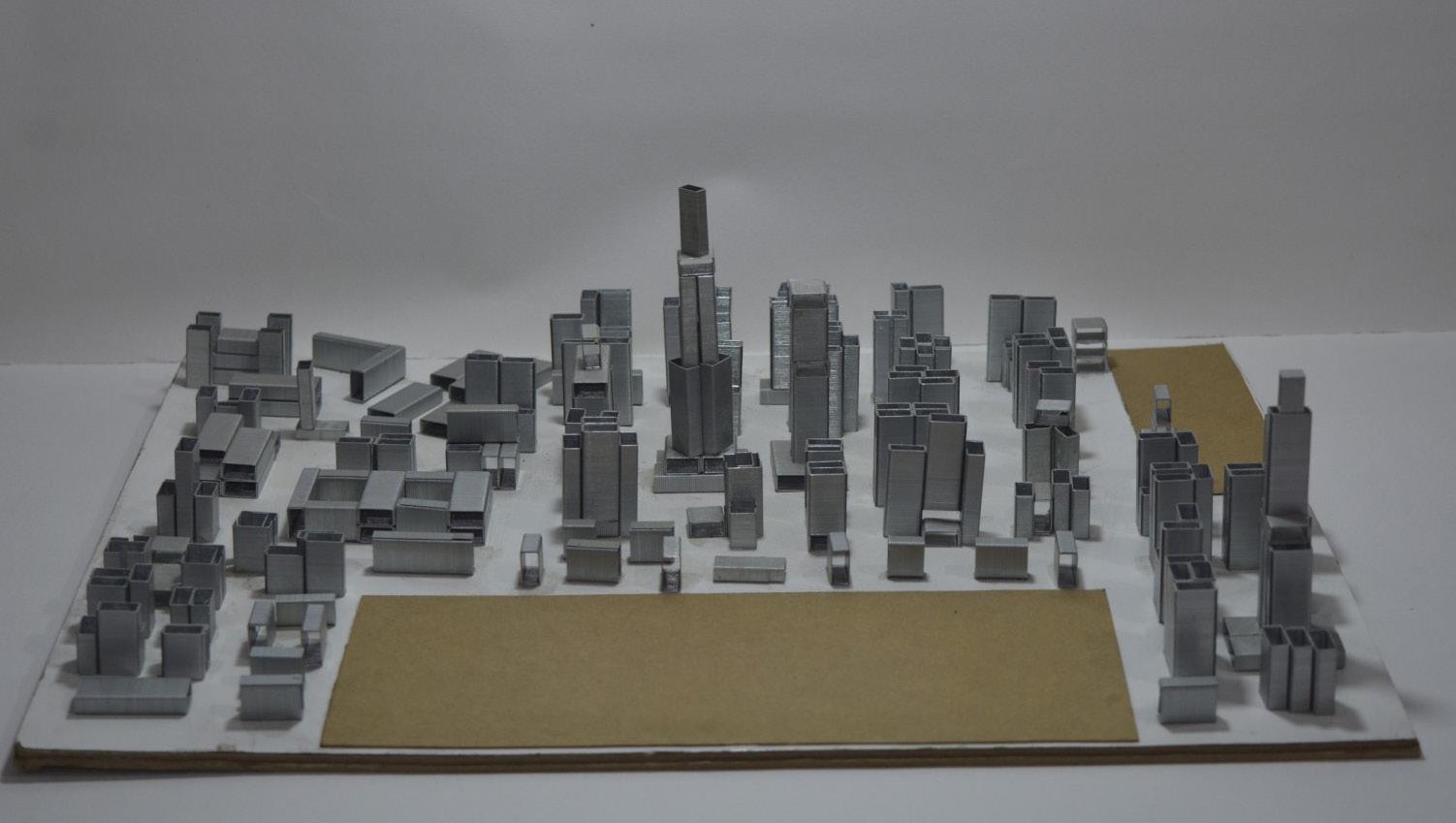

STAPLER CITY (HEX GROUP PROJECT)
