Aspiring Architectural Fresh Graduate from University of Sydney with hands-on experience at a leading architectural firm. Passionate about innovative design and sustainable solutions, along with creative vision and technical profi ciency. Thrive in dynamic environments and committed to contributing to the evolving landscape of modern architecture. Eager to leverage my academic background and professional expertise to create impactful and aesthetically compelling spaces.
Extensive experience with a broad range of design and architectural software including AutoCAD, Rhino, Sketchup, Design Builder, Grasshopper, V-Ray and Adobe Suite etc. In addition, an Official AutoCAD Professional Certificate from the AutoDesk was received after attending an internsive course at AutoDesk
Authorized Centre
Well developped designing, modelling, drafting, editing and presentation skills throughout the undergraduate studies. Work well to use clear and concise communication to interact professionally with colleagues, supervisors and clients.
Shiu Hei Lee
leeshiuhei00@gmail.com
MODELS
THE HORIZON LOOKOUT
YEAR 3 SEMESTER 1
ARCHITECTURAL TECHNOLOGIES
SHIU HEI LEE

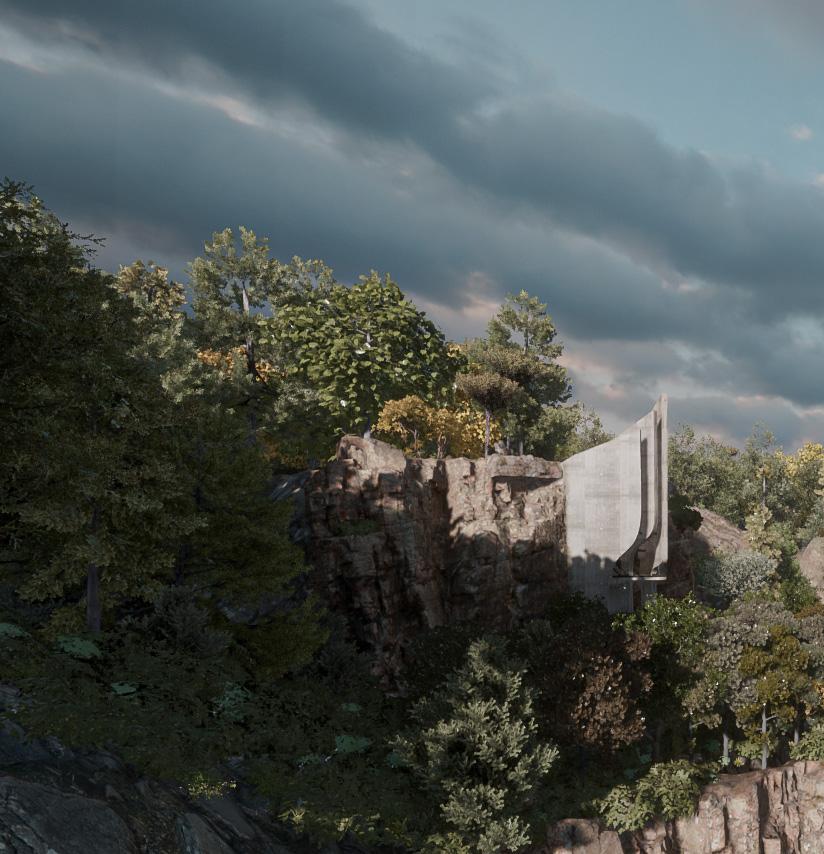

The main concept of The Horizon is to capture and frame the view of the valley views of the Blue Mountains in New South Wales. The design and the shape of the lookout is designed to capture a particular view, which allows visitors to walk from the above to the bottom of the lookout that shows different framed views formed by the facade of the lookout. Eventually, visitors can explore the geometry, the habitats and the nature of the Blue Mountains.

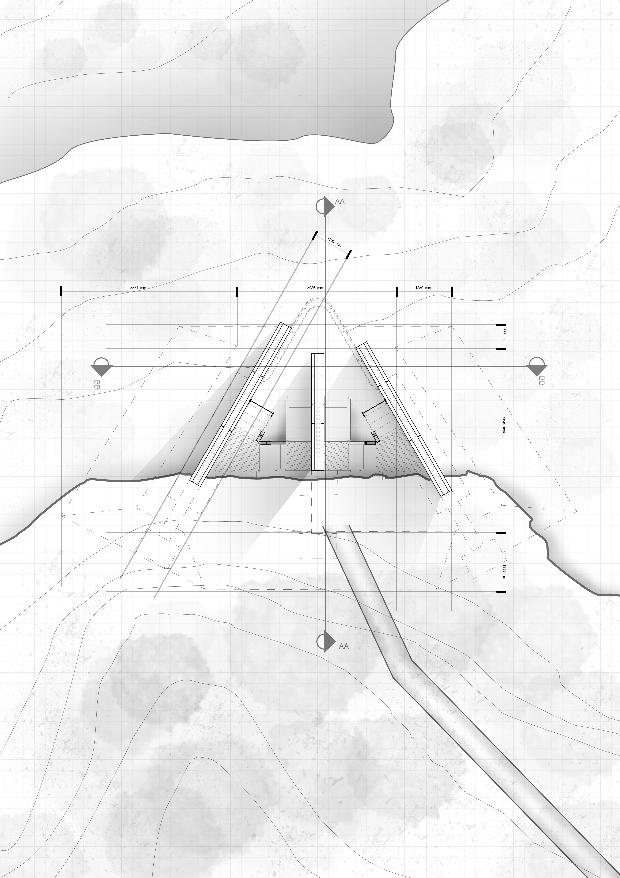

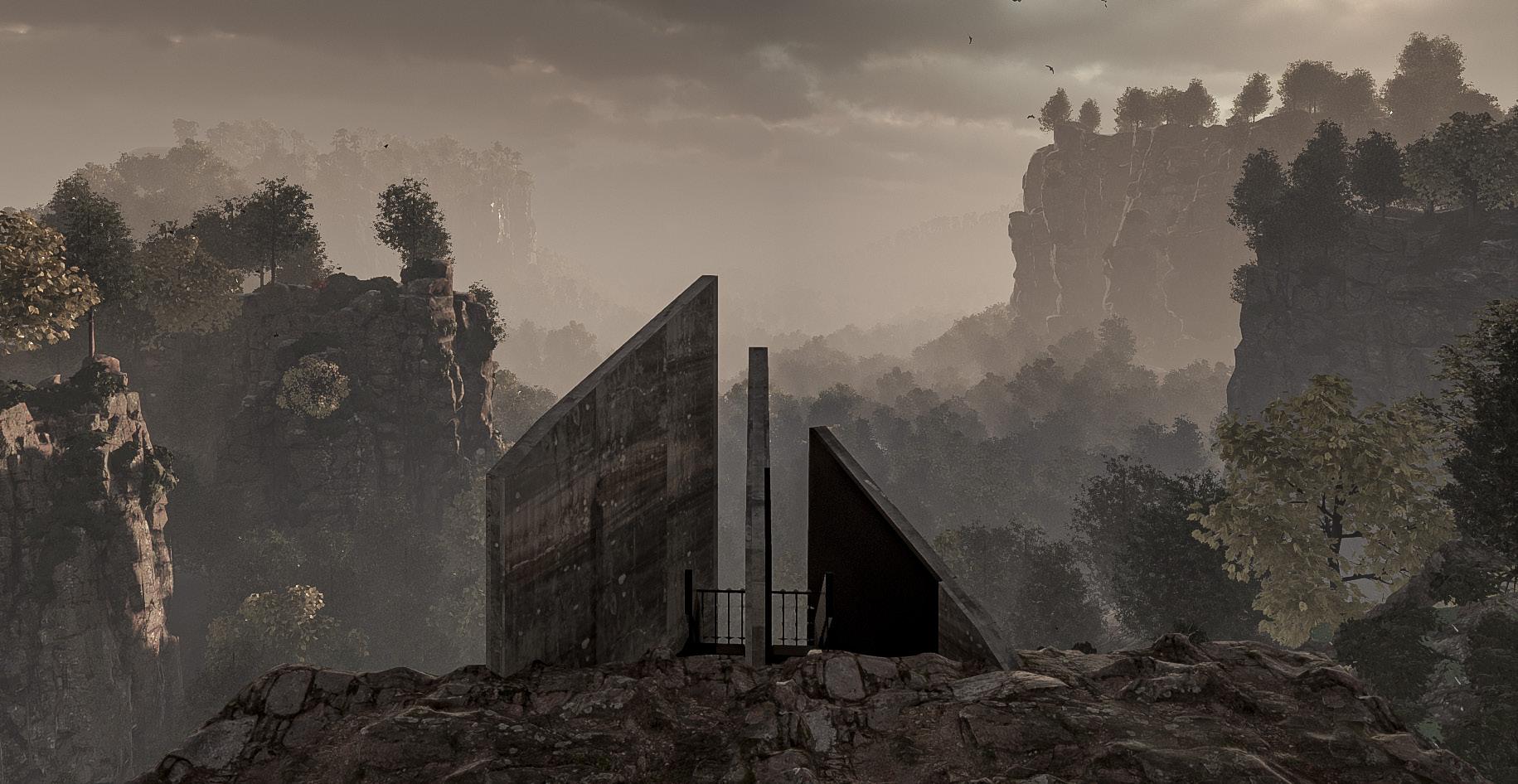

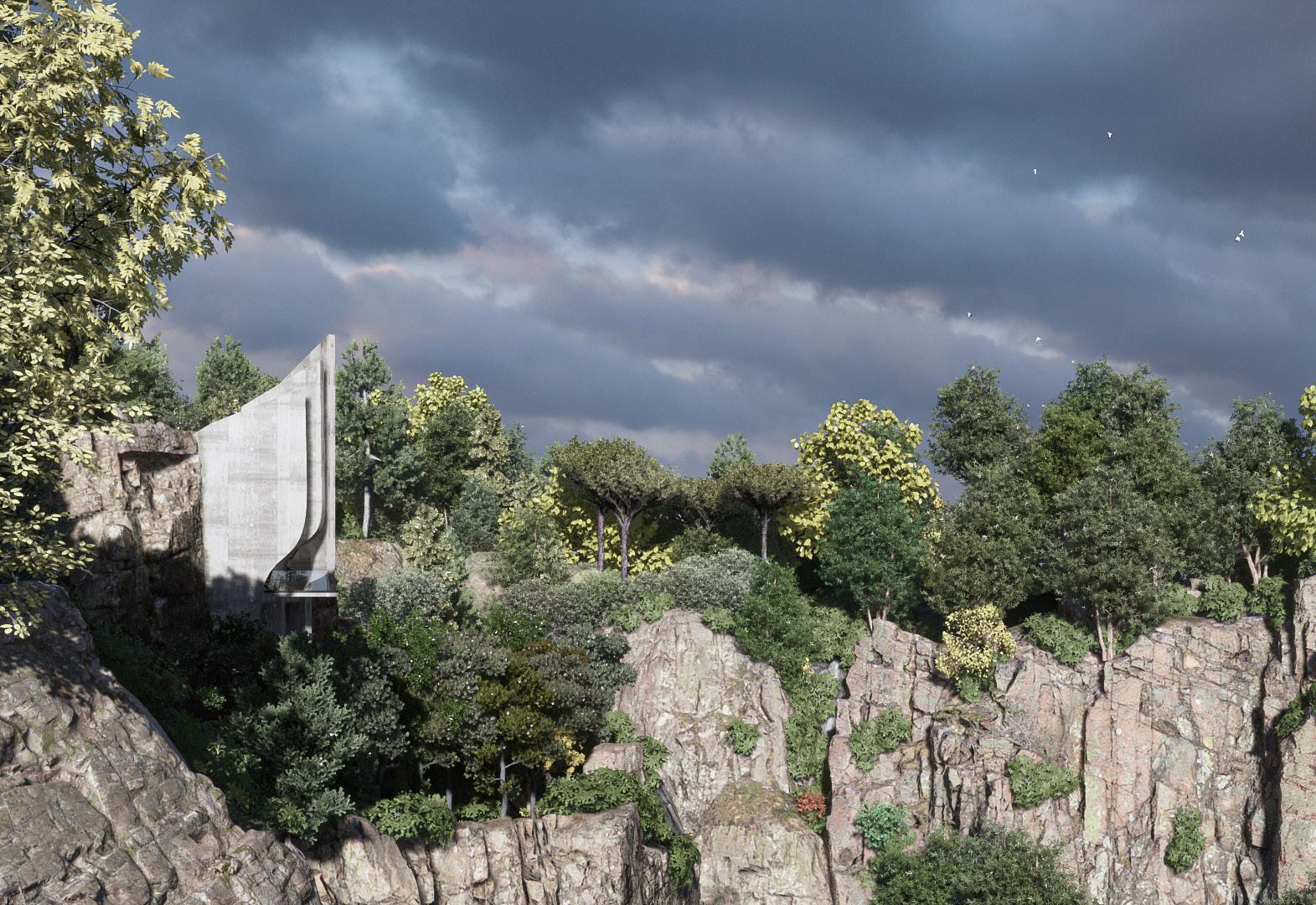

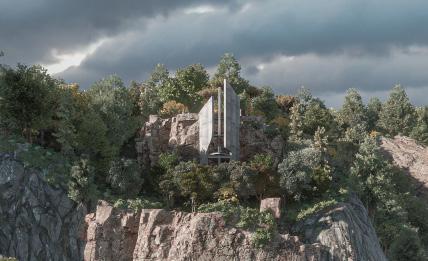

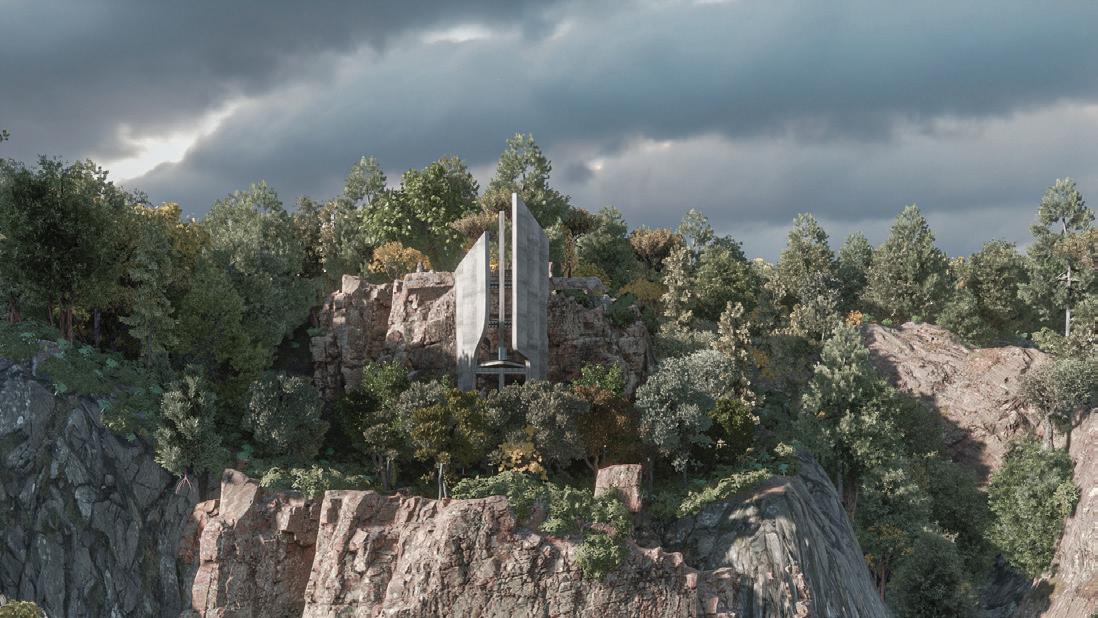

The Horizon sits at the cliff of the Therabulat Lookout at Katoomba, which is approximately 900 metres above sea level, looking right at the valleys and the natural habitats of the Blue Mountain. Wind, Rain, Soil condition and possible hazard have been taken into consideration when designing the Horizon

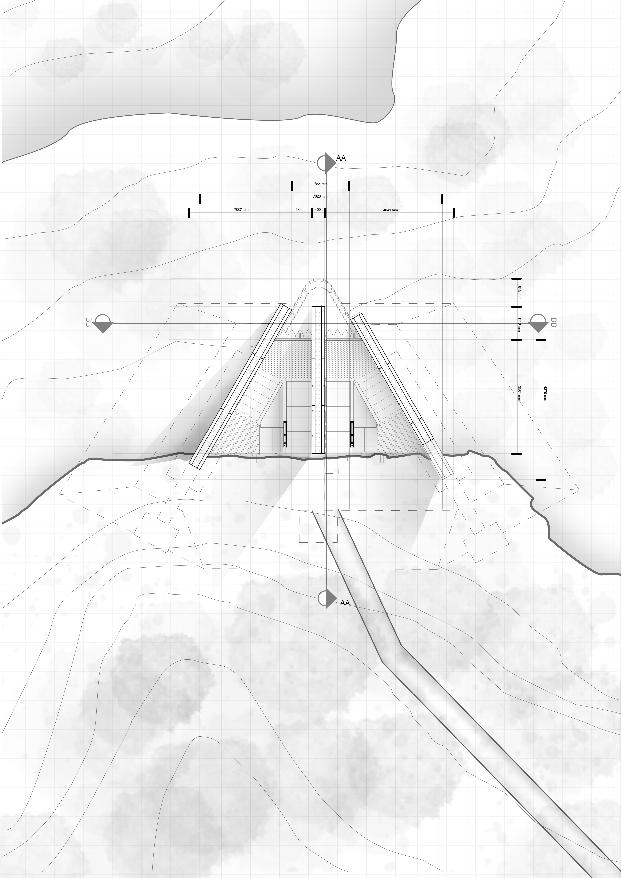

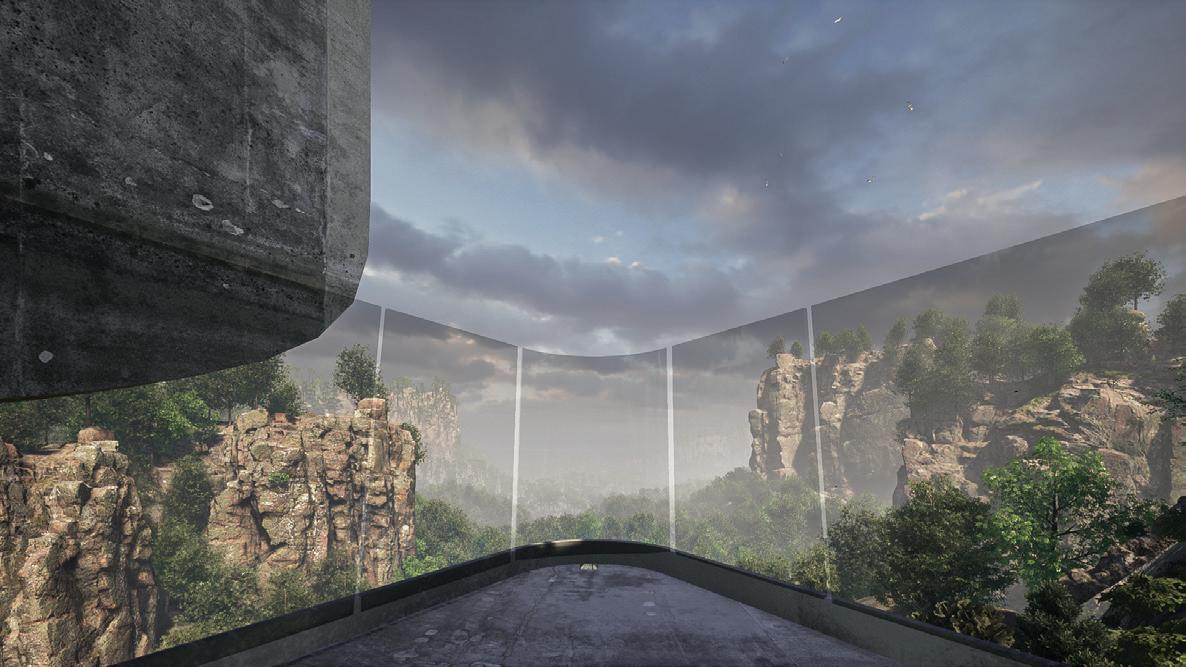

THE PLATFORM

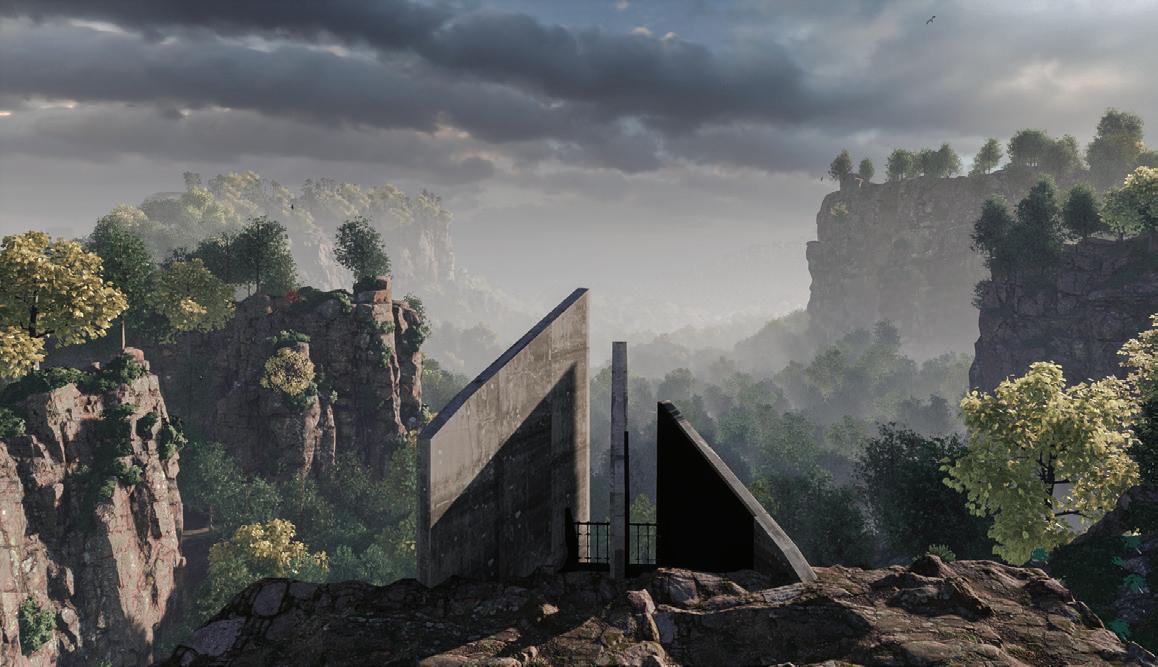

THE ENTRANCE

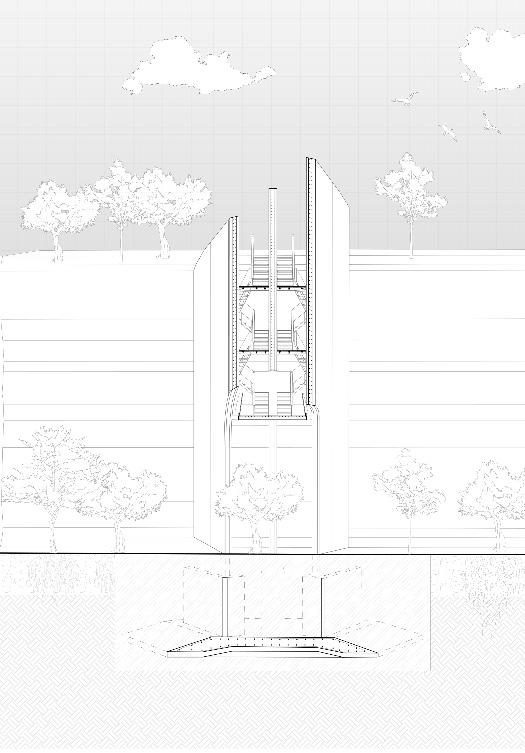

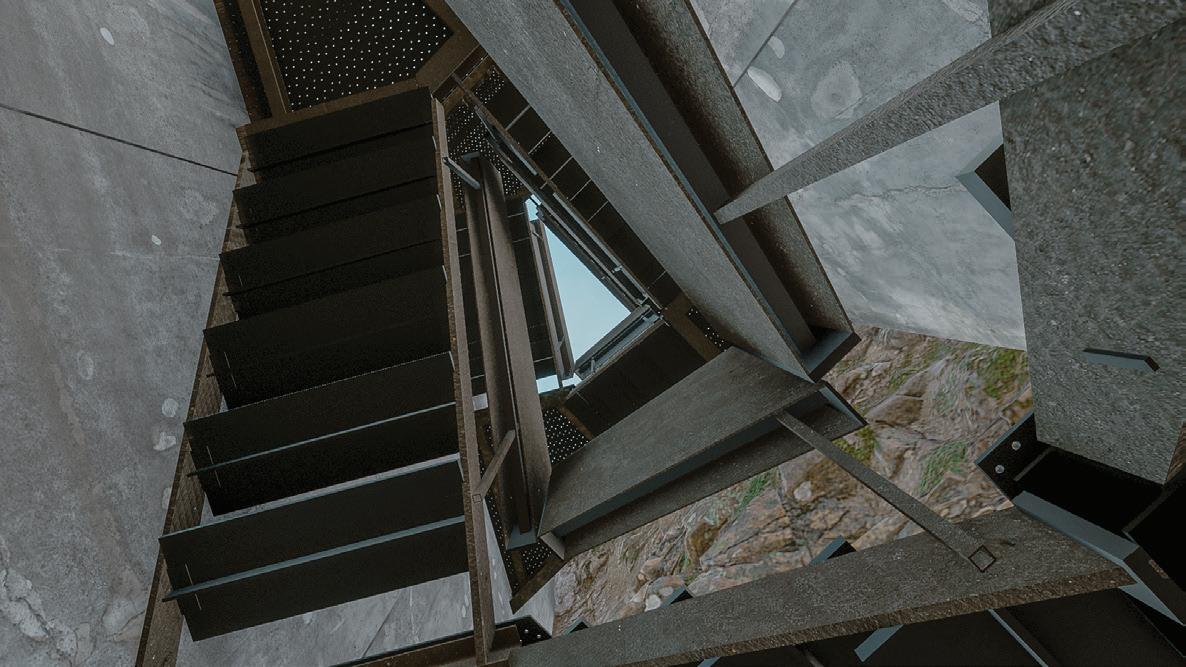

THE INTERIOR (STAIRCASE)

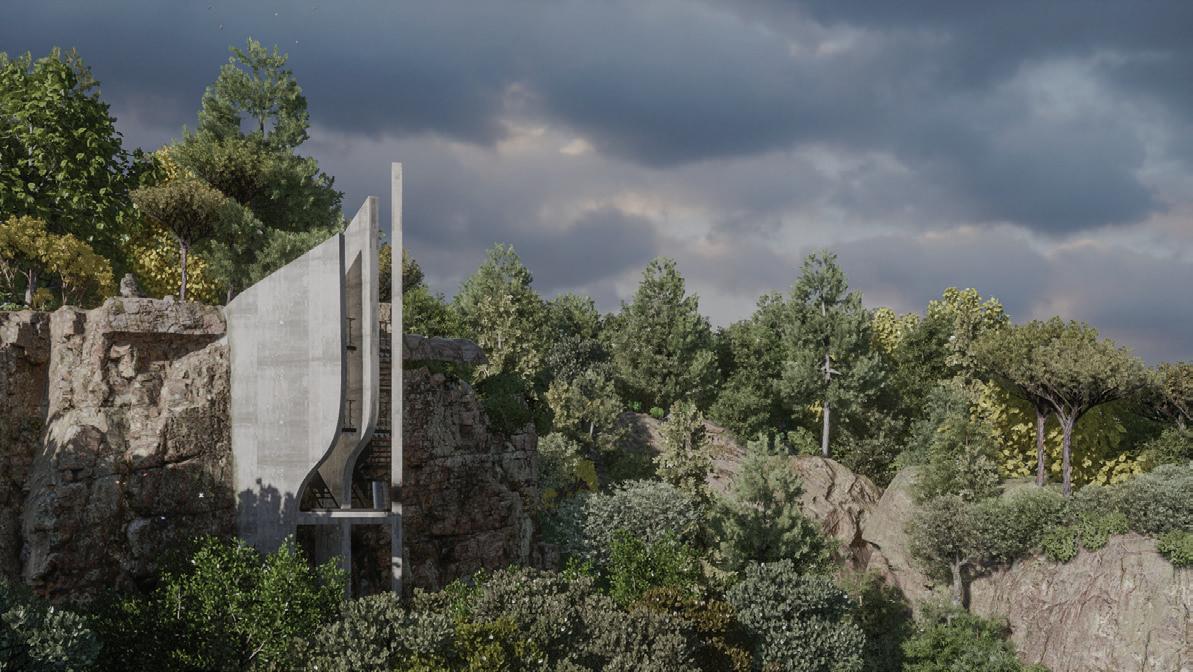

NORTHWEST FACADE
TECTONICS & STRATEGIES

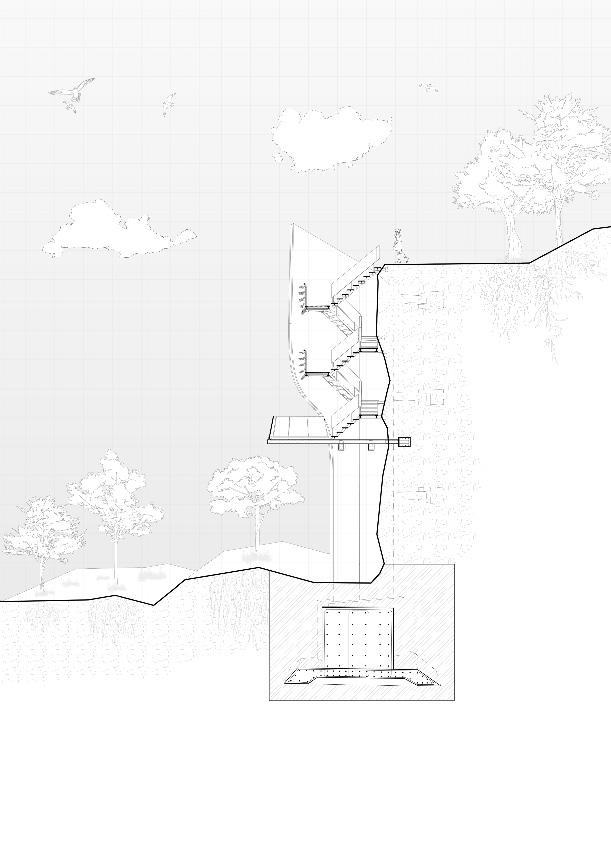

FOUNDATION STRATEGIES
SITE WEATHER STRATEGIES
FORM STRATEGIES
THE WILKINSON BUILDING RENOVATION
YEAR 2 SEMESTER 2
DESIGNING FOR ENVIRONMENTAL QUALITY
SHIU HEI LEE & HOWARD ZHAO
A YouTube Channel has decided to build a two-storey studio for the YouTube Channel and his crew of 30-40 people. His channel includes a range of types of videos, like game streaming, variety shows and comedy story clips (sometimes with advertisement purposes).
The studio space has to meet the Australian Standard for Insulation and has to be Energy Efficient. Indoor Environment Quality like Thermal, Lighting, Acoustics and Air Quality would be the main focus of the renovation

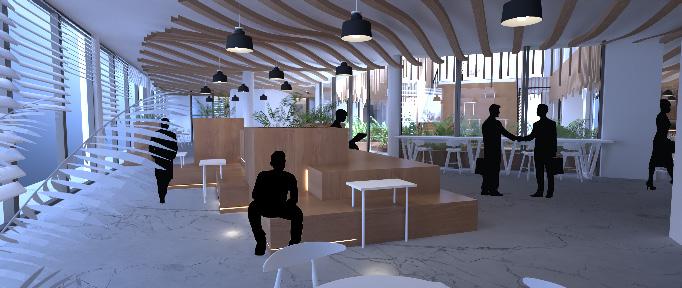

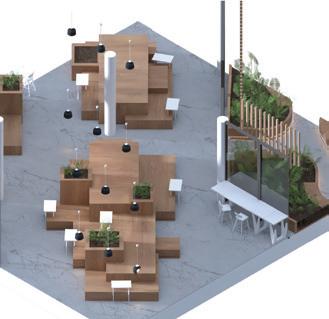

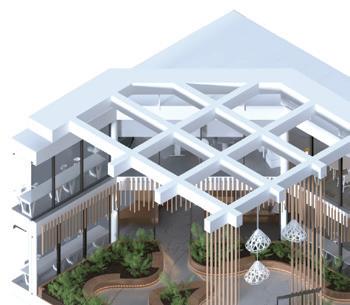

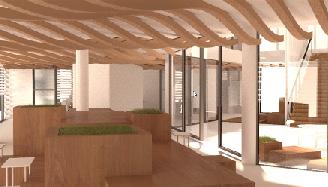

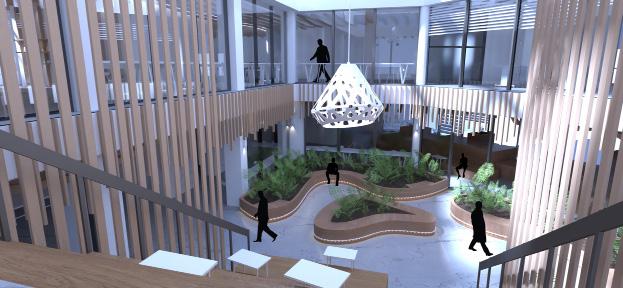

CENTRAL COURTYARD AREA

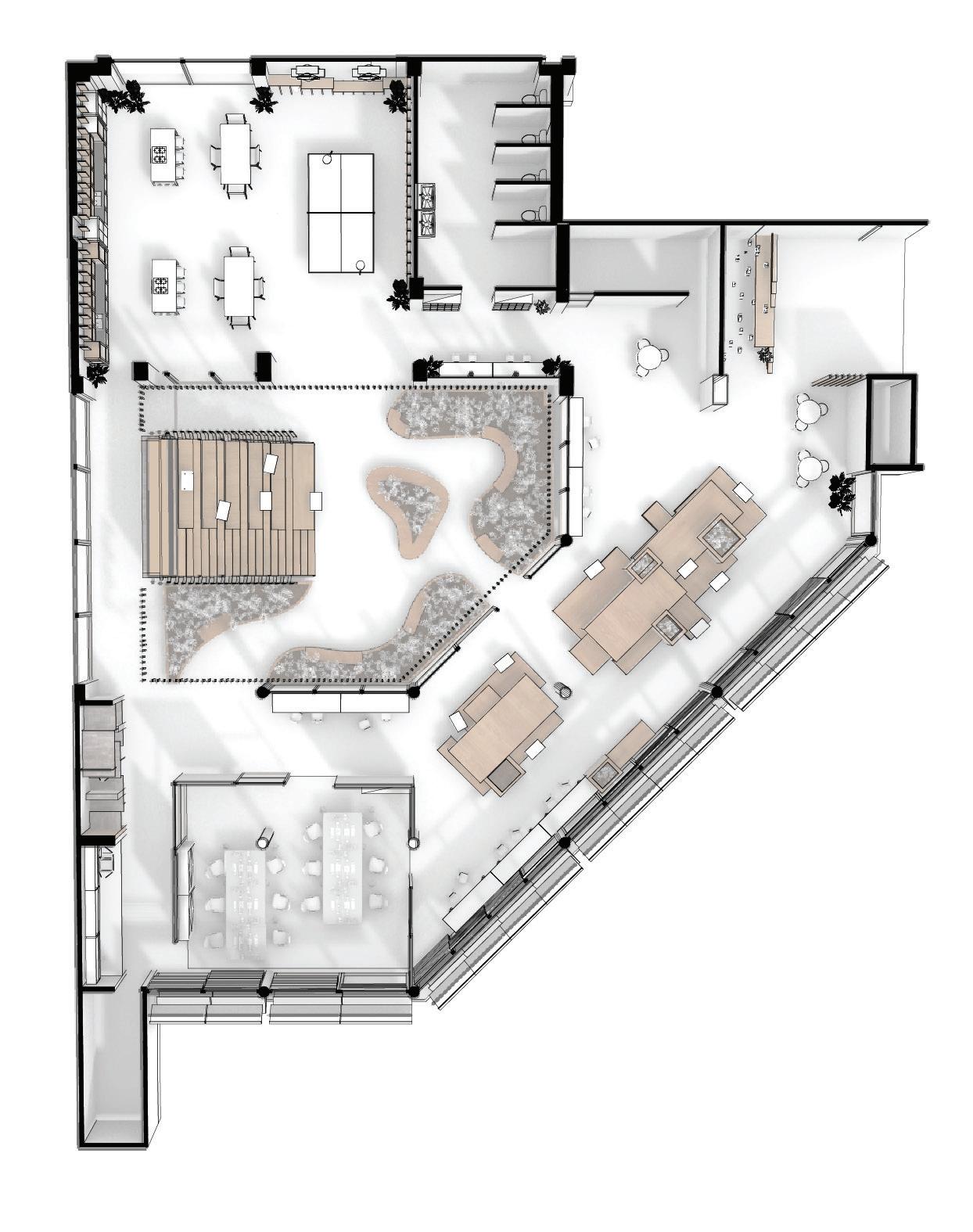

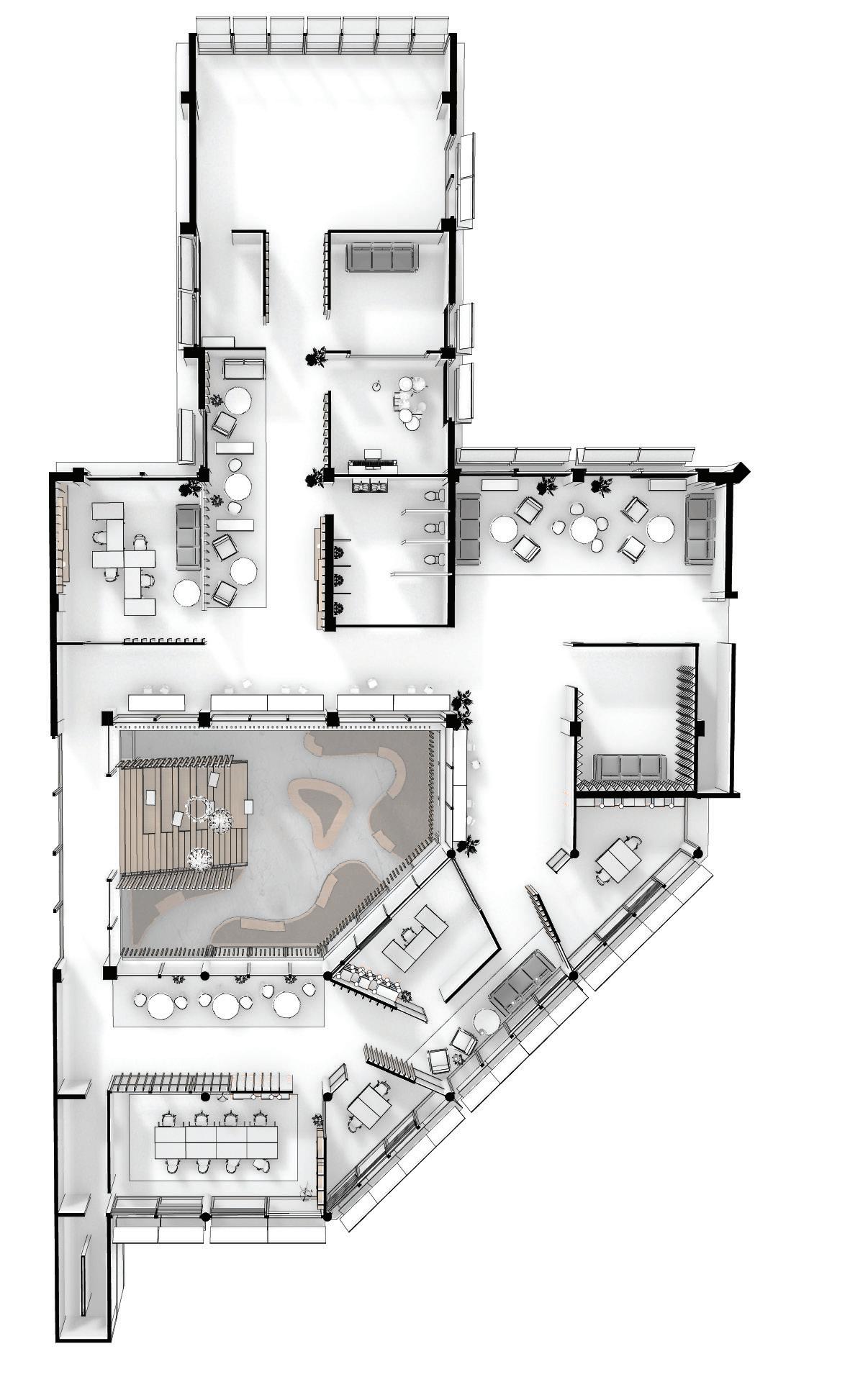

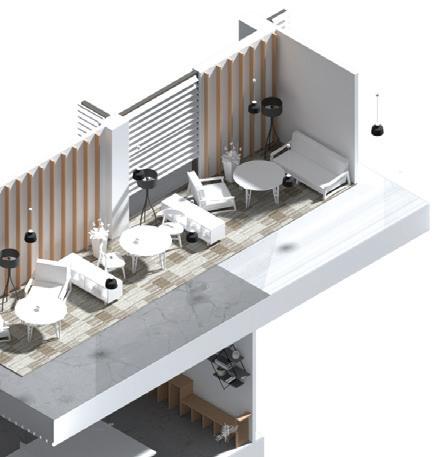

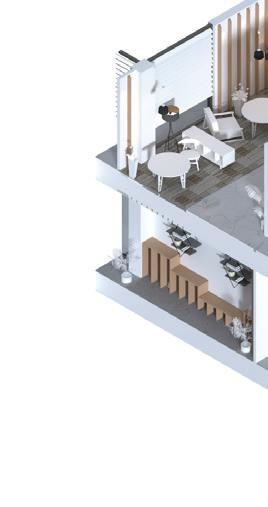

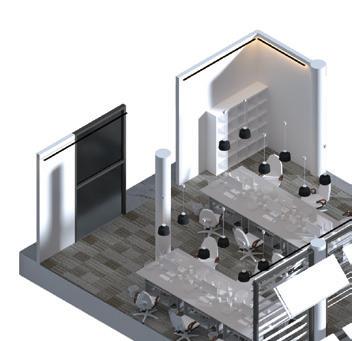

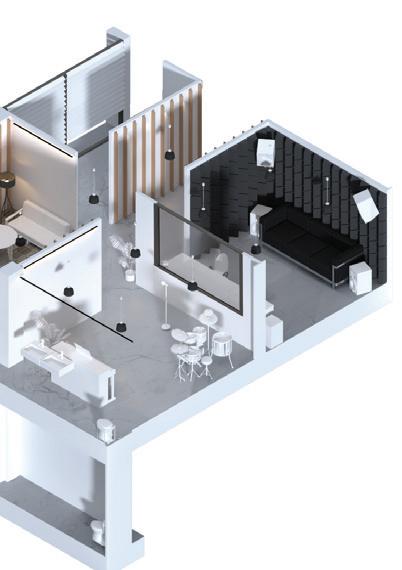

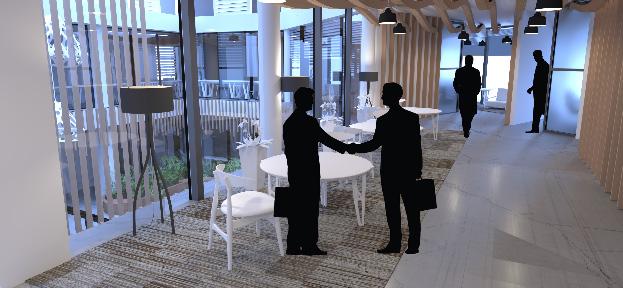

LEVEL 5 ACTIVE WORKING SPACE

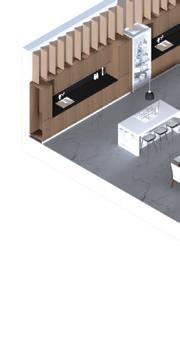

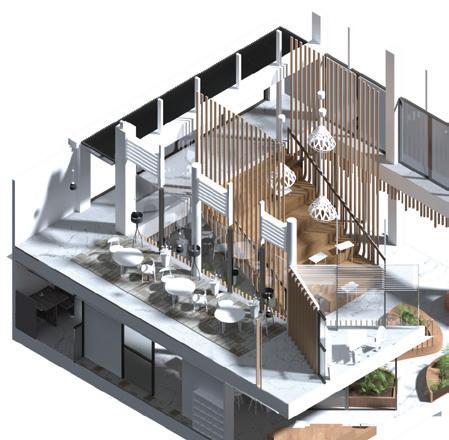

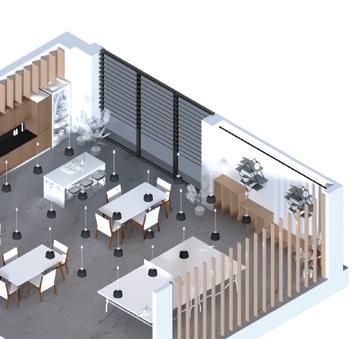

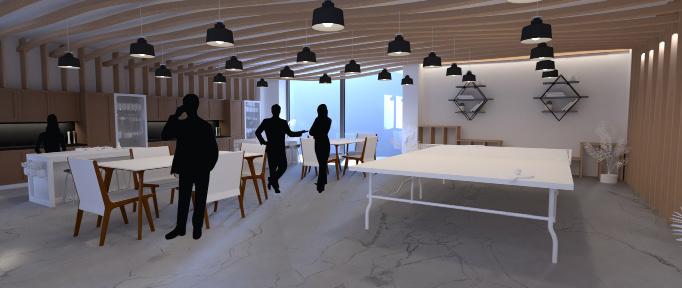

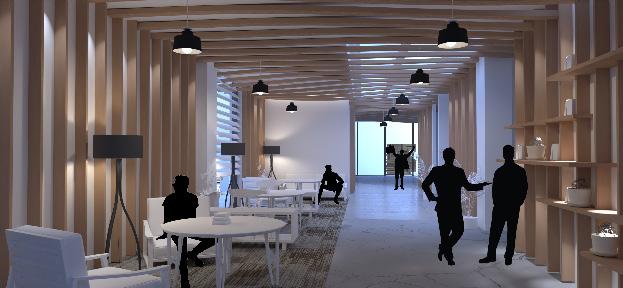

KITCHEN & RELAXATION HUB

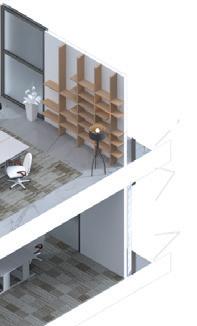

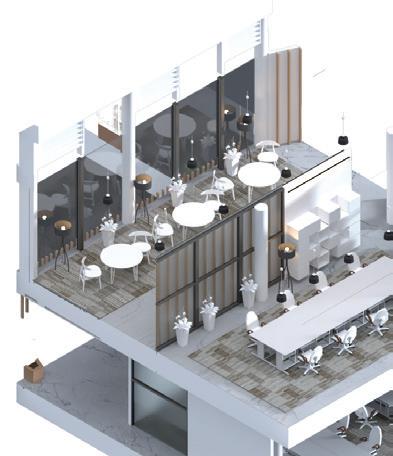

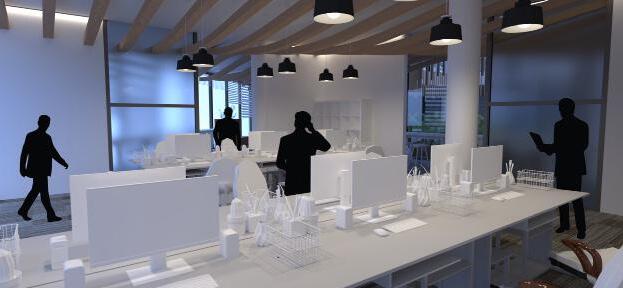

LEVEL 4 ACTIVE WORKING SPACE

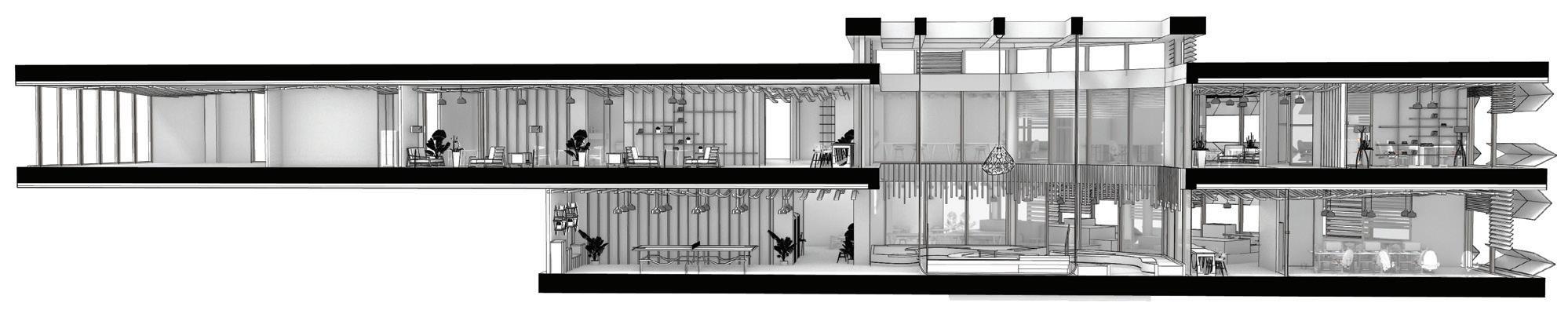

LEVEL 5 MEETING ROOMS LEVEL 4 WORK STATIONS
BUILDING SYSTEMS
UNDERGROUND AIR DISTRIBUTION SYSTEM

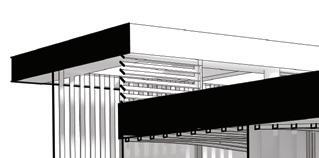

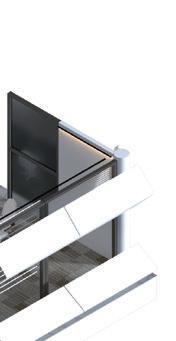

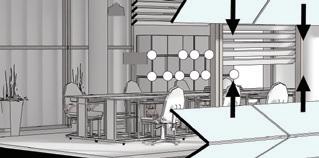

DYNAMIC SOLAR FACADE SYSTEM

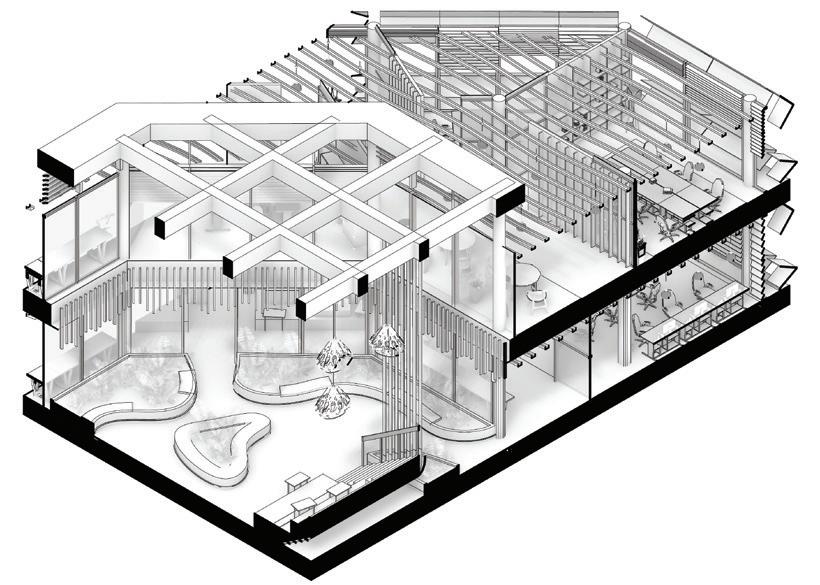

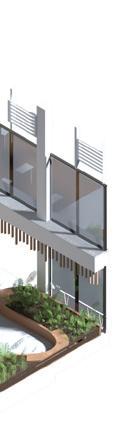

CENTRAL COURTYARD

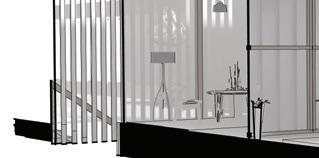

1 TAWA STREET ALTERNATION
YEAR 3 SEMESTER 2
ARCHITECTURAL PROFESSIONAL PRACTICE
SHIU HEI LEE
This residential alternation introduces professional practice of architecture, focusing on design development within regulatory and practice management frameworks. The development has to follow fundamental principles of key regulatory requirements and critically deploy personal understandings by investigating local practice case studies, in this case the Ashefield Local.
A Statement of Environmental Effect (SEE) and a Draft Development Application (DA) are the final outcome of the unit.

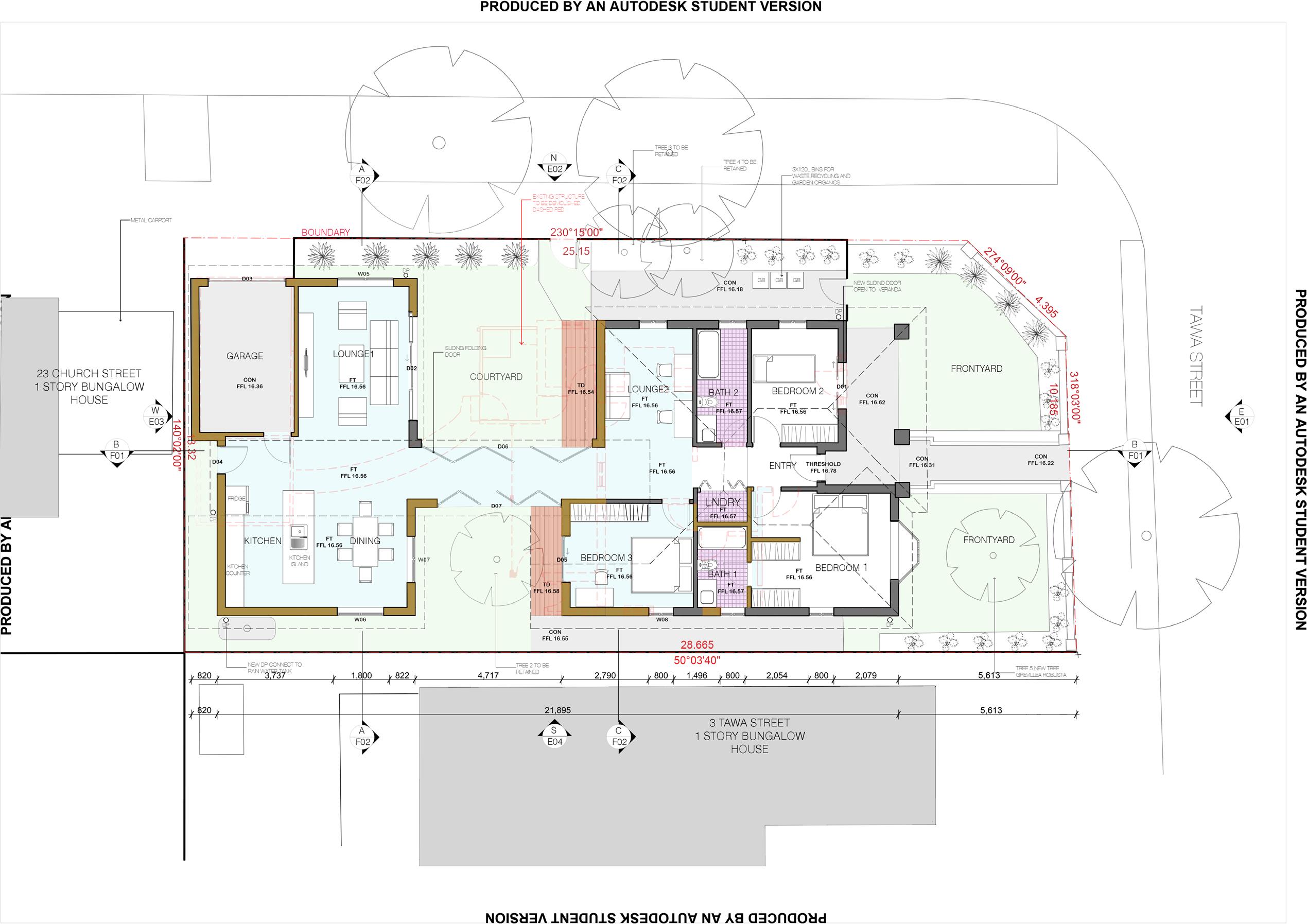

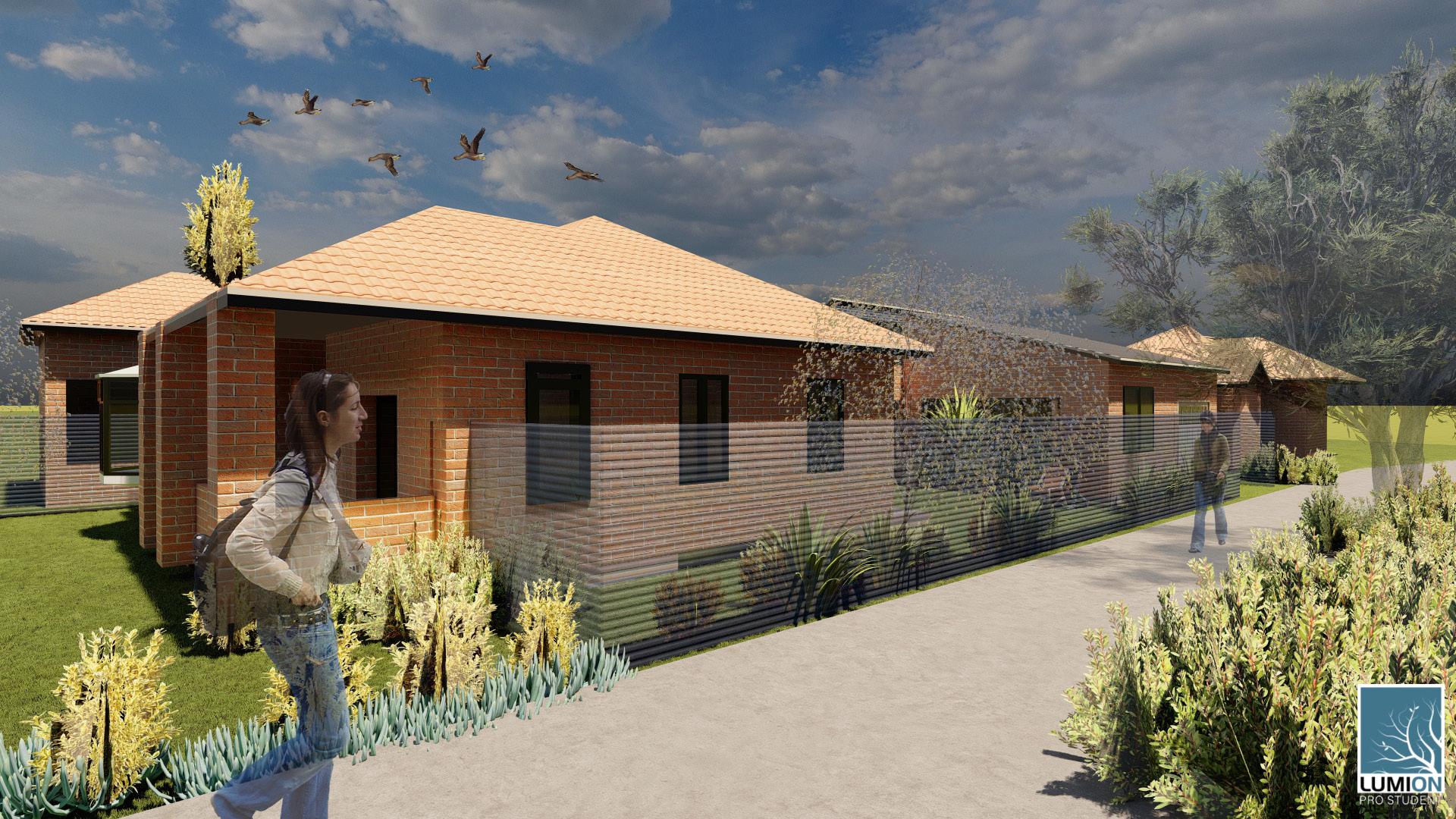

DRAFT DEVELOPMENT APPLICATION

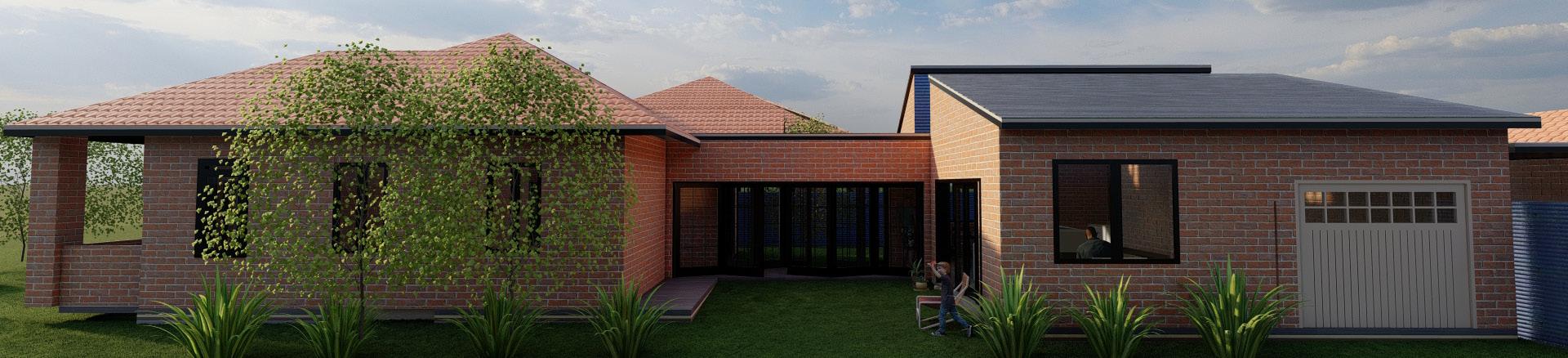

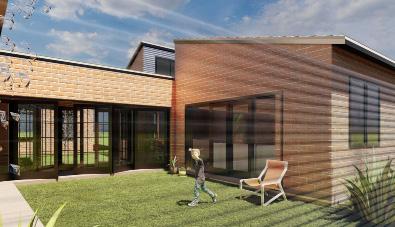

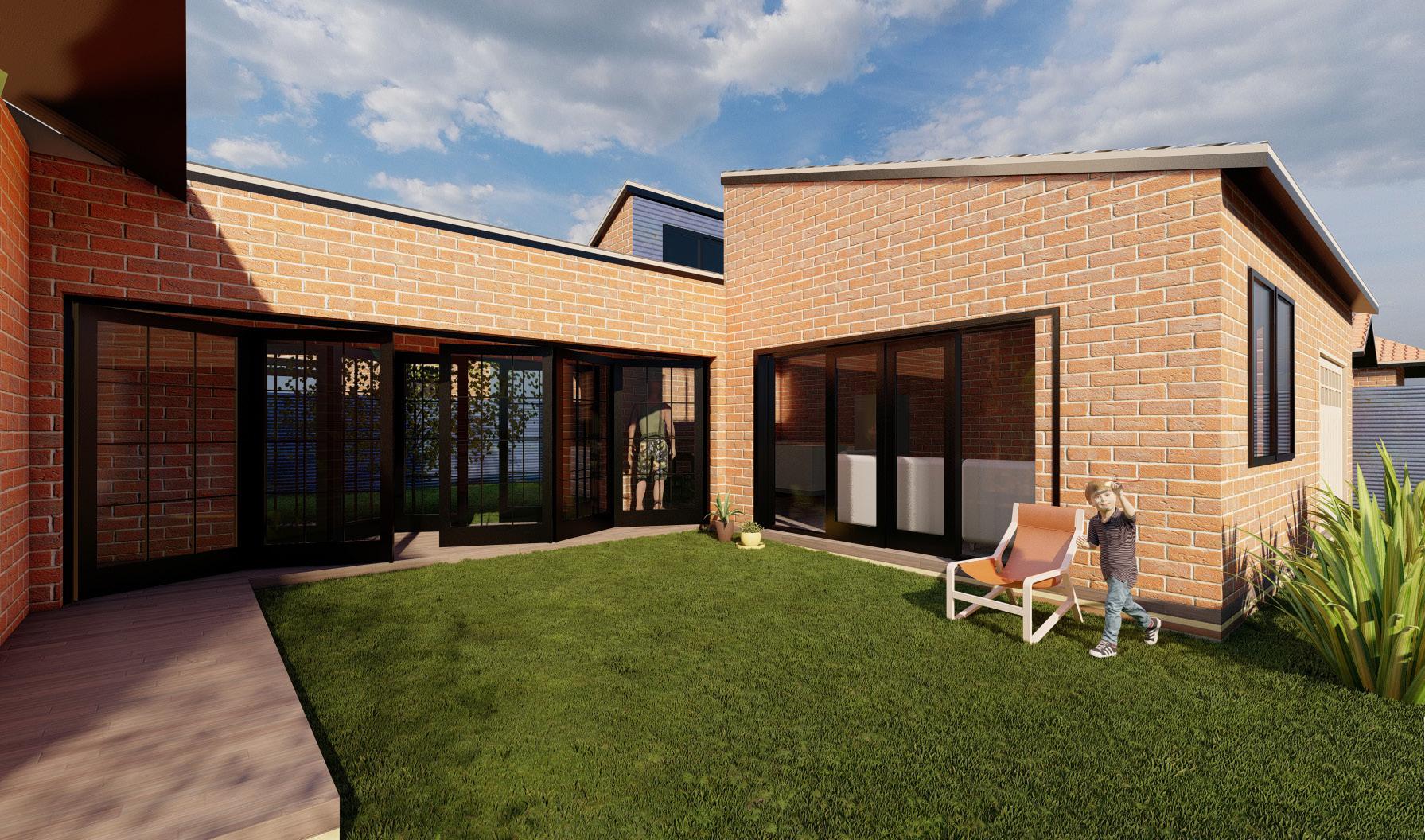

FIGURE1
VIEW OF COURTYARD FROM NORTH FENCE
FIGURE2
STREET VIEW OF NORTH SIDE FROM TAWA STREET (WITHOUT FENCE)
PROFESSIONAL INVOLVEMENT
DLN ARCHITECTS LIMITED
SHIU HEI LEE (ARCHITECTURAL ASSISTANT)
Assist in different types of architectural drawings for Approval In Principle (AIP), as well as producing diagrams and tenders for clients and design & build competitions and study. Indicative and illustrative diagrams including but not limited to Site Constraints, Mass Comparison, Axonometric and diff erent types of Circulation and Routing etc. Involvement also includes but not limit to working and drafting on Approval in Principle (AIP) Submission, finding & contacting suppliers for materials needed for projects

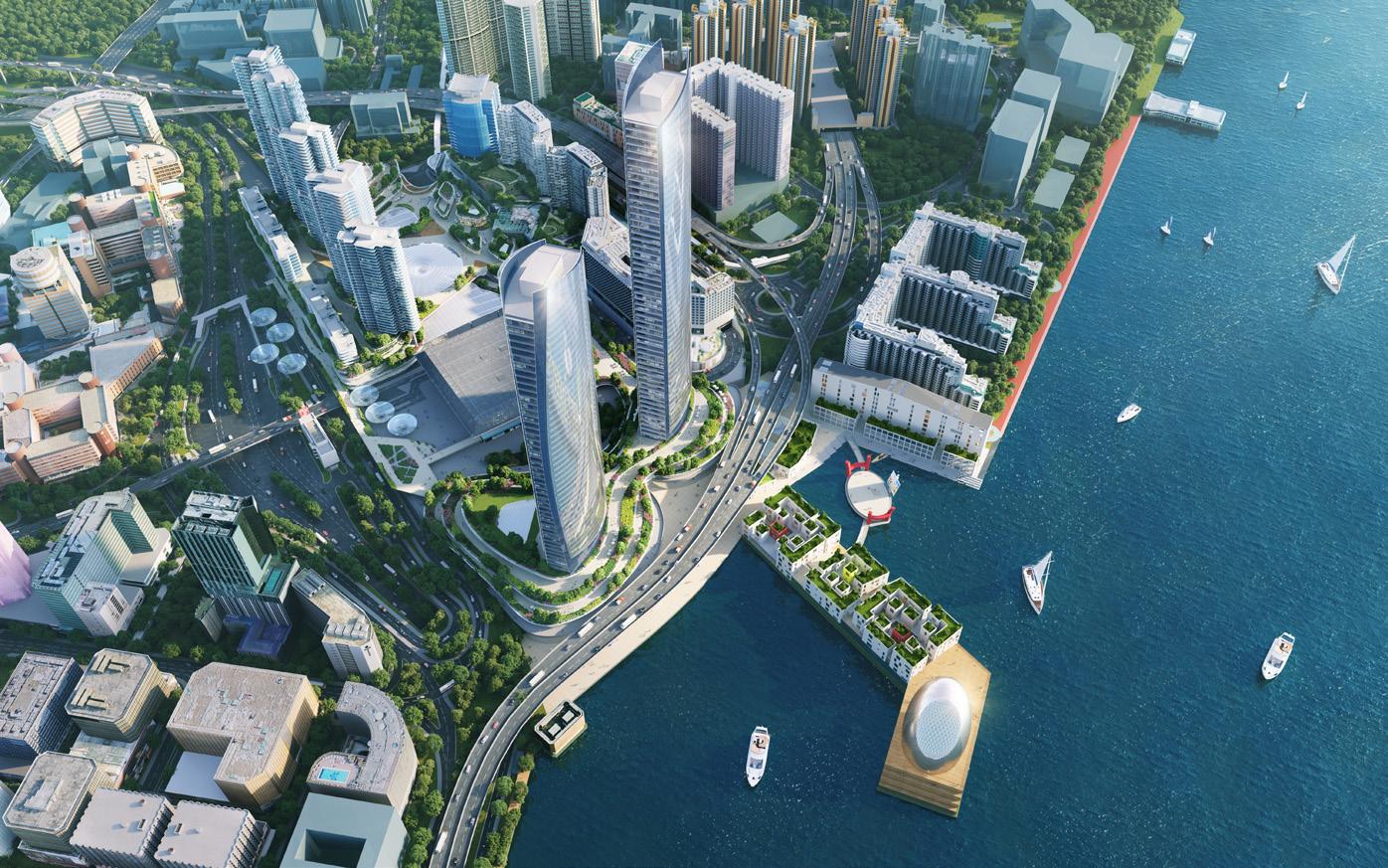

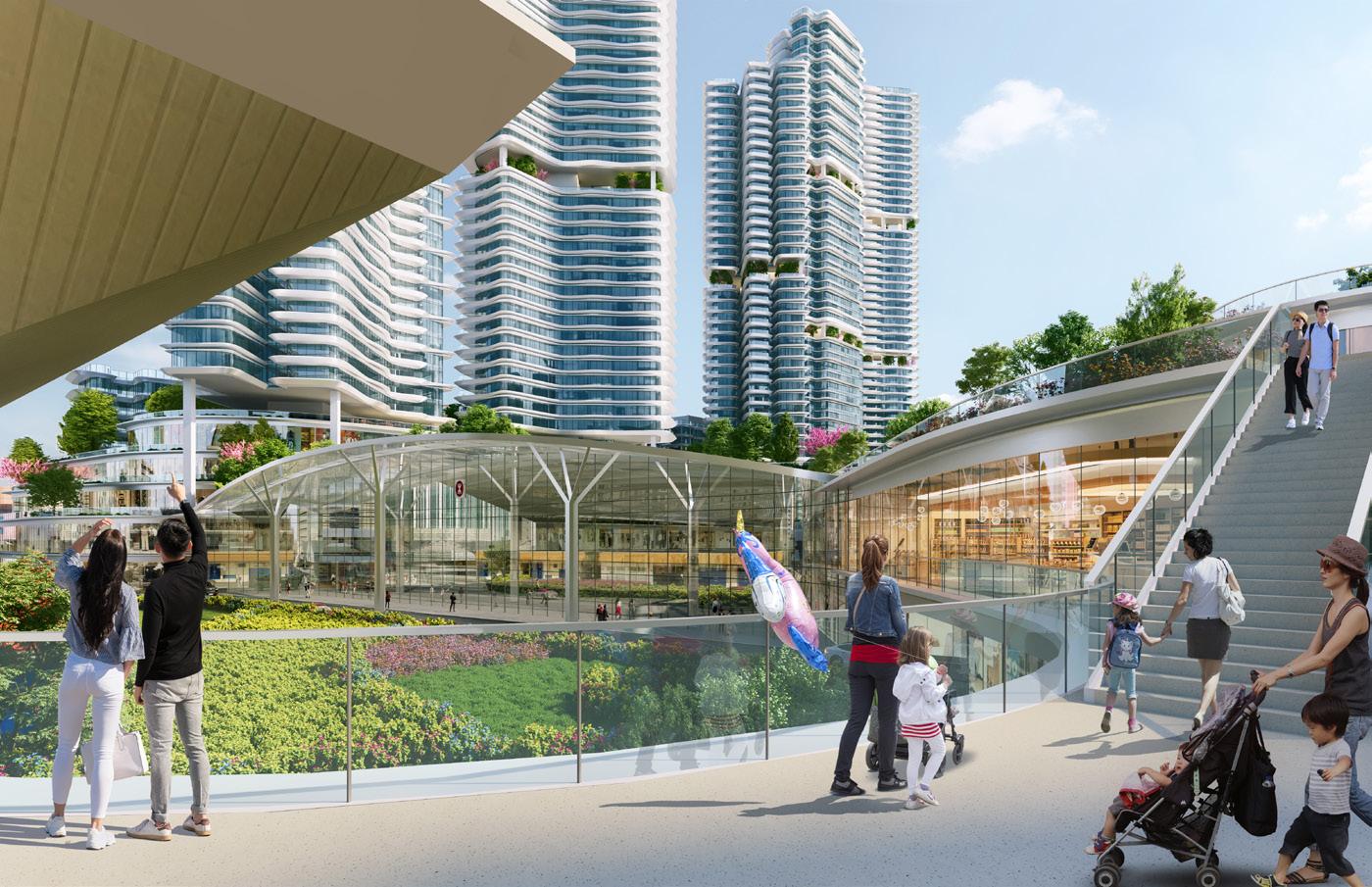

DESIGN BIDDING - HUNG HOM REDEVELOPMENT MASTER PLAN STUDY
DESIGN BIDDING - HUNG HOM REDEVELOPMENT MASTER PLAN STUDY

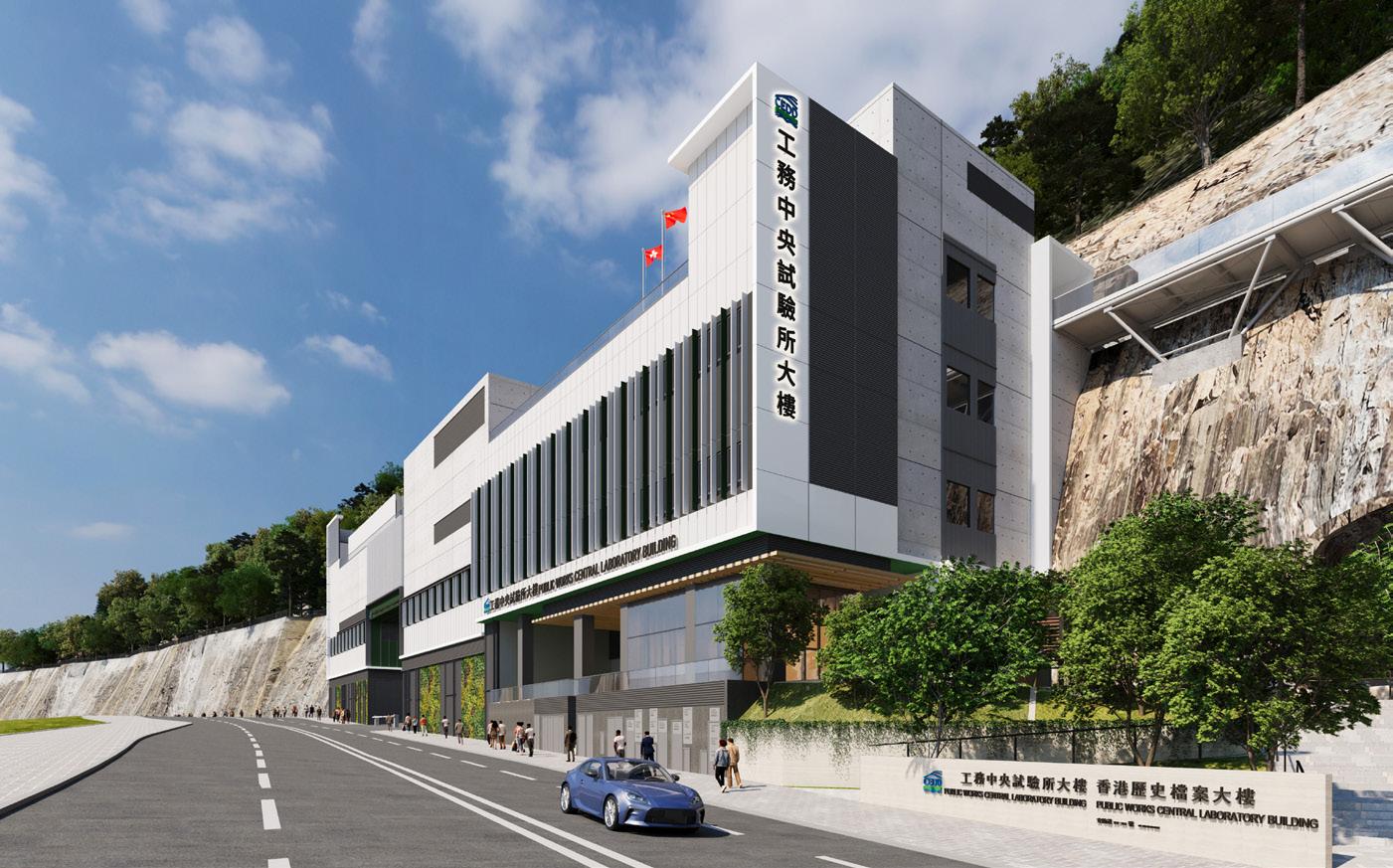

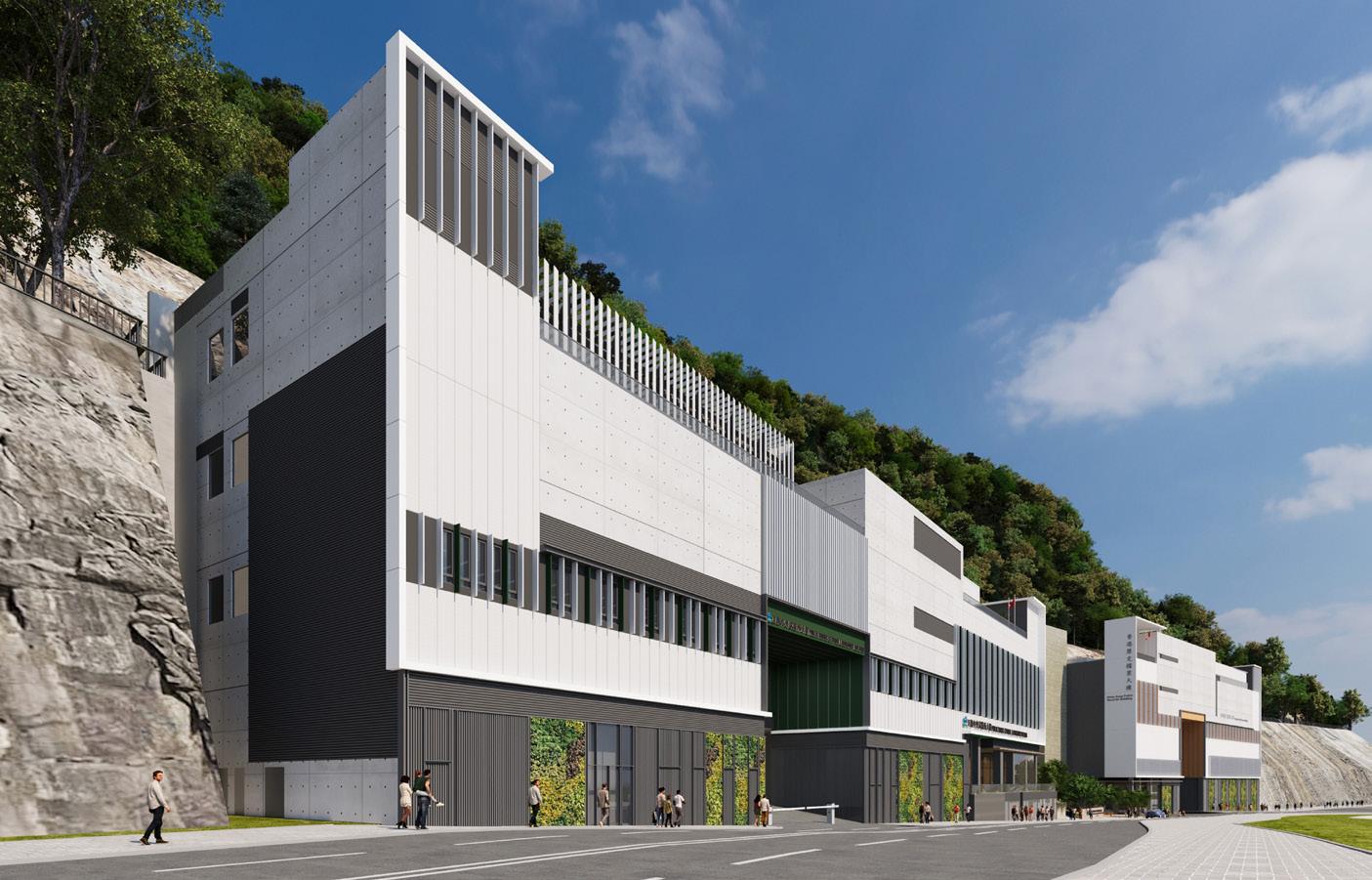

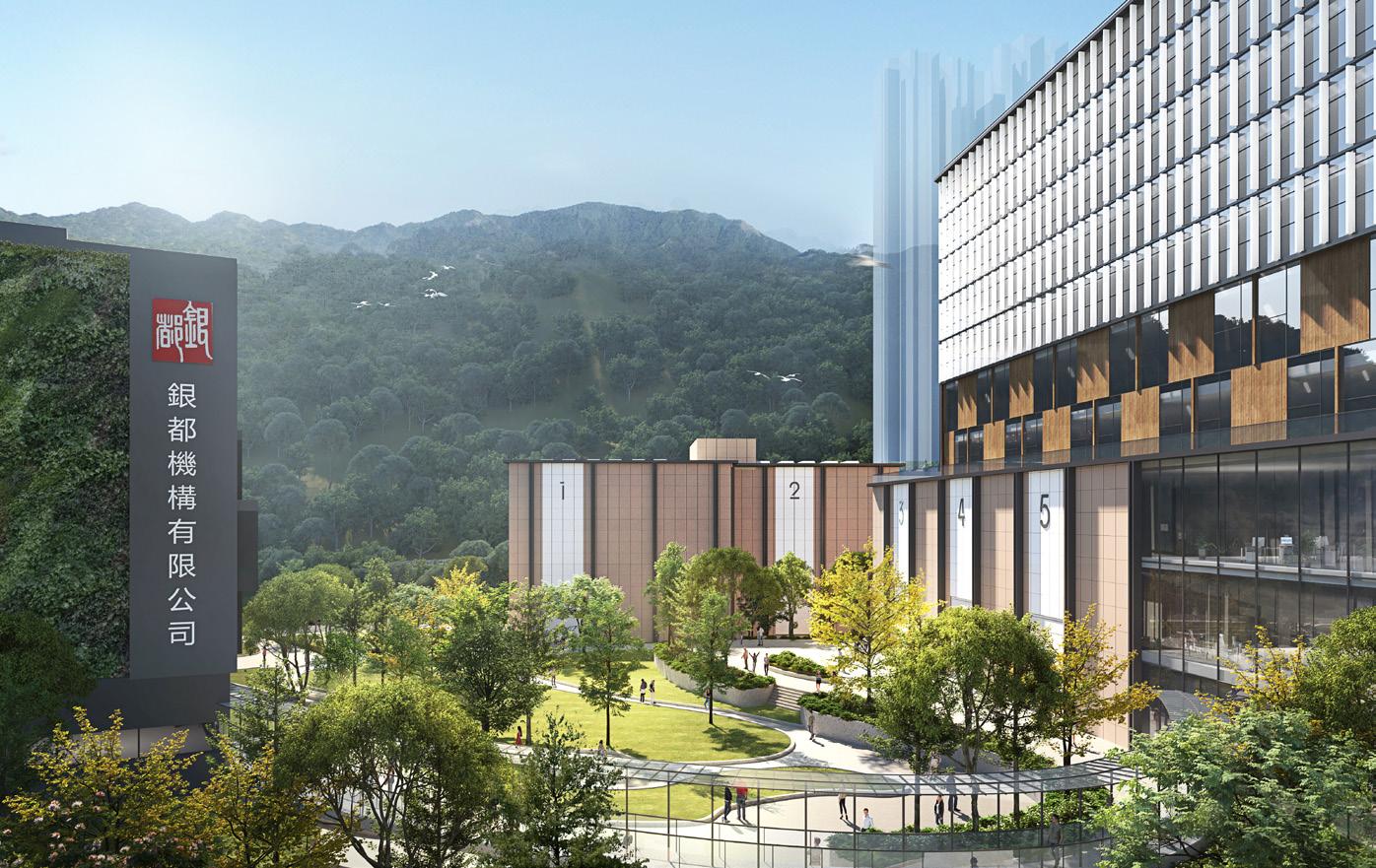

GOVERNMENT MAJOR PROJECT - PUBLIC WORKS CENTRAL LABORATORY JOINT CAVERN DEVELOPMENT AT ANDERSON ROAD QUARRY SITE
GOVERNMENT MAJOR PROJECT - PUBLIC WORKS CENTRAL LABORATORY JOINT CAVERN DEVELOPMENT AT ANDERSON ROAD QUARRY SITE

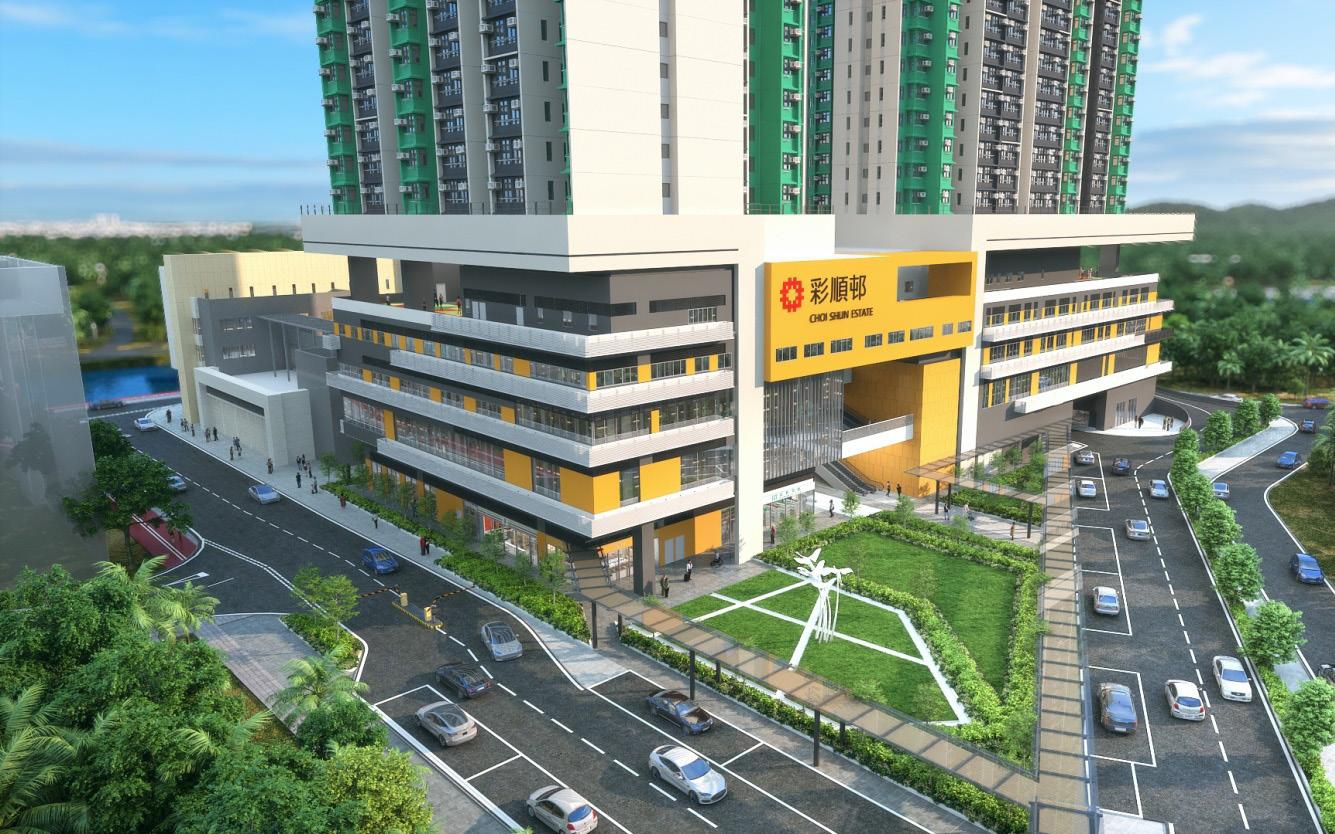

PUBLIC HOUSING - CHOI SHUN STREET PUBLIC HOUSING AT SHEUNG SHUI
PUBLIC HOUSING - CHOI SHUN STREET PUBLIC HOUSING AT SHEUNG SHUI
DESIGN & BUILD - PROPOSED REDEVELOPMENT PROPOSAL AT CDA SITE AREA
DESIGN & BUILD - PROPOSED REDEVELOPMENT PROPOSAL AT CDA SITE AREA
PAPER & MODELS
YEAR 1 - YEAR 3
SHIU HEI LEE
Model making in architecture is as an integral as sketches when creating a project, and the type of models made vary depending on the stage of the design process. Conceptual model. Conceptual model making often accompanies the initial sketches and creative brainstorming in the beginning stages of the project.

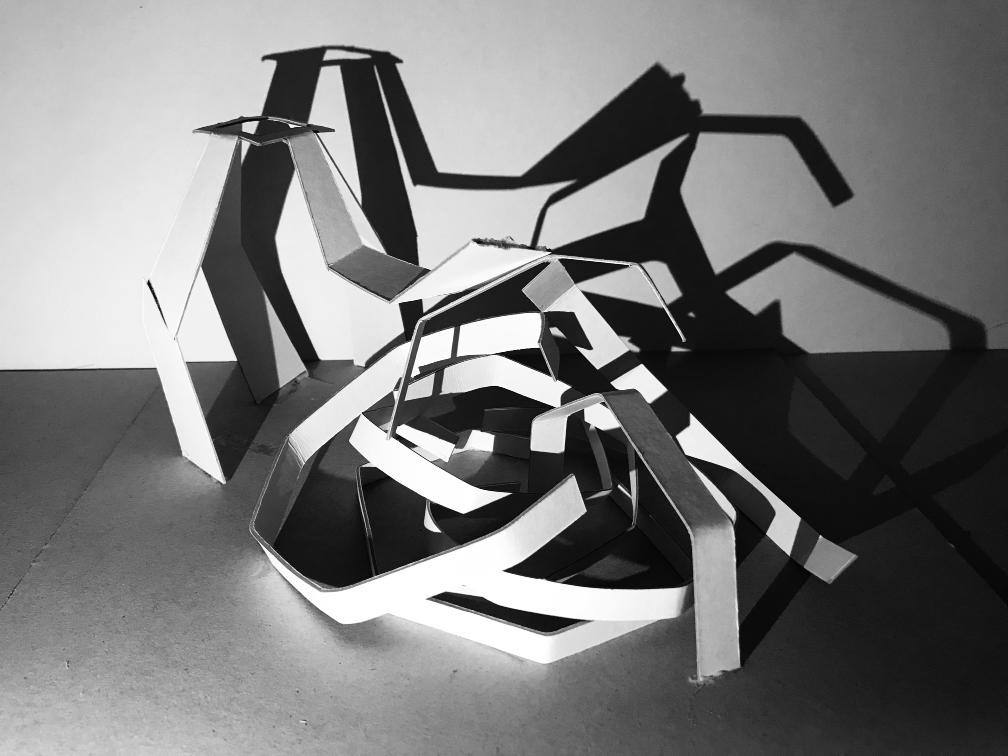

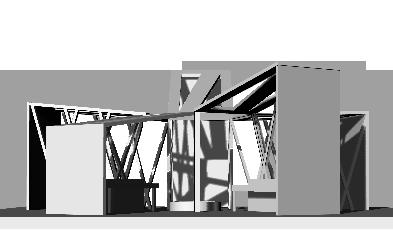

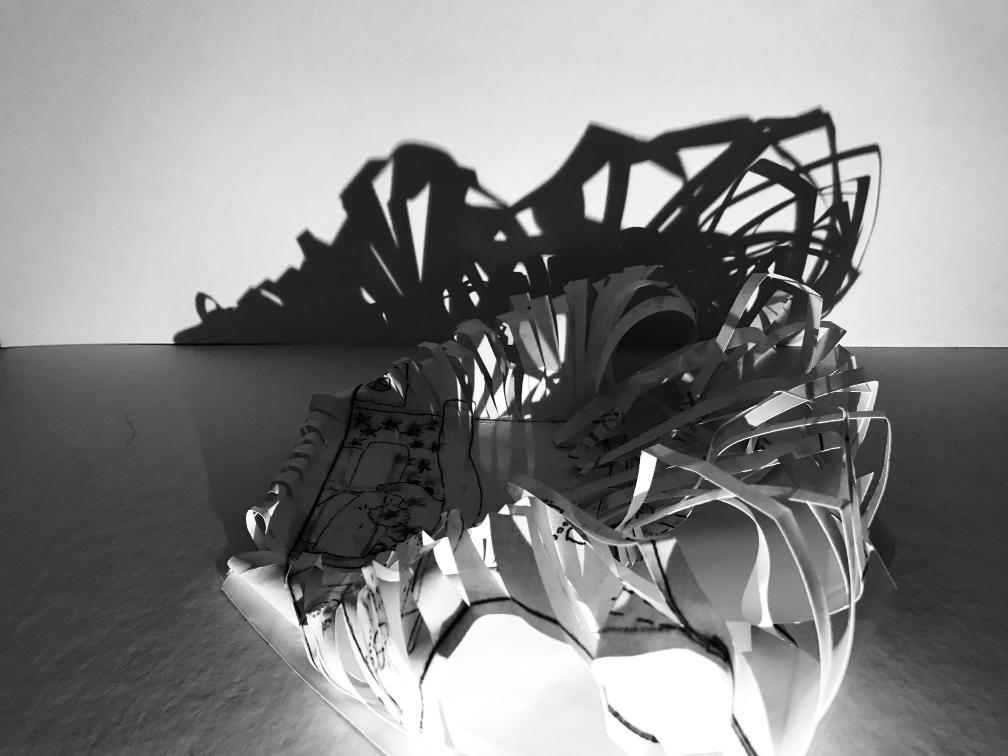

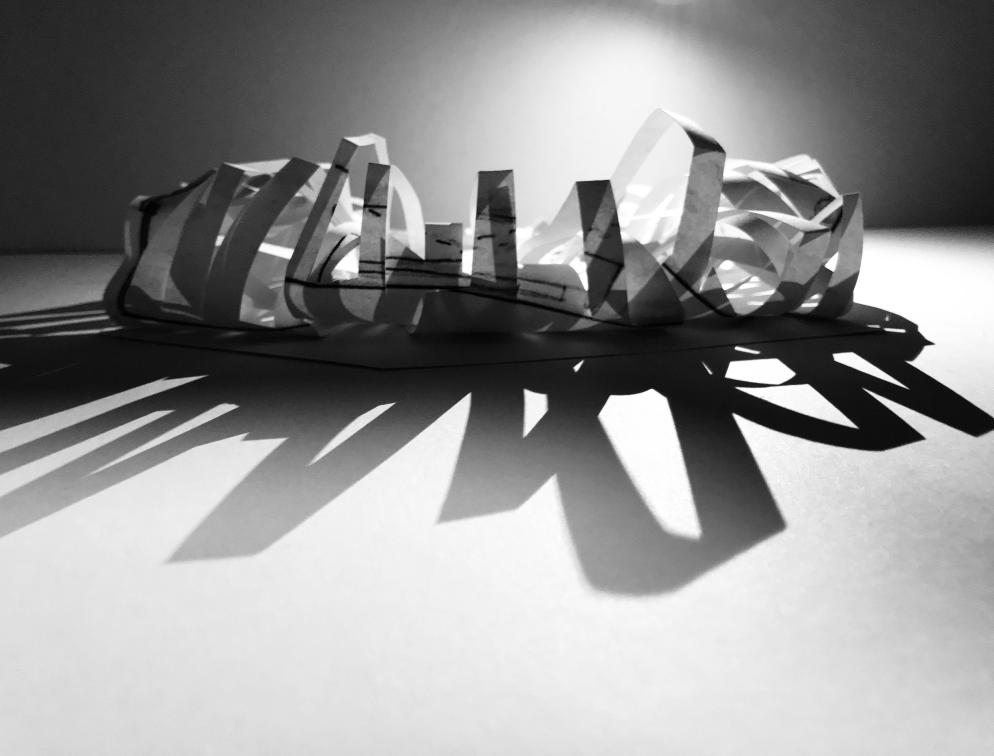

YEAR 1 SEMESTER 1 PAPER MODEL (INSPIRATIONS)
YEAR 1 SEMESTER 1 PAPER MODEL (INSPIRATIONS)
YEAR 1 SEMESTER 1 PAPER MODEL (INSPIRATIONS)
YEAR 1 SEMESTER 1 PAPER MODEL (INSPIRATIONS)

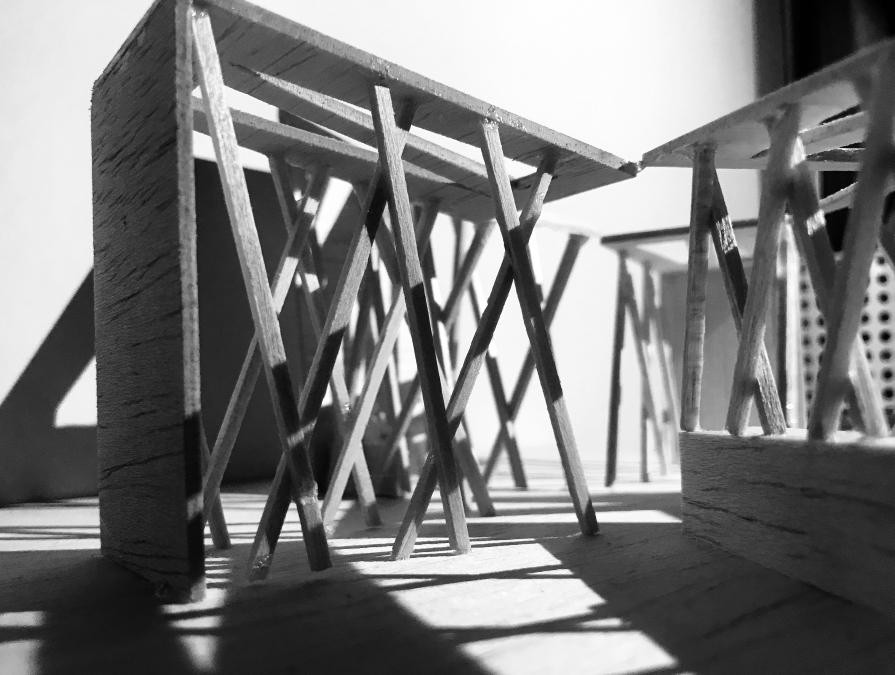

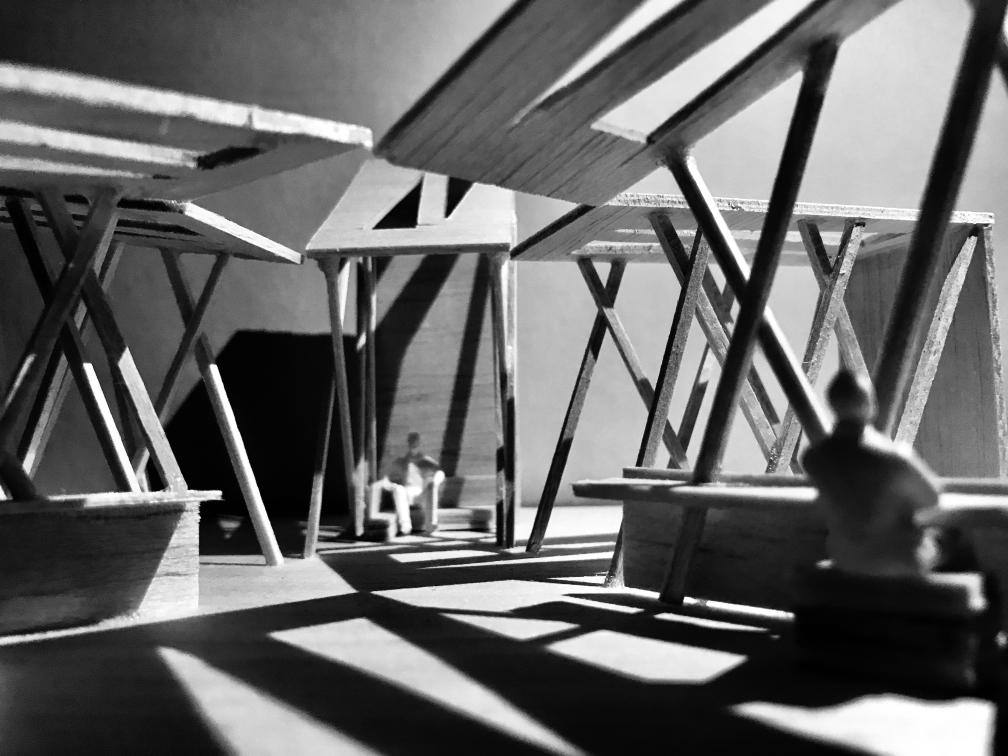

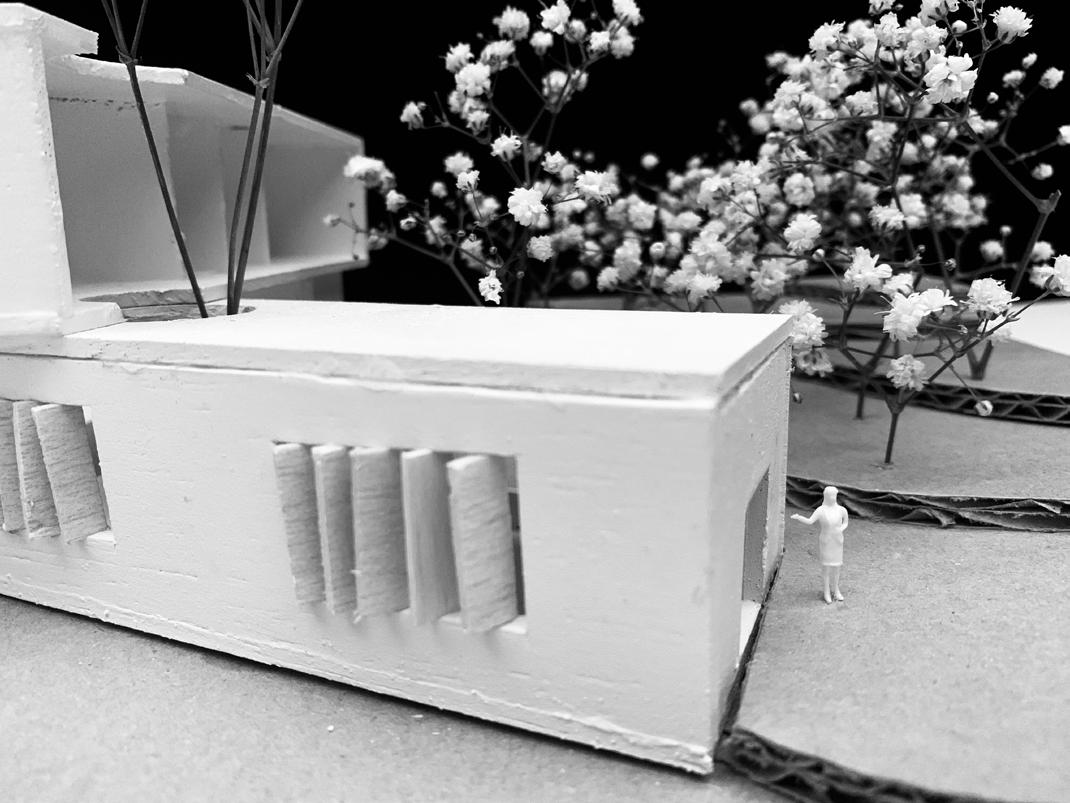

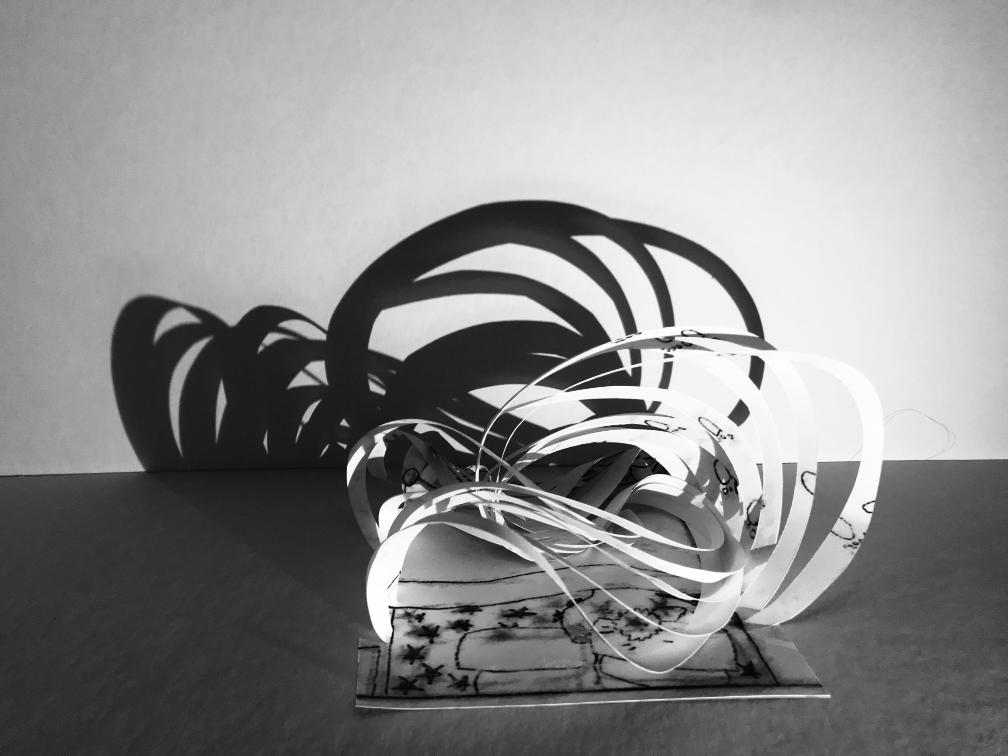

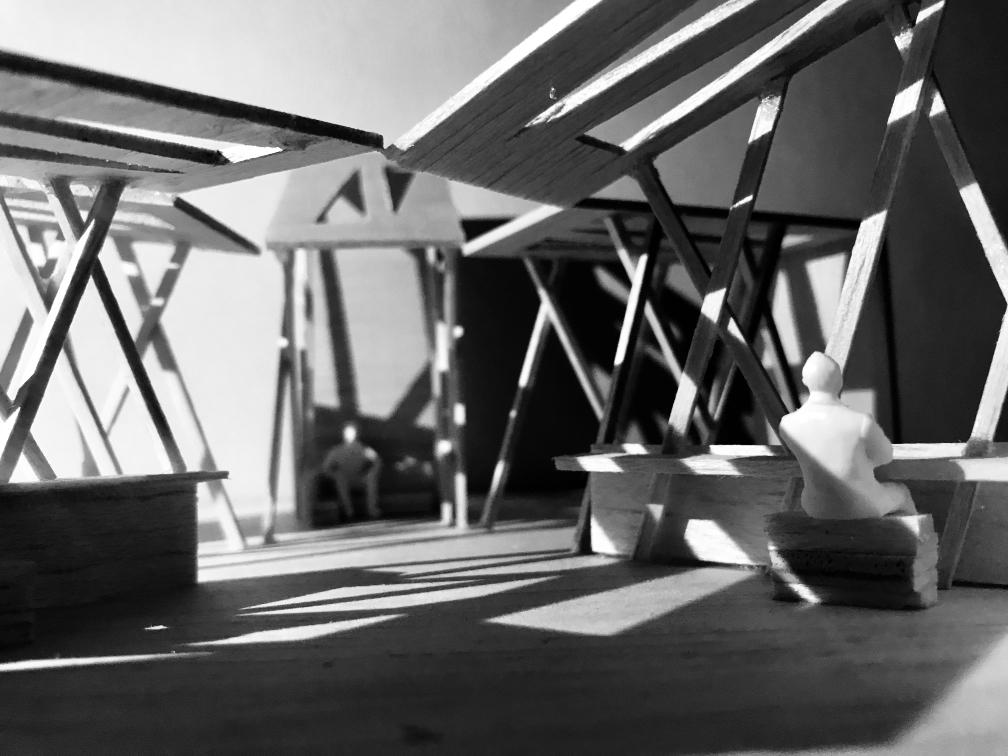

YEAR 1 SEMESTER 1 PHYSICAL MODEL
YEAR 1 SEMESTER 1 PHYSICAL MODEL
YEAR 1 SEMESTER 1 PHYSICAL MODEL
YEAR 1 SEMESTER 1 PHYSICAL MODEL

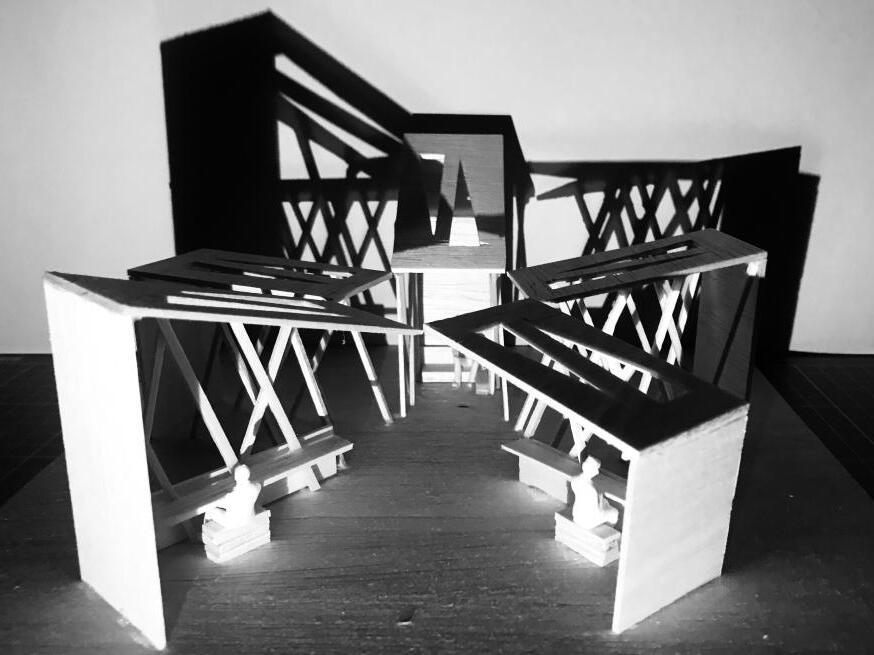

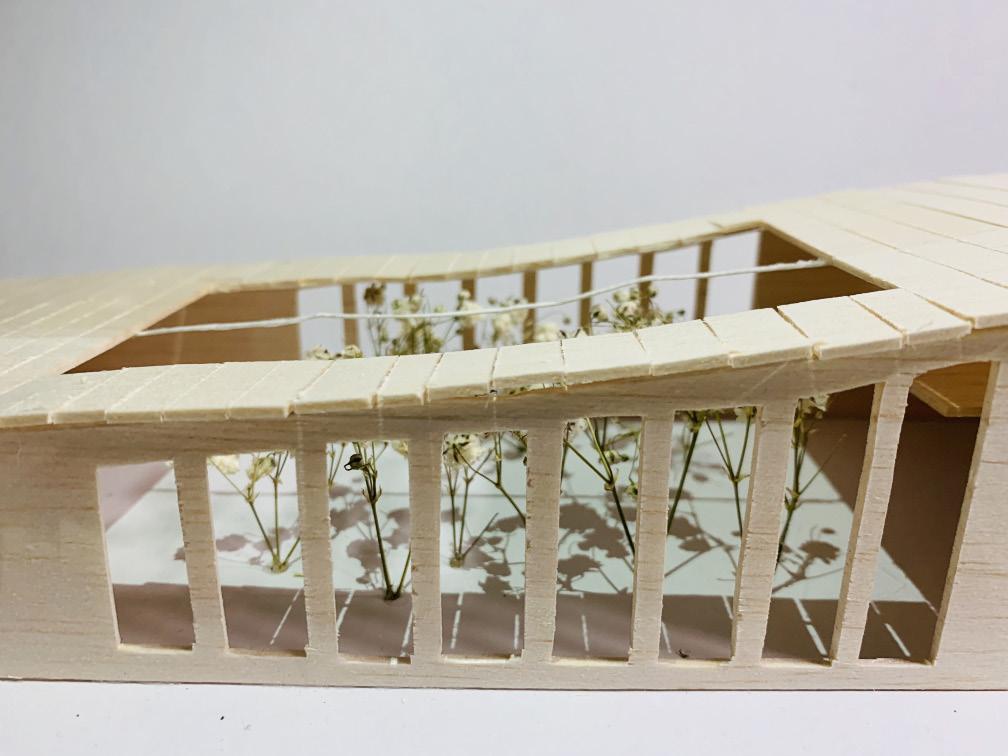

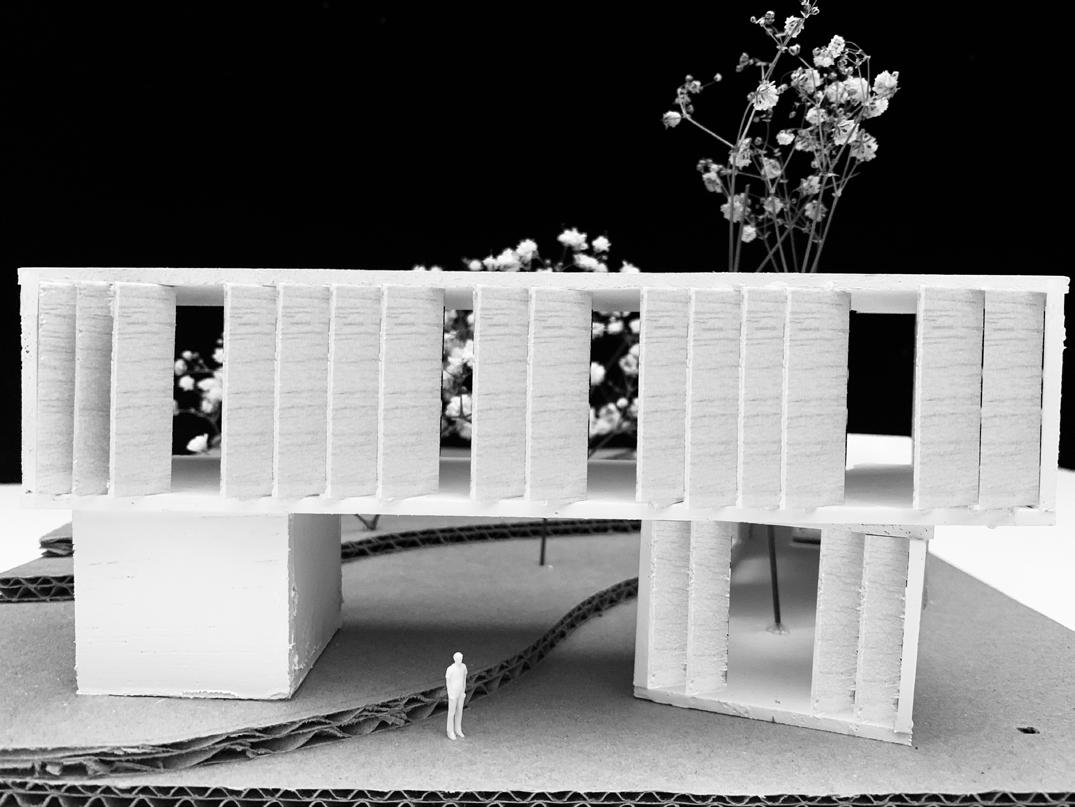

YEAR 2 SEMESTER 2 PRECEDENT MODEL (WALSH STREET HOUSE)
YEAR 2 SEMESTER 2 PRECEDENT MODEL (WALSH STREET HOUSE)

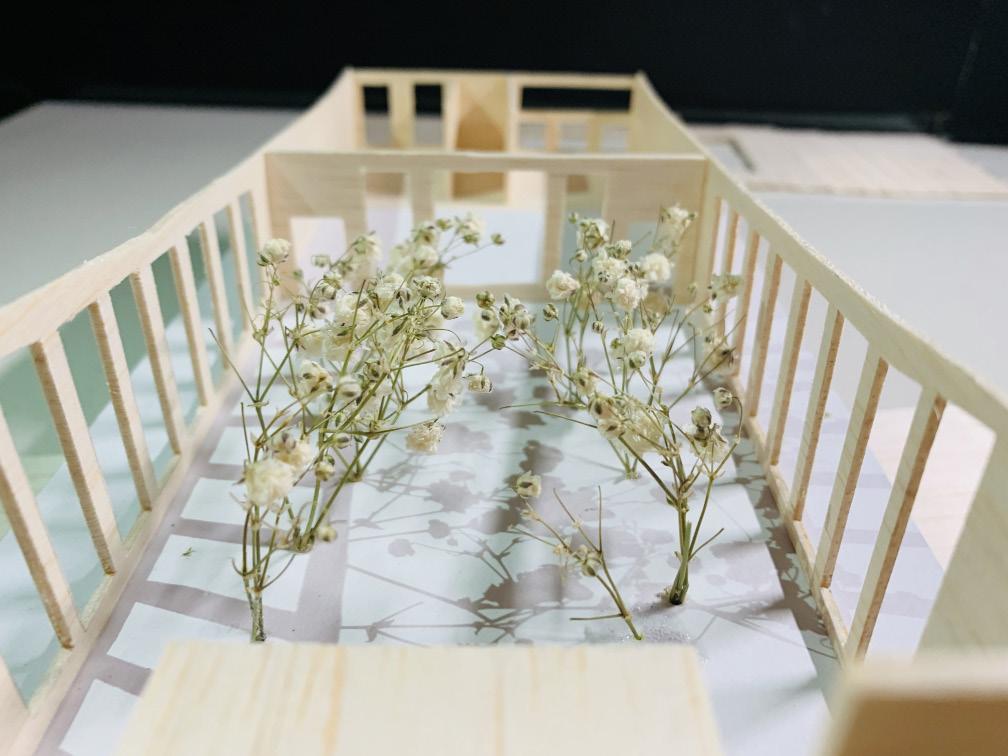

YEAR 2 SEMESTER 2 PHYSICAL MODEL
YEAR 2 SEMESTER 2 PHYSICAL MODEL
