PORTFOLIO

POR TFO LIO

hekinah KISOKA shekinahkisoka@yahoo.com / 0751047908

S

LE BOIS HABITE

Aubervilliers, 2020

pôle de santé 451.08 m2 947.28 CENTRE DE MAGASIN DIVER Rafraîchir

Projet

Coupe

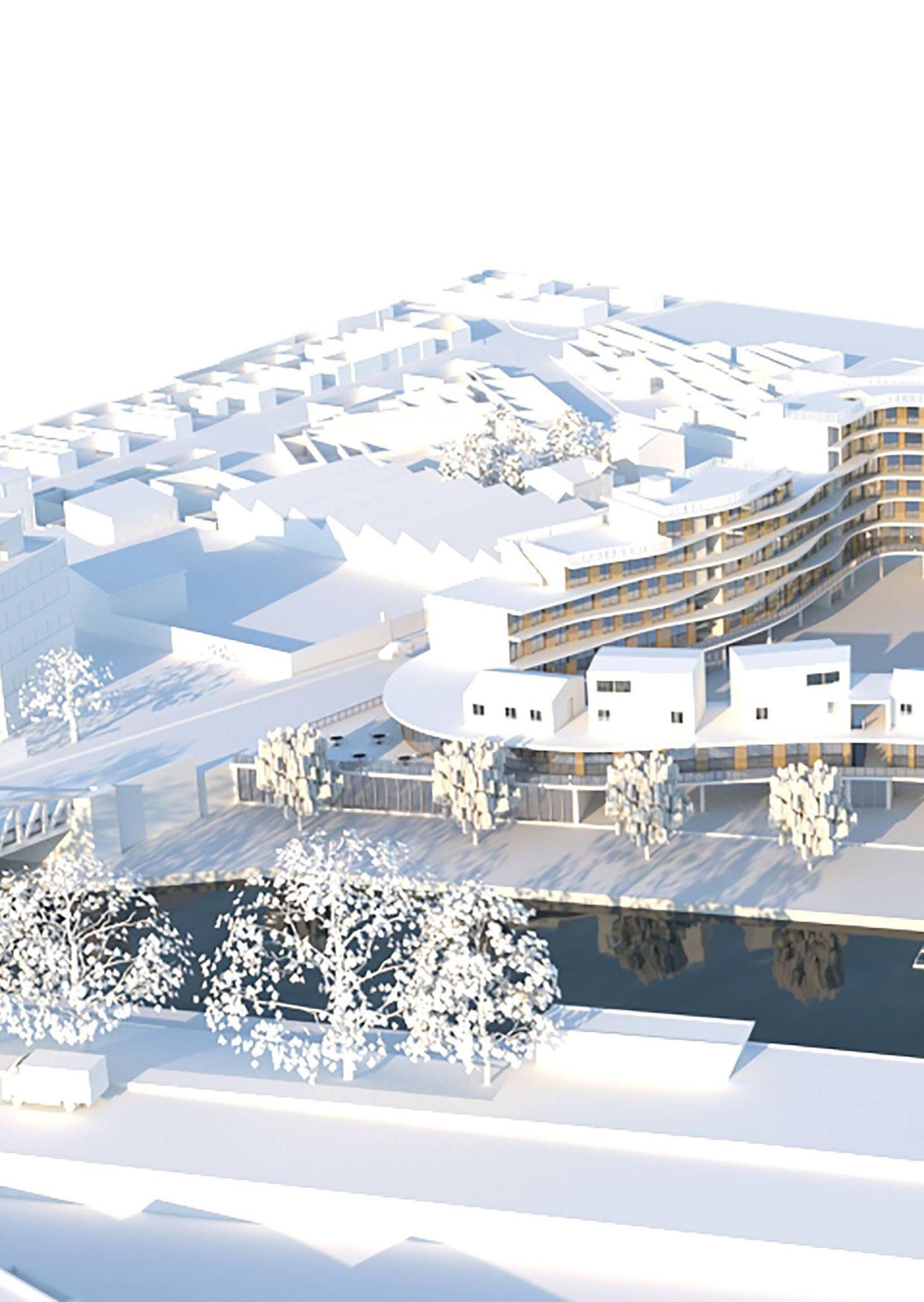

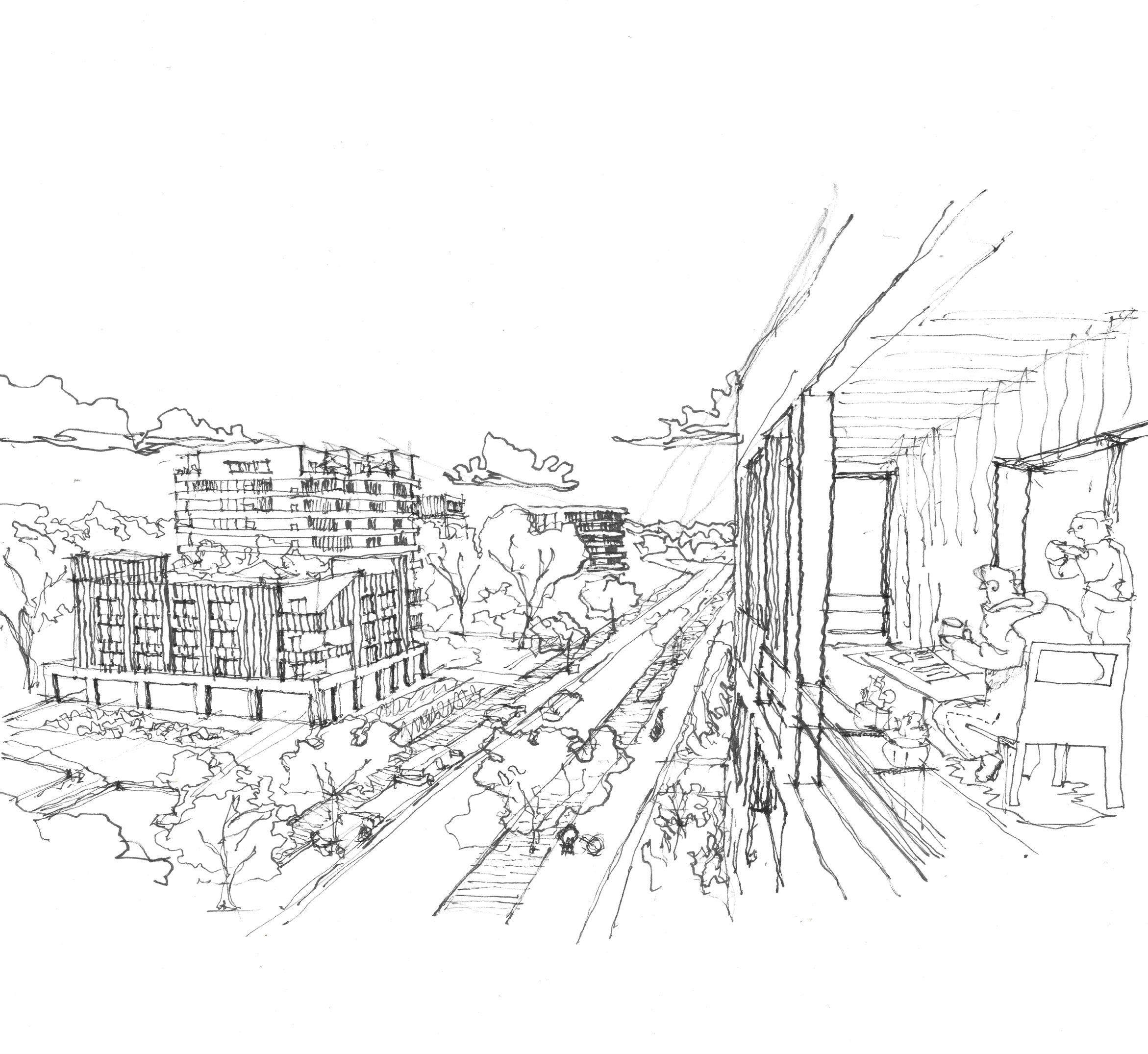

Croquis prospectif du projet

Espace partagé dédié aux arts* commerces Restaurant/ Bar Boulangerie L.techniques/Locaux Vélos FleuristeEpicerie Commerce Tailleur Cordonnier Accès LogtsduréelocationLogtsencourte Locauxtechniques/ L.Vélos Logtsenlocationcourte durée Accès Logts AccèsActivitésLogtsEtage/Souterrain Maison dequartier Librairie Commerces Garage vélos Accès Logts 1,120.60 m2 m2 GYMNASE DE SOIN ACCES PARKING S'asseoir Se réunir Plan de RDC Projet

ENTRE CIEL ET TERRE

Projet de logements, Aubervilliers, 2020

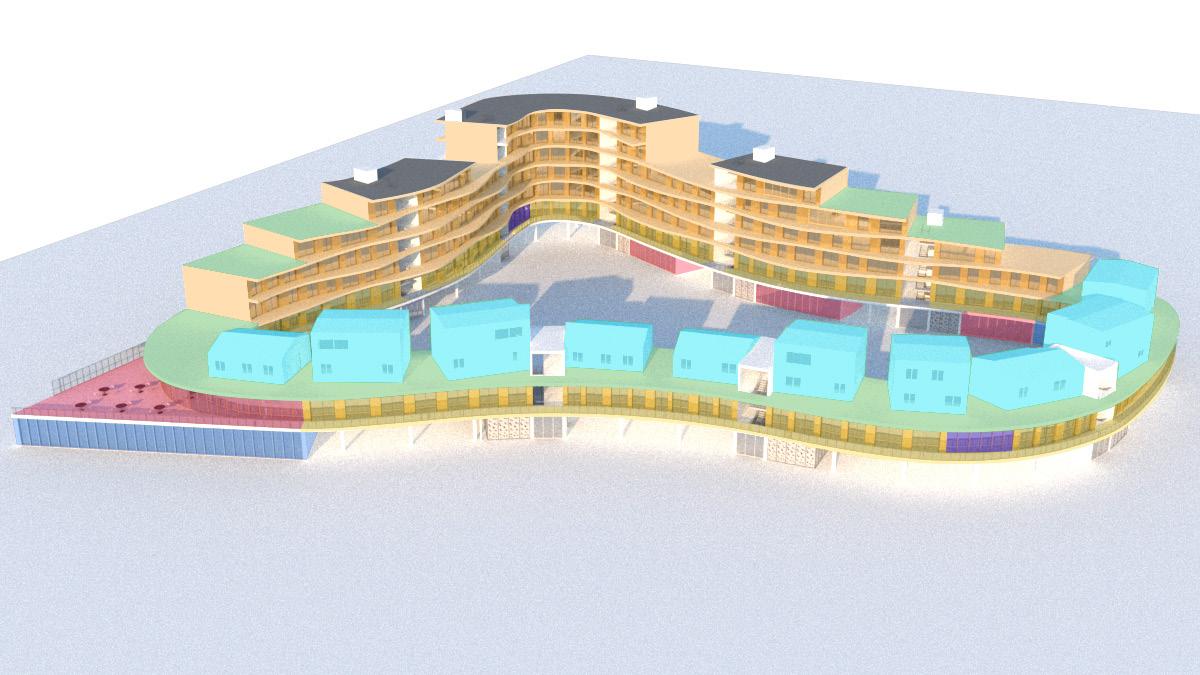

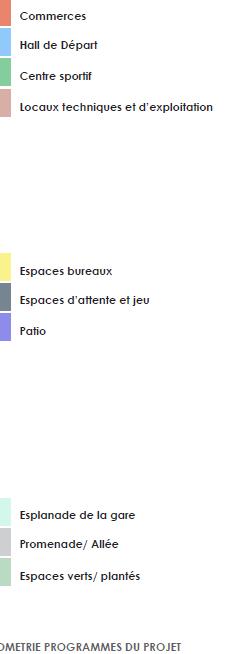

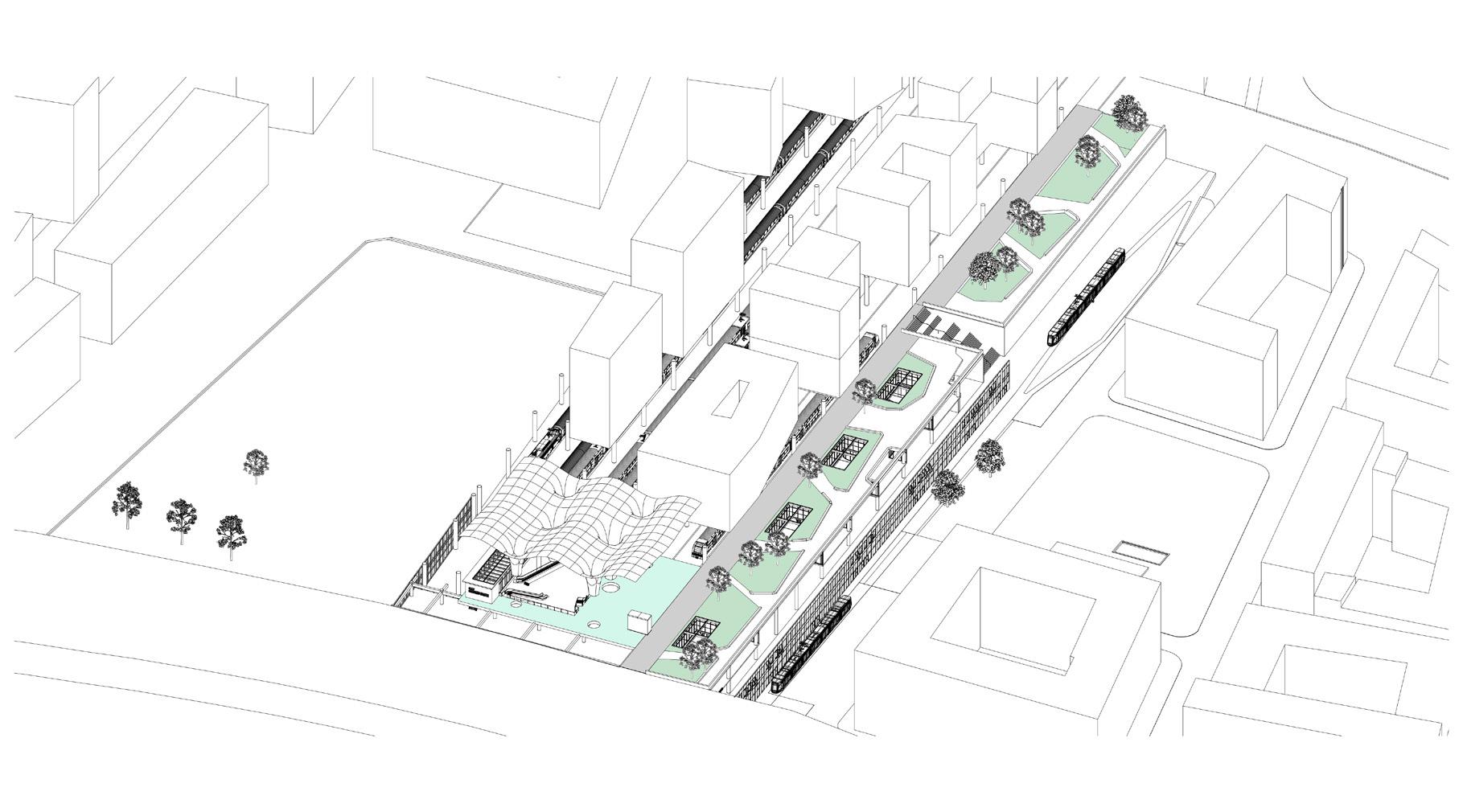

Axo programmatique

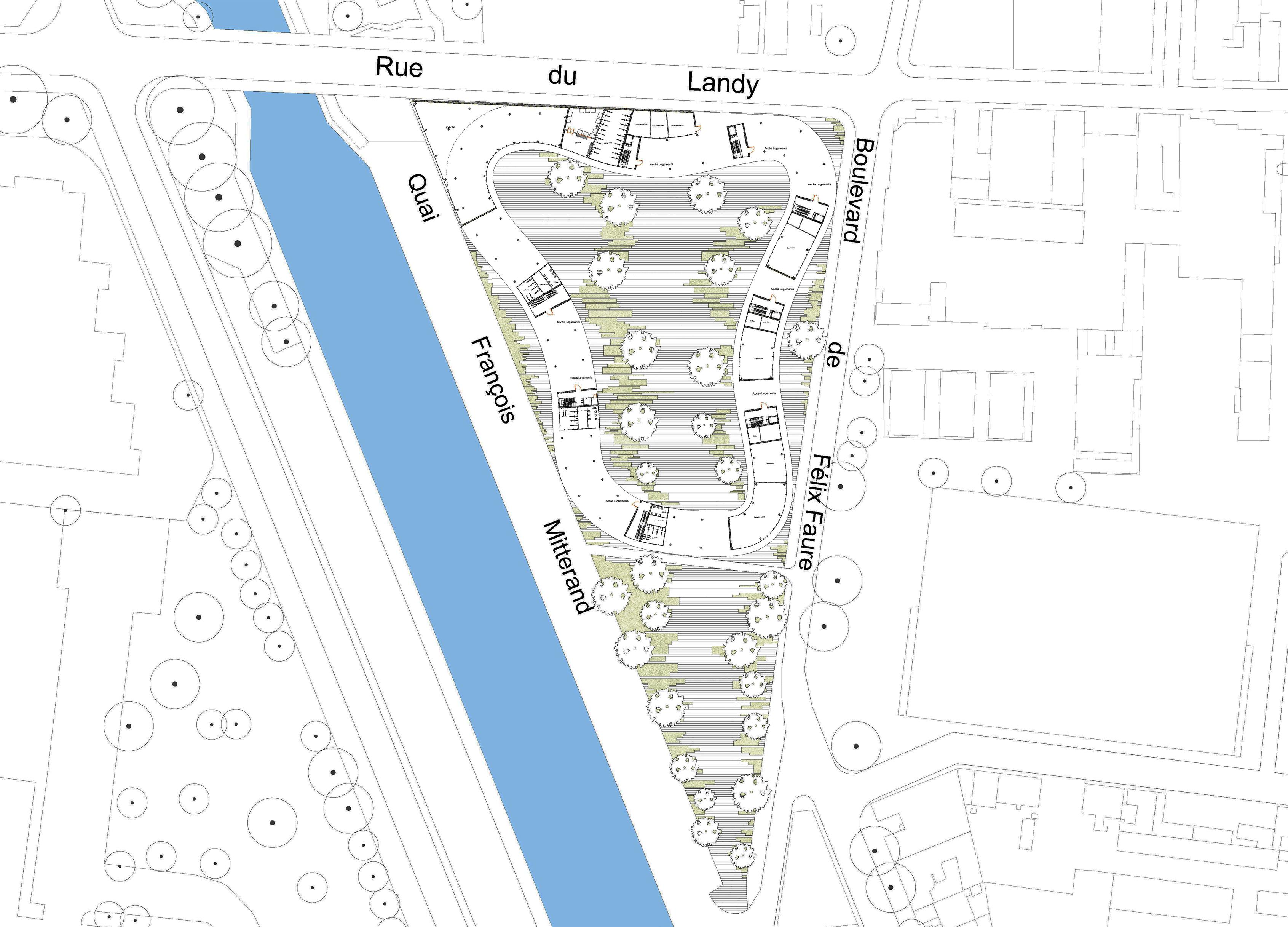

Plan de RDC

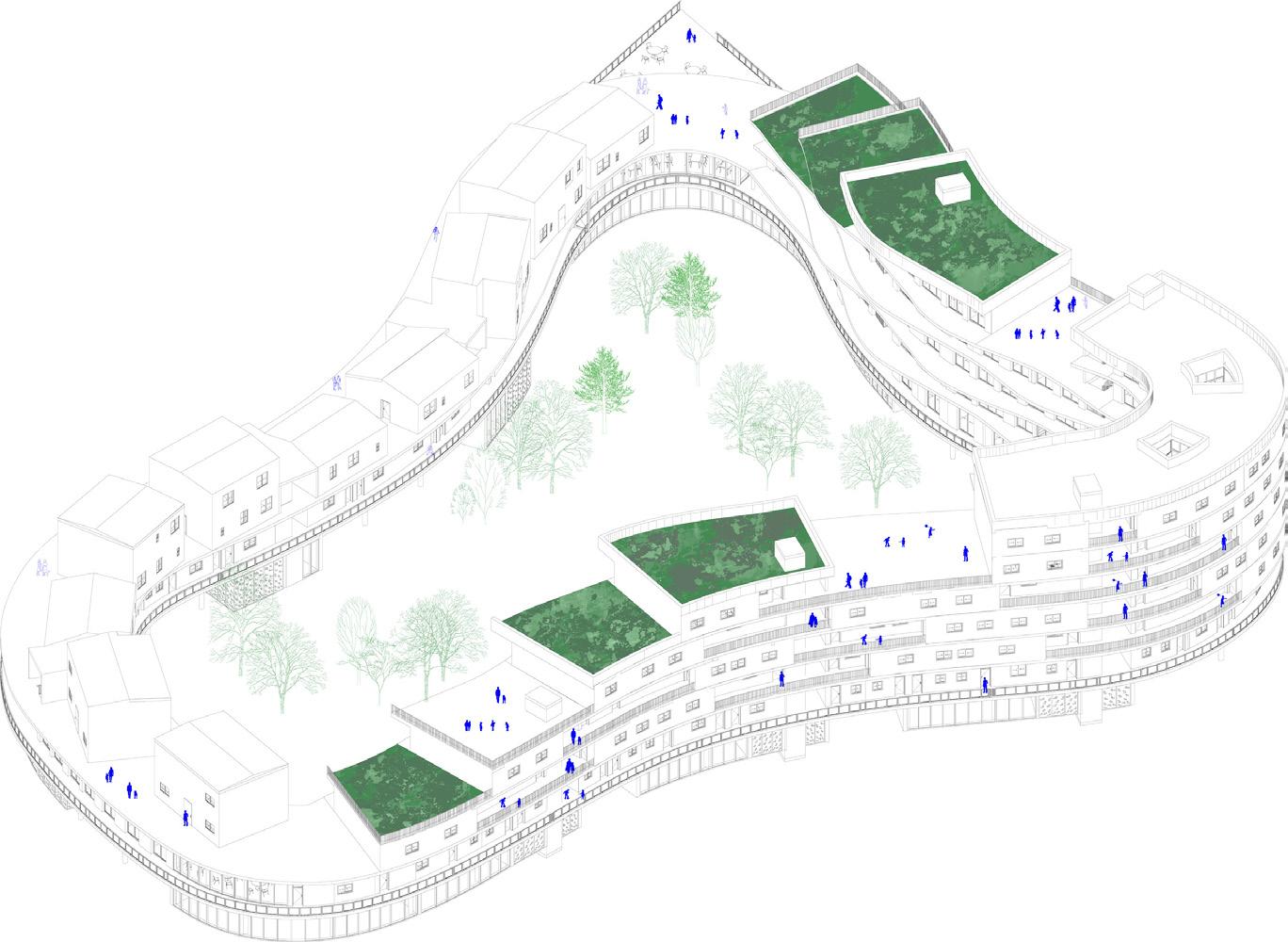

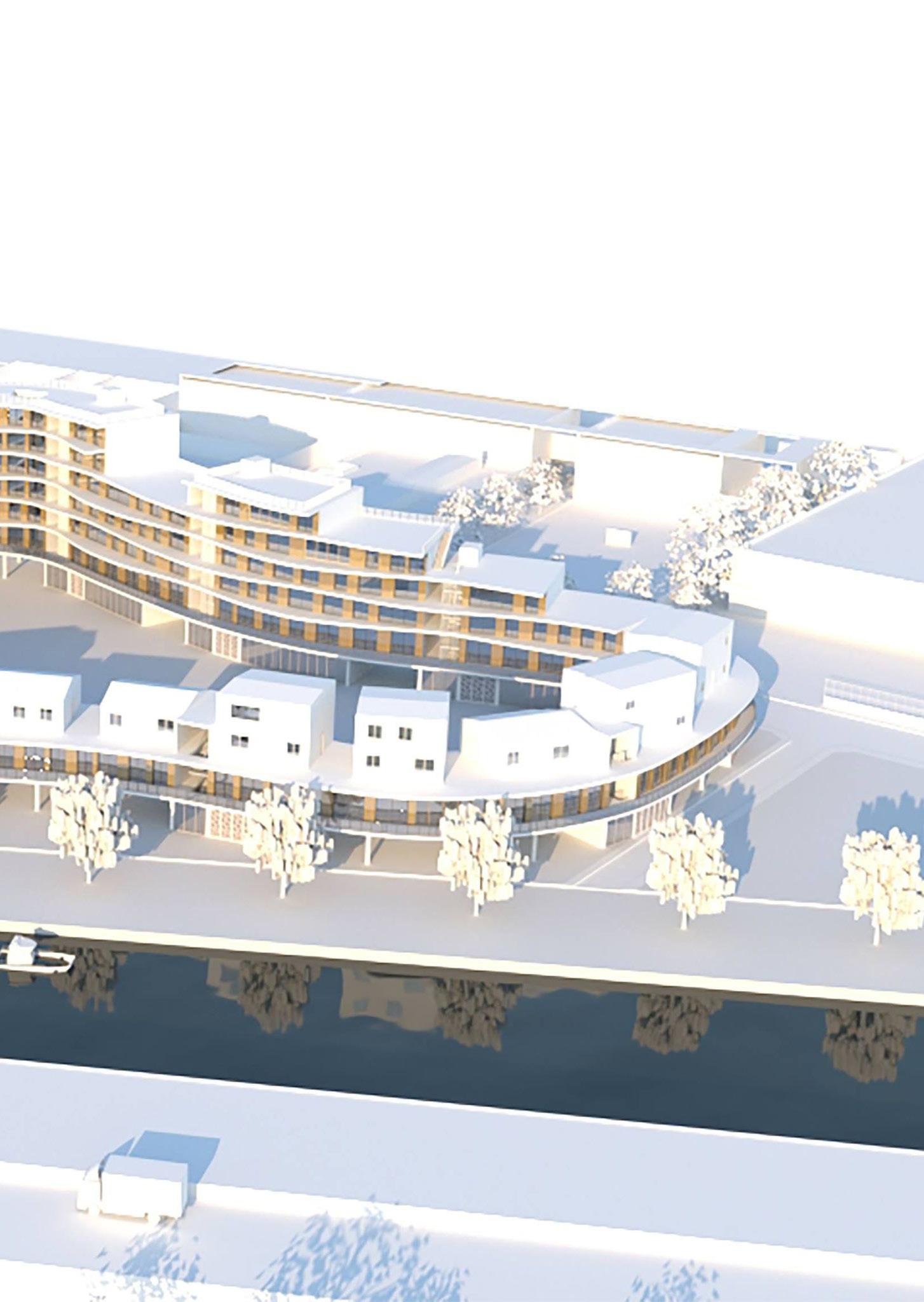

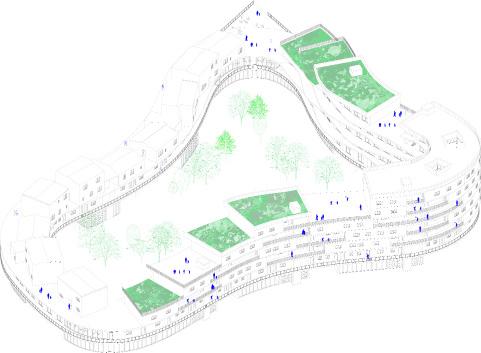

CONSTRUIRE Axonométrie du projet du projet semestre 5 « Courbes » Axonométrie

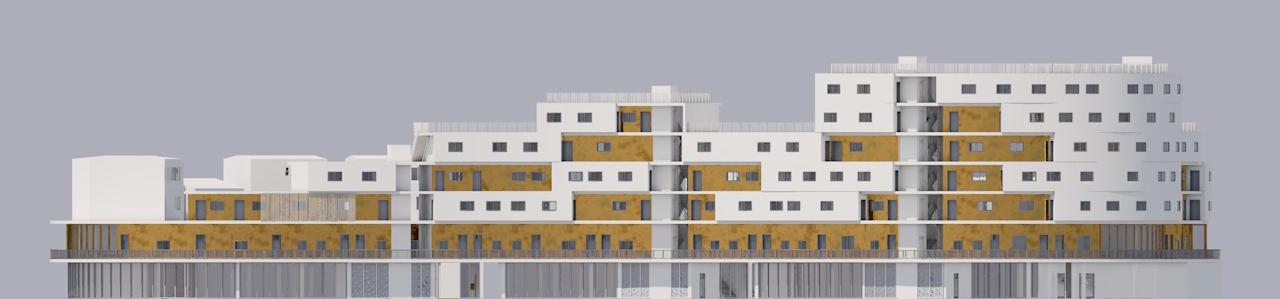

Elévation Est Elévation Ouest

du projet du projet semestre 5 « Courbes »

TYPOLOGIES SUR RUE DU LANDY ET BD FELIX FAURE Chambre 12,1㎡ 10,3㎡ Séjour 24,5㎡ Cuisine 8,1㎡ Sde 5,0㎡ Chambre 12,1㎡ Sde 4,3㎡ Bureau 5,9㎡ Entrée Espace partagé végétalisée T4 duplex en accession R+3 R+2 11,6㎡ Chambre 12,4㎡㎡ Cuisine 8,6㎡ Séjour 21,2㎡ T3 simplex en accession Espace partagé R+2 Allée végétalisée Sde 6,2 ㎡ Cuisine & S 11,6 ㎡ Séjour 20,4 ㎡ Entrée Rangement végétalisée T4 duplex en accession R+2 R+3 h=18,7cm, g=25cm Cuisine & m 9,0 ㎡ Entrée Sde 5,9 ㎡ Allée végétalisée Séjour 20,0 ㎡ T2 bis simplex en accession R+2 0 5 10 N

Sde 4,8 ㎡ Chambre 9,7 ㎡ Chambre 10,7 ㎡ Chambre 12,5 ㎡ Allée végétalisée T5 N 1/100 T4 T1 T2 T3 28,02m2 Dégagement T3 75,1m2 T4 78,8m2 5,06m2 10,91m2 Chambre T3 75,1m2 Chamb 78,8m2 4,18 txt Chambre 13,6 Séjo mbre 5,7m2 isine T1 T1 6,3 17 0,27 28,02m2Séjour 8m2Entrée Dégagement

Typlogies de logement sur canal

Poteau 300mm en BA

Retombée de poutre

Plinthe encastrée

Dallage en ciment Granulats en fibre de verre Etanchéité bitumineuse et feutre de protection Laine de roche 250mm Béton de Pente 1,5% Dalle en B.A.

Plancher sur plot Garde-corps vitré

Encadrement de fenêtre en aluminium

BA13 / BA15 Laine de roche Pare-vapeur Panneau de contreventement Pare-pluie Tasseaux verticaux Enduit de base Armature Sto Fibre de verre standard Finition Sto

BA13 BA15 Laine de roche Pare-vapeur Panneau de contreventement Pare-pluie Tasseaux verticaux Enduit de base Armature Sto Fibre de verre standard Finition Sto

Profilé Porteur Profilé T-bar Panneaux acoustique

BA13 BA15 Laine de roche Pare-vapeur Panneau de contreventement Pare pluie Tasseaux verticaux Tasseaux horizontaux Panneau en aluminium Coursive

BA13 / BA15 Laine de roche Pare-vapeur Panneau de contreventement Pare pluie Tasseaux verticaux Tasseaux horizontaux Panneau en aluminium

Profilé Porteur Profilé T-bar Panneaux en aluminum

Poteau 450mm en BA

Coursive 44,3 ngf 45,17 ngf 49,01 ngf 51,24m ngf 52,01m ngf 54,11m ngf 55 m ngf 57,55m ngf 58,45m ngf 48,12m ngf Coupe de Détail

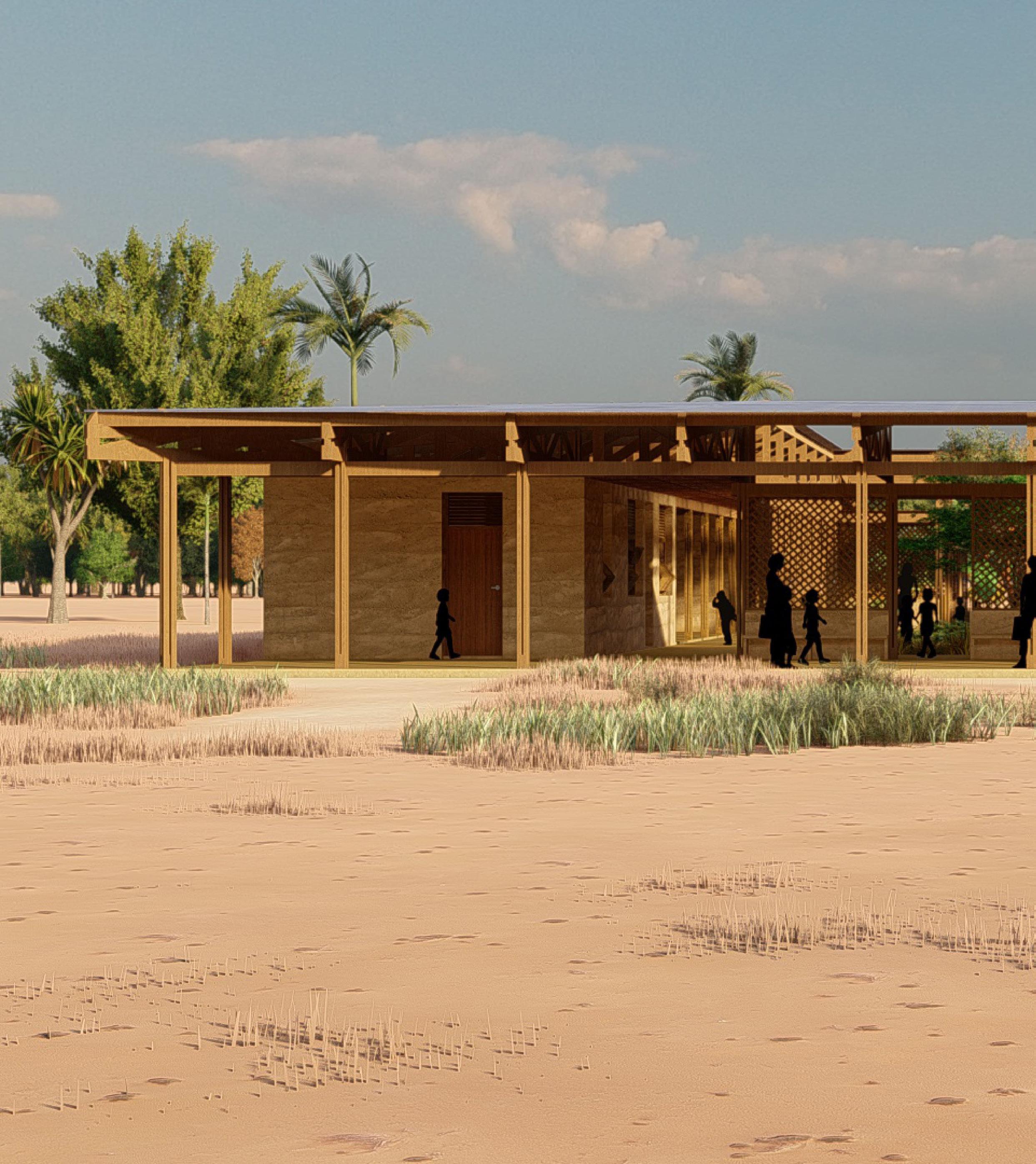

ENCLOS

Projet concours Kaira Looro, Sénégal, 2022

Plan de Situation

First of all, the enclosure is a project that has been designed around a desired microclimate within it. In fact, its location follows the direction of the prevailing winds coming from the south-west, which in their movement cool the walls of the enclosure. The enclosure thus forms a semi-open system to the incoming winds. The design is also inspired by the layout found in many Senegalese villages, where the huts are arranged around a central courtyard, which serves as a place for socialising. The design principle of the spaces is based on a grid of 2.5 metres by 2.5 metres.

The architectural object is accessed via a large courtyard that allows both coverage and a view of the entire project. It is composed of 3 large volumes arranged around a central courtyard with an extension onto the courtyard, the main access point of the project. The grid of posts defines an exterior circulation space around the central courtyard of the project. This space of circulation makes a transition from the outside and also sends us back to a form of interiority before penetrating into the inhabited volumes. All the spaces in the enclosure define a form that creates an atmosphere, whose system gives us a feeling of security.

The project is hierarchical in terms of programming, with ‘inhabited’ spaces on one side and ‘open’ spaces on the other. The inhabited spaces are formed by the housing, the storage and the administration. The latter has a covered outdoor extension that can be used for activities ancillary to the administration.

The «open» spaces are formed by the courtyard, the central courtyard and the recreation area which can be either open or closed for the supervision of the children. This space is extended by a pedagogical vegetable garden which allows the children to be introduced to smallscale agriculture. In addition, the outdoor spaces are equipped with furniture integrated into the structure of the walls. Also, the air circulates in a transversal way allowing to air efficiently the inhabited spaces which are generous volumes with a height under ceiling of 3.00 meters.

Finally, the project is punctuated by a collective roof that unifies the system and recalls the community aspect of the project. This roof, whose slopes face outwards, is composed of a framework of 46 wooden trusses whose void allows the continuous movement of warm air.

First of all, the enclosure is a project that has been designed around a desired microclimate within it. In fact, its location follows the direction of the prevailing winds coming from the south-west, which in their movement cool the walls of the enclosure. The enclosure thus forms a semi-open system to the incoming winds. The design is also inspired by the layout found in many Senegalese villages, where the huts are arranged around a central courtyard, which serves as a place for socialising. The design principle of the spaces is based on a grid of 2.5 metres by 2.5 metres.

The architectural object is accessed via a large courtyard that allows both coverage and a view of the entire project. It is composed of 3 large volumes arranged around a central courtyard with an extension onto the courtyard, the main access point of the project. The grid of posts defines an exterior circulation space around the central courtyard of the project. This space of circulation makes a transition from the outside and also sends us back to a form of interiority before penetrating into the inhabited volumes. All the spaces in the enclosure define a form that creates an atmosphere, whose system gives us a feeling of security.

The project is hierarchical in terms of programming, with ‘inhabited’ spaces on one side and ‘open’ spaces on the other. The inhabited spaces are formed by the housing, the storage and the administration. The latter has a covered outdoor extension that can be used for activities ancillary to the administration.

The «open» spaces are formed by the courtyard, the central courtyard and the recreation area which can be either open or closed for the supervision of the children. This space is extended by a pedagogical vegetable garden which allows the children to be introduced to smallscale agriculture. In addition, the outdoor spaces are equipped with furniture integrated into the structure of the walls. Also, the air circulates in a transversal way allowing to air efficiently the inhabited spaces which are generous volumes with a height under ceiling of 3.00 meters. Finally, the project is punctuated by a collective roof that unifies the system and recalls the community aspect of the project. This roof, whose slopes face outwards, is composed of a framework of 46 wooden trusses whose void allows the continuous movement of warm air.
