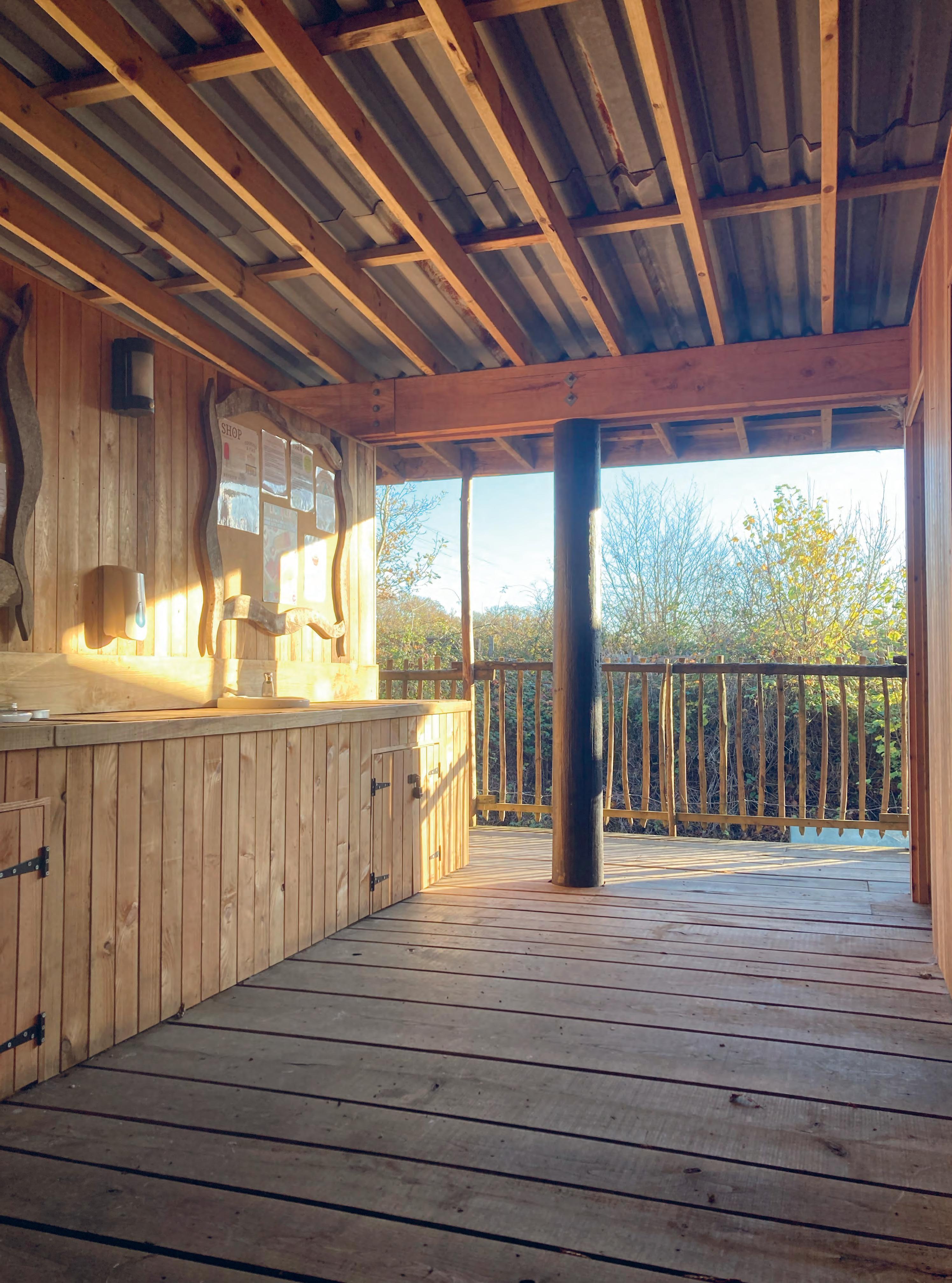

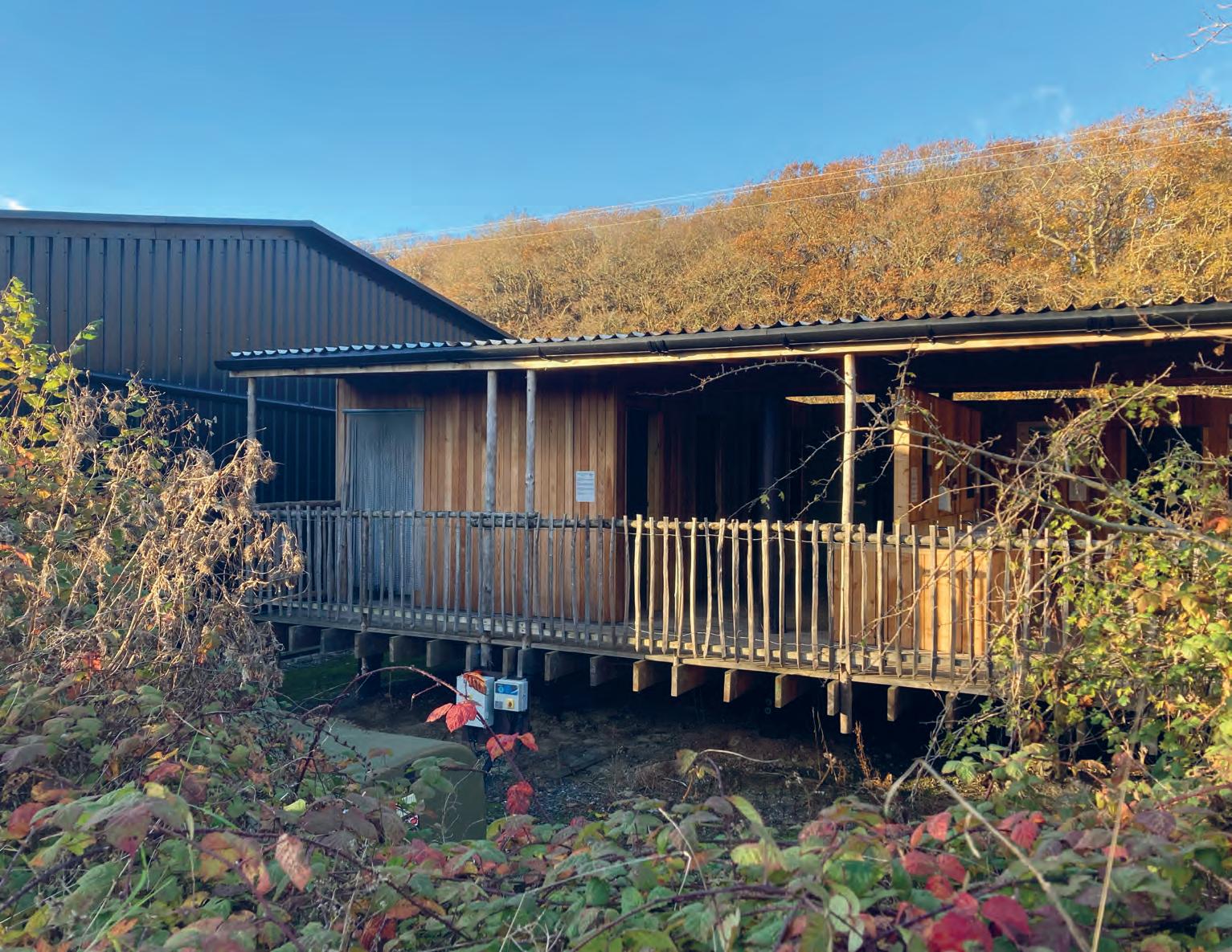

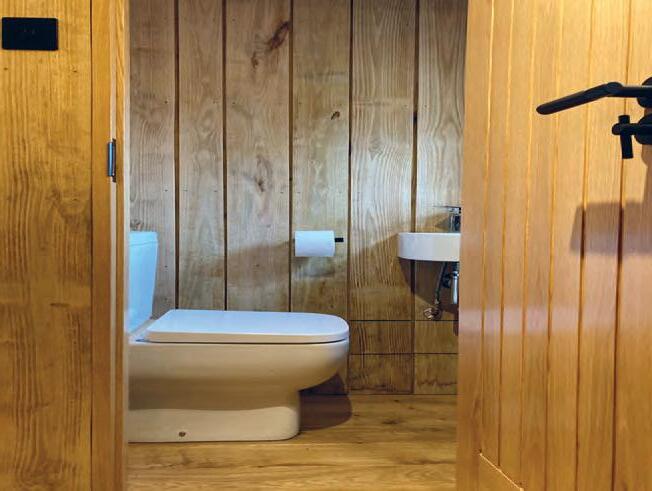

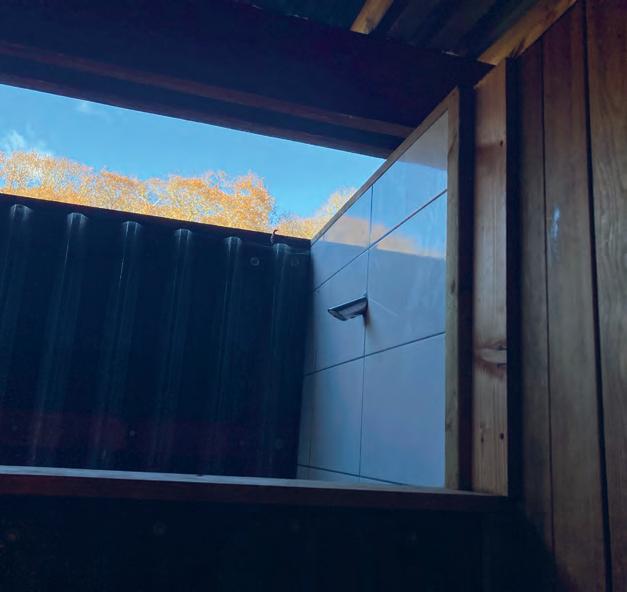

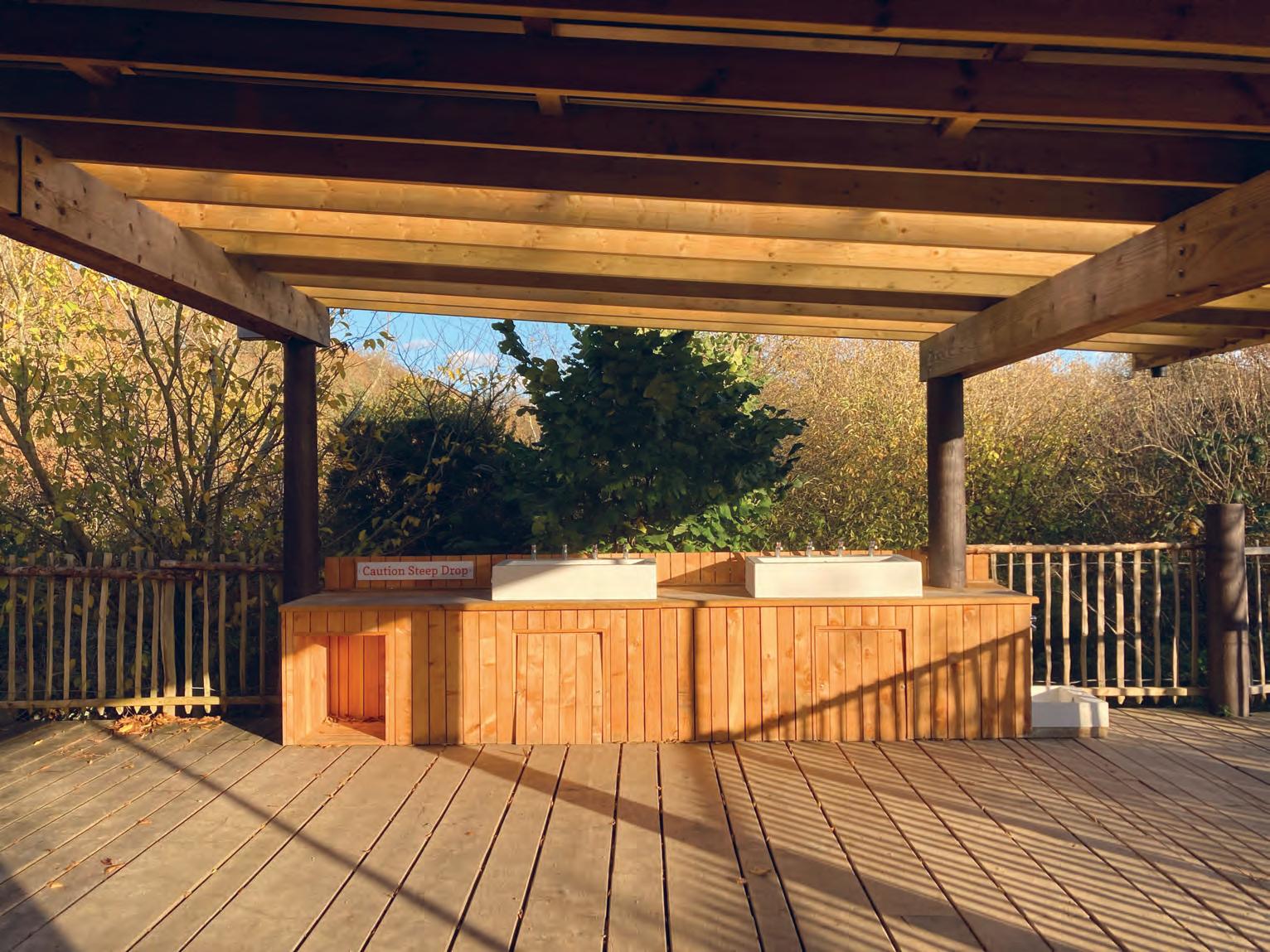

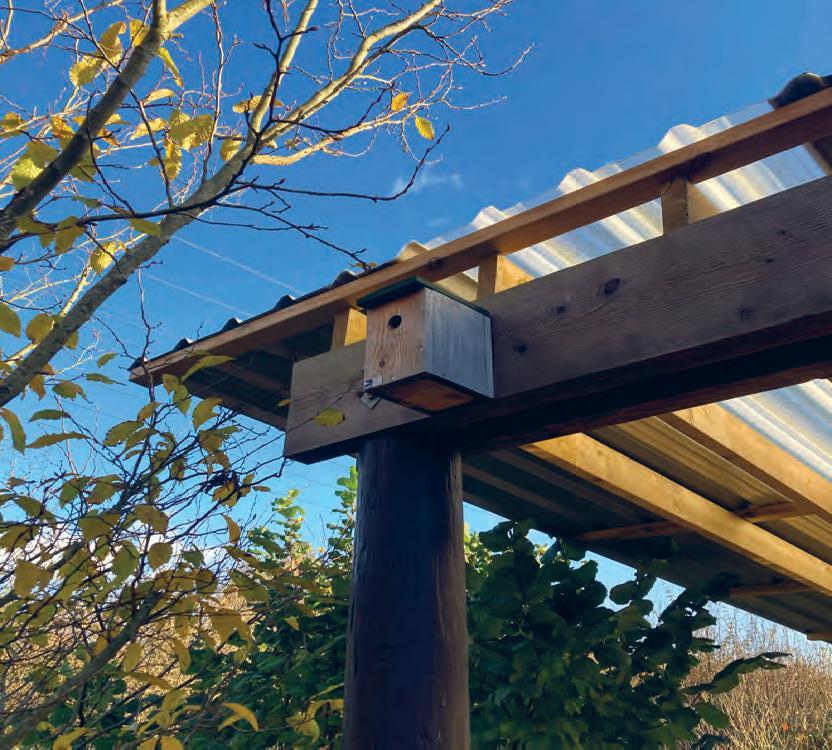

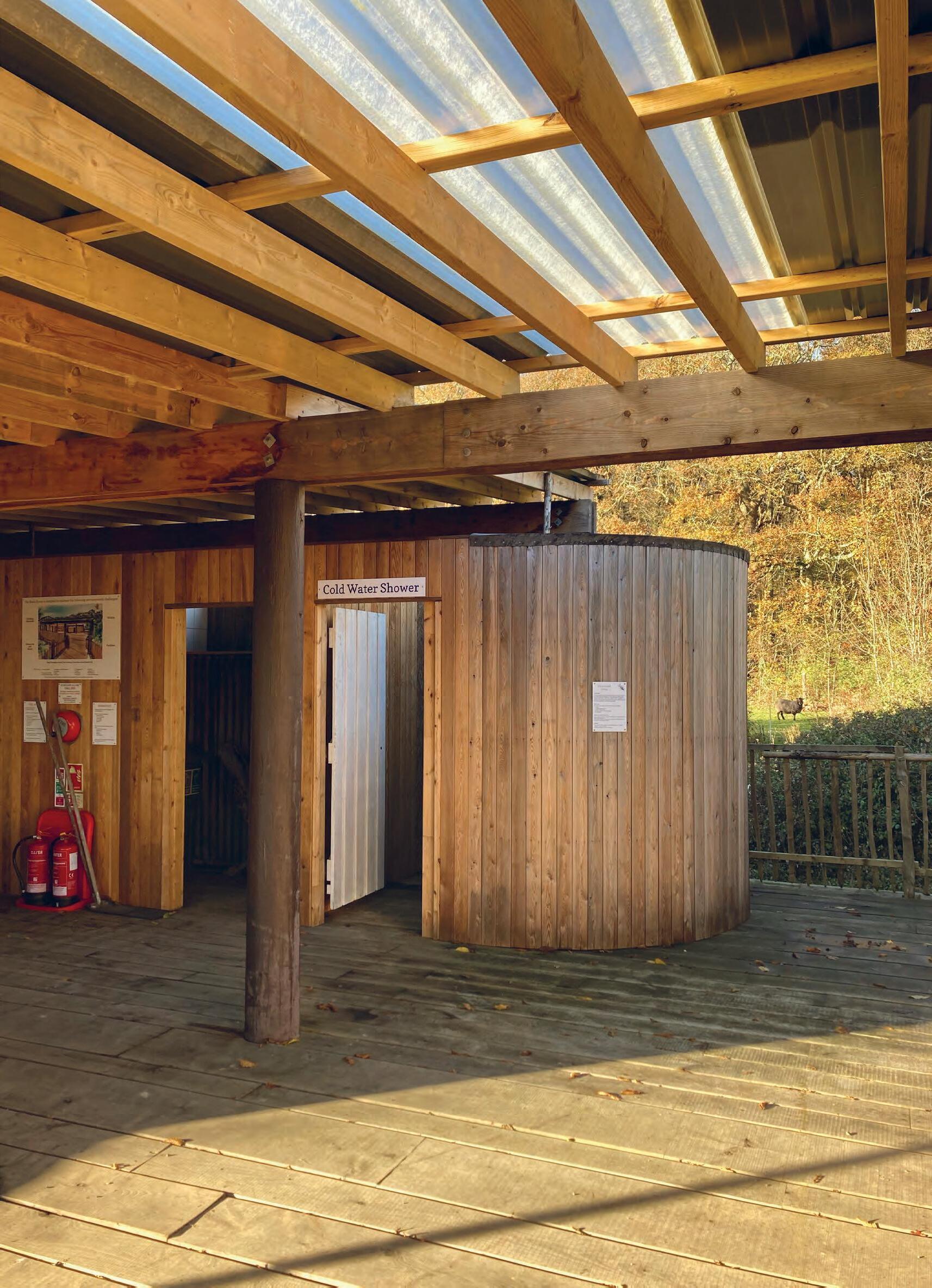

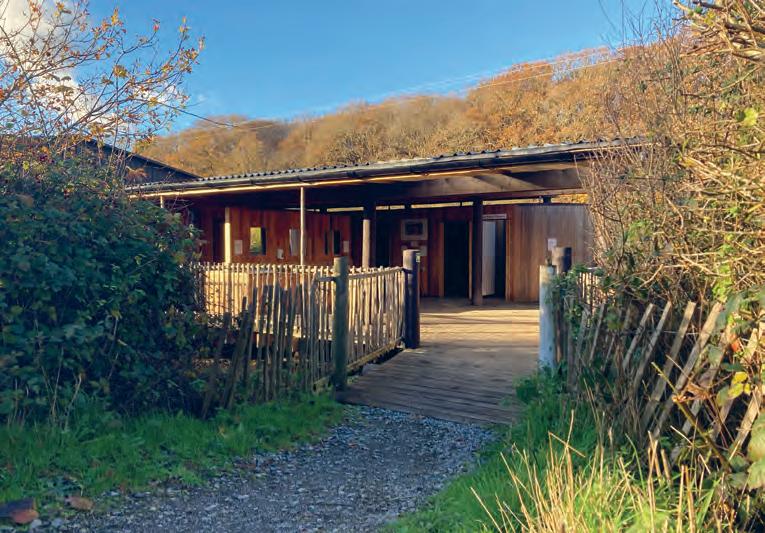

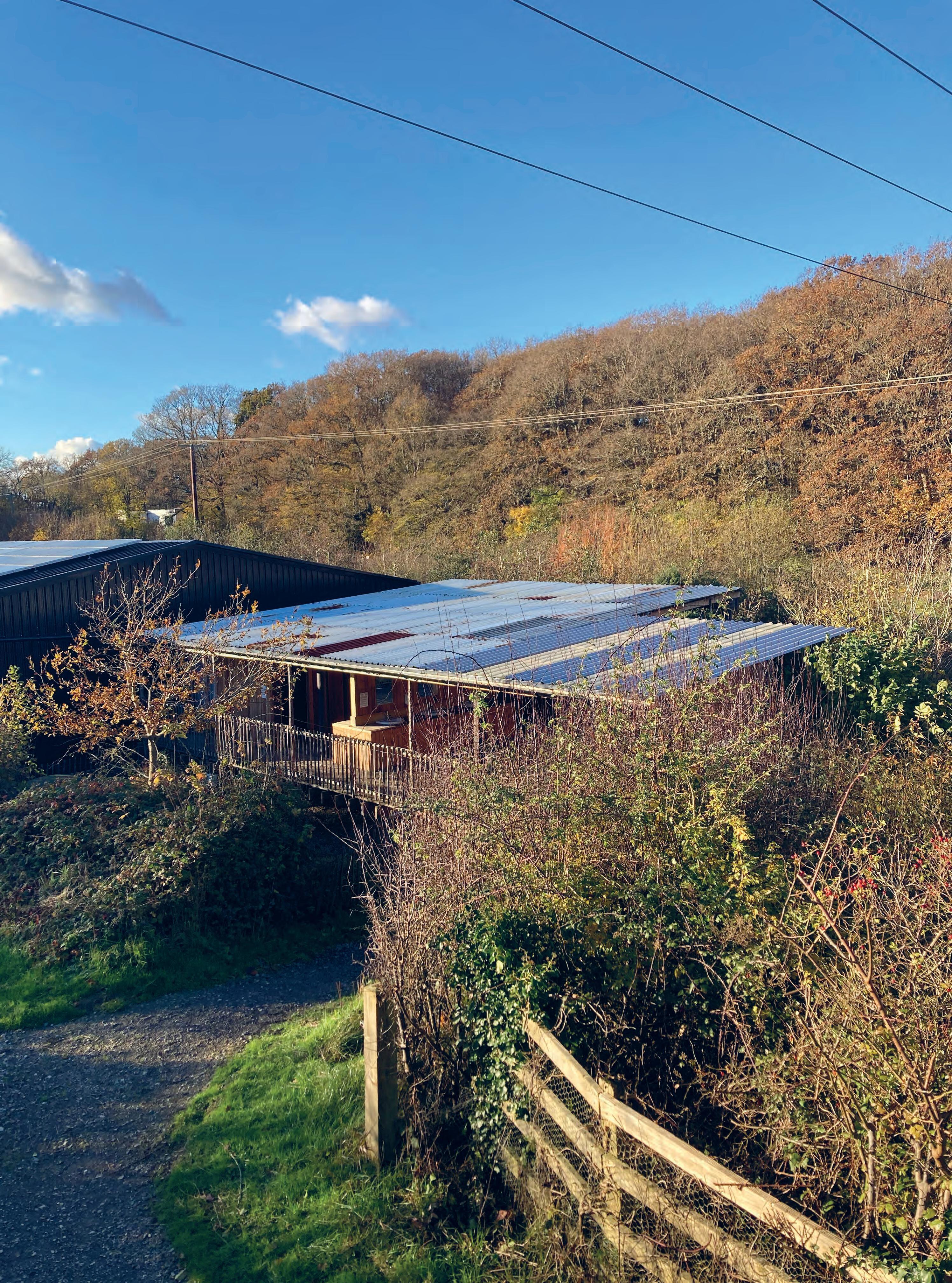

THE WASH HOUSE Open-air hygiene facility for an eco campsite in Sussex Winner of Best Sustainable Design Project at the Scottish Structural Awards 2024, The Wash House is a celebration of sustainable design, where every decision is rooted in respect for the land. In collaboration with Local Works Studio, I helped create this unique structure for The Secret Campsite—one that embodies the principles of the circular economy. Built entirely from locally sourced and recycled materials, the project tells a powerful narrative of sustainability, resilience, and ingenuity. A standout feature is its concrete-free foundations, which reflect a commitment to minimizing environmental impact from the ground up.

0

1m

2m

3m

4m

5m

10m

ramp

scale bar 1/100 (53.00) 0

0

0

0

0

0M

bench

Proposed toilet/shower building

min. 2.0m gap between buildings

4 no. washing up sinks with canopy over

Side (west) Elevation 1:100

Rear (north) Elevation 1:100

overhang

existing bank

(52.50) deck (53.35)

2.5m

3m

new 6.0m x 2.0m foul water treatment plant

existing bank

existing ramp

0.85m

existing bank

(53.30) (53.64)

(53.94) (54.30)

Front (south) Elevation1:100

Side (west) Elevation 1:100

Site Plan 1:100

ramp up 9900

deep flow timber gutter

clear plastic profile roofing sheets

purlins

A

150mm rafters fixed to 200mm roof girders to engineers design

high level opening with top hung shutter to match cladding timber roof girders

high level opening

SH

FD

high level opening

SH

FD

shower

SH

high level opening

FD

shower

SH

shower

disabled access WC/shower timber bench

2314

6500

all doors to be 838mm wide

internal walls to be 45x68mm studwork at 400 centres, clad both sides in timber cladding

timber frame 'pole building' structure to engineers design

2420

high level opening

FD

whole building to be uninsulated, unheated and naturally ventilated

external walls to be 45x68mm studwork at 400 centres, clad both sides in timber cladding and fixed to telegraph poles

external wall finish to be 100x25mm vertical larch boarding on studwork frame

8900

timber balustrade WC Plant room

timber deck finish timber joists 6250

timber girders

WC

hand basins

timber bench

wash area

timber deck

timber telegraph poles

4 washing up sinks with canopy cover

Urinal

WC

new 600mm wide foundations, min. 1.0m deep to engineers approval

Section AA 1:100

timber deck

rwp

rwp

A connect to new treatment plant

planted landscaping

connect to existing soakaway system

connect to existing soakaway system

Floor Plan 1:100

Electrical Installation All new electrical work is required to meet the requirements of Part P (Electrical Safety), & must be designed, installed, inspected, & tested by a person competent to do so. Prior to issuing a final completion certificate, the Local Authority should be satisfied that Part P has been fully complied with. NOTE: The electrical engineer, upon completion & testing of all electrical systems, is to provide test and commissioning certificates (To BS: 7671). Maintenance & operating instructions are to be made available to the owner.

Hot Water System Hot and/or cold water is to be provided to all new sinks, wash hand basins, showers and WC's. Hot water to be provided by electric hot water tank positioned in plant room. NOTE : A commissioning certificate to be issued by the approved engineer carrying out the installation.

Smoke Detection Mains fed smoke detectors (or which operate via. a mains transformer, & conform to B.S. 5446. Part 1) are to be installed.

Each unit to be located at least 300mm away from any light fitting. Smoke detectors to be interconnected so that detection of smoke by one unit operates the alarm signal in all of them. They are to be permanently wired to a separately fused circuit at the distribution board, & are to have a secondary power supply.

All wiring to have fire survival properties, & to conform to current IEE regulations. Maintenance/operating instructions to be made available to owner.

Natural Ventilation Design has air permeability higher than 5m3 /(h.m2) at 50Pa therefore natural ventilation is suitable.

Above Ground Drainage All new above ground drainage and plumbing to comply with BS EN 12056-2 for sanitary pipework. All drainage to be in accordance with part H of the Building Regulations. Wastes to have 75mm deep anti vac bottle traps and rodding eyes to be provided at changes of direction.

Size of wastes pipes and max length of branch connections (if max length is exceeded then anti vacuum traps to be used) Wash basin - 1.7m for 32mm pipe 3m for 40mm pipe Bath/shower - 3m for 40mm pipe 4m for 50mm pipe W/c - 6m for 100mm pipe for single WC All branch pipes to connect to 110mm soil and vent pipe terminating min 900mm above any openings within 3m.

Or to 110mm upvc soil pipe with accessible internal air admittance valve complying with BS EN 12380, placed at a height so that the outlet is above the trap of the highest fitting.

Waste pipes not to connect within 200mm of the WC connection.

Supply hot and cold water to all fittings as appropriate.

Waste Plumbing All new waste pipes serving new sanitaryware fittings are to be UPVC and are to connect into new SVP's/Stub stacks (S/S) as indicated on the plan.

Waste pipe diameters are to be as follows: WC - 110mm dia.

Basin - 32mm dia. (40mm dia. if length more than 1700mm) Shower - 40mm dia.

All new appliances are to be fitted with min. 75mm deep sealed traps. Rodding eyes are to be provided at all changes in direction.

Any stub stacks (S/S) installed are to be fitted with an automatic air admittance valve ("Durgo"), & are to terminate above the flood plane of the highest fitting connected into it. Rodding eyes to be fitted at all changes in direction.

Surface Water Drainage Arrangement as per strategy prepared by CGS Civils.

CLIENT

The Secret Campsite PROJECT

Proposed new toilet/shower building ADDRESS

Brickyard Farm, Town Littleworth Rd, Cooksbridge, East Sussex, BN8 4TD DRAWING TITLE

REV

MATERIAL AMENDMENTS TO PLANNING DRAWINGS

-

SCALE

DATE

DRAWN BY

DRAWING NO.

As shown @A1

Nov 2022

SR

2022/016/BR1/ MATERIAL

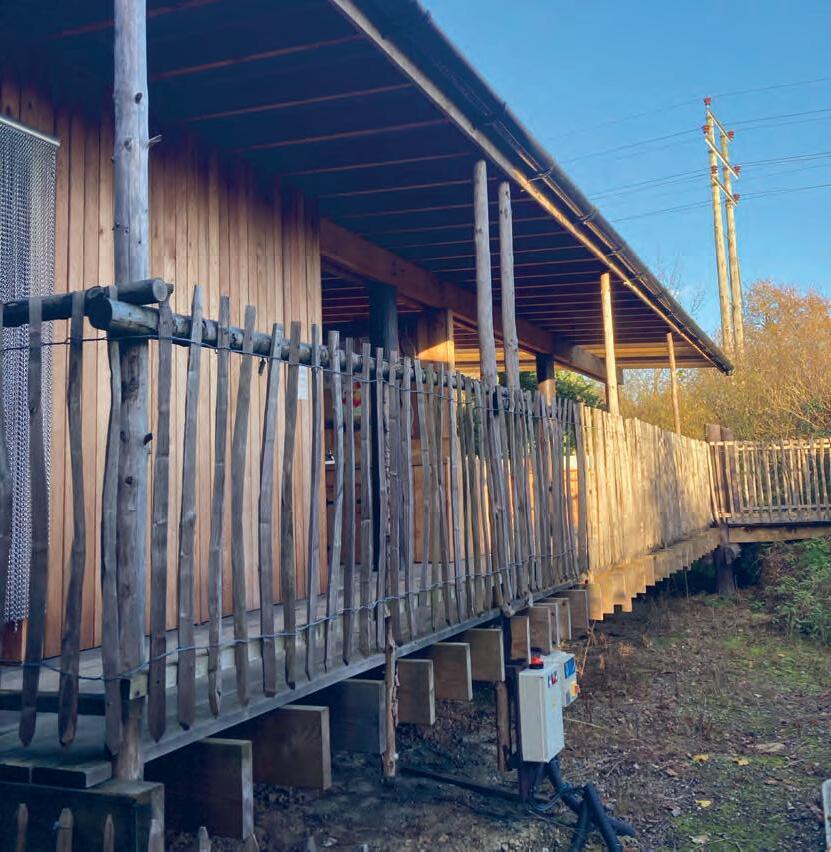

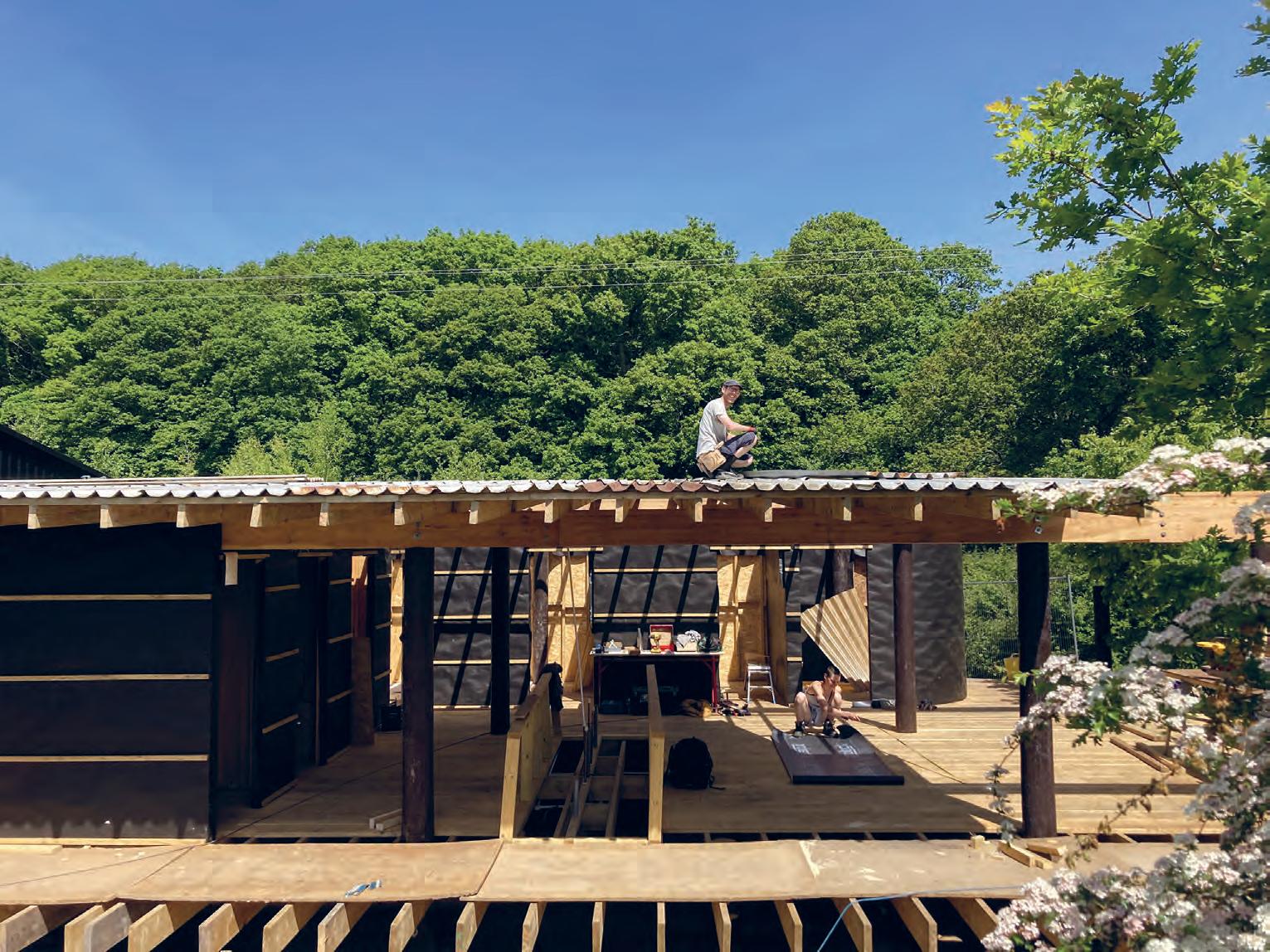

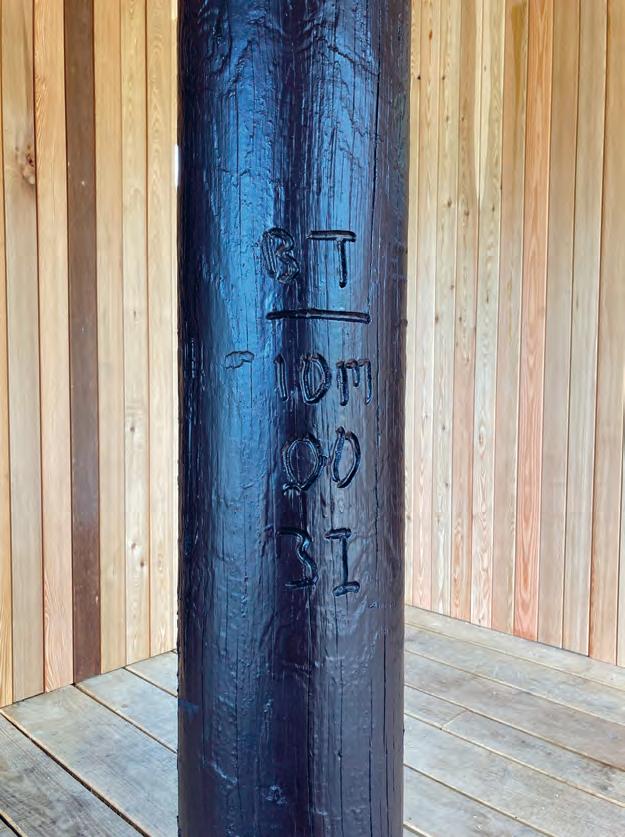

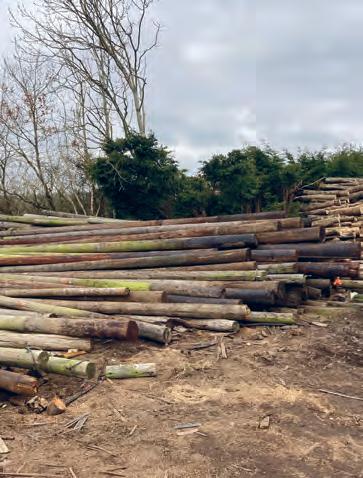

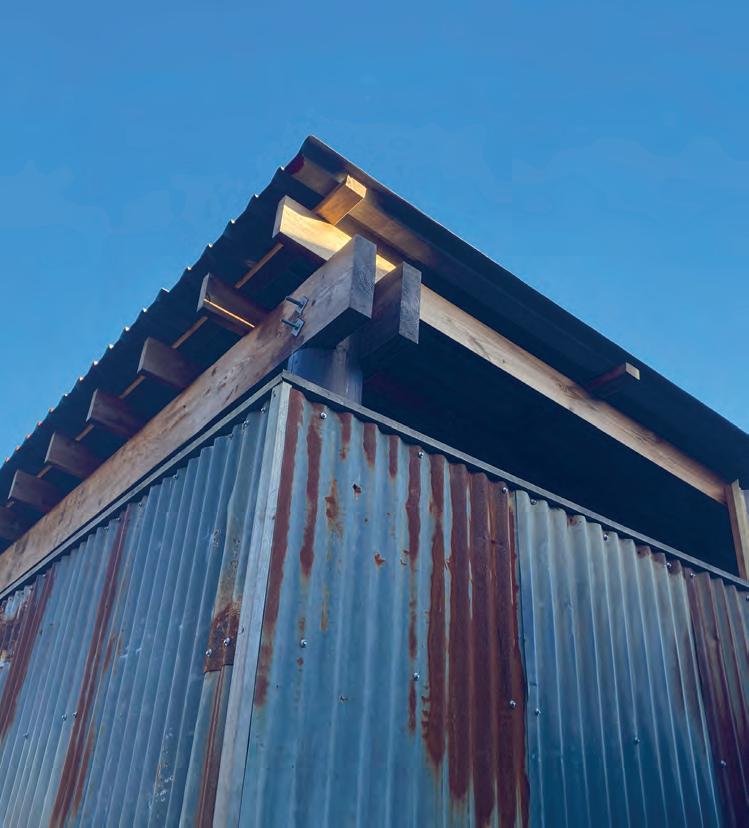

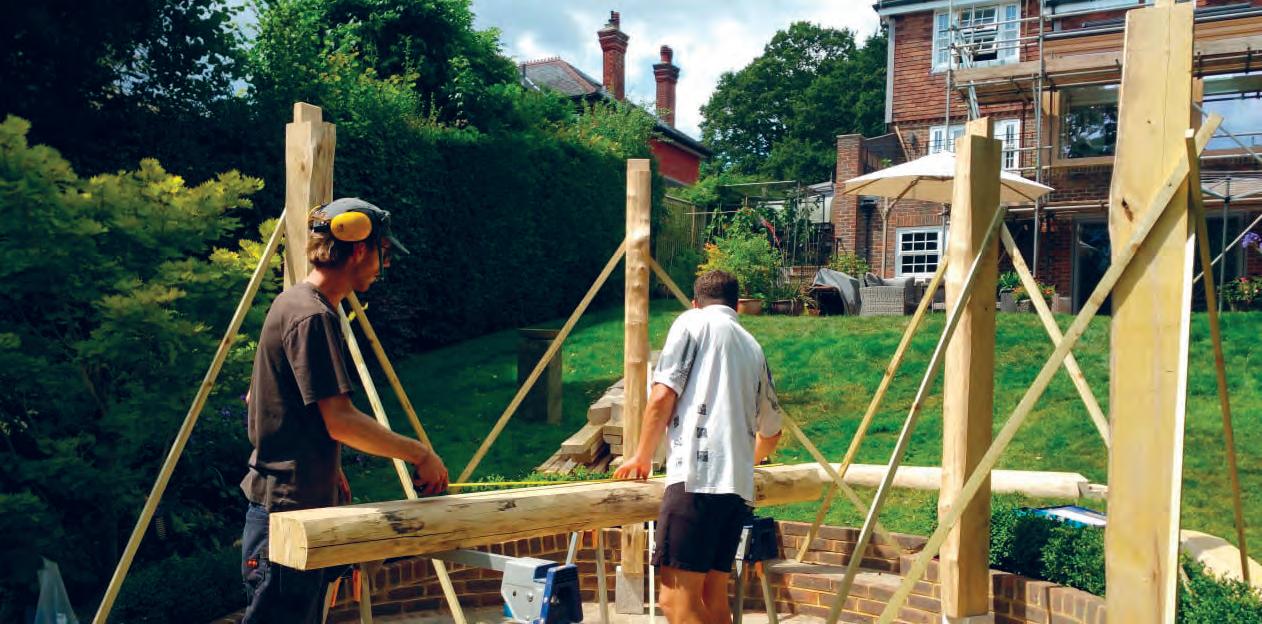

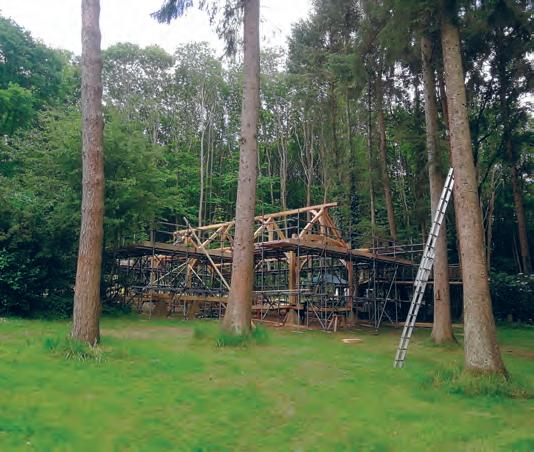

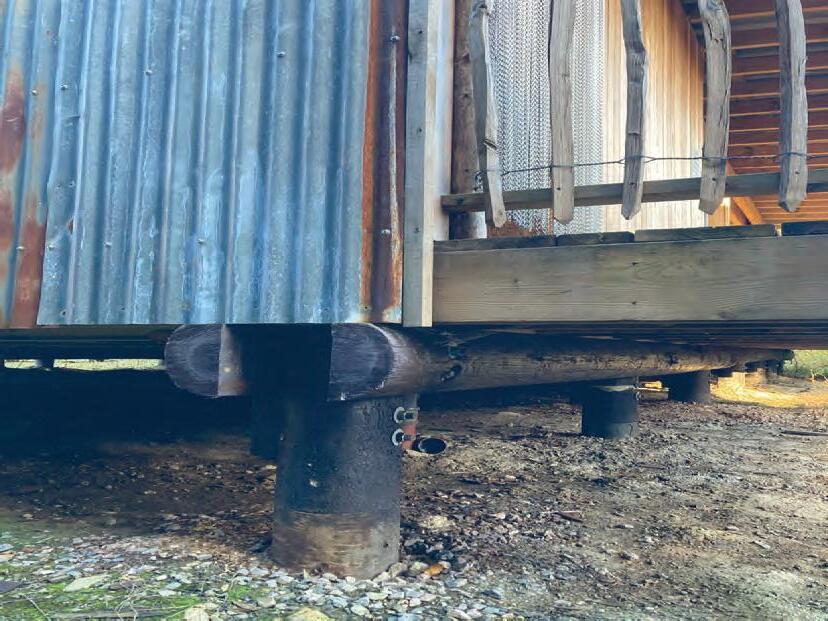

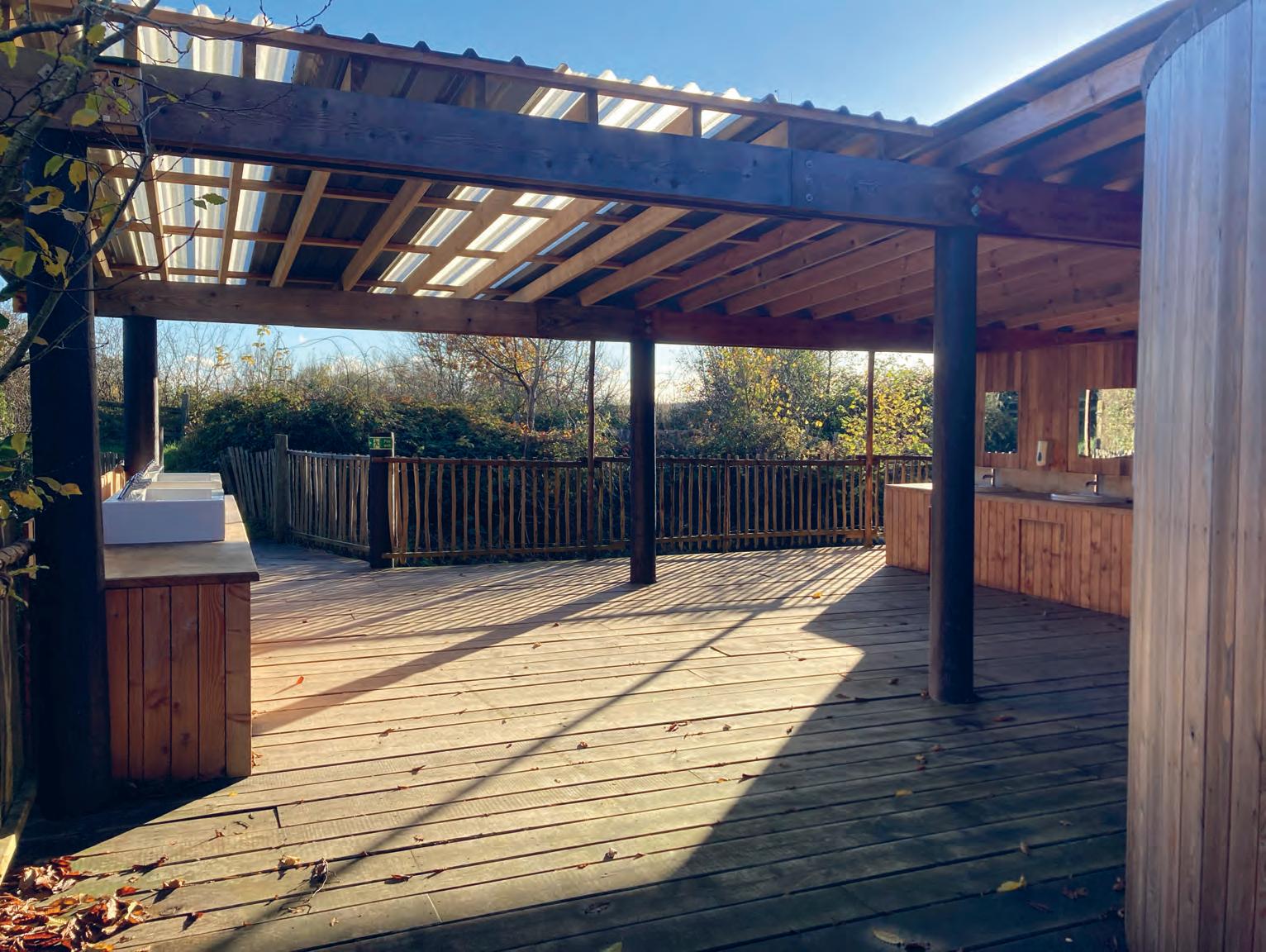

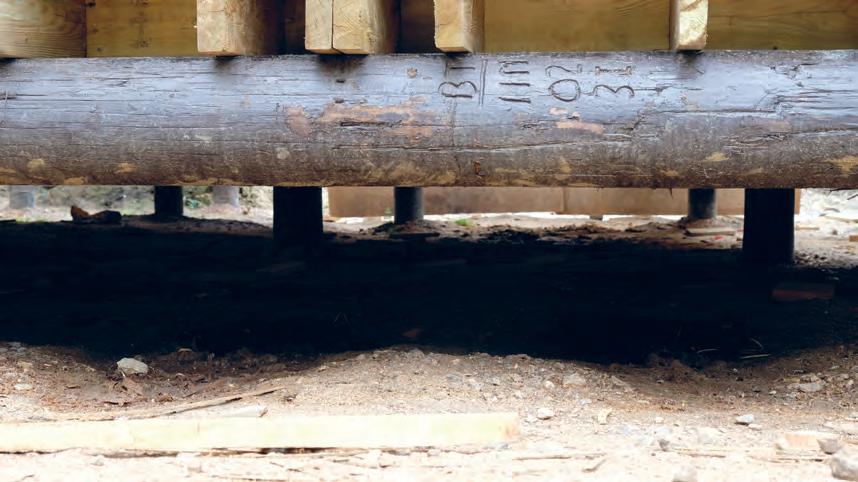

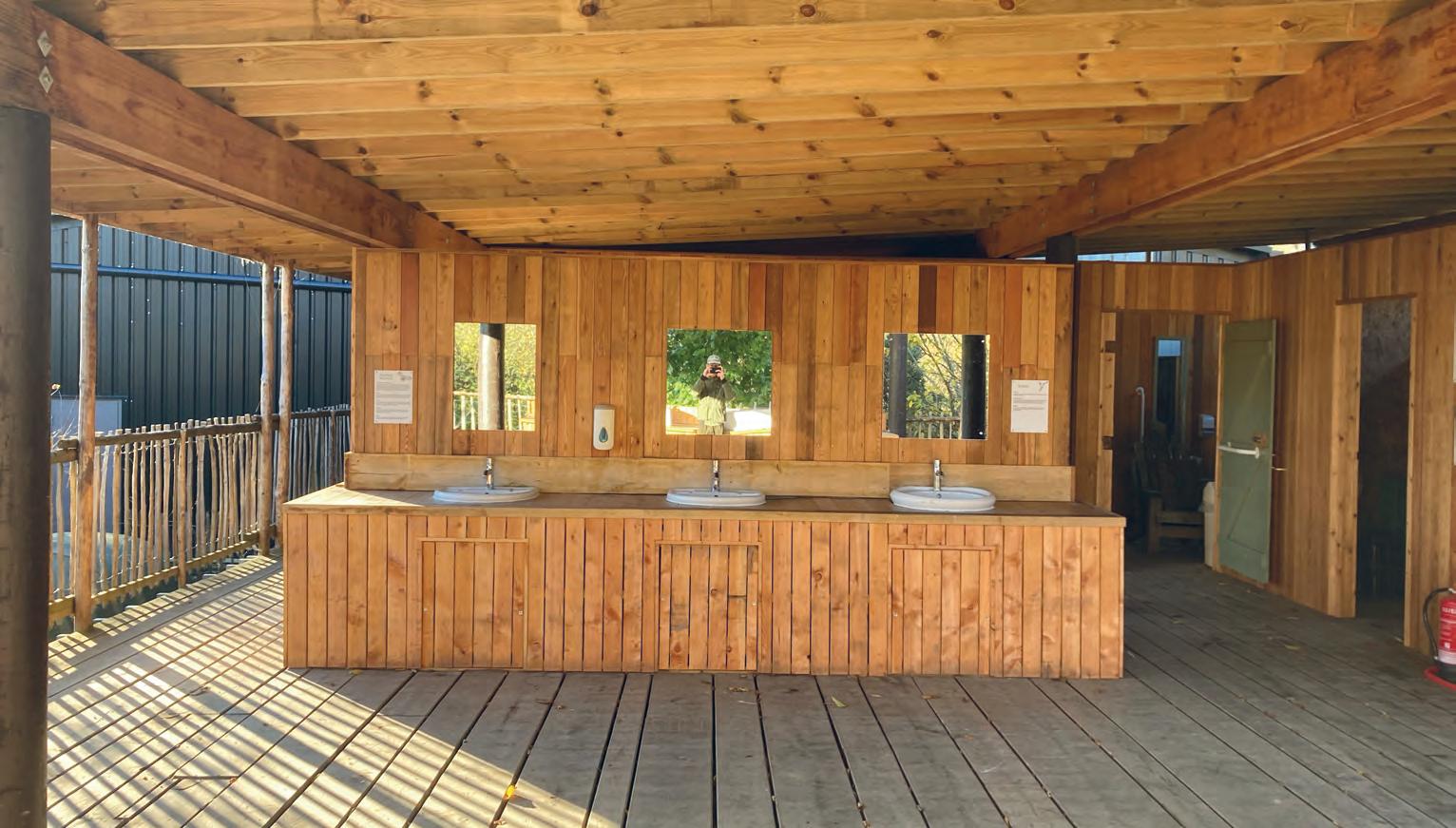

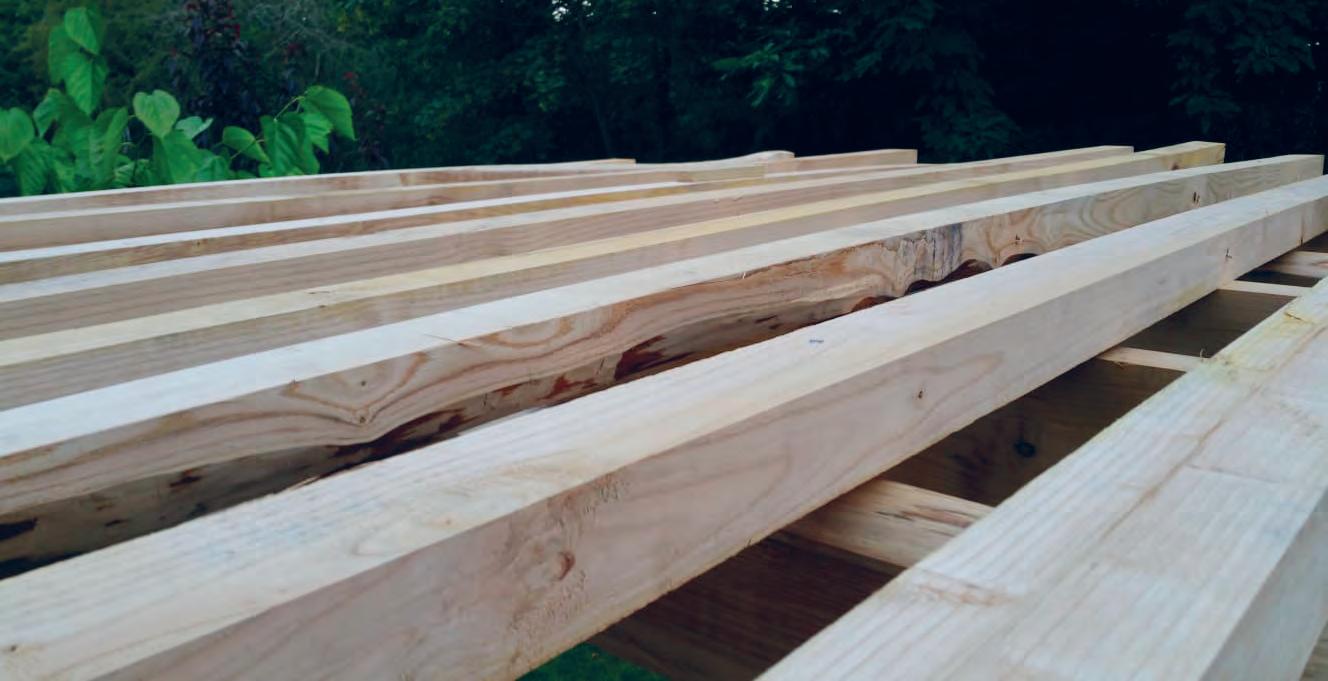

TELEGRAPH POLES POSTS AND JOISTS The building is a harmonious blend of functionality and beauty, featuring rainwater harvesting, passive solar design, and locally sourced timber. These elements come together to create a structure that is not only practical but also in perfect tune with its natural surroundings. Each material was chosen for its durability and ability to be repurposed, ensuring a future where the building can be deconstructed with minimal waste.

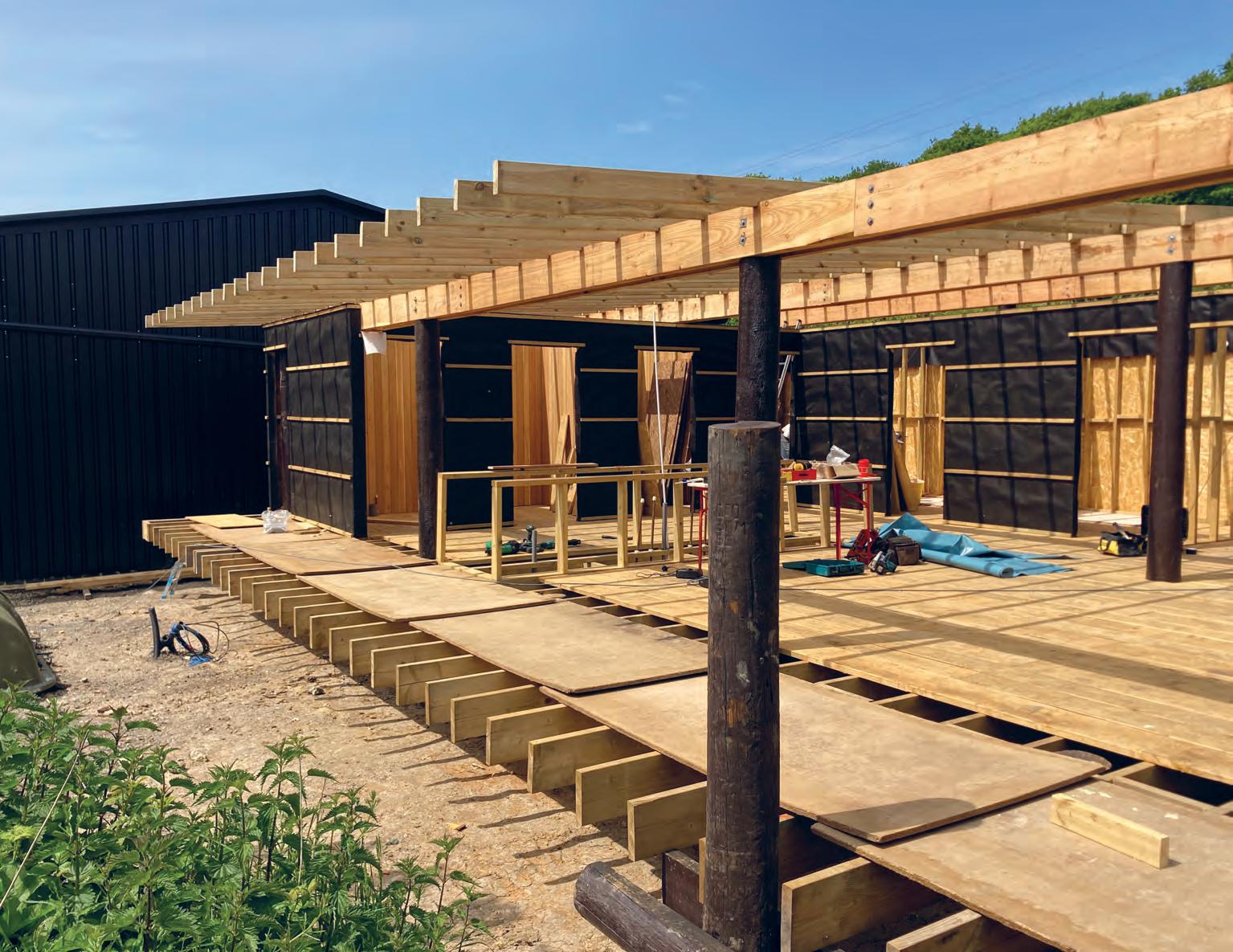

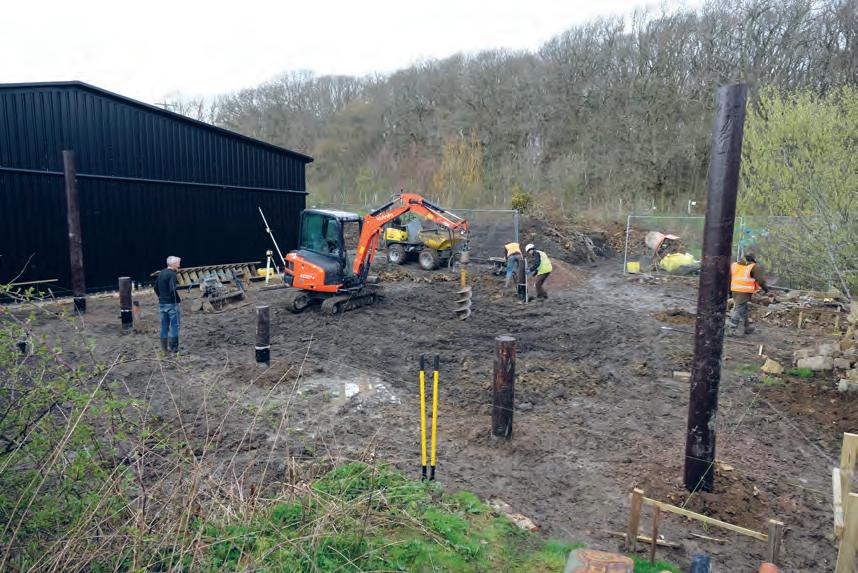

Throughout the project, I managed everything from technical design to procurement, ensuring compliance with CDM/Building regulations and leading a talented team of local carpenters and tradespeople. The result is a space that feels timeless, a place that inspires and nurtures—a true testament to the power of thoughtful, ecoconscious design.

The Wash House is more than a building; it is a narrative of sustainability that invites us to rethink how we design, build, and live, leaving a legacy of positive impact for future generations.

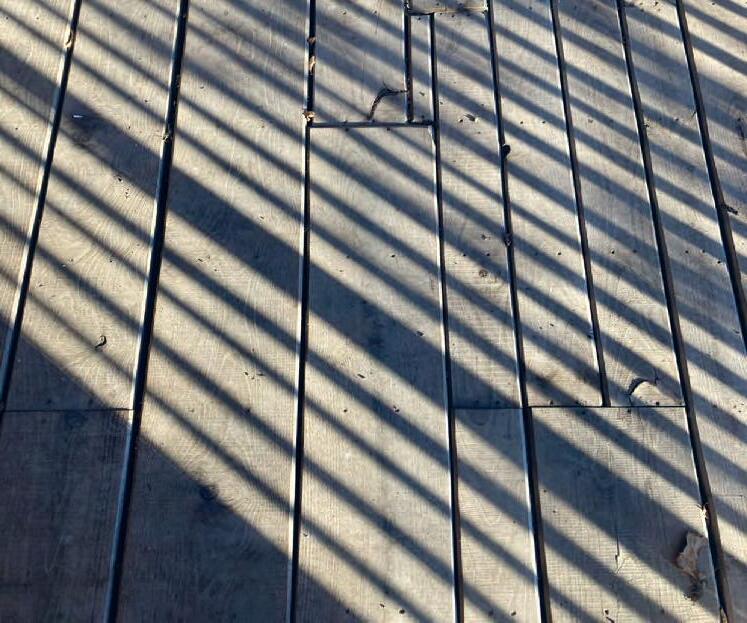

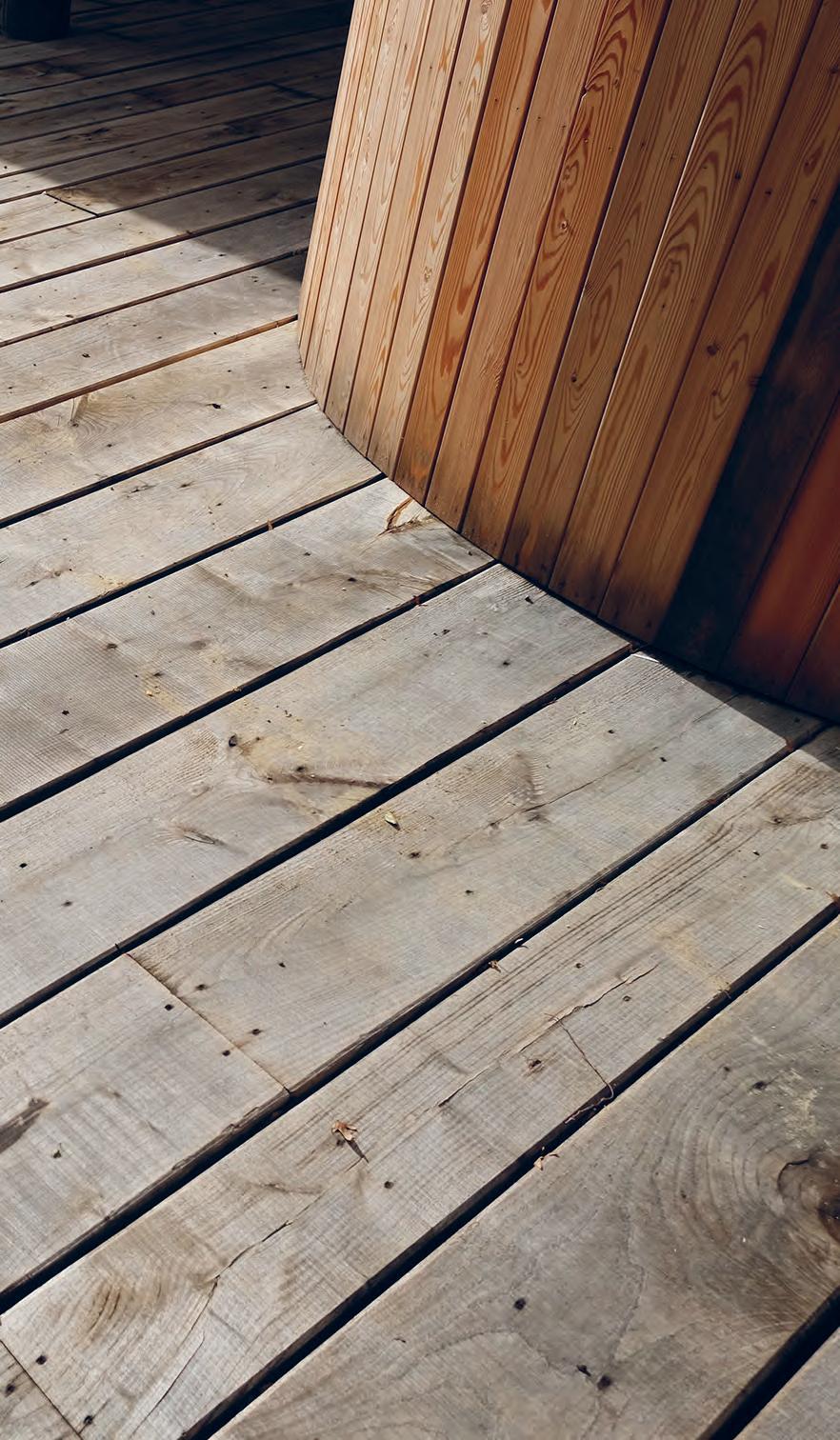

SWEET CHESTNUT DECK HOMEGROWN LARCH BEAMS CLAY AGGREGATE MIX FOR SHOWER TRAYS

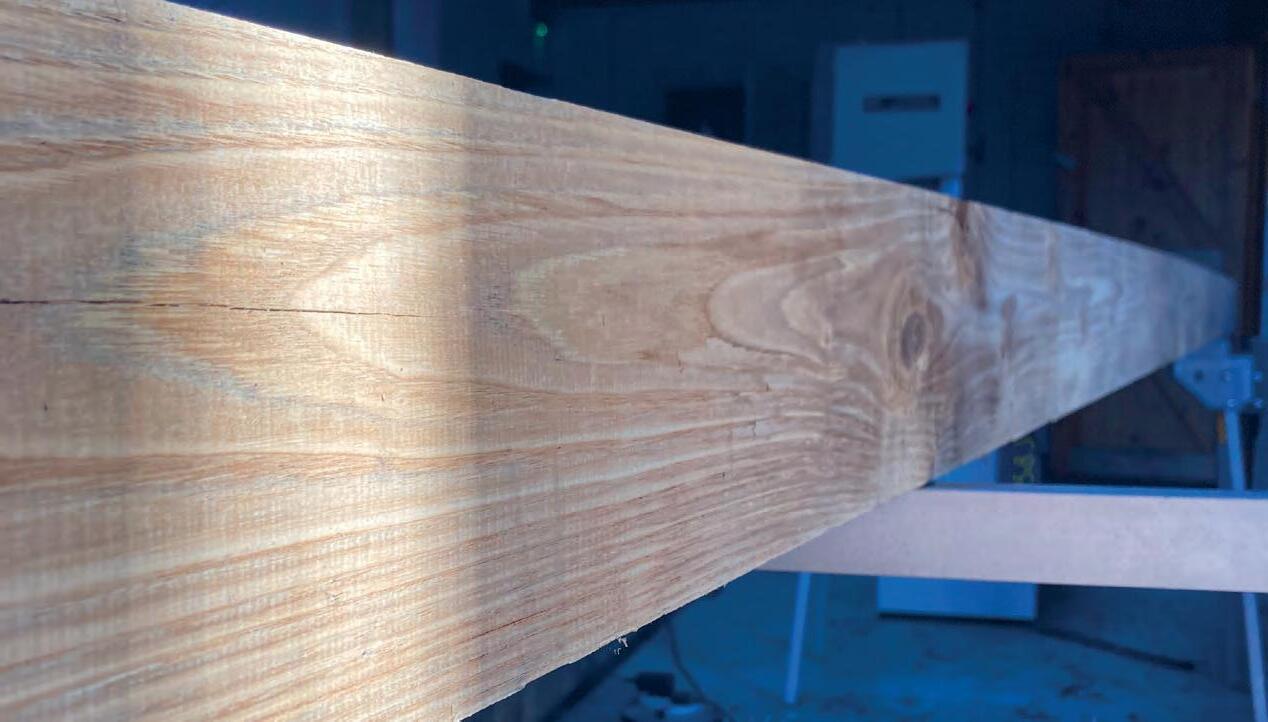

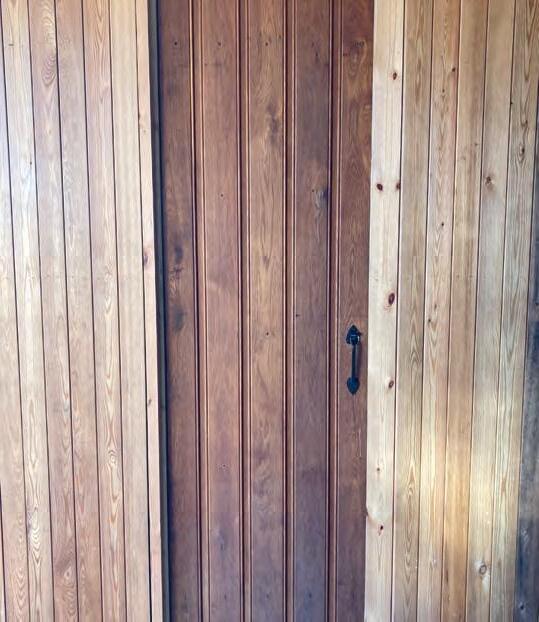

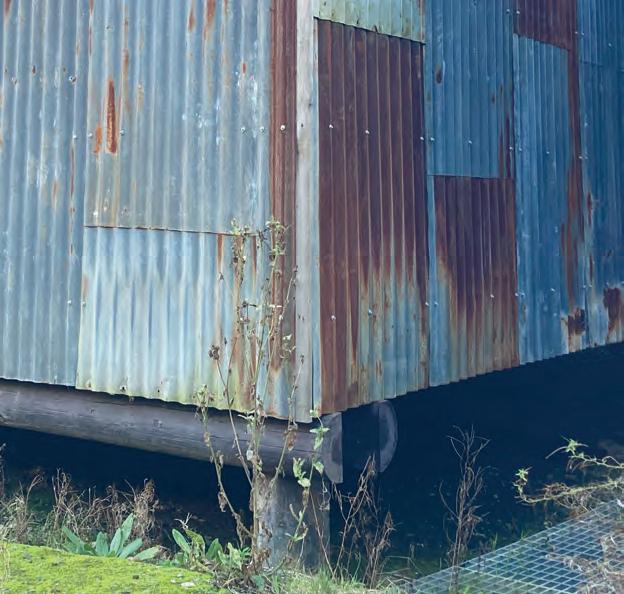

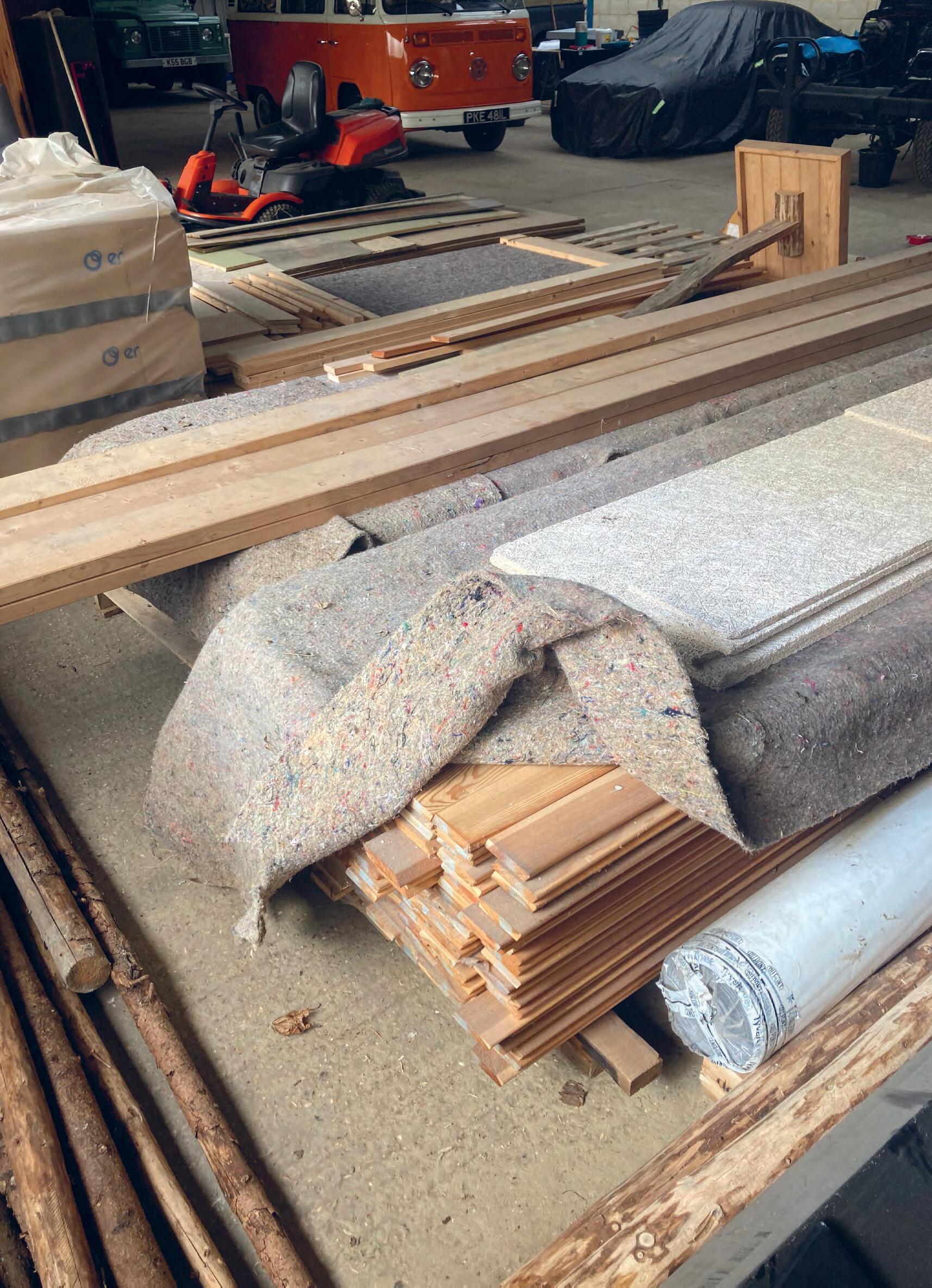

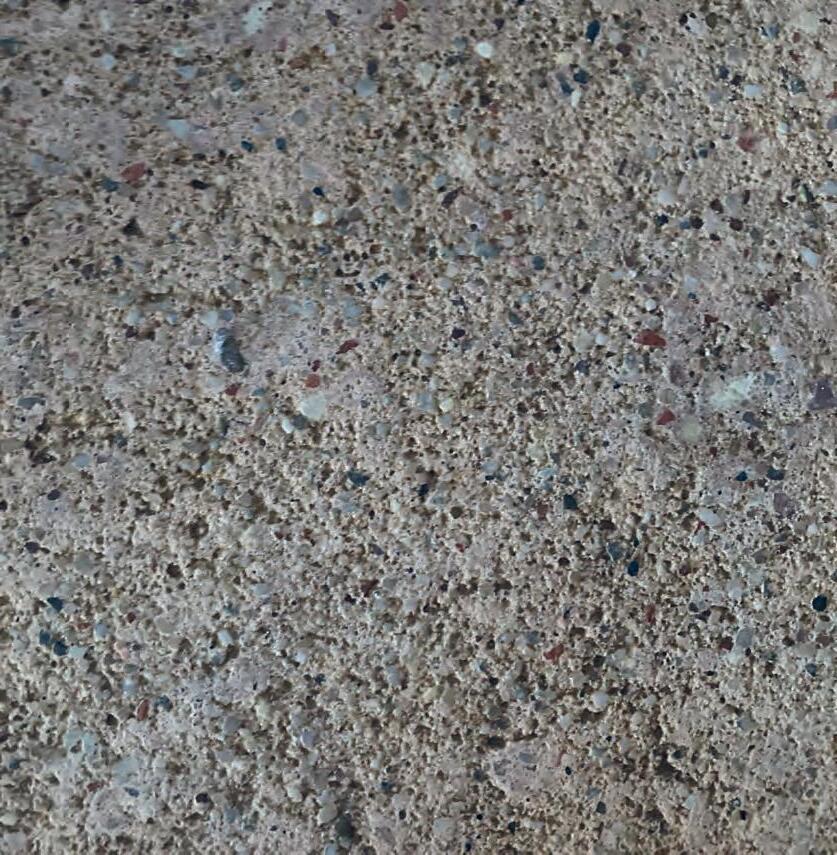

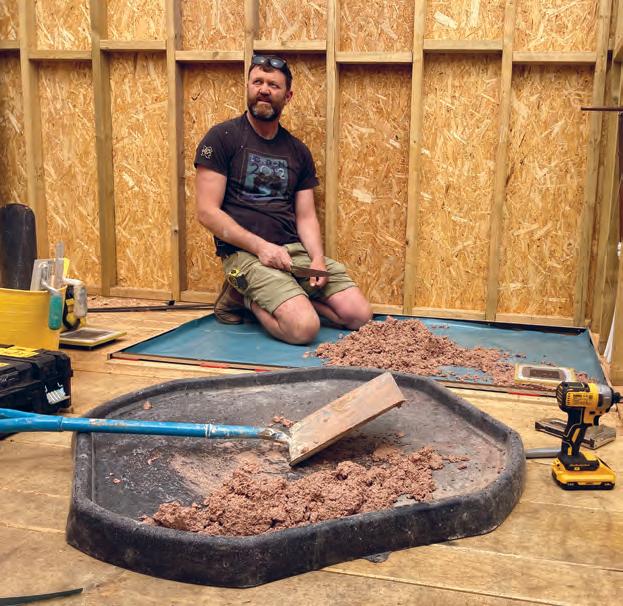

MATERIALITY: INVENTORY OF LEFTOVER MATERIALS ON SITE INCLUDING MACHINED LARCH CLADDING, LARCH POLES, C24/C16, STEEL FENCE PANELS, ALL FF&E. ALL DOORS SALVAGED, CURRAGTED TIN SHEETING SALVAGED. TEXTURE OF AGGREGATE (RIGHT), GREEN LARCH BEAMS SOURCED COPFORDS SAWMILL, SWEET CHESTNUT DECKING SOURCED PILMER WOODS

r u r a l

w o r k s h o p

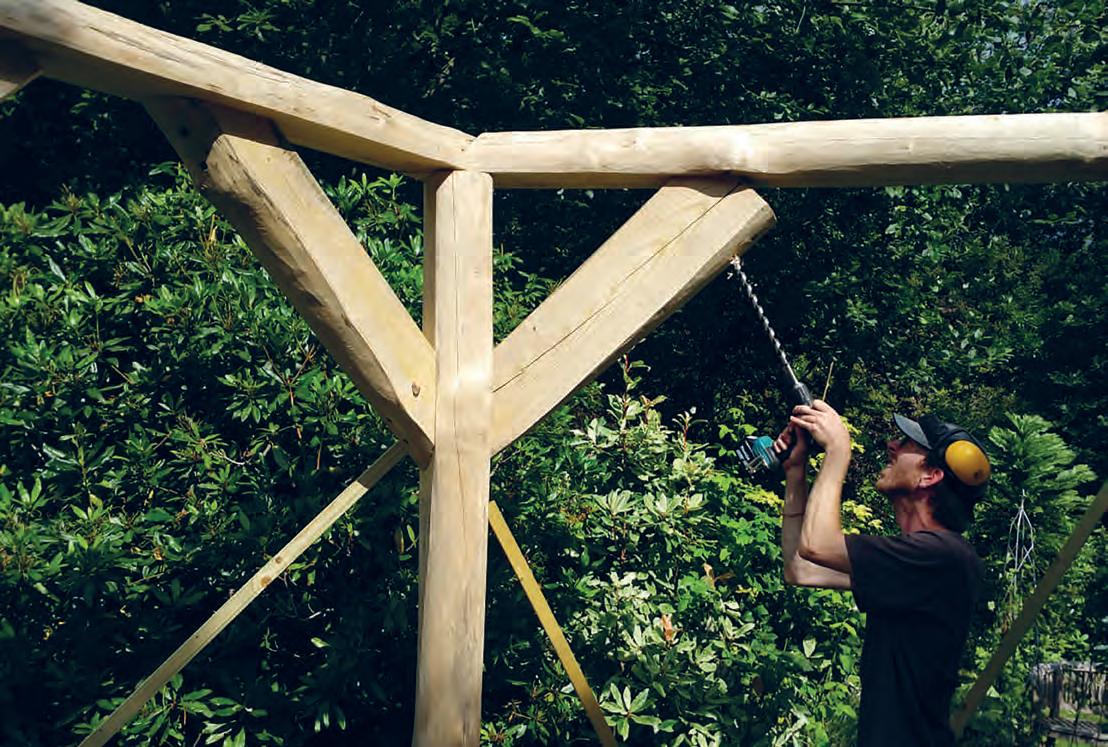

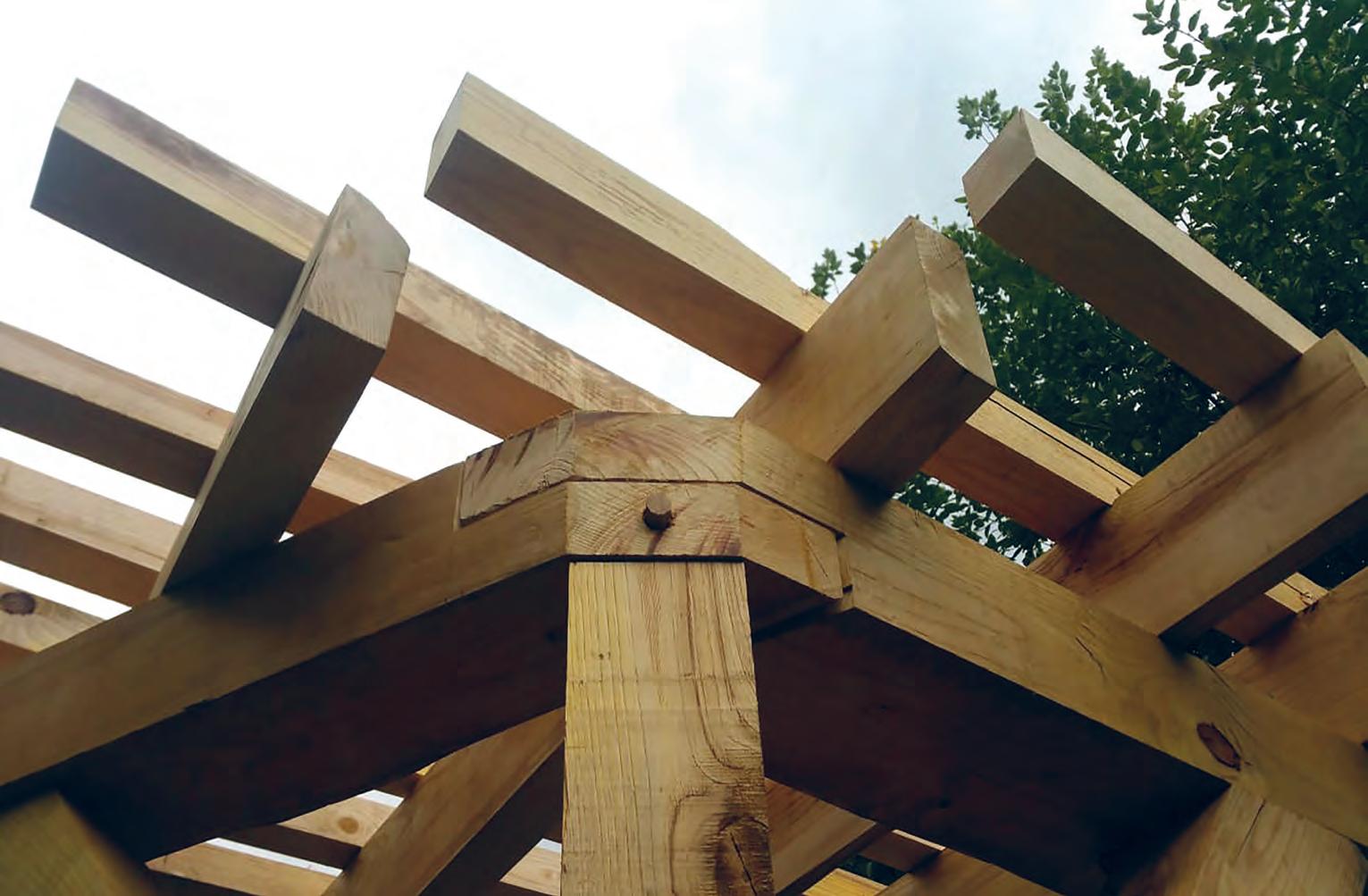

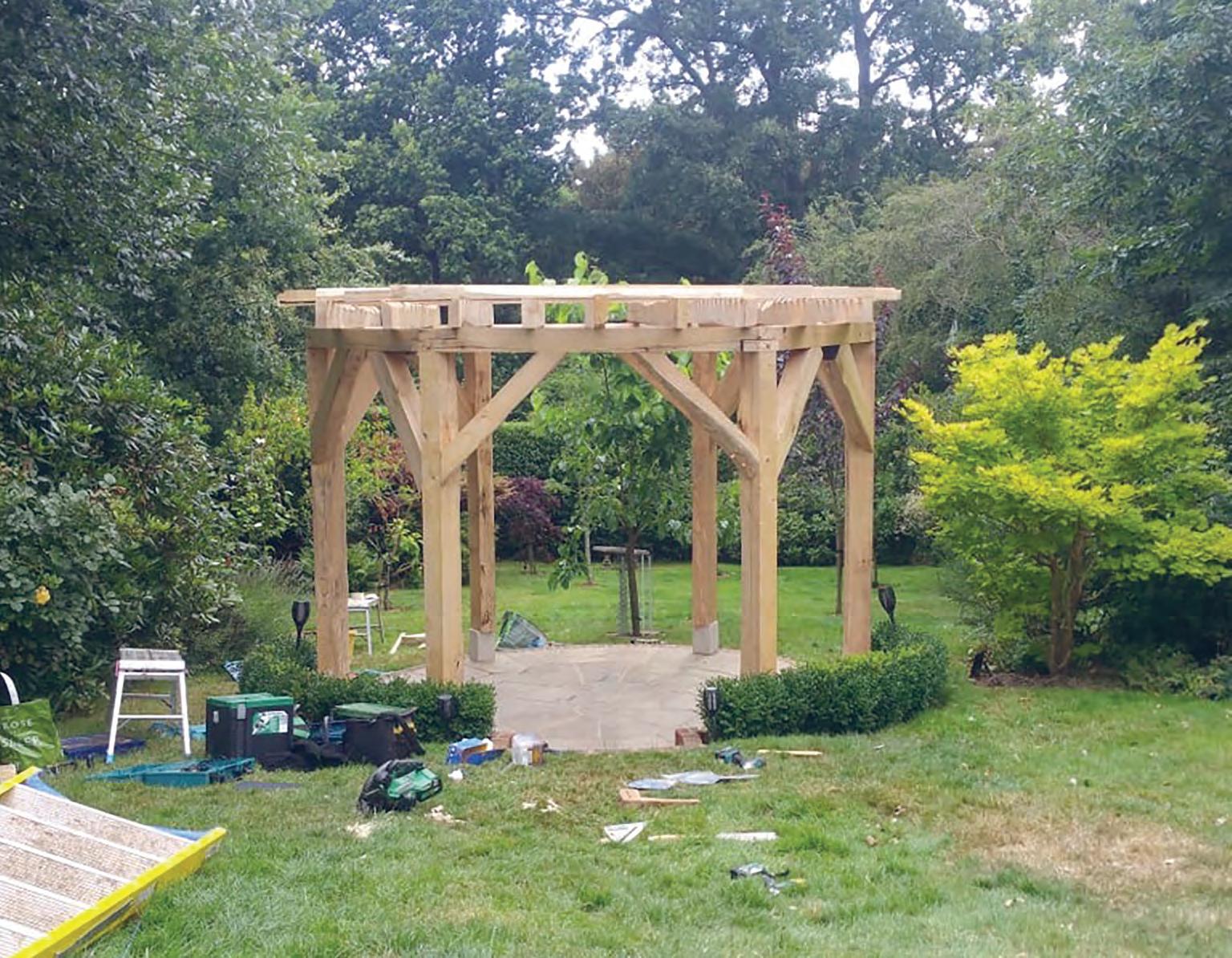

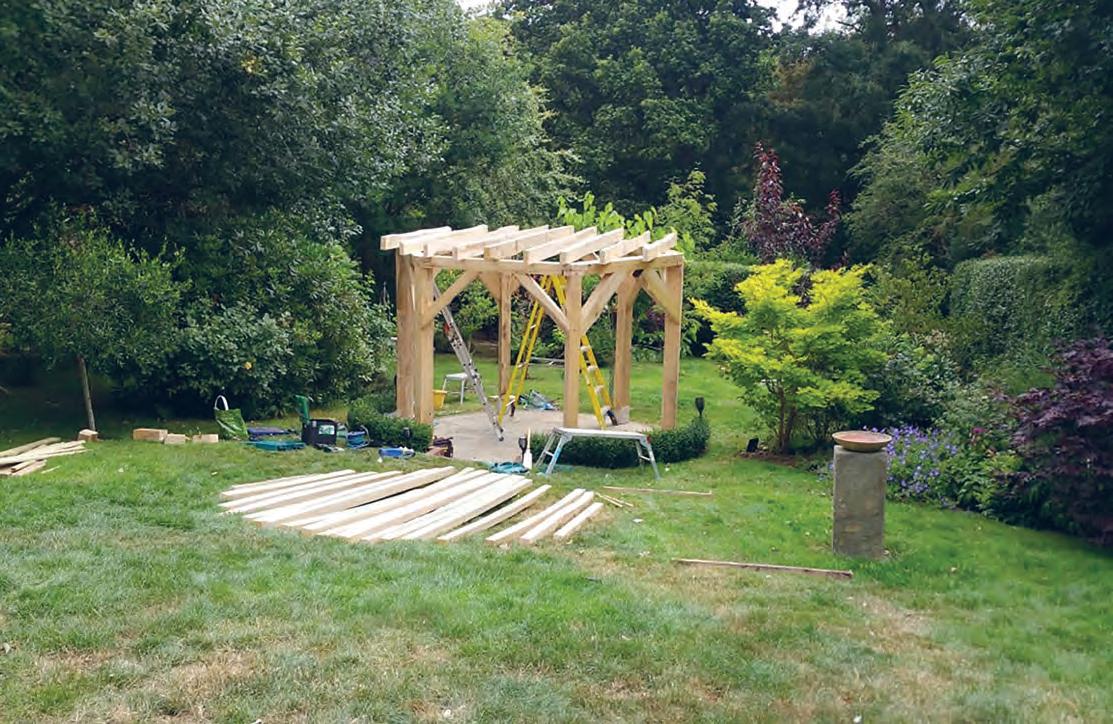

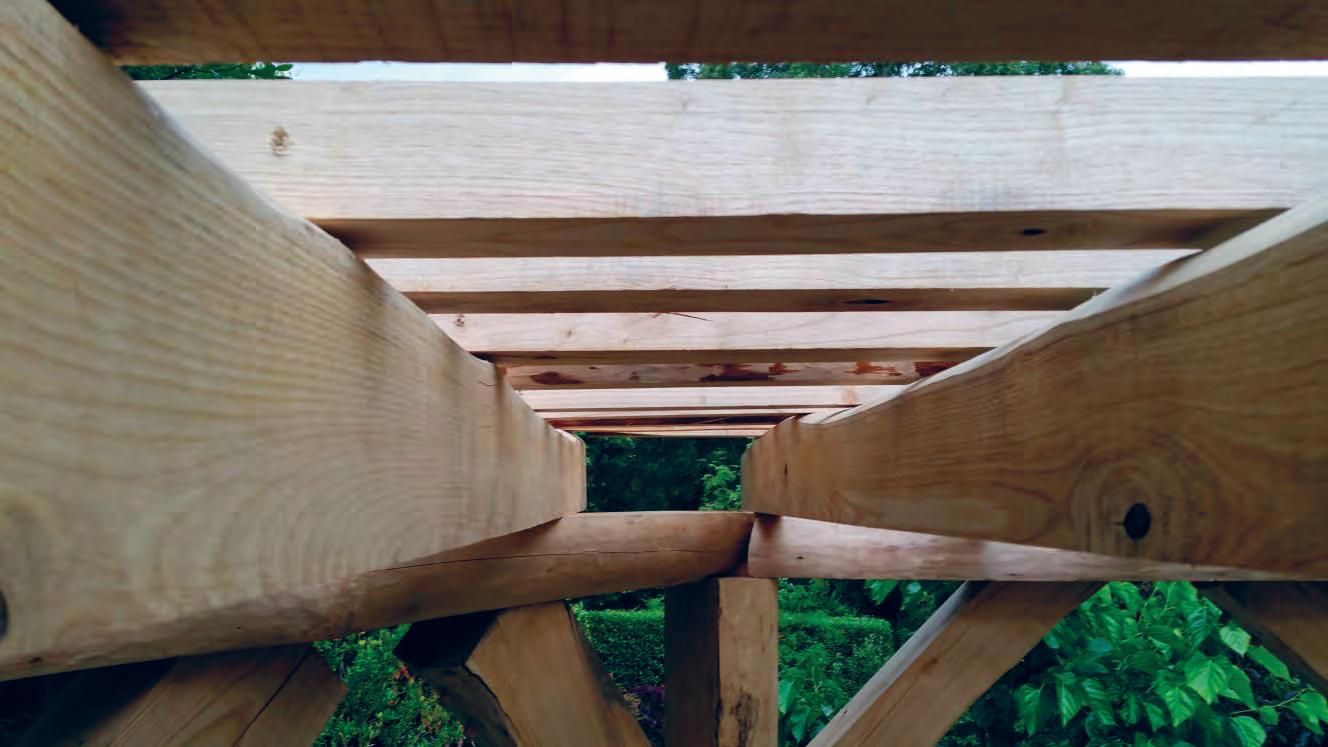

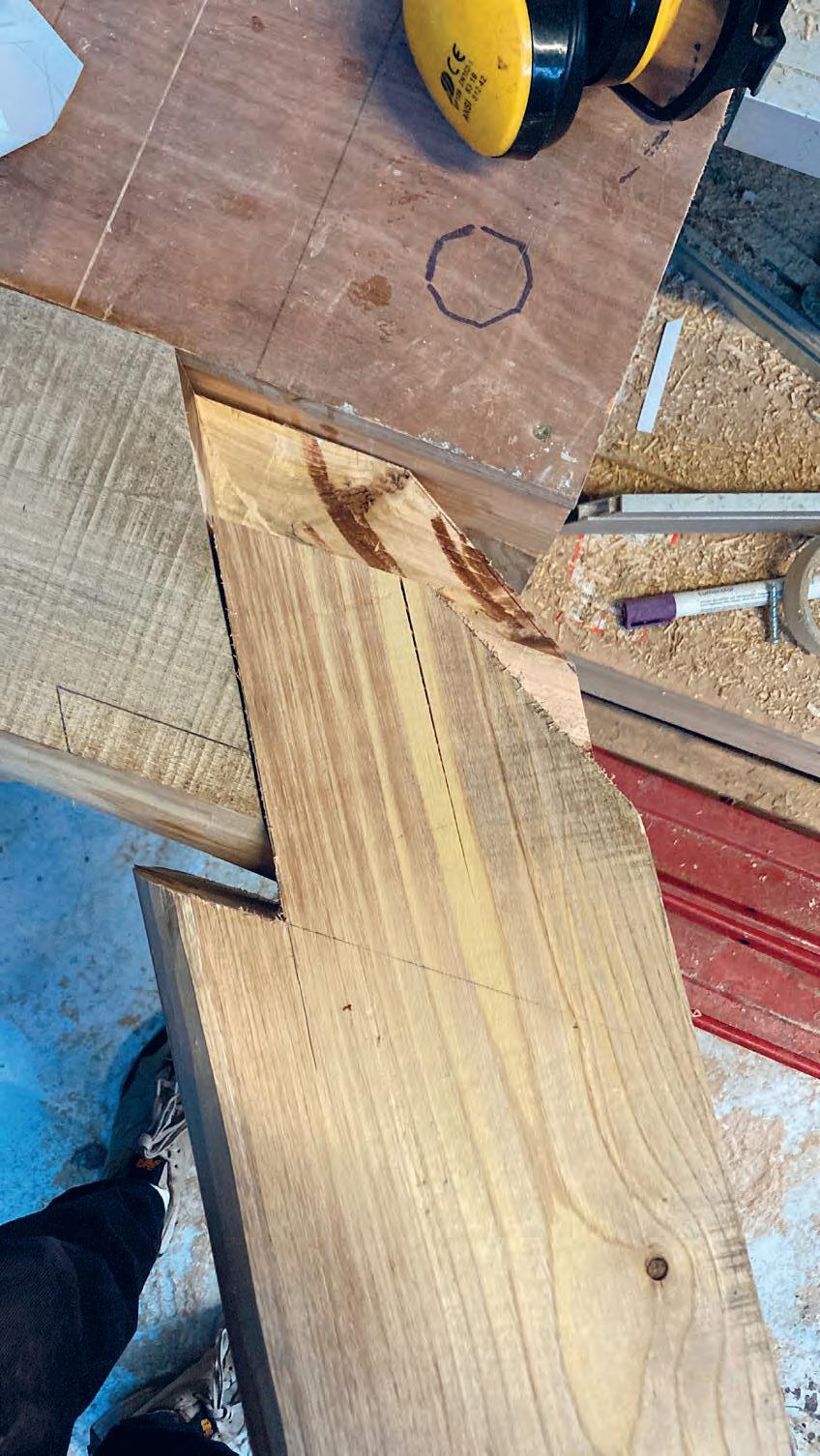

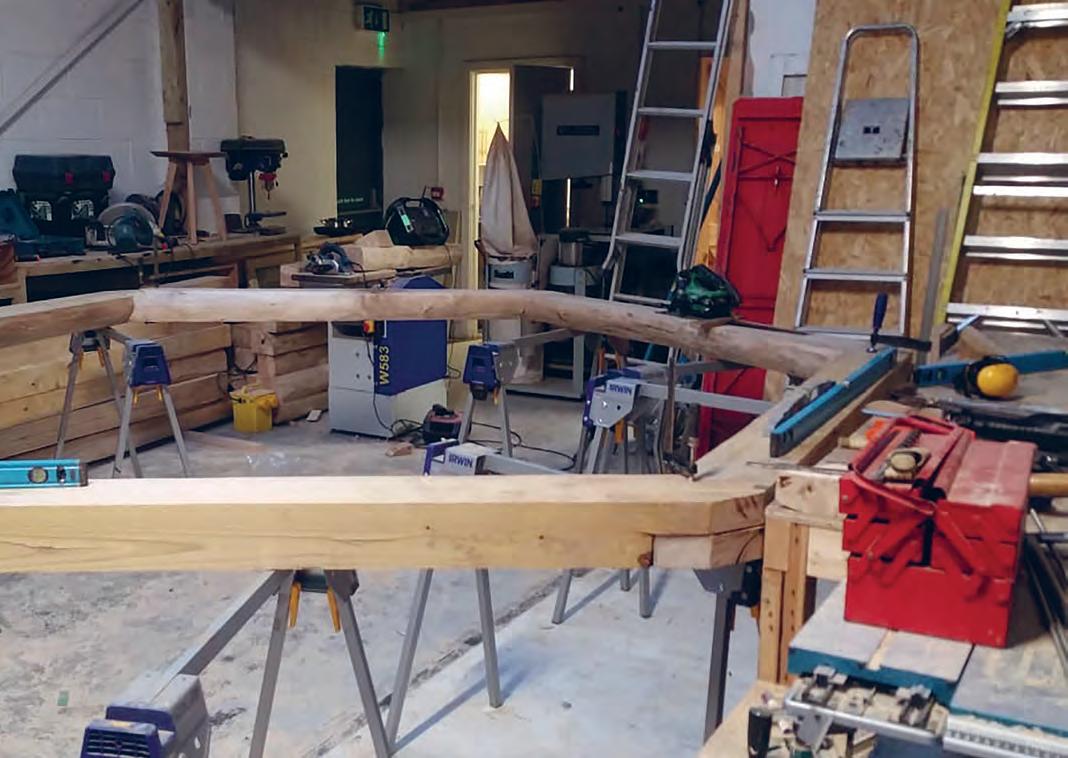

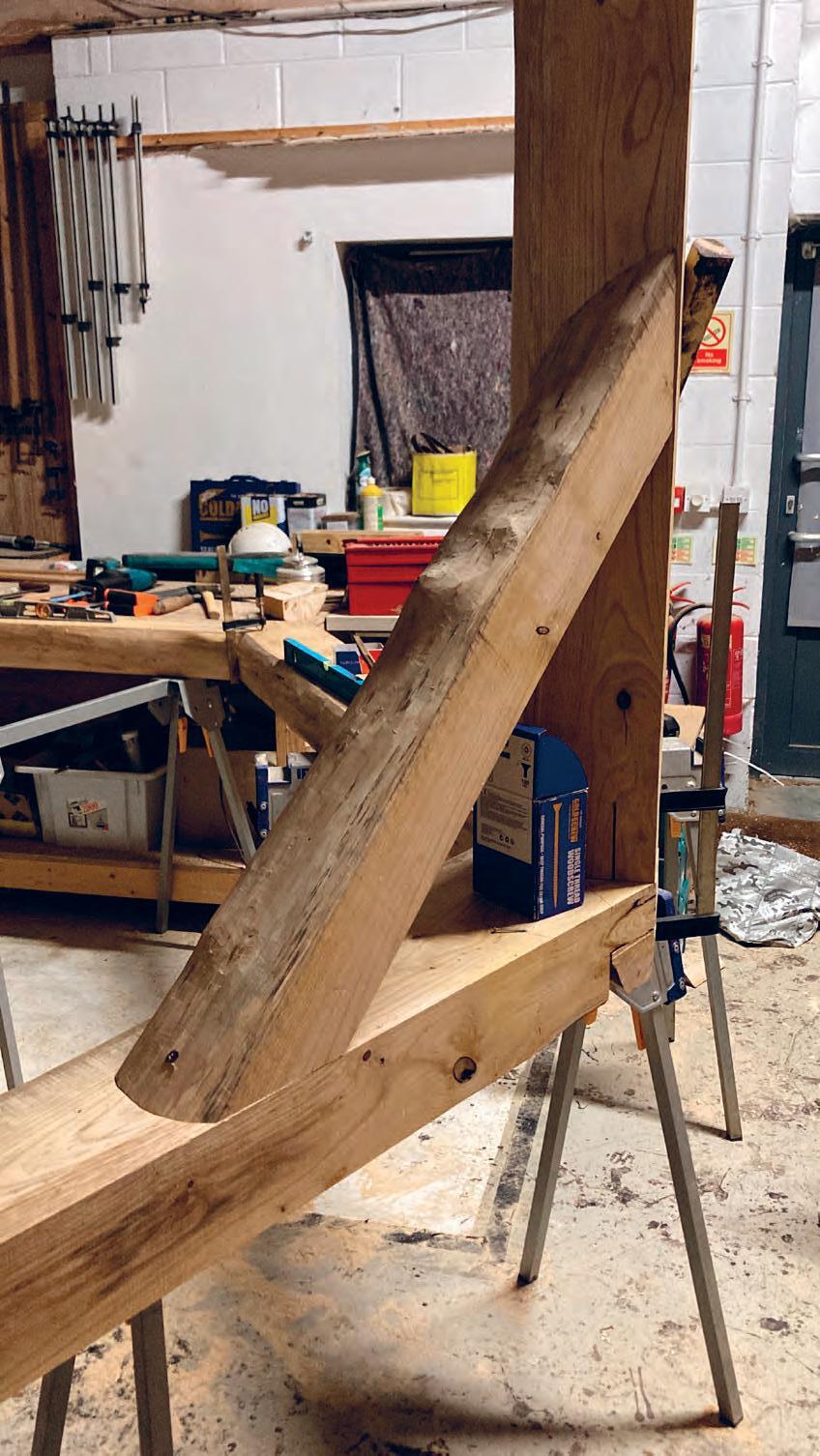

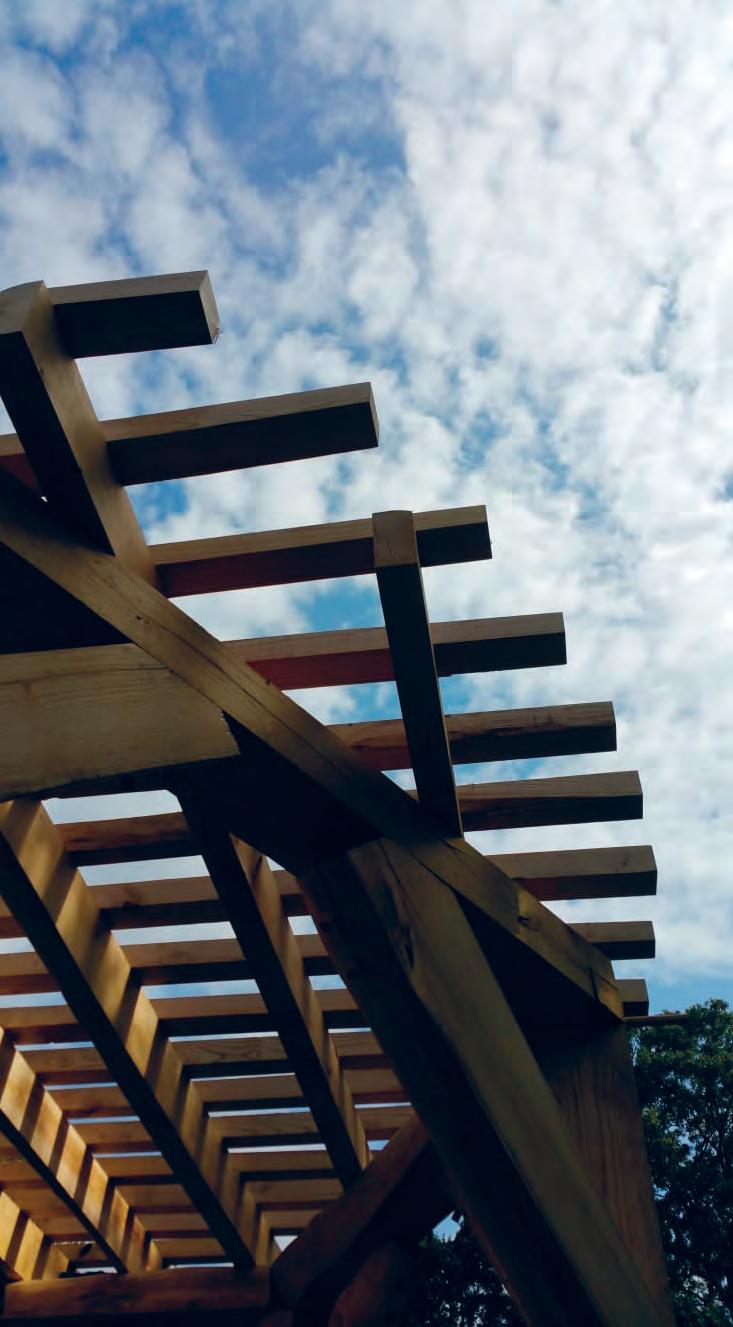

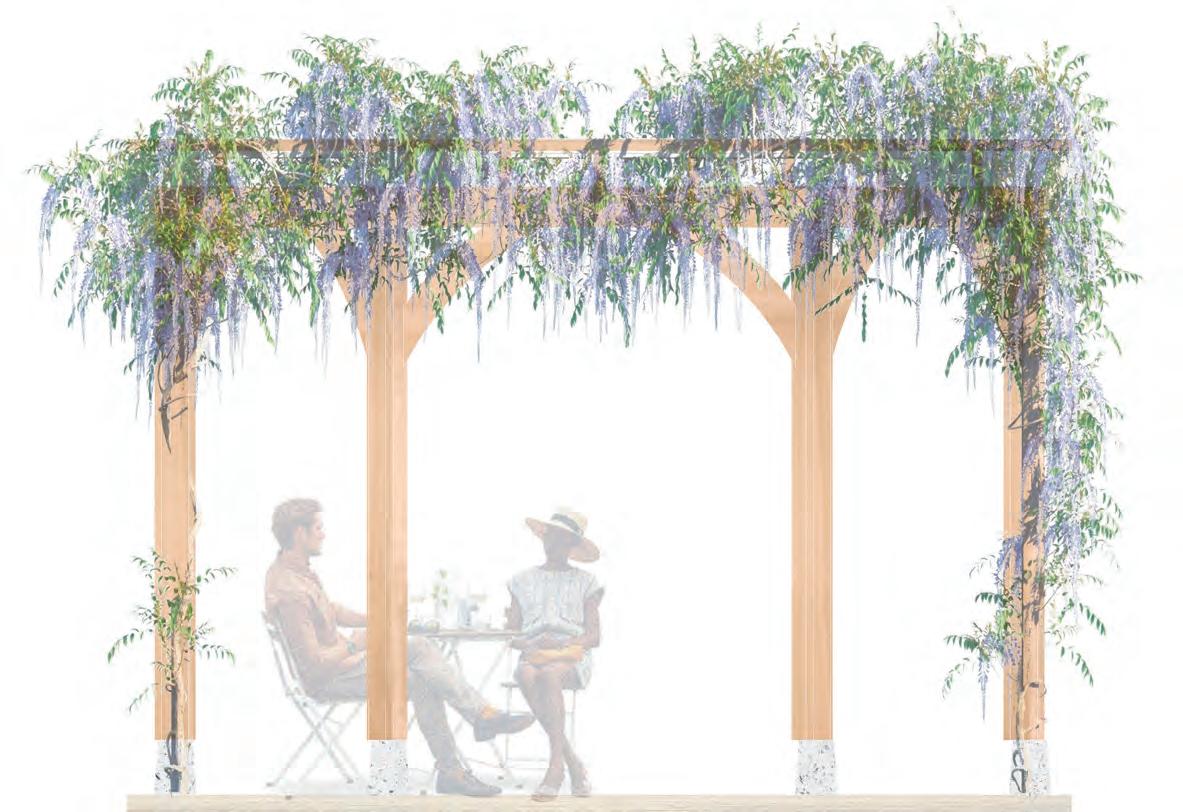

TOAD HALL Garden structure Toad Hall is an ornamental garden structure crafted from sweet chestnut, sourced from the neighboring village. The project was a rewarding collaboration with the client, where we focused on creating a contemporary design that celebrated the natural beauty and unique forms of the wood. This project gave me the opportunity to develop and express my own style, emphasizing the rich texture and strength of the sweet chestnut beams. Leading a skilled team of carpenters, I ensured the design was executed with precision, resulting in a beautifully crafted piece that blends craftsmanship with nature in a fresh, modern way.

r u r a l

w o r k s h o p

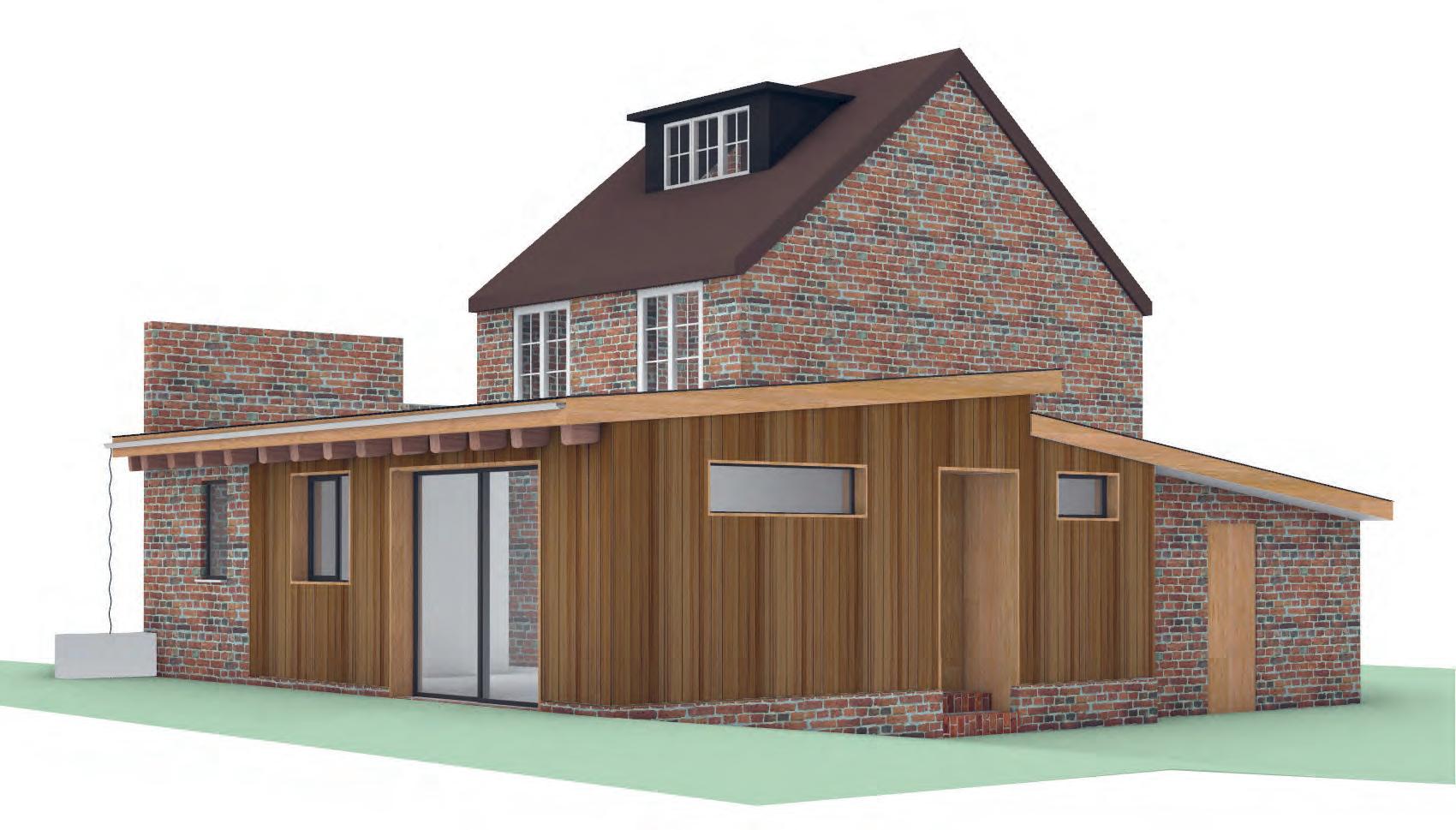

17 GORDON ROAD Timber framed extension for a Victorian rural cottage

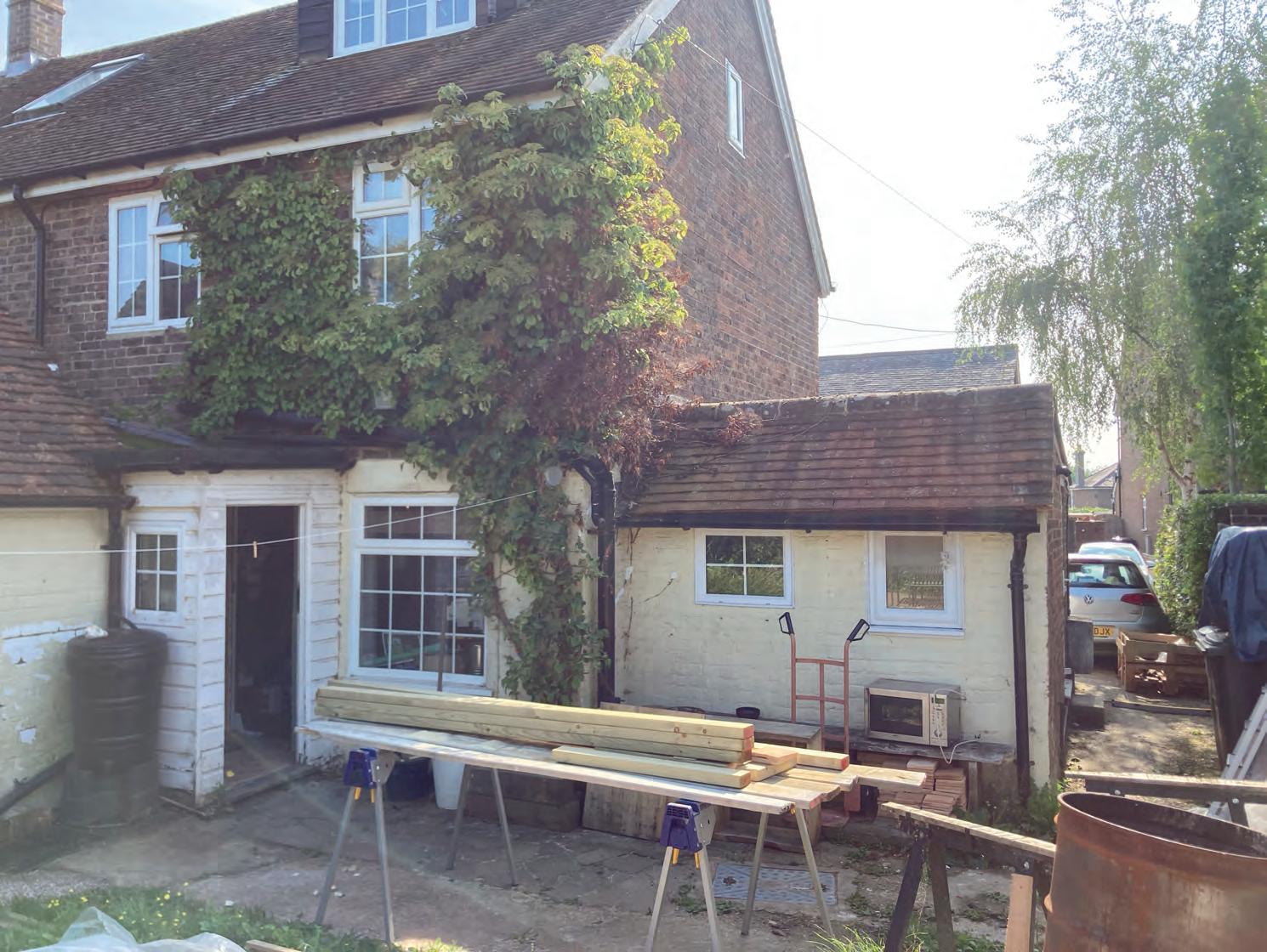

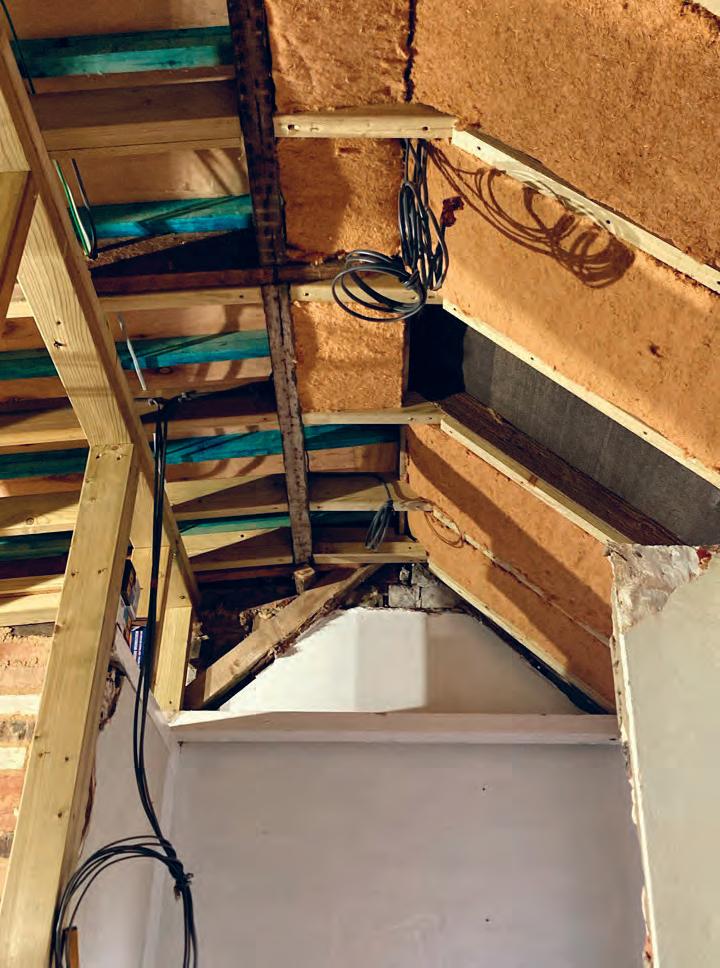

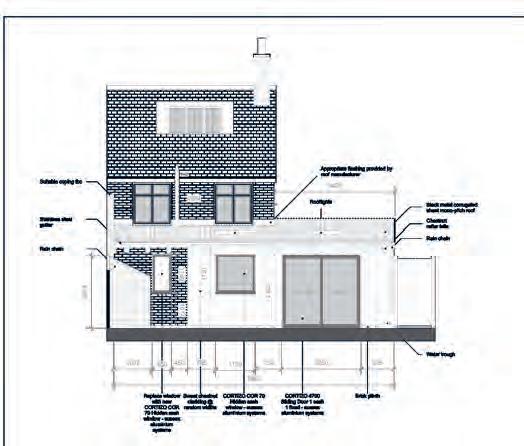

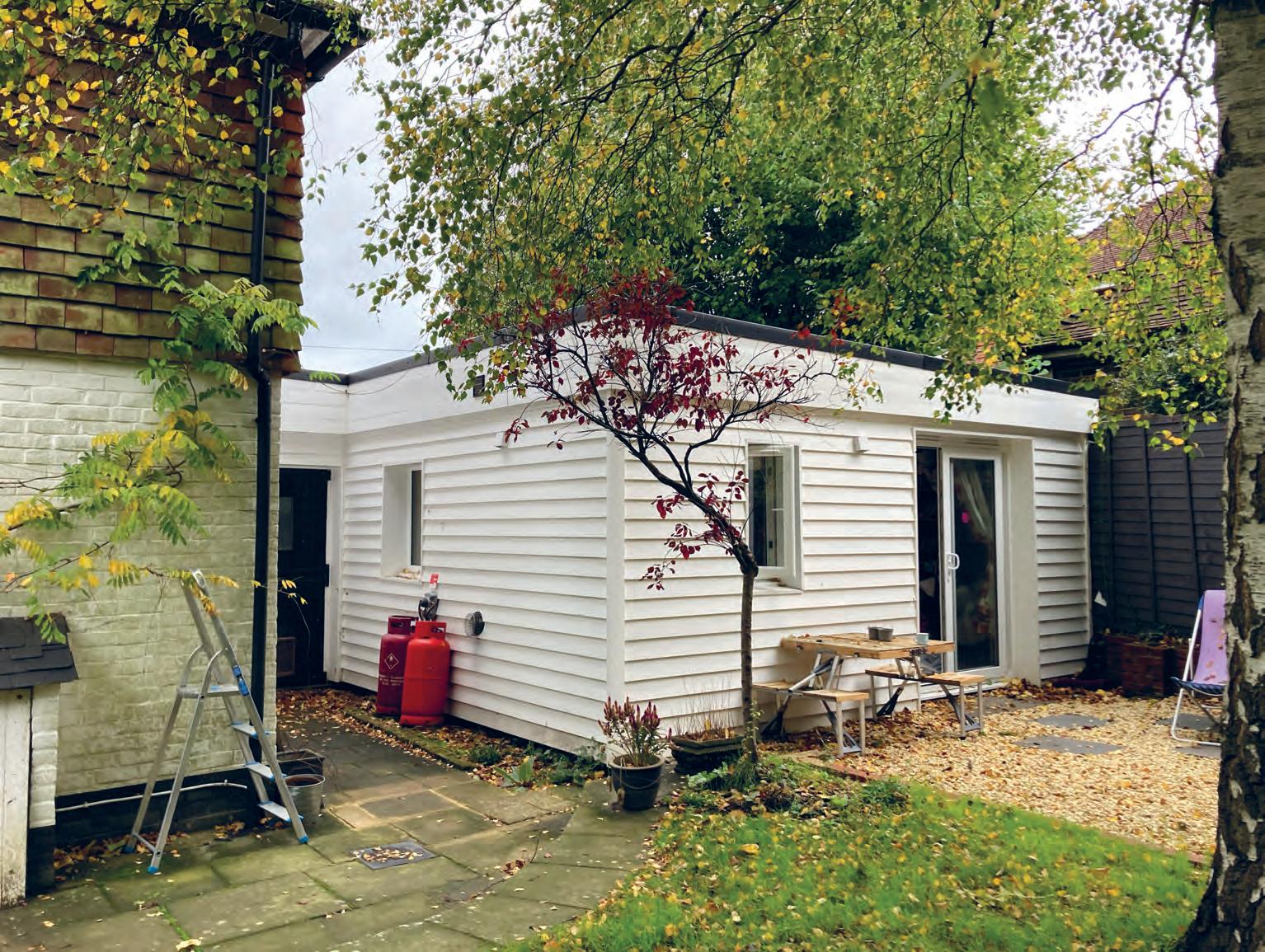

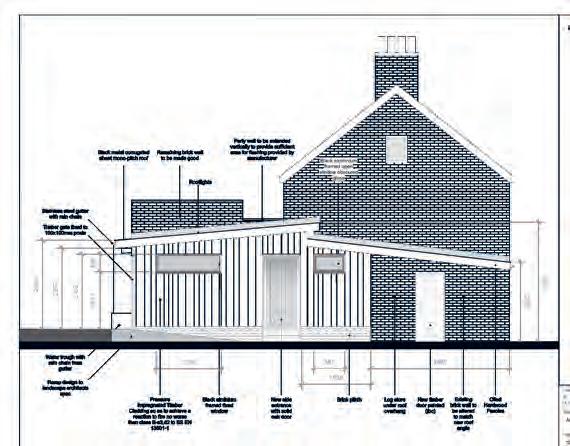

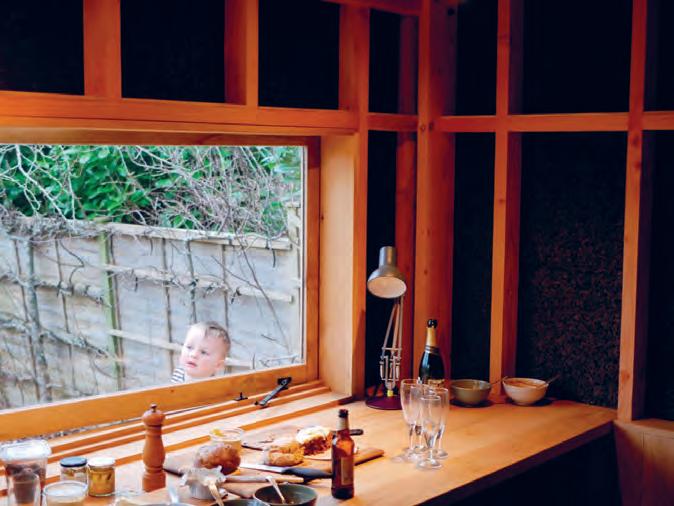

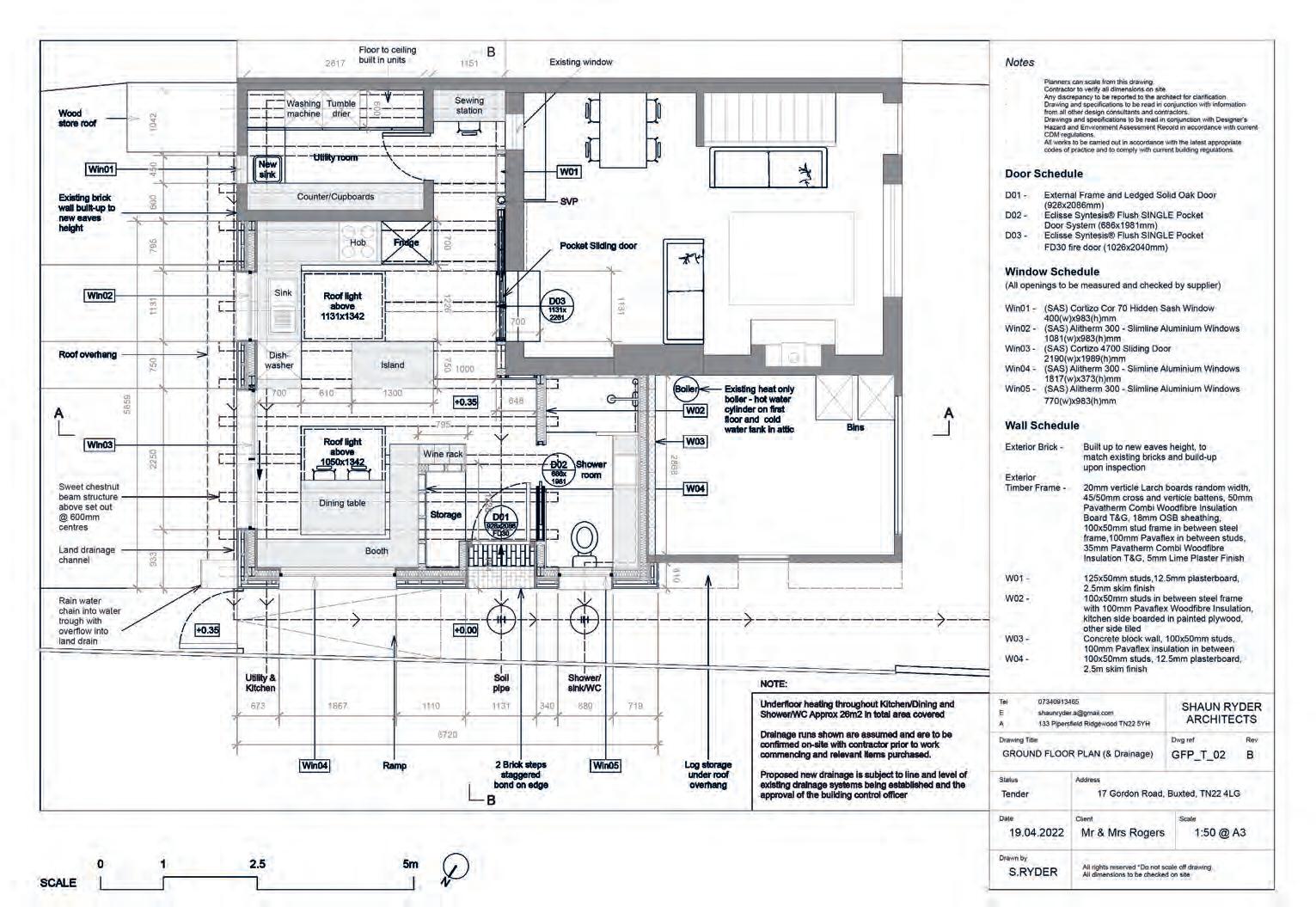

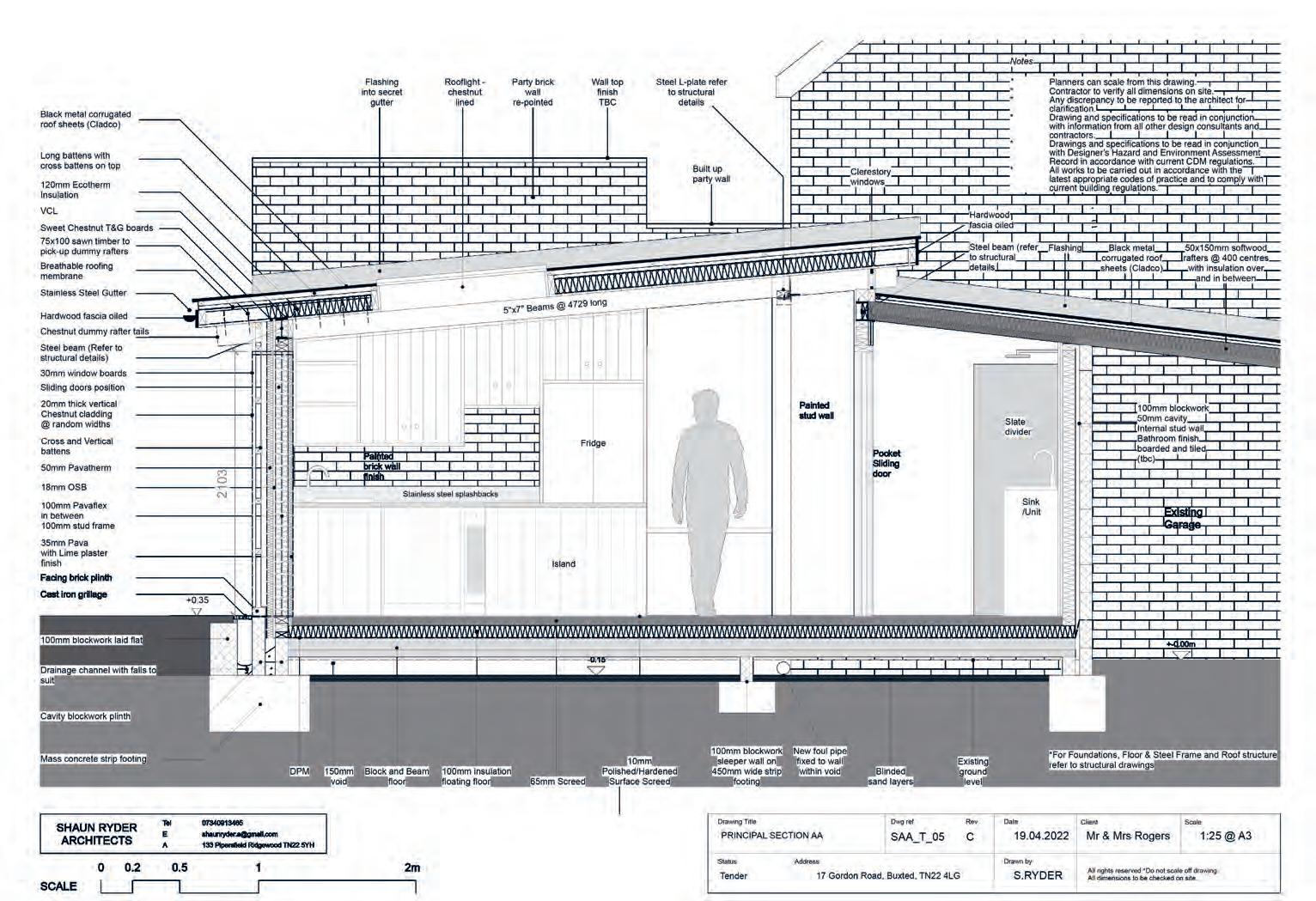

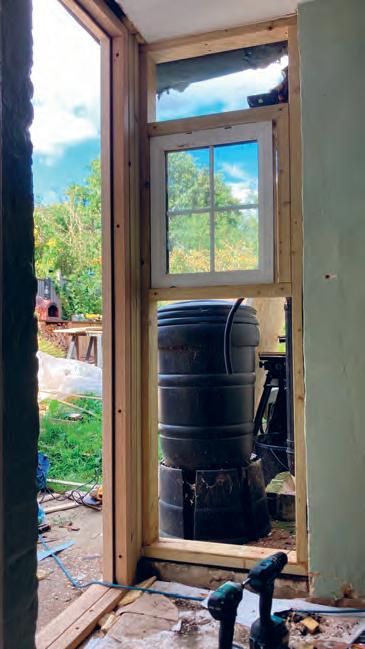

This rear extension for a 1900s semi-detached cottage transforms the home into a light-filled, functional haven for a young family. Designed to create a new entrance, storage, bathroom, and open-plan kitchen/living space, it seamlessly blends traditional timber framing with sleek steel sections, featuring exposed sweet chestnut roof joists sourced locally for a natural, warm interior. Eco-conscious materials like wood fibre insulation and bespoke finishes enhance its sustainable credentials. A clerestory roof, large skylights, and perimeter windows flood the space with light, while the thoughtful massing integrates effortlessly with the existing structure and garden. Fully approved by planning and building control, the extension reimagines the home’s ground floor as a beautifully modern, harmonious epicenter, perfectly aligned with the family’s vision.

r u r a l

w o r k s h o p

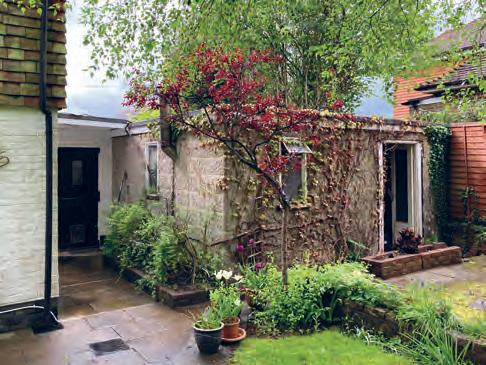

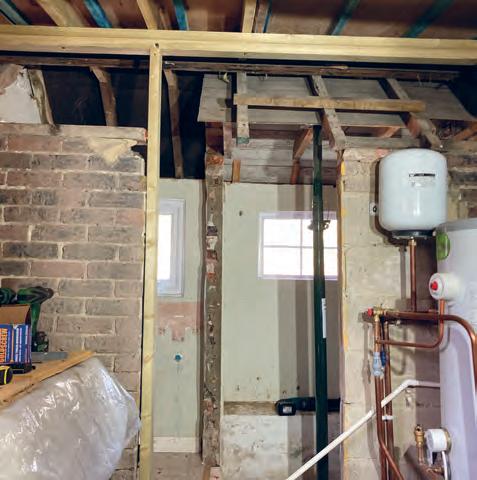

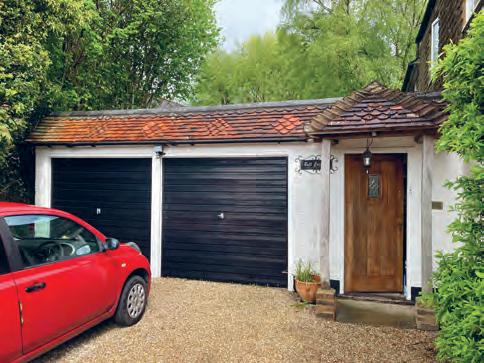

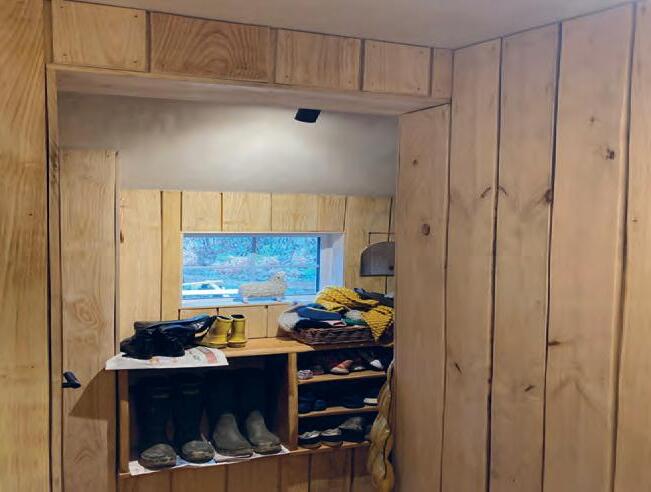

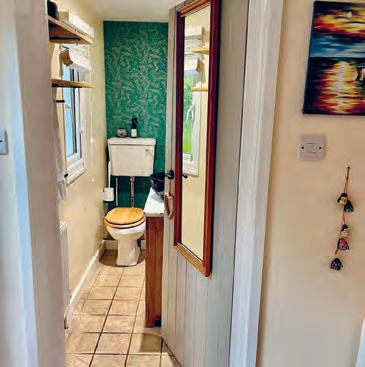

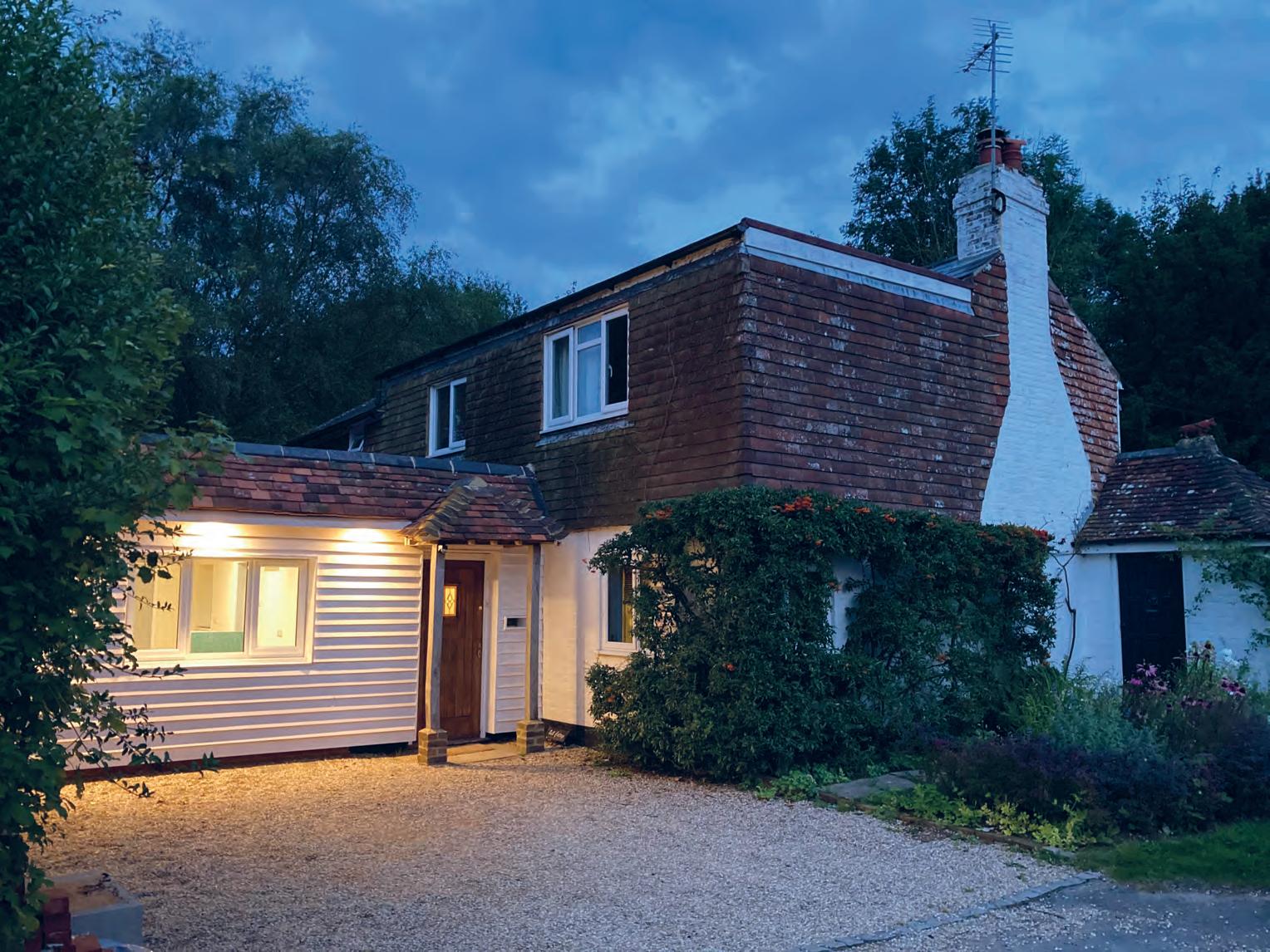

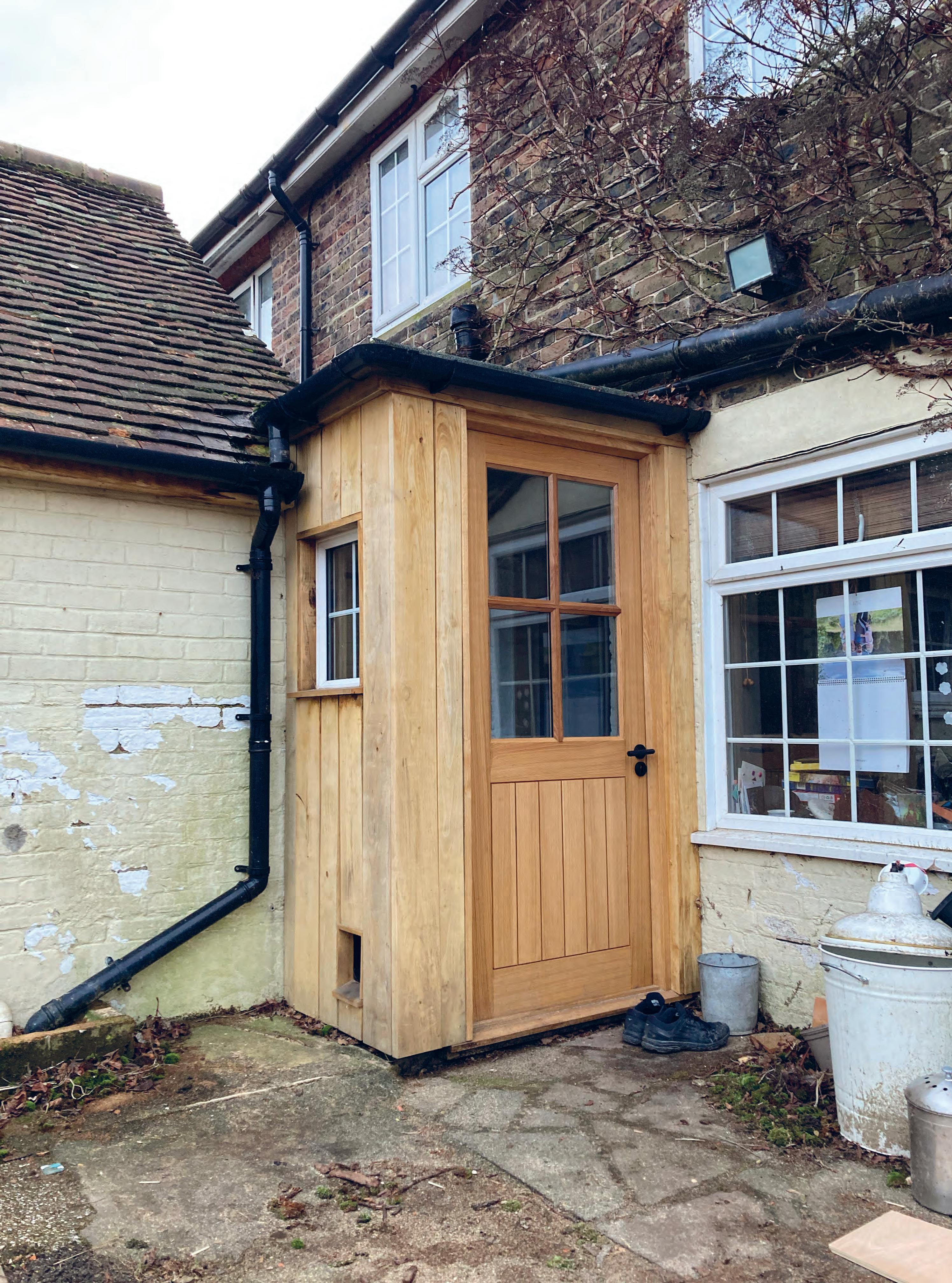

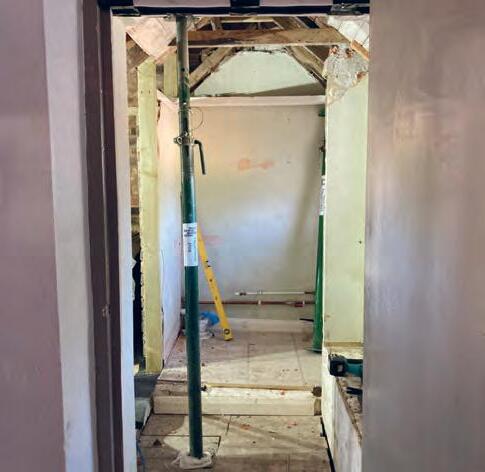

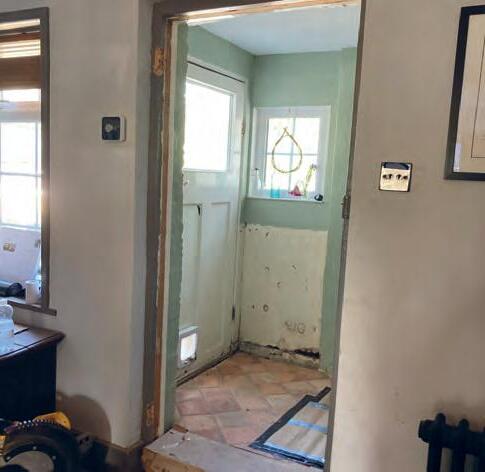

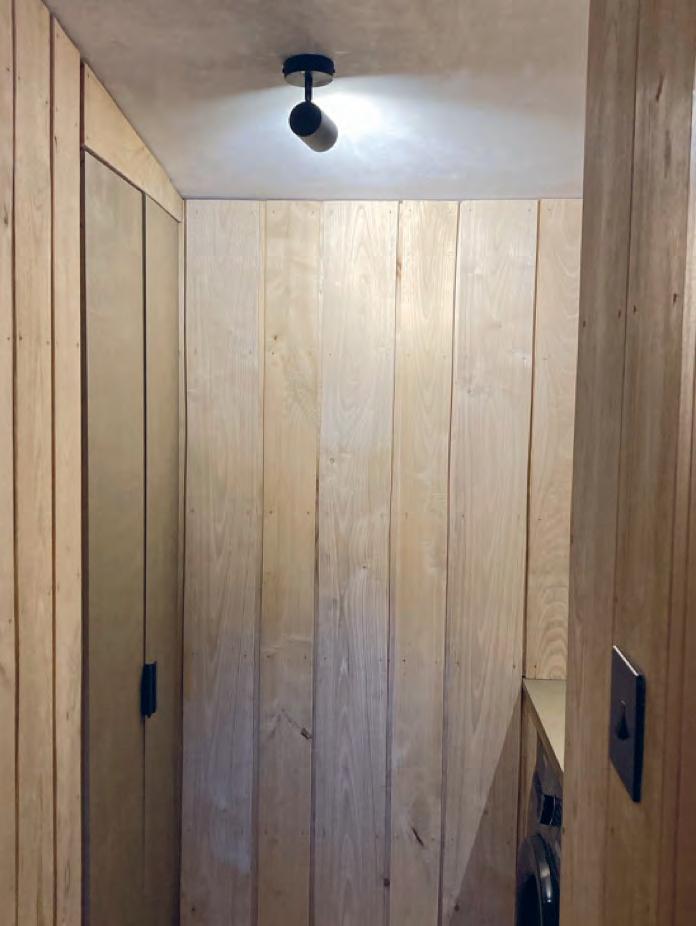

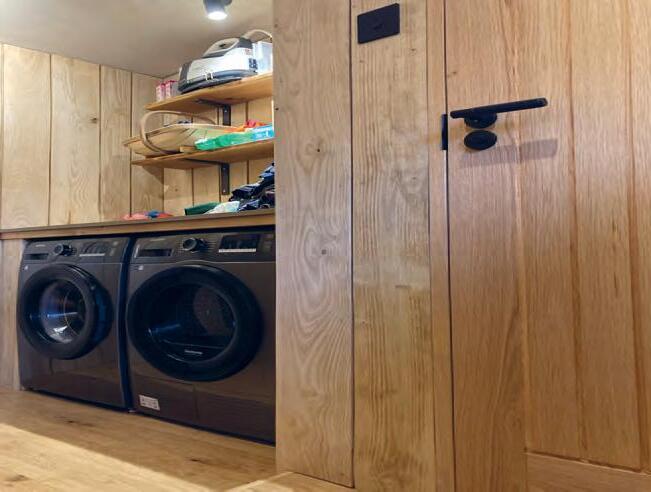

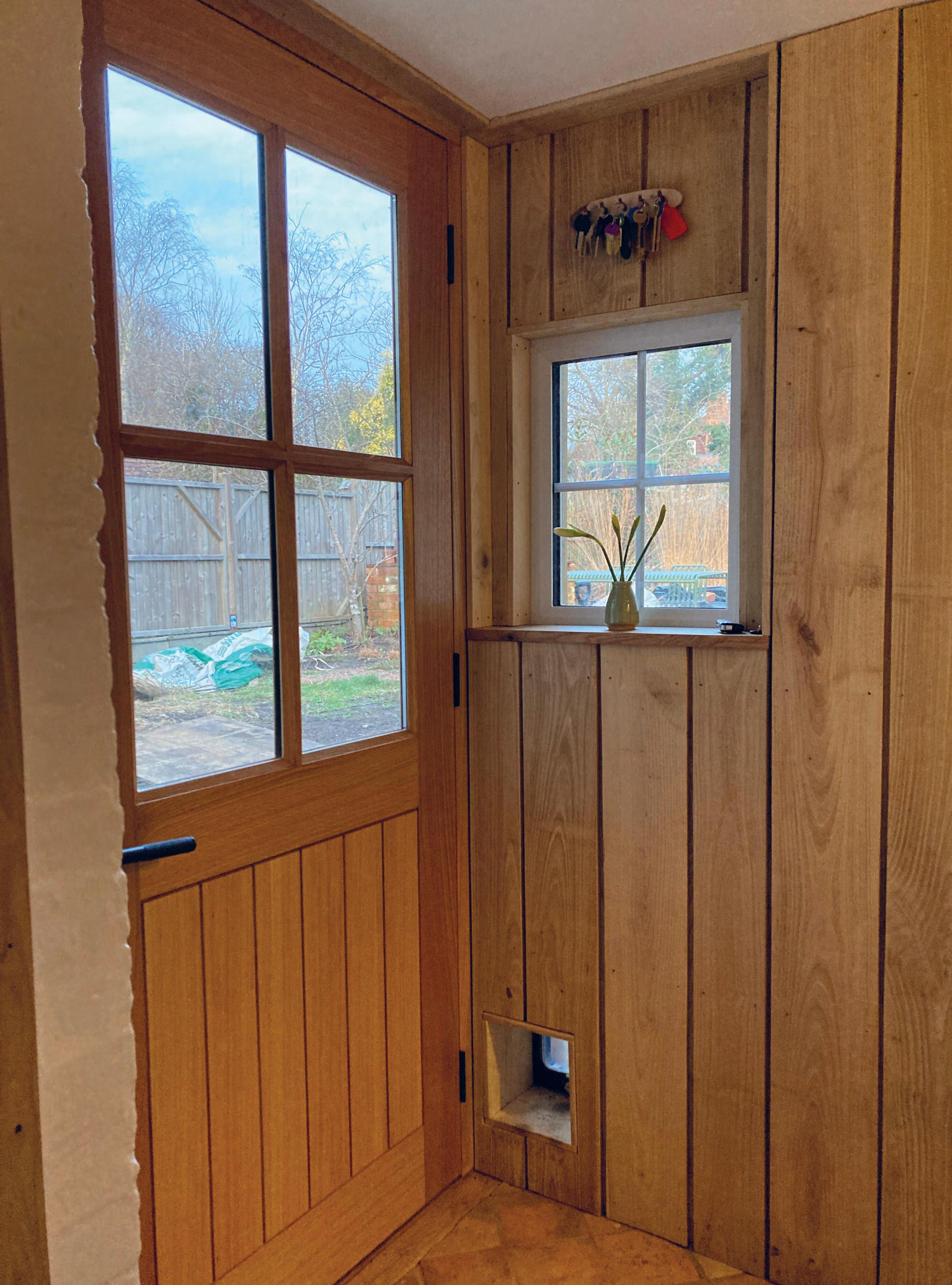

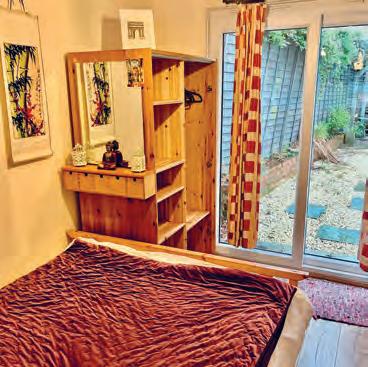

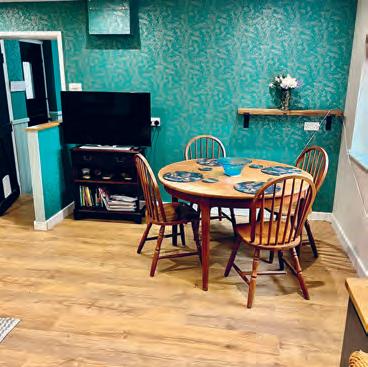

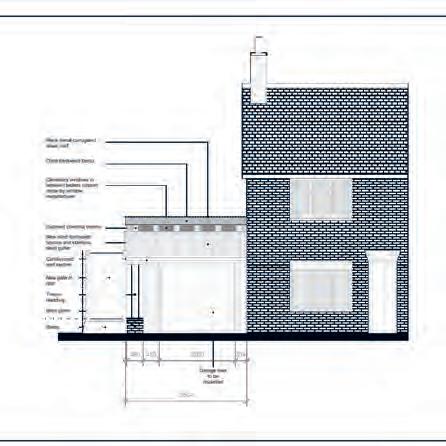

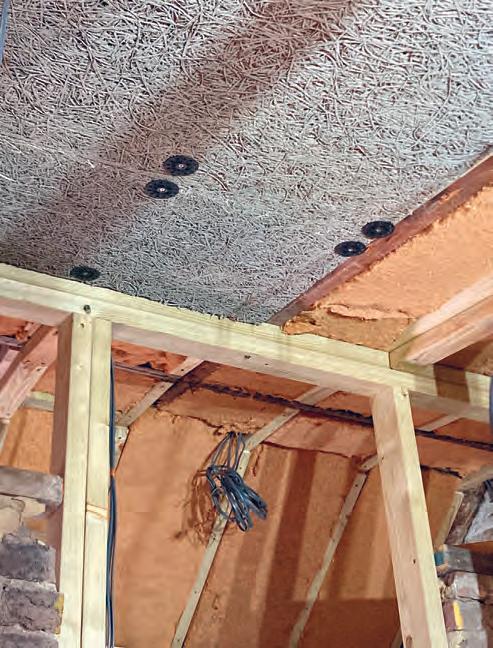

17 GORDON ROAD Porch and Interior Conversion This project transformed a small family cottage by reconfiguring the ground floor and partially converting the garage into functional living spaces, including a new downstairs toilet, utility space, airing cupboard, boot room, and an improved porch with a cat flap. I oversaw every aspect of the build, completing all finished carpentry by hand to ensure precision and craftsmanship. The porch now performs far better, thanks to its entirely new insulated framework, significantly enhancing comfort and energy efficiency. Reflecting a shared ethos of sustainability, the design features locally felled sweet chestnut cladding and woodfibre insulation, which not only improve performance but also bring a natural warmth to the home. The result is a thoughtful balance of functionality, environmental consciousness, and character.

BESPOKE CARPENTRY

c a m b i u m

c o l l e c t i v e

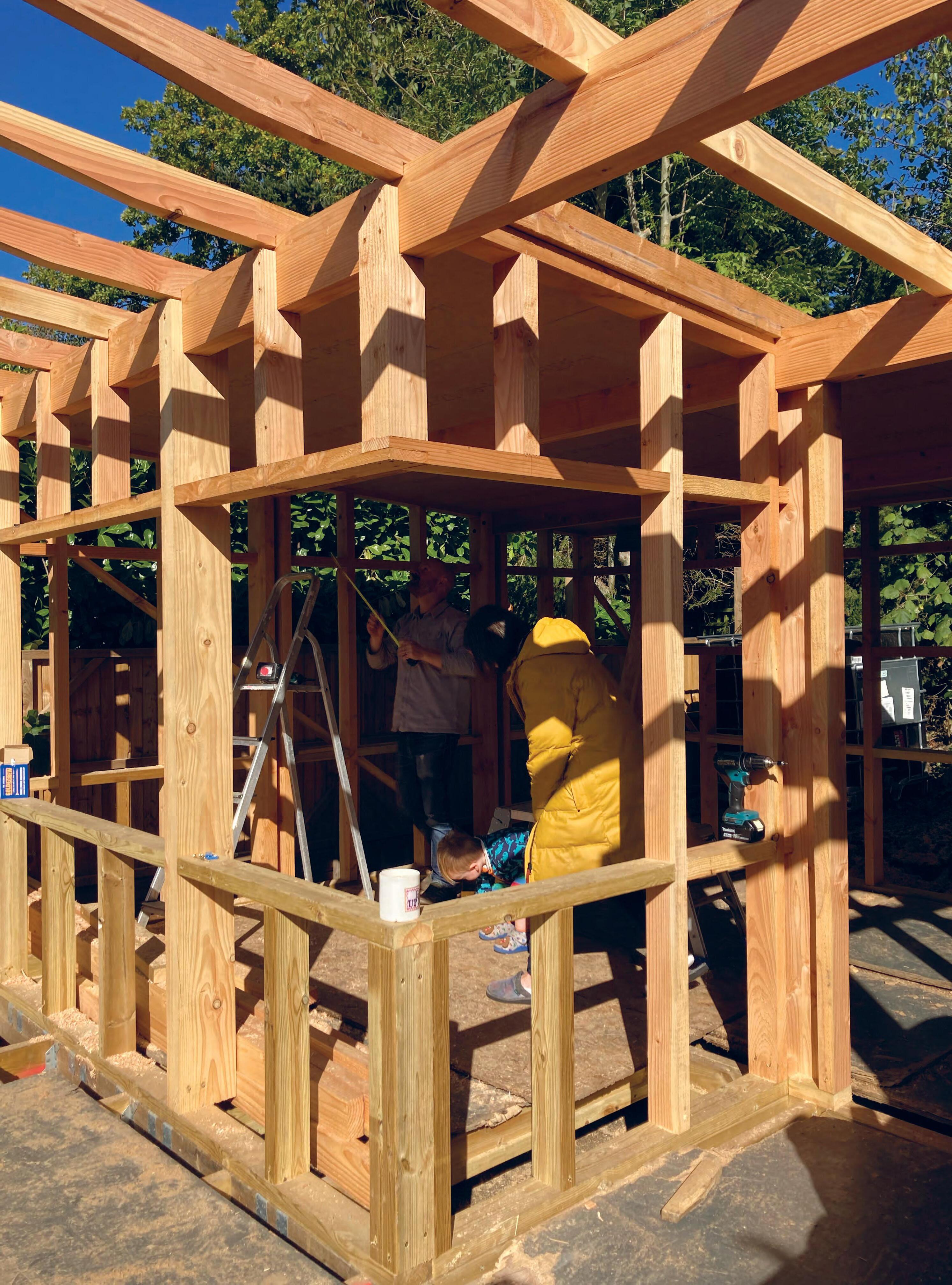

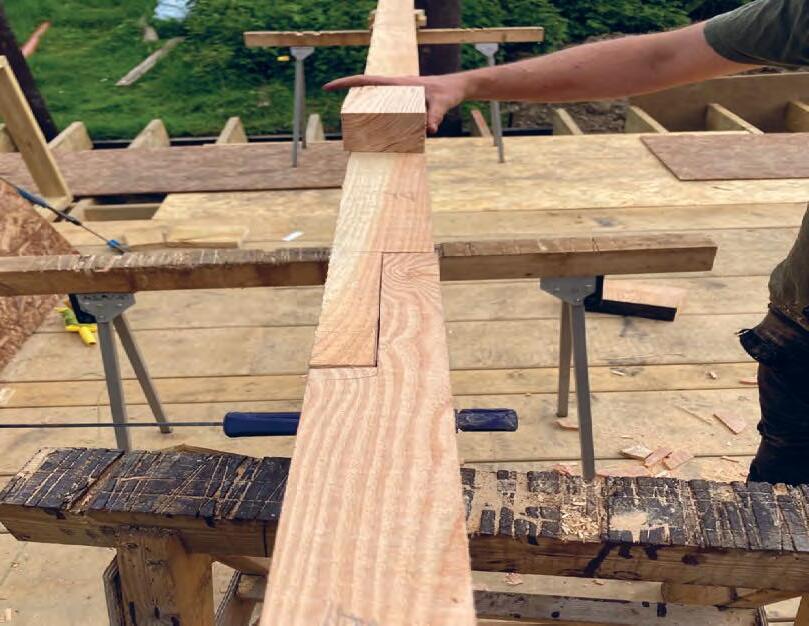

17 GORDON ROAD Garden studio build

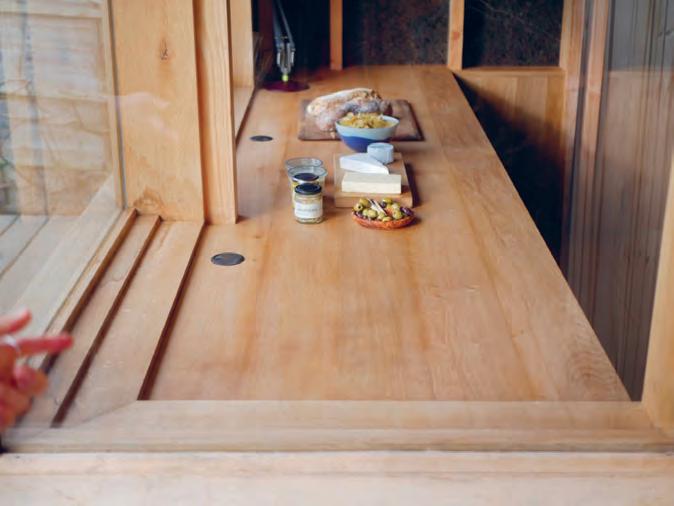

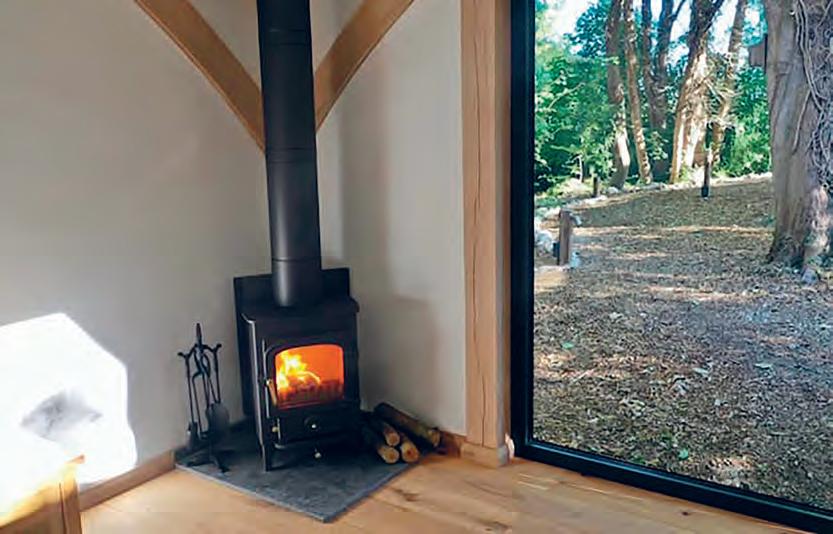

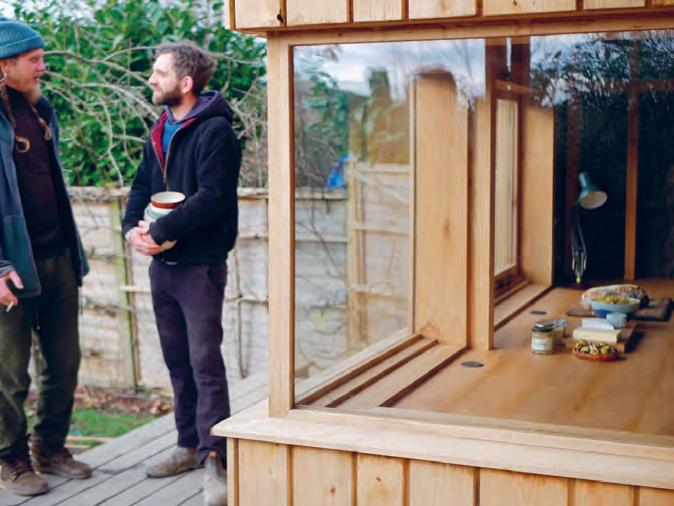

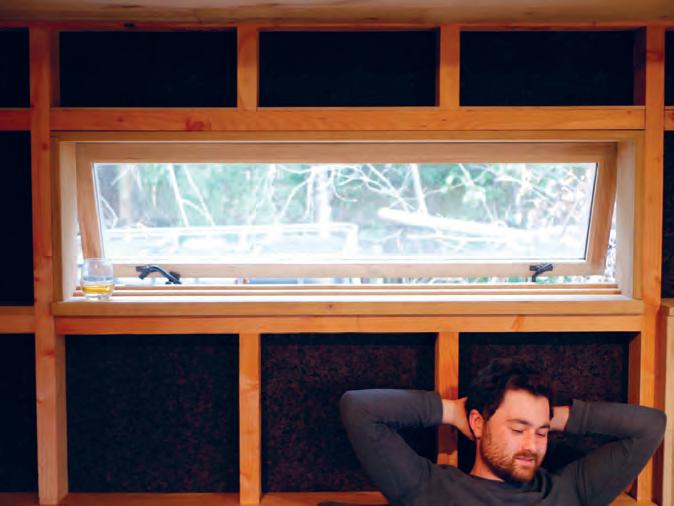

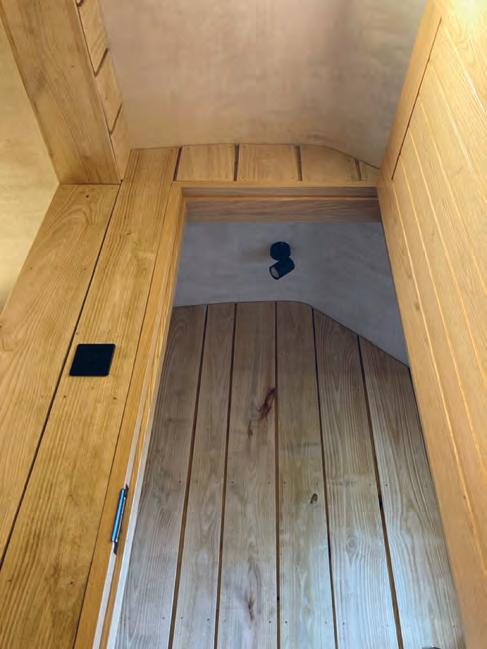

Designed by Tom Joseph the Garden Studio is the main office for the director of Hortus Collective, a Landscape Architecture Studio. The space showcases a raw cork interior finish with exposed Douglas fir frame. Oak pannelling, a beautiful desk and handmade oak windows elevate this small buildings character. The studio doubles up as a cosy hideaway equipped with pull out bed, log burner and in built storage to offer anyone a comfortable stay. My involvement as carpenter on this project exposed me to new materials and a role as translator of drawing details to other carpenters and a middle man for questions directly to the Architect during the construction process.

The build also symbolized the beginnings of a design and make collective comprised of Architects, Designers, Craftspeople, a Doctor and Land Workers, photographed here as Cambium Collective.

D a n

M o r r i s h

&

W i l d e r n e s s

W o o d

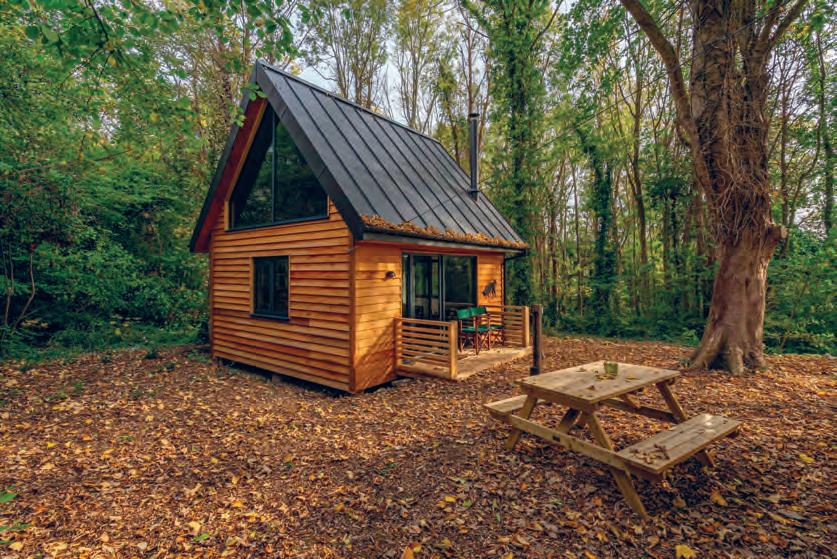

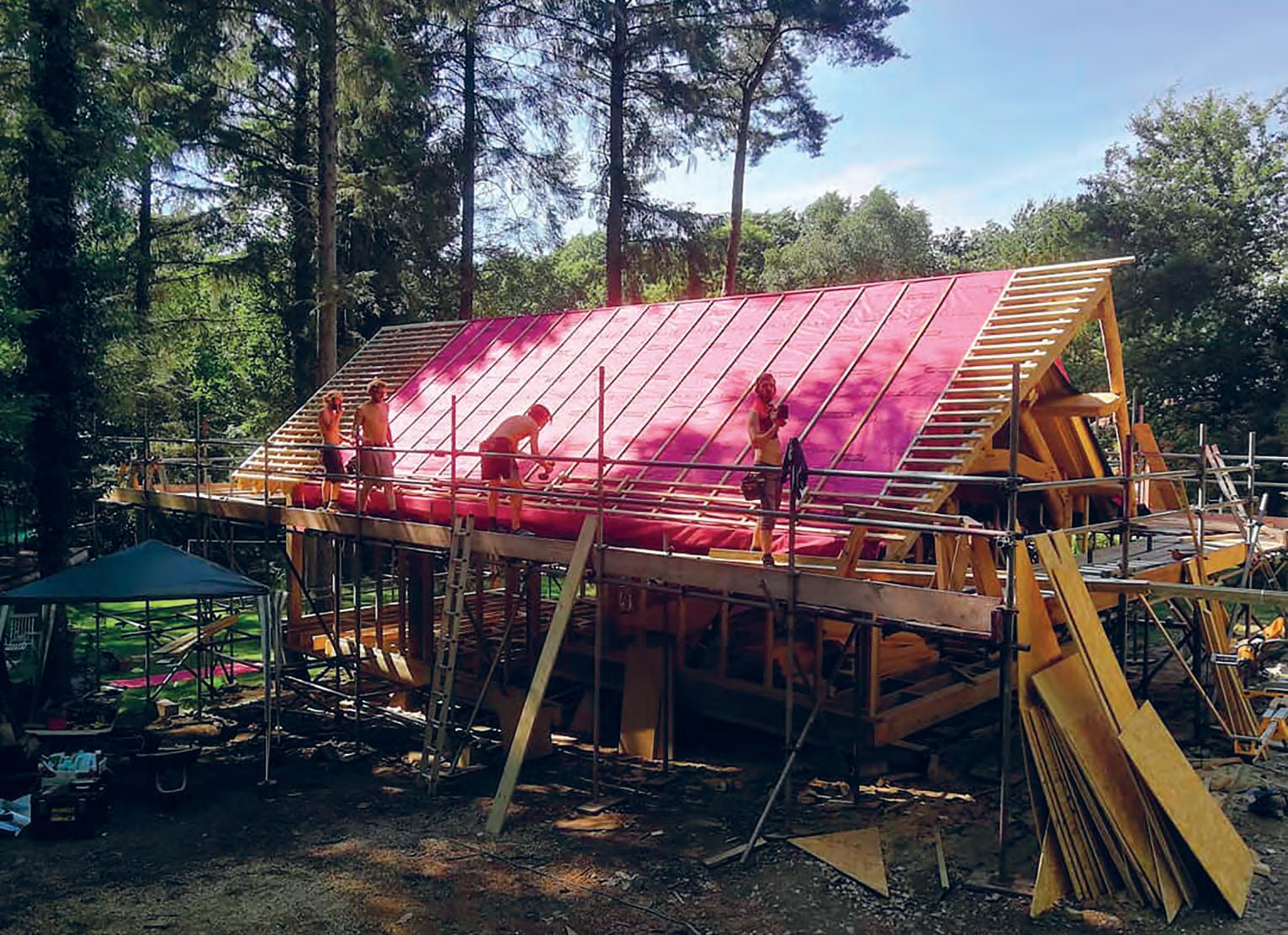

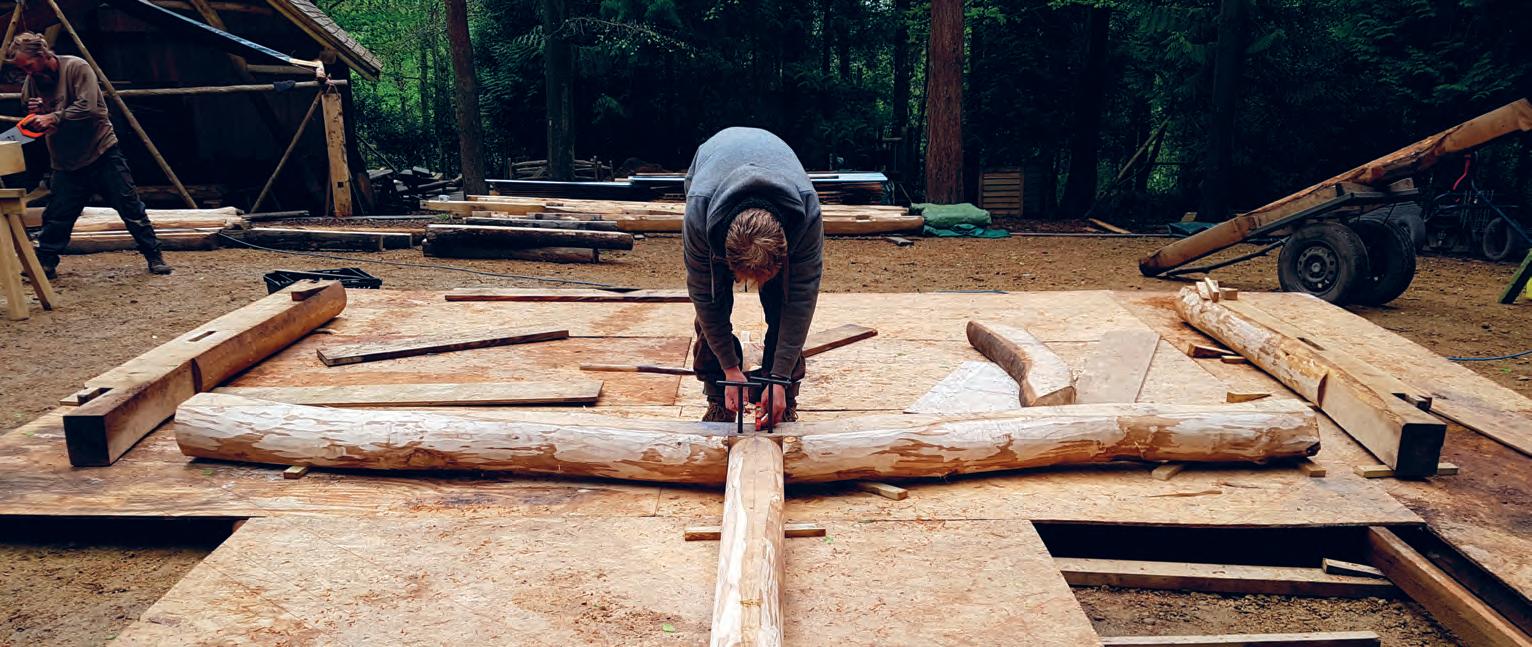

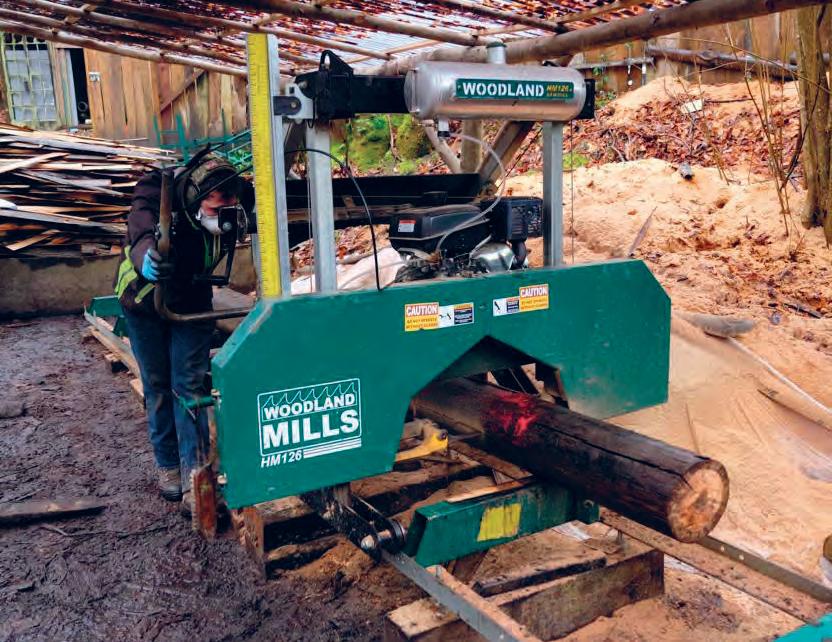

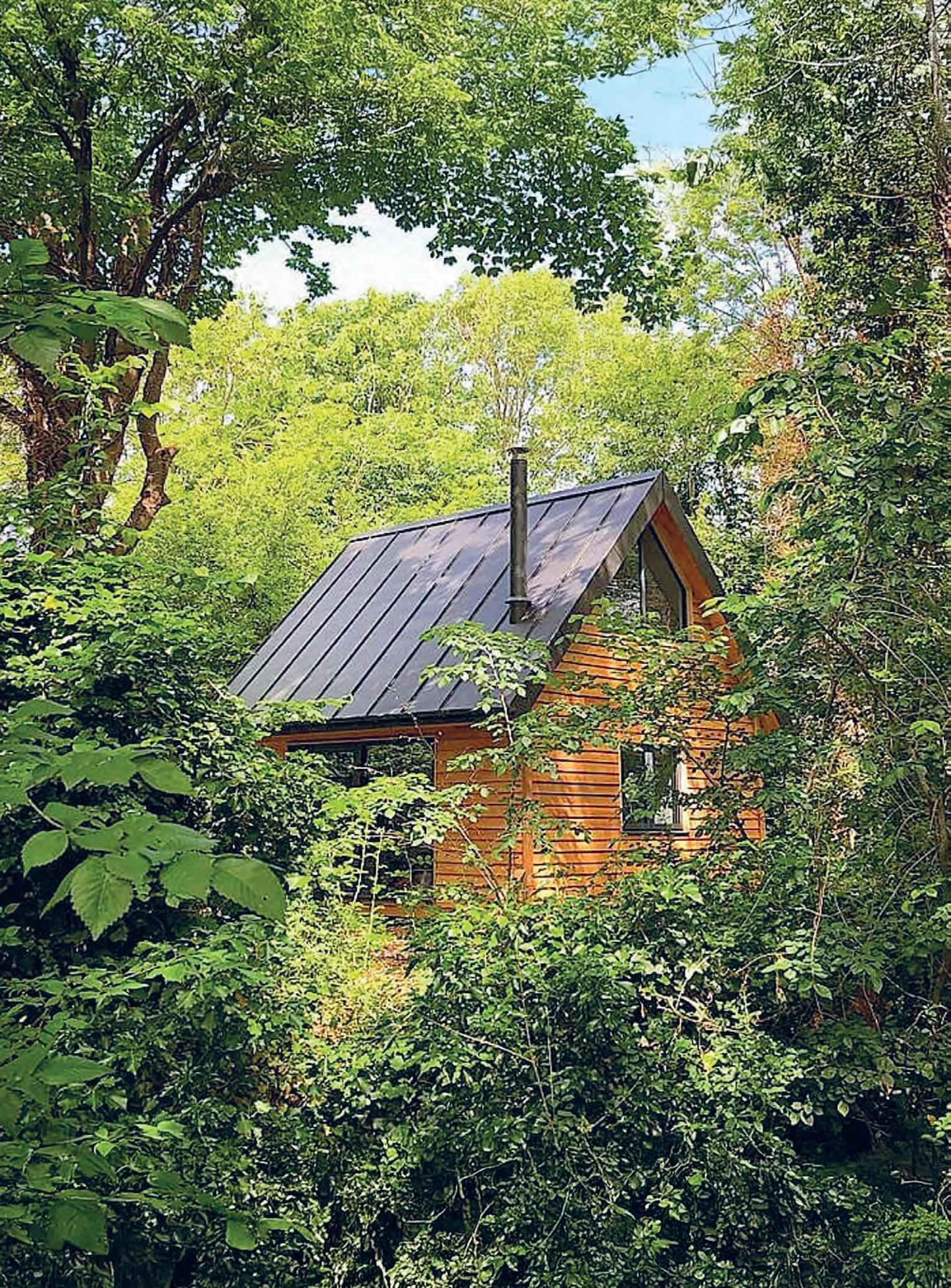

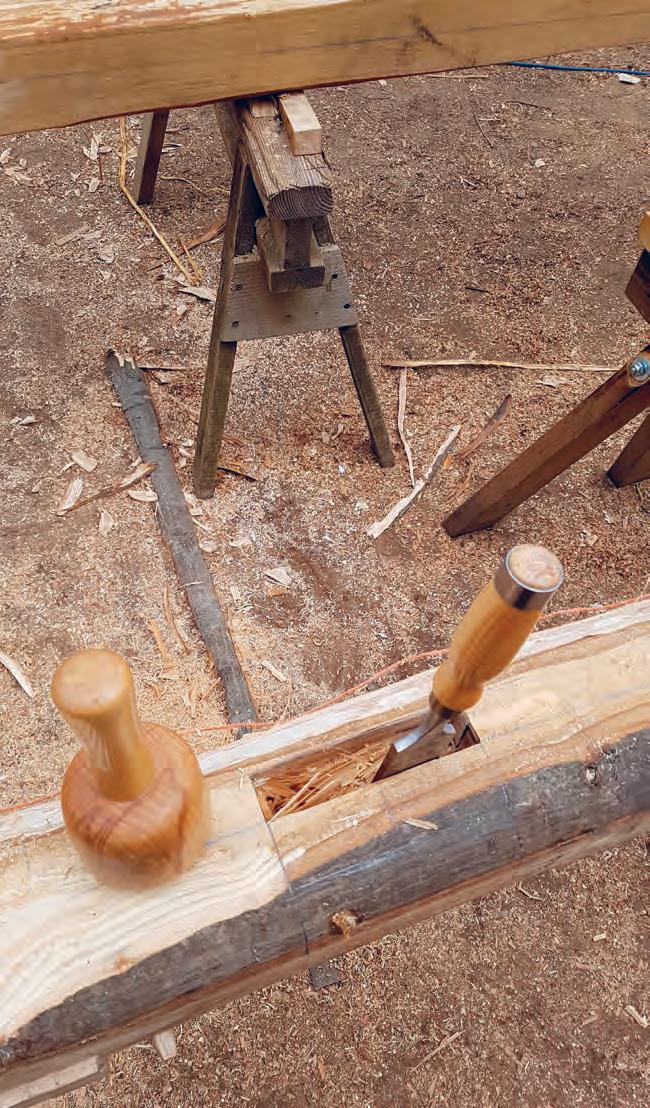

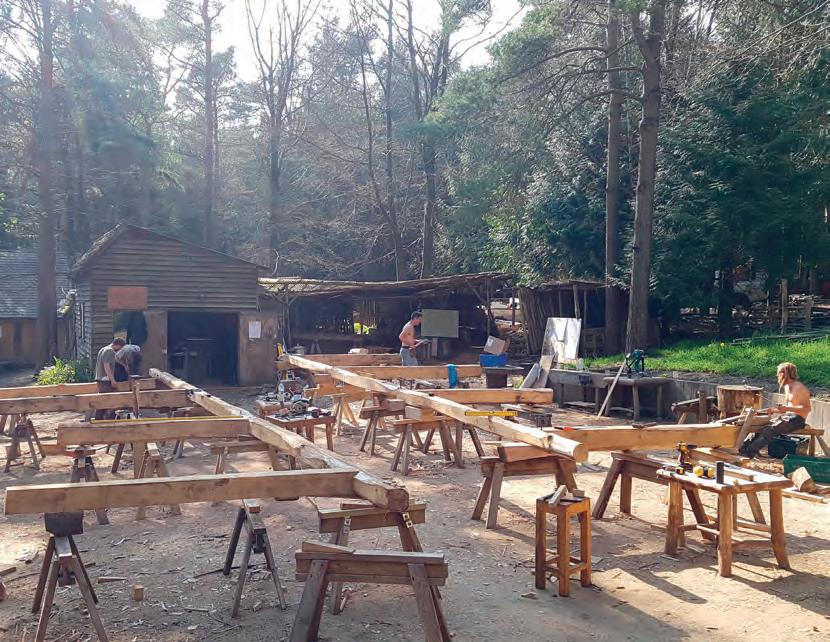

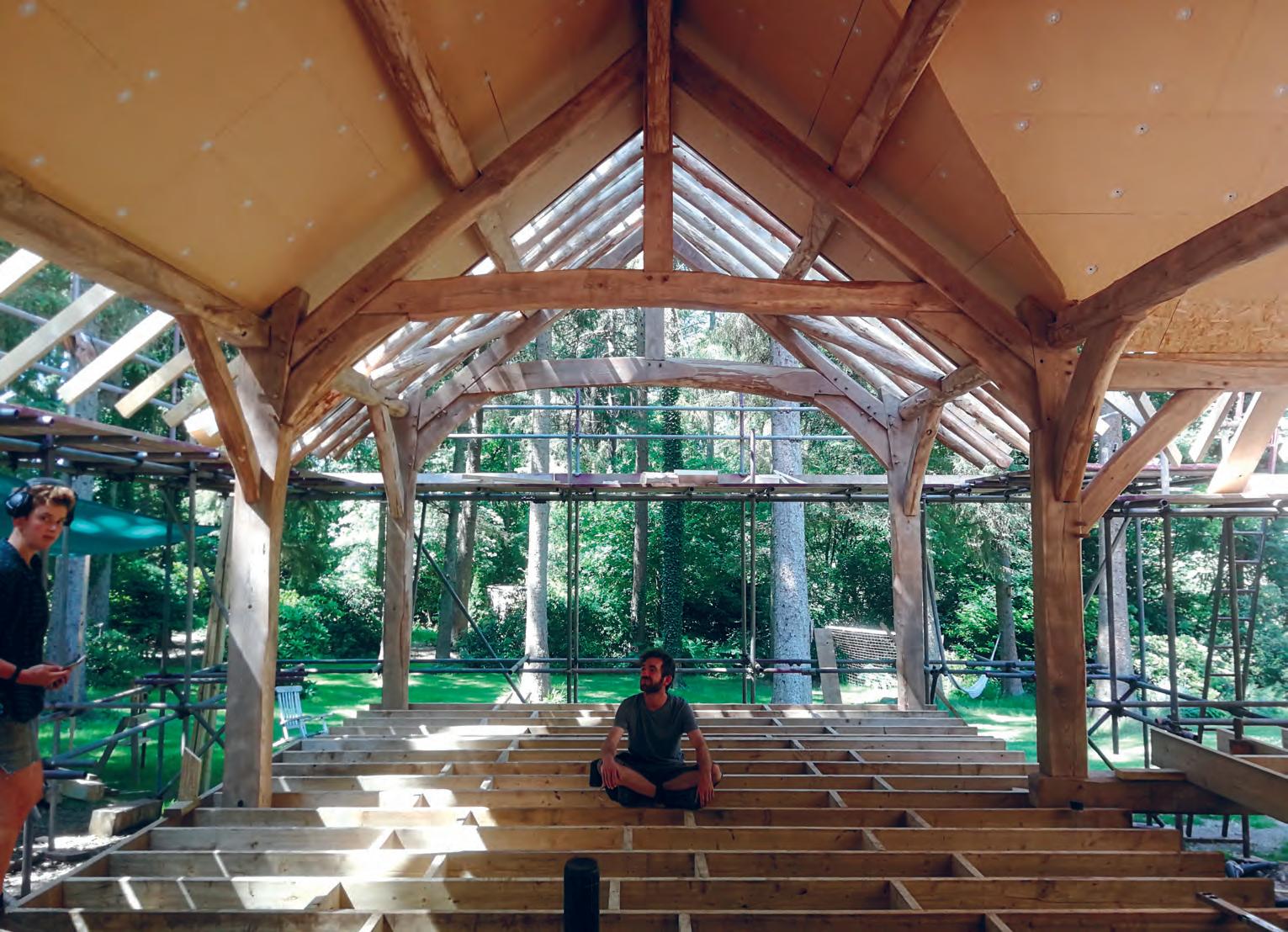

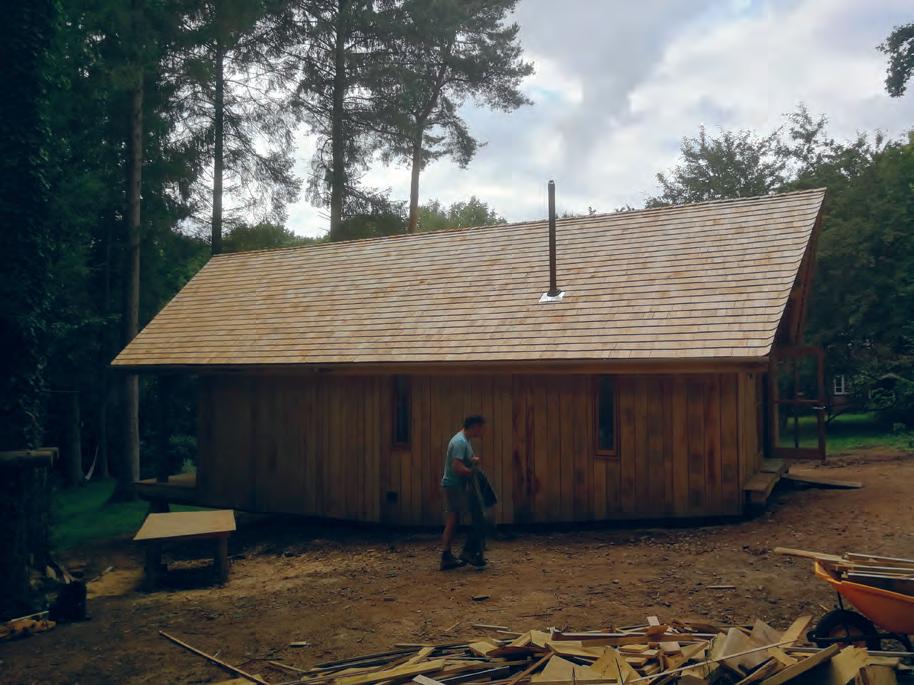

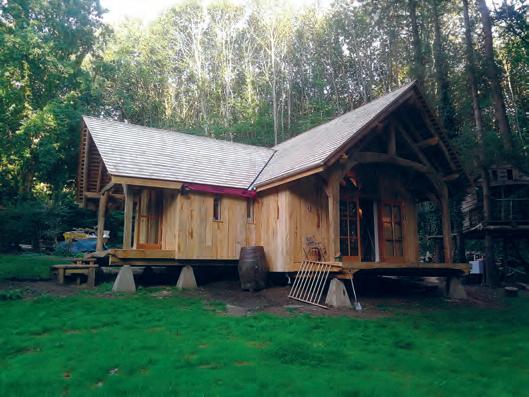

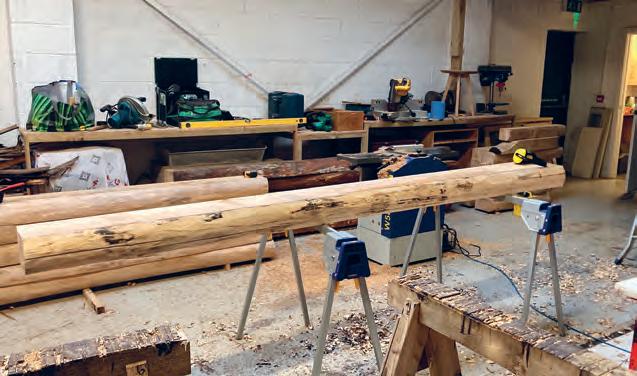

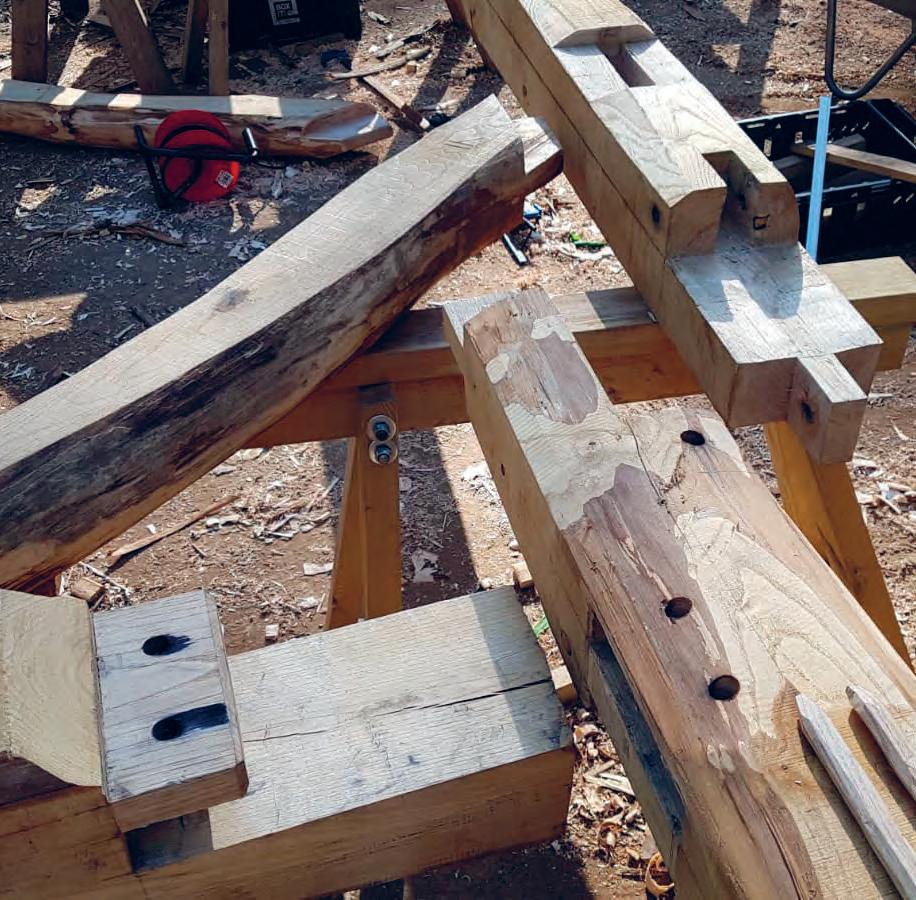

KEEPERS COTTAGE From Tree to Cabin Keepers was a truly special project that I saw through from concept to completion, working as part of an amazing team where collaboration and shared passion were at the heart of the process. Dan Morrish, Architect and Owner of Wilderness Wood, brought me on board to help bring his vision to life, starting with the design and securing all necessary permissions. Earlier in the year, we harvested the materials directly from the woods and extracted them using traditional cob horses, embodying a deep connection to the landscape. We trained under the inspiring John Russell, mastering traditional and roundwood framing techniques, and built the frame entirely on-site. I thrived off the energy and expertise of my peers, leading sections of the build and teaching volunteers, creating a structure that was not only sustainable but a celebration of craftsmanship, teamwork, and the journey from tree to cabin.

1.8m

2.16m

520mm

7" 8"

6"

2.45m 5"

580mm

8"

4.9m 4m TYPICAL WALL DETAIL @ 1:10

KEY 2000 LIGHTING

1800

SWITCHES @ 1100mm FROM FFL

1276

13AMP POWER OUTLETS @ 300mm FROM FFL 5 AMP POWER CIRCUIT SWITCHES @ 1100mm FROM FFL 6" RAINWATER DRAINAGE RUN RAINWATER DOWNPIPES FROM GUTTERING

20mm ISOTHERM w. LIME RENDER

4" FOUL DRAINAGE RUN

18mm OSB RACKING

SVP

5A SOCKET TRENCH HEATER

100mm ISOLAIR

HOT WATER FLOW AND RETURN HOT WATER FLOW & RETURN

WP MEMBRANE DISTANCE FROM POST TO POINT WHERE ELECTRICAL SERVICES SURFACE

1181

NEST THERMOSTAT @ 1100mm FROM FFL

SHELVING

2570 SHELVING

2294

DESK

400

CU UNDER DESK

STUDY 3600

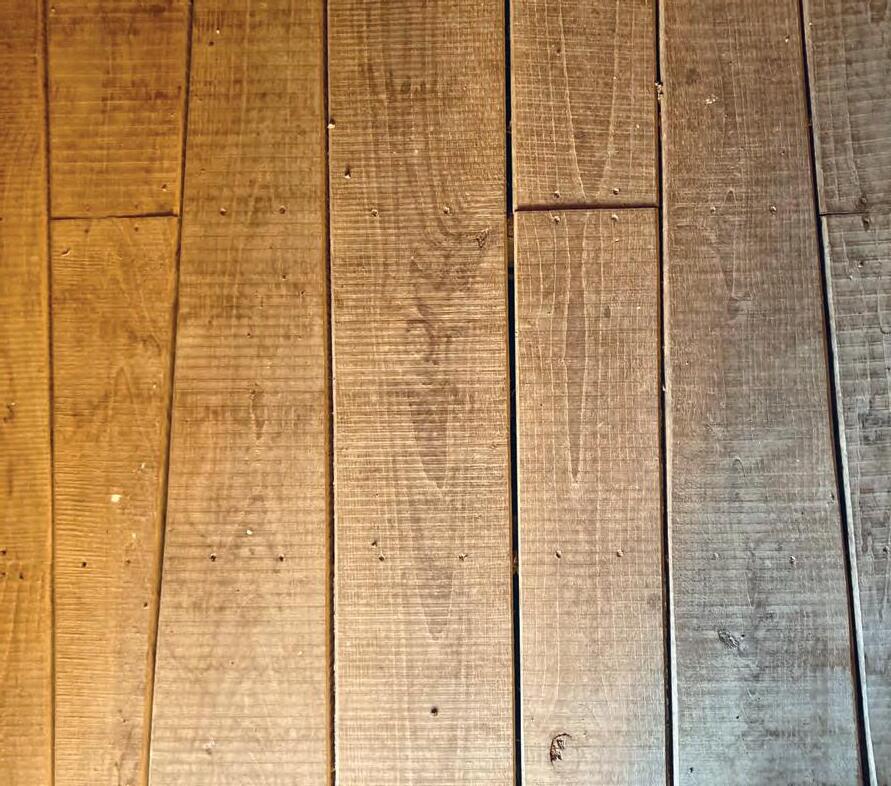

RANDOM WIDTH CHESTNUT FLOOR BOARDS THROUGHOUT THE BUILDING AND DECKING

1800

1203 1203

KITCHENETTE INSIDE UNIT

400

370

735

1215

STUD WALLS CAPPED @ 2200MM

800

1812

3224

750

2000

TILED BATHROOM FLOOR W/ TILED BATHROOM ELECTRIC UFH FLOOR W/ ELECTRIC UFH BASINS WITHIN VANITY UNIT

TERRACE

LIVING ROOM 1500

BEDROOM STUD WALLS CAPPED @ 2200MM

3658

STONE COFFEE TABLE @ 375MM FROM FFL STONE COFFEE TABLE @ 375 FROM FFL

4.8m

1303 HANGING WOOD BURNING STOVE HANGING WOOD BURNING STOVE

1200

TRENCH HEATER

2260

1162

1500

Notes

750

CARPET BEDROOM FLOOR

1603

667

DAIS @ 375MM FROM FFL DIAS @ 375MM FROM FFL

1276

STORAGE HOT WATER CYLINDER @ LOW LEVEL

WC

SVP

763

783

PLANT CUPBOARD @ LOW LEVEL TO RECEIVE HEAT EXCHANGER

STUD WALLS CAPPED @ 2200MM

Drawing Title

3600

400 403

TV CONNECTION CABLES

HOT WATER FLOW & RETURN

400 2158

DISTANCE CENTRE OF SVP FROM POST

10296

10296

2100

HEATED TOWEL RAIL

111

800

2158

1864

5.7m

1000

IH TANKED SHOWER ENCLOSURE

TERRACE

5AMP PLUG SOCKETS @ 300mm FROM FFL

2.8m

20mm CHESTNUT CLADDING

400

20+20mm BATTERNS

1900

100mm STUDS/INSULATION

SETTING OUT PLAN @ GROUND LEVEL

Status

TENDER

Date

17.03.2020

Drawn By

S.Ryder

Job Name Scale

KEEPERS COTTAGE

1:20 @ A1

© All rights reserved. *Do not scale off drawing.

All dimensions to be checked on site.

r u r a l

w o r k s h o p

BULL COTTAGE Annexe

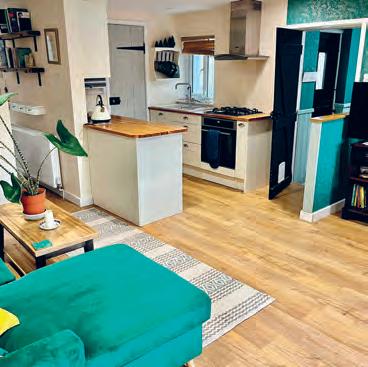

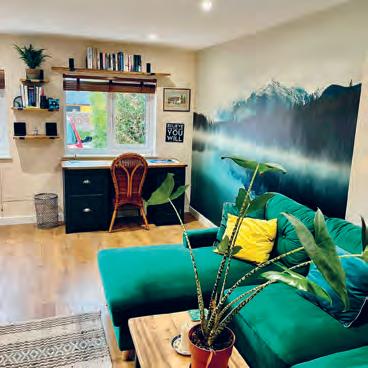

The client wanted a self-contained studio to serve as an office for private tutoring, with a small kitchenette and shower room for overnight guests. I led the design and build with a small team of tradesmen, transforming the existing 50-year-old garage, which had medium-density concrete blockwork and a sagging felt roof. We replaced the roof with a durable EPDM membrane for longevity, wrapped the building in eco-therm insulation, and finished it with feather-edge timber cladding and reclaimed wood fascia boards. The design was in keeping with the local vernacular, incorporating the original roof tiles on the elevation to blend the new structure seamlessly with the house. The project was efficient in its use of materials and spatial organisation, creating a bright, open-plan living space that adds 40 sqm of functional area to the home..

r y d e r

j o i n e r y

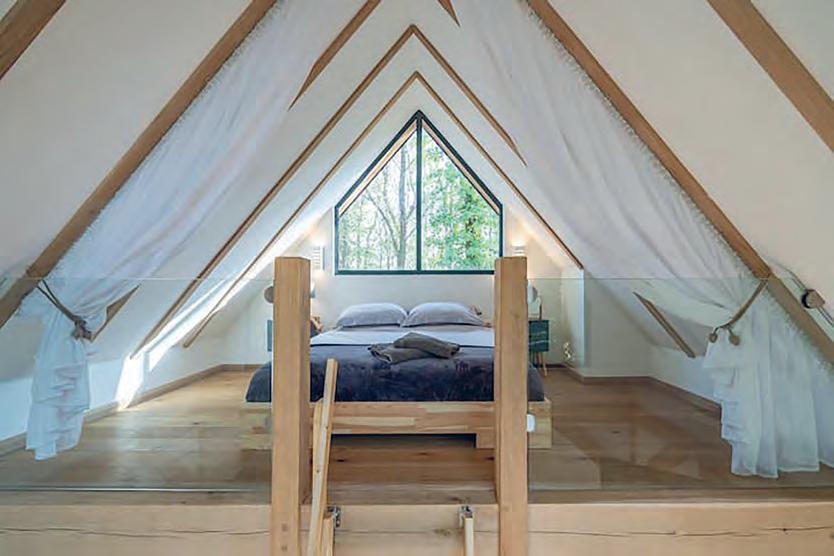

MISTILA CABINS Badgers Rest & Foxes Hollow The brief was to detail and build two woodland cabins that our client had already gained planning permission for. The challenge was to adapt a set of 1:100 drawings provided and incorporporate a traditional green oak frame. The result: 25m2 living space/kitchen/en-suite at ground level, 13m2 mezzanine bedroom, with an Oak frame sat on granite saddlestones, clad in sawn western red cedar (milled locally) and a zinc roof. Budget 50k each. The project was nominated for the Commercial Award in the Sussex Heritage Trust Awards 2021.
