Manufactory Wholesale Wifi ONU XPON with Dual Mode
EPON/GPON, 1Gbps PON Uplink, and 2.4GHz WIFI for FTTH
Solutions
Looking for a reliable and versatile solution for FTTH deployments? The Wifi ONU XPON combines EPON/GPON dual-mode technology with 1Gbps PON uplink and 2.4GHz WIFI, ensuring seamless data service access. Designed as a Home Gateway Unit (HGU), it supports automatic mode switching, diagnostic monitoring, and compatibility with Huawei, ZTE, and Fiberhome OLTs. With a compact design, low power consumption (<8W), and robust performance in temperatures from -10°C to 55°C, it’s ideal for residential and small business applications.
• EPON/GPON dual-mode | • 1Gbps PON uplink | • 2.4GHz WIFI | • Diagnostic monitoring | • Compatible with Huawei, ZTE, Fiberhome OLTs
This 1GE+1FE+WIFI XPON ONU is an EPON/GPON Dual Mode ONU with 1*Gbps PON Uplink, DC 12V Power Supply and External AC-DC Adapter.

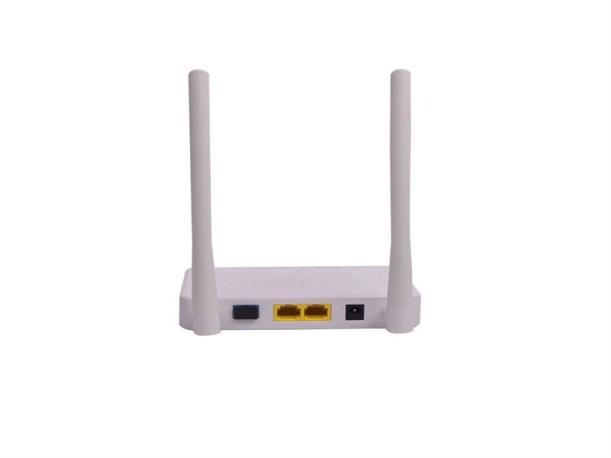

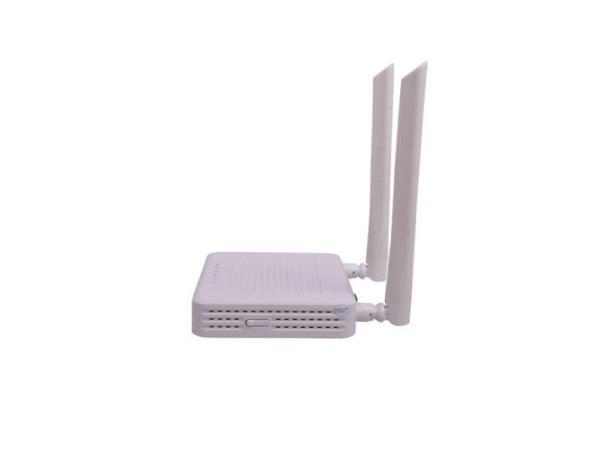

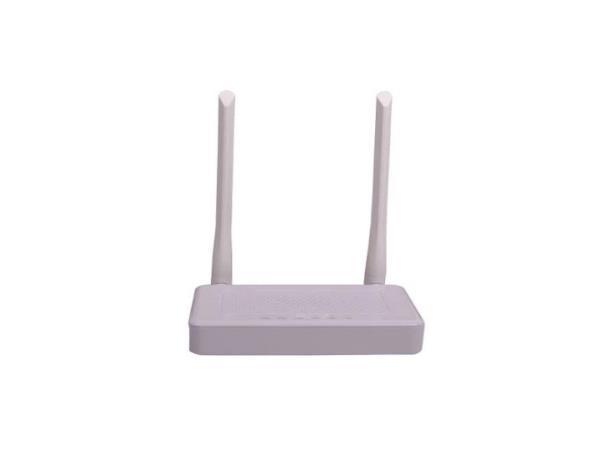

Wifi ONU XPON
ONT-2GF-W ,Wifi ONU XPON, is based on mature and stable, cost-effective XPON technology, designed as HGU(Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
Features of Wifi ONU XPON
This Wifi ONU XPON supports WIFI Interface
It supports EPON and GPON Mode, and switch mode automatically
WAN support networking bridge, route and bridge/route mixed mode
It supports diagnostic monitoring and remote disabling of fiber optical
It can be compatible with Huawei,ZTE and Fiberhome OLT.
Hardware Specifications
1.25Gbps; Downlink: 2.5Gbps
User-Side Interface 1*10/100BASE-T;1*10/100/1000BASE-T Size (Mm) 167(L)×118(W)×30(H)
Contact:Tomleequan Email：
Maximum Power Consumption <8W Weight 200g
Operating Environment
Power Supply
Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% （no condensation）
External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN Module
Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm Support 2.4GHz, 300M transmission rate

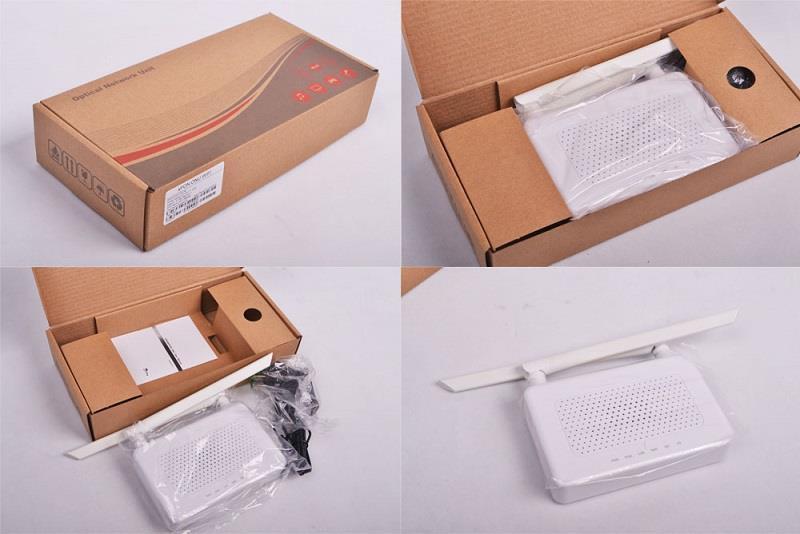

Package
