Manufactory Wholesale SFT3213 Series PON Power Meter for FTTx Applications with Triple Wavelength Measurement
Need precise and reliable signal testing for voice, data, and video in FTTx projects? The SFT3213 Series PON Power Meter is your ultimate solution, offering simultaneous measurement of three wavelengths (1490nm, 1550nm, 1310nm) with ±0.5dB accuracy.
Designed for BPON/EPON/GPON networks, it features burst mode measurement, USB data transfer, and PC connectivity for threshold setting and calibration. Ideal for PON construction and maintenance, this tool ensures efficient operation with a 90-hour continuous runtime and -10℃ to 60℃ temperature range.
• Triple wavelength measurement | • Burst mode for 1310nm upstream | • USB data transfer & PC connectivity | • ±0.5dB accuracy | • 90-hour continuous operation
This power meter is able to simultaneously test and estimate the signals of the voice, data and video.
Pon Power Meter

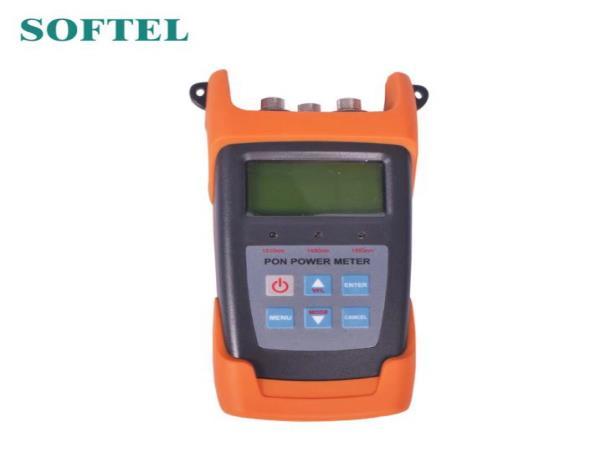

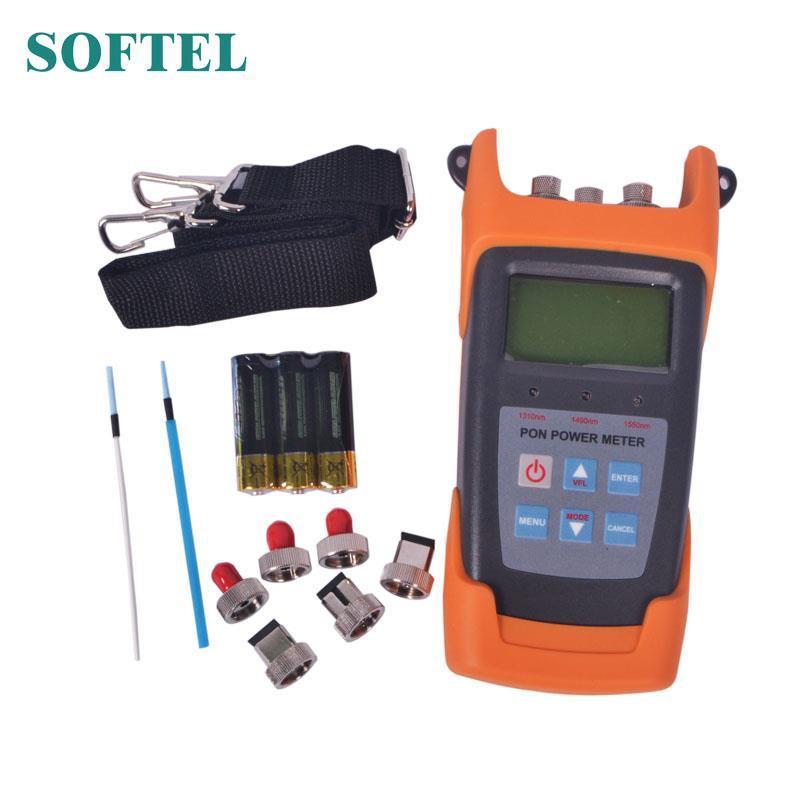

SFT3213 Series PON Power Meter is used for FTTx application and maintenance. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Features of PON power meter:
(1) It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
(2)It provides simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
⑶Used in Burst mode measurement of 1310nm upstream.
⑷Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
⑸USB communication port enables data transfer to a PC.1000measurement item can be saved in SFT3213 PON power meter or computer for data review.
PON module
PON module:
1310 upstream measurement
Pass Zone 1260nm～1360nm
MeasurementRange -40dBm～+10dBm
Output power(max) 15dBm
Isolation@1490/1550 >40dB
Burst mode measurement error <±0.5dB
1490 downstream measurement
Pass Zone 1470nm～1505nm
MeasurementRange -40dBm～+10dBm
Output power(max) 15dBm
Isolation@1310/1550 >40dB
1550 downstream measurement
Pass Zone 1535nm～1570nm
MeasurementRange -40dBm～+10dBm
Output power(max) 25dBm
Isolation@（1310/1490nm） >40dB
Measurement Accuracy
Connatural uncertainty ±0.5dB
Linearity ±0.1dB
Passing through insertion Loss <1.5dB
General Information
Detector Type InGaAs
Optical Connector

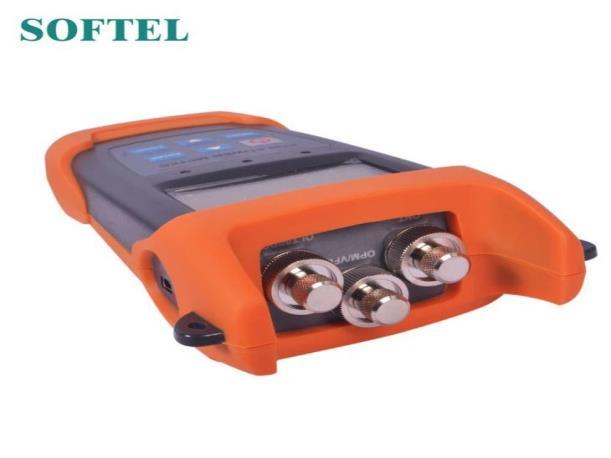

FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type SM 9/125um
Measurement Unit dB/dBm/xW
Resolution 0.01dB
Operation

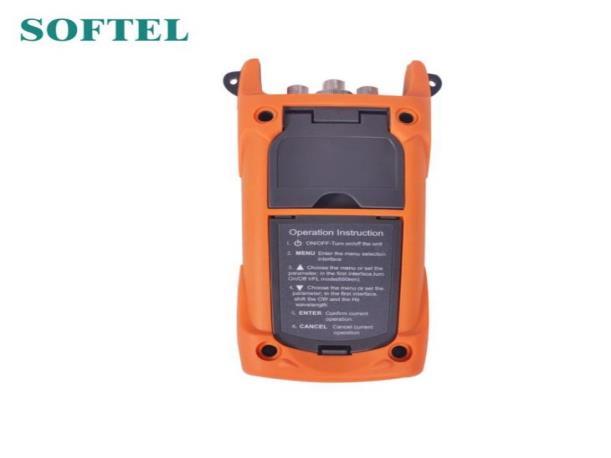

Power Supply 3pc1.5V battery
Continuously Operation
