Manufactory Wholesale OLT EPON Outdoor with EDFA, 256 ONUs Support, 1:64 Splitter Ratio for Triple-Play, CPN, IP Camera, Enterprise LAN, and IoT Applications
Looking for a robust outdoor OLT solution? The OLT EPON Outdoor OLT-E4-2204A integrates OLT and EDFA technologies, supporting up to 256 ONUs with a 1:64 splitter ratio. Designed for Triple-Play, CPN, IP Camera, Enterprise LAN, and IoT applications, it simplifies network design, reduces engineering costs, and accelerates fiber access deployment. With 20KM transmission distance, 4 PON ports, and SNMP/Telnet management, this device ensures high stability and flexible networking. Compliant with China MII and SARFT standards, it’s ideal for outdoor cabinets, corridors, and pole mounting.
• 256 ONUs support | • 1:64 splitter ratio | • 20KM transmission distance | • SNMP/Telnet/CLI management | • Triple-Play, CPN, IP Camera, IoT applications
This outdoor OLT can support 256 ONUs under 1:64 splitter ratio. It can be used for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications.
OLT EPON Outdoor

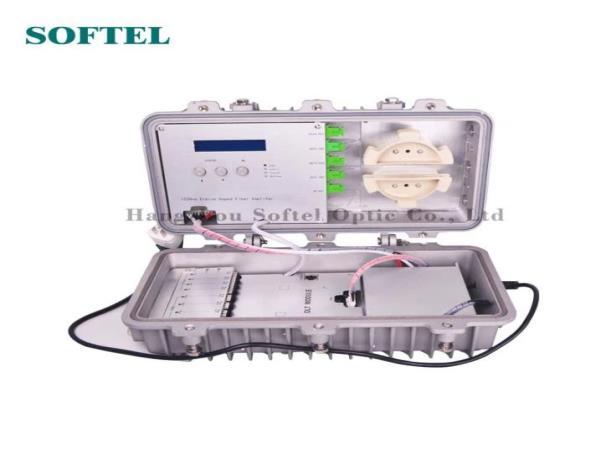

OLT EPON Outdoor OLT-E4-2204A is integrated with OLT and EDFA. It meets the technical requirements of China MII and SARFT’s for EPON and EDFA. The exquisitely designed equipment is flexible for deployment in outdoor cabinet, corridor and pole mounting etc. It can simplify network design, reduce engineering cost and accelerate the process of fiber access
Functional Feature
High Stability with low cost and flexible networking construction
Four fixed PON slots with 1:64 splitting ratio at most
Four Uplink GE optical interface
OLT-E4A could support 256 ONU maximally
Aluminum alloy die casting shaping, has good heat dissipation and shielding effect
Comprehensive Network Management
In band and out band management;
Support Telnet and local command lines management;
EMS management based on standard SNMP protocol;
Support EDFA docking management
Support online upgrading.
Powerful QOS Function
Realize stable and efficient dynamic bandwidth allocation (DBA)
Various OAM Function
ONU auto-detection and registration;
Support LGMP and Snooping function;
Support port flow control and flow shaping.
OLT Specifications
Item
Uplink Port Quatity 4
SFP 4GE optical interface
PON Port Quantity 4
Physical Interface SFP Slots
Connecto r Type 1000BASE-PX20+
Max splitting ratio 1:64
Management Ports
PON Port Specificat ion
（App ly to C-Dat a PON module
1*10/100/1000Mauto-negotiable outband port 1*CONSOLE port
Transmis sion Distance 20 Kilometer
PON port speed Symmetrical 1.25Gbps
Wavelen gth 1490nm Tx,1310nm Rx
Connecto r SC PC
Fiber Type 9/125μm SMF
TX Power +2～+7dBm
Contact:Tomleequan
Sensitivit y -30dBm
Saturatio n Optical Power -6dBm
Management Mode SNMP, Telnet, CLI management mode.
EPON Function
Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different servicecould provide different QoS by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system
Support dynamic distance calculation on EMS online
Support RSTP,IGMP Proxy
Power Consumption 35W

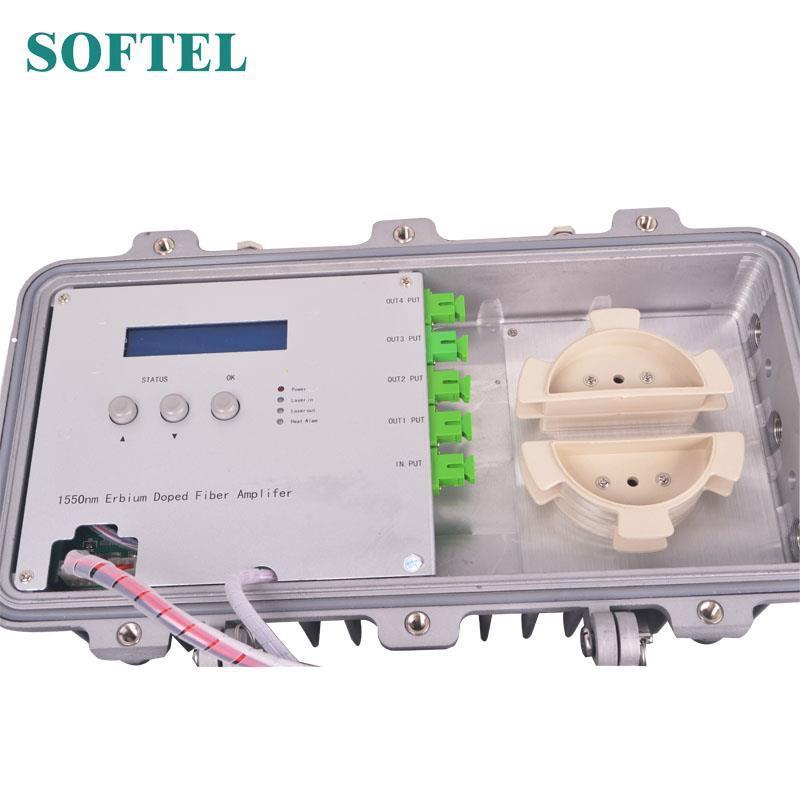

EDFA Specification
Optical Return Loss(dB) ≥45
Optical Connector
Noise Figure (dBmV)
SC/APC,1 input and 4 output
≤5.2(0dBm optical input)
Management Interface SNMP (RS232 via OLT)
Power Consume(W) 45
Packaging & Delivery
Packaging Details: standard export carton
Lead Time: about 15 days after the payment
Supply Ability
1000 Piece/Pieces per Month
