Manufactory Wholesale M50 ASI IP to RF Modulator for
DVB-C/DVB-T/ISDB-T
Broadcasting Systems
Struggling to manage multiple displays across vast distances? The M50 ASI IP to RF Modulator is your ultimate solution, combining multiple GE inputs, transport stream multiplexing, and RF modulation channels in a compact 1U rack unit. Designed for DVB-C, DVB-T, and ISDB-T standards, it supports 840 Mbit/s TS data rates and up to 1024 MPEG services, making it ideal for hotels, stadiums, campuses, and entertainment facilities. With web-based network management and LCD for easy IP address lookup, the M50 ensures rapid deployment and high channel density. Certified for Brazil, Japan, and Europe/Asia/Africa standards.
• 6 ASI inputs & 2 ASI outputs | • 840 Mbps TS data rate | • 1024 MPEG services | •
Web-based management | • RS(204,188) encoding
M50 is a Multi-functional DVB-C/DVB-T/ISDB-T Modulator combining multiple GE input, transport stream multiplexing, RF modulation channels in a 1U rack mount unit.
M50 IP to RF Modulator is an ideal solution for environments where you have a large number of displays over almost any distance such as Small and Medium Scale of Digital TV broadcasting System, Hotel, stadiums, Campus, entertainment facilities, Education Markets in limited budget. Designed especially for high channel density Distribution Video Engineering project where rapid deployment, compatibility IP and ASI inputs and Multi-Modulated Carrier RF outputs Simultaneously as like Brazil, Japan ISDB-T or Europe/Asia/Africa DVB-T and DVB-C standard.
M50 is a Multi-functional DVB-C/DVB-T/ISDB-T Modulator combining multiple GE input, transport stream multiplexing, RF modulation channels in a 1U rack mount unit. With IP In/Out data ports reception or streaming of MPEG compliant
transport streams over UDP/RTP, M50 operates independently and can be configured as either IP in and IP out supporting full 840 Mbit/s TS data rate and up to 1024 MPEG services.
Business Benefits
Enhanced Modulated Channel resource utilization LCD for easy IP address lookup and device management 6 ASI inputs and 2 ASI outputs multiple input interfaces, RJ45 and SFP Concurrent high availability for all services
Features
4*(RJ45 and SFP) interfaces, Data1 is bi-directional ports, max 512/1024* IP in, 16/32 or 8/16*IP out, Data2&3&4 ports only for input Supports accurate PCR adjusting Max 840Mbps for each input accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing up to 256 PIDs remapping per channel Supports 6 ASI input and 2 ASI output
16 or 32(DVB-C), 8 or 16 (DVB-T/ISDB-T) multiplexed TS over UDP/RTP/RTSP output
16 or 32 (DVB-C), 8 or 16 (DVB-T/ISDB-T) non-adjacent carriers output
RS(204,188) encoding Web-based Network management

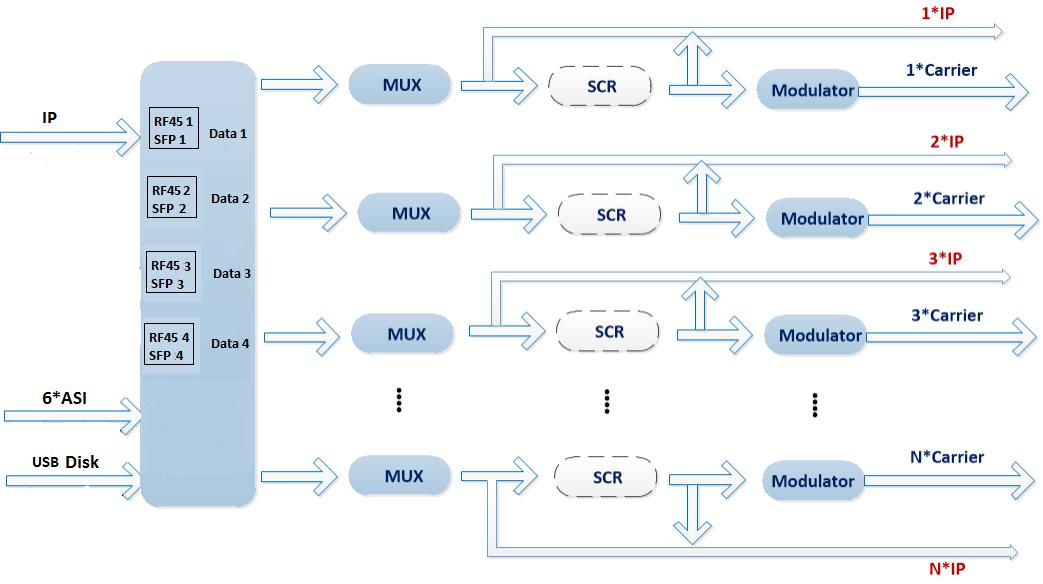

Principle Chart
in 16*IP
