Wholesale KL-280G Fusion Splicer Machine for High-Precision Fiber Optic Splicing with 5-Inch LCD Monitor
Looking for a compact and efficient solution for fiber optic splicing? The KL-280G Fusion Splicer Machine delivers high precision with a 5-inch color LCD monitor, offering clear fiber core visualization and simultaneous X & Y views. Designed for telecom, data centers, and field operations, it features a 9-second splice time, 30-second heat time, and auto-cleaved end face quality check. With a lightweight design and 4000 splice result storage, it’s the ideal tool for seamless fiber optic integration.
• 5-inch color LCD monitor | • 9-second splice time, 30-second heat time | • Auto-cleaved end face quality check | • Lightweight and compact design | • 4000 splice result storage
The device’s body is smaller than FSP-1’s body (about 1/3). Fiber core can be displayed clearly on the 5 inch color LCD monitor. Single X or Y view and X & Y view simultaneously. Auto check quality of cleaved end face .

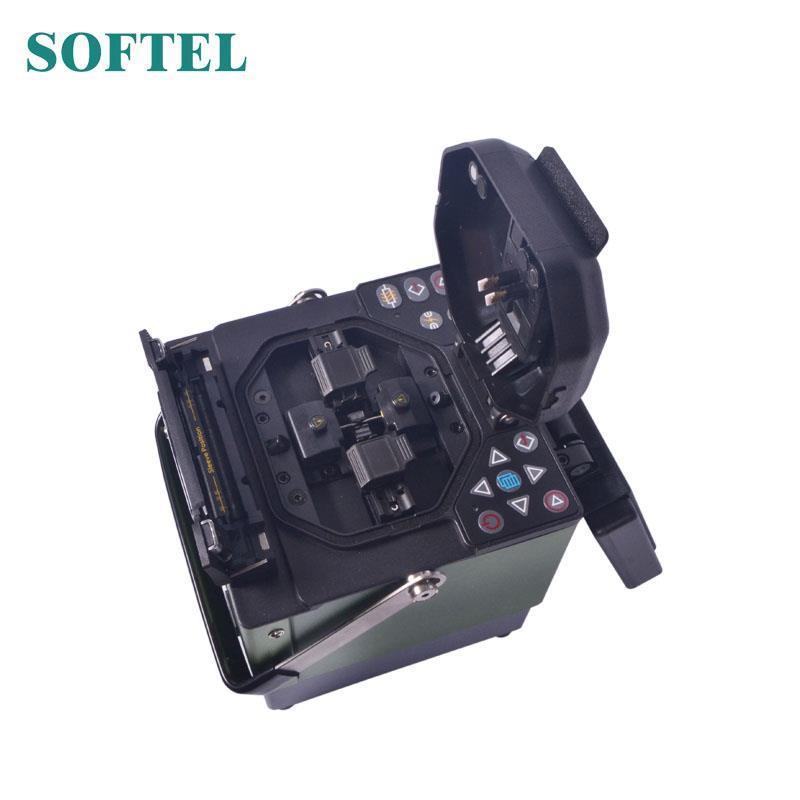

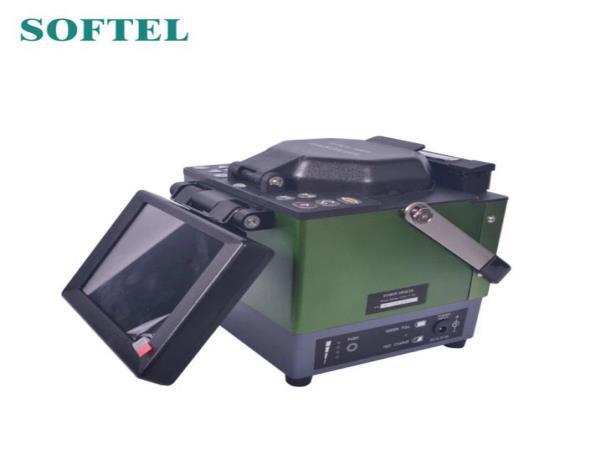

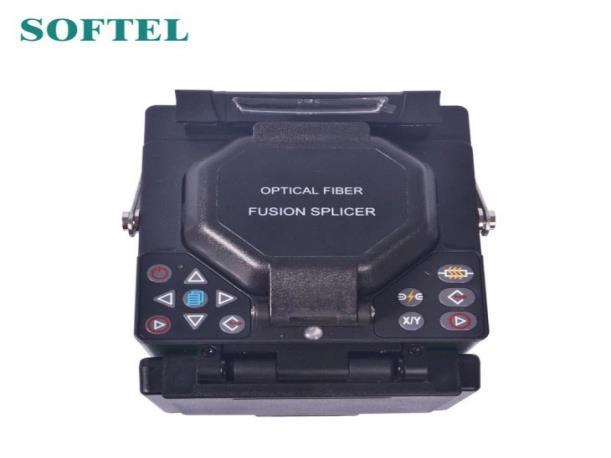

KL-280G Fusion Splicer Machine
Features
The Splicer Machine’s body is smaller than FSP-1’s body (about 1/3).
Fiber core can be displayed clearly on the 5 inch color LCD monitor.
Single X or Y view and X & Y view simultaneously.
Auto check quality of cleaved end face .
Auto select best splicing program
9 seconds splice time and 30 seconds heat time
Small bulk and light weight
5 inch color LCD monitor with clear digital image display
Simple operation menu
Specifications of Splicer Machine
Applicable fibers
Fiber diameter
Fiber aligning method
Actual average splice loss
Typical splicing time
Tube typical heating time
Storage of splice result
SM MM DS NZDS
Cladding diameter:80-150μm;Coating diameter:100-1000μm
Meticulous,Core,Clad,Manual
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04d B(NZDS)
Typical 9 sec (standard SM fiber)
Typical 30 sec
4000 results, 20 parameter per result
Fiber image magnification
Battery capacity
200X (X or Y view),50X (X and Y view)
Typical 300 cycles (splice/tube heat with inner Li-battery)
Monitor 3.5 inch TFT color LCD monitor
Power supply
AC 100-240V with AC adapter inner Li-battery (5200mAH)
Dimension 25mm(L)×105mm(W)×113mm(H)
Fiber cleaved length 8-16mm (Coating diameter:250μm)
Fiber count Single
Return loss >60dB
Splicing mode Auto Calibrate Normal Special
Splicing program 53 (templet), 40(user)
Protection sleeve length 60mm, 40mm
Tube heating program 9 (templet),24(user)
Tension test 2N
Electrode life 2500
Terminal USB
0-5000m above sea level, -10-50°
Operating condition
Max wind velocity of 15m/s
Weight 1.55Kg including battery
