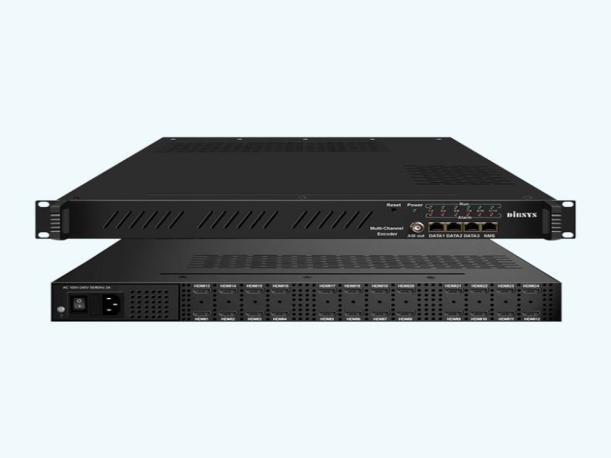

HD SDI To IP ASI MPEG2 H.264 Encoder
<Manufactory Wholesale for Satellite & Terrestrial Broadcast | ENC3443>(Struggling with high-quality video transmission in satellite or terrestrial broadcast? The HD SDI To IP ASI MPEG2 H.264 Encoder (Model: ENC3443) revolutionizes content aggregation with its MPEG-2 and MPEG-4 AVC encoding capabilities. Designed for satellite, terrestrial broadcast, and IPTV applications, it supports 12 channels HD-SDI inputs and delivers ultra-low bitrate encoding for both SD and HD formats. With Dolby Digital AC3 audio encoding and MPEG-TS stream compliance, it’s perfect for contribution and distribution workflows. Trusted by global broadcasters, it ensures MTBF ≤ 87600 hours for unmatched reliability.
• 12 channels HD-SDI inputs | • MPEG-2 & MPEG-4 AVC encoding | • Dolby Digital AC3 audio support | • MPEG-TS stream compliance | • MTBF ≤ 87600 hours)
Overview ENC3443 is especially well-suited for satellite, terrestrial broadcast and premium cable or IPTV applications, as well as various other kinds of content aggregation today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications with... Overview
ENC3443 is especially well-suited for satellite, terrestrial broadcast and premium cable or IPTV applications, as well as various other kinds of content aggregation today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC HD broadcasting applications with impressive audio encoding features: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) audio encoding (Optional), and AC3 (2.0/5.1) pass through.
ENC3443 supports the most demanding video applications. It offers codec and transport flexibility, interoperability and feature richness, and equipped with 12 channels HD or HD-SDI inputs and multiple codec standard, delivering the highest
compression performance in all formats SD MPEG-4 AVC, HD MPEG-4 AVC, SD MPEG-2, HD MPEG-2, — allowing users to broadcast more channels.
It provides ultra-high quality video for your contribution workflows, IP as well as the DVB ASI output that meets MPEG-TS stream standard. The product is ideal for a broad range of applications including contribution and distribution.
Features
◆Up to 12 channels HD per chassis (1-RU), SDI optional
◆32*IP input(Data 1 port) over UDP and RTP
◆Superior-quality low-bitrate MPEG-2 and MPEG-4 AVC encoding of SD or HD video pre-processing technologies
◆Automatic SD & HD Detection
◆Audio encoding: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
◆VCT(Virtual Channel Table) support for 8VSB ATSC and DVB-C QAM
◆Flexible GOP structures with B-frame and P-frame insertion in Manual
◆The dialogue normalization function of AC3 encoding nicely
◆12 channels CC (Closed Caption) EIA 608 and EIA 708
◆Simultaneous output via 12*SPTS/1*MPTS over UDP/RTP IP
◆1*ASI output as mirror of MPTS
◆CBR & VBR rate control
◆PCR correction to accurately correct several PCR of the input data
◆PID remapping, PSI/SI information creation by automatic or external
◆Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦ 87600 Hours
◆Easy-to-Use System Management via Web
